www.lg.com
OWNER’S MANUAL
Please read this manual carefully before operating
your set and retain it for future reference.
TYPE : PORTABLE AIR CONDITIONER
MODEL : LP1415GXR
AIR
CONDITIONER
ENGLISH
ESPAÑOL
2

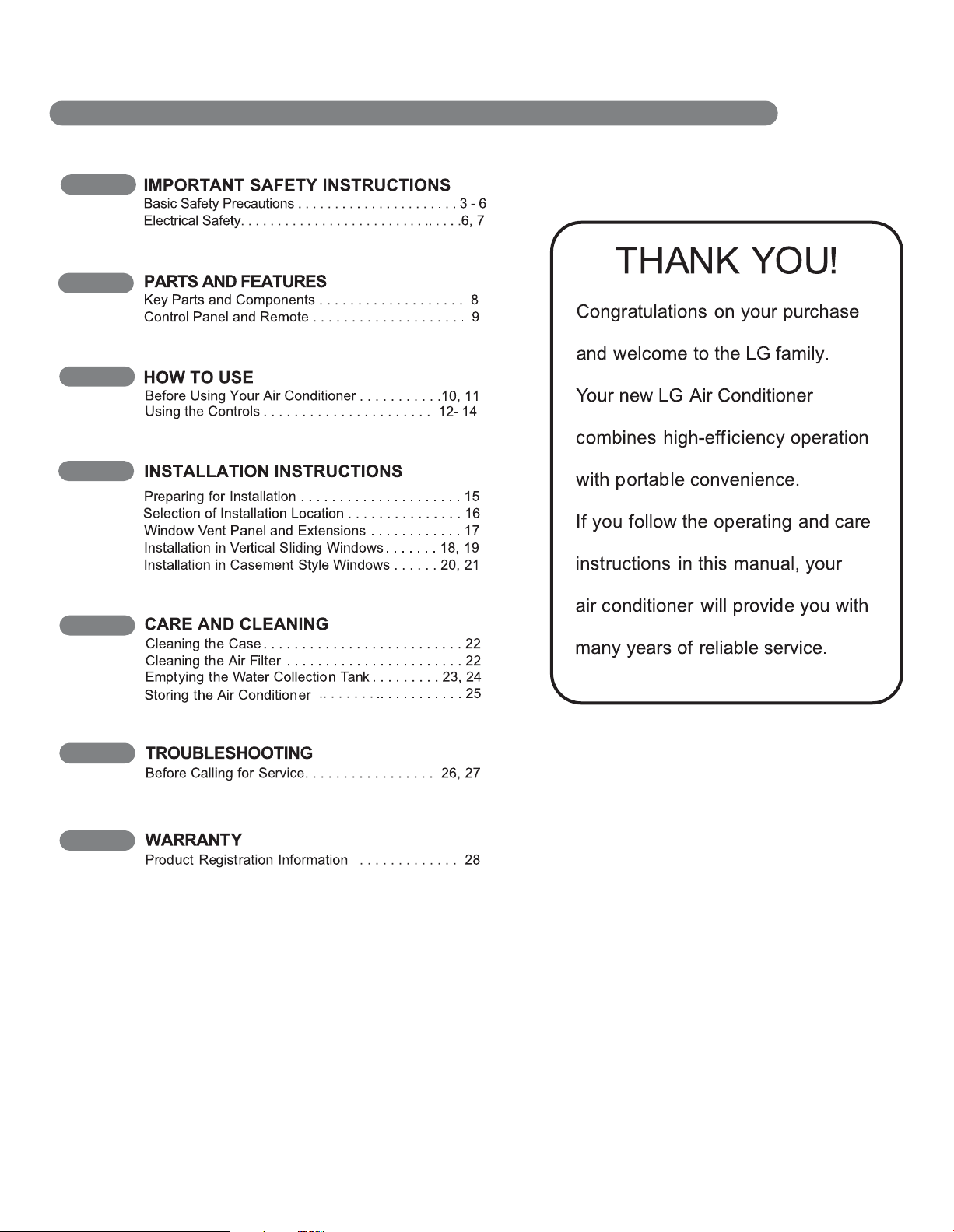

INTRODUCTION
ENGLISH
3
BASIC SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
（ ）
，
，
，
6
，
ELECTRICAL SAFETY
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
7
READ ALL INSTRUCTIONS BEFORE USE

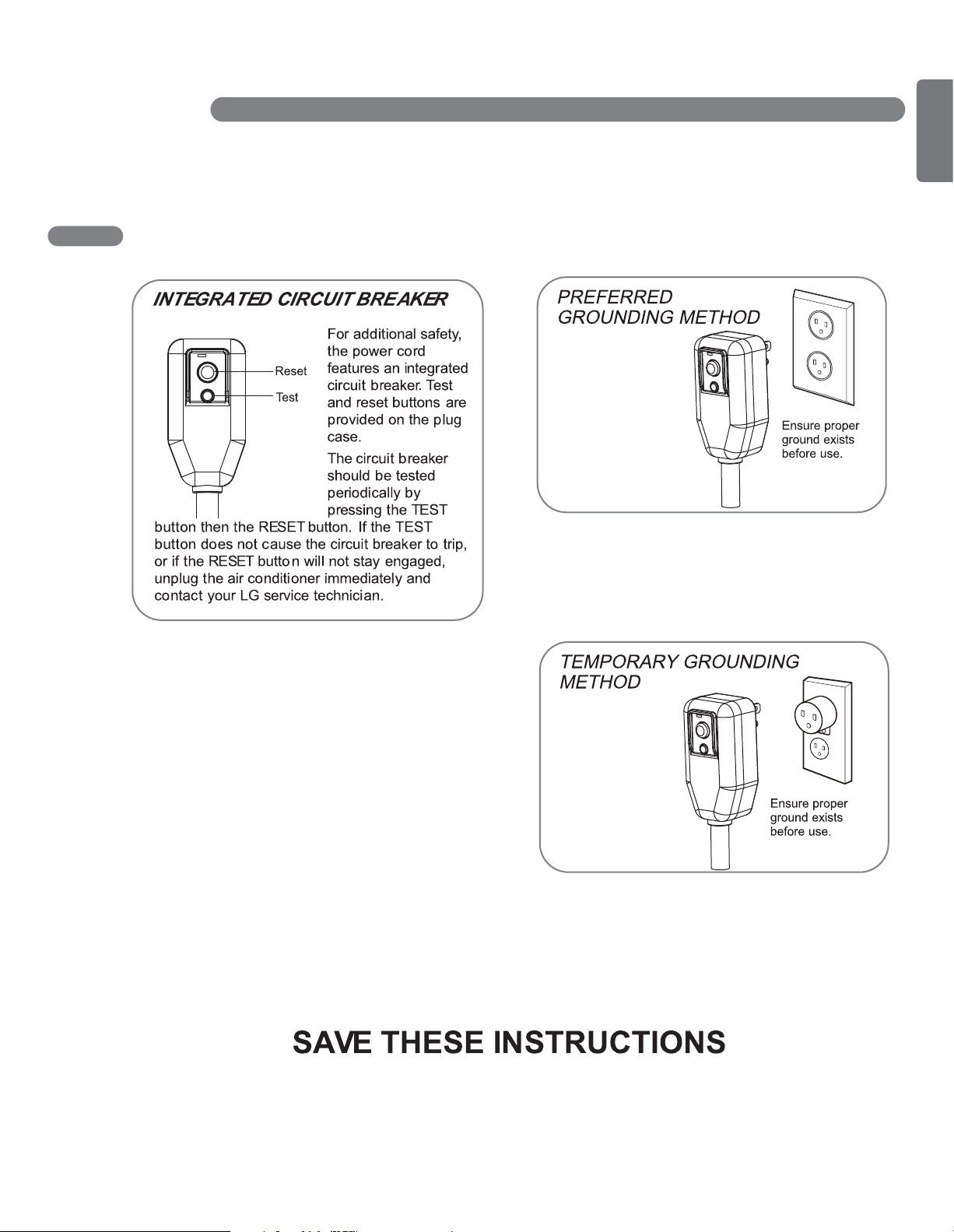

ELECTRICAL SAFETY
Due to potential safety hazards, the use of
an adapter plug is str ongly discouraged.
For temporary connections, use only a
UL-listed adapter. Ensure that the large slot
in the adapter is aligned with the large slot
in the outlet.
To prevent damage to the adapter’s ground
terminal, hold the adapter in place while
plugging in or unplugging the air conditioner.
• Attaching the adapter ground terminal to
the wall receptacle cover scr ew does not
ground the appliance unless the cover
scr ew is metal and not insulated, and the
wall receptacle is grounded thr ough the
house wiring.
• Frequent connection and disconnection
can damage the ground terminal on the
adapter . Never use a broken or damaged
adapter .
IMPORTANT SAFETY INSTRUCTIONS
8
KEY PARTS AND COMPONENTS
CONTROL PANEL AND DISPLAY
MOTORIZED AIR DISCHARGE
INFRARED REMOTE CONTROL
HOSE AND DIFFUSER
FILTER
HANDLES
SWIVELING CASTERS
BOTTOM DRAIN PORT
POWER SUPPLY CORD HOLDER
PARTS AND FEATURES
ENGLISH
9
LED
PARTS AND FEATURES
10

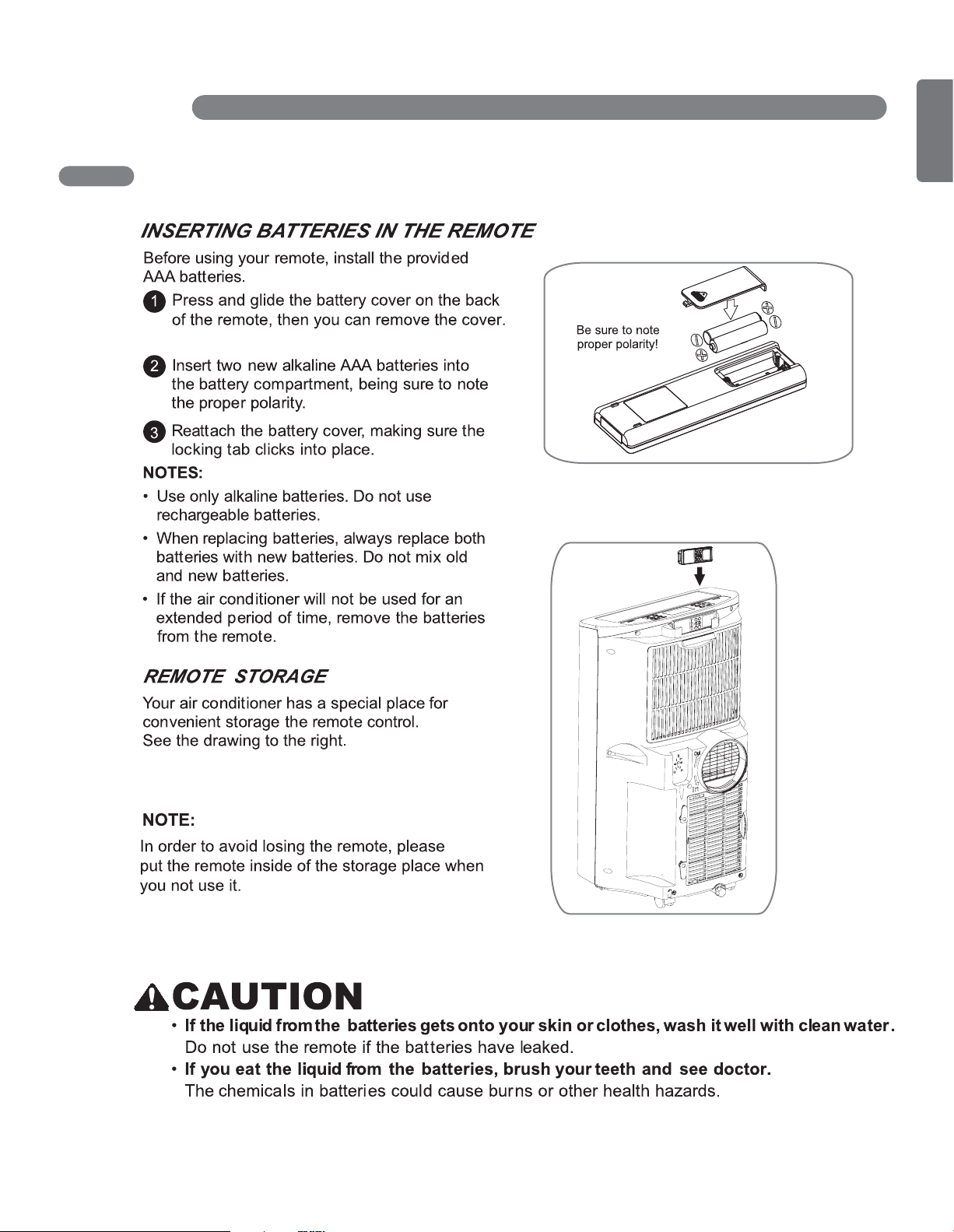

BEFORE USING YOUR AIR CONDITIONER
HOW TO USE
ENGLISH
11
BEFORE USING YOUR AIR CONDITIONER
HOW TO USE
12

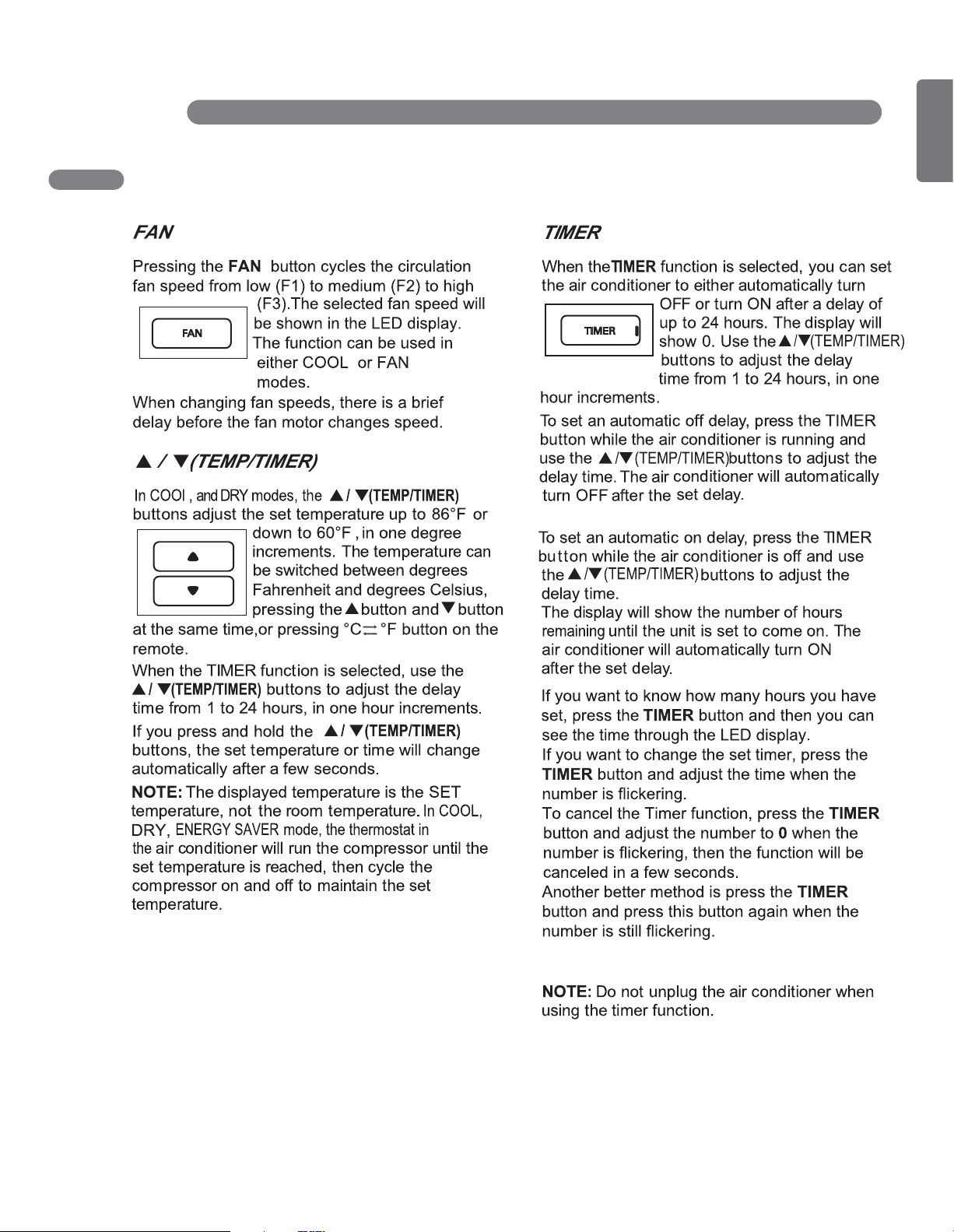

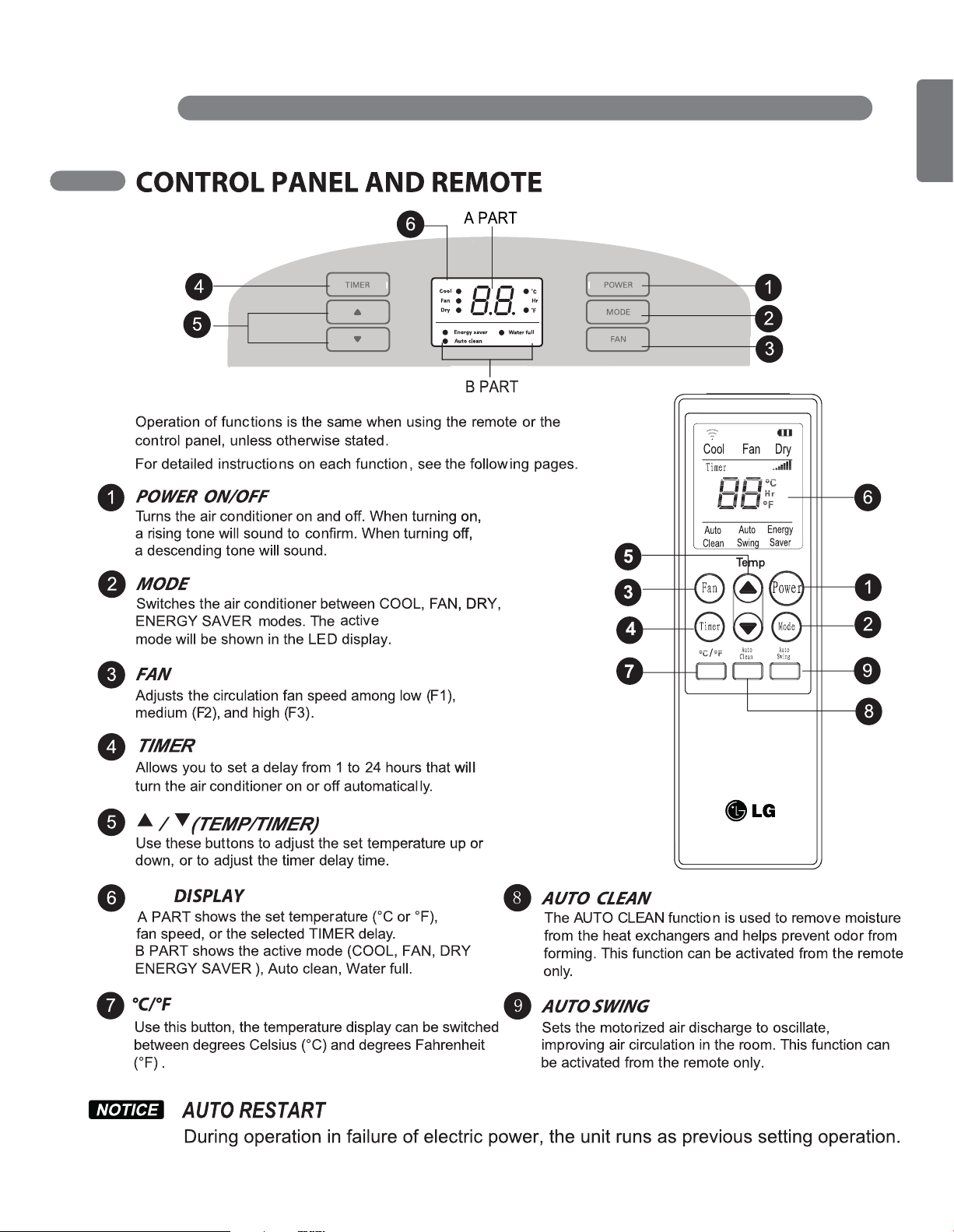

USING THE CONTROLS
HOW TO USE
→
→
→
ENGLISH
13
USING THE CONTROLS
HOW TO USE
14
HOW TO USE
ENGLISH
15
INSTALLATION INSTRUCTIONS
PREPARING FOR INSTALLATION
16
INSTALLATION INSTRUCTIONS

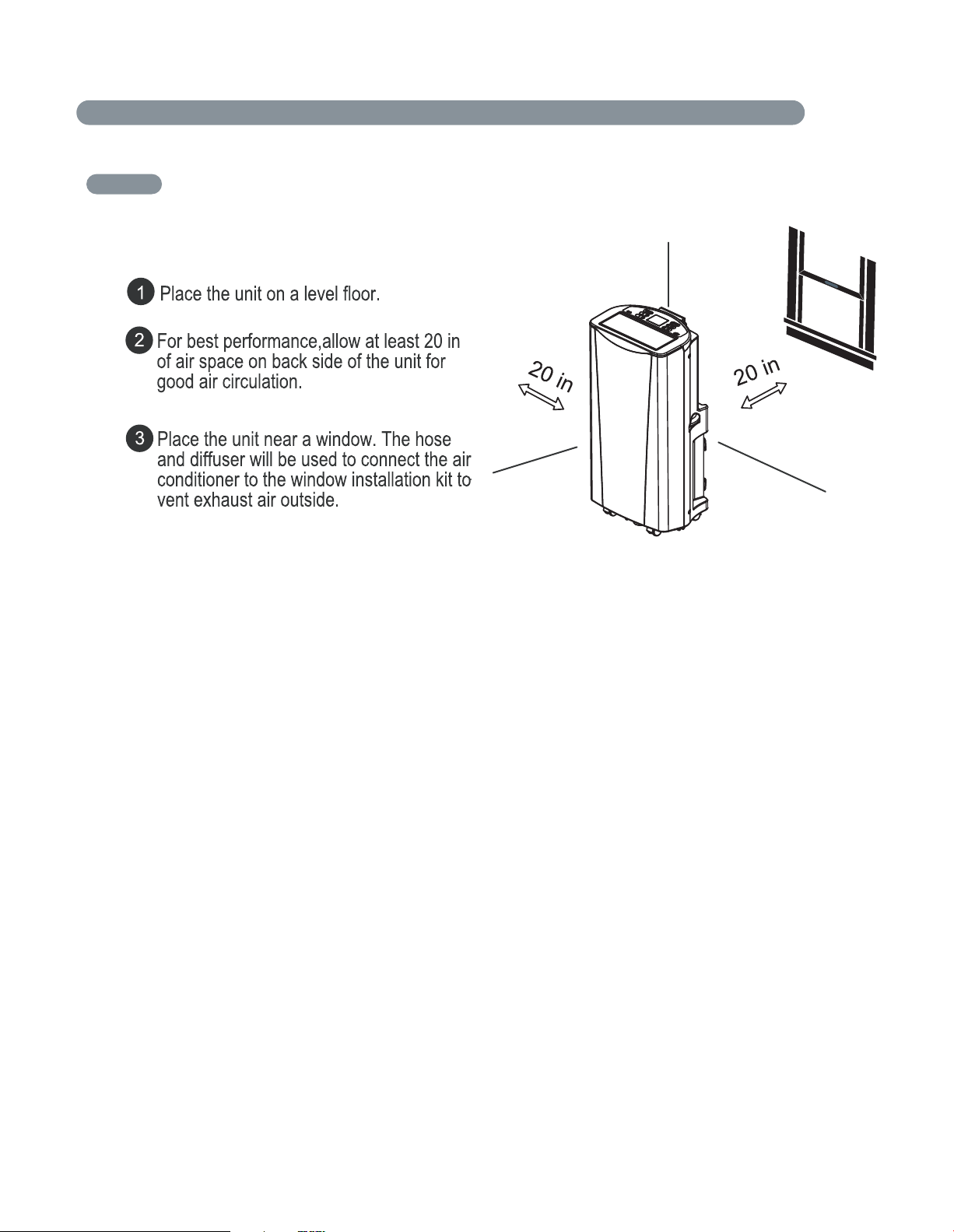

SELECTION OF INSTALLATION LOCATION
ENGLISH
17
INSTALLATION INSTRUCTIONS
WINDOW VENT PANEL AND EXTENSIONS
18
INSTALLATION INSTRUCTIONS
INSTALLATION IN VERTICAL SLIDING WINDOWS
ENGLISH
19
INSTALLATION IN VERTICAL SLIDING WINDOWS
INSTALLATION INSTRUCTIONS
20
INSTALLATION IN CASEMENT STYLE WINDOWS
INSTALLATION INSTRUCTIONS
ENGLISH
21
INSTALLATION IN CASEMENT STYLE WINDOWS
INSTALLATION INSTRUCTIONS
22
CARE AND CLEANING
CLEANING THE CASE
CLEANING THE AIR FILTER
① ②
ENGLISH
23
CARE AND CLEANING
EMPTYING THE WATER COLLECTION TANK
24
CARE AND CLEANING
EMPTYING THE WATER COLLECTION TANK
ENGLISH
25
STORING THE AIR CONDITIONER
CARE AND CLEANING
26
BEFORE CALLING FOR SERVICE
TROUBLESHOOTING
，
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
ENGLISH
27
WARRANTY
LG PORTABLE AIR CONDITIONER LIMITED WARRANTY - USA
WH
AT THIS WARRANTY COVERS:
LG Electronics U.S.A., Inc. (“LG”) warrants your LG Portable Air Conditioner ("product") against defect in materials or workmanship
under normal household use, during the warranty period set forth below, LG will, at its option, repair or replace the product. This
limited warranty is valid only to the original retail purchaser of the product, is not assignable or transferrable to any subsequent
purchaser or user, and applies only when the product is purchased through an LG authorized dealer or distributor and used within
the United States (“U.S.”) including U.S. Territories.
Note: Replacement products and repair parts may be new or factory-remanufactured and are warranted for the remaining portion
of the original unit’s warranty period or ninety (90) days, whichever is longer. Please retain dated receipt or delivery ticket as
evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative).
WARRANTY PERIOD:
1 year from the Date of Purchase: Any internal/ functional Parts and Labor.
HOW SERVICE IS HANDLED: In-Home Service
In-home service will be provided during the warranty period subject to availability within the United States. In-home service may
not be available in all areas. To receive in-home service, the product must be unobstructed and accessible to service personnel. If
during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home
service is unavailable, LG may elect, at our option, to provide for transportation of our choice to and from a LG authorized service
center.
THIS LIMITED WARRANTY
DOES NOT COVER:
1. Ser
vice trips to deliver, pick up, or install the product or
for instruction on product use.
2. Replacing house fuses or resetting of circuit breakers,
correction of house wiring or plumbing, or correction of
product installation.
3. Damage or failure caused by leaky/ broken/ frozen water
pipes, restricted drain lines, inadequate or interrupted
water supply or inadequate supply of air.
4. Damage or failure caused by accidents, pests and vermin,
lightning, wind, fire, floods or acts of God.
5. Damage or failure resulting from misuse, abuse, improper
installation, repair or maintenance. Improper repair
includes use of parts not approved or specified by LG.
6. Damage or failure caused by unauthorized modification or
alteration to the product.
7. Damage or failure caused by incorrect electrical current,
voltage, or plumbing codes.
8. Cosmetic damage, including scratches, dents, chips or
other damage to the finish of the product, unless such
damage results from defects in materials or
workmanship and is reported to LG within seven (7)
calendar days from the date of delivery.
9. Damage or missing items to any display, open box,
discounted, or refurbished product.
10. Product where the original factory serial numbers have
been removed, defaced or changed in any way.
11. Repairs when product is used in other than normal and
usual household use (e.g. rental, commercial use,
offices, or recreational facilities) or contrary to the
instructions outlined in the owner’s manual.
12. The removal and reinstallation of the Product if it is
installed in an inaccessible location.
THIS
WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING AND WITHOUT LIMITATION TO, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS
REQUIRED BY LAW, THIS WARRANTY IS LIMITED IN DURATION TO THE TERM PERIOD EXPRESSED ABOVE. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER. NEITHER THE
MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR
PUNITIVE DAMAGES OF ANY NATURE, INCLUDING AND WITHOUT LIMITATION TO, LOST REVENUES OR
PROFITS, OR ANY OTHER
DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCL
USION
OR LIMITATION MAY NOT APPLY TO YOU. THIS
WARRA
NTY
GI
VES
Y
O
U S
PECI
FIC LE
GAL
RI
GHTS
A
ND
YOU
MAY AL
S
O
HA
VE
OT
HER
RIGHTS T
H
AT
VAR
Y FR
OM ST
ATE
TO
ST
ATE.
H
OW
T
O
OBT
A
I
N
WARR
A
N
T
Y
S
E
RV
I
C
E
&
A
D
D
I
T
I
O
N
AL
I
N
FOR
MATION:
Call 1-800-243-0000 or visit our website at www.lg.com
.
Mail to: LG Customer Information Center (ATTN: CIC)
201 James Record Road, Huntsville, AL 35824
28
ENGLISH
29
1-800-243-0000
LG Customer Information Center
Register your product Online!
www.lg.com
LG ELECTRONICS,INC.
1000 Sylvan Ave.,Englewood Cliffs,NJ 07632
