USER MANUAL
Smart Camera
For more products please visit www.smartpointco.com
FCC Statement:
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
2. This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between
the radiator and any part of your body.
One Year Limited Warranty.
Customer Service: 732-994-2301; email: [email protected]
©Smartpoint LLC,
250 Liberty Street, Suite 1A
Metuchen, NJ 08840
Manufactured, marketed and distributed by Smartpoint LLC, under license.
Android and Google Play are trademarks of Google LLC.
App Store
®
is a registered trademark of Apple, Inc.
All trademarks and registered trademarks are property of their respective owners.
Made in China
For more products please visit www.smartpointco.com
WARRANTY INFORMATION
SPECIFICATIONS
Model: SPWIFICAM4-FB
Resolution:1920x1080
Alarm: Motion detection
Night Vision: 8-10m
Frame rate: Up to 15 fps
Sensor: 2.0 Megapixel 1/2.7 CMOS
Audio: Microphone & Speaker built-in
Micro SD Card Storage: Up to 128GB
Compression: H.264
Power: 5V/1A (USB)
Operating System:
Android™ 8.0 or higher, iOS 7.0 or higher
FEATURES
• Wi-Fi remote controlled through App
• Night vision
• Motion detection
• Two way audio
• Live video
• Local Micro SD Card storage
or cloud storage(monthly subscription)
• Video recording
• Takes still photos
PRODUCT CONFIGURATION
Items included in package:
Camera, USB Cable and User Manual.
USB port
Reset button
Micro SD Card Slot
DOWNLOAD APP
1. Android™: download “Smartpoint Home” app
on Google Play.
2. iPhone: download “Smartpoint Home” app
from the App Store.
Smartpoint Home

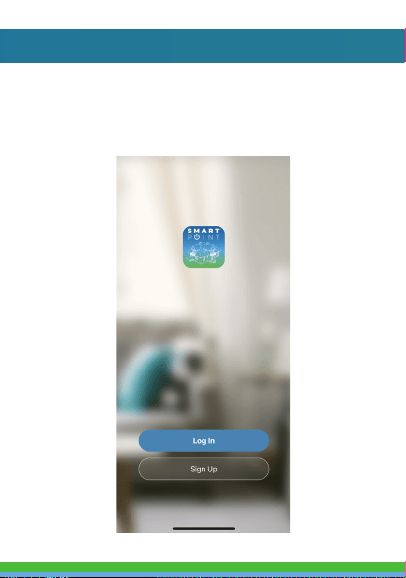

REGISTRATION AND LOGIN
1. Run the “Smartpoint Home” app from your
smart phone.
2. Sign up and login.
*
Screenshots may slightly differ from actual app.
*
1. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
2. Plug in Smart Camera into the wall. Wait 30-45
seconds for light to start blinking rapidly.
Camera is now in set up mode. If light does not
blink rapidly, enter set up mode manually by
pressing the reset button for 5-7 seconds, then
release and the wait 30-45 seconds. Light will
start blinking. Camera is now ready to be set up.

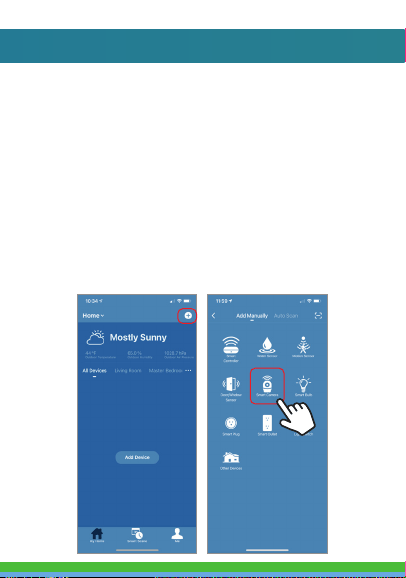

3. Press the (+) symbol in the top right corner of
the app and select the Smart Camera from
the list of devices to add.
ADD DEVICE

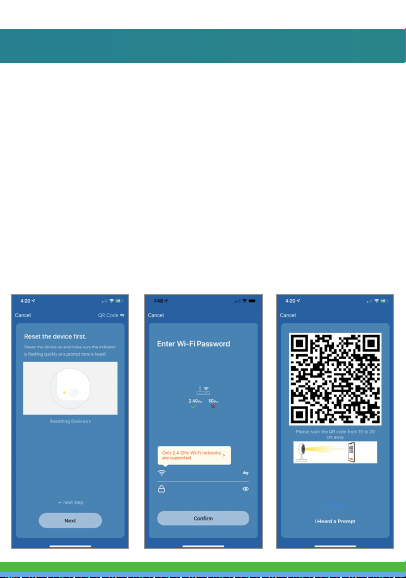

4. Press the “next step” button
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
6. Follow the directions in the app and hold the
QR code on the screen in front of the view of the
camera.

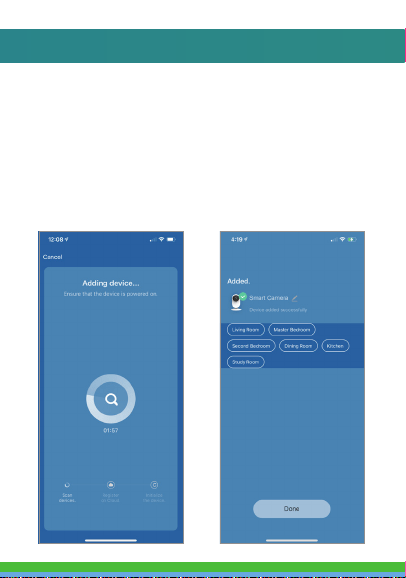

7. Connecting process will begin. Do not turn off
Wi-Fi Camera or phone while connecting. Wait for
connection process to complete.
8. Once device has been successfully added, name
the device what you would like it to be called in
the app. The Smart Camera is ready for use.

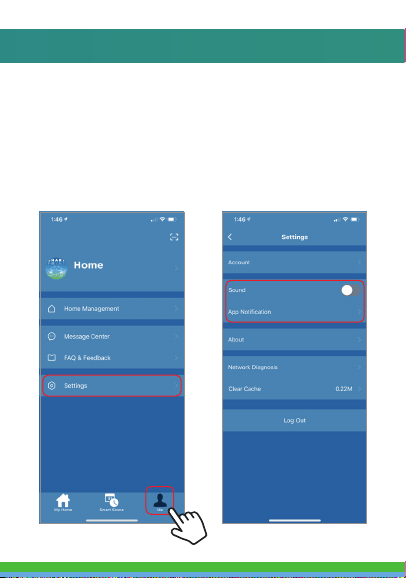

PUSH NOTIFICATIONS
1. You can turn on/off notifications for all devices
connected to app by clicking on the “Me” button at the
bottom right of the screen.
2. Then click on ”Settings” button. From there you can turn
on/off all notifications.

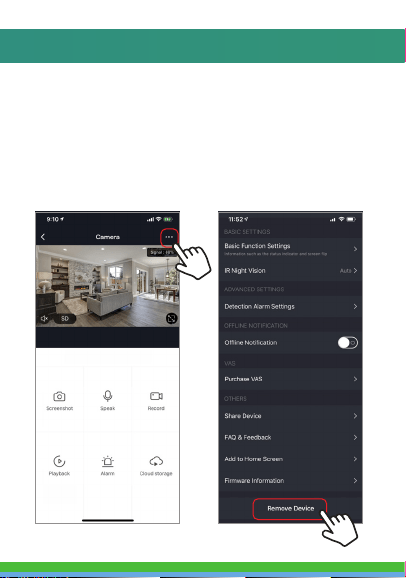

REMOVE A DEVICE
1. From the home screen, click on the device you would like
to remove.
2. Then click on the edit symbol on the top right of the
screen.
3. From there you would then click the “Remove Device”
button at the bottom of the screen.
APP FUNCTIONS

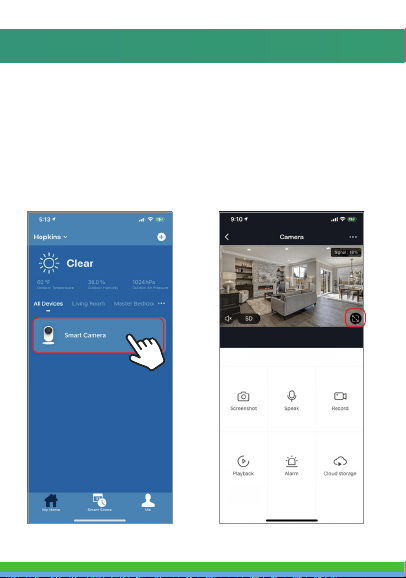

Live Video
To view live video simply click on the device under “All
devices” and you will see your live video at the top
immediately. Tilt your phone sideways or hit the full screen
button in the bottom right corner of the live video to see
your live footage at full screen on your phone.

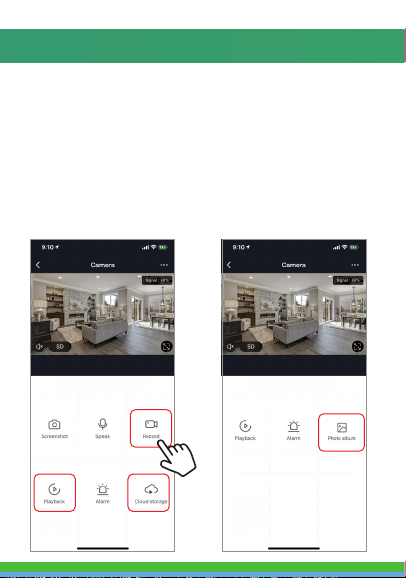

Video Recording
To record video press the “record” button one the main
camera screen. To end recording, press “record” button
again. To view recordings, scroll down on the main camera
page and press the “Photo Album” button. All of the video
recordings and photos you take will be here in the photo
album. To view all footage that your camera has recorded,
press “Playback”. You can also purchase optional cloud
storage by clicking on “Cloud Storage” if you do not have a
micro SD card inserted in your camera.

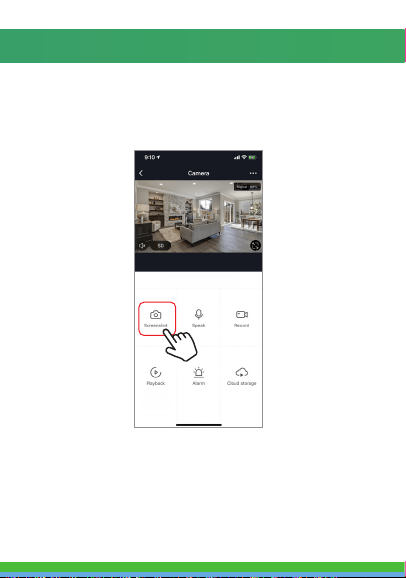

Taking a Photo
To take a photo, press “screenshot” and the photo will be
saved to your phone in the photos and video section.
Infrared Night Vision
Infrared night vision is controlled by camera automatically.
When the area around the camera becomes too dark, the
infrared night vision will activate automatically. When the
area around the camera is bright again, the night vision will
deactivate automatically.

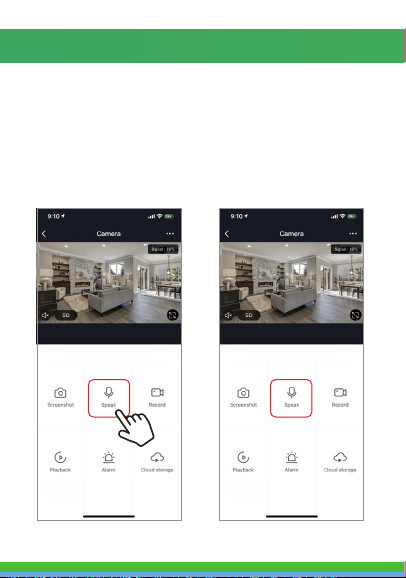

Two Way Audio
To activate two way audio, press the “speak” button. When
the button is blue, whatever you say into your phone will
come out of the speaker on the camera. You can also hear
at the same time any sounds from the live video on the
camera.

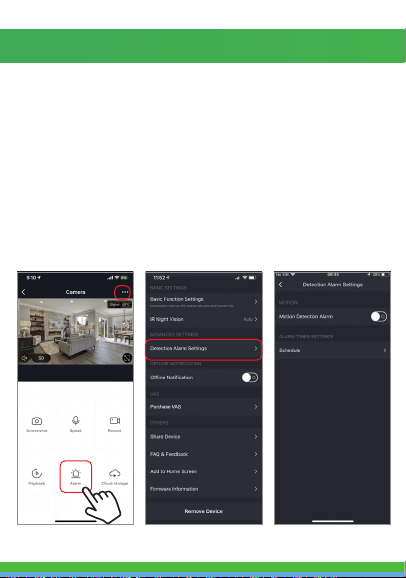

Motion Detection
The camera uses infrared sensors when someone/something
appears within its detection area. Push notifications will be
sent your phone once motion is detected.
To access control of motion detection press the camera
setting button at the top right. On the next page you can
select “motion detection”. From there you can turn it on/off
and set the sensitivity setting. You can also get to this from
hitting the “alarm” button on the main camera page.

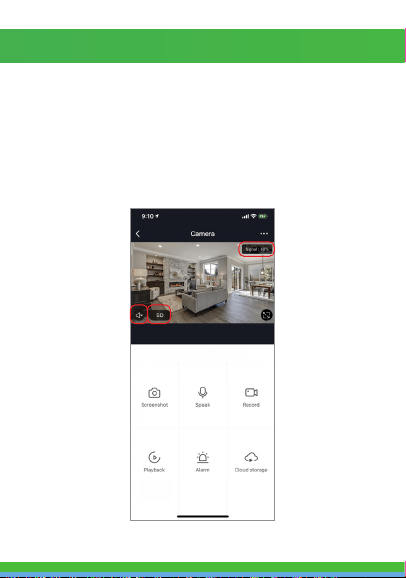

Hub controls (sound, video quality, signal strength)
You can control features from the live video feed. There is a
volume button that is used to mute and unmute the live
feed. Next to that button is the video quality button and it
can be used to switch between standard and high definition
video. In the top right, the signal strength of the camera is
shown.

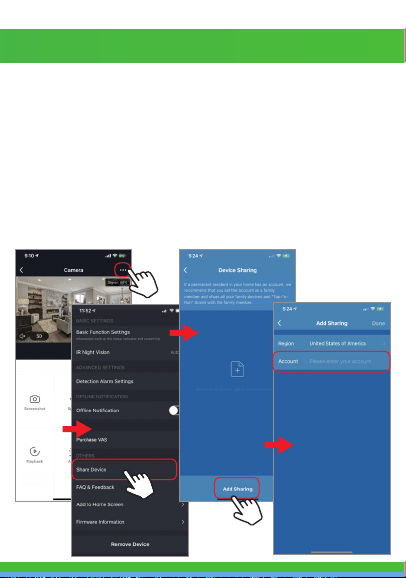

Sharing the Device
To share access to your camera with someone else’s
Smartpoint Home account, press the camera settings button
at the top right of the main camera screen. Then hit “Share
Device”. On the next page press “Add Sharing” at the
bottom. After that, enter the email on the person’s
Smartpoint Home account that you would like to share the
camera with. They will get a notification to accept and after
that the other person will have access to view your camera
through the Smartpoint Home app on their phone.
