INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
LOL336
06/17
Wiring supplies
as required by
local electrical
code
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French) Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
LED OUTDOOR
LIGHTING
Weather Resistant
Caulking
(not included)
4. Once connections of wires
are completed, carefully tuck wires
and wire nuts into the electrical
box making sure no bare wire is
visible at the wire nuts. Install the
light fixture to the wall by aligning
the hole(s) in the fixture with the
studs on the mounting bracket.
Secure in place with cap nuts and
star washers.
5. After installation, seal around
the top and side perimeter
between the fixture and the wall
surface with weather resistant
caulking. The bottom should be
left un-caulked to prevent
moisture build-up. Apply a small
amount of weather resistant
caulking around the side
perimeter between the cap nut
and mounting plate.
Mounting
Bracket

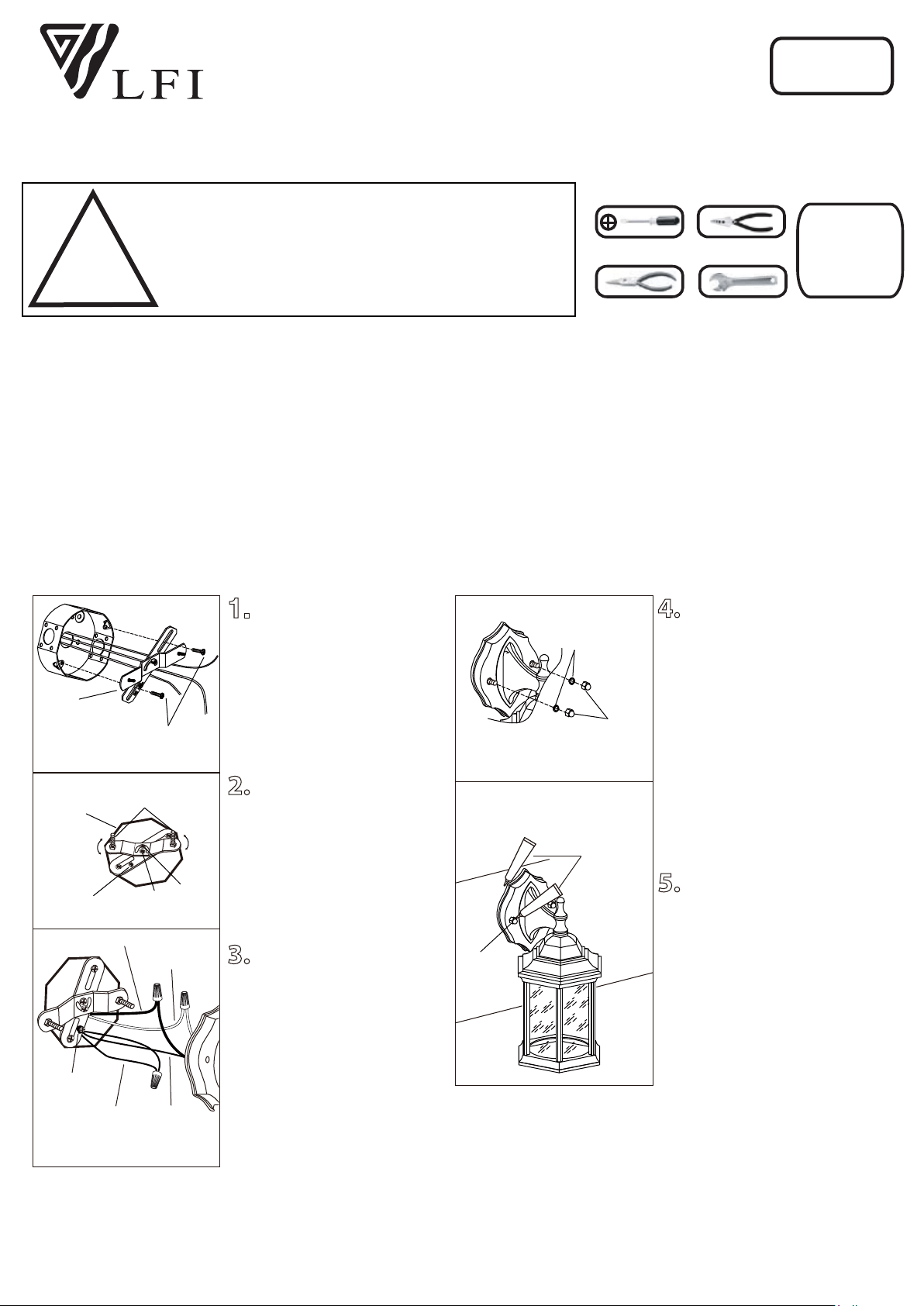

1. Mount the mounting bracket
to electrical box using electrical
box screws. Make sure the studs
on the mounting bracket are
facing out from the electrical box.
2. Position mounting bracket so
that the fixture will sit level once it
is mounted to the wall. Tighten
screws to hold in place.
3. Firmly attach the fixture
ground wire (bare copper) to the
mounting bracket with the
ground screw (by wrapping
around the ground screw) and
then connect it to the house
supply ground wire with a wire
nut. Connect the black wire from
the fixture to the black wire in the
electrical box and connect the
white wire from the fixture to the
white wire in the electrical box.
Electrical Box
Screws
(not included)
Star
Washer
Cap
Nut
Cap
Nut
Electrical
Box
Studs
Ground
Screw
Screws
House Supply
Ground Wire
Fixture
Ground
Wire
Ground
Screw
Black Wire
White Wire
