INSTALLATION:
SAFETY PRECAUTIONS:
CEILING/WALL
TRACK LIGHTING

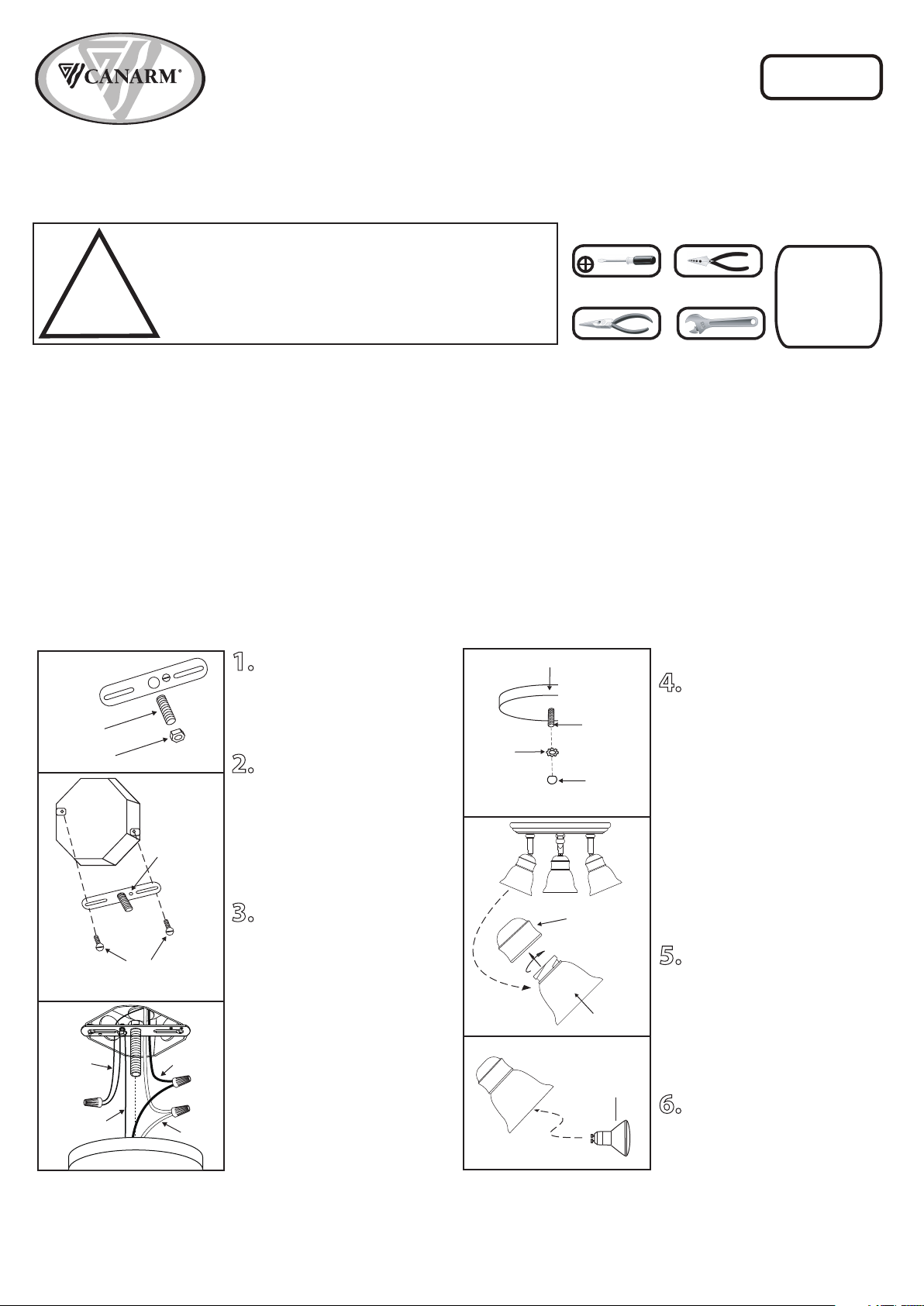

1. Attach nipple to mounting
bracket and adjust until it will
clear fixture when assembled.
Lock in place using the hex nut.
2. Mount the mounting
bracket to outlet box using
outlet box screws (not
included). Make sure the studs
or nipple on the mounting
bracket are facing out from the
outlet box.
3. Firmly attach the fixture
ground wire (bare copper) to
the mounting bracket with the
ground screw (by wrapping
around the ground screw) and
then connect it to the house
supply ground wire with a wire
nut. Connect the black wire (or
wire marked “SPT-1”) from the
fixture to the black wire in the
electrical box and connect the
white wire from the fixture to
the white wire in the electrical
box.
Nipple
Hex Nut
Outlet Box Screws
(not included)
Outlet
Box
4. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire (on the black and white) is
visible at the wire nuts.
Position fixture over studs or
nipple on mounting bracket
assembly. Secure fixture in
place with star washer and cap
nut.
5. Push and turn glass onto
fixture.
6. Install proper bulb type
and wattage (not included).
Bulb
Star
Washer
Cap
Nut
Fixture
Stud
Glass
Fixture
Socket
Mounting
Bracket
ICW284A03-M
08/10
352-6262
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T. or email to: guestser[email protected]
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (613) 342-8437
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3.
FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
4. WARNING: PLACE LIGHT SOURCE NO CLOSER THAN 18” TO ANY SURFACE.
White
Black
House
supply
Ground
wire
Fixture
Ground wire
