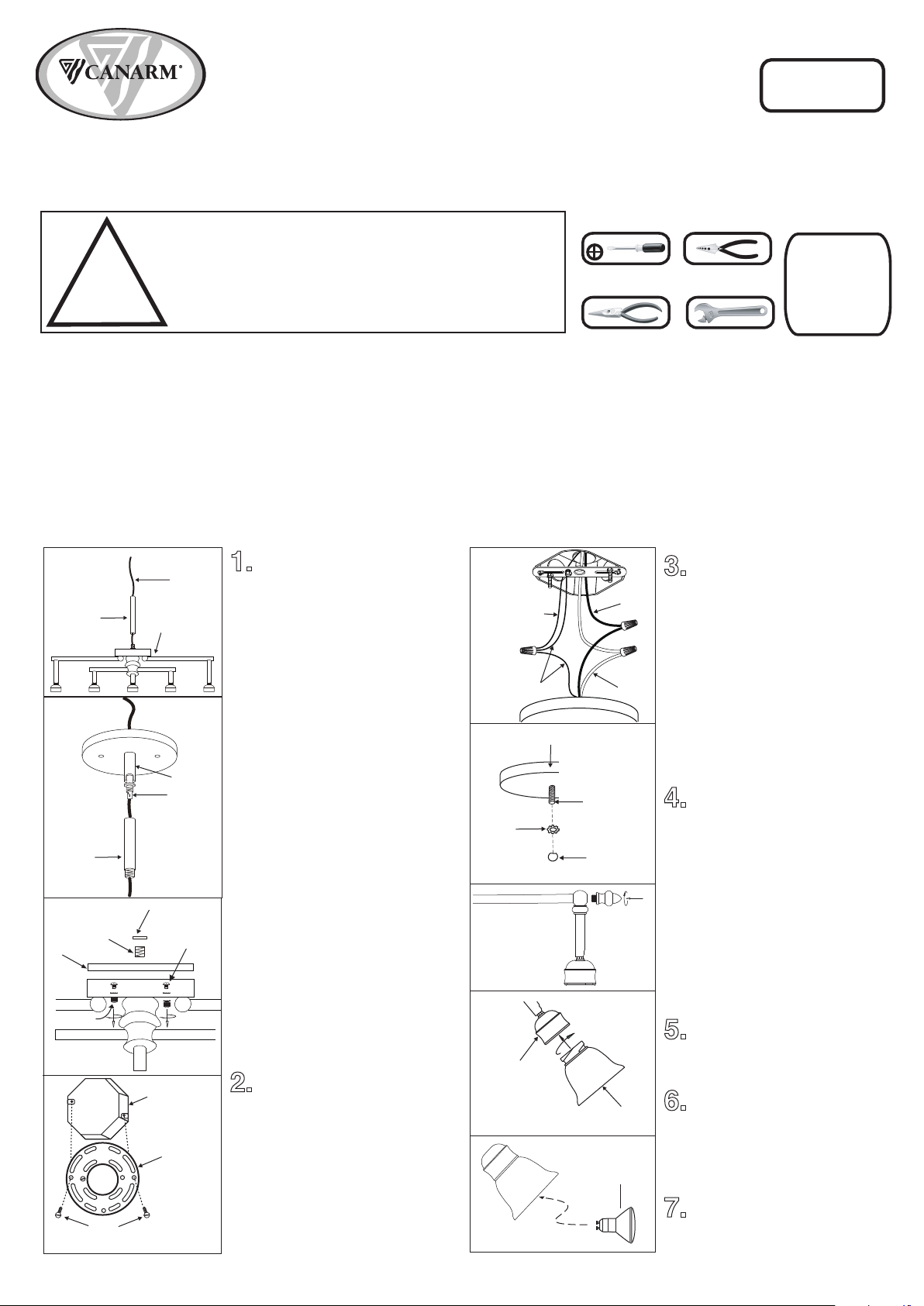

3. Connect the ground
wires (bare copper or green)
from your fixture to the
ground Wire (bare copper or
green) or ground screw in
the electrical outlet box.
Connect black wire from
fixture to black wire in outlet
box and connect the white
wire from fixture to white
wire in outlet box.
4. Once connections of
wires are completed,
carefully tuck wires and wire
nuts into the outlet box
making sure no bare
wire (on the black and white)
is visible at the wire nuts.
Position fixture over studs on
mounting bracket assembly.
Secure fixture in place with
star washer(s) and cap nut(s).
5. Tighten the finial to the
fixture.
6. Snap glass onto fixture
(push, or push and turn (it
depends on the style of your
fixture).
7. Install proper bulb type
and wattage(not included).
1. Note: Remove fixture
pan, plate and rods if
required (If you wish to
change the downrod length)
Install the length of rod that
is required by threading wire
through the rod and securing
it to the fixture.
Suspended Mount
Style#1 Install swivel to the
rod, ensuring that the sleeve
is at the swivel.
Flush Mount
Style#2 Unscrew the ring
the remove the nipple and
cap, cap screws and cap nuts.
2. Mount the mounting
bracket to electrical outlet
box using outlet box screws
(not included). Make sure the
studs or nipple on the
mounting bracket are facing
out from the electrical outlet
box.
INSTALLATION:
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (613) 342-8437
STYLE#1
STYLE#2
Mounting
Bracket
Electrical
Outlet Box
Star
Washer
Cap
Nut
Fixture
Stud
Fixture
Wire
Sleeve
Rod
Ring
Cap
screw
Nipple
Cap
Rod
SAFETY PRECAUTIONS:
SUSPENDED
TRACK LIGHTING
Swivel
Glass
Fixture
Socket
Outlet Box Screws
(not included)
TOOLS AND MATERIALS REQUIRED:
Star-headed
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T. or email to: guestser[email protected]
IST284A05-M
08/10
352-6261
Cap Nut
Bulb
White
Black
House supply
Ground wire
Fixture
Ground wire
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3.
CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
4. WARNING: PLACE LIGHT SOURCE NO CLOSER THAN 18” TO ANY SURFACE.
