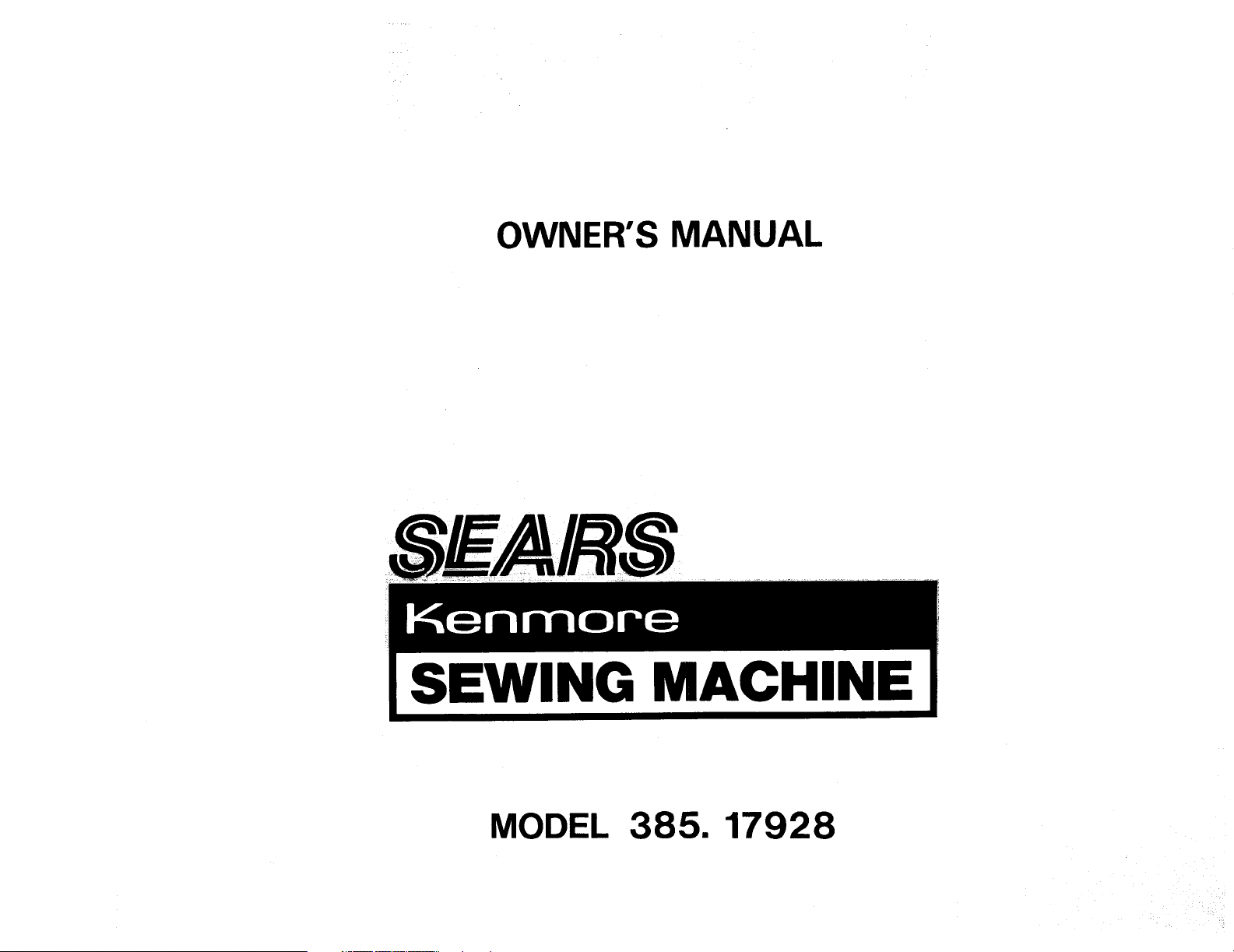

OWNER'S MANUAL
SEWING MACHINE
MODEL 385. 17928
, _ •=:= = - ....... • ............ , .... == .............
SEARS, ROEBUCK AND CO.

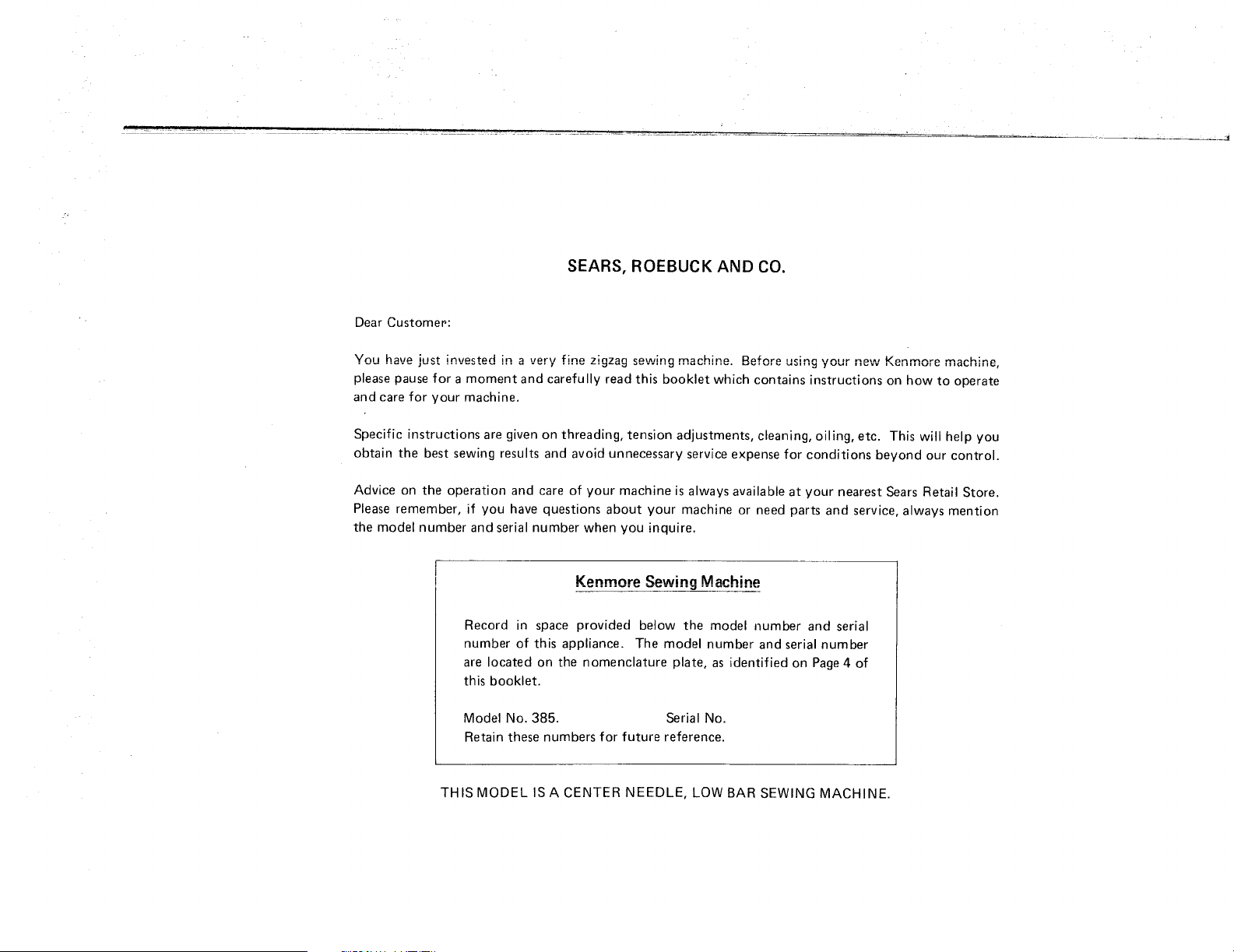

Dear CustomeP:
You have just invested in a very fine zigzag sewing machine. Before using your new Kenmore machine,
please pause for a moment and carefully read this booklet which contains instructions on how to operate
and care for your machine.
Specific instructions are given on threading, tension adjustments, cleaning, oiling, etc. This will help you
obtain the best sewing results and avoid unnecessary service expense for conditions beyond our control.
Advice on the operation and care of your machine is always available at your nearest Sears Retail Store.
Please remember, if you have questions about your machine or need parts and service, always mention
the model number and serial number when you inquire.
Kenmore Sewing Machine
Record in space provided below the model number and serial
number of this appliance. The model number and serial number
are located on the nomenclature plate, as identified on Page 4 of
this booklet.
Model No. 385. Serial No.
Retain these numbers for future reference.
THIS MODEL IS A CENTER NEEDLE, LOW BAR SEWING MACHINE.

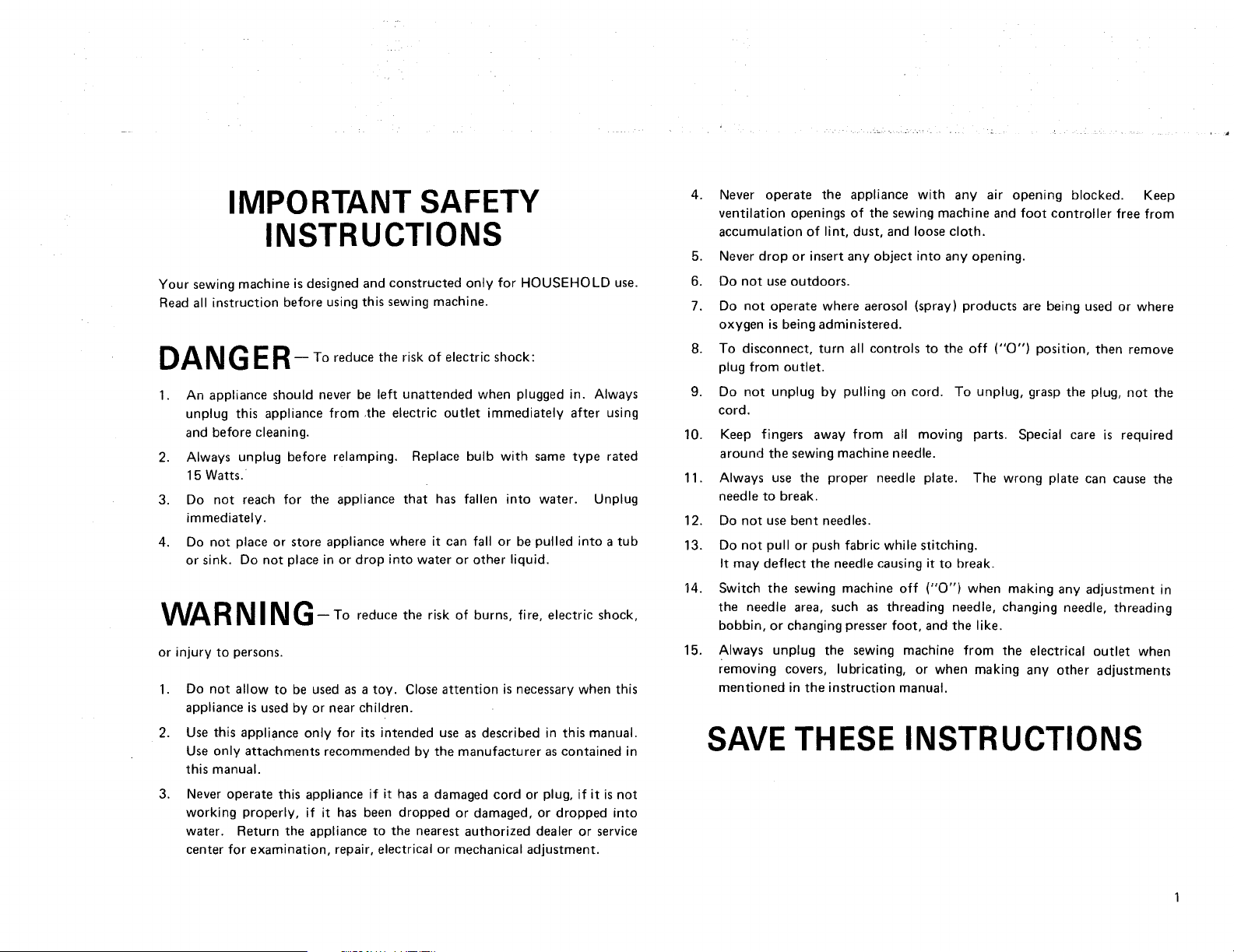

IMPORTANT SAFETY
INSTRUCTIONS
Your sewing machine is designed and constructed only for HOUSEHOLD use.
Read all instruction before using this sewing machine.
DA NGER- ,o.uo0the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always
unplug this appliance from ,the electric outlet immediately after using
and before cleaning.
2. Always unplug before relamping. Replace bulb with same type rated
15 Watts.
3. Do not reach for the appliance that has fallen into water. Unplug
immediately.
4. Do not place or store appliance where it can fall or be pulled into a tub
or sink. Do not place in or drop into water or other liquid.
WAR N ING- reduce the risk of burns, fire, electric shock,
or injury to persons.
1. Do not allow to be used as a toy. Close attention is necessary when this
appliance is used by or near children.
2. Use this appliance only for its intended use as described in this manual.
Use only attachments recommended by the manufacturer as contained in
this manual.
3.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into
water. Return the appliance to the nearest authorized dealer or service
center for examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air opening blocked. Keep
ventilation openings of the sewing machine and foot controller free from
accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
8. To disconnect, turn all controls to the off ("O") position, then remove
plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
10. Keep fingers away from all moving parts. Special care is required
around the sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the
needle to break.
Do not use bent needles.12.
13.
Do not pull or push fabric while stitching.
It may deflect the needle causing it to break.
i4. Switch the sewing machine off ('0") when making any adjustment in
the needle area, such as threading needle, changing needle, threading
bobbin, or changing presser foot, and the like.
15. Always unplug the sewing machine from the electrical outlet when
removing covers, lubricating, or when making any other adjustments
mentioned in the instruction manual.
SAVE THESE INSTRUCTIONS
SECTION
SECTION
SECTION
1.
2.
3.

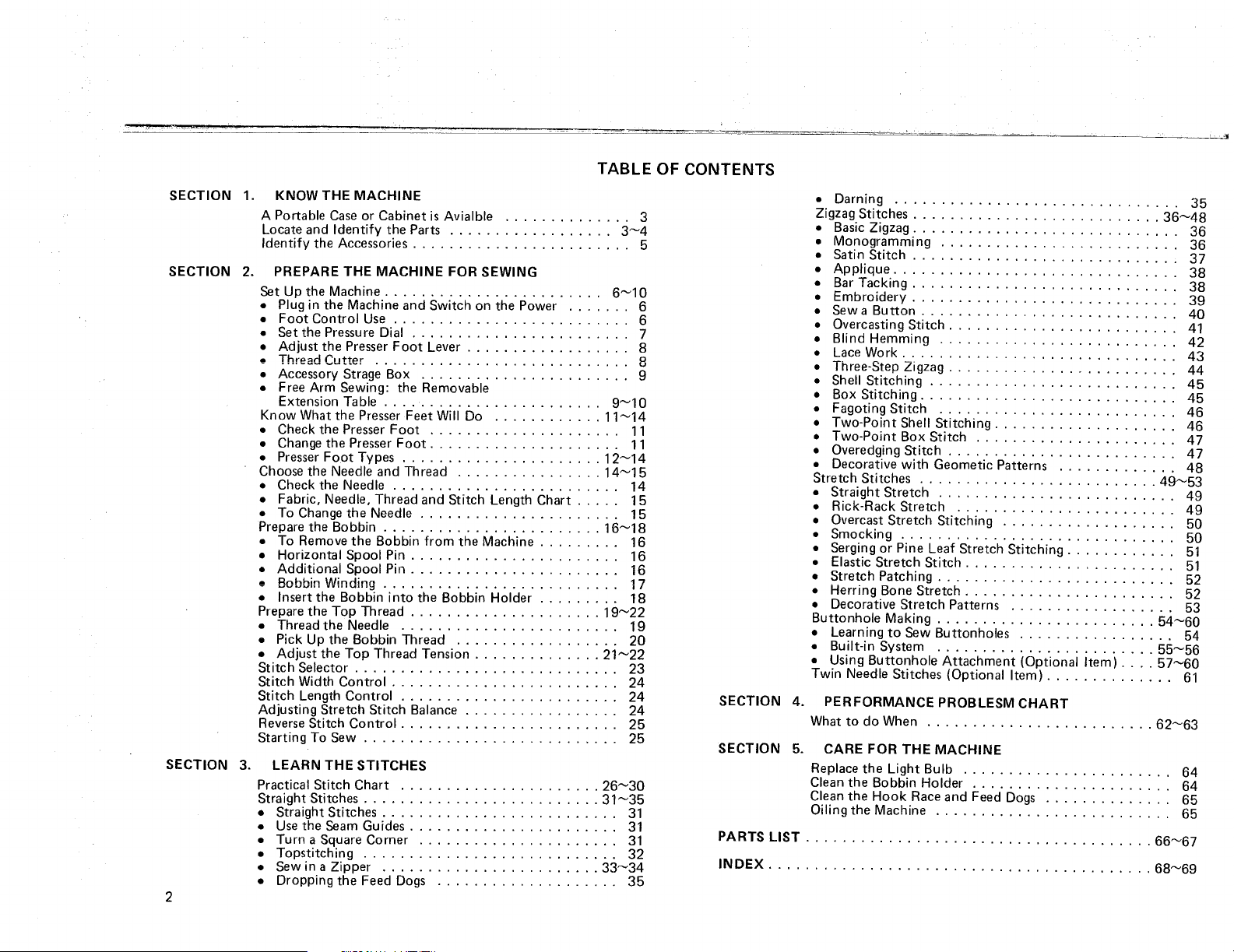

TABLE OF CONTENTS
KNOW THE MACHINE
A Portable Case or Cabinet is Avialble .............. 3
Locate and Identify the Parts .................. 3_4

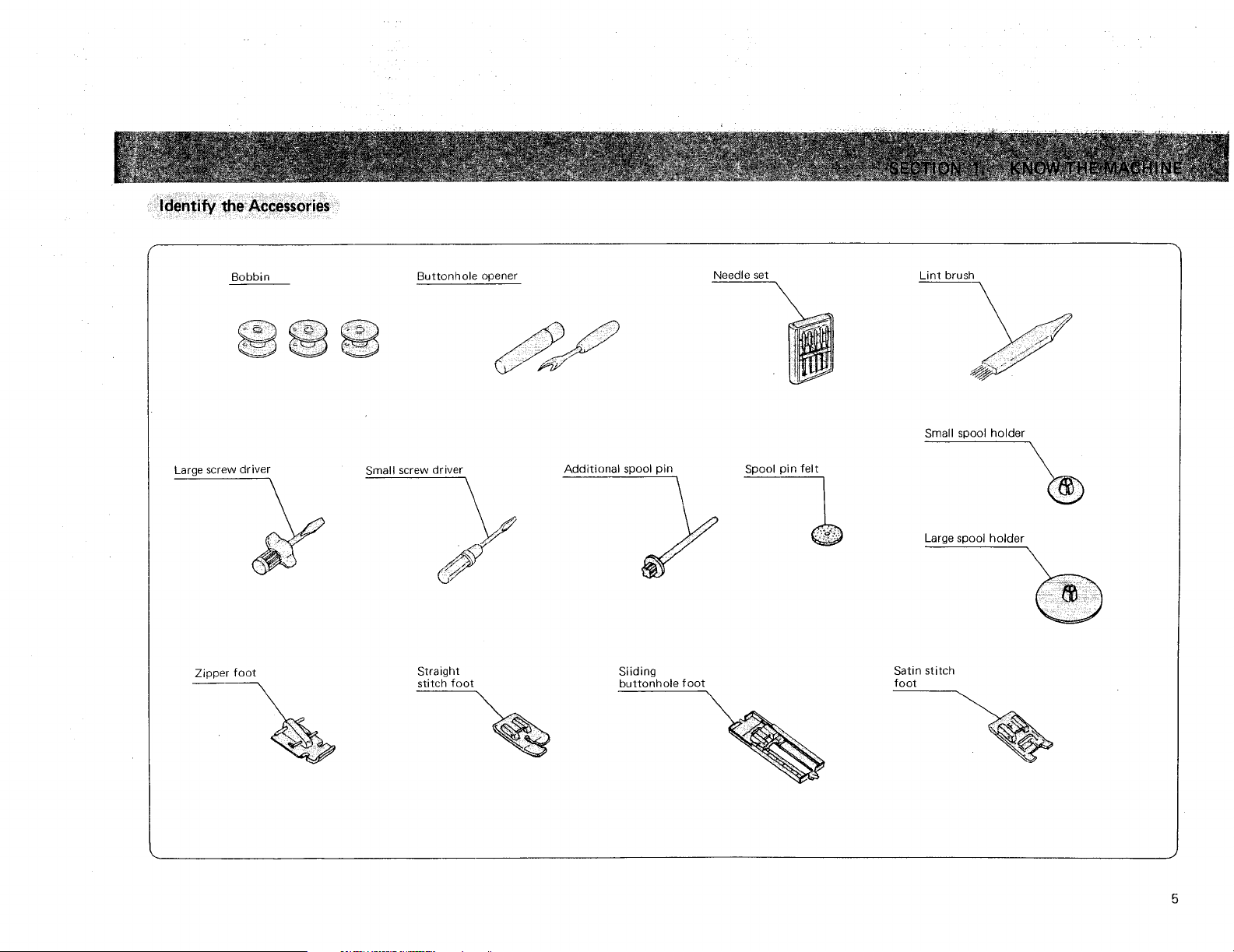

Identify the Accessories ........................ 5
PREPARE THE MACHINE FOR SEWING
Set Up the Machine ........................ 6_10
• Plug in the Machine and Switch on the Power ....... 6
• Foot Control Use .......................... 6
• Set the Pressure Dial ........................ 7
• Adjust the Presser Foot Lever .................. 8
• Thread Cutter ............................ 8
• Accessory Strage Box ....................... 9

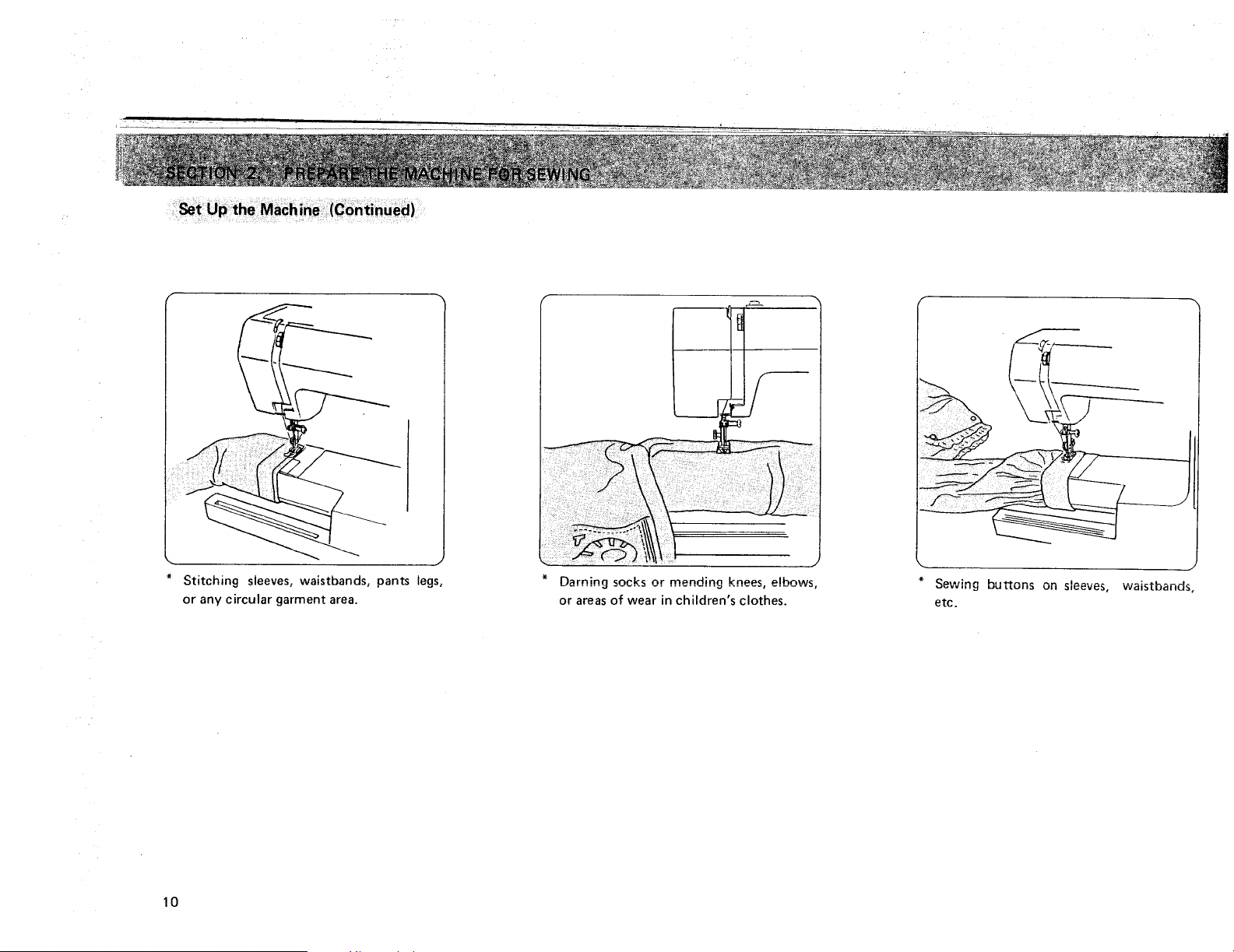

• Free Arm Sewing: the Removable
Extension Table ........................ 9_10

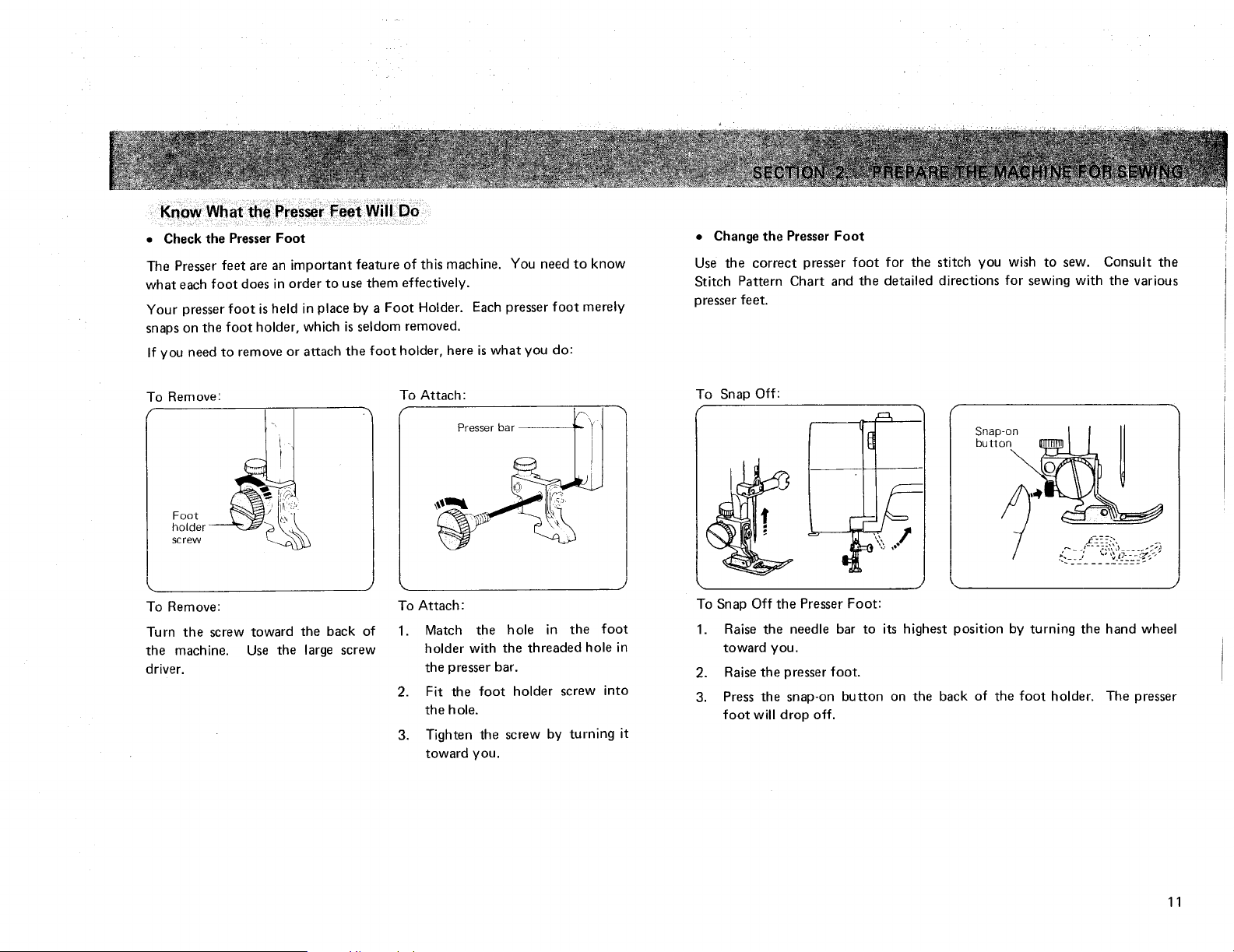

Know What the Presser Feet Will Do ............ 11_14
• Check the Presser Foot ..................... 11
• Change the Presser Foot ..................... 11
• Presser Foot Types ...................... 12_14

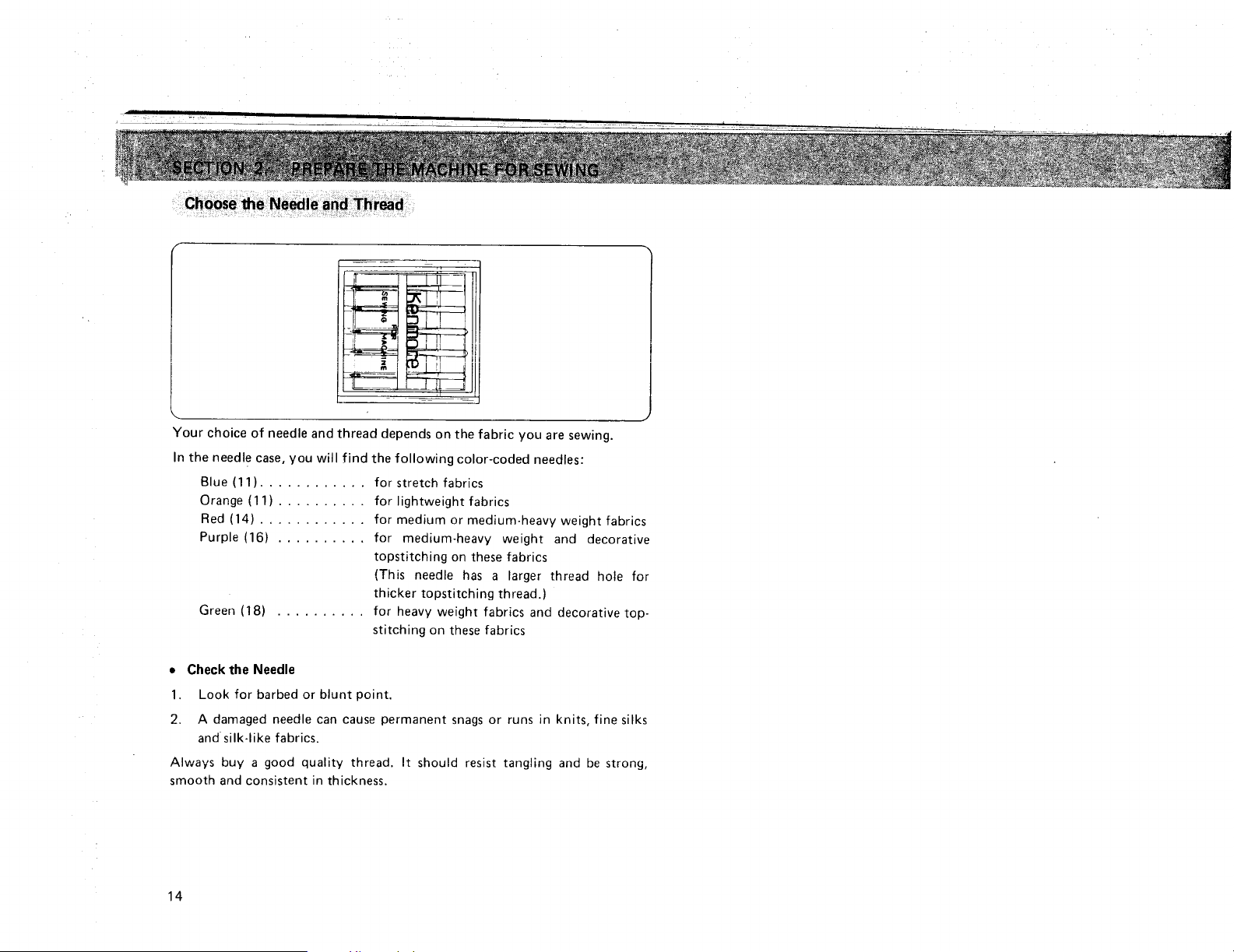

Choose the Needle and Thread ................ 14_15
• Check the Needle ......................... 14

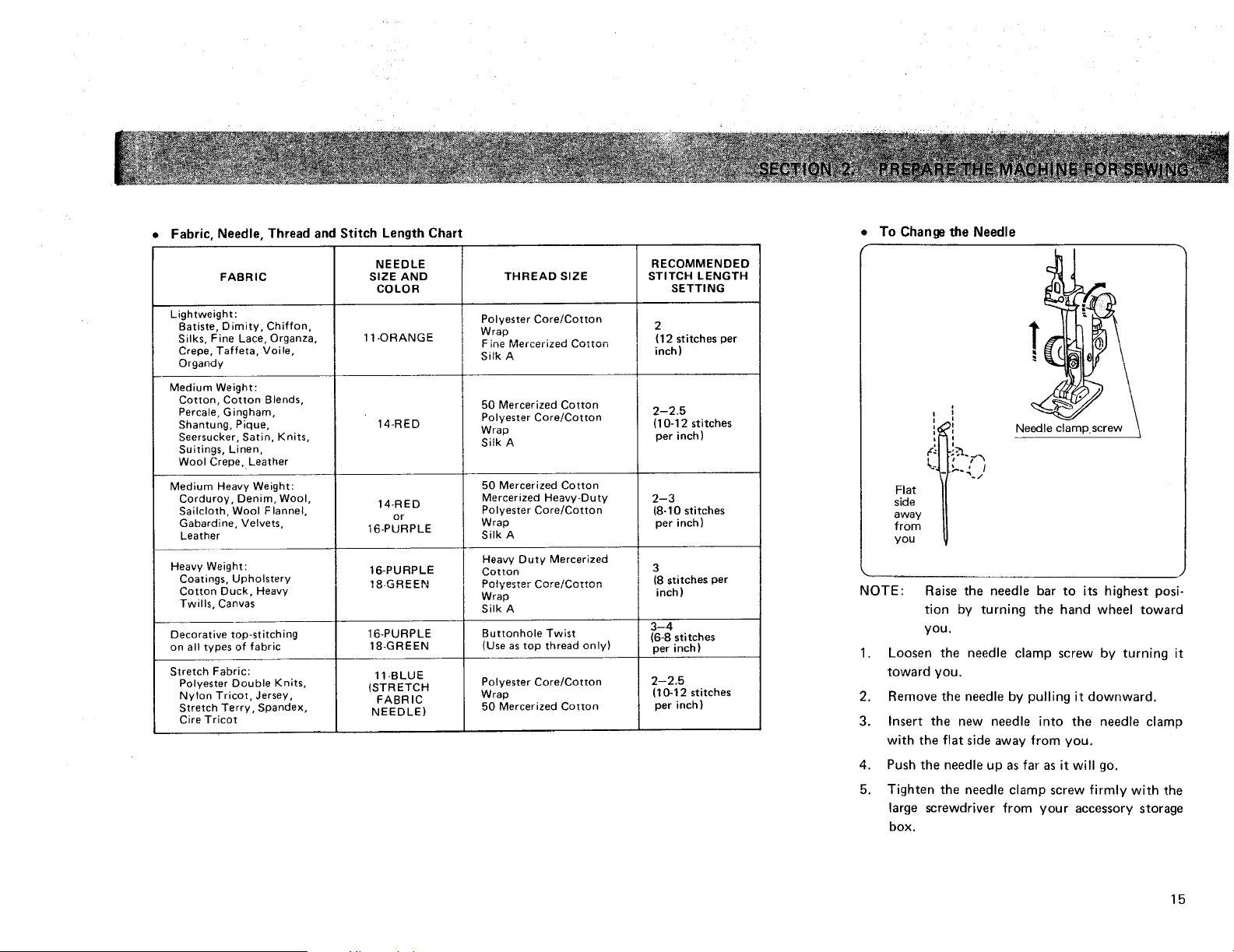

• Fabric, Needle, Thread and Stitch Length Chart ..... 15
• To Change the Needle ...................... 15

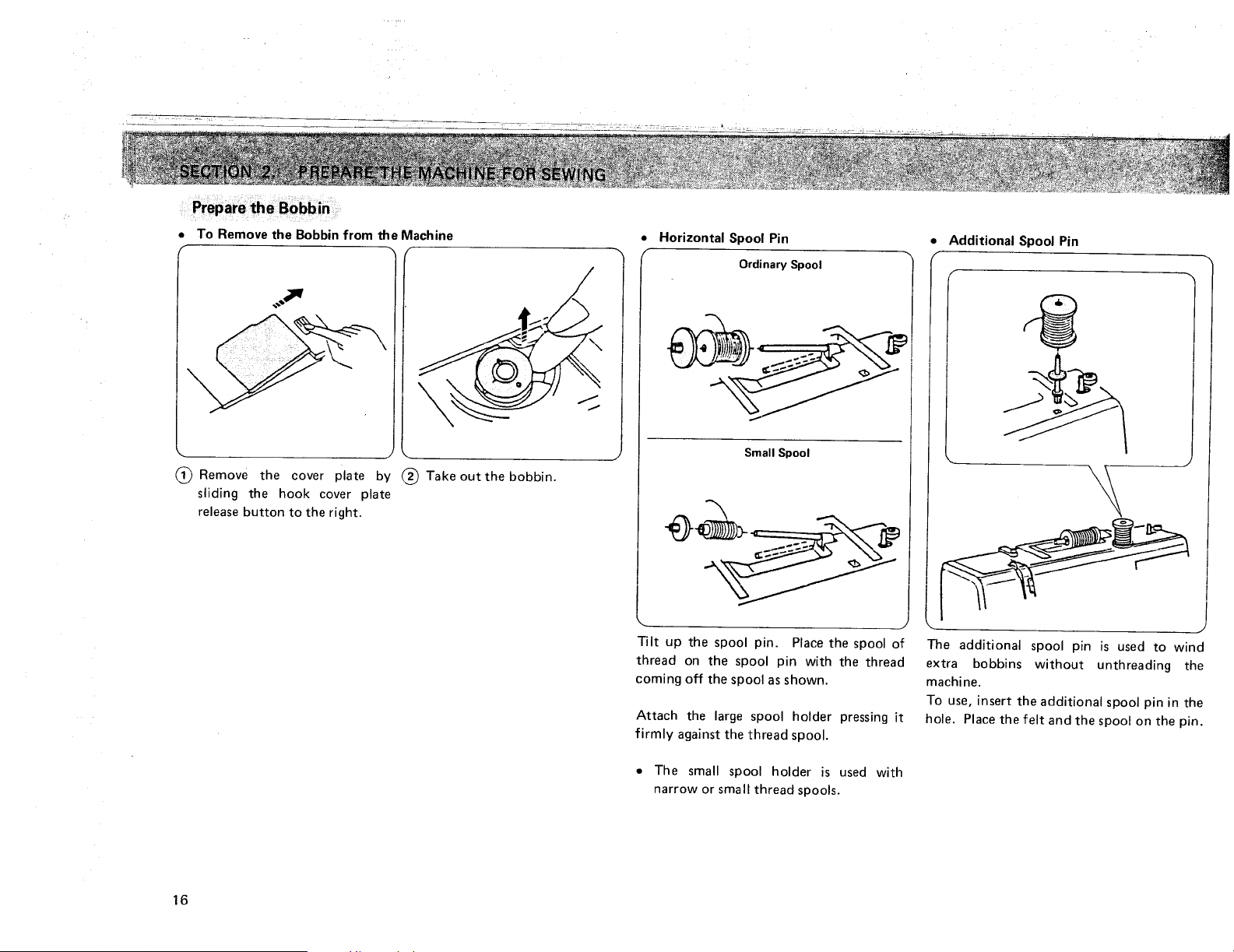

Prepare the Bobbin ........................ 16_18
• To Remove the Bobbin from the Machine ......... 16
• Horizontal Spool Pin ....................... 16
• Additional Spool Pin ....................... 16
• Bobbin W.nd.._g .......................... 17

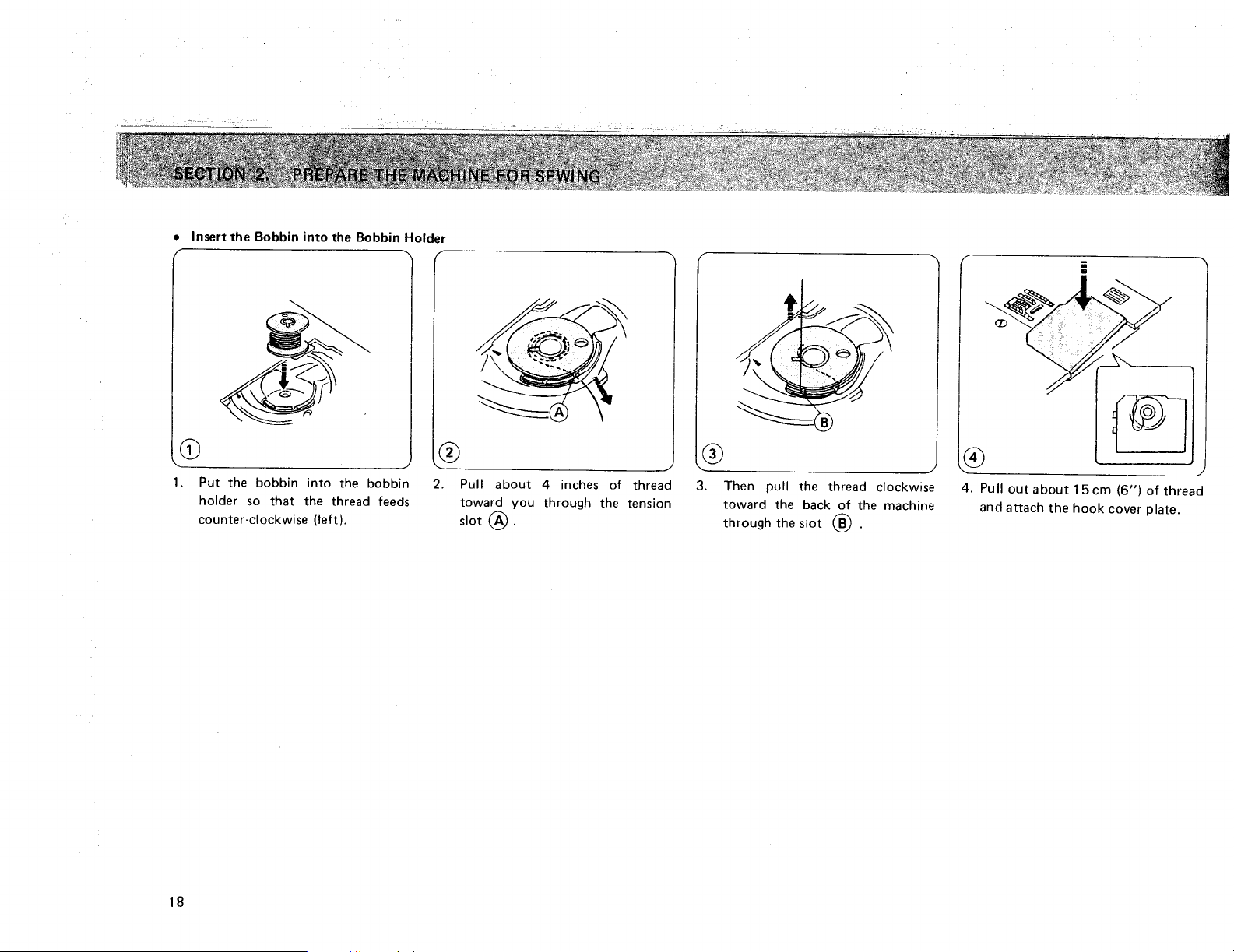

• Insert the Bobbin into the Bobbin Holder ......... 18
Prepare the Top Thread ..................... 19_22

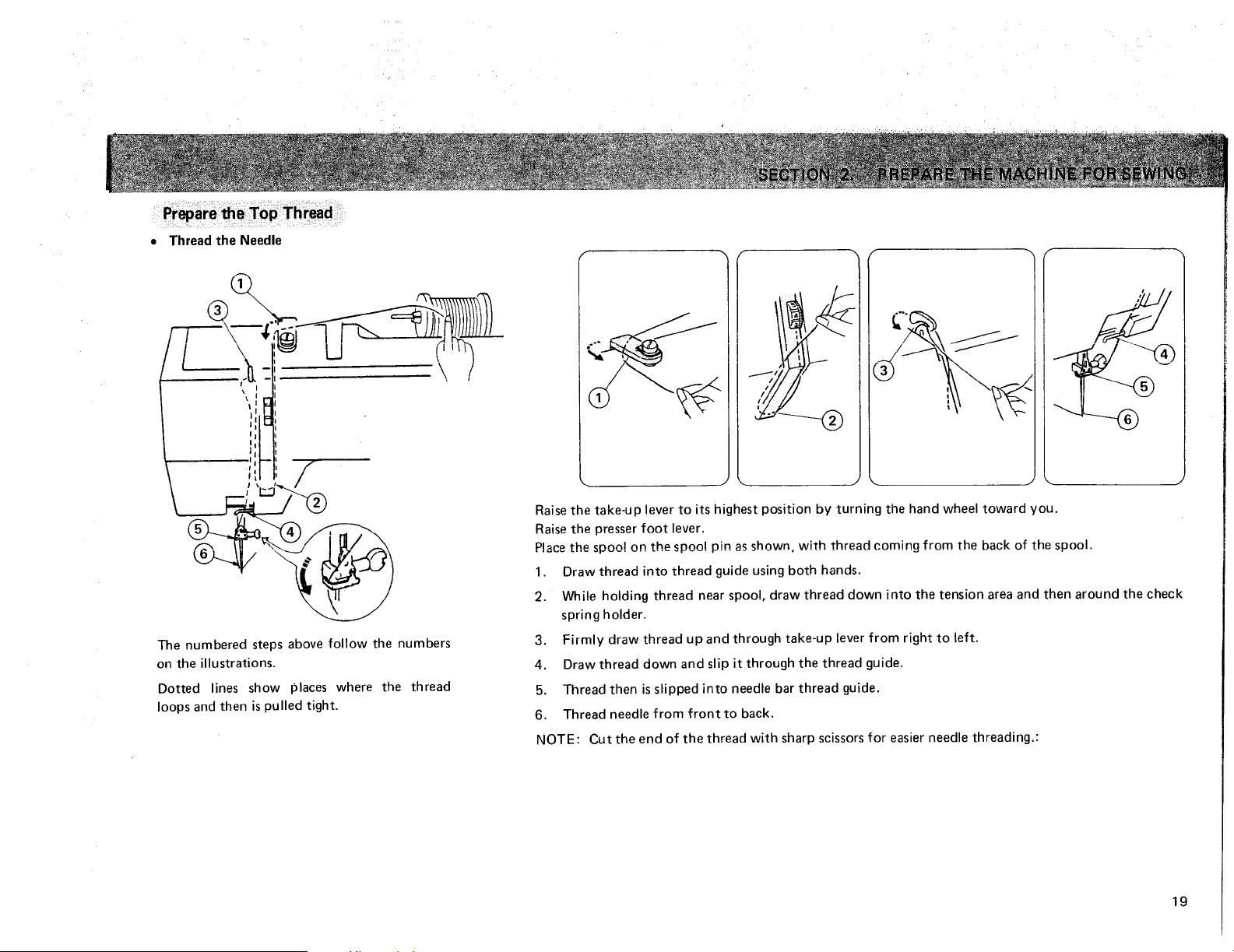

• Thread the Needle ........................ 19
• Pick Up the Bobbin Thread .................. 20

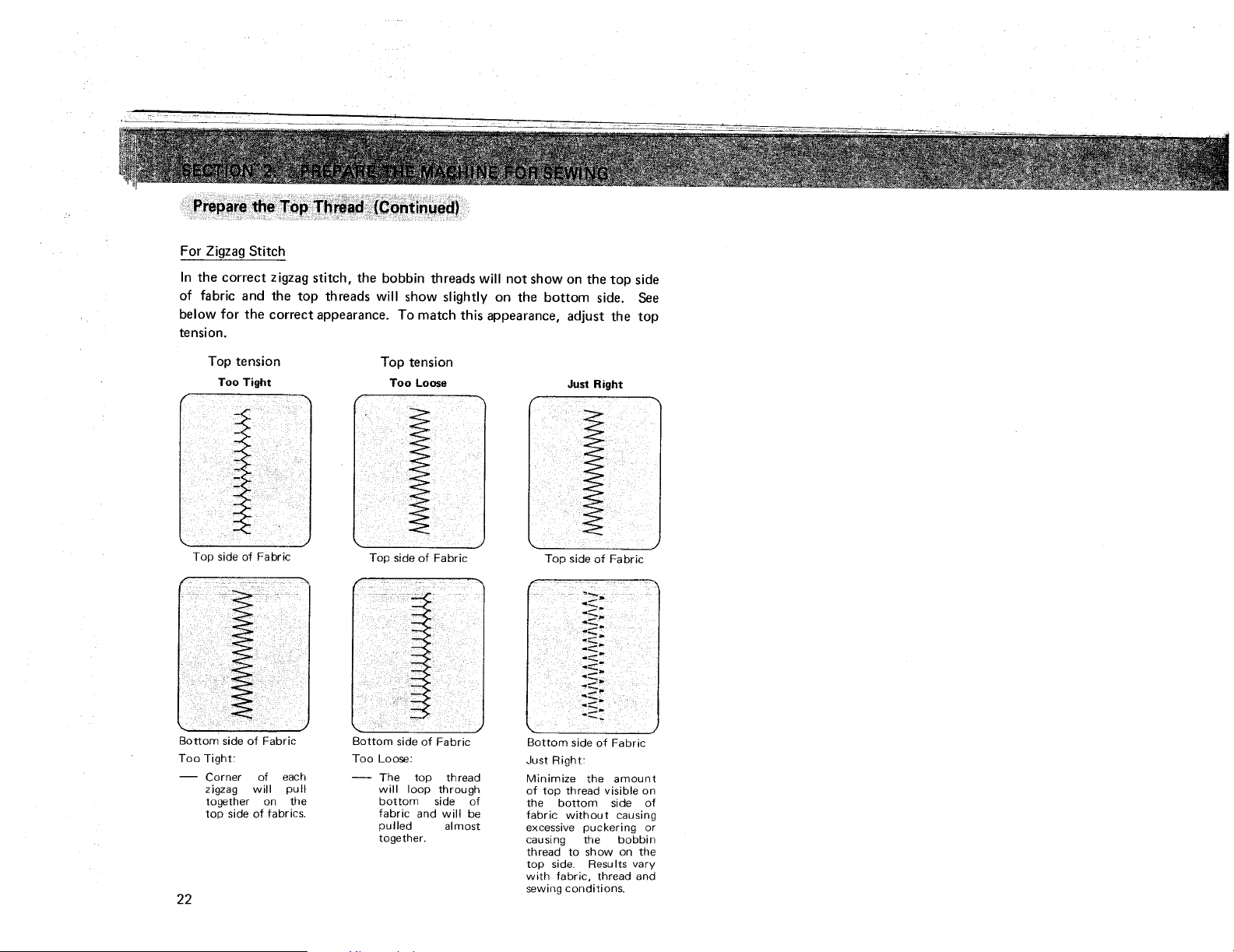

• Adjust the Top Thread Tension .............. 21_22

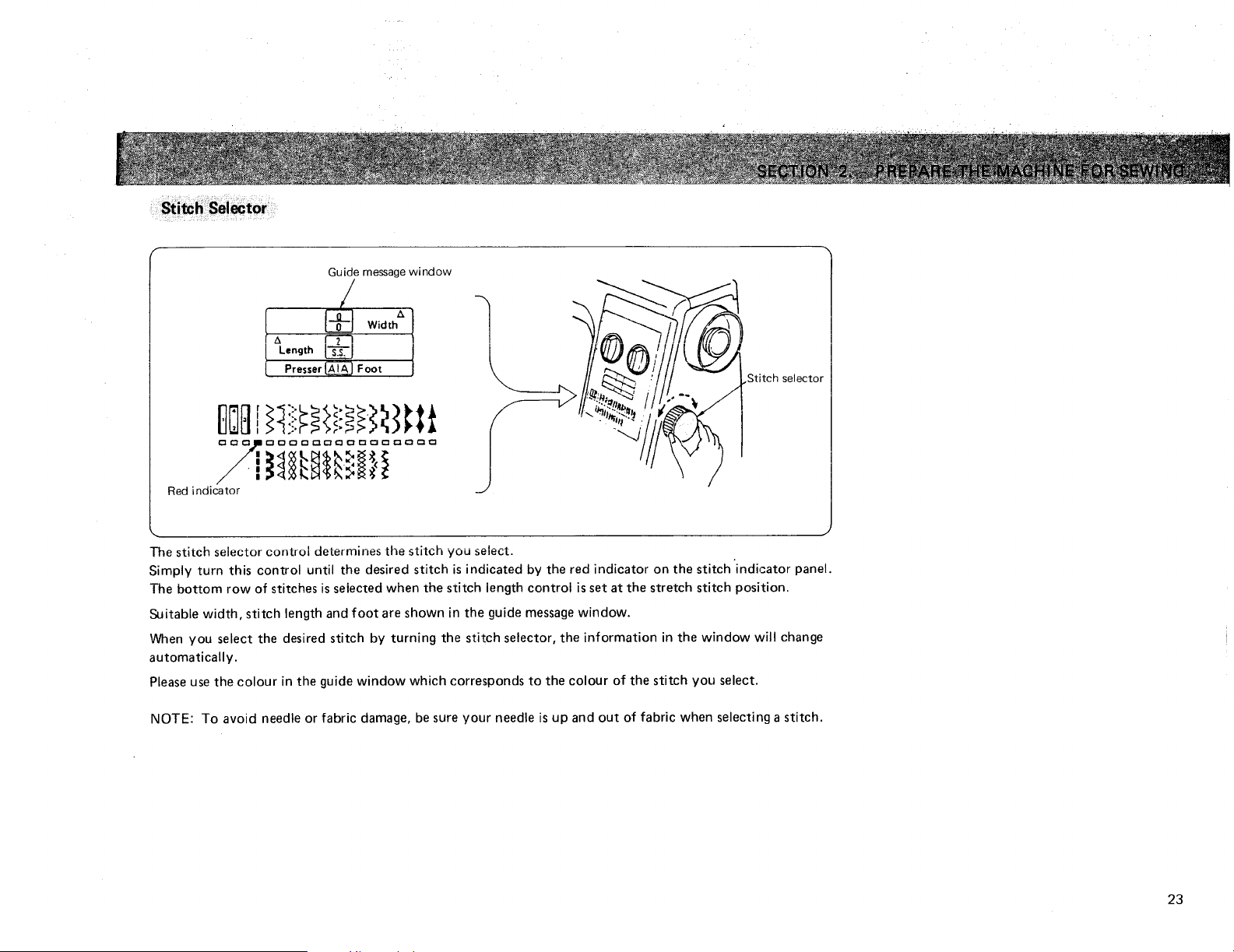

Stitch Selector ............................. 23

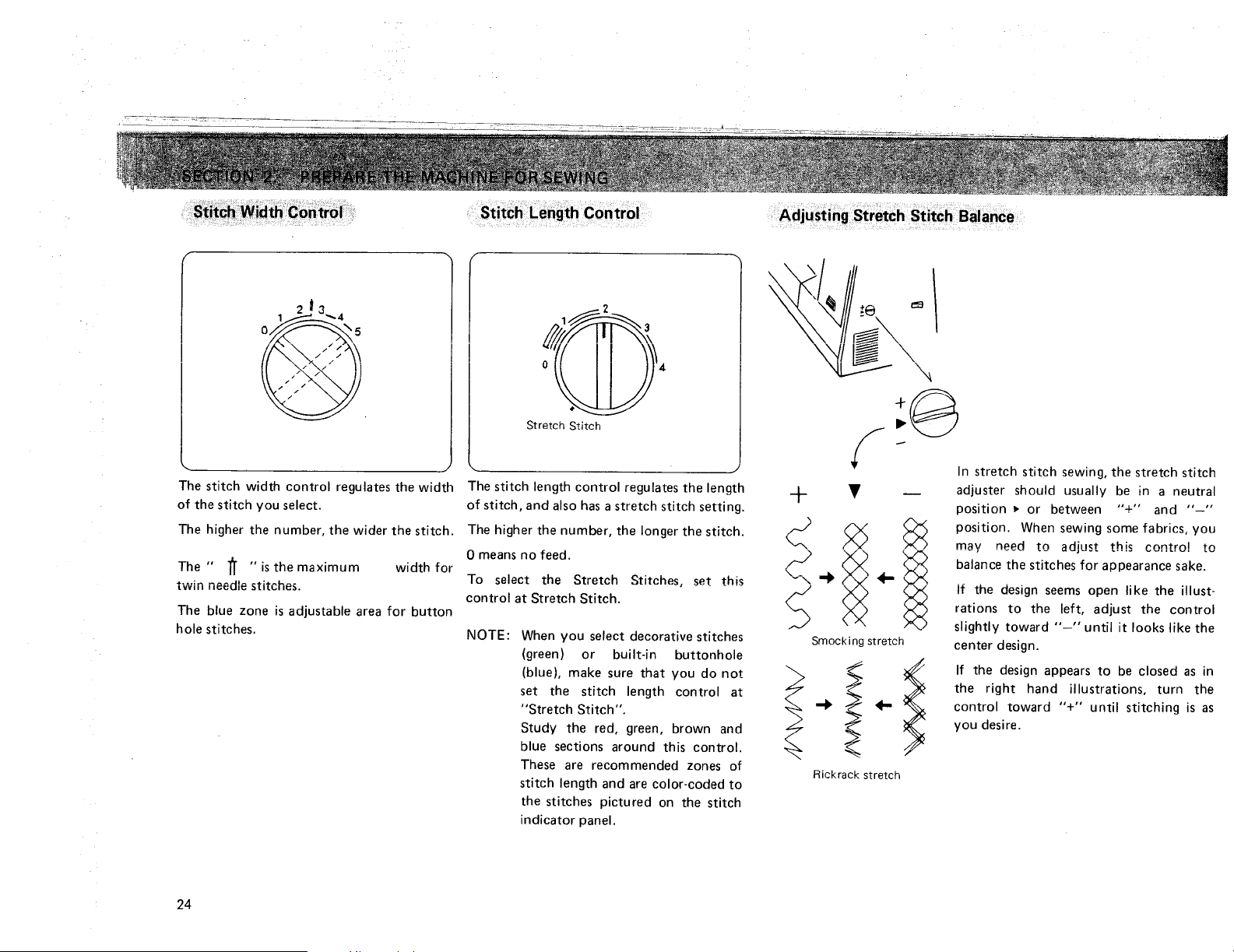

Stitch Width Control ......................... 24
Stitch Length Control ........................ 24
Adjusting Stretch Stitch Balance ................. 24

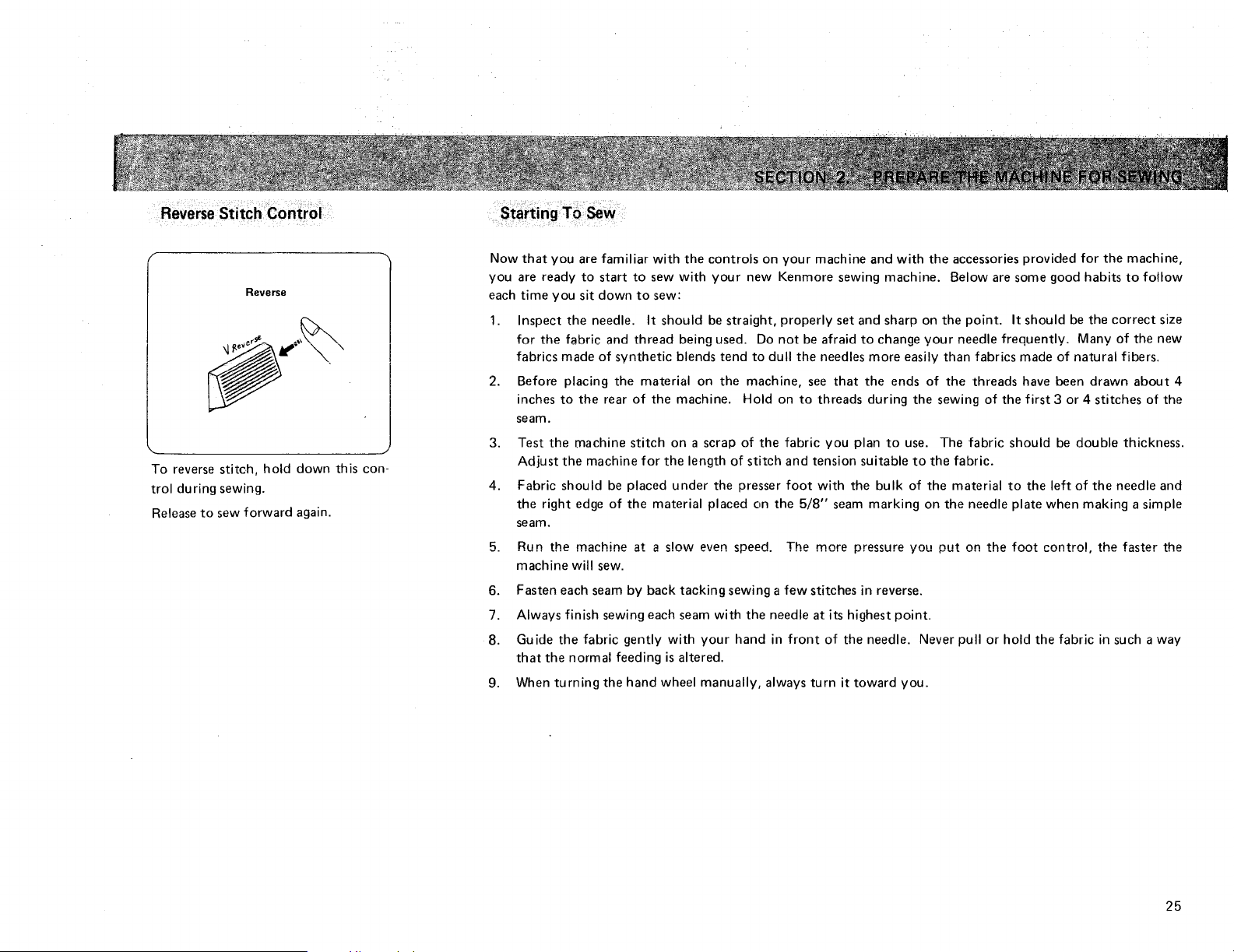

Reverse Stitch Control ........................ 25
Starting To Sew ............................ 25
LEARN THE STITCHES

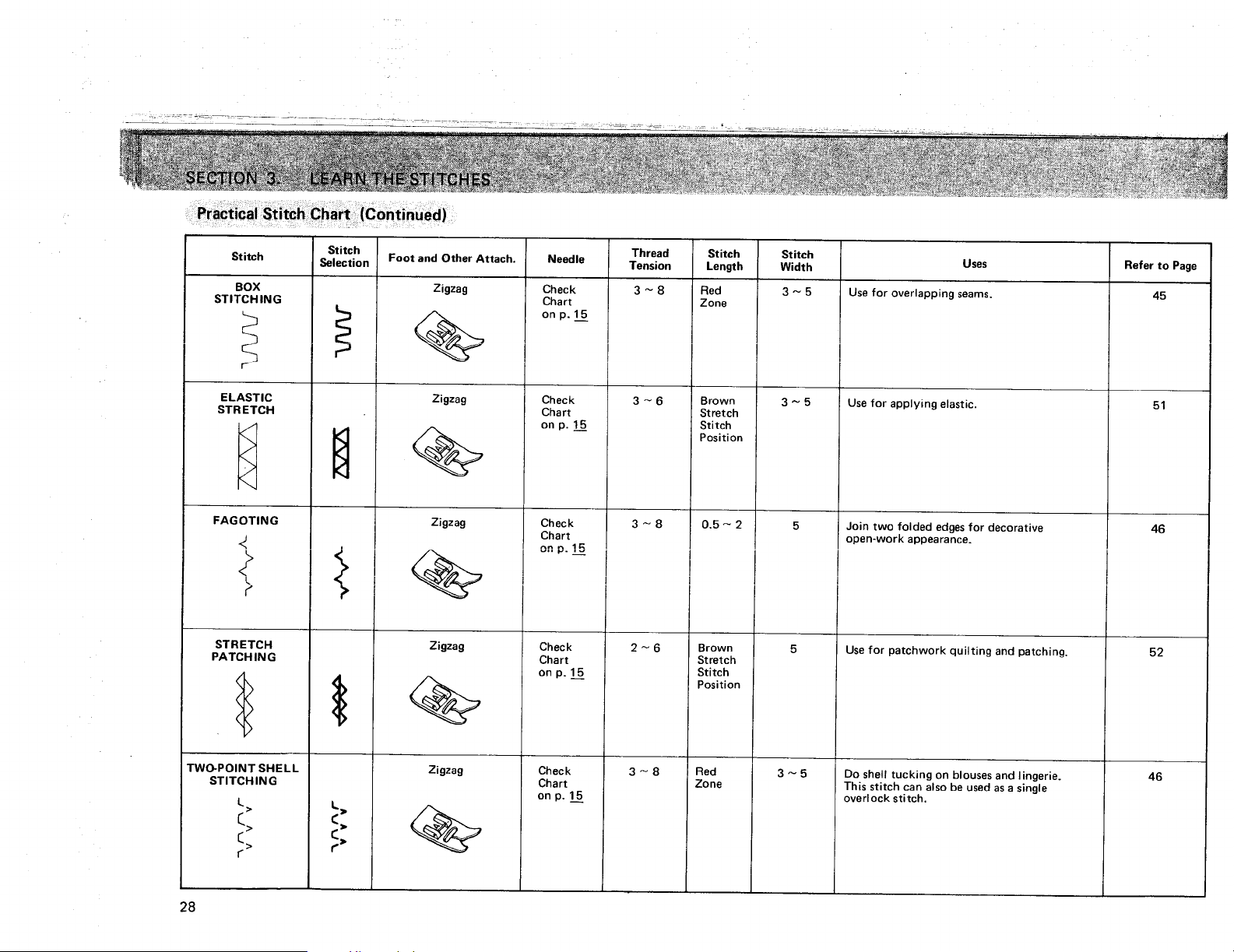

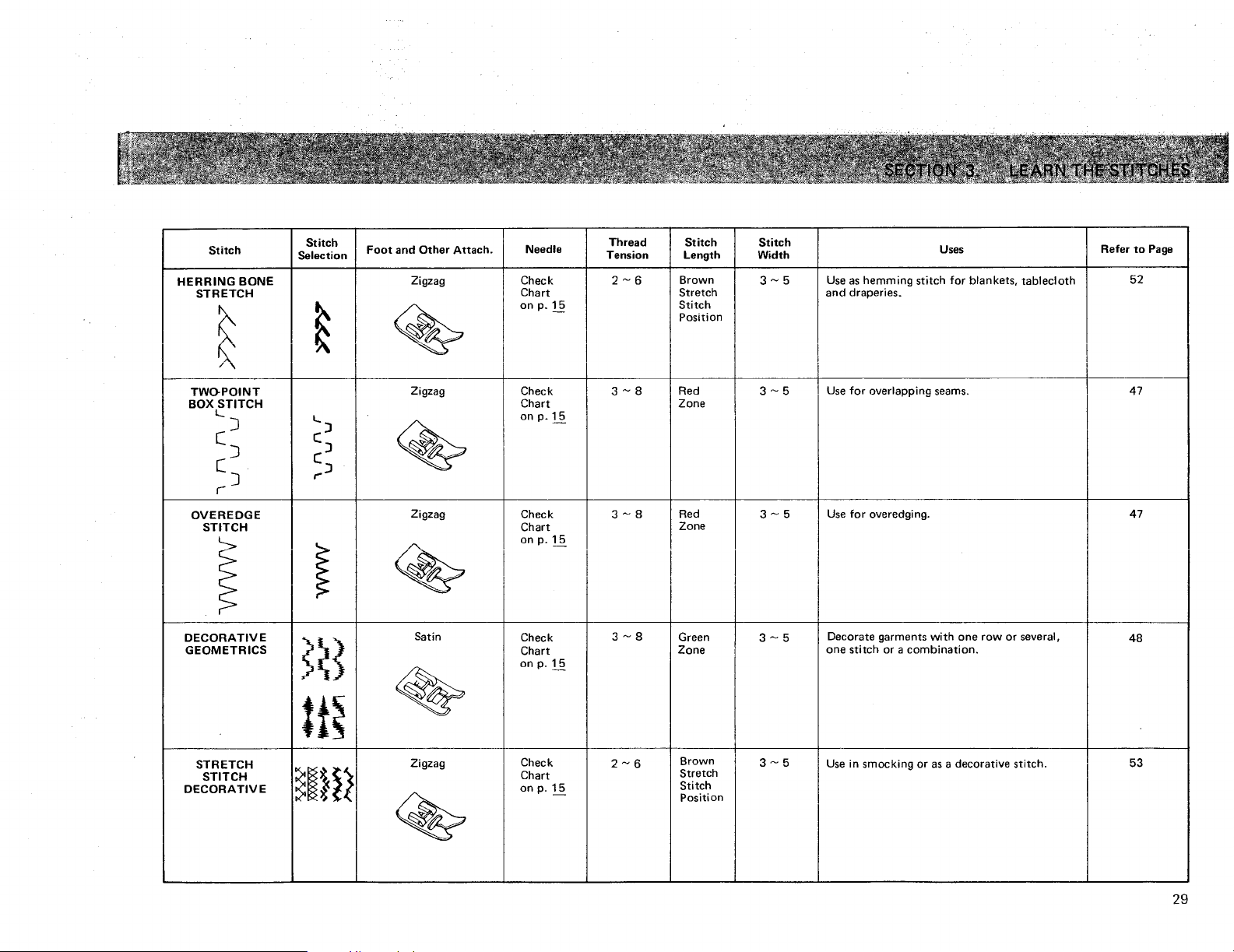

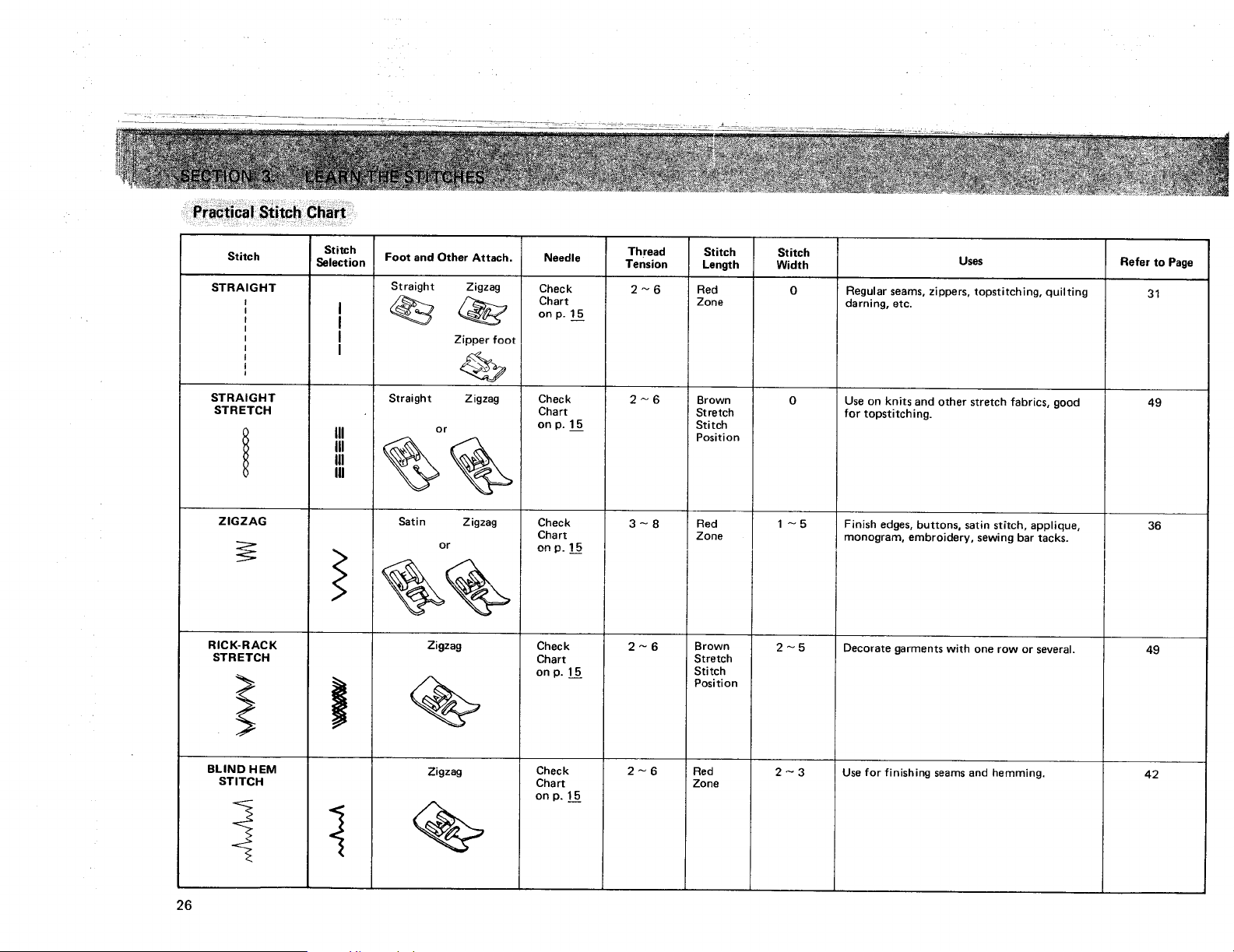

Practical Stitch Chart ...................... 26_30
Straight Stitches .......................... 31_35
• Straight Stitches .......................... 31
• Use the Seam Guides ....................... 31
• Turn a Square Corner ...................... 31

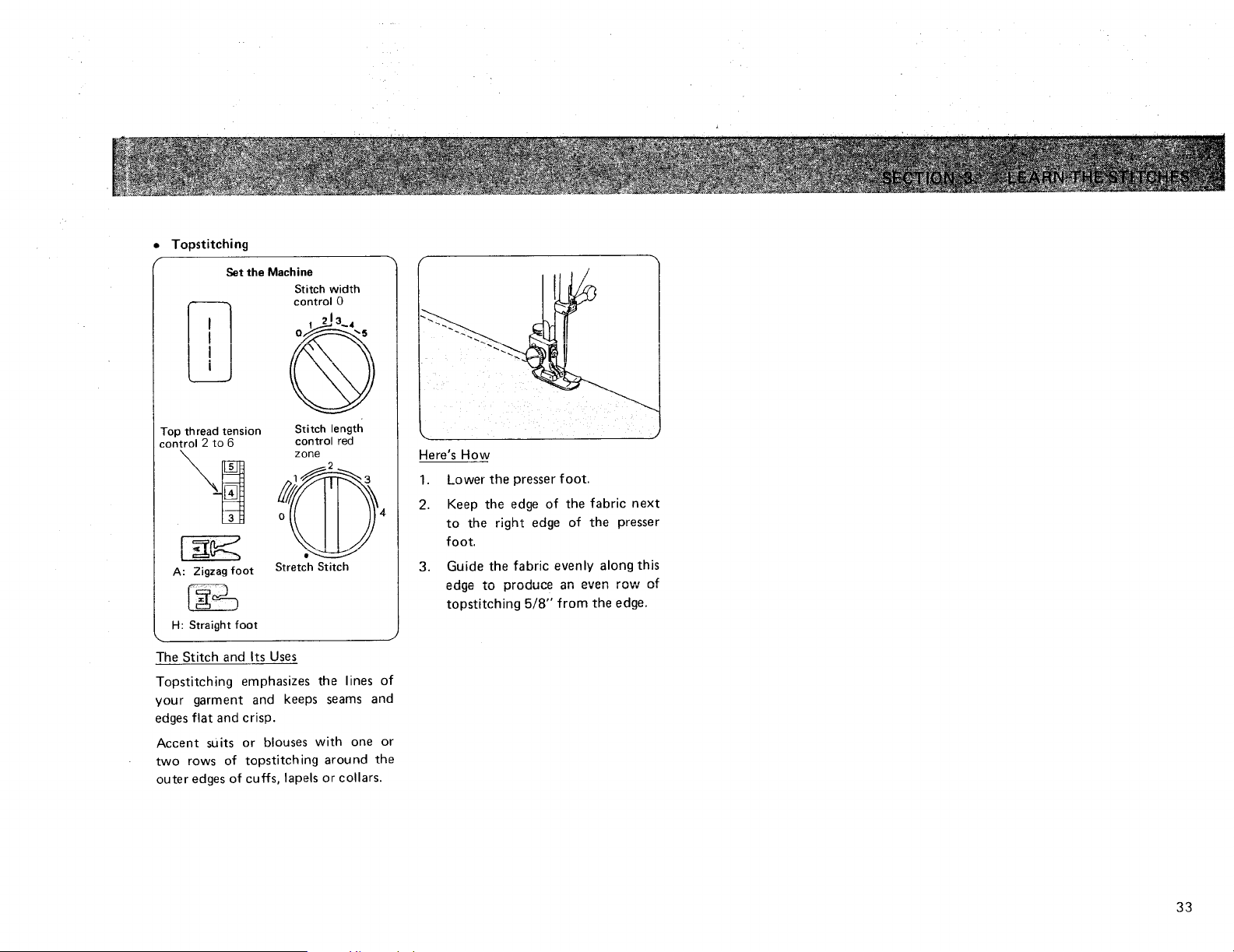

• Topstitching ............................ 32

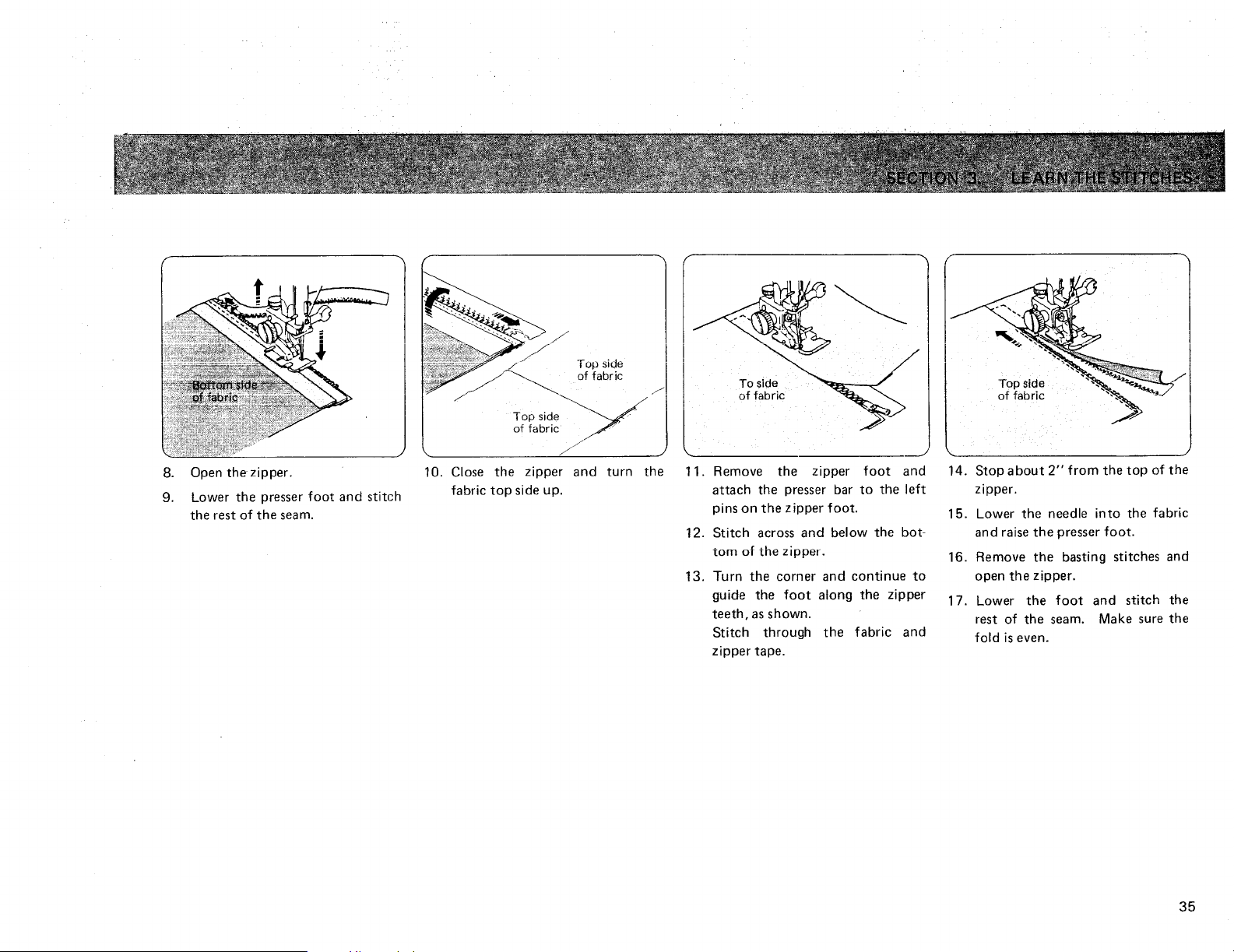

• Sew in a Zipper ........................ 33_34
• Dropping the Feed Dogs .................... 35
• Darning ............................... 35
Zigzag Stitches ........................... 36_48
• Basic Zigzag ............................. 36
• Monogramming .......................... 36
• Satin Stitch ............................. 37
• Applique ............................... 38
• Bar Tacking ............................. 38
• Embroidery ............................. 39

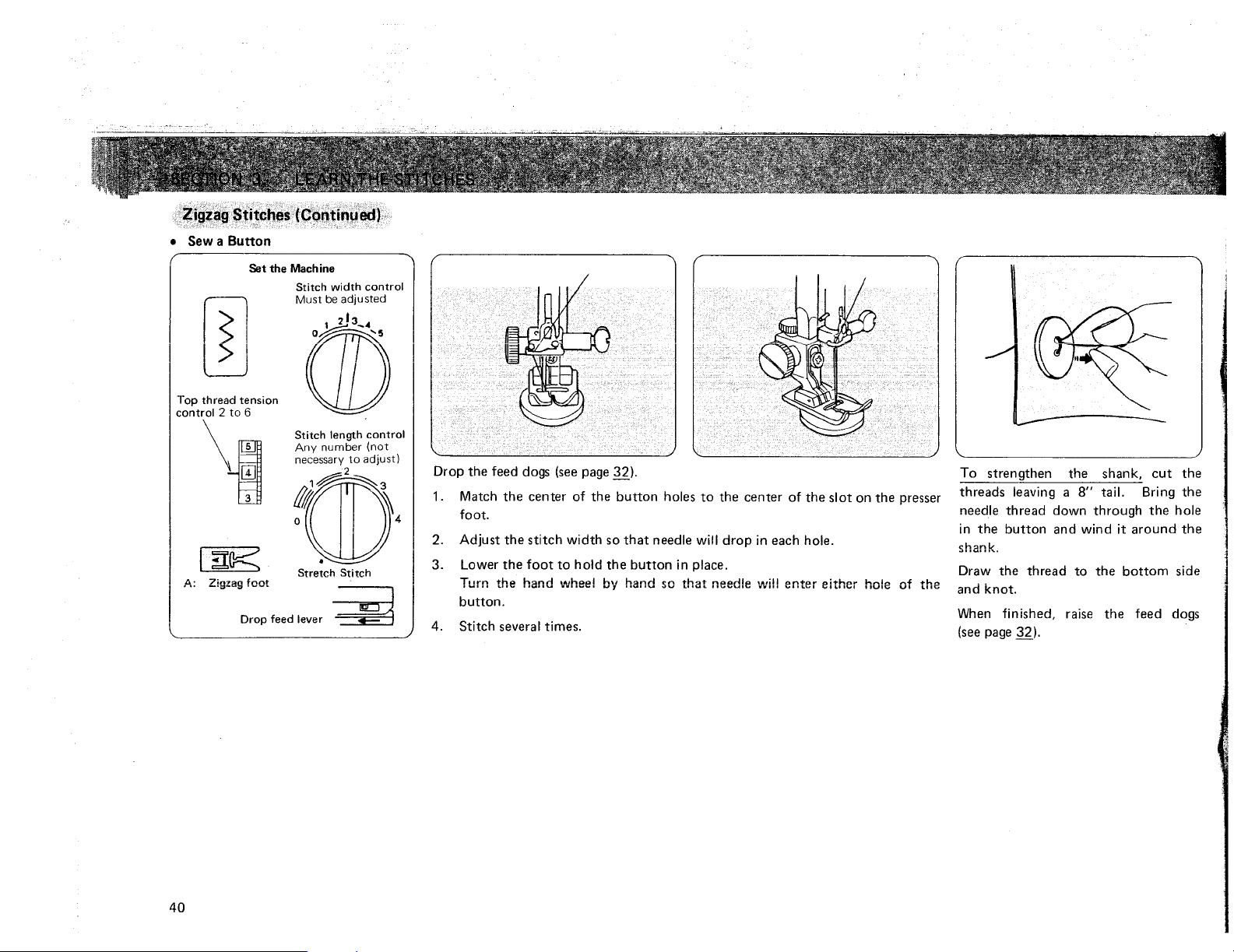

• Sewa Button ............................ 40

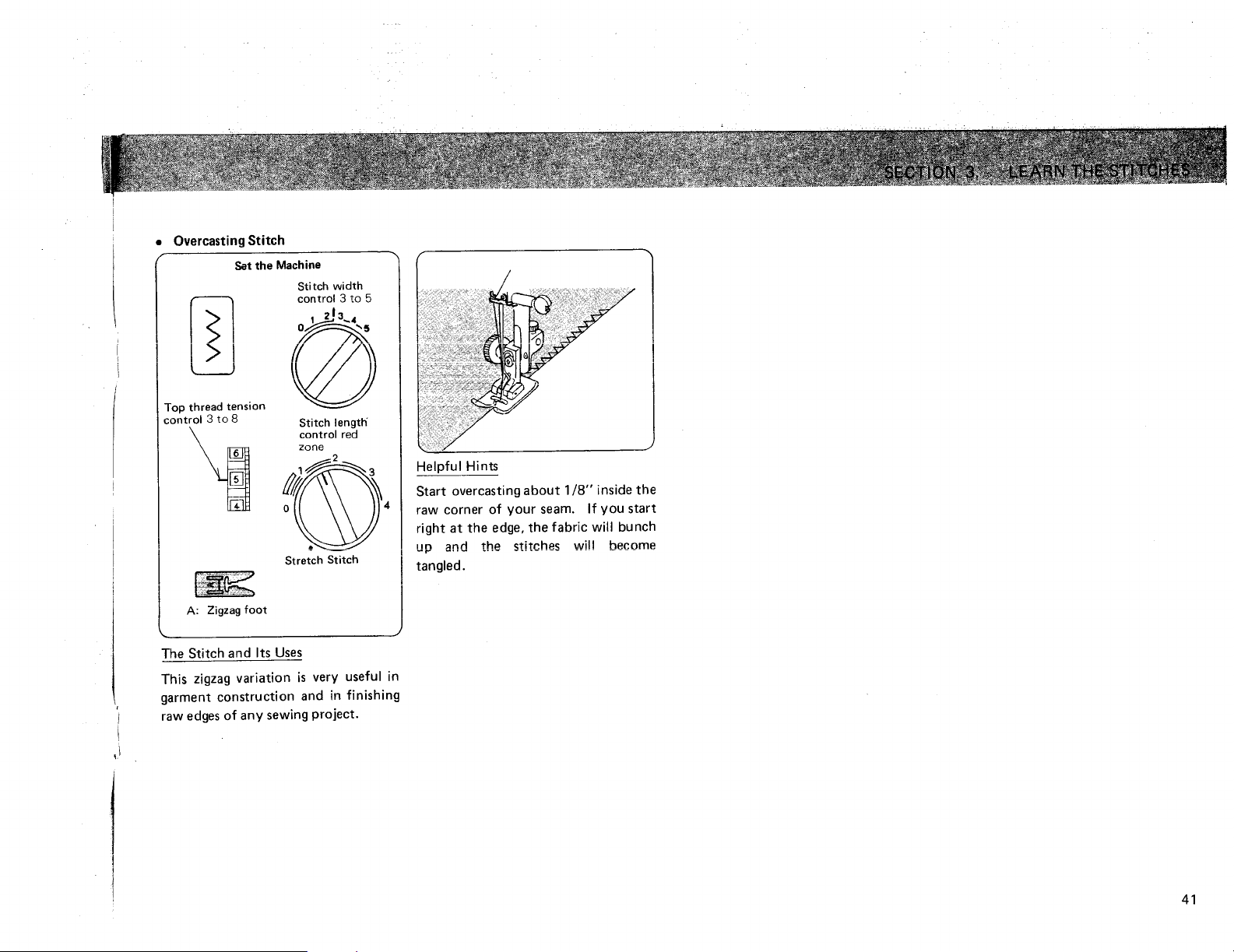

• Overcasting Stitch ......................... 41

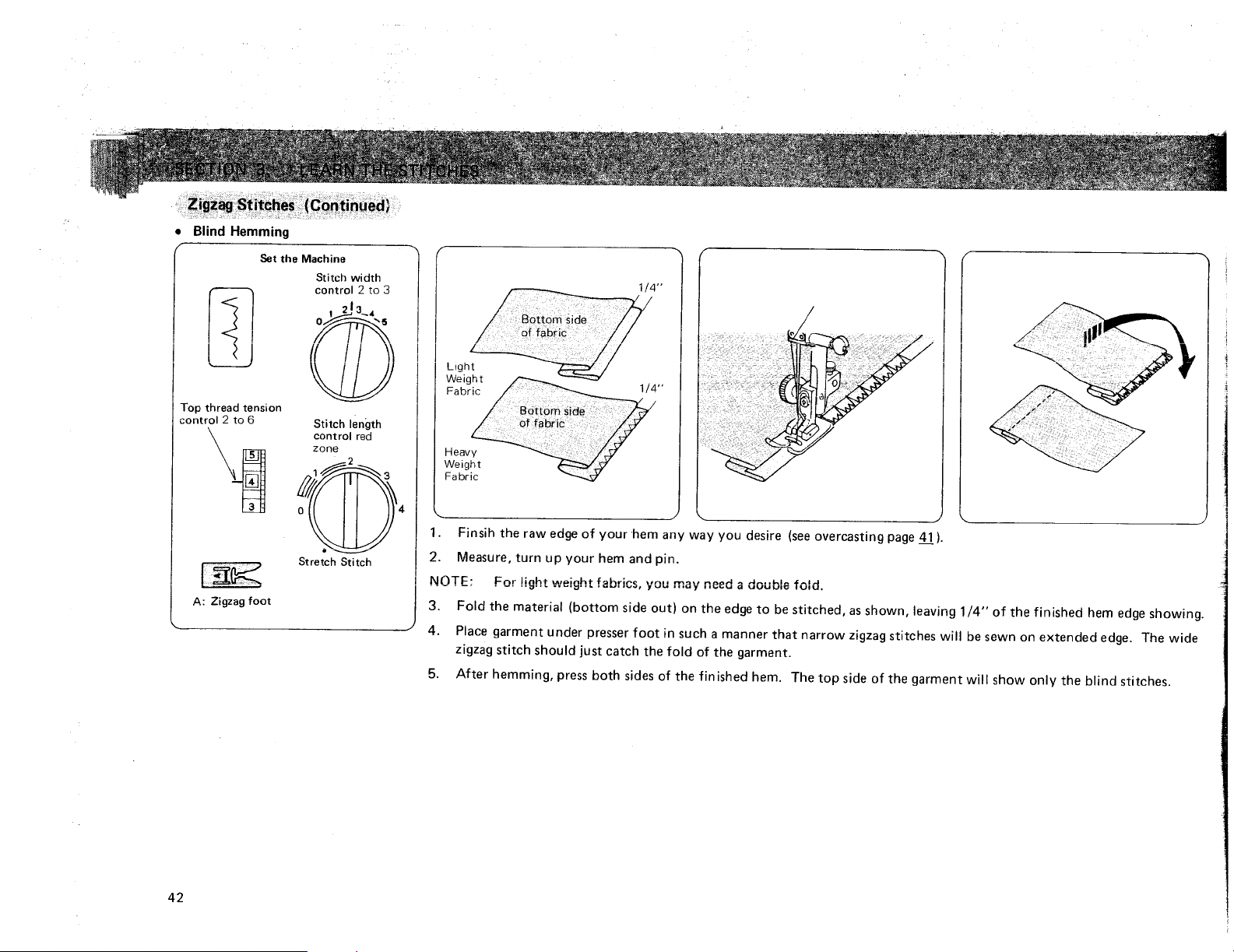

• Blind Hemming .......................... 42

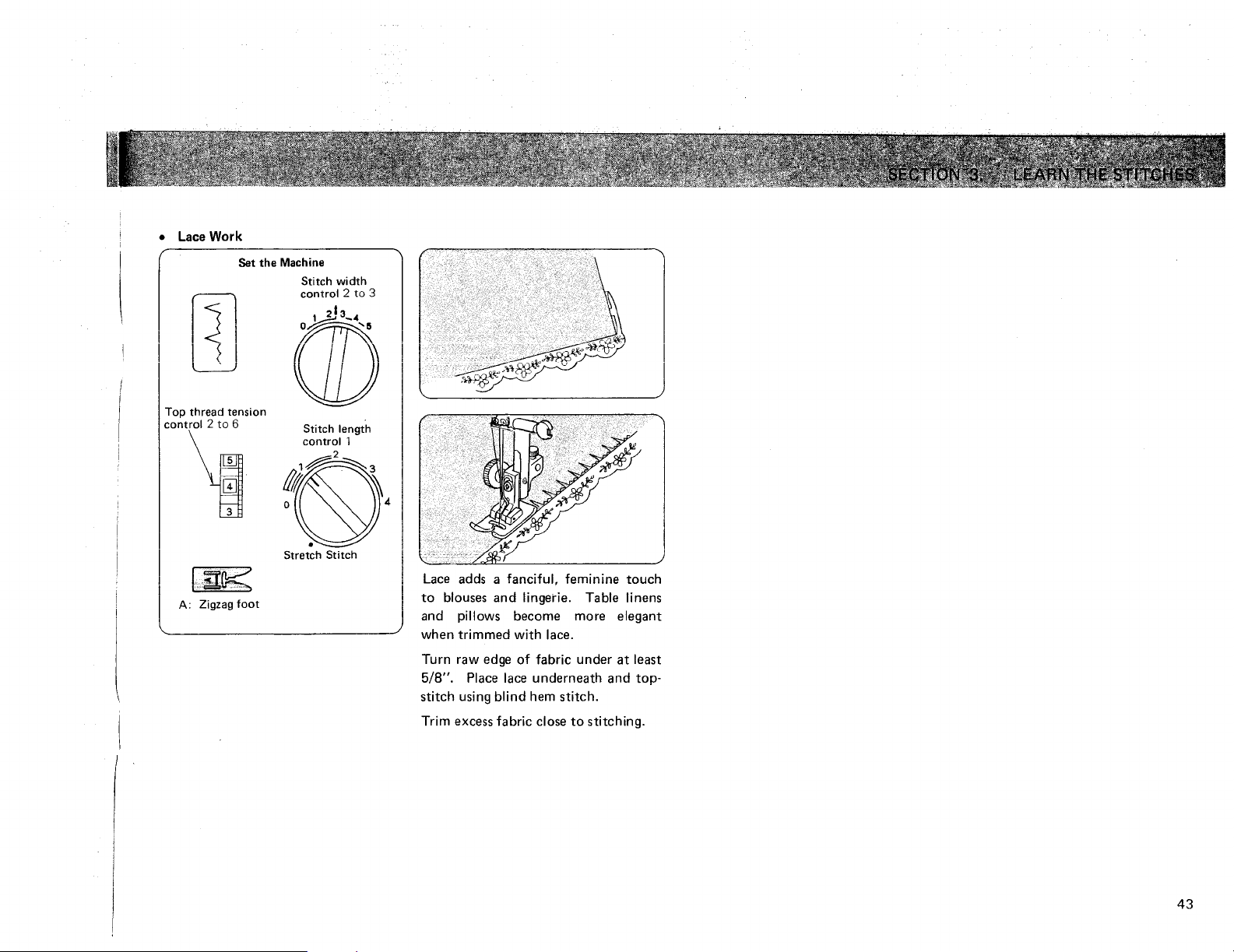

• LaceWork .............................. 43

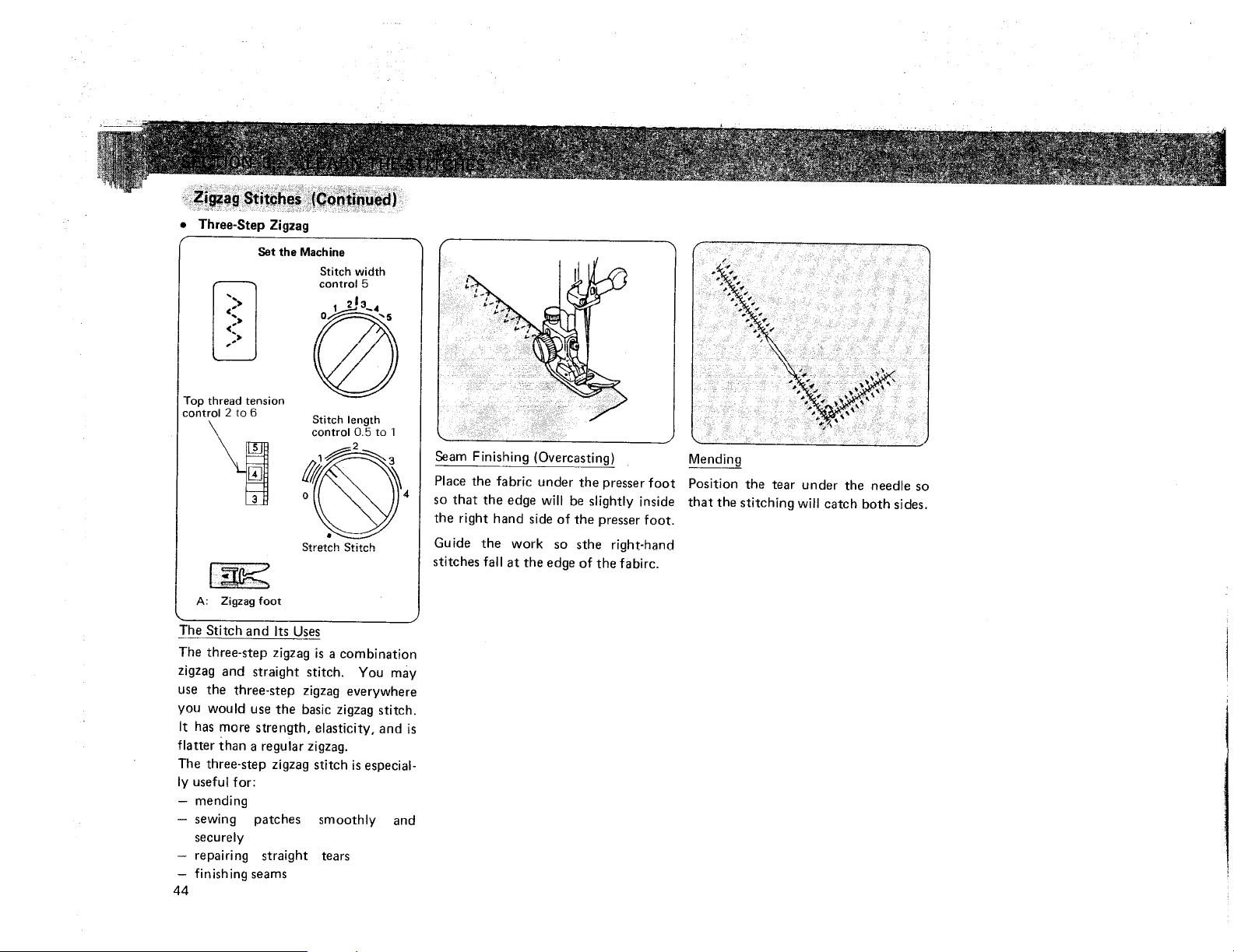

• Three-Step Zigzag ......................... 44

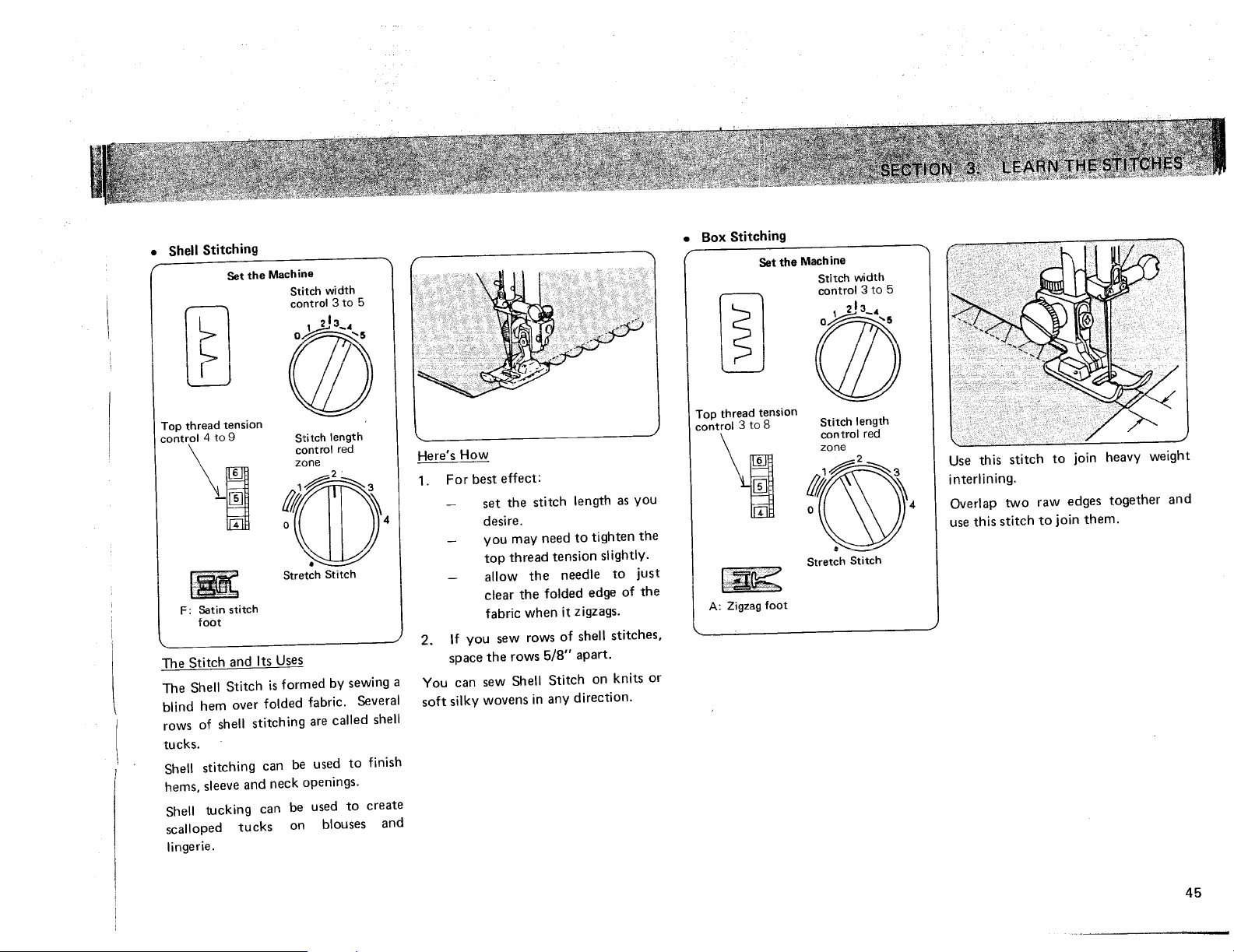

• Shell Stitching ........................... 45
• Box Stitching ............................ 45
• Fagoting Stitch .......................... 46
• Two-Point Shell Stitching .................... 46
• Two-Point Box Stitch ...................... 47
• Overedging Stitch ......................... 47
• Decorative with Geometic Patterns ............. 48
Stretch Stitches .......................... 49_53
• Straight Stretch .......................... 49
• Rick-Rack Stretch ........................ 49
• Overcast Stretch Stitching ................... 50
• Smocking .............................. 50

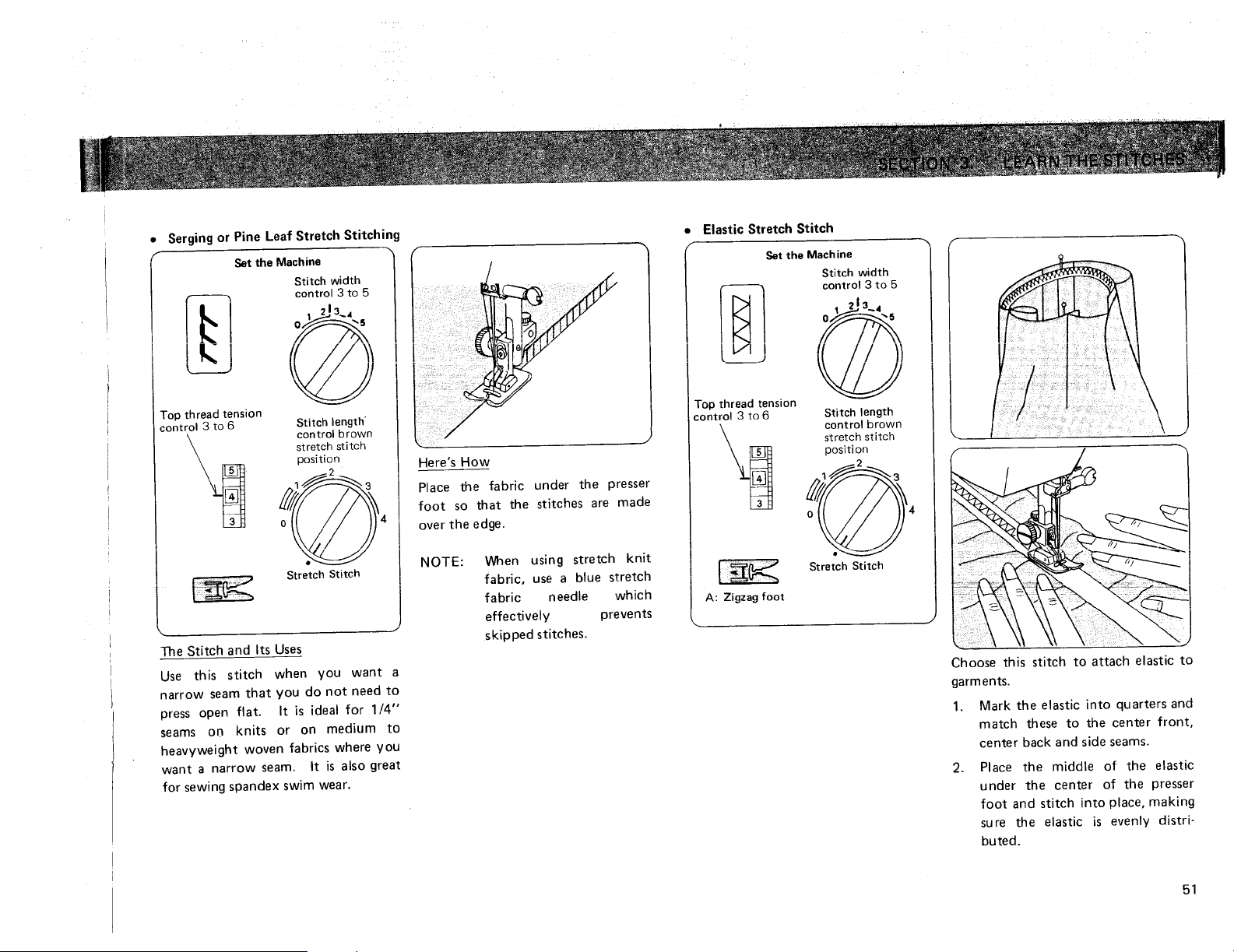

• Serging or Pine Leaf Stretch Stitching ............ 51
• Elastic Stretch Stitch ....................... 51
• Stretch Patching .......................... 52
• Herring Bone Stretch ....................... 52
• Decorative Stretch Patterns .................. 53

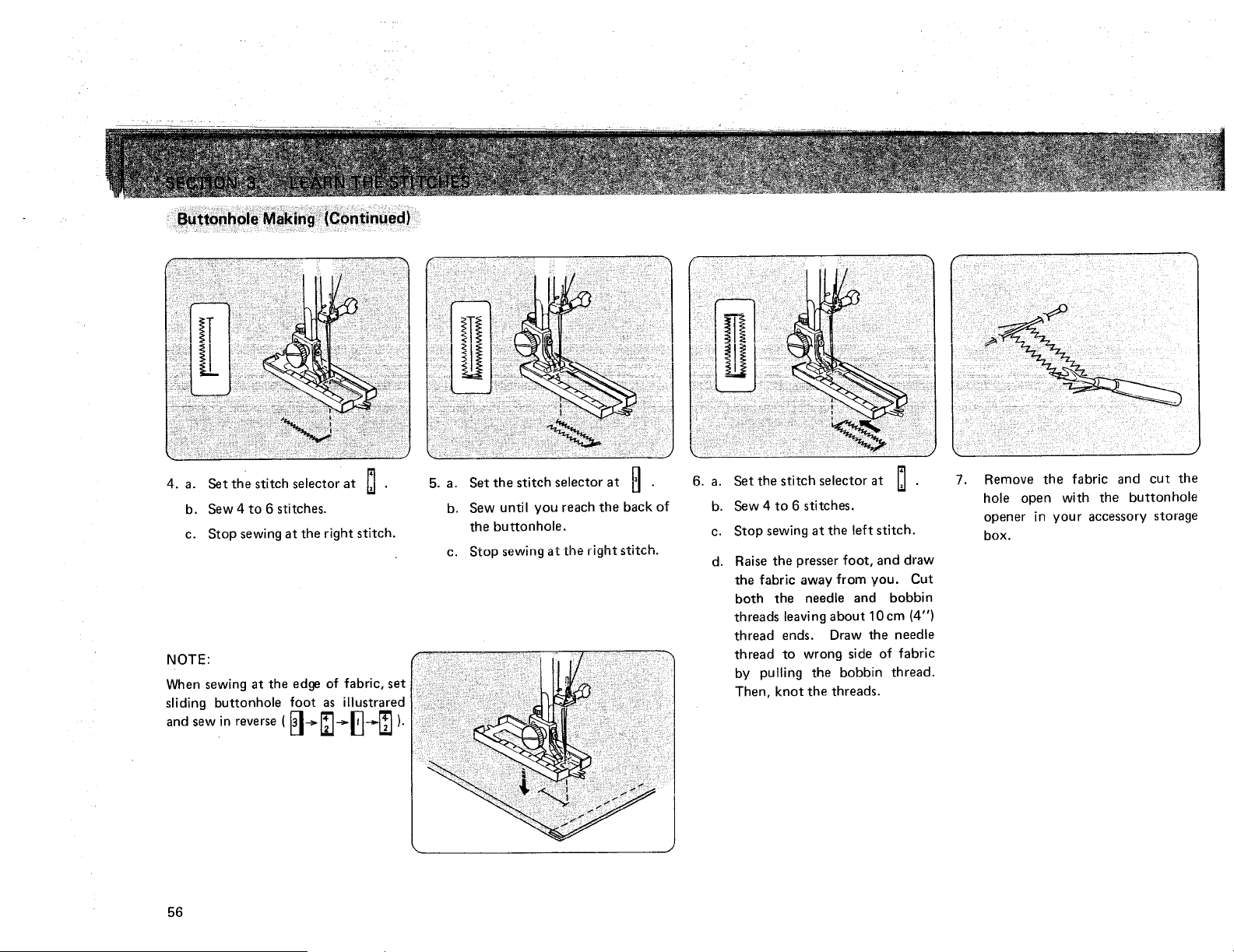

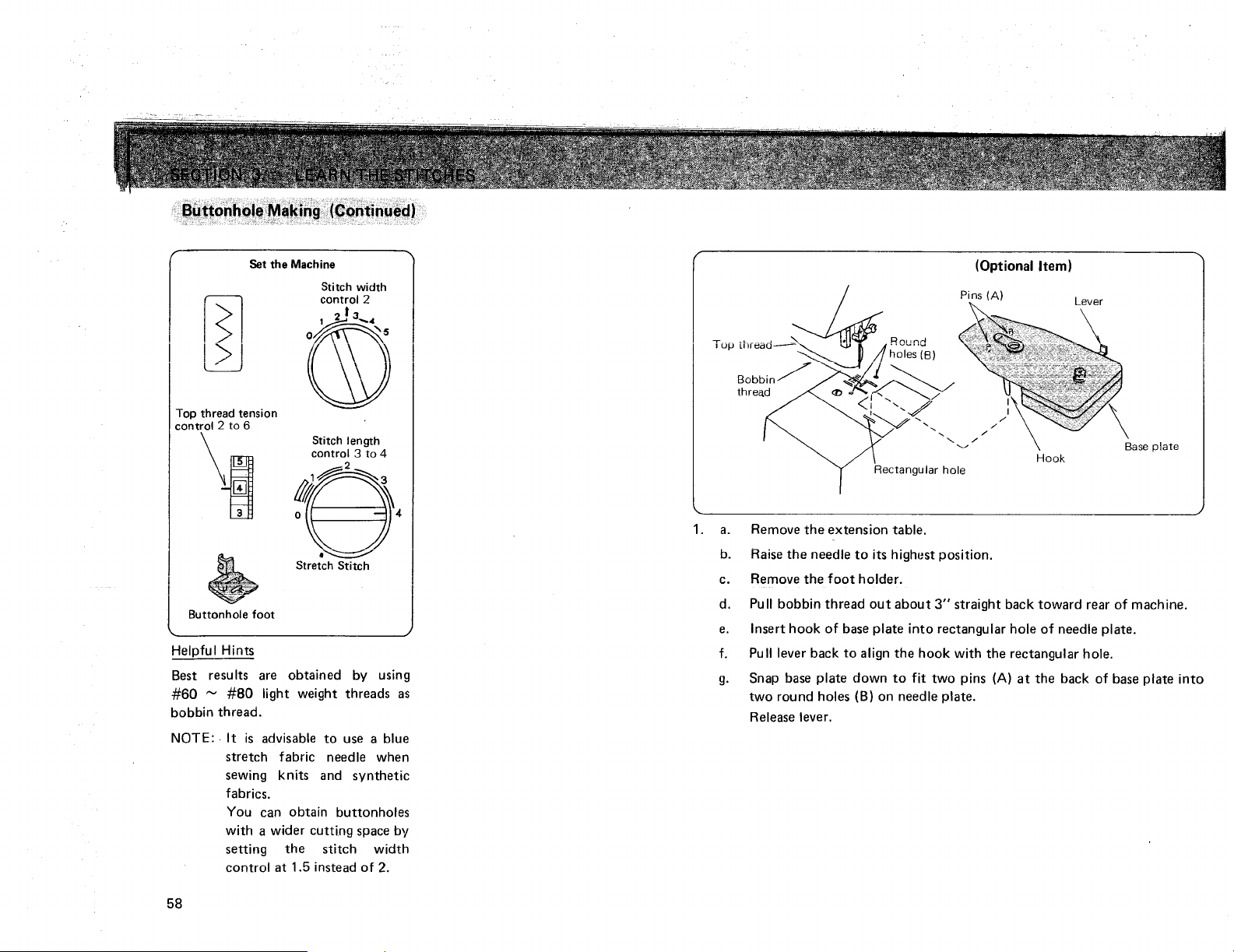

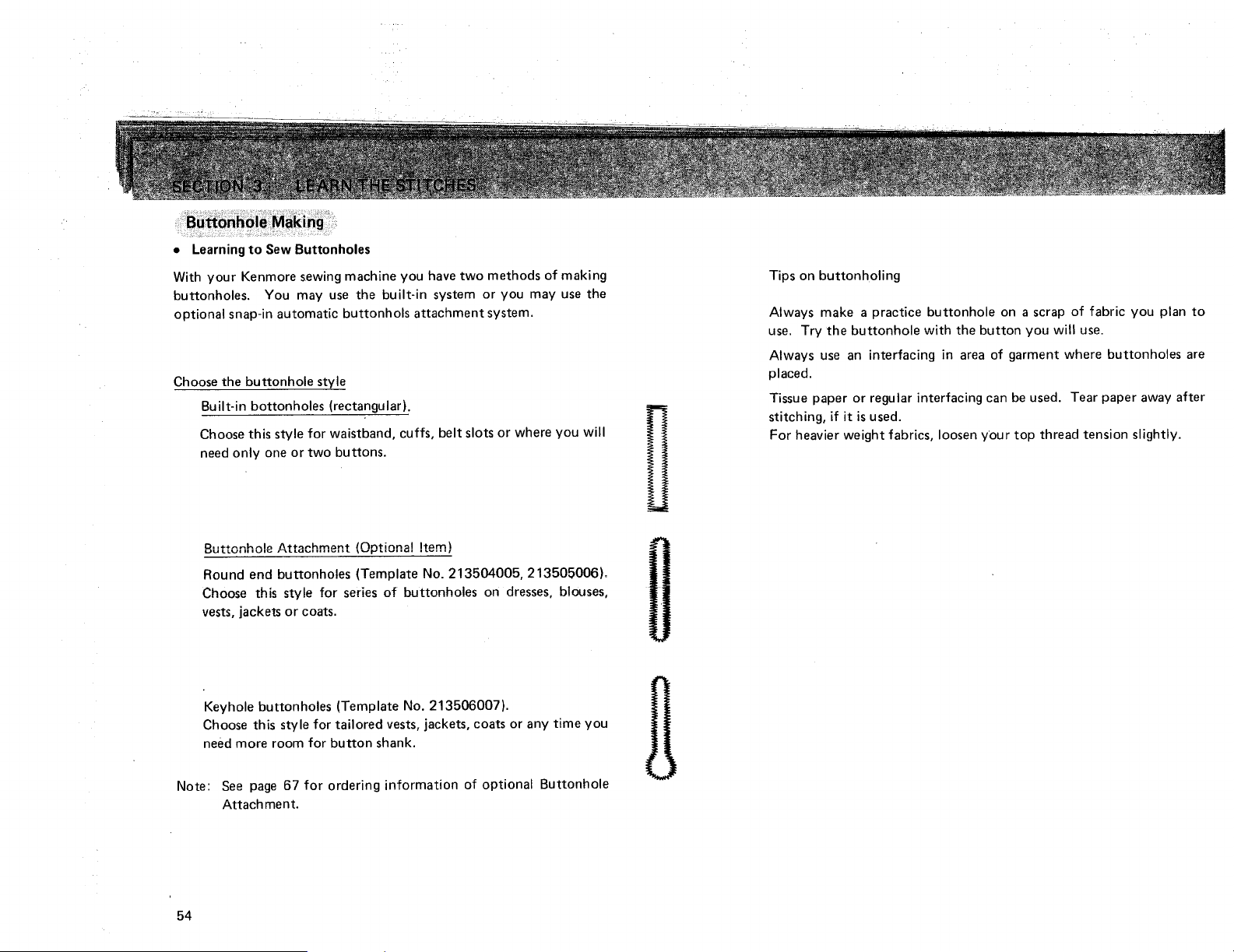

Buttonhole Making ........................ 54_60
• Learning to Sew Buttonholes ................. 54
• Built-in System ........................ 55_56

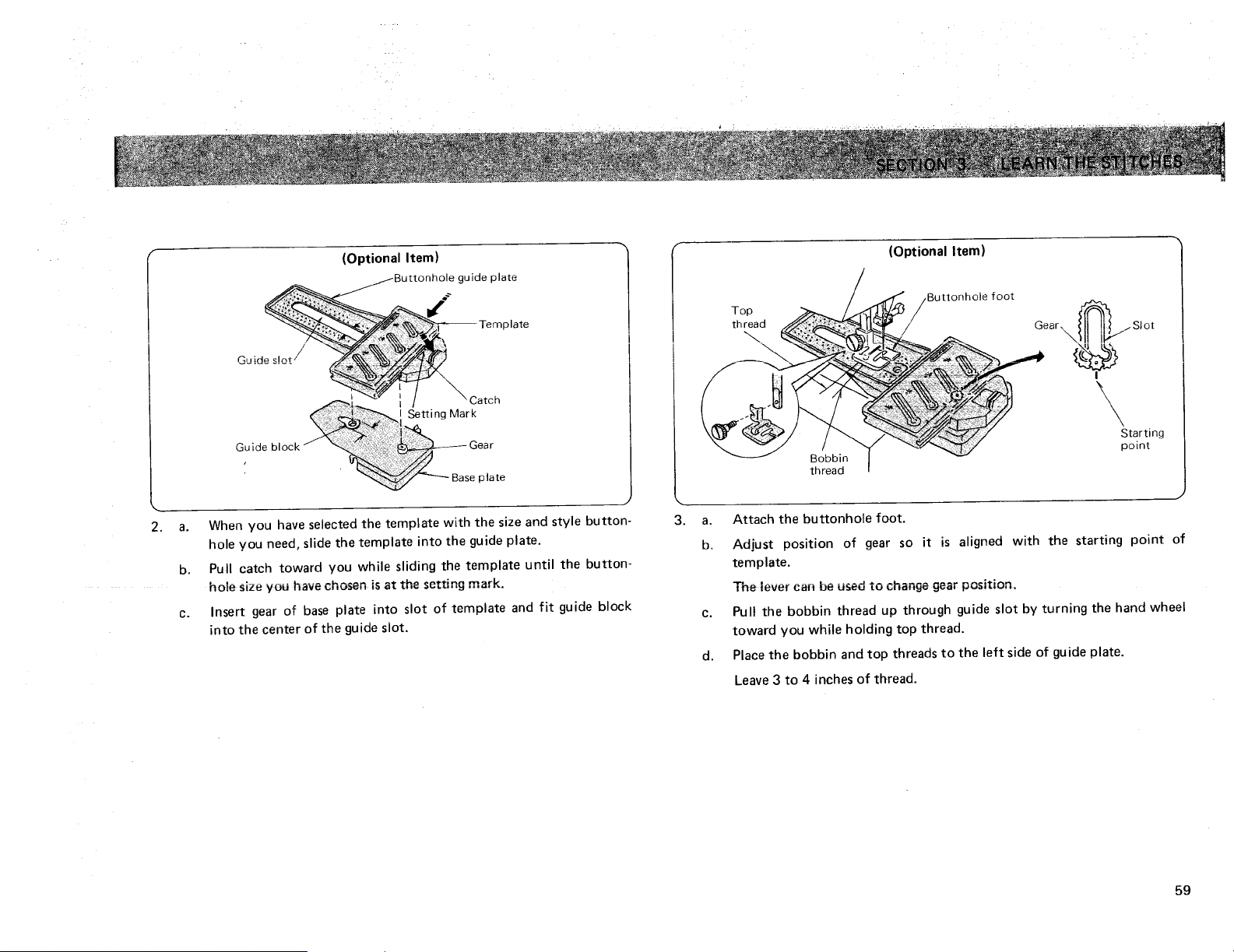

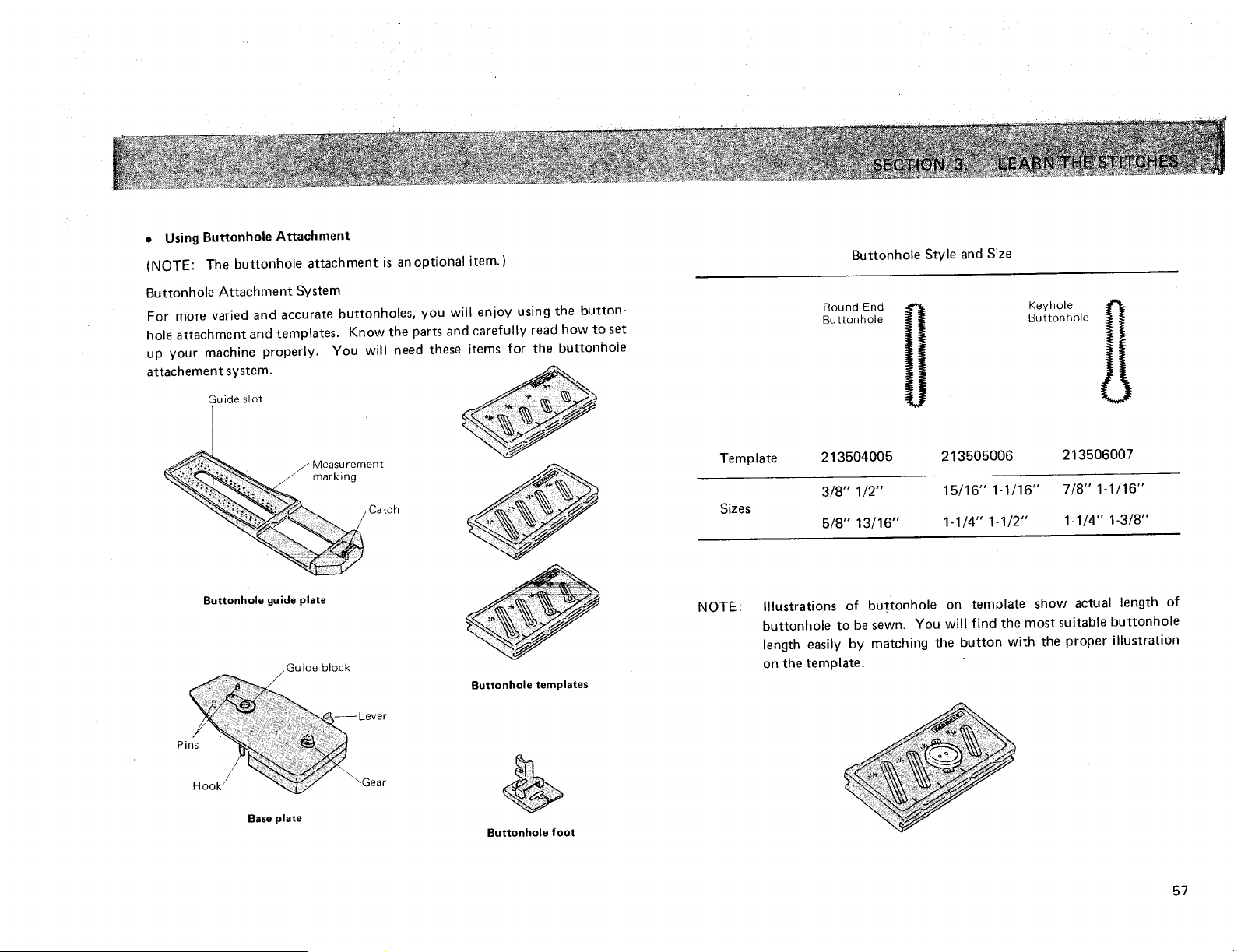

• Using Buttonhole Attachment (Optional Item) .... 57_60

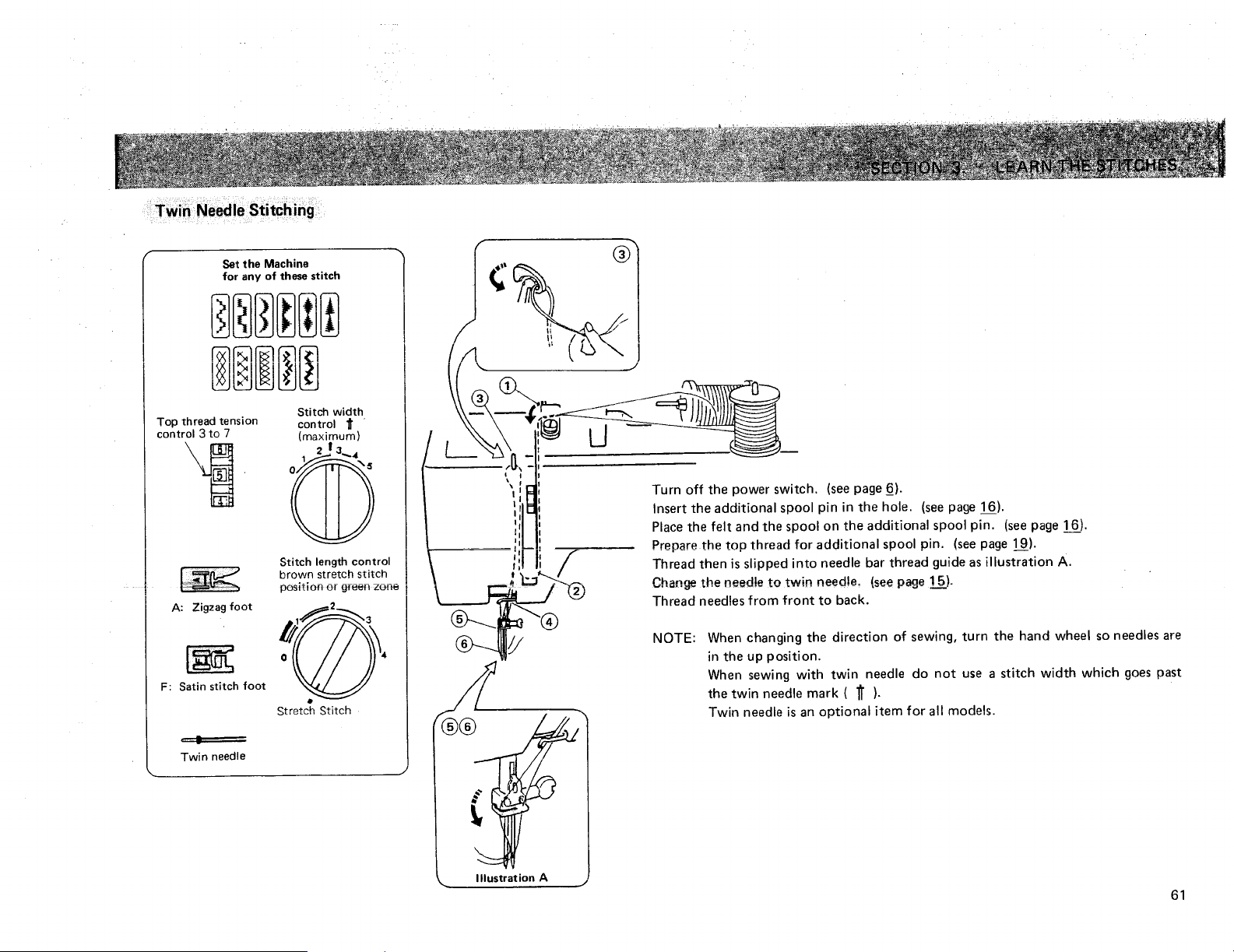

Twin Needle Stitches (Optional Item) .............. 61

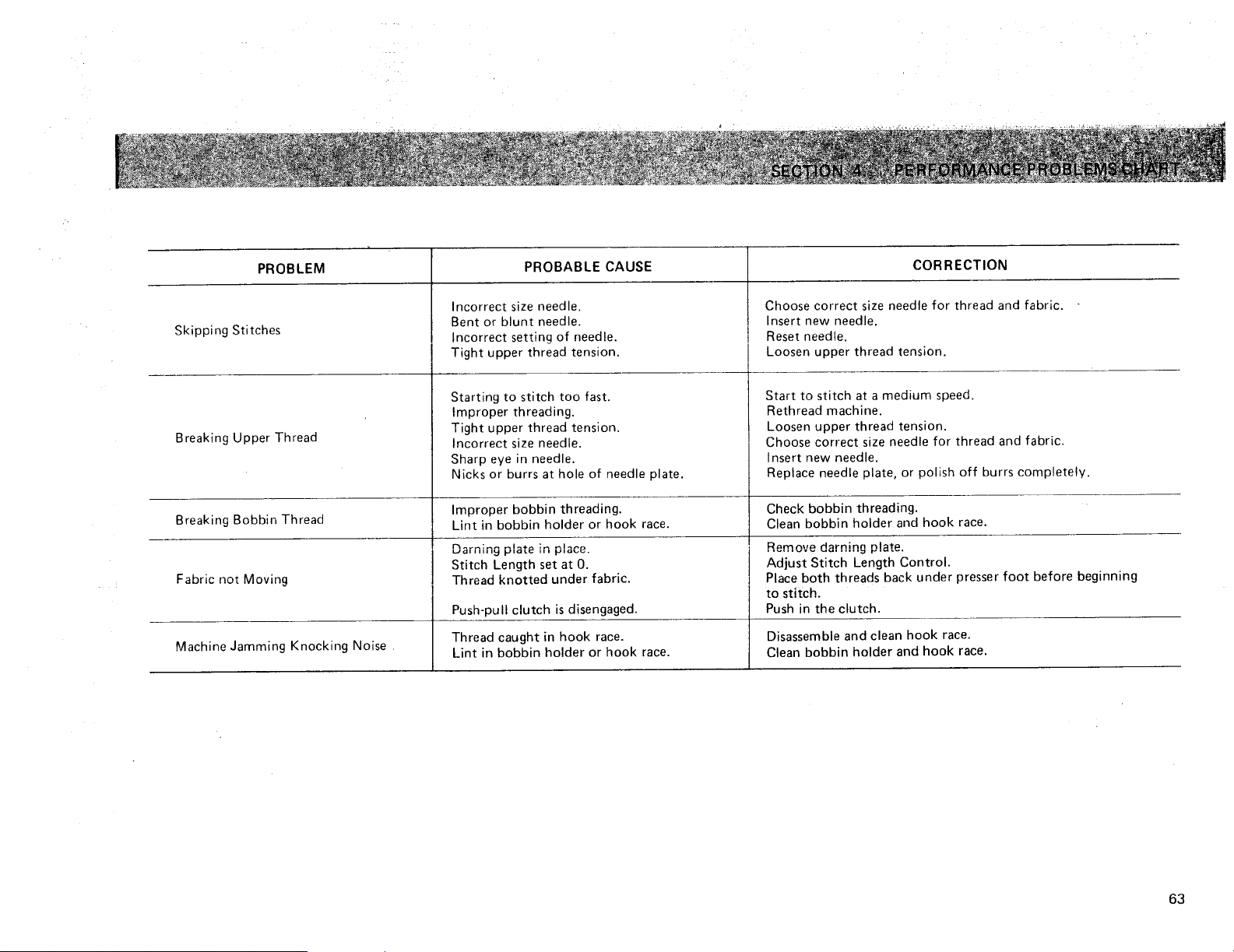

SECTION 4. PERFORMANCE PROBLESM CHART

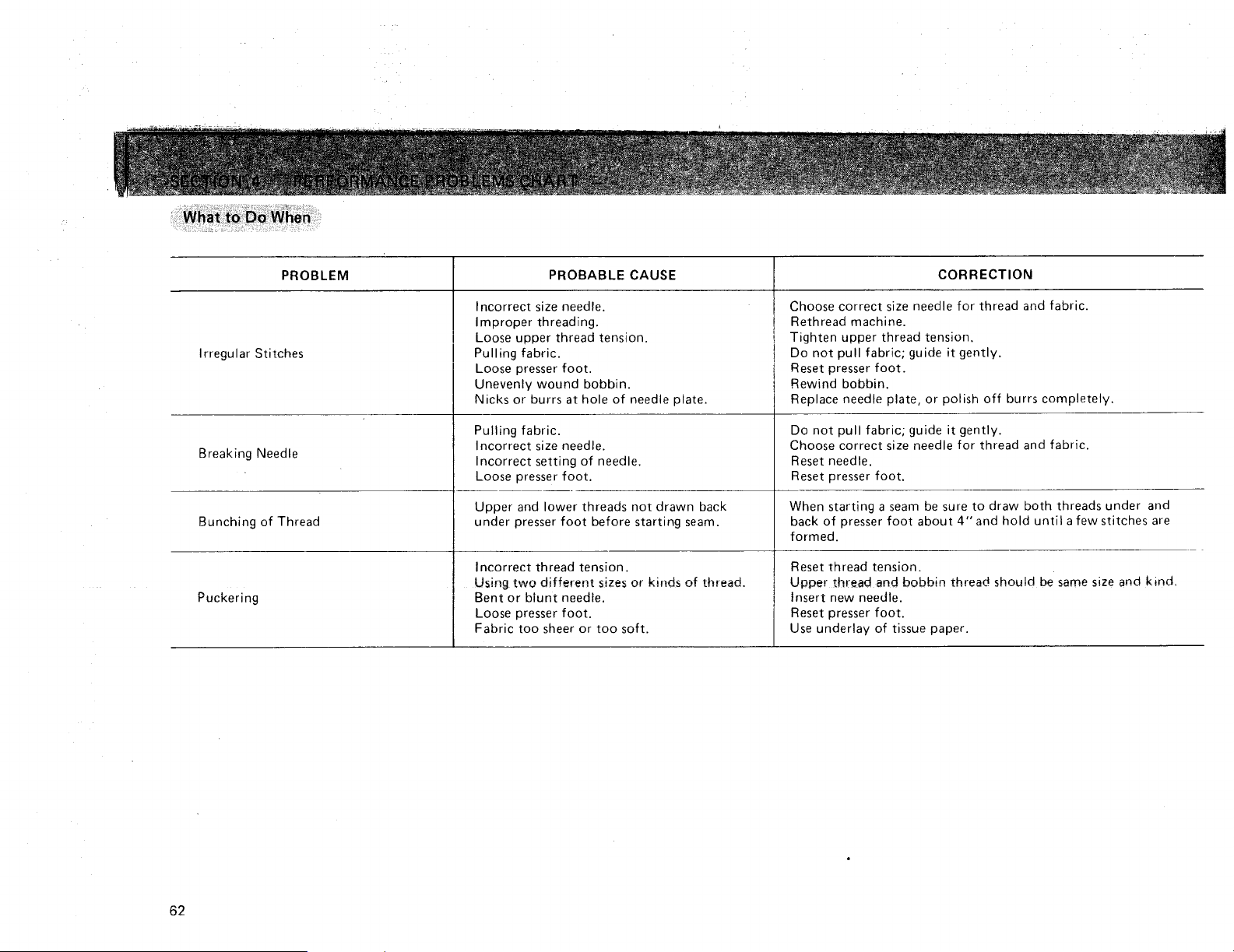

What to do When ......................... 62_63
SECTION 5. CARE FOR THE MACHINE
Replace the Light Bulb ....................... 64

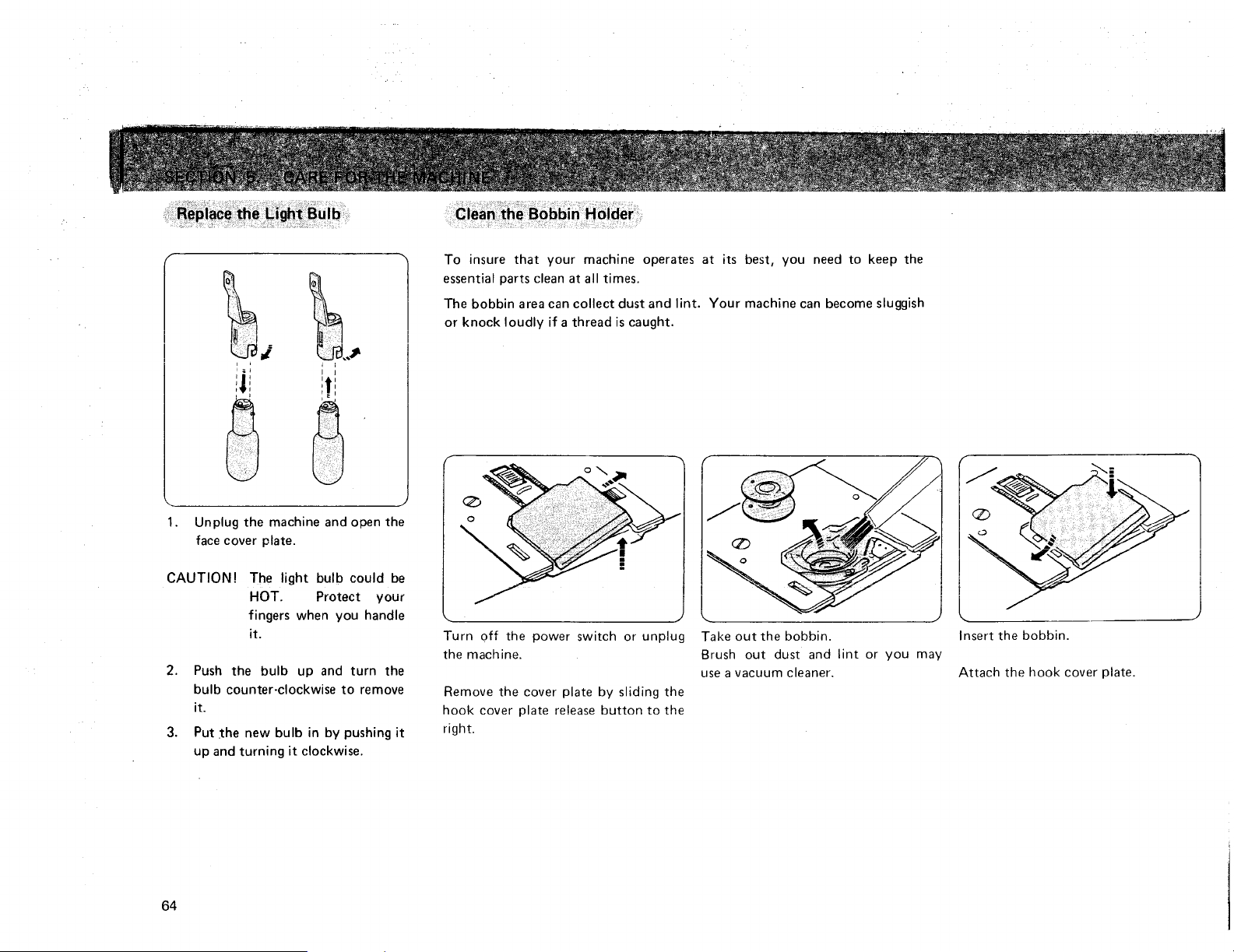

Clean the Bobbin Holder ...................... 64
Clean the Hook Race and Feed Dogs .............. 65
Oiling the Machine .......................... 65

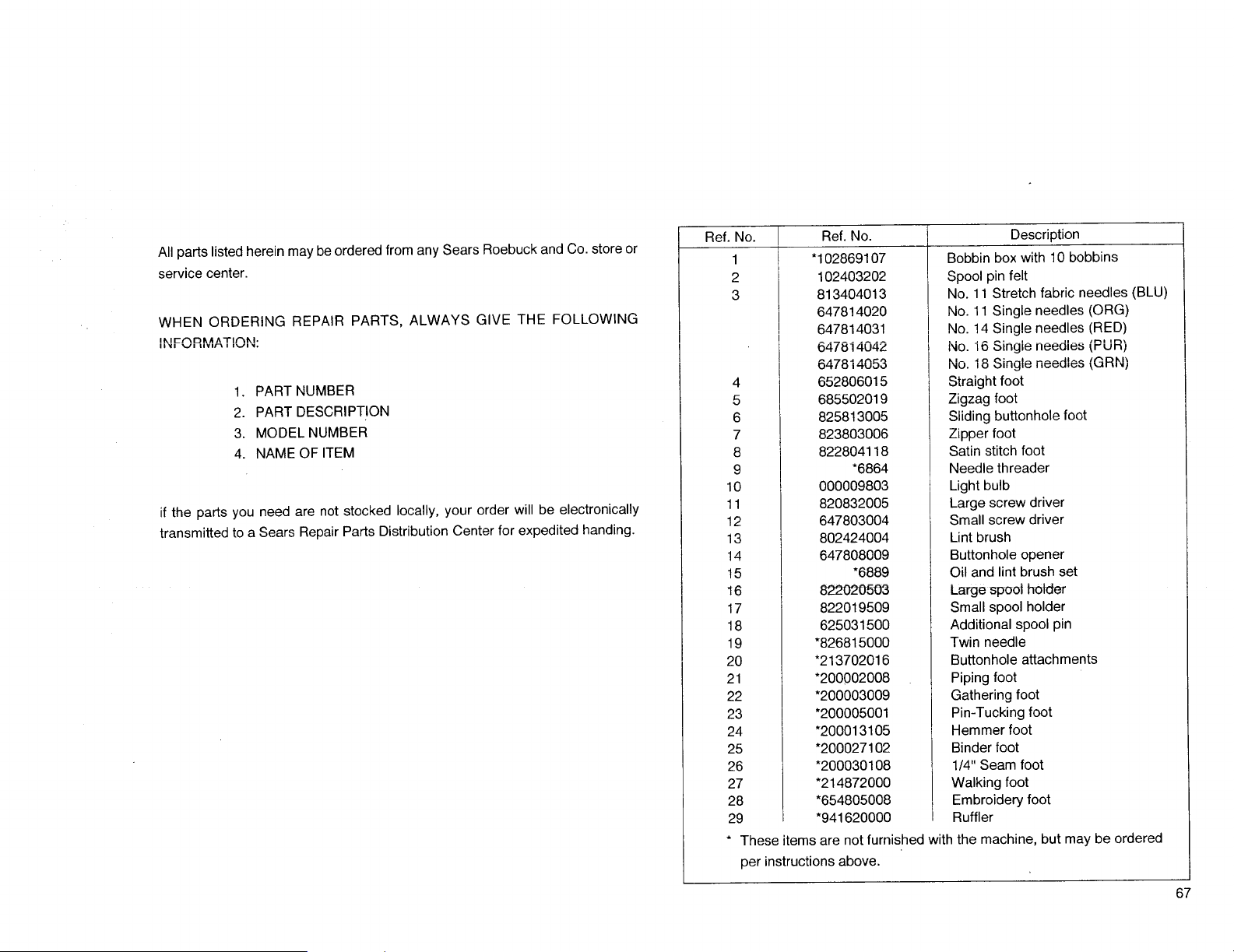

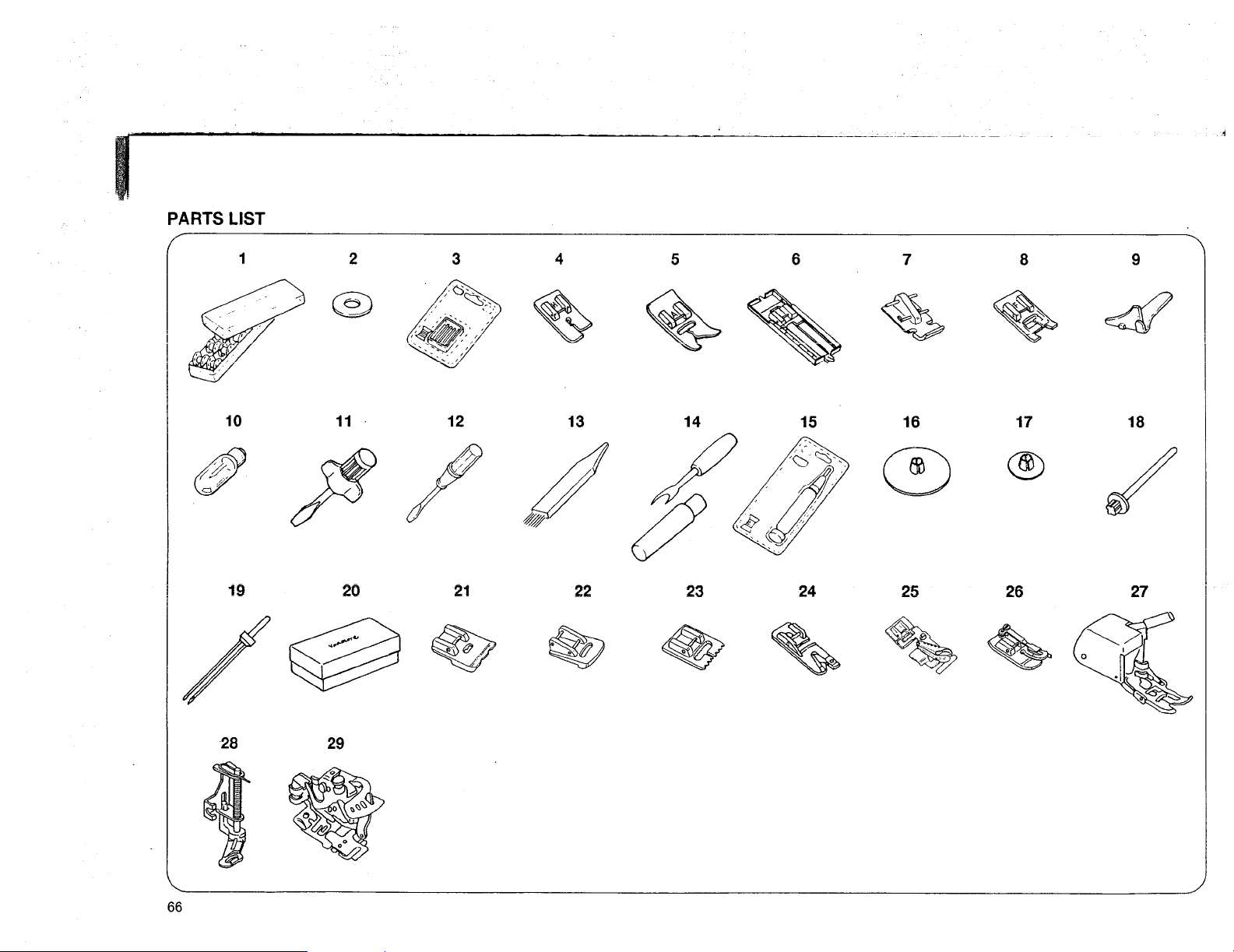

PARTS LIST ...................................... 66_67

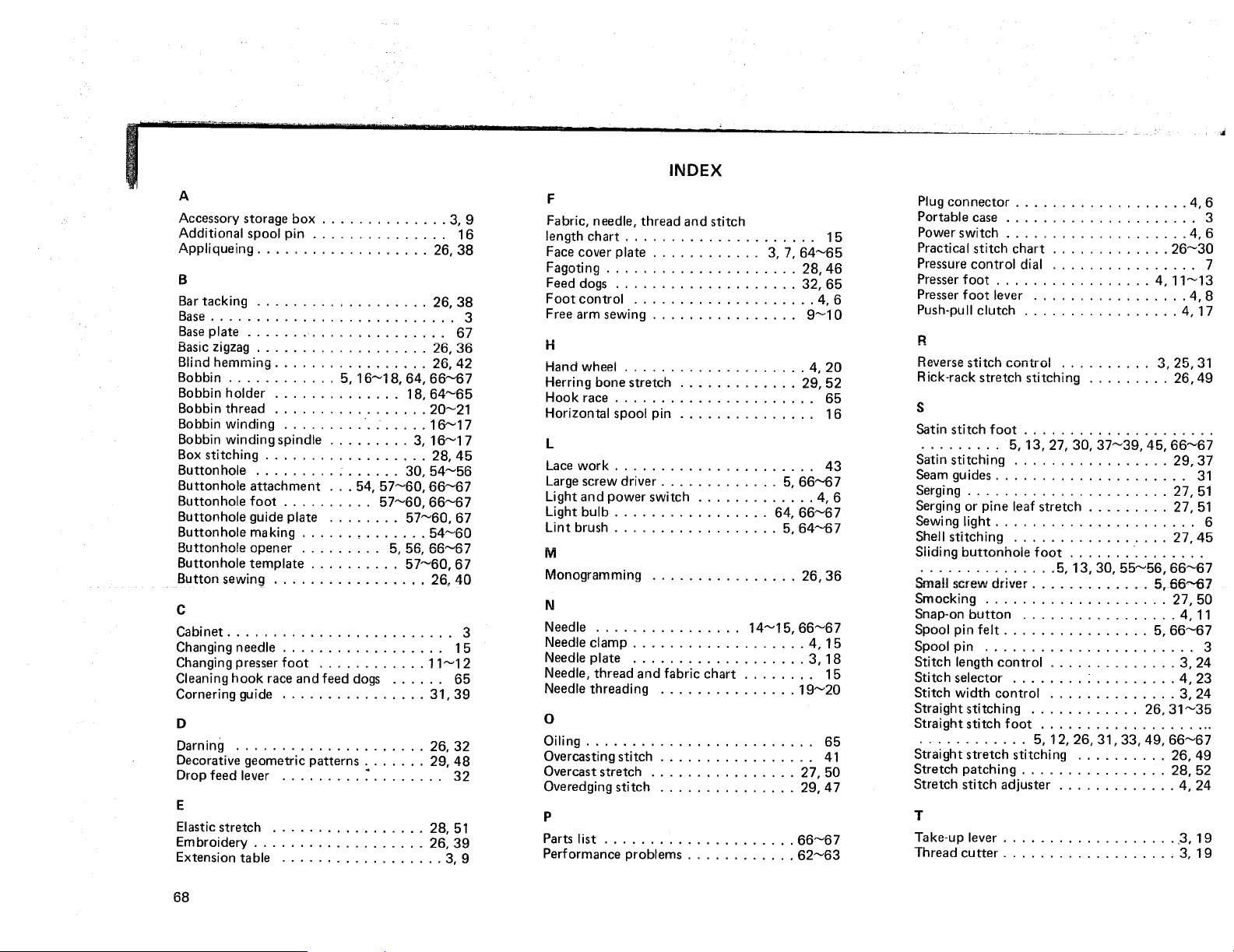

INDEX .......................................... 6B_69

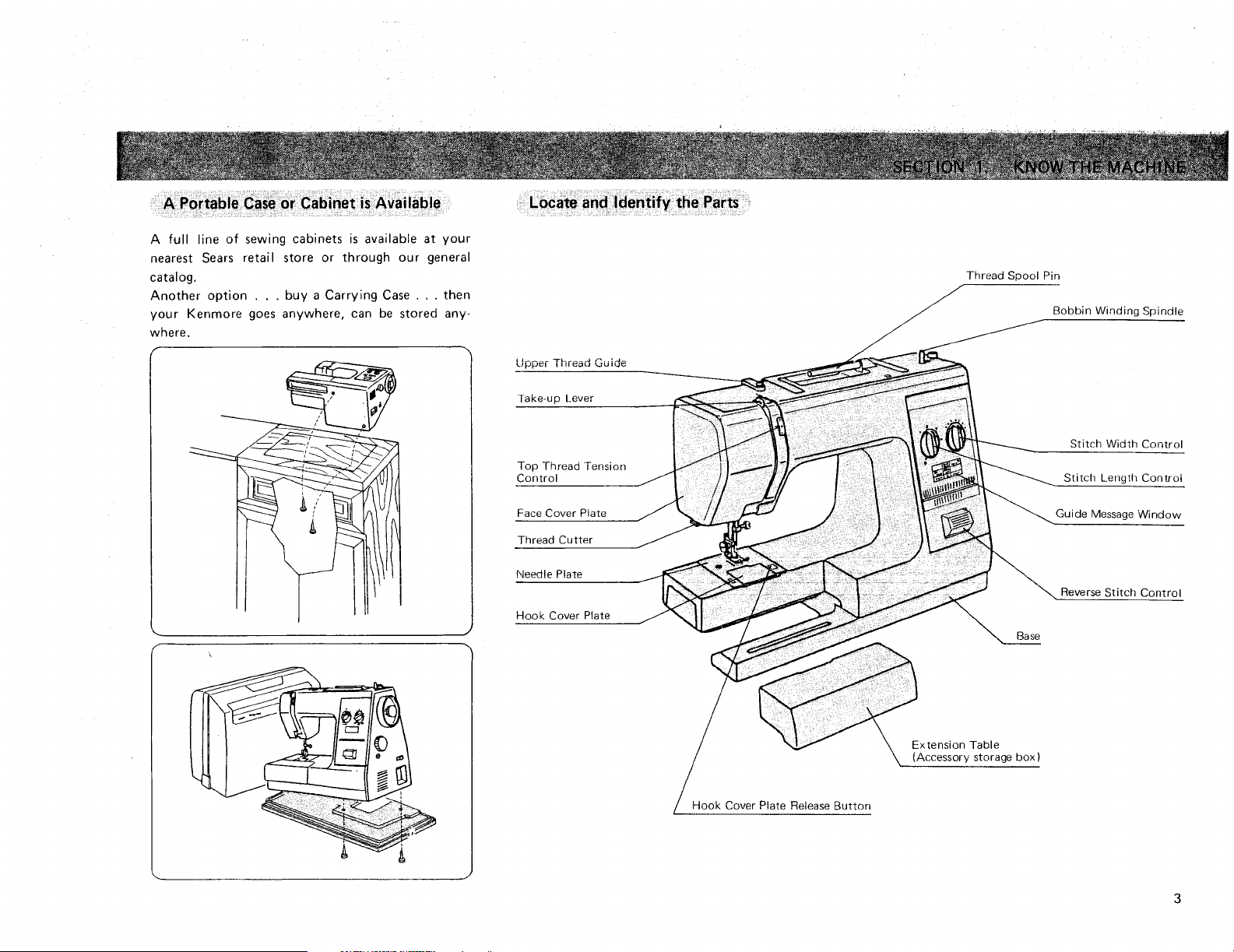

A full line of sewing cabinets is available at your
nearest Sears retail store or through our general
catalog.
Another option . . . buy a Carrying Case . . . then
your Kenmore goes anywhere, can be stored any-
where.
I I
I
J
Top Thread Tension
Control
Face Cover Plate
Thread Cutter
Needle Plate
Hook Cover Plate
Hook Cover Plate Release Button
Thread Spool Pin
Bobbin Winding Spindle
Stitch Width Control
Stitch Length Control
Guide Message Window
"_ Reverse Stitch
Control
Base
Extension Table
(Accessory storage box)
ArmCoverPlate
Hand Wheel
Push-Pull Clutch
Stitch Selector
Stretch Stitch Adjuster

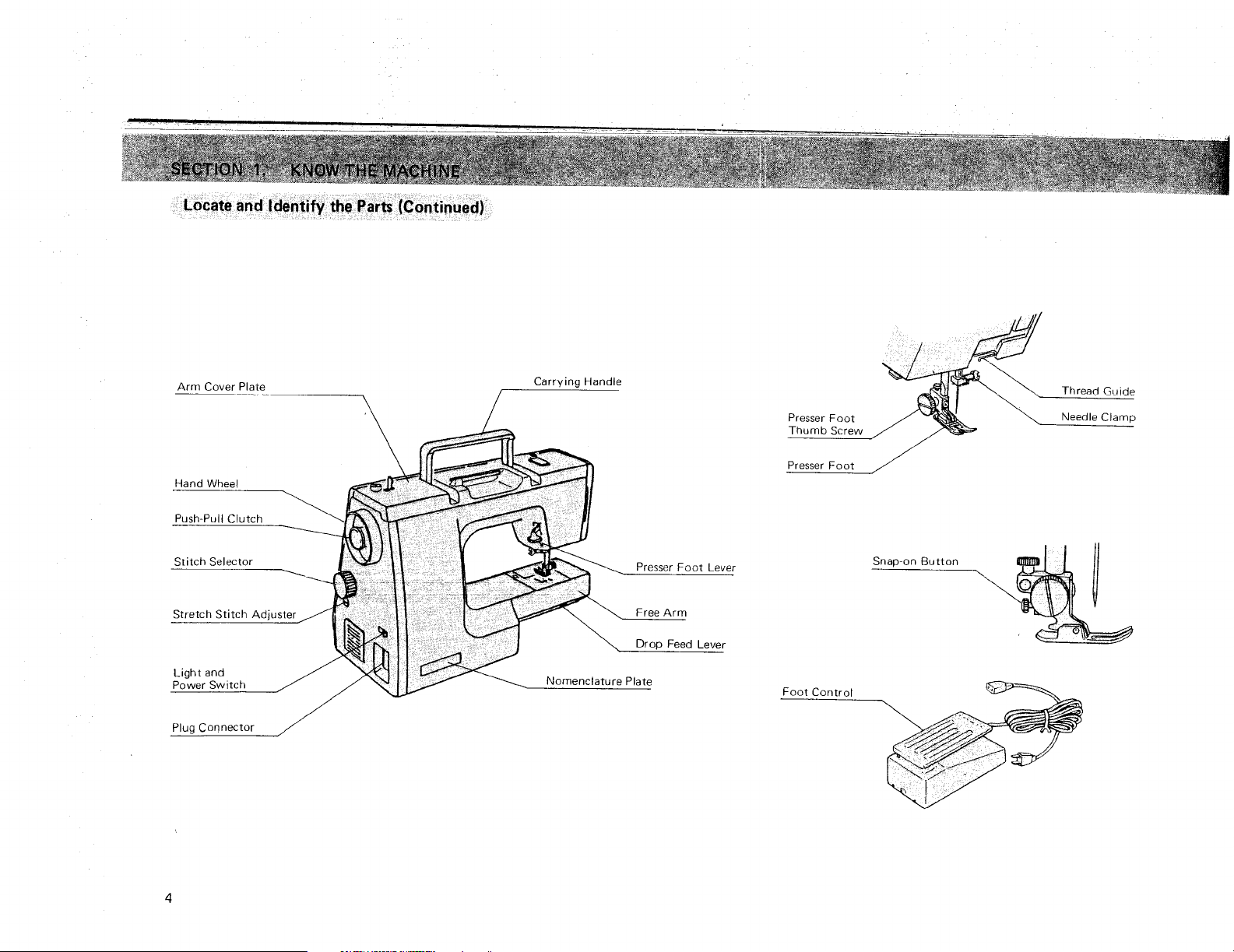

Light and
Power Switch
Plug Co0nector
Carrying Handle
Presser Foot Lever
Free Arm
Drop Feed Lever
Nomenclature Plate
Presser Foot
Thumb Screw
Presser Foot
Foot Control
Snap-on Button
Thread Guide
Needle Clamp
11
J/
V
Bobbin Buttonhole opener
Needle set
Lint brush
Large screw driver Small screw driver
Additional spool pin
>
Spool pin felt
Small spool holder
Large spool holder

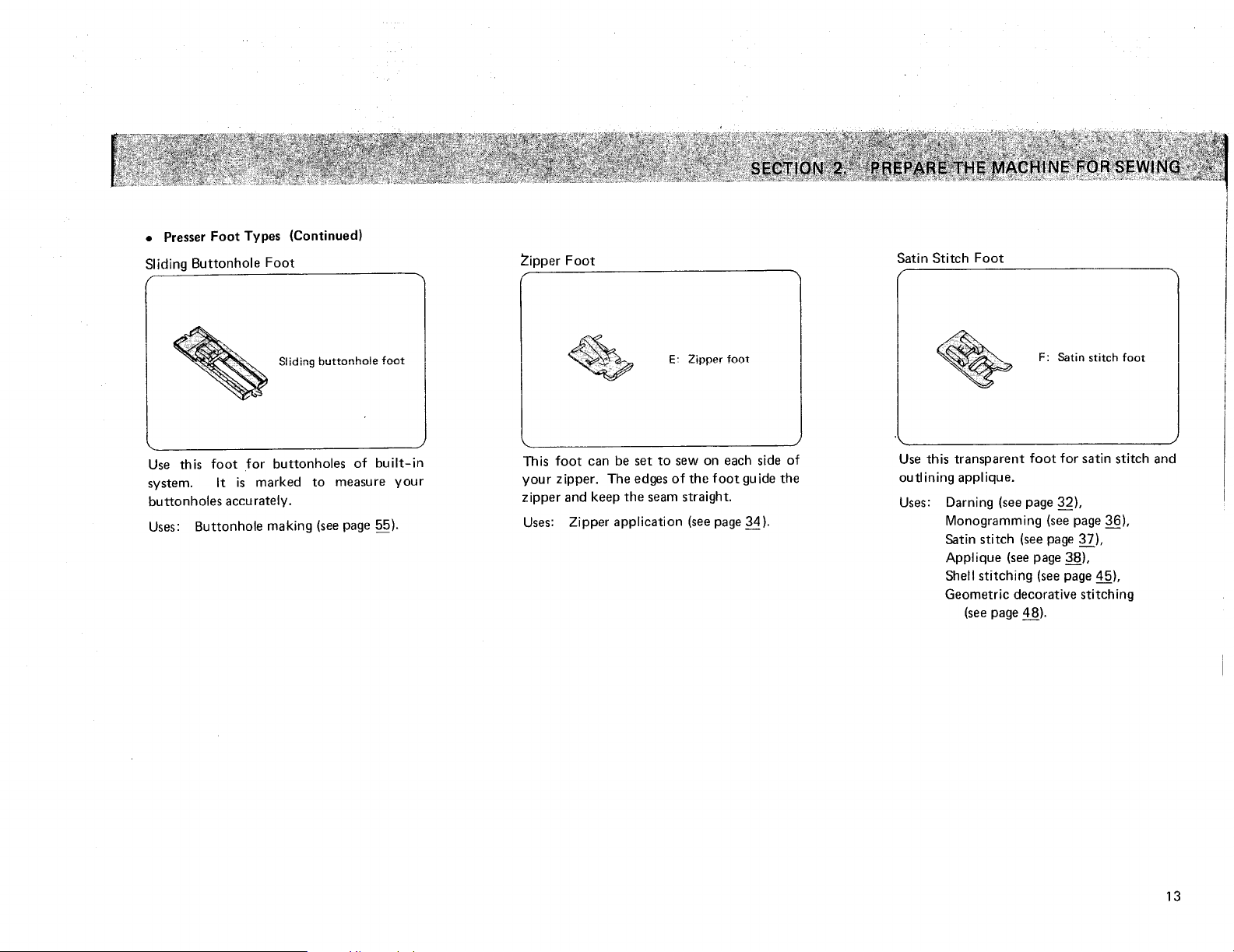

Zipper foot
Straight
stitch foot
Siiding
buttonhole foot
Satin stitch
foot

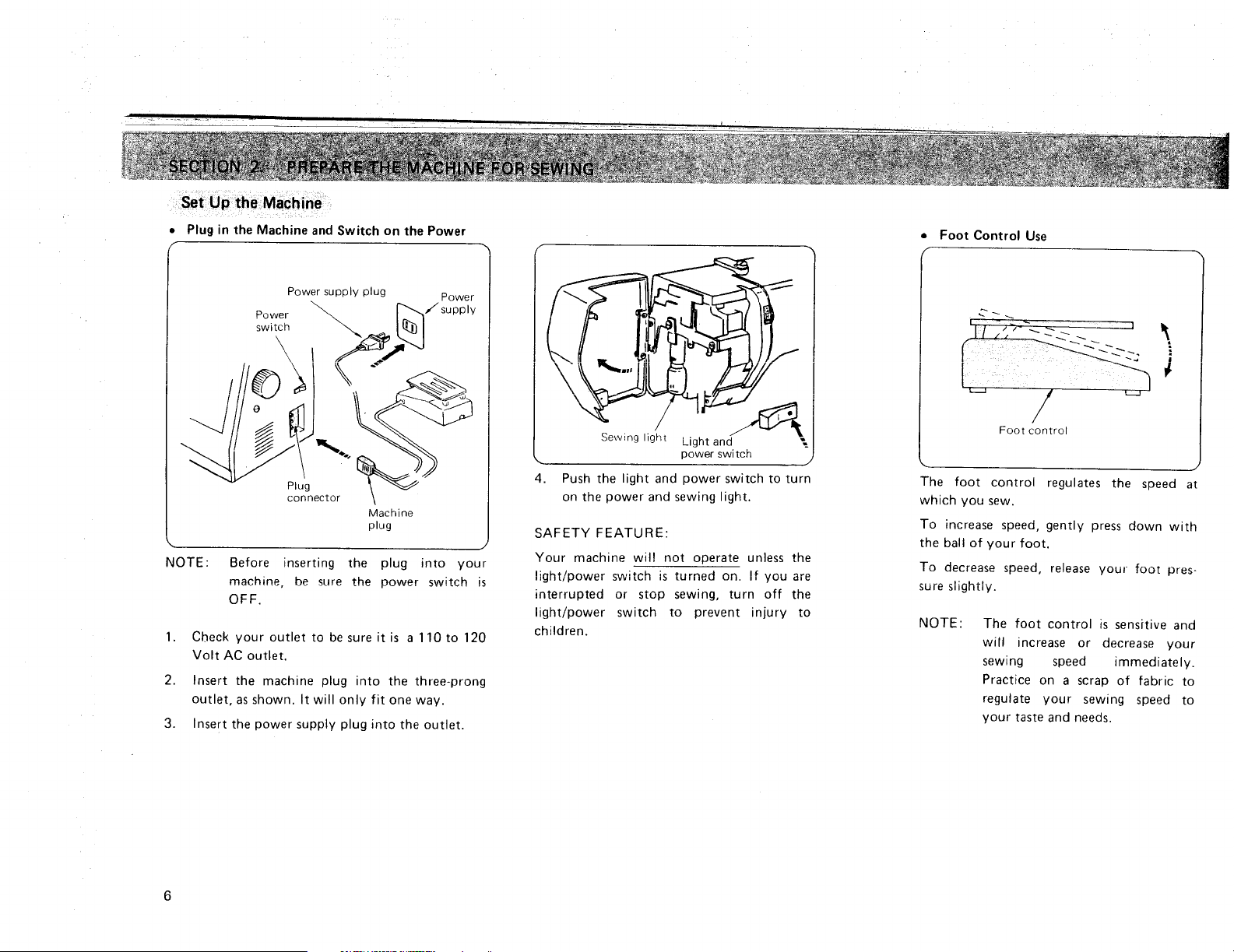

• Plug in the Machine and Switch on the Power
Power supply plug Power
NOTE:
Plug \
connector
Machine
plug
J
Before inserting the plug into your
machine, be sure the power switch is
OFF.
1. Check your outlet to be sure it is a 110to 120
Volt AC outlet.
2. Insert the machine plug into the three-prong
outlet, as shown. It will only fit one way.
3. Insert the power supply plug into the outlet.
4.
/
Sewing light Light and _1
power switch
J
Push the light and power switch to turn
on the power and sewing light.
SAFETY FEATURE:
Your machine wilt not operate unless the
light/power switch is turned on. If you are
interrupted or stop sewing, turn off the
light/power switch to prevent injury to
children.
• Foot Control Use
/
Foot control
The foot control
which you sew.
regulates the speed at
To increase speed, gently press down with
the ball of your foot.
To decrease speed, release your foot pres-
_Uli_ _llylltly,
NOTE:
The foot control is sensitive and
will increase or decrease your
sewing speed immediately.
Practice on a scrap of fabric to
regulate your sewing speed to
your taste and needs.

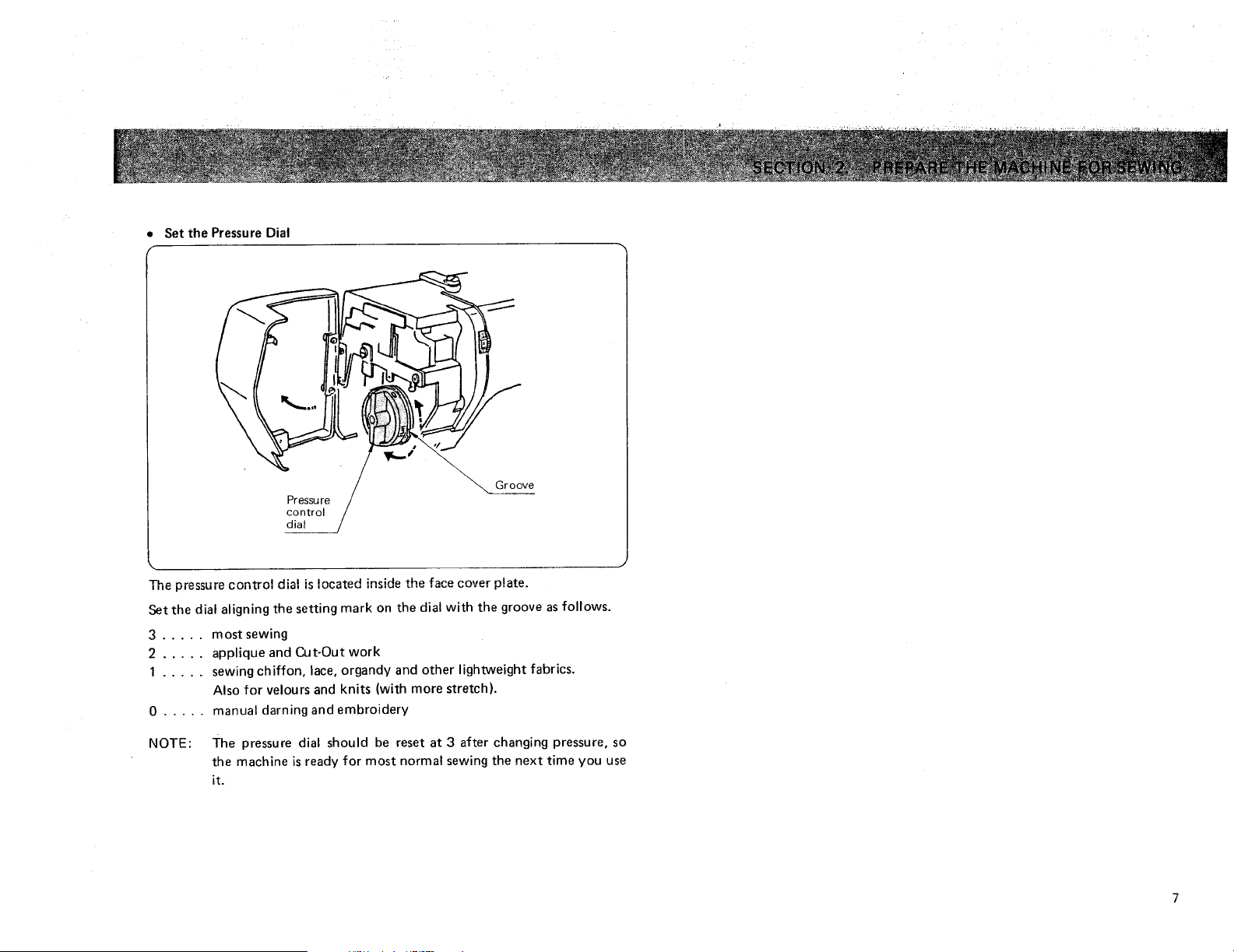

Set the Pressure Dial
Pressure
control
dial
Set the dial aligning the setting mark on the dial with the groove as follows.
3 .....
2 .....
1 .....
0 .....
most sewing
applique and Cut-Out work
sewing chiffon, lace, organdy and other lightweight fabrics.
Also for velours and knits (with more stretch).
manual darning and embroidery
NOTE: The pressure dial should be reset at 3 after changing pressure, so
the machine is ready for most normal sewing the next time you use
it.
Set Up the Machine (Continued)

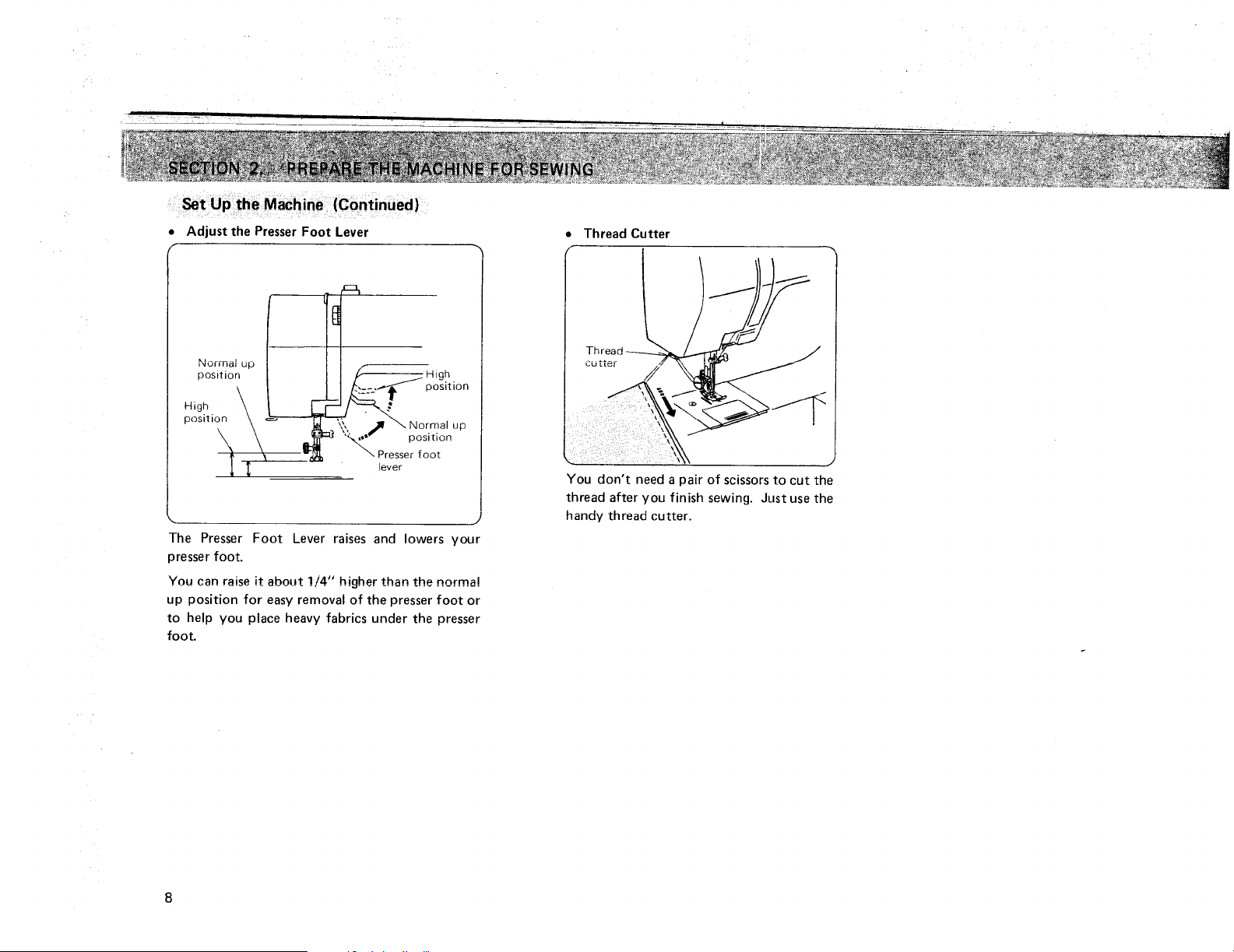

• Adjust the Presser Foot Lever
• Thread Cutter
,Normal up
position I J I F jHigh
\ | I I _-_ P°siti°n
position \ _--I-----rt--'r_',_ \
x \ _!_._._',?,. _ \ Normal up
\ X I_ "_t_" position
_ _ \ Presser foot
_ I lever
j
The Presser Foot Lever raises and lowers your
presser foot.
You can raise it ahnut !/4" higher than the normal
up position for easy removal of the presser foot or
to help you place heavy fabrics under the presser
foot.
J
You don't need a pair of scissors to cut the
thread after you finish sewing. Just use the
handy thread cutter.

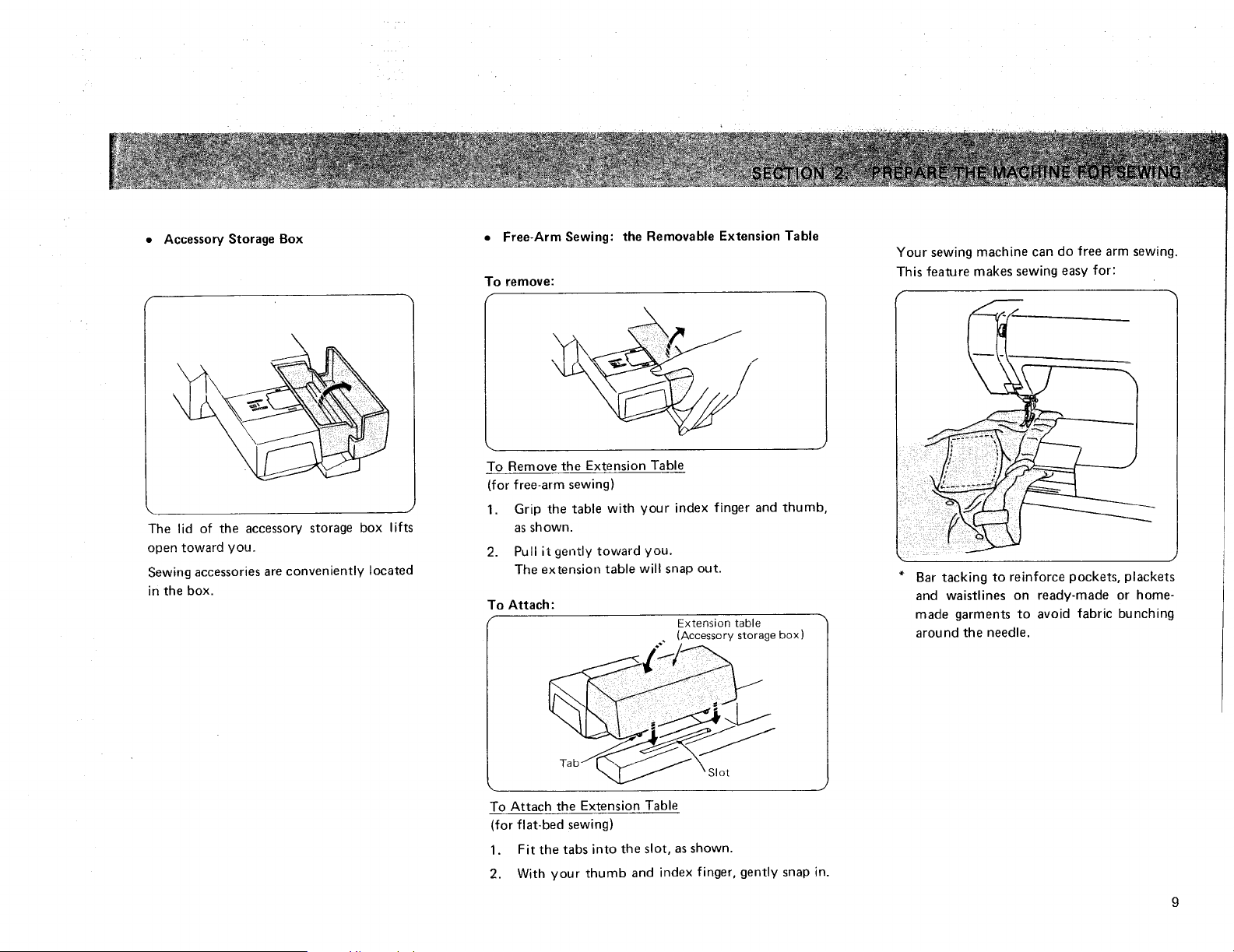

Accessory Storage Box
I
J
The lid of the accessory storage box lifts
open toward you.
Sewing accessories are conveniently located
in the box.
= Free-Arm Sewing: the Removable Extension Table
To remove:
f
To Remove the Extension Table
(for free-arm sewing)
1. Grip the table with your index finger and thumb,
as shown.
2. Pull it gently toward you.
The extension table will snap out.
To Attach:
Extension table
(Accessory storage box)
Slot
_. _,J
To Attach the Extension Table
(for flat-bed sewing)
1. Fit the tabs into the slot, as shown.
2. With your thumb and index finger, gently snap in.
Your sewing machine can do free arm sewing.
This feature makes sewing easy for:
!i:i!i¸!! ¸
* Bar tacking to reinforce pockets, plackets
and waistlines on ready-made or home-
made garments to avoid fabric bunching
around the needle.
4
Stitching sleeves, waistbands, pants legs,
or any circular garment area.
.............. _E
Darning socks or mending knees, elbows,
or areas of wear in children's clothes.
_J L
Sewing bu_ons on sleeves, wd _Lud d_,
etc.
10
• Check the PresserFoot
The Presser feet are an important feature of this machine. You need to know
what each foot does in order to use them effectively.
Your presser foot is held in place by a Foot Holder. Each presser foot merely
snaps on the foot holder, which is seldom removed.
If you need to remove or attach the foot holder, here is what you do:
• Change the Presser Foot
Use the correct presser foot for the stitch you wish to sew. Consult the
Stitch Pattern Chart and the detailed directions for sewing with the various
presser feet.
To Remove:
Foot
holder
screw
To Attach:
" Presser bar _"_T' t
_ I_
N. J "_,
To Remove: To Attach:
Turn the screw toward the back of 1. Match
the machine. Use the large screw
driver.
2.
3.
the hole in the foot
holder with the threaded hole in
the presser bar.
Fit the foot holder screw into
the hole.
Tighten the screw by turning it
toward you.
To Snap Off:
f
k__
/
f
Snap-on
butt on
To Snap Off the Presser Foot:
1. Raise the needle bar to its highest position by turning the hand wheel
toward you.
2. Raise the presser foot.
3. Press the snap-on button on the back of the foot holder. The presser
foot will drop off.
11

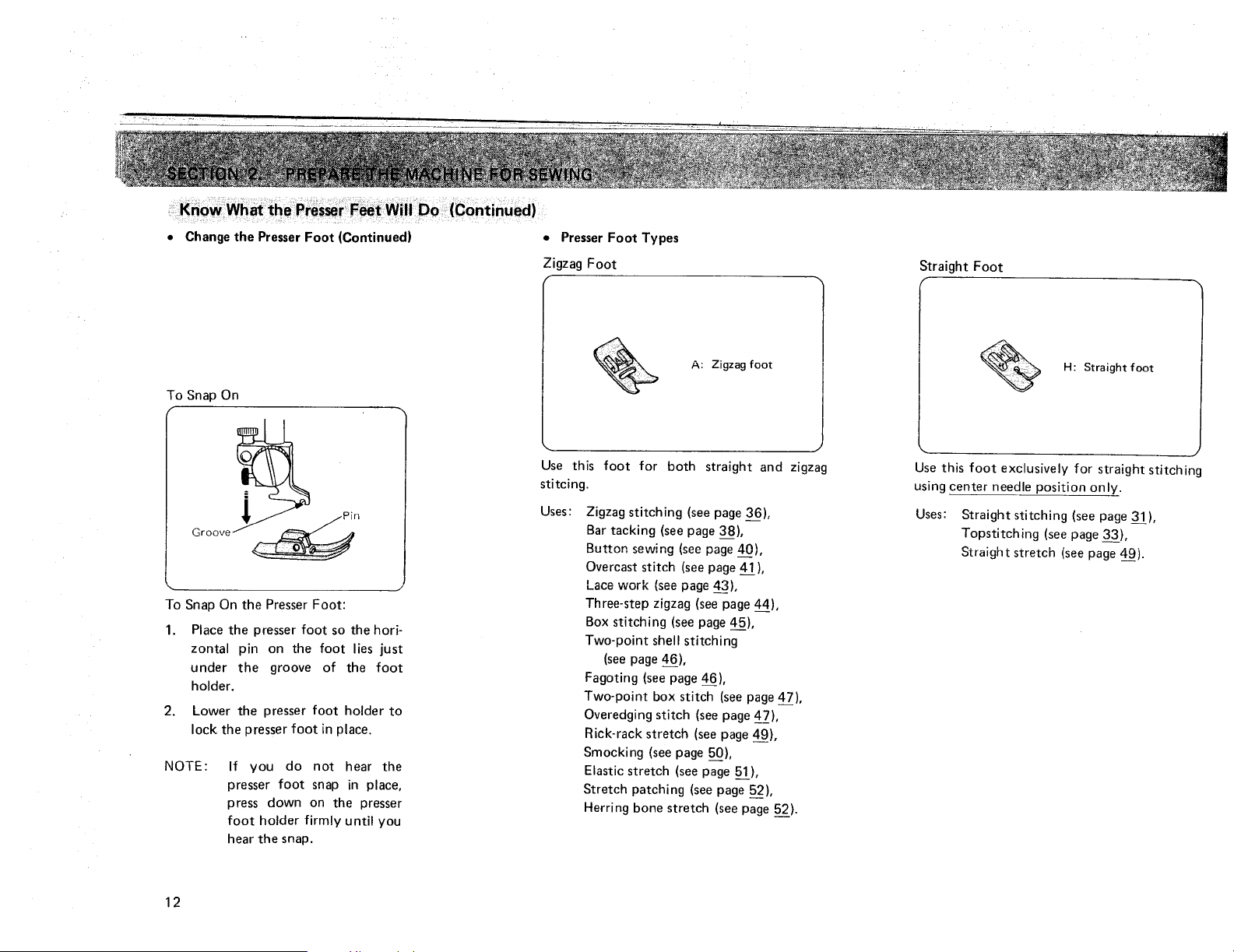

• Change the Presser Foot (Continued)
To Snap On
f
2.
To Snap On the Presser Foot:
1. Place the presser foot so the hori-
zontal pin on the foot lies just
under the groove of the foot
holder.
Lower the presser foot holder to
lock the presser foot in place.
NOTE: If you do not hear the
presser foot snap ill place,
press down on the presser
foot holder firmly until you
hear the snap.
12
• PresserFoot Types
Zigzag Foot
A: Zigzag foot
Use this
stitcing.
[
foot for both straight and zigzag
Uses: Zigzag stitching (see page 3_6),
Bar tacking (see page 3_88),
Button sewing (see page 40),
Overcast stitch (see page 41),
Lace work (see page 4_33),
Three-step zigzag (see page 44),
Box stitching (see page 4_55),
Two-point shell stitching
(see page 466),
Fagoting (see page 46),
Two-point box stitch (see page 4_7),
Overedging stitch (see page 4__]7),
Rick-rack stretch (see page 4__9_9),
Smocking (see page 50),
Elastic stretch (see page 5_11),
Stretch patching (see page 52),
Herring bone stretch (see page 5_22).
Straight Foot
% H: Straight foot
Use this foot exclusively for straight stitching
using center needle position only.
Uses: Straight stitching (see page 311),
Topstitching (see page 33),
Straigh t stretch (see page 49).
• Presser Foot Types (Continued)
Sliding Buttonhole Foot
I
Sliding buttonhole foot
Use
system. It is marked
buttonholes accurately.
1
I
J
this foot for buttonholes of built-in
to measure your
Uses: Buttonhole making (see page 55).
:Zipper Foot
I _ E: Zipper foot
This foot can be set to sew on each side of
your zipper. The edges of the foot guide the
zipper and keep the seam straight.
Uses: Zipper application (see page 34).
Satin Stitch Foot
Use this transparent foot for satin stitch and
outlining applique.
Uses:
Darning (see page 3_2),
Monogramming (see page 3__66),
Satin stitch (see page 3_7),
Applique (see page 3__88),
Shell stitching (see page 4___55),
Geometric decorative stitching
(see page 4__88).
13
Choose _e Needle and Thread
j
Your choice of needle and thread depends on the fabric you are sewing.
In the needle case, you will find the following color-coded needles:
Blue (1 1) ............ for stretch fabrics
Orange (11 ) .......... for lightweight fabrics
Red (14) ............ for medium or medium-heavy weight fabrics
Purple (16) .......... for medium-heavy weight and decorative
topstitching on these fabrics
(This needle has a larger thread hole for
thicker topstitching thread.)
Green (18) .......... for heavy weight fabrics and decorative top-
stitching on these fabrics
• Check the Needle
1. Look for barbed or blunt point.
2. A damaged needle can cause permanent snags or runs in knits, fine silks
and silk-like fabrics.
Always buy a good quality thread. It should resist tangling and be strong,
smooth and consistent in thickness.
14
Fabric, Needle, Thread and Stitch Length Chart
FABRIC
Lightweight:
Batiste, Dimity, Chiffon,
Silks, Fine Lace, Organza,
Crepe, Taffeta, Voile,
Or9andy
Medium Weight:
Cotton, Cotton Blends,
Percale, Gingham,
Shantung, Pique,
Seersucker, Satin, Knits,
Suitings, Linen,
Wool Crepe, Leather
Medium Heavy Weight:
Corduroy, Denim, Wool,
Sailcloth, Wool Flannel,
Gabardine, Velvets,
Leather
Heavy Weight:
Coatings, Upholstery
Cotton Duck, Heavy
Twills, Canvas
Decorative top-stitching
on all types of fabric
Stretch Fabric:
Polyester Double Knits,
Nylon Tricot, Jersey,
Stretch Terry, Spandex,
Cire Tricot
NEEDLE
SIZE AND
COLOR
11-ORANGE
14-RED
14-RED
or
16-PURPLE
16-PURPLE
!8 GREEN
16-PURPLE
18-GREEN
11-BLUE
(STRETCH
FABRIC
NEEDLE)
THREAD SIZE
Polyester Core/Cotton
Wrap
Fine Mercerized Cotton
Silk A
50 Mercerized Cotton
Polyester Core/Cotton
Wrap
Silk A
50 Mercerized Cotton
Mercerized Heavy-Duty
Polyester Core/Cotton
Wrap
Silk A
Heavy Duty Mercerized
Cotton
I Polyester Core/Cotton
Wrap
Silk A
Buttonhole Twist
(Use as top thread only)
Polyester Core/Cotton
Wrap
50 Mercerized Cotton
I
I
RECOMMENDED
STITCH LENGTH
SETTING
2
(12 stitches per
inch)
2--2.5
(10-12 stitches
per inch)
2--3
(8-10 stitches
per inch)
3
(8 stitches per
inch)
3--4
(6-8 stitches
per inch )
2--2.5
(10-12 stitches
per inch)
To Change the Needle
i f /
Flat
side
away
from
you
Needle clamp, screw
NOTE: Raise the needle bar to its highest posi-
tion by turning the hand wheel toward
you.
1. Loosen the needle clamp screw by turning it
toward you.
2. Remove the needle by pulling it downward.
3. Insert the new needle into the needle clamp
with the flat side away from you.
4. Push the needle up as far as it will go.
5. Tighten the needle clamp screw firmly with the
large screwdriver from your accessory storage
box.
15
• To Remove the Bobbin from the Machine
[
(_) Remove
sliding the hook cover plate
release button to the right.
the cover Plate by (_ Take out the bobbin.
• Horizontal Spool Pin
[
Ordinary Spool
Small Spool
Tilt up the spool pin. Place the spool of
thread on the spool pin with the thread
coming off the spool as shown.
Attach the large spool holder pressing it
firmly against the thread spool.
• The small spool holder is used with
narrow or small thread spools.
• Additional Spool Pin
I
I
J
The additional spool pin is used to wind
extra bobbins without unthreading the
machine.
To use, insert the additional spool pin in the
hole. Place the felt and the spool on the pin.
16

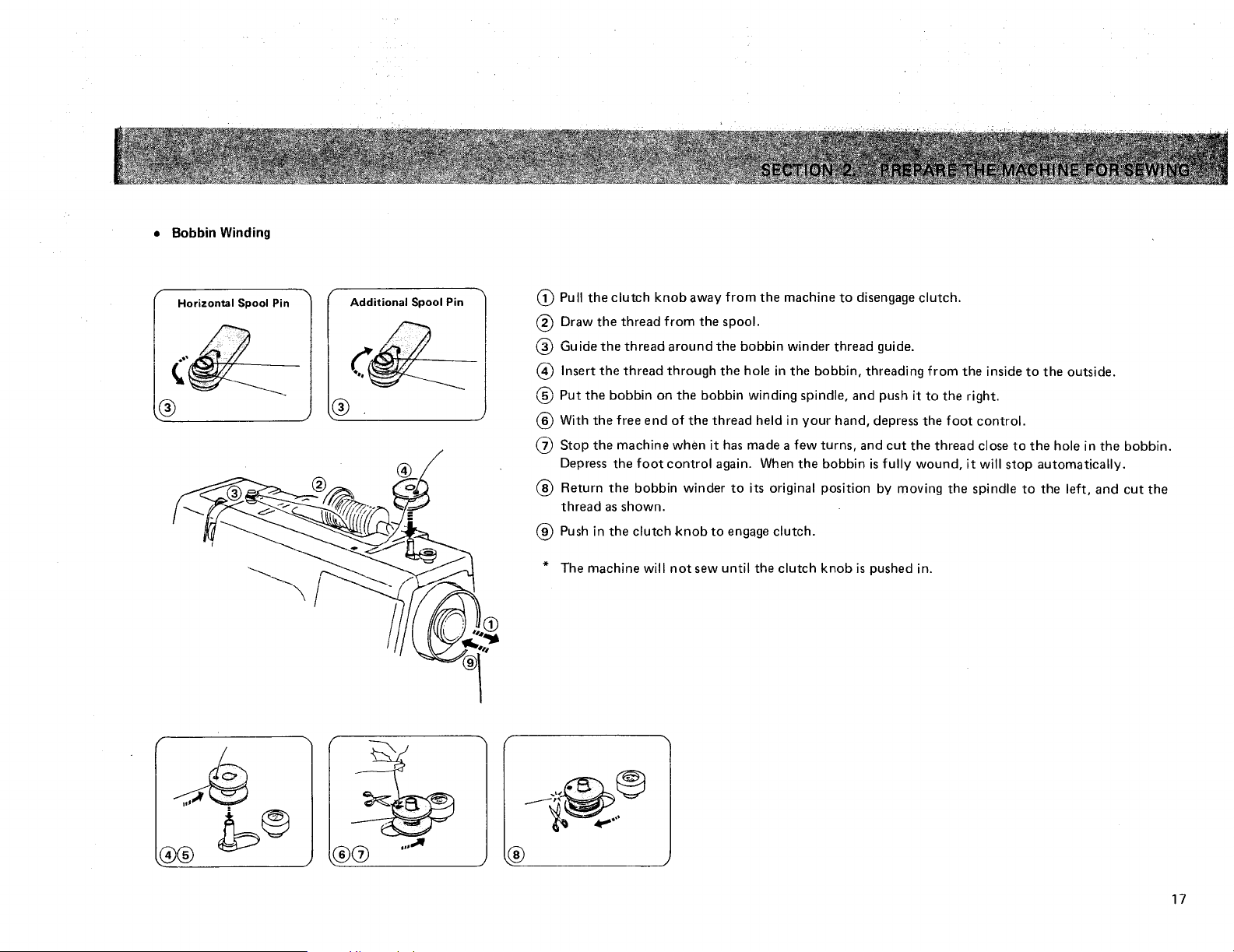

• Bobbin Winding
f
I Horizontal Spool Pin
I
f
Additional Spool Pin
®
Pull the clutch knob away from the machine to disengage clutch.
(_ Draw the thread from the spool.
Guide the thread around the bobbin winder thread guide.
(_) Insert the thread through the hole in the bobbin, threading from the inside to the outside.
_j Put the bobbin on the bobbin winding spindle, and push it to the right.
(_) With the free end of the thread held in your hand, depress the foot control.
(_ Stop the machine when it has made a few turns, and cut the thread close to the hole in the bobbin.
Depress the foot control again. When the bobbin is fully wound, it will stop automatically.
(_) Return the bobbin winder to its original position by moving the spindle to the left, and cut the
thread as shown.
(_ Push in the clutch knobto engage clutch.
The machine will not sew until the clutch knob is pushed in.
F
17
• Insert the Bobbin into the Bobbin Holder
J
1. Put the bobbin into the bobbin
holder so that the thread feeds
counter-clockwise (left).
2. Pull about 4 inches of thread
toward you through the tension
slot _.
3.
J
Then pull the thread clockwise
toward the back of the machine
through the slot (_) .
/
4. Pull out about 1 5 cm (6") of thread
and attach the hook cover plate.
18
Prepare the Top Thread
• Thread the Needle
The numbered steps above follow the numbers
on the illustrations.
Dotted lines show places where the thread
loops and then is pulled tight.
I
I 1
Raise the take-up lever to its highest position by turning the hand wheel toward you.
Raise the presser foot lever.
Place the spool on the spool pin as shown, with thread coming from the back of the spool.
1. Draw thread into thread guide using both hands.
2. While holding thread near spool, draw thread down into the tension area and then around the check
spring holder.
3. Firmly draw thread up and through take-up lever from right to left.
4. Draw thread down and slip it through the thread guide.
5. Thread then is slipped into needle bar thread guide.
6. Thread needle from front to back.
NOTE: Cut the end of the thread with sharp scissors for easier needle threading.:
19
Prepare the Top Thread (Continued)

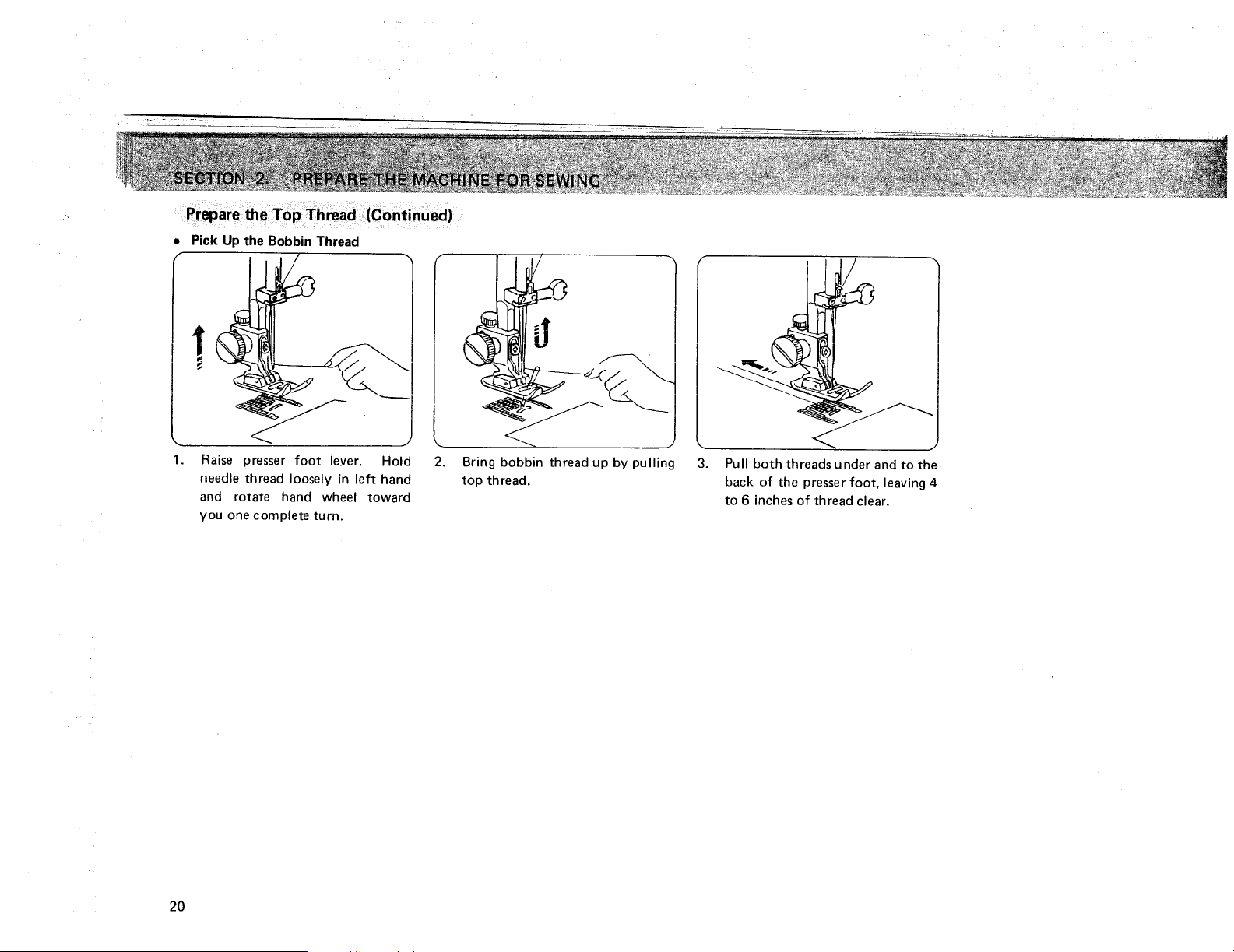

• Pick Up the Bobbin Thread
1. Raise presser foot lever. Hold 2. Bring bobbin thread up by pulling 3. Pull both threads under and to the
needle thread loosely in left hand top thread, back of the presser foot, leaving 4
and rotate hand wheel toward to 6 inches of thread clear.
you one complete turn.
20

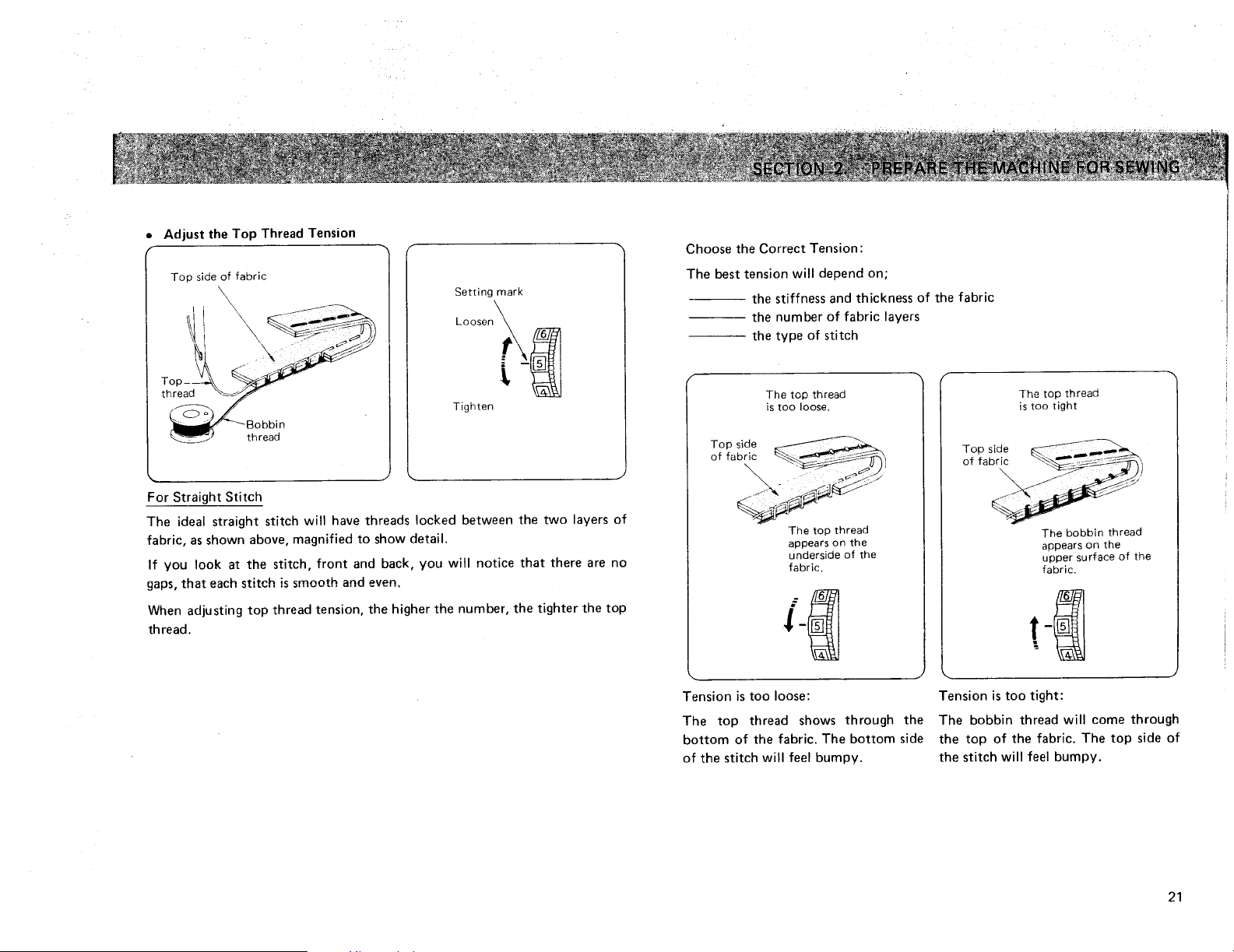

• Adjust the Top Thread Tension
III
Top side_f fabric
Top-
thread
obbin
thread
Setting mark
Tighten
For Straight Stitch
The ideal straight stitch will have threads locked between the two layers of
fabric, as shown above, magnified to show detail.
If you look at the stitch, front and back, you will notice that there are no
gaps, that each stitch is smooth and even.
When adjusting top thread tension, the higher the number, the tighter the top
th read.
Choose the Correct Tension :
The best tension will depend on;
the stiffness and thickness of the fabric
the number of fabric layers
the type of stitch
Top side
of fabric
The top thread
is too loose,
The top thread
appears on the
underside of the
fabric.
Tension is too loose:
The top thread shows through the
bottom of the fabric. The bottom side
of the stitch will feel bumpy.
The top thread
is too tight
o taS ' 1e
The bobbin thread
appears on the
upper surface of the
fabric.
Tension is too tight:
The bobbin thread will come through
the top of the fabric. The top side of
the stitch will feel bumpy.
21
For Zigzag Stitch
In the correct zigzag stitch, the bobbin threads will not show on the top side
of fabric and the top threads will show slightly on the bottom side. See
below for the correct appearance. To match this appearance, adjust the top
tension.
Top tension Top tension
Too Tight Too Loose Just Right
Top side of Fabric
Bottom side of Fabric
Too Tight:
Top side of Fabric
Top side of Fabric
-- Corner of each
zigzag will pull
together on the
top side of fabrics.
22
Bottom side of Fabric
Too Loose:
-- The top thread
will loop through
bottom side of
fabric and will be
pulled almost
together.
Bottom side of Fabric
Just Right:
Minimize the amount
of top thread visible on
the bottom side of
fabric without causing
excessive puckering or
causing the bobbin
thread to show on the
top side. Results vary
with fabric, thread and
sewing conditions.
Guide messagewindow
.Stitch selector
Red indicator
,. J
The stitch selector cunbul determines the stitch you select.
Simply turn this control until the desired stitch is indicated by the red indicator on the stitch indicator panel.
The bottom row of stitches is selected when the stitch length control is set at the stretch stitch position.
Suitable width, stitch length and foot are shown in the guide message window.
When you select the desired stitch by turning the stitch selector, the information in the window will change
automatically.
Please use the eolour in the guide window which corresponds to the colour of the stitch you select.
NOTE: To avoid needle or fabric damage, be sure your needle is up and out of fabric when selecting a stitch.
23
I
k.. , j
The stitch width control regulates the width
of the stitch you select.
The higher the number, the wider the stitch.
The " ]_ " is the maximum
twin needle stitches.
width for
The blue zone is adjustable area for button
hole stitches.
Stretch Stitch
k. j
The stitch length control regulates the length
of stitch, and also has a stretch stitch setting.
The higher the number, the longer the stitch.
0 means no feed.
To select the Stretch Stitches, set this
control at Stretch Stitch.
NOTE:
When you select decorative stitches
(green) or built-in buttonhole
(blue), make sure that you do not
set the stitch length control at
"Stretch Stitch".
Study the red, green, brown and
blue sections around this control.
These are recommended zones of
stitch length and are color-coded to
the stitches pictured on the stitch
indicator panel.
4-
_9
\
+
Smocking stretch
Rickrack stretch
In stretch stitch sewing, the stretch stitch
adjuster should usually be in a neutral
position • or between "+" and "-"
position. When sewing some fabrics, you
may need to adjust this control to
balance the stitches for appearance sake.
if the design seems open like the illust-
rations to the left, adjust the control
slightly toward "-" until it looks like the
center design.
If the design appears to be closed as in
the right hand illustrations, turn the
control toward "+" until stitching is as
you desire.
24
Reverse
To reverse stitch, hold down this con-
trol during sewing.
Release to sew forward again.
Now that you are familiar with the controls on your machine and with the accessories provided for the machine,
you are ready to start to sew with your new Kenmore sewing machine. Below are some good habits to follow
each time you sit down to sew:
1. Inspect the needle. It should be straight, properly set and sharp on the point. It should be the correct size
for the fabric and thread being used. Do not be afraid to change your needle frequently. Many of the new
fabrics made of synthetic blends tend to dull the needles more easily than fabrics made of natural fibers.
2. Before placing the material on the machine, see that the ends of the threads have been drawn about 4
inches to the rear of the machine. Hold on to threads during the sewing of the first 3 or 4 stitches of the
seam.
3. Test the machine stitch on a scrap of the fabric you plan to use. The fabric should be double thickness.
Adjust the machine for the length of stitch and tension suitable to the fabric.
4. Fabric should be placed under the presser foot with the bulk of the material to the left of the needle and
the right edge of the material placed on the 5/8" seam marking on the needle plate when making a simple
seam.
5. Run the machine at a s!ow even speed. The more pressure you put on the foot control, the faster the
machine will sew.
6. Fasten each seam by back tacking sewing a few stitches in reverse.
7. Always finish sewing each seam with the needle at its highest point.
8. Guide the fabric gently with your hand in front of the needle. Never pull or hold the fabric in such a way
that the normal feeding is altered.
9. When turning the hand wheel manually, always turn it toward you.
25
Stitch
STRAIGHT
I
I
I
I
I
I
t
i
J
STRAIGHT
STRETCH
ZIGZAG
RICK-RACK
STRETCH
BLIND HEM
STITCH
Stitch
Selection
I
I
I
I
III
III
Ul
Ul
J
Foot and Other Attach.
Straight Zigzag
Zipper foot
Straight Zigzag
or
Satin Zigzag
or
Zigzag
Zigzag
%
Needle
Check
Chart
on p. 15
Check
Chart
on p. 15
Check
Chart
on p. 1_55
Thread
Tension
2_6
2_6
3_8
Stitch
Length
Red
Zone
Brown
Stretch
Stitch
Position
Red
Zone
Stitch
Width
1~5
Uses
Regular seams, zippers, topstitching, quilting
darning, etc.
Use on knits and other stretch fabrics, good
for topstitching.
Finish edges, buttons, satin stitch, applique,
monogram, embroidery, sewing bar tacks.
Refer to Page
31
Check
Chart
onp. 15
2_6 Brown
Stretch
Stitch
Position
2~5
Decorate garments with one row or several.
49
Check
Chart
on p. 15
2_6 Red
Zone
2_3
Use for finishing seams and hemming.
36
49
42
26

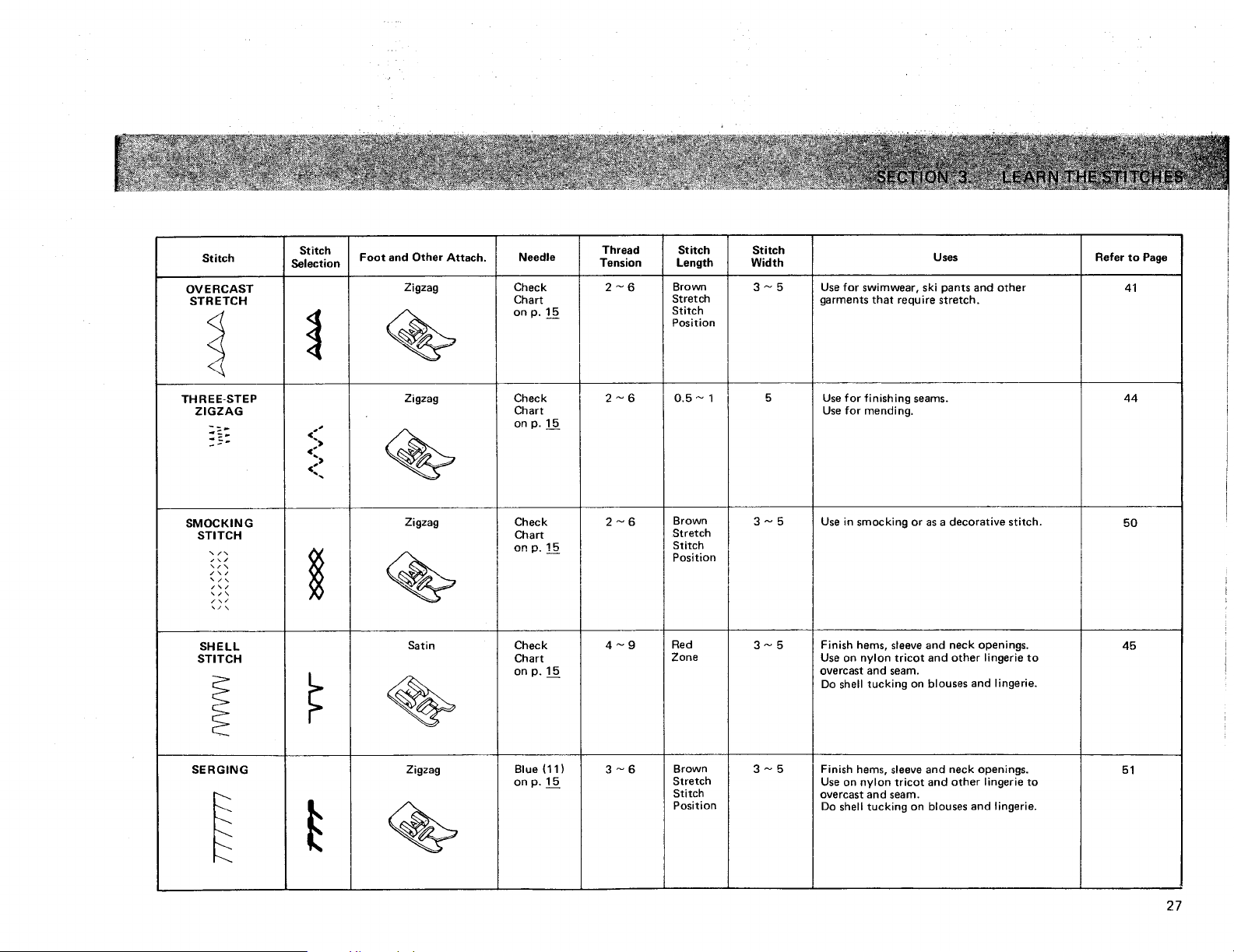

Stitch
OVERCAST
STRETCH
"--2,
THREE-STEP
ZIGZAG
SMOCKING
STITCH
/\/
\/\
/\/
SHELL
STITCH
SERGING
Stitch
Selection
<:l,
<
o_
I
!
4
Foot and Other Attach.
Zigzag
%
Zigzag
%
Zigzag
%
Satin
%
Zigzag
%
Needle
Check
Chart
on p. 15
Check
Chart
on p. 15
Check
Chart
on p. !55
Check
Chart
on p. 1,5
Blue (11)
on p. 155
Thread
Tension
2_6
2_6
2_6
4_9
3-6
Stitch
Length
Brown
Stretch
Stitch
Position
0.5_1
Brown
Stretch
Stitch
Position
Red
Zone
Brown
Stretch
Stitch
Position
Stitch
Width
3_5
3N5
3_5
3_5
U ses
Use for swimwear, ski pants and other
garments that require stretch.
Use for finishing seams.
Use for mending.
Use in smocking or as a decorative stitch.
Finish hems, sleeve and neck openings.
Use on nylon tricot and other lingerie to
overcast and seam.
Do shell tucking on blouses and lingerie.
Finish hems, sleeve and neck openings.
Use on nylon tricot and other lingerie to
overcast and seam.
Do shell tucking on blouses and lingerie.
Refer to Page
41
44
5O
45
51
27
Sthox
STITCHING
ELASTIC
STR ETCH

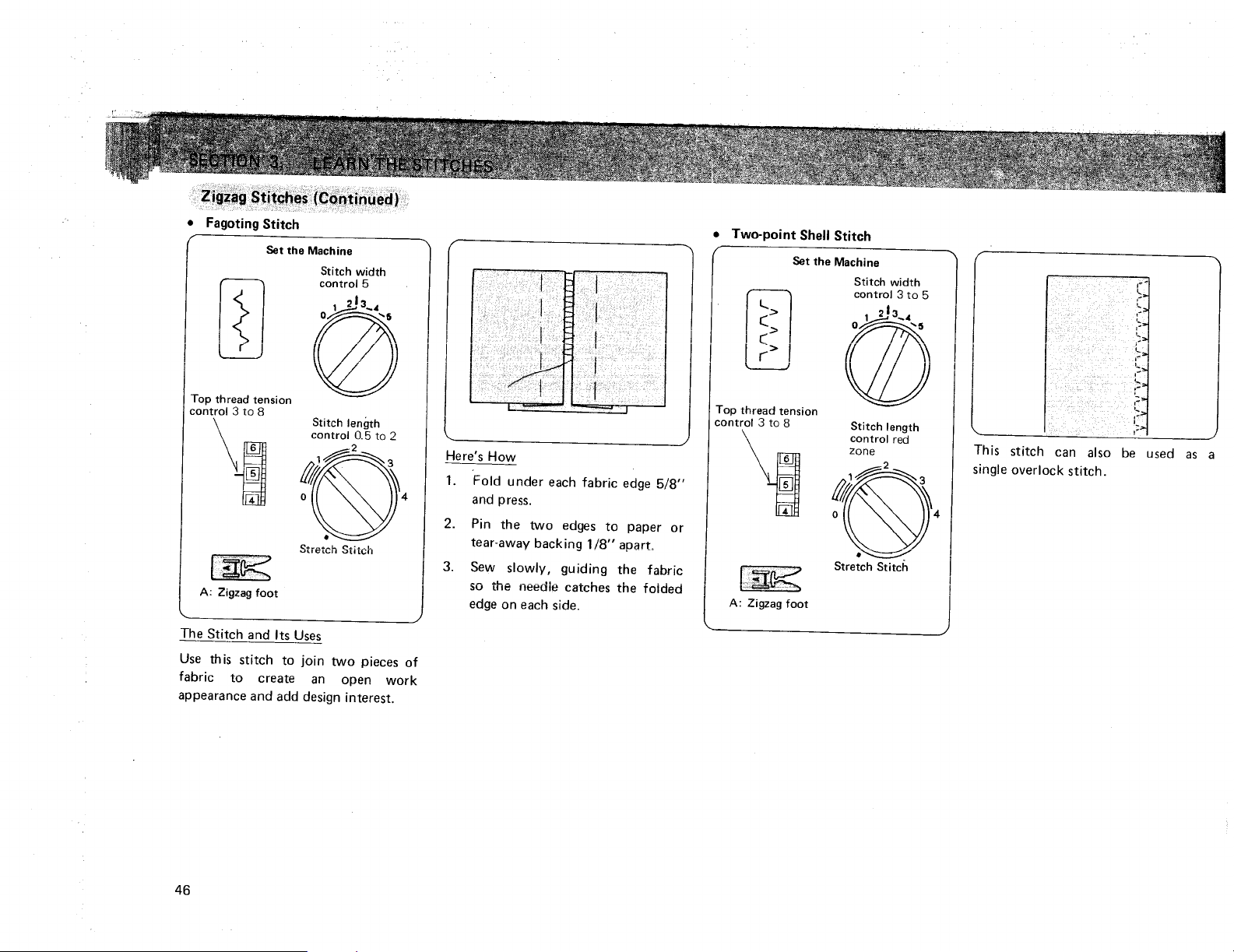

FAGOTING
L
r"
STRETCH
PATCHING
TWO-POINT SHELL
STITCHING
L
>
>
N
r_J
r_J
;)
Foot and Other Attach.
Zigzag
.%
Zigzag
%
Zigzag
%
Zigzag
%
Zigzag
%
Needle
Check
Chart
on p. 1.55
Check
Chart
on p. 1_55
Check
Chart
on p. 15
Check
Chart
on p. 1.55
Thread
Tension
3_8
3_6
3_8
2~6
Stitch
Length
Red
Zone
Brown
Stretch
Stitch
Position
0.5_2
Brown
Stretch
Stitch
Position
Stitch
Width
3N5
3_5
Uses
Use for overlapping seams.
Use for applying elastic.
Join two folded edges for decorative
open-work appearance.
Use for patchwork quilting and patching.
Check
Chart
on p. 1._55
3_8 Red
Zone
3_5
Do shell tucking on blouses and lingerie.
This stitch can also be used as a single
overlock stitch.
Refer to Page
45
51
46
52
46
t
28
Stitch
HERRING BONE
STRETCH
\
X
TWO-POINT
BOX STITCH
L_
C
L
r-
OVEREDGE
STITCH

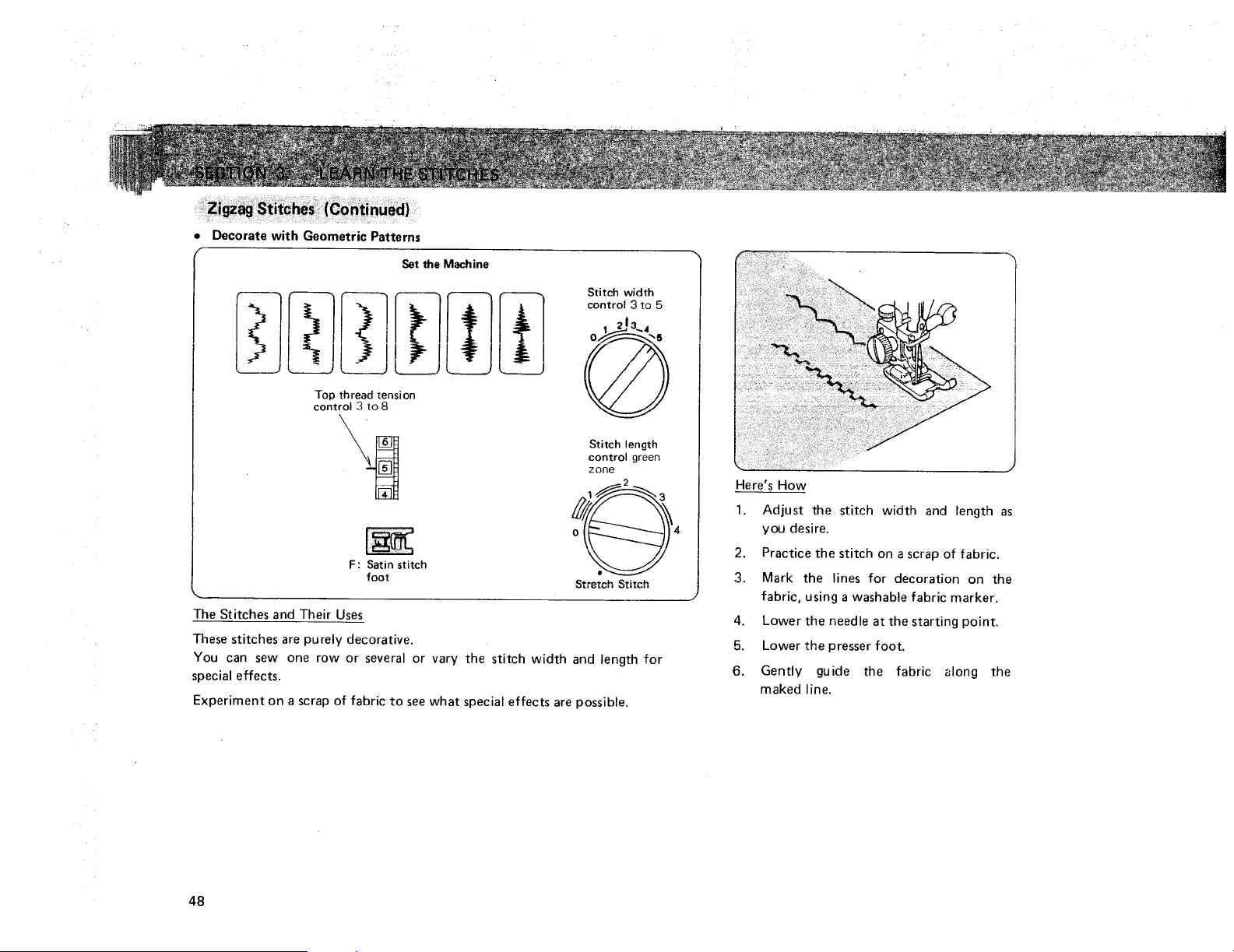

DECORATIVE
GEOMETRICS
STRETCH
STITCH
DECORATIVE
Stitch
Selection
L_
C:)
C
r.._
Foot and Other Attach.
Zigzag
Zigzag
%
Zigzag
A
%.%
Satin
%
Zigzag
%
Needle
Check
Chart
on p. 1_55
Check
Chart
on p. 15
Check
Chart
on p. 15
Check
Chart
on p. 15
Check
Chart
on p. 1_55
Thread
Tension
2-6
I
3~8
3_8
3~8
2_6
Stitch
Length
Brown
Stretch
Stitch
Position
Red
Zone
Red
Zone
Green
Zone
Brown
Stretch
Stitch
Position
Stitch
Width
3~5
3_5
3~5
3_5
3_5
Uses
Use as hemming stitch for blankets, tablecloth
and draperies.
Use for overlapping seams.
Use for overedging.
Decorate garments with one row or several,
one stitch or a combination.
Use in smocking or as a decorative stitch.
Refer to Page
52
47
47
48
53
29

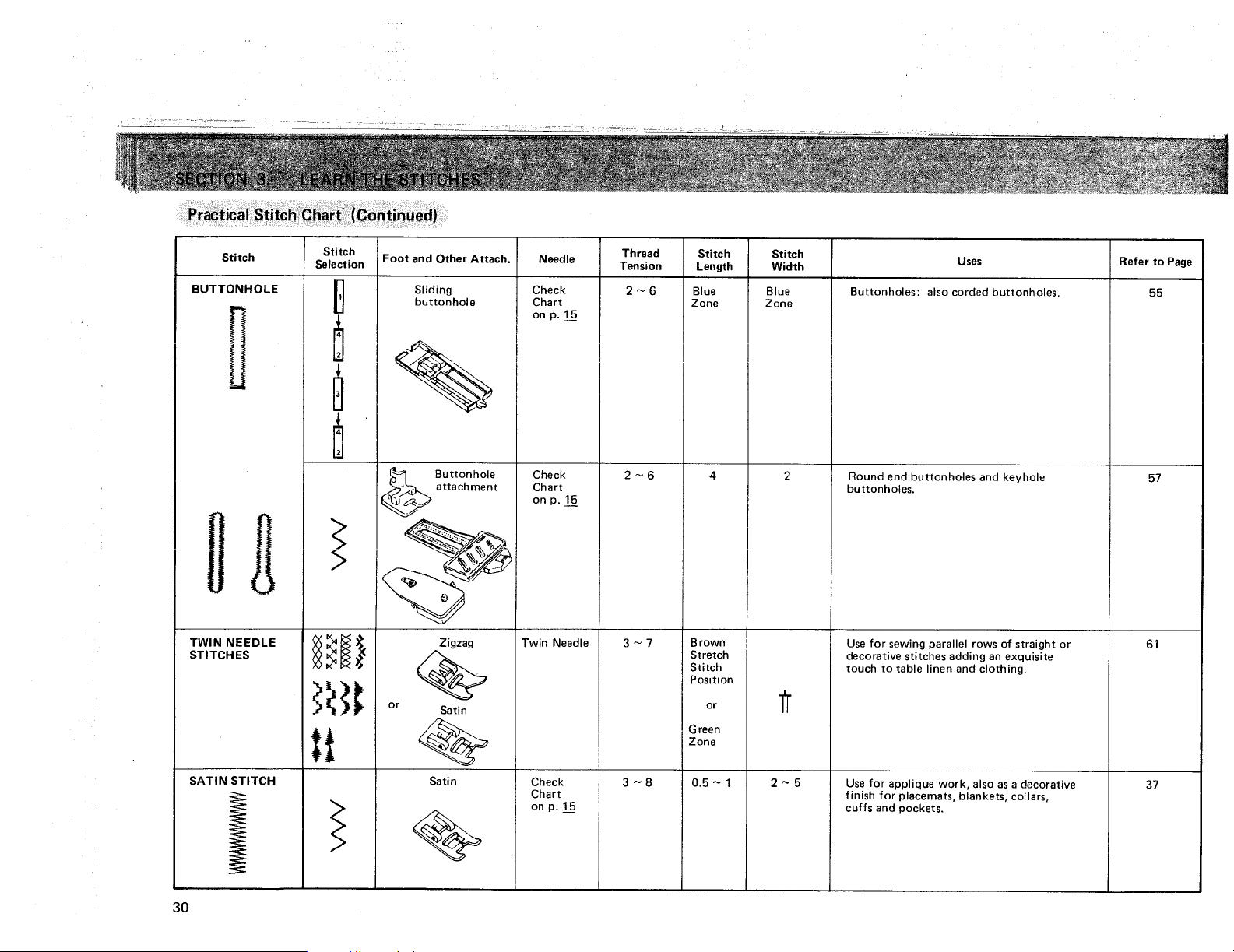

Stitch
BUTTONHOLE
Ei
TWIN NEEDLE
STITCHES
SATIN STITCH
Stitch
Selection
1,1
>
:i
Foot and Other Attach.
Sliding
buttonhole
Buttonhole
_._ attachment
Zigzag
%
Satin
Needle
Check
Chart
on p. 1.55
Check
Chart
on p. 15
Twin Needle
Thread
Tension
2~6
2_6
3_7
Stitch
Length
Blue
Zone
Brown
Stretch
Stitch
Posi ti on
or
G reen
Zone
Stitch
Width
Blue
Zone
Uses
Buttonholes: also corded buttonholes.
Round end buttonholes and keyhole
buttonholes.
Use for sewing parallel rows of straight or
decorative stitches adding an exquisite
touch to table linen and clothing.
Check
Chart
on p. 1._.55
3_8 0.5_1 2~5
Use for applique work, also as a decorative
finish for placemats, blankets, collars,
cuffs and pockets.
Refer to Page
55
57
61
37
3O

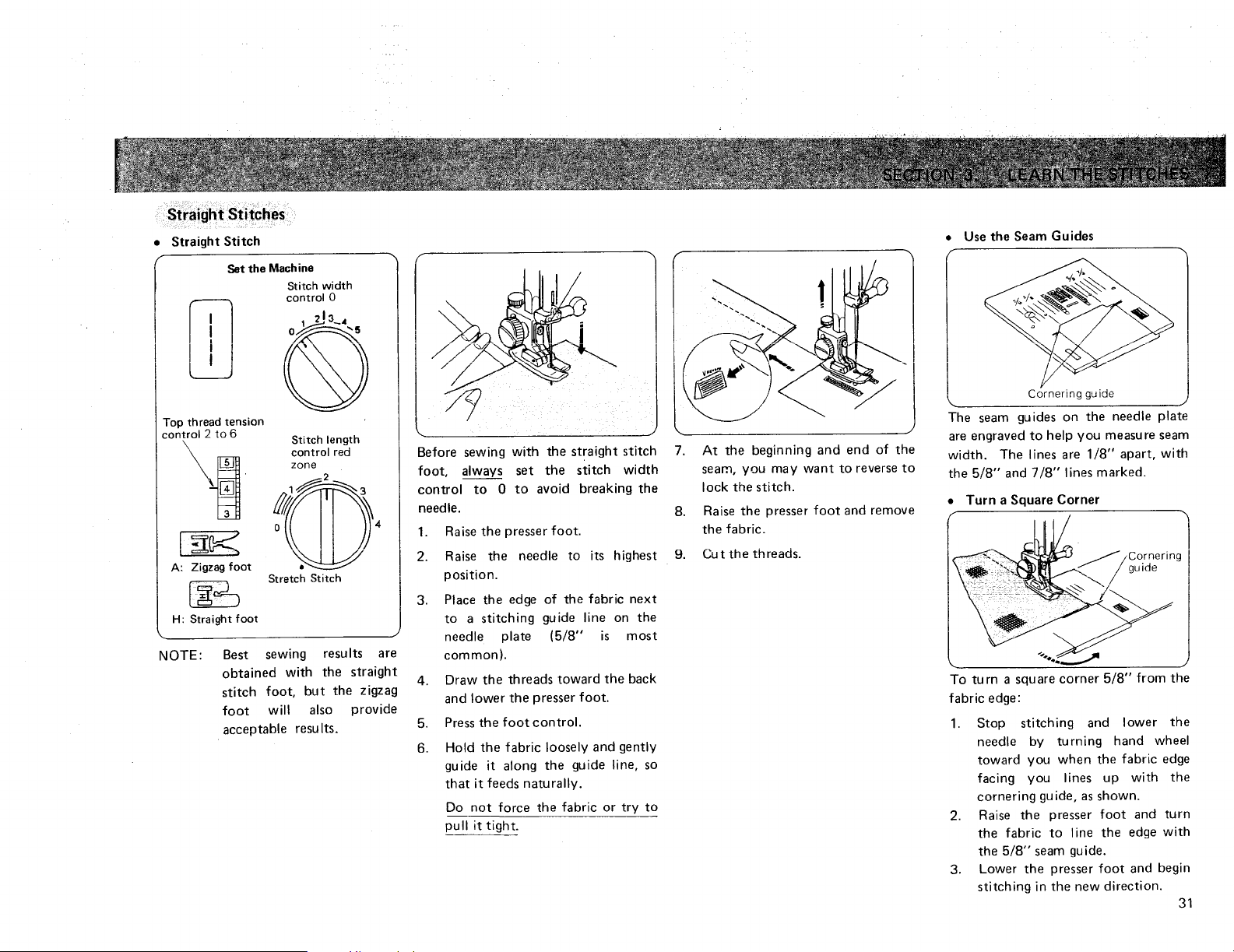

• Straight Stitch
I _t the Machine
LU
Stitch width
control 0
Top thread tension
control 2 to 6
A: Zigzag foot
H: Straight foot
Stitch length
control red
zone
°it,It ))'
Stretch Stitch
NOTE: Best sewing results are
obtained with the straight
stitch foot, but the zigzag
foot will also provide
acceptable resu Its.
Before sewing with the straight stitch
foot, always set the stitch width
control to 0 to avoid breaking the
needle.
1. Raise the presser foot.
2. Raise the needle to its highest
position.
3. Place the edge of the fabric next
to a stitching guide line on the
needle plate (5/8" is most
common).
4. Draw the threads toward the back
and lower the presser foot.
5. Press the foot control.
6. Hold the fabric loosely and gently
guide it along the guide line, so
that it feeds naturally.
Do not force the fabric or try to
pull it tight.
7. At the beginning and end of the
seam, you may want to reverse to
lock the stitch.
8. Raise the presser foot and remove
the fabric.
9. Cut the threads.
Use the Seam Guides
Cornering guide
!
The seam guides on the needle plate
are engraved to help you measure seam
width. The lines are 1/8" apart, with
the 5/8" and 7/8" lines marked.
• Turn a Square
Corner
/C°rn°ri°ol
gu ide
:1 2 :
J
To turn a square corner 5/8" from the
fabric edge:
1. Stop stitching and lower the
needle by turning hand wheel
toward you when the fabric edge
facing you lines up with the
cornering gu ide, as shown.
2. Raise the presser foot and turn
the fabric to line the edge with
the 5/8" seam guide.
3. Lower the presser foot and begin
stitching in the new direction.
31

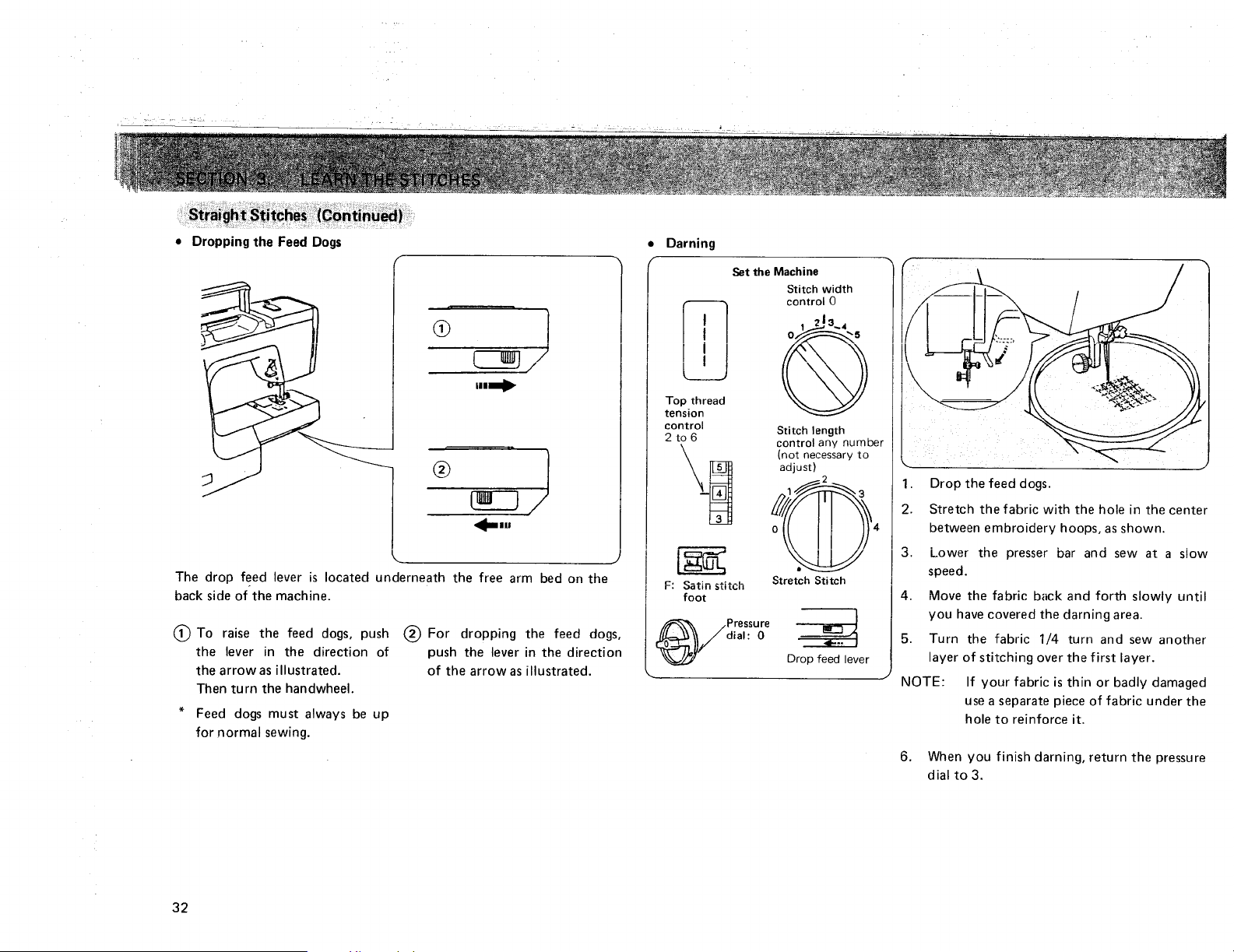

• Dropping the Feed Dogs
k
o 1
Illll_
4_11 Ill
The drop feed lever is located underneath the free arm bed on the
back side of the machine.
To raise the feed
dogs, push
the lever in the direction of
the arrow as illustrated.
Then turn the handwheel.
* Feed dogs must always be up
for normal sewing.
(_) For dropping the feed dogs,
push the lever in the direction
of the arrow as illustrated.
Darning
Set the Machine
Stitch width
control 0
1 213 4
Top thread
tension
control
2 to6
F: Satin stitch
foot
GF ressure
dial: 0
Stitch length
control any number
(not necessary to
adjust)
°// II ;;'
Stretch Stitch
Drop feed lever
1 Drop the feed dogs.
2. Stretch the fabric with the hole in the center
between embroidery hoops, as shown.
3. Lower the presser bar and sew a_ a siow
speed.
4. Move the fabric bzick and forth slowly until
you have covered the darning area.
5. Turn the fabric 1/4 turn and sew another
layer of stitching over the first layer.
NOTE: If your fabric is thin or badly damaged
use a separate piece of fabric under the
hole to reinforce it.
6. When you finish darning, return the pressure
dial to 3.
32
• Topstitching
f
Set the Machine
Stitch width
control 0
1 213 4
Top thread tension Stitch length
control 2 to 6 control red
zone
I !A: Zigzag foot Stretch Stitch
L 1
_,. H: Straight foot
The Stitch and Its Uses
Topstitching emphasizes the lines of
your garment and keeps seams and
edges flat and crisp.
Accent suits or blouses with one or
two rows of topstitching around the
outer edges of cuffs, lapels or collars.
Here's How
1. Lower the presser foot.
2. Keep the edge of the fabric next
to the right edge of the presser
foot.
3. Guide the fabric evenly along this
edge to produce an even row of
topstitching 5/8" from the edge.
33

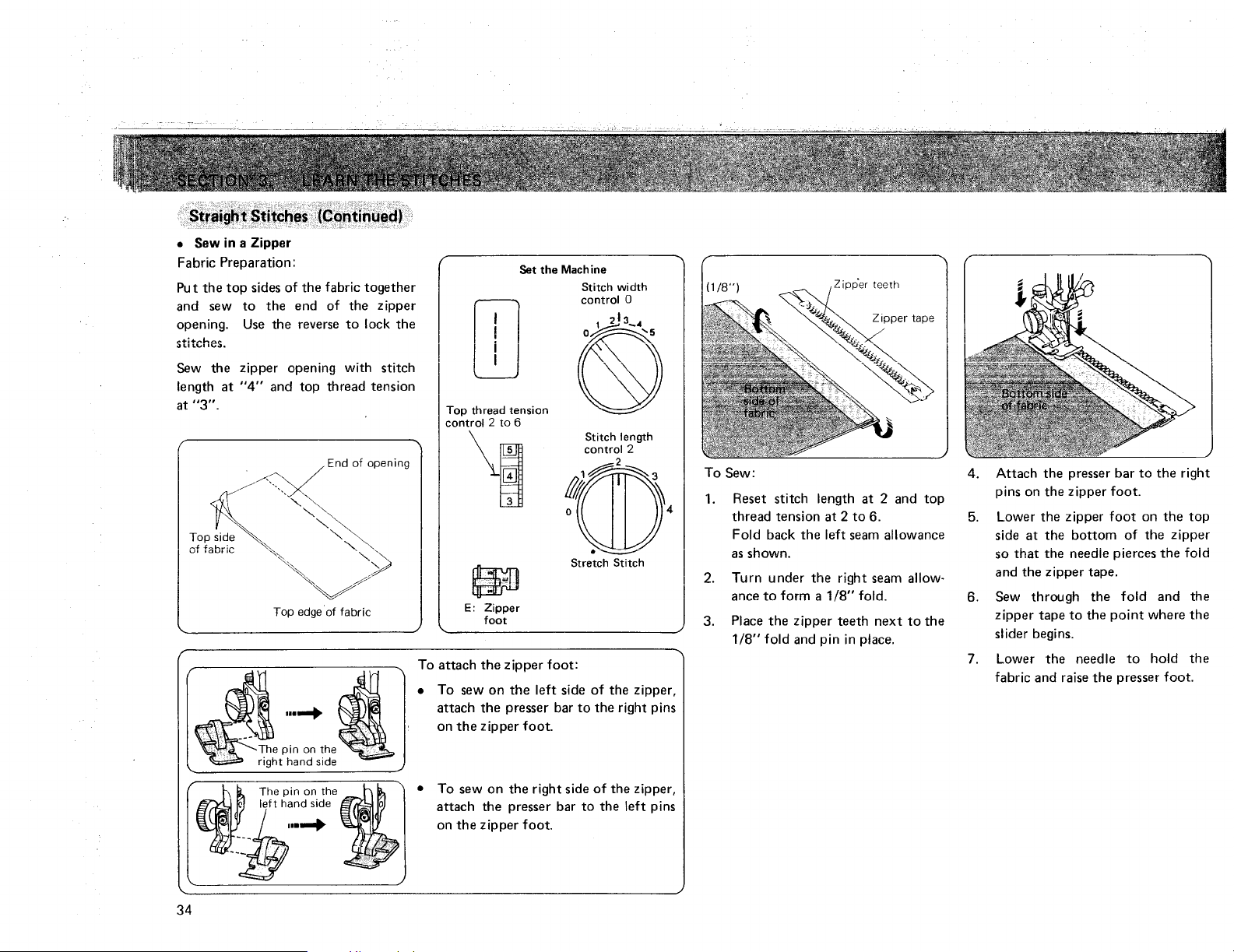

• Sew in a Zipper
Fabric Preparation:
Put the top sides of the fabric together
and sew to the end of the zipper
opening. Use the reverse to lock the
stitches.
Sew the zipper opening with stitch
length at "4" and top thread tension
at "3".
End of opening
\\
Top edge of fabric
Set the Machine
LU
Top thread tension
control 2 to 6
E: Zipper
foot
Stitch width
control 0
1 2|3_4
Stitch length
control 2
Stretch Stitch
To attach the zipper foot:
I__._ " _"_ • To sew on the left side of the zipper,
,,1.,,_ attach the presser bar to the right pins
on the zipper foot.
right hand side_J
L _'Thep in°nthe
I_ _ The pin on the • To sew on the right side of the zipper,
_'_'_'_'_'_'_'_'__I_1 left hand side attach the presser bar to the left pins
_ ,,i,,_l_ on the zipper foot.
34
/ Zipp'er teeth 1
Zipper tape
To Sew:
1. Reset stitch length at 2 and top
thread tension at 2 to 6.
Fold back the left seam allowance
as shown.
2. Turn under the right seam allow-
J ance to form a 1/8" fold.
3. Place the zipper teeth next to the
J
1/8" fold and pin in place.
]
4. Attach the presser bar to the right
pins on the zipper foot.
5. Lower the zipper foot on the top
side at the bottom of the zipper
so that the needle pierces the fold
and the zipper tape.
6. Sew through the fold and the
zipper tape to the point where the
slider begins.
7. Lower the needle to hold the
fabric and raise the presser foot.
8. Openthezipper.
9. Lowerthepresserfootandstitch
therestoftheseam.
/
J
Top side
of fabric
Top side
of fabric
10. Close the zipper and turn the
fabric top side up.
12.
13.
To side "_
of fabric
Remove the zipper foot and
attach the presser bar to the left
pins on the zipper foot.
Stitch across and below the bot-
tom of the zippel.
Turn the corner and continue to
guide the foot along the zipper
teeth, as shown.
Stitch through the fabric and
zipper tape.
of fabric "_'_ "'-"
J
14. Stop about 2" from the top of the
zipper.
15. Lower the needle into the fabric
and raise the presser foot.
16. Remove the basting stitches and
open the zipper.
17. Lower the foot and stitch the
rest of the seam. Make sure the
fold is even.
35

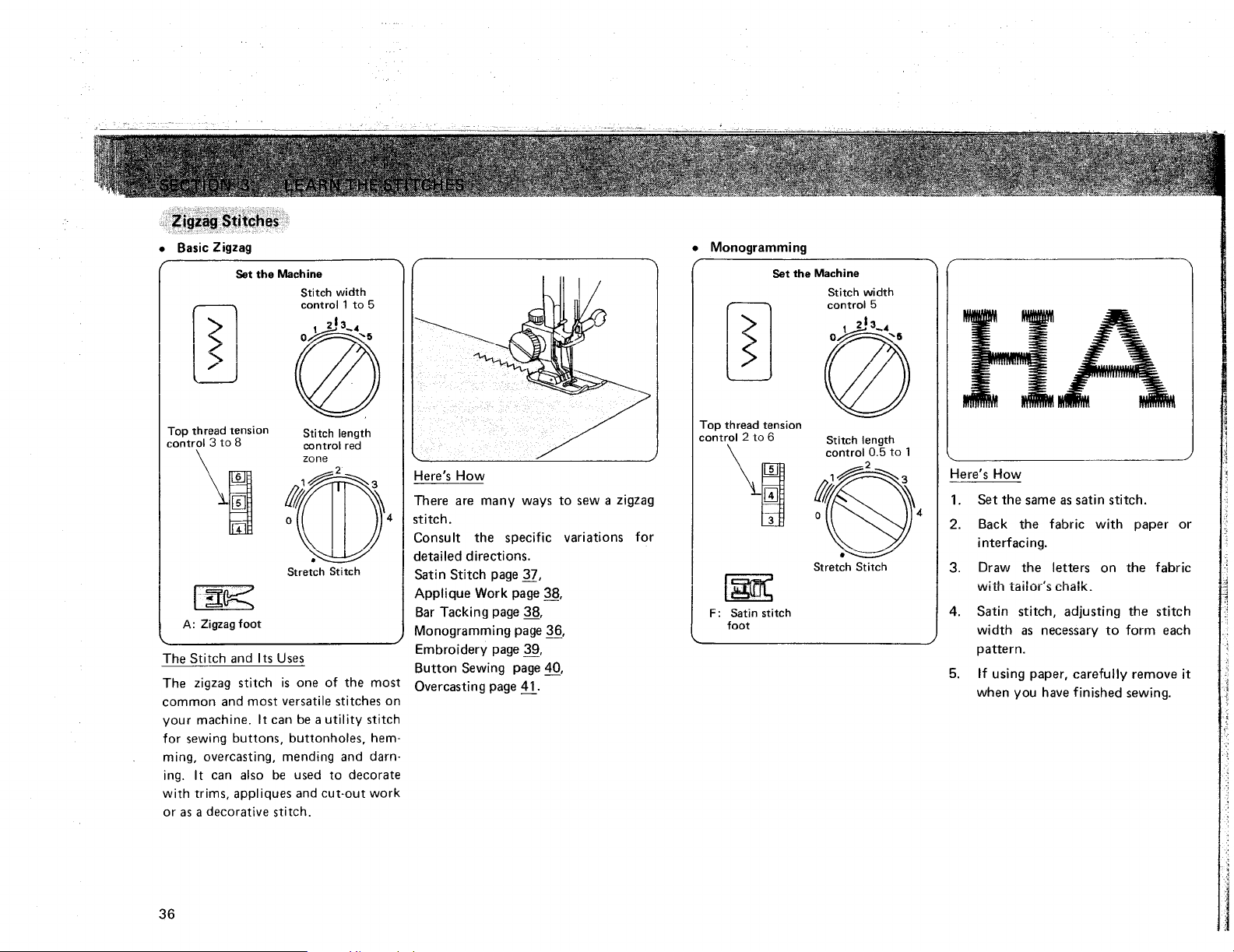

• Basic Zigzag
Set the Machine
Stitch width
control 1 to 5
Y
Top tnread tension
control 3 to 8
Stitch length
control red
zone
2
IL))'
Stretch Stitch
A: Zigzag foot
The Stitch and Its Uses
The zigzag stitch is one of the most
common and most versatile stitches on
your machine. It can be a utility stitch
for sewing buttons, buttonholes, hem-
ming, overcasting, mending and darn-
ing. It can also be used to decorate
with trims, appliques and cut-out work
or as a decorative stitch.
J
J
Here's How
There are many ways to sew a zigzag
stitch.
Consult the specific variations for
detailed directions.
Satin Stitch page 3_7,
Applique Work page 3_88,
Bar Tacking page 3__88,
Monogramming page 3__66,
Embroidery page 3__99,
Button Sewing page 4___00,
Overcasting page 41.
36
Monogramming
l!
Stitch width
o s
Top thread tension
control 2 to 6
Stitch length
control 0.5 to 1
Stretch Stitch
r
F: Satin stitch
foot
\
Here's How
1. Set the same as satin stitch.
2. Back the fabric with paper or
interfacing.
3. Draw the letters on the fabric
wtu, t_,=u, _ chalk.
4. Satin stitch, adjusting the stitch
width as necessary to form each
pattern.
5. If using paper, carefully remove it
when you have finished sewing.
I
I
)
)
L
L

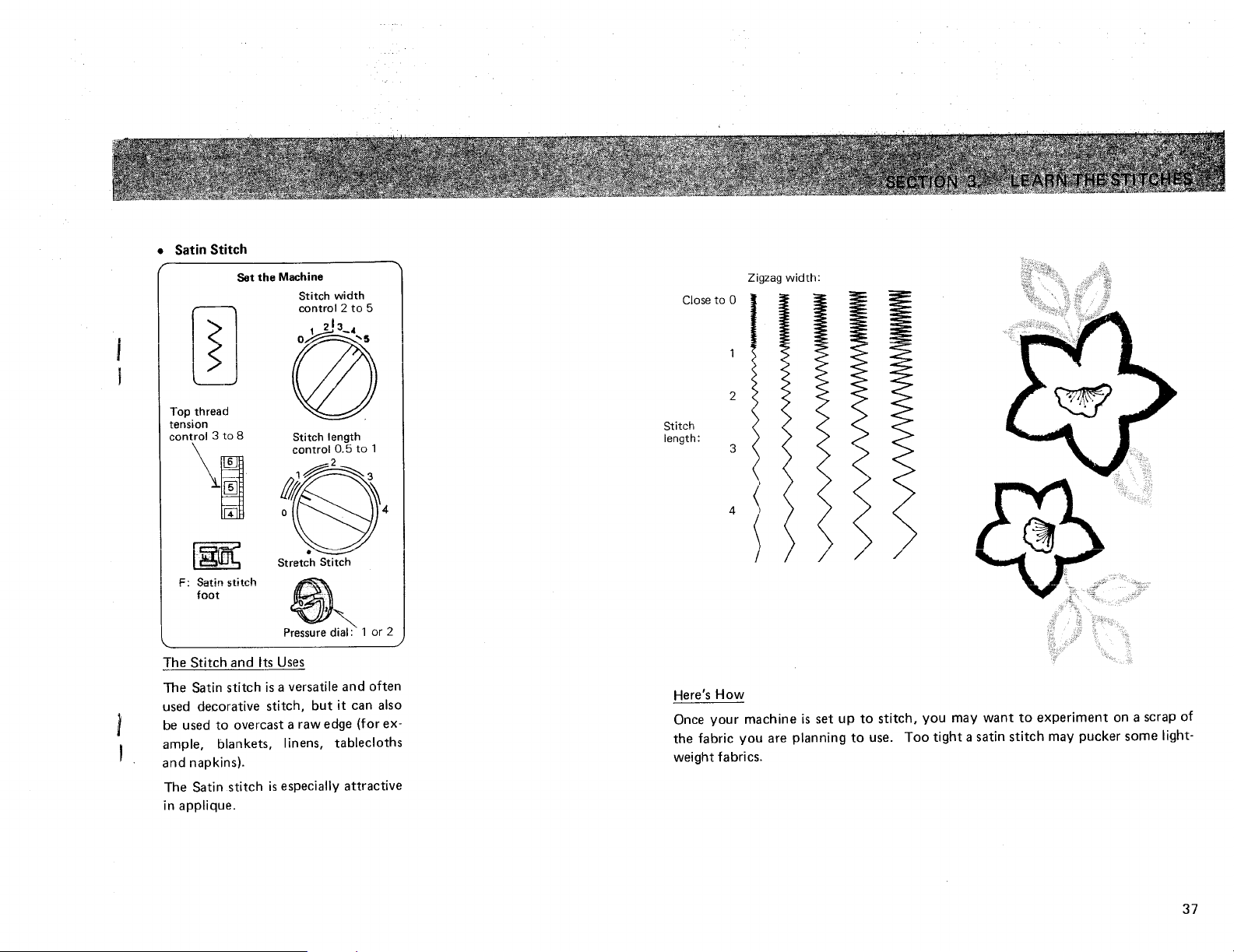

Satin Stitch
Set the Machine
Top thread
tension
control 3 to 8
F: Satin stitch
foot
Stitch width
control 2 to 5
1 2|3_4
Stitch length
control 0.5 to 1
Stretch Stitch
Pressure dial
1 or2
1
The Stitch and Its Uses
The Satin stitch is a versatile and often
used decorative stitch, but it can also
be used to overcast a raw edge (for ex-
ample, blankets, linens, tablecloths
and napkins).
The Satin stitch is especially attractive
in applique.
Close to 0
2
Stitch
length:
3
Zigzag width:
/ / /
>
>
>
/ /
_iii¸ _, •_......
SI ,, I
Here's How
Once your machine is set up to stitch, you may want to experiment on a scrap of
the fabric you are planning to use. Too tight a satin stitch may pucker some light-
weight fabrics.
37
Zigzag Stitches (Continued)

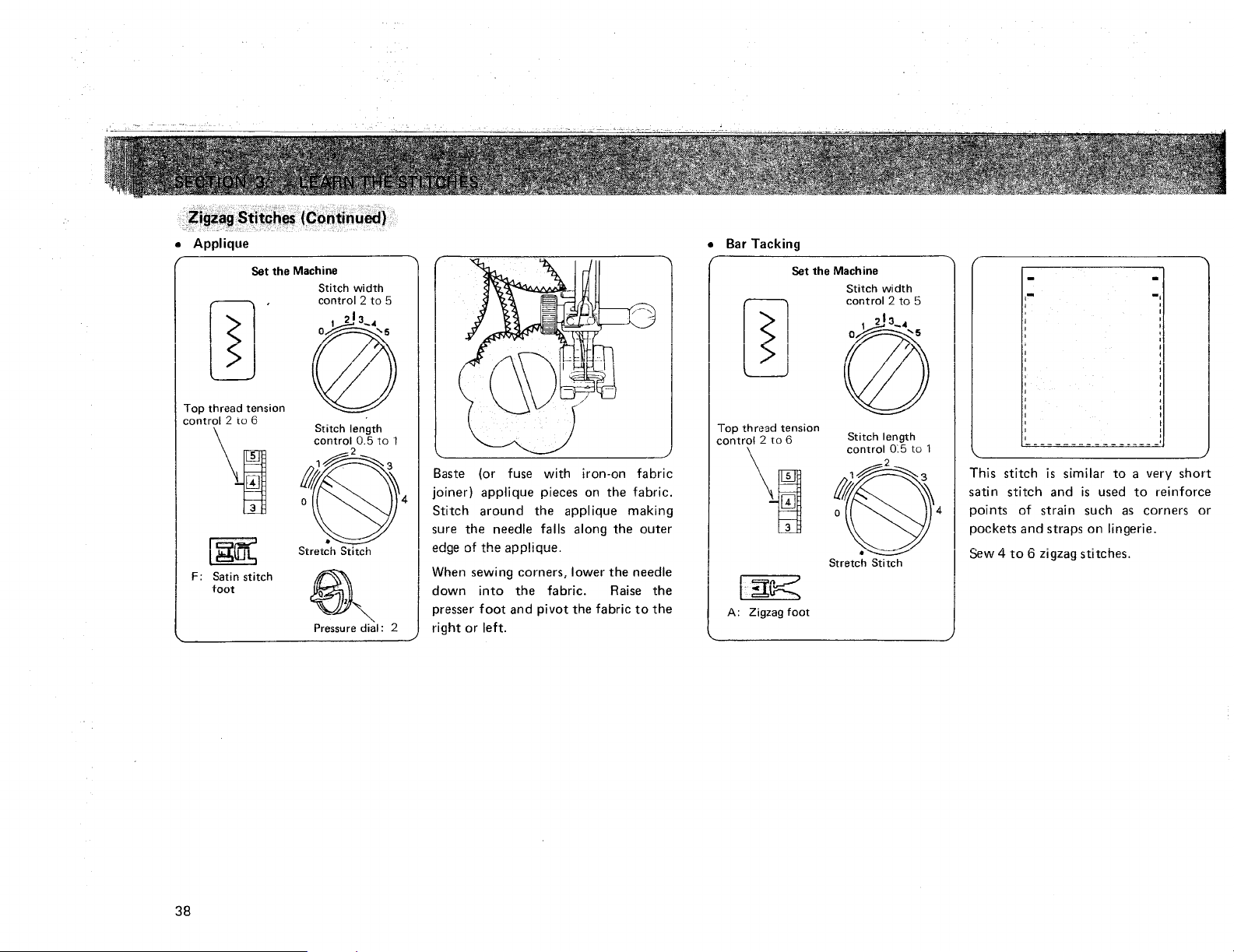

• Applique
f
Top thread tension
control 2 _o 6
F: Satin stitch
foot
Set the Machine
Stitch width
control 2 to 5
I 213 4
Stitch length
control 0.5 _o 1
Stretch Stltch
&
Pressure dial: 2
/
Baste (or fuse with iron-on fabric
joiner) applique pieces on the fabric.
Stitch around the applique making
sure the needle falls along the outer
arlna n{ tha annllnlla
t When sewing corners, lower the needle
I down into the fabric, Raise the
presser foot and pivot the fabric to the
right or left.
• Bar Tacking
Set the Machine
I
Stitch width
control 2 to 5
_22 _ 3_4
Top thread tension
control 2 [o 6
A: Zigzag foot
Stitch length
control 0_5 to 1
Stretch Stitch
I" 1
!
I
l
This stitch is similar to a very short
satin stitch and is used to reinforce
points of strain such as corners or
pockets and straps on lingerie.
Sew 4 to 6 zigzag stitches.
38

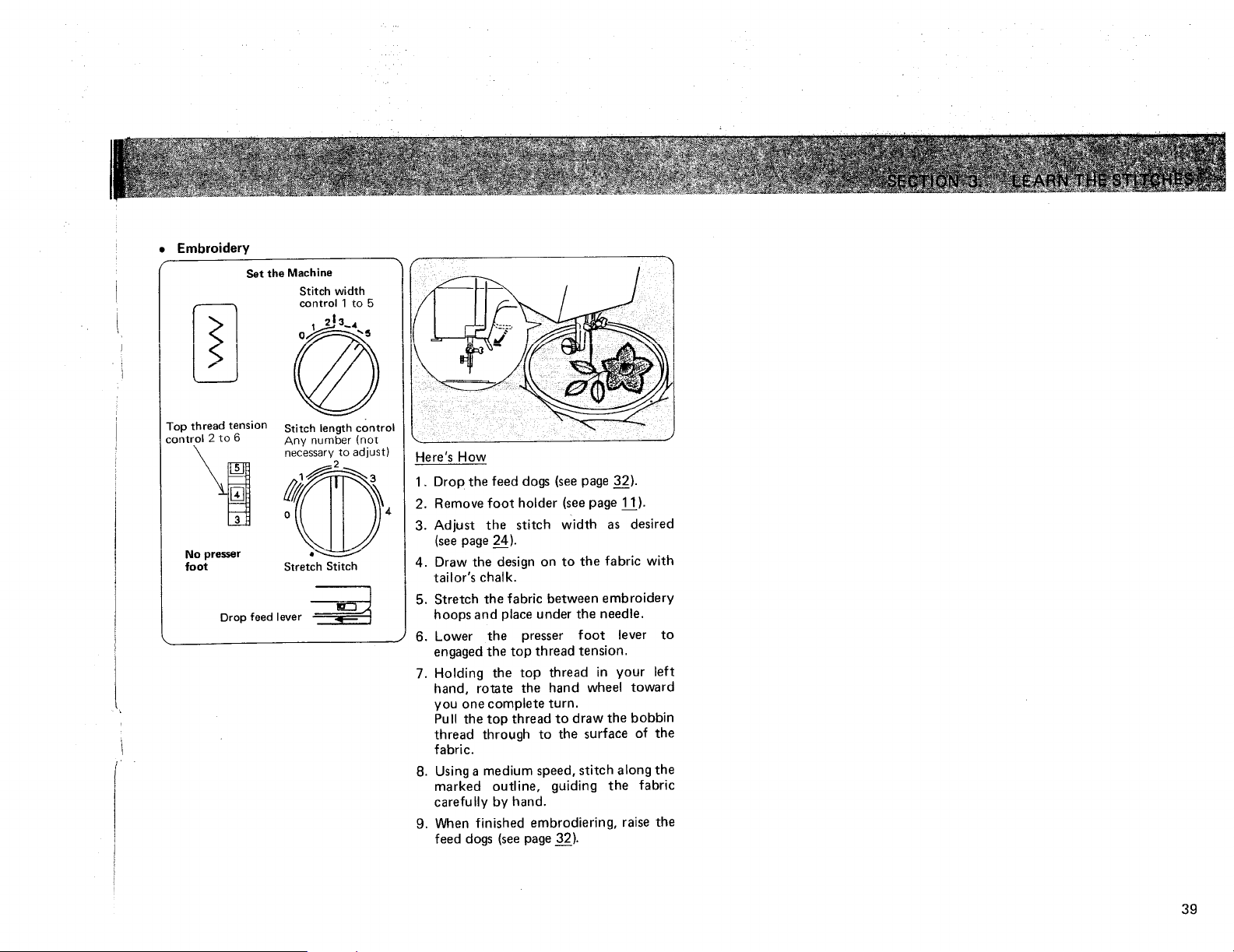

Embroidery
%
Top thread tension
control 2 to 6
No presser
foot
Set the Machine
Stitch width
controL 1 to 5
t 7_13_4
Stitch length control
Any number (not
necessary to adjust)
Stretch Stitch
Drop feed lever
Here's How
1. Drop the feed dogs (see page 32).
2. Remove foot holder (see page 11).
3. Adjust the stitch width as desired
(see page 24).
4. Draw the design on to the fabric with
tailor's chalk.
5. Stretch the fabric between embroidery
hoops and place under the needle.
6. Lower the presser foot lever to
engaged the top thread tension.
7. Holding the top thread in your left
hand, rotate the hand wheel toward
you one complete turn.
Pull the top thread to draw the bobbin
thread through to the surface of the
fabric.
8. Using a medium speed, stitch along the
marked outline, guiding the fabric
carefully by hand.
9. When finished embrodiering, raise the
feed dogs (see page 32).
39
Sew a Button
Set the Machine
Top thread tension
control 2 to 6
Stitch width control
Must be adjusted
t 213 4
A: Zigzag foot
l,
Stitch length control
Any number (not
necessary to adjust)
0L\ ))"
Stretch Stitch
Drop feed lever -_
f
/
Drop the feed dogs (see page 32).
1.
/
/
x. j
Match the center of the button holes to the center of the slot on the presser
foot.
2.
3.
Adjust the stitch width so that needle will drop in each hole.
Lower the foot to hold the button in place.
Turn the hand wheel by hand _v_ that needle ,,,:it,,,,,enter either ,,o,__"_ v,_ *_'_,,_
button.
4. Stitch several times.
J
\
To strengthen the shank, cut the
threads leaving a 8" tail. Bring the
needle thread down through the hole
in the button and wind it around the
shank.
Draw the thread to the bottom side
and knot.
When finished, raise the feed dogs
(see page 32).
]
4O
f
Overcasting Stitch
Set the Machine
Top thread tension
control 3 to 8
Stitch width
control 3 to 5
213 4
O_ _ "5
Stitch length
control red
zone
Stretch Stitch
A: Zigzag foot
,)
The Stitch and Its Uses
This zigzag variation is very useful in
garment construction and in finishing
raw edges of any sewing project.
Helpful Hints
Start overcasting about 1/8" inside the
raw corner of your seam. If you start
right at the edge, the fabric will bunch
up and the stitches wi!! become
tangled.
41
• Blind Hemming
f
Set the Machine
Top thread tension
control 2 to 6
I
A: Zigzag foot
Stitch width
control 2 to 3
Stitch length
control red
zone
Stretch Stitch
Light
Weight
Fabric
Heavy
Weight
Fabric
1/4"'
1/4"
k. J /
1. Finsih the raw edge of your hem any way you desire (see overcasting page 41).
2. Measure, turn up your hem and pin.
NOTF: For ight _,,_ nht f_k_i,,_ ,,_,,, may need a ,,ou_,,_ fold.
l
3. Fold the material (bottom side out) on the edge to be stitched, as shown, leaving 1/4" of the finished hem edge showing.
4. Place garment under presser foot in such a manner that narrow zigzag stitches will be sewn on extended edge. The wide
zigzag stitch should just catch the fold of the garment.
5. After hemming, press both sides of the fin ished hem. The top side of the garment will show only the blind stitches.
J
42
LaceWork
Set the Machine
Stitch width
control 2 to 3
t 213 4
Top thread tension
control 2 to 6
A: Zigzag foot
t"
Stretch Stitch
1
JJ_ i/
Lace adds a fanciful, feminine touch
to blouses and lingerie. Table linens
and pillows become more elegant
when trimmed with lace.
Turn raw edge of fabric under at least
5/8". Place lace underneath and top-
stitch using blind hem stitch.
Trim excess fabric close to stitching.
43
• Three-Step Zigzag
Set the Machine
Top thread tension
control 2 to 6
A: Zigzag foot
The Stitch and Its Uses
Stitch width
control 5
1 213 •
Stitch length
control 0.5 to 1
Stretch Stitch [
.1
The three-step zigzag is a combination
zigzag and straight stitch. You may
use the three-step zigzag everywhere
you would use the basic zigzag stitch.
It has more strength, elasticity, and is
flatter khan a regular zigzag.
The three-step zigzag stitch is especial-
ly useful for:
- mending
- sewing patches smoothly and
securely
- repairing straight tears
- finishing seams
44
Seam Finishing (Overcasting)
Place the fabric under the presser foot
so that the edge will be slightly inside
the right hand side of the presser foot.
Guide the work so sthe right-hand
stitches fall at the edge of the fabirc.
I
Mending
Position the tear under the needle so
that the stitching will catch both sides.
• Shell Stitching
Set the Machine _ r-
Stitch width
control 3 to 5
Top thread tension
control 4 to 9
F: Satin stitch
foot
j/
Stitch length
control red
zone
Stretch Stitch
Here's How
1. For best effect:
- set the stitch length as you
desire.
- you may need to tighten the
top thread tension slightly.
-- allow the needle to just
clear the folded edge of the
fabric when it zigzags.
The Stitch and Its Uses
The Shell Stitch is formed by sewing a
blind hem over folded fabric. Several
rows of shell stitching are called shell
tucks.
2. If you sew rows of shell stitches,
space the rows 5/8" apart.
You can sew Shell Stitch on knits or
soft silky wovens in any direction.
Shell stitching can be used to finish
hems, sleeve and neck openings.
Shell tucking can be used to create
scalloped tucks on blouses and
lingerie.
• Box Stitching
Set the Machine
Stitch width
control 3 to 5
Top thread tension
control 3 to 8 Stitch length
control red
zone
2
h1_3
• _
Stretch Stitch
A: Zigzag foot
J
Use this stitch to join heavy weight
interlining.
Overlap two raw edges together and
use this stitch to join them.
45
Fagoting Stitch
Set the Machine
Top thread tension
control 3 to 8
t A: Zigzag foot
Stitch width
control 5
Stitch len_lth
control 0.5 to 2
2
Stretch Stitch
The Stitch and Its Uses
Use this stitch to join two pieces of
fabric to create an open work
appearance and add design interest.
J
Here's How
1. 'Fold under each fabric edge 5/8"
and press.
2. Pin the two edges to paper or
tear-away backing 1/8" apart°
3. Sew slowly, guiding the fabric
so the needtu catches the folded
edge on each side.
Two-point Shell Stitch
Set the Machine
o
Stitch width
control 3 to 5
"Fop thread tension
control 3 to 8
Stitch length
control red
zone
Stretch Stitch
A: Zigzag foot
I
This stitch can also be used as a
single overlock stitch.
46
I

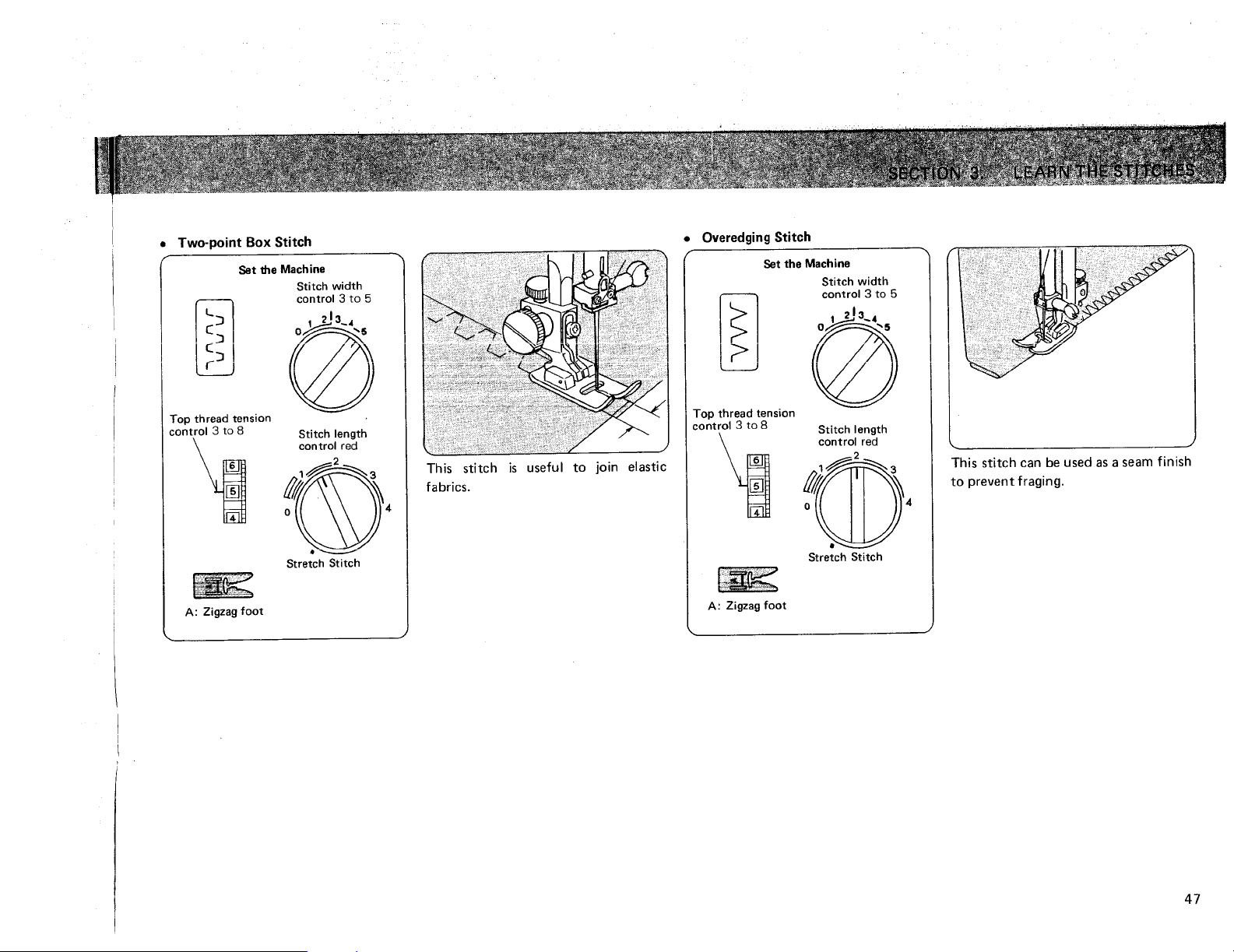

Two-point Box Stitch
Set the Machine
Stitch width
control 3 to 5
I 213 4
o_
Top thread tension
control 3 to 8
Stitch length
control red
Stretch Stitch
A: Zigzag foot
This stitch
fabrics.
I
useful
to join
elastic
Overedging Stitch
Set the Machine |
I
Stitch width
control 3 to 5
't 213 4
Top thread tension
control 3 to 8
Stitch length
control red
o._,
Stretch Stitch
A: Zigzag foot
I!ii
I I
This stitch can be used as a seam finish
to prevent fraging.
!
J
47
Decorate with Geometric Patterns
Set the Machine
Top thread tension
control 3 to 8
F: Satin stitch
foot
The Stitches and Their Uses
These stitches are purely decorative.
Stitch width
control 3 to 5
Stitch length
control green
zone
2
Stretch Stitch
You can sew one row or several or vary the stitch width and length for
special effects.
Experiment on a scrap of fabric to see what special effects are possible.
I
l
Here's How
1. Adjust the stitch width and length as
you desire.
2. Practice the stitch on a scrap of fabric.
3. Mark the lines for decoration on the
fabric, using a washable fabric marker.
4. Lower the needle at the starting point.
5. Lower the presser foot.
6. Gently guide the fabric along the
maked line.
48

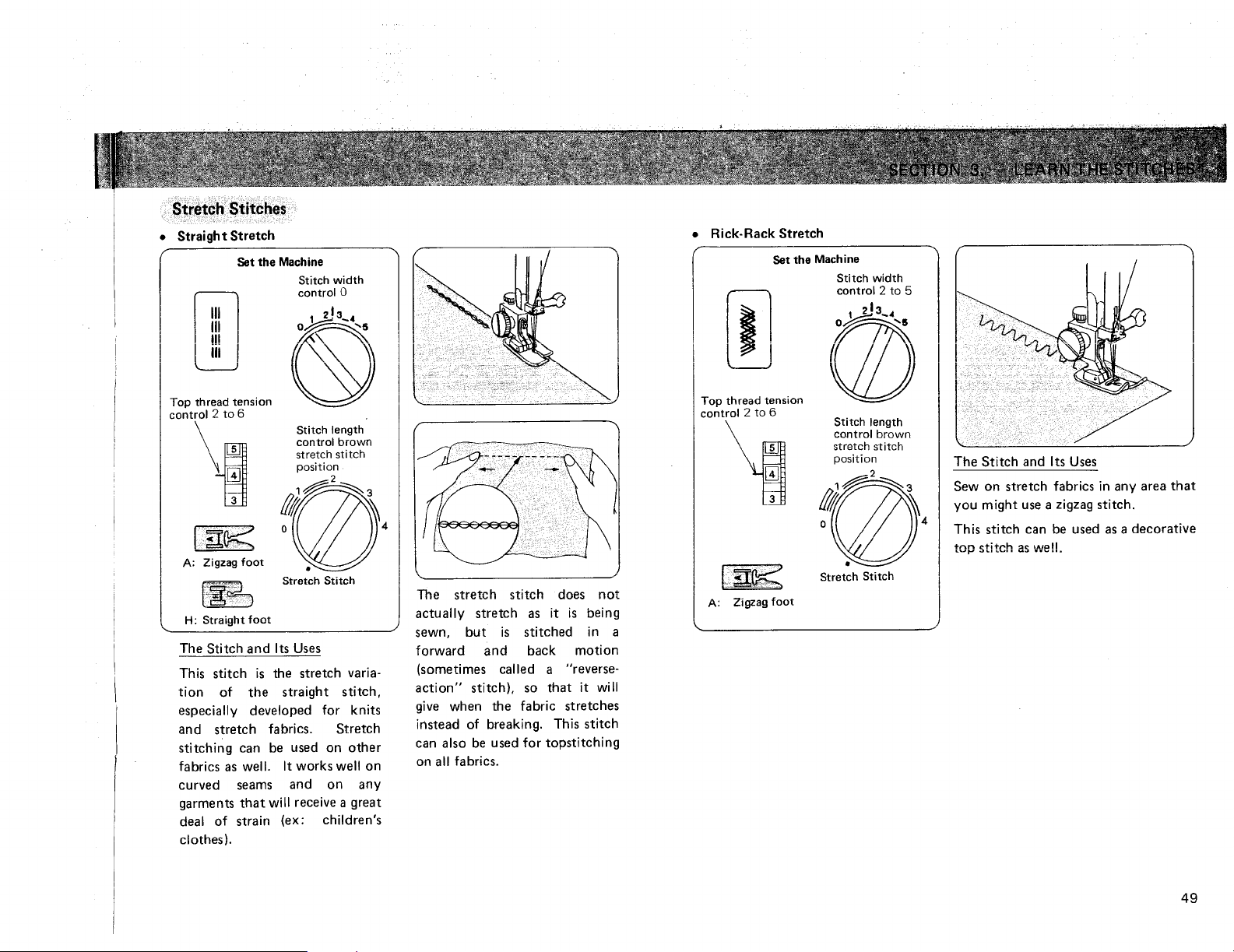

• Straight Stretch
f
Stitch width
control 0
Top thread tension
control 2 to 6
A: Zigzag foot
H: Straight foot
Stitch length
control brown
stretch stitch
position
Stretch Stitch
The Stitch and Its Uses
This stitch is the stretch varia-
tion of the straight stitch,
especially developed for knits
and stretch fabrics. Stretch
stitching can be used on other
fabrics as well. It works well on
curved seams and on any
garments that will receive a great
deal of strain (ex: children's
clothes).
J
The stretch stitch does not
actually stretch as it is being
sewn, but is stitched in a
forward and back motion
(sometimes called a "reverse-
action" stitch), so that it will
give when the fabric stretches
instead of breaking. This stitch
can also be used for topstitching
on all fabrics.
Rick-Rack Stretch
Set the Machine
Stitch width
control 2 to 5
Top thread tension
control 2 to 6
A: Zigzag foot
Stitch length
control brown
stretch stitch
position
oL/,/))"
Stretch Stitch t
j/
The Stitch and Its Uses
Sew on stretch fabrics in any area that
you might use a zigzag stitch.
This stitch can be used as a decorative
tnn et;t_h _e _^l_ll
49

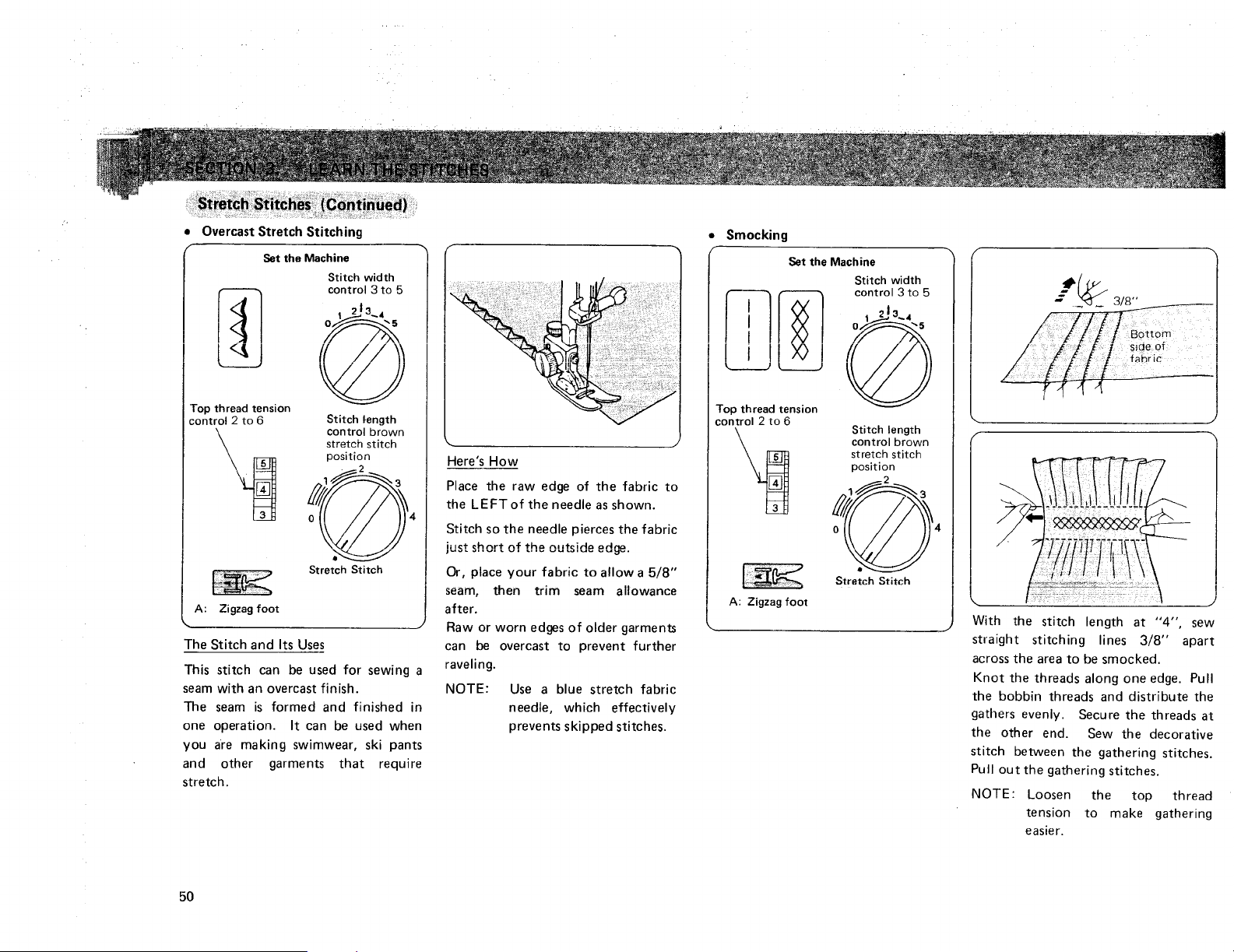

• Overcast Stretch Stitching
Top thread tension
control 2 to 6
Set the Machine
Stitch width
control 3 to 5
1 2|3 4
Stitch length
control brown
stretch stitch
position
Stretch Stitch
A: Zigzag foot
The Stitch and Its Uses
This stitch can be used for sewing a
seam with an overcast finish.
The seam is formed and finished in
one operation. It can be used when
you are making swimwear, ski pants
and other garments that require
stretch.
Here's How
Place the raw edge of the fabric to
the LEFT of the needle as shown.
Stitch so the needle pierces the fabric
iiict _hnrt t_f th= I"liitclrll_l =irlr'l_
Or, place your fabric to allow a 5!8"
seam, then trim seam allowance
after.
Raw or worn edges of older garments
can be overcast to prevent further
raveling.
NOTE: Use a blue stretch fabric
needle, which effectively
prevents skipped stitches.
• Smocking
Set the Machine
Top thread tension
control 2 to 6
Stitch width
control 3 to 5
Stitch length
control brown
stretch stitch
position
°it//))'
Stretch Stitch
A: Zigzag foot
!
J
////
le Of
%
With the stitch length at "4", sew
straight stitching lines 3/8" apart
across the area to be smocked.
Knot the threads along one edge. Pull
the bobbin threads and distribute the
gathers evenly. Secure the threads at
the other end. Sew the decorative
stitch between the gathering stitches.
Pull out the gathering stitches.
NOTE: Loosen the top thread
tension to make gathering
easier.
5O
• Serging or Pine Leaf Stretch Stitching
Set the Machine
!
Top thread tension
control 3 to 6
Stitch width
control 3 to 5
3_4
Stitch length'
control brown
stretch stitch
position
o
Stretch Stitch
The Stitch and Its Uses
L
J
Use this stitch when you want a
narrow seam that you do not need to
press open flat. It is ideal for 1/4"
seams on knits or on medium to
heavyweight woven fabrics where you
want a narrow seam. It is also great
for sewing spandex swim wear.
Here's How
Place the fabric under the presser
foot so that the stitches are made
over the edge.
NOTE:
When using stretch knit
fabric, use a blue stretch
fabric needle which
effectively prevents
skipped stitches.
Elastic Stretch Stitch
Top thread tension
control 3 to 6
Set the Machine
Stitch width
control 3 to 5
Stitch length
control brown
stretch stitch
positi on
A: Zigzag foot
o_
Stretch Stitch
!
Choose this stitch to attach elastic to
garments.
1. Mark the elastic into quarters and
match these to the center front,
center back and side seams.
2. Place the middle of the elastic
under the center of the presser
foot and stitch into place, making
sure the elastic is evenly distri-
buted.
51

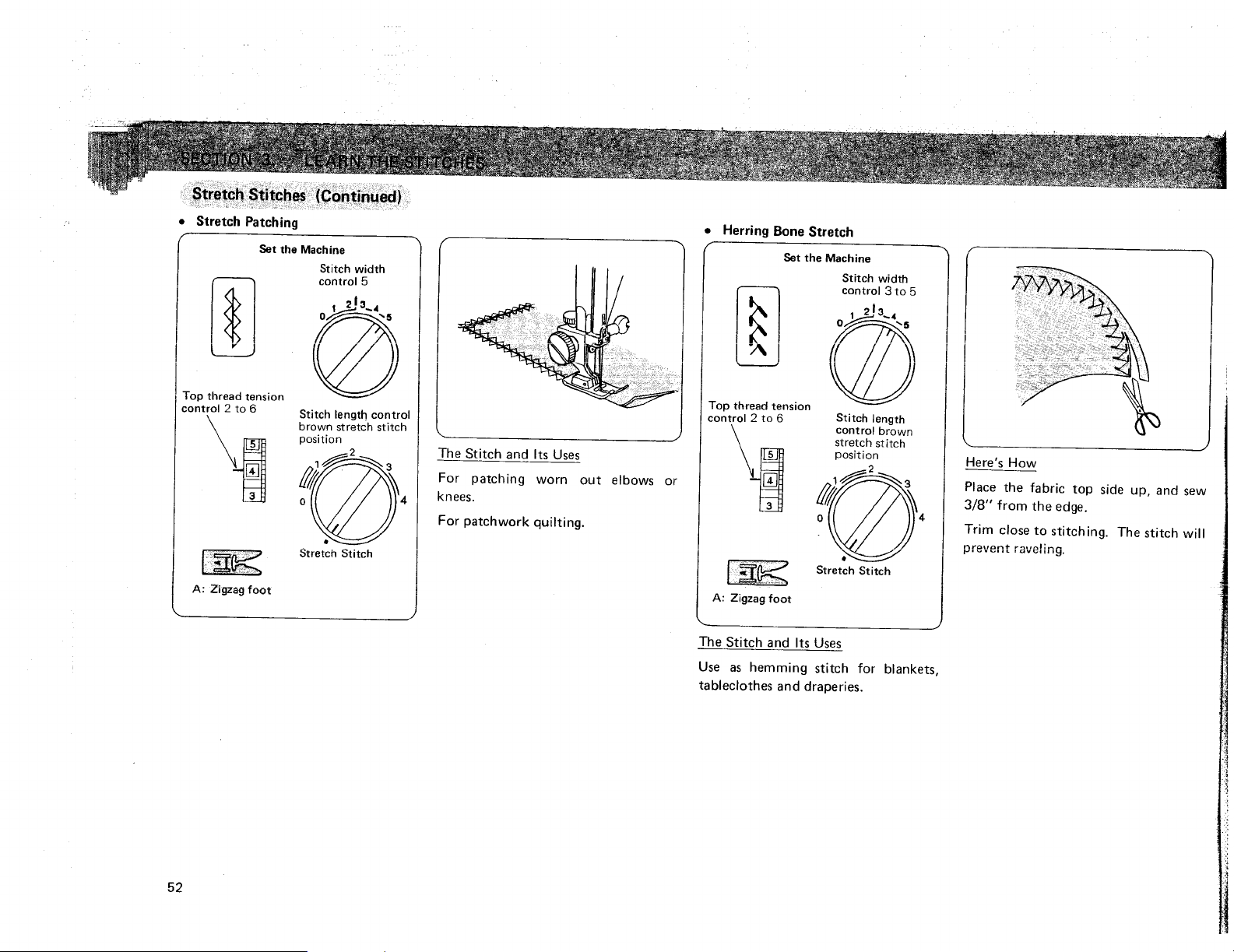

Stretch Patching
Set the Machine
Stitch width
control 5
O_ ---J 3_4..5
Top thread tension
control 2 to 6
A: Zigzag foot
Stitch length, control
brown stretch stitch
position
Stretch Stitch [
I
)
, !
_ iiI
• J
The Stitch and Its Uses
For patching worn out elbows or
knees.
For patchwork quilting.
• Herring Bone Stretch
S -- Set the Mac---_--_-'hine
Stitch width
I_ control 3 to 5
I _ I 1 213 ,4
Top thread tension
control 2 to 6 Stitch length
control brown
stretch stitch
position
01
Stretch Stitch
A: Zigzag foot
The Stitch and Its Uses
Use as hemming stitch for blankets,
tableclothes and draperies.
Here's How
Place the fabric top side up, and sew
3/8" from the edge.
Trim close to stitching. The stitch will
t
52
!

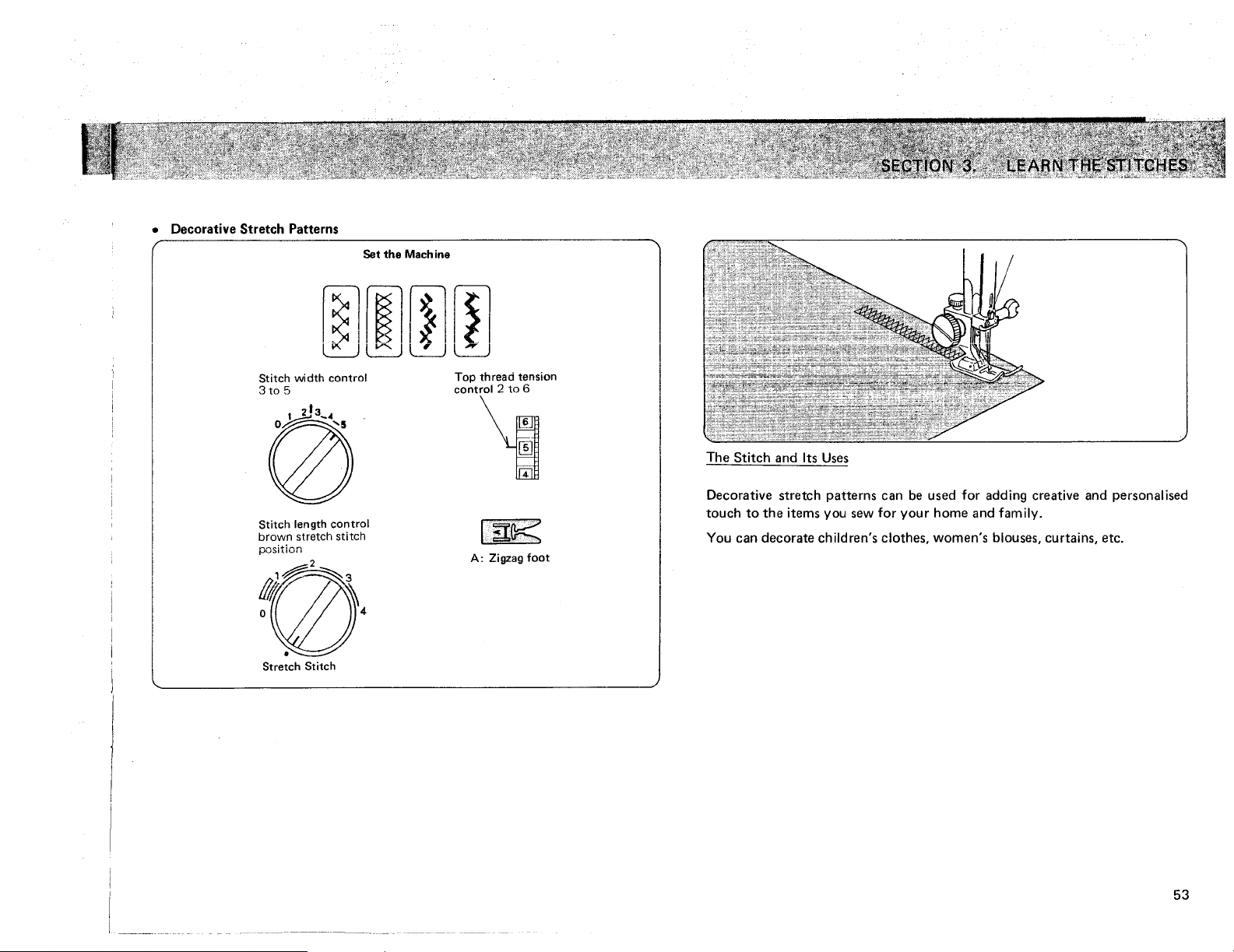

Decorative Stretch Patterns
Set the Machine
Stitch width control
3to5
Top thread tension
control 2 to 6
Stitch length control
brown stretch stitch
IJUUI_IU4=
2
h)._3
Stretch Stitch
A: Zigzag foot
The Stitch and Its Uses
Decorative stretch patterns can be used for adding creative and personalised
touch to the items you sew for your home and family.
You can decorate children's clothes, women's blouses, curtains, etc.
53
• Learning to Sew Buttonholes
With your Kenmore sewing machine you have two methods of making
buttonholes. You may use the built-in system or you may use the
optional snap-in automatic buttonhols attachment system.
Choose the buttonhole style
Built-in bottonholes (rectangular).
Choose this style for waistband, cuffs, belt slots or where you will
need only one or two buttons.
UULLUIIIIUI_ _LLU_IIIII_IIL _Ul-/_,VI,Ul |_ ....
Round end buttonholes (Template No. 213504005, 213505006).
Choose this style for series of buttonholes on dresses, b!ouses,
vests, jackets or coats.
#3t
Tips on buttonholing
Always make a practice buttonhole on a scrap of fabric you plan to
use. Try the buttonhole with the button you will use.
Always use an interfacing in area of garment where buttonholes are
placed.
Tissue paper or regular interfacing can be used. Tear paper away after
stitching, if it is used.
For heavier weight fabrics, loosen your top thread tension slightly.
Keyhole buttonholes (Template No. 213506007).
Choose this style for tailored vests, jackets, coats or any time you
need more room for button shank.
Note: See page 67 for ordering information of optional Buttonhole
Attachment.
54

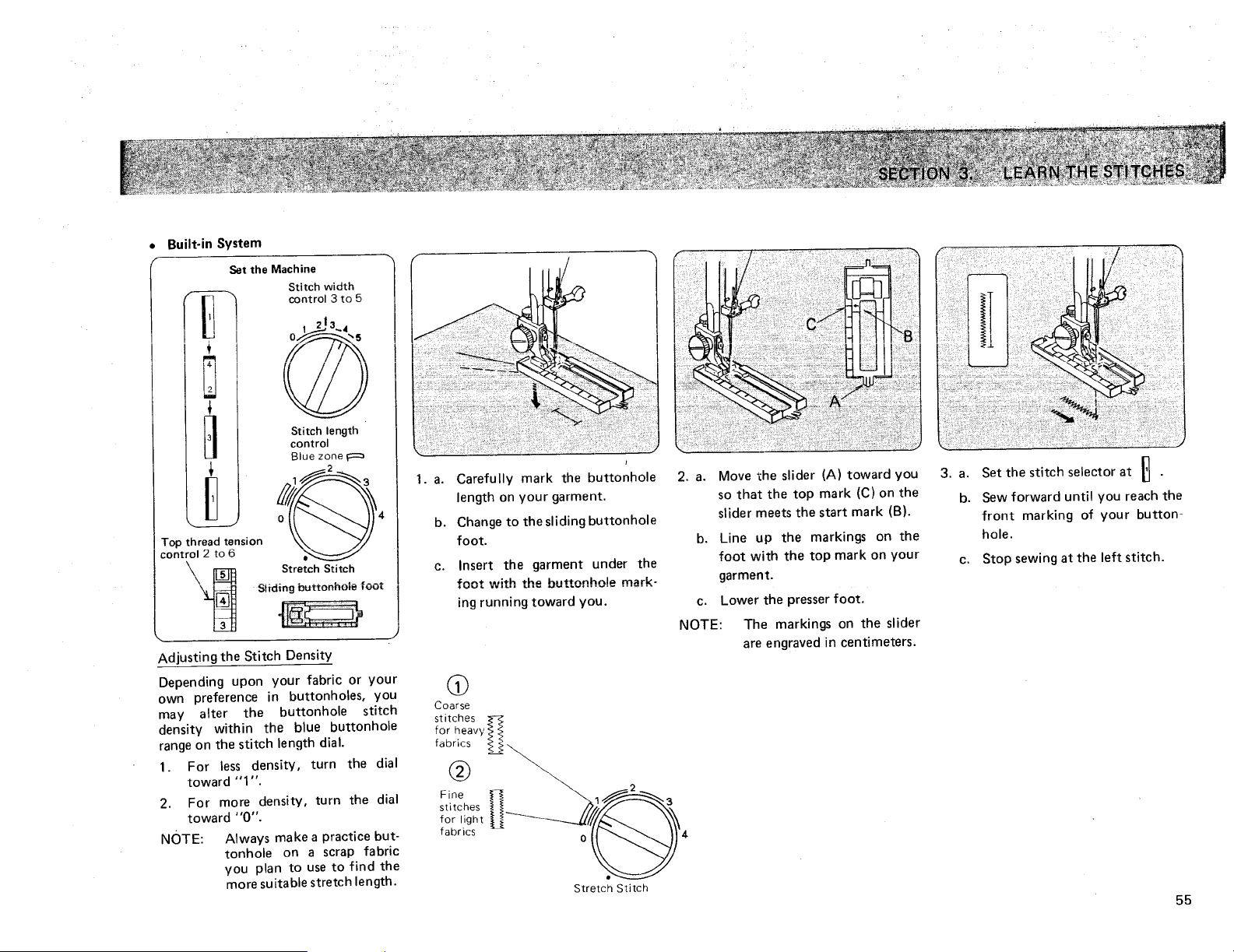

• Built-in System
. !
I I
Set the Machine
Top thread tension
Stitch width
control 3 to 5
1 213-4
Stitch length
control
Blue zone _
control 2 to 6 Stretch Stitch I
__3_ Sfading buttonhole foot }
J
Adjusting the Stitch Density
Depending upon your fabric or your
own preference in buttonholes, you
may alter the buttonhole stitch
density within the blue buttonhole
range on the stitch length dial.
1. For less density, turn the dial
toward "1".
2. For more density, turn the dial
toward "0".
NOTE: Always make a practice but-
tonhole on a scrap fabric
you plan to use to find the
more suitable stretch length.
i
1. a. Carefully mark the buttonhole
length on your garment.
b. Change to the sliding buttonhole
foot.
c. Insert the garment under the
foot with, the utto nhnl_
b ......... mark-
ing running toward you.
@
Coarse
stitches
for heavy
fabrics
@
Fine
stitches
for light
fabrics
Stretch Stitch
2. a,
b.
c.
NOTE:
Move the slider (A) toward you 3. a.
so that the top mark (C) on the b.
slider meets the start mark (B).
Line up the markings on the
foot with the top mark on your c.
garment.
Lower the presser foot.
The markings on the slider
are engraved in centimeters.
Set the stitch selector at _ .
Sew forward until you reach the
front marking of your button-
hole.
Stop sewing at the left stitch.
55
4. a.
b.
C.
Set the stitch selector at _ .
Sew 4 to 6 stitches.
Stop sewing at the right stitch.
NOTE:
When sewing at the edge of fabric, set
sliding buttonhole foot as illustrared
and sew in reverse ( [_ [_]-->_]-_] ).
C.
5. a. Set the stitch selector at _ .
b. Sew until you reach the back of
the buttonhole.
Stop sewing at iLu_u_,_y,_L_u LL._,.
J
b.
C,
d.
m
Set the stitch selector at U "
Sew 4 to 6 stitches,
Stop sewing at the left stitch.
Raise the presser foot, and draw
the fabric away from you. Cut
both the needle and bobbin
threads leaving about 10 cm (4")
thread ends. Draw the needle
thread to wrong side of fabric
by pulling the bobbin thread.
Then, knot the threads.
i
7. Remove the fabric and cut the
hole open with the buttonhole
opener in your accessory storage
box.
56
• Using Buttonhole Attachment
(NOTE: The buttonhole attachment is anoptional item.)
Buttonhole Attachment System
For more varied and accurate buttonholes, you will enjoy using the button-
hole attachment and templates. Know the parts and carefully read how to set
up your machine properly. You will need these items for the buttonhoie
attachement system.
Guide slot
I
/ Measurement
marking
Catch
Buttonhole guide plate
Guide block
Lever
Hook '/ "_Gear
Buttonhole templates
Base plate
Buttonhole foot
Template
Sizes
NOTE:
Buttonhole Style and Size
Round End
Buttonhole
Keyhole
Buttonhole
213504005 213505006 213506007
3/8" 1/2" 15/16" 1-1/16" 7/8" 1-1/16"
5/8" 13/16" 1-1/4" 1-1/2" 1-1/4" 1-3/8"
Illustrations of bu'_tonhole on template show actual length of
buttonhole to be sewn. You will find the most suitable buttonhole
length easily by matching the button with the proper illustration
on the template.
57
I !>1
Set the Machine
Top thread tension
control 2 to 6
Stitch width
control 2
1 2_ 3.,,. 4
Stitch length
control 3 to 4
0\\ j,
Stretch Stitch
I
Buttonhole foot
Helpful Hints
Best results are obtained by using
#60 _ #80 light weight threads as
bobbin thread.
NOTE: It is advisable to use a blue
stretch fabric needle when
sewing knits and synthetic
fabrics.
You can obtain buttonholes
with a wider cutting space by
setting the stitch width
control at 1.5 instead of 2.
58
1.
(Optional Item)
Pins (A)
Lever
1
Rectangular hole
Hook
Base plate
a. Remove the extension table.
b. Raise the needle to its highest position.
c. Remove the foot holder.
d. Pu II bobbin thread out about 3" straight back toward rear of machine.
e. Insert hook of base plate into rectangular hole of needle plate.
f. Pull lever back to align the hook with the rectangular hole.
g. Snap base plate down to fit two pins (A) at the back of base plate into
two round holes (B) on needle plate.
Release lever.
2. a.
b,
c.
(Optional Item)
guide plate
plate
!
Guide s!ot /
Guide block
I Setting Mark
/ Gear
e plate
When you have selected the template with the size and style button-
hole you need, slide the template into the guide plate.
Pull catch toward you while sliding the template until the button-
hole size you have thorn is at the setting mark.
Insert gear of base plate into slot of template and fit guide block
into the center of the guide slot.
3. a.
b.
C°
d.
(Optional Item)
Top !Buttonhole foot
thread /
Bobbin
thread
Gear_lll tl!_Sl°t
\
Starting
point
J
Attach the buttonhole foot.
Adjust position of gear so it is aligned with the starting point of
template.
The lever c_ be used to cha_-_je gear position.
Pull the bobbin thread up through guide slot by turning the hand wheel
toward you while holding top thread.
Place the bobbin and top threads to the left side of guide plate.
Leave 3 to 4 inches of thread.
59

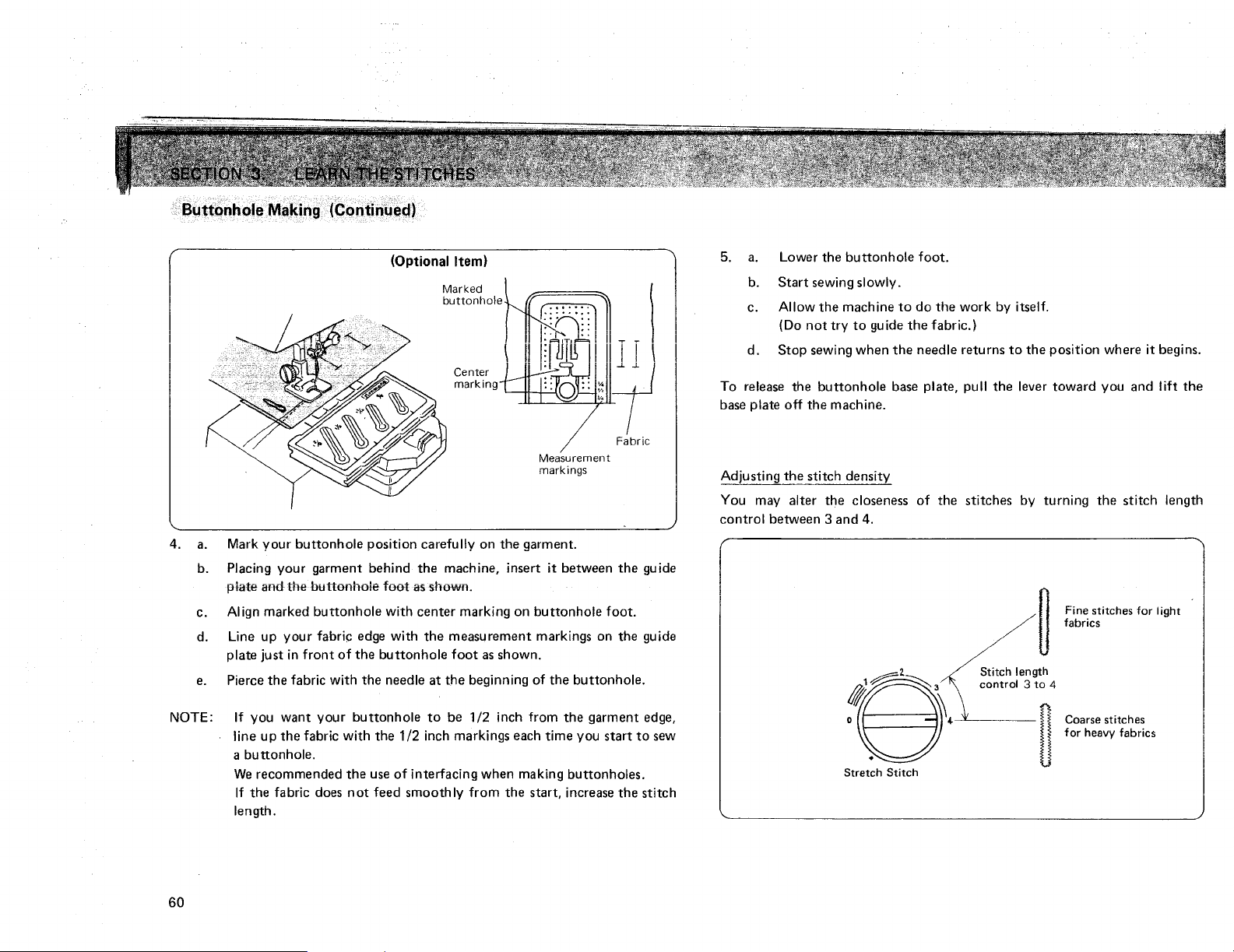

k.
4. a.
b.
C.
d.
e.
NOTE:
(Optional Item)
Marked | I
buttonhole-_ /_ _
!
Center
marking-
II I!1
Fabric
Measurement
markings
- j
Mark your buttonhole position carefully on the garment.
Placing your garment behind the machine, insert it between the guide
plate and the buttc,-_hole foot as shown.
Align marked buttonhole with center marking on buttonhole foot.
Line up your fabric edge with the measurement markings on the guide
plate just in front of the buttonhole foot as shown.
Pierce the fabric with the needle at the beginning of the buttonhole.
If you want your buttonhole to be 1/2 inch from the garment edge,
line up the fabric with the 1/2 inch markings each time you start to sew
a buttonhole.
We recommended the use of interfacing when making buttonholes.
If the fabric does not feed smoothly from the start, increase the stitch
length.
5. a. Lower the buttonhole foot.
b. Start sewing slowly.
c. Allow the machine to do the work by itself.
(Do not try to guide the fabric.)
d. Stop sewing when the needle returns to the position where it begins.
To release the buttonhole base plate, pull the lever toward you and lift the
base plate off the machine.
Adjusting the stitch density
You may alter the closeness of the stitches by turning the stitch length
control between 3 and 4.
Fine stitches for light
fabrics
Stretch Stitch
Stitch length
control 3 to 4
L4 _ _ Coarse stitches
for heavy fabrics
j
60
[
I
Set the Machine
for any of these stitch
Top thread tension
control 3 to 7
Stitch width
control I''
(maximum)
2_ 3,_. 4
Stitch length control
brown stretch stitch
positio_ or grue, t zu_qe
A: Zigzag foot
F: Satin stitch foot
Twin needle
I
\
Turn off the power switch. (see page 6).
Insert the additional spool pin in the hole. (see page 1__6).
Place the felt and the spool on the additional spool pin. (see page 16__).
Prp.pare the too thread for additional spool pin. (see paqe 19).
Thread then is slipped into needle bar thread guide as illustration A.
Chan_ the needle to twin needle° (see page !5__.)-
Thread needles from front to back.
Illustration A
J
NOTE:
When changing the direction of sewing, turn the hand wheel so needles are
in the up position.
When sewing with twin needle do not use a stitch width which goes past
the twin needle mark ( _r ).
Twin needle is an optional item for all models.
61
PROBLEM PROBABLE CAUSE CORRECTION
Irregular Stitches
Breaking Needle
Bunching of Thread
Puckering
Incorrect size needle.
Improper threading.
Loose upper thread tension.
Pulling fabric.
Loose presser foot.
Unevenly wound bobbin.
Nicks or burrs at hole of needle plate.
Pulling fabric.
Incorrect size needle.
Incorrect setting of needle.
Loose presser foot.
Upper and lower threads not drawn back
under presser foot before starting seam.
Incorrect thread tension.
Using two different sizes or kinds of thread.
Bent or biunt needle.
Loose presser foot.
Fabric too sheer or too soft.
!
1
Choose correct size needle for thread and fabric.
Rethread machine.
Tighten upper thread tension.
Do not pull fabric; guide it gently.
Reset presser foot.
Rewind bobbin.
Replace needle plate, or polish off burrs completely,
Do not pull fabric; guide it gently.
Choose correct size needle for thread and fabric.
Reset needle.
Reset presser foot.
When starting a seam be sure to draw both threads under and
back of presser foot about 4" and hold until a few stitches are
formed.
Reset thread tension.
Upper thread and bobbin thread should be same size and kind,
Insert new needle.
Reset presser foot.
Use underlay of tissue paper.
62
PROBLEM PROBABLE CAUSE
Skipping Stitches
Breaking Upper Thread
Breaking Bobbin Thread
Fabric not Moving
Machine Jamming Knocking Noise
Incorrect size needle.
Bent or blunt needle.
Incorrect setting of needle.
Tight upper thread tension.
Starting to stitch too fast.
Improper threading.
Tight upper thread tension.
Incorrect size needle.
Sharp eye in needle.
Nicks or burrs at hole of needle plate.
Improper bobbin threading.
Lint in bobbin holder or hook race.
L./Cll IIIII_ _JICILC; in }JiQ_.t_.
Stitch Length set at 0.
Thread knotted under fabric.
Push-pull clutch is disengaged.
Thread caught in hook race.
Lint in bobbin holder or hook race.
CORRECTION
Choose correct size needle for thread and fabric.
Insert new needle.
Reset needle.
Loosen upper thread tension.
Start to stitch at a medium speed.
Rethread machine.
Loosen upper thread tension.
Choose correct size needle for thread and fabric.
Insert new needle.
Replace needle plate, or polish off burrs completely.
Check bobbin threading.
Clean bobbin holder and hook race.
Remove darning nl_t_
Adjust Stitch Length Control.
Place both threads back under presser foot before beginning
to stitch.
Push in the clutch.
Disassemble and clean hook race.
Clean bobbin holder and hook race.
63
!
i
!i l
t p
J
1. Unplug the machine and open the
face cover plate.
CAUTION!
The light bulb could be
HOT. Protect your
fingers when you handle
it.
2.
.
Push the bulb up and turn the
bulb counter-clockwise to remove
it.
Put :the new bulb in by pushing it
up and turning it clockwise.
To insure that your machine operates at its best, you need to keep the
essential parts clean at all times.
The bobbin area can collect dust and lint. Your machine can become sluggish
or knock loudly if a thread is caught.
Gb
J
Turn off the power switch or unplug
the machine.
Remove the cover plate by sliding the
hook cover plate release button to the
right.
Take out the bobbin.
Brush out dust and lint or you may
use a vacuum cleaner.
J
k,
Insert the bobbin.
Attach the hook cover plate.
1
J
64

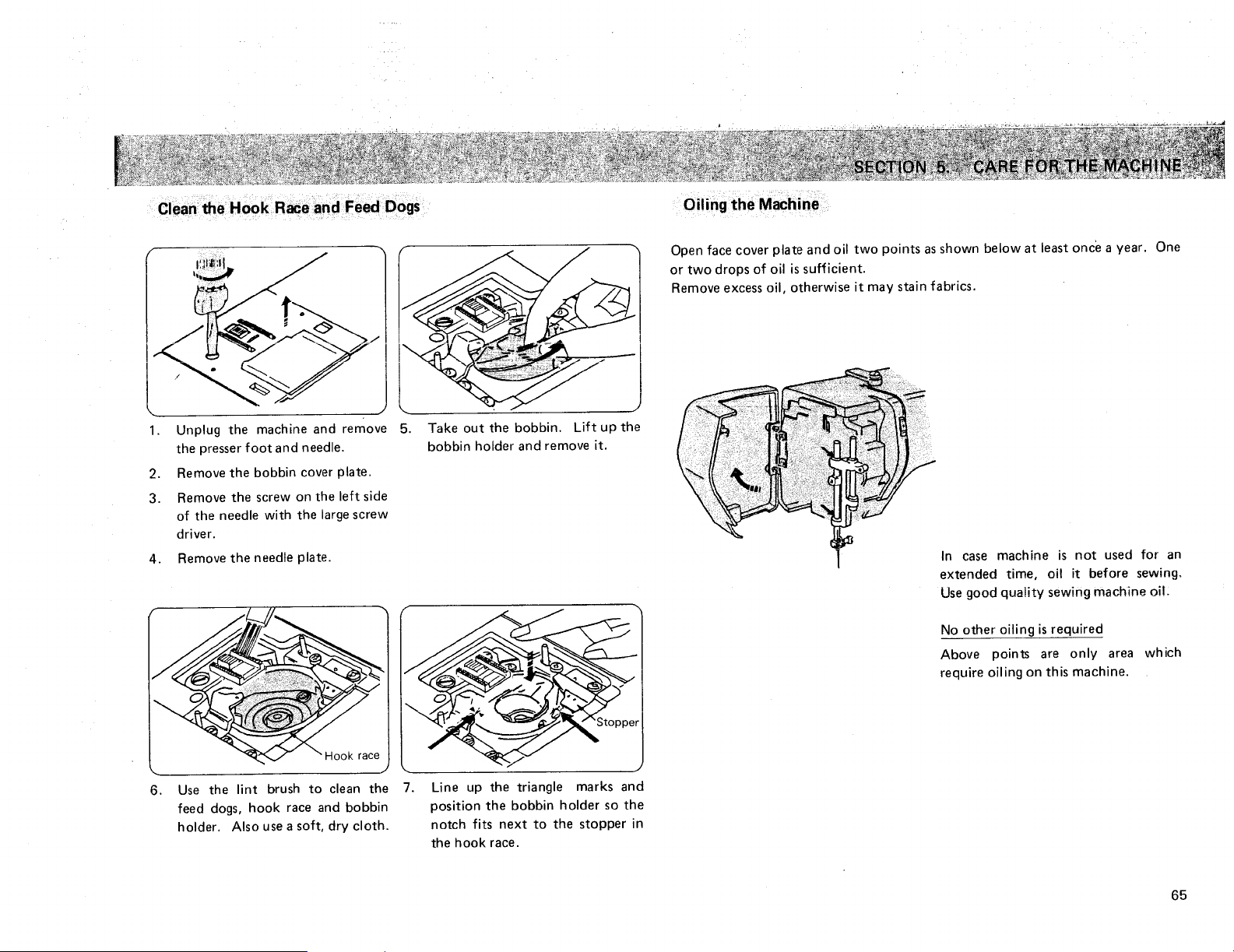

1. Unplug the machine and remove
the presser foot and needle.
2. Remove the bobbin cover plate.
3. Remove the screw on the left side
of the needle with the large screw
driver.
4. Remove the needle plate.
J
6. Use the lint brush to clean the
feed dogs, hook race and bobbin
holder. Also use a soft, dry cloth.
5. Take out the bobbin. Lift up the
bobbin holder and remove it.
7° Line up the triangle marks and
position the bobbin holder so the
notch fits next to the stopper in
the hook race.
Open face cover plate and oil two points as shown below at least once a year. One
or two drops of oil is sufficient.
Remove excess oil, otherwise it may stain fabrics.
In case machine is not used for an
extended time, oil it before sewing.
Use good quality sewing machine oil:
No other oiling is required
Above points are only area which
require oiling on this machine.
65
PARTS LIST
/
1
I
2 4 5 6
7 8 9
66
10 11 12 13
9/oJ
19 2O
28 29
21
22
W
14 15
23 24
%
16 17 18
@ ®
25 26 27
J
All parts listed herein may be ordered from any Sears Roebuck and Co. store or
service center.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
if the parts you need are not stocked locally, your order will be electronically
transmitted to a Sears Repair Parts Distribution Center for expedited handing.
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
t5
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Ref. No.
*102869107
102403202
813404013
647814020
647814031
647814042
647814053
652806015
685502019
825813005
823803006
822804118
*6864
000009803
820832005
6478030O4
802424004
647808O09
*6889
822O2O5O3
822019509
625031500
*826815000
*213702016
*200002008
*200003009
*200005001
*200013105
*200027102
*2O0O30108
*214872000
*654805008
*94162OO00
Description
Bobbin box with 10 bobbins
Spool pin felt
No. 11 Stretch fabric needles (BLU)
No. 11 Single needles (ORG)
No. !4 Single needles (RED)
___ ,!__ tr__! t •
' No. i6 Single nuuo_u_ IruR)
No. 18 Single needles (GRN)
Straight foot
Zigzag foot
Sliding buttonhole foot
Zipper foot
Satin stitch foot
Needle threader
Light bulb
Large screw driver
Small screw driver
Lint brush
Buttonhole opener
Oil and lint brush set
Large spool holder
Small spool holder
Additional spool pin
Twin needle
Buttonhole attachments
Piping foot
Gathering foot
Pin-Tucking foot
Hemmer foot
Binder foot
1/4" Seam foot
Walking foot
Embroidery foot
Ruffler
* These items are not furnished with the machine, but may be ordered
per instructions above.
67
.......................... nTGl_q_/i I iilr ..... _ .......
_ . _ _ ,
A
Accessory storage box .............. 3, 9
Additional spool pin ............... 16
Appliqueing ................... 26, 38
B
Bar tacking ................... 26, 38
Base ........................... 3
Base plate ....... ............... 67
Basic zigzag ................... 2tJ, 31J
Blind hemming ................. 26, 42
Bobbin ............ 5, t6_18, 64, 66_67
Bobbin holder .............. 18, 64_65
Bobbin thread ................. 20_21
Bobbin winding " 16_17
Bobbin winding spindle ......... 3, 16_17
Box stitching .................. 28, 45
Buttonhole 30, 54_56
Buttonhole attachment . . . 54, 57_60, 66_67
Buttonhole foot .......... 57_60, 66_67
Buttonhole guide plate ........ 57_60, 67
Buttonhole making .............. 54_60
Buttonhole template .......... 57_60, 67
Button sewing ................. 26, 40
C
Cabinet ......................... 3
Changing needle .................. 15
Changing presser foot ............ 11_12
Cleaning hook race and feed dogs ...... 65
Cornering guide ................ 31,39
D
Darning ..................... 26, 32
Decorative geometric patterns ....... 29, 48
Drop feed lever _ 32
Elastic stretch ................. 28, 51
Embroidery ................... 26, 39
Extension table .................. 3, 9
INDEX
Fabric, needle, thread and stitch
length chart ..................... 1 5
Face cover plate ............ 3, 7, 64_65
Fagoting ..................... 28, 46
Feed dogs .................... 32, 65
Foot control .................... 4, 6
Free arm sewing ................ 9_10
H
Hand wheel .................... 4, 20
Herring bone stretch ............. 29, 52
Hook race ...................... 65
Horizontal spool pin ............... 16
Lace work ...................... 43
Large screw driver ............. 5, 66"-67
Light and power switch ............. 4, 6
Light bulb ................. 64, 66_67
Lint brush .................. 5, 64_67
M
Monogramming ................ 26, 36
N
Needle ................ 14_15, 66_67
Needle clamp ................... 4, 15
Needle plate ................... 3, 18
Needle, thread and fabric chart ........ 15
Needle threading ............... 19_20
O
Oiling ......................... 65
Overcasting stitch ................. 41
Overcast stretch ................ 27, 50
Overedging stitch ............... 29, 47
P
Parts list ..................... 66_67
Performance problems ............ 62_63
Plug connector ................... 4, 6
Portable case ..................... 3
Power switch .................... 4, 6
Practical stitch chart ............. 26_30
Pressure control dial ................ 7
Presser foot ................. 4, 11_13
Presser foot lever ................. 4, 8
Push-pull clutch ................. 4, 17
R
Reverse stitch control .......... 3, 25, 31
Rick-rack stretch stitching ......... 26, 49
Satin stitch foot .....................
......... 5, 13, 27, 30, 37_39, 45, 66_67
Satin stitching ................. 29, 37
Seam guides ..................... 31
Serging ...................... 27, 51
Serging or pine leaf stretch ......... 27, 51
Sewing light ...................... 6
Shell stitching ................. 27, 45
blloing buttonnole TOOt ...............
............... 5, 13, 30, 55_56, 66_67
Sma!l screw driver ............. 5, 66_7
Smocking .................... 27, 50
Snap-on button ................. 4, 11
Spool pin felt ................ 5, 66_67
Spool pin ....................... 3
Stitch length control .............. 3, 24
Stitch selector 4, 23
Stitch width control .............. 3, 24
Straight stitching ............ 26, 31_35
Straight stitch foot ....................
............ 5, 12, 26, 31,33, 49, 66_67
Straight stretch stitching .......... 26, 49
Stretch patching ................ 28, 52
Stretch stitch adjuster ............. 4, 24
T
Take-up lever .................... 3, 19
Thread cutter ................... 3, 19
68
Threadguide................. 3_4,19
Three-stepzigzag............... 27,44
Topstitching.................. 26,33
Twinneedlestitches............... 61
Topthread................... 19"-22
Topthreadtension.............. 21_22
Topthreadtensioncontlol....... 3,21_22
Turningasquarecorner............. 31
Two-pointboxstitching........... 29,47
Two-pointshellstitching.......... 28,46
Z
Zigzagfoot ........................
..... 12,26_30,38,40_47,49_53,66_67
Zigzag stitching ............. 26, 36_48
Zigzag overcasting ................. 41
Zipper application ........... 26, 34_35
Zipper foot . ..... 5, 13, 26,34_35,66_67
69
JF _ It _ Ill _ .qi,-4_1,-,qin.-.qnp,. ,ill,._l_-.IFl* 4_.. ,111,-q_m.. ,llt,._q_.. qlln.,.,_D_ ,111, _qb.. ,4il,,..,ql_ ,iLl, _b.. ,lll,._b. ,qi,,_._,. 'ql,-4_,-qlh "_b," 'qlb '4qD_ 'ilh-4b-'ql, "_b,.-'ill, _ 'ill, _4h-" 'gll, _ IIh "qh_-'ill, _ 'Lib "_b" qll, _b - 'IIF, "ql,," 'LII '
WARRANTY
FULL 25-YEAR WARRANTY ON SEWING MACHINE HEAD _-=
For 25 years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which appear ._
# in the mechanical components of the sewing machine head.
.---" FULL TWO YEAR WARRANTY ON ELECTRICAL EQUIPMENT OF SEWING MACHINE
For two years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which ,_
_) appear in the electrical equipment of the sewing machine, including electronic components, motor, wiring, switch and
# speed control.
FULL 90-DAY WARRANTY ON ALL PARTS AND MECHANICAL ADJUSTMENTS
#
- For 90 days from the date of purchase, Sears wilt, free of charge, replace any parts and provide mechanical service
necessary for proper operation of the sewing machine, except for normal maintenance.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE SEWING MACHINE TO THE NEAREST SEARS SERVICE --=
CENTER/DEPARTMENT IN THE UNITED STATES.
# --=
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
-=
SEARS, ROEBUCK AND CO., D/817 WA, Hoffman Estates, IL 60179
SEWING MACHINE
Now that you have purchased your Kenmore Sewing Machine, should a need ever exist for repair parts
or service, simply contact your nearest Sears Service Center. Be sure to provide all pertinent facts when
you call or visit.
-]"he model number of your Sewing Machine will be shown on your nomenclature plate on the back of
your Sewing Machine. See page 4 for location.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
*PART NUMBER *PART DESCRIPTION *MODEL NUMBER *NAME OF ITEM
if the parts you need are not stocked iocaiiy, your order wiii be eiec_ronicaiiy transmitted to a Sears
Repair Parts Distribution Center for handling.
SEARS, ROEBUCK AND CO., Chicago, IL60684 U.S.A.
S-385 Printed in Taiwan Part No. 654800014
