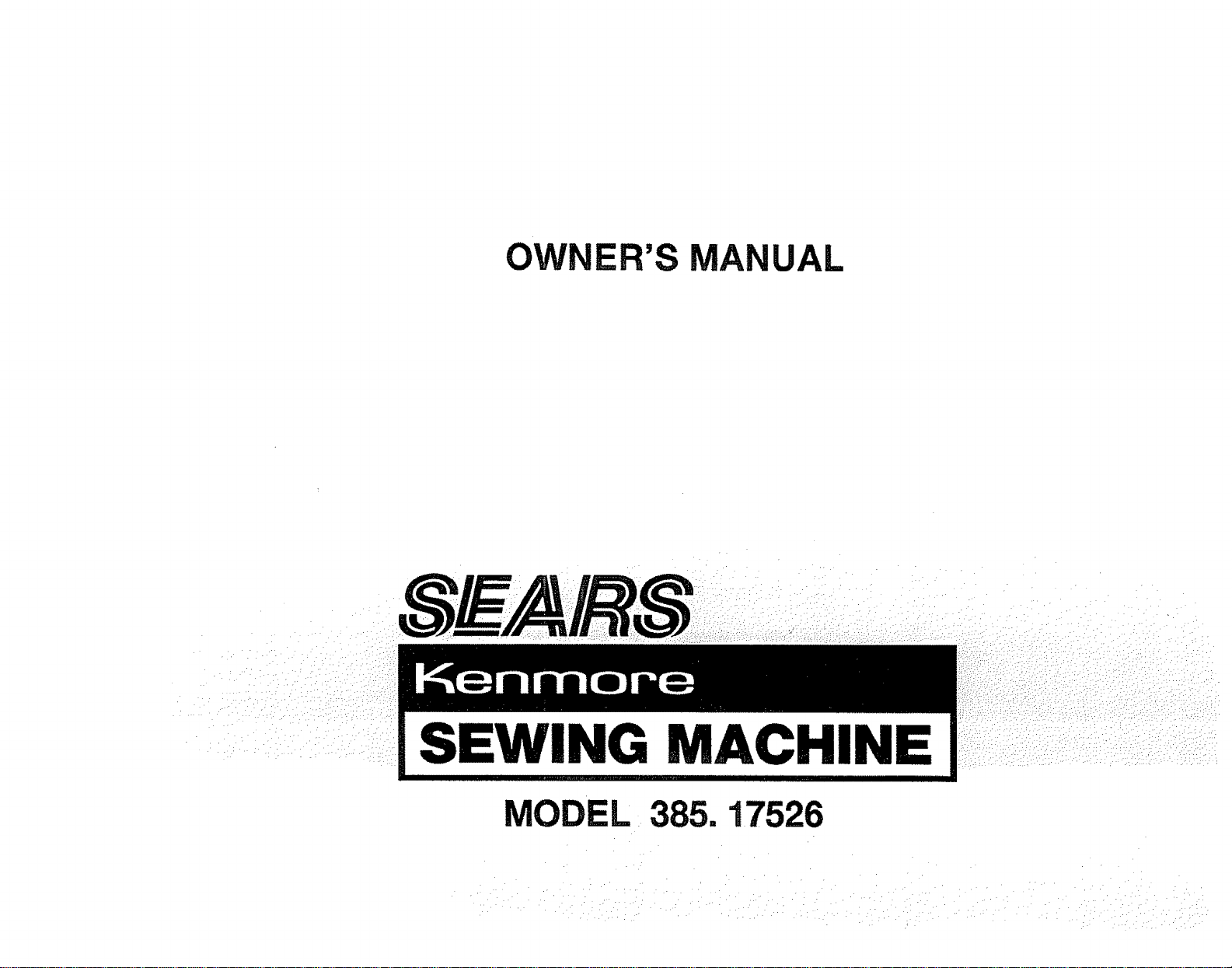

OWNER'S MANUAL
MODEL 385. 17526
SEARS, ROEBUCK AND CO.

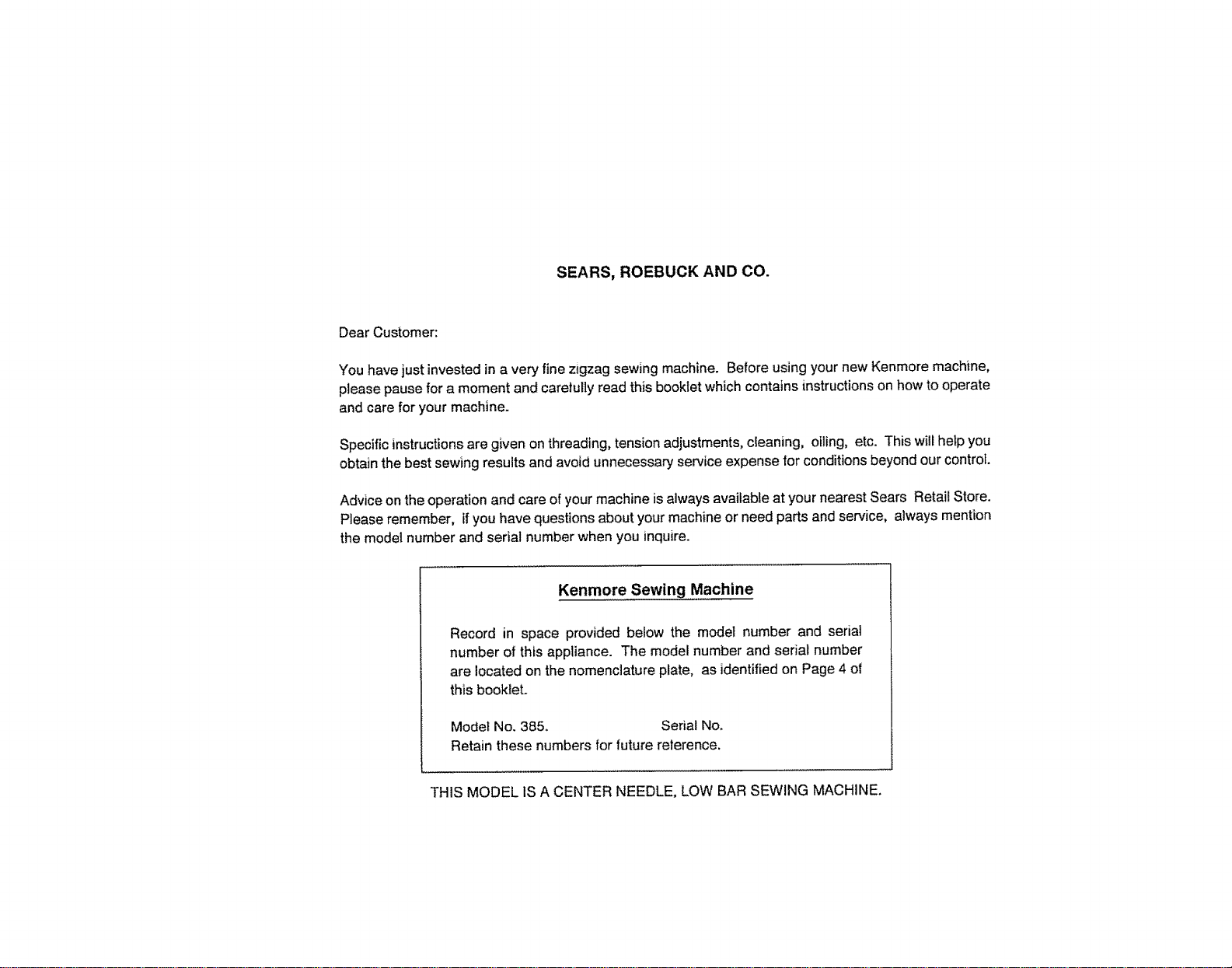

Dear Customer:
You have just invested in a very fine zigzag sewing machine. Before using your new Kenmore machine,
please pause for a moment and carefully read this booklet which contains instructions on how to operate
and care for your machine.
Specific instructions are given on threading, tension adjustments, cleaning, oiling, etc. This will help you
obtain the best sewing results and avoid unnecessary service expense for conditions beyond our control.
Advice on the operation and care of your machine is always available at your nearest Sears Retail Store.
Please remember, ifyou have questions about your machine or need parts and service, always mention
the model number and serial number when you inquire.
Kenmore Sewing, Machine
Record in space provided below the model number and serial
number of this appliance. The model number and serial number
are located on the nomenclature plate, as identified on Page 4 of
this booklet.
Model No. 385. Serial No,
Retain these numbers for future reterence.
THIS MODEL 1SA CENTER NEEDLE, LOW BAR SEWING MACHINE.

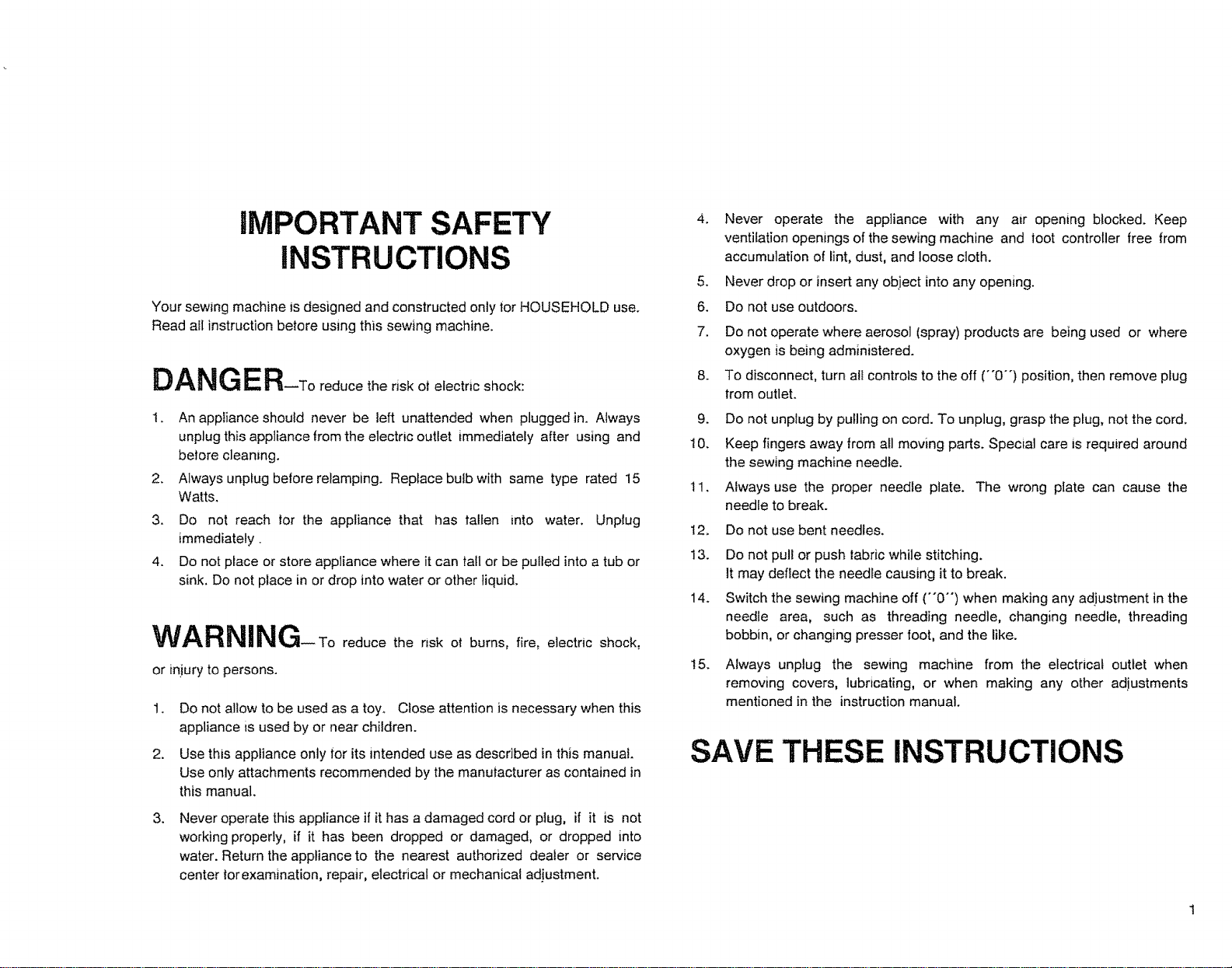

iMPORTANT SAFETY
INSTRUCTIONS
Your sewing machine is designed and constructed only for HOUSEHOLD use.
Read all instruction before using this sewing machine.
DANGER- o reduce the risk ot electric shock:
2.
3.
4.
An appliance should never be left unattended when plugged in. Always
unplug this appliance from the electric outlet immediately after using and
betore cleaning.
Always unplug before refamping. Replace bulb with same type rated 15
Watts.
Do not reach for the appliance that has tallen into water. Unplug
immediately.
Do not place or store appliance where it can tall or be pulled into a tub or
sink. Do not place in or drop into water or other liquid.
WA RNING- Toreduce the risk ot burns, fire, electric shock,
or injury to persons.
2,
.
Do not allow to be used as a toy. Close attention is necessary when this
appliance is used by or near children.
Use this appliance only for its intended use as described in this manual.
Use only attachments recommended by the manufacturer as contained in
this manual.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into
water. Return the appliance to the nearest authorized dealer or service
center torexamination, repair, electrical or mechanical adjustment.
4o
,
6.
7.
8.
Never operate the appliance with any air opening blocked. Keep
ventilation openings of the sewing machine and toot controller free from
accumulation of lint, dust, and loose cloth.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
To disconnect, turn all controls to the off I"0") position, then remove plug
trom outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away trom all moving pads. Special care is required around
the sewing machine needle.
11.
t2.
13.
14_
15.
Always use the proper needle plate. The wrong plate can cause the
needle to break.
Do not use bent needles.
Do not pull or push labric while stitching.
It may deflect the needle causing it to break.
Switch the sewing machine off ("0") when making any adjustment in the
needle area, such as threading needle, changing needle, threading
bobbin, or changing presser foot, and the like.
Always unplug the sewing machine from the electrical outlet when
removing covers, lubricating, or when making any other adjustments
mentioned in the instruction manual.
SAVE THESE INSTRUCTIONS

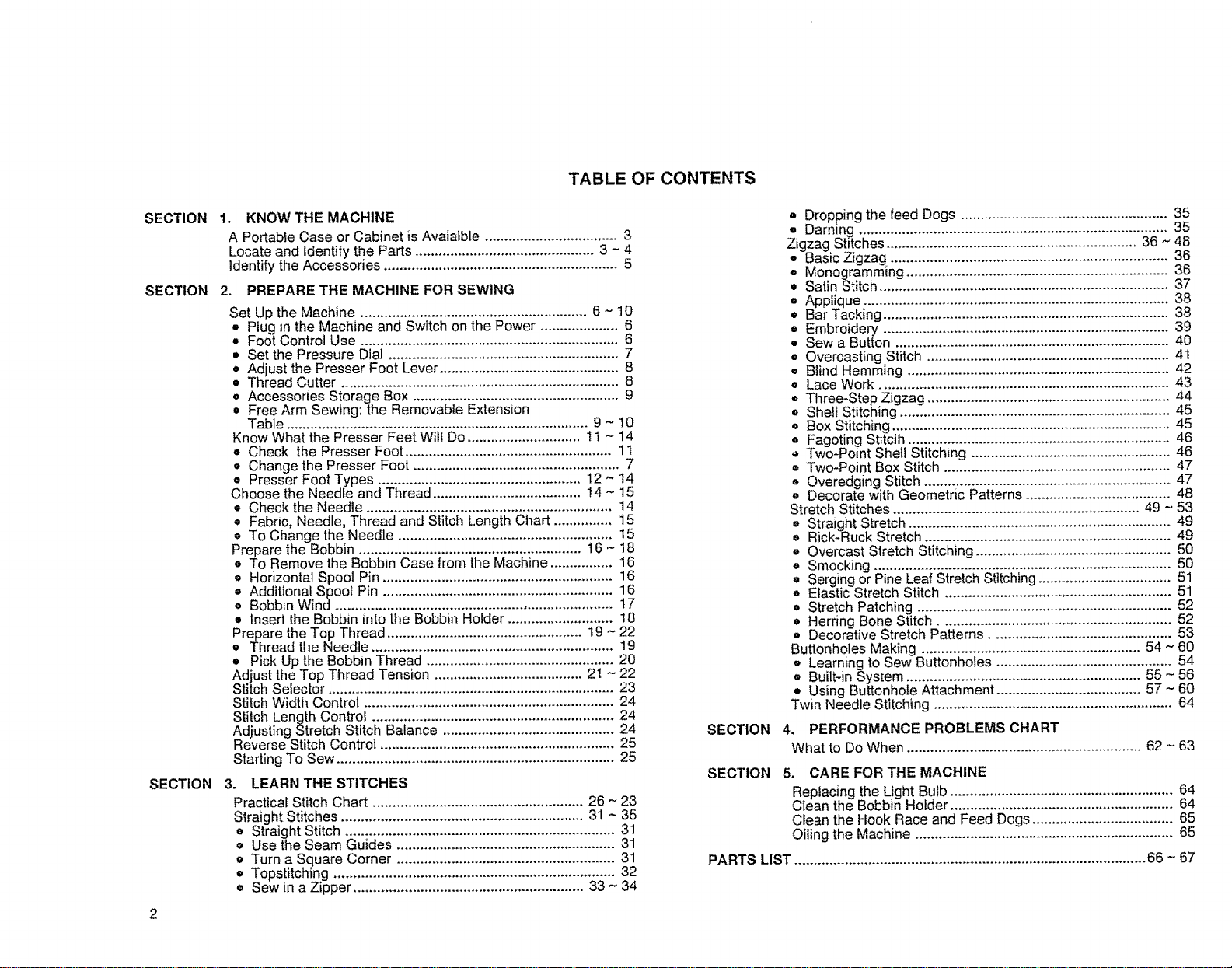

TABLE OF CONTENTS
SECTION
SECTION
SECTION
1. KNOW THE MACHINE
A Portable Case or Cabinet is Avaiatble .................................. 3
Locate and Identify the Parts .............................................. 3 - 4
identify the Accessories ............................................................ 5
2. PREPARE THE MACHINE FOR SEWING
Set Up the Machine .......................................................... 6 - 10
Plug in the Machine and Switch on the Power .................... 6
Foot Control Use .................................................................. 6
,= Set the Pressure Dial ........................................................... 7
o Adiust the Presser Foot Lever .............................................. 8
e
Thread Cutter ....................................................................... 8
o Accessories Storage Box ..................................................... 9
o Free Arm Sewing: the Removable Extension
Table ............................................................................. 9 - 10

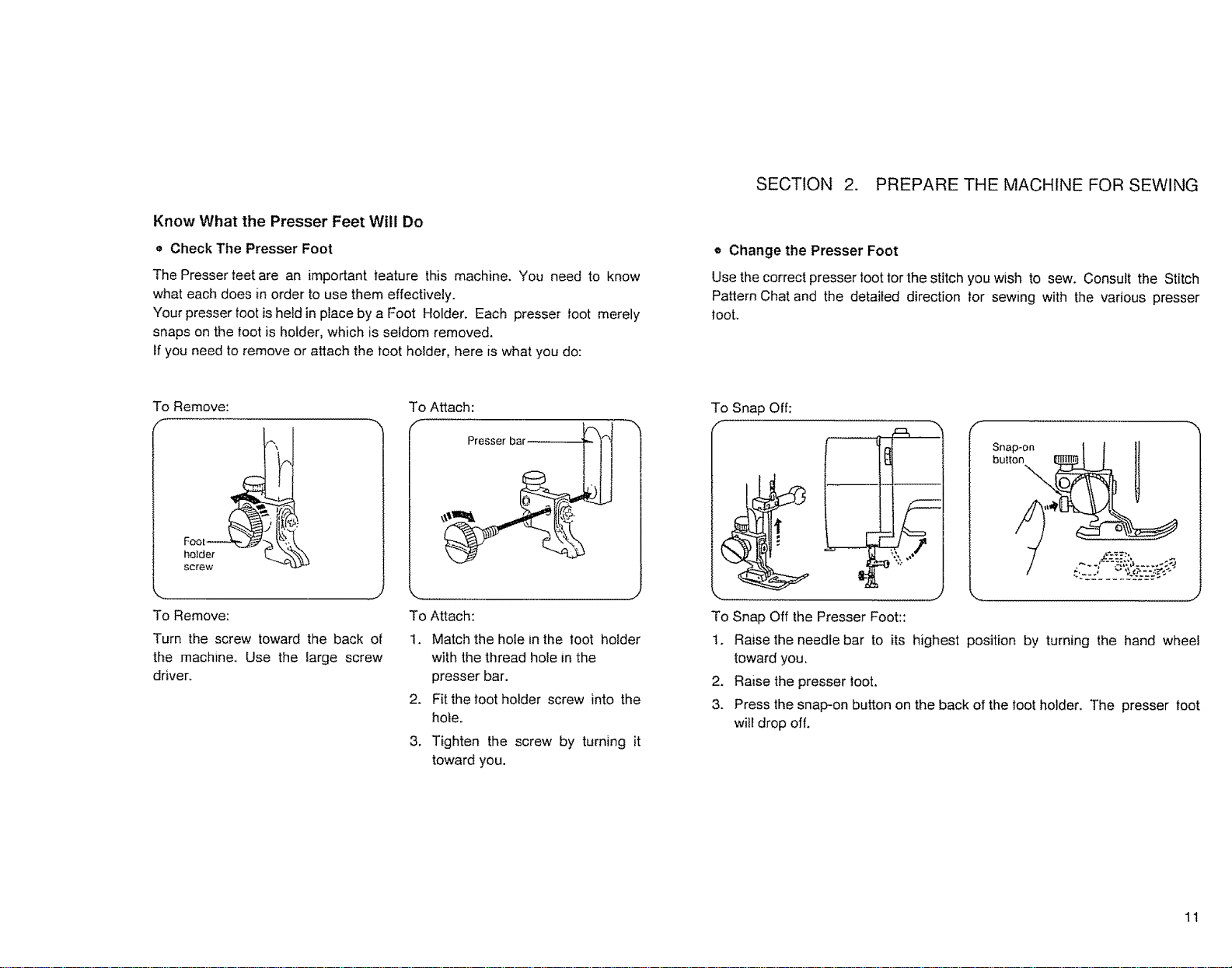

Know What the Presser Feet Will Do ............................. ! I - 14
o Check the Presser Foot ..................................................... 1t
o Change the Presser Foot ..................................................... 7
= Presser Foot Types .................................................... 12 ~ 14
Choose the Needle and Thread ...................................... 14 - 15
• Check the Needle ............................................................... 14
• Fabric, Needle, Thread and Stitch Length Chart ............... 15
o To Change the Needle ....................................................... 15
Prepare the Bobbin ......................................................... t 6 ~ 18
o To Remove the Bobbin Case from the Machine ................ 16
o Horizontal Spool Pin ........................................................... 16
o Additional Spool Pin ........................................................... 16
o Bobbin Wind ....................................................................... I7
o Insert the Bobbin into the Bobbin Holder ........................... I8
Prepare the Top Thread .................................................. 19 ~ 22
• Thread the Needle .............................................................. 19

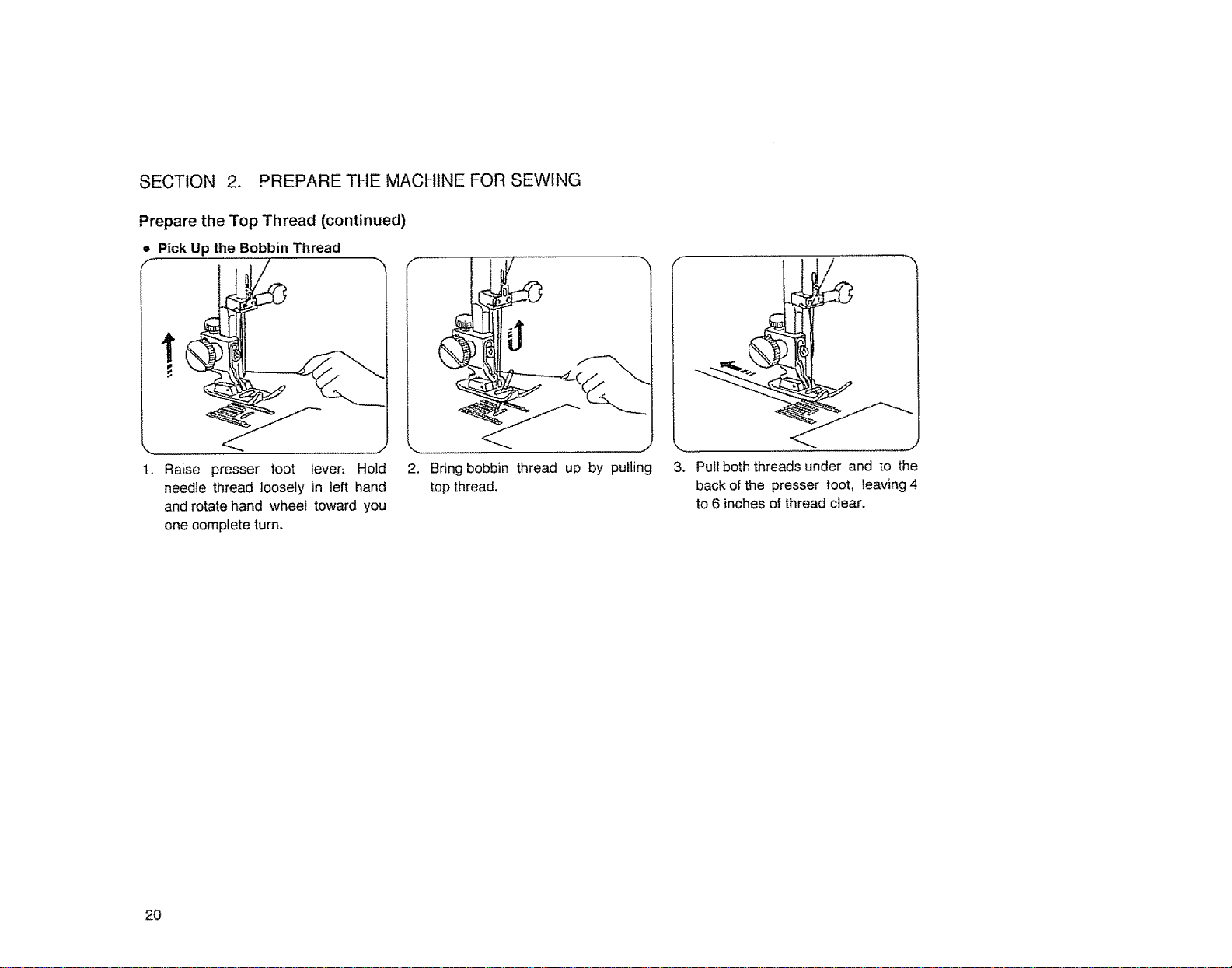

e Pick Up the Bobbin Thread ................................................ 20
Adjust the Top Thread Tension ...................................... 21 ~ 22
Stitch Selector ......................................................................... 23
Stitch Width Control ................................................................ 24
Stitch Length Control .............................................................. 24
Adjusting Stretch Stitch Balance ............................................ 24

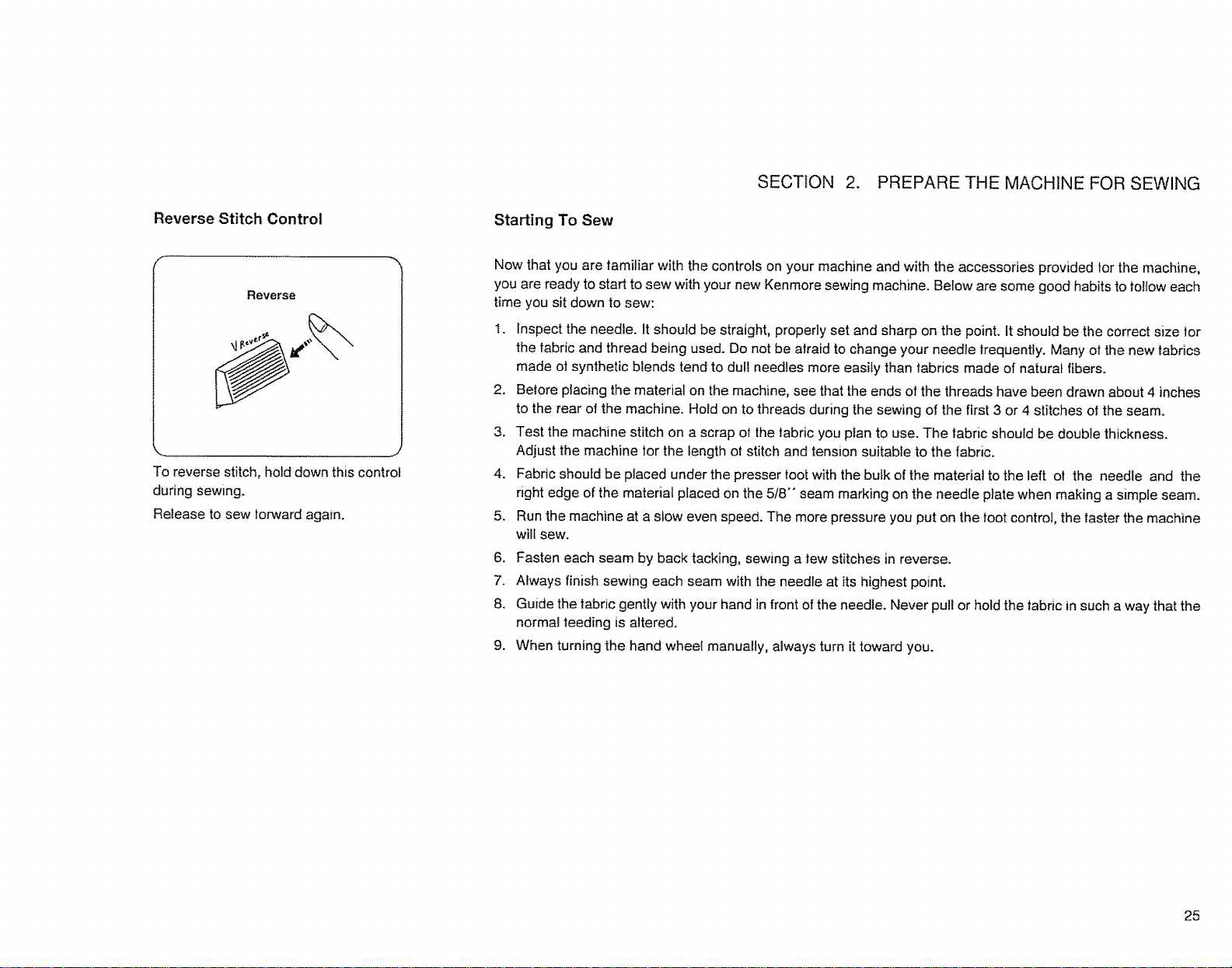

Reverse Stitch Control ............................................................ 25
Starting To Sew ....................................................................... 25
3. LEARN THE STITCHES

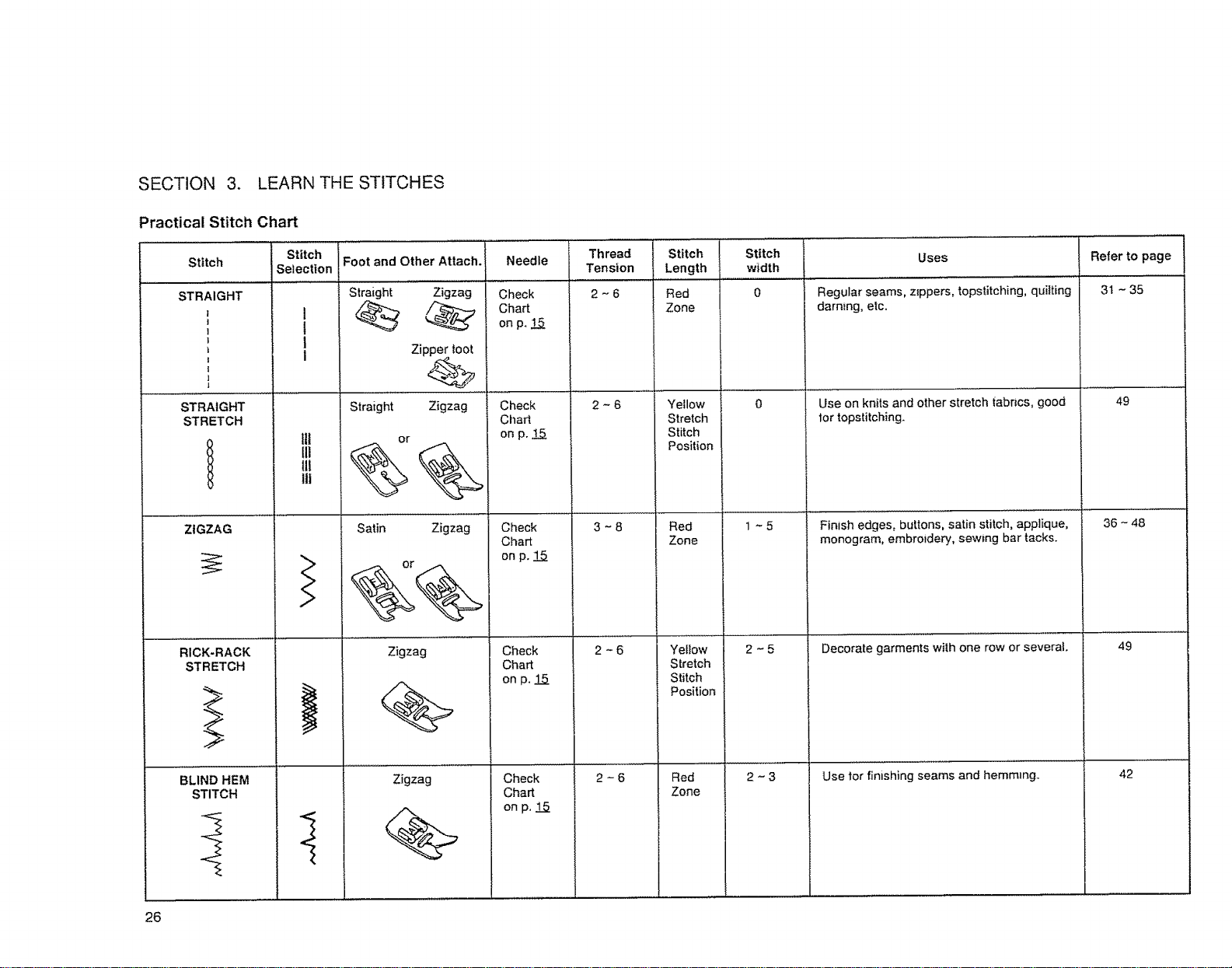

Practical Stitch Chart ...................................................... 26 - 23
Straight Stitches .............................................................. 3t - 35
e Straight Stitch ..................................................................... 31
o Use the Seam Guides ........................................................ 31
o Turn a Square Corner ........................................................ 31
• Topstitching ........................................................................ 32
® Sew in a Zipper ........................................................... 33 ~ 34
SECTION
Dropping the feed Dogs ..................................................... 35
=0Darning ............................................................................... 35
Zigzag Stitches ................................................................ 36 - 48
e Basic Zigzag ....................................................................... 36
• Monogramming ................................................................... 36
• Satin Stitch .......................................................................... 37
Applique .............................................................................. 38
Bar Tacking ......................................................................... 38
= Embroidery ......................................................................... 39
• Sew a Button ...................................................................... 40
o Overcasting Stitch .............................................................. 41

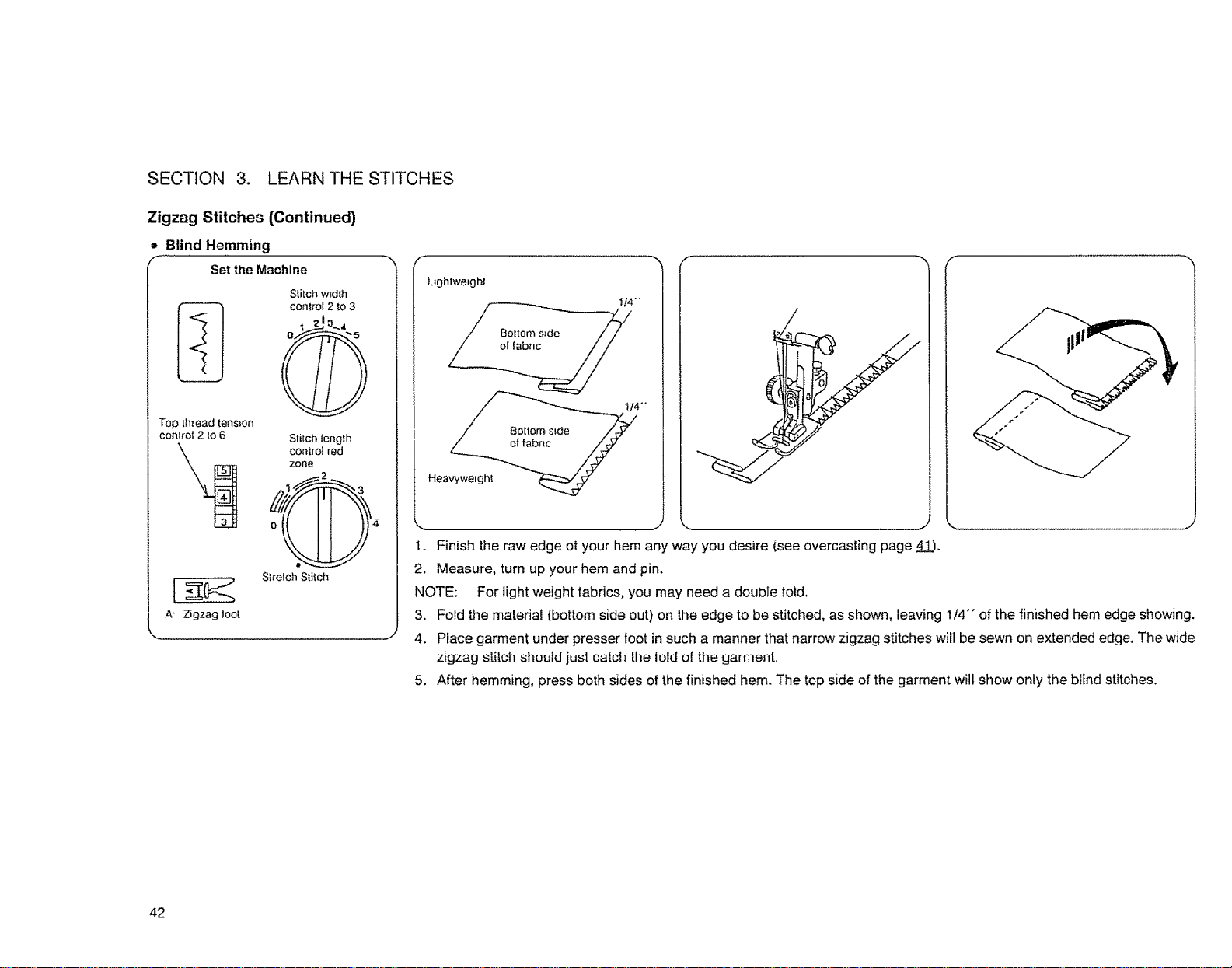

o Blind Hemming ................................................................... 42
o Lace Work .......................................................................... 43
e Three-Step Zigzag .............................................................. 44
o Shell Stitching ..................................................................... 45
o Box Stitching ....................................................................... 45
o Fagoting Stitcih ................................................................... 46
,_ Two-Point Shell Stitching ................................................... 46
= Two-Point Box Stitch .......................................................... 47
= Overedging Stitch ............................................................... 47
o Decorate with Geometric Patterns ..................................... 48
Stretch Stitches ............................................................... 49 ~ 53
,=,Straight Stretch ................................................................... 49
• Rick-Ruck Stretch ............................................................... 49
o Overcast Stretch Stitching .................................................. 50
o Smocking ............................................................................ 50
,= Serging or Pine Leaf Stretch Stitching .................................. 5t
o Elastic Stretch Stitch .......................................................... 51
o Stretch Patching ................................................................. 52
• Herring Bone Stitch ........................................................... 52
• Decorative Stretch Patterns .............................................. 53
Buttonholes Making ........................................................ 54 - 60
o Learning to Sew Buttonholes ............................................. 54
= Built-in System ............................................................ 55 - 56
• Using Buttonhole Attachment ..................................... 57 ~ 60
Twin Needle Stitching ............................................................. 64
4. PERFORMANCE PROBLEMS CHART

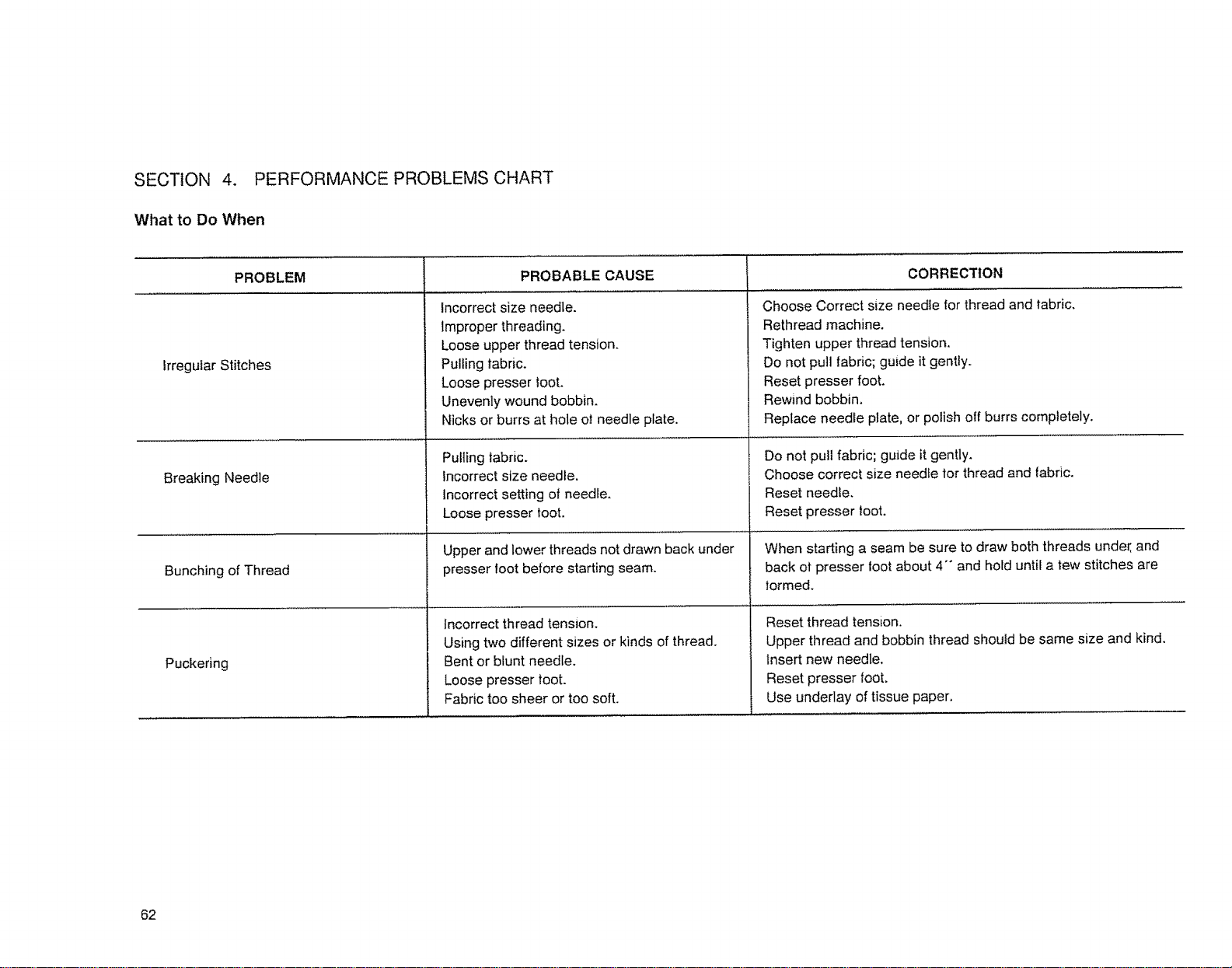

What to Do When ............................................................ 62 - 63
SECTION 5. CARE FOR THE MACHINE
Replacing the Light Bulb ......................................................... 64
Clean the Bobbin Holder ......................................................... 64
Clean the Hook Race and Feed Dogs .................................... 65
Oiling the Machine .................................................................. 65
PARTS LIST .......................................................................................... 66 - 67
A Portable Case or Cabinet is Available

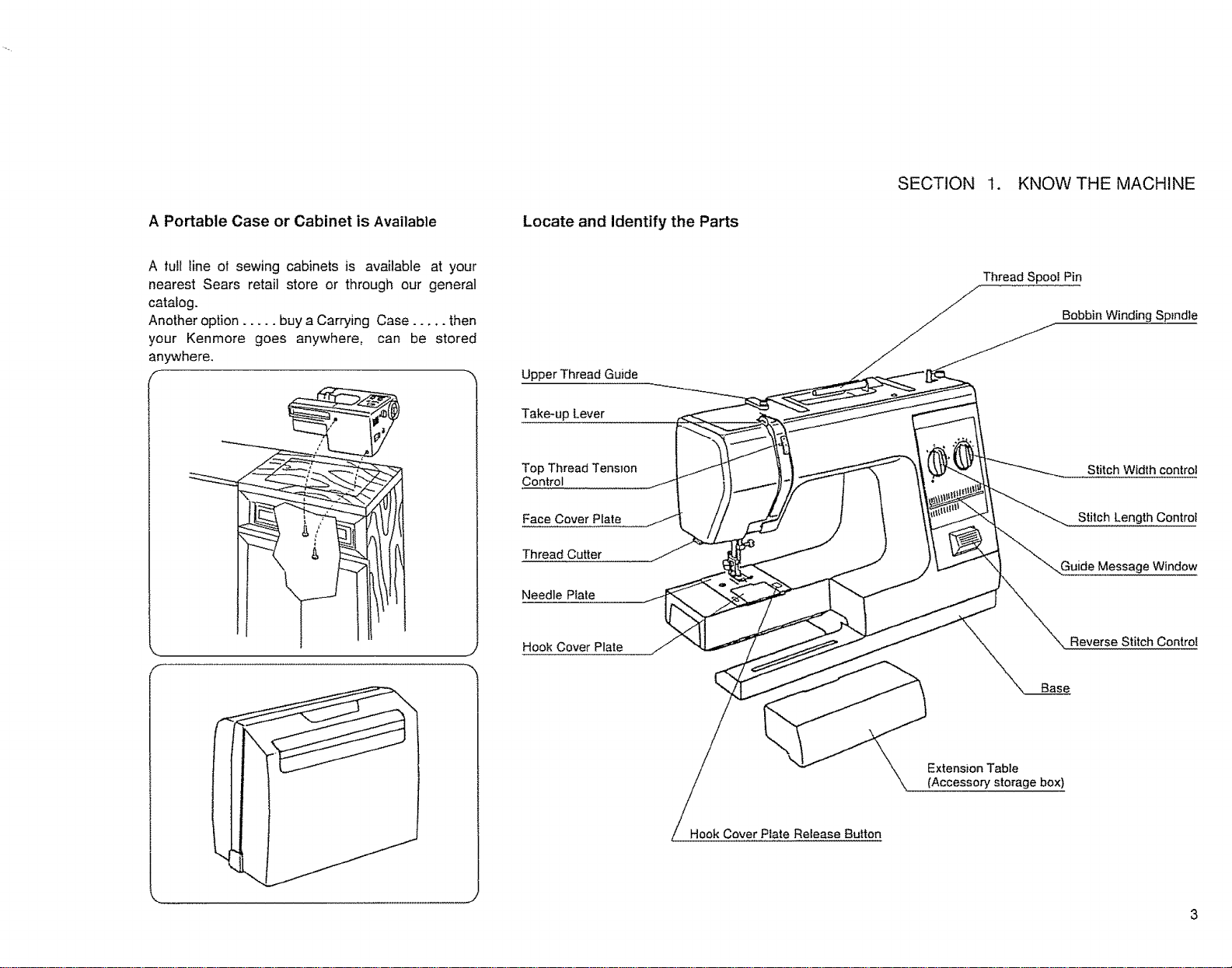

Locate and Identify the Parts
SECTION 1. KNOW THE MACHINE
A full fine ot sewing cabinets is available at your
nearest Sears retail store or through our general
catalog.
Another option ..... buy a Carrying Case ..... then
your Kenmore goes anywhere, can be stored
anywhere.
Upper Thread Guide
Take-up Lever
Top Thread Tension
Control
;over Plate
Thread Cutter
Needle Plate
Hook Cover Plate
Hook Cover Plate Release Sutton
Thread Spool Pin
Bobbin Winding Sptndle
Stitch Width control
Stitch Length Control
Guide Messa_
Extension Table
{Accessory storage box)
SECTION 1. KNOW THE MACHINE

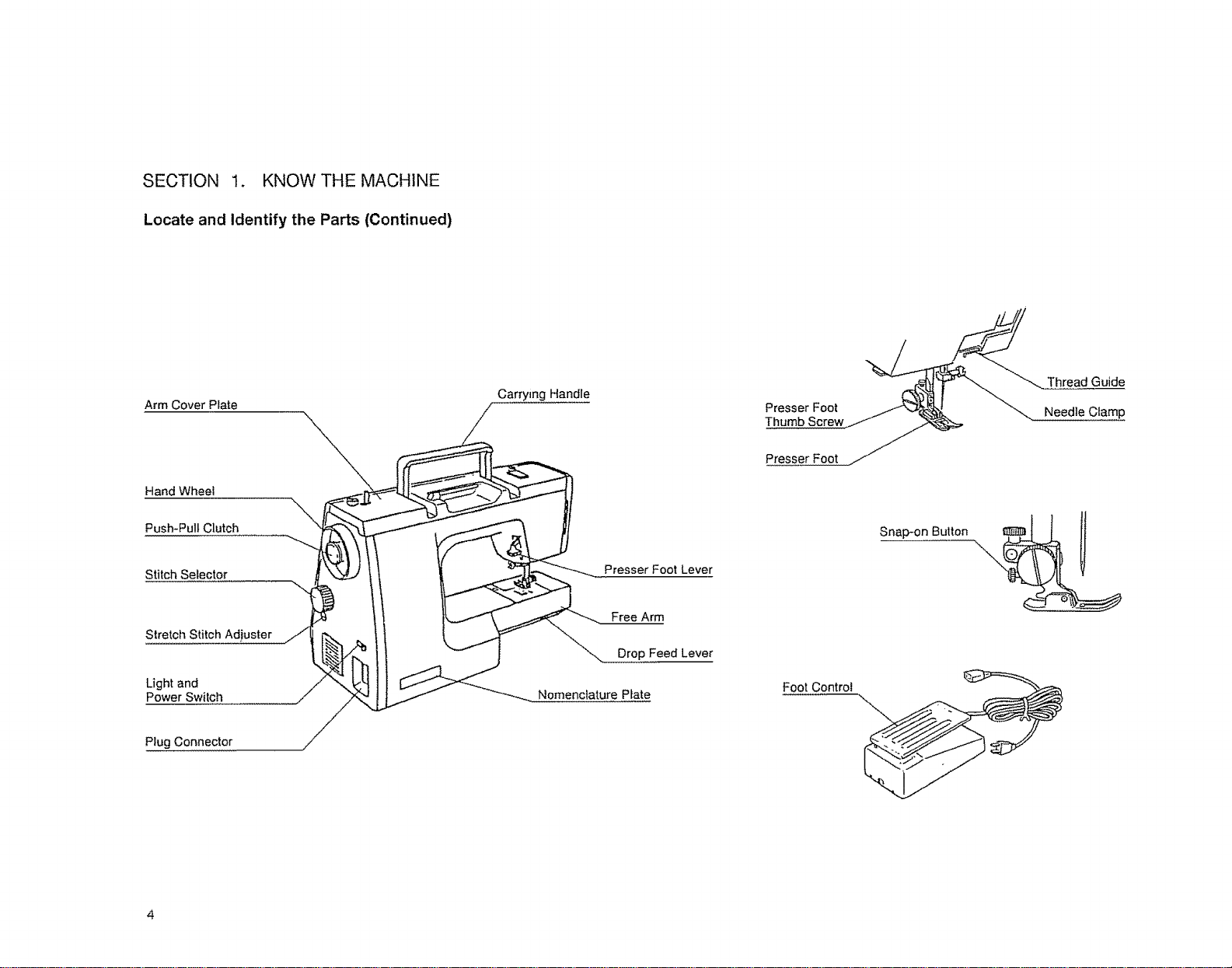

Locate and Identify the Parts (Continued)
Arm Cover Plate
Carrying Handle
Presser Foot
Thumb Screw
Presser Foot
Thread Guide
Needle
Hand Wheel
\
Push-Pull Clutch
Stitch Selector
Stretch Stitch Adiuster
Light and
Power Switch
Presser Foot Lever
Free Arm
Drop Feed Lever
Nomenclature Plate
Foot Control
Snap-on Button
Plug Connector

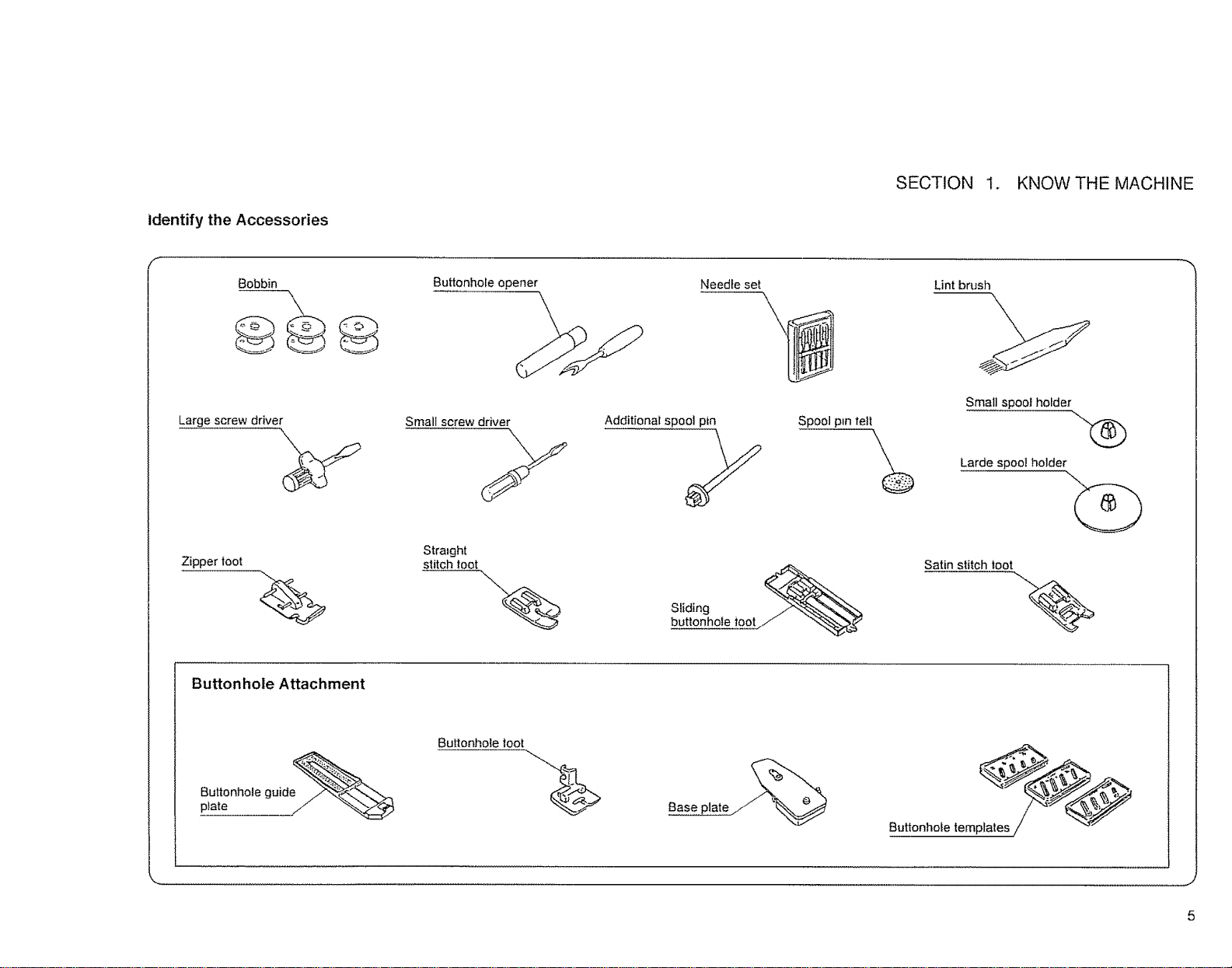

identify the Accessories
SECTION 1. KNOW THE MACHINE
Large screw driver
Buttonhole opener
Small screw driver
Y
Needle set
\
Additional spool pin
Straight
Zipper ioot stitch toot
Sliding
buttonhole loot
Spool pm tell
Lint brush
Small spoof holder
Larde spool holder
Satin stitch loot
-%
Buttonhole Attachment
Buttonhole guid_
p_ate ._//
Buttonhole toot
Base plate __
Buttonhole templates
SECTION 2. PREPARE THE MAHCINE FOR SEWING

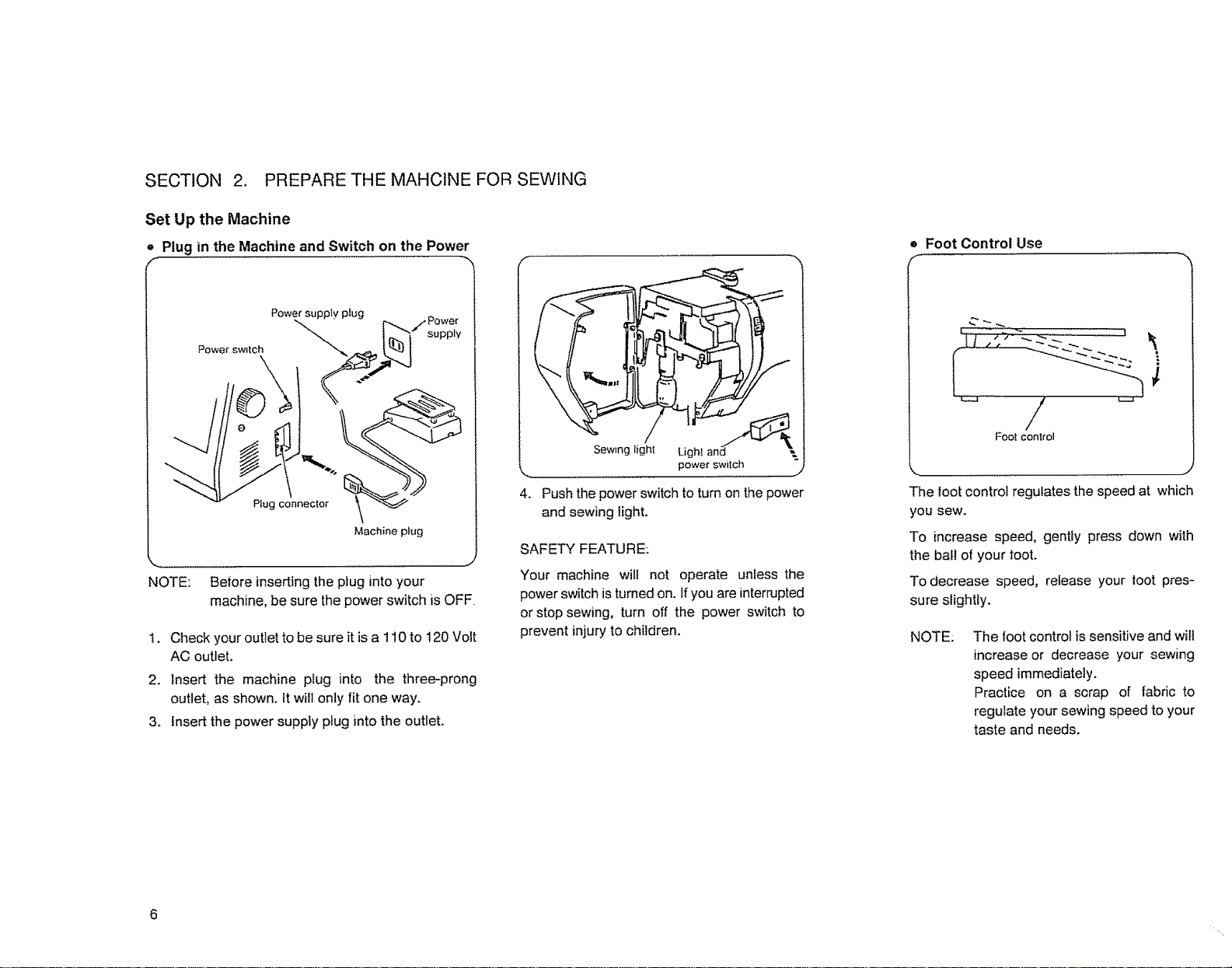

Set Up the Machine
o Plug in the Machine and Switch on the Power
• Foot Control Use
Power suppiy pIug
Power sw_tch
Plug connecter
\
Machine plug
J
NOTE: Before inserting the plug into your
machine, be sure the power switch is OFF_
1.
2.
3.
Check your outlet to be sure itis a 110 to t 20 Volt
AC outlet.
Insert the machine plug into the three-prong
outlet, as shown. It will only fit one way.
Insert the power supply plug into the outlet.
4.
Sewing light
........................ power switch j
Push the power switch to turn on the power
and sewing light.
SAFETY FEATURE:
Your machine wilt not operate unless the
power switch is turned on. If you are interrupted
or stop sewing, turn off the power switch to
prevent injury to children.
E-- -...... ,- < ]
/
Foot control
The foot control regulates the speed at which
you sew.
To increase speed, gently press down with
the ball of your toot.
To decrease speed, release your loot pres-
sure slightly.
NOTE: The foot control is sensitive and wilt
increase or decrease your sewing
speed immediately.
Practice on a scrap of fabric to
regulate your sewing speed to your
taste and needs.
SECTION 2. PREPARE THE MACHINE FOR SEWING

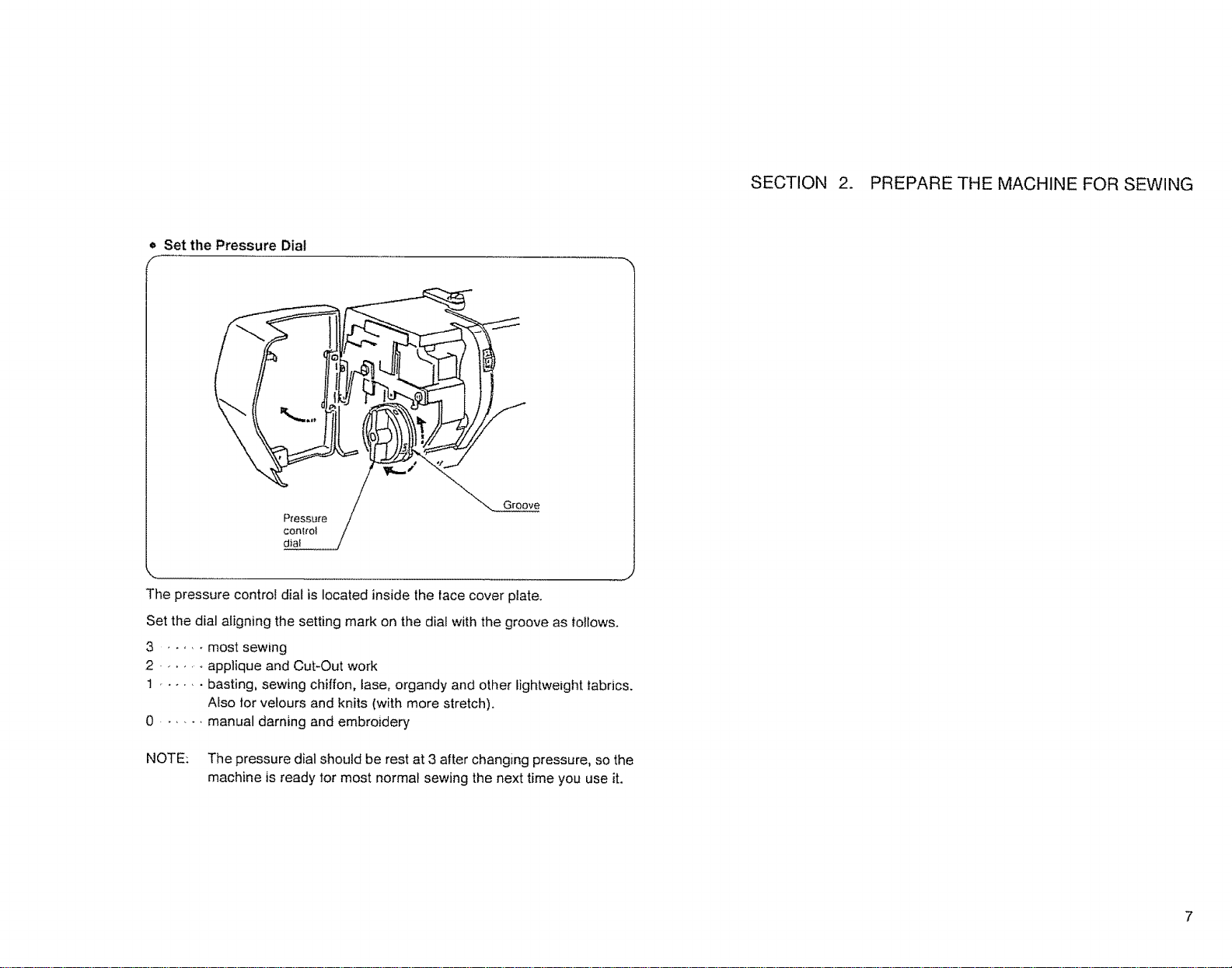

• Set the Pressure Dia!
f
The pressure control dial is located inside the race cover plate.
Set the dial aligning the setting mark on the dial with the groove as follows.
3 ...... most sewing
2 ....... applique and Cut-Out work
1 ....... basting, sewing chiffon, tase0 organdy and other lightweight fabrics.
Also tor velours and knits (with more stretch).
0 ...... manual darning and embroidery
NOTE: The pressure dial should be rest at 3 after changing pressure, so the
machine is ready tot most normal sewing the next time you use it.
7
SECTION 2. PREPARE THE MACHINE FOR SEWING
Set Up the Machine (Continued)

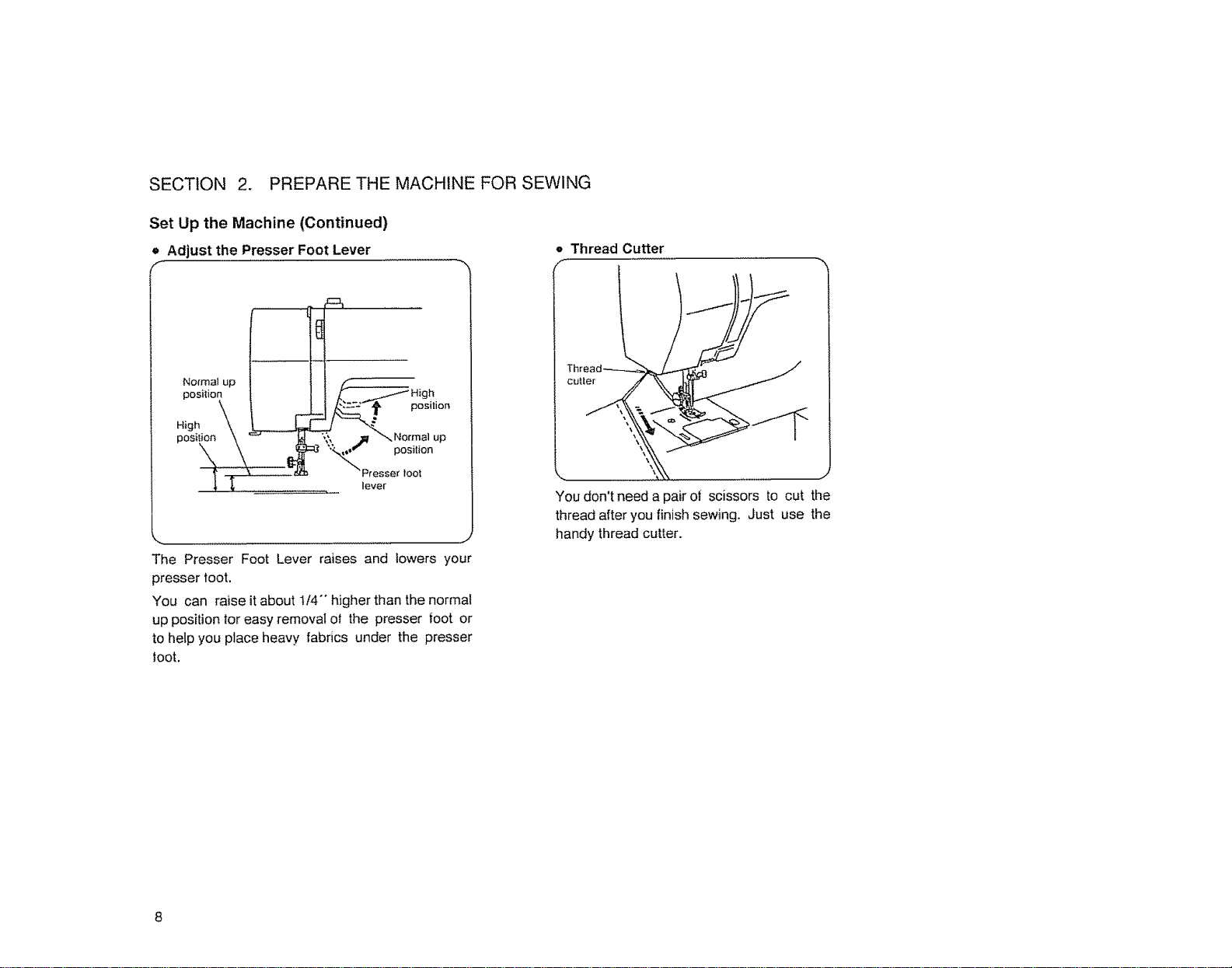

• Adjust the Presser Foot Lever
The Presser Foot Lever raises and lowers your
presser loot.
You can raise it about I/4- higher than the normal
up position for easy removal of the presser foot or
to help you place heavy fabrics under the presser
loot.
o Thread Cutter
cull_ __ _._
You don't need a pair o| scissors to cut the
thread after you finish sewing. Just use the
handy thread cutter.
8
SECTION 2. PREPARE THE MACHINE FOR SEWING

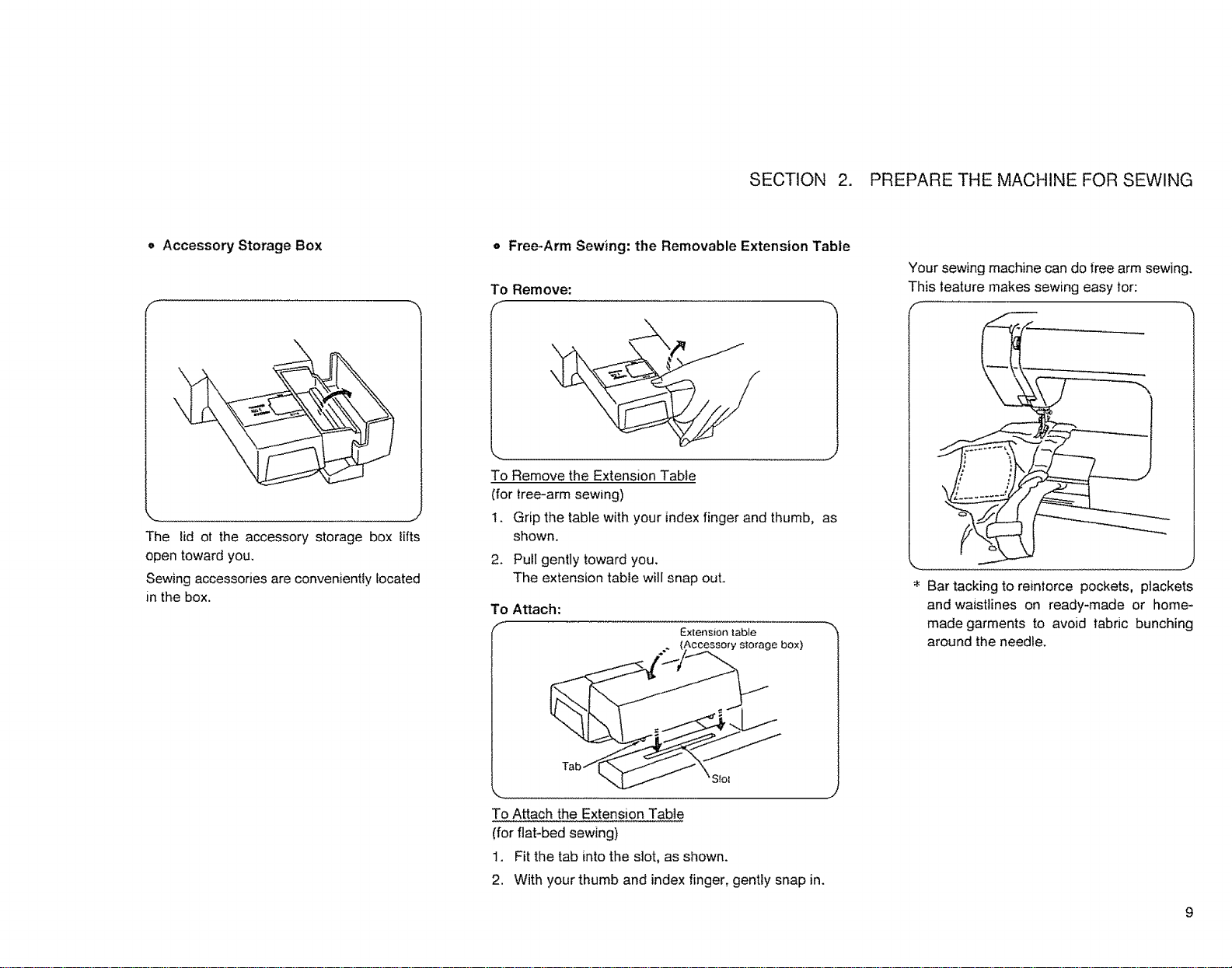

Accessory Storage Box
The lid ot the accessory storage box lifts
open toward you.
Sewing accessories are conveniently Iocated
in the box.
o Free-Arm Sewing: the Removable Extension Table
To Remove:
f
\
\
To Remove the Extension Table
(for tree-arm sewing)
t. Grip the table with your index finger and thumb, as
shown.
2. PuiI gently toward you.
The extension table will snap out.
To Attach:
/ Extension_,able
l_Accessory storage box)
To Attach the Extension Table
_for ftat-bed sewing)
1. Fit the tab into the slot, as shown.
2. With your thumb and index finger, gently snap in.
This feature makes sewing easy for:
f
Your sewing machine can do tree arm sewing.
* Bar tacking to reiniorce pockets, plackets
and waistlines on ready-made or home--
made garments to avoid tabric bunching
around the needle.
9
SECTION 2. PREPARE THE MACHINE FOR SEWING
Set Up the Machine (Continued)

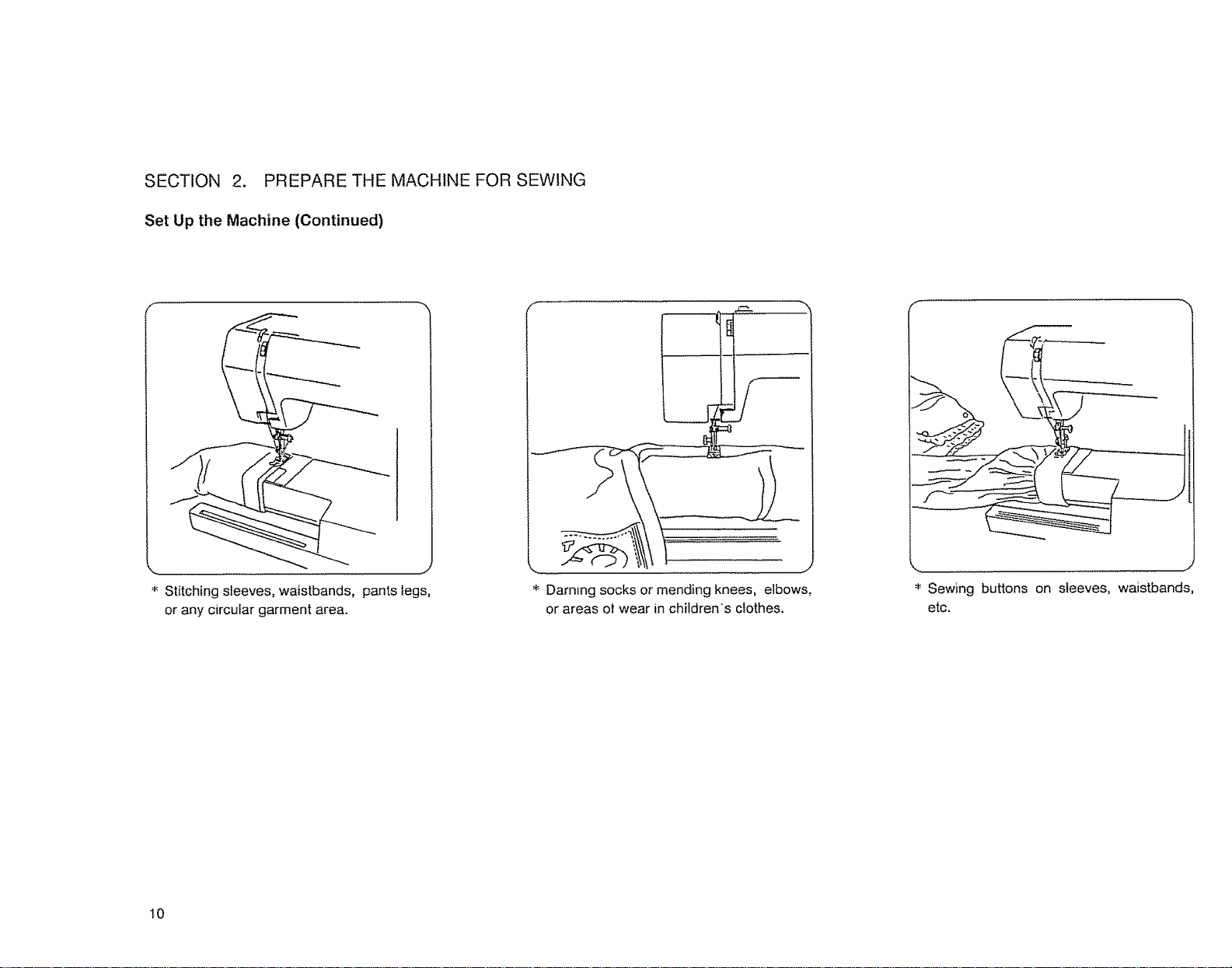

'* Stitching sleeves, waistbands, pants legs,
or any circular garment area.
J
_- Darning socks or mending knees, elbows,
or areas ol wear in children's clothes.
f
'_'Sewing buttons on sleeves, waistbands,
etc.
t0
KnowWhatthe Presser Feet Will Do
= Check The Presser Foot
The Presser leer are an important feature this machine. You need to know
what each does in order to use them effectively.
Your presser foot is held in place by a Foot Holder. Each presser foot merely
snaps on the toot is holder, which is seldom removed.
If you need to remove or attach the toot holder, here is what you do:
SECTION 2. PREPARE THE MACHINE FOR SEWING
• Change the Presser Foot
Use the correct presser loot tor the stitch you wish to sew. Consult the Stitch
Pattern Chat and the detailed direction tor sewing with the various presser
toot.
To Remove:
,1-
Foot
To Remove:
Turn the screw toward the back of
the machine. Use the large screw
driver.
To Attach:
f
Presser I:
J
To Attach:
1. Match the hole in the toot holder
with the thread hole in the
presser bar.
2. Fitthe toot holder screw into the
hole.
3. Tighten the screw by turning it
toward you.
To Snap Off:
! y,,
J
Snap-on
button
To Snap Off the Presser Foot::
t. Raise the needle bar to its highest position by turning the hand wheei
toward you.
2. Raise the presser loot.
3. Press the snap-on button on the back of the toot holder. The presser toot
will drop off.
11
SECTION 2. PREPARE THE MACHINE FOR SEWING
Know What the Presser Feet Will Do (Continued)

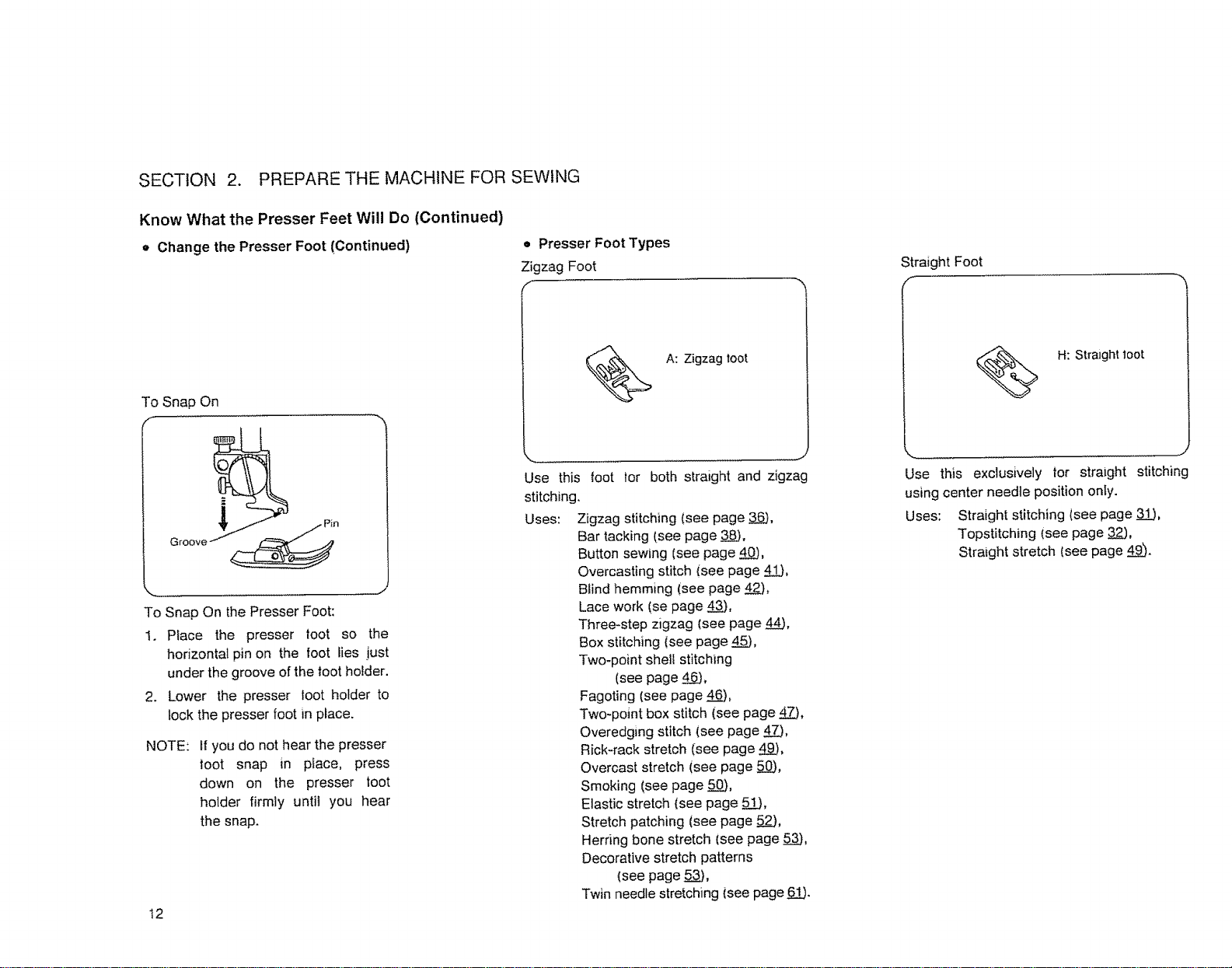

g Change the Presser Foot (Continued) • Presser Foot Types
Zigzag Foot
f
Straight Foot
To Snap On
,- .._
Groove _n_
_ ..... J
To Snap On the Presser Foot:
1. Place the presser loot so the
horizontal pin on the loot lies just
under the groove of the toot holder.
2. Lower the presser toot holder to
lock the presser foot in place.
NOTE:
If you do not hear the presser
toot snap in place, press
down on the presser toot
holder firmly until you hear
the snap.
t2
A: Zigzag toot
Use this foot lor both straight and zigzag
stitching.
Uses: Zigzag stitching (see page 3_,
Bar tacking (see page 3_,
Button sewing (see page 4_,
Overcasting stitch (see page 4_,
Blind hemming (see page 4_2.),
Lace work (se page 4_,
Three-step zigzag (see page 4__,
Box stitching {see page 4__,
Two-point shell stitching
(see page 4_.6_),
Fagoting (see page 46),
Two-point box stitch (see page 4_Z),
Overedging stitch (see page 4_Z),
Rick-rack stretch (see page __),
Overcast stretch (see page 50_,
Smoking (see page 5_.03,
Elastic stretch (see page 5_.!_),
Stretch patching (see page 5_,
Herring bone stretch (see page 53t,
Decorative stretch patterns
(see page _._.),
Twin needle stretching (see page 61_.
H: Straight toot
Use this exclusively for straight stitching
using center needle position only.
Uses: Straight stitching (see page 3_!),
Topstitching (see page 3_,
Straight stretch (see page 4__.
SECTION 2. PREPARE THE MACHINE FOR SEWING
= Presser Foot Types (Continued)

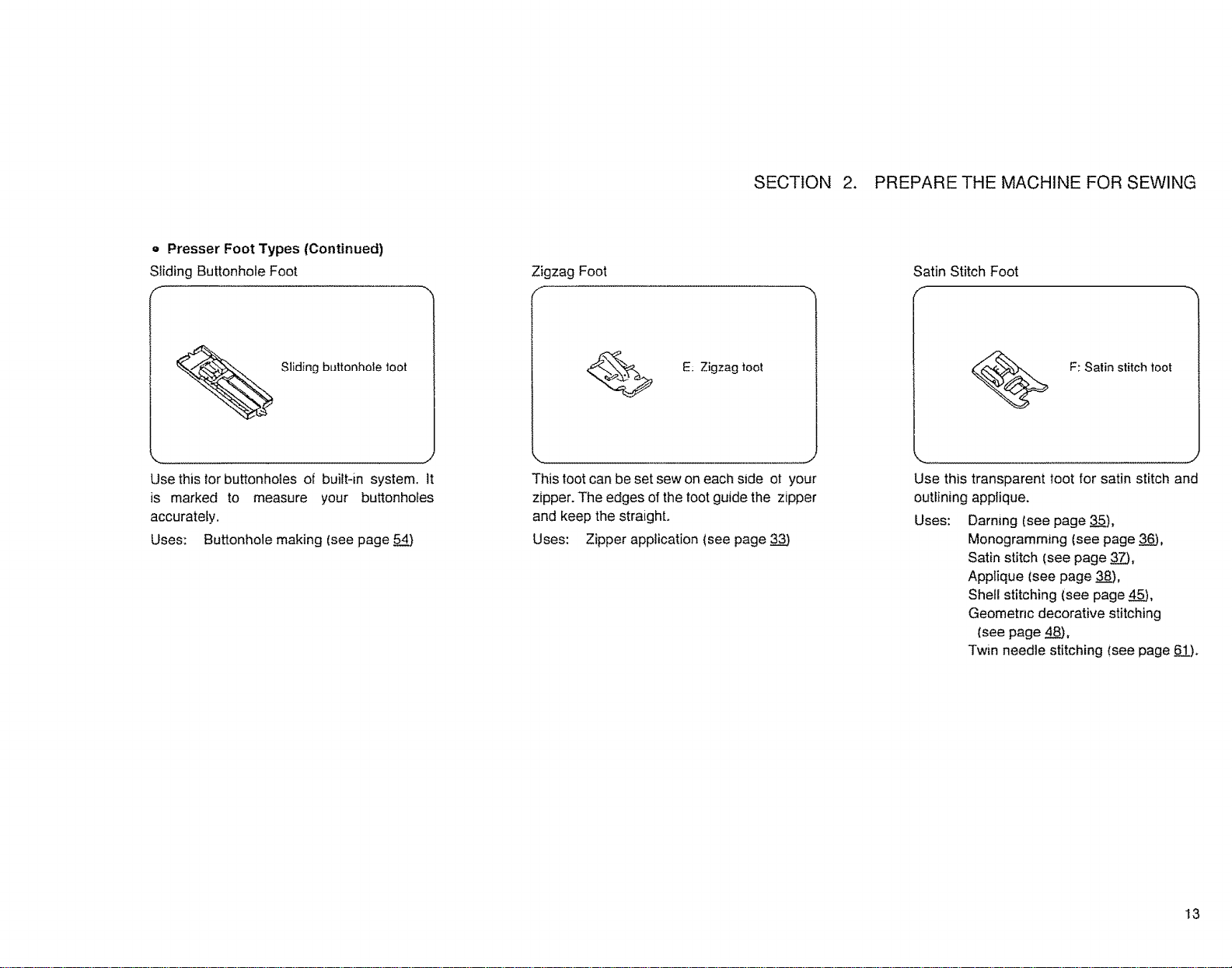

Sliding Buttonhole Foot
f--
Zigzag Foot
f
Satin Stitch Foot
Sliding buttonhole toot E; Zigzag toot
(_ F: Satin stitch toot
Use this for buttonholes of built-in system. It
is marked to measure your buttonholes
accurately.
Uses: Buttonhole making (see page 54_)
....... J
This toot can be set sew on each side ot your
zipper. The edges of the toot guide the zipper
and keep the straight.
Uses: Zipper application (see page 331
Use this transparent toot for satin stitch and
outlining applique.
Uses: Darning (see page 35.),
Monogramming (see page _,
Satin stitch (see page 3_Z),
Applique (see page 3__,
Shell stitching (see page 4__53,
Geometnc decorative stitching
(see page 4_.8),
Twin needle stitching (see page 61).
13
SECTION 2. PREPARE THE MACHINE FOR SEWING
= Presser Foot Types (Continued)

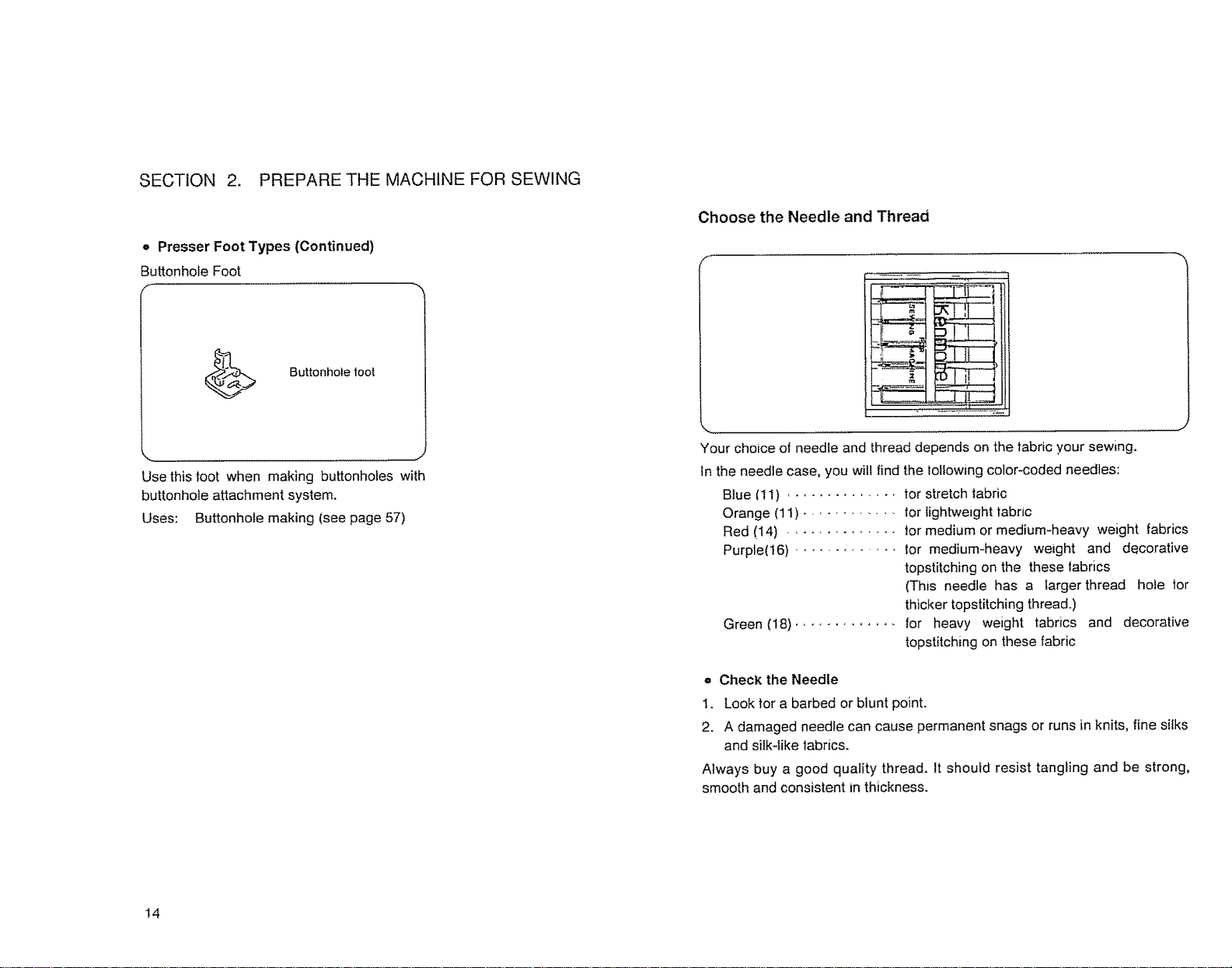

Buttonhole Foot
f-
Buttonhole toot
Use this loot when making buttonholes with
buttonhole attachment system.
Uses: Buttonhole making (see page 57)
Choose the Needle and Thread
,,,,,.... .--
Your choice of needle and thread depends on the labric your sewing.
In the needle case, you wilt find the tollowing color-coded needles:
Blue (11) .............. tot stretch tabric
Orange (11) ............ tot lightweight fabric
Red (t4) .............. for medium or medium-heavy weight fabrics
Purple(16) ............ lor medium-heavy weight and decorative
topstitching on the these labrics
(This needle has a larger thread hole tor
thicker topstitching thread.)
Green (18) ............. for heavy weight tabrics and decorative
topstitching on these fabric
• Check the Needle
1. Look tor a barbed or blunt point.
2. A damaged needle can cause permanent snags or runs in knits, fine silks
and silk-like labrics.
Always buy a good quality thread. It should resist tangling and be strong,
smooth and consistent in thickness.
t4
SECTION 2. PREPARE THE MACHINE FOR SEWING

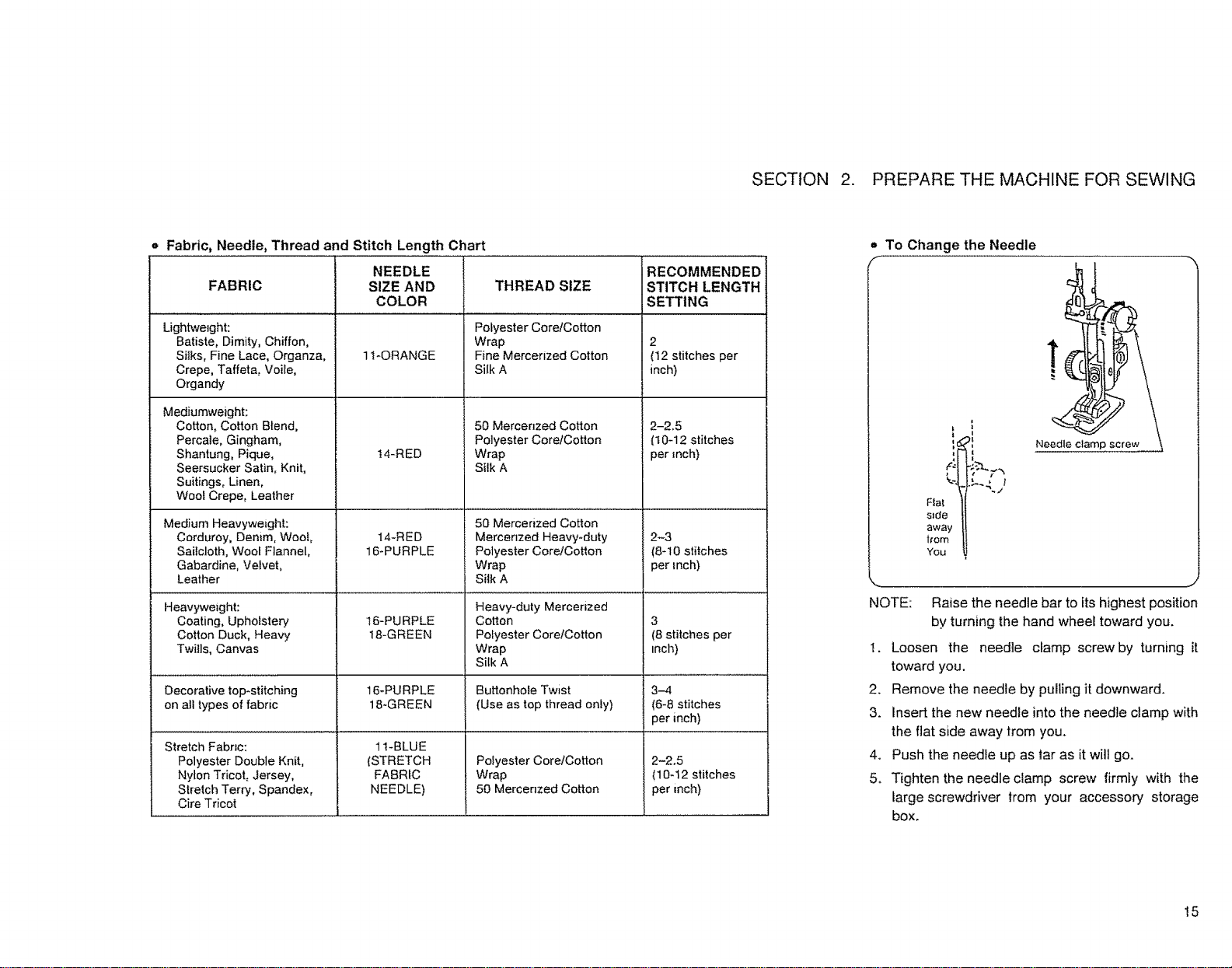

o Fabric, Needle, Thread and Stitch Length Chart
NEEDLE
FABRIC SIZE AND THREAD SIZE
COLOR
Lightwe{ght:
Batiste, Dimity, Chiffon,
Silks, Fine Lace, Organza,
Crepe, Taffeta, Voile,
Organdy
Mediurnweight,
Cotton, Cotton Blend,
Percale, Gingham,
Shantung, Pique,
Seersucker Satin, Knit,
Suitings, Linen,
Wool Crepe, Leather
Medium Heavyweight:
Corduroy, Denim, Wool,
Sailcloth, Woof Flannel,
Gabardine, Velvet,
Leather
Heavyweight:
Coating, Upholstery.
Cotton Duck, Heavy
Twills, Canvas
Decorative top-stitching
on all types of fabric
Stretch Fabnc:
Polyester Double Knit,
Nylon Tricot, Jersey,
Stretch Terry, Spandex,
Cire Tricot
11-ORANGE
Pofyester CoretCotton
Wrap
Fine Mercerized Cotton
Silk A
14-RED
14-RED
16-PURPLE
50 Mercenzed Cotton
Polyester CorelCotton
Wrap
Silk A
50 Mercerized Cotton
Mercenzed Heavy-duty
Polyester Core/Cotton
Wrap
Silk A
RECOMMENDED
STITCH LENGTH
SETTING
2
(12 stitches per
inch)
2-2.5
(t0-12 stitches
per _nch)
2-3
(8-10 stitches
per inch)
Heavy-duty Mercerized
!6-PURPLE
!8-GREEN
16-PU RPLE
18-GREEN
1t-BLUE
(STRETCH
FABRIC
NEEDLE)
Cotton
PoLyester Core/Cotton
Wrap
Silk A
Buttonhole Twist
(Use as top thread only)
Polyester Core/Cotton
Wrap
50 Mercenzed Cotton
3
(8 stitches per
Inch)
3-4
(6-8 stitches
per inch)
2-2.5
(10q2 stitches
per inch)
o To Changethe Needle
f
f
NOTE:
I.
2.
3.
4,
5.
Flal
stde
away
ttom
You
Needle clamp screw
.o
Raise the needle bar to its highest position
by turning the hand wheel toward you.
Loosen the needle clamp screw by turning it
toward you.
Remove the needle by pulling it downward.
Insert the new needle into the needle clamp with
the flat side away trom you.
Push the needle up as tar as it will go.
Tighten the needle clamp screw firmly with the
large screwdriver from your accessory storage
box.
15
SECTION 2. PREPARE THE MACHINE FOR SEWING

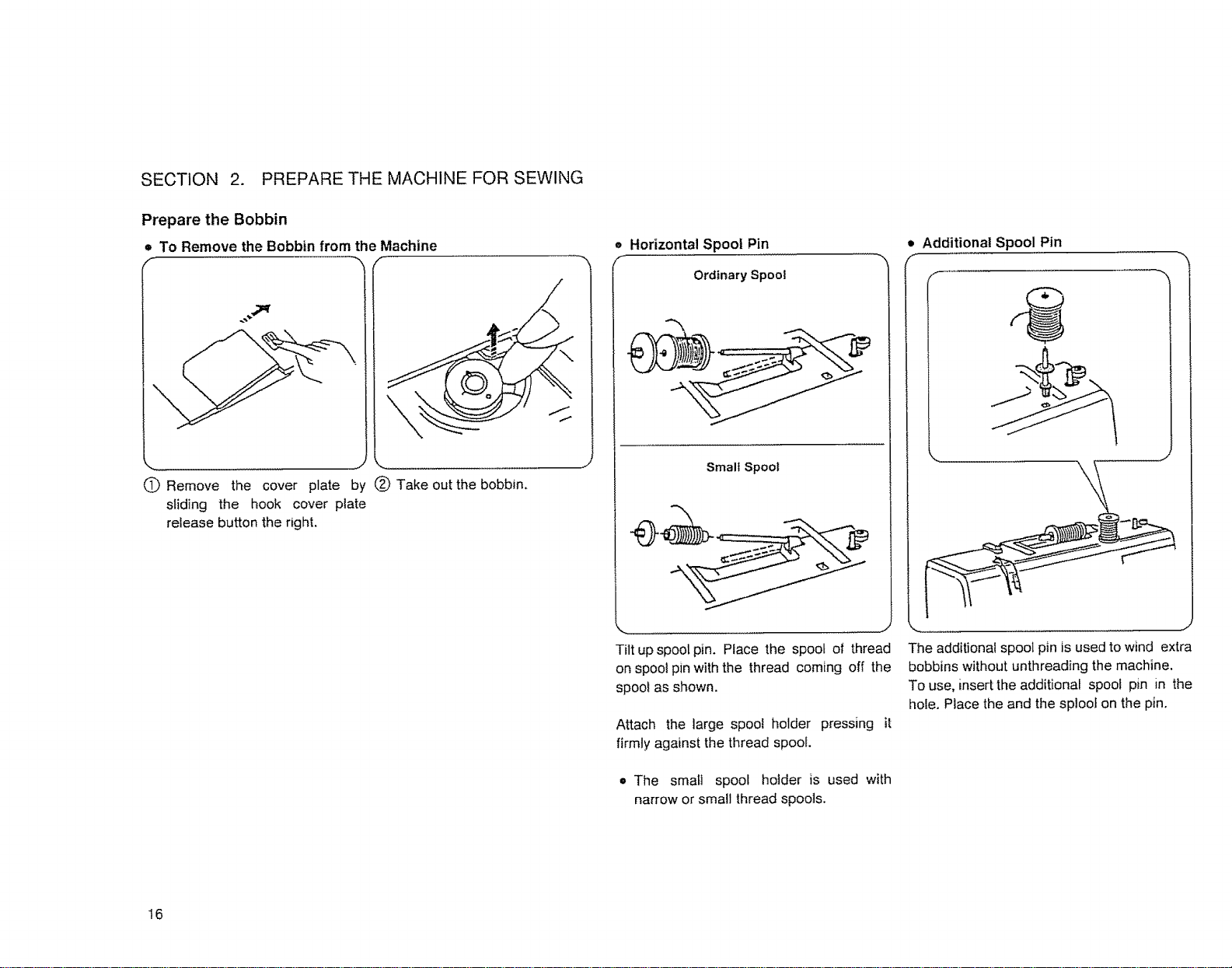

Prepare the Bobbin
• To Remove the Bobbin from the Machine
(_ Remove the cover plate by (_ Take out the bobbin,
sliding the hook cover plate
release button the right.
o Horizontal Spool Pin
Ordinary Spool
.-.,,
Small Spool
Tilt up spool pin. Place the spool of thread
on spool pin with the thread coming off the
spool as shown.
Attach the large spool holder pressing it
firmly against the thread spool.
o The small spool holder is used with
narrow or small thread spools.
e
Additional Spool Pin
The additional spool pin is used to wind extra
bobbins without unthreadhg the machine.
To use, insert the additional spool pin in the
hole. Place the and the spioot on the pin.
16
SECTION 2. PREPARE THE MACHINE FOR SEWING

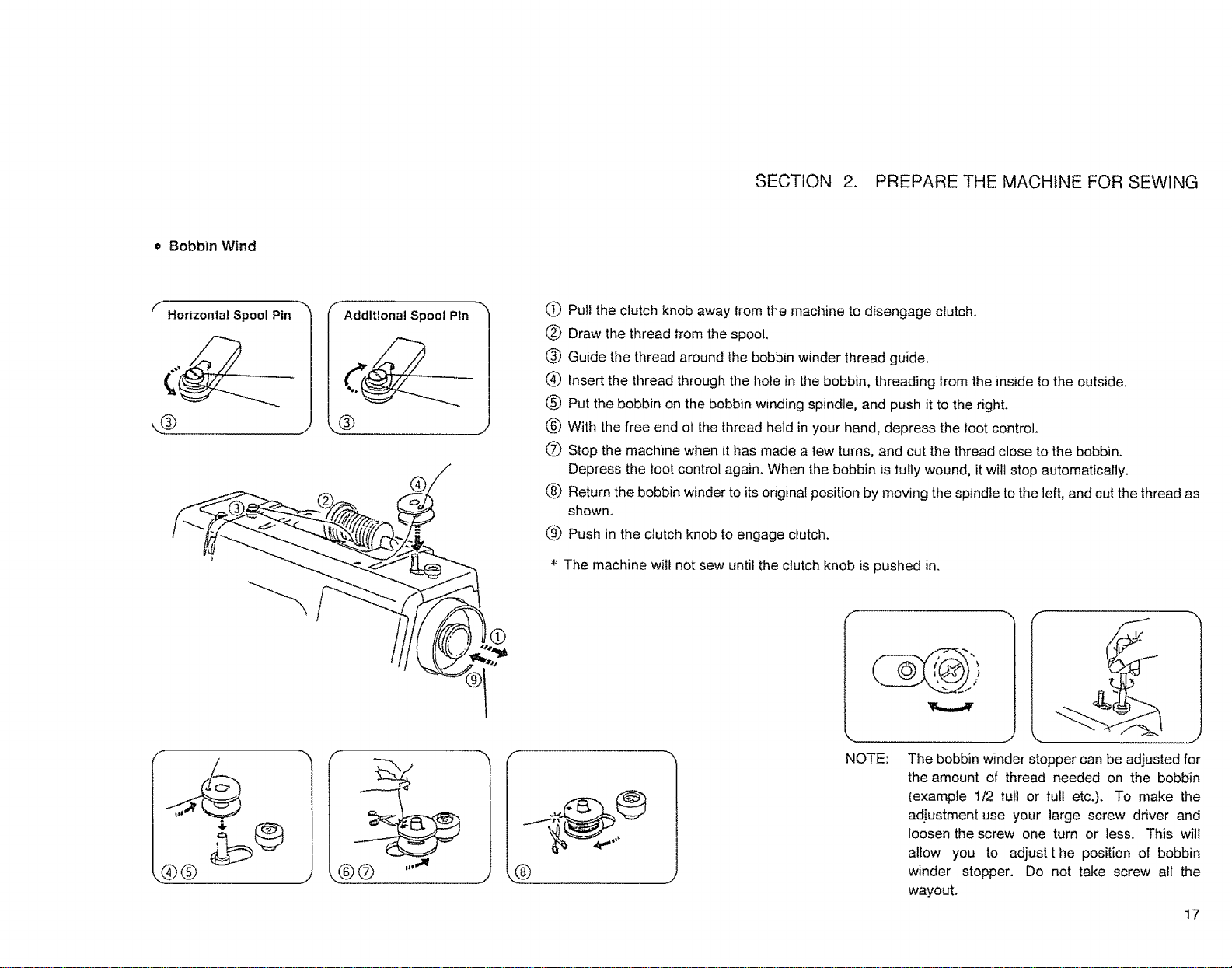

Bobbin Wind
f
Horizontal Spool Pin
®@
Additional Spool Pin
®
(_)0 ,,,,A
(_ Pull the clutch knob away trom the machine to disengage clutch.
(_ Draw the thread from the spool,
(_ Guide the thread around the bobbin winder thread guide.
(_ Insert the thread through the hole in the bobbin, threading lrom the inside to the outside.
(_) Put the bobbin on the bobbin winding spindle, and push it to the right.
(_ With the free end ol the thread held in your hand, depress the loot control.
(_ Stop the mach=ne when it has made a few turns, and cut the thread close to the bobbin.
Depress the toot control again. When the bobbin Jstully wound, it wilt stop automatically.
Return the bobbin winder to its original position by moving the spindle to the left, and cut the thread as
shown.
(_ Push in the clutch knob to engage clutch.
_" The machine witl not sew until the clutch knob is pushed in.
f
NOTE:
The bobbin winder stopper can be adjusted for
the amount of thread needed on the bobbin
(example t/2 tuli or tult etc.). To make the
adiustment use your large screw driver and
loosen the screw one turn or less, This will
a!low you to adjust t he position of bobbin
winder stopper. Do not take screw all the
wayout.
17
SECTION 2. PREPARE THE MACHINE FOR SEWING
Prepare the Bobbin (Continued)

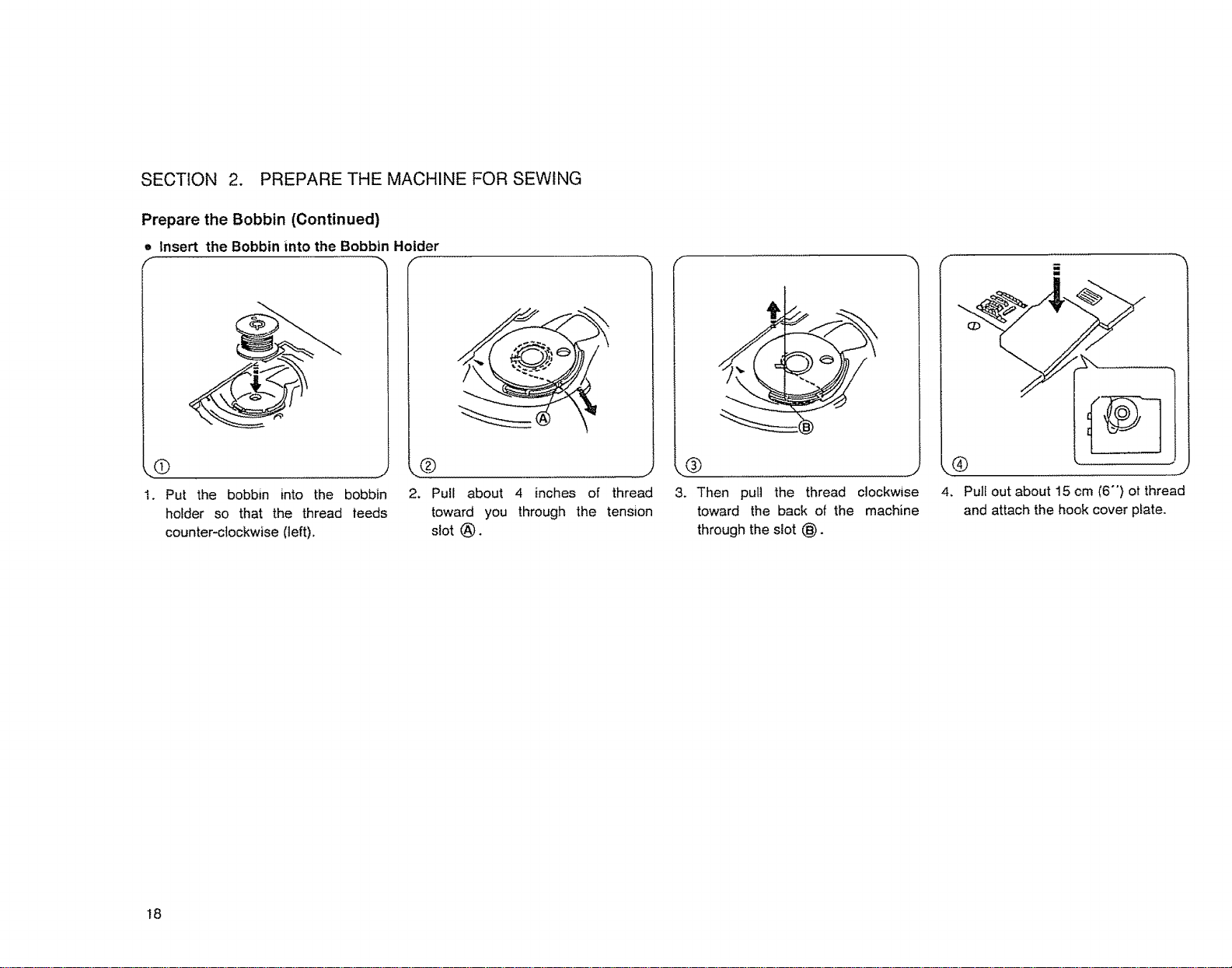

e Insert the Bobbin into the Bobbin Holder
I. Put the bobbin into the bobbin 2. Pult about 4 inches of thread
holder so that the thread reeds toward you through the tension
counter-clockwise (left). slot @.
3. Then pull the thread clockwise
toward the back of the machine
through the slot 1_).
4. PuJEout about t5 cm (6"') ot thread
and attach the hook cover plate.
18

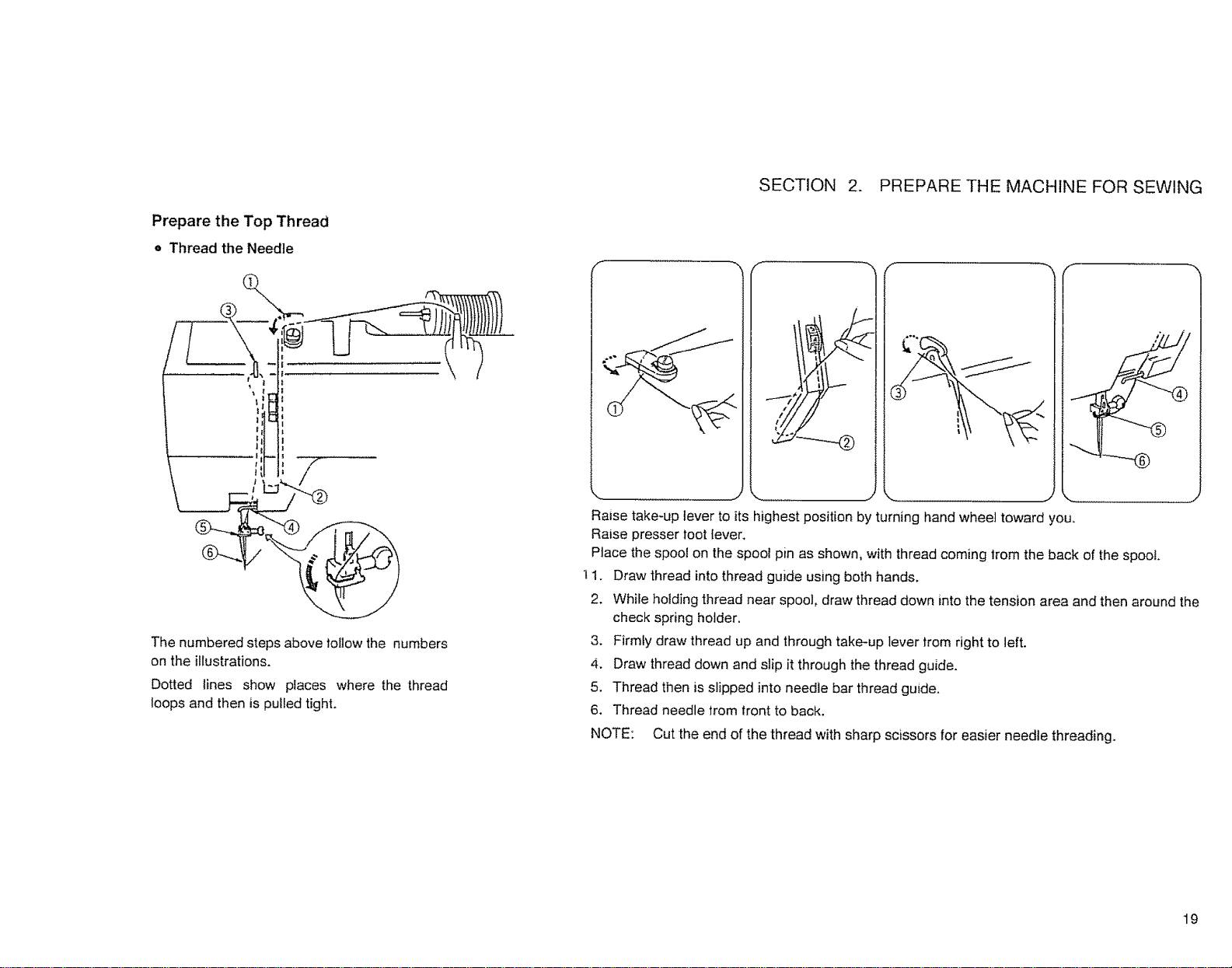

Preparethe Top Thread
o Thread the Needle
SECTION
2. PREPARE THE MACHINE FOR SEWING
The numbered steps above follow the numbers
on the illustrations.
Dotted lines show places where the thread
loops and then is pulled tight.
Raise take-up lever to its highest position by turning hand wheel toward you,
Raise presser toot lever,
Place the spool on the spool pin as shown, with thread coming lrom the back of the spool.
tl.
2.
3.
4.
5.
6.
NOTE:
Draw thread into thread guide using both hands.
While holding thread near spool, draw thread down into the tension area and then around the
check spring holder.
Firmly draw thread up and through take-up lever from right to left.
Draw thread down and slip it through the thread guide.
Thread then is slipped into needle bar thread guide.
Thread needle from front to back.
Cut the end of the thread with sharp scissors for easier needle threading.
19
SECTION 2. PREPARE THE MACHINE FOR SEWING
Prepare the Top Thread (continued)
• Pick Up the Bobbin Thread
!
1. Raise presser toot fever, Hold
needle thread loosely in left hand
and rotate hand wheel toward you
one complete turn.
k.. ........... ",-._ J
2. Bring bobbin thread up by pulling 3. Pull both threads under and to the
top thread, back of the presser toot, leaving 4
to 6 inches of thread clear.
2O
SECTION 2. PREPARE THE MACHINE FOR SEWING

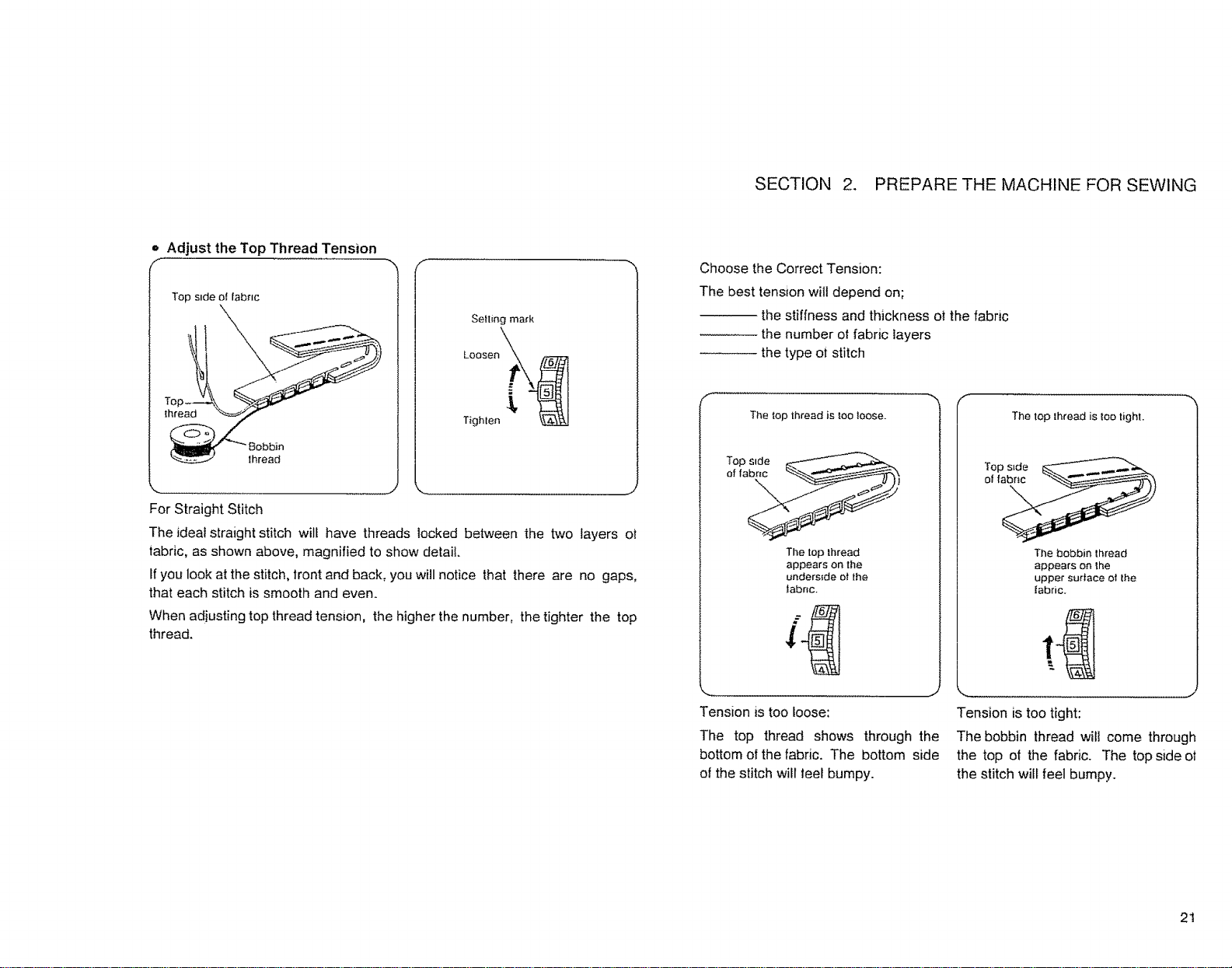

o Adjust the Top Thread Tension
Top side o! labnc
Selling mark
Loosen_
Tighfen _ _
For Straight Stitch
The ideal straight stitch will have threads locked between the two layers ot
tabric, as shown above, magnified to show detail.
Ifyou look at the stitch, trent and back, you will notice that there are no gaps,
that each stitch is smooth and even.
When adjusting top thread tension, the higher the number, the tighter the top
thread.
Choose the Correct Tension:
The best tension will depend on;
the stiffness and thickness el the fabric
the number o! fabric layers
the type el stitch
The top thread is 1oo loose.
Top side
of fabr,c __
The top thread
appears on the
underside el the
tabnc.
Tension is too loose:
The top thread shows through the
bottom el the tabric. The bottom side
of the stitch will reel bumpy.
The top lhread is 1oo tight.
The bobbin thread
appears on the
upper surtace o! the
labric.
J
Tension is too tight:
The bobbin thread will come through
the top of the fabric. The top side el
the stitch will feel bumpy.
21
SECTION 2. PREPARE THE MACHINE FOR SEWING

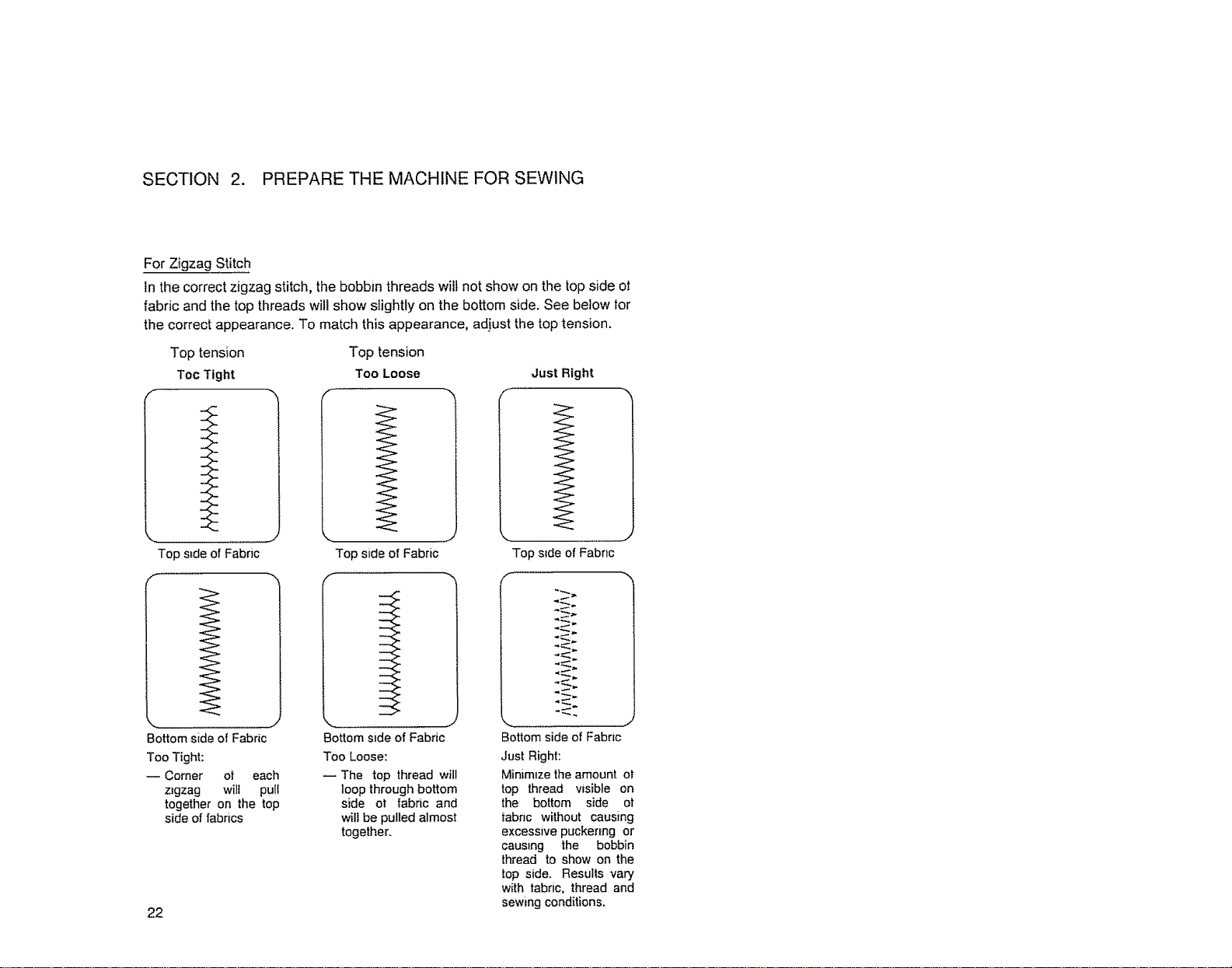

For Zigzag Stitch
in the correct zigzag stitch, the bobbin threads wilt not show on the top side ol
fabric and the top threads will show slightly on the bottom side. See below lor
the correct appearance. To match this appearance, a_ust the top tension.
Top tension
Toc Tight
I
Top s_de of Fabric
Top tension
Too Loose Just Right
%., , ,.- _
Top side of Fabric Top s_de of Fabric
f _ f -,,
Bottom side of Fabric
Too Tight:
-- Comer ot each
ztgzag will pull
together on the top
side of fabrics
22
k_ j j
Bottom side of Fabric Bottom side of Fabric
Too Loose: Just Right:
m The top thread will Minimize the amount ot
loop through bottom top thread visible on
side ot labric and the bottom side ot
will be pulled almost |abnc without causing
together, excesslve puckering or
causing the bobbin
thread to show on the
top side. Results vary
with |abric, thread and
sewing conditions.

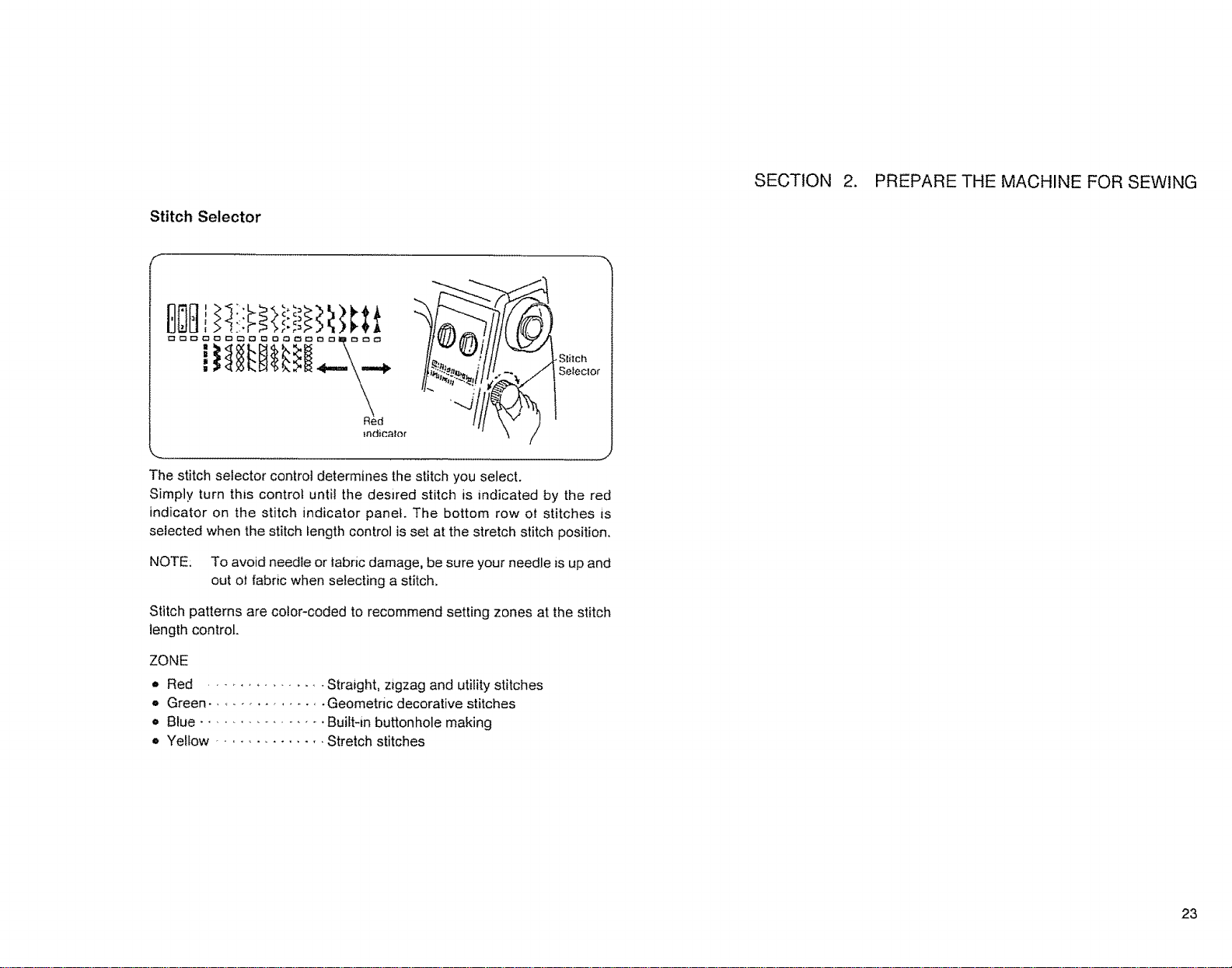

Stitch Selector
SECTION 2. PREPARE THE MACHINE FOR SEWING
The stitch selector controt determines the stitch you select.
Stitch
Se[eclor
.........................J
Simply turn this control untii the desired stitch is indicated by the red
indicator on the stitch indicator panef. The bottom row ot stitches is
selected when the stitch iength control is set at the stretch stitch position.
NOTE: To avoid needle or tabric damage, be sure your needle is up and
out ot fabric when selecting a stitch,
Stitch patterns are color-coded to recommend setting zones at the stitch
length controL.
ZONE
o Red ............... Straight, zigzag and utility stitches
• Green ............... Geometric decorative stitches
• Blue ................ Built-in buttonhole making
o Yeilow ............... Stretch stitches
23
SECTION 2. PREPARE THE MACHINE FOR SEWING

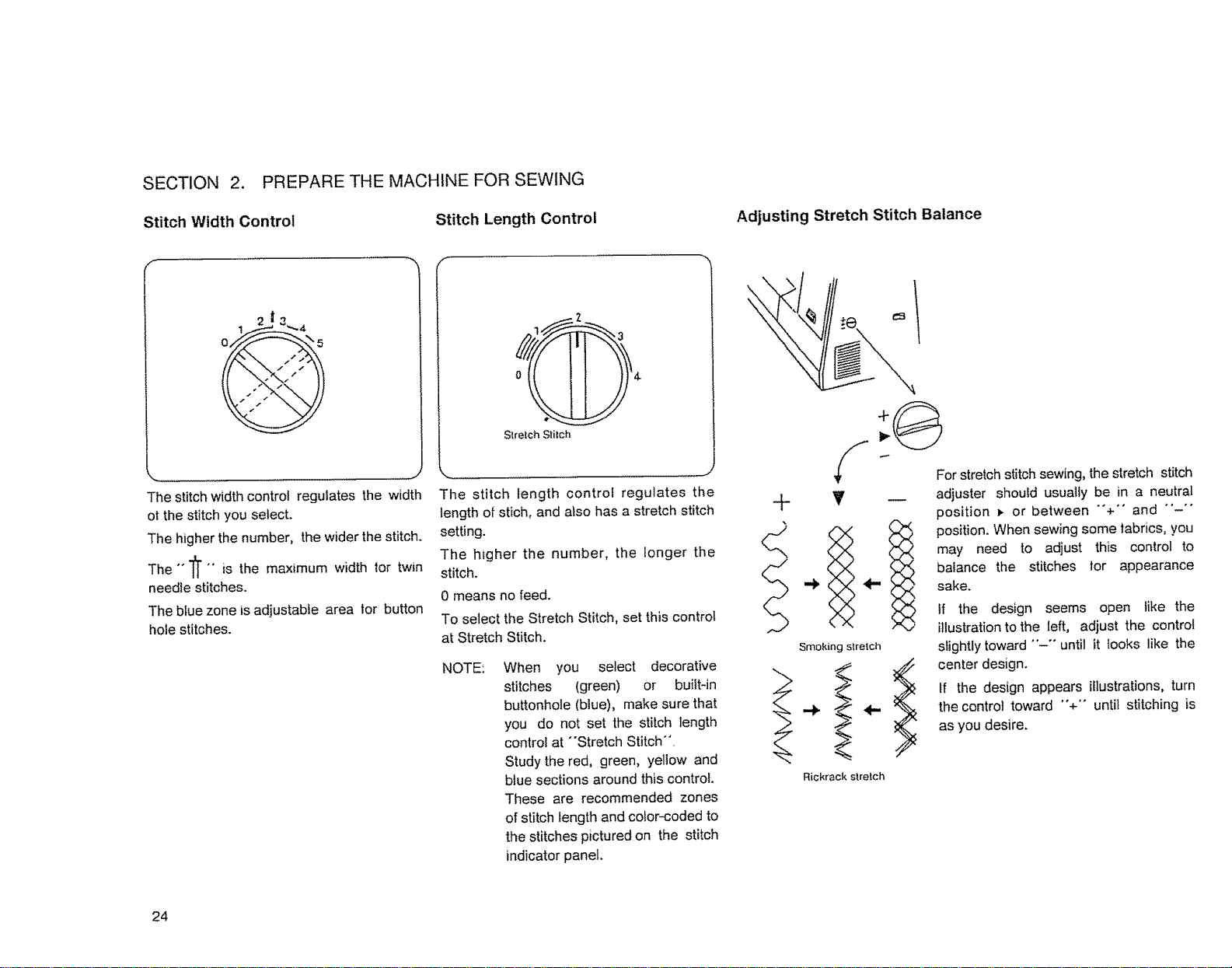

Stitch Width Control Stitch Length Control Adjusting Stretch Stitch Balance
The stitch width control regulates the width
ot the stitch you select.
The higher the number, the wider the stitch.
The ""_ "' is the maximum width tot twin
needle stitches.
The blue zone is adjustable area for button
hole stitches.
z
0 4-
S_,relch _;fitch
The stitch Iength control regulates the
length of stich, and also has a stretch stitch
setting.
The higher the number, the longer the
stitch.
0 means no teed.
To select the Stretch Stitch, set this control
at Stretch Stitch.
NOTE:
When you select decorative
stitches (green) or built-in
buttonhole (blue), make sure that
you do not set the stitch length
control at "Stretch Stitch".
Study the red, green, yellow and
blue sections around this control.
These are recommended zones
of stitch length and color-coded to
the stitches pictured on the stitch
indicator panel.
4-
Smoking stretch
For stretch stitch sewing, the stretch stitch
y __ adjuster should usually be in a neutral
position _ or between "'+'" and °'-"
position. When sewing some _abrics, you
may need to adjust this control to
balance the stitches for appearance
4"" sake.
If the design seems open like the
illustration to the left, adjust the control
slightly toward "'-'" until it looks like the
i center design.
If the design appears illustrations, turn
the control toward "°+" until stitching is
as you desire.
Rickrack s_,retch
24
Reverse Stitch Control
f
Rev_rs_
To reverse stitch, hold down this control
during sewing.
Release to sew forward again.
Starting To Sew
SECTION 2. PREPARE THE MACHINE FOR SEWING
Now that you are familiar with the controls on your machine and with the accessories provided for the machine,
you are ready to start to sew with your new Kenmore sewing machine. Below are some good habits to tolfow each
time you sit down to sew:
t. Inspect the needle. It should be straight, properly set and sharp on the point. It should be the correct size for
the fabric and thread being used. Do not be afraid to change your needle frequently. Many of the new fabrics
made of synthetic blends tend to dull needles more easily than fabrics made of natural fibers.
2. Before placing the material on the machine, see that the ends of the threads have been drawn about 4 inches
to the rear of the machine. Hold on to threads during the sewing of the first 3 or 4 stitches of the seam.
3. Test the machine stitch on a scrap ot the fabric you plan to use. The fabric should be double thickness.
Adjust the machine for the length of stitch and tension suitable to the fabric.
4. Fabric should be placed under the presser toot with the bulk of the material to the left of the needle and the
right edge of the material placed on the 518"" seam marking on the needle plate when making a simple seam.
5. Run the machine at a s_ow even speed. The more pressure you put on the foot control, the faster the machine
will sew.
6. Fasten each seam by back tacking, sewing a few stitches in reverse.
7. Always finish sewing each seam with the needle at its highest point.
8. Guide the tabrJcgently with your hand in front of the needle. Never pull or hold the fabric in such a way that the
normal feeding is altered.
9. When turning the hand wheel manually, always turn it toward you.
25
SECTION 3. LEARN THE STITCHES
Stitch
Practical Stitch Chart
Stitch
Selection
STRAIGHT
!
J
l
|
|
|
!
1
STRAIGHT
STRETCH
ZIGZAG
RICK-RACK
STRETCH
BLIND HEM
STITCH
I
I
I
I
III
Ul
III
III
Foot and Other Attach.
Straight Zigzag
Straight
or
%%
Satin Zigzag
Zigzag
%
Zigzag
Needle
Check
Chart
onp. 15
Zipper toot
Zigzag Check
Chart
on p. !__
Check
Chart
on p. 1__
Check
Chart
on p. 15
Check
Chart
on p. 15
Thread
Tension
2N6
2-6
3-8
2-6
2-6
Stitch
Length
Red
Zone
Yetlow
Stretch
Stitch
Position
Red
Zone
YeiLow
Stretch
Stitch
Position
Red
Zone
Stitch
width
1-5
2-5
2-3
j ........... Uses
Regular seams, z_ppers, topstitching, quilting
darning, etc.
Use on knits and other stretch {abncs, good
for topstitching.
Finish edges, buttons, satin stitch, applique,
monogram, embroidery, sewing bar tacks.
Decorate garments with one row or several.
Use tot finishing seams and hemmlng.
26
Reter to page
3t - 35
49
36 - 48
49
42

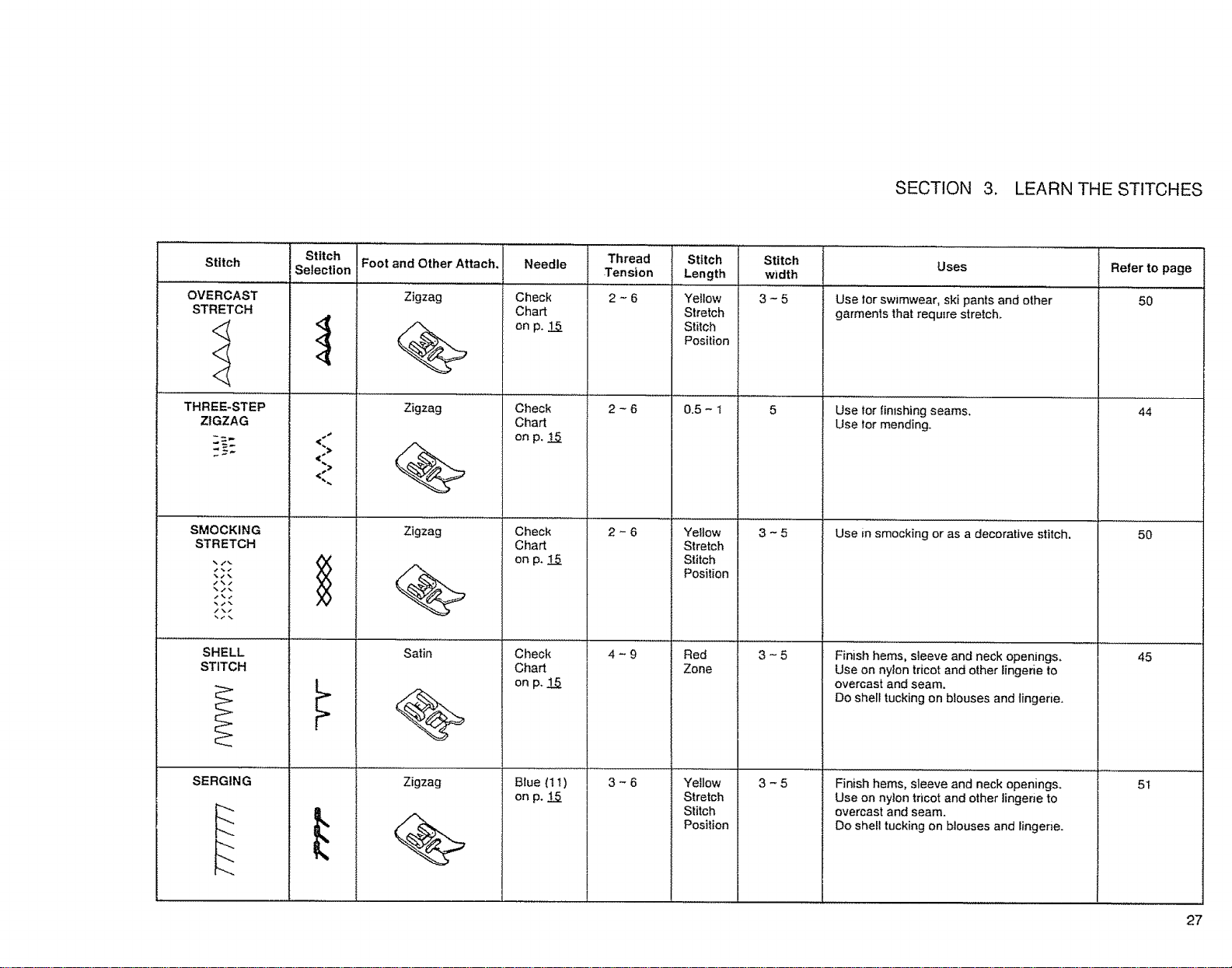

SECTION 3. LEARN THE STITCHES
Stitch Thread Stitch Stitch
Stitch Selection Needle Uses Refer to page
=Tension Length width
Check 2 - 6 Yellow 3 - 5 Use tor swimwear, ski pants and other 50
garments that require stretch.
OVERCAST
STRETCH
THREE-STEP
ZIGZAG
SMOCKING
STRETCH
SHELL
STITCH
SERGING
<,
,€
tk
I"
Foot and Other Attach.
Zigzag
%
Zigzag
Zigzag
%
Satin
Zigzag
%
Chad
on p° 1_
Check
Chart
on p. 15
Check
Chart
on p. 15
Check
Chart
on p. 15
Blue (1 t)
on p. 15
2-6
2-6
4-9
3-6
Stretch
Stitch
Position
0.5- t
Yettow
Stretch
Stitch
Position
Red
Zone
Yellow
Stretch
Stitch
Position
5
3-5
3-5
3-5
Use tot fintshing seams.
Use tot mending.
Use in smocking or as a decorative stitch.
Finish hems, sleeve and neck openings.
Use on nylon tricot and other lingerie to
overcast and seam.
Do shell tucking on blouses and lingerie.
Finish hems, sleeve and neck openings.
Use on nylon tricot and other lingene to
overcast and seam.
Do shell tucking on blouses and lingerie.
44
5O
45
51
27
SECTION 3. LEARN THE STITCHES

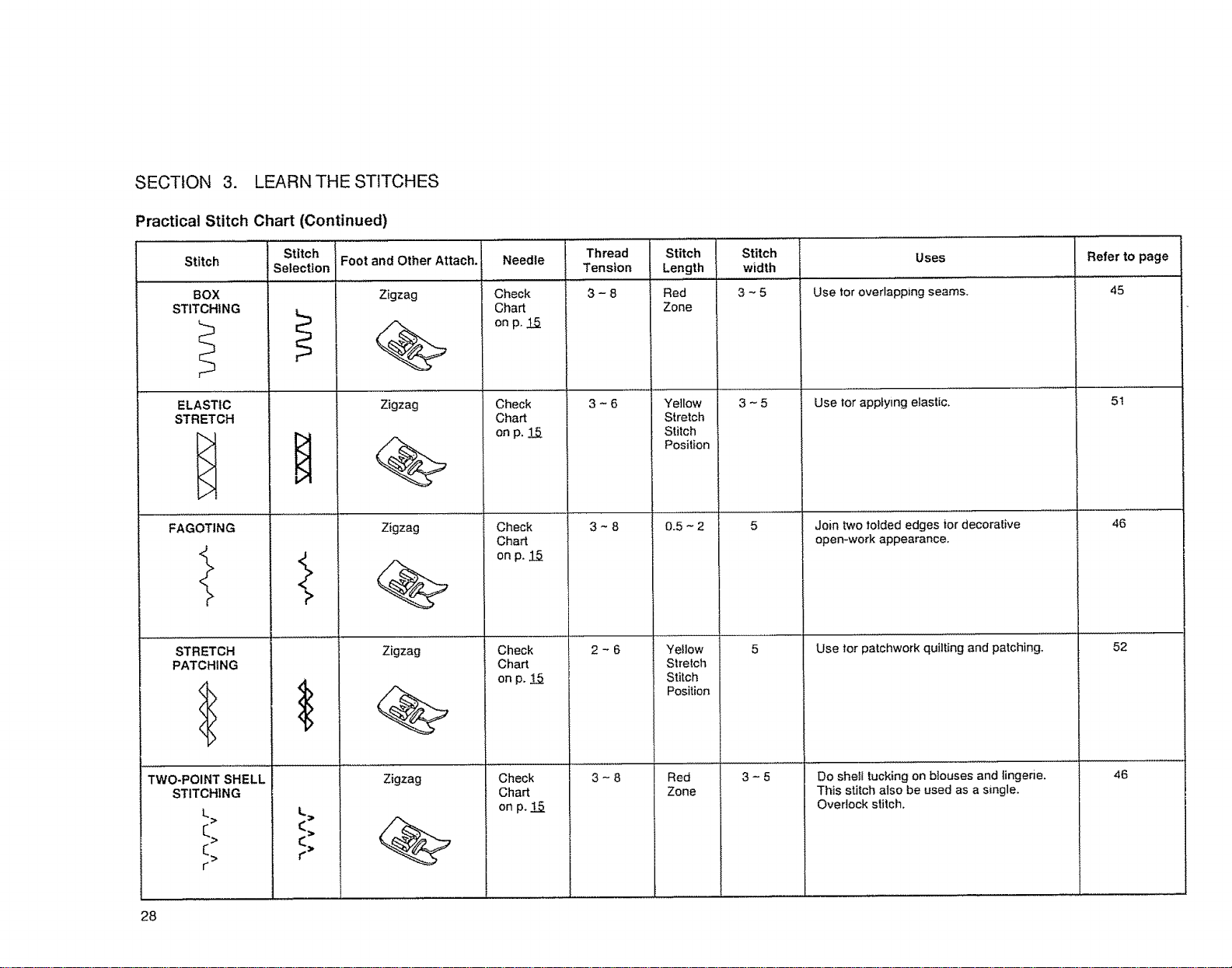

Practical Stitch Chart (Continued)
Stitch
BOX
STITCHING
ELASTIC
STRETCH
J>
>
FAGOTING
STRETCH
PATCHING
<>
TWO-POINT SHELL
STITCHING
L
Stitch
Selection
>
Foot and Other Attach.
Zigzag
%
Zigzag
%
Zigzag
%
Zigzag
%
Zigzag
Needle
Check
Chart
on p. t5
Check
Chart
onp. 15
Check
Chart
onp. 15
Check
Chart
onp. I_
Check
Chart
on p. 15
Thread
Tension
3-8
3-8
2-6
3-8
Stitch
Length
Red
Zone
Yellow
Stretch
Stitch
Position
0.5 - 2
Yellow
Stretch
Stitch
Position
Red
Zone
Stitch
width
3-5
3-5
5
5
3-5
Uses
Use for overlapping seams.
Use tor applying elastic.
Join two _otded edges tot decorative
open-work appearance.
Use tot patchwork quilting and patching.
Do shell tucking on blouses and lingene,
This stitch also be used as a single.
Overtock stitch.
28
Refer to page
45
5t
46
52
46

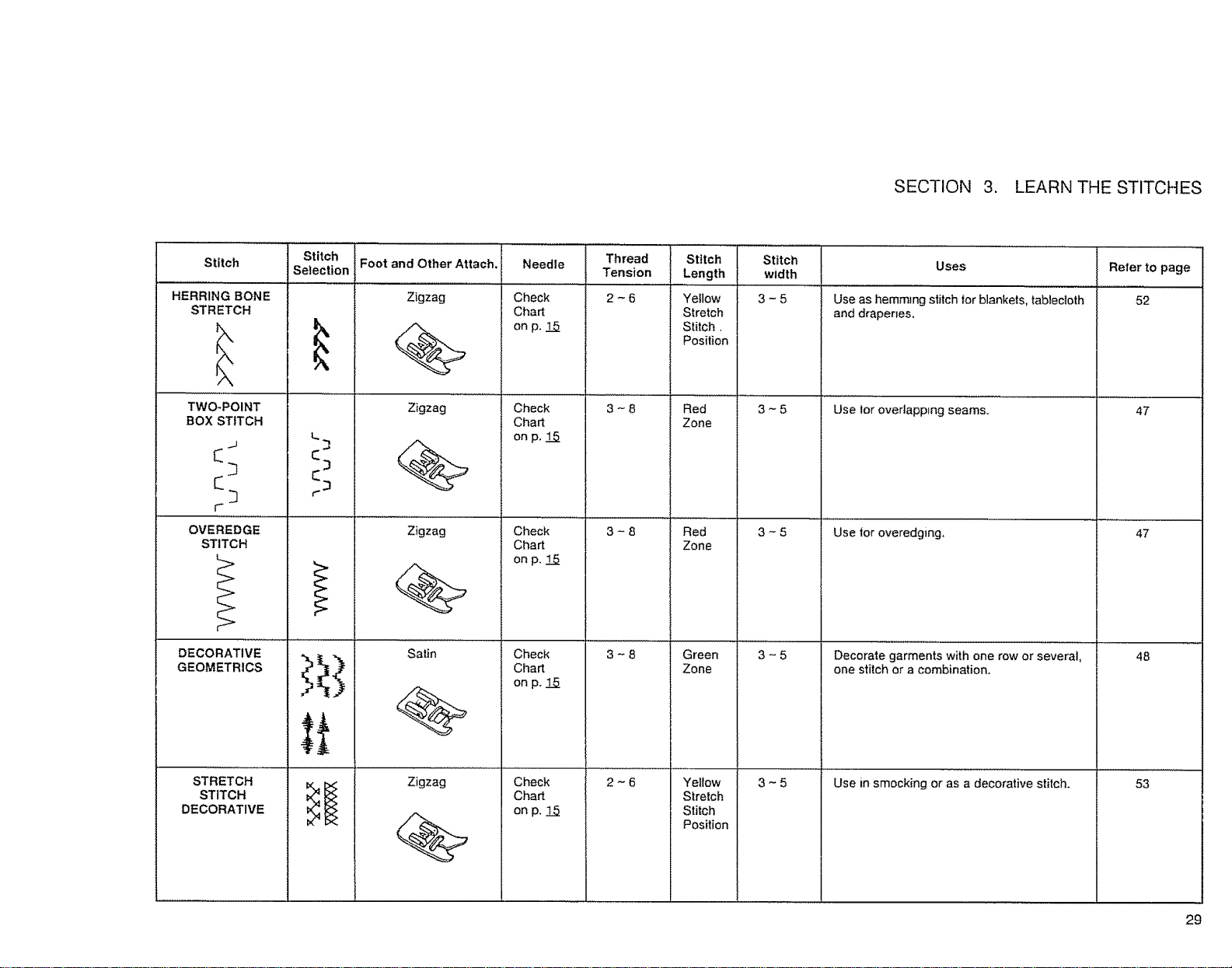

SECTION 3. LEARN THE STITCHES
Stitch
HERRING BONE
STRETCH
x,
x,
X
TWO*POINT
BOX STITCH
.J
r-
OVEREDGE
STITCH
DECORATIVE
GEOMETRICS
STRETCH
STITCH
DECORATIVE
Stitch
Selection
t_
Foot and Other Attach.
Zigzag
%
Zigzag
%
Needle
Zigzag
Satin
%
Check
Cha_
on p. 15
Check
Cha_
on p, 15
Check
Cha_
Thread
Tension
2-6
Stitch Stitch
Length width
Yellow
Red
Zone
Stretch
Stitch
Position
3-5
3-5
3-5
Uses
Use as hemming stitch for blankets, tablecloth
and d_penes,
Use tot ovedappJng seams.
Refer to page
Zigzag
on p. 15
3-8
Red
Zone
3-5
Use |or overedging.
52
Check
Cha_
on p. 15
3-8 Green
Zone
3-5
Decorate garments with one row or several,
one stitch or a combination.
47
47
48
Check
Chad
onp._
2-6 Yellow
Stretch
Stitch
Position
Use in smocking or as a decorative stitch. 53
29
SECTION 3. LEARN THE STITCHES

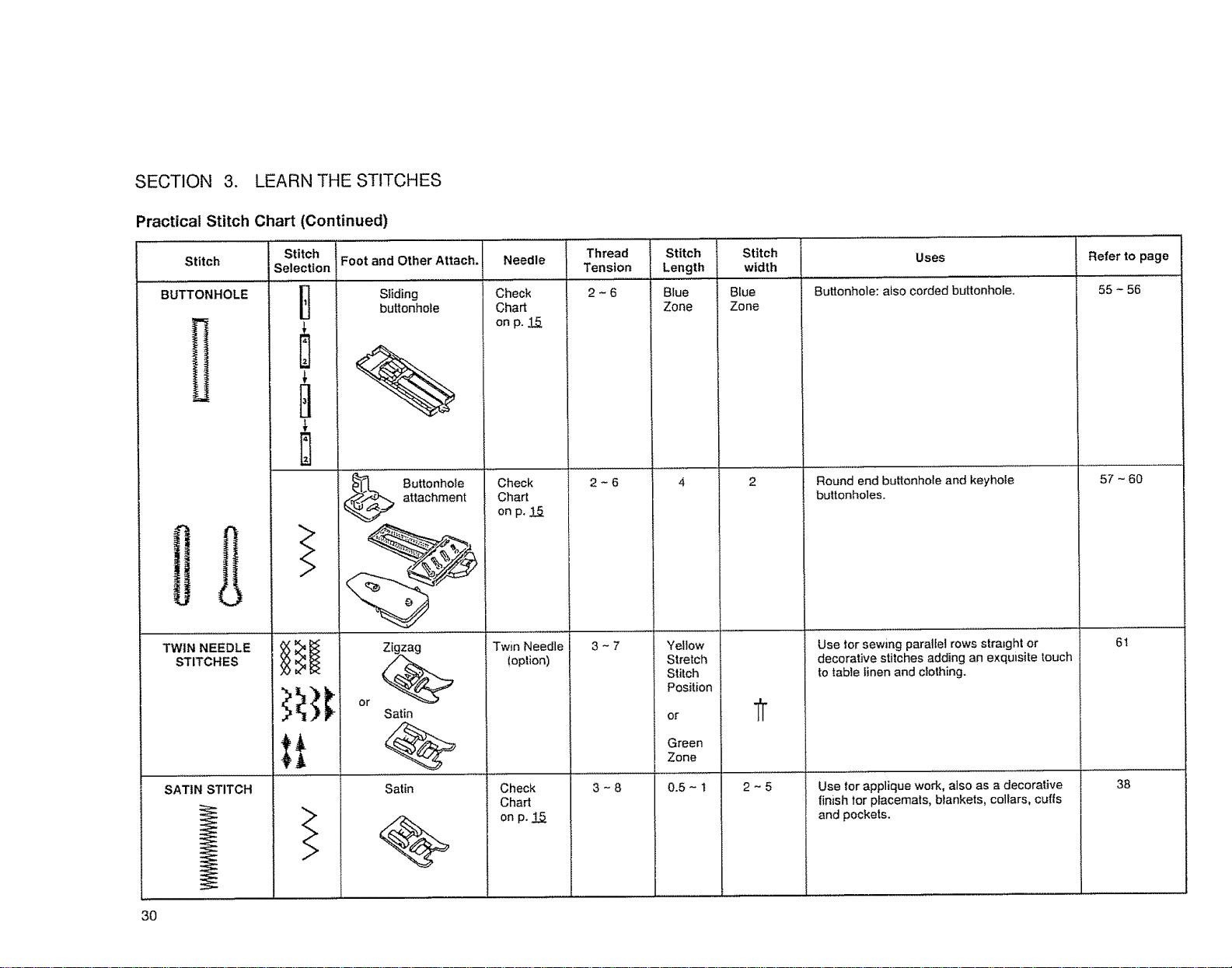

Practical Stitch Chart (Continued)
Stitch
BUTTONHOLE
0
TWiN NEEDLE
STITCHES
SATIN STITCH
Stitch
'Selection
Foot and Other Attach. Needle
Thread
Tension
Stitch
Sliding
buttonhole
Buttonhole
attachment
Satin
%
Satin
Check
Chart
onp. 1_
Check
Chart
onp. t5
Twin Needle
(option)
Check
Chart
onp. 15
2-6
2-6
3-8
Length
Blue
Zone
4
Yellow
Stretch
Stitch
Position
or
Green
Zone
0.5- t
Stitch
width
Blue
Zone
2
ir
2-5
Uses
Buttonhole: a_so corded buttonhole.
Round end buttonhole and keyhole
buttonholes.
Use lor sewing parallel rows straight or
decorative stitches adding an exquisite touch
to table linen and clothing.
Use lor applique work, also as a decorative
finish lor placemats, blankets, collars, cuffs
and pockets.
30
Refer to page
55 - 56
57 - 60
6t
38
SECTION 3. LEARN THE STITCHES

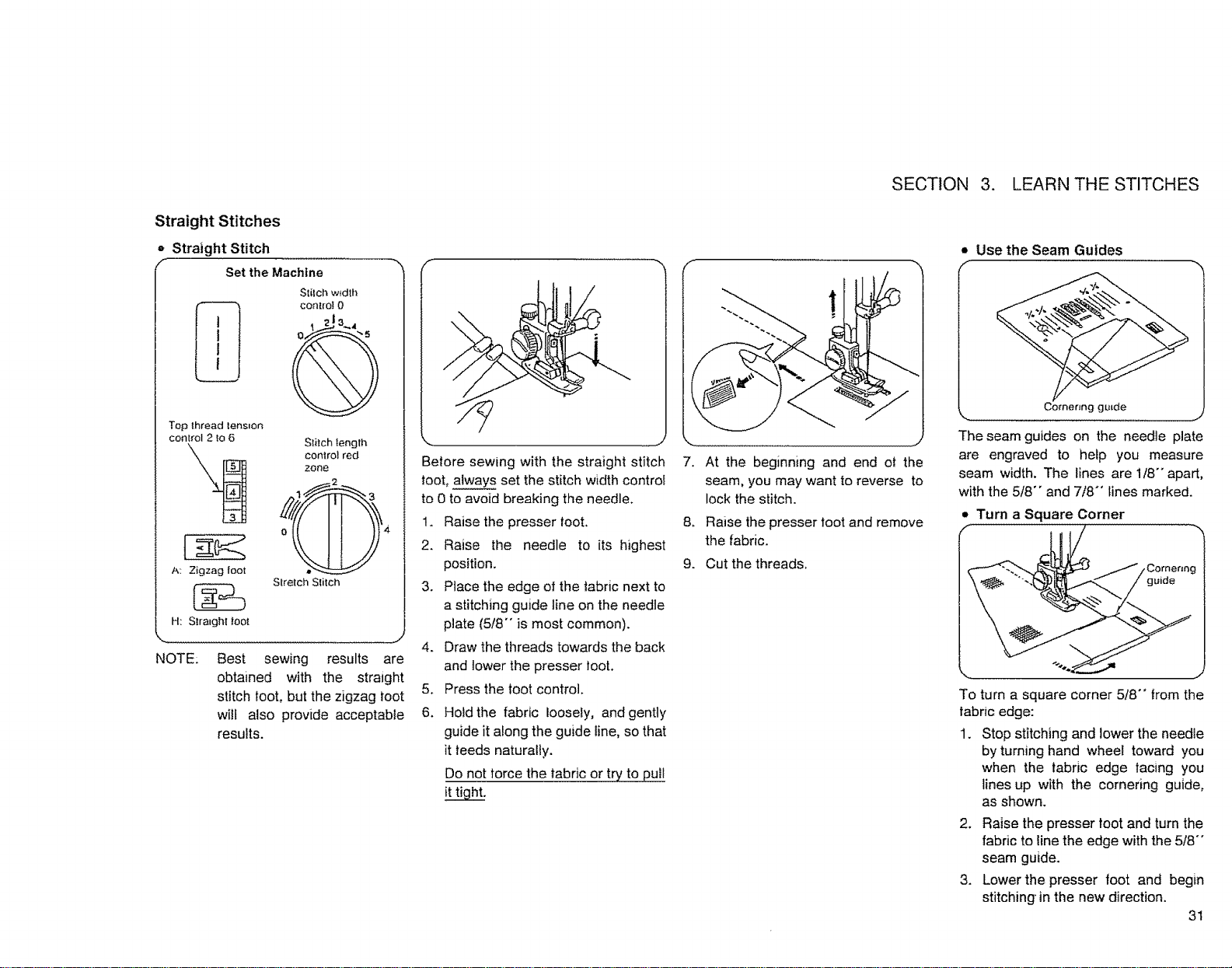

Straight Stitches
o Straight Stitch
f
Set the Machine
Top thread tension
control 2 to 6
A: Zigzag foot
H: Slralgh! loot
Stitch w_dth
control 0
Slitch tength
controt red
Zone
2
Stretch Stitch
J
NOTE Best sewing results are
obtained with the straight
stitch loot, but the zigzag toot
witf also provide acceptable
results.
J
Betore sewing with the straight stitch
loot, always set the stitch width control
to 0 to avoid breaking the needle,
1. Raise the presser toot.
2. Raise the needle to its highest
position.
3. Place the edge of the fabric next to
a stitching guide line on the needle
plate (5t8"" is most common).
4. Draw the threads towards the back
and lower the presser toot.
5. Press the foot control.
6. Hold the fabric loosely, and gently
guide it along the guide line, so that
it leeds naturally.
Do not force the fabric or try to puit
7_
8_
9.
!
At the beginning and end of the
seam, you may want to reverse to
lock the stitch.
Raise the presser toot and remove
the fabric.
Cut the threads,
• Use the Seam Guides
,,..-
Comenng guide
The seam guides on the needle plate
are engraved to help you measure
seam width. The lines are 1t8"" apart,
with the 5/8"" and 7/8 °" lines marked.
• Turn a Square Corner
guide
To turn a square corner 5/8- from the
fabric edge:
1. Stop stitching and lower the needle
by turning hand wheel toward you
when the labric edge facing you
lines up with the cornering guide,
as shown.
2. Raise the presser toot and turn the
fabric to line the edge with the 5f8""
seam guide.
3. Lower the presser foot and begin
stitching in the new direction.
31
SECTION 3. LEARN THE STITCHES
Straight Stitches (Continued)

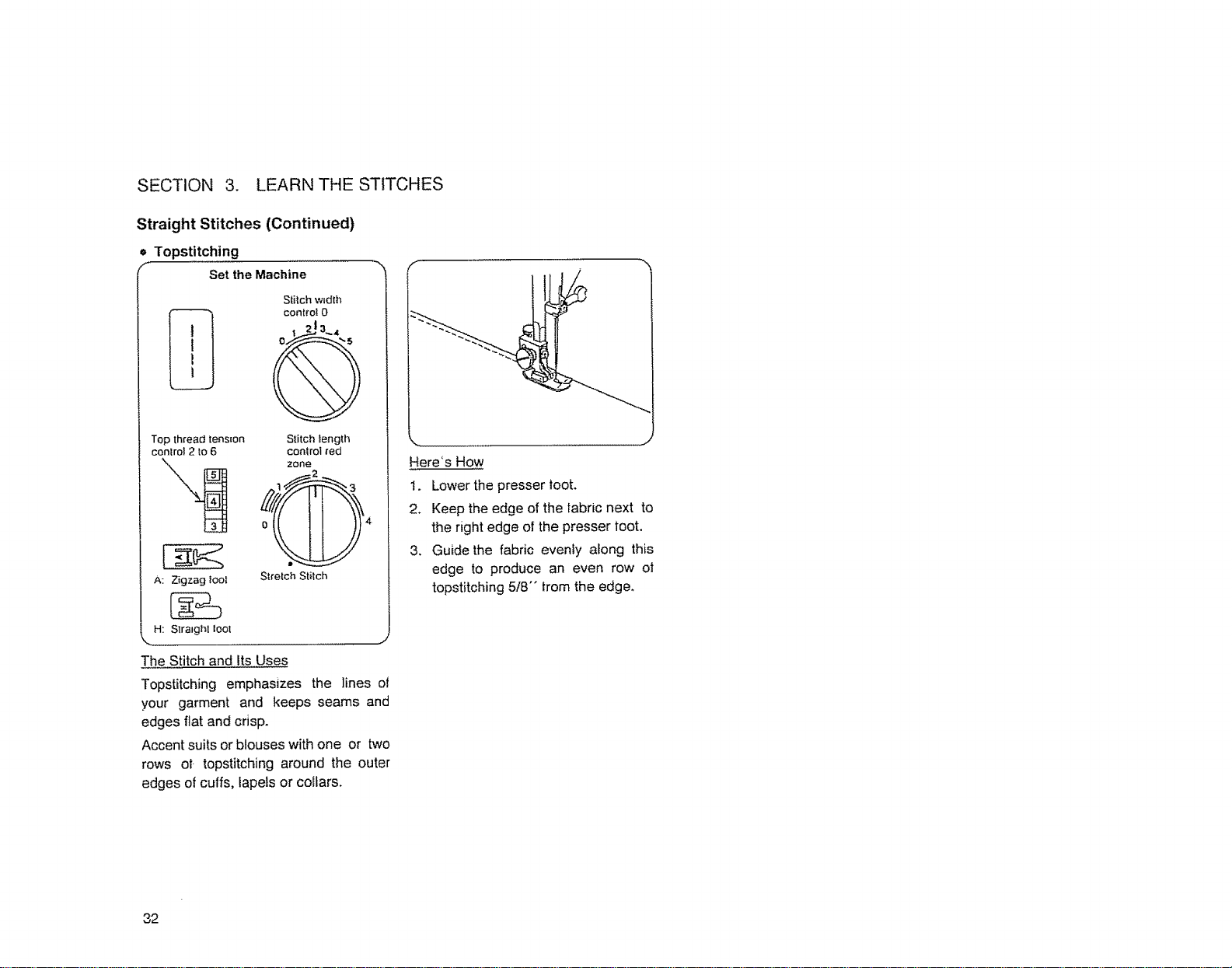

• Topstitching
Set the Machine
Stitch w_dth
_ contro__
Top thread tension
control 2 to 6
A: Zigzag loot
H: Straight toot
Stitch length
control red
ZORO
Stretch Stitch
The Stitch and Its Uses
Topstitching emphasizes the lines of
your garmenL and keeps seams and
edges flat and crisp.
Accent suits or blouses with one or two
rows ol topstitching around the outer
edges of cuffs, lapels or collars,
Here's How
1. Lower the presser loot.
2, Keep the edge of the tabric next to
the right edge of the presser toot.
3. Guide the fabric eventy along this
edge to produce an even row o!
topstitching 5/8 "° from the edge,
SECTION 3. LEARN THE STITCHES

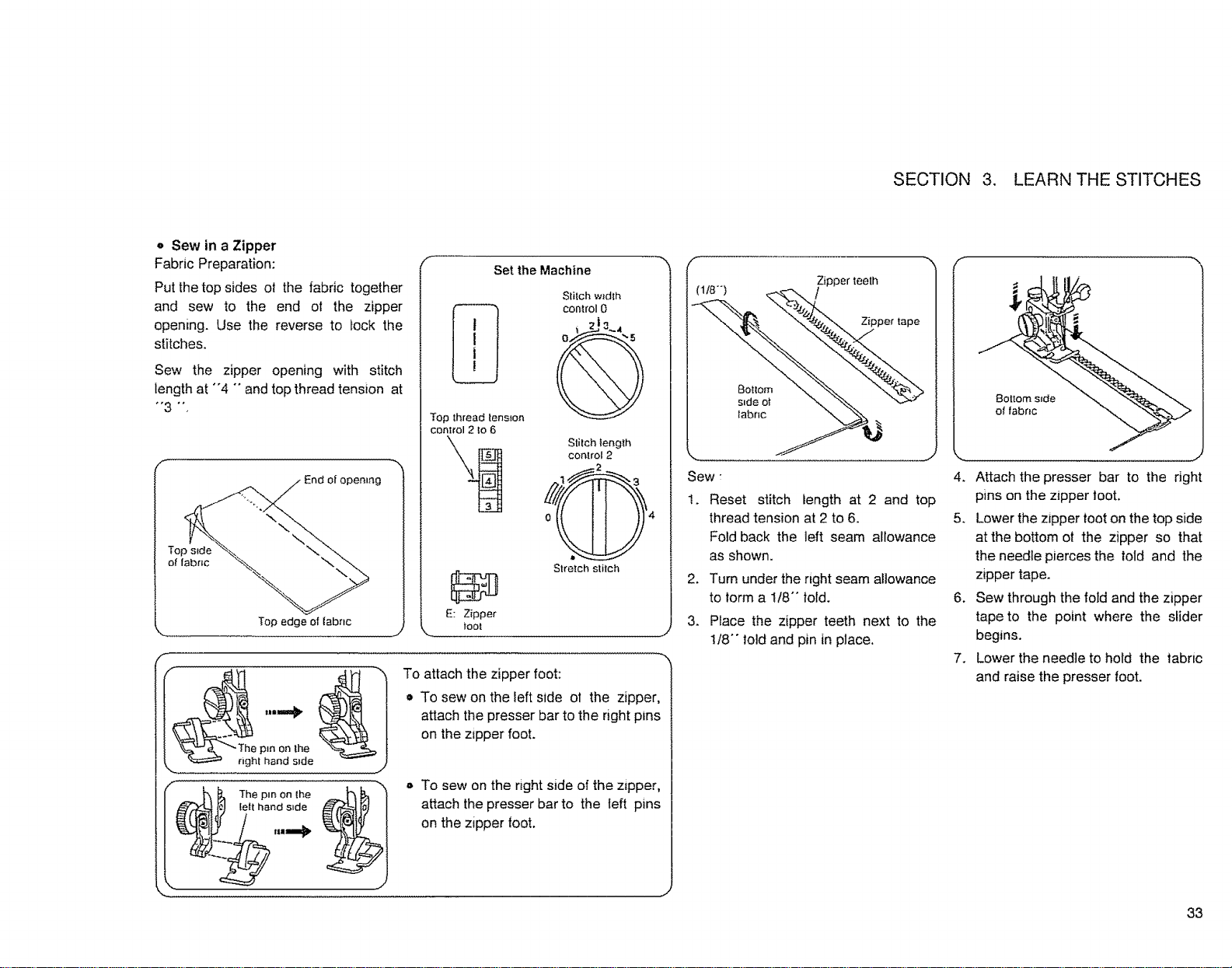

o Sew in a Zipper
Fabric Preparation:
Put the top sides o! the fabric together
and sew to the end ot the zipper
opening. Use the reverse to [ock the
stitches.
Sew the zipper opening with stitch
length at -4 ""and top thread tension at
"3 "*,
End of opemng _
Top side
of fabric
Top edge of fabric
J
Set the Machine
Top thread tension
control 2 to 6
E: Zipper
loot
Slitch w_dth
control 0
Stitch length
control 2
Stretch stitch
"_"_ _"" The pm on the
right hand side
[he pin On the
felt hand s_de
To attach the zipper foot:
o To sew on the ieft side ol the zipper,
attach the presser bar to the right pins
on the zipper foot.
o To sew on the right side of the zipper,
attach the presser bar to the left pins
on the zipper foot.
ipper teeth
Zipper tape
Sew •
1. Reset stitch length at 2 and top
thread tension at 2 to 6.
Fold back the left seam allowance
as shown.
2. Turn under the right seam allowance
to torm a If8"" told.
3. Place the zipper teeth next to the
1t8 °" told and pin in place,
8ottom s_de
of fabric
4. Attach the presser bar to the right
pins on the zipper toot,
5. Lower the zipper toot on the top side
at the bottom ot the zipper so that
the needle pierces the told and the
zipper tape.
6. Sew through the fold and the zipper
tape to the point where the slider
begins,
7. Lower the needle to hold the tabric
and raise the presser foot.
33
SECTION 3. LEARN THE STITCHES
Straight Stitches (Continued)
of fabric

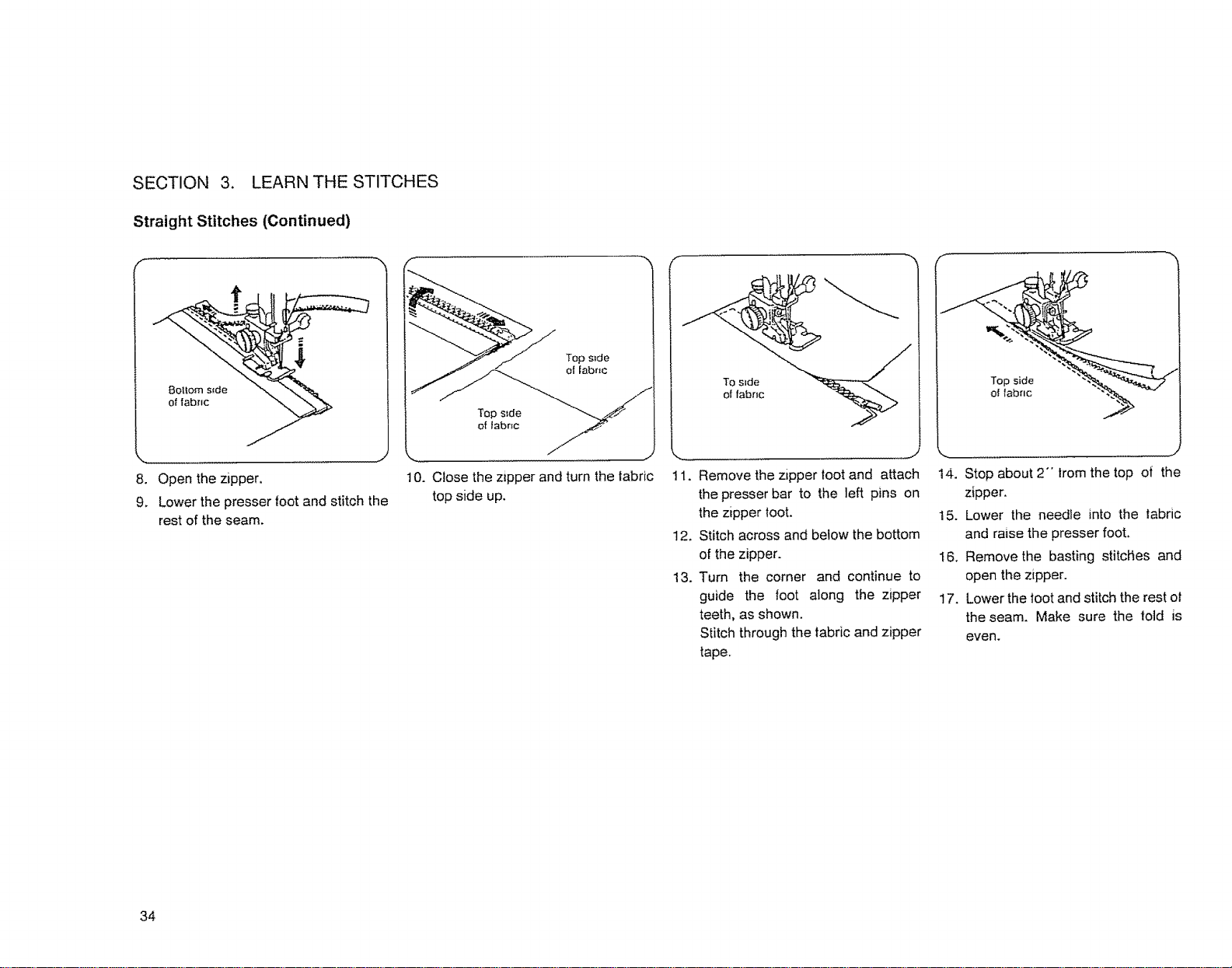

8. Open the zipper.
9. Lower the presser foot and stitch the
rest of the seam.
Top s_de
o! Iabnc
Top s_de
of labr_c
k.
lO. Close the zipper and turn the fabric
top side up,
f
11. Remove the zipper foot and attach
the presser bar to the left pins on
the zipper !oot.
12, Stitch across and below the bottom
of the zipper.
13. Turn the corner and continue to
guide the foot along the zipper
teeth, as shown.
Stitch through the fabric and zipper
tape.
14. Stop about 2"" from the top of the
zipper.
15. Lower the needle into the fabric
and raise the presser foot,
I6, Remove the basting stitches and
open the zipper.
17. Lower the toot and stitch the rest ot
the seam. Make sure the |old is
even.
34
SECTION 3. LEARN THE STITCHES

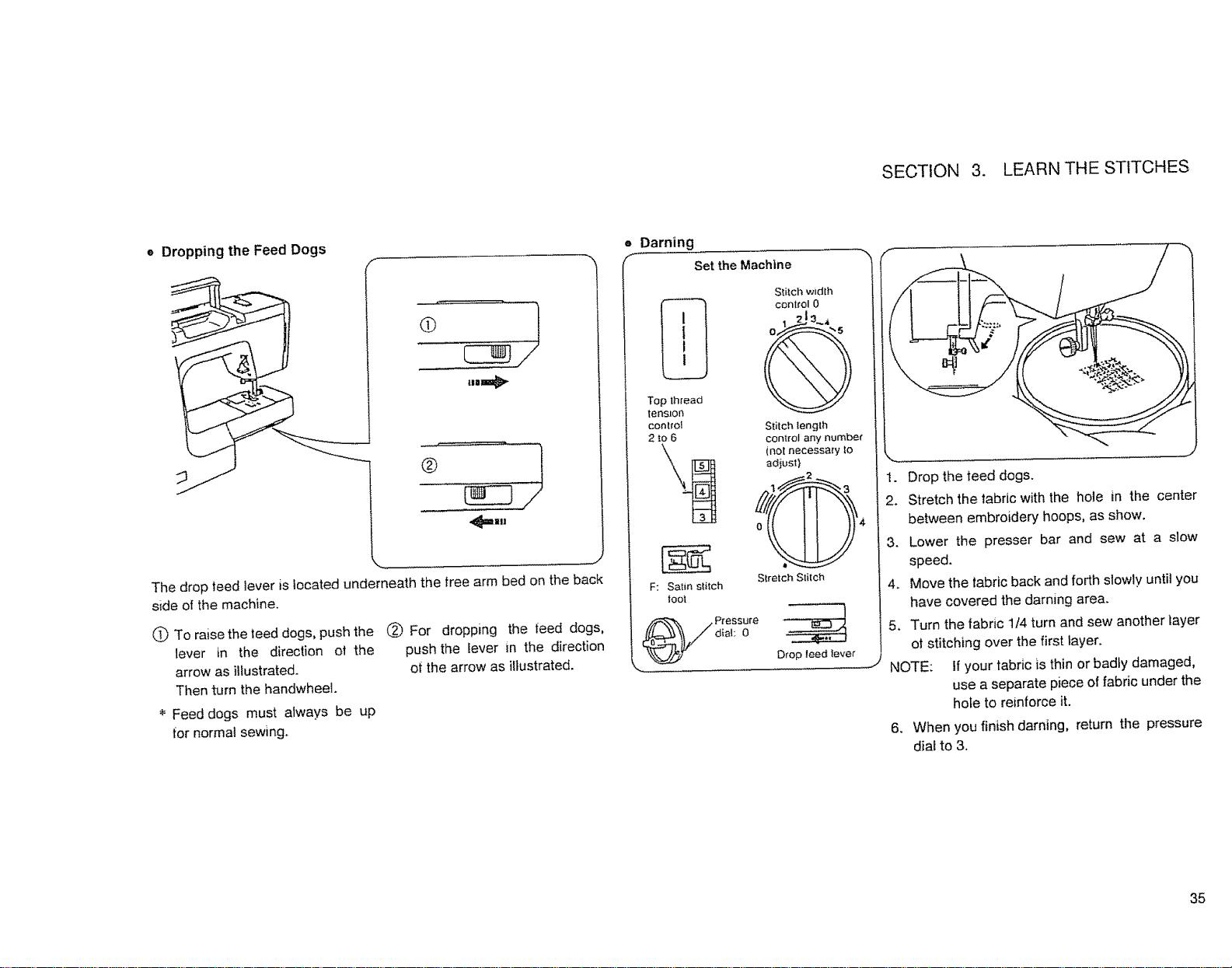

o Dropping the Feed Dogs
f
I
t|0_
.......... J
The drop teed lever is located underneath the free arm bed on the back
side of the machine.
C) To raise the teed dogs, push the
lever in the direction ol the
arrow as illustrated.
Then turn the handwheel.
* Feed dogs must always be up
for normal sewing.
(_ For dropping the teed dogs,
push the lever in the direction
of the arrow as illustrated.
= Darning
Set the Machine
Top thread
tension
control
2to6
F: Satin stitch
toot
Pressure
dial; 0
Stitch widlh
control 0
Stitch length
control any number
(not necessary to
adjust}
Stretch Stitch
---7
Drop leed fever
t.
2.
3.
4.
5.
NOTE:
Drop the teed dogs.
Stretch the fabric with the hole in the center
between embroidery hoops, as show.
Lower the presser bar and sew at a slow
speed.
Move the fabric back and forth slowly until you
have covered the darning area.
Turn the fabric 1/4 turn and sew another layer
of stitching over the first layer.
If your fabric is thin or badty damaged,
use a separate piece of fabric under the
hote to reinforce it.
6. When you finish darning, return the pressure
dial to 3.
35
SECTION 3. LEARN THE STITCHES

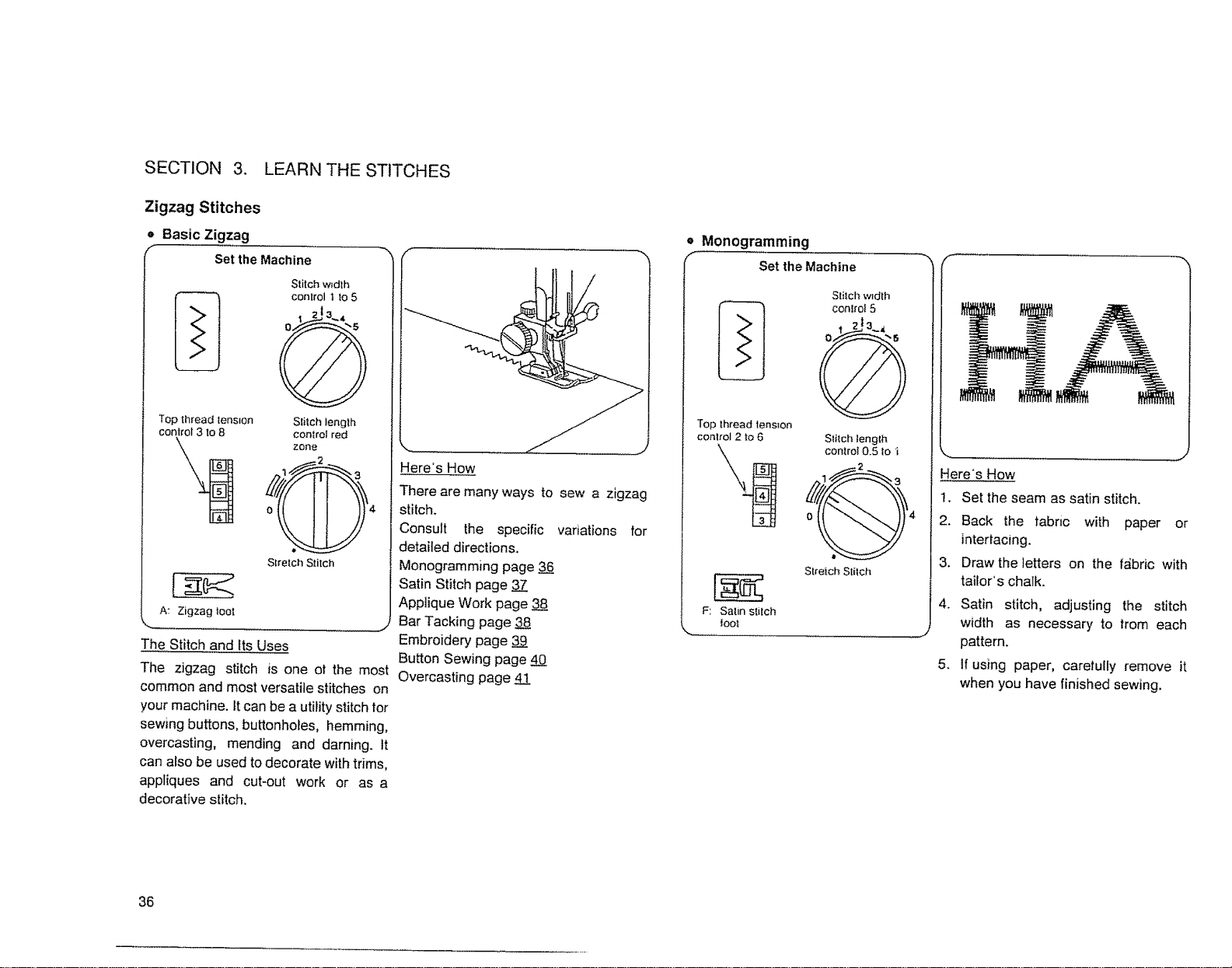

Zigzag Stitches
• Basic Zigzag
f
Set the Machine
TOp thread lens_on
control 3 to 8
A: Zigzag toot
Stitch w_dth
control 1 lo 5
Stitch Iength
control red
zone
Stretch Stitch
The Stitch and Its Uses
The zigzag stitch is one ot the most
common and most versatile stitches on
your machine, it can be a utility stitch for
sewing buttons, buttonholes, hemming,
overcasting, mending and darning. It
can also be used to decorate with trims,
appliques and cut-out work or as a
decorative stitch.
Here's How
There are many ways to sew a zigzag
stitch.
Consult the specific variations for
detailed directions.
Monogramming page 3_.6.
Satin Stitch page 37
Apptique Work page 38
Bar Tacking page 38
Embroidery page 3.3_9_
Button Sewing page 4(3
Overcasting page 451
o Monogramming
f
Set the Machine
Top thread tension
conlroI 2 to 6
F: Satin stitch
!ool
Sti_.ch wtdth
conl_oI 5
Stitch length
control 0.5 to i
2
Stretch Stilch
..... J
Here's How
I. Set the seam as satin stitch.
2. Back the fabric with paper or
interfacing.
3. Draw the letters on the fabric with
taitor's chalk.
4. Satin stitch, adjusting the stitch
width as necessary to lrom each
pattern.
5. If using paper, careluIty remove it
when you have finished sewing.
36

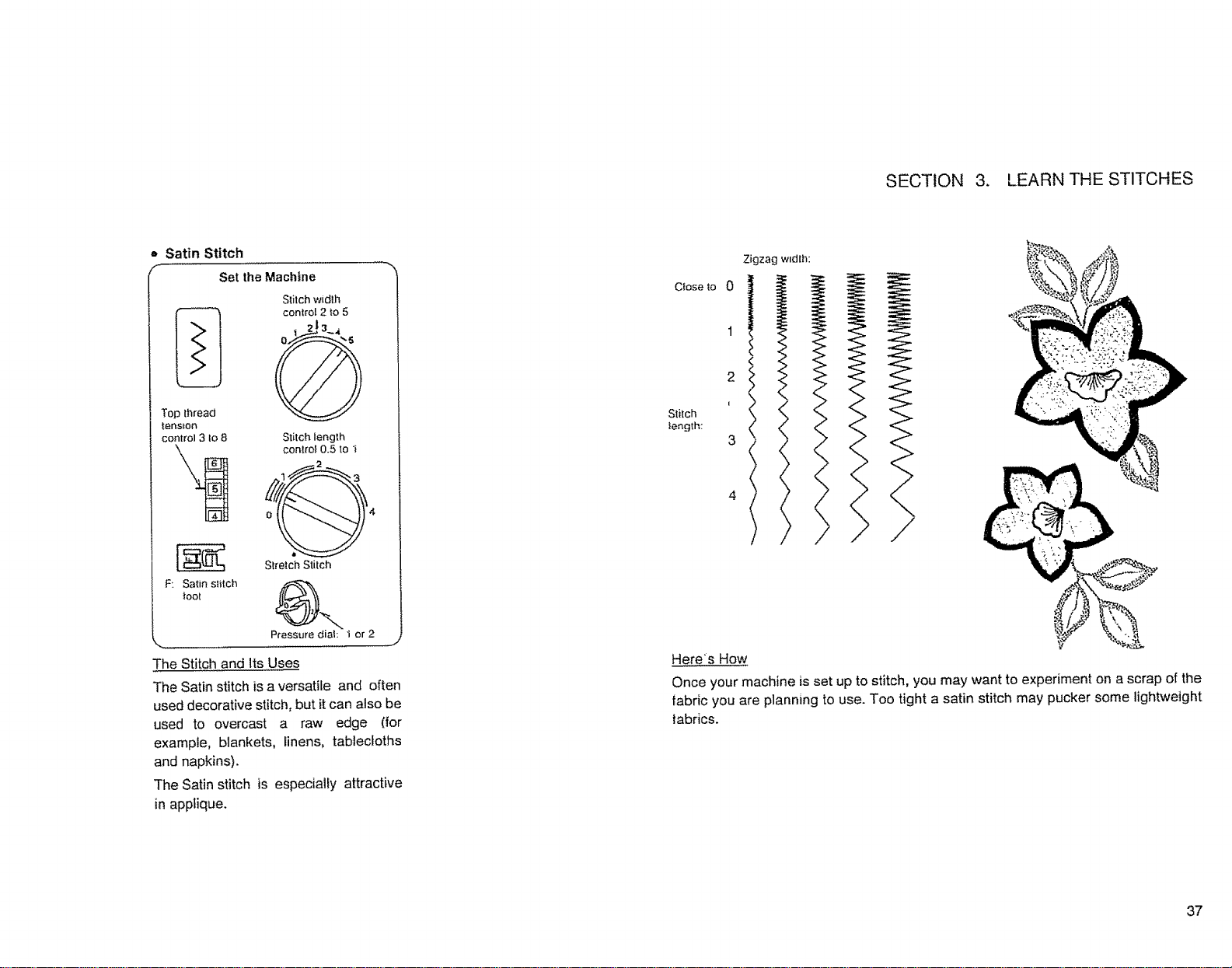

SECTION 3. LEARN THE STITCHES
o Satin Stitch
Set the Machine
Slitch widlh
Top thread
tenston
control 3 to 8 Stitch length
conlrel 0.5 to i
F: Satin slttch
1ool
Stretch Stitch
Pressure dial: I or 2
The Stitch and Its Uses
The Satin stitch is a versatile and often
used decorative stitch, but it can also be
used to overcast a raw edge {'for
example, blankets, linens, tablecloths
and napkins).
The Satin stitch is especially attractive
in applique,
Zigzag width:
Closeto 0
1
Stitch _ 1
length:
I (
4 (
/
/
>
>
>
>
>
Here's How
Once your machine is set up to stitch, you may want to experiment on a scrap of the
fabric you are planning to use. Too tight a satin stitch may pucker some lightweight
labdcs.
37

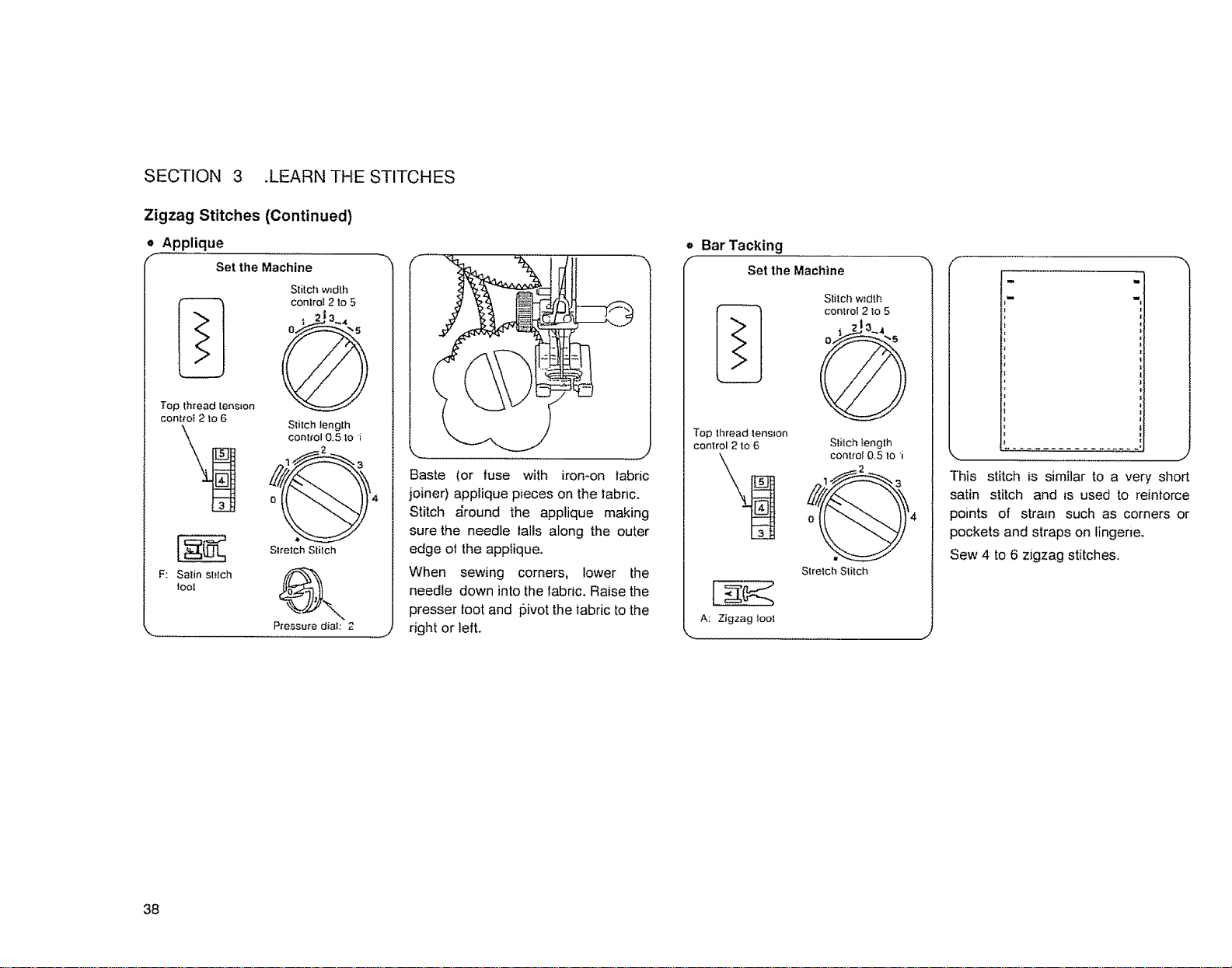

SECTION 3 .LEARN THE STITCHES
Zigzag Stitches (Continued)
• Applique
f
Set the Machine
Top thread tenston
conlrof 2 to 6
F: Satin st+tch
loot
Stitch w+dth
control 2 to 5
2 ! 34
Stitch lenglh
conb'ol 0+5 to i
2
Slretch Slitch
P[essure dial: 2
Baste (or tuse with iron-on tabric
joiner) applique pieces on the tabric.
Stitch ground the applique making
surethe needle lalls along the outer
edge ol the applique.
When sewing corners, lower the
needle down into the fabr+c. Raise the
presser toot and tSivot the fabric to the
right or left.
• Bar Tacking
f
Set the Machine
Top thread tens+on
control 2 to 6
A: Zigzag 1ool
Stitch w+dth
control 2 to 5
@
Stitch length
control 0+5 1o +i
2
Strelch Stitch
i
This stitch is similar to a very short
satin stitch and is used to reiniorce
points of stra+n such as corners or
pockets and straps on lingerie.
Sew 4 to 6 zigzag stitches.
38

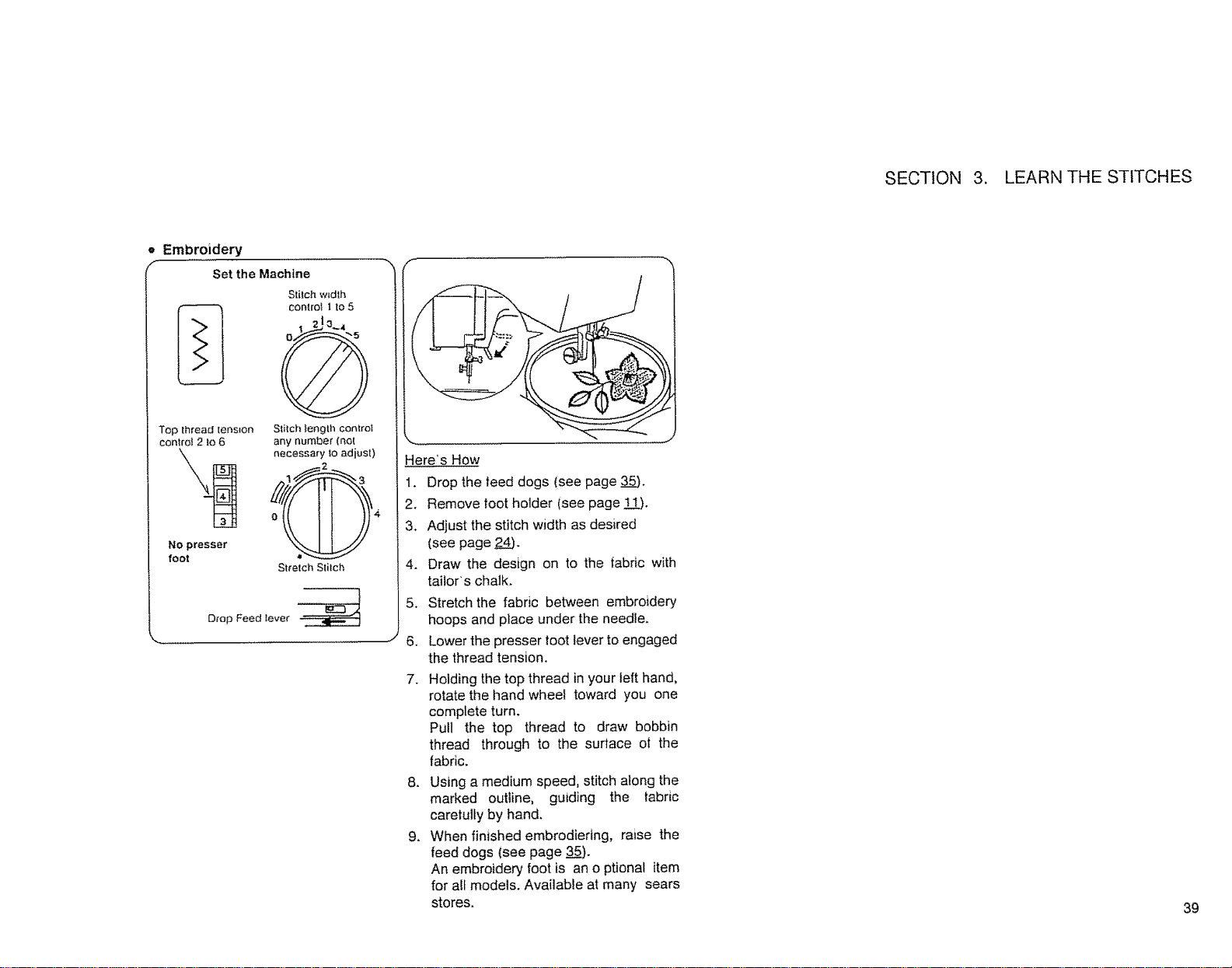

o Embroidery
f
Set the Machine
Stitch width
Top thread tension Stitch length conirot
control 2 to 6 any number (not
necessary _o adiust)
No presser _'_1 1j.ii
foot
Strelch Stitch
Drop Feed lever
°
g.
Drop the teed dogs (see page 3__5_).
Remove toot holder (see page 1_.
Adjust the stitch width as desired
(see page 2_A).
Draw the design on to the fabric with
taiior's chalk.
Stretch the fabric between embroidery
hoops and place under the needle.
Lower the presser toot lever to engaged
the thread tension.
Holding the top thread in your left hand,
rotate the hand wheel toward you one
complete turn.
Pull the top thread to draw bobbin
thread through to the sudace ot the
fabric.
Using a medium speed, stitch along the
marked outline, guiding the labric
caretully by hand.
When finished embrodiering, raise the
feed dogs (see page 3_..5.).
An embroidery foot is an o ptional item
for a!t models. Available at many sears
stores.
SECTION
3. LEARN THE STITCHES
39
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)

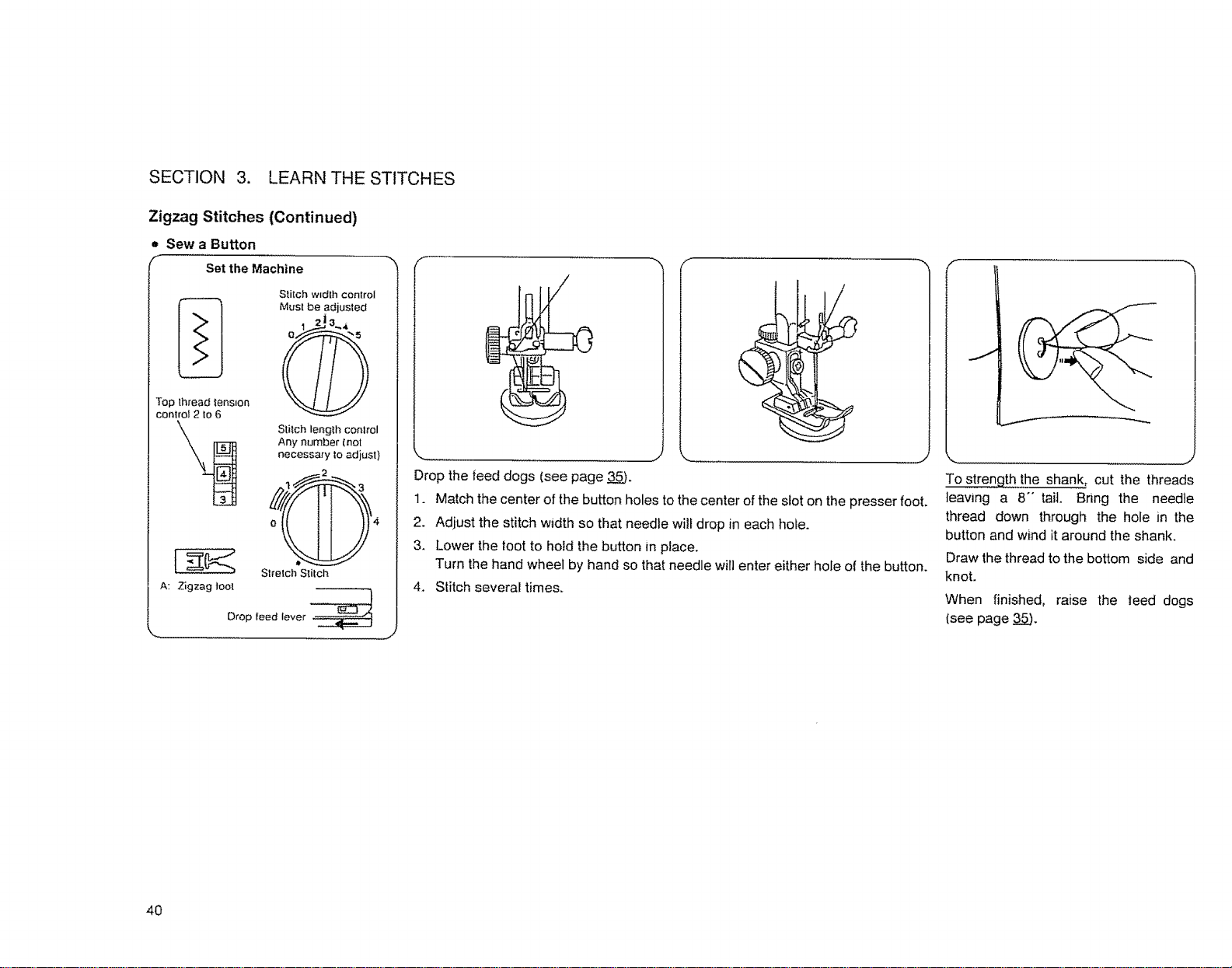

• Sew a Button
Set the Machine
Top thread tens=on
control 2 to 6
A: Zigzag loot
Stitch width control
Must be adjusted
I 2i3-4
Stitch leng_,h conlrol
Any number (not
necessary to adjust)
2
St_'etch Stitch
Orop _eed lever
Drop the feed dogs (see page 3_.).
. k._
1. Match the center of the button holes to the center of the slot on the presser foot.
2. Adjust the stitch width so that needle will drop in each hole.
3. Lower the foot to hold the button in place.
Turn the hand wheel by hand so that needle will enter either hole of the button.
4. Stitch several times.
J
k. ................... j
To strength the shank, cut the threads
teavJng a 8"" tail. Bring the needle
thread down through the hole in the
button and wind it around the shank.
Draw the thread to the bottom side and
knot.
When finished, raise the teed dogs
(see page 3_.
40

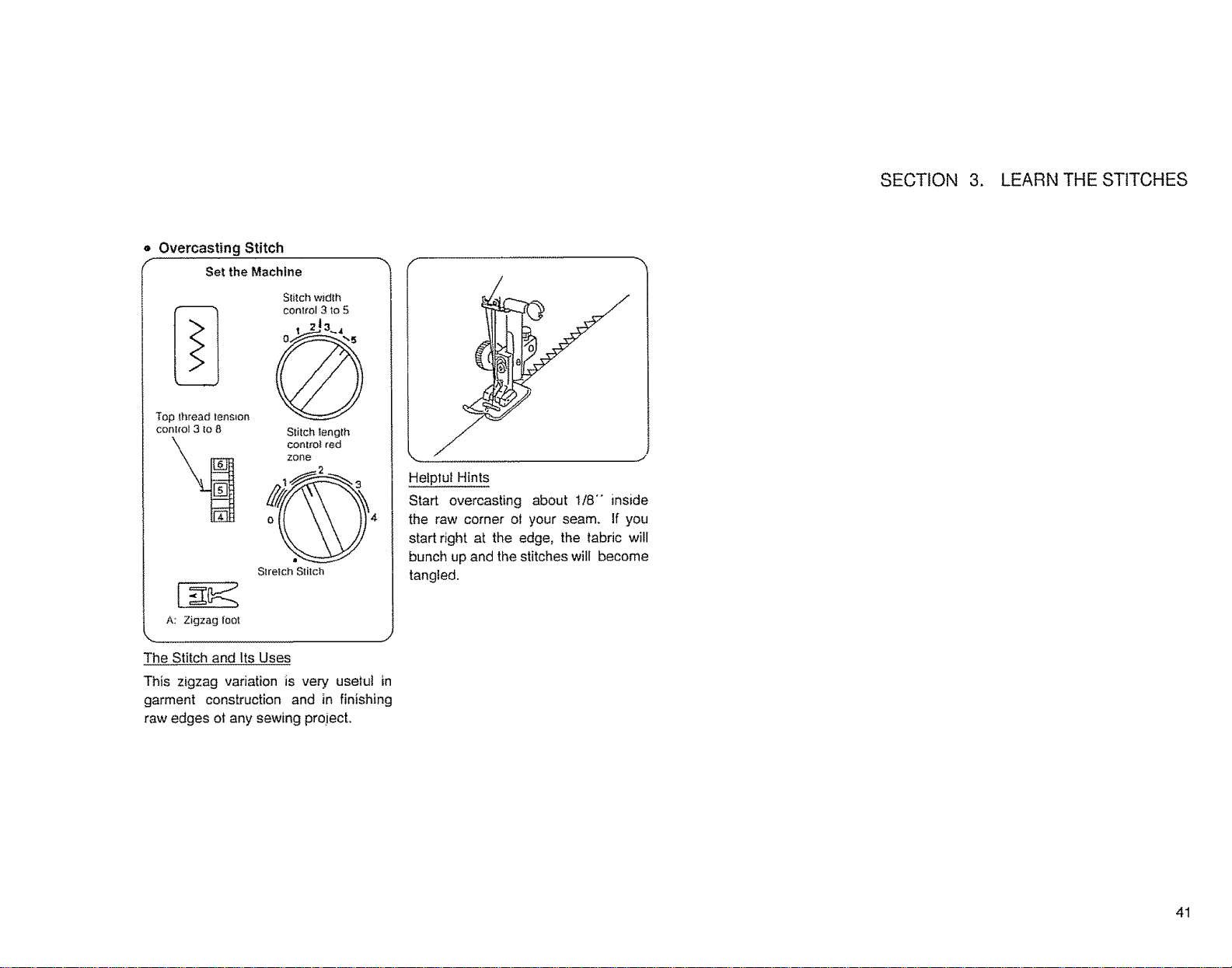

• Overcasting Stitch
f
Set the Machine
Top thread tenmon
Control 3 to 8
Stitch w+dth
control 3 to 5
Stitch length
control red
zonE,
2
Slre_ch Stitch
A: Zigzag foot
The Stitch and Its Uses
This zigzag variation is very usetul in
garment construction and in finishing
raw edges ot any sewing project.
Helptul Hints
Start overcasting about t/8"" inside
the raw corner ot your seam, If you
start right at the edge, the labric will
bunch up and the stitches will become
tangled.
SECTION 3. LEARN THE STITCHES
41
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
o Blind Hemming
f
Set the Machine
Top thread tension
con#ol 2 to 6
A: Zigzag loot
Stitch w=dlh
conlro! 2 to 3
Stitch length
con|roI red
zone
2
4
Slretch Slitch
Lightweighl
Hea
/
1. Finish the raw edge ol your hem any way you desire (see overcasting page 4__!.).
2. Measure, turn up your hem and pin.
NOTE: For light weight labrics, you may need a double told.
3. Fold the material {bottom side out) on the edge to be stitched, as shown, leaving 1/4- of the finished hem edge showing.
4. Place garment under presser foot in such a manner that narrow zigzag stitches wilt be sewn on extended edge. The wide
zigzag stitch should just catch the told of the garment.
5. After hemming, press both sides of the finished hem. The top side of the garment wilt show only the blind stitches.
42

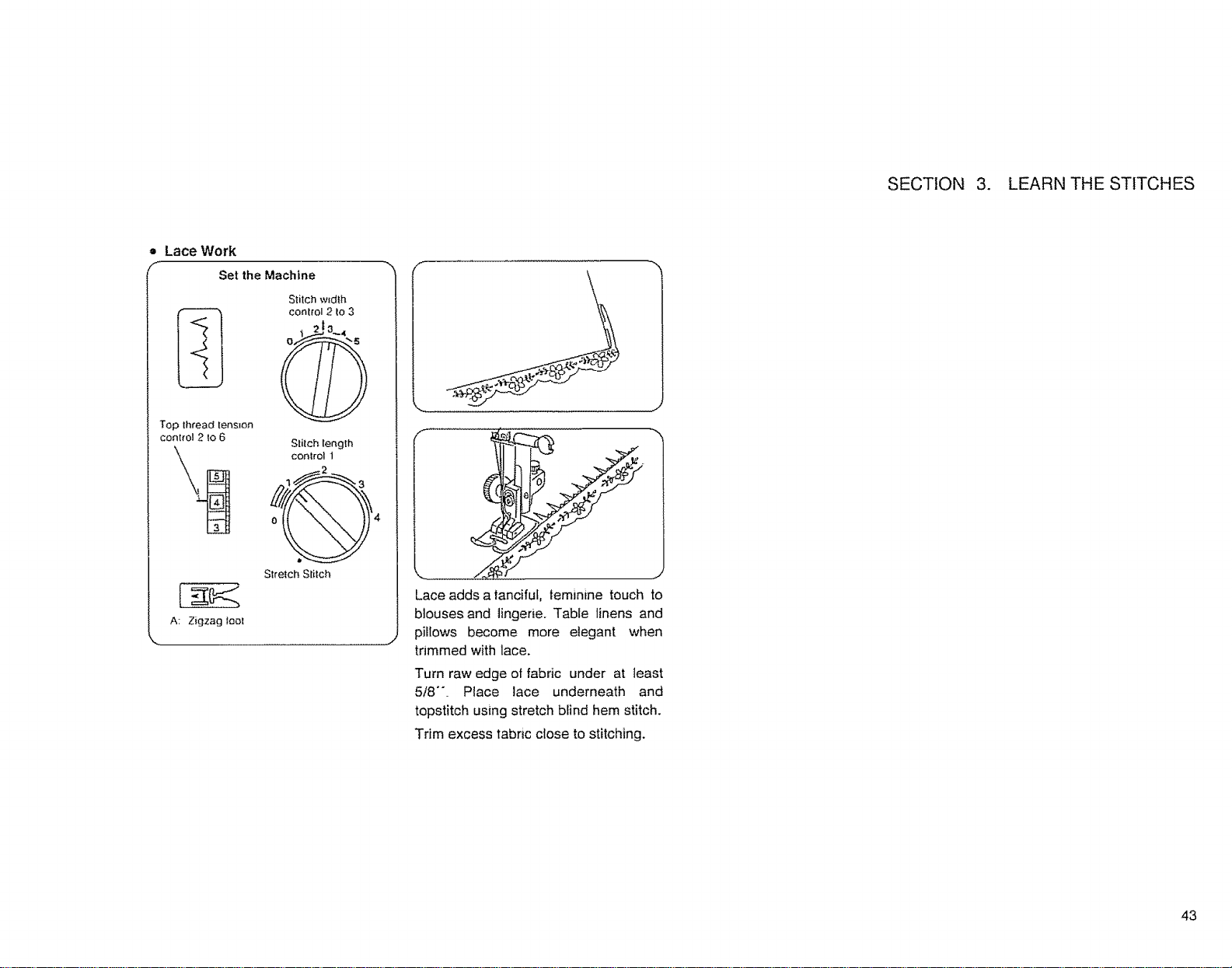

o LaceWork
Set the Machine
Top thread tension
cont[oI 2 to 6
Stitch w_dth
control 2 to 3
Stitch [ength
contro} 1
Stretch Stitch
J
Lace adds a |ancifut, feminine touch to
blouses and lingerie. Table linens and
pillows become more elegant when
trimmed with lace.
Turn raw edge of fabric under at teast
5/8"" Place lace underneath and
topstitch using stretch bFind hem stitch.
Trim excess tabric close to stitching.
SECTION 3. LEARN THE STITCHES
43
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)

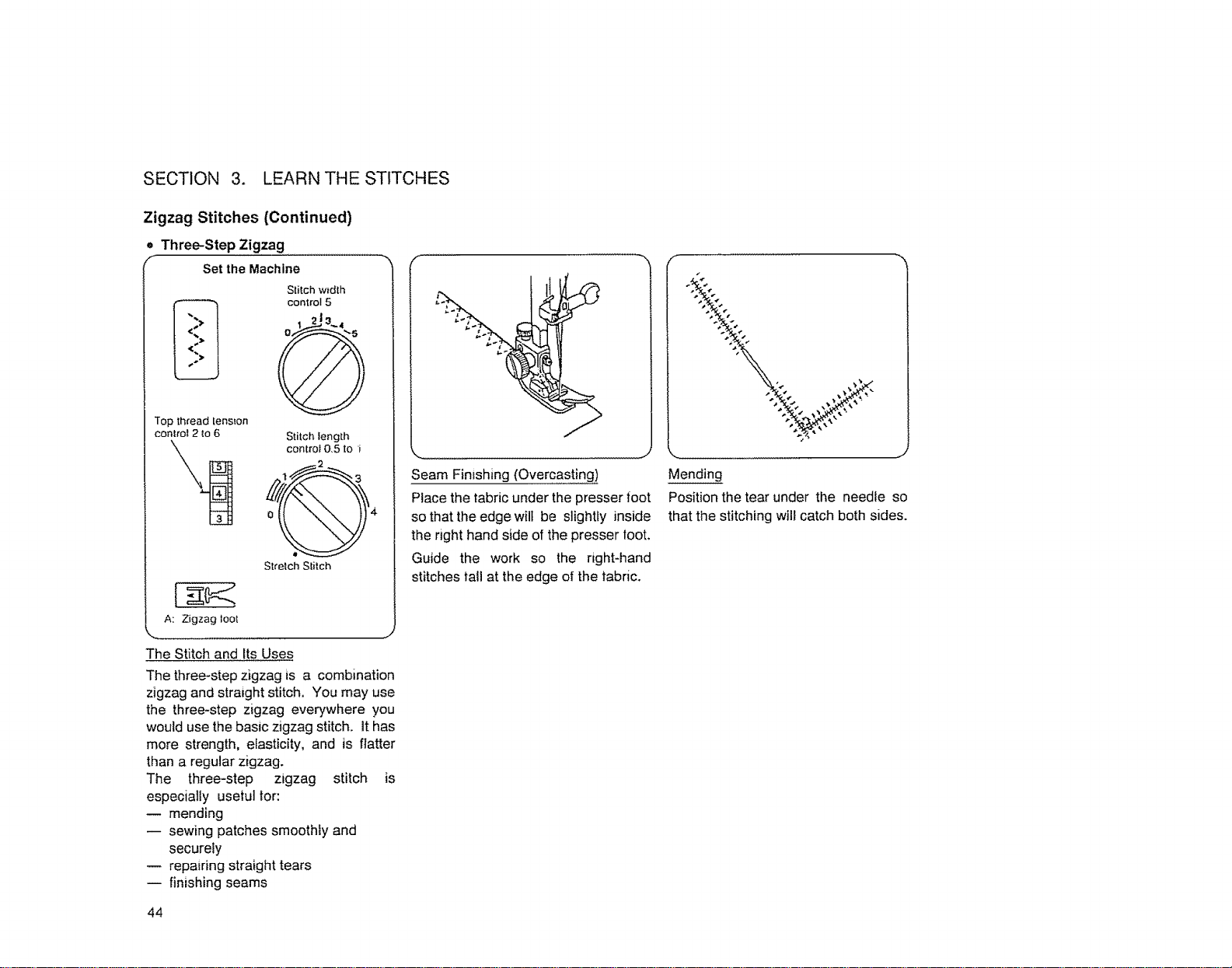

o Three-Step Zigzag
Set the Machine
Top thread lens_on
control 2 to 6
Stitch w_dth
control 5
Stitch length
control 0.5 to i
Stretch Sli|ch
A: Zigzag loot
The Stitch and Its Uses
The three-step zigzag is a combination
zigzag and straight stitch. You may use
the three-step zigzag everywhere you
would use the basic zigzag stitch, it has
more strength, elasticity, and is flatter
than a regular zigzag.
The three-step zigzag stitch is
especially uselut for:
-- mending
-- sewing patches smoothly and
securely
-- repairing straight tears
= finishing seams
f
Seam Finishing (Overcasting)
Place the tabric under the presser foot
so that the edge wilt be slightly inside
the right hand side of the presser loot,
Guide the work so the right-hand
stitches tall at the edge of the fabric.
Mending
Position the tear under the needle so
that the stitching will catch both sides.
44

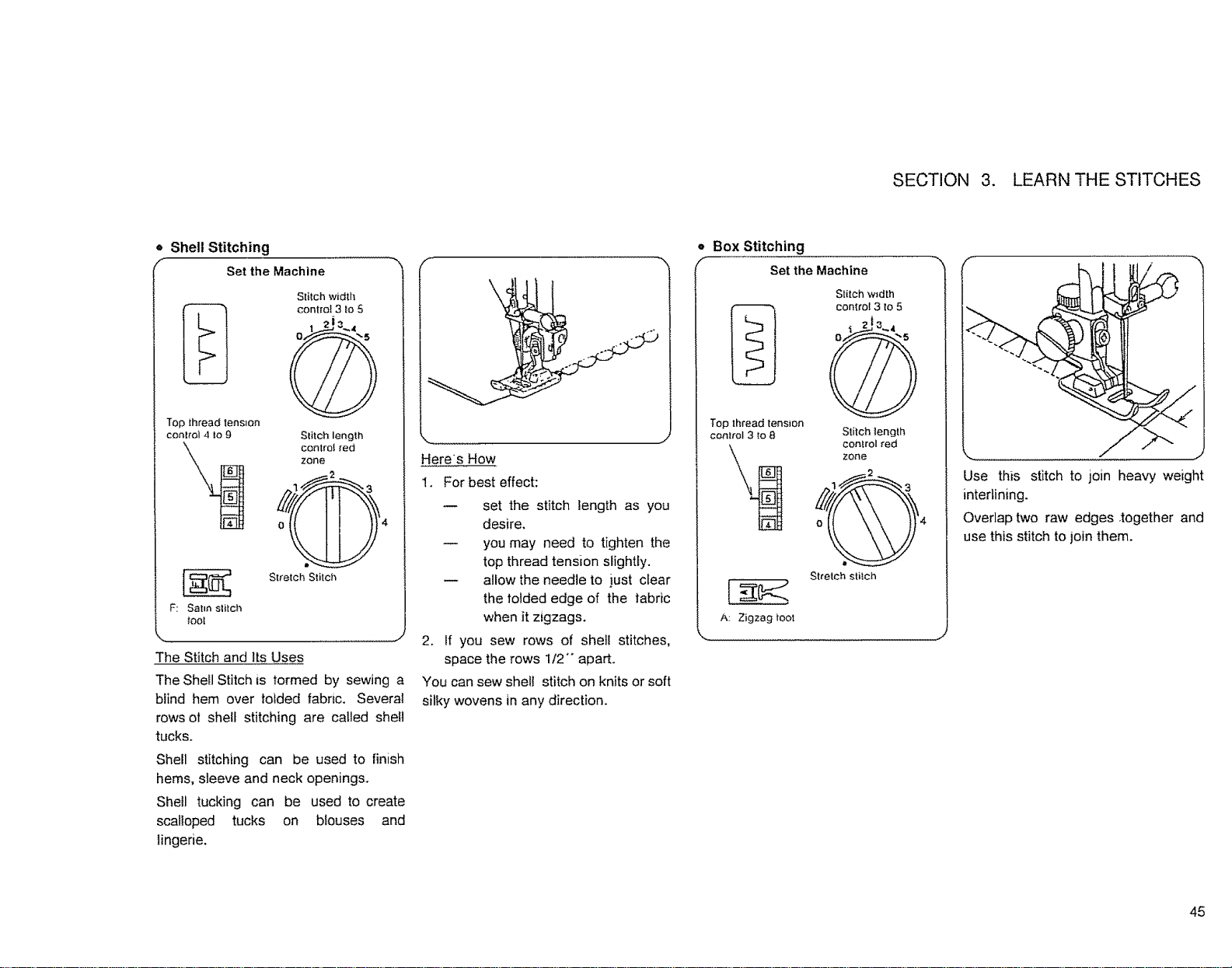

SECTION 3. LEARN THE STITCHES
o Shell Stitching
Set the Machine
Top thread tens+on
cont_-ol 4 to 9
Stitch width
cont[ol 3 to 5
Stitch length
control red
zone
Stretch Stitch
F: Salm slitcl_
tool
The Stitch and Its Uses
The Shell Stitch is tormed by sewing a
blind hem over totded fabric. Several
rows ot shell stitching are called shell
tucks.
Shell stitching can be used to finish
hems, sleeve and neck openings.
Shell tucking can be used to create
scaiioped tucks on blouses and
lingerie.
"N f
Heres How
I. For best effect:
set the stitch length as you
desire.
-- you may need to tighten the
top thread tension slightly.
-- allow the needle to just clear
the tolded edge of the tabric
when it zigzags.
2. If you sew rows of shell stitches,
space the rows 1/2- apart.
You can sew shet! stitch on knits or soft
silky wovens in any direction.
o Box Stitching
f-
Set the Machine
Stitch w+dth
Top thread tension
conirol 3 to 8 Stitch tength
control red
zone
Stretch stitch
A: Zigzag toot
k.
/
Use this stitch to join heavy weight
interlining.
Overlap two raw edges .together and
use this stitch to join them.
45

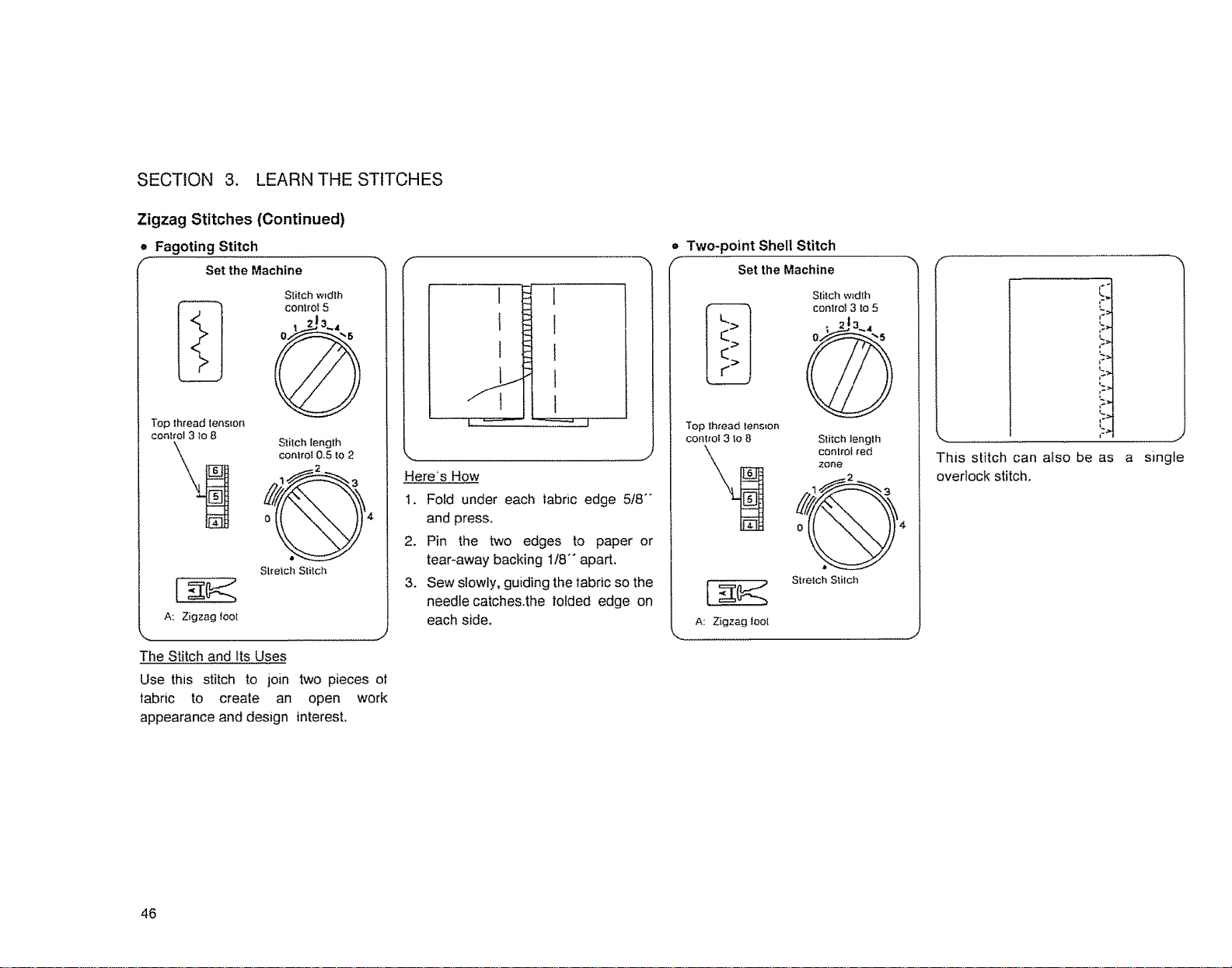

SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
• Fagoting Stitch
p-
Set the Machine
Top thread tension
control 3 1o 8
A: Zigzag loot
Stitch widlh
control 5
Stitch length
conlrof 0.5 Io 2
Slreich Stitch
The Stitch and Its Uses
Use this stitch to join two pieces ol
tabric to create an open work
appearance and design interest.
1
I
1
l
1
I
1
I
.........I"
J
Here's How
1, Fold under each |abric edge 5!8-
and press.
2. Pin the two edges to paper or
tear-away backing tl8"" apart,
3. Sew slowly, guiding the labric so the
needle catches.the lolded edge on
each side.
o Two-point Shell Stitch
Set the Machine
x._
Top thread tension
control 3 to 8
A: Zigzag fool
Sli|ch width
conlroi 3 to 5
Stitch lenglh
control red
zone
Stretch Stitch
c_
~
t÷
L
This stitch can also be as a
overlock stitch.
single
46
SECTION 3. LEARN THE STITCHES

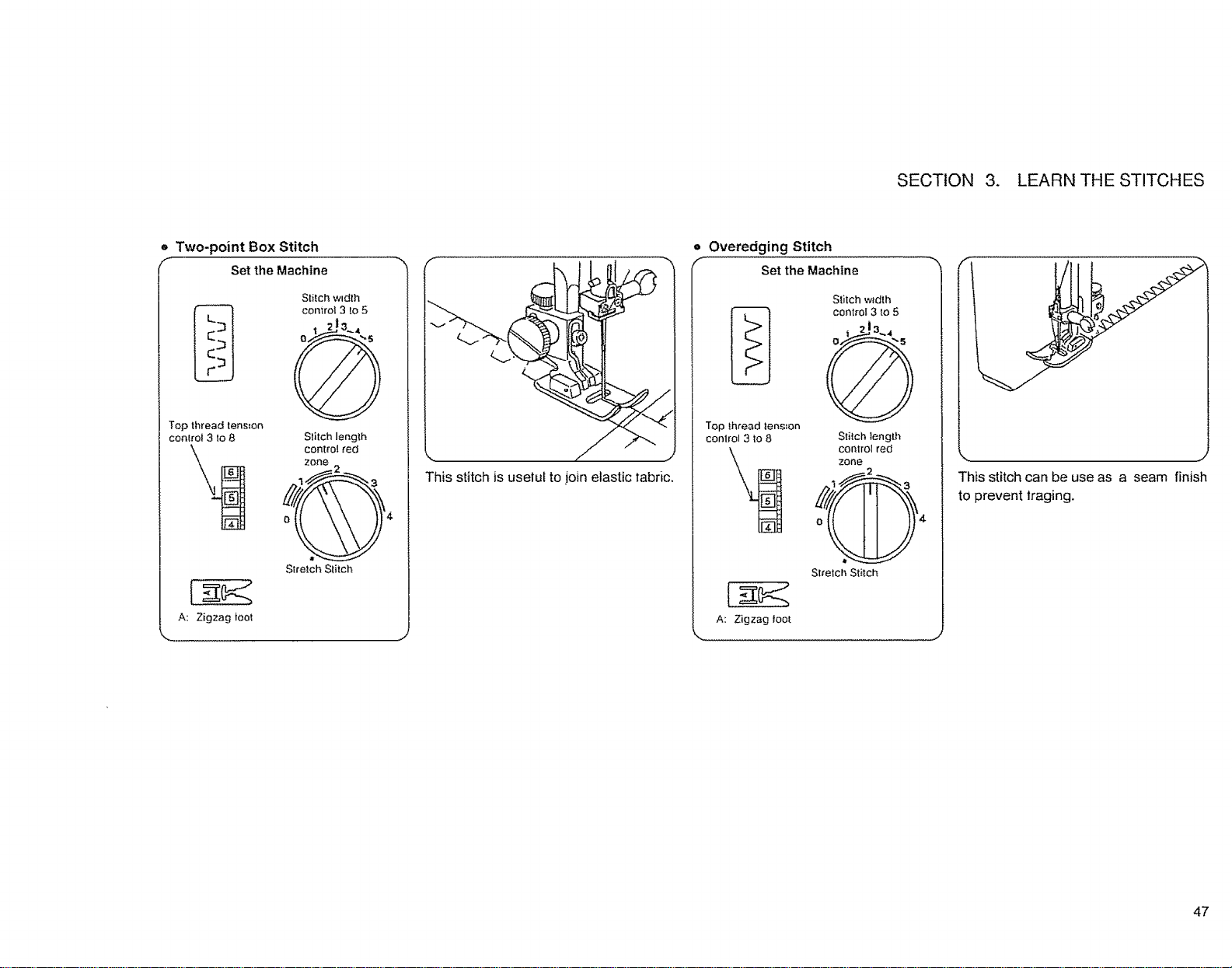

o Two-point Box Stitch
Set the Machtne
Top thread tens=on
conlrol 3 to 8
A: Zigzag toot
Stitch width
controt 3 to 5
Stitch length
control red
zone
Stretch Stitch
This stitch is useful to join elastic tabric.
= Overedging Stitch
Set the Machine
Stitch w_dlh
Top lhread lens_on
control 3 to 8 Stitch length
control red
zone
Stretch Slitch
A: Zigzag loot
This stitch can be use as a seam finish
to prevent traging.
47

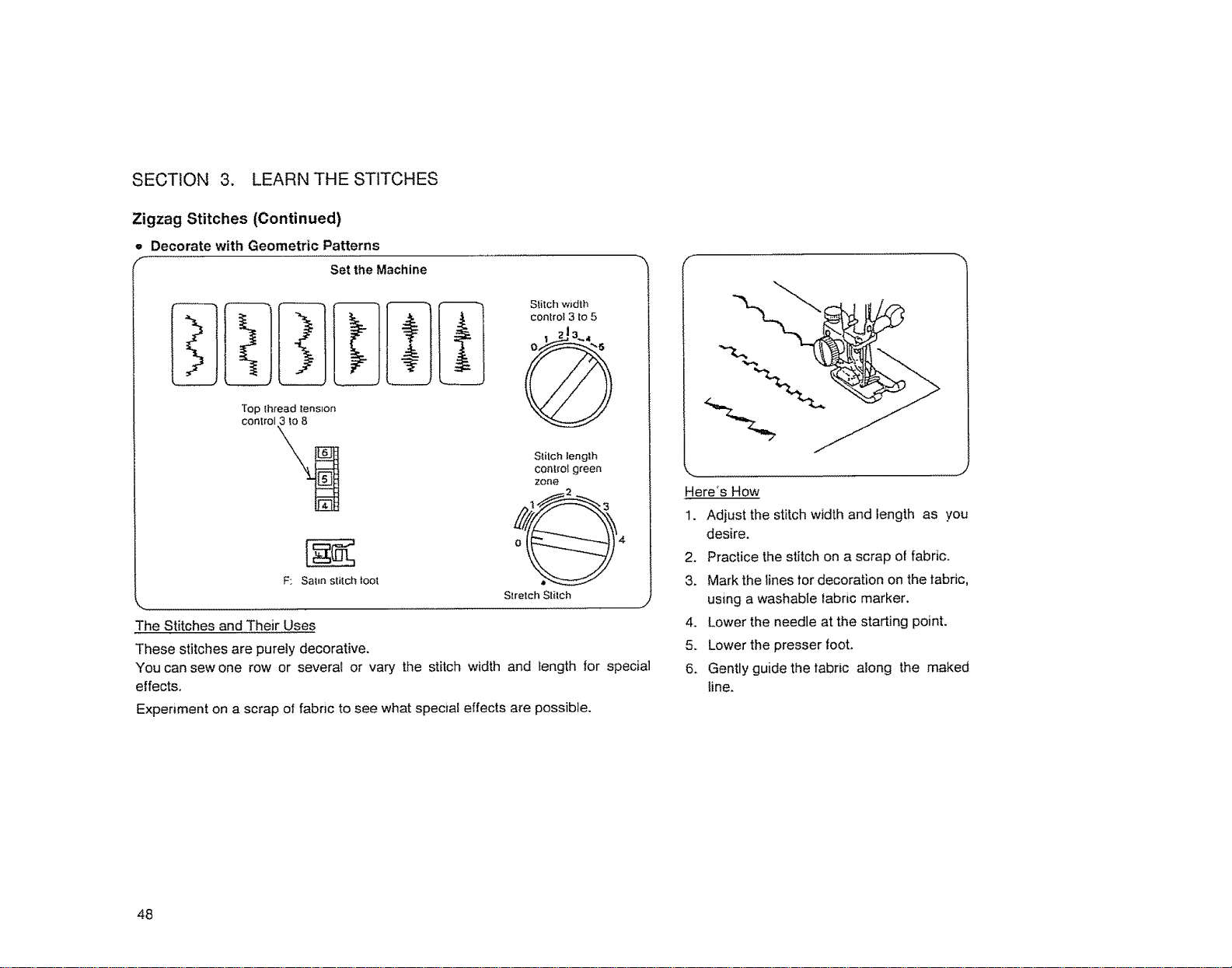

SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
o Decorate with Geometric Patterns
f
Set the Machine
Top thread tension
control 3 to 8
Stitch width
control 3 to 5
Stitch length
control green
zone
Stretch Stitch
The Stitches and Their Uses
These stitches are purely decorative,
You can sew one row or several or vary the stitch width and length tor specia]
effects.
Experiment on a scrap of fabric to see what special effects are possible.
%.................
Here's How
1. Adiust the stitch width and length as you
desire.
2. Practice the stitch on a scrap of fabric.
3. Mark the lines tor decoration on the tabric,
using a washable fabric marker.
4. Lower the needle at the starting point.
5. Lower the presser foot.
6. Gently guide the tabric along the maked
line.
48

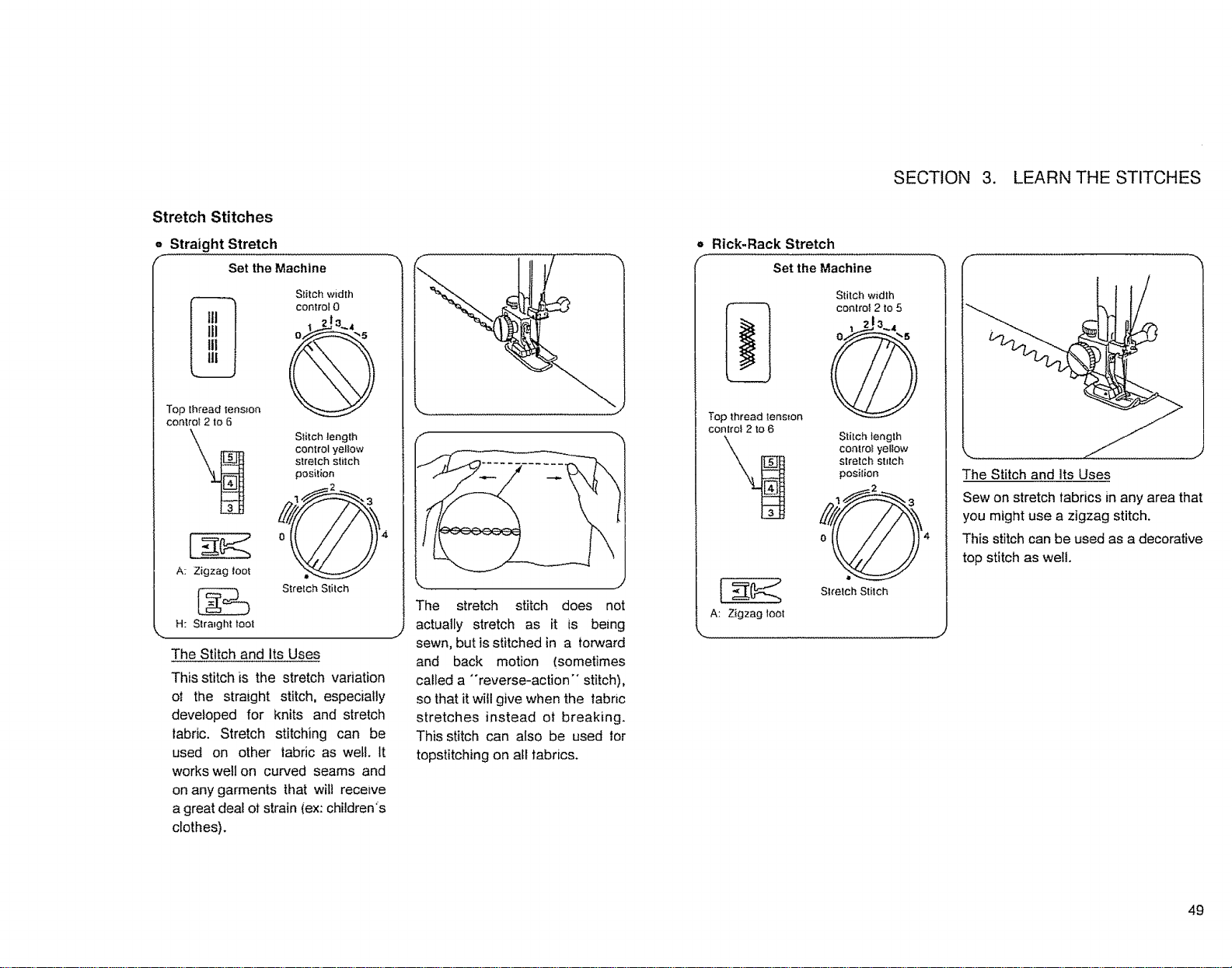

SECTION 3. LEARN THE STITCHES
Stretch Stitches
= Straight Stretch
f
Set the Machine
Top thread tension
controt 2 to 6
Stitch width
control 0
A: Zigzag toot
H: Stralgl_t toot
Stitch length
control yellow
stretch stiLch
position
Stretch Stitch
The Stitch and Its Uses
This stitch is the stretch variation
ot the straight stitch, especially
developed for knits and stretch
tabric. Stretch stitching can be
used on other fabric as welt. It
works well on curved seams and
on any garments that wilt receive
a great deal ot strain (ex: children's
clothes).
The stretch stitch does not
actually stretch as it is being
sewn, but isstitched in a forward
and back motion (sometimes
called a "reverse-action'" stitch),
so that it will give when the tabric
stretches instead ot breaking.
This stitch can also be used for
topstitching on ail tabrics.
= Rick-Rack Stretch
f
Set the Machine
Top thread tension
control 2 to 6
Stitch width
controI 2 to 5
Stitch length
control yellow
stretch stitch
posilion
Stretch Stitch
1
The Stitch and Its Uses
Sew on stretch fabrics in any area that
you might use a zigzag stitch.
This stitch can be used as a decorative
top stitch as well.
49

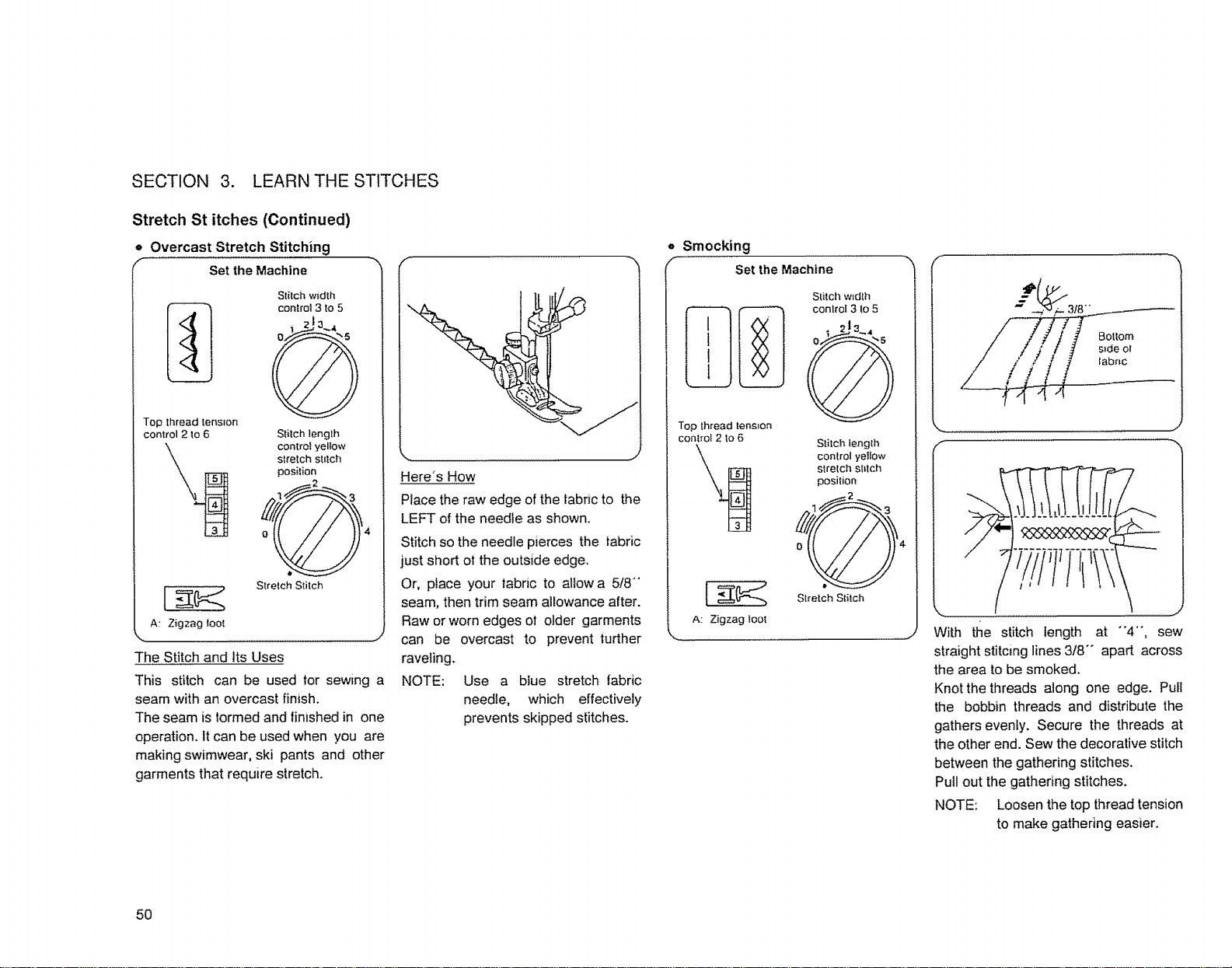

SECTION 3. LEARN THE STITCHES
Stretch St itches (Continued)
• Overcast Stretch Stitching
f
Set the Machine
Stitch width
Top lhread lenslon
control 2 to 6 Stilch length
control yellow
stretch sltlch
position
Stretch Stitch
A: Zigzag too_.
%.
The Stitch and Its Uses
This stitch can be used tot sewing a
seam with an overcast finish.
The seam is formed and finished in one
operation, it can be used when you are
making swimwear, ski pants and other
garments that require stretch.
Here's How
j,
Place the raw edge of the labrJc to the
LEFT of the needle as shown.
Stitch so the needle pierces the fabric
just short ot the outside edge.
Or, place your fabric to allow a 5/8""
seam, then trim seam allowance after.
Raw or worn edges ol older garments
can be overcast to prevent turther
raveling.
NOTE: Use a blue stretch fabric
needte, which effectively
prevents skipped stitches.
= Smocking
p-
Set the Machine
Stitch w_dth
Top thread tension
COntrOl 2 to 6 Stitch ienglh
control yeiiow
stretch stitch
position
Stretch Slitch
A: Zigzag loot
,,,J
f
J
_c
•,.. ,,...................
With the stitch length at "'4", sew
straight stitcing lines 3t8- apart across
the area to be smoked.
Knot the threads along one edge. Pull
the bobbin threads and distribute the
gathers evenly. Secure the threads at
the other end. Sew the decorative stitch
between the gathering stitches.
Pull out the gathering stitches.
NOTE: Loosen the top thread tension
to make gathering easier.
5O

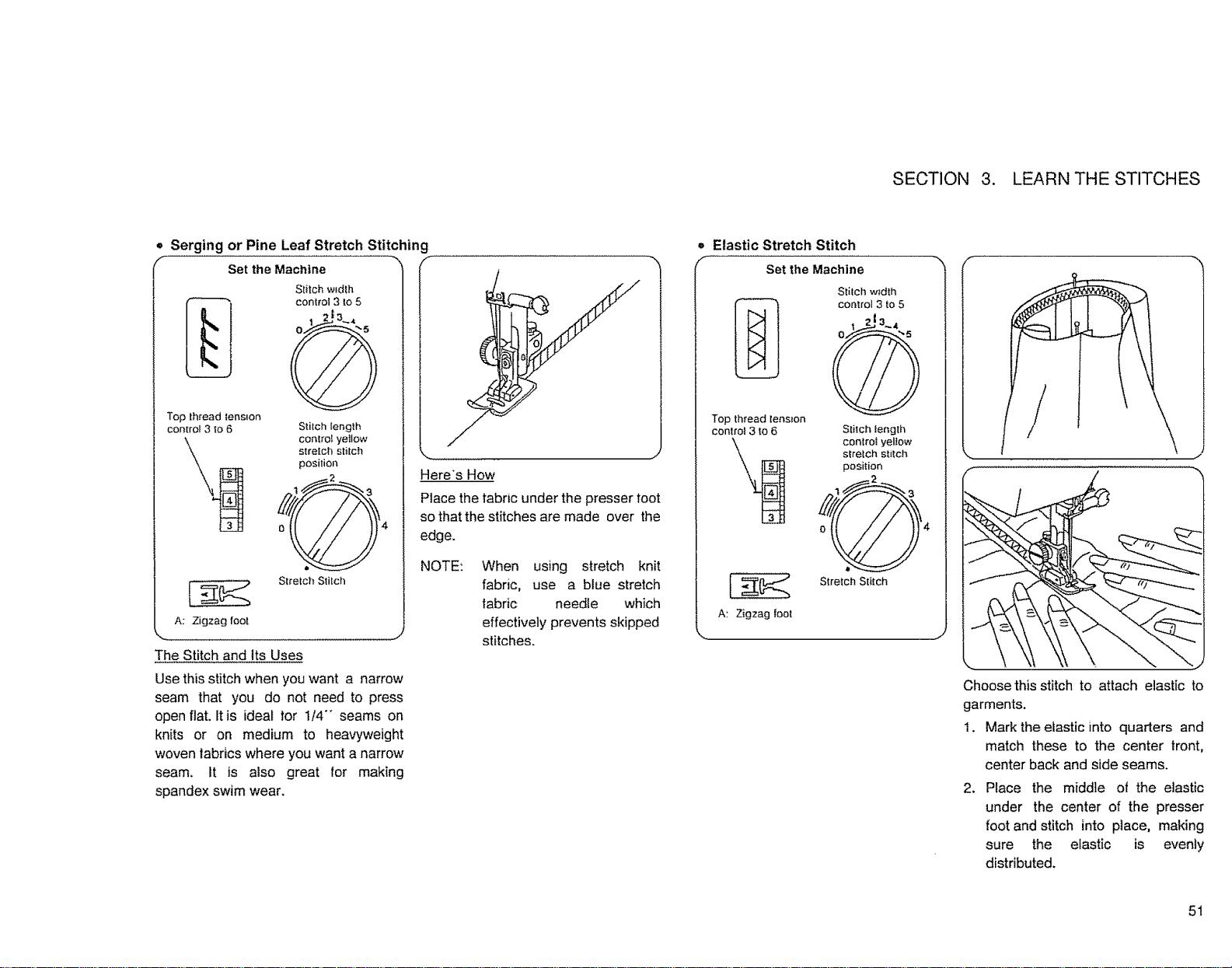

SECTION 3. LEARN THE STITCHES
• Serging or Pine Leaf Stretch Stitching
f _ f
Set the Machine
Stitch w+dlh
t 213 • _
Top thread tenmon
control 3 to 6 Stitch length
control yellow
stretch stitch
position
Stretch Stitch
A: Zigzag fool
J
The Stitch and Its Uses
Herds How
Place the tabric under the presser toot
so that the stitches are made over the
edge.
NOTE:
When using stretch knit
fabric, use a blue stretch
fabric needle which
effectively prevents skipped
stitches.
Use this stitch when you want a narrow
seam that you do not need to press
open flat. It is ideal for 1/4- seams on
knits or on medium to heavyweight
woven labrics where you want a narrow
seam. It is also great for making
spandex swim wear.
= Elastic Stretch Stitch
f
Set the Machine
Top thread tens+on
control 3 to 6
Stilch w+dth
control 3 to 5
Stitch length
control yellow
stretch stitch
position
Stretch Stitch
A: Zigzag foot
Choose this stitch to attach elastic to
garments.
1+ Mark the elastic into quarters and
match these to the center front,
center back and side seams.
2+ Place the middle of the elastic
under the center of the presser
foot and stitch into place, making
sure the elastic is evenly
distributed.
51

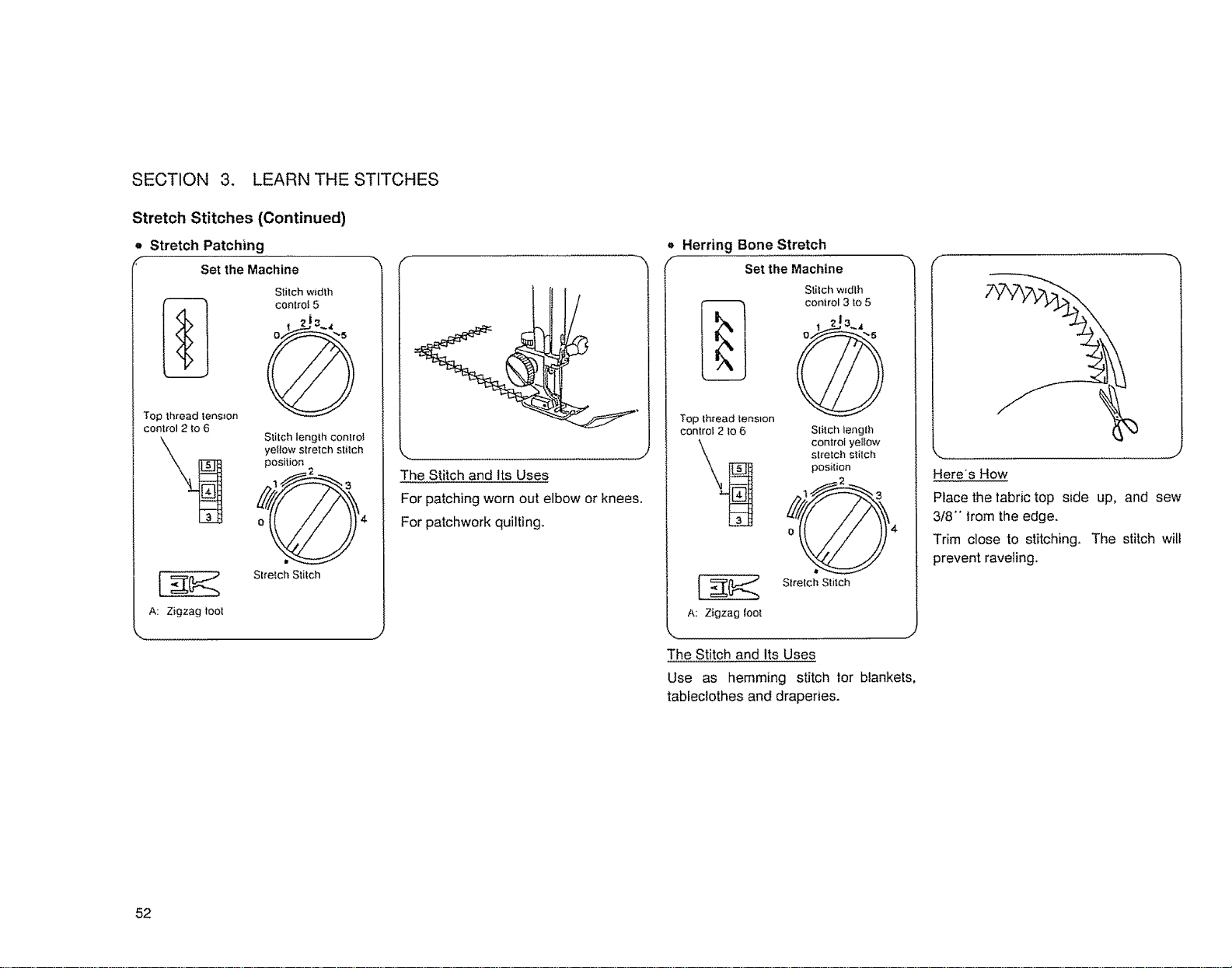

SECTION 3. LEARN THE STITCHES
Stretch Stitches (Continued)
=, Stretch Patching
Set the Machine
Top thread tension
cont[ol 2 to 6
A: Zigzag tool
Stitch width
control 5
Stitch length control
yeI!ow stretch stilch
position
Stretch Stitch
The Stitch and Its Uses
For patching worn out elbow or knees.
For patchwork quilting.
= Herring Bone Stretch
SettheMachine
Stitch wldlh
Top thread tension
control 2 1o 6 Stitch length
control yellow
stretcf_ stitch
position
Stretch Stitch
A: Zigzag toot
The Stitch and Its Uses
Use as hemming stitch tor blankets,
tabfeclothes and draperies.
%..................................... ...,
Heres How
PLacethe tabdc top side up, and sew
3!8 °' lrom the edge.
Trim close to stitching. The stitch will
prevent raveling.
52

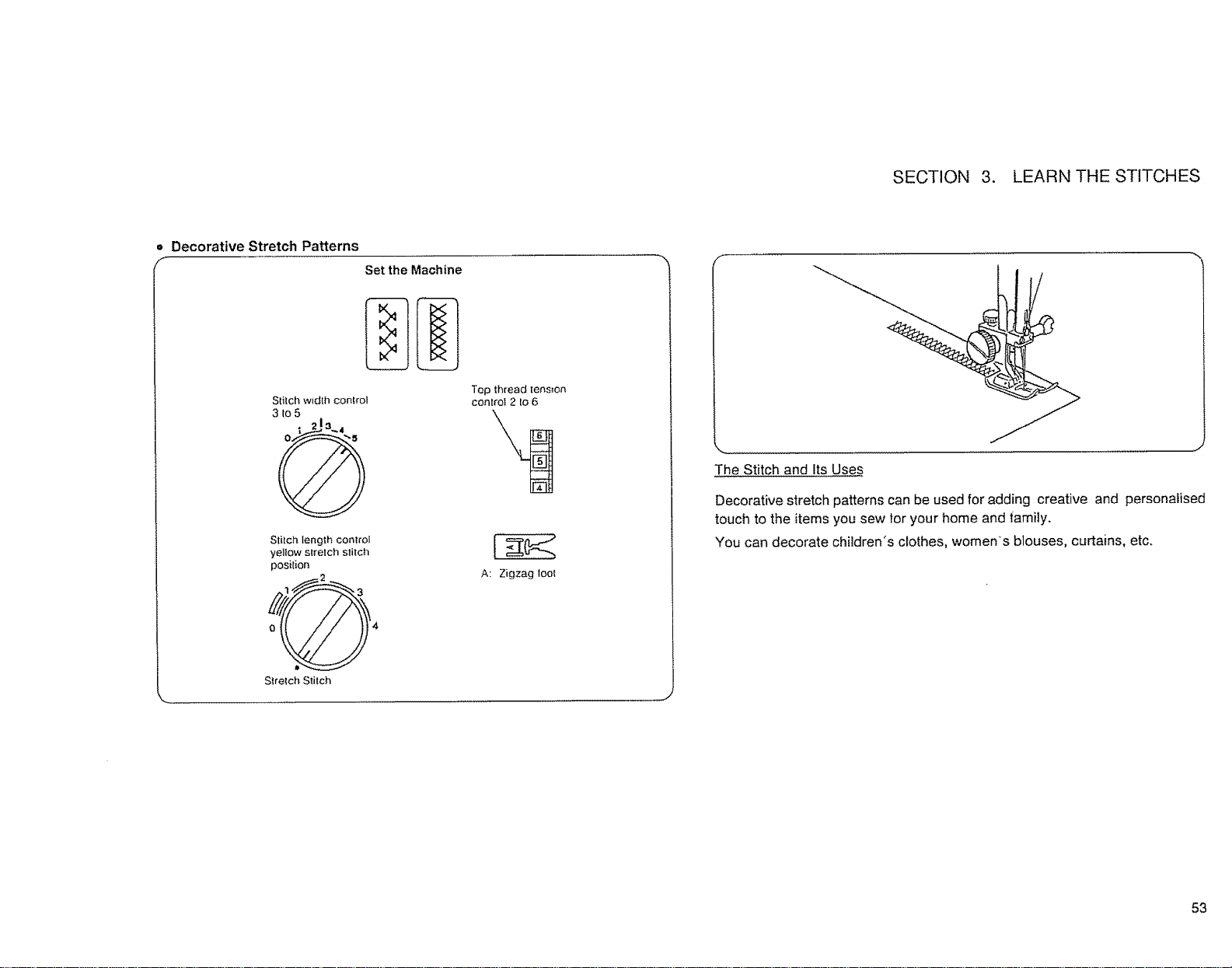

SECTION 3. LEARN THE STITCHES
= Decorative Stretch Patterns
F Set the Machine
Stitch width contro!
3to5
StitCh length control
ye}low stretch stitcll
pos}tion
2
Slrelch Stitch
Top thread tension
controt 2 to 6
A: Zigzag foot
The Stitch and Its Uses
.-%
Decorative stretch patterns can be used for adding creative and personafised
touch to the items you sew lor your home and tamily.
You can decorate children's clothes, womens blouses, curtains, etc.
53
SECTION 3. LEARN THE STITCHES

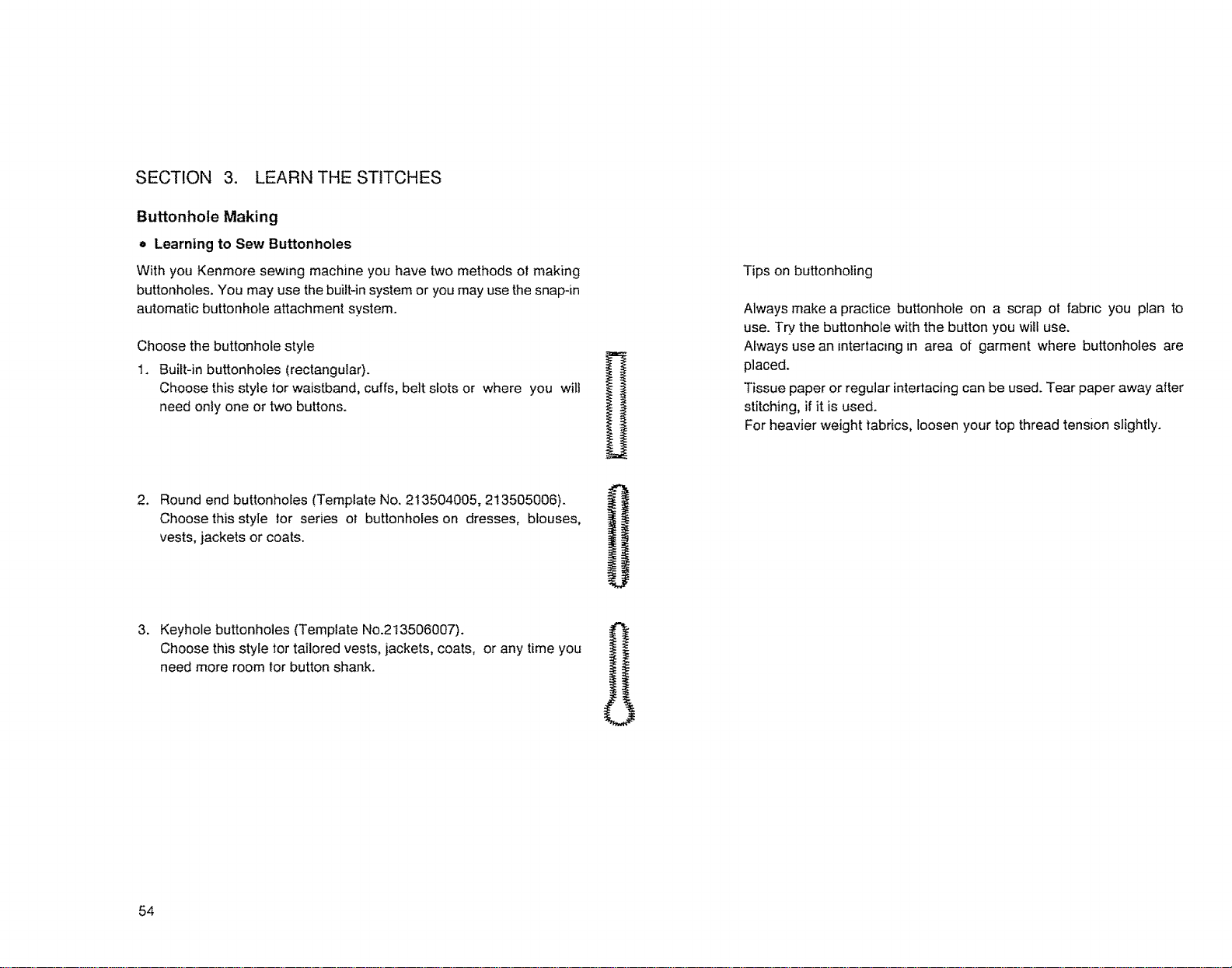

Buttonhole Making
,D Learning to Sew Buttonholes
With you Kenmore sewing machine you have two methods ol making
buttonholes. You may use the built-in system or you may use the snap-in
automatic buttonhole attachment system.
Choose the buttonhole style
1. Built-in buttonholes (rectangular).
Choose this style for waistband, cuffs, belt slots or where you will
need only one or two buttons.
Tips on buttonholing
Always make a practice buttonhole on a scrap o| fabric you plan to
use. Try.the buttonhole with the button you will use.
Always use an interfacing in area of garment where buttonholes are
placed.
Tissue paper or regular interfacing can be used. Tear paper away after
stitching, if it is used.
For heavier weight fabrics, loosen your top thread tension slightly.
2. Round end buttonholes (Template No. 213504005, 2t3505006).
Choose this style for series ol buttonholes on dresses, blouses,
vests, jackets or coats.
3.
Keyhole buttonholes (Template No.213506007).
Choose this style lor tailored vests, iackets, coats, or any time you
need more room for button shank.
54

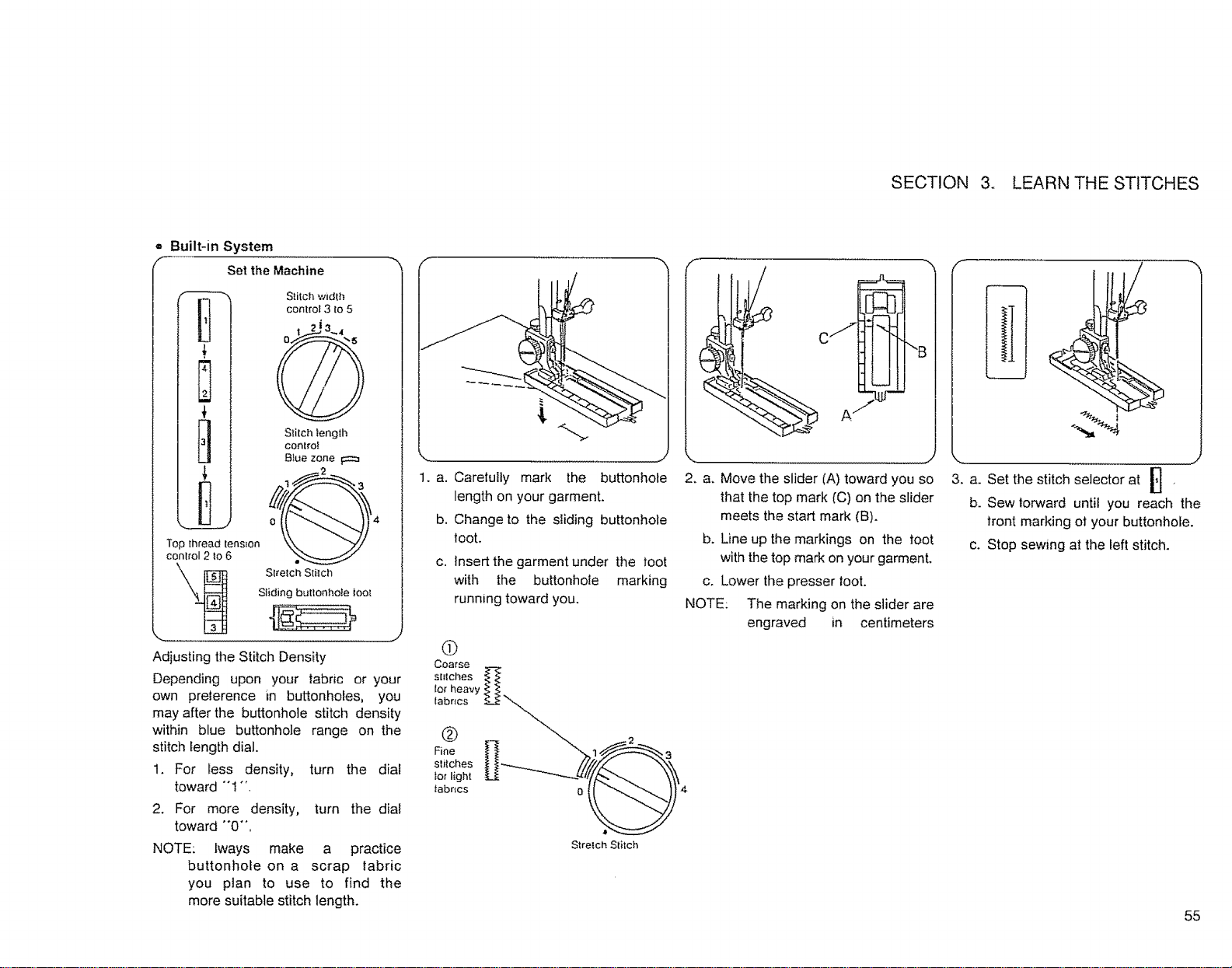

SECTION 3. LEARN THE STITCHES
e Built-in System
f
Set the Machine
Stitch w+dth
!t I 0oo,+.3,o
I Stilch length
conlro!
Blue zone F:==
2
TOp Ihread tension
control 2 lo 6
Strelch Stilch
Sliding buttonhole loot
Adjusting the Stitch Density
Depending upon your tabric or your
own prelerence in buttonholes, you
may after the buttonhole stitch density
within blue buttonhole range on the
stitch length dial.
1. For less density, turn the dial
toward "I "'.
2. For more density, turn the dia!
toward "'0",
NOTE: lways make a practice
buttonhole on a scrap labric
you plan to use to find the
more suitable stitch length.
1. a. Carefully mark the buttonhole
length on your garment.
b. Change to the sliding buttonhole
toot.
c. Insert the garment under the toot
with the buttonhole marking
runn+ng toward you+
@
Coarse
st+tches
lot heavy
labr+cs
®
Fine
slilches
lot lighl
labr+cs
Oi
Stretch Slitch
f
....................J
2. a. Move the slider (A) toward you so
that the top mark ('C) on the slider
meets the start mark (B).
b. Line up the markings on the toot
with the top mark on your garment.
c. Lower the presser toot.
NOTE: The marking on the slider are
engraved in centimeters
%
"'- ,............... J
3. a+ Set the stitch selector at !'1
t
b. Sew torward until you reach the
tront marking ot your buttonhole.
c. Stop sewing at the left stitch.
55
SECTION 3. LEARN THE STITCHES

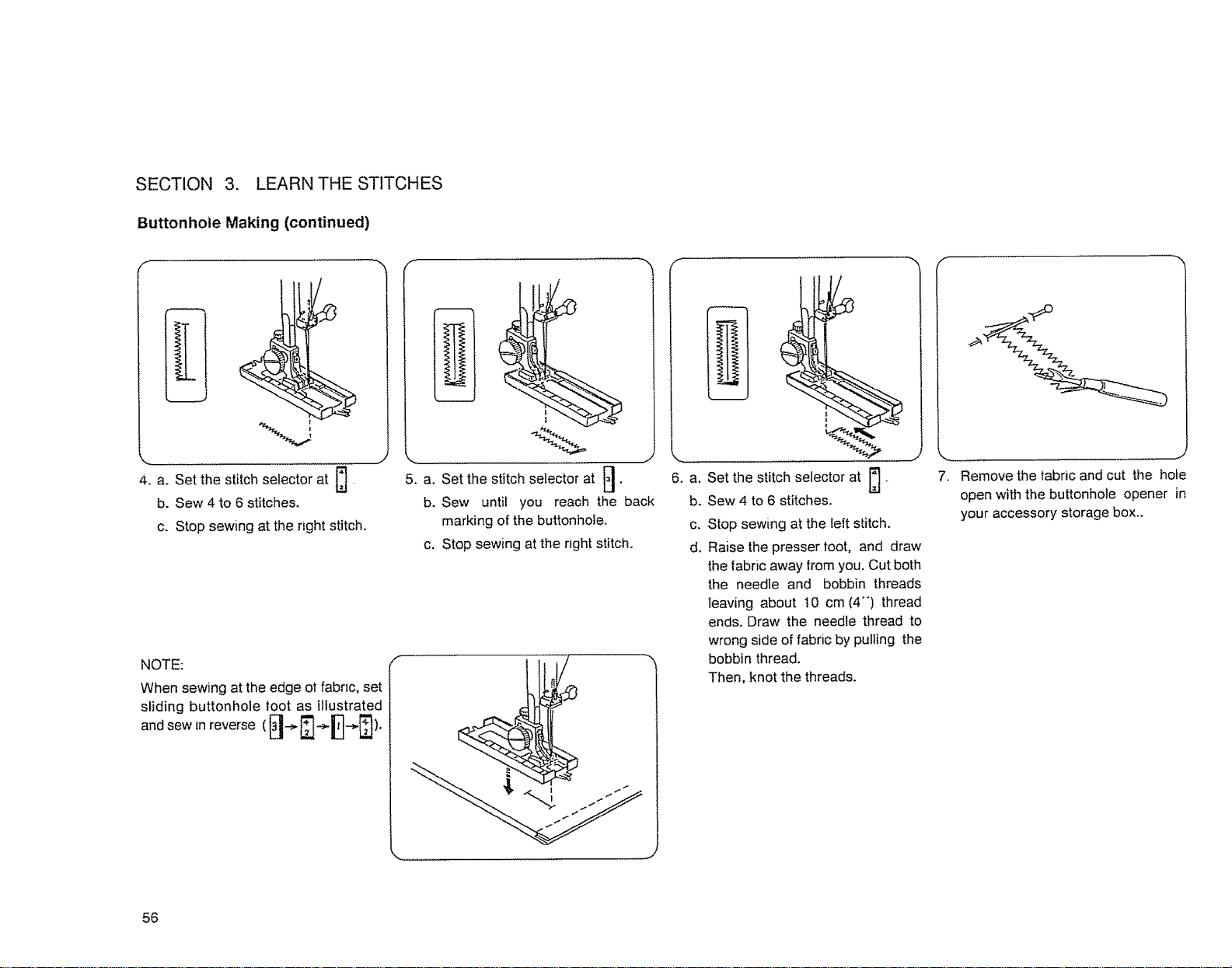

Buttonhole Making (continued)
f
4. a. Set the stitch selector at _
b. Sew 4 to 6 stitches.
c. Stop sewing at the right stitch.
NOTE:
When sewing at the edge of fabric, set
sliding buttonhole loot as illustrated
and sew in reverse ( _-> _ _ _]--,,.['_).
5. a. Set the stitch selector at 1=_
b. Sew until you reach the back
marking of the buttonhole.
c. Stop sewing at the right stitch.
6. a. Set the stitch selector at r_
%
b. Sew 4 to 6 stitches.
c. Stop sewing at the left stitch.
d. Raise the presser foot, and draw
the fabric away from you. Cut both
the needle and bobbin threads
leaving about I0 cm (4"') thread
ends. Draw the needle thread to
wrong side of fabric by pulling the
bobbin thread.
Then, knot the threads.
7. Remove the tabric and cut the hole
open with the buttonhole opener in
your accessory storage box..
........J
56

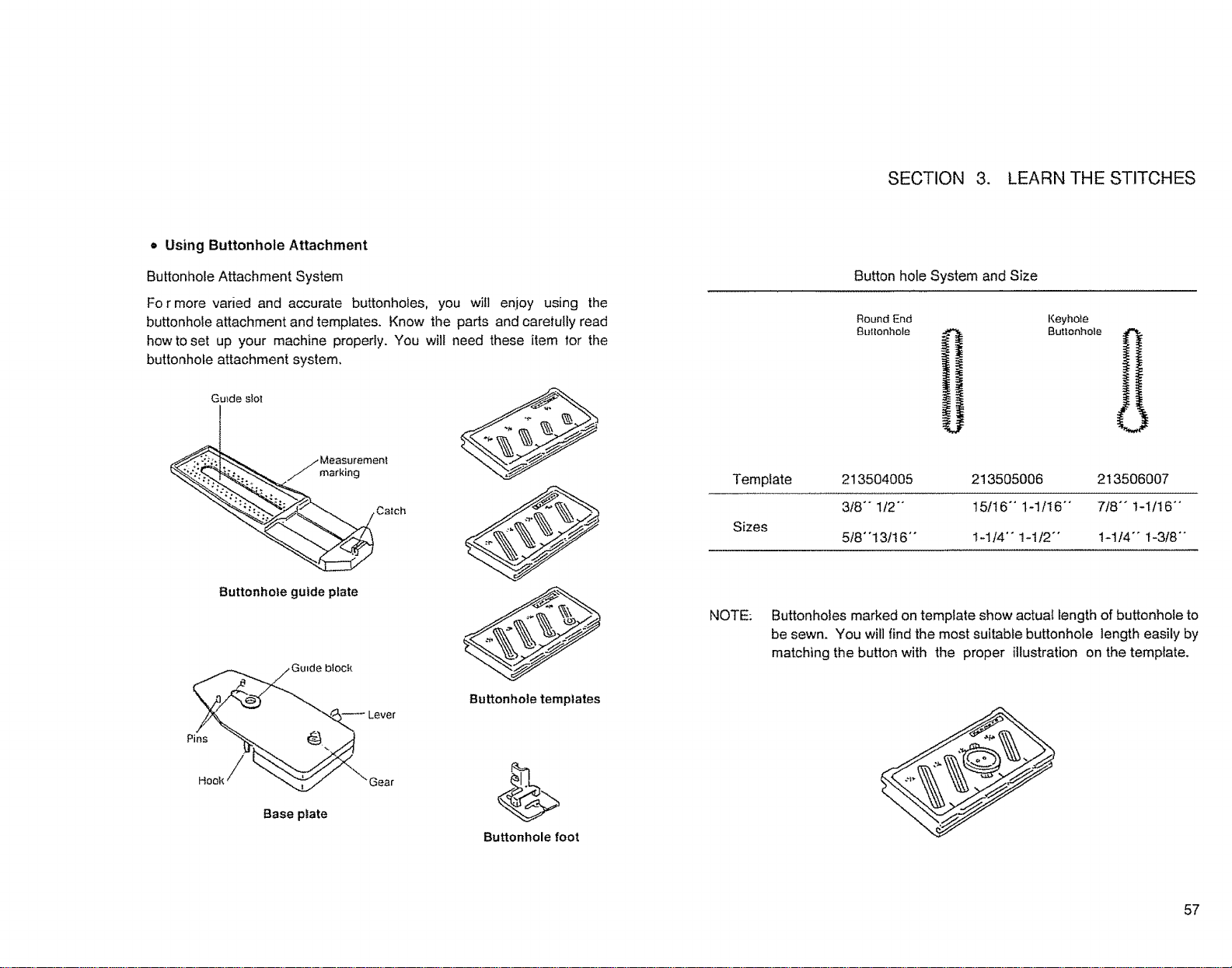

o Using Buttonhole Attachment
Buttonhole Attachment System
For more varied and accurate buttonholes, you will enioy using the
buttonhole attachment and templates. Know the parts and carefully read
how to set up your machine properly. You wilt need these item tot the
buttonhole attachment system.
Guide s!c!
Measu.remenl
marking
Catch
Buttonhole guide plate
Pins
O
Buttonhole templates
Hook/
Base plate
Buttonhole foot
Template
Sizes
NOTE:
SECTION 3. LEARN THE STITCHES
Button hole System and Size
Round End Keyhole
Bullonhole Butlonhole
213504005 213505006 213506007
3f8"" 1t2"" 15ft6"" 1-1116"" 7!8"" 1-1/16""
518"'13/16 "° t-1/4- 1-1/2- 1-1/4- 1-318-
Buttonholes marked on template show actual length of buttonhole to
be sewn. You will find the most suitable buttonhole length easily by
matching the button with the proper illustration on the template.
57

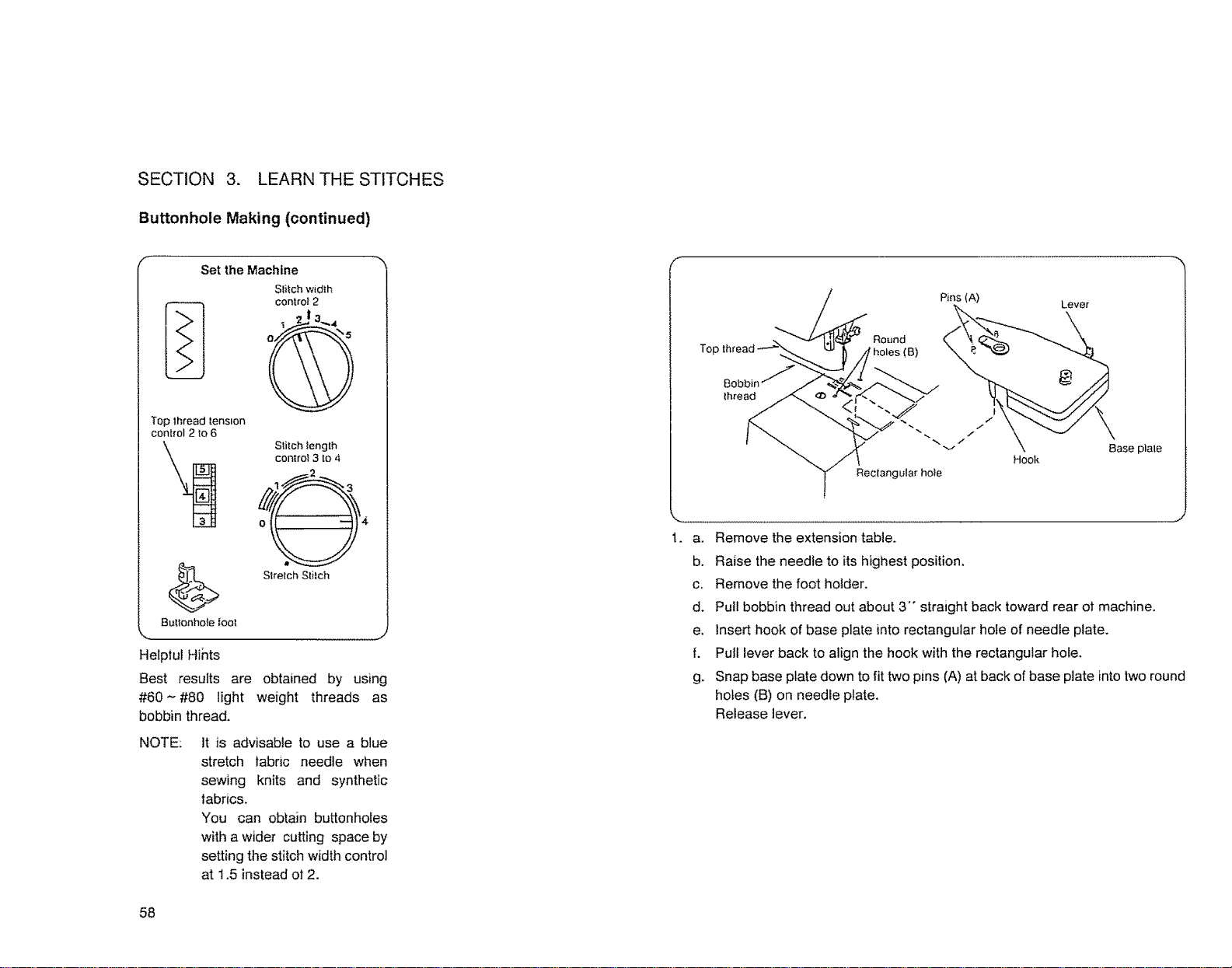

SECTION 3. LEARN THE STITCHES
Buttonhole Making (continued)
Set the Machine
Stitch width
control 2
Top thread tension
control 2 to 6
Buttonhole _oot
Helptui Hihts
Best results are
#60 ~#80 light
bobbin thread.
Stitch _ength
conlro_ 3 to 4
2
4
Slretoh Stitch
obtained by using
weight threads as
NOTE: It is advisable to use a blue
stretch labric needle when
sewing knits and synthetic
tabrics,
You can obtain buttonholes
with a wider cutting space by
setting the stitch width control
at 1.5 instead ot 2.
58
Round
To!: ' holes {B)
thread
Pins (A)
v
Reclangular hole
Hook
Lever
Base plale
1. a. Remove the extension table.
b. Raise the needle to its highest position,
c, Remove the foot holder.
d, Pull bobbin thread out about 3- straight back toward rear ot machine,
e, Insert hook of base plate into rectangular hole of needle plate.
f. Pult lever back to align the hook with the rectangular hole.
g, Snap base plate down to fit two pins (A) at back of base plate into two round
holes (B) on needle plate,
Release lever.

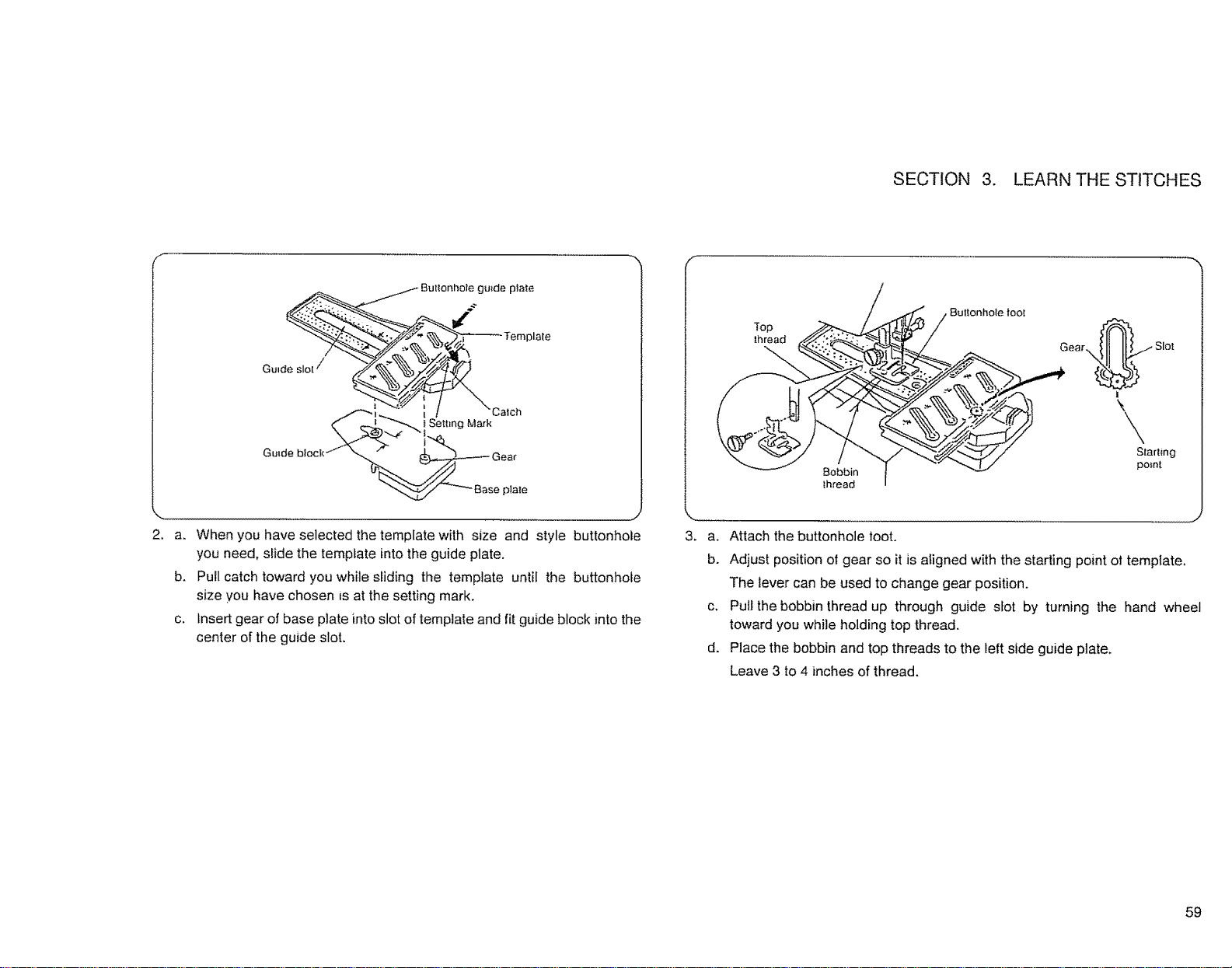

SECTION 3. LEARN THE STITCHES
2.
_-_Butlonhole guide plate
Mo,
Guide block -/ _._ _Geat
-'-'---Base p_ale
a. When you have selected the template with size and style buttonhole
you need, slide the template into the guide plate.
b. Pull catch toward you while sliding the template until the buttonhole
size you have chosen ts at the setting mark.
c. Insert gear of base plate into slot of template and fit guide block into the
center of the guide slot.
thread
Bu[lonhole tooi Gear r_ JSIot
3. a.
b.
C_
d.
Attach the buttonhole toot.
Adjust position of gear so it is aligned with the starting point of template.
The lever can be used to change gear position.
Pull the bobbin thread up through guide slot by turning the hand wheel
toward you while holding top thread.
Place the bobbin and top threads to the left side guide plate.
Leave 3 to 4 inches of thread.
59

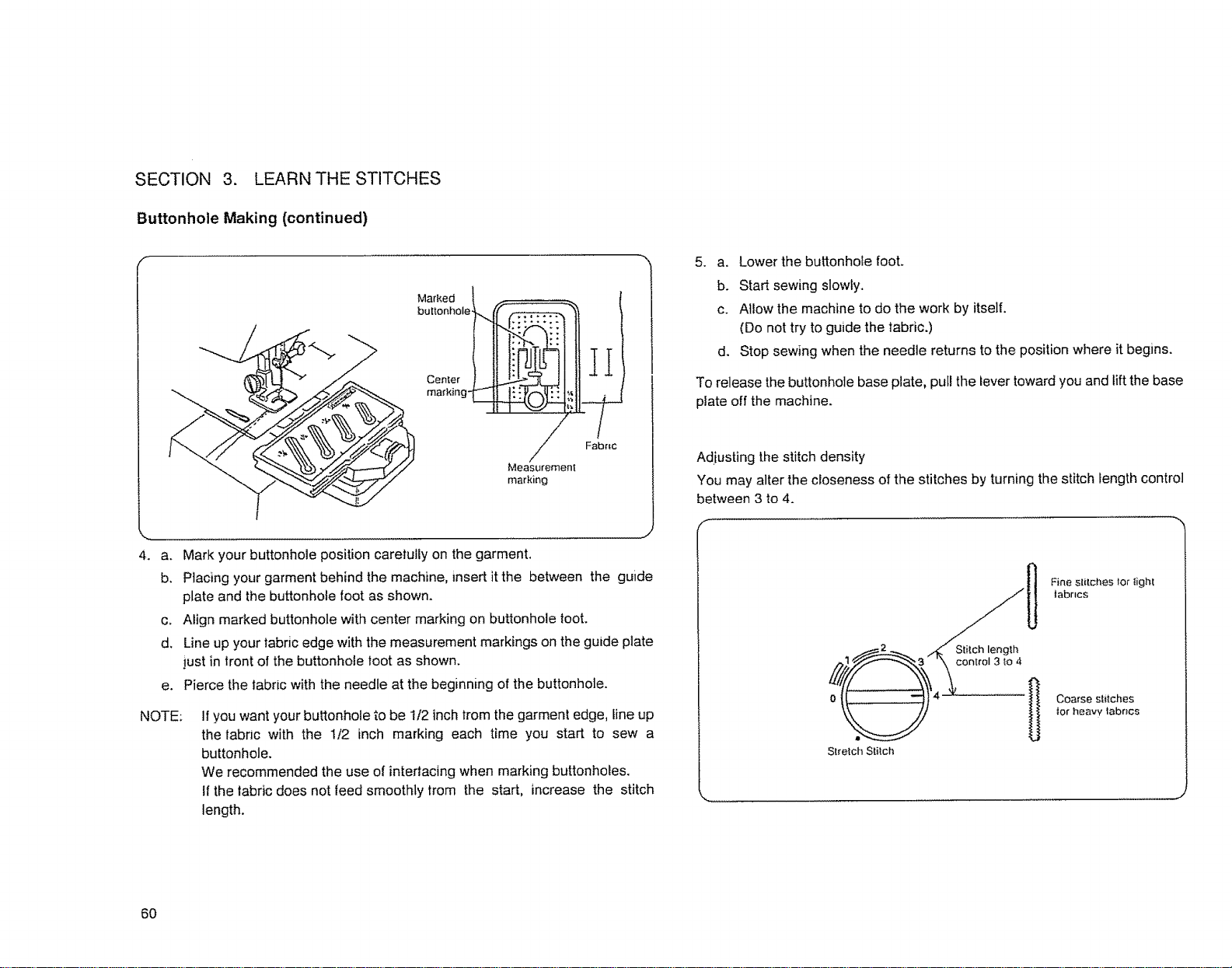

SECTION 3. LEARN THE STITCHES
Buttonhole Making (continued)
Marked _
Fabric
Measurement
marking
e.
NOTE;
Mark your buttonhole position caretully on the garment,
Placing your garment behind the machine, insert it the between the guide
plate and the buttonhole foot as shown.
c. Align marked buttonhole with center marking on buttonhole toot.
d, Line up your labric edge with the measurement markings on the guide plate
just in tront of the buttonhole loot as shown.
Pierce the labric with the needle at the beginning of the buttonhole.
if you want your buttonhole to be 1/2 inch from the garment edge, line up
the labnc with the t/2 inch marking each time you start to sew a
buttonhole,
We recommended the use of interlacing when marking buttonholes.
If the labdc does not feed smoothly from the start, increase the stitch
length.
5. a. Lower the buttonhole foot.
b. Start sewing slowly.
c. Allow the machine to do the work by itself.
(Do not try to guide the tabric.)
d. Stop sewing when the needle returns to the position where it begins.
To release the buttonhole base plate, pull the lever toward you and lift the base
plate off the machine.
Adiusting the stitch density
You may alter the closeness of the stitches by turning the stitch length control
between 3 to 4.
Stretch SLi|ch
Fine slitches tot tighl
labncs
Coarse s_itches
tor heavy tabncs
60

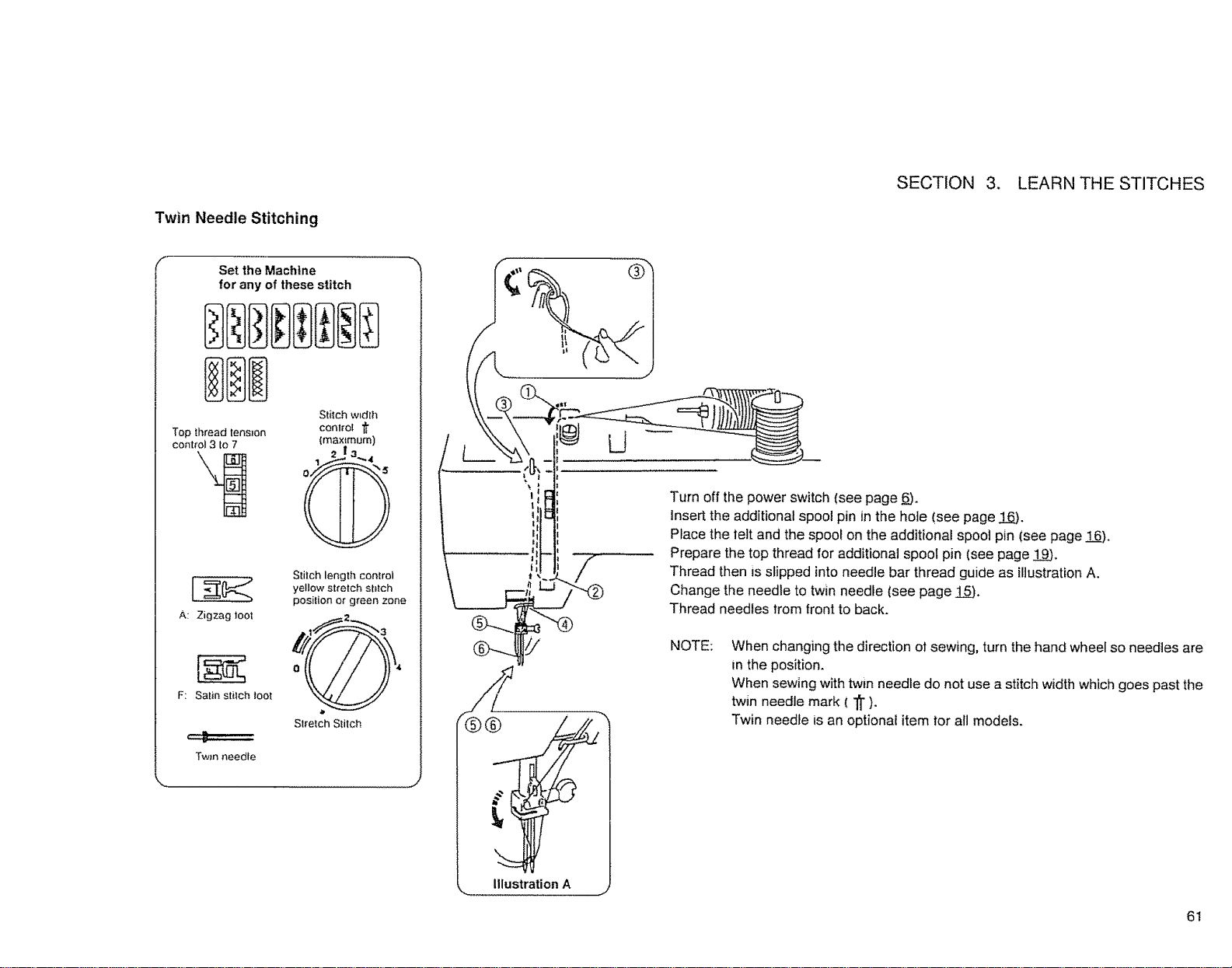

Twin Needle Stitching
SECTION 3. LEARN THE STITCHES
Set the Machine
for any of these stitch
Top thread tension
control 3 to 7
Stitch length control
yellow stitch
stretch
position or green zone
A: Zigzag toot ..I_3
F: Satin stilch toot
Stretch Stitch
Twin needle
J
| !it _', Turn off the power switch (see page 6_).
| II1_I Insert the additional spool pin in the hote (see page 1_.
III I ,,
II
,I I Place the felt and the spool on the additional spool pin (see page 1__.
t-------:,H', _ Prepare the top thread for additional spool pin (see page 1__9_).
\\ __,_-i_£-__/"_ Thhraeadet_hng n_SeeS_tPePtodtiwnln°' _eeeeddllee (berth_:dpg l_.guideas illustration A.
_---J_ Thread needles from front to back.
(_._/j NOTE: When changing the direction of sewing, turn the hand wheel so needles are
_ in the position.
When sewing with twin needle do not use a stitch width which goes past the
twin needle mark ( "_ ).
Twin needle is an optional item for all models.
Illustration A
61
SECTION 4. PERFORMANCE PROBLEMS CHART
What to Do When
PROBLEM
PROBABLE CAUSE
Irregular Stitches
Breaking Needle
Bunching of Thread
Puckering
Incorrect size needle.
improper threading.
Loose upper thread tension.
Pulling fabric.
Loose presser foot.
Unevenly wound bobbin.
Nicks or burrs at hole ot needle plate.
Pulling tabric.
Incorrect size needle.
Incorrect setting of needle.
Loose presser toot.
Upper and lower threads not drawn back under
presser foot before starting seam.
Incorrect thread tension.
Using two different sizes or kinds of thread.
Bent or blunt needle.
Loose presser toot.
Fabric too sheer or too soft.
CORRECTION
Choose Correct size needle for thread and fabric.
Rethread machine.
Tighten upper thread tension.
Do not pull fabric; guide it gently.
Reset presser foot.
Rewind bobbin,
Replace needle plate, or polish off burrs completely.
Do not pull fabric; guide it gently.
Choose correct size needle lot thread and fabric.
Reset needle.
Reset presser toot.
When starting a seam be sure to draw both threads under, and
back ot presser loot about 4"" and hold until a few stitches are
iormed.
Reset thread tension.
Upper thread and bobbin thread should be same size and kind.
Insert new needle,
Reset presser foot.
Use underlay of tissue paper,
62

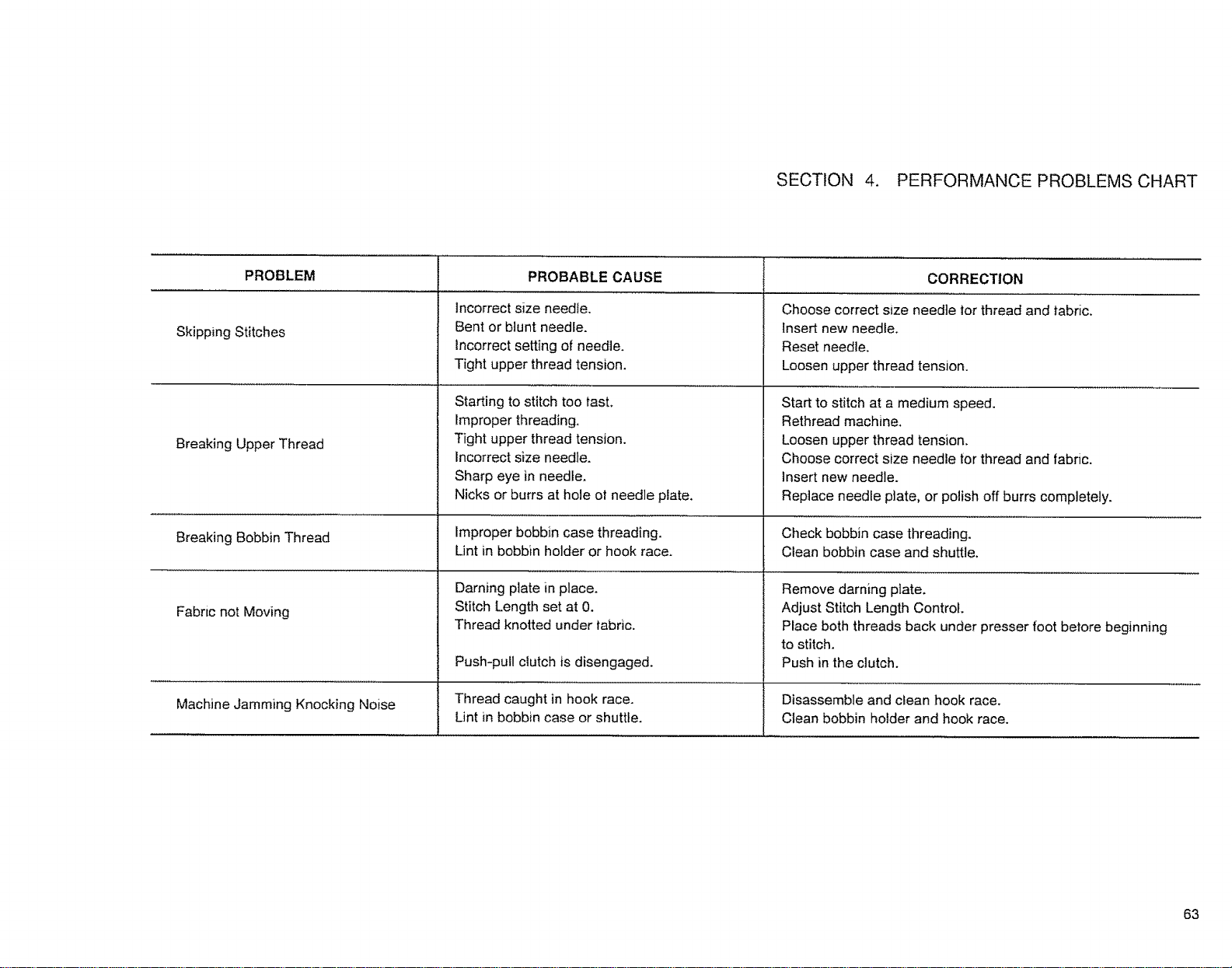

SECTION 4. PERFORMANCE PROBLEMS CHART
PROBLEM PROBABLE CAUSE CORRECTION
Skipping Stitches
Breaking Upper Thread
Breaking Bobbin Thread
Fabric not Moving
Machine Jamming Knocking Noise
incorrect size needle,
Bent or blunt needle.
incorrect setting of needle.
Tight upper thread tension.
Starting to stitch too fast.
Improper threading.
Tight upper thread tension.
Incorrect size needle.
Sharp eye in needle.
Nicks or burrs at hole of needle plate+
Improper bobbin case threading.
Lint in bobbin holder or hook race.
Darning plate in place.
Stitch Length set at 0+
Thread knotted under fabric.
Push-pull clutch is disengaged.
Thread caught in hook race.
Lint in bobbin case or shuttle.
Choose correct s+ze needle tot thread and fabric.
Insert new needle.
Reset needle.
Loosen upper thread tension.
Start to stitch at a medium speed.
Rethread machine.
Loosen upper thread tension.
Choose correct size needle for thread and fabric.
Insert new needle.
Replace needle ptate, or polish off burrs completely.
Check bobbin case threading.
Clean bobbin case and shuttle+
Remove darning plate.
Adjust Stitch Length Control.
PLace both threads back under presser foot before beginning
to stitch.
Push in the clutch.
Disassemble and clean hook race,
Clean bobbin holder and hook race.
63

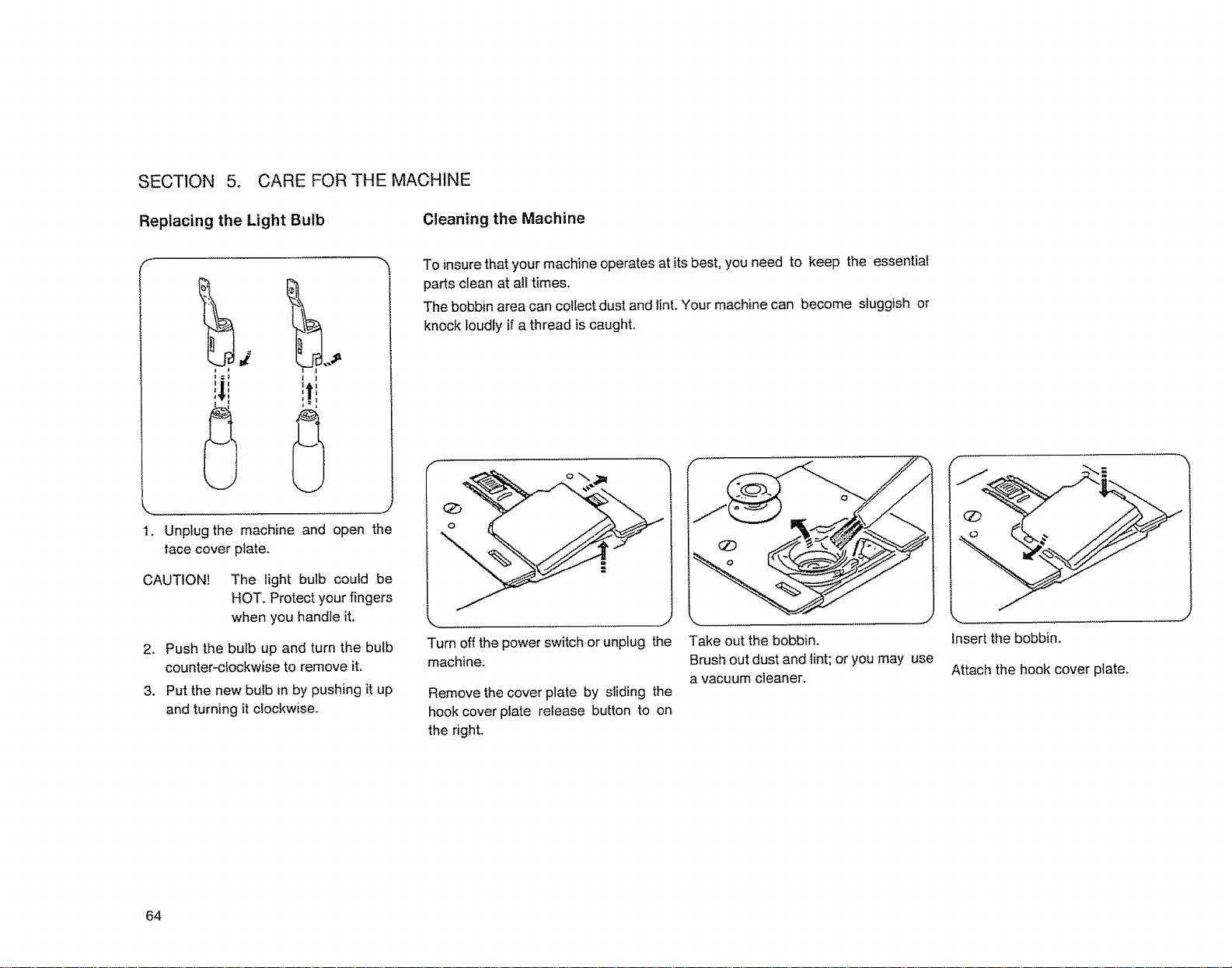

SECTION 5. CARE FOR THE MACHINE
Replacing the Light Bulb
Cleaning the Machine
Ial } I
T T
i t t i
1. Unplug the machine and open the
lace cover plate.
CAUTION! The light bulb could be
HOT. Protect your fingers
when you handle it,
2, Push the bulb up and turn the bulb
counter-clockwise to remove it.
3. Put the new bulb in by pushing it up
and turning it clockwise.
To insure that your machine operates at its best, you need to keep the essential
parts clean at all times,
The bobbin area can collect dust and lint, Your machine can become sluggish or
knock loudly if a thread is caught.
Turn off the power switch or unplug the
machine,
Remove the cover plate by sliding the
hook cover plate release button to on
the right.
Take out the bobbin.
Brush out dust and lint; or you may use
a vacuum cleaner.
Insert the bobbin.
Attach the hook cover plate,
64

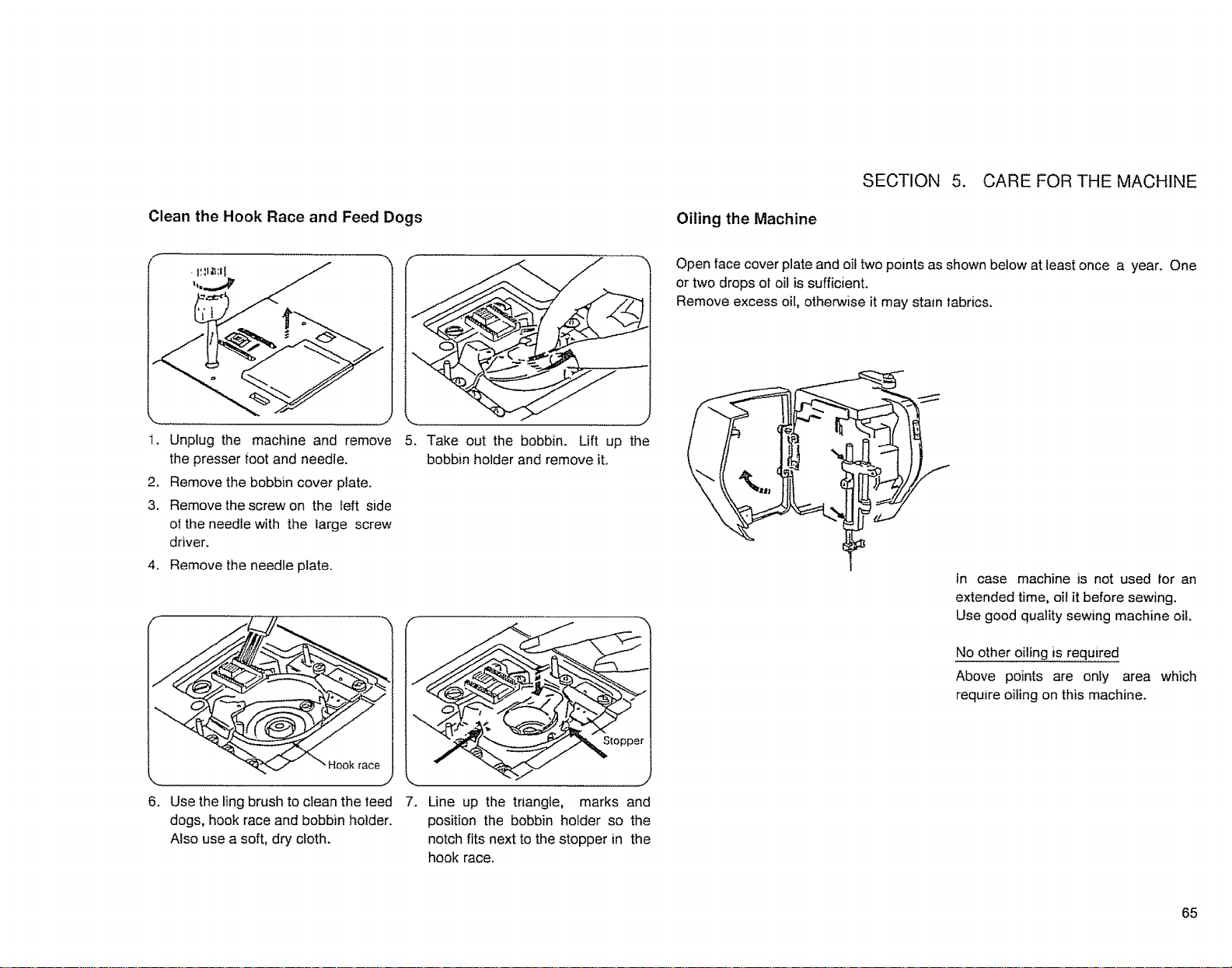

Clean the Hook Race and Feed Dogs
21
3.
Unplug the machine and remove
the presser foot and needle.
Remove the bobbin cover plate.
Remove the screw on the left side
ol the needle with the large screw
driver.
.....,J
5. Take out the bobbin. Lift up the
bobbin holder and remove it.
4. Remove the needle plate.
f ......
k._ j
6. Use the ling brush to clean the teed 7. Line up the triangle,
dogs, hook race and bobbin holder.
Also use a soft, dry cloth.
marks and
position the bobbin holder so the
notch fits next to the stopper in the
hook race.
Oiling the Machine
SECTION 5. CARE FOR THE MACHINE
Open face cover plate and oil two points as shown below at least once a year. One
or two drops ol oil is sufficient.
Remove excess oil, otherwise it may stain fabrics.
:IWf
in case machine is not used tor an
extended time, oil it before sewing.
Use good quality sewing machine oil.
No other oiling is required
Above points are only area which
require oiling on this machine.
65

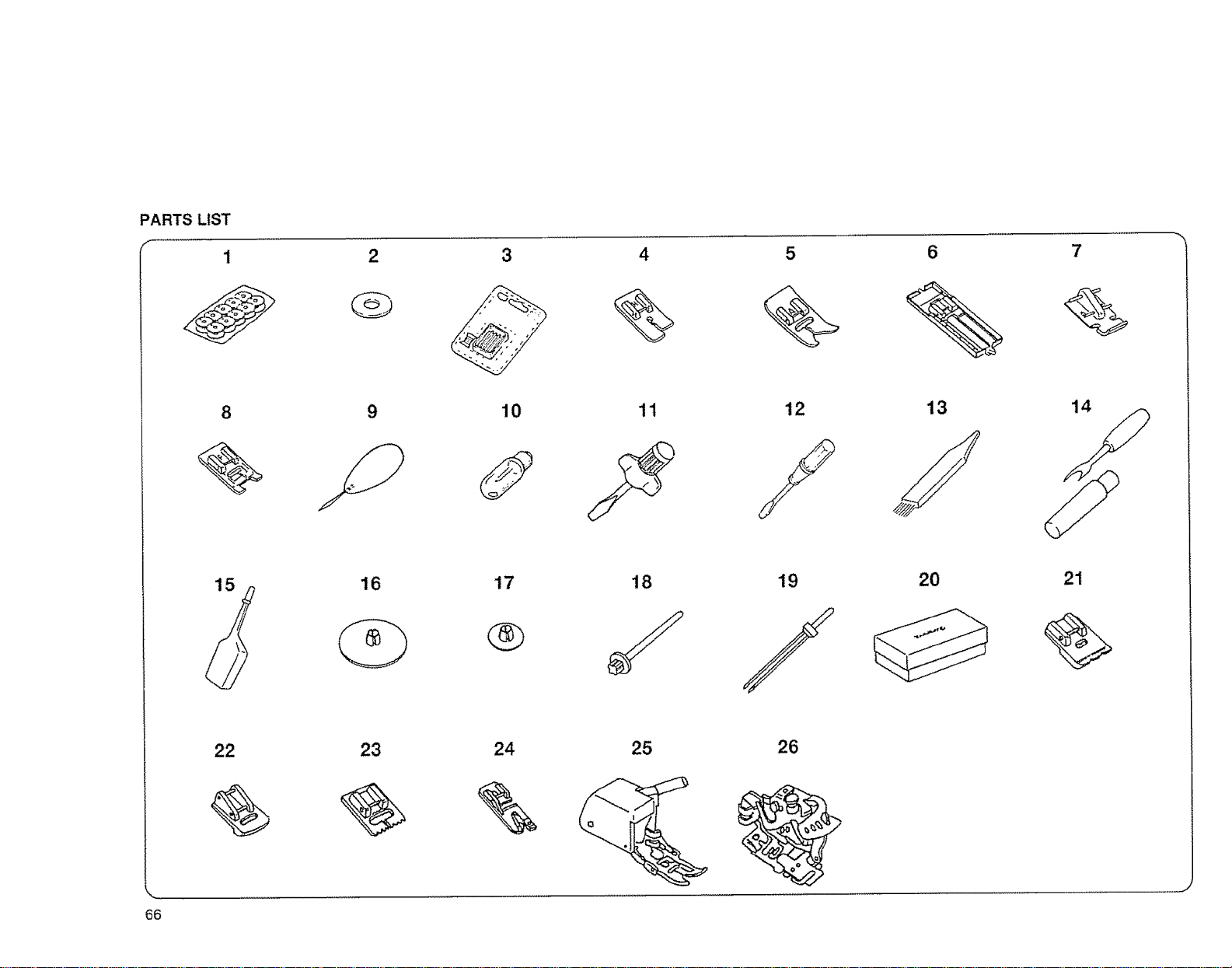

PARTS LIST
1
22
66
2
9
3
10
4
5 6
16
20
23
25 26
7
14
21

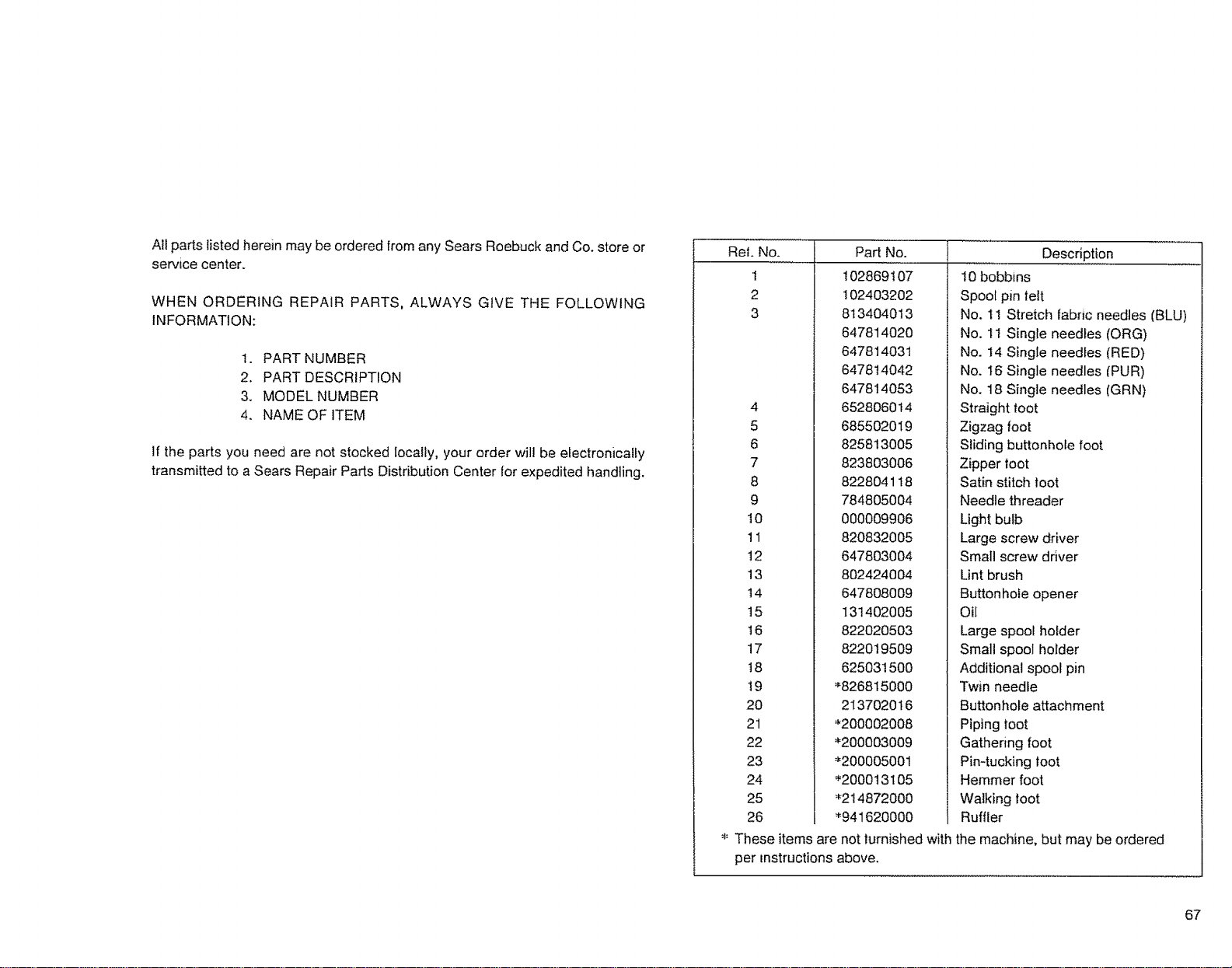

All parts listed herein may be ordered lrom any Sears Roebuck and Co. store or
service center.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
If the parts you need are not stocked locally, your order will be electronically
transmitted to a Sears Repair Parts Distribution Center for expedited handling.
Ret. No.
1
2
3
4
5
6
7
8
9
10
11
t2
13
t4
15
16
17
18
19
20
21
22
23
24
25
26
Part No.
102869107
102403202
813404013
647814020
647814031
647814042
647814053
652806014
685502019
825813005
823803006
822804118
784805004
000009906
820832005
647803004
8O2424O04
647808009
131402005
822020503
822019509
6250315OO
'_826815000
213702016
_200002008
_200003009
_200005001
_200013105
_2t4872000
_941620000
7: These items are not lumished with
per instructions above.
Description
10 bobbins
Spool pin telt
No. 1! Stretch fabric needles CBLU)
No. 11 Single needles _ORG)
No. 14 Single needles _RED)
No. t6 Single needles (PUR)
No. 18 Single needles IGRN)
Straight toot
Zigzag foot
Sliding buttonhole foot
Zipper loot
Satin stitch loot
Needle threader
Light bulb
Large screw driver
Small screw driver
Lint brush
Buttonhole opener
Oil
Large spool holder
Small spool holder
Additional spool pin
Twin needle
Buttonhole attachment
Piping toot
Gathering foot
Pin-tucking loot
Hemmer foot
Walking loot
Ruffler
the machine, but may be ordered
67
OPERATING INSTRUCTIONS
"For appliances with a polarized plug {one blade wider than the other).
To reduce the risk of eiectdc shock, this plug is intended to fit in a
polarized outlet only one way. ff the plug does not fit fully in the outlet,
reverse the plug. If it stilldoes not fit, contact a qualified electrician toinstall
the proper outlet. Do not modify the plug in any way."
"Foot Controller Model YC-482P or YC-530 for use with Sewing Machine Models
385.!778x x x, 385.1684x x x, 385.1584x x x, 385.1664 x x x, 385.1754x x ×, 385.17526x x x,
385.1764x x x, 385.1884x x x, 385.17928x x x, 385.17924x x x, 385.t8836x x x,
385.17922x x x, 385.16816x x x, 385.17822x x x, 385.17828x x x, 385_18830x x x and
385.17026x x x.
x xx - represents numbers 000 through 999."
(For U.S.A. market only) 100-315-004
+ ÷
_' WARRANTY _'
+ +
FULL 25-YEAR WARRANTY ON SEWING MACHINE HEAD 0
_ For 25 years from the date of purchase, Sears wilt,free of charge, repair detects in material or workmanship which appear in
# the mechanical components of the sewing machine head.
p
_) FULL TWO YEAR WARRANTY ON ELECTRICAL EQUIPMENT OF SEWING MACHINE #
(_ For two years trom the date of purchase, Sears will, free ot charge, repair defects in material or workmanship which appear
+ in the electrical equipment ofthe sewing machine, including electronic components, motor, wiring, switch and speed control.
FULL 90-DAY WARRANTY ON ALL PARTS AND MECHANICAL ADJUSTMENTS
For 90 days from the date of purchase, Sears will, lree of charge, replace any parts and provide mechanical service _)
necessary tor proper operation of the sewing machine, except for normal maintenance.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE SEWING MACHINE TO THE NEAREST SEARS
SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. _1
# #-
_ This warranty gives you specific _egai rights, and you may also have other rights which vary from state to state.
# #
_) SEARS, ROEBUCK AND CO., D1817 WA, Hoffman Estates, IL 60179
_,-_k+ m, _ m+ _ +It+ _ +++,+'++4_+,++._ +++_+_ _=+,+-,q_+ +m+++-.l_ _It+-+..'l_ *+_+-<II_++_....,I_ _+-<a_ .+_.,.+++,_ .m+,+.t_.+ ,m,.+,,+P_ ++i+++,+4_ _+,+,,_- m,++,,i_,. +u, _ "+_++'_. +.+.++',,I_ m,-.,ll,.._.+.,,II...m.,+-+,ll_ .m+++._ ++m.-.,l_ +m,++,,l_ +_++++,,Ik.+.++++
z O
m z
m I
r-
e m
t|
Jl
i|
&.-'S
f
€>';* >
G3-.<-_
m_
go
o
o
-n
_,m_m
z..__i
mlo
rni
:1:
p p
>i>
_-)_
o i i
-.<i
3o
_o
>__i__ -._
_ _i m_
m_
o_
P
m
i
*o
N
N
_. NI
_i _
3: "O
---1
b, m m L_ _'
o_o_ _
0 0= z
_o o
_ _'_ _ _ = _ -
_m
go
z zi-
o
0 0_
__ Io=o
_ Oft!

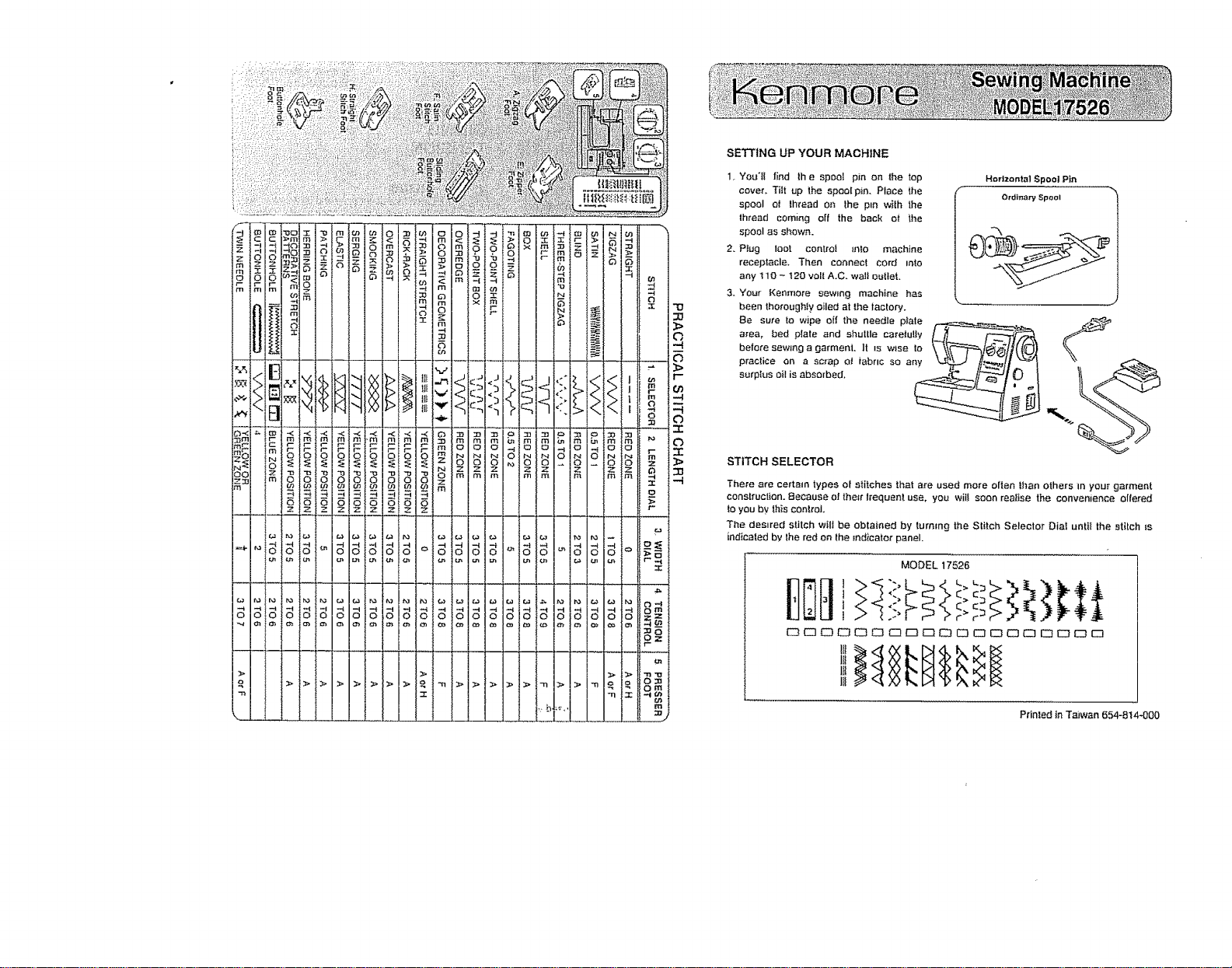

SETTING UP YOUR MACHINE
1o You'll find lh e spool pm on the top
cover. Tilt up the spoo[ pin. Place the
spool ot thread on lhe pm with the
thread coming o[f the back ot the
spool as shown.
2. Plug loot control _n|o machine
receptacle, Then connect cord I_to
any 110 - t 20 vol| A.C. wall o_t_et.
3. Your Kenmore sewing machine has
been tho_'oughty oiled at the factory.
Be sure to wipe o|t the needle plate
area, bed plate and shuttle caretu!l Li_ _
before sewing a garment. It _s w_se to
p_aclice on a scrap ot iabnc so any.
s_ptus oilis absorbed.
STITCH SELECTOR
Hodzontal Spool P}n
V
There ere certain types of stitches that are used mo_'e often than others in your garment
construct}on. Because o! the,r lrequent use, yo_ wit_ soon realise the convenience altered
to you by this control
The des=red stitch wilt be obtained by _urmng the Stitch Selector Dial until the stitch _s
indicated by lhe red on the _ndicator panel.
MODEL 17526
Printed inTa}wan 654-814--000

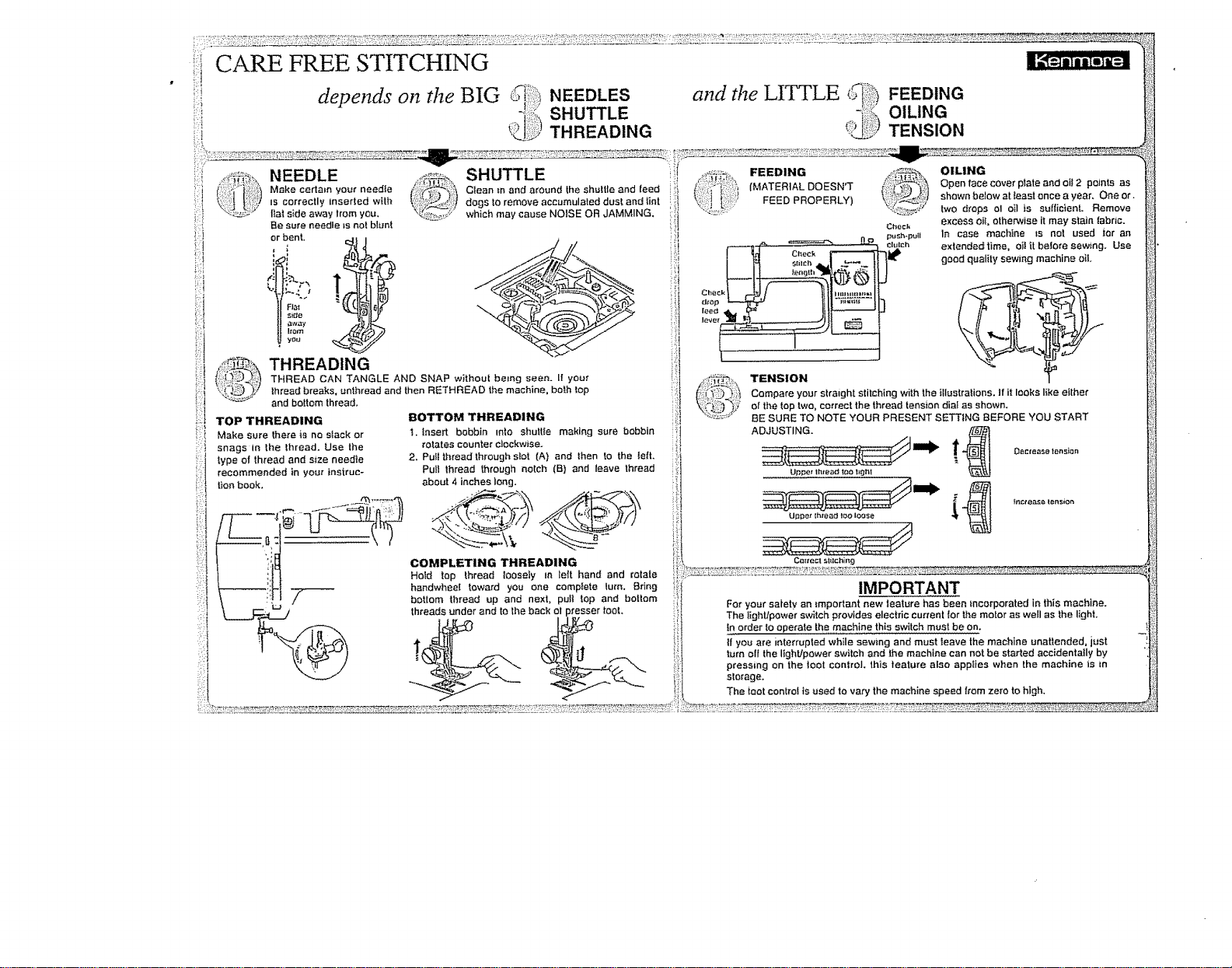

i::::_Makesurethereisnostack or t. insert bobbin into shuttle making sure bobbin
:il;i snags in the thread Use the rotates counter c ockwse, i_ij
i type of thread andsze neede 2 Pul thread through slat (A) and then to the left. _:;
']' recommended in your instruc- Pal thread through notch (B) and leave thread
!; t on book about4 incheslong. i
:it\ :!,i OM ET,.GTHREAD,.G i....
:: l ! | Hod lop thread oosely tn teIt hand and rotate
::: _"_:H _ handwheeI toward you one complete turn. Bring ;
_!:,_ _ / bottom thread up and next, pulltop and bottom
i:::] ____,_,,=4__ threads under and to the back el presser toot,
ADJUSTING. 1
! o.........o
Upper lhtBa_ If_ Ii_I_I
Upper Ih/ei_ I_ loose
Collect _ilChilI_
IMPORTANT
For your saiety an _mportant new lecture has been incorporated in this machine.
The fghltpawer switch provides electric current {or the motor as well as the light,
_norder to operate the machine this switch must be on,
If you are intelrupted while sewing and must leave the machine unattended, just
turn off the Iightipawer switch and the machine can not be started accidentally by
pressing on the loot control, this lecture afso apples when the machine is in
storage,
The toot control is used to vary the machine speed Item zero to high,

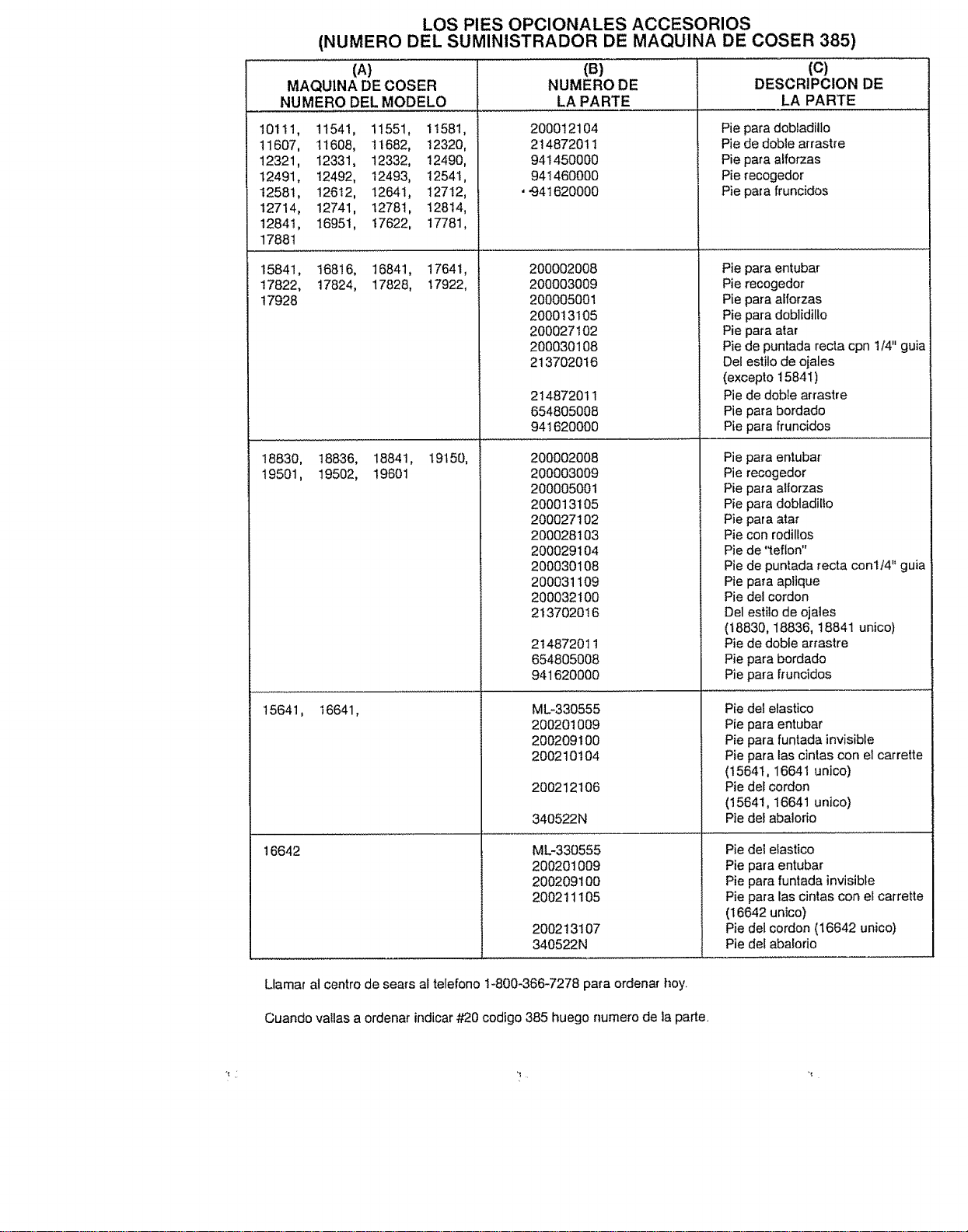

LOS PIES OPCIONALES ACCESORIOS
(NUMERO DEL SUMINiSTRADOR DE MAQUINA DE COSER 385)
(A) (C)
MAQU1NA DE COSER DESCRIPClON DE
NUMERO DEL MODELO LA PARTE
10111, 11541, 11551, 11581,
11687, 11608, 1t682, 12320,
12321, 12331, 12332, 12490,
12491, 12492, 12493, 12541,
12581, 12612, 12641, 12712,
12714, 12741, 12781, 12814,
12841, 16951, 17622, 17781,
17881
15841, 16816, 16841, 17641,
17822, 17824, 17828, 17922,
17928
18830, 18836, 18841,
19501, 19502, 19601
15641, 16641,
16642
19150,
(B)
NUMERO DE
LA PARTE
2OOO12104
214872011
941450000
94146OOOO
, "941620000
200002008
200003009
200005001
200013105
2O0027102
200030108
213702016
214872011
654805008
941620000
200002008
2O0003009
200005001
200013105
200027102
200028103
200029104
200030108
200031109
200032100
213702016
214872011
654805008
94162000O
M_330555
200201009
200209100
200210104
200212106
340522N
M_330555
200201009
200209100
200211105
200213107
340522N
Pie para dobiadillo
Pie de doble arrastre
Pie para alforzas
Pie recogedor
Pie para fruncidos
Pie para entubar
Pie recogedor
Pie para alforzas
Pie para doblidillo
Pie para atar
Pie de puntada recta cpn 1/4" guia
Del estilo de ojales
(excepto 1584t)
Pie de doble arrastre
Pie para bordado
Pie para fruncidos
Pie para entubar
Pie recegedor
Pie para alforzas
Pie para dobladiI!o
Pie para atar
Pie con rodillos
Pie de 'leflon"
Pie de puntada recta conl/4" guia
Pie para aplique
Pie del cordon
Del estilode ojales
(t8830, 18836, 18841 unico)
Pie de doble arrastre
Pie para bordado
Pie para fruncidos
Pie del elastico
Pie para entubar
Pie para funtada invisible
Pie para las cintas con elcarrette
(15641, 16641 unJco)
Pie de[ cordon
(15641, 16641 unico)
Pie del abatorio
Pie de1elastico
Pie para entubar
Pie para funtada invisible
Pie para las cintas con el carrette
(16642 unico)
Pie del cordon (16642 unico)
Pie del abatorio
Llamar al centro de sears al telefono 1-800-366-7278 para ordenar boy,
Cuando vallas a ordenar indicar #20 codigo 385 huego numero de ta parte,

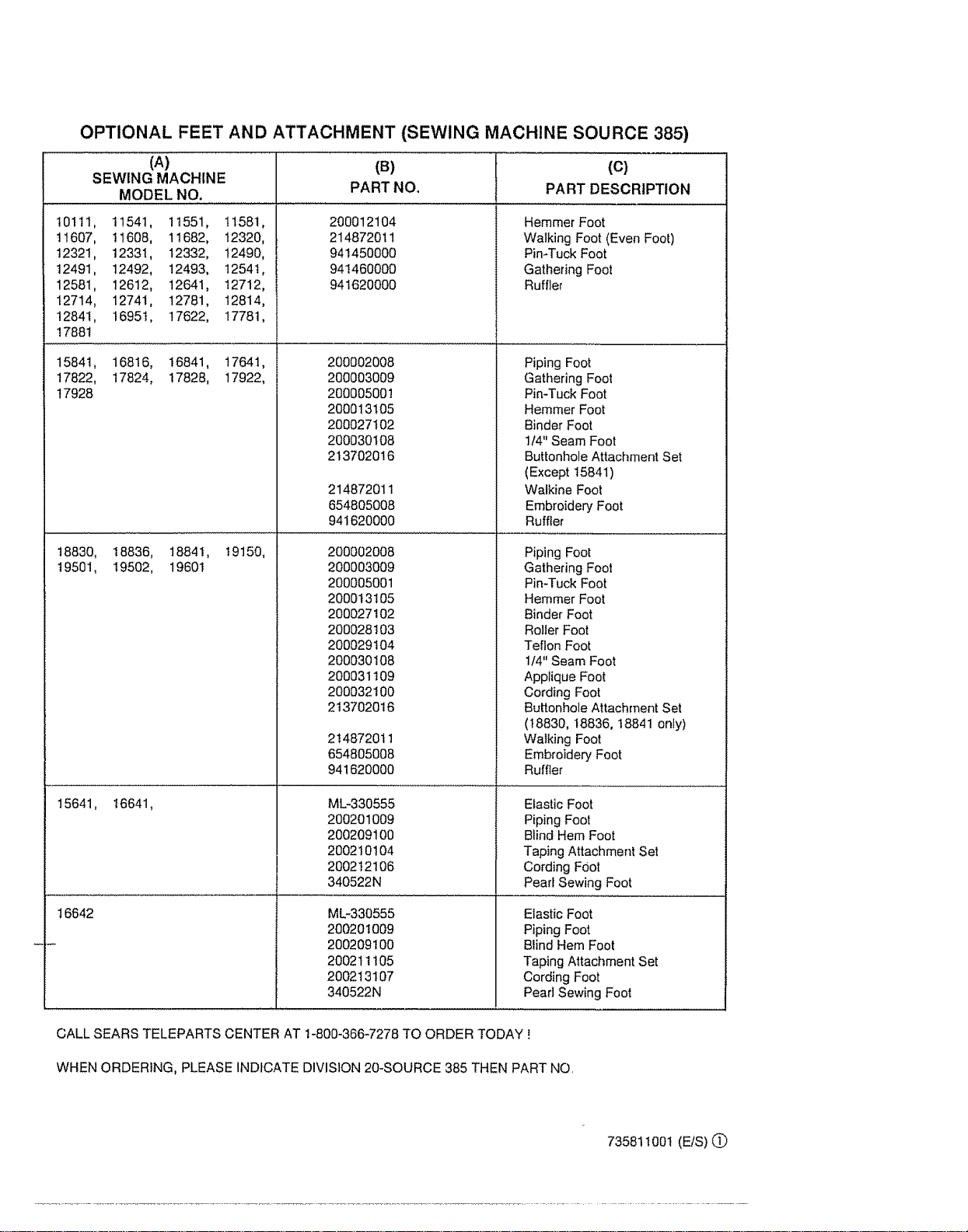

OPTIONAL FEET AND ATTACHMENT (SEWING MACHINE SOURCE 385)
(A) (B)
SEWING MACHINE
MODEL NO. PART NO.
, ,, _,,, ,,,,,, ,,, ,,,, ,, ,, ,,,,, ,,,,, ,, ,, .......... ,
10111, 11541, 11551, 11581,
11607, 11608, 11682, 12320,
12321, 12331, 12332, 12490,
12491, 12492, 12493, 12541,
12581, 12612, 12641, 12712,
12714, 12741, 12781, 12814,
12841, 16951, 17622, 17781,
17881
15841, 16816, 16841, 17641,
17822, 17824, 17828, 17922,
17928
18830, 18836, 18841, 19150,
19501, 19502, 19601
16641, 16641,
16642
200012104
214872011
941450000
94146000O
941620000
200002008
200003009
200005001
200013105
200027102
200030108
213702016
214872011
654805008
941620000
200002008
200003009
200005001
200013105
200027102
200028103
200029104
200030108
200031109
200032100
213702016
214872011
654805008
941620000
ML-330555
200201009
200209100
200210104
200212106
340522N
ML-330555
200201009
200209100
200211105
200213107
340522N
(c)
PART DESCRIPTION
Hemmer Foot
Walking Foot (Even Foot)
PimTuck Foot
Gathering Foot
Ruffler
Piping Foot
Gathering Foot
Pin-Tuck Foot
Hemmer Foot
Binder Foot
114"Seam Foot
Buttonhole Attachment Set
(Except 15841)
Walkine Foot
Embroidery Foot
Ruffler
Piping Foot
Gathering Foot
Pin-Tuck Foot
Hemmer Foot
Binder Foot
Roller Foot
Teflon Foot
1/4" Seam Foot
Applique Foot
Cording Foot
Buttonhole Attachment Set
(18830, 18836, 18841 only)
Walking Foot
Embroidery Foot
Ruffler
Elastic Foot
PipingFoot
BlindHem Foot
Taping Attachment Set
Cording Foot
Pearl Sewing Foot
Elastic Foot
Piping Foot
Blind Hem Foot
Taping Attachment Set
Cording Foot
Pearl Sewing Foot
CALL SEARS TELEPARTS CENTER AT 1-800-366-7278 TO ORDER TODAY !
WHEN ORDERING, PLEASE INDICATE DIVISION 20-SOURCE 385 THEN PART NO,
73581 t001 (E/S) (_
SEWING MACHINE
Now that you have purchased your Kenmore Sewing Machine, should a need ever exist for repair parts or
service, sJmpty contact your nearest Sears Service Center. Be sure to provide all pertinent facts when
you call or visit.
The model number will be shown on the nomenclature plate on the back of your sewing machine. See
page 4 for location.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
-_MODEL NUMBER_NAMEOFITEM_PART DESCRIPTION
If the parts you need are not stocked locally, your order will be electronically transmitted to a Sears
Repair Parts Distribution Center tor handling.
SEARS, ROEBUCK AND CO., D1817WA, HOFFMAN ESTATES, IL 60179
;! .....
Printed inTaiwan
