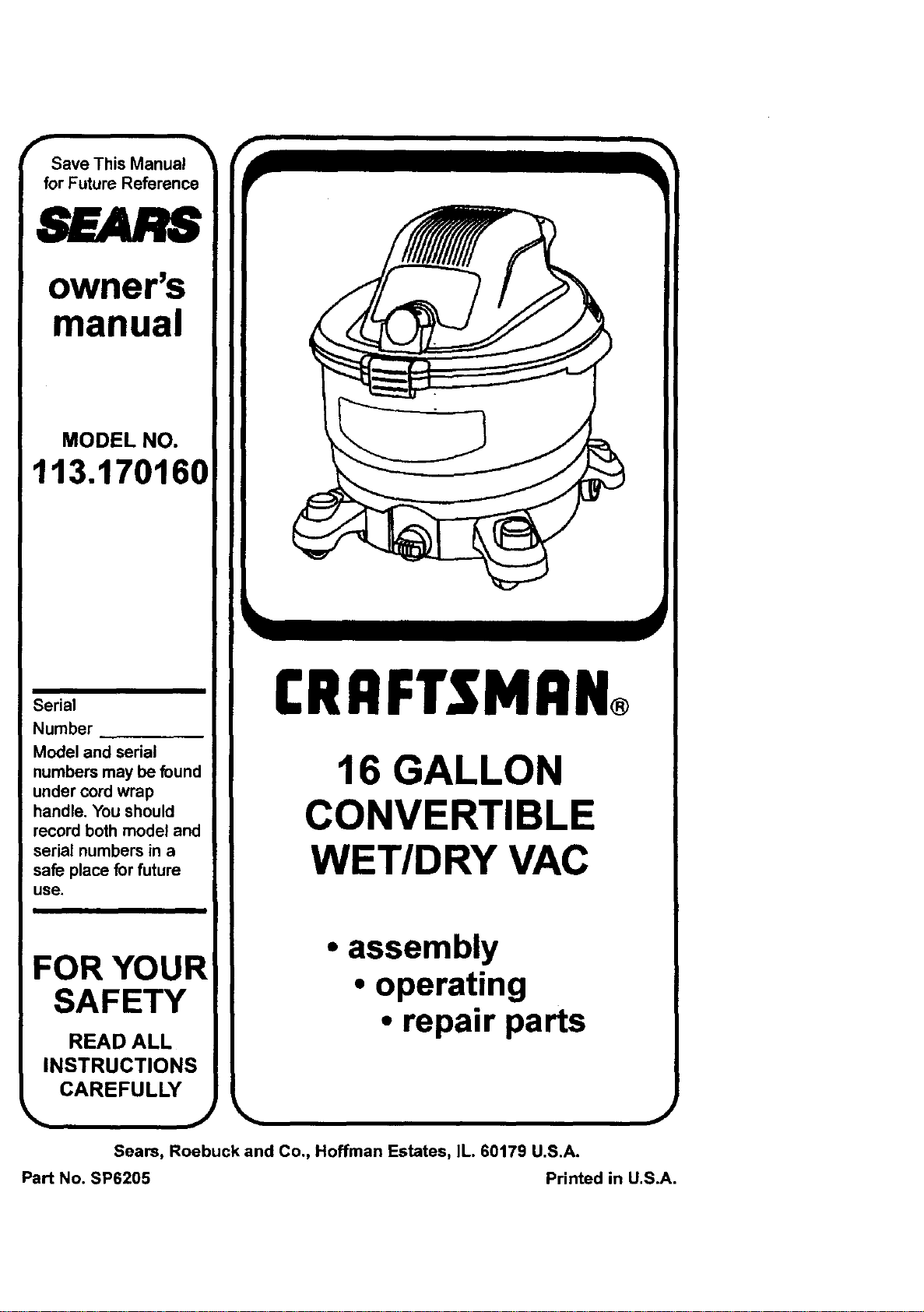

Save This Manual
for Future Reference
owner's
manual
MODEL NO.
113.170160
Serial
Number
Model and serial
numbers may be found
under cord wrap
handle. You should
record both model and
serial numbers in a
safe place for future
use,
FOR YOUR
SAFETY
READ ALL
INSTRUCTIONS
CAREFULLY
j
£RRFTSMAN
16 GALLON
CONVERTIBLE
WET/DRY VAC
• assembly
• operating
• repair parts
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
Part No. SP6205 Printed in U.S.A.
FULL ONE YEAR WARRANTY
ON CRAFTSMAN WET/DRY VACS
If within one year from the date of pumhase, this Craftsman Wet/Dry Vac fails
due to a defect in material or workmanship, Sears will repair it, free of charge.
in Wet/Dry Vac is used for commercial or rental purposes,
coverage applies for only 90 days from date of purchase.
f Simply Contacting The Nearest Sears Ser-
vice Centerldepartment Throughout The United States.
This warranty applies only while this product is in the United States.
This warranty gives you specific legal rights, and you may also have other
rights which .vary from state to state.
Sears,: Roebuck and Co., DI817 WA, Hoffman Estates, IL 60179
IMPORTANT SAFETY INSTRUCTIONS
Safety is a combination of common
sense, staying alert and knowing how
your vac works. Read this manual to
understand the vac.
Safety Signal Words
DANGER: means ifthe safely information
is not followed someone will be seriously
injured or killed.
WARNING: means if the safety informa-
tion is not followed someone could be
seriously injured or killed.
CAUTION: means if the safety informa-
tion is not followed someone may be
injured.
When using your Wet/Dry Vac, follow
basic safety precautions including the fol-
lowing.
WARNING-To reduce
the risk of fire, electric shock, or
injury:
Read and understand this owner's manual
and all labels on the Wet/Dry Vac before
operating. Use only as described in this
manual. To reduce the risk of personal
injury or damage to Wet/Dry Vac, use only
Sears Craftsman recommended accesso-
ries.
Sparks inside the motor can ignite flam-
mable vapors or dust. To reduce the risk
of fire or explosion:
• Do not vacuum, or use this Wet/Dry Vac
near, flammable or combustible liquids,
gases, or explosive dusts like gasoline
or other fuels, lighter fluid, cleaners, oil-
based paints, natural gas, hydrogen,
coal dust, magnesium dust, grain dust,
or gun powder.
• Do not use Wet/Dry Vac as a sprayer.
Do not vacuum anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not vacuum fireplace soot or ash. This
is a very fine dust which will not be cap-
tured by the filter and may cause damage.
To reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic
materials.
Donotuseorstorenearhazardousmaterials.
To reduce the risk of electric shock, do not
expose to rain. Store indoors.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Do not use this WeUDry Vac with a torn fil-
ter or without the filter installed except for
vacuuming liquids as described in the
operation section of this manual.
Do not leave Wet/Dry Vac when plugged
in. Unplug from outlet when not in use and
before servicing, Turn off Wet/Dry Vac
before unplugging.
2

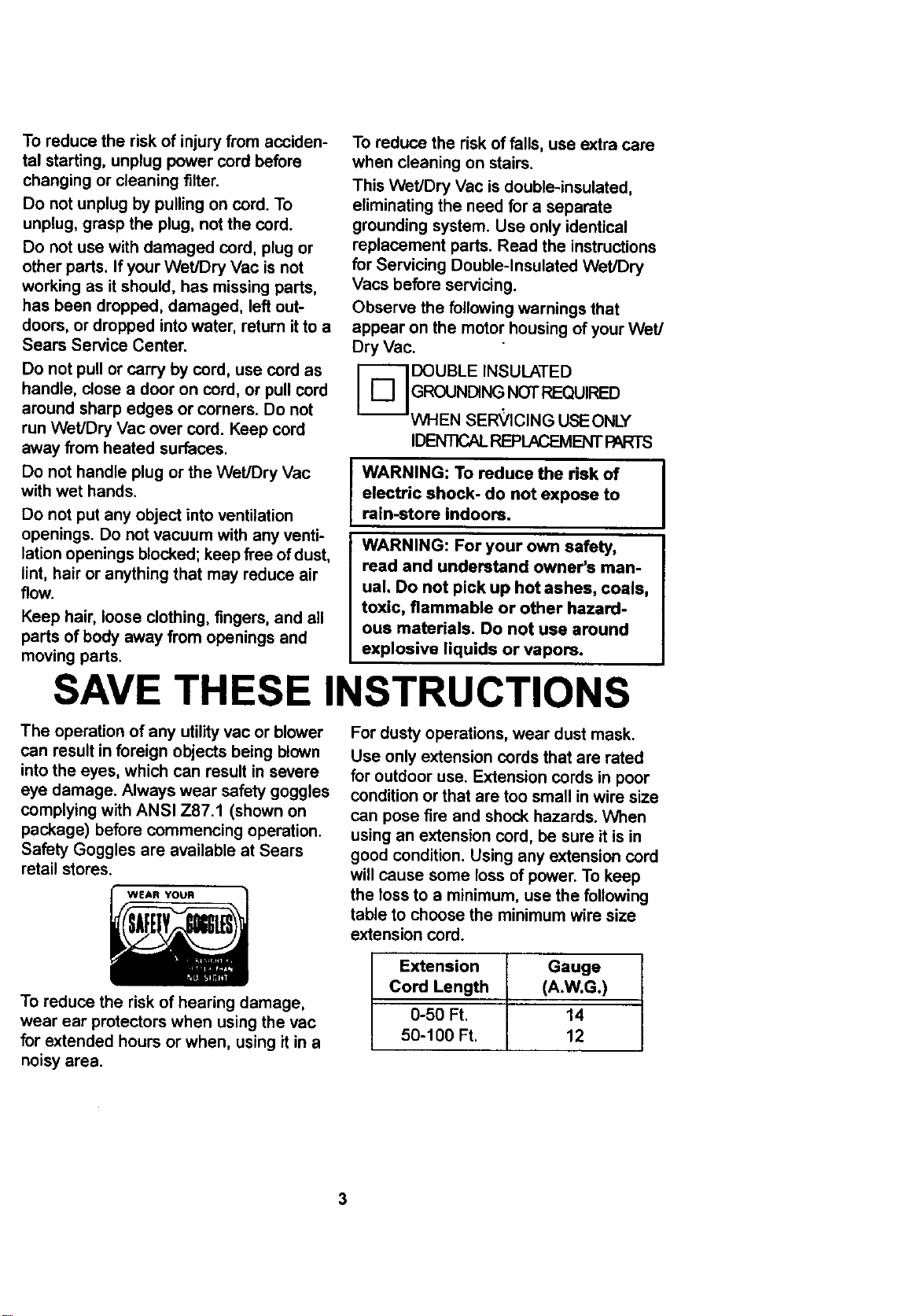

Toreduce the risk of injury from acciden-
tal starting, unplug power cord before
changing or cleaning filter.
Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Do not use with damaged cord, plug or
other parts. If your Wet/Dry Vac is not
working as it should, has missing parts,
has been dropped, damaged, left out-
doors, or dropped into water, return itto a
Sears Service Center.
Do not pull or carry by cord, use cord as
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not
run Wet/Dry Vac over cord. Keep cord
away from heated surfaces.
Do not handle plug or the Wet/Dry Vac
with wet hands.
Do not put any object into ventilation
openings. Do not vacuum with any venti-
lation openings blocked; keep free of dust,
lint, hair or anything that may reduce air
flow.
Keep hair, loose clothing, fingers, and all
parts of body away from openings and
moving parts.
To reduce the risk of falls, use extra care
when cleaning on stairs.
This Wet/Dry Vac is double-insulated,
eliminating the need for a separate
grounding system. Use only identical
replacement parts. Read the instructions
for Servicing Double-Insulated Wet/Dry
Vacs before servicing.
Observe the following warnings that
appear on the motor housing of your Wet/
Dry Vac.
--_ OUBLE INSULATED
GROUNDING NOT REQUIRED
WHEN SERe/ICING USE ONLY
IDENTICAL REPLACEMENT PARTS
WARNING: To reduce the risk of
electric shock- do not expose to
rain-store indoors.
WARNING: For your own safety,
read and understand owner's man-
ual. Do not pick up hot ashes, coals,
toxic, flammable or other hazard-
ous materials. Do not use around
explosive liquids or vapors.
SAVE THESE INSTRUCTIONS
The operation of any utility vac or blower
can result in foreign objects being blown
into the eyes, which can result in severe
eye damage. Always wear safety goggles
complying with ANSI Z87.1 (shown on
package) before commencing operation.
Safety Goggles are available at Sears
retail stores.
To reduce the risk of hearing damage,
wear ear protectors when using the vac
for extended hours or when, using it in a
noisy area.
For dusty operations, wear dust mask.
Use only extension cords that are rated
for outdoor use. Extension cords in poor
condition or that are too small in wire size
can pose fire and shock hazards. When
using an extension cord, be sure it is in
good condition. Using any extension cord
will cause some loss of power. To keep
the loss to a minimum, use the following
table to choose the minimum wire size
extension cord.
Extension Gauge
Cord Length (A.W.G.)
0-50 Ft. 14
50-100 Ft. 12
3
Introduction
This Wet/Dry Vac is intended for house-
hold use only.
IMPORTANT NOTE
Please Read Carefully
Static Shocks Are Common - In dry
areas or when the relative humidity of the
air is low. To reduce the frequency of
static shocks in your home the best rem-
edy is to add moisture to the air with a
console humidifier.
Table of Contents
Item Page
Warranty Information ............................. 2
Safety Instructions ................................. 2
Introduction ............................................ 4
Unpacking and Checking
Carton Contents ............................. 4
Assembly ............................................... 5
Operation ............................................... 8
Maintenance ........................................ 11
Repair Parts ........................................ 14
Unpacking and Checking Carton Contents --
Your new wet/dry vac is partially assem-
bled, Remove the contents from the dust
drum and follow the assembly instructions
to complete the vac assembly.
Remove entire contents of carton. Check
each item against the Carton Contents List.
Some units may include accessories not
shown. Notify your Sears Store immedi-
ately if any parts are damaged or missing.
Carton Contents List
Key Description ............................ Qty.
A 16 Gallon Wet/Dry Vac ............... 1
B Hose .......................................... 1
C Utility Nozzle .............................. 1
D Wet Nozzle ................................. 1
E Car Nozzle ................................. 1
F Extension Wands ....................... 2
G* Filter Nut .................................... 1
H* Filter Plate .................................. 1
J* Filter (Red Stripe) ...................... 1
K* Filter Cage ................................. 1
L* Float ........................................... 1
M Caster Foot for Storage .............. 4
N Single Wheel Caster .................. 4
P Hose Lock .................................. 1
R Owners Manual .......................... 1
*These items may come preassembled.
If they are not present in the carton
check the vac power head to see ifthey
are preassembled,
A
G_
4

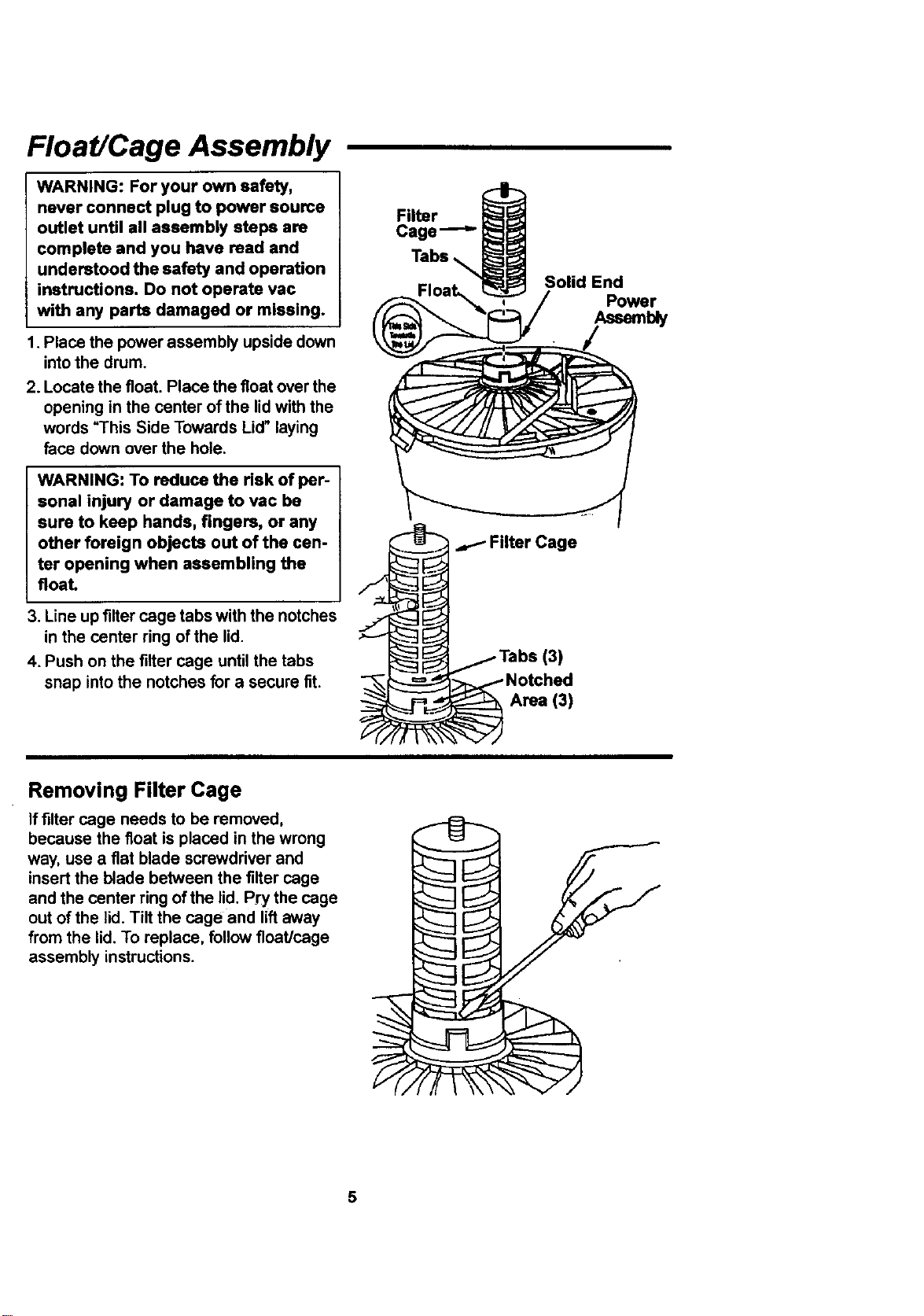

Float/Cage Assembly
WARNING: For your own safety,
never connect plug to power source
outlet until all assembly steps are
complete and you have read and
understood the safety and operation
instructions. Do not operate vac
with any parts damaged or missing.
1. Place the power assembly upside down
into the drum.
2. Locate the float. Place the float over the
opening in the center of the lid with the
words "This Side Towards Lid" laying
face down over the hole.
WARNING: To reduce the risk of per-
sonal injury or damage to vac be
sure to keep hands, fingers, or any
other foreign objects out of the cen-
ter opening when assembling the
floaL
3. Line up filter cage tabs with the notches
in the center ring of the lid.
4. Push on the filter cage until the tabs
snap into the notches for a secure fit.
Filter
Cage
Tabs
Solid End
_...- Filter Cage
Tabs (3)
Notched
_ _ Area (3)
Removing Filter Cage
If filter cage needs to be removed,
because the float is placed in the wrong
way, use a fiat blade screwdriver and
insert the blade between the filter cage
and the center ring of the lid. Pry the cage
out of the lid. Tilt the cage and lift away
from the lid. To replace, follow float/cage
assembly instructions.
5

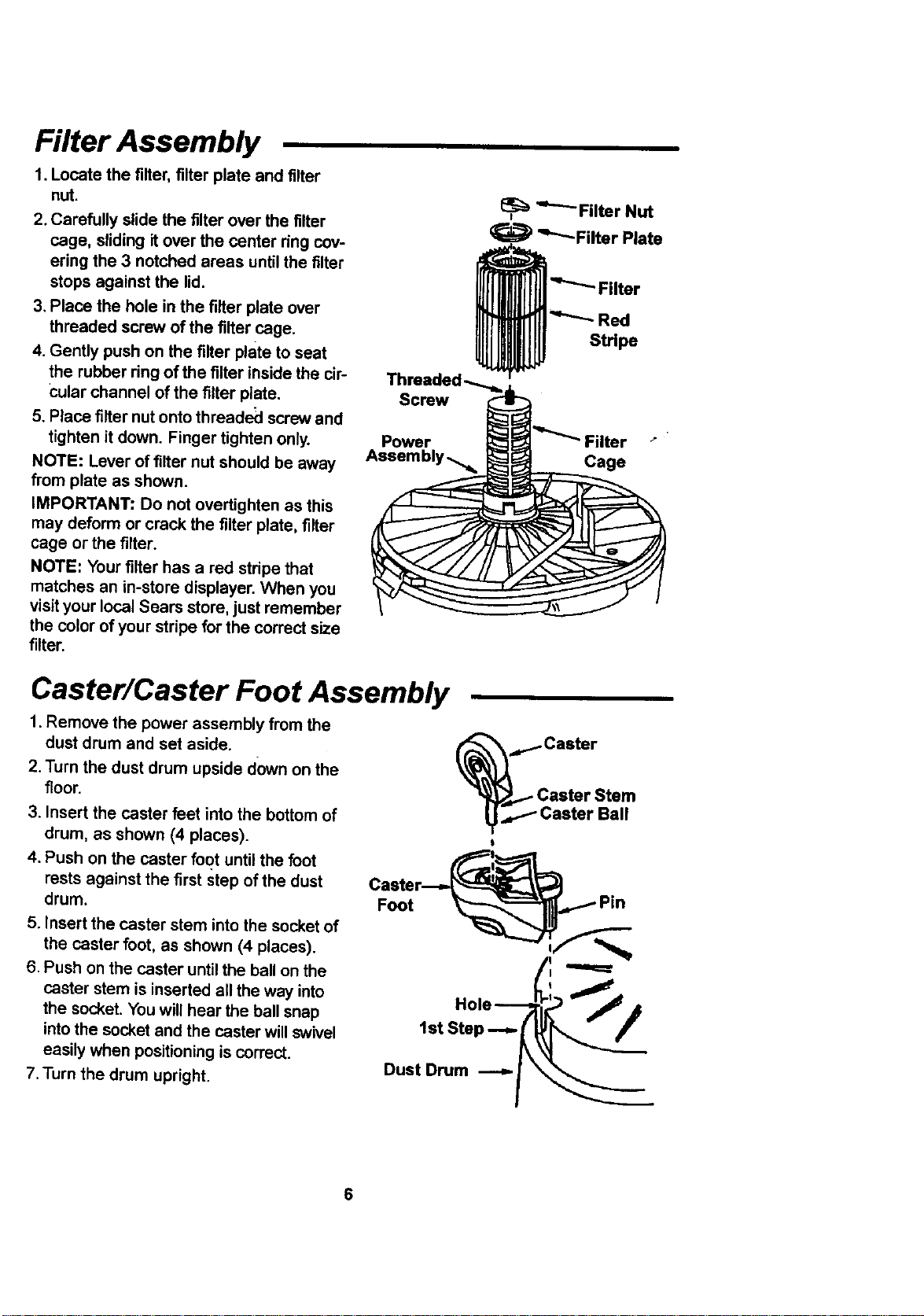

Filter Assembly
1. Locate the filter, filter plate and filter
nut.
2. Carefully slide the filter over the filter
cage, sliding it over the center ring cov-
ering the 3 notched areas until the filter
stops against the lid.
3. Place the hole in the filter plate over
threaded screw of the filter cage.
4. Gently push on the filter plate to seat
the rubber ring of the filter inside the cir-
cular channel of the filter plate.
5. Place filter nut onto threadecl screw and
tighten it down. Finger tighten only.
NOTE: Lever of filter nut should be away
from plate as shown.
iMPORTANT: Do not overtighten as this
may deform or crack the filter plate, filter
cage or the filter.
NOTE: Your filter has a red stripe that
matches an in-store displayer. When you
visit your local Sears store, just remember
the color of your stripe for the correct size
filter.
Screw
,_ ""-Filter Nut
"_--Filter Plate
_FRI_r
Stdpe
Power
Filter
Cage
Caster/Caster Foot Assembly
1. Remove the power assembly from the
dust drum and set aside.
2.Turn the dust drum upside down on the
floor.
3. Insert the caster feet into the bottom of
drum, as shown (4 places).
4. Push on the caster foot until the foot
rests against the first step of the dust
drum.
5. Insert the caster stem into the socket of
the caster foot, as shown (4 places).
6. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will hear the ball snap
into the socket and the caster will swivel
easily when positioning is correct.
7. Turn the drum upright.
_._ Caster
Stem
I st Step --,.-
Dust Drum

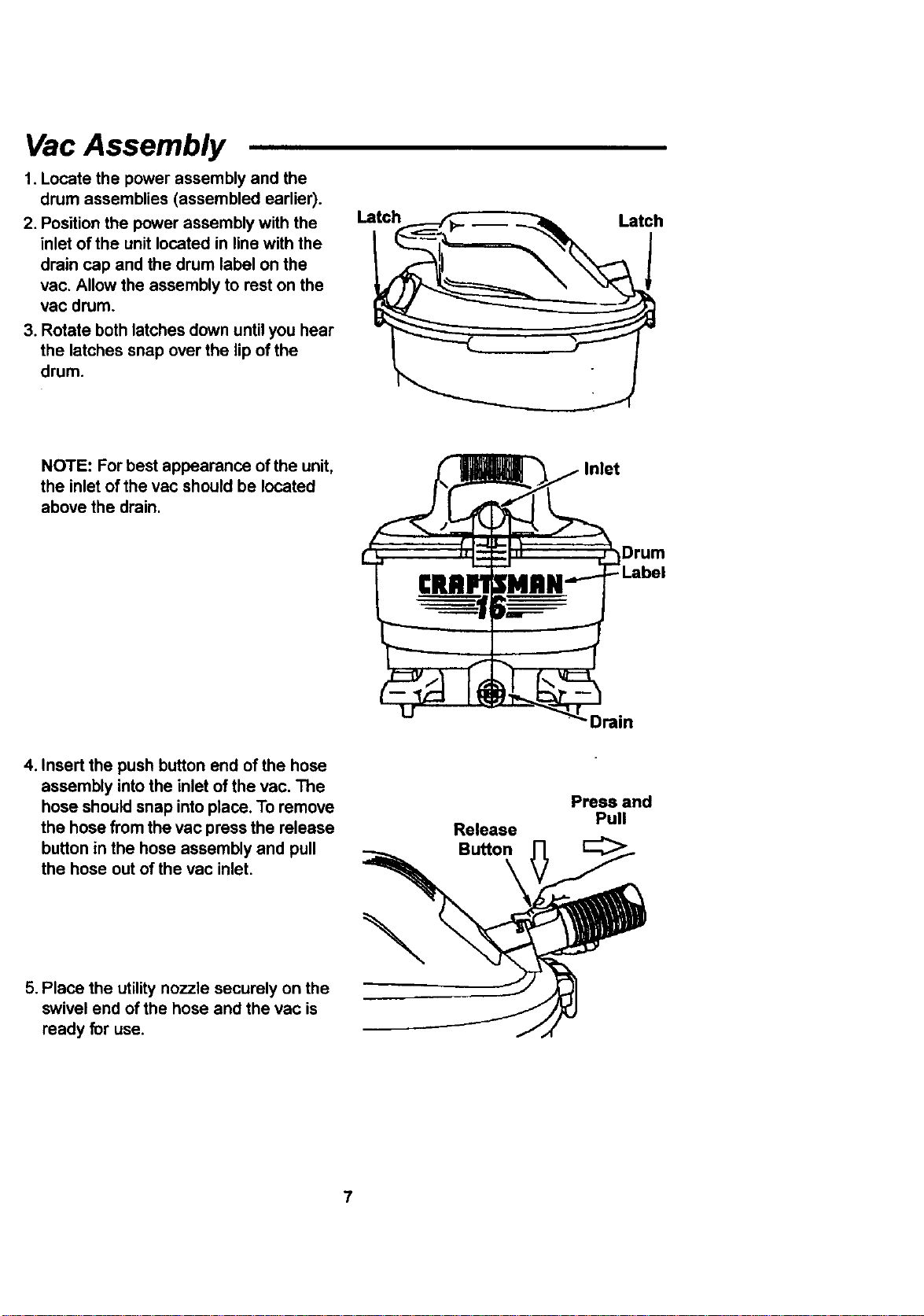

Vac Assembly
1. Locate the power assembly and the
drum assemblies (assembled earlier).
2. Position the power assembly with the
inlet of the unit located in line with the
drain cap and the drum label on the
vac. Allow the assembly to rest on the
vac drum.
3. Rotate both latches down until you hear
the latches snap over the lip of the
drum.
Latch
atch
NOTE: For best appearance of the unit,
the inlet of the vac should be located
above the drain.
Inlet
Drum
•Drain
4. Insert the push button end of the hose
assembly into the inlet of the vac. The
hose should snap into place. To remove
the hose from the vac press the release
button in the hose assembly and pull
the hose out of the vac inlet.
5. Place the utility nozzle securely on the
swivel end of the hose and the vac is
ready for use.
\
Release
Button
Press and
Pull
7

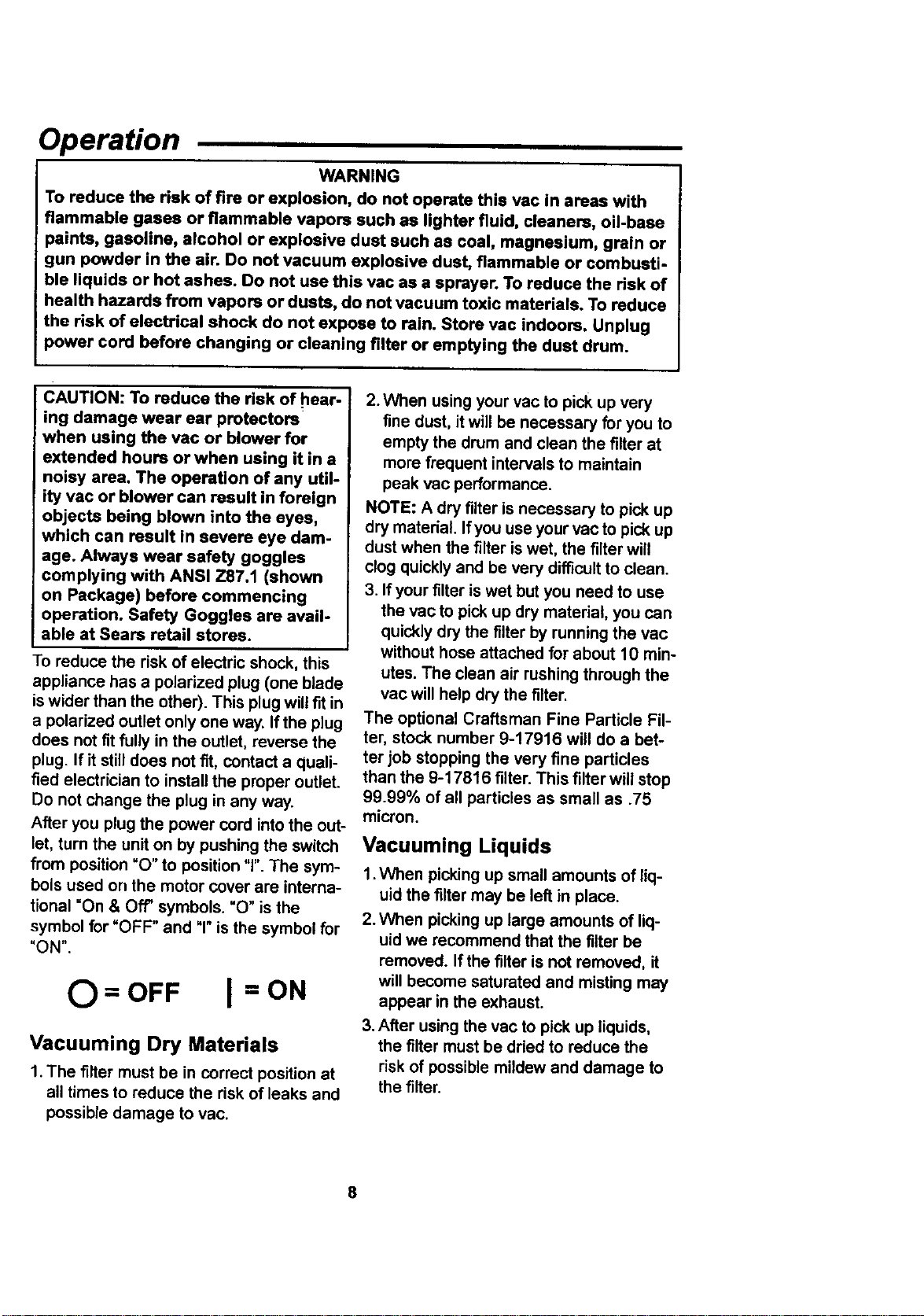

Operation
WARNING
To reduce the risk of fire or explosion, do not operate this vac in areas with
flammable gases or flammable vapors such as lighter fluid, cleaners, oil-base
paints, gasoline, alcohol or explosive dust such as coal, magnesium, grain or
gun powder in the air. Do not vacuum explosive dust, flammable or combusti-
ble liquids or hot ashes. Do not use this vac as a sprayer. To reduce the risk of
health hazards from vapors or dusts, do not vacuum toxic materials. To reduce
the risk of electrical shock do not expose to rain. Store vac indoors. Unplug
power cord before changing or cleaning filter or emptying the dust drum.
CAUTION: To reduce the risk of .hear-
ing damage wear ear protectors
when using the vac or blower for
extended hours or when using it in a
noisy area. The operation of any uUl-
ity vac or blower can result in foreign
objects being blown into the eyes,
which can result in severe eye dam-
age. Always wear safety goggles
complying with ANSI Z87.1 (shown
on Package) before commencing
operation. Safety Goggles are avail-
able at Sears retail stores.
To reduce the risk of electric shock, this
appliance has a polarized plug (one blade
is wider than the other). This plug will fit in
a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a quali-
fied electrician to install the proper outlet.
Do not change the plug in any way.
After you plug the power cord into the out-
let, turn the unit on by pushing the switch
from position "O" to position "1".The sym-
bols used on the motor cover are interna-
tional =On & Off' symbols. "O" is the
symbol for "OFF" and "1"is the symbol for
"ON".
C) = OFF I = ON
Vacuuming Dry Materials
1. The filter must be in correct position at
all times to reduce the dsk of leaks and
possible damage to vac.
2. When using your vac to pick up very
fine dust, it will be necessary for you to
empty the drum and clean the filter at
more frequent intervals to maintain
peak vac performance.
NOTE: A dry filter is necessary to pick up
dry material. Ifyou use your vac to pick up
dust when the filter is wet, the filter will
clog quickly and be very difficult to clean.
3. If your filter is wet but you need to use
the vac to pick up dry material, you can
quickly dry the filter by running the vac
without hose attached for about 10 min-
utes. The clean air rushing through the
vac will help dry the filter.
The optional Craftsman Fine Particle Fil-
ter, stock number 9-17916 will do a bet-
ter job stopping the very fine particles
than the 9-17816 filter. This filter will stop
99.99% of all particles as small as .75
micron.
Vacuuming Liquids
1. When picking up small amounts of liq-
uid the filter may be left in place.
2. When picking up large amounts of liq-
uid we recommend that the filter be
removed. If the filter is not removed, it
will become saturated and misting may
appear in the exhaust.
3. After using the vac to pick up liquids,
the filter must be dried to reduce the
risk of possible mildew and damage to
the filter.
8

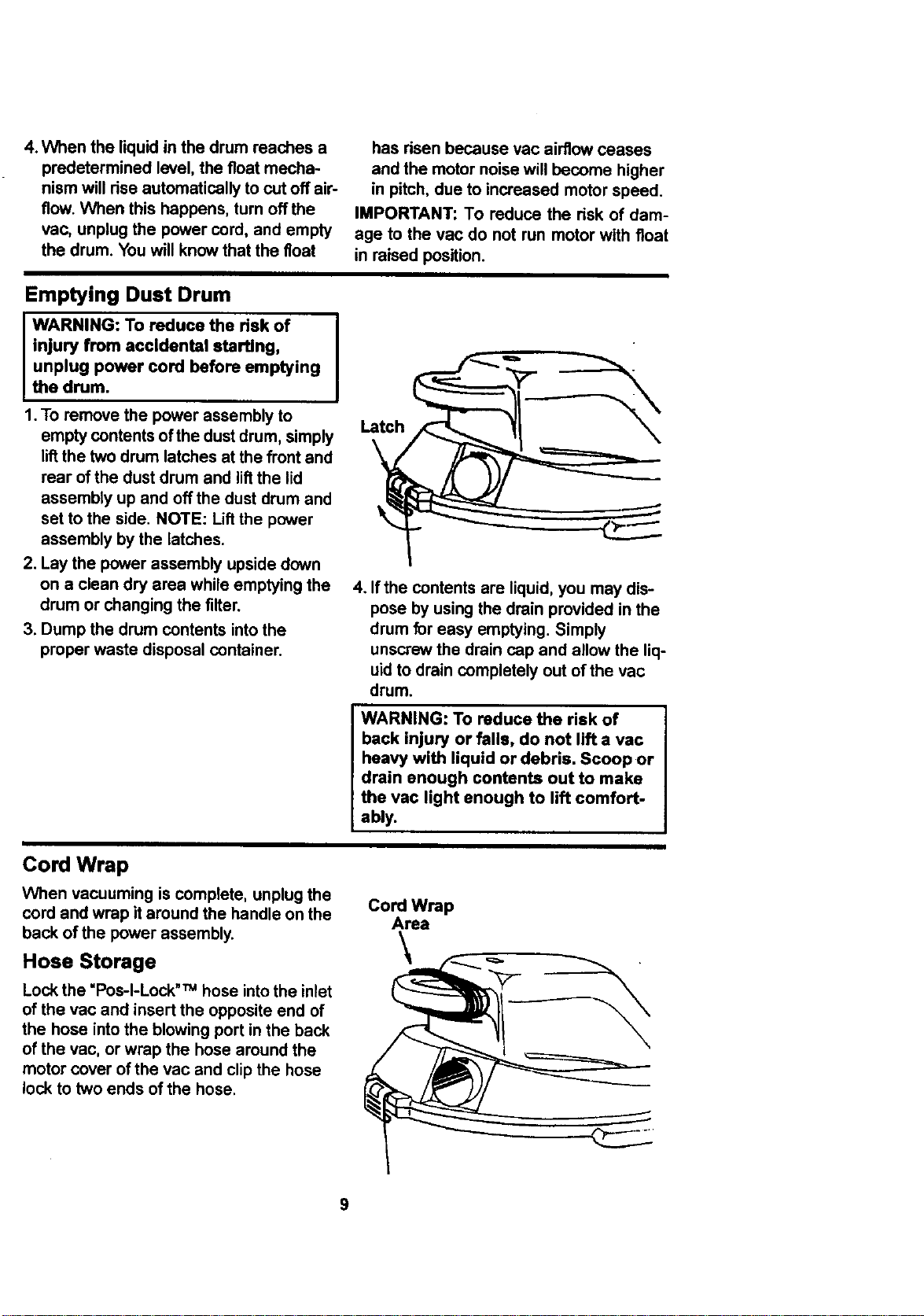

4.Whentheliquidinthedrumreachesa
predeterminedlevel,thefloat mecha-
nism will rise automatically to cut off air-
flow. When this happens, turn off the
vac, unplug the power cord, and empty
the drum. You will know that the float
has risen because vac airflow ceases
and the motor noise will become higher
in pitch, due to increased motor speed.
IMPORTANT: To reduce the dsk of dam-
age to the vac do not run motor with float
in raised position.
Emptying Dust Drum
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before emptying
the drum.
1. To remove the power assembly to
empty contents of the dust drum, simply
lift the two drum latches at the front and
rear of the dust drum and lift the lid
assembly up and off the dust drum and
set to the side. NOTE: Lift the power
assembly by the latches.
2. Lay the power assembly upside down
on a clean dry area while emptying the
drum or changing the filter.
3. Dump the drum contents into the
proper waste disposal container.
4. If the contents are liquid, you may dis-
pose by using the drain provided in the
drum for easy emptying. Simply
unscrew the drain cap and allow the liq-
uid to drain completely out of the vac
drum.
WARNING: To reduce the risk of
back injury or falls, do not lift a vac
heavy with liquid or debris. Scoop or
drain enough contents out to make
the vac light enough to lift comfort-
ably.
Cord Wrap
When vacuuming is complete, unplug the
cord and wrap it around the handle on the
back of the power assembly.
Hose Storage
Lock the "Pos-I-Lock "_ hose into the inlet
of the vac and insert the opposite end of
the hose into the blowing port in the back
of the vac, or wrap the hose around the
motor cover of the vac and clip the hose
lock to two ends of the hose.
Cord Wrap
Area

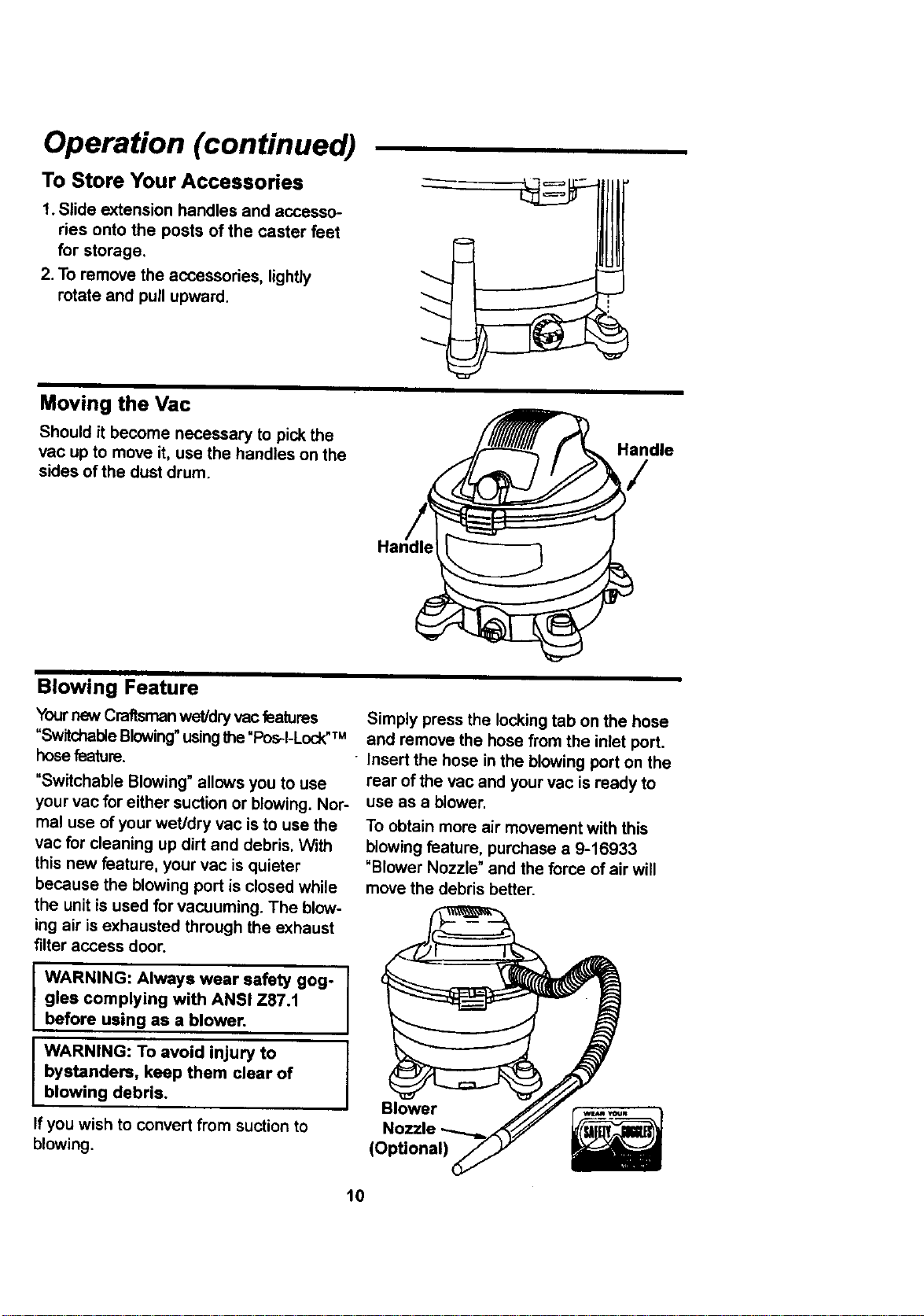

Operation (continued)
To Store Your Accessories
1. Slide extension handles and accesso-
ries onto the posts of the caster feet
for storage,
2. To remove the accessories, lightly
rotate and pull upward.
Moving the Vac
Should it become necessary to pick the
vac up to move it, use the handles on the
sides of the dust drum.
Handle
/
Blowing Feature
Your new Craftsman wet/dry vac features
"Switchable Blowing"usingthe "Pos*l-Lock "TM
hose featum.
"Switchable Blowing" allows you to use
your vac for either suction or blowing. Nor-
mal use of your wet/dry vac is to use the
vac for cleaning up dirt and debris. With
this new feature, your vac is quieter
because the blowing port is closed while
the unit is used for vacuuming. The blow-
ing air is exhausted through the exhaust
filter access door.
I ARNING: Always wear safety gog-
gles complying with ANSI Z87.t
before using as a blower.
I ARNING: To avoid injury to
bystanders, keep them clear of
blowing debris.
If you wish to convert from suction to
blowing.
Simply press the locking tab on the hose
and remove the hose from the inlet port.
Insert the hose in the blowing port on the
rear of the vac and your vac is ready to
use as a blower.
To obtain more air movement with this
blowing feature, purchase a 9-16933
"Blower Nozzle" and the force of air will
move the debris better.
Blower _
Nozzle --.,_.._
(Optional) _
10

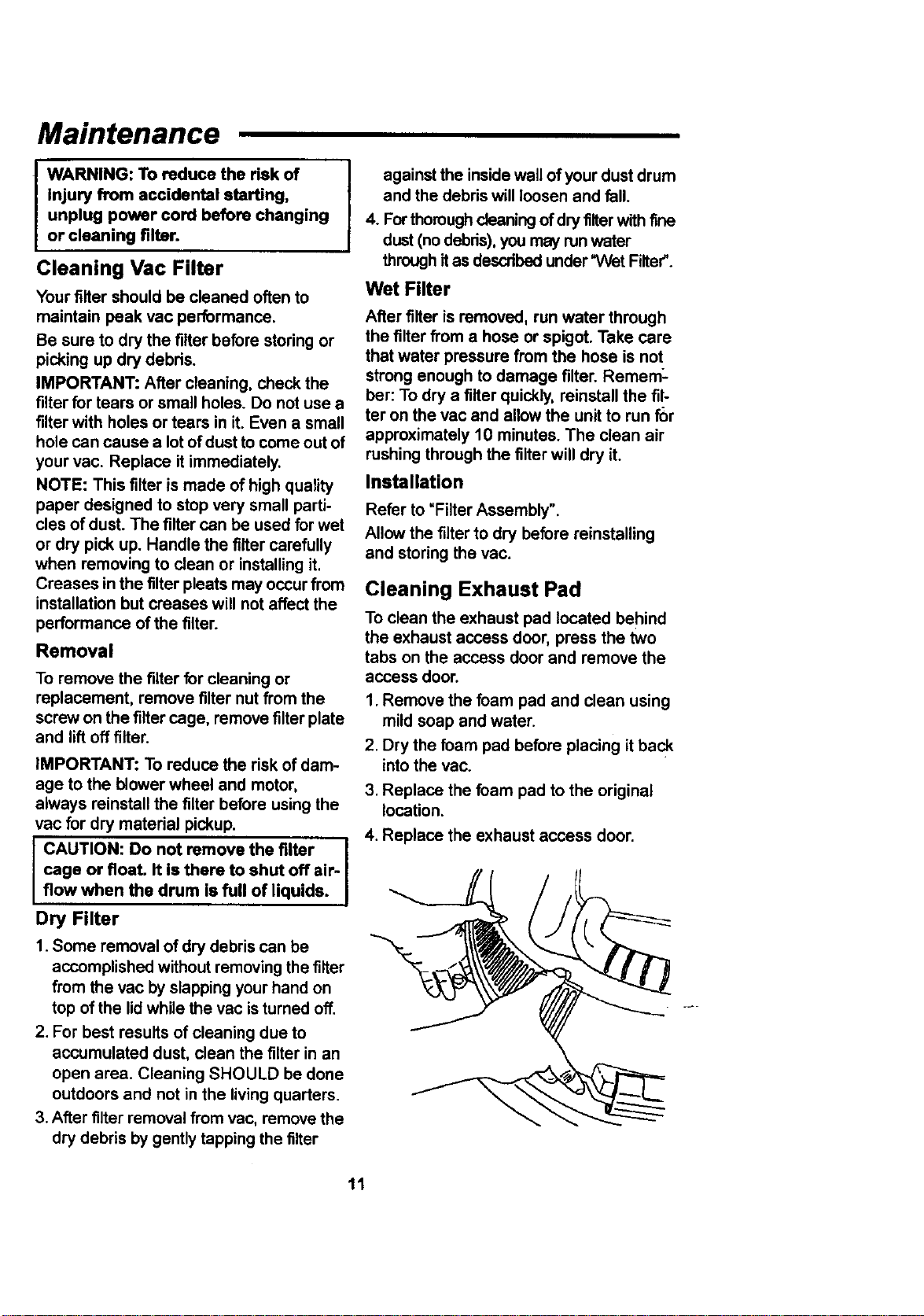

Maintenance
J WARNING: To reduce the risk of
J
Injury from accidental starting,
unplug power cord before changing
or cleaning filter.
Cleaning Vac Filter
Your filler should be cleaned often to
maintain peak vac performance.
Be sure to dry the filter before storing or
picking up dry debris.
IMPORTANT: After cleaning, check the
filter for tears or small holes. Do not use a
filter with holes or tears in it. Even a small
hole can cause a lot of dust to come out of
your vac. Replace it immediately.
NOTE: This filter is made of high quality
paper designed to stop very small parti-
cles of dust. The filter can be used for wet
or dry pick up. Handle the filter carefully
when removing to clean or installing it.
Creases in the filter pleats may occur from
installation but creases will not affect the
performance of the filter.
Removal
To remove the filter for cleaning or
replacement, remove filter nut from the
screw on the filter cage, remove filter plate
and lift off filler.
IMPORTANT: To reduce the risk of dam-
age to the blower wheel and motor,
always reinstall the filter before using the
vac for dry material pickup.
CAUTION: Do not remove the filter
cage or float. It is there to shut off air-
iflow when the drum is full of liquids.
Dry Filter
1. Some removal of dry debris can be
accomplished without removing the filler
from the vac by slapping your hand on
top of the lid while the vac is turned off.
2. For best results of cleaning due to
accumulated dust, clean the filter in an
open area. Cleaning SHOULD be done
outdoors and not in the living quarters.
3. After filter removal from vac, remove the
dry debris by gently tapping the filter
against the inside wall of your dust drum
and the debris will loosen and fall.
4. For thorough cleaning of dry filler with fine
dust (no debris), you may run water
through itas desc_bed under"Wet Filler".
Wet Filter
After filler is removed, run water through
the filter from a hose or spigot. Take care
that water pressure from the hose is not
strong enough to damage filter. Remem_-
ber: To dry a filter quickly, reinstall the fit-
ter on the vac and allow the unit to run for
approximately 10 minutes. The clean air
rushing through the filter will dry it.
Installation
Refer to "Filter Assembly".
Allow the filter to dry before reinstalling
and storing the vac.
Cleaning Exhaust Pad
To clean the exhaust pad located behind
the exhaust access door, press the two
tabs on the access door and remove the
access door.
1. Remove the foam pad and clean using
mild soap and water.
2. Dry the foam pad before placing it back
into the vac.
3. Replace the foam pad to the original
location.
4. Replace the exhaust access door.
11

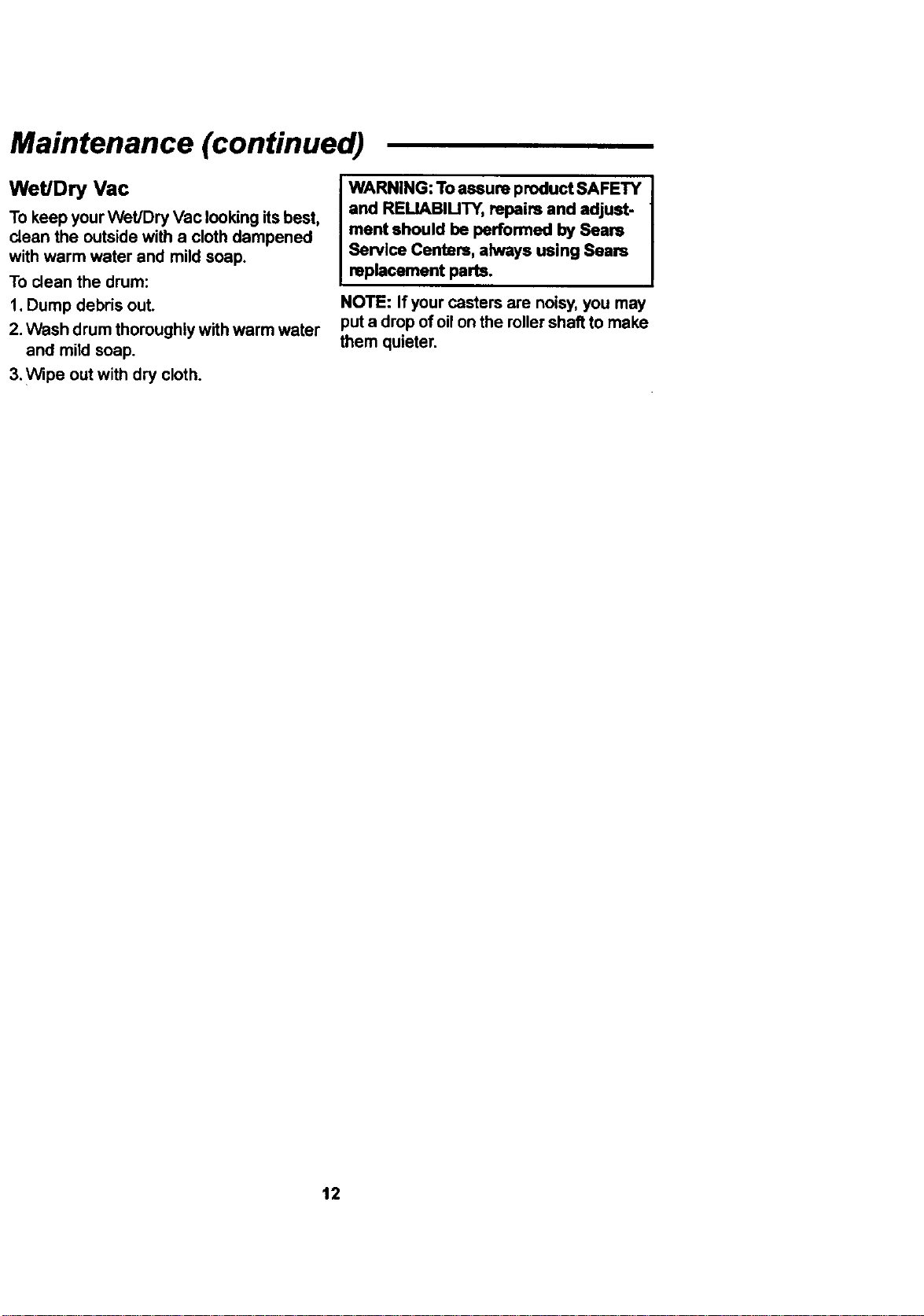

Maintenance (continued)
Wet/Dry Vac
To keep your Wet/Dry Vac looking its best,
clean the outside with a cloth dampened
with warm water and mild soap.
To dean the drum:
1, Dump debris out.
2. Wash drum thoroughly with warm water
and mild soap.
3. Wipe out with dry cloth.
WARNING: To assure product SAFETY
and REUABIUTY, repairs and adjust-
ment should be performed by Seam
Service Centem, always using Seam
replacement parts.
NOTE: If your castersare noisy,you may
puta dropofoil ontherollershaft to make
them quieter.
12

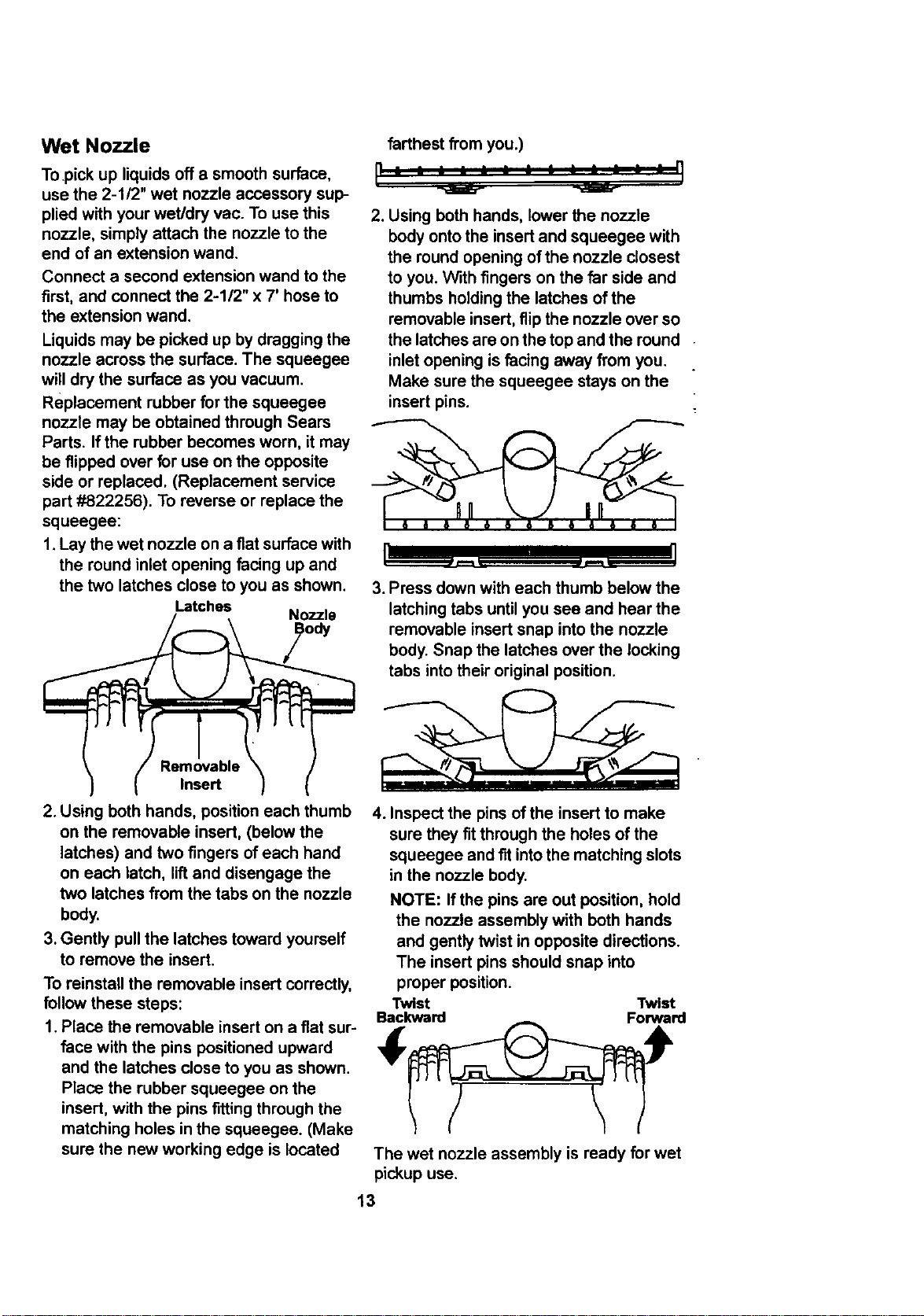

Wet Nozzle
To pick up liquids off a smooth surface,
use the 2-1/2" wet nozzle accessory sup-
plied with your wet/dry vac. To use this
nozzle, simply attach the nozzle to the
end of an extension wand.
Connect a second extension wand to the
first, and connect the 2-1/2" x 7' hose to
the extension wand.
Liquids may be picked up by dragging the
nozzle across the surface. The squeegee
will dry the surface as you vacuum.
Replacement rubber for the squeegee
nozzle may be obtained through Sears
Parts. If the rubber becomes worn, it may
be flipped over for use on the opposite
side or replaced. (Replacement service
part #822256). To reverse or replace the
squeegee:
1. Lay the wet nozzle on a fiat surface with
the round inlet opening facing up and
the two latches close to you as shown.
Latches
Nozzle
Removable
Insert
2. Using both hands, position each thumb
on the removable insert, (below the
latches) and two fingers of each hand
on each latch, lift and disengage the
two latches from the tabs on the nozzle
body.
3. Gently pull the latches toward yourself
to remove the insert.
To reinstall the removable insert correctly,
follow these steps:
1. Place the removable insert on a fiat sur-
face with the pins positioned upward
and the latches close to you as shown.
Place the rubber squeegee on the
insert, with the pins fitting through the
matching holes in the squeegee. (Make
sure the new working edge is located
farthest from you.)
2. Using both hands, lower the nozzle
body onto the insert and squeegee with
the round opening of the nozzle closest
to you. With fingers on the far side and
thumbs holding the latches of the
removable insert, flip the nozzle over so
the latches are on the top and the round
inlet opening is facing away from you.
Make sure the squeegee stays on the
insert pins.
3. Press down with each thumb below the
latching tabs until you see and hear the
removable insert snap into the nozzle
body. Snap the latches over the locking
tabs into their original position.
4. Inspect the pins of the insert to make
sure they fit through the holes of the
squeegee and fit into the matching slots
in the nozzle body.
NOTE: If the pins are out position, hold
the nozzle assembly with both hands
and gently twist in opposite directions.
The insert pins should snap into
proper position.
Twist Twist
The wet nozzle assembly is ready for wet
pickup use.
13

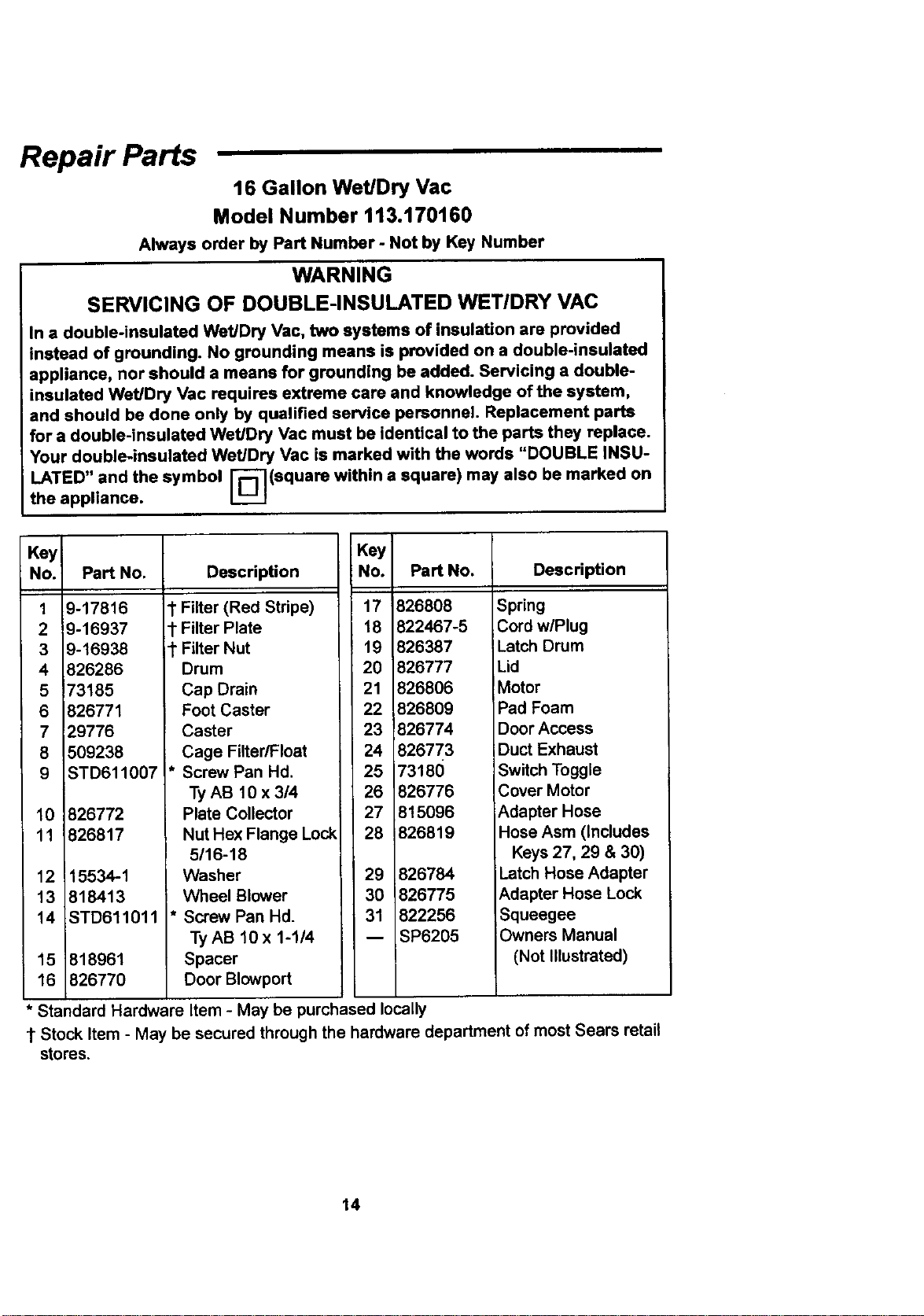

Repair Parts
16 Gallon Wet/Dry Vac
Model Number 113.170160
Always order by Part Number - Not by Key Number
WARNING
SERVICING OF DOUBLE-INSULATED WETIDRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-
insulated Wet/Dry Vac requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts
for a double-insulated Wet/Dry Vac must be identical to the parts they replace.
Your double-insulated Wet/Dry Vac is marked with the words "DOUBLE INSU-
LATED" and the symbol I-_(square within a square) may also be marked on
the appliance.
Key
No. Part No.
1 9-17816
2 9-16937
3 9-16938
4 826286
5 73185
6 826771
7 29776
8 509238
9 STD611007 *
10
11
12
13
14
15
16
826772
826817
15534-1
818413
STD611011 *
818961
826770
Description
1"Filter (Red Stripe)
t Filter Plate
1"Filter Nut
Drum
Cap Drain
Foot Caster
Caster
Cage Filter/Float
Screw Pan Hd.
TyAB 10 x 3/4
Plate Collector
Nut Hex Flange Lock
5/16-18
Washer
Wheel Blower
Screw Pan Hd.
Ty AB 10 x 1-1/4
Spacer
Door Blowport
Key
No. Part No.
17 826808
18 822467-5
19 826387
20 826777
21 826806
22 826809
23 !826774
24 826773
25 73180
26 _26776
27 815096
28 826819
29
30
31
826784
826775
822256
SP6205
Description
Spring
Cord w/Plug
Latch Drum
Lid
Motor
Pad Foam
Door Access
Duct Exhaust
Switch Toggle
Cover Motor
Adapter Hose
Hose Asm (Includes
Keys 27, 29 & 30)
Latch Hose Adapter
Adapter Hose Lock
Squeegee
Owners Manual
(Not Illustrated)
* Standard Hardware Item - May be purchased locally
t Stock Item - May be secured through the hardware department of most Sears retail
stores.
14

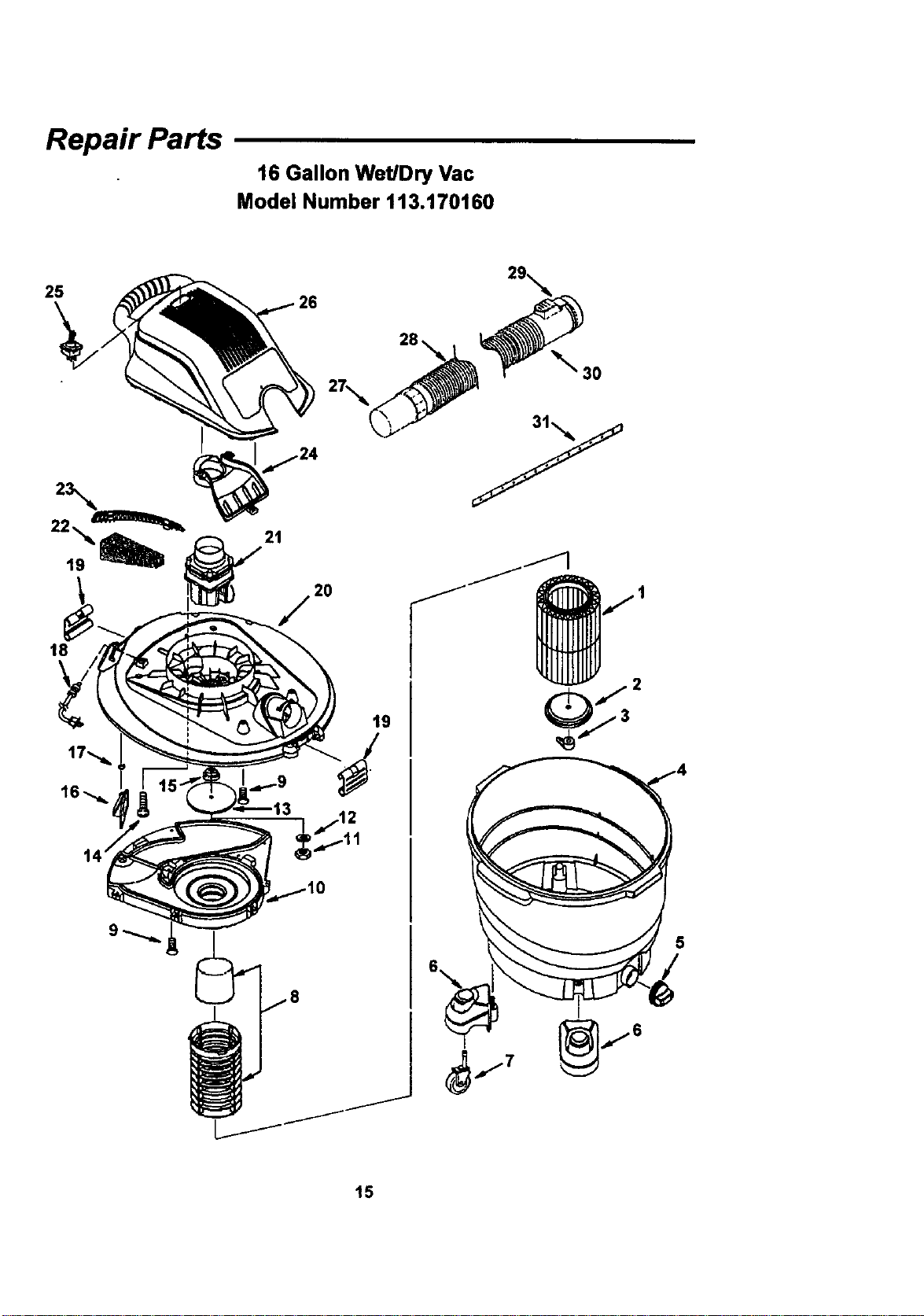

Repair Parts
16 Gallon Wet/Dry Vac
Model Number 113.170t60
25
26
20
18
,....-10
19
30
jj.l_l
I
5
15
£RRFTSMRN

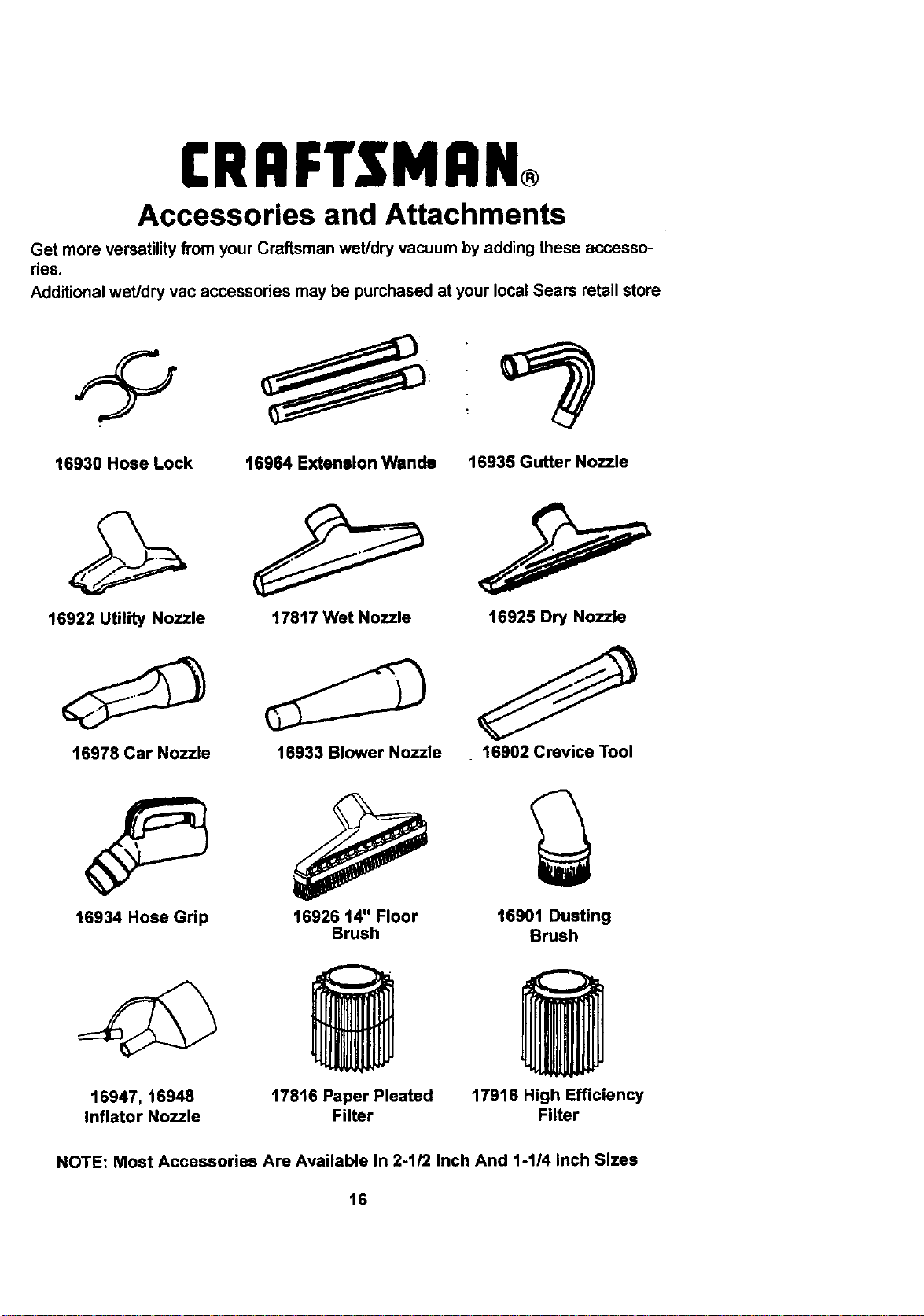

Accessories and Attachments
Get more versatility from your Craftsman wet/dry vacuum by adding these accesso-
ries,
Additional wet/dry vac accessories may be purchased at your local Sears retail store
16930 Hose Lock 16964 ExtenMon Wands 16935 Gutter Nozzle
16922 Utility Nozzle 17817 Wet Nozzle 16925 Dry Nozzle
16978 Car Nozzle 16933 Blower Nozzle
. 16902 Crevice Tool
16934 Hose Grip
16947,16948
Inflator Nozzle
16926 14" Floor 16901 Dusting
Brush Brush
17816 Paper Pleated
Filter
17916 High Efficiency
Filter
NOTE: Most Accessories Are Available In 2-112 Inch And 1-I/4 Inch Sizes
16
Sawdust Collection Series
l
Whole-shop Sawdust Manifold-Type Collection System
29964
Radial Arm Saw
Dust Collection Kit
29963
Table Saw Dust
Collection Kit
29962
17
Notes
18
Notes
19

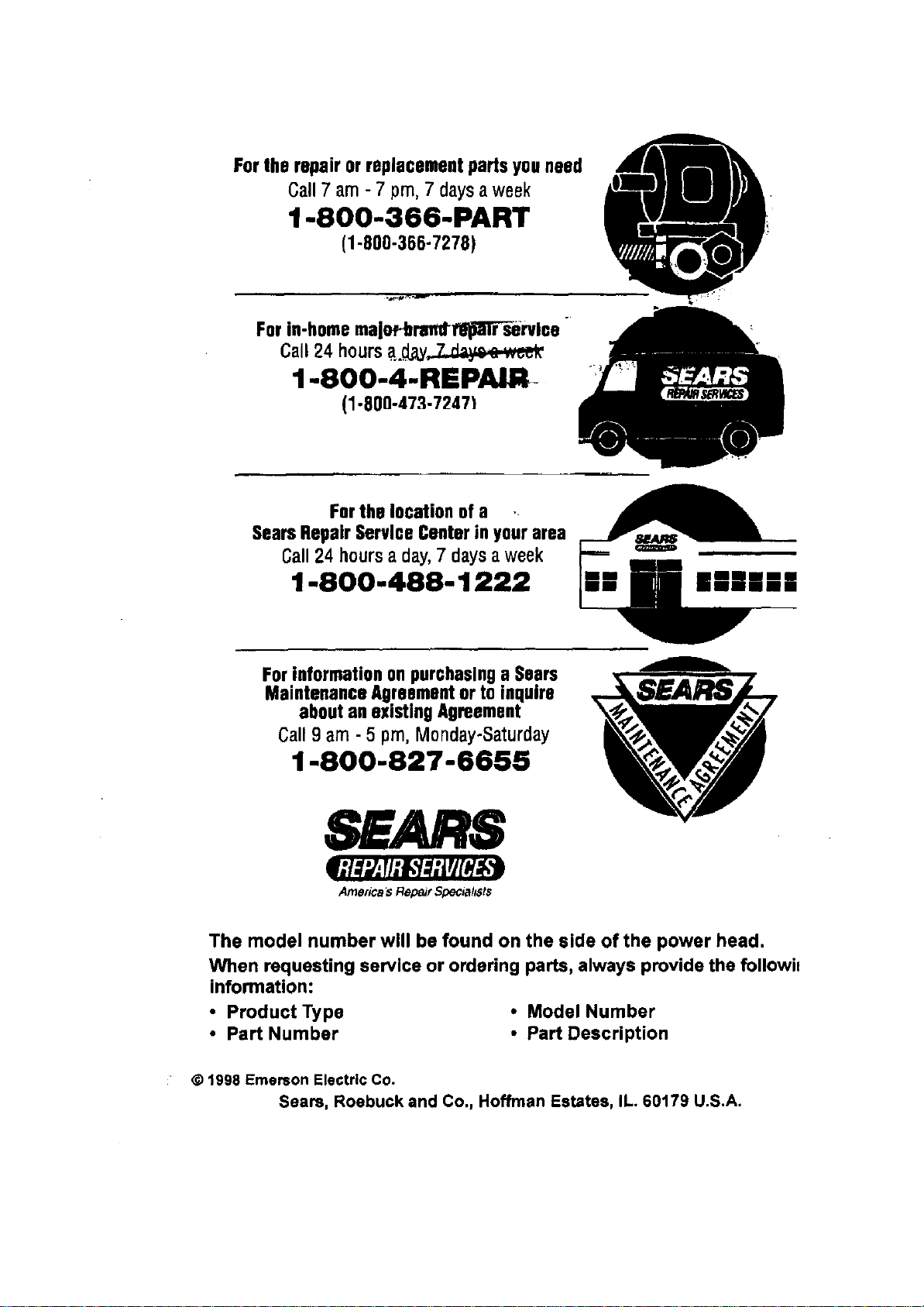

For the repair orreplacementpartsyou need
Call7 am - 7 pro,7 daysaweek
1-8OO-366-PART
(1-800-366-7278)
For in-homemaJo_zrend'_rvioe -
Call24 hours a cJ._y_
1-800-4-REPAIA-
(1-800-473-7247t
Forthe locationof a
SearsRepairServiceCenterin yourarea
Call24 hours a day,7 daysaweek
1-800-488-1222 Bi||||
For informationonpurchasinga Sears _--
MaintenanceAgreementor to inquire
aboutan existingAgreement
Call9 am - 5 prn,Monday-Saturday
1-800-827-6655
SEARS
America _ Repair Specia/_sts
The model number will be found on the side of the power head.
When requesting service or ordering parts, always provide the followil
information:
• Product Type
• Part Number
• Model Number
• Part Description
@ 1998 Emerson Electric Co.
Seam, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
