User Manual Craftsman 580327150 2400-Watt Ac Portable Generator

Documents for Craftsman 580327150

User Manual

For 580327150. Also, The document are for others Craftsman models: 580.327152

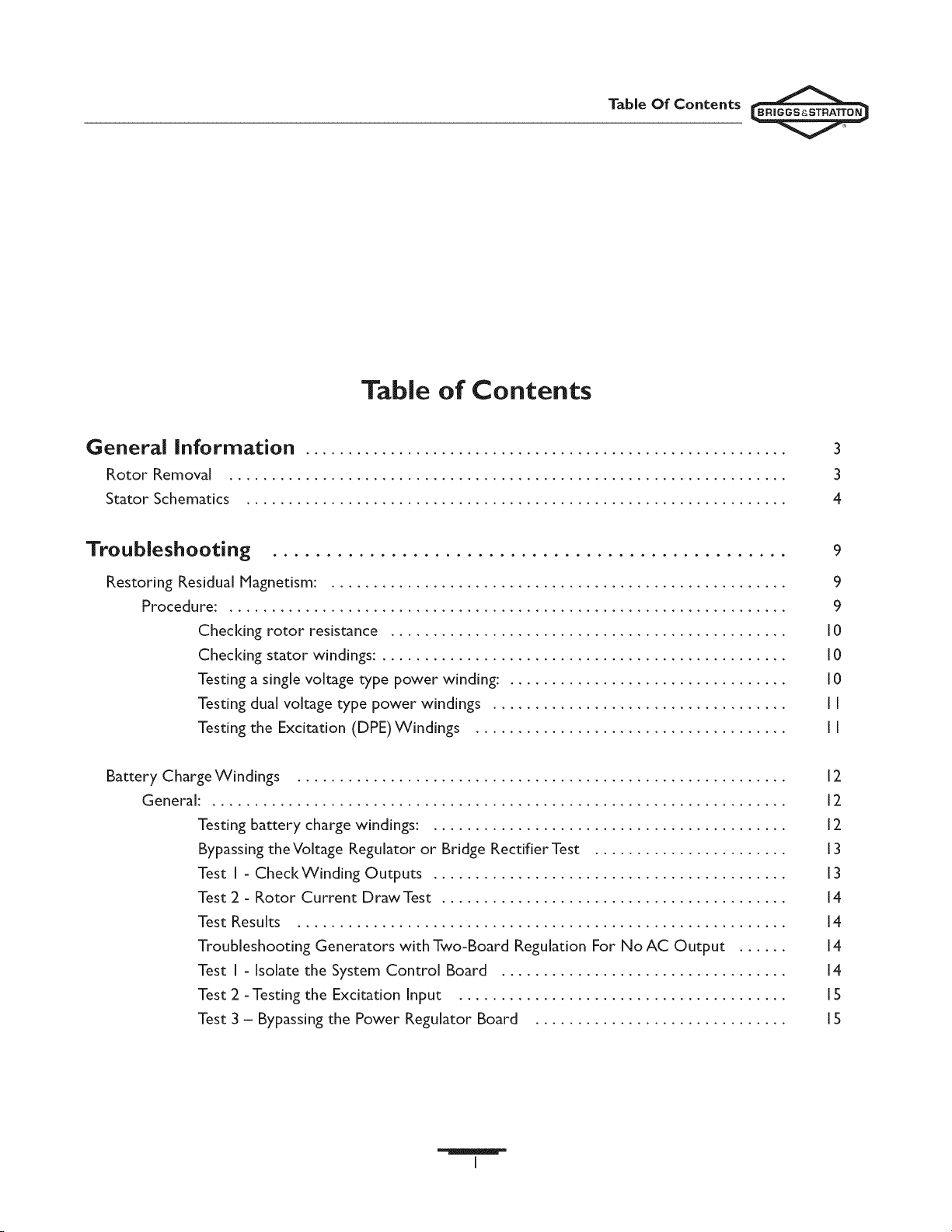

• General Information3

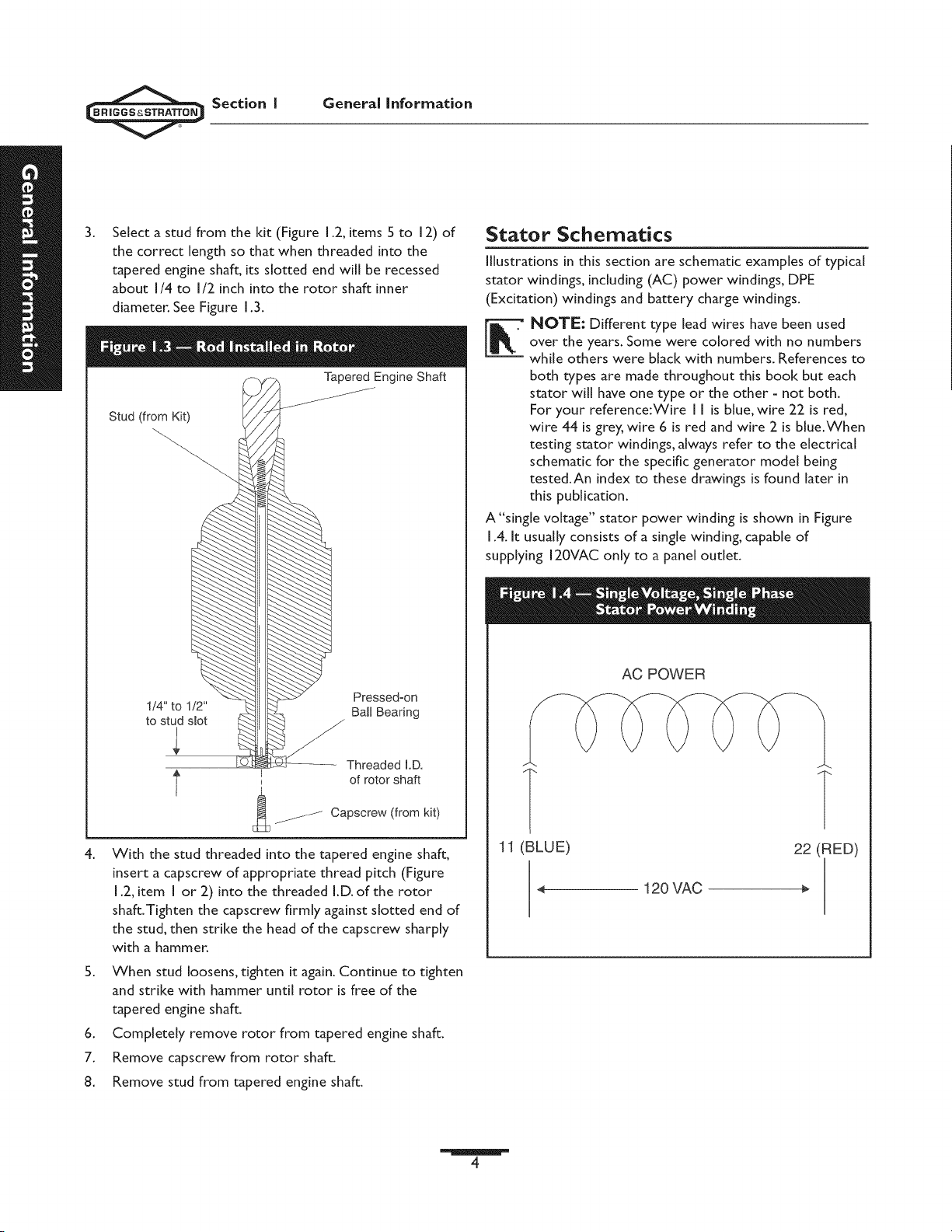

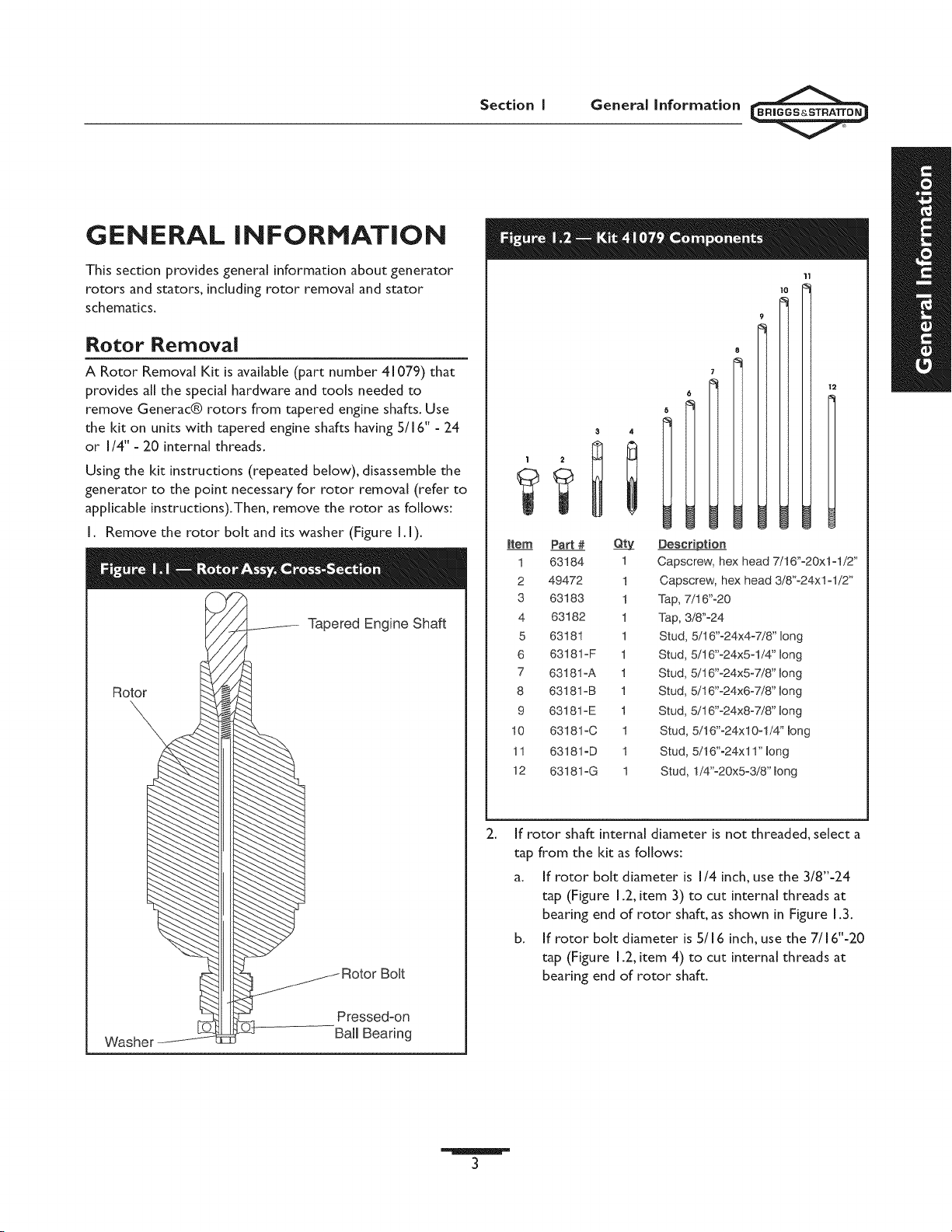

  • Rotor Removal3

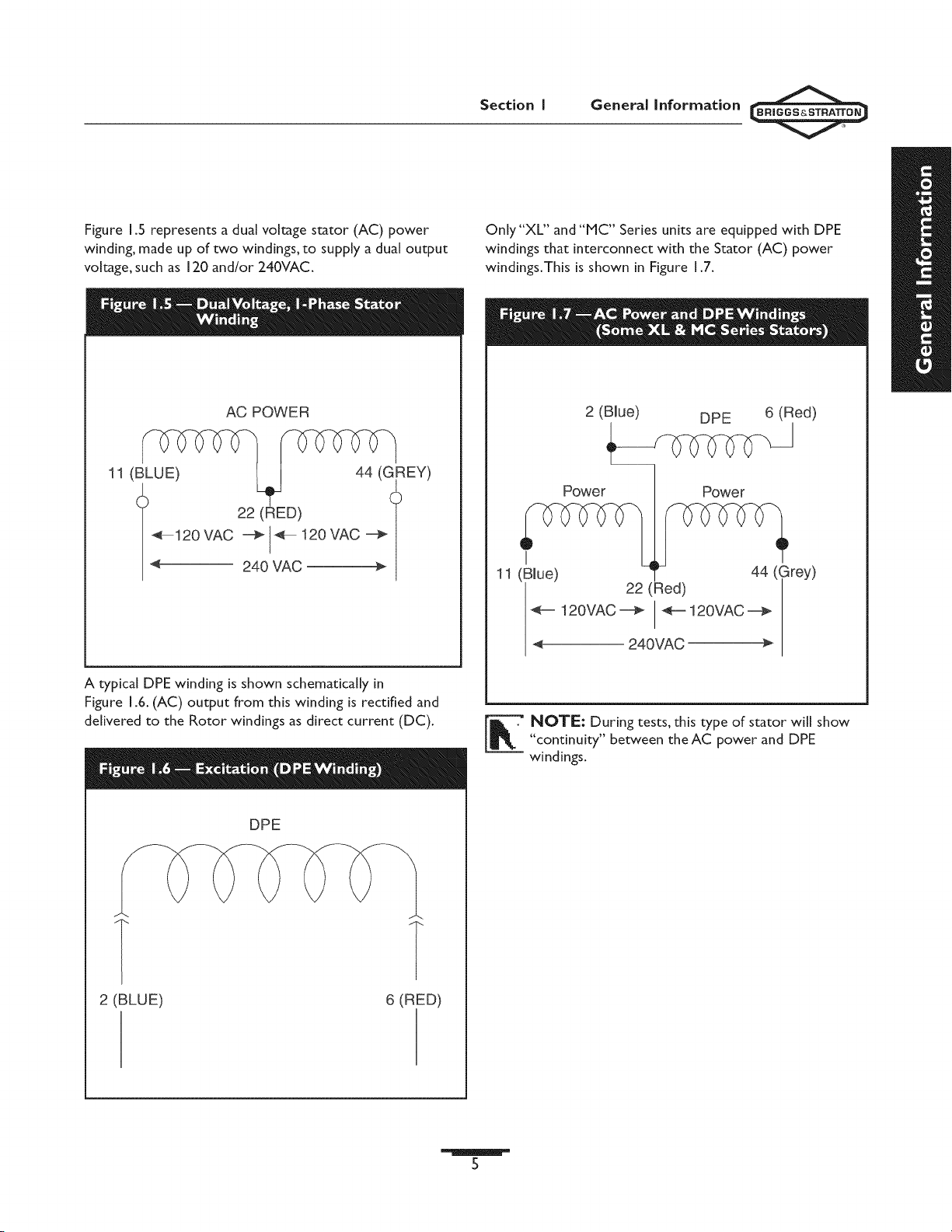

  • Stator Schematics4
• Troubleshooting9

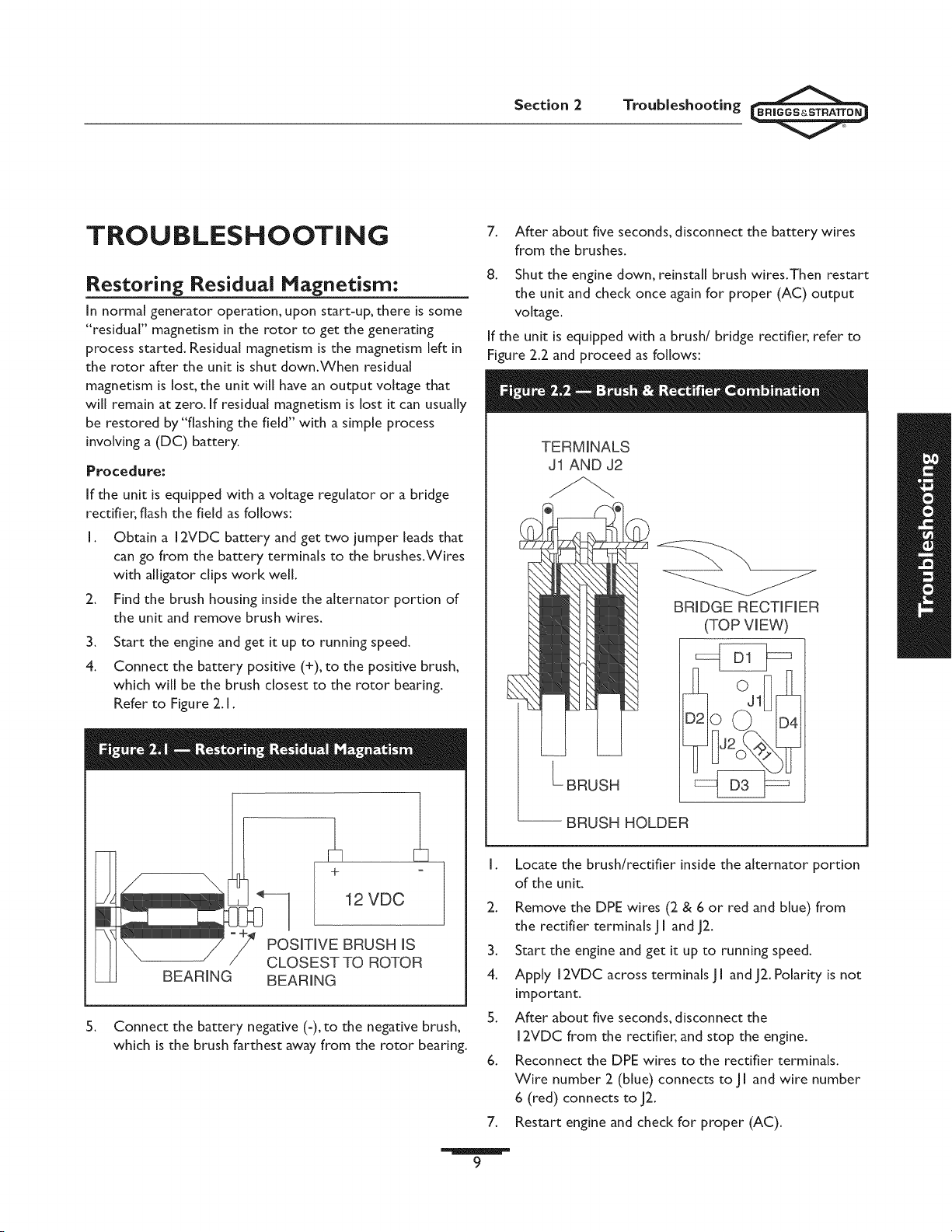

  • Restoring Residual Magnetism9
    • Procedure9

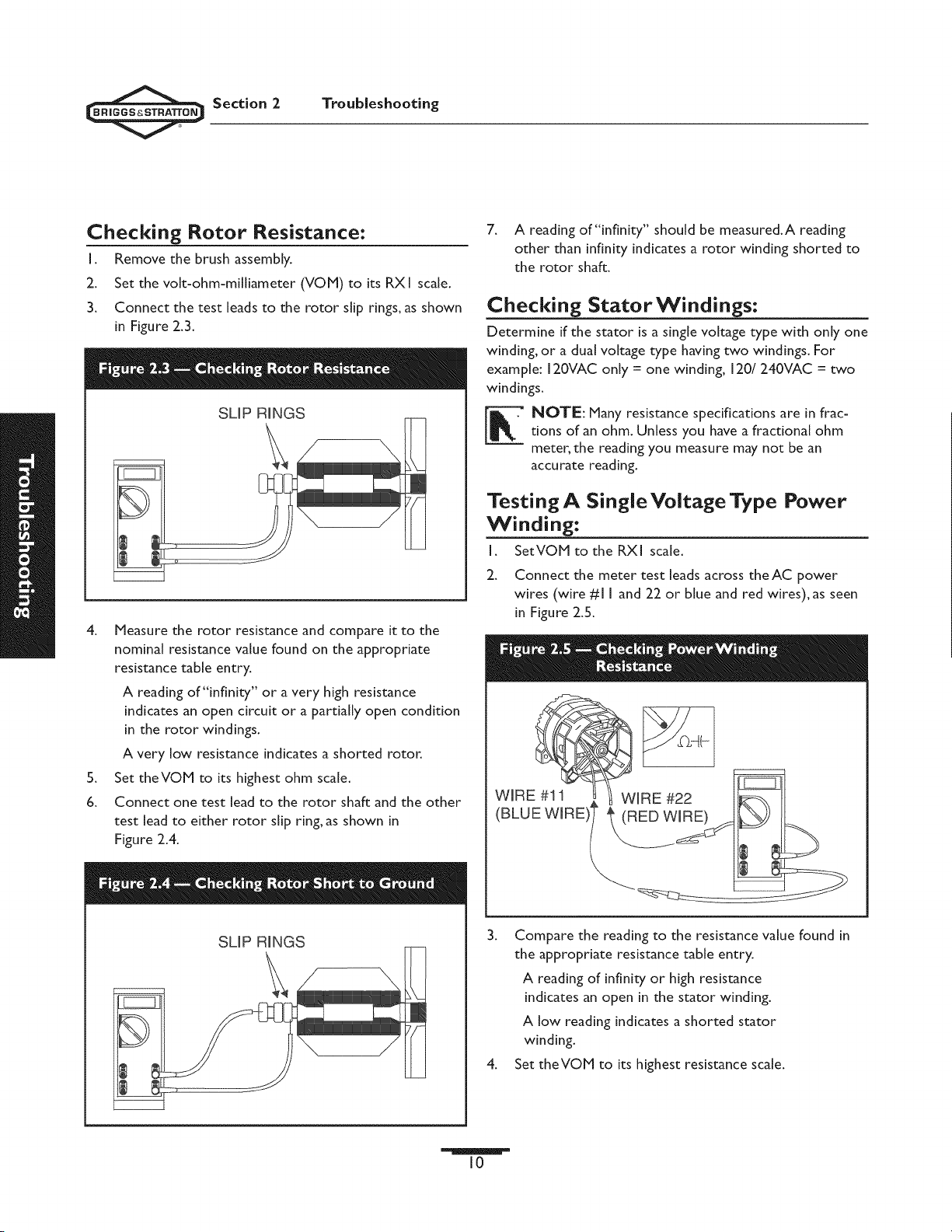

      • Checking Rotor Resistance.10
      • Checking Stator Windings10
      • Testing A Single Voltage Type Power Winding10
      • Testing Dual Voltage Type Power Windings11

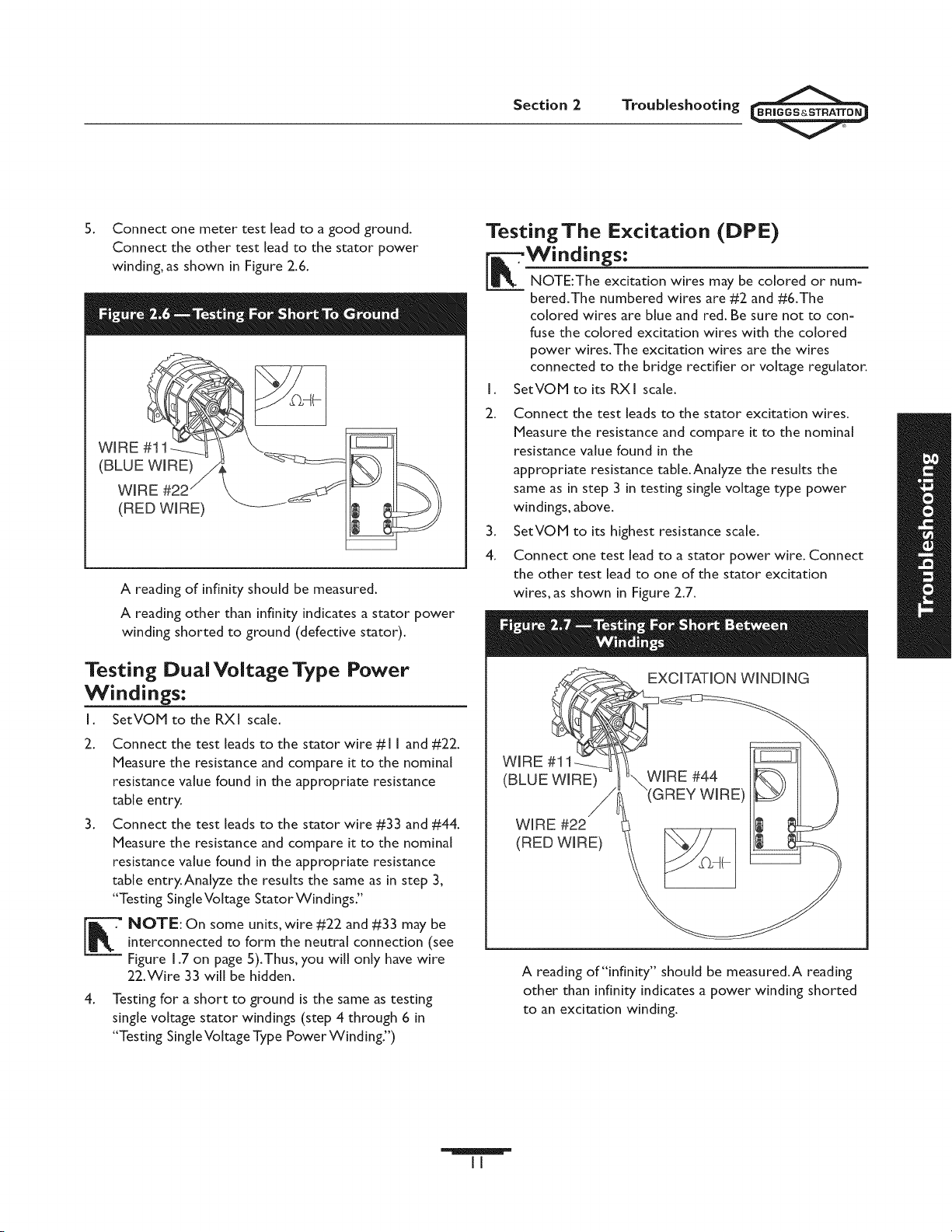

      • Testing The Excitation (DPE) Windings11

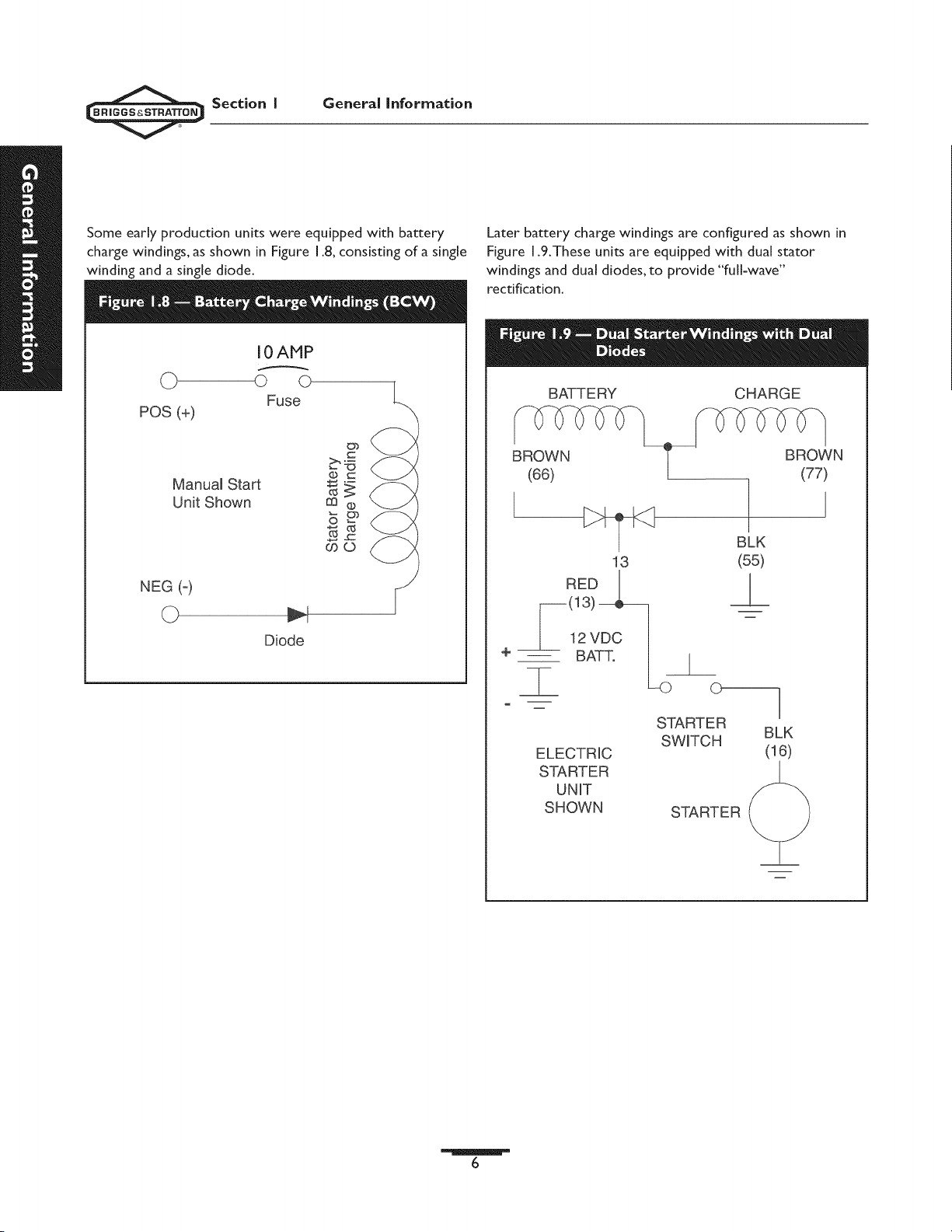

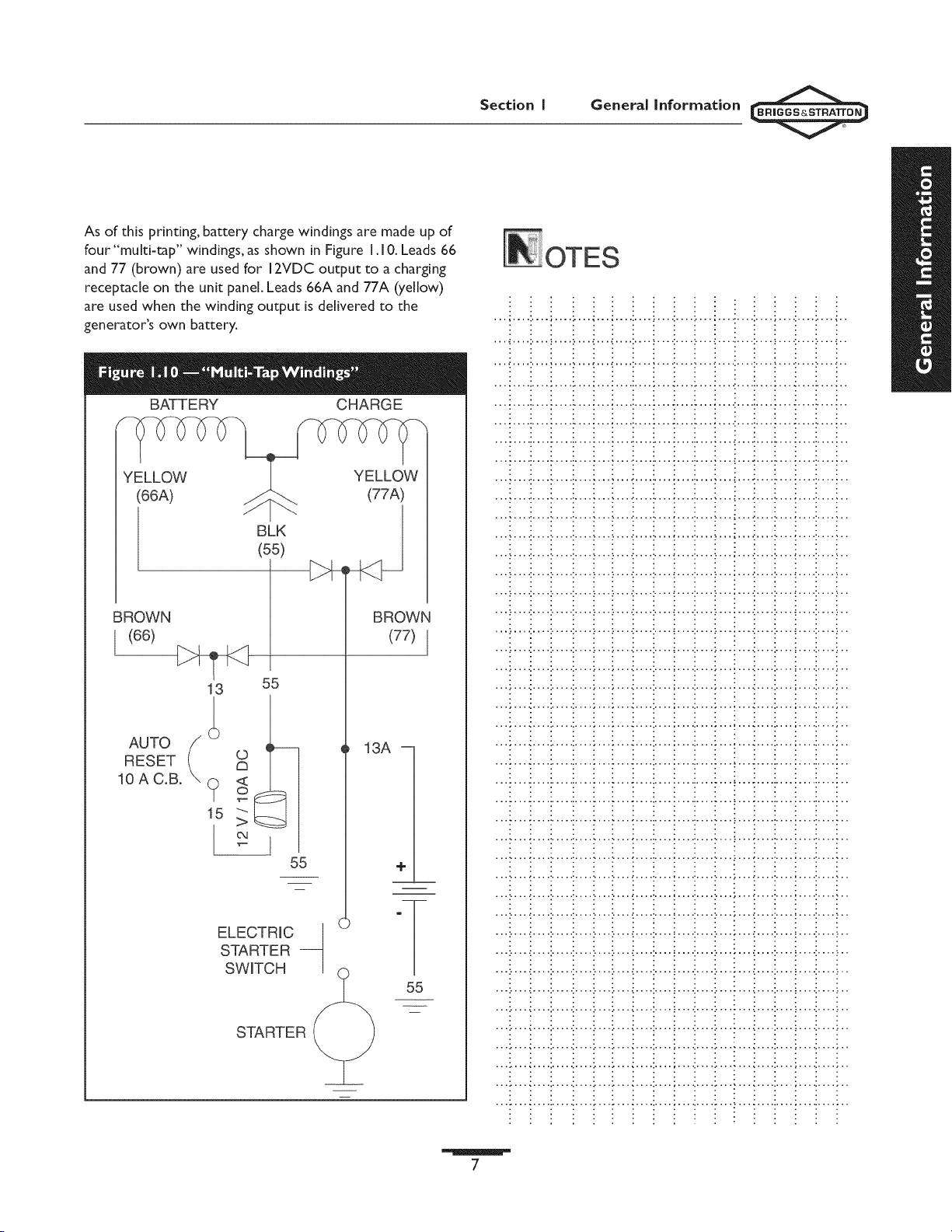

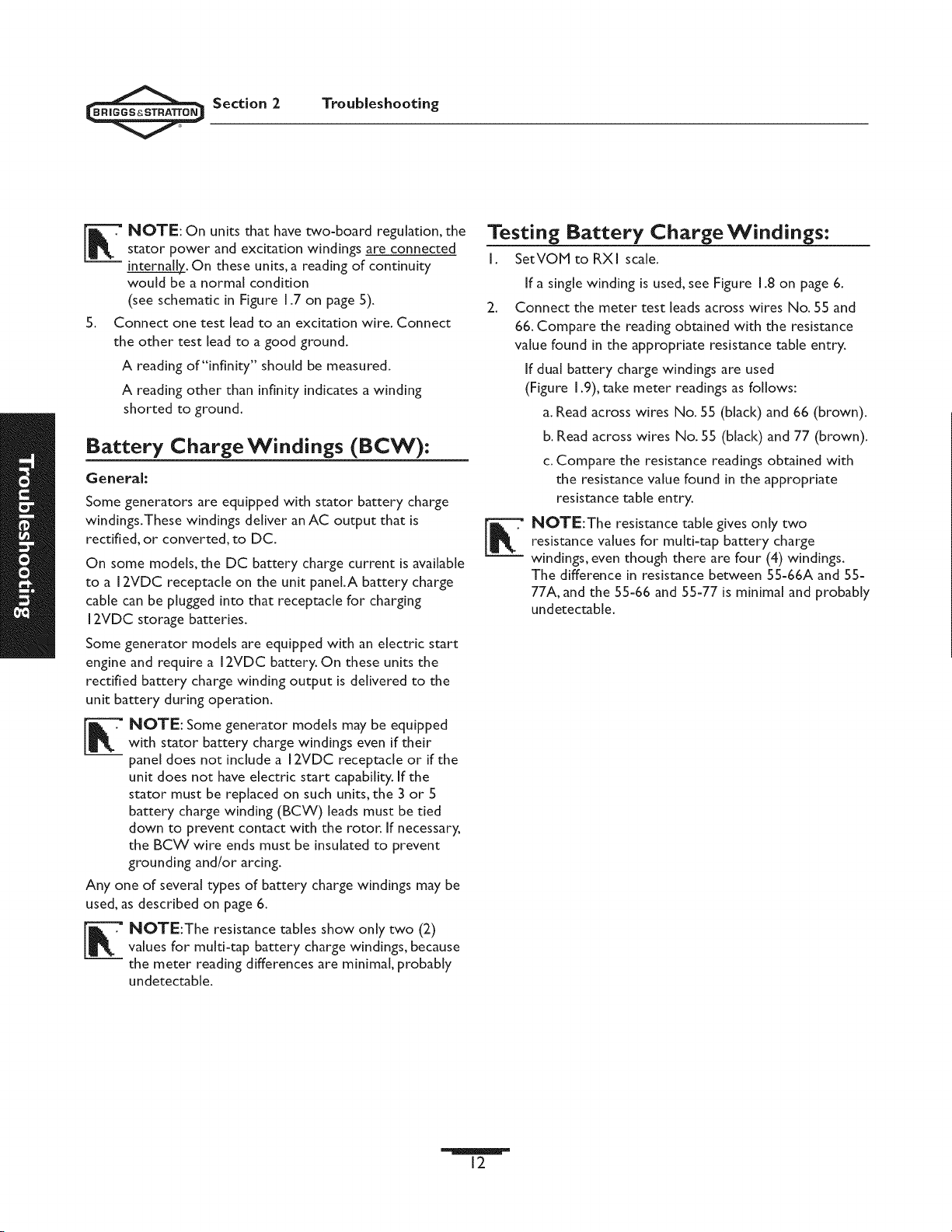

  • Battery Charge Windings12
    • General12
      • Testing Battery Charge Windings12
      • Bypassing The Voltage Regulator Or Bridge Rectifier Test13
      • Test 1 Check Winding Outputs13
      • Test 2 Rotor Current DrawTest.14
      • Test Results14
      • Troubleshooting Generators With Two Board Regulation For No AC Output14

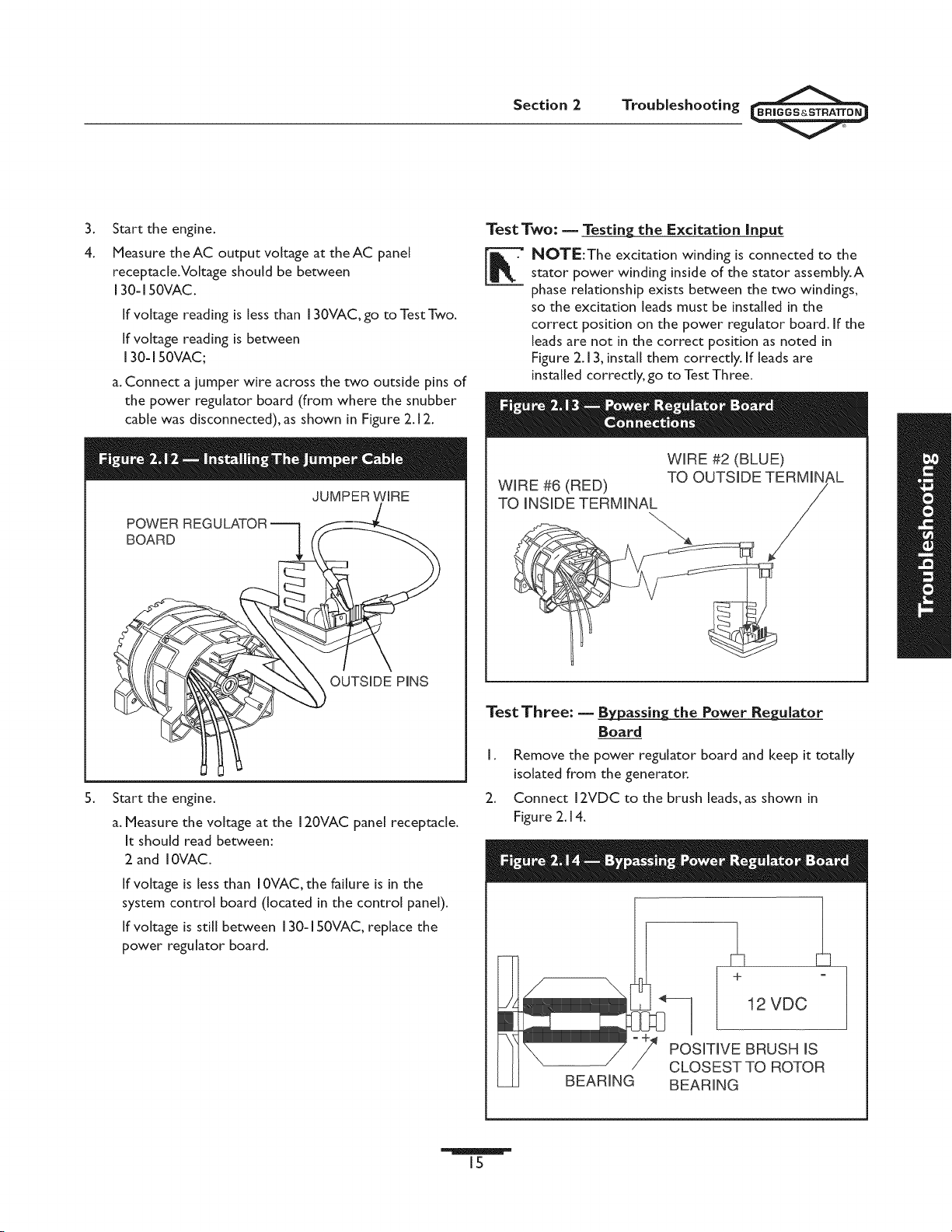

      • Test 1 Isolate The System Control Board14
      • Test 2 Testing The Excitation Input15

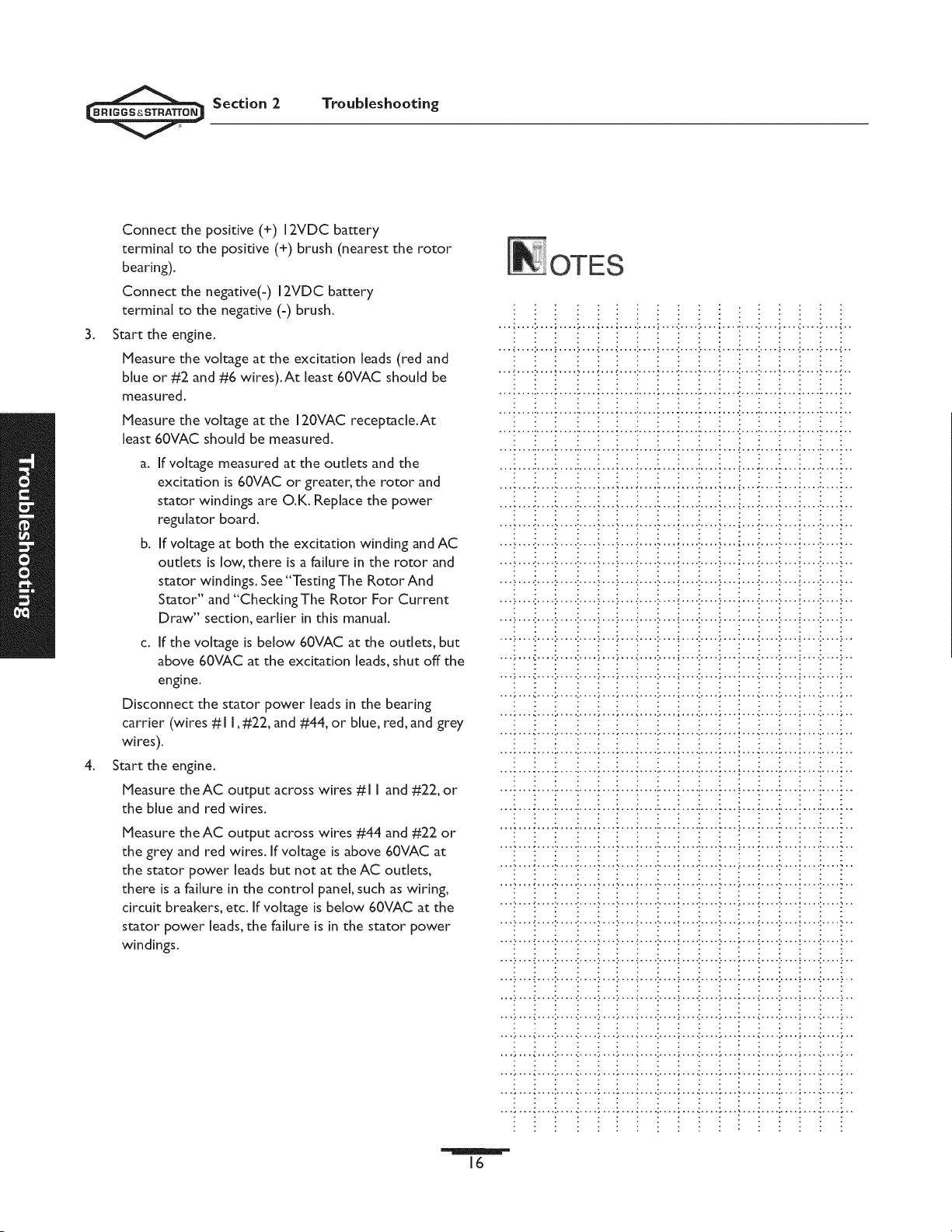

      • Test 3 — Bypassing The Power Regulator Board15

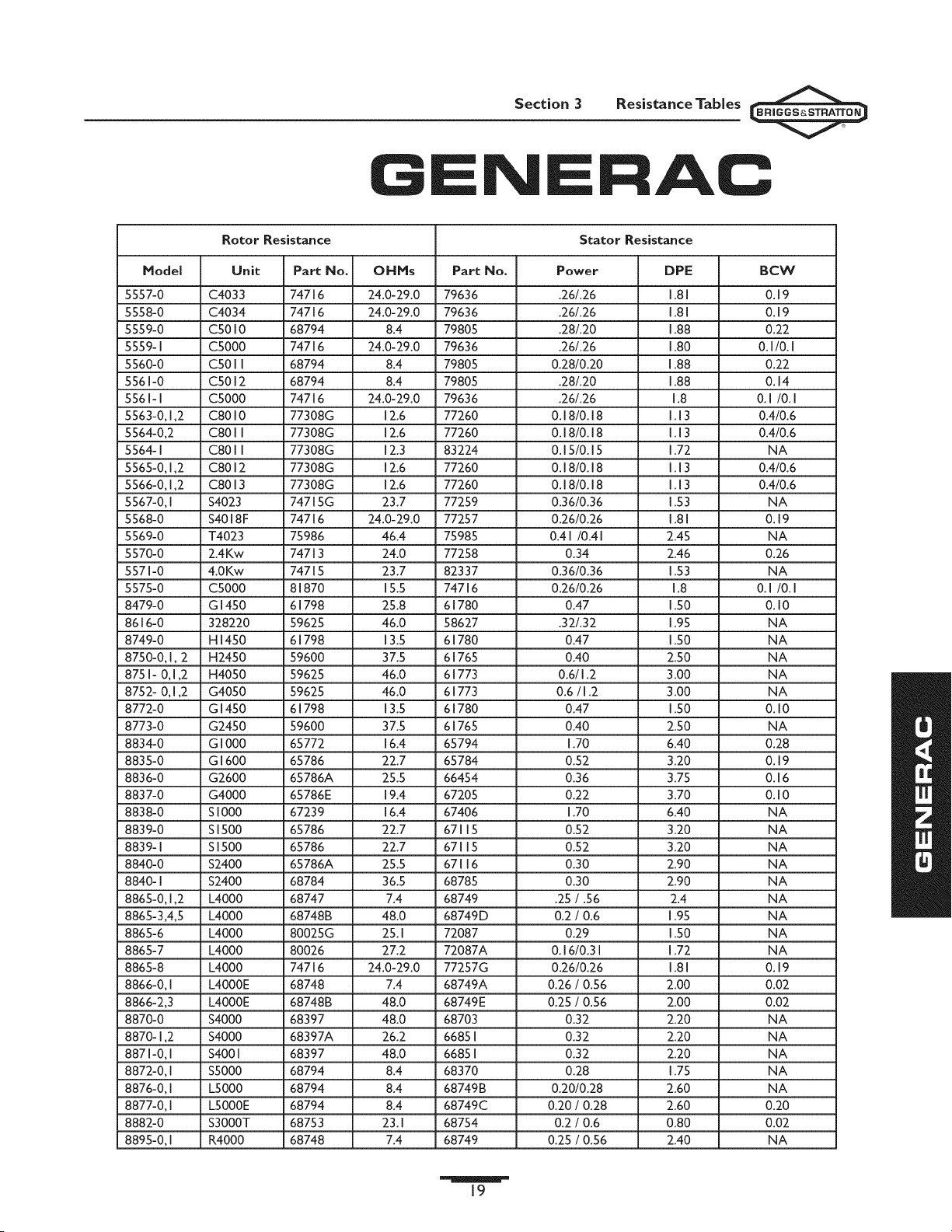

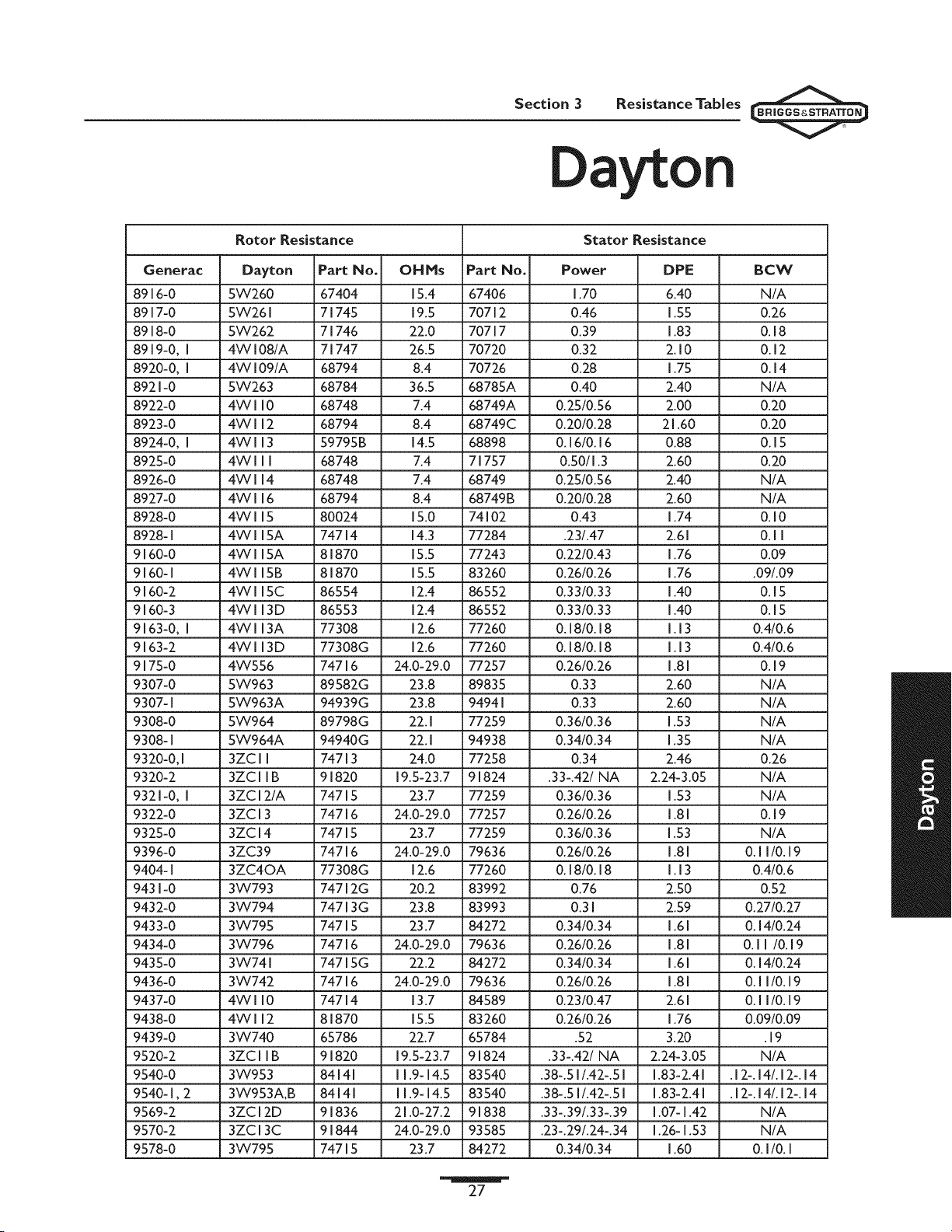

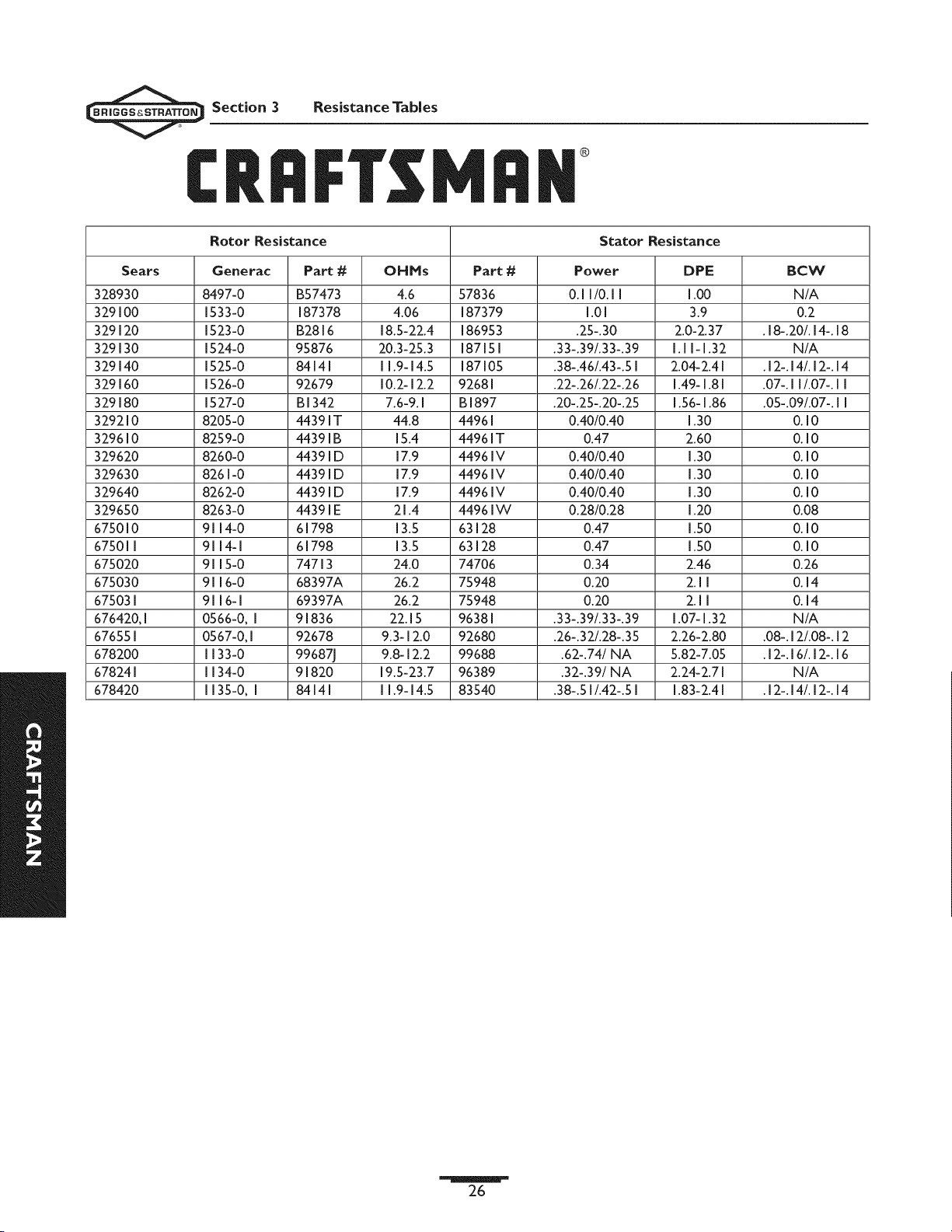

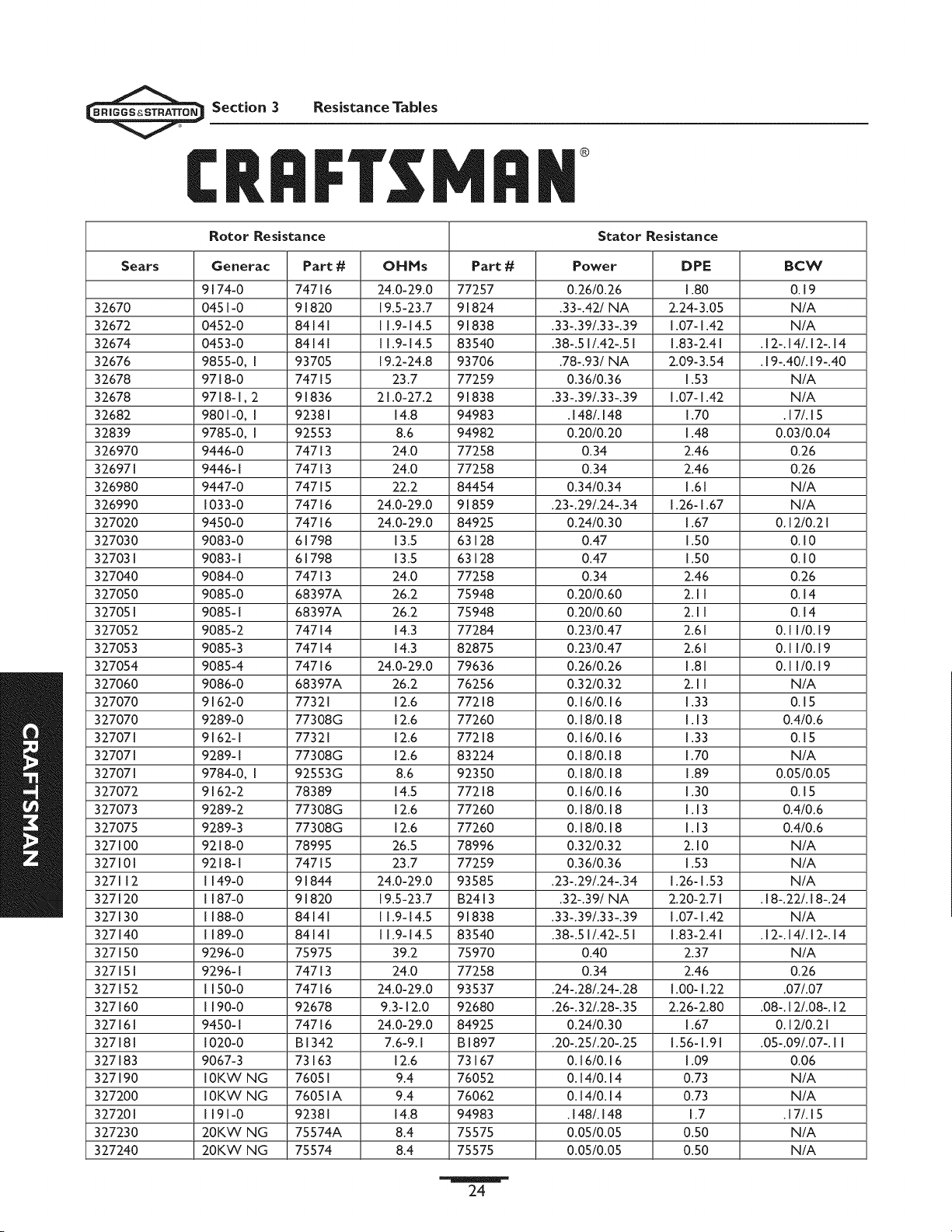

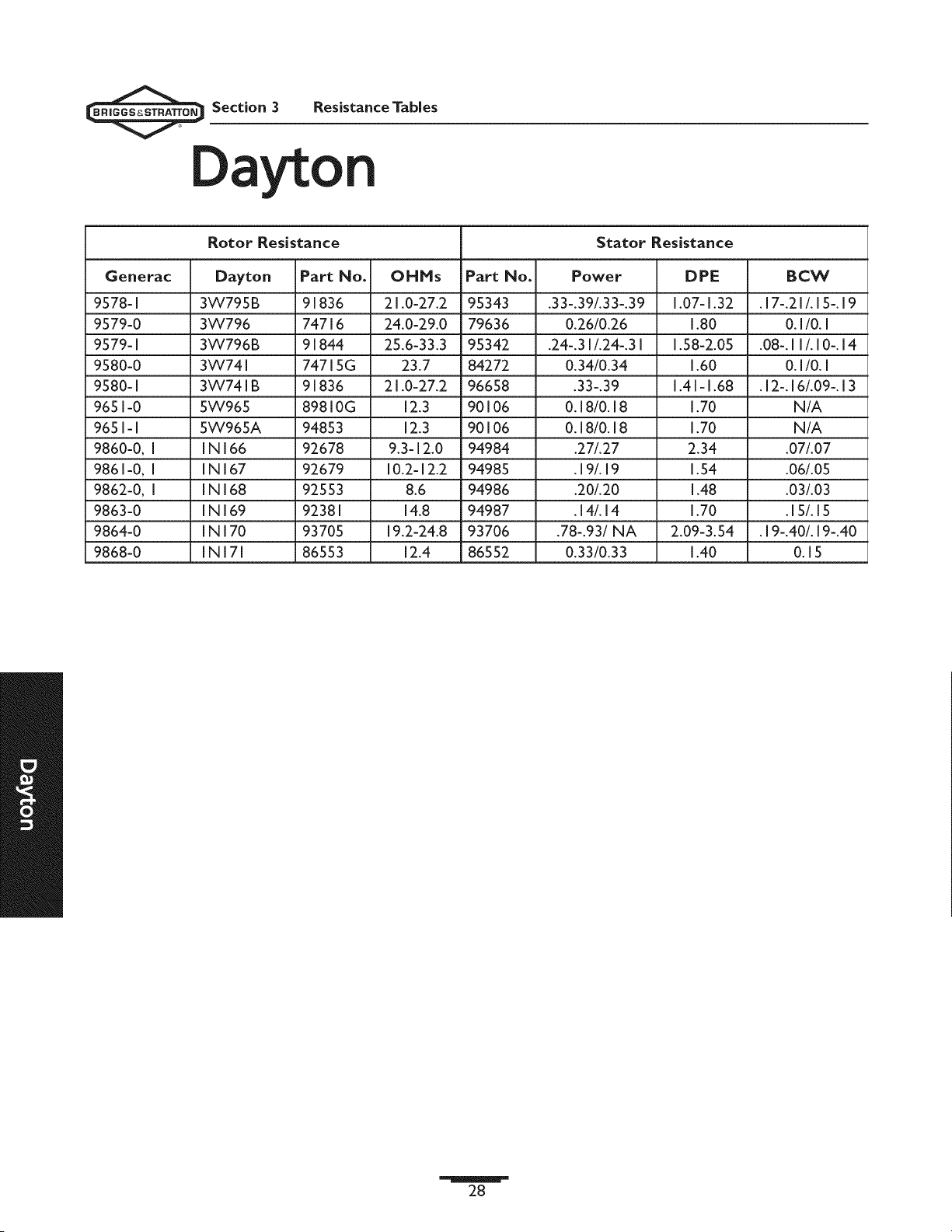

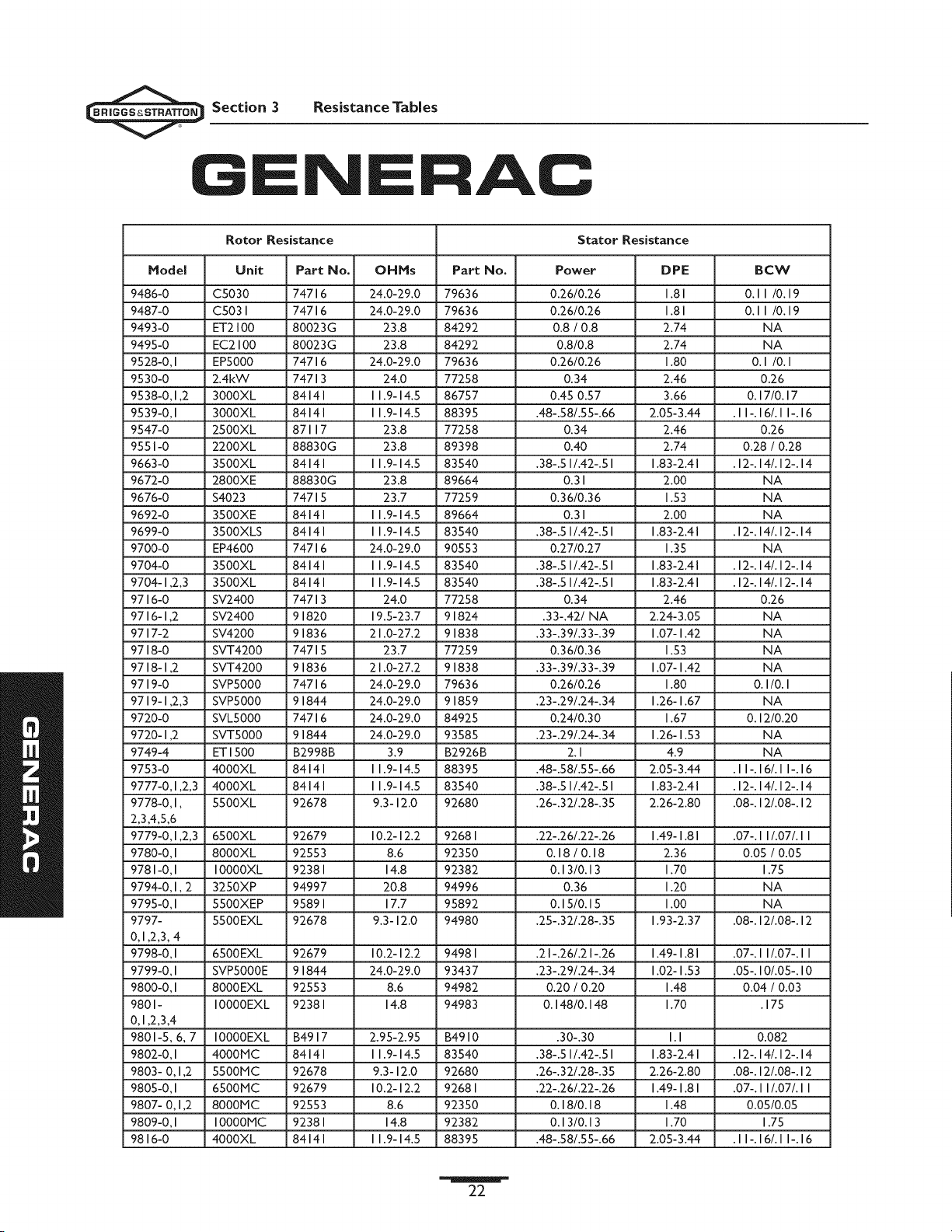

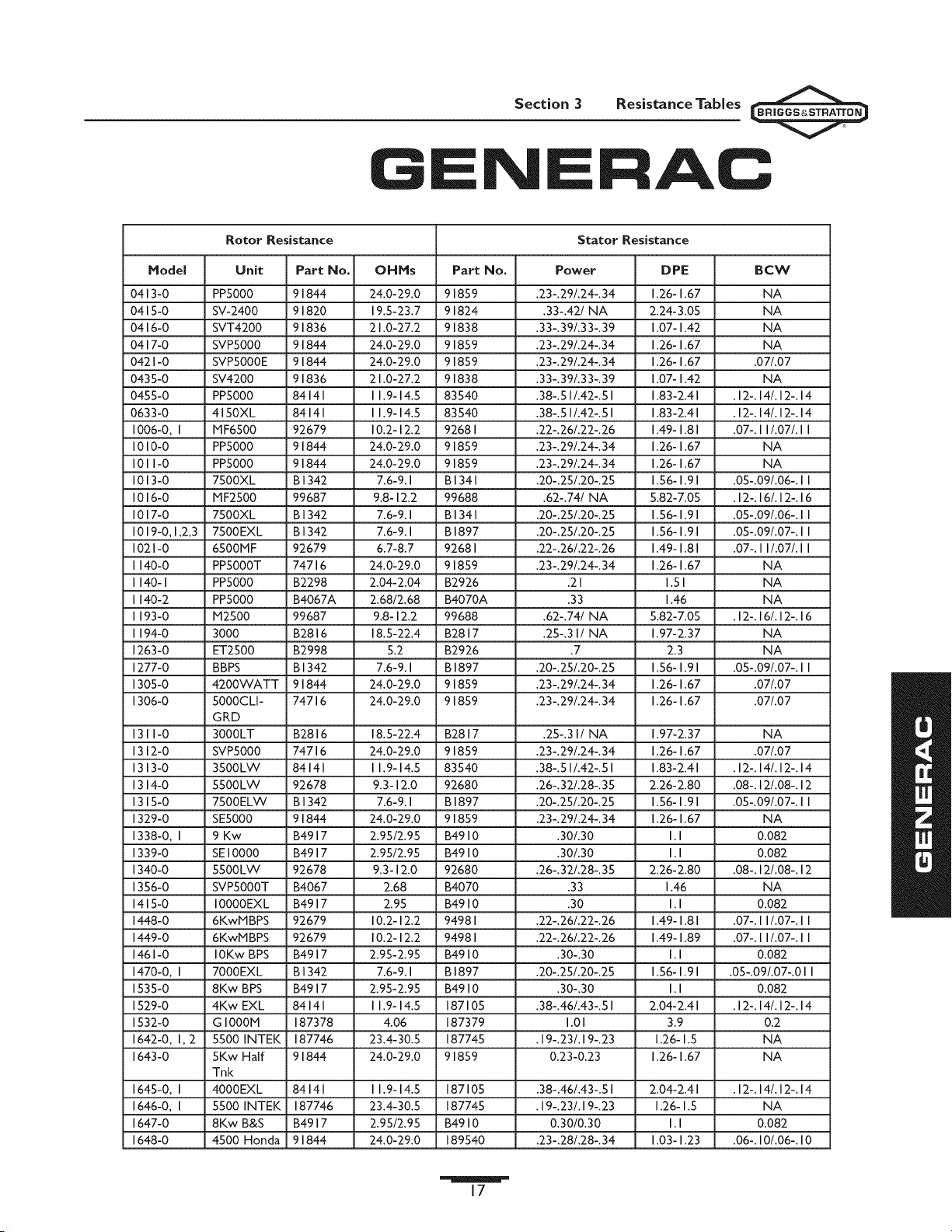

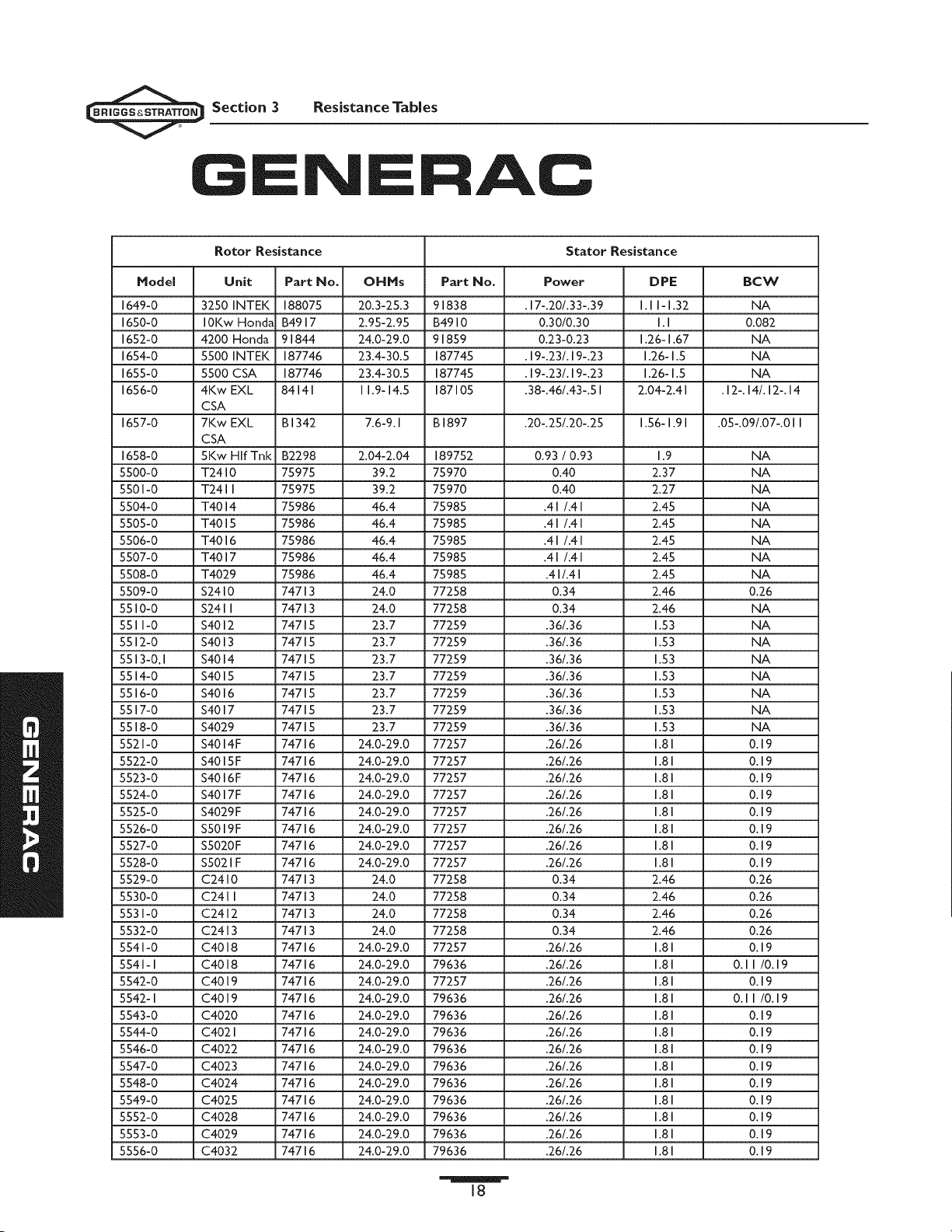

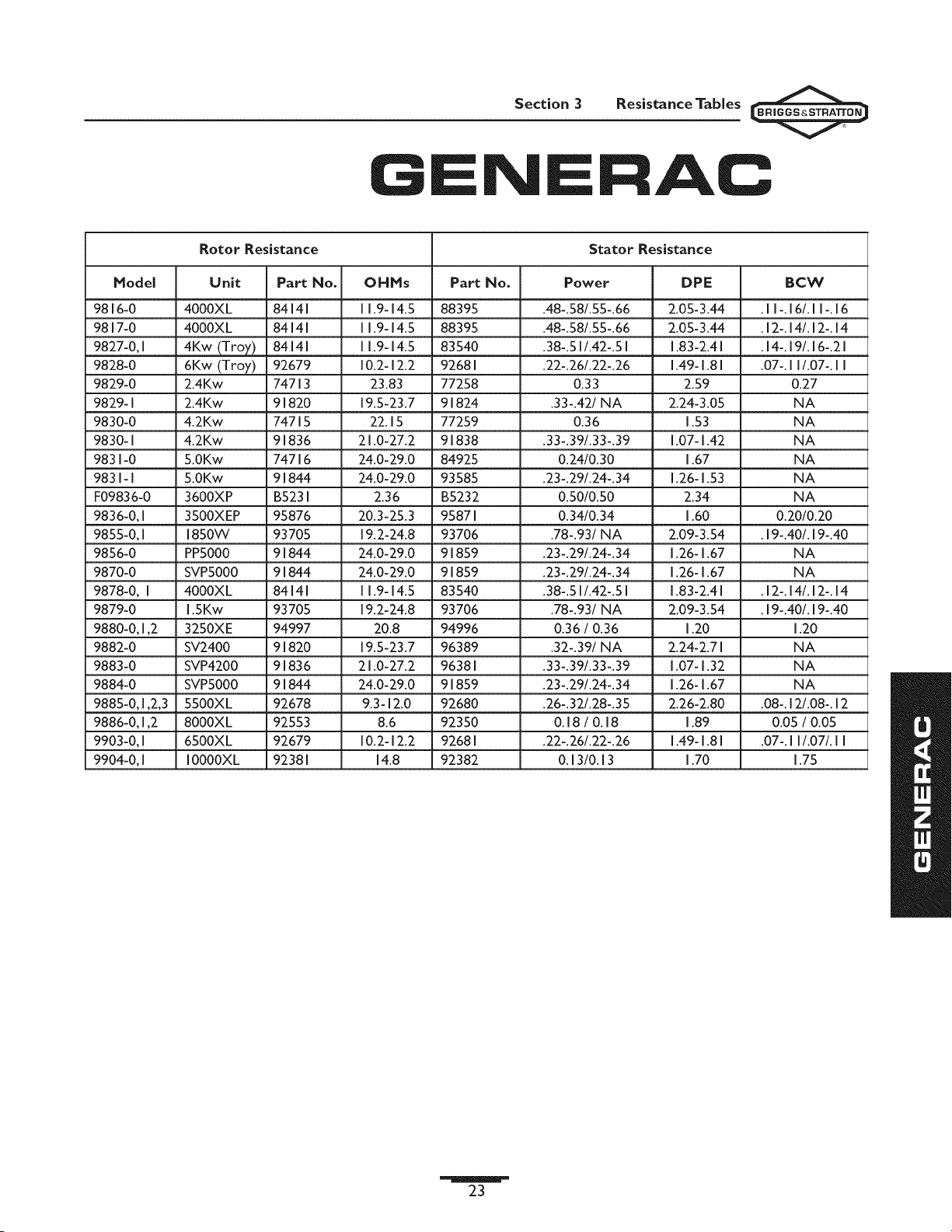

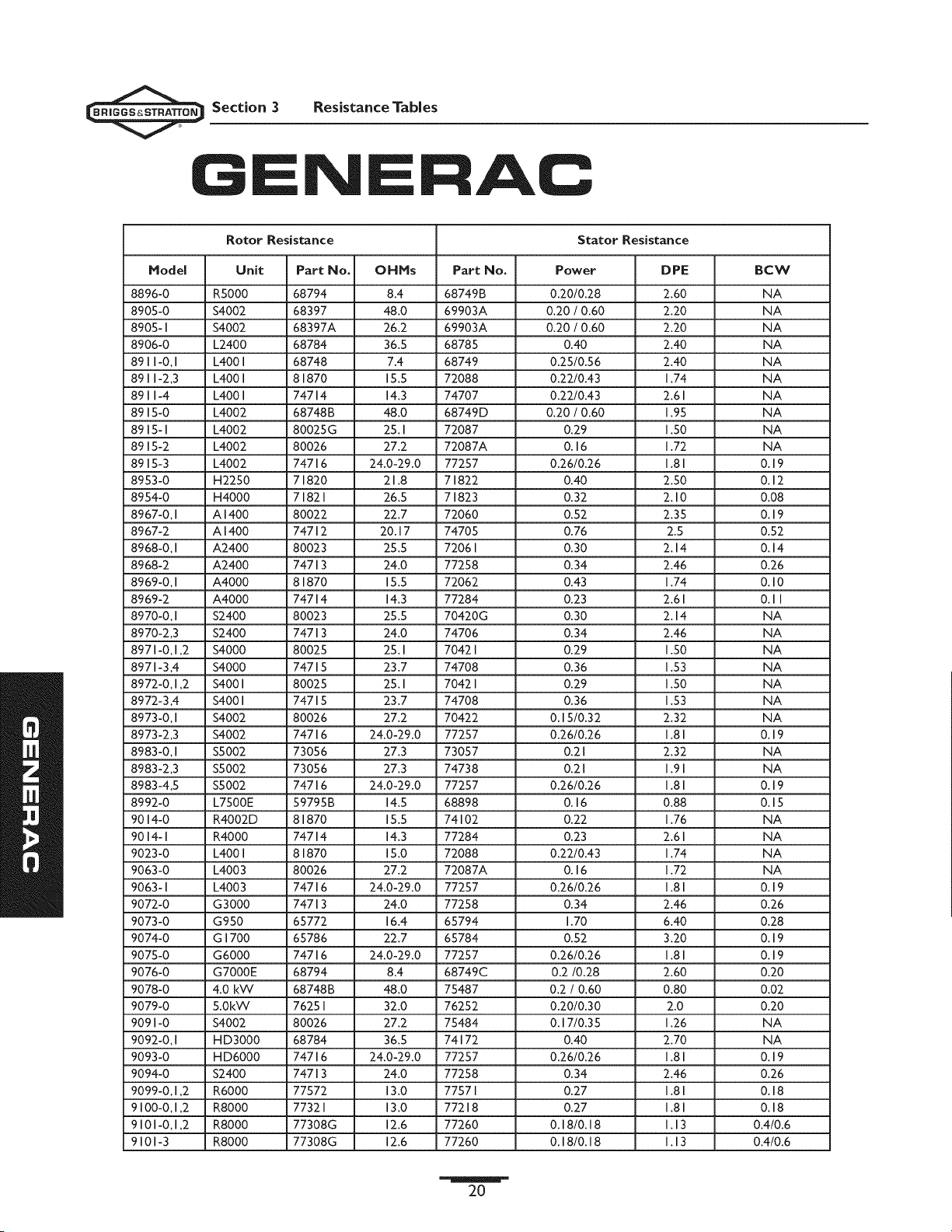

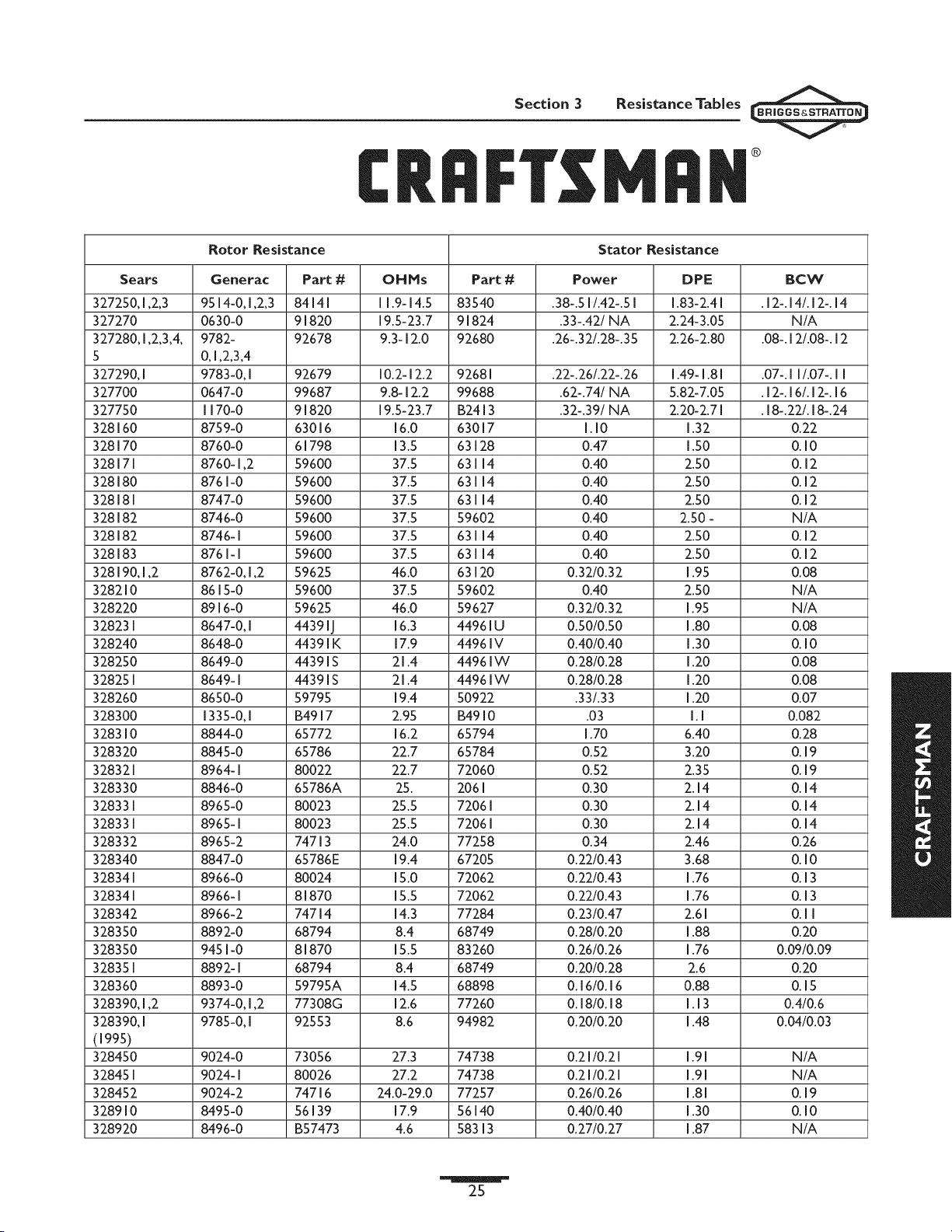

• Resistance Tables17

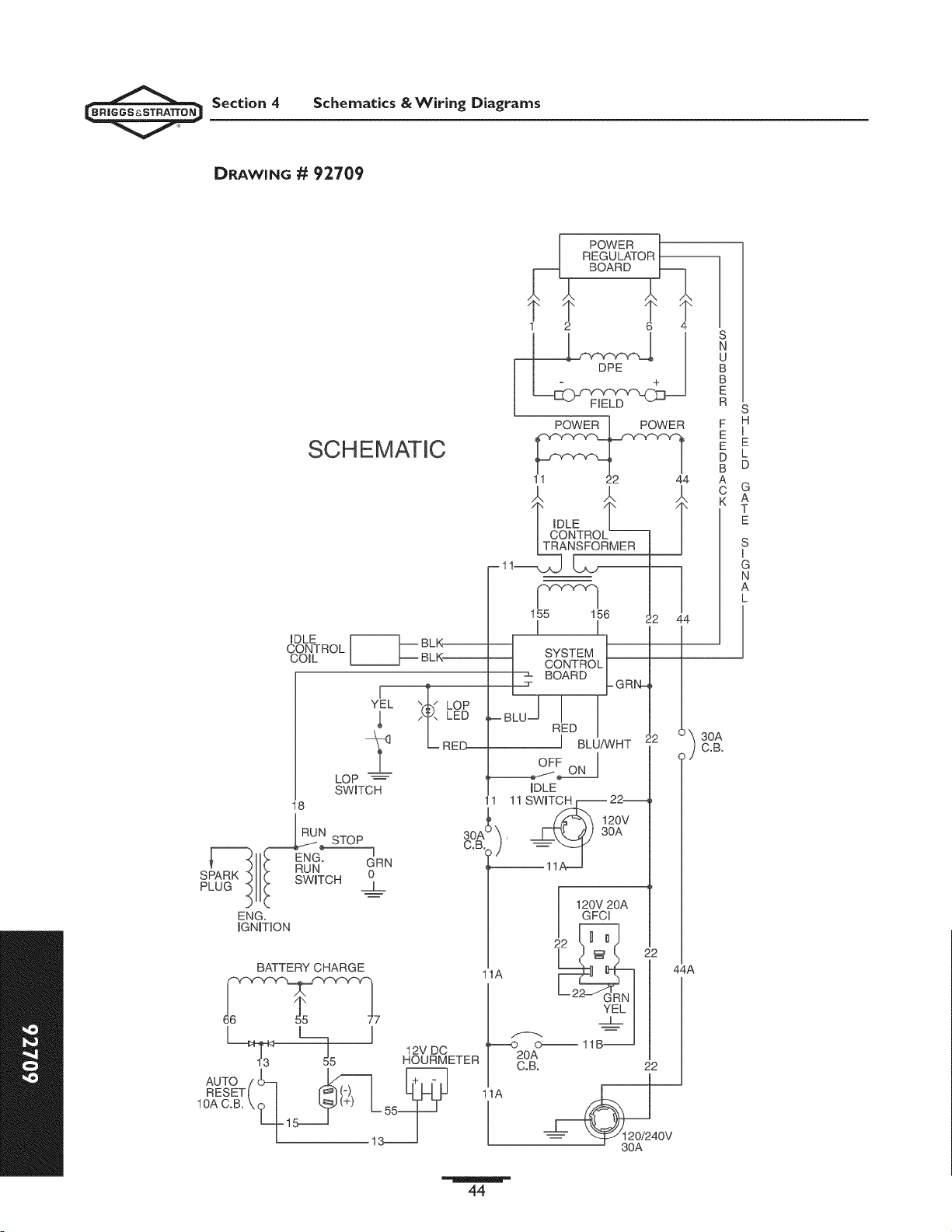

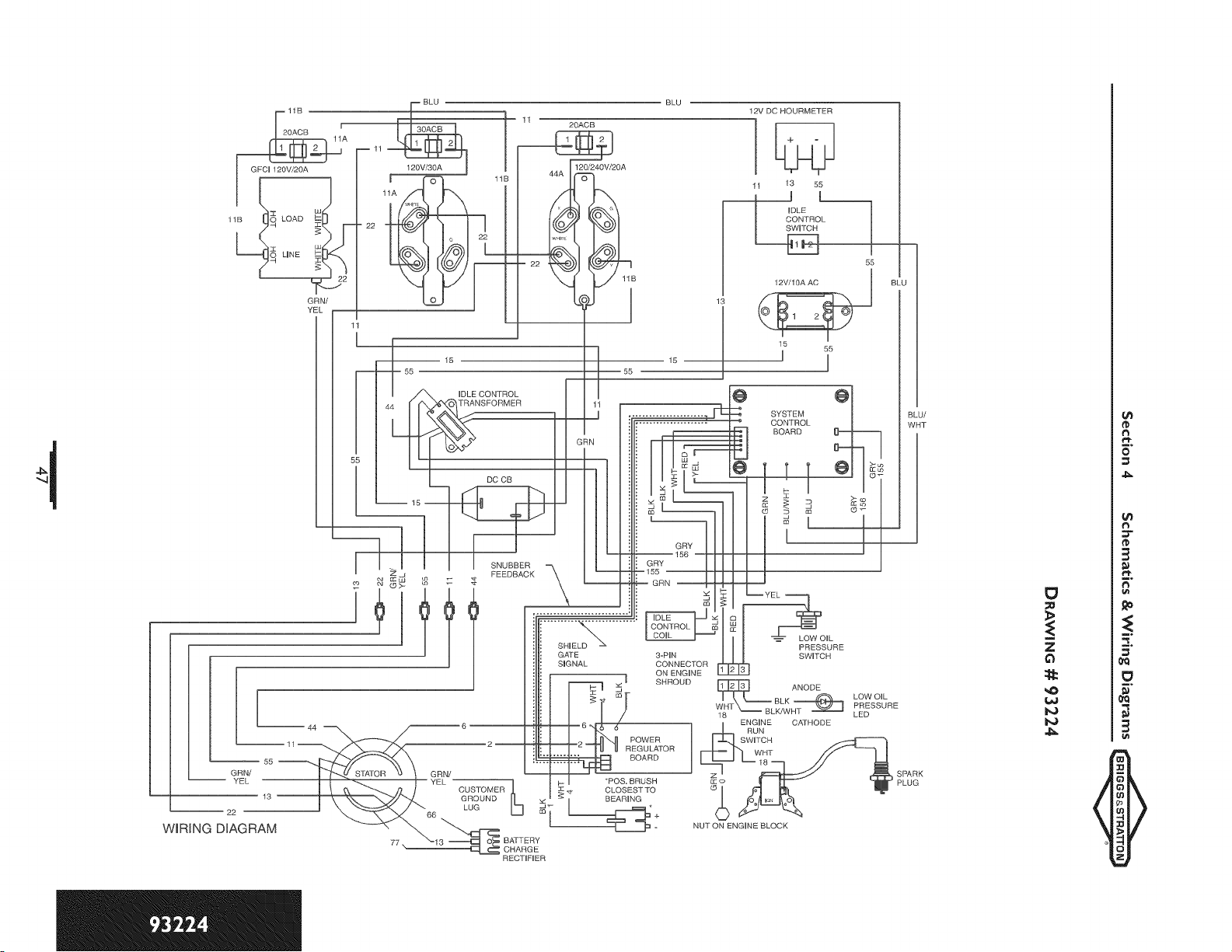

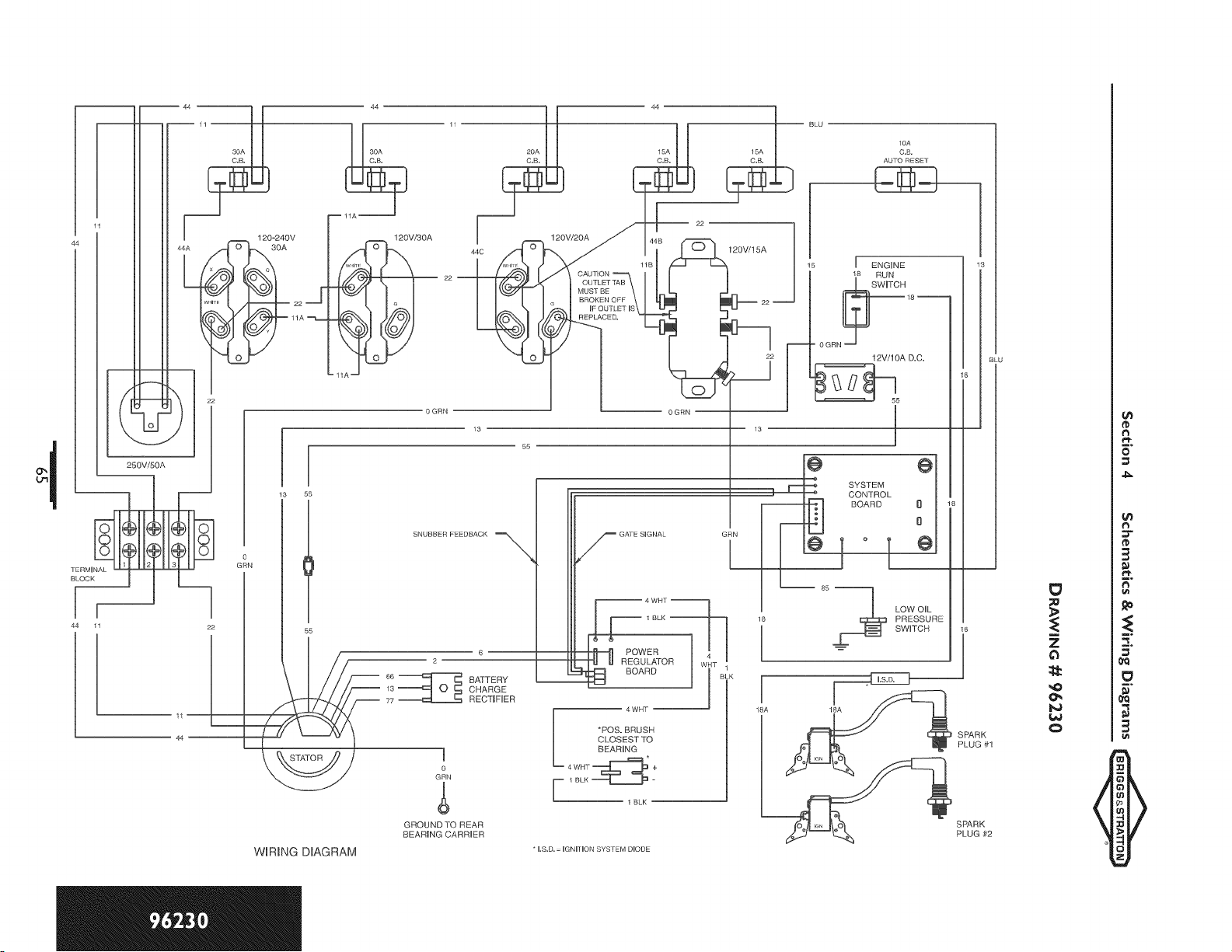

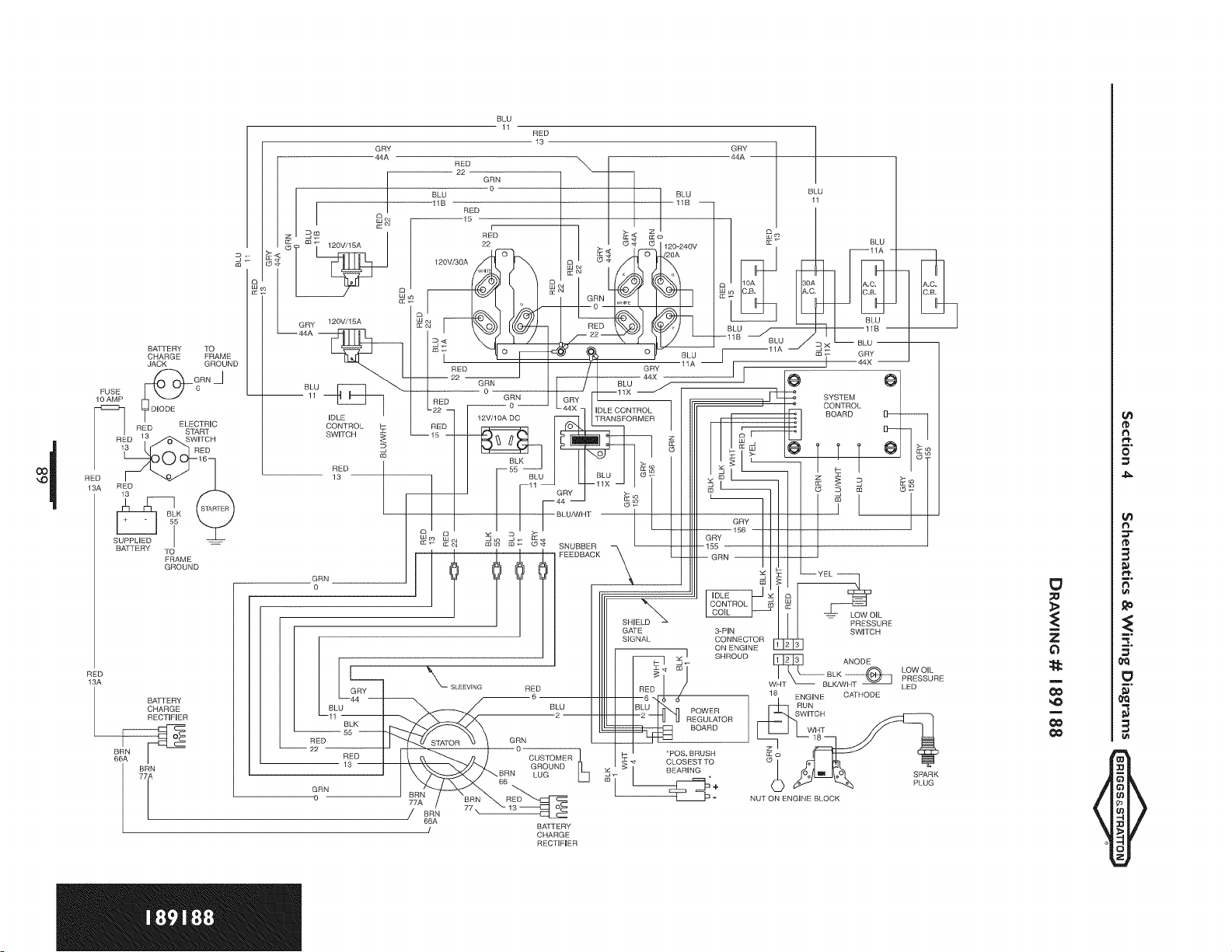

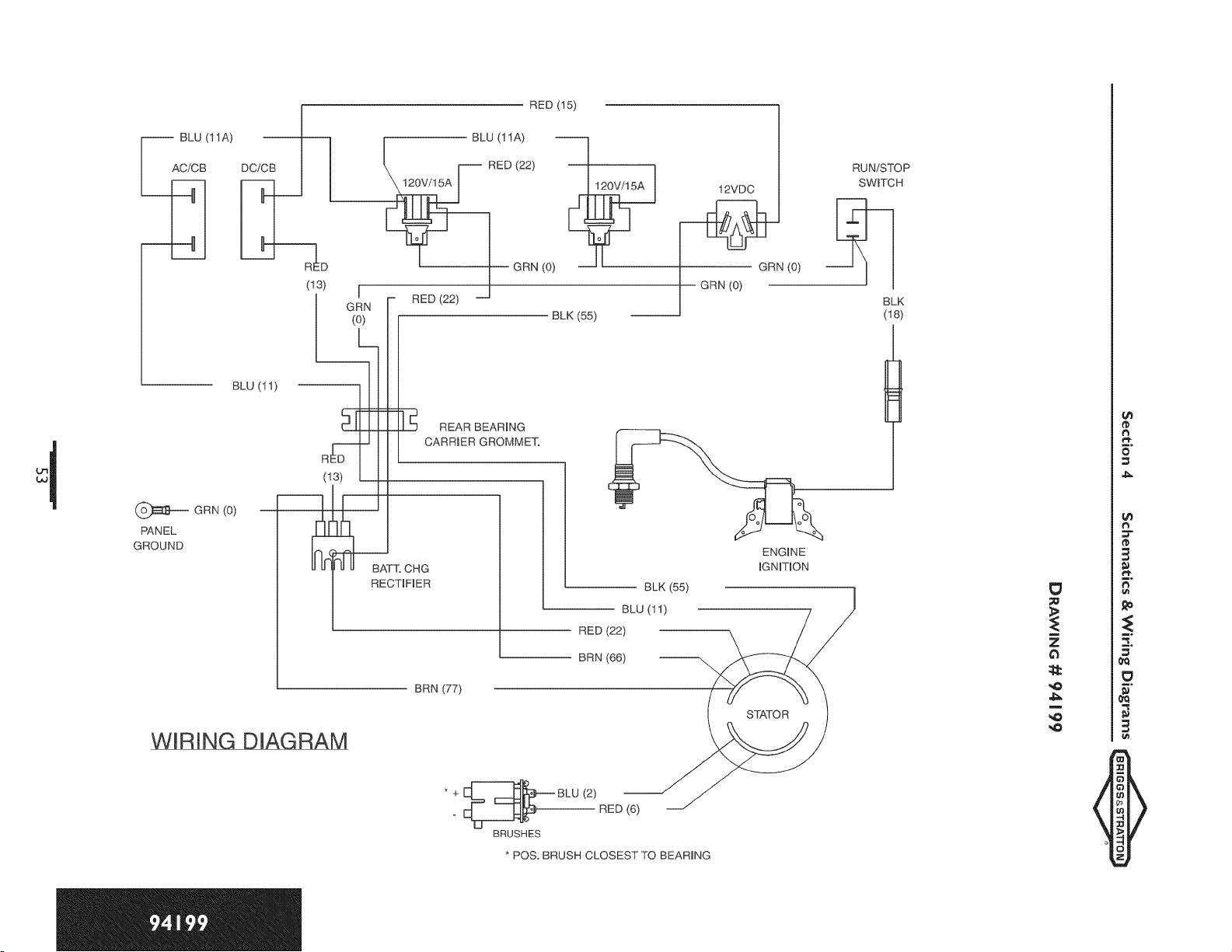

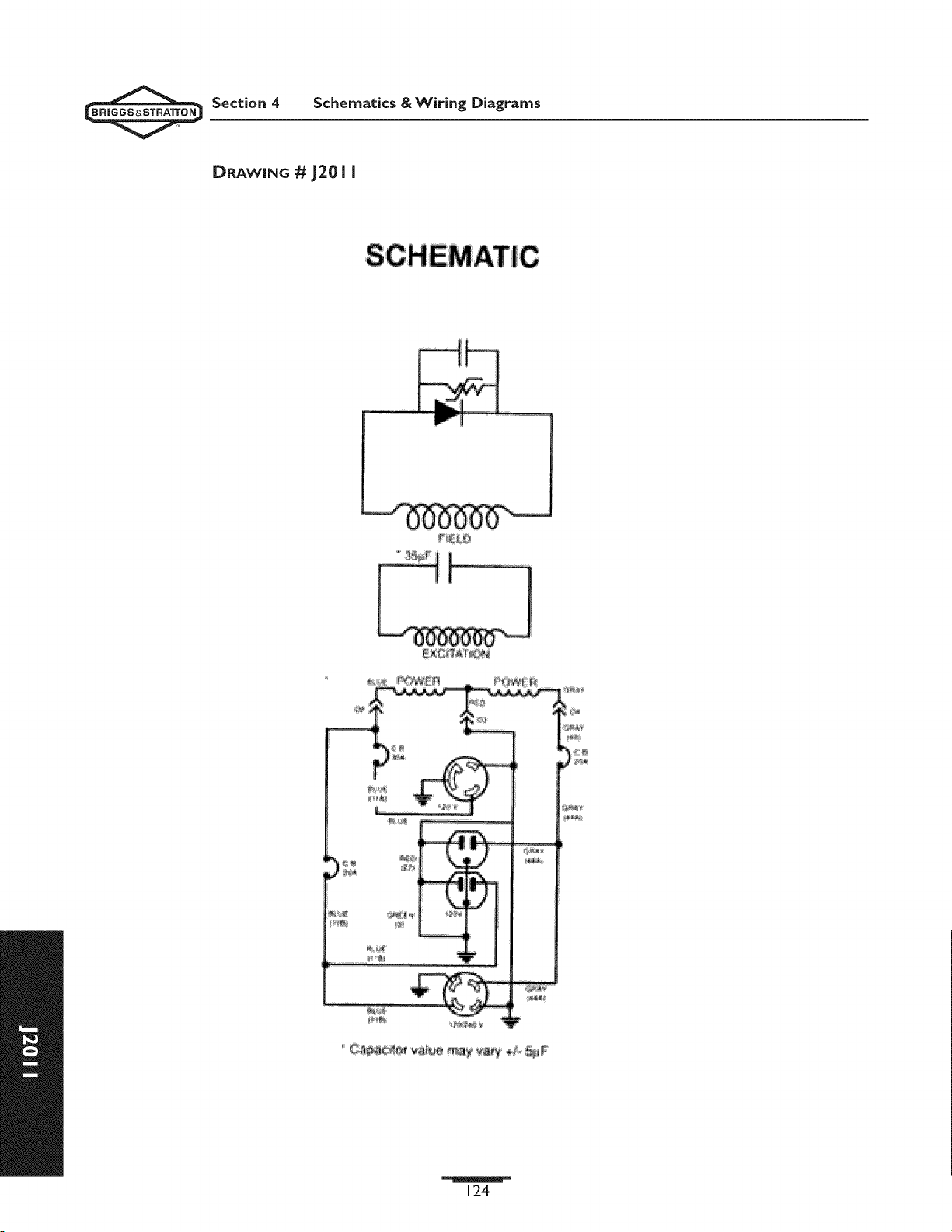

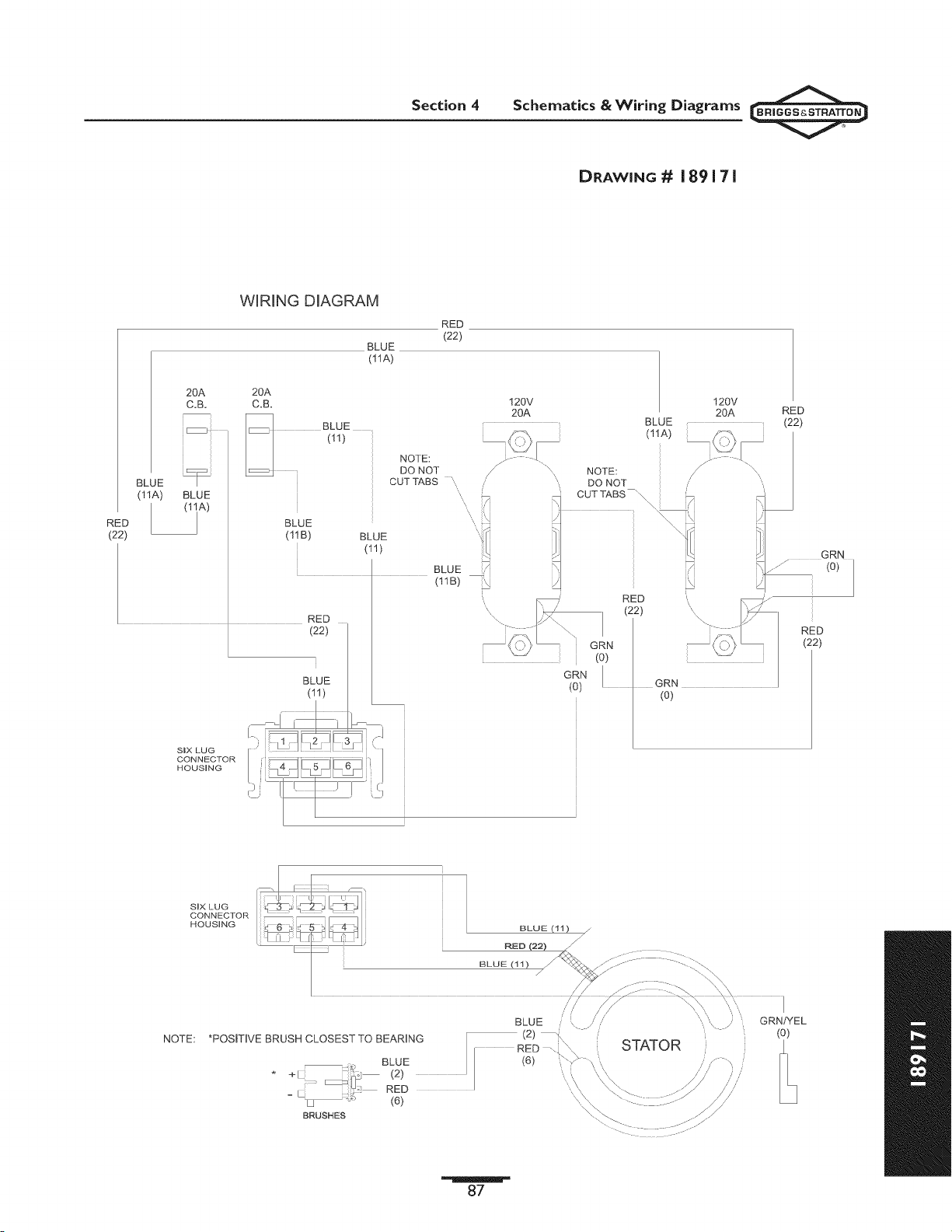

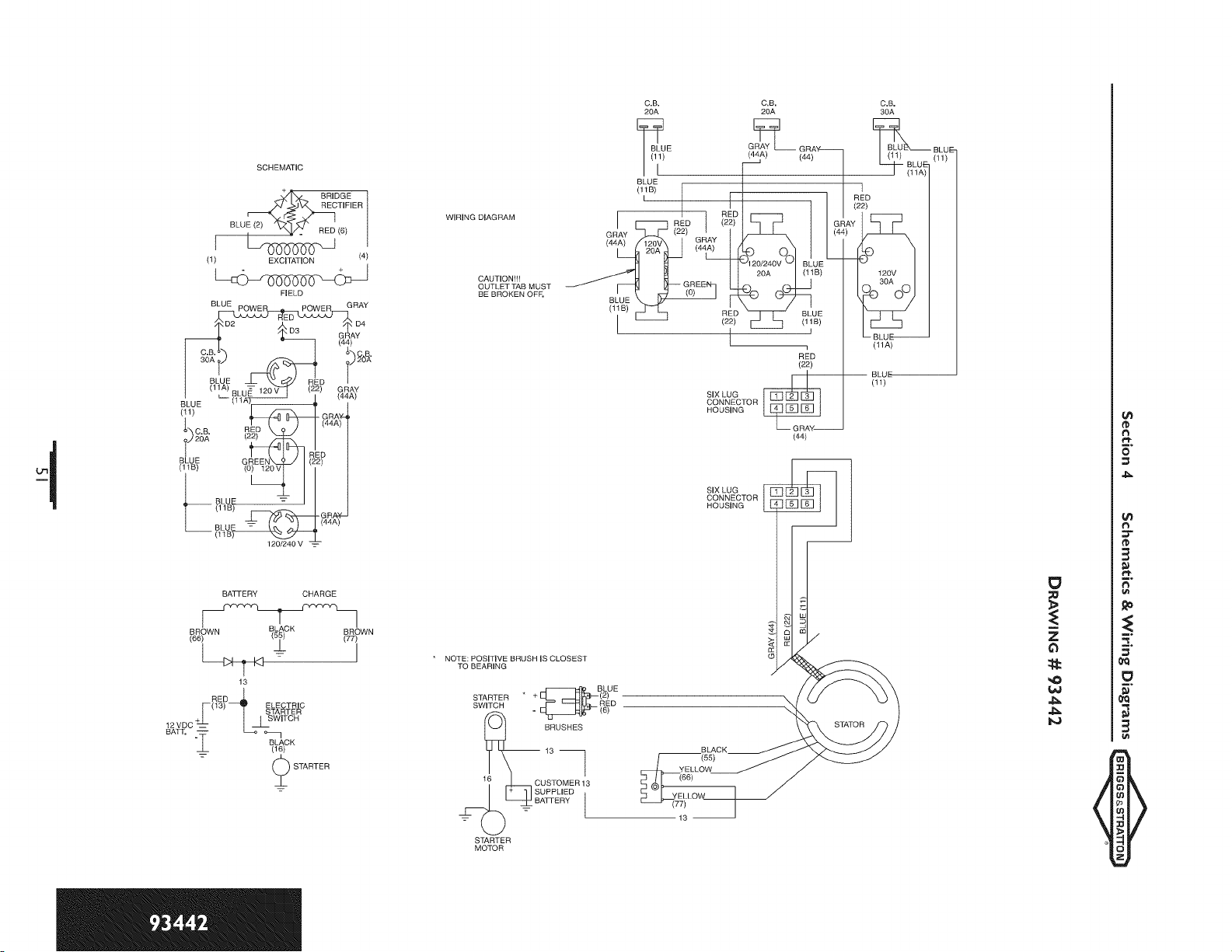

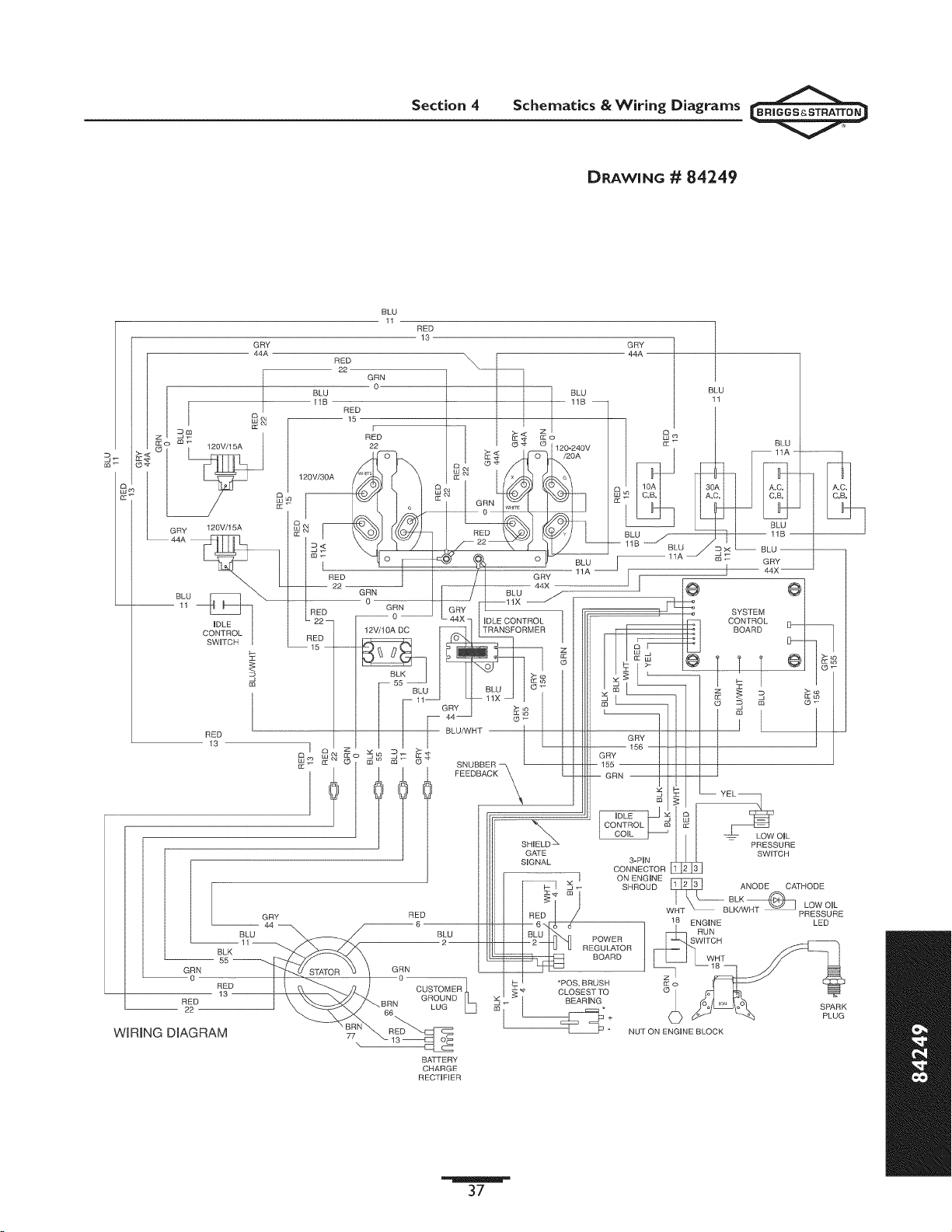

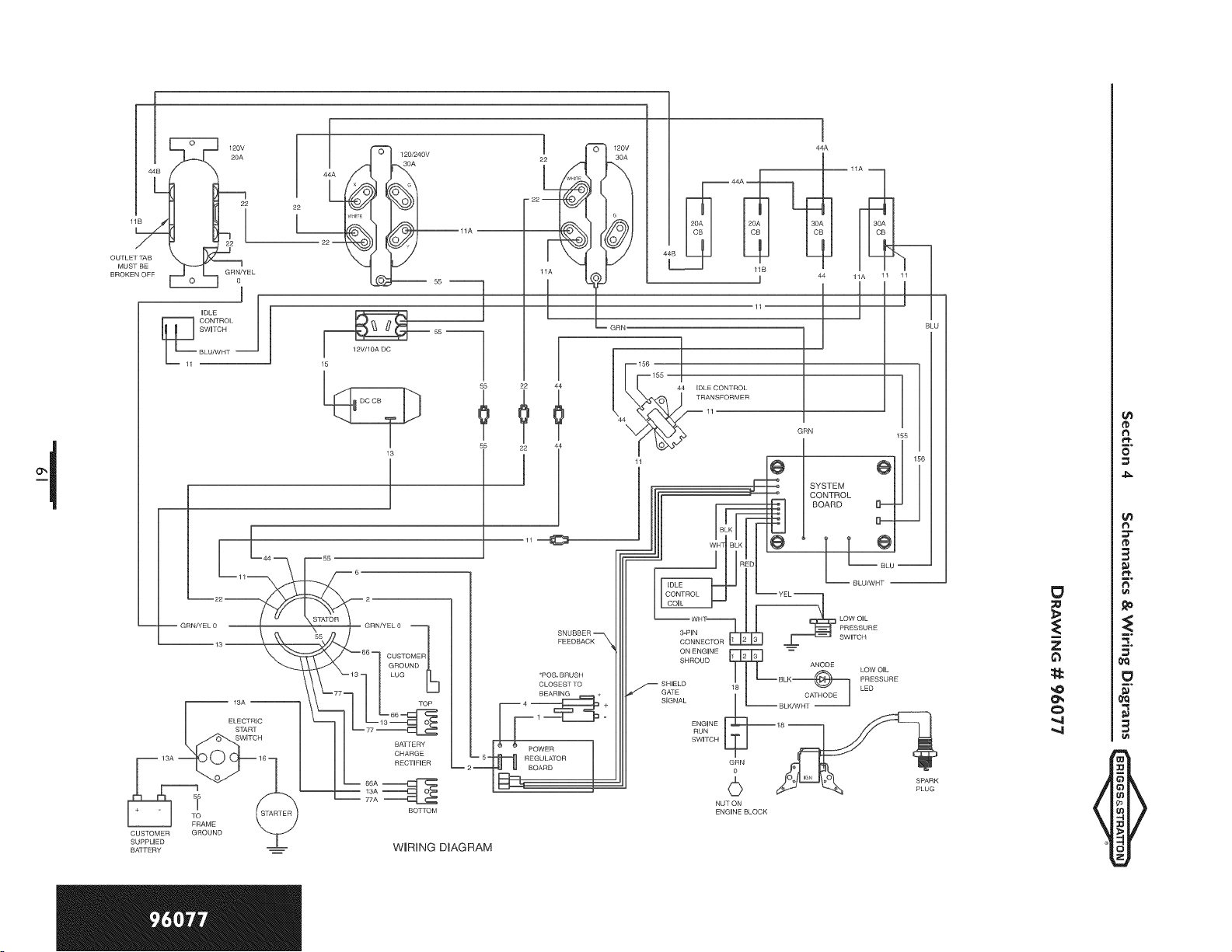

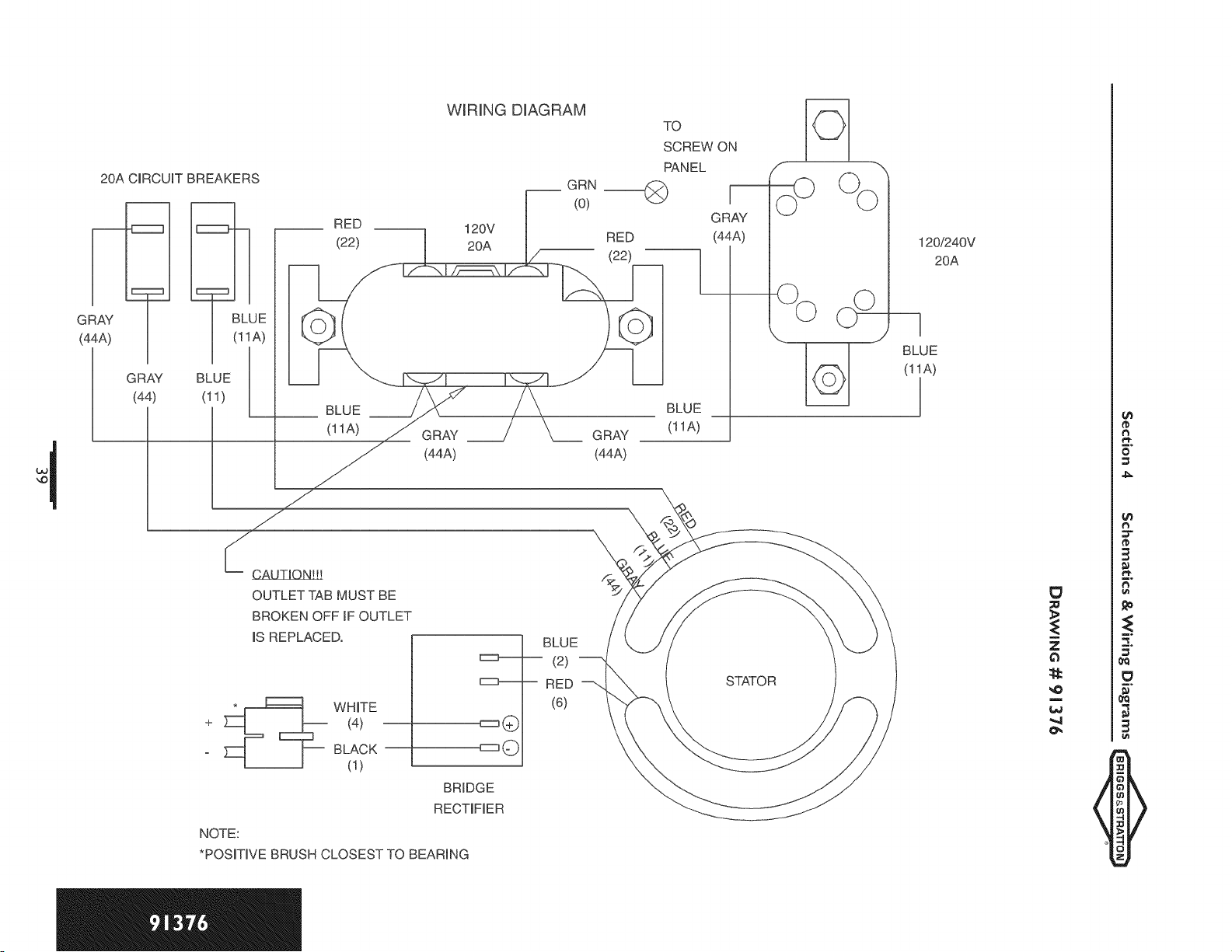

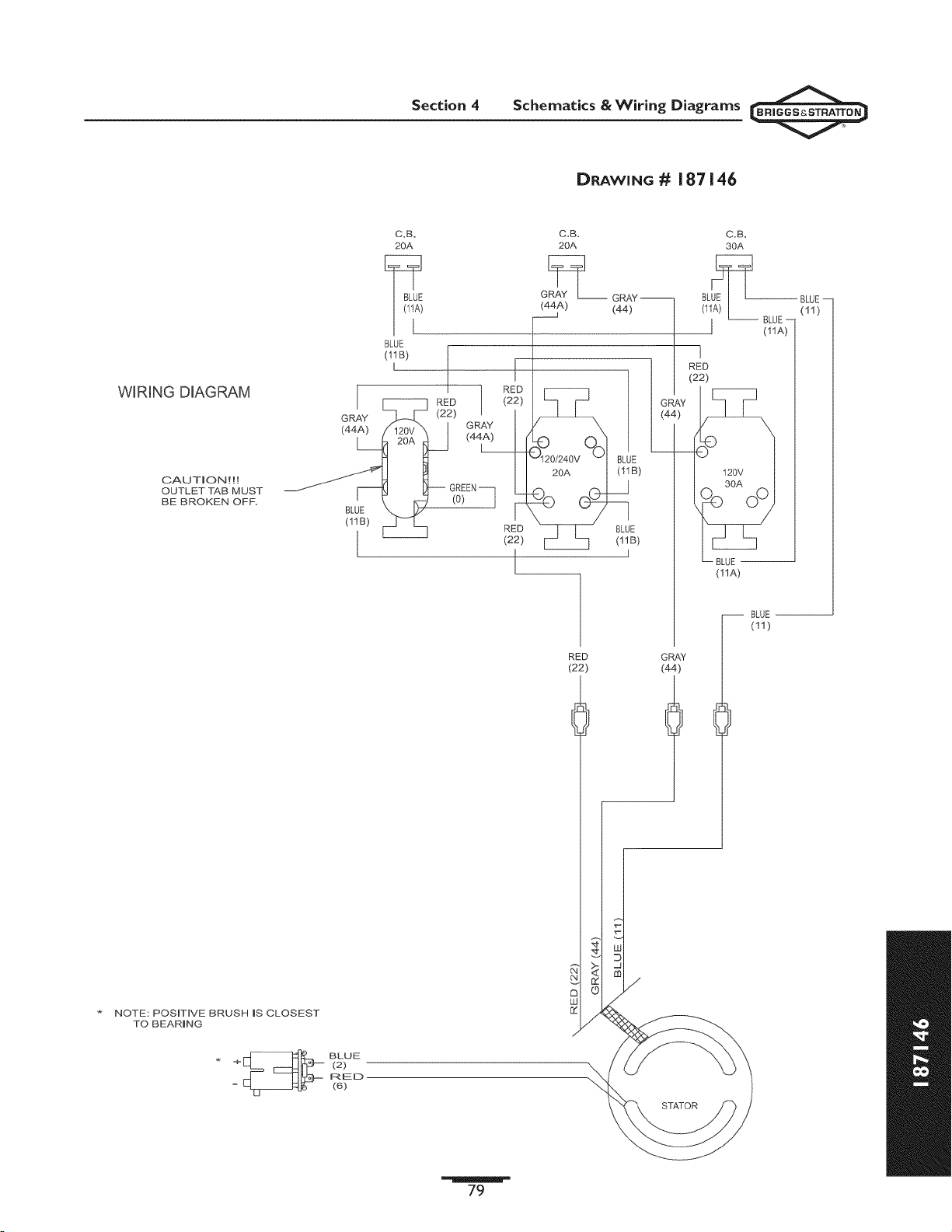

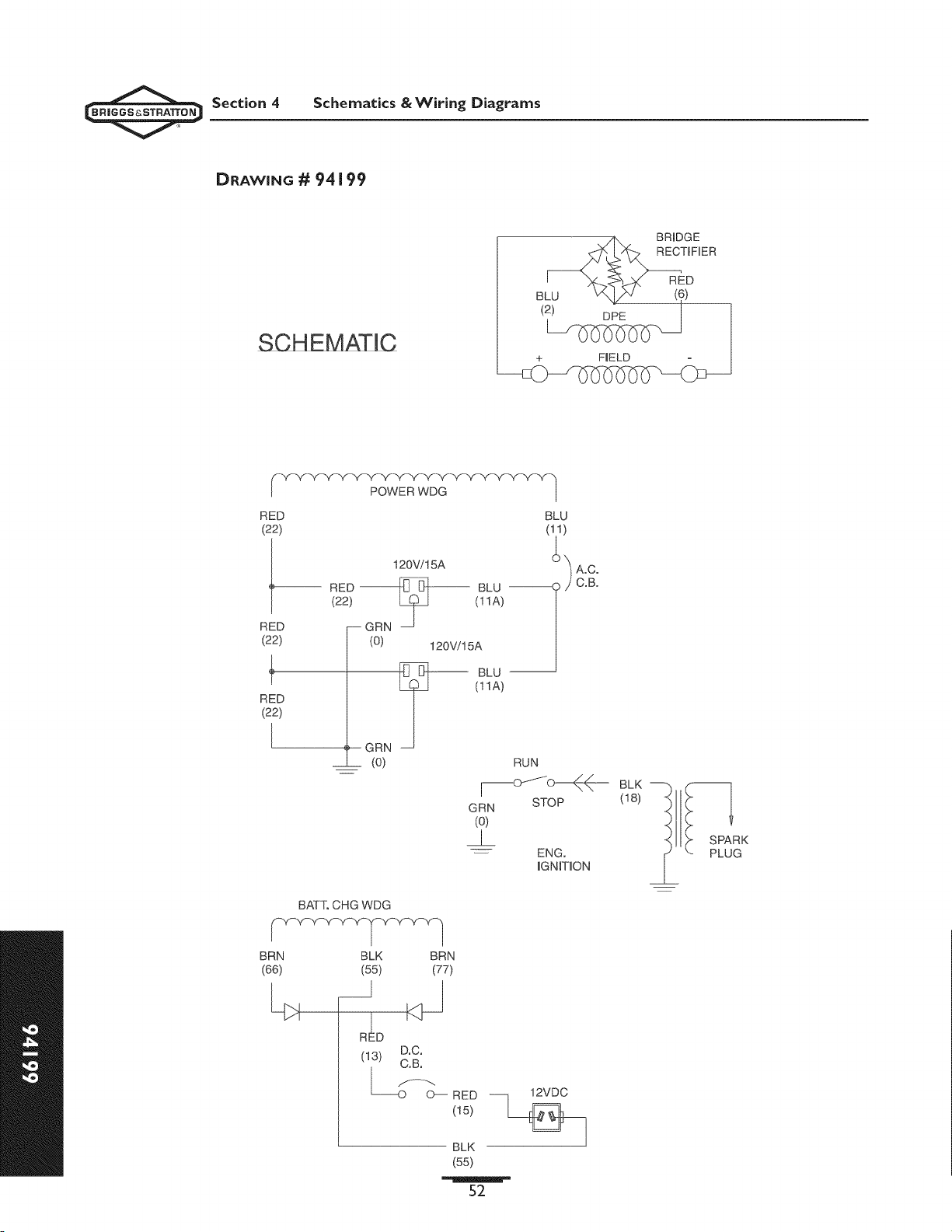

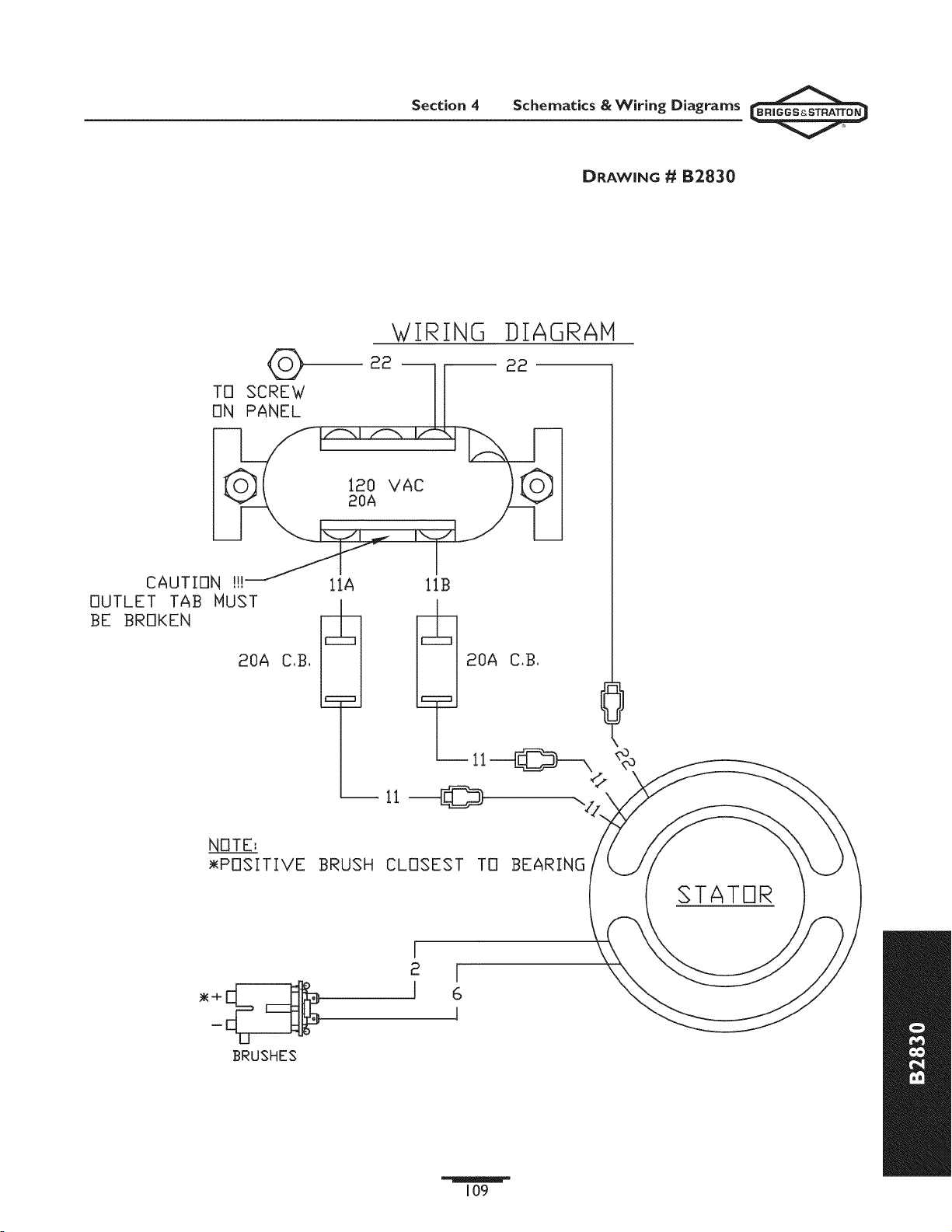

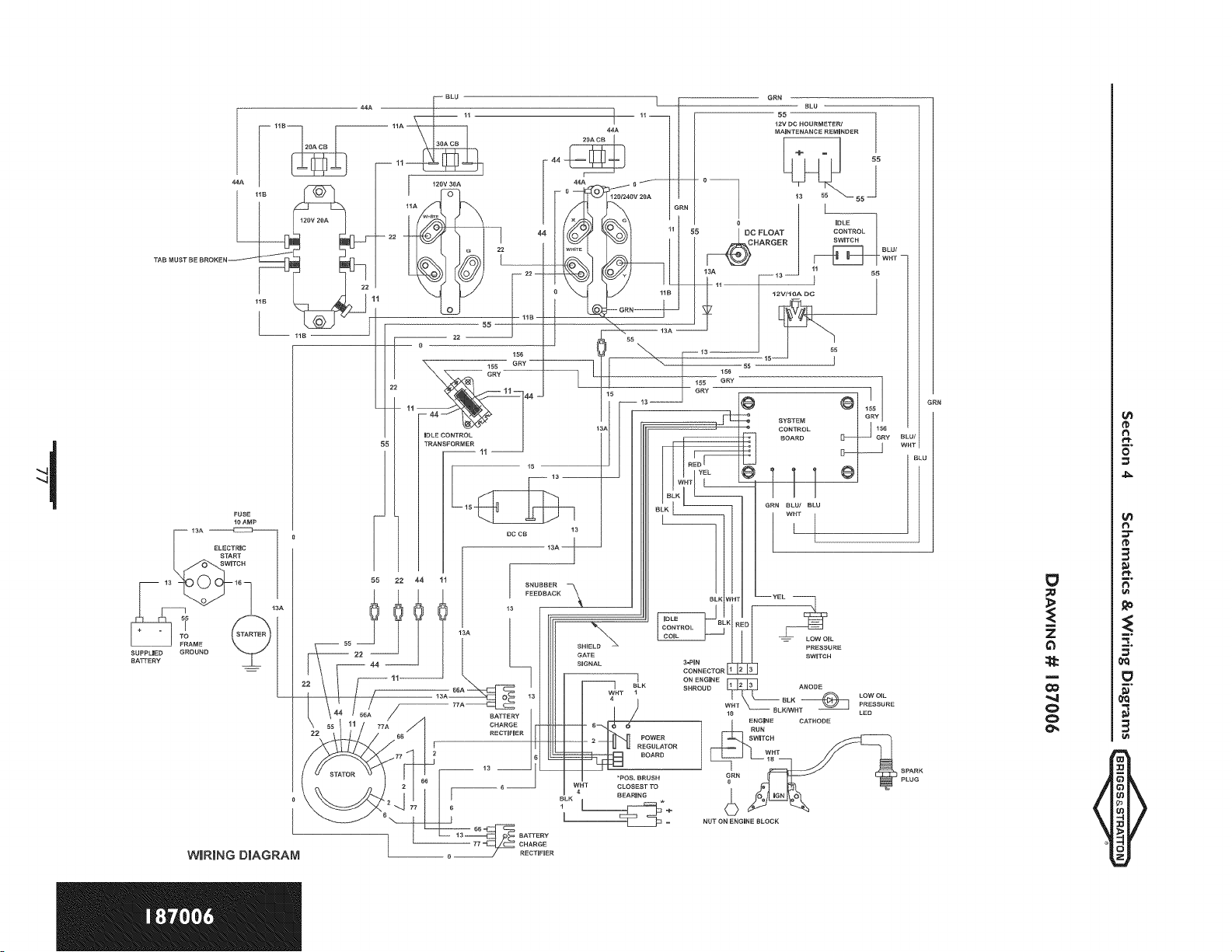

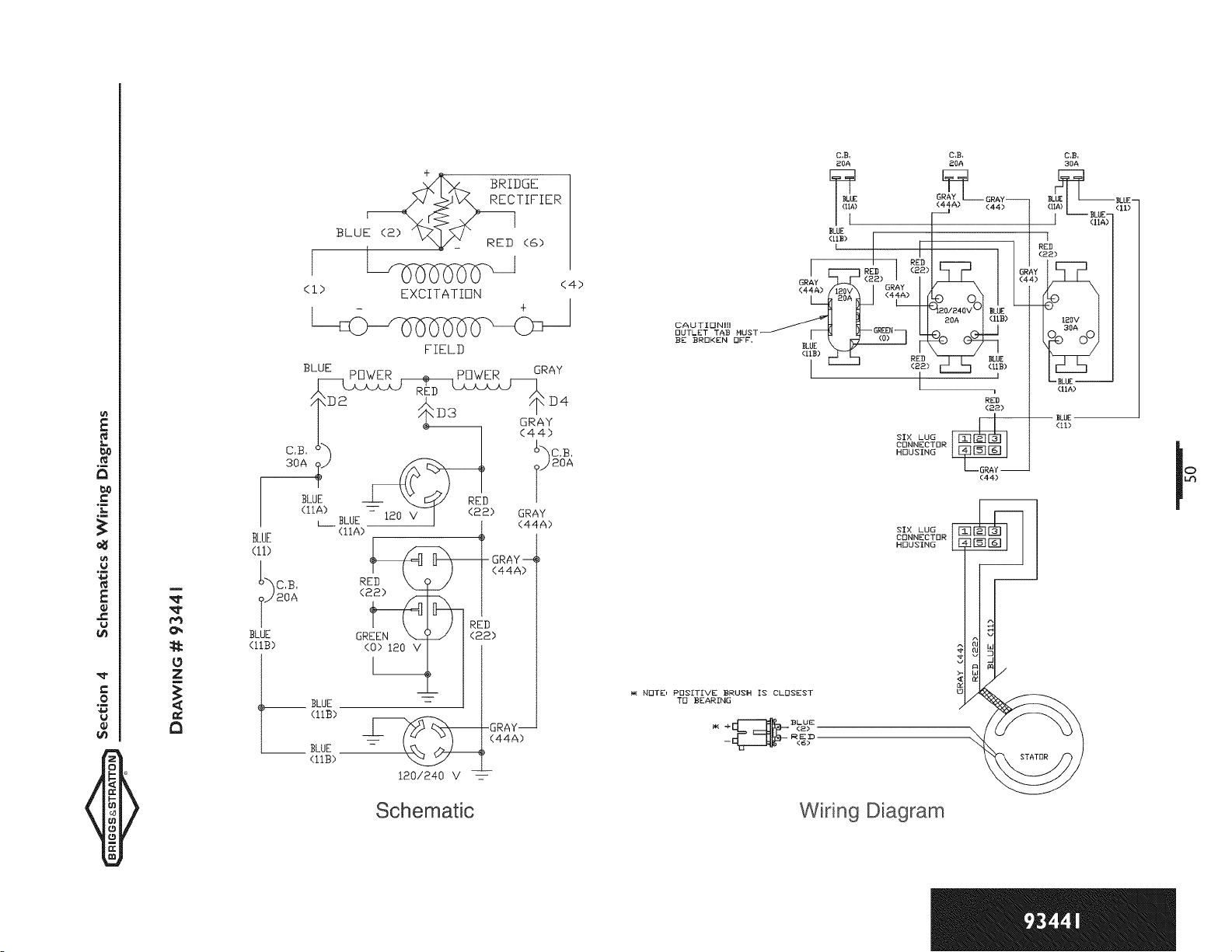

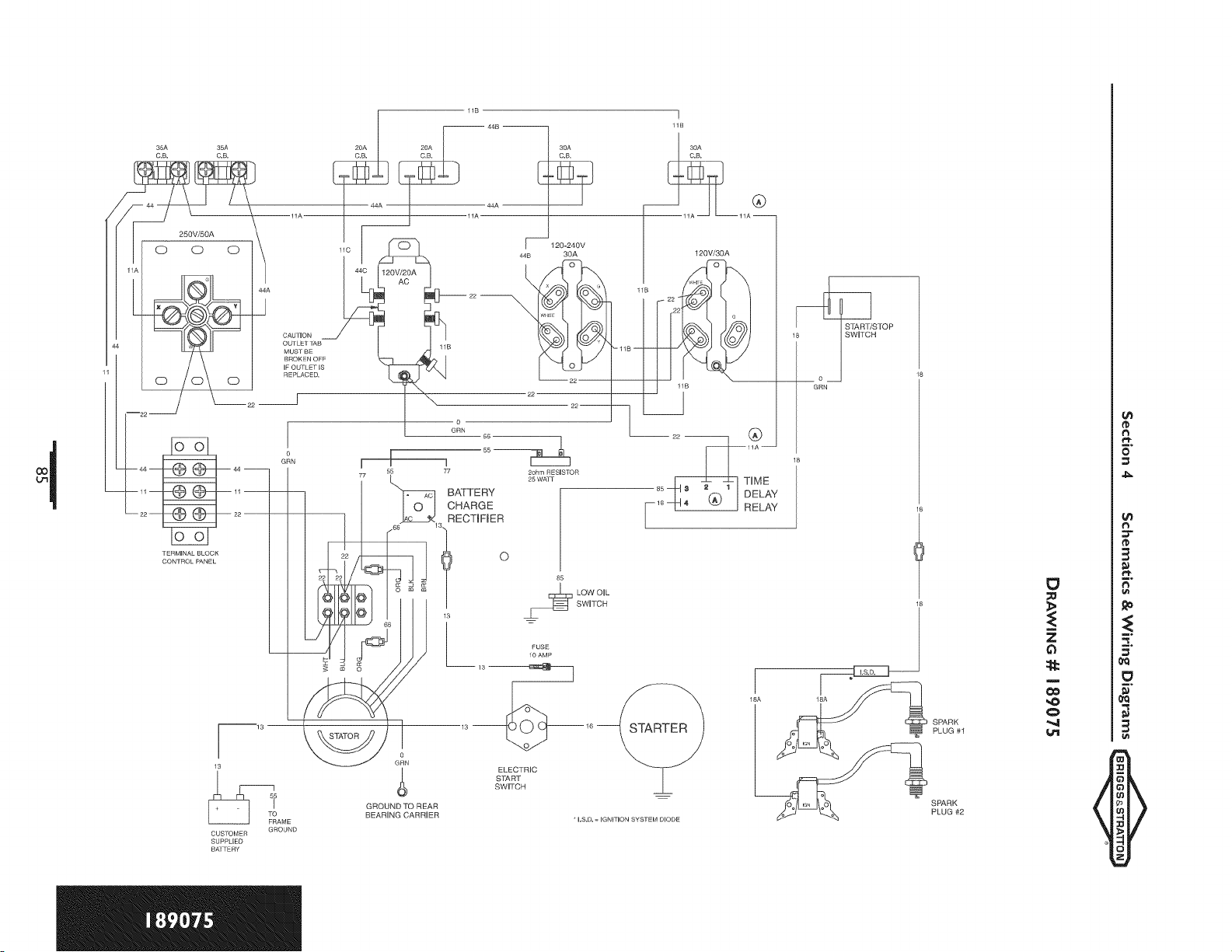

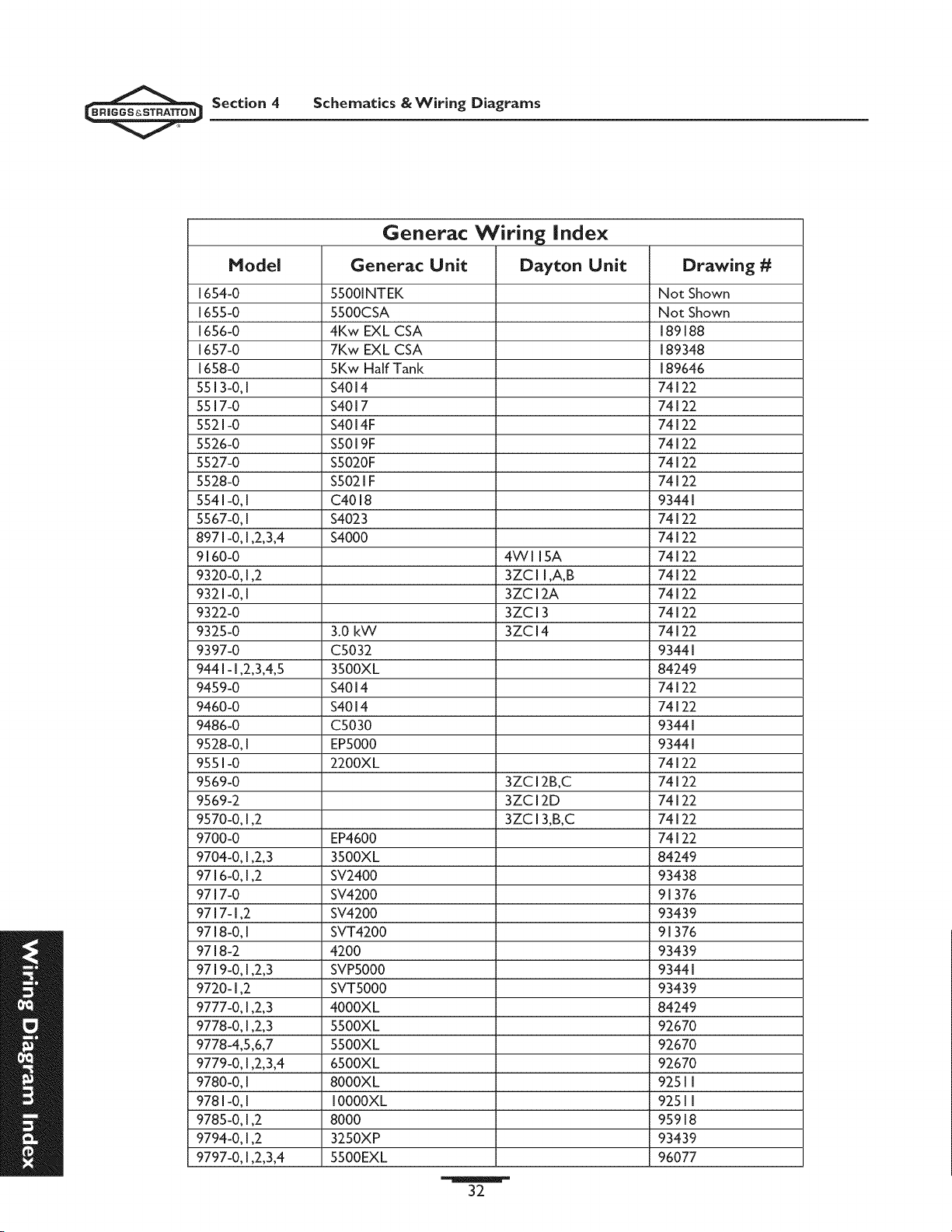

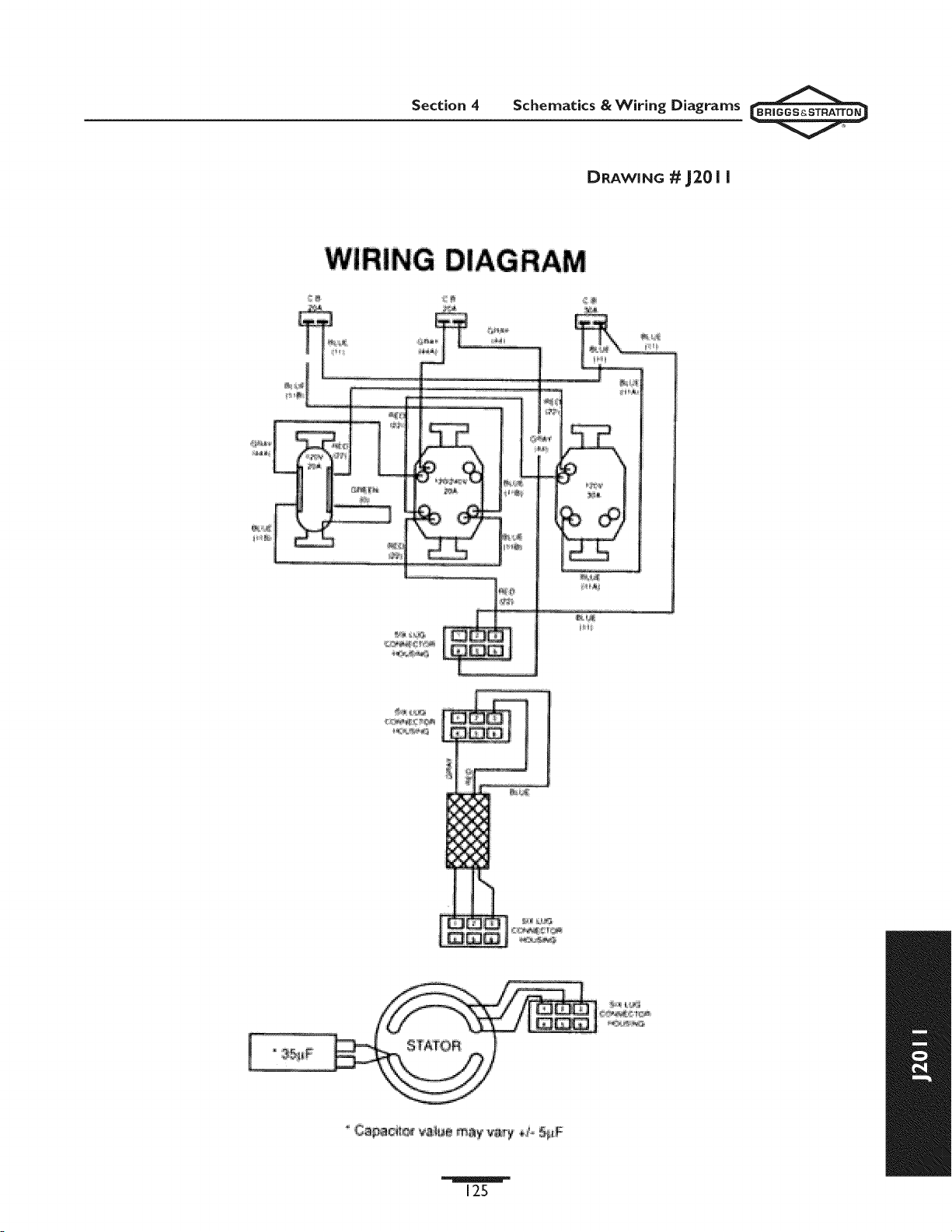

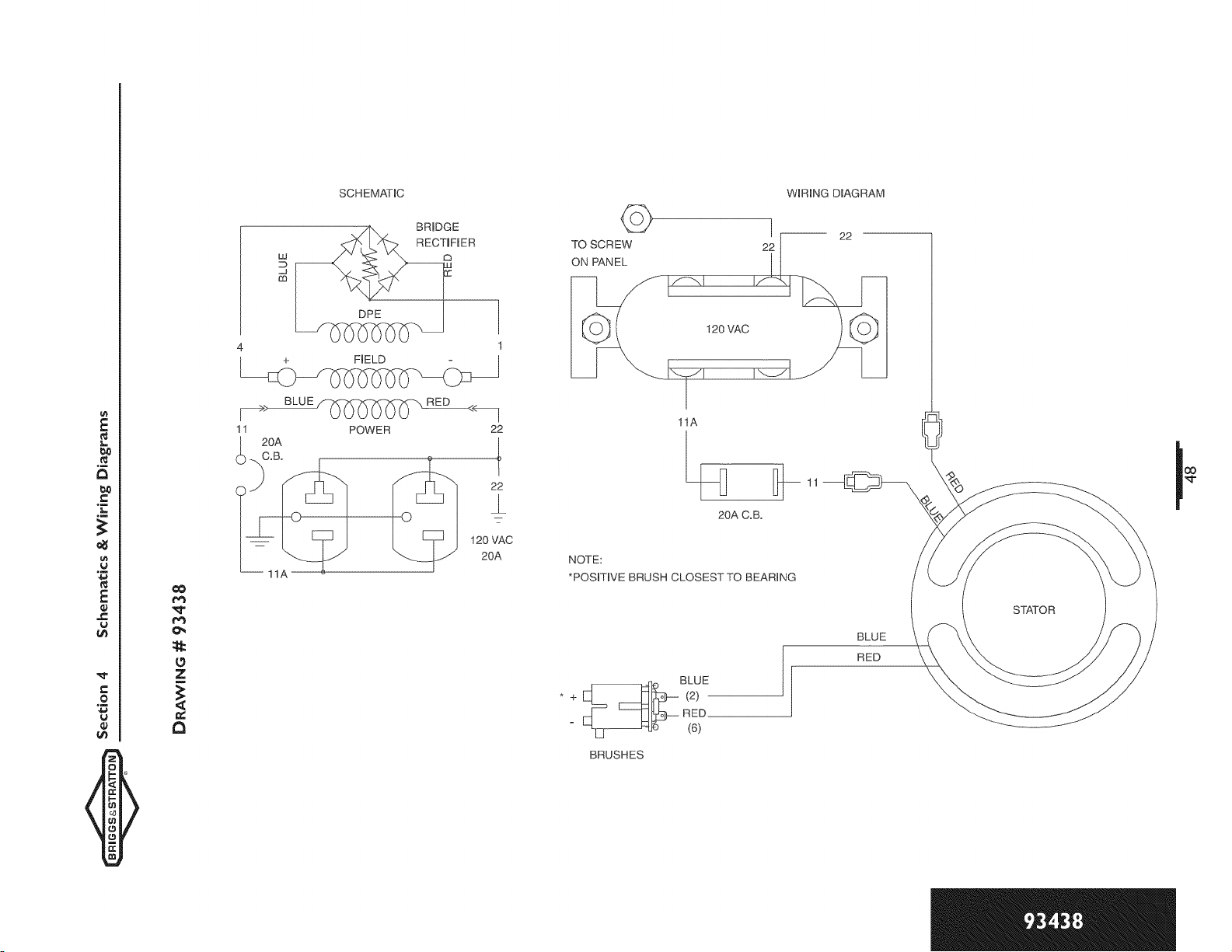

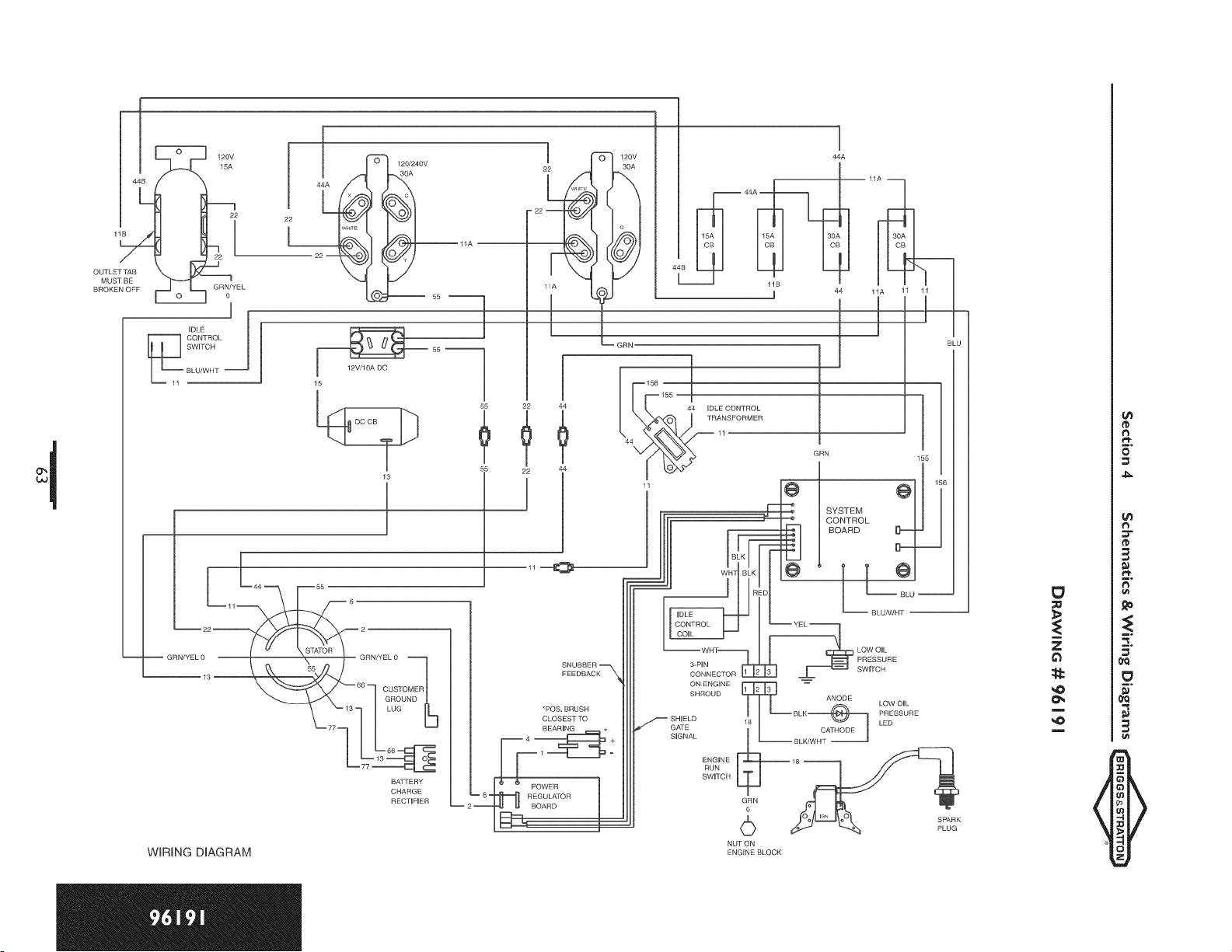

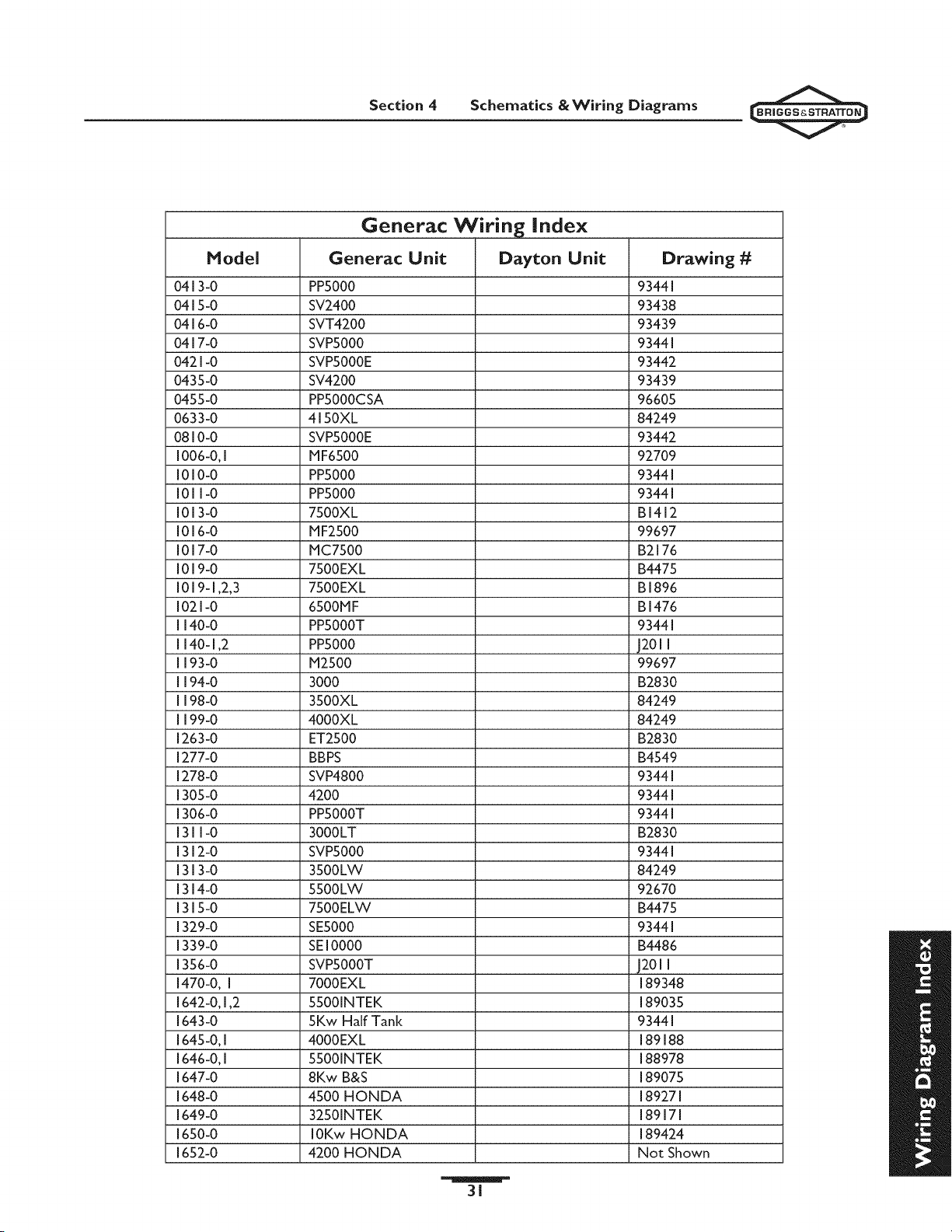

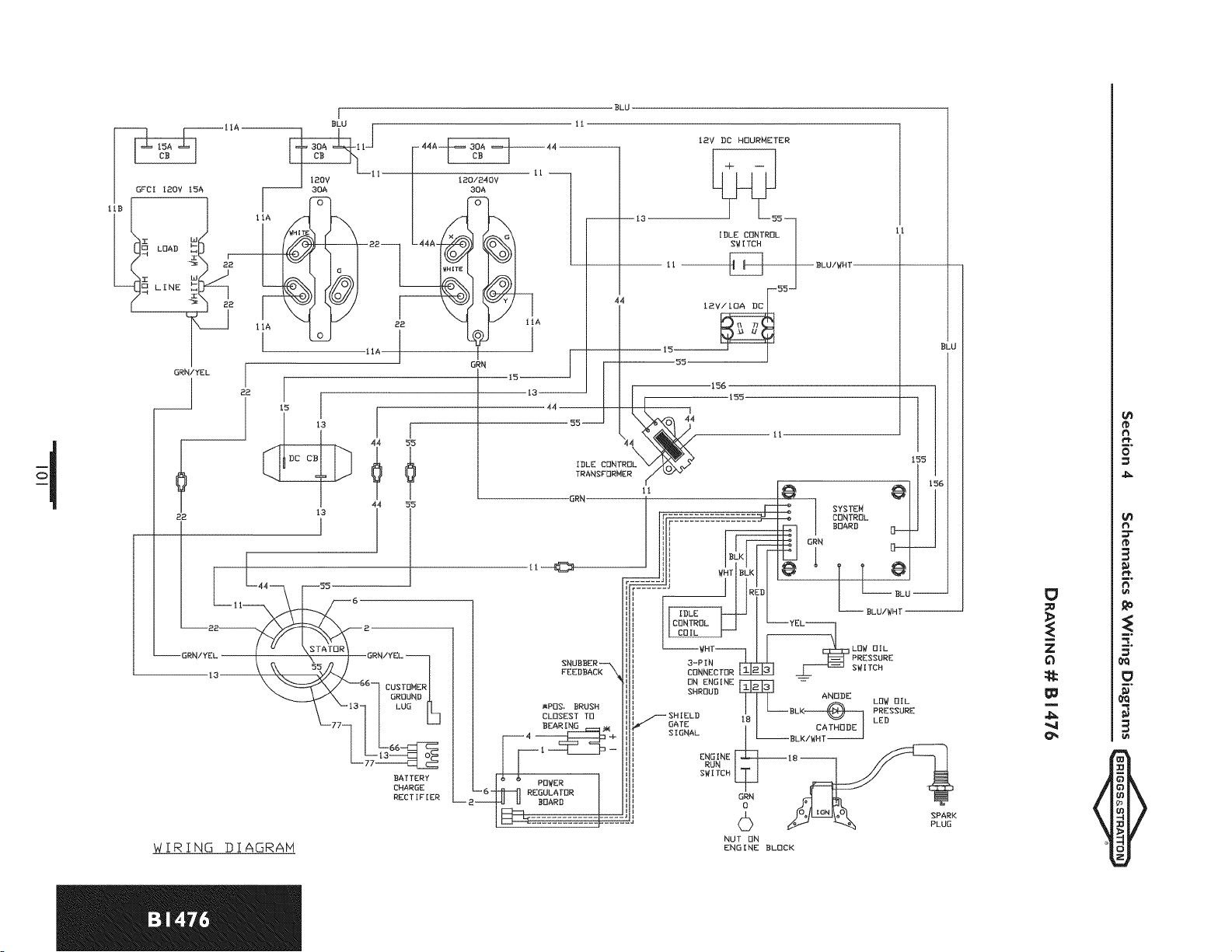

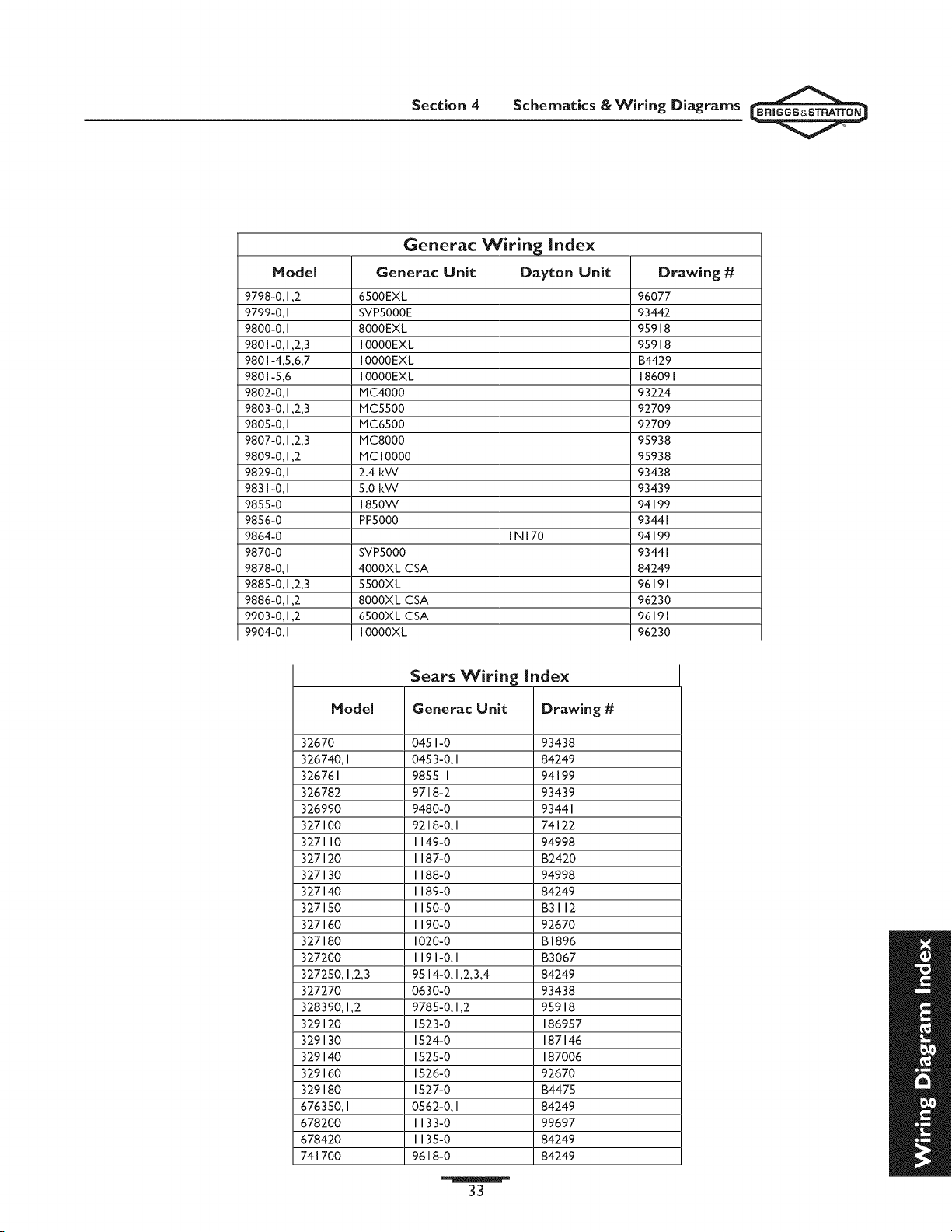

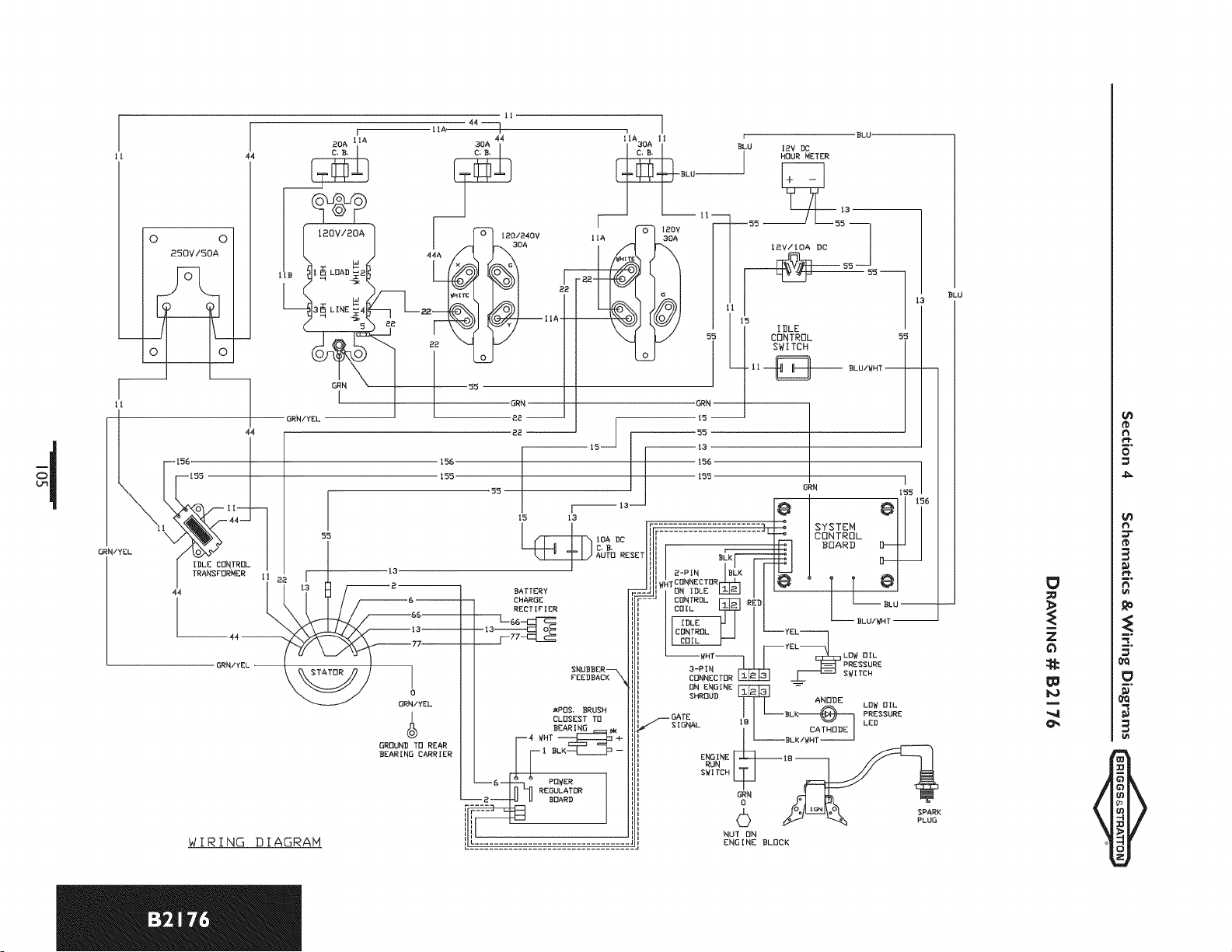

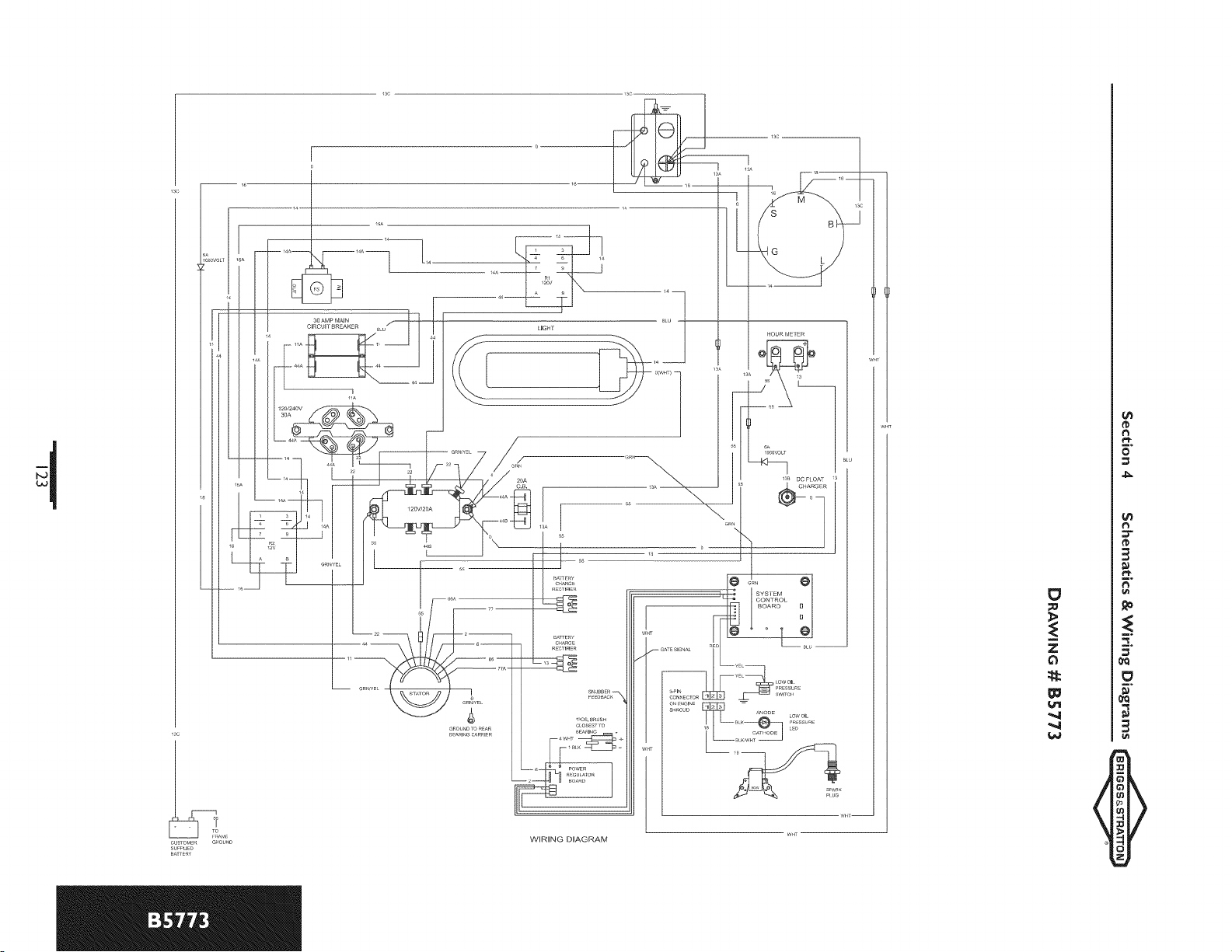

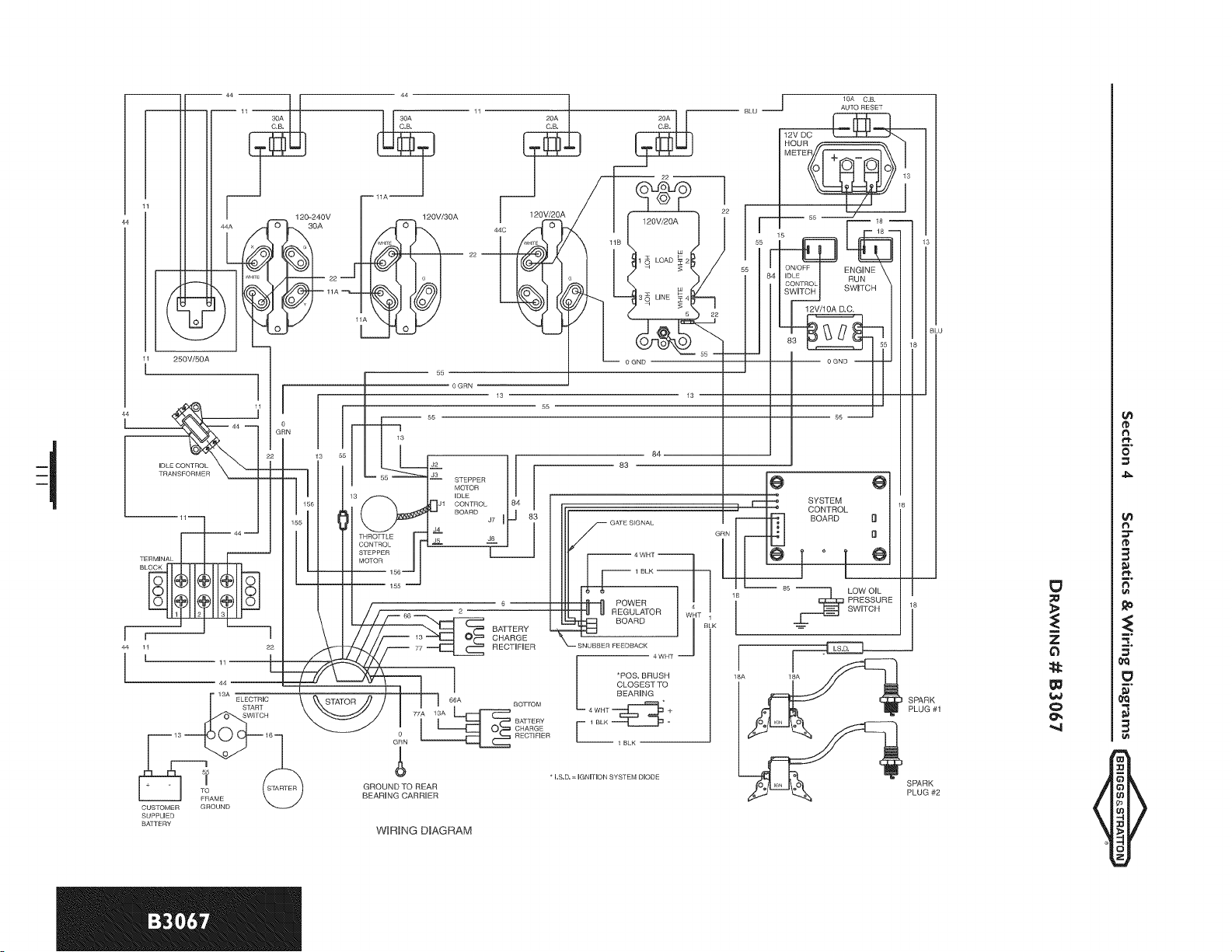

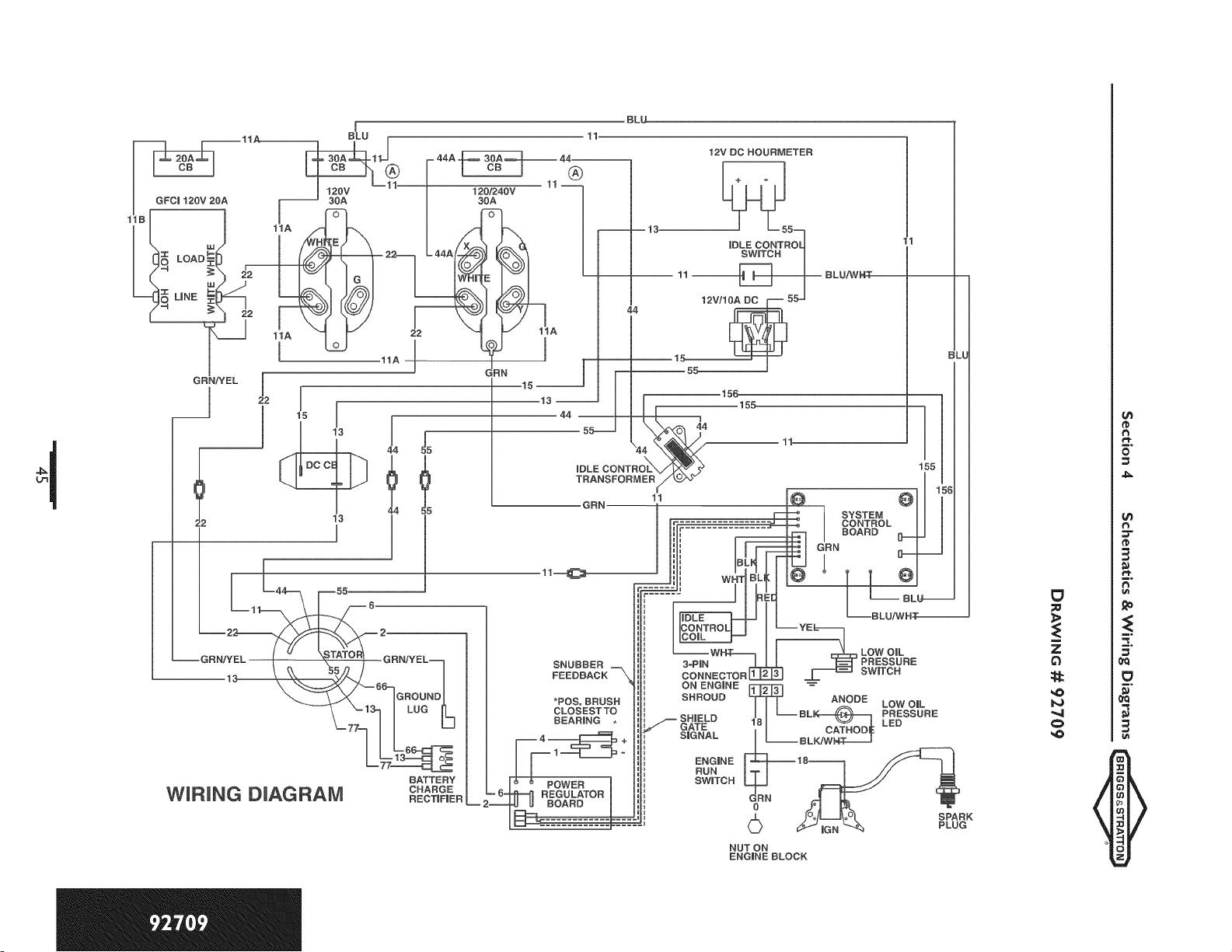

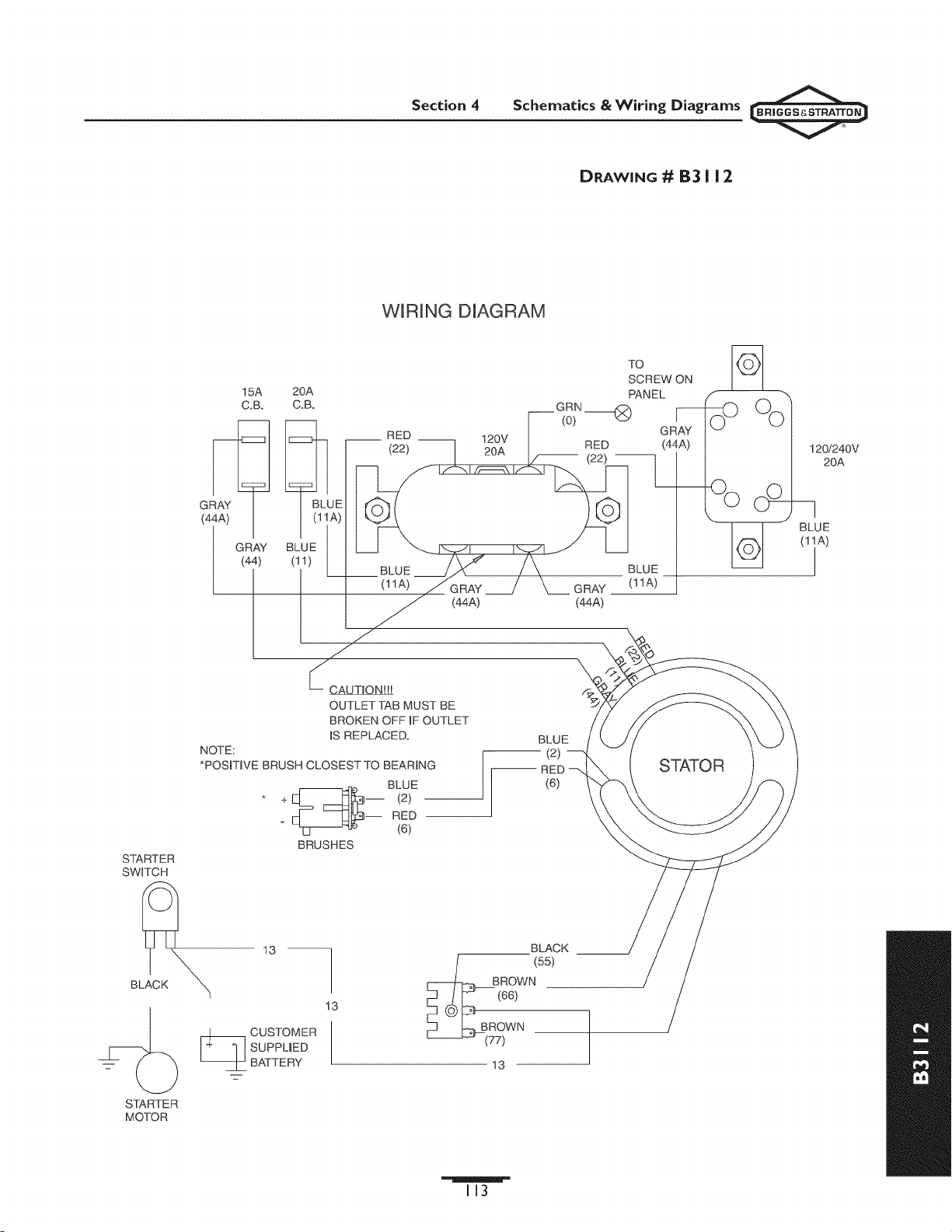

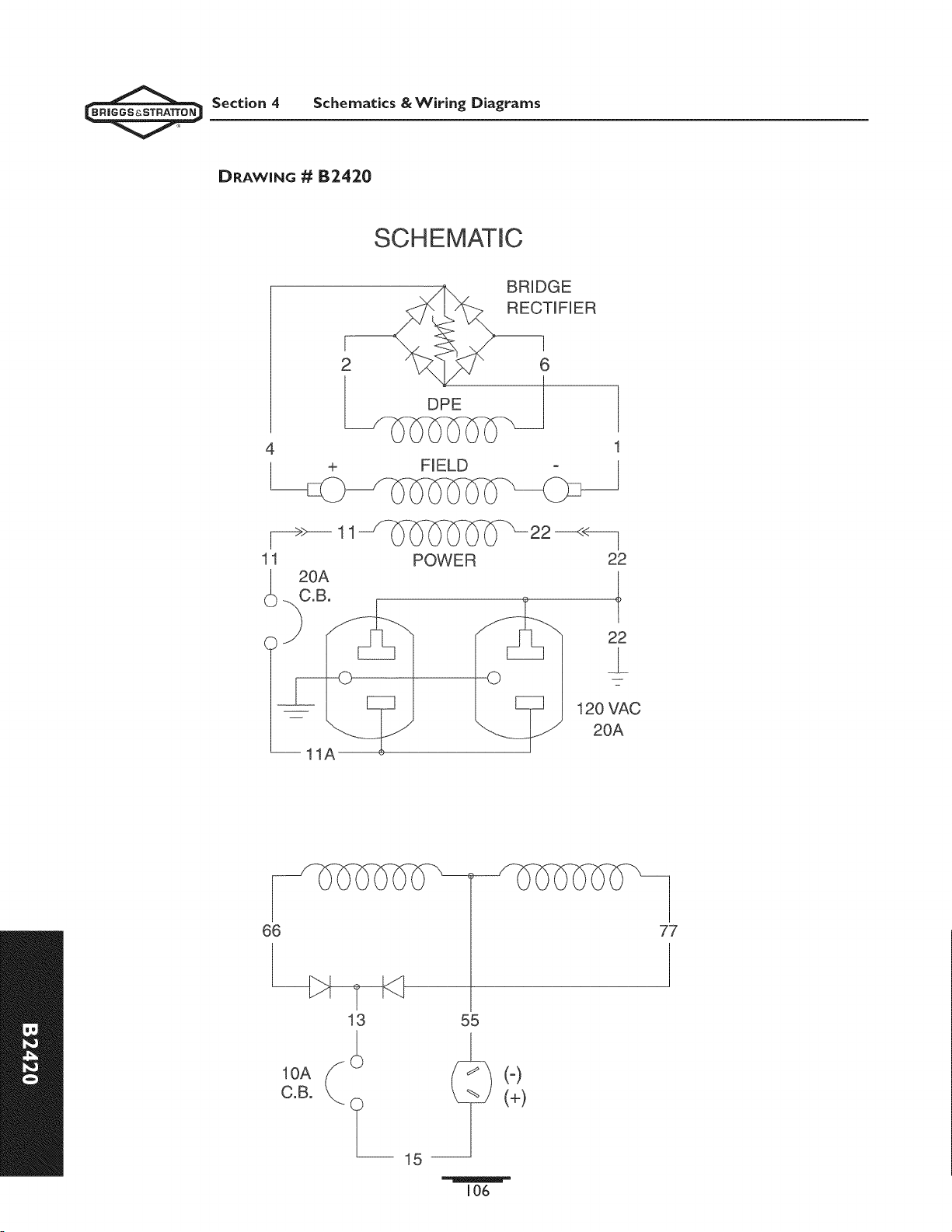

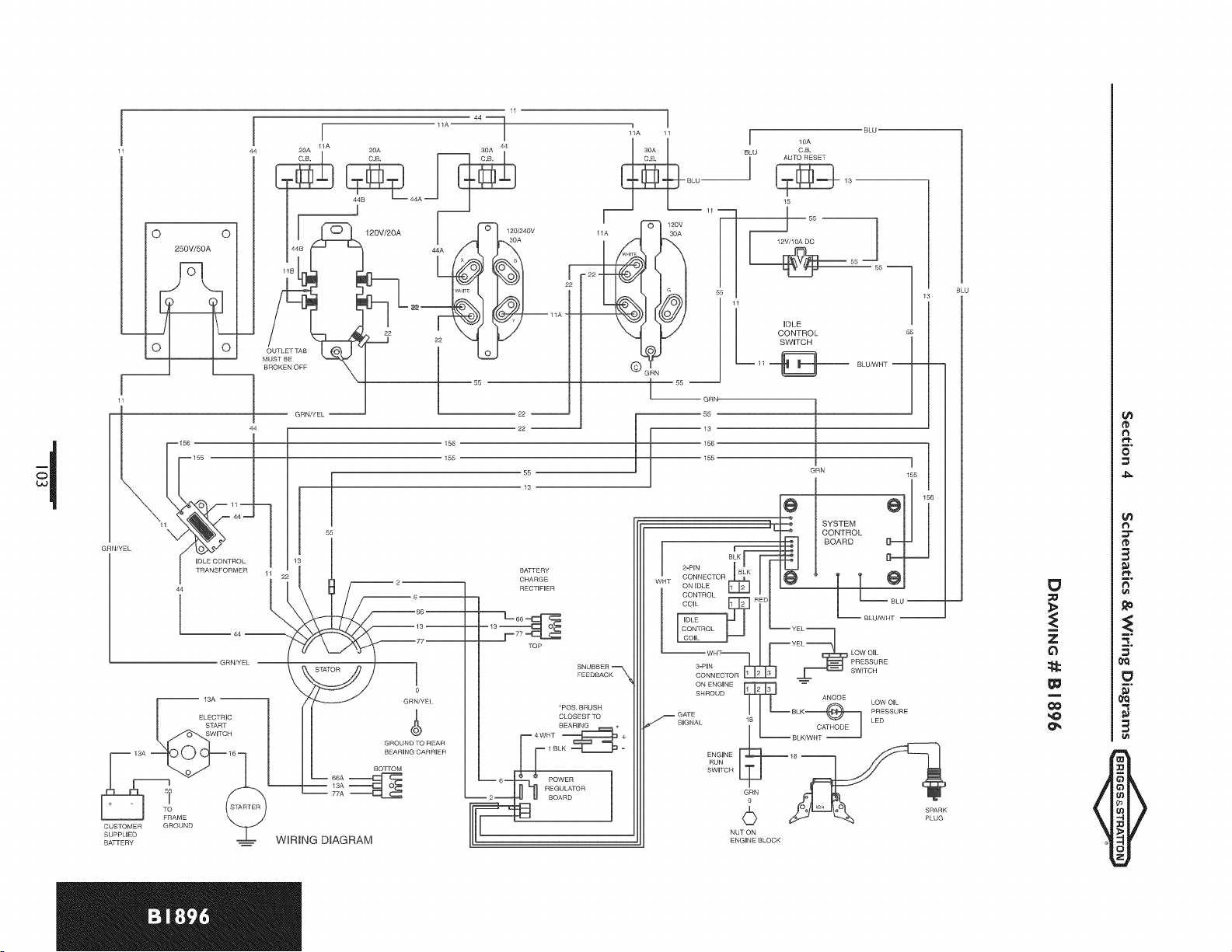

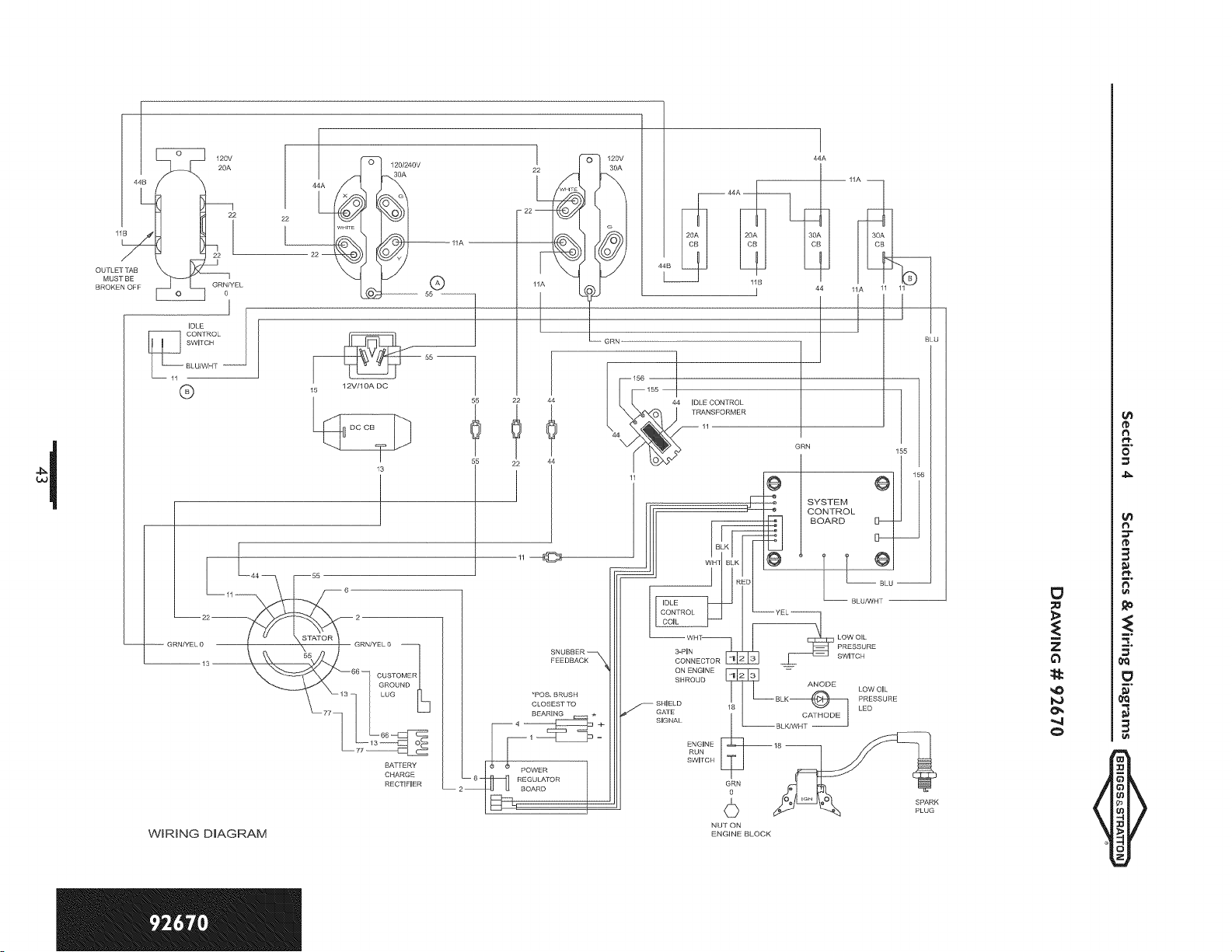

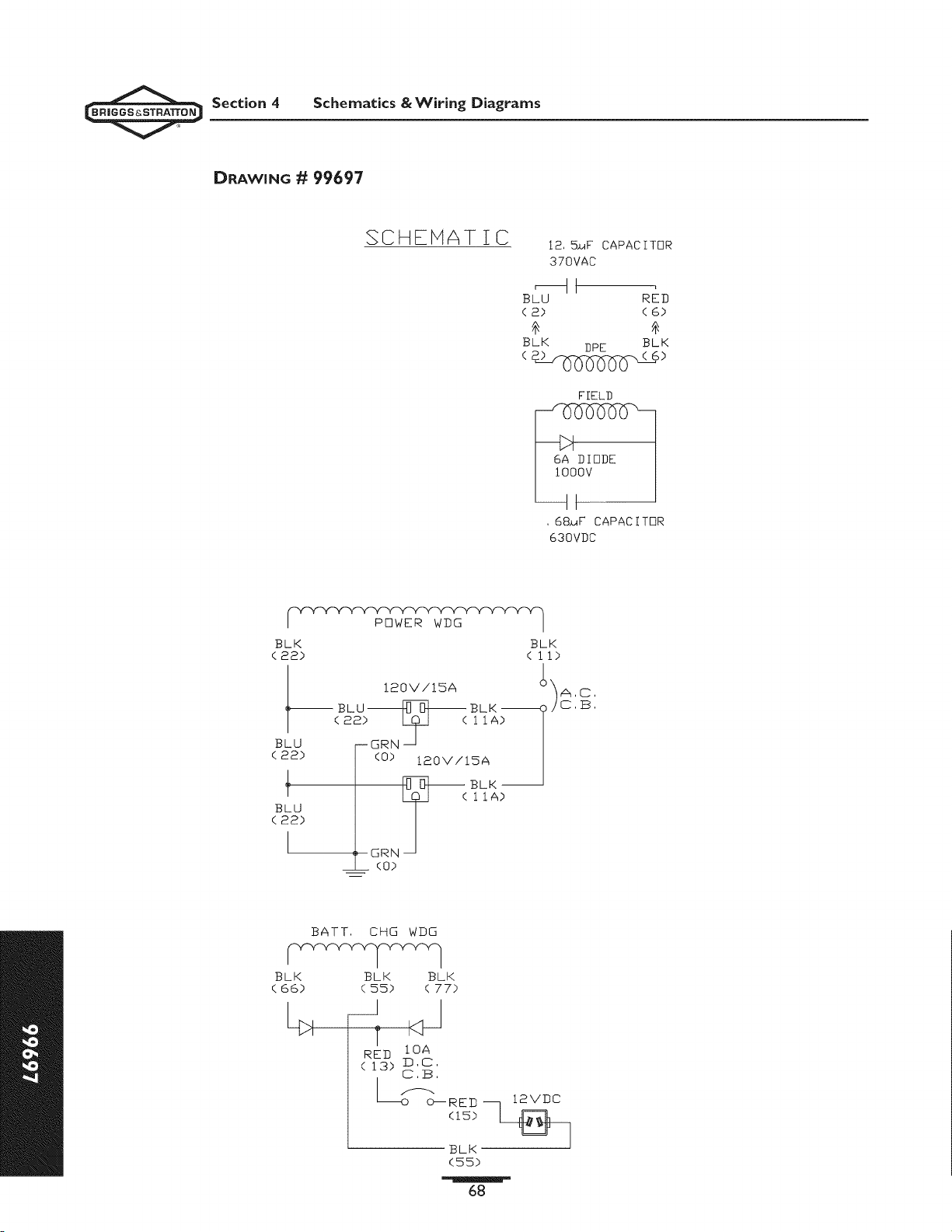

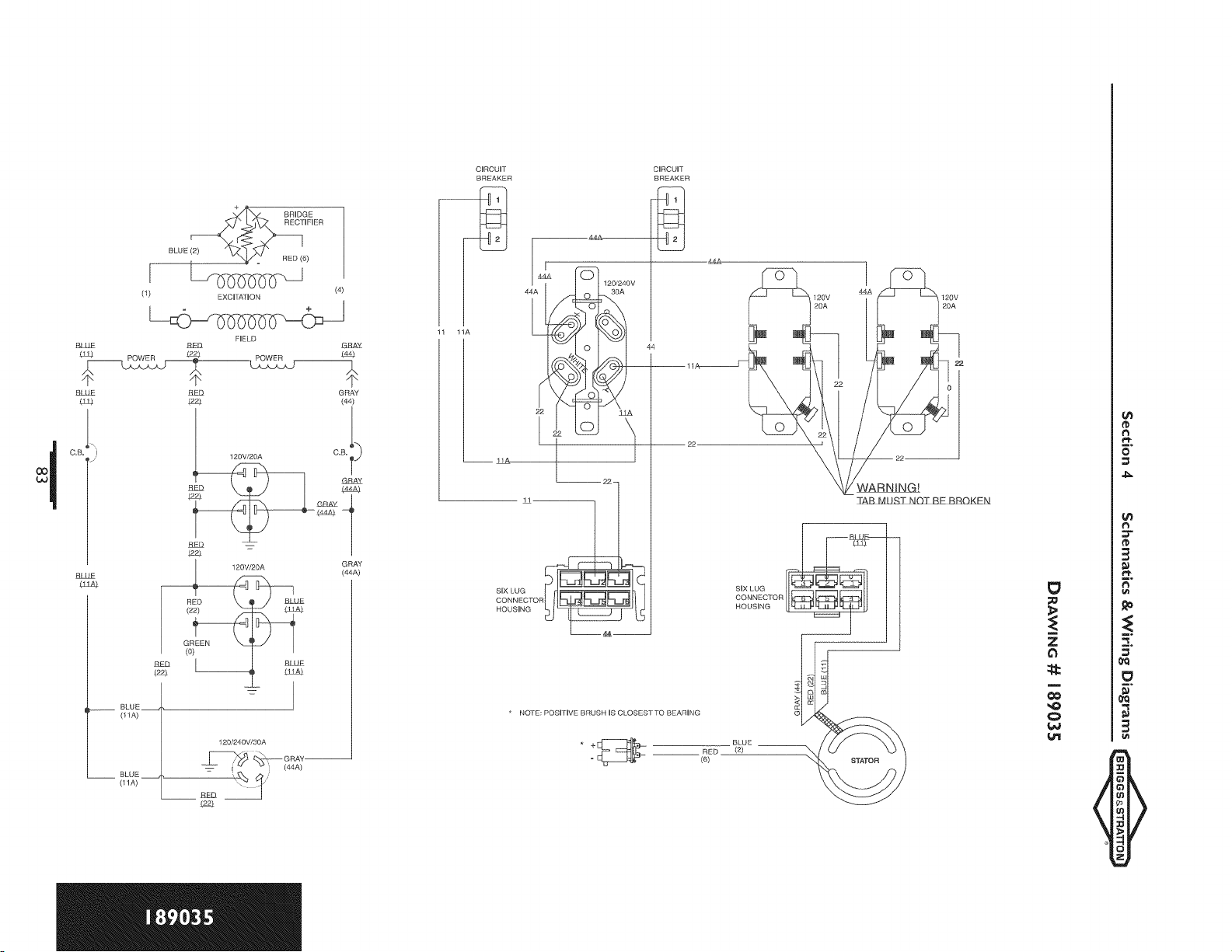

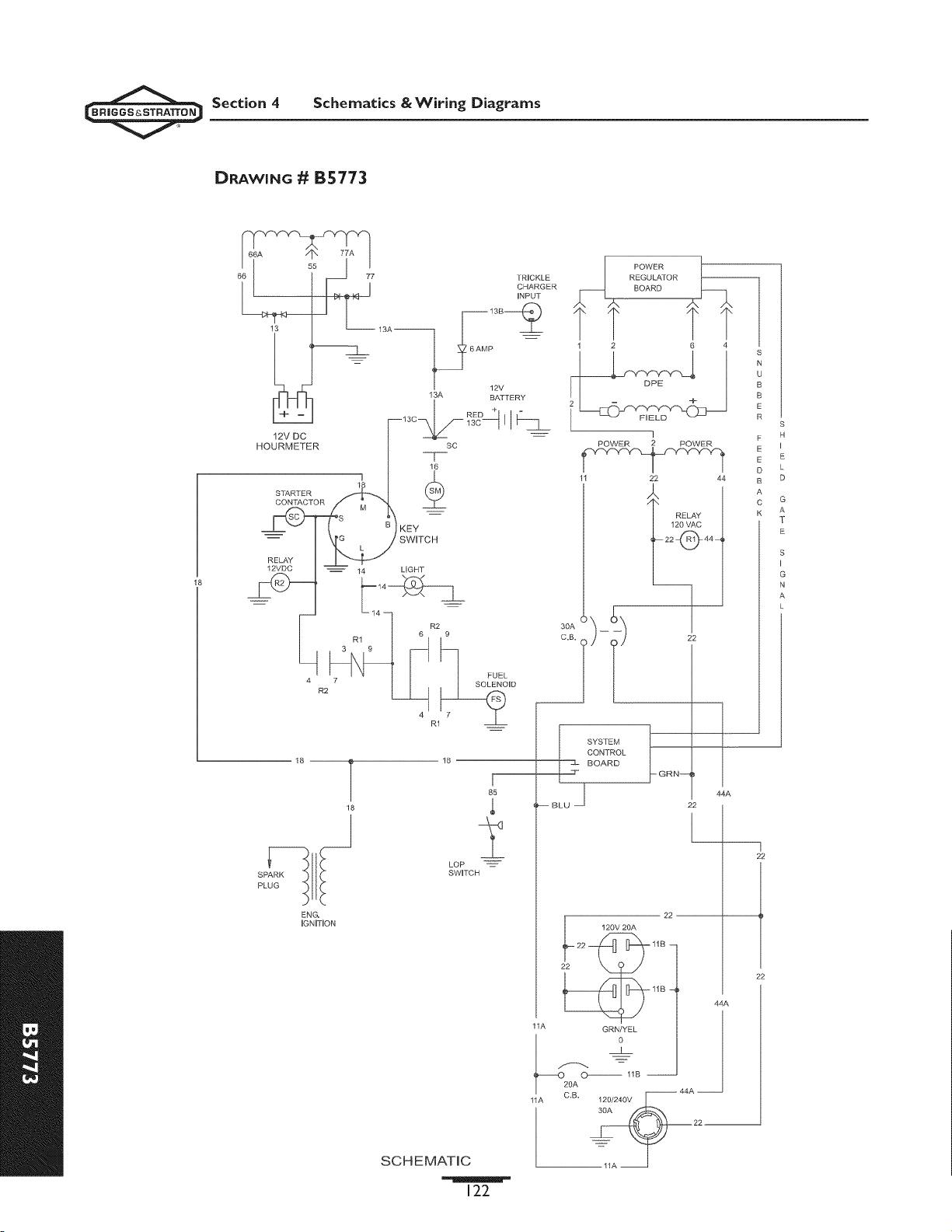

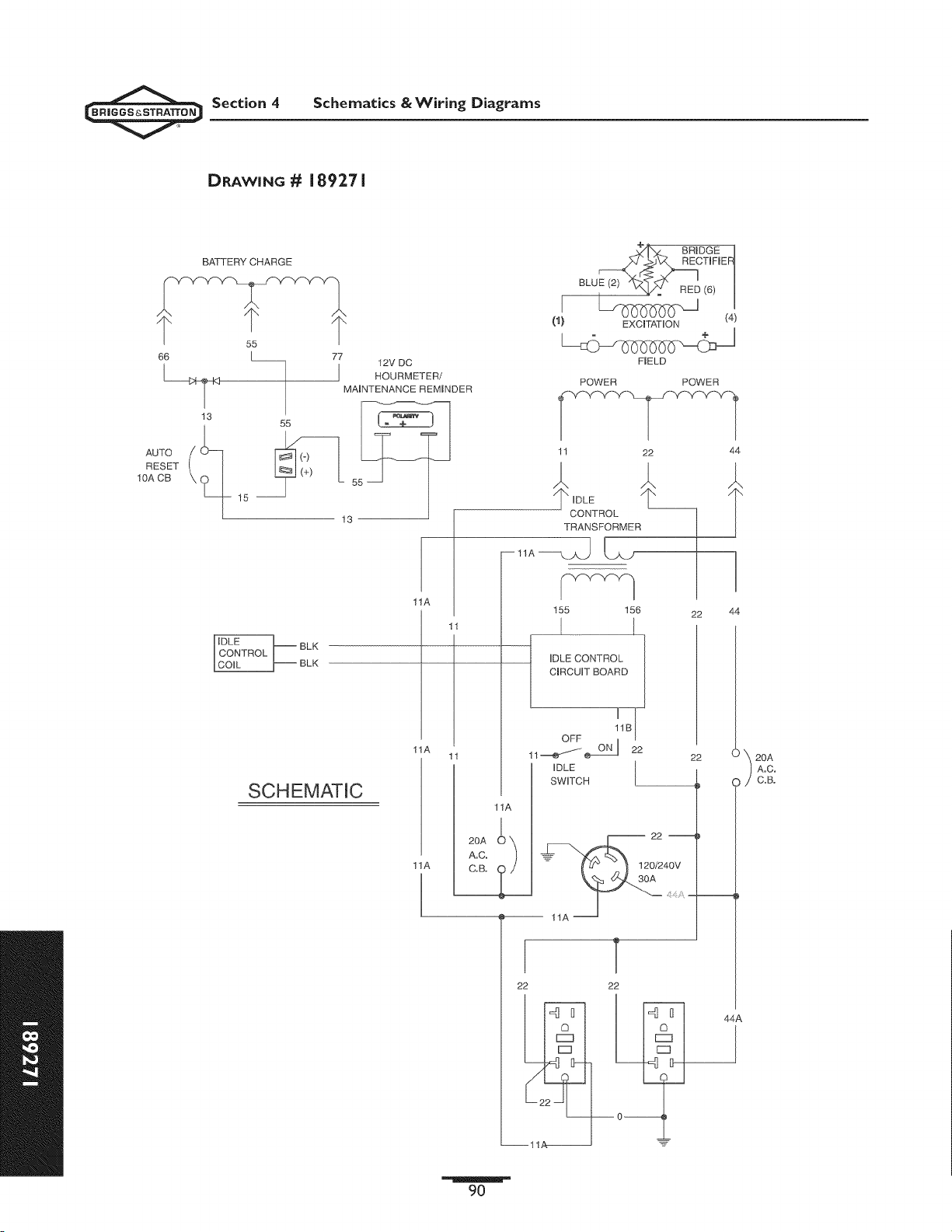

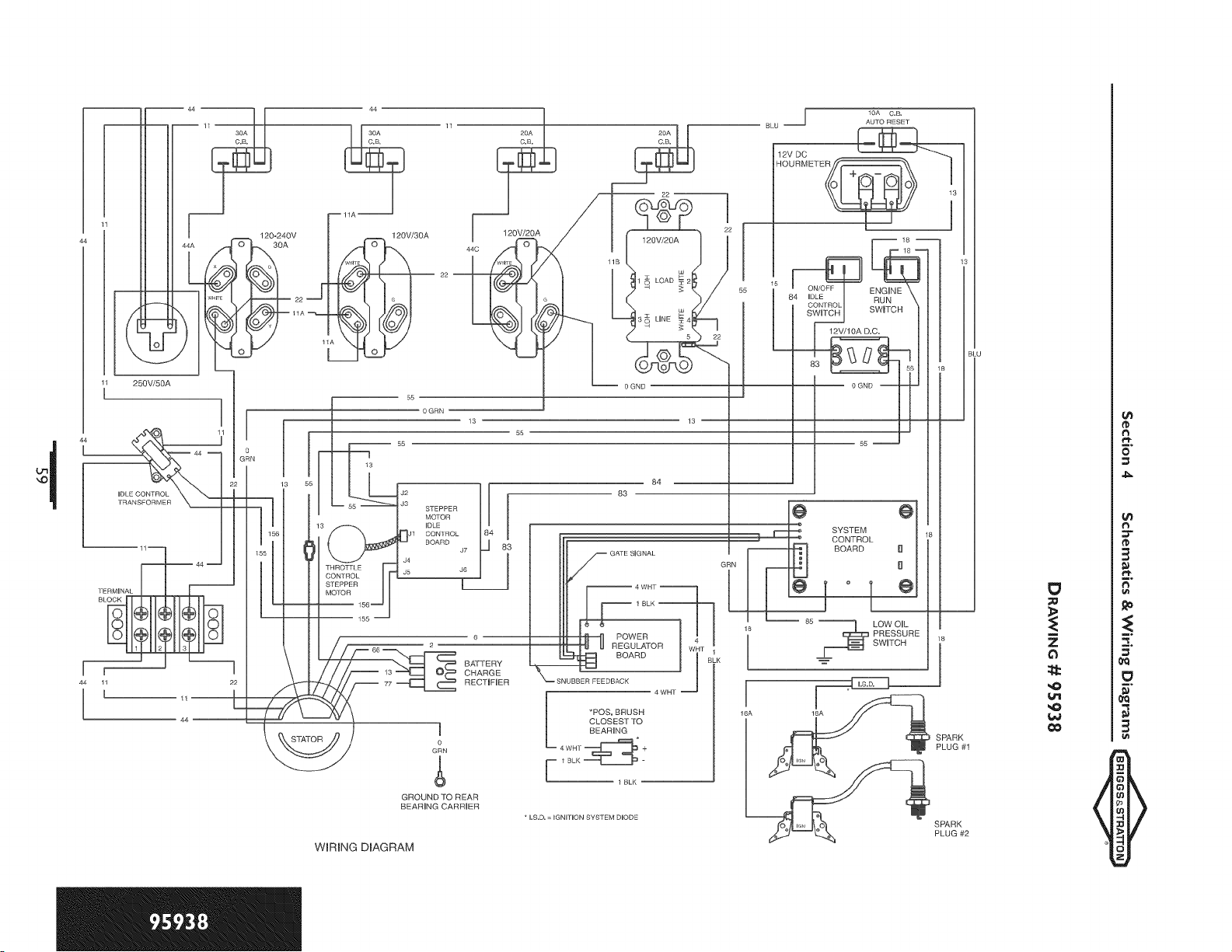

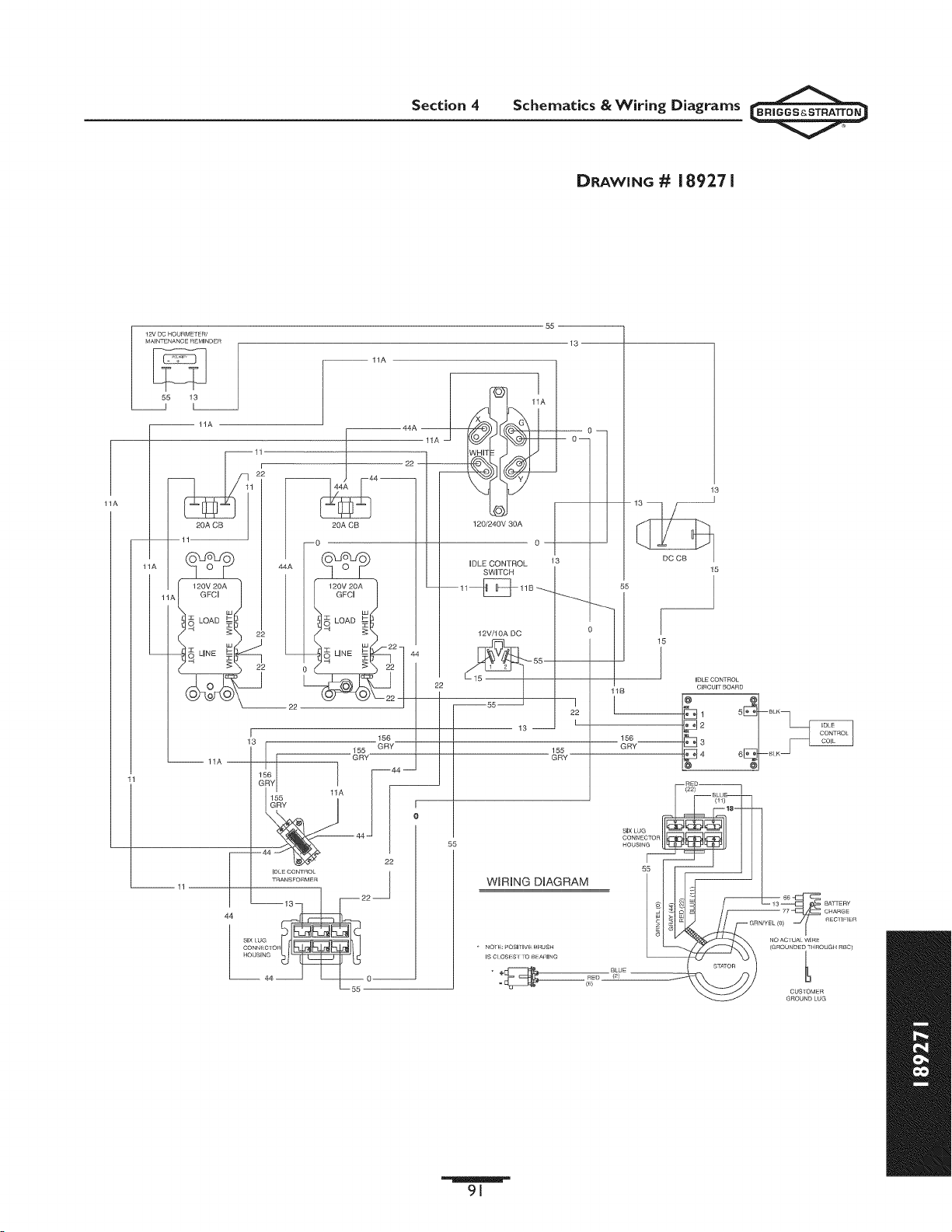

• Schematics & Wiring Diagrams29
