Craftsman 580326740 User Manual
Craftsman 580326740 Portable Generator
User Manual
For 580326740.
PDF File Manual
,
124 pages
,
Read Online
|
Download pdf file

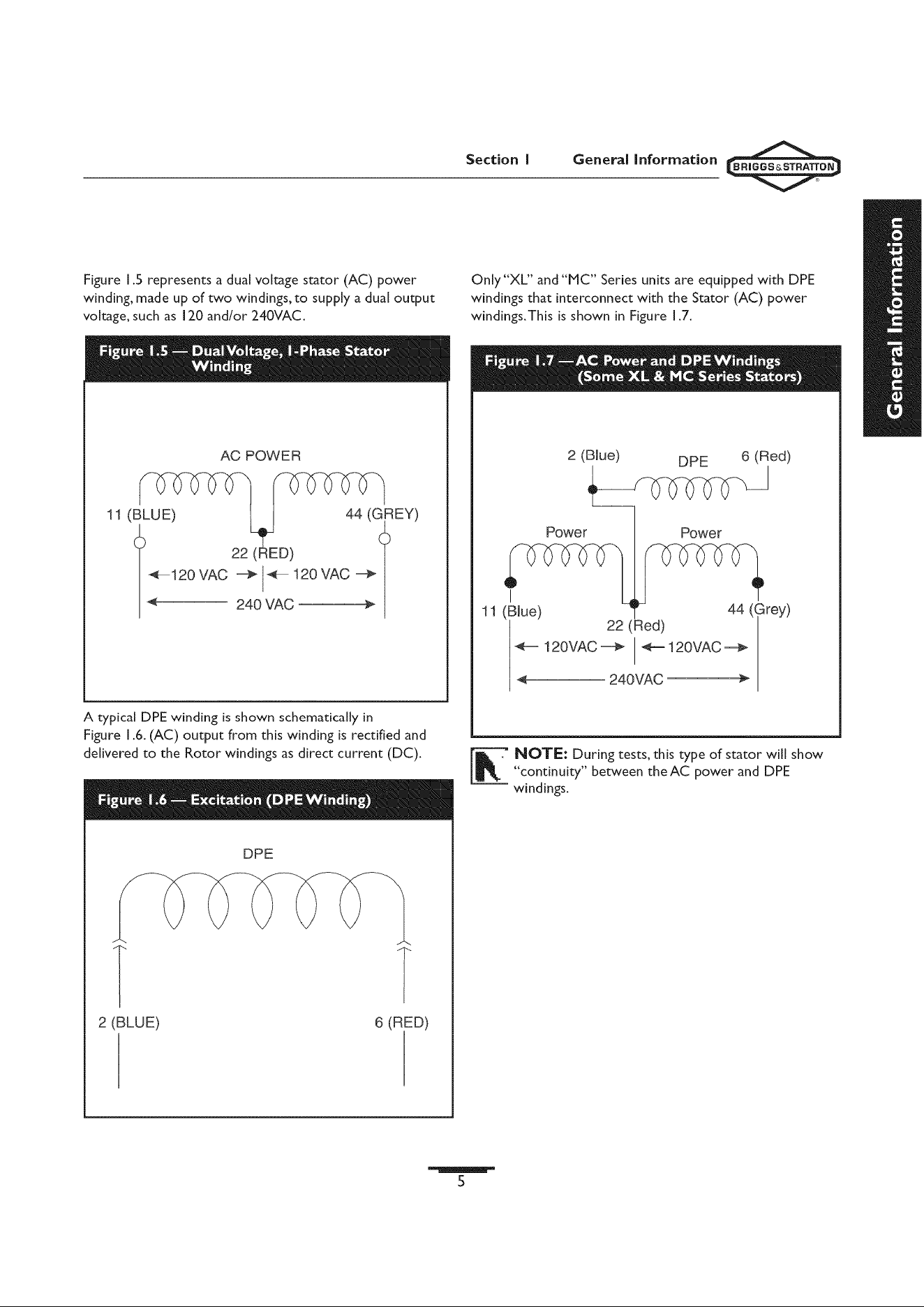

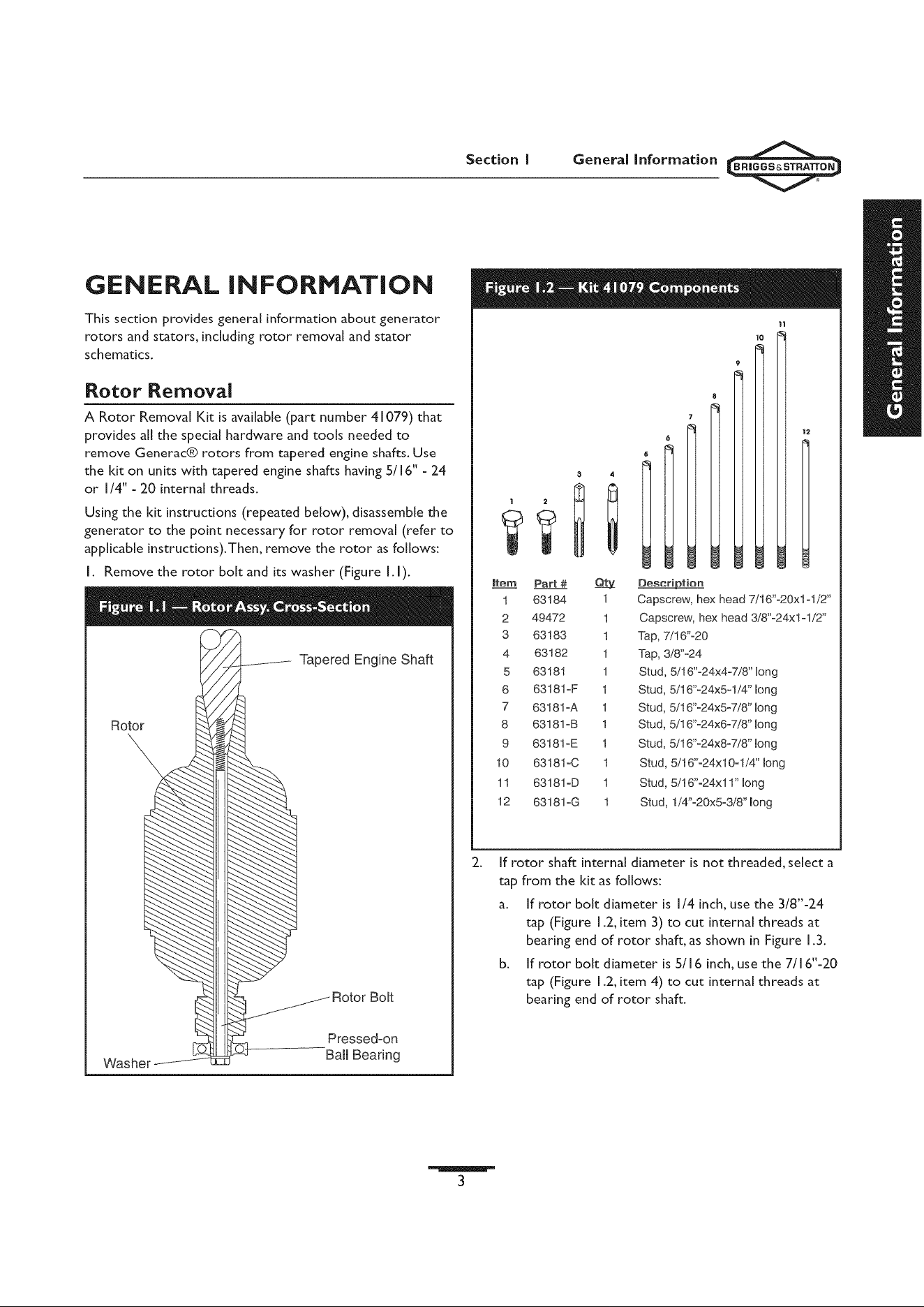

General Information

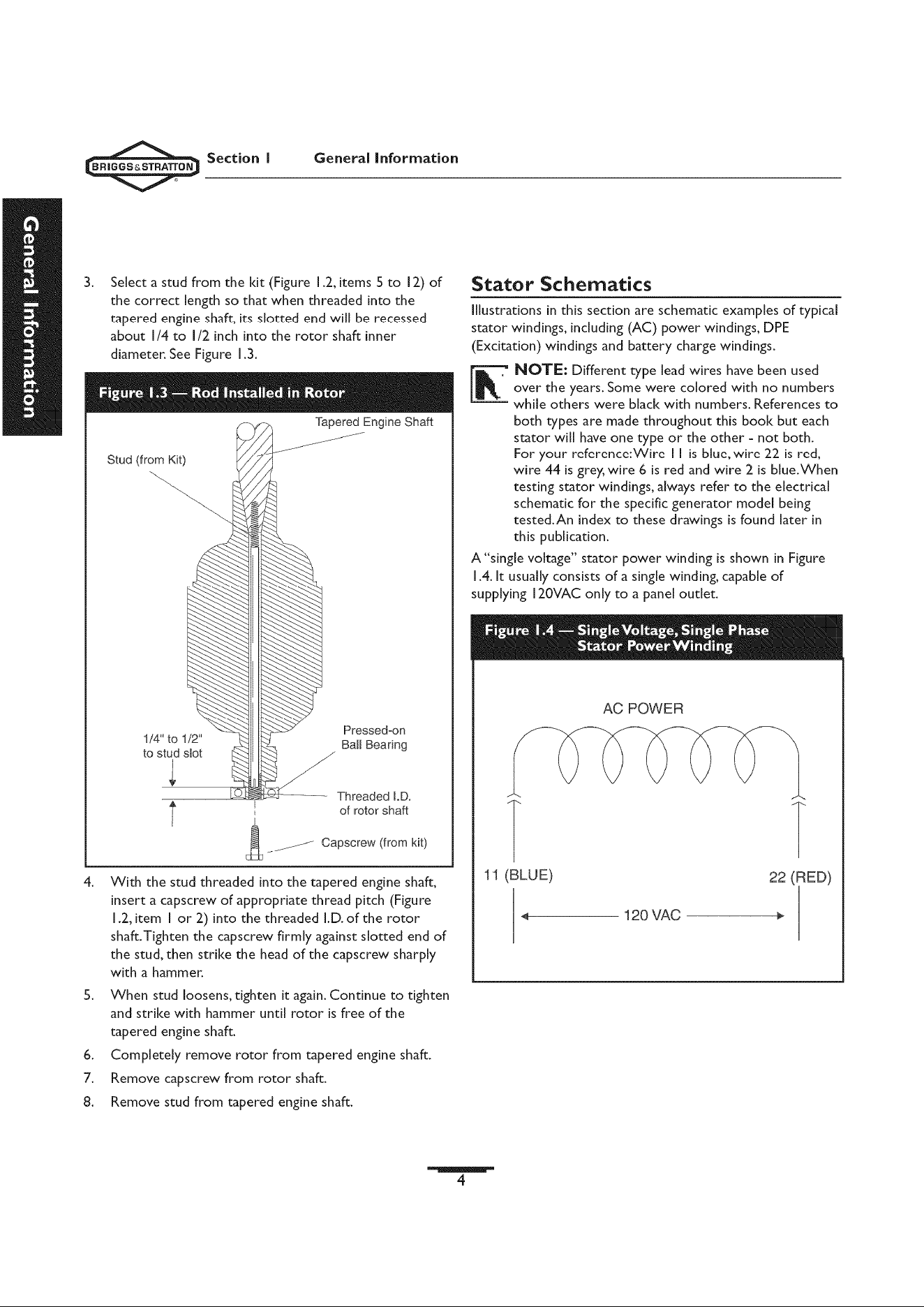

Rotor Removal
Stator Schematics

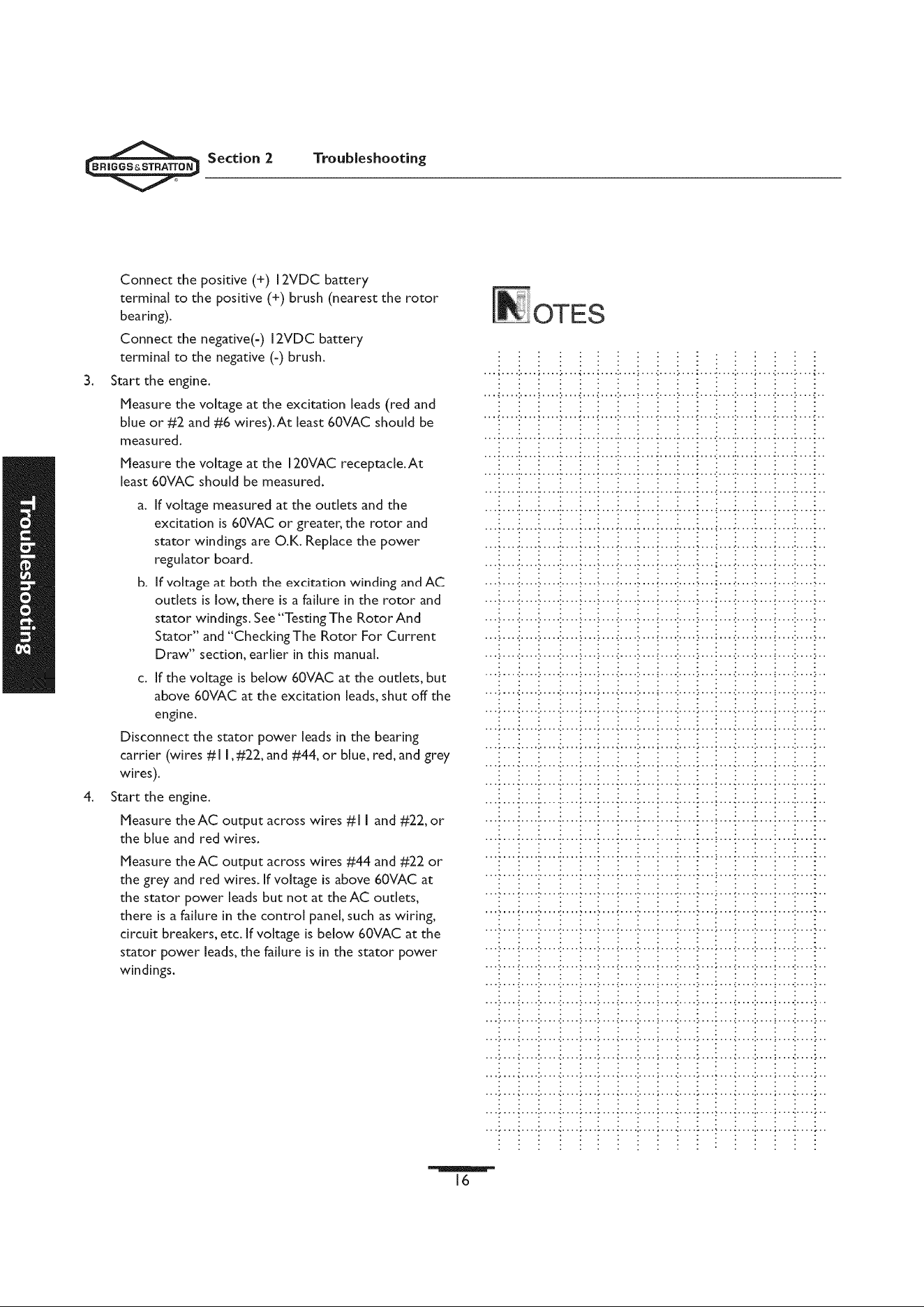

Troubleshooting

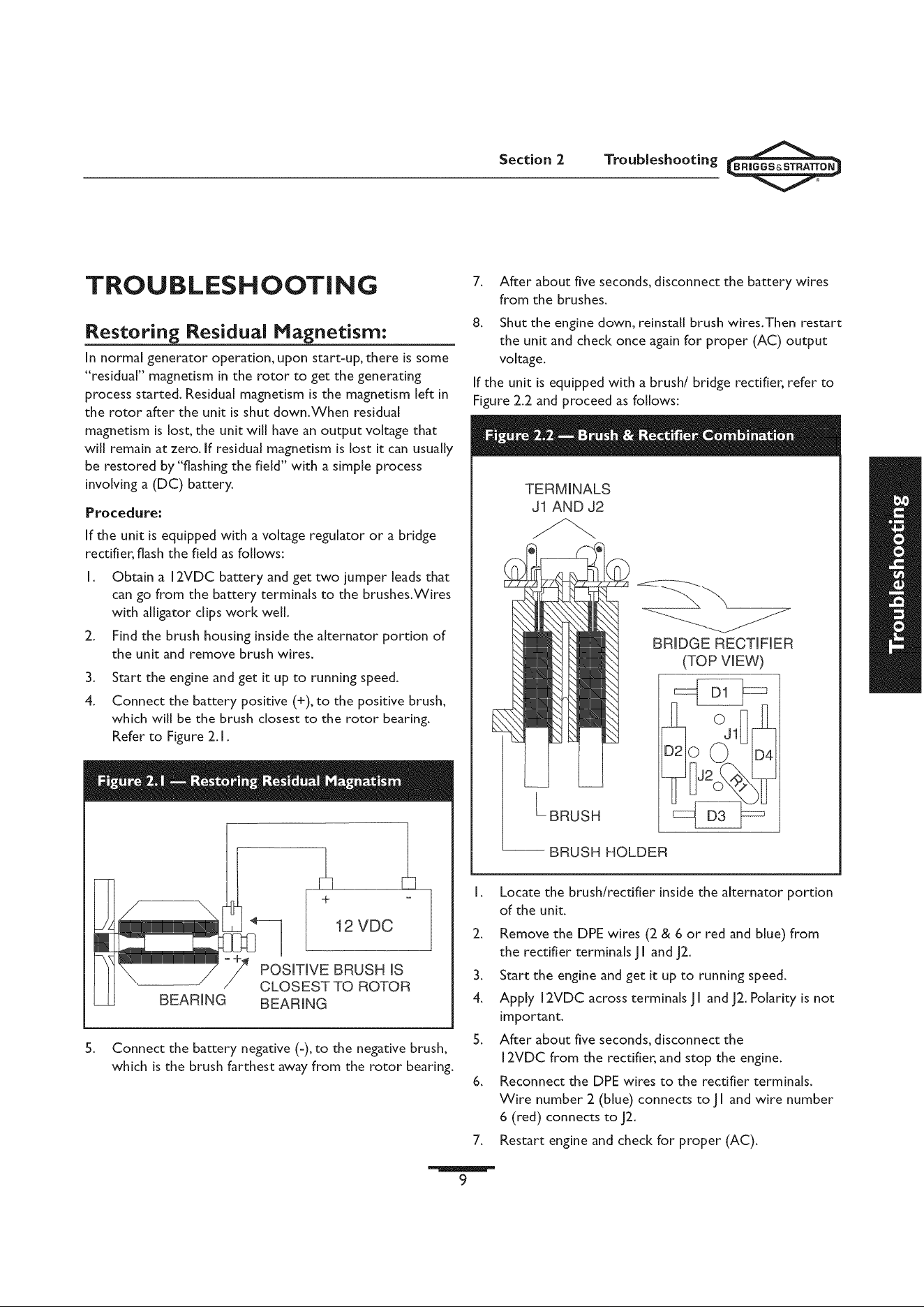

Restoring Residual Magnetism
Procedure
Checking Rotor Resistance
Checking Rotor Windings
Testing A Single Voltage Type Power Winding

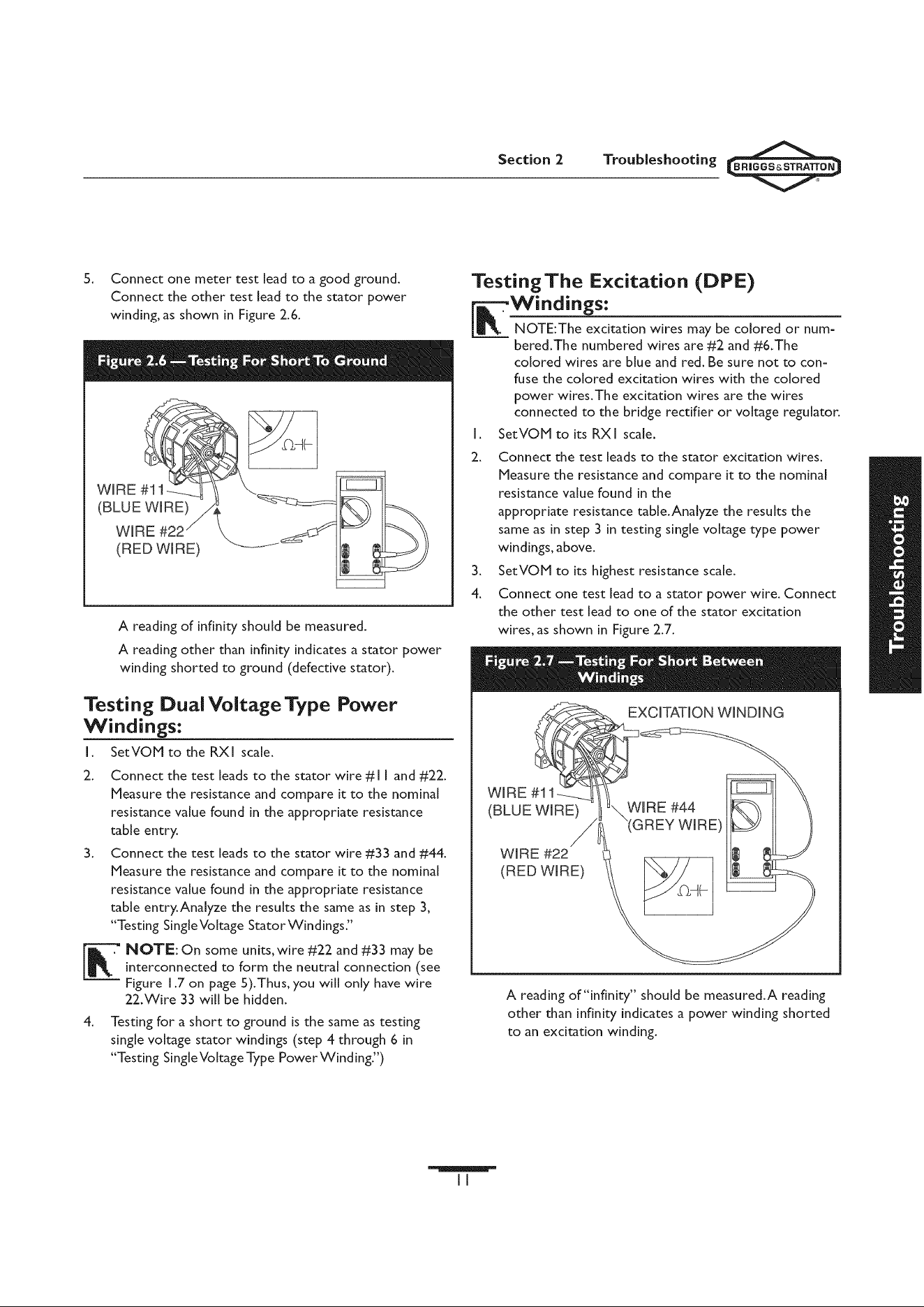

Testing Dual Voltage Type Power Windings
Testing The Excitation (DPE) Windings

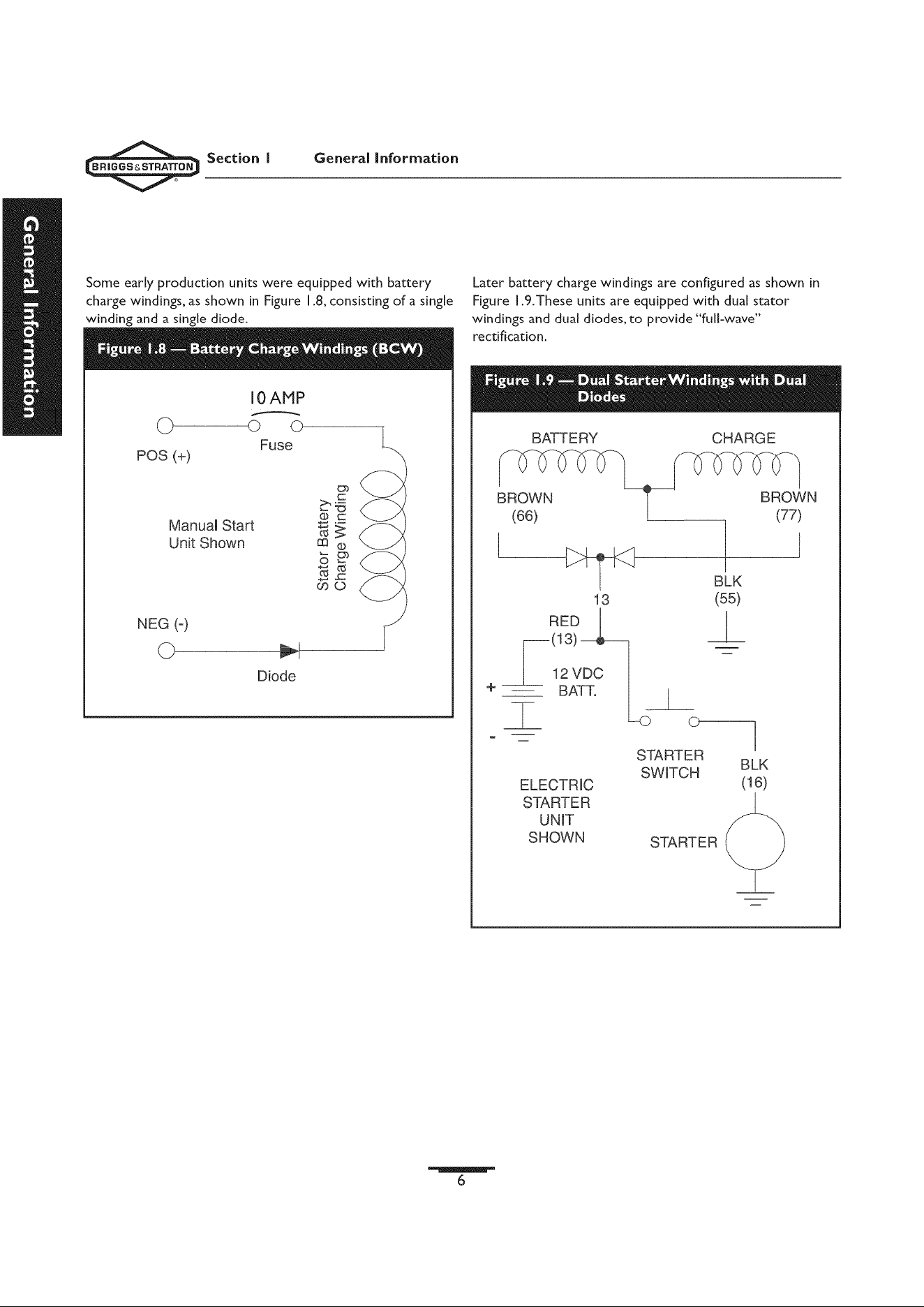

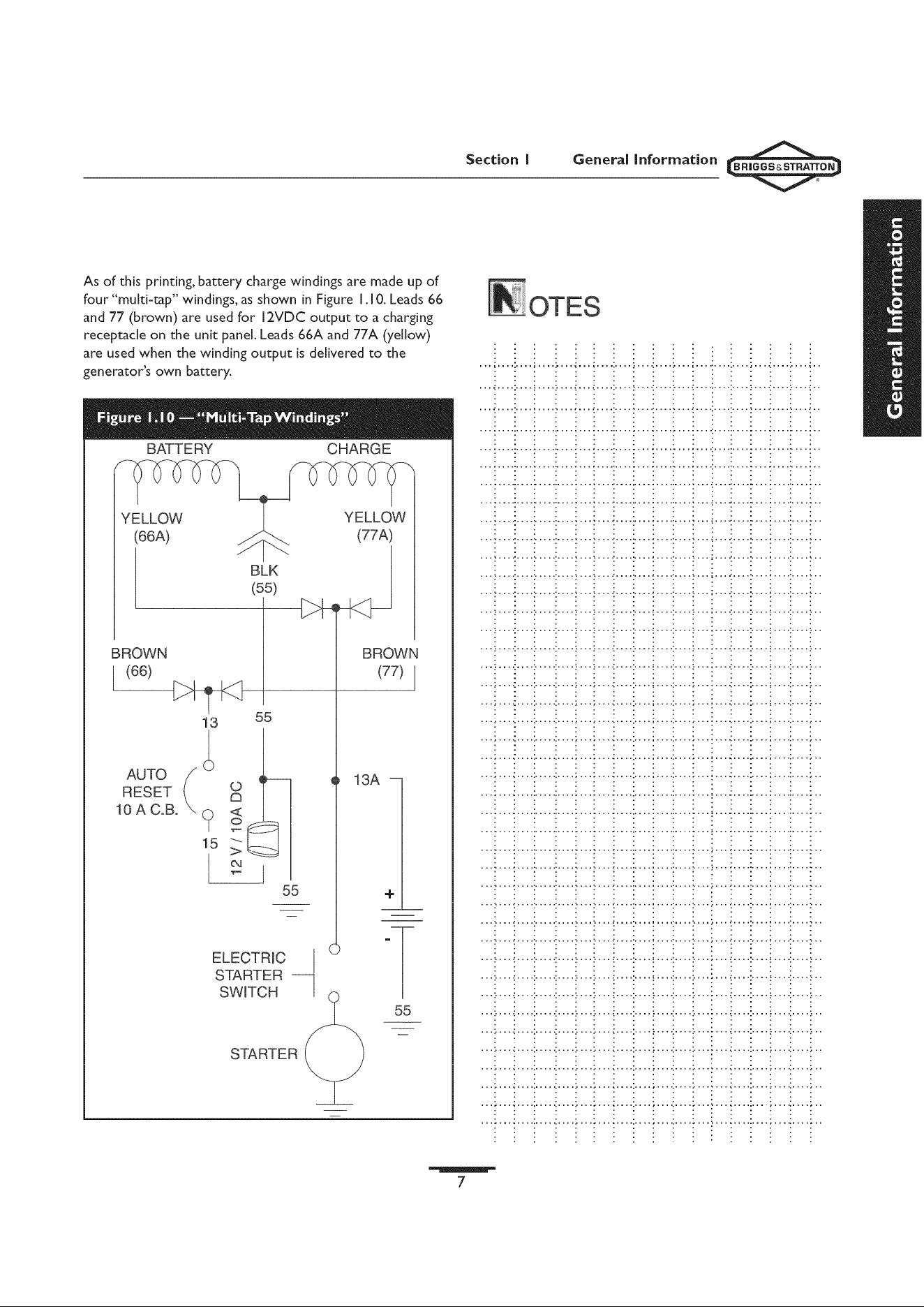

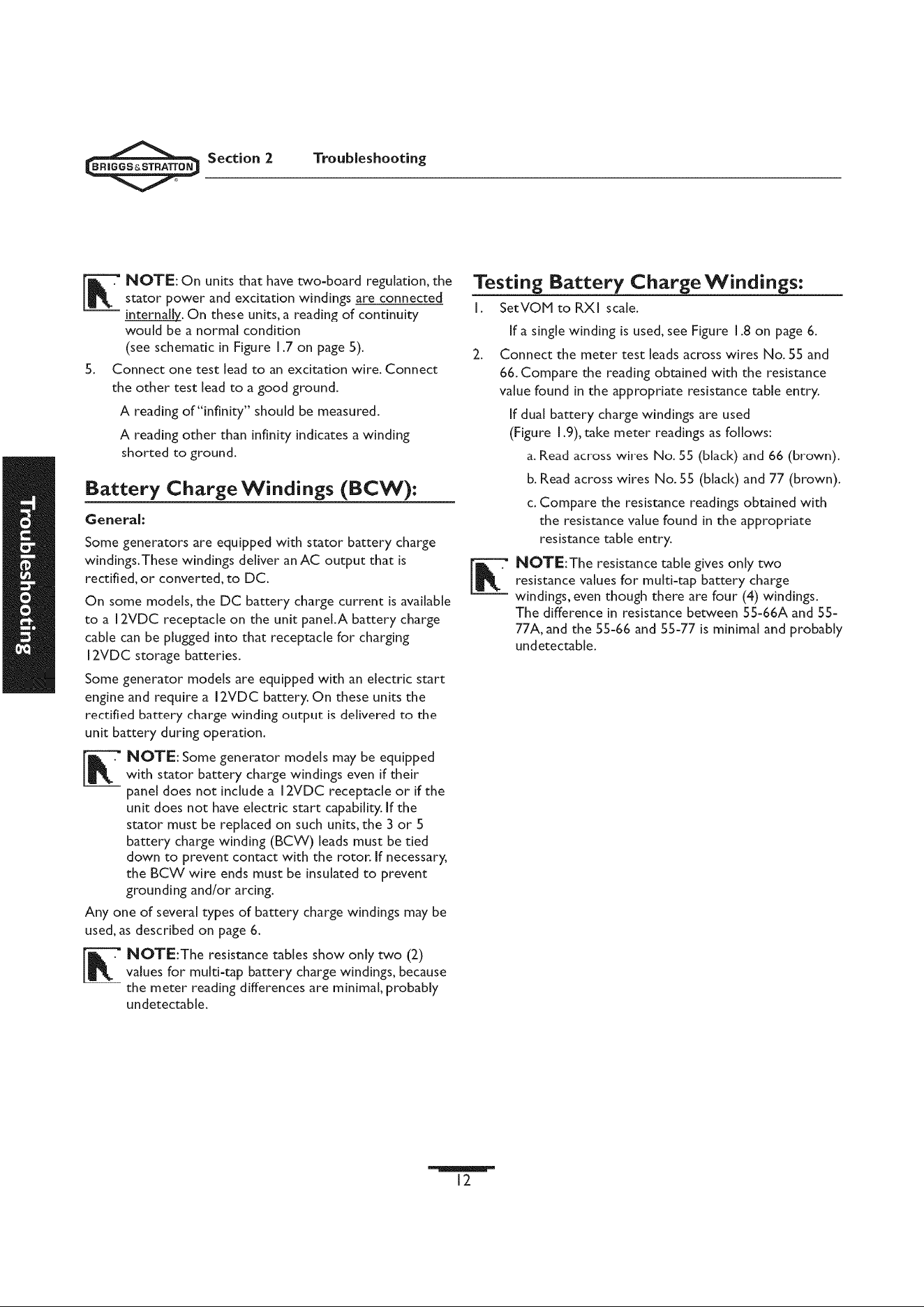

Battery Charge Windings
General
Testing Battery Charge Windings

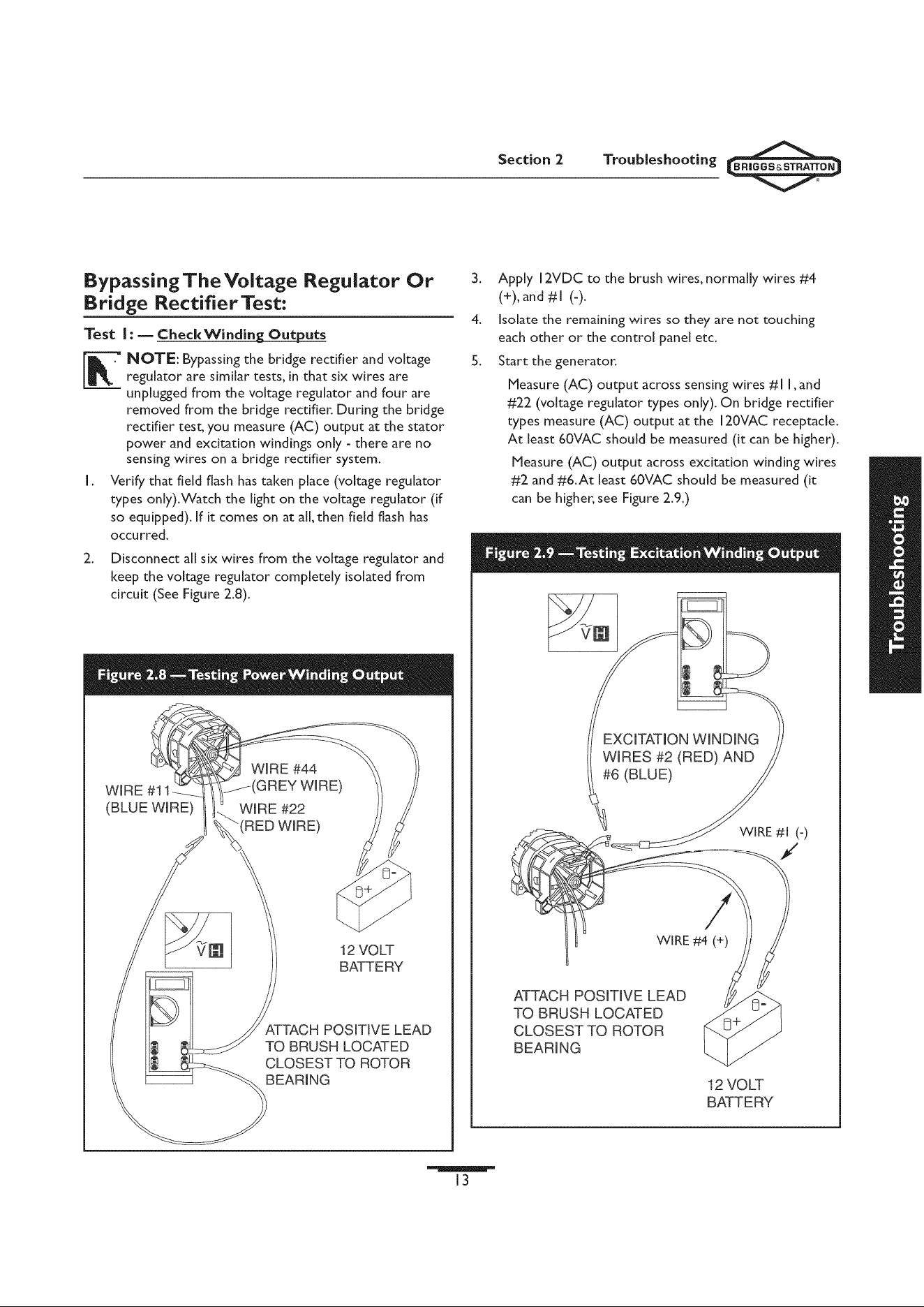

Bypassing The Voltage Regulator Or Bridge Rectifier Test
Test 1 Check Winding Outputs
Test 2 Rotor Current Draw Test
Test 3 Results

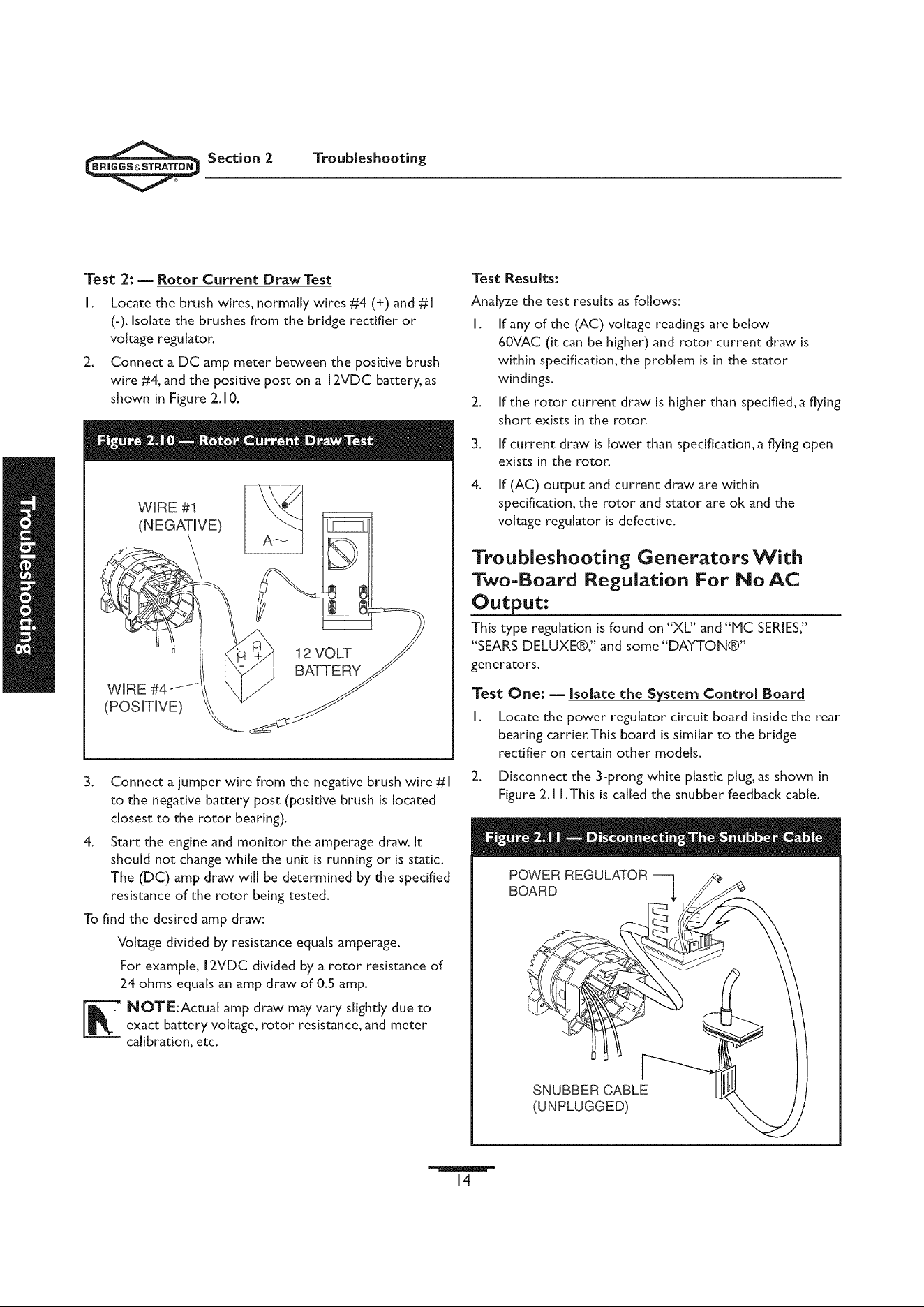

Troubleshooting Generators With TwoBoard Regulation For NoAC Output
Test 1 Isolate The System Control Board

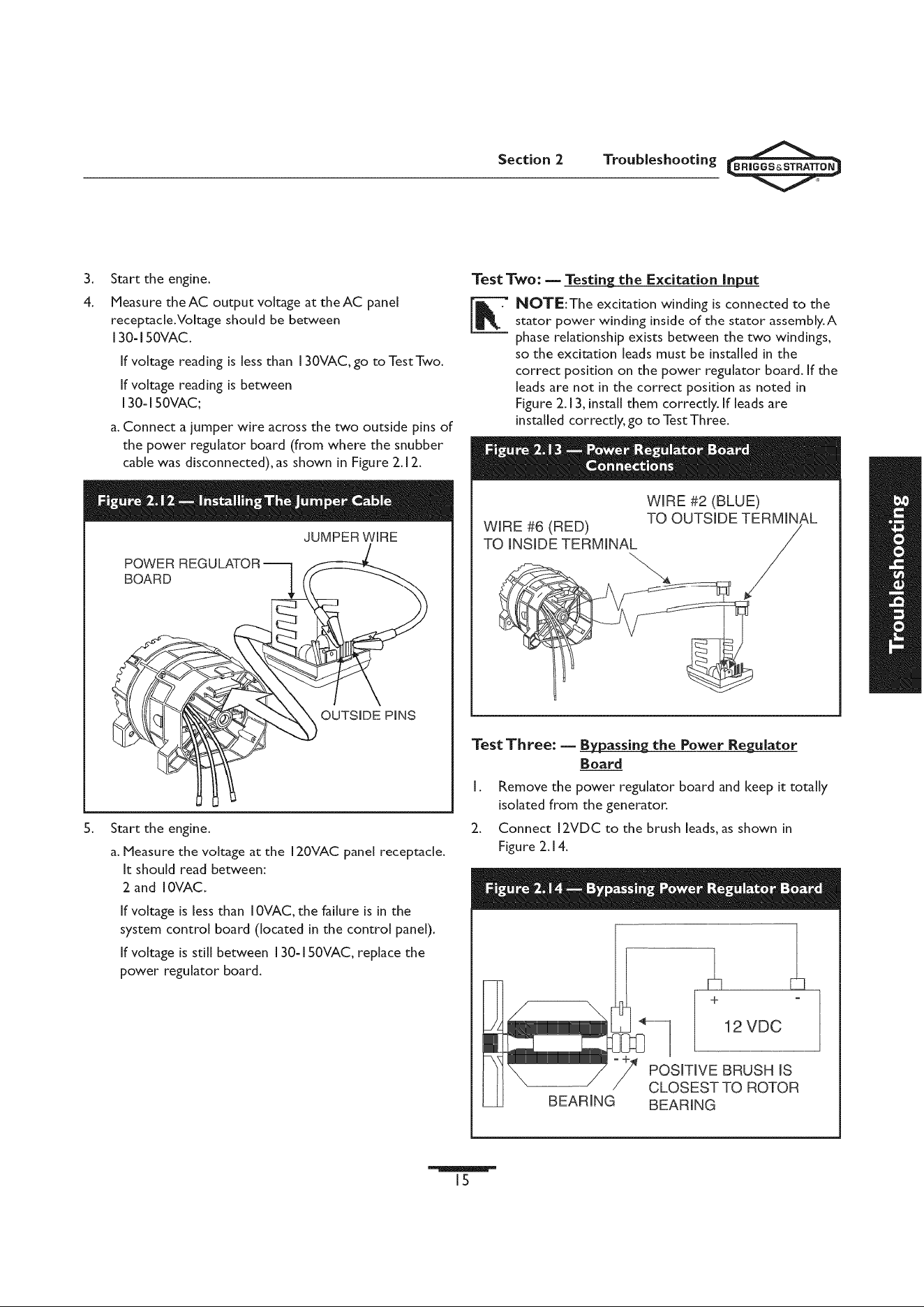

Test 2 Testing The Excitation Input
Test 3 Bypassing The Power Regulator Board

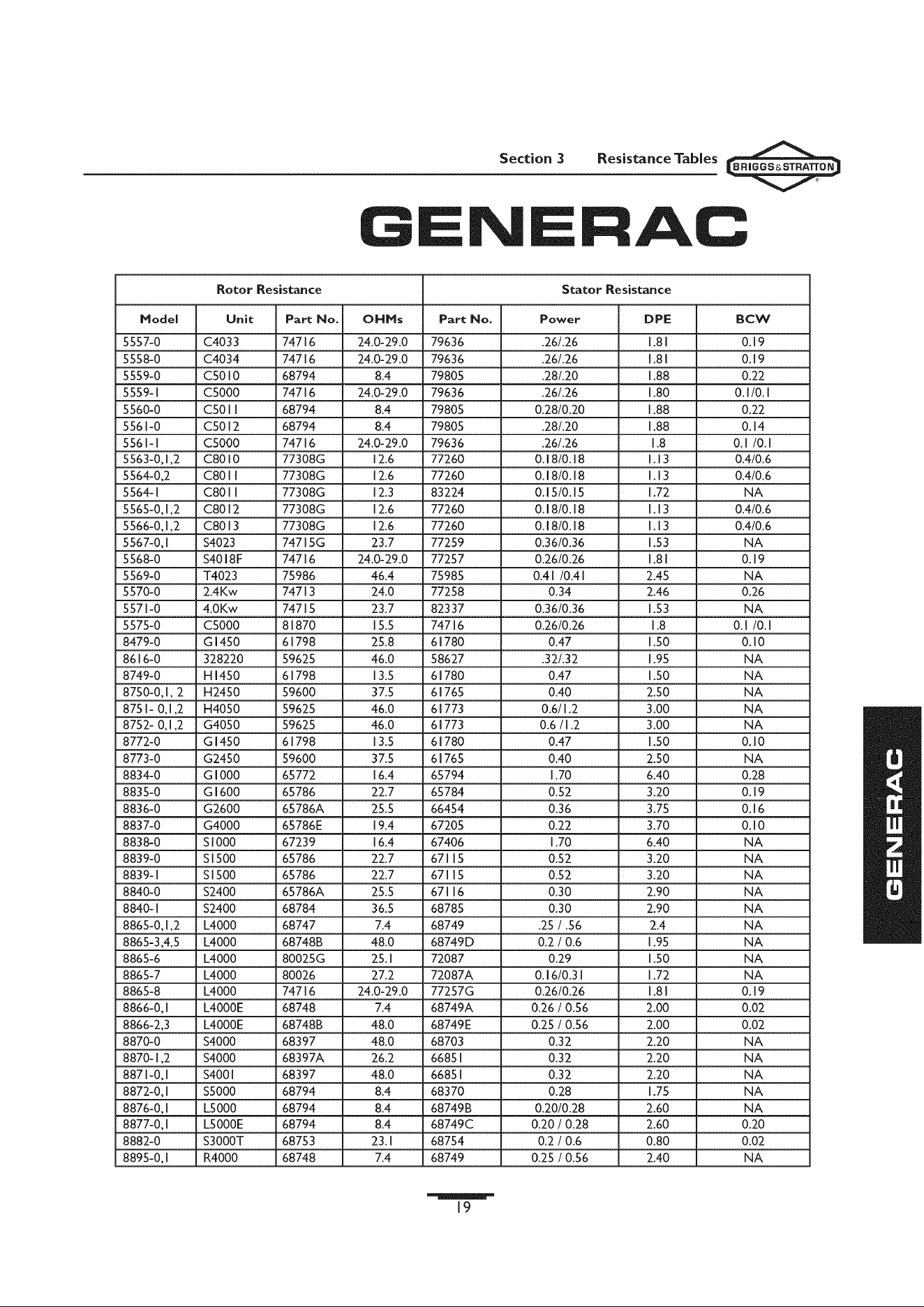

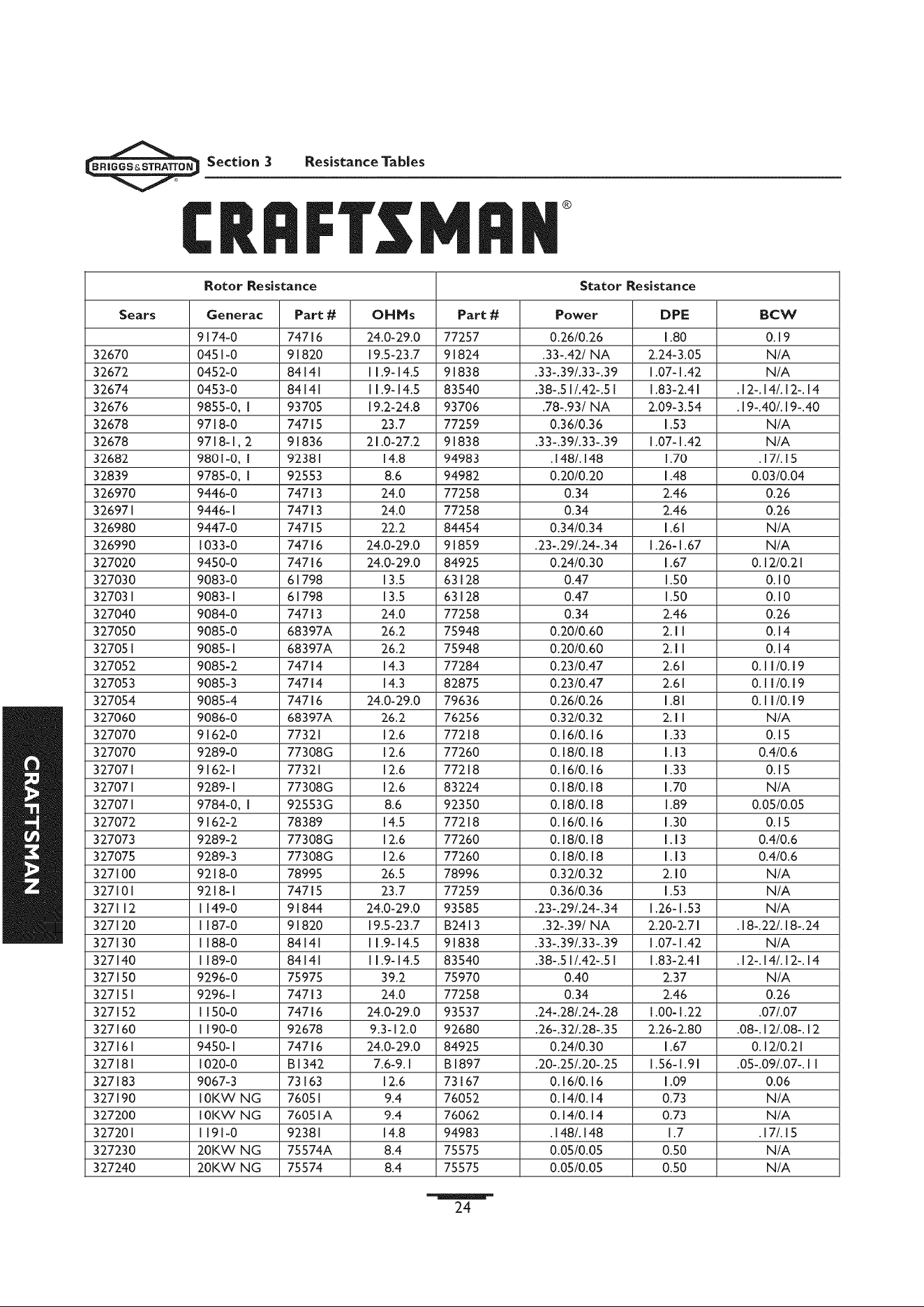

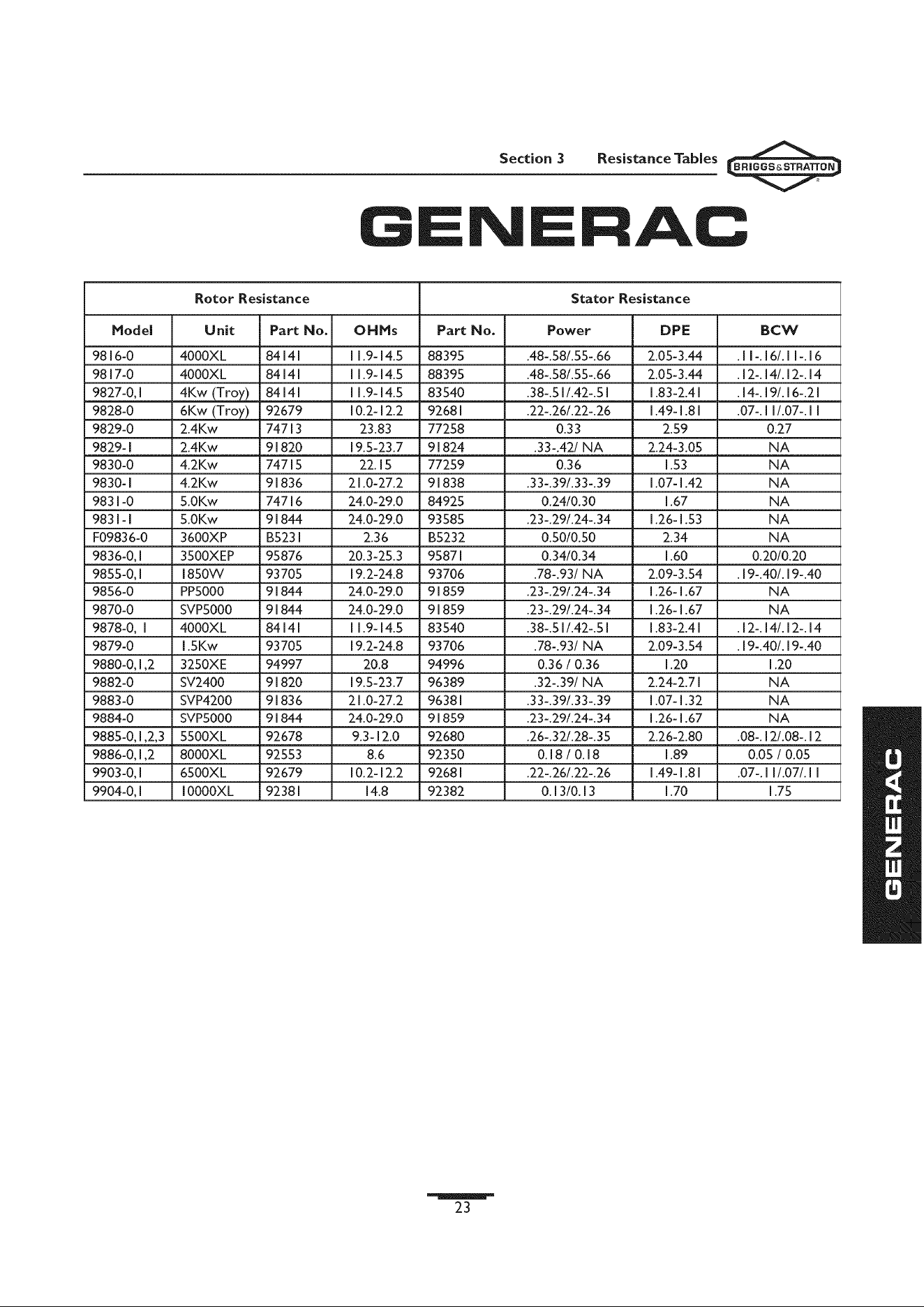

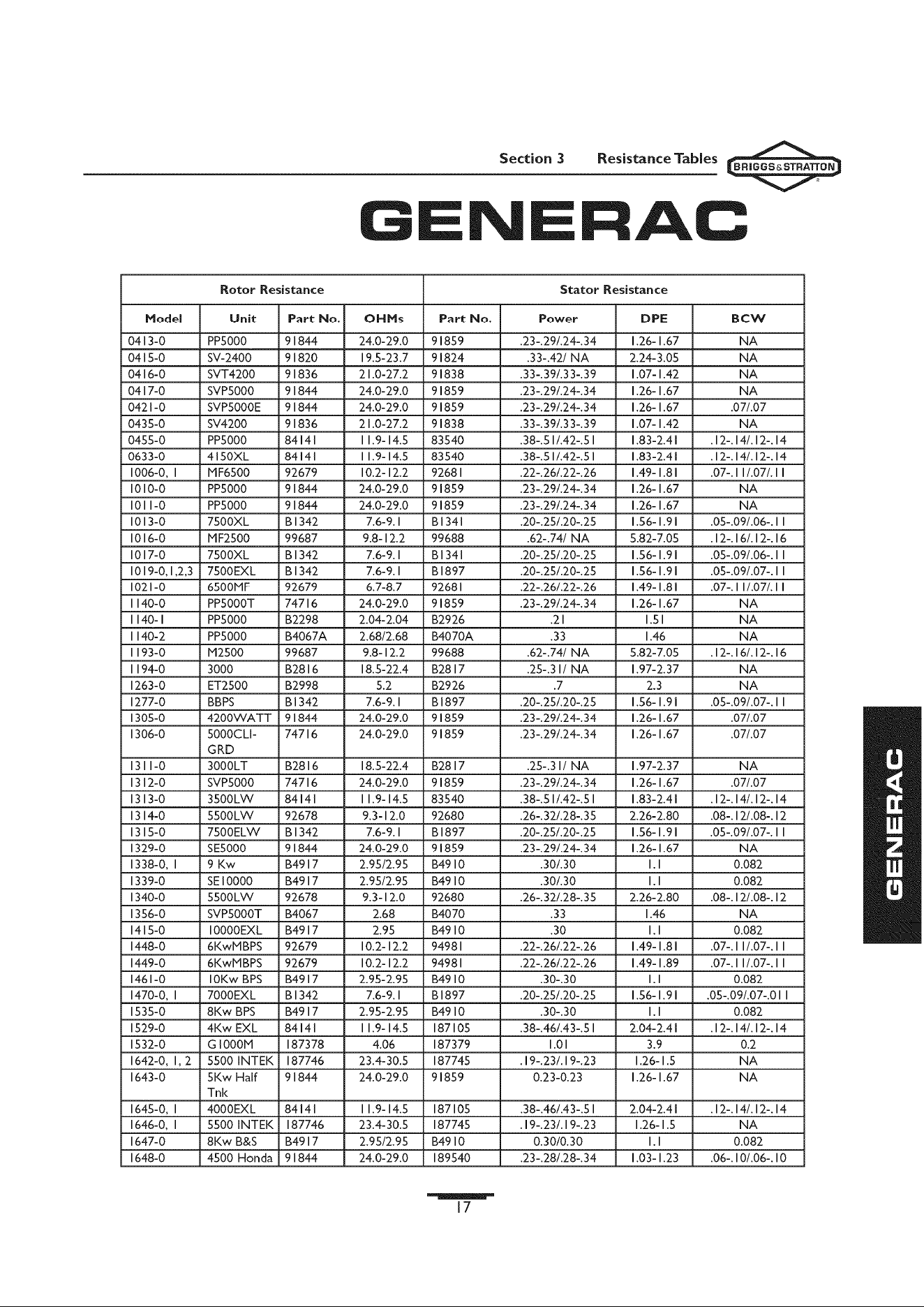

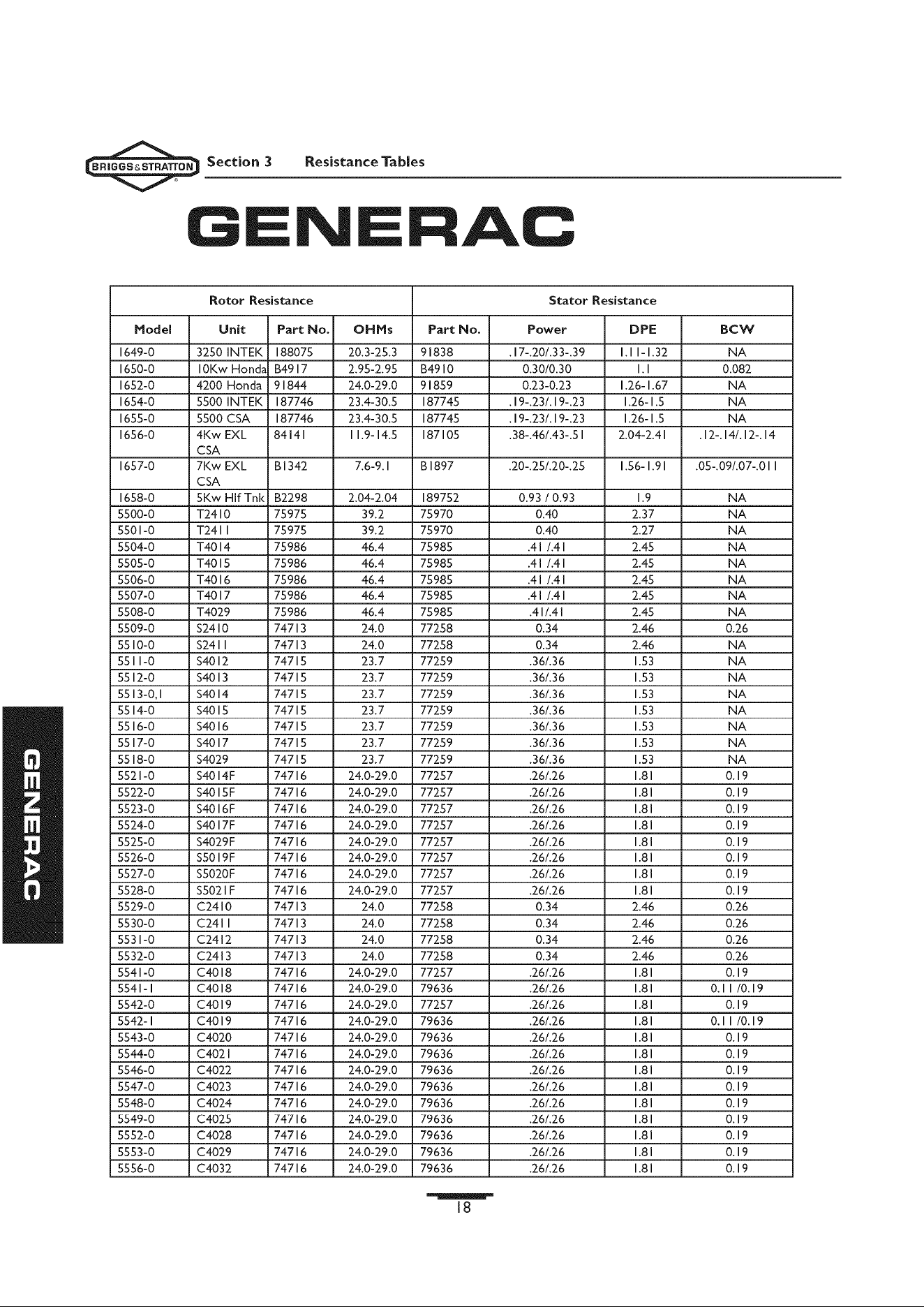

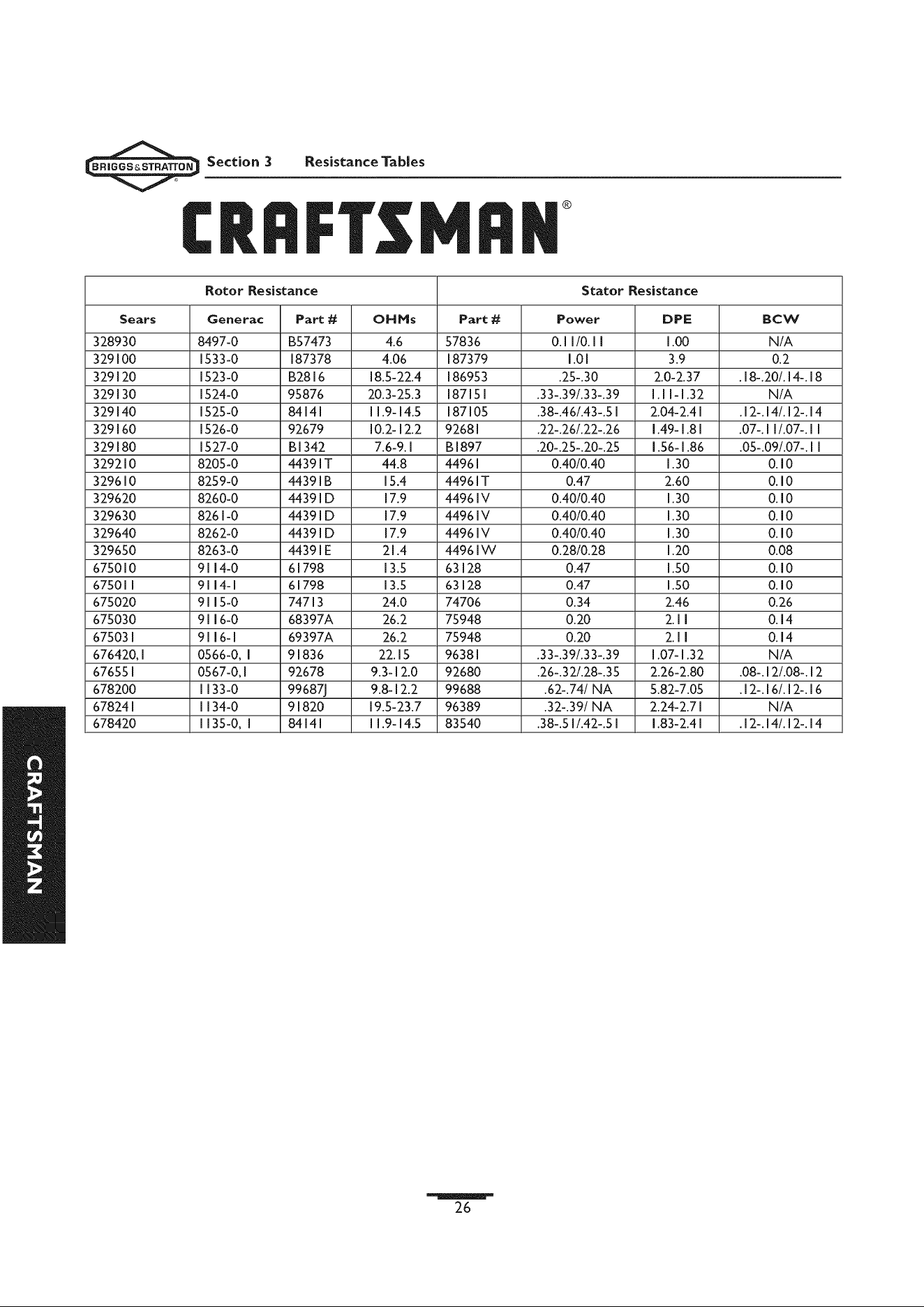

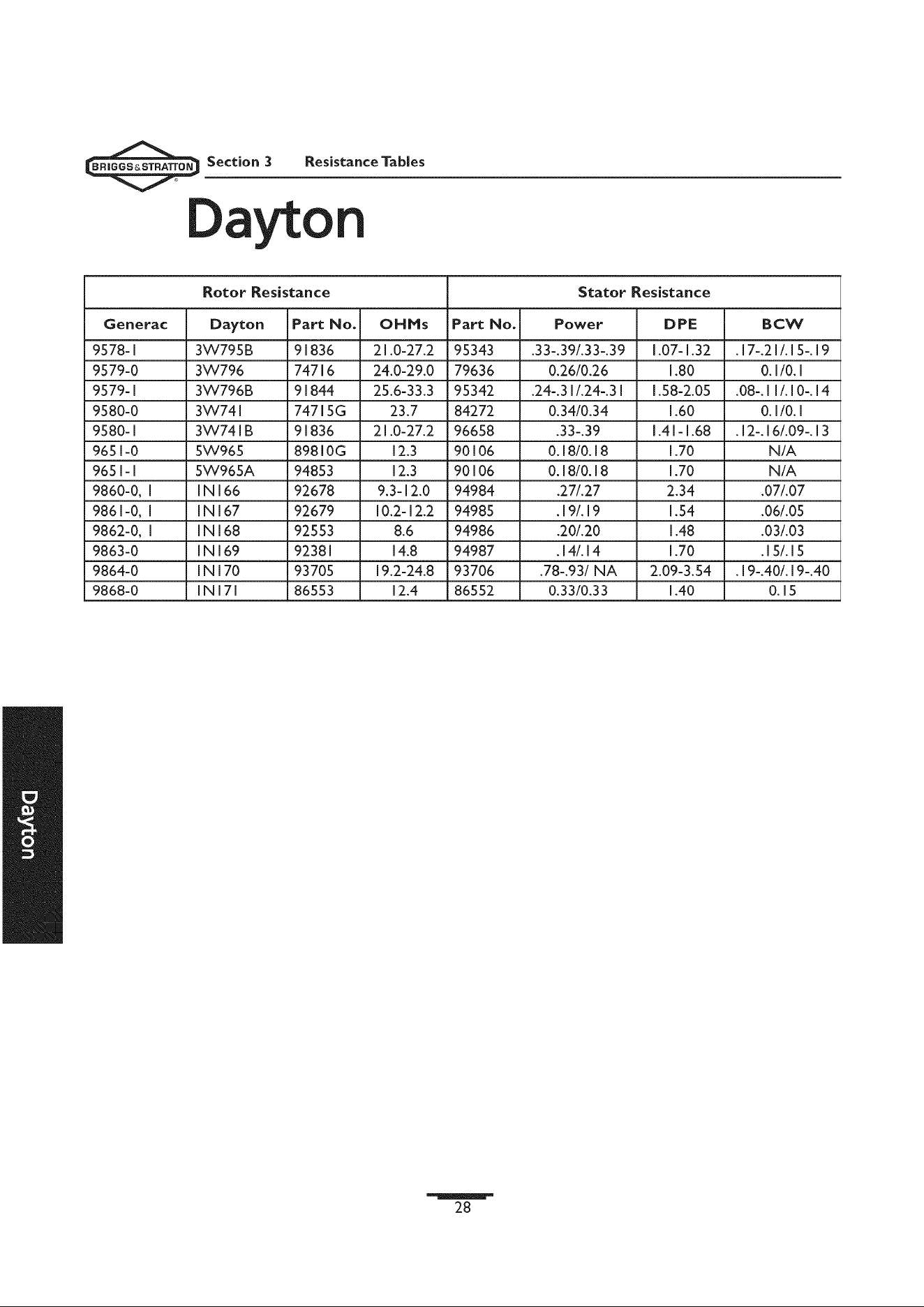

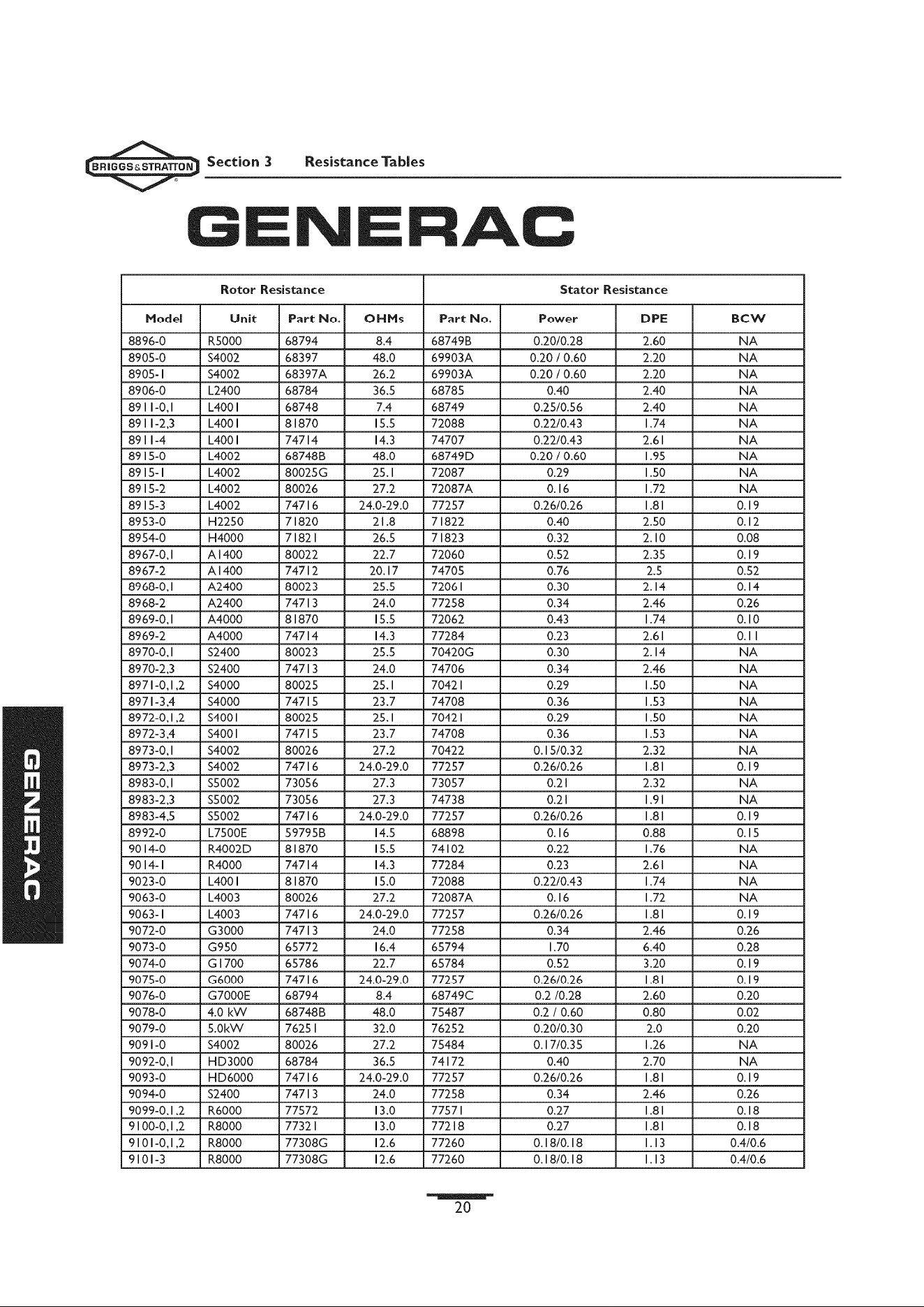

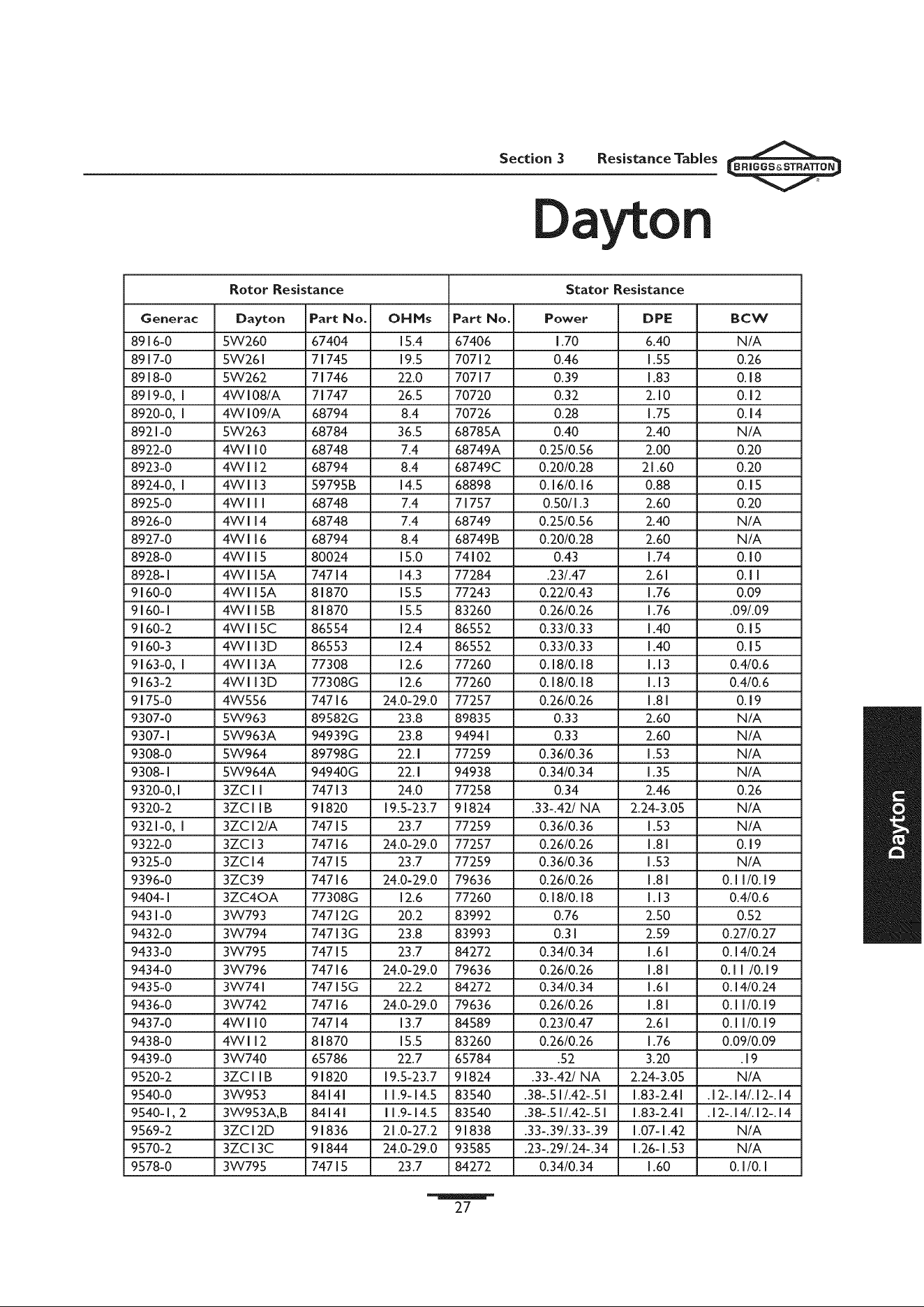

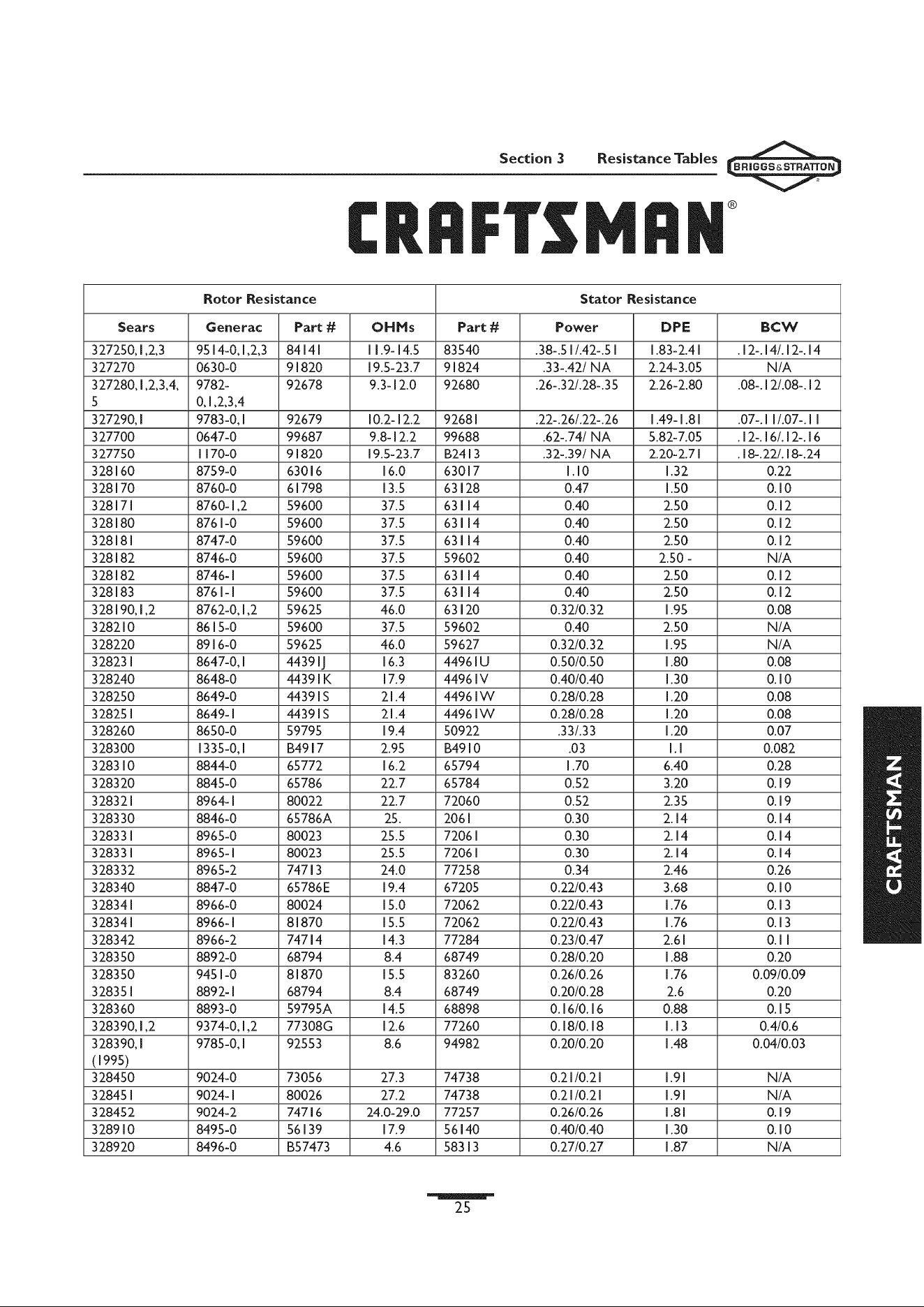

Resistance Tables

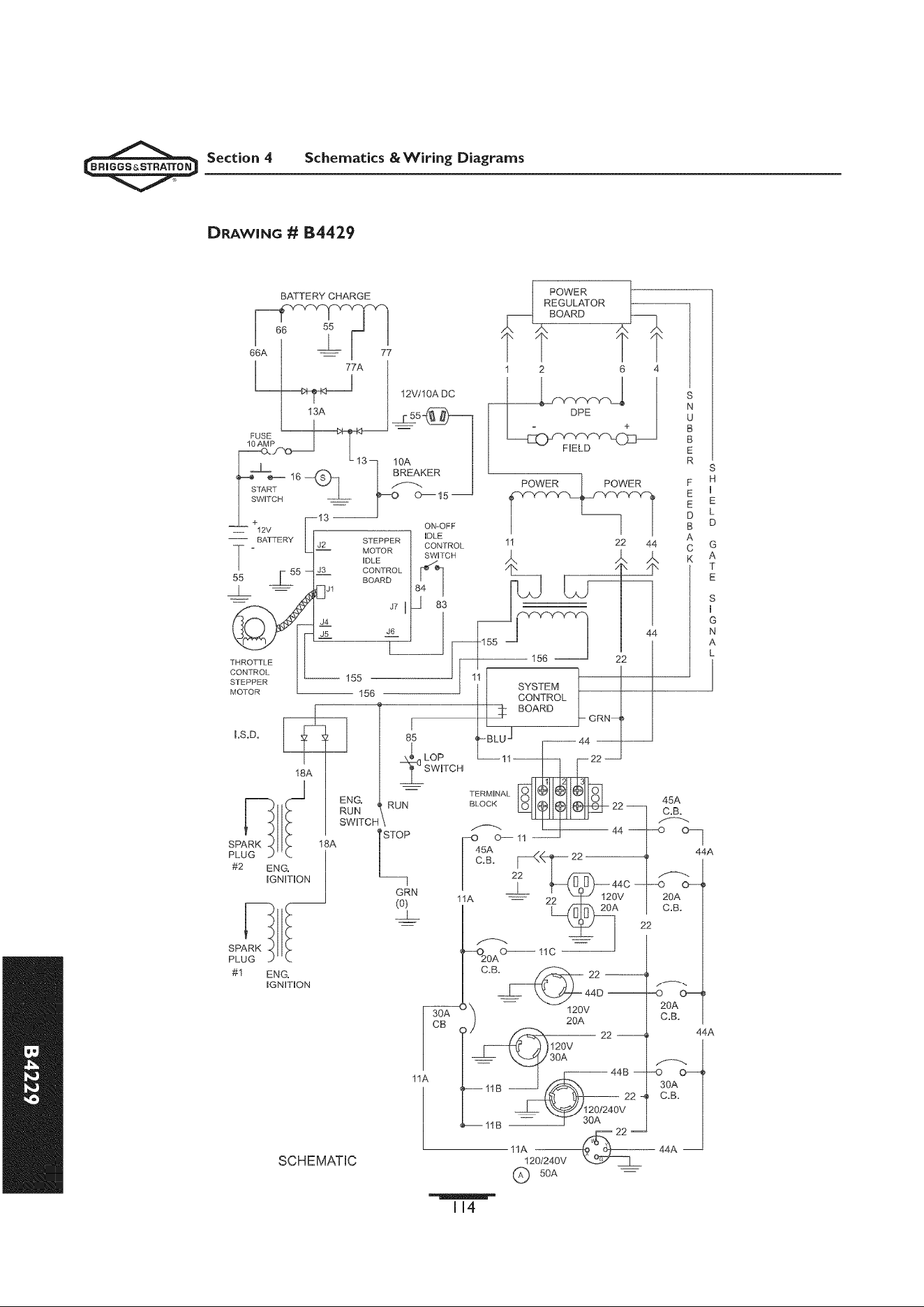

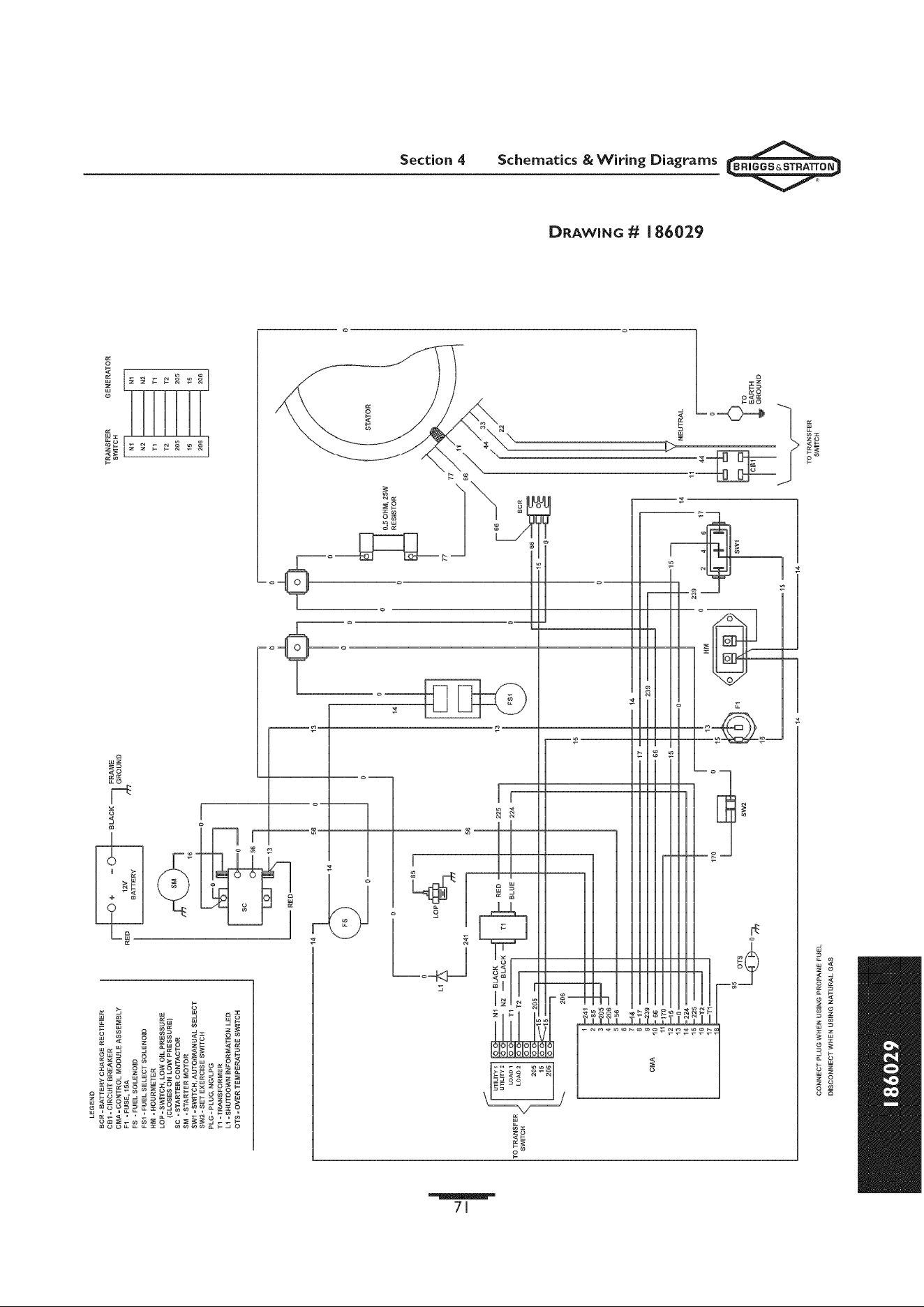

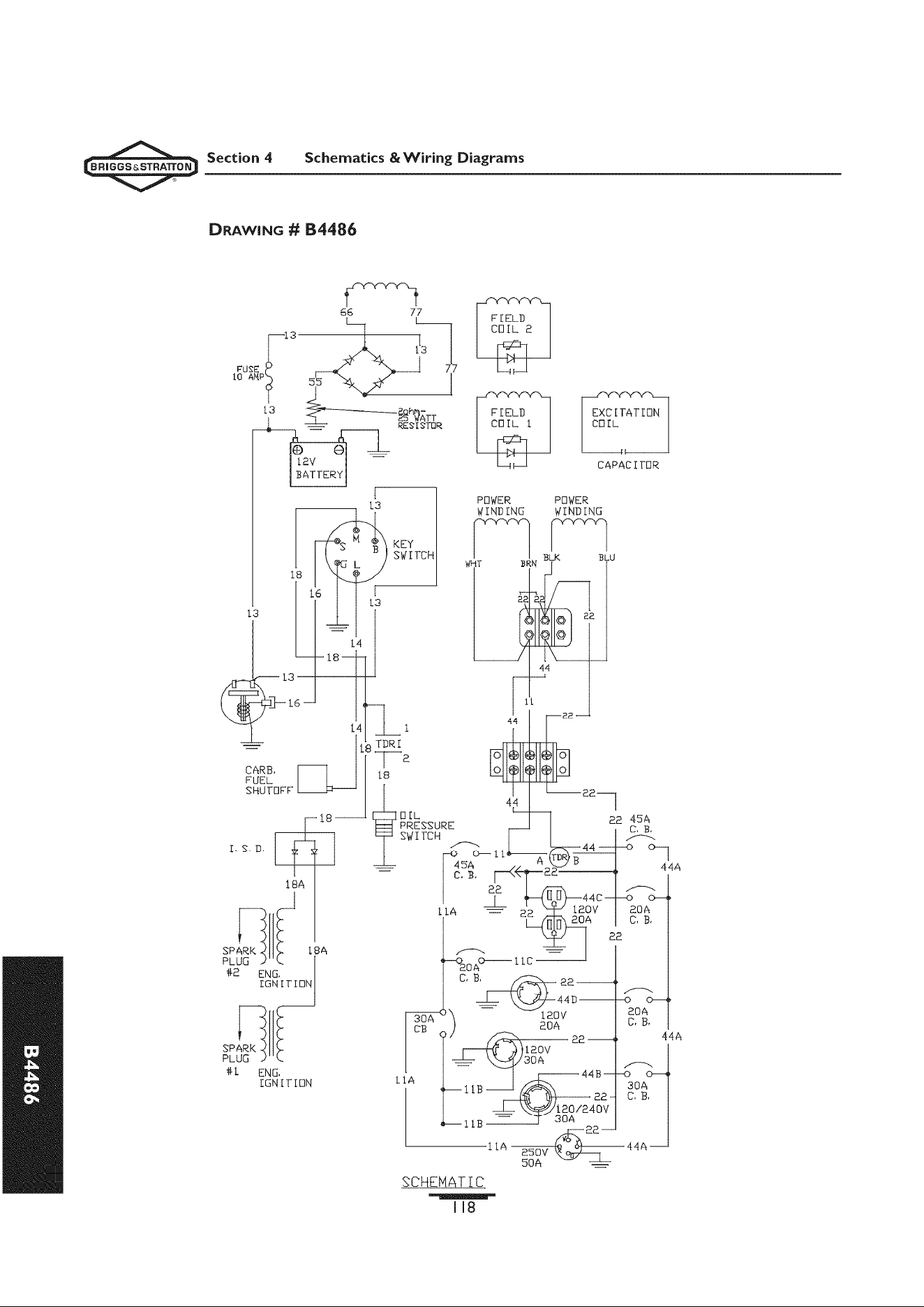

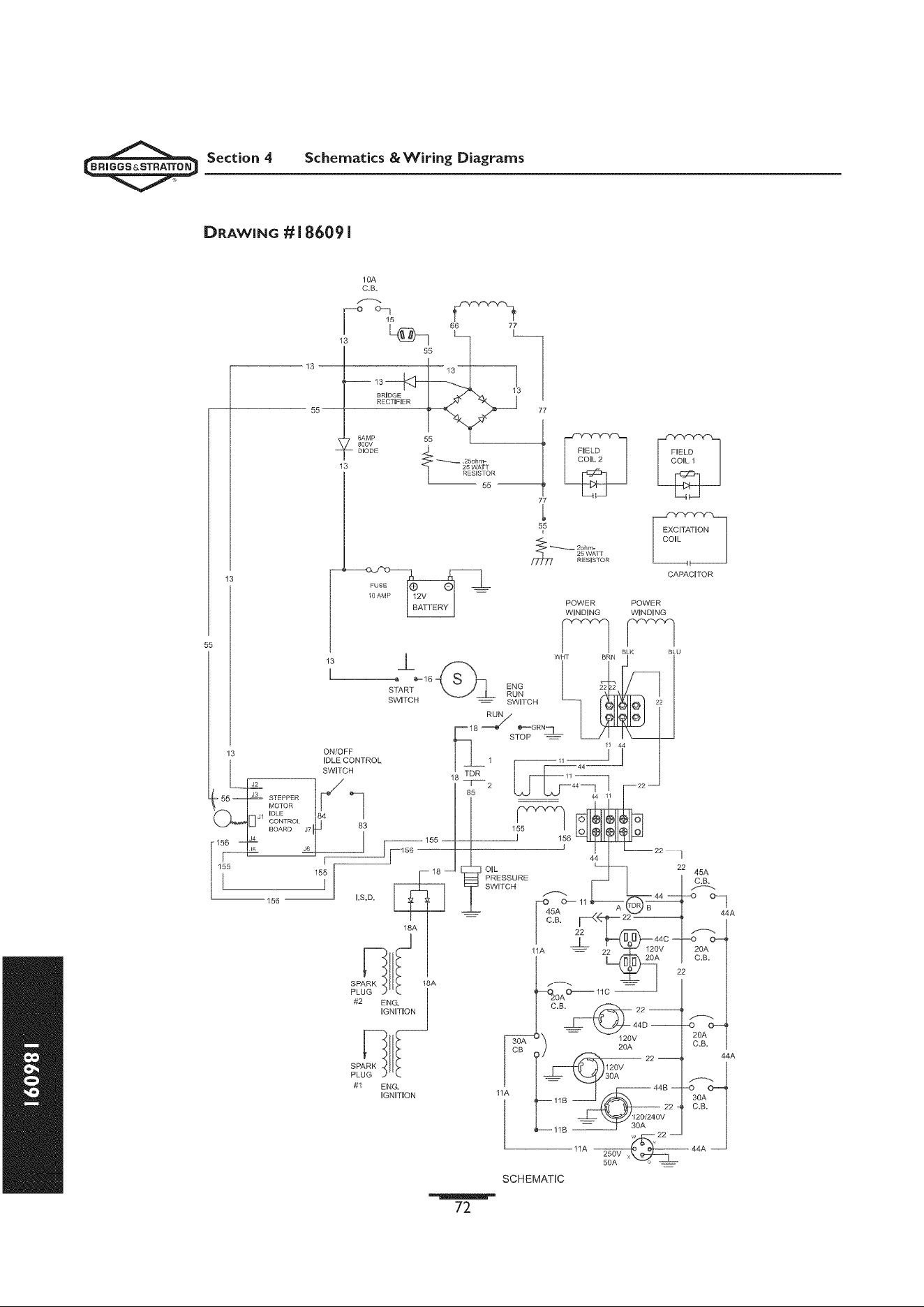

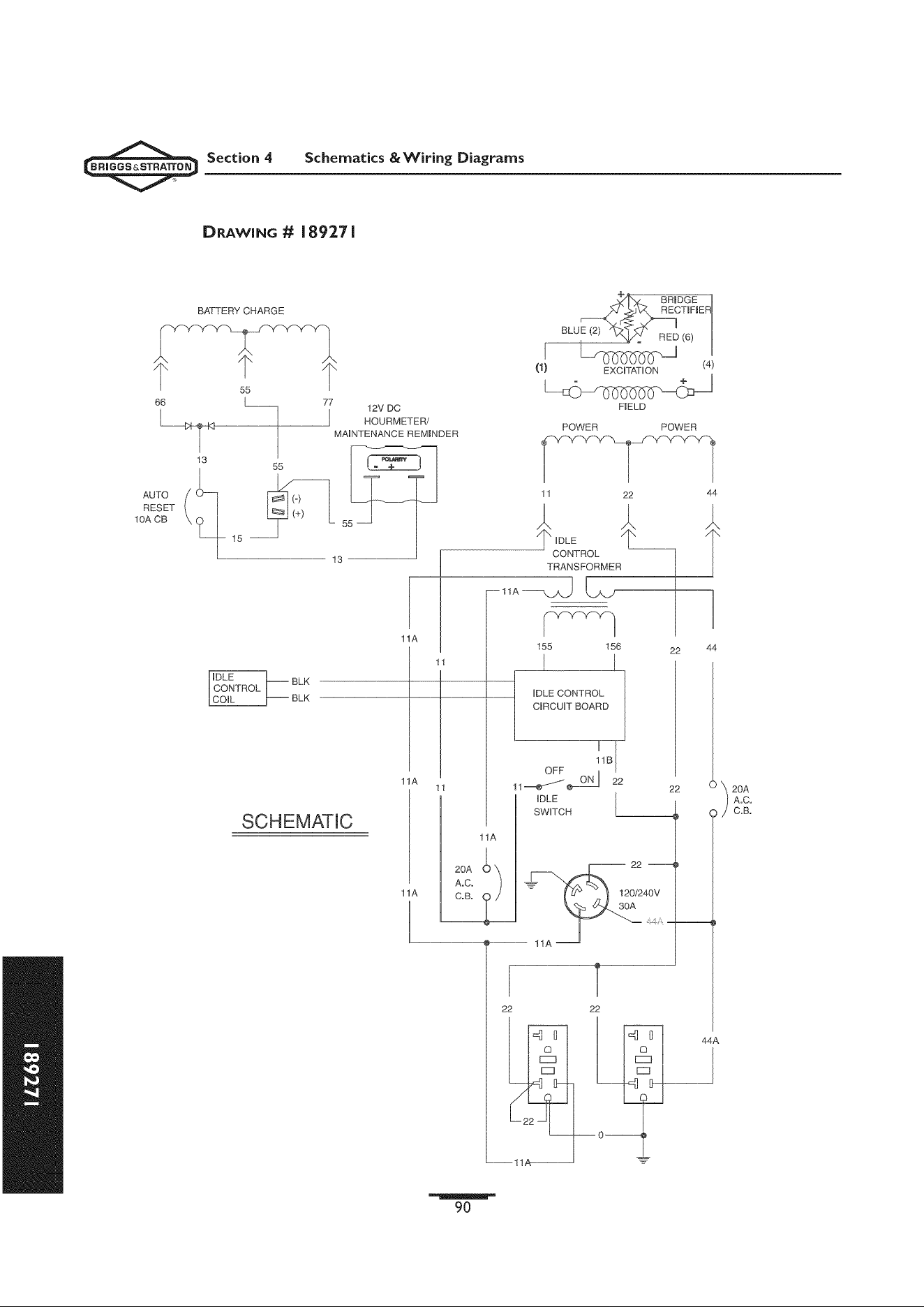

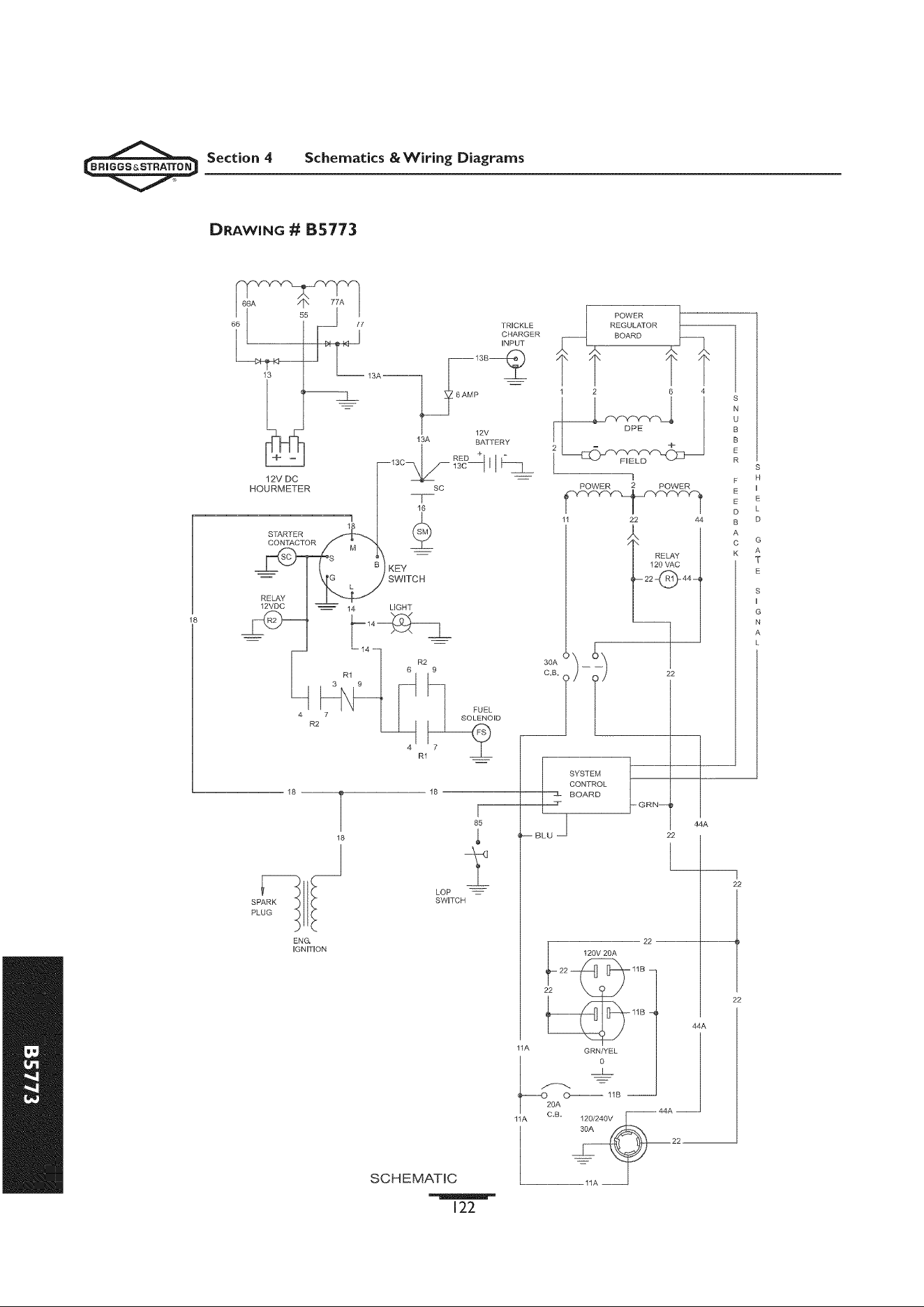

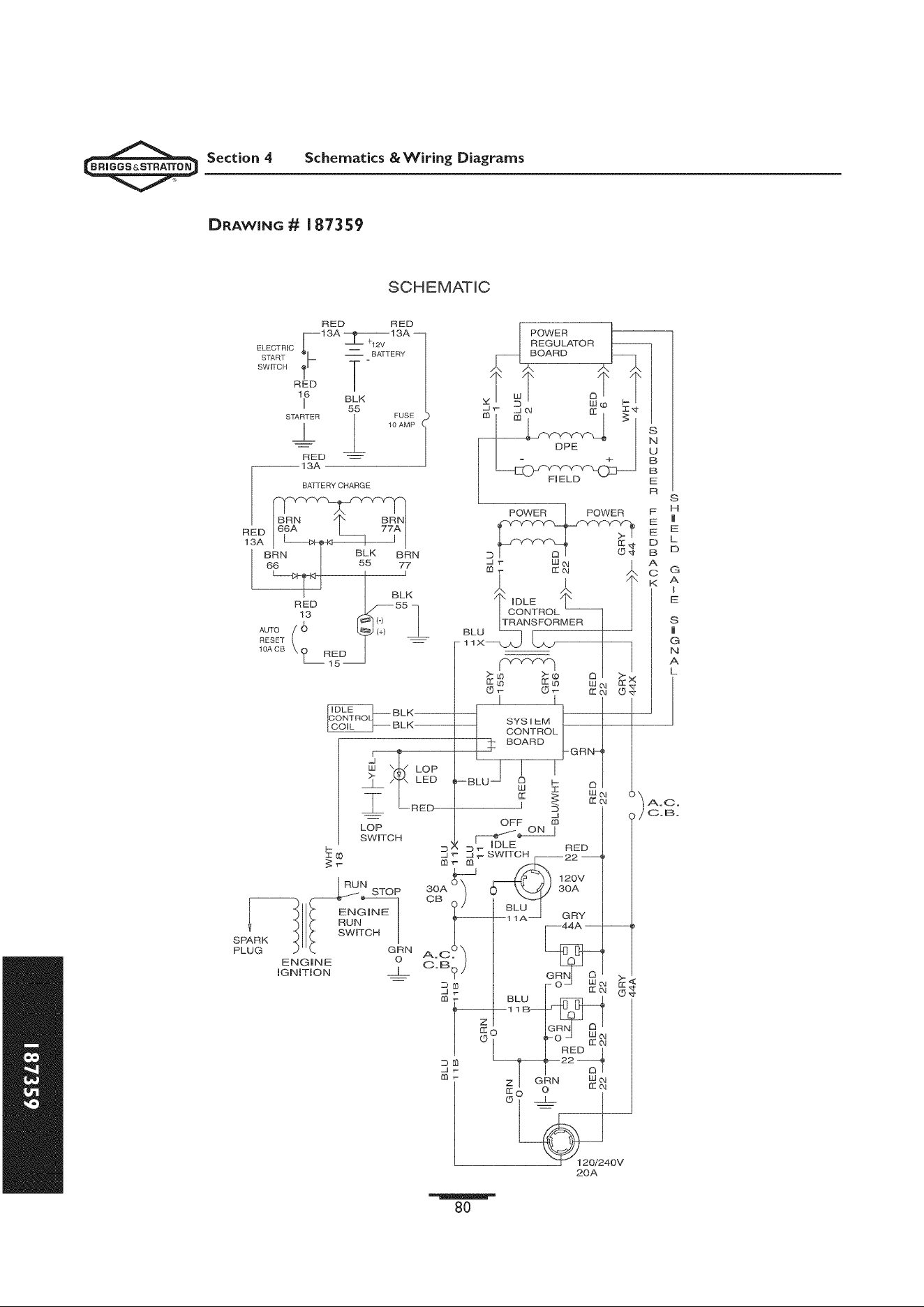

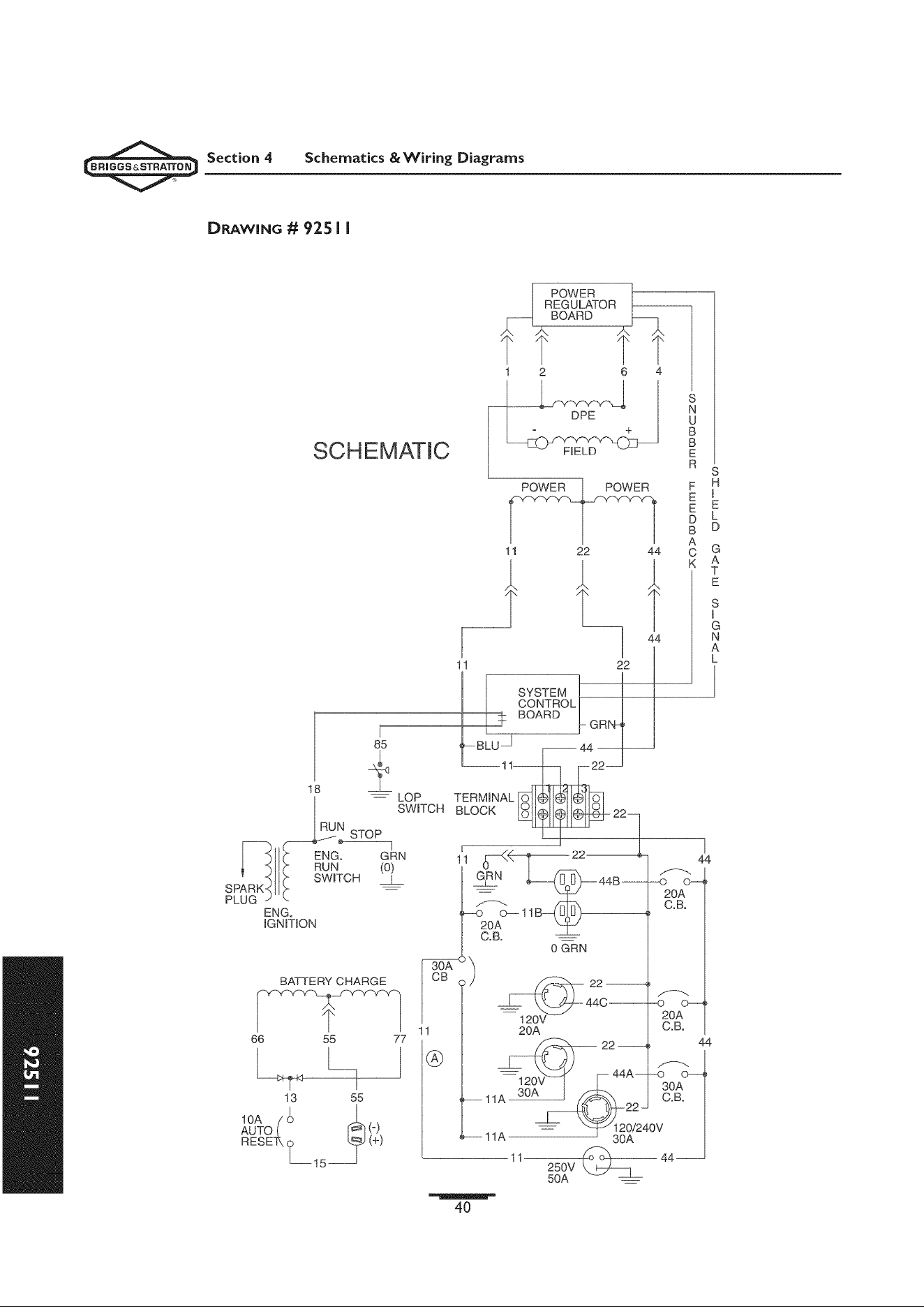

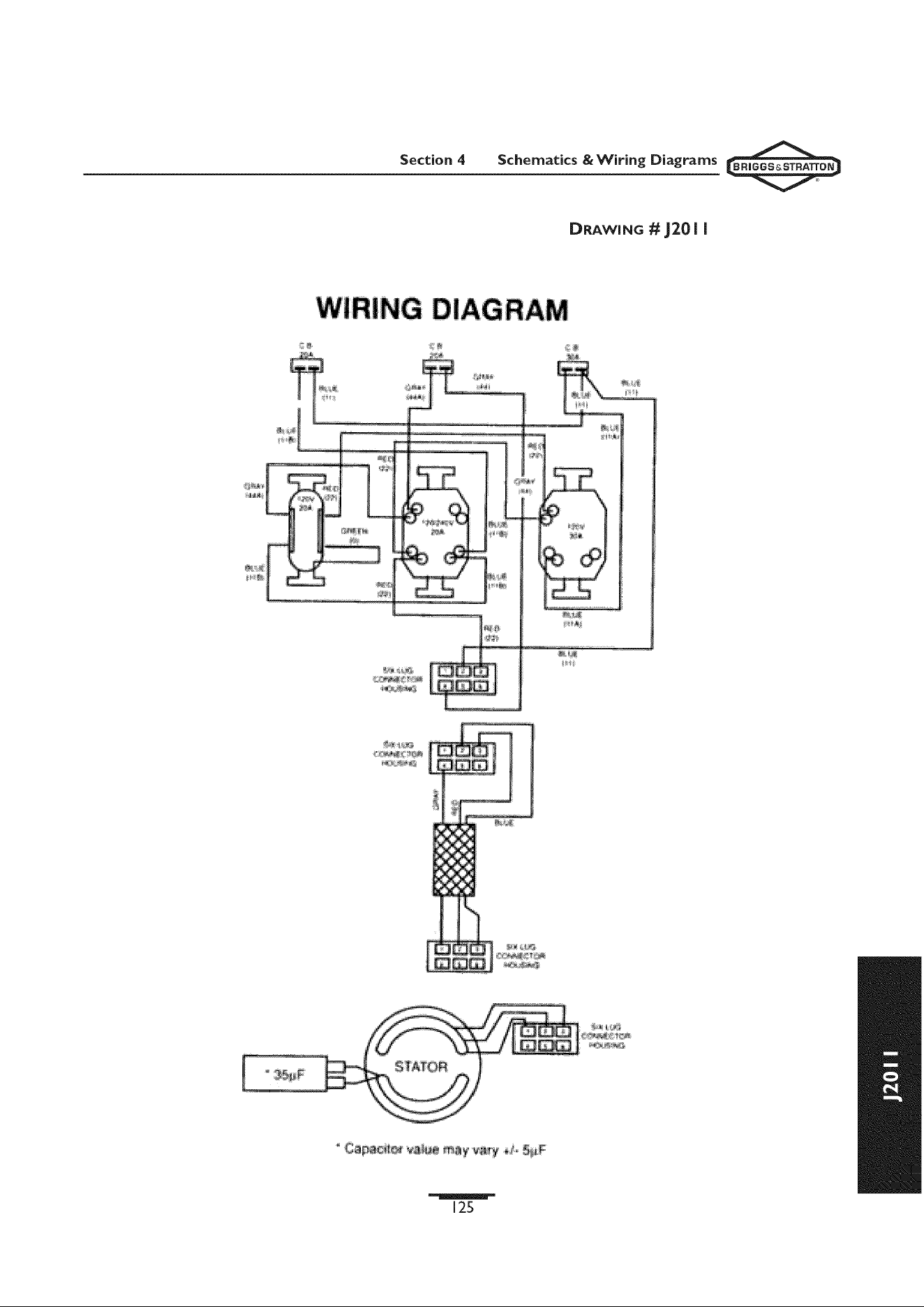

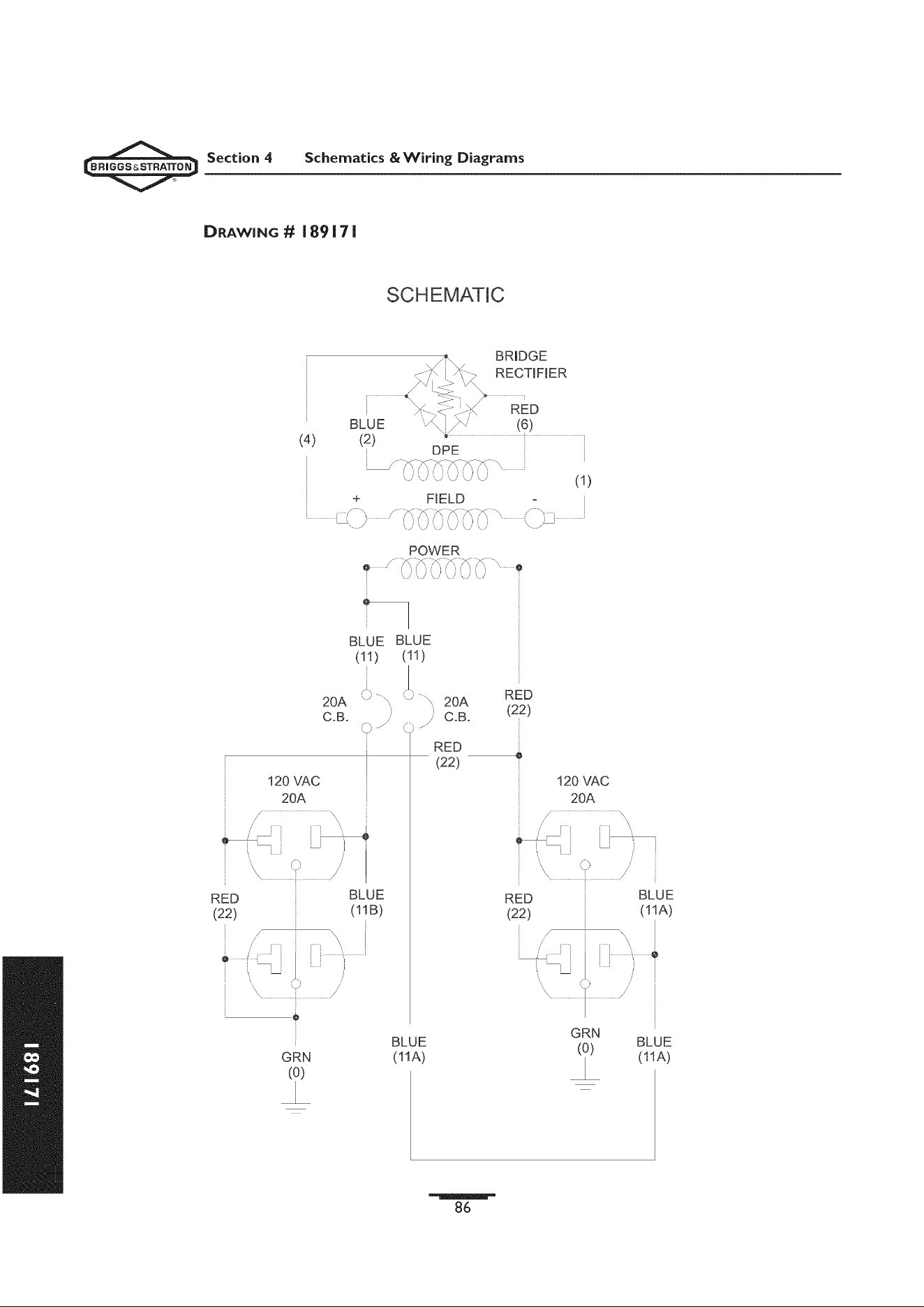

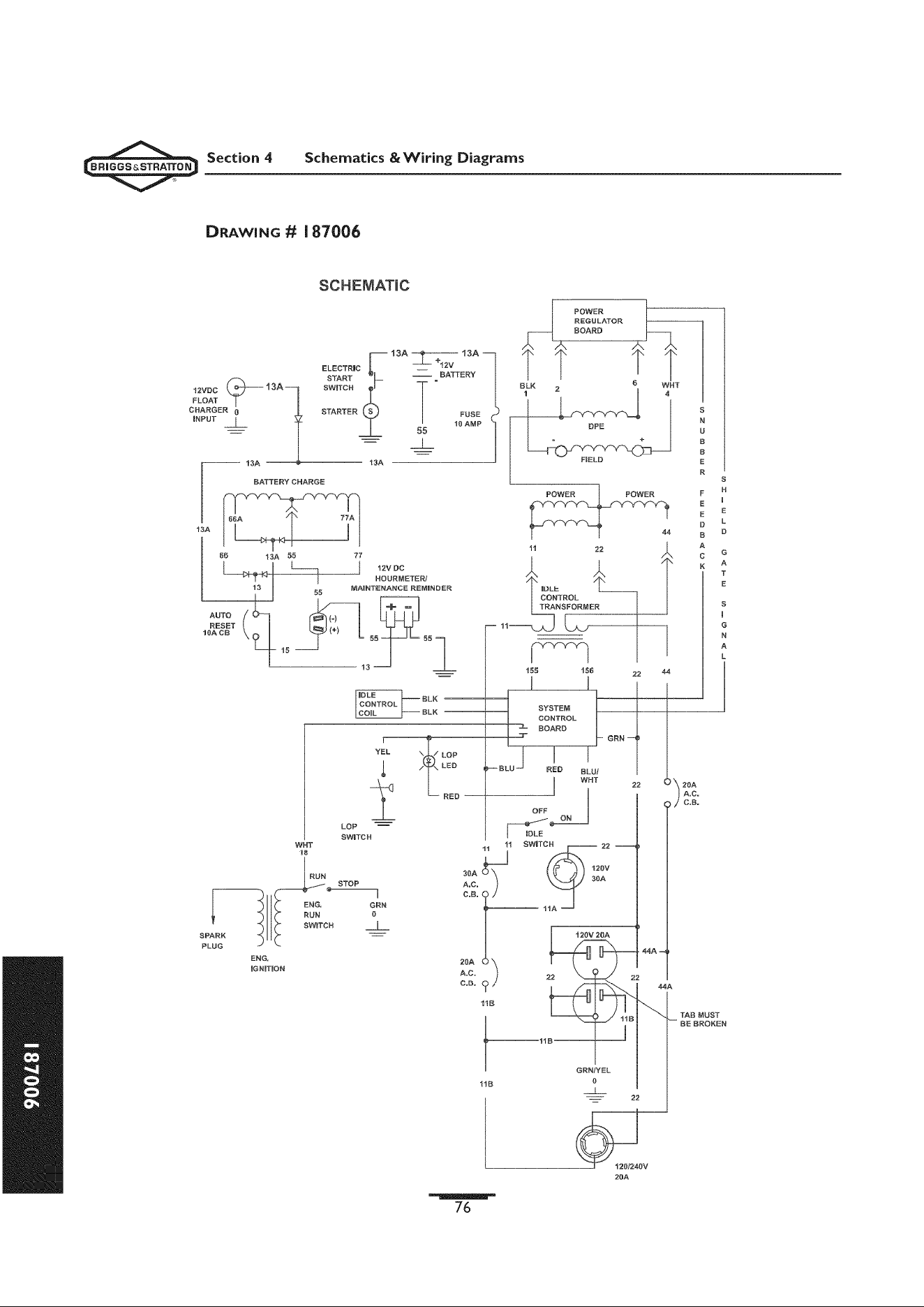

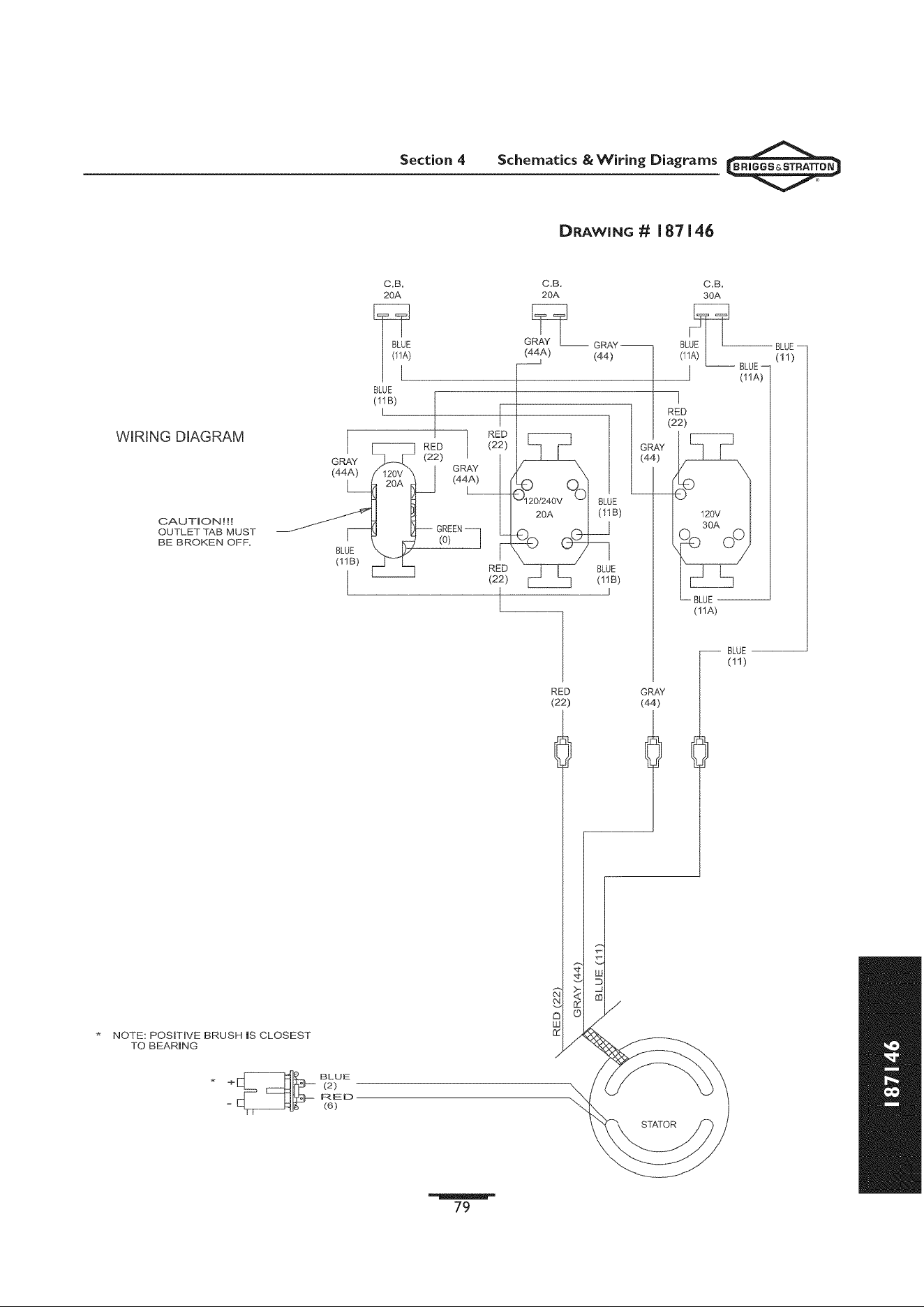

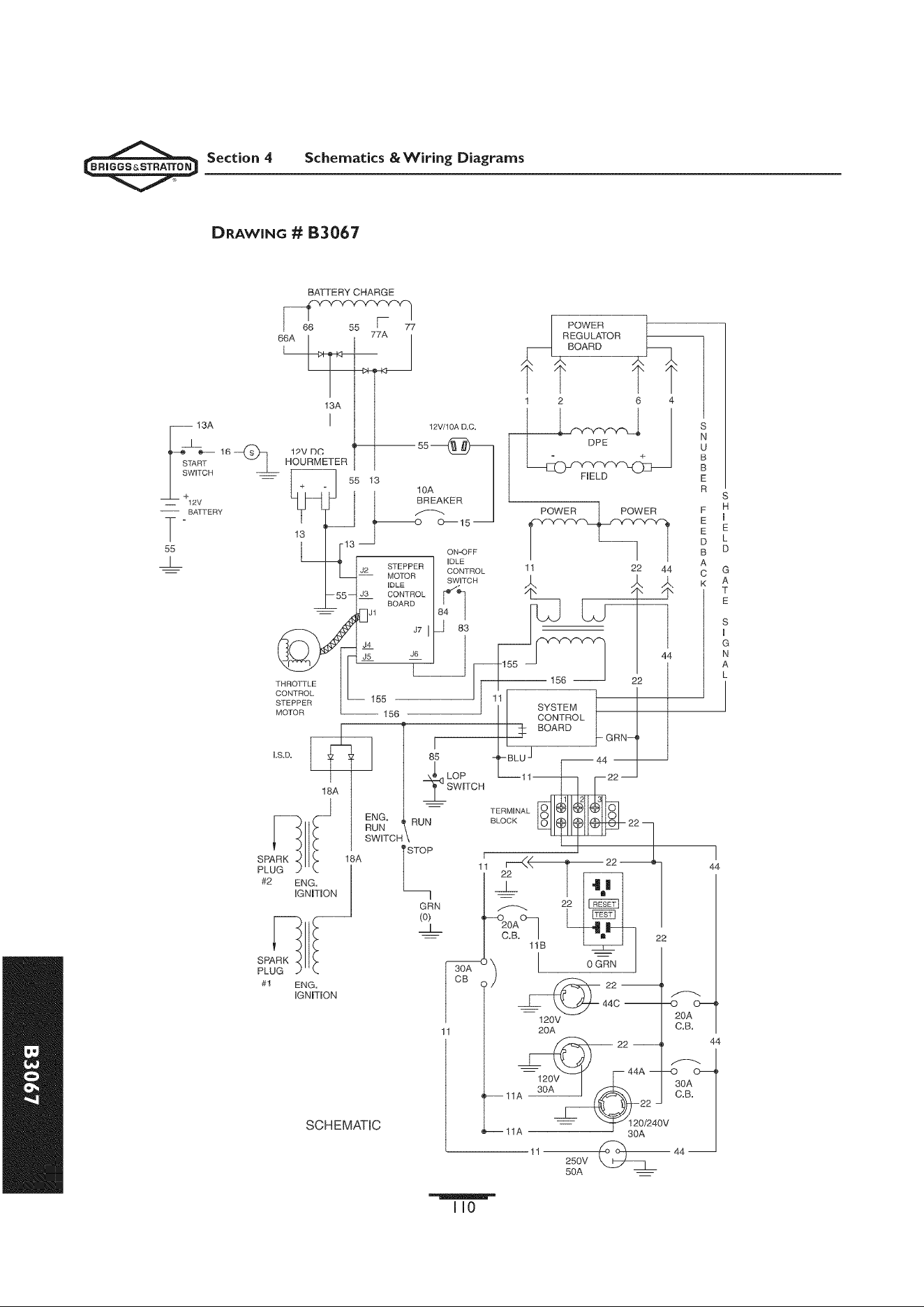

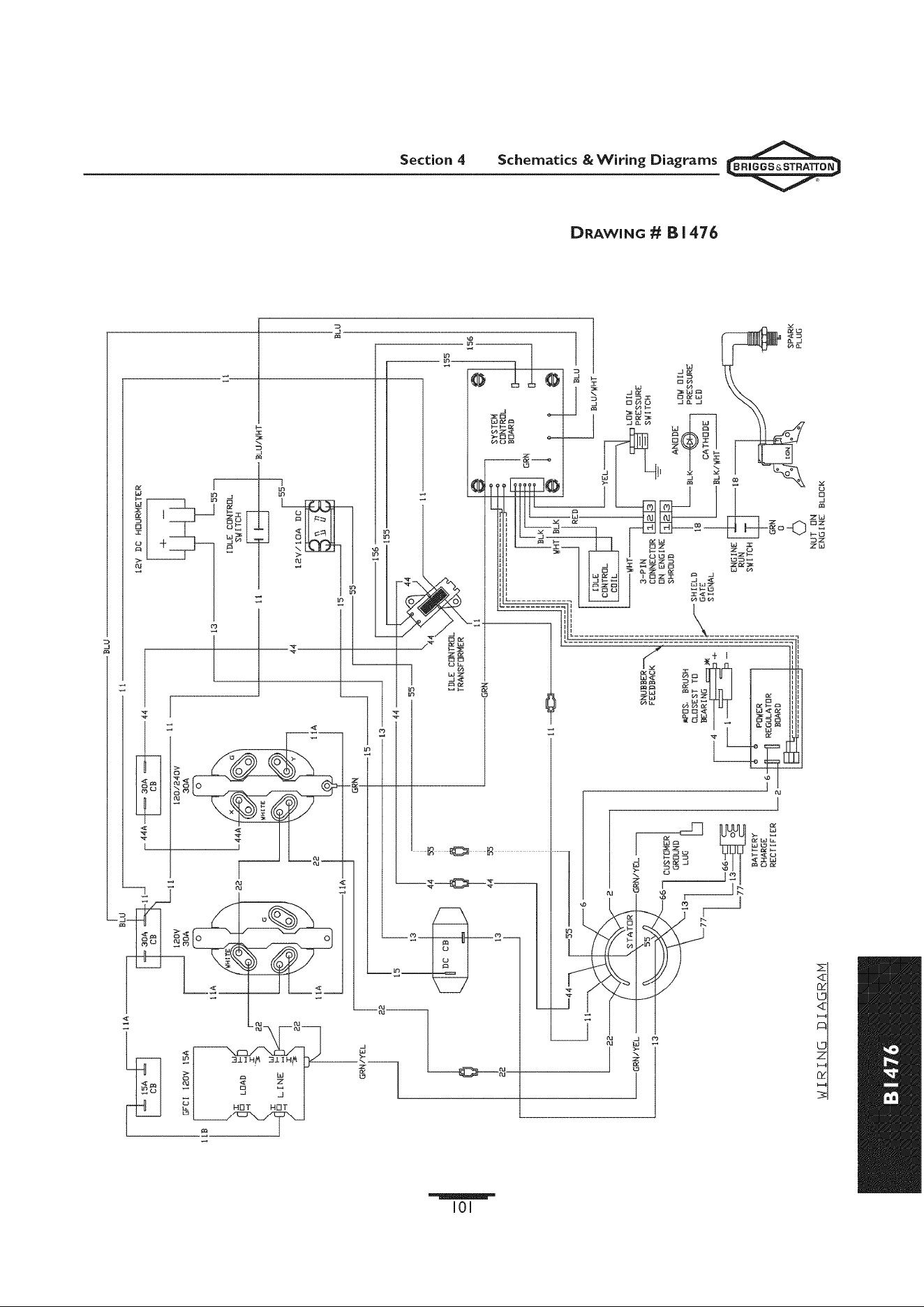

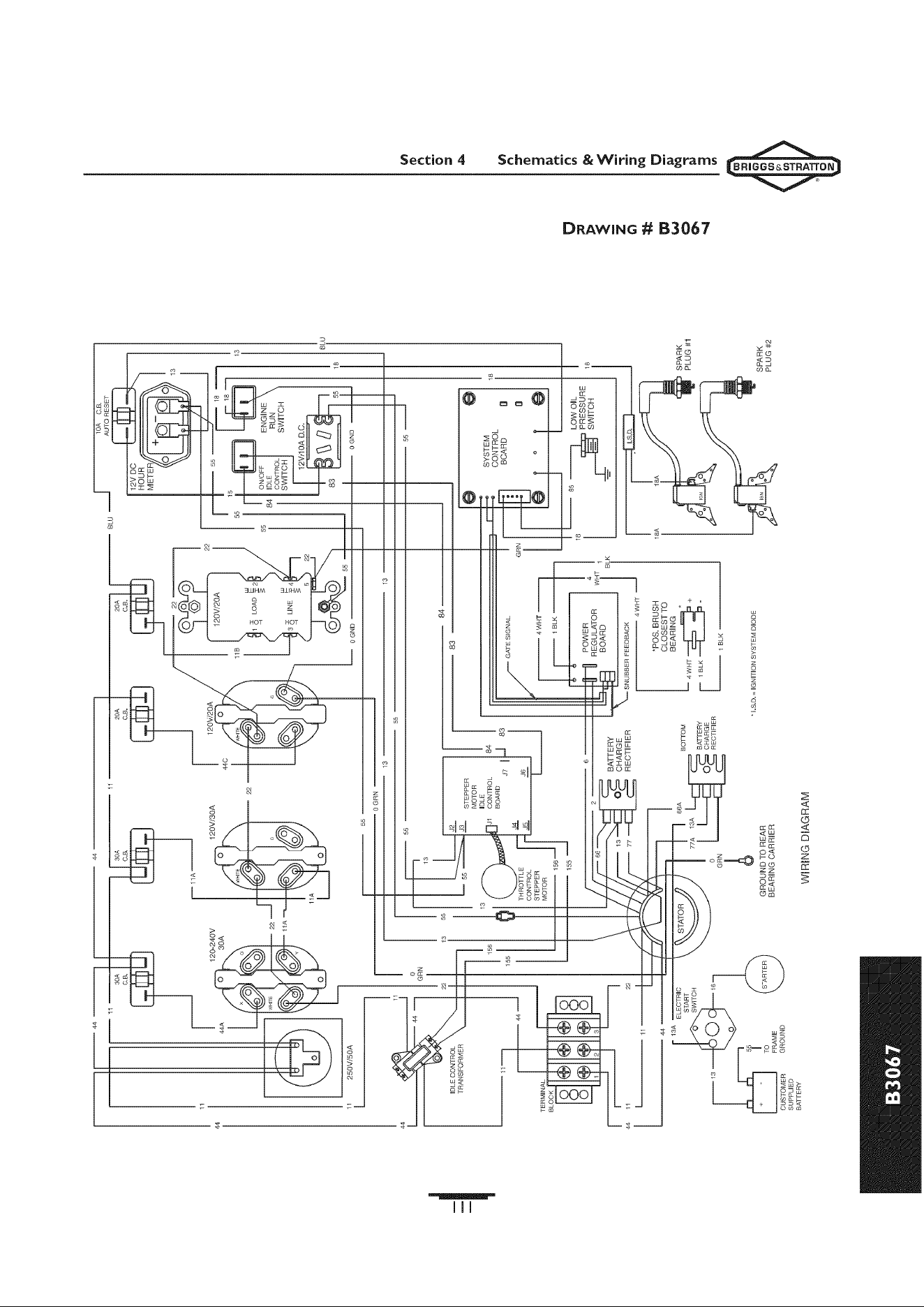

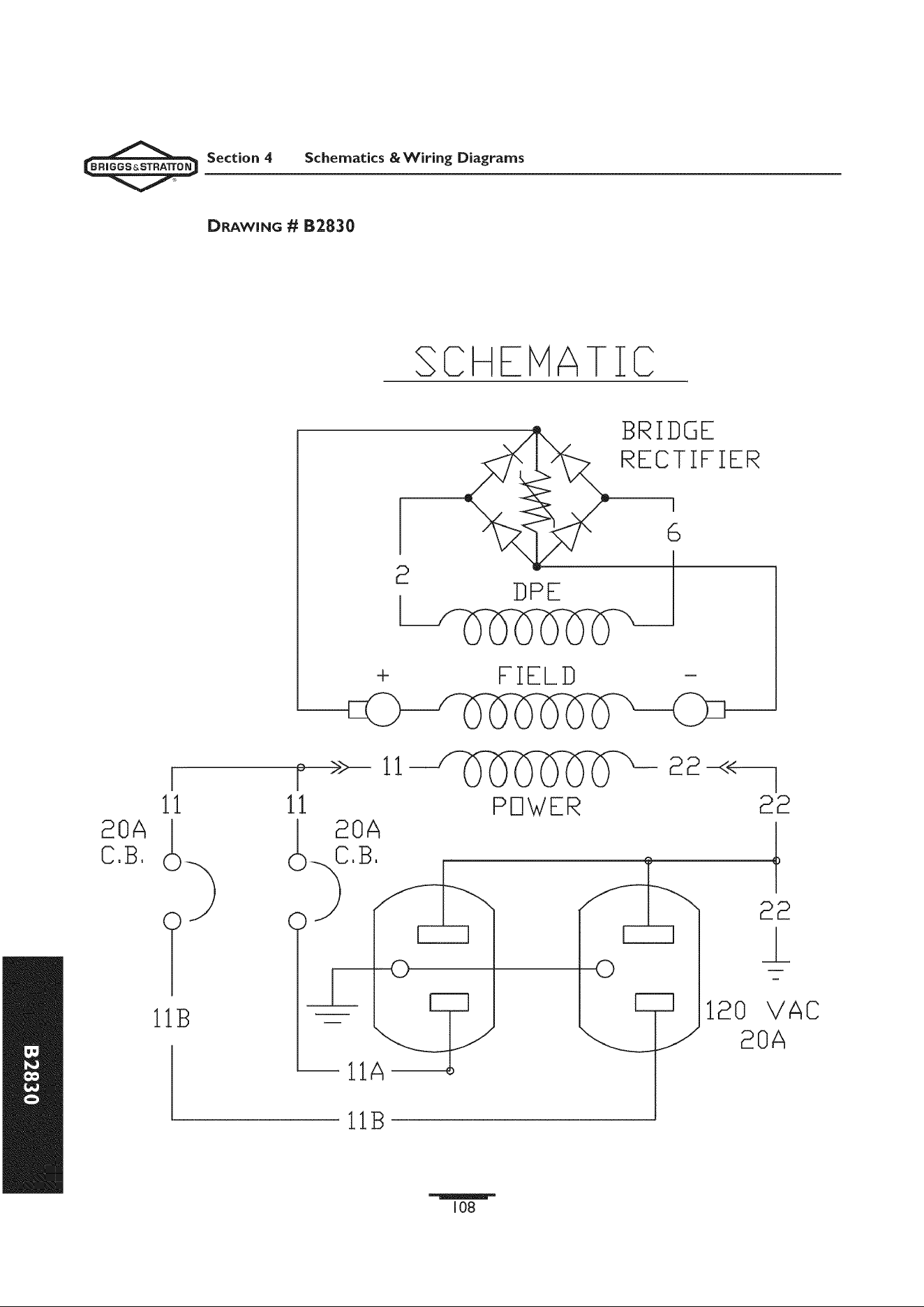

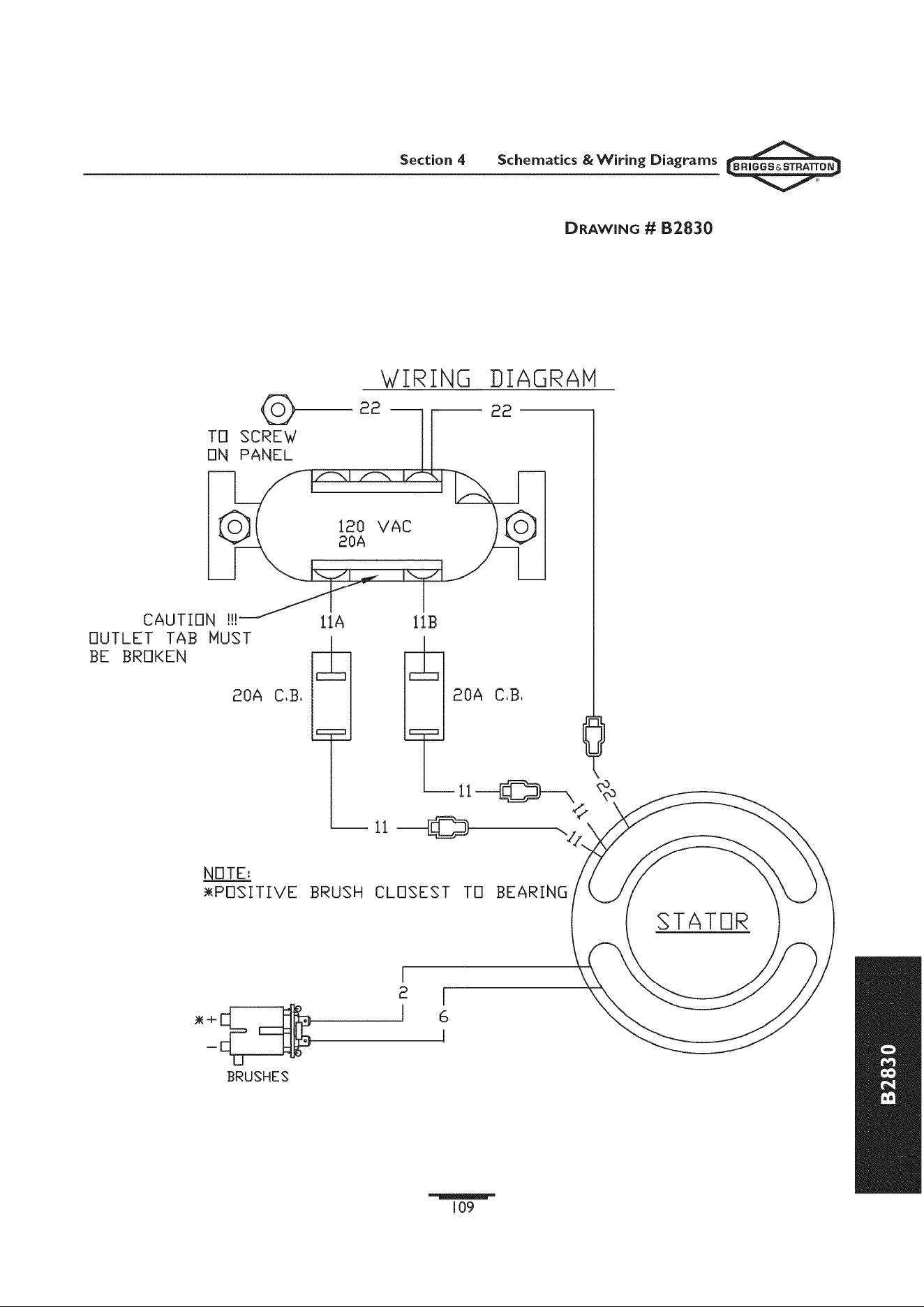

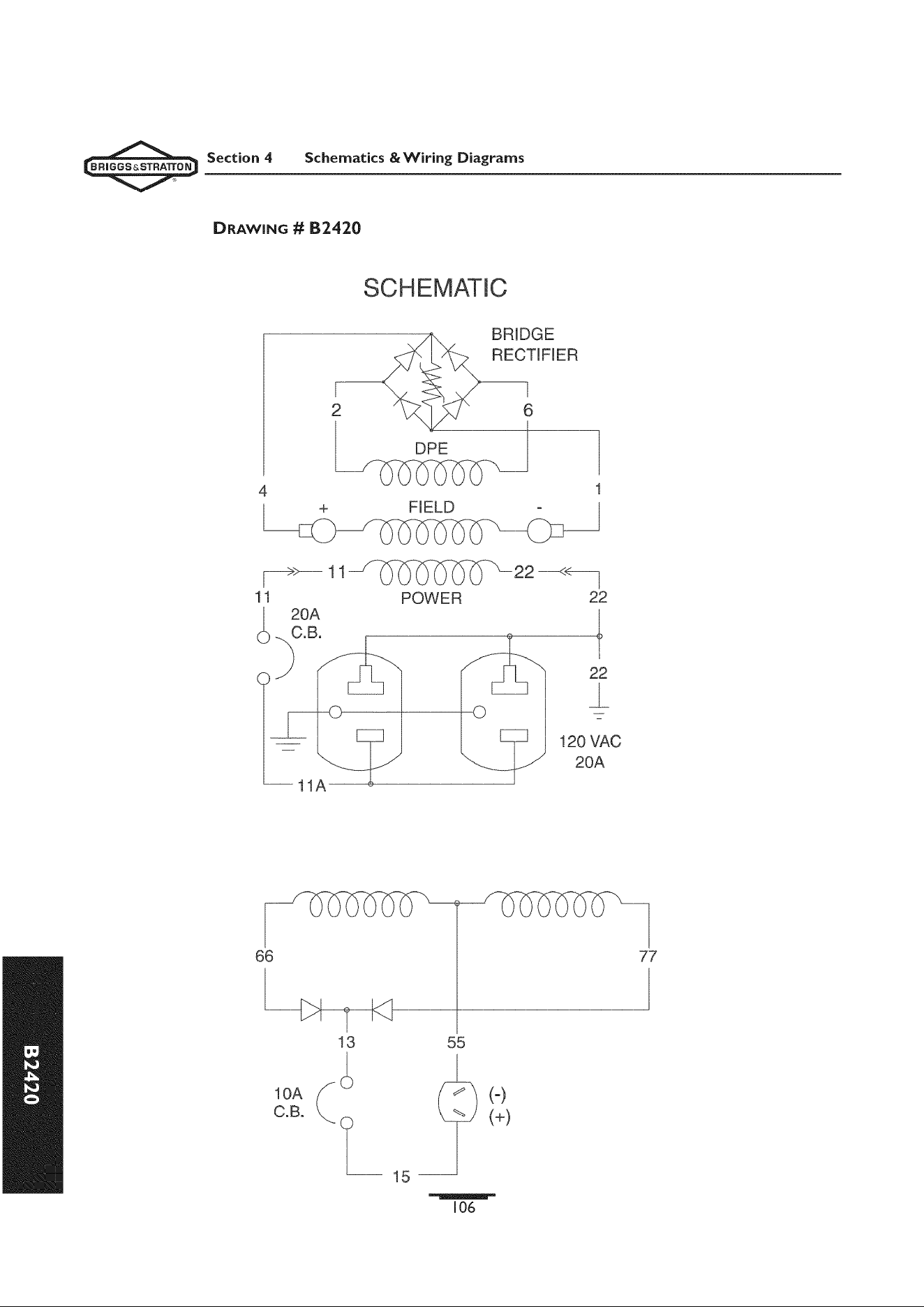

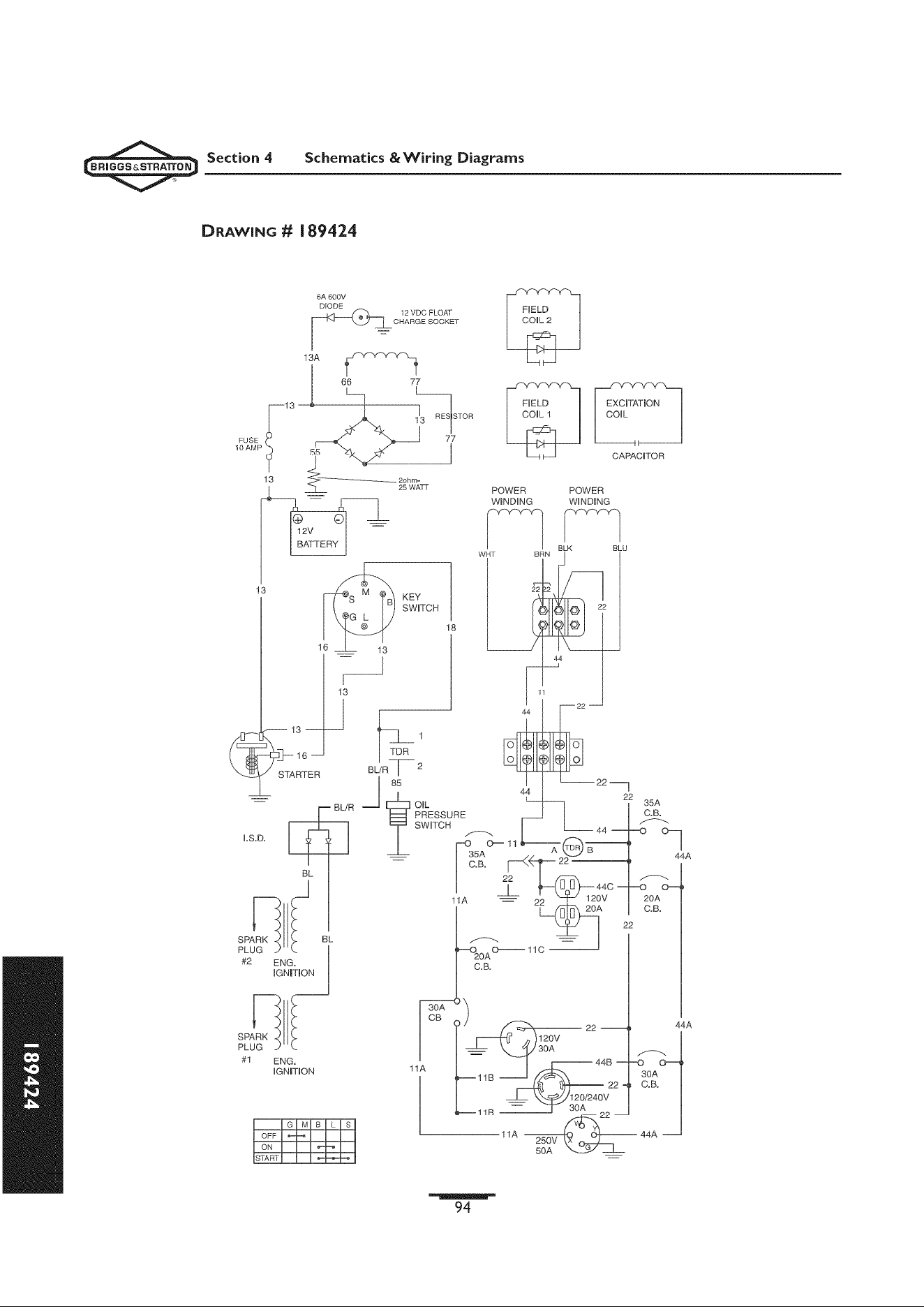

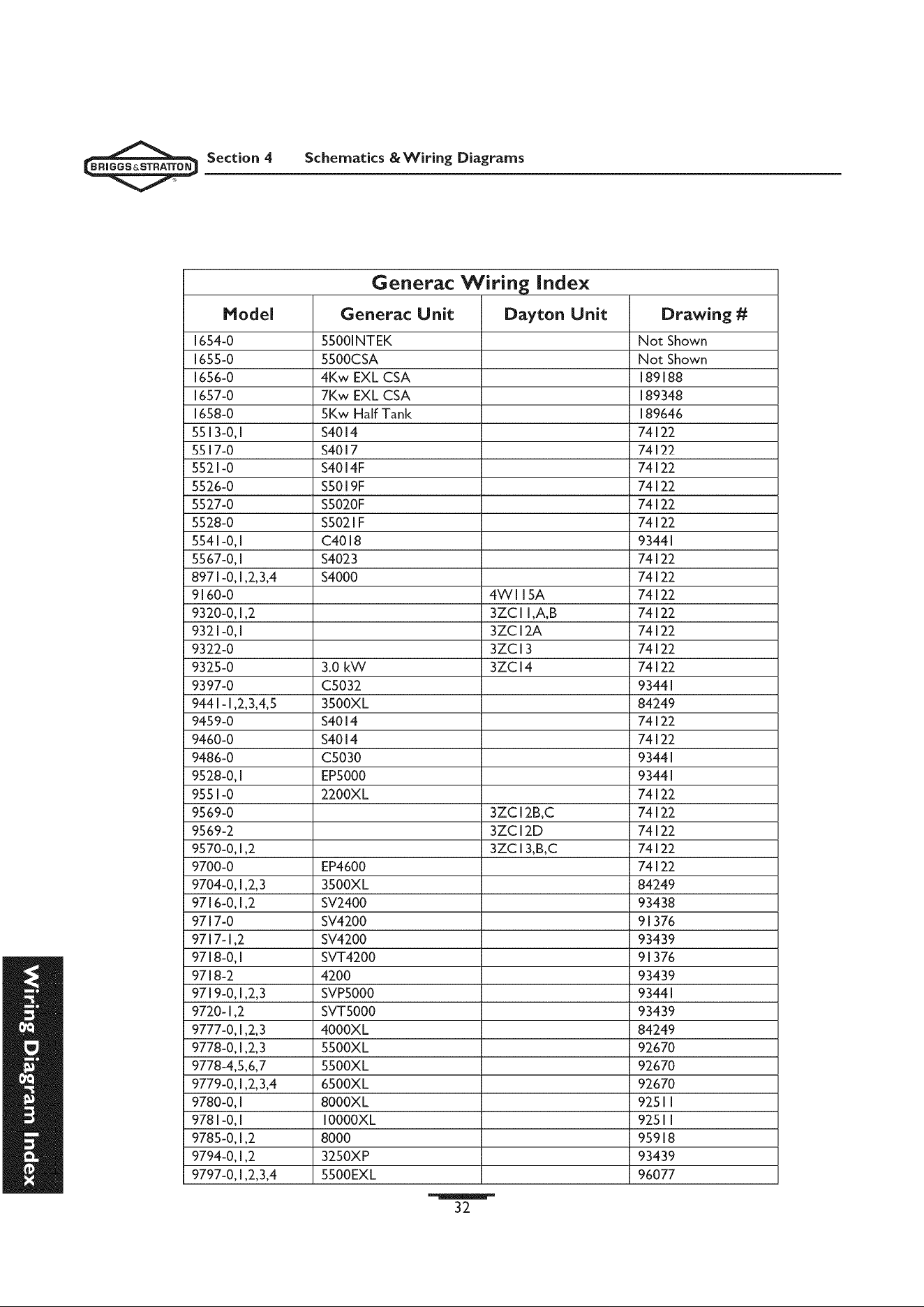

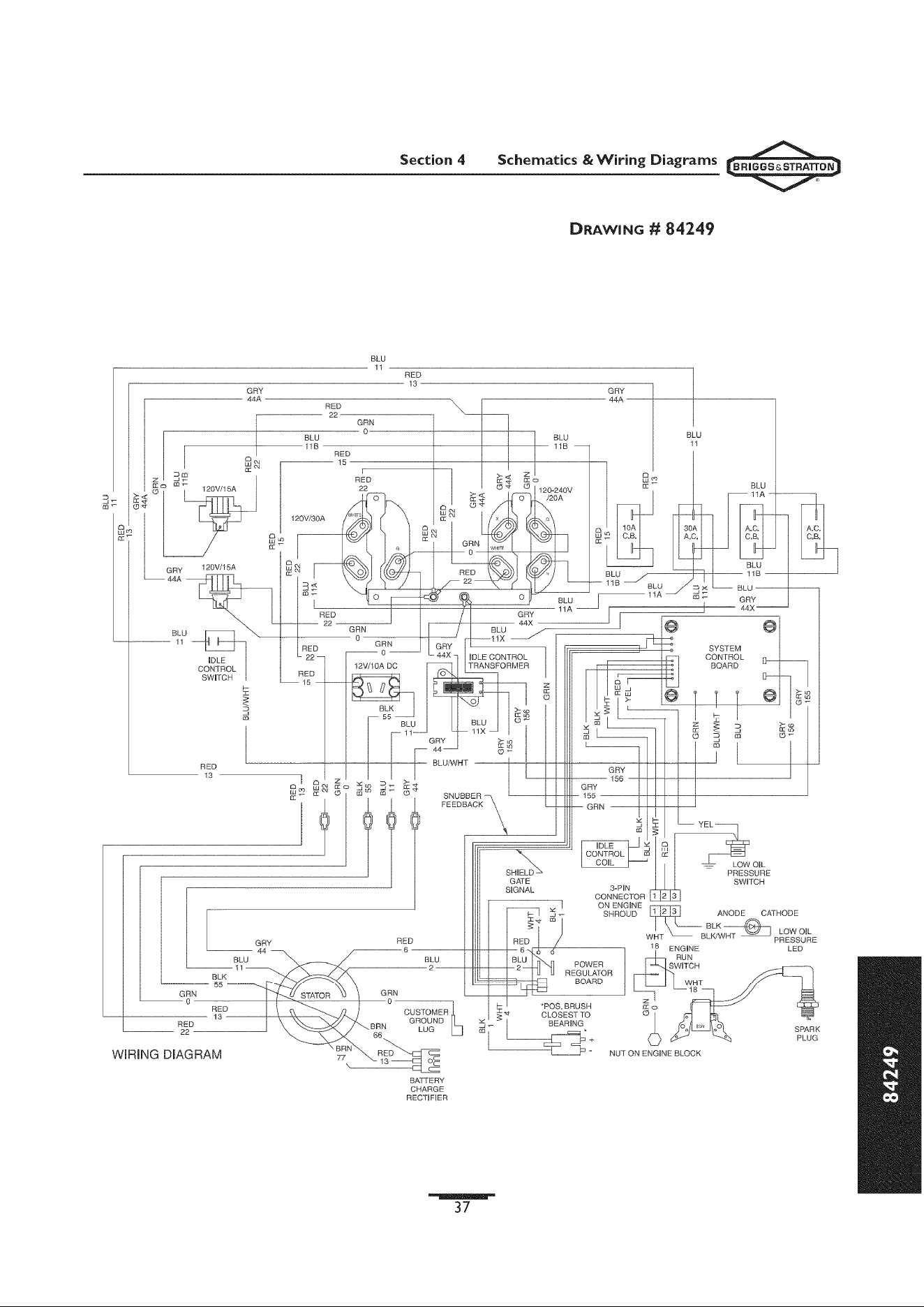

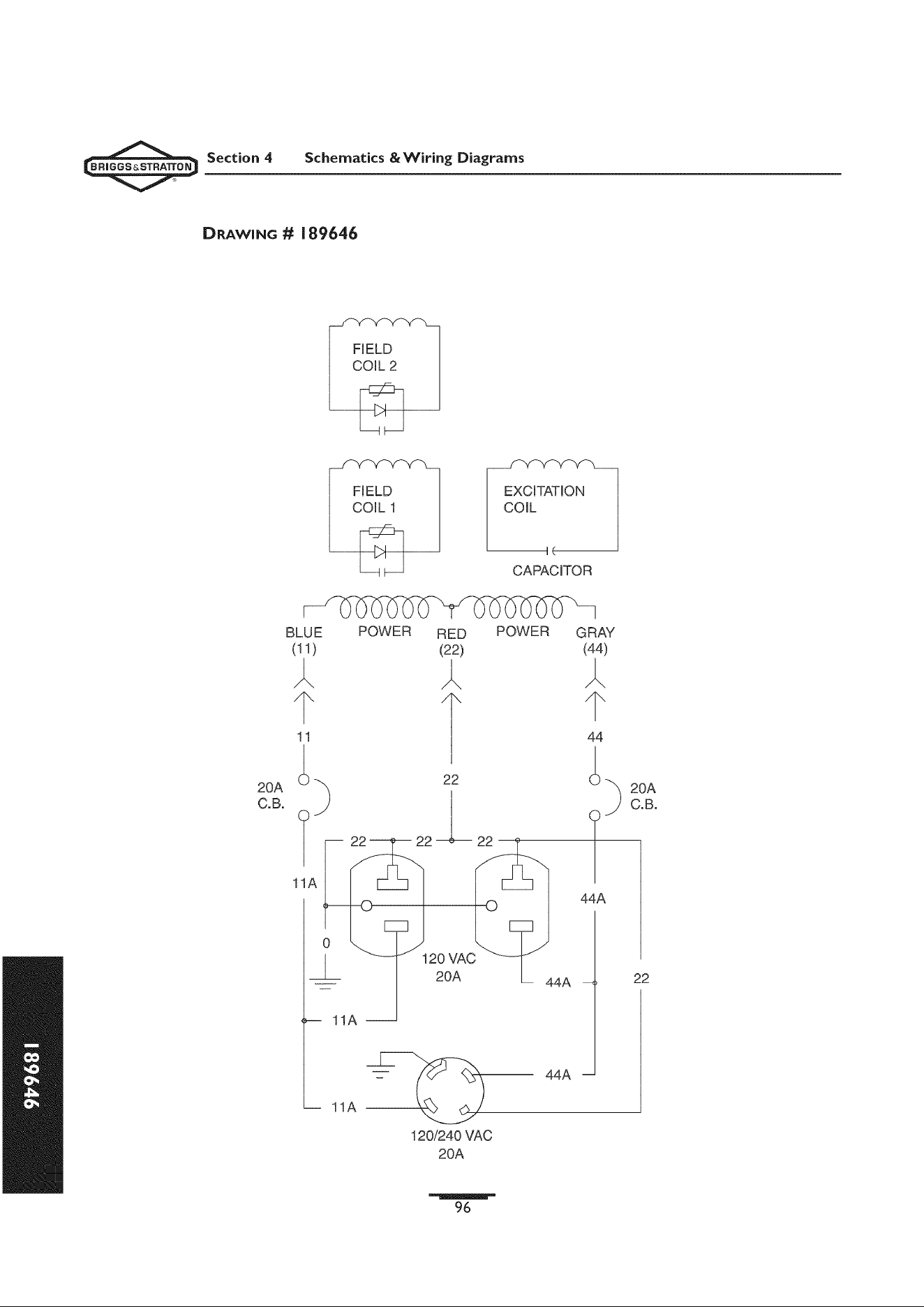

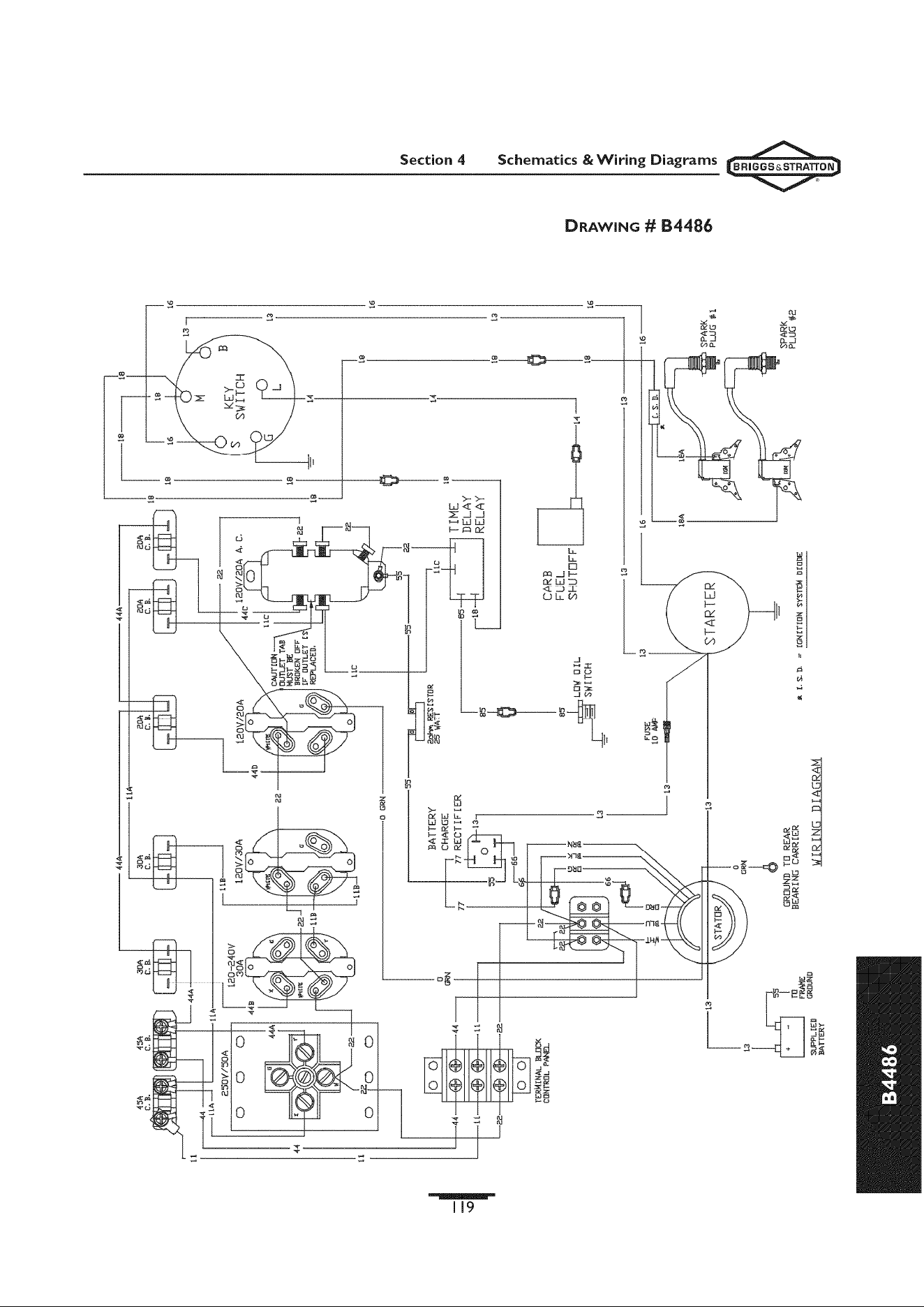

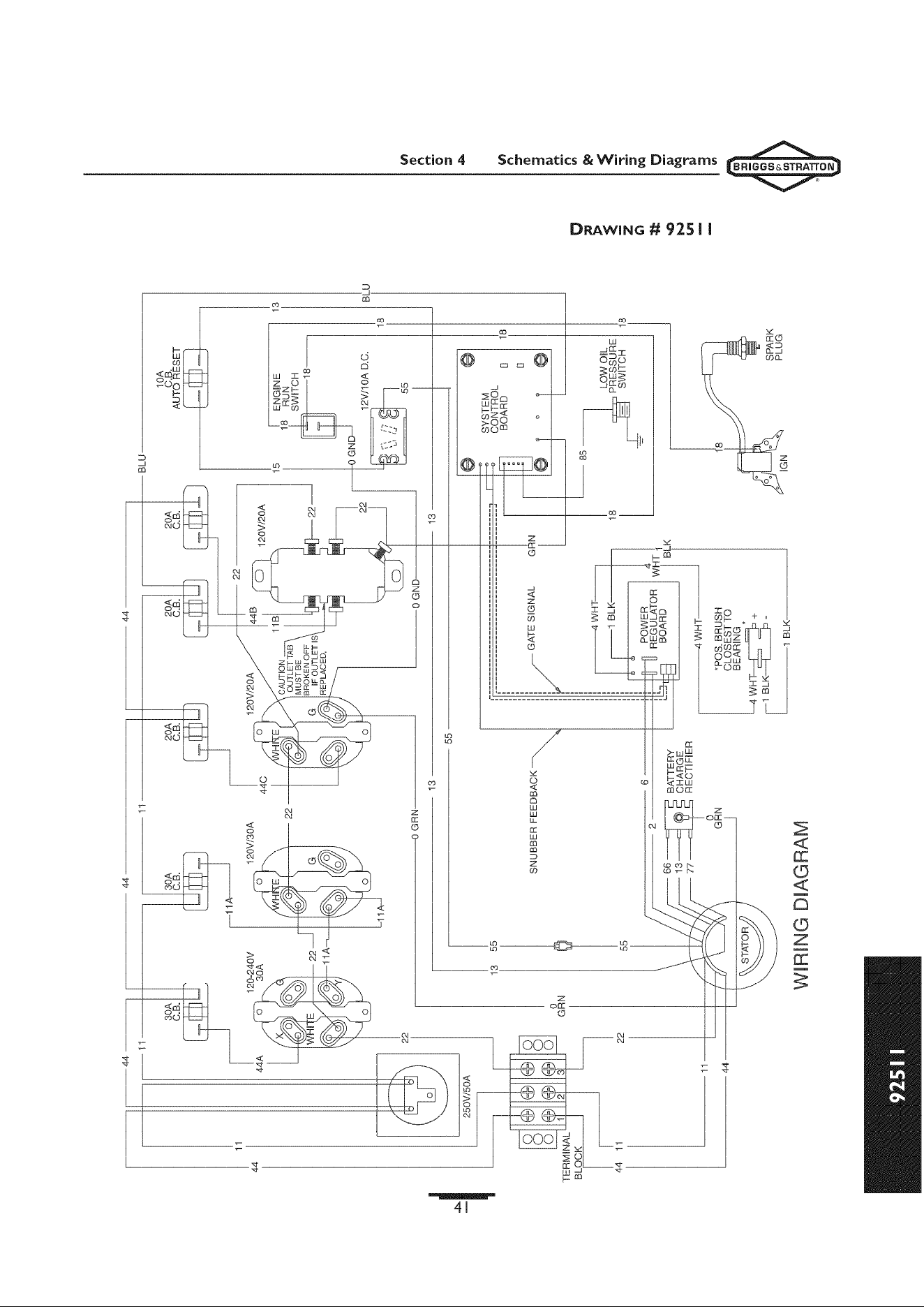

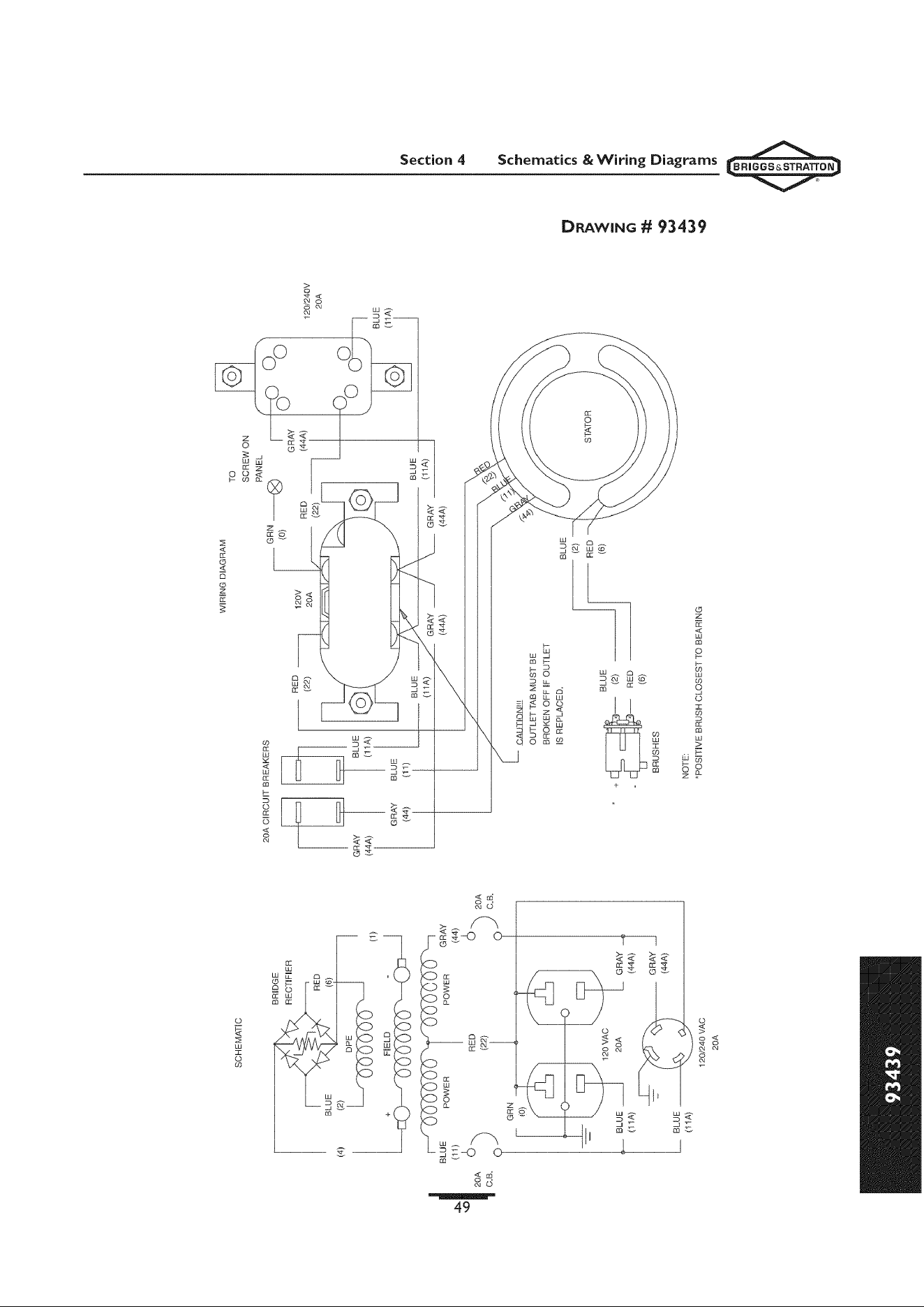

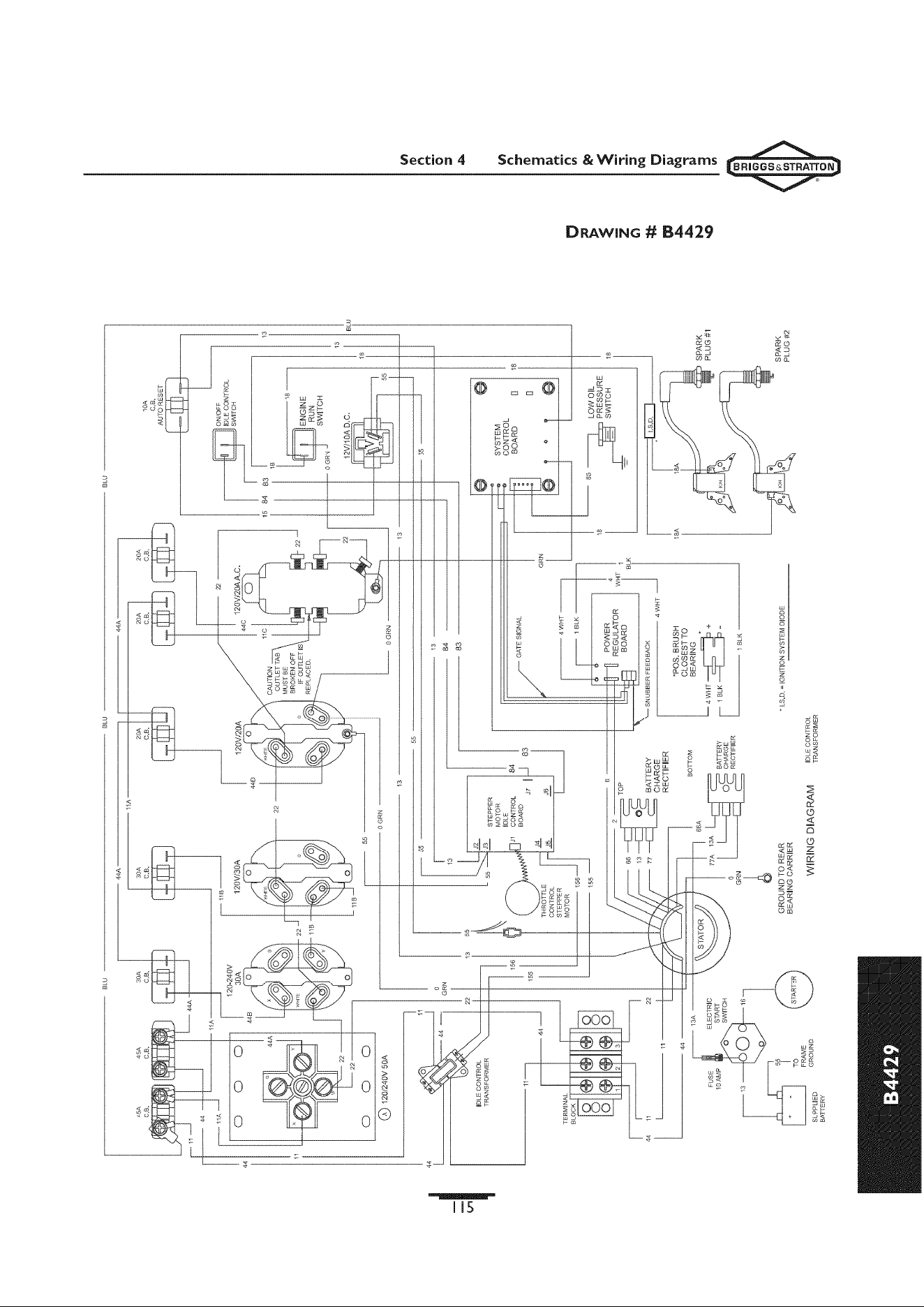

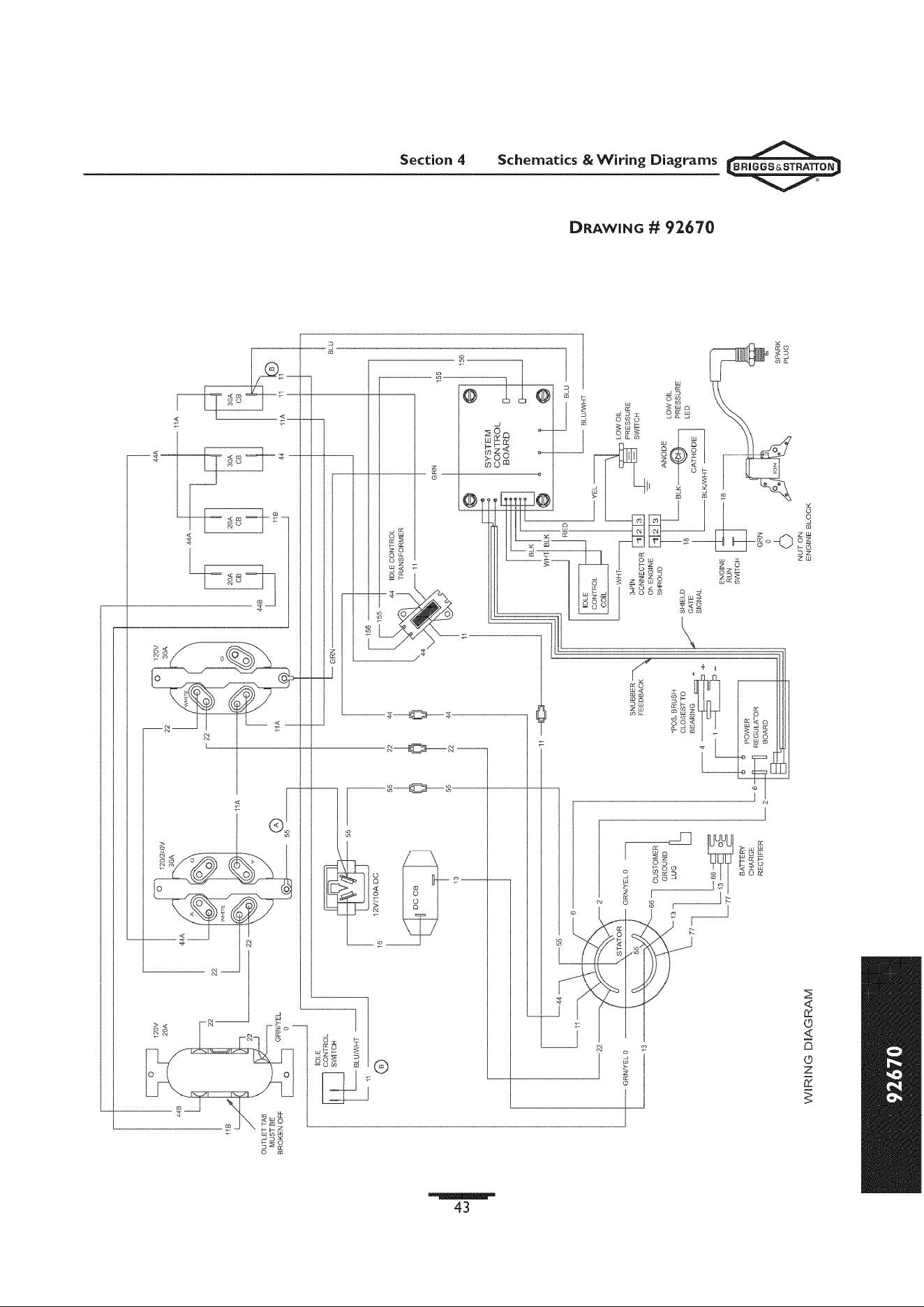

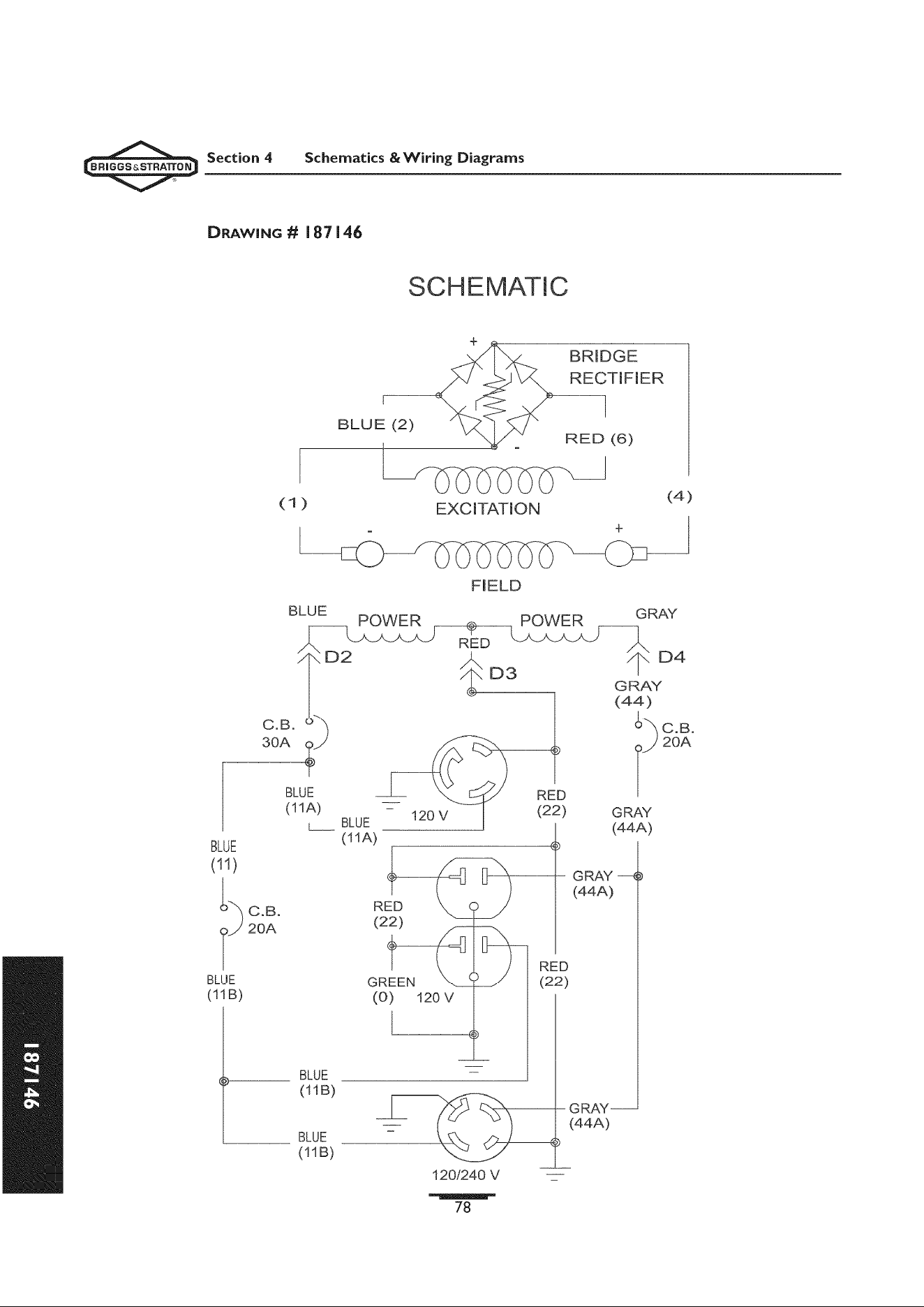

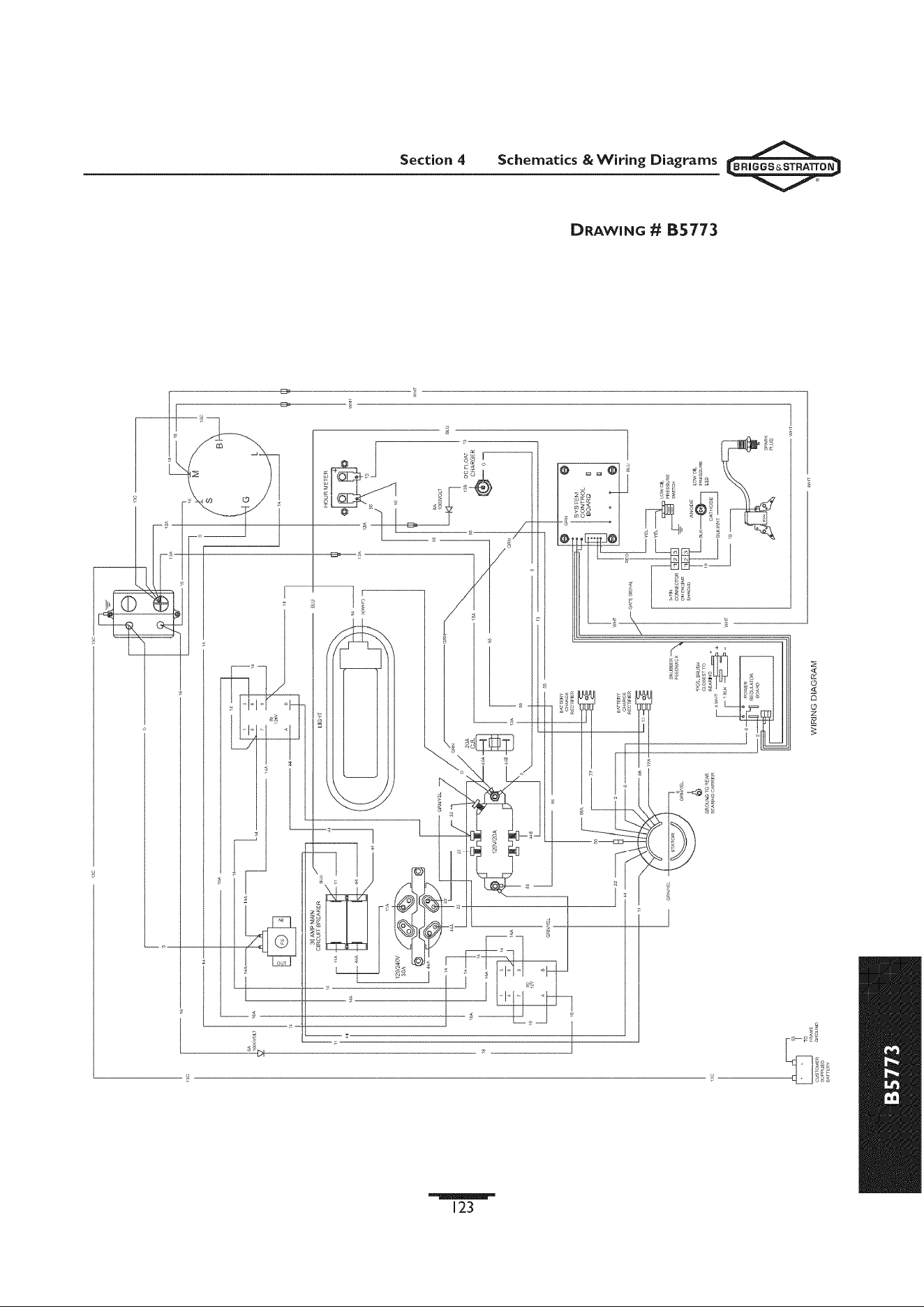

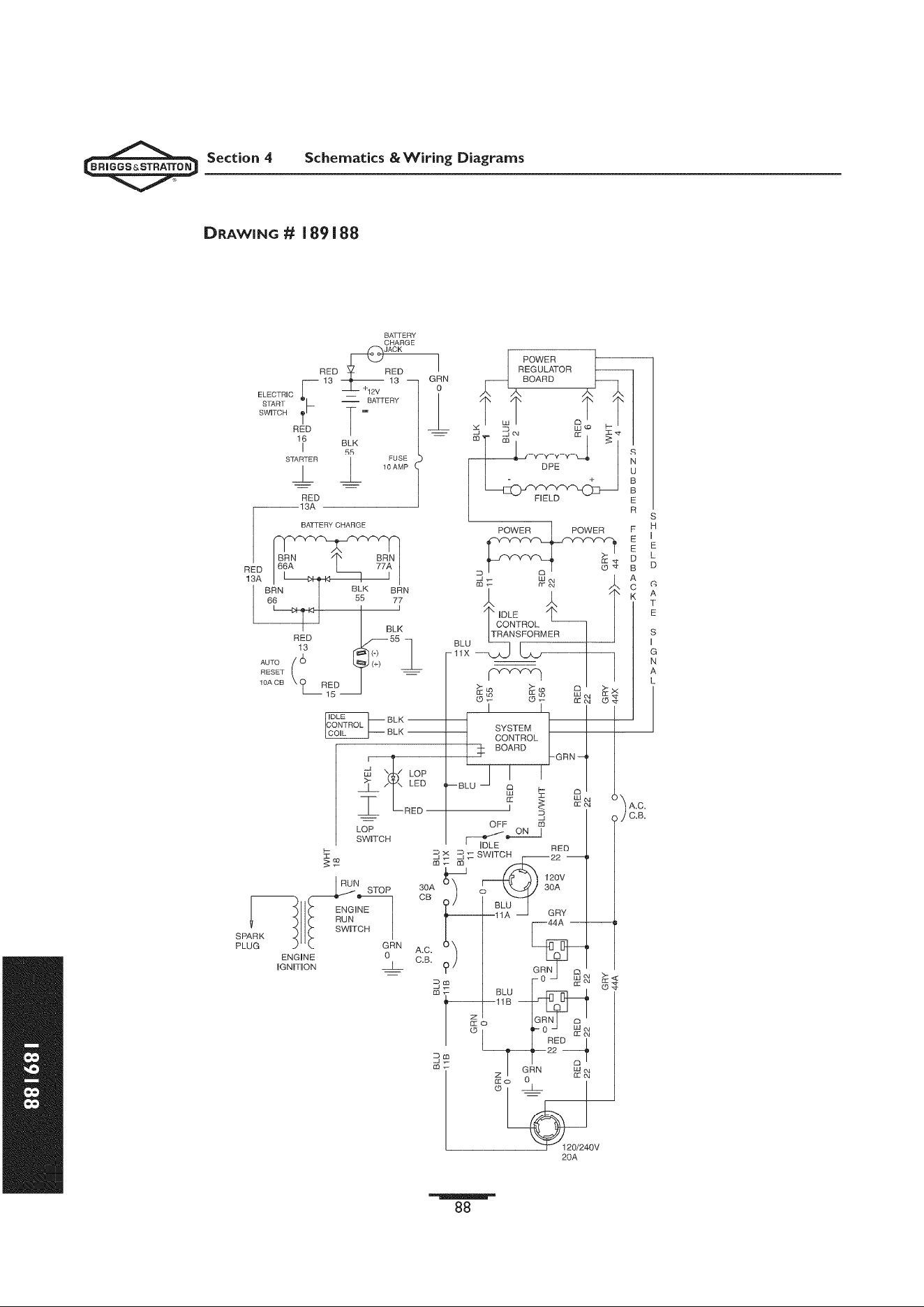

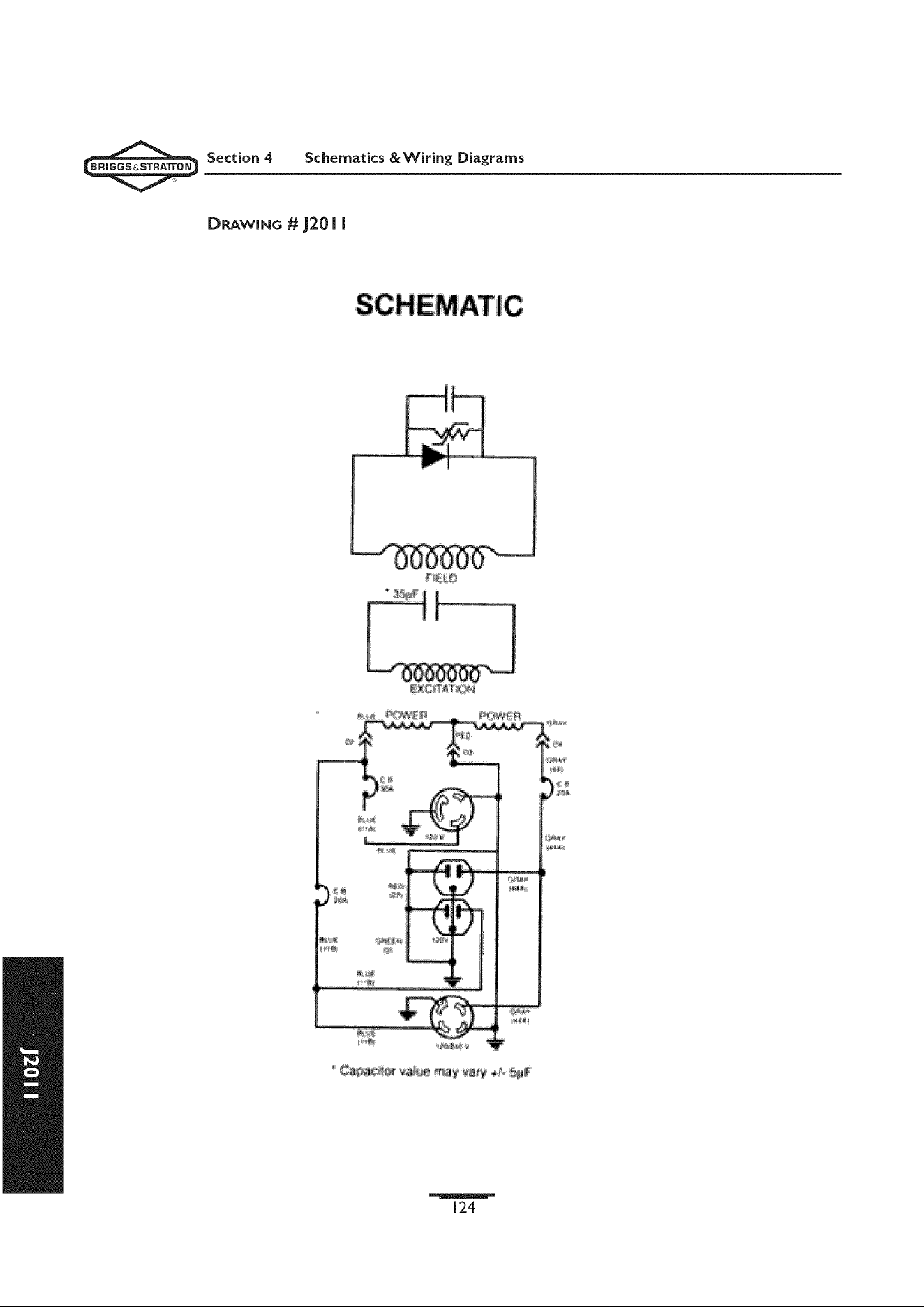

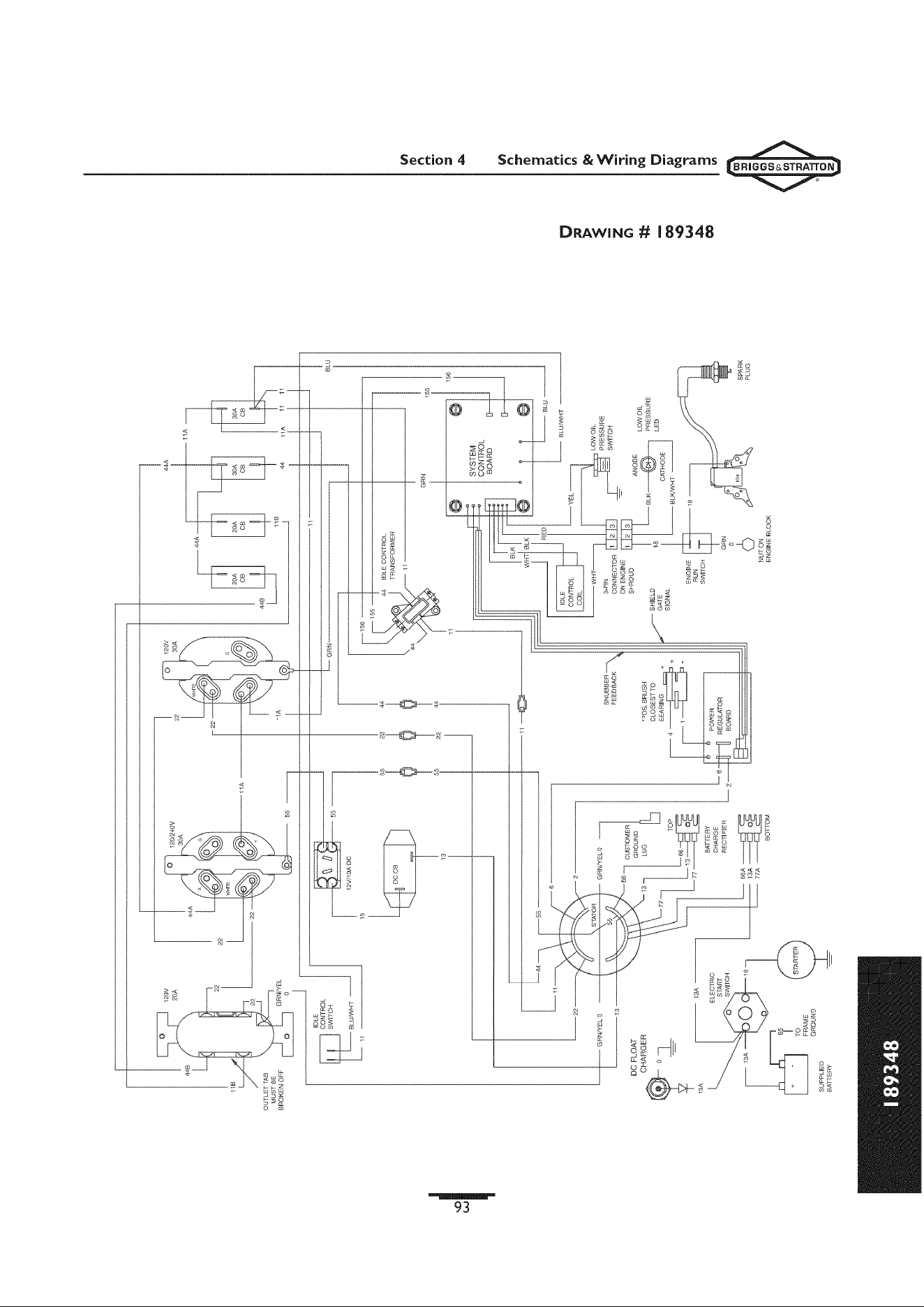

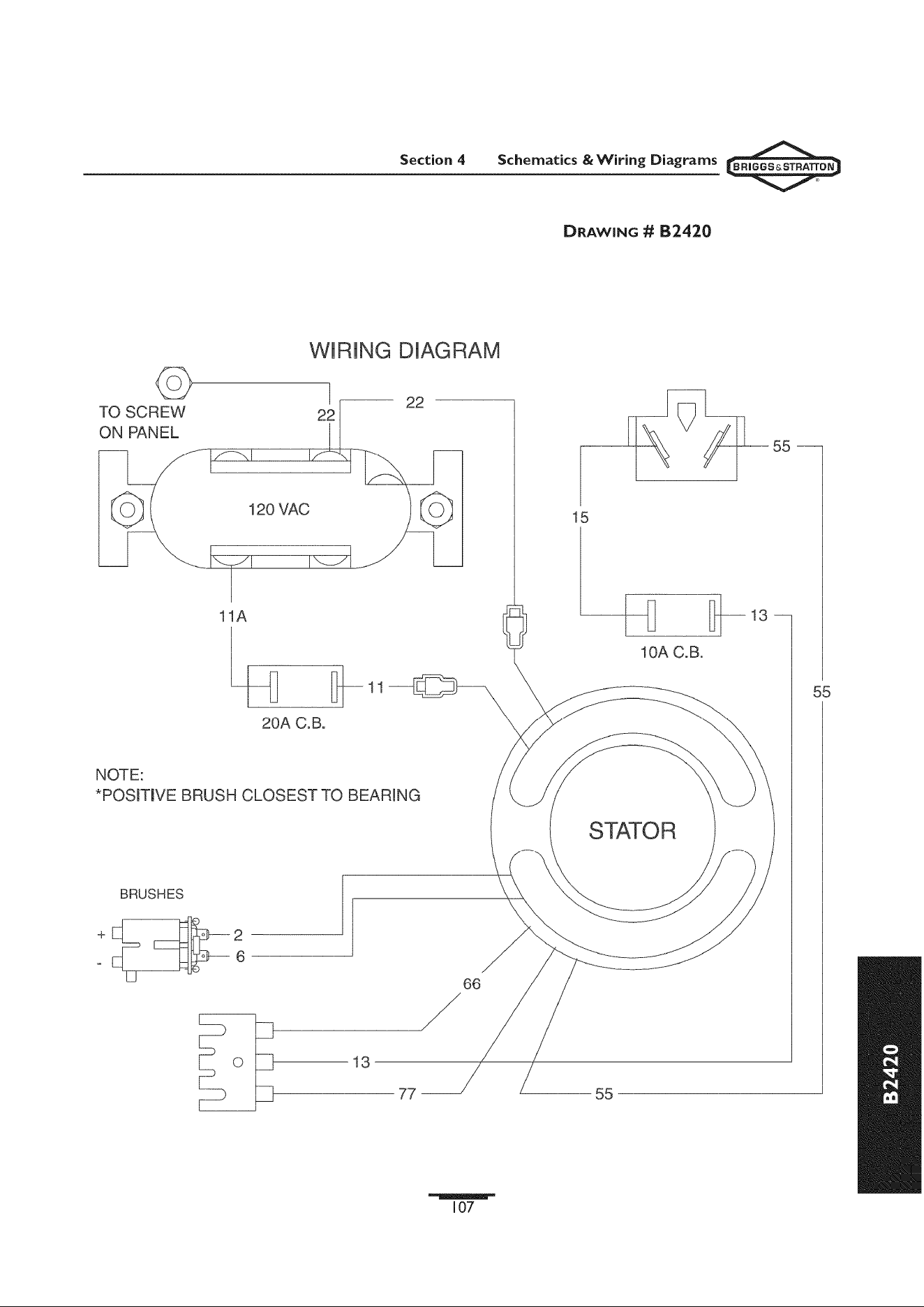

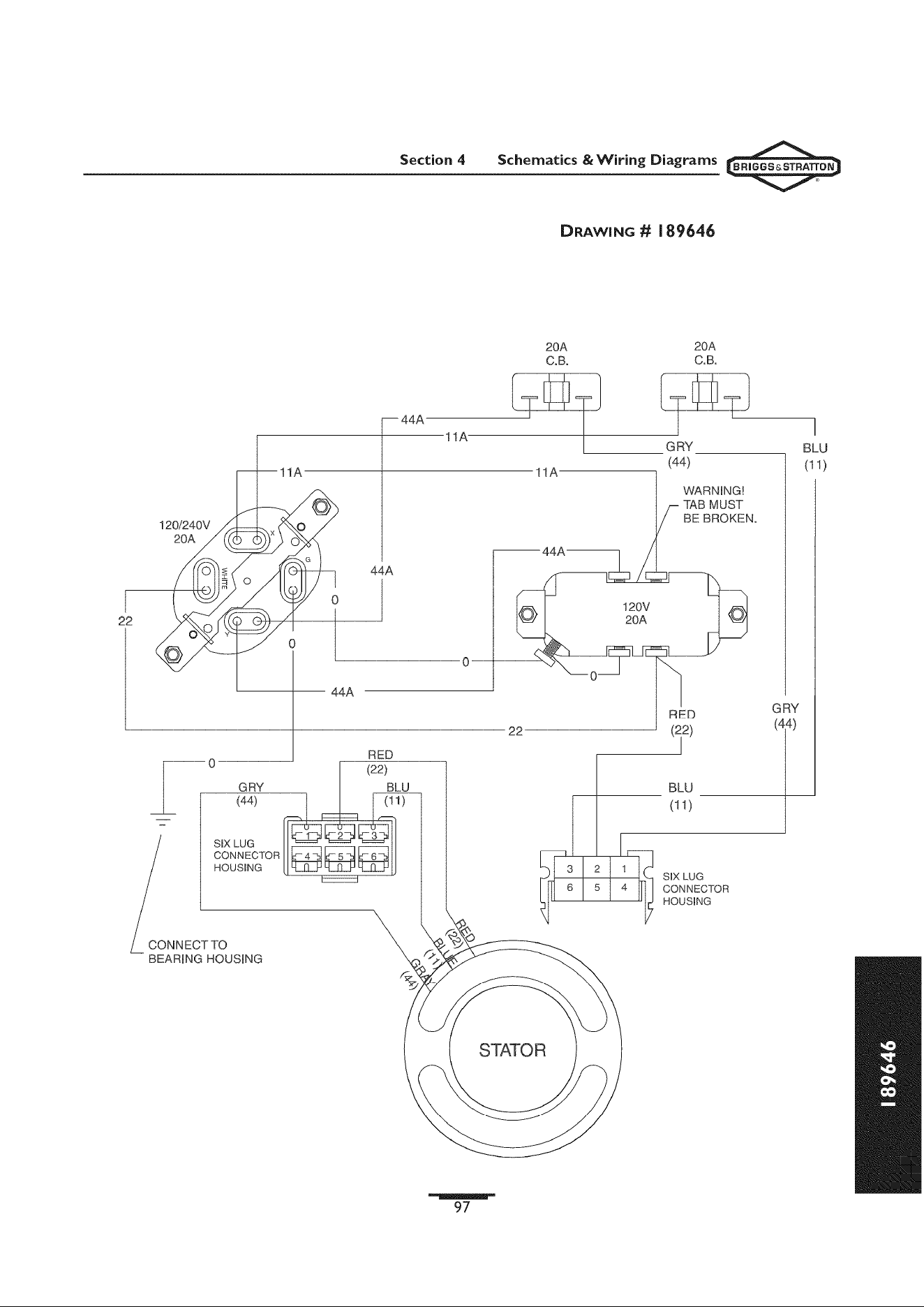

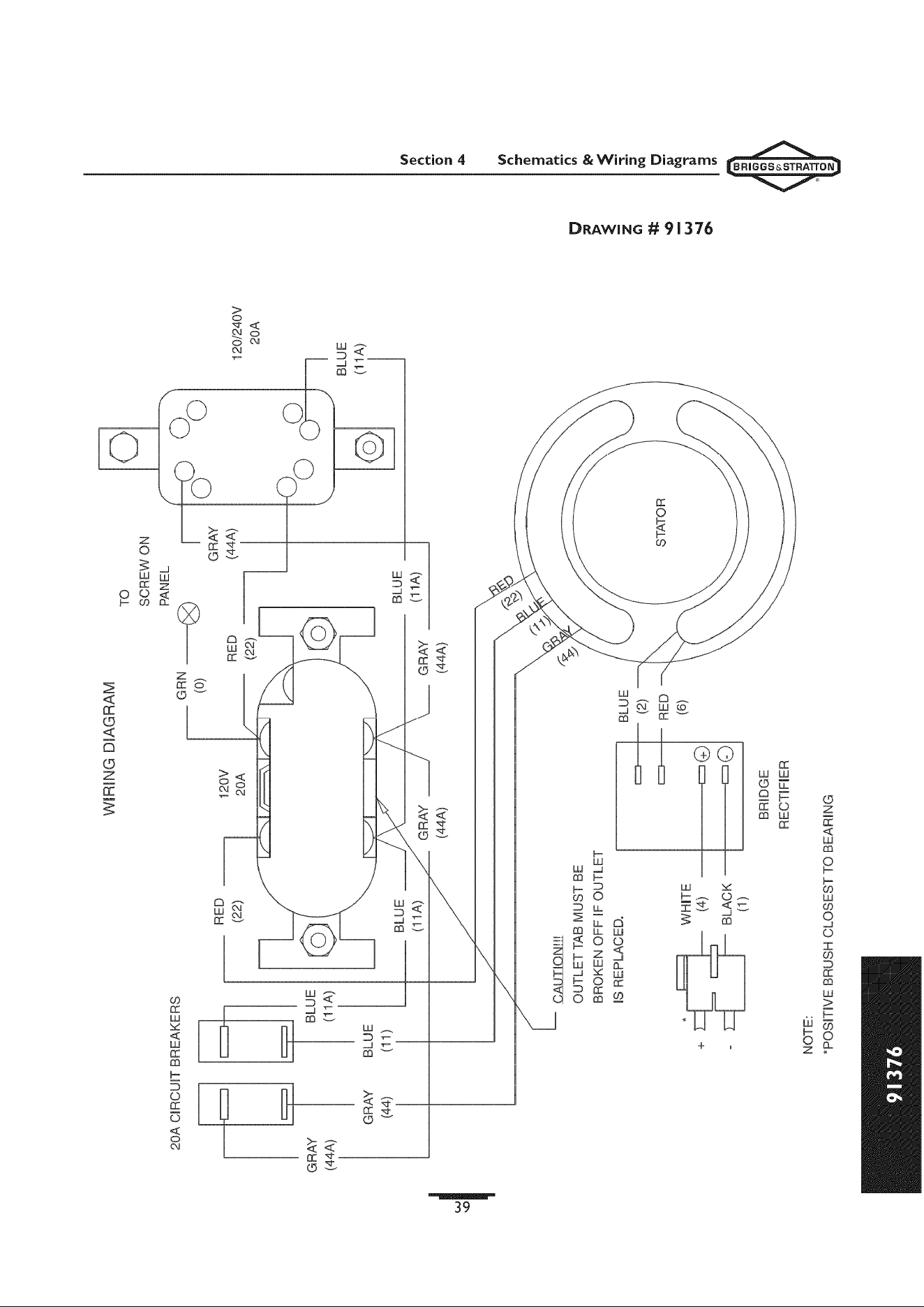

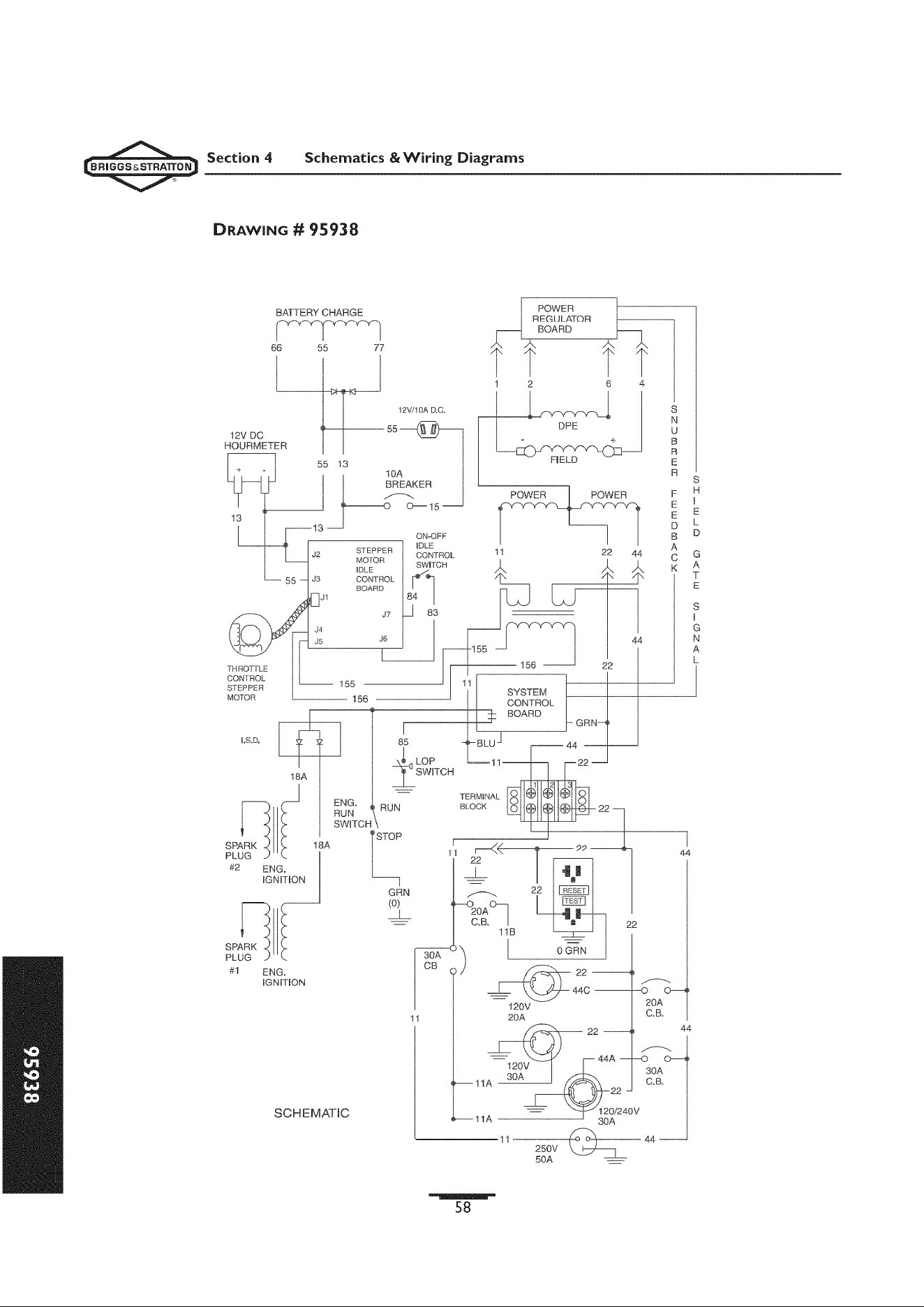

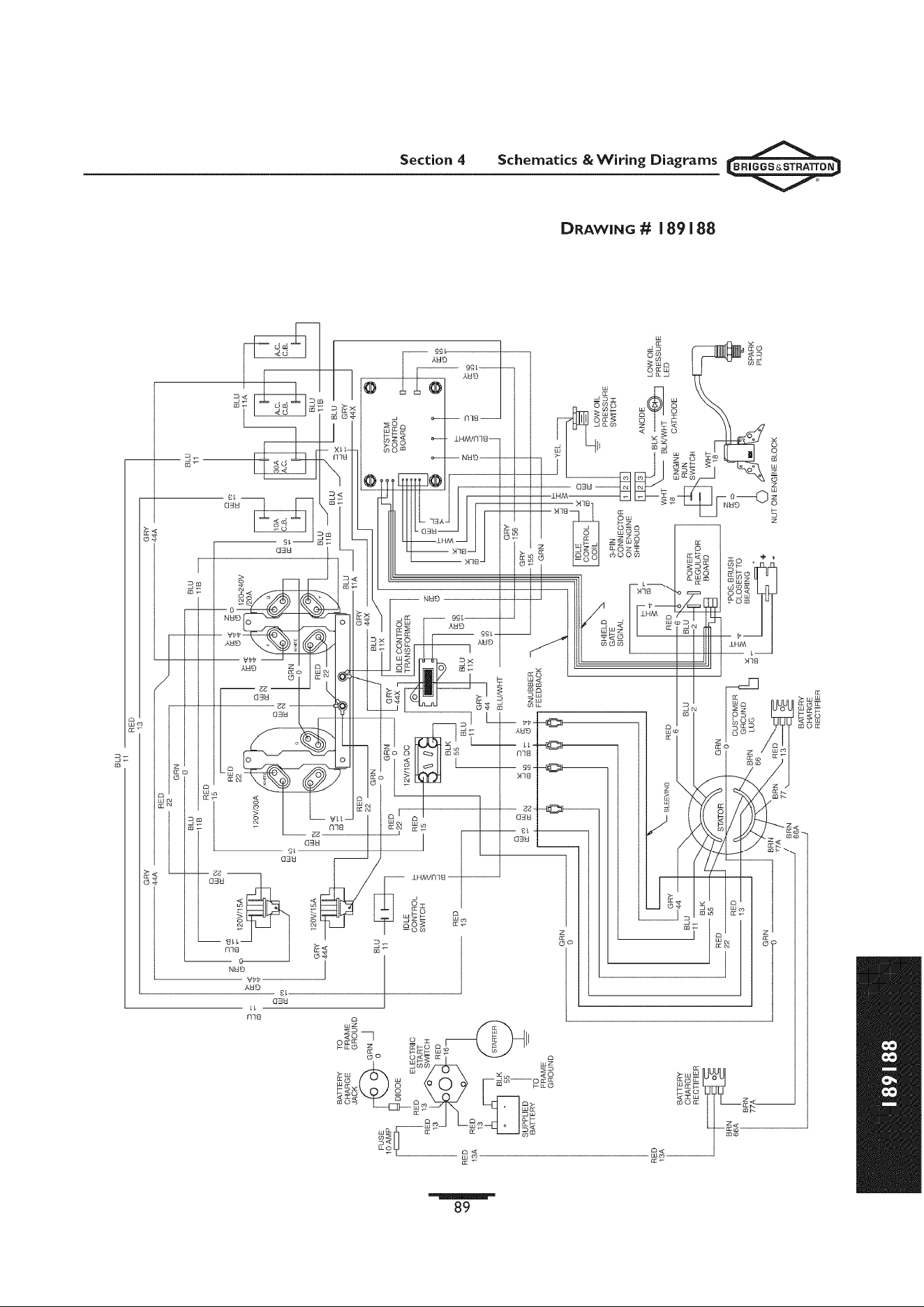

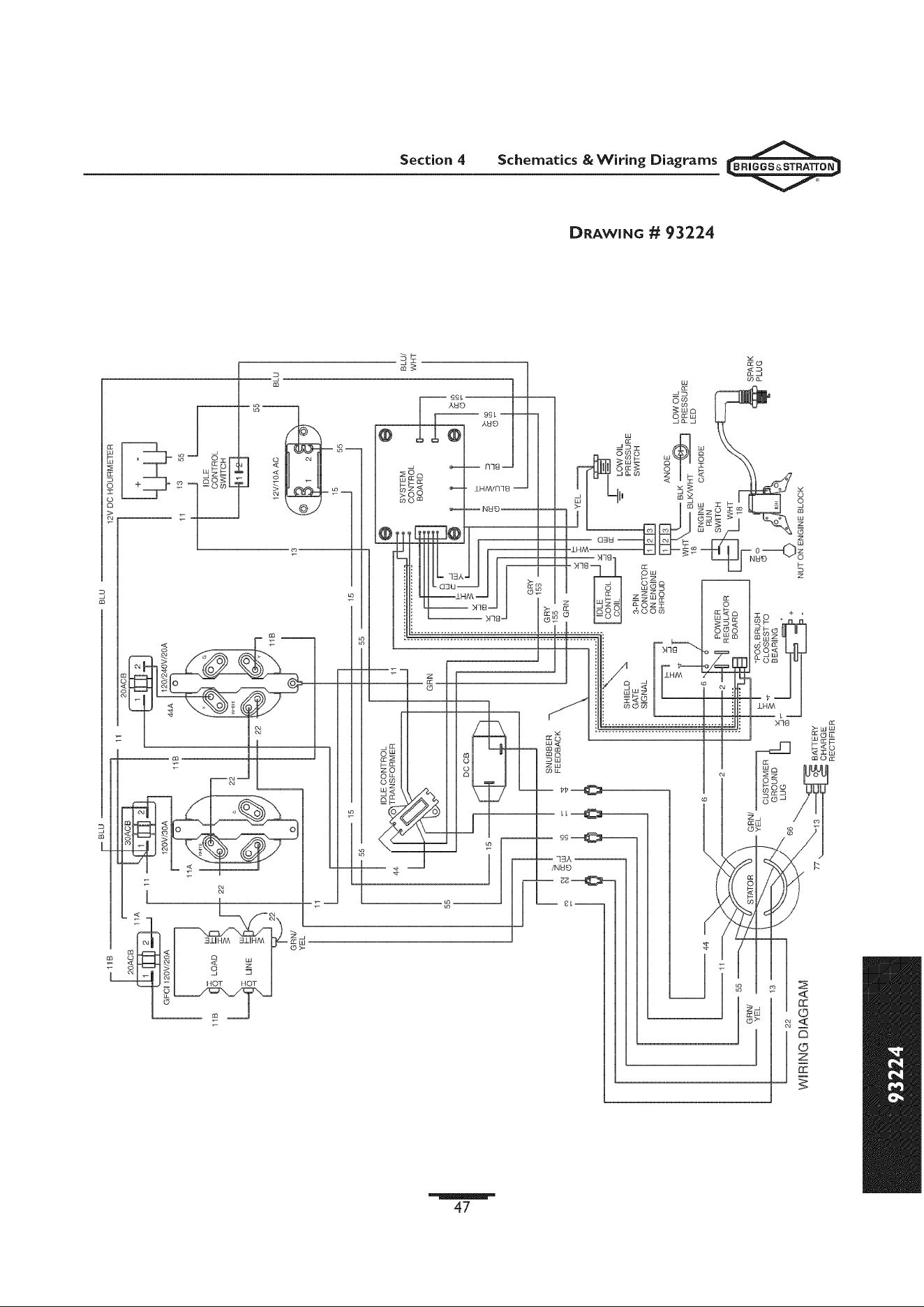

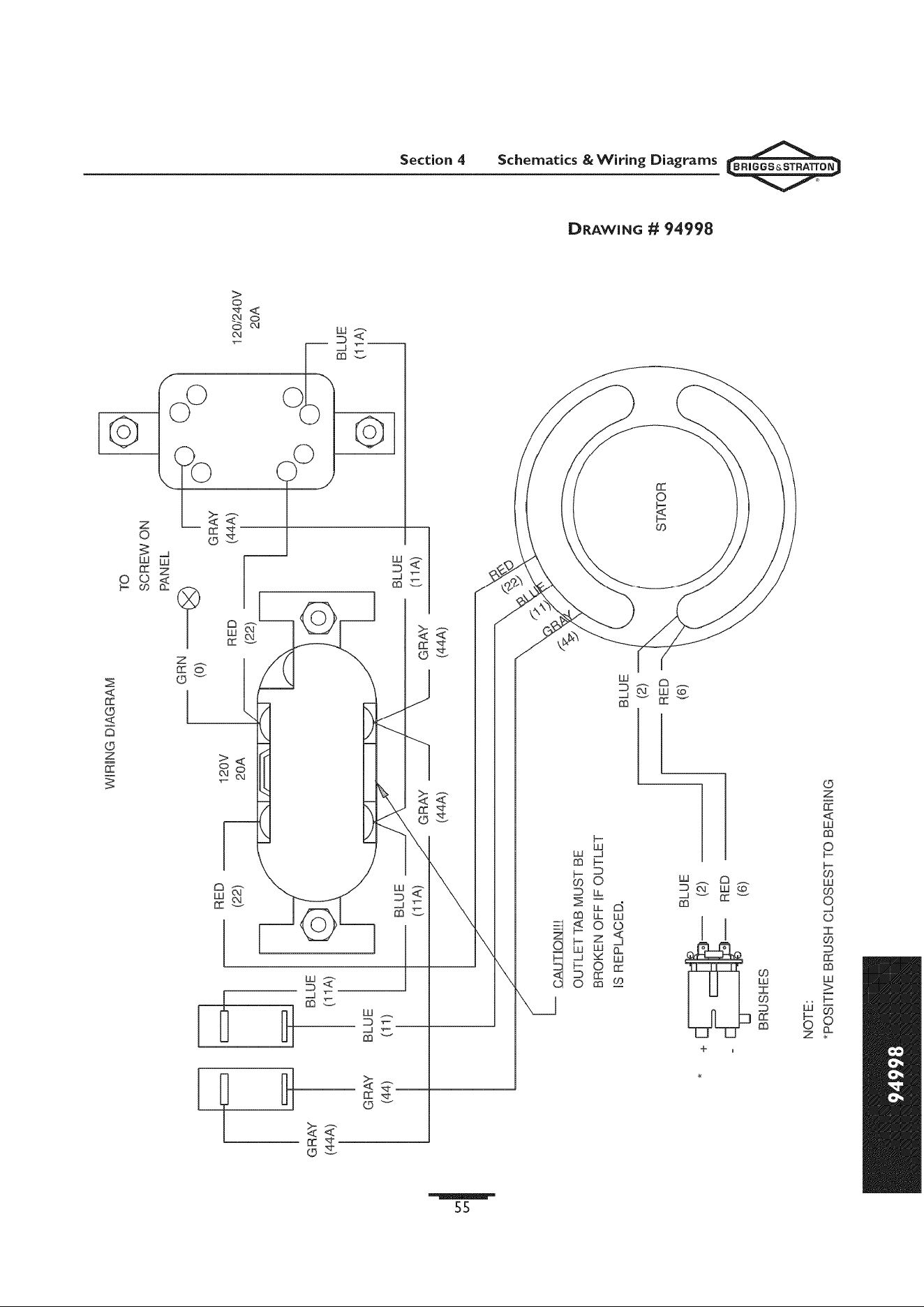

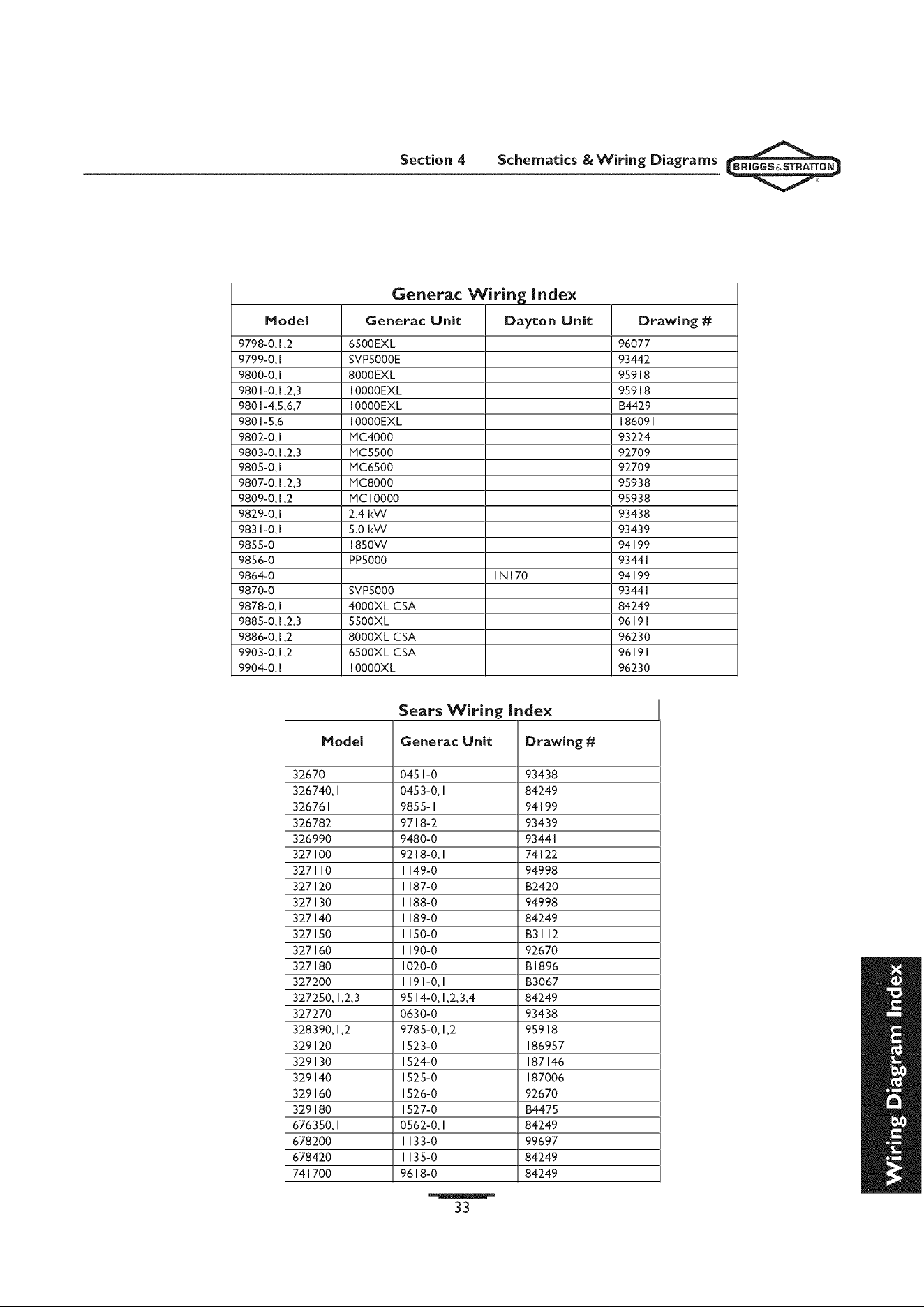

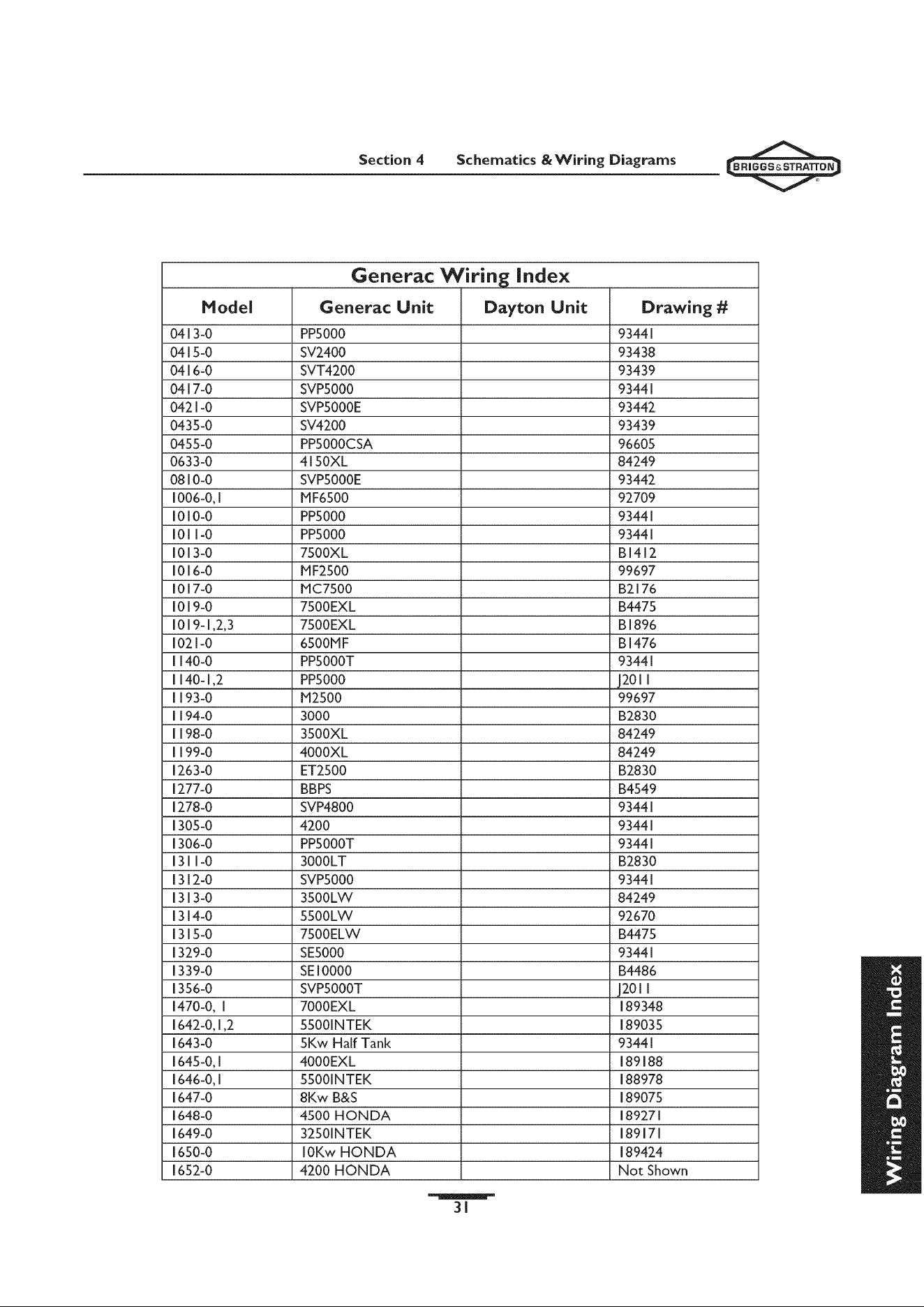

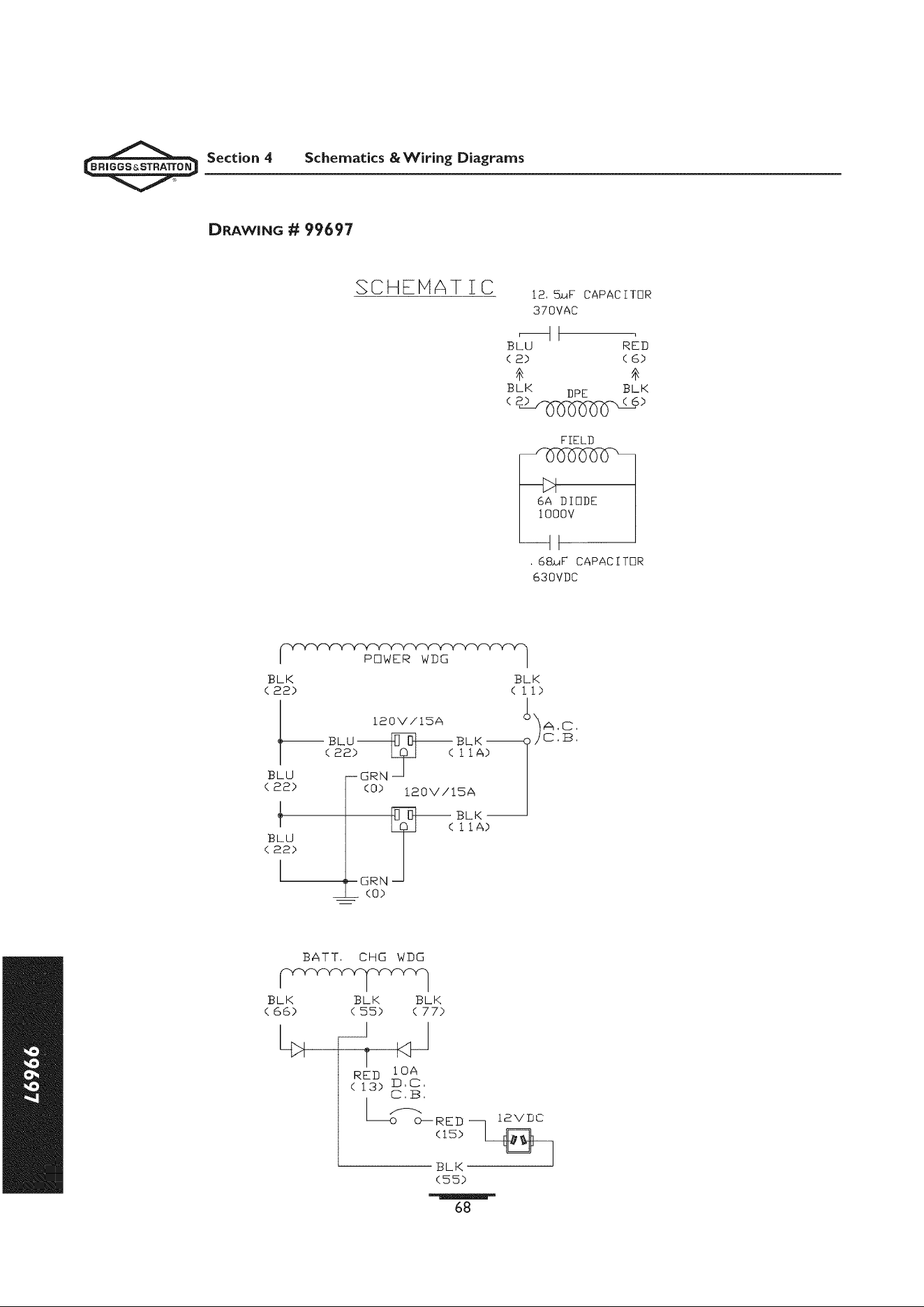

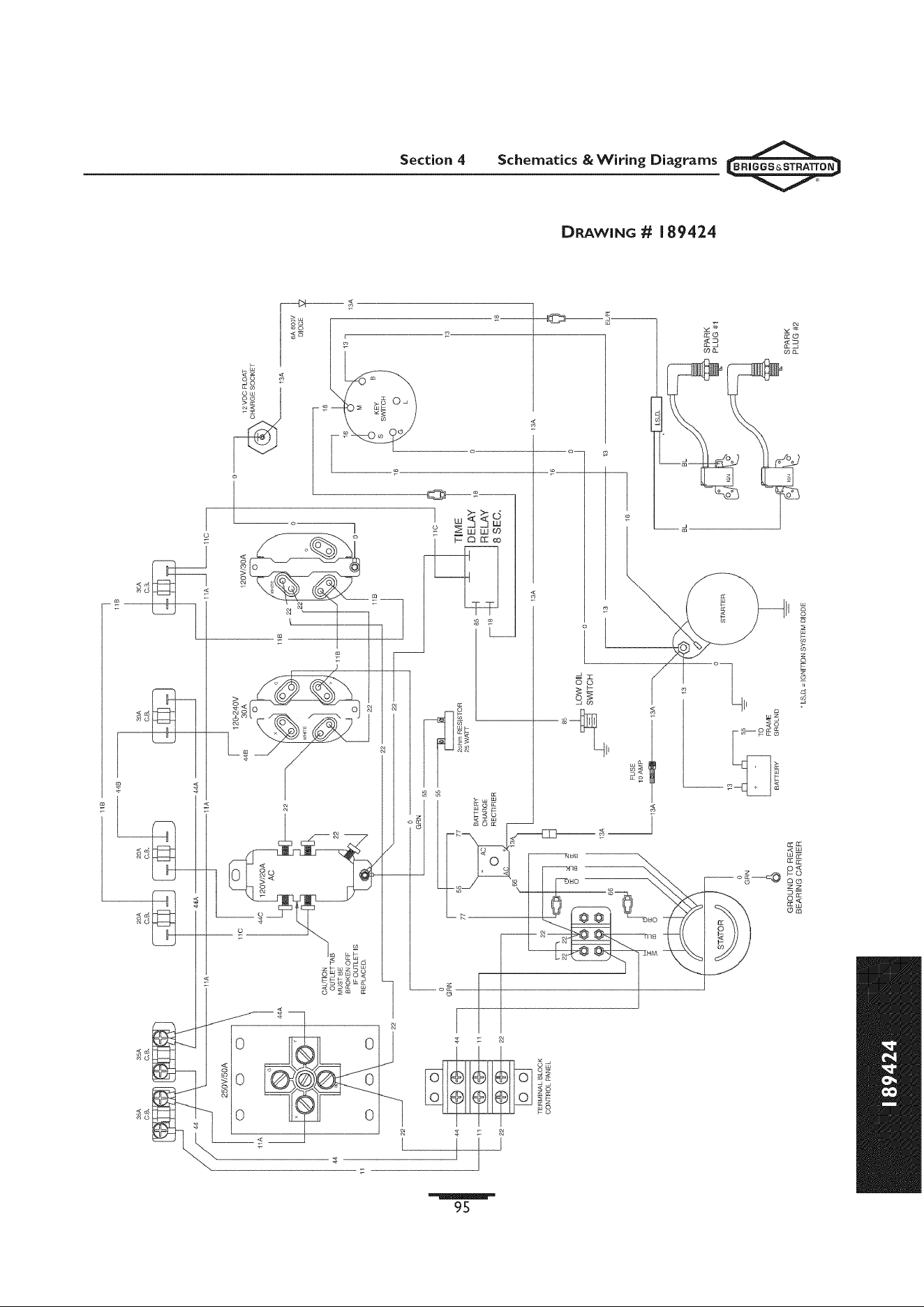

Schematics & Wiring Diagrams
