OPERATORS MANUAL MANUAL DEL OPERADOR MANUEL DUTILISATION
Outdoor Portable Generator
Generador portatil para uso en exteriores
Génératrice Portable pour Extérieur
Manual No. 336745509 Rev Level:00
CMXGGFMP03633
1-888-331-4569 WWW.CRAFTSMAN.COM
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.
SI TIENE DUDAS 0 COMENTARIOS, CONTÁCTENOS.
background
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features, Controls and On -Product Hazard Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 6

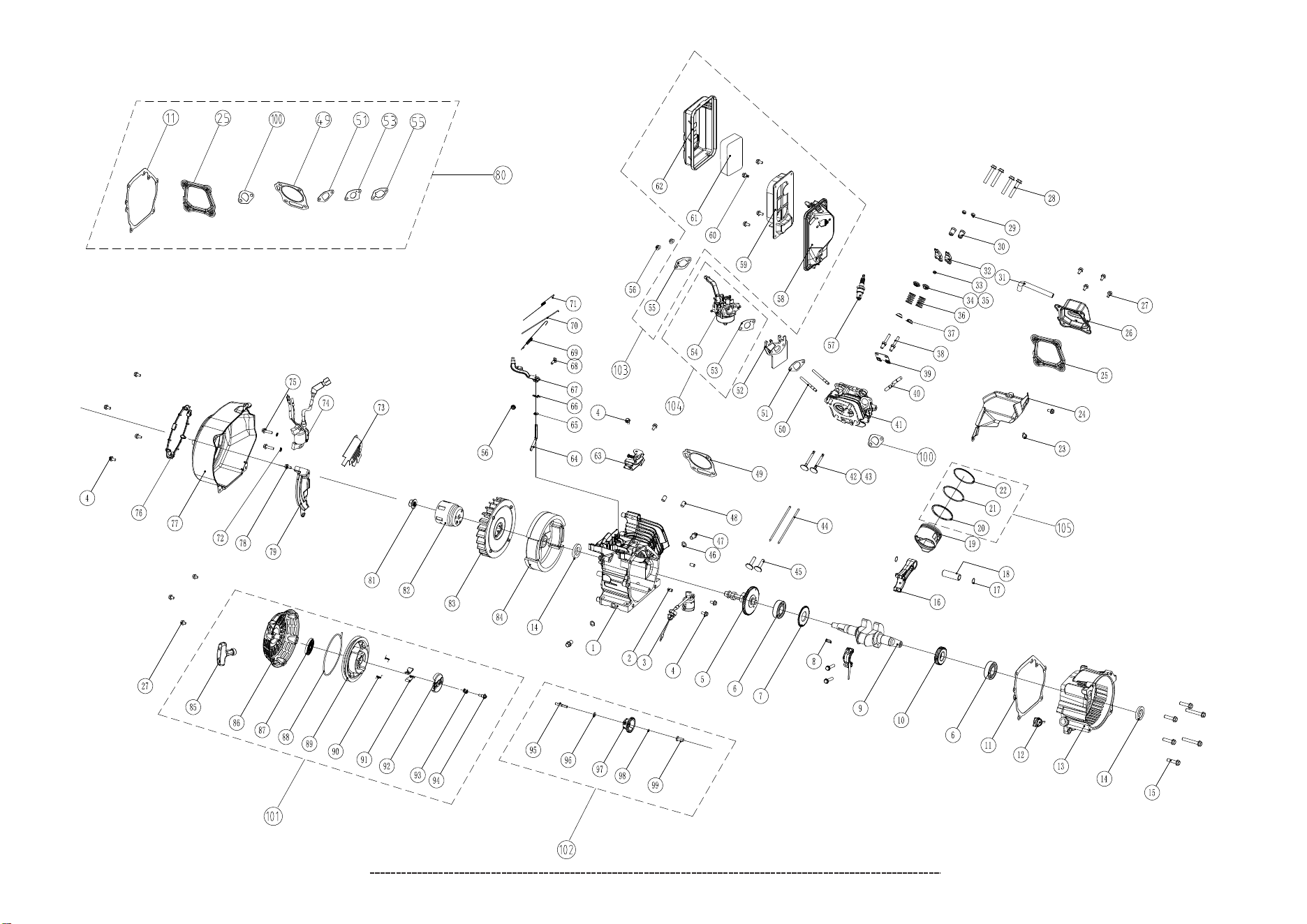

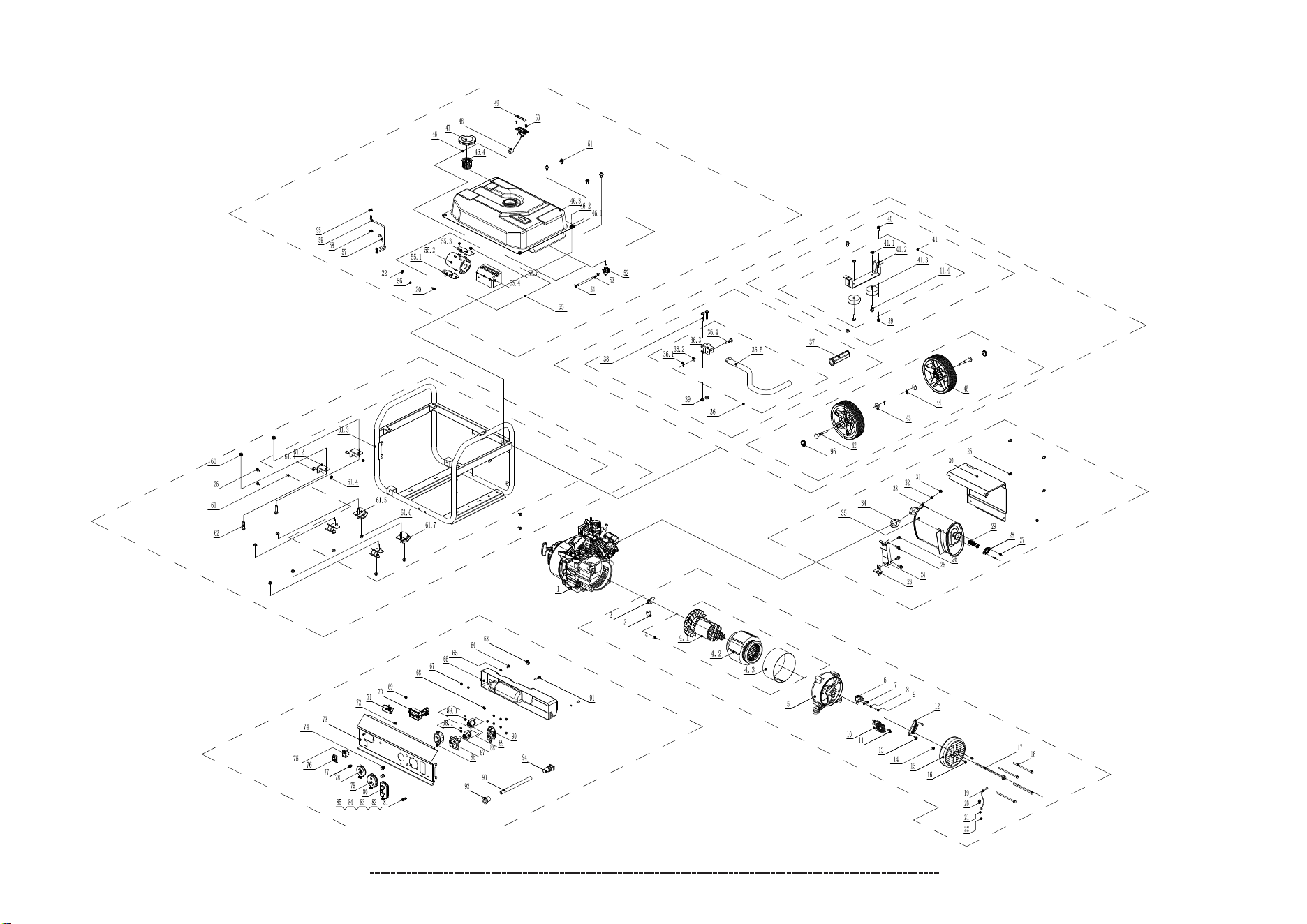

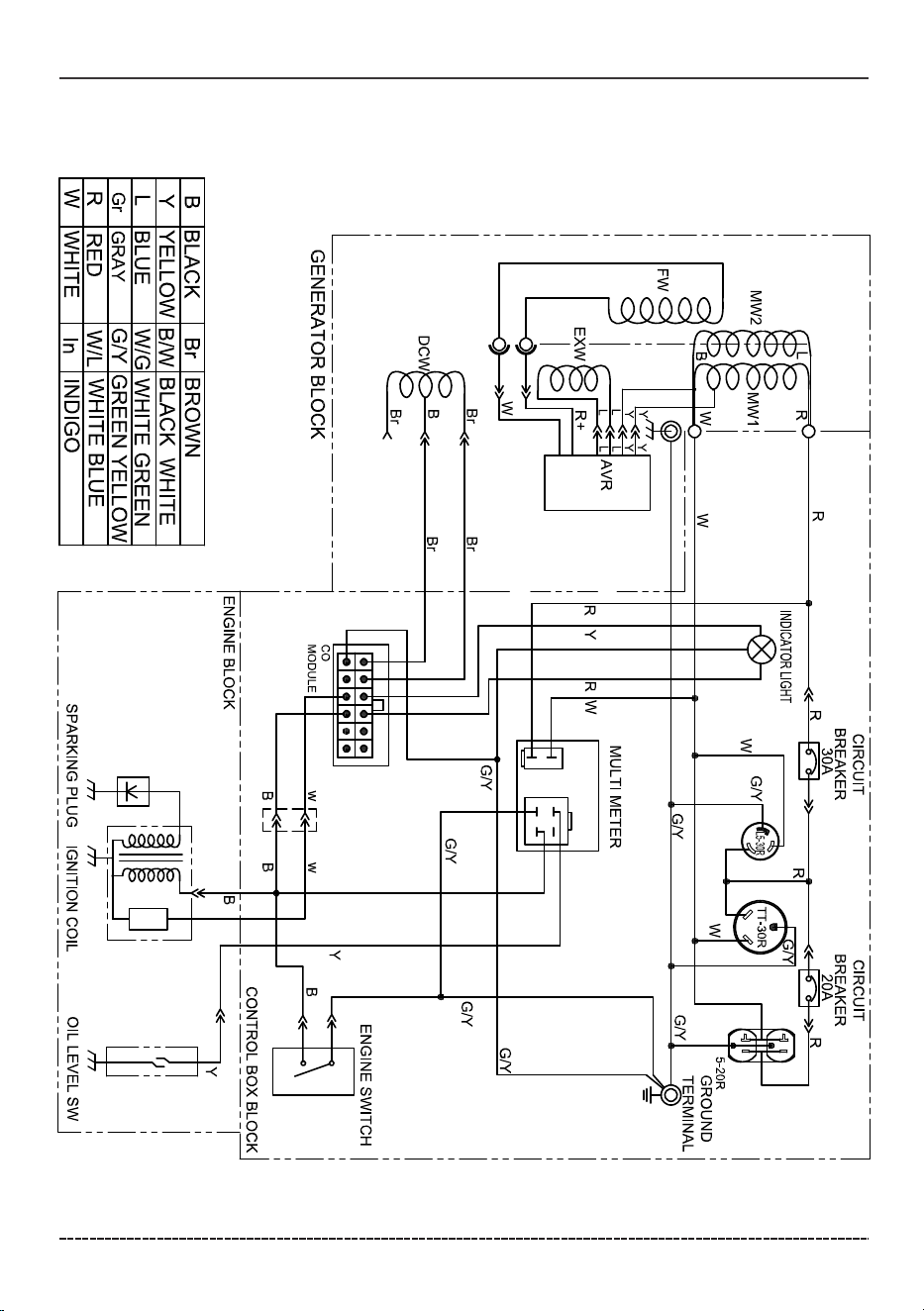

Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 8
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
REGISTER YOUR PRODUCT
Register your FIRMAN generator online at www.firmanpowerequipment.com
INTRODUCTION
Thank you for purchasing a CRAFTSMAN generator. You have selected a high-quality, precision
engineered generator set designed and tested to give you years of satisfactory service. This generator
is designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to
supply power for life safety support.
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this portable
generator. Save these original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the generator and this documentation at any time without prior notice.
INTRODUCTION
01
background
02
SIGNAL WORDS
DANGER WARNING CAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Generator could cause electrical shock resulting in death or serious
injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION
background
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NOTICE If you have questions about intended use, contact CRAFTSMAN customer service. This
portable generator is designed to be used only with CRAFTSMAN authorized parts.
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualified electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section 590.6.
Compliance Requirements
To Restore Power Using Extension Cords
03
INTRODUCTION
The generator neutral is floating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a floating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
System Ground
background
2. Follow cord safety instructions.
3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
downwind in an open, outdoor area, at least 20 ft. (6 m.) from occupied spaces with exhaust pointed
away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Extension cords running directly into the home increase your risk of carbon monoxide
poisoning through any openings.
If an extension cord running directly into your home is used to power indoor items, the
operator recognizes that this increases the risk of CO poisoning to people inside the home
and assumes that risk.
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
04
INTRODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
16
14
To provide power using
extension cords
Total
Amperage
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
Up to 13A
Up to 15A
Up to 20A
Up to 30A
background
*We are always working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
05

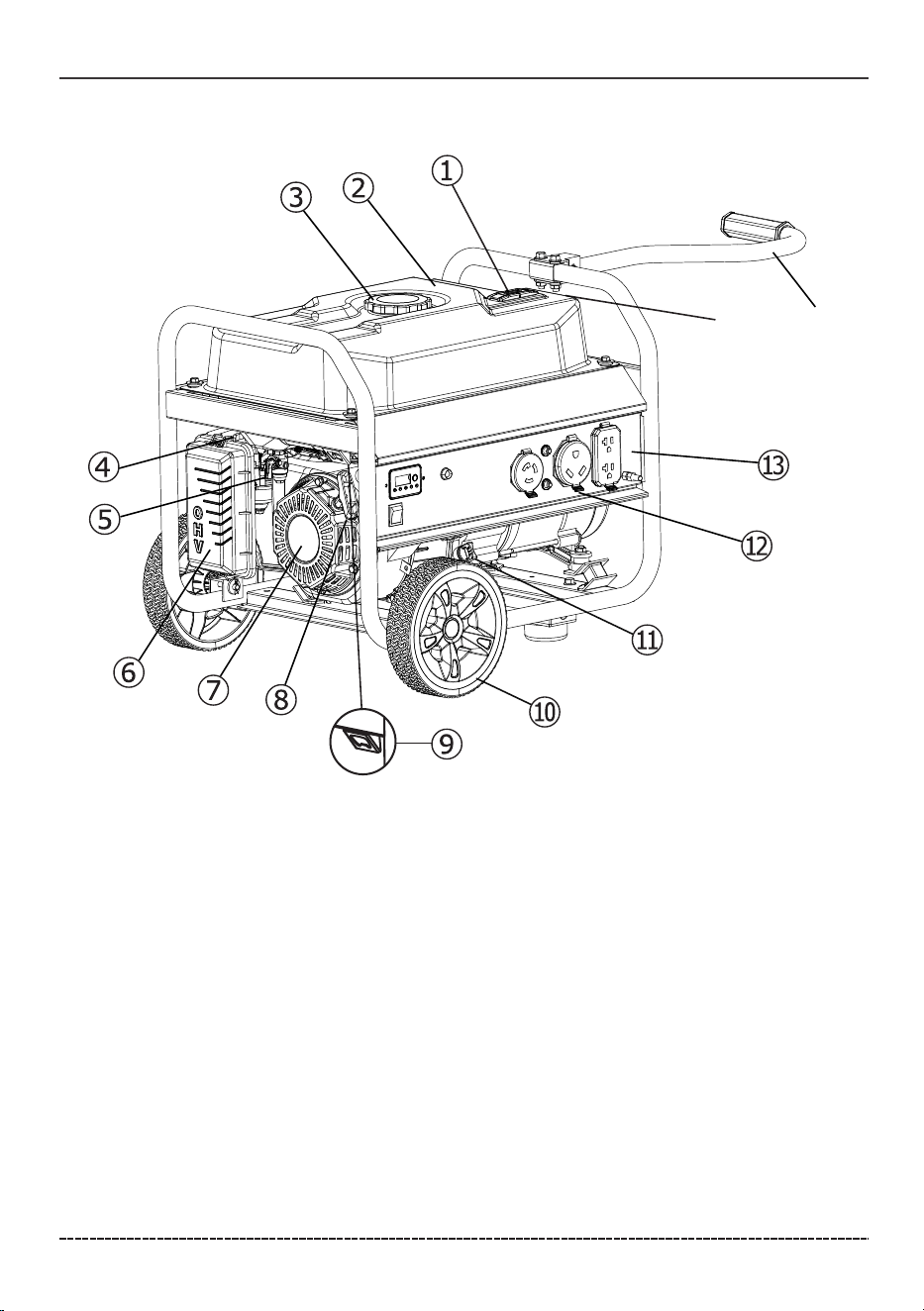

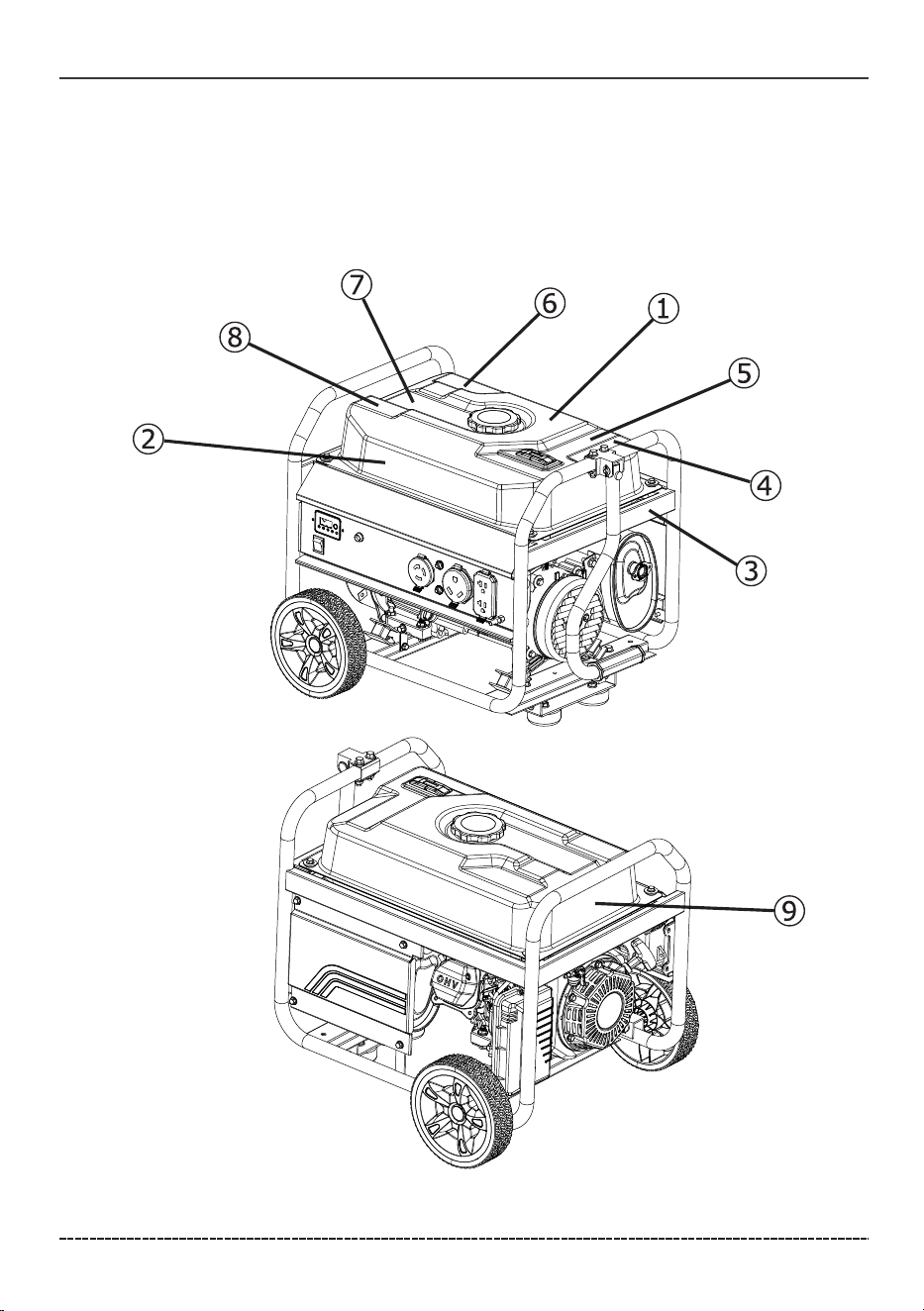

1- Fuel Gauge
2- 5.0 Gallon(19L) Capacity Fuel Tank
3- Fuel Cap
5- Fuel Valve
6- Air Filter
7- 208cc OHV Engine
8- Recoil Starter
9- Bottle Opener
10- 8.0"(20.3cm) Flat Free Wheel
11- Oil Filler Cap
12- Outlet Cover
13- Control Panel
14- Handle
15- Data Decal / Serial Number
4- Choke Lever(behind air filter box)
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
06

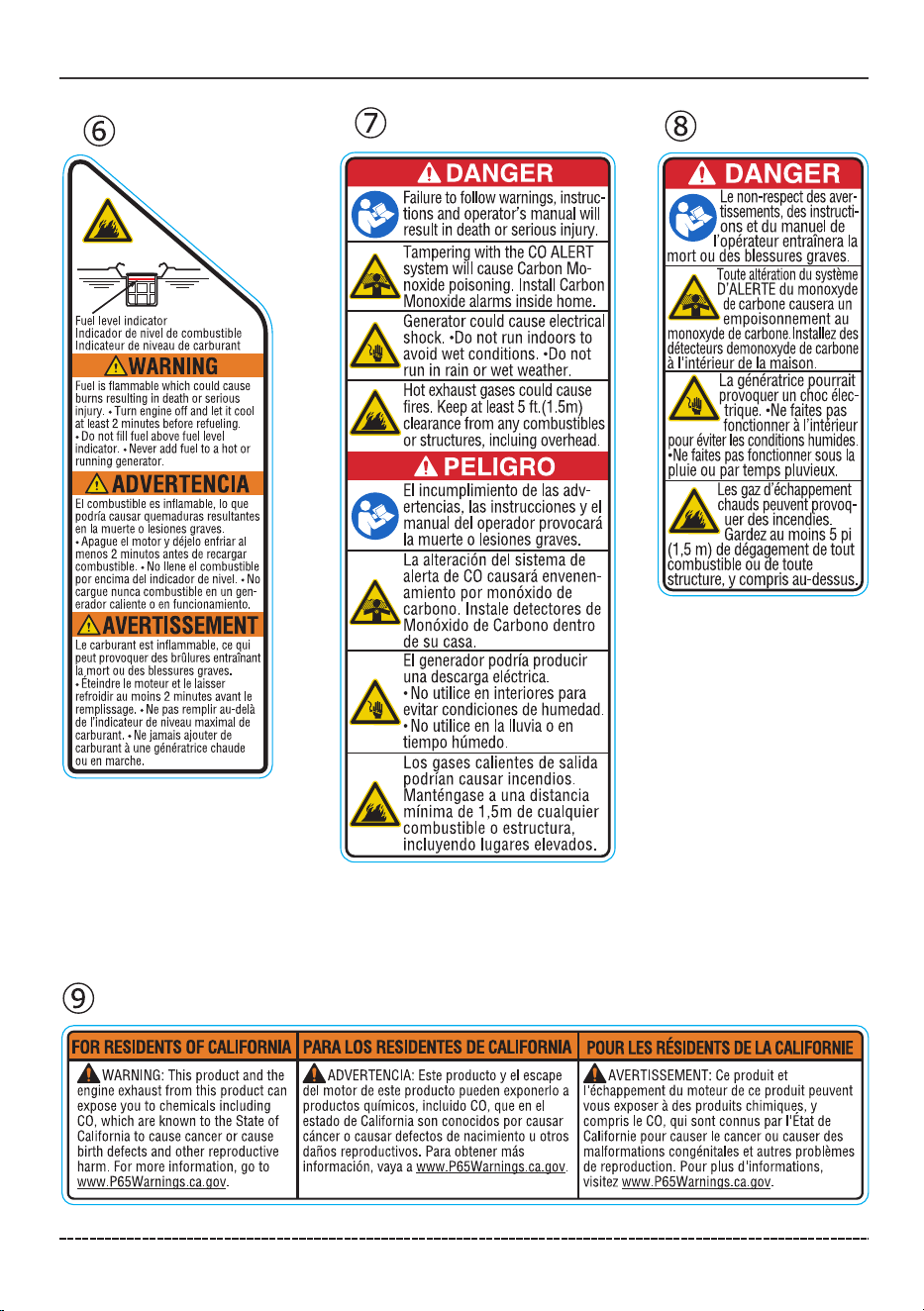

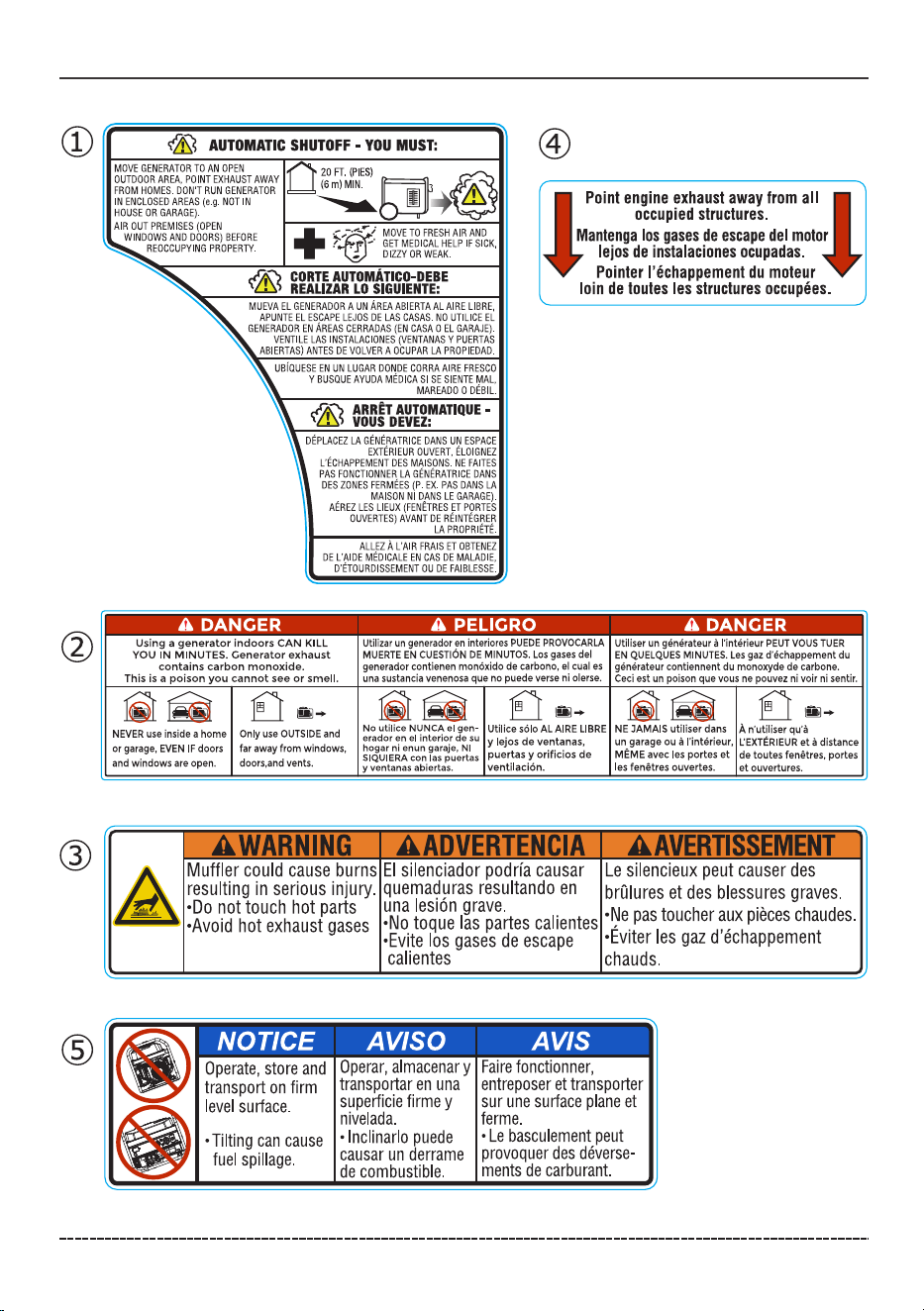

LOCATION AND CONTENT OF NO-PRODUCT HAZARD LABELS
FREE WARNING LABEL REPLACEMENT
If hazard labels become illegible or are missing, contact CRAFTSMAN customer service for a free
replacement.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
07
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
08
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
09

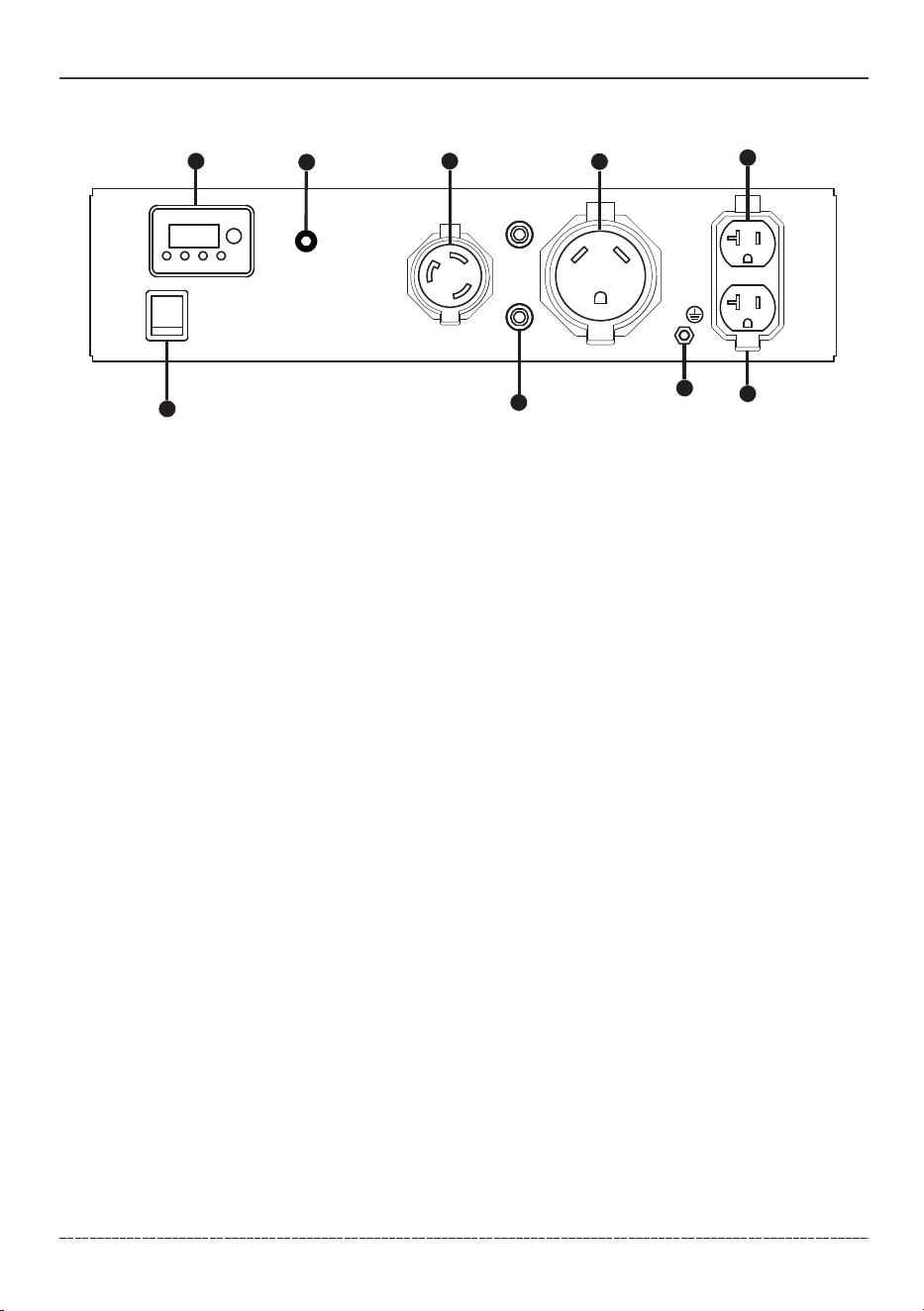

Control Panel
NOTICE Total power drawn from all receptacles must not exceed the data decal rating.
4. 120V, 30A Twist Lock – NEMA L5-30R
A maximum of 30 Amps current may be drawn from this receptacle.
6. 120V, 20A Duplex - NEMA 5-20R (Not GFCI protected)
A maximum of 20 Amps current may be drawn from this duplex receptacle.
1. Engine Switch Engine Switch – Flip the switch to the “ON”(l) position and pull the recoil starter to start
the generator. Turn to the “OFF”(O) position to turn off the generator.
2. 4-1 Data-Minder (Multi-Meter)Push the SELECT button to show the Voltage, Hertz, running hours and
low oil alarm.
7. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
3. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
5. 120V, 30A RV – NEMA TT-30R
A maximum of 30 Amps current may be drawn from this receptacle.
9. Outlet Cover - Protects the receptacles from dust and debris.
8. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector will trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
NOTICE If multiple receptacles are used at the same time, the total current must be kept with-in
the portable generator data decal rating.
1
2
3
4
5
8
7
6
9
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
10

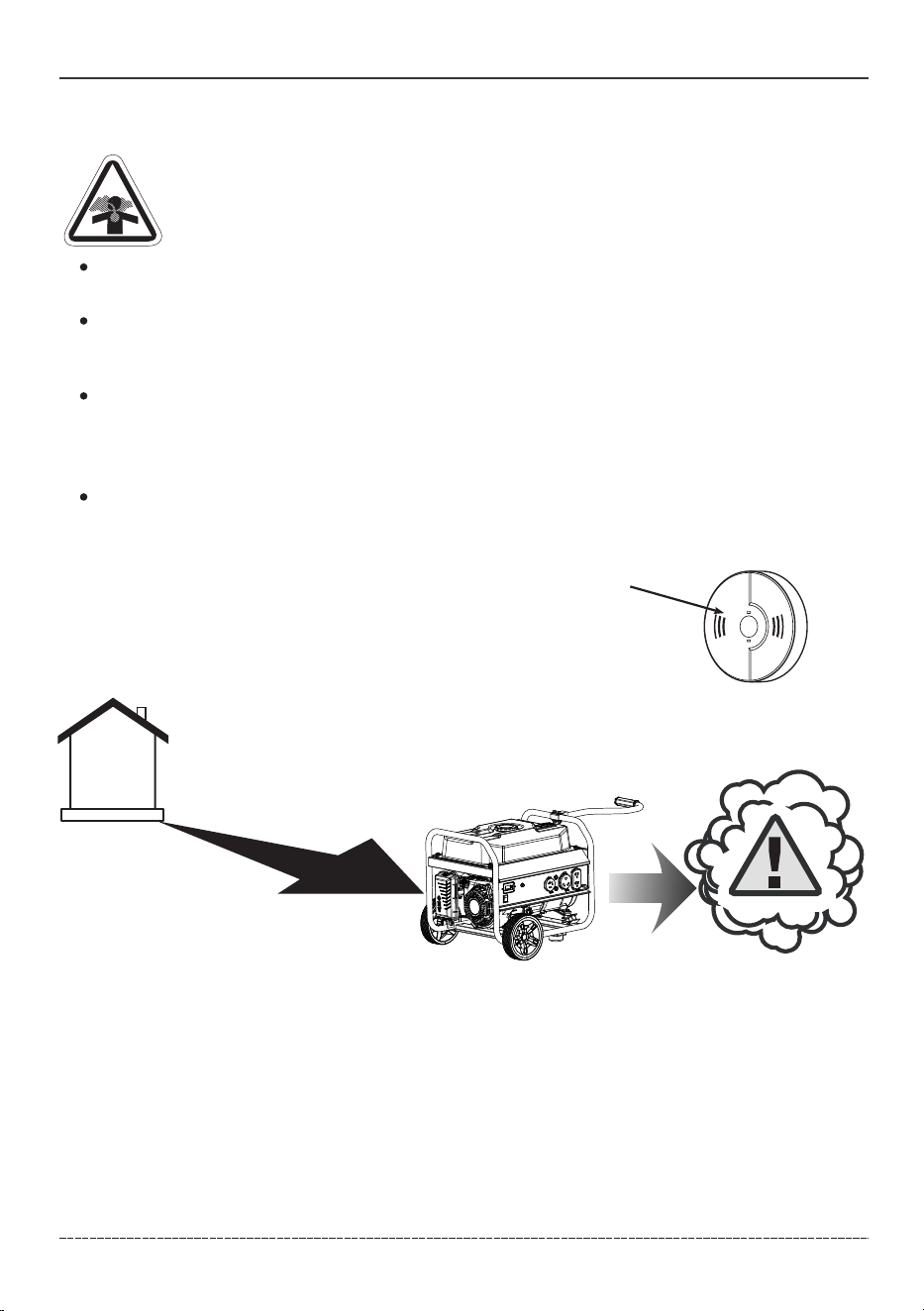

1. Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied
spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors and downwind at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks,
go to www.takeyourgeneratoroutside.com.
OPERATION
background

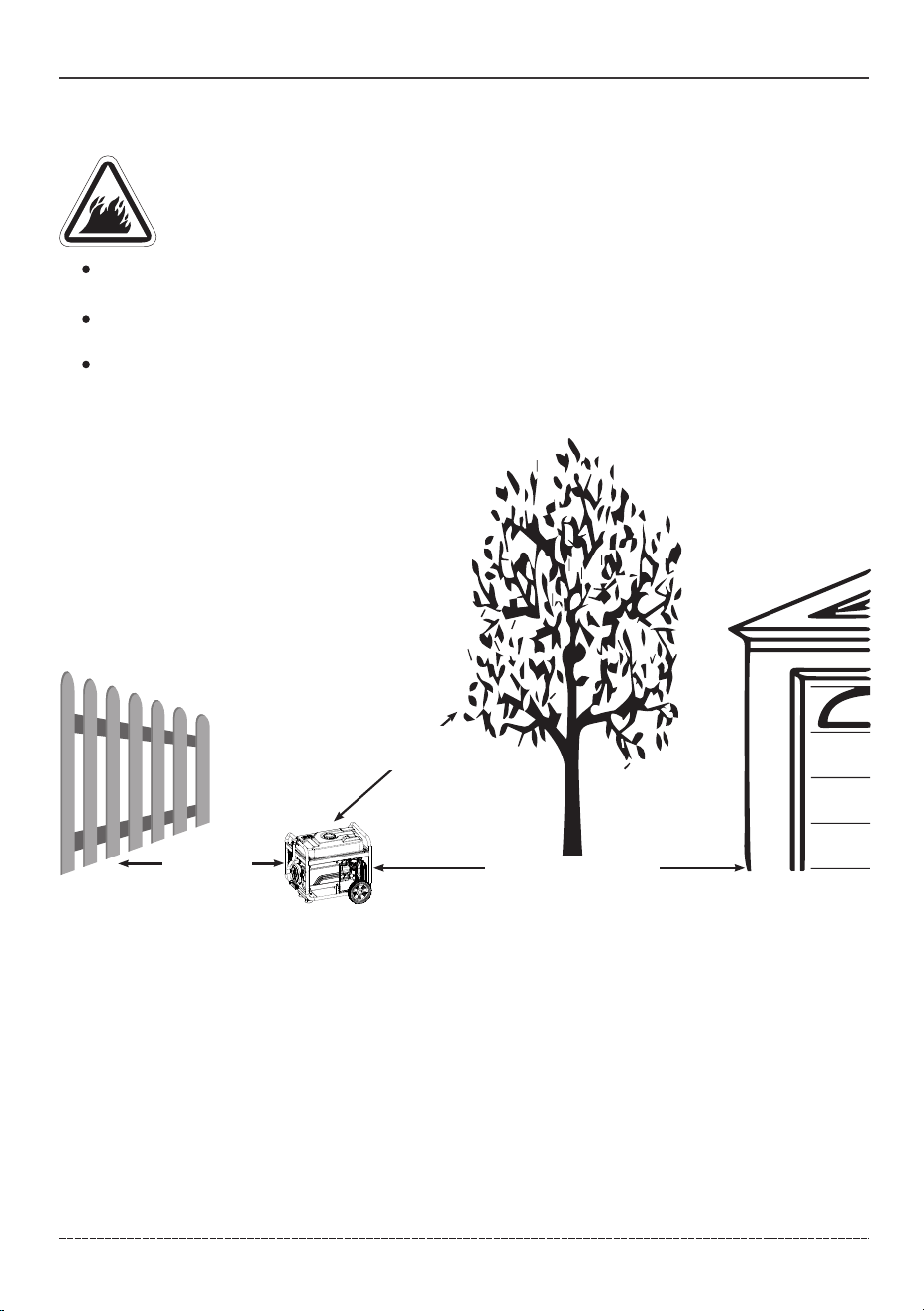

Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12
in. (30 cm) in height.
Select an outdoor site that is dry and protected from the weather. Do not move portable
generator indoors to protect it from the weather.
Do not locate the portable generator under a deck or other similar structure that may
confine heat and airflow.
11
OPERATION
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
background

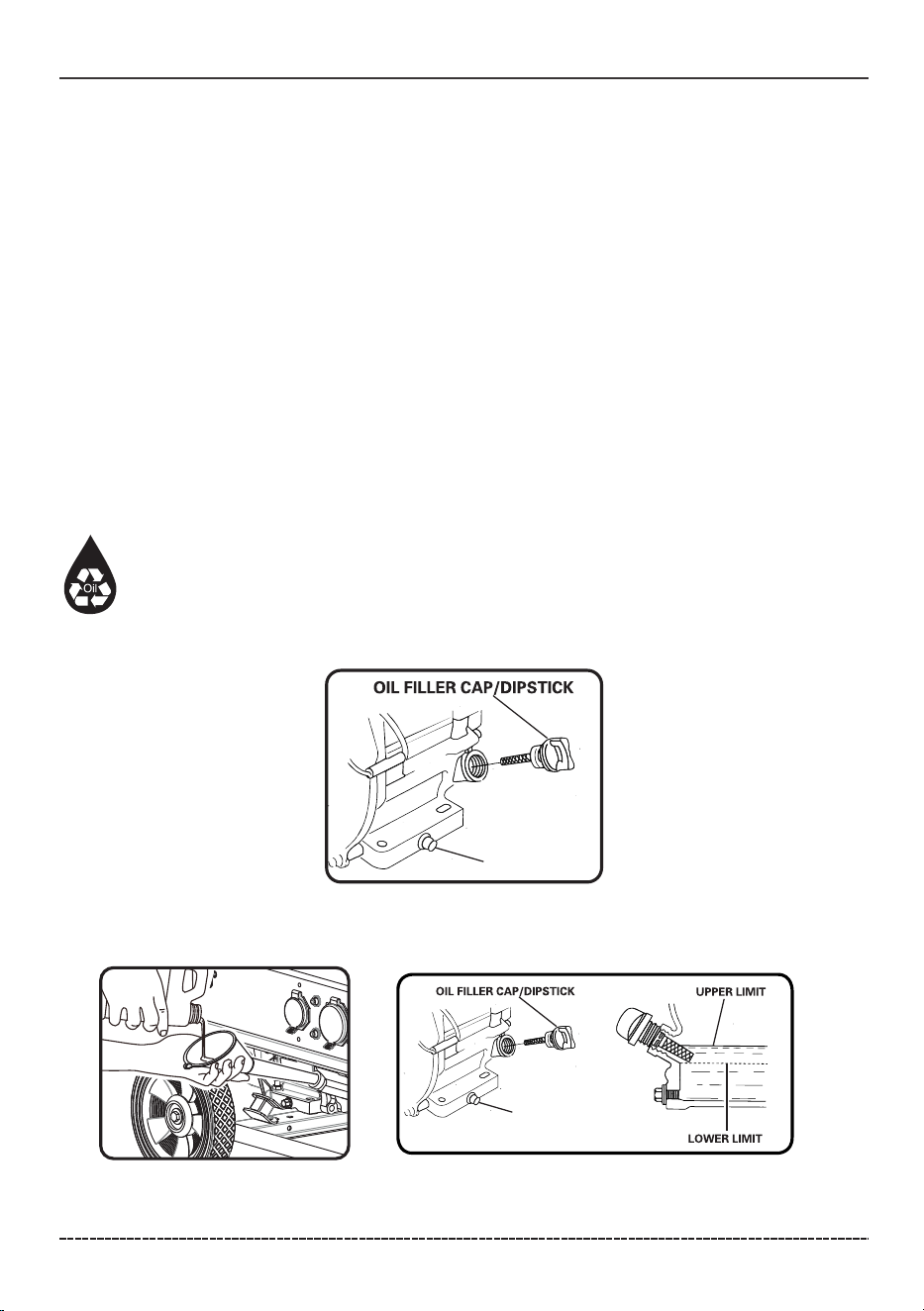

2. Oil and Gasoline
Add Engine Oil

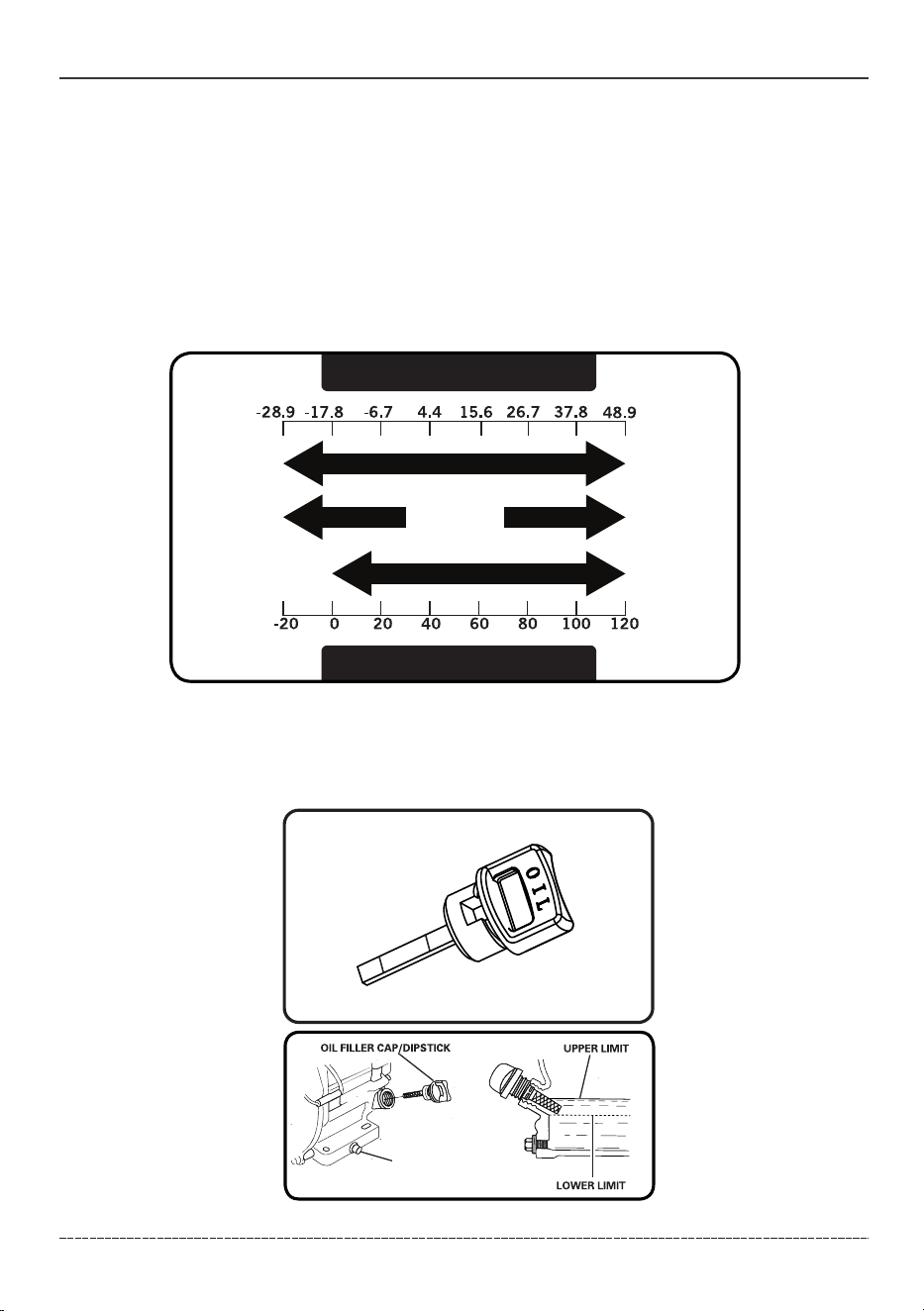

We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special
additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart
to select the proper oil for the outdoor temperature range expected.
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30
1.Place generator on a flat, level surface.
2.Clean area around oil fill and remove yellow oil fill cap/dipstick.
3.Wipe dipstick clean.
12
OPERATION
(H)
DRAIN PLUG
(L)
H
L
NOTICE Do not screw in cap/dipstick when checking oil level.
background

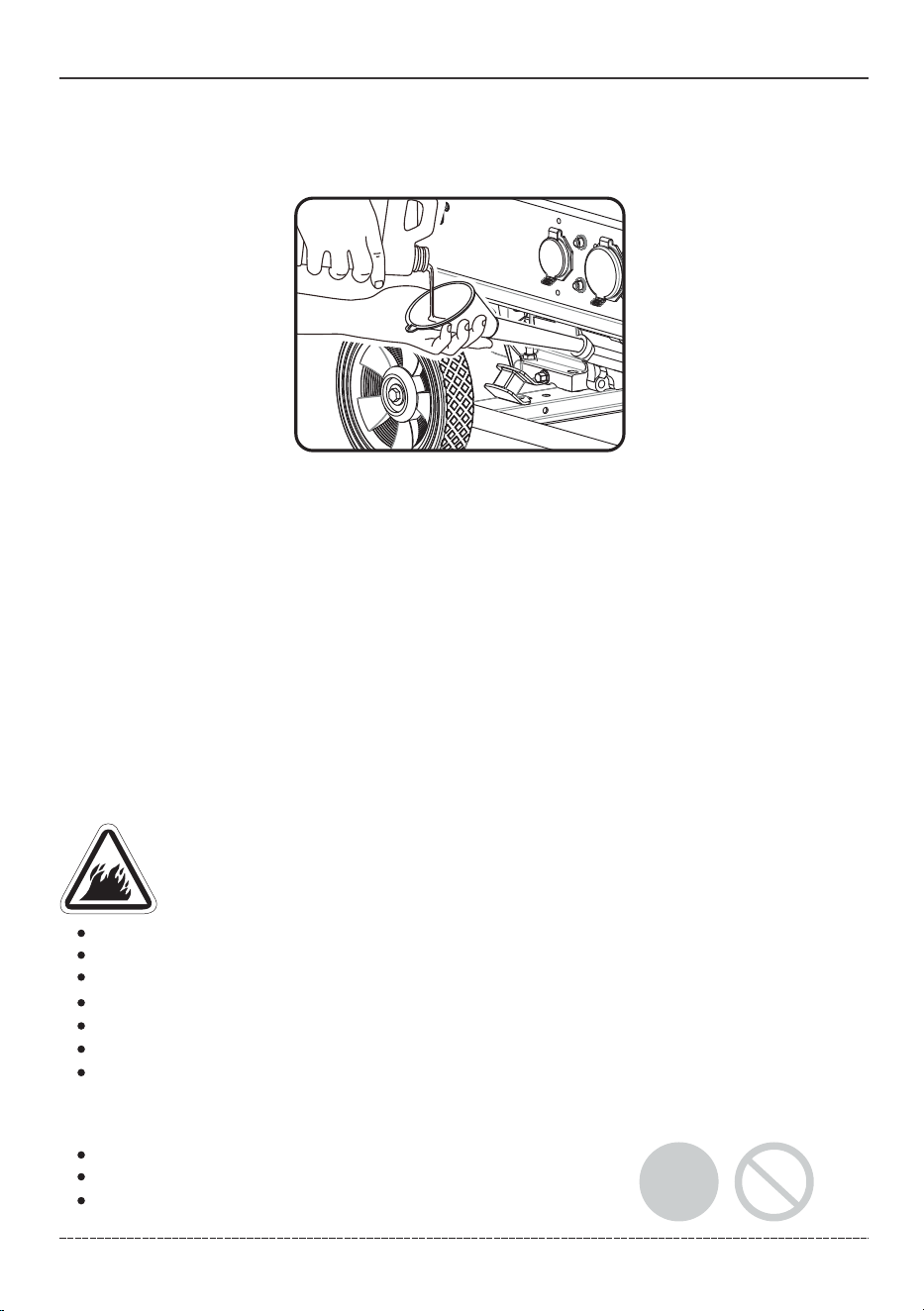

4. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
5.Replace oil fill cap/dipstick and fully tighten.
6.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specifications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact CRAFTSMAN customer service.
Low Oil Shutdown

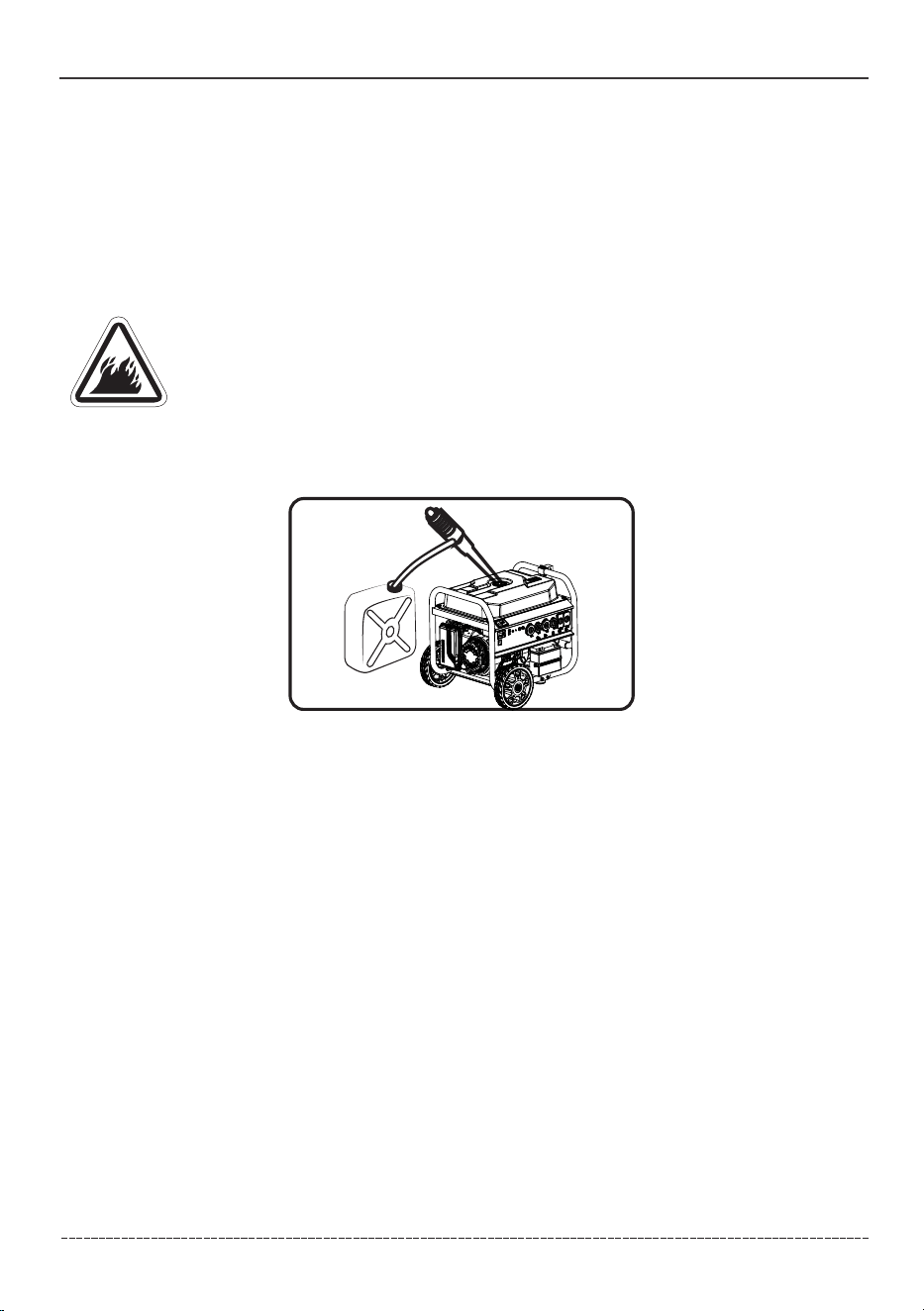

Add Gasoline
WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire
resulting in death or serious injury.
Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
Do Not refuel or move generator when engine is running.
Move generator outdoors prior to adding or draining fuel
Keep fuel away from any ignition sources.
Do not overfill tank, allow space for fuel expansion.
If any fuel spills, wait until it evaporates before starting engine
Check and replace fuel lines, tank, cap, and fittings prior to each use if any damage or leaks
are found.
Fuel must meet these requirements:
Clean, fresh, unleaded gasoline with a minimum of 87 octane.
For high altitude use, see Operation at High Altitude.
Gasoline with no more than 10% ethanol is acceptable.
E10
E15
13
OPERATION
background
NOTICE Do not mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.

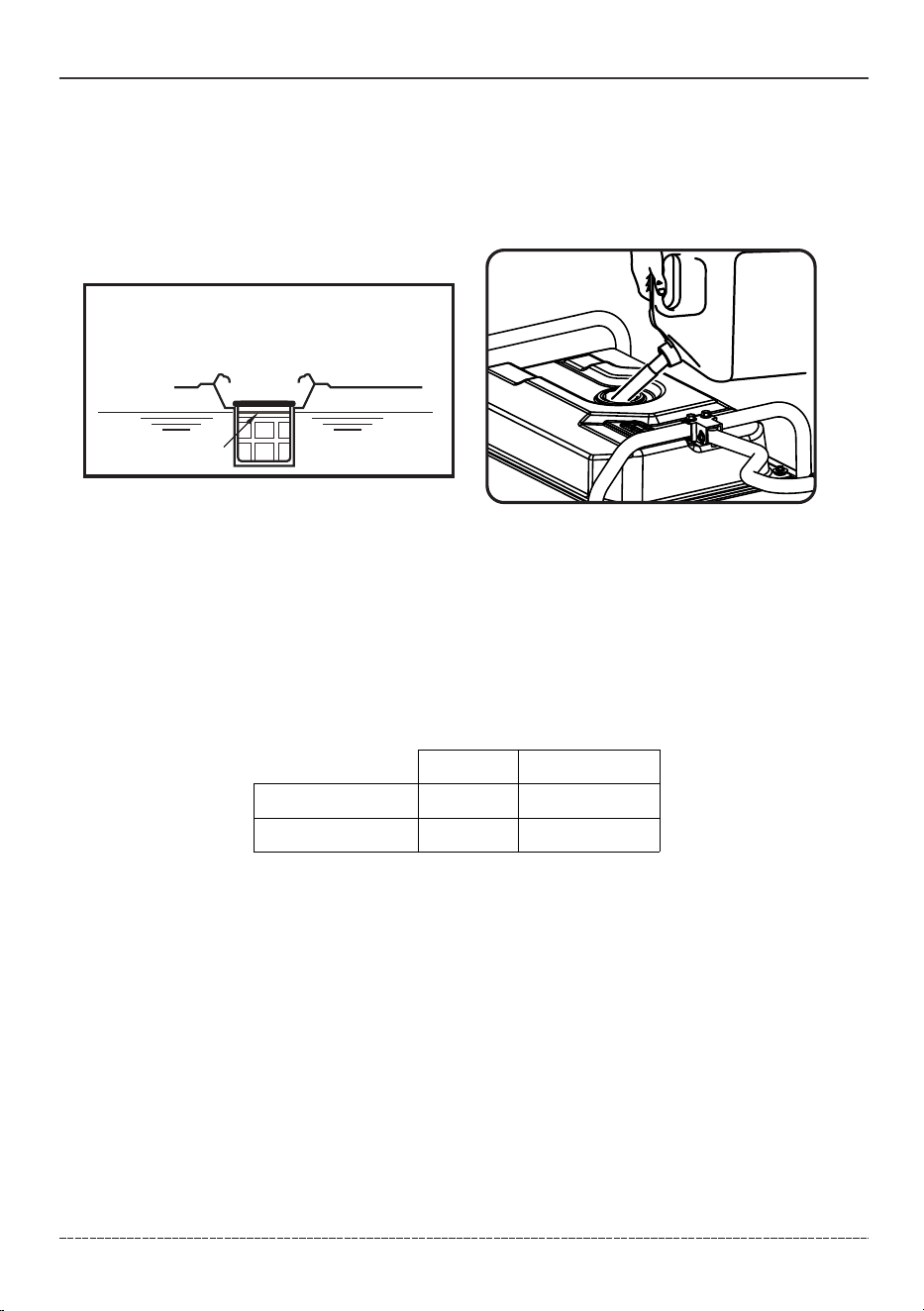

1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to fill above the RED fuel level indicator.
This allows adequate space for fuel expansion.
Red Line Indicator
3. Install fuel cap and let any spilled fuel evaporate before starting engine.
Operation at High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum 85 octane gasoline is acceptable.
Engine power and generator output will be reduced approximately 3.5% for every 1000 feet (305 m)
of elevation above sea level. High altitude may cause hard starting, increased fuel consumption
and sparkplug fouling. To operate at high altitudes CRAFTSMAN can provide a high altitude carburetor
main jet. The alternative main jet and installation instructions can be obtained by contacting
Customer Support.
NOTICE Operation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Altitude main jet 1
Altitude main jet 2
208cc
335717002
335717003
Altitude
3000-6000Feet
6000-8000Feet
Operation at High Ambient conditions
14
OPERATION
Your CRAFTSMAN product is designed and rated for continuous operation at ambient
temperatures up to 104°F (4C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
ope rat ion. When operated abo ve 77°F(25°C) there may be a decrea se in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
background

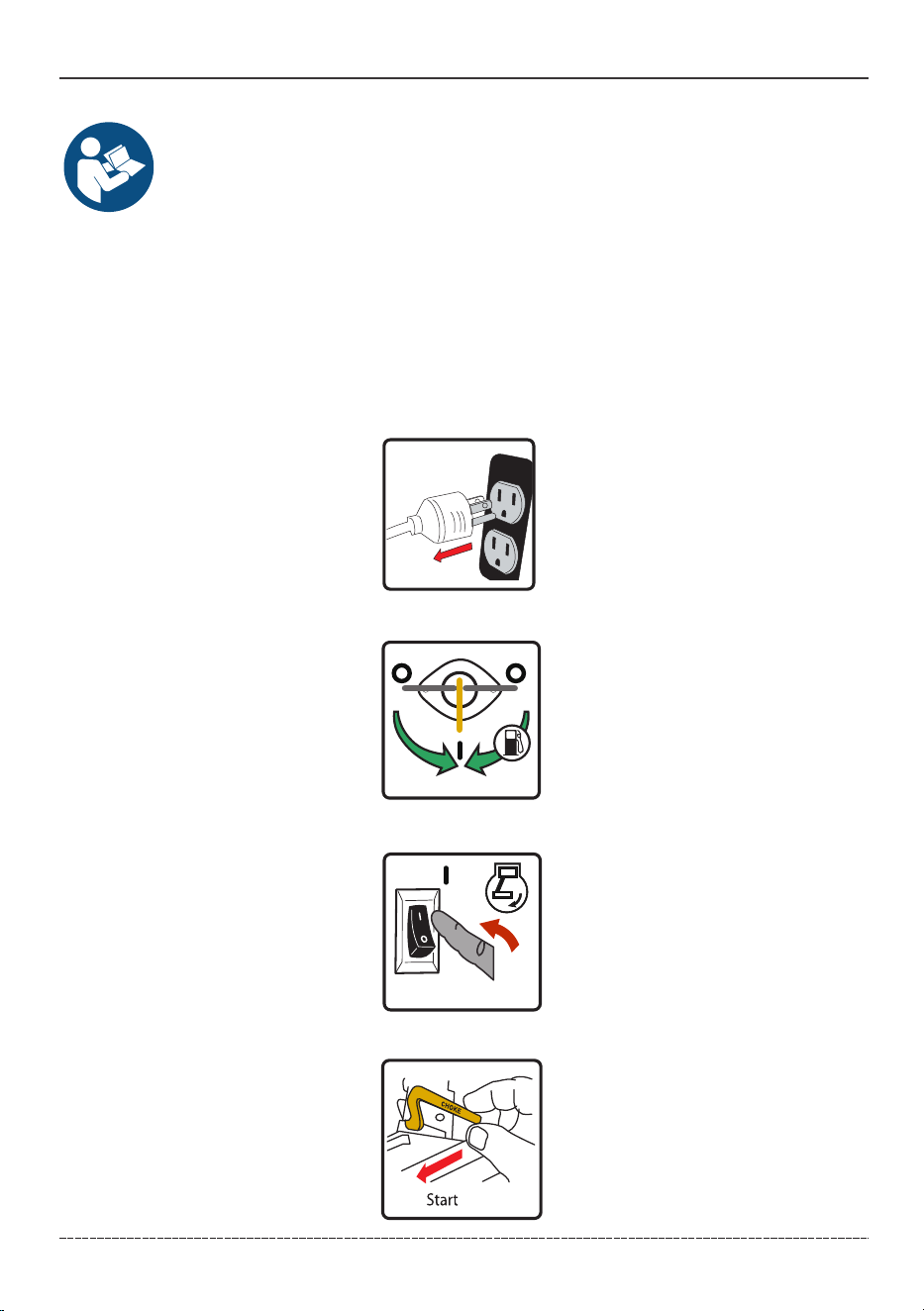

3. Starting the Generator
1. Before starting the generator, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plugs, muffler, fuel cap, and air cleaner are all in place.
2. Move portable generator outdoors to safe operating location downwind and at least 20 feet from
any occupied spaces.
15
OPERATION
3. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
5. Flip the engine switch to the “ON” (l) position.
4. Turn the fuel valve to the “ON” (l)position.
6. Move the choke lever to the “START” position.
WARNING! Failure to read and follow all warnings and instructions in this manual
and on-product labels before attempting to start or operate this portable generator
could result in death or serious injury.
background
16
OPERATION
9. Allow portable generator to run at no load for a few minutes to stabilize before plugging in
any electrical devices.
NOTICE If engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
7. Pull the starter cord slowly until resistance is felt and then pull rapidly.
8. Do not over-choke. As soon as engine starts and warms up, move the choke lever to the “RUN
position.
background
This portable generator has been pretested and adjusted to handle its full capacity. The voltage is
regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty.
4. Connecting Electrical Loads
Damaged or overloaded extension cords could overheat, arc, and burn resulting death or
serious injury.
Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as
metal decking.
Do not touch bare wires or receptacles.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
17
OPERATION
Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
Do not operate generator in the rain or wet weather.
Do not run indoors to avoid wet conditions.
Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Plug in and turn on the first item. It is best to attach the item with the largest load first.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
Surge Protection
There is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generator’s momentary voltage fluctuations. While there is no
way to prevent all voltage fluctuations, you can take steps to protect your sensitive electronic
equipment. Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment.
Surge suppressors come in single or multi-outlet styles. They are designed to protect against short
duration voltage fluctuations.
background
5. Stopping the generator
1. Turn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
18
OPERATION
CO Alert
Carbon Monoxide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide
accumulate around the generator or a CO Alert fault occurs. After shutdown, the CO Alert
indicator light will blink for at least five minutes per the chart below.
CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Dont run generator in enclosed
areas.
Color
Description
Red
Yellow
CO Alert fault occured*.
See CRAFTSMAN authorized service dealer.
*Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning
properly.
TM
If you start to feel sick, dizzy, weak, or your homes carbon
monoxide alarm sounds while using this product, get to
fresh air right away. Call emergency services. You may
have carbon monoxide poisoning.
Carbon monoxide accumulated around generator. Prior
to restart move generator to an open, outdoor area
downwind and at least 20 ft. (6 m) from occupied spaces
with exhaust pointed away. Air out premises (open
windows and doors) before reoccupying property.
Automatic shutoff is an indication generator was
improperly located.
background
19
OPERATION
2. Flip the engine switch to“OFF”(O) position.
If a cover is used, do not install until unit has cooled.
3. Turn the fuel valve to the “OFF(O) position.
2S
Do not leave the generator until it has completely stopped.
background
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NOTICE Once a year you should clean or replace the spark plug and replace the air filter. New
spark plug and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
To be performed by knowledgable/experienced owner or by authorized service center.
*
MAINTENANCE SCHEDULE
ITEM NOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
*
*
Fuel
Clean fuel tank strainer.
Replace if necessary.
20
background
When Transporting Generator
Transport with fuel tank EMPTY or with fuel valve in OFF position.
Do not tip generator at an angle which causes fuel to spill.
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wires before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your generator under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
NOTICE We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use
special additives. See Oil and Gasoline
21
Maintenance - Storage
DRAIN PLUG
(a) On a level surface drain oil into a suitable container by removing the drain plug and the oil
filler cap while the engine is warm.
(b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the
oil filler dipstick.
(H)
DRAIN PLUG
(L)
NOTICE Do not screw in cap/dipstick when checking oil level.
background

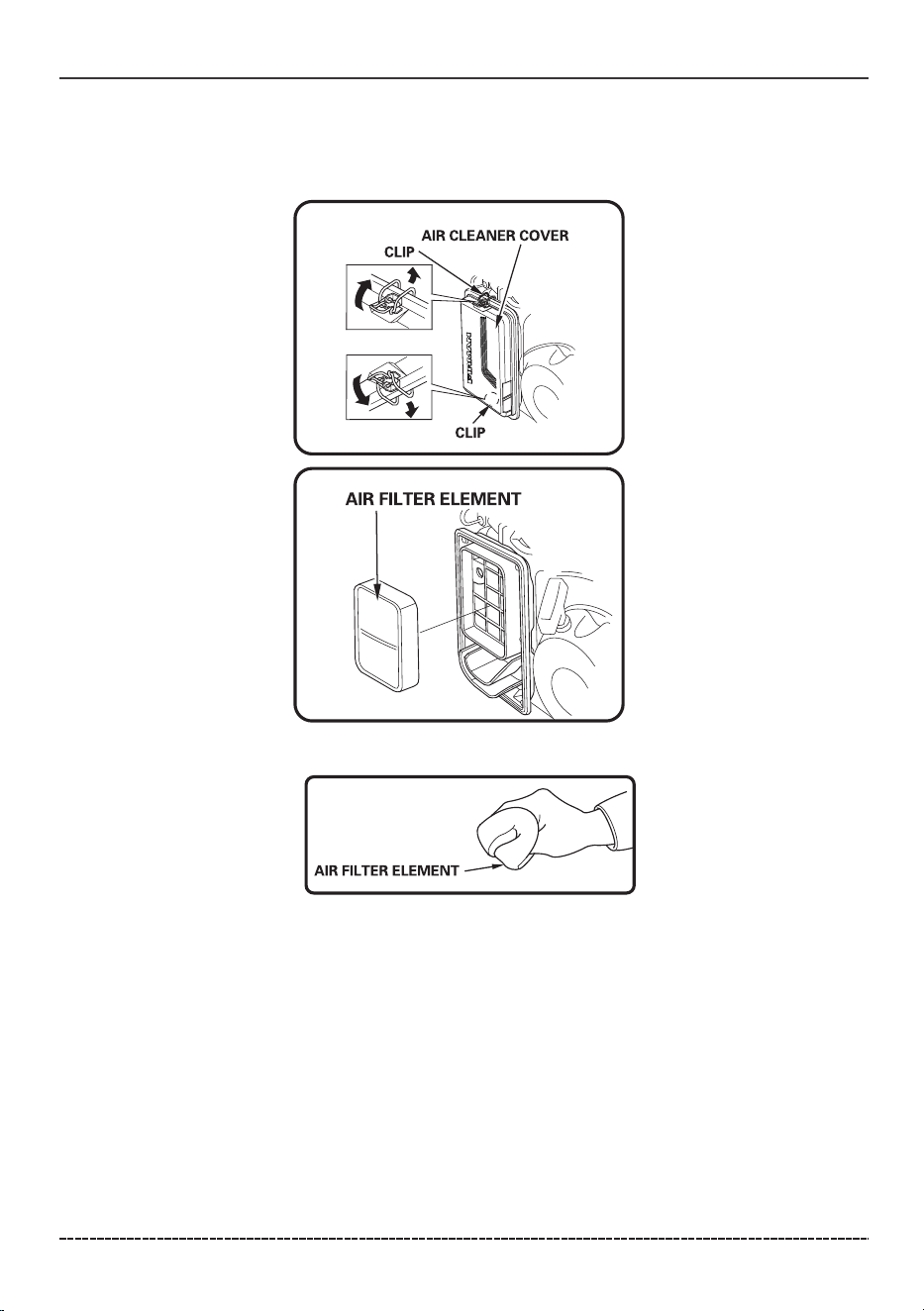

Air Filter Maintenance
(a) Carefully remove foam air filter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
(b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.

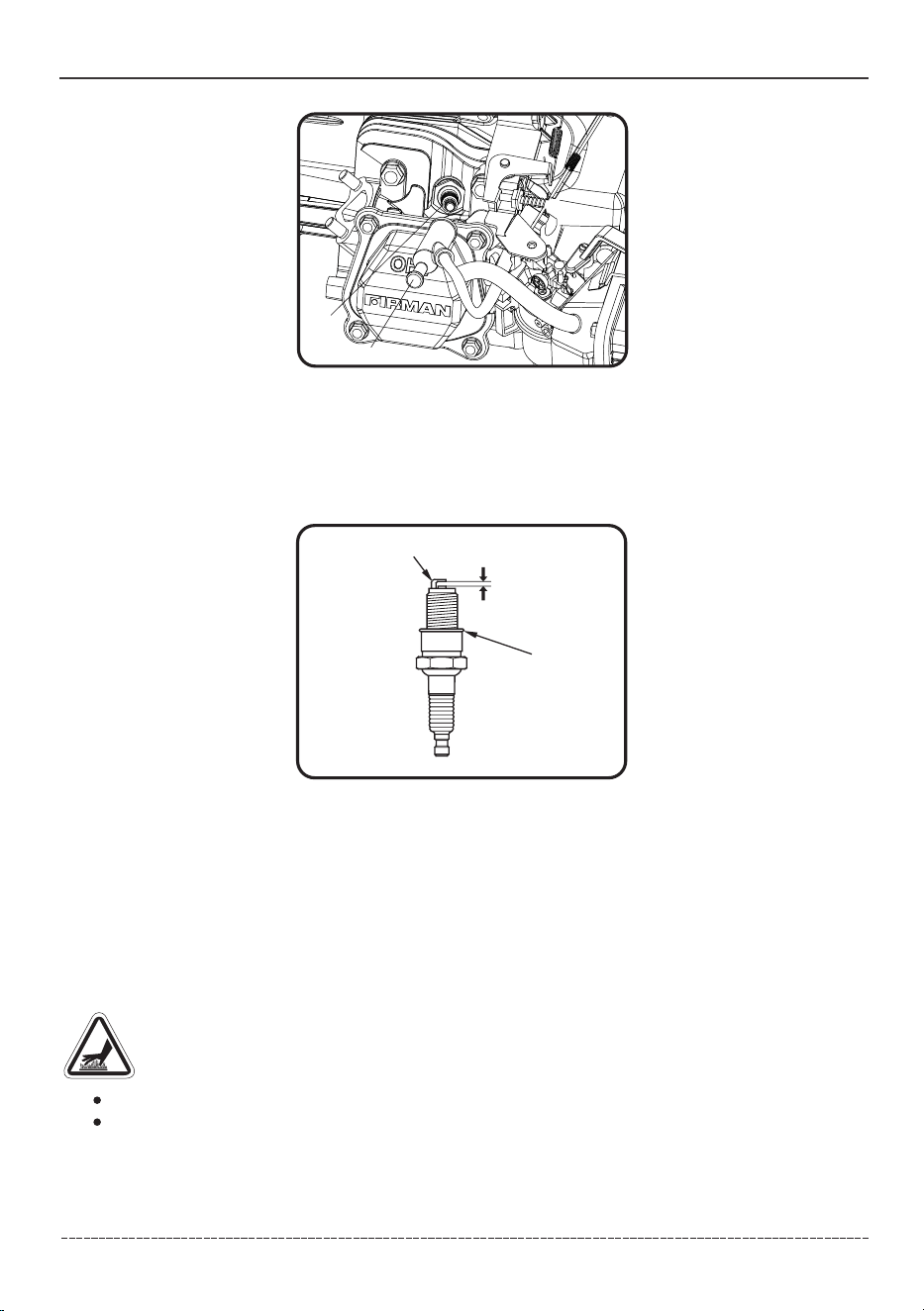

Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the spark plug boot.
(b) Remove spark plug using provided wrench.
22
( c) Reinstall clean or new air filter element.
Maintenance - Storage
background
( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(d) Adjust the electrode gap to 0.028 - 0.031 in. (0.7 - 0.8 mm).
(e) Seat spark plug in position and thread by hand to prevent cross threading.
(f) Tighten plug firmly with provided wrench and put the spark plug boot back on spark plug.
Do not overtighten.
SPARK PLUG: TORCH F6RTC, NGK BPR6ES, CHAMPION RN9YC or equivalent.
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)

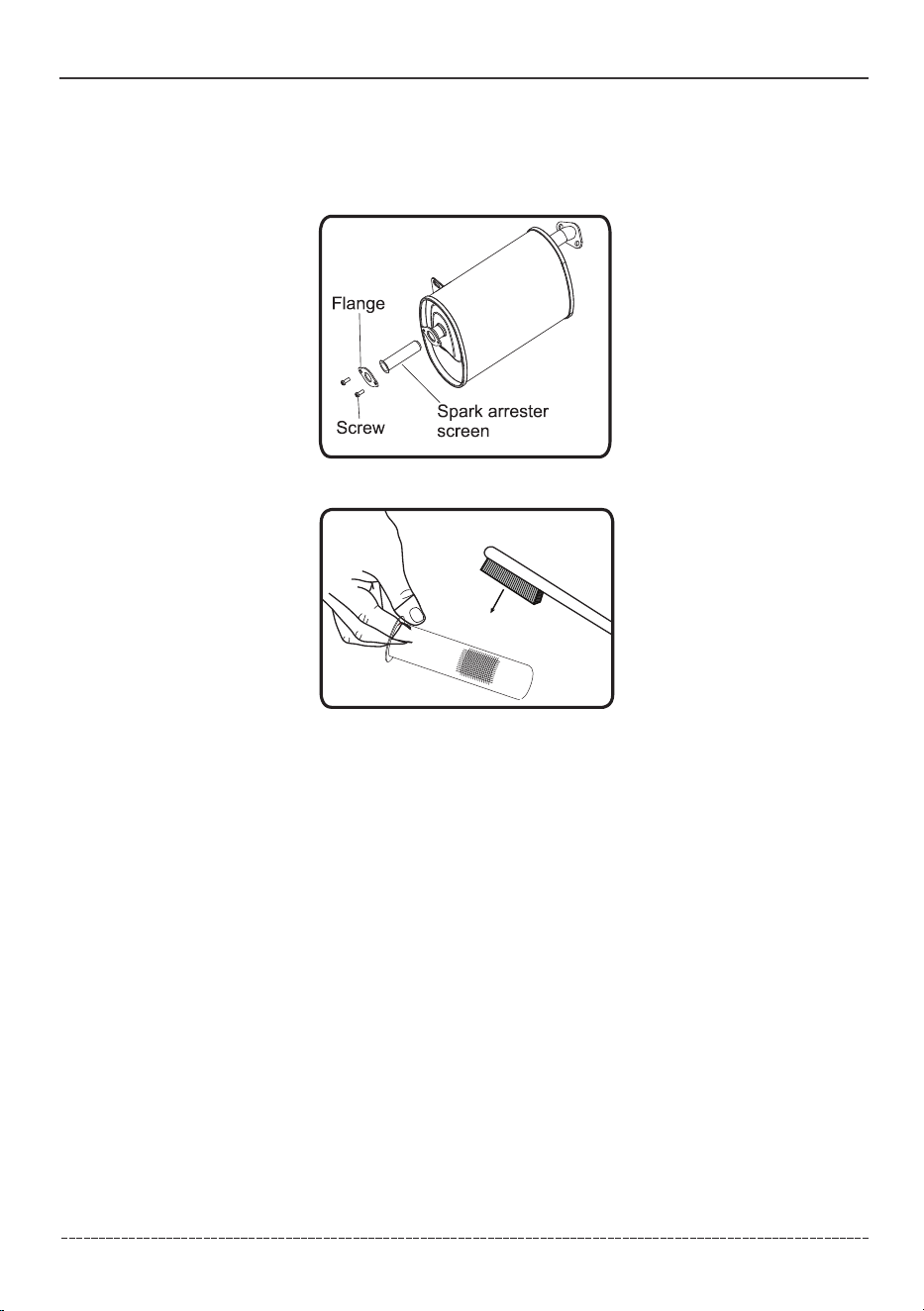

Muffler and Spark Arrester
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not touch hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
23
Maintenance - Storage
A- Spark plug
B- Spark plug boot
A
B
0.028 - 0.031 in.
(0.7 - 0.8 mm)
SIDE ELECTRODE
SEALING
WASHER
background
Inspect Muffler and Spark Arrester
1. Inspect the muffler for cracks, corrosion, or other damage.
2. Remove the screws securing the spark arrester in place and the remove it from muffler.
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only CRAFTSMAN authorized replacement parts.
5. Position the spark arrester in the muffler and attach with the screws.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
GENERATOR MAINTENANCE
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around muffler free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
24
Run the generator at least 30 minutes every month.
Maintenance - Storage
background
It is important to prevent gum deposits from forming in essential fuel system components such
as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol
or methanol) attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage.
Long Term Storage
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
Do not store fuel near any ignition sources.
When draining fuel move generator outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to
circulate treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is
drained turn fuel valve to on position. Start and run the portable generator outdoors until engine
stops from lack of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the
spark plug hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder
Pull recoil slowly until resistance is felt. This will close the valves so no moisture enters the engine
cylinder. Reinstall the spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from
any ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty.
Do not store gasoline from one season to another season.
25
Maintenance - Storage
background
Troubleshooting – Specifications
Problem Cause Correction
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but bogs down
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
1. Low oil level.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Flooded.
9. Excessively rich fuel mixture.
1. Fill crankcase to proper level or
place generator on level surface.
2. Clean or replace air cleaner.
3. Fill fuel tank with gasoline.
4. Drain fuel tank and carburetor; fill
with fresh gasoline.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank and carburetor; fill
with fresh gasoline.
8. Wait 5 minutes and re-crank engine.
9. Contact authorized service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
Engine“huntsor falters.
1. Carburetor is running too rich or too lean.
1. Contact authorized service facility.
10. Clogged or dirty fuel filter.
4. Clean or replace fuel filter.
10. Clean or replace fuel filter.
3. Clogged or dirty fuel filter.
4. Clogged spark arrester.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester.
2. Clogged or dirty fuel filter.
2. Clean or replace fuel filter.
Engine shuts down when
running.
1. Out of gasoline.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank with gasoline.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place.
generator on level surface.
4. Clogged or dirty fuel filter.
For all other issues, contact CRAFTSMAN customer service.
26
Engine shuts down and
yellow CO fault light
blinking.
1. CO system fault 1. Contact authorized CRAFTSMAN
service facility.
background
SPECIFICATIONS
Model
Rated AC Voltage
Phase
Power Factor
Voltage Regulator
Alternator Type
Running Watts*
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
120V
CMXGGFMP03633
3650
AVR
Single
1
Single Cylinder, 4-Stroke OHV Air Cooled
208cc
Breakless Ignition Type, Flywheel Magneto
Unleaded Automotive Gasoline
5 U.S. Gallons (19L)
20.3 oz (0.6L)
Counter Clockwise (Facing P.T.O.)
Float
Brushed
Polyurethane Type
Yes
4550
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
Recoil
AC Grounding System
Floating Neutral
27
Troubleshooting – Specifications
*Complies with PGMA (Portable Generator Manufacturers’ Association) standard
ANSI/PGMA G300-2018, Safety and Performance of Portable Generators.
background
PARTS DIAGRAM AND PART LIST
P03633 PARTS DIAGRAM
28
background
208cc ENGINE PARTS DIAGRAM
29
background
P03633 Portable Generator
30
Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
336465502
336713501
336713502
336428300
336713605
336713604
336713801
336715504
336713526
336713525
357713511
330713612
336755504
336713519
336713523
336713520
336713507
336715514
336713507
336713508
336713511
336713514
336718301
336713516
336718326
336713529
336713530
336713531
336718302
336713538
336713537
336713536
336715505
336713534
336713509
336713533
336713532
336713535
336413508
336713590
336713591
336713592
340713004
336713595
336725504
336718320
336718315
336713559
336413509
336718314
336713560
336713557
336713561
336715506
336713510
336713556
336725505
336415504
336713542
357713600
336713628
336713548
336713549
1
2
3
4
4.1
4.2
4.3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36.1
36.2
36.3
36.4
36.5
37
38
39
40
41
41.1
41.2
41.3
41.4
42
43
44
45
46
46.1
46.2
46.3
46.4
47
48
49
50
51
52
53
54
55
55.1
55.2
55.3
55.4
55.5
56
57
58
59
60
61
61.1
61.2
61.3
61.4
61.5
61.6
61.7
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
88.1
89
89.1
90
91
92
93
94
95
96
208cc Engine
Rubber Cap 2
Rubber Cap 1
Alternator assy
Stator Assy
Rotor Assy
Stator Cover
Generator End Cover
Carbon Brush Assembly
Carbon Brush Holder
Spring Washer Ø5
Bolt M5×16
AVR
Flange Bolt M5×16
Terminal Block
Bolt &washer Assemblies
Flange Bolt M5×12
Generator End Cover Cap
Flange Bolt M5×12
Flange Bolt M8×252
Flange Bolt M6×179
Ground Wire
Flange Bolt M6×12
Nut M6
Muffler Fixed Plate I (small)
Muffler Fixed Plate II (big)
Flange Bolt M8×20
Flange Bolt M6×12
Screw&washer Assy M5×14
Holder, Spark Arrester
Arrester, Spark
Guard, Muff.
Nut M8
Spring Washer Ø8
Flat Washer Ø8
Auspuffdichtung
Muffler Assembly
handle assembly
Pin, Shaft
Flat Pad (Ø8.2ר17×0.8)
Bracket, Handle
Pin, Handle
Handle
Cover, Handle
Flange Bolt M8×45
Nut M8
Flange Bolt M8×16
Support Leg Assy
Nut M6
Support Leg
Rubber, Support
Flange Bolt M6×25
Axle Pin
Flat Washer Ø8
Cotter Pin
Wheel
Fuel Tank & Decals Assy.
Grommet, Fuel Tank
Bushing
Fuel Tank Assy.
Fuel Filter, Wire Mesh
Fuel Cap
External Teeth Lock Washer Ø6
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
1
2
1
4
1
2
1
1
1
1
3
10
2
1
1
1
2
2
2
1
1
1
1
1
1
1
1
1
2
4
2
1
2
1
2
2
2
2
2
2
1
4
4
1
1
1
336713545
336713547
392715522
310715064
336715507
336725500
330713508
336428301
336713650
336713637
336713639
336713636
380713003
336713528
336713680
330713509
336713635
336713558
336418300
336718301
336715000
336713640
336713517
336713562
336713558
336713563
336715001
336713564
336713565
336713579
336713566
336713567
336718324
336718356
336713570
336755000
336713569
336715508
336755005
336713572
336755004
336755002
336725506
336725507
336725508
336713576
336713577
336718325
336713579
336713580
336713832
336713584
330713594
336713569
336713586
336713569
336713588
336713589
357713545
336713582
336713587
336713540
336725509
Fuel Gauge Assy.
Fuel Gauge Display
Screw M5×10
Bolt M6×20
Fuel Valve
Fuel hose
Clamp
Carbon canister Assy
Carbon Canister Holder
Carbon Canister
Carbon Canister Board II
Carbon Canister Board I
Flange Bolt M6×6
Flange Bolt M6×8
Fuel hose
Clamp Ø8.8
Fuel hose
Nut M8
Frame
Flange Bolt M6×12
Generator Fender Bracket
Frame
Nut M6
Isolator 1
Nut M8
Isolator 2
Flange Bolt M8×35
Sheath, Breather Tube
Screw M5×14
Flat Washer Ø5
Control Box
Nut M3
Nut M4
Screw&washer Assy M5×12
Multi Meter
Control Module
Screw&washer Assy M4×8
Control Panel Comp.
Breaker Cover
Engine Switch
Engine Switch Cover
Outlet Cover L5-30R
Outlet Cover TT-30R
Outlet Cover 5-20R
FLG. BOLT M5×16(ground)
NUT M5(ground)
NUT M5
Flat Washer Ø5
Star Washer Ø5
Receptacle L5-30R
Receptacle TT-30R
Screw&washer Assy M4×8
Circuit Breaker
Screw&washer Assy M4×8
Receptacle 5-20R
Screw&washer Assy M5×38
Grommet
Sleeve
Grommet
Clamp Ø8×6
Cover,Wheel
NO.
Part Number
Description
Qty.
1
1
2
4
1
1
2
1
1
1
1
1
2
1
1
2
1
6
1
2
2
1
2
2
4
2
2
1
2
2
1
2
8
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
2
1
1
1
1
1
2
2
CO Shutdown Indicator Light
AC 20A Breaker, Push Button
background
208cc Engine
31
Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
336715509
317723516
336723502
336723503
336723504
336723505
336723506
336723507
336723508
336723509
336723510
336725510
336723512
336723513
336723514
336723515
336723516
336723517
336723518
336723519
336723520
336723521
336723522
336723523
336723524
336715510
336723526
336723527
336723528
336723529
336723530
336723531
336723532
336723533
336723534
336723535
336723536
336723537
336723538
336723539
336723540
336723541
336723542
340718302
340718301
336723545
336723546
330723548
336723548
336723549
336723550
336723551
336723552
336715511
336723554
336723555
336723556
336723557
336723558
336723559
336723560
336715512
336723562
336723563
336723564
336723565
336723566
336723567
336723568
336723569
336723570
336723615
336723572
336765009
336723574
336723575
336715513
336723577
336723578
336423505
336723580
336723581
336723582
336723583
336725511
336723585
336723586
336723587
336723588
336723589
336723590
336723591
336723592
336723593
336723594
336723595
336723596
336723597
336723598
336713532
336423508
336423501
336415502
336415503
336423504
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
NO.
Part Number
Description
Qty.
Crankcase Subassembly.
Locating Pins
Sensor, Engine Oil
Flg. Bolt M6×12
Gear Assy, Governor
Bearing
Gear,crankshaft
Woodruff Key
Crankshaft
Gear,drive
Gasket, Crankcase
Oil Dipstick Assy
Cover,crankcase
Seal, Oil
Flange Bolt M8×32
Rod, Connecting
Clip, Piston Pin
Pin, Piston
Piston
Ring Set, Oil
Ring, The Second
Ring, The First
Flange Bolt M6×8
Air Guide Lower
Gasket, Cylinder Head Cover
Flange Bolt M6×15
Flange Bolt M8×55
Nut, Valve Lock
Nut Valve Adjusting
Breather Tube
Rocker, Valve
Rotator, Valve
Retainer, Intake Valve
Retainer, Exhaust Valve
Spring,valve
Oil Seal,valve
Bolt, Valve Adjusting
Exhaust Valves Stud Bolt
Head Subassembly, Cylinder
Valve, Intake
Valve, Exhaust
Push Rod
Tappet, Valve
Washer, Drain bolt
Bolt, Drain Plug
Locating Pins
Gasket, Cylinder Head
Stud, Intake
Gasket, Inlet
Plate, Carburetor Insulator
Gasket, Carburetor
Carburetor
Gasket, Air Cleaner
Nut M6
Spark Plug
Elbow, Air Cleaner
Clapboard
Mounting Bolt, Air Cleaner
Element, Air Cleaner
Cover, Air Cleaner
Control Assembly
Shaft, Governor Arm
Rocker Shim
Pin, Shaft
Arm, Governor
Bolt, Governor Arm
Spring, Governor
Rod, Governor
Lock Washer
Wind Deflectors
Ignition Coil
Flange Bolt M6×25
Protect Circle
Fan Cover Comp
Flange Bolt M6×20
Air Guide, Right Side
Gasket Set
Locknut
Pulley, Starter
Cooling Fan
Flywheel Comp
Grip, Starter
Case Comp., Recoil Starter
Spring, Starter Return
Cord
Pulley, Recoil Starter
Spring, Patchet
Patchet, Starter
Pawl Guide
Clip Sprg., Pawl Guide
Screw, Pawl Guide
Governor, Gear Shaft
Inner Washer, Gear
Gear, Governor
Clip, Govorner Gear
Bushing, Govorner Gear
Exhaust pipe gasket
Recoil Starter Set
Governing Gear Set
Air Cleaner Set
Carburetor Set
Piston Rings Set
1
2
1
8
1
2
1
1
1
1
1
1
1
2
6
1
2
1
1
1
1
1
2
1
1
1
7
4
2
2
1
2
1
1
1
2
2
2
1
2
1
1
1
2
2
2
2
2
1
2
1
1
1
1
1
3
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Spring, Throttle Valve Returning
Cover Subassembly, Cylinder Head
Plate Subassembly, Lifter Stopper
background
32
Parts Diagrams - Parts Lists - Wiring Diagram
Wiring Diagram
background
CRAFTSMAN 3 Years Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the CRAFTSMAN Service Center and CRAFTSMAN will troubleshoot any issue via phone
or e-mail. If the problem is not corrected by this method, CRAFTSMAN will, at its option, authorize
evaluation, repair or replacement of the defective part or component at a CRAFTSMAN Service
Center. CRAFTSMAN will provide you with a case number for warranty service. Please keep it for
future reference. Repairs or replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
CRAFTSMAN warrants to the original purchaser that the mechanical and electrical components
will be free of defects in material and workmanship for a period of one(1) year(parts and labor) and
3 years (parts and technical support) from the original date of purchase 90 days [parts and labor]
and 180 days [parts] for commercial & industrial use. Transportation charges on product submitted
for repair or replacement under this warranty are the sole responsibility of the purchaser . This
warranty only applies to the original purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
Warranty Qualigications
CRAFTSMAN GENERATOR will register the warranty upon receipt of your Warranty Registration
Card and a copy of your sales receipt from one of CRAFTSMANs retail locations as proof of
purchase. Please submit your warranty registration and your proof of purchase within ten(10) days
of the date of purchase.
33
SERVICE INFORMATION CONTACT CRAFTSMAN PRODUCT SERVICE DEPARTMENT AT 1-888-331-
4569 or at www.craftsman.com to obtain warranty service information or to order replacement
parts or accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
Model No. Rev. Level and Serial No. found on the Data Decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the generator.
Service – Warranty
background
Limits of Implied Warranty and Consequential Damage
CRAFTSMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
34
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturers control
– problems caused by parts that are not CRAFTSMAN authorized parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
Service – Warranty
Contact Information
You may contact CRAFTSMAN at:
888-331-4569
www.craftsman.com
background
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate
purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your small off-road engine and engine powered equipment is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
The California Air Resources Board, US Environmental Protection Agency (US EPA”) and FIRMAN POWER EQUIPMENT
INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2022-2023 or later Small Off-Road
Engine (SORE”) and engine powered equipment. In California, new equipment that use small off-road engines must be
designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control
systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic
converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated
components. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you
including diagnosis, parts and labor.
OWNER'S WARRANTY RESPONSIBILITIES:
As the SORE and engine powered equipment owner, you are responsible for the performance of the required maintenance
listed in your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and
engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine and engine powered equipment to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
35
Service – Warranty
background
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines( for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
FIRMAN POWER EQUIPMENT INC.
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
36
Service – Warranty

Specifications

Indexed Terms: Portable Generator

Craftsman CMXGGFMP03633 Questions and Answers
