Manual of dehumidifier
Model No. SDL-30P
1
CONTENTS
2
4
4
5
5
6
7
9
10
11
12
SAFETY INSTRUCTIONS
QUICK VISUAL SAFETY GUIDE
FEATURES
INSTALLATION
POSITIONING THE DEHUMIDIFIER
PARTS
CONTROL PANEL
WATER DRAINAGE
CARE AND MAINTENANCE
TROUBLESHOOTING
TECHNICAL DATA
WARRANTY
13
2
SAFETY INSTRUCTIONS
IMPORTANT
• Carefully read the instructions before operating the unit.
• This appliance is for indoor use only and intended for use in a domestic environment only.
Any other use is not recommended by the manufacturer and may cause fire, electrical
shocks
or other injury to user or property.
• If you are in any doubt about the suitability of your electrical supply, have it checked and if
necessary, modified by a qualified electrician.
• This dehumidifier has been tested and is safe to use. However, as with any electrical
appliance,use it with care.
• Disconnect the power before dismantling, assembling or cleaning.
• Avoid touching any moving parts within the appliance.
• Never insert fingers, pencils or any other objects though the guard.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities. It is also not intended for use by those with a lack of
experience and knowledge, unless they have been given supervision or instruction,
concerning the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If a power outlet is not
available, one should be installed by a qualified electrician.
• Never operate this appliance if the cord, power adapter or plug is damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
• A damaged power supply cord should be replaced by the manufacturer or a qualified
electrician in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an
authorised service representative. Failure to comply could result in a voided warranty.
• Do not use the appliance for any purpose other than its intended use.
• Do not tilt the unit while in use. The unit is design to work only in vertical position.
• This dehumidifier must always be stored and transported upright, otherwise irreparable
damage may be caused to the compressor; if in doubt we suggest waiting at least 24 hours
before starting the unit.
• Avoid restarting the dehumidifier unless 5 minutes have passed since being turned off. This
prevents damage to the compressor.
• Never use the plug as a switch to start or turn off the dehumidifier. Use the provided POWER
button located on the control panel.
• Always place the unit on a dry and stable surface.
• Do not dry laundry above the unit to prevent water entering the dehumidifier. Place the
laundry at least 1 meter away from your dehumidifier.
3
• Before moving the appliance,the water tank should be emptied.
• The handle on the appliance is designed to aid in its movement and should not be used to
support the full weight of the dehumidifier. When carrying the unit, it should be kept upright
and sufficiently supported from its base.
• The appliance must be placed in a room without sources of ignition (for example: open
flames, an operating gas appliance or an operating electric heater).
• Do not use or store the appliance in an unventilated space with an area smaller than 43 sq.ft
(4m
2
)per unit.
• If the appliance is installed, used or stored in an unventilated room, the room must be such
as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire
or explosion once the refrigerant comes into contact with electric heaters, stoves or other
sources of ignition.
• Do not use the product and contact the retailer for advice, if damage has occurred to the unit
which may have compromised the refrigerant system.
• Any repairs or maintenance must only be carried out on the unit by a suitably qualified
engineer.Before opening and servicing the unit,the authorized engineer must be in
possession of a copy of the manufacturer’s service manual and must follow the safety
information contained within it to ensure all hazards are minimized.
• The refrigerant system should not be perforated or punctured.
• Do not place the unit next to heat sources (e.g. electrical fires, fireplaces, etc.)
• Avoid mishandling the dehumidifier. Dropping, throwing the unit can cause damage to its
internals and increases the risks of operating it.
• Do not store or use gasoline, petrol, paint, solvents or other flammable vapours or liquids in
the vicinity of this dehumidifier or any other appliance.
• This dehumidifier must not be used in spaces where there is a high concentration of gases,
solvent or other volatile organic compounds; in very dusty environments; in any domestic,
commercial or industrial environment where the air composition is flammable.
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
• Do not cover or restrict the airflow from the outlet or inlet grills. Do not operate and follow
troubleshoot procedure if the self-opening louvers do not open on power on.
• For maximum performance the minimum distance from a wall or objects should be 7.9 in
(20cm).
• Keep the filters or grills of the unit clean. Under normal conditions, filters or grills should only
need cleaning once every three weeks (approximately).
• Since the filters remove airborne particles, more frequent cleaning maybe necessary,
depending on the air quality. Vacuum both mesh and optional activated carbon filters and
wash the mesh filters with hot soapy water and dry them before placing them back in the
unit.
4

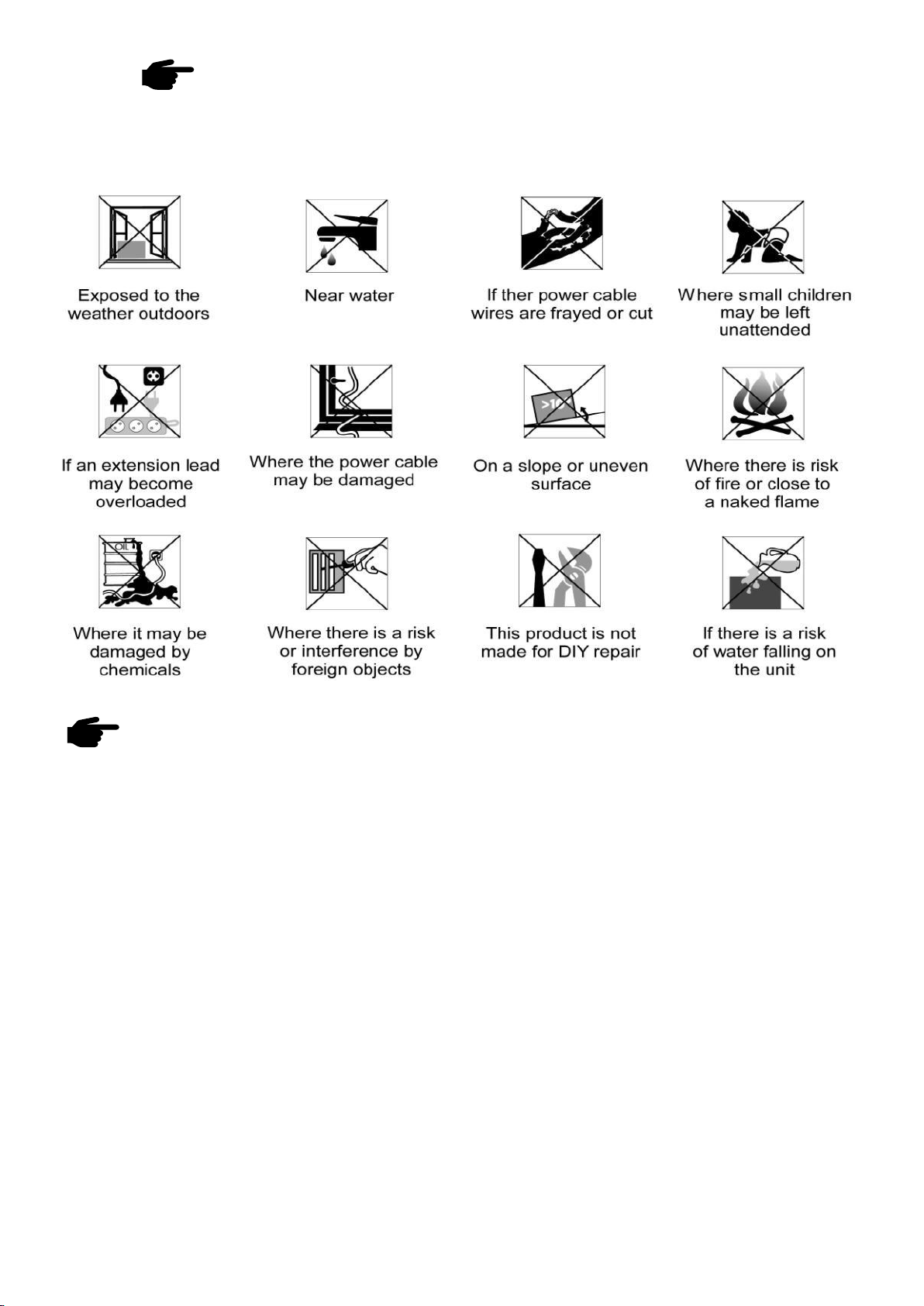

QUICK VISUAL SAFETY GUIDE ON
WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER
FEATURES
1. Easy to use controls.
2. Easy to carry around handle.
3. Great for up to 3 bed houses.
4. Cost effective way to combat mould, condensation and damp.
5. Laundry mode - dries laundry more efficiently than a tumble dryer.
6. Designed to complement
any modern space.
7. Intelligent CPU controlled digital humidistat with 30-80% RH and room
humidity display.
8. 24 hours start / stop timer.
9. Easy to remove front tank with water level indicator.
10. Tank operation or permanent drainage option with splash proof tank.
11. Tank full alarm & auto-stop function.
12. Power failure memory function.
5
INSTALLATION
Remove any water from within the water tank before starting the unit. In order to save
energy,do not open windows or doors while the unit is running. Place the unit on a hard / flat
surface. On first use, run the unit continuously for 24 hrs.
TO REDUCE NOISE LEVELS:
Place a piece of carpet or a rubber mat under the unit to reduce any vibrations while the unit is
running. Our dehumidifier uses compressor technology to extract water from the environment.
Compressor dehumidifiers are ideal for normal domestic or office environments which are heated
during the winter months and maintain a temperature above 54℉-59℉（
12-15⁰C）.
The dehumidifiers are lightweight and easy to move. They are designed to extract unwanted
humidity while saving money due to their power saving logic. They feature an intelligent humidistat
where the desired relative humidity can be adjusted in increments of 5% between 30% and 80%
ensuring your room is not dried too much and power is not wasted.

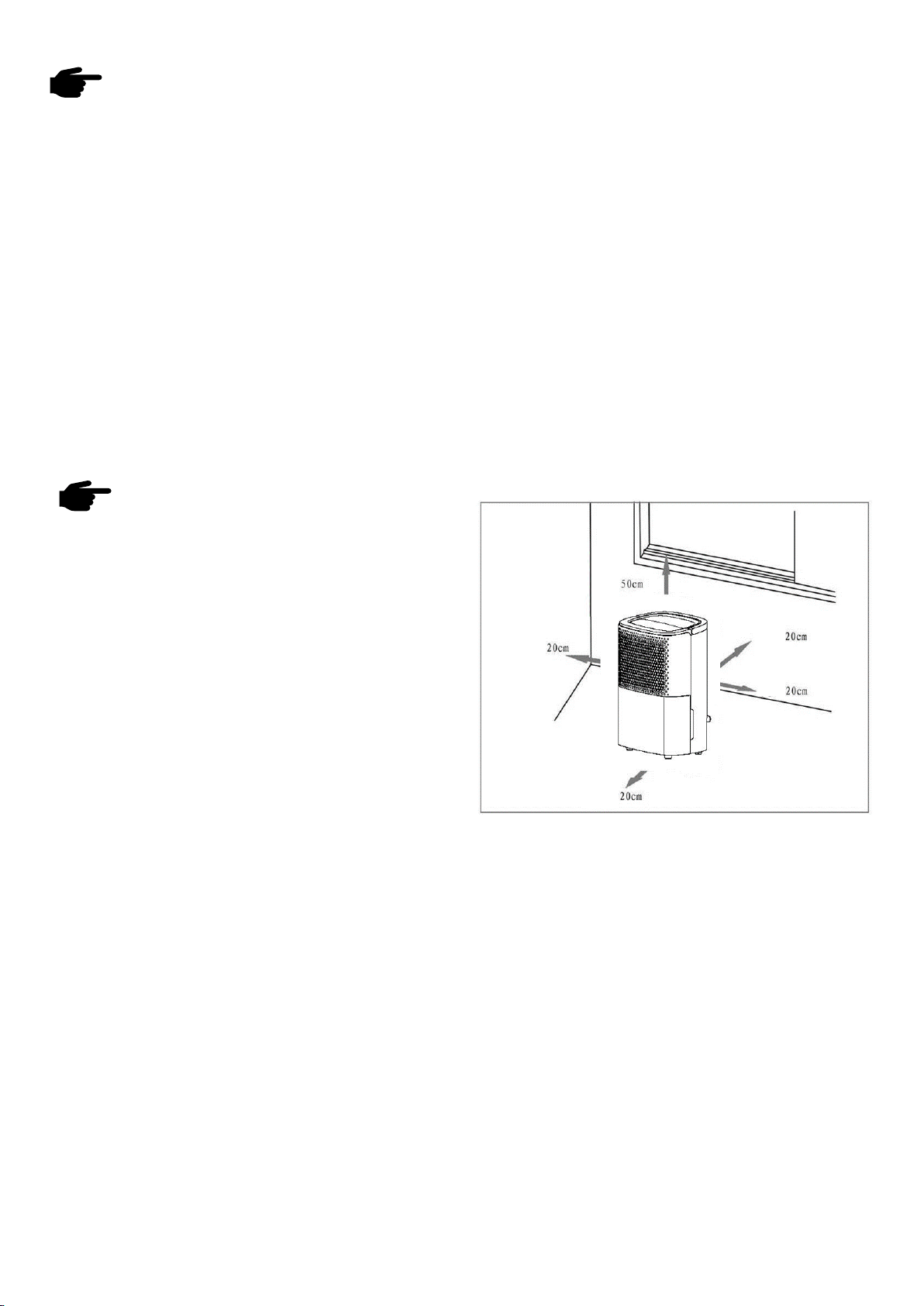

POSITIONING THE DEHUMIDIFIER
A badly positioned dehumidifier will have little
effect.In positioning the dehumidifier,please
ensure circulation of air is not restricted around the
unit.
Allow at least 7.9 in (20cm) space around the unit.
This dehumidifier is designed only for indoor
residential or small office applications and any
commercial or industrial use will invalidate the
warranty.
Use in an enclosed area for maximum efficiency. Close all doors, windows to create an
effective operating environment.
Do not use outdoors.
Your dehumidifier will begin to protect your space from the harmful effects of excessive
moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. For
this reason, the dehumidifier should be positioned in a central and clear location so that it
can draw this moist air towards it from all over the home. A warm hallway or landing is an
excellent position for your dehumidifier. If possible, leave interior doors ajar to allow air
circulation.
Alternatively, if you have a serious problem in one area you can begin by positioning the
dehumidifier there and moving it to a more central location at a later date. For the most
effective use, run your dehumidifier with external doors and windows kept closed. Please
note the unit should not be placed directly against a radiator or other heat source.
6

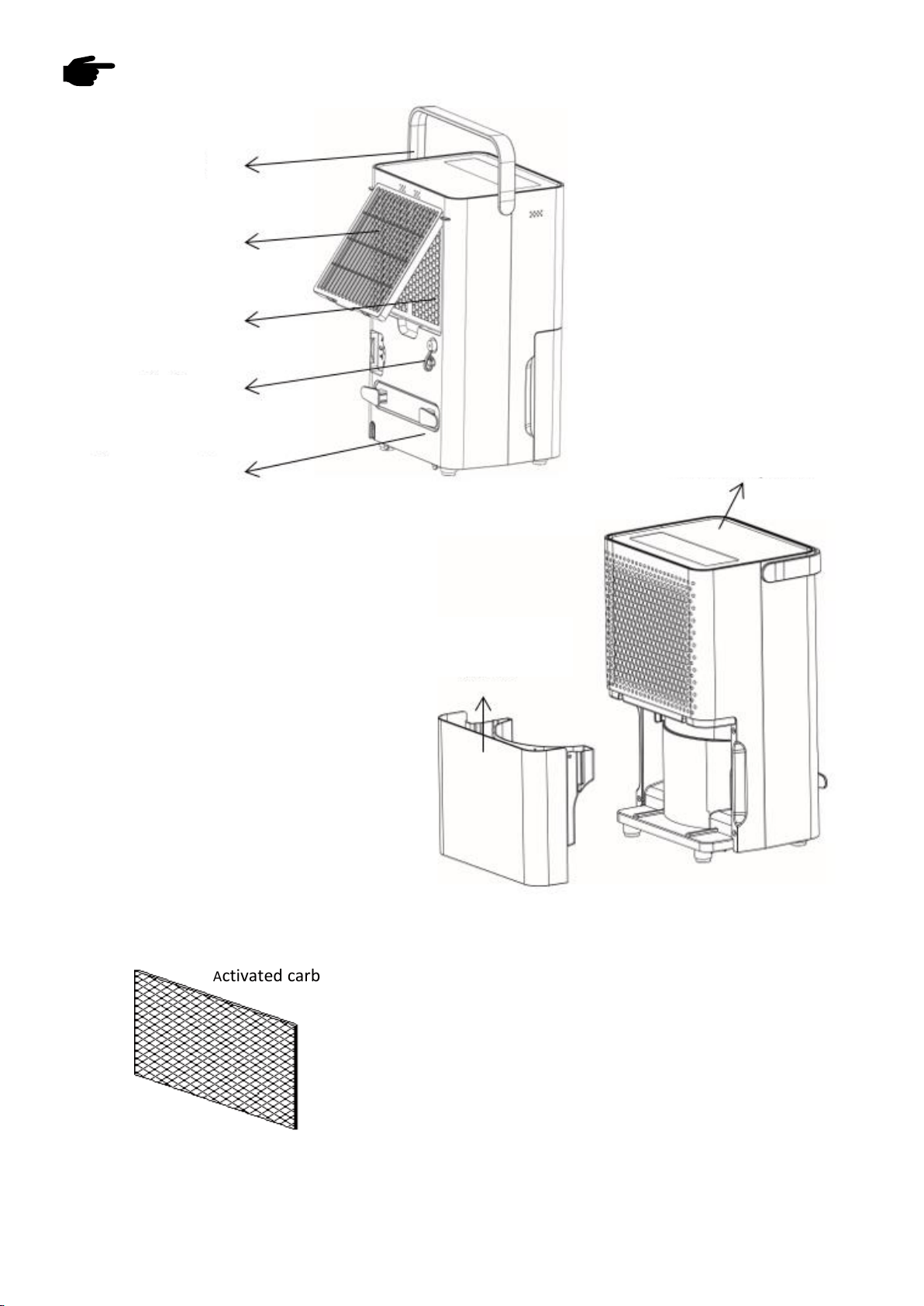

PARTS
OPTIONAL
Activated carbon filter (Optional)
HANDLE
FILTER FRAME
ACTIVATED
CARBON FILTER
DRAIN PORT
POWER CORD
STORAGE
CONTROL PANEL
WATER TANK
The replacement time of the activated carbon filter
depends on the frequency and location of your use.
It is recommended to replace it every six months,
not more than one year at most. and replacement
needs to be purchased by yourself.
Please search our official website of Shinco
(www.shincoglobal.com) to purchase it.
7
CONTROL PANEL
POWER
Turn the appliance on/off
MODE
Select the operating mode of the unit between Laundry and Auto. The fan will
operate continuously to monitor the humidity.
AUTO MODE: The unit will start dehumidifying when the humidity increases to 5%
above the desired humidity and will stop when the humidity drops to 5% below the
desired humidity. The default desired humidity is 50% RH
CONTINUOUS MODE: The unit will dehumidify continuously unless the water tank
is full or the unit is going through its defrost cycle. This is ideal for drying clothes.
DESIRED HUMIDITY
During Auto Mode,press this button to adjust the desired humidity of the room.
This can be changed between 30% and 80% in 5% increments. The unit will
initially default to 50% RH.
FAN SPEED
Press it to change between HIGH and LOW fan speeds.
CLEAN BUTTON
When selected the unit will run a cleaning cycle without the compressor to dry out
the inside of the unit before storage. This should be run for at least 30 minutes.
TIMER
Press the TIMER button to program the timer. When the timer is activated the
"TIMER" light will be illuminated. Before programming the timer, ensure the timer
function has not been activated (the light must be off). The following timer
programs are available.
DELAYED POWER-ON FUNCTION: With the appliance in stand-by, repeatedly press
the TIMER button to set in how many hours time you require the unit to start (0~24
hours).
DELAYED POWER-OFF FUNCTION: While the appliance is running with the desired
settings, repeatedly press the TIMER button to set in how many hours time you
require the unit to stop (0~24 hours).
TANK-FULL
When the water tank is full, the TANK FULL indicator light will illuminate, and
the unit will stop operating. One emptied and reinstall, the appliance will
resume operation.
DIGITAL DISPLAY
Shows the current humidity while the unit is running.
Shows the desired humidity when the DESIRED HUMIDITY button is pressed.
Shows the timer duration when the TIMER button is pressed.
8
NOTES
• If a permanent drainage pipe is fitted,the unit will not stop operating. Setting the
desired
humidity to around 35% is good for laundry mode, a quick drying boost, or in
emergencies. It is not recommended for long normal operation in a domestic or office
environment.
• To allow more moisture in the air, set a higher desired humidity
(e.g. 60%-70%).
• We recommend setting the desired humidity to 50-55%. This is great for domestic operation
and dry storage.
• Setting the humidity to 60% is great for personal comfort and applications where 50% RH is
considered too dry.
• Setting the humidity to 70% is ideal for unoccupied properties or where an economical run is
needed without the need to reduce the humidity further.
OTHER FEATURES AND INDICATORS
TANK FULL LIGHT
When the water tank is full, the unit will stop dehumidifying, the tank full light will illuminate and
the unit will bleep.
Empty the tank and reinsert it correctly to resume operation.
AUTO DEFROST
When frost builds up on the evaporator coils, the compressor will cycle off and the unit will go in
to defrost mode. Following completion of the defrost mode, the unit will return to the previously
operating settings.
• When the unit is running in a room with a temperature between 32℉ and 53.6 ℉(0℃ and
12℃)，it will enter defrost mode for 8 minutes roughly every 30minutes.
• When the unit is running in a room with a temperature between 53.6℉ and 60.8 ℉
(12℃and
16℃)，it will enter defrost mode for 5 minutes roughly every 60minutes.
• When the unit is running in a room with a temperature between 60.8℉ and 68 ℉(16℃ and
20℃)，it will enter defrost mode for 5 minutes roughly every 90minutes.
AUTO MODE
• When the humidity of the room is 5% lower than the desired humidity the compressor will
turn off automatically .
• When the humidity of the room is 5% higher than the desired humidity the compressor will
restart after a 3 minutes delay to protect the compressor.
POWER
After the unit has stopped, to protect the compressor, it is not recommended to resume
operation for at least 10 minutes. Operation can resume after this period lapses. When the
unit is restarted,there is a 3 minutes delay before compressor starting.
9
WATER DRAINAGE
When the water tank is full, the unit will stop automatically. When this
happens,the TANK FULL light will show on the control panel.
NOTE: Only empty the water tank when it is full or before moving or storing
the unit.
There are two ways to dispense collected water.

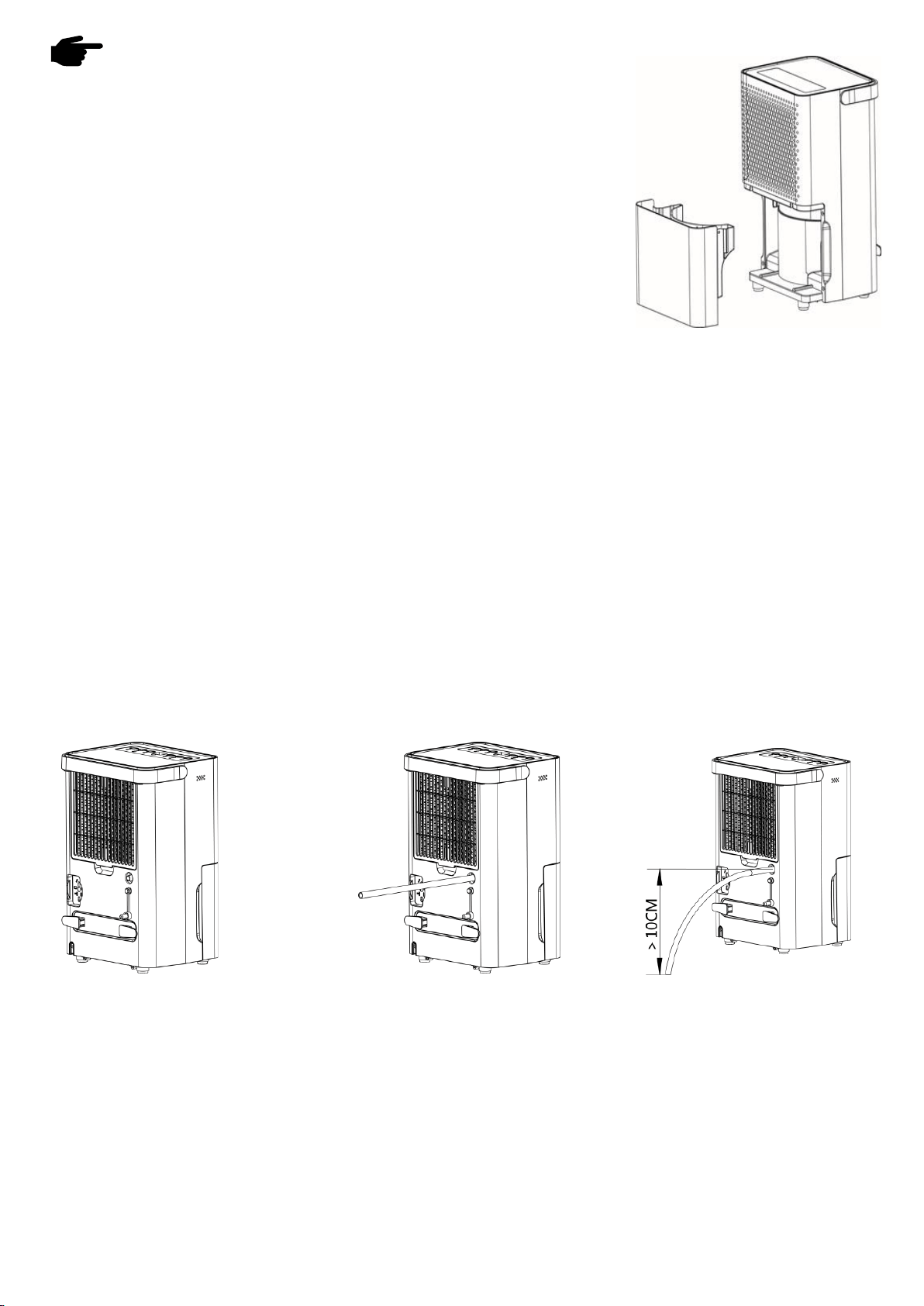

USE THE TANK
When the tank is full, the unit will automatically stop running, and the Tank
Full indicator will illuminate.
Slowly pull out the tank. Grip the tank by its handle securely, and carefully pull it out. Empty the water tank
and reinsert it into the dehumidifier. The tank must be in place and securely seated for the dehumidifier to
operate again. The dehumidifier will re-start when the tank is restored in its correct position.
NOTES:
When you remove the water tank, do not touch sensors or any parts which are situated behind tank.
Otherwise it may damage the product. Be sure to push the tank gently all the way into the unit. Banging
the bucket against anything or failing to push it securely into place may cause the unit not to operate. Do
not remove any parts from the water tank or tank enclosure,otherwise the water full sensor will no longer
be able to detect the water level correctly and water may leak from the water tank.
CONTINUOUS DRAINAGE
Water can be automatically plumbed in or drained into a sink, a larger recipient or through the wall into
an outside drain by attaching a pipe to the unit [0.354 in (9mm) internal diameter]. One 23.62 in (60cm)
pipe is supplied. Insert the pipe into the drain outlet at the back of the unit as shown here.
Make sure the connection between pipe and the drain outlet is tight and does not leak. Then direct
the pipe to a suitable drainage point. This unit uses gravity to dispose of water,hence the drain
should be lower than the water outlet on the unit. Be sure to run the water pipe downward and let the
water to flow out smoothly. Do not kink or bend the pipe.
Notice:Pls make sure that the water tank is properly installed on the machine when you use continuous
drainage.
10
CARE AND MAINTENANCE
Always shut off the unit and unplug from the mains before cleaning or performing any
maintenance. When it is not in use for long periods,it is advisable to remove the plug from the
power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may
cause irreversible damage to the unit.
1. CLEAN THE GRILLE AND CASE
Use water and a mild detergent to clean the washable filter frame. Do not use
bleach or abrasives. Do not splash water directly onto the main
unit,because it may cause an electric shock and can lead to the insulation
to deteriorate, or cause the unit to rust. The air intake and outlet grilles
get soiled easily, so use a vacuum attachment or soft brush to clean. Wipe
the dehumidifier body with a soft damp cloth or kitchen towel.
Remove the filter frame. If the optional activated carbon filter is fitted, remove them from the
frame and hoover gently approximately every 2-3 weeks.
If the mesh filter is dirty,pls hoover it, if it is heavily soiled,wash it with warm soapy water and dry
thoroughly before reinserting it in the unit.
When filter cleaning is finished and filters are dry, place them back into the unit.
NOTE: While the activated carbon filter is optional,so never run the unit without the filter frame
correctly inserted.
2. CLEAN THE WATER TANK
Every few weeks, clean the tank to prevent growth of mold, mildew and bacteria. Partially fill the
tank with clean water and add a little mild detergent. Swish it around and then empty the tank and
rinse.
NOTE: Do
not use a dishwasher to clean the tank. After cleaning and drying, the tank must be
reinserted securely into
dehumidifier in order to restart operation.
END OF SEASON MAINTENANCE
1. Press the CLEAN BUTTON and leave the unit for at least 30 minutes to internally dry.
2. Empty and clean the water tank, ensuring it is fully dry before reinserting into the unit.
3. Clean the unit and the filters as per cleaning procedure above.
4. Coil the power cord on the special cord storage rest at the back of the unit.
5. Cover the unit and keep it in a
dry place.
11
FREQUENTLY ASKED QUESTIONS
Why doesn’t the dehumidifier seem to extract much water if the temperature is low?
This is a compressor dehumidifier which works best in temperatures above 59℉ (15⁰C）. If the
temperature is low and the air is dryer than the setting on the humidistat,the unit will not extract
water. If you want to use a dehumidifier for outside buildings, unheated properties, boats or
garages,pls check our desiccant range. Why doesn’t the unit work /or stops suddenly?
The water tank may be full or displaced. To rectify: empty the tank and carefully place the tank
back in the unit. Also the unit may be running in dehumidifying mode with a low room
temperature. Please check if the room temperature is lower than 41℉(5⁰C). If so, the unit will stop
working while in dehumidifying mode.(unit may be defrosted).
The ambient operating range is between 41℉(5⁰C) and 95℉(35⁰C) with a relative humidity ranging
from 30% to 80%. For maximum efficiency use the unit between 59℉(15⁰C) and 89.6℉(32⁰C).
TROUBLESHOOTING
Issue
Cause
Solution
Hot or cold
air being
produced
Normal Operation
When the unit is in dehumidifying mode it absorbs humid air from
room and freezes it to reduce the humidity.
During the cold cycle there should be cold air coming out of the unit,
During the defrost cycle hot dry air should be coming out of the outlet
grill.
Unit does
not operate
Is the plug properly inserted in
the socket?
Insert the plug into the socket and turn the switch on.
Does the tank full indicator is
red?
Tank full, float displaced or tank not properly inserted. Empty tank,
check float and make sure tank is properly inserted in unit.
Dehumidifier
does not
extract
water
Is the unit set to a humidity level
lower than the one in the room?
Set the humidity level on the humidistat bellow current humidity
reading.
Is the temperature too low for
water extraction to be efficient?
Increase temperature in the room or reposition the unit.
Is any intake grill or discharge
blocked? Is the unit too close to
walls.
Remove obstructions and restart the unit.
Ensure a distance of at least 7.9 in(20cm) between the unit & walls
Airflow
seems weak
Is filter dirty or clogged?
Please service the filters regularly as per user manual.
Unit is noisy
during
operation
Is the unit on an uneven
surface?
Please place on flat horizontal surface.
Is filter clogged?
Please service the filters regularly as user manual.
E2 Error
Code
Temperature sensor error
Use the unit within the prescribed temperature range. Unplug the
unit, rest and plug it back in. If error repeats, call for service centre.
P1 Error
Code
Appliance in defrost mode
This is normal operation to prevent a build up of ice on the coils.
Leave the unit, and it will return to normal operation.
FL Error
Code
Water tank full notification
Tank is full or is not in the right position-- Empty the tank and replace
in the right position.
12
TECHNICAL DATA
Model SDL-30P
Color white
Specification
Power supply 110~120V/60Hz
Power input (w) 280
Rated current(A) 3
Moisture Removal (90°F,RH90%) 30
Water tank capacity(Water full)(Liter) 1.5L
Refrigerant R134a
Noise level (dbA) 42
Type Mechanical/Electronic Electronic
Features
Timer 24H
Display LED
water-full alarm YES
cloth-dry function YES
Continuous drianage function YES
Frost prevention YES
Specification
Net/Gross Weight (Kg) 9.5/10.5
Body size(MM) 256×203x415
Package size(MM) 299×258x459
13
Warranty
TO OBTAIN WARRANTY SERVICE:
Please contact us by email.
Sales support: [email protected]
WARRANTY PERIOD:
Labor: 1 Year from the Date of Purchase.
Parts: 1 Year from the Date of Purchase.
SHINCO Electric Co., Ltd reserves rights to upgrade products
without user notice.
