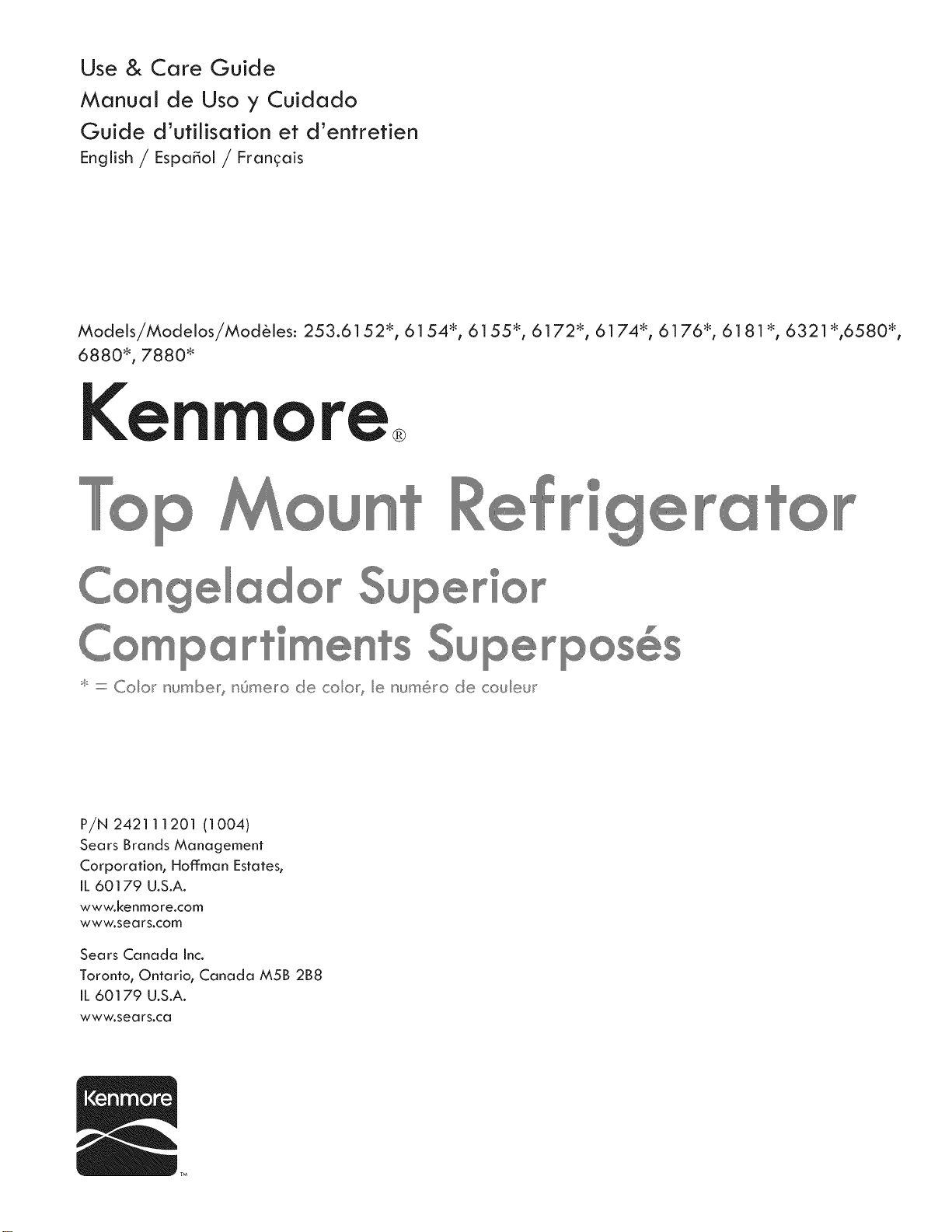

Use & Care Guide
Manual de Uso y Cuidado
Guide d'utilisation et d'entretien
English / Espa_ol / Fran?ais
Models/Modelos/Mod@les: 253.6152", 6154", 6155", 6172", 6174", 6176", 6181 *, 6321 *,6580",
6880", 7880*
Ke
®
_:_= Color number, n0mero de color, le num@o de couleur
P/N 242111201 (1004)
Sears Brands Management
Corporation, HofFman Estates,
JL60179 U.S.A.
wwwokenmore.com
www.sears.com
Sears Canada inc.
Toronto, Ontario, Canada M5B 2B8
JL60179 U.S.A.
www.sears.ca

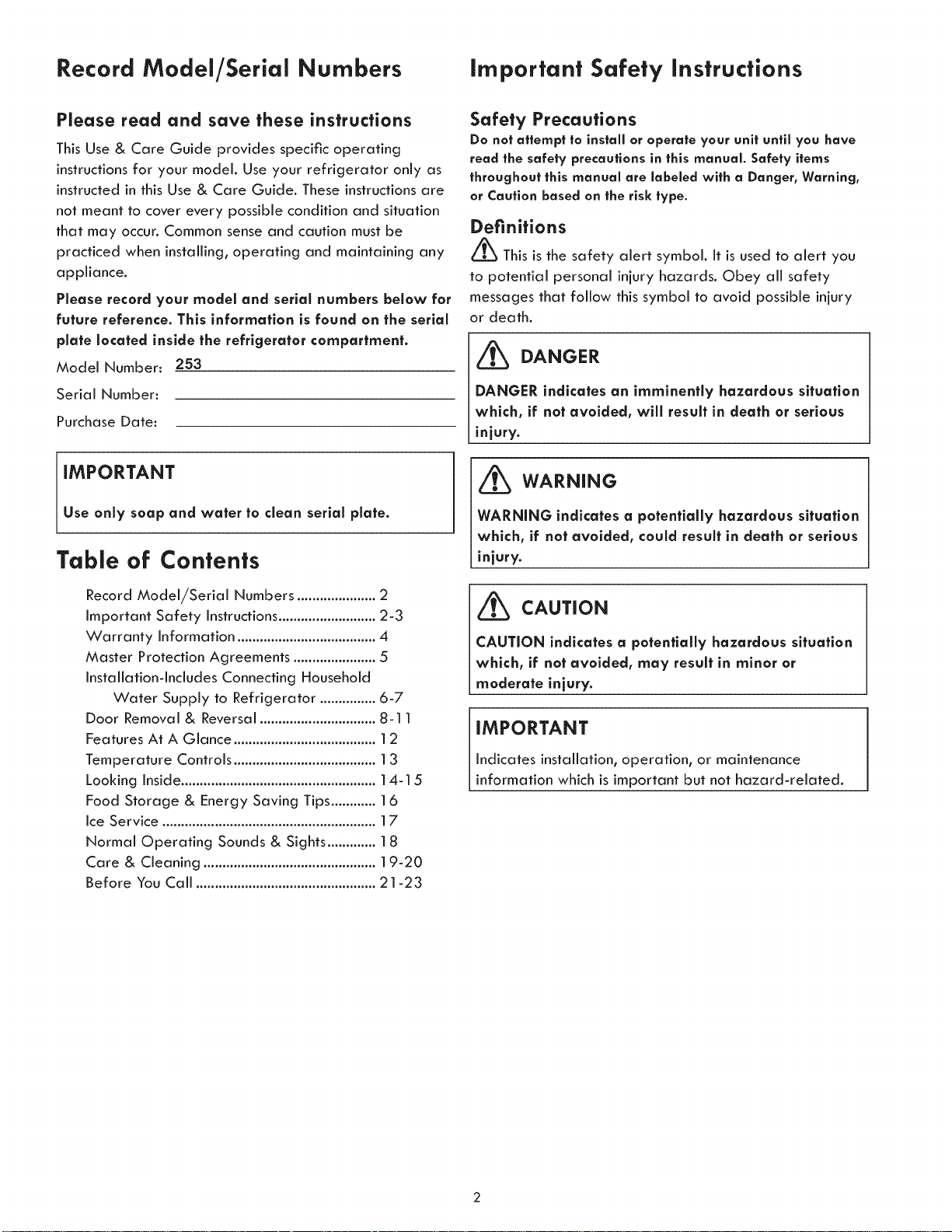

Record ModeJ/Serial Numbers important Safety instructions
Please read and save these instructions
This Use & Care Guide provides specific operating
instructions for your model. Use your refrigerator only as
instructed in this Use & Care Guide. These instructions are
not meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
Please record your model and serial numbers below for
future reference. This information is found on the serial
plate located inside the refrigerator compartment.
ModeJ Number: 253
Serial Number:
Purchase Date:
iMPORTANT
Use only soap and water to clean serial plate.
Table of Contents
Record Model/Serial Numbers .....................2
important Safety instructions..........................2-3
Warranty information .....................................4
Master Protection Agreements ......................5

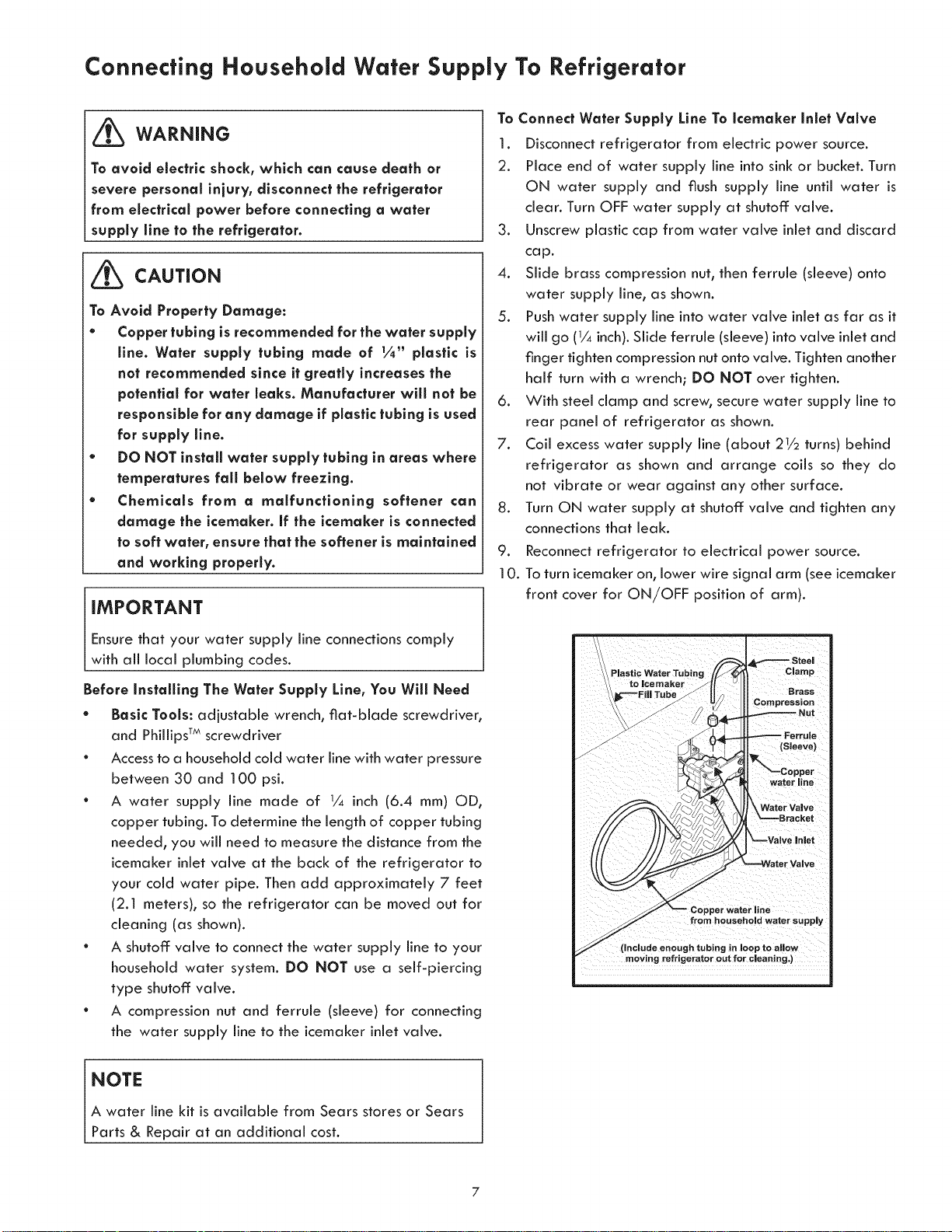

Installationdncludes Connecting Household
Water Supply to Refrigerator ...............6-7

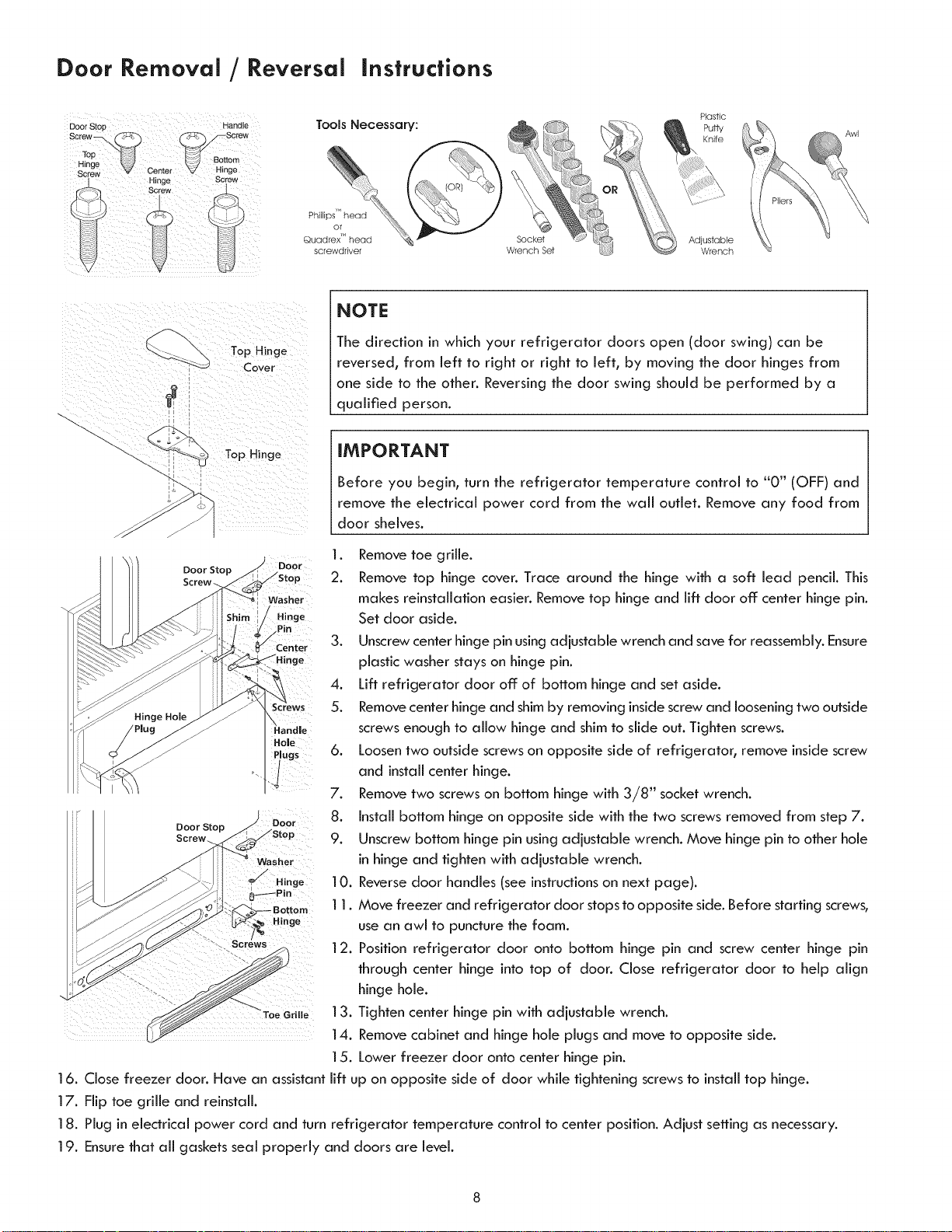

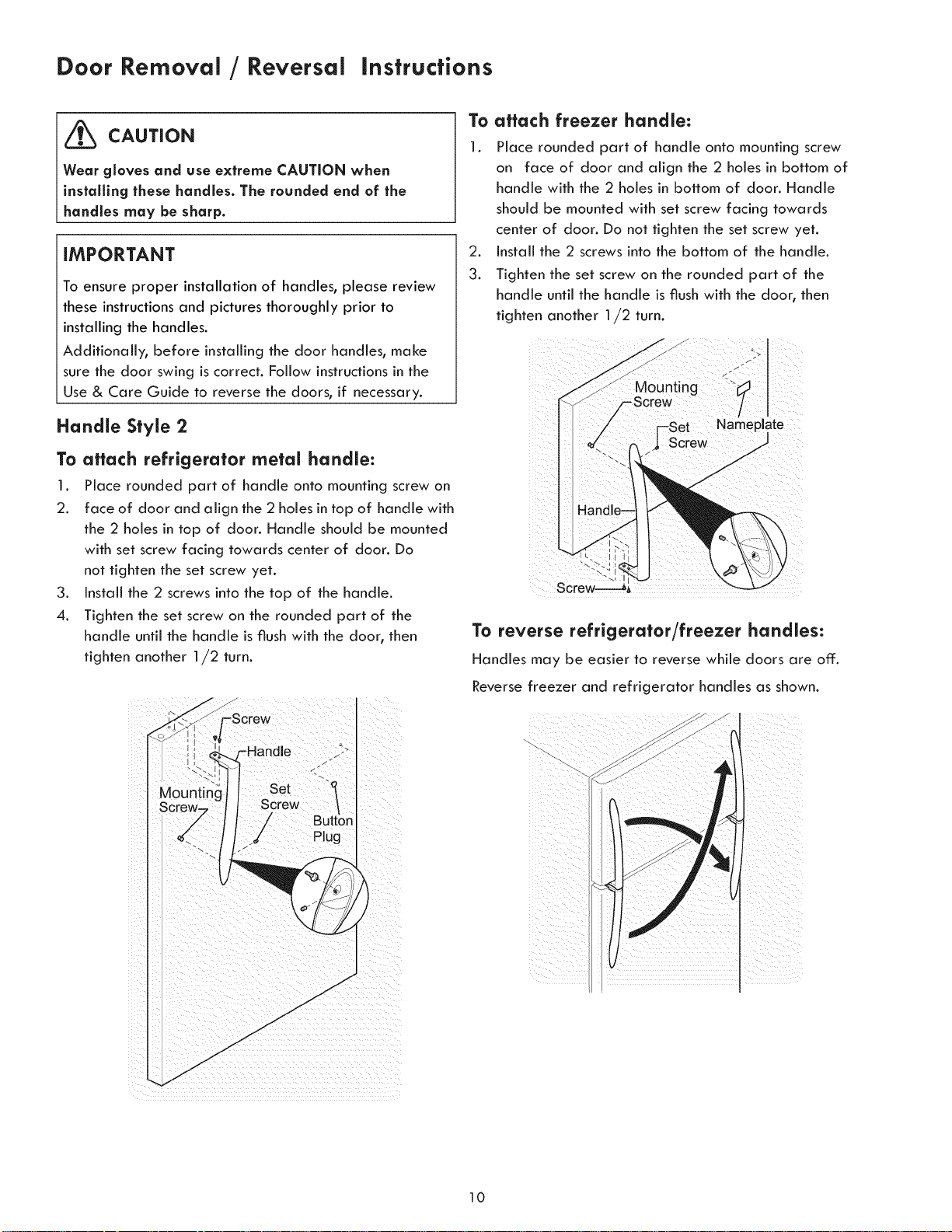

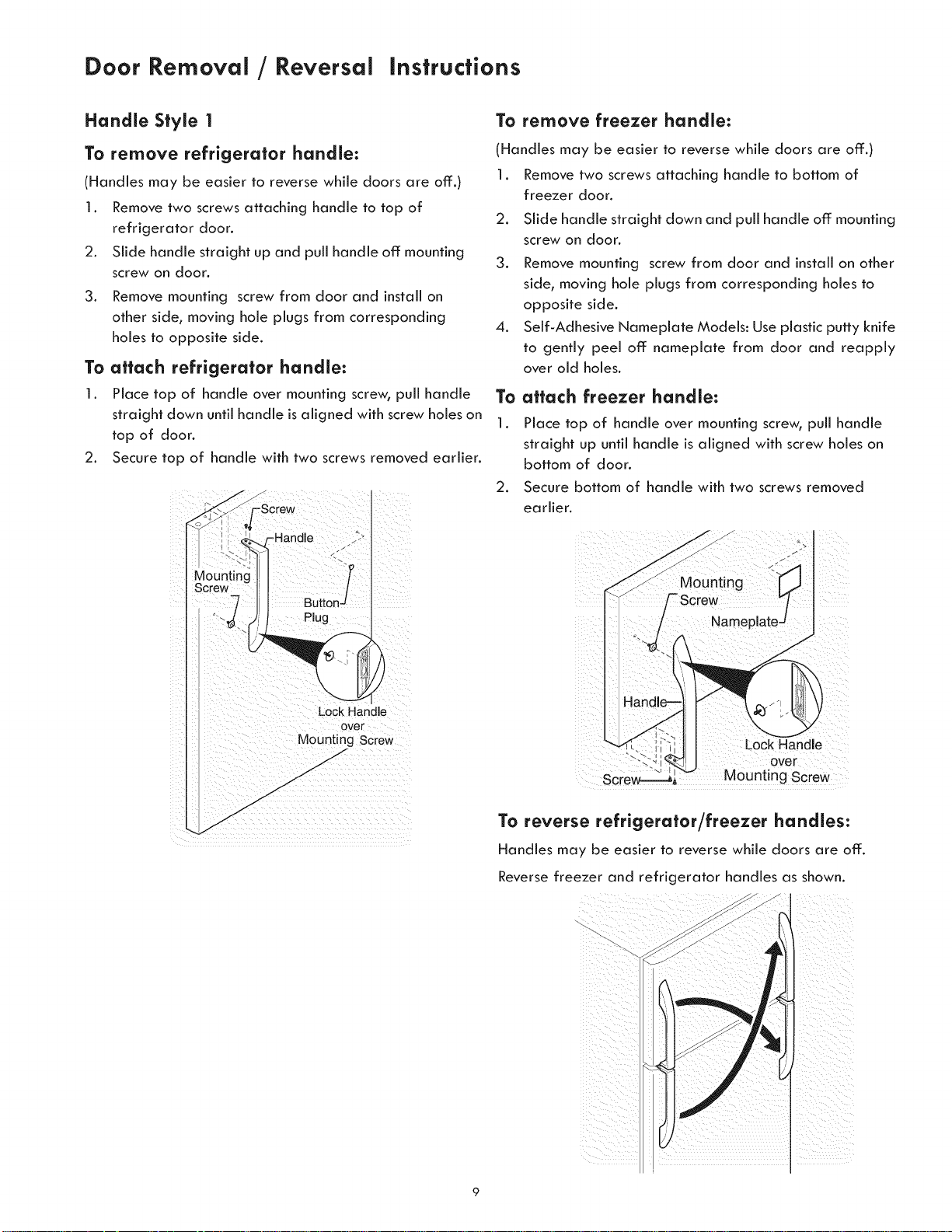

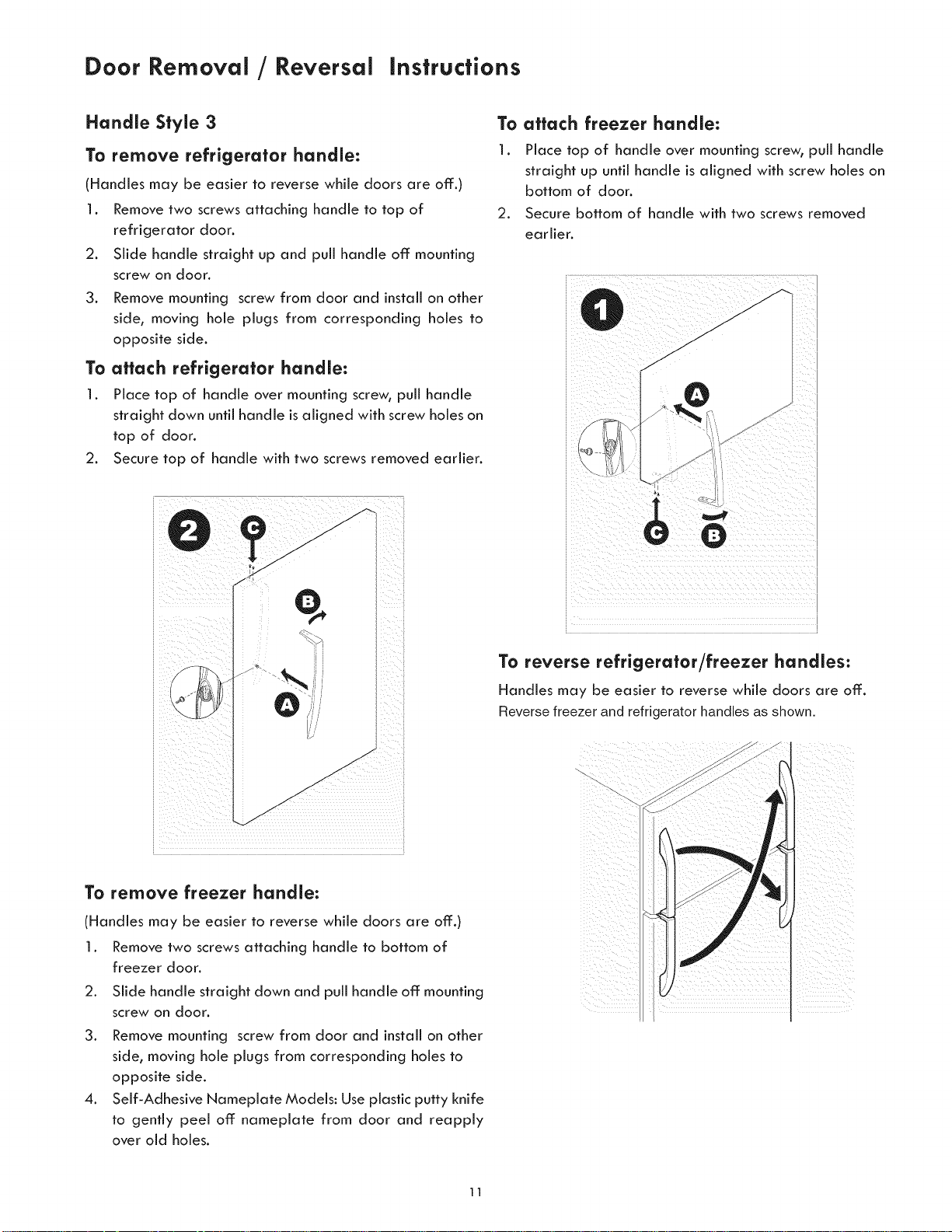

Door Removal & Reversal...............................8-11

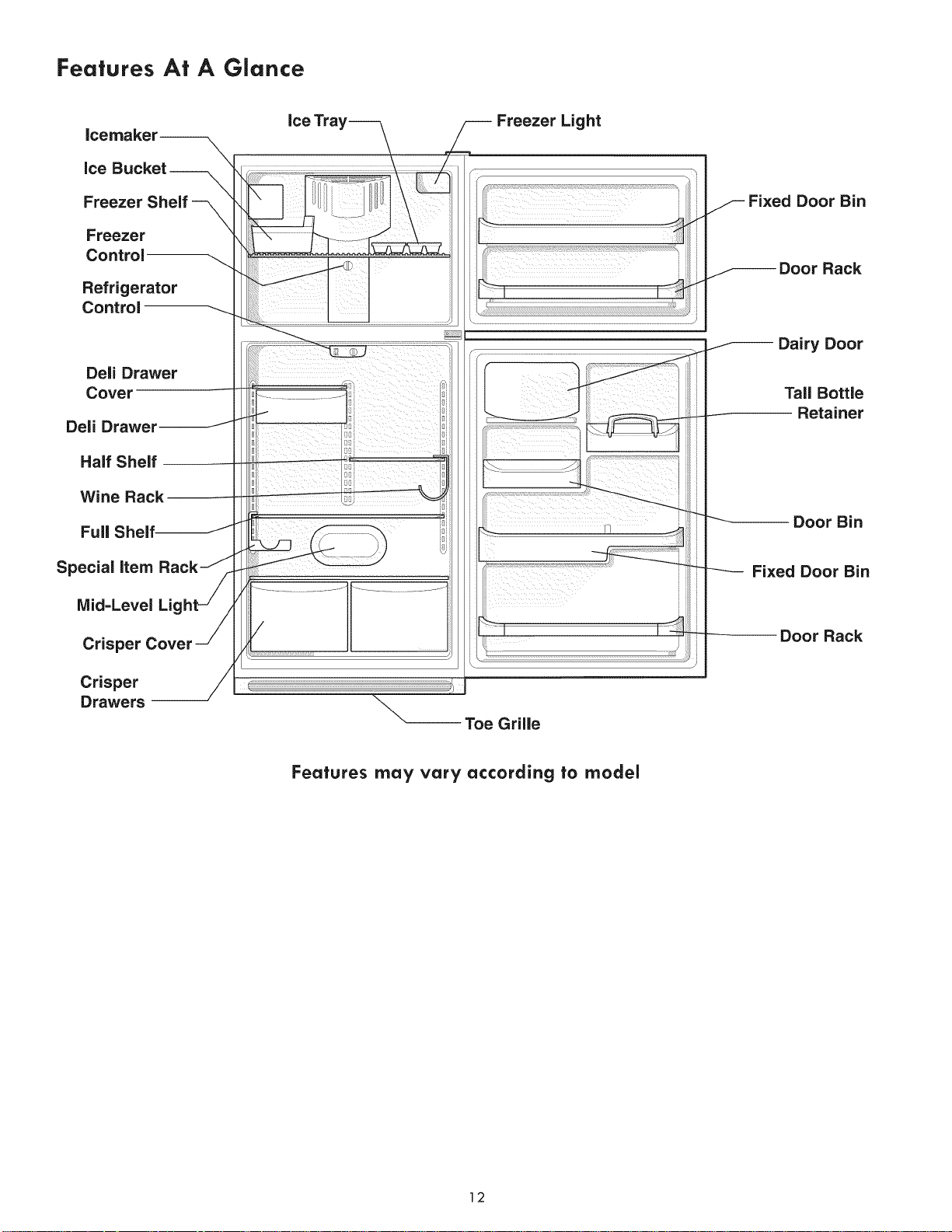

Features At A Glance ...................................... 2

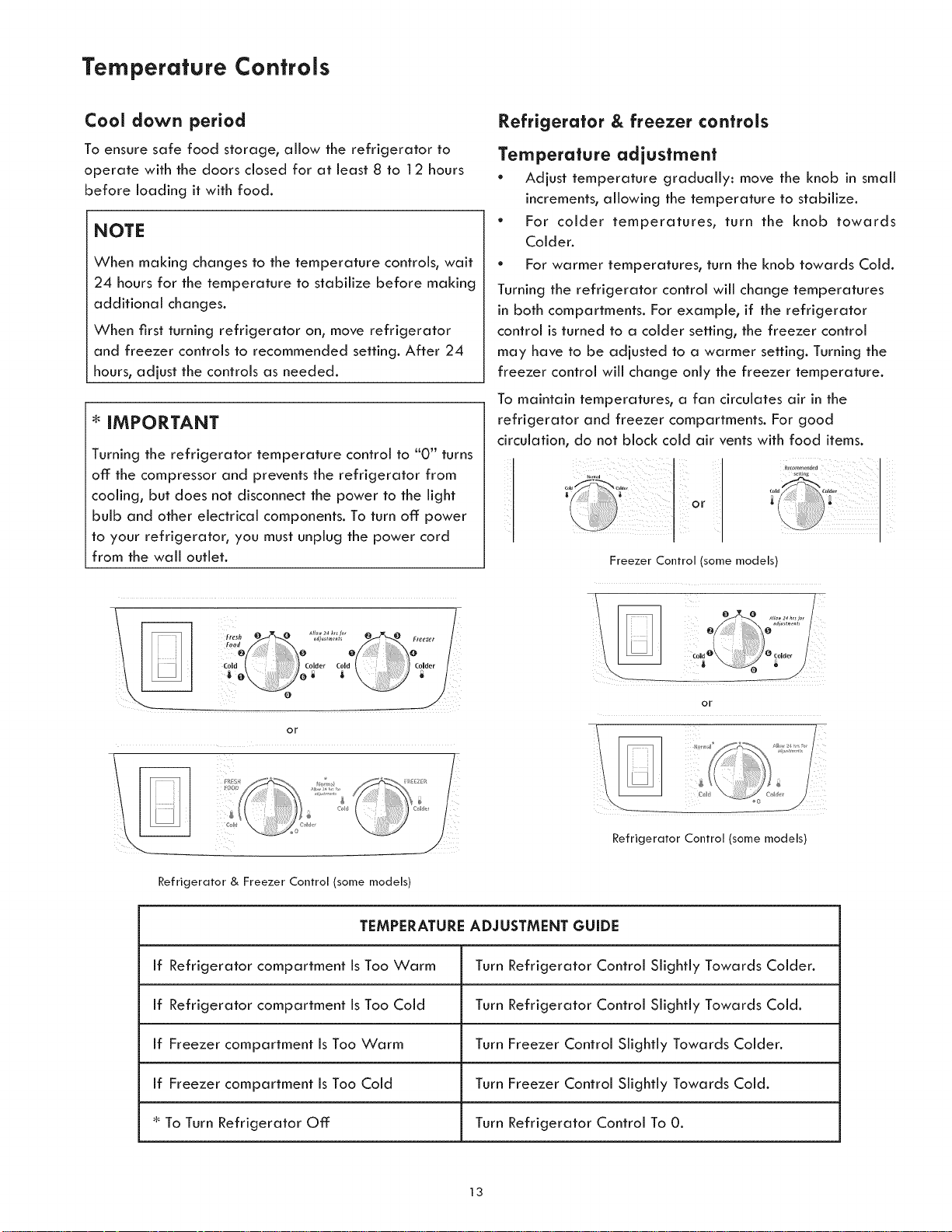

Temperature Controls ...................................... 3

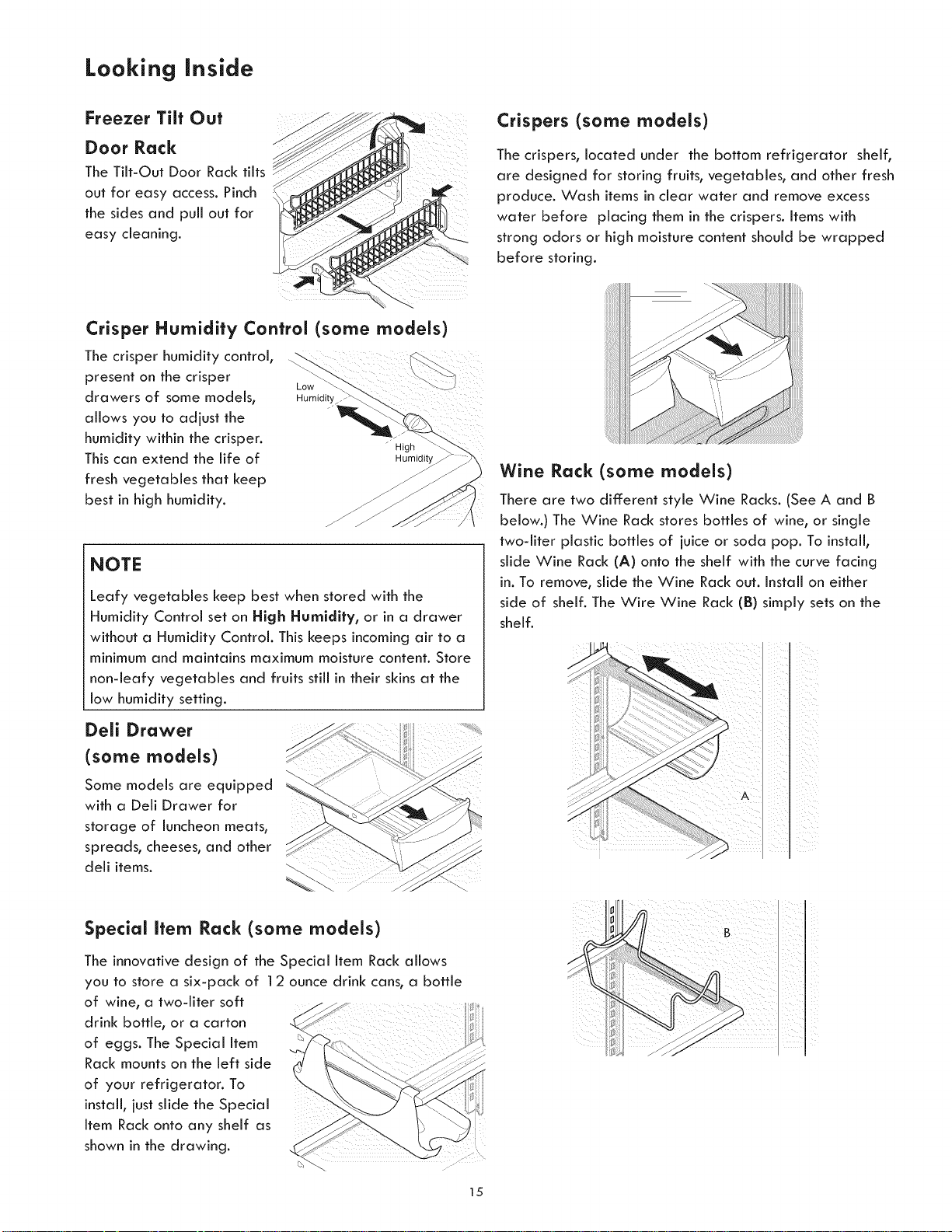

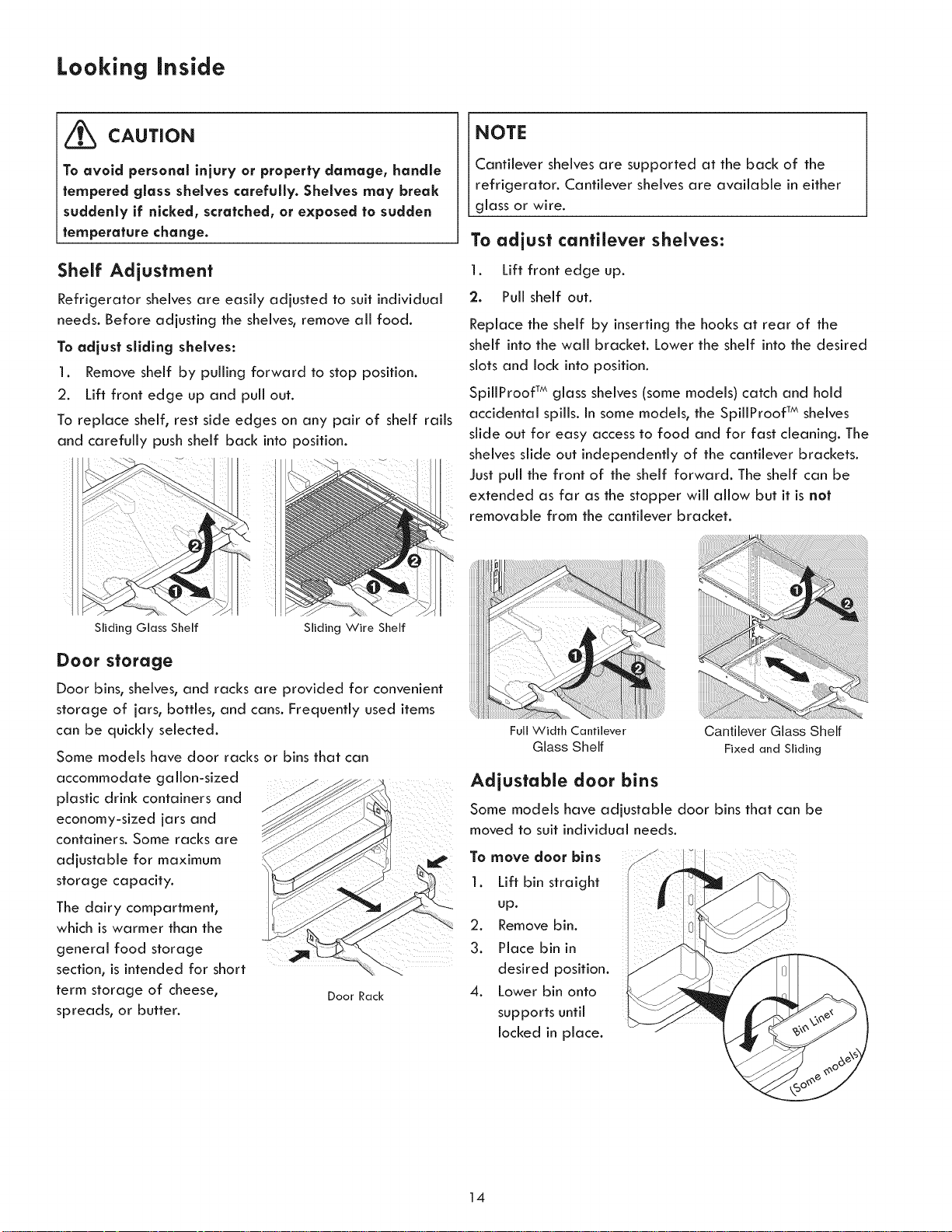

Looking inside.................................................... 4-15

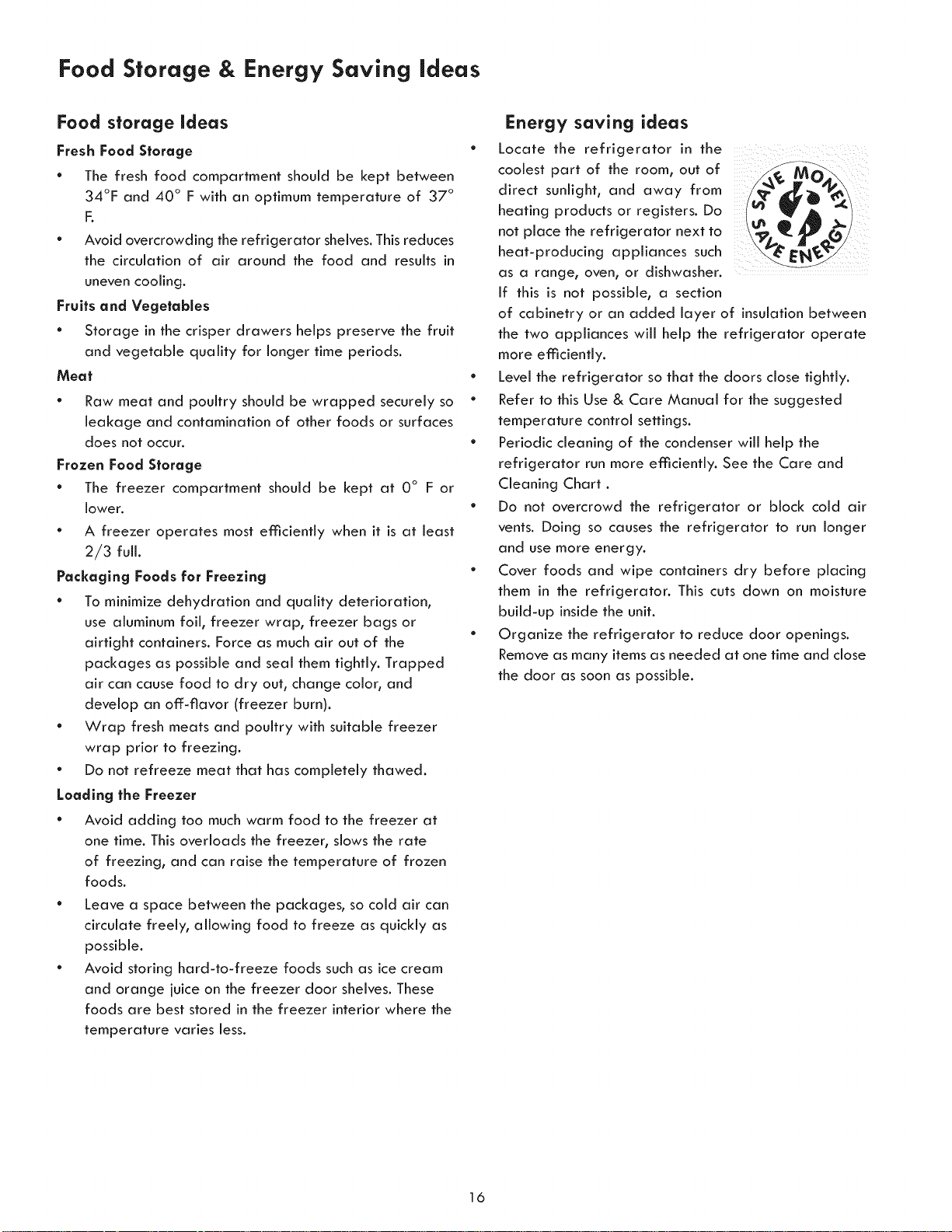

Food Storage & Energy Saving Tips............ 6

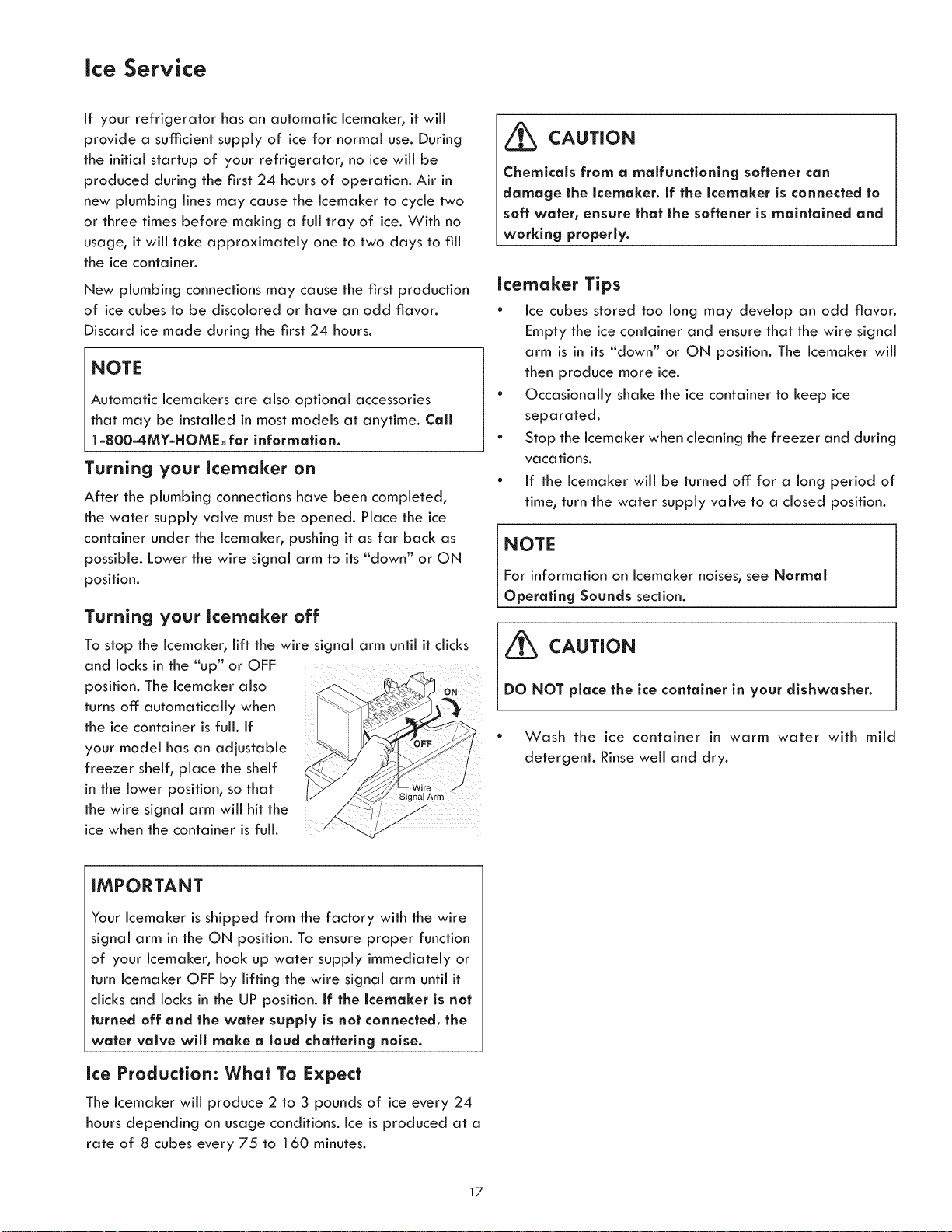

ice Service ......................................................... 7

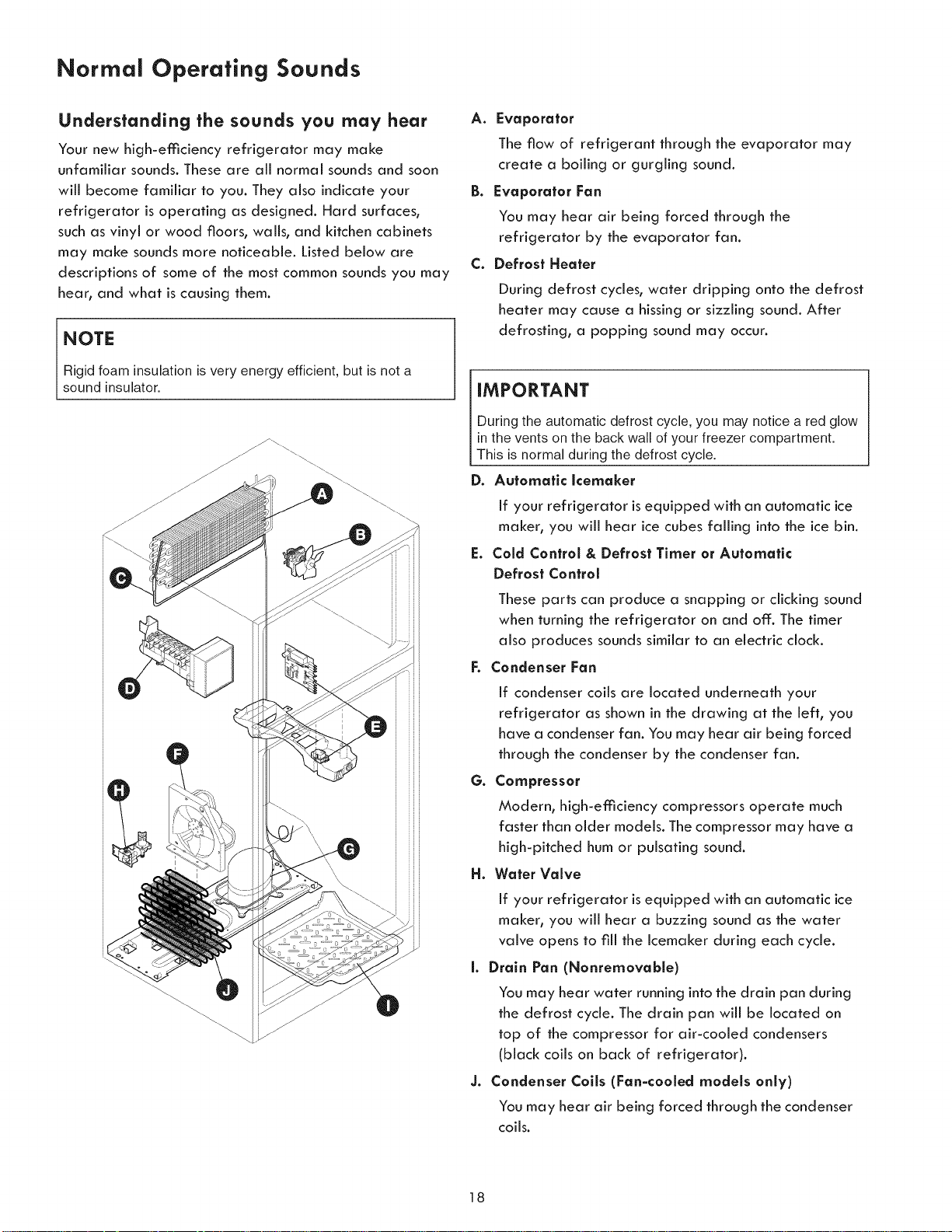

Normal Operating Sounds & Sights............. 8

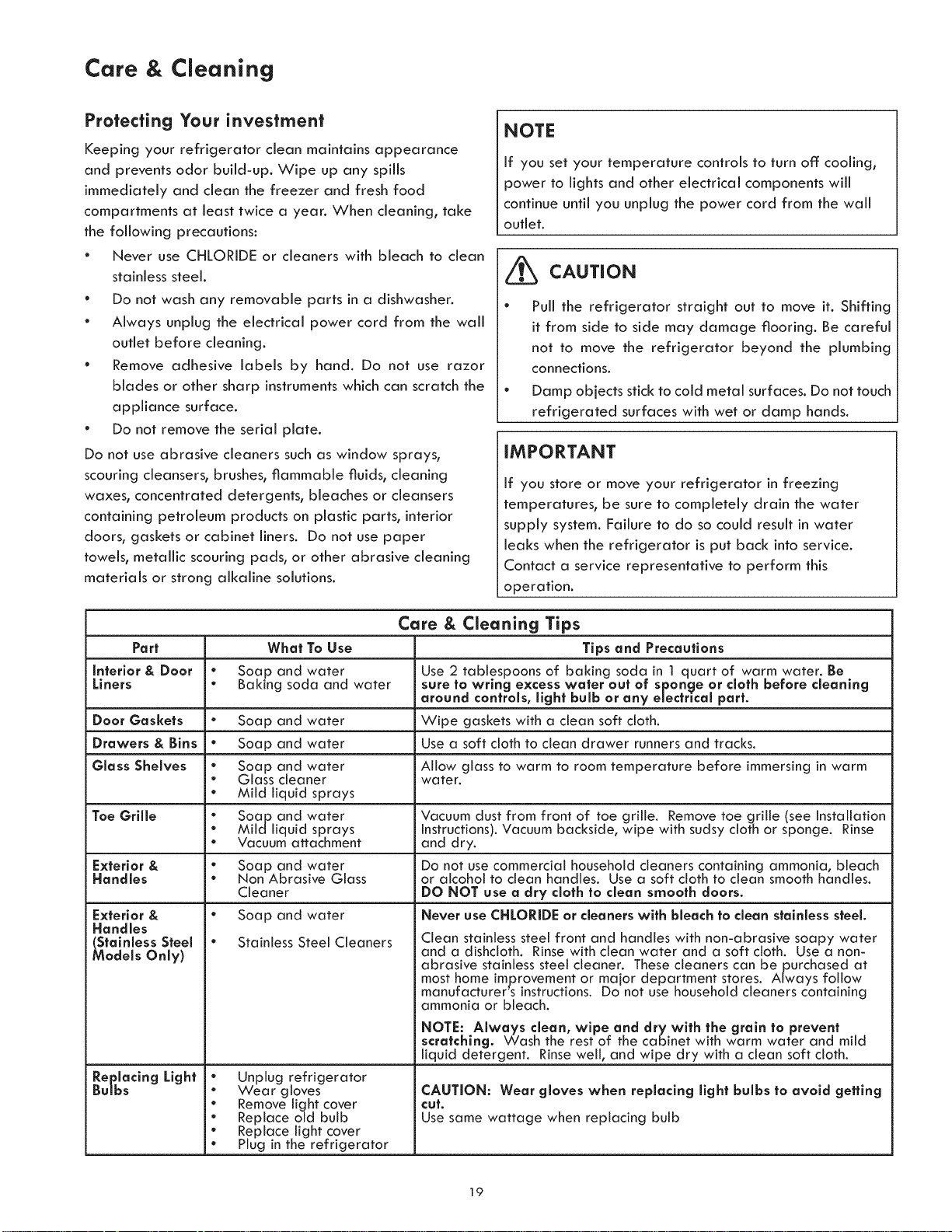

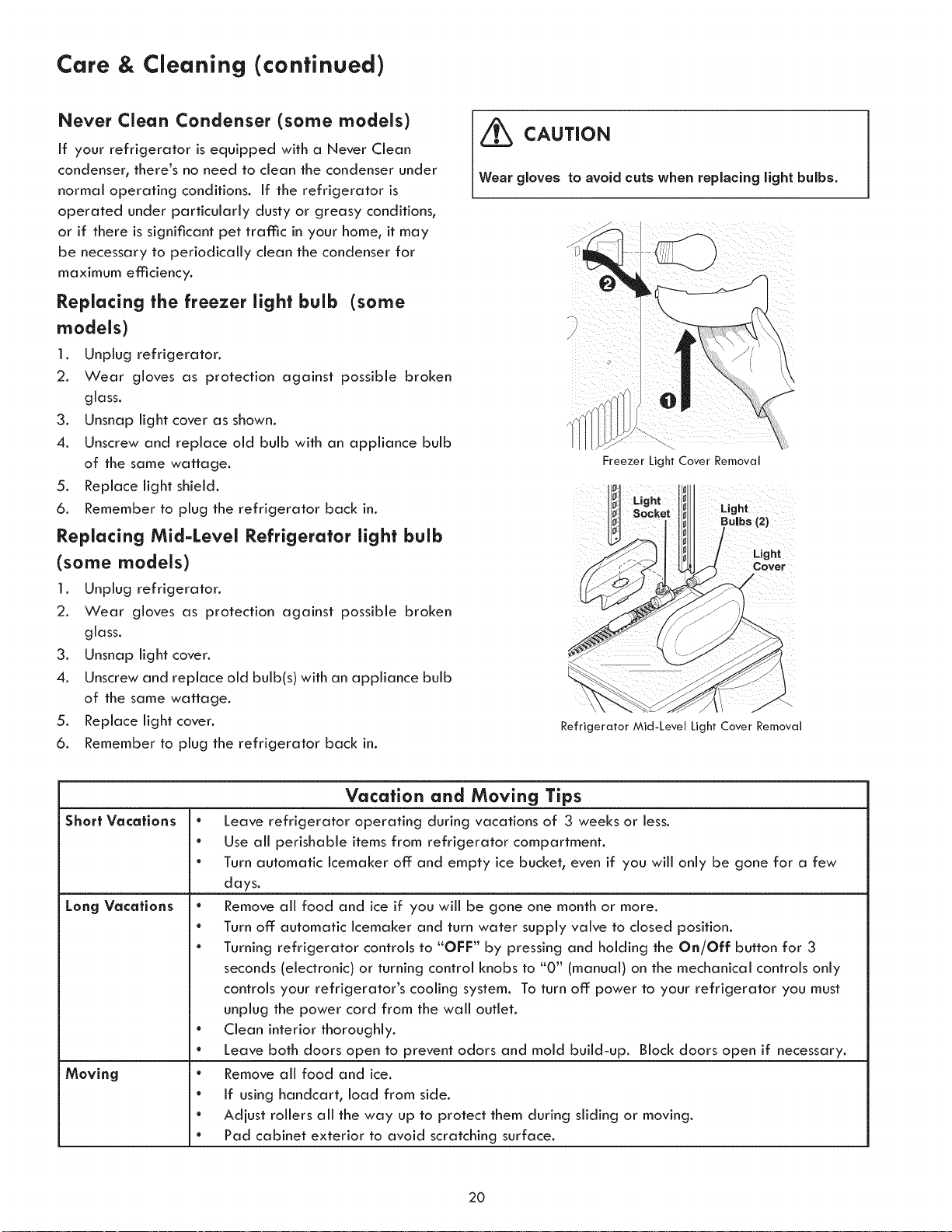

Care & Cleaning .............................................. 9-20

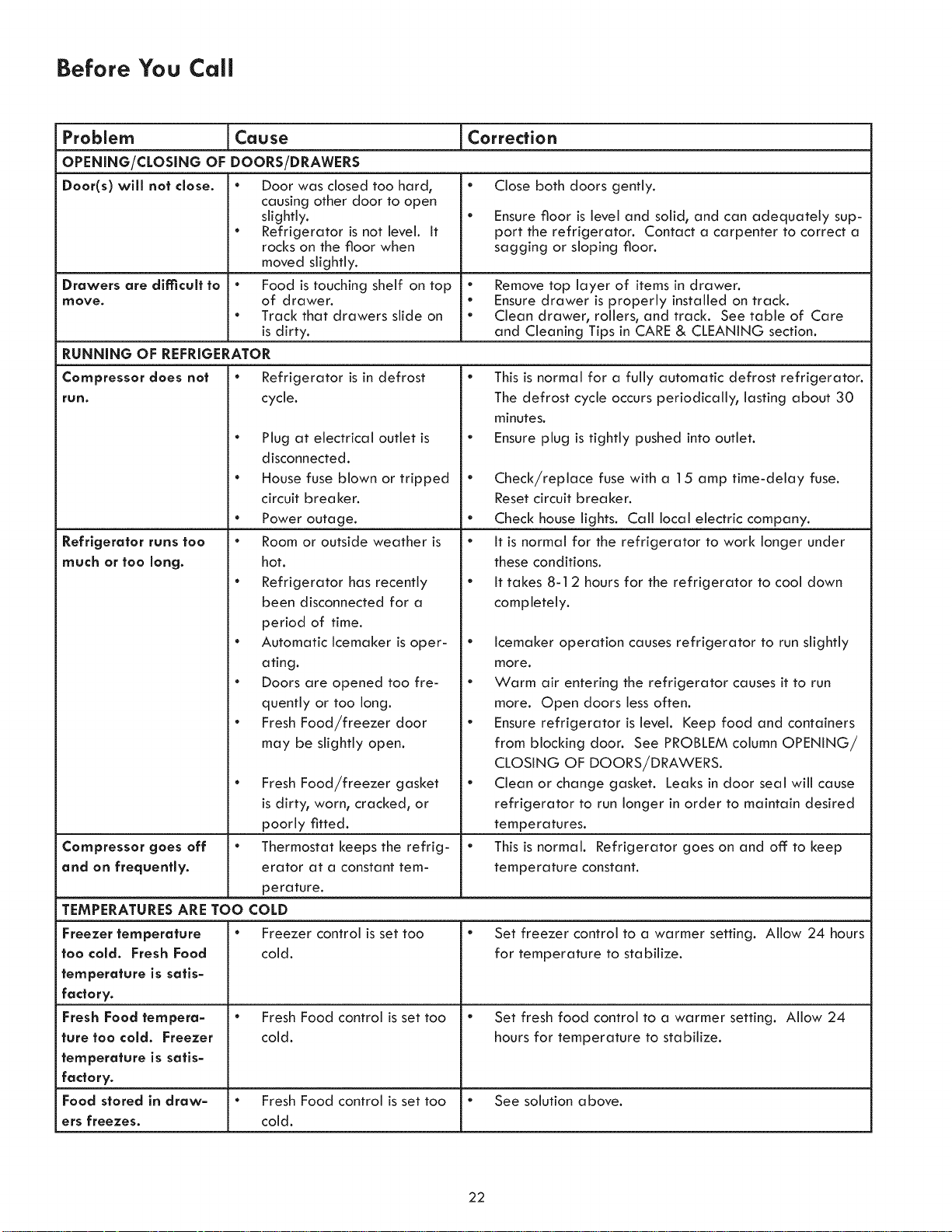

Before You Call ................................................21-23
Safety Precautions
Do not attempt to install or operate your unit until you have
read the safety precautions in this manual. Safety items
throughout this manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
_This is the safety alert symbol, it is used to alert you
to potential personal iniury hazards. Obey all safety
messages that fallow this symbol to avoid possible iniury
or death.
_ DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
_ WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
iniury.
_ CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate iniury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-related.

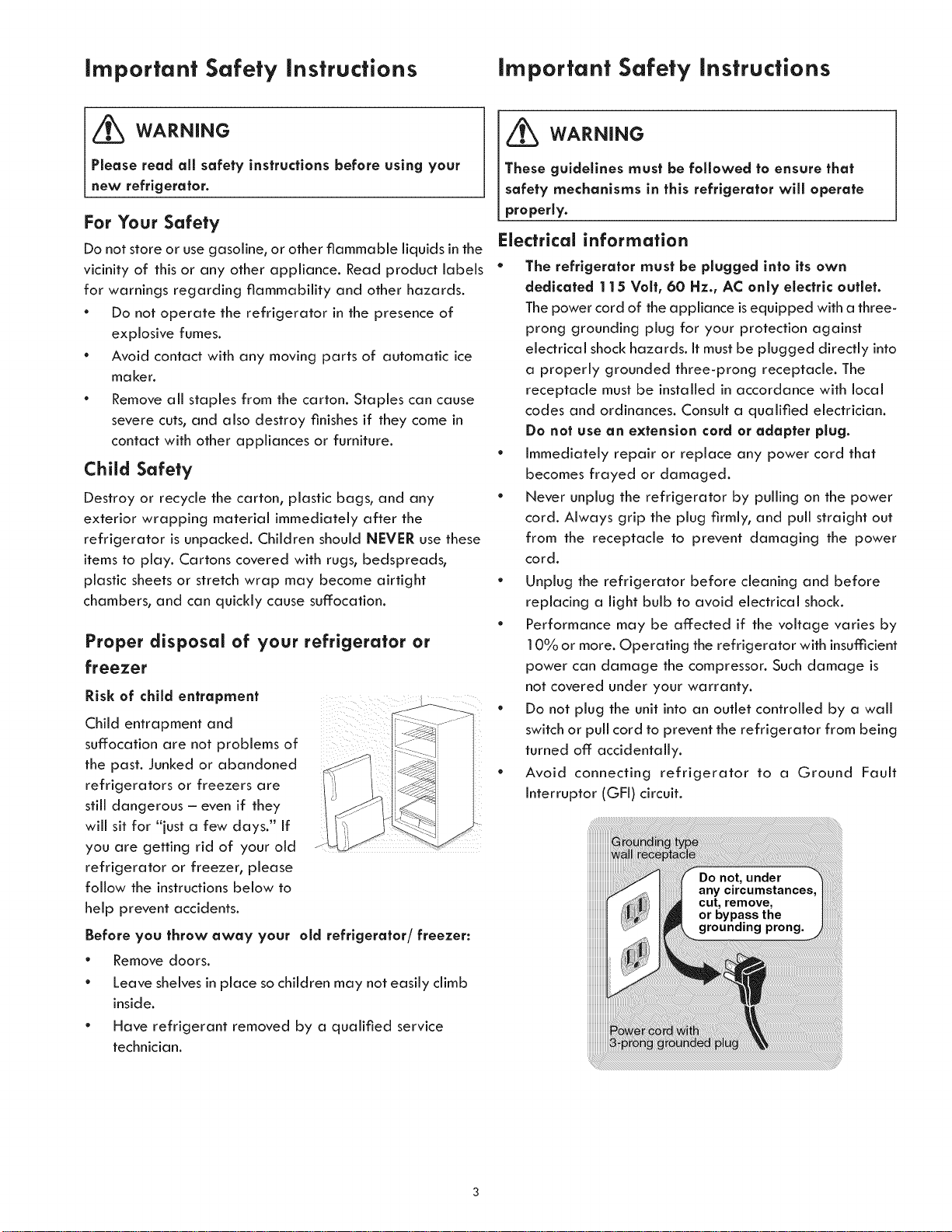

important Safety instructions important Safety instructions
_ WARNING
Please read all safety instructions before using your
new refrigerator.
For Your Safety
Do not store or use gasoline, or other flammable liquids in the
vicinity of this or any other appliance. Read product labels
for warnings regarding flammability and other hazards.
* Do not operate the refrigerator in the presence of
explosive fumes.
Avoid contact with any moving parts of automatic ice
maker.
Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the
refrigerator is unpacked. Children should NEVER use these
items to play. Cartons covered with rugs, bedspreads,
plastic sheets or stretch wrap may become airtight
chambers, and can quickly cause suffocation.
Proper disposal of your refrigerator or
freezer
Risk of child entrapment
Child entrapment and
suffocation are not problems of
the past. Junked or abandoned
refrigerators or freezers are
still dangerous - even if they
will sit for "just a few days." If
you are getting rid of your old
refrigerator or freezer, please
follow the instructions below to
help prevent accidents.
Before you throw away your old refrigerator/freezer:
* Remove doors.
Leave shelves in place so children may not easily climb
inside.
Have refrigerant removed by a qualified service
technician.
_ WARNING
These guidelines must be followed to ensure that
safety mechanisms in this refrigerator will operate
properly.
Electrical information
* The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a three-
prong grounding plug for your protection against
electrical shock hazards. It must be plugged directly into
a properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
* immediately repair or replace any power cord that
becomes frayed or damaged.
Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power
cord.
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
" Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
Avoid connecting refrigerator to a Ground Fault
Interruptor (GFI) circuit.

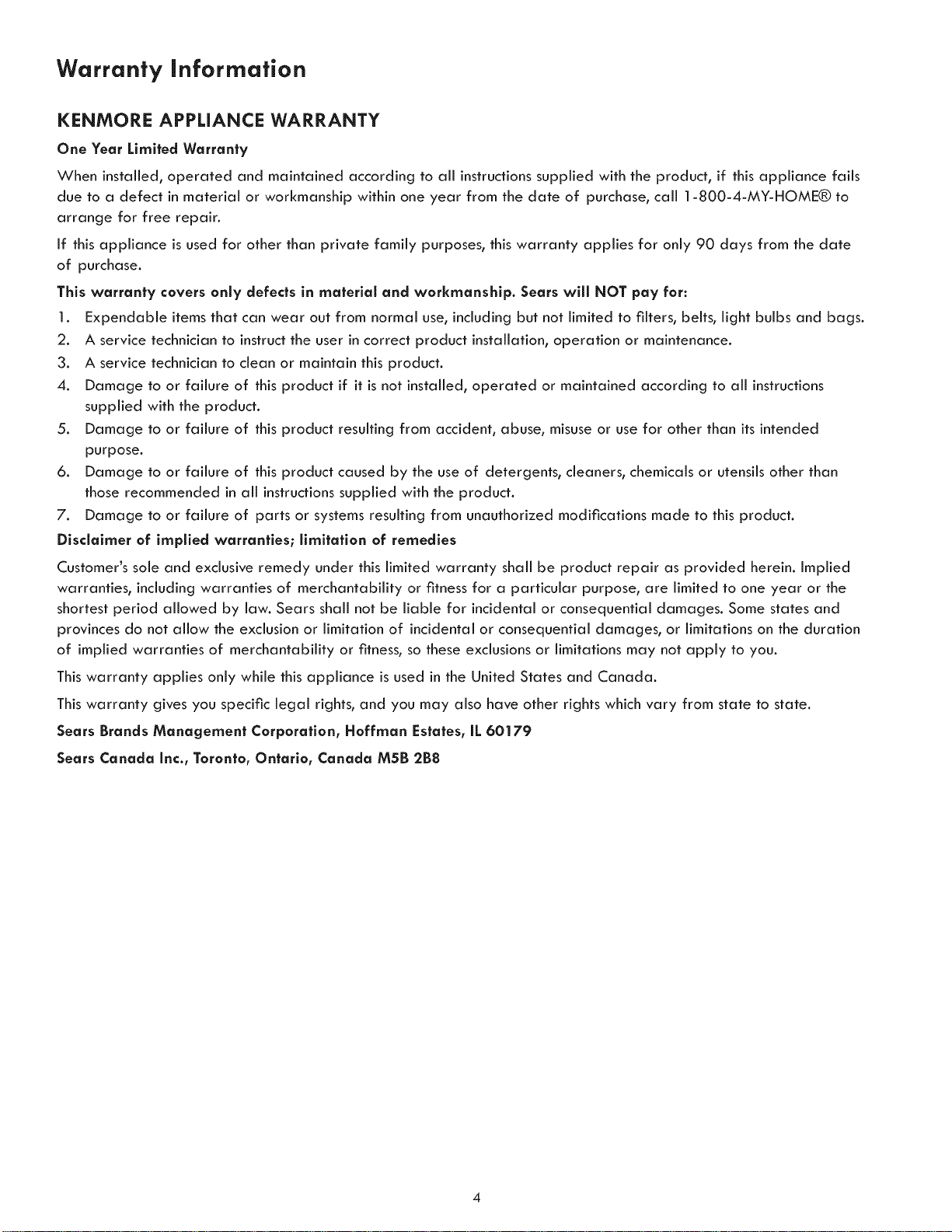

Warranty information
KENMORE APPLIANCE WARRANTY
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to
arrange for free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date
of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions
supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than
those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

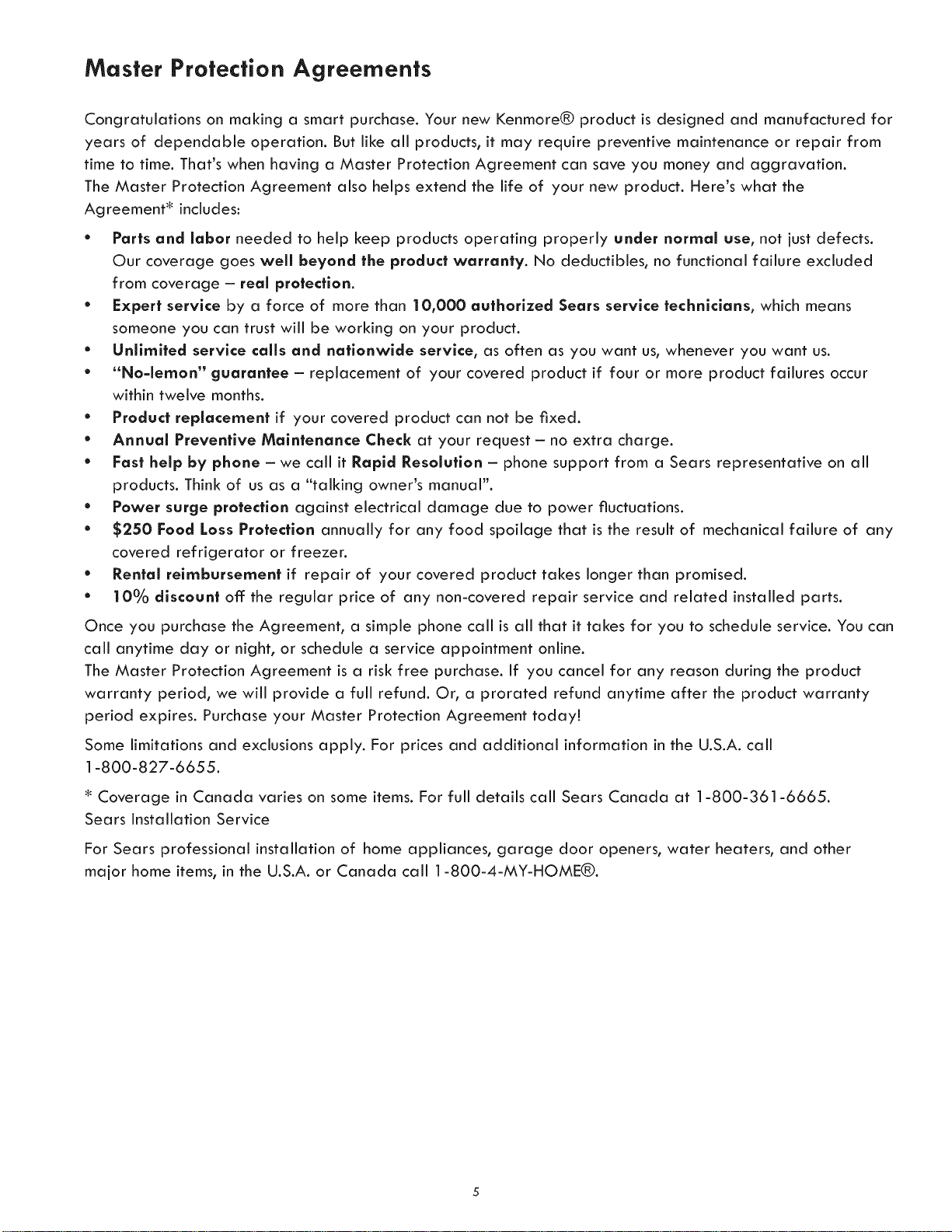

Master Protection Agreements
Congratulations on making a smart purchase, Your new Kenmore® product is designed and manufactured for
years of dependable operation, But like all products, it may require preventive maintenance or repair from
time to time, That's when having a Master Protection Agreement can save you money and aggravation,
The Master Protection Agreement also helps extend the life of your new product, Here's what the
Agreement _ includes:
* Parts and labor needed to help keep products operating properly under normal use, not just defects,
Our coverage goes well beyond the product warranty, No deductibles, no functional failure excluded
from coverage - real protection.
* Expert service by a force of more than 10,000 authorized Sears service technicians, which means
someone you can trust will be working on your product.
* Unlimited service calls and nationwide service, as often as you want us, whenever you want us,
* "No-leman _ guarantee- replacement of your covered product if four or more product failures occur
within twelve months.
* Praduct replacement if your covered product can not be fixed,
* Annual Preventive Maintenance Check at your request- no extra charge,
* Fast help by phone- we call it Rapid Resolution - phone support from a Sears representative on all
products, Think of us as a "talking owner's manual",
* Power surge protection against electrical damage due to power fluctuations,
* $250 Food Lass Protection annually for any food spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
* Rental reimbursement if repair of your covered product takes longer than promised.
* 10% discount off the regular price of any non-covered repair service and related installed parts,
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service, You can
call anytime day or night, or schedule a service appointment online,
The Master Protection Agreement is a risk free purchase, if you cancel for any reason during the product
warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty
period expires, Purchase your Master Protection Agreement today!
Some limitations and exclusions apply, For prices and additional information in the U,S,A, call
] -800-827-6655,
Coverage in Canada varies on some items, For full details call Sears Canada at ] -800-36] -6665,
Sears installation Service
For Sears professional installation of home appliances, garage door openers, water heaters, and other
maior home items, in the U,S,A, or Canada call ] -800-4-MY-HOME®,

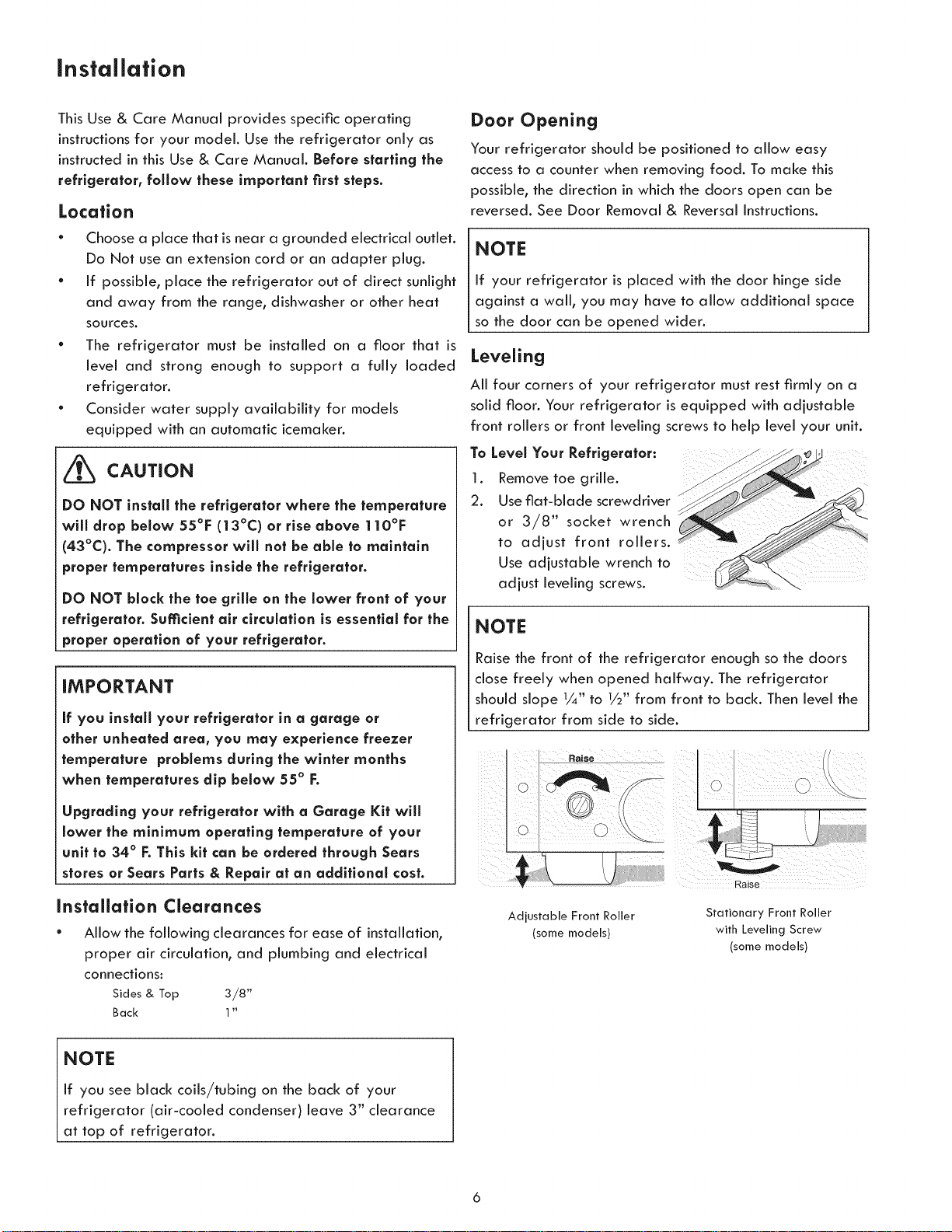

Installation
This Use & Care Manual provides specific operating
instructions far your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
Location
* Choose a place that is near a grounded electrical outlet.
Do Nat use an extension cord or an adapter plug.
* If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
* The refrigerator must be installed on a floor that is
level and strong enough to support a fully loaded
refrigerator.
* Consider water supply availability far models
equipped with an automatic icemaker.
_ CAUTION
DO NOT install the refrigerator where the temperature
will drop below 55°F (13°C) or rise above 110OF
(43°C). The compressor will not be able to maintain
proper temperatures inside the refrigerator.
DO NOT block the toe grille on the lower front of your
refrigerator. Sufficient air circulation is essential for the
proper operation of your refrigerator.
IMPORTANT
If you install your refrigerator in a garage or
other unheated area, you may experience freezer
temperature problems during the winter months
when temperatures dip below 55 ° F.
Upgrading your refrigerator with a Garage Kit will
lower the minimum operating temperature of your
unit to 34° F.This kit can be ordered through Sears
stores or Sears Parts & Repair at an additional cost.
Installation Clearances
* Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides& Top 3/8"
Back 1"
Door Opening
Your refrigerator should be positioned to allow easy
access to a counter when removing food. To make this
possible, the direction in which the doors open can be
reversed. See Door Removal & Reversal Instructions.
NOTE
If your refrigerator is placed with the door hinge side
against a wall, you may have to allow additional space
so the door can be opened wider.
Leveling
All four corners of your refrigerator must rest firmly on a
solid floor. Your refrigerator is equipped with adjustable
front rollers or front leveling screws to help level your unit.
To Level Your Refrigerator:
1. Remove toe grille.
2. Use fiat-blade screwdriver
or 3/8" socket wrench
to adjust front rollers.
Use adjustable wrench to
adjust leveling screws.
NOTE
Raise the front of the refrigerator enough so the doors
close freely when opened halfway. The refrigerator
should slope I/4" to 1/2" from front to back. Then level the
refrigerator from side to side.
Raise
Raise
Adjustable Front Roller
(some models)
Stationary Front Roller
with Leveling Screw
(some models)
NOTE
If you see black coils/tubing on the back of your
refrigerator (air-cooled condenser) leave 3" clearance
at top of refrigerator.
Connecting Household Water Supply To Refrigerator
_ WARNING
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
_ CAUTION
To Avoid Property Damage:
* Copper tubing is recommended for the water supply
line. Water supply tubing made of IA" plastic is
not recommended since it greatly increases the
potential for water leaks. Manufacturer will not be
responsible for any damage if plastic tubing is used
for supply line.
* DO NOT install water supply tubing in areas where
temperatures fall below freezing.
* Chemicals from a malfunctioning softener can
damage the icemaker. If the icemaker is connected
to soft water, ensure that the softener is maintained
and working properly.
iMPORTANT
Ensure that your water supply line connections comply
with all local plumbing codes.
Before Installing The Water Supply Line, You Will Need
* Basic Tools: adiustabJe wrench, fiat-blade screwdriver,
and Phillips TM screwdriver
* Access to a household cold water line with water pressure
between 30 and 100 psi.
* A water supply line made of I/4 inch (6.4 ram) OD,
copper tubing. To determine the length of copper tubing
needed, you will need to measure the distance from the
icemaker inlet valve at the back of the refrigerator to
your cold water pipe. Then add approximately 7 feet
(2.1 meters), so the refrigerator can be moved out for
cleaning (as shown).
* A shutoff: valve to connect the water supply line to your
household water system. DO NOT use a self-piercing
type shutoff: valve.
* A compression nut and ferrule (sleeve) for connecting
the water supply line to the icemaker inlet valve.
To Connect Water Supply Line To Icemaker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn
ON water supply and flush supply line until water is
clear. Turn OFF water supply at shutoff: valve.
3. Unscrew plastic cap from water valve inlet and discard
cap.
4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.
5. Push water supply line into water valve inlet as far as it
will go (1/4inch). Slide ferrule (sleeve) into valve inlet and
finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to
rear panel of refrigerator as shown.
7. Coil excess water supply line (about 21/2 turns) behind
refrigerator as shown and arrange coils so they do
not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff: valve and tighten any
connections that leak.
9. Reconnect refrigerator to electrical power source.
10. To turn icemaker on, lower wire signal arm (see icemaker
front cover for ON/OFF position of arm).
Steel
Clamp
Compression
Nut
-- Ferrule
(Sleeve)
_-_Copper
water line
\Water Valve
_===Bracket
_ \=--Valve inlet
dive
-- Copper water line
from household water supply
/_/
/ (Include enough tubing in loop to allow
moving refrigerator out for cleaning,)
NOTE
A water line kit is available from Sears stores or Sears
Parts & Repair at an additional cost.
Door Removal / Reversal instructions
Door Stop Handle
So,ege V Cente,V _Hi_ge
Hinge Screw
Plastic
ToolsNecessary: pu_
Knife
Phillips'" head
Quadrex head Socket Adjustable
screwdriver Wrench Set Wrench
Awl
Top Hinge
Cover
nge
Washer
Hinge
/ Pin
_//Center
Hinge Hole j
Door Stop
Screw
, Hinge
Toe Grille
NOTE
The direction in which your refrigerator doors open (door swing) can be
reversed, from left to right or right to left, by moving the door hinges from
one side to the other. Reversing the door swing should be performed by a
qualified person.
IMPORTANT
Before you begin, turn the refrigerator temperature control to "0" (OFF) and
remove the electrical power cord from the wall outlet. Remove any food from
door shelves.
1. Remove toe grille.
2. Remove top hinge cover. Trace around the hinge with a soft lead pencil. This
makes reinstallation easier. Remove top hinge and lift door off center hinge pin.
Set door aside.
3. Unscrew center hinge pin using adjustable wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge and set aside.
5. Remove center hinge and shim by removing inside screw and loosening two outside
screws enough to allow hinge and shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite side of refrigerator, remove inside screw
and install center hinge.
7. Remove two screws on bottom hinge with 3/8" socket wrench.
8. Install bottom hinge on opposite side with the two screws removed from step 7.
9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to other hole
in hinge and tighten with adjustable wrench.
] O. Reverse door handles (see instructions on next page).
] 1. Move freezer and refrigerator door stops to opposite side. Before starting screws,
use an awl to puncture the foam.
] 2. Position refrigerator door onto bottom hinge pin and screw center hinge pin
through center hinge into top of door. Close refrigerator door to help align
hinge hole.
13. Tighten center hinge pin with adjustable wrench.
14. Remove cabinet and hinge hole plugs and move to opposite side.
15. Lower freezer door onto center hinge pin.
16. Close freezer door. Have an assistant lift up on opposite side of door while tightening screws to install top hinge.
17. Flip toe grille and reinstall.
18. Plug in electrical power cord and turn refrigerator temperature control to center position. Adjust setting as necessary.
19. Ensure that all gaskets seal properly and doors are level.
Door RemovaJ / ReversaJ instructions
Handle Style 1
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. SWe handle straight up and pull handle off mounting
screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
To attach refrigerator handle:
1. PJace top of handJe over mounting screw, pull handJe
straight down until handle is aligned with screw holes on
top of door.
2. Secure top of handle with two screws removed eadier.
Mounting Screw
To remove freezer handle:
(Handles may be easier to reverse while doors are off.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. SWe handle straight down and pull handle off mounting
screw on door.
3. Remove mounting screw from door and install on other
side, moving hole plugs from corresponding holes to
opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty knife
to gently peel off nameplate from door and reapply
over aid holes.
To attach freezer handle:
1. Place top of handle over mounting screw, pull handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed
eadier.
J
Mounting <'[_
F-Screw
/
Nameplate J
Lock Handle
over
Mounting Screw
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off.
Reverse freezer and refrigerator handles as shown.
Door Removal / Reversal instructions
_ CAUTION
Wear gloves and use extreme CAUTION when
installing these handles. The rounded end of the
handles may be sharp.
IMPORTANT
To ensure proper installation of handles, please review
these instructions and pictures thoroughly prior to
installing the handles.
Additionally, before installing the door handles, make
sure the door swing is correct. Follow instructions in the
Use & Care Guide to reverse the doors, if necessary.
Handle Style 2
To attach refrigerator metal handle:
1. Place rounded part of handle onto mounting screw on
2. face of door and align the 2 holes in top of handle with
the 2 holes in top of door. Handle should be mounted
with set screw facing towards center of door. Do
not tighten the set screw yet.
3. Install the 2 screws into the top of the handle.
4. Tighten the set screw on the rounded part of the
handle until the handle is flush with the door, then
tighten another 1/2 turn.
crew
-Handle
Mountin, Set
Screw
Plug
To attach freezer handle:
1. Place rounded part of handle onto mounting screw
on face of door and align the 2 holes in bottom of
handle with the 2 holes in bottom of door. Handle
should be mounted with set screw facing towards
center of door. Do not tighten the set screw yet.
2. Install the 2 screws into the bottom of the handle.
3. Tighten the set screw on the rounded part of the
handle until the handle is flush with the door, then
tighten another ]/2 turn.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off.
Reverse freezer and refrigerator handles as shown.
10
Door Removal / Reversal instructions
Handle Style 3
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. SWe handle straight up and pull handle off: mounting
screw on door.
3. Remove mounting screw from door and install on other
side, moving hole plugs from corresponding holes to
opposite side.
To attach refrigerator handle:
1. Place top of handle over mounting screw, pull handle
straight down until handle is aligned with screw holes on
top of door.
2. Secure top of handle with two screws removed earlier.
To attach freezer handle:
1. Place top of handle aver mounting screw, pull handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed
earlier.
J
J
J
J
J
J
J
J
J
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator handles as shown.
To remove freezer handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. SWe handle straight down and pull handle off: mounting
screw on door.
3. Remove mounting screw from door and install on other
side, moving hole plugs from corresponding holes to
opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty knife
to gently peel off: nameplate from door and reapply
over old holes.
11
Features At A Glance
Dell Drawer
Cover
Dell Drawer
Half Shelf
Wine Rack
Full S
Special item
Mid=Level Lic
Crisper
Crisper
Drawers
Freezer Light
Door Bin
Door Rack
Dairy Door
-- Door Bin
Fixed Door Bin
Door Rack
Features may vary according to model
]2
Temperature ControJs
Cool down period
To ensure safe food storage, allow the refrigerator to
operate with the doors closed for at least 8 to 12 hours
before loading it with food.
NOTE
When making changes to the temperature controls, wait
24 hours for the temperature to stabilize before making
additional changes.
When first turning refrigerator on, move refrigerator
and freezer controls to recommended setting. After 24
hours, adiust the controls as needed.
iMPORTANT
Turning the refrigerator temperature control to "0" turns
off the compressor and prevents the refrigerator from
cooling, but does not disconnect the power to the light
bulb and other electrical components. To turn off: power
to your refrigerator, you must unplug the power cord
from the waJJ outlet.
or
Refrigerator & Freezer Control (some models)
Refrigerator & freezer controls
Temperature adjustment
* Adiust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
* For colder temperatures, turn the knob towards
Colder.
* For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures
in both compartments. For example, if the refrigerator
control is turned to a colder setting, the freezer control
may have to be adiusted to a warmer setting. Turning the
freezer control will change only the freezer temperature.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good
circulation, do not block cold air vents with food items.
or
Freezer Control (some models
or
Refrigerator Control (some models)
TEMPERATURE ADJUSTMENT GUIDE
Jf Refrigerator compartment JsToo Warm Turn Refrigerator Control Slightly Towards Colder.
If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.
To Turn Refrigerator Off: Turn Refrigerator Control To O.
13
Looking inside
_ CAUTION
To avoid personal iniury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change.
Shelf Adjustment
Refrigerator shelves are easily adiusted to suit individual
needs. Before adjusting the shelves, remove all food.
To adjust sliding shelves:
1. Remove shelf by pulling forward to stop position.
2. Lift front edge up and pull out.
To replace shelf, rest side edges on any pair of shelf rails
and carefully push shelf back into position.
Sliding Glass Shelf Sliding Wire Shelf
NOTE
Cantilever shelves are supported at the back of the
refrigerator. Cantilever shelves are available in either
glass or wire.
To adjust cantilever shelves:
1. Lift front edge up.
2. Pull shelf out.
Replace the shelf by inserting the hooks at rear of the
shelf into the wall bracket. Lower the shelf into the desired
slots and lock into position.
SpilIProof TM glass shelves (some models) catch and hold
accidental spills. In some models, the SpilIProof TM shelves
slide out for easy access to food and for fast cleaning. The
shelves slide out independently of the cantilever brackets.
Just pull the front of the shelf forward. The shelf can be
extended as far as the stopper will allow but it is not
removable from the cantilever bracket.
Door storage
Door bins, shelves, and racks are provided for convenient
storage of iars, bottles, and cans. Frequently used items
can be quickly selected.
Some models have door racks or bins that can
accommodate gallon-sized
plastic drink containers and
economy-sized iars and
containers. Some racks are
adiustable for maximum
storage capacity.
The dairy compartment,
which is warmer than the
general food storage
section, is intended for short
term storage of cheese,
spreads, or butter.
Door Rack
Full Width Cantilever
Glass Shelf
Adjustable door bins
Cantilever Glass Shelf
Fixed and Sliding
Some models have adjustable door bins that can be
moved to suit individual needs.
To move door bins
1. Lift bin straight
up.
2. Remove bin.
3. Place bin in
desired position.
4. Lower bin onto
supports until
locked in place.
]4
Looking inside
Freezer Tilt Out
Door Rack
The Tilt-Out Door Rack flits
out for easy access. Pinch
the sides and pull out for
easy cleaning.
Crispers (some models)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash items in dear water and remove excess
water before placing them in the crispers, items with
strong odors or high moisture content should be wrapped
before storing.
Crisper Humidity Control (some models)
The crisper humidity control,
present on the crisper
drawers of some models,
allows you to adjust the
humidity within the crisper.
This can extend the life of
Low
Humidity_
High
Humidit\
fresh vegetables that keep
best in high humidity.
NOTE
Leafy vegetables keep best when stored with the
Humidity Control set on High Humidity, or in a drawer
without a Humidity Control. This keeps incoming air to a
minimum and maintains maximum moisture content. Store
non-leafy vegetables and fruits still in their skins at the
low humidity setting.
Deli Drawer
(some models)
Some modeJs are equipped
with a Dell Drawer for ............
storage of luncheon meats,
spreads, cheeses, and other
dell items.
Wine Rack (some models)
There are two different style Wine Racks. (See A and B
below.) The Wine Rack stores bottles of wine, or single
two-liter plastic bottles of juice or soda pop. To install,
slide Wine Rack (A) onto the shelf with the curve facing
in. To remove, slide the Wine Rack out. Install on either
side of shelf. The Wire Wine Rack (B) simply sets on the
shelf.
Special item Rack (some models)
The innovative design of the Special Item Rack allows
you to store a six-pack of 12 ounce drink cans, a bottle
of wine, a two-liter soft
drink bottle, or a carton
of eggs. The Special Item .
Rack mounts on the left side
of your refrigerator. To
install, just slide the Special
Item Rack onto any shelf as
shown in the drawing.
_.
15
/
/
Food Storage & Energy Saving ideas
Food storage ideas
Fresh Food Storage *
• The fresh food compartment shouJd be kept between
34°F and 40 ° F with an optimum temperature of 37 °
F.
• Avoid overcrowding the refrigerator shelves. This reduces
the circulation of air around the food and results in
uneven coding.
Fruits and Vegetables
• Storage in the crisper drawers helps preserve the fruit
and vegetable quality for longer time periods.
Meat *
• Raw meat and pouffry shouJd be wrapped secureJy so *
leakage and contamination of other foods or surfaces
does not occur. *
Frozen Food Storage
• The freezer compartment shouJd be kept at 0° F or
lower.
• A freezer operates most efficiently when it is at least
2/3 full.
Packaging Foods for Freezing
• To minimize dehydration and quality deterioration,
use aluminum foil, freezer wrap, freezer bags or
e
airtight containers. Force as much air out of the
packages as possible and seal them tightly. Trapped
air can cause food to dry out, change color, and
develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer
wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
• Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate
of freezing, and can raise the temperature of frozen
foods.
• Leave a space between the packages, so cold air can
circulate freely, allowing food to freeze as quicHy as
possible.
• Avoid storing hard-to-freeze foods such as ice cream
and orange iuice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less.
Energy saving ideas
Locate the refrigerator in the
coolest part of the room, out of
direct sunlight, and away from
heating products or registers. Do
not place the refrigerator next to
heat-producing appliances such
as a range, oven, or dishwasher.
if this is not possible, a section
of cabinetry or an added layer of insulation between
the two appliances will help the refrigerator operate
more efficiently.
Level the refrigerator so that the doors dose tightly.
Refer to this Use & Care Manual for the suggested
temperature control settings.
Periodic cleaning of the condenser will help the
refrigerator run more efficiently. See the Care and
Cleaning Chart.
Do not overcrowd the refrigerator or block cold air
vents. Doing so causes the refrigerator to run longer
and use more energy.
Cover foods and wipe containers dry before placing
them in the refrigerator. This cuts down on moisture
build-up inside the unit.
Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and close
the door as soon as possible.
16
ice Service
ff your refrigerator has an automatic [cemaker, it will
provide a sufficient supply of ice for normal use. During
the initial startup of your refrigerator, no ice will be
produced during the first 24 hours of operation. Air in
new plumbing lines may cause the Icemaker to cycle two
or three times before making a full tray of ice. With no
usage, it wi[[ take approximately one to two days to fi[[
the ice container.
New plumbing connections may cause the first production
of ice cubes to be discolored or have an odd flavor.
Discard ice made during the first 24 hours.
NOTE
Automatic Icemakers are also optional accessories
that may be installed in most models at anytime. Call
1-800-4MY-HOME_ for information.
Turning your Icemaker on
After the plumbing connections have been completed,
the water supply valve must be opened. Place the ice
container under the Icemaker, pushing it as far back as
possible. Lower the wire signal arm to its "down" or ON
position.
Turning your Icemaker off
To stop the Icemaker, lift the wire signal arm until it dicks
andposition.IoCkSThein theIcemaker"up" OralsoOFF
turns off: automatically when i
the ice container is full. if
your model has an adiustable
freezer shelf, place the shelf
in the lower position, so that
the wire signal arm will hit the ........
ice when the container is full.
_ CAUTION
Chemicals from a malfunctioning softener can
damage the Icemaker. ff the Icemaker is connected to
soft water, ensure that the softener is maintained and
working properly.
Icemaker Tips
* Ice cubes stored too long may develop an odd flavor.
Empty the ice container and ensure that the wire signal
arm is in its "down" or ON position. The Icemaker will
then produce more ice.
* Occasionally shake the ice container to keep ice
separated.
Stop the Icemaker when cleaning the freezer and during
vacations.
If the Icemaker will be turned off: for a long period of
time, turn the water supply valve to a closed position.
NOTE
For information on Icemaker noises, see Normal
Operating Sounds section.
_ CAUTION
DO NOT place the ice container in your dishwasher.
• Wash the ice container in warm water with mild
detergent. Rinse well and dry.
IMPORTANT
Your Icemaker is shipped from the factory with the wire
signal arm in the ON position. To ensure proper function
of your Icemaker, hook up water supply immediately or
turn Icemaker OFF by lifting the wire signal arm until it
clicks and locks in the UP position, ff the Icemaker is not
turned off and the water supply is not connected, the
water valve will make a loud chattering noise.
Ice Production: What To Expect
The Icemaker will produce 2 to 3 pounds of ice every 24
hours depending on usage conditions. Ice is produced at a
rate of 8 cubes every 75 to 160 minutes.
17
Normal Operating Sounds
Understanding the sounds you may hear
Your new high-efficiency refrigerator may make
unfamiliar sounds. These are all normal sounds and soon
will become familiar to you. They also indicate your
refrigerator is operating as designed. Hard surfaces,
such as vinyl or wood floors, walls, and kitchen cabinets
may make sounds more noticeable. Listed below are
descriptions of some of the most common sounds you may
hear, and what is causing them.
NOTE
Rigid foam insulation is very energy efficient, but is not a
sound insulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the
refrigerator by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
IMPORTANT
During the automatic defrost cycle, you may notice a red glow
in the vents on the back wall of your freezer compartment.
This is normal during the defrost cycle.
D. Automatic Icemaker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off:. The timer
also produces sounds similar to an electric clock.
F. Condenser Fan
If condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the Icemaker during each cycle.
h Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on
top of the compressor for air-cooled condensers
(black coils on back of refrigerator).
J. Condenser Coils (Fan-cooled models only)
You may hear air being forced through the condenser
coils.
18
Care & Cleaning
Protecting Your investment
Keeping your refrigerator clean maintains appearance
and prevents odor build-up. Wipe up any spills
immediately and clean the freezer and fresh food
compartments at least twice a year. When cleaning, take
the following precautions:
* Never use CHLORIDE or cleaners with bleach to clean
stainless steel.
" Do not wash any removable parts in a dishwasher.
" Always unplug the electrical power cord from the wall
outlet before cleaning.
" Remove adhesive labels by hand. Do not use razor
blades or other sharp instruments which can scratch the
appliance surface.
* Do not remove the serial plate.
Do not use abrasive cleaners such as window sprays,
scouring cleansers, brushes, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
doors, gaskets or cabinet liners. Do not use paper
towels, metallic scouring pads, or other abrasive cleaning
materials or strong alkaline solutions.
NOTE
If you set your temperature controls to turn off: cooling,
power to lights and other electrical components will
continue until you unplug the power cord from the wall
outlet.
_ CAUTION
* Pull the refrigerator straight out to move it. Shifting
it from side to side may damage flooring. Be careful
not to move the refrigerator beyond the plumbing
connections.
* Damp objects stick to cold metal surfaces. Do not touch
refrigerated surfaces with wet or damp hands.
iMPORTANT
If you store or move your refrigerator in freezing
temperatures, be sure to completely drain the water
supply system. Failure to do so could result in water
leaks when the refrigerator is put back into service.
Contact a service representative to perform this
operation.
Part
interior & Door •
Liners
Door Gaskets •
Drawers & Bins •
Glass Shelves •
e
e
Toe Grille *
e
e
Exterior &
Handles
Exterior &
Handles
(Stainless Steel •
Models Only)
Replacing Light •
Bulbs
e
e
e
e
Care & Cleaning Tips
What To Use Tips and Precautions
Soap and water Use 2 tablespoons of baking soda in ] quart of warm water. Be
Baking soda and water sure to wring excess water out of sponge or cloth before cleaning
around controls, light bulb or any electrical part.
Wipe gaskets with a dean soft cloth.
Use a soft cloth to dean drawer runners and tracks.
AJiow glass to warm to room temperature before immersing in warm
water.
Vacuum dust from front of toe grille. Remove toe grille (see Installation
Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse
and dry.
Do not use commercial household cleaners containing ammonia, bJeach
or alcohol to clean handles. Use a soft cloth to dean smooth handles.
DO NOT use a dry cloth to clean smooth doors.
Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Soap and water
Soap and water
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mildliquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Stainless Steel Cleaners
Unplug refrigerator
Wear gloves
Remove light cover
Replace old bulb
Replace light cover
Plug in the refrigerator
Clean stainless steel front and handles with non-abrasive soapy water
and a dishcloth. Rinse with clean water and a soft cloth. Use a non-
abrasive stainless steel cleaner. These cleaners can be purchased at
most home improvement or major department stores. Always follow
manufacturer's instructions. Do not use household cleaners containing
ammonia or bleach.
NOTE: Always clean, wipe and dry with the grain to prevent
scratching. Wash the rest of the cabinet with warm water and mild
liquid detergent. Rinse well, and wipe dry with a clean soft cloth.
CAUTION: Wear gloves when replacing light bulbs to avoid getting
cut.
Use same wattage when replacing bulb
19
Care & Cleaning {continued)
Never Clean Condenser (some models)
If your refrigerator is equipped with a Never Clean
condenser, there's no need to clean the condenser under
normal operating conditions. If the refrigerator is
operated under particularly dusty or greasy conditions,
or if there is significant pet traffic in your home, it may
be necessary to periodically clean the condenser for
maximum efficiency.
Replacing the freezer light bulb (some
models)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Unsnap light cover as shown.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
Replacing Mid=Level Refrigerator light bulb
(some models)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Unsnap light cover.
4. Unscrew and replace old bulb(s) with an appliance bulb
of the same wattage.
5. Replace light cover.
6. Remember to plug the refrigerator back in.
_ CAUTION
Wear gloves to avoid cuts when replacing light bulbs.
Freezer Light CoverRemoval
_u|bs (2)
ht
Cover
Refrigerator Mid-Level Light Cover Removal
Short Vacations
Long Vacations
Moving
Vacation and Moving Tips
* Leave refrigerator operating during vacations of 3 weeks or less.
* Use all perishable items from refrigerator compartment.
Turn automatic Icemaker off: and empty ice bucket, even if you will only be gone for a few
days.
Remove all food and ice if you will be gone one month or more.
Turn off: automatic Icemaker and turn water supply valve to closed position.
Turning refrigerator controls to "OFF" by pressing and holding the On/Off button for 3
seconds (electronic) or turning control knobs to "0" (manual) on the mechanical controls only
controls your refrigerator's cooling system. To turn off: power to your refrigerator you must
unplug the power cord from the wall outlet.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.
Remove all food and ice.
If using handcart, load from side.
Adiust rollers all the way up to protect them during sliding or moving.
Pad cabinet exterior to avoid scratching surface.
2O

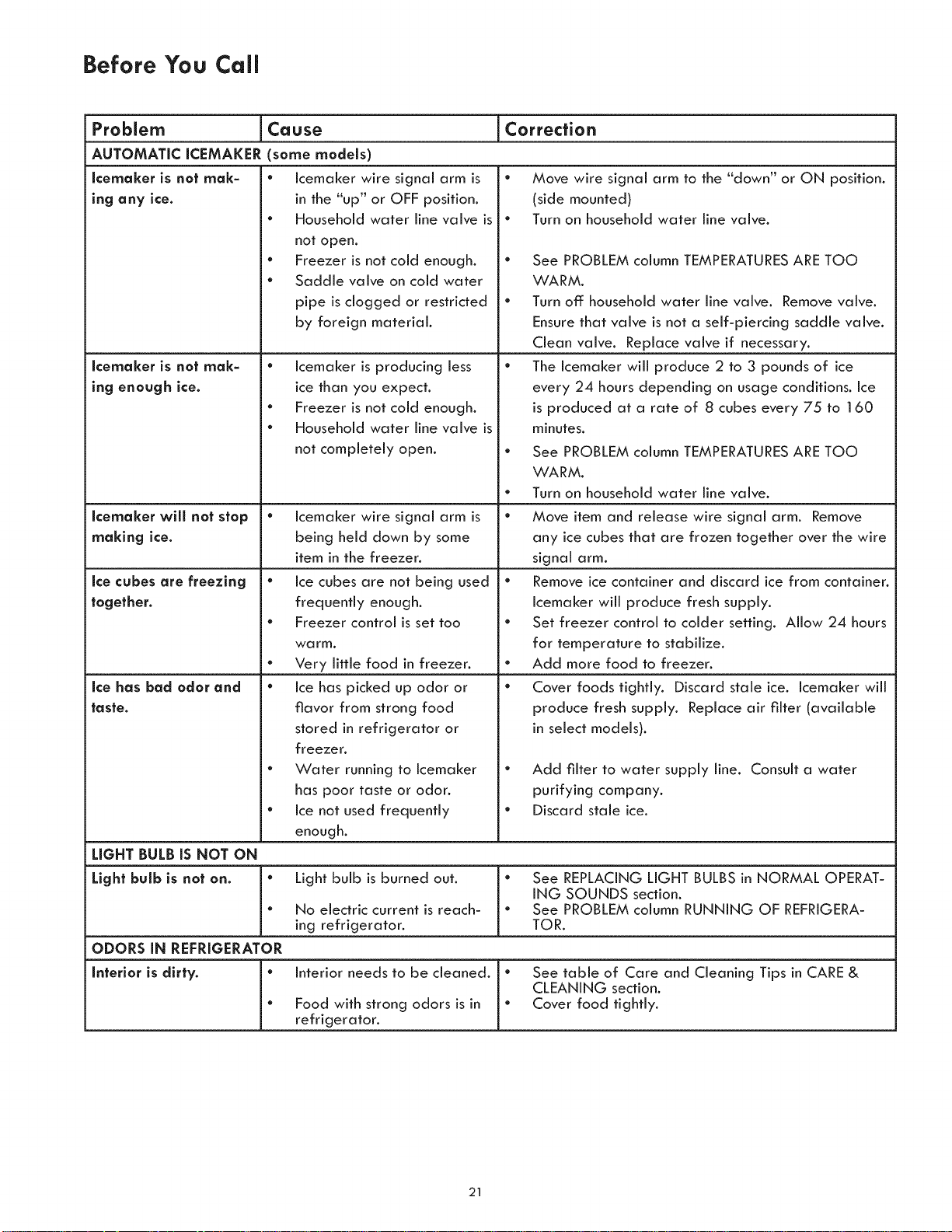

Before You Call
Problem ICause
AUTOMATIC ICEMAKER (some models)
Icemaker is not mak- * Icemaker wire signal arm is
ing any ice. in the _up" or OFF position.
lCorrection
Icemaker is not mak-
ing enough ice.
Icemaker will not stop
making ice.
Ice cubes are freezing
together.
Ice has bad odor and
taste.
* Household water line valve is
not open.
* Freezer is not cold enough.
* Saddle valve on cold water
pipe is clogged or restricted
by foreign material.
* Icemaker is producing less
ice than you expect.
* Freezer is not cold enough.
* Household water line valve is
not completely open.
* Icemaker wire signal arm is
being held down by some
item in the freezer.
* Ice cubes are not being used
frequently enough.
* Freezer control is set too
warm.
* Very little food in freezer.
* Ice has picked up odor or
flavor from strong food
stored in refrigerator or
freezer.
* Water running to Icemaker
has poor taste or odor.
* Ice not used frequently
enough.
* Move wire signal arm to the _down" or ON position.
(side mounted)
* Turn on household water line valve.
* See PROBLEM column TEMPERATURES ARE TOO
WARM.
* Turn off: household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
* The Icemaker will produce 2 to 3 pounds of ice
every 24 hours depending on usage conditions. Ice
is produced at a rate of 8 cubes every 75 to 160
minutes.
* See PROBLEM column TEMPERATURES ARE TOO
WARM.
* Turn on household water line valve.
* Move item and release wire signal arm. Remove
any ice cubes that are frozen together over the wire
signal arm.
* Remove ice container and discard ice from container.
Icemaker will produce fresh supply.
* Set freezer control to colder setting. Allow 24 hours
for temperature to stabilize.
* Add more food to freezer.
* Cover foods tightly. Discard stale ice. Icemaker will
produce fresh supply. Replace air filter (available
in select models).
* Add filter to water supply line. Consult a water
purifying company.
* Discard stale ice.
LIGHT BULB IS NOT ON
Light bulb is not on. * Light bulb is burned out. * See REPLACING LIGHT BULBS in NORMAL OPERAT-
ING SOUNDS section.
• No electric current is reach- * See PROBLEM column RUNNING OF REFRIGERA-
ing refrigerator. TOR.
ODORS iN REFRIGERATOR
interior is dirty. * interior needs to be cleaned. * See table of Care and Cleaning Tips in CARE &
CLEANING section.
• Food with strong odors is in * Cover food tightly.
refrigerator.
21
Before You Call
Problem I Cause I Corredion
OPENING/CLOSING OF DOORS/DRAWERS
o
Door(s) will not close.
Compressor does not
run.
Door was closed too hard,
causing other door to open
slightly.
Refrigerator is not level. It
rocks on the floor when
moved slightly.
o
o
Close both doors gently.
Ensure floor is level and solid, and can adequately sup-
port the refrigerator. Contact a carpenter to correct a
sagging or sloping floor.
Drawers are difncult to • Food is touching shelf on top • Remove top layer of items in drawer.
move. of drawer. • Ensure drawer is properly installed on track.
• Track that drawers slide on • Clean drawer, rollers, and track. See table of Care
is dirty, and Cleaning Tips in CARE & CLEANING section.
RUNNING OF REFRIGERATOR
o
Refrigerator runs too
much or too long.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
• Room or outside weather is
hot.
• Refrigerator has recently
been disconnected for a
period of time.
• Automatic Icemaker is oper-
ating.
• Doors are opened too fre-
quently or too long.
• Fresh Food/freezer door
may be slightly open.
• Fresh Food/freezer gasket
is dirty, worn, cracked, or
poorly fitted.
Compressor goes off • Thermostat keeps the refrig-
and on frequently, erator at a constant tem-
perature.
TEMPERATURES ARE TOO COLD
• Freezer control is set too
cold.
Freezer temperature
too cold. Fresh Food
temperature is satis-
factory.
Fresh Food tempera- •
ture too cold. Freezer
temperature is satis-
factory.
Food stored in draw- •
ers freezes.
Fresh Food control is set too
cold.
This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
• Check house lights. Call local electric company.
• It is normal for the refrigerator to work longer under
these conditions.
• It takes 8-1 2 hours for the refrigerator to cool down
completely.
• Icemaker operation causes refrigerator to run slightly
more.
• Warm air entering the refrigerator causes it to run
more. Open doors less often.
• Ensure refrigerator is level. Keep food and containers
from blocking door. See PROBLEM column OPENING/
CLOSING OF DOORS/DRAWERS.
• Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired
temperatures.
• This is normal. Refrigerator goes on and off to keep
temperature constant.
• Set freezer control to a warmer setting. Allow 24 hours
for temperature to stabilize.
• Set fresh food control to a warmer setting. Allow 24
hours for temperature to stabilize.
Fresh Food control is set too • See solution above.
cold.
22

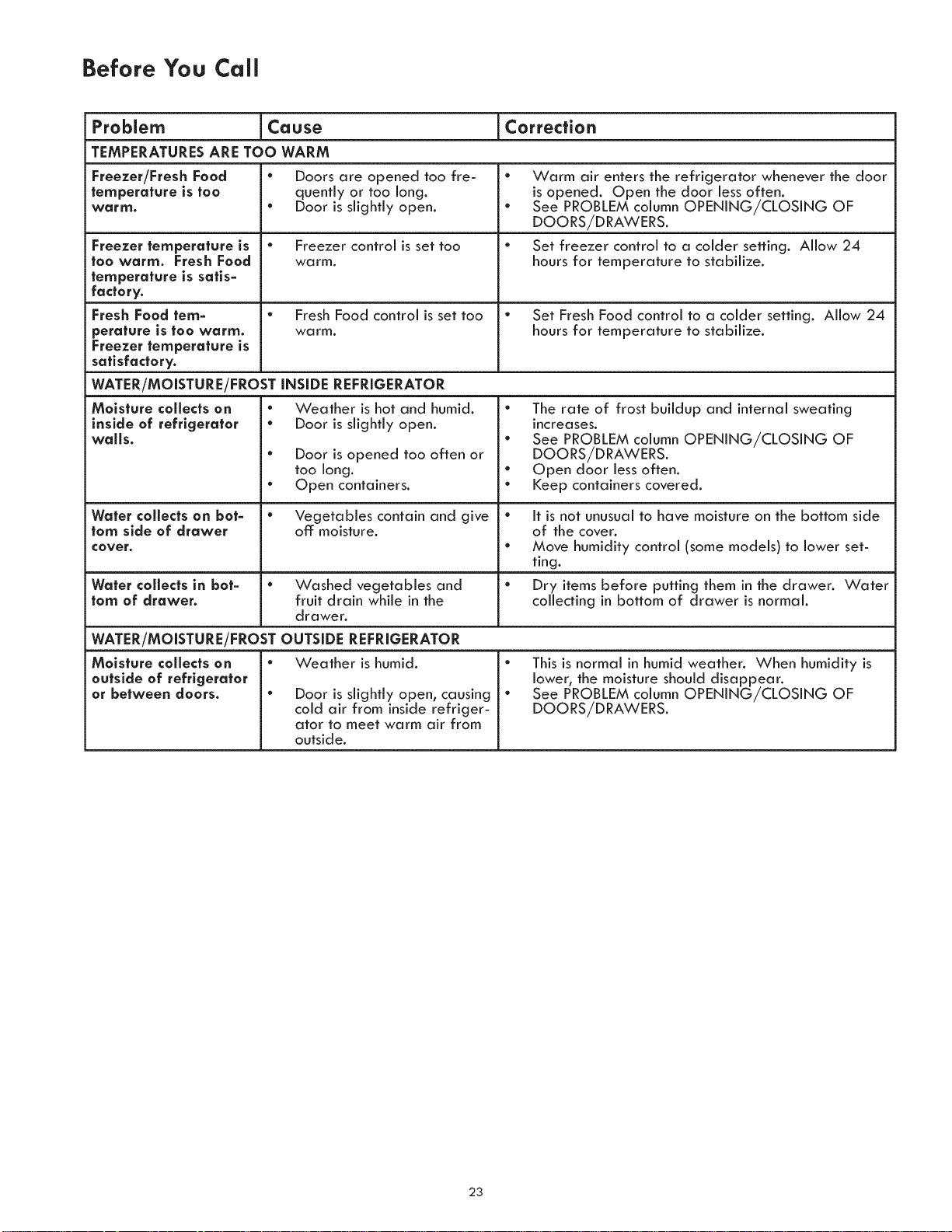

Before You Call
Problem j Cause i Correction
TEMPERATURES ARE TOO WARM
Freezer/Fresh Food * Doors are opened too fie- * Warm air enters the refrigerator whenever the door
temperature is too quenfly or too long. is opened. Open the door less often.
warm. • Door is slightly open. • See PROBLEM column OPENING/CLOSING OF
DOORS/DRAWERS.
Freezer temperature is • Freezer control is set too • Set freezer control to a colder setting. Allow 24
too warm. Fresh Food warm. hours for temperature to stabilize.
temperature is saris-
factory.
Fresh Food tern- • Fresh Food control is set too * Set Fresh Food control to a colder setting. Allow 24
perature is too warm. warm. hours for temperature to stabilize.
Freezer temperature is
satisfactory.
WATER/MOISTURE/FROST iNSiDE REFRIGERATOR
Moisture collects on
inside of refrigerator
walls.
* Weather is hot and humid.
* Door is slightly open.
* Door is opened too often or
too long.
* Open containers.
* The rate of frost buildup and internal sweating
increases.
* See PROBLEM column OPENING/CLOSING OF
DOORS/DRAWERS.
* Open door less often.
* Keep containers covered.
Water collects on hot- * Vegetables contain and give * It is not unusual to have moisture on the bottom side
tom side of drawer off: moisture, of the cover.
cover. • Move humidity control (some models) to lower set-
ting.
Water collects in hot- * Washed vegetables and * Dry items before putting them in the drawer. Water
torn of drawer, fruit drain while in the collecting in bottom of drawer is normal.
drawer.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
• Weather is humid.
Door is slightly open, causing
cold air from inside refriger-
ator to meet warm air from
outside.
Moisture collects on
outside of refrigerator
or between doors.
* This is normal in humid weather. When humidity is
lower, the moisture should disappear.
* See PROBLEM column OPENING/CLOSING OF
DOORS/DRAWERS.
23
Your Home
For troubleshooting, product manuals and expert advice:
www.managemylife.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com _w.sears:ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran£ais:
1-800-LE-FOYER M°
(1-800-533-6937)
www.sears.ca
www.sears.com
TM
® Registered Trademark / Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / MDMarque deposee de Sears Brands, LLC
