Welcome
Thank you for purchasing your Thor Kitchen Appliance! We appreciate
your business and we recommend that you read this entire User’s
Manual before operating your new appliance for the first time.
This manual contains instructions on how to properly install and set up
your new range, as well as insights into the unique features that our
product offers. Please keep this manual for future reference, as it
contains answers to questions that you might have as you begin to cook.
For any inquiries, please reach our customer service support at +1 877-
288-8099 at our business hours or email service@thorgroup.us.
Thank you,
Thor Group
This manual applies to the following models’ series:

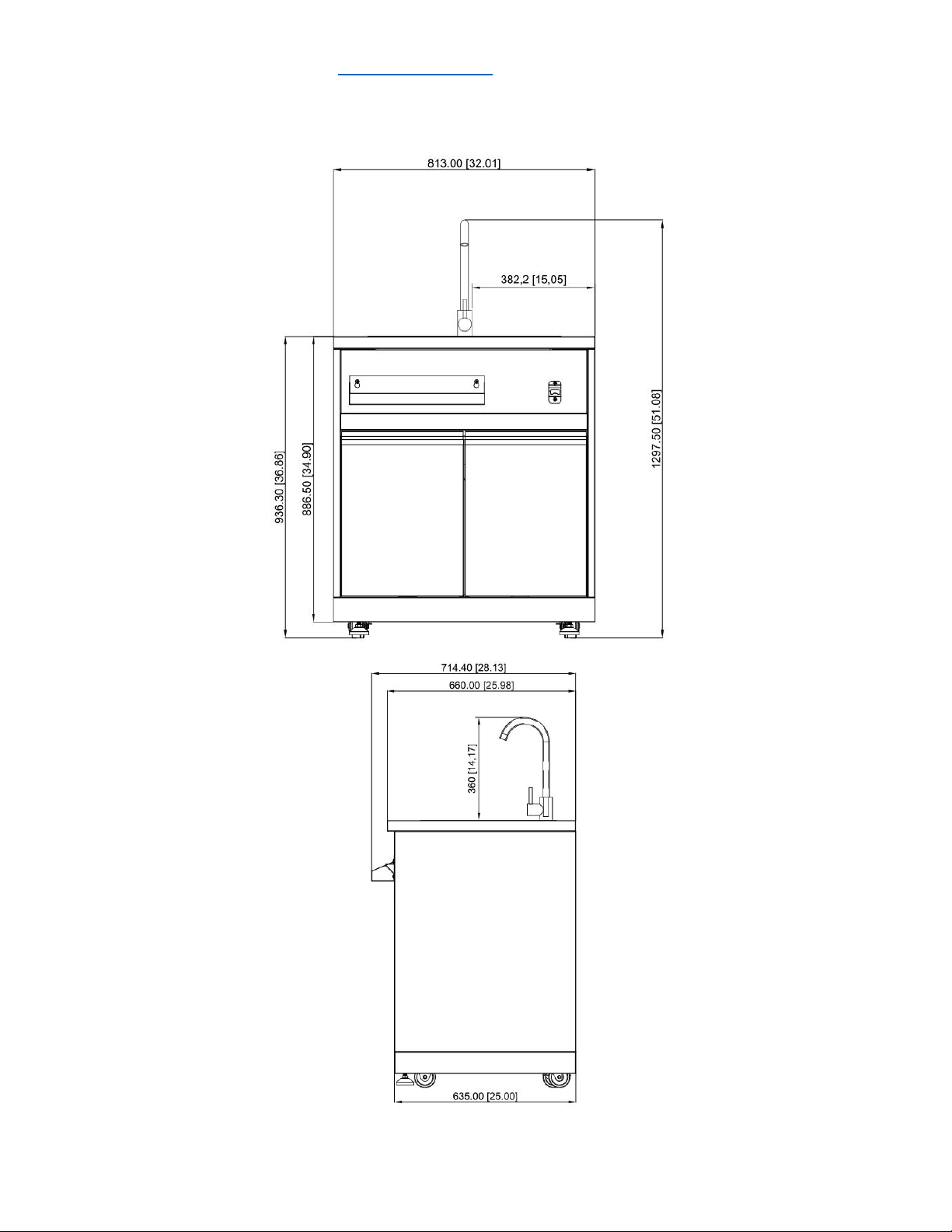

Model # MK01SS304 (Outdoor Sink Cabinet)
service@thorgroup.us +1 877-288-8099

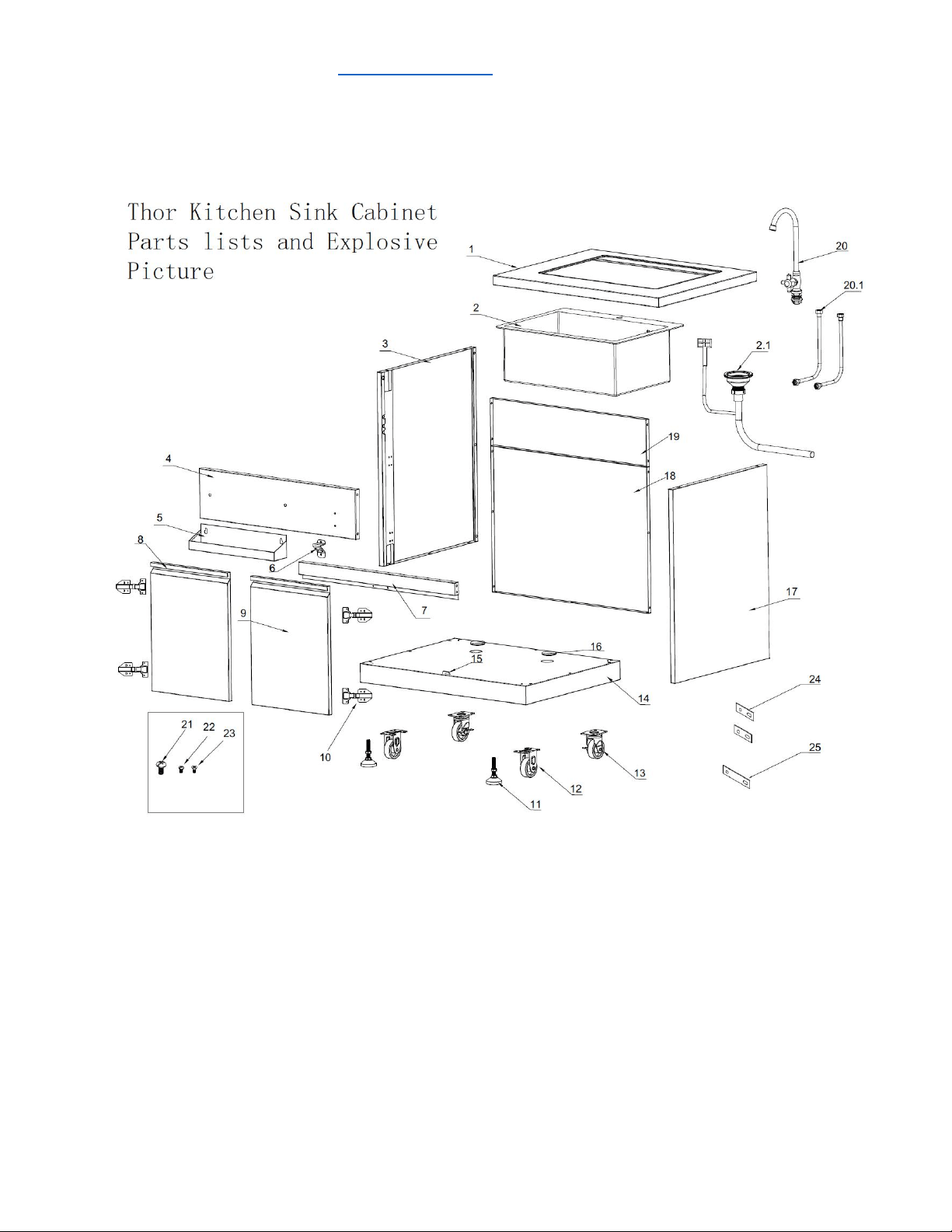

Parts List
If you are missing any part, please contact Thor Kitchen Customer Service
for help.
Explosive #
Part #
Part Name
Quantity
1
20.01.008067-000-A0
Countertop welding assembly
1
2
05.99.008008-000-A1
Water sink
1
2.1
05.19.008004-000-A0
Drainpipe with anti-overflow
1
3
20.01.008089-000-A00
Left side panel welding assembly
1
4
20.01.001038-000-A0
Decoration panel welding assembly
1
5
20.01.001044-000-A0
Condiment holder welding
assembly
1
6
04.01.008033-000-A0
Bottle opener
1
7
20.01.001040-000-A1
Beam welding assembly
1
8
22.99.009182-000-A0
Left door welding assembly
1
9
22.99.009181-000-A0
Right door welding assembly
1
10
05.03.008001-000-A0
Door hinge
4
11
05.01.008004-000-A0
Supporting leg
2
12
05.10.000122-000-A0
Fixed caster
2
13
05.10.000123-000-A0
Universal caster with brake
2
14
20.01.008069-000-A0
Bottom panel welding assembly
1
15
04.01.002596-000-A1
Door barrier strip
1
16
06.08.008078-000-A0
Gasket
2
17
20.01.008088-000-A0
Right side panel welding assembly
1
18
20.01.001042-000-A0
Back panel welding assembly A
1
19
20.01.008091-000-A0
Back panel welding assembly B
1
20
05.99.008009-000-A0
Faucet
1
20.1
05.19.008005-000-A0
Faucet inlet pipe
2
21
06.02.000093-000-A0
¼” Philips thumb head screw with
anti-slip design
52
22
06.10.000042-000-A0
Philips thumb head screw
4
23
06.11.008056-000-A0
flat head screw
26
24
04.01.002580-000-A0

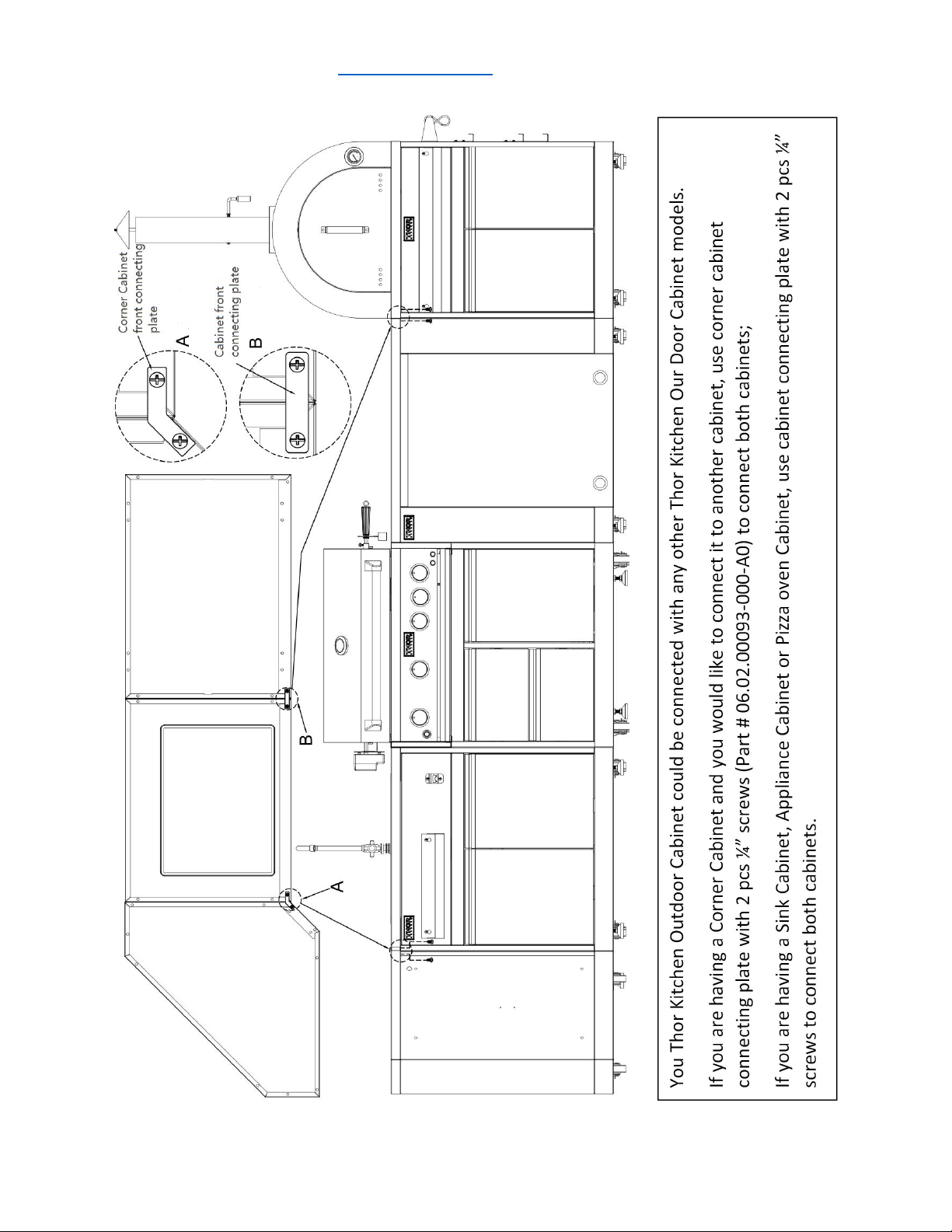

cabinet back connecting plate
2
25
04.01.002579-000-A0
cabinet front connecting plate
1
service@thorgroup.us +1 877-288-8099
Cabinet Installation

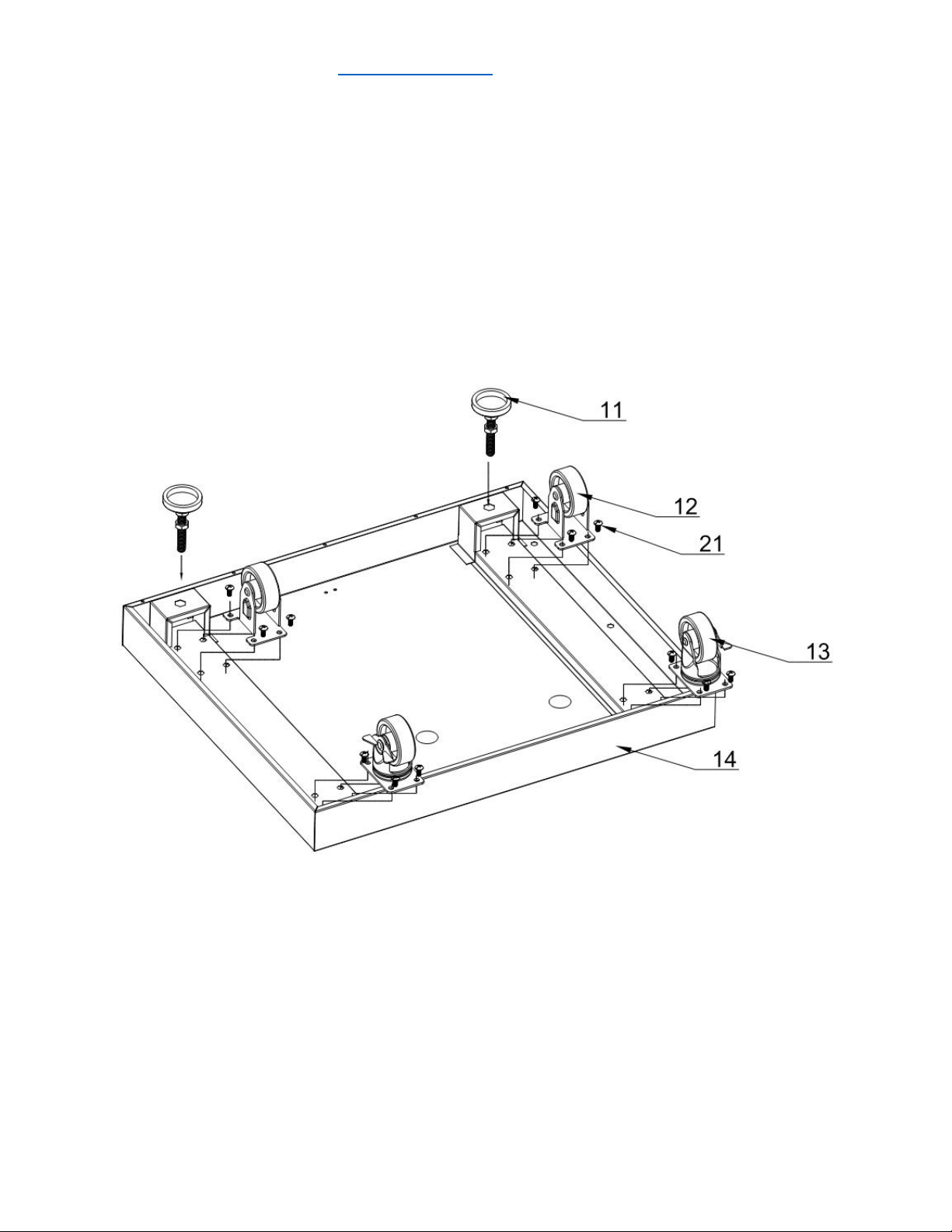

Step 1
1. Connect 2 pcs supporting leg (Part # 11) to bottom welding part, and
tighten two legs;
2. Connect 2 pcs Fixed caster (Part # 12) and 2 pcs universal caster with brake
(Part # 13) with 16 pcs ¼” Philips thumb head screw with anti-slip design
(Part # 21) to bottom welding part (Part # 14)
service@thorgroup.us +1 877-288-8099

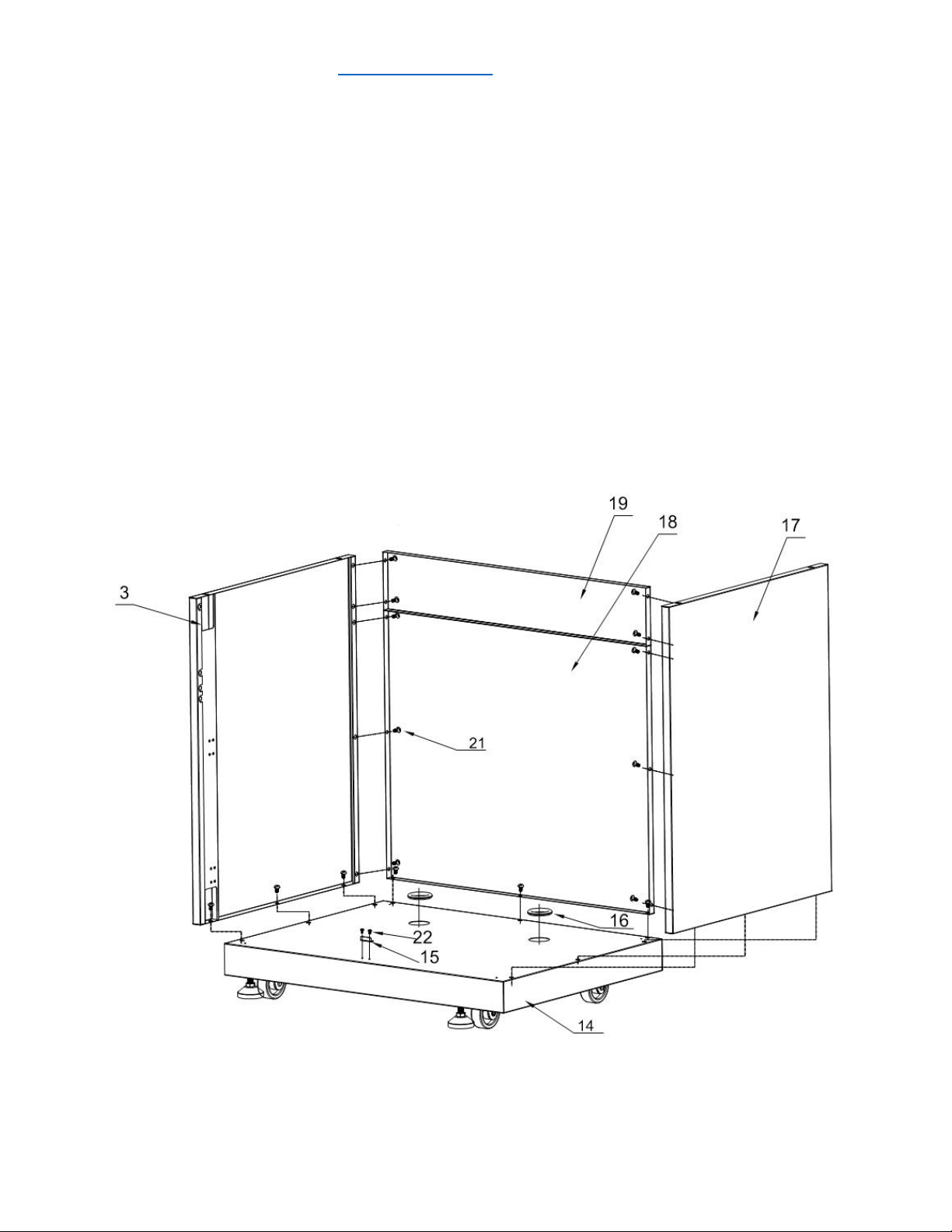

Step 2
1. Reverse back Bottom panel welding assembly (Part # 14). Install 2 pcs
Gasket (Part # 16) to Part # 14, and then use 2 pcs Philips thumb head
screw (Part # 22) to install Door barrier strip (Part # 15) to Part # 14;
2. Use 3 pcs ¼” Philips thumb head screw with anti-slip design (Part # 21) to
tighten Left side panel welding assembly (Part # 3) to Part # 14;
3. Use 3 pcs Part # 21 to tighten Right side panel welding assembly (Part # 17)
to Part #14;
4. Use 13 pcs Part # 21 to tighten Back panel welding assembly A (Part # 18)
and Back panel welding assembly B (Part # 19) with Part #13, #3 and #17.
5. Do not over-tighten all the screws until parts are lined up.
6.
service@thorgroup.us +1 877-288-8099

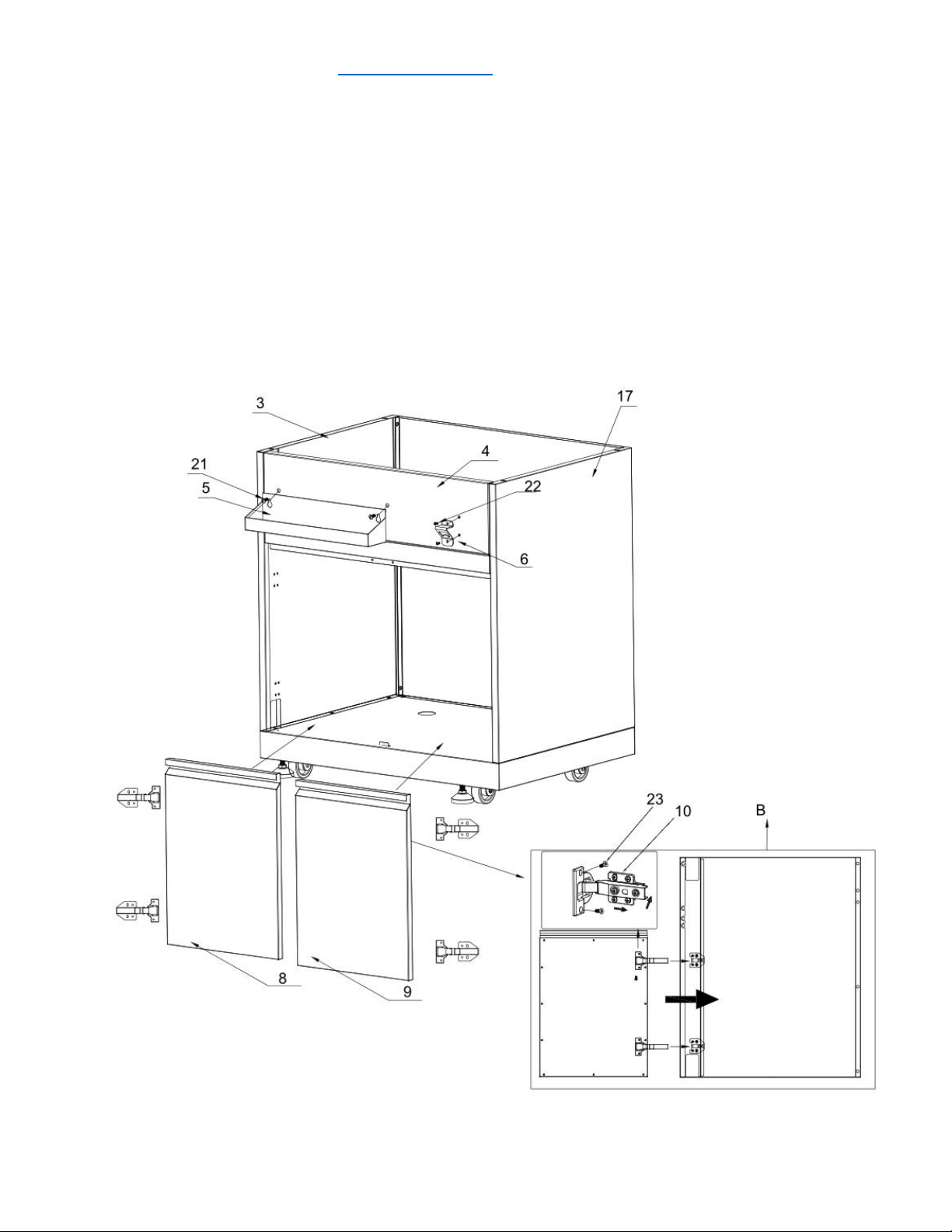

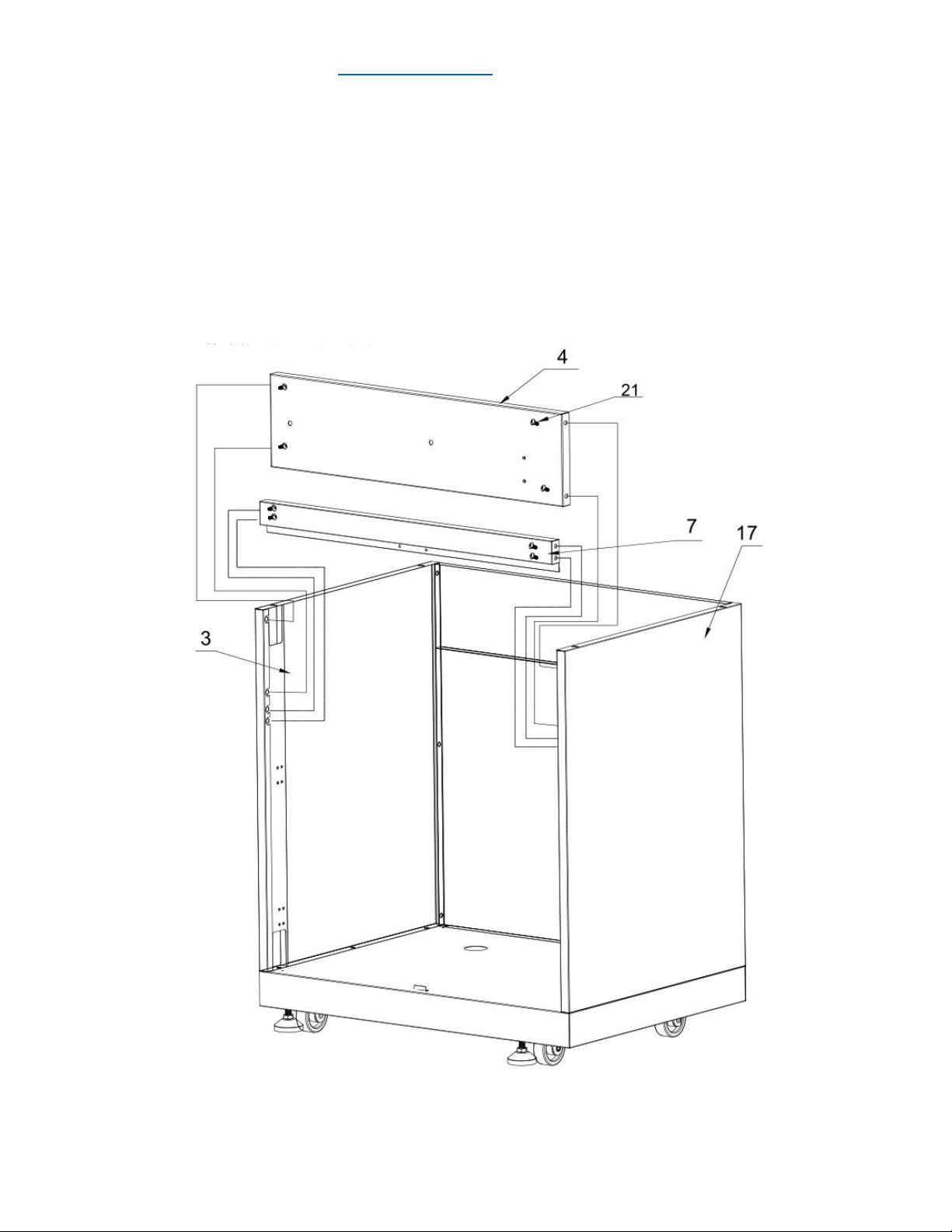

Step 4
1. Use 2 pcs Part # 21 to connect Condiment holder welding assembly (Part # 5) with Part
#4;
2. Use 2 pcs Philips thumb head screw (Part # 22) to connect bottle opener (Part # 6) with
Part #4;
3. Use 24 pcs flat head screw (Part # 23, Showing in Picture “B”) to install 4 pcs Door hinge
with Part # 3, Left door welding assembly (Part # 8), Right door welding assembly (Part #
9) and Right-side panel welding assembly (Part # 17).
4. Install Part # 8 to Part # 3 and install Part # 9 to Part # 17. Do not over-tighten all the
screws until parts are lined up.
service@thorgroup.us +1 877-288-8099

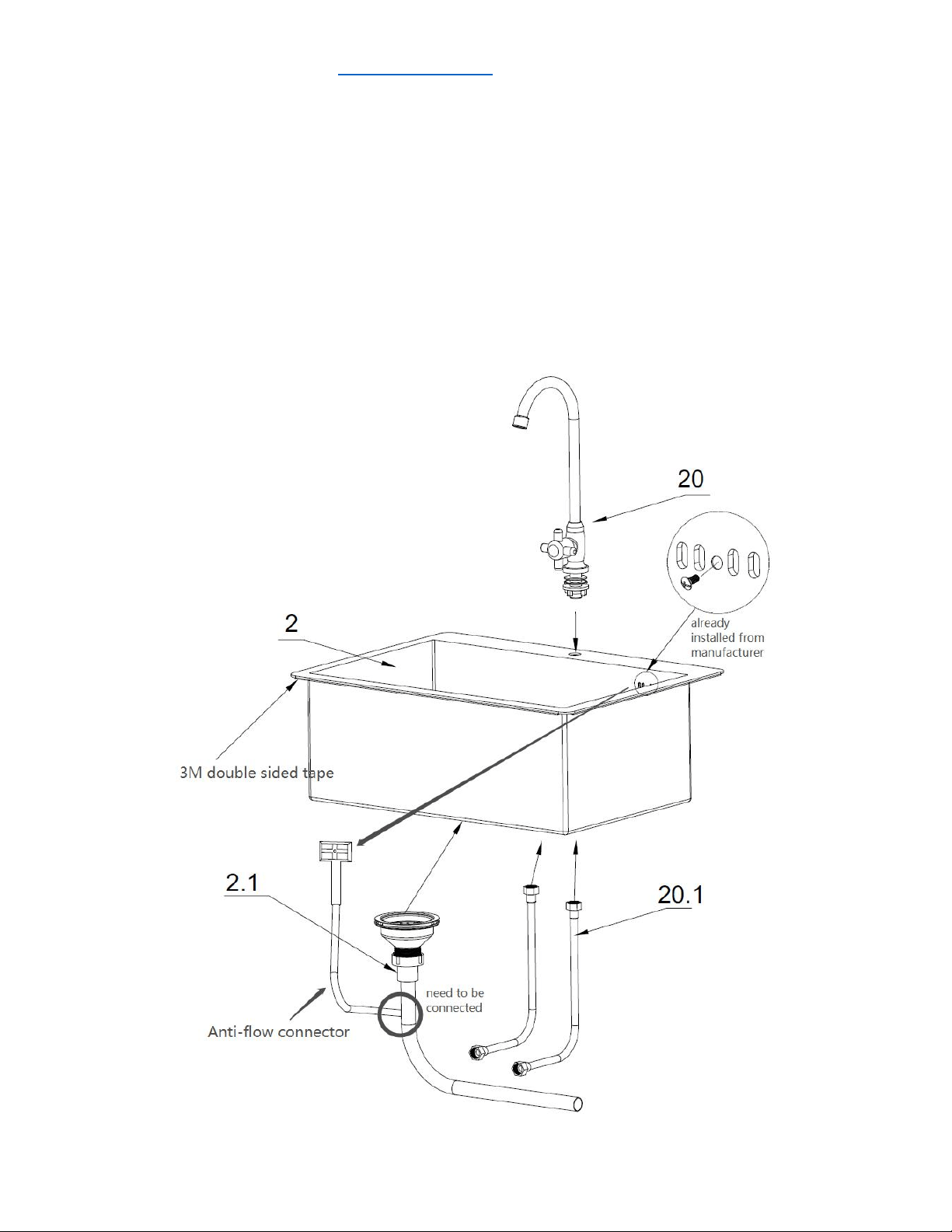

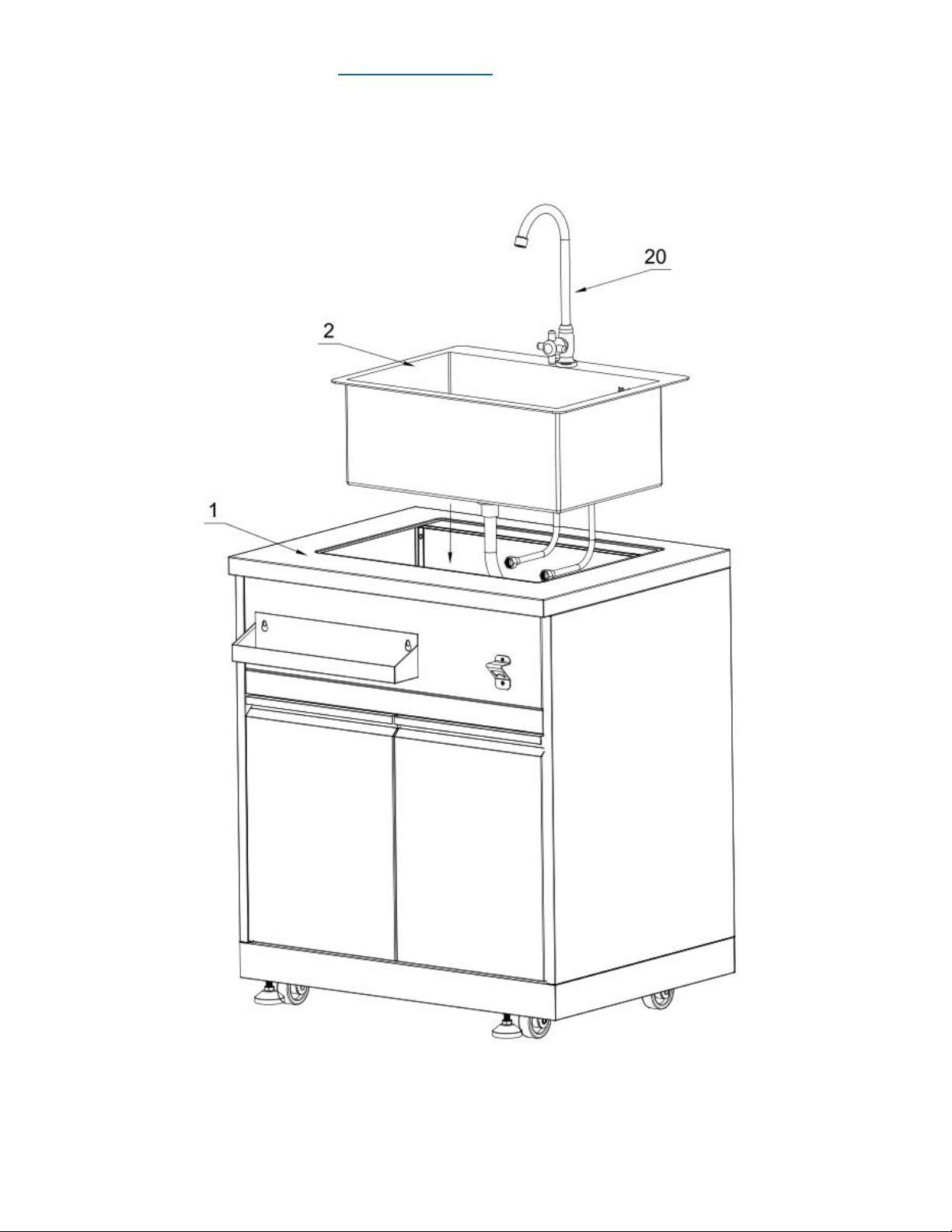

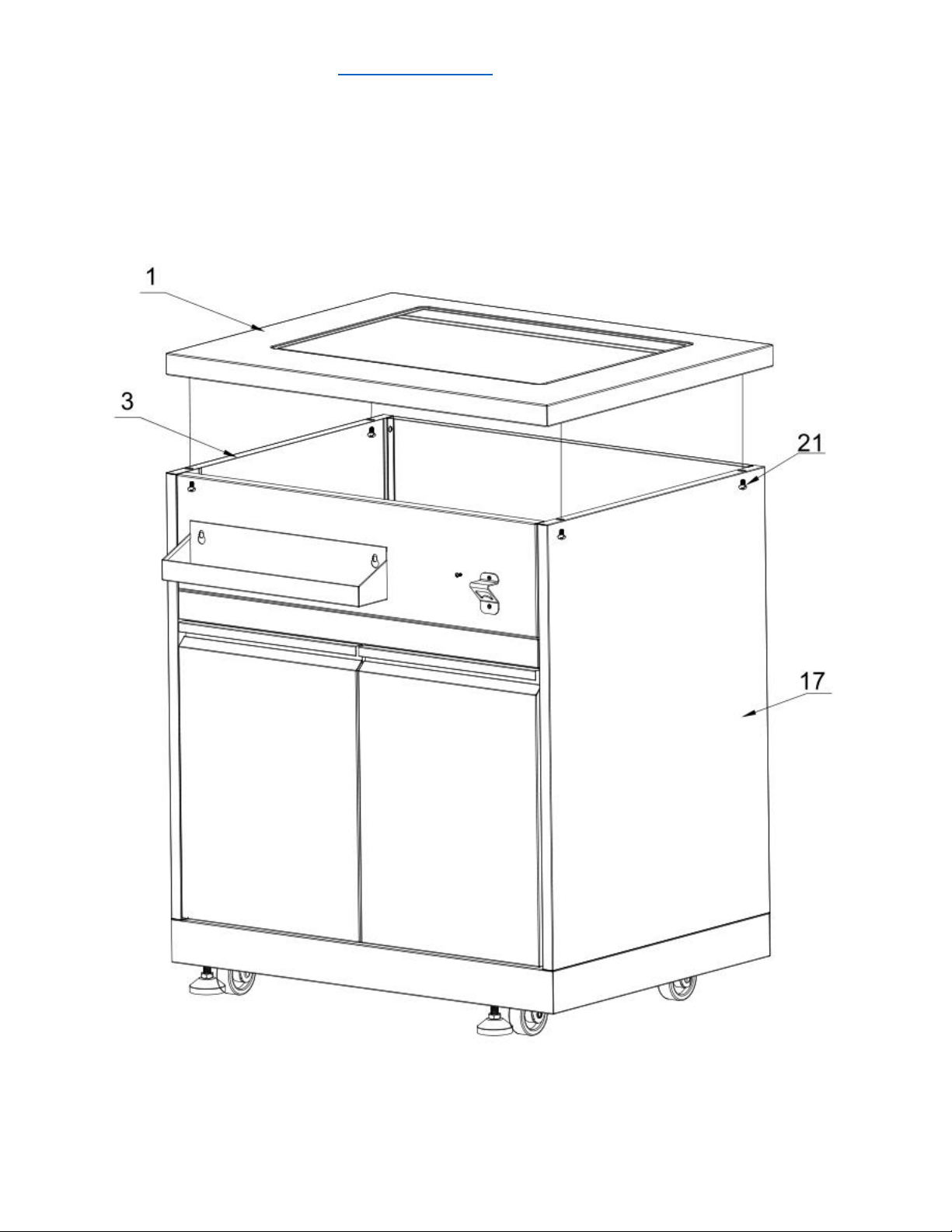

Step 7

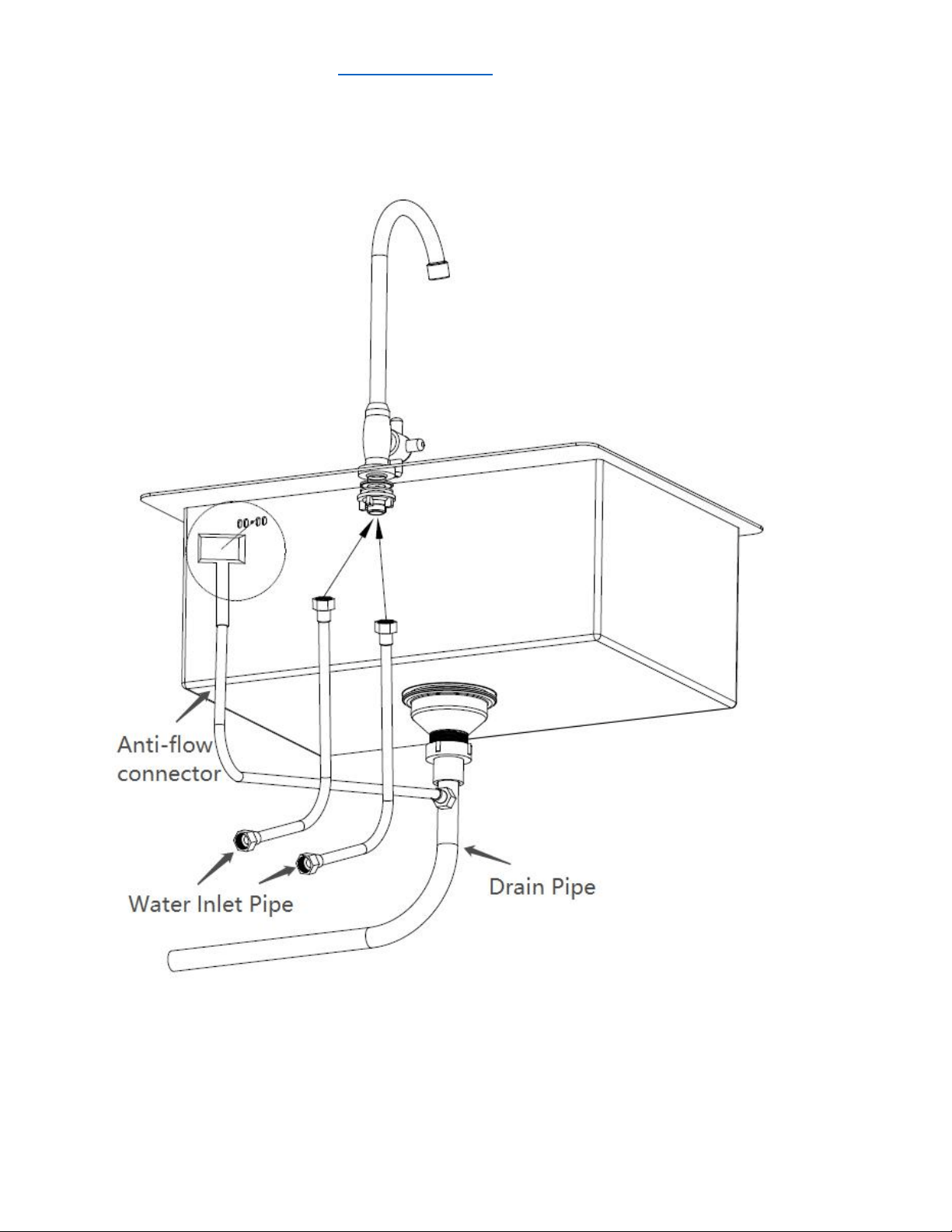

1. Install Faucet (Part # 20) to Water sink (Part # 2), then put 2 pcs water inlet
pipe (part of # 18) into the bottom of Part # 20;
2. Put Drain pipe with anti-overflow (Part # 2.1) to the bottom of Part # 2,
then use specialized screw 3/16” screw within Part # 2.1 to lock Anti-
overflow connector (already installed from the manufacturer), connect
anti-flow connector to the side of drain pipe;
3. Take out 3M double sided tape from the edge of the water sink.
