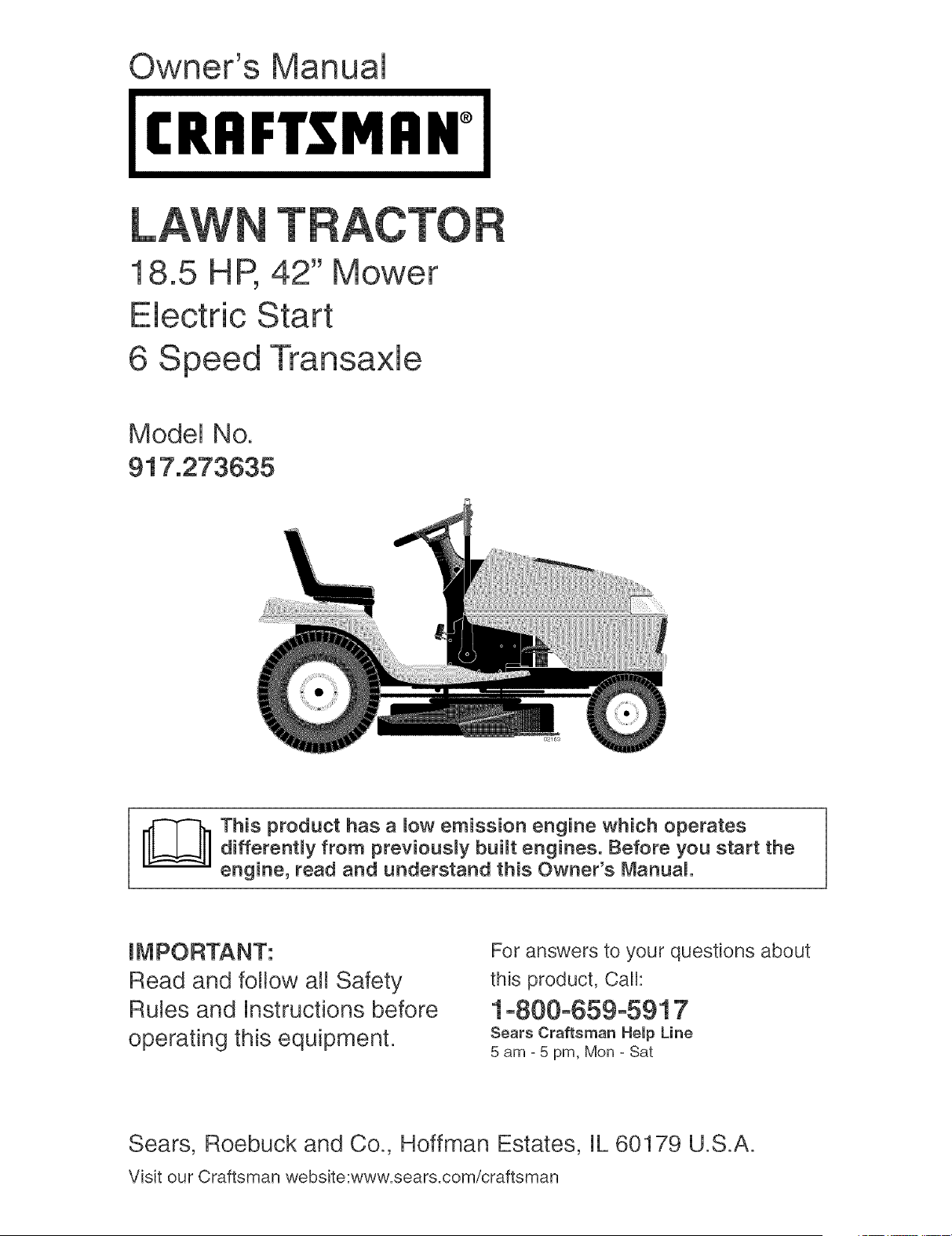

Craftsman 917273635 tractor User Manual

Owner's Manual

CRAFTSMIIN°

18.5 HE 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.273635

i_] his product has a mowemission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1_800-659°5917

Sears Craftsman Help Line

5 am o5 pm, Men o Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

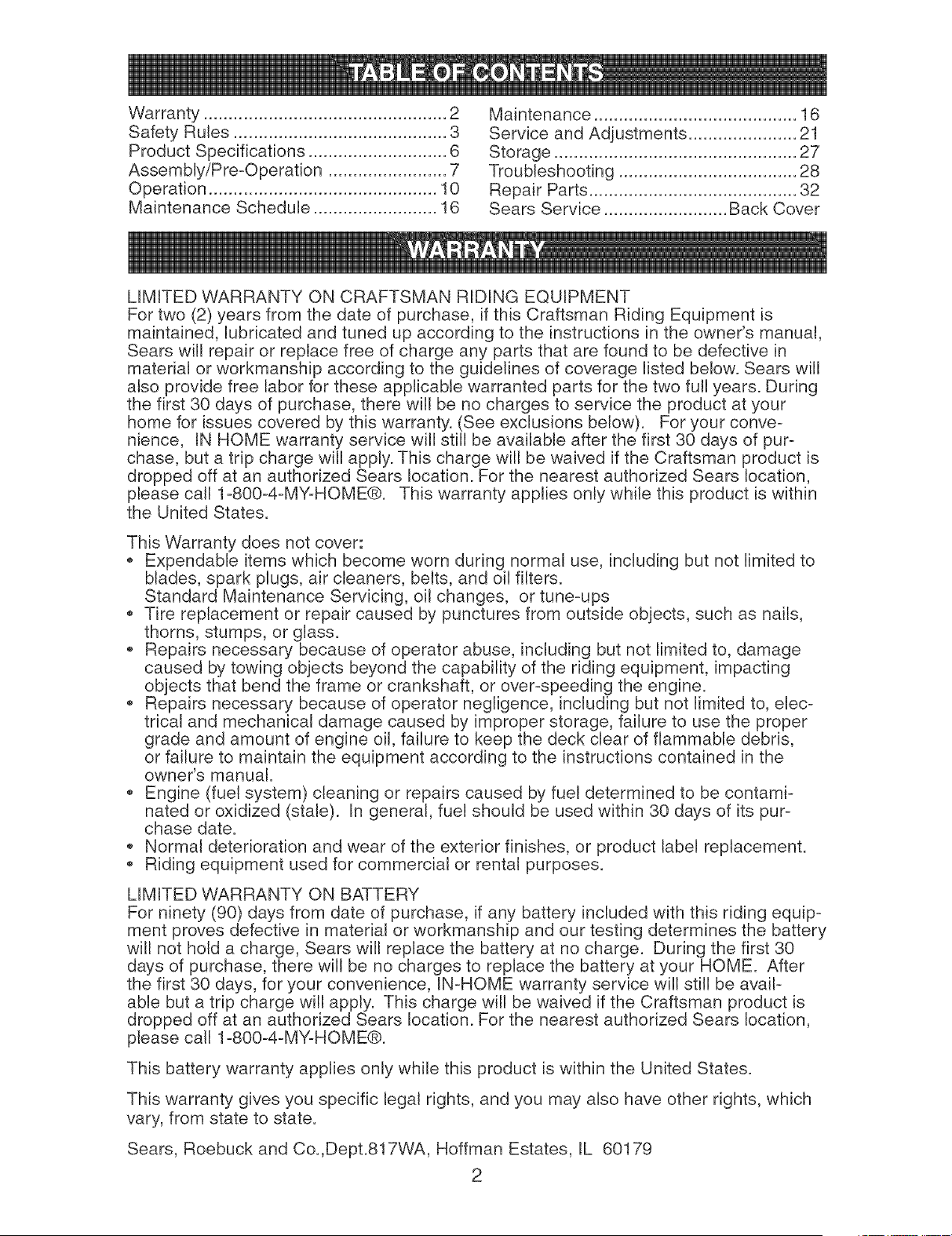

Warranty.................................................2

SafetyRules ...........................................3

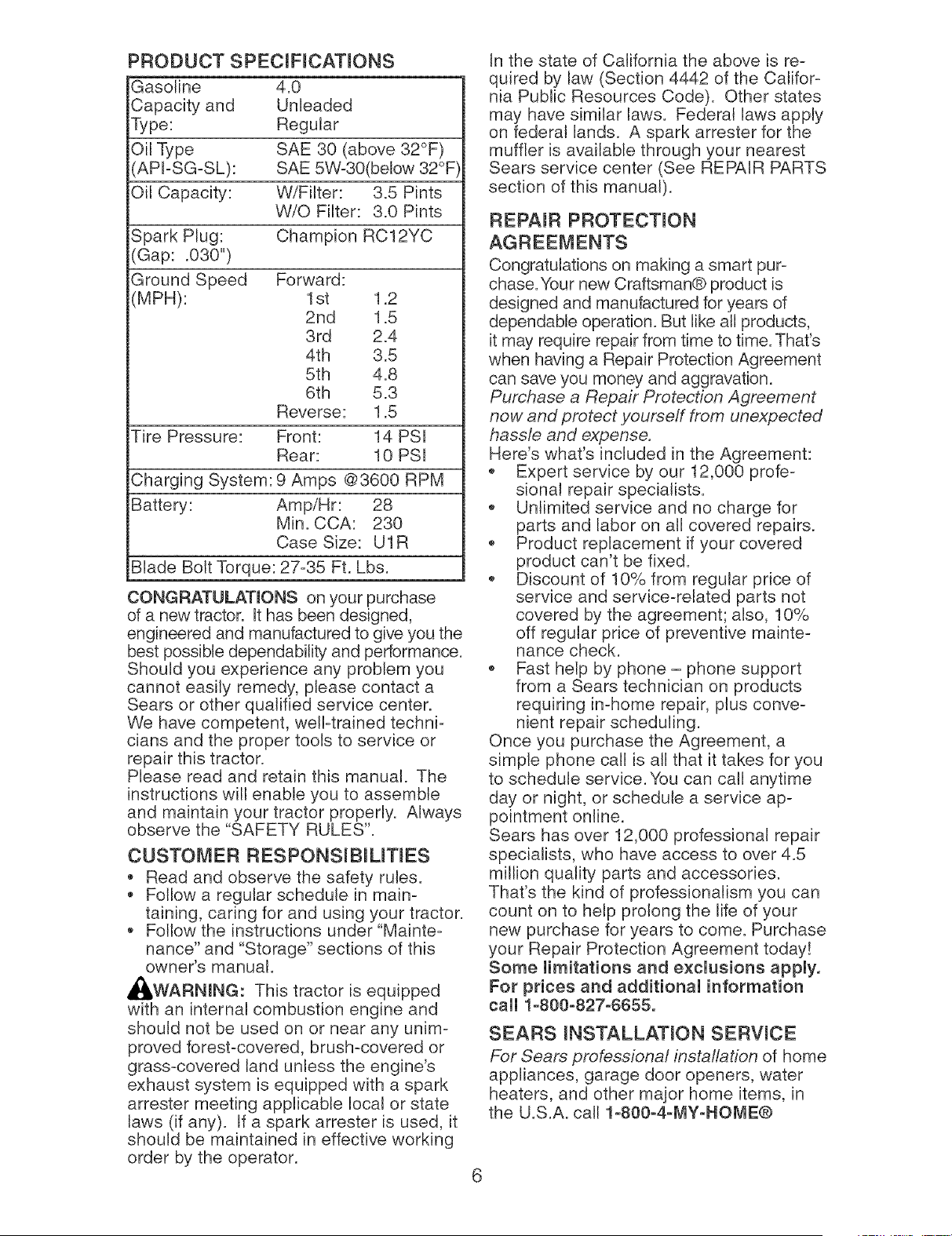

ProductSpecifications............................6

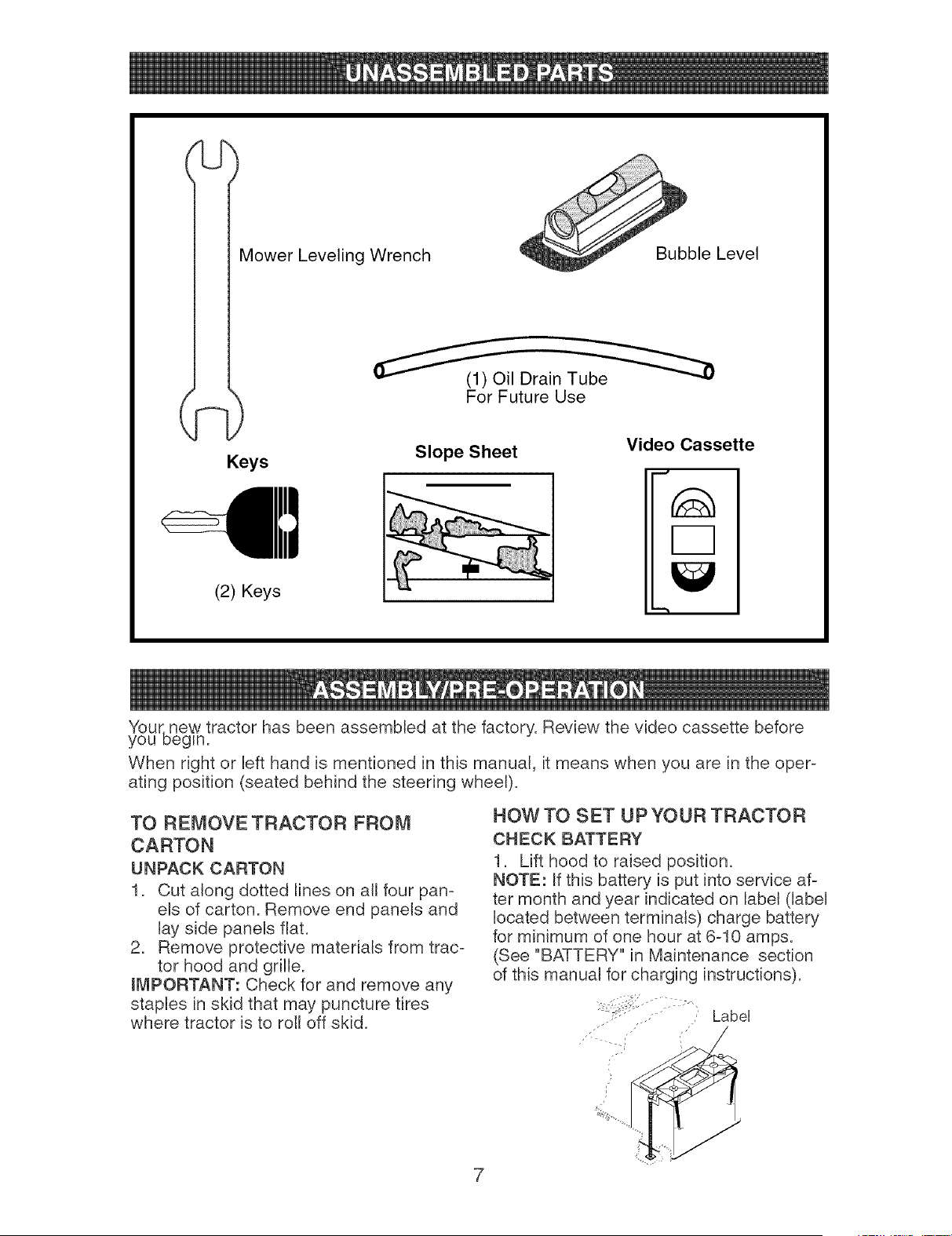

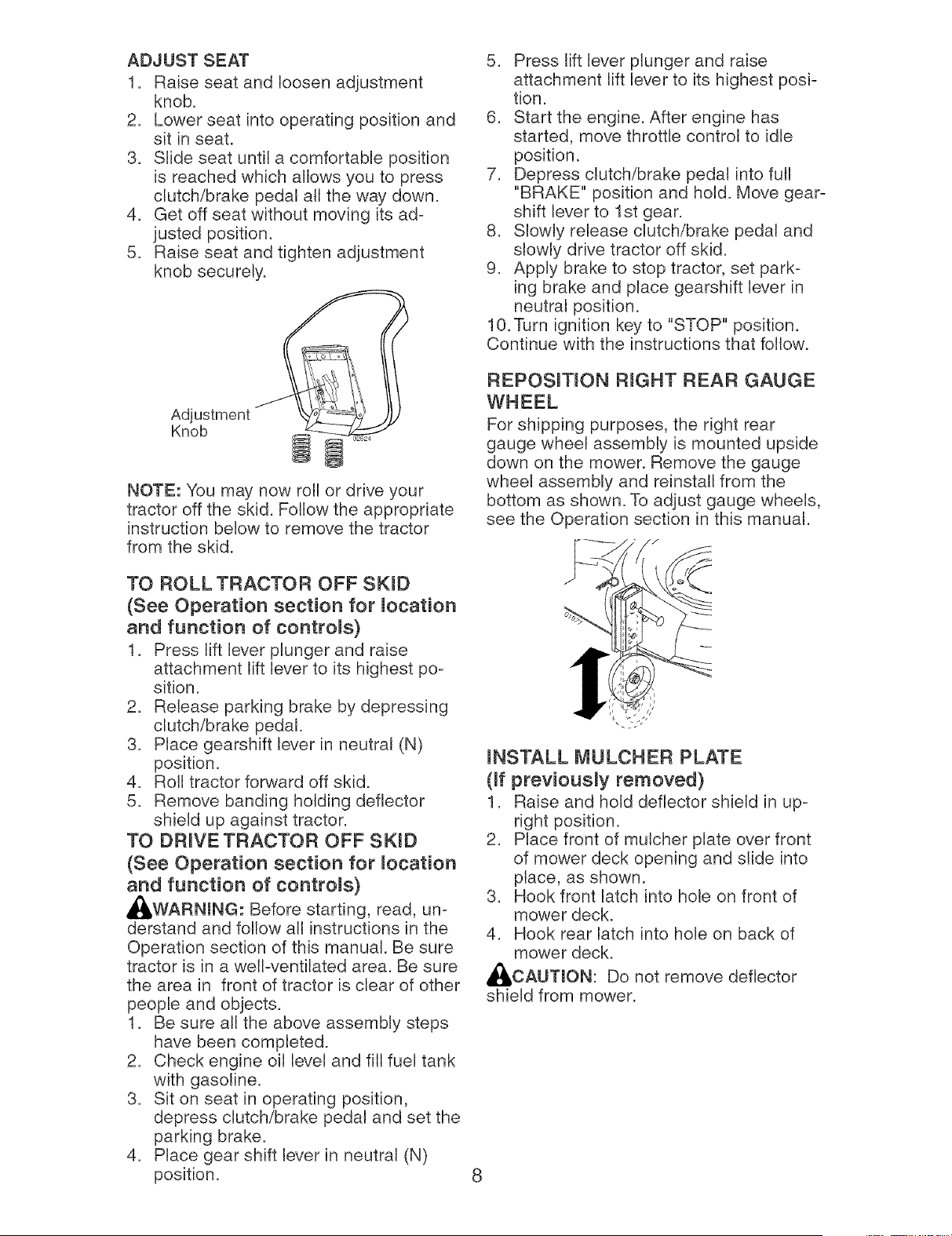

Assembly/Pre-Operation........................7

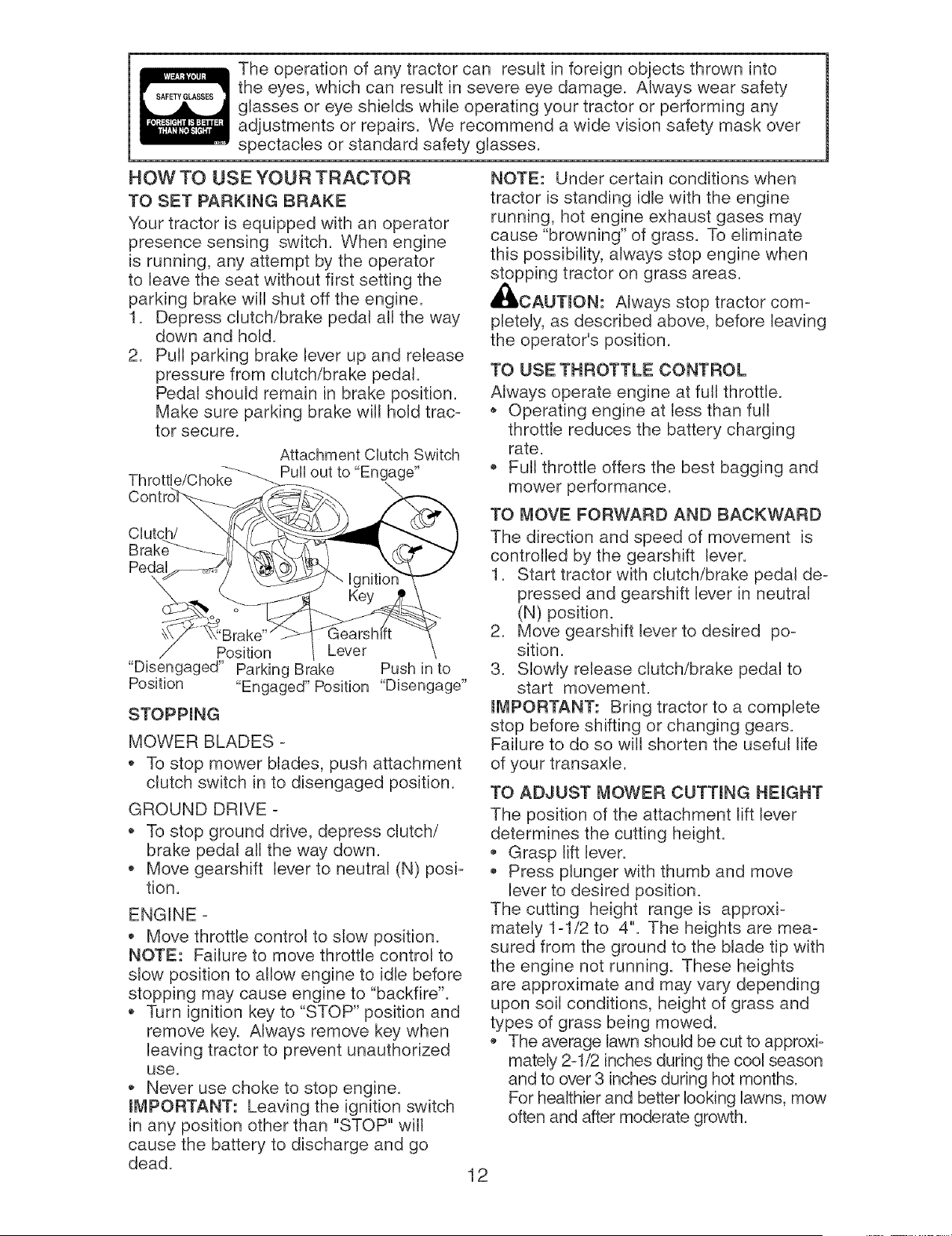

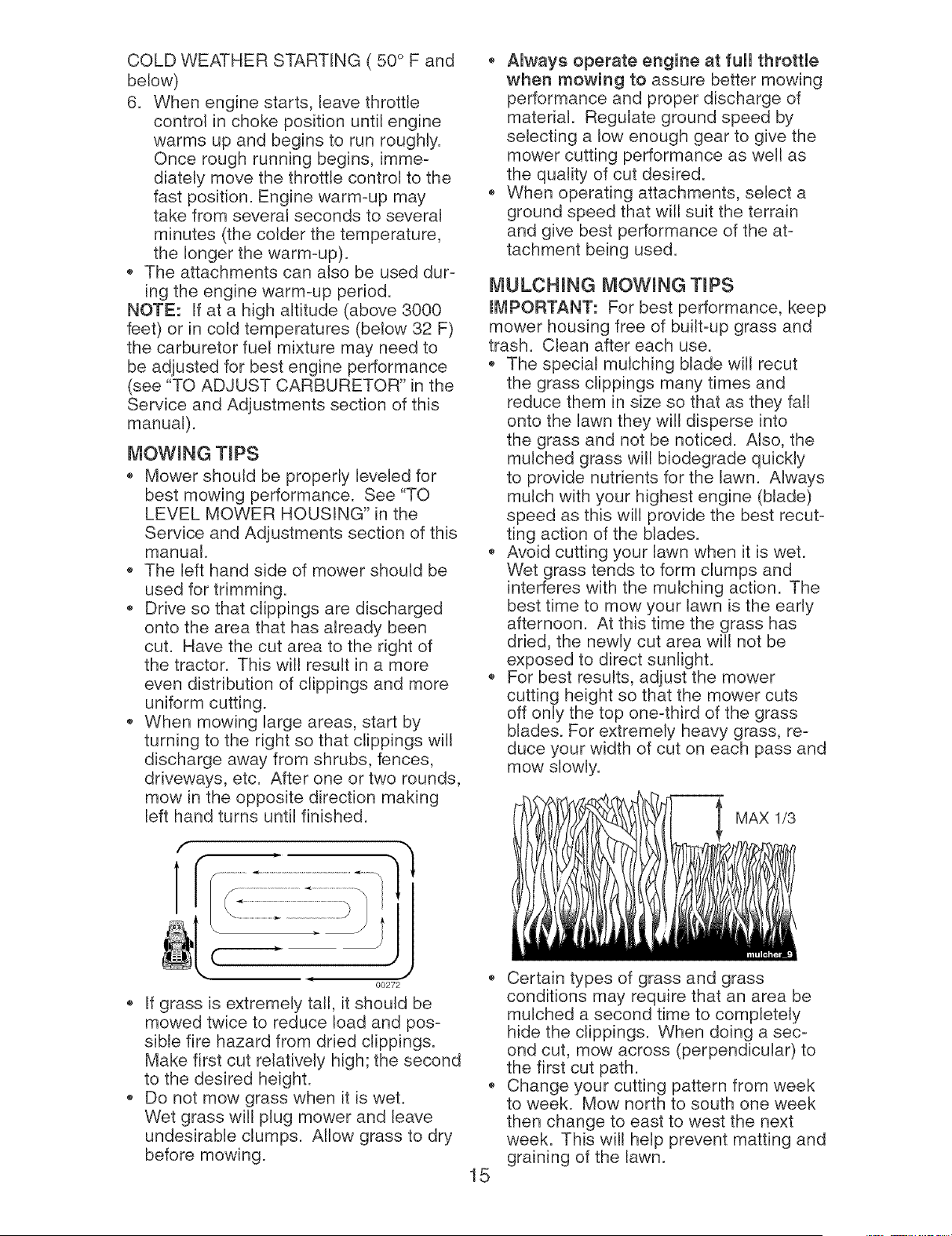

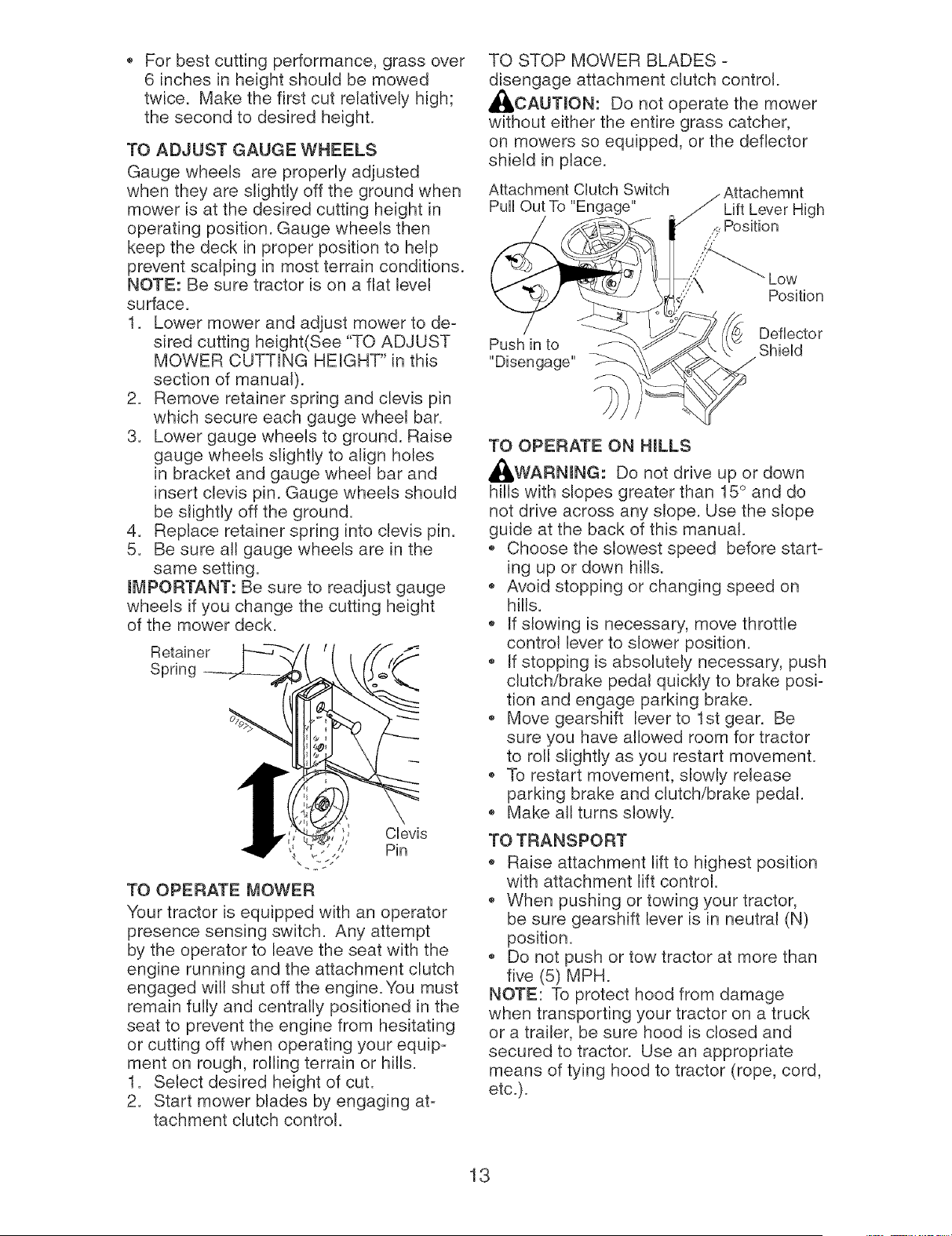

Operation..............................................10

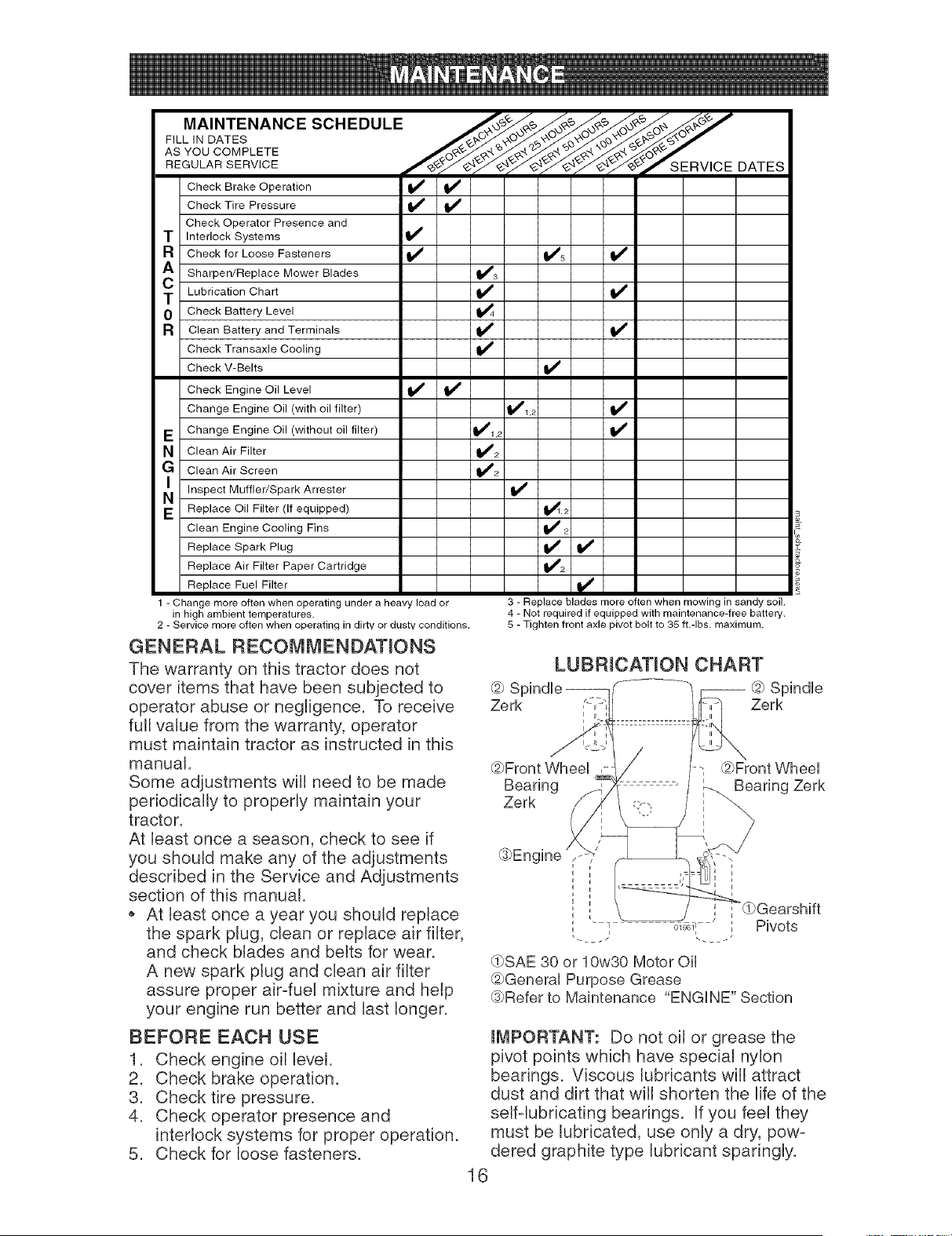

MaintenanceSchedule.........................16

Maintenance.........................................16

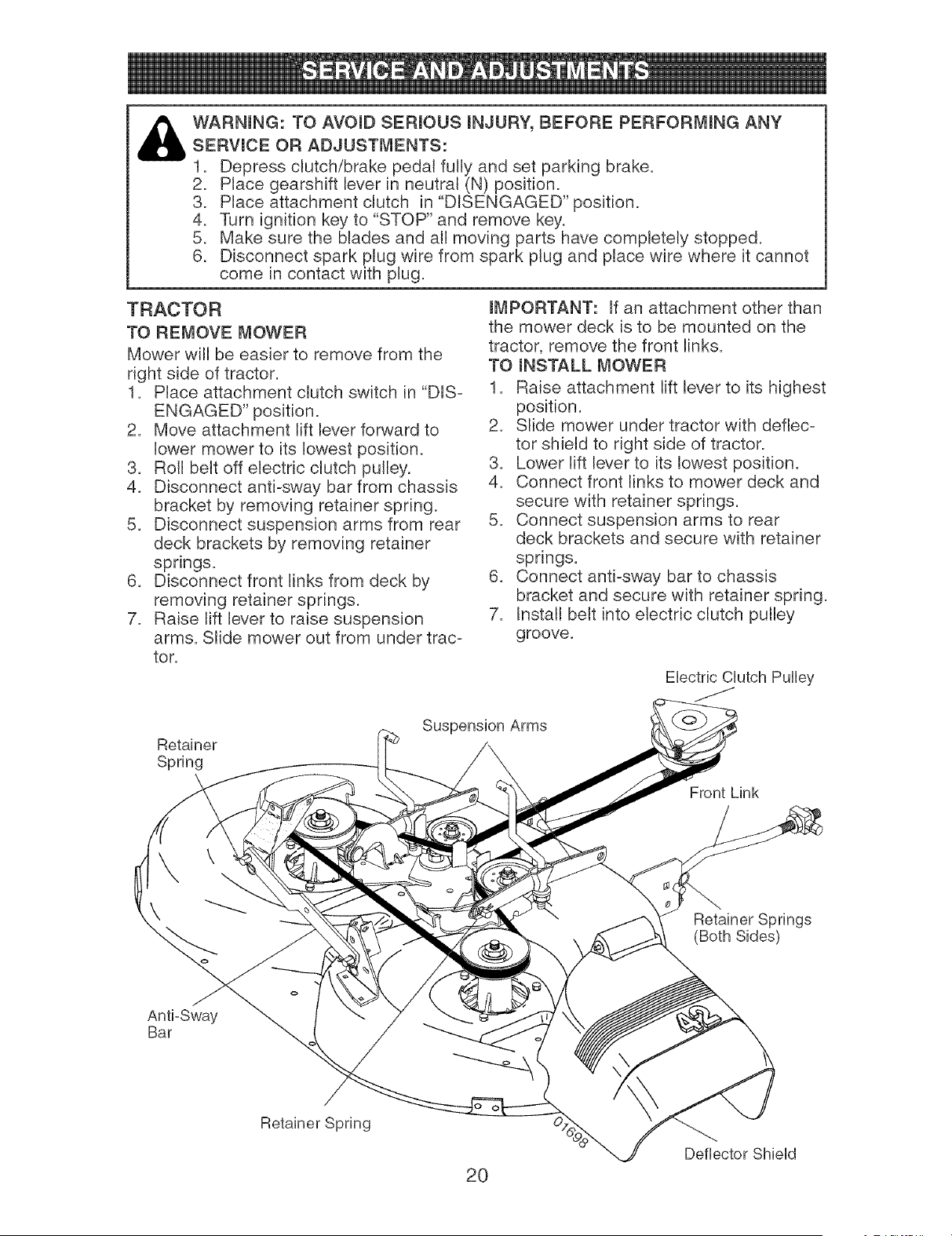

Service andAdjustments......................21

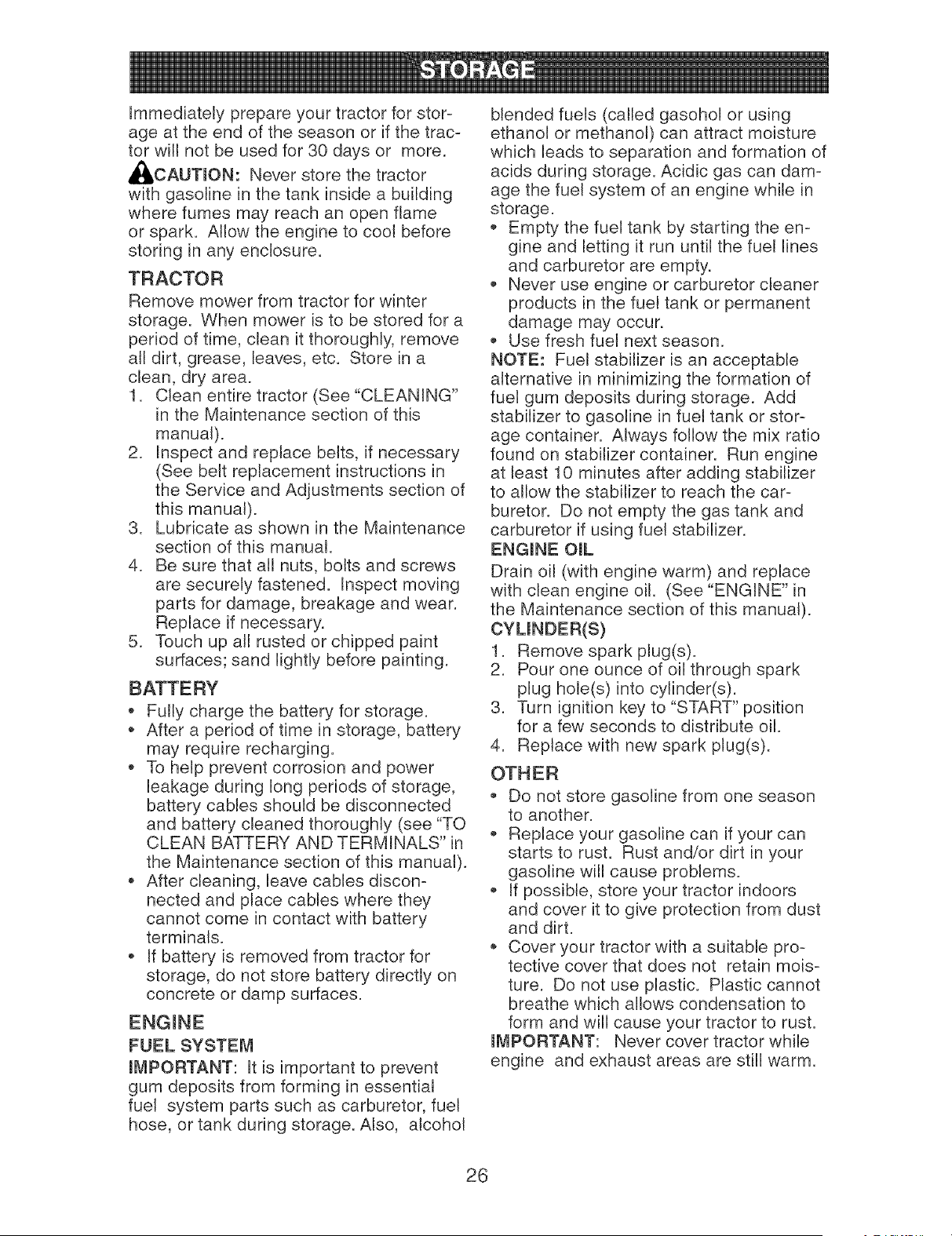

Storage.................................................27

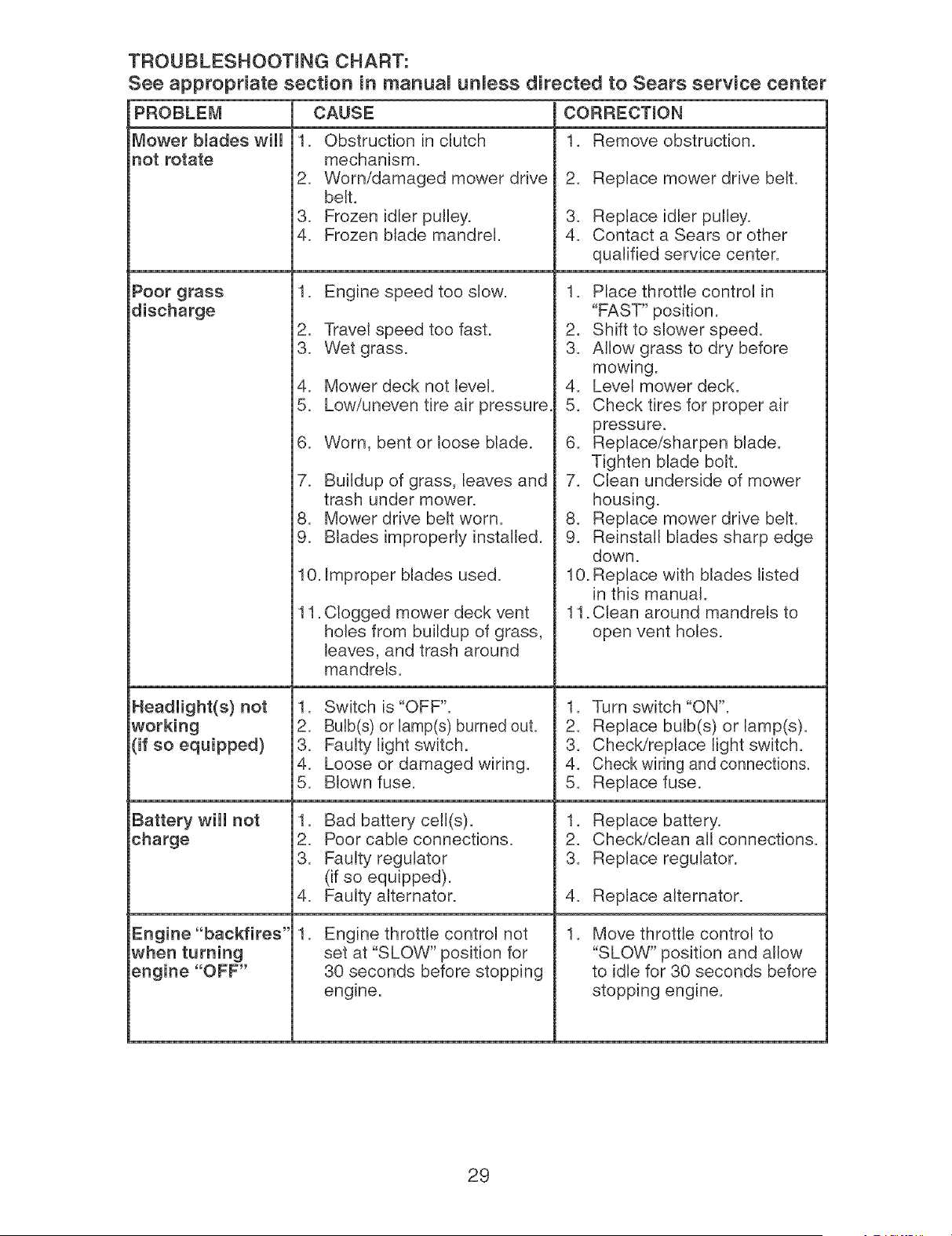

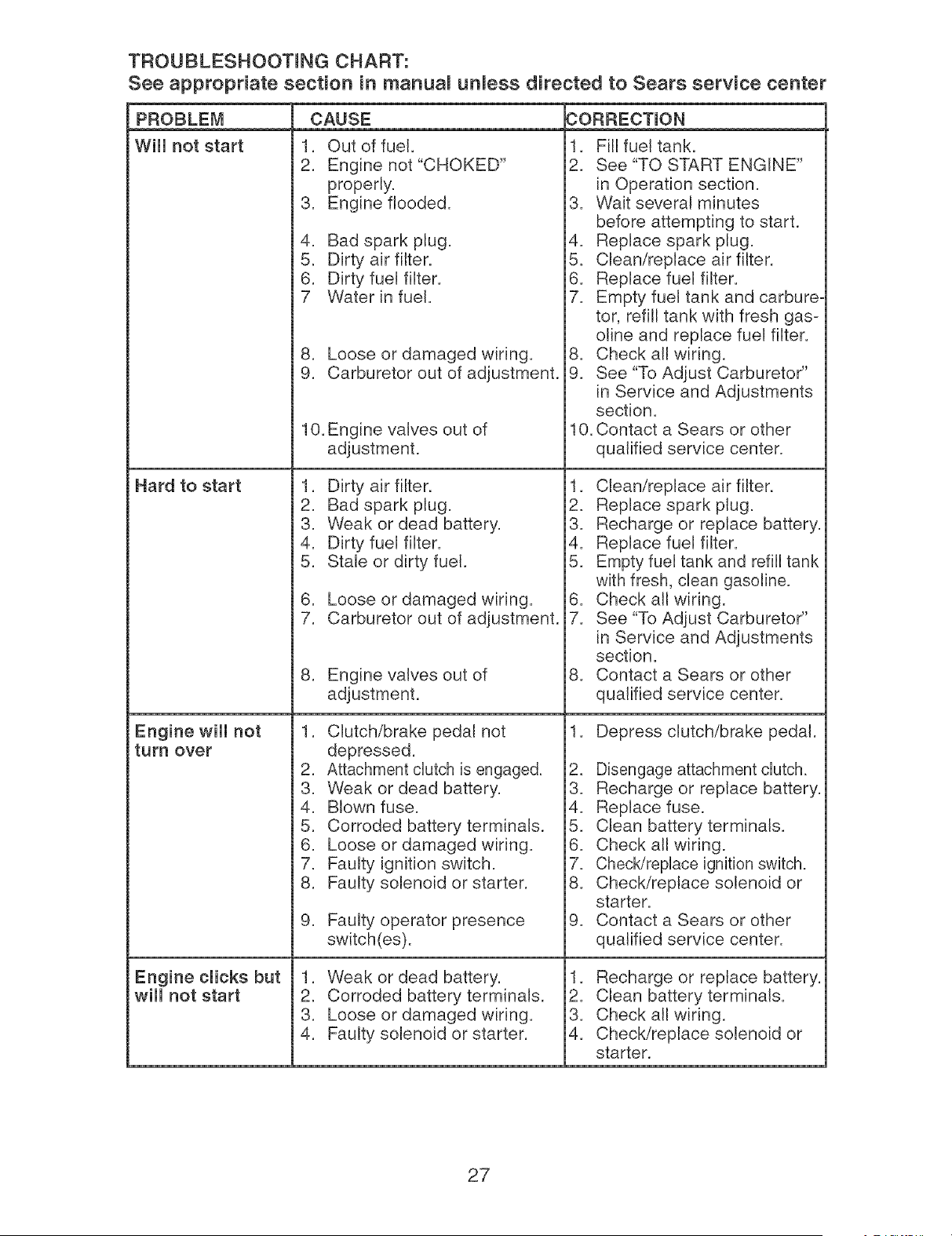

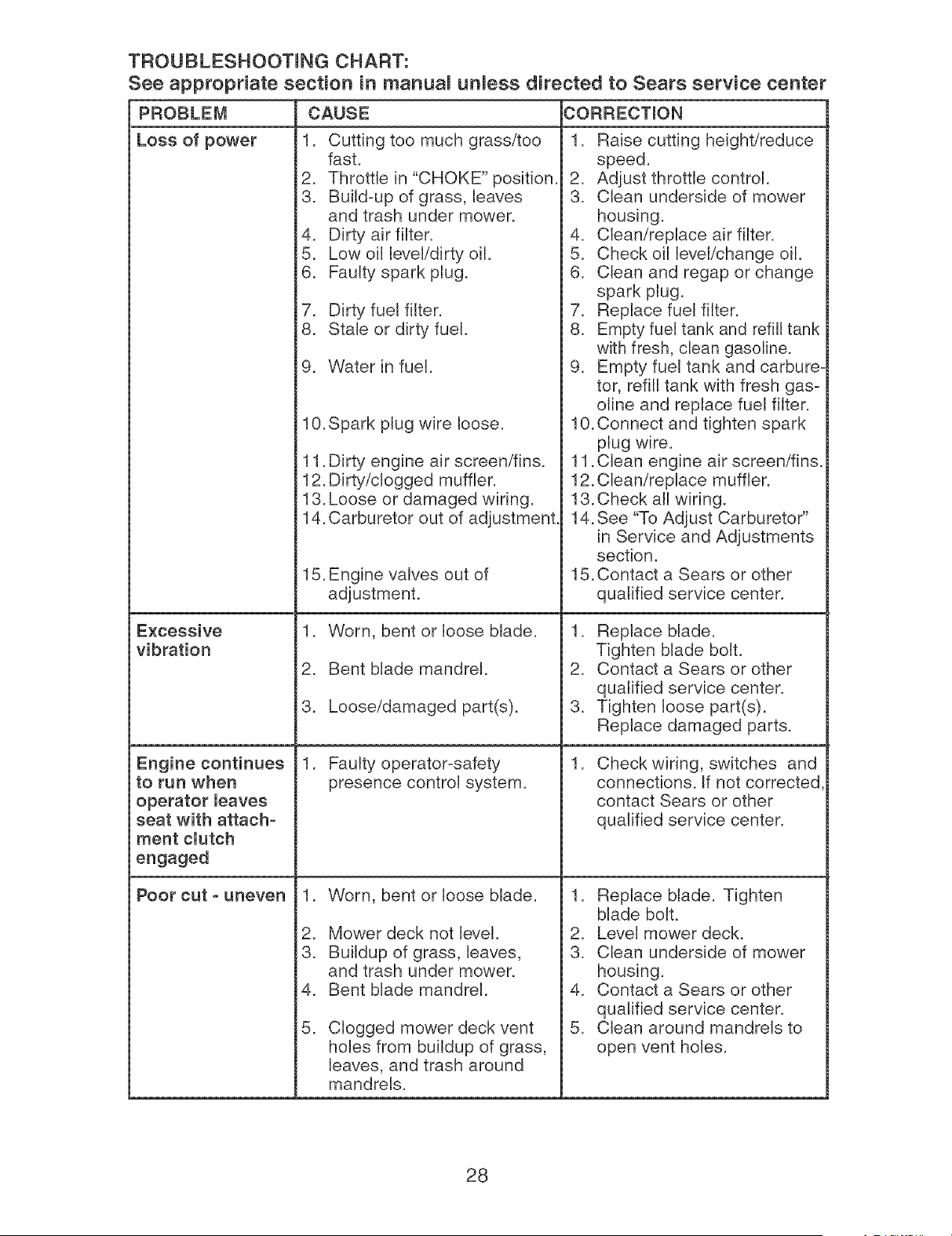

Troubleshooting....................................28

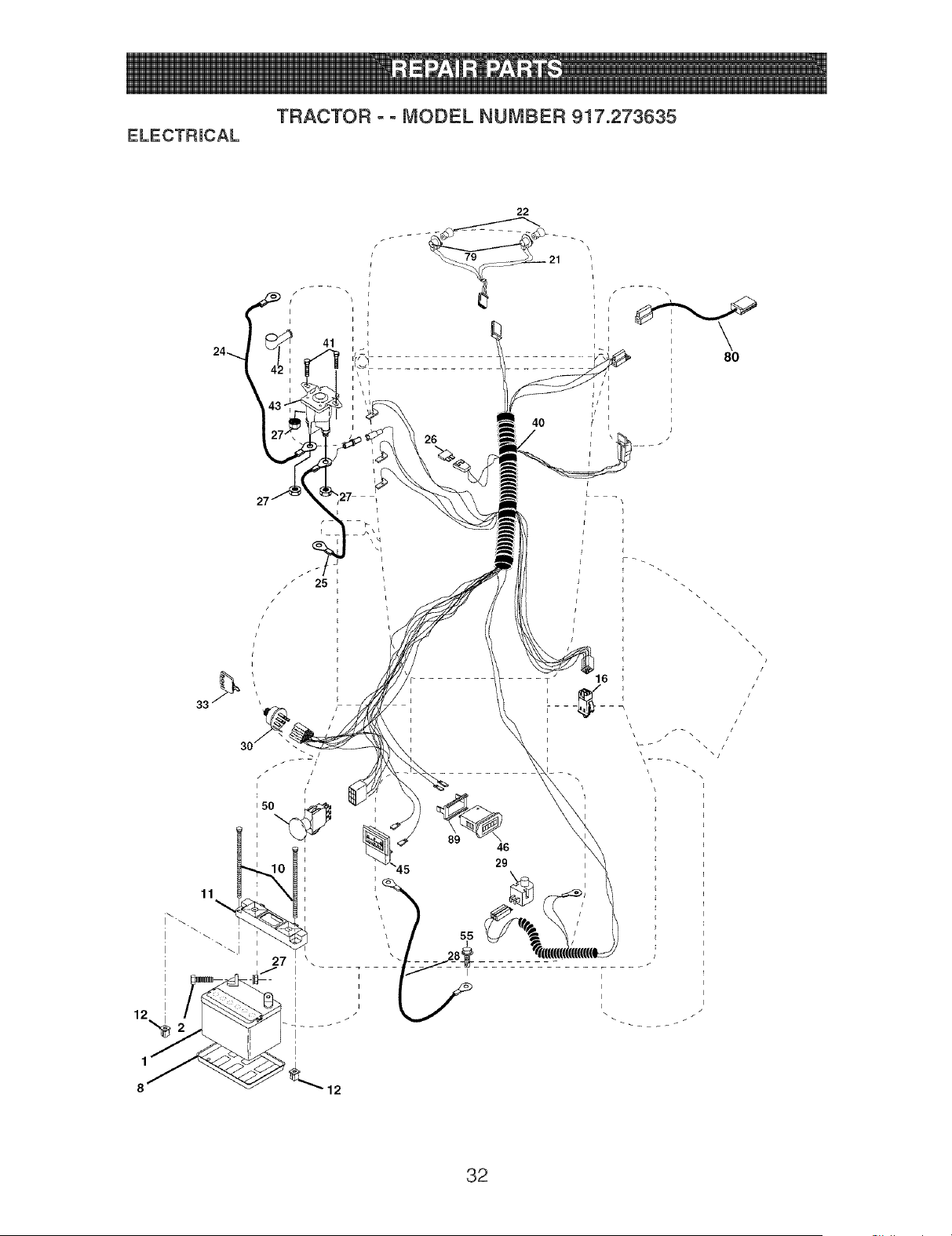

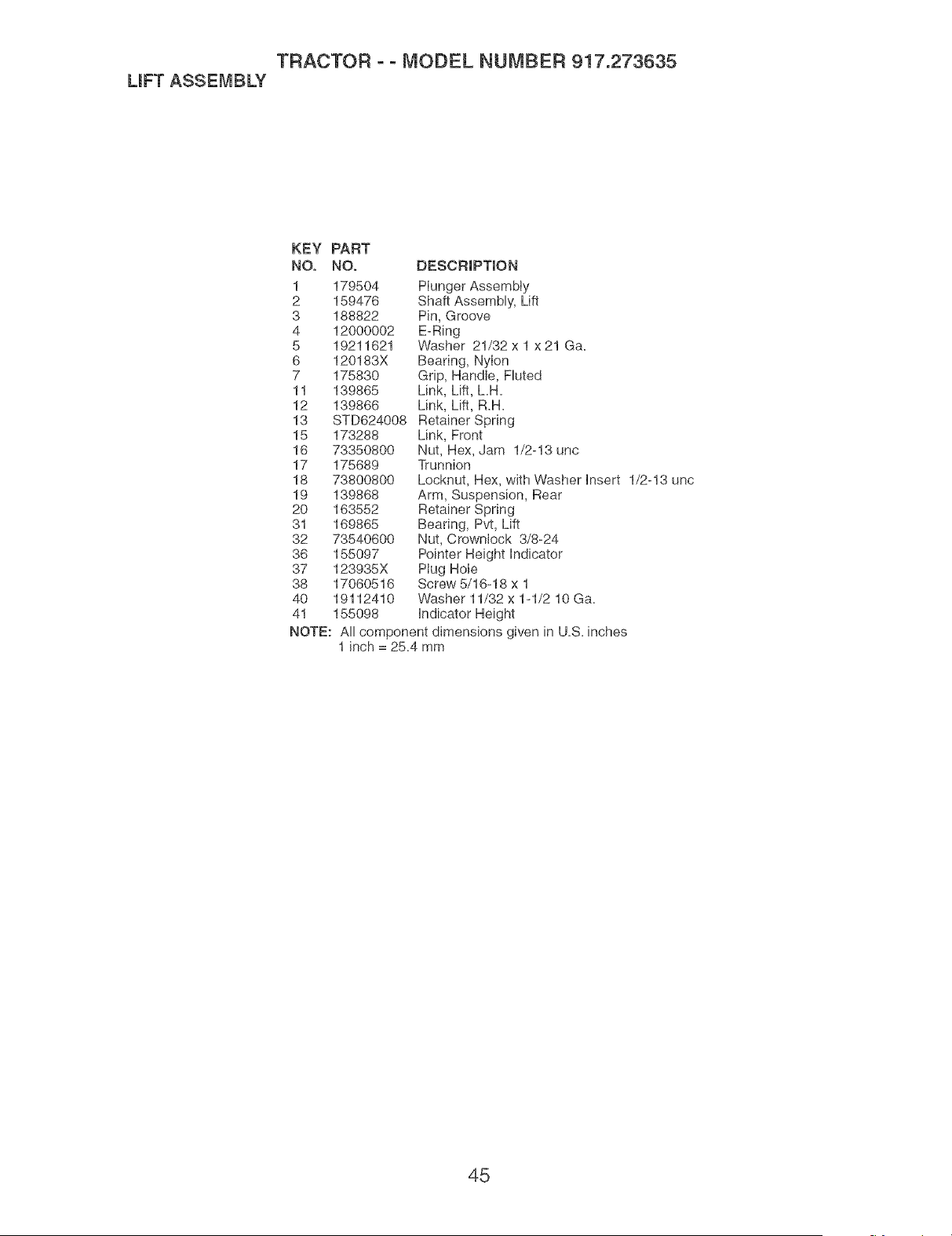

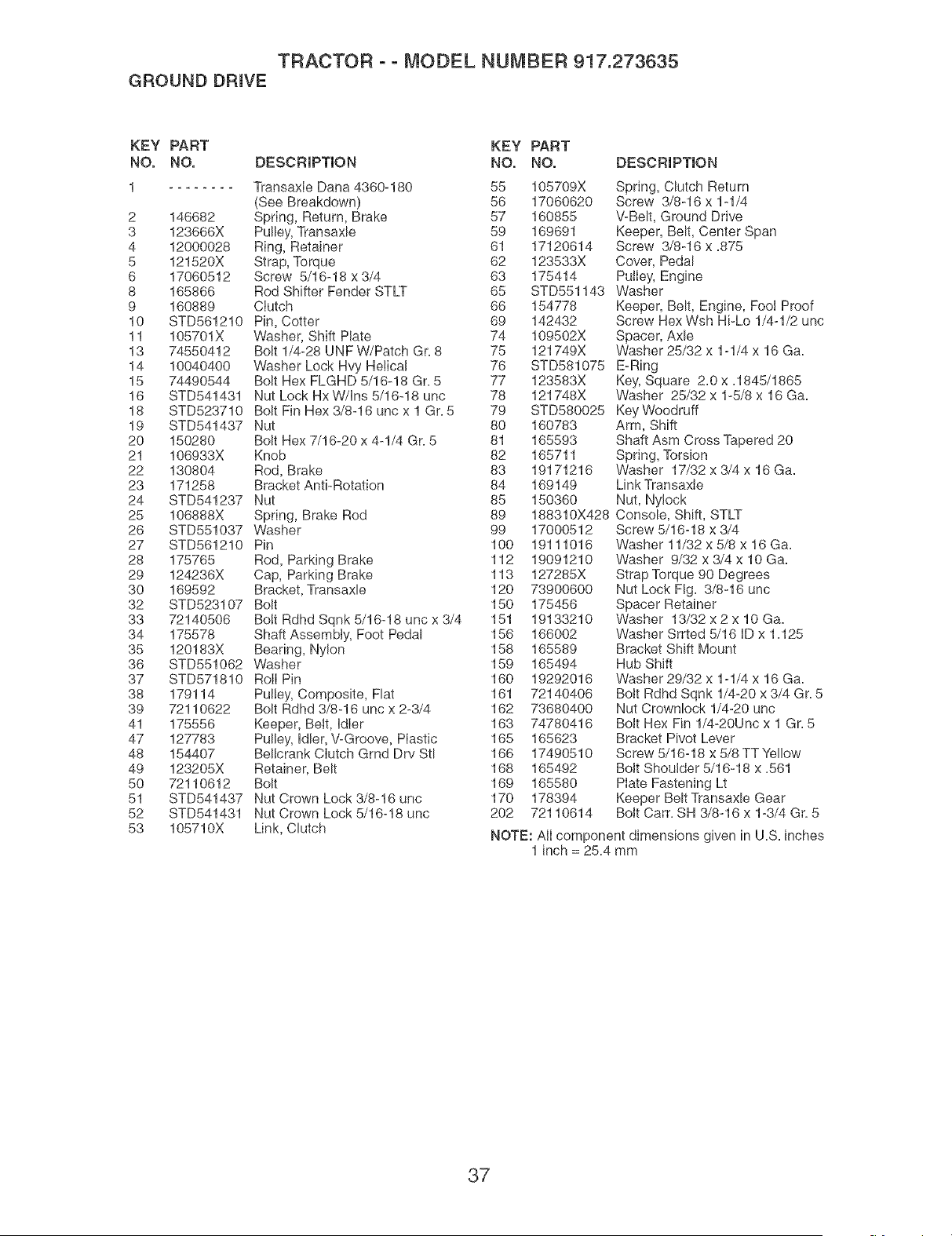

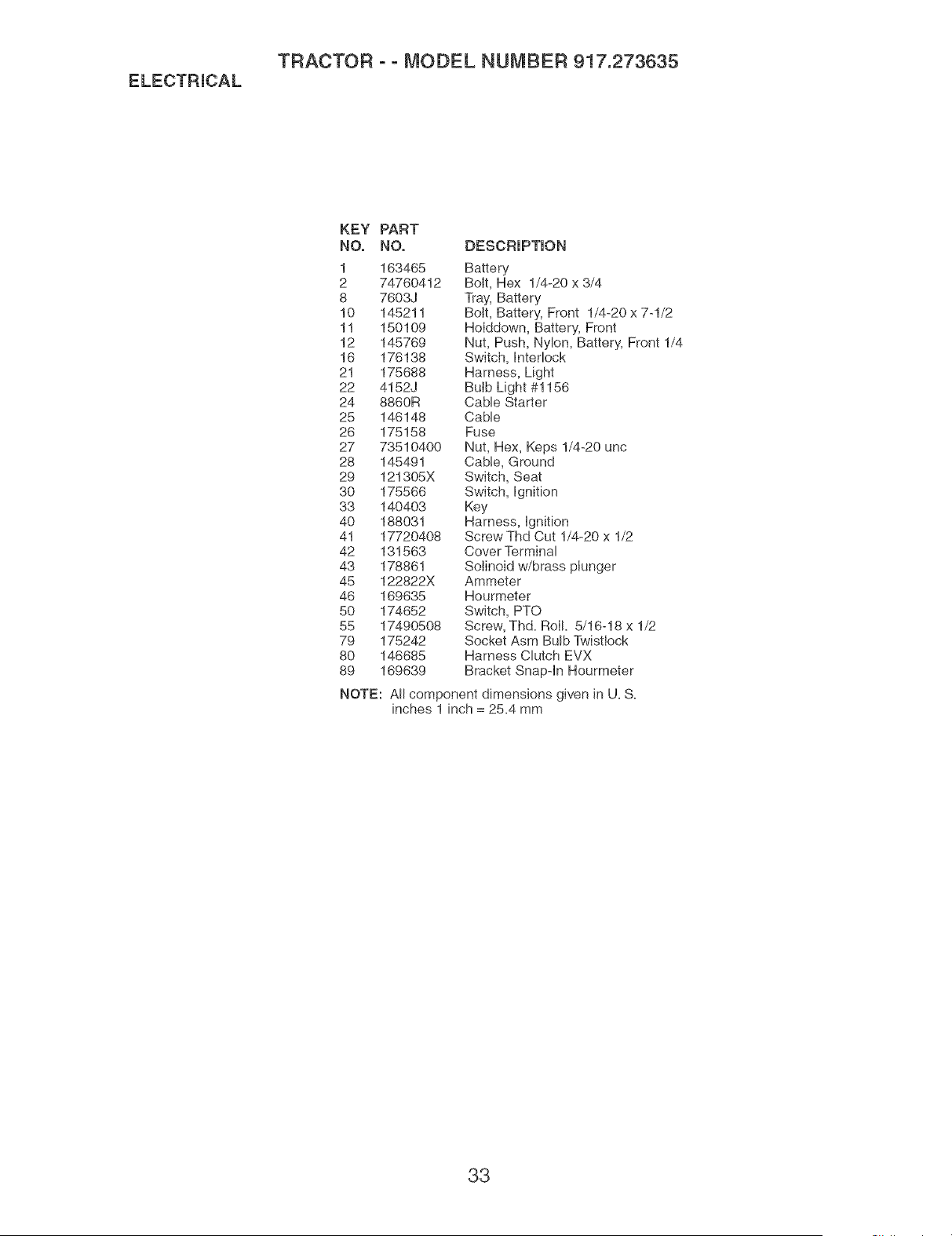

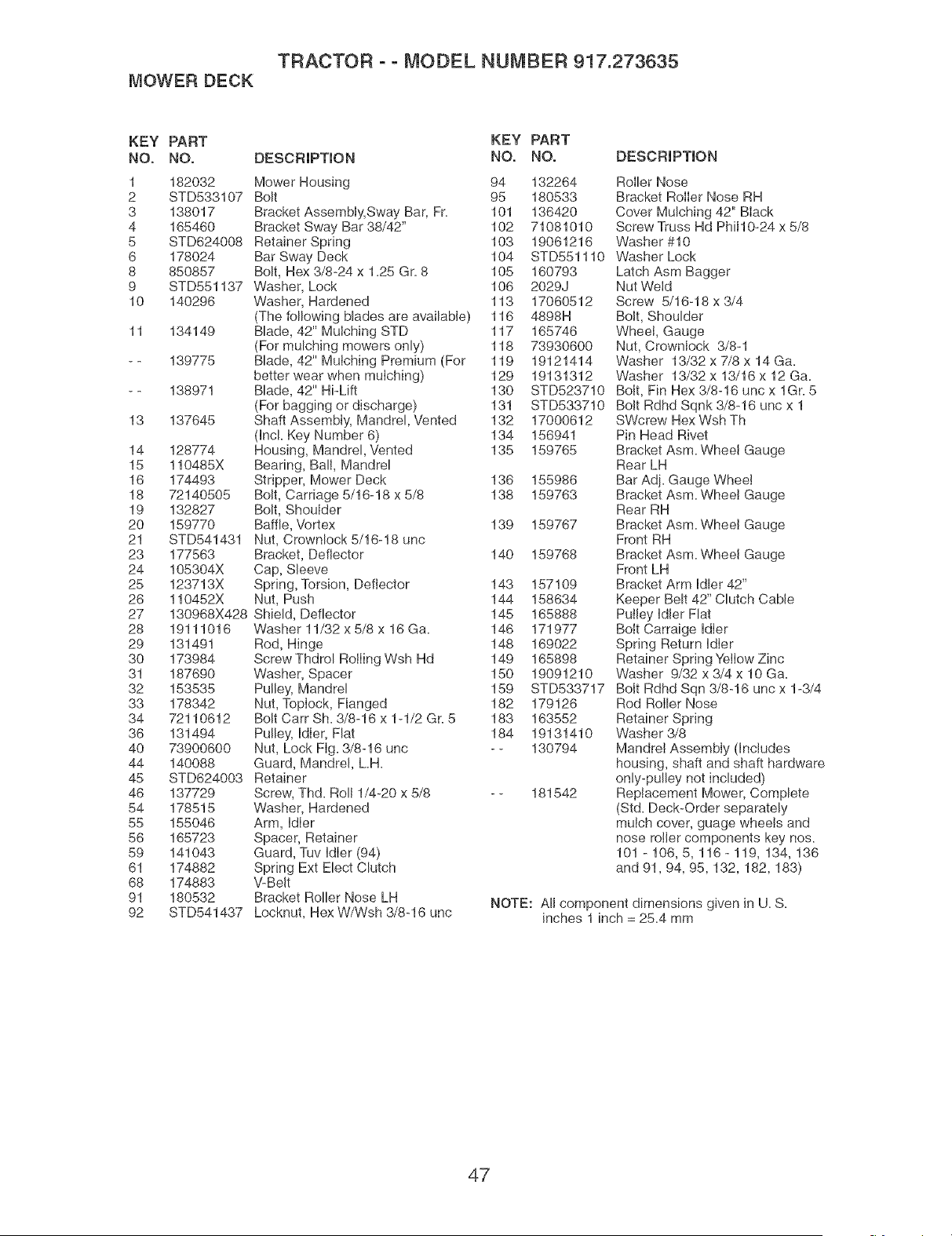

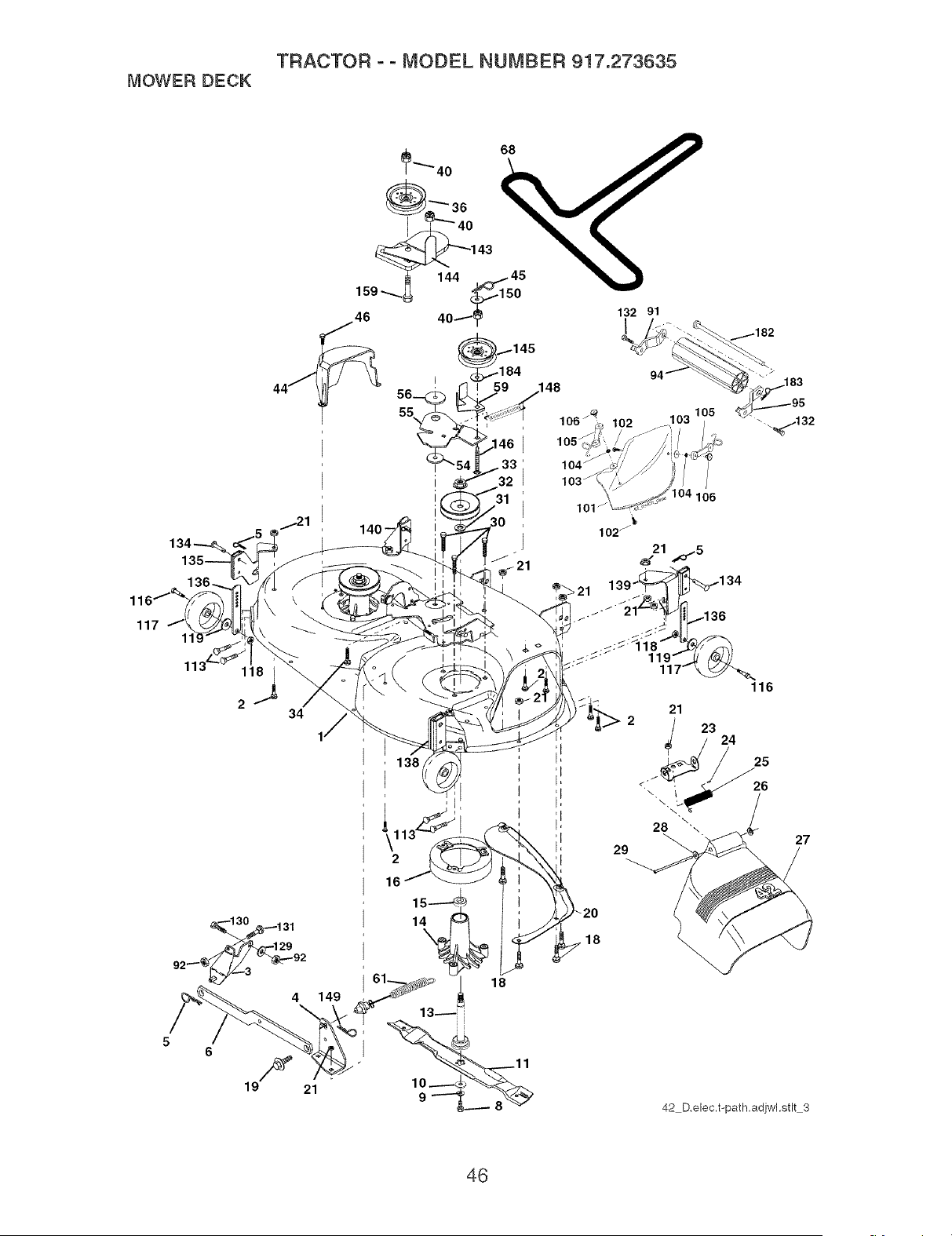

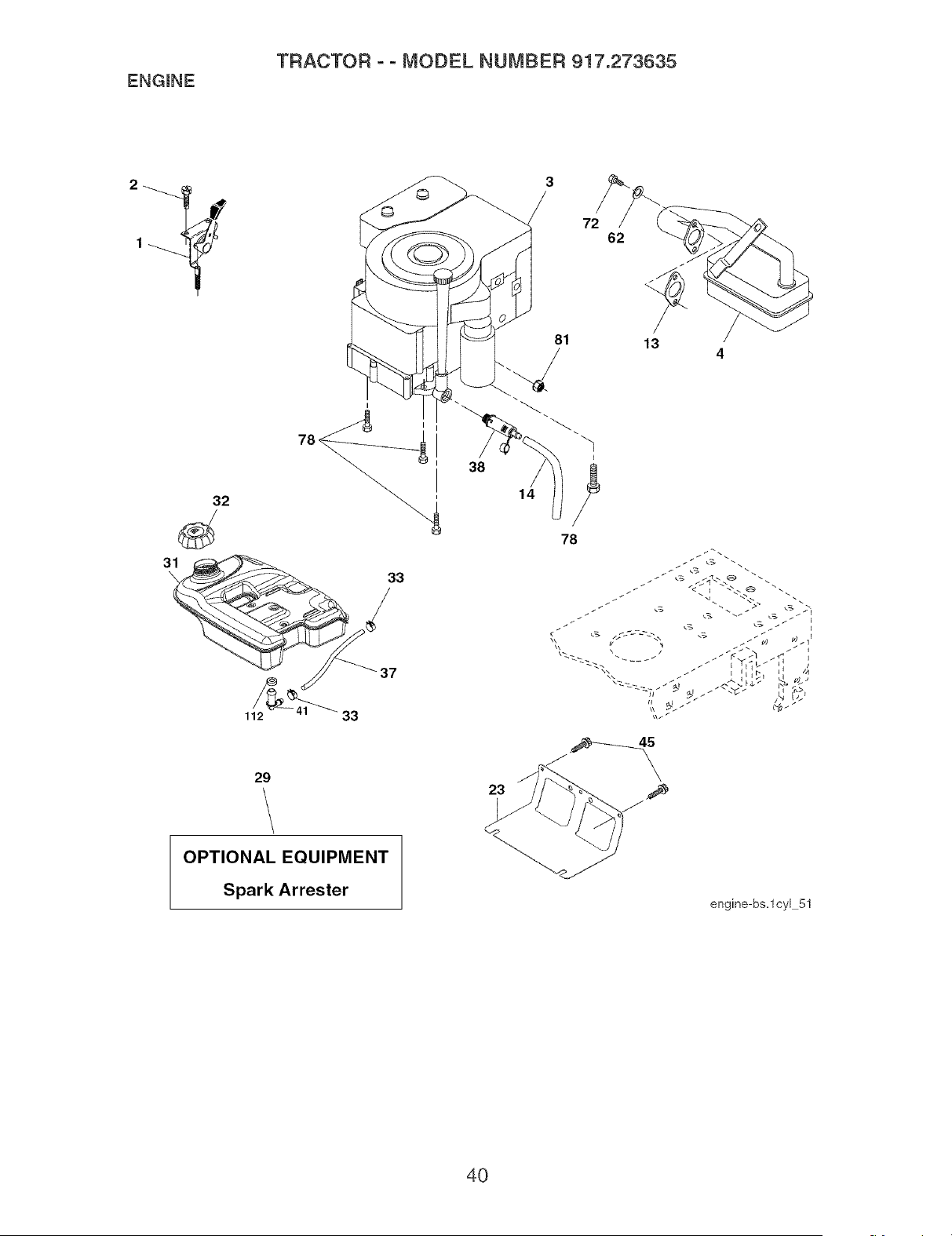

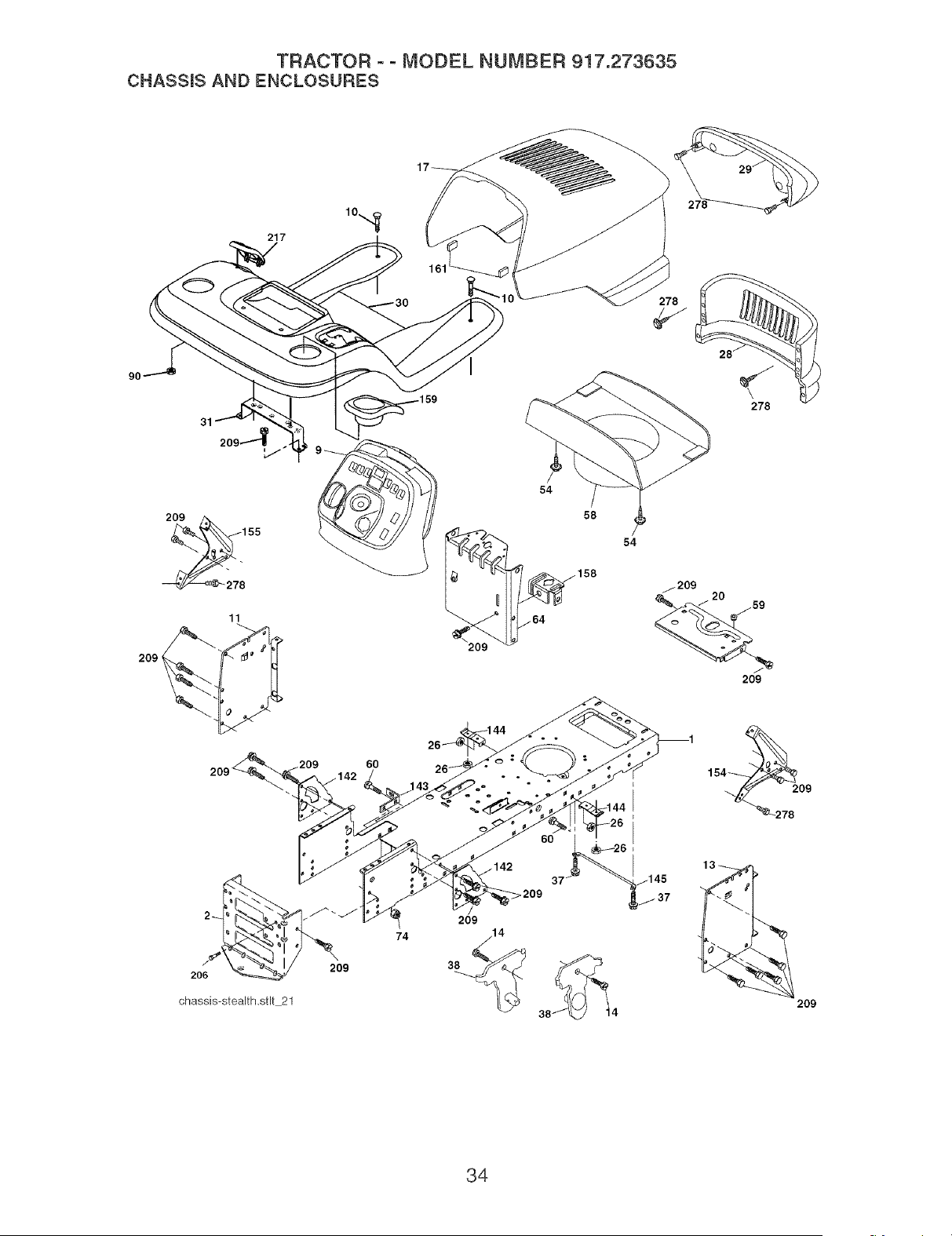

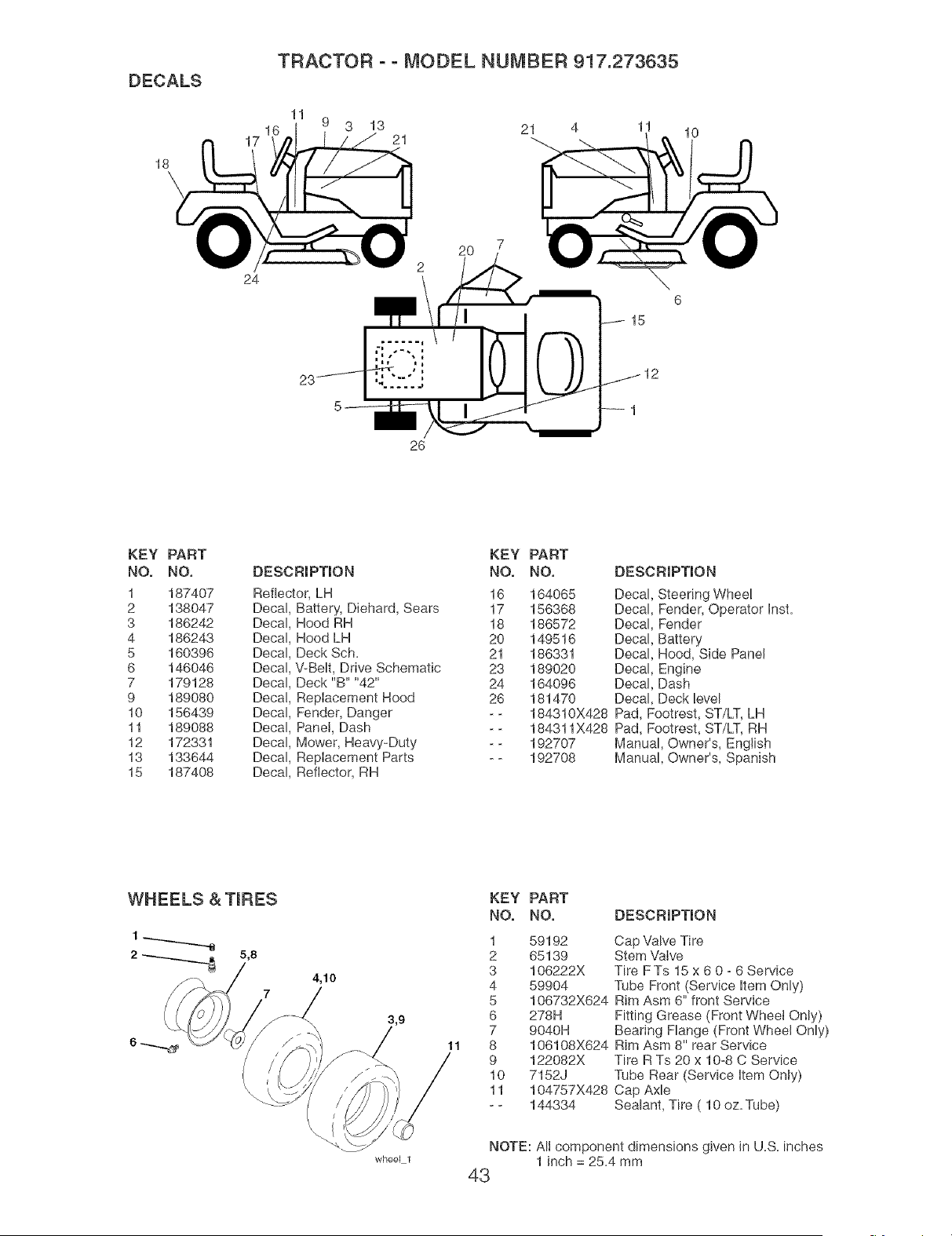

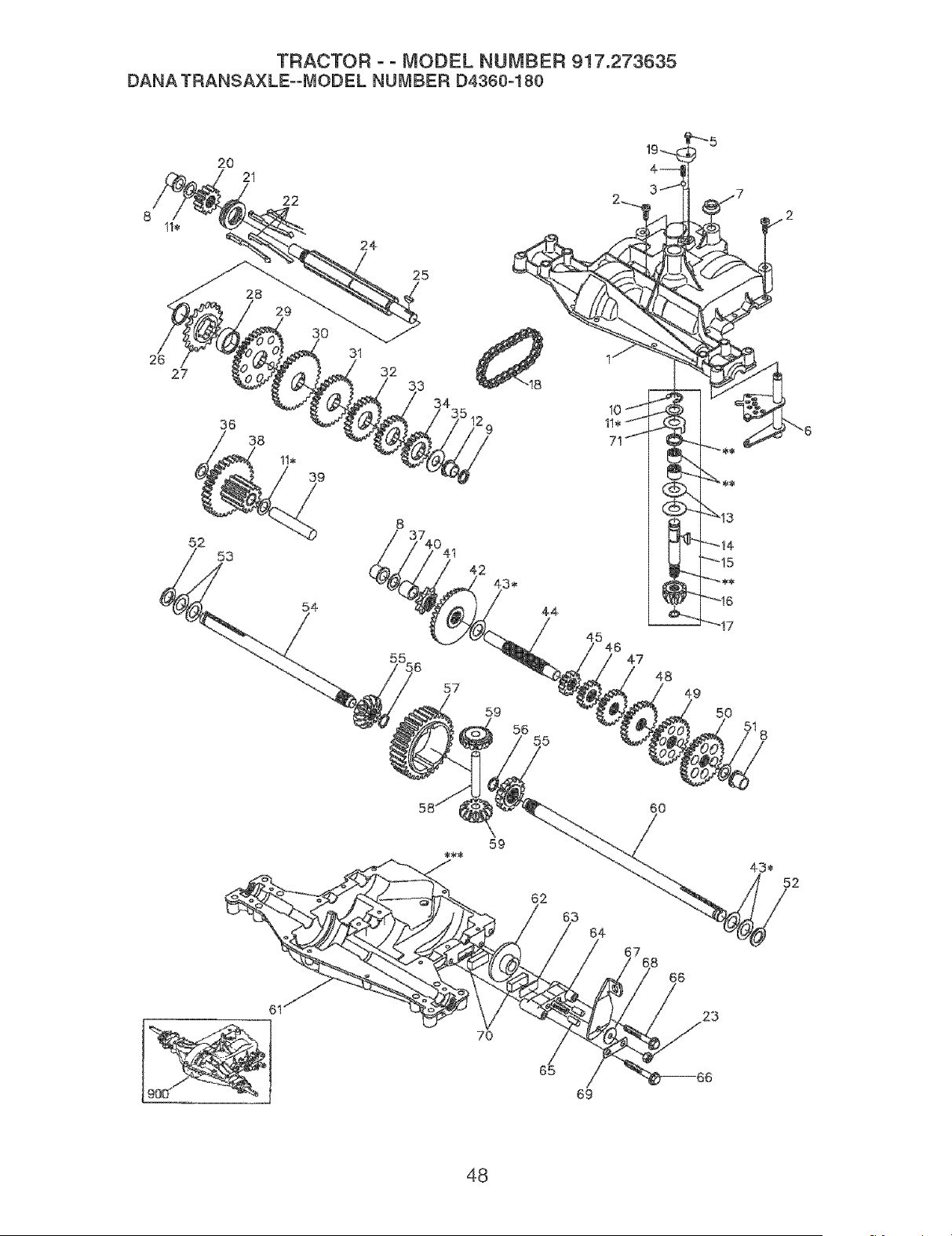

Repair Parts..........................................32

Sears Service.........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2) years from the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned up accordingto the instructionsin the owner'smanual,

Searswill repairor replacefree of chargeany parts that are foundto be defectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree labor for these applicablewarrantedpartsfor the two full years.During

the first 30 days of purchase,there will be no chargesto servicethe productat your

homefor issuescoveredby this warranty.(See exclusionsbelow). Foryour conve-

nience, IN HOMEwarrantyservicewill still be availableafterthe first 30 days of pur-

chase, but a trip chargewill apply.Thischarge will be waived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.This warrantyapplies onlywhile this productis within

the UnitedStates.

This Warrantydoes not cover:

Expendableitemswhich becomeworn during normaluse, includingbut not limitedto

blades,spark plugs,air cleaners, belts,and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups

Tire replacementor repair causedby puncturesfrom outsideobjects,such as nails,

thorns,stumps,or glass.

Repairs necessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towingobjectsbeyondthe capabilityof the riding equipment,impacting

objectsthat bendthe frameor crankshaft,or over-speedingthe engine.

Repairs necessarybecauseof operatornegligence,includingbut not limitedto, elec-

trical and mechanicaldamagecausedby improperstorage,failureto use the proper

gradeand amount of engine oil, failureto keepthe deckclear of flammabledebris,

or failureto maintainthe equipmentaccordingto the instructionscontainedin the

owner'smanual.

• Engine (fuel system)cleaningor repairscaused by fuel determinedto be contami-

nated or oxidized(stale). In general,fuel should be used within30 days of its pur-

chase date.

• Normaldeteriorationand wear of the exteriorfinishes,or productlabel replacement.

• Ridingequipmentusedfor commercialor rental purposes.

LIMITEDWARRANTYON BATTERY

For ninety(90) daysfrom date of purchase,if any batteryincludedwith this riding equip-

ment provesdefectivein materialor workmanshipand our testing determinesthe battery

will not holda charge, Searswill replacethe batteryat no charge. Duringthe first 30

daysof purchase,there will be no chargesto replacethe batteryat your HOME. After

the first 30 days, foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebut a trip charge will apply. Thischarge will bewaived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis withinthe UnitedStates.

This warrantygivesyou specificlegal rights,and you mayalso haveother rights, which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

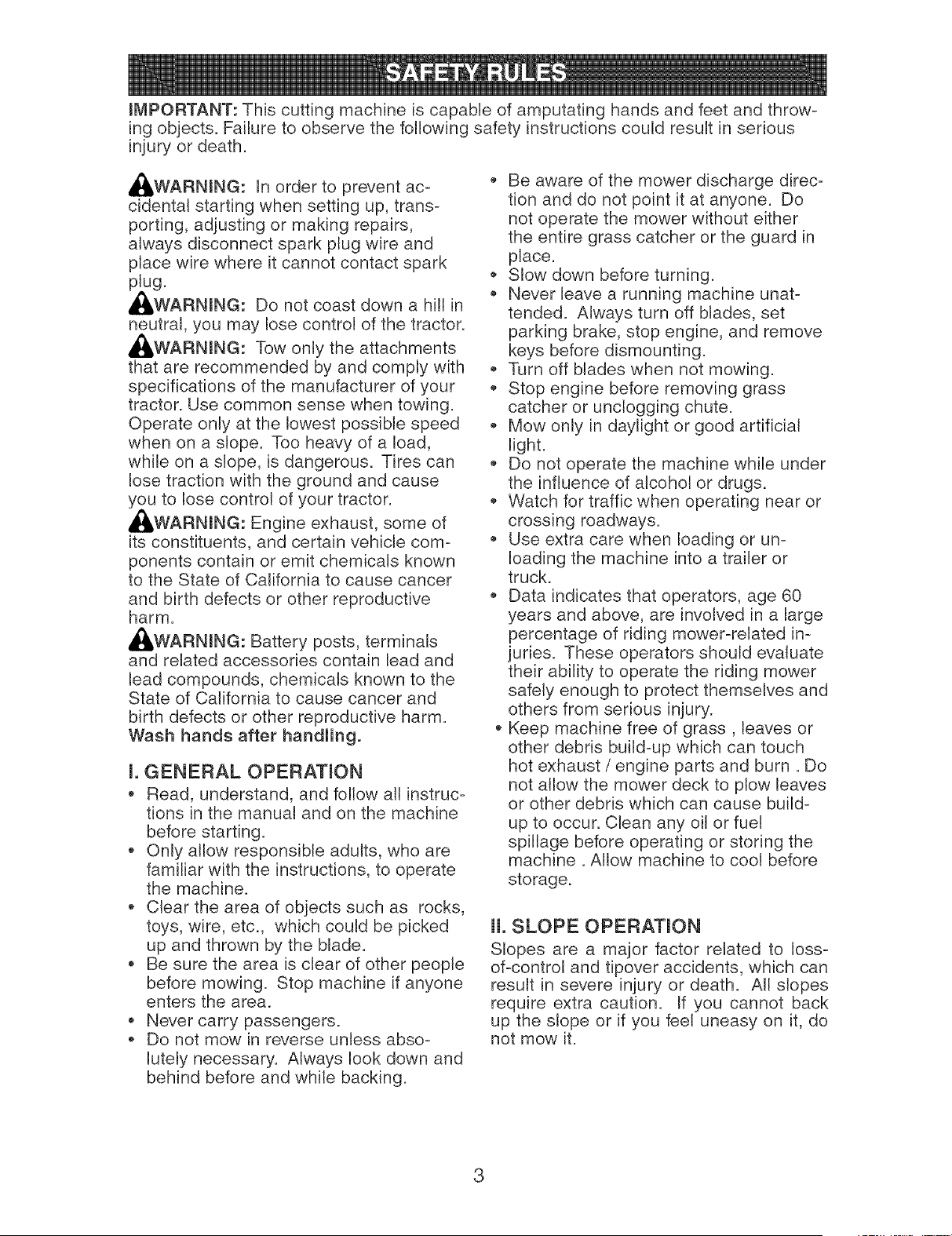

mMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNmNG: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

dHLWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

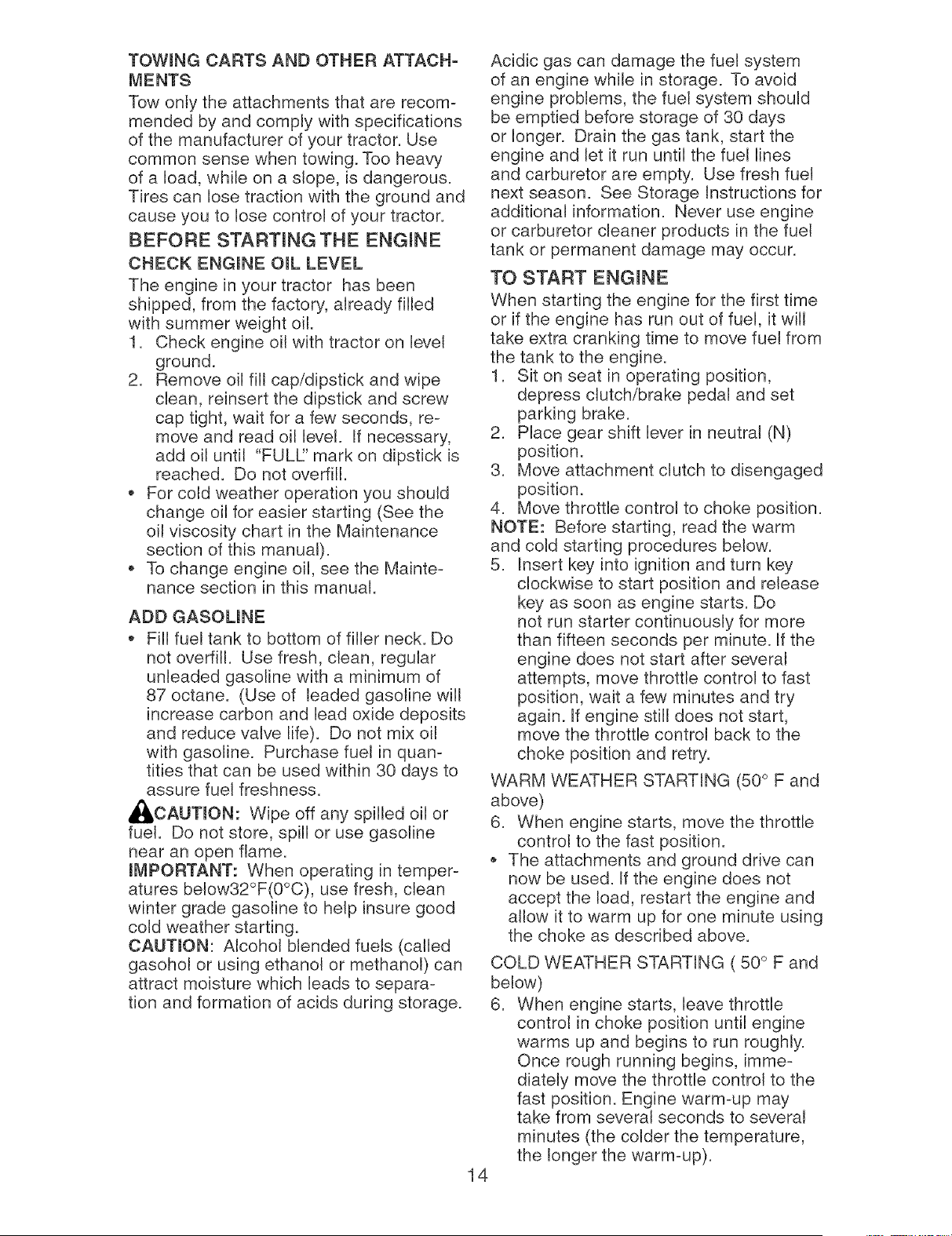

_,WARNING: Tow only the attachments

that are recommended by and comply with •

specifications of the manufacturer of your •

tractor. Use common sense when towing.

Operate only at the lowest possible speed •

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can •

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNmNG: Engine exhaust, some of

its constituents, and certain vehicle com- •

portents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling. *

L GENERAL OPERATmON

• Read, understand, and follow all instruc-

tions in the manuat and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower=related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

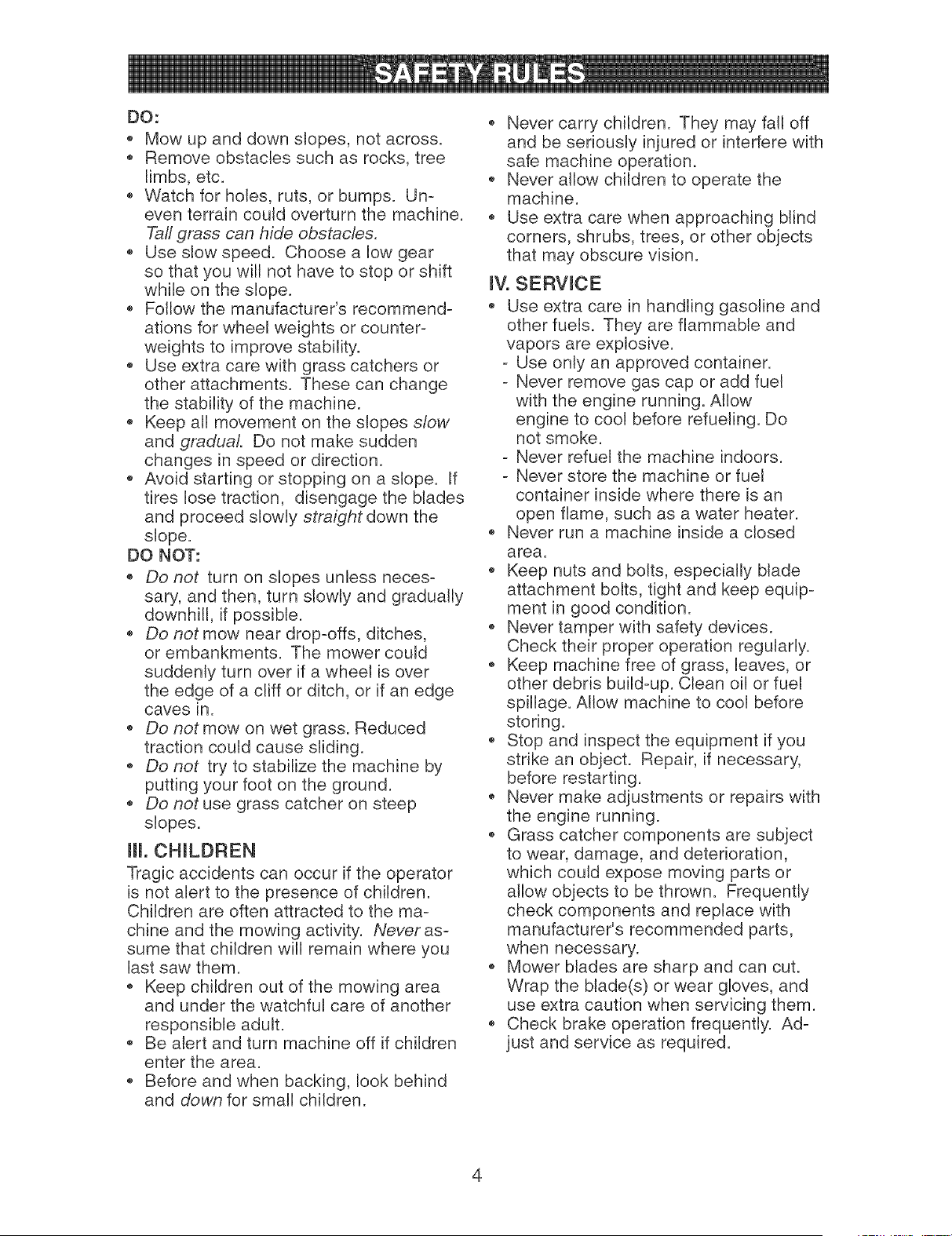

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

* Do not mow on wet grass. Reduced

traction could cause sliding.

* Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

* Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

* Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

* Never tamper with safety devices.

Check their proper operation regularly.

* Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

* Never make adjustments or repairs with

the engine running.

* Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

* Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

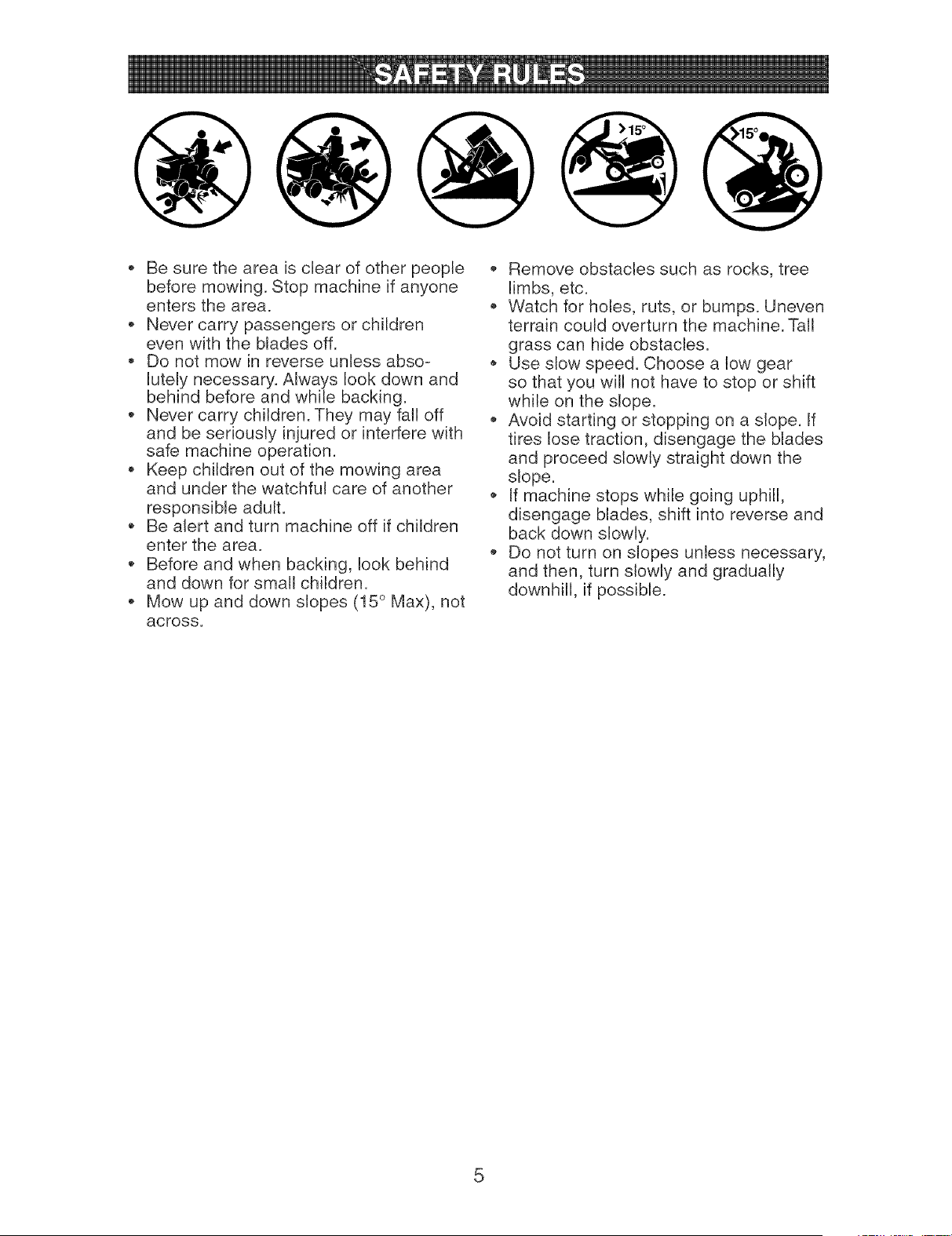

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

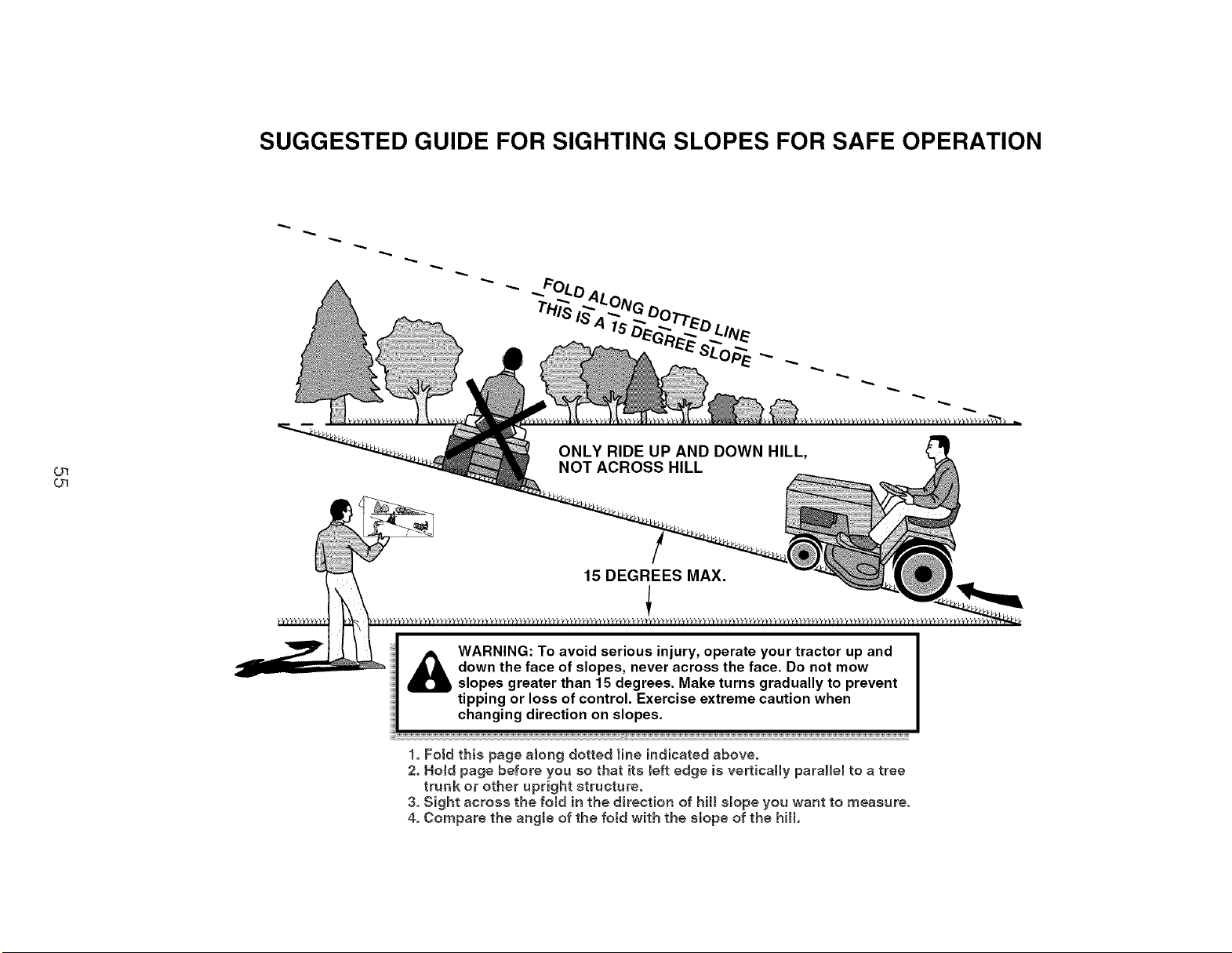

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATmONS

Gasoline 4.0

Capacityand Unleaded

Type: Regular

OilType SAE 30 (above32°F)

IAPFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 9 Amps @3600 RPM

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you the

best possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITmES

Read and observe the safety rules.

Follow a regular schedule in main-

taining, caring for and using your tractor.

* Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_bWARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sionat repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regutar price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

* Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-8655.

SEARS INSTALLATmON SERVmCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4oMY-HOME®

Mower Leveling Wrench

Bubble Level

)

Keys

(2) Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

Video Cassette

"'t

Your, new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac-

tor hood and grille.

mMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af-

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps.

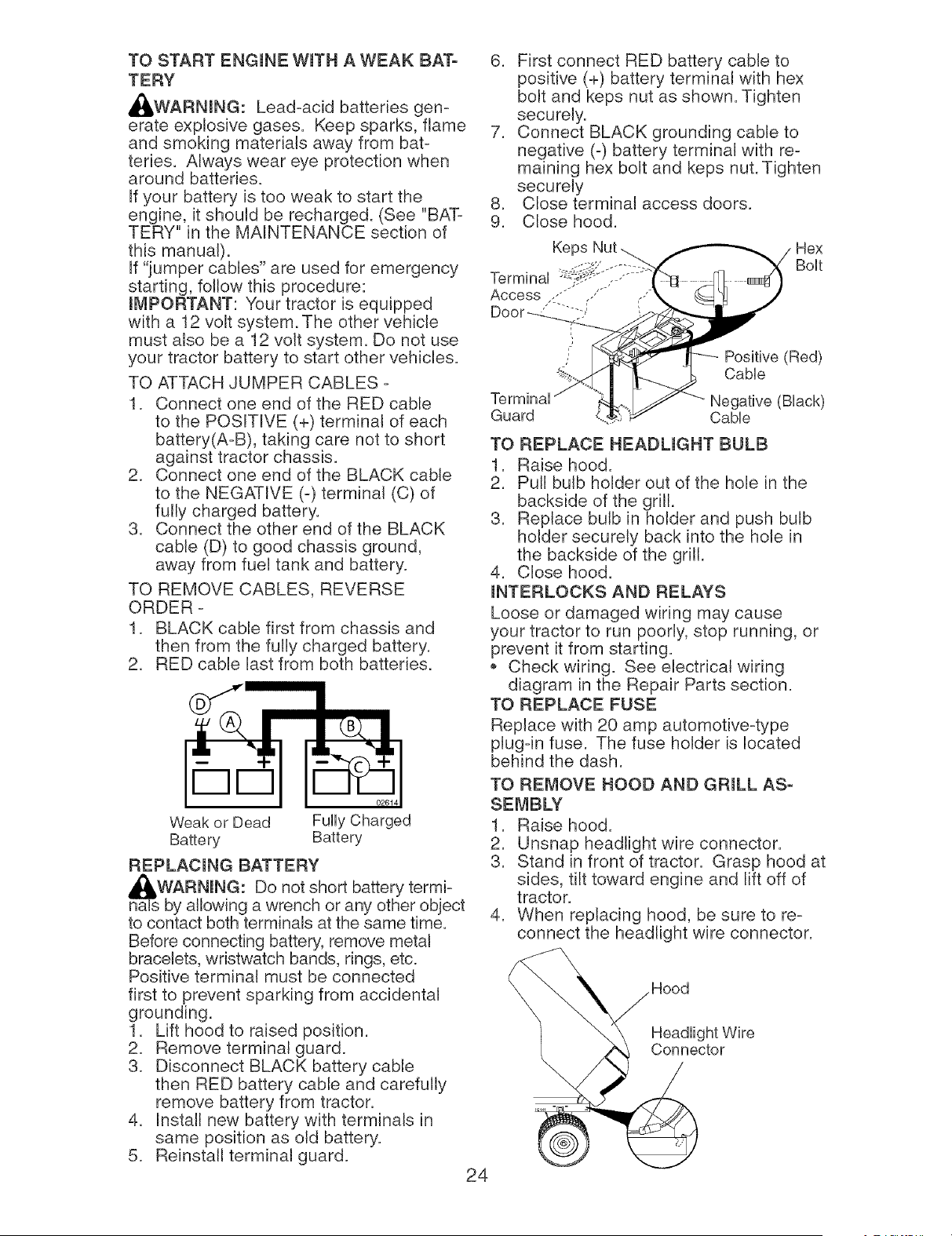

(See "BATTERY" in Maintenance section

of this manual for charging instructions).

Lab°,

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

REPOSITION RmGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

TO ROLLTRACTOR OFF SKmD

(See Operation section for mocation

and function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position,

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor,

TO DRmVETRACTOR OFF SKID

(See Operation section for mocation

and function of controms)

_IWARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

mNSTALL MULCHER PLATE

(If previousmy removed}

1. Raise and hold deflector shield in up-

right position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_ICAUTmON: Do not remove deflector

shield from mower.

Deflector

ShbUd

Mulcher

Latch

Hooks

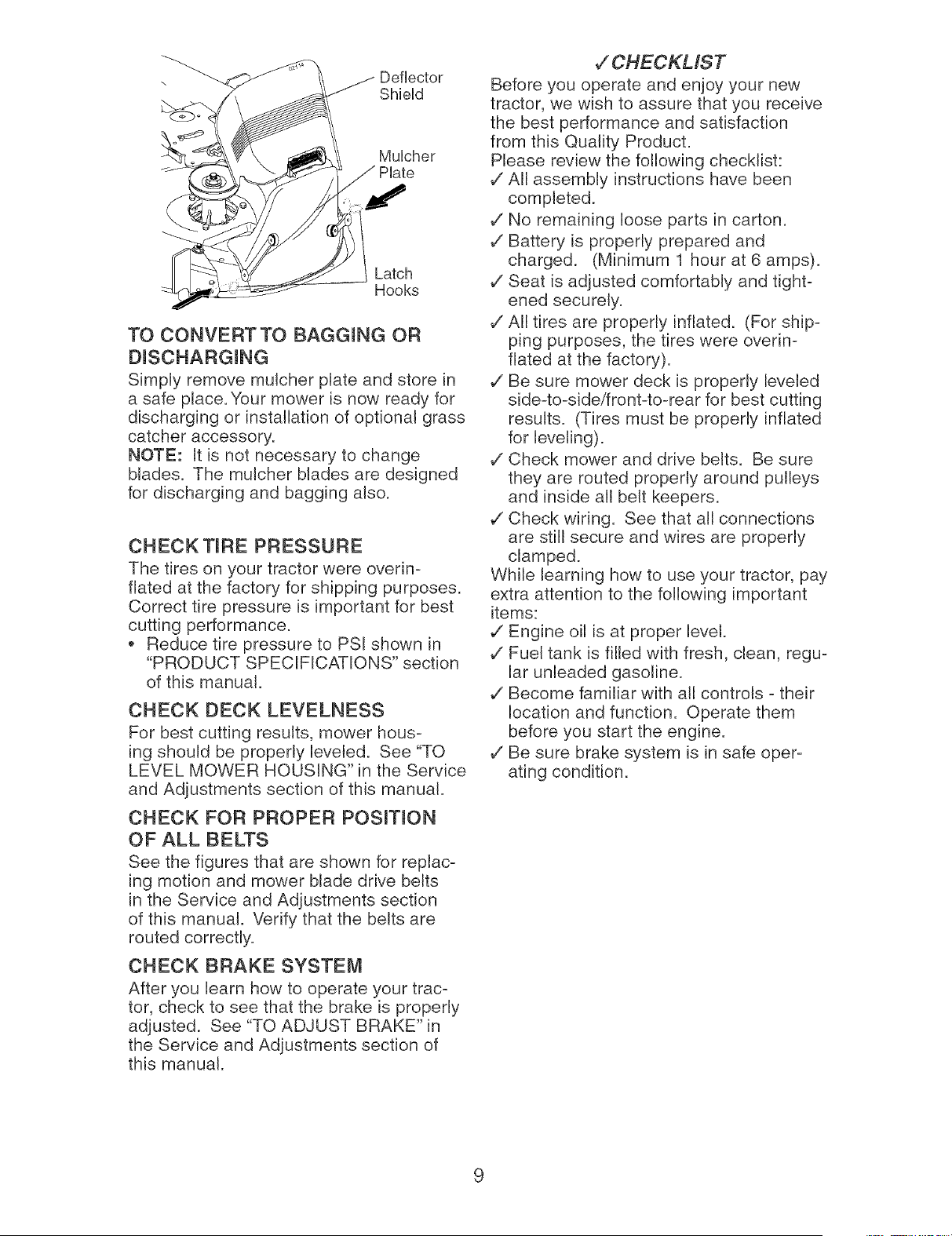

TO CONVERT TO BAGGING OR

DISCHARGmNG

Simply remove mubher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TmRE PRESSURE

The tires on your tractor were ovedn-

fiated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER PosmoN

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKMST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

v" Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

v" Seat is adjusted comfortably and tight-

ened securely.

v" All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

fiated at the factory).

v" Be sure mower deck is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

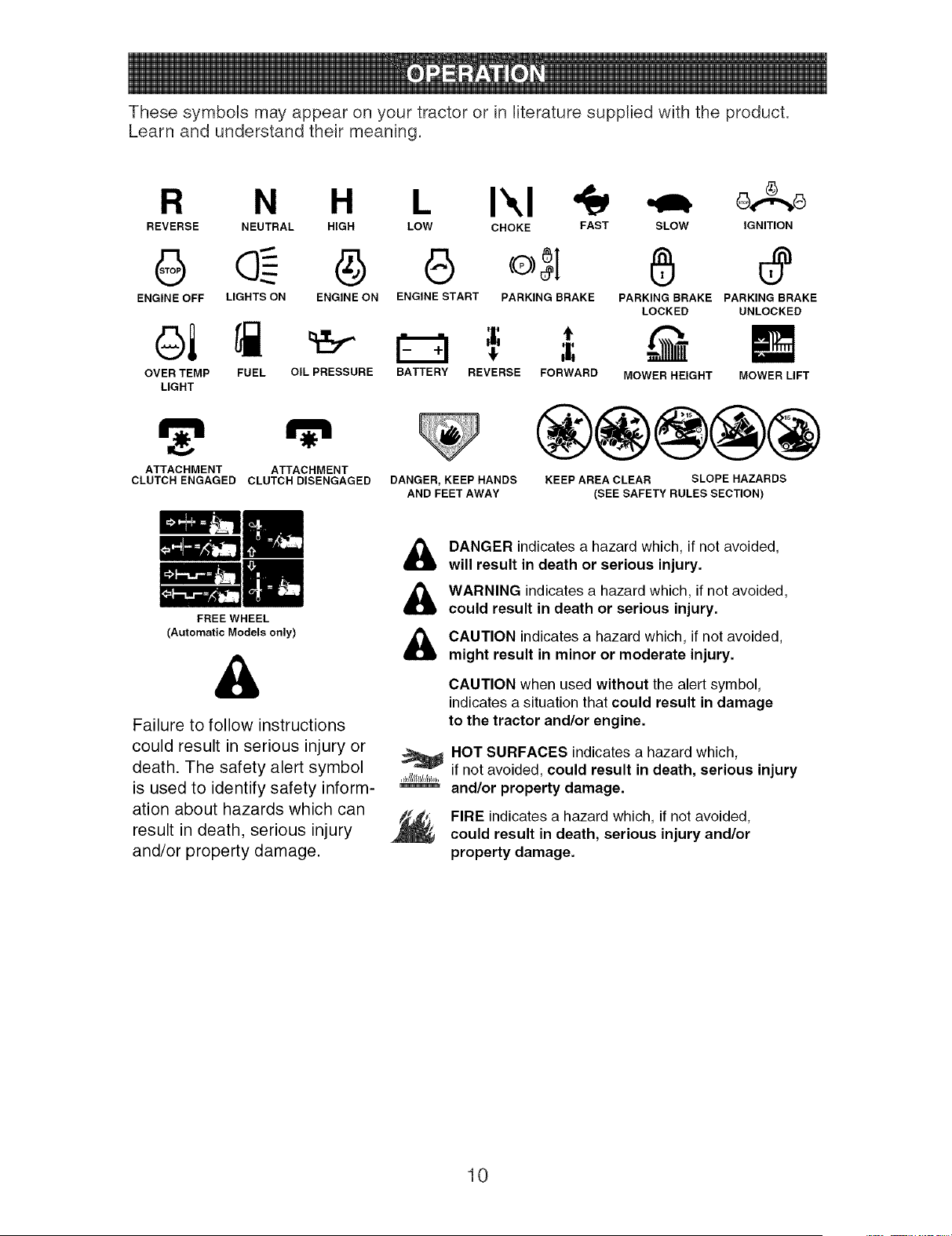

These symbols mayappearon your tractor or in literaturesuppliedwith the product.

Learnand understandtheir meaning.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G G

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

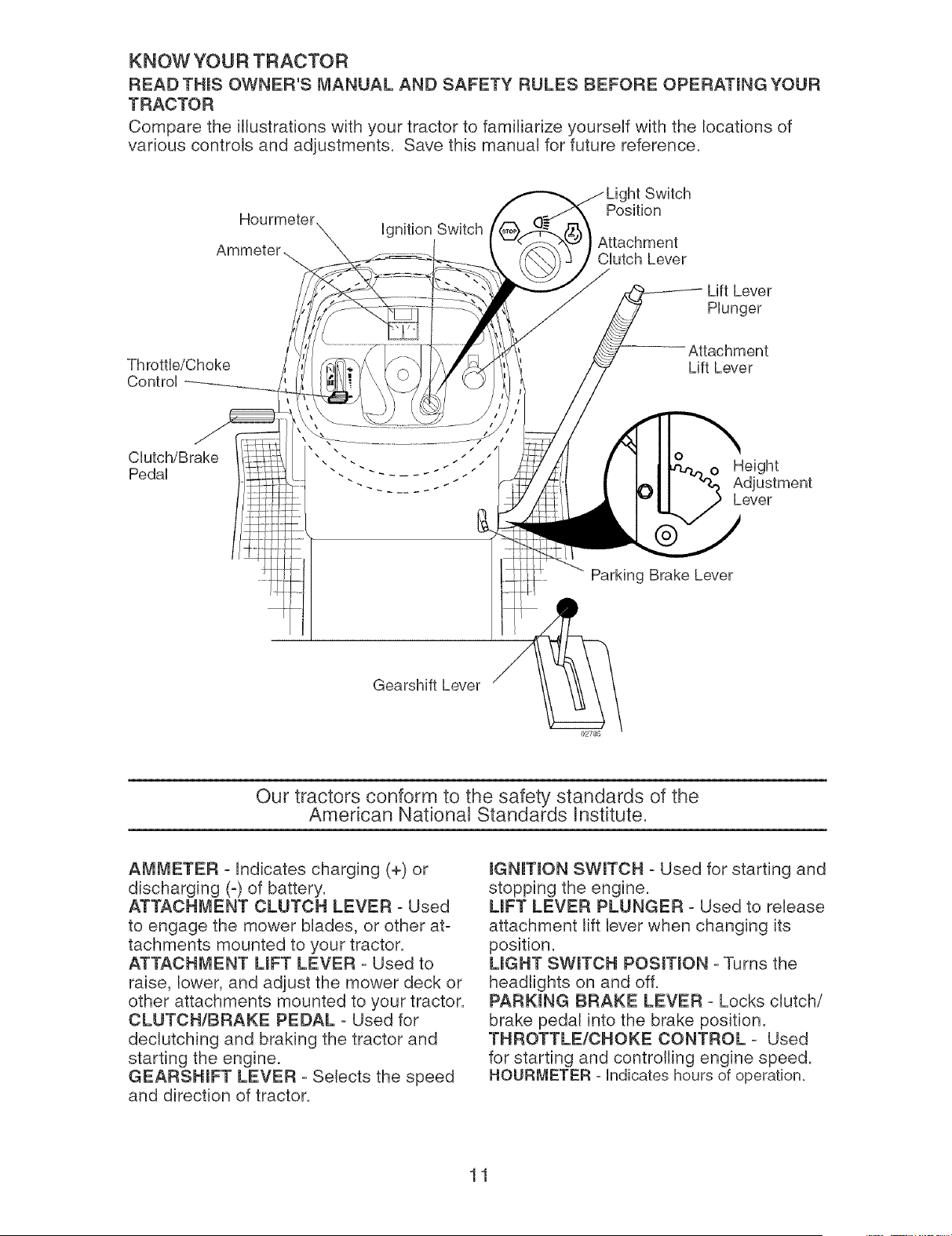

KNOW YOUR TRACTOR

READ THINSOWNER'S MANUAL AND SAFETY RULES BEFORE OPERATmNG YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Th rottle/Choke

Control

Hourmeter

ignition Switch

iht Switch

Position

Attachment

Clutch Lever

Lift Lever

Plunger

Attachment

Lift Lever

Parking Brake Lever

Gearshift Lever

02785

Our tractors conform to the safety standards of the

American National Standards anstitute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT UFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHmFT LEVER - Selects the speed

and direction of tractor.

mGNmON SWITCH - Used for starting and

stopping the engine.

LiFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

UGHT SWmTCH POSmON - Turns the

headlights on and off.

PARKmNG BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

HOURI_IETER - indicates hours of operation.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedaf all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

ThrottUe/Choke

Attachment CUutchSwitch

Pull out to "Engage"

Key

Position Lever

"Disengaged" Parking Brake Push in to

Position "Engaged" Position "Disengage"

STOPPmNG

MOWER BLADES -

To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

To stop ground drive, depress clutch/

brake pedal all the way down.

Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to atlow engine to idle before

stopping may cause engine to "backfire".

Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

Never use choke to stop engine.

mMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

* Operating engine at less than full

throttle reduces the battery charging

rate.

Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

mMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

Grasp lift lever.

Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

The average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

mMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_ICAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment CUutch Switch

Pull Out To "Engage"

Attachemnt

Lift Lever High

9 Position

.:,,74_._.._._Low

Position

Deflector

Shield

TO OPERATE ON HILLS

_,WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

,, Raise attachment lift to highest position

with attachment lift control.

,, When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

,, Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

rvIENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heaw

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL:' mark on dipstick is

reached. Do not overfill.

For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

,I_I, CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWmNG TIPS

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHmNG MOWmNG TIPS

mMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

o For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

F,LL,, DATES

AS COMPLETE ......

REGULARSERV,OE f y4 yA TS ERV'CEDATES

Check Brake Operation _1_ t_

Check Tire Pressure

Check Operator Presence and

T Interlock Systems If

R Check for Loose Fasteners If I_s If

A Sharpen/Replace Mower Blades li#13

C Lubrication Chart tf If

0 Check Battery Level 1_4

a Clean Battery and Terminals _ If

i,,'Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level _ If

Change Engine Oil (with oil filter) I_$1,2

E Change Engine Oil (without oil filter) 11_'1,2

N Clean Air Filter 11_2

G Clean Air Screen 1_112

I Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) 1_,2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_'2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operatinq in dirty or dusty conditions.

GENERAL RECOMMENDATmONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum.

LUBRmCATION CHART

@ Sl: -- @ Spindb

Zerk Zerk

@Front Wheel ,

Bearing

Zerk

@Front Wheel

Bearing Zerk

@Engine .

Pivots

(gSAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

mlVlPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feet they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

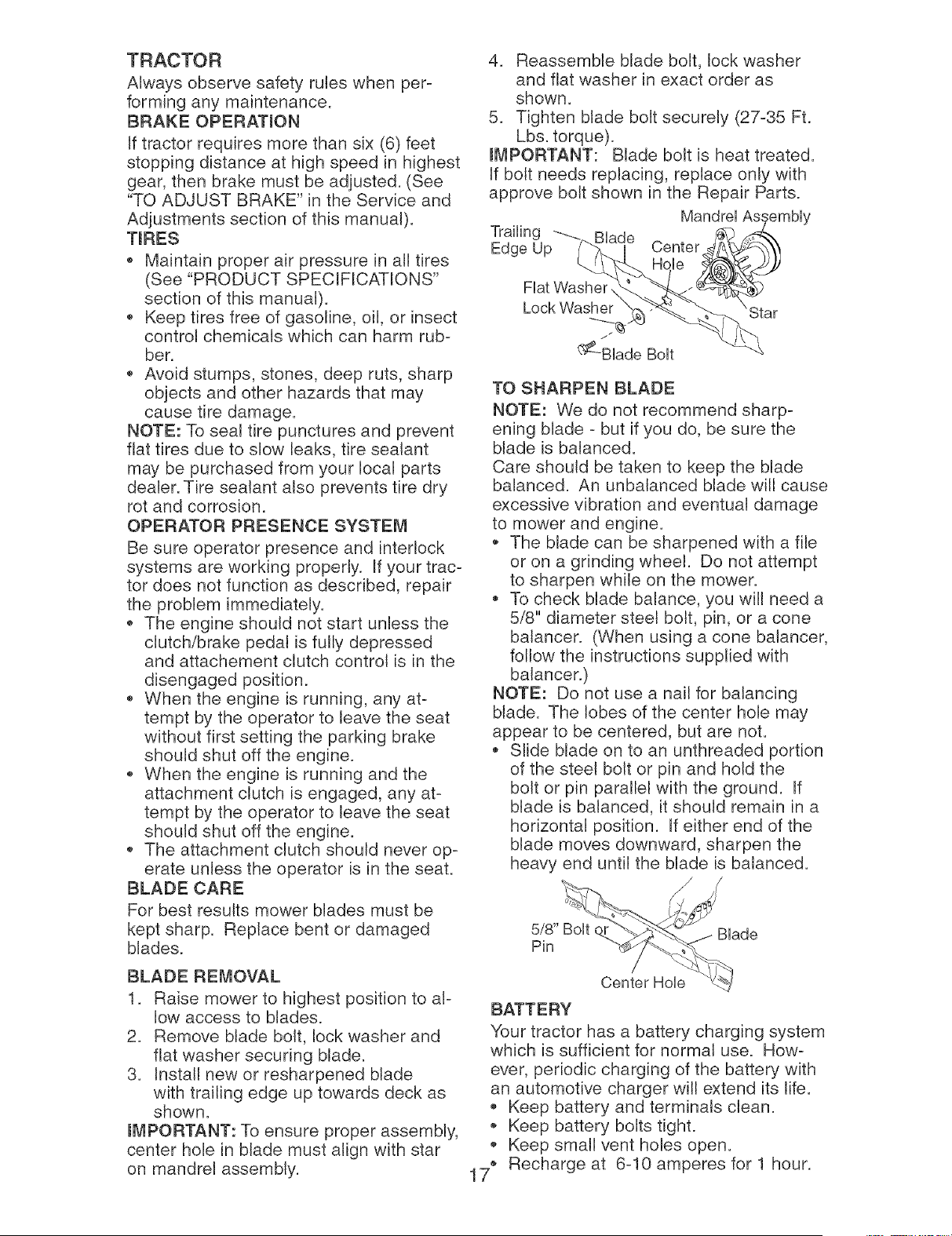

TRACTOR

Always observe safety rubs when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TmRES

, Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

* Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

* Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

, The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

mMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

mlVIPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel As,' ;embly

Trailing e

Edge Up Center

Flat Washer

Lock VVasher

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

, The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt Blade

Center Hob

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

Keep battery and terminals clean.

, Keep battery bolts tight.

Keep small vent holes open.

17" Recharge at 6-10 amperes for 1 hour.

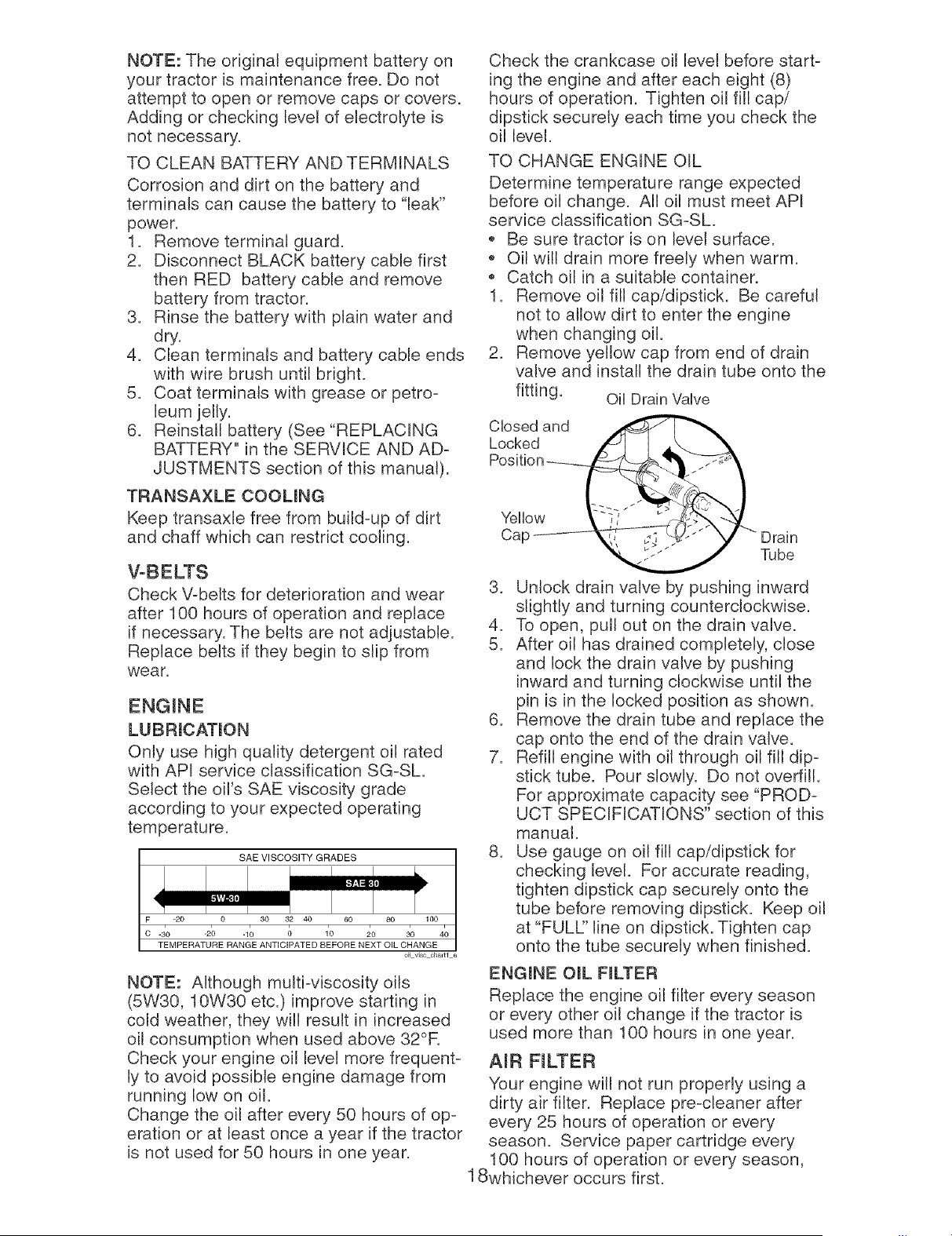

NOTE:The originalequipmentbattery on

your tractor is maintenancefree.Do not

attemptto openor removecaps or covers.

Adding or checking levelof electrolyteis

not necessary.

TO CLEAN BATTERYANDTERMINALS

Corrosionand dirt on the batteryand

terminalscan causethe batteryto "leak"

power.

1. Removeterminalguard.

2. DisconnectBLACKbattery cablefirst

then RED batterycableand remove

batteryfrom tractor.

3. Rinsethe battery with plain water and

dry.

4. Cleanterminalsand batterycableends

with wire brushuntil bright.

5. Coat terminalswith greaseor petro-

leumjelly.

6. Reinstallbattery(See "REPLACING

BATTERY"in the SERVICEAND AD-

JUSTMENTSsection of this manual).

TRANSAXLE COOLING

Keeptransaxlefree from build-upof dirt

and chaff whichcan restrictcooling.

Checkthe crankcaseoil levelbeforestart-

ing the engine and after each eight (8)

hours of operation. Tightenoil fill cap/

dipsticksecurely eachtime you check the

oil level.

TO CHANGEENGINEOIL

Determinetemperaturerange expected

beforeoil change. All oil mustmeet API

service classificationSG-SL

Besure tractor is on levelsurface.

Oilwill drain more freely whenwarm.

Catchoil in a suitable container.

1. Removeoil fill cap/dipstick. Be careful

notto allow dirt to enter the engine

whenchanging oil.

2. Removeyellow cap from end of drain

valveand installthe draintube ontothe

fitting. OilDrainValve

Drain

Tube

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

LUBRmCATmON

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

c -1o -2o -lo _ _'o _o _o 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oi|vi_ chart1 e

NOTE: Although multi-viscosky oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULF' line on dipstick. Tighten cap

onto the tube securely when finished.

ENGmNE OraL FmLTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

18whichever occurs first.

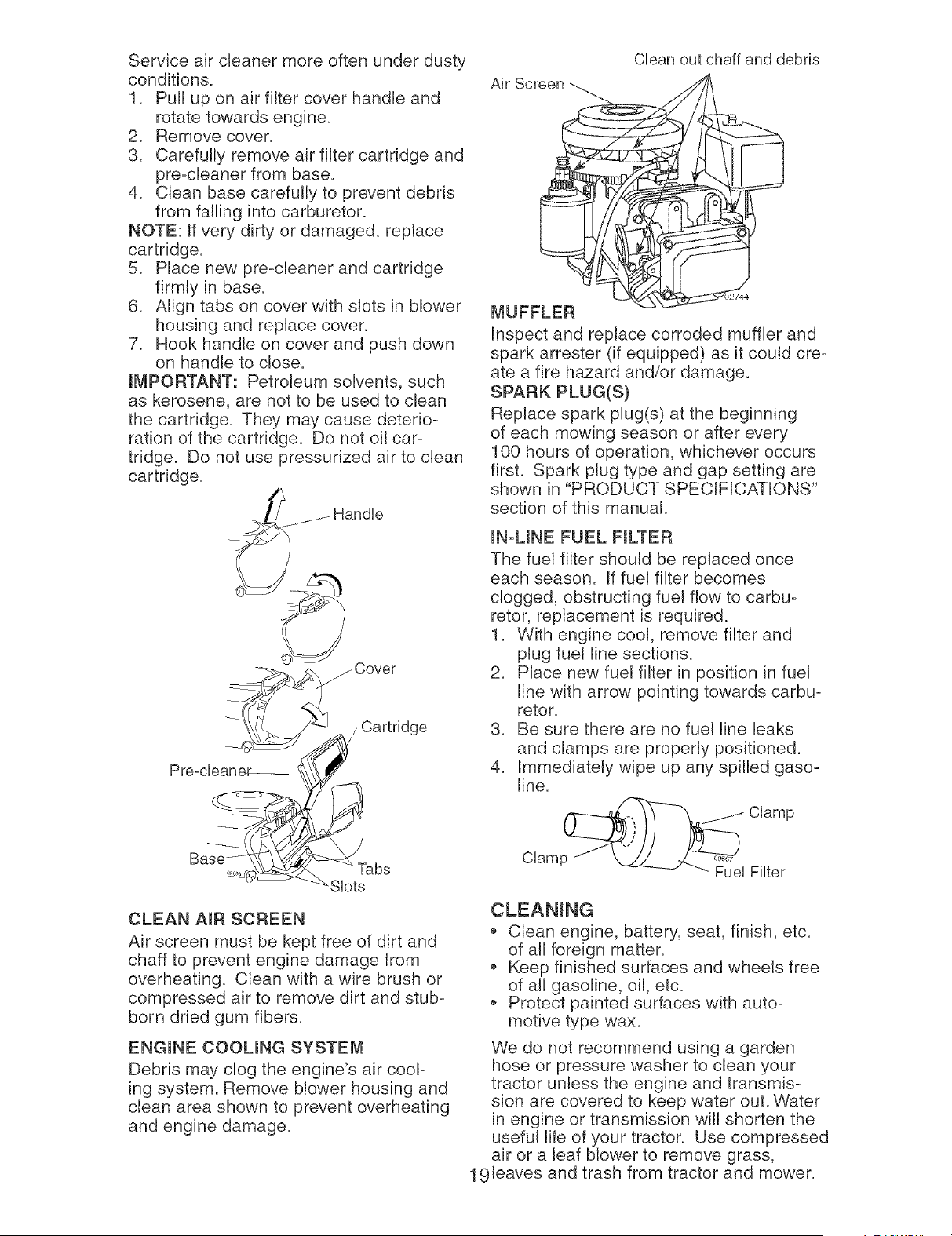

Serviceair cleaner more often underdusty

conditions.

1. Pull up on air filter cover handleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveair filter cartridge and

pre-cleanerfrom base.

4. Clean basecarefullyto preventdebris

fromfalling into carburetor.

NOTE:If very dirty or damaged,replace

cartridge.

5. Place new pre-cleanerand cartridge

firmly in base.

6. Aligntabs on coverwith slots in blower

housingand replacecover.

7. Hook handleon coverand pushdown

on handleto close.

mMPORTANT:Petroleumsolvents,such

as kerosene,are notto be used to clean

the cartridge. Theymaycause deterio-

rationof the cartridge. Do notoil car-

tridge. Do not use pressurizedair to clean

cartridge.

__Handb

j Cover

Cartridge

Slots

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

mN-UNE FUEL FmLTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

CUamp_ _CUamp

I Filter

CLEAN AiR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGmNE COOUNG SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

,, Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

191eaves and trash from tractor and mower.

WARNmNG:TO AVOmDSERmOUSmNJURY,BEFORE PERFORMmNGANY

SERVmCEOR ADJUSTMENTS:

1. Depressclutch/brakepedalfully and set parking brake.

2. Placegearshift leverin neutral(N) position.

3. Placeattachmentclutch in "DISENGAGED"position.

4. Turnignition keyto "STOP"and removekey.

5. Makesure the bladesand all movingparts havecompletelystopped.

6. Disconnectspark plug wire from spark plug and placewire whereit cannot

come in contactwith plug.

TRACTO£

TO REI_IOVEMOWER

Mowerwill be easierto removefrom the

right side of tractor.

1. Placeattachmentclutch switch in "DIS-

ENGAGED"position.

2. Moveattachmentlift leverforwardto

lowermowerto its lowest position.

3. Roll belt off electricclutch pulley.

4. Disconnectanti-swaybar from chassis

bracketby removingretainerspring.

5. Disconnectsuspensionarms from rear

deck bracketsby removingretainer

springs.

6. Disconnectfront linksfrom deck by

removingretainersprings.

7. Raiselift leverto raisesuspension

arms.Slide mowerout from undertrac-

tor.

mMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO mNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Install belt into electric clutch pulley

groove.

Electric Clutch Pulley

Retainer

Spring

Suspension Arms

Front Link

Anti-Sway

Bar

Retainer Springs

(Both Sides)

Retainer Spring

,j_De_lector Shield

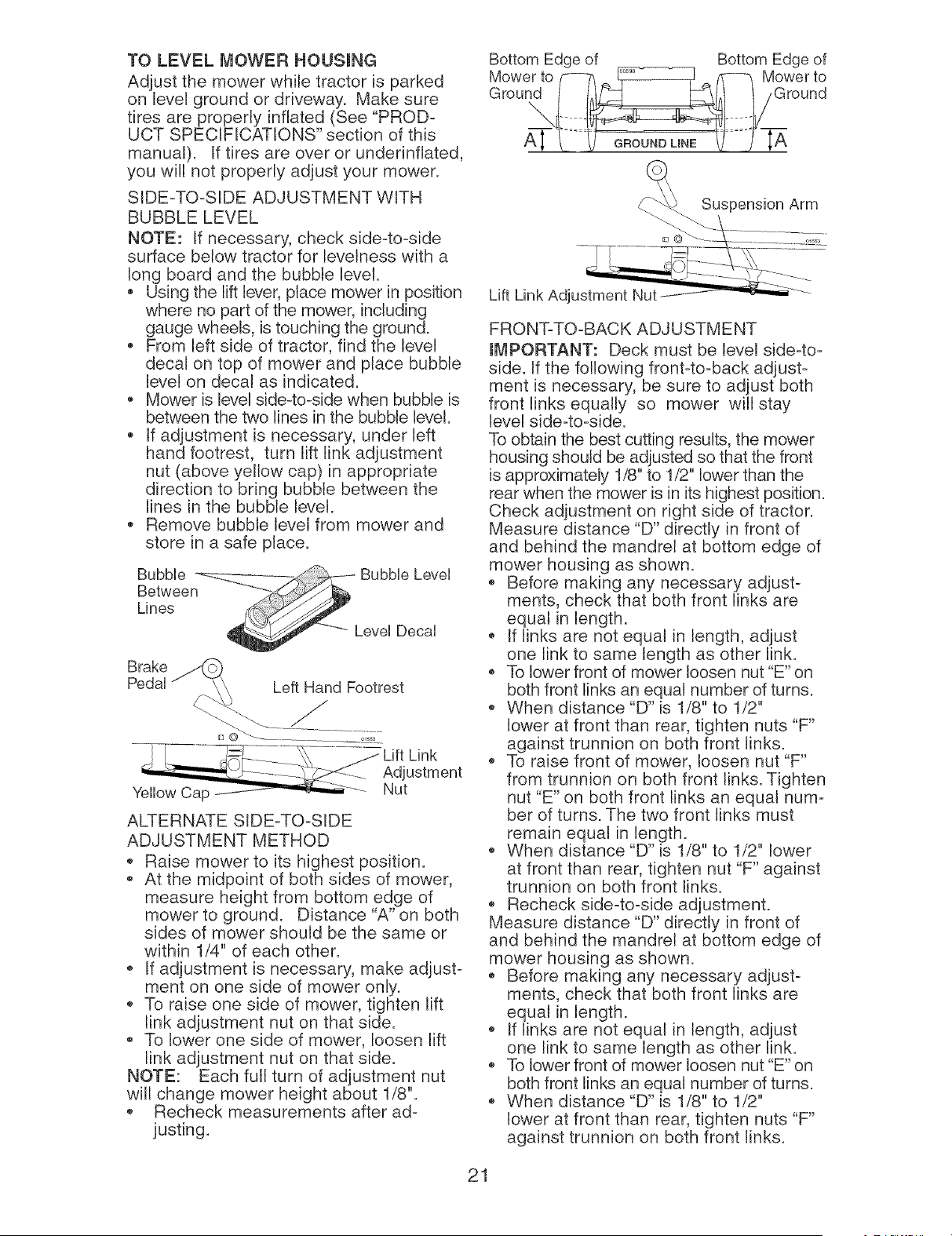

TO LEVEL MOWER HOUSmNG

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or undednflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in position

where no part of the mower, including

gauge wheels, is touching the ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

Mower is level side-to-side when bubble is

between the two lines in the bubble level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

Brake

PedaU/ f-_\45 Left Hand Footrest

o o_ ....... 7_

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after ad-

justing.

Bottom Edge of Bottom Edge of

Suspension Arm

Lift Link Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

mMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the mower

housing should be adjusted so that the front

is approximately 1/8" to 1/2" lower than the

rear when the mower is in its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

If links are not equal in length, adjust

one link to same length as other link.

To lower front of mower loosen nut "E" on

both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E" on

both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

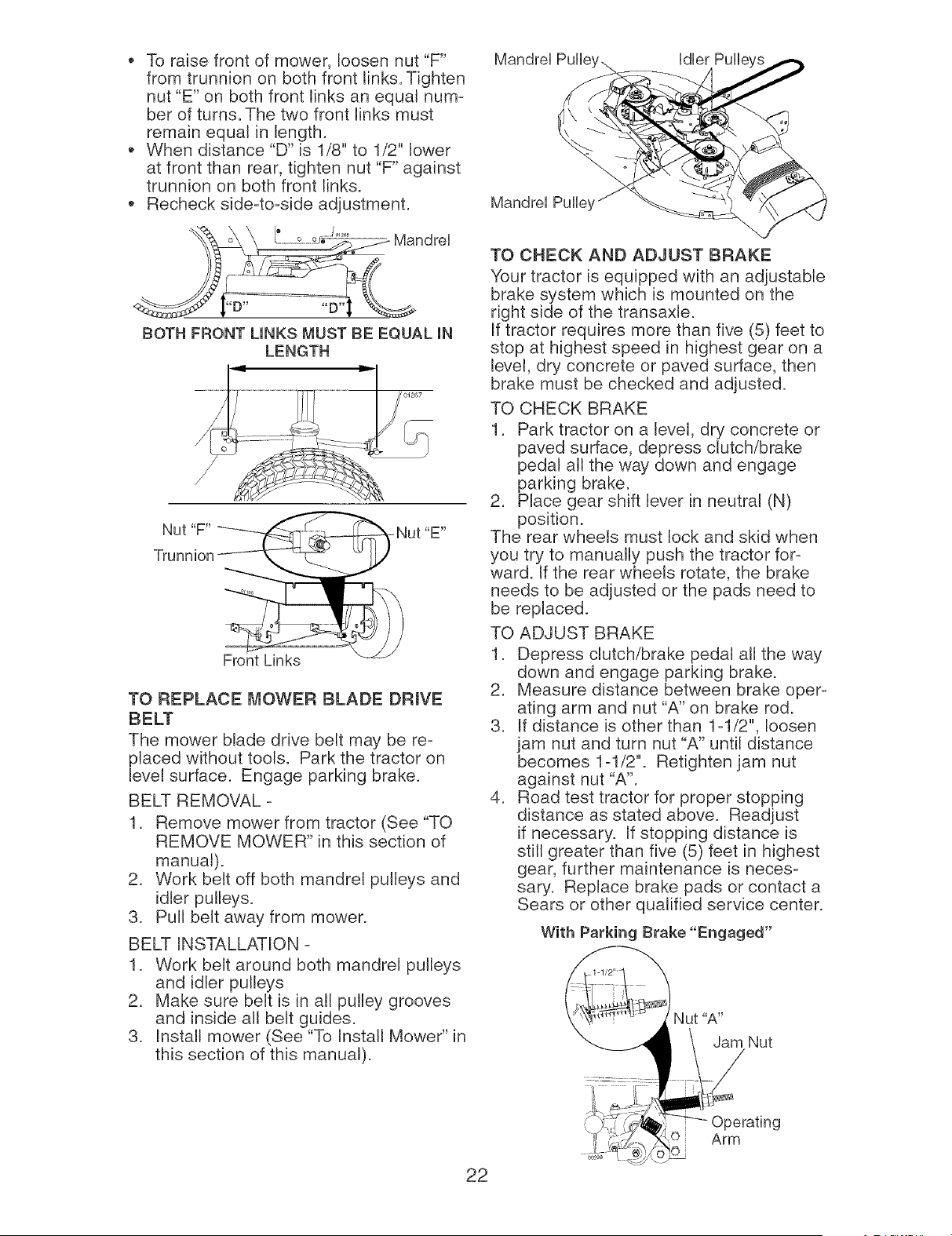

To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

Recheck side-to-side adjustment.

Mandrel

Idler

BOTH FRONT LINKS MUST BE EQUALIN

LENGTH

Nut "F"

Trunnion

Front Links

TO REPLACE MOWER BLADE DRmVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

o Arm

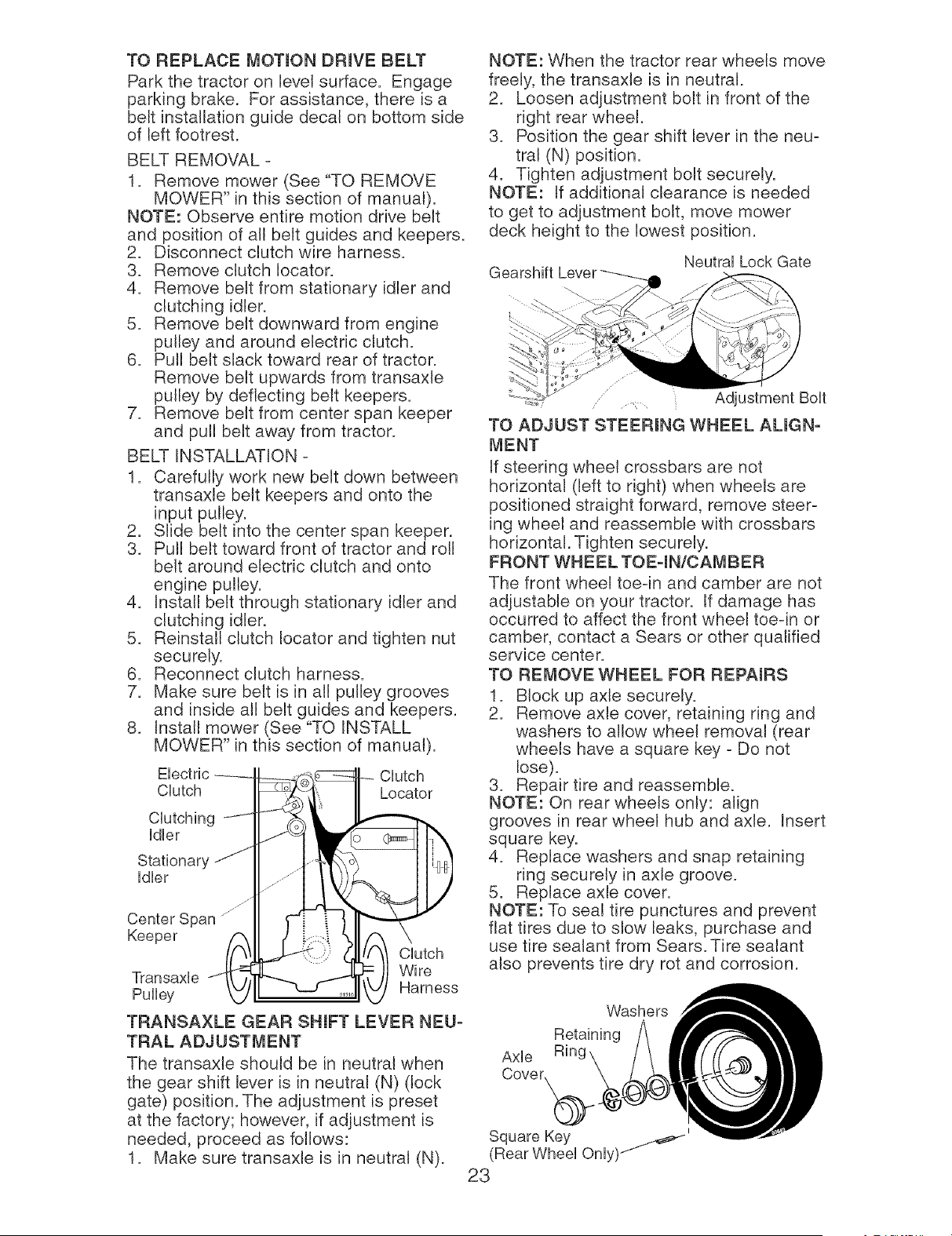

TO REPLACE MOTmON DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxb

pulley by deflecting belt keepers.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and rofl

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch Iocator and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Electric Clutch

Clutch Locator

Clutching

Idler

Stationary

Idler

Center Span

Keeper

Clutch

Transaxle Wi re

Pulley Harness

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxb is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift

Neutral Lock Gate

--,,_.o., Adjustment Bolt

TO ADJUST STEERmNG WHEEL AUGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE=IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Axle

Cover

Square Key Only)_.j._ -_'

(Rear Wheel

TO STARTENGINEWiTH A WEAK BAT-

TERY

,_kWARNmNG:Lead-acidbatteriesgen-

erate explosivegases. Keepsparks,flame

andsmoking materialsawayfrom bat-

teries. Alwayswear eye protectionwhen

around batteries.

If your batteryis too weakto start the

engine, it shouldbe recharged.(See "BAT-

TERY" in the MAINTENANCEsectionof

this manual).

If "jumpercables"are usedfor emergency

starting, followthis procedure:

IMPORTANT:Yourtractor isequipped

with a 12 volt system.The other vehicle

must also be a 12 volt system.Do not use

your tractorbatteryto start othervehicles.

TO ATTACHJUMPERCABLES-

1. Connectone end of the REDcable

to the POSITIVE(+) terminal of each

battery(A-B),takingcare not to short

againsttractor chassis.

2. Connectone end of the BLACKcable

to the NEGATIVE(-) terminal (C)of

fully charged battery.

3. Connectthe other end of the BLACK

cable(D) to goodchassisground,

awayfrom fuel tank and battery.

TO REMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirst from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

n_asWARNmNG: Do not short battery termi-

by allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

mex

BoUt

Positive (Red)

CabUe

Negative (BUack)

CaMe

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

mNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

,_ Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Connector

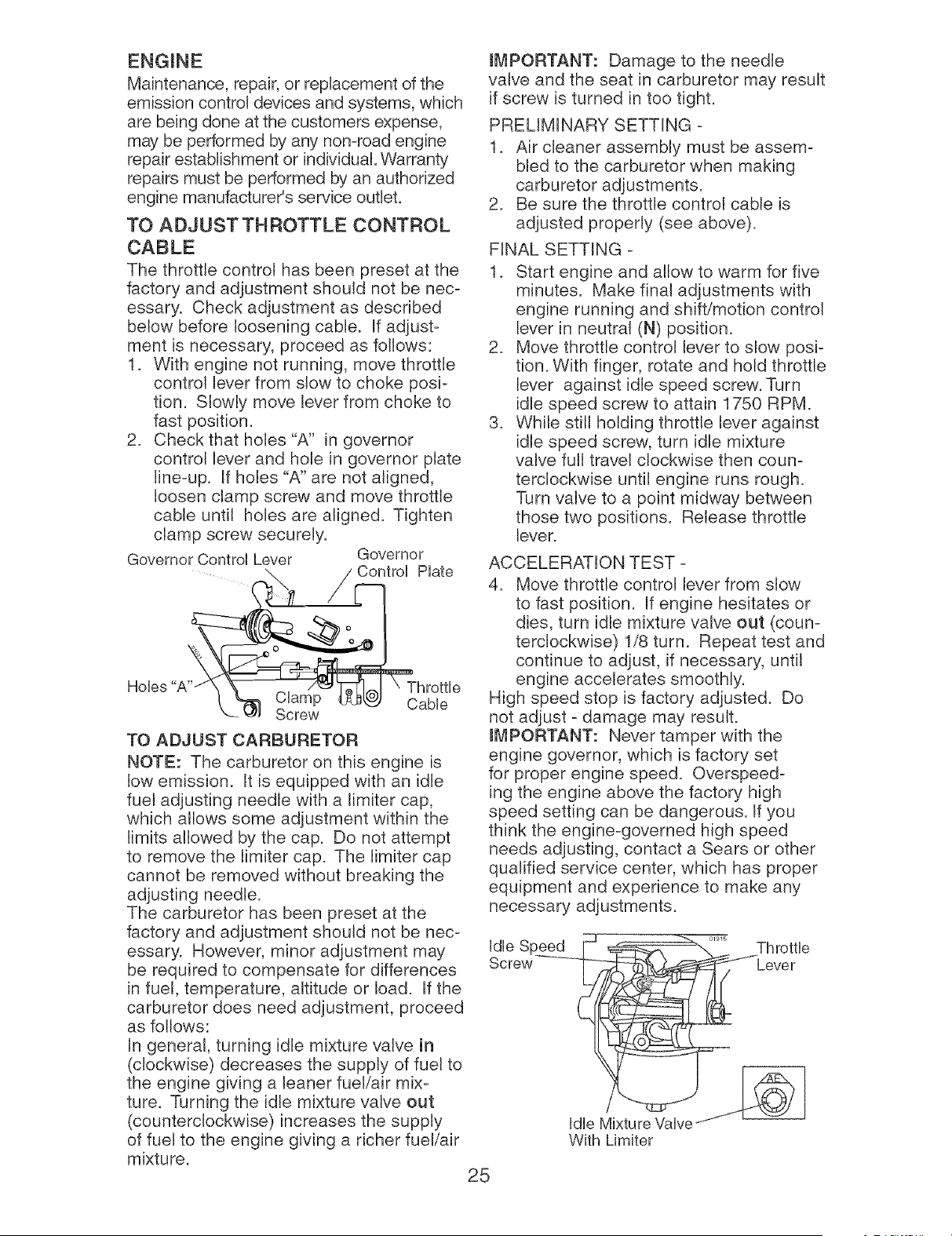

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor ControU Lever Governor

PUate

HoUes ThrottUe

CUamp CaMe

Screw

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limker cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

mMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

mMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed [- Throttle

Screw Lever

With Limiter

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_I, CAUTmON: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery

may require recharging.

To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

mMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENG(NE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

Do not store gasoline from one season

to another.

Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

mMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTmNG CHART:

See appropriate section in marluamunmess directed to Sears service center

Hard to start

Engine wiii not

turn over

Engine clicks but

wiii not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

GORRECTmON

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure=

tor, refill tank with fresh gas=

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check atl wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

CAUSE CORRECTmON

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build=up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator=safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

POOr cut _ uneven

Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure=

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

Mower blades wiii

not rotate

PROBLEM CAUSE CORRECTmON

1. Remove obstruction.

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery wiii not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

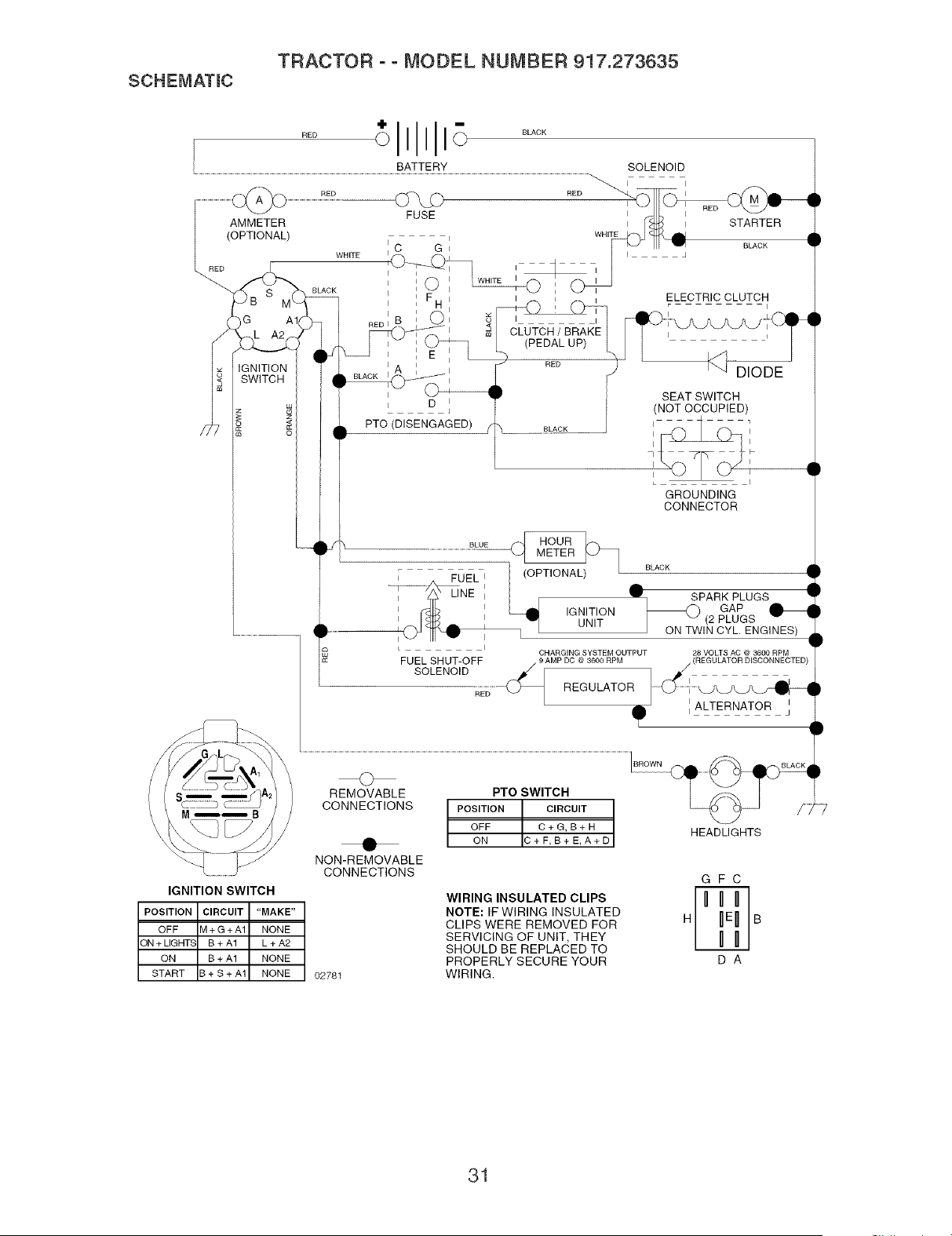

SCHEMATmC

TRACTOR ooMODEL NUMBER 917.273635

SOLENOID

I J

STARTER

BLACK

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

DN + LIGHTS B+A1 L+A2

ON B + A1 NONE

START B + S + A1 NONE

ELECTRIC CLUTCH

I i

DIODE

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

i FUEL I (OPTIONAL) BLACK

_NE I O SPARK PLUGS •

IL_/_, I L- _ IGNITION I_ GAP

' _ I - UN,T J ON_(2PLUGS-- "

I ON TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

FUEL SH UT-OFF 9 AMP DC @ 3600 RPM (REGULATOR DISCONNECTED)

SOLENOID (_ _ _ j_j_

REGULATOR

RED

ALTERNATOR _

osw,

OFF C + G, B + H HEADLIGHTS

ON C+F,B+E,A+D

NON-REMOVABLE

CONNECTIONS

02781

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

GFC

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.273635

]

I- .....

ELECTRmCAL

TRACTOR o o MODEL NUMBER 917.273635

KEY PART

NO. NO. DESCRiPTiON

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Trap',Battery

10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2

11 150109 HoIddown, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, htedock

21 175688 Harness, Light

22 4152J Bulb Light #1156

24 8860R Cable Starter

25 146148 Cable

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 uric

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Hgnition

33 140403 Key

40 188031 Harness, Hgnition

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover Terminal

43 178861 Sotinoid w/brass plunger

45 122822X Ammeter

46 169635 Hourmeter

50 174652 Switch, PTO

55 17490508 Screw, Thd. RoII. 5/16-18 x 1/2

79 175242 Socket Asm Bulb Twistiock

80 146685 Harness Clutch EVX

89 169639 Bracket Snap4n Hourmeter

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273635

CHASSmSAND ENCLOSURES

217

278

209 /_.

155

_278

209

_,158

._ 209

.--" 20 59

209

206

chassis-stealth,stlt 21

209 6O

209

>209

_14

154_209

_278

209

TRACTOR ooMODEL NUMBER 917.273635

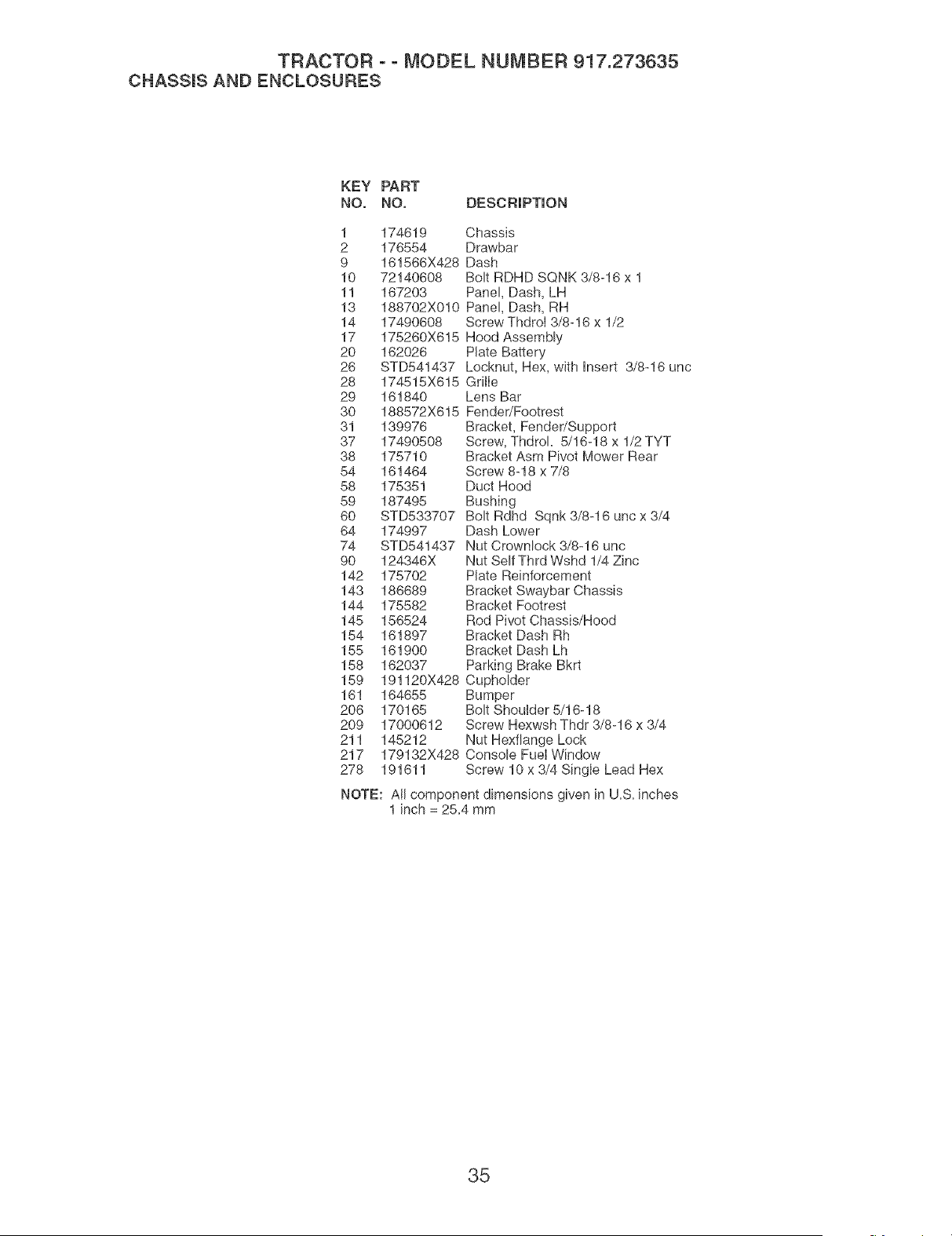

CHASSmSAND ENCLOSURES

KEY PART

NO. NO. DESCRiPTiON

1 174619 Chassis

2 176554 Drawbar

9 161566X428 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 167203 Panel, Dash, LH

13 188702X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 175260X615 Hood Assembly

20 162026 Plate Battery

26 STD541437 Locknut, Hex, with Insert 3/8-16 unc

28 174515X615 Grille

29 161840 Lens Bar

30 188572X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, ThdroL 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

54 161464 Screw 8-18 x 7/8

58 175351 Duct Hood

59 187495 Bushing

60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownlock 3/8-16 uric

90 124346X Nut Self Thrd Wshd 1/4 Zinc

142 175702 Plate Reinforcement

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 191120X428 Cupholder

161 164655 Bumper

206 170165 Bolt Shoulder 5/16-18

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

211 145212 Nut Hexfiange Lock

217 179132X428 Console Fuel Window

278 191611 Screw 10 x 3/4 Single Lead Hex

NOTE: Atl component dimensions given in U=S=inches

1 inch = 25=4 mm

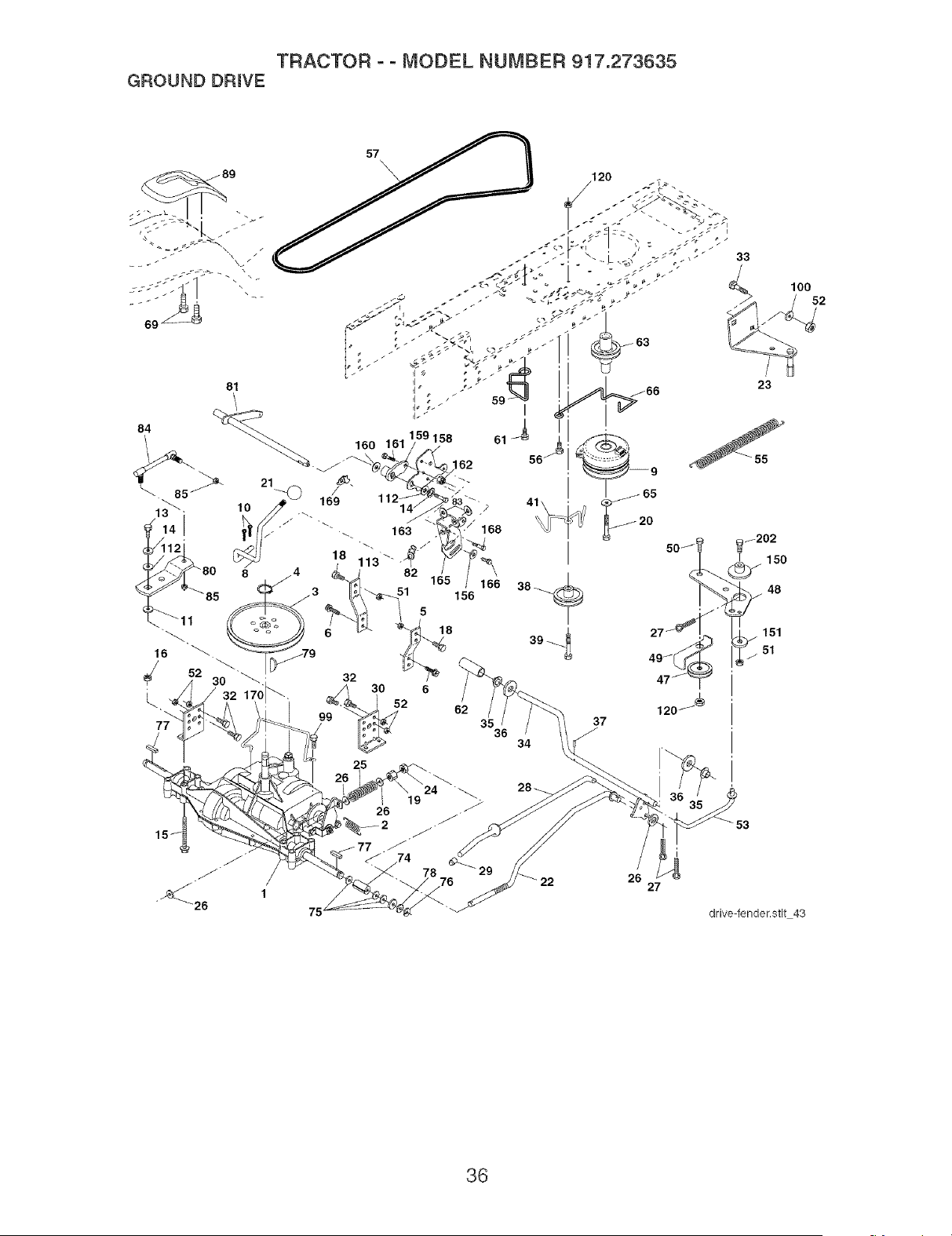

TRACTOR - - MODEL NUMBER 917.273635

GROUND DRIVE

75 drive-fender.stlt 43

TRACTOR ° ° MODEL NUMBER 917.273635

GROUND DRmVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 TransaxIe Dana 4360-180 55 105709X

(See Breakdown) 56 17060620

2 146682 Spring, Return, Brake 57 160855

3 123666X Pulley, Transaxle 59 169691

4 12000028 Ring, Retainer 61 17120614

5 121520X Strap, Torque 62 123533X

6 17060512 Screw 5/16-18 x 3/4 63 175414

8 165866 Rod Shifter Fender STLT 65 STD551143

9 160889 Clutch 66 154778

10 STD561210 Pin, Cotter 69 142432

11 105701X Washer, Shift Plate 74 109502X

13 74550412 Bolt 1/4-28 UNF W/Patch Gr+8 75 121749X

14 10040400 Washer Lock Hvy Helical 76 STD581075

15 74490544 Bolt Hex FLGHD 5/16-18 Gr+5 77 123583X

16 STD541431 Nut Lock Hx W/Ins 5/16-18 unc 78 121748X

18 STD523710 Bolt Fin Hex 3/8-16 unc x 1 Gr+5 79 STD5B0025

19 STD541437 Nut 80 160783

20 150280 Bolt Hex 7/16-20 x 4-1/4 Gr+5 81 165593

21 106933X Knob 82 165711

22 130804 Rod, Brake 83 19171216

23 171258 Bracket Anti-Rotation 84 169149

24 STD541237 Nut 85 150360

25 106888X Spring, Brake Rod 89 188310X428

26 STD551037 Washer 99 17000512

27 STD561210 Pin 100 19111016

2B 175765 Rod, Parking Brake 112 19091210

29 124236X Cap, Parking Brake 113 127285X

30 169592 Bracket, Transaxle 120 73900600

32 STD523107 Bolt 150 175456

33 72140506 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 151 19133210

34 175578 Shaft Assembly, Foot Pedal 156 166002

35 120183X Bearing, Nylon 158 165589

36 STD551062 Washer 159 165494

37 STD571810 RoII Pin 160 19292016

38 179114 Pulley, Composite, Flat 161 72140406

39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 162 73680400

41 175556 Keeper, Belt, Idler 163 74780416

47 127783 Pulley, Idler, V-Groove, Plastic 165 165623

48 154407 Bellcrank Clutch Grad Drv Stl 166 17490510

49 123205X Retainer, Belt 168 165492

50 72110612 Bolt 169 165580

51 STD541437 Nut Crown Lock 3/8-16 uric 170 178394

52 STD541431 Nut Crown Lock 5/16-18 unc 202 72110614

53 105710X Link, Clutch

DESCRIPTION

Spring, Clutch Return

Screw 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, Center Span

Screw 3/8-16 x +875

Cover, Pedal

Pulley, Engine

Washer

Keeper, Belt, Engine, Fool Proof

Screw Hex Wsh Hi-Lo 1/4-1/2 uric

Spacer, Axle

VVasher 25/32 x 1-1/4 x 16 Ga+

E-Ring

Key, Square 2+0 x +1845/1865

Washer 25/32 x 1-5/8 x 16 Ga+

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga+

Link Transaxie

Nut, Nylock

Console, Shift, STLT

Screw 5/16-18 x 3/4

Washer 11/32 x 5/8 x 16 Ga+

Washer 9/32 x 3/4 x 10 Ga+

Strap Torque 90 Degrees

Nut Lock Fig+ 3/8-16 unc

Spacer Retainer

VVasher 13/32 x 2 x 10 Ga+

Washer Srrted 5/16 ID x 1+125

Bracket Shift Mount

Hub Shift

Washer 29/32 x 1-1/4 x 16 Ga+

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr+5

Nut Crownlock 1/4-20 uric

Bolt Hex Fin 1/4-20Unc x 1 Gr+5

Bracket Pivot Lever

Screw 5/16-18 x 5/8 TT Yellow

Bolt Shoulder 5/16-18 x +561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Bolt Cam SH 3/8-16 x 1-3/4 Gr+5

NOTE: AII component dimensions given in U+S+inches

1 inch = 25+4 mm

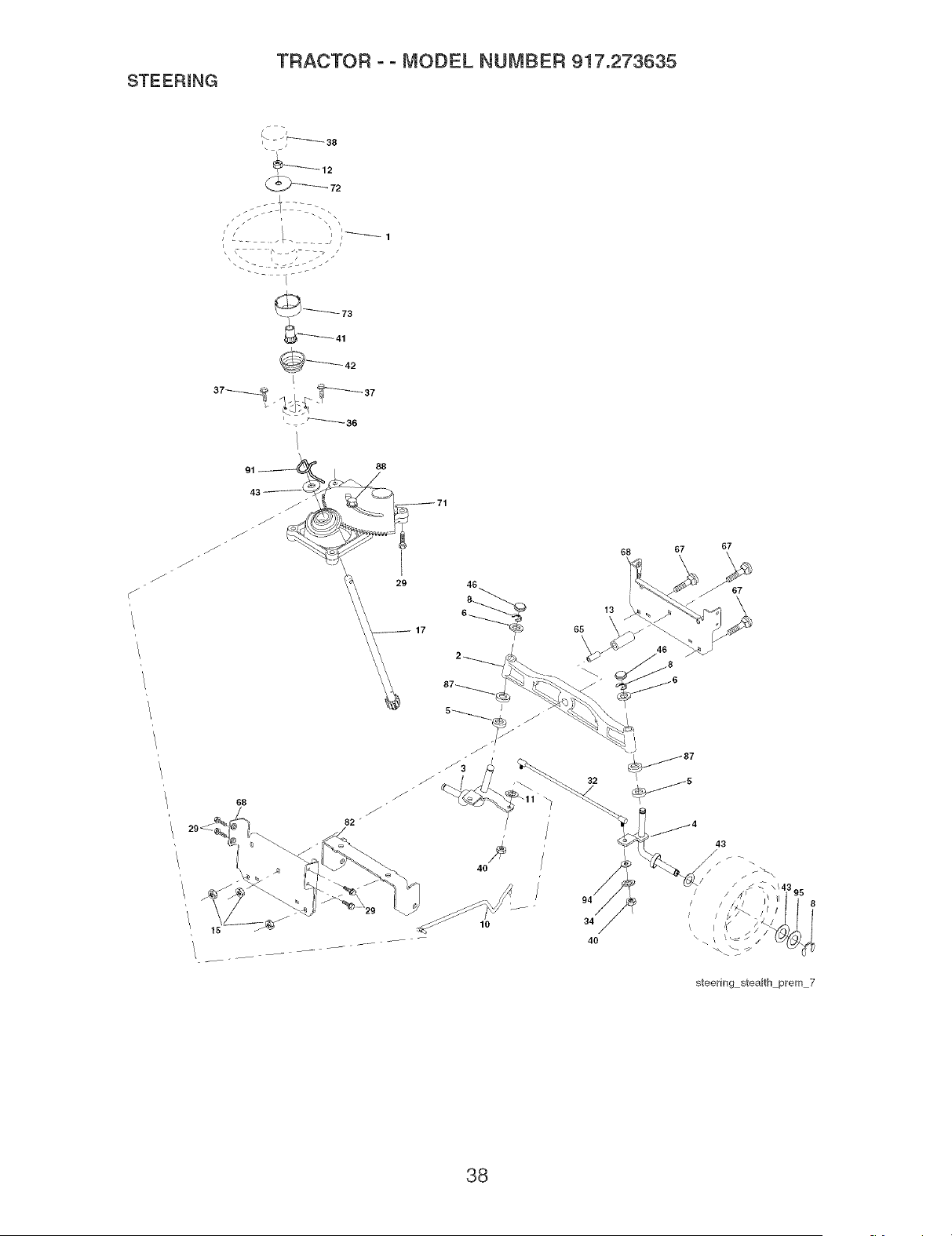

STEERmNG

TRACTOR o o MODEL NUMBER 917.273635

/ :

L _ 38

_72

/ /

68 67 67

/ 67

/ \

/ / /_J

/ 8

steering steaffh prem 7

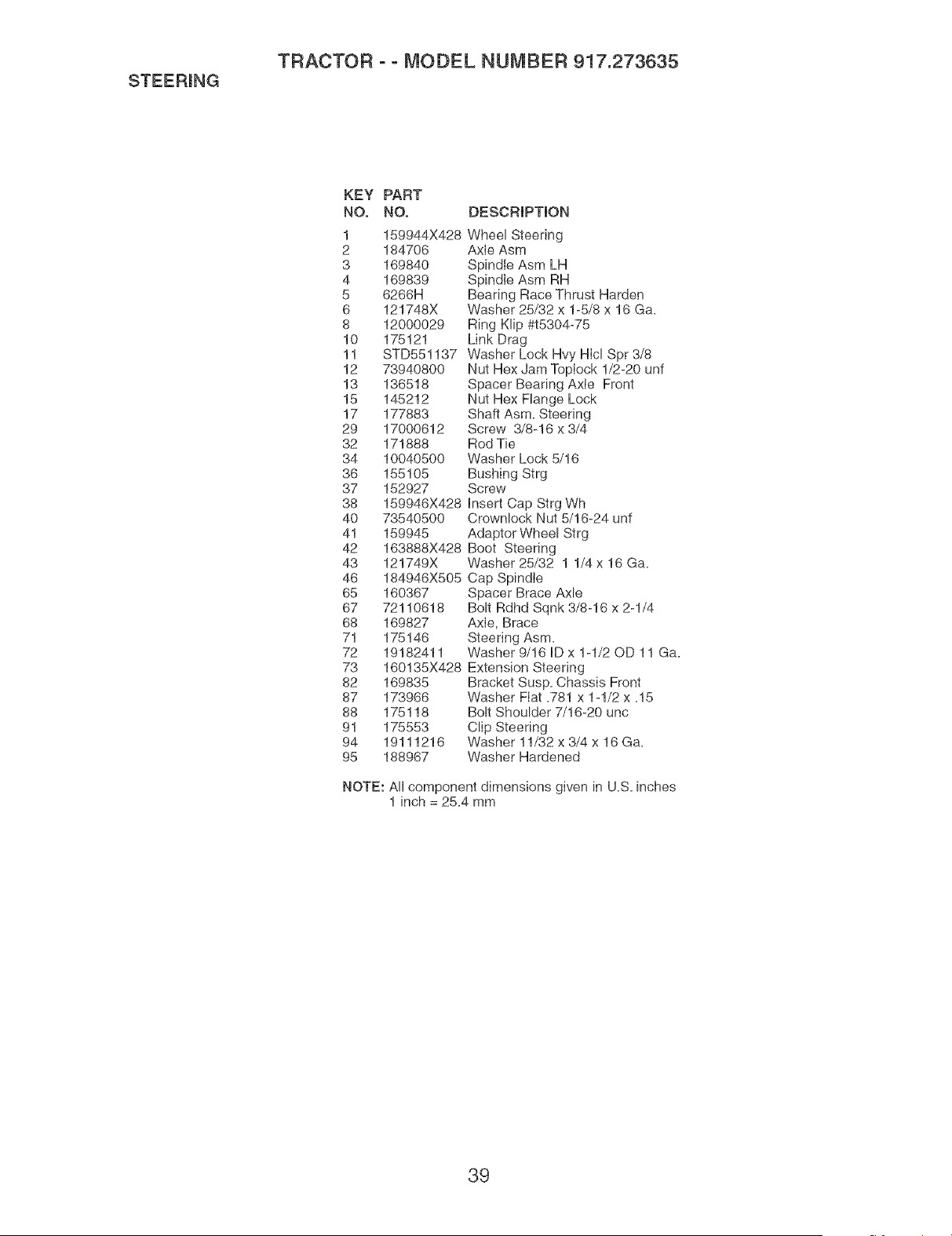

STEERmNG

TRACTOR o o MODEL NUMBER 917.273635

KEY PART

NO. NO. DESCRiPTiON

1 159944X428 Wheel Steering

2 184706 Axle Asm

3 169840 Spindle Asm LH

4 169839 Spindle Asm RH

5 6266H Bearing Race Thrust Harden

6 121748X Washer 25/32 x 1-5/8 x 16 Ga=

8 12000029 Ring Klip #t5304-75

10 175121 Link Drag

11 STD551137 Washer Lock Hvy HIcl Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axie Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm. Steering

29 17000612 Screw 3/8-16 x 3/4

32 171888 Rod Tie

34 10040500 Washer Lock 5/16

36 155105 Bushing Strg

37 152927 Screw

38 159946X428 insert Cap Strg Wh

40 73540500 Crownlock Nut 5/16-24 unf

41 159945 Adaptor Wheel Strg

42 163888X428 Boot Steering

43 121749X Washer 25/32 1 1/4 x 16 Ga=

46 184946X505 Cap Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm=

72 19182411 Washer 9/16 ID x 1-1/20D 11 Ga=

73 160135X428 Extension Steering

82 169835 Bracket Susp= Chassis Front

87 173966 Washer Fiat =781 x 1-1/2 x =15

88 175118 Bolt Shoulder 7/16-20 unc

91 175553 Clip Steering

94 19111216 Washer 11/32 x 3/4 x 16 Ga=

95 188967 Washer Hardened

NOTE: All component dimensions given in U=S=inches

1 inch = 25=4 mm

ENGmNE

TRACTOR ° ° MODEL NUMBER 917.273635

112

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs=lcyF 51

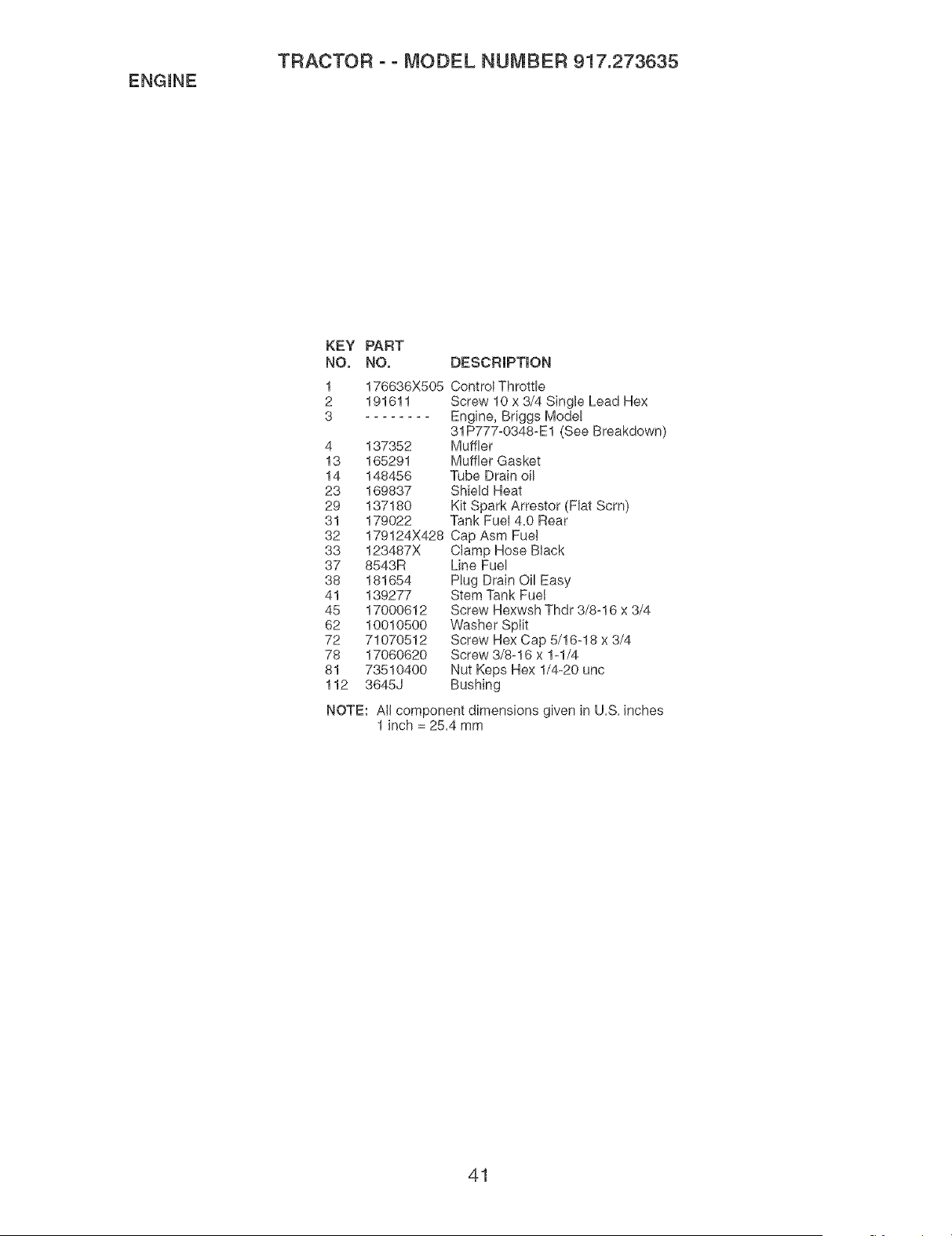

ENGINE

TRACTOR o o MODEL NUMBER 917.273635

KEY PART

NO. NO. DESCRIPTION

1 176636X505 Control Throttle

2 191611 Screw 10 x 3/4 Single Lead Hex

3 ........ Engine, Briggs Mode!

31P777-0348-E1 (See Breakdown)

4 137352 Muffler

13 165291 Muffler Gasket

14 148456 Tube Drain oil

23 169837 Shield Heat

29 137180 Kit Spark Arrestor (Flat Scrn)

31 179022 Tank Fuel 4.0 Rear

32 179124X428 Cap Asm Fue!

33 123487X Clamp Hose Black

37 8543R Line Fuel

38 181654 Hug Drain Oil Easy

41 139277 Stem Tank Fuet

45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

62 10010500 Washer Split

72 71070512 Screw Hex Cap 5/16-18 x 3/4

78 17060620 Screw 3/8-16 x 1-1/4

81 73510400 Nut Keps Hex 1/4-20 unc

112 3645J Bushing

NOTE: All component dimensions given in U=S=inches

1 inch = 25=4 mm

TRACTOR ° ° MODEL NUMBER 917.273635

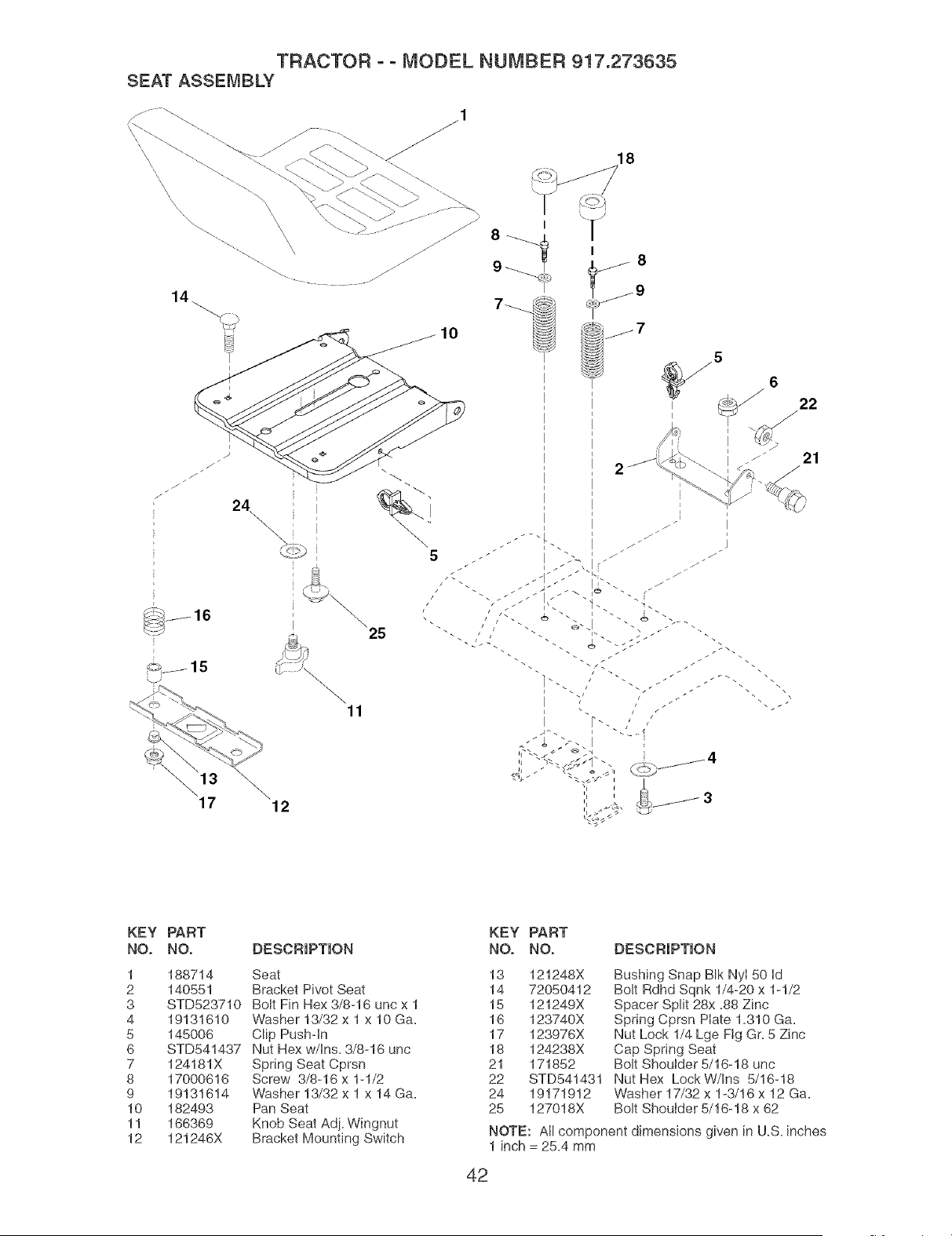

SEAT ASSEMBLY

I \\

.... 15

17 \12

_t f

Et t _

t E _x

KEY PART

NO, NO, DESCRiPTiON

1 188714 Seat

2 140551 Bracket Pivot Seat

3 STD523710 Bolt Fin Hex 3/8-16 unc x 1

4 19131610 Washer 13/32 x 1 x 10 Ga=

5 145006 Clip Push-Hn

6 STD541437 Nut Hex w/Hns. 3/8-16 unc

7 124181X Spring Seat Cprsn

8 17000616 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13/32 x 1 x 14 Ga=

10 182493 Pan Seat

11 166369 Knob Seat Adj= Wingnut

12 121246X Bracket Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 121249X

16 123740X

17 123976X

18 124238X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk NyI 50 Hd

Bolt Rdhd Sqnk 1/4-20 x 1-1/2

Spacer Split 28x .88 Zinc

Spring Cprsn PIate 1,310 Ga=

Nut Lock 1/4 Lge Fig Gr=5 Zinc

Cap Spring Seat

Bolt ShouIder 5/16-18 uric

Nut Hex LockW/Hns 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga=

Bolt Shoulder 5/16-18 x 62

NOTE: AII component dimensions given in U=S=inches

1 inch = 25,4 mm

DECALS

TRACTOR o o MODEL NUMBER 917.273635

16 3 13 21 4 11

2O 7

KEY PART

NO. NO.

1 187407

2 138047

3 186242

4 186243

5 160396

6 146046

7 179128

9 189080

10 156439

11 189088

12 172331

13 133644

15 187408

DESCRIPTION

Reflector, LH

Decal, Battery, Diehard, Sears

Decal, Hood RH

Decal, Hood LH

Decal, Deck Sch.

Decal, V-Belt, Drive Schematic

Decal, Deck "B" "42"

Decal, Replacement Hood

Decal, Fender, Danger

Decal, Panel, Dash

Decal, Mower, Heavy-Duty

Decal, Replacement Parts

Decal, Reflector, RH

KEY PART

NO. NO.

16 164065

17 156368

18 186572

20 149516

21 186331

23 189020

24 164096

26 181470

-- 184310X428

-- 184311X428

-- 192707

-- 192708

DESCRIPTION

Decal, Steering Whee!

Decal, Fender, Operator Inst.

Decal, Fender

Decal, Battery

Decal, Hood, Side Panel

Decal, Engine

Decal, Dash

Decal, Deck level

Pad, Footrest, ST/LT, LH

Pad, Footrest, ST/LT, RH

Manual, Owner's, English

Manual, Owner's, Spanish

4,10

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X624

3,9 6 278H

7 9040H

11 8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Valve Tire

Stem Valve

Tire FTs 15 x 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6" front Service

Fitting Grease (Front Wheet Only)

Bearing Flange (Front Wheel Only)

Rim Asm 8" rear Service

Tire R Ts 20 x 10-8 C Service

Tube Rear (Service Item Only)

Cap Axle

Sealant, Tire ( 10 oz. Tube)

wheel 1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273635

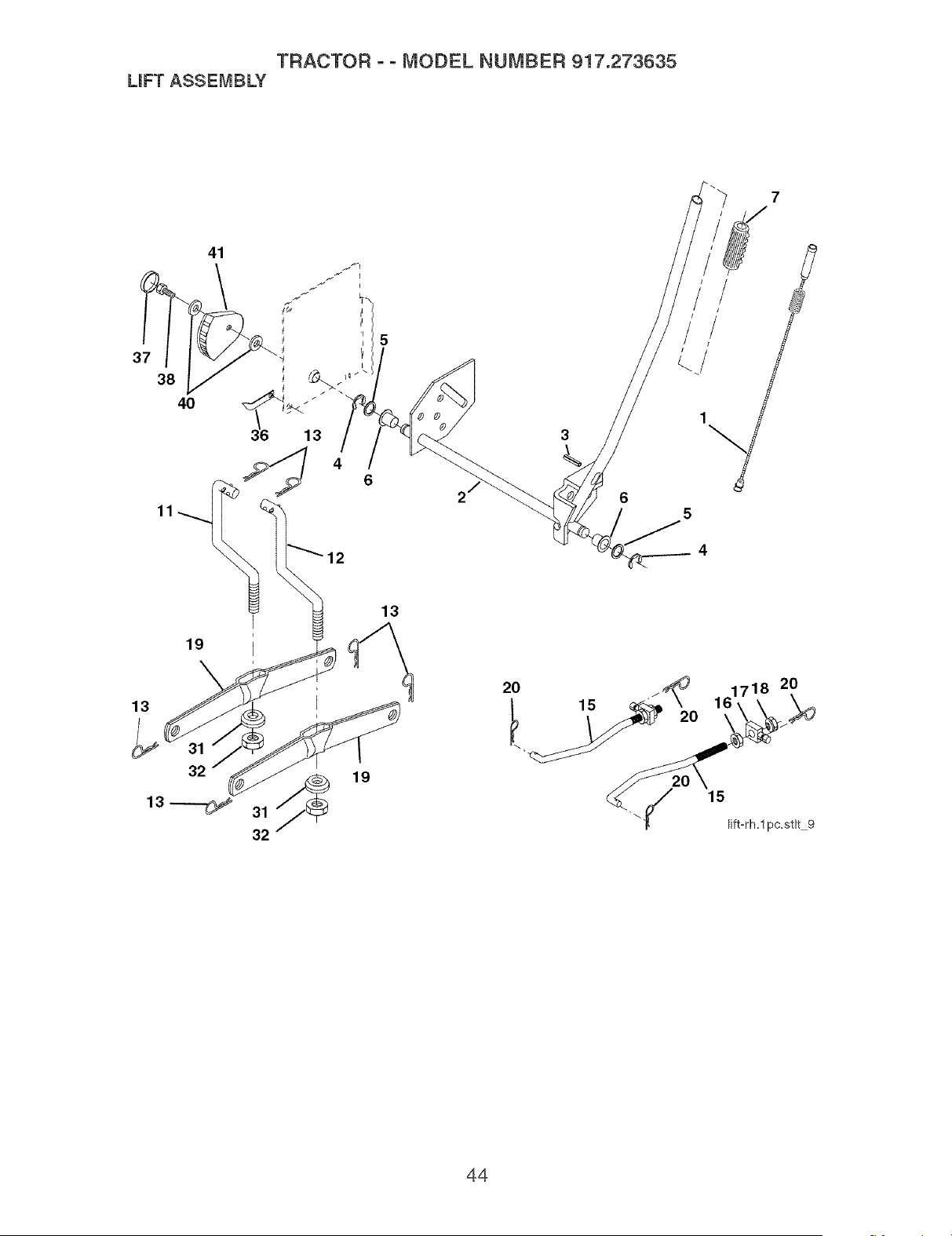

LmFTASSEMBLY

13----_

31_

1718 20

16,

Fift-rh.1 pc.stlt 9

TRACTOR ooMODEL NUMBER 917.273635

LmFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 179504 PIunger Assembiy

2 159476 Shaft Assembly, Lift

3 188822 Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x21Ga.

6 120183X Bearing, NyIon

7 175830 Grip, Handle, Fluted

11 139865 Link, Lift, LH.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 uric

17 175689 Trunnion

18 73800800 Locknut, Hex, with Washer Insert 1/2-13 unc

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

36 155097 Pointer Height Indicator

37 123935X Hug Hole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 10 Ga.

41 155098 Indicator Height

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR o o MODEL NUMBER 917.273635

MOWER DECK

_ ""_ 40

159 _i

132 91

_184

117

92__ 92

4 149

19F 21

140 -

, 138

102 F

21 _5

_134

116

2 / 23

_,_ 6

28 \"

42 D,elec.t-path.adjwl.stlt 3

TRACTOR o o MODEL NUMBER 917.273635

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO.

1 182032 Mower Housing 94 132264

2 STD533107 Bolt 95 180533

3 138017 Bracket Assembly, Sway Bar, Fr. 101 136420

4 165460 Bracket Sway Bar 38/42" 102 71081010

5 STD624008 Retainer Spring 103 19061216

6 178024 Bar Sway Deck 104 STD551110

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

9 STD551137 Washer, Lock 106 2029J

10 140296 Washer, Hardened 113 17060512

(The following blades are available) 116 4898H

11 134149 Blade, 42" Mulching STD 117 165746

(For mulching mowers only) 118 73930600

- - 139775 Blade, 42" Mulching Premium (For 119 19121414

better wear when mulching) 129 19131312

- - 138971 Blade, 42" Hi-Lift 130 STD523710

(For bagging or discharge) 131 STD533710

13 137645 Shaft Assembly, Mandrel, Vented 132 17000612

dncL Key Number 6) 134 156941

14 128774 Housing, Mandrel, Vented 135 159765

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck 136 155986

18 72140505 Bolt, Carriage 5/16-18 x 5/8 138 159763

19 132827 Bolt, Shoulder

20 159770 Baffle, Vortex 139 159767

21 STD541431 Nut, Crownlock 5/16-18 unc

23 177563 Bracket, Deflector 140 159768

24 105304X Cap, Sleeve

25 123713X Spring, Torsion, Deflector 143 157109

26 110452X Nut, Push 144 158634

27 130968X428 Shield, Deflector 145 165888

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 146 171977

29 131491 Rod, Hinge 148 169022

30 173984 Screw Thdrol Rolling Wsh Hd 149 165898

31 187690 Washer, Spacer 150 19091210

32 153535 Pulley, Mandrel 159 STD533717

33 178342 Nut, TopIock, Flanged 182 179126

34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 183 163552

36 131494 Pulley, Idler, Flat 184 19131410

40 73900600 Nut, Lock Fig. 3/8-16 uric - - 130794

44 140088 Guard, Mandrel, LH.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 - - 181542

54 178515 Washer, Hardened

55 155046 Arm, IdIer

56 165723 Spacer, Retainer

59 141043 Guard, Tuv IdIer (94)

61 174882 Spring Ext Elect Clutch

68 174883 V-Belt

91 180532 Bracket Roller Nose LH

92 STD541437 Locknut, Hex W/Wsh 3/8-16 uric

DESCRIPTION

Roller Nose

Bracket Roller Nose RH

Cover Mulching 42" Black

Screw Truss Hd Phil10-24 x 5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1Gr. 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

SWcrew Hex Wsh Th

Pin Head Rivet

Bracket Asm. Wheel Gauge

Rear LH

Bar Adj. Gauge Wheel

Bracket Asm. Wheel Gauge

Rear RH

Bracket Asm. Wheel Gauge

Front RH

Bracket Asm. Wheel Gauge

Front LH

Bracket Arm idler 42"

Keeper Belt 42" Clutch Cable

Pulley idler Flat

Bolt Carraige idler

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Rod Roller Nose

Retainer Spring

Washer 3/8

Mandrel Assembly (includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulch cover, guage wheels and

nose roller components key nos.

101 - 106, 5, 116- 119, 134, 136

and 91,94, 95,132, 182,183)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR ooMODEL NUMBER 917.273635

DANATRANSAXLE==MODELNUMBERD4360=180

11.

!I*

6768

43*

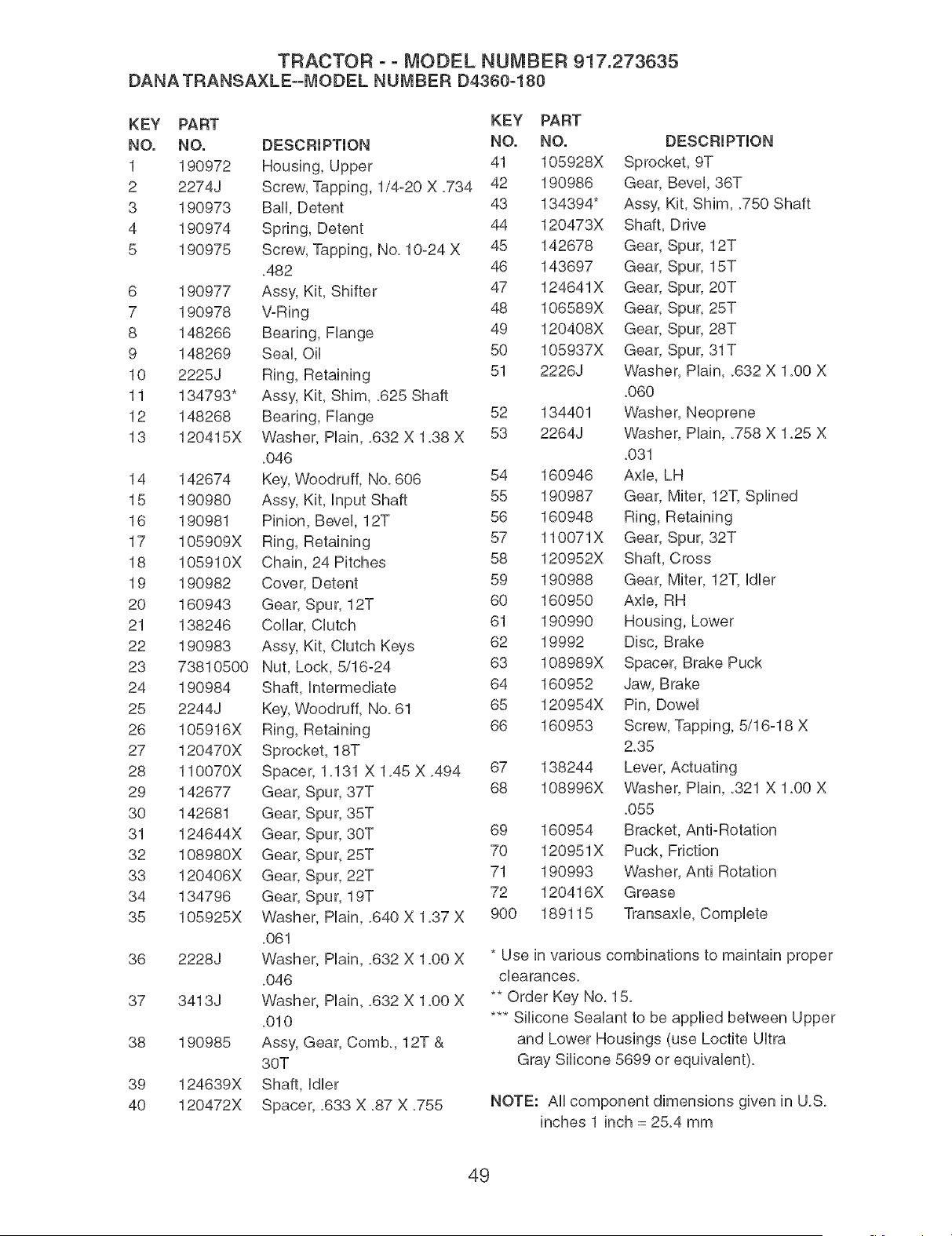

TRACTOR ° ° MODEL NUMBER 917.273635

DANA TRANSAXLE-=MODEL NUMBER D4360-180

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO.

1 190972 Housing, Upper 41 105928×

2 2274J Screw, Tapping, 1/4-20 X .734 42 190986

3 190973 BaH, Detent 43 134394"

4 190974 Spring, Detent 44 120473X

5 190975 Screw, Tapping, No. 10-24 X 45 142678

.482 46 143697

6 190977 Assy, Kit, Shifter 47 124641X

7 190978 V-Ring 48 106589X

8 148266 Bearing, Hange 49 120408X

9 148269 SeaU,OH 50 105937X

10 2225J Ring, Retaining 51 2226J

11 134793" Assy, Kit, Shim, .625 Shaft

12 148268 Bearing, Hange 52 134401

13 120415X Washer, PUain,.632 X 1.38 X 53 2264J

.046

14 142674 Key, Woodruff, No. 606 54 160946

15 190980 Assy, Kit, UnputShaft 55 190987

16 190981 Pinion, Bevel, 12T 56 160948

17 105909X Ring, Retaining 57 110071X

18 105910X Chain, 24 Pitches 58 120952X

19 190982 Cover, Detent 59 190988

20 160943 Gear, Spu r, 12T 60 160950

21 138246 Collar, CUutch 61 190990

22 190983 Assy, Kit, CUutchKeys 62 19992

23 73810500 Nut, Lock, 5/16-24 63 108989X

24 190984 Shaft, Untermediate 64 160952

25 2244J Key, VVoodruff, No. 61 65 120954X

26 105916X Ring, Retaining 66 160953

27 120470X Sprocket, 18T

28 110070X Spacer, 1_131 X 1_45 X _494 67 138244

29 142677 Gear, Spur, 37T 68 108996X

30 142681 Gear, Spur, 35T

31 124644X Gear, Spur, 30T 69 160954

32 108980X Gear, Spur, 25T 70 120951X

33 120406X Gear, Spur, 22T 71 190993

34 134796 Gear, Spur, 19T 72 120416X

35 105925X Washer, Plain, _640 X 1_37 X 900 189115

_061

36 2228J Washer, Plain, _632 X 1 _00X

_046

37 3413J Washer, Plain, _632 X 1 _00X

_010

38 190985 Assy, Gear, Comb, 12T &

30T

39 124639X Shaft, Idler

40 120472X Spacer, _633 X _87 X _755

Gear, S

Washe_

_060

DESCRIPTION

Sprocket, 9T

Gear, Bevel, 36T

Assy, Kit, Shim, _750 Shaft

Shaft, Drive

Gear, S_ur, 12T

_ur, 15T

3ur, 20T

3ur, 25T

3ur, 28T

3ur, 31T

Plain, .632 X 1.00 X

Washer, Neoprene

Washer, Plain, .758 X 1.25 X

.031

Axle, LH

Gear, Miter, 12T, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 12T, Idler

Axle, RH

Housing, Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X

2.35

Lever, Actuating

Washer, Plain, .321 X 1.00 X

.055

Bracket, Anti-Rotation

Puck, Friction

Washer, Anti Rotation

Grease

Transaxle, Complete

* Use in various combinations to maintain proper

clearances.

** Order Key No. 15_

*** Silicone Sealant to be applied between Upper

and Lower Housings (use Loctite Ultra

Gray Silicone 5699 or equivalent).

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

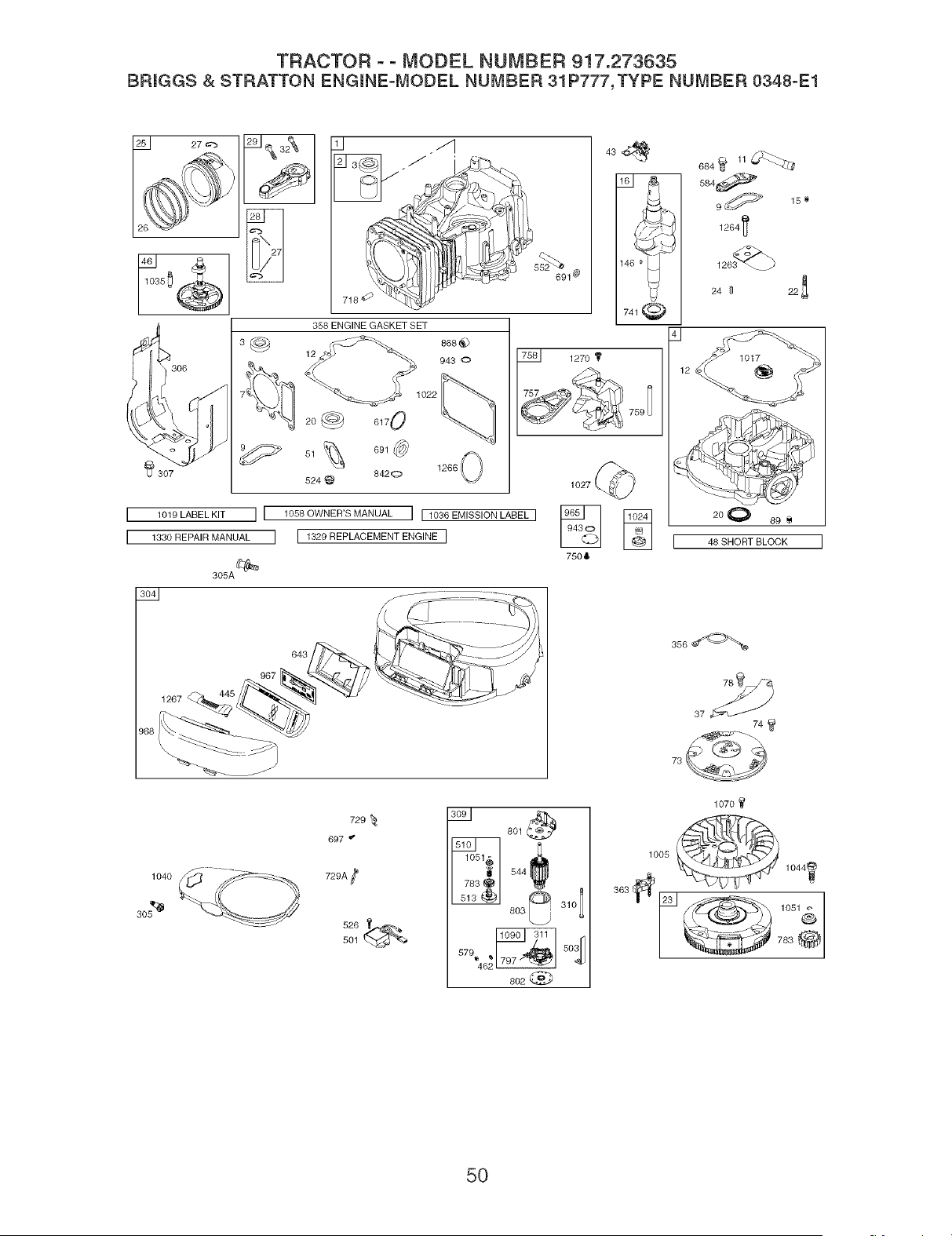

TRACTOR ° ° MODEL NUMBER 917.273635

BRmGGS & STRATTON ENGmNE=MODEL NUMBER 31P777,TYPE NUMBER 0348=E1

718

358 ENGINE GASKET SET

8680

8_1_

146 '_ I

741_

524

617 0

842<:3

943 O

1270

_7591

1027 /

I 1019LABELKIT II

I 1330 REPAIR MANUAL

305A _

1058 OWNER'S MANUAL I I 1036 EMISSION LABEL I _ _

I [ 1329 REPLACEMENT ENGINE ]

750&

884_ 11_

584_

9_ 15

12641_

126_

24 _ 22

20_ 89

48 SHORT BLOCK

1040

3o8_

643

729

697 _

729A_

801

803_ 310 I

802

388_<_>'%

1070

lOO8 1°44I

783@J

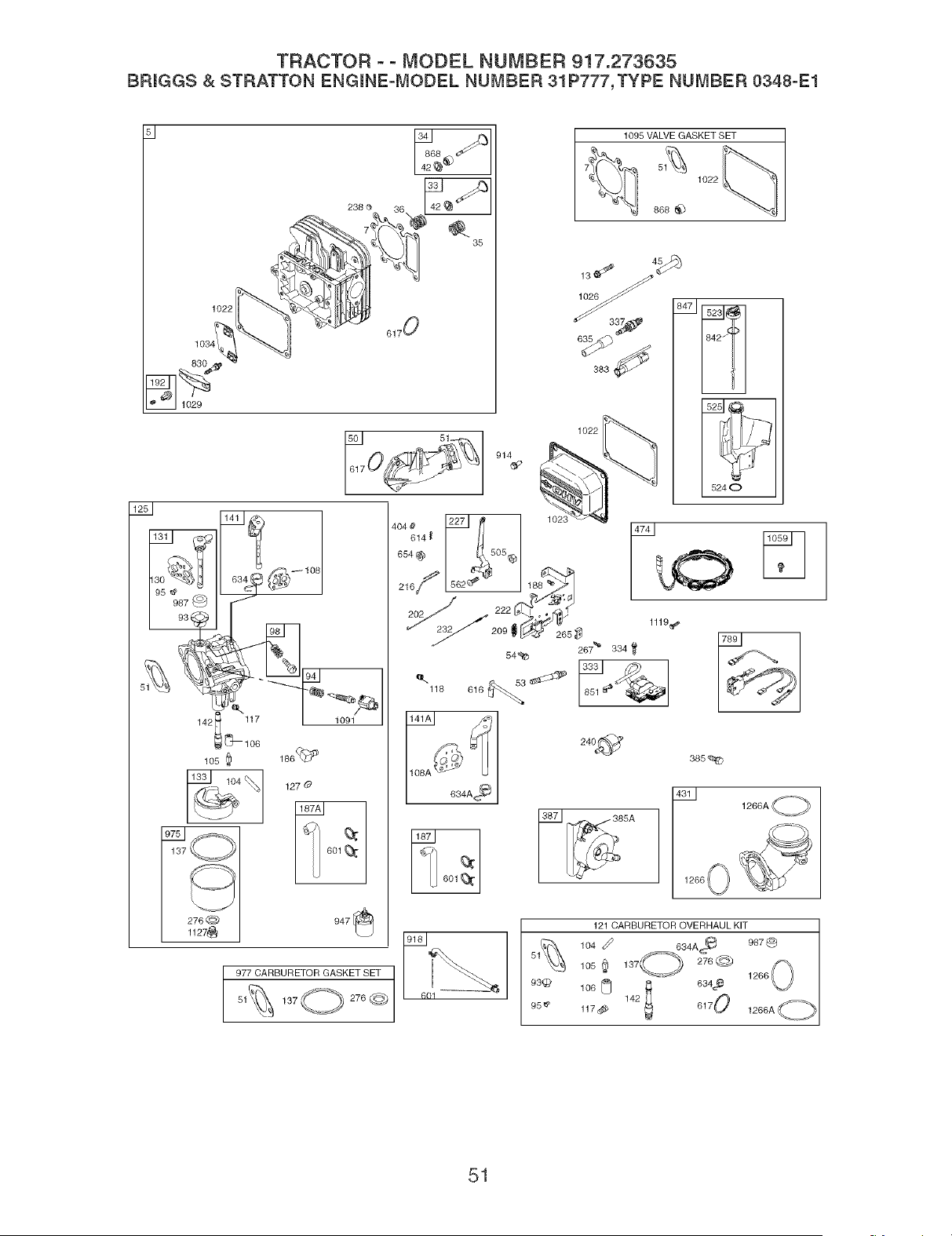

TRACTOR ° ° MODEL NUMBER 917.273635

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31P777,TYPE NUMBER 0348=E1

238

1022

1034

6170

914

1095 VALVE GASKET SET

868 _'_ 1022 _]

131

--10_

•_ _-1o6 lo91

105

276@

1127L4_

127 (_

601

1119_

947

918

977 CARBURETOR1370GASKET276_._SET 160/1

93_

95 _

104%-CA R B URE TO R6_4A_KIT-087

105 _ 137_ 276@ f-_ I

106 _ _'_ 634_ 1266 L] I

117_ 142_ 6170 1266A< _

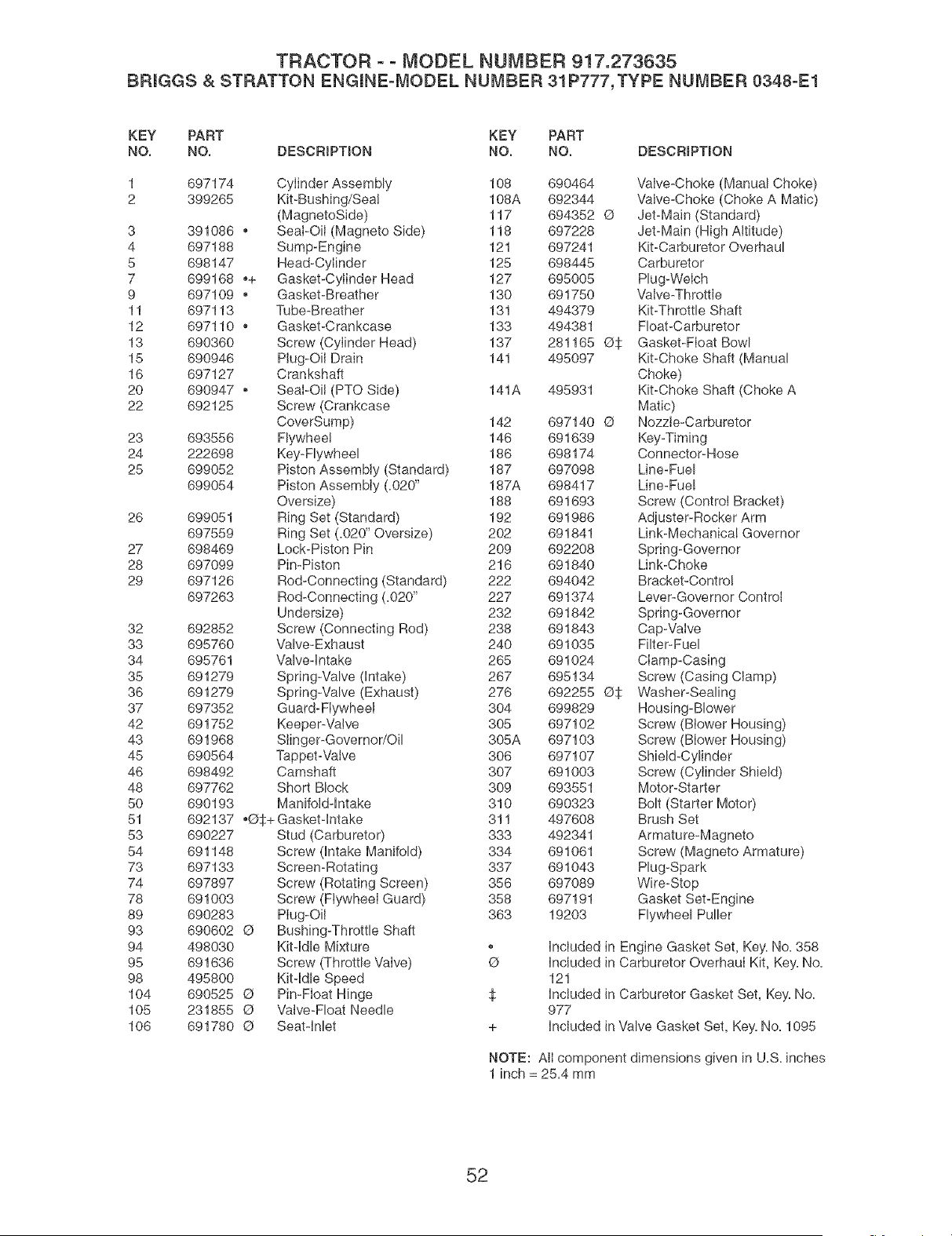

TRACTOR o o MODEL NUMBER 917.273635

BRmGGS & STRATTON ENGmNE=MODEL NUMBER 31P777,TYPE NUMBER 0348=E1

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRmPTmON

1 697174 Cylinder Assembly 108 690464 Valve-Choke (Manual Choke)

2 399265 Kit-Bushing/Sea! 108A 692344 Valve-Choke (Choke A Matic)

3 391086 ,, SeaFOiI (Magneto Side) 118 697228 Jet-Main (High Altitude)

4 697188 Sump-Engine 121 697241 Kit-Carburetor Overhaul

5 698147 Head-CyIinder 125 698445 Carburetor

7 699168 ,,+ Gasket-Cylinder Head 127 695005 Plug-Welch

9 697109 ,, Gasket-Breather 130 691750 Valve-Throttle

11 697113 Tube-Breather 131 494379 Kit-Throttle Shaft

12 697110 ,, Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 {3$ Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual

16 697127 Crankshaft Choke)

20 690947 ,, SeaI-Oil (PT{3 Side) 141A 495931 Kit-Choke Shaft (Choke A

22 692125 Screw (Crankcase Matic)

CoverSump) 142 697140 {3 Nozzle-Carburetor

23 693556 Flywhee! 146 691639 Key-Timing

24 222698 Key-Flywheel 186 698174 Connector-Nose

25 699052 Piston Assembly (Standard) 187 697098 Line-Fuel

699054 Piston Assembly (=020" 187A 698417 Line-Fue!

Oversize) 188 691693 Screw (Control Bracket)

26 699051 Ring Set (Standard) 192 691986 Adjuster-Rocker Arm

697559 Ring Set (.020" Oversize) 202 691841 Link-Mechanica! Governor

27 698469 Lock-Piston Pin 209 692208 Spring-Governor

28 697099 Pin-Piston 216 691840 Link-Choke

29 697126 Rod-Connecting (Standard) 222 694042 Bracket-Contro!

697263 Rod-Connecting (.020" 227 691374 Lever-Governor Control

Undersize) 232 691842 Spring-Governor

32 692852 Screw (Connecting Rod) 238 691843 Cap-Valve

33 695760 Valve-Exhaust 240 691035 Filter-Fuel

34 695761 Valve-Intake 265 691024 CIamp-Casing

35 691279 Spring-Valve (Intake) 267 695134 Screw (Casing Clamp)

36 691279 Spring-Valve (Exhaust) 276 692255 {3_ Washer-Sealing

37 697352 Guard-FIywheel 304 699829 Housing-Blower

42 691752 Keeper-Valve 305 697102 Screw (Biower Housing)

43 691968 Stinger-Governor/Oil 305A 697103 Screw (BIower Housing)

45 690564 Tappet-Valve 306 697107 Shield-Cylinder

46 698492 Camshaft 307 691003 Screw (Cylinder Shield)

48 697762 Short Block 309 693551 Motor-Starter

50 690193 Manifold-Intake 310 690323 Bolt (Starter Motor)

51 692137 ,,{3_+ Gasket-Intake 311 497608 Brush Set

53 690227 Stud (Carburetor) 333 492341 Armature-Magneto

54 691148 Screw (Intake Manifold) 334 691061 Screw (Magneto Armature)

73 697133 Screen-Rotating 337 691043 Plug-Spark

74 697897 Screw (Rotating Screen) 356 697089 Wire-Stop

78 691003 Screw (Flywheel Guard) 358 697191 Gasket Set-Engine

89 690283 Plug-Oil 363 19203 Flywheel Puller

93 690602 {3 Bushing-Throttle Shaft

94 498030 Kit-Hie Mixture • Included in Engine Gasket Set, Key. No=358

95 691636 Screw (Throttle VaIve) {3 Included in Carburetor OverhauI Kit, Key=No=

98 495800 Kit-Idle Speed 121

104 690525 {3 Pin-FIoat Hinge $ Inctuded in Carburetor Gasket Set, Key=No=

105 231855 {3 Valve-FIoat Needle 977

106 691780 {3 Seat-Inlet + Included in Valve Gasket Set, Key=No=1095

NOTE: AII component dimensions given in U.S. inches

1 inch = 25.4 mm

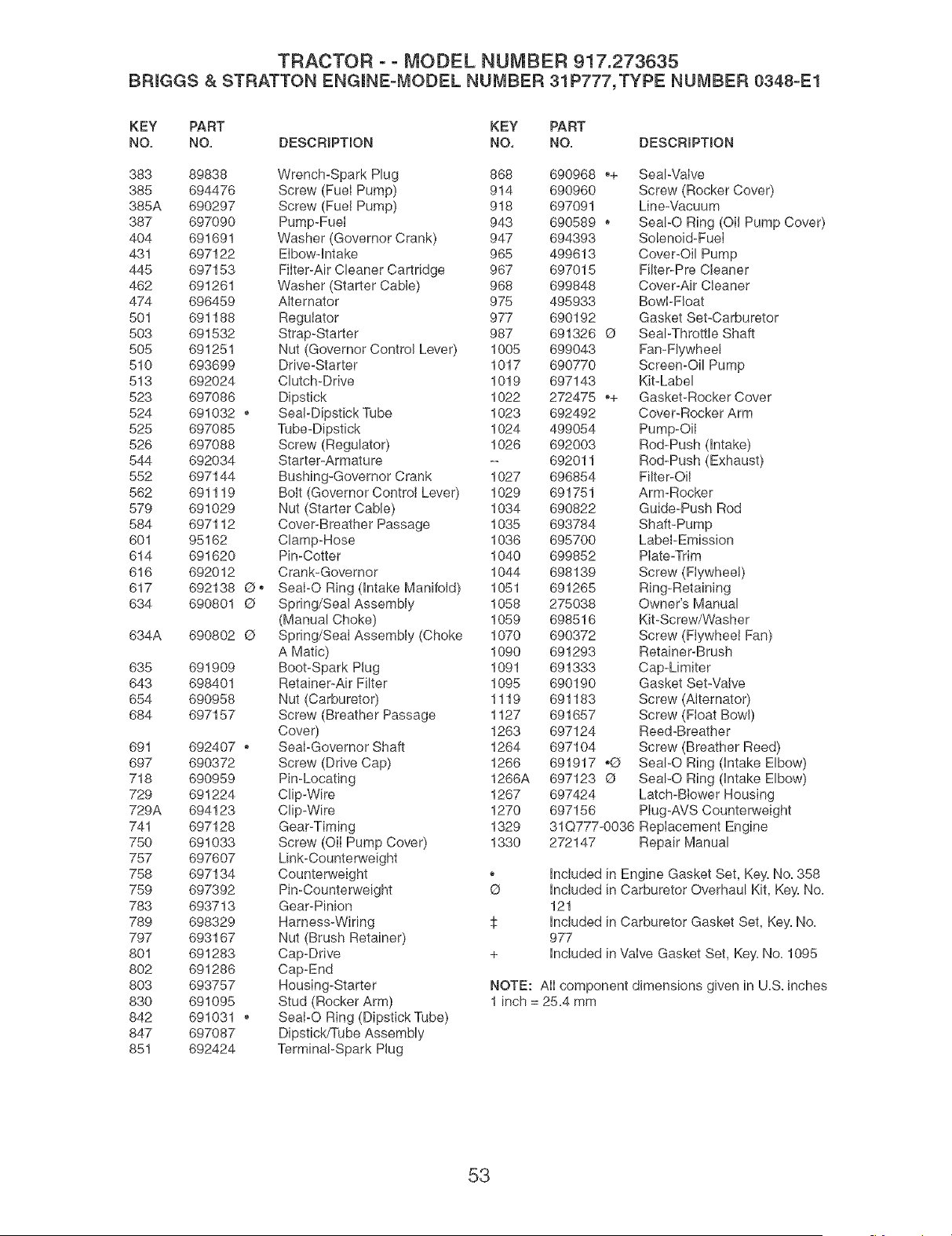

TRACTOR ooMODEL NUMBER 917.273635

BRmGGS& STRATTON ENGmNE=MODEL NUMBER 31P777, TYPE NUMBER 0348=E1

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRmPTmON

383 89838 Wrench-Spark Plug 868 690968

385 694476 Screw (Fuel Pump) 914 690960

385A 690297 Screw (Fuel Pump) 918 697091

387 697090 Pump-Fuel 943 690589

404 691691 Washer (Governor Crank) 947 694393

431 697122 Elbowqntake 965 499613

445 697153 Filter-Air Cleaner Cartridge 967 697015

462 691261 Washer (Starter Cable) 968 699848

474 696459 Alternator 975 495933

501 691188 Regulator 977 690192

503 691532 Strap-Starter 987 691326

505 691251 Nut (Governor Control Lever) 1005 699043

510 693699 Drive-Starter 1017 690770

513 692024 Clutch-Drive 1019 697143

523 697086 Dipstick 1022 272475

524 691032 ,, SeaFDipstick Tube 1023 692492

525 697085 Tube-Dipstick 1024 499054

526 697088 Screw (Regulator) 1026 692003

544 692034 Starter-Armature -- 692011

552 697144 Bushing-Governor Crank 1027 696854

562 691119 Bolt (Governor Control Lever) 1029 691751

579 691029 Nut (Starter Cable) 1034 690822

584 697112 Cover-Breather Passage 1035 693784

601 95162 Clamp-Hose 1036 695700

614 691620 Pin-Cotter 1040 699852

616 692012 Crank-Governor 1044 698139

617 692138 O, Seal-O Ring dntake Manifold) 1051 691265

634 690801 O Spring/Seal Assembly 1058 275038

(Manual Choke) 1059 698516

634A 690802 O Spring/Seal Assembly (Choke 1070 690372

A Matic) 1090 691293

635 691909 Boot-Spark Plug 1091 691333

643 698401 Retainer-Air Filter 1095 690190

654 690958 Nut (Carburetor) 1119 691183

684 697157 Screw (Breather Passage 1127 691657

Cover) 1263 697124

691 692407 ,, Seal-Governor Shaft 1264 697104

697 690372 Screw (Drive Cap) 1266 691917

718 690959 Pin-Locating 1266A 697123

729 691224 Clip-Wire 1267 697424

729A 694123 Clip-Wire 1270 697156

741 697128 Gear-Timing 1329

750 691033 Screw (Oil Pump Cover) 1330

757 697607 Link-Counterweight

758 697134 Counterweight

759 697392 Pin-Counterweight O

783 693713 Gear-Pinion

789 698329 Harness-Wiring

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive +

802 691286 Cap-End

803 693757 Housing-Starter

830 691095 Stud (Rocker Arm)

842 691031 ,, SeaFO Ring (Dipstick Tube)

847 697087 Dipstick/Tube Assembly

851 692424 TerminaFSpark Plug

"+ SeaFVaIve

Screw (Rocker Cover)

Line-Vacuum

Sea!-O Ring (Oil Pump Cover)

Solenoid-FueI

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

BowFFIoat

Gasket Set-Carburetor

{3 SeaFThrottIe Shaft

Fan-Flywheel

Screen-Oil Pump

Kit-Label

-+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

Label-Emission

Hate-Trim

Screw (FIywhee!)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Screw (FIoat Bowl)

Reed-Breather

Screw (Breather Reed)

,,0 SeaI-O Ring (intake Elbow)

{3 SeaI-O Ring (intake Elbow)

Latch-Blower Housing

PIug-AVS Counterweight

31Q777-0036 Replacement Engine

272147 Repair Manual

included in Engine Gasket Set, Key. No. 358

included in Carburetor Overhaul Kit, Key. No.

121

included in Carburetor Gasket Set, Key. No.

977

included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_b ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1= Fold this page along dotted Wineindicated above.

2. Hotd page before you so that its Jeff edge is vertically paraJNel to a tree

trunk or other upright structure.

3. Sight across the fomd in the direction of hi_ smope you want to measure.

4. Compare the angme of the fomd with the smope of the hill.

iiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiii_

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ¢ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.seats.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

, E/.4RS ........

02410

® Registered Trademark / TM Trademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TM Marca de Fabrica / SM Marca de Servicio de Sears, Roebuck and Co.

Mc Marque de commerce / MDMarque deposee de Sears, Roebuck and Co.

192707 Rev. 1 7.6.04 MH Printed in U.S.A.

Craftsman 917273635 tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917273635 Questions and Answers
