Operating instructions
Adora SL
Washing machine
2
Safety precautions
Read the operating instructions be-
fore using the appliance for the first
time.
General safety precautions
▪ This appliance can be used
by children aged8 and
above and by persons with
reduced physical, sensory
or mental capabilities, or
lack of experience and/or
knowledge, provided they
are supervised or have
been instructed on the safe
use of the appliance and
have understood the haz-
ards involved. Children must
not play with the appliance.
Cleaning and user mainten-
ance shall not be under-
taken by children without su-
pervision.
▪ If an appliance is not
equipped with a mains
cable and a plug or other
means for disconnecting
from the mains with a con-
tact opening on each pole
complying with the condi-
tions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical in-
stallation in accordance with
the installation regulations.
▪ If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manu-
facturer or its Customer Ser-
vices or a similarly qualified
person in order to avoid
hazard.
Appliance-specific safety
precautions
▪ Children under 3 years of
age must be kept away
from the appliance unless
they are constantly super-
vised.
▪ The appliance has a max-
imum dry load capacity of
8 kg.
CAUTION
▪ If this appliance is supplied
from a cord extension set or
electrical portable outlet
device, the cord extension
set or electrical portable
outlet device must be posi-
tioned so that it is not sub-
ject to splashing or ingress
of moisture.
Instructions for use
▪ If connected to the water mains by de-
tachable hoses, the new hose set sup-
plied with the appliance must be used.
Do not reuse old hose sets.
© V-ZUG Ltd, CH-6301 Zug, 2016
Safety precautions
3
▪ Ensure ready access to the power
socket being used.
▪ Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings, as
well as affect the functioning of the ap-
pliance. If the appliance is not working
properly or in case a repair is needed,
follow the instructions given in the «Ser-
vice and repairs» section. Please con-
tact our Customer Services if neces-
sary.
▪ Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the
drum.
▪ Strictly use original spare parts only.
▪ If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪ Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
▪ To protect your washing, follow the fab-
ric care symbols and the hints and ad-
vice in the «Washing tips» section.
▪ Textiles that have been cleaned, treated
or soaked with flammable chemicals,
detergents or solvents such as ben-
zene, alcohol, stain remover, oil, paint,
wax, etc. are not to be washed in the
appliance. Fire or explosion hazard!
Wash materials containing such sub-
stances first by hand with water or allow
the solvent to evaporate completely.
▪ Ensure the washing drum has stopped
moving before reaching inside. Do not
touch the washing drum while it is still
in motion – risk of serious injury!
▪ Disconnect the appliance from the
mains before carrying out maintenance
work.
Correct use
The appliance is only suitable for washing
home textiles with water and regular wash-
ing machine detergent. It is designed for
use in the home and for the above-men-
tioned purpose only. No liability is as-
sumed for any damage caused by im-
proper or incorrect use.
How to avoid damaging the
appliance
▪ Close the appliance door carefully.
▪ Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the
washing drum, detergent dispenser
drawer or around the foreign body trap.
Foreign objects such as coins, nails, pa-
per clips, etc. can damage parts of the
appliance as well as the washing.
▪ During longer periods of absence, turn
off the water tap before switching off the
power by pulling out the mains plug.
Never pull the mains plug out by the
cable. Please note: The built-in overflow
protection is rendered inactive when the
power is switched off.
▪ When cleaning the appliance make sure
no water gets inside it. Use a moder-
ately damp cloth. Do not spray the out-
side or the inside of the appliance with
water. If water gets inside the appliance,
it will cause damage.
▪ Textiles with metal reinforcements are
not to be washed in the appliance Risk
of damage.
▪ Trainers, diving suits, rucksacks, car-
pets, etc. are not to be washed in the
appliance.
Safety precautions
4
Using for the first time
The appliance must be installed and
connected to the electricity supply by
a qualified fitter/electrician in accord-
ance with the separate installation in-
structions.
Transport lock
Remove the transport lock (hexagon
head screws at the back of the appli-
ance) in order to avoid damage to
the appliance (see installation in-
structions).
Running the first wash cycle without
any washing
▸ Add a little washing detergent to com-
partment
II
.
▸ Run an empty coloureds 60°C cycle to
remove any residues from the manufac-
turing process.
Serial number
The serial number (FN) is located on the
identification plate:
▸ Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸ Hold the button depressed until
the following display appears:
User settings
FN XXXXX XXXXXX
Note on the operating
instructions
For more information on your appliance
and for answers to frequently asked ques-
tions, visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions can
result in injury or in damage to the appli-
ance or fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the
identification plate. These operating in-
structions apply to:
Appliance
designation
Adora SL
Type
WAASLZ
Product family
11012
Variations depending on the model are
noted in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modific-
ations for the purpose of the further devel-
opment of the appliances is reserved.
Contents
1 Appliance description 6
1.1 Appliance construction ..................................6
1.2 Indicator lights .................................................6
1.3 Operating and display elements..................7
2 Programme overview 8
2.1 Whites and coloureds programmes............8
2.2 Programmes for normally soiled
cotton load .......................................................8
2.3 Extra programmes ..........................................9
2.4 Additional functions ........................................9
2.5 EcoManagement .......................................... 11
3 Operating the appliance 12
3.1 Preparations.................................................. 12
3.2 Loading the washing ................................... 12
3.3 Adding washing detergent ......................... 13
3.4 Detergent dosage ........................................ 14
3.5 Dyeing textiles .............................................. 14
3.6 Selecting programme.................................. 14
3.7 Programmes for normally soiled
cotton load .................................................... 14
3.8 Selecting additional functions.................... 15
3.9 Delayed start................................................. 15
3.10 OptiTime ........................................................ 16
3.11 Separate rinsing / Separate spinning ...... 16
3.12 Soaking.......................................................... 16
3.13 Bio wash / Soap wash................................ 17
3.14 Correcting entry............................................ 17
3.15 Aborting a programme ............................... 17
3.16 With childproof lock activated ................... 18
3.17 Opening the appliance door during
washing.......................................................... 18
3.18 End of programme ...................................... 19
3.19 EcoManagement statistics ......................... 20
4 Favourites 21
4.1 Defining favourites ....................................... 21
4.2 Changing favourites .................................... 21
4.3 Deleting favourites ....................................... 22
4.4 Starting favourites ........................................ 22
5 User settings 23
6 Care and maintenance 27
6.1 Cleaning the detergent dispenser drawer
(as required) ................................................. 27
6.2 Cleaning the water inlet filter ..................... 28
6.3 Emergency draining .................................... 28
6.4 Cleaning the foreign body trap ..................29
6.5 Opening the appliance door in the event
of a power failure..........................................30
7 Trouble-shooting 31
7.1 Error messages.............................................31
7.2 Other possible problems.............................33
7.3 Unsatisfactory wash results ........................35
8 Spare parts 37
9 Technical data 37
9.1 Note for testing institutes ............................38
9.2 Consumption values.....................................38
9.3 VAS Vibration Absorbing System ..............39
9.4 Water and energy economy .......................39
9.5 EcoStandby....................................................39
10 Washing tips 40
10.1 Energy and water economy........................40
10.2 Avoiding damage..........................................41
11 Disposal 42
12 Notes 43
Quick instructions 44
5
1 Appliance description
1.1 Appliance construction
1
2
3
4
5
6
7
8
9
11
12
13
10
Detergent dispenser
drawer (2)
Drain tray (4)
1
Pivoting operating panel
8
Liquid detergent flap / drain tray opener
2
Detergent dispenser drawer
9
Siphon for fabric conditioner
3
Appliance door
10
Emergency door release tool
4
Drain tray
11
Foreign body trap
5
Pre-wash detergent, compartment
I 12
Identification plate / serial number (FN)
6
Main wash detergent, compartment
II 13
Emergency door release
7
Fabric conditioner, compartment
1.2 Indicator lights
Illuminated:
relevant function active
Off:
relevant function not selectable
Flashing:
relevant function selectable
6
1 Appliance description
1.3 Operating and display elements
1 2
57
9
6 4
8
3
1
Pause
6
Favourites
2
Display
7
Whites and coloureds programmes
3
Door opener
8
Programmes for normally soiled cotton load
4
Additional functions and extra programmes
5
Fast forward /
9
EcoManagement
End of programme
Whites and co- Programmes for Additional functions
loureds programmes normally soiled
Eco
Whites 95°C
cotton load and
Sprint
Coloureds 60°C
extra programmes
Easy care
Coloureds 40°C 40°C Coloureds normal Pre-wash
Coloureds 30°C 10°C Coloureds normal Steam anti-crease
Coloureds 20°C Steam anti-crease Fabric types
Coloureds 10°C Proofing AquaPlus
Appliance hygiene Degree of soiling,
Anti-mite
Spin speed
Delayed start incl.
OptiTime
7
2 Programme overview
2 Programme overview
To select the right programme, please follow the fabric care symbols on the laundry labels,
e.g.
40
. woollens and textiles with the fabric care label may only be washed using the
additional function «Hand wash».
2.1 Whites and coloureds programmes
Buttons Programmes Fabric care
symbols
Load
capacity
1x Whites 95°C:
For white cottons/linens e.g.
bed and table linen, towels, white or colour-fast
underwear.
95
1–8 kg
2x Coloureds 70°C:
Energy-saving programme
for white cottons.
95
1–8 kg
Coloureds 60°C:
For coloured cottons e.g.
bright blouses, overalls, shirts, bed linen.
60
,
95
1–8 kg
Coloureds 40°C:
For coloured cottons and
mixed washing e.g. coloured sweatshirts, t-
shirts.
40
,
60
,
95
1–8 kg
Coloureds 30°C:
For coloured cottons and
mixed washing e.g. t-shirts.
30
,
40
,
60
,
95
1–8 kg
1x Coloureds 20°C:
Energy-saving programme
for lightly soiled textiles.
30
,
40
,
60
,
95
1–8 kg
2x Coloureds 10°C:
Refresh programme without
heat, suitable for washing new clothes for the
first time.
30
,
40
,
60
,
95
1–8 kg
2.2 Programmes for normally soiled cotton load
Buttons Programmes Load
capacity
1x 40°C Coloureds normal:
The recommended programme for
washing normally soiled cottons at rated load capacity.
1
–
8kg
2x 10°C Coloureds normal:
The programme with the lowest pos-
sible temperature setting for washing cottons. It corresponds to
the 40°C Coloureds normal programme without the water be-
ing heated. This programme has the same water level as the
40°C Coloureds normal programme.
1
–
8kg
8
2 Programme overview
2.3 Extra programmes
Buttons Programmes Fabric care
symbols
Load
capacity
3x Steam anti-crease:
Dry washing is uncreased
and made damp, ready to iron.
40
,
60
,
95
1–1.5 kg
4x Proofing:
For starching or proofing laundry, add the agent to
the fabric conditioner compartment.
1–3 kg
5x Appliance hygiene:
Steam cleaning without laundry.
0 kg
2.4 Additional functions
Buttons Additional functions Load
capacity
Eco:
Large energy savings due to reduced wash temperature. The extended wash-
ing time ensures the washing performance is maintained. Depending on pro-
gramme, energy savings of about 10%-40%, extension of the washing times by 25–
60 minutes and water savings of about 10%-20%.
Sprint:
Short programme for lightly soiled washing. 2 instead of 3
rinsing cycles.
2.5 kg
+ : 26mins. + : 28mins.
+ : 27mins. + : 39mins.
Note:
Add a small quantity of washing detergent. A large washing
load or too much washing detergent can significantly extend the
programme time. Use liquid detergent only.
Easy care:
For washing requiring very gentle treatment. Increased
water level, reduced washing action and lower spin speed.
3.5kg
Pre-wash:
Suitable for heavily soiled washing. Programme duration extended about
15minutes.
Steam anti-crease:
Reduces creasing significantly. Loosening-up
time: 60minutes. The washing is warm and should be hung up im-
mediately to dry or be tumble dried. The spin speed is limited to
1000 rpm.
max. 2 kg
9
2 Programme overview
Buttons Additional functions Load
capacity
Fabric types:
Press the button repeatedly to select the fabric type.
Coloureds:
Standard programme
1–8 kg
Woollens:
Gentle treatment for woollens and other delicate tex-
tiles. Only for woollens with a felt-free finish and labelled as «ma-
chine washable».
1–2 kg
Hand wash:
Very gentle treatment for textiles labelled with the
fabric care symbol.
1–2 kg
Shirts:
Optimized for minimizing creasing, contains steam anti-
crease.
max.7items
Outdoor garments:
For waterproof and breathable clothing. Higher
water level during washing and spinning.
max. 3 kg
Net curtains:
Reduced washing action for very gentle treatment.
Higher water level during washing and spinning. The washing re-
mains lying in the water after the final rinse (stop after rinsing).
max. 2 kg
+ 1x
Draining with spinning
+ 2x
Draining without spinning
Black garments:
Optimized rinsing through a higher water level
and extended rinsing time for dark textiles.
max. 4 kg
Denim:
Optimized for colour run from denim.
max. 4 kg
Baby garments:
Very thorough rinsing for the protection of sensit-
ive baby skin. If 95°C is selected as the temperature, a pre-wash
is included.
max. 5 kg
Down:
Optimized for the particular wetting characteristics of down
fabrics. Short spin at the beginning of the programme to get rid of
any air in down textiles.
max. 2 kg
Silks:
For delicate silk articles. Spin speed is reduced to minimize
creasing.
max. 1.5 kg
AquaPlus:
There are 5 different settings for rinsing intensity.
1x
Standard:
Normal water level.
2x
more water:
Increased water level during the main wash and rinsing.
3x
+ 1 rinse:
An additional rinsing cycle.
4x
more water + 1 rinse:
Increased water level during the main wash and
rinsing, an additional rinsing cycle.
5x
Skin protection:
Increased water level during rinsing, two additional rins-
ing cycles. Suitable for sensitive skin.
10
2 Programme overview
Buttons Additional functions
Degree of soiling / Anti-mite:
Adjustment to the degree of soiling of the washing.
1x
Light soiling:
For lightly soiled washing.
2x
Medium soiling:
For normally soiled washing. Extended wash time.
3x
Heavy soiling:
For heavily soiled washing. Extended wash time, higher
water level, an additional rinsing cycle.
4x
Anti-mite:
The main wash is intensified. Suitable for individuals with an al-
lergy to mites.
5x
Soaking:
The duration can be set between 0.5 and 6 hours.
Spin speed:
The spin speed can be changed. Delicates can be spun at a lower
spin speed. The lower the spin speed, the longer the drying time.
Delayed start
: For using cheap-rate electricity (setting range of up to 24hours).
The programme starts automatically when the set time is reached.
OptiTime
: If a programme end time has been selected, OptiTime calculates the
most energy-efficient programme that can be carried out in the time remaining to
programme end. OptiTime reduces the washing temperature, while the washing
performance is maintained. The more time is available for washing, the more the
washing temperature can be reduced. If higher wash temperatures with a germ-
killing effect are needed, a corresponding programme without the OptiTime func-
tion must be selected.
Separate rinsing / Separate spinning:
The programme starts at the desired parts of
the programme and the programme sequence is shortened (see page 16).
Bio wash
(alkaline detergent + bleach)
/
Soap wash
(water softener + soap detergent):
The programme sequence is adap-
ted for the use of multi-component detergents (see page 17).
Pressing the button interrupts the programme running. Pressing it again resumes
the programme.
2.5 EcoManagement
Only active if «EcoManagement» is turned on in the user settings.
EcoManagement provides information on the energy and water consumption of
the appliance and supports the sustainable use of energy. The following con-
sumption information can only be retrieved when no programme is running:
▪ Energy and water consumption of the last programme
▪ Total energy and water consumption
▪ Average energy and water consumption of the last 25 programmes
The energy and water consumption of a programme is displayed during pro-
gramme selection. At the end of a programme, the energy and water consump-
tion of the last programme run is displayed.
The values can vary according to programme, load, additional functions and user
settings.
11
3 Operating the appliance
3 Operating the appliance
3.1 Preparations
▸ Check the foreign body trap is inserted correctly.
▸ Insert the mains plug into a suitable mains socket.
▸ Turn on water tap.
▸ Press the button to open the appliance door.
3.2 Loading the washing
▸ Load up to a maximum of 8kg dry washing.
full: Normally soiled whites and coloureds
max. ¾: Heavily soiled whites and coloureds
max. ½: Easy care cottons, white and coloured
synthetics as well as mixed fabrics
max. ¼: Delicates, woollens, silks, polyacrylics
and net curtains
Note:
For wet loads, only half-fill the washing drum. The washing drum should not be loaded
with any one single, heavy item.
▸ Close the appliance door firmly.
95
60
40
30 20
The indicator lights for the programme buttons flash. They go out after 20seconds if no pro-
gramme selection is made. A programme can still be selected afterwards.
12
3 Operating the appliance
3.3 Adding washing detergent
Liquid detergent Powder detergent
▸ Pull the detergent dis-
penser drawer out as far
as it will go.
▸ Pull the detergent dis-
penser drawer out as far
as it will go.
a
1
▸ Pull flap
a
upwards and
out and insert into
position
1
.
2
a
▸ Pull flap
a
upwards and
out and insert into
position
2
.
Note:
Liquid detergent
▪ Do not fill past the upper mark.
▪ Only use for main wash with programmes without a pre-wash.
▪ Only use for temperatures of up to 60°C.
▪ If washing with a delayed start, add to a dosing aid (e.g. ball) and place it directly in the
washing drum so that no detergent gets onto the washing during the delayed start time.
Compartments
Conventional washing
I
II
Pre-wash detergent
Compartment
I
Main wash detergent
Compartment
II
Fabric conditioner
Compartment
Bio wash
Alkaline detergent
Compartment
II
Bleach
Compartment
I
Fabric conditioner
Compartment
Soap wash
Water softener
Compartment
I
Soap detergent
Compartment
II
Fabric conditioner
Compartment
Note:
Do not fill fabric conditioner past the upper mark.
13
3 Operating the appliance
3.4 Detergent dosage
Adding too much washing detergent can cause excess foaming, The con-
sequences: poor wash results, damage to the appliance in the worst case.
The correct dosage depends on the degree of soiling, the wash load, the water hardness and
the product used. Follow the manufacturer’s dosing instructions.
Water hardness
Soft
0°fH to 15°fH The local water authorities can provide
information on the level of water hard-
ness in your area.
Medium
15°fH to 25°fH
Hard
over 25°fH
After adding the washing detergent
▸ Push the detergent dispenser drawer back in.
▸ Select a programme.
3.5 Dyeing textiles
Textiles can be dyed in the appliance using suitable dyeing agents. Follow the manufacturer’s
safety instructions and warnings.
Note:
Each wash programme starts with brief draining. Add liquid dye components after this.
3.6 Selecting programme
60
▸ Press the button for the desired programme once or more.
The programme selected, the expected duration and the expected pro-
gramme end time are displayed.
The indicator lights for selectable additional functions flash.
3.7 Programmes for normally soiled cotton load
40°C Coloureds normal
▸ Press the button 1x.
40°C Coloureds normal
3h40
End 13:491400 rpm
The adjacent display appears.
10°C Coloureds normal
▸ Press the button 2x.
10°C Coloureds normal
3h40
End 13:491400 rpm
The adjacent display appears.
14
3 Operating the appliance
3.8 Selecting additional functions
60
▸ Press the button for the desired programme once or more.
▸ Press the button for the desired programme once or more.
If the programme needs to be changed, it is possible to select a new pro-
gramme within 20 seconds. Additional functions must also be reselected. If
no button is pressed within the next 20seconds, the programme selected
starts automatically.
3.9 Delayed start
Selecting programme end time
The options «Programme end time» and «OptiTime OFF» must be enabled in the user set-
tings under «Programming delayed start / OptiTime».
60
▸ Press the button for the desired programme once or more.
▸ Press the button repeatedly until the desired programme end time appears
in the display.
The display goes dark. The desired programme starts automatically when
the set time is reached.
▸ To reduce the remaining time delay in hourly intervals, press the button re-
peatedly again.
Laundry can be added at any time.
Selecting programme start time
The option «Programme start time» must be enabled in the user settings under «Program-
ming delayed start».
▸ Carry out steps analogous to those described in «Selecting programme end time».
15
3 Operating the appliance
3.10 OptiTime
The options «Programme end time» and «OptiTime ON» must be enabled in the user settings
under «Programming delayed start / OptiTime».
60
▸ Press the button for the desired programme once or more.
▸ Press the button.
The additional function «OptiTime» appears.
▸ Press the button repeatedly until the desired programme end time appears.
The delayed start time starts with the additional function «OptiTime».
▸ If «OptiTime» or «Eco» must be switched off, press the button repeatedly
until the desired programme appears.
3.11 Separate rinsing / Separate spinning
60
▸ Press the button for the desired programme.
▸ Press the button 1x.
Programme starts from «Rinsing» and «Spinning».
▸ Press the button 2x.
Programme starts from «Final rinse / Conditioning» and «Final spin».
▸ Press the button 3x.
Programme starts from «Separate spinning».
3.12 Soaking
60
▸ Press the button for the desired programme once or more.
▸ Press the button 5x.
▸ Press the button repeatedly until the desired duration is set.
16
3 Operating the appliance
3.13 Bio wash / Soap wash
Ensure the alkaline detergent or soap detergent are added to the correct compartment (see
page 13).
Bio wash Soap wash
60
▸ Press the button for the
desired programme once
or more.
60
▸ Press the button for the
desired programme once
or more.
▸ Press the button 2x. ▸ Press the button 3x.
3.14 Correcting entry
60
▸ Press another programme button during programme selection.
All entries are cleared.
3.15 Aborting a programme
Note:
Once a programme has started, only the spin speed can be changed. For any other
changes, the programme must be aborted.
▸ Touch the button repeatedly until «Draining» appears in the display. This
part of the programme cannot be skipped and will be carried out in full.
17
3 Operating the appliance
3.16 With childproof lock activated
Selecting programme
How to turn the childproof lock on/off is described in «User settings».
▸ Close the appliance door.
The adjacent display appears.
Childproof lock
▸ Hold the desired, flashing pro-
gramme button depressed
and at the same time press
the «Fast forward / End of pro-
gramme» button.
The indicator lights for the ad-
ditional functions flash.
Aborting programme
▸ Hold the flashing programme
button depressed.
▸ At the same time press the
«Fast forward / End of pro-
gramme» button repeatedly
until the adjacent display ap-
pears.
Draining 0h01
end 15:38
The «Draining» part of the programme cannot be skipped and will be carried out in full.
3.17 Opening the appliance door during washing
The appliance door can only be opened if the indicator light for the button is illuminated.
▸ Touch the button.
The appliance door opens. Laundry can be added or removed.
▸ Close the appliance door.
The programme is resumed.
Note:
In the event of a power failure, the appliance door can only be opened using the emer-
gency door release (see page 30). The programme sequence is automatically resumed fol-
lowing such a power failure.
18
3 Operating the appliance
3.18 End of programme
Unloading the washing before time
Shortly before the end of the programme, the washing is loosened up. This takes about 1–2
minutes.
Note:
If steam anti-crease has been selected, the loosening-up period is extended to about
60 minutes to further prevent creasing.
▸ Press the button to unload the washing during the loosening-up phase.
Door opener
The user settings that are enabled determine whether the appliance door opens automatically
when the programme ends and whether information on energy consumption is displayed or
not.
«Automatic door opener ON»
The appliance door opens automatically at the end of the programme and the washing can
be unloaded.
«Automatic door opener OFF» and «EcoManagement OFF»
When the programme has finished, the follow-
ing display appears for about 20minutes:
End of programme
▸ Press the button to open the
appliance door and unload the
washing.
«Automatic door opener OFF» and «EcoManagement ON»
When the programme has finished, the follow-
ing display appears for about 20minutes:
End of programme
0.6kWh
53
▸ Press the button to open the
appliance door and unload the
washing.
Stop after rinsing
The washing remains lying in the water after the final rinse. The water must be drained off be-
fore the washing can be unloaded.
Draining with spinning Draining without spinning
▸ Touch the button 1x. ▸ Touch the button 2x.
19
3 Operating the appliance
Hygiene recommendation
▪ If the adjacent display appears at the end of
the programme:
Hygiene recommendation:
at least 60 °C programme
▸ Run the next wash cycle at
least at 60°C.
▪ If the adjacent display appears at the end of
the programme:
or select appliance
hygiene
▸ Unload the washing.
▸ Close the appliance door.
▸ Press the button 5x.
The «Appliance hygiene» pro-
gramme starts.
Each time after use
▸ Clean the detergent dispenser drawer.
▸ Pull the detergent dispenser drawer out as far as it will go in order for it to
dry.
▸ Remove any deposits or foreign objects from out of the door seal.
▸ Leave the appliance door slightly ajar to allow the washing drum and door
seal to dry.
3.19 EcoManagement statistics
Energy and water consumption can be displayed before a programme starts
or after a programme ends.
Display total consumption
▸ Hold the button depressed for
3seconds.
Total consumption
205kWh
4672
The adjacent display appears.
Display average consumption
▸ Press the button again.
Average per cycle
1.3kWh
65
The adjacent display appears.
20
4 Favourites
4 Favourites
Simple start to frequently used programmes.
Note:
The appliance door has to be open to define, change or delete a favour-
ite.
4.1 Defining favourites
▸ Press the button 2x.
The adjacent display appears.
Define favourite
1 empty
15:38
60
▸ Select programme and addi-
tional functions.
▸ Press the button.
The adjacent display appears.
1
YES: NO:
save changes?
▸ Press one of the two adjacent
buttons.
Save favourite
programme.
Cancel action.
4.2 Changing favourites
▸ Press the button repeatedly
until the favourite programme
to be changed appears.
1
60 °C Coloureds 1h15
▸ Make changes.
▸ Press the button.
The adjacent display appears.
1
YES: NO:
save changes?
▸ Press one of the two adjacent
buttons.
Save changes.
Cancel action.
21
4 Favourites
4.3 Deleting favourites
▸ Press the button repeatedly
until the favourite programme
to be cleared appears:
The adjacent display appears.
Define favourite
1 empty
15:38
▸ Hold the button depressed for
about 3 seconds.
The adjacent display appears.
1
YES: NO:
save changes?
▸ Press one of the two adjacent
buttons.
Clear favourite
programme.
Cancel action.
4.4 Starting favourites
▸ Close the appliance door.
▸ Press the button repeatedly
until the desired favourite pro-
gramme appears:
1
60 °C Coloureds 1h15
The favourite programme
starts automatically after
20seconds.
22
5 User settings
5 User settings
Providing no programme is running and no error message is displayed, the user settings
can be changed with the appliance door open or closed.
5.1 Preparations
The serial number has to be retrieved before the user settings can be changed.
User settings
FN XXXXX XXXXXX
▸ Hold the button depressed until the
adjacent display appears.
The user settings can be changed.
5.2 Language
1x
Language
D/F/I/R/E
English
The language is set during the initial set-
up of the appliance. It can be changed.
5.3 Time
2x
Time 15:38
The time must be reset after a power fail-
ure lasting around 5 weeks. The appli-
ance must not be disconnected from the
mains supply for at least 30 minutes
after making the settings.
5.4 Spin speed
3x
1200 rpm
1600, 1400,
400, 600,
800, 1000
rpm
XXXX
1200
1
An increase in the spin speed is only
possible for suitable programmes. A re-
duction in the spin speed is possible for
all programmes.
1
Factory setting
23
5 User settings
5.5 EcoManagement
Ein
4x
EcoManagement
OFF
EcoManagement
ON
EcoManagement
Clear counter?
Programming
delayed start
Clear average?
JA: NO:
Clear water counter?
YES: NO:
Clear energy counter?
YES: NO:
Programming
delayed start
1
When this function is activated, expected
consumption values appear at the start
of the programme and actual consump-
tion values appear at the end of the pro-
gramme. The stored consumption values
can be deleted as well.
5.6 Programming delayed start/OptiTime
OptiTime
OFF
OptiTime
ON
5x
Programming delayed start
Programme start time
Programming delayed start
Programme end time
1
When the «Programme start» function is
turned on, the time a programme should
start running can be defined.
When the «Programme end» function is
turned on, the time a programme should
end can be defined. If the «OptiTime»
function is also turned on, the «Opti-
Time» function is automatically added
whenever a delayed start is selected.
1
Factory setting
24
5 User settings
5.7 AquaPlus
6x
AquaPlus
Standard
AquaPlus
more water
AquaPlus
+1 rinse
AquaPlus
more water +1 rinse
AquaPlus
more water + 2 rinses
1
▪
Standard:
Normal water level.
▪
more water:
Increased water level.
▪
+ 1 rinse:
1 additional rinsing cycle.
▪
more water + 1 rinse:
Increased water
level, 1 additional rinsing cycle.
▪
Skin protection:
Increased water
level, 2 additional rinsing cycles.
5.8 Hygiene info
7x
Hygiene recommend.
OFF
Hygiene recommend.
ON
1
When the function is turned on, a wash
of at least 60°C is recommended for
hygiene reasons whenever the formation
of foul smelling coatings in the appliance
is to be prevented.
5.9 Soft water
8x
Soft water
OFF
Soft water
ON
1
When the function is turned on, adjusting
for very soft water prevents heavy foam-
ing.
5.10 Childproof lock
Ein
9x
Childproof lock
ON
Childproof lock
OFF
1
The childproof lock prevents a pro-
gramme from being started accidentally.
A programme can only be started by
pressing two buttons at the same time.
5.11 Automatic door opener
10x
Automatic
door opener
OFF
Automatic
door opener
ON
1
When the function is turned on, the appli-
ance door opens automatically when the
programme ends. When the function is
turned off, the appliance door can be
opened by pressing the button.
1
Factory setting
25
5 User settings
5.12 Loosening up the washing
11x
Loosening up
30 secs.
Loosening up
10 mins.
Loosening up
30 mins.
Loosening up
6 hrs.
1
Touch the button at any time to
open the appliance door. The washing
can be unloaded.
5.13 Silent
12x
Silent
OFF
Silent
ON
1
When the function is turned on, pro-
grammes with the additional function
«Eco» are quieter. This extends the pro-
gramme duration slightly.
5.14 Brightness
13x
very dark
medium
very bright
Brightness
1
Brightness
3
Brightness
5
1
.....
.....
The display can be adjusted to the pre-
vailing lighting conditions.
5.15 Button tone
14x
Button tone
OFF
Button tone
ON
1
The button tone can be turned on and
off. The button tone for the and
buttons cannot be turned off.
1
Factory setting
26
6 Care and maintenance
5.16 Factory settings
16x
Restore
factory settings?
Factory settings
YES: NO:
Factory settings
restored!
The factory settings can be restored. The
language if changed is not reset to the
factory setting.
17x
Display goes out.
Configuration saved
6 Care and maintenance
Using the correct dosage of detergent will automatically clean the inside of the appliance. Im-
mediately wipe away all traces of detergent with a soft cloth to avoid staining.
6.1 Cleaning the detergent dispenser drawer (as required)
Cleaning the detergent compartments
l
▸ Pull the detergent dispenser drawer out as far as it will go, push the
release lever to the left and remove the detergent dispenser drawer.
▸ Wash out the detergent compartments.
▸ Clean the duct under the pre-wash detergent compartment
l
.
Cleaning the siphon and suction tube
2
1
▸ Pull siphon
1
in fabric conditioner compartment upwards and out.
▸ Clean the siphon
1
and suction tube
2
.
▸ Insert the siphon again correctly.
27
6 Care and maintenance
6.2 Cleaning the water inlet filter
Test the water inlet for leaks following maintenance work.
1
▸ To avoid blockages, periodically check and, if necessary, clean the
water inlet filter
1
.
6.3 Emergency draining
The water in the appliance may be hot. Scalding hazard! Allow to cool down be-
fore emergency draining.
In the event of a blocked water outlet or drain pump, a malfunction or a power failure, if there
is water still in the appliance it must be drained off as follows:
▸ Open the drain tray by pressing it bottom right or with the use of the
liquid detergent flap.
▸ Fold the drain tray right down. It also functions as a receptacle for col-
lecting any water that runs out.
▸ Carefully release the foreign body trap somewhat by turning it anti-
clockwise and steadily drain off the water.
▸ Close the foreign body trap by turning it clockwise and remove the
drain tray from the front.
▸ Empty the drain tray and then put it back, pushing it in straight as far
as it will go.
Note
: The drain tray can be removed and a larger receptacle used in
its place to draining off the water. The appliance can hold up to 30
litres of water.
28
6 Care and maintenance

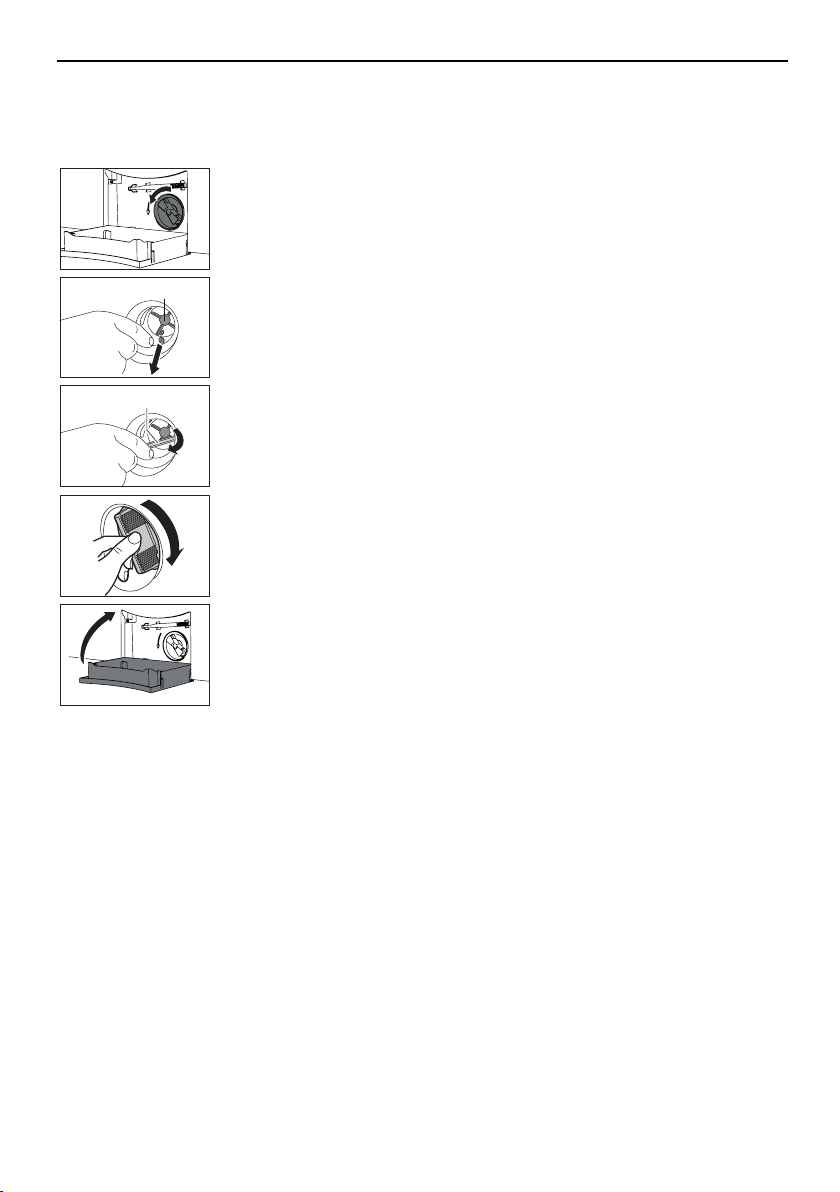

6.4 Cleaning the foreign body trap
Note
: Clean the foreign body trap at regular intervals as well as after washing, for instance,
pet blankets or other wash items that cause a thick build-up of fluff.
▸ Drain off any residual water (see page 28).
1
▸ Remove any foreign objects (buttons, coins, etc.) from around the im-
peller
1
.
2
▸ Using the emergency door release tool
2
, check that the drain pump
impeller can turn.
Note
: The impeller
1
may turn stiffly. This is construction related and
does not indicate the presence of any foreign object or defect. If the
impeller does not turn, please contact our Customer Services.
▸ Push the foreign body trap in as far as it will go and then turn clock-
wise as far as it will go.
▸ Put the drain tray back and close it to.
29
6 Care and maintenance
6.5 Opening the appliance door in the event of a power failure
Wait until the washing drum is completely stationary. A washing drum that is still
rotating poses a risk of serious injury.
▸ Close the water tap and disconnect the appliance from the mains.
▸ Open the drain tray by pressing it at the bottom or with the use of the
liquid detergent flap.
▸ Fold the drain tray right down. If necessary, carry out emergency
draining.
1
▸ Remove drain tray.
▸ Remove the emergency door release tool
1
from its bracket.
a.
2
▸ Insert emergency door release tool into blue opening cap
2
and turn
in direction of arrow.
a.
Door opens from right
b.
Door opens from left
b.
The appliance door springs open.
Note
: If the emergency door release tool is missing, a screw driver
can be used instead.
30
7 Trouble-shooting
7 Trouble-shooting
You may be able to trouble-shoot the following errors yourself. If not, note down the error
message in full (message, F and E numbers) and call Customer Services.
7.1 Error messages
Display Possible cause Solution
A2
Check water outlet
▪ The foreign body trap is
clogged.
▪ The drain pump is
blocked.
▪ The drain hose is bent or
kinked.
▪ The outlet or drain trap is
clogged.
▸ Check cause (see page 29).
▸ Press the button.
▸ Restart the programme.
A3
Clean foreign body
trap
▪ The foreign body trap is
clogged.
▸ Check cause (see page 29).
▸ Press the button.
▸ Restart the programme.
A5
Spin stop:
Unbalanced load
▪ Large items are unevenly
distributed in the washing
drum.
▸ Wash large and small items together.
▪ Pillows or similar items in
the wash.
▸ Remove the pillows.
▸ Spin the washing again.
▸ Spin the pillows separately.
▪ Wash items are tangled. ▸ Separate the wash items.
▸ Fasten duvet covers and pillow cases.
▸ Spin the washing again.
A6
Check foreign body
trap
▪ The foreign body trap is
missing or is not sitting
correctly.
▸ Check cause (see page 29).
▸ Press the button.
▸ Restart the programme.
A9
Check water inlet
▪ The water tap is turned
off.
▪ The water inlet filter is
clogged.
▪ Water supply is interrup-
ted.
▪ Water pressure is too
low.
▸ Clean water inlet filter or restore water
supply (see page 28).
▸ Press the button.
▸ Restart the programme.
31
7 Trouble-shooting
Display Possible cause Solution
F6/E77
see instructions
FN XXXXX XXXXXX
▪ Anti-leak protection was
triggered.
▸ Turn off water tap.
▸ Note down error message in full and
appliance's FN.
▸ Press the button.
▸ Call Customer Services.
FXX/EXX
see instructions
FN XXXXX XXXXXX
▪ Various situations can
lead to an "F" message.
▸ Press the button.
▸ Switch off the power supply for about
1 minute.
▸ Switch the power supply back on
again and select a new programme.
▪ If the error appears
again:
▸ Note down error message in full and
appliance's FN.
▸ Interrupt the water and power supply.
▸ If there is laundry in the appliance:
carry out emergency draining, use
emergency door release and unload
laundry.
▸ Call Customer Services.
H20
▪ The water counter in the
inlet hose is defective. It
is still possible to wash
without a problem. The
water consumption dis-
played can deviate from
the actual consumption.
▸ Call Customer Services.
U1/E27
see instructions
FN XXXXX XXXXXX
▪ Faulty electrical connec-
tion.
▪ Overvoltage.
▸ Press the button.
▸ Switch off the power supply for about
1 minute.
▸ Switch the power supply back on
again and select a new programme.
▪ If the error appears
again:
▸ Have an electrician check the house
installation.
▸ Note down error message in full and
appliance's FN.
▸ Disconnect from the power supply.
▸ Call Customer Services.
Foam in main
wash:
Rinsing extended
▪ If there is very heavy
foaming, the programme
is automatically extended
by a rinsing cycle. This
improves the wash res-
ults, but extends the pro-
gramme time.
▸ Reduce the amount of washing deter-
gent used next time.
▸ Adjust detergent dosage to water
hardness (see page 14).
32
7 Trouble-shooting
Display Possible cause Solution
Hygiene recom-
mend.
▪ No wash cycle has been
carried out at a temperat-
ure of at least 60 °C for
a longer period of time.
▸ With one of the next wash cycles carry
out a wash with at least 60°C.
Or:
▸ Run «Appliance hygiene» programme
without laundry (see page 20).
Inlet water very
cold:
Heating extended
▪ Inlet water is very cold.
Heating is extended.
▸ No action is necessary.
Too many items:
Heating extended
▪ The selected programme
is intended for a smaller
load. Heating and pos-
sibly rinsing is extended.
▸ Adjust load to the max. load size (see
page 12).
Large unbalanced
load:
Spin extended
▪ The appliance optimizes
the distribution of the
wash load to com-
pensate an unbalanced
load. The final spin is ex-
tended.
▸ Wash large and small items together
to avoid large unbalanced loads.
7.2 Other possible problems
Problem Possible cause Solution
The washing has
not been spun or
has been spun in-
sufficiently.
▪ The spin speed set is too
low.
▸ Increase the spin speed for the next
wash cycle (see page 23).
▪ Too large an unbalanced
load in the washing
drum.
▸ Wash large and small items together.
▪ «Steam anti-crease» was
selected and the appli-
ance was not standing
level.
▸ Optimize appliance set-up according
to installation instructions.
The appliance vi-
brates heavily when
spinning.
▪ The transport lock has
not been removed.
▸ Remove transport lock (see page 4).
▪ The feet of the appliance
are not properly adjus-
ted.
▸ Set appliance feet so that the appli-
ance stands level.
▪ The load could not be
optimally balanced in the
washing drum.
▸ Wash large and small items together.
33
7 Trouble-shooting
Problem Possible cause Solution
At the end of the
programme, the ap-
pliance door can-
not be opened with
the button.
▪ The appliance door is
stuck.
▸ Press hard against the lock side of the
appliance door (i.e. front edge of ap-
pliance door).
▸ Press the button again.
▪ An interruption in the
power supply.
▸ Use the emergency door release (see
page 30).
Water sounds after
programme has fin-
ished when wash-
ing drum is turned
by hand.
▪ The vanes are filled with
water to compensate the
unbalanced load.
▸ The water is automatically pumped off.
No action is necessary.
Traces of condi-
tioner or water in
fabric conditioner
compartment.
▪ Siphon in fabric condi-
tioner compartment is
missing or not inserted
correctly.
▸ Insert the siphon correctly (see page
27).
▪ Siphon or suction tube is
clogged.
▸ Clean siphon and suction tube (see
page 27).
Traces of powder
detergent in deter-
gent compartment.
▪ Damp or lumpy washing
detergent.
▸ Store washing detergent in a dry
place.
▪ Washing detergent com-
partment was damp and
a delayed start was se-
lected.
▸ Wipe detergent compartment dry be-
fore adding the detergent.
▪ Water flow pressure is
too low.
▸ Open water tap fully.
▪ Water inlet is scaled up. ▸ Check water supply and, if necessary,
clean the water inlet filter (see page
28).
▪ Flap
a
was inserted in
position
1
for liquid deter-
gent.
▸ Pull flap
a
out and insert into position
2 (see page 13).
2
a
34
7 Trouble-shooting
Problem Possible cause Solution
Laundry is still dry
after programme
has finished – no
error message.
▪ «Demo mode» is turned
on.
▸ Open the appliance door.
▸ Hold the and buttons de-
pressed.
▸ Simultaneously press the button.
«Demo mode ON» appears in the dis-
play.
▸ Press the button.
«Demo mode OFF» appears in the dis-
play.
▸ Press the button repeatedly until
the display goes out.
7.3 Unsatisfactory wash results
Result Possible cause Solution
White residue on
washing
▪ Despite intensive rinsing,
badly soluble com-
pounds in the detergent
can be left on the wash-
ing.
▸ Shake out or brush the wash items.
▸ Wash the items again with just a little
washing detergent.
▸ Use a liquid detergent that does not
contain zeolites.
▸ Select additional function .
Grey residue on
washing
▪ Grease and dirt particles
left behind.
▪ Residue from detergent,
limescale and dirt
▸ Increase detergent dosage.
▸ Use heavy-duty washing detergent.
▸ Adjust amount of detergent to water
hardness and degree of soiling of
washing (see page 14).
▪ Washing drum is over-
loaded.
▸ Put less laundry into the washing drum
(see page 12).
Washing feels hard ▪ Poor rinsing effect
through very soft water
(below 15 °fH).
▸ Select user setting «soft water» (see
page 25).
Unsatisfactory
wash result using
detergent for col-
oureds
▪ Washing detergent used
does not contain bleach.
▸ Use washing detergent containing
bleach (see page 13).
▪ Exceptionally heavily
soiled washing.
▸ More intensive programme, e.g. de-
gree of soiling «heavily soiled».
Unsatisfactory
wash result using li-
quid detergent
▪ Liquid detergent does not
contain bleach.
▸ Use washing detergent containing
bleach (see page 13).
35
7 Trouble-shooting
Result Possible cause Solution
Soap deposits on
washing
▪ Water hardness is too
high.
▸ Soap detergent should only be used if
the water hardness is below 25 °fH
(see page 14).
Unsatisfactory rins-
ing performance
▪ Too much washing deter-
gent.
▸ Adjust washing detergent dosage to
water hardness and degree of soiling
(see page 14).
▪ Very soft water (below
15°fH)
▸ Select user setting «soft water» (see
page 25).
Fabric stains ▪ Rust stains
▪ Chemical effect
▪ Residues from hair care
products, cosmetics and
plants can react with the
suds to cause a chem-
ical reaction that can res-
ult in staining.
▸ Brush out pockets in garments.
▸ Wash items with metal parts separ-
ately.
Colour run ▪ Non-fast colours in the
wash.
▸ Wash white and coloured textiles sep-
arately.
▸ Follow fabric care labels (see page 8).
▪ Items in the wash whose
colour has run.
▸ Empty garment pockets.
Holes, rips or tears ▪ Items in the wash with
zips or hooks open.
▸ Fasten zip fasteners and hooks before
washing.
▸ Wash delicates in a laundry bag or pil-
low case.
▸ Turn pockets inside out.
▸ Empty garment pockets.
▪ Chemical effect of wash-
ing detergent, textile
quality
▸ Do not put washing detergent directly
onto the laundry.
▪ Washing drum damaged
by foreign objects (e.g.
nails, paper clips, etc.)
▸ Inspect washing drum for foreign ob-
jects and damage.
▸ Remove foreign objects.
▸ Call Customer Services if the washing
drum is damaged.
Fabric wear ▪ Washing drum over-
loaded
▸ Put less laundry into the washing drum
(see page 12).
▪ Friction between fabrics
during washing.
▸ Select additional function «Easy
care».
▪ Pilling ▸ Turn items inside out before washing.
36
8 Spare parts
8 Spare parts
Please give product family and exact designation when ordering parts.
Drain hose 1.5m /
4.0m
Emergency door re-
lease tool
Foreign body trap Drain tray
Siphon Detergent dis-
penser drawer
Liquid detergent
flap
9 Technical data
Dimensions Spin speed
Height 85cm 400, 600, 800, 1000, 1200,
1400, 1600 rpm
Width 59.5cm
Depth 62.5cm
Weight 70 kg
Electrical connection
Pumping height of pump 1.2m See identification plate:
▸ Open the drain tray.
Dry load capacity 8 kg
The identification plate is
located next to the foreign
body trap.
Plumbing in
Connection to water supply Cold water G¾"
Permitted pressure of water
supply
0.1–0.6Mpa (1–6bar)
Max. pumping height of drain
pump
1.2m
37
9 Technical data
9.1 Note for testing institutes
Set to the standard programmes according to AS/NZS 2040.2:2005 :
Programme Load capacity
40°C Coloureds normal 8kg
▸ Press the button 1x.
10°C Coloureds normal 8kg
▸ Press the button 2x.
For test institutes we recommend for the measurement of end mode the door remains open
so that it matches normal use without user intervention. Note at the point of end mode the
door will automatically pop open.
Data for the 40°C Coloureds normal programme
Load
capacity
kg
Programme
duration
hrs./mins.
Energy
star rating
Energy
consump-
tion
kWh/cycle
Water
star rating
Water con-
sumption
l/cycle
Residual
moisture
%
8 3h50 4 0.81 4 78 57
9.2 Consumption values
The consumption data and programme times given serve only as a guide. They refer to the
maximum load capacity and can vary with, for instance, towelling material, a very cold water
feed, the degree of soiling selected or a smaller wash load. The time remaining shown and
the programme end time are adjusted accordingly.
Whites and coloureds programmes
Programme Load
kg
Spin speed
1
rpm
Duration
hrs./mins.
Water
Litres
Energy
kWh
Whites 95 °C 1–8 1200 1h41 75 2.2
Coloureds 60 °C 1–8 1200 1h18 65 1.3
Coloureds 40 °C 1–8 1200 1h08 70 0.8
Coloureds 30 °C 1–8 1200 1h05 70 0.5
Coloureds 20 °C 1–8 1200 1h02 70 0.3
Woollens 30 °C 1–2.5 800 0h48 52 0.3
Hand wash 20 °C 1–2 600 0h45 58 0.2
1
Factory setting
38
9 Technical data
Extra programmes
Programme Load
kg
Spin speed
1
rpm
Duration
hrs./mins.
Water
Litres
Energy
kWh
Steam anti-crease 1–1.5 0 0h23 1 0.1
Proofing 20°C 1–3 800 0h28 12 0.2
Appliance hygiene 0 0 0h30 9 0.7
1
Factory setting
9.3 VAS Vibration Absorbing System
As the washing drum starts to spin, if the control unit detects that the load is out of balance it
will interrupt the spinning action once or more. In this case, the appliance tries to improve the
distribution of the wash load in the washing drum.
When spinning, at all spin speeds the load is, where necessary, actively balanced in the
washing drum, whereby the hollow vanes are filled with the necessary quantity of water. This
ensures optimal care and draining of the washing.
9.4 Water and energy economy
During the first few minutes of a programme running, sensors automatically determine the
type and the size of the load being washed.
Water levels are then optimally adjusted to the wash load so that only the strict amount of wa-
ter needed is used.
9.5 EcoStandby
The appliance is equipped with an automatic energy-saving «EcoStandby» function to avoid
consuming energy unnecessarily.
All displays go out within minutes of a programme finishing. Energy consumption is reduced
to an absolute minimum. The safety functions, however, remain activated.
39
10 Washing tips
10 Washing tips
10.1 Energy and water economy
▪ Where possible fill the drum to the maximum load capacity of the relevant programme.
▪ Select «Pre-wash» or «Soaking» only for washing that is heavily soiled or stained.
▪ For lightly soiled washing without staining select the «20°C» main wash programme or
the additional function «Sprint».
▪ Select additional function «Eco» if the duration of the programme or the germ-killing effect
of high temperatures do not play a role.
▪ Select additional function «OptiTime» if washing using a delayed start or the germ-killing
effect of high temperatures do not play a role.
Spin speed
How much energy is consumed by subsequent tumble drying depends on the spin speed
set. The higher the spin speed set, the lower the remaining moisture content of the washing
at the end of the programme.
rpm
1600 1400 1200 1000 800 600 400
Residual moisture
(cotton)
~44% ~47% ~52% ~60% ~70% ~90% ~110%
Automatic door opener
Use the appliance with the automatic door opener switched on. When the appliance door
opens the appliance immediately enters the lowest possible stand-by power consumption
state.
40
10 Washing tips
10.2 Avoiding damage
▪ Follow the fabric care symbols on garment labels.
▪ The wash temperature selected should agree with the recommended temperature range of
the washing detergent to ensure the washing detergent is at its most effective.
▪ Wash white and coloured textiles separately.
▪ Empty pockets and turn inside out. Remove any foreign objects (coins, nails, paper clips,
etc.).
▪ Empty and brush out pockets of work overalls worn in the metal industry. Metal shavings
can damage the washing and cause rust stains.
▪ Fasten hook and eye fasteners and zips. These can damage the laundry and the drum.
▪ Fasten cloth belts, apron ties and duvet and pillow cases to avoid them getting tangled up.
▪ Wash smaller items (e.g. nylon tights, belts) and items with zips and hooks in a washing
net or cushion cover.
▪ Remove stains before washing using a suitable stain remover.
▪ Pre-treat heavily soiled areas (collars, cuffs, etc.) with soap, special detergent or paste.
▪ Textiles, such as dog or horse blankets, that are covered in animal hair should be brushed
out before washing.
41
11 Disposal
11 Disposal
11.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
11.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g. through
children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out
by a qualified electrician. Then cut the mains cable off flush with the appliance.
▸ Remove or disable the lock on the appliance door.
11.3 Disposal
▪ The «crossed-out wheelie bin» symbol indicates that waste electrical and electronic
equipment (WEEE) must be specially disposed of. Such equipment can contain dangerous
and environmentally harmful substances.
▪ These appliances must be taken to an official collection point for recycling electrical and
electronic equipment and must not be disposed of with ordinary household waste. In this
way, you help conserve resources and protect the environment.
▪ Please contact your local authorities for more information.
42
43
12 Notes
Quick instructions
Please first read the safety precautions in the operating instructions.
Starting programme
▸ Switch on appliance and turn on water
tap.
▸ Press the button. Appliance door
opens.
▸ Load laundry.
▸ Add washing detergent to detergent dis-
penser drawer.
When programme has finished
▸ Press the button and unload the
laundry.
▸ Clean detergent dispenser drawer.
▸ Push appliance door to, but do not
close.
Services & support
Register your appliance today online via
our website at www.vzug.com and benefit
from the best possible support in the event
of a malfunction – including during the
manufacturer's 2-year warranty period. You
will require the serial number (FN) and ap-
pliance designation to register your appli-
ance. You will find them on the identifica-
tion plate of your appliance.
You can make your own note of the FN
and appliance designation or note them on
the service sticker which comes with the
appliance:
FN:
______________________________
Appliance:
________________________
Your repair order
You can find the telephone number of the
nearest V-ZUG service centre to you under
www.vzug.com →Service →Service hotline.
General queries, accessories and service
agreement
V-ZUG will be happy to help you with any
general administrative or technical queries,
to accept your orders for accessories and
spare parts and to inform you about our
progressive service agreements.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
1013671-R03
