Operating instructions
Adora SLQ WP
Washing machine
2
Safety precautions
Read the operating instructions be-
fore using the appliance for the first
time.
General safety precautions
▪ This appliance can be used
by children aged8 and
above and by persons with
reduced physical, sensory
or mental capabilities, or
lack of experience and/or
knowledge, provided they
are supervised or have
been instructed on the safe
use of the appliance and
have understood the haz-
ards involved. Children must
not play with the appliance.
Cleaning and user mainten-
ance shall not be under-
taken by children without su-
pervision.
▪ If an appliance is not
equipped with a mains
cable and a plug or other
means for disconnecting
from the mains with a con-
tact opening on each pole
complying with the condi-
tions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical in-
stallation in accordance with
the installation regulations.
▪ If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manu-
facturer or its Customer Ser-
vices or a similarly qualified
person in order to avoid
hazard.
Appliance-specific safety
precautions
▪ Children under 3 years of
age must be kept away
from the appliance unless
they are constantly super-
vised.
▪ The appliance has a max-
imum dry load capacity of
8 kg.
CAUTION
▪ If this appliance is supplied
from a cord extension set or
electrical portable outlet
device, the cord extension
set or electrical portable
outlet device must be posi-
tioned so that it is not sub-
ject to splashing or ingress
of moisture.
Instructions for use
▪ If connected to the water mains by de-
tachable hoses, the new hose set sup-
plied with the appliance must be used.
Do not reuse old hose sets.
▪ Ensure ready access to the power
socket being used.
Safety precautions
3
▪ Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings, as
well as affect the functioning of the ap-
pliance. If the appliance is not working
properly or in case a repair is needed,
follow the instructions given in the «Ser-
vice and repairs» section. Please con-
tact our Customer Services if neces-
sary.
▪ Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the
drum.
▪ Strictly use original spare parts only.
▪ If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪ Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
▪ To protect your washing, follow the fab-
ric care symbols and the hints and ad-
vice in the «Washing tips» section.
▪ Textiles that have been cleaned, treated
or soaked with flammable chemicals,
detergents or solvents such as ben-
zene, alcohol, stain remover, oil, paint,
wax, etc. are not to be washed in the
appliance. Fire or explosion hazard!
Wash materials containing such sub-
stances first by hand with water or allow
the solvent to evaporate completely.
▪ Ensure the washing drum has stopped
moving before reaching inside. Do not
touch the washing drum while it is still
in motion – risk of serious injury!
▪ Disconnect the appliance from the
mains before carrying out maintenance
work.
Correct use
The appliance is only suitable for washing
home textiles with water and regular wash-
ing machine detergent. It is designed for
use in the home and for the above-men-
tioned purpose only. No liability is as-
sumed for any damage caused by im-
proper or incorrect use.
How to avoid damaging the
appliance
▪ Close the appliance door carefully.
▪ Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the
washing drum, detergent dispenser
drawer or around the foreign body trap.
Foreign objects such as coins, nails, pa-
per clips, etc. can damage parts of the
appliance as well as the washing.
▪ During longer periods of absence, turn
off the water tap before switching off the
power by pulling out the mains plug.
Never pull the mains plug out by the
cable. Please note: The built-in overflow
protection is rendered inactive when the
power is switched off.
▪ When cleaning the appliance make sure
no water gets inside it. Use a moder-
ately damp cloth. Do not spray the out-
side or the inside of the appliance with
water. If water gets inside the appliance,
it will cause damage.
▪ Textiles with metal reinforcements are
not to be washed in the appliance Risk
of damage.
▪ Trainers, diving suits, rucksacks, car-
pets, etc. are not to be washed in the
appliance.
Safety precautions
4
Using for the first time
The appliance must be installed and
connected to the electricity supply by
a qualified fitter/electrician in accord-
ance with the separate installation in-
structions.
Transport lock
Remove the transport lock (hexagon
head screws at the back of the appli-
ance) in order to avoid damage to
the appliance (see installation in-
structions).
Running the first wash cycle
without any washing
▸Add a little washing detergent to com-
partment II.
▸Run an empty coloureds 60°C cycle to
remove any residues from the manufac-
turing process.
Serial number
The serial number (FN) is located on the
identification plate:
▸Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸Hold the
button depressed until
the following display appears:
Settings
FN 120 06 00 0123
Note on the operating
instructions
For more information on your appliance
and for answers to frequently asked ques-
tions, visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions can
result in injury or in damage to the appli-
ance or fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the
identification plate. These operating in-
structions apply to:
Appliance
designation
Adora SLQ WP
Type
WAASLQWPZ
Product family
11014
Variations depending on the model are
noted in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modific-
ations for the purpose of the further devel-
opment of the appliances is reserved.
Colour operating instructions can be down-
loaded from the internet from
www.vzug.com.
Contents
1Appliance description6
1.1Appliance construction..................................6
1.2Indicator lights and button state..................6
1.3Operating and display elements..................7
2Programme overview8
2.1Whites and coloureds programmes............8
2.2Programmes for normally soiled cotton load
8
2.3Extra programmes..........................................9
2.4Fabric types.....................................................9
2.5Additional functions.....................................11
2.6EcoManagement..........................................13
3Operating the appliance14
3.1Preparations..................................................14
3.2Loading the washing...................................14
3.3Adding washing detergent.........................15
3.4Detergent dosage........................................16
3.5Dyeing textiles..............................................16
3.6Selecting programme..................................16

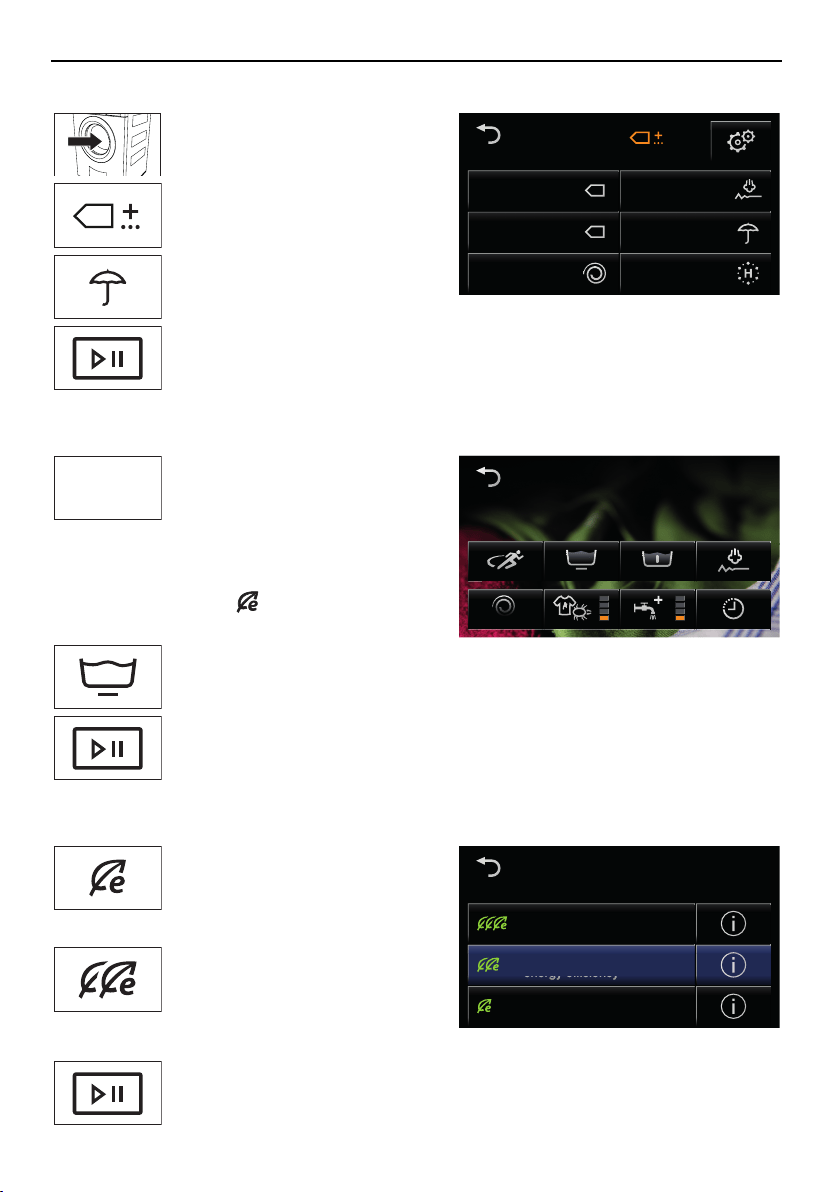

3.7Selecting additional functions....................18
3.8EcoHybrid......................................................18
3.9Delayed start.................................................19
3.10OptiTime........................................................20
3.11Separate rinsing / Separate spinning......20
3.12Bio wash / Soap wash................................21
3.13Correcting entry............................................21
3.14Aborting a programme...............................21

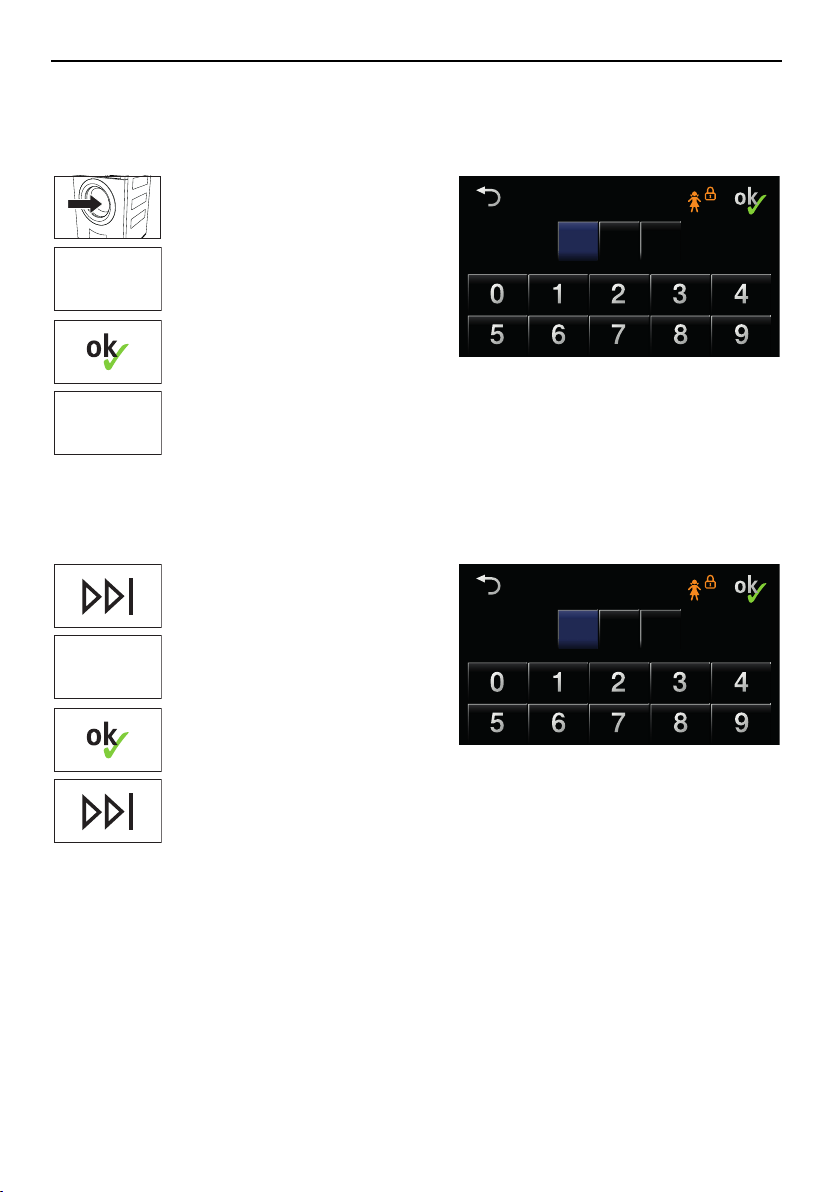

3.15With childproof lock activated...................22
3.16Opening the appliance door during washing
23
3.17End of programme......................................23

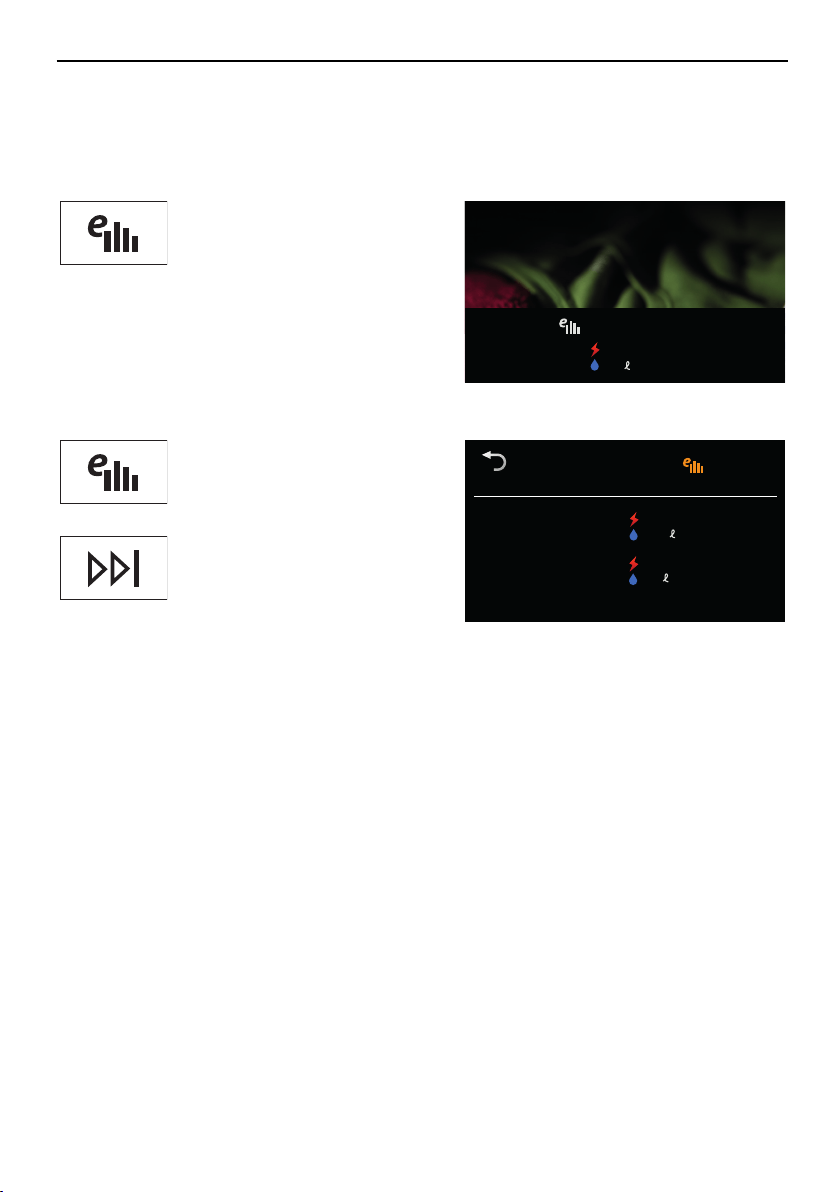

3.18EcoManagement statistics.........................25
4Favourites26
4.1Defining favourites.......................................26
4.2Changing favourites....................................26
4.3Deleting favourites.......................................27
4.4Starting favourites........................................27
5User settings28
6Care and maintenance32

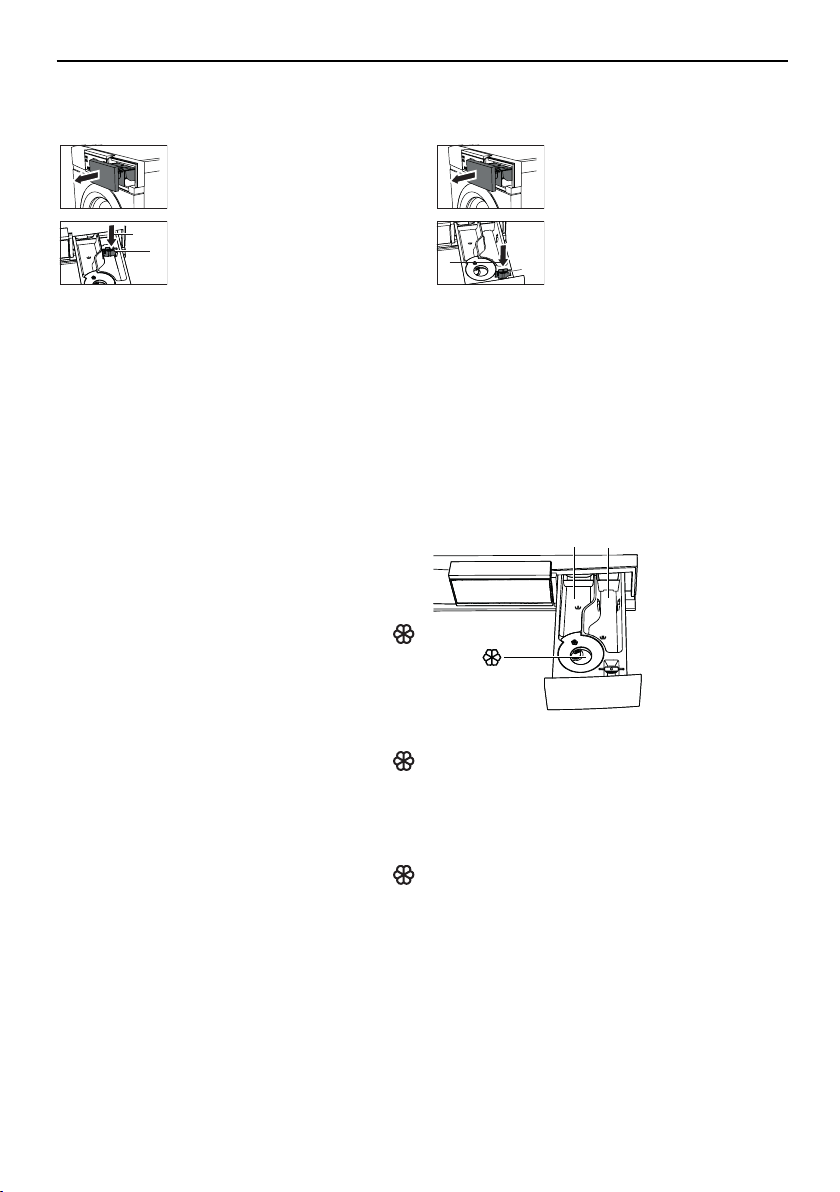

6.1Cleaning the detergent dispenser drawer
(as required)..................................................32
6.2Cleaning the water inlet filter......................33

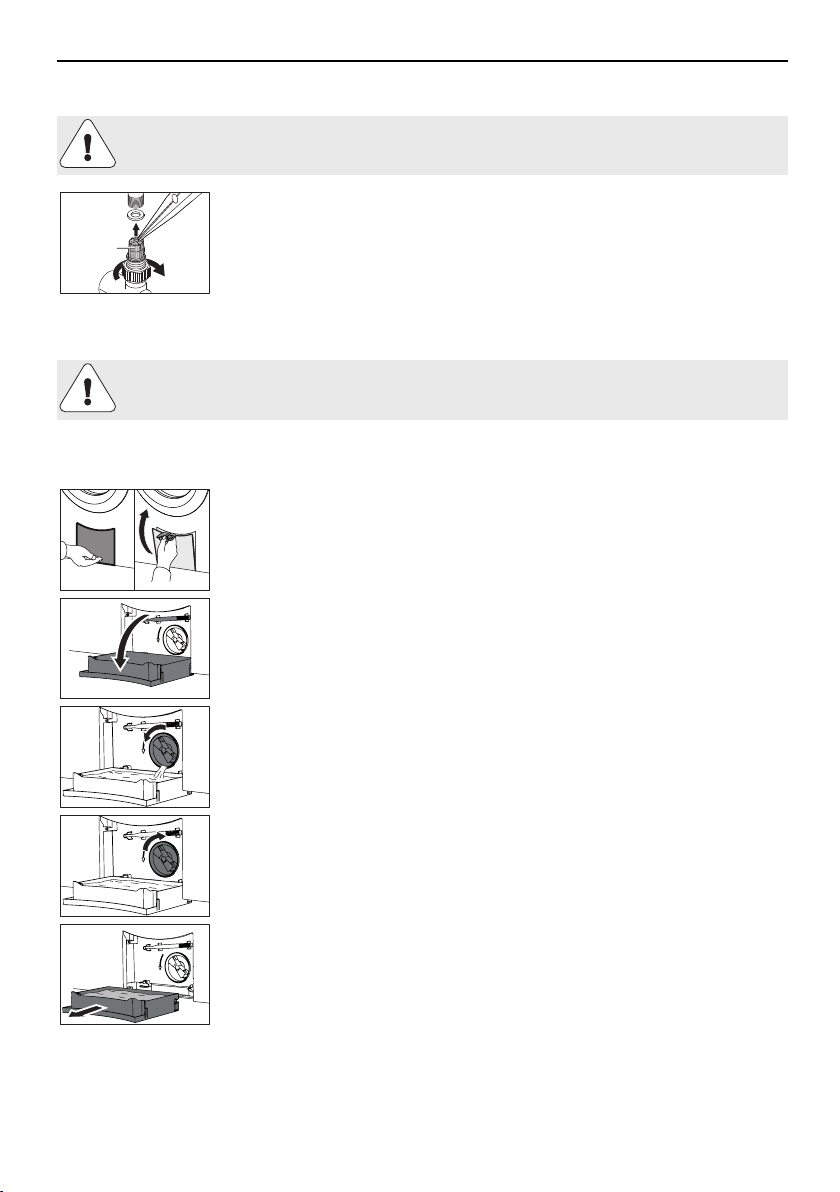

6.3Emergency draining.....................................33

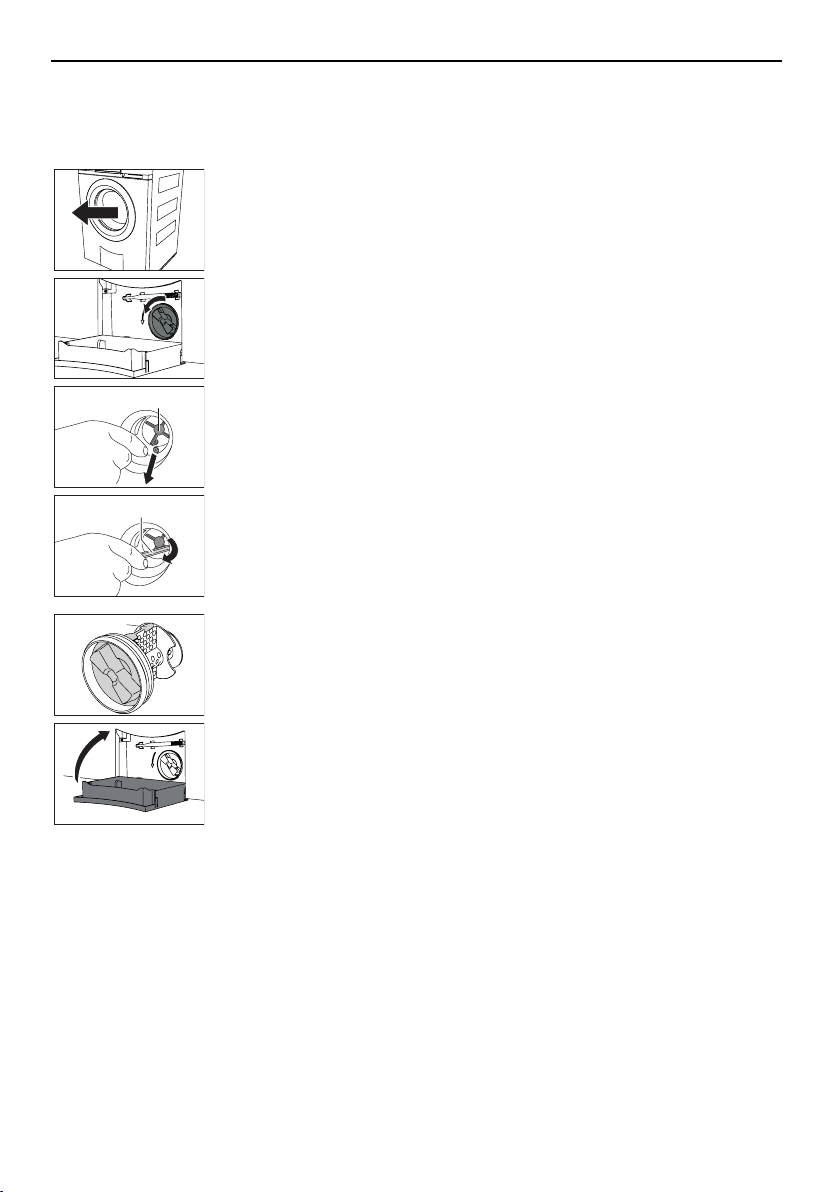

6.4Cleaning the foreign body trap..................34
6.5Opening the appliance door in the event of
a power failure...............................................35
7Trouble-shooting36
7.1Error messages.............................................36
7.2Other possible problems.............................39
7.3Unsatisfactory wash results........................41
8Spare parts43
9Technical data43
9.1Note for testing institutes............................44
9.2Consumption values.....................................44
9.3VAS Vibration Absorbing System..............45
9.4Water and energy economy.......................46
9.5Automatic energy-saving stand-by............46
10Washing tips46
10.1Energy and water economy........................46
10.2Avoiding damage..........................................46
11Disposal47
12Quick instructions48
13Services & support48
5

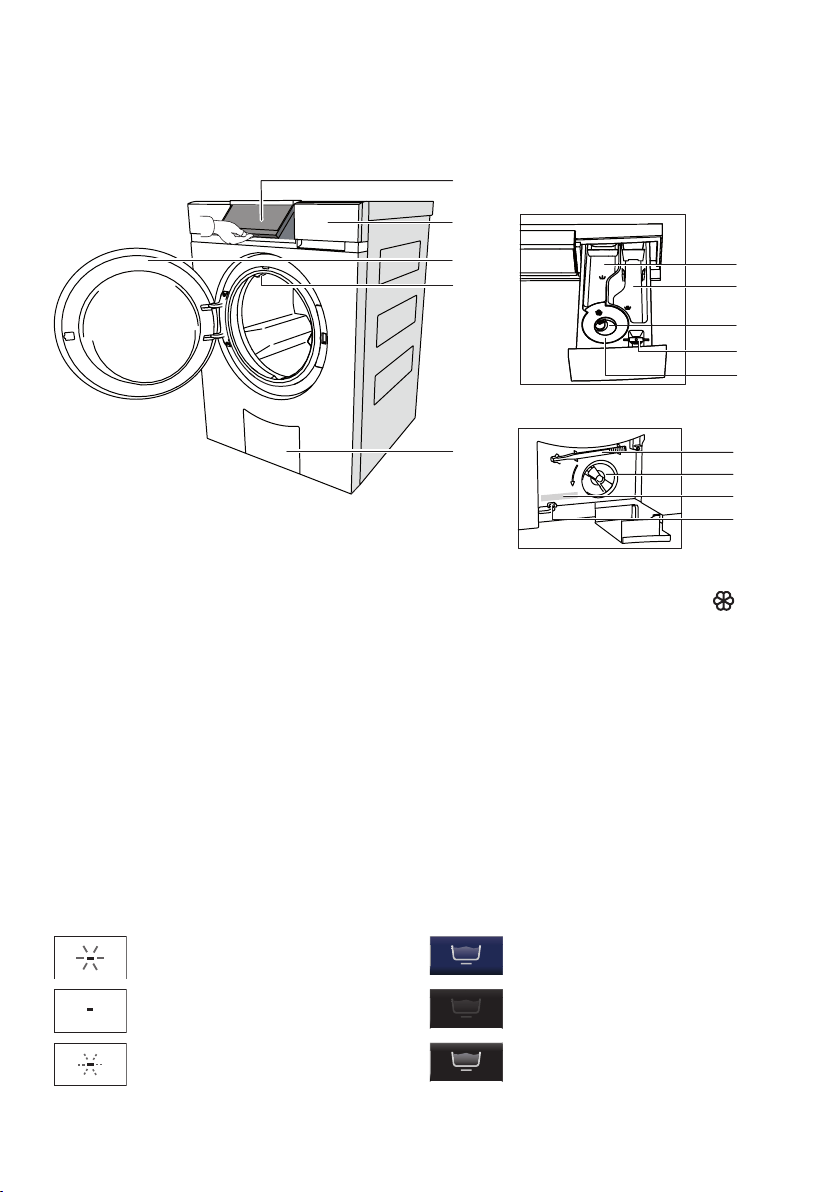

1 Appliance description
1.1 Appliance construction
6
7
8
9
Detergent dispenser
drawer (2)
10
12
13
14
11
Drain tray (5)
1
2
3
4
5
1
Pivoting operating panel
8
Fabric conditioner, compartment
2
Detergent dispenser drawer
9
Liquid detergent flap / drain tray opener
3
Appliance door
10
Siphon for fabric conditioner
4
Circulation nozzle
11
Emergency door release tool
5
Drain tray
12
Foreign body trap
6Pre-wash detergent, compartment I13
Identification plate / serial number (FN)
7Main wash detergent, compartment II14
Emergency door release
1.2 Indicator lights and button state
Indicator lightsButton state
Illuminated: relevant function
active
Blue background: relevant
function active
Off: relevant function not
selectable
Black button: relevant function
not selectable
Flashing: relevant function
selectable
Black background: relevant
function selectable
6
1 Appliance description

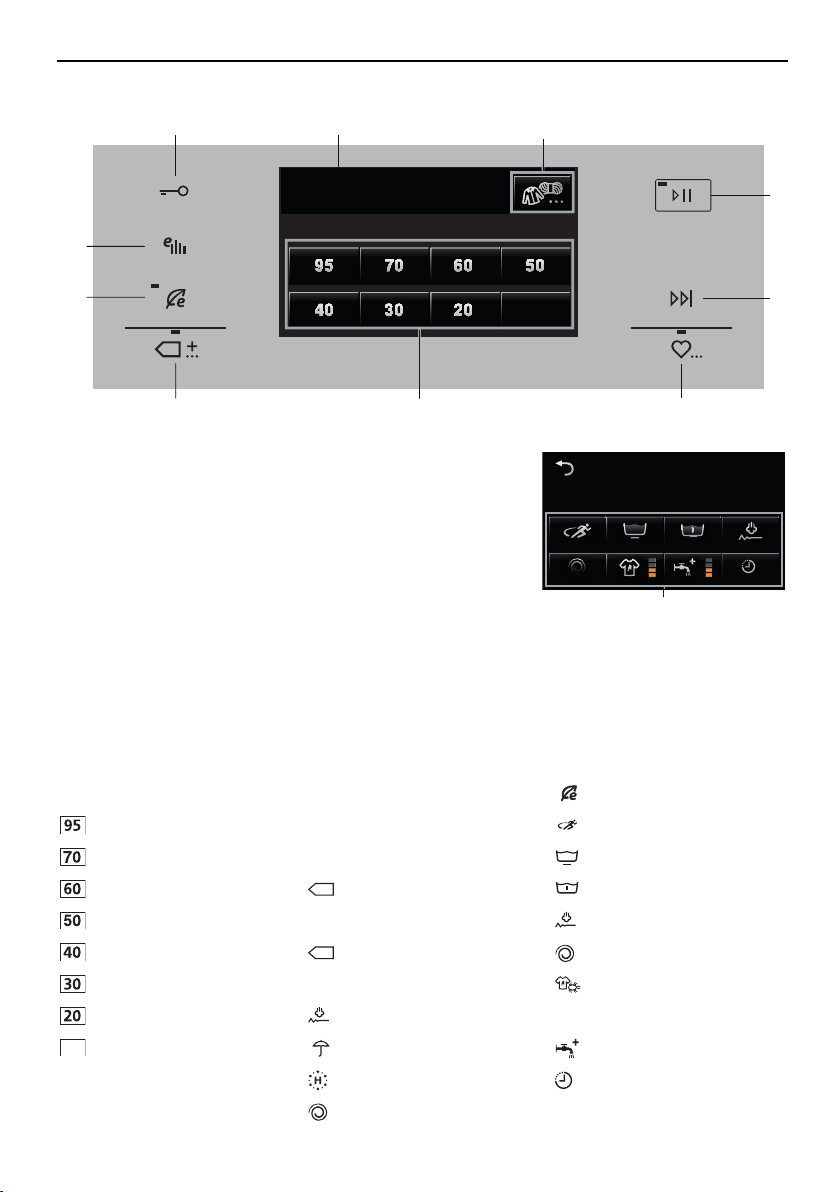

1.3 Operating and display elements
1
4
5
6
78
9
10
2
Coloureds
Select temperature
3
cold
1
Door opener
8
Programmes for
1 h 00
End 16 : 13
60°C Coloureds
800
1 h 00
End 16 : 13
60°C Coloureds
800
11
2
TouchDisplaynormally soiled
3
Fabric typescotton load and
4
Start/Pauseextra programmes
5
Fast forward/
9
EcoHybrid (see
End of programmeadditional functions)
6
Favourites
10
EcoManagement
7
Whites and co-
11
Additional functions
loureds programmes
Whites and co-Programmes forAdditional functions
loureds programmesnormally soiled
EcoHybrid (9)
Whites 95°C
cotton load and
Sprint
Coloureds 70°C
extra programmes
Easy care
Coloureds 60°C40°C ColouredsPre-wash
Coloureds 50°CnormalSteam anti-crease
Coloureds 40°C10°C ColouredsSpin speed
Coloureds 30°CnormalDegree of soiling,
Coloureds 20°CSteam anti-creaseAnti-mite
cold
Coloureds 10°CProofingAquaPlus
Appliance hygieneDelayed start incl.
SpinningOptiTime
7
2 Programme overview
2 Programme overview
To select the right programme, please follow the fabric care symbols on the laundry labels,
e.g.
40
. woollens and textiles with the fabric care label may only be washed using the
additional function «Hand wash».
2.1 Whites and coloureds programmes
ButtonsProgrammesFabric care
symbols
Load
capacity
Whites 95°C: For white cottons/linens e.g. bed
and table linen, towels, white or colour-fast under-
wear.
95
1–8 kg
Coloureds 70°C: Energy-saving programme for
white cottons.
95
1–8 kg
Coloureds 60°C: For coloured cottons e.g. bright
blouses, overalls, shirts, bed linen.
60
,
95
1–8 kg
Coloureds 50°C: Energy-saving programme for
coloured cottons.
60
,
95
1–8 kg
Coloureds 40°C: For coloured cottons and mixed
washing e.g. coloured sweatshirts, t-shirts.
40
,
60
,
95
1–8 kg
Coloureds 30°C: For coloured cottons and mixed
washing e.g. t-shirts.
30
,
40
,
60
,
95
1–8 kg
Coloureds 20°C: Energy-saving programme for
lightly soiled textiles.
30
,
40
,
60
,
95
1–8 kg
cold
Coloureds 10°C: Refresh programme without heat,
suitable for washing new clothes for the first time.
30
,
40
,
60
,
95
1–8 kg
2.2 Programmes for normally soiled cotton load
ButtonsProgrammesLoad
capacity
+
40°C Coloureds normal: The recommended programme
for washing normally soiled cottons at rated load capacity.
1–8 kg
+
10°C Coloureds normal: The programme with the lowest
possible temperature setting for washing cottons. It corres-
ponds to the 40°C Coloureds normal programme without
the water being heated. This programme has the same wa-
ter level as the 40°C Coloureds normal programme.
1–8 kg
8
2 Programme overview
2.3 Extra programmes
ButtonsProgrammesFabric care
symbols
Load
capacity
+
Steam anti-crease: Dry washing is par-
tially uncreased and made damp, ready to
iron.
40
,
60
,
95
1–1.5 kg
+
Proofing: For starching or proofing laundry, add the agent
to the fabric conditioner compartment.
1–3 kg
+
Appliance hygiene: Steam cleaning without laundry.0 kg
+
Spinning: Wet washing is spun. No wash cycle is carried
out.
1–8 kg
2.4 Fabric types
ButtonsProgrammesLoad
capacity
+
Coloureds: Standard programme1–8 kg
Shirts: Optimized for minimizing creasing, contains
steam anti-crease.
max.7items
Woollens: Gentle treatment for woollens and other delic-
ate textiles. Only for woollens with a felt-free finish and la-
belled as «machine washable».
1–2.5 kg
Hand wash: Very gentle treatment for textiles labelled
with the fabric care symbol.
1–2 kg
+
Down: Optimized for the particular wetting characteristics
of down fabrics. Short spin at the beginning of the pro-
gramme to get rid of any air in down textiles.
max. 1 kg
Outdoor garments: For waterproof and breathable cloth-
ing. Higher water level during washing and spinning.
1–3 kg
Silks: For delicate silk articles. Spin speed is reduced to
minimize creasing.
1–1.5 kg
Underwear: For very delicate textiles labelled with the
fabric care symbol e.g. underwear.
1–3 kg
9
2 Programme overview
+
Baby garments: Very thorough rinsing for the protection
of sensitive baby skin. If 95°C is selected as the temper-
ature, a pre-wash is included.
1–5 kg
Denim: Optimized for colour run from denim.1–4 kg
WetClean: For all fabrics labelled as washable. Most
gentle treatment possible through applying a gentle rock-
ing motion and a fine spray of water.
1–1.5 kg
Net curtains: Reduced washing action for very gentle
treatment. Higher water level during washing and spin-
ning. The washing remains lying in the water after the fi-
nal rinse (stop after rinsing).
1–2 kg
+ 1x
Draining with spinning
+ 2x
Draining without spinning
+
Black garments: Optimized rinsing through a higher wa-
ter level and extended rinsing time for dark textiles.
1–4 kg
Black hand wash: Optimized rinsing through a higher
water level and extended rinsing time for dark textiles la-
belled with the
fabric care symbol.
1–2 kg
10
2 Programme overview
2.5 Additional functions
ButtonsAdditional functionsLoad
capacity
EcoHybrid: The appliance is equipped with two heating systems:
▪ Heat pump heater (approximately 1kW heat output) with very low energy con-
sumption. Suitable for heating up to 50°C.
▪ Conventional auxiliary heater (approximately 2.8kW heat output) with normal en-
ergy consumption.
Optimal energy efficiency: Initially heated only using the heat pump
heater. The conventional heater comes on at around 40–50°C. The set
temperature is also reduced. The extended washing time, however, en-
sures the washing performance is maintained. The energy consumed to
heat the water is around 50–70% lower than with conventional washing
machines without a heat pump.
Very good energy efficiency: Initially heated only using the heat pump
heater. The conventional heater comes on at around 40–50°C. It takes
longer to reach the desired wash temperature. The energy consumed to
heat the water is around 40–50% lower than with conventional washing
machines without a heat pump.
Good energy efficiency: Heating using both heating systems simultan-
eously. This provides a high heat energy output. The energy consumed to
heat the water is around 10–20% lower than with conventional washing
machines without a heat pump.
Sprint: Short programme for lightly soiled washing. 2 instead of 3
rinsing cycles. The programme time is for the EcoHybrid setting
:
2.5 kg
+:26mins.+:28mins.
+:27mins.+:39mins.
Note: Add a small quantity of washing detergent. A large washing
load or too much washing detergent can significantly extend the
programme time. Use liquid detergent only.
Easy care: For washing requiring very gentle treatment. Increased
water level, reduced washing action and lower spin speed.
3.5kg
Pre-wash: Suitable for heavily soiled washing. Programme duration extended about
15minutes.
Steam anti-crease: Reduces creasing significantly. Loosening-up
period: 60minutes. The washing is warm and should be hung up
immediately to dry or be tumble dried. The spin speed is limited to
1000 rpm.
max. 2 kg
Spin speed: The spin speed can be changed. Delicates can be spun at a lower
spin speed. However, this increases the drying time (greater energy consumption
for tumble drying).
11
2 Programme overview
ButtonsAdditional functions
Degree of soiling: Adjustment to the degree of soiling of the washing.
Light soiling: For lightly soiled washing.
Medium soiling: Extended wash time.
Heavy soiling: Extended wash time, higher water level, an additional rins-
ing cycle.
Soaking: The duration can be set between 0.5 and 6 hours.
Anti-mite: The main wash is extended and intensified. The mites are
killed and the allergens are rinsed out thoroughly.
AquaPlus: There are 5 different settings for rinsing intensity.
Standard: Normal water level.
more water: Increased water level during the main wash and rinsing.
+ 1 rinse: An additional rinsing cycle.
more water + 1 rinse: Increased water level during the main wash and
rinsing, an additional rinsing cycle.
Skin protection: Increased water level during rinsing, two additional rins-
ing cycles. Suitable for sensitive skin.
Delayed start: For using cheap-rate electricity (setting range of up to 24hours).
The programme starts automatically when the set time is reached.
OptiTime: If a programme end time has been selected, OptiTime calculates the
most energy-efficient programme that can be carried out in the time remaining to
programme end. OptiTime reduces the washing temperature, while the washing
performance is maintained. The more time is available for washing, the more the
washing temperature can be reduced. If higher wash temperatures with a germ-
killing effect are needed, a corresponding programme without the OptiTime func-
tion must be selected.
Separate rinsing / Separate spinning: The programme starts at the desired parts
of the programme and the programme sequence is shortened (see page 20).
Bio wash (alkaline detergent + bleach) /
Soap wash (water softener + soap detergent): The programme sequence is adap-
ted for the use of multi-component detergents (see page 21).
Start/Pause: Touch the button to start or interrupt programmes. Touch the button
again to resume the programme after being interrupted.
12
2 Programme overview
2.6 EcoManagement
EcoManagement provides information on the energy and water consumption of the
appliance. The following statistical data can only be retrieved when no programme
is running:
▪ Energy and water consumption of the last programme
▪ Total energy and water consumption
▪ Average energy and water consumption of the last 25 programmes
The energy and water consumption of a programme is displayed during pro-
gramme selection. At the end of a programme, the energy and water consumption
of the last programme run is displayed.
13

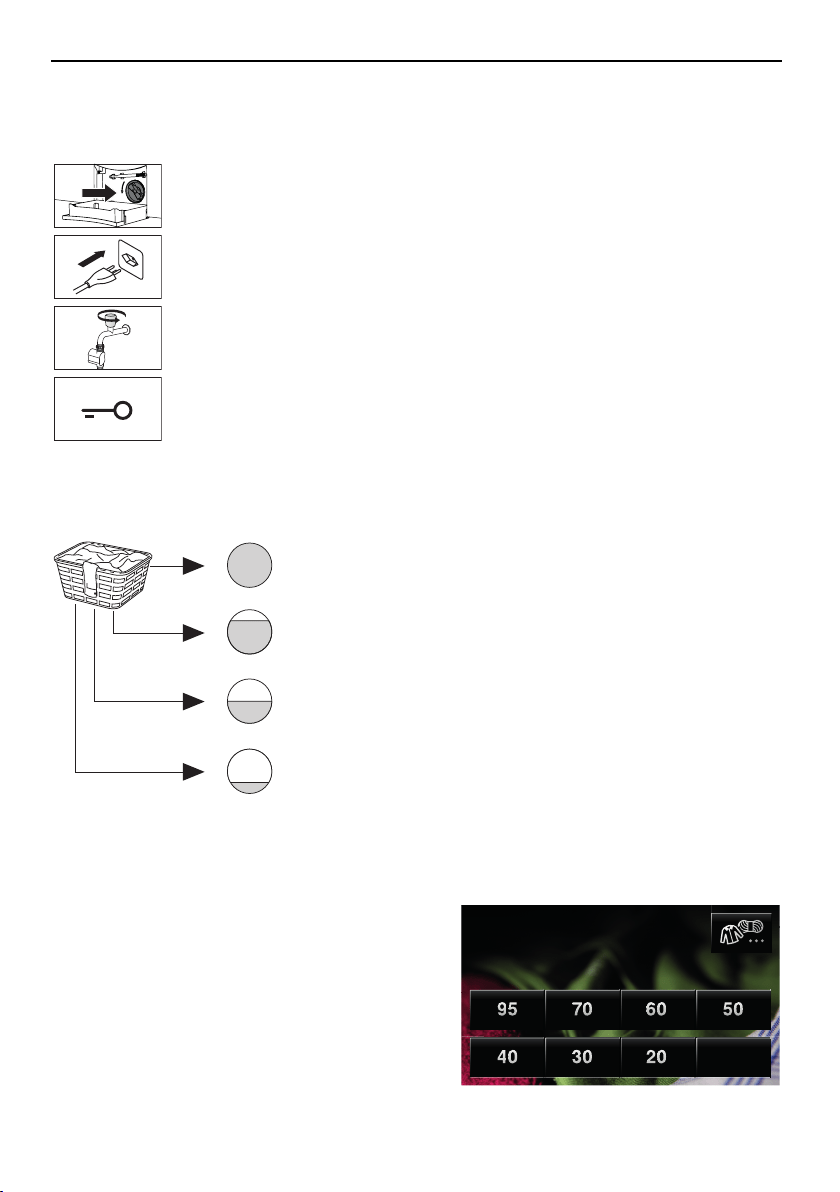

3 Operating the appliance
3 Operating the appliance
3.1 Preparations
▸Check the foreign body trap is inserted correctly.
▸Insert the mains plug into a suitable mains socket.
▸Turn on water tap.
▸Press the button to open the appliance door.
3.2 Loading the washing
▸Load up to a maximum of 8kg dry washing.
full:Normally soiled whites and coloureds
max. ¾:Heavily soiled whites and coloureds
max. ½:Easy care cottons, white and coloured
synthetics as well as mixed fabrics
max. ¼:Delicates, woollens, silks, polyacrylics
and net curtains
Note: For wet loads, only half-fill the washing drum. The washing drum should not be loaded
with any one single, heavy item.
▸Close the appliance door firmly.
If no programme selection is made within 20
seconds, all the displays go out. Touch any-
where on the TouchDisplay at any time to dis-
play the start screen again.
cold
Coloureds
Select temperature
14
3 Operating the appliance
3.3 Adding washing detergent
Liquid detergentPowder detergent
▸Pull the detergent dis-
penser drawer out as far
as it will go.
▸Pull the detergent dis-
penser drawer out as far
as it will go.
a
1
▸Pull flap a upwards and
out and insert into
position 1.
2
a
▸Pull flap a upwards and
out and insert into
position 2.
Note: Liquid detergent
▪ Do not fill past the upper mark.
▪ Only use for main wash with programmes without a pre-wash.
▪ Only use for temperatures of up to 60°C.
▪ If washing with a delayed start, add to a dosing aid (e.g. ball) and place it directly in the
washing drum so that no detergent gets onto the washing during the delayed start time.
Compartments
Conventional washing
I
II
Pre-wash detergent
Compartment I
Main wash detergent
Compartment II
Fabric conditioner
Compartment
Bio wash
Alkaline detergent
Compartment II
Bleach
Compartment I
Fabric conditioner
Compartment
Soap washNote: Fabric conditioner
Water softener
Compartment I
▪ Do not fill past the upper mark.
▪ Where possible do not use if tumble dry-
ing, as tumble drying automatically leaves
fabrics soft and fluffy to the touch.
Soap detergent
Compartment II
Fabric conditioner
Compartment
15
3 Operating the appliance
3.4 Detergent dosage
Adding too much washing detergent can cause excess foaming, The con-
sequences: poor wash results, damage to the appliance in the worst case.
The correct dosage depends on the degree of soiling, the wash load, the water hardness and
the product used. Follow the manufacturer’s dosing instructions.
Water hardness
Soft
0°fH to 15°fHThe local water authorities can provide
information on the level of water hard-
ness in your area.
Medium
15°fH to 25°fH
Hard
over 25°fH
After adding the washing detergent
▸Push the detergent dispenser drawer back in.
▸Select a programme.
3.5 Dyeing textiles
Textiles can be dyed in the appliance using suitable dyeing agents. Follow the manufacturer’s
safety instructions and warnings.
Note: Each wash programme starts with brief draining. Add liquid dye components after this.
3.6 Selecting programme
Main wash programmes
When a programme is selected, all the necessary settings for it are assigned automatically.
Additional functions can be selected or deselected by using further buttons in other views.

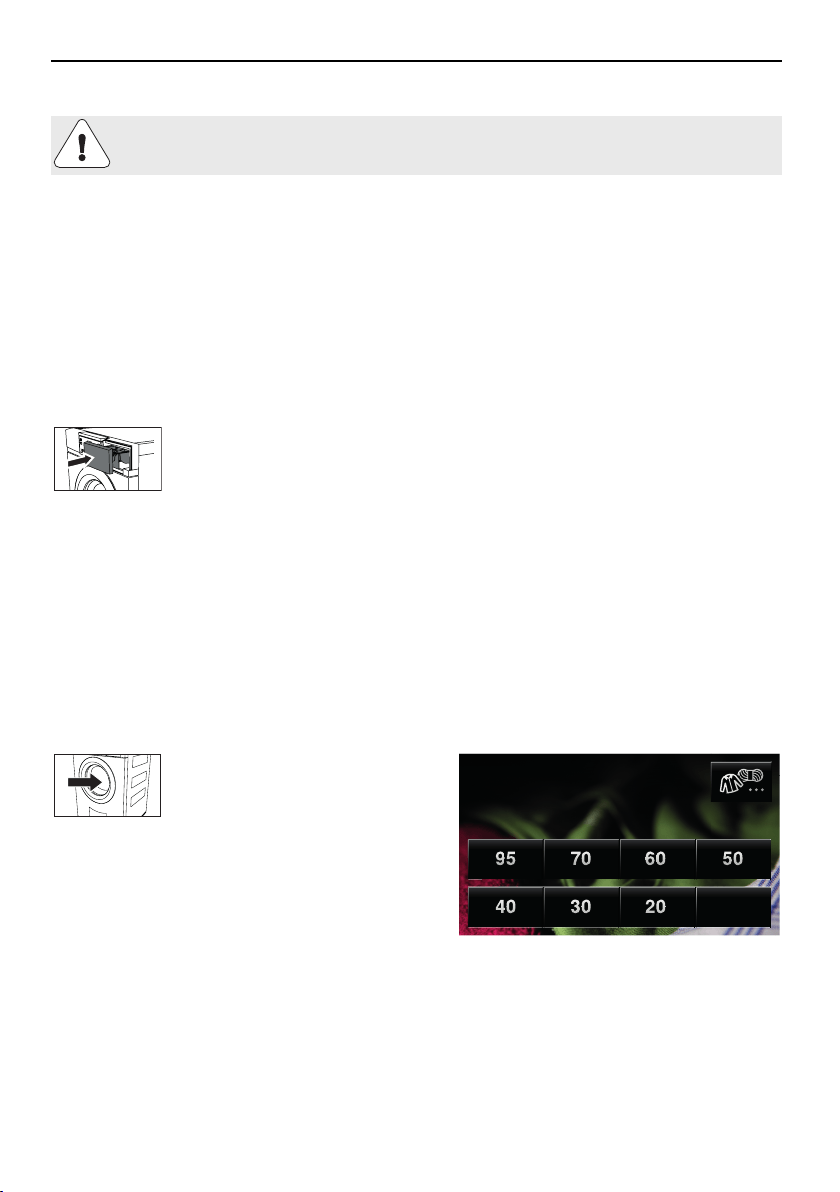

▸Close the appliance door.
cold
Coloureds
Select temperature
The start screen appears.
16
3 Operating the appliance
60
▸Touch the button for the de-
sired programme.
1200
1 h 00
End 16 : 13
60°C Coloureds
The programme selected, the
expected duration, the expec-
ted programme end time and
the selectable additional func-
tions are displayed. The indic-
ator light for the selectable
button flashes.
▸Touch the button.
The programme selected
starts.

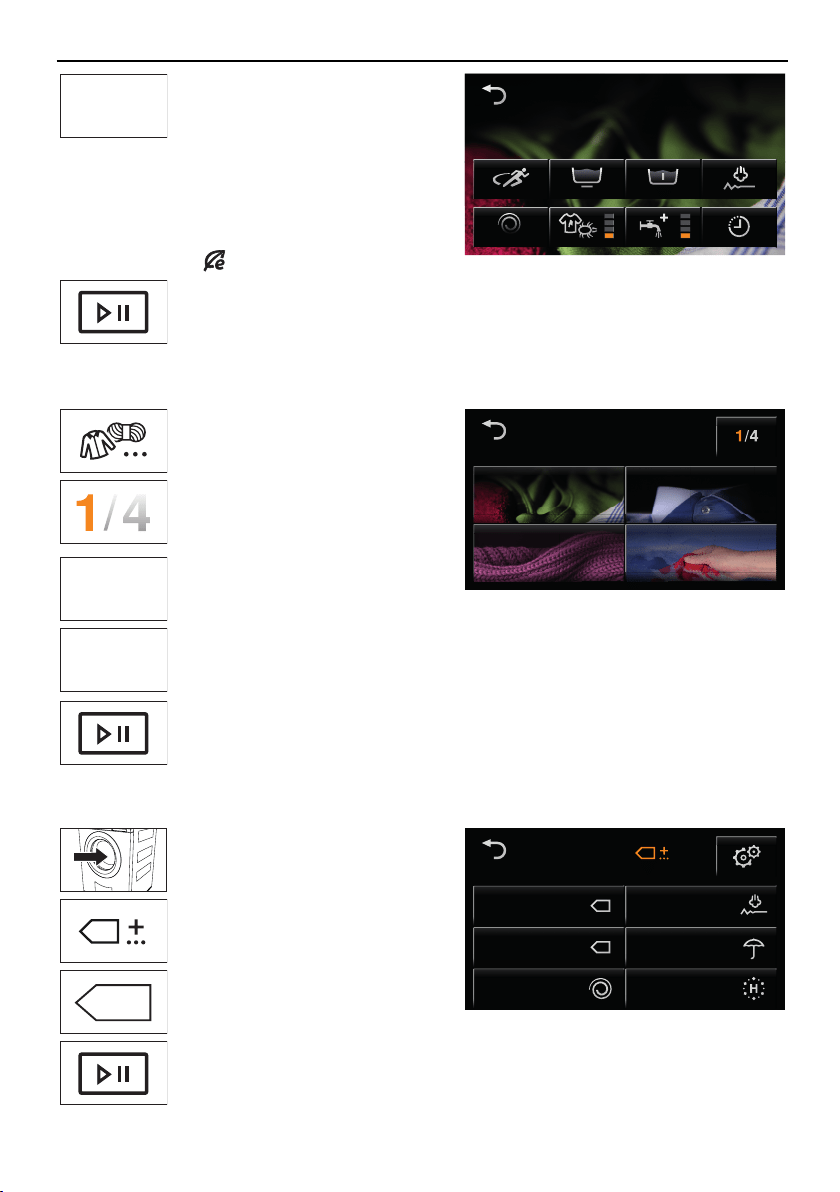

Fabric programmes
▸Touch the button.
Fabric selection
Coloureds
Hand washWoollens
Shirts
The adjacent TouchDisplay ap-
pears.
▸Touch the button repeatedly
until the desired fabric type
appears in the TouchDisplay.
Shirts
▸Touch the button for the de-
sired fabric type.
60
▸Touch the button for the de-
sired temperature.
▸Touch the button.
The programme selected starts.
Programmes for normally soiled cotton load
▸Close the appliance door.
10° Standard Steam anti-cr.
40° Standard
App. hygieneSpinning
Proofing
Extra
▸Touch the button.
The adjacent TouchDisplay ap-
pears.
▸Touch the button for the de-
sired programme.
▸Touch the button.
The programme selected starts.
17
3 Operating the appliance
Extra programmes
▸Close the appliance door.
10° Standard Steam anti-cr.
40° Standard
App. hygieneSpinning
Proofing
Extra
▸Touch the button.
The adjacent TouchDisplay ap-
pears.
▸Touch the button for the de-
sired extra programme.
▸Touch the button.
The programme selected starts.
3.7 Selecting additional functions
60
▸Touch the button for the de-
sired programme.
1200
1 h 00
End 16 : 13
60°C Coloureds
The programme selected ap-
pears. All selectable additional
functions are displayed. The
indicator light for the select-
able
button flashes.
▸For desired additional functions, touch the corresponding buttons.
The new programme duration and programme end time are displayed
▸Touch the button.
The programme selected starts.
3.8 EcoHybrid
▸Touch the button while the in-
dicator light is flashing. The
adjacent TouchDisplay ap-
pears.
EcoHybrid
Optimal
energy efficiency
Very good
energy efficiency
Good
energy efficiency
e
e
e
e
n
n
n
n
e
e
e
e
r
r
r
r
g
g
g
g
g
g
g
g
g
y
y
y
y
y
y
y
y
y
e
e
e
e
ffi
ffi
ffi
ffi
c
c
c
c
i
i
i
i
e
e
e
e
n
n
n
n
c
c
c
c
y
y
y
y
y
y
y
y
y
▸Touch the button for the de-
sired EcoHybrid setting.
The new programme duration
and time are displayed.
▸Touch the button.
The programme selected starts.
18
3 Operating the appliance
3.9 Delayed start
Selecting programme end time
The option «Programme end, OptiTime off» must be enabled in the user settings under «Pro-
gramming delayed start / OptiTime».
60
▸Touch the button for the de-
sired programme.
▸Touch the button.
8 1 4 5
Progr. end time
The adjacent TouchDisplay ap-
pears.
81
▸Enter the time the desired pro-
gramme should end.
▸Touch the button.
The programme end time is
saved.
▸Touch the button again if any
changes have to be made.
▸Touch the button.
The delayed start time starts. The desired programme starts automatically
when the set time is reached.
Selecting programme start time
The option «Programme start» must be enabled in the user settings under «Programming
delayed start».
▸Carry out steps analogous to those described in «Selecting programme end time».
19
3 Operating the appliance
3.10 OptiTime
The option «Programme end, OptiTime on» must be enabled in the user settings under «Pro-
gramming delayed start / OptiTime».
60
▸Touch the button for the de-
sired programme.
▸Touch the button.
8 1 4 5
Progr. end time
The adjacent TouchDisplay ap-
pears.
81
▸Enter the time the desired pro-
gramme should end.
▸Touch the button.
The programme end time is
saved.
▸Touch the button again if any
changes have to be made.
▸Touch the button.
The delayed start time starts with the additional function «OptiTime». The
desired programme starts automatically when the set time is reached.
3.11 Separate rinsing / Separate spinning
60
▸Press the button for the desired programme.
▸Press the button 1x.
Programme starts from «Rinsing» and «Spinning».
▸Press the button 2x.
Programme starts from «Final rinse / Conditioning» and «Final spin».
▸Press the button 3x.
Programme starts from «Separate spinning».
20
3 Operating the appliance
3.12 Bio wash / Soap wash
To start Bio or Soap wash, «Multi-component detergent» must be enabled in the user settings
(see page 31). Ensure the alkaline detergent or soap detergent are added to the correct
compartment (see page 15).
60
▸Touch the button for the de-
sired programme.
▸Touch the button.
Select wash detergent
Standard Pre-wash
Soap wash Bio wash
The adjacent TouchDisplay ap-
pears.
Bio wash
▸Touch the desired washing de-
tergent.
▸Touch the button.
The programme selected
starts.
3.13 Correcting entry
During programme selection, entries can be corrected as follows:
Clearing entries in the current view
▸Touch the button.
Entries will be cancelled. The previous TouchDisplay appears.
Clearing all entries
▸Touch the button repeatedly until the TouchDisplay goes dark.
All entries are cleared.
3.14 Aborting a programme
Note: Once a programme has started, only the spin speed can be changed. For any other
changes, the programme must be aborted.
▸Touch the button repeatedly until «Draining» is displayed in the TouchDis-
play. This part of the programme cannot be skipped and will be carried out
in full.
21
3 Operating the appliance

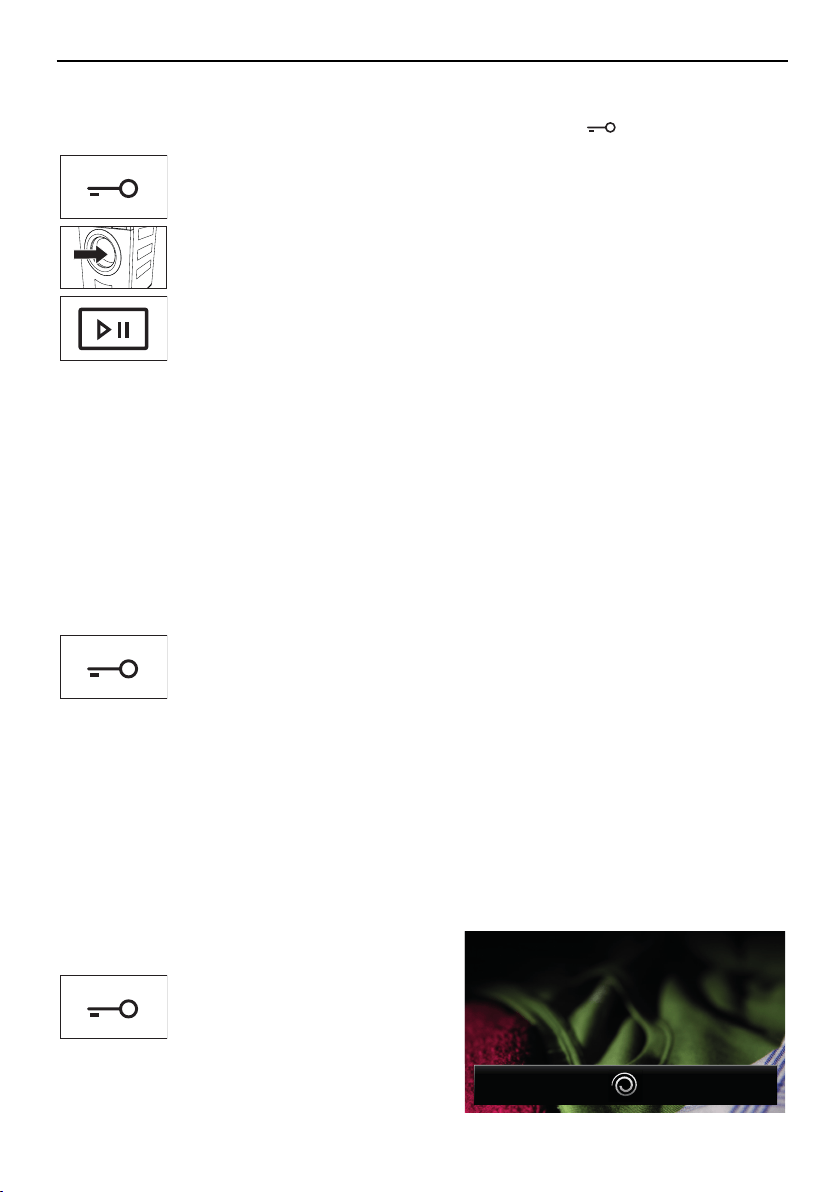

3.15 With childproof lock activated
Selecting programme
How to turn the childproof lock on/off is described in «User settings».
▸Close the appliance door.
0 0 0
Childproof lock
Code
731
The adjacent TouchDisplay ap-
pears.
731
▸Touch the digits 7, 3, 1 in se-
quence.
▸Touch the button.
The appliance is unlocked.
60
▸Touch the button for the de-
sired programme.
Further steps can be taken without further regard to the childproof lock. If
no programme selection is made within 20 seconds, the «Childproof lock»
TouchDisplay appears again.
Aborting programme / opening appliance door at end of programme
▸Touch the button.
0 0 0
Childproof lock
Code
731
The adjacent TouchDisplay ap-
pears.
731
▸Press the digits 7, 3, 1 in se-
quence.
▸Touch the button.
The appliance is unlocked.
▸Touch the button repeatedly
until «Draining» appears in the
TouchDisplay.
The appliance door opens.
22
3 Operating the appliance
3.16 Opening the appliance door during washing
The appliance door can only be opened if the indicator light for the button is illuminated.
▸Touch the button.
The appliance door opens. Laundry can be added or removed.
▸Close the appliance door.
▸Touch the button.
The programme is resumed.
Note: In the event of a power failure, the appliance door can only be opened using the emer-
gency door release (see page 35). The programme sequence is automatically resumed fol-
lowing such a power failure.
3.17 End of programme
Unloading the washing before time
Shortly before the end of the programme, the washing is loosened up. This takes about 1–2
minutes.
Note: If steam anti-crease has been selected, the loosening-up period is extended to about
60 minutes to further prevent creasing.
▸Touch the button to unload the washing during the loosening-up phase.
Door opener
The user settings that are enabled determine whether the appliance door opens automatically
when the programme ends and whether information on energy consumption is displayed or
not.
«Automatic door opener ON»
The appliance door opens automatically at the end of the programme and the washing can
be unloaded.
«Automatic door opener OFF» and «EcoManagement OFF»
When the programme has finished, the adjacent
display appears for about 20minutes.
800
60°C Coloureds
End of programme
0 h 00
▸Touch the button to open the
appliance door and unload the
washing at any time.
23
3 Operating the appliance

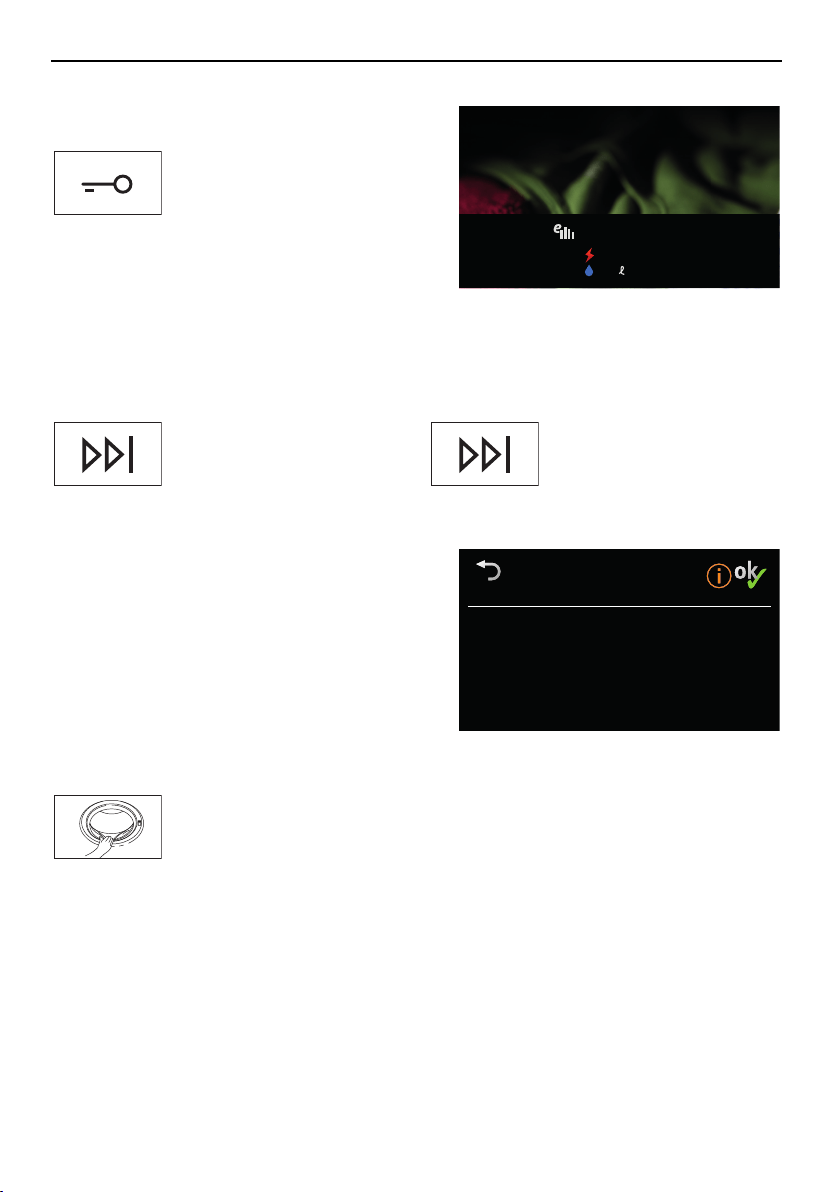

«Automatic door opener OFF» and «EcoManagement ON»
When the programme has finished, the adjacent
display appears for about 20minutes.
60°C Coloureds
End of programme
0 h 00
Consumption values
0.9 kWh
10
▸Touch the button to open the
appliance door and unload the
washing at any time.
Stop after rinsing
The washing remains lying in the water after the final rinse. The water must be drained off be-
fore the washing can be unloaded.
Draining with spinningDraining without spinning
▸Touch the button 1x.▸Touch the button 2x.
Hygiene recommendation
▸When the adjacent TouchDis-
play appears, the next wash
cycle must be run at least at
60°C or «Appliance hygiene»
must be selected under stand-
ard and extra programmes.
Hygiene recommendation
- At least 60°C programme
or select appliance hygiene
Hygiene recommendation
- At least 60°C programme
or select appliance hygiene
Each time after use
▸Clean the detergent dispenser drawer.
▸Pull the detergent dispenser drawer out as far as it will go in order for it to
dry.
▸Remove any deposits or foreign objects from out of the door seal.
▸Leave the appliance door slightly ajar to allow the washing drum and door
seal to dry.
24
3 Operating the appliance
3.18 EcoManagement statistics
Energy and water consumption can be displayed before a programme starts
or after a programme ends.
Displaying the last programme
▸Touch the button.
Last programme
Consumption values
0.9 kWh
10
The energy and water con-
sumption of the last pro-
gramme run is displayed.
Display total and average consumption
▸Hold the button depressed for
3seconds.
EcoManagement
Statistics
Total
Average
390 kWh
920
0.9 kWh
10
Total and average consump-
tion are displayed.
▸Touch the button to end stat-
istic retrieval.
25

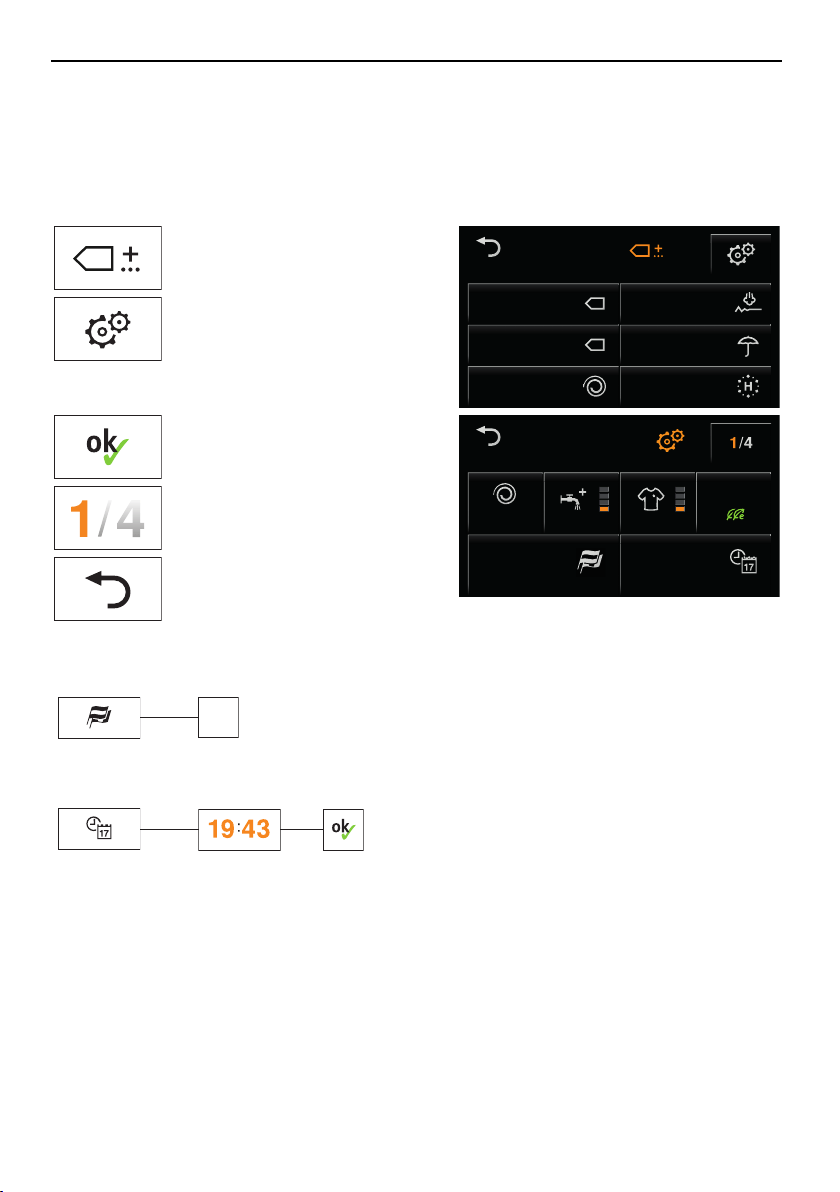

4 Favourites
4 Favourites
Simple start to frequently used programmes.
Note: The appliance door has to be open to define, change or delete a fa-
vourite.
4.1 Defining favourites
▸Touch the button.
empty
▸Touch one of the favourite
buttons.
60
▸Select programme and ad-
ditional functions.
▸Touch the button.
▸Touch one of the two adja-
cent buttons.
Yes
Save favourite programme.
No
Cancel action.
4.2 Changing favourites
▸Touch the button.
60°C
▸Select the favourite pro-
gramme to be changed.
Change
▸Touch the button.
▸Make changes.
▸Touch the button.
▸Touch one of the two adja-
cent buttons.
Yes
Save changes.
No
Cancel action.
26
4 Favourites
4.3 Deleting favourites
▸Touch the button.
60°C
▸Select the favourite programme to be deleted.
Clear
▸Touch the button.
The favourite programme is deleted.
4.4 Starting favourites
▸Close the appliance door.
▸Touch the button.
60°C
▸Select the desired favourite programme.
▸Touch the button.
The programme selected starts.
27
5 User settings
5 User settings
Providing no programme is running and no error message is displayed, the user settings
can be changed.
5.1 Preparations
▸Touch the button.
10° Standard Steam anti-cr.
40° Standard
App. hygieneSpinning
Proofing
Extra
The adjacent TouchDisplay ap-
pears.
▸Touch the button.
▸Select and change desired
settings and submenus.
▸Touch the button to save the
selected setting.
Language 19.41
English
Settings
FN 11014 000123
EcoHybrid
1200
▸Touch the button to select and
change any other settings.
▸Touch the button to save any
changes and to exit «Set-
tings».
5.2 Language
.. .
The language is set during the initial set-
up of the appliance. It can be changed.
5.3 Time
The time must be reset after a power fail-
ure lasting around 5 weeks. The appli-
ance must not be disconnected from the
mains supply for at least 30 minutes
after making the settings.
1
Factory setting
28
5 User settings
5.4 Spin speed
.....
1600
400
An increase in the spin speed is only as-
signed to suitable programmes. A reduc-
tion in the spin speed is assigned to all
programmes.
5.5 AquaPlus
Standard
Skin protection
.....
1
▪ Standard: Normal water level.
▪ more water: Increased water level.
▪ + 1 rinse: 1 additional rinsing cycle.
▪ more water + 1 rinse: Increased wa-
ter level, 1 additional rinsing cycle.
▪ Skin protection: Increased water
level, 2 additional rinsing cycles.
5.6 Degree of soiling
.....
lightly soiled
1
heavily soiled
There are 3 settings for degree of soil-
ing.
5.7 EcoHybrid
optimal
very good
good
1
There are 3 settings for energy effi-
ciency.
1
Factory setting
29
5 User settings
5.8 EcoManagement
On
Off
1
Statistics
Info
When this function is activated, expected
consumption values appear at the start
of the programme and actual consump-
tion values appear at the end of the pro-
gramme. The stored consumption values
can be deleted as well.
5.9 Hygiene info
On
Off
Hygiene
info
1
When the function is turned on, a wash
of at least 60°C is recommended for
hygiene reasons whenever the formation
of foul smelling coatings in the appliance
is to be prevented.
5.10 Childproof lock
On
Off
1
The childproof lock prevents a pro-
gramme from being started accidentally.
The appliance can only be operated
after first entering the code 731.
5.11 Automatic door opener
On
Off
1
Automatic
door opener
When the function is turned on, the appli-
ance door opens automatically when the
programme ends. When the function is
turned off, the appliance door can be
opened by touching the
button.
5.12 Programming delayed start/OptiTime
Programme end,
OptiTime on
Programme start
1
Programme end,
OptiTime off
When the «Programme start» function is
turned on, the time a programme should
start running can be defined.
When the «Programme end» function is
turned on, the time a programme should
end can be defined. If the «OptiTime»
function is also turned on, the «Opti-
Time» function is automatically added
whenever a delayed start is selected.
1
Factory setting
30
5 User settings
5.13 Soft water
On
Off
Soft
water
1
When the function is turned on, adjusting
for very soft water prevents heavy foam-
ing.
5.14 Multi-component detergent
On
Off
Multi-comp.
detergent
1
When the function is turned on, the de-
sired type of wash can be selected un-
der the additional function «Pre-wash».
5.15 Silent
On
Off
1
When the function is turned on, pro-
grammes with the additional function
«EcoHybrid optimal» are quieter. This ex-
tends the programme duration slightly.
5.16 Loosening up the washing
10
mins.
30
secs.
Loosening
up
1
6 hrs.
30
mins.
Touch the button at any time to
open the appliance door. The washing
can be unloaded.
5.17 Brightness
Medium bright
Bright
Very bright
Dark
1
The display can be adjusted to the pre-
vailing lighting conditions.
1
Factory setting
31
6 Care and maintenance
5.18 Background image
On
Off
Background
1
The background image of the TouchDis-
play can be turned off. In this case, the
background appears black.
5.19 Button tone
On
Off
1
The button tone can be turned on and
off. The button tone for the
and
buttons cannot be turned off.
5.20 Factory settings
Restore
Do not
restore
The factory settings can be restored. The
language if changed is not reset to the
factory setting.
1
Factory setting
6 Care and maintenance
Using the correct dosage of detergent will automatically clean the inside of the appliance. Im-
mediately wipe away all traces of detergent with a soft cloth to avoid staining.
6.1 Cleaning the detergent dispenser drawer (as required)
Cleaning the detergent compartments
l
▸Pull the detergent dispenser drawer out as far as it will go, push the
release lever to the left and remove the detergent dispenser drawer.
▸Wash out the detergent compartments.
▸Clean the duct under the pre-wash detergent compartment l.
Cleaning the siphon and suction tube
2
1
▸Pull siphon1 in fabric conditioner compartment upwards and out.
▸Clean the siphon1 and suction tube2.
▸Insert the siphon again correctly.
32
6 Care and maintenance
6.2 Cleaning the water inlet filter
Test the water inlet for leaks following maintenance work.
1
▸To avoid blockages, periodically check and, if necessary, clean the
water inlet filter 1.
6.3 Emergency draining
The water in the appliance may be hot. Scalding hazard! Allow to cool down be-
fore emergency draining.
In the event of a blocked water outlet or drain pump, a malfunction or a power failure, if there
is water still in the appliance it must be drained off as follows:
▸Open the drain tray by pressing it bottom right or with the use of the
liquid detergent flap.
▸Fold the drain tray right down. It also functions as a receptacle for col-
lecting any water that runs out.
▸Carefully release the foreign body trap somewhat by turning it anti-
clockwise and steadily drain off the water.
▸Close the foreign body trap by turning it clockwise and remove the
drain tray from the front.
▸Empty the drain tray and then put it back, pushing it in straight as far
as it will go.
Note: The drain tray can be removed and a larger receptacle used in
its place to draining off the water. The appliance can hold up to 30
litres of water.
33
6 Care and maintenance
6.4 Cleaning the foreign body trap
Note: Clean the foreign body trap at regular intervals as well as after washing, for instance,
pet blankets or other wash items that cause a thick build-up of fluff.
▸Open the appliance door.
▸Drain off any residual water (see page 33).
1
▸Remove any foreign objects (buttons, coins, etc.) from around the im-
peller 1.
2
▸Using the emergency door release tool 2, check that the drain pump
impeller can turn.
Note: The impeller1 may turn stiffly. This is construction related and
does not indicate the presence of any foreign object or defect. If the
impeller does not turn, please contact our Customer Services.
3
▸Insert the foreign body trap– with the arrow-like cam3 pointing up-
wards – as far as it will go.
▸Screw the foreign body trap in clockwise as far as it will go.
▸Put the drain tray back and close it to.
34
6 Care and maintenance

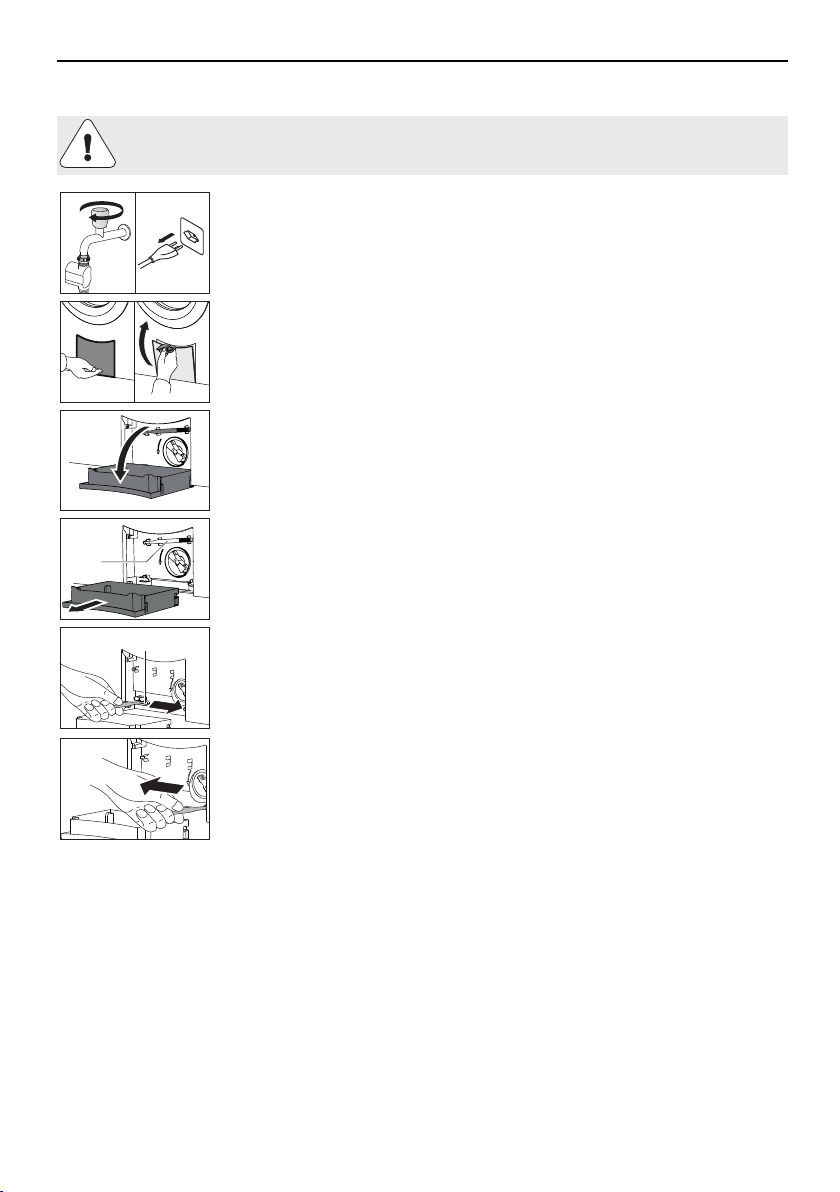

6.5 Opening the appliance door in the event of a power failure
Wait until the washing drum is completely stationary. A washing drum that is still
rotating poses a risk of serious injury.
▸Close the water tap and disconnect the appliance from the mains.
▸Open the drain tray by pressing it at the bottom or with the use of the
liquid detergent flap.
▸Fold the drain tray right down. If necessary, carry out emergency
draining.
1
▸Remove drain tray.
▸Remove the emergency door release tool 1 from its bracket.
a.
2
▸Insert emergency door release tool into blue opening cap2 and turn
in direction of arrow.
a. Door opens from right
b. Door opens from left
b.
The appliance door springs open.
Note: If the emergency door release tool is missing, a screw driver
can be used instead.
35
7 Trouble-shooting
7 Trouble-shooting
You may be able to trouble-shoot the following errors yourself. If not, note down the error
message in full (message, F and E numbers) and call Customer Services.
7.1 Error messages
DisplayPossible causeSolution
A2
Check water outlet
▪ The foreign body trap is
clogged.
▪ The drain pump is
blocked.
▪ The drain hose is bent or
kinked.
▪ The outlet or drain trap is
clogged.
▸Check cause (see page 34).
▸Touch the
button.
▸Restart the programme.
A3
Clean foreign body
trap
▪ The foreign body trap is
clogged.
▪ The circulation nozzle is
clogged.
▸Check cause (see page 34).
▸Touch the
button.
▸Restart the programme.
A5
Spin stop:
Unbalanced load
▪ Large items are unevenly
distributed in the washing
drum.
▸Wash large and small items together.
▪ Pillows or similar items in
the wash.
▸Remove the pillows.
▸Spin the washing again.
▸Spin the pillows separately.
▪ Wash items are tangled.▸Separate the wash items.
▸Fasten duvet covers and pillow cases.
▸Spin the washing again.
A6
Check foreign body
trap
▪ The foreign body trap is
missing or is not sitting
correctly.
▸Check cause (see page 34).
▸Touch the
button.
▸Restart the programme.
A9
Check water inlet
▪ The water tap is turned
off.
▪ The water inlet filter is
clogged.
▪ Water supply is interrup-
ted.
▪ Water pressure is too
low.
▸Clean water inlet filter or restore water
supply (see page 33).
▸Touch the
button.
▸Restart the programme.
36
7 Trouble-shooting
DisplayPossible causeSolution
F6/E77
see instructions
FN XXXXX XXXXXX
▪ Anti-leak protection was
triggered.
▸Turn off water tap.
▸Note down error message in full and
appliance's FN.
▸Touch the
button.
▸Call Customer Services.
FXX/EXX
see instructions
FN XXXXX XXXXXX
▪ Various situations can
lead to an "F" message.
▸Touch the button.
▸Switch off the power supply for about
1 minute.
▸Switch the power supply back on
again and select a new programme.
▪ If the error appears
again:
▸Note down error message in full and
appliance's FN.
▸Interrupt the water and power supply.
▸If there is laundry in the appliance:
carry out emergency draining, use
emergency door release and unload
laundry.
▸Call Customer Services.
H20
▪ The water counter in the
inlet hose is defective. It
is still possible to wash
without a problem. The
water consumption dis-
played can deviate from
the actual consumption.
▸Call Customer Services.
U1/E27
see instructions
FN XXXXX XXXXXX
▪ Faulty electrical connec-
tion.
▪ Overvoltage.
▸Touch the button.
▸Switch off the power supply for about
1 minute.
▸Switch the power supply back on
again and select a new programme.
▪ If the error appears
again:
▸Have an electrician check the house
installation.
▸Note down error message in full and
appliance's FN.
▸Disconnect from the power supply.
▸Call Customer Services.
37
7 Trouble-shooting
DisplayPossible causeSolution
Foam in main
wash:
Rinsing extended
▪ If there is very heavy
foaming, the programme
is automatically extended
by a rinsing cycle. This
improves the wash res-
ults, but extends the pro-
gramme time.
▸Reduce the amount of washing deter-
gent used next time.
▸Adjust detergent dosage to water
hardness (see page 16).
Defective heat
pump. Washing at
reduced energy ef-
ficiency still pos-
sible.
▪ Defective heat pump cir-
cuit.
▸Call Customer Services and have heat
pump checked. It is still possible to
wash with reduced energy efficiency.
Hygiene recom-
mend.
▪ No wash cycle has been
carried out at a temperat-
ure of at least 60 °C for
a longer period of time.
▸With one of the next wash cycles carry
out a wash with at least 60°C.
Or:
▸Run «Appliance hygiene» programme
without laundry (see page 24).
Inlet water very
cold:
Heating extended
▪ Inlet water is very cold.
Heating is extended.
▸No action is necessary.
Too many items:
Heating extended
▪ The selected programme
is intended for a smaller
load. Heating and pos-
sibly rinsing is extended.
▸Adjust load to the max. load size (see
page 14).
Large unbalanced
load:
Spin extended
▪ The appliance optimizes
the distribution of the
wash load to com-
pensate an unbalanced
load. The final spin is ex-
tended.
▸Wash large and small items together
to avoid large unbalanced loads.
38
7 Trouble-shooting
7.2 Other possible problems
ProblemPossible causeSolution
The washing has
not been spun or
has been spun in-
sufficiently.
▪ The spin speed set is too
low.
▸Increase the spin speed for the next
wash cycle (see page 29).
▪ Too large an unbalanced
load in the washing
drum.
▸Wash large and small items together.
▪ «Steam anti-crease» was
selected and the appli-
ance was not standing
level.
▸Optimize appliance set-up according
to installation instructions.
The appliance vi-
brates heavily when
spinning.
▪ The transport lock has
not been removed.
▸Remove transport lock (see page 4).
▪ The feet of the appliance
are not properly adjus-
ted.
▸Set appliance feet so that the appli-
ance stands level.
▪ The load could not be
optimally balanced in the
washing drum.
▸Wash large and small items together.
At the end of the
programme, the ap-
pliance door can-
not be opened with
the
button.
▪ The appliance door is
stuck.
▸Press hard against the lock side of the
appliance door (i.e. front edge of ap-
pliance door).
▸Touch the
button again.
▪ An interruption in the
power supply.
▸Use the emergency door release (see
page 35).
Water sounds after
programme has fin-
ished when wash-
ing drum is turned
by hand.
▪ The vanes are filled with
water to compensate the
unbalanced load.
▸The water is automatically pumped off.
No action is necessary.
Traces of condi-
tioner or water in
fabric conditioner
compartment.
▪ Siphon in fabric condi-
tioner compartment is
missing or not inserted
correctly.
▸Insert the siphon correctly (see page
32).
▪ Siphon or suction tube is
clogged.
▸Clean siphon and suction tube (see
page 32).
39
7 Trouble-shooting
ProblemPossible causeSolution
Traces of powder
detergent in deter-
gent compartment.
▪ Damp or lumpy washing
detergent.
▸Store washing detergent in a dry
place.
▪ Washing detergent com-
partment was damp and
a delayed start was se-
lected.
▸Wipe detergent compartment dry be-
fore adding the detergent.
▪ Water flow pressure is
too low.
▸Open water tap fully.
▪ Water inlet is scaled up.
▸Check water supply and, if necessary,
clean the water inlet filter (see page
33).
▪ Flap a was inserted in
position 1 for liquid deter-
gent.
▸Pull flap a out and insert into position
2 (see page 15).
2
a
Laundry is still dry
after programme
has finished – no
error message.
▪ «Demo mode» is turned
on.
▸Open the appliance door.
▸Hold the
and buttons de-
pressed.
▸Simultaneously touch the
button.
In the display appears:
«Demo mode status: On"
▸Touch the
button to turn off the
demo mode.
▸Touch the button to save the set-
ting.
40
7 Trouble-shooting
7.3 Unsatisfactory wash results
ResultPossible causeSolution
White residue on
washing
▪ Despite intensive rinsing,
badly soluble com-
pounds in the detergent
can be left on the wash-
ing.
▸Shake out or brush the wash items.
▸Wash the items again with just a little
washing detergent.
▸Use a liquid detergent that does not
contain zeolites.
▸Select fabric type «Black gar-
ments» (see page 9).
Grey residue on
washing
▪ Grease and dirt particles
left behind.
▪ Residue from detergent,
limescale and dirt
▸Increase detergent dosage.
▸Use heavy-duty washing detergent.
▸Adjust amount of detergent to water
hardness and degree of soiling of
washing (see page 16).
▪ Washing drum is over-
loaded.
▸Put less laundry into the washing drum
(see page 14).
Washing feels hard▪ Poor rinsing effect
through very soft water
(below 15 °fH).
▸Select user setting «soft water».
Unsatisfactory
wash result using
detergent for col-
oureds
▪ Washing detergent used
does not contain bleach.
▸Use washing detergent containing
bleach (see page 15).
▪ Exceptionally heavily
soiled washing.
▸More intensive programme, e.g. de-
gree of soiling
«heavily
soiled».
Unsatisfactory
wash result using li-
quid detergent
▪ Liquid detergent does not
contain bleach.
▸Use washing detergent containing
bleach (see page 15).
Soap deposits on
washing
▪ Water hardness is too
high.
▸Soap detergent should only be used if
the water hardness is below 25 °fH
(see page 16).
Unsatisfactory rins-
ing performance
▪ Too much washing deter-
gent.
▸Adjust washing detergent dosage to
water hardness and degree of soiling
(see page 16).
▪ Very soft water (below
15°fH)
▸Select user setting «soft water».
41
7 Trouble-shooting
ResultPossible causeSolution
Fabric stains▪ Rust stains
▪ Chemical effect
▪ Residues from hair care
products, cosmetics and
plants can react with the
suds to cause a chem-
ical reaction that can res-
ult in staining.
▸Brush out pockets in garments.
▸Wash items with metal parts separ-
ately.
Colour run▪ Non-fast colours in the
wash.
▸Wash white and coloured textiles sep-
arately.
▸Follow fabric care labels (see page 8).
▪ Items in the wash whose
colour has run.
▸Empty garment pockets.
Holes, rips or tears▪ Items in the wash with
zips or hooks open.
▸Fasten zip fasteners and hooks before
washing.
▸Wash delicates in a laundry bag or pil-
low case.
▸Turn pockets inside out.
▸Empty garment pockets.
▪ Chemical effect of wash-
ing detergent, textile
quality
▸Do not put washing detergent directly
onto the laundry.
▪ Washing drum damaged
by foreign objects (e.g.
nails, paper clips, etc.)
▸Inspect washing drum for foreign ob-
jects and damage.
▸Remove foreign objects.
▸Call Customer Services if the washing
drum is damaged.
Fabric wear▪ Washing drum over-
loaded
▸Put less laundry into the washing drum
(see page 14).
▪ Friction between fabrics
during washing.
▸Select additional function «Easy
care» (see page 11).
▪ Pilling
▸Turn items inside out before washing.
42
8 Spare parts

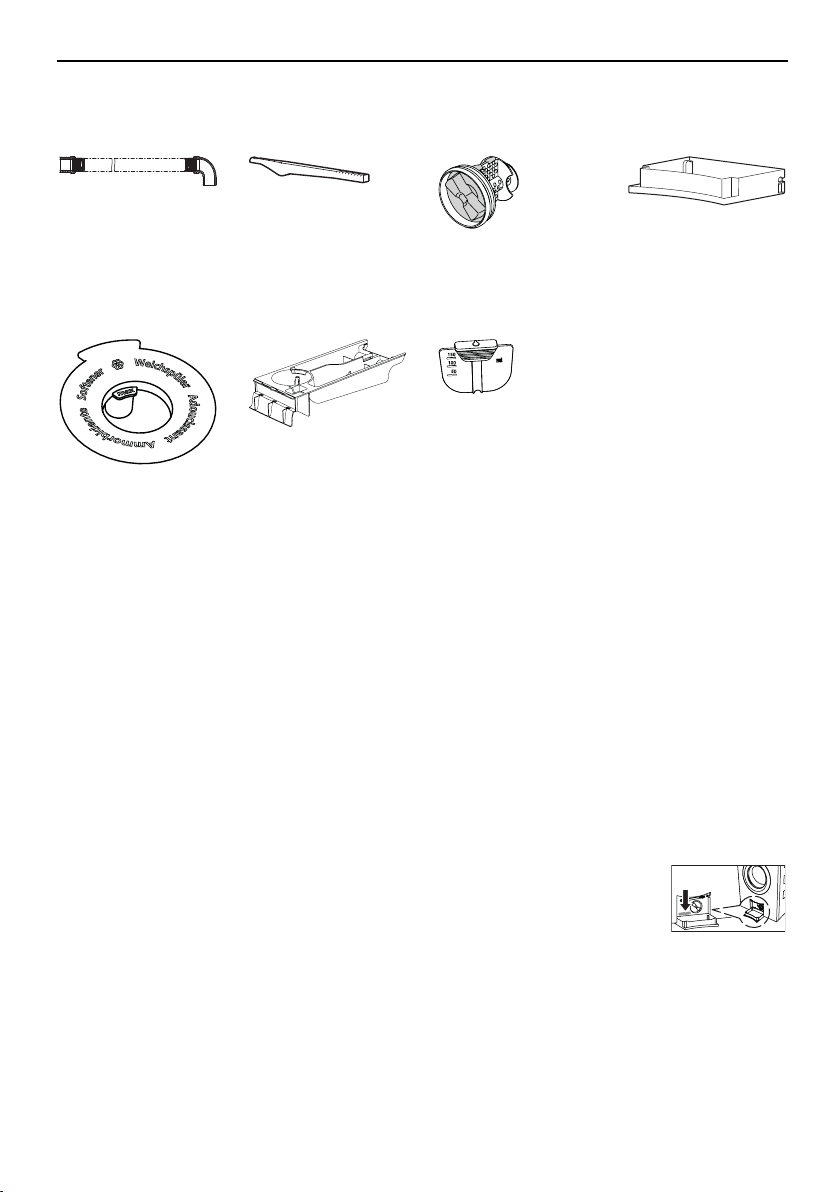

8 Spare parts
Please give product family and exact designation when ordering parts.
Drain hose 1.5m /
4.0m
Emergency door re-
lease tool
Foreign body trapDrain tray
SiphonDetergent dis-
penser drawer
Liquid detergent
flap
9 Technical data
DimensionsSpin speed
Height85cm400, 600, 800, 1000, 1200,
1400, 1600 rpm
Width59.5cm
Depth62.5cm
Weight84 kg
Electrical connection
Pumping height of pump1.2mSee identification plate:
▸Open the drain tray.
Dry load capacity8 kg
The identification plate is
located next to the foreign
body trap.
Plumbing in
Connection to water supplyCold water G¾"
Permitted pressure of water
supply
0.1–0.6Mpa (1–6bar)
Max. pumping height of drain
pump
1.2m
43
9 Technical data
9.1 Note for testing institutes
Set to the standard programmes according to AS/NZS 2040.2:2005 :
ProgrammeLoad capacity
40°C Coloureds normal8kg
▸Touch the
button.
▸Touch the button.
▸Touch the
button.
10°C Coloureds normal8kg
▸Touch the
button.
▸Touch the button.
▸Touch the
button.
For test institutes we recommend for the measurement of end mode the door remains open
so that it matches normal use without user intervention. Note at the point of end mode the
door will automatically pop open.
Data for the 40°C Coloureds normal programme
Load
capacity
kg
Programme
duration
hrs./mins.
Energy
star rating
Energy
consump-
tion
kWh/cycle
Water
star rating
Water con-
sumption
l/cycle
Residual
moisture
%
83h2050.514.56854
9.2 Consumption values
The consumption data and programme times given serve only as a guide. They refer to the
maximum load capacity and can vary with, for instance, towelling material, a very cold water
feed, the degree of soiling selected or a smaller wash load. The time remaining shown and
the programme end time are adjusted accordingly.
Whites and coloureds programmes
ProgrammeLoad
kg
Spin speed
1
rpm
Duration
hrs./mins.
Water
Litres
Energy
kWh
Whites 95 °C1–812002h25751.6
Coloureds 70 °C1–812002h10651.2
Coloureds 60 °C1–812002h00651.0
Coloureds 40 °C1–812001h40700.5
Coloureds 30 °C1–812001h30700.3
Coloureds 20 °C1–812001h05700.2
Coloureds 10 °C1–812000h59700.2
1
Factory setting
44
9 Technical data
Extra programmes
ProgrammeLoad
kg
Spin speed ¹
rpm
Duration
hrs./mins.
Water
Litres
Energy
kWh
Steam anti-crease1–1.500h2310.1
Proofing 20°C1–38000h28120.1
Appliance hygiene000h3890.7
1
Factory setting
Fabric types
ProgrammeLoad
kg/items
Spin speed ¹
rpm
Duration
hrs./mins.
Water
Litres
Energy
kWh
Shirts 40°Cmax.7items10001h57330.3
Woollens 30°C1–2.58000h58520.2
Hand wash 20°C1–26000h50580.1
Down 40°C1item,
max.2 kg
8001h44400.3
Outdoor garments
40°C
310001h32400.3
Silks 30°C1.54000h58520.2
Underwear 30°C38001h25400.2
Baby garments
60°C
512002h251201.1
Denim 40°C412001h47550.3
WetClean 20°C1.54001h00600.2
Net curtains 30°C2Stop after
rinsing
1h15450.3
Black garments
40°C
412001h50850.4
Black hand wash
20°C
1.56001h05680.1
1
Factory setting
9.3 VAS Vibration Absorbing System
As the washing drum starts to spin, if the control unit detects that the load is out of balance it
will interrupt the spinning action once or more. In this case, the appliance tries to improve the
distribution of the wash load in the washing drum.
When spinning, at all spin speeds the load is, where necessary, actively balanced in the
washing drum, whereby the hollow vanes are filled with the necessary quantity of water. This
ensures optimal care and draining of the washing.
45
10 Washing tips
9.4 Water and energy economy
During the first few minutes of a programme running, sensors automatically determine the
type and the size of the load being washed.
Water levels are then optimally adjusted to the wash load so that only the strict amount of wa-
ter needed is used.
9.5 Automatic energy-saving stand-by
The appliance is equipped with automatic energy-saving stand-by to avoid consuming energy
unnecessarily.
All displays go out within minutes of a programme finishing. Energy consumption is reduced
to an absolute minimum. The safety functions, however, remain activated.
10 Washing tips
10.1 Energy and water economy
▪ Where possible fill the drum to the maximum load capacity of the relevant programme.
▪ Select «Pre-wash» or «Soaking» only for washing that is heavily soiled or stained.
▪ For lightly soiled washing without staining select the «20°C» main wash programme or
the additional function «Sprint».
▪ Select EcoHybrid level «optimal»
if the duration of the programme or the germ-killing
effect of high temperatures do not play a role.
▪ Select additional function «OptiTime» if washing using a delayed start or the germ-killing
effect of high temperatures do not play a role.
Spin speed
How much energy is consumed by subsequent tumble drying depends on the spin speed
set. The higher the spin speed set, the lower the remaining moisture content of the washing
at the end of the programme.
rpm
1600140012001000800600400
Residual moisture
(cotton)
~44%~47%~52%~60%~70%~90%~110%
Automatic door opener
Use the appliance with the automatic door opener switched on. When the appliance door
opens the appliance immediately enters the lowest possible stand-by power consumption
state.
10.2 Avoiding damage
▪ Follow the fabric care symbols on garment labels.
▪ The wash temperature selected should agree with the recommended temperature range of
the washing detergent to ensure the washing detergent is at its most effective.
▪ Wash white and coloured textiles separately.
46
11 Disposal
▪ Empty pockets and turn inside out. Remove any foreign objects (coins, nails, paper clips,
etc.).
▪ Empty and brush out pockets of work overalls worn in the metal industry. Metal shavings
can damage the washing and cause rust stains.
▪ Fasten hook and eye fasteners and zips. These can damage the laundry and the drum.
▪ Fasten cloth belts, apron ties and duvet and pillow cases to avoid them getting tangled up.
▪ Wash smaller items (e.g. nylon tights, belts) and items with zips and hooks in a washing
net or cushion cover.
▪ Remove stains before washing using a suitable stain remover.
▪ Pre-treat heavily soiled areas (collars, cuffs, etc.) with soap, special detergent or paste.
▪ Textiles, such as dog or horse blankets, that are covered in animal hair should be brushed
out before washing.
11 Disposal
11.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
11.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g. through
children playing):
▸Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out
by a qualified electrician. Then cut the mains cable off flush with the appliance.
▸Remove or disable the lock on the appliance door.
11.3 Disposal
▪
The «crossed-out wheelie bin» symbol indicates that waste electrical and electronic
equipment (WEEE) must be specially disposed of. Such equipment can contain dangerous
and environmentally harmful substances.
▪ These appliances must be taken to an official collection point for recycling electrical and
electronic equipment and must not be disposed of with ordinary household waste. In this
way, you help conserve resources and protect the environment.
▪ Please contact your local authorities for more information.
11.4 Note on heat pump
This appliance is CFC-free (the cold circuit contains R134a).
47
12 Quick instructions
Please first read the safety precautions in the operating instructions.
Starting programme
▸Switch on appliance and turn on water
tap.
▸Press the
button. Appliance door
opens.
▸Load laundry.
▸Add washing detergent to detergent dis-
penser drawer.
▸Select programme and any additional
functions.
▸Touch the
button. Programme
starts.
When programme has finished
▸Press the
button and unload the
laundry.
▸Clean detergent dispenser drawer.
▸Push appliance door to, but do not
close.
13 Services & support
Register your appliance today online via
our website at www.vzug.com and benefit
from the best possible support in the event
of a malfunction – including during the
manufacturer's 2-year warranty period. You
will require the serial number (FN) and ap-
pliance designation to register your appli-
ance. You will find them on the identifica-
tion plate of your appliance.
You can also note the serial number and
device designation here or on the service
sticker which comes with the appliance:
FN: ______________________________
Appliance: _______________________
Your repair order
You can find the telephone number of the
nearest V-ZUG service centre to you under
www.vzug.com→Service→Service hotline.
General queries, accessories and service
agreement
V-ZUG will be happy to help you with any
general administrative or technical queries,
to accept your orders for accessories and
spare parts and to inform you about our
progressive service agreements.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
1013673-R02
