ITEM #2599768
RAYNERIDGE LED
CEILING FAN
Español p. 19
MODEL #MH52MBK5LR
ATTACH YOUR RECEIPT HERE
Purchase Date
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
VR20319
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
2
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 5
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
.
.. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12
Operating Instructions ......................................................................................................... 14
Care and Maintenance ...................................................................................................
.
.... 16
Troubleshooting .................................................................................................................. 17
Limited Lifetime Warranty ................................................................................................... 18
Replacement Parts List ....................................................................................................... 18
TABLE OF CONTENTS
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might exceed the
initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and
ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are
unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the floor
and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 18.48 lbs.
FCC Compliance Notice
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
SAFETY INFORMATION
3
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
CAUTION
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
WARNING
PACKAGE CONTENTS
4
A
Downrod 1
B
Canopy
1
C
Mounting Bracket
1
D Motor Housing 1
E
Yoke Cover 1
F LED Light Kit 1
G
Canopy Mounting Screw 4
(preassembled)
H Light Kit Fitter 1
I
Blade
5
J
Motor Plate Screw 3
(preassembled)
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
K Light Kit Fitter Screw 3
(preassembled)
L Pin (preassembled) 1
M Clip (preassembled) 1
N
Remote Control Receiver 1
O Remote Pack 1
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
C
K
A
D
B
M
L
J
I
E
N
G
O
F
H
5
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
CC
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
AA
CC
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Fiber
Blade
Washer
Qty. 15
+ 1 extra
BB
INITIAL INSTALLATION
6
4a.
Loosen canopy mounting screws (G) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (G); save for later use.
Remove mounting bracket (C) from canopy (B).
A
B
2
19° max.
7 ft.
min.
30 in.
min.
I
3
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (I) will be at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
3.
4a
C
B
G
G
INITIAL INSTALLATION
7
DOWNROD-STYLE FAN MOUNTING
4b
Open End
C
C
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4b.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1a below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
1a.
1b.
ANGLE
MOUNT
STANDARD
MOUNT
1a
M
D
L
1b
A
Yoke
Set Screw
& Nut
Sideview
DOWNROD-STYLE FAN MOUNTING
8

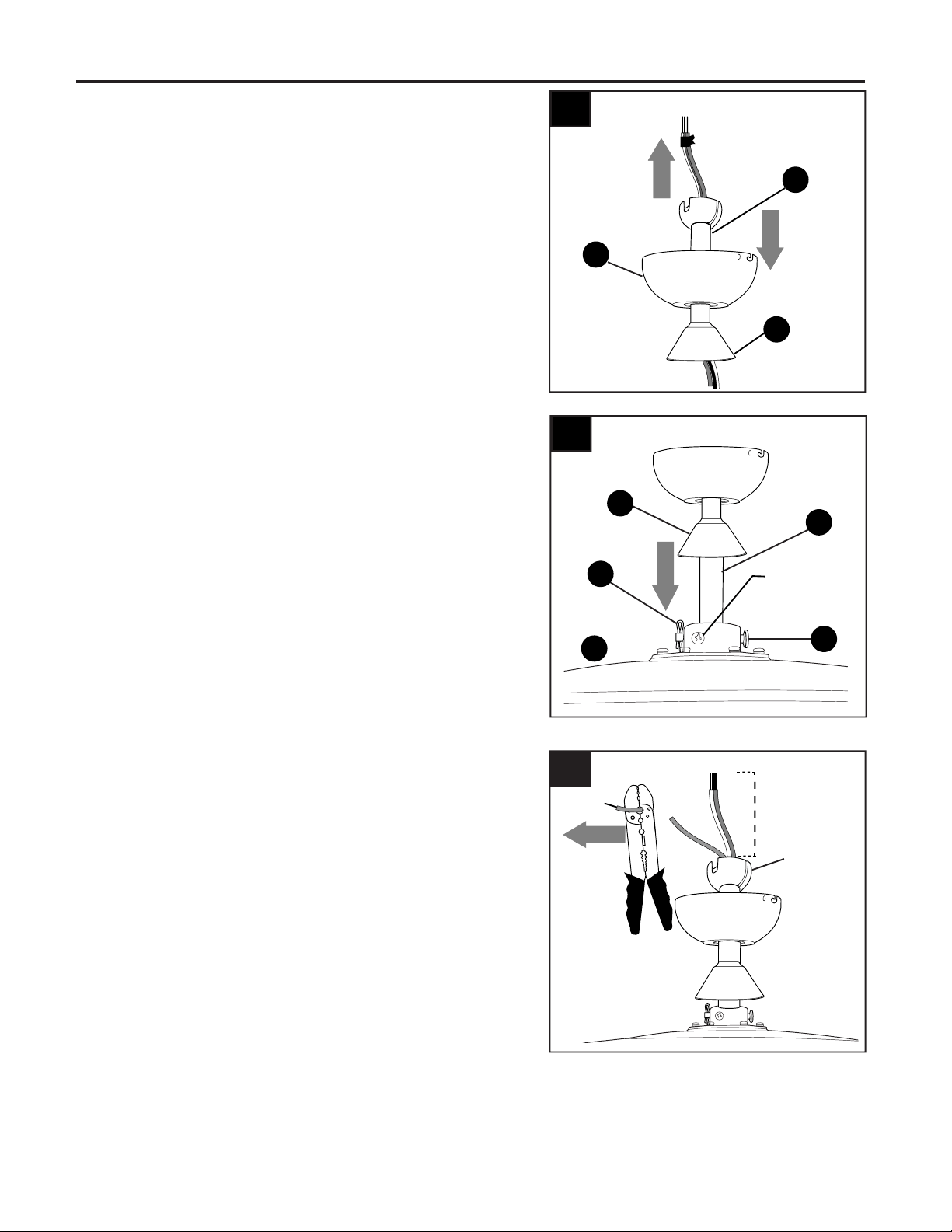

4.
2.
3.
Insert downrod (A) through canopy (B), and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed to
Step 6 instead.
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten downrod (A)
set screws and then tighten nuts. Slide yoke cover
(E) down until it rests on top of motor housing (D).
A
3
A
M
L
Set Screw
and Nut
2
B
E
D
4
Hanging
Ball
8 in.
E
9
DOWNROD-STYLE FAN MOUNTING
5
5.
6.
Remove preassembled canopy cover from bottom
of canopy (B). [NOTE: It may be necessary to use
the handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy (B).]
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.

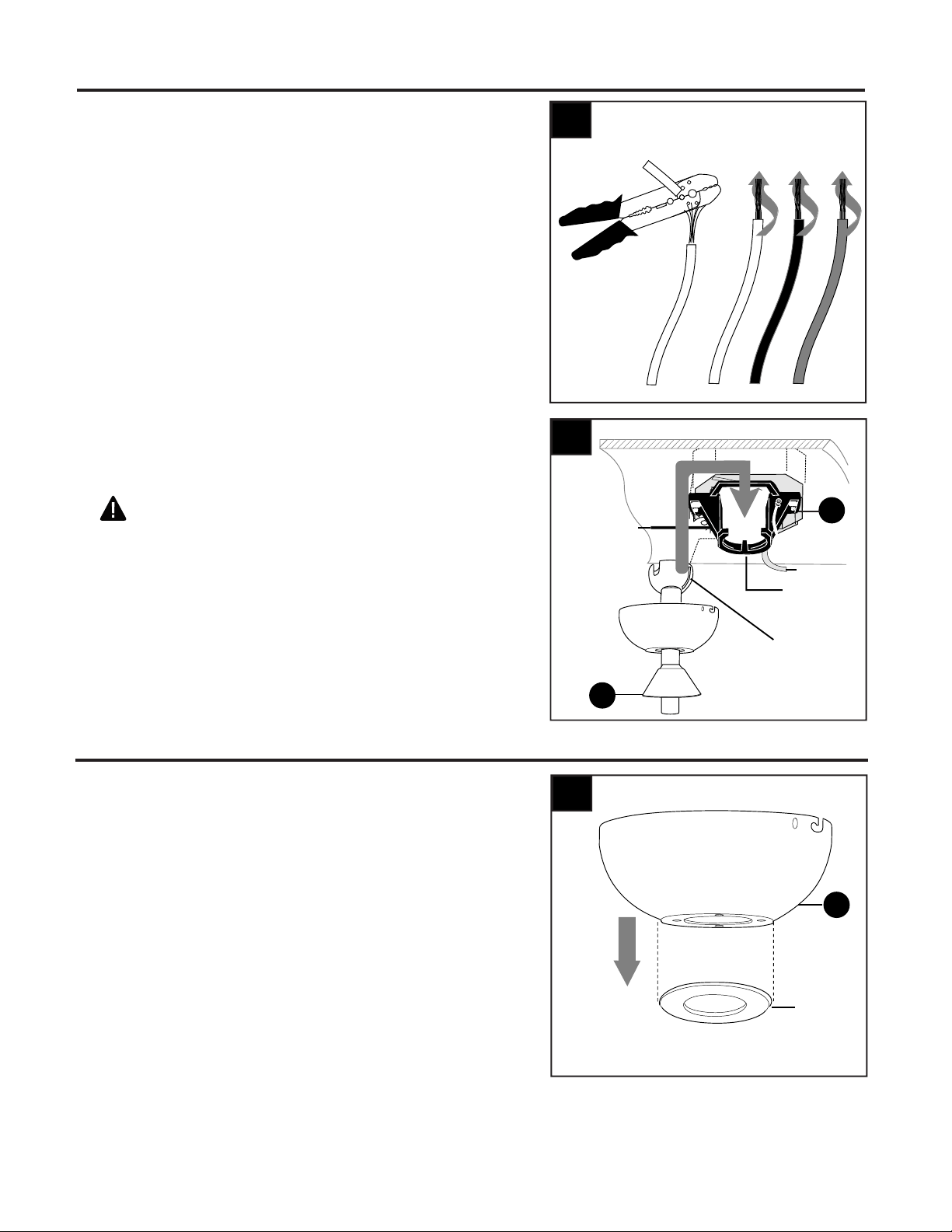

If you cut back the lead wires in Step 4, strip 1/2 in.
of insulation from end of of each wire -- white,
black, green and blue (if applicable). Twist stripped
ends of each strand of wire within the insulation
with pliers (not included).
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align the slot in hanging ball
with the tab in mounting bracket (C).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (C) may result in
serious injury or death.
Continue to WIRING on page 11.
C
Slot
Tab
6
A
Canopy
Cover
B
1
B
CLOSEMOUNT-STYLE FAN MOUNTING
10

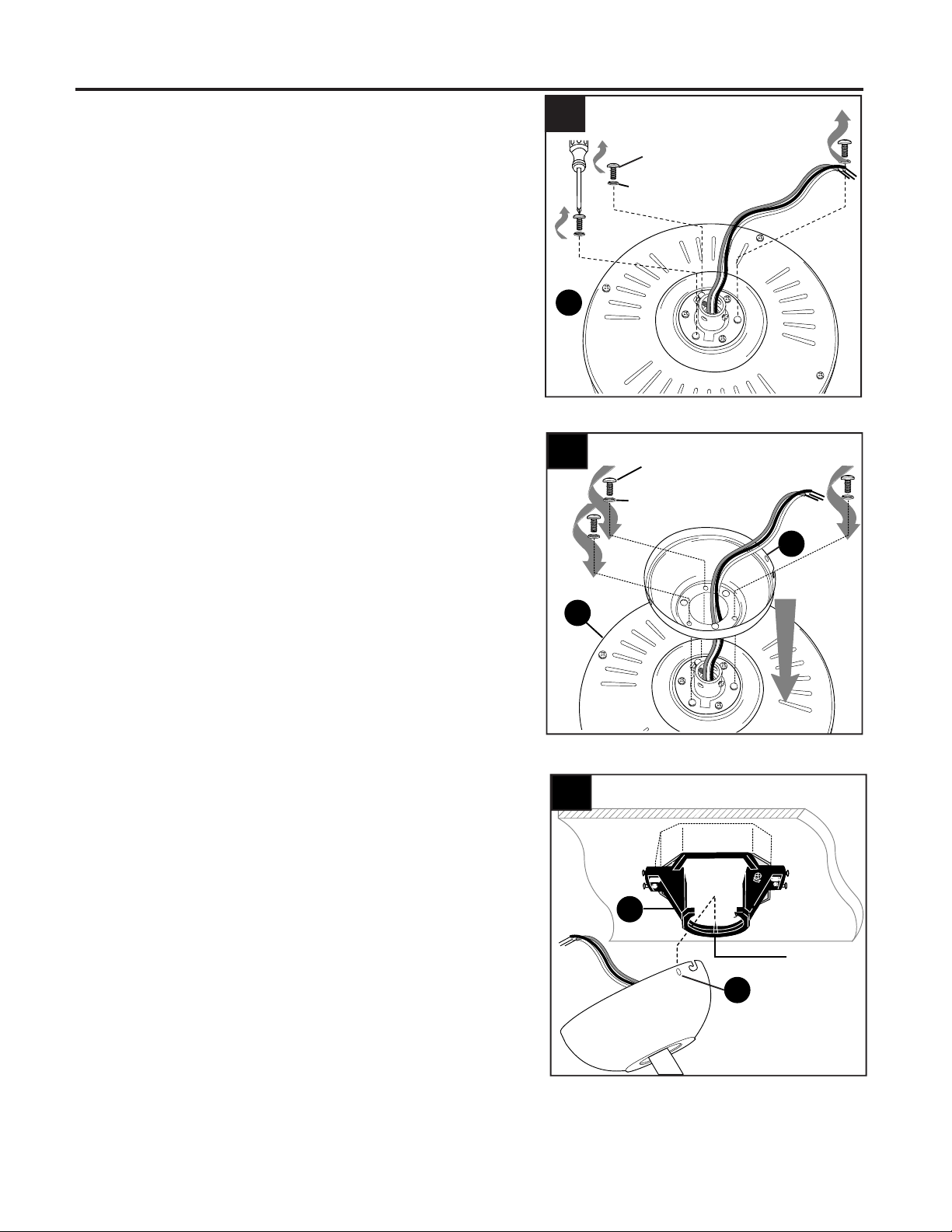

Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
2.
2
D
Remove every other preassembled screw and lock
washer from top of motor housing (D).
Screw
Lock Washer
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
3
B
D
Screw
Lock
Washer
Tab
C
4
B
11
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop immediately.
A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1.
Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, and mounting
bracket (C)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (N) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (N) to WHITE supply
wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (N) to WHITE wire
from motor housing (D).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (N) to BLACK wire
from motor housing (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (N) to BLUE wire from
motor housing (D).
CAUTION: Assistance from another person is
recommended for this step.
N
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
IMPORTANT: Make the necessary wiring connections
for remote control operation as detailed below. For
each wire connection, use one of the wire connectors
from the remote pack (O), making sure to screw wire
connector on in a clockwise direction.
O
Wire
Connectors
A
C
Wire Connector x 4
Hardware Used
CC
WIRING
12
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the
opposite side of the outlet box from the BLACK and
BLUE wire connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
CC
2
CC
3
Gently slide remote control receiver (N) flat-side
up into mounting bracket (C). Turn spliced/taped
wires upward and gently push wires and wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (N) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1 MAX.
Should you choose to use a different remote
control with this fan, it must also meet these same
requirements.
3.
Antenna
A
N
C
1.
Lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (G) in mounting bracket
(C). Twist canopy (B) clockwise to lock. Re-insert
the two canopy mounting screws (G) previously
removed (Step 4a, page 6) and tighten all canopy
mounting screws (G) securely.
FINAL INSTALLATION
1
B
D
G
D
B
Downrod
Option
Closemount
Option
G
13
FINAL INSTALLATION
2.
Hardware Used
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (I). If screws are overtightened, blades (I)
may crack and break.
Insert the blade (I) through the slot on the band of
the motor housing (D). Align holes in blade (I) with
holes in plate on underside of motor. Attach the
blade (I) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw (AA),
starting with the one in the middle. Repeat for
remaining blades (I).
4.
3.
Remove one motor plate screw (J) from motor
plate preassembled on the underside of the
motor housing (D) and partially loosen the
other two motor plate screws (J). Align slotted
holes in light kit fitter (H) with loosened motor
plate screws (J), allowing male plug from
motor housing (D) to come through hole in
light kit fitter (H). Twist light kit fitter (H) to lock.
Re-insert the motor plate screw (J) that was
removed and securely tighten all three motor
plate screws (J).
Remove three preassembled light kit fitter
screws (K) from posts on underside of light kit
fitter (H). Save light kit fitter screws (K) for later
use.
Connect male plug from motor housing (D) to
female plug from light kit fitter (H), matching up
the colors on the plugs for correct fit. Make sure
plugs connect tightly.
3
2
D
BB
AA
3
4
3
Male Plug
Male Plug Female Plug
I
J
I
J
I
J
H
K
K
D
D
H
Motor
Plate
I
FINAL INSTALLATION
14
6.
OPERATING INSTRUCTIONS
Locate BLUE and WHITE wires in light kit fitter
(H). Connect WHITE wire from LED light kit (F) to
WHITE wire from light kit fitter (H). Connect
BLACK wire from LED light kit (F) to BLUE wire
from light kit fitter (H). Make sure molex
connections are secure.
Carefully arrange wires inside light kit fitter (H).
Align holes in LED light kit (F) with posts in light
kit fitter (H). Re-insert light kit fitter screws (K)
previously removed (step 4, page 13). Tighten all
three light kit fitter screws (K) securely.
5.
6
Remote Control
Bracket
Wall
If you wish to use the remote control bracket
from remote pack (O), install screws from remote
pack (O) through bracket and into the desired
installation site. The remote control transmitter
from remote pack (O) rests inside the bracket.
Bracket
Screws
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
Remove protective covering from batteries in
remote pack (O) and discard protective covering.
Remove battery cover from back of remote control
transmitter in remote pack (O). Install two AAA
batteries (included).
Replace battery cover on remote control transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
NOTE: The dimmer switch located on the backside
of the transmitter (labeled O and D) has been
pre-set to the “ON” position (D). If you do not wish
to have dimming capability, please move the switch
to the “OFF” position (O).
1.
1
Battery
Cover
Battery
NOTE: Battery is NOT rechargeable. Remove battery with low or no charge and dispose of properly.
(back)
Remote Control
Transmitter
3
5
BLUE
WHITE
WHITE
BLACK
Loosened
Screws
F
H
K
15
OPERATING INSTRUCTIONS
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
IMPORTANT: To prevent damage to remote control transmitter, remove the batteries if not used for
long periods. Store the remote control transmitter away from excess heat or humidity.
2
Remote Control Transmitter
light button
fan button
2.
Operation buttons on the panel of the remote control
transmitter:
H button
M button
L button
OFF button
to control fan speed
- turns fan to HIGH speed
- turns fan to MEDIUM speed
- turns fan to LOW speed
- turns fan OFF
to control light brightness
- turns light kit ON/OFF when pressed once;
dims light kit when pressed and held down.
3.
Use the fan reverse switch on the light kit fitter (H)
to optimize the fan for seasonal performance. A
ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting
in winter without feeling a difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (I) come to a complete stop before manually
activating the reverse switch.
3
Reverse
Switch
H
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
16
3c
3c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (I) with a lint-free cloth. You may occasionally apply a light coat of furniture polish
to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
3a
3b
3a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
3b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in light kit fitter are
connected properly according to
instructions on page 13.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
17
Fan operates but
light fails (if
applicable).
1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Wires in light kit fitter not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
2. Make sure that wall switch to
fan is on.
3. Check that molex connections
in light kit fitter are connected
properly according to
instructions on page 14.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Wires in light kit fitter not wired
correctly.
Printed in China
18
JMLI2008
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
A
B
C
REPLACEMENT PARTS LIST
I
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
PART DESCRIPTION
A Downrod
B Canopy
C Mounting Bracket
H Light Kit Fitter
I Blade
2599768-A
2599768-B
2599768-C
2599768-H
2599768-I
#
2599768
PART #
H
