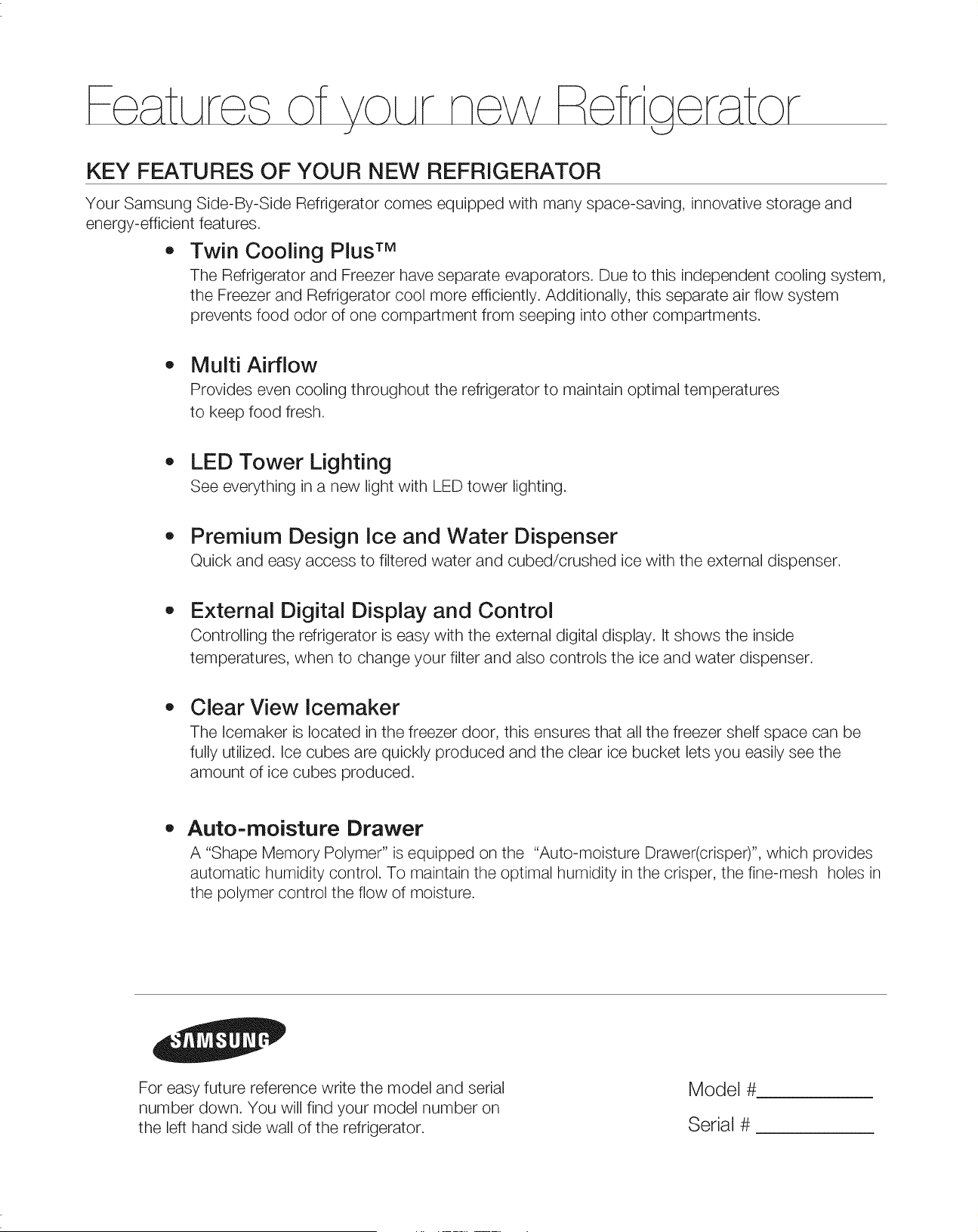

KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and
energy-efficient features.
o Twin Cooling Plus TM
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently. Additionally, this separate air flow system
prevents food odor of one compartment from seeping into other compartments.
Multi Airflow
Provides even cooling throughout the refrigerator to maintain optimal temperatures
to keep food fresh.
- LED Tower Lighting
See everything in a new light with LED tower lighting.
- Premium Design Ice and Water Dispenser
Quick and easy access to filtered water and cubed/crushed ice with the external dispenser.
External Digital Display and Control
Controlling the refrigerator is easy with the external digital display. It shows the inside
temperatures, when to change your filter and also controls the ice and water dispenser.
Clear View Icemaker
The Icemaker is located in the freezer door, this ensures that all the freezer shelf space can be
fully utilized. Ice cubes are quickly produced and the clear ice bucket lets you easily see the
amount of ice cubes produced.
Auto=moisture Drawer
A "Shape Memory Polymer" is equipped on the "Auto-moisture Drawer(crisper)", which provides
automatic humidity control. To maintain the optimal humidity in the crisper, the fine-mesh holes in
the polymer control the flow of moisture.
For easy future reference write the model and serial
number down. You will find your model number on
the left hand side wall of the refrigerator.
Model #
Serial #
SAFETY INFORMATION
Before using your new Samsung Side-By-Side Refrigerator, please read this manual thoroughly
to ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers.
Because the following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual. If you have any question, contact
us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean '
Hazards or unsafe practices that may result in severe personal injury or death.
WARNING
Hazards or unsafe practices that may result in minor personal injury or property
CAUTION damage.
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
CAUTION refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
[_} Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly
Keep this manual in a safe place for future reference.

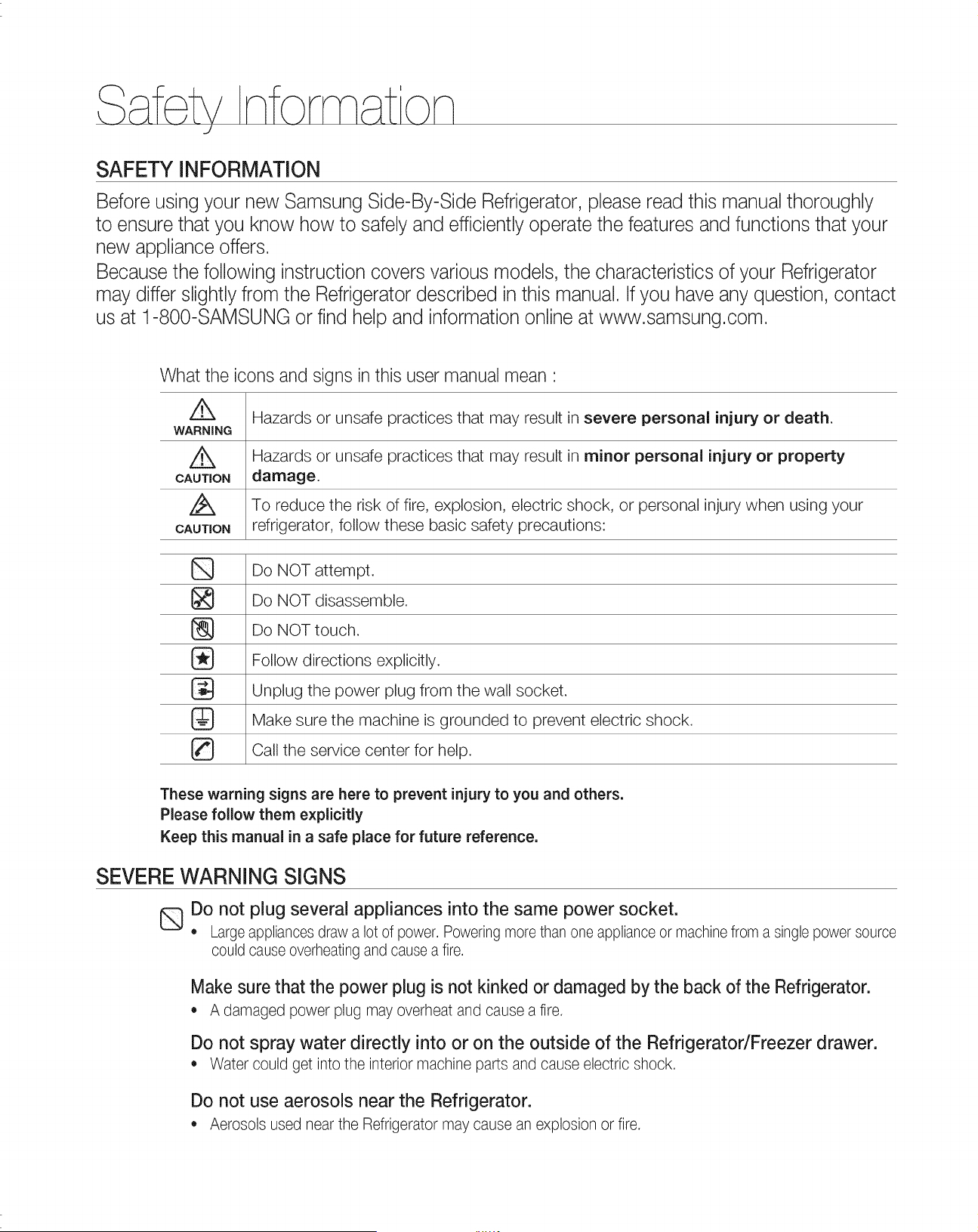

SEVERE WARNING SIGNS
Do not plug several appliances into the same power socket.
G
Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source
could cause overheating and cause a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
• A damaged power plug may overheat and cause a fire.
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
Water could get into the interior machine parts and cause electric shock.
Do not use aerosols near the Refrigerator.
Aerosols used near the Refrigerator may cause an explosion or fire.

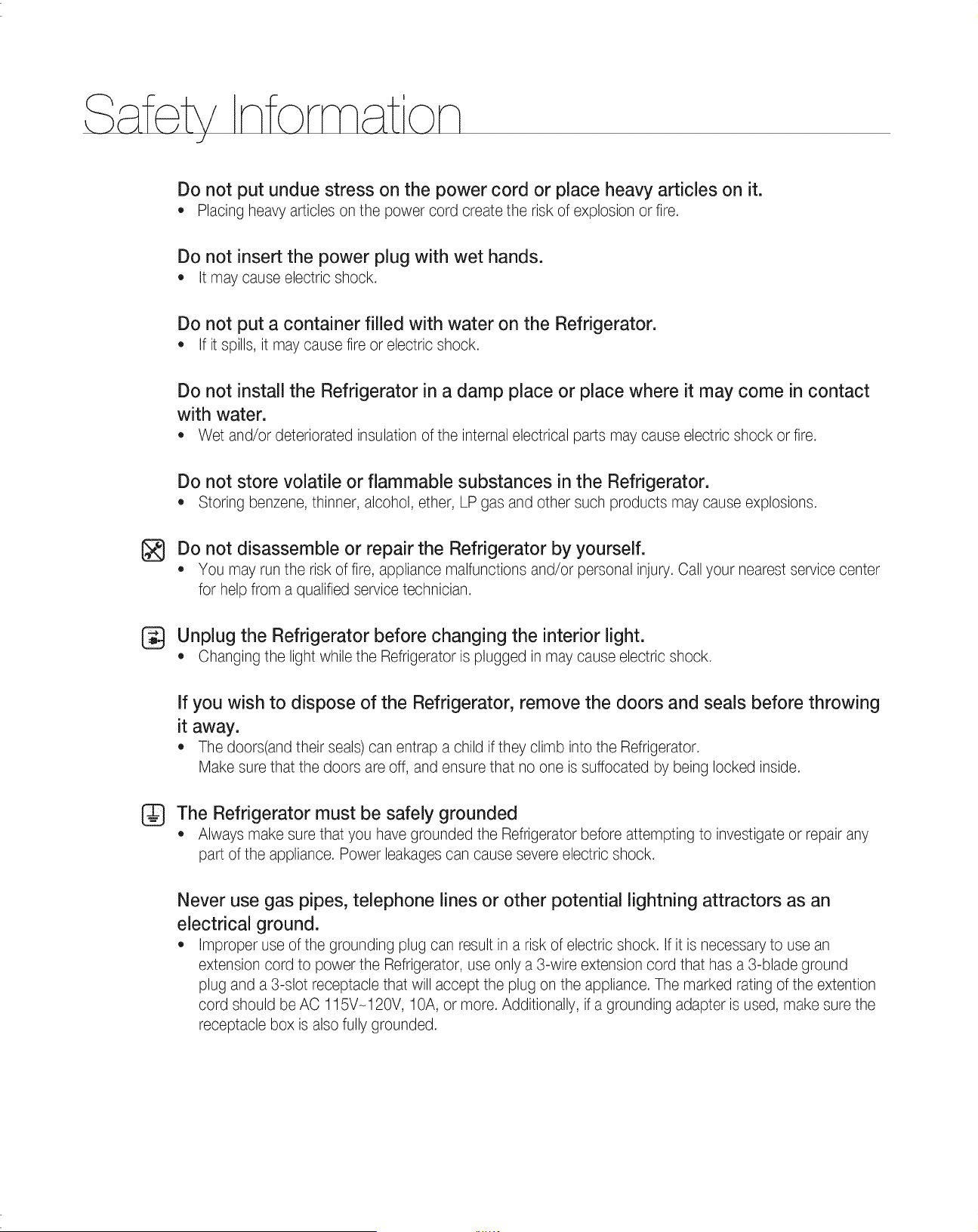

Do not put undue stress on the power cord or place heavy articles on it.
• Placing heavy articles on the power cord create the risk of explosion or fire.
Do not insert the power plug with wet hands.
It may cause electric shock.
Do not put a container filled with water on the Refrigerator.
If it spills, it may cause fire or electric shock.
Do not install the Refrigerator in a damp place or place where it may come in contact
with water.
Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
Do not store volatile or flammable substances in the Refrigerator.
Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
Do not disassemble or repair the Refrigerator by yourself.
You may run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center
for help from a qualified service technician.
Unplug the Refrigerator before changing the interior light.
Changing the light while the Refrigerator is plugged in may cause electric shock.
If you wish to dispose of the Refrigerator, remove the doors and seals before throwing
it away.
The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
@
The Refrigerator must be safely grounded
Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
Never use gas pipes, telephone lines or other potential lightning attractors as an
electrical ground.
Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.

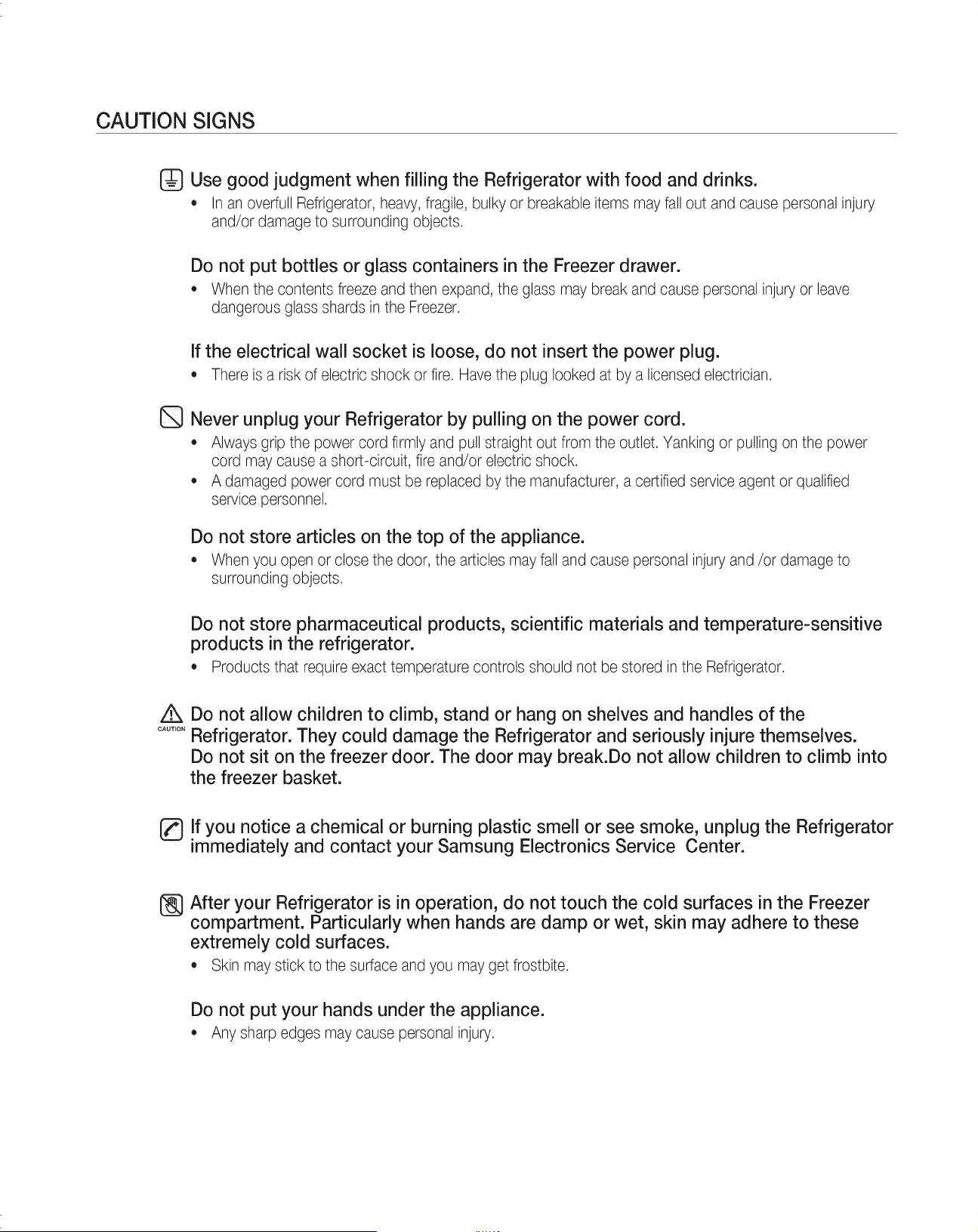

CAUTION SIGNS
Use good judgment when filling the Refrigerator with food and drinks.
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
Do not put bottles or glass containers in the Freezer drawer.
When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
If the electrical wall socket is loose, do not insert the power plug.
There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
Never unplug your Refrigerator by pulling on the power cord.
Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance.
When you open or close the door, the articles may fall and cause personal injury and/or damage to
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
Products that require exact temperature controls should not be stored in the Refrigerator.
,6,
CAUTION
Do not allow children to climb, stand or hang on shelves and handles of the
Refrigerator. They could damage the Refrigerator and seriously injure themselves.
Do not sit on the freezer door. The door may break.Do not allow children to climb into
the freezer basket.
!f you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator
_mmediately and contact your Samsung Electronics Service Center.
®
After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these
extremely cold surfaces.
Skin may stick to the surface and you may get frostbite.
Do not put your hands under the appliance.
• Any sharp edges may cause personal injury.

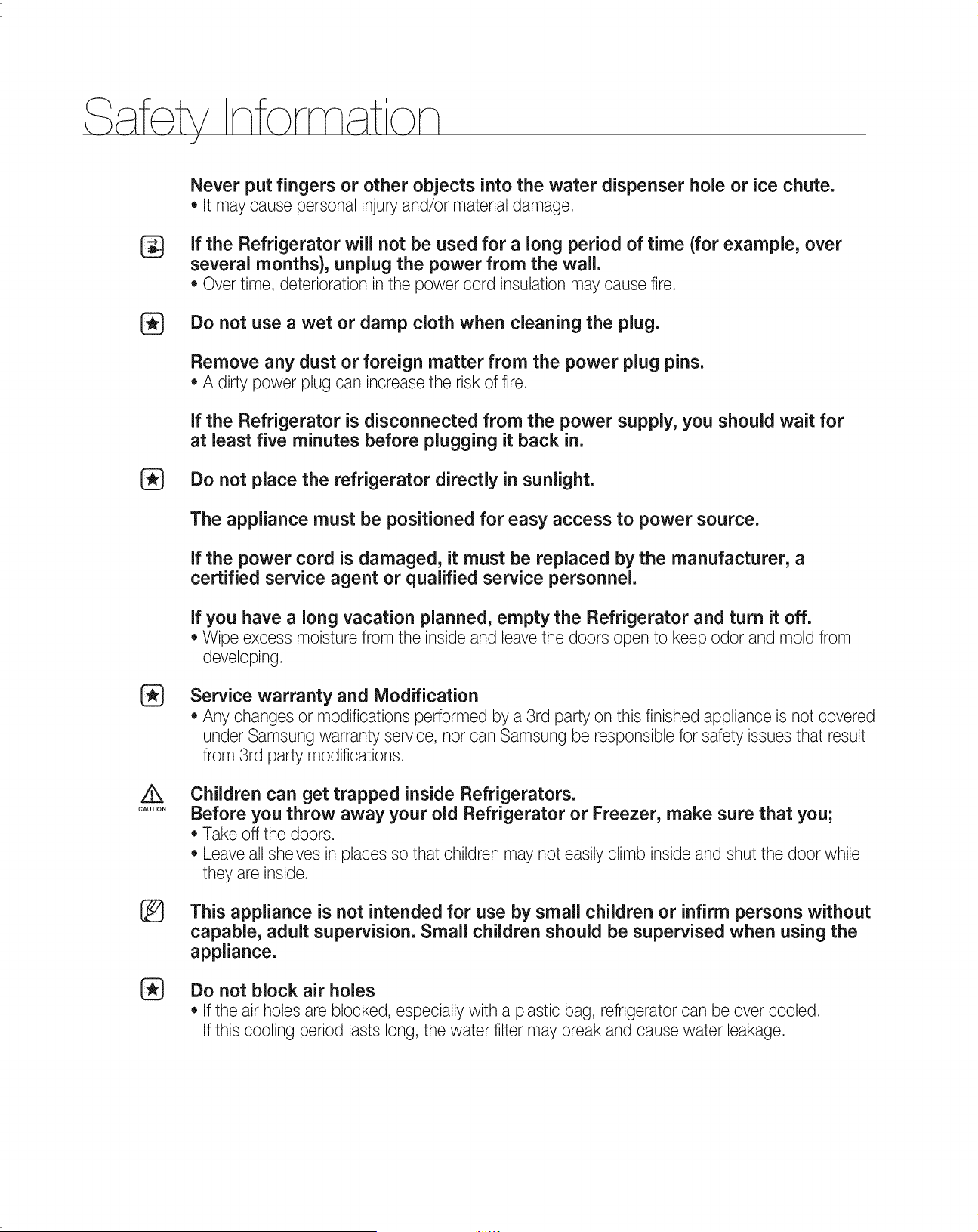

Never put fingers or other objects into the water dispenser hole or ice chute.
= It maycause personalinjuryand/or materialdamage.
If the Refrigerator will not be used for a long period of time (for example, over
several months}, unplug the power from the wall.
• Overtime, deteriorationinthe powercord insulationmaycausefire.
Do not use a wet or damp cloth when cleaning the plug.
Remove any dust or foreign matter from the power plug pins.
A dirty power plug can increasethe riskof fire.
If the Refrigerator is disconnected from the power supply, you should wait for
at least five minutes before plugging it back in,
Do not place the refrigerator directly in sunlight.
The appliance must be positioned for easy access to power source.
If the power cord is damaged, it must be replaced by the manufacturer, a
certified service agent or qualified service personnel,
If you have a long vacation planned, empty the Refrigerator and turn it off.
Wipe excessmoisturefrom the insideand leavethe doors open to keepodor and moldfrom
developing.
Service warranty and Modification
Any changesor modificationsperformed by a 3rd party on this finishedapplianceis not covered
under Samsungwarrantyservice,nor can Samsungbe responsiblefor safety issuesthat result
from 3rd party modifications.
Z_ Children can get trapped inside Refrigerators,
....... Before you throw away your old Refrigerator or Freezer, make sure that you;
Take off the doors.
Leaveall shelvesin placesso that childrenmay not easilyclimb insideand shut the door while
theyare inside.
This appliance is not intended for use by small children or infirm persons without
capable, adult supervision, Small children should be supervised when using the
appliance.
Do not block air holes
If the air holesare blocked, especiallywith a plastic bag, refrigeratorcan be over cooled.
If this cooling period lastslong,the waterfilter may breakand cause water leakage.

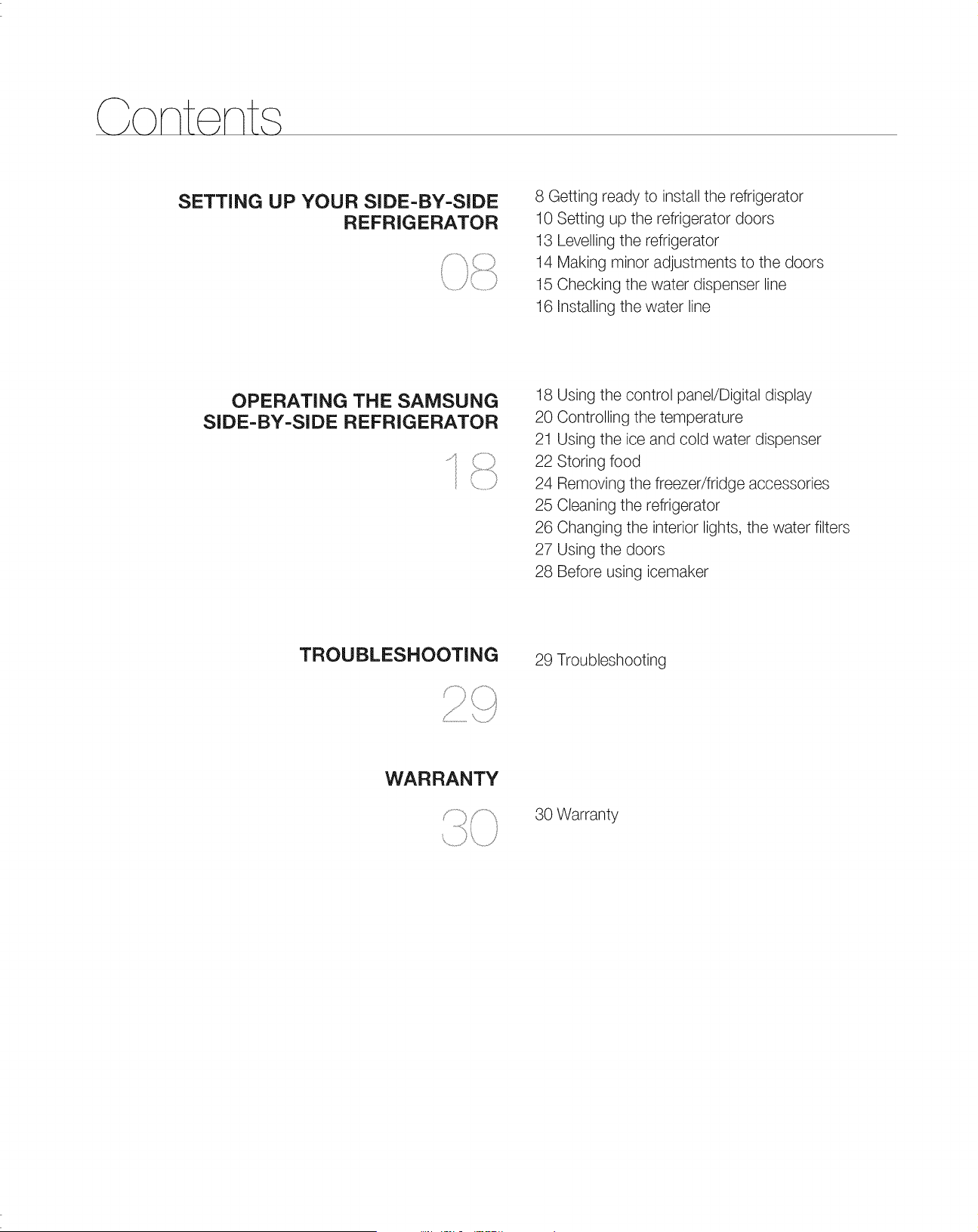

SETTING UP YOUR SIDE-BY-SIDE
REFRIGERATOR
8 Getting ready to install the refrigerator
10 Setting up the refrigerator doors
13 Levelling the refrigerator

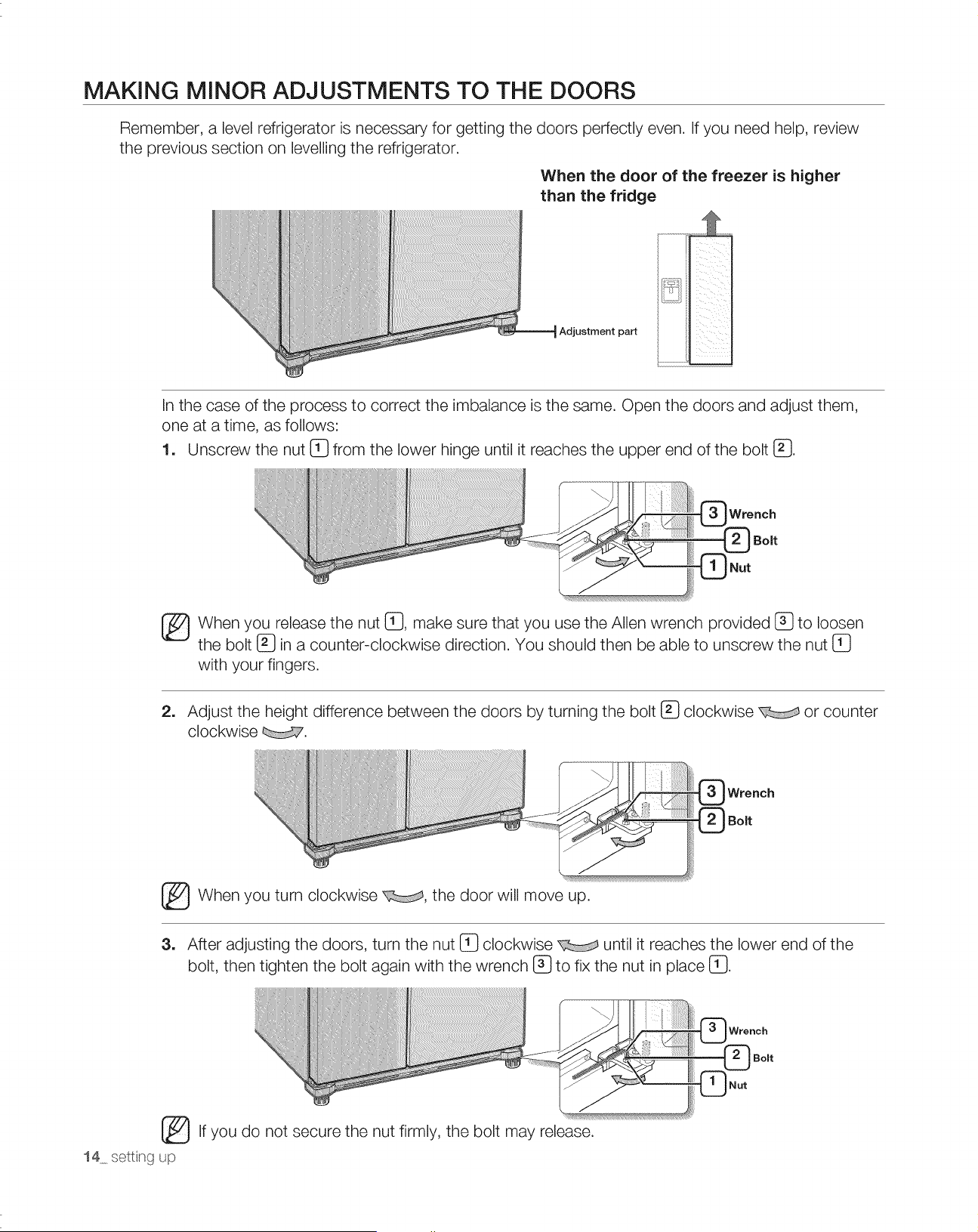

14 Making minor adjustments to the doors

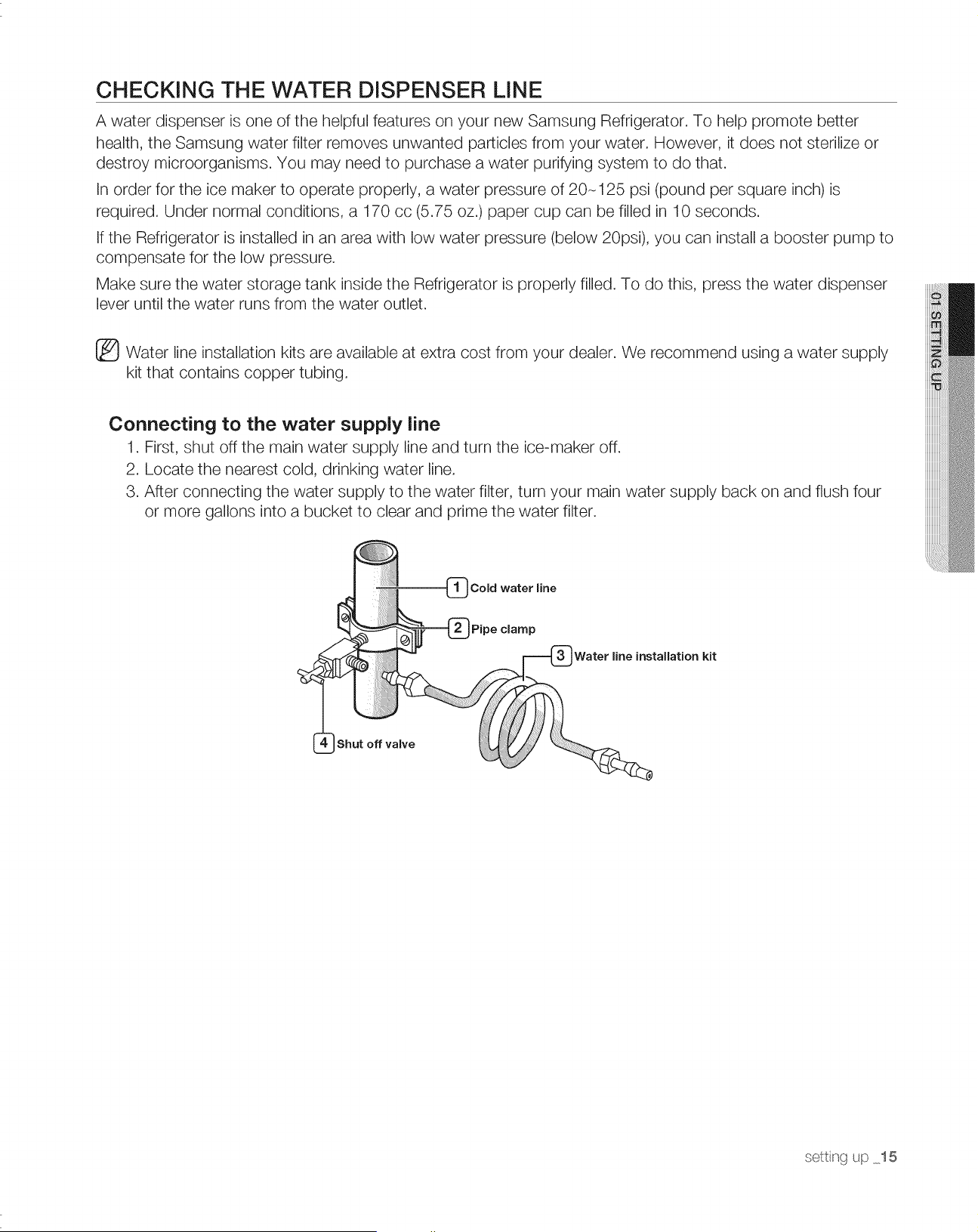

15 Checking the water dispenser line
16 Installing the water line
OPERATING THE SAMSUNG
SIDE-BY-SIDE REFRIGERATOR

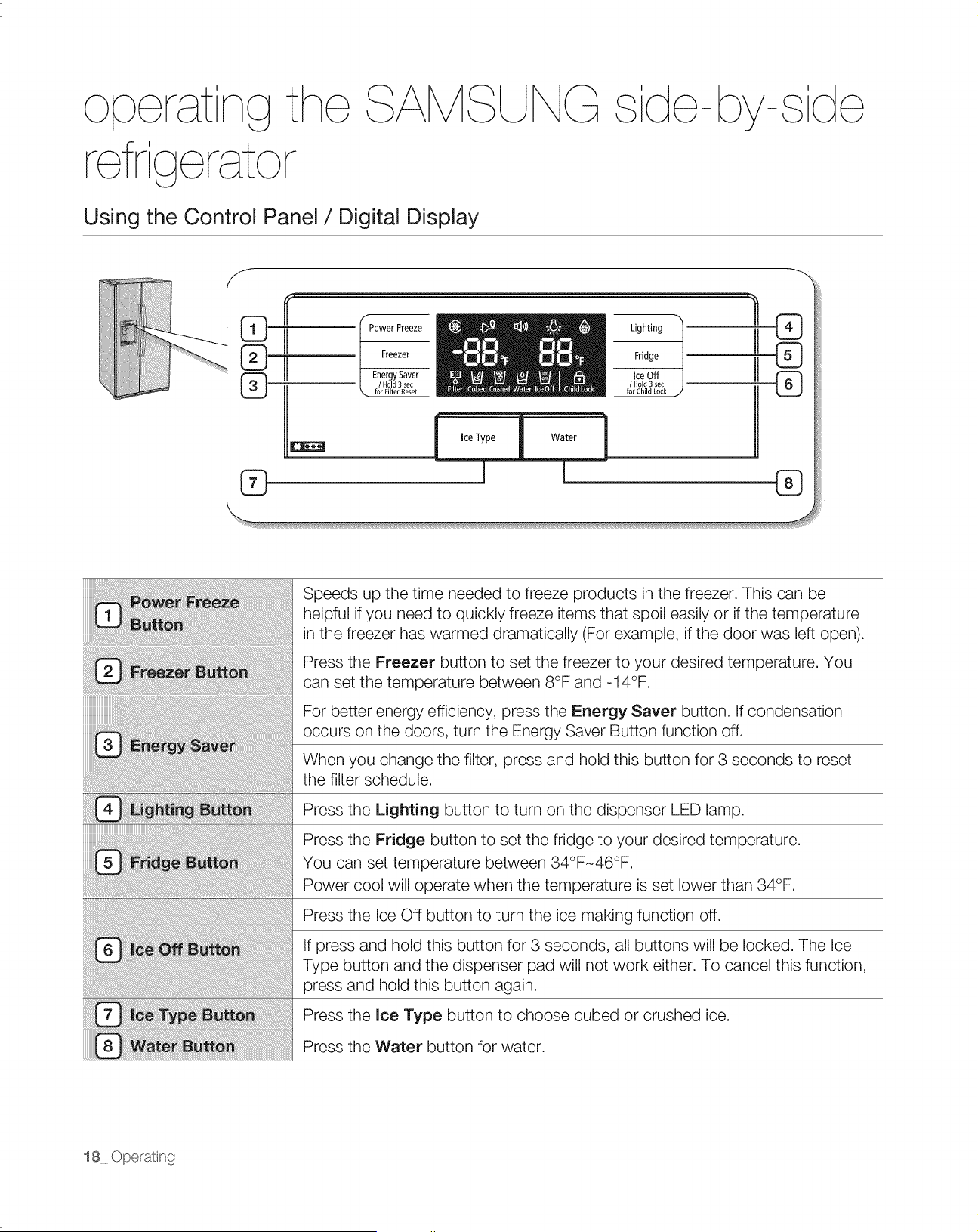

18 Using the control panel/Digital display
20 Controlling the temperature

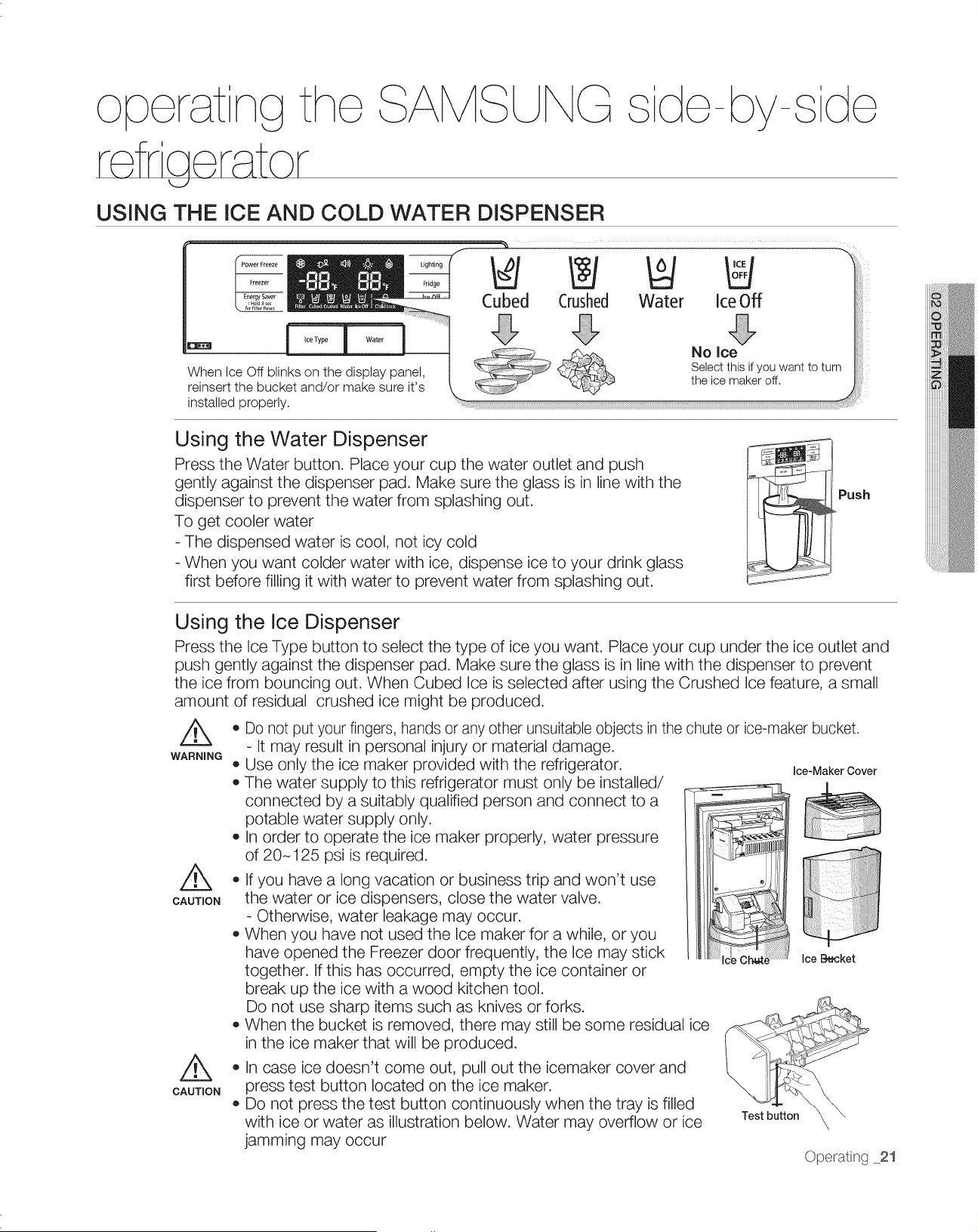

21 Using the ice and cold water dispenser
22 Storing food
24 Removing the freezer/fridge accessories

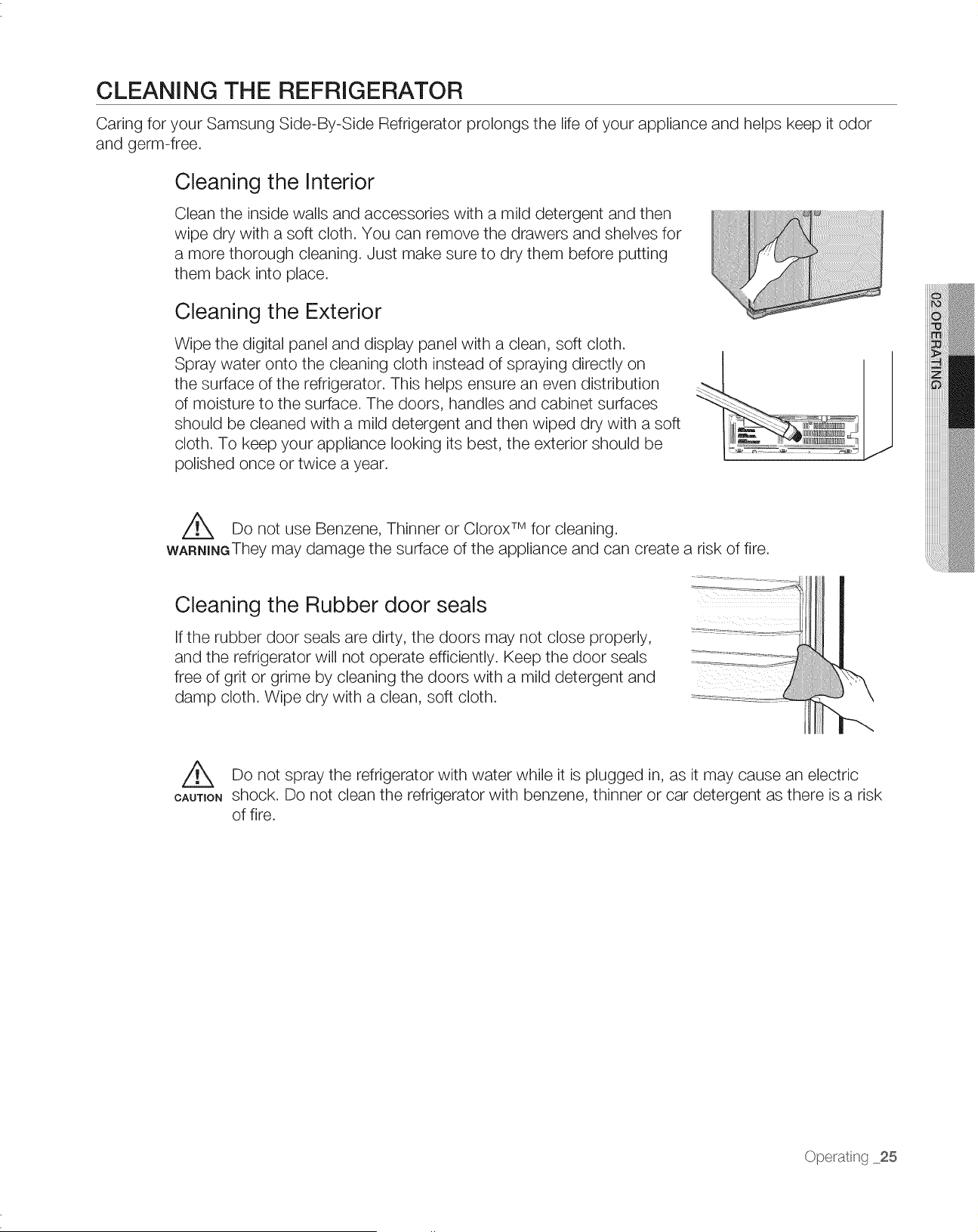

25 Cleaning the refrigerator
26 Changing the interior lights, the water filters
27 Using the doors

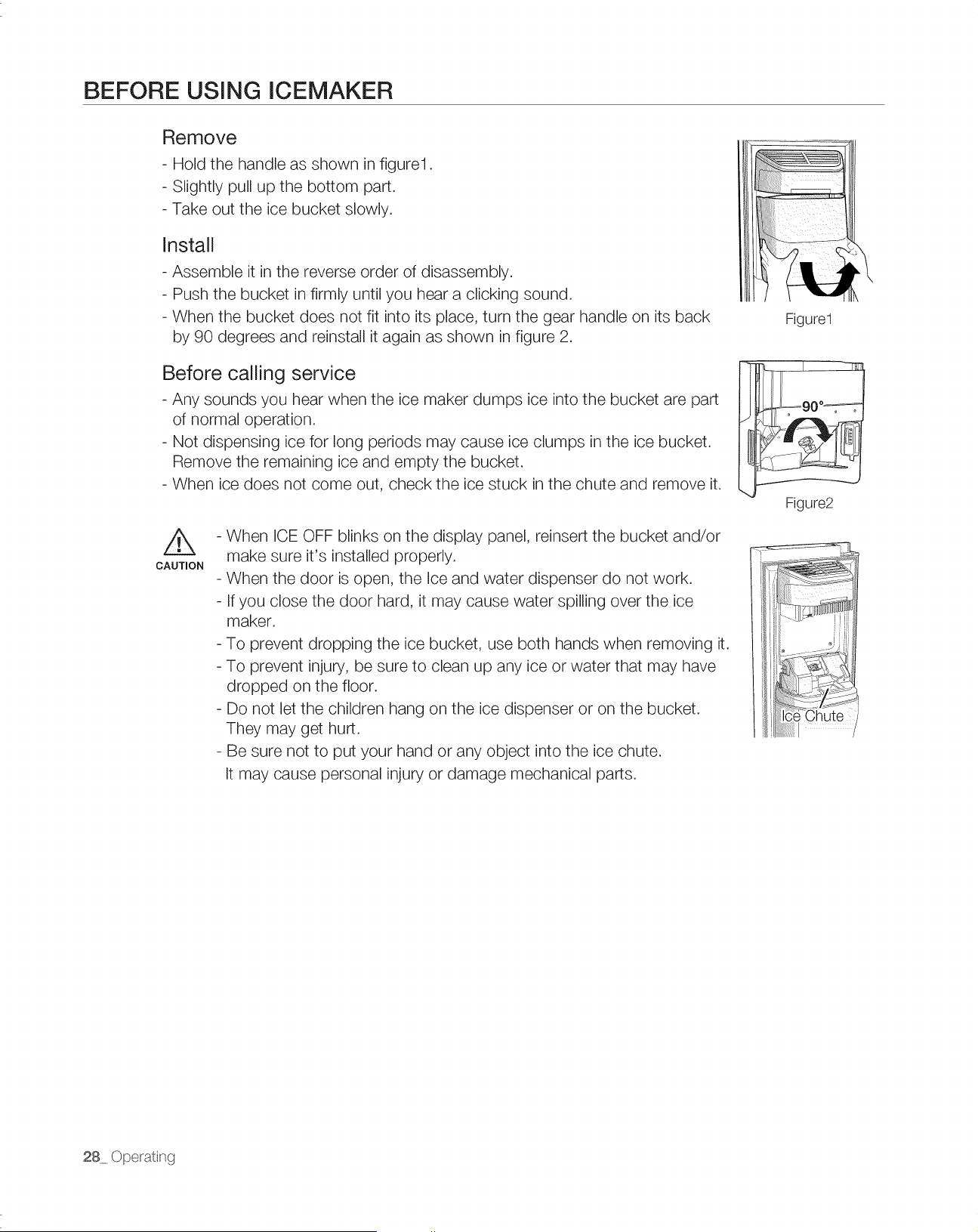

28 Before using icemaker
TROUBLESHOOTING
/
......2........../

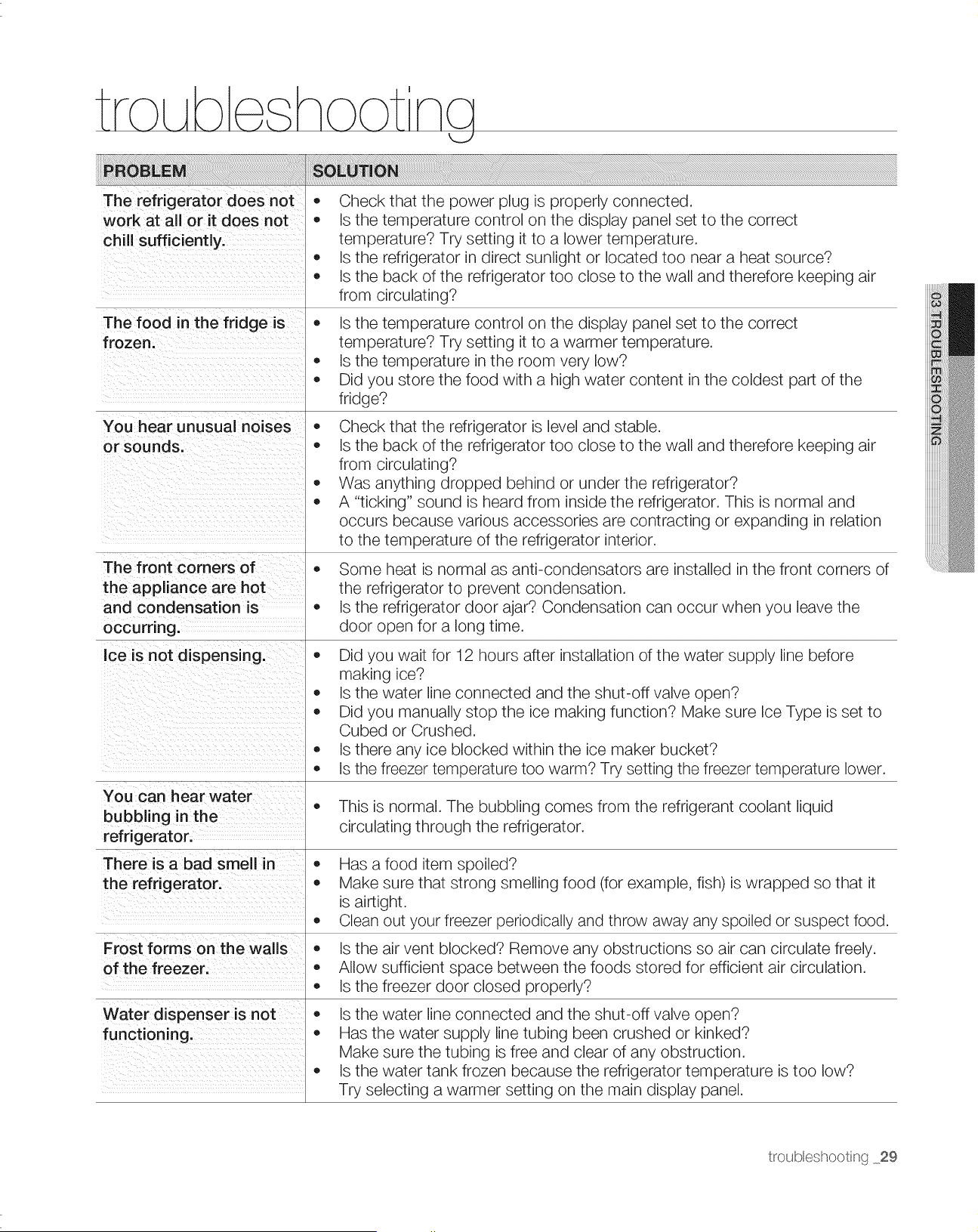

29 Troubleshooting
WARRANTY
ii!fl
30 Warranty

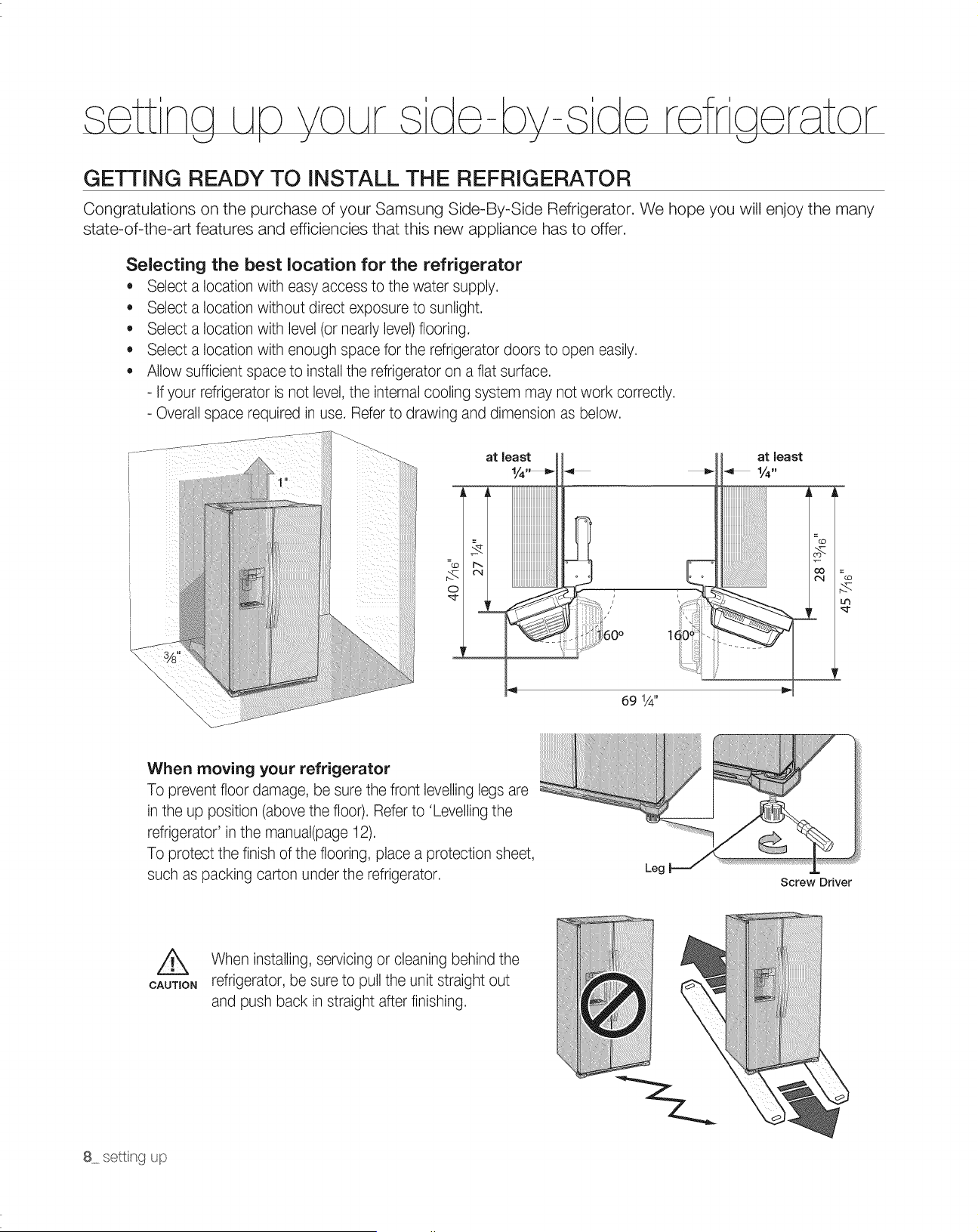

GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many
state-of-the-art features and efficiencies that this new appliance has to offer.
Selecting the best location for the refrigerator
• Select a location with easy access to the water supply.
• Select a location without direct exposure to sunlight.
• Select a location with level (or nearly level) flooring.
• Select a location with enough space for the refrigerator doors to open easily.
• Allow sufficient space to install the refrigerator on a flat surface.
- ifyour refrigerator is not level, the internal cooling system may not work correctly.
- Overall space required in use. Refer to drawing and dimension as below.
at least at least
I/4"
/
60 ° 1
69 1/4"
When moving your refrigerator
To prevent floor damage, be sure the front levelling legs are
in the up position (above the floor). Refer to 'Levelling the
refrigerator' in the manual(page 12).
To protect the finish of the flooring, place a protection sheet,
such as packing carton under the refrigerator.
Leg
Screw Driver
CAUTION
When installing, servicing or cleaning behind the
refrigerator, be sure to pull the unit straight out
and push back in straight after finishing.
8 sett_g up
First things first! Make sure that you can easily move your refrigerator to its final location by measuring
doorways (both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth.
Dimensions(inch)
Width
Depth
Height
Only Cabinet
With Leg Front
Only Cabinet
With Door
With Handle
Only Cabinet
With Hinge
With Door
35 3/4
35 15/16
23 5/8
27 7/16
30
68 5/8
69 5/16
70
•
O
O
Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
Do not install the refrigerator where the temperature can drop below 50°F (10°C).
Make sure you disconnect the water supply line BEFORE removing the freezer door. See the
next section on "Separating the Water Line" to avoid damage.
SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and
functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.
If not, first check the power supply and electricity source or try the troubleshooting section at the back of
this user's guide. If you have any further questions, contact your Samsung Electronics service center.
1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the
Refrigerator. Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly
chilled and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can
store food and drinks in the Refrigerator after the temperature is sufficiently cool.
Check the accessory list below.
L
Water filter Hex wrench Compression fitting Compression nut
(DA29-00003B) (DA80-00002C) (DA62-00305A) (DA74-00070B)
Clip Clip Screw
(DA61-04521A) (DA61-04522A) (6001-000541)
Settng Up 9
SETTING UP THE REFRIGERATOR DOORS
If your entrance won't allow the refrigerator to pass easily through it, you can remove the doors.
Removing the Front Leg Cover
First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the
three screws counter-clockwise
Separating the Water Supply Line from the Refrigerator
1. Remove the water line(gray and transparent colors) by pressing the coupler [_ and pulling the
water line _ away.
Make sure the color of the
water lines match.
Reattaching the Water Supply Line
1. The Water Line must be fully inserted to
the marked line to prevent water leakage
from the dispenser.
2. Insert the 4 clips in the install
pack and check that each clip
holds the line firmly.
cips cipB
(1¼-) $ (5/16")
Do not cut the water line. Gently separate it from the coupler.
Line
clip A _ clip A
,,(_(1_,,) ,,(_(_,,)
10 setti_g up

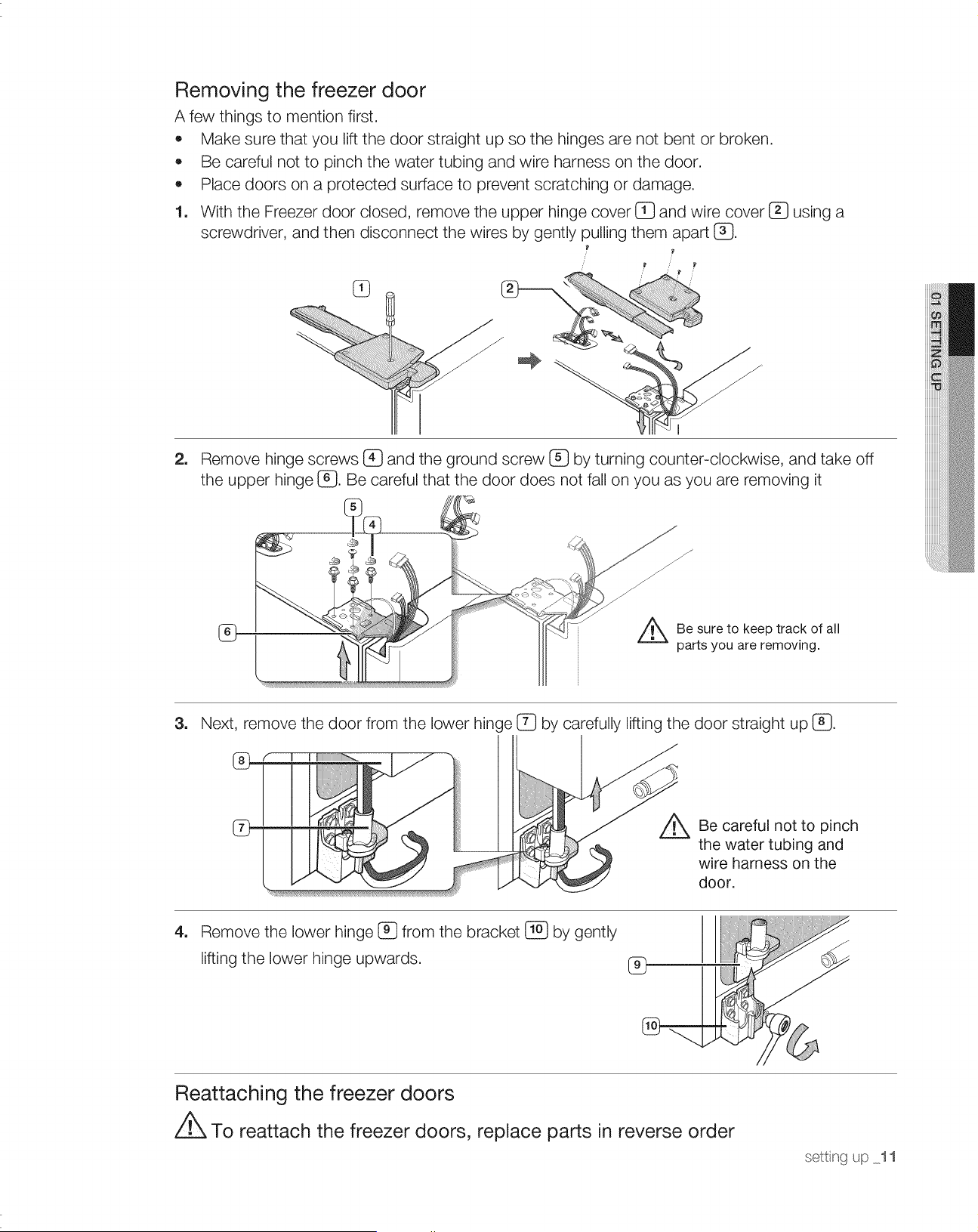

Removing the freezer door
A few things to mention first.
,, Make sure that you lift the door straight up so the hinges are not bent or broken.
,, Be careful not to pinch the water tubing and wire harness on the door.
,, Place doors on a protected surface to prevent scratching or damage.
1. With the Freezer door closed, remove the upper hinge cover 1]_ and wire cover 13[} using a
screwdriver, and then disconnect the wires by gently pulling them apart GD.
2. Remove hinge screws (_} and the ground screw !_} by turning counter-clockwise, and take off
the upper hinge (_. Be careful that the door does not fall on you as you are removing it
_ e sure to keep track of all
parts you are removing.
3. Next, remove the door from the lower hinge (Z} by carefully lifting the door straight up I]_.
®
ABe careful not to
pinch
the water tubing and
wire harness on the
door.
4. Remove the lower hinge 13[]from the bracket _ by gently
lifting the lower hinge upwards. 1_}.
Reattaching the freezer doors
To reattach the freezer doors, replace parts in reverse order
setti"_g up 11

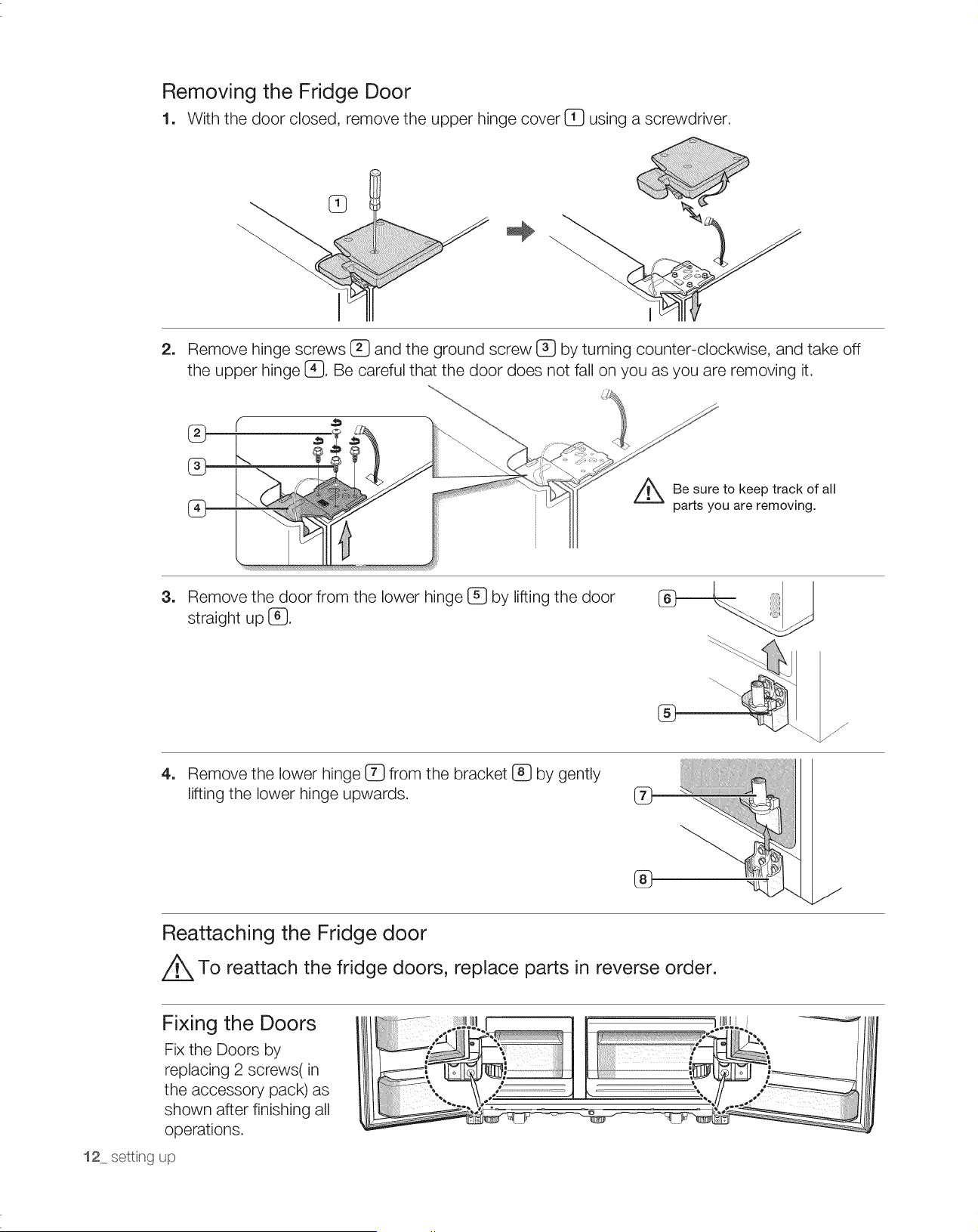

Removing the Fridge Door
1. With the door closed, remove the upper hinge cover (_} using a screwdriver.
m
Remove hinge screws (_ and the ground screw (_ by turning counter-clockwise, and take off
the upper hinge [_. Be careful that the door does not fall on you as you are removing it.
z£
Be sure to keep track of all
parts you are removing.
m
Remove the door from the lower hinge (_ by lifting the door
straight up I_).
J
4. Remove the lower hinge (_ from the bracket (_ by gently
lifting the lower hinge upwards.
®
Reattaching the Fridge door
® To reattach the fridge doors, replace parts in reverse order.
Fixing the Doors
Fix the Doors by
replacing 2 screws( in
the accessory pack) as
shown after finishing all
operations.
12 setti-_g up

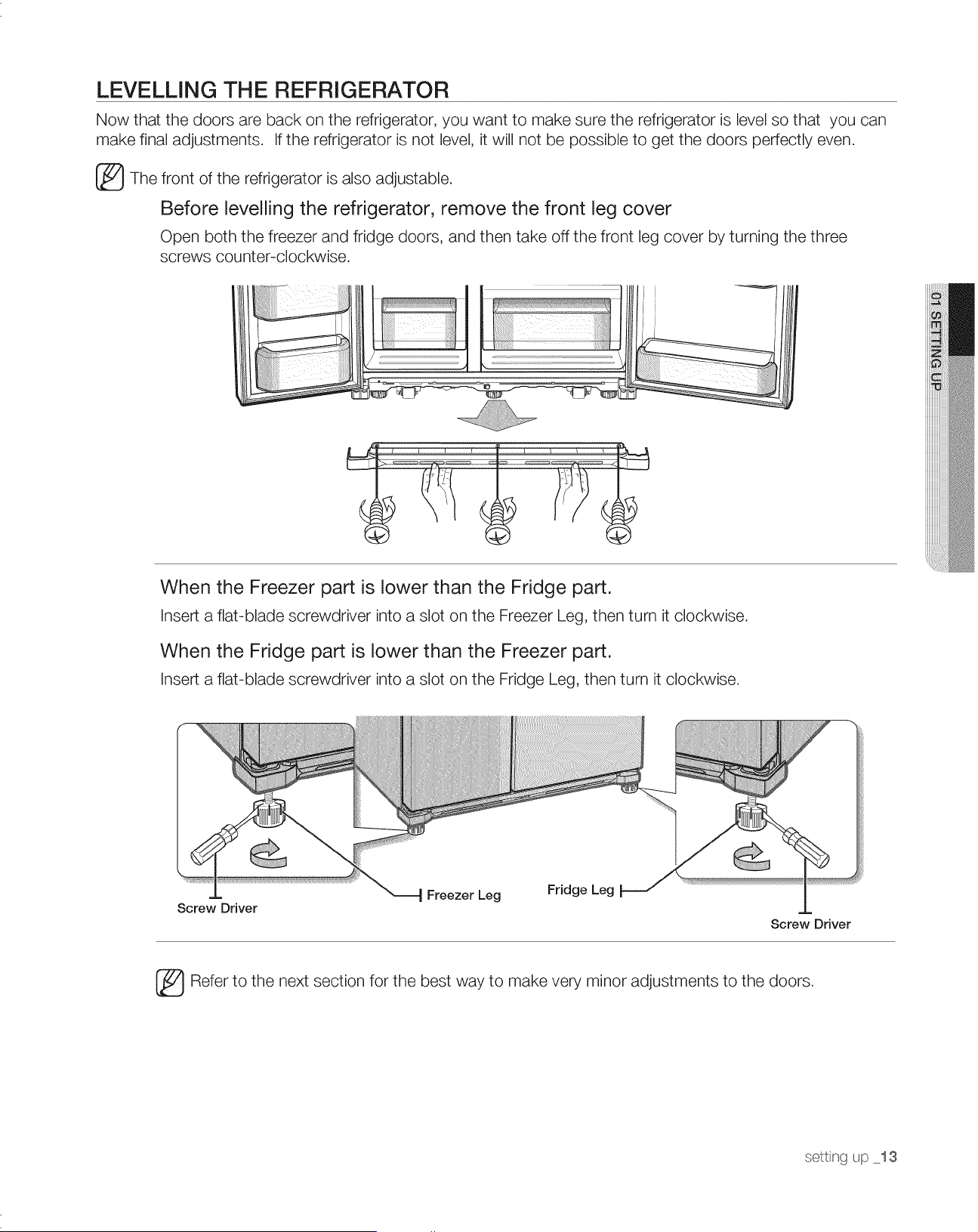

LEVELLING THE REFRIGERATOR
Now that the doors are back on the refrigerator, you want to make sure the refrigerator is level so that you can
make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even.
_The front of the refrigerator is also adjustable.
Before levelling the refrigerator, remove the front leg cover
Open both the freezer and fridge doors, and then take off the front leg cover by turning the three
screws counter-clockwise.
When the Freezer part is lower than the Fridge part.
Insert a flat-blade screwdriver into a slot on the Freezer Leg, then turn it clockwise.
When the Fridge part is lower than the Freezer part.
Insert a flat-blade screwdriver into a slot on the Fridge Leg, then turn it clockwise.
Screw Driver
Freezer Leg
Fridge Leg
Screw Driver
_ Refer to the next section for the best way to make very minor adjustments to the doors.
setti_g up 13
MAKING MINOR ADJUSTMENTS TO THE DOORS
Remember, a level refrigerator is necessary for getting the doors perfectly even. If you need help, review
the previous section on levelling the refrigerator.
When the door of the freezer is higher
than the fridge
[:/ ....
_1 Adjustment part
In the case of the process to correct the imbalance is the same. Open the doors and adjust them,
one at a time, as follows:
1. Unscrew the nut [_ from the lower hinge until it reaches the upper end of the bolt [_.
Wrench
Bolt
Nut
When you release the nut [_}, make sure that you use the Allen wrench provided [_ to loosen
the bolt _ in a counter-clockwise direction. You should then be able to unscrew the nut [_
with your fingers.
2. Adjust the height difference between the doors by turning the bolt [_} clockwise or counter
clockwise
Wrench
Bolt
_When you turn clockwise , the door will move up.
3. After adjusting the doors, turn the nut [_ clockwise until it reaches the lower end of the
bolt, then tighten the bolt again with the wrench _ to fix the nut in place [_.
_lf you do not secure the nut firmly, the bolt may release.
14 settiqg up
Wrench
Belt
Nut
CHECKING THE WATER DISPENSER LiNE
A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20-125 psi (pound per square inch)is
required. Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Water line installation kits are available at extra cost from your dealer. We recommend using a water supply
kit that contains copper tubing.
Connecting to the water supply line
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply to the water filter, turn your main water supply back on and flush four
or more gallons into a bucket to clear and prime the water filter.
Cold water line
Pipe damp
Water line installation kit
Shut off valve
settng up 15
INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items sold as a kit at your local hardware store.
,, 1/4" compression nut ,, plastic tubing _r
,, copper tubing ,, ferrule /
1. Slip the compression nut ® through the supplied plastic tubing ®.
2. Tighten the compression nut ® onto the 1/4" compression fitting.
- If you are using copper tubing, slip the compression nut ® (not included) and ferrule (not included)
on copper tubing (not included) as shown.
- If you are using plastic tubing ®, insert the molded end of the plastic tubing ® into the
compression fitting.
3. Tighten the compression nut ® onto the compression fitting. Do not over-tighten the compression nut ®.
4. Turn water on and check for any leakage.
Only connect water to a water source.
the line drinkable
If you have to repair or disassemble the water line, cut off 1/4" of the plastic tubing to make sure
you get a snug, leak-free connection.
Installing the water filter.
Before installing filter, please remove
the water the
top shelf.
1. Remove the water filter cover( I_ )
2. Remove the fixed cap by turning it counter
clockwise. Keep the cap in a safe place for later use
if you don't use a filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months
in the future. For example, if you install the water
filter in March, put the "SEP" sticker on the filter to
remind you to replace in September. That way you'll
know when it is time to replace the filter. Normally, a
filter life is about 6 months.
16 setting up
3
Sticker
(month indicator)
4. Remove the filter cap and insert the filter
into the filter housing.
5. Slowly turn the water filter 90 ° clockwise
to align with the printing mark on the
cover, locking the filter in position. Make
sure to align the water filter label mark
with center of cover filter printing as
illustrated. Remember, do not over-
tighten.

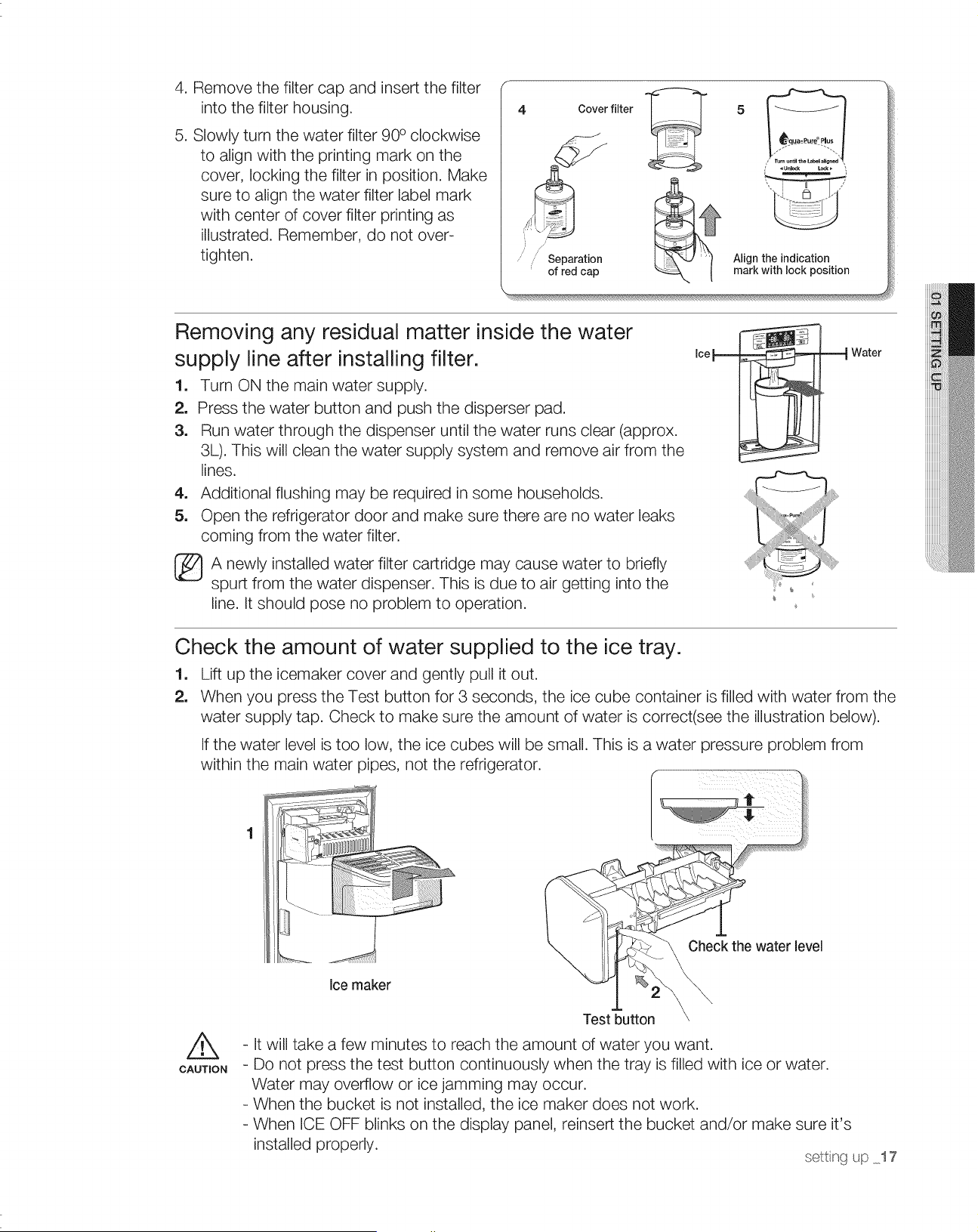

Removing any residual matter inside the water
supply line after installing filter.
1. Turn ON the main water supply.
2. Press the water button and push the disperser pad.
3. Run water through the dispenser until the water runs clear (approx.
3L). This will clean the water supply system and remove air from the
lines.
4. Additional flushing may be required in some households.
5. Open the refrigerator door and make sure there are no water leaks
coming from the water filter.
A newly installed water filter cartridge may cause water to briefly
spurt from the water dispenser. This is due to air getting into the
line. It should pose no problem to operation.
Ice Water
Check the amount of water supplied to the ice tray.
1. Lift up the icemaker cover and gently pull it out.
2. When you press the Test button for 3 seconds, the ice cube container is filled with water from the
water supply tap. Check to make sure the amount of water is correct(see the illustration below).
If the water level is too low, the ice cubes will be small. This is a water pressure problem from
within the main water pipes, not the refrigerator.
Check the water level
CAUTION
Ice maker
Test button
- It will take a few minutes to reach the amount of water you want.
- Do not press the test button continuously when the tray is filled with ice or water.
Water may overflow or ice jamming may occur.
- When the bucket is not installed, the ice maker does not work.
- When ICE OFF blinks on the display panel, reinsert the bucket and/or make sure it's
installed properly, setti-_g up 17
Using the Control Panel/Digital Display
sdo by sdo
I Hold 3 sec
E] I ! ®
®
Speeds up the time needed to freeze products in the freezer. This can be
helpful if you need to quickly freeze items that spoil easily or if the temperature
in the freezer has warmed dramatically (For example, if the door was left open).
Press the Freezer button to set the freezer to your desired temperature. You
can set the temperature between 8°F and -14°F.
For better energy efficiency, press the Energy Saver button. If condensation
occurs on the doors, turn the Energy Saver Button function off.
When you change the filter, press and hold this button for 3 seconds to reset
the filter schedule.
Press the Lighting button to turn on the dispenser LED lamp.
Press the Fridge button to set the fridge to your desired temperature.
You can set temperature between 34°F-46°F.
Power cool will operate when the temperature is set lower than 34°F.
Press the Ice Off button to turn the ice making function off.
If press and hold this button for 3 seconds, all buttons will be locked. The Ice
Type button and the dispenser pad will not work either. To cancel this function,
press and hold this button again.
Press the Ice Type button to choose cubed or crushed ice.
Press the Water button for water.
18 Operat_g

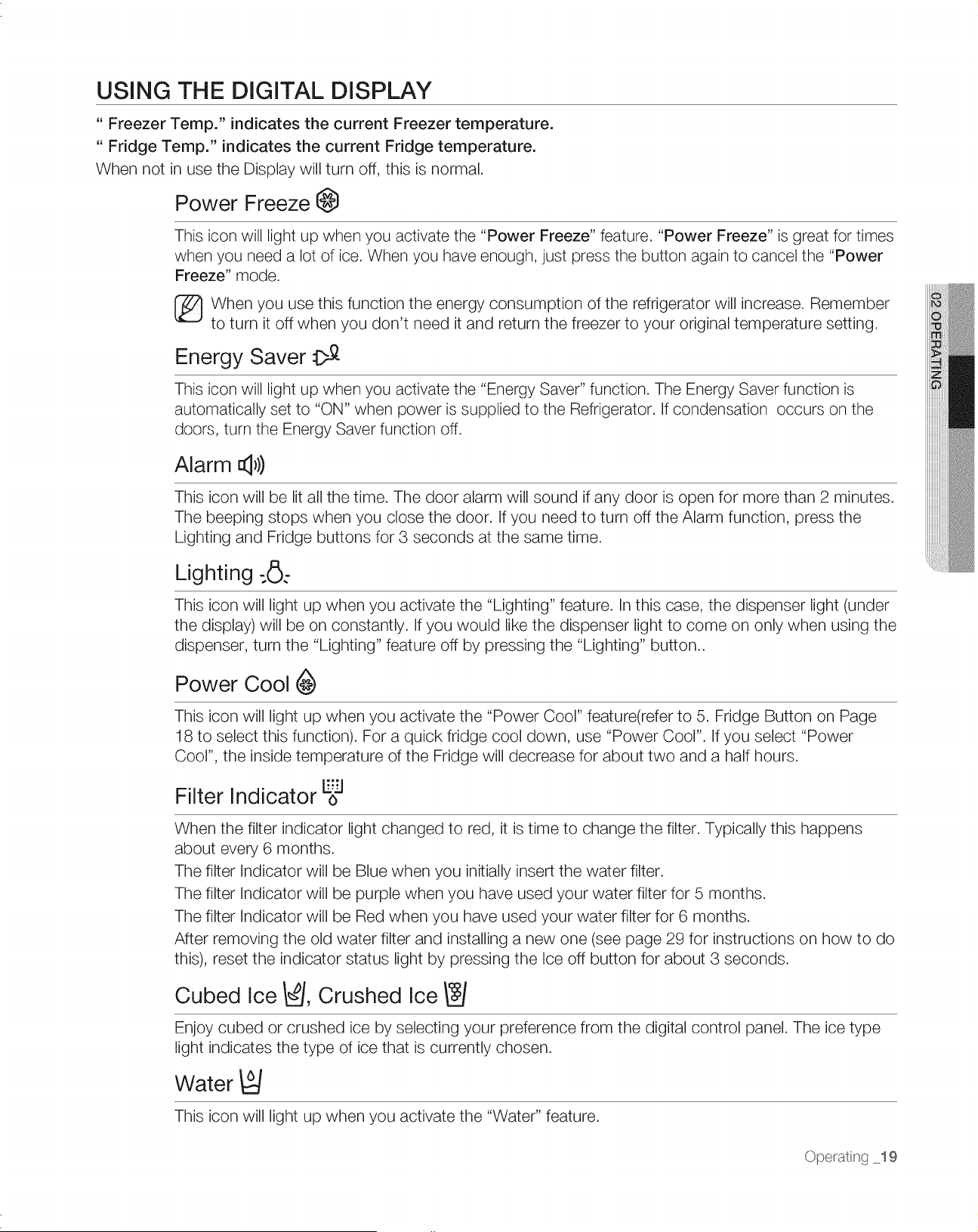

USING THE DIGITAL DISPLAY
" Freezer Temp." indicates the current Freezer temperature.
" Fndge Temp." indicates the current Fndge temperature.
When not in use the Display will turn off, this is normal.
Power Freeze @
This icon will light up when you activate the "Power Freeze" feature. "Power Freeze" is great for times
when you need a lot of ice. When you have enough, just press the button again to cancel the "Power
Freeze" mode.
When you use this function the energy consumption of the refrigerator will increase. Remember
to turn it off when you don't need it and return the freezer to your original temperature setting.
Energy Saver
This icon will light up when you activate the "Energy Saver" function. The Energy Saver function is
automatically set to "ON" when power is supplied to the Refrigerator. If condensation occurs on the
doors, turn the Energy Saver function off.
Alarm @))
This icon will be lit all the time. The door alarm will sound if any door is open for more than 2 minutes.
The beeping stops when you close the door. If you need to turn off the Alarm function, press the
Lighting and Fridge buttons for 3 seconds at the same time.
Lighting
This icon will light up when you activate the "Lighting" feature. In this case, the dispenser light (under
the display) will be on constantly. If you would like the dispenser light to come on only when using the
dispenser, turn the "Lighting" feature off by pressing the "Lighting" button..
Power Cool
This icon will light up when you activate the "Power Cool" feature(refer to 5. Fridge Button on Page
18 to select this function). For a quick fridge cool down, use "Power Cool". If you select "Power
Cool", the inside temperature of the Fridge will decrease for about two and a half hours.
Filter Indicator
When the filter indicator light changed to red, it is time to change the filter. Typically this happens
about every 6 months.
The filter Indicator will be Blue when you initially insert the water filter.
The filter Indicator will be purple when you have used your water filter for 5 months.
The filter Indicator will be Red when you have used your water filter for 6 months.
After removing the old water filter and installing a new one (see page 29 for instructions on how to do
this), reset the indicator status light by pressing the Ice off button for about 3 seconds.
Cubed Ice Crushed Ice
Enjoy cubed or crushed ice by selecting your preference from the digital control panel. The ice type
light indicates the type of ice that is currently chosen.
Water
This icon will light up when you activate the "Water" feature.

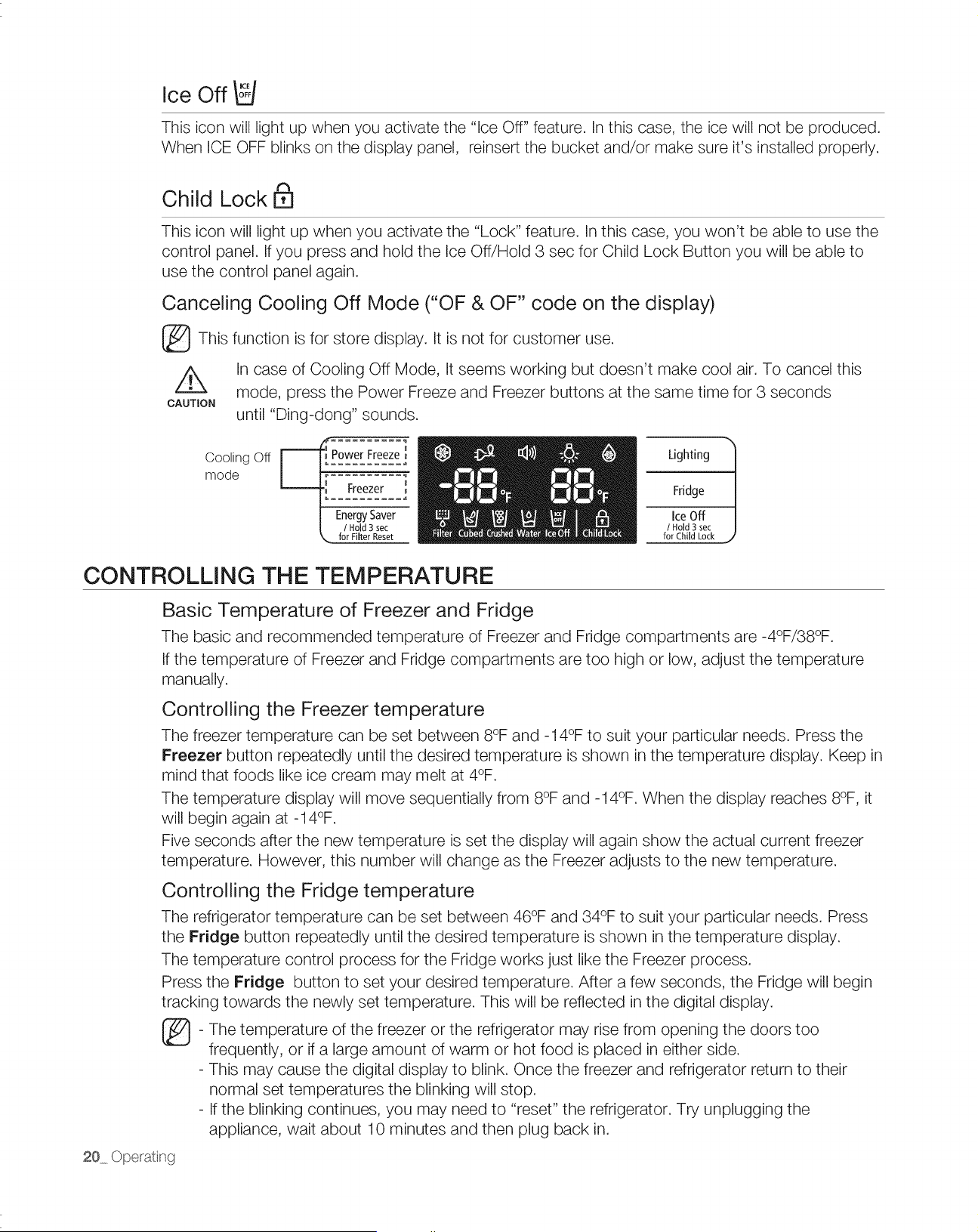

Ice Off
This icon will light up when you activate the "Ice Off" feature. In this case, the ice will not be produced.
When ICE OFF blinks on the display panel, reinsert the bucket and/or make sure it's installed properly.
Child Lock []
This icon will light up when you activate the "Lock" feature. In this case, you won't be able to use the
control panel. If you press and hold the Ice Off/Hold 3 sec for Child Lock Button you will be able to
use the control panel again.
Canceling Cooling Off Mode ("OF & OF" code on the display)
_This function is for It is for
store
display.
not customer use.
In case of Cooling Off Mode, It seems working but doesn't make cool air. To cancel this
mode, press the Power Freeze and Freezer buttons at the same time for 3 seconds
CAUTION
until "Ding-dong" sounds.
modeC°°lingOff C
Power Freeze I
Freezer I
EnergySaver
t Hold 3 sec
for Filter Reset
Lighting
Fridge J
||
for Child Lock ,,,.../
CONTROLLING THE TEMPERATURE
Basic Temperature of Freezer and Fridge
The basic and recommended temperature of Freezer and Fridge compartments are -4°F/38°F.
If the temperature of Freezer and Fridge compartments are too high or low, adjust the temperature
manually.
Controlling the Freezer temperature
The freezer temperature can be set between 8°F and -14°F to suit your particular needs. Press the
Freezer button repeatedly until the desired temperature is shown in the temperature display. Keep in
mind that foods like ice cream may melt at 4°F.
The temperature display will move sequentially from 8°F and -14°F. When the display reaches 8°F, it
will begin again at -14°F.
Five seconds after the new temperature is set the display will again show the actual current freezer
temperature. However, this number will change as the Freezer adjusts to the new temperature.
Controlling the Fddge temperature
The refrigerator temperature can be set between 46°F and 34°F to suit your particular needs. Press
the Fridge button repeatedly until the desired temperature is shown in the temperature display.
The temperature control process for the Fridge works just like the Freezer process.
Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin
tracking towards the newly set temperature. This will be reflected in the digital display.
_- The temperature of the freezer or the refrigerator rise from opening the doors too
may
frequently, or if a large amount of warm or hot food is placed in either side.
- This may cause the digital display to blink. Once the freezer and refrigerator return to their
normal set temperatures the blinking will stop.
- If the blinking continues, you may need to "reset" the refrigerator. Try unplugging the
appliance, wait about 10 minutes and then plug back in.
20 Ope_ating
sde-bT-sde
USING THE ICE AND COLD WATER DISPENSER
%
Cubed Crushed Water IceOff
When Ice Off blinks on the display panel,
reinsert the bucket and/or make sure it's
installed properly.
No ice
Select this ifyou want to turn
the ice maker off.
Using the Water Dispenser
Press the Water button. Place your cup the water outlet and push
gently against the dispenser pad. Make sure the glass is in line with the
dispenser to prevent the water from splashing out.
To get cooler water
- The dispensed water is cool, not icy cold
- When you want colder water with ice, dispense ice to your drink glass
first before filling it with water to prevent water from splashing out.
Push
Using the Ice Dispenser
Press the Ice Type button to select the type of ice you want. Place your cup under the ice outlet and
push gently against the dispenser pad. Make sure the glass is in line with the dispenser to prevent
the ice from bouncing out. When Cubed Ice is selected after using the Crushed Ice feature, a small
amount of residual crushed ice might be produced.
/_ ,, Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket.
WARNING - It may result in personal injury or material damage.
,, Use only the ice maker provided with the refrigerator. Ice-MakerCover
"The water supply to this refrigerator must only be installed/
connected by a suitably qualified person and connect to a
potable water supply only.
,, In order to operate the ice maker properly, water pressure
of 20-125 psi is required.
z_ ,, If you have a long vacation or business trip and won't use
CAUTION the water or ice dispensers, close the water valve.
- Otherwise, water leakage may occur.
,, When you have not used the Ice maker for a while, or you
have opened the Freezer door frequently, the Ice may stick
together. If this has occurred, empty the ice container or
break up the ice with a wood kitchen tool.
Do not use sharp items such as knives or forks.
,, When the bucket is removed, there may still be some residual ice
in the ice maker that will be produced.
,, In ice doesn't out the icemaker and
case come out,
pull
cover
CAUTION press test button located on the ice maker.
,, Do not press the test button continuously when the tray is filled
with ice or water as illustration below. Water may overflow or ice
jamming may occur
Ice I_ket

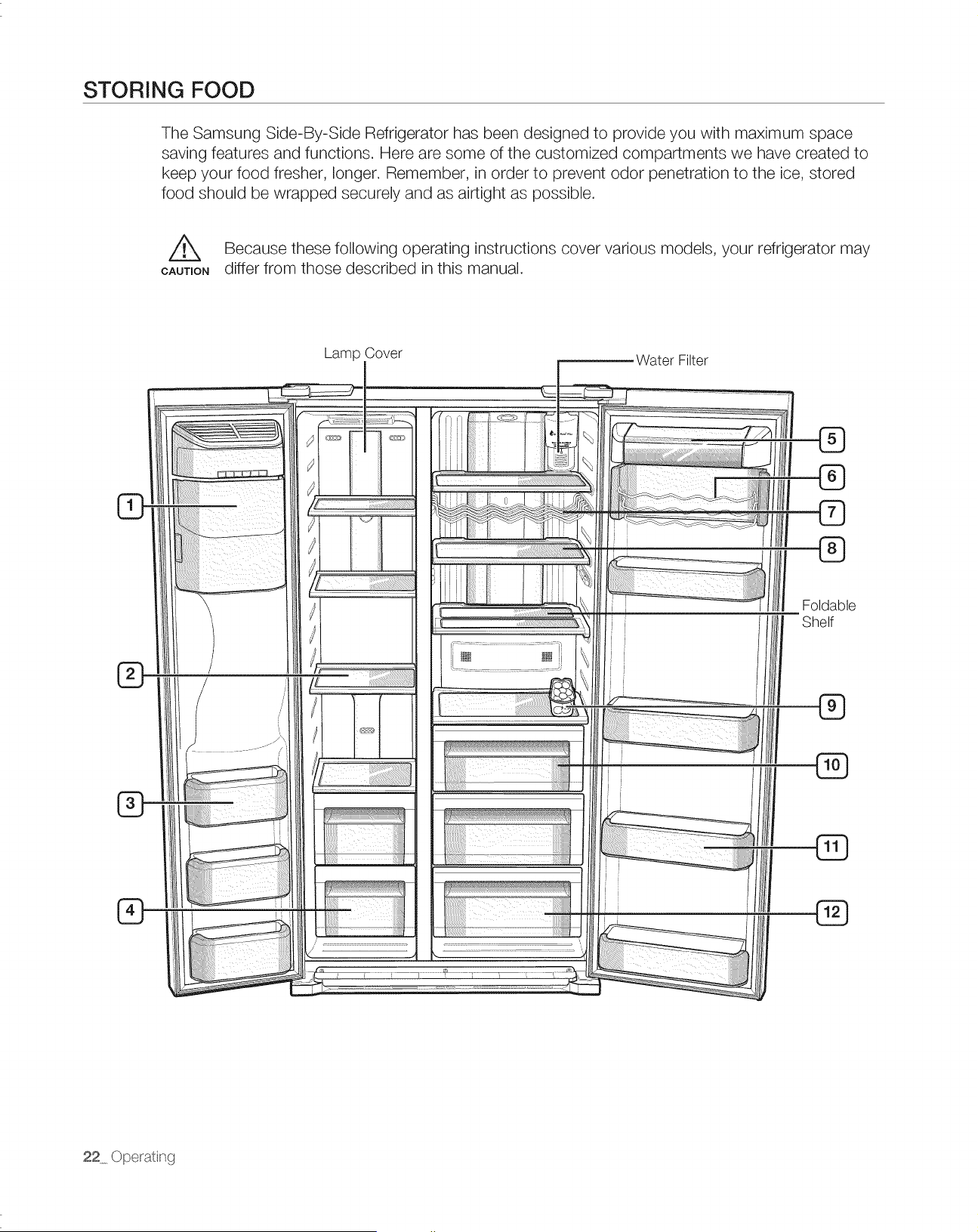

STORING FOOD
The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum space
saving features and functions. Here are some of the customized compartments we have created to
keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored
food should be wrapped securely and as airtight as possible.
Because these following operating instructions cover various models, your refrigerator may
CAUTION differ from those described in this manual.
@
®
®
G
Lamp Cover
i
Water Filter
i l
i !
i
®
®
6O
®
Foldable
Shelf
®
@
@
22 Operating

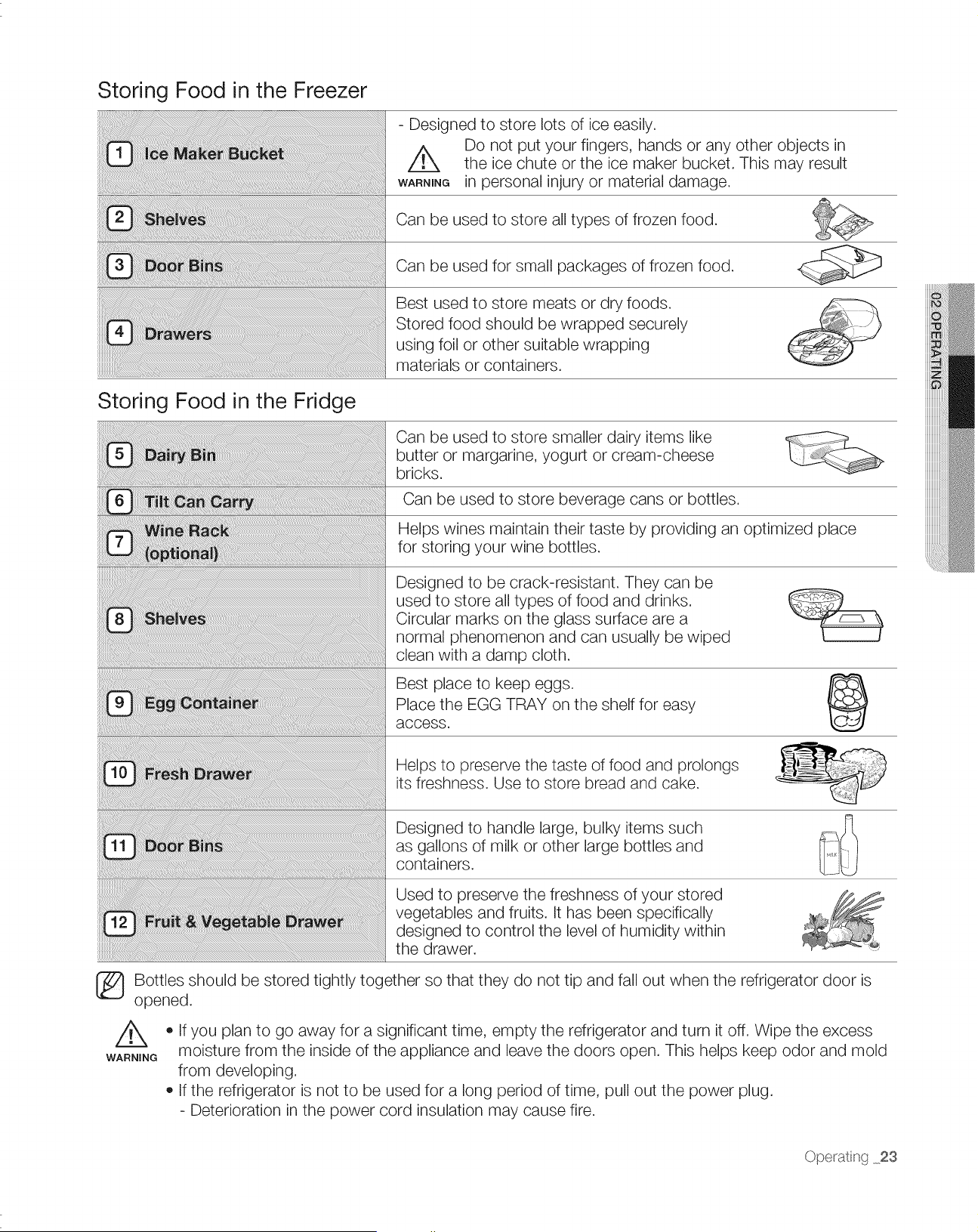

Storing Food in the Freezer
Storing Food in the Fridge
- Designed to store lots of ice easily.
Do not put your fingers, hands or any other objects in
the ice chute or the ice maker bucket. This may result
WARNINGin personal injury or material damage.
Can be used to store all types of frozen food.
Can be used for small packages of frozen food.
Best used to store meats or dry foods.
Stored food should be wrapped securely
using foil or other suitable wrapping
materials or containers.
WARNING
Can be used to store smaller dairy items like
butter or margarine, yogurt or cream-cheese
bricks.
Can be used to store beverage cans or bottles.
Helps wines maintain their taste by providing an optimized place
for storing your wine bottles.
Designed to be crack-resistant. They can be
used to store all types of food and drinks.
Circular marks on the glass surface are a
normal phenomenon and can usually be wiped
clean with a damp cloth.
Best place to keep eggs.
Place the EGG TRAY on the shelf for easy
access.
Helps to preserve the taste of food and prolongs
its freshness. Use to store bread and cake.
Designed to handle large, bulky items such
as gallons of milk or other large bottles and
containers.
Used to preserve the freshness of your stored
vegetables and fruits. It has been specifically
designed to control the level of humidity within
the drawer.
Bottles should be stored tightly together so that they do not tip and fall out when the refrigerator door is
opened.
• If you plan to go away for a significant time, empty the refrigerator and turn it off. Wipe the excess
moisture from the inside of the appliance and leave the doors open. This helps keep odor and mold
from developing.
If the refrigerator is not to be used for a long period of time, pull out the power plug.
- Deterioration in the power cord insulation may cause fire.
SU
by8

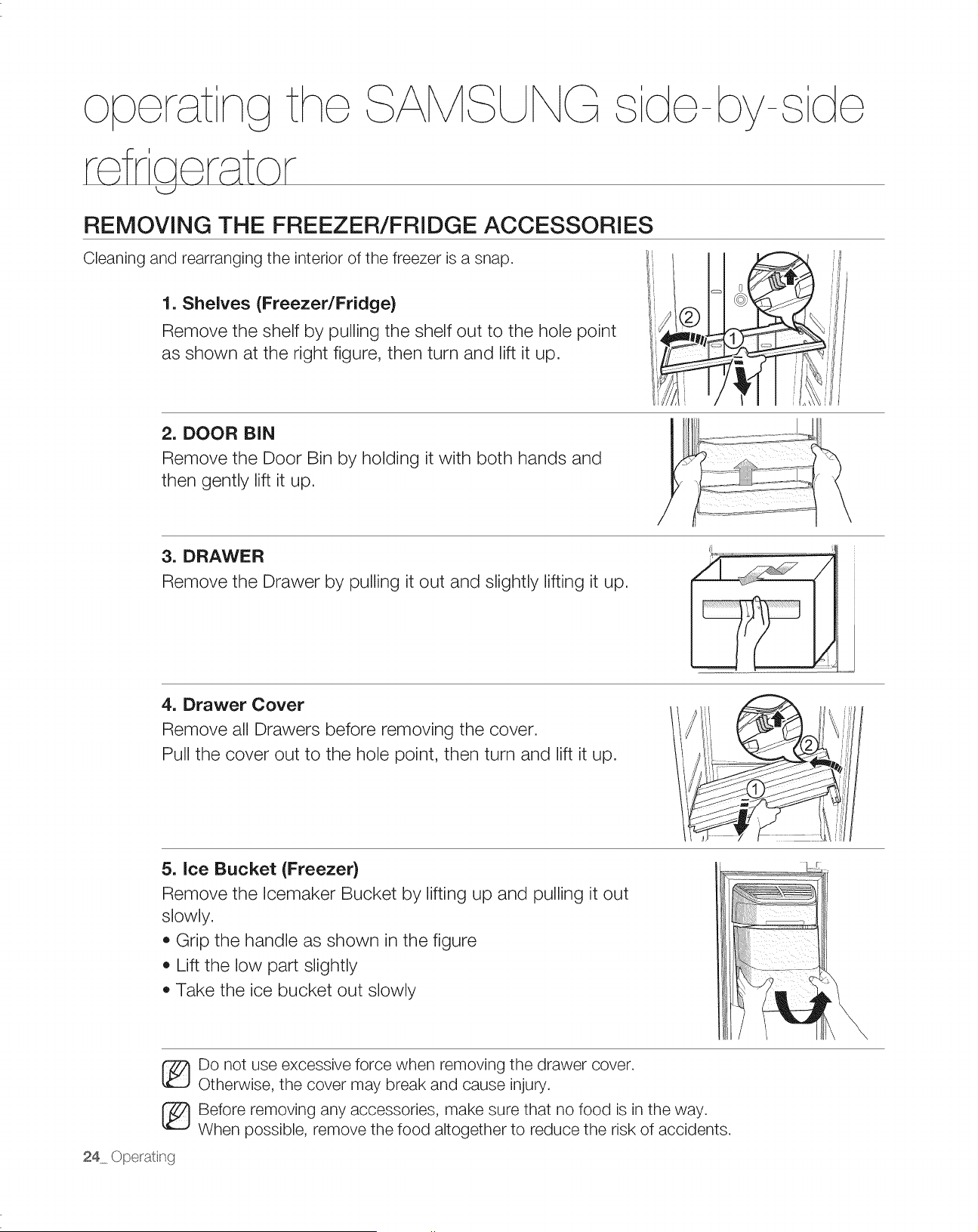

REMOVING THE FREEZER/FRIDGE ACCESSORIES
Cleaning and rearranging the interior of the freezer is a snap.
1. Shelves (Freezer/Fridge}
Remove the shelf by pulling the shelf out to the hole point
as shown at the right figure, then turn and lift it up.
2. DOOR BIN
Remove the Door Bin by holding it with both hands and
then gently lift it up.
3. DRAWER
Remove the Drawer by pulling it out and slightly lifting it up.
4. Drawer Cover
Remove all Drawers before removing the cover.
Pull the cover out to the hole point, then turn and lift it up.
5. Ice Bucket (Freezer}
Remove the Icemaker Bucket by lifting up and pulling it out
slowly.
• Grip the handle as shown in the figure
Lift the low part slightly
Take the ice bucket out slowly
Do not use excessive force when removing the drawer cover.
Otherwise, the cover may break and cause injury.
_ Before removing any accessories, make sure that no food is in the way.
When possible, remove the food altogether to reduce the risk of accidents.
24 Operating
CLEANING THE REFRIGERATOR
Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor
and germ-free.
Cleaning the Interior
Clean the inside walls and accessories with a mild detergent and then
wipe dry with a soft cloth. You can remove the drawers and shelves for
a more thorough cleaning. Just make sure to dry them before putting
them back into place.
Cleaning the Exterior
Wipe the digital panel and display panel with a clean, soft cloth.
Spray water onto the cleaning cloth instead of spraying directly on
the surface of the refrigerator. This helps ensure an even distribution
of moisture to the surface. The doors, handles and cabinet surfaces
should be cleaned with a mild detergent and then wiped dry with a soft
cloth. To keep your appliance looking its best, the exterior should be
polished once or twice a year.
Do not use Benzene, Thinner or CIorox TM for cleaning.
WARNINGThey may damage the surface of the appliance and can create a risk of fire.
Cleaning the Rubber door seals
If the rubber door seals are dirty, the doors may not close properly,
and the refrigerator will not operate efficiently. Keep the door seals
free of grit or grime by cleaning the doors with a mild detergent and
damp cloth. Wipe dry with a clean, soft cloth.
A
CAUTION
Do not spray the refrigerator with water while it is plugged in, as it may cause an electric
shock. Do not clean the refrigerator with benzene, thinner or car detergent as there is a risk
of fire.
de-by- de
CHANGING THE INTERIOR LIGHTS
Z_ Pull the power plug out of the socket before changing the interior light of the refrigerator.
- Otherwise, there is a risk of electric shock.
WARNING If yOU experience difficulty when changing the light, contact your service center.
Changing the LED Type Lighting
/_ Do not disassemble or replace the LED type Lighting.
To change the LED Type Lighting, contact a Samsung service center.
CAUTION
CHANGING THE WATER FILTER
The "Filter Indicator" light lets you know when it is time to change your water filter cartridge. To give
you preparation time to get a new filter, the red light will come on just before the capacity of the
current filter runs out. Changing the filter on time provides you with the freshest, cleanest water from
your fridge.
_1. Remove the water filter from the box and month indicator sticker the filter shown.
put
a on as
Place a sticker on the filter that dates six months in the future. For example, if you are
replacing the water filter in March, put the "SEP" (September) sticker on the filter to remind
you to replace in September. Normal filter life is about every 6 months.
2. Remove the new filter's protective cap and remove the old filter.
3. Position and insert the new filter into the filter housing.
Slowly turn the water filter clockwise to align with the printing mark on the cover, locking
the filter in position. Make sure to align the water filter label mark with the center of cover
filter printing as illustrated. Remember, do not over-tighten.
iii!i_
Sticker Turn until the label
(month indicator) aligned.
26 Operat _g

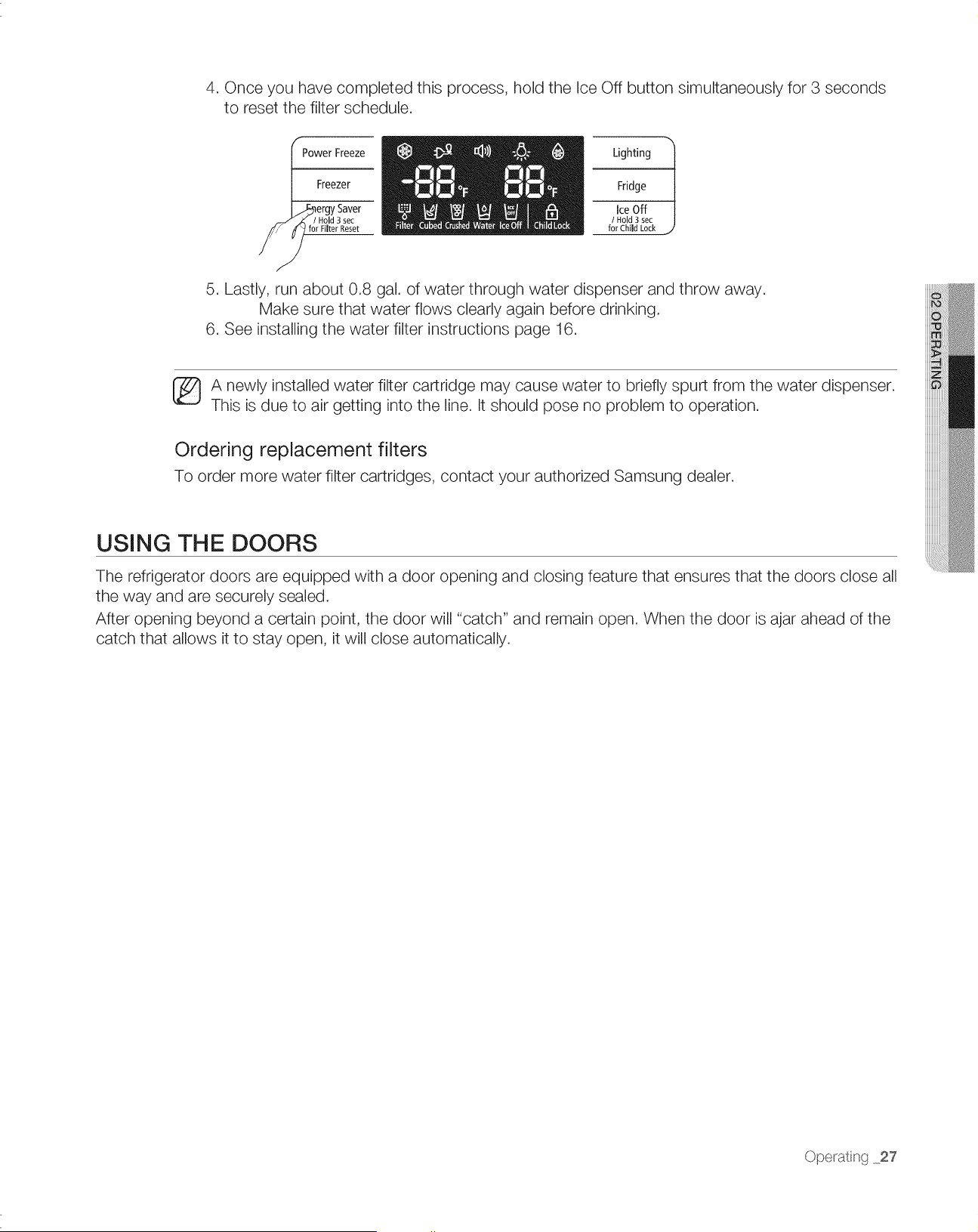

4. Once you have completed this process, hold the Ice Off button simultaneously for 3 seconds
to reset the filter schedule.
f
Power Freeze
Freezer
TM
Filter Reset
Lighting 1
Ffidge
IceOff
/ Hold 3 sec
for Child Lock
5. Lastly, run about 0.8 gal. of water through water dispenser and throw away.
Make sure that water flows clearly again before drinking.
6. See installing the water filter instructions page 16.
A newly installed water filter cartridge may cause water to briefly spurt from the water dispenser.
This is due to air getting into the line. It should pose no problem to operation.
Ordering replacement filters
To order more water filter cartridges, contact your authorized Samsung dealer.
USING THE DOORS
The refrigerator doors are equipped with a door opening and closing feature that ensures that the doors close all
the way and are securely sealed.
After opening beyond a certain point, the door will "catch" and remain open. When the door is ajar ahead of the
catch that allows it to stay open, it will close automatically.
BEFORE USING ICEMAKER
Remove
- Hold the handle as shown in figure1.
- Slightly pull up the bottom part.
- Take out the ice bucket slowly.
Install
- Assemble it in the reverse order of disassembly.
- Push the bucket in firmly until you hear a clicking sound.
- When the bucket does not fit into its place, turn the gear handle on its back
by 90 degrees and reinstall it again as shown in figure 2.
Before calling service
- Any sounds you hear when the ice maker dumps ice into the bucket are part
of normal operation.
- Not dispensing ice for long periods may cause ice clumps in the ice bucket.
Remove the remaining ice and empty the bucket.
- When ice does not come out, check the ice stuck in the chute and remove it.
CAUTION
- When ICE OFF blinks on the display panel, reinsert the bucket and/or
make sure it's installed properly.
- When the door is open, the Ice and water dispenser do not work.
- If you close the door hard, it may cause water spilling over the ice
maker.
- To prevent dropping the ice bucket, use both hands when removing it.
- To prevent injury, be sure to clean up any ice or water that may have
dropped on the floor.
- Do not let the children hang on the ice dispenser or on the bucket.
They may get hurt.
- Be sure not to put your hand or any object into the ice chute.
It may cause personal injury or damage mechanical parts.
J
Figure1
Figure2
28 Ope_ating
The refrigerator does not
work at all or it does not
chill sufficiently.
The food in the fridge is
frozen.
YOU hear unusual noises
or sounds.
The front corners of
the appliance are hot
and condensation is
occurring.
Ice is not dispensing.
You can hear water
bubbling in the
refrigerator.
There is a bad smell in
the refrigerator.
Frost forms on the walls
of the freezer.
Water dispenser is not
functioning.
• Check that the power plug is properly connected.
Is the temperature control on the display panel set to the correct
temperature? Try setting it to a lower temperature.
Is the refrigerator in direct sunlight or located too near a heat source?
Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
Is the temperature control on the display panel set to the correct
temperature? Try setting it to a warmer temperature.
Is the temperature in the room very low?
Did you store the food with a high water content in the coldest part of the
fridge?
Check that the refrigerator is level and stable.
Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
Was anything dropped behind or under the refrigerator?
A "ticking" sound is heard from inside the refrigerator. This is normal and
occurs because various accessories are contracting or expanding in relation
to the temperature of the refrigerator interior.
Some heat is normal as anti-condensators are installed in the front corners of
the refrigerator to prevent condensation.
Is the refrigerator door ajar? Condensation can occur when you leave the
door open for a long time.
Did you wait for 12 hours after installation of the water supply line before
making ice?
Is the water line connected and the shut-off valve open?
Did you manually stop the ice making function? Make sure Ice Type is set to
Cubed or Crushed.
Is there any ice blocked within the ice maker bucket?
Is the freezer temperature too warm? Try setting the freezer temperature lower.
This is normal. The bubbling comes from the refrigerant coolant liquid
circulating through the refrigerator.
Has a food item spoiled?
Make sure that strong smelling food (for example, fish) is wrapped so that it
is airtight.
Clean out your freezer periodically and throw away any spoiled or suspect food.
Is the air vent blocked? Remove any obstructions so air can circulate freely.
Allow sufficient space between the foods stored for efficient air circulation.
,, Is the freezer door closed properly?
Is the water line connected and the shut-off valve open?
Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
Is the water tank frozen because the refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.
SAMSUNG REFRIGERATOR (24.1 CUBIC FEET AND LARGER CAPACITY)
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung)
and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against
manufacturing defects in materials and workmanship for a limited warranty period of:
one (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in
the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and
service procedures. Warranty service can only be performed by a Samsung authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service
center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulatedX herein,
with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products
become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the
remaining original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous United
States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed
and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may
be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at
our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise,
transportation to and from the Samsung authorized service center is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which
occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered
product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other
acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied
and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line
voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due
to spoilage; consumable items including filters and light bulbs.
30 warranty

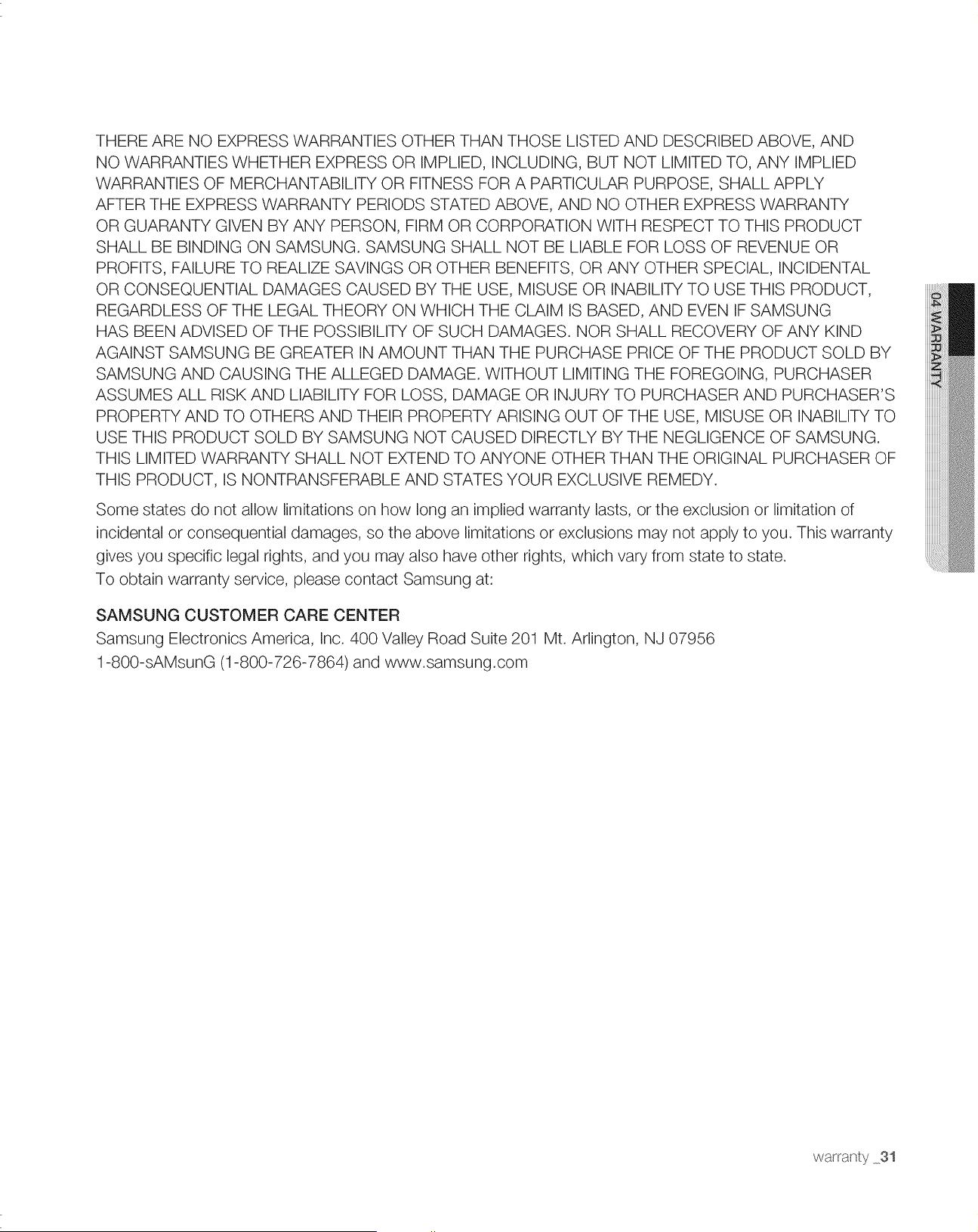

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND
NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY
AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY
OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND
AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY
SAMSUNG AND CAUSING THE ALLEGED DAMAGE WITHOUT LIMITING THE FOREGOING, PURCHASER
ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO
USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact Samsung at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 400 Valley Road Suite 201 Mt. Arlington, NJ 07956
1-800-sAMsunG (1-800-726-7864) and www.samsung.com
QUESTIONS OR COMMENTS?
COUNTRY I CALL' OR VISITUS ONUNEAT' WRITE
800-SAMSUNG Samsung Electronics America, Inc. 400 Valley
U.S www.samsung.com
(800-726-7864) Road Suite 201 Mt. Arlington, NJ 07956
800-SAMSUNG Samsung Electronics Canada Inc. Customer
CANADA (800-726-7864) www.samsung.com/ca Service, 55 Standish Court Mississauga, Ontario
L5R 4B2 Canada
Code No. DA99-01746A REV(0.0)
