Contents Assembling your machine Getting started Connecting to the Dyson Link app Connecting to your smart home Power and continuous monitoring Information menu Auto mode Airflow speed and direction Oscillation Heating and Cooling modes

Night mode Sleep timer Changing your HEPA+Carbon filter Resetting your HEPA+Carbon filter life Changing your HEPA and carbon filters Resetting your HEPA and carbon filter life Changing your HEPA+Carbon filters with a catalytic filter Resetting your HEPA+Carbon filter life Looking after your machine

User manual

SV12 JN.00000 PN.000000-00-00 00.00.00 VERSION NO.01

The Dyson Pure Hot plus Cool purifier fan heater. with the amplifier loop and mesh filter cover. screen below the loop amplifier and outer cover release button on the side.

Dyson Purifier Hot+Cool

Assembling your machine

Getting started

Dyson Purifier Hot+Cool Formaldehyde Your machine comes with a permanent catalytic filter and a HEPA+Carbon filter.

Push the catalytic filter into position on the machine.

Push the HEPA+Carbon filter into the outer cover and position on the base.

Push firmly until both outer covers click into place.

Use both hands to lift your machine out of the box. by its base.

Do not lift out by the loop amplifier.

Assemble your machine with the filters that are supplied.

Dyson Purifier Hot+Cool

Dyson Purifier Hot+Cool

Supplied with a HEPA+Carbon filter.

Push your HEPA+Carbon filter into the outer cover and position onto the base. Push firmly until both outer covers click securely into place.

Supplied with separate HEPA and carbon filters.

Push the carbon filters into place on the machine.

Push the HEPA filter into the outer cover. Put the outer covers into position on the base and push firmly until they both click securely into place.

Standby on/off Information menu

Airflow speed

Auto mode

Oscillation on/off Airflow direction

Night mode

Place the remote control on top of the machine with the buttons facing down.

Plug in and switch on.

Clik

Clik

Remote control

Standby on/off

Sleep timer

Cooling mode

Heating control

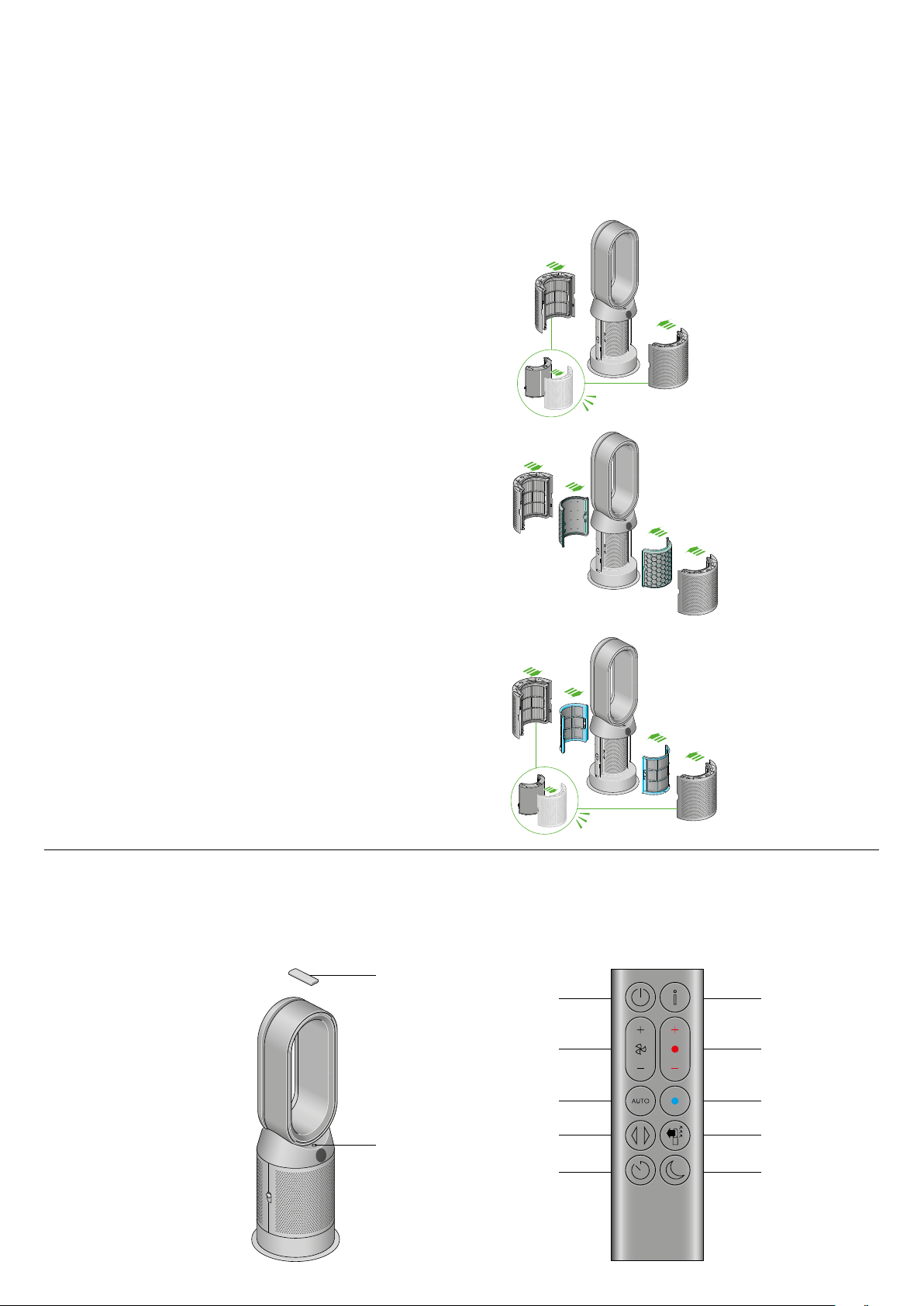

The air purifier fan heater with the filter covers open showing a HEPA filter located in the filter covers and a carbon filter.

Arrows demonstrate that the carbon filter is fitted directly to the base of the machine and the filter covers will need to be assembled onto the base of the machine.

The air purifier fan heater with the filter covers open showing a HEPA plus carbon filter located in the filter covers and a catalytic filter. Arrows demonstrate that the catalytic filter is fitted directly to the base of the machine and the filter covers will need to be assembled onto the base of the machine.

An image of the air purifier fan heater with the remote placed on the top of the loop amplifier and the location of the standby on/off button on the top of the base of the machine.

The layout of the remote control with the standby button on the top left. the airflow speed toggle button in the middle left with the Auto mode button below. then the Oscillation button and then at the bottom is the Sleep timer button. On the top right-hand side is the Information menu button. then go ing downwards is the Heating control button. Cooling mode button. Airflow direction and then Night mode button at the bottom.

The air purifier fan heater with the filter covers open showing a HEPA plus carbon filter located in the filter covers. Arrows demonstrate that the filter covers will need to be assembled onto the base of the machine.

Connecting to the Dyson Link app

Connecting to your smart home

Using Google Assistant

Using Amazon Alexa

Using Siri

Take full control with the Dyson Link app and access step-by-step setup and support. control how and when your Dyson purifying fan heater operates. monitor air quality with visual updates and automatically keep up to date with the latest software updates.

Download the Dyson Link app from the App Store or Google Play.

Open the app and follow the on-screen instructions to create a new account.

Control all of your connected purifiers with Google or set a routine to automate how your machine works with other devices in your home. Just say “Hey Google” to get started.

Ask Alexa to enable the Dyson skill. to control your Dyson purifier or purifier humidifier. And set a routine that automates how your machine works with other devices in your home.

Connect your Dyson machines to Siri Shortcuts and you’ll be able to control them with your voice. on your Apple device.

Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries.

App Store is a service mark of Apple Inc. registered in the U.S. and other countries.

Google Play and the Google Play logo are trademarks of Google Inc.

Available on Android stores

The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

Power and continuous monitoring

Standby on/off

Wi-Fi Connectivity

Continuous monitoring

Continuous monitoring

Press the Standby on/off button on your Dyson purifying fan heater or remote control to stop your machine. It will continue to monitor the air quality.

Wi-Fi is on by default. To turn the Wi-Fi on or off. press and hold the Standby on/off button on your machine for 5 seconds.

Press and hold the Auto mode button on the remote control for 5 seconds to turn it on. The LCD screen will indicate when continuous monitoring is on or off.

Continuous monitoring is turned off by default. Once turned on. it will always be active until you turn it off again.

With continuous monitoring turned on. your Dyson purifying fan heater will gather air quality. temperature and humidity information. which is displayed on the LCD screen and in the Dyson Link app.

Information menu

Press this button to scroll through the information being monitored by your Dyson purifying fan heater.

Information about air quality. temperature. humidity and filter levels is shown on the LCD screen.

When a particular type of pollutant causes air quality to decrease. a symbol for the pollutant will show on the LCD screen.

Volatile organic compounds

Indoor humidity

Wi-Fi

Filters

Formaldehyde (HCHO)

Nitrogen dioxide and other oxidising gases Indoor temperature

Particulate matter (PM2.5)

Particulate matter (PM10) VOCs are typically odours that may be potentially harmful. These can be found in cleaning products. paints and furnishings.

The amount of water vapour in the air. shown as a percentage.

The current status of connection to the Wi-Fi network.

The remaining filter life is shown on the LCD screen and will indicate when your filters need replacing

A common indoor pollutant. It can be released for many years from furnishings. floorings and glue.

These potentially harmful gases are released into the air by combustion. for example. the burning gas when cooking and in vehicle exhaust emissions.

Monitor the ambient temperature to help maintain a comfortable environment.

Microscopic particles up to 2.5 microns in size. suspended in the air we breathe. These include smoke. bacteria and allergens.

Larger microscopic particles up to 10 microns in size. suspended in the air we breathe. These include dust. mould and pollen.

Indoor air quality - 12 seconds Monitor the current air quality with a graph showing the last 12 seconds of data.

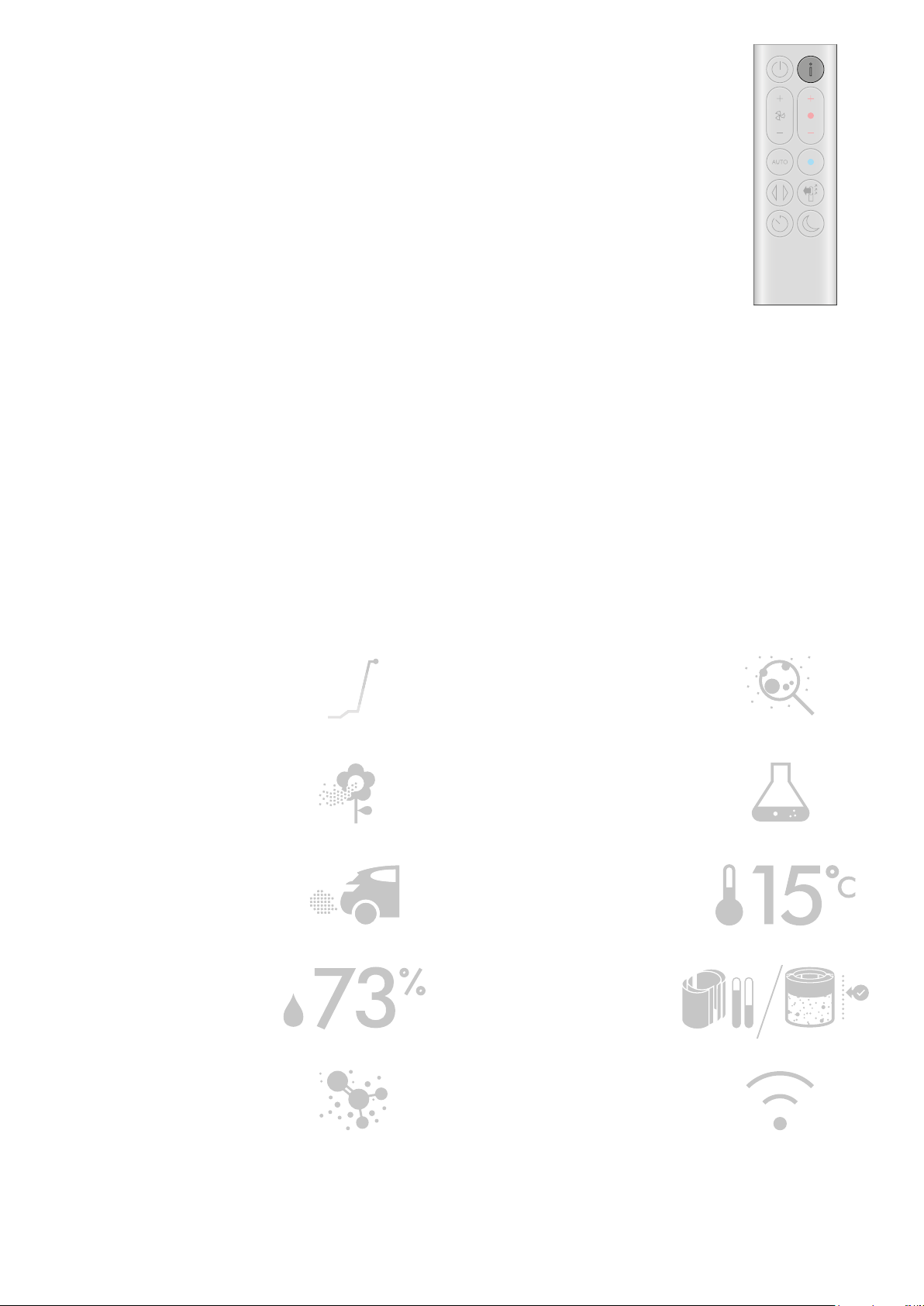

The remote control with the information button on the top right.

Set your Dyson purifying fan heater to Auto mode and the on-board sensors will intelligently adjust the settings of the machine according to the air quality.

Air quality: your machine will pause when the target air quality has been reached. switching on again when the air quality levels drop.

Airflow speed: the airflow speed will increase until the target air quality and temperature have been reached.

Press the Airflow speed button to increase and decrease the airflow speed.

Press the Airflow direction button to change the direction of airflow from front to back.

Change the airflow direction for your personal comfort.

Select the Airflow direction to Fan mode for airflow from the front for purifying. cooling and heating.

Auto mode

Airflow speed and direction

Press the Oscillation button to circulate the air around the room and scroll through the oscillation settings from 0° to 350°.

Customise your oscillation setting in the Dyson Link app.

In Night mode. your Dyson purifying fan heater will continue to monitor and respond to changes in air quality. but only using its quietest settings – and with its LCD screen dimmed.

Oscillation

Night mode

The remote control with the Auto mode button below the Airflow speed button on the left.

The remote control with the Airflow speed toggle button on the left hand side. below the standby button.

The Airflow direction button is on the right above the Night mode button.

The remote control with the oscillation button on the left above the sleep timer.

The remote control with the Night mode button on the right at the bottom.

Press the button to set the required room temperature.

Your machine will pause when the temperature set has been reached.

Press the Cooling mode button to switch your machine from heating mode to cooling mode.

Your Dyson purifying fan heater will turn off automatically after the selected amount of time.

To set the time: press the button to scroll through the time options. Once activated. press the Sleep timer button once to see the time selected.

To cancel the Sleep timer: press the Sleep timer button twice.

Heating and Cooling modes

Sleep timer

The remote control with the Heating mode button on the right. below the Information button. The Cooling mode button is immediately below the Heating mode button.

The remote control with the sleep timer button on the bottom left.

Changing your HEPA+Carbon filter

Before changing your filter. switch off and unplug your Dyson purifier fan heater.

The remaining filter life is displayed on the screen and will indicate when your non-washable filters need replacing. Press the Information button on your remote or check on the Dyson Link app.

You'll need to reset the filter life on your machine.

Supplied with a HEPA+Carbon filter.

To change your HEPA+Carbon filter. push down on the buttons either side of your machine to release the outer cover. Push down on the tabs to remove the filter.

Push the replacement filter into the outer cover and make sure the tabs click into place.

Put the outer covers into position on your machine and push firmly until they both click securely into position.

Plug in and switch your machine. and reset your filter life.

Dyson Purifier Hot+Cool

Resetting your HEPA+Carbon filter life

Resetting your HEPA+Carbon filter life

It's important to reset your filter life after you have replaced your filter.

Press and hold the Night mode button on your remote control.

The display on your machine will countdown from five. the filter life will be reset and your machine is ready to use.

The air purifier fan heater with the filter covers open showing a HEPA plus carbon filter located in the filter covers. Arrows demonstrate that the filter covers will need to be assembled onto the base of the machine.

Pressing the night mode button on the bottom right of the remote control for 5 seconds.

Changing your HEPA and carbon filters

Before changing your filter. switch off and unplug your Dyson purifier fan heater.

The remaining filter life is displayed on the screen and will indicate when your non-washable filters need replacing. Press the Information button on your remote or check on the Dyson Link app.

You'll need to reset the filter life on your machine.

Supplied with separate HEPA and carbon filters.

To change your HEPA filter. push down on the buttons either side of your machine to release the filter covers. Push down on the tabs to remove the HEPA filter.

Push the replacement filter into the outer cover and make sure the tabs click into place.

To change the carbon filter from your machine. remove the filter from the base of your machine and insert the replacement filter.

Put the outer covers into position on your machine and push firmly until they both click securely into position.

Plug in and switch your machine. and reset your filter life.

Dyson Purifier Hot+Cool

Resetting your HEPA and carbon filter life

Resetting your carbon filter life

Resetting your HEPA filter life

Press and hold the Oscillation button on your remote control.

The display on your machine will countdown from five. the filter life will be reset and your machine is ready to use.

It's important to reset your filter life after you have replaced your filter.

Press and hold the Night mode button on your remote control.

The display on your machine will countdown from five. the filter life will be reset and your machine is ready to use.

The air purifier fan heater with the filter covers open showing a HEPA filter located in the filter covers and a carbon filter. Arrows demonstrate that the carbon filter is fitted directly to the base of the machine and the filter covers will need to be assembled onto the base of the machine.

Pressing the Oscillation button on the bottom left of the remote control. above the sleep timer button. for 5 seconds.

Pressing the night mode button on the bottom right of the remote control for 5 seconds.

Changing your HEPA+Carbon filters with a catalytic filter

Before changing your filter. switch off and unplug your Dyson purifier fan heater.

The remaining filter life is displayed on the screen and will indicate when your non-washable filters need replacing. Press the Information button on your remote or check on the Dyson Link app.

You'll need to reset the filter life on your machine.

Your machine comes with a permanent catalytic filter and a HEPA+Carbon filter.

You won't need to change your catalytic filter.

To change your HEPA+Carbon filter. push down on the buttons either side of your machine to release the outer cover. Push down on the tabs to remove the filter.

Push the replacement filter into the outer cover and make sure the tabs click into place.

Put the outer covers into position on your machine and push firmly until they both click securely into position.

Plug in and switch your machine. and reset your filter life.

Dyson Purifier Hot+Cool Formaldehyde

Resetting your HEPA+Carbon filter life

Resetting your HEPA+Carbon filter life

It's important to reset your filter life after you have replaced your filter.

Press and hold the Night mode button on your remote control.

The display on your machine will countdown from five. the filter life will be reset and your machine is ready to use.

The air purifier fan heater with the filter covers open showing a HEPA plus carbon filter located in the filter covers and a catalytic filter. Arrows demonstrate that the catalytic filter is fitted directly to the base of the machine and the filter covers will need to be assembled onto the base of the machine.

Pressing the night mode and sleep timer button on the bottom right of the remote control for 5 seconds.

Looking after your machine

Error codes

Display errors

To resolve this issue please follow the steps below.

Cleaning your machine

To always get the best performance from your Dyson purifying fan heater. it’s important to regularly clean it and check for blockages.

If your machine shows an error code. try turning it off and then on again.

If this doesn’t clear the error code contact Dyson Customer Care.

For more information and support for your machine go to the Dyson Link app or online: www.dyson.com/support

If your machine is dusty. wipe with a damp lint-free cloth.

Look for blockages in the air inlet holes on the filter and the small aperture inside the loop amplifier.

Use a soft brush to remove dust and debris.

Don’t use detergents or polishes to clean your machine.

Sensor display is not updating or constantly displays a reading of zero’ reading.

A. Air Quality (AQ) sensor error - Display shows a flat line and does not change over time.

B. PM 10 sensor error - Display shows no readings (-.---’) or zero.

C. PM 2.5 sensor error - Display shows no readings (-.---’) or zero.

D. Formaldehyde sensor error - Display shows no readings (-.---’) or zero.

E. Temp sensor error - Display shows no readings (-.---’) or zero.

F. Humidity sensor error - Display shows no readings (-.---’) or zero.

Trouble shooting
