Craftsman 113197601 10" radial saw User Manual

Sears

owners

manual

MODEL NO.

113.19761

Serial

Number

Model and serial

number may be found

at the front of the base.

You should record both

model and serial number

in a safe place for

future use.

CAUTION:

Read GENERAL

and ADDITIONAL

SAFETY

INSTRUCTIONS

carefully

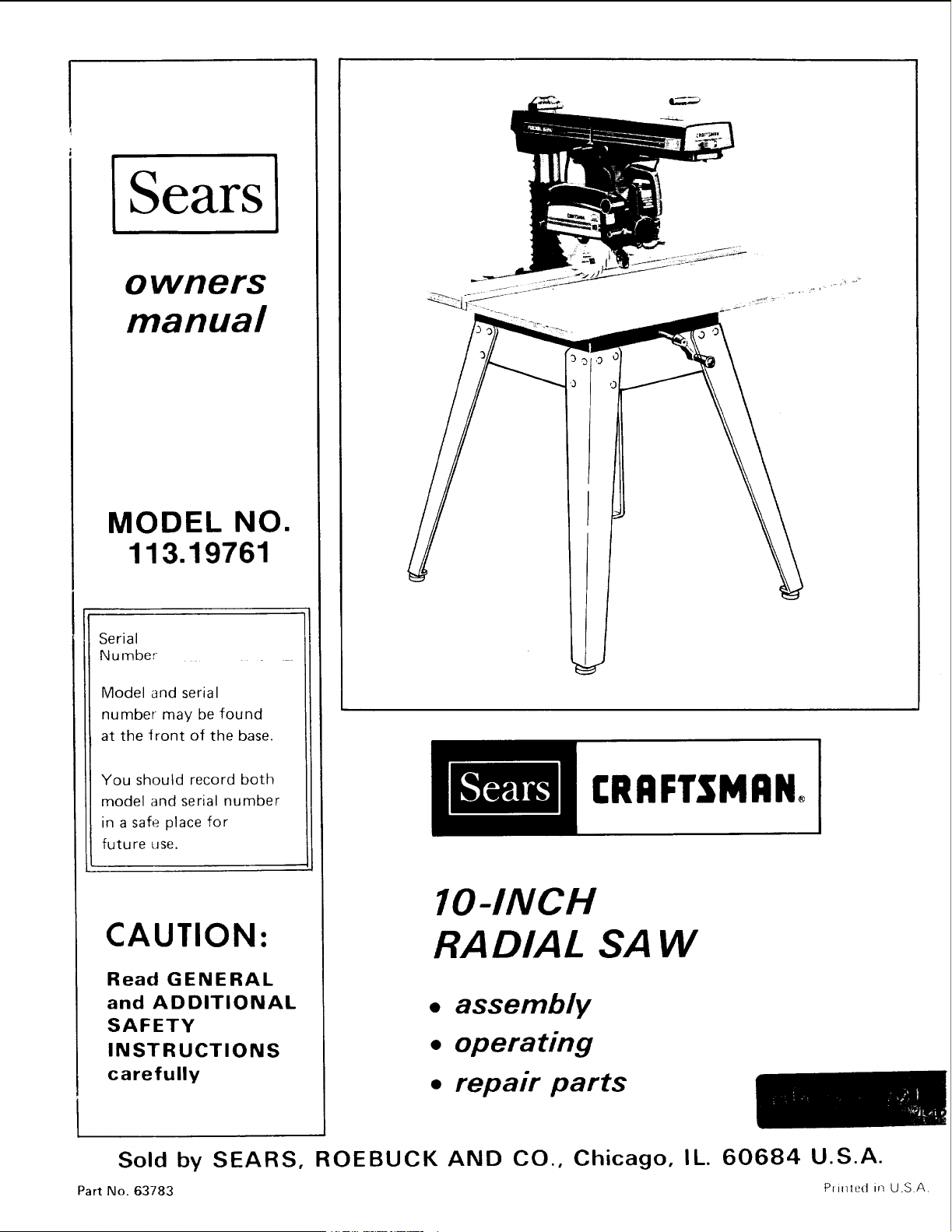

CRRFTSMRNo

IO-INCH

RADIAL SAW

• assembly

• operating

• repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 63783 Plinted in U.S.A.

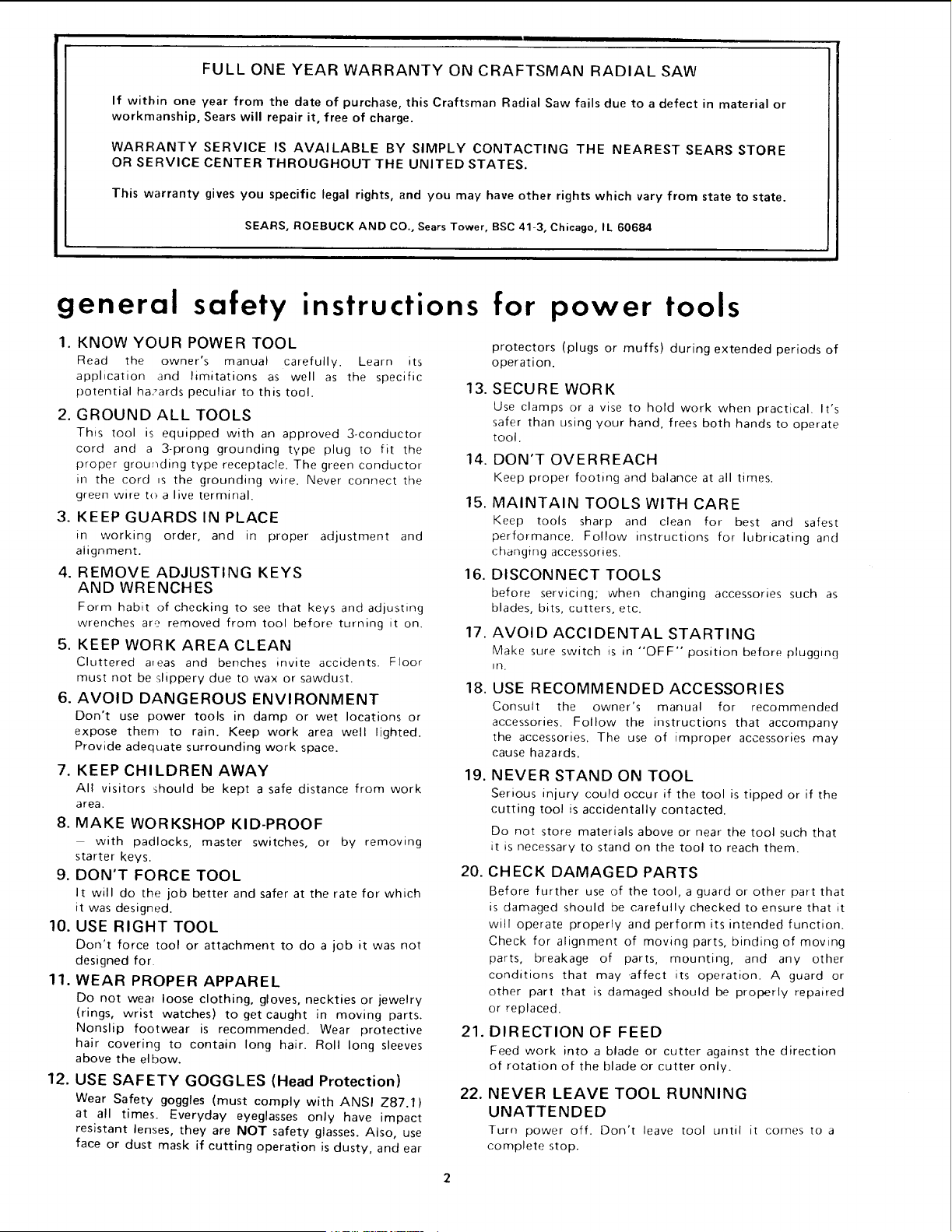

FULL ONE YEAR WARRANTY ON CRAFTSMAN RADIAL SAW

If within one year from the date of purchase, this Craftsman Radial Saw fails due to a defect in material or

workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS STORE

OR SERVICE CENTER THROUGHOUT THE UNITED STATES.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., Sears Tower, BSC 41-3, Chicago, IL 60684

general safety instructions for power tools

1. KNOW YOUR POWER TOOL

Read the owner's manual carefully. Learn its

application and limitations as well as the specific

potential ha.,ards peculiar to this tool. 13.

2. GROUND ALL TOOLS

This tool is equipped with an approved 3-conductor

cord and a 3-prong grounding type plug to fit the

proper grounding type receptacle. The green conductor 14.

in the cord _s the grounding wire. Never connect the

green wire t() a live terminal. 15.

3. KEEP GUARDS IN PLACE

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS 16.

AND WRENCHES

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

17.

5. KEEP WORK AREA CLEAN

Cluttered aweas and benches invite accidents. Floor

must not be slippery due to wax or sawdust.

18.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY 19.

All visitors should be kept a safe distance from work

area.

8. MAKE WORKSHOP KID-PROOF

with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for which

it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was not

designed for

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or jewelry

(rings, wrist watches) to get caught in moving parts.

Nonslip footwear is recommended. Wear protective

hair covering to contain long hair. Roll long sleeves

above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

22.

Wear Safety goggles (must comply with ANSI Z87.1)

at all times. Everyday eyeglasses only have impact

resistant lenses, they are NOT safety glasses. Also, use

face or dust mask if cutting operation is dusty, and ear

protectors (plugs or muffs) during extended periods of

operation.

SECURE WORK

Use clamps or a vise to hold work when practical. It's

safer than using your hand, frees both hands to operate

tool.

DON'T OVERREACH

Keep proper footing and balance at all times.

MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

DISCONNECT TOOLS

before servicing; when changing accessories such as

blades, bits, cutters, etc.

AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plugging

I n.

USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accompany

the accessories. The use of improper accessories may

cause hazards.

NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or if the

cutting too! is accidentally contacted.

Do not store materials above or near the tool such that

it is necessary to stand on the tool to reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part that

is damaged should be carefully checked to ensure that it

will operate propedy and perform its intended function.

Check for alignment of moving parts, binding of moving

parts, breakage of parts, mounting, and any other

conditions that may .affect its operation. A guard or

other part that is damaged should be properly repaired

or replaced.

21. DIRECTION OF FEED

Feed work into a blade or cutter against the direction

of rotation of the blade or cutter only.

NEVER LEAVE TOOL RUNNING

UNATTENDED

Turn power off. Don't leave tool until it comes to a

complete stop.

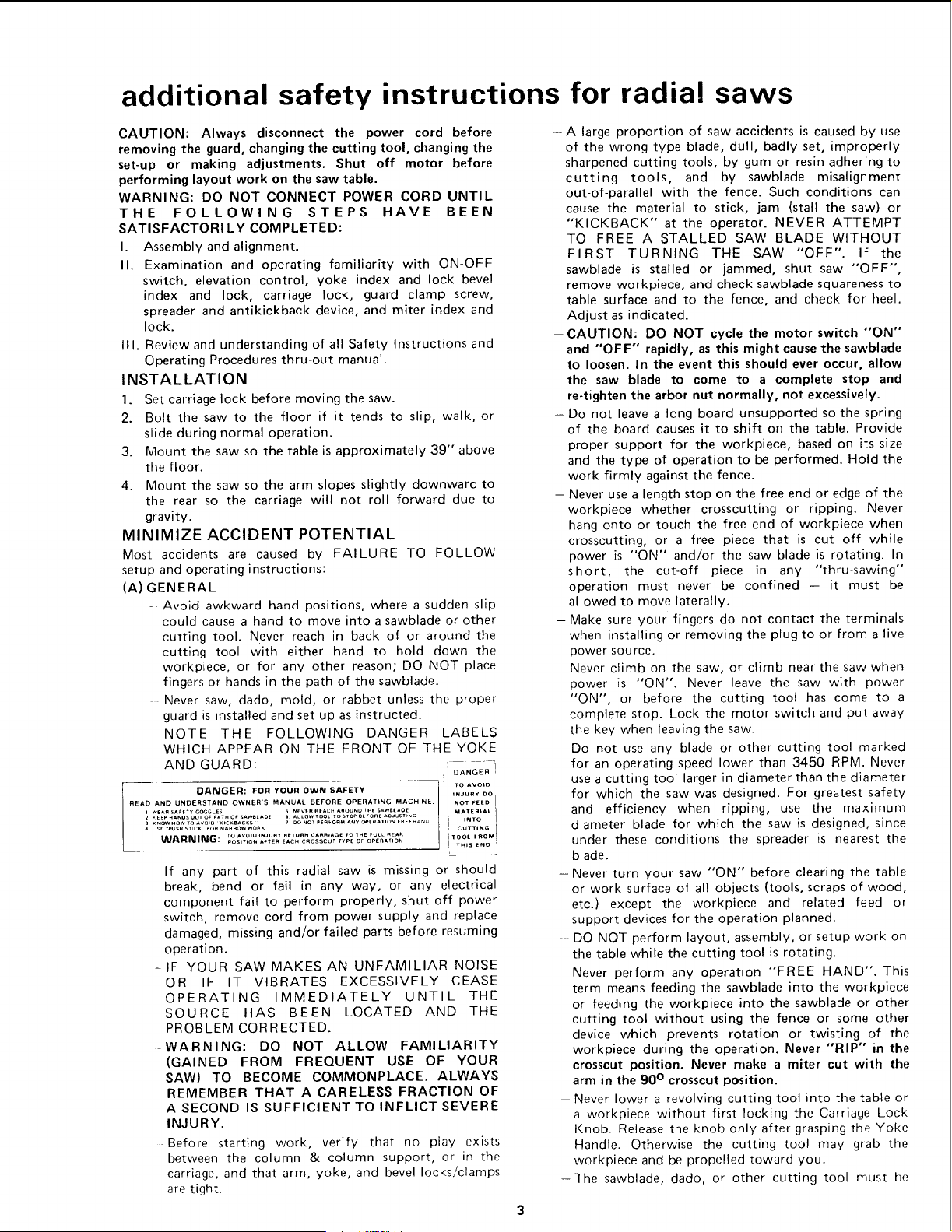

additional safety instructions for radial saws

CAUTION: Always disconnect the power cord before

removing the guard, changing the cutting tool, changing the

set-up or making adjustments. Shut off motor before

performing layout work on the saw table.

WARNING: DO NOT CONNECT POWER CORD UNTIL

THE FOLLOWING STEPS HAVE BEEN

SATISFACTORI LY COMPLETED:

I. Assembly and alignment.

II. Examination and operating familiarity with ON-OFF

switch, elevation control, yoke index and lock bevel

index and lock, carriage lock, guard clamp screw,

spreader and antikickback device, and miter index and

lock.

III. Review and understanding of all Safety Instructions and

Operating Procedures thru-out manual,

INSTALLATION

I. Set carriage lock before moving the saw.

2. Bolt the saw to the floor if it tends to slip, walk, or

slide during normal operation.

3. Mount the saw so the table is approximately 39" above

the floor.

4. Mount the saw so the arm slopes slightly downward to

the rear so the carriage will not roll forward due to

gravity.

MINIMIZE ACCIDENT POTENTIAL

Most accidents are caused by FAILURE TO FOLLOW

setup and operating instructions:

(A) GENERAL

-Avoid awkward hand positions, where a sudden slip

could cause a hand to move into a sawblade or other

cutting tool. Never reach in back of or around the

cutting tool with either hand to hold down the

workpiece, or for any other reason; DO NOT place

fingers or hands in the path of the sawblade.

Never saw, dado, mold, or rabbet unless the proper

guard is installed and set up as instructed.

NOTE THE FOLLOWING DANGER LABELS

WHICH APPEAR ON THE FRONT OF THE YOKE

' " 3

AND GUARD: i DANGERI

DANGER: FOR YOUR OWN SAFETY ] TOAVOID

INJURY DO

READ AND UNDERSTAND OWNERS MANUAL BEFORE OPERATING MACHINE. i NOT FEED I

WeA_ SA_TY GOGG,ES s NEVER REACH AAOUNO THE SAwetAOE MATERIAL 1. EePHANDSOUTOFPAtH OFSAWSLAO[ ALLOWrOOt TOSTOPeEFORZAOJUSTPNG

3 KNOV,HOWTOAvo,o K,CK=ACKS _ NOT PE_OAU A_Y O_ERAT'ON _REEHAND INTO

= ,Jsr 'PUSHS,,CK _OaNA.ROWWO_K ! CUTTING i

WARNING: TO AVOID INJURY RETURN CARRIAGE IO IHE FULL REAR _TOOL FROM,

POSITION AFTER EACH CROSSCUT TYPE OF OperATION I ,

[ THIS END

If any part of this radial saw is missing or should

break, bend or fail in any way, or any electrical

component fail to perform properly, shut off power

switch, remove cord from power supply and replace

damaged, missing and/or failed parts before resuming

operation.

- IF YOUR SAW MAKES AN UNFAMILIAR NOISE

OR IF IT VIBRATES EXCESSIVELY CEASE

OPERATING IMMEDIATELY UNTIL THE

SOURCE HAS BEEN LOCATED AND THE

PROBLEM CORRECTED.

-WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

SAW) TO BECOME COMMONPLACE. ALWAYS

REMEMBER THAT A CARELESS FRACTION OF

A SECOND IS SUFFICIENT TO INFLICT SEVERE

INJURY.

Before starting work, verify that no play exists

between the column & column support, or in the

carriage, and that arm, yoke, and bevel locks!clamps

are tight.

--A large proportion of saw accidents is caused by use

of the wrong type blade, dull, badly set, improperly

sharpened cutting tools, by gum or resin adhering to

cutting tools, and by sawblade misalignment

out-of-parallel with the fence. Such conditions can

cause the material to stick, jam {stall the saw) or

"KICKBACK" at the operator. NEVER ATTEMPT

TO FREE A STALLED SAW BLADE WITHOUT

FIRST TURNING THE SAW "OFF". If the

sawblade is stalled or jammed, shut saw "OFF",

remove workpiece, and check sawblade squareness to

table surface and to the fence, and check for heel.

Adjust as indicated.

-CAUTION: DO NOT cycle the motor switch "'ON'"

and "OFF" rapidly, as this might cause the sawblade

to loosen. In the event this should ever occur, allow

the saw blade to come to a complete stop and

re-tighten the arbor nut normally, not excessively.

- Do not leave a long board unsupported so the spring

of the board causes it to shift on the table. Provide

proper support for the workpiece, based on its size

and the type of operation to be performed. Hold the

work firmly against the fence.

- Never use a length stop on the free end or edge of the

workpiece whether crosscutting or ripping. Never

hang onto or touch the free end of workpiece when

crosscutting, or a free piece that is cut off while

power is "ON" and/or the saw blade is rotating. In

short, the cut-off piece in any "thru-sawing"

operation must never be confined - it must be

allowed to move laterally.

- Make sure your fingers do not contact the terminals

when installing or removing the plug to or from a live

power source.

Never climb on the saw, or climb near the saw when

power is "'ON". Never leave the saw with power

"ON", or before the cutting toot has come to a

complete stop. Lock the motor switch and put away

the key when leaving the saw.

-Do not use any blade or other cutting tool marked

for an operating speed lower than 3450 RPM. Never

use a cutting tool larger in diameter than the diameter

for which the saw was designed. For greatest safety

and efficiency when ripping, use the maximum

diameter blade for which the saw is designed, since

under these conditions the spreader is nearest the

blade.

- Never turn your saw "ON" before clearing the table

or work surface of all objects (tools, scraps of wood,

etc.) except the workpiece and related feed or

support devices for the operation planned.

- DO NOT perform layout, assembly, or setup work on

the table while the cutting tool is rotating.

- Never perform any operation "FREE HAND". This

term means feeding the sawblade into the workpiece

or feeding the workpiece into the sawblade or other

cutting tool without using the fence or some other

device which prevents rotation or twisting of the

workpiece during the operation. Never "'RIP" in the

crosscut position. Never make a miter cut with the

arm in the 90 ° crosscut position.

Never lower a revolving cutting tool into the table or

a workpiece without first locking the Carriage Lock

Knob. Release the knob only after grasping the Yoke

Handle. Otherwise the cutting tool may grab the

workpiece and be propelled toward you.

-The sawblade, dado, or other cutting tool must be

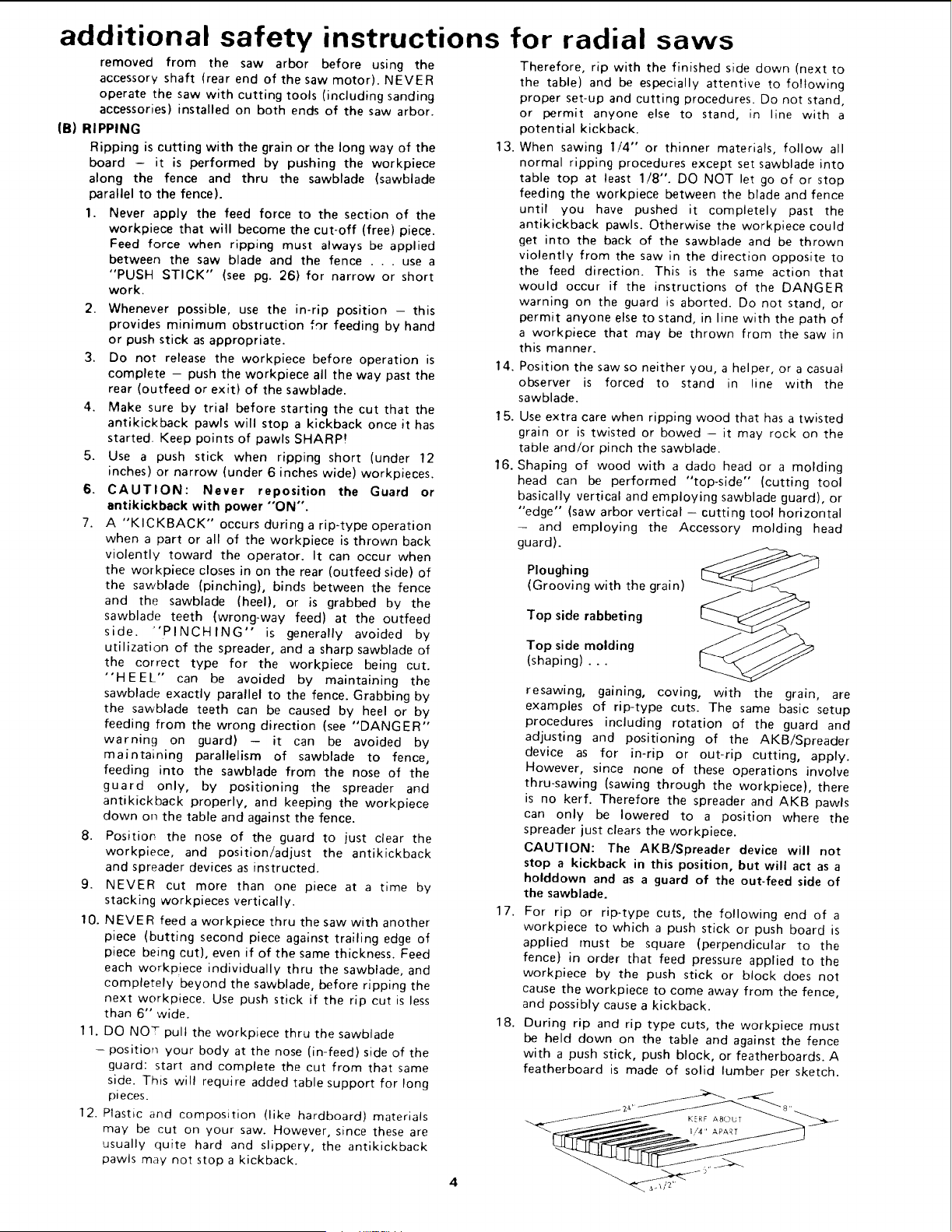

additional safety

instructions for radial saws

Therefore, rip with the finished side down (next to

the table) and be especially attentive to following

proper set-up and cutting procedures. Do not stand,

or permit anyone else to stand, in line with a

potential kickback.

13. When sawing I/4" or thinner materials, follow all

normal ripping procedures except set sawblade into

table top at least 1/8". DO NOT let go of or stop

feeding the workpiece between the blade and fence

until you have pushed it completely past the

antikickback pawls. Otherwise the workpiece could

get into the back of the sawblade and be thrown

violently from the saw in the direction opposite to

the feed direction. This is the same action that

would occur if the instructions of the DANGER

warning on the guard is aborted. Do not stand, or

permit anyone else to stand, in line with the path of

a workpiece that may be thrown from the saw in

this manner.

14. Position the saw so neither you, a helper, or a casual

observer is forced to stand in line with the

sawblade.

15. Use extra care when ripping wood that has a twisted

grain or is twisted or bowed - it may rock on the

table and/or pinch the sawblade.

16. Shaping of wood with a dado head or a molding

head can be performed "top-side" (cutting tool

basically vertical and employing sawblade guard), or

"edge" (saw arbor vertical - cutting tool horizontal

- and employing the Accessory molding head

guard).

removed from the saw arbor before using the

accessory shaft (rear end of the saw motor). NEVER

operate the saw with cutting tools (including sanding

accessories) installed on both ends of the saw arbor.

(B) RIPPING

Ripping is cutting with the grain or the long way of the

board - it is performed by pushing the workpiece

along the fence and thru the sawblade (sawblade

parallel to the fence).

1. Never apply the feed force to the section of the

workpiece that will become the cut-off (free) piece.

Feed force when ripping must always be applied

between the saw blade and the fence . . . use a

"PUSH STICK" (see pg. 26) for narrow or short

work.

2. Whenever possible, use the in-rip position - this

provides minimum obstruction f_r feeding by hand

or push stick as appropriate.

3. Do not release the workpiece before operation is

complete - push the workpiece all the way past the

rear (outfeed or exit) of the sawblade.

4. Make sure by trial before starting the cut that the

antikickback pawls will stop a kickback once it has

started. Keep points of pawls SHARP!

5. Use a push stick when ripping short (under 12

inches) or narrow (under 6 inches wide) workpieces.

6. CAUTION: Never reposition the Guard or

antikickback with power "ON".

7. A "KICKBACK" occurs during a rip-type operation

when a part or all of the workpiece is thrown back

violently toward the operator. It can occur when

the workpiece closes in on the rear (outfeed side) of

the sawblade (pinching), binds between the fence

and the sawblade (heel), or is grabbed by the

sawblade teeth (wrong-way feed) at the outfeed

side. "PINCHING" is generally avoided by

utilization of the spreader, and a sharp sawblade of

the correct type for the workpiece being cut.

"HEEL" can be avoided by maintaining the

sawblade exactly parallel to the fence. Grabbing by

the sawblade teeth can be caused by heel or by

feeding from the wrong direction (see "DANGER"

warning on guard) - it can be avoided by

maintaining parallelism of sawblade to fence,

feeding into the sawblade from the nose of the

guard only, by positioning the spreader and

antikickback properly, and keeping the workpiece

down on the table and against the fence.

8. Position the nose of the guard to just clear the

workpiece, and position/adjust the antikickback

and spreader devices as instructed.

9. NEVER cut more than one piece at a time by

stacking workpieces vertically.

10. NEVER feed a workpiece thru the saw with another

p}ece {butt{rig second piece against trailing edge of

piece being cut), even if of the same thickness. Feed

each workpiece individually thru the sawblade, and

completely beyond the sawblade, before ripping the

next workpiece. Use push stick if the rip cut is less

than 6" wide.

1 1. DO NO _- pull the workpiece thru the sawblade

- position your body at the nose (in-feed) side of the

guard: start and complete the cut from that same

side. This will require added table support for long

pieces.

12. Plastic and composition (like hardboard)materials

may be cut on your saw. However, since these are

usually quite hard and slippery, the antikickback

pawls may not stop a kickback.

Ploughing

(Grooving with the grain)

Top side rabbeting

Top side molding

(shaping) ...

17.

18.

resawing, gaining, coving, with the grain, are

examples of rip-type cuts. The same basic setup

procedures including rotation of the guard and

adjusting and positioning of the AKB/Spreader

device as for in-rip or out-rip cutting, apply.

However, since none of these operations involve

thru-sawing (sawing through the workpiece), there

is no kerf. Therefore the spreader and AKB pawls

can only be lowered to a position where the

spreader just clears the workpiece.

CAUTION: The AKB/Spreader device will not

stop a kickback in this position, but will act as a

holddown and as a guard of the out-feed side of

the sawblade.

For rip or rip-type cuts, the following end of a

workpiece to which a push stick or push board is

applied must be square (perpendicular to the

fence) in order that feed pressure applied to the

workpiece by the push stick or block does not

cause the workpiece to come away from the fence,

and possibly cause a kickback.

During rip and rip type cuts, the workpiece must

be held clown on the table and against the fence

with a push stick, push block, or featherboards. A

featherboard is made of solid lumber per sketch.

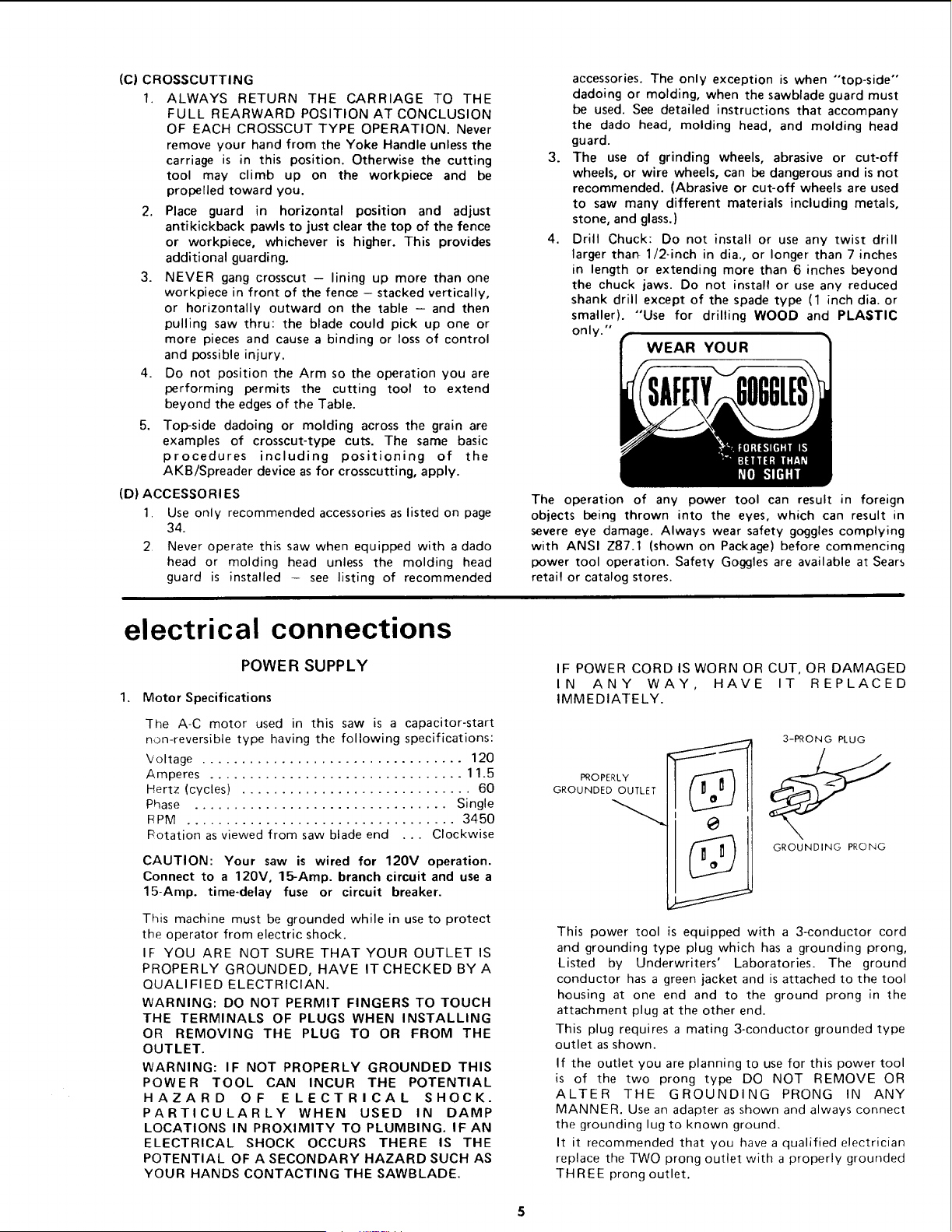

(C)CROSSCUTTING

1. ALWAYSRETURNTHECARRIAGETOTHE

FULLREARWARDPOSITIONATCONCLUSION

OFEACHCROSSCUTTYPEOPERATION.Never

removeyourhandfromtheYokeHandleunlessthe

carriageis in thisposition.Otherwisethecutting

tool mayclimbup on theworkpieceandbe

propelledtowardyou.

2. Placeguardin horizontalpositionand adjust

antikickbackpawlstojustclearthetopofthefence

or workpiece,whicheverishigher.Thisprovides

additionalguarding.

3. NEVERgangcrosscut- liningupmorethanone

workpieceinfrontofthefence- stackedvertically,

or horizontallyoutwardonthetable- andthen

pullingsawthru:thebladecouldpickuponeor

morepiecesandcauseabindingorlossofcontrol

andpossibleinjury.

4. DonotpositiontheArmsotheoperationyouare

performingpermitsthe cuttingtool to extend

beyondtheedgesoftheTable.

5. Top-sidedadoingor moldingacrossthegrainare

examplesof crosscut-typecuts.Thesamebasic

procedures including positioning of the

AKB/Spreaderdeviceasforcrosscutting,apply.

(D)ACCESSORIES

1. Use only recommended accessories as listed on page

34.

2 Never operate this saw when equipped with a dado

head or molding head unless the molding head

guard is installed - see listing of recommended

accessories. The only exception is when "top-side"

dadoing or molding, when the sawblade guard must

be used. See detailed instructions that accompany

the dado head, molding head, and molding head

guard.

The use of grinding wheels, abrasive or cut-off

wheels, or wire wheels, can be dangerous and is not

recommended. (Abrasive or cut-off wheels are used

to saw many different materials including metals,

stone, and glass.)

Drill Chuck: Do not install or use any twist drill

larger than 1/2-inch in dia., or longer than 7 inches

in length or extending more than 6 inches beyond

the chuck jaws. Do not install or use any reduced

shank drill except of the spade type (1 inch dia. or

smaller). "Use for drilling WOOD and PLASTIC

only."

WEAR YOUR

The operation of any power tool can result in foreign

objects being thrown into the eyes, which can result in

severe eye damage. Always wear safety goggles complying

with ANSI Z87.1 (shown on Package) before commencing

power tool operation. Safety Goggles are available at Sears

retail or catalog stores.

electrical connections

POWER SUPPLY

1. Motor Specifications

The A-C motor used in this saw is a capacitor-start

non-reversible type having the following specifications:

Voltage ................................. 120

Amperes ................................ 11.5

Hertz (cycles) ............................. 60

Phase ................................ Single

PPM .................................. 3450

Potation as viewed from saw blade end . . . Clockwise

CAUTION: Your saw is wired for 120V operation.

Connect to a 120V, 15-Amp. branch circuit and use a

15-Amp. time-delay fuse or circuit breaker.

This machine must be grounded while in use to protect

the operator from electric shock.

IF YOU ARE NOT SURE THAT YOUR OUTLET IS

PROPERLY GROUNDED, HAVE IT CHECKED BY A

QUALIFIED ELECTRICIAN.

WARNING: DO NOT PERMIT FINGERS TO TOUCH

THE TERMINALS OF PLUGS WHEN INSTALLING

OR REMOVING THE PLUG TO OR FROM THE

OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN INCUR THE POTENTIAL

HAZARD OF ELECTRICAL SHOCK.

PARTICULARLY WHEN USED IN DAMP

LOCATIONS IN PROXIMITY TO PLUMBING. IF AN

ELECTRICAL SHOCK OCCURS THERE IS THE

POTENTIAL OF A SECONDARY HAZARD SUCH AS

YOUR HANDS CONTACTING THE SAWBLADE.

IF POWER CORD IS WORN OR CUT, OR DAMAGED

IN ANY WAY, HAVE IT REPLACED

IMMEDIATELY.

PROPERLY

GROUNDED OUTLET

3-PRONG PLUG

GROUNDING PRONG

This power tool is equipped with a 3-conductor cord

and grounding type plug which has a grounding prong,

Listed by Underwriters' Laboratories. The ground

conductor has a green jacket and is attached to the tool

housing at one end and to the ground prong in the

attachment plug at the other end.

This plug requires a mating 3-conductor grounded type

outlet as shown.

If the outlet you are planning to use for this power tool

is of the two prong type DO NOT REMOVE OR

ALTER THE GROUNDING PRONG IN ANY

MANNER. Use an adapter as shown and always connect

the grounding lug to known ground.

It it recommended that you have a qualified electrician

replace the TWO prong outlet with a properly grounded

THREE prong outlet.

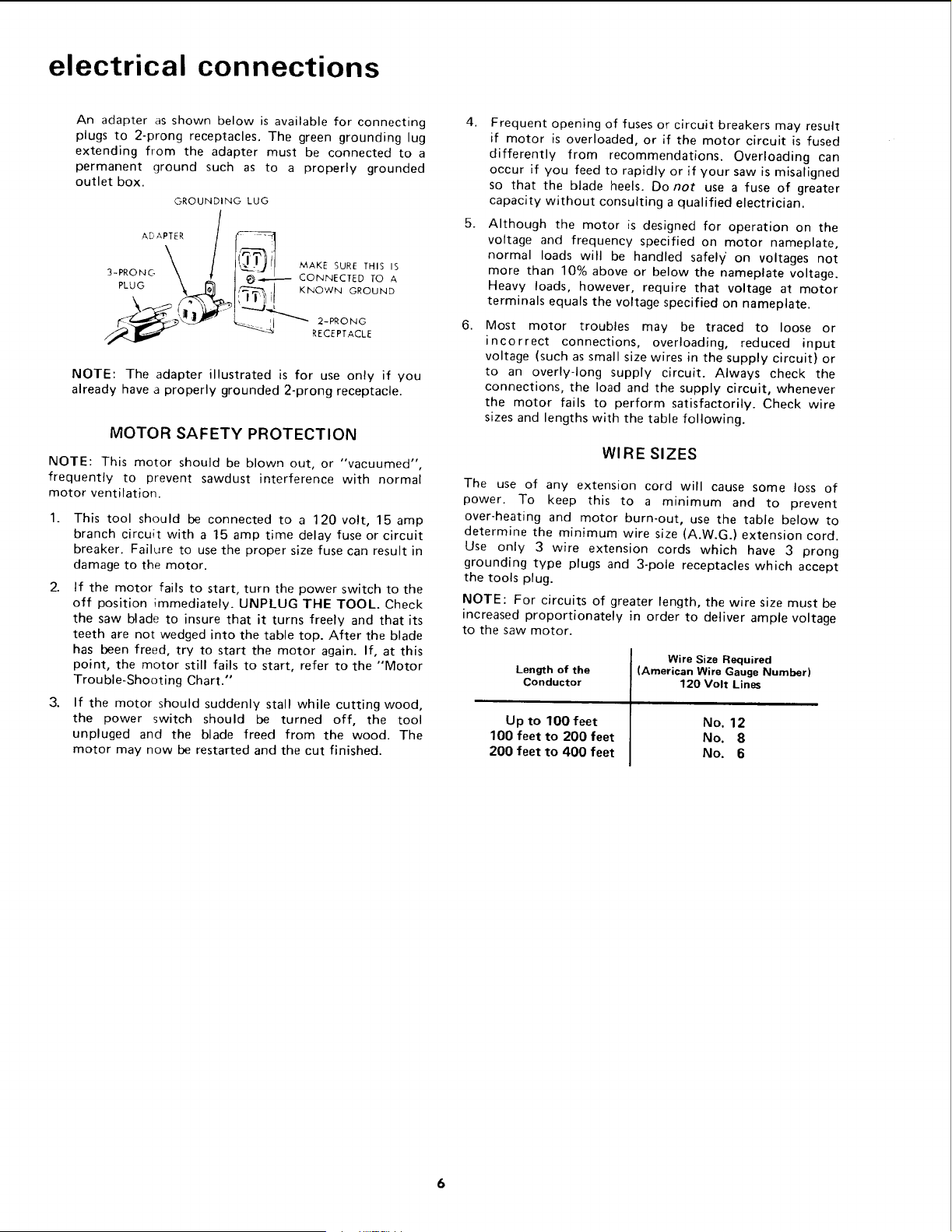

electrical connections

An adapter as shown below is available for connecting

plugs to 2-prong receptacles. The green grounding lug

extending from the adapter must be connected to a

permanent ground such as to a properly grounded

outlet box.

GROUNDING LUG

ADAPTER_/_\>,_l

MAKE SURE THIS IS

3-PRONG '_ _ CONNECTED TO A

PLUG __ ,_, KNOWN GROUND

RECEPTACLE

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong receptacle.

MOTOR SAFETY PROTECTION

NOTE: This motor should be blown out, or "vacuumed",

frequently to prevent sawdust interference with normal

motor ventilation.

This tool should be connected to a 120 volt, 15 amp

branch circuit with a 15 amp time delay fuse or circuit

breaker. Failure to use the proper size fuse can result in

damage to the motor.

If the motor fails to start, turn the power switch to the

off position immediately. UNPLUG THE TOOL. Check

the saw blade to insure that it turns freely and that its

teeth are not wedged into the table top. After the blade

has been freed, try to start the motor again. If, at this

point, the motor still fails to start, refer to the "Motor

Trouble-Shooting Chart."

If the motor should suddenly stall while cutting wood,

the power switch should be turned off, the tool

unpluged and the blade freed from the wood. The

motor may now be restarted and the cut finished.

Frequent opening of fuses or circuit breakers may result

if motor is overloaded, or if the motor circuit is fused

differently from recommendations. Overloading can

occur if you feed to rapidly or if your saw is misaligned

so that the blade heels. Do not use a fuse of greater

capacity without consulting a qualified electrician.

Although the motor is designed for operation on the

voltage and frequency specified on motor nameplate,

normal loads will be handled safely/ on voltages not

more than 10% above or below the nameplate voltage.

Heavy loads, however, require that voltage at motor

terminals equals the voltage specified on nameplate.

Most motor troubles may be traced to loose or

incorrect connections, overloading, reduced input

voltage (such as small size wires in the supply circuit) or

to an overly-long supply circuit. Always check the

connections, the load and the supply circuit, whenever

the motor fails to perform satisfactorily. Check wire

sizes and lengths with the table following.

WIRE SIZES

The use of any extension cord will cause some loss of

power. To keep this to a minimum and to prevent

over-heating and motor burn-out, use the table below to

determine the minimum wire size (A.W.G.) extension cord.

Use only 3 wire extension cords which have 3 prong

grounding type plugs and 3-pole receptacles which accept

the tools plug.

NOTE: For circuits of greater length, the wire size must be

increased proportionately in order to deliver ample voltage

to the saw motor.

Length of the

Conductor

Up to 100 feet

100 feet to 200 feet

200 feet to 400 feet

Wire Size Required

(American Wire Gauge Number)

120 Volt Lines

No. 12

No. 8

No. 6

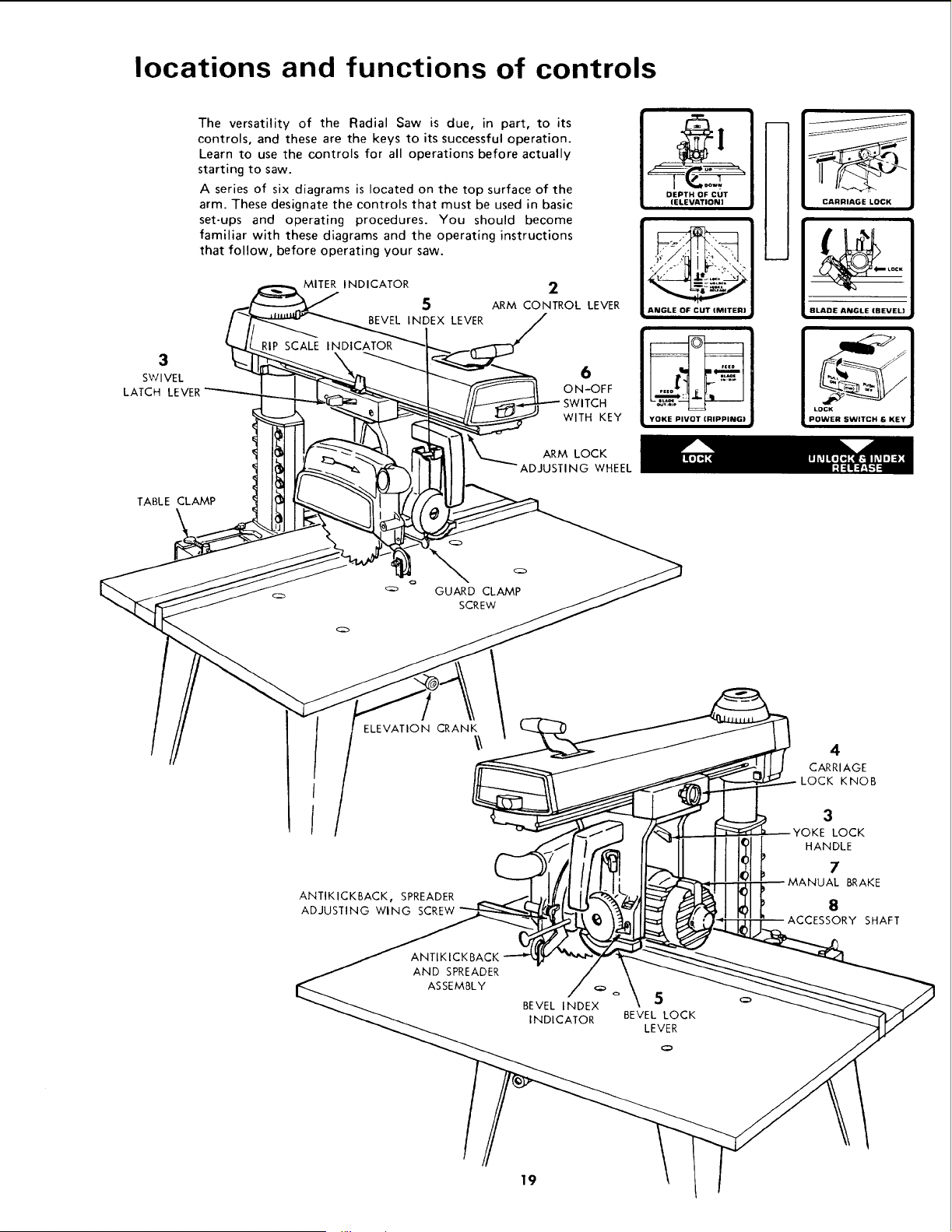

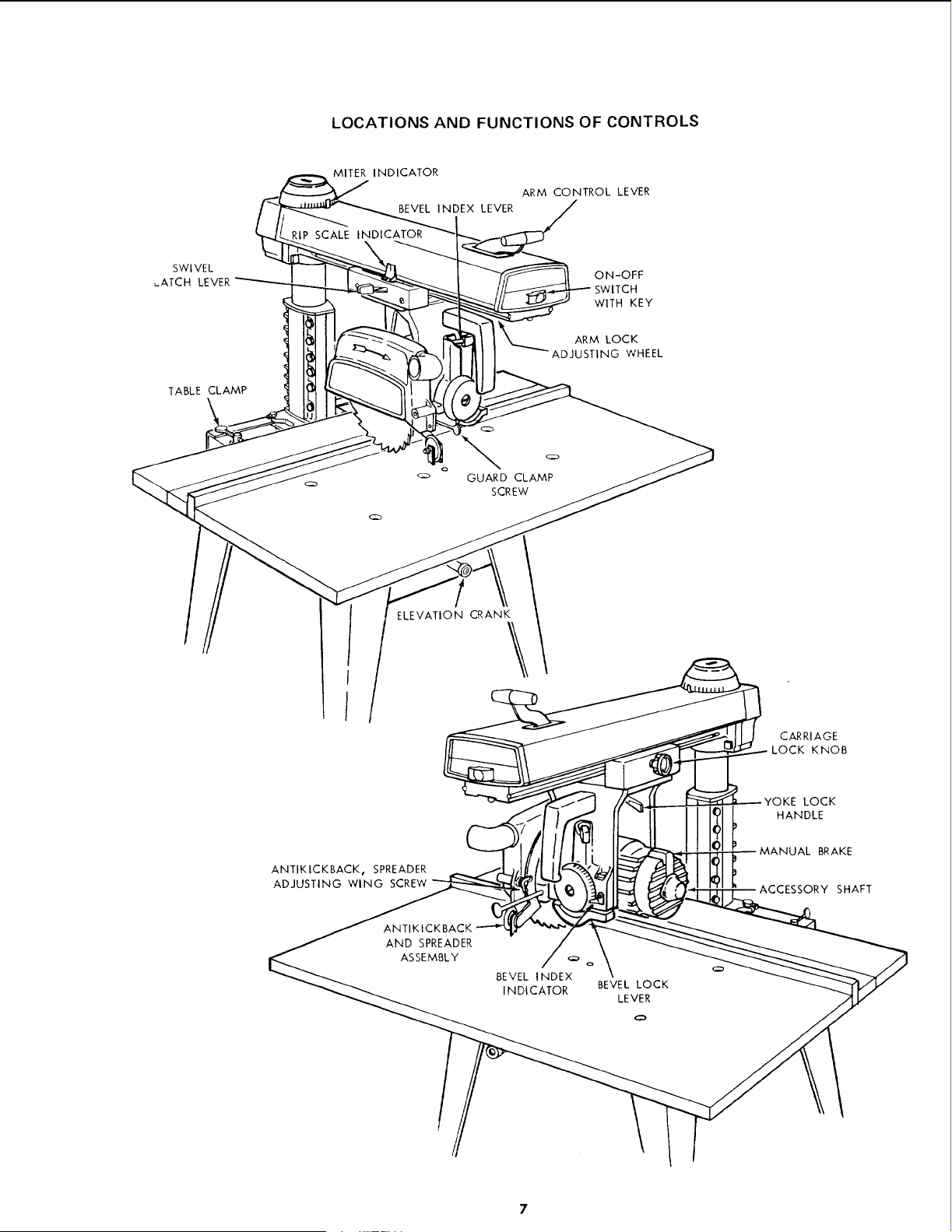

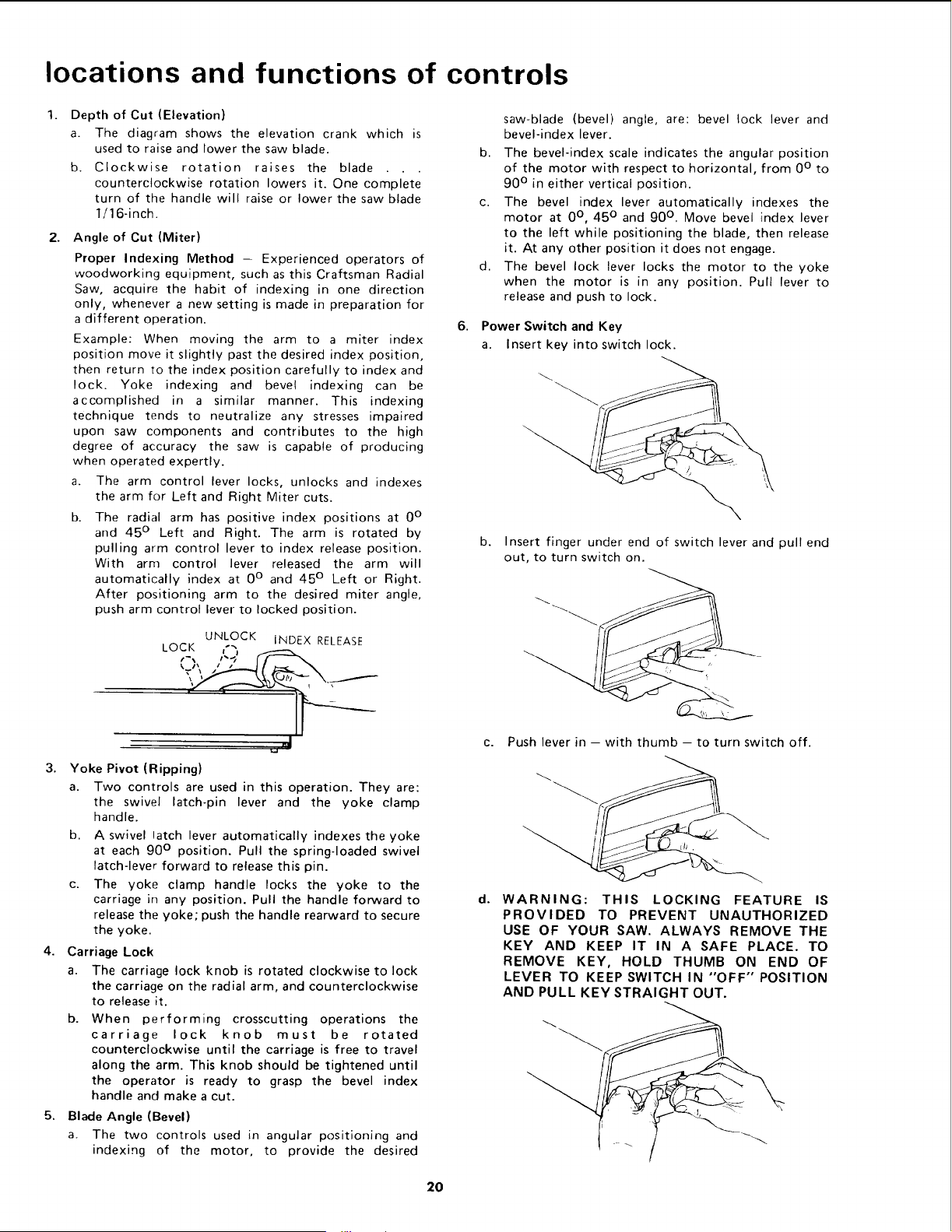

LOCATIONS AND FUNCTIONS OF CONTROLS

SWIVEL

L_ATCH LEVER

MITER INDICATOR

BEVEL INDEX LEVER

RIP SCALE INDICATOR

ARM CONTROL LEVER

ON-OFF

SWITCH

WITH KEY

LOCK

NG WHEEL

TABLE CLAMP

GUARD CLAMP

SCREW

ELEVATION CRANK

CARRIAGE

LOCK KNOB

LOCK

HANDLE

ANTIKICKBACK_ SPREADER

ADJUSTING WING SCREW

MANUAL BRAKE

SHAFT

ANTIKtCKBACK

AND SPREADER

ASSEMBLY

BEVEL INDEX

INDICATOR

BEVEL LOCK

LEVER

CONTENTS

Guarantee .................................... 2

General Safety Instructions for Power Tools ......... 2

Additional Safety Instructions for Radial Saws ....... 3

Electrical Connections .......................... 5

Assembly and Alignment ........................ 8

Unpacking and Preassembly ..................... 8

Alignment Procedure ......................... 11

Location and Functions of Controls ............... 19

Basic Saw Operations .......................... 22

Adjustments to Compensate for Wear .............. 27

Trouble-Shooting ............................ 30

Maintenance and Lubrication .................... 33

Recommended Accessories ...................... 33

Repair Parts ................................. 34

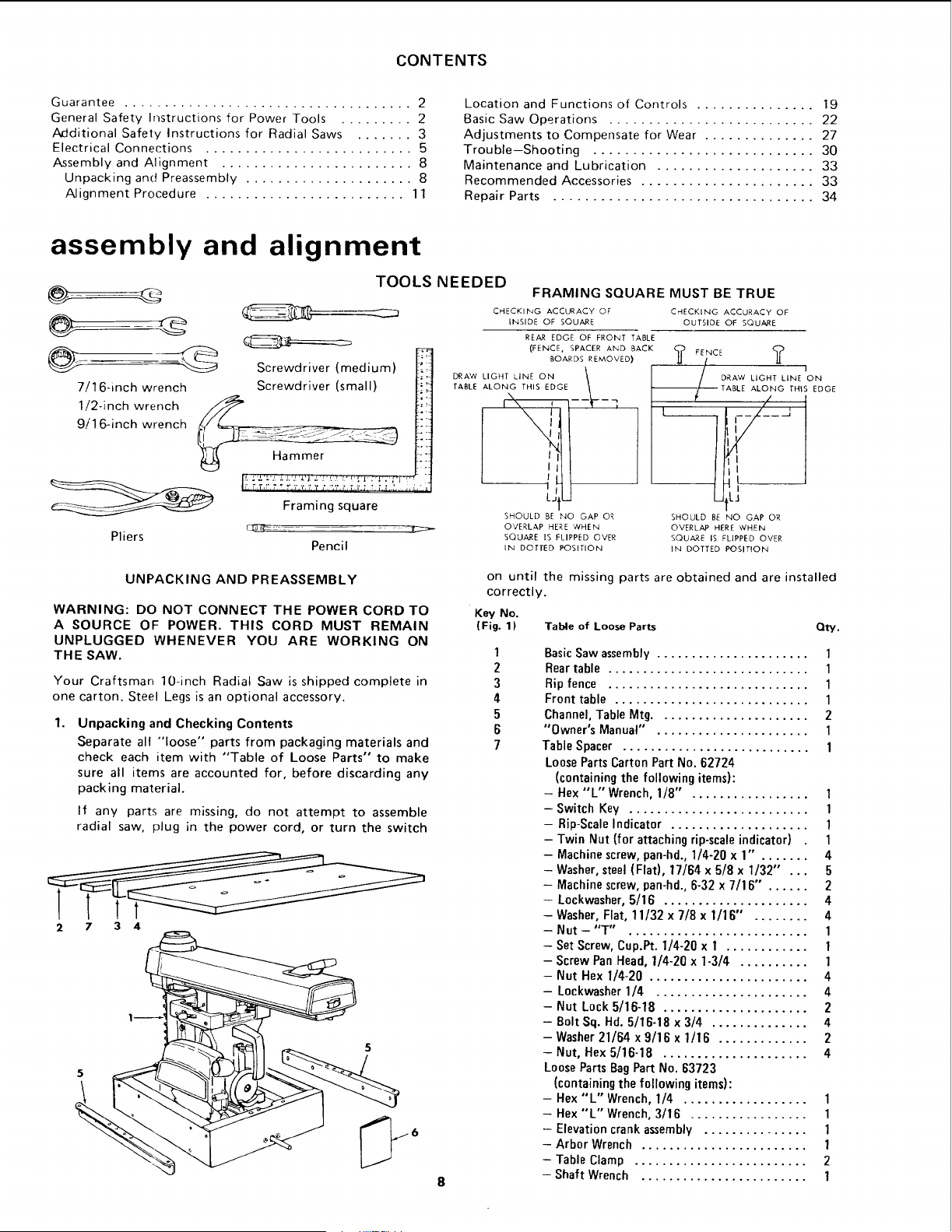

assembly and alignment

7/11/2.inch6-i nChwrenchWrench_Screwdriver (small)

9/'16-inch wrench

Hammer

Framing square

Pliers

Pencil

TOOLS NEEDED

Screwdriver (medium)

DRAW

TABLE

FRAMING SQUARE MUST BE TRUE

CHECKING ACCURACY OF C_ECKING ACCURACY OF

INSIDE OF SQUARE OUTSIDE OF SQUARE

REAR EDGE OF FRONT TABLE

(FENCE, SPACER AND BACK _-_ FENCE <_

BOARDS REMOVED) ]J / Jl

LIGHT LINE ON \ / DRAW LIGHT LINE ON

ALONG THIS EDGE "_ --/_'----TABLE ALONG THIS EDGE

I\\ _ I--_-- q f / ,

L- tu utLJ

SHOULD BE NO GAP OR SHOULD BE NO GAP OR

OVERL&P HERE 'WHEN OVERLAP HERE WHEN

SQUARE IS FLIPPED OVER SQUARE IS FLIPPED OVER

IN DOTTED POSITION IN DOTTED POSITION

UNPACKING AND PREASSEMBLY

WARNING: DO NOT CONNECT THE POWER CORD TO

A SOURCE OF POWER. THIS CORD MUST REMAIN

UNPLUGGED WHENEVER YOU ARE WORKING ON

THE SAW.

Your Craftsman 10-inch Radial Saw is shipped complete in

one carton. Steel Legs is an optional accessory.

Unpacking and Checking Contents

Separate all "loose" parts from packaging materials and

check each item with "Table of Loose Parts" to make

sure all items are accounted for, before discarding any

packing material.

If any parts are missing, do not attempt to assemble

radial saw, plug in the power cord, or turn the switch

2 7 3 4

on until the missing parts are obtained and are installed

correctly.

Key No,

(Fig. 1) Table of Loose Parts Qty.

BasicSawassembly...................... 1

Reartable ............................. 1

Ripfence ............................. 1

Front table ............................ 1

Channel,TableMtg...................... 2

"Owner's Manual" . ..................... 1

TableSpacer ........................... 1

LoosePartsCarton Part No.62724

(containingthe following items):

- Hex"L" Wrench,1/8" . ................ 1

- Switch Key .......................... 1

- Rip-ScaleIndicator .................... 1

- Twin Nut (for attachingrip-scaleindicator) 1

- Machinescrew,pan-hd.,1/4-20x 1" . ...... 4

- Washer,steel(Flat), 17/64 x 5/8 x 1/32" ... 5

- Machinescrew,pan-hd.,6-32 x 7/16" . ..... 2

- Lockwasher,5/16 ..................... 4

- Washer,Flat, 11/32 x 7/8 x 1/16" . ....... 4

- Nut-"T" . ......................... 1

- SetScrew,Cup.Pt. 1/4-20 x 1 ............ 1

- ScrewPan Head,1/4-20 x 1-3/4 .......... 1

- Nut Hex 1/4-20 ....................... 4

- Lockwasher1/4 ...................... 4

- Nut Lock 5/16-18 ..................... 2

- Bolt Sq. Hd.5/16-18 x 3/4 .............. 4

- Washer21/64 x9/16 x 1/16 ............. 2

- Nut, Hex5/16-18 ..................... 4

LoosePartsBagPart No. 63723

(containingthe followingitems):

- Hex"L" Wrench,1/4 .................. 1

- Hex"L" Wrench,3/16 ................. 1

- Elevationcrankassembly ............... 1

- Arbor Wrench ........................ 1

- TableClamp ......................... 2

- Shaft Wrench ........................ 1

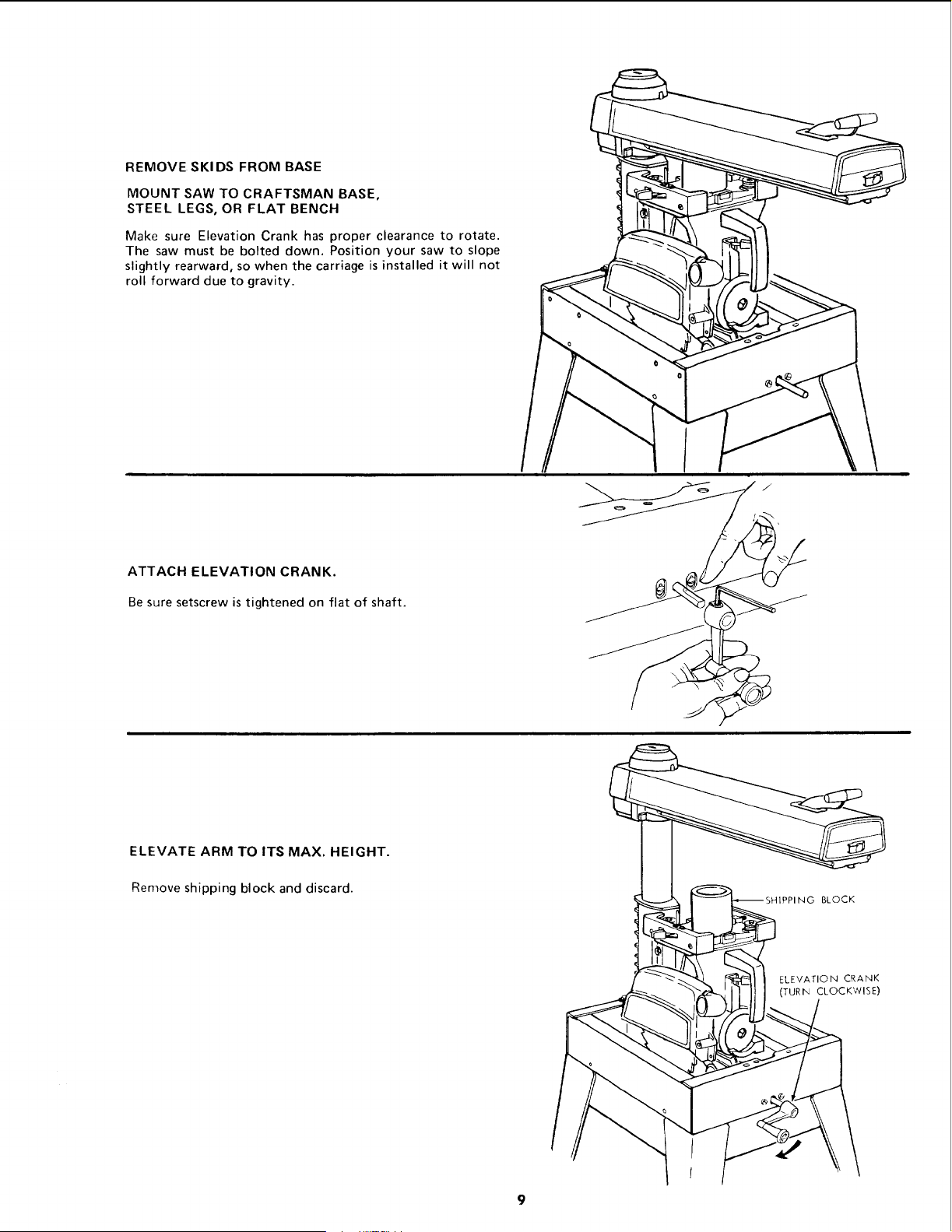

REMOVE SKIDS FROM BASE

MOUNT SAW TO CRAFTSMAN BASE,

STEEL LEGS, OR FLAT BENCH

Make sure Elevation Crank has proper clearance to rotate.

The saw must be bolted down. Position your saw to slope

slightly rearward, so when the carriage is installed it will not

roll forward due to gravity.

ATTACH ELEVATION CRANK.

Be sure setscrew is tightened on flat of shaft.

ELEVATE ARM TO ITS MAX. HEIGHT.

Remove shipping block and discard.

PPING BLOCK

ELEVATION CRANK

(TURIN CLOCKWISE)

assembly and alignment

BE positive switch is "OFF" and power cord unplugged

thru-out entire procedure.

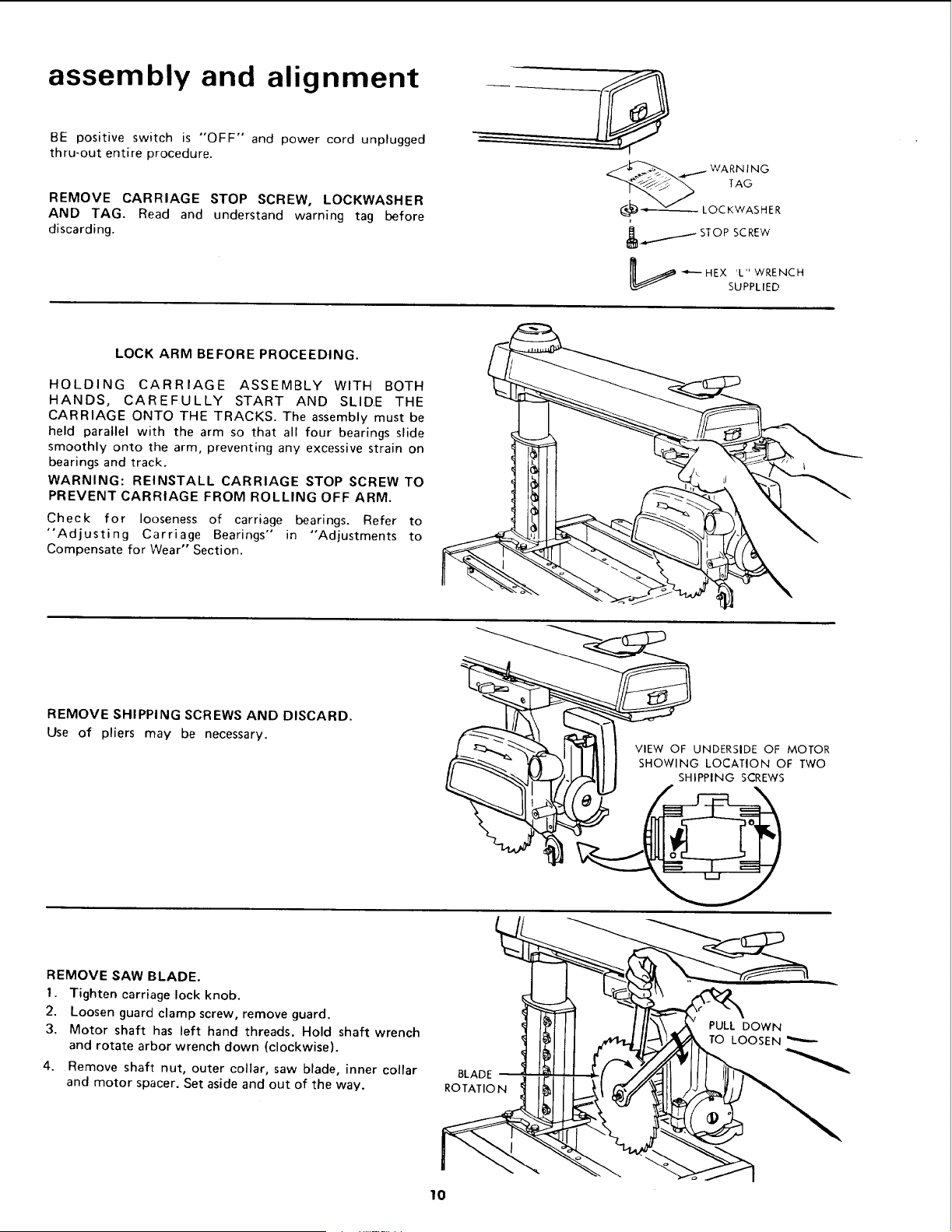

REMOVE CARRIAGE STOP SCREW, LOCKWASHER

AND TAG. Read and understand warning tag before

discarding.

_J__._ WARN ING

TAG

_:_ -.,_-----_,--- LOCKWASHER

i_...._./STOP SCREW

L_ "_'-'- HEX 'L" WRENCH

SUPPLIED

LOCK ARM BEFORE PROCEEDING.

HOLDING CARRIAGE ASSEMBLY WITH BOTH

HANDS, CAREFULLY START AND SLIDE THE

CARRIAGE ONTO THE TRACKS. The assembly must be

held parallel with the arm so that all four bearings slide

smoothly onto the arm, preventing any excessive strain on

bearings and track.

WARNING: REINSTALL CARRIAGE STOP SCREW TO

PREVENT CARRIAGE FROM ROLLING OFF ARM.

Check for looseness of carriage bearings. Refer to

"Adjusting Carriage Bearings" in "Adjustments to

Compensate for Wear" Section.

REMOVE SHIPPING SCREWS AND DISCARD.

Use of pliers may be necessary.

VIEW OF UNDERSIDE OF MOTOR

SHOWING LOCATION OF TWO

SHIPPING SCREWS

REMOVE SAW BLADE.

1. Tighten carriage lock knob.

2. Loosen guard clamp screw, remove guard.

3. Motor shaft has left hand threads. Hold shaft wrench

and rotate arbor wrench down (clockwise).

4. Remove shaft nut, outer collar, saw blade, inner collar

and motor spacer. Set aside and out of the way.

BLADE

ROTATION

PULL DOWN

TO LOOSEN

ALIGNMENT PROCEDURE

IMPORTANT:

IN ORDER TO OBTAIN MAXIMUM CUTTING

ACCURACY, THE FOLLOWING SIX STEPS

MUST BE CAREFULLY FOLLOWED.

BECOME THOROUGHLY FAMILIAR WITH

THESE STEPS SO THAT YOU CAN ALWAYS

MAINTAIN YOUR SAW IN PROPER

ALIGNMENT. THE ACCURACY OF EACH

ADJUSTMENT IS ALWAYS DEPENDENT

UPON THE ACCURA C Y OF THE PRECEDING

ADJUSTMENT.

After following the 6 step assembly and alignment

procedure and the Basic Saw operation section refer to

Trouble Shooting section if any difficulty is experienced

when performing any sawing operation.

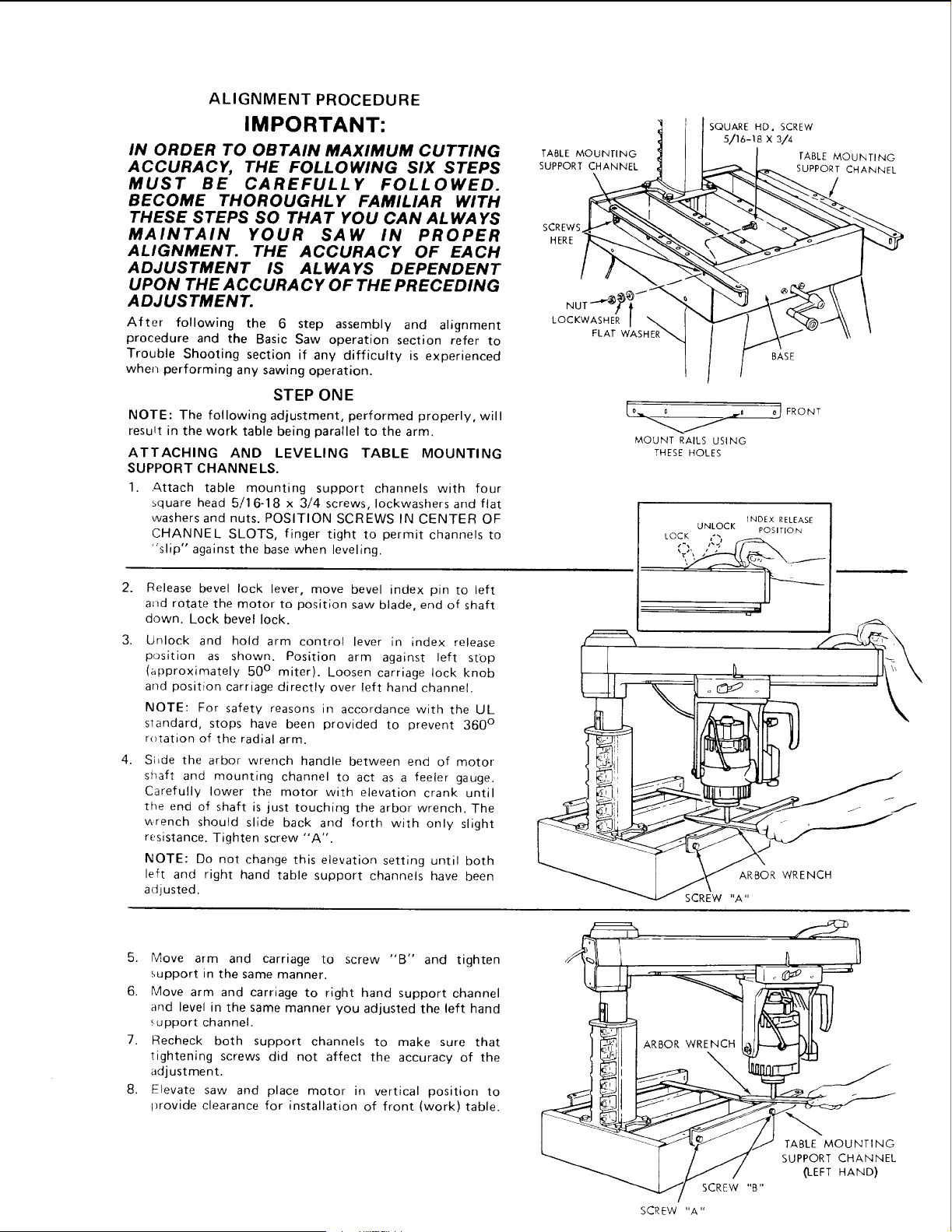

STEP ON E

NOTE: The following adjustment, performed properly, will

result in the work table being parallel to the arm.

ATTACHING AND LEVELING TABLE MOUNTING

SUPPORT CHANNE LS.

1. Attach table mounting support channels with four

square head 5/16-18 x 3/4 screws, Iockwashers and flat

washers and nuts. POSITION SCREWS IN CENTER OF

CHANNEL SLOTS, finger tight to permit channels to

"slip" against the base when leveling.

TABLE MOUNTING

SUPPORT CHANNEL

SCREWS

HERE

LOCKWASHER /

FLAT WASHER

Release bevel lock lever, move bevel index pin to left

and rotate the motor to position saw blade, end of shaft

down. Lock bevel lock.

Unlock and hold arm control lever in index release

position as shown. Position arm against left st'op

(approximately 50 ° miter). Loosen carriage lock knob

and position carriage directly over left hand channel.

NOTE: For safety reasons in accordance with the UL

standard, stops have been provided to prevent 360 °

r_tation of the radial arm.

S;ide the arbor wrench handle between end of motor

shaft and mounting channel to act as a feeler gauge.

Carefully lower the motor with elevation crank until

the end of shaft is just touching the arbor wrench. The

wrench should slide back and forth with only slight

resistance. Tighten screw "'A".

NOTE: Do not change this elevation setting until both

left and right hand table support channels have been

adjusted.

SQUARE HD. SCREW

s/16-1B x 3/4

TABLE MOUNTING

SUPPORT CHANNEL

BASE

/__ FRONT

MOUNT RAILS USING

THESE HOLES

iNDEX RELEASE

UNLOCK POSITION

LOCK i'_

ARBOR WRENCH

SCREW "A"

5. Move arm and carriage to screw "B" and tighten

support in the same manner.

6. Move arm and carriage to right hand support channel

and level in the same manner you adjusted the left hand

support channel.

7. Recheck both support channels to make sure that

tightening screws did not affect the accuracy of the

adjustment.

8. Elevate saw and place motor in vertical position to

provide clearance for installation of front (work) table.

SCREW "B"

SCREW "A"

TABLE MOUNTING

SUPPORT CHANNEL

(LEFT HAND)

assembly and alignment

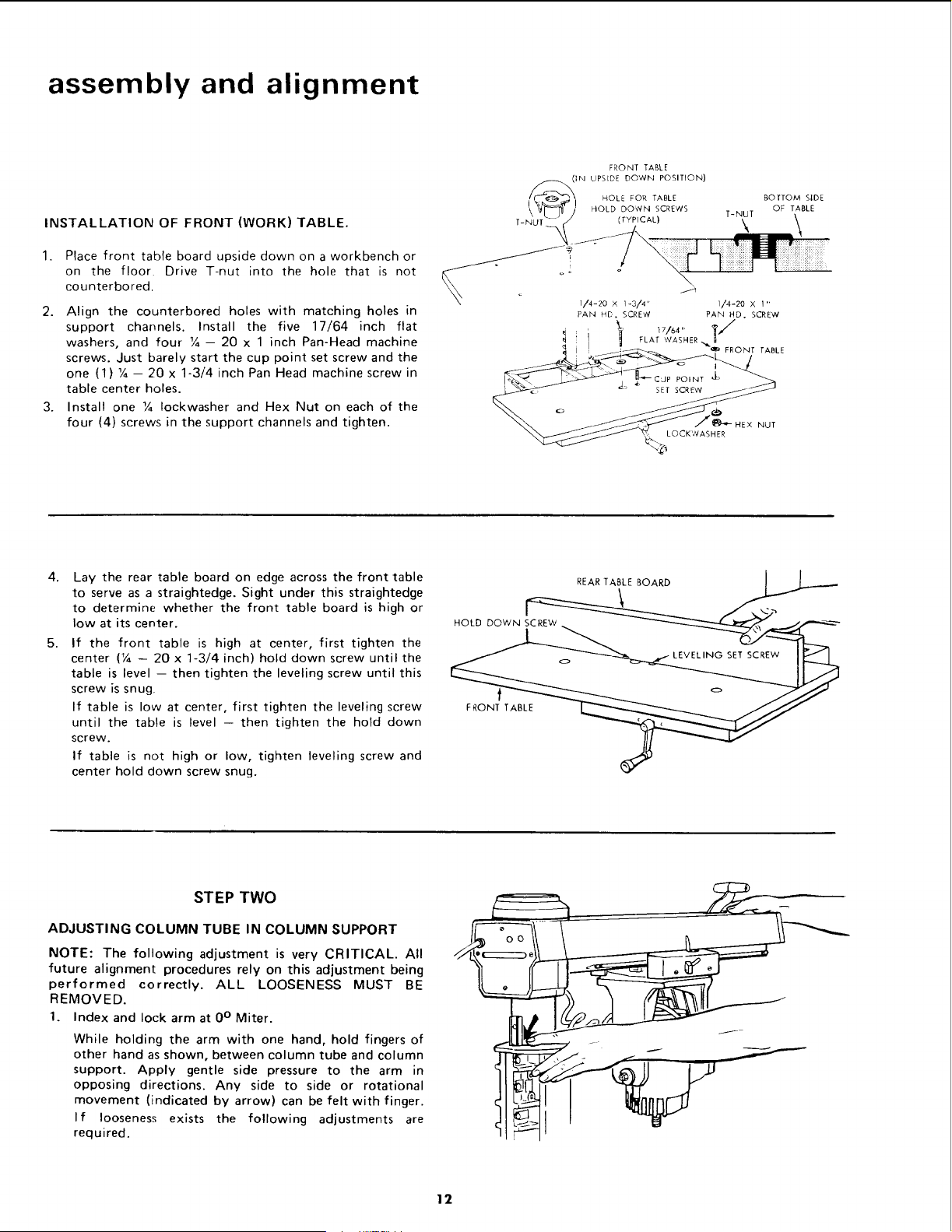

INSTALLATION OF FRONT (WORK) TABLE.

Place front table board upside down on a workbench or

on the floor Drive T-nut into the hole that is not

counterbored.

2. Align the counterbored holes with matching holes in

support channels. Install the five 17/64 inch flat

washers, and four ¼- 20 x 1 inch Pan-Head machine

screws. Just barely start the cup point set screw and the

one (1) ¼ - 20 x 1-3/4 inch Pan Head machine screw in

table center holes.

3. Install one ¼ Iockwasher and Hex Nut on each of the

four (4) screws in the support channels and tighten.

FRONT TABLE

IN UPSIDE DOWN POSITION)

HOLE FOR TABLE BOTTOM S,DE

"_\ k_J"_ _._/! HOLD DOWN SCREWS T-NUT OF TABLE

T-NUT /" (TYPICAL) _

_ 1/4-20 X°1-3/4 ' _ 1/4-20 X 1"

PAN HE. SCREW PAN HD. SCREW

i FLAT WASHER

IL_ONT TABLE

HEX NUT

LOCKWASHER

Lay the rear table board on edge across the front table

to serve as a straightedge. Sight under this straightedge

to determine whether the front table board is high or

low at its center.

If the front table is high at center, first tighten the

center (¼ -- 20 x 1-3/4 inch) hold down screw until the

table is level -- then tighten the leveling screw until this

screw is snug

If table is low at center, first tighten the leveling screw

until the table is level - then tighten the hold down

screw.

If table is not high or low, tighten leveling screw and

center hold down screw snug.

FRONT TABLE

STEP TWO

ADJUSTING COLUMN TUBE IN COLUMN SUPPORT

NOTE: The following adjustment is very CRITICAL. All

future alignment procedures rely on this adjustment being

performed correctly. ALL LOOSENESS MUST BE

REMOVED.

1. Index and lock arm at 0° Miter.

While holding the arm with one hand, hold fingers of

other hand as shown, between column tube and column

support. Apply gentle side pressure to the arm in

opposing directions. Any side to side or rotational

movement (indicated by arrow) can be felt with finger.

If looseness exists the following adjustments are

req u ired.

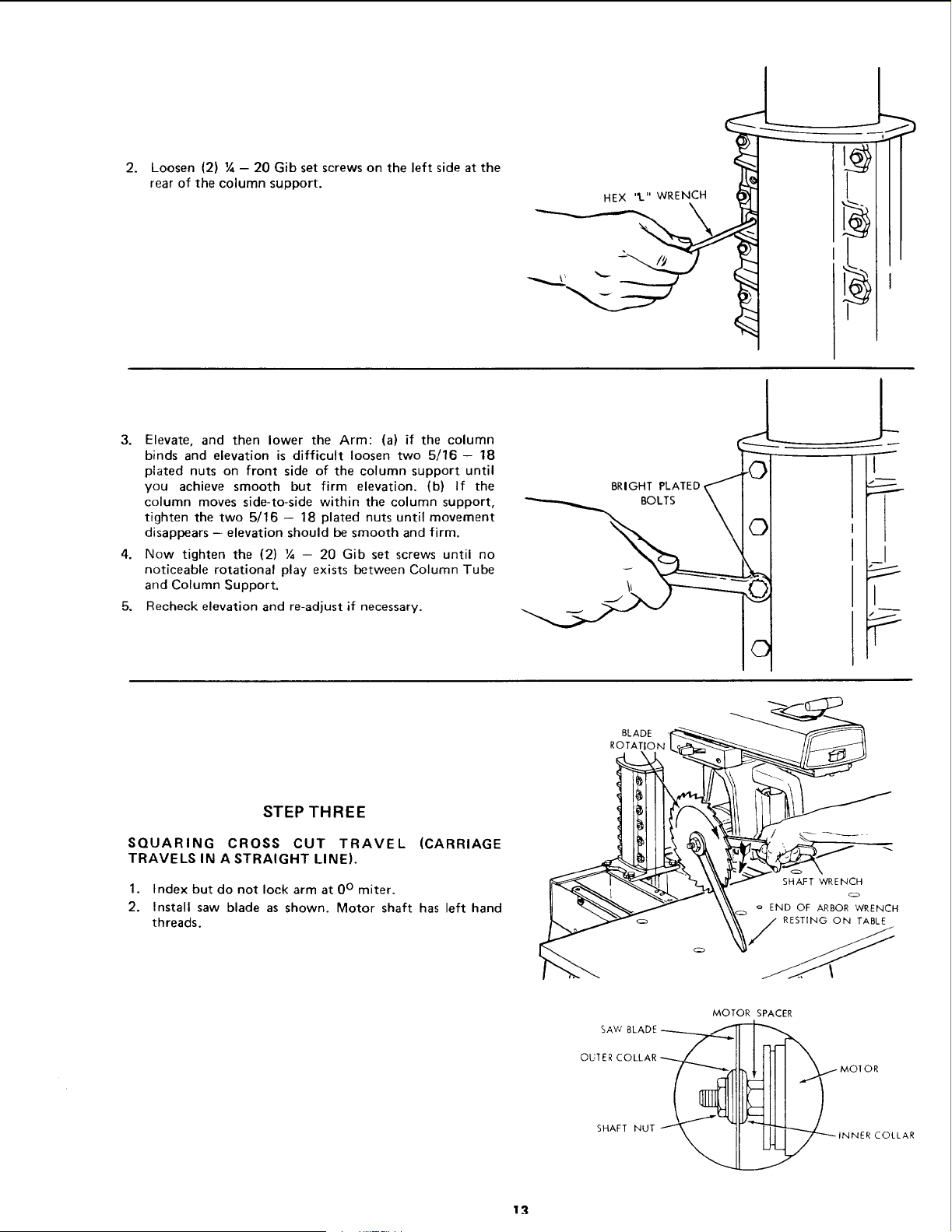

2. Loosen (2) ¼ - 20 Gib set screws on the left side at the

rear of the column support.

3. Elevate, and then lower the Arm: (a) if the column

binds and elevation is difficult loosen two 5/16- 18

plated nuts on front side of the column support until

you achieve smooth but firm elevation. (b) If the

column moves side-to-side within the column support,

tighten the two 5/16 - 18 plated nuts until movement

disappears -- elevation should be smooth and firm.

4. Now tighten the (2) ¼ - 20 Gib set screws until no

noticeable rotational play exists between Column Tube

and Column Support.

5. Recheck elevation and re-adjust if necessary.

8R,O.T LA,Eo<JT

BOLTS \ I

T-

STEP THREE

SQUARING CROSS CUT TRAVEL (CARRIAGE

TRAVELS IN A STRAIGHT LINE).

1. Index but do not lock arm at 0 ° miter.

2. Install saw blade as shown. Motor shaft has left hand

threads.

_,:_ ° END OF ARBOR WRENCH

%/ RESTING ON TABLE

MOTOR SPACER

SAW BLADE

)IOR

SHAFT NUT

ER COLLAR

assembly and alignment

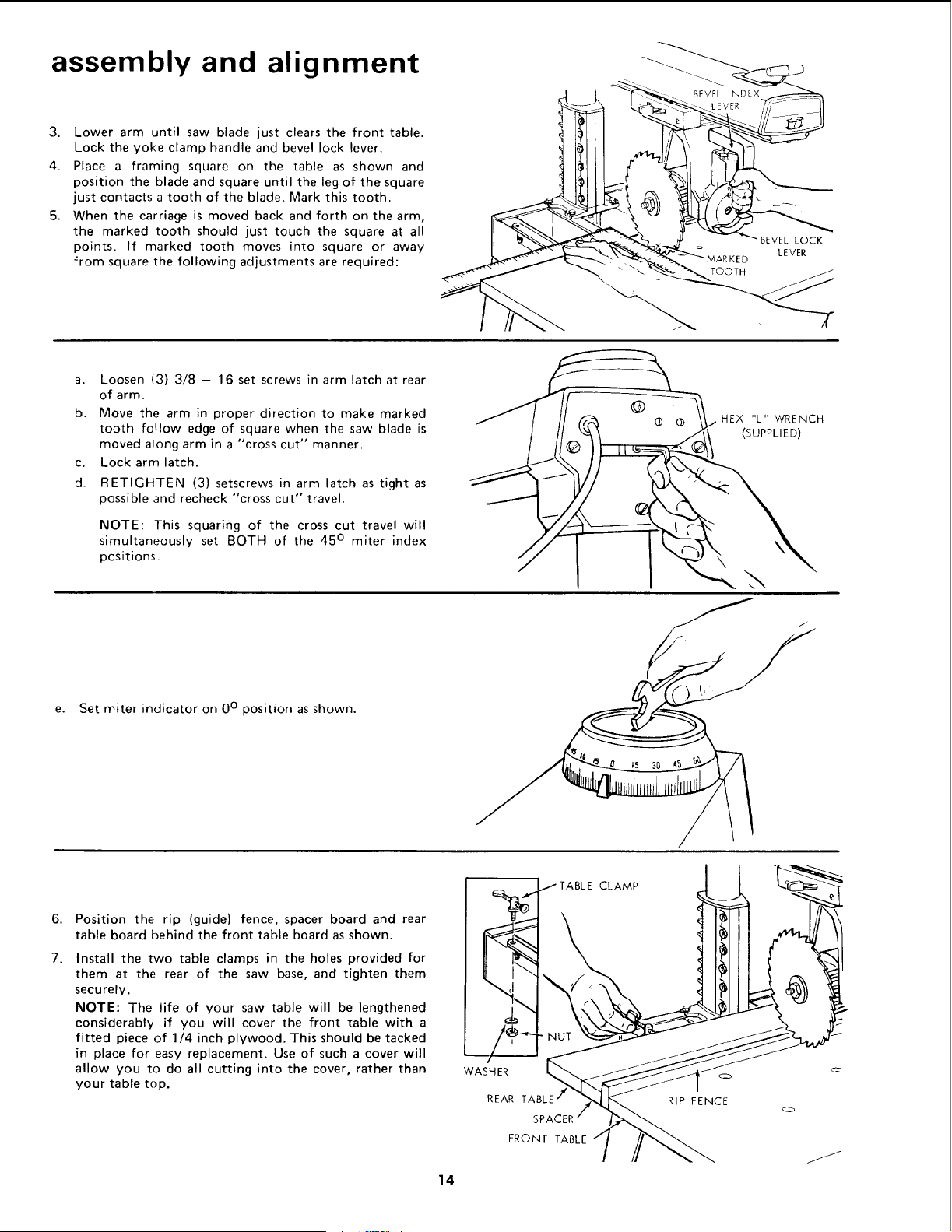

3. Lower arm until saw blade just clears the front table.

Lock the yoke clamp handle and bevel lock lever.

4. Place a framing square on the table as shown and

position the blade and square until the leg of the square

just contacts a tooth of the blade. Mark this tooth.

5. When the carriage is moved back and forth on the arm,

the marked tooth should just touch the square at all

points. If marked tooth moves into square or away

from square the following adjustments are required:

TOOTH

BEVEL LOCK

LEVER

a. Loosen (3) 3/8 - 16 set screws in arm latch at rear

of arm.

b. Move the arm in proper direction to make marked

tooth follow edge of square when the saw blade is

moved along arm in a "cross cut" manner.

c. Lock arm latch.

d. RETIGHTEN (3) setscrews in arm latch as tight as

possible and recheck "cross cut" travel.

NOTE: This squaring of the cross cut travel will

simultaneously set BOTH of the 45 ° miter index

positions.

HEX "L" vVRENCH

(SUPPLIED)

Set miter indicator on 0 ° position as shown.

Position the rip (guide) fence, spacer board and rear

table board behind the front table board as shown.

Install the two table clamps in the holes provided for

them at the rear of the saw base, and tighten them

securely.

NOTE: The life of your saw table will be lengthened

considerably if you will cover the front table with a

fitted piece of 1/4 inch plywood. This should be tacked

in place for easy replacement. Use of such a cover will

allow you to do all cutting into the cover, rather than

your table top.

WASHER

'14

TABLE CLAMP

REAR TABLE

FRONT TABLE

RIP FENCE

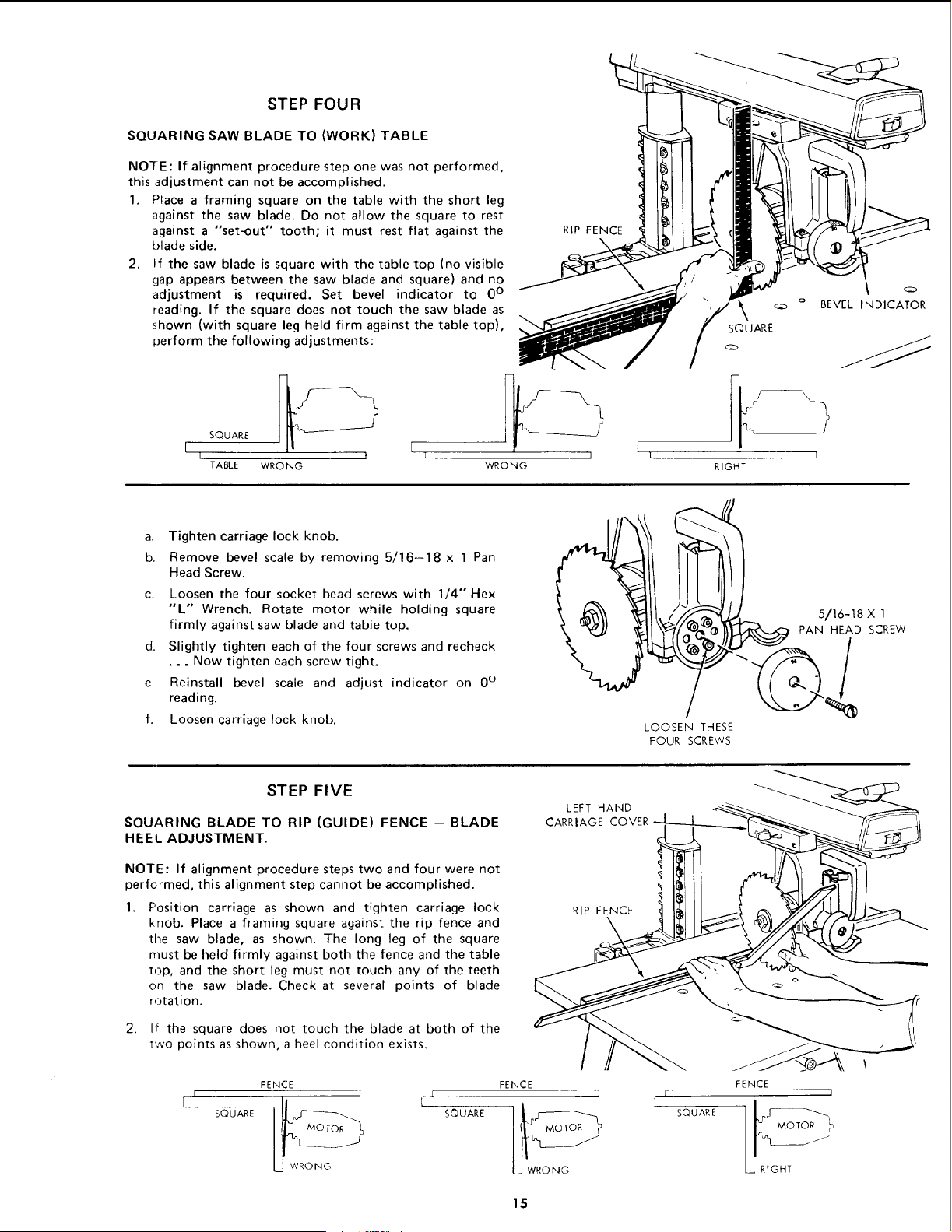

STEP FOUR

SQUARING SAW BLADE TO (WORK) TABLE

NOTE: If alignment procedure step one was not performed,

this adjustment can not be accomplished.

1. Place a framing square on the table with the short leg

against the saw blade. Do not allow the square to rest

against a "set-out" tooth; it must rest flat against the

blade side.

2. If the saw blade is square with the table top (no visible

gap appears between the saw blade and square) and no

adjustment is required. Set bevel indicator to 0 °

reading. If the square does not touch the saw blade as

shown (with square leg held firm against the table top),

perform the following adjustments:

RIP FENCE

J SQUARE

I l

TABLE WRONG

SQUARE

J I I

WRONG RIGHT

BEVEL INDICATOR

a. Tighten carriage lock knob.

b. Remove bevel scale by removing 5/16-18 x 1 Pan

Head Screw.

c. Loosen the four socket head screws with 1/4" Hex

"L" Wrench. Rotate motor while holding square

firmly against saw blade and table top.

d. Slightly tighten each of the four screws and recheck

•.. Now tighten each screw tight.

e. Reinstall bevel scale and adjust indicator on 0°

reading.

f. Loosen carriage lock knob.

.5/16-18 X I

_ PAN HE._D SCREW

LOOSEN THESE

FOUR SCREWS

STEP FIVE

SQUARING BLADE TO RIP (GUIDE) FENCE - BLADE

HEEL ADJUSTMENT.

NOTE: If alignment procedure steps two and four were not

performed, this alignment step cannot be accomplished.

1. Position carriage as shown and tighten carriage lock

knob. Place a framing square against the rip fence and

the saw blade, as shown. The long leg of the square

must be held firmly against both the fence and the table

top, and the short leg must not touch any of the teeth

on the saw blade. Check at several points of blade

rotation.

2. If the square does not touch the blade at both of the

two points as shown, a heel condition exists.

LEFT HAND

CARRIAGE COVER

RIP FENCE

FENCE

I [

SQUARE SOUARE

U WRONG

FENCE

RONG

SQUARE

FENCE

L RIGHT

assembly and alignment

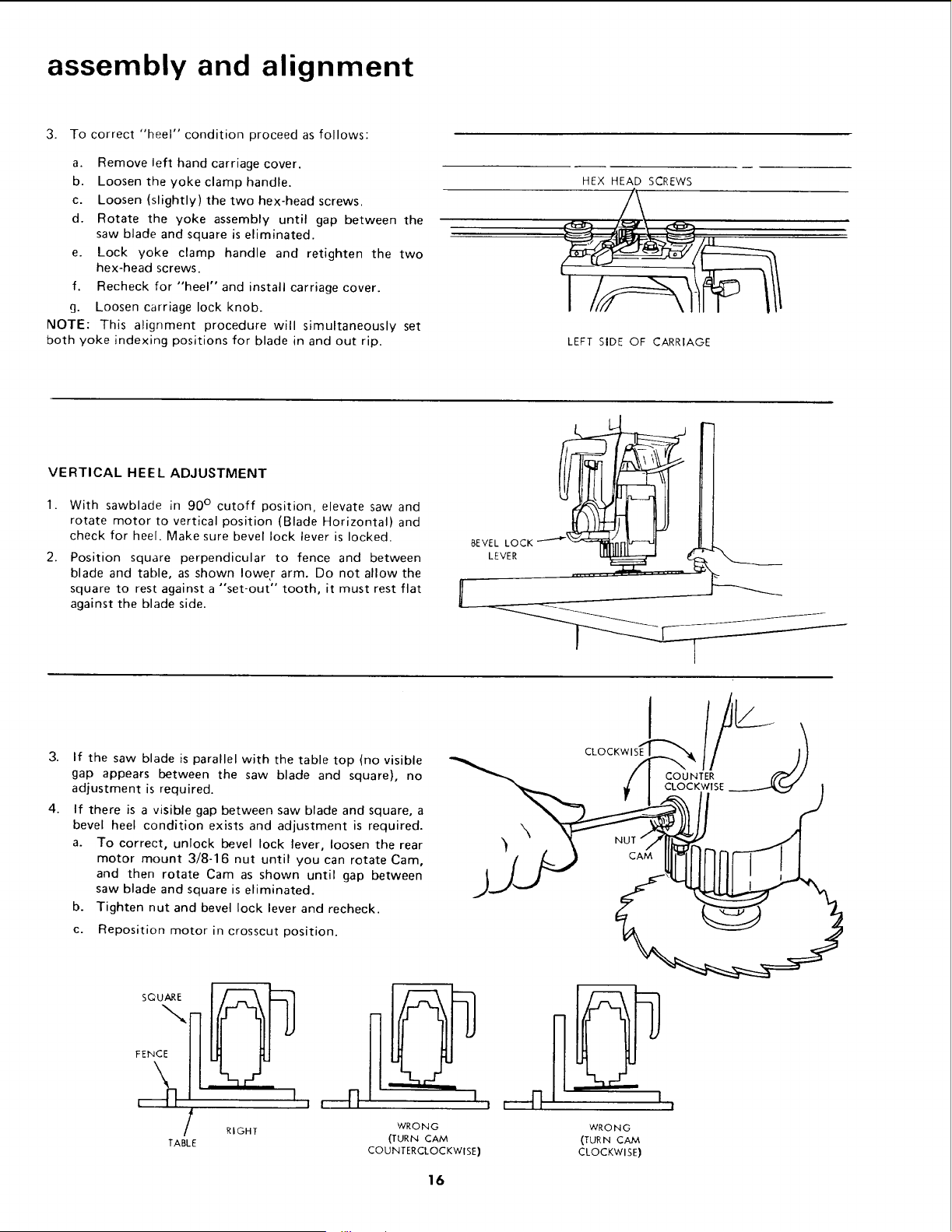

3. To correct "heel" condition proceed as follows:

a. Remove left hand carriage cover.

b. Loosen the yoke clamp handle.

c. Loosen (slightly) the two hex-head screws.

d. Rotate the yoke assembly until gap between the

saw blade and square is eliminated.

e. Lock yoke clamp handle and retighten the two

hex-head screws.

f. Recheck for "heel" and install carriage cover.

g. Loosen carriage lock knob.

NOTE: This alignment procedure will simultaneously set

both yoke indexing positions for blade in and out rip.

HEX HEAD SCREWS

LEFT SIDE OF CARRIAGE

VERTICAL HEEL ADJUSTMENT

1. With sawblade in 90 ° cutoff position, elevate saw and

rotate motor to vertical position (Blade Horizontal) and

check for heel. Make sure bevel lock lever is locked.

2. Position square perpendicular to fence and between

blade and table, as shown lower arm. Do not allow the

square to rest against a "set-out" tooth, it must rest flat

against the blade side.

BEVEL LOCK /_

LEVER

........... ...",

If the saw blade is parallel with the table top (no visible

gap appears between the saw blade and square), no

adjustment is required.

If there is a visible gap between saw blade and square, a

bevel heel condition exists and adjustment is required.

a. To correct, unlock bevel lock lever, loosen the rear

motor mount 3/8-16 nut until you can rotate Cam,

and then rotate Cam as shown until gap between

saw blade and square is eliminated.

b. Tighten nut and bevel lock lever and recheck.

c. Reposition motor in crosscut position.

CLOCKW

COUNTER

CLOCKWISE

SQUARE

V ,

RIGHT

TABLE

WRONG

(TURN CAM

COUNTERCLOCKWISE)

WRONG

(TURN CAM

CLOCKWISE)

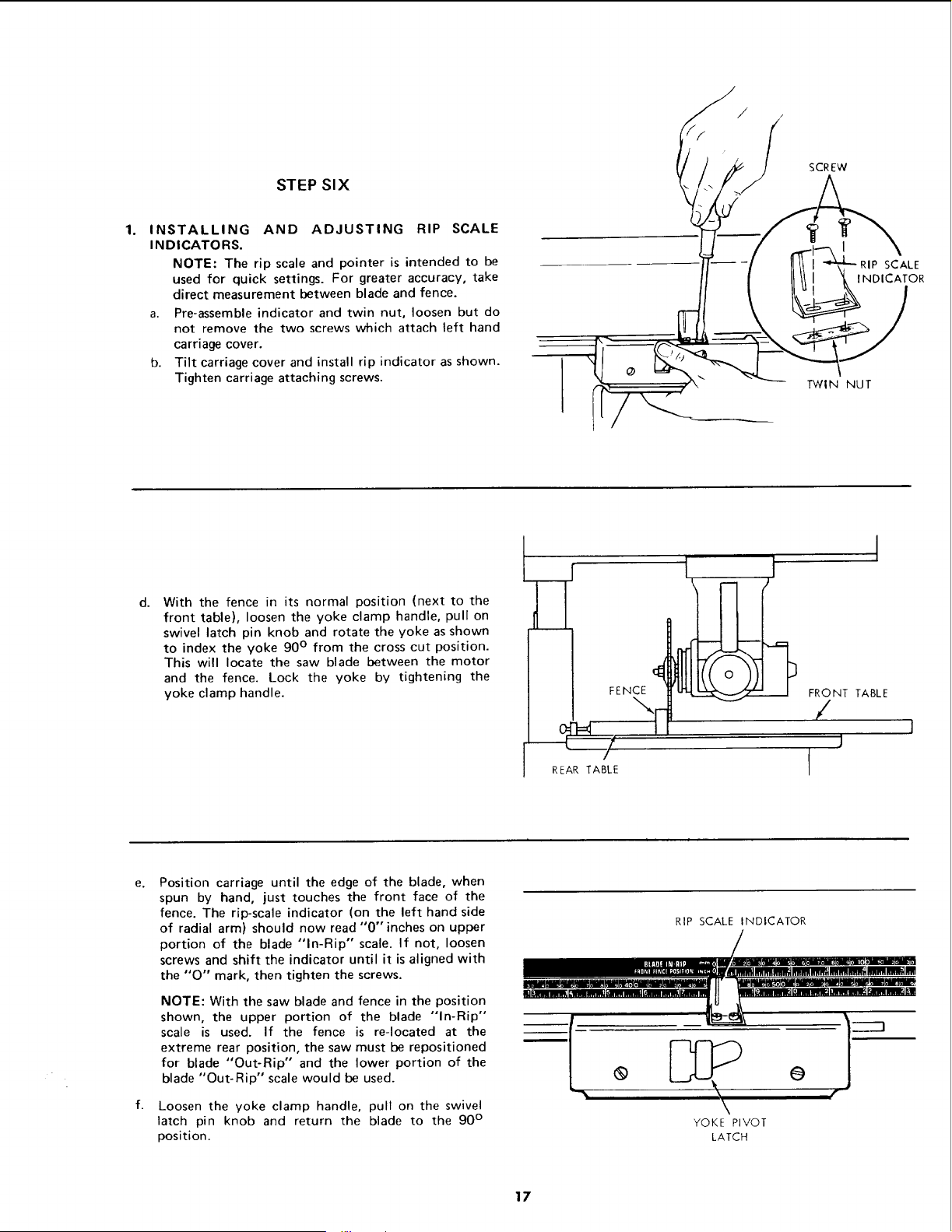

STEP SIX

SCREW

1. INSTALLING AND ADJUSTING RIP SCALE

INDICATORS.

b°

NOTE: The rip scale and pointer is intended to be

used for quick settings. For greater accuracy, take

direct measurement between blade and fence.

Pre-assemble indicator and twin nut, loosen but do

not remove the two screws which attach left hand

carriage cover.

Tilt carriage cover and install rip indicator as shown.

Tighten carriage attaching screws.

I I

_I'_, RIP SCALE

JI_IL INDICATOR

TWIN NUT

d. With the fence in its normal position (next to the

front table), loosen the yoke clamp handle, pull on

swivel latch pin knob and rotate the yoke as shown

to index the yoke 90 ° from the cross cut position.

This will locate the saw blade between the motor

and the fence. Lock the yoke by tightening the

yoke clamp handle.

FENCE

REAR TABLE

FRONT TABLE

e. Position carriage until the edge of the blade, when

spun by hand, just touches the front face of the

fence. The rip-scale indicator (on the left hand side

of radial arm) should now read "'0'" inches on upper

portion of the blade "In-Rip" scale. If not, loosen

screws and shift the indicator until it is aligned with

the "0" mark, then tighten the screws.

NOTE: With the saw blade and fence in the position

shown, the upper portion of the blade "In-Rip"

scale is used. If the fence is re-located at the

extreme rear position, the saw must be repositioned

for blade "Out-Rip" and the lower portion of the

blade "Out-Rip" scale would be used.

Loosen the yoke clamp handle, pull on the swivel

latch pin knob and return the blade to the 90 °

position.

RIP SCALE INDICATOR

YOKE PIVOT

LATCH

assembly and alignment

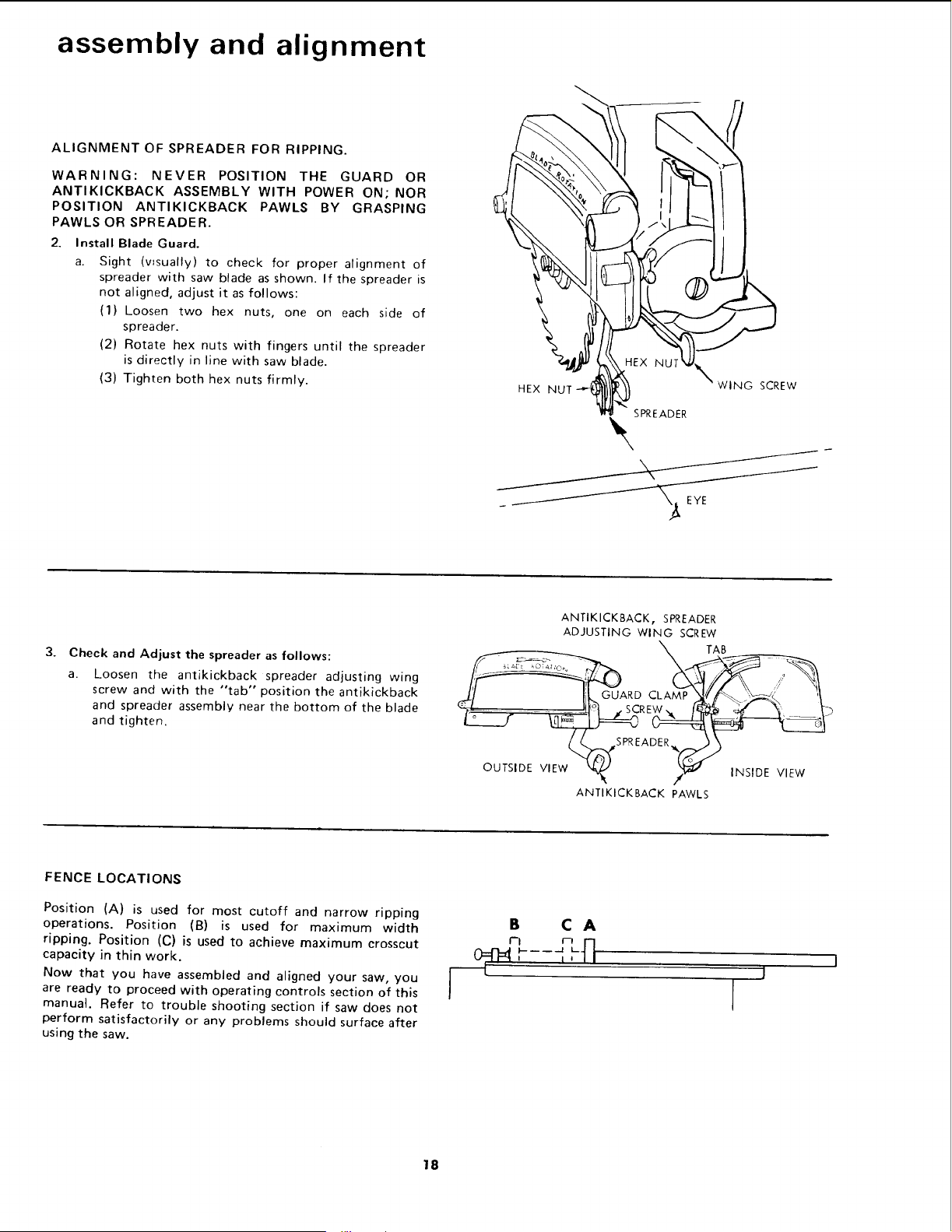

ALIGNMENT OF SPREADER FOR RIPPING.

WARNING: NEVER POSITION THE GUARD OR

ANTIKICKBACK ASSEMBLY WITH POWER ON; NOR

POSITION ANTIKICKBACK PAWLS BY GRASPING

PAWLS OR SPREADER.

2. Install Blade Guard.

a. Sight (wsually) to check for proper alignment of

spreader with saw blade as shown. If the spreader is

not aligned, adjust it as follows:

(1) Loosen two hex nuts, one on each side of

spreader.

(2) Rotate hex nuts with fingers until the spreader

is directly in line with saw blade.

(3) Tighten both hex nuts firmly.

HEX NUT ""_t

TER WING SCREW

Check and Adjust the spreader as follows:

a. Loosen the antikickback spreader adjusting wing

screw and with the "tab" position the antikickback

and spreader assembly near the bottom of the blade

and tighten.

ANTIKICKBACK, SPREADER

ADJUSTING WING SCREW

_ARDC_'/OUTSIDE_:A[_ko_,_,,,O._ViEW___e SPREASCREW .... '

ANTIKICKBACK PAWLS

FENCE LOCATIONS

Position (A) is used for most cutoff and narrow ripping

operations. Position (B) is used for maximum width

ripping. Position (C) is used to achieve maximum crosscut

capacity in thin work.

Now that you have assembled and aligned your saw, you

are ready to proceed with operating controls section of this

manual. Refer to trouble shooting section if saw does not

perform satisfactorily or any problems should surface after

using the saw.

B CA

[

locations and functions of controls

SWIVEL

LATCH LEVER

The versatility of the Radial Saw is due, in part, to its

controls, and these are the keys to its successful operation.

Learn to use the controls for all operations before actually

starting to saw.

A series of six diagrams is located on the top surface of the

arm. These designate the controls that must be used in basic

set-ups and operating procedures. You should become

familiar with these diagrams and the operating instructions

that follow, before operating your saw.

MITER INDICATOR 2

5 ARM CONTROL LEVER

BEVEL INDEX LEVER

RIP SCALE INDICATOR

ON-OFF

SWITCH

WITH KEY

ARM LOCK

JSTING WHEEL

TABLE CLAMP

. L

YOKE PIVOT {RIPPING)

PO_/ER SWITCH & KEY

GUARD CLAMP

SCREW

ELEVATION CRANK

ANTIKICKBACK, SPREADER

ADJUSTING WING SCREW

CARRIAGE

LOCK KNOB

LOCK

HANDLE

BRAKE

ACCESSORY SHAFT

ANTIKICKBACK

AND SPREADER

ASSEMBLY

BEVEL INDEX

INDICATOR

BEVEL LOCK

LEVER

locations and functions of controls

Depth of Cut (Elevation)

a. The diagram shows the elevation crank which is

used to raise and lower the saw blade.

b. Clockwise rotation raises the blade

counterclockwise rotation lowers it. One complete

turn of the handle will raise or lower the saw blade

1/16-inch.

Angle of Cut (Miter)

Proper Indexing Method - Experienced operators of

woodworking equipment, such as this Craftsman Radial

Saw, acquire the habit of indexing in one direction

only, whenever a new setting is made in preparation for

a different operation.

Example: When moving the arm to a miter index

position move it slightly past the desired index position,

then return to the index position carefully to index and

lock. Yoke indexing and bevel indexing can be

accomplished in a similar manner. This indexing

technique tends to neutralize any stresses impaired

upon saw components and contributes to the high

degree of accuracy the saw is capable of producing

when operated expertly.

a. The arm control lever locks, unlocks and indexes

the arm for Left and Right Miter cuts.

b. The radial arm has positive index positions at 0°

and 45 ° Left and Right. The arm is rotated by

pulling arm control lever to index release position.

With arm control lever released the arm will

automatically index at 0 ° and 45 ° Left or Right.

After positioning arm to the desired miter angle,

push arm control lever to locked position.

UNLOCK INDEX RELEASE

Yoke Pivot (Ripping)

a. Two controls are used in this operation. They are:

the swivel latch-pin lever and the yoke clamp

handle.

b. A swivel latch lever automatically indexes the yoke

at each 90 ° position. Pull the spring-loaded swivel

latch-lever forward to release this pin.

c. The yoke clamp handle locks the yoke to the

carriage in any position. Pull the handle forward to

release the yoke; push the handle rearward to secure

the yoke.

Carriage Lock

a. The carriage lock knob is rotated clockwise to lock

the carriage on the radial arm, and counterclockwise

to release it.

b. When performing crosscutting operations the

carriage lock knob must be rotated

counterclockwise until the carriage is free to travel

along the arm. This knob should be tightened until

the operator is ready to grasp the bevel index

handle and make a cut.

5. Blade Angle (Bevel)

a. The two controls used in angular positioning and

indexing of the motor, to provide the desired

saw-blade (bevel) angle, are: bevel lock lever and

bevel-index lever.

b. The bevel-index scale indicates the angular position

of the motor with respect to horizontal, from 0 ° to

90 ° in either vertical position.

c. The bevel index lever automatically indexes the

motor at 0 °, 45 ° and 90 ° . Move bevel index lever

to the left while positioning the blade, then release

it. At any other position it does not engage.

d. The bevel lock lever locks the motor to the yoke

when the motor is in any position. Pull lever to

release and push to lock.

Power Switch and Key

a. Insert key into switch lock.

b. Insert finger under end of switch lever and pull end

out, to turn switch on.

C°

Push lever in - with thumb - to turn switch off.

WARNING: THIS LOCKING FEATURE IS

PROVIDED TO PREVENT UNAUTHORIZED

USE OF YOUR SAW. ALWAYS REMOVE THE

KEY AND KEEP IT IN A SAFE PLACE. TO

REMOVE KEY, HOLD THUMB ON END OF

LEVER TO KEEP SWITCH IN "OFF" POSITION

AND PULL KEY STRAIGHT OUT.

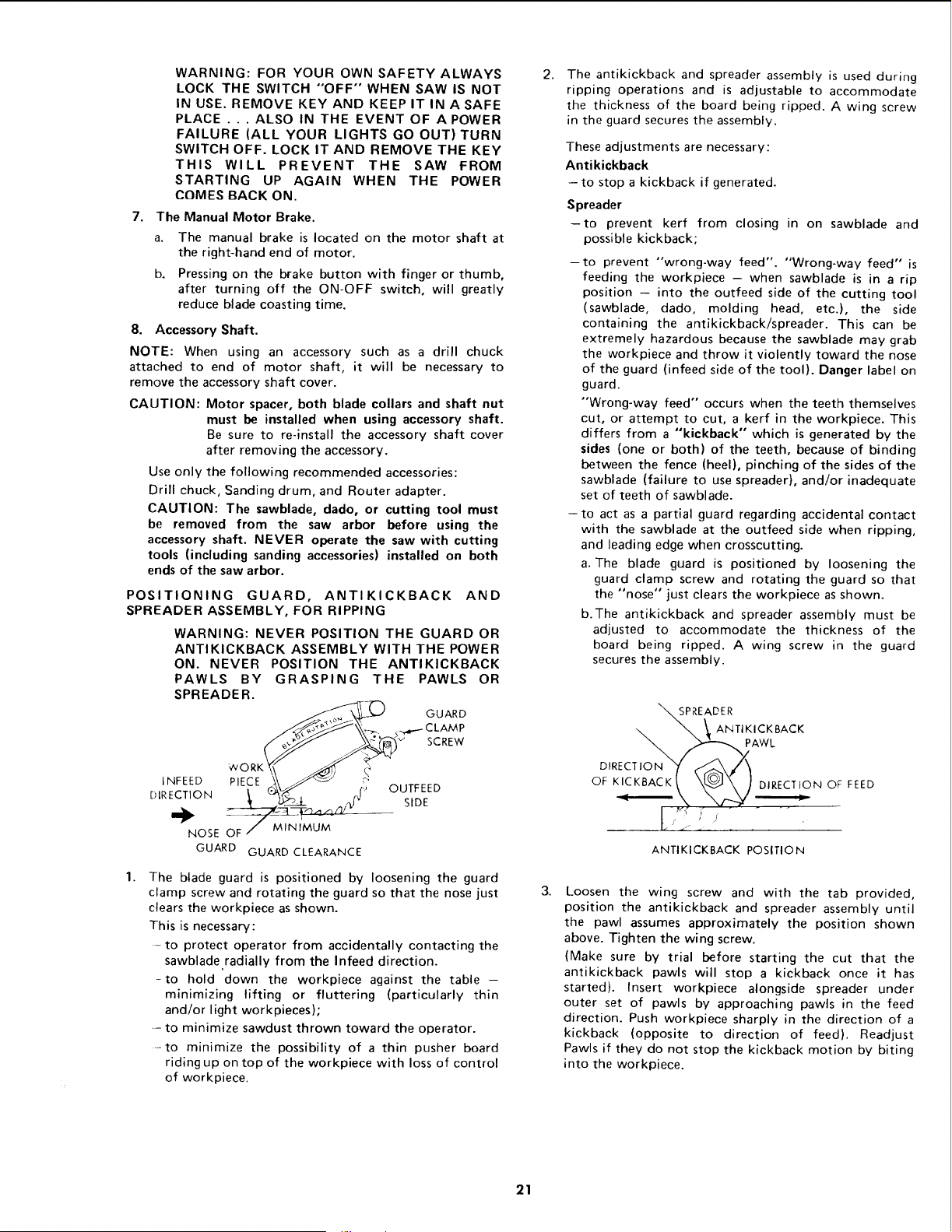

WARNING: FOR YOUR OWN SAFETY ALWAYS

LOCK THE SWITCH "OFF" WHEN SAW IS NOT

IN USE. REMOVE KEY AND KEEP IT IN A SAFE

PLACE . . . ALSO IN THE EVENT OF A POWER

FAILURE (ALL YOUR LIGHTS GO OUT) TURN

SWITCH OFF. LOCK IT AND REMOVE THE KEY

THIS WILL PREVENT THE SAW FROM

STARTING UP AGAIN WHEN THE POWER

COMES BACK ON.

The Manual Motor Brake.

a. The manual brake is located on the motor shaft at

the right-hand end of motor.

b. Pressing on the brake button with finger or thumb,

after turning off the ON-OFF switch, will greatly

reduce blade coasting time.

8. Accessory Shaft.

NOTE: When using an accessory such as a drill chuck

attached to end of motor shaft, it will be necessary to

remove the accessory shaft cover.

CAUTION: Motor spacer, both blade collars and shaft nut

must be installed when using accessory shaft.

Be sure to re-install the accessory shaft cover

after removing the accessory.

Use only the following recommended accessories:

Drill chuck, Sanding drum, and Router adapter.

CAUTION: The sawblade, dado, or cutting tool must

be removed from the saw arbor before using the

accessory shaft. NEVER operate the saw with cutting

tools (including sanding accessories) installed on both

ends of the saw arbor.

POSITIONING GUARD, ANTIKICKBACK AND

SPREADER ASSEMBLY, FOR RIPPING

WARNING: NEVER POSITION THE GUARD OR

ANTIKICKBACK ASSEMBLY WITH THE POWER

ON. NEVER POSITION THE ANTIKICKBACK

PAWLS BY GRASPING THE PAWLS OR

SPREADER.

GUARD

SCREW

INFEED PIECE

DIRECTION /, OUTFEED

SIDE

NOSE OF MINIMUM

GUARD GUARD CLEARANCE

1. The blade guard is positioned by loosening the guard

clamp screw and rotating the guard so that the nose just

clears the workpiece as shown.

This is necessary:

- to protect operator from accidentally contacting the

sawblade radially from the Infeed direction.

-to hold clown the workpiece against the table --

minimizing lifting or fluttering (particularly thin

and/or light workpieces);

-- to minimize sawdust thrown toward the operator.

-to minimize the possibility of a thin pusher board

riding up on top of the workpiece with loss of control

of workpiece.

The antikickback and spreader assembly is used during

ripping operations and is adjustable to accommodate

the thickness of the board being ripped. A wing screw

in the guard secures the assembly.

These adjustments are necessary:

Antikickback

- to stop a kickback if generated.

Spreader

-to prevent kerf from closing in on sawblade and

possible kickback;

-to prevent "wrong-way feed". "Wrong-way feed" is

feeding the workpiece - when sawblade is in a rip

position - into the outfeed side of the cutting tool

(sawblade, dado, molding head, etc.), the side

containing the antikickback/spreader. This can be

extremely hazardous because the sawblade may grab

the workpiece and throw it violently toward the nose

of the guard (infeed side of the tool). Danger label on

guard.

"Wrong-way feed" occurs when the teeth themselves

cut, or attempt to cut, a kerr in the workpiece. This

differs from a "'kickback" which is generated by the

sides (one or both) of the teeth, because of binding

between the fence (heel), pinching of the sides of the

sawblade (failure to use spreader), and/or inadequate

set of teeth of sawblade.

-to act as a partial guard regarding accidental contact

with the sawblade at the outfeed side when ripping,

and leading edge when crosscutting.

a. The blade guard is positioned by loosening the

guard clamp screw and rotating the guard so that

the "nose" just clears the workpiece as shown.

b.The antikickback and spreader assembly must be

adjusted to accommodate the thickness of the

board being ripped. A wing screw in the guard

secures the assembly.

__,_N READER

ANTIKICKBACK

PAWL

OF KICKBACK\ _l_.J _ ) DIRECTION OF FEED

L; j ' .'

ANTIKICKBACK POSITION

Loosen the wing screw and with the tab provided,

position the antikickback and spreader assembly until

the pawl assumes approximately the position shown

above. Tighten the wing screw.

(Make sure by trial before starting the cut that the

antikickback pawls will stop a kickback once it has

started). Insert workpiece alongside spreader under

outer set of pawls by approaching pawls in the feed

direction. Push workpiece sharply in the direction of a

kickback (opposite to direction of feed). Readjust

Pawls if they do not stop the kickback motion by biting

into the workpiece.

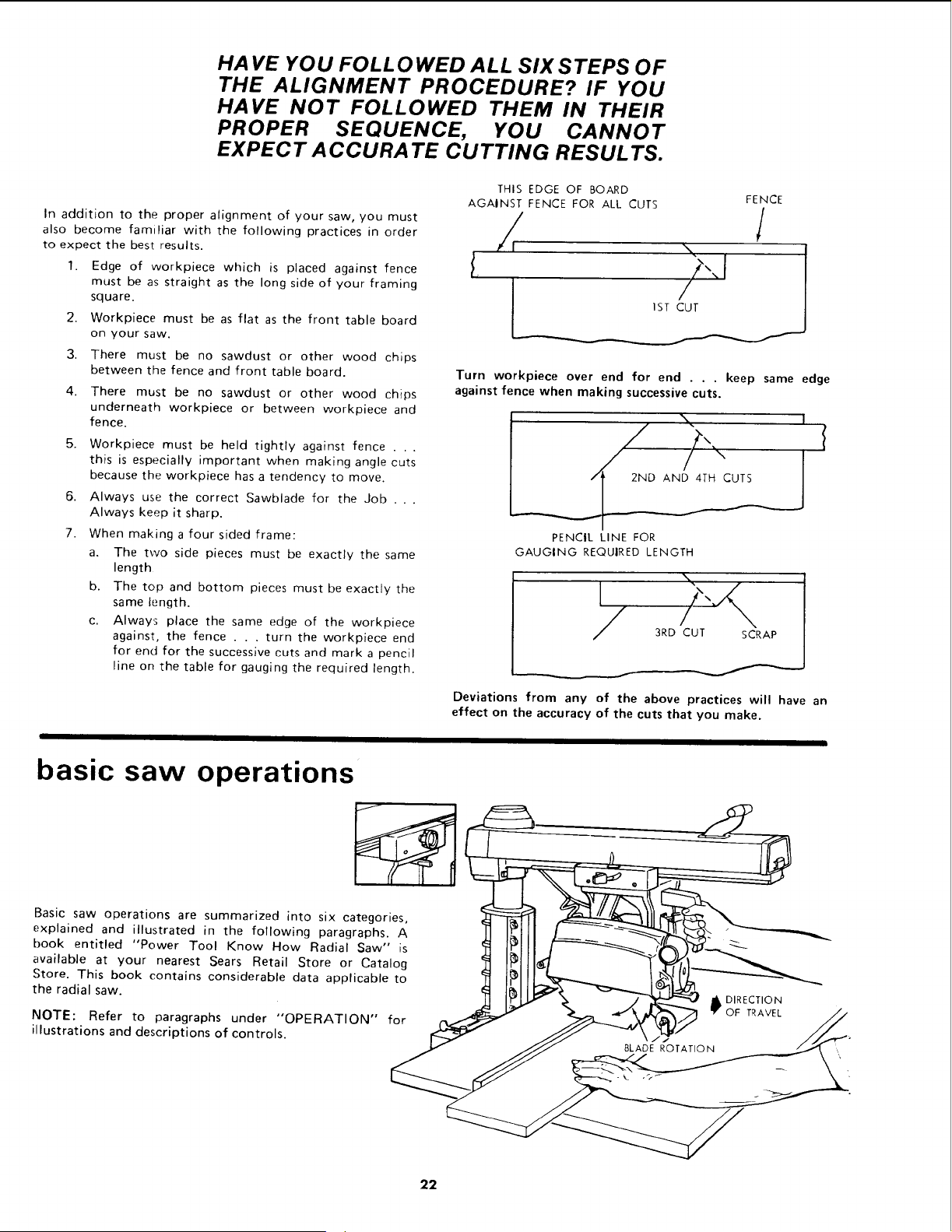

HAVE YOU FOLLOWED ALL SIX STEPS OF

THE ALIGNMENT PROCEDURE? IF YOU

HAVE NOT FOLLOWED THEM IN THEIR

PROPER SEQUENCE, YOU CANNOT

EXPECT A CCURA TE CUTTING RESUL TS.

In addition to the proper alignment of your saw, you must

also become familiar with the following practices in order

to expect the best results.

I. Edge of workpiece which is placed against fence

must be as straight as the long side of your framing

square.

2. Workpiece must be as flat as the front table board

on your saw.

3. There must be no sawdust or other wood chips

between the fence and front table board.

4. There must be no sawdust or other wood chips

underneath workpiece or between workpiece and

fence.

5. Workpiece must be held tightly against fence . ..

this is especially important when making angle cuts

because the workpiece has a tendency to move.

6. Always use the correct Sawblade for the Job ...

Always keep it sharp.

7. When making a four sided frame:

a. The two side pieces must be exactly the same

length

b. The top and bottom pieces must be exactly the

same length.

c. Always place the same edge of the workpiece

against, the fence . . . turn the workpiece end

for end for the successive cuts and mark a pencil

line on the table for gauging the required length.

THIS EDGE OF BOARD

AGAINST FENCE FOR ALL CUTS FENCE

/ , /

L_IST CUT

Turn workpiece over end for end . . . keep same edge

against fence when making successive cuts.

PENCIL LINE FOR

GAUGING REQUIRED LENGTH

3RD CUT SCRAP

Deviations from any of the above practices will have an

effect on the accuracy of the cuts that you make.

basic saw operations

Basic saw operations are summarized into six categories,

explained and illustrated in the following paragraphs. A

book entitled "Power Tool Know How Radial Saw" is

available at your nearest Sears Retail Store or Catalog

Store. This book contains considerable data applicable to

the radial saw.

NOTE: Refer to paragraphs under "OPERATION" for

illustrations and descriptions of controls.

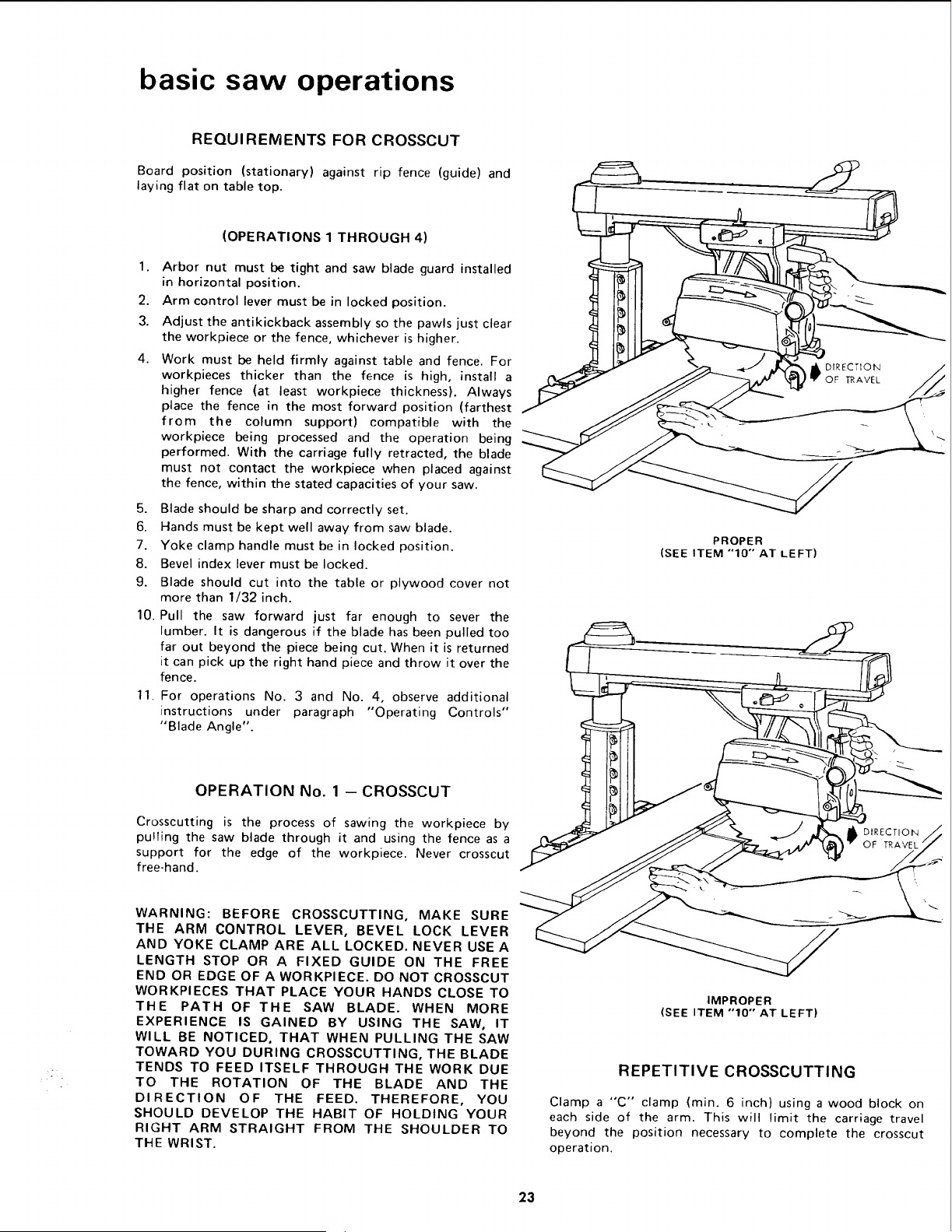

basic saw operations

REQUIREMENTS FOR CROSSCUT

Board position (stationary) against rip fence (guide) and

laying flat on table top.

(OPERATIONS 1 THROUGH 4)

Arbor nut must be tight and saw blade guard installed

in horizontal position.

Arm control lever must be in locked position.

Adjust the antikickback assembly so the pawls just clear

the workpiece or the fence, whichever is higher.

Work must be held firmly against table and fence. For

workpieces thicker than the fence is high, install a

higher fence (at least workpiece thickness). Always

place the fence in the most forward position (farthest

from the column support) compatible with the

workpiece being processed and the operation being

performed. With the carriage fully retracted, the blade

must not contact the workpiece when placed against

the fence, within the stated capacities of your saw.

5. Blade should be sharp and correctly set.

6. Hands must be kept well away from saw blade.

7. Yoke clamp handle must be in locked position.

8. Bevel index lever must be locked.

9. Blade should cut into the table or plywood cover not

more than 1/32 inch.

10. Pull the saw forward just far enough to sever the

lumber. It is dangerous if the blade has been pulled too

far out beyond the piece being cut. When it is returned

it can pick up the right hand piece and throw it over the

fence.

For operations No. 3 and No. 4, observe additional

instructions under paragraph "Operating Controls"

"Blade Angle".

OPERATION No. 1 - CROSSCUT

Crosscutting is the process of sawing the workpiece by

pulling the saw blade through it and using the fence as a

support for the edge of the workpiece. Never crosscut

free-hand.

WARNING: BEFORE CROSSCUTTING, MAKE SURE

THE ARM CONTROL LEVER, BEVEL LOCK LEVER

AND YOKE CLAMP ARE ALL LOCKED. NEVER USE A

LENGTH STOP OR A FIXED GUIDE ON THE FREE

END OR EDGE OF A WORKPIECE. DO NOT CROSSCUT

WORKPIECES THAT PLACE YOUR HANDS CLOSE TO

THE PATH OF THE SAW BLADE. WHEN MORE

EXPERIENCE IS GAINED BY USING THE SAW, IT

WILL BE NOTICED, THAT WHEN PULLING THE SAW

TOWARD YOU DURING CROSSCUTTING, THE BLADE

TENDS TO FEED ITSELF THROUGH THE WORK DUE

TO THE ROTATION OF THE BLADE AND THE

DIRECTION OF THE FEED. THEREFORE, YOU

SHOULD DEVELOP THE HABIT OF HOLDING YOUR

RIGHT ARM STRAIGHT FROM THE SHOULDER TO

THE WRIST.

PROPER

(SEE ITEM "10" AT LEFT)

IMPROPER

(SEE ITEM "10" AT LEFT)

REPETITIVE CROSSCUTTING

Clamp a "C'" clamp (min. 6 inch) using a wood block on

each side of the arm. This will limit the carriage travel

beyond the position necessary to complete the crosscut

operation.

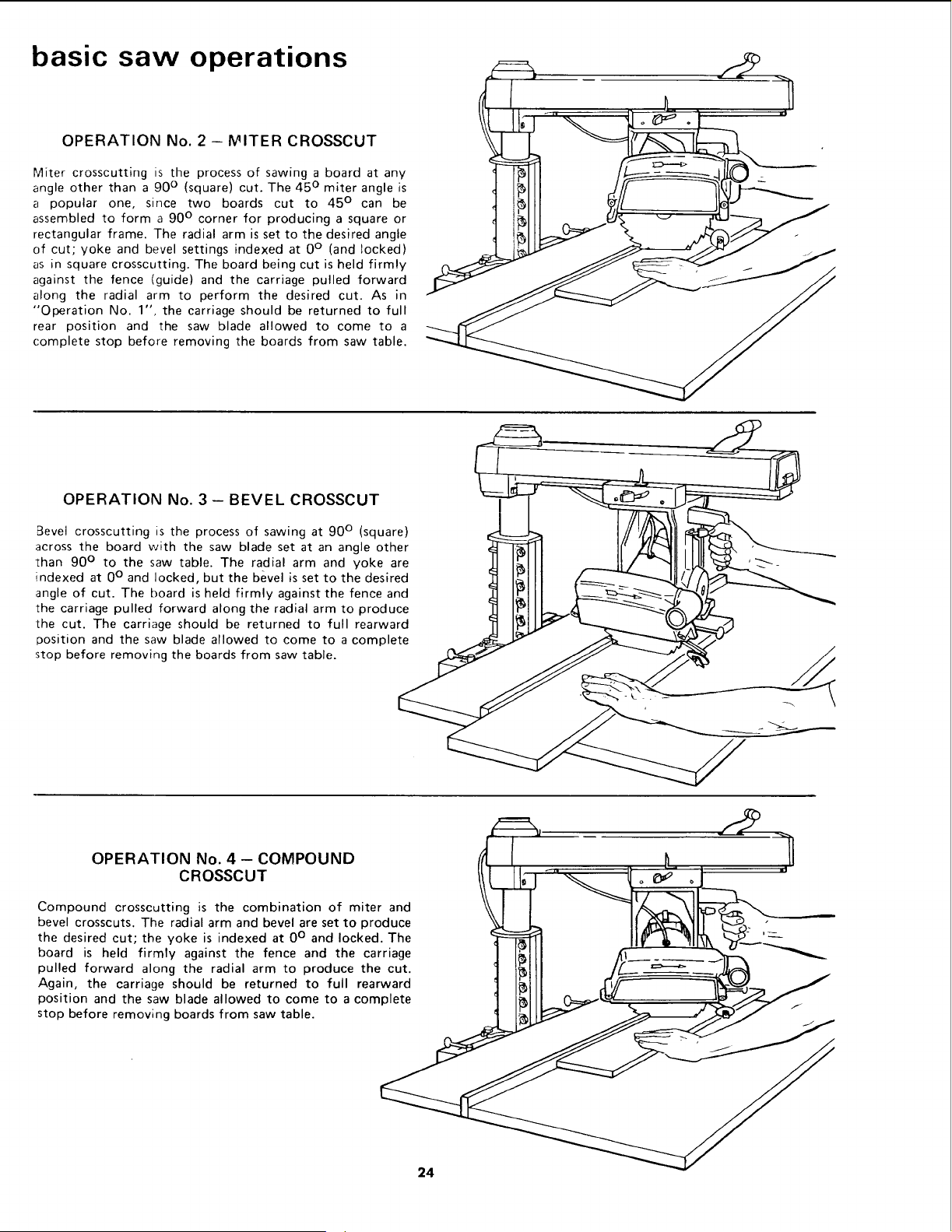

basic saw operations

OPERATION No. 2 - MITER CROSSCUT

Miter crosscutting is the process of sawing a board at any

angle other than a 90 ° (square) cut. The 45 ° miter angle is

a popular one, since two boards cut to 45 ° can be

assembled to form a 90 ° corner for producing a square or

rectangular frame. The radial arm is set to the desired angle

of cut; yoke and bevel settings indexed at 0 ° (and locked)

as in square crosscutting. The board being cut is held firmly

against the fence (guide) and the carriage pulled forward

along the radial arm to perform the desired cut. As in

"Operation No. 1", the carriage should be returned to full

rear position and the saw blade allowed to come to a

complete stop before removing the boards from saw table.

OPERATION No. 3 - BEVEL CROSSCUT

Bevel crosscutting is the process of sawing at 90 ° (square)

across the board with the saw blade set at an angle other

than 90 ° to the saw table. The radial arm and yoke are

indexed at 0° and locked, but the bevel is set to the desired

angle of cut. The board is held firmly against the fence and

the carriage pulled forward along the radial arm to produce

the cut. The carriage should be returned to full rearward

position and the saw blade allowed to come to a complete

stop before removing the boards from saw table.

OPERATION No. 4- COMPOUND ° !_ ,

CROSSCUT

Compound crosscutting is the combination of miter and

bevel crosscuts. The radial arm and bevel are set to produce

the desired cut; the yoke is indexed at 0° and locked. The

board is held firmly against the fence and the carriage

pulled forward along the radial arm to produce the cut.

Again, the carriage should be returned to full rearward

position and the saw blade allowed to come to a complete

stop before removing boards from saw table.

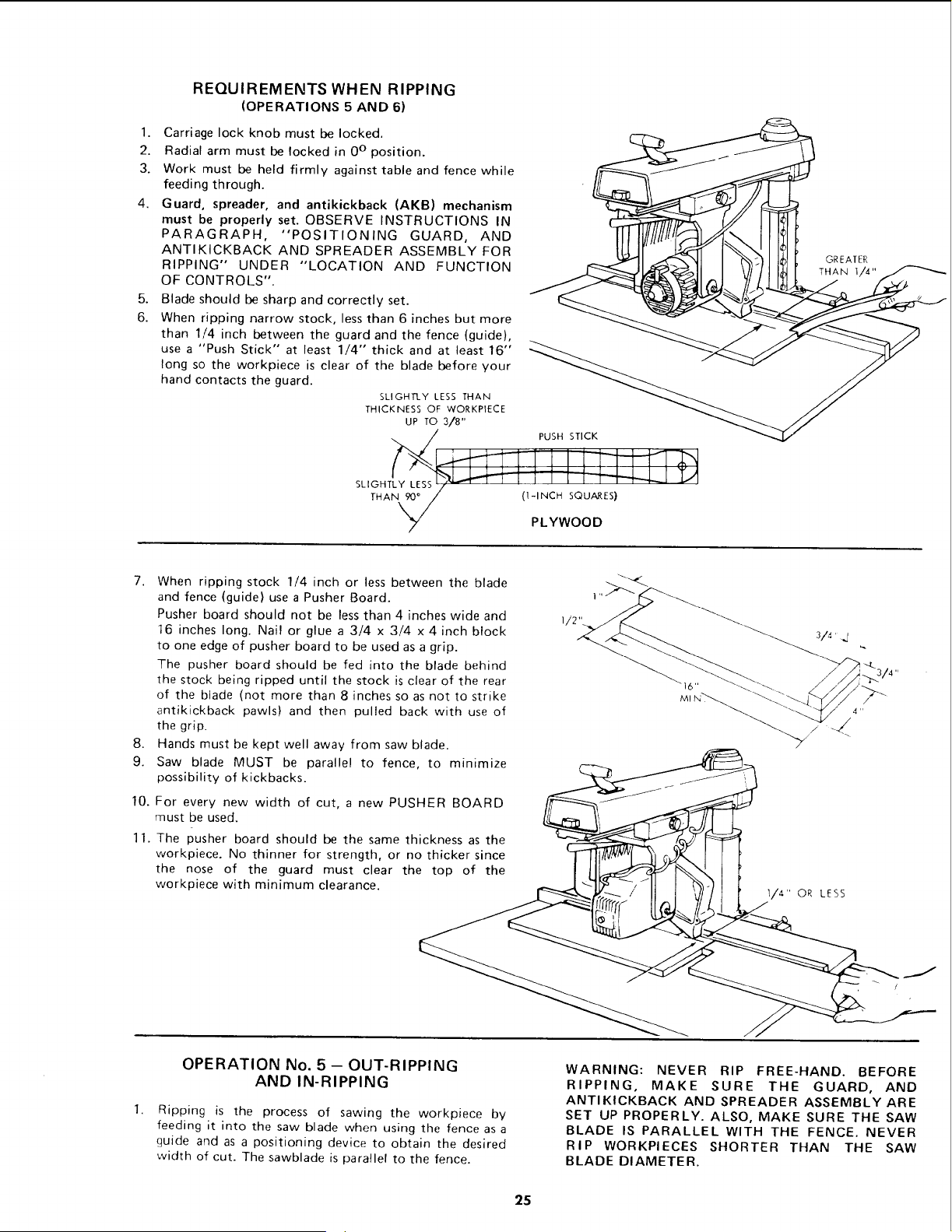

REQUIREMENTS WHEN RIPPING

(OPERATIONS 5 AND 6)

1. Carriage lock knob must be locked.

2. Radial arm must be locked in 0° position.

3. Work must be held firmly against table and fence while

feeding through.

4, Guard, spreader, and antikickback (AKB) mechanism

must be properly set. OBSERVE INSTRUCTIONS IN

PARAGRAPH, "POSITIONING GUARD, AND

ANTIKICKBACK AND SPREADER ASSEMBLY FOR

RIPPING" UNDER "LOCATION AND FUNCTION

OF CONTROLS".

5. Blade should be sharp and correctly set.

6. When ripping narrow stock, less than 6 inches but more

than 1/4 inch between the guard and the fence (guide),

use a "Push Stick" at least 1/4" thick and at least 16"

long so the workpiece is clear of the blade before your

hand contacts the guard.

SLIGHTLY LESS THAN

THICKNESS OF WORKPIECE

UP TO 3/8"

GREATER

SLIGHTLY LESS

THAN 90 o

(!-INCH SQUARES)

PLYWOOD

7. When ripping stock 1/4 inch or less between the blade

and fence (guide) use a Pusher Board.

Pusher board should not be less than 4 inches wide and

16 inches long. Nail or glue a 3/4 x 3/4 x 4 inch block

to one edge of pusher board to be used as a grip.

The pusher board should be fed into the blade behind

the stock being ripped until the stock is clear of the rear

of the blade (not more than 8 inches so as not to strike

antikickback pawls) and then pulled back with use of

the grip.

1/2"

8. Hands must be kept well away from saw blade.

9. Saw blade MUST be parallel to fence, to minimize

possibility of kickbacks.

10. For every new width of cut, a new PUSHER BOARD

must be used.

11. The pusher board should be the same thickness as the

workpiece. No thinner for strength, or no thicker since

the nose of the guard must clear the top of the

workpiece with minimum clearance.

OPERATION No. 5 - OUT-RIPPING

AND IN-RIPPING

Ripping is the process of sawing the workpiece by

feeding it into the saw blade when using the fence as a

guide and as a positioning device to obtain the desired

width of cut. The sawblade is parallel to the fence.

WARNING: NEVER RIP FREE-HAND. BEFORE

RIPPING, MAKE SURE THE GUARD, AND

ANTIKICKBACK AND SPREADER ASSEMBLY ARE

SET UP PROPERLY. ALSO, MAKE SURE THE SAW

BLADE IS PARALLEL WITH THE FENCE. NEVER

RIP WORKPIECES SHORTER THAN THE SAW

BLADE DIAMETER.

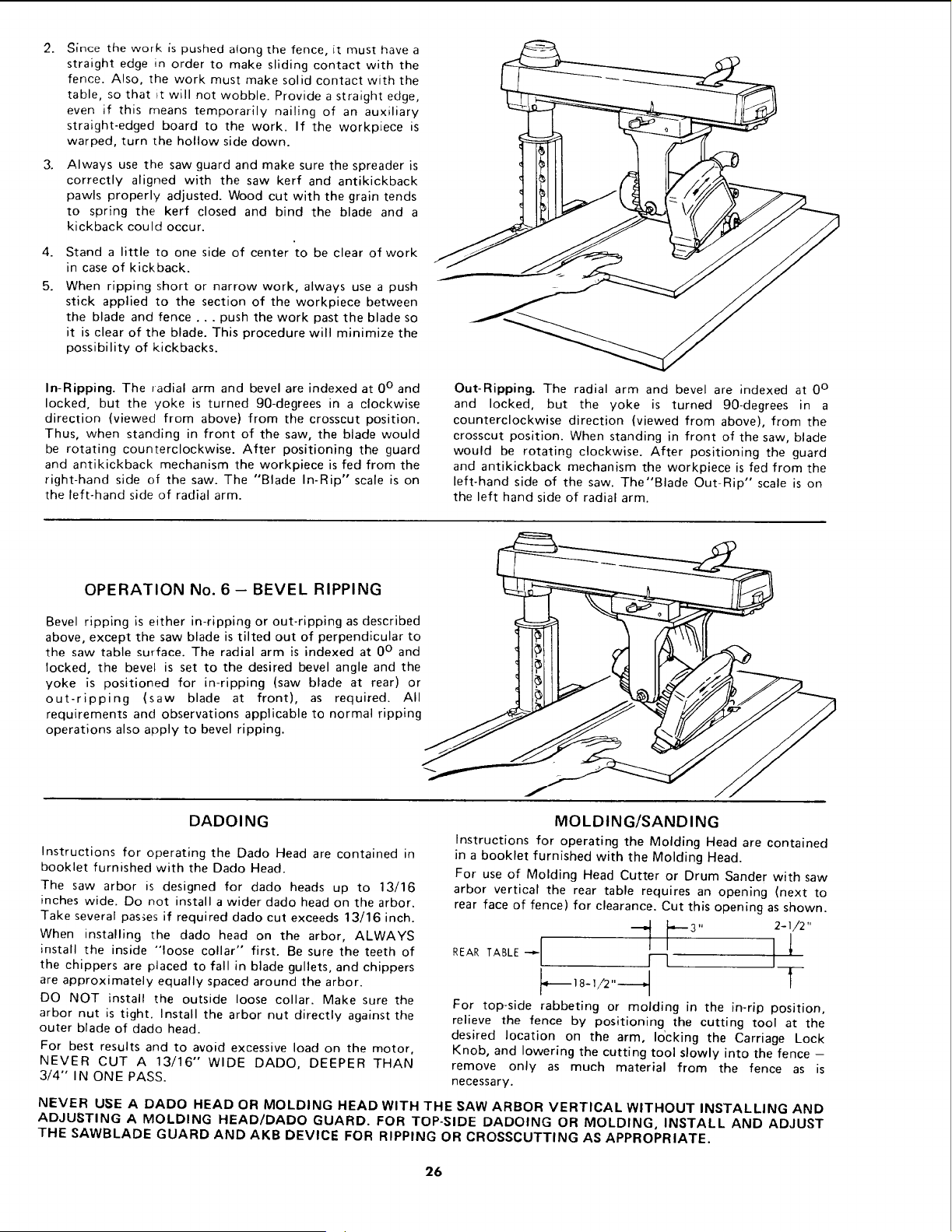

£ince the work is pushed along the fence, it must have a

straight edge in order to make sliding contact with the

fence. Also, the work must make solid contact with the

table, so that it will not wobble. Provide a straight edge,

even if this means temporarily nailing of an auxiliary

straight-edged board to the work. If the workpiece is

warped, turn [he hollow side down.

Always use the saw guard and make sure the spreader is

correctly aligned with the saw kerf and antikickback

pawls properly adjusted. Wood cut with the grain tends

to spring the kerf closed and bind the blade and a

kickback could occur.

Stand a little to one side of center to be clear of work

in case of kickback.

When ripping short or narrow work, always use a push

stick applied to the section of the workpiece between

the blade and fence.., push the work past the blade so

it is clear of the blade. This procedure will minimize the

possibility of kickbacks.

In-Ripping. The ladial arm and bevel are indexed at 0° and

locked, but the yoke is turned 90-degrees in a clockwise

direction (viewed from above) from the crosscut position.

Thus, when standing in front of the saw, the blade would

be rotating counterclockwise. After positioning the guard

and antikickback mechanism the workpiece is fed from the

right-hand side of the saw. The "Blade In-Rip" scale is on

the left-hand side of radial arm.

Out-Ripping. The radial arm and bevel are indexed at 0 °

and locked, but the yoke is turned 90-degrees in a

counterclockwise direction (viewed from above), from the

crosscut position. When standing in front of the saw, blade

would be rotating clockwise. After positioning the guard

and antikickback mechanism the workpiece is fed from the

left-hand side of the saw. The"Blade Out-Rip" scale is on

the left hand side of radial arm.

OPERATION No. 6- BEVEL RIPPING

Bevel ripping is either in-ripping or out-ripping as described

above, except the saw blade is tilted out of perpendicular to

the saw table surface. The radial arm is indexed at 00 and

locked, the bevel is set to the desired bevel angle and the

yoke is positioned for in-ripping (saw blade at rear) or

out-ripping (saw blade at front), as required. All

requirements and observations applicable to normal ripping

operations also apply to bevel ripping.

DADOING

Instructions for operating the Dado Head are contained in

booklet furnished with the Dado Head.

The saw arbor is designed for dado heads up to 13/16

inches wide. Do not install a wider dado head on the arbor.

Take several pas_es if required dado cut exceeds 13/16 inch.

When installing the dado head on the arbor, ALWAYS

install the inside "loose collar" first. Be sure the teeth of

the chippers are placed to fall in blade gullets, and chippers

are approximately equally spaced around the arbor.

DO NOT install the outside loose collar. Make sure the

arbor nut is tight. Install the arbor nut directly against the

outer blade of dado head.

For best results and to avoid excessive load on the motor,

NEVER CUT A 13/16" WIDE DADO, DEEPER THAN

3/4" IN ONE PASS.

MOLDING/SANDING

Instructions for operating the Molding Head are contained

in a booklet furnished with the Molding Head.

For use of Molding Head Cutter or Drum Sander with saw

arbor vertical the rear table requires an opening (next to

rear face of fence) for clearance. Cut this opening as shown.

REAR TABLE

For top-side rabbeting or molding in the in-rip position,

relieve the fence by positioning the cutting tool at the

desired location on the arm, locking the Carriage Lock

Knob, and lowering the cutting tool slowly into the fence -

remove only as much material from the fence as is

necessary.

NEVER USE A DADO HEAD OR MOLDING HEAD WITH THE SAW ARBOR VERTICAL WITHOUT INSTALLING AND

ADJUSTING A MOLDING HEAD/DADO GUARD. FOR TOP-SIDE DADOING OR MOLDING, INSTALL AND ADJUST

THE SAWBLADE GUARD AND AKB DEVICE FOR RIPPING OR CROSSCUTTING AS APPROPRIATE.

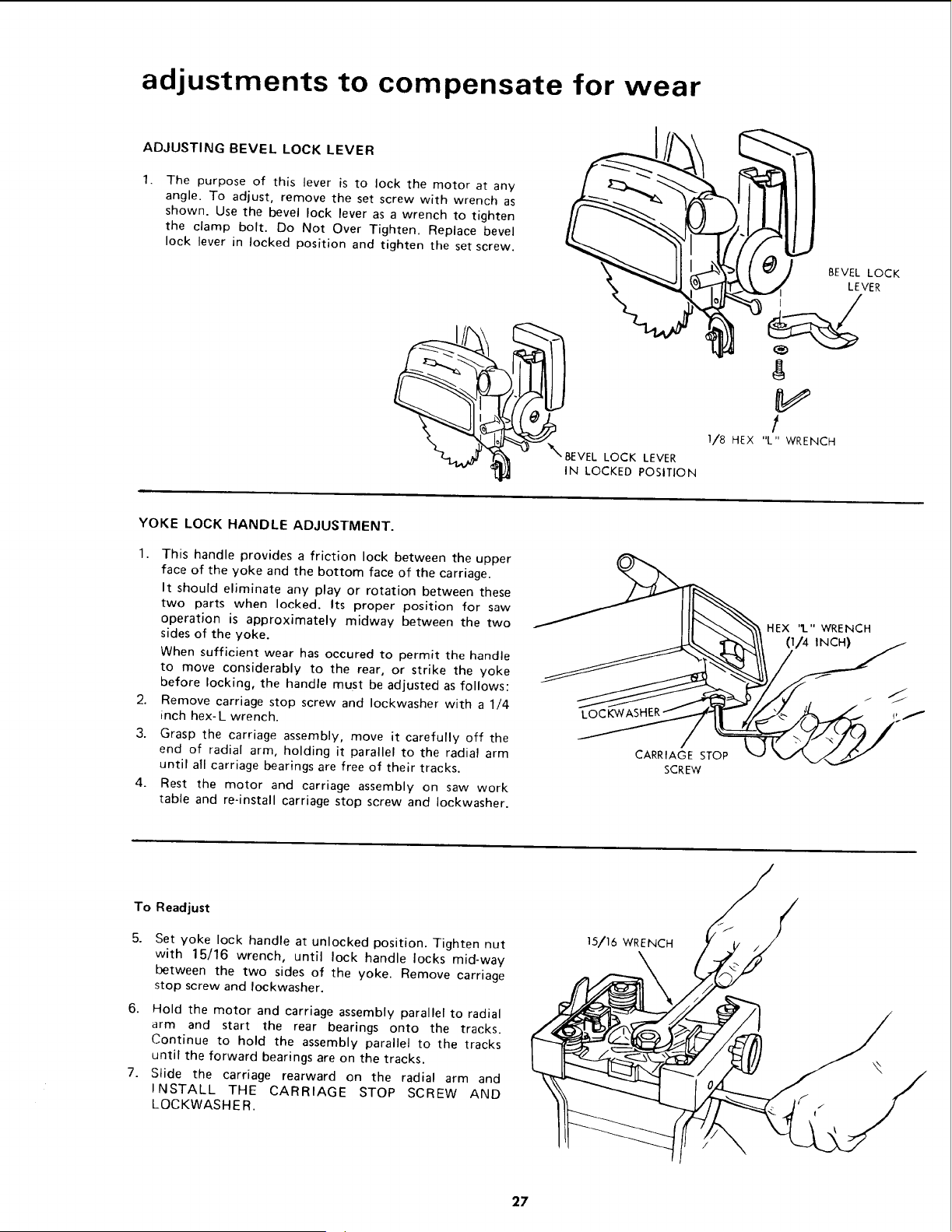

adjustments to compensate for wear

ADJUSTING BEVEL LOCK LEVER

The purpose of this lever is to lock the motor at any

angle. To adjust, remove the set screw with wrench as

shown. Use the bevel lock lever as a wrench to tighten

the clamp bolt. Do Not Over Tighten. Replace bevel

lock lever in locked position and tighten the set screw.

_ IN LOCKED POSITION

BEVEL LOCK

LEVER

1/8 HEX "k" WRENCH

YOKE LOCK HANDLE ADJUSTMENT.

1. This handle provides a friction lock between the upper

face of the yoke and the bottom face of the carriage.

It should eliminate any play or rotation between these

two parts when locked. Its proper position for saw

operation is approximately midway between the two

sides of the yoke.

When sufficient wear has occured to permit the handle

to move considerably to the rear, or strike the yoke

before locking, the handle must be adjusted as follows:

2. Remove carriage stop screw and Iockwasher with a 1/4

inch hex-L wrench.

3. Grasp the carriage assembly, move it carefully off the

end of radial arm, holding it parallel to the radial arm

until all carriage bearings are free of their tracks,

4. Rest the motor and carriage assembly on saw work

table and re-install carriage stop screw and Iockwasher.

_HEX 'I-" WRENCH

_LLk. _"q/\ (1/4 INCH) j

SCREW

To Readjust

5. Set yoke lock handle at unlocked position. Tighten nut

with 15/16 wrench, until lock handle locks mid-way

between the two sides of the yoke. Remove carriage

stop screw and Iockwasher.

6. Hold the motor and carriage assembly parallel to radial

arm and start the rear bearings onto the tracks.

Continue to hold the assembly parallel to the tracks

until the forward bearings are on the tracks.

7. Slide the carriage rearward on the radial arm and

INSTALL THE CARRIAGE STOP SCREW AND

LOCKWASHE R.

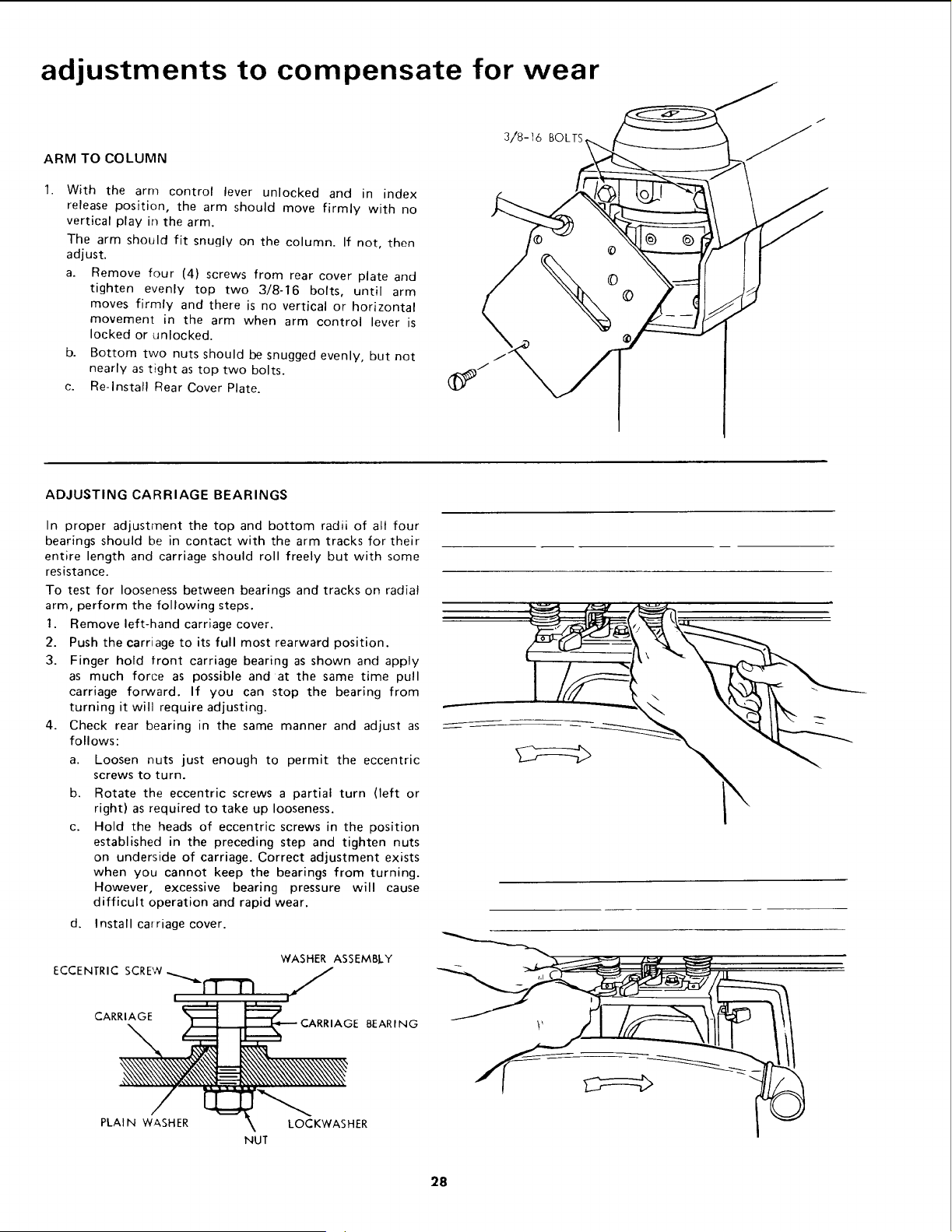

adjustments to compensate for wear

ARM TO COLUMN

With the arm control lever unlocked and in index

release position, the arm should move firmly with no

vertical play in the arm.

The arm should fit snugly on the column. If not, then

adjust.

a. Remove four (4) screws from rear cover plate and

tighten evenly top two 3/8-16 bolts, until arm

moves firmly and there is no vertical or horizontal

movement in the arm when arm control lever is

locked or unlocked.

b. Bottom two nuts should be snugged evenly, but not

nearly as tight as top two bolts.

c. Re-Install Rear Cover Plate.

3/8-]6 BOLTS

ADJUSTING CARRIAGE BEARINGS

In proper adjustment the top and bottom radii of all four

bearings should be in contact with the arm tracks for their

entire length and carriage should roll freely but with some

resistance.

To test for looseness between bearings and tracks on radial

arm, perform the following steps.

1. Remove left-hand carriage cover.

2. Push the carriage to its full most rearward position.

3. Finger hold front carriage bearing as shown and apply

as much force as possible and at the same time pull

carriage forward. If you can stop the bearing from

turning it will require adjusting.

4. Check rear bearing in the same manner and adjust as

follows:

a. Loosen nuts just enough to permit the eccentric

screws to turn.

b. Rotate the eccentric screws a partial turn (left or

right) as required to take up looseness.

c. Hold the heads of eccentric screws in the position

established in the preceding step and tighten nuts

on underside of carriage. Correct adjustment exists

when you cannot keep the bearings from turning.

However, excessive bearing pressure will cause

difficult operation and rapid wear.

d. Install carriage cover.

ECCENTRIC SCREW

WASHER ASSEMBLY

CARRIAGE

3E BEARING

PLAIN WASHER LOCKWASHER

NUT

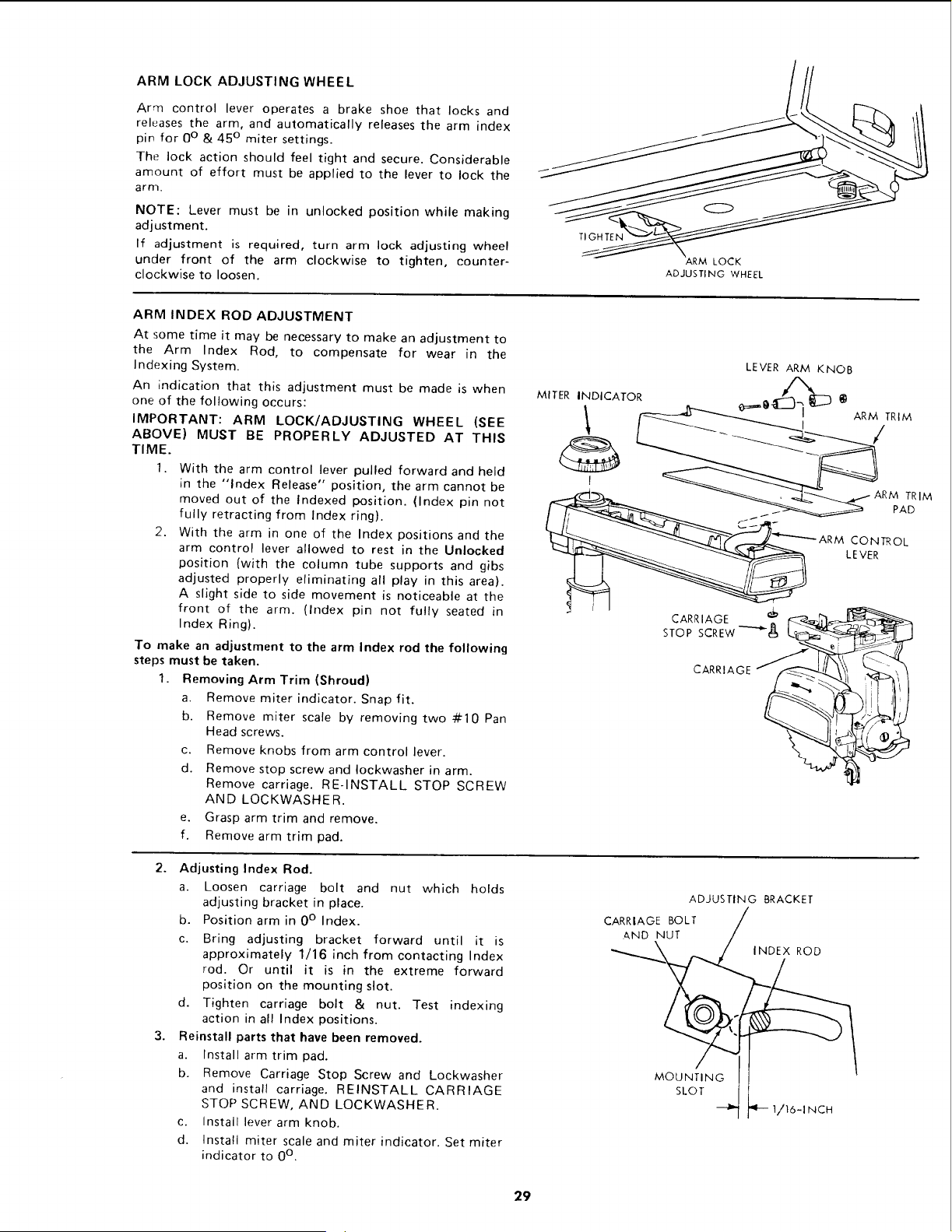

ARMLOCKADJUSTINGWHEEL

Arm control lever operates a brake shoe that locks and

releases the arm, and automatically releases the arm index

pip for O° & 45 ° miter settings.

The lock action should feel tight and secure. Considerable

amount of effort must be applied to the lever to lock the

arm.

NOTE: Lever must be in unlocked position while making

adjustment.

If adjustment is required, turn arm lock adjusting wheel

under front of the arm clockwise to tighten, counter-

clockwise to loosen.

TIGHTEN

ARM LOCK

ADJUSTING WHEEL

ARM INDEX ROD ADJUSTMENT

At some time it may be necessary to make an adjustment to

the Arm Index Rod, to compensate for wear in the

Indexing System.

An indication that this adjustment must be made is when

one of the following occurs:

IMPORTANT: ARM LOCK/ADJUSTING WHEEL (SEE

ABOVE) MUST BE PROPERLY ADJUSTED AT THIS

TIME.

1. With the arm control lever pulled forward and held

in the "Index Release" position, the arm cannot be

moved out of the Indexed position. (Index pin not

fully retracting from Index ring).

2. With the arm in one of the Index positions and the

arm control lever allowed to rest in the Unlocked

position (with the column tube supports and gibs

adjusted properly eliminating all play in this area).

A slight side to side movement is noticeable at the

front of the arm. (Index pin not fully seated in

Index Ring).

To make an adjustment to the arm Index rod the following

steps must be taken.

1. Removing Arm Trim (Shroud)

a. Remove miter indicator. Snap fit.

b. Remove miter scale by removing two #10 Pan

Head screws.

c. Remove knobs from arm control lever.

d. Remove stop screw and Iockwasher in arm.

Remove carriage. RE-INSTALL STOP SCREW

AND LOCKWASHE R.

e. Grasp arm trim and remove.

f. Remove arm trim pad.

CARRIAGE

Adjusting Index Rod.

a. Loosen carriage

bolt and nut which holds

adjusting bracket in place.

b. Position arm in 0° Index.

c. Bring adjusting bracket forward until it is

approximately 1/16 inch from contacting Index

rod. Or until it is in the extreme forward

position on the mounting slot.

d. Tighten carriage bolt & nut. Test indexing

action in all Index positions.

Reinstall parts that have been removed.

a. Install arm trim pad.

b. Remove Carriage Stop Screw and Lockwasher

and install carriage. REINSTALL CARRIAGE

STOP SCREW, AND LOCKWASHER.

c. Install lever arm knob.

cl. Install miter scale and miter indicator. Set miter

indicator to 0°.

ADJUSTING BRACKET

CARRIAGE BOLT

AND NUT

INDEX ROD

MOUNTING

SLOT

1/16-INCH

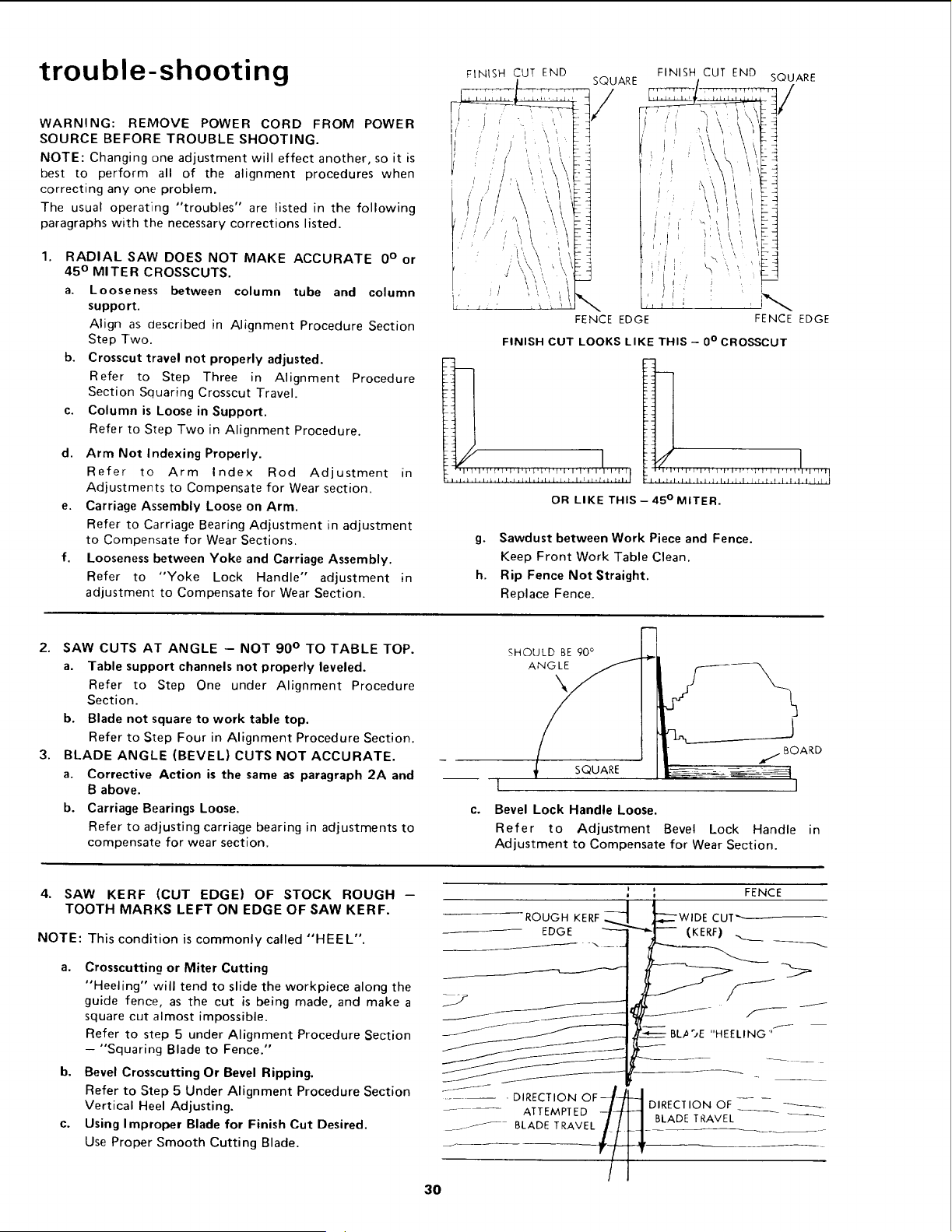

trouble-shooting

WARNING: REMOVE POWER CORD FROM POWER

SOURCE BEFORE TROUBLE SHOOTING.

NOTE: Changing one adjustment will effect another, so it is

best to perform all of the alignment procedures when

correcting any one problem.

The usual operating "troubles" are listed in the following

paragraphs with the necessary corrections listed.

RADIAL SAW DOES NOT MAKE ACCURATE 0° or

45 ° MITER CROSSCUTS.

a. Looseness between column tube and column

support.

Align as described in Alignment Procedure Section

Step Two.

b. Crosscut travel not properly adjusted.

Refer to Step Three in Alignment Procedure

Section Squaring Crosscut Travel.

c. Column is Loose in Support.

Refer to Step Two in Alignment Procedure.

d. Arm Not Indexing Properly.

Refer to Arm Index Rod Adjustment in

Adjustments to Compensate for Wear section.

e. Carriage Assembly Loose on Arm.

Refer to Carriage Bearing Adjustment in adjustment

to Compensate for Wear Sections.

f. Looseness between Yoke and Carriage Assembly.

Refer to "Yoke Lock Handle" adjustment in

adjustment to Compensate for Wear Section.

FINISH CUT LOOKS LIKE THIS - 0 ° CROSSCUT

i _ i ] I Irl 'I 'I'I ' ] 'I' I

Illll II11111111jii I r I I I I I I LIIJI

OR LIKE THIS -- 45 ° MITER.

g. Sawdust between Work Piece and Fence.

Keep Front Work Table Clean.

h. Rip Fence Not Straight.

Replace Fence.

2. SAW CUTS AT ANGLE -- NOT 90 ° TO TABLE TOP.

a. Table support channels not properly leveled.

Refer to Step One under Alignment Procedure

Section.

b. Blade not square to work table top.

Refer to Step Four in Alignment Procedure Section.

3. BLADE ANGLE (BEVEL) CUTS NOT ACCURATE.

a. Corrective Action is the same as paragraph 2A and

B above.

b. Carriage Bearings Loose.

Refer to adjusting carriage bearing in adjustments to

compensate for wear section.

C°

<HOULD BE 90 °

ANGLE

BOAED

SQUARE

Bevel Lock Handle Loose.

Refer to Adjustment Bevel Lock Handle in

Adjustment to Compensate for Wear Section.

4. SAW KERF (CUT EDGE) OF STOCK ROUGH --

TOOTH MARKS LEFT ON EDGE OF SAW KERF.

NOTE:

This condition is commonly called "HEE L".

Crosscutting or Miter Cutting

"Heeling" will tend to slide the workpiece along the

guide fence, as the cut is being made, and make a

square cut almost impossible.

Refer to step 5 under Alignment Procedure Section

- "Squaring Blade to Fence."

Bevel Crosscutting Or Bevel Ripping.

Refer to Step 5 Under Alignment Procedure Section

Vertical Heel Adjusting.

Using Improper Blade for Finish Cut Desired.

Use Proper Smooth Cutting Blade.

I ', FENCE

ROUGH KERF_----_-'-_WIDE CUT_-----

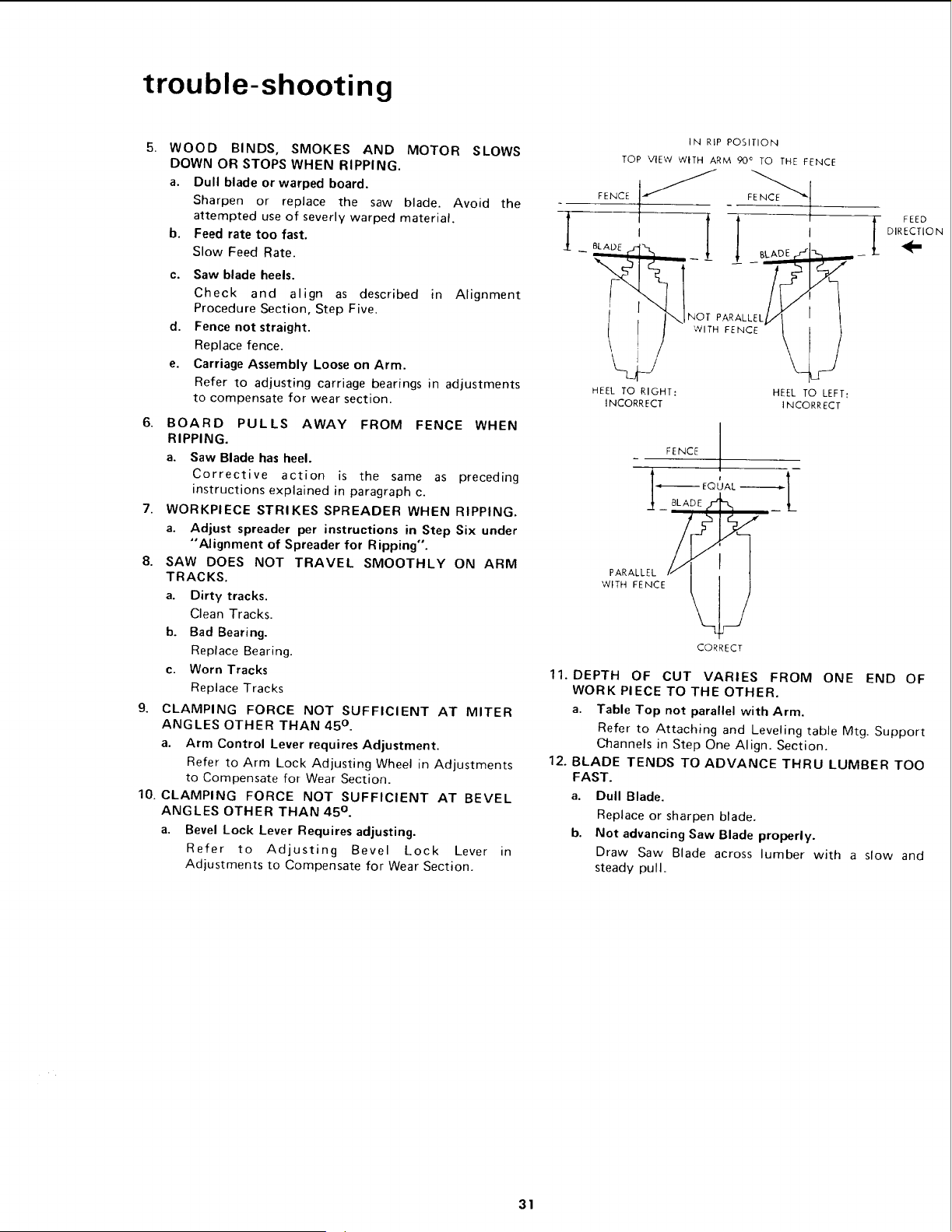

trouble-shooting

5. WOOD BINDS, SMOKES AND MOTOR SLOWS

DOWN OR STOPS WHEN RIPPING.

a. Dull blade or warped board.

Sharpen or replace the saw blade. Avoid the

attempted use of severly warped material.

b. Feed rate too fast.

Slow Feed Rate.

c. Saw blade heels.

Check and align as described in Alignment

Procedure Section, Step Five.

d. Fence not straight.

Replace fence.

e. Carriage Assembly Loose on Arm.

Refer to adjusting carriage bearings in adjustments

to compensate for wear section.

6. BOARD PULLS AWAY FROM FENCE WHEN

RIPPING.

a. Saw Blade has heel.

Corrective action is the same as preceding

instructions explained in paragraph c.

7. WORKPIECE STRIKES SPREADER WHEN RIPPING.

a. Adjust spreader per instructions in Step Six under

"Alignment of Spreader for Ripping".

8. SAW DOES NOT TRAVEL SMOOTHLY ON ARM

TRACKS.

a. Dirty tracks.

Clean Tracks.

b. Bad Bearing.

Replace Bearing.

c. Worn Tracks

Replace Tracks

9. CLAMPING FORCE NOT SUFFICIENT AT MITER

ANGLES OTHER THAN 45 ° .

a. Arm Control Lever requires Adjustment.

Refer to Arm Lock Adjusting Wheel in Adjustments

to Compensate for Wear Section.

10. CLAMPING FORCE NOT SUFFICIENT AT BEVEL

ANGLES OTHER THAN 45 ° .

a. Bevel Lock Lever Requires adjusting.

Refer to Adjusting Bevel Lock Lever in

Adjustments to Compensate for Wear Section.

IN RIP POSITION

TOP VIEW WITH ARM 90 ° TO THE FENCE

FENCE

BLADE#

HEEL TO RIGHT:

INCORRECT

J WITH FENCE

HEEL TO LEFT:

I NCORR ECT

t FEED

DIRECTION

PARALLEL

WITH FENCE

CORRECT

11. DEPTH OF CUT VARIES FROM ONE END OF

WORK PIECE TO THE OTHER.

a. Table Top not parallel with Arm.

Refer to Attaching and Leveling table Mtg. Support

Channels in Step One Align. Section.

12. BLADE TENDS TO ADVANCE THRU LUMBER TOO

FAST.

a. Dull Blade.

Replace or sharpen blade.

b. Not advancing Saw Blade properly.

Draw Saw Blade across lumber with a slow and

steady pull.

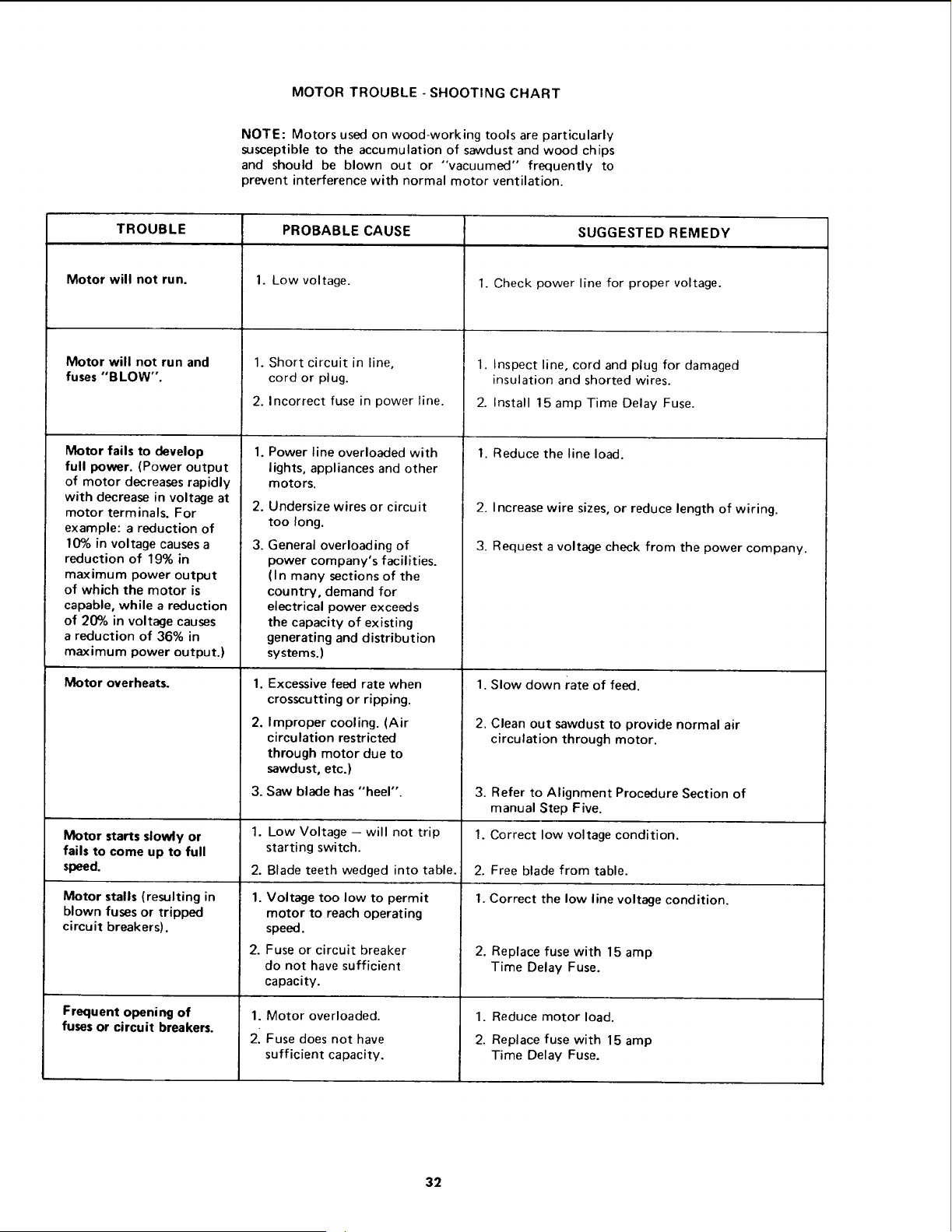

MOTOR TROUBLE - SHOOTING CHART

NOTE: Motors used on wood-working tools are particularly

susceptible to the accumulation of sawdust and wood chips

and should be blown out or "vacuumed" frequently to

prevent interference with normal motor ventilation.

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

Motor will not run.

Motor will not run and

fuses "BLOW".

Motor fails to develop

full power. (Power output

of motor decreases rapidly

with decrease in voltage at

motor terminals. For

example: a reduction of

10% in voltage causes a

reduction of 19% in

maximum power output

of which the motor is

capable, while a reduction

of 20% in voltage causes

a reduction of 36% in

maximum power output.)

Motor overheats.

Motor starts slowly or

fails to come up to full

speed.

Motor stalls (resulting in

blown fuses or tripped

circuit breakers).

Frequent opening of

fuses or circuit breakers.

1. Low voltage.

1. Short circuit in line,

cord or plug.

2. Incorrect fuse in power line.

Power line overloaded with

lights, appliances and other

motors.

Undersize wires or circu it

too long.

General overloading of

power company's facilities.

(In many sections of the

country, demand for

electrical power exceeds

the capacity of existing

generating and distribution

systems.)

1. Excessive feed rate when

crosscutting or ripping.

2. Improper cooling. (Air

circulation restricted

through motor due to

sawdust, etc.)

3. Saw blade has "heel".

1. Low Voltage - will not trip

starting switch.

2. Blade teeth wedged into table. ;

1. Voltage too low to permit

motor to reach operating

speed.

2. Fuse or circuit breaker

do not have sufficient

capacity.

1. Motor overloaded.

21 Fuse does not have

sufficient capacity.

1. Check power line for proper voltage.

1. Inspect line, cord and plug for damaged

insulation and shorted wires.

2. Install 15 amp Time Delay Fuse.

1. Reduce the line load.

2. Increase wire sizes, or reduce length of wiring.

3. Request a voltage check from the power company.

1. Slow down rate of feed.

2. Clean out sawdust to provide normal air

circulation through motor.

3. Refer to Alignment Procedure Section of

manual Step Five.

1. Correct low voltage condition.

2. Free blade from table.

1. Correct the low line voltage condition.

2. Replace fuse with 15 amp

Time Delay Fuse.

1. Reduce motor load.

2. Replace fuse with 15 amp

Time Delay Fuse.

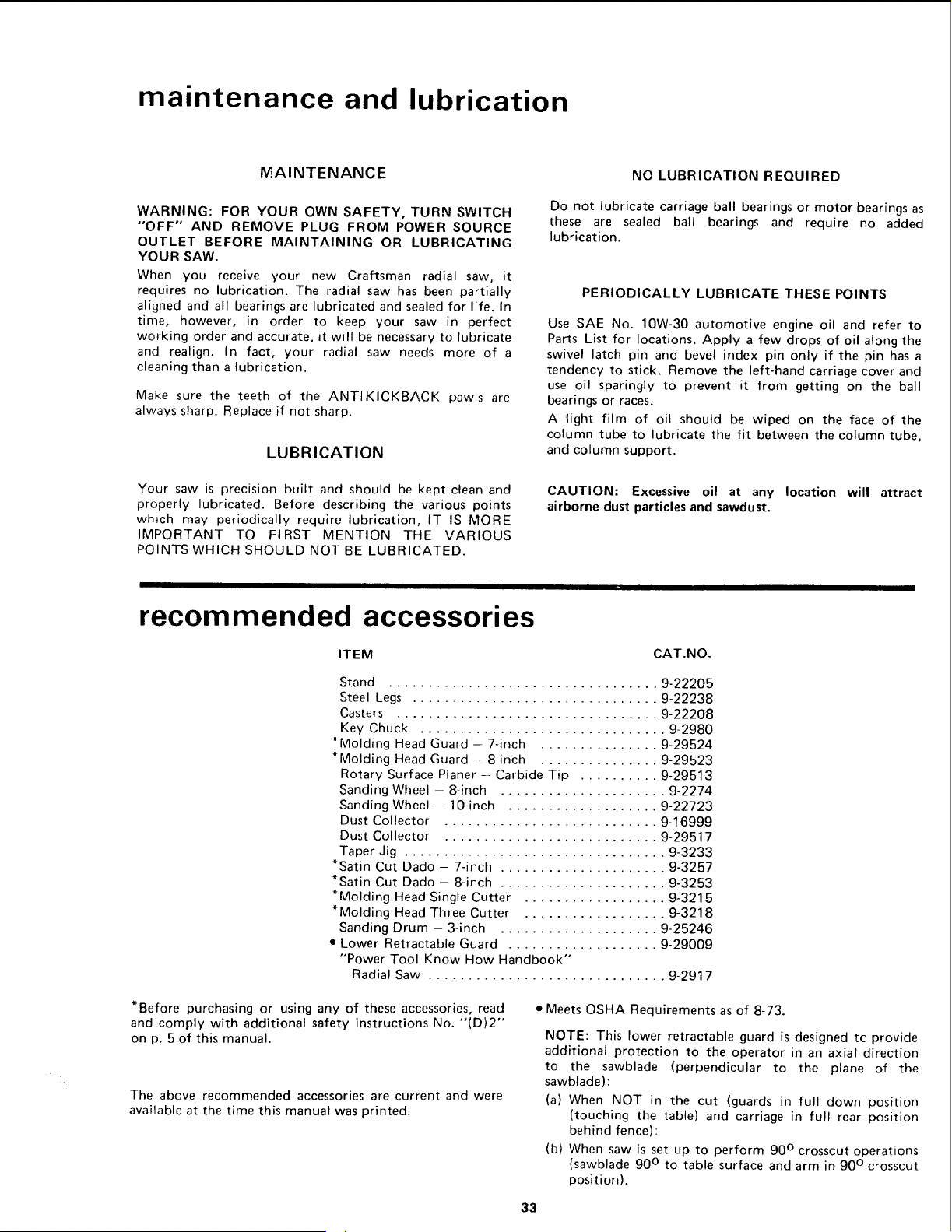

maintenance and lubrication

MAINTENANCE

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE MAINTAINING OR LUBRICATING

YOUR SAW.

When you receive your new Craftsman radial saw, it

requires no lubrication. The radial saw has been partially

aligned and all bearings are lubricated and sealed for life. In

time, however, in order to keep your saw in perfect

working order and accurate, it will be necessary to lubricate

and realign. In fact, your radial saw needs more of a

cleaning than a lubrication.

Make sure the teeth of the ANTI KICKBACK pawls are

always sharp. Replace if not sharp.

LUBRICATION

Your saw is precision built and should be kept clean and

properly lubricated. Before describing the various points

which may periodically require lubrication, IT IS MORE

IMPORTANT TO FIRST MENTION THE VARIOUS

POINTS WHICH SHOULD NOT BE LUBRICATED.

NO LUBRICATION REQUIRED

Do not lubricate carriage ball bearings or motor bearings as

these are sealed ball bearings and require no added

lubrication.

PERIODICALLY LUBRICATE THESE POINTS

Use SAE No. 10W-30 automotive engine oil and refer to

Parts List for locations. Apply a few drops of oil along the

swivel latch pin and bevel index pin only if the pin has a

tendency to stick. Remove the left-hand carriage cover and

use oil sparingly to prevent it from getting on the ball

bearings or races.

A light film of oil should be wiped on the face of the

column tube to lubricate the fit between the column tube,

and column support.

CAUTION: Excessive oil at any location will attract

airborne dust particles and sawdust.

recommended accessories

ITEM CAT.NO.

Stand .................................. 9-22205

Steel Legs ............................... 9-22238

Casters ................................. 9-2220'8

Key Chuck ............................... 9-2980

*Molding Head Guard - 7-inch ............... 9-29524

*Molding Head Guard - 8-inch ............... 9-29523

Rotary Surface Planer - Carbide Tip .......... 9-29513

Sanding Wheel - 8-inch ..................... 9-2274

Sanding Wheel - 10-inch ................... 9-22723

Dust Collector ........................... 9-16999

Dust Collector ........................... 9-29517

Taper Jig ................................. 9-3233

*Satin Cut Dado - 7-inch ..................... 9-3257

*Satin Cut Dado - 8-inch ..................... 9-3253

*Molding Head Single Cutter .................. 9-3215

*Molding Head Three Cutter .................. 9-3218

Sanding Drum - 3-inch .................... 9-25246

• Lower Retractable Guard ................... 9-29009

"Power Tool Know How Handbook"

Radial Saw .............................. 9-2917

*Before purchasing or using any of these accessories, read

and comply with additional safety instructions No. "(D)2"

on p. 5 of this manual.

The above recommended accessories are current and were

available at the time this manual was printed.

• Meets OSHA Requirements as of 8-73.

NOTE: This lower retractable guard is designed to provide

additional protection to the operator in an axial direction

to the sawblade (perpendicular to the plane of the

sawblade):

(a) When NOT in the cut (guards in full clown position

(touching the table) and carriage in full rear position

behind fence):

(b) When saw is set up to perform 90 ° crosscut operations

(sawblade 90 ° to table surface and arm in 90 ° crosscut

position).

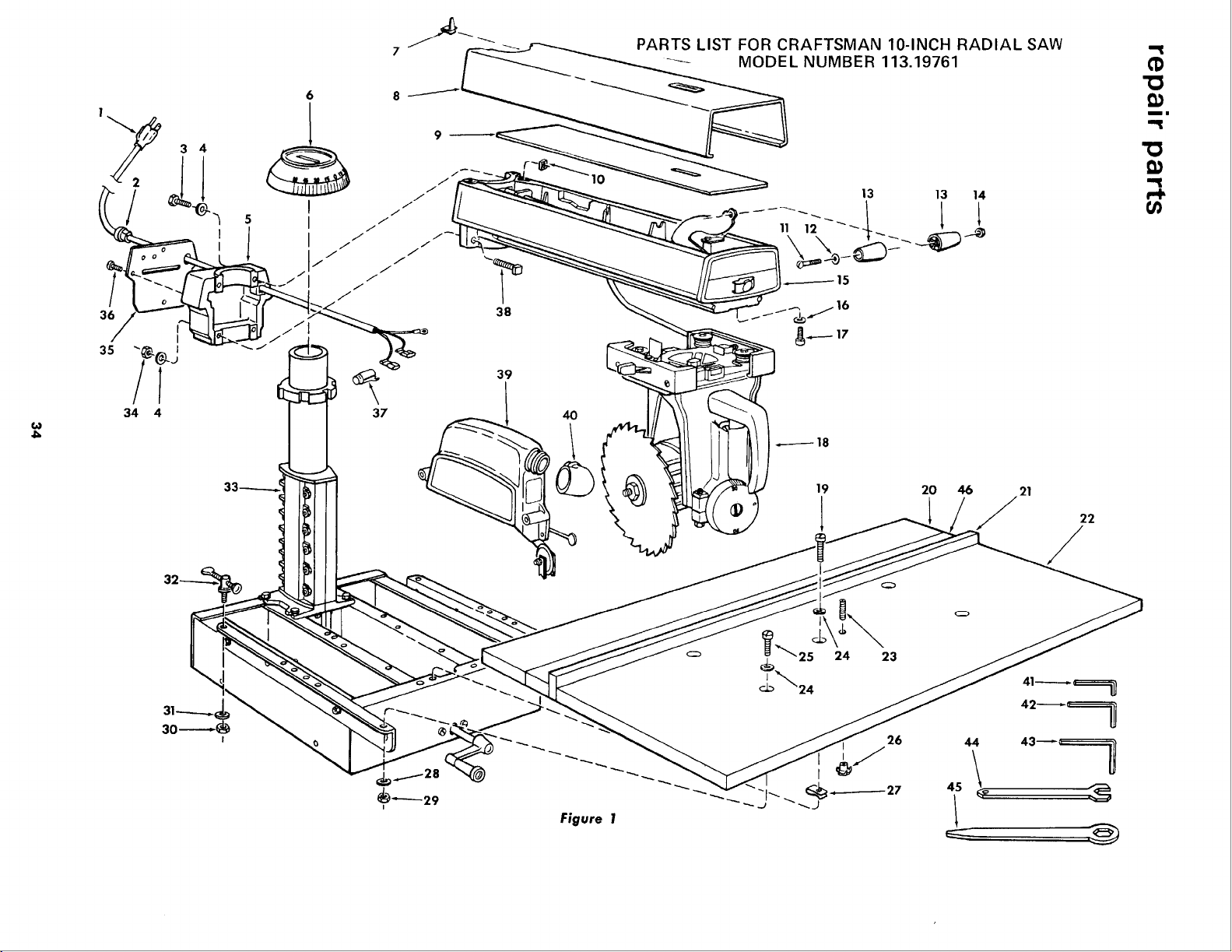

Figure 1

4 23

45 I 43--_

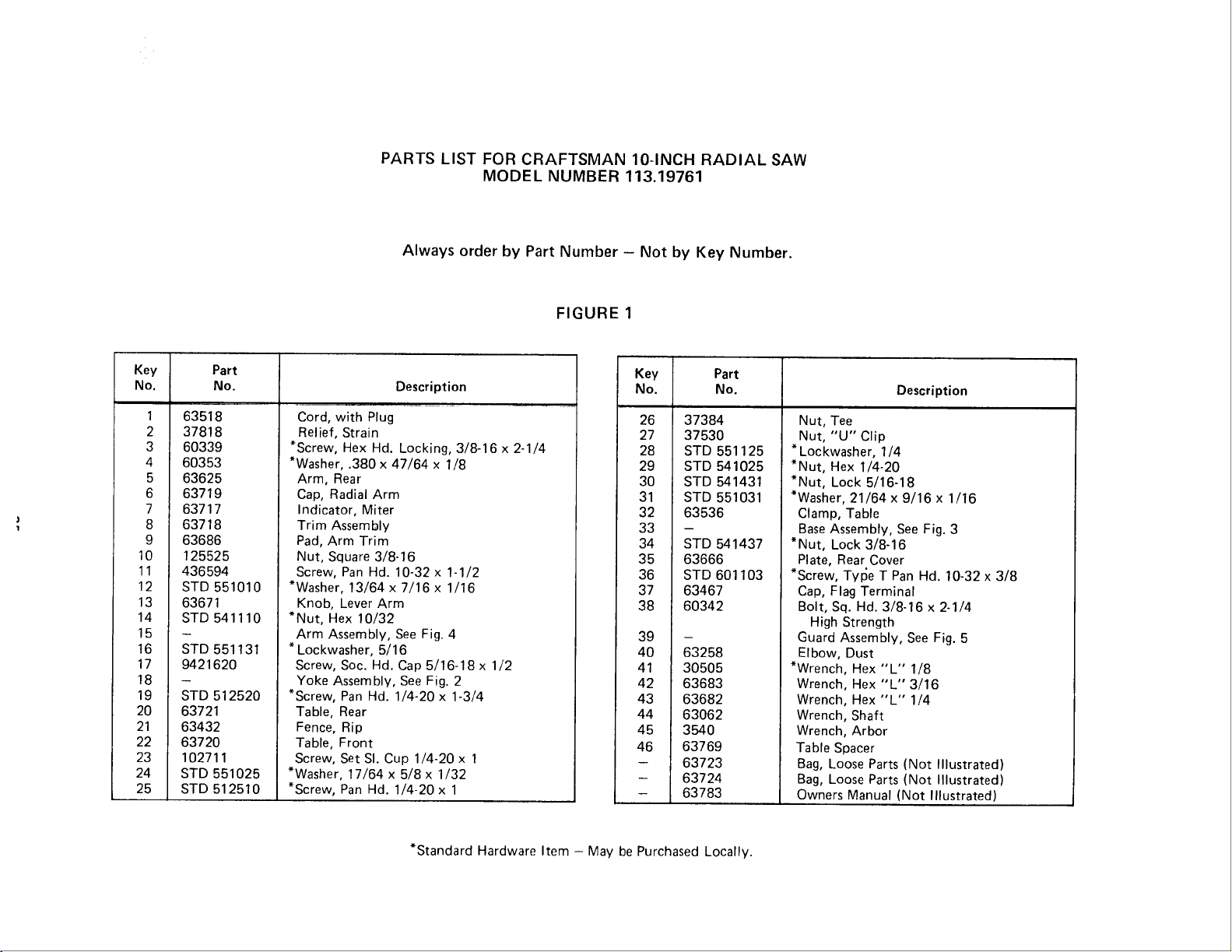

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW

MODEL NUMBER 113.19761

Always order by Part Number - Not by Key Number.

FIGURE 1

Key Part

No. No. Description

1 63518

2 37818

3 60339

4 60353

5 63625

6 63719

7 63717

8 63718

9 63686

10 125525

11 436594

12 STD 551010

13 63671

14 STD 541110

16 STD 551131

17 9421620

19 STD 512520

20 63721

21 63432

22 63720

23 102711

24 STD 551025

25 STD 512510

T •

Cord, with Plug

Relief, Strain

*Screw, Hex Hd. Locking, 3/8-16 x 2-1/4

*Washer, .380 x 47/64 x 1/8

Arm, Rear

Cap, Radial Arm

Indicator, Miter

Trim Assembly

Pad, Arm Trim

Nut, Square 3/8-16

Screw, Pan Hd. 10-32 x 1-1/2

*Washer, 13/64 x 7/16 x 1/16

Knob, Lever Arm

*Nut, Hex 10/32

Arm Assembly, See Fig. 4

* Lockwasher, 5/16

Screw, Soc. Hd. Cap 5/16-18 x 1/2

Yoke Assembly, See Fig. 2

*Screw, Pan Hd. 1/4-20 x 1-3/4

Table, Rear

Fence, Rip

Table, Front

Screw, Set SI. Cup 1/4-20 x 1

*Washer, 17/64 x 5/8 x 1/32

*Screw, Pan Hd. 1/4-20 x 1

Key Part

No. No. Description

26 37384

27 37530

28 STD 551125

29 STD 541025

30 STD 541431

31 STD 551031

32 63536

34 STD 541437

35 63666

36 STD 601103

37 63467

38 60342

39 -

40 63258

41 30505

42 63683

43 63682

44 63062

45 3540

46 63769

- 63723

- 63724

- 63783

Nut, Tee

Nut, "U" Clip

* Lockwasher, 1/4

*Nut, Hex 1/4-20

*Nut, Lock 5/16-18

*Washer, 21/64 x 9/16 x 1/16

Clamp, Table

Base Assembly, See Fig. 3

*Nut, Lock 3/8-16

Plate, Rear Cover

*Screw, TYl_e T Pan Hd. 10-32 x 3/8

Cap, Flag Terminal

Bolt, Sq. Hd. 3/8-16 x 2-1/4

High Strength

Guard Assembly, See Fig. 5

Elbow, Dust

*Wrench, Hex "L" 1/8

Wrench, Hex "L" 3/16

Wrench, Hex "L" 1/4

Wrench, Shaft

Wrench, Arbor

Table Spacer

Bag, Loose Parts (Not Illustrated)

Owners Manual (Not Illustrated)

*Standard Hardware Item - May be Purchased Locally.

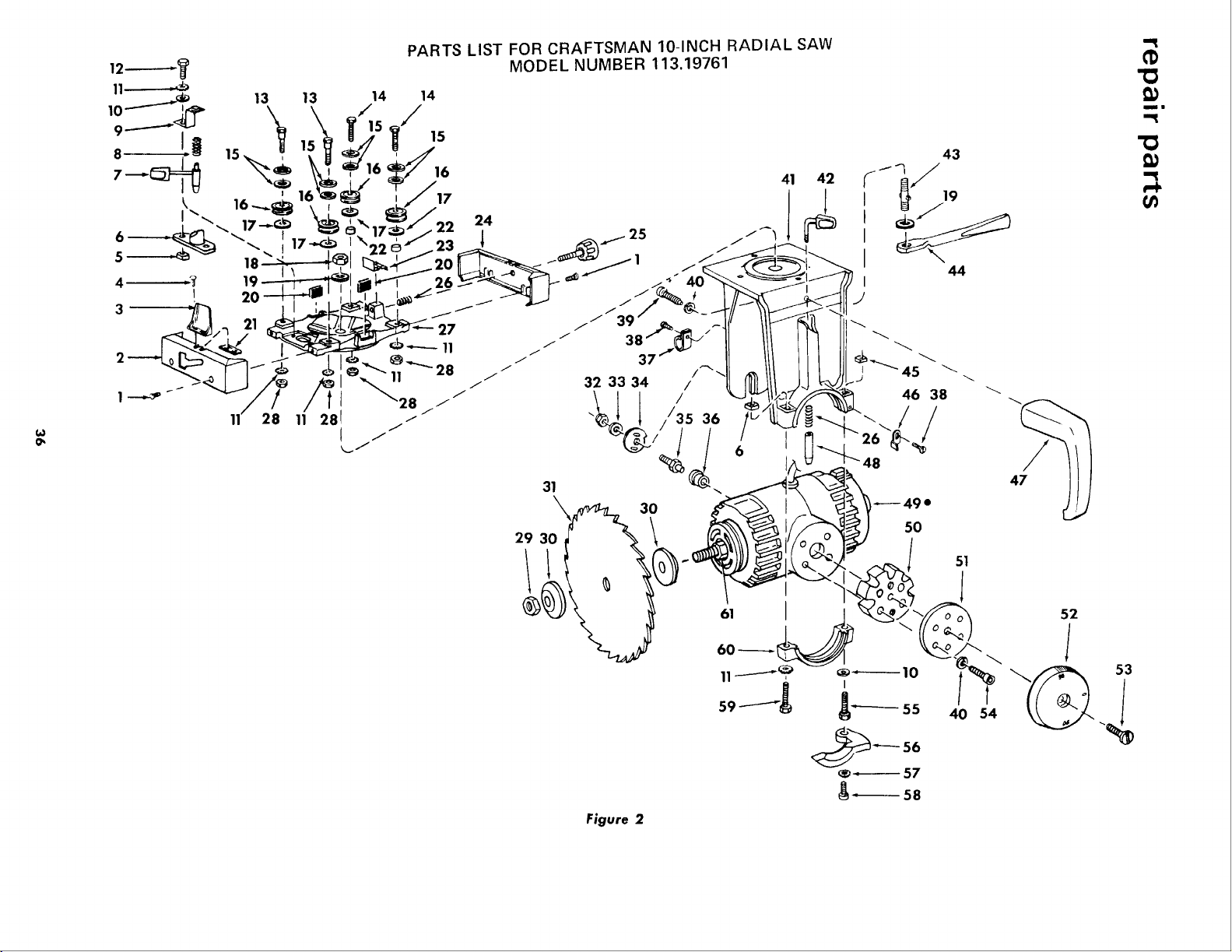

28 11 281

I /

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW

MODEL NUMBER 113.19761

41 42

28//

29 30

/35 36

46 38

uJJl

Figure 2

40 54

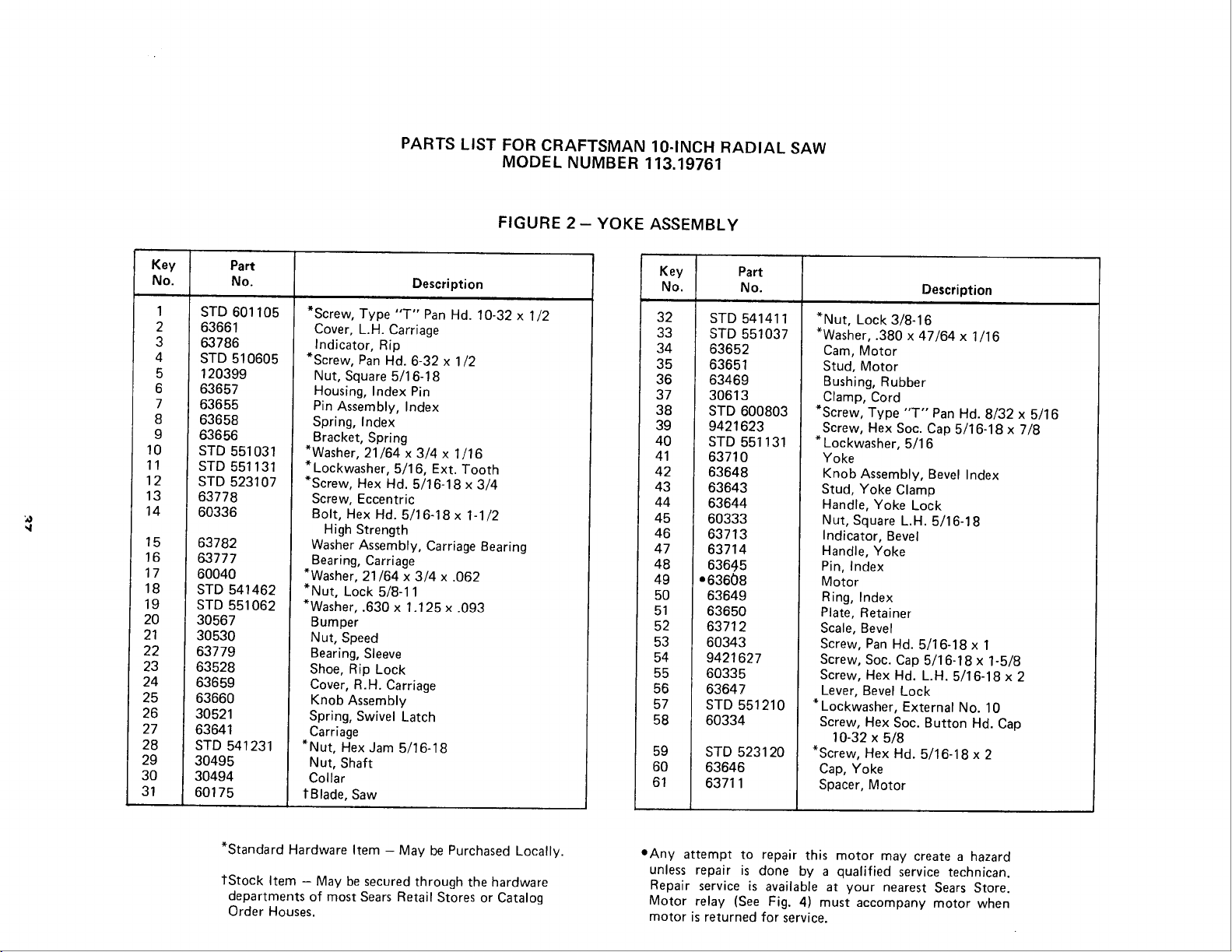

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW

MODEL NUMBER 113.19761

FIGURE 2- YOKE ASSEMBLY

Key

No.

Part

No.

STD 601105

63661

63786

STD 510605

120399

63657

63655

63658

63656

STD 551031

STD 551131

STD 523107

63778

60336

63782

63777

60040

STD 541462

STD 551062

30567

30530

63779

63528

63659

63660

30521

63641

STD 541231

30495

30494

60175

Description

*Screw, Type "T" Pan Hd. 10-32 x 1/2

Cover, L.H. Carriage

Indicator, Rip

*Screw, Pan Hd. 6-32 x 1/2

Nut, Square 5/16-18

Housing, Index Pin

Pin Assembly, Index

Spring, Index

Bracket, Spring

*Washer, 21/64 x 3/4 x 1/16

* Lockwasher, 5/16, Ext. Tooth

*Screw, Hex Hd. 5/16-18 x 3/4

Screw, Eccentric

Bolt, Hex Hd. 5/16-18 x 1-1/2

High Strength

Washer Assembly, Carriage Bearing

Bearing, Carriage

*Washer, 21/64 x 3/4 x .062

*Nut, Lock 5/8-11

*Washer, .630 x 1.125 x .093

Bumper

Nut, Speed

Bearing, Sleeve

Shoe, Rip Lock

Cover, R.H. Carriage

Knob Assembly

Spring, Swivel Latch

Carriage

*Nut, Hex Jam 5/16-18

Nut, Shaft

Collar

tBlade, Saw

Key Part

No. No. Description

STD 541411

STD 551037

63652

63651

63469

30613

STD 600803

9421623

STD 551131

*Nut, Lock 3/8-16

*Washer, .380 x 47/64 x 1/16

Cam, Motor

Stud, Motor

Bushing, Rubber

Clamp, Cord

*Screw, Type "T" Pan Hd. 8/32 x 5/16

Screw, Hex Soc. Cap 5/16-18 x 7/8

* Lockwasher, 5/16

63710

63648

63643

63644

60333

63713

63714

63645

163608

63649

63650

63712

60343

9421627

60335

63647

STD 551210

60334

STD 523120

63646

63711

Yoke

Knob Assembly, Bevel Index

Stud, Yoke Clamp

Handle, Yoke Lock

Nut, Square L.H. 5/16-18

Indicator, Bevel

Handle, Yoke

Pin, Index

Motor

Ring, Index

Plate, Retainer

Scale, Bevel

Screw, Pan Hd. 5/16-18 x 1

Screw, Soc. Cap 5/16-18 x 1-5/8

Screw, Hex Hd. L.H. 5/16-18 x 2

Lever, Bevel Lock

*Lockwasher, External No. 10

Screw, Hex Soc. Button Hd. Cap

10-32 x 5/8

*Screw, Hex Hd. 5/16-18 x 2

Cap, Yoke

Spacer, Motor

*Standard Hardware Item - May be Purchased Locally.

tStock Item - May be secured through the hardware

departments of most Sears Retail Stores or Catalog

Order Houses.

°Any attempt to repair this motor may create a hazard

unless repair is done by a qualified service technican.

Repair service is available at your nearest Sears Store.

Motor relay (See Fig. 4) must accompany motor when

motor is returned for service.

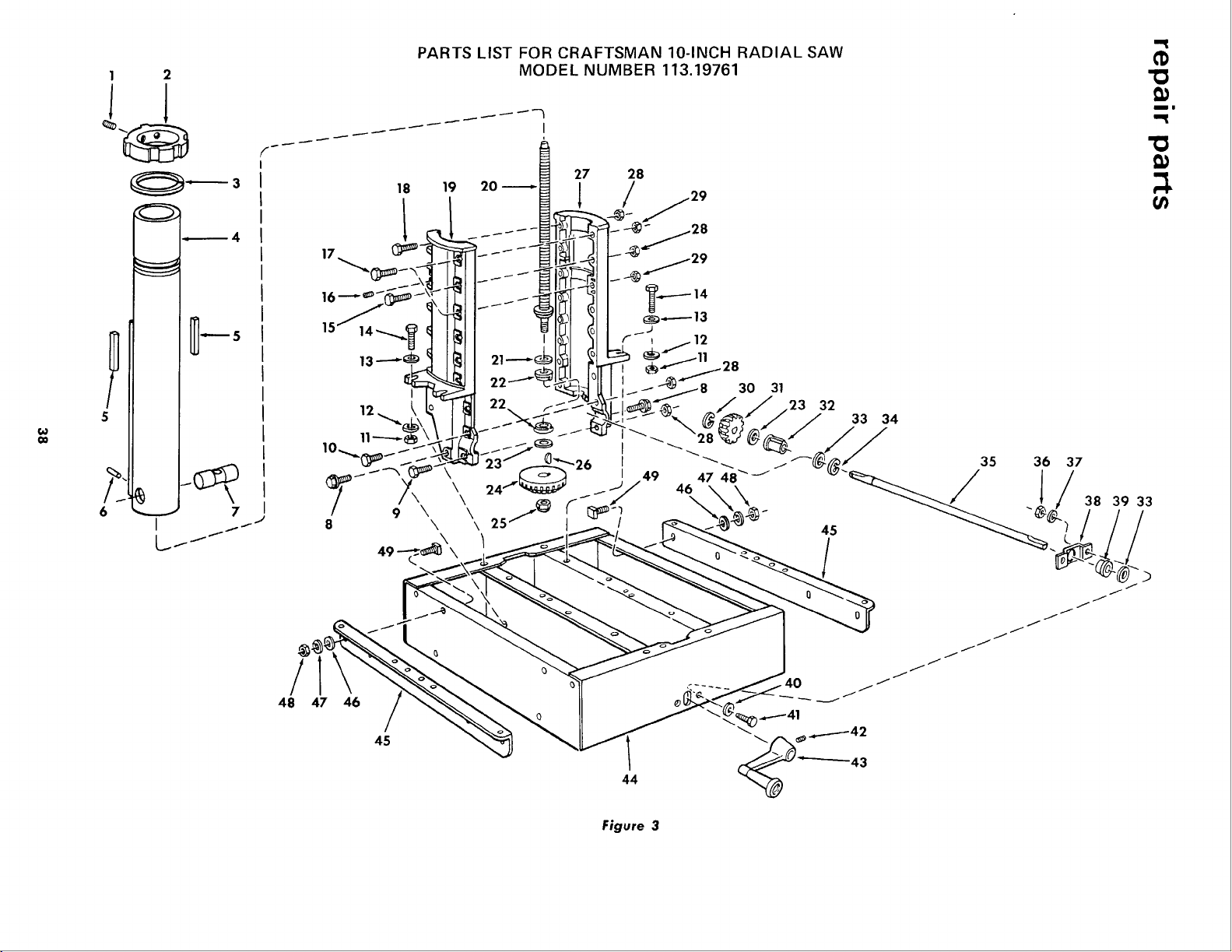

r,,3

30 31

49 k-'-'_\\ \

°- ,, zi;

_ "_.. .8 39 33

"_. L/_/ / ,

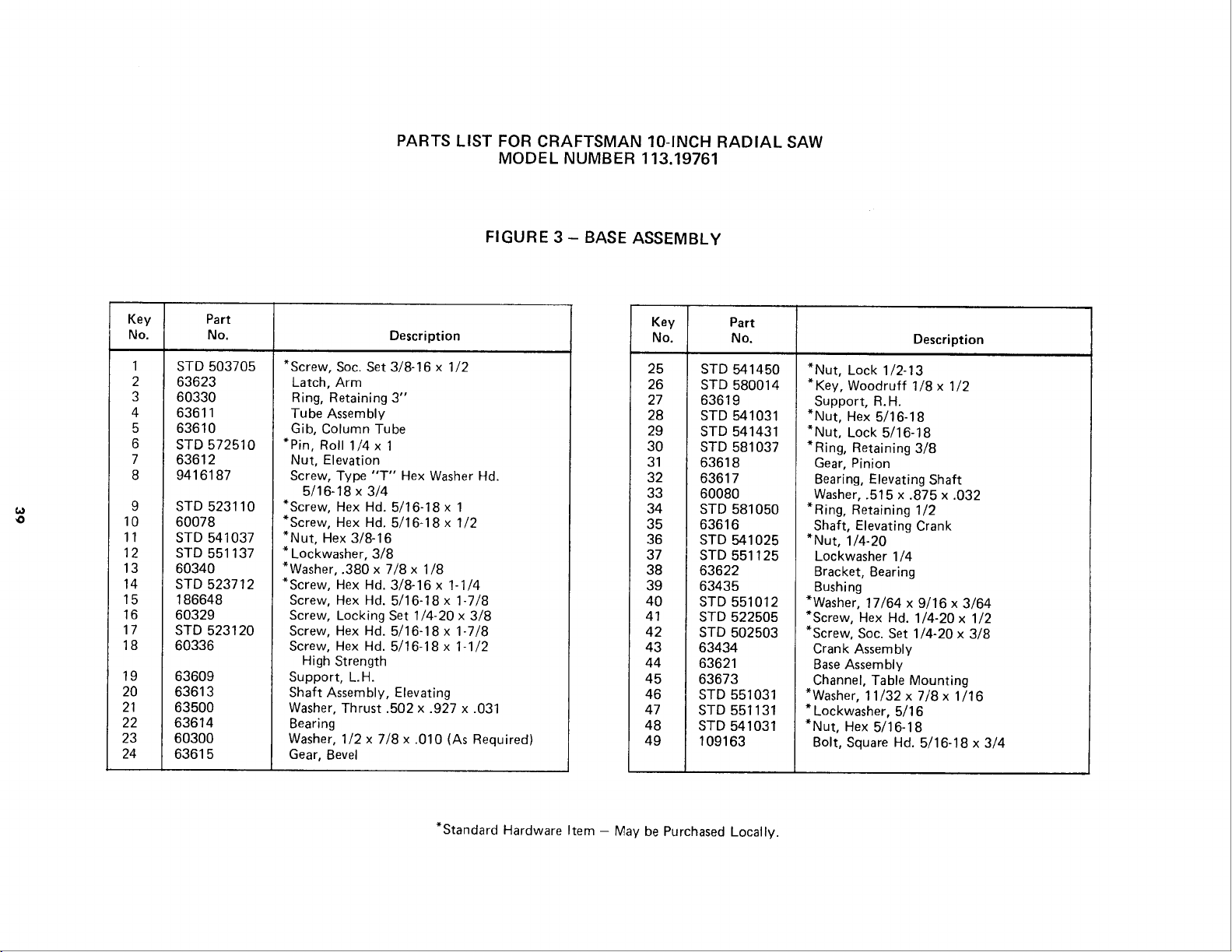

PARTS LIST FOR CRAFTSMAN IO-INCH RADIAL SAW

MODEL NUMBER 113.19761

FIGURE 3- BASE ASSEMBLY

Key Part

No. No. Description

STD 503705

63623

60330

63611

63610

STD 572510

63612

9416187

STD 523110

60078

STD 541037

STD 551137

60340

STD 523712

186648

60329

STD 523120

60336

63609

63613

63500

63614

60300

63615

*Screw, Soc. Set 3/8-16 x 1/2

Latch, Arm

Ring, Retaining 3"

Tube Assembly

Gib, Column Tube

*Pin, Roll 1/4 x 1

Nut, Elevation

Screw, Type "T" Hex Washer Hd.

5/16-18 x 3/4

*Screw, Hex Hd. 5/16-18 x 1

*Screw, Hex Hd. 5/16-18 x 1/2

*Nut, Hex 3/8-16

* Lockwasher, 3/8

*Washer, .380 x 7/8 x 1/8

*Screw, Hex Hd. 3/8-16 x 1-1/4

Screw, Hex Hd. 5/16-18 x 1-7/8

Screw, Locking Set 1/4-20 x 3/8

Screw, Hex Hd. 5/16-18 x 1-7/8

Screw, Hex Hd. 5/16-18 x 1-1/2

High Strength

Support, L.H.

Shaft Assembly, Elevating

Washer, Thrust .502 x .927 x .031

Bearing

Washer, 1/2 x 7/8 x .010 (As Required)

Gear, Bevel

Key Part

No. No. Description

25 STD541450

26 STD 580014

27 63619

28 STD 541031

29 STD 541431

30 STD 581037

31 63618

32 63617

33 60080

34 STD 581050

35 63616

36 STD541025

37 STD 551125

38 63622

39 63435

40 STD 551012

41 STD 522505

42 STD 502503

43 63434

44 63621

45 63673

46 STD 551031

47 STD 551131

48 STD 541031

49 109163

*Nut, Lock 1/2-13

*Key, Woodruff 1/8 x 1/2

Support, R.H.

*Nut, Hex 5/16-18

*Nut, Lock 5/16-18

*Ring, Retaining 3/8

Gear, Pinion

Bearing, Elevating Shaft

Washer, .515 x .875 x .032

*Ring, Retaining 1/2

Shaft, Elevating Crank

*Nut, 1/4-20

Lockwasher 1/4

Bracket, Bearing

Bushing

*Washer, 17/64 x 9/16 x 3/64

*Screw, Hex Hd. 1/4-20 x 1/2

*Screw, Soc. Set 1/4-20 x 3/8

Crank Assembly

Base Assembly

Channel, Table Mounting

*Washer, 11/32 x 7/8 x 1/16

* Lockwasher, 5/16

*Nut, Hex 5/16-18

Bolt, Square Hd. 5/16-18 x 3/4

*Standard Hardware Item - May be Purchased Locally.

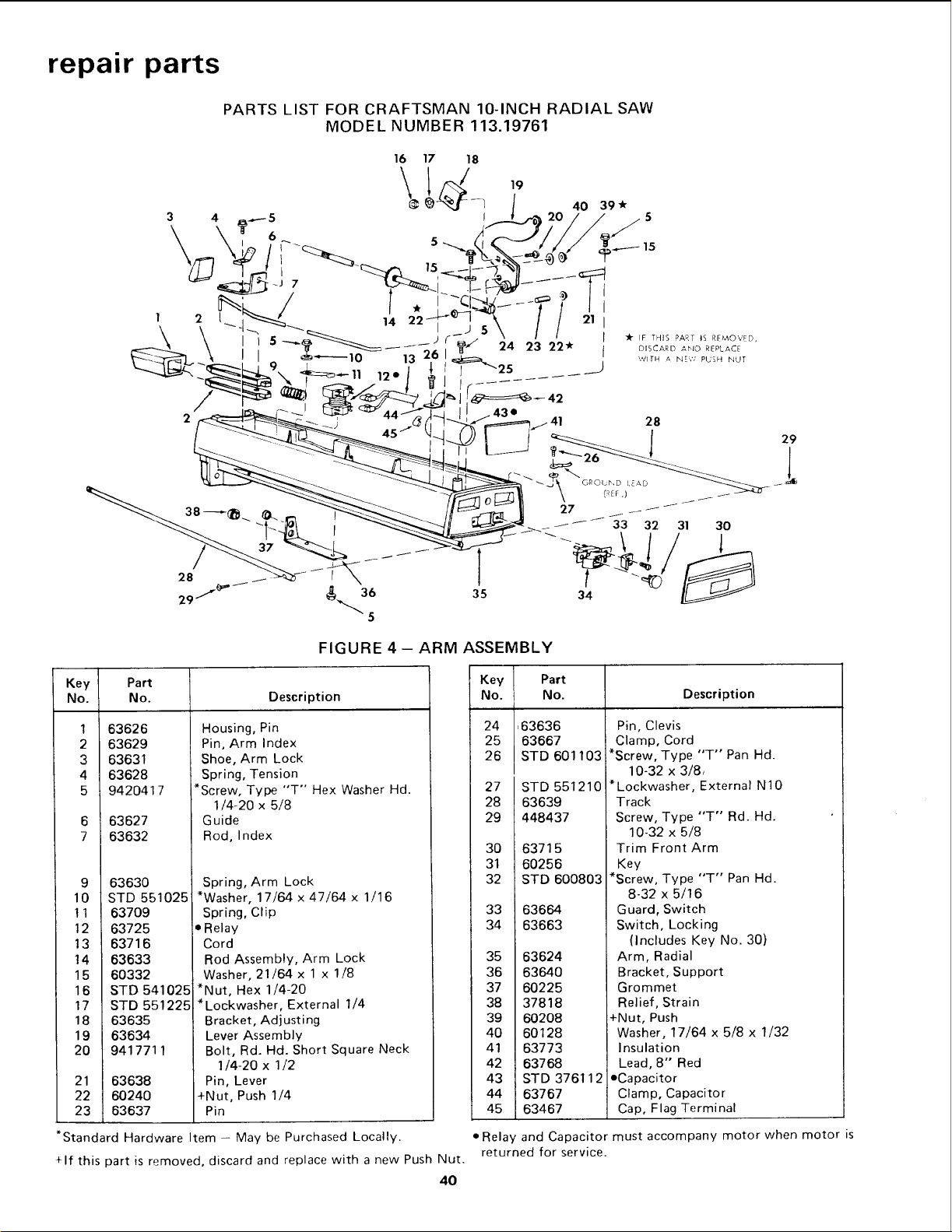

repair parts

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW

MODEL NUMBER 113.19761

FIGURE 4- ARM ASSEMBLY

Key

No.

Part

No.

1 63626

2 63629

3 63631

4 63628

5 9420417

63627

63632

9 63630

10 STD 551025'

11 637O9

12 63725

13 63716

14 63633

15 60332

16 STD 541025

17 STD 551225

18 63635

19 63634

20 9417711

63638

60240

63637

Description

Housing, Pin

Pin, Arm Index

Shoe, Arm Lock

Spring, Tension

*Screw, Type "T" Hex Washer Hd.

1/4-20 x 5/8

Guide

Rod, Index

Spring, Arm Lock

*Washer, 17/64 x 47/64 x 1/16

Spring, Clip

.Relay

Cord

Rod Assembly, Arm Lock

Washer, 21/64 x 1 x 1/8

*Nut, Hex 1/4-20

*Lockwasher, External 1/4

Bracket, Adjusting

Lever Assembly

Bolt, Rd. Hd. Short Square Neck

1/4-20 x 1/2

Pin, Lever

+Nut, Push 1/4

*Standard Hardware Item - May be Purchased Locally.

+If this part is removed, discard and replace with a new Push Nut.

Key Part

No. No.

,63636

63667

STD 601103

STD 551210

63639

448437

63715

60256

STD 600803

63664

63663

63624

63640

60225

37818

60208

60128

63773

63768

STD 376112

63767

63467

Description

Pin, Clevis

Clamp, Cord

*Screw, Type "T" Pan Hd.

10-32 x 3/8,

*Lockwasher, External N10

Track

Screw, Type "T" Rd. Hd.

10-32 x 5/8

Trim Front Arm

Key

*Screw, Type "T" Pan Hd.

8-32 x 5/16

Guard, Switch

Switch, Locking

(Includes Key No. 30)

Arm, Radial

Bracket, Support

Grommet

Relief, Strain

+Nut, Push

Washer, 17/64 x 5/8 x 1/32

Insulation

Lead, 8" Red

eCapacitor

Clamp, Capacitor

Cap, Flag Terminal

Relay and Capacitor must accompany motor when motor is

returned for service.

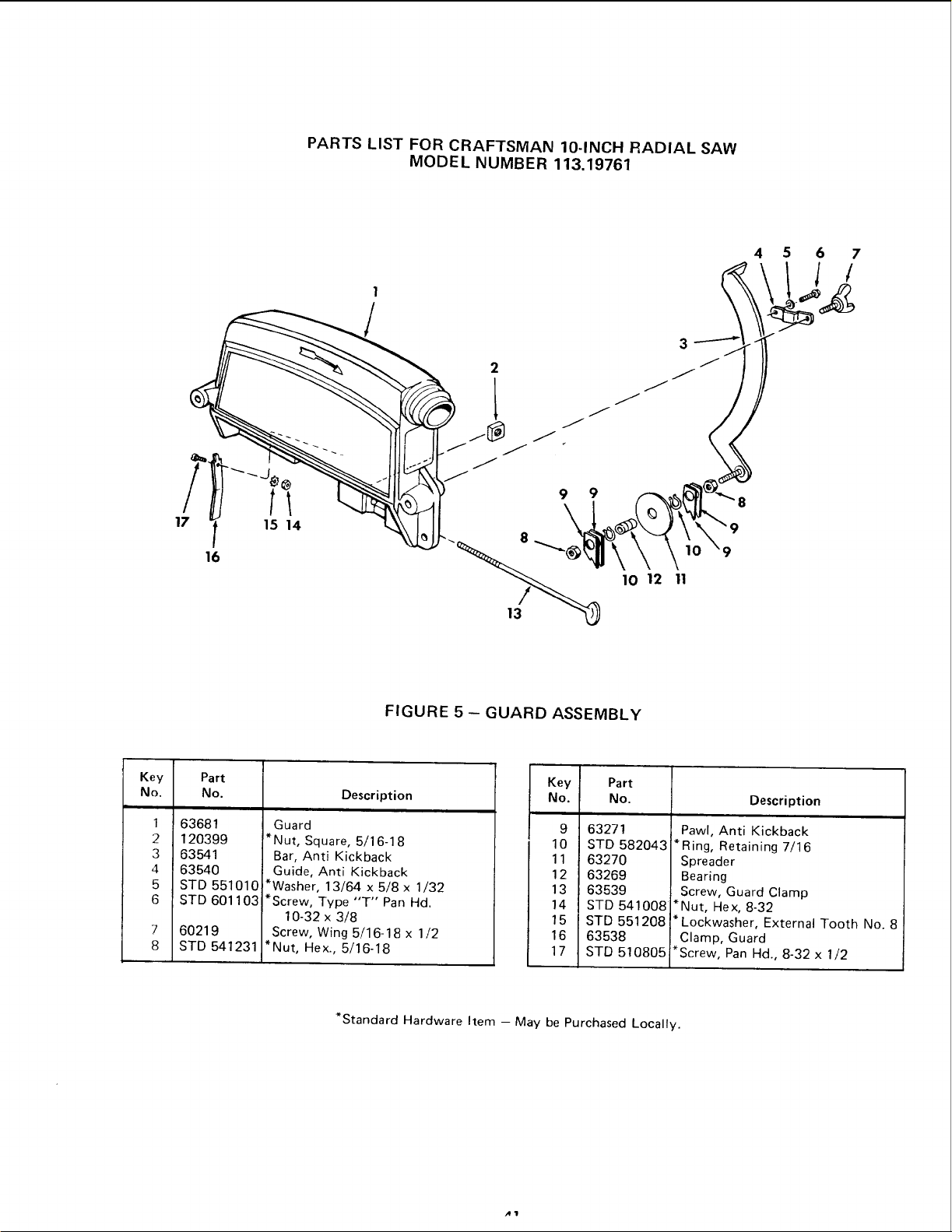

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW

MODEL NUMBER 113.19761

17 15 14

10 12

4 5 6 7

FIGURE 5 - GUARD ASSEMBLY

Key

No.

Part

No.

63681

120399

63541

6354O

STD 551010

STD 601103

60219

STD 541231

Description

Guard

*Nut, Square, 5/16-18

Bar, Anti Kickback

Guide, Anti Kickback

*Washer, 13/64 x 5/8 x 1/32

*Screw, Type "T" Pan Hd.

10-32 x 3/8

Screw, Wing 5/16-18 x 1/2

*Nut, Hex., 5/16-18

Key Part

No. No. Description

63271

STD 582043

63270

63269

63539

STD 541008

STD 551208

63538

STD 510805

Pawl, Anti Kickback

*Ring, Retaining 7/16

Spreader

Bearing

Screw, Guard Clamp

*Nut, Hex, 8-32

* Lockwasher, External Tooth No. 8

Clamp, Guard

*Screw, Pan Hd., 8-32 x 1/2

*Standard Hardware Item - May be Purchased Locally,

NOTES

Sears

owners

manual

SERVICE

MODEL NO.

113.19761

HOW TO ORDER

REPAIR PARTS

IO-INCH RADIAL SAW

Now that you have purchased your 10-inch radial saw, should a

need ever exist for repair parts or service, simply contact any

Sears Service Center and most Sears, Roebuck and Co. stores.

Be sure to provide all pertinent facts when you call or visit.

The model number of your 10-inch radial saw will be found on

a label attached to your saw, at the front of the base.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

PART NUMBER PART DESCRIPTION

MODEL NUMBER

113.19761

NAME OF ITEM

10-INCH RADIAL SAW

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Center for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 63783 Form No. SP4412 Printed in U.S.A. 12/79

Craftsman 113197601 10" radial saw

Product's Documents

User Manual

Specifications

Craftsman 113197601 Questions and Answers
