Zip H5E786Z05AU HydroTap G5 B Elite Plus Tap Brushed Rose User Manual

806835 v1.02 05.21 G5 User guide

1

User Guide

HydroTap G5

®

Visit our website to download the manuals

Australia UK

806835 v1.02 05.21 G5 User guide

2

806835 v1.02 05.21 G5 User guide

3

Table of contents

SECTION 1: SAFETY ....................................5

1.1 Explanation of symbols .......................................... 5

1.2 Before you start ..................................................... 5

SECTION 2: Using the HydroTap .................6

2.1 Classic Plus, Elite Plus ............................................. 7

2.2 Touch-Free Wave ................................................. 8

2.3 Arc, Cube and Celsius ........................................... 10

2.4 Classic ................................................................... 11

2.5 HydroTap Mixer taps ............................................. 12

SECTION 3: Command Centre Screen ..........13

3.1 How to use the Command Centre screen ............. 13

3.2 Home screen ......................................................... 15

3.3 Main menu ............................................................ 16

3.4 General settings ................................................... 16

3.5 System settings ..................................................... 18

3.5.1 Filter settings ....................................................... 19

3.5.2 Temperature settings ......................................... 22

3.5.3 CO settings ........................................................ 24

3.5.4 Dispense times ................................................... 26

3.5.5 Light sensor ........................................................ 26

3.5.6 Quiet mode ........................................................ 27

3.5.7 Advanced settings 1 ............................................ 27

3.5.8 Advanced settings 2 (Wave Tap only) ................ 28

3.5.9 System restart ..................................................... 28

3.6 Safety & security .................................................... 29

3.6.1 Boiling safety ....................................................... 29

3.6.2 Passcode protect ............................................... 30

3.7 Energy saving ........................................................ 31

3.7.1 Sleep mode ......................................................... 31

3.7.2 On/Off Timer ...................................................... 32

3.7.3 Energy Use .......................................................... 33

3.8 Info & logs ............................................................. 34

SECTION 4: User maintenance .................... 35

4.1 Changing the internal filter ................................... 35

4.2 Air inlet filter maintenance .................................. 37

4.3 Cleaning ................................................................ 38

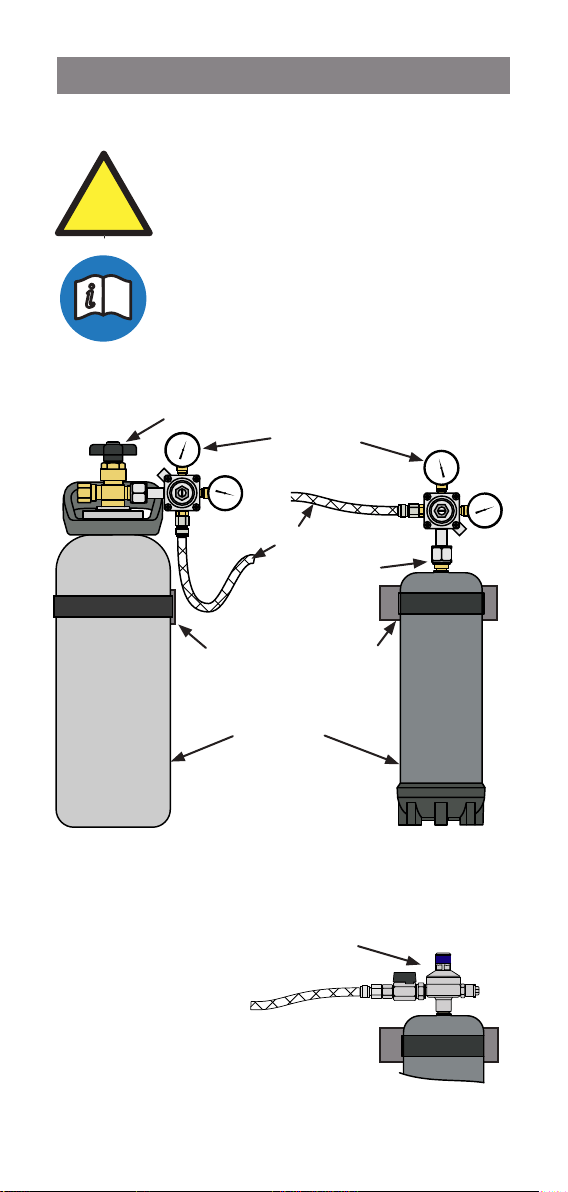

4.4 CO cylinder and regulator ................................... 39

4.4.1 Changing the 2.64kg CO cylinder .................... 41

4.4.2 Changing the 1.2kg CO2 cylinder ...................... 42

806835 v1.02 05.21 G5 User guide

4

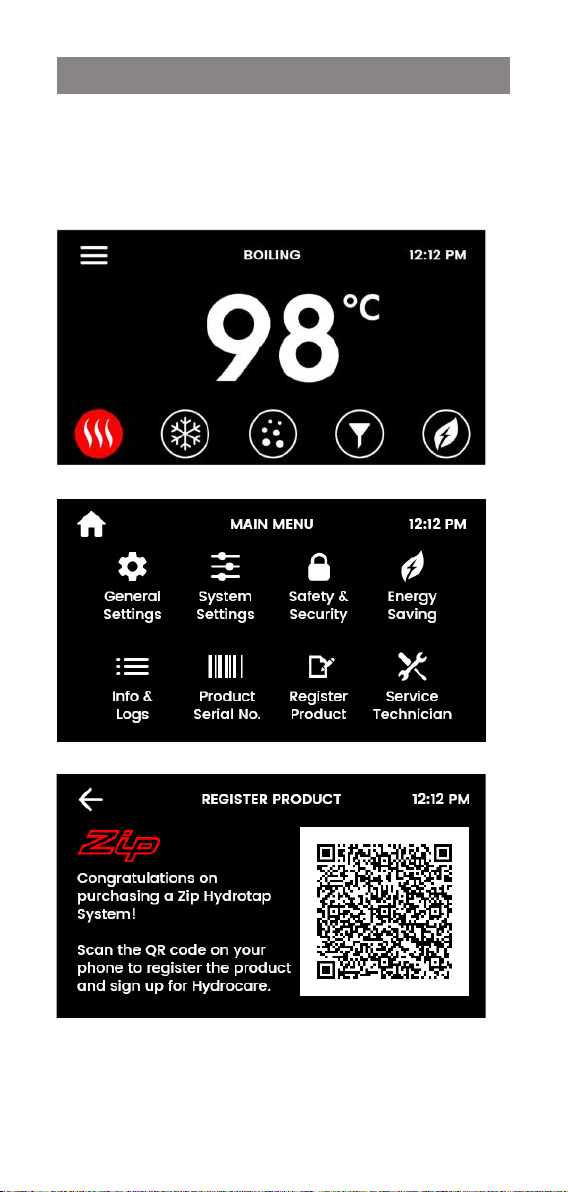

• Navigate to the register product menu.

• Scan the QR code and follow the on screen steps to

register your product.

[ ]

Register product

806835 v1.02 05.21 G5 User guide

5

!

1.1 Explanation of symbols

Read the instructions

WARNING

!

Danger of electric shock

!

Hot surface

SECTION 1: SAFETY

1.2 Before you start

Read the WARNINGS and PRECAUTIONS.

Download & read the complete

Command Centre installation instruction

manual and user guide.

!

Read and use the instructions supplied

with individual kit components for a

safe use and installation of replacement

consumables.

806835 v1.02 05.21 G5 User guide

6

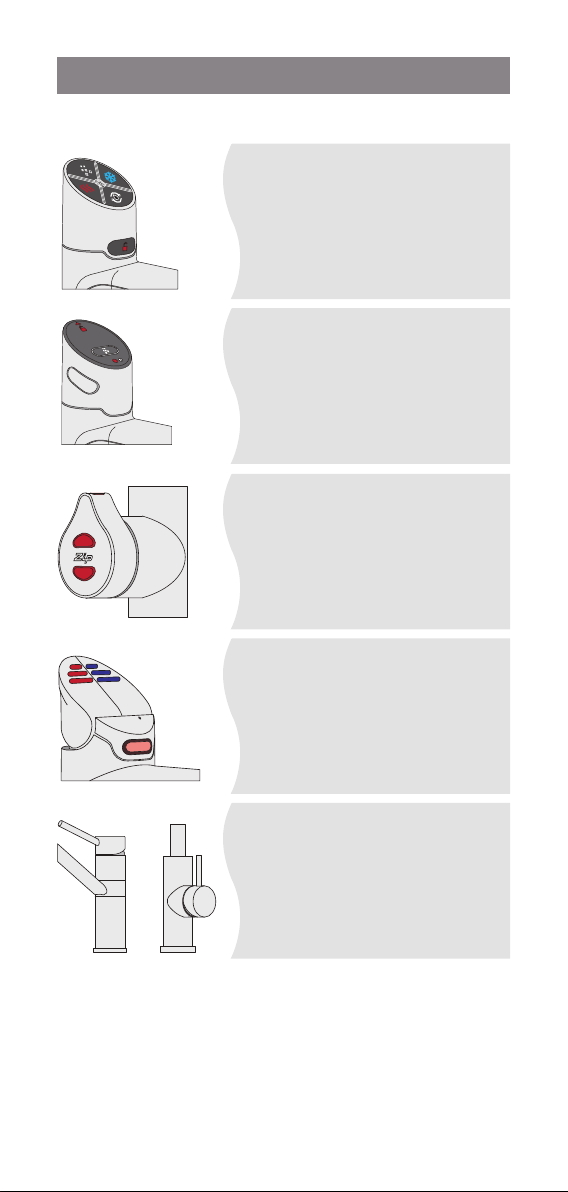

SECTION 2: Using the HydroTap

SAFETY

BOILING

CHILLED

CHANGE FILTER

SAFETY

Touch-free

Classic

Arc, Cube and Celsius

HydroTap Mixer Taps

Touch-Free Wave

Classic Plus, Elite Plus

See page 6

See page 7

See page 9

See page 10

See page 11

806835 v1.02 05.21 G5 User guide

7

SECTION 2: Using the HydroTap

Controls Press to dispense

Dispense options

Press the icons to dispense water choice.

Chilled Sparkling

+

Boiling

ON

Ready to dispense.

FLASHING SLOWLY

Water temperature not at set point.

FLASHING QUICKLY

System fault.

Simply press to dispense

chosen water type

Safety lock

Info

ON

Safety lock on

OFF

Safety lock off

ON

Bottle fill

enabled

FLASHING

Change

filter

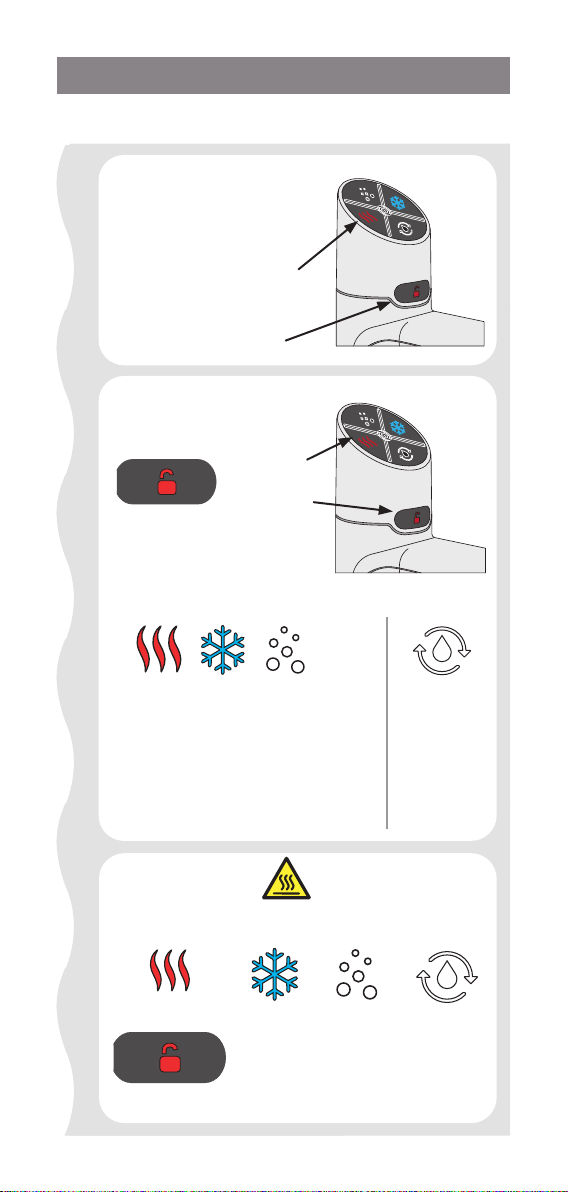

2.1 Classic Plus, Elite Plus

Lights

!

Bottle fill

(then

press water

choice)

806835 v1.02 05.21 G5 User guide

8

SECTION 2: Using the HydroTap

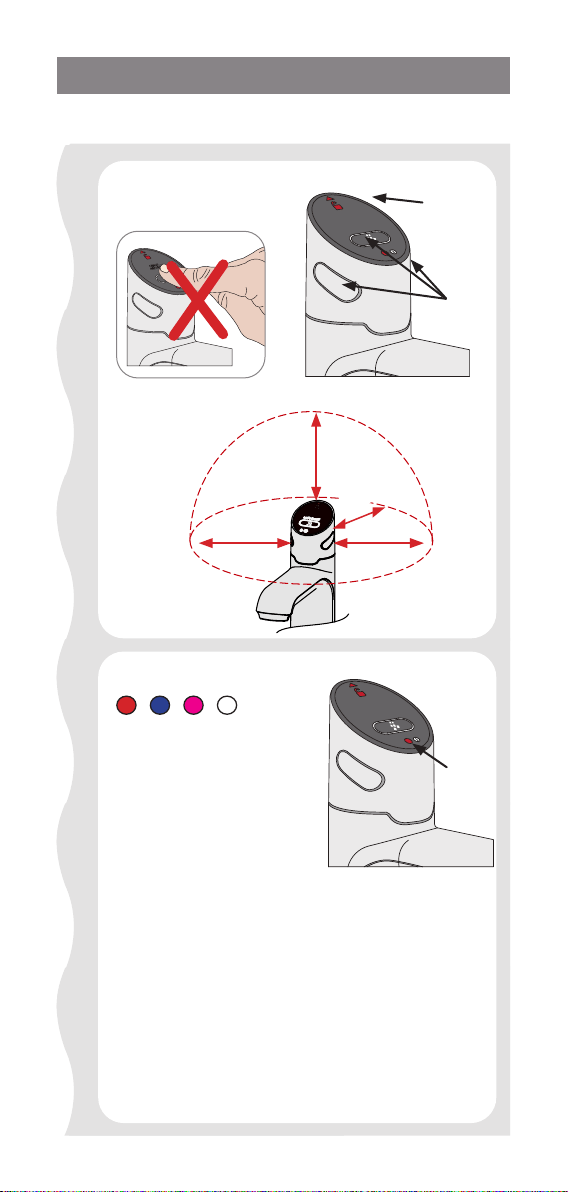

2.2 Touch-Free Wave

Touch-free

Controls Touch-free

sensors on the tap top,

back and sides.

Touch-free

Lights

Dispense

sensors

Safety

sensor

(at back)

Light

Touch-free

Clearance requirements

100mm 100mm

100mm

RED Boiling & safety

sensors activated, water

dispensed.

BLUE Chilled sensor

activated, water dispensed.

WHITE Sparkling sensor

activated, water dispensed.

PURPLE Lock mode on (when tap is idle).

Flashing RED Sensor activated incorrectly; hand

may be too close to sensor, sensor has been

touched or covered.

WHITE / BLUE / RED Cycling 5 to 10 seconds

Filter needs replacing, CO warning (G5), unit

is in an error mode (refer to Command Centre

screen).

WHITE Flashing rapidly Sensors calibrating when

power is ﬁrst applied to the tap. Allow 10 seconds.

806835 v1.02 05.21 G5 User guide

9

SECTION 2: Using the HydroTap

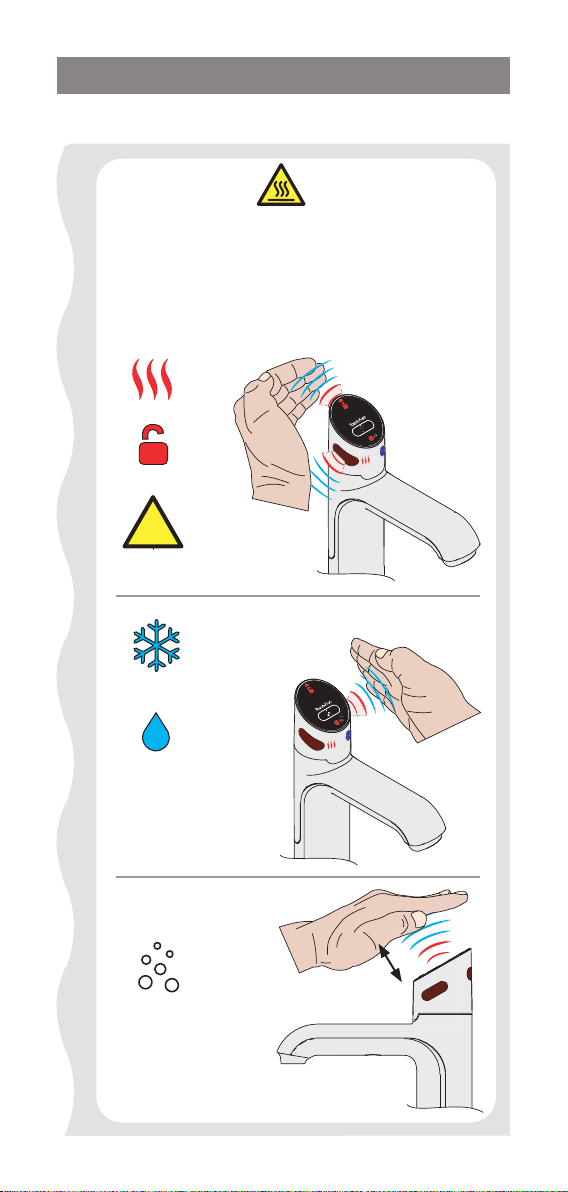

2.2 Touch-Free Wave continued

Dispense options

Sensor range 1 - 4cm.

To dispense, hold hand within range of the

sensors.

Tap will not operate and light will flash if the

sensors are touched or if your hand is too close.

+

Boiling Water

!

Chilled

Ambient

Sparkling

!

1 – 4cm

Boiling

Side + Rear sensor:

Bottle fill

(timed dispense)

Top + Rear sensor:

Bottle fill

(timed dispense)

806835 v1.02 05.21 G5 User guide

10

SECTION 2: Using the HydroTap

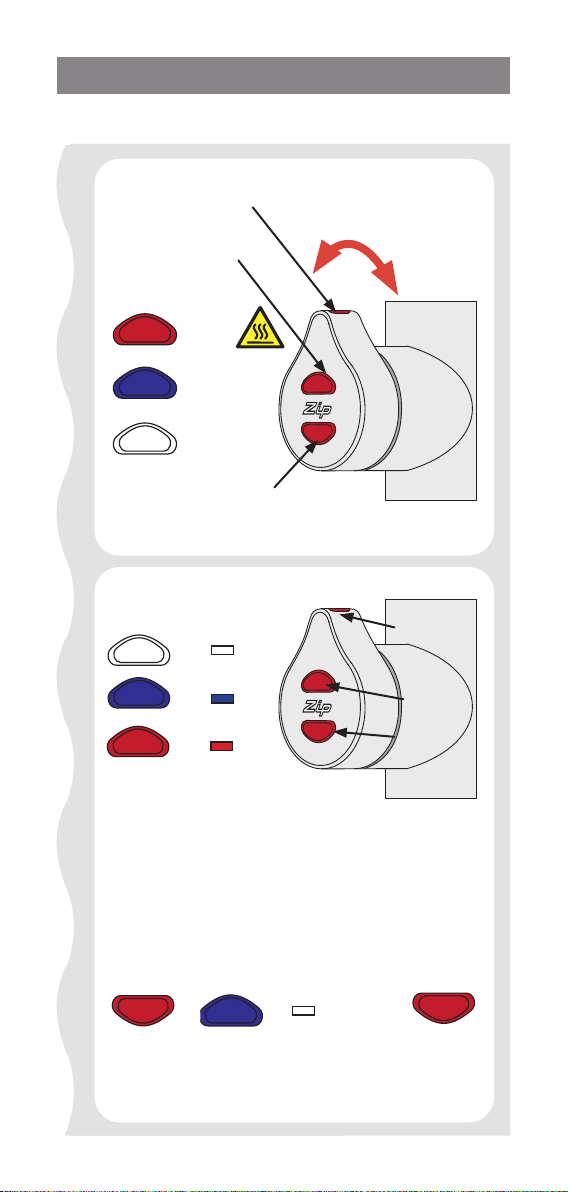

2.3 Arc, Cube and Celsius

SAFETY

Controls

Manual

dispense

Bottle fill

(timed dispense)

Safety To dispense boiling

water, touch twice while

flashing when safety lock is on.

Indicator displays

system status.

Select touch to

select water type.

SAFETY

LOCK ON

Lights

Indicator

Select

Safety

SAFETY

+

ON

Ready to dispense.

ALL LIGHTS FLASH CONTINUOUSLY

System fault, refer to Command Centre LCD

(HydroTap will not function).

RED OR BLUE LIGHT FLASHES

Fault (HydroTap still functions), refer to

Command Centre LCD.

SAFETY

+

SAFETY

+

SELECT

SAFETY

+

SAFETY

+

ALL LIGHTS FLASH EVERY 10

SECONDS

Filter change due.

SELECT

SAFETY

Boiling

Chilled

Sparkling

SELECT

!

806835 v1.02 05.21 G5 User guide

11

BOILING

CHILLED

CHANGE FILTER

SAFETY

SECTION 2: Using the HydroTap

2.4 Classic

BOILING

CHILLED

CHANGE FILTER

SAFETY

Controls

Push for manual

dispense

Pull for bottle fill

(timed dispense)

Lights

BOILING

CHILLED

CHANGE FILTER

SAFETY

Dispense options

Boiling ready

Chilled / sparkling

ready

Filter

Use boiling, chilled,

sparkling, or ambient

lever to dispense your

water choice.

BOILING

CHILLED

CHANGE FILTER

SAFETY

BOILING

CHILLED

CHANGE FILTER

SAFETY

ON

Ready to dispense.

FLASHING SLOWLY

Water temperature is not

at set point

FLASHING QUICKLY

System fault

BOILING

CHILLED

CHANGE FILTER

SAFETY

FILTER

Safety

lock

OFF

Filter within lifespan.

FLASHING SLOWLY

Change filter.

ON active

OFF inactive

!

806835 v1.02 05.21 G5 User guide

12

SECTION 2: Using the HydroTap

2.5 HydroTap Mixer taps

Controls mixed water

Hot

Cold

Lift and rotate the lever

to dispense mixed

warm water.

806835 v1.02 05.21 G5 User guide

13

SECTION 3: Command Centre Screen

3.1 How to use the Command Centre screen

The Command Centre has a colour touch screen liquid

crystal display.

The screen turns OFF after 5 minutes of non-use. Touch

the screen to reactivate.

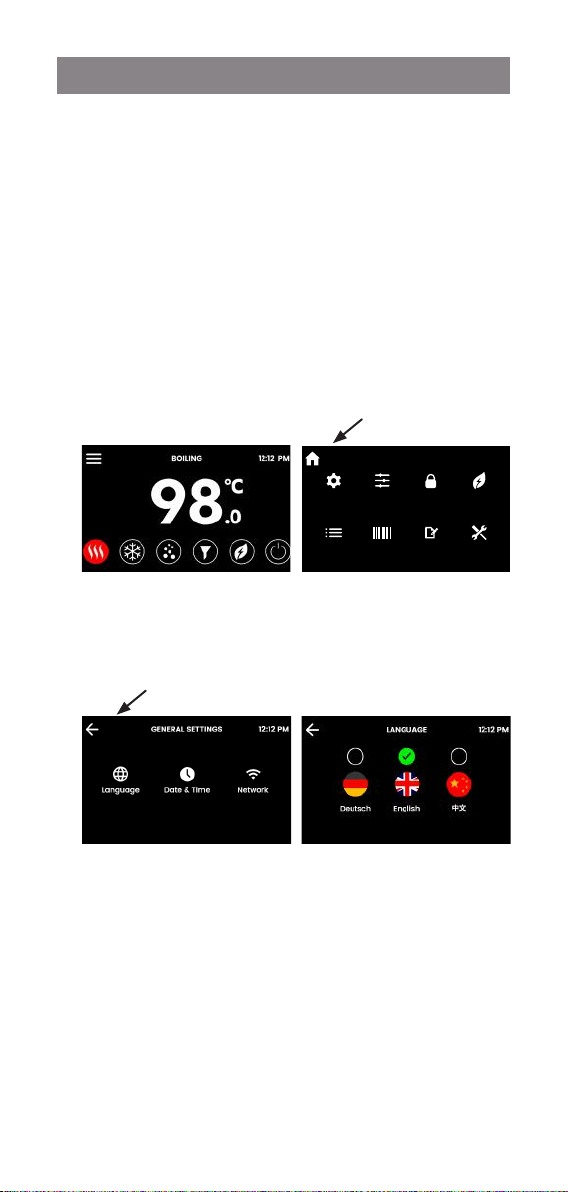

Navigate to the required screen. Here's an example :

Set the language - from the home screen

Touch the ‘top left’ icon to navigate to the main menu.

Then touch the general settings icon to navigate to the

general settings menu.

MAIN MENU 12:12 PM

General

Settings

System

Settings

Safety &

Security

Energy

Saving

Info &

Logs

Product

Serial No.

Register

Product

Service

Technician

[ ]

Touch the language icon to navigate to the language

screen.

Touch the relevant icon to choose the language.

[ ] [ ]

(To go back)

(To return to the home screen)

[ ]

806835 v1.02 05.21 G5 User guide

14

SECTION 3: Command Centre Screen

OFF screen

Touch the power button to turn the Command Centre ON

or OFF. The LCD screen visually shows OFF when it is non-

operational.

You will hear the sound of an internal “click” as the

HydroTap Command Centre turns ON or OFF.

When OFF, all functions are disabled including heating,

chilling, filling and dispensing.

Turning the power back ON will reset the system of any

faults.

806835 v1.02 05.21 G5 User guide

15

SECTION 3: Command Centre Screen

3.2 Home screen

Status screens shown here are representative and may vary.

Use the home screen to monitor the HydroTap status.

Touch each icon to view the system status.

Boiling temperature set

point

Chilled temperature set

point (Chilled models)

CO2 gas remaining (Sparkling models)

12:12 PM

0

%

CO2 GAS REMAINING

REPLACE

CO2 GAS

!

When the CO2 cylinder has approximately 20% remaining,

a warning appears to encourage you to prepare a

replacement cylinder.

Filter life remaining

A warning icon is shown when the filter needs to be

replaced. See page 35.

12:12 PMFILTER LIFE REMAINING

External %

EXT FILTER

DISABLED

!

UV %

REPLACE

FILTER

Internal %

100

Energy saving settings

View or modify the current active timers and sleep mode

actions. See page 31.

806835 v1.02 05.21 G5 User guide

16

SECTION 3: Command Centre Screen

3.3 Main menu

Use the Main menu to configure your HydroTap and

access features and settings. Touch each icon to access

further options.

3.4 General settings

Language

[ ]

806835 v1.02 05.21 G5 User guide

17

SECTION 3: Command Centre Screen

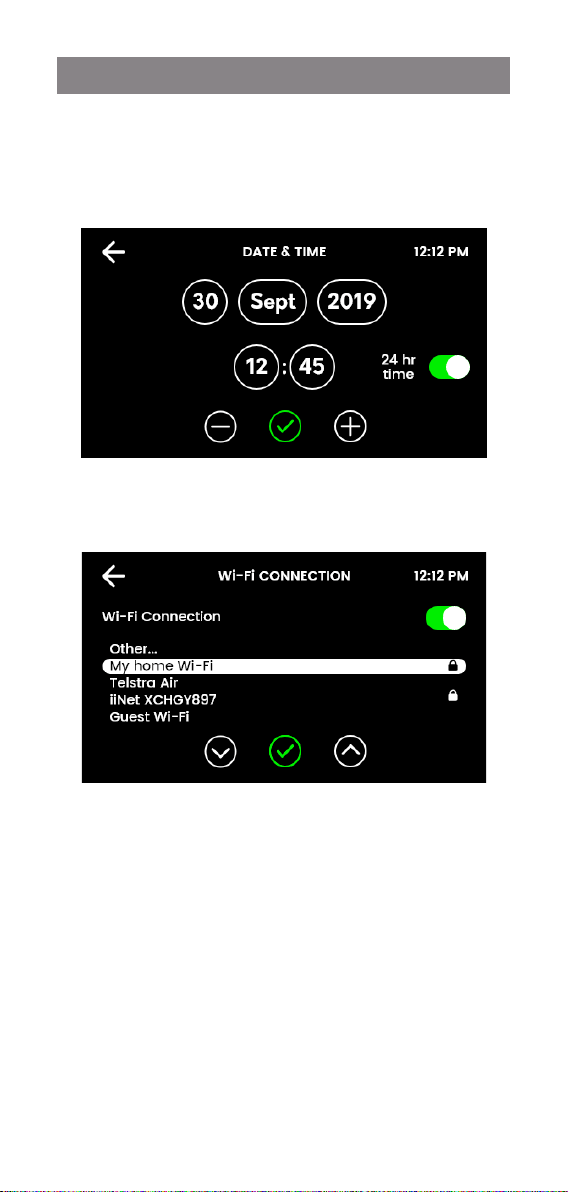

Date and time

Touch the text boxes on the screen and then press + and -

to set the current date and time. Press the tick to confirm

and save.

Network

Connect to Wi Fi (available with optional Zip Assist Kit).

806835 v1.02 05.21 G5 User guide

18

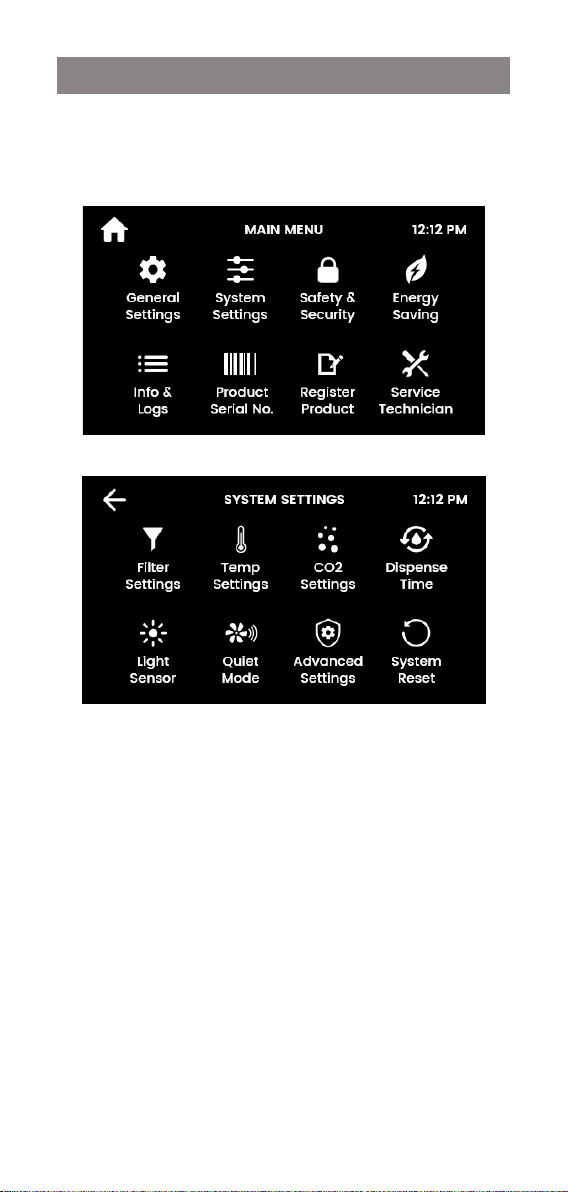

3.5 System settings

Configure your HydroTap to suit your needs.

Navigate to system settings screen for all system settings.

SECTION 3: Command Centre Screen

[ ]

806835 v1.02 05.21 G5 User guide

19

SECTION 3: Command Centre Screen

Filter flush

Use Filter flush during commissioning of a new installation,

and after every filter change.

See page 35 for filter change instructions.

3.5.1 Filter settings

FILTER SETTINGS 12:12 PM

Filter

Reset

Filter

Life

Filter

Flush

Tank

Flush

Open filter door, uncoil flush line.

Direct flush line into bucket.

Open flush line tap.

Flush line tap

Flush line tap open

806835 v1.02 05.21 G5 User guide

20

SECTION 3: Command Centre Screen

Start flush.

Flush line tap closed

12:12 PM

| |

FILTER FLUSH

RUNNING.....

Water is now being flushed through the filter.

This process is automatic and will take 2 minutes.

Press pause to pause filter flush.

Approximately 10L of water will

flow, for 2 minutes.

The screen will show the filter has

been flushed.

Close the flush line tap, return the

flush line to the filter compartment

and close door.

Reset the filter counter (see page 19).

806835 v1.02 05.21 G5 User guide

21

SECTION 3: Command Centre Screen

Filter reset

FILTER RESET 12:12 PM

External

filter

Internal

filter

This will reset the usage counters for the chosen item.

Select an item and press reset to confirm.

Filter life

Select internal/external filter and edit the filter life (months

or litres) and actual usage (days or litres).

When usage exceeds the filter life, the tap lights and

screen will indicate to change the water filter.

Default internal water filter life:

• Residential: 12 months or 4000L

• Commercial: 6 months or 6000L.

Reset the filter counters after filter replacement and flush.

Life (months)

Life (litres)

12 000

Usage (days)

Usage (litres)

04000 000

INTERNAL FILTER LIFE 12:12 PM

806835 v1.02 05.21 G5 User guide

22

Chilled models

Default chill set point: 5-9ºC Commercial, 6-10ºC Residential.

Scroll to select alternatives.

Boiling models

Default set point: 98ºC Set point range: 68-100ºC.

Operation: Within 1-2ºC of set point.

Note: Boiling water delivery rate will be affected with a

higher temperature setting. Up to 6% less energy in standby

is consumed with a 98ºC set point, rather than 100ºC.

A warning icon will appear when setting boiling set point

temperatures that are subject to pump cavitation.

COLD/HOT SETPOINT 12:12 PM

Boiling Set Point

Chill Set Point

3-6

°C

98

°C

SECTION 3: Command Centre Screen

Boiling / Chilled set point

Adjust as required.

3.5.2 Temperature settings

Sparkling models

Default chill set point: 3-6ºC Commercial, 3-7ºC Residential.

Scroll to select alternatives.

806835 v1.02 05.21 G5 User guide

23

SECTION 3: Command Centre Screen

Boiling calibration

Take care during boiling calibration as hot

steam may vent from the tap spout.

On start-up, the HydroTap self-calibrates, or

go to this menu to recalibrate.

Calibration will take around 10 minutes.

!

External Booster

For selected commercial Boiling models, an external

booster is supplied or may be purchased as an upgrade to

increase Boiling capacity.

Ensure the correct selection is made, for optimum

performance.

806835 v1.02 05.21 G5 User guide

24

CO purge

Purge the gas lines when fitting a new CO gas cylinder.

Press the green start icon. The purge runs for 30 seconds.

Water may be dispensed before CO gas escapes from the

tap. The purge process stops automatically.

3.5.3 CO settings

12:12 PMPURGE WATER WITH CO2

INFO

This process removes water from the sparkling

chamber when a new CO2 bottle is installed.

This is an automatic process that will take 30 seconds.

SECTION 3: Command Centre Screen

CO2 SETTINGS 12:12 PM

CO2

Reset

CO2

Life

Purge

CO2

After fitting a new CO cylinder, reset the CO counter.

CO reset

806835 v1.02 05.21 G5 User guide

25

CO life

CO life may be adjusted by months or litres. The Home

screen displays a warning when the CO level reaches 20%

(see page 14).

CO life defaults to grams absorbed. Months of use

may also be selected to trigger a reminder to prepare a

replacement CO cylinder.

Usage is dependent on CO absorption, settings on the

HydroTap, and leak-free installation.

CO cylinders are available in two sizes:

• 1.2kg (approx. 180-200L) for residential or commercial

(UK).

• 2.64kg (approx. 400-460L) for commercial (not available

in UK).

SECTION 3: Command Centre Screen

806835 v1.02 05.21 G5 User guide

26

SECTION 3: Command Centre Screen

3.5.4 Dispense times

Set the “bottle fill” dispense time for each water type.

Minimum dispense time: 5 seconds.

Maximum dispense time: 15 seconds (default).

3.5.5 Light sensor

Follow the on screen instructions.

Ensure the ambient light in the room is typical for

operating conditions.

The lights on the tap will flash to confirm calibration.

When the room is darkened below the calibrated light

level, the tap lights will turn OFF after 30 seconds. Energy

saving modes may occur. Refer to section 3.7 (page 31).

LIGHT SENSOR 12:12 PM

CALIBRATION

This will calibrate the light sensor which will allow the

system to go to sleep when it is dark.

Before we start, the room should be in a typical

ambient lit environment.

Remove any object away from the tap.

806835 v1.02 05.21 G5 User guide

27

SECTION 3: Command Centre Screen

3.5.6 Quiet mode

Lowering the fan speed can reduce noise. Increasing it

may improve chilling performance.

Residential models: 75% / 100% / Auto (default).

Commercial models: 100% (default) / Auto.

3.5.7 Advanced settings 1

12:12 PMADVANCED SETTINGS 1

Periodic Pulse Reduced Cavitation Mode

Hot setpoint must be < 98°C to disable

Pre-pulse Reduced Cavitation Mode

Adds slight delay to boiling dispense

Power Pulsing Mode

Hot setpoint must be < 98.5°C to disable

Periodic Pulse Reduced Cavitation Mode

Sends two electric pulses every 5 minutes to the pump.

This prevents the build-up of air bubbles inside the pump

to ensure an even flow of hot water at the tap.

Pre-Pulse Reduced Cavitation Mode

Pulses immediately before boiling dispense to prevent the

build-up of air bubbles inside the pump and ensure an even

flow of hot water at the tap. There will be a 150 millisecond

delay before water is dispensed.

Power Pulsing Mode

Applies a closer tolerance to the set temperature, to

ensure hot water is maintained as closely as possible to the

set point.

806835 v1.02 05.21 G5 User guide

28

3.5.9 System restart

SECTION 3: Command Centre Screen

Touch the top circle, then the bottom circle to power

down and restart the system. Use this function to reset

faults or to reset the settings access password.

3.5.8 Advanced settings 2 (Wave Tap only)

12:12 PMADVANCED SETTINGS 2

Wave Tap Sensor Demister Mode

Allows Control of Heating of Wave Tap

Wave Tap Lock Mode

Dual Sensors Required for Chilled/Sparkling

Wave Tap Sensor Demister Mode

• Enabled (default): activates the Wave Tap internal

heater to prevent its sensors from being affected by

condensation from steam.

• Disabled: choose this option to conserve a small amount

of power.

Wave Tap Lock Mode

• Disabled (default): Chilled or sparkling water can be

dispensed by activating the corresponding sensor.

• Enabled: in addition to the chilled or sparkling sensor,

the rear sensor must also be activated in order to

dispense chilled or sparkling water. This is useful to

prevent false activation if a highly reflective surface is

present (such as high-visibility reflective tape). Note:

Bottle fill is disabled.

806835 v1.02 05.21 G5 User guide

29

SECTION 3: Command Centre Screen

3.6 Safety & security

3.6.1 Boiling safety

(Not applicable to Touch-Free Wave Tap)

12:12 PMBOILING SAFETY

Boiling safety lock

Use the safety button to dispense hot water

Hot isolation (additional boiling safety)

3 slow safety button presses required

prior to dispensing

Boiling safety lock

• Enabled (default): safety button must be touched/

tapped in order to dispense boiling water.

• Disabled: boiling water can be dispensed without the

need to touch/tap the safety button.

Hot isolation

3 slow safety button presses are required prior to

dispensing.

806835 v1.02 05.21 G5 User guide

30

SECTION 3: Command Centre Screen

3.6.2 Passcode protect

Activate passcode protection to limit access to certain

settings. Users will be prompted for this passcode when

attempting to access settings.

Create a 4-digit passcode and re-enter, as prompted.

The passcode will be deactivated if the HydroTap is reset

(powered off and on again).

806835 v1.02 05.21 G5 User guide

31

3.7 Energy saving

3.7.1 Sleep mode

SECTION 3: Command Centre Screen

SLEEP WHEN 12:12 PM

It gets

dark

Not used

in 2 hours

• Disabled (default).

• Enabled: Any attempt to dispense water will bring the

HydroTap out of sleep mode. Allow sufficient time for

the water to reach the set temperature.

Sleep when...

Select from: It gets dark / Not used in 2 hours / Both

Recalibrate the light sensor after selecting sleep when “it

gets dark”. Ensure the ambient light is typical for operating

conditions (see page 26).

806835 v1.02 05.21 G5 User guide

32

SECTION 3: Command Centre Screen

When sleeping

Choose between the following modes:

• Keep hot water at 68°C (default). Chilled water will be

kept at setpoint, for chilled models.

• Turn system OFF: boiling and chilled water will be OFF.

The option that is in effect is highlighted.

When OFF, the HydroTap will stop chilling and heating the

drinking water.

During OFF mode, any attempt to dispense water will bring

the HydroTap back ON. Allow sufficient time for the water

to reach the set temperature.

After 30 minutes of non-use, the system will revert to the

On / Off setting.

Set Timer

The off/on timer can be set to the same time every day,

on a range of days (weekdays/weekends), or by individual

days.

3.7.2 On/Off Timer

12:12 PMSET TIMER

Everyday

Weekdays / Weekends

Individual days

806835 v1.02 05.21 G5 User guide

33

SECTION 3: Command Centre Screen

12:12 PMENERGY USE

00000.0

000.0

Total (kWh)

Last Period (kWh)

01/01/2020

Date of Reset

3.7.3 Energy Use

Track energy usage of your HydroTap by viewing the total

energy consumed and the energy consumed since the last

energy use reset.

12:12 PMSET TIMER

Off at On at

Mon Tue Wed Thu Fri Sat Sun

0023

:

0023

:

3.7.2 On/Oﬀ Timer continued

Select the day or range of days, then set the desired Off/

On times. Touch the tick to confirm and save.

806835 v1.02 05.21 G5 User guide

34

About System

View the system information.

3.8 Info & logs

INFO & LOGS 12:12 PM

System

Faults

!

About

System

i

Filter

Logs

!

Recent

Faults

ABOUT SYSTEM 12:12 PM

Title Info

Module:

App. revision:

Serial No:

Product No:

Calibration:

50L Filtered:

Wi-Fi:

MAC Address:

BCS100

017-H5v0.1.xx

0000000000000

H500xx000AU

N/A

BS 0.00 FW 0.00

00:00:00:00:00:00

SECTION 3: Command Centre Screen

Filter Logs, System Faults, Recent Faults

View the filter reset history, current and recent fault history.

806835 v1.02 05.21 G5 User guide

35

SECTION 4: User maintenance

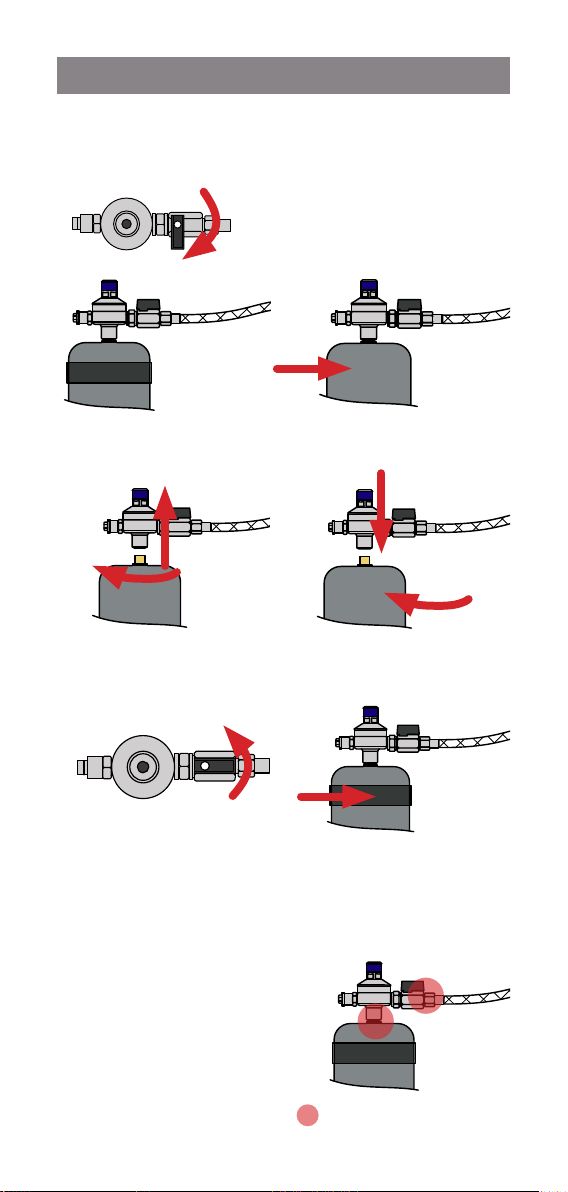

4.1 Changing the internal filter

The tap and screen will indicate that a filter needs to be

changed.

Depending on local water quality conditions and usage,

the filter may require changing before the filter change

indication is shown. You may also need to replace the filter

if you notice an increase in chlorine, taste or odour.

Place a cloth or towel under the filter cartridge before

removing. Water will drip as the cartridge is removed.

Unpack replacement cartridge and remove sanitary cap.

Write today’s date on the label.

Rotate

Pull

!

Open filter door.

Remove old filter.

Remove

806835 v1.02 05.21 G5 User guide

36

Initiate the filter flush programme by scrolling through the

menu screen (see page 19).

Clean up and dispose of old cartridge and packaging.

If the HydroTap is switched off for a long period of time

(e.g. more than a weekend), run water through the chilled

water outlet for at least 60 seconds before consumption.

Rotate

Insert

SECTION 4: User maintenance

Push up

Moisten connector o-rings.

Fit new filter.

806835 v1.02 05.21 G5 User guide

37

SECTION 4: User maintenance

4.2 Air inlet filter maintenance

Remove and clean quarterly.

Rinse off with tap water.

Gently dry with a cloth or towel.

Maintain at least a 50mm air gap in front of the air inlet

screen at all times.

Take care to keep the air inlet clear of blockage.

806835 v1.02 05.21 G5 User guide

38

SECTION 4: User maintenance

4.3 Cleaning

!

To clean all taps, Command Centre and

ancillaries, wipe external surfaces with a gentle

cleaning agent or a damp cloth and then wipe

dry immediately with a clean, dry cloth.

Do not use strong, corrosive, spray or abrasive

cleaners.

Command Centres must never be located near

or cleaned with water jets.

For the Touch-Free Wave Tap:

Do not use abrasives to clean the sensor lenses

at the sides, top and rear of the Touch-Free

Wave Tap.

Do not use disinfectant sprays without wiping

dry afterwards.

This could cause permanent malfunction and

void warranty.

806835 v1.02 05.21 G5 User guide

39

4.4 CO cylinder and regulator

!

Significant concentrations of CO gas can

cause harm.

To prevent leaks, read and use the

instructions and safety documents provided

with the replacement cylinder, together with

these instructions.

SECTION 4: User maintenance

Components

Cylinder

Regulator

I

1.2kg cylinder2.64kg cylinder

Hose

Hook and loop strap

and bracket

Cylinder valve

Regulator to

cylinder

adaptor

Non-adjustable

regulator

Non-adjustable 1.2kg cylinder regulator

806835 v1.02 05.21 G5 User guide

40

I

Cylinder pressure

Outlet

pressure

Regulator

control

knob

Cylinder

connection

Gas hose

connection

Set to

3.0 bar

!

SECTION 4: User maintenance

Universal G5 CO regulator

1.2kg cylinder non-adjustable regulator

Regulator control

knob

Braided hose

connection

Cylinder

connection

806835 v1.02 05.21 G5 User guide

41

Regulator

SECTION 4: User maintenance

Turn off cylinder valve & regulator.

1

2

3 4

5

6

4.4.1 Changing the 2.64kg CO cylinder

I

Unstrap.

I

Unscrew regulator

connection.

I

Replace cylinder and refit

regulator.

I

Strap in place.

Turn on the cylinder valve

Adjust outlet pressure 3.0 bar.

I

7

Test for leaks in these areas

Test for leaks by brushing

with soapy water and looking

for bubbles.

Reseal if leaking, or call Zip for

advice and assistance.

8

Purge, reset and set the CO

2

life, (see page 24).

806835 v1.02 05.21 G5 User guide

42

I

Regulator

SECTION 4: User maintenance

Turn off regulator.

1

2

4

6

4.4.2 Changing the 1.2kg CO2 cylinder

Universal G5 regulator

Unstrap.

Unscrew regulator

connection.

Replace cylinder and refit

regulator inc. adaptor.

I

Strap in place.Adjust outlet pressure

3.0 bar.

Test for leaks in these areas

Test for leaks by brushing

with soapy water and looking

for bubbles.

Reseal if leaking, or call Zip for

advice and assistance.

I

3

5

7

8

Purge, reset and set the CO

2

life, (see page 24).

806835 v1.02 05.21 G5 User guide

43

SECTION 4: User maintenance

Non-adjustable regulator

Turn off regulator.

1 2

4

6

Unstrap.

Unscrew regulator

connection.

Replace cylinder and refit

regulator.

Strap in place.Turn ON regulator

valve.

Test for leaks in these areas

Test for leaks by brushing

with soapy water and looking

for bubbles.

Reseal if leaking, or call Zip for

advice and assistance.

3

5

7

8

Purge, reset and set the CO

2

life, (see page 24).

806835 v1.02 05.21 G5 User guide

44

Zip Water (Australia) Pty Ltd

ABN 46 000 578 727

67 - 77 Allingham Street, Condell Park, NSW 2200

Postal: Locked Bag 80, Bankstown 1885, Australia

(+612) 9796 3100 | Free Call (Aust): 1800 947 827

www.zipwater.com

Zip Water UK

Trafalgar House

Rash’s Green, Dereham,

Norfolk NR19 1JG

0345 6 005 005

[email protected].uk

specify.zipwater.co.uk

AU02691

Zip H5E786Z05AU HydroTap G5 B Elite Plus Tap Brushed Rose Gold

Product's Documents

User Manual

Specifications

Zip H5E786Z05AU Questions and Answers
