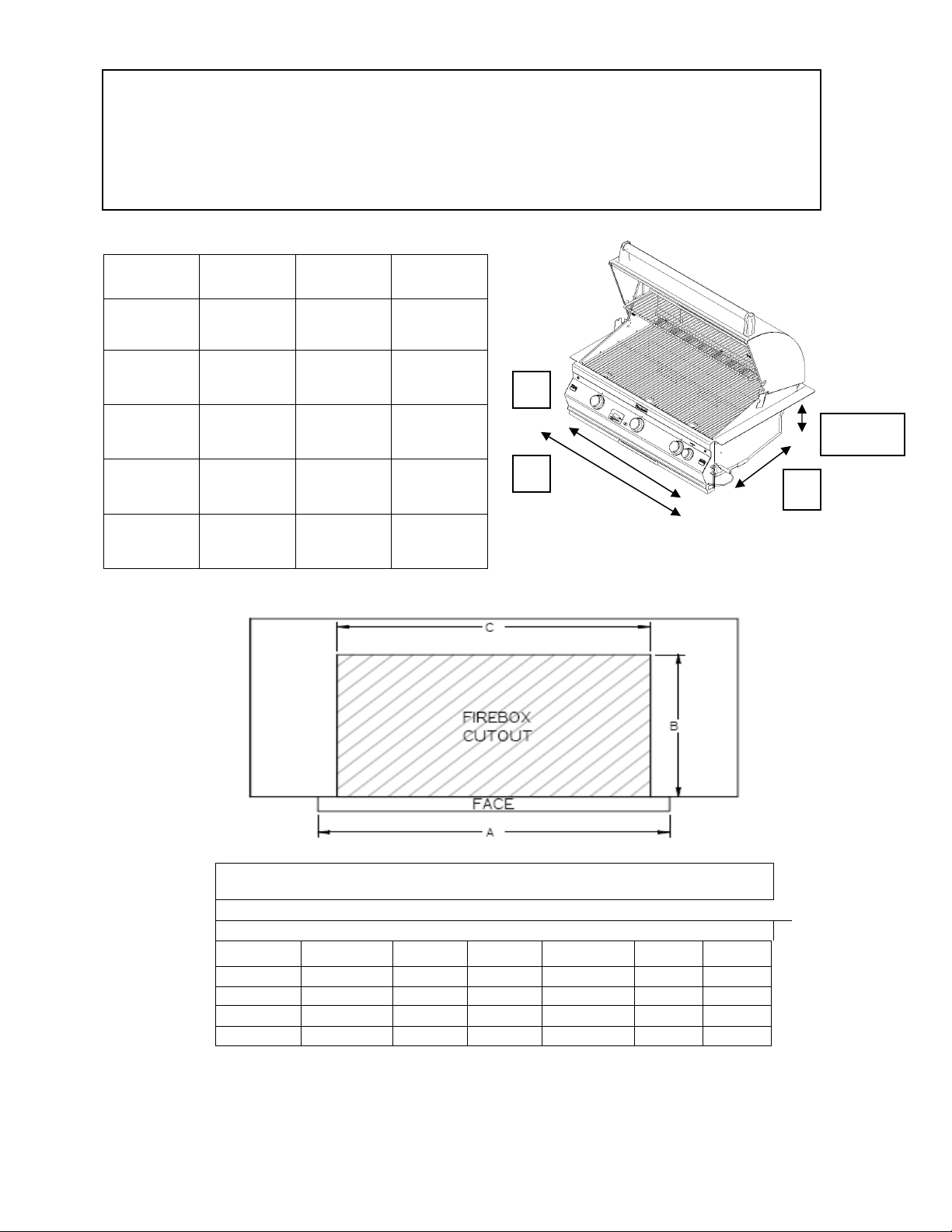

An additional clearance of 4” in the back hanger and 12” on each side hanger
is recommended for unrestricted operation of the hood and rotisserie.
GRILLING BACK
ORIFICES N-LP
BTU BTU GRILL BACK
A790i
30,000 x 3 23,000 38/53 42/55
A660I
25,000 x 3p 19,000 42/58 47/55
A540I 20,000 x 3p 19,000 44/35 47/55
A530I
30,000 x 2p 16,000 40/53 50/58
A430I
25,000 x 2p 16,000 45/54 50/58
MODEL
A
Face
B
Depth
C
Body
A430i
26 ½
19 ½
25 ½
A530i
26 ½
23 ½
25 ½
A540i
32 ½
19 ½
32
A660i
32 ½
23 ½
32
A790i
38 ¼
23 ½
37 ¾
A
B
C
D =12”
Robert H. Peterson

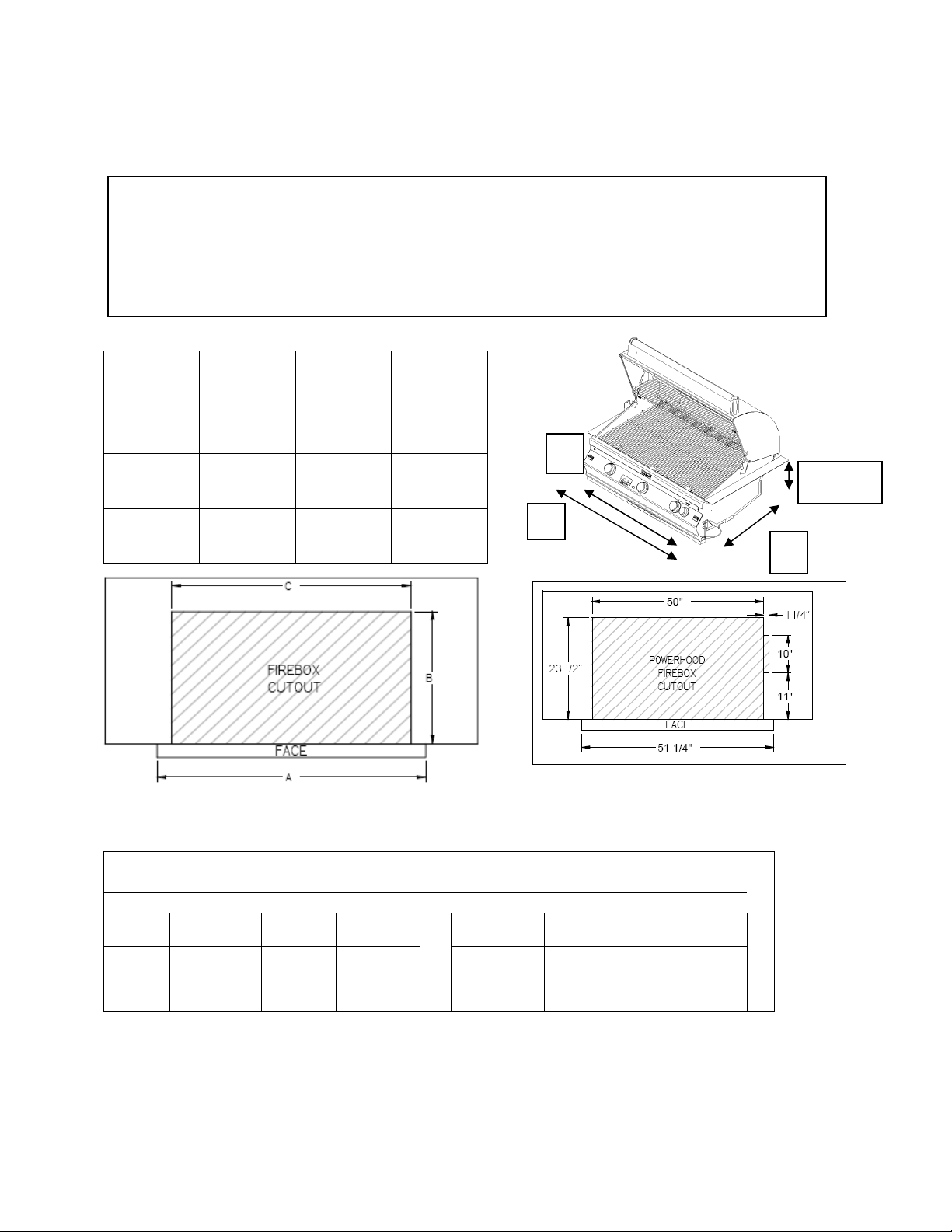

Fire Magic Firebox Cutout & Technical Data Information
AURORA COLLECTION
E1060i with Power Hood Only
An additional clearance of 4” in the back hanger and 12” on each side hanger
is recommended for unrestricted operation of the hood and rotisserie.
GRILLING BACK SMOKER ORIFICES N-LP
BTU BTU BTU GRILL BACK SMOKER
E1060i 30,000 x 4 15,000 x 2 2,500 #40-#53 #49-#56 #68-#77
E709i 32,000 x 3 23,000 2,500 #38 #53 #42 #55 #68-#77
E660i 25,000 x 3 19,000 2,500 #42-#54 #47-#55 #68-#77
MODEL
A
Face
B
Depth
C
Body
E1060i
(Without
Power Hood)
51 ¼
23 ½
50
E790i
38 ⅜
23 ½
37
E660i
32 ¼
23 ½
31 ¼
A
C
D =12”
B
Robert H. Peterson
Fire Magic Firebox Cutout & Technical Information
ECHELON COLLECTION
An additional clearance of 4” in the back hanger and 12” on each side hanger
is recommended for unrestricted operation of the hood and rotisserie.
MODEL
GRILLING BACK IR ORIFICES N-LP
BTU BTU BTU GRILL BACK IR
REGAL I
21,000 x 3p 22,000 NA 52/61 42/54 NA
DELUXE CDI
42,000 p NA 28,000 52/57 NA 49/57
DELUXE GDI
21,000 x 2 NA 28,000 52/57 NA 49/57
DELUXE GSI
21,000 x 2 NA 28,000 47/55 NA 49/57
REGAL RCH
*
CUSTOM CCH
*
* RCH & CCH Charcoal grills for use with or without a Fire Magic Smoker Oven
MODEL
A
(L)
B
(W)
C
(D)
Regal I
Classic Drop -In
20 ½”
41 ½”
18”
Deluxe Classic
Drop-In
19 ½”
24 ½”
12”
Deluxe Gourmet Drop-In
16 ½”
29 ½”
14”
Deluxe Gourmet
Slide-In
17 ¾”
24 ¾”
12”
Regal I
Charcoal (RCH)
19 ¾”
32”
12”
Custom I
Charcoal (CCH)
19 ¾”
26”
12”
A B
C
A
B
Robert H. Peterson

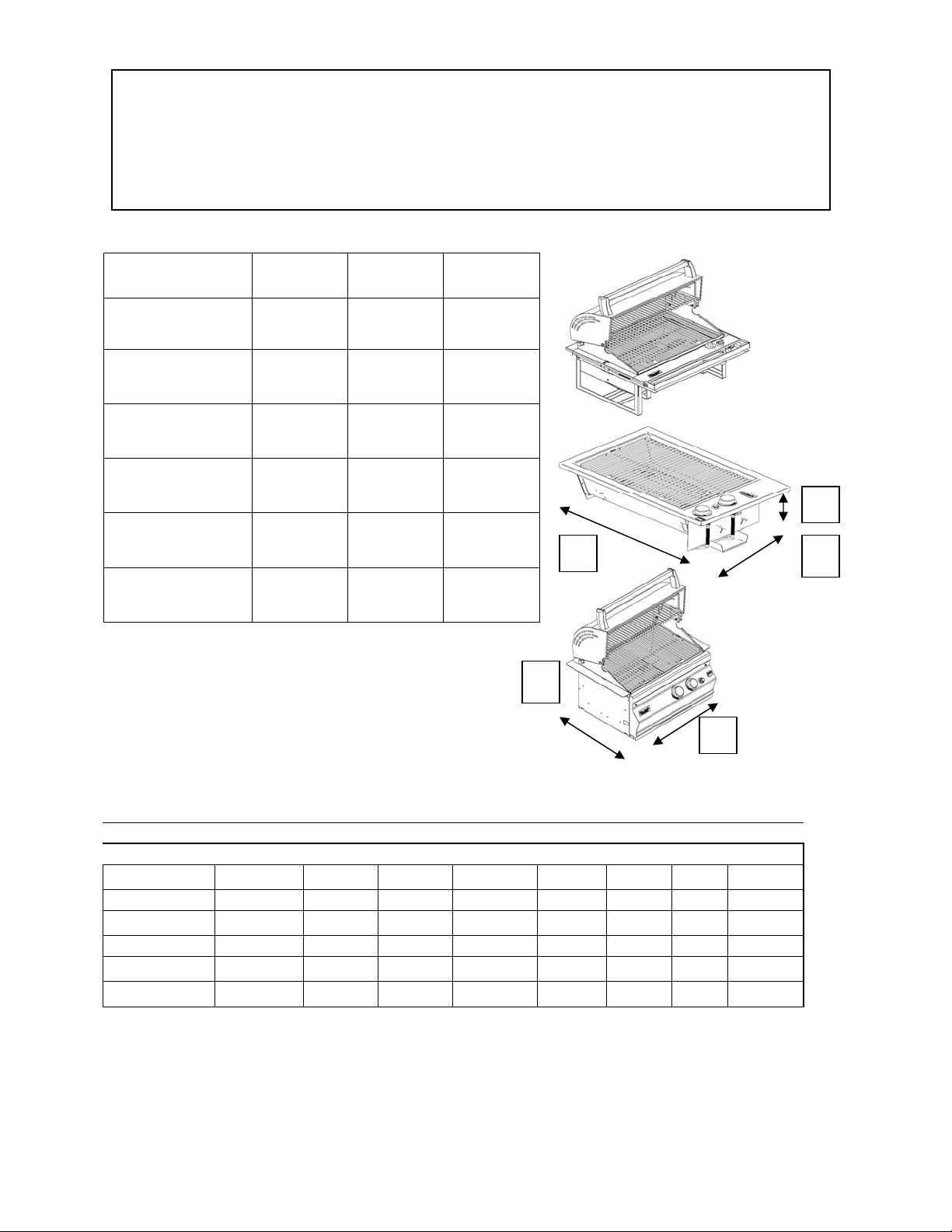

Fire Magic Firebox Cutout & Technical Data Information
LEGACY COLLECTION
