Safety Information 3
SAFETY INFORMATION1.
In the interest of your safety and to
ensure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings.
This appliance is intended to be used in
household and similar applications
such as:
Farm houses
By clients in serviced apartments,
holiday apartments and residential
type environments.
Conditions of use
To avoid unnecessary mistakes and
accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation and
safety features.
Save these instructions and make sure
that they remain with the appliance if it
is moved or sold, so that everyone
using it through its life will be properly
informed on appliance use and safety.
1.1 GENERAL SAFETY
It is dangerous to alter the
specifications or attempt to modify this
product in anyway.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use the advised quantities of
fabric softener and detergent. Damage
to the fabric or appliance can occur if
you overfill. Refer to the manufacturer’s
recommendations of quantities.
Wash small items such as socks,
laces, washable belts etc in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the inner drum.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Do not use your washing machine to
wash articles with whalebones,
material without hems or torn material.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
1.2 INSTALLATION
-
-
4 Safety Information
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the machine is situated on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
This washing machine is not intended
for use by young children or infirm
persons without supervision.
Young children should be supervised
to ensure that they do not play with
the appliance.
The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach.
Make sure that children or pets do not
climb into the drum.
Keep all detergents in a safe place out
of children’s reach.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which it
was designed.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing. Underwired bras
must NOT be machine washed.
Garments which have been in contact
with volatile petroleum products
should not be machine washed. If
volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
Never use the washing machine if the
power supply cable, the control panel,
the working surface or the base are
damaged so that the inside of the
washing machine is accessible.
1.3 USE
1.4 CHILD SAFETY

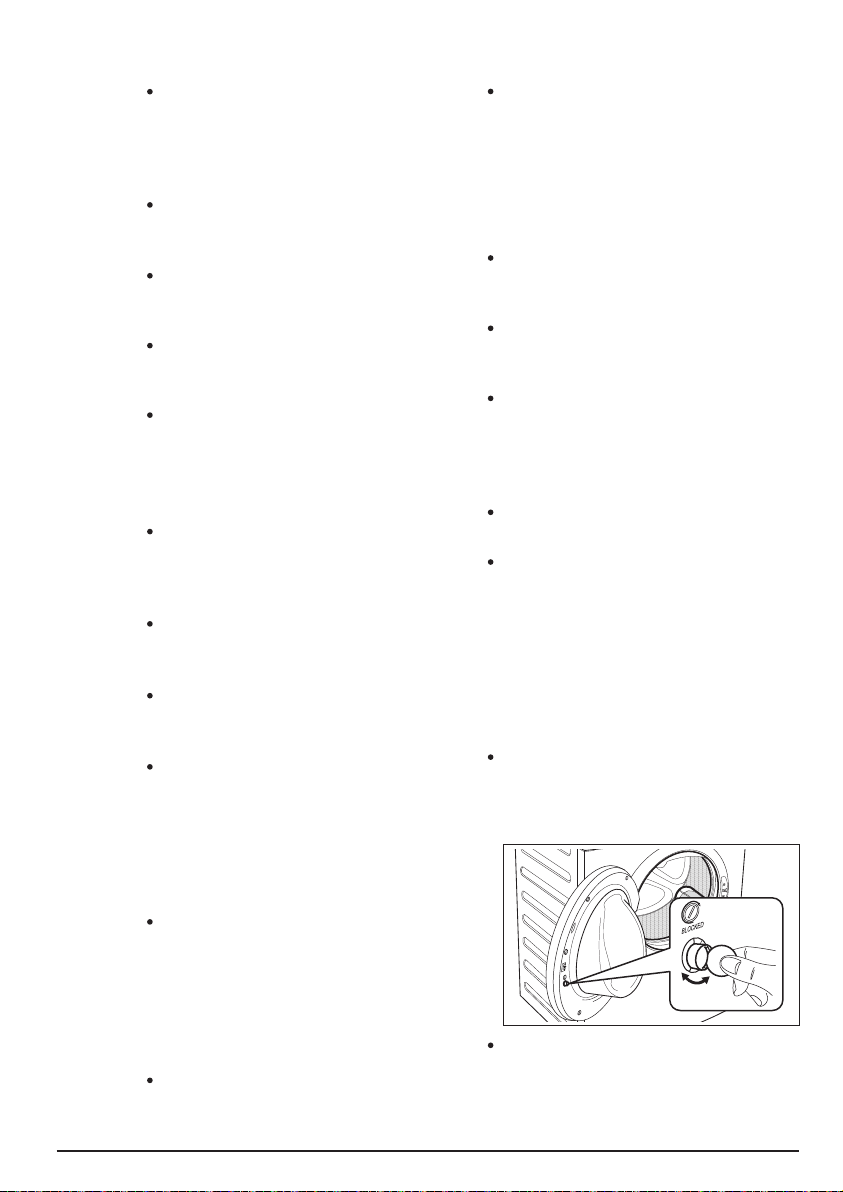

To activate this device, rotate the
button (WITHOUT pressing it) inside
the door clockwise until the groove is
horizontal. If necessary use a coin.
When you activate this device, you
cannot close the door. This prevents
children or pets to be locked in the
drum.
To disable this device and restore the
possibility of closing the door, rotate
the button anti-clockwise until the
groove is vertical.
1.5 CHILD SAFETY DEVICE
Product Description 5
PRODUCT DESCRIPTION2.
1
Worktop
2
Detergent/Softener Dispenser
3
Control Panel
4
Door Handle
5
Door
13
Child Safety Device
14
Rating Plate
15
Drain Filter
7
6
Level Adjustment Feet (Front)
8
Mains Cable
9
Water Inlet Hose
10
Water Drain Hose
11
Hose Support
12
Level Adjustment Feet (Back)
Transit Bolts
8
9
12
7
11
10
14
15
13
Your new appliance meets all modern requirements for effective treatment of
laundry with low water, energy and detergent consumption.
The program selector dial combines the function of program and temperature
selection, making it easier to set the program.
The automatic cooling of the washing water from 90° to 60°C before draining will
prevent old drain pipes from being deformed.
The balance control device ensures the machine is stable during the spin.
1
4
5
6
2
3

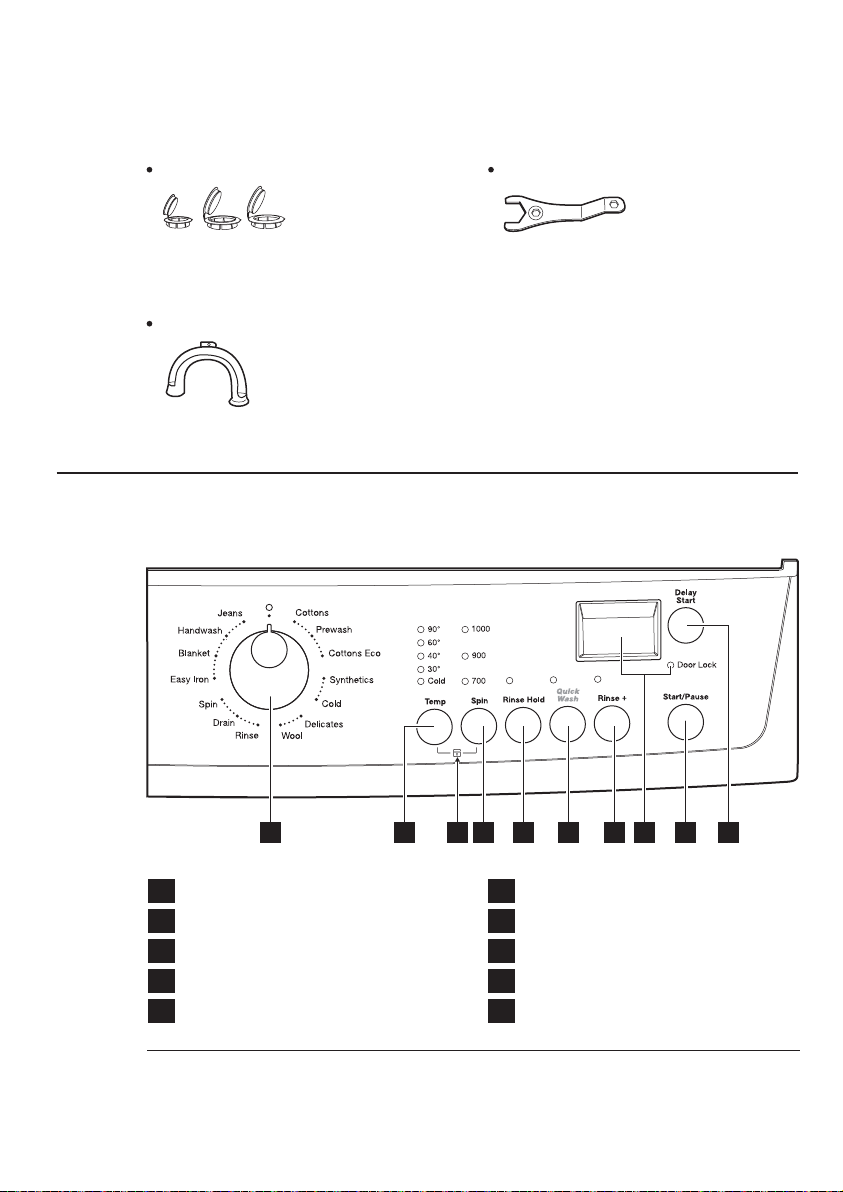

CONTROL PANEL3.
6 Product Description / Control Panel

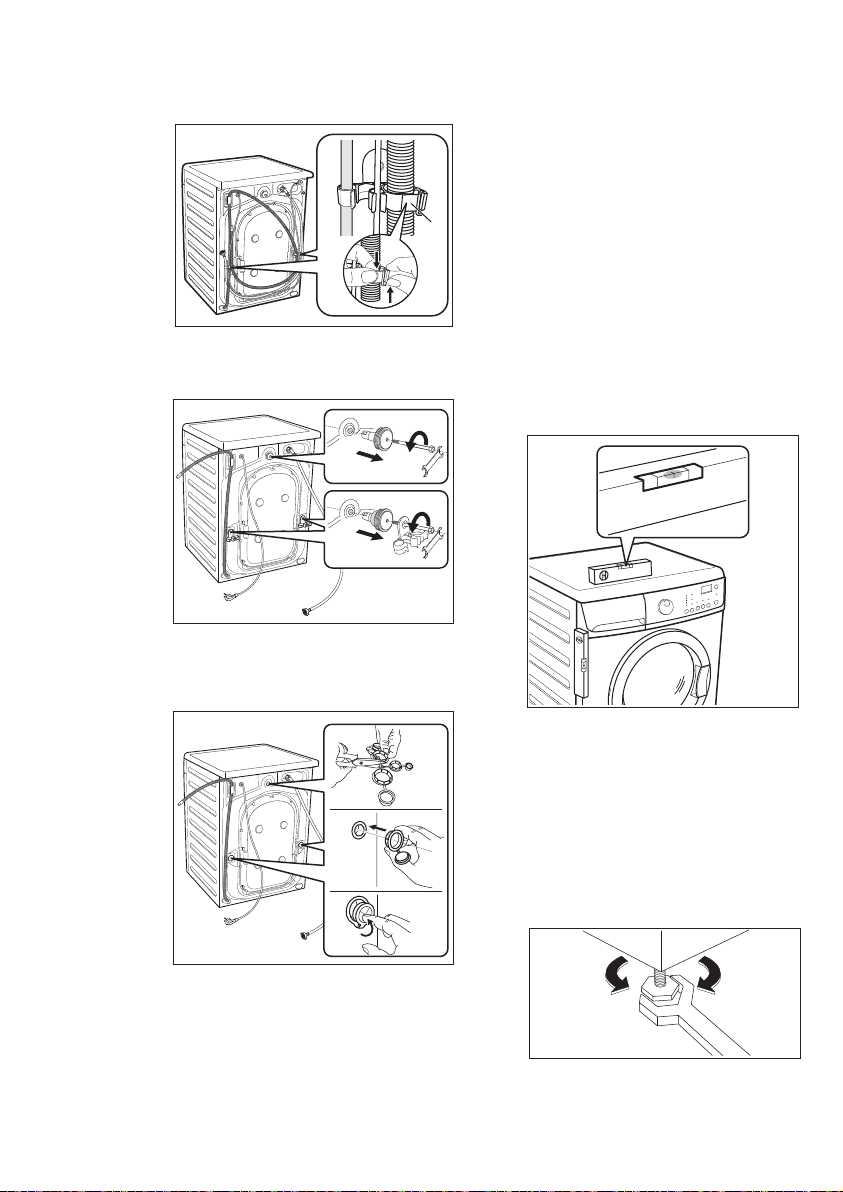

To remove the transit bolts.
To adjust levelling legs.
To connect the drain hose on the
edge of a sink.
Plastic caps
To close the holes on the rear side
of the cabinet after the removal of
the transit bolts.
Accessories
Plastic hose guide
Spanner
-
-
1 2 10 3 4 5 6 7 8
1
2
Program Selector Knob
3
4
Temperature Button
5
Spin Selection Button
6
Rinse Hold Button
Quick Wash Button
7
Rinse Plus Button
8
Display and Door Lock Indicator
9
Start/Pause Button
10
Delay Start Button
Child Lock Option
9
Control Panel 7
3.1 Program Selector Knob
Turn this knob to set a wash
program, the machine will
automatically select the spin speed
and temperature for selected
program.
The selector knob can be turned
either clockwise or anticlockwise.
Position “ ” to reset program/
switching OFF the machine.
At the end of the program the
selector dial must be turned to
position “ ”, to switch the
machine off.
3.3 Spin Selection Button
3.4 Rinse Hold Button
Press this button to increase or
decrease the spin speed, if you
want your laundry to be spun at a
speed different from the one
proposed by the washing machine.
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent
the laundry creasing.
The door is still locked to indicate
that the water must be emptied out.
3.2 Temperature Button
Press this button repeatedly to
increase or decrease the wash
temperature if you want your
laundry to be washed at a tempera-
ture different from the one
proposed by the washing machine.
3.5 Quick Wash Button
To empty out the water:
Select “Spin” or “Drain” program.
Reduce the spin speed if needed.
Press the button Start/Pause.
The appliance will drain the
water and then spin.
3.6 Rinse Plus Button
This option is recommended for
people who are allergic to
detergents, and in areas where the
water is very soft.
Press it to add rinsing phases to a
program.
The indicator of this option comes
on.
This option can be used for lightly
soiled laundry in order to obtain a
good washing result in a short time.
The washing time will be reduced
according to type of fabric and the
selected temperature.
At the end of program the display
will show ‘ ’ and the ‘Door Lock’
indicator goes off. The door can
be opened.
3.7 Display and Door Lock
Indicator
A
Digital Number will show:
-
B
C
Delay Start Icon
D
Child Lock Icon
Door Lock Indicator
Washing cycle time.
LED on, you cannot open the
door.
LED off, you can open the door.
-
The alarm codes. Refer to the
chapter “Troubleshooting” for
their description.
-
Delay start time.
B
A
C
D
8 Control Panel
3.8 Start/Pause Button
To start the selected program,
press the ‘Start/Pause’.
To interrupt a program which is
running, press the ‘Start/Pause’ to
pause the machine.
To restart the program from the
point at which it was interrupted,
press the ‘Start/Pause’ again.
If you have chosen a delayed start,
after pressing ‘Start/Pause’ the
machine will begin the countdown.
This option makes it possible to
delay the start of the program by
30 min, 60 min or 90 min and
then by every hour from 2 to 20
hours.
The delay you have selected is
indicated on the display. The end
time will increase in order to show
you the selected delay.
You must select this option after
you have set the program and
before you press the Start/Pause
button.
If you wish to add laundry in the
machine during the delay time
press Start/Pause button to put the
machine in PAUSE mode. Add
laundry, close the door and press
Start/Pause button again.
You can cancel the delay time at
any moment, by pressing ‘Delay
Start’ button repeatedly till the
display shows delay time ‘ ’, then
press the Start/Pause button.
3.10 Child Lock Option
Your appliance is provided with
CHILD SAFETY LOCK which
permits you to leave the appliance
unsupervised with the door closed
without having to worry that
children might be injured by or
cause damage to the appliance.
Set this option before pressing the
Start/Pause and after having
selected the required wash program.
This function remains enabled even
after the appliance is switched off.
To activate the function, press
‘Temp’ and ‘Spin’ buttons at
the same time until indicator of
this option comes on.
Setting Child Lock option:
To deactivate the function, press
‘Temp’ and ‘Spin’ buttons at the
same time until indicator of this
option goes off.
3.9 Delay Start ( ) Button
Control Panel 9
3.11 Programs + Options
Program;
Temperature
Cottons;
90 °C to
Cold
Prewash;
90 °C to
Cold
Cottons Eco ;
60 °C to
40 °C
White cotton (heavy
soiled cotton items):e.g.
sheets,tablecloths,
towels,household linen;
maximum load 7 kg.
Wash
Rinses
Long Spin
Spin, Rinse Hold,
Quick Wash,
Rinse +, Delay Start
Spin, Rinse Hold,
Quick Wash,
Rinse +, Delay Start
Spin, Rinse Hold,
Quick Wash,
Rinse +, Delay Start
Spin, Rinse Hold,
Delay Start
Spin (Max. 700 RPM),
Rinse Hold,
Quick Wash,
Rinse +, Delay Start
Spin, Rinse Hold,
Rinse +, Delay Start
Spin, Rinse Hold,
Rinse +, Delay Start
Spin, Rinse Hold,
Rinse +, Delay Start
Fast coloured cottons,
normally soiled items,
shirts, under wear;
maximum load 7 kg.
Type of load;
Max. weight of load
Cycle
description
Options can be
combined
-
-
-
Wash
Rinses
Long Spin
-
-
-
Wash
Rinses
Long Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
White and colourfast,
cotton with normal soil. Set
this program to have a
good washing results and
decrease the energy
consumption. The time of
the washing program is
extended; max. load 7 kg.
Synthetics;
60 °C to
Cold
Cold
Delicates
40° C to
Cold
Wool;
40° C to
Cold
Synthetic or mixed fabric
items with normal level of
soil; max. load 3.5 kg.
Synthetic and mixed fabric
items (lightly soiled);
maximum load 2.5 kg
Delicate fabrics as acrylics,
viscose, polyester items
with normal soil;
maximum load 3.5 kg
Specially tested program
for woollen garments
bearing the ‘Pure new
woollen, non-shrink,
machine washable’ label
and hand washing fabrics;
maximum load 2 kg.
Rinse To rinse and spin the
laundry;
maximum load 7 kg.
Drain For emptying out the last
rinse water in programs
with the ‘Rinse Hold’
option; maximum load 7 kg.
Three
rinses with
softener
Spin phase
-
-
Drain
-
-
1)
10 Control Panel/Before First Use
Program;
Temperature
Spin
Easy Iron;
40° C to
Cold
To spin the laundry and to
drain the water in the drum;
maximum load 7 kg.
Synthetic or mixed fabrics,
to be ironed underwear,
coloured garments,
non-shirnk shirts, blouses;
maximum load 3.5 kg.
Blanket;
40° C to
30° C
Special program for one
synthetic blanket, duvet,
bedspread and so on;
maximum load 3 kg.
Handwash;
30°
Special program for hand
washing fabrics;
maximum load 2 kg.
Jeans;
60° C to
Cold
Jeans & dark coloured to
prevent detergent residue;
maximum load 7 kg.
Type of load;
Max. weight of load
Cycle
description
Options can be
combined
Wash
Rinses
Short Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
Wash
Rinses
Short Spin
-
-
-
Drain
Spin phase
-
-
Spin, Delay Start
Spin (Max. 900 RPM),
Rinse Hold, Rinse +,
Delay Start
Spin (Max. 700 RPM),
Delay Start
Delay Start
- Wash
- Rinses
- Long spin
Spin, Rinse Hold,
Delay Start
1) Cottons Economy 60 °C program is recommended for a full load of normally
soiled cottons, and is the water and energy rating label program (in accordance with
AS/NZS 2040 : 2005 & AS/NZS 6400 : 2500).
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
1.
2.
3.
Select a Cottons cycle at 90 °C,
without any laundry in the machine,
to remove any manufacturing
residue from the drum and tub.
Pour 1/2 a measure of detergent
into the dispenser drawer and start
the machine.
Daily Use 11
DAILY USE5.
Connect the mains plug to the mains socket.
Turn the water tap on.
Step 1 - Setting A Program For Washing
5.1 Four Steps Start Up Guide
1
2 3
4
1.
Turn the program selector dial to the
required program.
Once you select a wash program,
the program selected will stay at
that position for the whole of the
wash.
-
The selector dial can be turned
either clockwise or anticlockwise.
-
2.
If you want your laundry to be spun or
use temperature different from the one
proposed by the washing machine,
press the ‘Spin’ and the ‘Temp’ button
repeatedly to change the spin speed
and temperature.
3.
Press the ‘Rinse Hold’, ‘Quick Wash’
and ‘Rinse +’ buttons, if you want
your laundry to be washed with
special functions.
Different functions can be
combined which is dependent
on the program selected.
When these buttons are pressed,
the corresponding pilot lights come
on. When they are pressed again,
the pilot lights go out.
4.
If you want
to delay the start of the
washing program
, press the ‘delay
Start’ button repeatedly to choose
your washing machine delay time.
12 Daily Use
Step 2 - Loading The Laundry
1.
Before loading the laundry,
please make sure:
Empty pockets.
Tie the cords.
Fasten buttons.
Close zippers.
Place the laundry in the drum,
one item at a time, shaking them
out as much as possible.
3.
Open the door by carefully pulling
the door handle outwards.
Check and remove objects (if
there are any) that could be
trapped in the fold.
2.
Underwired bras must NOT be
machine washed.
Make sure that no laundry remains
between the seal and the door.
4.
Close the door.
5.
Daily Use 13
Powder or liquid detergent.
1
3
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
2

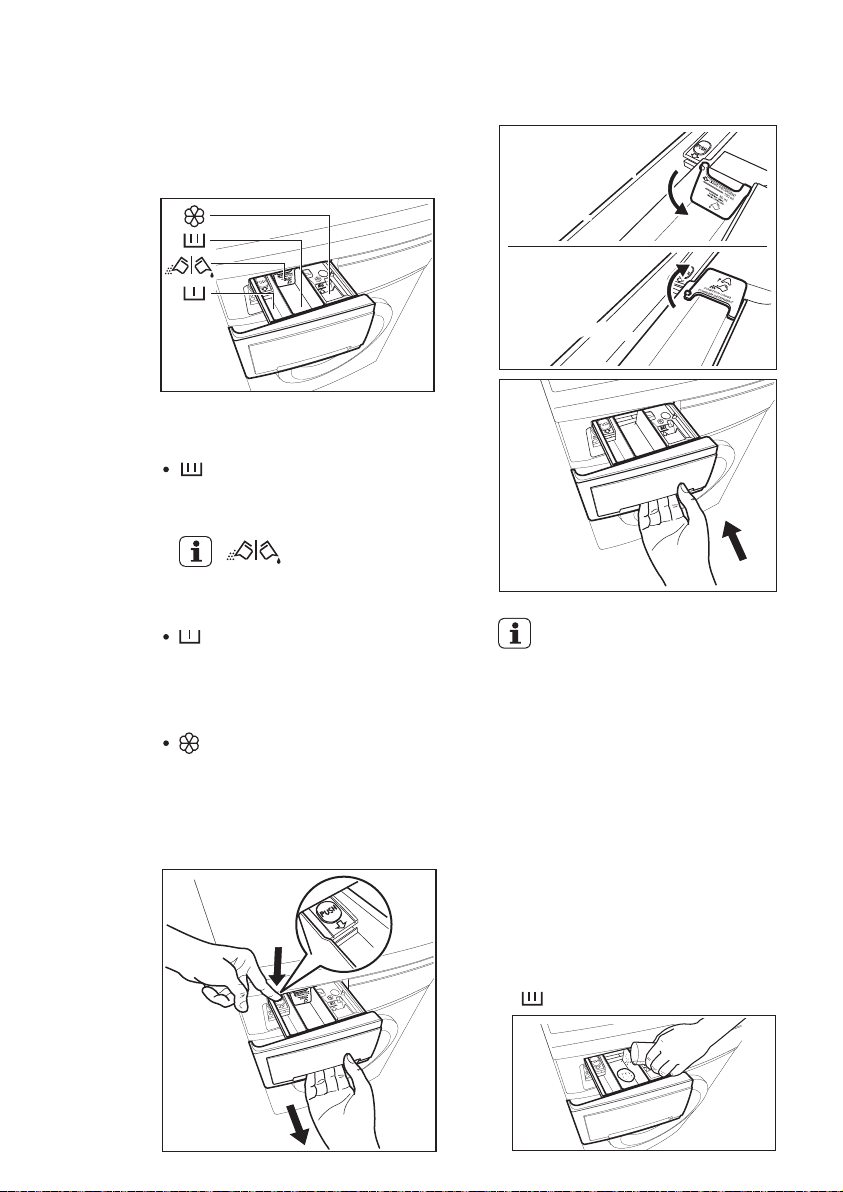

Step 3 - Using Detergent And Additives

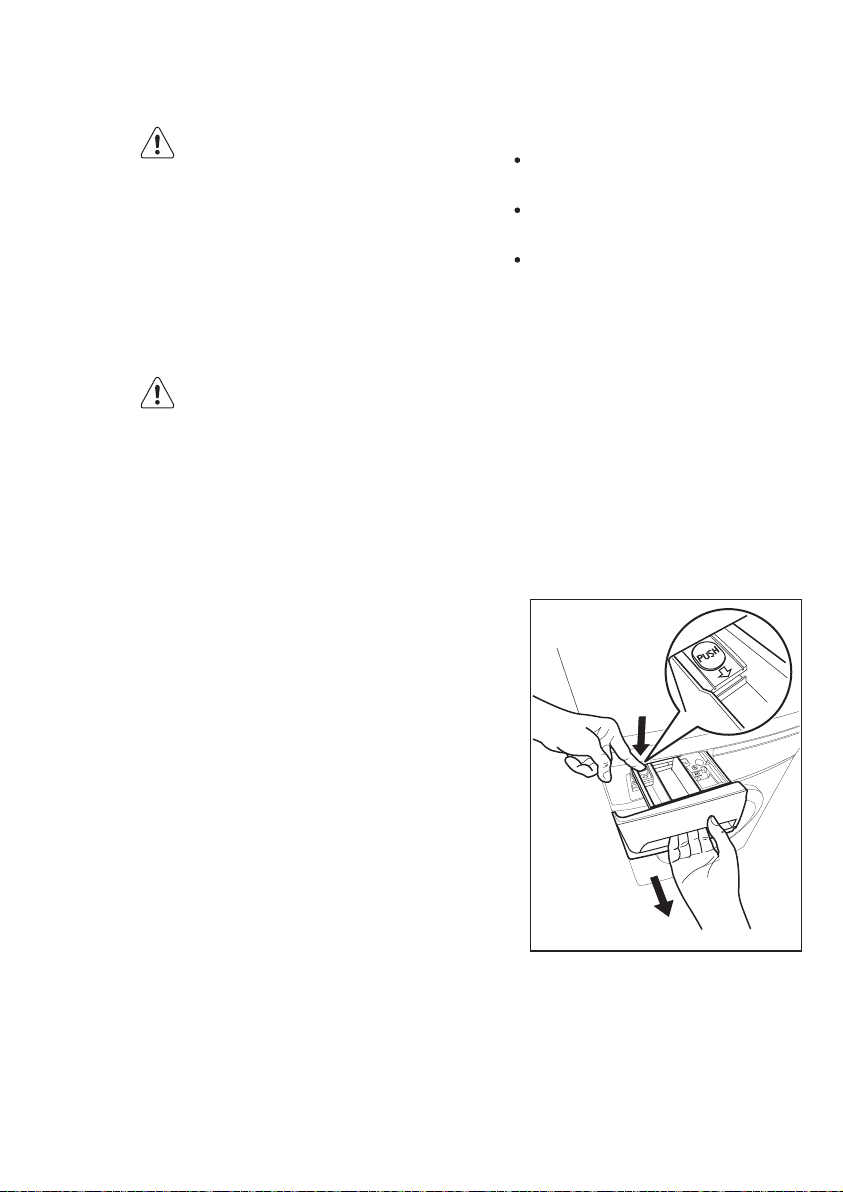

Detergent Dispenser Drawer1.
4
The detergent dispenser is divided
into three compartments.
Compartment ‘SOFTENER’
Compartment ‘PREWASH’
This compartment is used for
fabric conditioner and starching
agent.
This compartment is only used
for detergent when a Prewash
is selected.
Compartment ‘MAIN WASH’
This compartment is used for
detergent on all programs.
Detergent flap
Flap for powder or liquid
detergent.
Do not use gelatinous or thick
liquid detergents.
-
Do not put more liquid than the
maximum level.
-
Do not set the DELAY START.
-
Do not set the PREWASH phase.
-
When you use the liquid
detergent:
Measure out the amount of
detergent required, pour it into
the main wash compartment
( ).
Pull out the dispenser drawer until
it stops.
-
-
Measure out the detergent and
the fabric softener;
2.
14 Daily Use
To pause press Start/Pause. The
indicator will start flashing.
-
Press the Start/Pause again. The
program will continue.
-
5.2 Interruption Of A Program
5.3 Changing A Program
It is possible to change only some
options after the program has
started.
Press the Start/Pause button.
The indicator will start flashing.
1.
Change the options.2.
Press Start/Pause again. The
program will continue.
3.
While a program or the delay start
is operating, the appliance door is
locked and the ‘Door Lock’ pilot
light come on.
5.4 Changing The Options
5.5 Opening The Door
First set the machine to PAUSE by
pressing the “Start/Pause” button.
Wait until the door lock indicator
goes off, then the door can be
opened.
Changing a running program is possible
only by resetting it.
Turn the program selector knob to
the position ‘ ’ to cancel the
program and to turn off the
appliance.
1.
Turn the program selector knob to
the new program position and set the
new option, then press ‘Start/Pause’
button again.
The appliance will not drain the
water.
2.
If required, pour fabric softener into
the compartment marked (the
amount used must not exceed the
“MAX” mark in the drawer).
-
Close the drawer gently.
-
ATTENTION!
If you turn the program selector dial to
another program when the machine is
working, the red Start/Pause pilot light
will flash 3 times to indicate a wrong
selection. The machine will not perform
the new selected program.
The appliance will automatically
adjust the selected program duration
according to the type and size of the
load.
-
Step 4 - Starting a program
To start a program, press the
Start/Pause ( ) button, the
corresponding pilot light will stop
flashing and a default program
duration will be displayed on the
screen.
After approx. 15 minutes from
the start of a program:
Daily Use 15
If the door lock indicator does not
disappear, this means that the
machine is already heating and the
water level is above the bottom edge
of the door or the drum is turning. In
this case the door CAN NOT be
opened.
If you can not open the door but
you need to open it you have to
switch the machine off by turn the
program selector knob to the
position ‘ ’ to deactivate the
appliance. After about 5 minutes the
door can be opened.
Pay attention to the water
level and water tempera-
ture.
CAUTION!
5.6 At The End Of The Program
1.
3.
2.
When The Washing Program
Is Completed, But There Is
Water In The Drum
The drum turns regularly to
prevent the creases in the
laundry.
You must drain the water to open
the door.
The ‘Door Lock’ indicator is on.
The door stays locked.
To drain the water:
Press the button Start/Pause.
The appliance will drain the
water.
If necessary, decrease the spin
speed.
Set the “Spin” or “Drain” program.
-
-
5.7
When the program is completed
and the Door Lock indicator
disappears, you can open the
door.
4.
Turn the program selector knob
to the position ‘ ’ to deactivate
the appliance.
5.
5 minutes after the washing program
ends, if you do not deactivate the
appliance, the energy saving function
activates.
The energy saving function decreases
the energy consumption when the
appliance is in the stand by mode.
All indicators and the display will
switch off.
The indicator of the Start/Pause
button will flash slowly.
Press one of the buttons to
deactivate the energy saving
status.
Stand by mode
5.8
The appliance stops automatically.
The acoustic signal will operate.
The display will show ‘ ’.
The indicator of the Start/Pause
button goes off.
-
-
-
-
-
-
-
-
The door lock indicator goes off.
Remove the laundry from the
appliance. Make sure that the
drum is empty.
Keep the door ajar, to prevent
the mildew and odours.
Turn off the water tap.
16
Washing Hints
WASHING HINTS6.
Follow the wash code symbols on
each garment label and the
manufacturer’s washing instructions.
Sort the laundry as follows: whites,
coloureds, synthetics, delicates,
woollens.
6.1 Sorting The Laundry
6.2 Temperatures
90°C
60°C
50°C
40°C
30°C
Cold
For normally soiled,
colourfast garments (e.g.
shirts, night dresses,
pyjamas....) in linen, cotton
or synthetic fibres and for
lightly soiled white cotton
(e.g.underwear).
For delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres
and woollens bearing the
label pure new wool,
machine washable,
non-shrink.
For normally soiled white
cottons and linen
(e.g. teacloths, towels,
tablecloths, sheets...).
Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the
first wash; they should therefore be
washed separately the first time.
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie
any belts or long tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a
bag or a net.
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).
6.3 Before Loading The
Laundry
Recommended loads are indicated
in the program charts. General
rules:
Washing a maximum load makes
the most efficient use of water and
energy. For heavily soiled laundry,
reduce the load size.
Cotton, linen:
drum full but not
too tightly packed;
Synthetics:
drum no more
than half full;
Delicate
fabrics and
woollens:
drum no more
than one third full.
6.4 Maximum Loads
Blood: treat fresh stains with cold
water. For dried stains, soak
overnight in water with a special
detergent then rub in the soap and
water.
Oil based paint: moisten with
benzine stain remover, lay the
garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with
turpentine, lay the garment on a
soft surface and dab the stain with
the fingertips and a cotton cloth.
Stubborn stains may not be
removed by just water and
detergent. It is therefore advisable
to treat them prior to washing.
6.5 Removing Stains
Washing Hints
17
Rust: oxalic acid dissolved in hot
water or a rust removing product
used in cold water. Be careful with
rust stains which are not recent
since the cellulose structure will
already have been damaged and
the fabric tends to hole.
Mould stains: treat with bleach,
rinse well (whites and fast
coloureds only).
Grass: soap lightly and treat with
bleach (whites and fast coloureds
only).
Ball point pen and glue: moisten
with acetone (*), lay the garment on
a soft cloth and dab the stain.
Lipstick: moisten with acetone (*)
as above, then treat stains with
methylated spirits. Remove any
residual marks from white fabrics
with bleach.
The detergent and any additives
must be placed in the appropriate
compartments of the dispenser
drawer before starting the wash
program.
Red wine: soak in water and
detergent, rinse and treat with
acetic or citric acid, then rinse.
Treat any residual marks with
bleach.
Ink: depending on the type of ink,
moisten the fabric first with
acetone (*), then with acetic acid;
treat any residual marks on white
fabrics with bleach and then rinse
thoroughly.
Tar stains: first treat with stain
remover, methylated spirits or
benzine, then rub with detergent
paste.
Good washing results also depend
on the choice of detergent and use
of the correct quantities to avoid
waste and protect the
environment.
Although biodegradable, detergents
contain substances which, in large
quantities, can upset the delicate
balance of nature.
The choice of detergent will depend
on the type of fabric (delicates,
woollens, cottons, etc.), the colour,
washing temperature and degree of
soiling.
Only low suds Front load washer
detergents should be used in
this appliance:
(*) do not use acetone on artificial
silk.
6.6 Detergents and Additives
powder detergents for all types
of fabric,
powder detergents for delicate
fabrics (60 °C max) and woollens,
liquid detergents, preferably for
low temperature wash program
(60 °C max) for all types of fabric,
or special for woollens only.
If using concentrated powder
or liquid detergents, a program
without PREWASH must be
selected.
Use only a recommended
detergent for maximum clean
laundry result and life span of
the machine guaranteed.
Pour liquid detergent into the
dispenser drawer compartment
marked ‘ ’ just before starting
the program.
18
Washing Hints
the wash load to turn grey,
greasy clothes.
sudsing,
inadequate rinsing.
reduced washing effect,
Any fabric softener or starching
additives must be poured into the
compartment marked ‘ ’ before
starting the wash program.
Follow the product manufacturer’s
recommendations on quantities to
use and do not exceed the MAX
mark in the detergent dispenser
drawer.
The type and quantity of detergent
will depend on the type of fabric,
load size, degree of soiling and
hardness of the water used.
Do not spray stain pre-treatment
products (e.g. Preen) on or near
the machine, as it can attack
plastic materials reducing its
life.
Information on hardness of the
water in your area can be obtained
from the relevant water supply
company, or from your local
authority.
Follow the product manufacturers’
instructions on quantities to use.
Water hardness is classified in
so-called “degrees” of hardness.
6.7 Quantity Of Detergent To Be
Used
Not enough washing powder
causes:
Too much washing powder causes:
you are washing a small load,
large amounts of foam form
during washing.
the laundry is lightly soiled,
Use less detergent if:
International Wash Code Symbols 19
INTERNATIONAL WASH CODE SYMBOLS7.

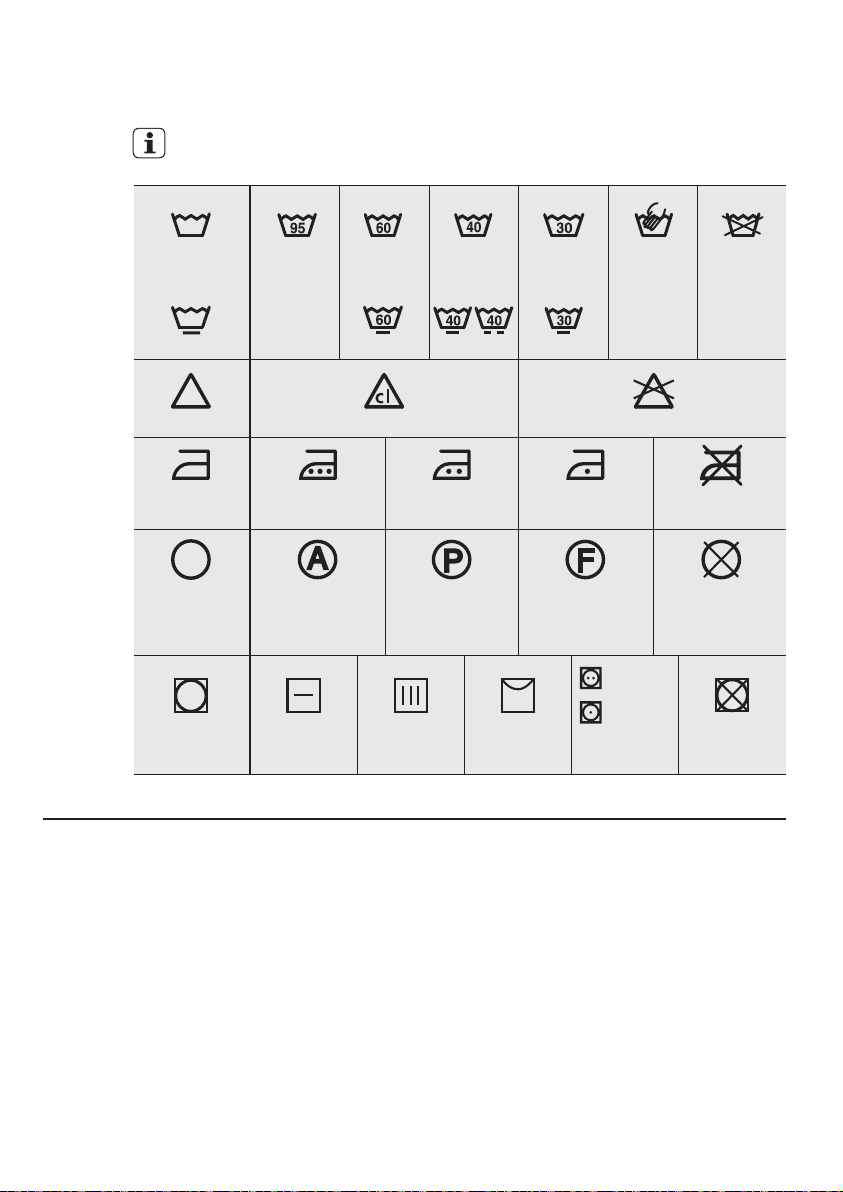

These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Bleach in cold water DO NOT bleach
Bleaching
Energetic wash
Delicate wash
Hand wash
Max. wash
temperature
95 °C
Hot iron
max. 200 °C
Dry cleaning in
all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning in
petrol, pure alcohol
and R 113
DO NOT
dry clean
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
DO NOT iron
Max. wash
temperature
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
DO NOT
wash at all
Ironing
Dry cleaning
Drying Flat Tumble dry DO NOT
tumble dry
High
temperature
Low
temperature
On clothes
hanger
On the line
20
Care And Cleaning
CARE AND CLEANING8.
You must DISCONNECT the
appliance from the electricity
supply, before you can carry out
any cleaning or maintenance
work.
The water we use normally
contains lime. It is a good idea to
periodically use a water softening
powder in the machine.
Clean the appliance only with soap
and warm water. Fully dry all the
surfaces.
Do not use alcohol, solvents or
chemical products.
Do this separately from any laundry
washing, and according to the
softening powder manufacturer's
instructions.
This will help to prevent the
formation of lime deposits.
8.2 Descaling
8.1 External Cleaning
The washing powder and additive
dispenser drawer should be
cleaned regularly.
Remove the drawer by pressing
the catch downwards and by
pulling it out. Flush it out under a
tap, to remove any traces of
accumulated powder.
8.5 Cleaning The Dispenser
Drawer
Leave the door open for a while.
This helps to prevent mould and
stagnant smells forming inside the
appliance. Keeping the door open
after a wash will also help to
preserve the door seal.
8.3 After Each Wash
With the use of low temperature
washes it is possible to get a build
up of residues inside the drum.
We recommend that a maintenance
wash be performed on a regular
basis.
8.4 Maintenance Wash
The drum should be empty of
laundry.
Select the hottest ‘Cottons 90 °C’
wash program.
Use a normal measure of detergent,
must be a powder with biological
properties.
To run a maintenance wash:
WARNING!
CAUTION!
1
2
Care And Cleaning
21
8.7 Cleaning the drain filter
Turn program selector dial to
position Off ( ).
Unplug the appliance.
Open the door.
To clean the drain filter:
Disconnect the mains plug
from the mains socket.
Do not clean the drain filter if
the water in the appliance is
hot.
1. Turn the drum and align the filter
cover (FILTER) with the arrow on
the door seal.
WARNING!
WARNING!
Drain filter collects lint and other
items left in the dirty laundry to
prevent pump blockage
The pump must be cleaned regularly.
To clean the filter, proceed as
follows:
To aid cleaning, the top part of the
additive compartment should be
removed.
Having removed the drawer, use a
small brush to clean the recess,
ensuring that all washing powder
residue is removed from the upper
and lower part of the recess.
Replace the drawer and run the
rinse program without any clothes
in the drum.
8.6 Cleaning The Drawer Recess
22
Care And Cleaning
2. Open the filter cover by pressing
the special hook and by rotating
the cover upwards.
Hold filter securly and pull
upwards to remove it from its
position.
Clean the filter under the water
tap.
After cleaning the filter, open the
filter cover and insert the filter
back to its position.
4.
5.
6.
Remove eliminate the eventual
fluff or small objects (if there are
any) around the filter.
3.
Care And Cleaning
23
IMPORTANT!
Close the filter cover.
Insert the mains plug again.
The filter is inserted correctly
when the indicator on this
top is visible and you will
hear “Click” sound.
7.
8.
9.
Do not start washing
clothes without the filter
in its place.
WARNING!
If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged.
It is therefore a good idea to clean it
from time to time.
Remove the water inlet hose from
the water tap.
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a
stiff brush or a towel.
Install again the inlet hose. Make
sure that the couplings are tight to
prevent leakages.
Clean the filter in the inlet hose with
a stiff brush.

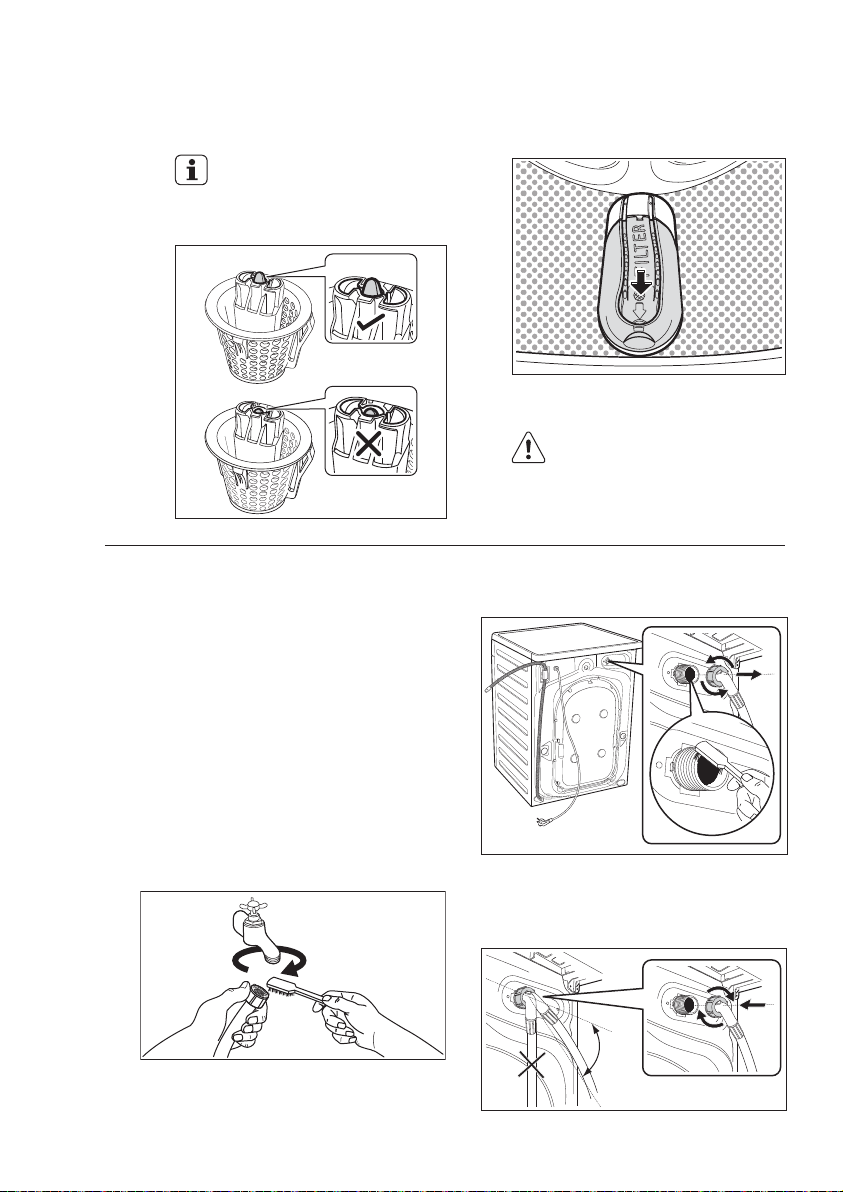

8.8 Cleaning The Water Inlet Filter
To clean the water inlet filters:
1.
Close the water tap.
2.
3.
4.
5.
6.
7. Open the water tap.
45°
24
Care And Cleaning
If the machine is exposed to
temperatures below 0°C, certain
precautions should be taken.
8.9 The Dangers Of Freezing
Turn off the water tap.1.
2. Unscrew the inlet hose.
3. Remove the drain hose from the
rear support and unhook it from
sink or spigot.
4. Put the ends of the drain and
inlet hose in a container. Let the
water flow out of the hoses.
5. When no more water flows,
install the inlet hose and the
drain hose again.
Disconnect the mains plug
from the mains socket.
Do this procedure also when
you want to do the emergency
drain.
Make sure that the
temperature is more
than 0 °C before you
use the appliance
again.
The manufacturer is
not responsible for
damages caused by
low temperatures.
Troubleshooting 25
The door has not been
closed. (Error code: )
The plug is not properly
inserted in the power socket.
There is no power at the
socket.
Insert the plug into the
power socket.
Please check your
domestic electrical
installation.
The Start/Pause button has
not been pressed.
Press the Start/Pause
button.
The delay start has been
selected.
If the laundry are to be
washed immediately,
cancel the delay start.
The inlet hose is squashed or
kinked. (Error code: )
Check the inlet hose
connection.
The end of the drain hose is
too low. (Error code: )
Refer to relevant paragraph
in “water drainage” section.
The drain hose is squashed
or kinked. (Error code: )
Check the drain hose
connection.
The drain filter is clogged.
(Error code: )
Clean the drain filter.
The filter in the inlet hose is
blocked. (Error code: )
Clean the water inlet hose
filter.
The door is not properly
closed. (Error code: )
Close the door firmly.
The water tap is closed.
(Error code: )
Open the water tap.
Close the door firmly.
Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer. Before contacting your local Service
Centre, please carry out the checks listed below.
During machine operation it is possible that the red Start/Pause pilot light flashes to
indicate that the machine is not working.
Once the problem has been eliminated, press the Start/Pause button to restart the
program. If after all checks, the problem persists, contact your local Service Centre.
The washing
machine does
not start:
The machine
does not fill the
water:
The machine fills
then empties
immediately:
The machine
does not empty
and/or does not
spin:
TROUBLESHOOTING9.
The option ‘Rinse Hold’ or
‘No Spin’ has been selected.
Disable the option
‘Rinse Hold’ or ‘No Spin’
Pause the machine and
redistribute laundry
manually.
The laundry is not evenly
distributed in the drum.
Slelect spin program.
Malfunction Possible cause Solution
26 Troubleshooting
Malfunction Possible cause Solution
Too much detergent or
unsuitable detergent (creates too
much foam) has been used.
Reduce the detergent
quantity or use another one.
Reduce the detergent
quantity or use another one.
Redistribute laundry manually
in the drum and start the spin
phase again. Refer to relevant
paragraph in “Positioning”
section.
Check whether there are any
leaks from one of the inlet hose
fittings. It is not always easy to
see this as the water runs down
the hose; check to see if it is
damp.
Check the water inlet hose
connection.
Too little detergent or unsuitable
detergent has been used.
Increase the detergent
quantity or use another one.
The program is still running. Wait until the end of
washing cycle.
The transit bolts and packing
have not been removed.
Detergent over dose.
Machine unbalance.
Check the correct
installation of the appliance.
The support feet have not
been adjusted.
Check the correct levelling
of the appliance.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry manually.
There is very little laundry in the
drum.
Load more laundry.
Unstable floors eg. wooden
floors.
Refer to relevant paragraph
in “Positioning” section.
The door lock has not been
released.
Wait about 5 minutes.
There is water in the drum. Select “Spin” or “Drain”
program to empty out the
water.
Stubborn stains have not been
treated prior to washing.
Use commercial products
to treat the stubborn stains.
The correct temperature was not
selected.
Check if you have selected
the correct temperature.
Excessive laundry load. Reduce load.
The drain hose is damaged. Change it with a new one.
There is water
on the floor:
Unsatisfactory
washing
results:
The door will
not open:
The machine
vibrates or is
noisy:
Cycle time
longer than
displayed:
Troubleshooting 27
If you are unable to identify or solve the
problem, contact our service centre.
Before telephoning, make a note of the
model, serial number and purchase date
of your machine: the Service Centre will
require this information.
Malfunction Possible cause Solution
The electronic unbalance
detection device has cut in
because the laundry is not
evenly distributed in the drum.
The laundry is redistributed by
reverse rotation of the drum.
This may happen several times
before the unbalance
disappears and normal
spinning can resume. If, after
10 minutes, the laundry is still
not evenly distributed in the
drum, the machine will not
spin. In this case, redistribute
the load manually and select
the spin program.
Machine not installed properly. Make sure the levelling of
the appliance is correct.
Refer to ‘Installation’.
Transit bolts or packaging
not removed.
The load may be too small.
Make sure that the packaging
and/or the transit bolts are
removed. Refer to
‘Installation’.
Machines based on modern
technology operate very
economically using very little
water without affecting
performance.
Add more laundry in the
drum.
Pause the machine and
redistribute laundry manually.
Spinning starts
late or the
machine does
not spin:
The machine
makes an
unusual noise:
No water is
visible in the
drum:
28
Technical Data
TECHNICAL DATA10.
Dimensions
Power supply (voltage/frequency)
Total power absorbed
Minimum fuse protection
Water supply pressure
Maximum load
Spin speed
220-240 V/50 Hz
2000 W
10 A
0.8 MPa
0.05 MPa
Maximum
Minimum
1000 RPM
700 RPM
Maximum
Minimum
Width
Height
Depth
60 cm
85 cm
56 cm
Programs Max. Load
7.0 kg
7.0 kg
7.0 kg
3.5 kg
2.5 kg
3.5 kg
2.0 kg
7.0 kg
7.0 kg
7.0 kg
3.5 kg
3.0 kg
2.0 kg
7.0 kg
Cottons
Prewash
Cottons Eco
Synthetics
Cold
Delicates
Wool
Rinse
Drain
Spin
Easy Iron
Blanket
Handwash
Jeans
Installation 29
INSTALLATION11 .

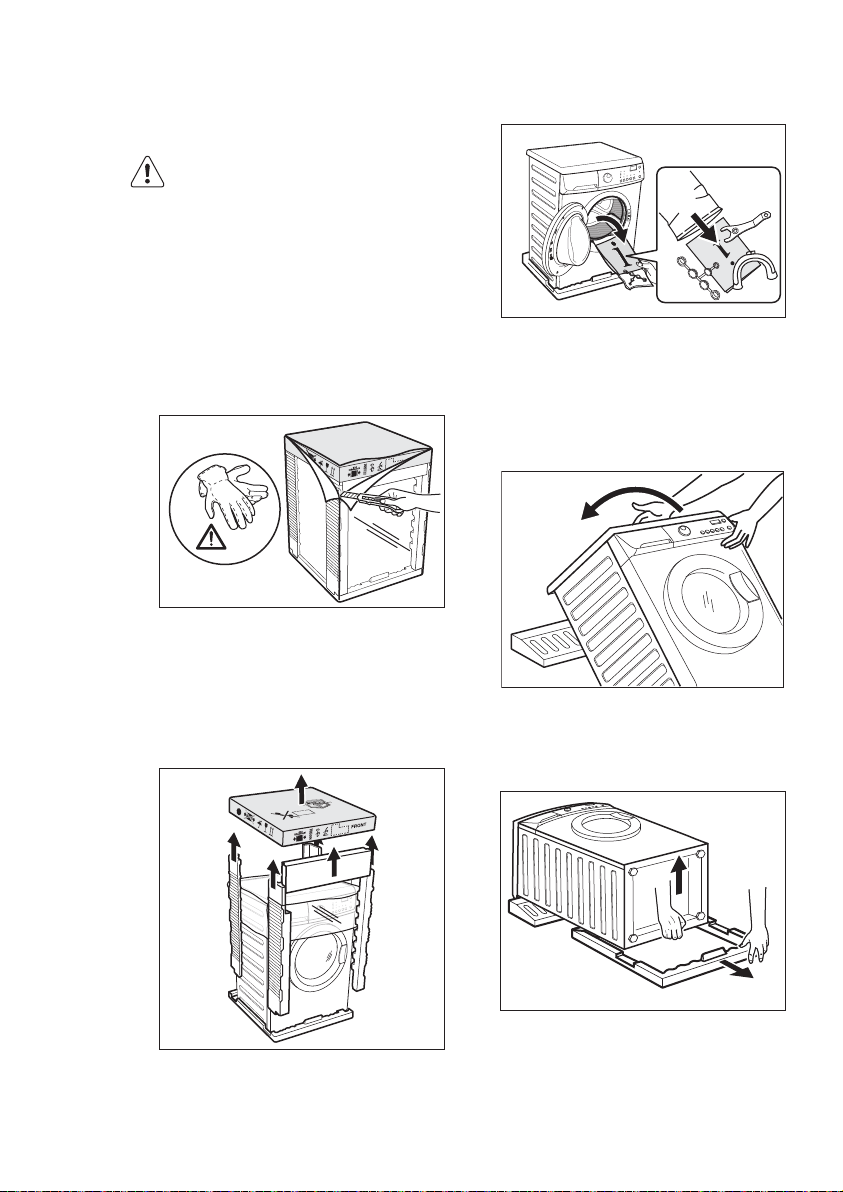

11.1 Unpacking
You are advised to keep all transit
devices so that they can be
refitted if the machine ever has to
be transported again.
Use gloves. Remove the external
film. If necessary, use a cutter.
Remove the polystyrene packaging
materials.
Remove the plastic bag which
cover the machine.
Open the door. Remove all the items
from the drum.
All transit bolts and packing must
be removed before using the
appliance.
CAUTION!
1.
2.
Remove the cardboard top.
3.
4.
5.
6.
7.
Remove the polystyrene base.
8.
Put one of the polystyrene
packaging elements on the floor
behind the appliance. Carefully
put down the appliance with the
rear side on it. Make sure not to
damage the hoses.
Pull up the appliance in vertical
position.
9.
Remove the power supply cable
and the drain and inlet hoses from
the hose holders (A) on the rear of
the appliance.
1
2
30 Installation
Loosen or tighten the feet to adjust
the level. A correct adjustment of
the appliance level prevents the
vibration, noise and the movement
of the appliance when in operation.
Use a spirit level on the top and side
of the washing machine to check
the levels.
If you do not have a spirit level, as a
guide use the edge of a door frame,
cupboard or bench to check that
the washing machine is level.
It is important that your
washing machine stands firm
and level on the floor to ensure
correct operation.
11.2 Positioning
That the appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge
on the opposite side to that of the
washing machine door is restricted.
A
10.
11.
Pull out the plastic spacers.
Remove the three bolts.
12.
Put the plastic caps in the holes.
You can find these caps in the user
manual bag.
1
2
3
Installation 31
Never place cardboard, wood or
similar materials under the machine
to compensate for any unevenness
in the floor.
When the washing machine is
levelled, try to rock it from corner
to corner. If it does rock, adjust the
legs again until it is levelled and
does not rock.

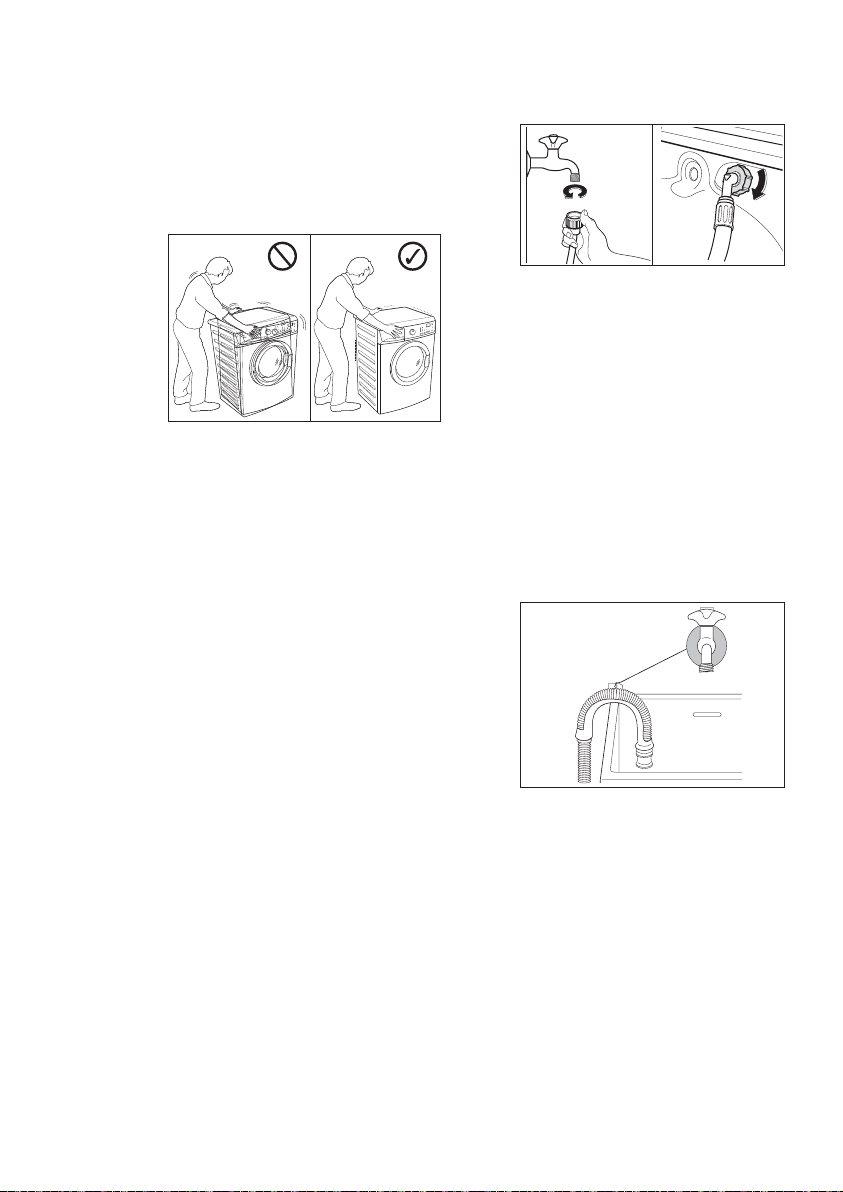

Connect the water inlet hose to a
tap with 3/4” BSP thread.
Use the hose supplied with the
washing machine. DO NOT USE
OLD HOSES.
The other end of the inlet hose
which connects to the machine
can be turned in any direction.
Simply loosen the fitting, rotate
the hose and retighten the fitting,
making sure there are no water
leaks.
11.3 Water Inlet
Install the machine on a flat hard
floor. Make sure that air circulation
around the machine is not
impeded by carpets, rugs etc.
Check that the machine does not
touch the wall or cupboard units.
The inlet hose must not be
lengthened. If it is too short and
you do not wish to move the tap,
you will have to purchase a new,
longer hose specially designed for
this type of use.
This could be done by tying it to
the tap with a piece of string or
attaching it to the wall.
In a sink drain pipe branch. This
branch must be above the trap so
that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a
height of not less than 60 cm and
not more than 90 cm.
The end of the drain hose can be
positioned in three ways:
Hooked over the edge of a sink
using the plastic hose guide
supplied with the machine.
In this case, make sure the end
cannot come unhooked when the
machine is emptying.
11.4 Water Drainage
32 Installation
Should the appliance power
supply cable need to be replaced,
this should be carried out by our
Service Centre.
When the appliance is installed
the power supply cable must be
easily accessible.
If this appliance is supplied from a
cord extension set or electrical
portable outlet device, the cord
extension set or electrical portable
device must be positioned so that
it is not subject to splashing or
ingress of moisture.
The end of the drain hose must
always be ventilated, i.e. the
inside diameter of the drain pipe
must be larger than the outside
diameter of the drain hose.
The drain hose must not be
kinked. Run it along the floor; only
the part near the drainage point
must be raised.
For the correct functioning of the
machine the drain hose must
remain hooked on the proper
support piece situated on the top
part of back side of the appliance.
90 cm
60 cm
“An incorrect power supply
may void your warranty.”
Check that your domestic
electrical installation can take the
maximum load required (2.0 kW),
also taking into account any other
appliances in use.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
This machine is designed to
operate on a 220-240 V,
single-phase, 50 Hz.
11.5 Electrical Connection
Connect the machine to
an earthed socket outlet.
CAUTION!
Environment Concerns
33
The materials marked with
the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be
recycled by disposing of them
properly in appropriate collection
containers.
To save water, energy and to help
protect the environment, we
recommend that you follow these
tips:
Use authorised disposal sites for
your old appliance. Help to keep
your country tidy!
The symbol on the product
or on its packaging indicates that
this product may not be treated
as household waste.
Instead it shall be handed over to
the applicable collection point for
the recycling of electrical and
electronic equipment.
By ensuring this product is
disposed of correctly, you will
help prevent potential negative
consequences for the
environment and human health,
which could otherwise be caused
by inappropriate waste handling
of this product.
For more detailed information
about recycling of this product,
please contact your local city
office, your household waste
disposal service or the shop
where you purchased the
product.
12.1 Packaging Materials
12.3 Ecological Hints
12.2 Old Machine
ENVIRONMENT CONCERNS12.
Normally soiled laundry may be
washed without prewashing in
order to save detergent, water
and time (the environment is
protected too!).
The machine works more
economically if it is fully loaded.
With adequate pre-treatment,
stains and limited soiling can
be removed; the laundry can
then be washed at a lower
temperature.
Measure out detergent
according to the water
hardness, the degree of soiling
and the quantity of laundry
being washed.
NOTE
www.simpson.com.au
147194896-001-352013
