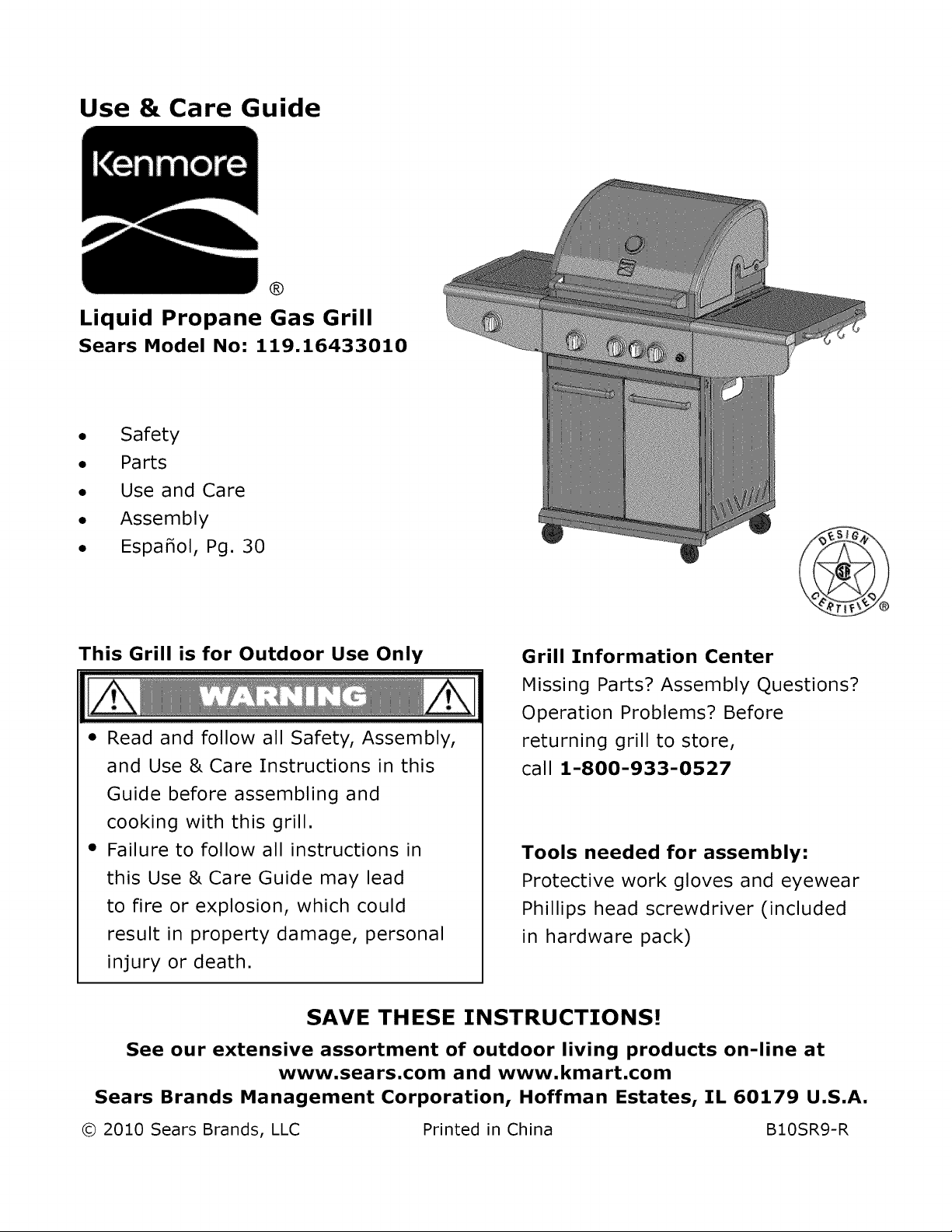

Use & Care Guide
®
Liquid Propane Gas Grill
Sears Model No: 119.16433010
Safety
Parts
Use and Care
Assembly
Espa_ol, Pg. 30
This Grill is for Outdoor Use Only
Read and follow all Safety, Assembly,
and Use & Care Instructions in this
Guide before assembling and
cooking with this grill.
Failure to follow all instructions in
this Use & Care Guide may lead
to fire or explosion, which could
result in property damage, personal
injury or death.
Grill Information Center
Missing Parts? Assembly Questions?
Operation Problems? Before
returning grill to store,
call 1-800-933-0527
Tools needed for assembly:
Protective work gloves and eyewear
Phillips head screwdriver (included
in hardware pack)
SAVE THESE INSTRUCTIONS!
See our extensive assortment of outdoor living products on-line at
www.sears.com and www.kmart.com
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
© 2010 Sears Brands, LLC Printed in China B10SR9-R
background

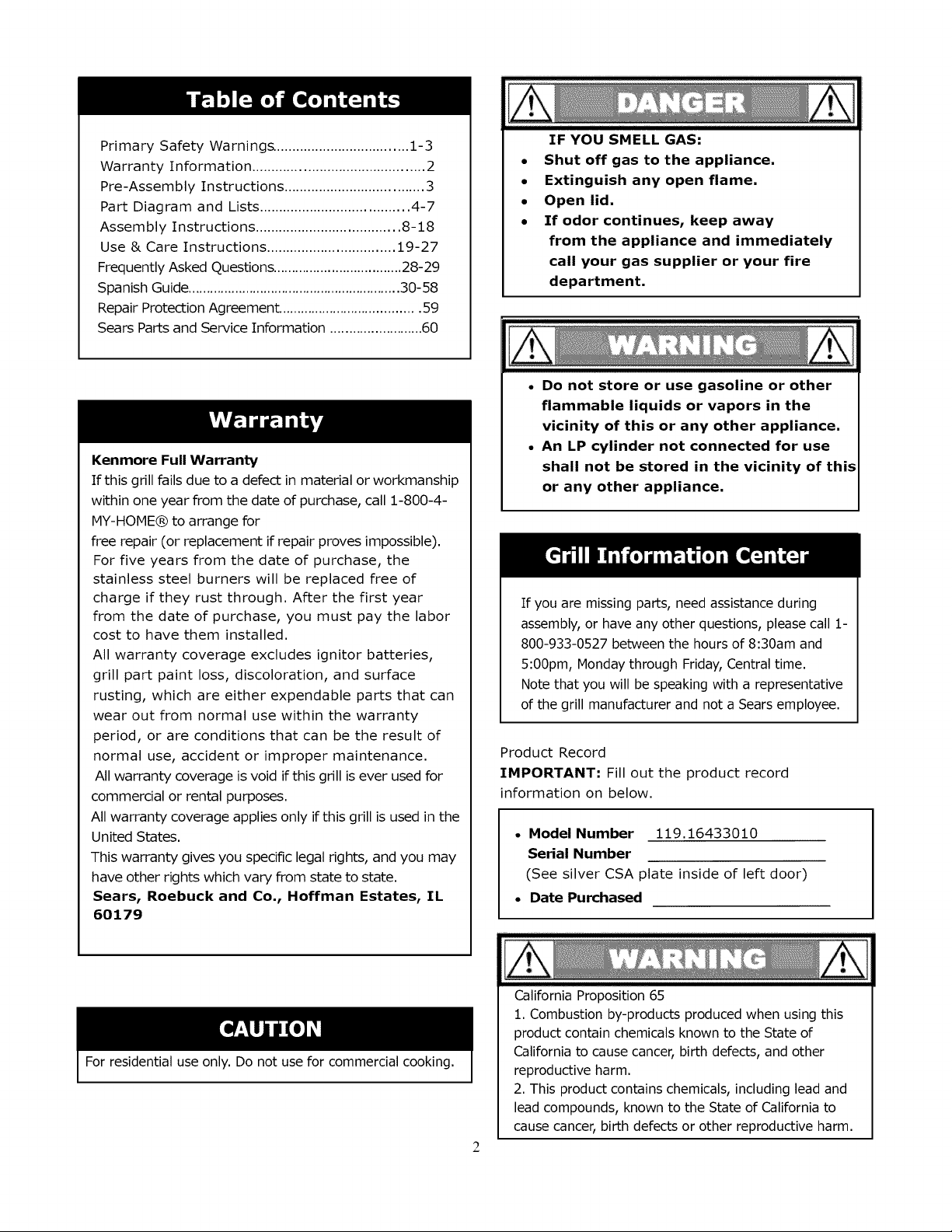

Primary Safety Warnings. .................................. 1-3
Warranty Information ............................................ 2
Pre-Assembly instructions .................................... 3
Part Diagram and Lists ...................................... 4-7
Assembly Instructions ..................................... 8-18
Use & Care Instructions ................................. 19-27
Frequently Asked Questions ................................... 28- 29
Spanish Guide ........................................................... 30-58
Repair Protection Agreement ...................................... 59
Sears Parts and Service Information ......................... 60
Kenmore Full Warranty
If this grill fails due to a defect in material or workmanship
within one year from the date of purchase, call 1-800-4-
MY-HOME® to arrange for
free repair (or replacement if repair proves impossible).
For five years from the date of purchase, the
stainless steel burners will be replaced free of
charge if they rust through. After the first year
from the date of purchase, you must pay the labor
cost to have them installed.
All warranty coverage excludes ignitor batteries,
grill part paint loss, discoloration, and surface
rusting, which are either expendable parts that can
wear out from normal use within the warranty
period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
United States.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
Sears, Roebuck and Co,, Hoffman Estates, IL
60179
IF YOU SMELL GAS:
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, keep away
from the appliance and immediately
call your gas supplier or your fire
department.
Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance,
An LP cylinder not connected for use
shall not be stored in the vicinity of thh
or any other appliance,
If you are missing parts, need assistance during
assembly, or have any other questions, please call 1-
800-933-0527 between the hours of 8:30am and
5:00pm, Monday through Friday, Central time.
Note that you will be speaking with a representative
of the grill manufacturer and not a Sears employee.
Product Record
IMPORTANT: Fill out the product record
information on below.
Model Number 119.16433010
Serial Number
(See silver CSA plate inside of left door)
Date Purchased
For residential use only. Do not use for commercial cooking.
California Proposition 65
1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead and
lead compounds, known to the State of California to
cause cancer, birth defects or other reproductive harm.
background
DO NOT light this grill without first reading
the Lighting Instructions.
DO NOT light this grill without checking the
burner tubes for blockage that could have
occurred during shipment. See the Cleaning
and Maintenance Instructions.
The installation must conform with local codes or,
in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or CAN/CGA B149.1, Natural Gas and Propane
Installation Code, or Propane Storage and
Handling Code, B149.2.
DO NOT use any type of charcoal in this grill.
DO NOT operate the main burners and back
burner at the same time. (If Equipped)
ALWAYS inspect the grease tray before each
use. Remove and clean as necessary.
All electrical accessories (such as a rotisserie or
light) must be electrically grounded in accordance
with local codes, or in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70,
or the Canadian Electrical Code, CSA C22.1. Keep
any electrical cords away from hot surfaces.
This outdoor cooking gas appliance is not intended
to be installed in or on boats or recreational
vehicles.
Liquid Propane Gas (LPG) grills must be used with
the liquid propane gas regulator assembly supplied.
This grill is not convertible to natural gas.
ALWAYS keep the gas hose assembly away from
any heated surface and dripping grease. Avoid
unnecessary twisting of the hose. Visually
inspect the hose prior to each use for cuts,
cracks, excessive wear, or other damage. Do not
use the gas grill if the hose appears damaged.
Call Sears at 1-800-4-MY-HOME®
(1-800-469-4663) for a Kenmore replacement
gas hose assembly.
NEVER use your gas grill in a building,
garage, porch, shed, breezeway or any
other enclosed area.
NEVER obstruct the flow of ventilation
air around your gas grill cabinet.
DO NOT leave children and pets
unattended in the area when the grill is
in operation.
ENSURE the grill is on a level surface
when in operation. You can adjust the
feet in front to level and stabilize the grill.
NEVER attach an unregulated gas line
to this appliance.
PRE-ASSEMBLY
Two people will be necessary to assemble the
larger parts of the grill.
Lay a cardboard sheet on the floor and use as a
work surface to protect floor and grill parts from
scratches.
Once all parts are removed and unpacked,
use the Hardware and Part Diagrams to ensure all
items are included and free of damage.
background
A
Phillips Head Bolt M6×35mm
Qty: 4 pcs
F
Phillips Head Screwdriver
Qty: 1 pc
lm B
Phillips Head Bolt M6x16mm
Qty: 24 pcs
Battery Size AA
Qty: 1 pc
G
C
Phillips Head Bolt M6xl0mm
Qty: 4 pcs
Cabinet Door Stop
Qty: 1 pc
H
D
Phillips Head Bolt M4×Smm
Qty: 22 pcs
"S" Hook
Qty: 3 pcs
Plastic Washer M6
Qty: 8 pcs
E
Washer M4
Qty: 4 pcs
background

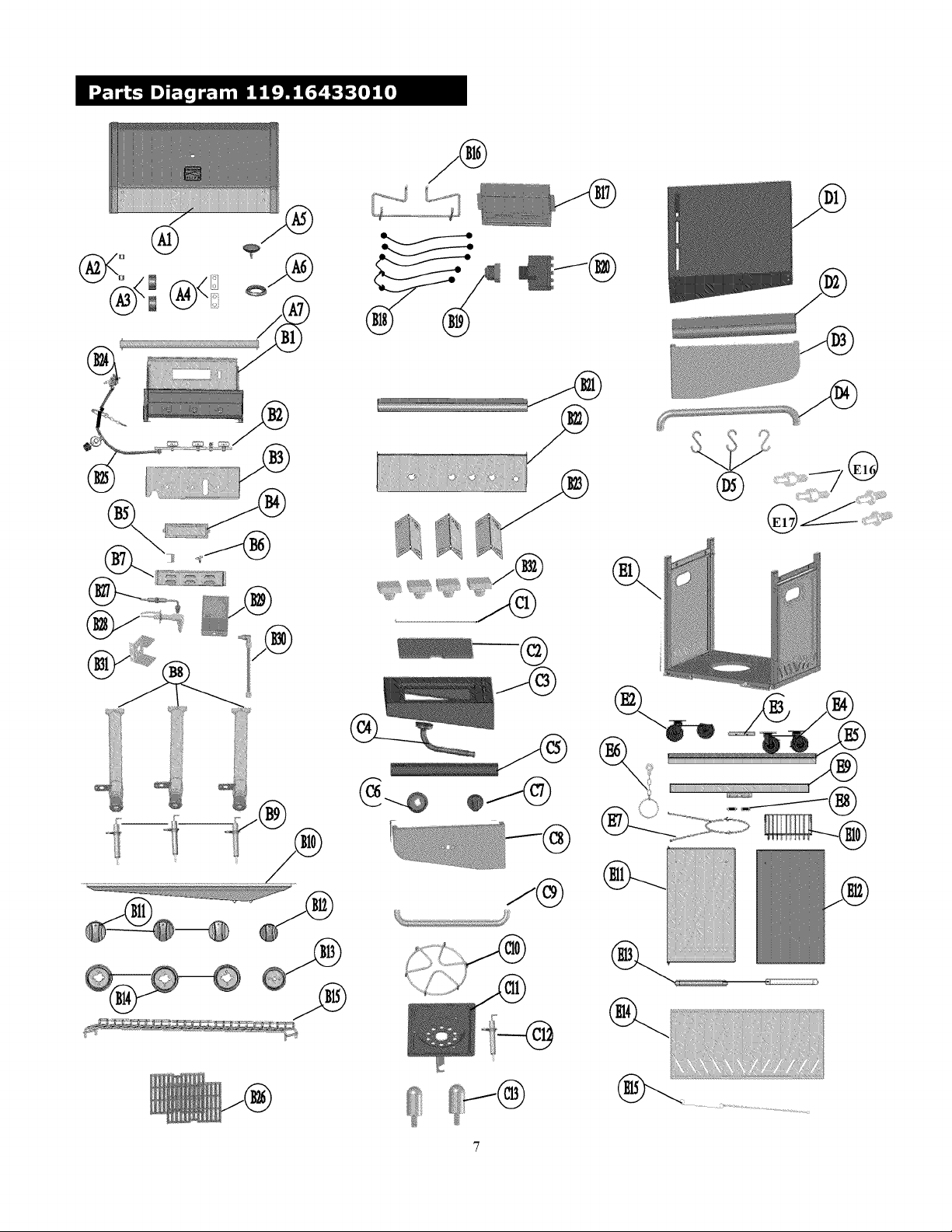

Key Qty Part No. Description
A1 1 *ASMA0085-01 Hood Assembly
A2 2 *ASMA0014-03 Hood Bolt Assembly
A3 1 CA0046-001 Hood Handle Seat Assebmly
A4 2 FLPP0114 Hood Handle Heat Insulator
A5 1 SE0213 Thermometer
A6 1 CA0045-002 Thermometer Seat
A7 1 *ASMA0014-05 Hood Handle
B1 1 *ASMB0085-01 Firebox Assembly
B2 1 SC1020 Gas Manifold Assembly
B3 1 *ASMB0085-02 Firebox Front Heat Shield
B4 1 SD0051 Rotisserie Burner
B5 1 *ASMB0085-03 Rotisserie Burner Orifice Support
B6 1 SC0097 Rotisserie Burner Orifice
B7 1 $1027-037D-006 Rotisserie Burner Cover
B8 3 SD0024-A Main Burner
B9 3 SE9009 Main Burner Electrode
B10 1 $1018-000C-026 Grease Tray
Bll 3 PLABS0090-001 Control Knob- Large
B12 1 PLABS0103-001 Control Knob- Small
B13 1 PLABS0104-001 Control Knob Seat - Small
B14 3 FA0121-001 Control Knob Seat - Large
B15 1 SE0286-012 Warming Rack
B16 1 SE0287-013 Grease Pan Bracket
B17 1 $1020-023D-004 Grease Pan
B18 1 *ASMB0085-04 Electronic Igniter Wire Set
B19 1 SB0131B Electronic Igniter Button
B20 1 SE0078 Electronic Igniter
B21 1 *ASMB0085-05 Main Burner Control Panel top Panel
B22 1 *ASMB0085-06 Main Burner Control Panel
B23 3 S1007-012E-016 Heat Diffuser
B24 1 SC0101 Side Burner Valve
B25 1 SE0148 Regulator and Hose Assembly
B26 2 CI0018-012 Cooking Grate
B27 1 SC0100 Rotisserie Burner Flame Sensor
B28 1 SE0237Z Rotisserie Burner Electrode
B29 1 *ASMB0085-07 Rotisserie Burner Electrode Protection Box
B30 1 SH1100-A Rotisserie Burner Stem
B31 1 $1046-000C-001 Rotisserie Burner Electrode Support
B32 4 FE0025M Hood Bumper
C1 1 SE0153-002 Side Burner Cover Pin
background

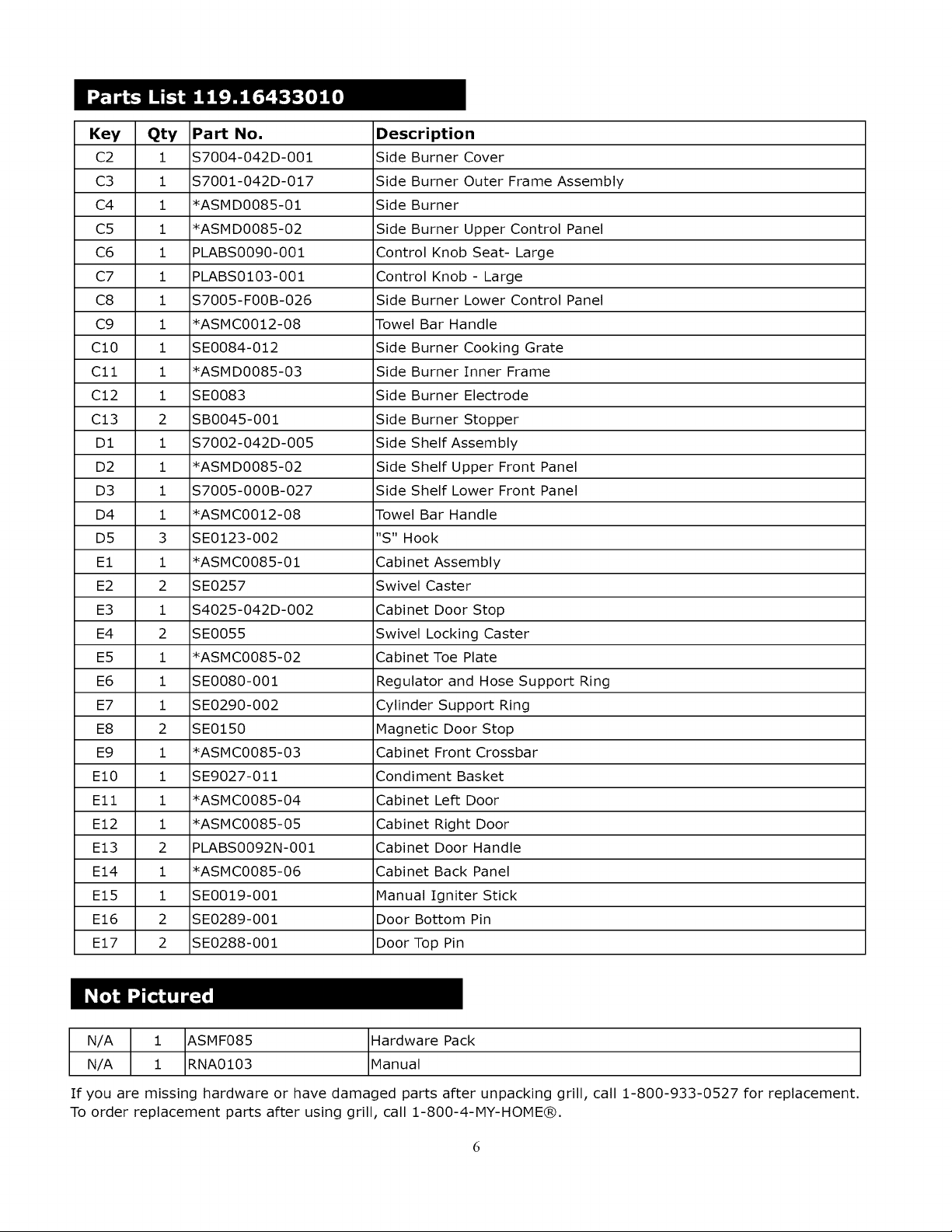

Key Qty Part No.
C2 1 $7004-042D-001
C3 1 $7001-042D-017
C4 1 *ASMD0085-01
C5 1 *ASMD0085-02
C6 1 PLABS0090-001
C7 1 PLABS0103-001
C8 1 S7005-F00B-026
C9 1 *ASMC0012-08
C10 1 SE0084-012
Cll 1 *ASMD0085-03
C12 1 SE0083
C13 2 SB0045-001
D1 1 $7002-042D-005
D2 1 *ASMD0085-02
D3 1 $7005-000B-027
D4 1 *ASMC0012-08
D5 3 SE0123-002
E1 1 *ASMC0085-01
E2 2 SE0257
E3 1 $4025-042D-002
E4 2 SE0055
E5 1 *ASMC0085-02
E6 1 SE0080-001
E7 1 SE0290-002
E8 2 SE0150
E9 1 *ASMC0085-03
El0 1 SE9027-011
Ell 1 *ASMC0085-04
E12 1 *ASMC0085-05
E13 2 PLABS0092N-001
E14 1 *ASMC0085-06
E15 1 SE0019-001
E16 2 SE0289-001
E17 2 SE0288-001
Description
Side Burner Cover
Side Burner Outer Frame Assembly
Side Burner
Side Burner Upper Control Panel
Control Knob Seat- Large
Control Knob - Large
Side Burner Lower Control Panel
Towel Bar Handle
Side Burner Cooking Grate
Side Burner Inner Frame
Side Burner Electrode
Side Burner Stopper
Side Shelf Assembly
Side Shelf Upper Front Panel
Side Shelf Lower Front Panel
Towel Bar Handle
"S" Hook
Cabinet Assembly
Swivel Caster
Cabinet Door Stop
Swivel Locking Caster
Cabinet Toe Plate
Regulator and Hose Support Ring
Cylinder Support Ring
Magnetic Door Stop
Cabinet Front Crossbar
Condiment Basket
Cabinet Left Door
Cabinet Right Door
Cabinet Door Handle
Cabinet Back Panel
Manual Igniter Stick
Door Bottom Pin
Door Top Pin
N/A 1 ASMF085 Hardware Pack
N/A 1 RNA0103 Manual
If you are missing hardware or have damaged parts after unpacking grill, call 1-800-933-0527 for replacement.
To order replacement parts after using grill, call 1-800-4-MY-HOME®.
background
_----(
background

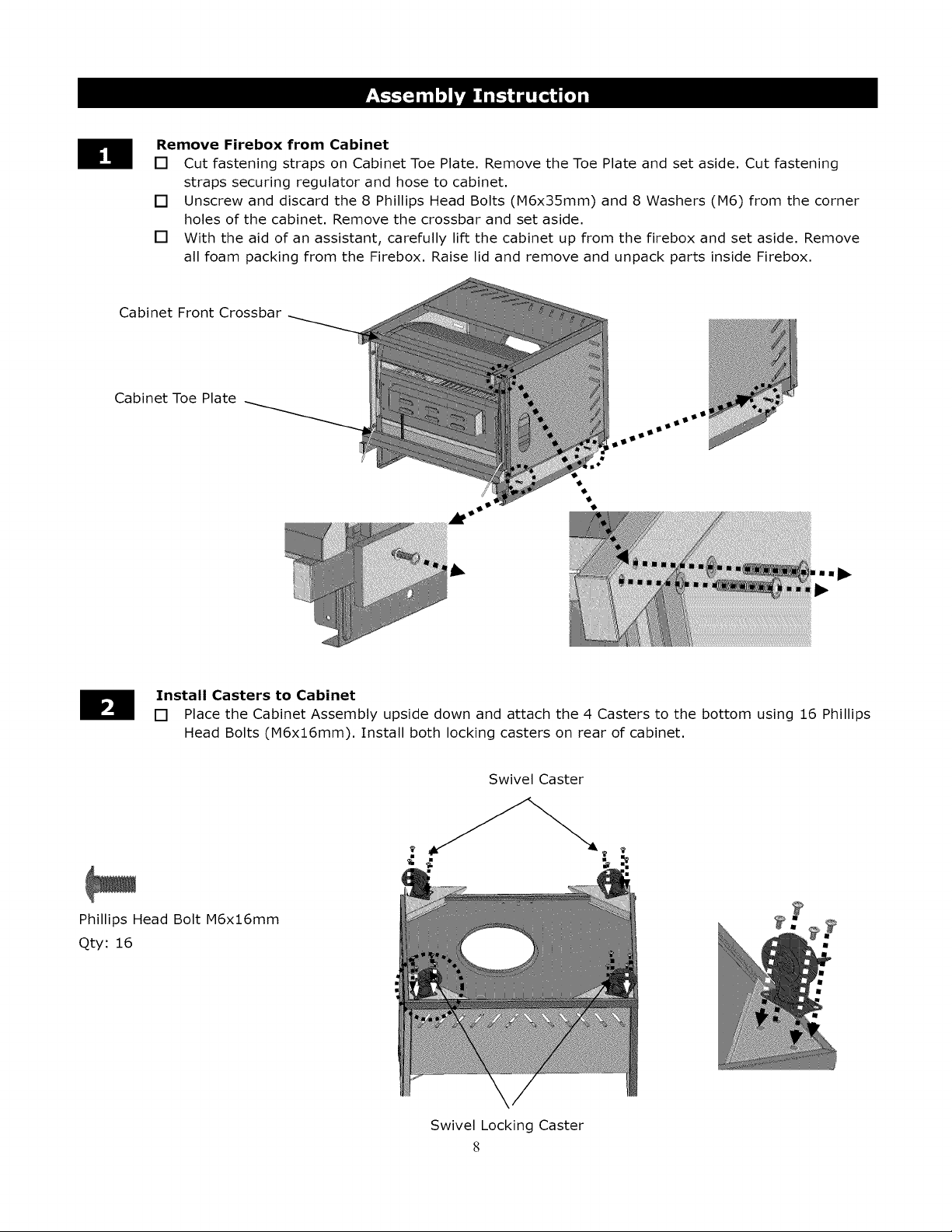

Remove Firebox from Cabinet
[] Cut fastening straps on Cabinet Toe Plate. Remove the Toe Plate and set aside. Cut fastening
straps securing regulator and hose to cabinet.
[] Unscrew and discard the 8 Phillips Head Bolts (M6x35mm) and 8 Washers (M6) from the corner
holes of the cabinet. Remove the crossbar and set aside.
[] With the aid of an assistant, carefully lift the cabinet up from the firebox and set aside. Remove
all foam packing from the Firebox. Raise lid and remove and unpack parts inside Firebox.
Cabinet Front Crossbar
Cabinet Toe Plate
Install Casters to Cabinet
[] Place the Cabinet Assembly upside down and attach the 4 Casters to the bottom using 16 Phillips
Head Bolts (M6x16mm). Install both locking casters on rear of cabinet.
Swivel Caster
Phillips Head Bolt M6x16mm
Qty: 16
Swivel Locking Caster
g
background

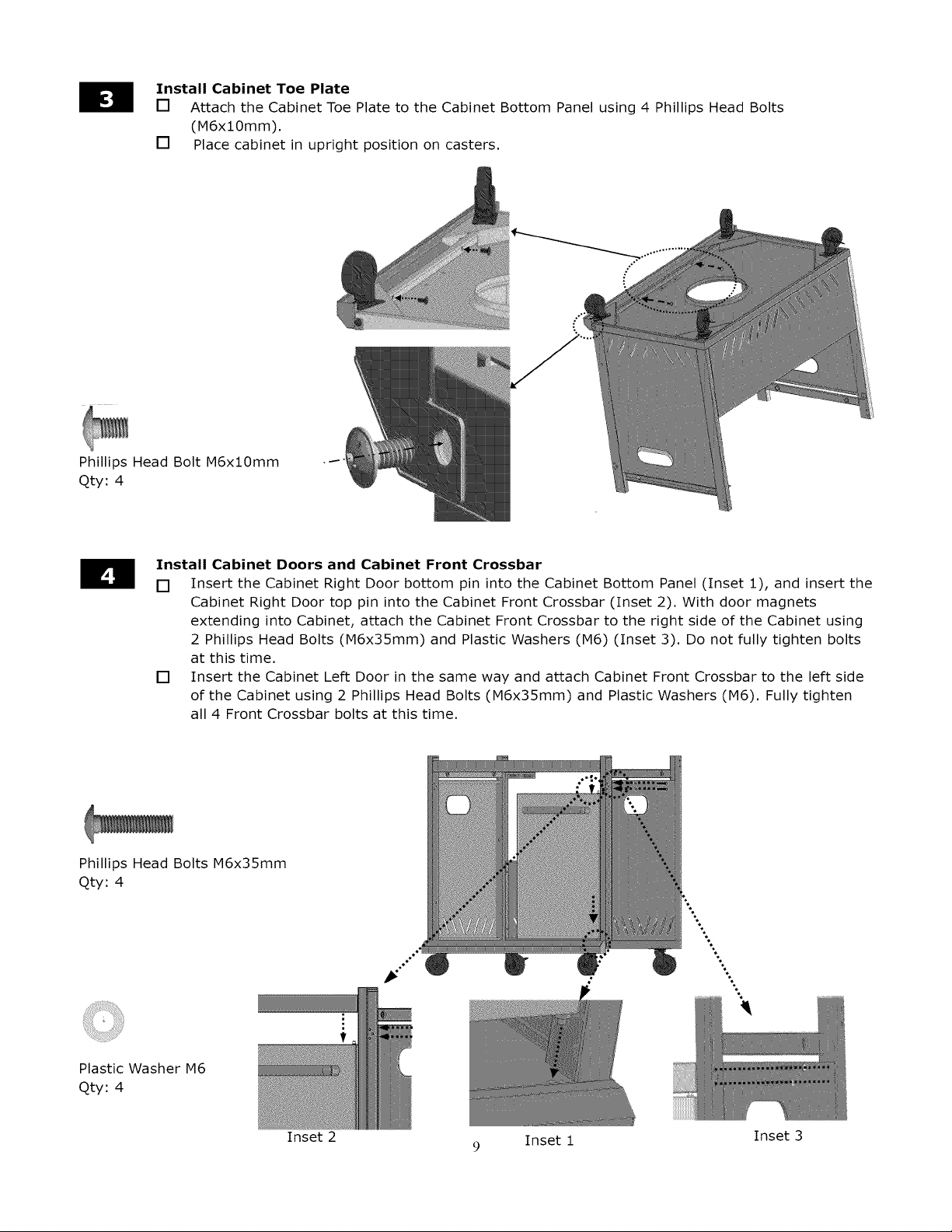

Install Cabinet Toe Plate
[] Attach the Cabinet Toe Plate to the Cabinet Bottom Panel using 4 Phillips Head Bolts
(M6xl0mm),
[] Place cabinet in upright position on casters,
Phillips Head Bolt M6xl0mm
Qty: 4
Install Cabinet Doors and Cabinet Front Crossbar
[] Insert the Cabinet Right Door bottom pin into the Cabinet Bottom Panel (Inset 1), and insert the
Cabinet Right Door top pin into the Cabinet Front Crossbar (Inset 2), With door magnets
extending into Cabinet, attach the Cabinet Front Crossbar to the right side of the Cabinet using
2 Phillips Head Bolts (M6x35mm) and Plastic Washers (M6) (Inset 3), Do not fully tighten bolts
at this time,
[] Insert the Cabinet Left Door in the same way and attach Cabinet Front Crossbar to the left side
of the Cabinet using 2 Phillips Head Bolts (M6x35mm) and Plastic Washers (M6), Fully tighten
all 4 Front Crossbar bolts at this time,
Phillips Head Bolts M6x35mm
Qty: 4
Plastic Washer M6
Qty: 4
\
Inset 2 9 Inset 1 Inset 3
background

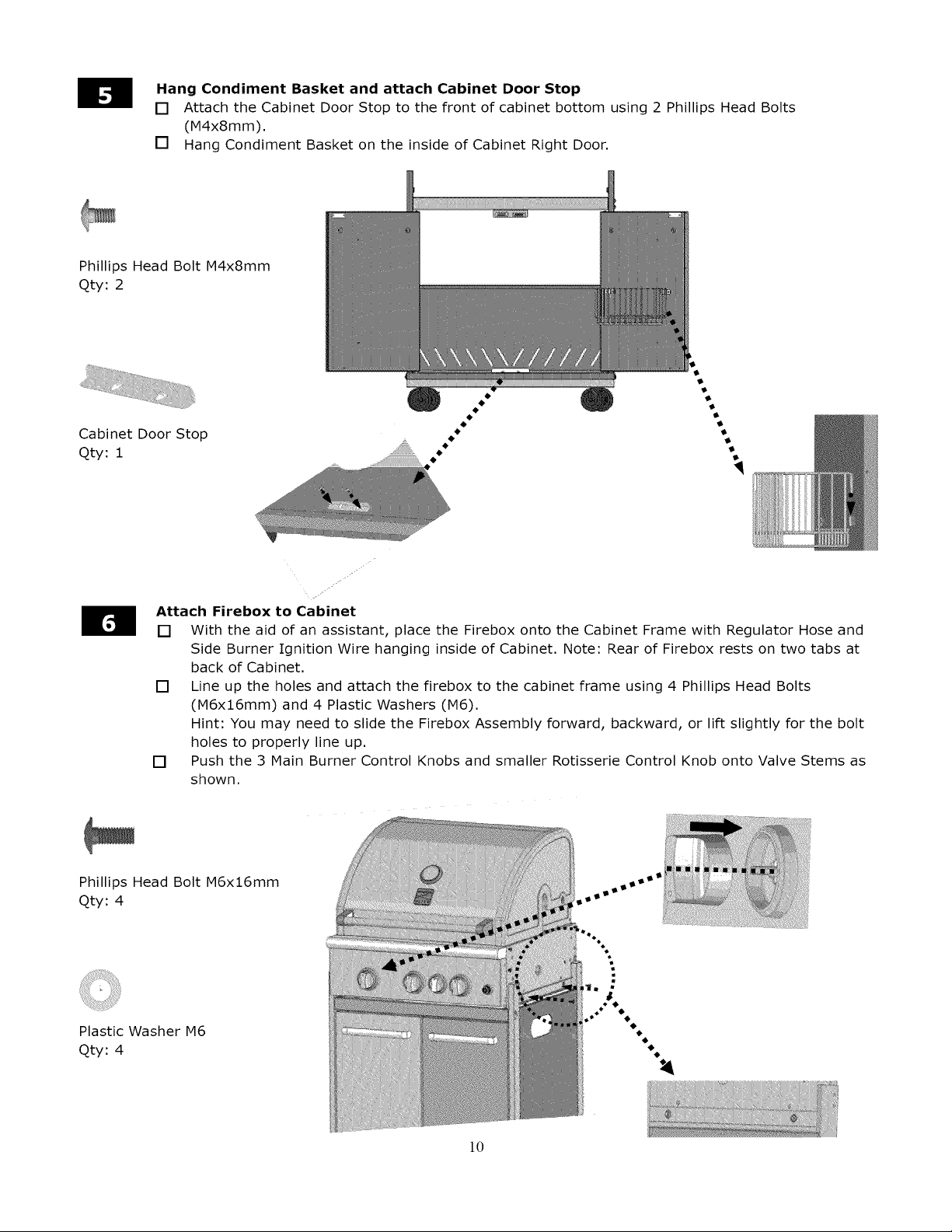

Hang Condiment Basket and attach Cabinet Door Stop
[] Attach the Cabinet Door Stop to the front of cabinet bottom using 2 Phillips Head Bolts
(M4x8mm),
[] Hang Condiment Basket on the inside of Cabinet Right Door,
Phillips Head Bolt M4x8mm
Qty: 2
Cabinet Door Stop
Qty: 1
/.
Attach Firebox to Cabinet
[] With the aid of an assistant, place the Firebox onto the Cabinet Frame with Regulator Hose and
Side Burner Ignition Wire hanging inside of Cabinet, Note: Rear of Firebox rests on two tabs at
back of Cabinet,
[] Line up the holes and attach the firebox to the cabinet frame using 4 Phillips Head Bolts
(M6x16mm) and 4 Plastic Washers (M6),
Hint: You may need to slide the Firebox Assembly forward, backward, or lift slightly for the bolt
holes to properly line up,
[] Push the 3 Main Burner Control Knobs and smaller Rotisserie Control Knob onto Valve Stems as
shown,
Phillips Head Bolt M6x16mm
Qty: 4
Plastic Washer M6
Qty: 4
10
background
Install Grease Tray
[] Insert the Grease Tray along two sides of the Firebox from the back underneath the firebox.
Insert tray with the grease drain hole positioned as shown. Be careful when sliding the tray past
wires and fuel line. Slide tray fully in until it locks into place behind stops.
............. I, Grease drain hole
Install Grease Pan Bracket and Grease Pan
[] From the rear of cabinet, insert the Grease Pan Bracket into the bottom of the Grease Tray.
[] From the front of Cabinet, insert the Grease Pan into the Grease Pan Bracket.
mmnnmmmDmP_
II
background

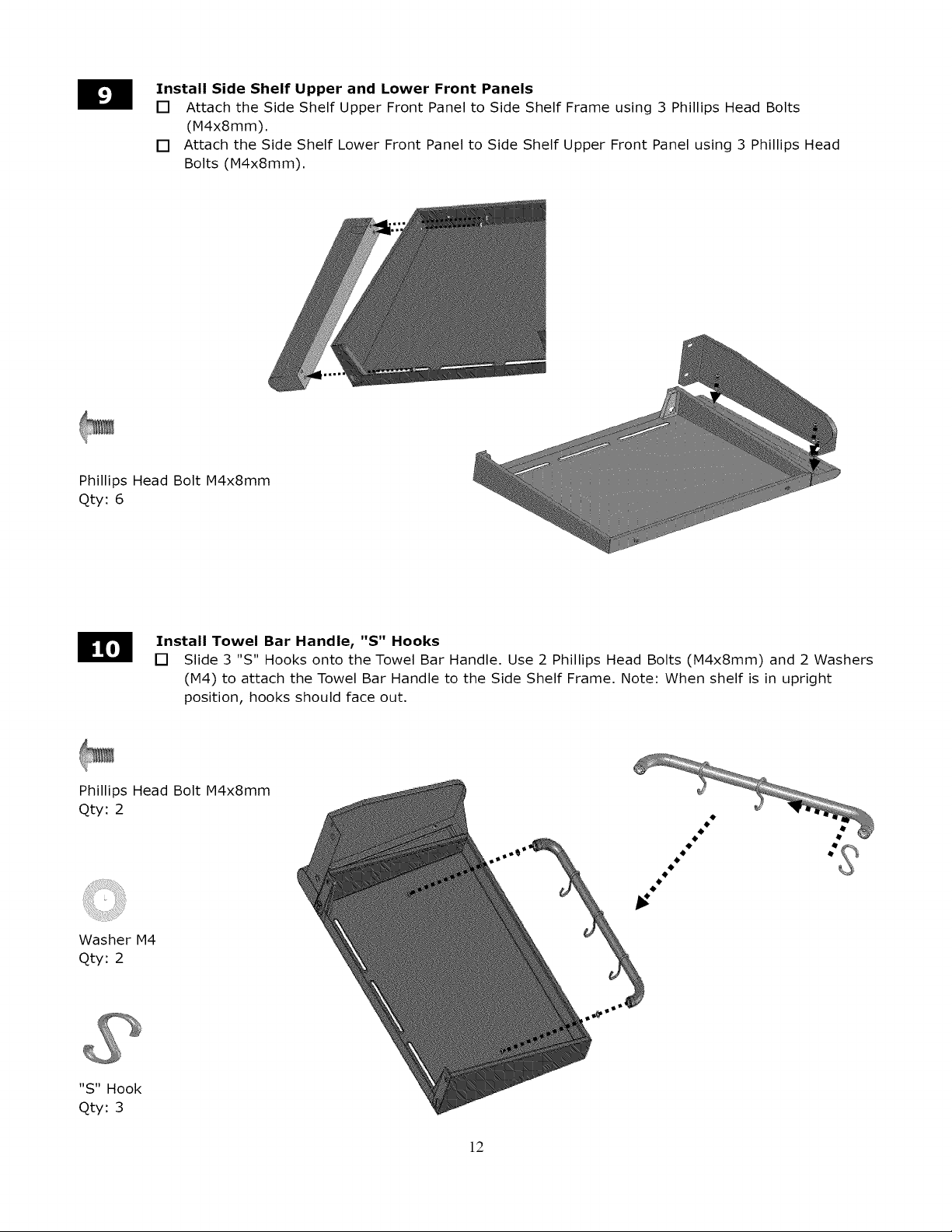

Install Side Shelf Upper and Lower Front Panels
[] Attach the Side Shelf Upper Front Panel to Side Shelf Frame using 3 Phillips Head Bolts
(M4xSmm),
[] Attach the Side Shelf Lower Front Panel to Side Shelf Upper Front Panel using 3 Phillips Head
Bolts (M4x8mm),
Phillips Head Bolt M4x8mm
qty: 6
I_l Install Towel Bar Handle, "S" Hooks
[] Slide 3 "S" Hooks onto the Towel Bar Handle, Use 2 Phillips Head Bolts (M4x8mm) and 2 Washers
(M4) to attach the Towel Bar Handle to the Side Shelf Frame, Note: When shelf is in upright
position, hooks should face out,
Phillips Head Bolt M4x8mm
Qty: 2
Washer M4
Qty: 2
"S" Hook
Qty: 3
12
background

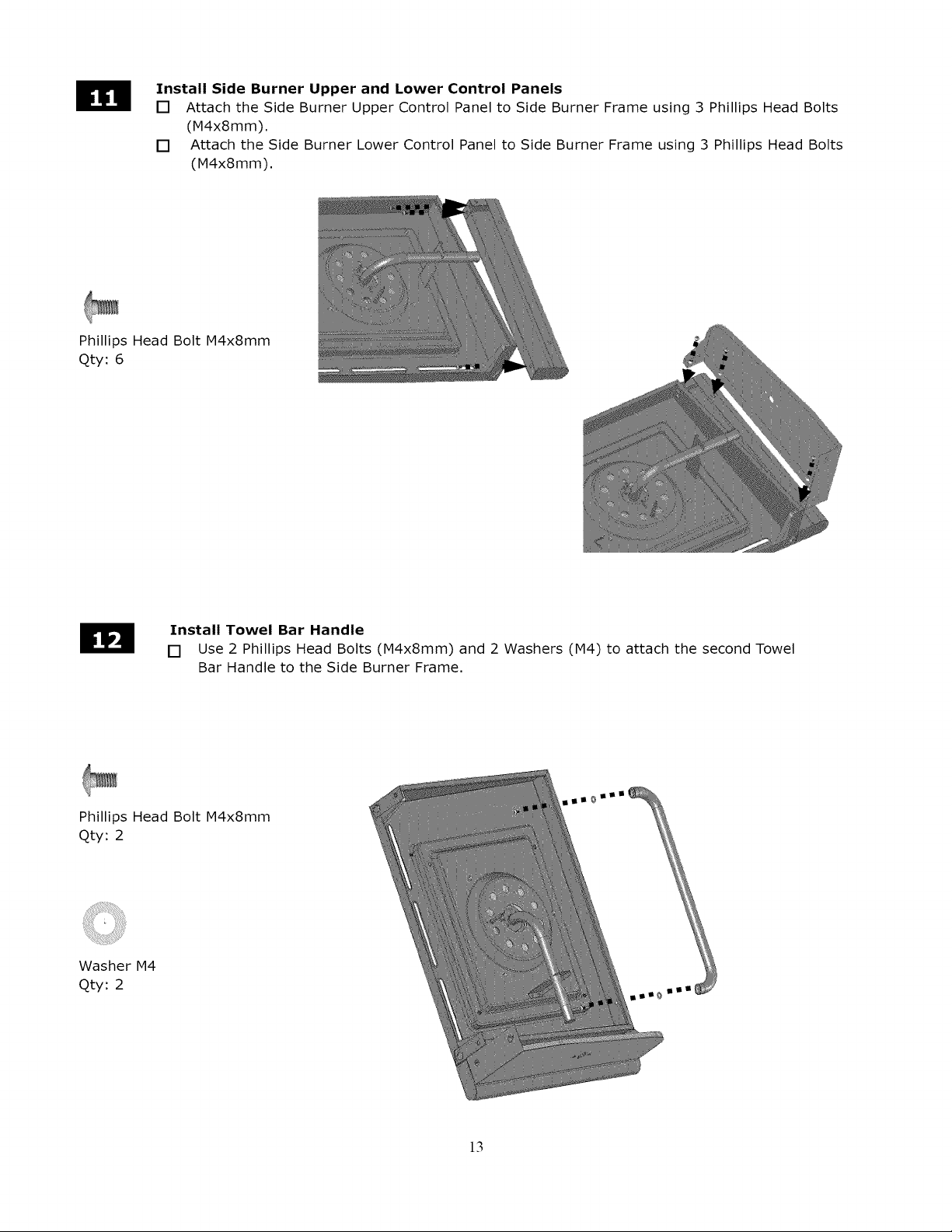

Znstall Side Burner Upper and Lower Control Panels
[] Attach the Side Burner Upper Control Panel to Side Burner Frame using 3 Phillips Head Bolts
(M4xSmm),
[] Attach the Side Burner Lower Control Panel to Side Burner Frame using 3 Phillips Head Bolts
(M4xSmm),
Phillips Head Bolt M4x8mm
qty: 6
Znstall Towel Bar Handle
[] Use 2 Phillips Head Bolts (M4x8mm) and 2 Washers (M4) to attach the second Towel
Bar Handle to the Side Burner Frame,
Phillips Head Bolt M4x8mm
qty: 2
Washer IV]4
Qty: 2
13
background

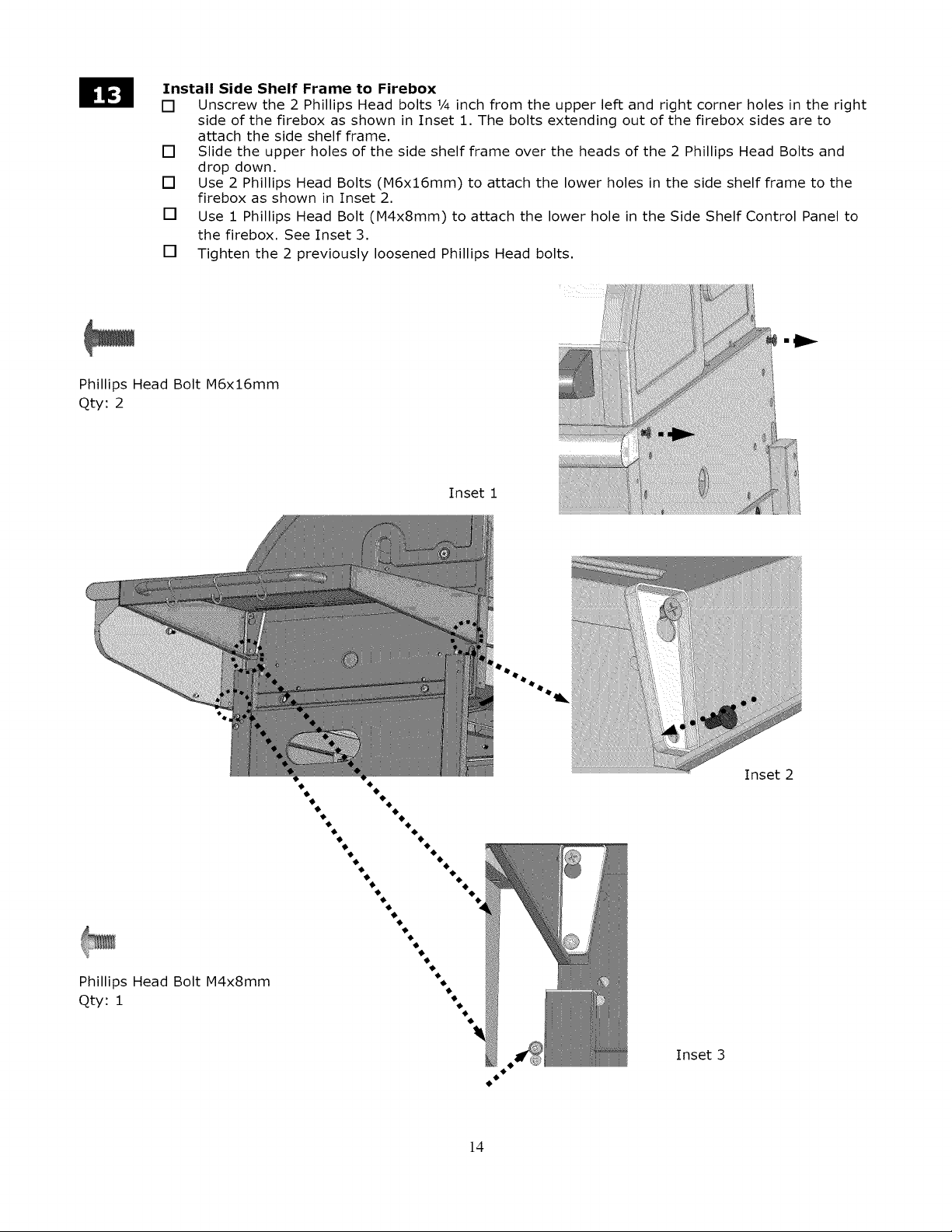

Install Side Shelf Frame to Firebox
[] Unscrew the 2 Phillips Head bolts ¼ inch from the upper left and right corner holes in the right
side of the firebox as shown in Inset 1. The bolts extending out of the firebox sides are to
attach the side shelf frame.
[] Slide the upper holes of the side shelf frame over the heads of the 2 Phillips Head Bolts and
drop down.
[] Use 2 Phillips Head Bolts (M6x16mm) to attach the lower holes in the side shelf frame to the
firebox as shown in Inset 2.
[] Use 1 Phillips Head Bolt (M4x8mm) to attach the lower hole in the Side Shelf Control Panel to
the firebox. See Inset 3.
[] Tighten the 2 previously loosened Phillips Head bolts.
Phillips Head Bolt M6x16mm
Qty: 2
Inset 1
Phillips Head Bolt M4x8mm
Qty: 1
Inset 3
Inset 2
14
background
Install Side Burner Frame to Firebox
[] Unscrew the 2 Phillips Head bolts 1/4 inch from the upper left and right corner holes in the left
side of the firebox as shown in Inset 1. The bolts extending out of the firebox sides are to
attach the side Burner frame.
[] Slide the upper holes of the side Burner frame over the heads of the 2 Phillips Head Bolts and
drop down.
[] Use 2 Phillips Head Bolts (M6x16mm) to attach the lower holes in the side Burner frame to the
firebox as shown in Inset 2.
[] Tighten the 2 previously loosened Phillips Head bolts.
Phillips Head Bolt M6x16mm
Qty: 2
Inset 1
||||tl||li _
Inset 2
15
background
Install Side Burner Valve
[] Detach side burner ignition wire from the regulator hose. Feed side burner valve and igniter
wire through hole in left side of cabinet.
[] Open side burner lid and cut tie wrap securing grate to pan. On underside of pan, remove the 2
screws holding the side burner in place. See Inset 1.
[] Secure the side burner valve stem to the Side Burner Lower Control Panel using 2 Phillips Head
Bolts (M4x8mm). See Inset 2.
[] Center the side burner valve into the side burner tube. See Inset 3. Reattach side burner to pan
with 2 previously removed screws.
[] Use 1 Phillips Head Bolt (M4x8mm) to attach the Side Burner Lower Control Panel to the firebox.
See Inset 4.
Inset 2
Inset 1
Phillips Head Bolt M4x8mm
qty: 3
Inset 4
Inset 3
Attach Side Burner Control Knob and Side Burner Ignition Wire
[] Attach the side burner ignition wire over the side burner connector pin.
[] Push the Control Knob onto the valve stem.
ld
background

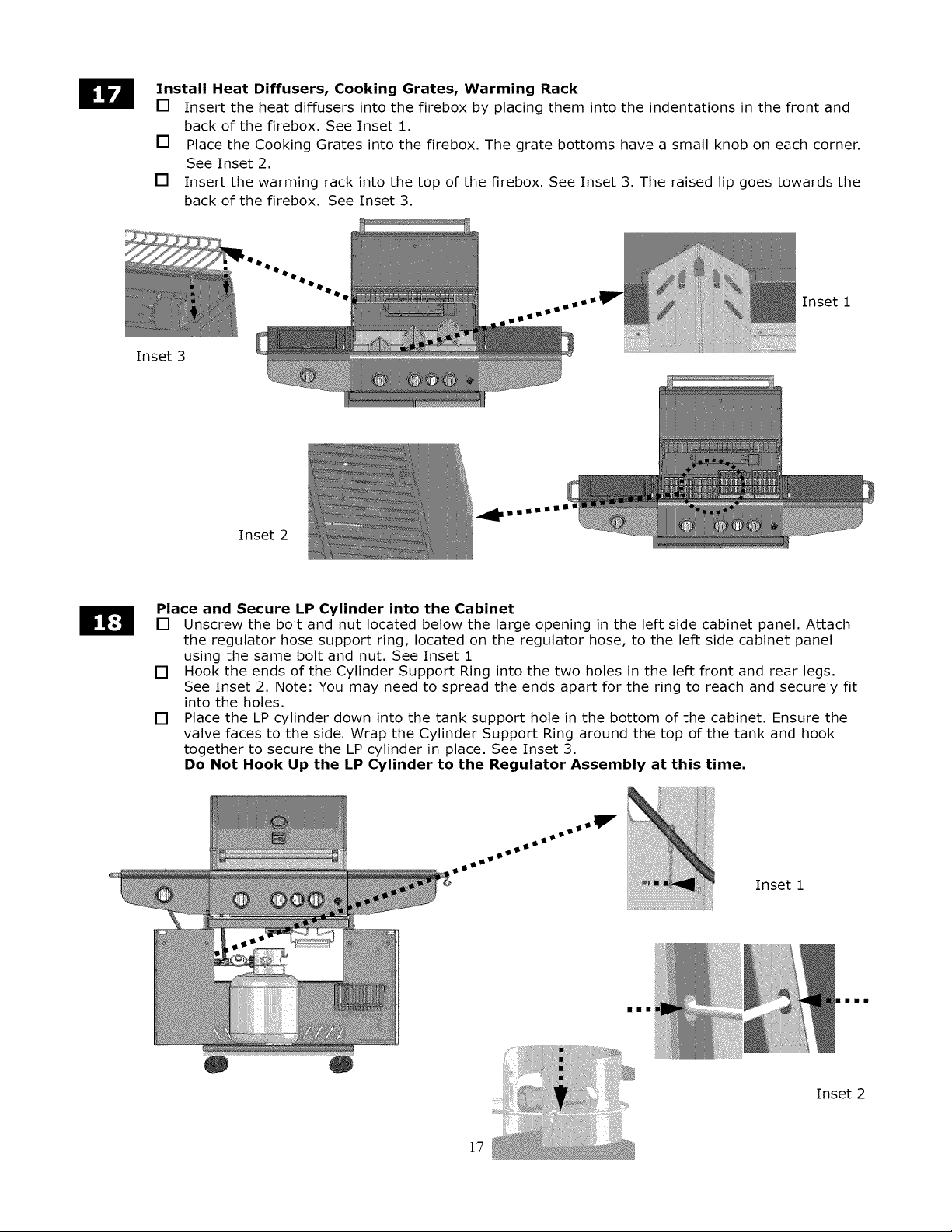

Install Heat Diffusers, Cooking Grates, Warming Rack
[] Insert the heat diffusers into the firebox by placing them into the indentations in the front and
back of the firebox. See Inset 1.
[] Place the Cooking Grates into the firebox. The grate bottoms have a small knob on each corner.
See Inset 2.
[] Insert the warming rack into the top of the firebox. See Inset 3. The raised lip goes towards the
back of the firebox. See Inset 3.
Inset 3
Inset 1
Inset 2
Place and Secure LP Cylinder into the Cabinet[] Unscrew the bolt and nut located below the large opening in the left side cabinet panel. Attach
the regulator hose support ring, located on the regulator hose, to the left side cabinet panel
using the same bolt and nut. See Inset 1
[] Hook the ends of the Cylinder Support Ring into the two holes in the left front and rear legs.
See Inset 2. Note: You may need to spread the ends apart for the ring to reach and securely fit
into the holes.
[] Place the LP cylinder down into the tank support hole in the bottom of the cabinet. Ensure the
valve faces to the side. Wrap the Cylinder Support Ring around the top of the tank and hook
together to secure the LP cylinder in place. See Inset 3.
Do Not Hook Up the LP Cylinder to the Regulator Assembly at this time.
Inset 1
mmm
Inset 2
17
background

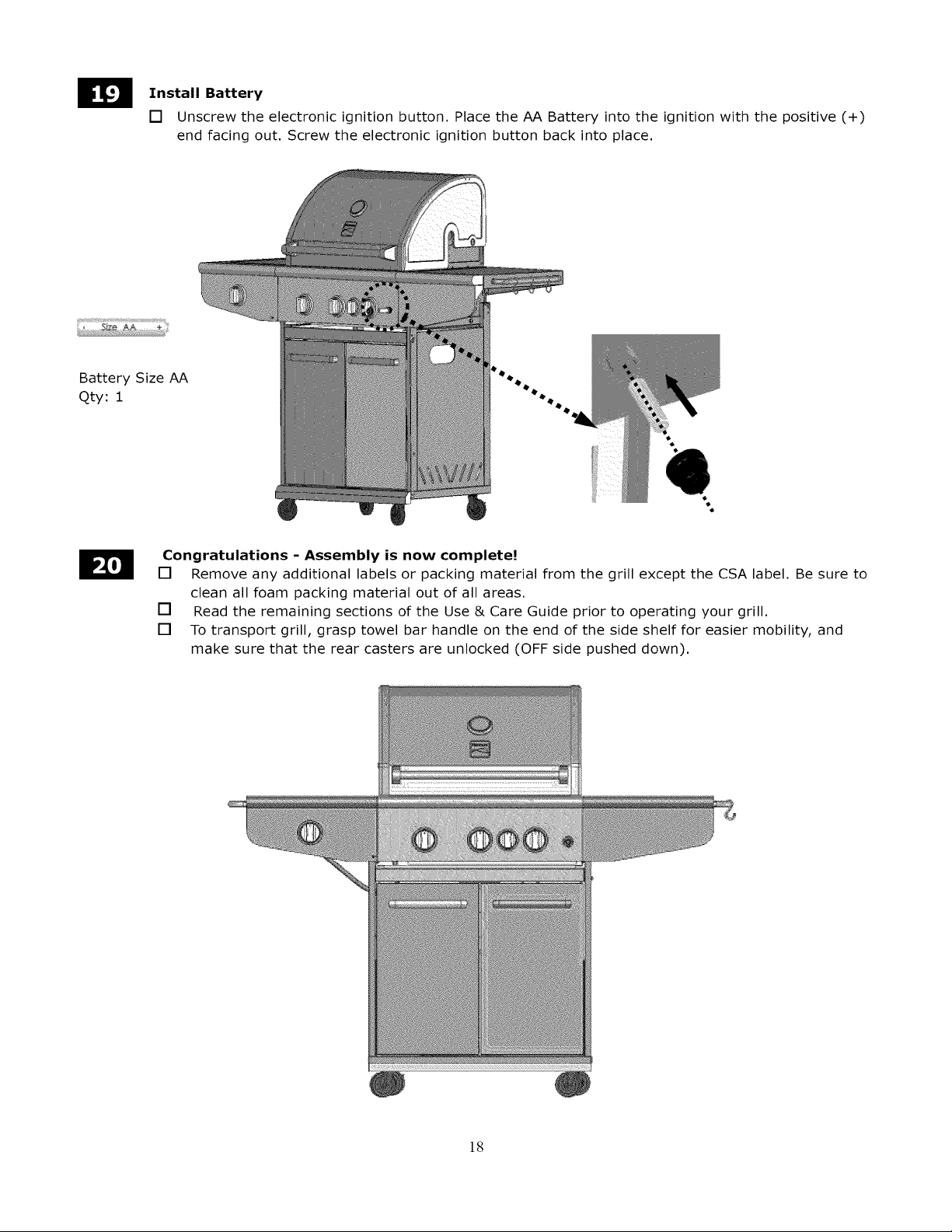

Install Battery
[] Unscrew the electronic ignition button. Place the AA Battery into the ignition with the positive (+)
end facing out. Screw the electronic ignition button back into place.
Battery Size AA
Qty: 1
Congratulations - Assembly is now complete!
[] Remove any additional labels or packing material from the grill except the CSA label. Be sure to
clean all foam packing material out of all areas.
[] Read the remaining sections of the Use 8( Care Guide prior to operating your grill.
[] To transport grill, grasp towel bar handle on the end of the side shelf for easier mobility, and
make sure that the rear casters are unlocked (OFF side pushed down).
18
background

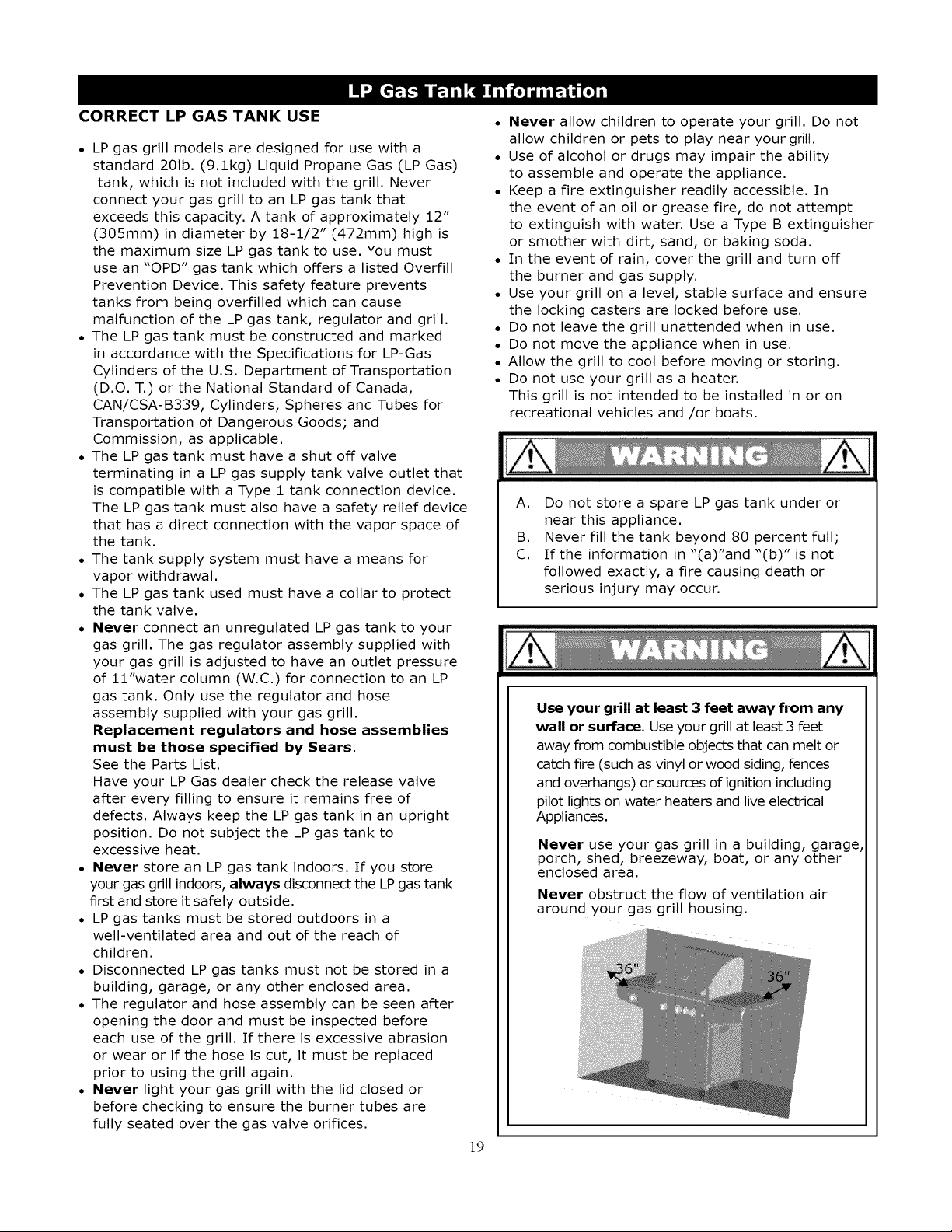

CORRECT LP GAS TANK USE
LP gas grill models are designed for use with a
standard 20lb. (9.1kg) Liquid Propane Gas (LP Gas)
tank, which is not included with the grill. Never
connect your gas grill to an LP gas tank that
exceeds this capacity. A tank of approximately 12"
(305mm) in diameter by 18-1/2" (472mm) high is
the maximum size LP gas tank to use. You must
use an "OPD" gas tank which offers a listed Overfill
Prevention Device. This safety feature prevents
tanks from being overfilled which can cause
malfunction of the LP gas tank, regulator and grill.
° The LP gas tank must be constructed and marked
in accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission, as applicable.
° The LP gas tank must have a shut off valve
terminating in a LP gas supply tank valve outlet that
is compatible with a Type 1 tank connection device.
The LP gas tank must also have a safety relief device
that has a direct connection with the vapor space of
the tank.
° The tank supply system must have a means for
vapor withdrawal.
° The LP gas tank used must have a collar to protect
the tank valve.
Never connect an unregulated LP gas tank to your
gas grill. The gas regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure
of 11"water column (W.C.) for connection to an LP
gas tank. Only use the regulator and hose
assembly supplied with your gas grill.
Replacement regulators and hose assemblies
must be those specified by Sears,
See the Parts List.
Have your LP Gas dealer check the release valve
after every filling to ensure it remains free of
defects, Always keep the LP gas tank in an upright
position, Do not subject the LP gas tank to
excessive heat,
Never store an LP gas tank indoors. If you store
your gas grill indoors, always disconnect the LP gas tank
first and store it safely outside.
LP gas tanks must be stored outdoors in a
well-ventilated area and out of the reach of
children.
Disconnected LP gas tanks must not be stored in a
building, garage, or any other enclosed area.
The regulator and hose assembly can be seen after
opening the door and must be inspected before
each use of the grill. If there is excessive abrasion
or wear or if the hose is cut, it must be replaced
prior to using the grill again.
Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
19
Never allow children to operate your grill. Do not
allow children or pets to play near your grill.
Use of alcohol or drugs may impair the ability
to assemble and operate the appliance.
Keep a fire extinguisher readily accessible. In
the event of an oil or grease fire, do not attempt
to extinguish with water. Use a Type B extinguisher
or smother with dirt, sand, or baking soda.
In the event of rain, cover the grill and turn off
the burner and gas supply.
Use your grill on a level, stable surface and ensure
the locking casters are locked before use.
Do not leave the grill unattended when in use.
Do not move the appliance when in use.
Allow the grill to cool before moving or storing.
Do not use your grill as a heater.
This grill is not intended to be installed in or on
recreational vehicles and/or boats.
A. Do not store a spare LP gas tank under or
near this appliance.
B. Never fill the tank beyond 80 percent full;
C. If the information in "(a)"and "(b)" is not
followed exactly, a fire causing death or
serious injury may occur.
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire (such as vinyl or wood siding, fences
and overhangs) or sources of ignition including
pilot lights on water heaters and live electrical
Appliances.
Never use your gas grill in a building, garage,
porch, shed, breezeway, boat, or any other
enclosed area.
Never obstruct the flow of ventilation air
around your gas grill housing.
background
Notes about LP Gas Tank Exchange Programs
Many retailers that sell grills offer you the option of
replacing your empty LP gas tank through an
exchange service. Use only those reputable
exchange companies that inspect, precision fill, test
and certify their tanks. Exchange your tank only for
an OPD safety feature equipped tank as described
in the LP gas tank section of this manual.
Always keep new and exchanged LP gas tanks in an
upright position during use, transit or storage.
Leak test new and exchanged LP gas tanks BEFORE
connecting one to your grill.
How to Leak Test your LP Gas Tank
For your safety:
All leak tests must be repeated each time your LP gas
tank is exchanged or refilled.
Do not smoke when checking for gas leaks.
Do not use an open flame to check for gas leaks.
Your grill must be leak tested outdoors in a
well-ventilated area, away from ignition sources such
as gas fired or electrical appliances. During the leak
test, keep your grill away from open flames or
sparks.
Do not use household cleaning agents as damage to
gas assembly components can occur.
[] Use a clean paintbrush and a 50/50 mild soap and
water solution.
[] Brush soapy solution onto the LP gas tank in the areas
indicated by the arrows. See diagram.
[] If growing bubbles appear do not use or move the LP
Gas tank. Call an LP gas supplier or your fire
department.
Regulator and LP Cylinder Connections
The gas pressure regulator provided with this
outdoor cooking appliance must be used. This
regulator is set for an outlet pressure of 11
inches water column.
Regulator:
Your regulator is equipped with a Q.C.C. Type 1
quick connect system. It will not allow gas to flow
until a positive seal has been made. It has a
thermal element that will shut off the gas flow if
the temperature reaches 240 degrees F (115
degrees C). It also has a flow-limiting device that
will restrict the flow of gas to 10 cubic feet per
hour (0.28 cubic meters per hour).
TO CONNECT THE CYLINDER TO THE
REGULATOR AND HOSE
1. Be sure the LP cylinder is "OFF" by turning the
hand wheel clockwise until it stops.
2. Place the cylinder into the base cabinet shelf of
the grill with the valve facing outward and
secure with the cylinder support ring.
3. Be sure all burner controls are turned to the
"OFF" position.
4. Remove the safety cap from the cylinder valve.
5. Center the nipple of the regulator into the
cylinder valve.
6. Turn the black nut clockwise until it stops.
Hand Tighten Only, Do Not Use A Wrench.
.............. Type 1 connection per
......,,, ...............ANS Z21158b-2006
..... _;iI
Quick
Coupling Nut
If growing bubbles appear do not use or move
the LP Gas tank. Contact an LP gas Supplier or
your fire department!
2O
CAUTION: When the appliance is not in use
the gas must be turned off at the tank.
background

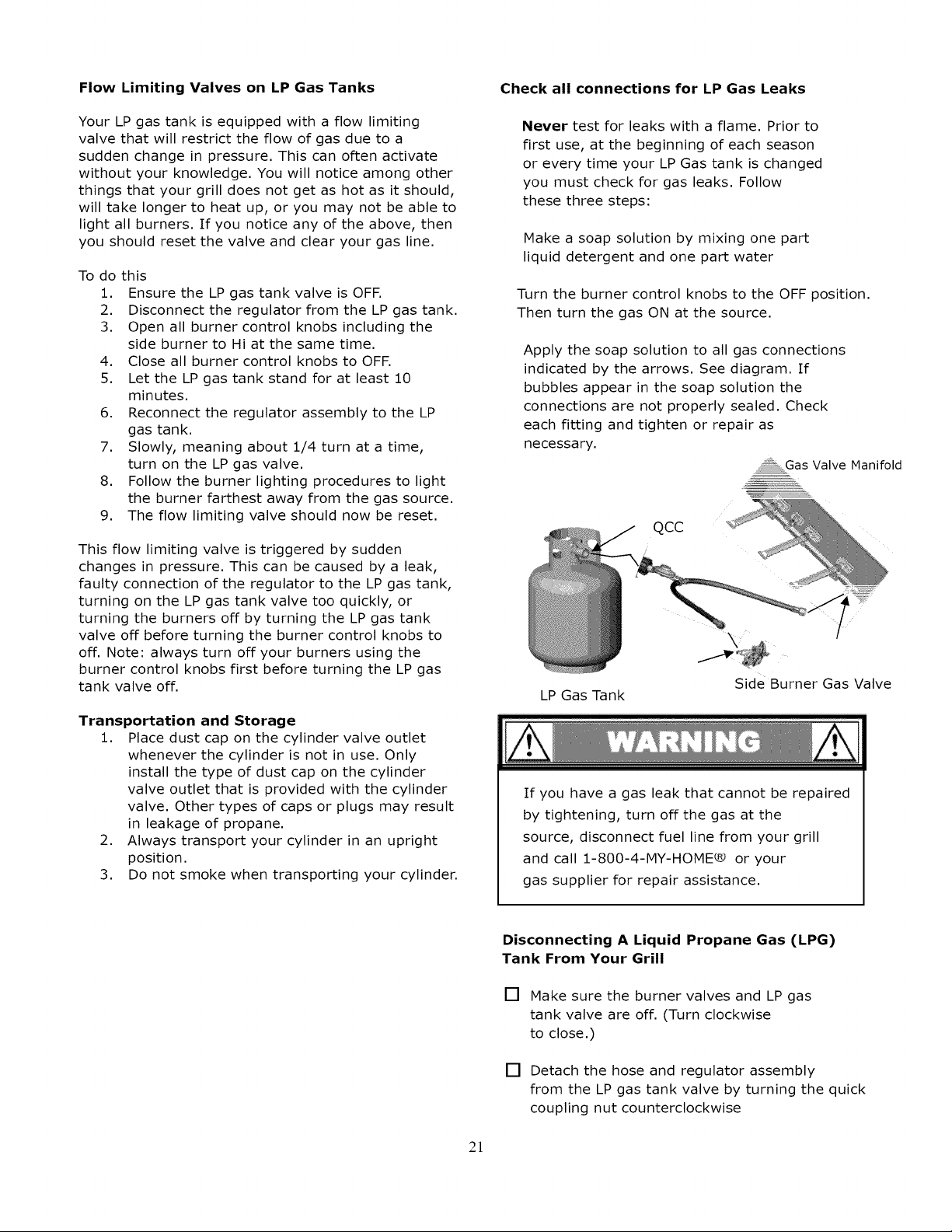

Flow Limiting Valves on LP Gas Tanks Check all connections for LP Gas Leaks
Your LP gas tank is equipped with a flow limiting
valve that will restrict the flow of gas due to a
sudden change in pressure. This can often activate
without your knowledge. You will notice among other
things that your grill does not get as hot as it should,
will take longer to heat up, or you may not be able to
light all burners. If you notice any of the above, then
you should reset the valve and clear your gas line.
To do
i.
2.
3.
4.
5.
6.
7.
8.
9.
this
Ensure the LP gas tank valve is OFF.
Disconnect the regulator from the LP gas tank.
Open all burner control knobs including the
side burner to Hi at the same time.
Close all burner control knobs to OFF.
Let the LP gas tank stand for at least 10
minutes.
Reconnect the regulator assembly to the LP
gas tank.
Slowly, meaning about 1/4 turn at a time,
turn on the LP gas valve.
Follow the burner lighting procedures to light
the burner farthest away from the gas source.
The flow limiting valve should now be reset.
This flow limiting valve is triggered by sudden
changes in pressure. This can be caused by a leak,
faulty connection of the regulator to the LP gas tank,
turning on the LP gas tank valve too quickly, or
turning the burners off by turning the LP gas tank
valve off before turning the burner control knobs to
off. Note: always turn off your burners using the
burner control knobs first before turning the LP gas
tank valve off.
Transportation and Storage
i. Place dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder
valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result
in leakage of propane.
2. Always transport your cylinder in an upright
position.
3. Do not smoke when transporting your cylinder.
Never test for leaks with a flame. Prior to
first use, at the beginning of each season
or every time your LP Gas tank is changed
you must check for gas leaks. Follow
these three steps:
Make a soap solution by mixing one part
liquid detergent and one part water
Turn the burner control knobs to the OFF position.
Then turn the gas ON at the source.
Apply the soap solution to all gas connections
indicated by the arrows. See diagram. If
bubbles appear in the soap solution the
connections are not properly sealed. Check
each fitting and tighten or repair as
necessary.
-_:,. Gas Valve Manifold
QCC
Side Burner Gas Valve
LP Gas Tank
If you have a gas leak that cannot be repaired
by tightening, turn off the gas at the
source, disconnect fuel line from your grill
and call 1-800-4-MY-HOME_ or your
gas supplier for repair assistance.
Disconnecting A Liquid Propane Gas (LPG)
Tank From Your Grill
[] Make sure the burner valves and LP gas
tank valve are off. (Turn clockwise
to close.)
[] Detach the hose and regulator assembly
from the LP gas tank valve by turning the quick
coupling nut counterclockwise
21
background

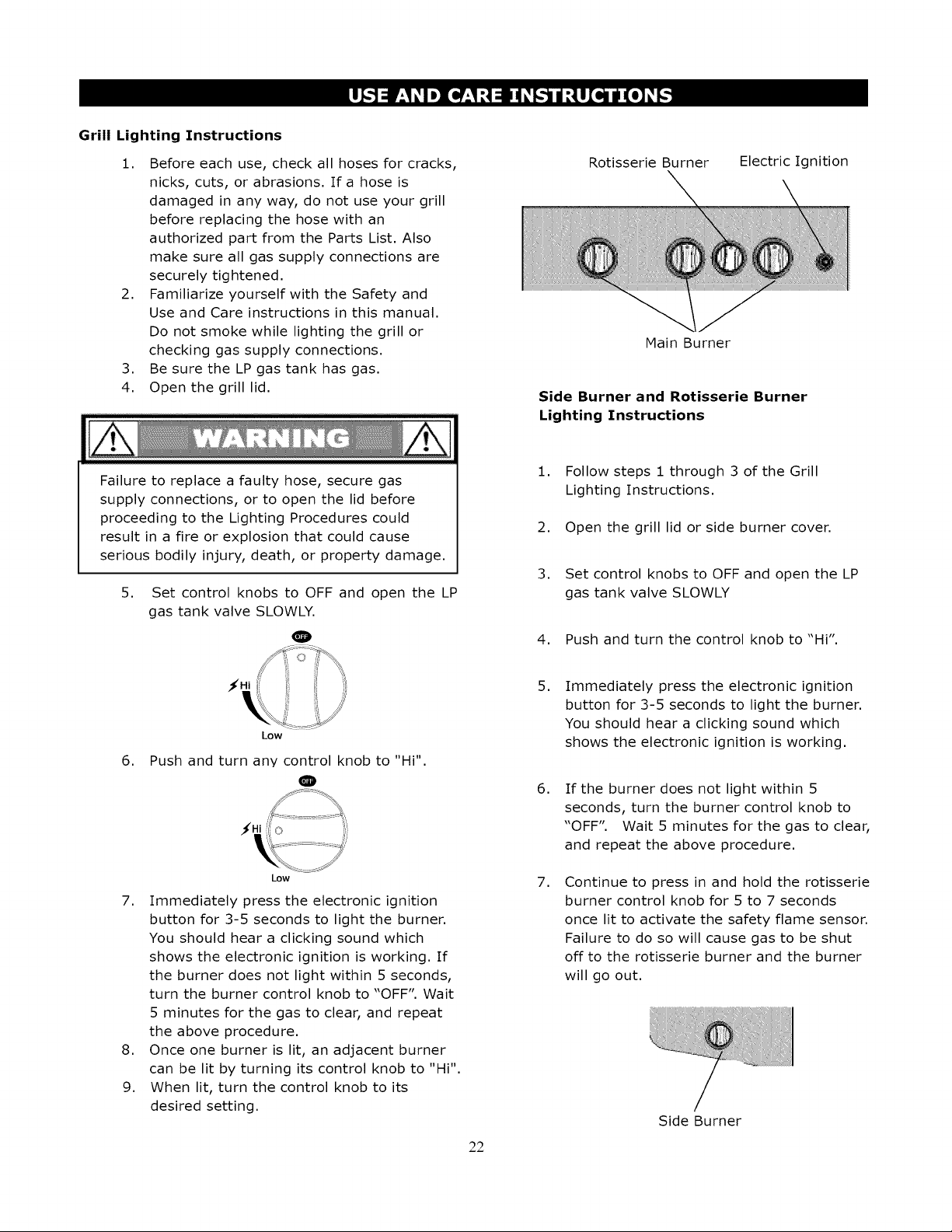

Grill Lighting Instructions
1. Before each use, check all hoses for cracks,
nicks, cuts, or abrasions. If a hose is
damaged in any way, do not use your grill
before replacing the hose with an
authorized part from the Parts List. Also
make sure all gas supply connections are
securely tightened.
2. Familiarize yourself with the Safety and
Use and Care instructions in this manual.
Do not smoke while lighting the grill or
checking gas supply connections.
3. Be sure the LP gas tank has gas.
4. Open the grill lid.
Failure to replace a faulty hose, secure gas
supply connections, or to open the lid before
proceeding to the Lighting Procedures could
result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
5. Set control knobs to OFF and open the LP
gas tank valve SLOWLY.
O
Low
6. Push and turn any control knob to "Hi".
0
Low
7. Immediately press the electronic ignition
button for 3-5 seconds to light the burner.
You should hear a clicking sound which
shows the electronic ignition is working. If
the burner does not light within 5 seconds,
turn the burner control knob to "OFF". Wait
5 minutes for the gas to clear, and repeat
the above procedure.
8. Once one burner is lit, an adjacent burner
can be lit by turning its control knob to "Hi".
9. When lit, turn the control knob to its
desired setting.
22
Rotisserie Burner Electric Ignition
Main Burner
Side Burner and Rotisserie Burner
Lighting Instructions
1,
Follow steps 1 through 3 of the Grill
Lighting Instructions.
2. Open the grill lid or side burner cover.
3. Set control knobs to OFF and open the LP
gas tank valve SLOWLY
4. Push and turn the control knob to "Hi".
5,
Immediately press the electronic ignition
button for 3-5 seconds to light the burner.
You should hear a clicking sound which
shows the electronic ignition is working.
6,
7,
If the burner does not light within 5
seconds, turn the burner control knob to
"OFF". Wait 5 minutes for the gas to clear,
and repeat the above procedure.
Continue to press in and hold the rotisserie
burner control knob for 5 to 7 seconds
once lit to activate the safety flame sensor.
Failure to do so will cause gas to be shut
off to the rotisserie burner and the burner
will go out.
Side Burner
background

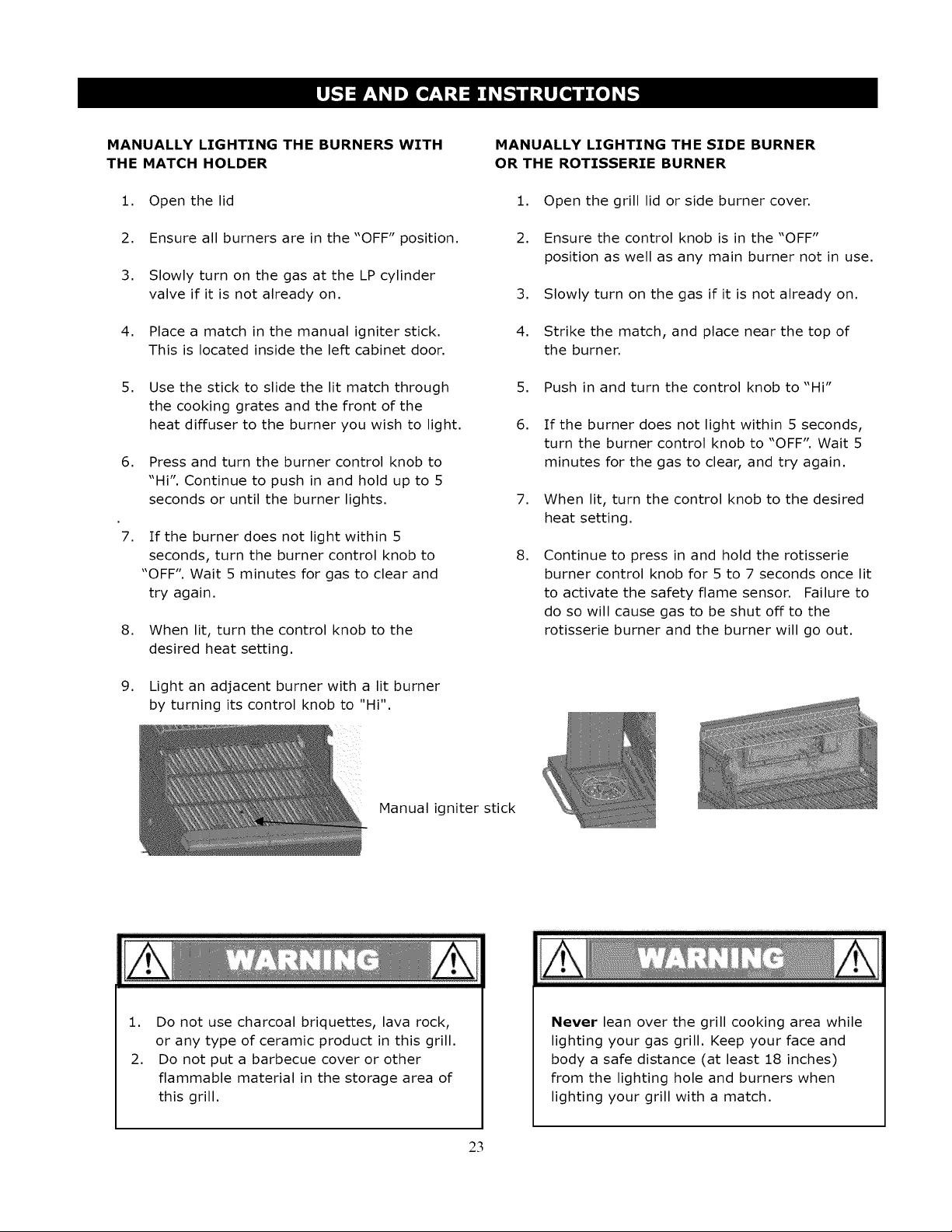

MANUALLY LIGHTING THE BURNERS WITH
THE MATCH HOLDER
MANUALLY LIGHTING THE SIDE BURNER
OR THE ROTISSERIE BURNER
1. Open the lid 1. Open the grill lid or side burner cover.
2. Ensure all burners are in the "OFF" position.
3. Slowly turn on the gas at the LP cylinder
valve if it is not already on.
2, Ensure the control knob is in the "OFF"
position as well as any main burner not in use.
3. Slowly turn on the gas if it is not already on.
4. Place a match in the manual igniter stick.
This is located inside the left cabinet door.
4. Strike the match, and place near the top of
the burner.
5,
6,
7,
8,
Use the stick to slide the lit match through
the cooking grates and the front of the
heat diffuser to the burner you wish to light.
Press and turn the burner control knob to
"Hi". Continue to push in and hold up to 5
seconds or until the burner lights.
If the burner does not light within 5
seconds, turn the burner control knob to
"OFF". Wait 5 minutes for gas to clear and
try again.
When lit, turn the control knob to the
desired heat setting.
5. Push in and turn the control knob to "Hi"
6. If the burner does not light within 5 seconds,
turn the burner control knob to "OFF". Wait 5
minutes for the gas to clear, and try again.
7. When lit, turn the control knob to the desired
heat setting.
8,
Continue to press in and hold the rotisserie
burner control knob for 5 to 7 seconds once lit
to activate the safety flame sensor. Failure to
do so will cause gas to be shut off to the
rotisserie burner and the burner will go out.
9,
Light an adjacent burner with a lit burner
by turning its control knob to "Hi".
Manual igniter stick
1. Do not use charcoal briquettes, lava rock,
or any type of ceramic product in this grill.
2. Do not put a barbecue cover or other
flammable material in the storage area of
this grill.
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and
body a safe distance (at least 18 inches)
from the lighting hole and burners when
lighting your grill with a match.
23
background

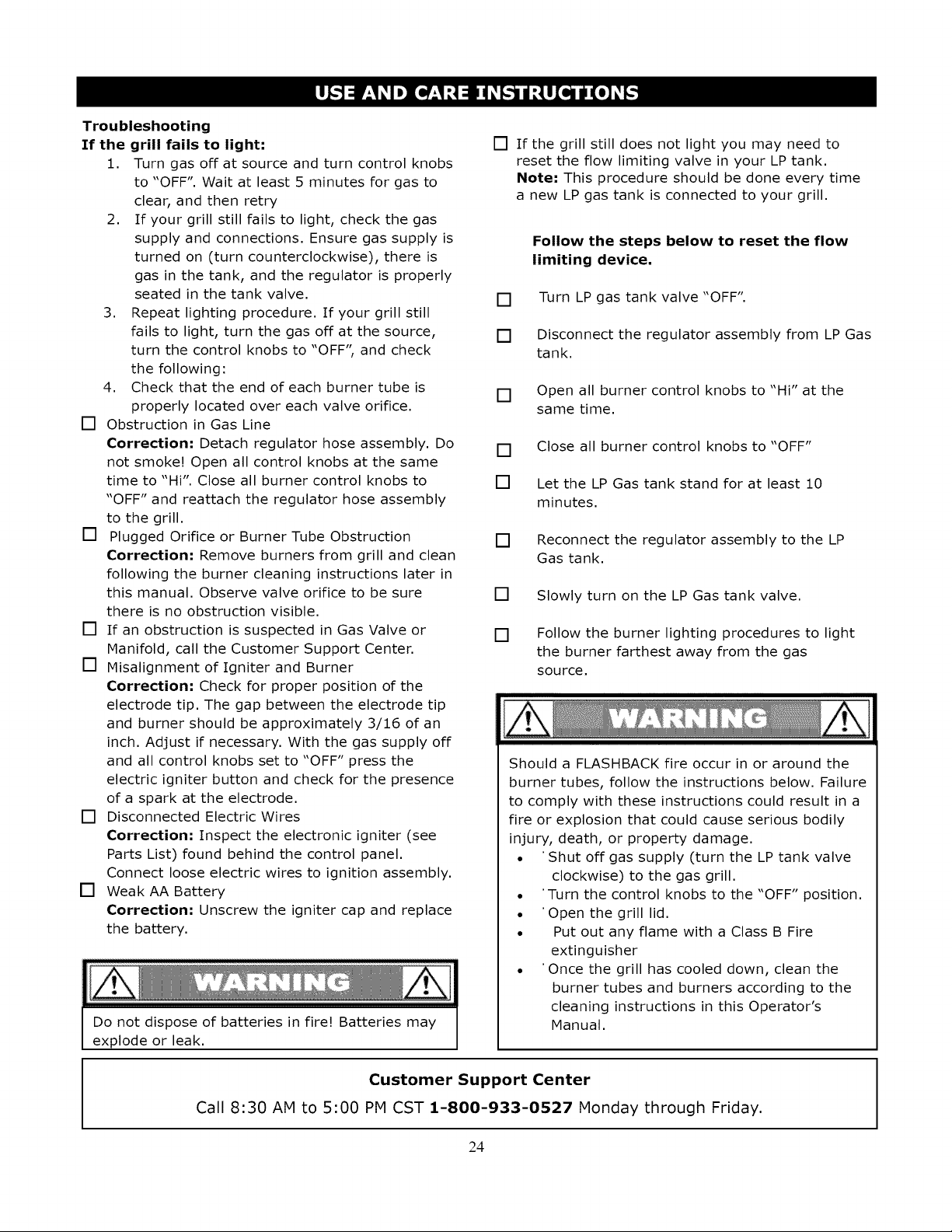

Troubleshooting
If the grill fails to light:
1. Turn gas off at source and turn control knobs
to "OFF". Wait at least 5 minutes for gas to
clear, and then retry
2. If your grill still fails to light, check the gas
supply and connections. Ensure gas supply is
turned on (turn counterclockwise), there is
gas in the tank, and the regulator is properly
seated in the tank valve.
3. Repeat lighting procedure. If your grill still
fails to light, turn the gas off at the source,
turn the control knobs to "OFF", and check
the following:
4. Check that the end of each burner tube is
properly located over each valve orifice.
[] Obstruction in Gas Line
Correction: Detach regulator hose assembly. Do
not smoke! Open all control knobs at the same
time to "Hi". Close all burner control knobs to
"OFF" and reattach the regulator hose assembly
to the grill.
[] Plugged Orifice or Burner Tube Obstruction
Correction: Remove burners from grill and clean
following the burner cleaning instructions later in
this manual. Observe valve orifice to be sure
there is no obstruction visible.
[] If an obstruction is suspected in Gas Valve or
Manifold, call the Customer Support Center.
[] Misalignment of Igniter and Burner
Correction: Check for proper position of the
electrode tip. The gap between the electrode tip
and burner should be approximately 3/16 of an
inch. Adjust if necessary. With the gas supply off
and all control knobs set to "OFF" press the
electric igniter button and check for the presence
of a spark at the electrode.
[] Disconnected Electric Wires
Correction: Inspect the electronic igniter (see
Parts List) found behind the control panel.
Connect loose electric wires to ignition assembly.
[] Weak AA Battery
Correction: Unscrew the igniter cap and replace
the battery,
Do not dispose of batteries in fire! Batteries may
explode or leak,
[]
[]
[]
[]
[]
[]
[]
[]
[]
If the grill still does not light you may need to
reset the flow limiting valve in your LP tank.
Note: This procedure should be done every time
a new LP gas tank is connected to your grill,
Follow the steps below to reset the flow
limiting device,
Turn LP gas tank valve "OFF".
Disconnect the regulator assembly from LP Gas
tank.
Open all burner control knobs to "Hi" at the
same time.
Close all burner control knobs to "OFF"
Let the LP Gas tank stand for at least 10
minutes.
Reconnect the regulator assembly to the LP
Gas tank.
Slowly turn on the LP Gas tank valve.
Follow the burner lighting procedures to light
the burner farthest away from the gas
source.
Should a FLASHBACK fire occur in or around the
burner tubes, follow the instructions below. Failure
to comply with these instructions could result in a
fire or explosion that could cause serious bodily
injury, death, or property damage.
Shut off gas supply (turn the LP tank valve
clockwise) to the gas grill.
"Turn the control knobs to the "OFF" position.
"Open the grill lid.
Put out any flame with a Class B Fire
extinguisher
"Once the grill has cooled down, clean the
burner tubes and burners according to the
cleaning instructions in this Operator's
Manual.
Customer Support Center
Call 8:30 AN to 5:00 PN CST 1-800-933-0527 Monday through Friday.
24
background
Proper care and maintenance will keep your grill in
good operating condition and prolong its life. Follow
these cleaning procedures on a timely basis and your
grill will stay clean and operate with minimum effort.
CAUTION: Be sure your grill is off and cool before
cleaning, and always wear protective gloves when
cleaning your grill.
down over each valve orifice.
9. Check and clean each electrode tip. Adjust
the
spacing between the tips and the burner as
necessary. The space between the electrode
tip and burner should be approximately 3/16".
10. Replace the heat diffusers, grates, warming
rack, and grease tray.
11. Reconnect the gas source and observe the
burner flame for correct operation.
Cleaning The Cooking Grates
Wash your cooking grates in a mild soap and
warm water solution. You can use a wash cloth,
vegetable brush, or brass bristled brush.
Never use any type of steel bristled brush. Dry
them when finished.
Cleaning the Heat Diffusers
Wash the heat diffusers periodically in a soap and
warm water solution. Use a vegetable brush to
remove stubborn burnt-on cooking residue. Dry
the heat diffusers thoroughly before you reinstall
them into the firebox.
Cleaning the Grease Tray and Pan
To reduce the chance of fire, the grease tray and
grease pan should be visually inspected before
each grill use. Remove any grease and wash both
with a mild soap and warm water solution.
Cleaning the Inside of the Grill Lid
Grease can have a tendency to build up on the
inside of the grill lid and could drip onto the deck
or patio when the lid is opened. Visually inspect the
inside of the grill lid before each grill use. Remove
any grease and wash with a mild soap and warm
water solution.
Annual Cleaning of the Grill Interior
Burning-off excess food after every cookout will
keep it ready for instant use. We recommend you
periodically give the entire grill a thorough cleaning
to minimize your risk of grease fire and keep the
grill in good shape. Follow these steps:
1. Turn all burner valves to the "OFF" position.
2. Turn the LP gas tank valve to the "OFF"
position.
3. Disconnect the regulator assembly from the
gas tank. Inspect the hose for cracking, cuts
or any other damage, and replace as
necessary. Refer to the Parts List in this
Operator's Manual.
4. Remove and clean the cooking grates, heat
diffusers, warming rack, burners, and grease
tray.
5. Cover each gas valve orifice with aluminum
foil.
6. Brush the inside and bottom of the grill with
a fiber pad or nylon brush and wash with a
mild soap and warm water solution. Rinse
thoroughly and let dry.
7. Remove aluminum foil from orifices and
check each orifice for obstruction.
8. Replace the burners, ensuring the burners fit
Cleaning Exterior Surfaces:
Cleaning Exterior Surfaces:
Wash with a mild dish soap and warm water
solution. A cloth, soft brush, or plastic
cleaning pad can be used. Rinse thoroughly
and wipe dry.
Cleaning Exterior Stainless Steel Surfaces:
Wash with a mild dish soap and warm water
solution. Clean and polish with a stainless
steel cleaner. There are many good quality
stainless steel cleaners and polishes available.
Follow the manufacturer's directions. Always
polish in the direction of the lines. Do not
allow dirt and grease to accumulate. Do not
use steel wool as it will scratch the surface.
Do not use abrasive cleaners and scrubbers.
CAUTION:
Heat, weathering, machine oils used in the
manufacturing of stainless steel, and dirt can
all cause exterior stainless steel surfaces to
turn tan in color. In addition, the following
products and naturally occurring substances in
the outdoors will damage all stainless steel
finishes. Use caution so they will not come in
contact with your grill. Immediately wash
them off and dry the stainless steel should
they ever come in contact with your gas grill.
They include, but are not limited to, pool
chemicals (chlorine and bromine), lawn
fertilizer, ice melting salts, sea or salt water,
urine, bird droppings, and tree sap.
Failure to comply with these instructions may
result in a hazardous situation which, if not
avoided, may result in injury.
Keep grill area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of air for combustion
and ventilation.
Keep the ventilation openings of the tank
enclosure cabinet free and clear of debris.
25
background

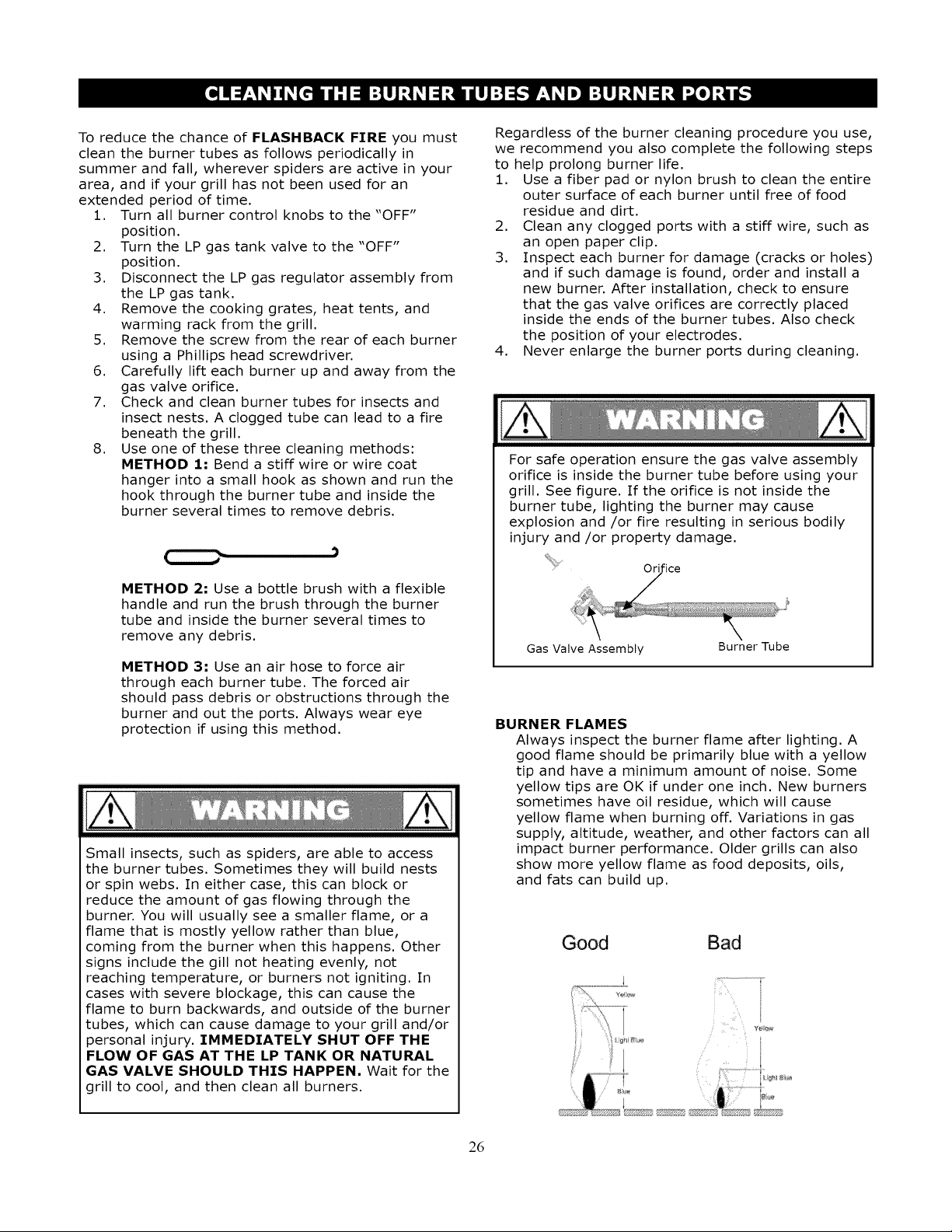

Toreducethechanceof FLASHBACK FTRE you must
clean the burner tubes as follows periodically in
summer and fall, wherever spiders are active in your
area, and if your grill has not been used for an
extended period of time.
1. Turn all burner control knobs to the "OFF"
position.
2. Turn the LP gas tank valve to the "OFF"
position.
3. Disconnect the LP gas regulator assembly from
the LP gas tank.
4. Remove the cooking grates, heat tents, and
warming rack from the grill.
5. Remove the screw from the rear of each burner
using a Phillips head screwdriver.
6. Carefully lift each burner up and away from the
gas valve orifice.
7. Check and clean burner tubes for insects and
insect nests. A clogged tube can lead to a fire
beneath the grill.
8. Use one of these three cleaning methods:
METHOD 1: Bend a stiff wire or wire coat
hanger into a small hook as shown and run the
hook through the burner tube and inside the
burner several times to remove debris.
METHOD 2: Use a bottle brush with a flexible
handle and run the brush through the burner
tube and inside the burner several times to
remove any debris.
METHOD 3: Use an air hose to force air
through each burner tube. The forced air
should pass debris or obstructions through the
burner and out the ports. Always wear eye
protection if using this method.
Small insects, such as spiders, are able to access
the burner tubes. Sometimes they will build nests
or spin webs. In either case, this can block or
reduce the amount of gas flowing through the
burner. You will usually see a smaller flame, or a
flame that is mostly yellow rather than blue,
coming from the burner when this happens. Other
signs include the gill not heating evenly, not
reaching temperature, or burners not igniting. In
cases with severe blockage, this can cause the
flame to burn backwards, and outside of the burner
tubes, which can cause damage to your grill and/or
personal injury. IMMEDTATELY SHUT OFF THE
FLOW OF GAS AT THE LP TANK OR NATURAL
GAS VALVE SHOULD THTS HAPPEN, Wait for the
grill to cool, and then clean all burners.
Regardless of the burner cleaning procedure you use,
we recommend you also complete the following steps
to help prolong burner life.
1. Use a fiber pad or nylon brush to clean the entire
outer surface of each burner until free of food
residue and dirt.
2. Clean any clogged ports with a stiff wire, such as
an open paper clip.
3. Inspect each burner for damage (cracks or holes)
and if such damage is found, order and install a
new burner. After installation, check to ensure
that the gas valve orifices are correctly placed
inside the ends of the burner tubes. Also check
the position of your electrodes.
4. Never enlarge the burner ports during cleaning.
For safe operation ensure the gas valve assembly
orifice is inside the burner tube before using your
grill. See figure. If the orifice is not inside the
burner tube, lighting the burner may cause
explosion and/or fire resulting in serious bodily
injury and/or property damage.
Gas Valve Assembly
Burner Tube
BURNER FLAMES
Always inspect the burner flame after lighting. A
good flame should be primarily blue with a yellow
tip and have a minimum amount of noise. Some
yellow tips are OK if under one inch. New burners
sometimes have oil residue, which will cause
yellow flame when burning off. Variations in gas
supply, altitude, weather, and other factors can all
impact burner performance. Older grills can also
show more yellow flame as food deposits, oils,
and fats can build up.
Good Bad
26
background

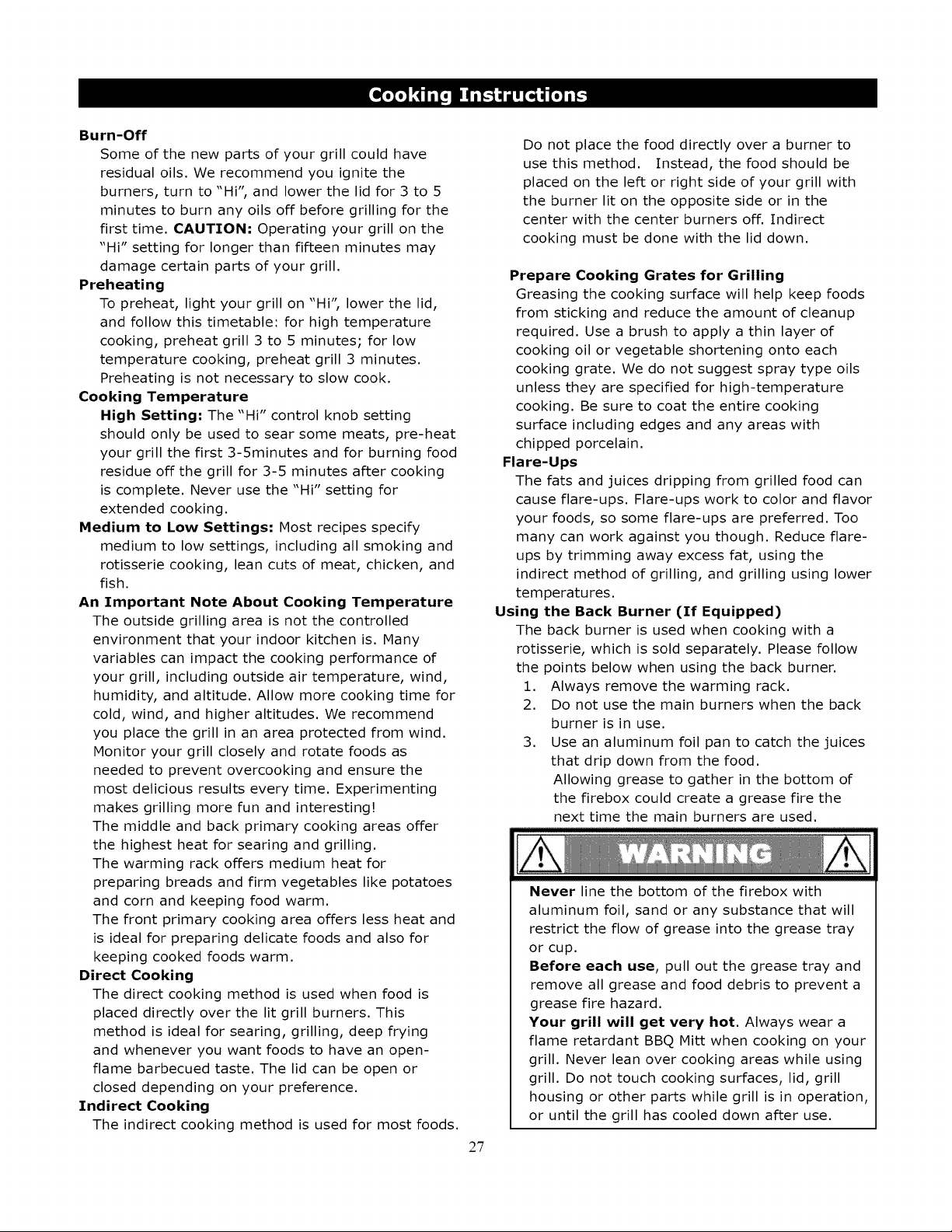

Burn-Off
Some of the new parts of your grill could have
residual oils. We recommend you ignite the
burners, turn to "Hi", and lower the lid for 3 to 5
minutes to burn any oils off before grilling for the
first time. CAUTION: Operating your grill on the
"Hi" setting for longer than fifteen minutes may
damage certain parts of your grill.
Preheating
To preheat, light your grill on "Hi", lower the lid,
and follow this timetable: for high temperature
cooking, preheat grill 3 to 5 minutes; for low
temperature cooking, preheat grill 3 minutes.
Preheating is not necessary to slow cook.
Cooking Temperature
High Setting: The "Hi" control knob setting
should only be used to sear some meats, pre-heat
your grill the first 3-5minutes and for burning food
residue off the grill for 3-5 minutes after cooking
is complete. Never use the "Hi" setting for
extended cooking.
Medium to Low Settings" Most recipes specify
medium to low settings, including all smoking and
rotisserie cooking, lean cuts of meat, chicken, and
fish.
An Important Note About Cooking Temperature
The outside grilling area is not the controlled
environment that your indoor kitchen is. Many
variables can impact the cooking performance of
your grill, including outside air temperature, wind,
humidity, and altitude. Allow more cooking time for
cold, wind, and higher altitudes. We recommend
you place the grill in an area protected from wind.
Monitor your grill closely and rotate foods as
needed to prevent overcooking and ensure the
most delicious results every time. Experimenting
makes grilling more fun and interesting!
The middle and back primary cooking areas offer
the highest heat for searing and grilling.
The warming rack offers medium heat for
preparing breads and firm vegetables like potatoes
and corn and keeping food warm.
The front primary cooking area offers less heat and
is ideal for preparing delicate foods and also for
keeping cooked foods warm.
Direct Cooking
The direct cooking method is used when food is
placed directly over the lit grill burners. This
method is ideal for searing, grilling, deep frying
and whenever you want foods to have an open-
flame barbecued taste. The lid can be open or
closed depending on your preference.
Indirect Cooking
The indirect cooking method is used for most foods.
2?
Do not place the food directly over a burner to
use this method. Instead, the food should be
placed on the left or right side of your grill with
the burner lit on the opposite side or in the
center with the center burners off. Indirect
cooking must be done with the lid down.
Prepare Cooking Grates for Grilling
Greasing the cooking surface will help keep foods
from sticking and reduce the amount of cleanup
required. Use a brush to apply a thin layer of
cooking oil or vegetable shortening onto each
cooking grate. We do not suggest spray type oils
unless they are specified for high-temperature
cooking. Be sure to coat the entire cooking
surface including edges and any areas with
chipped porcelain.
Flare-Ups
The fats and juices dripping from grilled food can
cause flare-ups. Flare-ups work to color and flavor
your foods, so some flare-ups are preferred. Too
many can work against you though. Reduce flare-
ups by trimming away excess fat, using the
indirect method of grilling, and grilling using lower
temperatures.
Using the Back Burner (If Equipped)
The back burner is used when cooking with a
rotisserie, which is sold separately. Please follow
the points below when using the back burner.
1. Always remove the warming rack.
2. Do not use the main burners when the back
burner is in use.
3. Use an aluminum foil pan to catch the juices
that drip down from the food.
Allowing grease to gather in the bottom of
the firebox could create a grease fire the
next time the main burners are used.
Never line the bottom of the firebox with
aluminum foil, sand or any substance that will
restrict the flow of grease into the grease tray
or cup.
Before each use, pull out the grease tray and
remove all grease and food debris to prevent a
grease fire hazard.
Your grill will get very hot. Always wear a
flame retardant BBQ Mitt when cooking on your
grill. Never lean over cooking areas while using
grill. Do not touch cooking surfaces, lid, grill
housing or other parts while grill is in operation,
or until the grill has cooled down after use.
background
Question:
Can I convert my gas grill from one fuel
type to another, such as LP to NG (natural
gas) or vice versa?
Answer:
No, your gas grill is manufactured to specific
standards developed by CSA and ANSI for your
safety and is certified for one type of gas only.
Question:
Are the serial and model numbers of my
grill listed somewhere for reference?
Answer:
The serial and model numbers are listed on a
silver CSA label placed on the grill. Depending
on the grill model, the silver CSA label generally
will be located inside the left door of the cabinet.
Question:
My grill will not light properly. Why?
Answer:
Check these possibilities:
1. The gas supply is turned off at the LP tank.
Turn on the gas at the LP tank.
2. Your LP tank is out of propane.
3. The regulator is not properly seated in the
tank valve. Remove and reattach. Hand
tighten only.
4. Crimped fuel supply hose. Inspect and
straighten.
5. Regulator failure or damaged hose assembly.
Inspect and order a replacement part. Do
not use your grill if you find a damaged
hose assembly.
6. Gas not getting to the burners. Inspect the
burners under the control panel to be sure
they are aligned with the valve orifices.
7. Blockage in the gas system. Inspect
burners and valve orifices for blockages,
such as spider webs, insects, etc. Clean as
necessary.
Question:
My electronic ignition is not working.
Answer:
Listen to hear the electronic igniter clicking. If
not, check these possibilities:
1. Replace the AA battery. Ensure the"+" end
is facing up and out.
2. Ensure the battery is centered and fits into
the electronic ignition button properly.
3. Be sure the wires are all attached to the
electronic ignition assembly behind the
control panel and the individual electrodes.
4. Inspect the electrodes to be sure they are
not coated with grease or dirt. If so, clean
with rubbing alcohol.
If you hear a clicking sound, then:
1. Inspect the electrodes to be sure they are
not coated with grease and dirt. Clean with
rubbing alcohol.
2. Inspect the distance from the electrode to
the burner. It should be 1/8 to 1/4 inch
from the main burner and 1/8 to 3/16 inch
from the side burner.
Question:
Sometimes z hear a humming sound
coming from my regulator. What causes
this?
Answer:
The humming sound is gas flowing through the
regulator. This is more likely to occur in periods
of high gas flow. A low volume of sound is
normal and will not interfere with the operation
of your grill.
Question:
My grill has a low flame on some burners,
or some burners will not light at all. What
can cause this?
Answer
This can be caused by the flow limiting device,
which is generally triggered by a sudden
change in pressure. Opening the tank valve
too fast or shutting the burners off using the
tank valve can cause this. To reset:
1. Close the LP tank valve and disconnect
the regulator assembly from the tank.
2. Let the LP tank sit for 10 minutes.
3. Open all burner control knobs,
including the side burner, to "Hi" at the
same time.
4. Close all burner control knobs.
5. Reconnect the gas regulator to the LP
tank.
6. Follow the burner lighting procedures
and light the burner farthest from the
LP tank.
2g
background

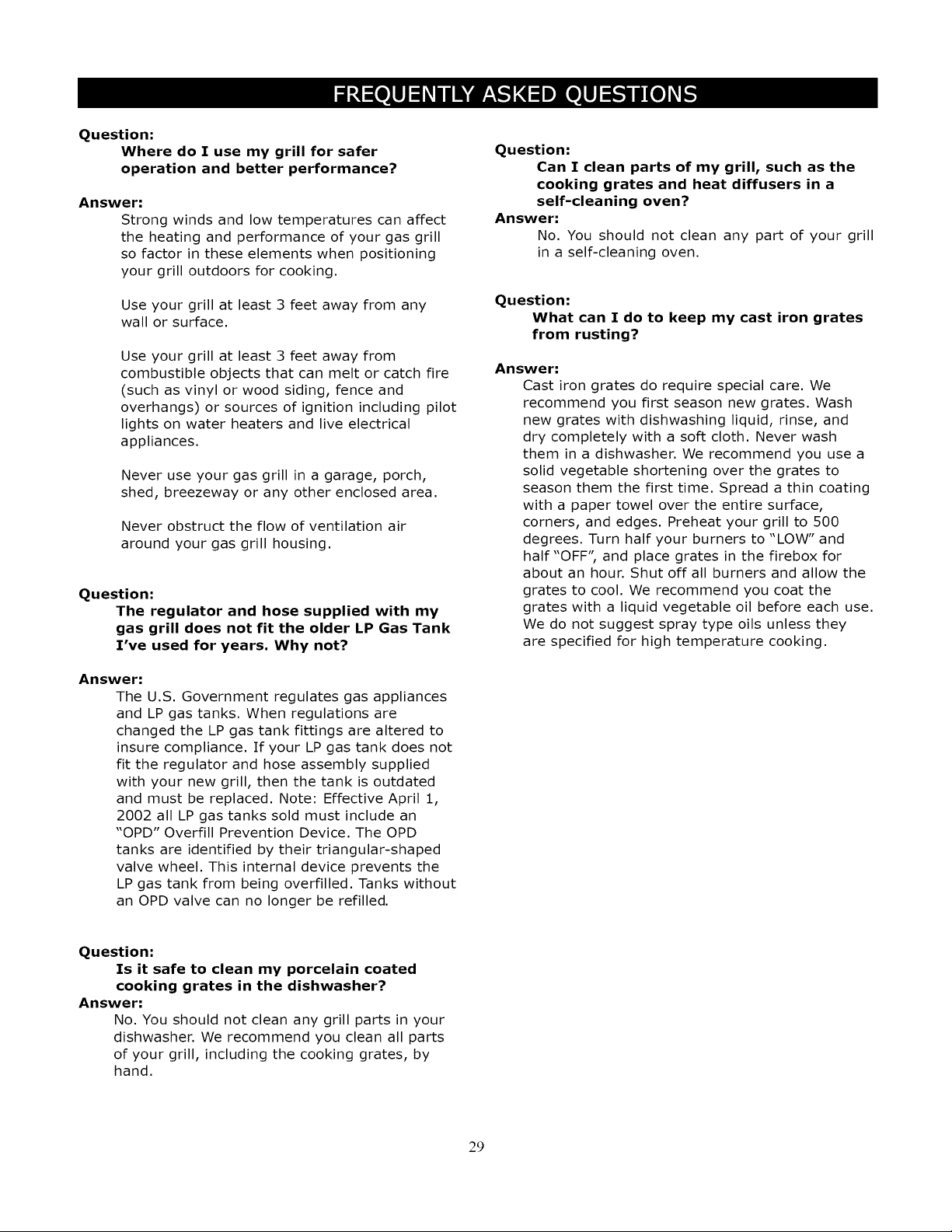

Question:
Where do I use my grill for safer
operation and better performance?
Answer:
Strong winds and low temperatures can affect
the heating and performance of your gas grill
so factor in these elements when positioning
your grill outdoors for cooking.
Use your grill at least 3 feet away from any
wall or surface.
Use your grill at least 3 feet away from
combustible objects that can melt or catch fire
(such as vinyl or wood siding, fence and
overhangs) or sources of ignition including pilot
lights on water heaters and live electrical
appliances.
Never use your gas grill in a garage, porch,
shed, breezeway or any other enclosed area.
Never obstruct the flow of ventilation air
around your gas grill housing.
Question:
The regulator and hose supplied with my
gas grill does not fit the older LP Gas Tank
I've used for years. Why not?
Answer:
The U.S. Government regulates gas appliances
and LP gas tanks. When regulations are
changed the LP gas tank fittings are altered to
insure compliance. If your LP gas tank does not
fit the regulator and hose assembly supplied
with your new grill, then the tank is outdated
and must be replaced. Note: Effective April 1,
2002 all LP gas tanks sold must include an
"OPD" Overfill Prevention Device. The OPD
tanks are identified by their triangular-shaped
valve wheel. This internal device prevents the
LP gas tank from being overfilled. Tanks without
an OPD valve can no longer be refilled.
Question:
Can I clean parts of my grill, such as the
cooking grates and heat diffusers in a
self-cleaning oven?
Answer:
No. You should not clean any part of your grill
in a self-cleaning oven.
Question:
What can I do to keep my cast iron grates
from rusting?
Answer:
Cast iron grates do require special care. We
recommend you first season new grates. Wash
new grates with dishwashing liquid, rinse, and
dry completely with a soft cloth. Never wash
them in a dishwasher. We recommend you use a
solid vegetable shortening over the grates to
season them the first time. Spread a thin coating
with a paper towel over the entire surface,
corners, and edges. Preheat your grill to 500
degrees. Turn half your burners to "LOW" and
half "OFF", and place grates in the firebox for
about an hour. Shut off all burners and allow the
grates to cool. We recommend you coat the
grates with a liquid vegetable oil before each use.
We do not suggest spray type oils unless they
are specified for high temperature cooking.
Question:
Is it safe to clean my porcelain coated
cooking grates in the dishwasher?
Answer:
No. You should not clean any grill parts in your
dishwasher. We recommend you clean all parts
of your grill, including the cooking grates, by
hand.
29
background
Congratulationsonmakinga smartpurchase.Your
newKenmore<R_productisdesignedand
manufacturedfor yearsof dependableoperation.But
likeall products,it mayrequirerepairfromtimeto
time.That'swhenhavinga RepairProtection
Agreementcansaveyoumoneyandaggravation.
Here'swhatthe RepairProtectionAgreement*
includes:
[] Expert service by our 10,000 professional
repair specialists
[] Unlimited service and no charge for parts and
labor on all covered repairs
[] Product replacement up to $1500 if your
covered product can't be fixed
[] Discount of 10% from regular price of service
and related installed parts not covered by the
agreement; also, 10% off regular price of
preventive maintenance check
[] Fast help by phone - we call it Rapid Resolution-
phone support from a
Sears representative, Think of us as a "talking
owner's manual."
Once you purchase the Repair Protection Agreement,
a simple phone call is all that it takes for you to
schedule service. You can call anytime day or night,
or schedule a service appointment online.
The Repair Protection Agreement is a risk-free
purchase. If you cancel for any reason during the
product warranty period, we will provide a full refund.
Or, a prorated refund anytime after the product
warranty period expires. Purchase your Repair
Protection Agreement today!
Some limitations and exclusions apply. For
prices and additional information in the U.S.A.
CALL 1-800-827-6655.
*Coverage in Canada varies on some items. For
full details call Sears Canada at 1-800-361-
6665
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters, and
other major home items, in the U.S.A. or Canada call
1-800-4-MY-HOME®
3O
background
Your Home
For exped troubleshooting and home solutions advice:
++++++++++++++++++++
a na9 ÷
www,managemyhome,com
For repair- in your home- of al! major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For,the replacement pads, accessories and
owner s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1+800+469-4663)
Call anytime, day or night (U+S+A, and Canada)
v_-ww,sears,com w-ww,sears,ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U,S.A,) 1-800-469-4663 (Canada)
TO purchase a protection, agreement on a product serviced by Sears:
1-800-827-6655 (V.S.A,) 1-800-361-6665 (Canada)
Para pedir servicio de reparaciCn Au Canada pour service en fran_ais:
a domicilio, y pard ordenar piezas: 1.800.LE,.FOYERMC
1-888- S U- H OG A R+
(1-888-784-6427' www,sears,ca
_:9Regis_.e[ed Tta.dematk / Trademark / s Service M++rk of Sears Bra<+ds. LLC
tM _
_; Marr;a Regis_ada / M;_rca de F&brlca / Marca d{ Servk;io de S+}ars BrTmds, LLC
_. Marque de commerce / P,_eMarque depOSed de Sears Brands, LLC
_<;;Sears Brands, LLC
31

Specifications

Indexed Terms: Gas Grill

Kenmore 11916433010 Questions and Answers
