2 English
Contents
SAVE THESE INSTRUCTIONS
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Installation 13
Unpacking your washer 13
Overview of your washer 14
Basic location requirements 16
Important note to installer 20
Step-by-step installation 20
Operating instructions 28
Loading your washer 28
Getting started 29
Washing a load of laundry 30
Control panel 30
Options 33
Washing clothes using the option button 37
ATC (Auto Temperature Control) 38
The basics 39
Detergent use 41
Features 42
Maintaining your washer 46
Cleaning the exterior 46
Cleaning the interior 46
Storing your washer 46
Preserving the top cover and the front frame 47
Cleaning mesh lter 47
Cleaning the dispensers 47
Self Clean 49
Troubleshooting 50
Checkpoints 50
Information codes 54
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 2 2017-01-27 11:24:10
English 3
Contents
SAVE THESE INSTRUCTIONS
Specications 57
Fabric care chart 57
Helping the environment 59
Declaration of conformity 59
Specication sheet 60
Cycle chart 61
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 3 2017-01-27 11:24:10
4 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Congratulations on your new Samsung washer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this manual
to take full advantage of your washer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the manual
in a safe location close to the appliance for future reference. Use this appliance only for its
intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your washer.
Because the following operating instructions cover various models, the characteristics of your
washer may differ slightly from those described in this manual and not all warning signs
may be applicable. If you have any questions or concerns, contact your nearest service center
or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 4 2017-01-27 11:24:10
English 5
Safety information
SAVE THESE INSTRUCTIONS
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To
safely operate this appliance, familiarize yourself with its operation and exercise care when
using it.
WARNING
State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other ammable or explosive substances as
they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the lid of the washing
or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless it is
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to
the wash water. These substances give off vapors that could ignite or explode.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 5 2017-01-27 11:24:11
6 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
10. Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for 2 weeks or more, before using a washer or combination
washer-dryer, turn on all hot water faucets and let the water ow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is ammable, do not
smoke or use an open ame during this time.
Critical installation warnings
WARNING
Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
•Sharing a wall socket with other appliances, using a power strip, or extending the power
cord may result in electric shock or re.
•Do not use an electric transformer. It may result in electric shock or re.
•Ensure that the power voltage, frequency, and current match the product’s specications.
Failing to do so may result in electric shock or re.
Have this appliance installed by a qualied technician or service company.
•Failing to do so may result in electric shock, re, an explosion, problems with the product,
or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
•Unplug the power plug and clean it with a dry cloth.
•Failing to do so may result in electric shock or re.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the oor.
•If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or re.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
•Improper grounding may result in electric shock, re, an explosion, or problems with the
product.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 6 2017-01-27 11:24:11
English 7
Safety information
SAVE THESE INSTRUCTIONS
•Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or ammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
•This may result in electric shock or re.
Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged
power cord, or loose wall socket.
•This may result in electric shock or re.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
•This may result in electric shock or re.
Do not pull the power cord when unplugging the power plug.
•Unplug the power plug by holding the plug.
•Failing to do so may result in electric shock or re.
If the power plug or power cord are damaged, contact your nearest service center.
Installation cautions
CAUTION
Position the appliance so that the power plug is easily accessible.
•Failing to do so may result in electric shock or re due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
•Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
•Failing to do so may result in electric shock or re.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 7 2017-01-27 11:24:11
8 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Critical usage warnings
WARNING
If the appliance is ooded, cut the power immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest service center.
•Failing to do so may result in electric shock or re.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately.
Do not turn any appliance or light on or off.
•Do not use a ventilating fan.
•A spark may result in an explosion or re.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other ammable or explosive substances.
•This may result in electric shock, re, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature washing/
drying/spinning).
•Water owing out of the washer may cause burns or cause the oor to be slippery.
This may result in injury.
•Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
•This may result in injury.
Do not touch the power plug with wet hands.
•This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in operation.
•Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can be
dangerous to children.
•If a child places a bag over their head, the child may suffocate.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 8 2017-01-27 11:24:11
English 9
Safety information
SAVE THESE INSTRUCTIONS
Do not let children or inrm persons use this washer unsupervised.
•Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
•This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
•Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
•If you need to repair or reinstall the appliance, contact your nearest service center.
•Failing to do so may result in electric shock, re, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest service center.
•Failing to do so may result in electric shock or re.
If the water supply hose comes loose from the faucet and oods the appliance, unplug the
power plug.
•Failing to do so may result in electric shock or re.
Usage cautions
CAUTION
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc.,
unplug the power plug and clean the washer using a damp, soft cloth.
•Failing to do so may result in discoloration, deformation, damage or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
•If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
•The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 9 2017-01-27 11:24:11
10 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
•If the washer is used when it is ooded because of a draining problem, it may result in
electric shock or re due to electric leakage.
Do not insert your hand under the washer.
•This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
•If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or
result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
•Ensure that the water supply hose connectors are properly tightened.
•Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is rmly tightened and that
there is no water leaking before using the product.
•If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
•This may result in electric shock, re, problems with the product, or injury.
Do not operate the appliance with wet hands.
•This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
•As well as being harmful to humans, it may also result in electric shock, re, or problems
with the product.
Do not place an object that generates a electromagnetic eld near the washer.
•This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
•This may result in burns or injury.
For waterproof fabrics, only use the WATERPROOF cycle.
•Do not use other cycles for waterproof fabrics.
This may result in injury or damage to the washer, walls, oor, or clothing due to
abnormal vibrations.
•Set the temperature and spin according to the attached care label.
Do not operate the washer when the detergent dispenser is removed.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 10 2017-01-27 11:24:11
English 11
Safety information
SAVE THESE INSTRUCTIONS
•This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
•This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer.
•This can cause abnormal vibrations that can damage the washer, and, in the case of pets,
cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
•This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops
or massage clinics.
•This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of
time.
•This may cause the tub to rust.
•If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly in the tub and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
•This may result in spontaneous combustion or ignition due to heat from the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
•This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
•If it hardens and accumulates inside the washer, it may cause problems with the product,
discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
•Failing to do so may result in injury due to abnormal vibrations.
•Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
•If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 11 2017-01-27 11:24:11
12 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
•If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
•This may result in discoloration, deformation, damage, electric shock, or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
•Failing to do so may result in electric shock or re.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 12 2017-01-27 11:24:11
English 13
Installation
Installation
Follow these instructions carefully to ensure proper installation of the washer and to prevent
accidents when using it.
WARNING
Control board, heat sink, motor, inlet valve and pump are intentionally not grounded and may
present a risk of electric shock only during servicing.
Unpacking your washer
Unpack your washer and inspect it for shipping damage. Make sure you have received all the
items shown below. If your washer was damaged during shipping, or you do not have all of
the items, contact 1-800-SAMSUNG (1-800-726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the
unit.
WARNING
Packing materials can be dangerous to children; Keep all packing material (plastic bags,
polystyrene, etc.) well out of children’s reach.
CAUTION
When unpacking the washer, 2 person
collaboration is needed. To remove the
cushion bottom of the packing materials,
forward dumping is strictly prohibited.
When you lay the washer down to remove
carton base, should protect the side of
washer and lay it carefully. Never lay your
washer on its back or front.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 13 2017-01-27 11:24:11
14 English
Installation
Installation

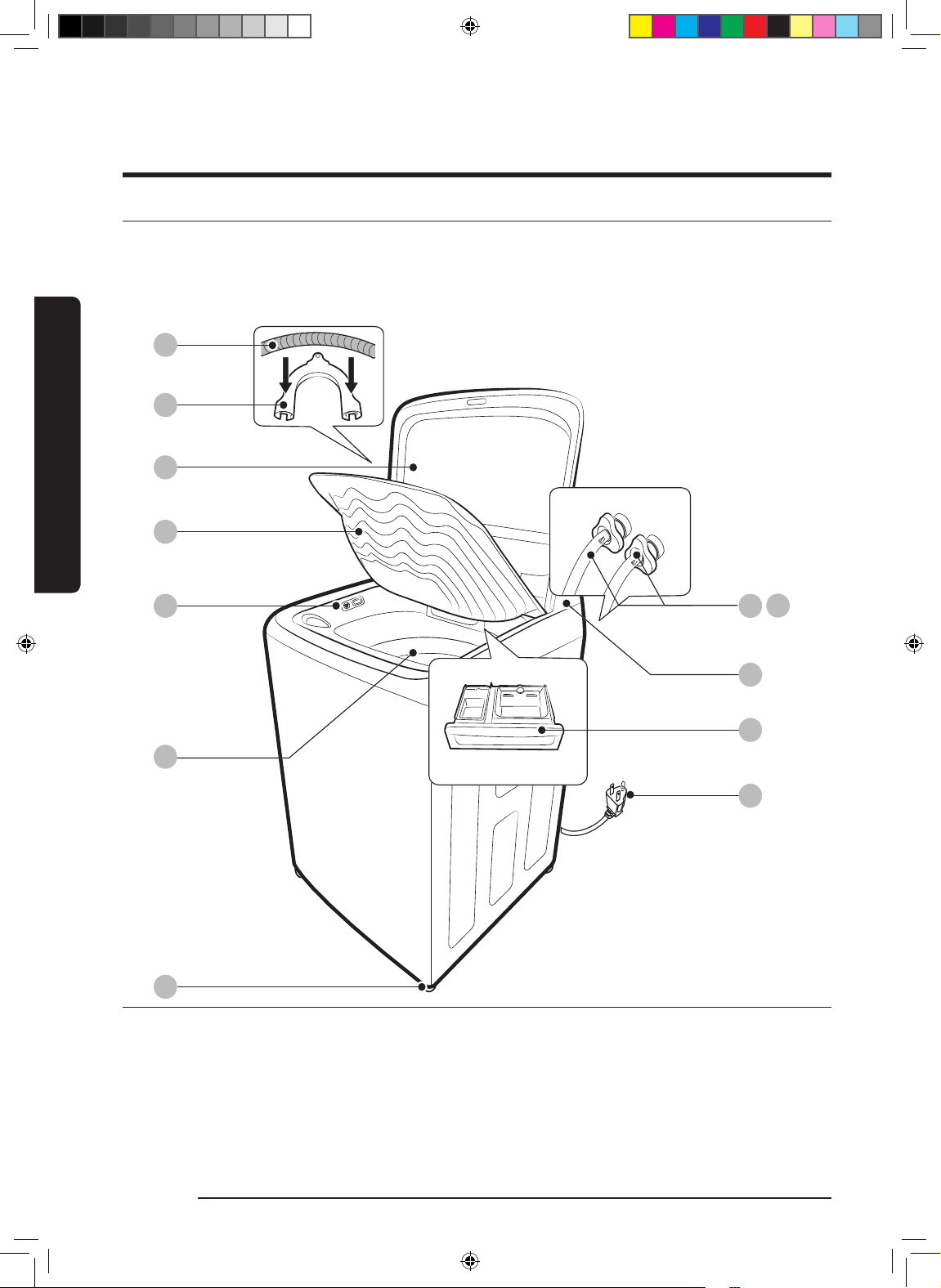

Overview of your washer
Make sure all the parts are included in the product package. If you have a problem with
the washer or the parts, contact a local Samsung customer center or the retailer.
MAX
MAX
09
08
01
02
03
04
05
07
06
10
11
12
01 Drain hose 02 Hose guide 03 Lid
04 Built-in sink 05 Water Jet 06 Tub
07 Leveling feet 08 Water hose (Cold) 09 Water hose (Hot)
10 Control panel 11 Detergent drawer 12 Power cord
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 14 2017-01-27 11:24:12
English 15
Installation
Parts supplied
Hose guide User manual Plastic zip hose tie Water intake cap
Parts not supplied
Water hose
Tools needed for installation
Wrench Philips screwdriver Level
Adjustable Plier Measuring tape
NOTE
•If you lose an accessory and want to purchase a replacement, contact the Samsung
service center (1-800-SAMSUNG (1-800-726-7864)).
•The design of the parts and accessories may differ from the pictures above.
Their design is subject to change without notice for product improvement.
•Do not reuse old hoses. Only use new water supply hoses when you install the washer.
Old water supply hoses can leak or burst causing ooding and property damage.
•Conrm that there are rubber washers inside each coupling of the water supply hoses.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 15 2017-01-27 11:24:13
16 English
Installation
Installation
Basic location requirements
Electrical
•120 Volt 60 Hz 15 AMP fuse or circuit
breaker.
•Individual branch circuit serving only
your Washer is recommended.
•Your washer is equipped with a power
cord.
CAUTION
Never use an extension cord.
Grounding
Electrical grounding is required for this
appliance.
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current.
This appliance is equipped with a power
cord having a three-prong grounding plug
for use in a properly installed and grounded
outlet.
The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING
An improperly connected equipment-
grounding conductor can increase the risk
of electrical shock. Check with a qualied
electrician or serviceman if you are not sure
whether the appliance is properly grounded.
Do not modify the plug provided with the
appliance – if it does not t the outlet, have
a proper outlet installed by a qualied
electrician.
Important safety precautions
To prevent unnecessary risk of re,
electrical shock or personal injury, all wiring
and grounding must be done in accordance
with the National Electrical Code ANSI/
FNPA, No.70 Latest Revision and local
codes and ordinances. It is the personal
responsibility of the appliance owner to
provide adequate electrical service for this
appliance.
CAUTION
Never connect the ground wire to plastic
plumbing lines, gas lines, or hot water pipes.
Water
To correctly ll your Washer in the proper
amount of time, water pressure of 20 to
116psi (137 to 800kPa) is required.
Water pressure less than 20 psi may cause
water valve failure, or may not allow the
water valve to shut off completely, or may
extend the ll time beyond what your
Washer controls allow, causing your Washer
to turn off. A time limit is built into the
controls to prevent ooding in your home if
a hose becomes loose.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 16 2017-01-27 11:24:13
English 17
Installation
The water faucets must be within 4 feet
(122 cm) to the back of your Washer to
match the inlet hoses provided with your
Washer.
NOTE
Accessory inlet hoses are available in
various lengths up to 10 feet (275 cm) for
faucets that are further away from the back
of your washer.
To avoid the possibility of water damage:
•Have water faucets easily accessible.
•Turn off faucets when the washer is not
in use.
•Periodically check that there is no
leakage from the water inlet hose
ttings.
WARNING
Check all connections at the water valve and
faucet for leaks
Drain facility
The recommended height of the standpipe
is 39 in (99 cm). The drain hose must be
routed through the drain hose clip to the
standpipe. The standpipe must be large
enough to accept the outside diameter of
the drain hose. The drain hose is attached to
the washer at the factory.
Flooring
For best performance, you must install
your washer on a solidly constructed oor.
Wood oors may need to be reinforced to
minimize vibration and/or unbalanced load
situations. Carpeting and soft tile surfaces
are contributing factors to vibration which
can cause your washer to move slightly
during the spin cycle.
Never install your washer on a platform or
weakly supported structure.
Location considerations
Do not install your washer in areas where
water may freeze, since your washer will
always retain some water in its water valve,
pump, and hose areas. Frozen water can
damage the belts, the pump, hoses, and
other components.
Alcove or closet installation
Minimum clearances for closet and alcove
installations:
Sides
1 in /
25 mm
Closet
front
2 in /
51 mm
Rear
6 in /
152 mm
Top
21 in /
533 mm
If the washer and dryer are installed
together, the closet front must have at least
a 72 in² (465 cm²) unobstructed air opening.
Your washer alone does not require a
specic air opening.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 17 2017-01-27 11:24:13
18 English
Installation
Installation
Recessed area
A A
A
B B
A 1 in (2.5 cm)
B 27.0 in (68.6 cm)
Side view - closet or conned area
A
B
C
D
E
A 21 in (53.3 cm)
B 2 in (5.1 cm)
C 29 7/16 in (74.4 cm)
D 6 in (15.2 cm)
E
Gap between end of water
valve and the wall
•Case 1. Assemble supply
hose after installing : Over
4 in (10 cm).
•Case 2. Assemble supply
hose before installing :
Over 3 in (8 cm).
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 18 2017-01-27 11:24:14
English 19
Installation
Required dimensions for Installation
A
C
B
A 27.0 in (68.6 cm)
B 39.2 in (99.5 cm)
C 42.4 in (107.7 cm)
B
A
A 29.3 in (74.4 cm)
B 42.4 in (107.7 cm)
A
A 61.0 in (155.0 cm)
B
A
C
C
A* 48.0 in
2
(310.0 cm
2
)
B* 24.0 in
2
(155.0 cm
2
)
C 3.0 in (7.6 cm)
NOTE
* Required spacing
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 19 2017-01-27 11:24:14
20 English
Installation
Installation
Important note to installer
Please read the following instructions carefully before installing your washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation ow chart
Removing the
shipping bolts
(Front loading
washers only)
Connecting the
water and drain
Adjusting the
leveling feet
Selecting a
location
Powering your
washing machine
Running a test cycle
Run Rinse+Spin with
small amount of
laundry (about 4~5
towels) as a test cycle
Running
Calibration Mode
Finishing the
installation
Does your washer
vibrate?
NO
YES
Check again before steps.
Step-by-step installation
STEP 1 Selecting a location
NOTE
Before you install the washer, make sure the location:
•Has a hard, level surface without carpeting or ooring that may obstruct ventilation.
•Is away from direct sunlight.
•Has adequate ventilation.
•Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).
•Is away from heat sources such as oil or gas.
•Has enough space so that the washer doesn’t rest on its power cord.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 20 2017-01-27 11:24:14
English 21
Installation
STEP 2 Connecting the water supply hose
B
A
CAUTION
Before installing the water supply hoses,
make sure there are rubber gaskets (B)
inside the couplings (A) at both ends of each
new water hose. Installing the water supply
hoses without rubber gaskets can cause
water leakage.
CAUTION
When you initially install the washer, be
sure to use new hoses. Failing to do so may
result in a water leakage or overow and
may damage your property.
CAUTION
Do not connect multiple water supply hoses
together to increase the length of the supply
hose. Hoses connected this way can leak
and the leakage can cause electrical shock. If
a hose is too short, replace the hose with a
longer, high pressure hose.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 21 2017-01-27 11:24:15
22 English
Installation
Installation
1. Connect the ends of the water supply
hoses to the hot and cold faucets.
2. Tighten the ttings by hand until they
are snug, and then tighten them an
additional two-thirds of a turn with a
plier.
CAUTION
When you fasten the ttings, do not fasten
them too tightly or apply tape or sealant to
the faucets or water supply intakes. This can
damage the ttings.
NOTE
After you have connected the water supply
hoses to the faucets, ensure that they are
connected correctly by pulling the water
supply hoses downwards.
3. Place the unconnected ends of the hoses
into a bucket and open the faucets
connected to the two water supply hoses
for 10 or 15 seconds to remove any
foreign substances from the hoses. Close
the faucets before continuing.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 22 2017-01-27 11:24:15
English 23
Installation
4. Connect the ends of the water supply
hoses to the water supply intake
connections at the back of the washer.
CAUTION
The water supply hose connected to the hot
faucet must be connected to the hot water
supply intake and the water hose connected
to the cold faucet must be connected to the
cold water supply intake.
5. Tighten the ttings by hand until they
are snug, and then tighten them an
additional two-thirds of a turn with a
plier.
NOTE
To ensure the correct water usage, connect
both the hot and cold water faucets. If either
or both are not connected, an “4C” (no ll)
code can be displayed.
NOTE
If you do not want to use the hot water
supply hose, insert the water intake cap
into the hot water supply intake hole. In
this case, you must select the Tap Cold
for the water temperature. If you select
the Tap Cold, all the lamps for the water
temperature options are turned off.
CAUTION
Conrm that the water supply hoses are not
twisted or bent. If the hoses are twisted or
bent, the hoses can leak and cause electric
shock due to the water leakage.
6. Turn on the hot and cold water supplies
and check all the water supply intake
connections and the faucets for water
leaks.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 23 2017-01-27 11:24:16
24 English
Installation
Installation
STEP 3 Connecting the drain hose
A
The end of the drain hose can be positioned
in three ways:
In a Wall standpipe or Floor standpipe
The height of end of standpipe must be no
lower than 39 in (99 cm) and no higher than
96 in (245 cm)
If drain pipe are built into the wall with
water valves (A), fasten the drain hose to
the water hose.
NOTE
•Make sure that the connection between
the drain hose and the standpipe is not
airtight.
In a laundry tub
The height of the tub must be no lower than
39 in (99 cm) and no higher than 96 in (245
cm)
Assemble the supplied Hose guide at the
end of the drain hose, and put the hanger on
laundry tub.
And fasten the drain hose to the leg of
laundry tub.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 24 2017-01-27 11:24:17
English 25
Installation
*
A
NOTE

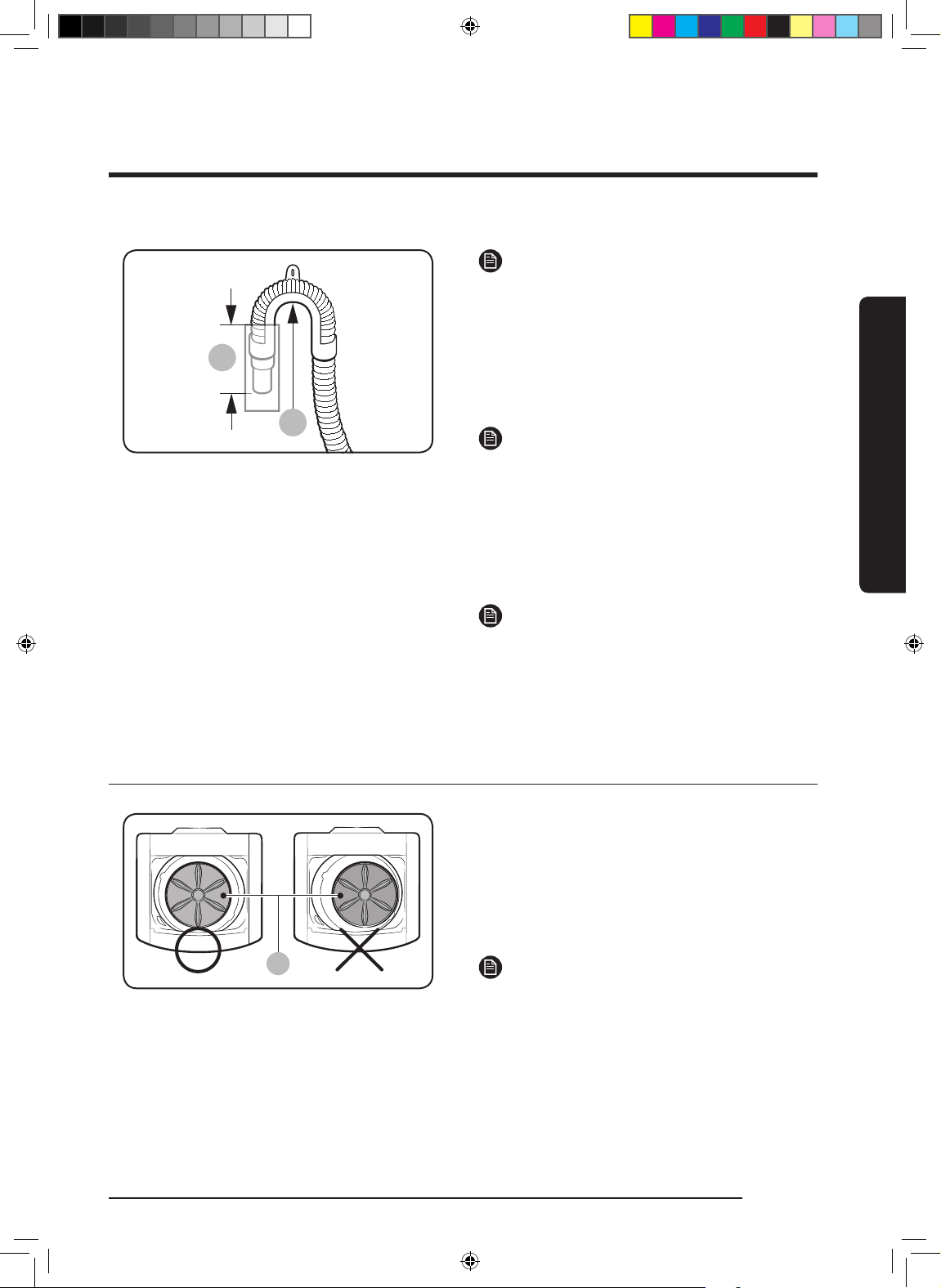

Connect the hose guide (A) within 3~5 in
(7.6~12.7 cm)* from the end of the drain
hose. If the drain hose is extended beyond
the end of the hose guide, mold or
microorganisms could spread inside the
washer.
NOTE
The drain hose can be installed to a 96
in (245 cm) maximum, but the draining
capability can be reduced at this height.
It can cause the washer to have an odor
because of remaining water in the drain
system.
NOTE
If the drain hose is installed below 39 in (99
cm), water can be drained in cycles due to a
siphon phenomenon. It causes the washer to
display “4C”.
STEP 4 Leveling your washer
A
See if the washer is level by checking the
position of the tub:
1. Slide the washer into position.
2. Open the lid of the washer, and pour
the water into the tub to just below the
pulsator level.
NOTE
WA52M8650A* models have the Built-in
sink over the pulsator level. That’s why the
level is not revealed. Open the Built-in sink
and check the level with eyes.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 25 2017-01-27 11:24:17
26 English
Installation
Installation
B C
3. If the washer is level, the pulsator (A) is
positioned at the center of the water as
shown in the gure.
If not, level your washer by turning
the front leveling feet clockwise or
counterclockwise as necessary.
NOTE
Turn the front leveling feet clockwise (B) to
lower the washer, and counterclockwise (C)
to raise the washer.
STEP 5 Powering your washer
Plug the power cord into a 3-prong,
well grounded 120 volt 60 Hz approved
electrical outlet protected by a 15-amp fuse
or comparable circuit breaker.
Your washer is grounded through the third
prong of the power cord when plugged into
a three-prong grounded electrical outlet.
Test run
Make sure that you install your washer
correctly by running the Rinse+Spin after
the installation is complete.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 26 2017-01-27 11:24:18
English 27
Installation
STEP 6 Running a test cycle
Run a test cycle as follows to check if your washer is properly installed.
1. Load about 6 pounds of laundry into the tub.
2. Press Power to turn on your washer.
3. Select Rinse+Spin by press the Cycle Selector.
4. Press Start/Pause to start the test cycle.
5. The washer should not rock or vibrate excessively when water is supplied or when
washing or spinning, and should drain well during the spin cycle.
NOTE
If water leaks while water is being supplied or drained, check the water connections. Refer to
the “STEP 2 Connecting the water supply hose” section on page 21 for instructions.
NOTE
If the washer rocks and vibrates excessively, level your washer again. Refer to the “STEP
4 Leveling your washer” section on page 25 for instructions.
STEP 7 Calibration Mode
Your Samsung washer detects the laundry weight automatically.
For more accurate weight detection, please run Calibration Mode after the installation.
To run Calibration Mode, follow these steps:
1. Remove laundry or any contents in the machine.
2. Press Temp. and Delay End simultaneously for at least 3 seconds when the power is
turned on.
3. Press Start/Pause to activate Calibration Mode.
4. The pulsator rotates clockwise and counterclockwise approximately 1 minute.
5. When Calibration Mode is nished, “0” appears on the display, and the washer
automatically turns off. The washer is now ready for use.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 27 2017-01-27 11:24:18
28 English
Operating instructions
Operating instructions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
Loading your washer
•Fill the tub with dry, unfolded clothes evenly around in order to enhance washing
efciency and prevent excess wear, or wrinkling of the load.
•For optimal washing performance, make sure the laundry is piled up evenly.
•Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with
similar lightweight items.
•When washing big bulky items or a few smaller items that don’t ll the tub completely
– a rug, a pillow, stuffed toys, or one or two sweaters, for example – add a few towels to
improve spin performance.
•Do not insert bulky items except for Bedding in this cycle.
NOTE
During the spin cycle, the washer may add additional water to redistribute the clothes and
correct an imbalance inside the drum.
•When washing heavily soiled loads, do not overload your washer to ensure good cleaning
results.
CAUTION
•Inatable items may cause damage to the laundry or the machine during the wash or
drying process.
•Regardless of the size, blankets or quilts are safer and cleaner to wash one item at a time.
Two different-sized blankets in the same load may compromise the drying performance
due to unbalanced loads.
To input a blanket
Fold the blanket into the blanket-specic net
as shown, and then insert in the tub below
the plastic area of the tub.
CAUTION
Make sure the laundry is inserted
completely.
•Any exposed part of the laundry may
cause damage to the machine or the
laundry itself, or a water leak.
•Do not overload the tub. Make sure no
part of the laundry is exposed outside of
the tub.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 28 2017-01-27 11:24:18
English 29
Operating instructions
To add a forgotten item:
1. Press Start/Pause to pause the washer.
2. Wait for the door to unlock automatically, and then open the door.
3. Add the item, close the door, and then press Start/Pause. The cycle will resume.
Getting started
1. Load your washer.
2. Add liquid (or powder) detergent and additives to the dispenser (see the "Detergent use"
section on page 41).
3. Select the appropriate cycle and options for the load (see the "Washing a load of laundry"
section page 30).
4. Close the lid.
5. Press Start/Pause.
6. The Wash Indicator illuminates.
7. The estimated cycle time will appear in the display.
The time may uctuate to indicate the time remaining in the cycle.
NOTE
The actual time required for a cycle may differ from the estimated time in the display
depending on the water pressure, water temperature, detergent, and laundry.
8. Before your washer starts to ll, it will make a series of clicking noises to check the door
lock and do a quick drain.
NOTE
•When the cycle is complete, the Door Lock indicator will go out and “0” will appear in
the display.
•Pressing Power cancels the cycle and stops your washer.
•The Wash, Rinse, and Spin indicators will illuminate during those portions of the cycle.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 29 2017-01-27 11:24:18
30 English
Washing a load of laundry
Washing a load of laundry
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.

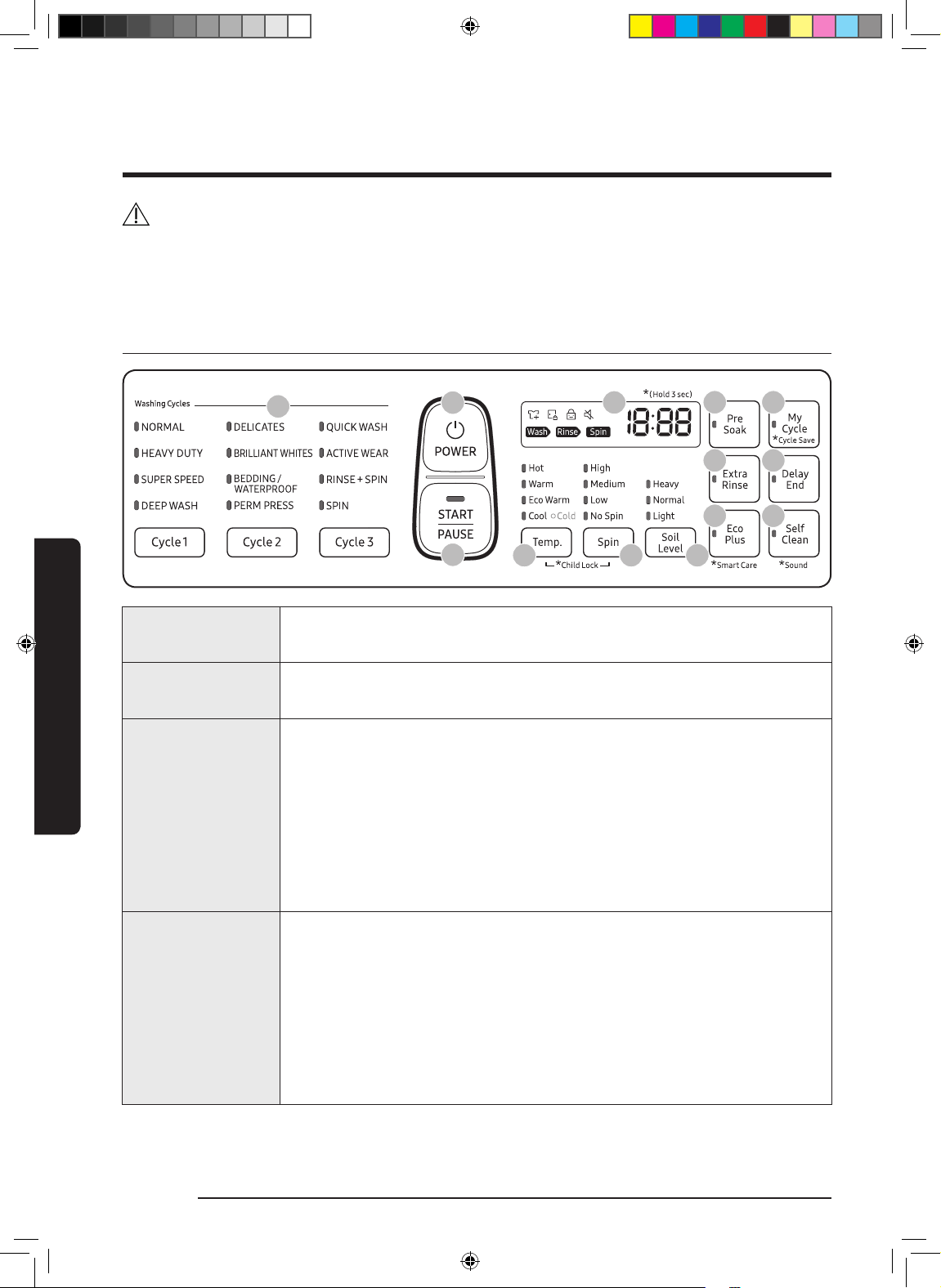

Control panel
01
03 04
02
06
07
08
09
10
11
05
12
13
01 Cycle Selector
Press to select a desired cycle in the left-most panel. When a cycle is
selected, the cycle indicator lights up.
02 Display
Provides instructions and diagnostics while keeping you updated on
the cycle status and time remaining.
03 Temp.
Press the button repeatedly to cycle through the different water
temperature options.
•Hot - Whites and heavily soiled, colorfast items.
•Warm - Colorfast items.
•Eco Warm - Moderately soiled, colorfast items; most wrinkle-free
items.
•Cool - Brightly colored, very lightly soiled items.
•Cold - Cold water with no warm water added.
04 Spin
Press the button repeatedly to cycle through the different spin speed
options.
•High - Use for underwear, t-shirts, jeans, and sturdy cottons.
•Medium - Use for jeans, wrinkle-free or wash-and-wear items, and
synthetics.
•Low - Use for delicate items needing a slow spin speed.
•No Spin - Drains your washer without spinning. Use for extremely
delicate items that cannot tolerate any spin.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 30 2017-01-27 11:24:19
English 31
Washing a load of laundry
05 Soil Level
Press the button to select the soil level/washing time.
•Heavy - For heavily soiled loads.
•Normal - For moderately soiled loads. This setting is best for most
loads.
•Light - For lightly soiled loads.
06 Pre Soak
It adds 18 minutes soaking time at the start of the wash cycle for
better stain removal.
07 Extra Rinse
Change from spray rinse mode to deep rinse mode, and rinse once
again.
08 Eco Plus
To increase your energy savings on your wash cycles. (Less hot water
consumption)
09 My Cycle
Press for 3 seconds to save your own cycle.
Create and/or use a cycle you have customized temperature, spin
speed, soil level, options, etc.
10 Delay End
Delay the end of any cycle for up to 24 hours in one-hour increments.
Displayed hour indicates the time the wash will be ended.
11 Self Clean
Use to clean dirt and bacteria from the drum. Regular use (after every
20 washes) is recommended. No detergent or bleach is needed.
12 POWER
Press once to turn your washer on. Press again to turn your washer
off. If the washer is left on for more than 10 minutes without any
buttons being pressed, the power automatically turns off.
13 START/PAUSE Press to start operation, or press to stop operation.
NOTE
We recommend that you untangle the items before washing.
Do not put objects on the washer, especially on the feature panel.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 31 2017-01-27 11:24:19
32 English
Washing a load of laundry
Washing a load of laundry
Cycle overview
NOTE
To minimize wrinkling of laundry, select Perm Press.
Cycle Description
Normal
For most fabrics including cottons, linens, and normally soiled
garments.
Heavy Duty
For sturdy, colorfast fabrics and heavily soiled garments. We propose
to use this function only when washing lot of heavily soiled garments.
Super Speed Normal soiled and normal loads (up to 8lb).
Deep Wash Use more water in washing and rinsing.
Delicates
For sheer fabrics, bras, lingerie, silks, and other handwash-only
fabrics. For best results, use liquid detergent.
Brilliant Whites For white fabrics with or without bleach.
Bedding/WaterProof
For bulky and large items, such as comforters, blankets and
sheets. When washing comforters, use liquid detergent,
waterproof or water-resistant items.
CAUTION
•Do not wash waterproof items and non-waterproof items together.
•Check the specication label on the fabric item and see if the
item is waterproof.
•Use the bedding/waterproof cycle for waterproof or water
resistant items such as plastic mats, ski pants, raincoat and
comforters which hardly absorb water.
Perm Press
For wash-and-wear, synthetic fabrics, and lightly to normally
soiled garments.
Quick Wash For lightly soiled garments needed quickly.
Active Wear
Use this cycle to wash exercise wear such as sports jerseys,
training pants, shirts/tops and other performance clothing. This
cycle provides effective soil removal with gentle action for
special fabric care.
Rinse + Spin
Use for loads that need rinsing only or to add rinse-added
fabric softener to a load.
Spin Drains the water and spins at a high speed.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 32 2017-01-27 11:24:19
English 33
Washing a load of laundry
Options
Child Lock
Child Lock prevents children from playing
with your washer.
Activating the Child Lock function
Press Temp. and Spin simultaneously for
approximately 3 seconds.
•When you activate the Child Lock
function, the
Child Lock indicator
blinks.
Using the Child Lock function
If the lid is opened when the Child Lock
function is on, “dC” is displayed and an
alarm sounds.
•If the water level in the tub is above the
safe water level, “dC” is displayed on the
LED display and the washer starts to
drain water by force after 30 seconds.
•If the water level in the tub is above
the safe water level and the Child Lock
function is turned on while the door
is open, “CL” is displayed on the LED
display even if the power of the washer
is turned off and the washer drains
water by force.
•Even if the power of the washer is
turned off, if the lid is opened while the
water level in the tub is above the Reset
water level, “CL” is displayed on the LED
display without the alarm sounding and
the washer starts to drain water. When
the draining operation nishes, the
power is automatically turned off again.
•You have activated the Child Lock
function while the washer is running, the
Start/Pause button will not work.
•After the compulsory drain, the “CL”
blinks at 1 second intervals and the
product enters the “CL” mode. (When
the product is in the “CL” mode, only the
Power button works.)
•To cancel the “CL” mode, you need to
turn the power off and then on again.
•To cancel the “dC” mode, deactivate
the Child Lock function. To deactivate
the Child Lock function, press Temp.
and Spin simultaneously for at least 3
seconds.
NOTE
Adding laundry when Child Lock is on
To add laundry, deactivate the Child
Lock function. To deactivate the Child
Lock function, press Temp. and Spin
simultaneously for at least 3 seconds. See
the “Pause Option” section on page 37 for
additional details.
Deactivating the Child Lock function
Press both Temp. and Spin simultaneously
for approximately 3 seconds.
•When you deactivate the Child Lock
function, the
Child Lock indicator is
turned off.
•The Child Lock function prevents
children or the inrm from accidently
operating the washer and injuring
themselves.
WARNING
If a child enters the washer, the child may
become trapped and suffocate.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 33 2017-01-27 11:24:19
34 English
Washing a load of laundry
Washing a load of laundry
CAUTION
•Once you have activated the Child Lock
function, it continues working even if
the power is turned off.
•Forcing the lid open can result in injury
or damage to the product.
NOTE
To add laundry after you have activated
the Child Lock function, you must rst
deactivate the Child Lock function.
Sound
The Sound Off function can be selected
during all cycles.
Garment Plus
You can add or take out laundry items even
after the wash has started, as long as the
Garment Plus indicator is on. Pressing
Start/Pause unlocks the lid. If you open the
lid and want to continue the wash cycle,
close the lid, and then press Start/Pause.
NOTE
If you have activated the Child Lock, you
must deactivate it rst. See page 33.
My Cycle
Lets you save a custom wash cycle
(temperature, spin, soil level, etc.) and
then recall and use it with one button
convenience.
To save a cycle and selected options as your
My Cycle, follow these steps:
1. Press Power.
2. Select a cycle using the Cycle Selector.
3. After cycle selection, set each option.
NOTE
See the “Cycle chart” section on page 61 for
available option settings with each cycle.
4. You can then store the selected cycle
and options by pressing and holding
My Cycle for longer than 3 seconds.
The cycle and options you select will be
displayed the next time you choose the
My Cycle function.
5. Press My Cycle to load and use the
saved My Cycle options. The “My Cycle”
light will indicate activation. Also, the
chosen cycle and option lights will
icker.
NOTE
You can change the My Cycle settings by
repeating the process above.
The last saved settings will be displayed the
next time you choose the My Cycle function.
NOTE
If you press My Cycle and release it within
3 seconds, the previously saved cycle and
options appear. If you press My Cycle for 3
second or longer, the currently set cycle and
options are saved and the LED blinks for 3
seconds.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 34 2017-01-27 11:24:20
English 35
Washing a load of laundry
Delay End
You can set the washer to start your wash
automatically at a later time, by choosing a
delay time.
The hour displayed indicates the time at
which the wash will be ended.
1. Set your wash cycle.
2. Press Delay End repeatedly until the
delay time is set.
3. Press Start/Pause. The “Delay End”
indicator will be lit, and the clock will
begin counting down until it reaches the
set time.
4. To cancel a Delay End function, press the
Power button and then turn the washer
on again.
Pre Soak
Use this function when the laundry is
heavily contaminated or stained. This
function improves the wash performance by
adding a Pre Soak cycle.
•If you select this function, the total cycle
time is increased by 18 minutes.
•When the Pre Soak cycle starts, the
washer repeats a wash cycle after
supplying water and then performs a
18-minute soak cycle.
•When the Pre Soak cycle is complete,
the congured wash cycle starts without
draining water.
Eco Plus
This function sets the temperature
somewhat lower than the typical washing
cycle and extends the wash time slightly.
With laundry time slightly extended, it’s
possible to keep the same level of washing
performance with cooler water. This function
reduces energy consumption and maintains
the quality of the wash.
Mist Shower
Mist Shower sprays water from a nozzle
that is independent of the main water
supply system. It states that is soaks the
laundry with water from the beginning of
the rinse cycle and ensures an effective
wash, but it’s not part of the wash cycle, it’s
part of the rinse cycle, so this needs to state
that it ensures an effective rinse.
(The Mist Shower function may not work if
there is too large of a load in the machine.)
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 35 2017-01-27 11:24:20
36 English
Washing a load of laundry
Washing a load of laundry
Smart Care
This function enables you to check the
status of the washer using a smartphone.
1. To enable the Smart Care function, press
Fabric Softener for 3 seconds after
turning the power on or when an error
occurs.
NOTE
The error code history is deleted after you
use this function.
2. The Smart Care indicator is lit on the
display.
3. Run the Smart Care app on your smart
phone.
•Android: Galaxy S series, Galaxy
Note series. (Other devices may not
be normal operation).
Supported OS : Android 2.2 or higher
•iOS: iPhone series
Supported OS : iOS 4.3 or higher
4. Focus your smart phone’s camera on the
display panel of the washer.
5. If the smart phone’s camera is focused
on the display panel of the washer, the
panel and error message is automatically
recognized and the error type and
countermeasures are displayed on the
smart phone.
6. If the smartphone fails to recognize the
error code more than twice, please enter
the error code displayed on the display
panel of the washer manually into the
Smart Care app.
NOTE
Downloading the Smart Care app
•Download the Samsung Laundry App
into your mobile phone from the
Android market or Apple App store.
(Search word : Samsung Smart Washer/
Dryer)
NOTE
Precautions when using Smart Care
•If light from a light bulb, uorescent
bulb, or lamp is reected on the display
panel of the washer, the smartphone
may not be able to recognize the panel
or error message easily.
•If you hold the smartphone at too
large an angle relative to the front of
the display panel, it may not be able
to recognize the error code. For best
results, hold the smartphone so that the
front of the panel and the smartphone
are parallel or nearly parallel.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 36 2017-01-27 11:24:20
English 37
Washing a load of laundry
Washing clothes using the option button
Your new washer makes washing clothes
easy, using Samsung’s “Fuzzy Control”
automatic control system. When you select
a wash program, the machine will set the
correct temperature, washing time, and
washing speed.
1. Press Power.
2. Open the lid.
3. Load the articles of clothing one at a
time loosely into the drum, without
overlling it.
4. Add liquid (or powder) detergent,
softener, and/or bleach (if necessary) to
the appropriate compartments. See the
"Detergent use" section on page 41.
5. Close the lid.
6. Use the option button to select the
appropriate cycle according to the
type of material: Normal, Heavy Duty,
Delicates, Deep Wash, Super Speed,
Bedding/WaterProof, Perm Press,
Brilliant Whites, Quick Wash, Active
Wear, Rinse+Spin, and Spin. The relevant
indicators will illuminate on the control
panel.
7. At this time, you can control the wash
temperature, the number of rinse cycles,
the spinning speed, and the delay time
by pressing the appropriate option
button.
8. Press Start/Pause and the wash will
begin. The process indicator will light up
and the remaining time for the cycle will
appear in the display.
Pause Option
To remove or add laundry items, follow
these steps:
1. Press Start/Pause to unlock the lid.
NOTE
The lid cannot be opened when the water is
too HOT.
2. Remove or add laundry items.
3. Close the lid, and then press Start/Pause
to restart the wash.
NOTE
If you have Child Lock on, you must
deactivate it rst. See page 33.
When the cycle is nished:
After the total cycle has nished, the power
will turn off automatically.
1. Open the lid.
2. Remove laundry.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 37 2017-01-27 11:24:20
38 English
Washing a load of laundry
Washing a load of laundry
ATC (Auto Temperature Control)
ATC is the control function that the
washer controls water temperature with
temperature sensor (thermistor).
NOTE
Because there are numerous water
temperatures depending on the customer’s
environments (cold areas, warm areas,
various water temperatures, settings of
heater temperature, etc.), ATC function in our
washer maintains the certain level of wash
temperature to output the best washing
performance at each cycle.
NOTE
If you select NORMAL cycle, this cycle is the
regulation and UL cycle. Since new washers
must reduce the amount of energy usage as
a rst priority, customers will notice more
cold water entering the washer. But, this is
normal, not a problem.
In those regulation cycles, Hot temperature
is similar to acceptable adult bath-water
temperature and warm temperature is
similar to comfortable swimming-pool water
temperature.
NOTE
If customers want to wash clothes in specic
water temperatures, customers should
choose a different cycle at each temperature
(Hot/Warm/Eco Warm).
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 38 2017-01-27 11:24:20
English 39
Washing a load of laundry
The basics
Prewash (Water Jet & Built-in sink)
Water Jet and Built-in sink help you
handwash before the washing machine
starts operation. Water Jet is available only
when the door is open with the water level
set to less than High. For prewashing, use
the Built-in sink that is designed to facilitate
the hand-wash.
1. With the door open, lower the Built-in
sink . To open only the door, press and
release the front middle of the door. To
close and lock both the door and the
Built-in sink, press down the door until
you hear a clicking sound.
2. Put clothes to prewash in it.
3. Press Water Jet to supply water to the
Built-in sink, and hand-wash.
4. When done, gently lift up the Built-in
sink to drain water into the tub.
NOTE
•If you want to hand-wash while the
machine is operating, press Start/Pause
to stop operation, and then follow steps
1-4 above.
•If you open both the door and the
Builtin sink, lower the Built-in sink
manually for prewashing.
[Water Jet stops]
•Water Jet stops operation automatically
when the washing machine detects the
maximum water level.
•Water Jet stops operation automatically
5 minutes after it begins. To add more
water, press Water Jet again to resupply
water.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 39 2017-01-27 11:24:21
40 English
Washing a load of laundry
Washing a load of laundry
[Water Jet drains]
•Select a cycle and press Start/Pause. Then
the washing machine drains the water to be
used during the prewash.
•When the washing machine is turned off
before starting the wash cycle, it drains
the water to be used during the prewash.
However, when it is turned off during the
wash cycle, it does not drain the water.
NOTE
•Water Jet extracts the water through the
Mist Shower nozzle for 1 second and then
through the Water Jet nozzle from then on
when it is rst activated after the washing
machine turns on.
CAUTION
•Do not abuse Water Jet. Excessive use of
Water Jet increases water consumption.
•When running water to the tub, do that
gently. Otherwise, water may overow the
tub.
•Use caution when removing laundry from
the tub. You may bump your head on the
Built-in sink.
•Do not block the outlet of Water Jet with
hands. Water may leak outside the tub,
causing a system failure.
•Put only clothes to prewash in the Built-in
sink. Other items such as shoes, food, or
animals can not be used for prewash.
•Do not open the Built-in sink in a hurry.
Remaining water in the sink may splash on
the door or control panel.
•Due to a difference in air pressure, Water Jet
may splash water from its outlet when it is
rst activated.
•This lid must be closed tightly to do the
laundry.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 40 2017-01-27 11:24:21
English 41
Washing a load of laundry
Detergent use
Your washer is designed to use high
efciency (HE) detergents.
•For the best cleaning results, use a high
efciency detergent such as Tide HE,
Wisk HE, Cheer HE or Gain HE*. High
efciency detergents contain suds
suppressors that reduce or eliminate
suds. When fewer suds are produced,
the load tumbles more efciently and
cleaning is maximized. (* Brand names
are trademarks of their respective
manufacturers.)
WARNING
Regular detergent is not recommended. Use
HE detergents only.
NOTE
Reducing the amount of detergent
may reduce the quality of cleaning. It
is important to pre–treat stains, sort
carefully by color and soil level, and avoid
overloading.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 41 2017-01-27 11:24:21
42 English
Washing a load of laundry
Washing a load of laundry
Features
Automatic dispenser
Your washer has separate compartments for dispensing detergent and color-safe bleach and
fabric softener. Add all laundry additives to their respective compartments before starting
your washer.
The automatic dispenser must always be in place before you start your washer.
DO NOT open the automatic dispenser when your washer is running.
NOTE
•Never exceed the manufacturer’s recommendations when adding detergent.
•This compartment holds liquid detergent for the main wash cycle, which is added to the
load at the beginning of the cycle.
•When using powdered detergent, remove the liquid detergent compartment from the
detergent drawer. The washer will not dispense powdered detergent from the liquid
detergent compartment.
To add detergent to the automatic dispenser:
1. Open the dispenser drawer.
2. Load the recommended amount of liquid
(or powder) detergent into the detergent
compartment before you start your
wash.
3. Close the drawer slowly and smoothly
to avoid spilling, splashing, or premature
dispensing of the contents.
NOTE
It is normal for a small amount of water to
remain in the dispenser compartments at
the end of the cycle.
NOTE
Do not put chlorine bleach in the dispenser
drawer.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 42 2017-01-27 11:24:22
English 43
Washing a load of laundry
Loading the Liquid (or Powder) detergent compartment
A
1. Pour the recommended amount of
laundry detergent directly into the
detergent compartment before starting
your washer.
2. If you are using color-safe bleach, add
it with the detergent to the detergent
compartment.
NOTE
When adding color-safe bleach with
detergent, it is best if both laundry products
are in the same form – liquid.
NOTE
When using powdered detergent, remove
the liquid detergent compartment (A) from
the detergent drawer. The washer will not
dispense powdered detergent from the
liquid detergent compartment.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 43 2017-01-27 11:24:22
44 English
Washing a load of laundry
Washing a load of laundry
Loading the Bleach compartment
B
CAUTION
Use the liquid chlorine bleach only.
1. Add chlorine bleach to the bleach
compartment (B).
DO NOT exceed the bleach compartment.
NOTE
•Avoid splashing or over–lling the
compartment.
•Never pour undiluted liquid chlorine
bleach directly onto the load or into the
tub. It is a powerful chemical and can
cause fabric damage, such as weakening
of the bers or color loss, if not used
properly.
•If you prefer to use color–safe, non–
chlorine bleach, add it to the appropriate
detergent compartment.
DO NOT pour color–safe bleach into the
Bleach compartment.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 44 2017-01-27 11:24:22
English 45
Washing a load of laundry
Loading the fabric softener compartment
C
1. Pour the recommended amount of
liquid fabric softener into the softener
compartment (C).
For smaller loads, use less than one
capful.
2. Dilute the fabric softener with water
until it reaches MAX FILL in the
compartment.
3. The dispenser automatically releases
liquid fabric softener at the proper time
during the rinse cycle.
NOTE
•Use the softener compartment ONLY for
liquid fabric softeners.
•DO NOT use the Downy Ball* in the
fabric softener compartment with this
washer. It will not add fabric softener at
the appropriate time.
Use the detergent compartment.
(* Brand names are trademarks of their
respective manufacturers.)
•Do not use liquid fabric softener that
is too sticky as it may not mix with the
water sufciently.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 45 2017-01-27 11:24:22
46 English
Maintaining your washer
Maintaining your washer
WARNING
Control board, heat sink, motor, inlet valve and pump are intentionally not grounded and may
present a risk of electric shock only during servicing.
Cleaning the exterior
1. Turn off the water faucets after nishing
the day’s washing.
This will shut off the water supply to
your washer and prevent the unlikely
possibility of damage from escaping
water. Leave the lid open to allow the
inside of your washer to dry out.
2. Use a soft cloth to wipe up all detergent,
bleach or other spills as they occur.
3. Clean the following as recommended:
Control Panel – Clean with a soft, damp
cloth. Do not use abrasive powders or
cleaning pads. Do not spray cleaners
directly on the panel.
Cleaning the interior
Clean the interior of your washer
periodically to remove any dirt, soil, odor,
mold, mildew, or bacterial residue that
may remain in your washer as a result of
washing clothes.
Failure to follow these instructions may
result in unpleasant conditions, including
odors and/or permanent stains on your
washer or laundry.
Hard water deposits may be removed, if
needed. Use cleaners labeled “Washer safe”.
Storing your washer
Washers can be damaged if water is
not removed from hoses and internal
components before storage.
Prepare your washer for storage as follows:
1. Select the Quick Wash cycle and add
bleach to the automatic dispenser. Run
your washer through the cycle without
a load.
2. Turn the water faucets off and
disconnect the inlet hoses.
3. Unplug your washer from the electrical
outlet and leave your washer lid open to
let air circulate inside the drum.
If your washer has been stored in
below–freezing temperatures, allow time
for any leftover water in your washer to
thaw out before use.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 46 2017-01-27 11:24:23
English 47
Maintaining your washer
Preserving the top cover and the front frame
Do not place any heavy or sharp objects or
a detergent box on the washer. They can
scratch or damage the top cover of the unit.
NOTE
Since the entire washer has a high-gloss
nish, the surface can be scratched or
damaged.
Avoid scratching or damaging the surface
when using the washer.
Cleaning mesh lter
Clean the mesh lter of the water hose once or twice a year.
1. Turn off the washer, and then unplug the
power cord.
2. Close the faucet.
3. Loosen and disconnect the water hose
from the back of the washer. Cover the
hose with a cloth to prevent water from
gushing out.
4. Use pliers to pull out the mesh lter
from the inlet valve.
5. Submerge the mesh lter deeply in
water so that the threaded connector is
also submerged.
6. Dry the mesh lter completely in a
shaded area.
7. Reinsert the mesh lter into the inlet
valve, and reconnect the water hose to
the inlet valve.
8. Open the faucet.
NOTE
If the mesh lter is clogged, the “4C” information code appears on the the washer’s display screen.
Cleaning the dispensers
The automatic dispenser may need to be
cleaned periodically due to laundry additive
buildup.
1. Pull the dispenser drawer straight back
until it stops.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 47 2017-01-27 11:24:23
48 English
Maintaining your washer
Maintaining your washer
2. Push the ends of each side of the case at
the same time.
When you feel the ends push, pull out
the dispenser drawer.
3. Remove the inserts from the 3
compartments. Rinse the inserts and
the drawer with warm water to remove
traces of accumulated laundry products.
4. To clean the drawer opening, use a
small, non-metal brush to clean the
recess. Remove all residue from the
upper and lower parts of the recess.
B
A
5. Return the inserts to the proper
compartments and replace the drawer
by placing the dispenser drawer rail (B)
on top of the compartment rail (A) (Tilt
the dispenser drawer downward and
insert it).
Then push the drawer in rmly and
slowly.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 48 2017-01-27 11:24:24
English 49
Maintaining your washer
Self Clean
Self Clean is a self-cleaning cycle that
removes mold that may occur inside the
washer.
1. Press Power.
2. Select Self Clean.
Once Self Clean is selected, the only
function that can be set is Delay End.
3. Press Start/Pause. Self.
CAUTION
•Using Self Clean, you can clean the drum
without using a cleansing agent.
•Never use Self Clean when laundry is
in the washer. This may cause damage
to the laundry or a problem with the
washer.
NOTE
The Self Clean Auto Led Function
•If the “Self Clean” led is lit after a
wash, it led that tub (drum) cleaning
is required. In this case, remove the
laundry from the washing machine, turn
the power on, and clean the drum by
running Self Clean.
•If you do not run Self Clean, the “Self
Clean” led turns off. However, the “Self
Clean” led will light again after ve
washes. Not running Self Clean at this
point will not cause a problem with the
washing machine.
•Although the Self Clean Auto led appears
once a month or so, the frequency may
differ depending on the number of times
the washing machine is used.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 49 2017-01-27 11:24:24
50 English
Troubleshooting
Troubleshooting
Checkpoints
If you encounter a problem with the washer, rst check the table below and try the
suggestions.
Problem Action
Does not turn on.
•Make sure you use rated power for the product.
•Make sure the power cord is completely plugged in.
•Check the fuse or reset the circuit breaker.
Does not start.
•Make sure the door is closed.
•Make sure the water taps are open.
•Make sure to press or tap Start/Pause to start the washing
machine.
•Make sure Child Lock is not activated.
•Before the washing machine starts to ll, it will make a series
of clicking noises to check the door lock and does a quick
drain.
•Was the door opened during the spinning cycle? Close the
door, and press or tap Start/Pause to resume.
•The machine enters Standby or is in a soaking cycle. Please
wait.
•Check the fuse or reset the circuit breaker
Water is not supplied.
•Make sure you press or tap Start/Pause after selecting the
water supply.
•Make sure the water taps are open.
•Is the lter net at the water supply hose connector clogged?
Clean the lter net by brushing with a toothbrush.
•Is the water supply cut off? If the water supply is cut off, close
the tap and power off.
•Straighten the water supply hoses.
•Open and close the door, then press or tap Start/Pause.
•If the water pressure is low, it takes longer to start washing.
•If the water level is not as high as necessary or lower than
expected, use the level selector to adjust the water level.
After a cycle,
detergent remains
in the automatic
dispenser.
•Make sure the washing machine is running with sufcient
water pressure.
•Make sure the detergent drawer is properly inserted.
•Remove and clean the detergent drawer, and then try again.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 50 2017-01-27 11:24:24
English 51
Troubleshooting
Problem Action
Vibrates excessively
or makes noise.
•Make sure the washing machine is set on a level oor. If the
oor is not level, use the levelling feet to adjust the washing
machine.
•Make sure the washing machine is not contacting any other
object.
•Make sure the laundry load is balanced.
•Make sure the laundry is spread evenly in the washing
machine. Spread out the laundry evenly and start again.
•Make sure the space around the washing machine is free of
objects.
•Humming is produced normally during operation.
•Objects such as coins can cause noise. Remove these objects
from the washing machine after washing is complete.
Stops.
•Plug the power cord into a live electrical outlet.
•Check the fuse or reset the circuit breaker.
•Close the door, and press or tap Start/Pause to start the
washing machine. For your safety, the washing machine will
not spin unless the door is closed.
•Before the washing machine starts to ll, it will make a series
of clicking noises to check the door lock and does a quick
drain.
•There may be a pause or soak period in the cycle. Wait briey
and the washing machine may start.
•Make sure the inlet hose screens at the taps are not clogged.
Periodically clean the screens.
•This problem occurs temporarily due to low voltages, and will
be solved when power recovers.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 51 2017-01-27 11:24:24
52 English
Troubleshooting
Troubleshooting
Problem Action
Fills with the wrong
temperature water.
•Fully open both water taps.
•Make sure the temperature selection is correct.
•Make sure the hoses are connected to the correct water taps.
Flush water lines.
•Disconnect the hoses and clean the screens. The hose lter
screens may be clogged.
•While the washing machine lls, the water temperature may
change as the automatic temperature control feature checks
incoming water temperature. This is normal.
•While the washing machine lls, you may notice just hot and/
or just cold water going through the dispenser when cold or
warm temperatures are selected.
This is a normal function of the automatic temperature
control feature as the washing machine determines the water
temperature.
Door (Lid) locked or
will not open.
•While the washing machine is operating, press or tap Start/
Pause to stop the washing machine.
•It may take a few moments for the door lock mechanism to
disengage.
Does not drain and/
or spin.
•Check the fuse or reset the circuit breaker.
•Make sure the electrical voltage is normal.
•Make sure the washing machine is plugged in.
•Make sure the drain hose is pointed downward. (Natural drain
models only)
•Make sure the drain hose is not clogged.
•Make sure the drain hose is not kinked.
•Straighten the drain hose. If there is a drain restriction, call for
service.
•Close the door, and press or tap Start/Pause. For your safety,
the washing machine will not spin unless the door is closed.
Load is wet at the end
of the cycle.
•Use the High or Extra High spin speed. (Applicable model
only)
•Use high efciency (HE) detergent to reduce oversudsing.
•Load is too small. Small loads (one or two items) may become
unbalanced and not spin completely.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 52 2017-01-27 11:24:24
English 53
Troubleshooting
Problem Action
Leaks water.
•Make sure all hose connections are tight.
•Make sure the water supply hose's rubber packing is in the
correct position. Screw tightly again.
•Make sure the end of the drain hose is correctly inserted and
secured to the drain system.
•Avoid overloading.
•Use high efciency (HE) detergent to prevent oversudsing.
•Make sure the water supply hose is not kinked.
•If the water supply is too strong, water may leak. Close the
water tap a little.
•Make sure water is not leaking from the water tap. If so,
repair the water tap.
Excessive suds.
•Use high efciency (HE) detergent to prevent oversudsing.
•Reduce the detergent amount for soft water, small loads, or
lightly soiled loads.
•Non-HE detergent is not recommended.
The spin basket or
drain/supply hose is
frozen.
•Use warm water to disconnect the water supply hose and
drain hose. Soak them in warm water.
•Fill the spin basket with warm water, and then wait for about
10 minutes.
•Put a hot towel on the drain hose connector.
•Reconnect the water supply hose and drain hose, and check if
water is supplied properly.
Water drains out
immediately.
•Make sure the drain hose is not clogged, and is hung over the
drain hose hook. Fill the spin basket halfway with water, and
try spinning again.
•Lift the end of the drain hose to prevent water from draining.
Fill the spin basket halfway with water, and then run spinning
after releasing the drain hose.
•Make sure the drain hose is installed correctly. See the
installation section of this user manual and adjust the position
of the drain hose as instructed.
Stains on clothes. •Clean the magic lter.
Has odours.
•Excessive suds collect in recesses and can cause foul odours.
•Run cleansing cycles to sanitize periodically.
•Dry the washing machine interior after a cycle has nished.
If a problem persists, contact a local Samsung service center.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 53 2017-01-27 11:24:24
54 English
Troubleshooting
Troubleshooting
Information codes
The washer may display information codes to help you understand what is occurring with
your washer better.
No Code Meaning
1 1C
The WaterLevel sensor is not working properly.
•CheckWaterLevelSensorwireharness.
•Iftheinformationcoderemains,contactacustomerservice
centre.
NOTE
When the washer displays “1C”, the washer do draining for 3
minutes. During this time, the Power button is inoperative.
2 3C
Check the motor for operation.
•Tryrestartingthecycle.
•Iftheproblemcontinues,callforservice.
3 4C
Water is not supplied.
•Makesurethewatertapsareopen.
•Makesurethewaterhosesarenotclogged.
•Makesurethewatertapsarenotfrozen.
•Makesurethewashingmachineisoperatingwithsufcient
water pressure.
•Makesurethatthecoldwatertapandthehotwatertapare
properly connected.
•Cleanthemeshlterasitmaybeclogged.
NOTE
When the washer displays “4C”, the washer do draining for 3
minutes. During this time, the Power button is inoperative.
4 4C2
•Makesurethecoldwatersupplyhoseisrmlyconnectedtothe
cold water tap.
If it is connected to the hot water tap, the laundry may be
deformed with some cycles.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 54 2017-01-27 11:24:25
English 55
Troubleshooting
No Code Meaning
5 5C
Water is not draining.
•Makesurethedrainhoseisnotfrozenorclogged.
•Makesurethedrainhoseispositionedcorrectly,dependingon
the connection type.
•Cleanthedebrislterasitmaybeclogged.
•Makesurethedrainhoseisstraightenedallthewaytothe
drain system.
•Iftheinformationcoderemains,contactacustomerservice
centre.
6 9C1
The electronic control needs to be checked (Over Voltage Error).
•CheckthePCBandwireharness.
•Checkifpowerissuppliedproperly.
•Iftheinformationcoderemains,contactacustomerservice
centre.
7 9C2
Low voltage detected
•Checkifthepowercordispluggedin.
•Iftheinformationcoderemains,contactacustomerservice
centre.
8 AC6
Inverter Communication problem
•ChecktheInverterPCBandwireharness.
•Iftheinformationcoderemains,contactacustomerservice
centre.
9 dC
Operating the washer with the door open.
•Makesurethedoorisproperlyclosed.
•Makesurelaundryisnotcaughtinthedoor.
10 HC
High temperature heating check.
•Iftheinformationcoderemains,contactacustomerservice
centre.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 55 2017-01-27 11:24:25
56 English
Troubleshooting
Troubleshooting
No Code Meaning
11 LC
Check the drain hose.
•Makesuretheendofthedrainhoseisplacedontheoor.
•Makesurethedrainhoseisnotclogged.
•Iftheinformationcoderemains,contactacustomerservice
centre.
NOTE
When the washer displays “LC”, the washer do draining for 3
minutes. During this time, the Power button is inoperative.
12 OC
Water is overowed.
•Restartafterspinning.
•Iftheinformationcoderemainsonthedisplay,contactalocal
Samsung service centre.
13 PC
When position of the clutch can't be detected.
•Iftheinformationcoderemains,contactacustomerservice
centre.
14 PC1
After position of the clutch is detected, if the signal of the clutch
hall goes wrong.
•Iftheinformationcoderemains,contactacustomerservice
centre.
15 Ub
Spinning does not work.
•Makesurelaundryisspreadoutevenly.
•Makesurethewashingmachineisonaat,stablesurface.
•Redistributetheload.Ifonlyoneitemofclothingneeds
washing, such as a bathrobe or pair of jeans, the nal spin result
might be unsatisfactory, and an “Ub” check message will be
shown in the display.
16 Ur
Display for additional rinsing.
•Showadditionalrinsinginsensingunbalance.
•Methodofreleasingthedisplay.
- Any key input.
For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG).
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 56 2017-01-27 11:24:25
English 57
Specications
Specications
Fabric care chart
The following symbols provide garment care
direction. The clothing care labels include
symbols for drying, bleaching, drying and
ironing, or dry cleaning when necessary. The
use of symbols ensures consistency among
garment manufacturers of domestic and
imported items. Follow care label directions
to optimize garment life and reduce
laundering problems.
Wash cycle
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Hand wash
Water temperature
Hot
Warm
Cold
NOTE
This represents appropriate wash water
temperatures for various items. The
temperature range for Hot is 105° - 125 °F
/ 41° - 52 °C, for Warm 85° - 105 °F /
29° - 41 °C and for Cold 60° - 85 °F / 16°
- 29 °C. (Wash water temperature must be
a minimum of 60 °F / 16 °C for detergent
activation and effective cleaning.)
The clothes washer can not ensure
these temperatures because the actual
temperature of the water entering your
washer depends on water heater settings
and regional water supply temperatures. For
example, cold water entering the home in
the northern states during winter may be
40 °F / 4 °C which is too cold for effective
cleaning. In this situation, you will need to
adjust the water temperature by selecting
a warm setting, adding some hot water to
the MAX FILL line, or using your Washer’s
heating option, if available.
Bleach
Any bleach (when needed)
Only non-chlorine (color-safe)
bleach (when needed)
Tumble dry
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Special instructions
Line dry/Hang to dry
Drip dry
Dry at
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 57 2017-01-27 11:24:27
58 English
Specications
Specications
Heat setting
High
Medium
Low
Any heat
No heat / Air
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry-clean
Dry-clean
Do not dry-clean
Line dry / Hang to dry
Drip dry
Dry at
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 58 2017-01-27 11:24:29
English 59
Specications
Helping the environment
•Your washer is manufactured from
recyclable materials. If you decide to
dispose of it, please observe local waste
disposal regulations. Cut off the power
cord so that the appliance cannot be
connected to a power source. Remove
the lid so that animals and small children
cannot get trapped inside the appliance.
•Do not exceed the detergent quantities
recommended in the detergent
manufacturers’ instructions.
•Use stain removal products and bleaches
before the wash cycle only when
necessary.
•Save water and electricity by only
washing full loads (the exact amount
depends upon the program used).
Declaration of conformity
This appliance complies with UL2157.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 59 2017-01-27 11:24:29
60 English
Specications
Specications

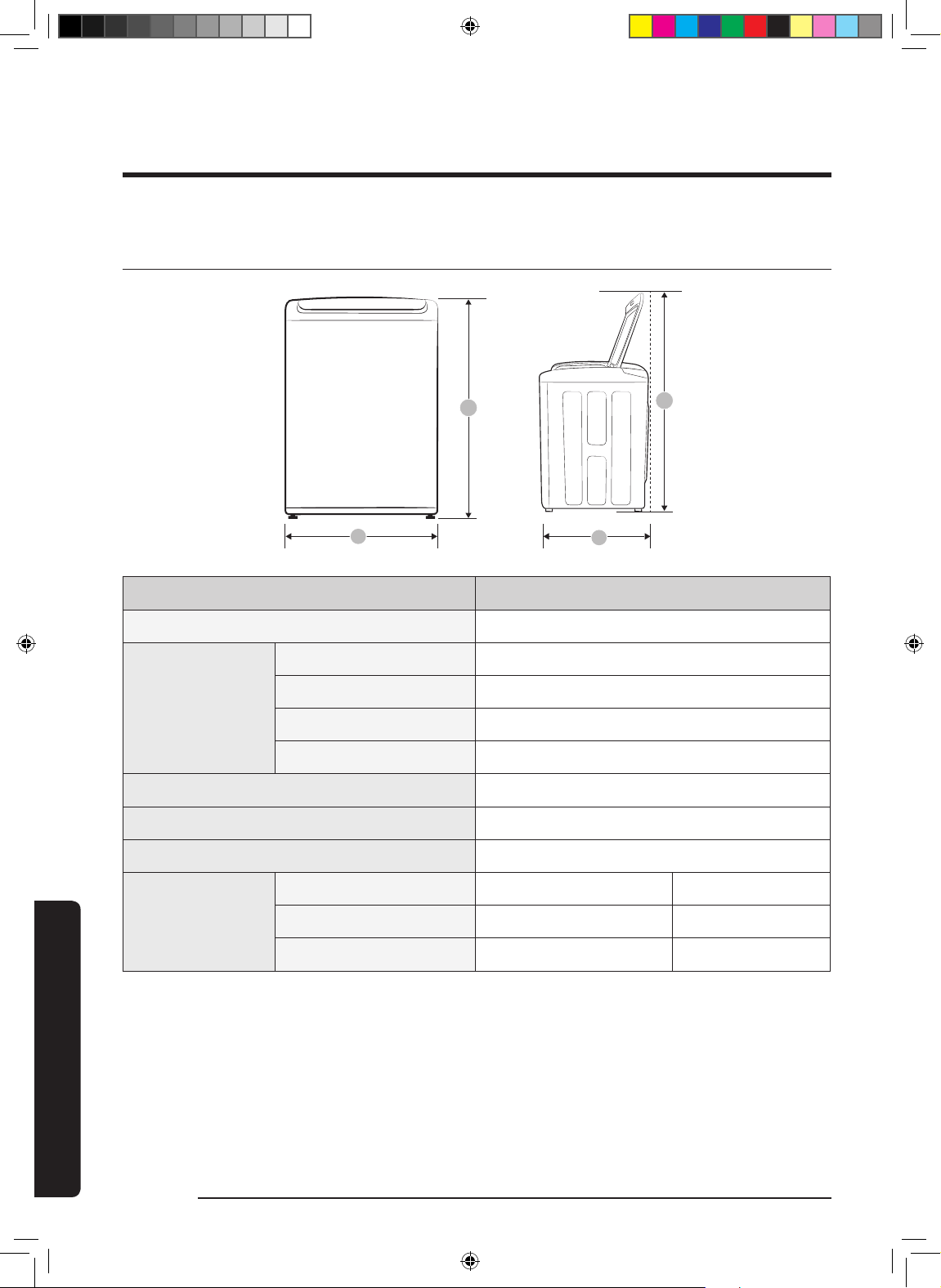

Specication sheet
C
B
A
D
Type Top loading washer
Model name
WA52M8650A*
Dimensions
(inches (cm))
A. Height 42.4 (107.7)
B. Width 27.0 (68.6)
C. Height with lid open 61.0 (155.0)
D. Depth 29.3 (74.4)
Water pressure (psi (kPa)) 20 - 116 (137 - 800)
Spin revolution 800 rpm
NET weight (kg (lb)) 62 (137.0)
Heater rating
Washing 120 V 700 W
Spin 120 V 400 W
Drain 120 V 80 W
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 60 2017-01-27 11:24:29
English 61
Specications
Cycle chart
Use this chart to set the best cycle and options for you laundry.
NOTE
Setting Temp. Spin Soil Level
: factory setting H: Hot H: High H: Heavy
: can be selected W: Warm M: Medium N: Normal
EW: Eco Warm L: Low L: Light
CL: Cool NS: No Spin
CD: Cold
Cycle
Temp. Spin Soil Level
H W EW CL CD H M L NS H N L
Normal
Heavy Duty
Super Speed
Deep Wash
Delicates
Brilliant Whites
Bedding/
WaterProof
Perm Press
Quick Wash
Active Wear
Rinse+Spin
Spin
Self Clean
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 61 2017-01-27 11:24:29
62 English
Specications
Specications
Cycle
Options
Pre Soak Extra Rinse Eco Plus
Normal
Heavy Duty
Super Speed
Deep Wash
Delicates
Brilliant Whites
Bedding/
WaterProof
Perm Press
Quick Wash
Active Wear
Rinse+Spin
Spin
Self Clean
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 62 2017-01-27 11:24:29
English 63
Warranty (U.S.A)
SAMSUNG WASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) year part and labor, Three (3) years stainless tub part (Part Only), Ten (10) years
washing DD motor part (Part Only).
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the United States. To receive warranty service, the purchaser must
contact SAMSUNG for problem determination and service procedures. Warranty service can
only be performed by a SAMSUNG authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized
service center. SAMSUNG will provide in-home service during the warranty period at no
charge, subject to availability within the contiguous United States. In-home service is not
available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent. If service is not available, SAMSUNG may elect to provide transportation of the
product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective during
the limited warranty period specied above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited
warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that
occurs in shipment; delivery and installation; applications and uses for which this product
was not intended; altered product or serial numbers; cosmetic damage or exterior nish;
accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage
this product or result in service problems; incorrect electrical line voltage, uctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance and
environmental instructions that are covered and prescribed in the instruction book; product
removal and reinstallation; problems caused by pest infestations.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 63 2017-01-27 11:24:29
64 English
Warranty (U.S.A)
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions,
or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation
of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY
ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specic rights, and you may also have other
rights, which vary from state to state.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 64 2017-01-27 11:24:30
English 65
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Visits by a Service Engineer to explain functions, maintenance or installation is not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 65 2017-01-27 11:24:30
66 English
Warranty (CANADA)
SAMSUNG WASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) year part and labor, Ten (10) years washing DD motor (Part only).
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the Canada. To receive warranty service, the purchaser must contact
SAMSUNG for problem determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. SAMSUNG will provide in-home service during the warranty period at no charge,
subject to availability within the Canada. In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent. If service is not available, SAMSUNG may elect to provide transportation of the
product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective during
the limited warranty period specied above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited
warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that
occurs in shipment; delivery and installation; applications and uses for which this product
was not intended; altered product or serial numbers; cosmetic damage or exterior nish;
accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage
this product or result in service problems; incorrect electrical line voltage, uctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance and
environmental instructions that are covered and prescribed in the instruction book; product
removal and reinstallation; problems caused by pest infestations.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 66 2017-01-27 11:24:30
English 67
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions,
or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation
of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY
ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY
AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO
USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some provinces do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specic rights, and you may also
have other rights, which vary from province to province.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 67 2017-01-27 11:24:30
68 English
Warranty (CANADA)
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Visits by a Service Engineer to explain functions, maintenance or installation is not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 68 2017-01-27 11:24:30
Memo
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 69 2017-01-27 11:24:30
Scan this with your smartphone
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DC68-03774C-01_EN
WA8600M_WA52M8650A_DC68-03774C-01_EN.indd 70 2017-01-27 11:24:30
