MODEL NUMBER 917.256591 OWNER'SMANUAL

oAssembly

oOperation

oCustomer Responsibilities

oService and Adjustments

o Repair Parts

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

IIIIIII IIIII

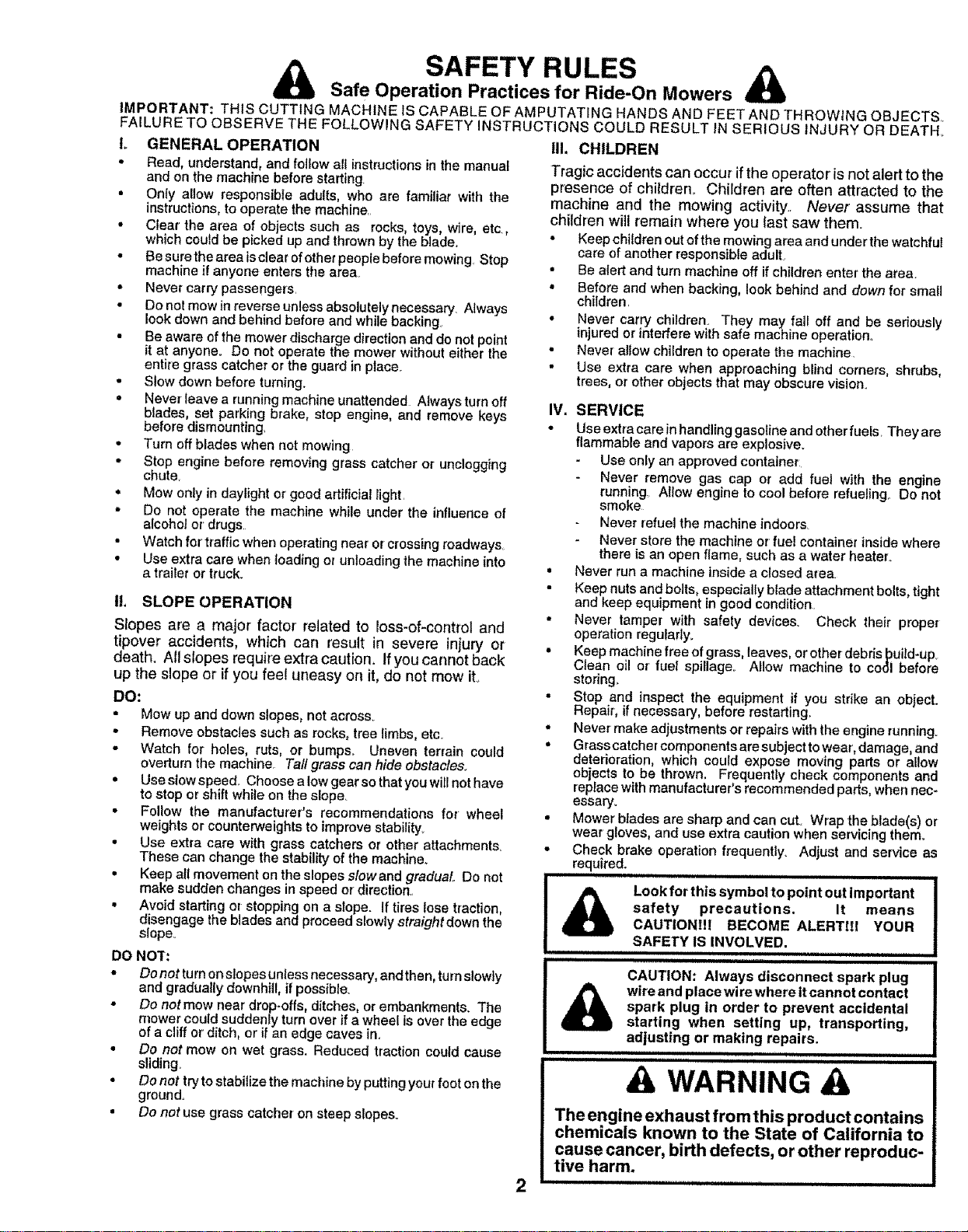

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWtNG OBJECTS..

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH

1o GENERAL OPERATION

• Read, understand, and follow all instructions in the manual

and on the machine before starting

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing Stop

machine if anyone enters the area.

• Never carry passengers.

• Do notmow in reverse unless absolutely necessary. Always

look down and behind before and while backing_

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in placer

• Slow down before turning.

• Never leave a running machine unattended Always turn off

b_ades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when not mowing

,, Stop engine before removing grass catcher or unclogging

chute_

• Mow only in daylight or' good artificial light.

- Do not operate the machine while under the influence of

alcohol or'drugs

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into

a trailer or truck.

It. SLOPE OPERATION

Slopes are a major factor' related to loss-of-control and

tipover accidents, which can result in severe injury or

death. All slopes require extra caution, If you cannot back

up the slope or if you feel uneasy on it, do not mow iL

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc

* Watch for holes, ruts, or bumps, Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use stow speed.. Choose a low gear so that you willnot have

to stop or shift while on the slope.

, Follow the manufacturar's recommendations for wheel

weights or counterweights to improve stability_

, Use extra care with grass catchers or other attachments

These can change the stability of the machine.

- Keep all movement on the slopes slow and gradual Do not

make sudden changes in speed or direction.

• Avoid starting or stopping on a slope, if tires lose traction,

disengage the blades and proceed slowly straight down the

slope..

DO NOT:

• Do not turn onslopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

• Do not mow near' drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or'ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could cause

sliding.

• Do not try,to stabilize the machine by putting your foot on the

ground.

• Do not use grass catcher on steep slopes.

!11, CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful

care of another responsible adult°

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small

children

• Never carry children_ They may fail off and be seriously

injured or interfere with safe machine operation..

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

.i,...

IV. SERVICE

• Use extra care in handlinggasoline and other fuels They are

flammable and vapors are explosive.

Use only an approved container

Never remove gas cap or add fuel with the engine

running Allow engine to cool before refueling Do not

smoke

Never refuel the machine indoors

Never store the machine or fuel container inside where

there is an open flame, such as a water heater._

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly_

• Keep machine free of grass, leaves, or other debris_uild-up

Clean oil or fuet spiIlager. Allow machine to codl before

storing

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting

° Never make adjustments or repairs with the engine running.

• Grass catcher components are subject towear, damage, and

deterioration, which could expose moving parts or aIIow

objects to be thrown. Frequently check components and

repiace with manufacturer's recommended parts, when nec-

essary.

• Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them..

• Check brake operation frequently. Adjust and service as

required.

,..m... luul i i

Look for this symbol to point out important

safety precautions. It means

CAUTtONt!! BECOME ALERT_I YOUR

SAFETY IS INVOLVED.

iiiiiiiir III iiiiii i ii

CAUTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

nnrnnnrnrnrnnnr IIIII I I IIIIHIIIIIIIIIIIIIIIIIIII

A WARNING

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproduc-

tive harm.

iiiii

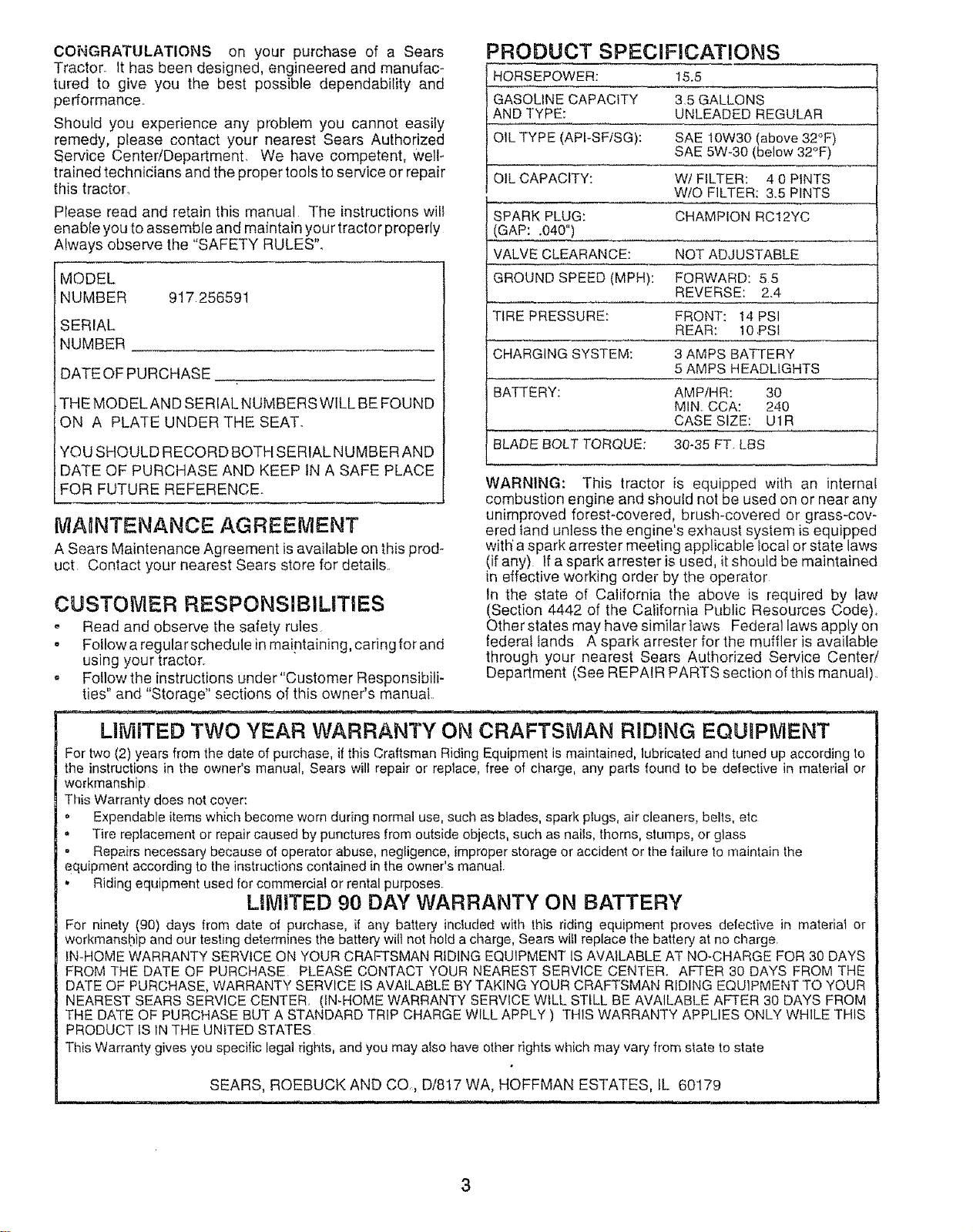

CONGRATULATIONS on your purchase of a Sears

Tractor. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmenL We have competent, welF

trained technicians and the proper tools to service or repair

this tractor+

Please read and retain this manual The instructions will

enable you to assemble and maintain your tractor properly

Always observe the "SAFETY RULES"°

MODEL

NUMBER 917 256591

SERIAL

NUMBER

DATE OF PURCHASE

THE MODELAND SERIAL NUMBERSWILL BE FOUND

ON A PLATE UNDER THE SEAT..

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP tN A SAFE PLACE

FOR FUTURE REFERENCE.

IViAaNTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod+

uct. Contact your nearest Sears store for details..

CUSTOMER RESPONSIBIMTIES

+ Read and observe the safety rules

. Follow a regular schedule in mai.ntaining, caring for and

using your tractor.

- Follow the instructions under"Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

PRODUCT SPECIFICATIONS

HORSEPOWER: 15.5

GASOLINE CAPACITY 35 GALLONS

AND TYPE: UNLEADED REGULAR

OlL TYPE (API+SFiSG): SAE 10W30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER: 4 0 PINTS

W/O FILTER: 3+5PINTS

SPARK PLUG: CHAMPION RC12YC

(GAP: .040")

VALVE CLEARANCE: NOT ADJUSTABLE

GROUND SPEED (MPH): FORWARD: 5 5

REVERSE: 2,4

TIRE PRESSURE: FRONT: t4 PSi

REAR: t0,PS!

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT LBS

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with' aspark arrester meeting applicable local or state laws

(if any) tf a spark arrester is used, it should be maintained

in effective working order by the operator

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code),

Other states may have similar laws Federal laws apply on

federal lands A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual)

LiMiTED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUBPMENT

For two (2) years from the date of purchase, ifthis Craftsman Riding Equipment is maintained, lubricated and tuned up according to

the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship

This Warranty does not cover:

° Expendable items which become worn during normal use, such as btades, spark plugs, air cleaners, belts, etc

= Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass

= Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual

. Riding equipment used for commercia! or rental purposes.

LIM1TED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, il any battery included with this riding equipment proves defective in matedat or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30 DAYS

FROM THE DATE OF PURCHASE PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS FROM THE

DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO YOUR

NEAREST SEARS SERVICE CENTER (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS FROM

THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY ) THIS WARRANTY APPLIES ONLY WHILE THiS

PRODUCT IS IN THE UNITED STATES

Tinis Warranty gives you specific legal fights, and you may also have other rights which may vary from state to state

SEARS, ROEBUCK AND CO, D/817 WA, HOFFMAN ESTATES, fL 60179

......... iiii ............... ........ ]

i i in i, •

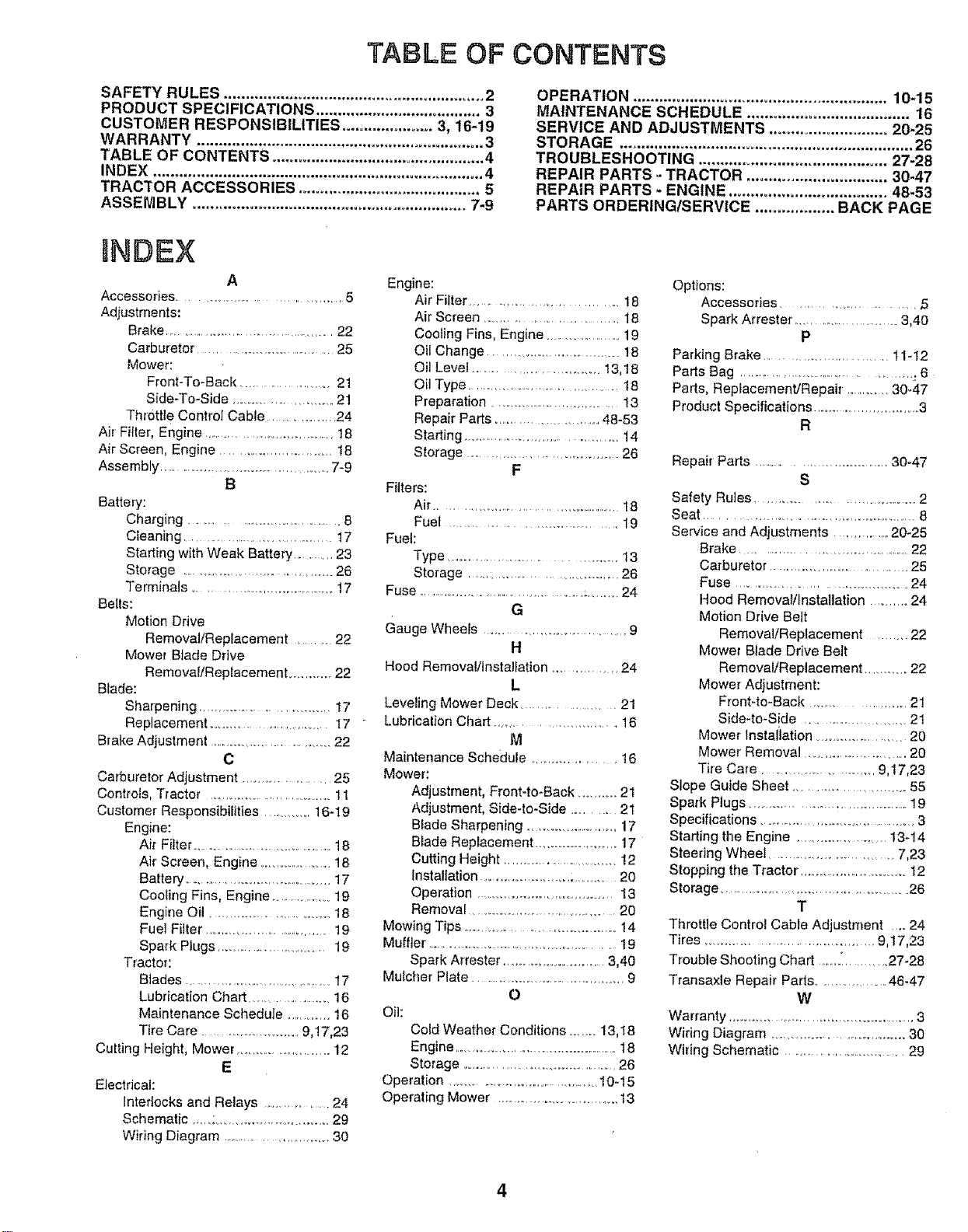

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 16-19

WARRANTY .................................................................. 3

TABLE OF CONTENTS ................................................. 4

INDEX ............................................................................ 4

TRACTOR ACCESSORIES .......................................... 5

ASSEMBLY ............................................................... 7-9

OPERATION .......................................................... 10-15

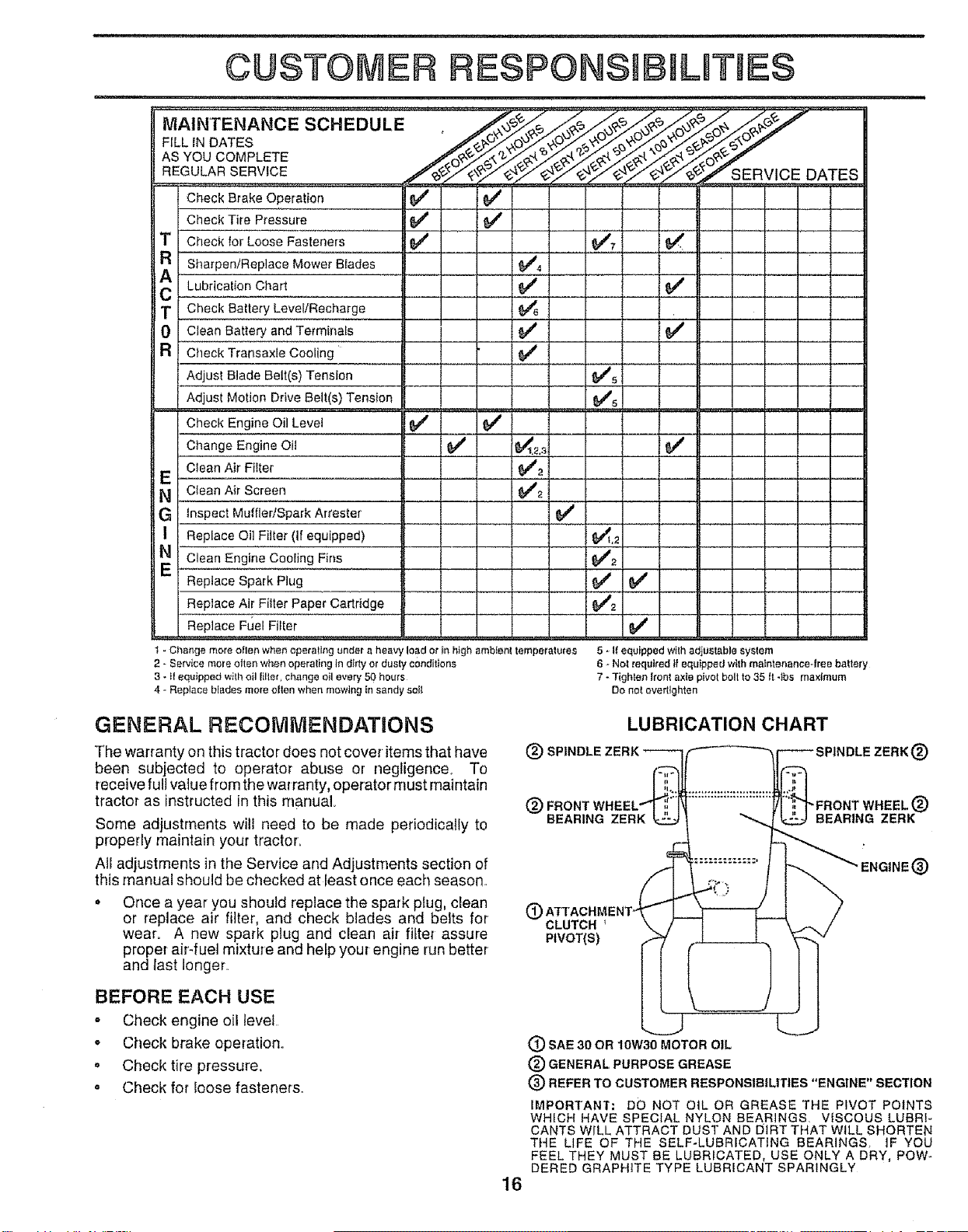

MAINTENANCE SCHEDULE ..................................... 16

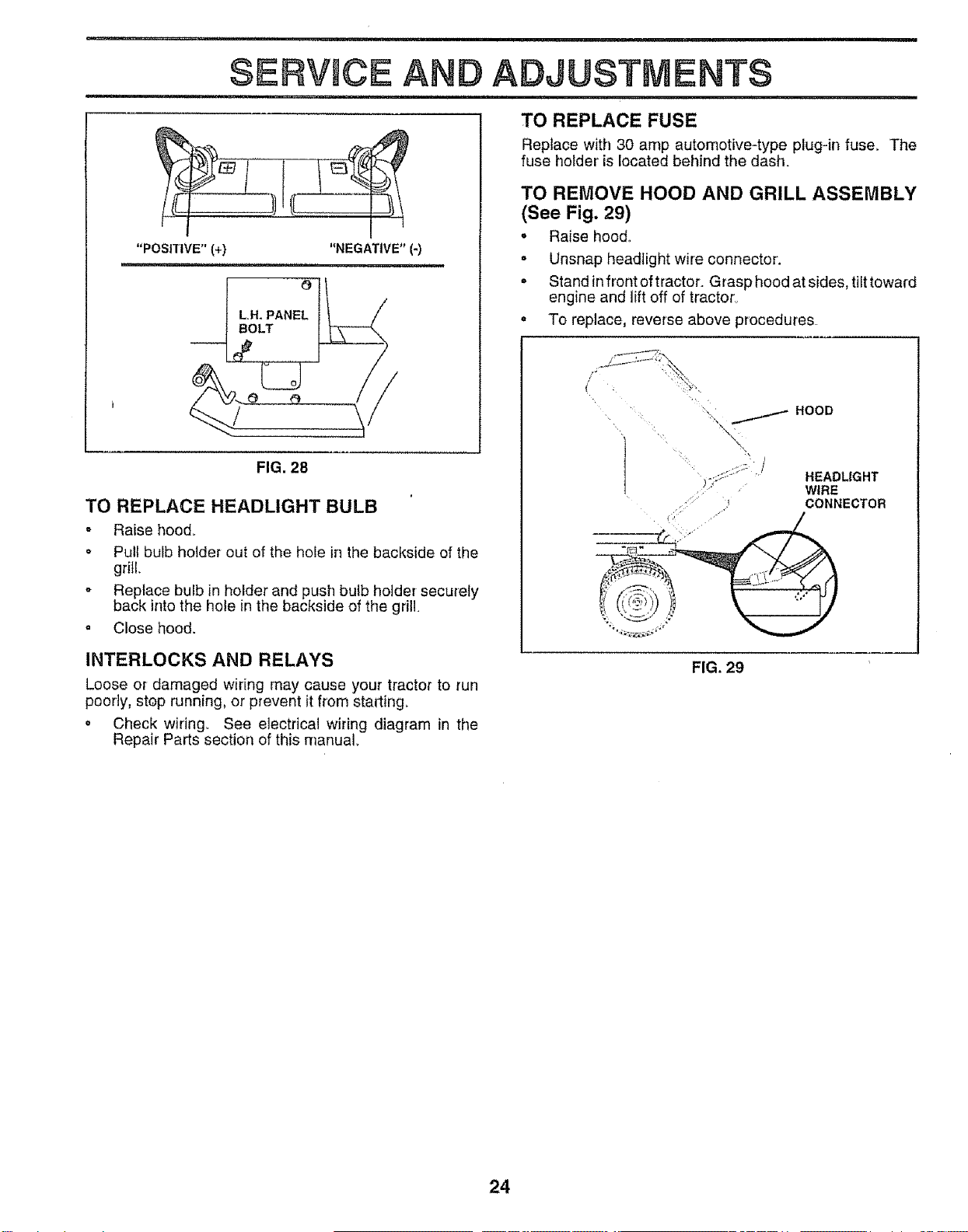

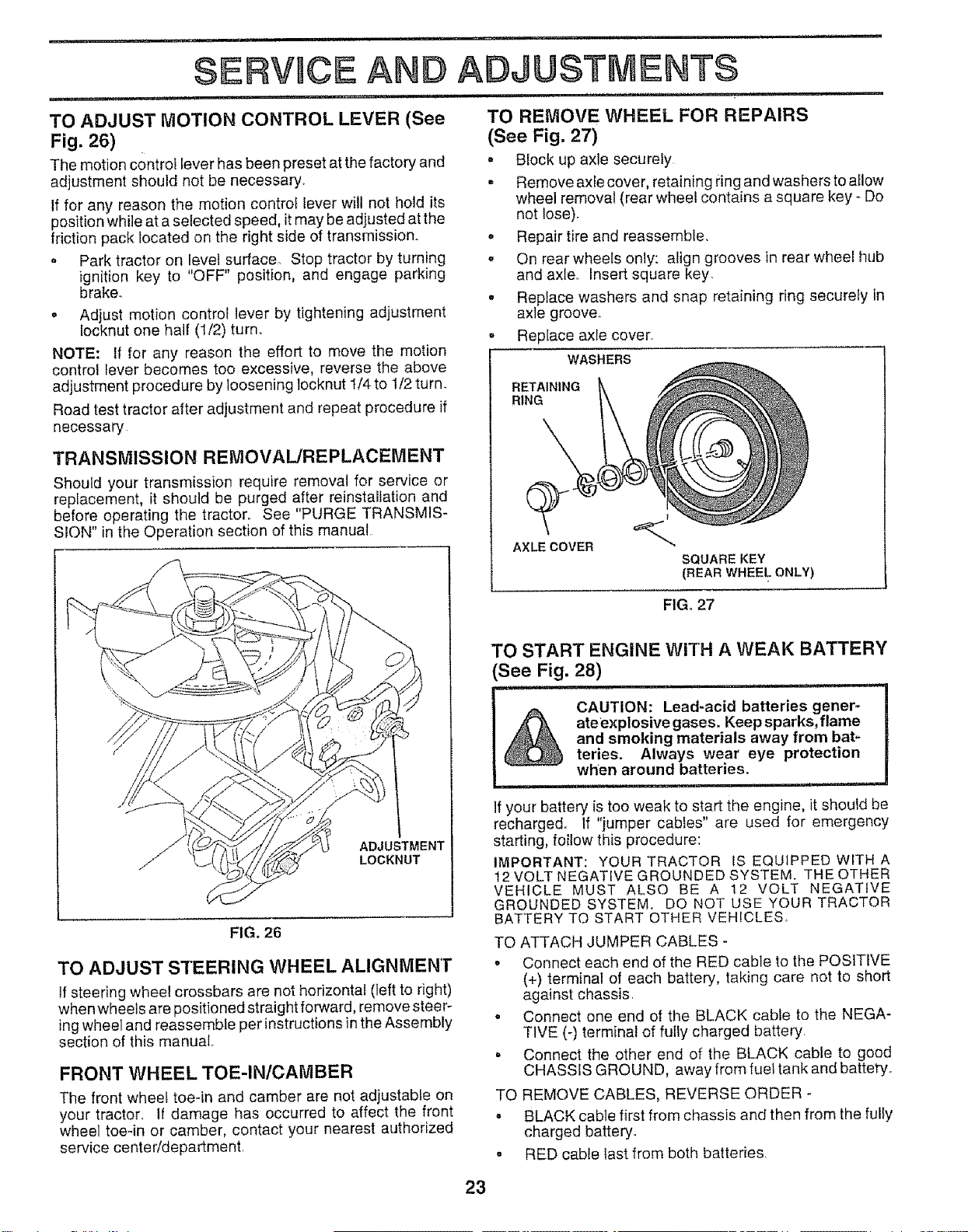

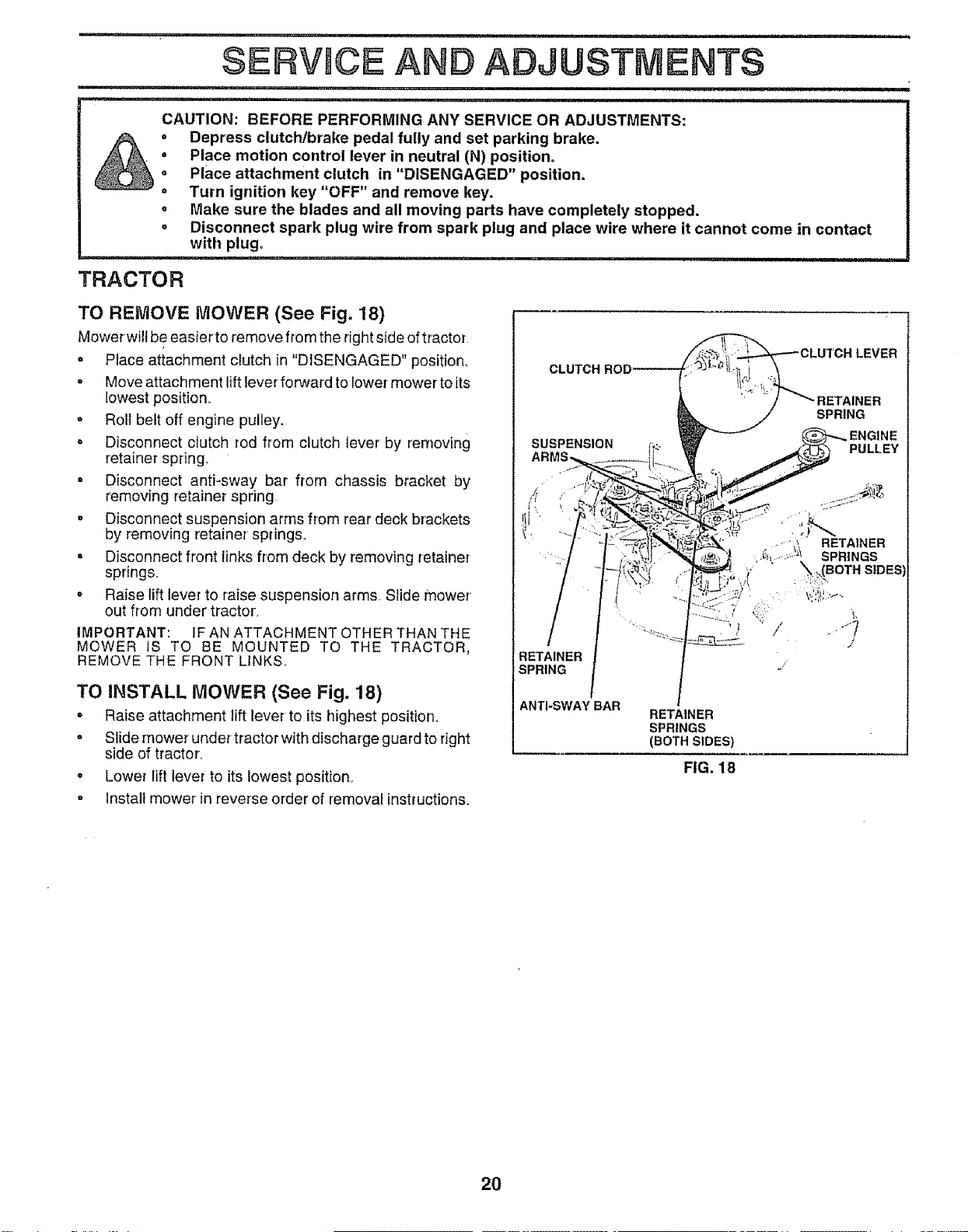

SERVICE AND ADJUSTMENTS ........................... 20-25

STORAGE ................................................................... 26

TROUBLESHOOTING ........................................... 27-28

REPAIR PARTS =TRACTOR ................................ 30-47

REPAIR PARTS - ENGINE .................................... 48-53

PARTS ORDERING/SERVICE .................. BACK PAGE

mNDEX

Accessories .................................. 5

Adjustments:

Brake ............................................. 22

Carburetor .................................. 25

Mower:

Front-To-Back ........................ 21

Side-To-Side ............................ 21

Throttl e Control Cable ....................24

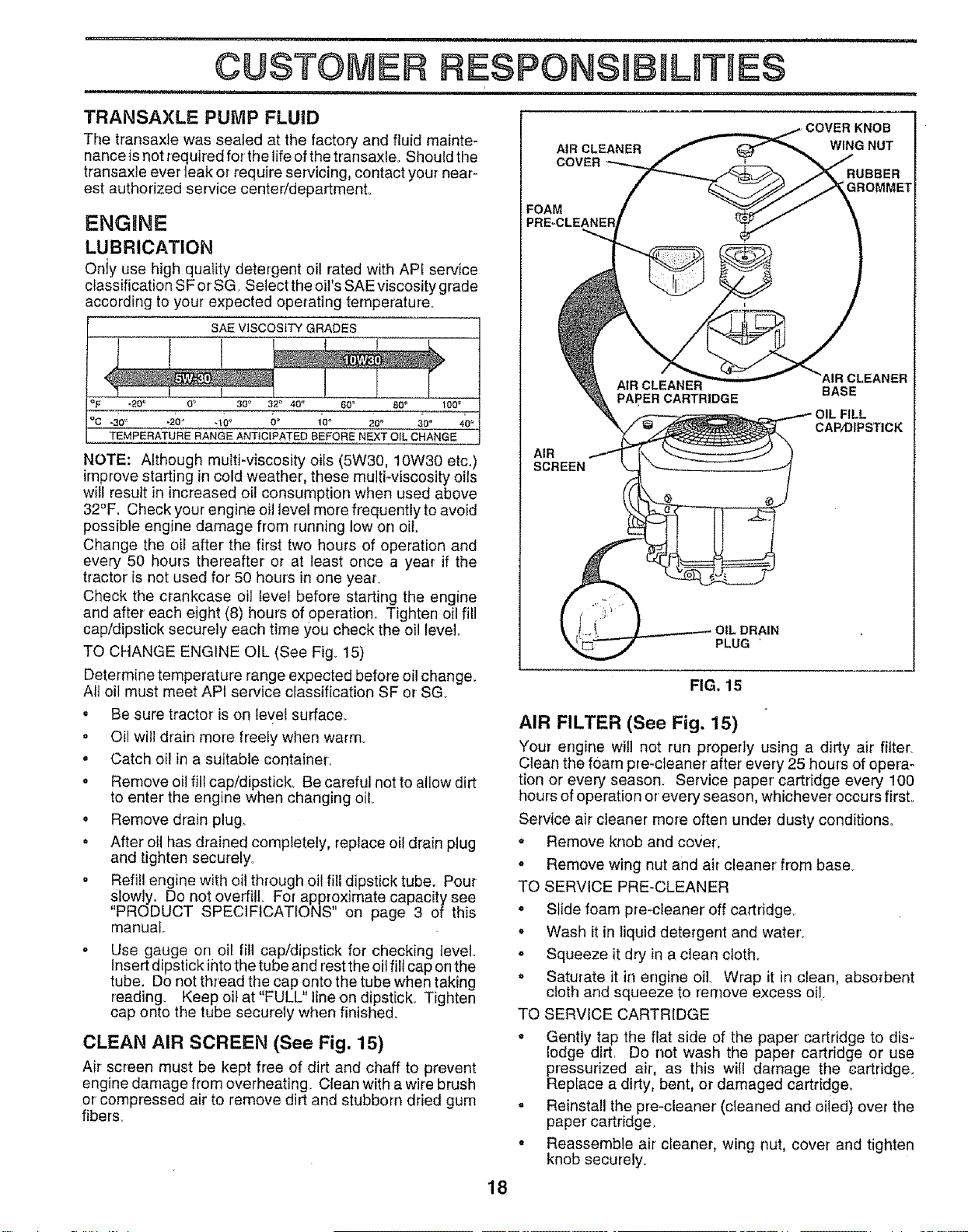

Air Filter, Engine .................................... 18

Air Screen, Engine ................................ 18

Assembly ...................................................7-9

Battery:

Charging ...................................................8

Cleaning ...................................... t7

Starting with Weak Battery ........ 23

Storage ....................................... 26

Terminals ................................... 17

Belts:

Motion Drive

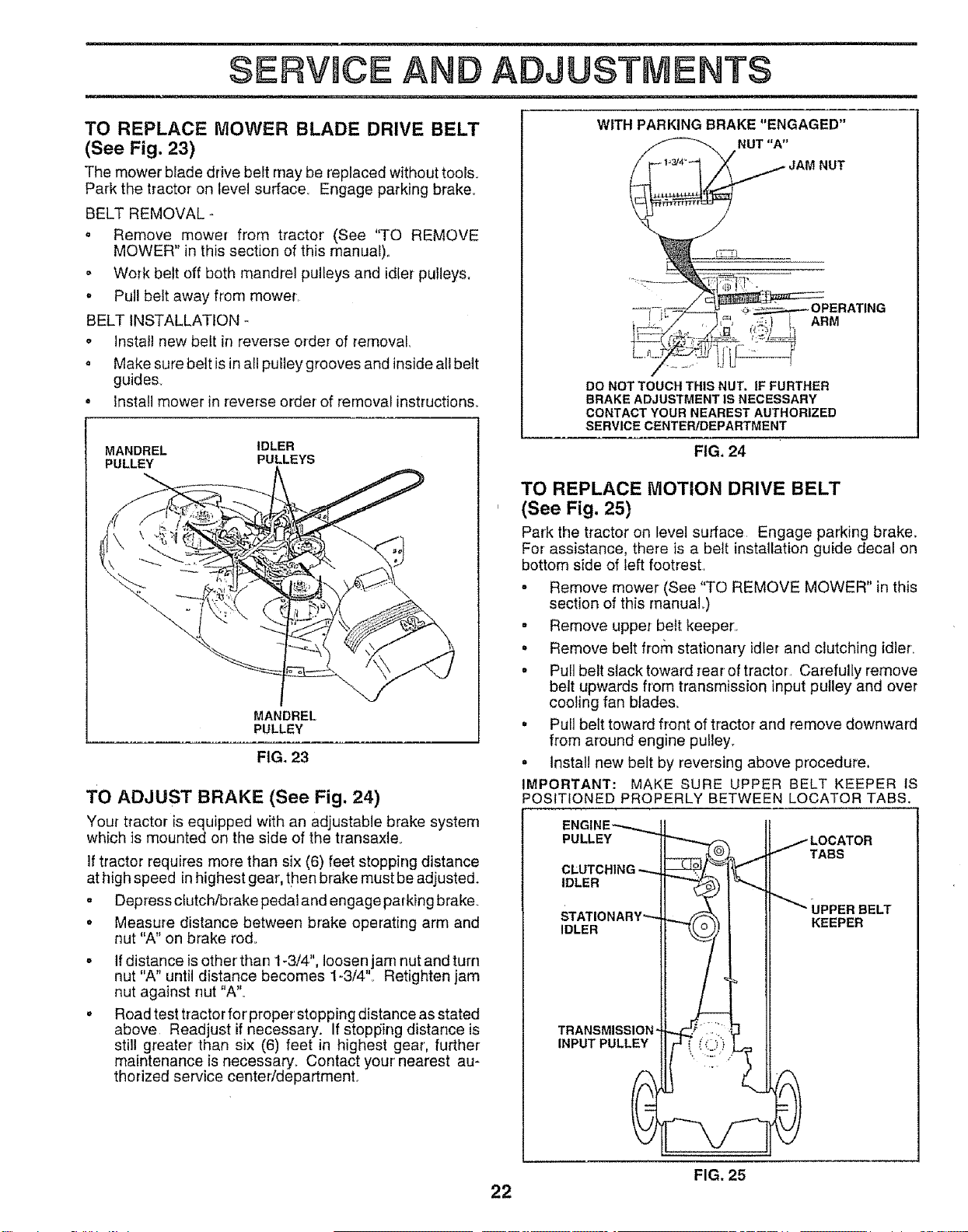

Removal!Replacement .......... 22

Mower Blade Drive

Removal/Replacement ...............22

Blade:

Sharpening ................................... 17

Replacement .............................. 17

Brake Adjustment .................................. 22

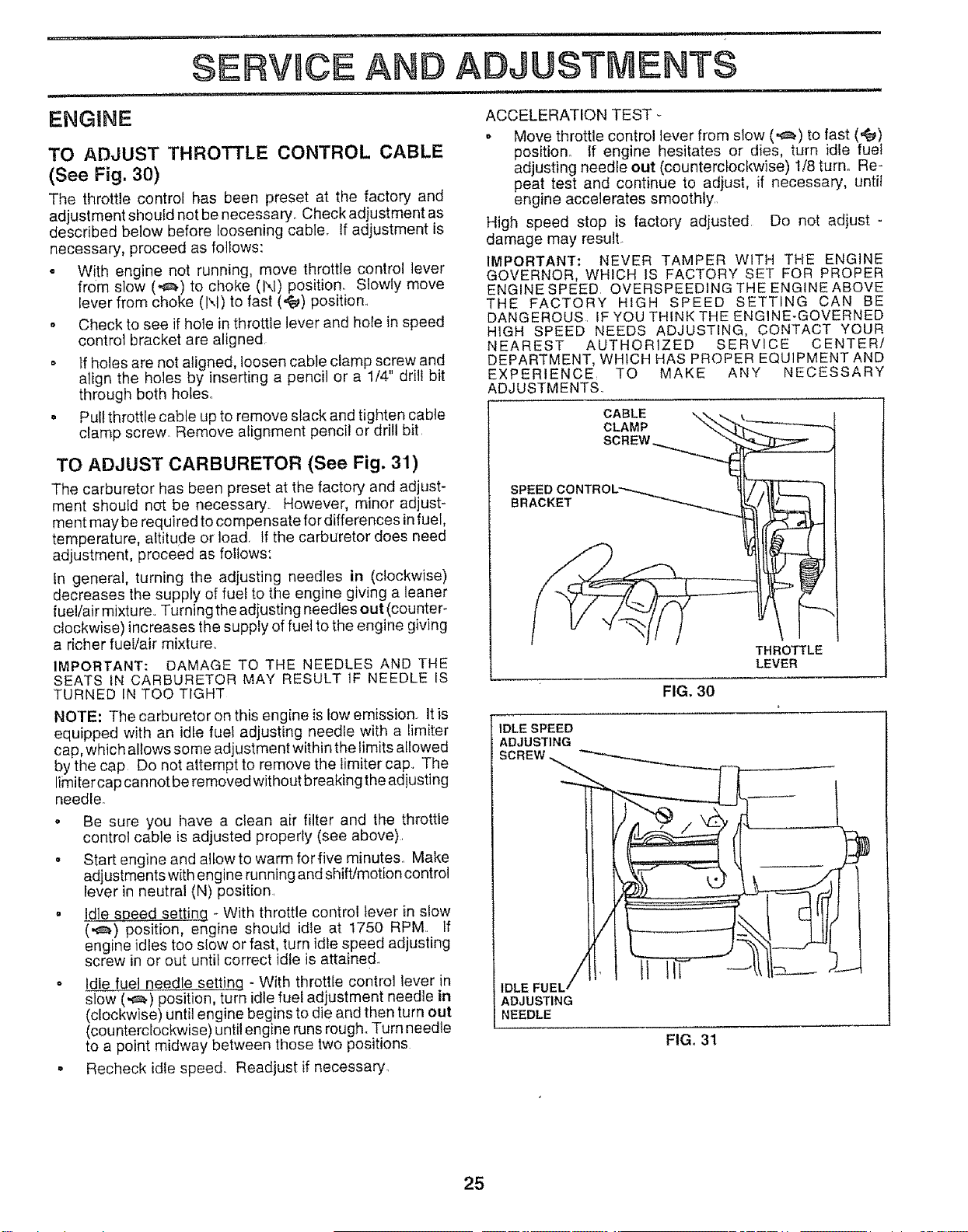

Carburetor Adjustment ....................... 25

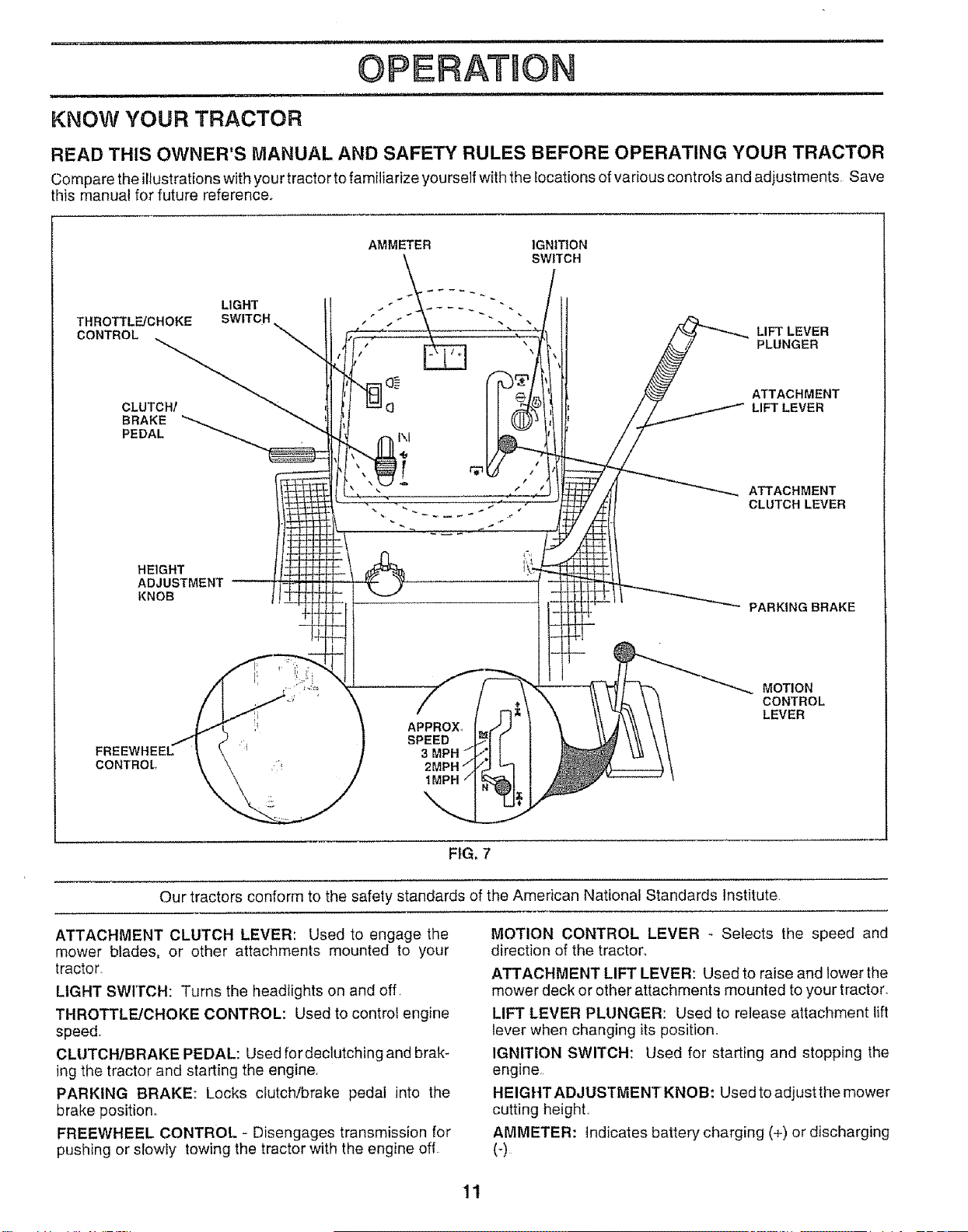

Controls, Tractor ................................. t 1

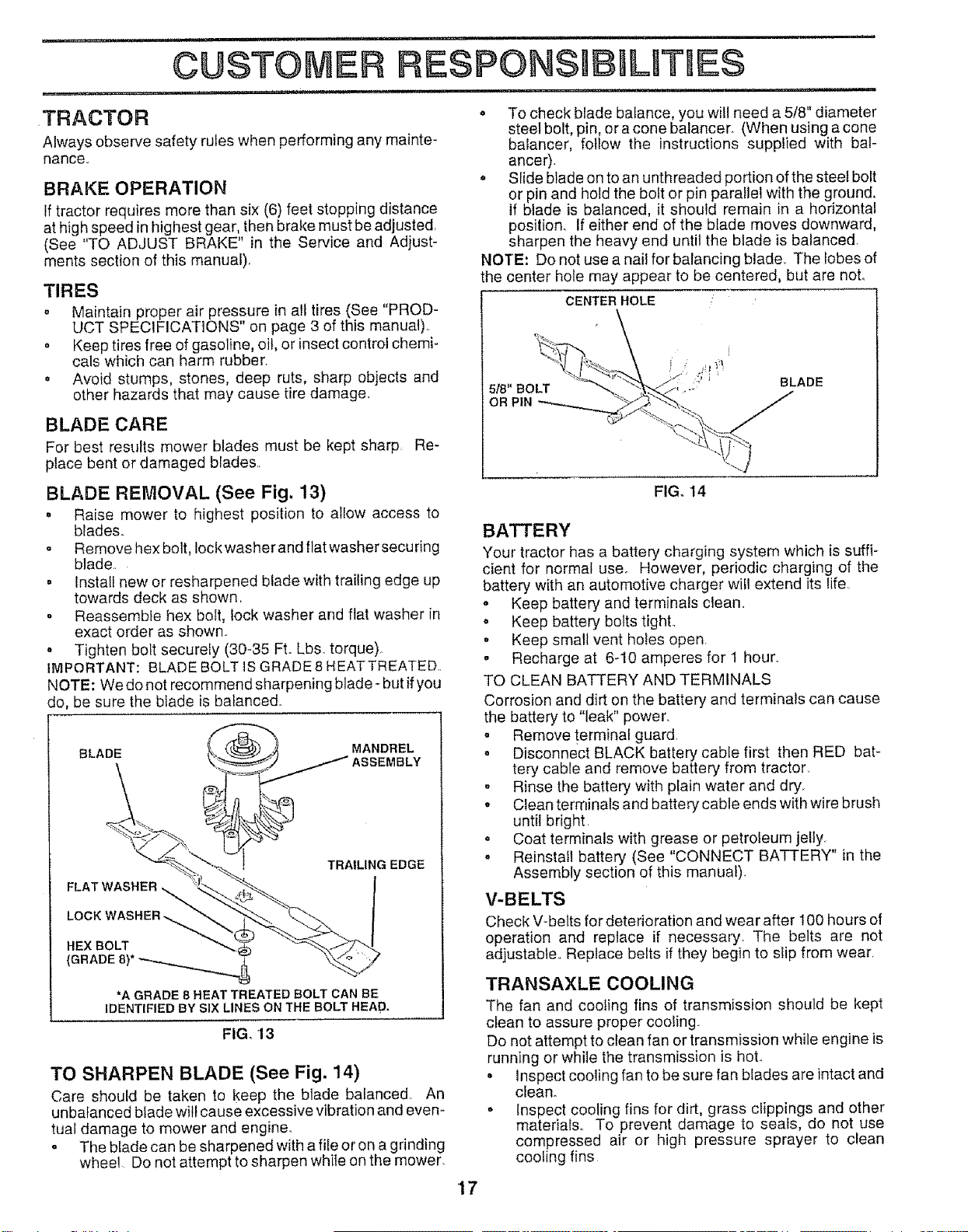

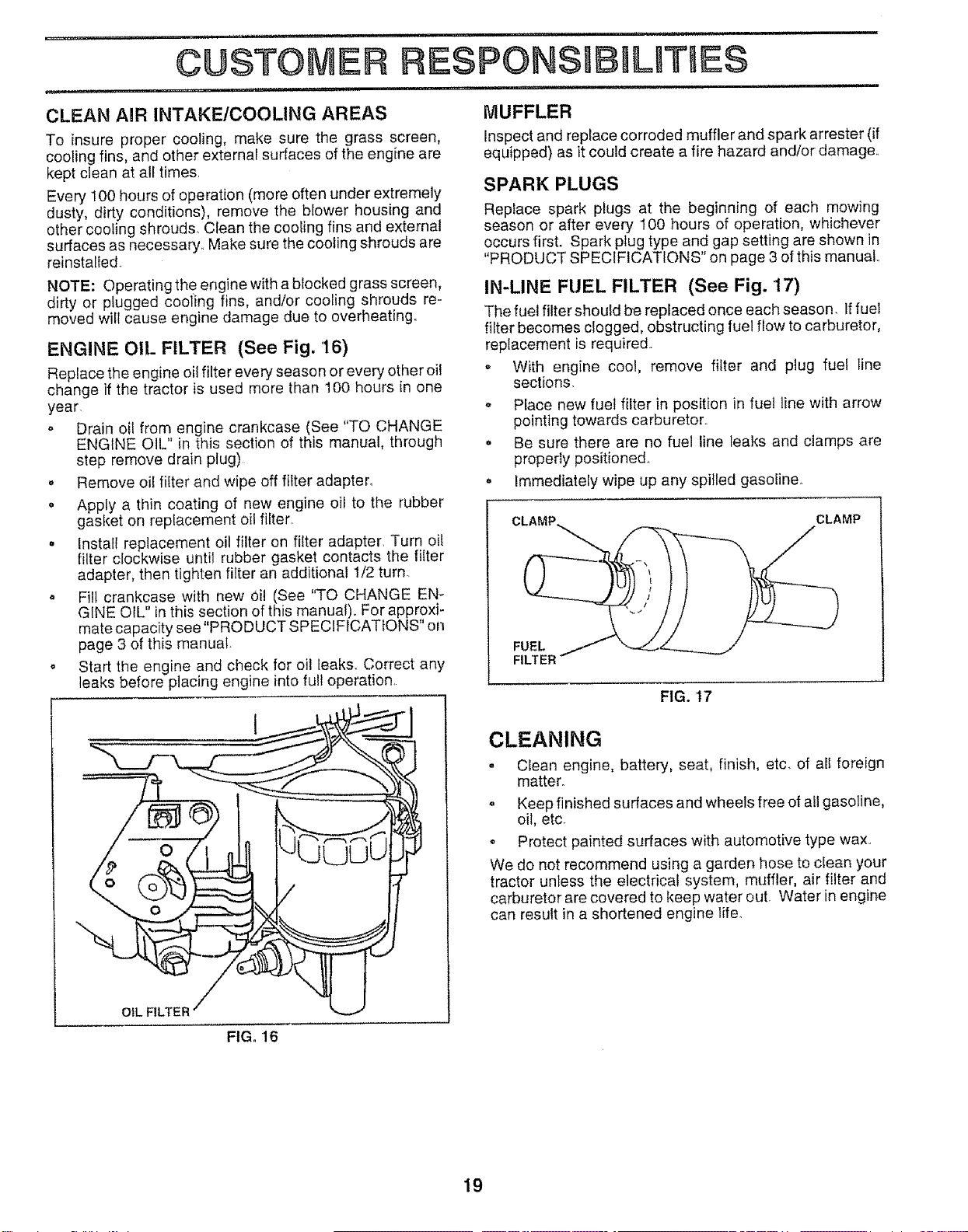

Customer Responsibilities ..............16-19

Engine:

Air Filter ...........................................18

Air Screen, Engine .......................18

Battery ..............................................17

Coofing Fins, Engine ................ 19

Engine Oil .................................. 18

Fuel Fitter ................................. 19

Spark Plugs ................................ 19

Tractor:

Blades ........................................ 17

Lubrication Chart ....................... 16

Maintenance Schedule .............16

Tire Care ........................... 9,17,23

Cutting Height, Mower ..............................12

Electrical:

Interlocks and Relays ................... 24

Schematic ......:......................................29

Wiring Diagram ........................... 30

Engine:

Air Filter ................................ 18

Air Screen ................................. 18

Cooling Fins, Engine ......................19

Oil Change ......................................18

Oil Level ................................... 13,18

Oil Type ........................................ 18

Preparation .................................... 13

Repair Parts ........................... 48-53

Starting ..................................... 14

Storage ................................... 26

Filters:

Air ................................................. 18

Fuel .................................... 19

Fuel:

Type .................................... 13

Storage ......................................... 26

Fuse ........................................... ......... 24

Gauge Wheels .............................. 9

Hood Removal/Installation .............. 24

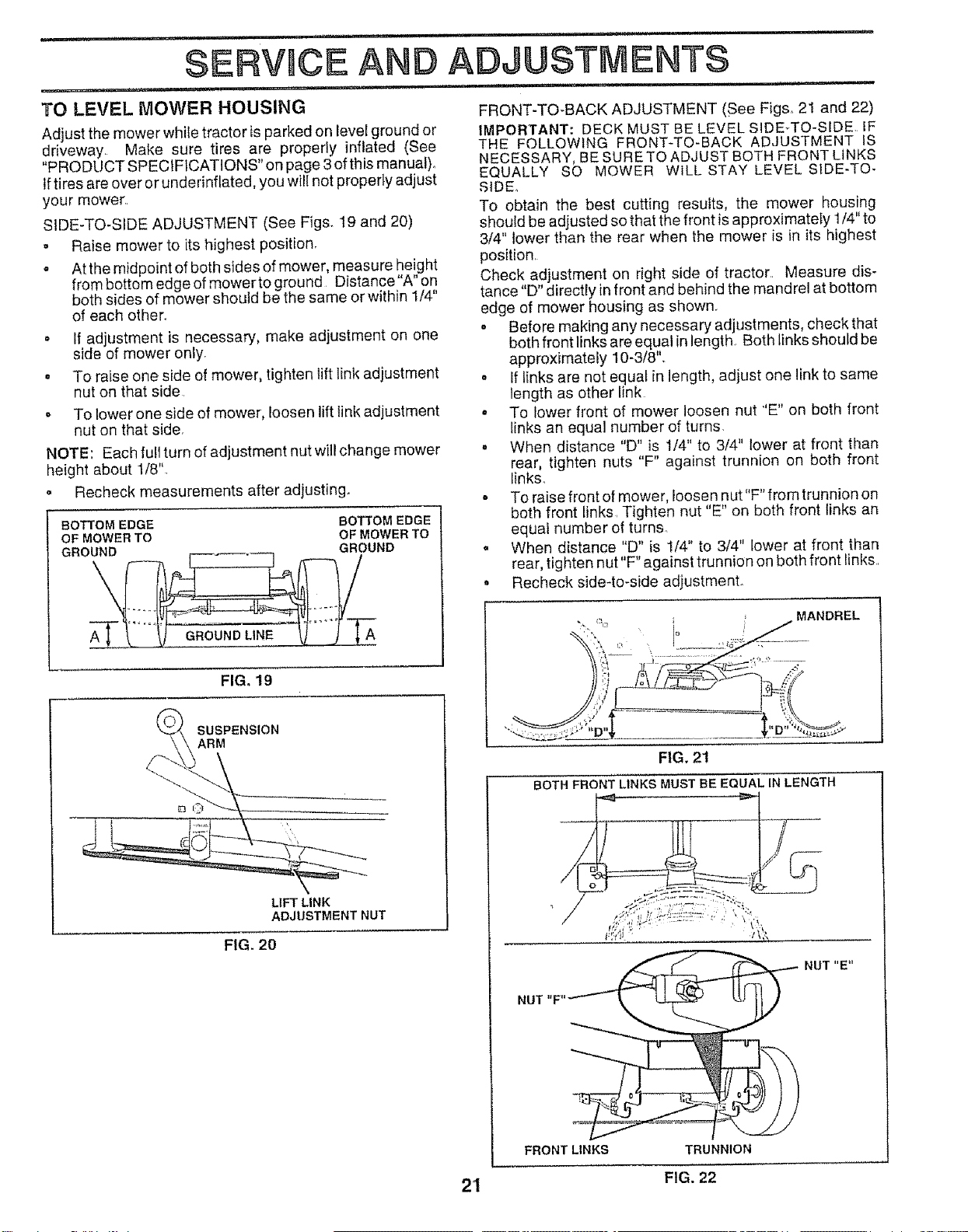

Leveling Mower Deck ................. 21

Lubrication Chart ........................... 16

Maintenance Schedule .................... 16

Mower:

Adjustment, Front-to-Back ........... 21

Adjustment, Side-to-Side ......... 21

Blade Sharpening ............................. 1 7

Blade Replacement ........................ 17

Cutting Height ................................ 12

installation .................................. 20

Operation .........................................13

Removal ..................................... 20

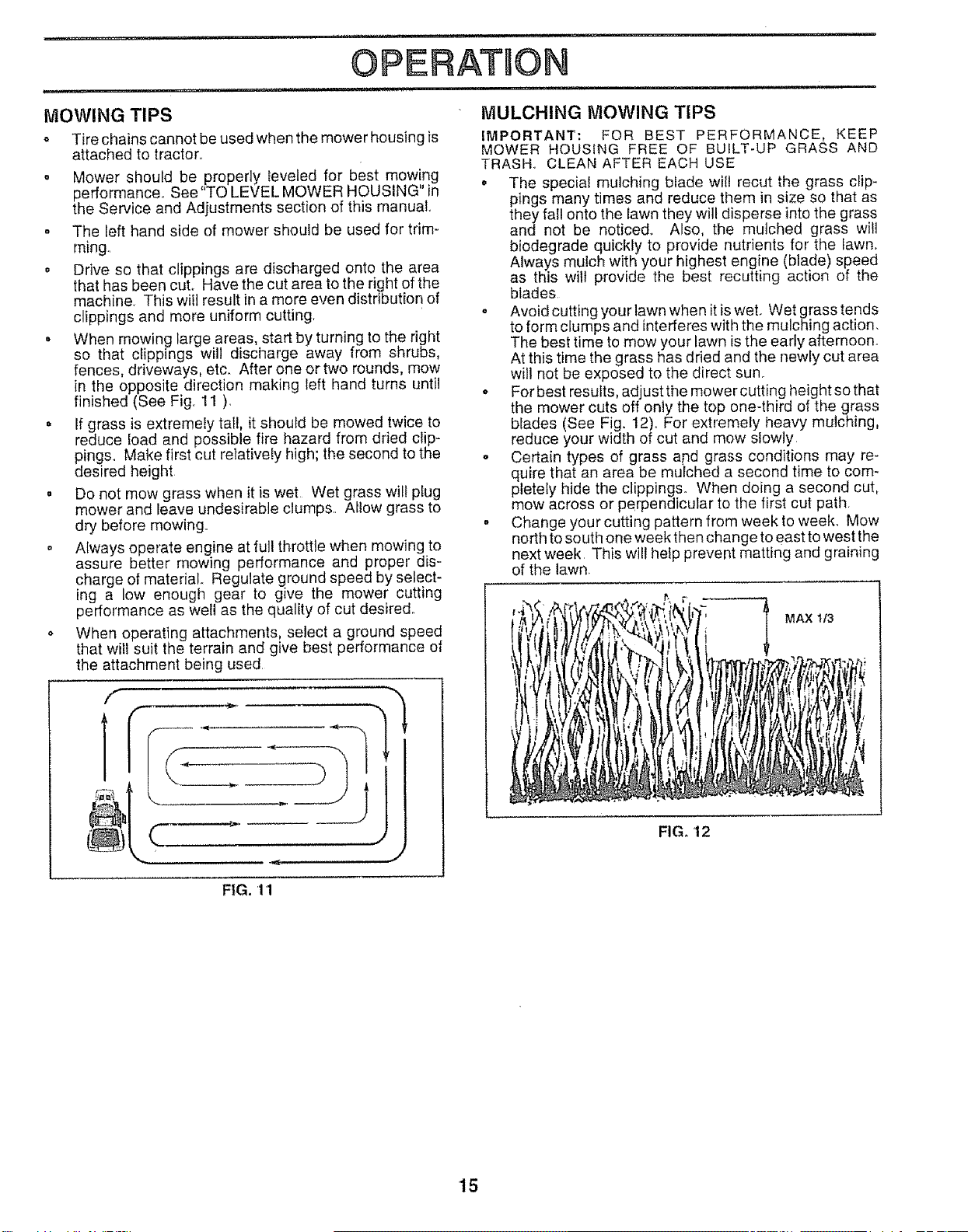

Mowing Tips .............................................14

Muffler ............................................... 19

Spark Attester ..................................3,40

Mulcher Plate ......................................... 9

Oil:

Cold Weather Conditions ........ 13,t8

Engine ............................................... 1 8

Storage ............................................26

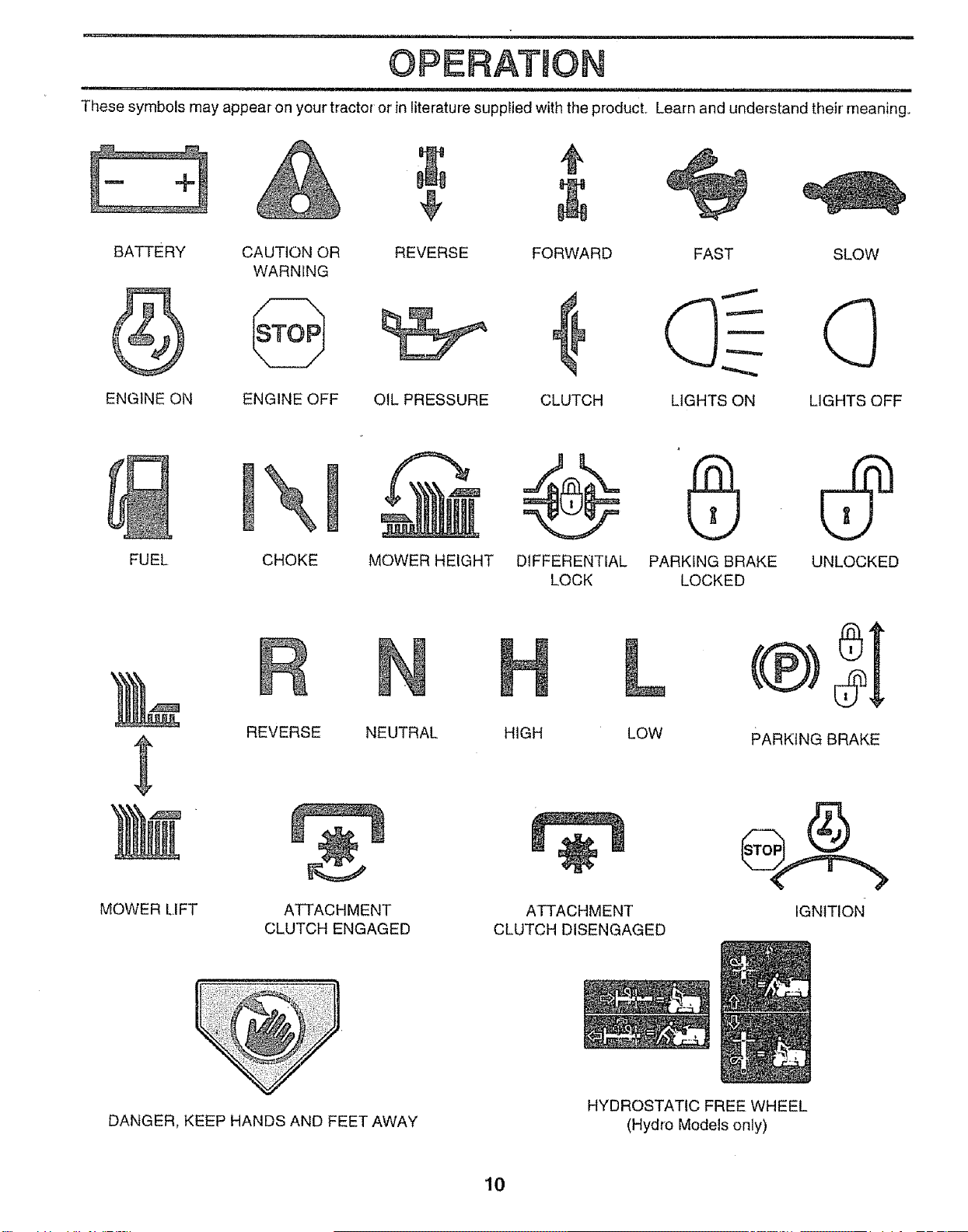

Operation ...........................................10-15

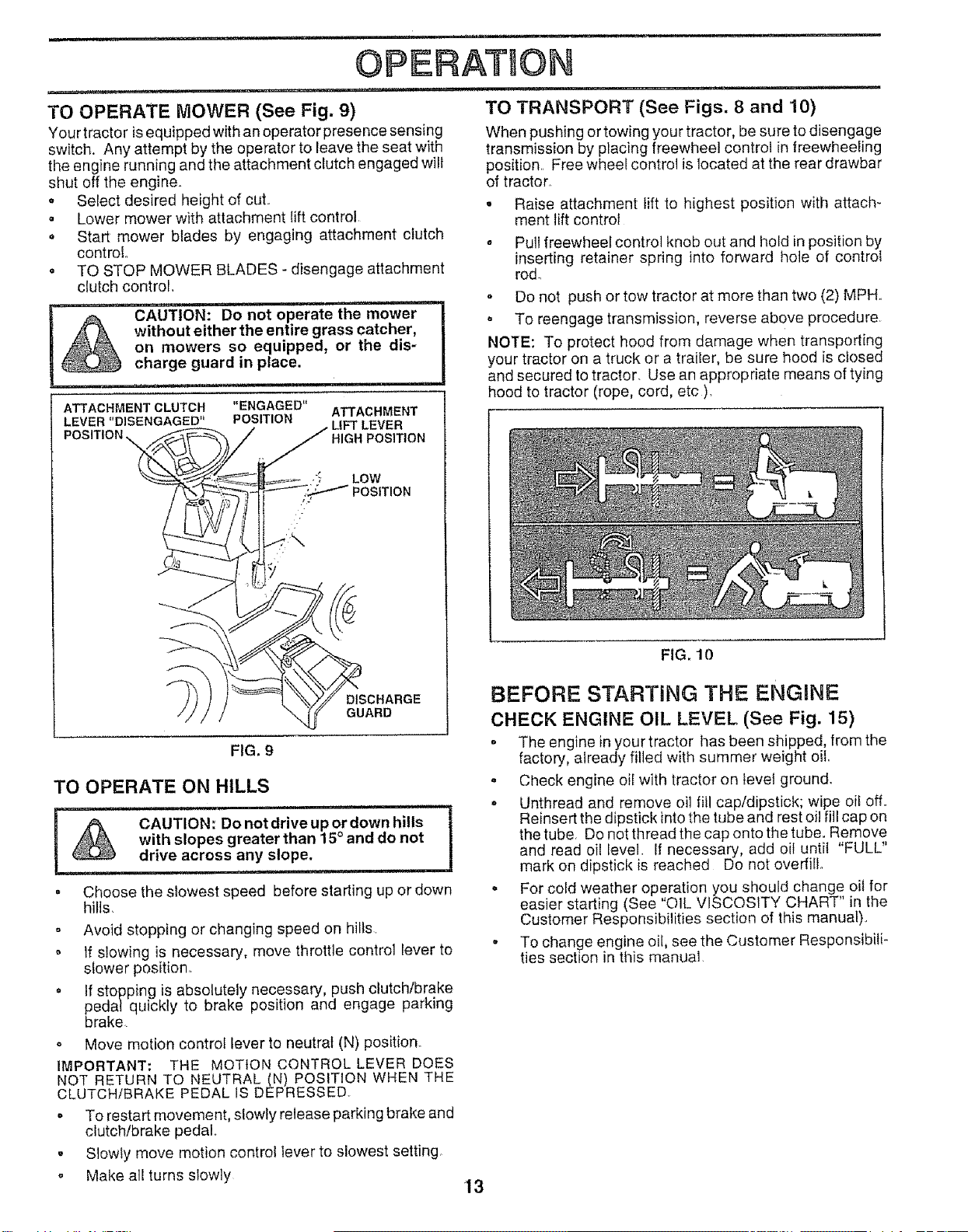

Operating Mower ................................. I3

Options:

Accessories .......................... ,5

Spark Attester ..............................3,40

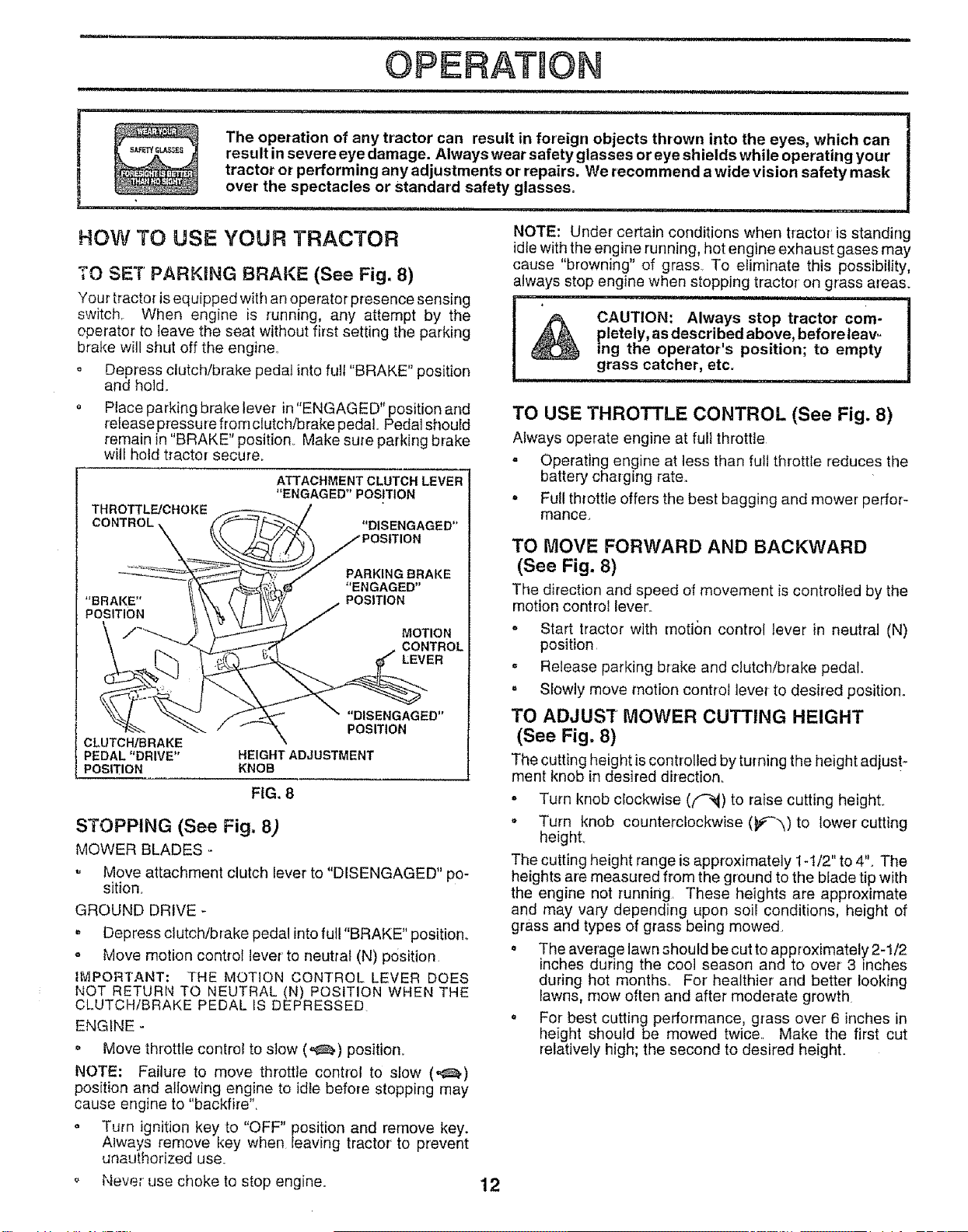

Parking Brake .......................... 11-t2

Parts Bag ............................................. , 6

Parts, Replacement/Repair ..............30-47

Product Specifications ................................... 3

Repair Parts ..................................... 30-47

Safety Rules ....................................... 2

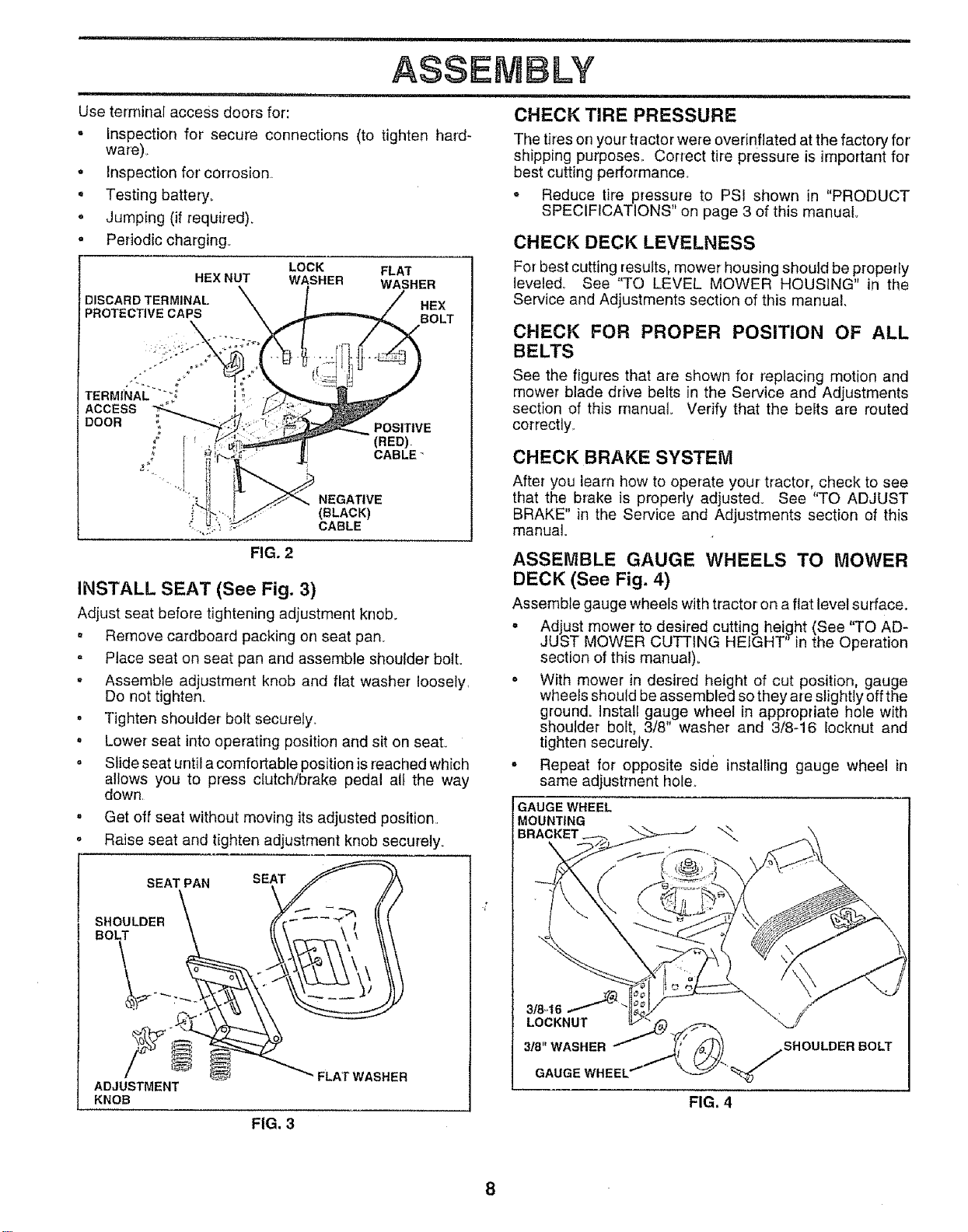

Seat ...................................................... 8

Service and Adjustments ............... 20*25

Brake .......................................... 22

Carburetor ................................... 25

Fuse ................................... 24

Hood Removal/Installation .........24

Motion Drive Belt

Removal/Replacement ........ 22

Mower Blade Drive Belt

Removal/Replacement ........... 22

Mower Adjustment:

Front-to-Back ................... 21

Side-to-Side ......................... 21

Mower lnstatiation ..................... 20

Mower Removal .......................... 20

Tire Care ............................... g,17,23

Slope Guide Sheet .............................. 55

Spark Plugs .......................................... 19

Specifications ....................................... 3

Starting the Engine ........................ 13-14

Steering Wheel ................................ 7,23

Stopping the Tractor ............................... 12

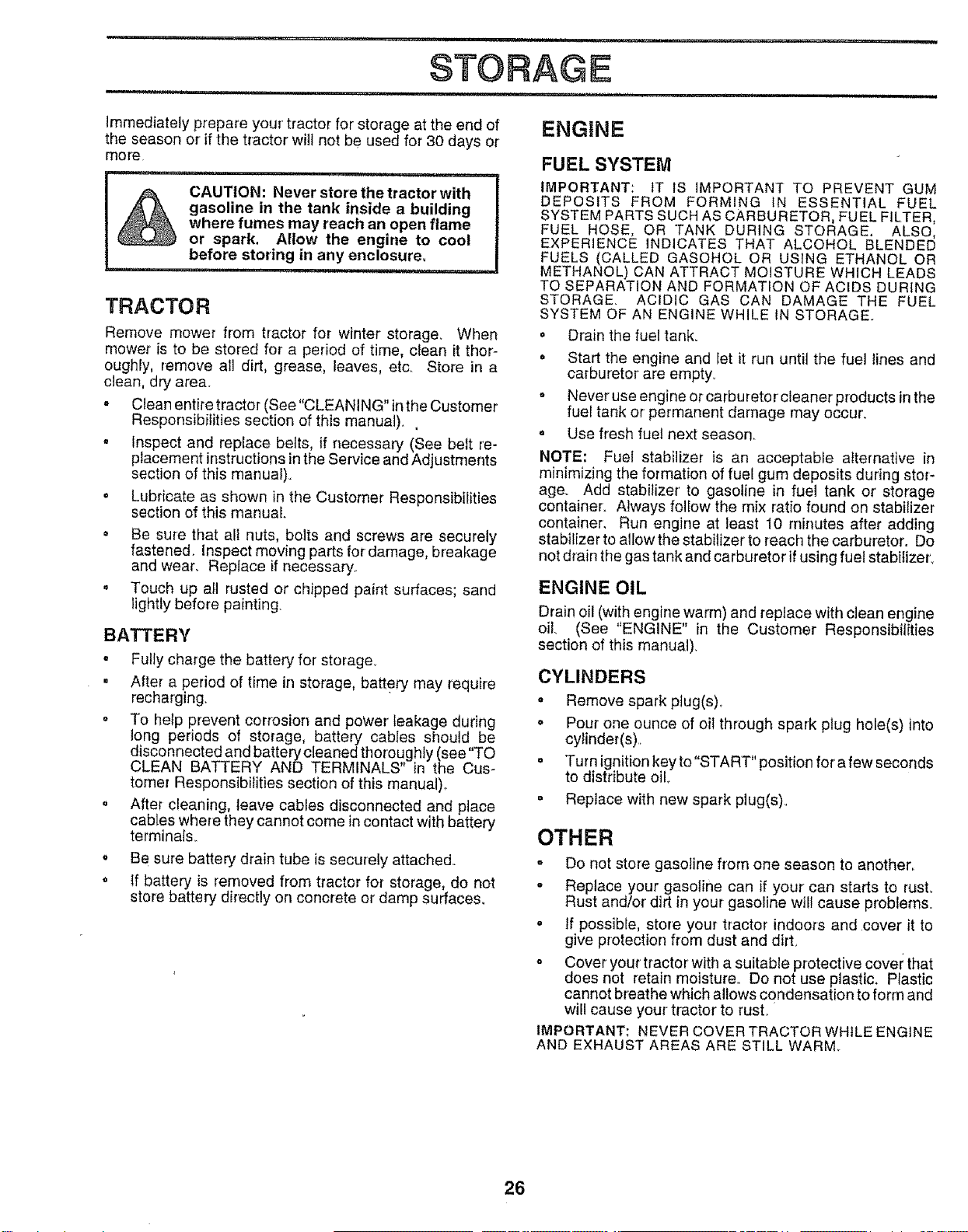

Storage ................................................... 26

Throttle Control Cable Adjustment .... 24

Tires .......................................... 9,17,23

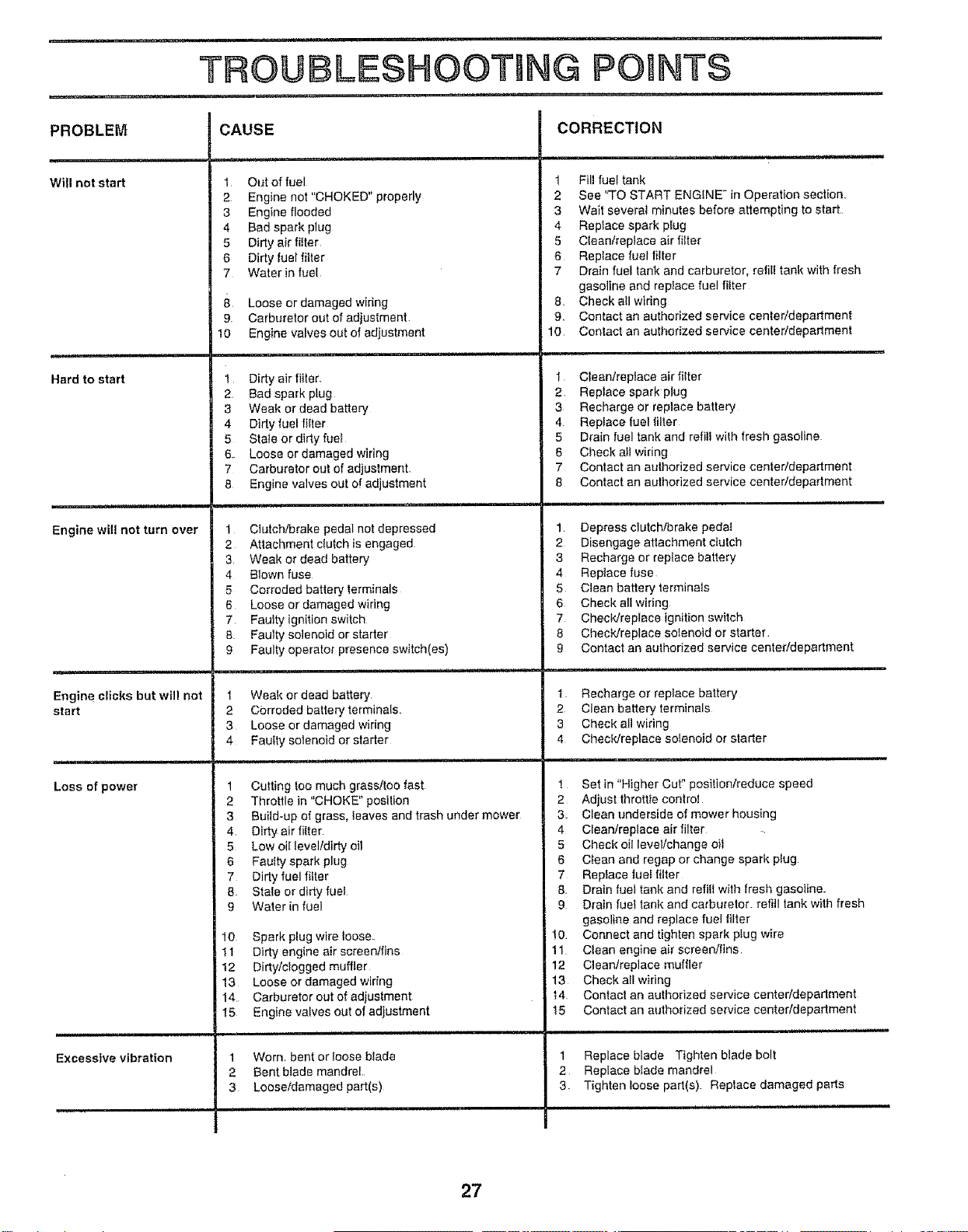

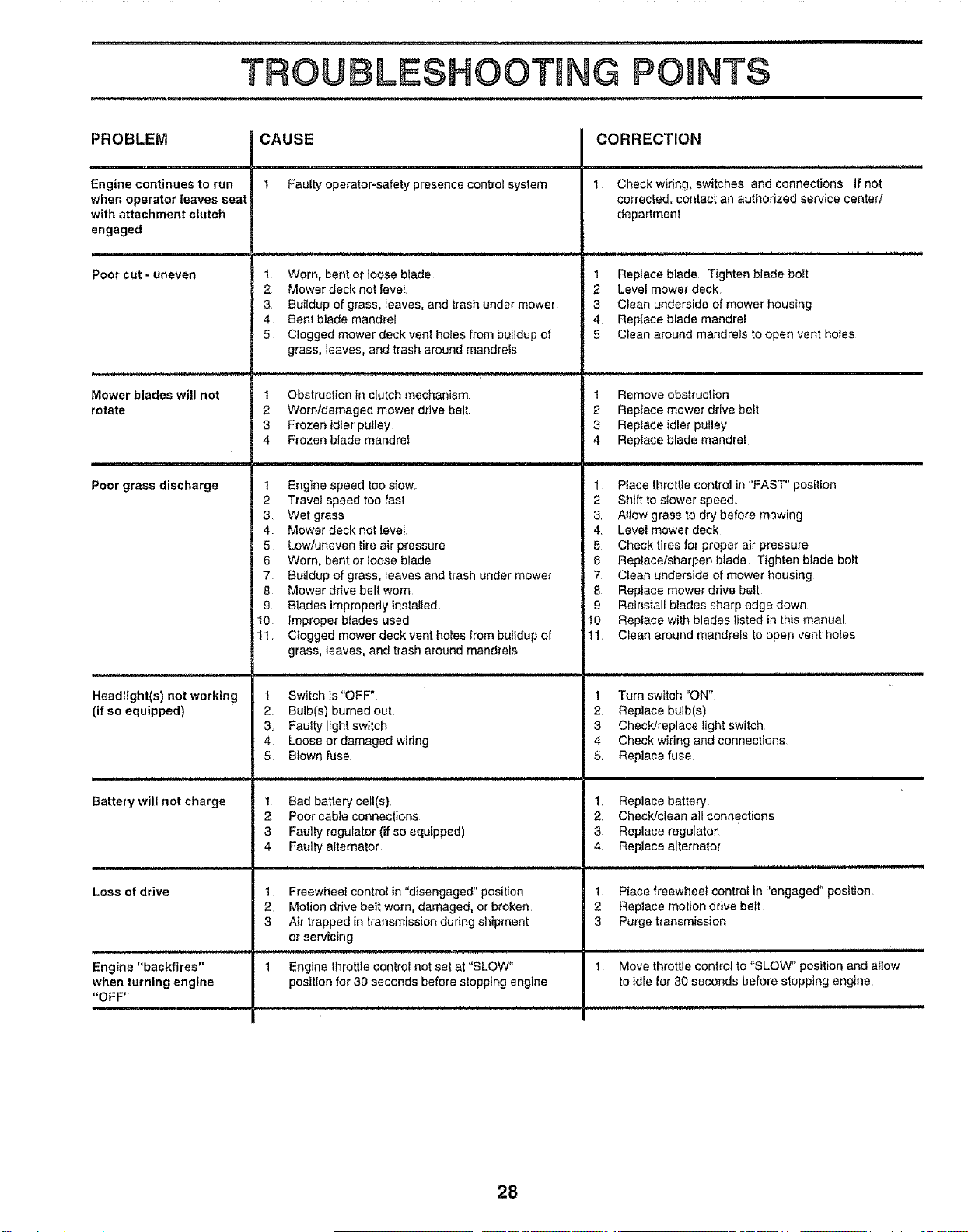

Trouble Shooting Chart .......................27-28

Transaxle Repair Parts ................. 46-47

Warranty ................................................. 3

Wiring Diagram .................................. 30

Wiring Schematic ............................... 29

ACCESSORUE$ AN ATTACHMENTS

i ,i i,i1,1, H, i, ,, i i,,,111.... ,........................... , , ,i,ii,, i ,, ii U,ill

These accessories and attachments were avaifab{e through most Sears retail outlets and service centers when the tractor was purchased.

Most Sears stores can order these items for you when you provide the model number of your tractor

ENGINE

SPARK PLUG

GAS CAN

ENGINEOIL FUEL STABILIZER AIR FILTER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are {istedbelow with brief explanations of how they can help

you This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model Contact your nearest Sears store for the

accessories and attachments that are available for your tractor..

Most of those attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2 5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in.

Steel weight tray for increased penetration

BAGGER lets you collect grass clippings and leaves for a

healthier, nearer look ng lawn Two Permanex containers hold

30-gallon plastic bags

BUMPER protects front end of tractor from damage.

CARTS make hauling easy Variety of sizes available, plus

accessories suct_ as side panel kits, too! caddy, cart cover,

protective mat and dolly,

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots 36-inch swath 24

hardened steel coring tips° I50 Ib. capacity weight tray

EASY OIL DRAIN VALVE makes oi! changes easier, faster

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain

GANG HITCH lets you tow 2 or3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of"scalping" on uneven terrain For mower decks not so

equipped

MULCH RAKFJDETHATCHER loosens soil and flips thatch and

matted leaves to Iawn surface for easy pickup Twenty spring tine

teeth. Useful to prepare bare areas for seeding. Available for front

or rear mounting, HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper Mounts behind tractor

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, d_scharge or bag clippings (bagger optional) without

changing blades For models not equipped as 3-in-1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck Use with 2 x 8 or 2 x 10 fumber

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater-tight drum holds up to 390 tbs ofweight Rounded

edges prevent harm to turf Adjustable scraper automatically

cleans drc_m

SNOW BLADE for snow removal only. 14-inch high, 48-inch wide

blade clears 42-inch path when angled left or right Raises, lowers

with side Lever. Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheel weights and/or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath Drum-type auger handles

powdery and wet/heavy snow Mounts easily with simple pin

arrangement.. Discharge chute adjusts from tractor seat 6-inch

diameter spout discharges snow !0 to 50 feet Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight )

SPRAYERS use 12-volt DC e_ectric motor that connects to the

tractor battery or other 12-volt source Inctudes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADERISEEDERS make seeding, fertilizing, and weed kill-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand

SWEEPERS let you collect grass clippings and leaves

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch

Fits any fawn, yard or garden tractor Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatchlng, aerating, hilling..without tools

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth fide, outstanding traction

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility.. Hinged metal doors with catch. Keeps operator warm

and dry Remove vinyl sides and windshields for use as sun

protector in summer Optional accessories include: tinted/

tempered solid safety glass windshield with hand opei'ated wiper;

12-volt amber caution light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves

Optional wand attachment to pick up debris in hard-to-reach

places VAClCHIPPER includes a chipper--shredder

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (1) 55 Ib. weight

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials

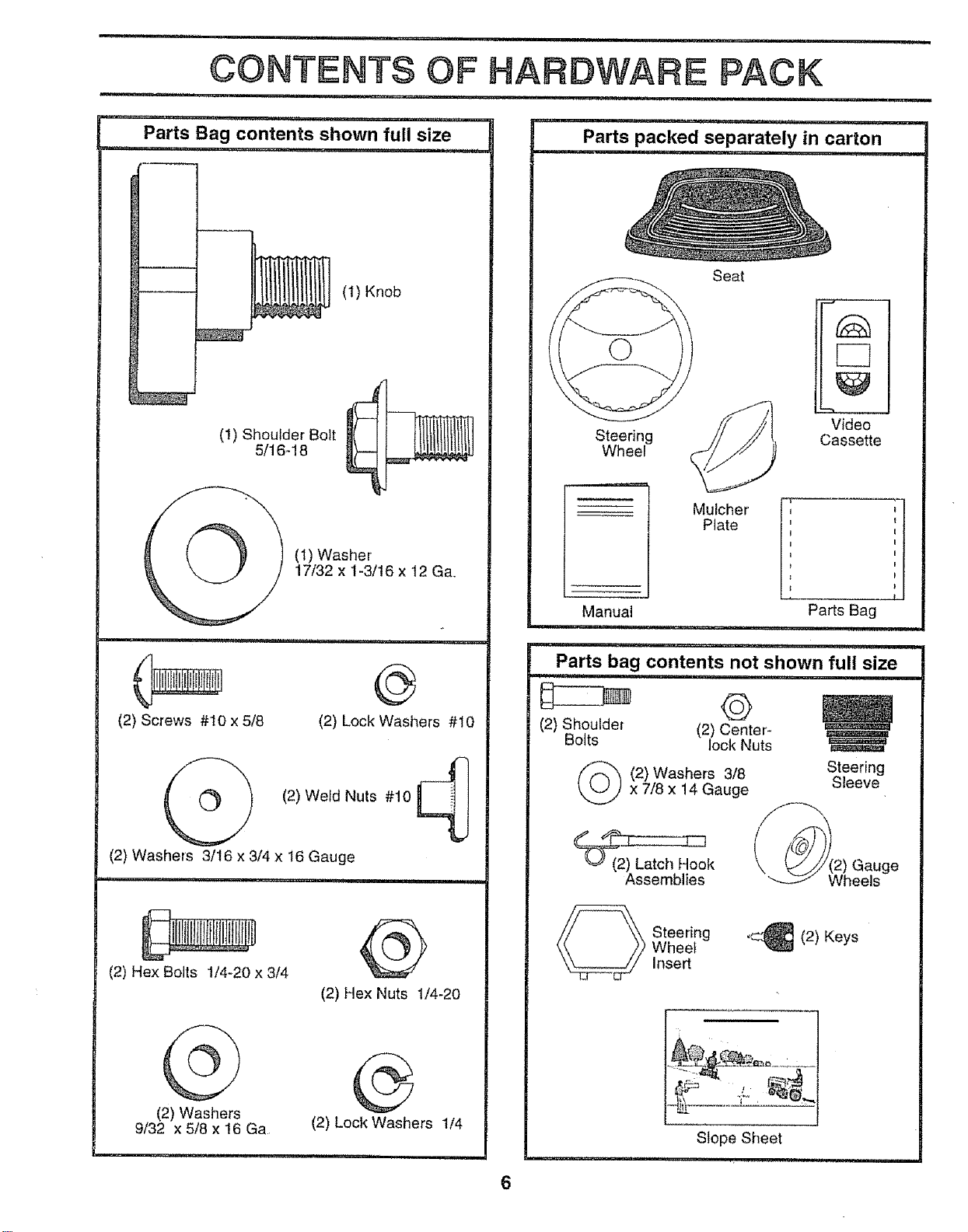

CONTENTS OF HARDWARE PACK

..... i..................... ....................

,u,,, i a in .................. ........ ,, uu lU , u .....

Parts B g contents shown full size Parts packed separately in carton

- lu..... ii ,,

(1) Knob

(1) Shoulder Bolt

5/16-18

(2) Screws #10 x 5/8

(1) Washer

17/32 x 1-3/t6 x t2 Ga.

....... ii .... unlu ,

(2) Lock Washers #t0

(2) Weld Nuts #10

(2) Washers 3/I6 x 3/4 x 16 Gauge

(2) Hex Bolts 1/4-20 x 3/4

(2) Washers

9/32 x5/8xt6Ga

(2) Hex Nuts 1/4-20

(2) Lock Washers 1/4

Steering

Wheel

Seat

Video

Cassette

Mulcher I

Plate '

Manual Parts Bag

,, ,,,,ll,,,u ,,, Ul, i i,

,i,,i,, ,,i , ,,i , ,,11 .......

Parts bag contents not shown full size

(2) Shoulder (2) Center-

Bolts lock Nuts

Assemblies

Steering

(2) Keys

Wheel

Insert

Slope Sheet

(2) Washers 3/8 Steering

x 7/8 x 14 Gauge Sleeve

ASSEMBLY

..................... ................... I,II n,,lll, Ill II I lu,I

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor ai] parts and hardware you assemble must be tightened securely_ Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier, Standard

wrench sizes are listed,

(1) 5/16" wrench

(2) 7/!6" wrenches

(1) 1/2" wrench

(1) 9/16" wrench

(1) 3/4" Socket w/drive rachet

Phillips Screwdriver

Tire pressure gauge

Utility knife

When right or left hand is mentioned in this manua}, it

means when you are in the operating position (seated

behind the steering wheel)

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

o Remove all accessible loose parts and parts cartons

from carton (See page 6),

• Cut, from top to bottom, along lines on all four corners

of carton, and tay panels flat

. Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKiD

ATTACH STEERING WHEEL (See Fig. 1)

= Remove Iocknut and large flat washer from steering

shall

° Position front wheels of the tractor so they are pointing

straight forward.

. Slide the steering sleeve over the steering shaft,,

. Position steering wheel so cross bars are horizontal

(left to right) and slide onto adapter.

o Secure steering wheel to steering shaft with locknut

and large flat washer previously removed. Tighten

securely

• Snap steering wheel insert into center of steering

wheel,

. Remove protective plastic from tractor hood and grill,

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

tN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKtD

TO ROLLTRACTOR OFF SKID (See Operation

section for location and function of controls)

, Press liftlever plunger and raise attachment lift lever to

its highest position.

. Release parking brake by depressing clutch/brake

peda!.

° Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" in

the Operation section of this manual),

- Roll tractor backwards off skid.

- Remove banding holding discharge guard up against

tractor

STEERING "----_-,-..,,,_A:i!_,.:,

t / .,STEER,NG

.:'_'1'_ ;_IF_ / SLEEVE .°

I /_--._ "7 _'" ,

t /

t I l/ /

FiG. 1

CONNECT BATTERY (See Fig. 2)

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

Lift hood to raised position,.

Open terminal access doors, remove terminal protec-

tive caps and discard.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-I0 amps

First connect RED battery cable to positive (+) battery

terminal with hex bolt, flat washer, lock washer and hex

nut as shown Tighten securely.

Connect BLACK grounding cable to negative (-) bat-

tery terminal with remaining hex bolt, flat washer, lock

washer and hex nut. Tighten securely.

Close terminal access doors°

mll_ll,!,l,, 1,1,11¸11111111ii H I I

Use terminal access doors for:

. Inspection for secure connections (to tighten hard-

ware).

o Inspection for corrosion

o Testing battery,

o Jumping (if required).

° Periodic charging.

LOCK FLAT

HEX NUT WASHER WASHER

DISCARD TERMINAL

PROTECTIVE CAPS

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes Correct tire pressure is important for

best cutting performance.

- Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled_ See "TO LEVEL MOWER HOUSING" in the

TERMINAL .... _'

ACCESS

DOOR

NEGATIVE

(BLACK)

CABLE

POSITIVE

(RED).

CABLE _

FIG. 2

HEX

BOLT

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual Verify that the belts are routed

correctly

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is propedy adjusted. See 'q'O ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

Assemble gauge wheels with tractor on a flat level surface.

= Remove cardboard packing on seat pan.

= Place seat on seat pan and assemble shoulder bolt.

, Assemble adjustment knob and flat washer loosely.

Do not tighten.

• Tighten shoulder bolt securely..

, Lower seat into operating position and sit on seal

, Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down.

° Get off seat without moving its adjusted position.

o Raise seat and tighten adjustment knob securely.

SEAT PAN SEAT

SHOULDER

BOLT

ADJUSTMENT

KNOB

FIG. 3

'FLATWASHER

, Adjust mower' to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT"in the Operation

section of this manual)°

o With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8" washer and 3/8-16 Iocknut and

tighten securely.

, Repeat for opposite side installing gauge wheel in

same adjustment hole.

GAUGE WHEEL ]

MOUNTING

318-16 \.\: ...._

LOCKNUT

318" WASHER SHOULDER BOLT

GAUGE WHEEL "_

FIG. 4

mN,,l=, ,,-r,

ASSEMBLY

INSTALL MULCHER PLATE

(See Figs. 5 & 6)

Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down°

o Tighten hardware securely.

o Raise and hold deflector shield in upright position.

- Place front of mufcher plate over front of mower deck

opening and slide into place, as shown.

° Hook front latch into hole on front of mower deck.

o Hook rear latch into hole on back of mower deck.

HOOK POINTS DOWN

WELD NUT FROM THE TOP

LOCK

WELD WASHER

NUT_ SCREW

LATCH

WASHER

LOCK

WASHER

MULCHER

PLATE

FIG_ 5

HOOK

WELD

NUT

DEFLECTOR

SHIELD

LATCH

HOOKS

FIG. 6

CAUTION: Do not remove discharge ]

guard from mower. Raise and hold |

guard when attaching mulcher plate i

and allow it to rest on plate while in |

operation. |

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory

NOTE: tt is not necessary to change blades.. The mulcher

blades are designed for discharging and bagging also_

,/'CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TOASSURE THAT YOU RECEIVE

THE BESTPERFORMANCE AND SA TISFA CTION FROM

THIS QUALITY PRODUCT

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed..

v" No remaining loose parts in carton

v" Battery is properly prepared and charged.. (Minimum

1 hour at 6 amps)..

v" Seat is adjusted comfortably and tightened securely.

7" All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory)

¢' Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

d" Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers,

¢' Check wiring, See that all connections are still secure

and wires are properly clamped

,/ Before driving tractor, be sure freewheel control is in

drive position°

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA A TTENTION TO THE FOLL 0 WING IMPOR TANT

ITEMS:

¢' Engine oil is at proper level,.

,z Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

v' Become familiar with all controls - their location and

function. Operate them before you start the engine

,/ Be sure brake system is in safe operating condition.

¢ It is important to purge the transmission before operat-

ing your tractor for the first time. Foltow proper starting

..... " T

and transmission purging mstructlons (See TO STAR

ENGINE and PURGE TRANSMISSION in the Op-

eration section of this manual).

' .i......................................... i

OPERATION

m i mu,Hn i

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LtGHTS ON LIGHTS OFF

FUEL CHOKE MOWER HEIGHT DIFFERENTIAL

LOCK

PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH LOW

ATTACHMENT

CLUTCH DISENGAGED

oSl

PARKING BRAKE

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATION

, ,i, , ii .........................

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adiustments Save

this manual for future reference°

THROTTL_CHOKE

CONTROL

LIGHT

SWITCH

CLUTCH/

BRAKE _

PEDAL

HEIGHT

ADJUSTMENT

KNOB

AMMETER IGNITION

SWITCH

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

ATTACHMENT

CLUTCH LEVER

PARKING BRAKE

CONTROL ,:"

APPROX_

SPEED

3 MPH

1MPH

MOTION

CONTROL

LEVER

FIG, 7

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower biades, or other attachments mounted to your

tractor.

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE/CHOKE CONTROL: Used to control engine

speed.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine,

PARKING BRAKE: Locks clutch/brake pedal into the

brake position.

FREEWHEEL CONTROL - Disengages transmission for

pushing or slowly towing the tractor with the engine off

MOTION CONTROL LEVER - Selects the speed and

direction of the tractor_

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment iift

lever when changing its position_

IGNITION SWITCH: Used for starting and stopping the

engine,

HEIGHT ADJUSTMENT KNOB: Used to adjust the mower

cutting heighL

AMMETER: indicates battery charging (+) or discharging

(-)

,HHmp,,= H,,, =,,,,==,==, === , ,,

OPERATgON

u:J_,J= =,m, , = 11 = 1, 11,111,

_ _ The operation of any tractor can result in foreign objects thrown into the eyes, which can

s_ _ result in severe eye damage. Always wear safety glasses or eye shields while operating your

L _'_ tractororperforminganyadjustmentsorrepairs. Werecommendawidevisionsafetymask

over the spectacles or Standard safety glasses=

_ ,,,_ =,,=,,,=H== m,,H=, N,H,, 'H ....................

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor isequipped with an operator presence sensing

switch, When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine,_

Depress clutch/brake pedal into full "BRAKE" position

and hold.

o Place parking brake lever in "ENGAGED" position and

release pressure frornclutch/brake pedal. Pedal should

remain in "BRAKE" position_ Make sure parking brake

wilt hold tractor secure_

THROTTLE/CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

"DISENGAGED"

"BRAKE"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

MOTION

CONTROL

LEVER

"DISENGAGED"

POSITION

CLUTCHIBRAKE

PEDAL "DRIVE" HEIGHT ADJUSTMENT

POSITION KNOB

FIG. 8

STOPPING (See Fig, 8)

MOWER BLADES =

= Move attachment clutch Iever to "DISENGAGED" po-

sition.

GROUND DRIVE -

= Depress clutch!brake pedal into futl "BRAKE" position.

,, Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL tS DEPRESSED

ENGINE -

o Move throttle control to slow (,_,) position°

NOTE: Failure to move throttle control to slow (,,{_)

position and allowing engine to idle before stopping may

cause engine to "backfire"_

o Turn,ignition key to "OFF" position and remove key.

Always remove key when leaving tractor' to prevent

unauthorized use.

_, Never use choke to stop engine°

NOTE: Under certain conditions when tractor' is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass, To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

,,,, , m H,

CAUTION: Always stop tractor com-

Pnletely,as described above, before leaw

g the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle

= Operating engine at less than full throttle reduces the

battery charging rate..

. Full throttle offers the best bagging and mower perfor-

mance.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

motion control lever..

o Start tractor with moti()n control lever in neutral (N)

position

. Release parking brake and clutch/brake pedal.

• Slowly move motion control level to desired position..

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height is controlled by turning the height adjust_

ment knob in desired direction,

- Turn knob clockwise (f"-_) to raise cutting height.

• Turn knob counterclockwise (_'",,)to tower cutting

height

The cutting height range is approximately 1-I/2" to 4"° The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

, The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth

o For best cutting performance, grass over 6 inches in

height should be mowed twice.. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE MOWER (See Fig. 9)

Your tractor isequipped with an operator presence sensing

switch, Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

o Select desired height of cut.,

Lower mower with attachment lift control

o Start mower blades by engaging attachment clutch

control

• TO STOP MOWER BLADES - disengage attachment

clutch control

........................... , i n,,,llnll u,

_ CAUTION: Do not operate the mower

_ _ without either the entire grass catcher,

II _ on mowers so equipped, or the dis-

charge guard in place"

,, ,,, ,, ,,,,,,, = = ,, NuJ,

DISCHARGE

GUARD

FIG. 9

ATTACHMENT CLUTCH

LEVER "DISENGAGED"

POSITION

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills I

with slopes greater than 15° and do not

drive across any slope.

Choose the slowest speed before starting up or down

hills,

o Avoid stopping or changing speed on hills,

o If slowing is necessary, move throttle control lever to

sfower position,

, if stopping is absolutely necessary, push clutchfbrake

pedal quickly to brake position and engage parking

brake

o Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED,

, To restart movement, slowly release parking brake and

clutch/brake pedal,,

• Slowly move motion control lever to slowest setting,

o Make all turns slowly

TO TRANSPORT (See Figs. 8 and 10)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position,, Free wheef control is located at the rear drawbar

of tractor,,

• Raise attachment lift to highest position with attach-

ment lift control

o Pull freewheel control knob out and hold inposition by

inserting retainer spring into forward hole of controt

rod.

o Do not push or tow tractor at more than two (2) MPH.

o To reengage transmission, reverse above procedure

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc )_

FIG, 10

BEFORE STARTING THE ENGBNE

CHECK ENGINE OIL LEVEL (See Fig. 15)

• The engine inyour tractor has been shipped, from the

factory, already filled with summer weight oil

° Check engine oif with tractor on level ground.

= Unthread and remove oil fitl cap/dipstick; wipe oil off.

Reinsert the dipstick intothe tube and rest oil fill cap on

the tube. Do not thread the cap onto the tube. Remove

and read oil level, If necessary, add oil until "FULL"

mark on dipstick is reached Do not overfill.

. For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual),.

° To change engine oil, see the Customer Responsibili-

ties section in this manual

OPERATION

.................... l!,ll ii , i

ADD GASOLINE

o Fill fuel tank.. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life).. Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING iN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP fNSURE GOOD COLD WEATHER

STARTING,

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids dudng storage, Acidic gas can damage the fuel

system of an engine while in storage To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor' are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never' use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

gas tank ............j

_ _ fillerneek. Do not overfiU. Wipeoffany

! spilled oil or' fuelo Do not store, spill or J

use gasoline near an open flame, j

'TO START ENGINE (See Fig. 9)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine_

o Depress crutch/brake pedal and set parking brake.

Pface motion control lever in neutral (N) position..

o Move attachment clutch to "DISENGAGED" position.

o Move throttle control to choke (l\l) position,

Note: Before starting, read the warm and cold starting

procedures below.

o _nsertkey into ignitionand turn key clockwise to"START"

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen sec-

onds per minute If the engine does not start after

several attempts, move throttle control to fast (,_)

position, wait a few minutes and try again, ifengine stilt

does not start, move the throttle control back to the

choke (N) position and retry.

WARM WEATHER STARTING (50° F and above)

o When engine starts, move the throttle control to the fast

(,@) position..

The attachments and ground drive can now be use& If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING ( 50° F and below)

o When engine starts, atlow engineto runwith thethrottle

control in the choke (I\) position until the engine runs

roughly, then move thrott e contro to fast (=_) position.

This may require an engine warm-up period from

several seconds to several minutes, depending on the

temperature.

HYDROSTATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the transmis-

sion should be warmed up as follows: 14

o Be sure the tractor' is on level ground.

o Place the motion control lever in neutral

Release the parking brake and let the clutch/brake

slowly return to operating position..

o Allow one minute for' transmission to warm up.

This can be done during the engine warm up

period.

o The attachments can also be used during the engine

warm-up period after the transmission has been warmed

up.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuet mixture may

need to be adjusted for best engine perfor mance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning,

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor' for the first time° This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLAT1ON

BEFORE OPERATING THE TRACTOR

° Place tractor safely on level surface with engine off and

parking brake set,

o Disengage transmission by placing freewheel control

in freewheeling position (See "TO TRANSPORT" in

this section of manual),

. Sitting in the tractor seat, start engine, After the engine

is running, move throttle control to slow (-_) position,.

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal

• Move motion control lever to full forward position and

hold for' five (5) second& Move lever to full reverse

position and hold for five (5) seconds.. Repeat this

procedure three (3) times,,

NOTE: During this procedure there will be no movement of

drive wheel& The air is being removed from hydraulic drive

system_

° Move motion control lever' to neutral (N) position_ Shut-

off engine and set parking brake

= Engage transmission by placing freew!leel control in

driving position (S..e TO TRANSPORT Jnth,s section

of manual).

o Sitting in the tractor seat, start engine° After the engine

is running, move throttle control to half (1/2) speed.

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal

o Slowly move motion control lever' forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position.. After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times°

• Your tractor is now purged and now ready for normal

operation

OPERATION

m_ ...............................

MOWING TIPS

o Tire chains cannot be used when the mower housing is

attached to tractor°

o Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.,

. The left hand side of mower should be used for trim-

ruing.

° Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This wiil result in a more even distributio n of

clippings and more uniform cutting.

• When mewing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one ortwo rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 11 ).

. If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings.. Make first cut relatively high; the second to the

desired height

• Do not mow grass when it is wet Wet grass will plug

mower and leave undesirable clumps.. Allow grass to

dry before mowing..

. Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

o When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used

,,,,,,,,,,,,,

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH, CLEAN AFTER EACH USE

o The special mulching btade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed, Also, the mutched grass will

biodegrade quickly to provide nutrients for the Iawn.

Always mulch with your highest engine (blade) speed

as this wilt provide the best recutting action of the

blades

o Avoid cutting your lawn when it isweL Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon_

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun,

* For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 12),, For extremely heavy mulching,

reduce your width of cut and mow slowly,

o Certain types of grass apd grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings° When doing a second cut,

mow across or perpendicular to the first cut path

o Change your cutting pattern from week to week° Mow

north to south one week then change to east to west the

next week This will help prevent matting and graining

of the lawn.

r, 1 MAX ti3

FIG_ t 2

FIG. 11

CUSTOMER ESPONSHBILBTJlES

,, __ -- , ,

FILL iN DATES ' ._._,-O_'_.,

AS YOU COMPLETE L_ ____

REGOLARSERV,CE .I '%RVlOE DATES

.......Check Brake 0potation '" I"_ ................. _'"

Check Tire Pressure _

T Check for Loose Fasteners 6##

,_ Sharpen/Replace Mower Blades

C Lubdcalion Chart

T Check Battery Level!Recharge

0 Clean Battery and Terminals

a Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tension

Check Engine Oil Level

Change Engine Oit

Clean Air Filter

N Clean Air Screen

G inspect Muffler/Spark Arrestor

Replace Oi1 Filter (If equipped)

N Clean Engin'e Cooling Fir,s

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

e,'

e"_i

v' e,'

t - Change more often when operating under a heavy load o_'In high ambienl temperatures

2 - Service more often when operating in dirty or dusty conditions

3 * tf equipped with off fillet, change oil every 50 hours

4 - Replace biades more otten when mowing tn sandy sell

5 * II equipped with adjustable sysiem

6 - Not required _fequfpped with maintenance-free battery

7 - Tighlen Iront axie pivof bolt to 35 It 4ha maximum

Do no_ overltghten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence, To

receive full value from the war ranty, operator must maintain

tractor as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your tractor,

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season..

o Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear, A new spark plug and clean air fitter assure

proper air-fuel mixture and help your engine runbetter

and last longer.

LUBRICATION CHART

® SPtND'EZERK----IF------_F--- SPINBLEZERK®

_) FRO NT WHEEL_::::::::::::::::::::::::::_ FRONTWHEEL-_' ®

BEARING ZERK _! "_J _ REARING ZERK

CLUTCH

PIVOT(S)

ENGINE ®

BEFORE EACH USE

- Check engine oil level

° Check brake operation.

o Check tire pressure,

o Check for loose fasteners.

(_) SAE 30 OR lOW30 MOTOR OIL

® GENERAL PURPOSE GREASE

® REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS, VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND IJtRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS, IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHtTE TYPE LUBRICANT SPARINGLY

..................... i i,

CUSTO RESPONSmB LUTUES

i ............................ 1,n

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manual)

TIRES

o Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual)°

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

o Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results mower blades must be kept sharp Re-

place bent or damaged blades,

o To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer_ (When using a cone

balancer, follow the instructions supplied with bal-

ancer),

o Slide blade onto an unthreaded portion of the steet bolt

or pin and hold the bolt or pin parallel with the ground.

if blade is balanced, it should remain in a hodzontaf

position, if either end of the blade moves downward.

sharpen the heavy end until the blade is balanced

NOTE: Do not use a nail for balancing blade, The lobes of

the center hole may appear to be centered, but are not,

CENTER HOLE /

518" BOLT

OR PIN

BLADE

BLADE REMOVAL (See Fig. 13)

= Raise mower to highest position to allow access to

blades.

o Remove hex bolt, lock washer and flat washer securing

blade,,

= Install new or resharpened blade with trailing edge up

towards deck as shown,

o Reassemble hex bolt, lock washer and flat washer in

exact order as shown.,

• Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT tS GRADE 8 HEATTREATED.,

NOTE: We do not recommend sharpening blade- but ifyou

do, be sure the blade is balanced,.

BLADE MANDREL

ASSEMBLY

TRAILING EDGE

FLAT WASHER_ !

HEXBOLT

(GRADE

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENT1FIEDBYSIXLINESONTHEBOLTHEAD.

FIG. ! 3

TO SHARPEN BLADE (See Fig. 14)

Care should be taken to keep the blade balanced An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine_

. The blade can be sharpened with a file or on a grinding

wheel Do not attempt to sharpen while on the mower.

FIG. 14

BATTERY

Your tractor has a battery charging system which is suffF

cient for normal use° However, periodic charging of the

battery with an automotive charger will extend its life

- Keep battery and terminals clean.,

Keep battery bolts tight,

• Keep small vent holes open,

. Recharge at 6-10 amperes for 1 hour_

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

o Remove terminal guard,

° Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor,

- Rinse the battery with plain water and dry

. Clean terminals and battery cable ends with wire brush

until bright,

o Coat terminals with grease or petroleum jelly,

o Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual),

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable., Replace belts if they begin to slip from wear

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot.

= lnspect cooling fan to be sure fan blades are intact and

cleano

- Inspect cooling fins for dirt, grass clippings and other

matedalso To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins

il,,, i, i ,,, _,, i,,,,,t, i IH"nMU

CUSTOMER RESPONSMBILSTIES

11inn u n u

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Shouldthe

transaxle ever leak or require servicing, contact your near-

est authorized service centeddepartmento

ENGINE

LUBRICATION

Only use high quatity detergent oil rated with API service

classification SF or SG Select the oil's SAE viscosity grade

according to your expected operating temperature°

AIR CLEANER

COVER

FOAM

SAE VISCOSITY GRADES

°F -20 _ 0 _ 30 ° 32" 40" 60 ° 80" 100 =

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F, Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 50 hours thereafter or at least once a year if the

tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fiH

cap/dipstick securely each time you check the oil level

TO CHANGE ENGINE OIL (See Fig_ 15)

Determine temperature range expected before oil change_

All oil must meet APt service classification SF or SG_

= Be sure tractor is on level surfacer

= Oil wit1drain more freely when warm.

o Catch oil in a suitable container_

. Remove oil fill cap/dipstick, Be carefu] not to allow dirt

to enter the engine when changing oil.

= Remove drain plugo

° After oil has drained completely, replace oil drain plug

and tighten securely°

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual

Use gauge on oil fill cap/dipstick for checking level..

Insert dipstick into the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the tube when taking

reading. Keep oil at"FULL" line on dipstick. Tighten

cap onto the tube securely when finished.

CLEAN AIR SCREEN (See Fig, 15)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating, Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers,,

KNOB

WING NUT

RUBBER

GROMMET

AIR

PAPER CARTRIDGE

AIR CLEANER

BASE

CAP,DIPSTICK

PLUG

FIG. 15

AIR FILTER (See Fig. 15)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or'every season, whichever occurs firsL

Service air cleaner more often under dusty conditions.

o Remove knob and cover.

o Remove wing nut and air cleaner from base.

TO SERVICE PRE-CLEANER

o Slide foam pre-cleaner off cartridge

o Wash it in liquid detergent and water'.

° Squeeze it dry in a clean cloth_

, Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil

TO SERVICE CARTRIDGE

o Gently tap the flat side of the paper' cartridge to dis-

lodge dirt. Do not wash the paper cartridge or use

pressurized air', as this wil! damage the eartridge_

Replace a dirty, bent, or damaged cartridge_

= Reinstall the pre-cleaner (cleaned and oiled) over the

paper' cartridge.

• Reassemble air cleaner, wing nut, cover and tighten

knob securely_

, i ii,lllll ¸

CUSTOMER

RESPONSUlBIL ES

, ,i i,im ,llll

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times,

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled

NOTE: Operating the engine with a blocked grass screen,

dirty or plugged cooling fins, and/or cooling shrouds re-

moved will cause engine damage due to overheating.

ENGINE OIL FILTER (See Fig. 16)

Replace the engine oil filter every season or every other oil

change if the tractor is used more than 100 hours in one

year.

o Drain oil from engine crankcase (See "TO CHANGE

ENGINE OIL" in this section of this manual, through

step remove drain plug)

Remove oil filter and wipe oft filter adapter_

o Apply a thin coating of new engine oil to the rubber

gasket on replacement oil filter,

. Install replacement oil filter on filter adapter, Turn oit

filter clockwise until rubber gasket contacts the filter

adapter, then tighten filter an additional 1/2 turn,

o Fill crankcase with new 0il (See "TO CHANGE EN-

GINE OIL" in this section of this manual). For approxi-

mate capacity see "PRODUCT SPECIFICATIONS" on

page 3 of this manual.

o Start the engine and check for oil leaks,, Correct any

leaks before placing engine into full operation,

OIL FILTER

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.,

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig, 17)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required..

° With engine cool, remove filter and plug fue! line

sections.

- Place new fuel filter in position in fuel line with arrow

pointing towards carburetor..

• Be sure there are no fuel line leaks and damps are

properly positioned.

. Immediately wipe up any spilled gasoline

CLAMP CLAMP

FUEL

FILTER

FIG. 17

CLEANING

o Clean engine, battery, seat, finish, etc. of alt foreign

matter.

o Keep finished surfaces and wheels free of all gasoline,

oil, etco

° Protect painted surfaces with automotive type wax..

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out Water in engine

can result in a shortened engine life.,

FIG. 16

SEIRVmCEAND ADJUSTMENTS

,,r,, ..........................

,, i i i '

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

o Depress clutchtbrake pedal fully and set parking brake.

o Place motion control lever in neutral (N) position.

o Place attachment clutch in "DISENGAGED" position.

° Turn ignition key "OFF" and remove key.

o Make sure the blades and all moving parts have completely stopped.

o Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plugo

ii, li i,i ,im ,111i, i i

TRACTOR

TO REMOVE MOWER (See Fig. 18)

Mowerwilt be easier to remove from the right side of tractor

° Place attachment clutch in "DISENGAGED" position.

, Move attachment lift lever forward to lower mower to its

lowest position_

o Roll belt off engine pulley.

o Disconnect clutch rod from clutch lever by removing

retainer spring_

° Disconnect anti-sway bar from chassis bracket by

removing retainer spring

o Disconnect suspension arms from rear deck brackets

by removing retainer springs°

. Disconnect front links flora deck by removing retainer

springs°

o Raise lift lever to raise suspension arms, Slide mower

out from under tractor,

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER iS TO BE MOUNTED TO THE TRACTOR,

REMOVE THE FRONT LINKS,

TO INSTALL MOWER (See Fig. 18)

, Raise attachment lift lever to its highest position,

° Slide mower under tractor with discharge guard to right

side of tractor.

. Lower lift lever to its lowest position,,

. Install mower in reverse order of removal instructions.

SUSPENSION

SPRING

ENGINE

PULLEY

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 18

= ii,u,, iir-i ',

SERVNCE AND

........ ,,i , ....................... ,r,lllJ,J

TO LEVEL MOWER HOUSING

Adjustthemower whiletractorisparkedon levelgroundor

driveway Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 ofthis manual)°

If tires are over orunderinflated, you will not properly adjust

your mower..

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

o Raise mower to its highest position.

- At the midpoint of both sides of mower, measure height

from bottom edge of mowerto ground Distance"A" on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

o To raise one side of mower, tighten lift link adjustment

nut on that side

o To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each fun turn of adjustment nut will change mower

height about 118".

• Recheck measurements after adjusting°

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LINE A

FIG. 19

SUSPENSION

ARM

LIFT LINK

ADJUSTMENT NUT

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SiDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WiLL STAY LEVEL SIDE-TO-

SIDE,

To obtain the best cutting results, the mower housing

should be adiusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position,

Check adjustment on right side of tractor,, Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately t0-3/8".

• If links are not equal in length, adjust one link to same

length as other link

° To lower front of mower loosen nut "E" on both front

links an equal number of turns.

• When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

o To raise front of mower, loosen nut "F" from trunnion on

both front links, Tighten nut "E" on both front links an

equal number of turns

. When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut"F" against trunnion on both front links,,

o Recheck side-to-side adjustment.

" _" ;o , MANDREL

J :?

FIG, 21

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT

NUT " "_

FRONT LINKS TRUNNION

21 FIG. 22

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 23)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface_ Engage parking brake.

BELT REMOVAL-

o Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual)..

o Work belt off both mandrel pulleys and idler pulleys,

= Pull belt away from mower,

BELT INSTALLATION -

o Install new belt in reverse order of removal.

= Make sure belt is in all pulley grooves and inside all belt

guides_

• Install mower in reverse order of removal instructions.

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 23

TO ADJUST BRAKE (See Fig. 24)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxte.

If tractor requires more than six (6) feet stopping distance

athigh speed in highest gear, then brake must be adjusted.

, Depress clutch/brake pedal and engage parking brake.

° Measure distance between brake operating arm and

nut "A" on brake rod.,

Ifdistance is other' than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4" Retighten jam

nut against nut "A".

Road test tractor for proper stopping distance as stated

above Readjust if necessary, if stopping distance is

still greater than six (6) feet in highest gear', further

maintenance is necessary. Contact your' nearest au-

thorized service center/department.

WITH PARKING BRAKE "ENGAGED"

NUT "A"

,JAM NUT

_,_OPERATING

ARM

DO NOT TOUCH THIS NUT. IF FURTHER

BRAKE ADJUSTMENT IS NECESSARY

CONTACT YOUR NEAREST AUTHORIZED

SERVICE CENTER/DEPARTMENT

FIG, 24

TO REPLACE MOTION DRIVE BELT

(See Fig. 25)

Park the tractor on level surface Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

o Remove mower (See "TO REMOVE MOWER" in this

section of this manual,)

, Remove upper belt keeper..

• Remove belt from stationary idler and clutching idler,

• Pull belt slack toward rear of tractor, Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades.

• Pull belt toward front of tractor and remove downward

from around engine pulley.

• install new belt by reversing above procedure,

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS,

ENGINE_I I

PULLEY _-]__.(_-_ .._-" LOCATOR

I_.__I / TABS

CLUTCHING_L_- _

IDLER H ---_ ] _ "-,

' H _ I -"--_"UPPER BELT

STATIONARY .....

IDLER IARYI_ Kccr'crt

TRANSMISSION -,hL._C_,r ._

,.PUTPOLLEY11/" /

FIG. 25

, i lUl!,!,lll,i , i,,,11 ,,i,

SERVICE AND ADJUSTMENTS

i Ul..., .......... . ......... it i.

TO ADJUST NOTION CONTROL LEVER (See TO REMOVE WHEEL FOR REPAIRS

Fig. 26) (See Fig, 27)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission..

o Park tractor on level surface Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake.

o Adjust motion control lever by tightening adjustment

Iocknut one half (1/2) turn.

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening tocknut 1/4to 1/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in the Operation section of this manual

ADJUSTMENT

LOGKNUT

FIG. 26

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toeqn or camber, contact your nearest authorized

service centeddepartment.

o Block up axle securely

- Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

o Repair tire and reassemble.

. On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

. Replace washers and snap retaining ring securely in

axle groove.

. Replace axle cover.

WASHERS

RETAINING

RING

AXLE COVER

SQUARE I(EY

(REAR WHEE L ONLY)

FIG. 27

TO START ENGINE WITH A WEAK BATTERY

See Fig. 28)

CAUTION: Lead-acid batteries gener-

ateexplosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A

12 VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEH!CLES.

TO ATTACH JUMPER CABLES -

o Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

o Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

o BLACK cable first from chassis and then from the fulty

charged battery.

o RED cable last from both batteries

SERVmCE AND ADJUSTMENTS

,,,,H,=, =iN l= =Hill lllili= ................................. = 1, i =

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse.

fuse holder' is located behind the dash.

L,H. PANEL

BOLT

FIG. 28

TO REPLACE HEADLIGHT BULB

= Raise hood..

. Pull bulb holder out of the hole in the backside of the

grill.

- Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill°

. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or p_event it from stalting_

• Check wiring. See electrical wiring diagram in the

Repair Parts section of this rnanual.

The

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 29)

. Raise hood.,

° Unsnap headlight wire connector.

• Stand infront of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor°

= To replace, reverse above procedures

HOOD

....

!_,iS:_: HEADLIGHT

WIRE

CONNECTOR

FIG. 29

.... .....u ...... ql_ IIM,

SERWCE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig, 30)

The throttle control has been preset at the factory and

adjustment should not be necessary, Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

° With engine not running, move throttle control lever

from slow (-_,) to choke (N) position. Slowly move

lever from choke (1\1)to fast (,_) position..

o Check to see if hole in throttle lever and hole in speed

control bracket are aligned

o If holes are not aligned loosen cable clamp screw and

align the holes by inserting a pencil or a 1/4" dr bit

through both holes.

° Pull throttle cable up to remove slack and tighten cable

clamp screw Remove alignment pencil or drill bit

TO ADJUST CARBURETOR (See Fig. 31)

The carburetor has been preset at the factory and adjust-

ment should nat be necessary, However, minor adjust-

ment may be required tocompensate for differences in fuel,

temperature, altitude or load tf the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles in (clockwise)

decreases the supply of fuel to the engine giving a leaner

fue!/air mixtu re..Turning the adjusting needles out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel!air mixture,,

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT 1F NEEDLE IS

TURNED IN TOO TIGHT

NOTE: The carburetor on this engine is low emission. It is

equipped with an idle fuel adjusting needle with a Iimiter

cap, which allows some adjustment within the limits allowed

by the cap Do not attempt to remove the limiter cap., The

limitercap cannot be removed without breaking the adjusting

needle.

,, Be sure you have a clean air tilter and the throttle

control cable is adjusted properly (see above),

• Start engine and allow to warm for.five minutes., Make

adjustments with engine running and shift/motion control

lever in neutral (N) position,

. Idle speed setting - With throttle control lever in slow

(,,_) position, engine should idle at 1750 RPM, tf

engine idles too s!ow or fast, turn idle speed adjusting

screw in or out until correct idle is attaine&

- Idle fuel needle settinq - With throttle control lever in

slow (.e_) position, turn idle fuel adjustment needle in

(clockwise) until engine begins to die and then turn out

(counterclockwise) until engine runs rough. Turn needle

to a point midway between those two positions

,, Recheck idle speed. Readjust if necessary.

ACCELERATION TEST -

• Move throttle control lever from slow (.=_) to fast (._)

position, if engine hesitates or dies, turn idle fuel

adjusting needle out (counterclockwise) 1/8 turn° Re-

peat test and continue to adjust, if necessary, until

engine accelerates smoothly,

High speed stop is factory adjusted Do not adjust -

damage may result

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVERSPEEDINGTHEENGINEABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS, IF YOU THINK THE ENGINE-GOVERNED

H1GH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE, TO MAKE ANY NECESSARY

ADJUSTMENTS.

CABLE

CLAMP

SCREW

SPEED C(

BRACKET

FIG. 30

IDLE SPEED

ADJUSTING

SCREW

IDLE FUEL /

ADJUSTING

iNEEDLE

THROTTLE

LEVER

FIGo 31

STORAGE

Hi,m, n= ,mural 1' ='n i ,jj_

Immediately prepare your tractor for storage at the end of ENGINE

the season or if the tractor will not be used for 30 days or

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure_

TRACTOR

Remove mower from tractor for winter storage_ When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area,,

o Clean enti[etractor (See"CLEANING"inthe Customer

Responsibilities section of this manual), ,

o Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that af! nuts, bolts and screws ate securely

fastened. Inspect moving parts for damage, breakage

and wear° Replace if necessary,.

° Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

° Fully charge the battery for storage,.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should,, be

disconnected and battery cleaned thoroughly (see TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual)_

Q After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminats_

o Be sure battery drain tube is securely attached,.

o If battery is removed from tractor for storage, do not

store battery directly on concrete or'damp surfaces.

FUEL SYSTEM

IMPORTANT: 1T IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING _N ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE, ALSO,

EXPERIENCE iNDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE,

" Drain the fuel tank.

. Start the engine and Iet it run until the fuel lines and

carburetor are empty°

" Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur_

. Use fresh fuel next season_

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container, Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor' if using fuel stabilizer_

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

• Remove spark plug(s)_

° Pour one ounce of oil through spark plug hole(s) into

cylinder(s),,

• Turn ignitionkey to"START" position for a few seconds

to distribute oil,

= Replace with new spark plug(s)_

OTHER

= Do not store gasotine from one season to another,_

° Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

. If possible, store your tractor indoors and cover it to

give protection from dust and dirt,

o Cover your tractor with a suitable protective coveithat

does not retain moisture, Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your' tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POnNTS

PROBLEM CAUSE CORRECTION

Will not start

1 Out of fuel

2 Engine not "CHOKED" properly

3 Engine flooded

4 Bad spark plug

5 Dirty air filter

6 Dirty fuel filter

7 Water in fuel

8 Loose or damaged wiring

9. Carburetor out of adjustment

10 Engine valves out of adjustment

1 Fill fuel tank

2 See "TO START ENGINE" in Operation section,

3 Wait several minutes before attempting to start

4 Replace spark plug

5 Clean/replace air filter

6 Replace fuel filter

7 Drain fuel tank and carburetor, refill tank with fresh

gasoline and rep}ace fuel filter

8 Check all wiring

9, Contact an authorized service center/department

10 Conlact an authorized service center/depadment

Hard to start 1 Dirty air filter,

2 Badspark plug

3 Weak or dead battery

4 Dirty fuel filter

5 Stale or dirty fue_

6, Loose or damaged wiring

7 Carburetor out of adjustment

I Clean/replace air filter

2, Replace spark plug

3 Recharge or replace battery

4 Replace fuel filler

5 Drain fuel tank and refill with fresh gasoline

6 Check all wiring

7 Contact an authorized service center!department

Engine will not turn over

Engine clicks but wil! not

start

Loss of power

8 Engine valves out of adjustment

1 Clutch/brake pedal not depressed

2 Attachment clutch is engaged

3 Weak or dead battery

4 Blown fuse

5 Corroded battery terminals

6 Loose or damaged wiring

7 Faulty ignition switch

8 Faulty solenoid or starter

9 Faulty operator presence switch(as)

1 Weak or dead battery

2 Corroded batter,/terminals

3 Loose or damaged wiring

4 Faulty solenoid or starter

1 Cutting too much grass/too fast

2 Throttle in "CHOKE" position

3 Build-up of grass, leaves and trash under mower

8 Contact an authorized service center/department

1 Depress clutch/brake pedal

2 Disengage attachment clutch

3 Recharge or replace battery

4 Replace fuse

5 Clean batten/terminals

6 Check all wiring

7 Check/replace ignition switch

8 Check/replace solenoid or starter

9 Contact an authorized service center/department

t Recharge or replace battery

2 Clean battery terminals

3 Check all wiring

4 Check/replace solenoid or starter

1 Set in "Higher Cut" position/reduce speed

2 Adjust throttle control

3 Clean underside of mower housing

4 Dirty air fiiter

5 Low oil level!dirty oil

6 Faulty spark plug

7 Dirty fuel filter

8 Stale or dirty fuel

9 Water in fuel

10 Spark plug wire loose,

11 Dirty engine air screen/fins

12 Dirty/clogged muffler

13 Loose or damaged wiring

4 Clean!replace air filter

5 Check oil levetlcllange oil

6 Clean and regap or change spark plug

? Replace fuel filter

8, Drain fuel tank and refill with fresh gasoline.

9 Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel tilter

t 0 Connect and tighten spark plug wire

11 Clean engine air screenilins,

12 Clean/replace muffler

13 Check all wiring

Excessive vibration

14 Carburetor out of adjustment

15 Engine valves out of adjustment

1 Worn, bent or loose blade

2 Bent blade mandrel,

3 Loose/damaged part(s)

t4 Contact an authorized service center/department

15 Contact an authorized service center/department

ii, i ,1111,1,

1 Replace blade Tighten blade bolt

2 Replace blade mandrel

3 Tighten loose part(s) Replace damaged parts

TROUBLESHOOTNNG PONNTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

IIIH

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires"

when turning engine

"OFF"

CAUSE

1 Faulty operator-safety presence control system

1 Worn, bent or loose blade

2 Mower deck not level

3 Buildup of grass, leaves, and trash under mower

4 Bent blade mandrel

5 Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels

1 Obstruction in clutch mechanism.

2 Wornldamaged mower drive belt

3 Frozen idler pulley

4 Frozen blade mandrel

1 Engine speed too stow.

2 Travel speed too last

3 Wet grass

4 Mower deck not revel

5 Low/uneven tire air pressure

6 Worn, bent or loose blade

7 Buildup of grass, leaves and trash under mowe_

8 Mower dr{ve belt worn

9 Blades improperly installed

I0 Improper blades used

11. Clogged mower deck vent ho_es from buildup of

grass, leaves, and trash around mandrels

1 Switch is "OFF"

2 Bulb(s) burned out

3 Faulty light switch

4 Loose or damaged widng

5 Blown fuse

1 Bad battery cell(s)

2 Poor cable connections

3 Faulty regulator (if so equipped)

4 Faulty alternator

1 Freewheel control in "disengaged" position

2 Motion drive belt worn, damaged, or broken

3 Air trapped in transmission during shipment

or servicing

Engine throttlecontrol not set at "SLOW"

position for30 seconds beforestopping engine

CORRECTION

i i , i ,i ii ,IH,I

1 Check wiring, switches and connections If not

corrected, contact an authorized service center/

department

1 Replace blade Tighten blade bolt

2 Level mower deck

3 Clean underside o{mower housing

4 Rap[ace blade mandrel

5 C_ean around mandrels to open vent holes

t Remove obstruction

2 Replace mower drive belt

3 Replace idler pulley

4 Replace blade mandret

1 Place throttle contro] in "FAST" position

2. Shift to stower speed.

3. Allow grass to dry before mowing

4 Level mower deck

5 Check tires for proper air pressure

6 Replace/sharpen blade Tighten blade bolt

7 Clean underside of mower housing

8 Replace mower drive belt

9 Reinstall blades sharp edge down

t0 Replace with blades listed in this manual

11 Clean around mandrels to open vent holes

1 Turn swtteb "ON"

2. Replace bulb(s)

3 Check/replace light switch

4 Check wiring and connections

5. Replace fuse

1. Replace battery.

2. Check/clean all connections

3 Replace regulator.

4. Replace alternator

illlll i ,i,

1_ Piece freewhee_ controt in "engaged" position

2 Replace motion drive belt

3 Purge transmission

i i HI Ill IIII IHHHHHI,IH,

Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

Craftsman 917256591 tractor

Product's Documents

User Manual

Specifications

Craftsman 917256591 Questions and Answers

Related Products

Craftsman 917273631 tractor

Craftsman 917258661 tractor

Craftsman 917252714 Tractor

Craftsman 247273270 tractor

Craftsman 917255981 Tractor

Craftsman 917256710 Tractor
