QUICK SET UP YOUR APPLIANCE
It is recommended you install the Wine Cooler in a place where the ambient temperature is between
22-26º C/72º-78ºF. If the ambient temperature is above or below recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 10-18º C/50º-64ºF may not be
reached.
Temperature Ranges For Your Wine Cooler
TWE-012SL
10 - 18º C
50 – 64º F
CONTROL PANEL
➢ SETTING THE TEMPERATURE CONTROL
➢ Your Wine Cellar has been equipped with an “automatic” control panel lock, that will activate 12
seconds after the last time a button has been touched.
Push and hold the button simultaneously for 3 seconds to unlock the control panel. You will
hear a “BEEP” sound to alert you that the control is now active.
➢ You can set the temperature as you desire by pushing the or button on the control
panel for each zone. The temperature that you desire to set will increase or decrease 1ºF or 1ºC if
you push the or button once.
➢ When you store mostly red wines, the temperature which you control by pushing the above two
buttons need to be set at between 15º - 18ºC (58º - 64ºF).
➢ When you store mostly white wines, the temperature needs to be set at between 10º - 14ºC
(50º - 57ºF).
➢ NOTE:
• When you use the wine Cooler for the first time or restart the wine Cooler after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine Cooler is running for a few hours everything will be back to normal.
➢ Storage Capacity
TWE-012SL: You can place 12 standard bottles.
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux
750ml bottles and include bulk storage.
➢ Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “Light” symbol
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button
marked with the Light symbol again and the light will turn back on.
You can select temperature display setting from Fahrenheit to Celsius degree by
pushing and holding the button until the display changes.
2
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers / No. de Modelos: TWE-012SL
WINE COOLER / VINERA
(Image may vary)
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 10.
3
TABLE OF CONTENTS
Parts and Features
4
Important Safety Instructions
5
Installation Instructions
5
Before Using Your Wine Cooler
5
Installation of Your Wine Cooler
5
Electrical Connection
6
How to Connect the Adapter
7
Connect the Adapter to Your Wine Cooler
7
Connect the Adapter to Wall Outlet
7
Care and Maintenance
8
Cleaning Your Wine Cooler
8
Power Failure
8
Moving Your Wine Cooler
8
Energy Saving Tips
8
Problems with Your Wine Cooler
9
Troubleshooting Guide
9
Circuit Diagram
9
Instrucciones en Español
10-12
4

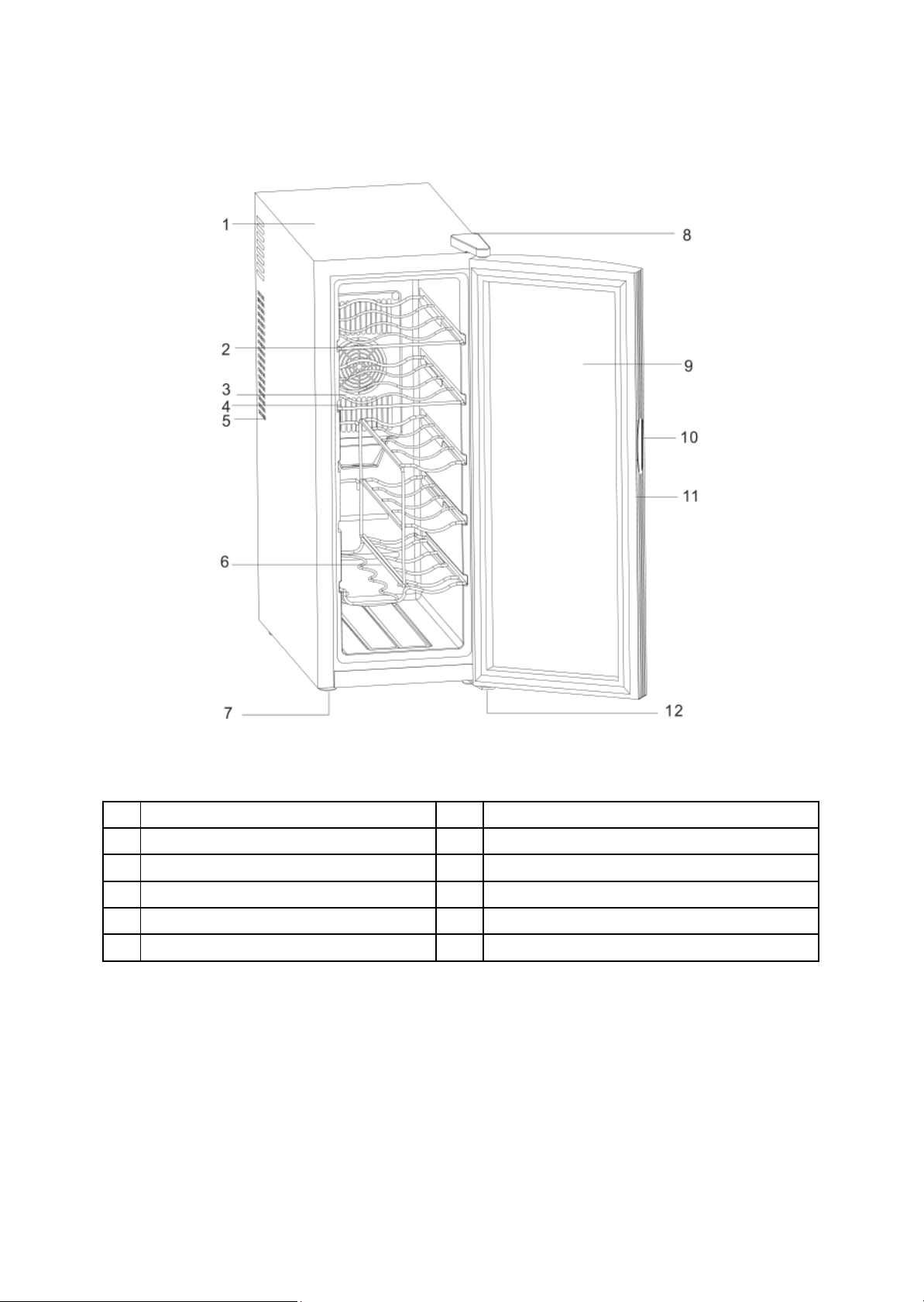

PARTS & FEATURES
1
Cabinet
7
Leveling Legs
2
Standard Shelf (2 pcs)
8
Upper Door Hinge w/ Cover
3
Cold Sink Fan
9
Glass Door
4
Cold Sink Fan Cover
10
Integrated Door Handle
5
Ventilation Holes
11
Door Gasket
6
Vertical Shelf Assembly
12
Bottom Hinge
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
• Read all instructions before using the Wine Cooler.
• DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
• Before you throw away your old Wine Cooler: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not repair or replace any part of the wine Cooler or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions. Replace the fuse with the same type.
-Save these instructions-
INSTALLATION INSTRUCTIONS
➢ Before Using Your Wine Cooler
• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
(2) Standard Horizontal Shelves
(1) Vertical Shelf Assembly: can hold 4 vertical bottles and 4 bottles horizontal bottles
(1) Adapter
(2) Instruction Manual
• Clean the interior surface with lukewarm water using a soft cloth.
➢ Installation of Your Wine Cooler
• This Wine Cooler is designed to be free standing installation only, and should not be recessed or
built-in (Fully recessed).
• Place your Wine Cooler on a surface that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the wine Cooler, which allows the proper
air circulation to cool the heat sink.
• Locate the Wine Cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This Wine Cooler uses thermoelectric refrigeration technology (no compressor) and is not
designed for storage in hot areas like garages, warehouses or outdoors since it is designed to
operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine Cooler into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or contact us
ecoonefuture1@gmail.com.
• After plugging the Wine Cooler into a wall outlet, allow the unit to cool down for 2-3 hours before
placing any items in the compartment.
6
➢ Electrical Connection
This appliance requires a standard 115 Volt AC / 60Hz, 6A DC adapter with electrical ground outlet
with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the
outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately your adapter that have become frayed or otherwise
damaged. When moving the appliance, be careful not to damage the adapter.
PROP. 65 WARNING FOR CALIFORNIA RESIDENTS
WARNING:
Cancer And Reproductive Harm
www.p65warnings.ca.gov
Warning
If the adapter is damaged, have it replaced by an authorized service center, or contact us
ecoonefuture1@gmail.com.
7
HOW TO CONNECT THE POWER
➢ Connect the Adapter to Your Wine Cooler
➢ Connect the Adapter to Wall outlet
8
CARE AND MAINTENANCE
➢ Cleaning Your Wine Cooler
• UNPLUG the Wine Cooler, and remove all items including shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
CAUTION
Failure to unplug the Wine Cooler could result in electrical shock or personal injury.
➢ Power Failure
• Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
➢ Vacation Time
• Short vacations: Leave the Appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all contents and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.
➢ Moving Your Wine Cooler
• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.
➢ Energy Saving Tips
• The Wine Cooler should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
• One characteristic of thermoelectric units is the length of time it requires to recover from having
the door opened and shut frequently. It may be necessary to wait longer for the temperature to
return to its former level once the door has been opened for too long. This is normal for this type
of unit.
9
PROBLEMS WITH YOUR WINE COOLER?
You can solve many common Wine Cooler problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before contacting us
ecoonfuture1@gmail.com.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The circuit breaker tripped or a blown fuse.
Control panel is locked
Push the button simultaneously for
3 seconds to unlock the control panel.
Wait for beep sound.
Wine Cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The Wine Cooler does not have the correct
clearances.
Abnormal voltage.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Cooler is level.
The door will not close properly.
The Wine Cooler is not level.
The door was not properly installed.
The gasket is dirty.
The shelves are out of position.
WIRING DIAGRAM
10
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE
PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas, pestillos,
tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna medida para asegurar
que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Deje cinco pulgadas de espacio entre la parte posterior de la vinera y toda pared contigua.
3. Las bodegas thermoelectrica necesitan cierto tiempo de recuperación cuando la puerta se
abre y se deja abierta por mucho tiempo. Esto es normal para este tipo de unidad.
4. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
5. Para un mejor desempeño, nivele la vinera utilizando las patas ajustables o tornillos
niveladores.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.
11
CONTROL DE TEMPERATURA:
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 22-26º C/72º-78ºF. Si la temperatura ambiental oscila fuera de esos límites, pueda afectar la
temperatura de la unidad. Por ejemplo,si su unidad está situada en lugares donde hay temperaturas
muy frías o calientes también puede afectar la temperatura de la unidad y no alcanzará los límites
10-18º C/50º-64ºF .
Temperaturas recomendadas para enfriar vinos:
Vinos rojos
14º - 18º C
57 – 64º F
Vinos blancos
9º - 14º C
48 – 58º F
Vinos tintos
10º - 11º C
51 – 53º F
Rango de Temperatura de su vinera
TWE-012SL
10 - 18º C
50 – 64º F
Panel de controles
Control de temperatura
El panel de control de su vinera se anulará automáticamente 12 segundos después que cualquier
botón haya sido presionado.
Para activar el panel de control de su vinera, presione simultaneamente los botones marcados
por 3 segundos. Espere por el sonido.
Ud. se puede seleccionar la temperatura preferida presionando los botones marcados
o . Cuando Ud. presione uno de los dos botones por primera vez la temperatura
seleccionada originalmente en la factoría aparecerá en la pantalla. (12ºC / 54ºF).
La temperatura que Ud. selecciona subirá 1ºC/F cada vez que presione el botón marcado al
contrario la temperatura bajará 1ºC/F cada vez que presione el botón marcado .
AVISO:
Cuando Ud. encienda su vinera por primera vez o después de un largo tiempo de estar apagado,
habrá una diferencía entre la temperatura que Ud. selecciona y la temperatura indicada en la pantalla
digital. Este situación es normal debido al tiempo de que estuvo apagado. En cuanto la unidad esté
encendida por un par de horas la temperatura volverá a su nivel normal.
Luz interior
Ud. puedes encender o apagar la luz interior presionando el botón mercado . La luz interior se
apagará automáticamente si está encendida por 10 minutos seguidos. Ud. necesita presionar el
botón de nuevo para encender la luz.
12
CUIDADO Y MANTENIMIENTO
Capacidad
Modelo: TWE-012SL: 12 botellas de tamaño normal (standard)
El tamaño de las botellas pueden variar y afectará la cantidad de botellas que Ud. puede almacenar.
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada. Durante los cortes de corriente de larga duración, tome medidas para
proteger sus botellas de vino.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
• Las bebidas deben guardarse en botellas cerradas.
• No sobrecargue el compartimiento interior.
• No abra la puerta a menos que sea necesario.
Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier
otro material para cubrir estantes que puedan obstruir la circulación del aire.
