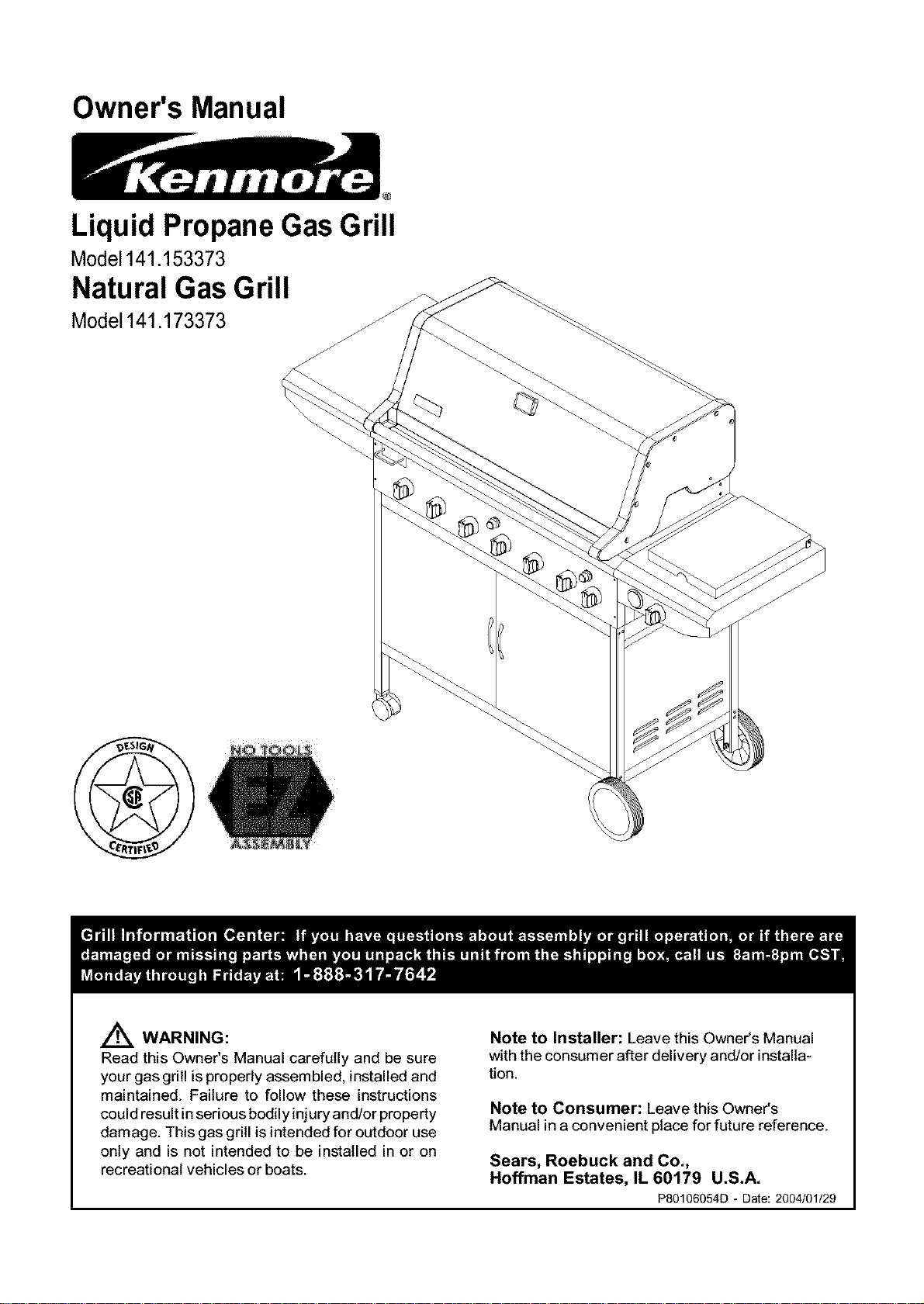

Owner's Manual
Liquid Propane Gas Grill
Model141.153373
Natural Gas Grill
Model141.173373
A WARNING:
Read this Owner's Manual carefully and be sure
your gas grill is properly assembled, installed and
maintained. Failure to follow these instructions
could result in serious bodily injury and/or property
damage. This gas grill is intended for outdoor use
only and is not intended to be installed in or on
recreational vehicles or boats.
Note to Installer: Leave this Owner's Manual
with the consumer after delivery and/or installa-
tion.
Note to Consumer: Leave this Owner's
Manual in a convenient place for future reference.
Sears, Roebuck and Co.,
Hoffman Estates, IL 60179 U.S.A.
P80106054D - Date: 2004/01/29

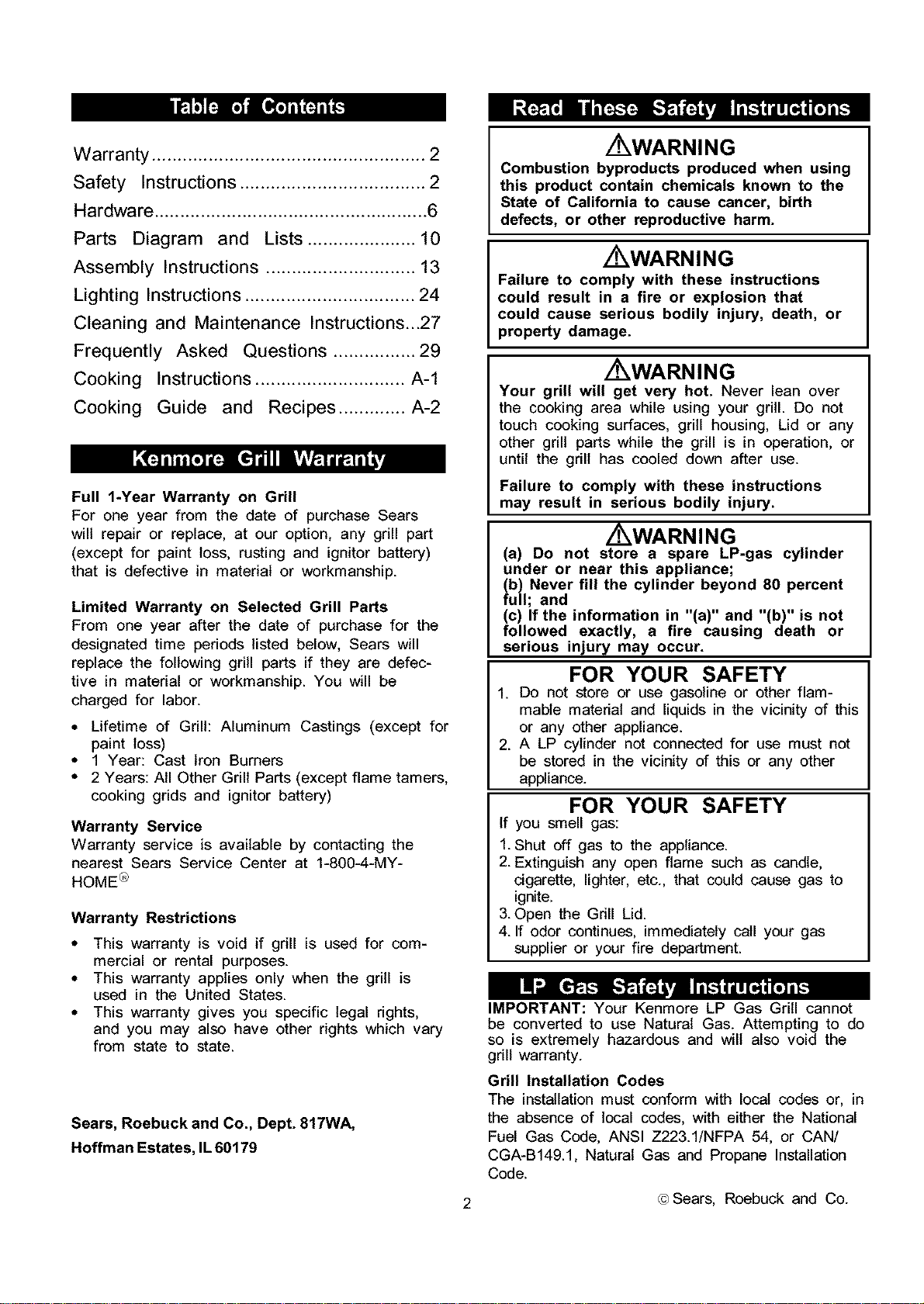

Warranty ..................................................... 2
Safety Instructions .................................... 2
Hardware ..................................................... 6
Parts Diagram and Lists ..................... 10
Assembly Instructions ............................. 13
Lighting Instructions ................................. 24
Cleaning and Maintenance Instructions...27
Frequently Asked Questions ................ 29
Cooking Instructions ............................. A-1
Cooking Guide and Recipes ............. A-2
Full 1-Year Warranty on Grill
For one year from the date of purchase Sears
will repair or replace, at our option, any grill part
(except for paint loss, rusting and ignitor battery)
that is defective in material or workmanship.
Limited Warranty on Selected Grill Parts
From one year after the date of purchase for the
designated time periods listed below, Sears will
replace the following grill parts if they are defec-
tive in material or workmanship. You will be
charged for labor.
• Lifetime of Grill: Aluminum Castings (except for
paint loss)
• 1 Year: Cast Iron Burners
• 2 Years: All Other Grill Parts (except flame tamers,
cooking grids and ignitor battery)
Warranty Service
Warranty service is available by contacting the
nearest Sears Service Center at 1-800-4-MY-
HOME @
Warranty Restrictions
• This warranty is void if grill is used for com-
mercial or rental purposes.
• This warranty applies only when the grill is
used in the United States.
• This warranty gives you specific legal rights,
and you may also have other rights which vary
from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL60179
/_kWARN ING
Combustion byproducts produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, or other reproductive harm.
/_WARNING
Failure to comply with these instructions
could result in a fire or explosion that
could cause serious bodily injury, death, or
property damage.
Z_WARNING
Your grill will get very hot. Never lean over
the cooking area while using your grill. Do not
touch cooking surfaces, grill housing, Lid or any
other grill parts while the grill is in operation, or
until the grill has cooled down after use.
Failure to comply with these instructions
may result in serious bodily injury.
Z_WARNING
(a) Do not store a spare LP-gas cylinder
under or near this appliance;
(b) Never fill the cylinder beyond 80 percent
full; and
(c) If the information in "(a)" and "(b)" is not
followed exactly, a fire causing death or
serious injury may occur.
FOR YOUR SAFETY
1. Do not store or use gasoline or other flam-
mable material and liquids in the vicinity of this
or any other appliance.
2. ALP cylinder not connected for use must not
be stored in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
If you smell gas:
1.Shut off gas to the appliance.
2. Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas to
ignite.
3. Open the Grill Lid.
4. If odor continues, immediately call your gas
supplier or your fire department.
2
IMPORTANT: Your Kenmore LP Gas Grill cannot
be converted to use Natural Gas. Attempting to do
so is extremely hazardous and will also void the
grill warranty.
Grill Installation Codes
The installation must conform with local codes or, in
the absence of local codes, with either the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/
CGA-B149.1, Natural Gas and Propane Installation
Code.
© Sears, Roebuck and Co.

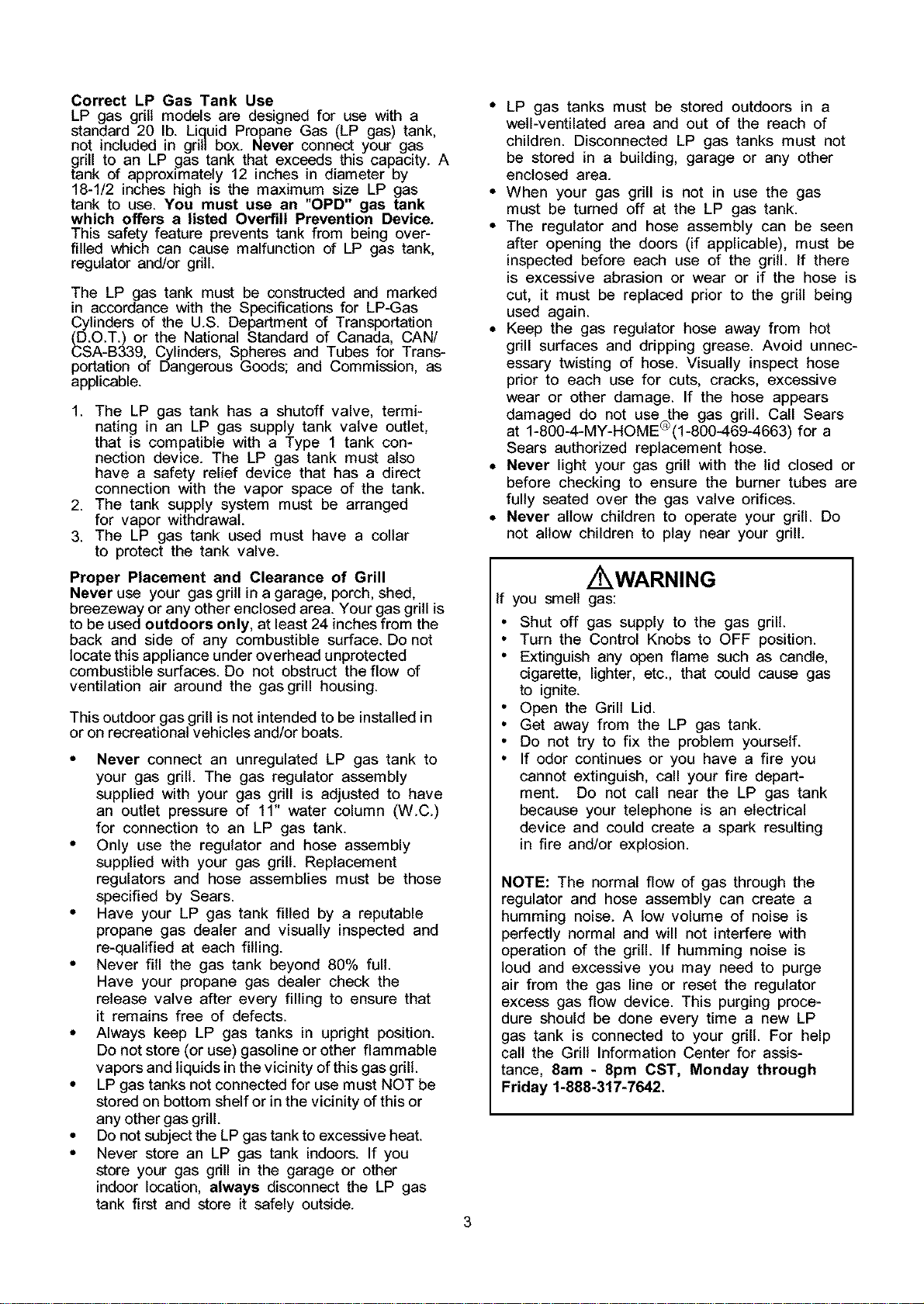

Correct LP Gas Tank Use
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas (LP gas) tank,
not included in grill box. Never connect your gas
grill to an LP gas tank that exceeds this capacity. A
tank of approximately 12 inches in diameter by
18-1/2 inches high is the maximum size LP gas
tank to use. You must use an "OPD" gas tank
which offers a listed Overfill Prevention Device.
This safety feature prevents tank from being over-
filled which can cause malfunction of LP gas tank,
regulator and/or gdtl.
The LP gas tank must be constructed and marked
in accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standard of Canada, CAN/
CSA-B339, Cylinders, Spheres and Tubes for Trans-
portation of Dangerous Goods; and Commission, as
applicable.
1. The LP gas tank has a shutoff valve, termi-
nating in an LP gas supply tank valve outlet,
that is compatible with a Type 1 tank con-
nection device. The LP gas tank must also
have a safety relief device that has a direct
connection with the vapor space of the tank.
2. The tank supply system must be arranged
for vapor withdrawal.
3. The LP gas tank used must have a collar
to protect the tank valve.
Proper Placement and Clearance of Grill
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area. Your gas grill is
to be used outdoors only, at least 24 inches from the
back and side of any combustible surface. Do not
locate this appliance under overhead unprotected
combustible surfaces. Do not obstruct theflow of
ventilation air around the gasgrill housing.
This outdoor gas grill is not intended to be installed in
or on recreational vehicles and/or boats.
• Never connect an unregulated LP gas tank to
your gas grill. The gas regulator assembly
supplied with your gas grill is adjusted to have
an outlet pressure of 11" water column (W.C.)
for connection to an LP gas tank.
• Only use the regulator and hose assembly
supplied with your gas grill. Replacement
regulators and hose assemblies must be those
specified by Sears.
• Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and
re-qualified at each filling.
• Never fill the gas tank beyond 80% full.
Have your propane gas dealer check the
release valve after every filling to ensure that
it remains free of defects.
• Always keep LP gas tanks in upright position.
Do not store (or use) gasoline or other flammable
vapors and liquids in the vicinity of this gas grill.
• LP gas tanks not connected for use must NOT be
stored on bottom shelf or in the vicinity of this or
any other gas grill.
• Do not subject the LP gas tank to excessive heat.
• Never store an LP gas tank indoors. If you
store your gas grill in the garage or other
indoor location, always disconnect the LP gas
tank first and store it safely outside.
• LP gas tanks must be stored outdoors in a
well-ventilated area and out of the reach of
children. Disconnected LP gas tanks must not
be stored in a building, garage or any other
enclosed area.
• When your gas grill is not in use the gas
must be turned off at the LP gas tank.
• The regulator and hose assembly can be seen
after opening the doors (if applicable), must be
inspected before each use of the grill. If there
is excessive abrasion or wear or if the hose is
cut, it must be replaced prior to the grill being
used again.
• Keep the gas regulator hose away from hot
grill surfaces and dripping grease. Avoid unnec-
essary twisting of hose. Visually inspect hose
prior to each use for cuts, cracks, excessive
wear or other damage. If the hose appears
damaged do not use the gas grill. Call Sears
at 1-800-4-MY-HOME®(1-800-469-4663) for a
Sears authorized replacement hose.
• Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
• Never allow children to operate your grill. Do
not allow children to play near your grill.
Z WARNING
If you smell gas:
• Shut off gas supply to the gas grill.
• Turn the Control Knobs to OFF position.
• Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas
to ignite.
• Open the Grill Lid.
• Get away from the LP gas tank.
• Do not try to fix the problem yourself.
• If odor continues or you have a fire you
cannot extinguish, call your fire depart-
ment. Do not call near the LP gas tank
because your telephone is an electrical
device and could create a spark resulting
in fire and/or explosion.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a
humming noise. A low volume of noise is
perfectly normal and will not interfere with
operation of the grill. If humming noise is
loud and excessive you may need to purge
air from the gas line or reset the regulator
excess gas flow device. This purging proce-
dure should be done every time a new LP
gas tank is connected to your grill. For help
call the Grill Information Center for assis-
tance, 8am - 8pm CST, Monday through
Friday 1-888-317-7642.
3

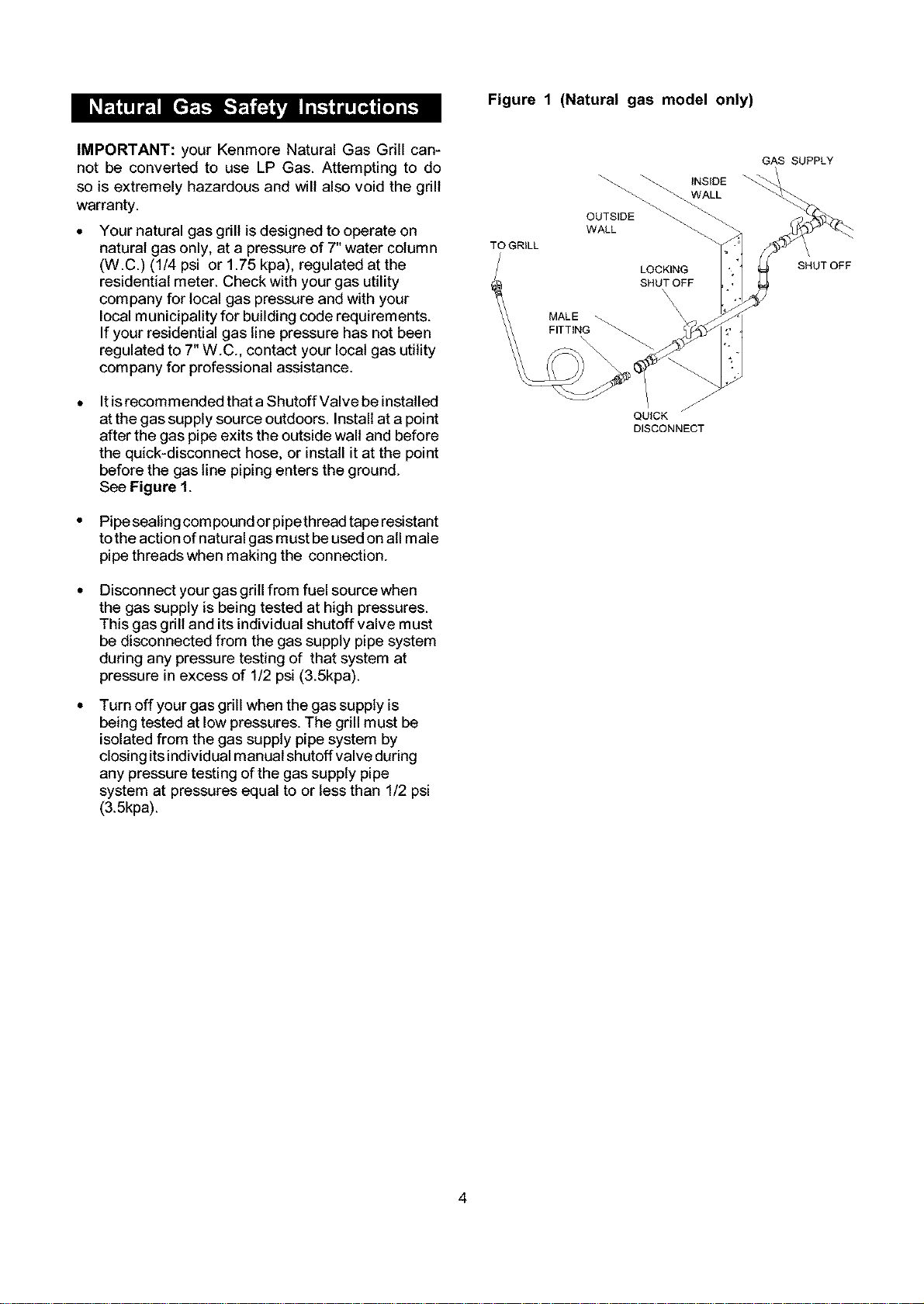

Figure 1 (Natural gas model only)
IMPORTANT: your Kenmore Natural Gas Grill can-
not be converted to use LP Gas. Attempting to do
so is extremely hazardous and will also void the grill
warranty.
Your natural gas grill is designed to operate on
natural gas only, at a pressure of 7" water column
(W.C.) (1/4 psi or 1.75 kpa), regulated at the
residential meter. Check with your gas utility
company for local gas pressure and with your
local municipality for building code requirements.
If your residential gas line pressure has not been
regulated to 7" W.C., contact your local gas utility
company for professional assistance.
It is recommended that a Shutoff Valve be installed
at the gas supply source outdoors. Install at a point
after the gas pipe exits the outside wall and before
the quick-disconnect hose, or install it at the point
before the gas line piping enters the ground.
See Figure 1.
• Pipe sealing com pound orpipe thread tape resistant
tothe action of natural gas must be used on all male
pipe threads when making the connection.
Disconnect your gas grill from fuel source when
the gas supply is being tested at high pressures.
This gas grill and its individual shutoff valve must
be disconnected from the gas supply pipe system
during any pressure testing of that system at
pressure in excess of 1/2 psi (3.5kpa).
Turn off your gas grill when the gas supply is
being tested at low pressures. The grill must be
isolated from the gas supply pipe system by
closing its individual manual shutoff valve during
any pressure testing of the gas supply pipe
system at pressures equal to or less than 1/2 psi
(3.5kpa).
TO GRILL
OUTSIDE
WALL
MALE
FITTING
iNSiDE
WALL
LOCKING
SHUT OFF
\
\
\
\
\
QUICK
DISCONNECT
GAS SUPPLY
SHUTOFF
4

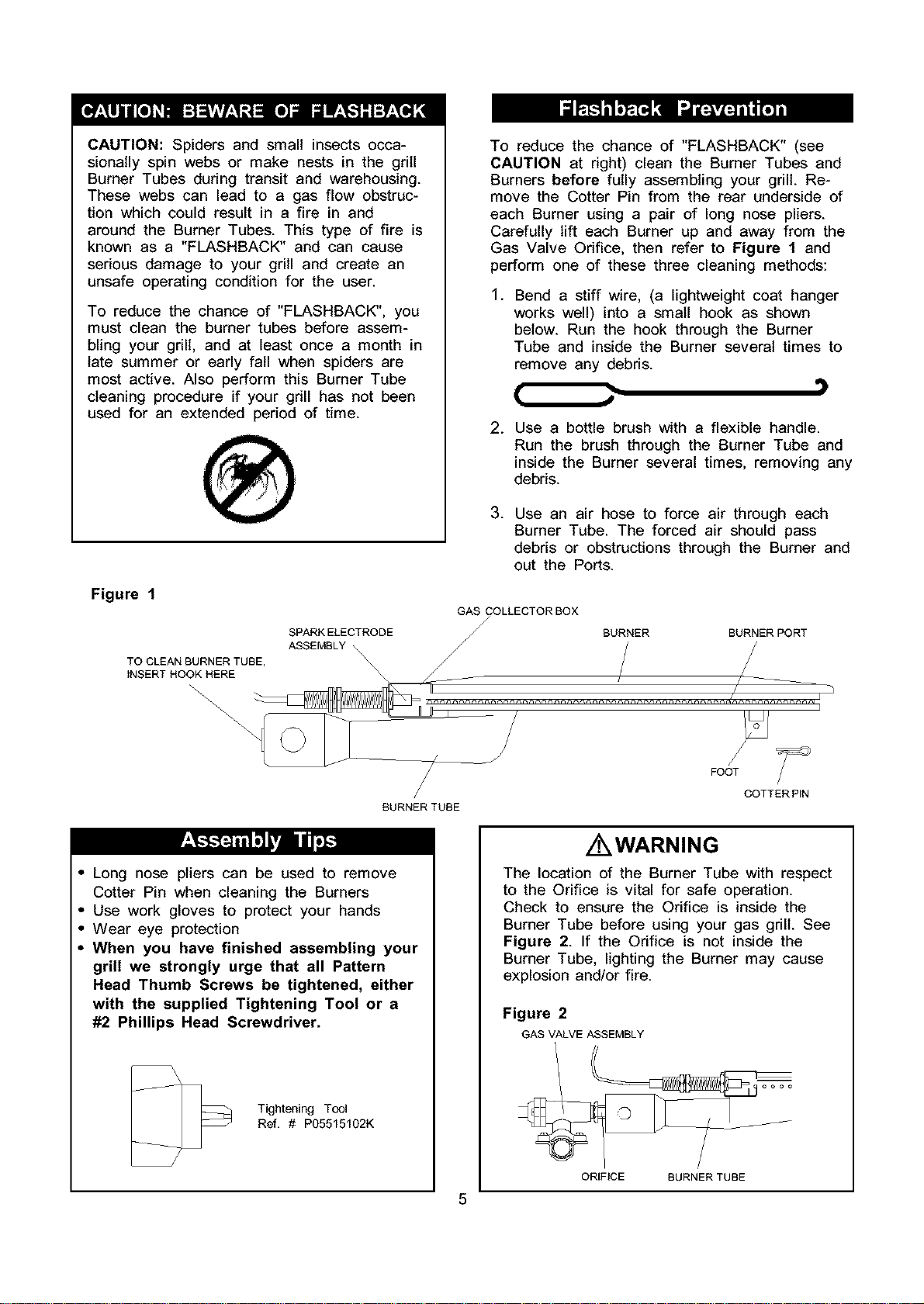

CAUTION:Spidersandsmallinsectsocca-
sionallyspinwebsor makenestsin thegrill
BurnerTubesduringtransitandwarehousing.
Thesewebscan leadto a gasflowobstruc-
tionwhichcouldresultin a fire in and
aroundthe BurnerTubes.Thistypeof fire is
knownas a "FLASHBACK"andcancause
seriousdamageto yourgrillandcreatean
unsafeoperatingconditionfor the user.
To reducethechanceof "FLASHBACK",you
mustcleantheburnertubesbeforeassem-
blingyourgrill,andat leastoncea monthin
late summeror earlyfall whenspidersare
mostactive.Alsoperformthis BurnerTube
cleaningprocedureif yourgrillhasnotbeen
usedfor an extendedperiodof time.
Figure 1

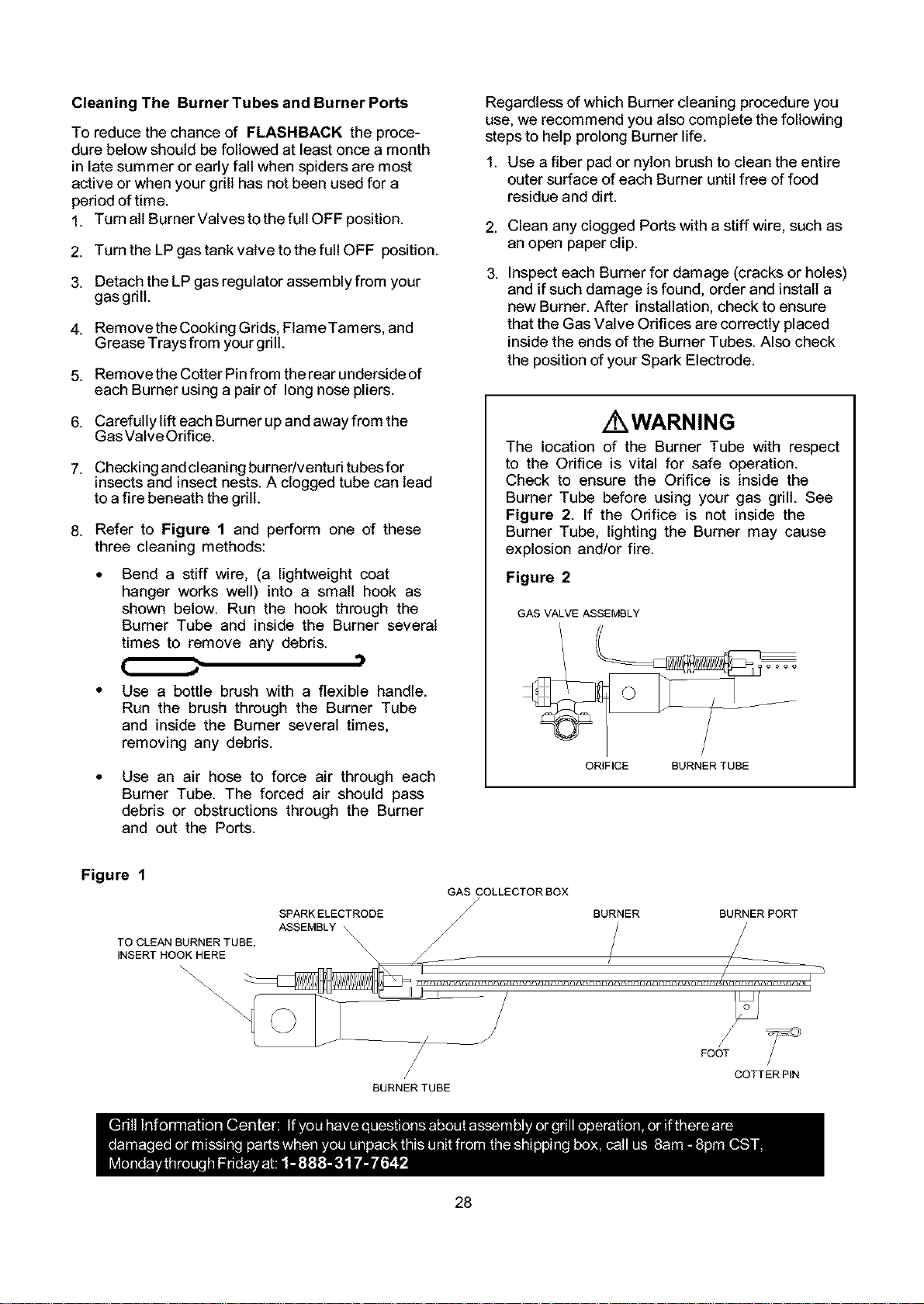

TO CLEAN BURNER TUBE,
INSERT HOOK HERE
\
\\
SPARKELECTRODE
ASSEMBLY \\\\
To reduce the chance of "FLASHBACK" (see
CAUTION at right) clean the Burner Tubes and
Burners before fully assembling your grill. Re-
move the Cotter Pin from the rear underside of
each Burner using a pair of long nose pliers.
Carefully lift each Burner up and away from the
Gas Valve Orifice, then refer to Figure 1 and
perform one of these three cleaning methods:
.
Bend a stiff wire, (a lightweight coat hanger
works well) into a small hook as shown
below. Run the hook through the Burner
Tube and inside the Burner several times to
remove any debris.
.. ')
( J
. Use a bottle brush with a flexible handle.
Run the brush through the Burner Tube and
inside the Burner several times, removing any
debris.
.
Use an air hose to force air through each
Burner Tube. The forced air should pass
debris or obstructions through the Burner and
out the Ports.
GAS COLLECTOR BOX
/
BURNER
BURNER PORT
I
/
BURNER TUBE
• Long nose pliers can be used to remove
Cotter Pin when cleaning the Burners
• Use work gloves to protect your hands
• Wear eye protection
• When you have finished assembling your
grill we strongly urge that all Pattern
Head Thumb Screws be tightened, either
with the supplied Tightening Tool or a
#2 Phillips Head Screwdriver.
Tightening Tool
Ref. # P05515102K
5
FOOT
COTTER PIN
, WARNING
The location of the Burner Tube with respect
to the Orifice is vital for safe operation.
Check to ensure the Orifice is inside the
Burner Tube before using your gas grill. See
Figure 2. If the Orifice is not inside the
Burner Tube, lighting the Burner may cause
explosion and/or fire.
Figure 2
GAS VALVE ASSEMBLY
ORIFICE BURNER TUBE

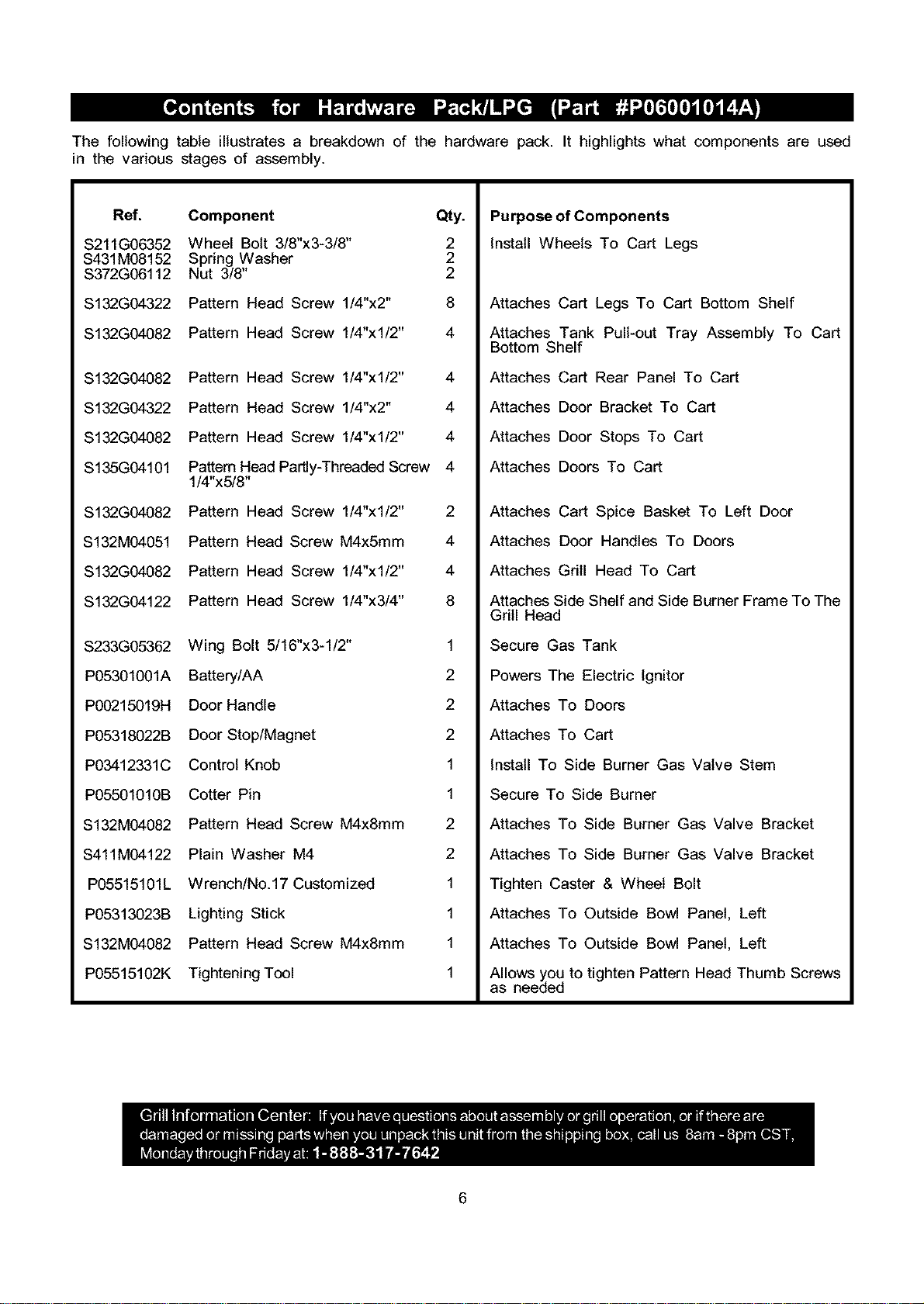

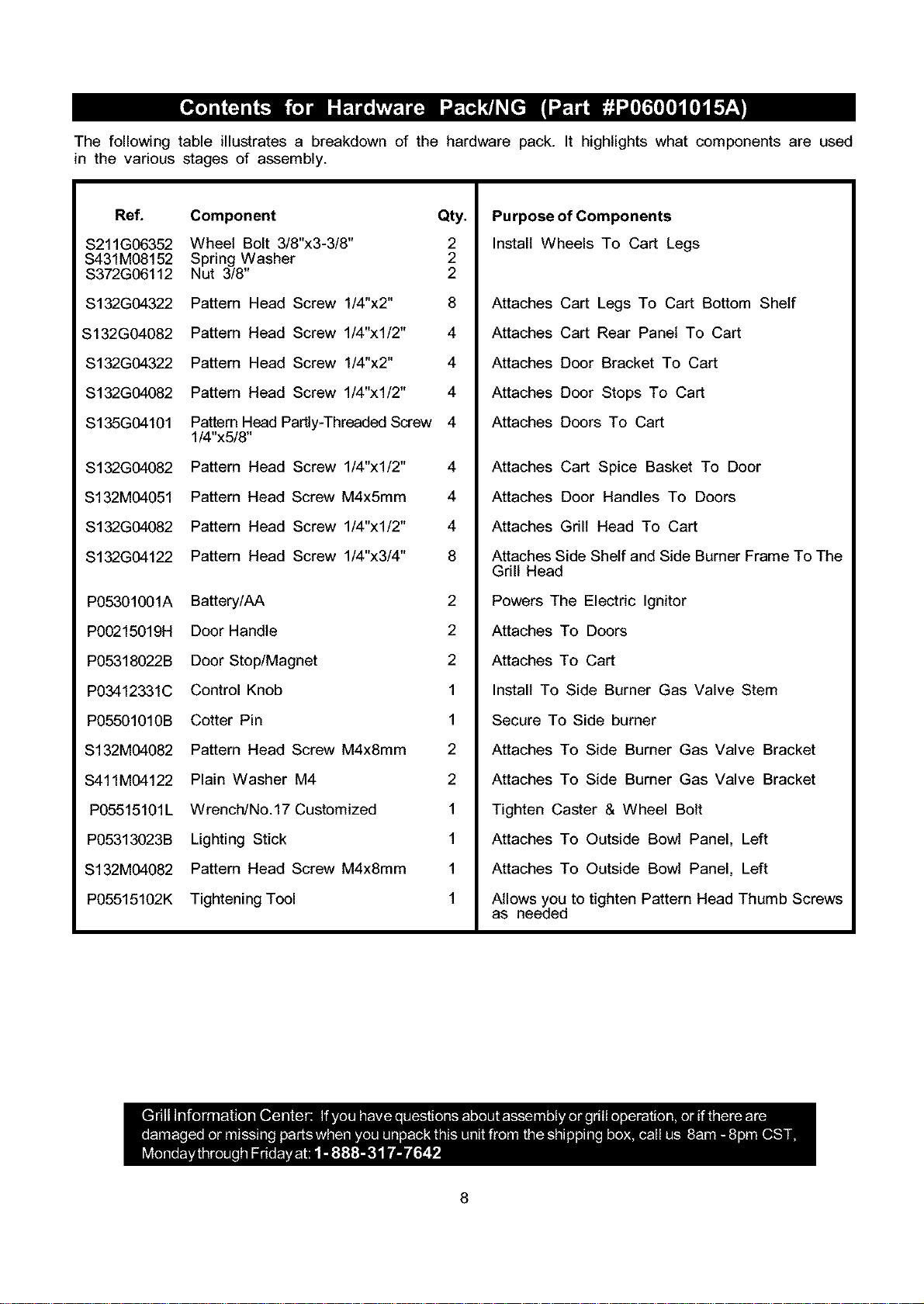

The following table illustrates a breakdown of the hardware pack. It highlights what components are used
in the various stages of assembly.
Ref. Component Qty.
$211G06352 Wheel Bolt 3/8"x3-3/8" 2
$431M08152 Spring Washer 2
$372G06112 Nut 3/8" 2
$132G04322 Pattern Head Screw 1/4"x2" 8
S132G04082 Pattern Head Screw 1/4"xl/2" 4
$132G04082
$132G04322
$132G04082
$135G04101
$132G04082
$132M04051
$132G04082
$132G04122
S233G05362
P05301001A
P00215019H
P05318022B
P03412331 C
PO5501010B
S132M04082
S411M04122
P05515101L
P05313023B
S132M04082
PO5515102K
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x2" 4
Pattern Head Screw 1/4"xl/2" 4
Pattem Head Partly-Threaded Screw 4
1/4"x5/8"
Pattern Head Screw 1/4"xl/2" 2
Pattern Head Screw M4x5mm 4
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x3/4" 8
Wing Bolt 5/16"x3-1/2" 1
Battery/AA 2
Door Handle 2
Door Stop/Magnet 2
Control Knob 1
Cotter Pin 1
Pattern Head Screw M4x8mm 2
Plain Washer M4 2
Wrench/No.17 Customized 1
Lighting Stick 1
Pattern Head Screw M4x8mm 1
Tightening Tool 1
Purpose of Components
Install Wheels To Cart Legs
Attaches Cart Legs To Cart Bottom Shelf
Attaches Tank Pull-out Tray Assembly To Cart
Bottom Shelf
Attaches Cart Rear Panel To Cart
Attaches Door Bracket To Cart
Attaches Door Stops To Cart
Attaches Doors To Cart
Attaches Cart Spice Basket To Left Door
Attaches Door Handles To Doors
Attaches Grill Head To Cart
Attaches Side Shelf and Side Burner Frame To The
Grill Head
Secure Gas Tank
Powers The Electric Ignitor
Attaches To Doors
Attaches To Cart
Install To Side Burner Gas Valve Stem
Secure To Side Burner
Attaches To Side Burner Gas Valve Bracket
Attaches To Side Burner Gas Valve Bracket
Tighten Caster & Wheel Bolt
Attaches To Outside Bowl Panel, Left
Attaches To Outside Bowl Panel, Left
Allows you to tighten Pattern Head Thumb Screws
as needed
6
LP GAS MODEL ONLY
Size and Quantity of each Hardware Piece:
Wheel Bolt 3/8"x3-3/8"
Qty. 2
Ref. # $211G06352
Spring Washer 3/8"
Qty. 2
Ref. # $431M08152
Nut 3/8"
Qty. 2
Ref. # S372G06112
Pattern Heed Screw 1/4"x2"
Qty. 12
Ref. # $132G04322
Pattern Head Screw 1/4"x3/4"
Qty. 8
Ref. # S132G04122
Pattern Heed Screw 1/4"x1/2"
Qty. 18
Ref. # $132G04082
Pattern Head Partly-Threaded Battery/AA
Screw 1/4"x5/8" Qty. 1
Qty. 4 Ref. # P05301001A
Ref. # S135G04101 Scale 1:2
Door Stop/Magnet
Qty. 2
Ref, # P05318022B
Scale 1:2
Door Handle
Qty. 2
Ref, # P00215019H
Scale 1:2
Wrench/No.17 Customized
Qty. 1
Ref. # P05515101L
Scale 1:2
Cotter Pin
Qty. 1
Ref. # P05501010B
Lighting Stick
Qty. 1 Ref. # PO5313023B
Scale 1:2
Control Knob
Qty. 1
Ref. # P03412331C
Scale 1:2
Pattern Heed Screw M4x8mm
Qty. 3
Ref. # $132M04082
J
Tightening Tool
Qty. 1
Ref. # P05515102K
Plain Washer M4
Qty, 2
Ref, #
S411M04122
Pattern Heed Screw M4x5mm
Qty. 4
Ref. # $132M04051
Wing Bolt 5/16"x3-1/2"
Qty. 1
Ref. # S233G05362
7
Thefollowingtableillustratesa breakdownof thehardwarepack.It highlights what components are used
in the various stages of assembly.
Ref.
S211G06352
S431MO8152
S372GO6112
S132G04322
S132G04082
S132G04322
S132G04082
S135G04101
S132G04082
S132M04051
S132G04082
S132G04122
P05301001A
P00215019H
P05318022B
P03412331C
P05501010B
S132M04082
S411M04122
PO5515101L
P05313023B
S132M04082
PO5515102K
Component Qty.
Wheel Bolt 3/8"x3-3/8" 2
Spring Washer 2
Nut 3/8" 2
Pattern Head Screw 1/4"x2" 8
Pattern Head Screw 1/4"x1/2" 4
Pattern Head Screw 1/4"x2" 4
Pattern Head Screw 1/4"x1/2" 4
Pattern Head ParUy-Threaded Screw 4
1/4"x5/8"
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw M4x5mm 4
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x3/4" 8
Battery/AA 2
Door Handle 2
Door Stop/Magnet 2
Control Knob 1
Cotter Pin 1
Pattern Head Screw M4x8mm 2
Plain Washer M4 2
Wrench/No. 17 Customized 1
Lighting Stick 1
Pattern Head Screw M4x8mm 1
Tightening Tool 1
Purpose of Components
Install Wheels To Cart Legs
Attaches Cart Legs To Cart Bottom Shelf
Attaches Cart Rear Panel To Cart
Attaches Door Bracket To Cart
Attaches Door Stops To Cart
Attaches Doors To Cart
Attaches Cart Spice Basket To Door
Attaches Door Handles To Doors
Attaches Grill Head To Cart
Attaches Side Shelf and Side Burner Frame To The
Grill Head
Powers The Electric Ignitor
Attaches To Doors
Attaches To Cart
Install To Side Burner Gas Valve Stem
Secure To Side burner
Attaches To Side Burner Gas Valve Bracket
Attaches To Side Burner Gas Valve Bracket
Tighten Caster & Wheel Bolt
Attaches To Outside Bowl Panel, Left
Attaches To Outside Bowl Panel, Left
Allows you to tighten Pattern Head Thumb Screws
as needed
8

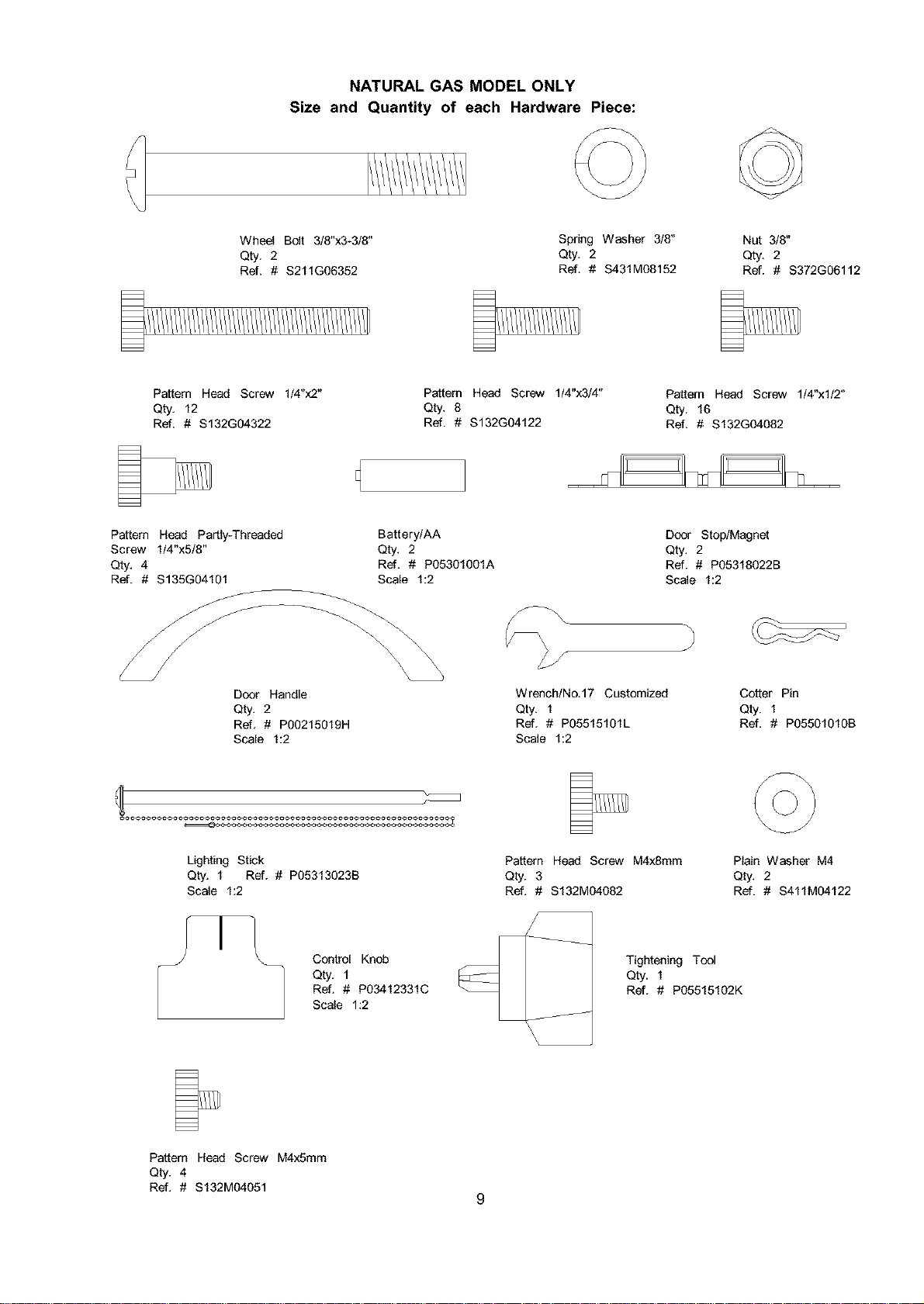

NATURAL GAS MODEL ONLY
Size and Quantity of each Hardware Piece:
Wheel Bolt 3/8"x3-3/8"
Qty. 2
Ref. # $211G06352
Spring Washer 3/8"
Qty. 2
Ref. # $431M08152
Nut 3/8"
Qty. 2
Ref. # $372G06112
Pattern Heed Screw 1/4"x2"
Qty. 12
Ref. # $132G04322
Pattern Head Screw 1/4"x3/4"
Qty. 8
Ref. # $132G04122
Pattern Heed Screw 1/4"x1/2"
Qty. 16
Ref. # $132G04082
Pattern Heed Partly*Threeded
Screw 1/4"x5/8"
Qty. 4
Ref. # $135G04101
Battery/AA
Qty. 2
Ref, # P05301001A
Scale 1:2
Door Stop/Magnet
Qty. 2
Ref. # P05318022B
Scale 1:2
Door Handle
Qty. 2
Ref, # P00215019H
Scale 1:2
Wrench/No.17 Customized
Qty. 1
Ref. # P05515101L
Scale 1:2
Cotter Pin
Qty. 1
Ref. # P05501010B
Lighting Stick
Qty. 1 Ref. # PO5313023B
Scale 1:2
Control Knob
Qty. 1
Ref. # P03412331C
Scale 1:2
Pattern Heed Screw M4x8mm
Qty. 3
Ref. # $132M04082
Plain Washer M4
Qty, 2
Ref. # S411M04122
Tightening Tool
Qty. 1
Ref. # P05515102K
Pattern Heed Screw M4x5mm
Qty. 4
Ref. # $132M04051
9

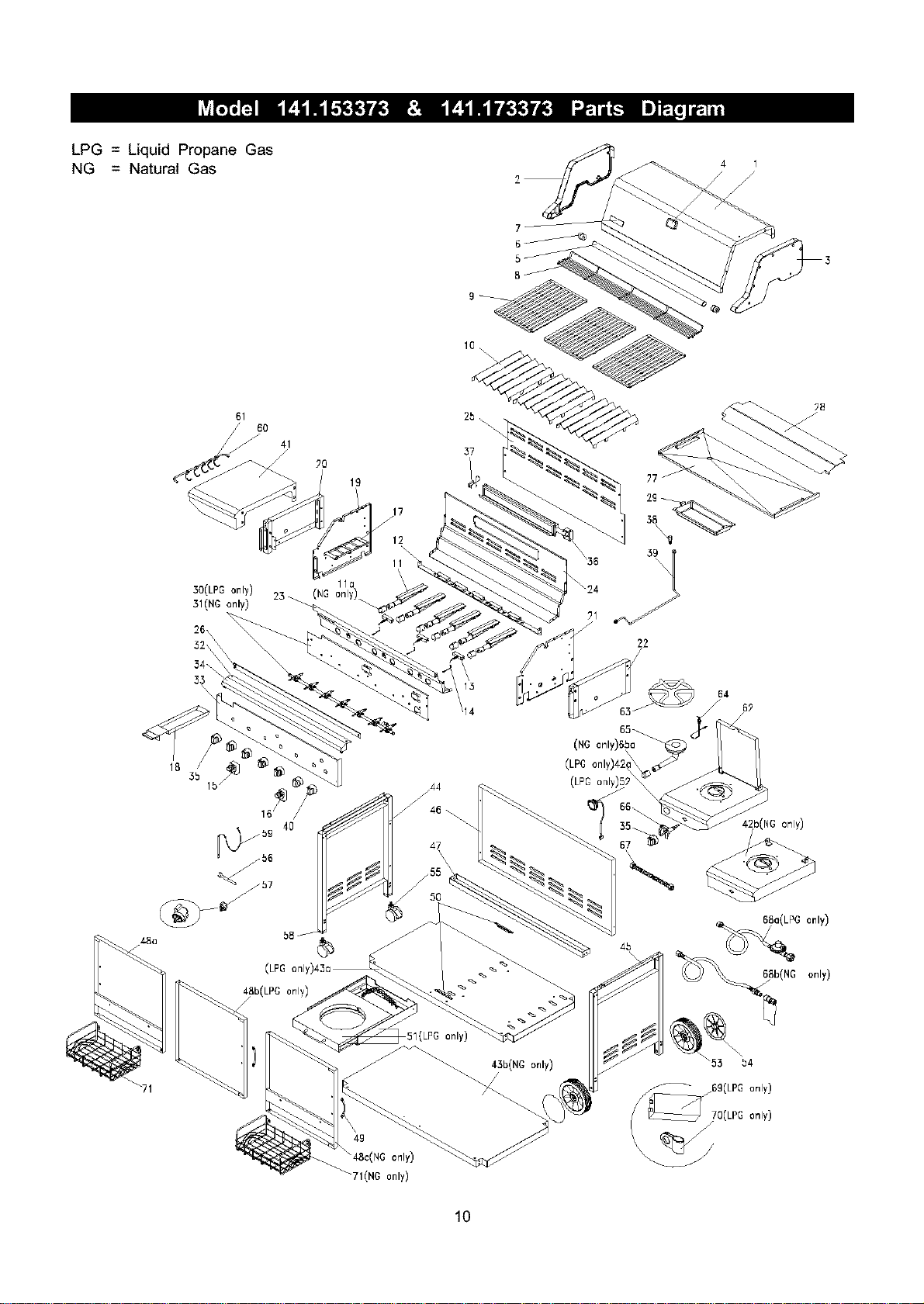

LPG = Liquid Propane Gas
NG = Natural Gas
10_
\
30(LPG only)
31(NG only)
26\
\
32\
61
6O
41
2O
11o
23_(NG only)_
19
17
/
12
23
37
22
18
3b lb /
(NO
(LP6
(LPC
64
62
/
(LPG
_Sb(LPG only)
47
4b
\
only)
only)
46
_480(NG only)
_71(NG only)
"53 b4
69(LPG only)
j70(LPG only)
\
lO

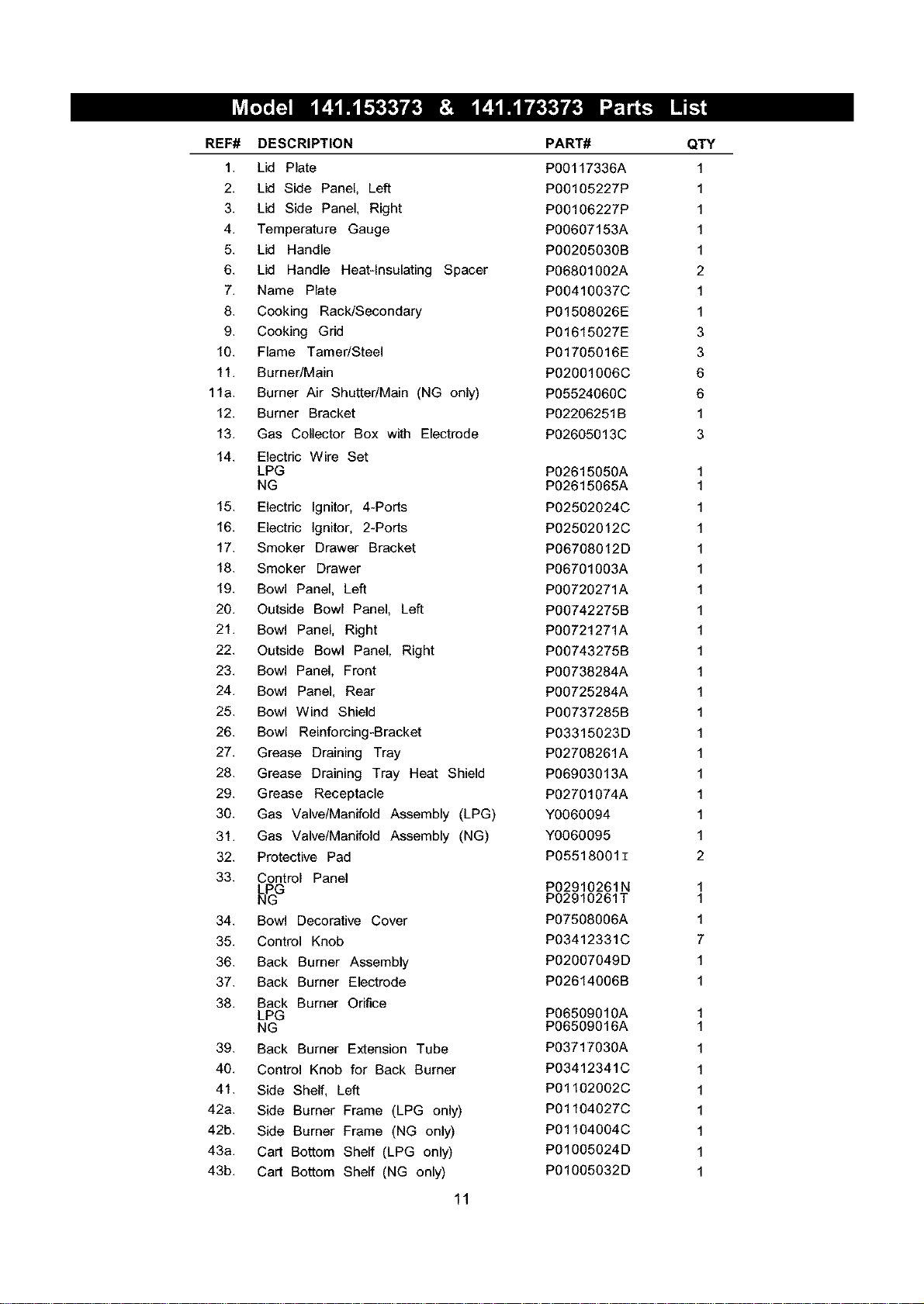

REF# DESCRIPTION
1. Lid Plate
2. Lid Side Panel, Left
3. Lid Side Panel, Right
4. Temperature Gauge
5. Lid Handle
6. Lid Handle Heat-Insulating Spacer
7. Name Plate
8. Cooking Rack/Secondary
9. Cooking Grid
10. Flame TamedSteel
11. Burner/Main
11a. Burner Air ShuttedMain (NG only)
12. Burner Bracket
13. Gas Collector Box with Electrode
14. Electric Wire Set
LPG
NG
15. Electric Ignitor, 4-Ports
16. Electric Ignitor, 2-Ports
17. Smoker Drawer Bracket
18. Smoker Drawer
19. Bowl Panel, Left
20. Outside Bowl Panel, Left
21. Bowl Panel, Right
22. Outside Bowl Panel, Right
23. Bowl Panel, Front
24. Bowl Panel, Rear
25. Bowl Wind Shield
26. Bowl Reinforcing-Bracket
27. Grease Draining Tray
28. Grease Draining Tray Heat Shield
29. Grease Receptacle
30. Gas Valve/Manifold Assembly (LPG)
31. Gas Valve/Manifold Assembly (NG)
32. Protective Pad
33. Control Panel
LPG
NG
34. Bowl Decorative Cover
35. Control Knob
36. Back Burner Assembly
37. Back Burner Electrode
38. Back Burner Orifice
LPG
NG
39. Back Burner Extension Tube
40. Control Knob for Back Burner
41. Side Shelf, Left
42a. Side Burner Frame (LPG only)
42b. Side Burner Frame (NG only)
43a. Cart Bottom Shelf (LPG only)
43b. Cart Bottom Shelf (NG only)
11
PART#
P00117336A
P00105227P
P00106227P
P00607153A
P00205030B
P06801002A
P00410037C
P01508026E
P01615027E
P01705016E
P02001006C
P05524060C
P02206251B
P02605013C
P02615050A
P02615065A
P02502024C
P02502012C
P06708012D
P06701003A
P00720271A
P00742275B
P00721271A
P00743275B
P00738284A
P00725284A
P00737285B
P03315023D
P02708261A
P06903013A
P02701074A
Y0060094
Y0060095
P05518001I
P02910261N
P02910261T
P07508006A
P03412331C
P02007049D
P02614006B
P06509010A
P06509016A
P03717030A
P03412341C
P01102002C
P01104027C
P01104004C
P01005024D
P01005032D
QTY
1
1
1
1
1
2
1
1
3
3
6
6
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
7
1
1
1
1
1
1
1
1
1
1
1

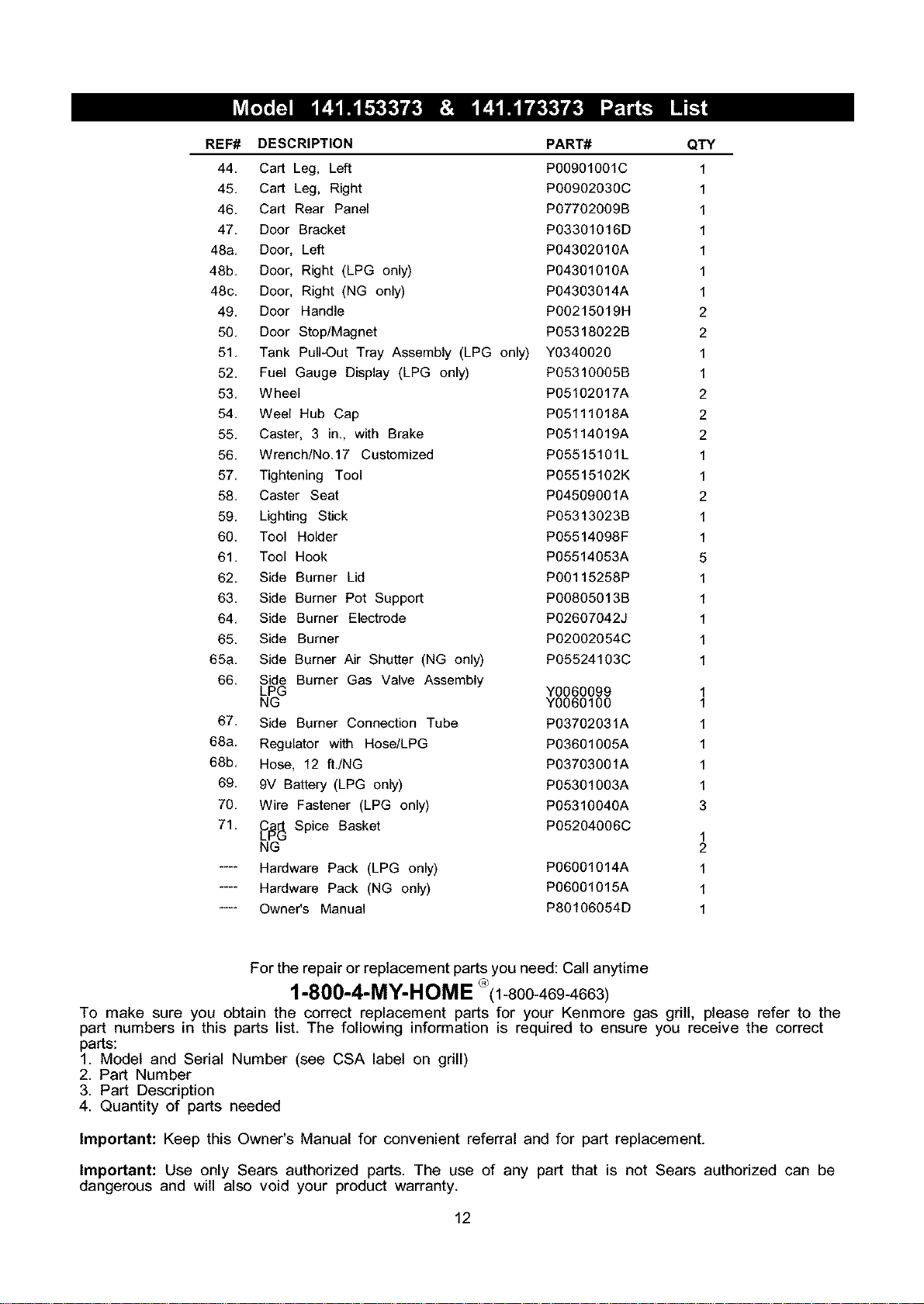

REF# DESCRIPTION PART#
44, Cart Leg, Left P00901001C
45, Cart Leg, Right P00902030C
46, Cart Rear Panel PO7702009B
47, Door Bracket PO3301016D
48a, Door, Left P04302010A
48b, Door, Right (LPG only) P04301010A
48c, Door, Right (NG only) P04303014A
49, Door Handle PO0215019H
50, Door Stop/Magnet PO5318022B
51, Tank Pull-Out Tray Assembly (LPG only) Y0340020
52, Fuel Gauge Display (LPG only) P05310005B
53, Wheel P05102017A
54, Weel Hub Cap P05111018A
55, Caster, 3 in,, with Brake P05114019A
56, Wrench/No,17 Customized PO5515101L
57, Tightening Tool PO5515102K
58, Caster Seat P04509001A
59, Lighting Stick P05313023B
60, Tool Holder PO5514098F
61, Tool Hook P05514053A
62, Side Burner Lid PO0115258P
63, Side Burner Pot Support PO0805013B
64, Side Burner Electrode PO2607042J
65, Side Burner P02002054C
65a, Side Burner Air Shutter (NG only) P05524103C
66, Side Burner Gas Valve Assembly
LPG Y0060099
NG Y0060100
67, Side Burner Connection Tube P03702031A
68a, Regulator with Hose/LPG P03601005A
68b, Hose, 12 ft,/NG P03703001A
69, 9V Battery (LPG only) P05301003A
70, Wire Fastener (LPG only) P0531004OA
71, jC_ Spice Basket P05204006C
NG
.... Hardware Pack (LPG only) P06O01014A
.... Hardware Pack (NG only) P06O01015A
.... Owner's Manual PS0106054D
QTY
1
1
1
1
1
1
1
2
2
1
1
2
2
2
1
1
2
1
1
5
1
1
1
1
1
1
1
1
1
1
1
3
1
2
1
1
1
For the repair or replacement parts you need: Call anytime
1-800-4-MY-HOME °(1-800-469-4663)
To make sure you obtain the correct replacement parts for your Kenmere gas grill, please refer to the
part numbers in this parts list. The following information is required to ensure you receive the correct
parts:
1. Model and Serial Number (see CSA label on grill)
2. Part Number
3. Part Description
4. Quantity of parts needed
Important: Keep this Owner's Manual for convenient referral and for part replacement.
Important: Use only Sears authorized parts. The use of any part that is not Sears authorized can be
dangerous and will also void your product warranty.
12
CAUTION:Whileitispossibleforonepersonto

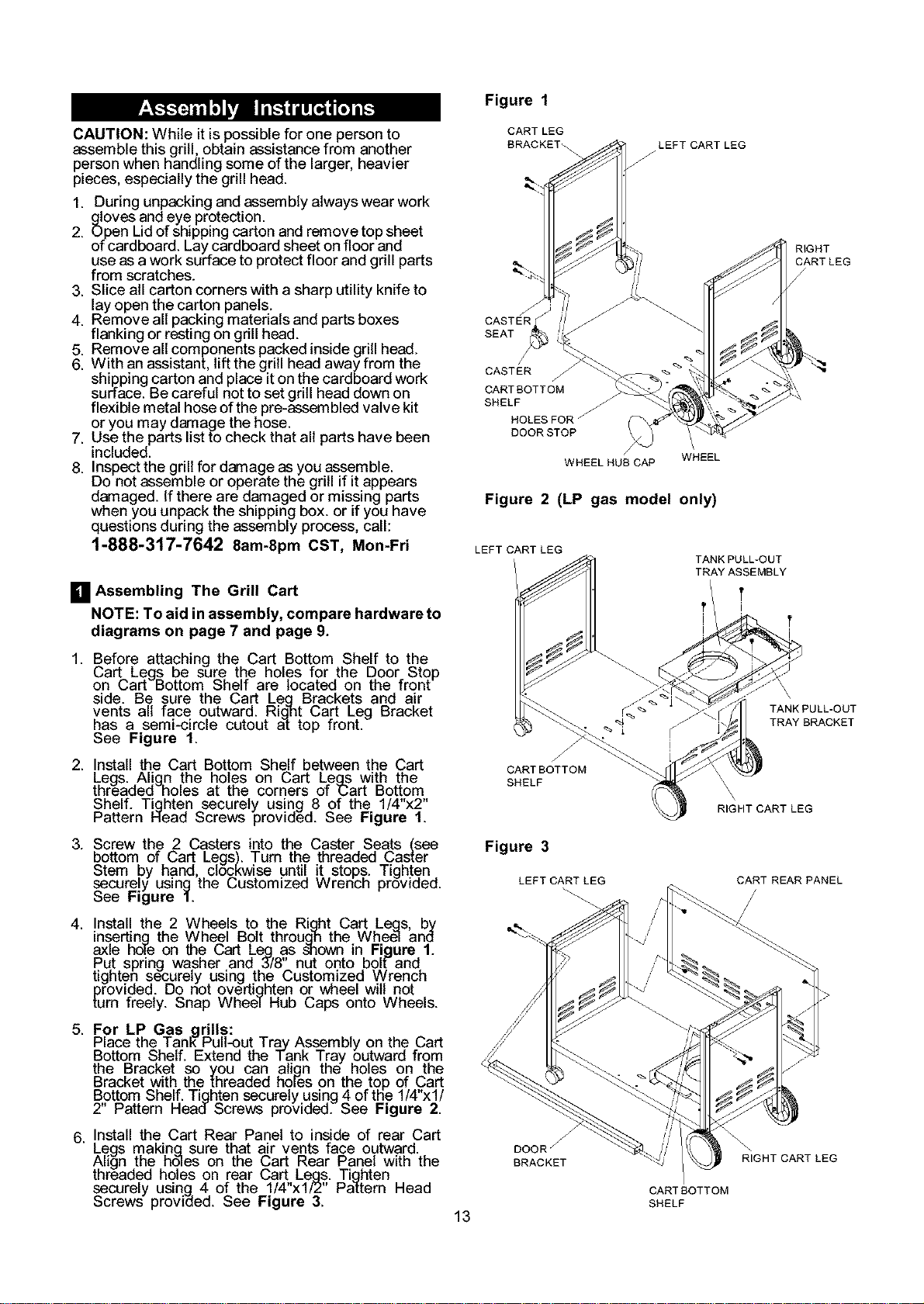

Figure 1
assemble this grill, obtain assistance from another
person when handling some of the larger, heavier
pieces, especially the grill head.
1. During unpacking and assembly always wear work
gloves and eye protection.
2. Open Lid of shipping carton and remove top sheet
of cardboard. Lay cardboard sheet on floor and
use as a work surface to protect floor and grill parts
from scratches.
3. Slice all carton corners with a sharp utility knife to
lay open the carton panels.
4. Remove all packing materials and parts boxes
flanking or resting on grill head.
5. Remove all components packed inside grill head.
6. With an assistant, lift the grill head away from the
shipping carton and place it on the cardboard work
surface. Be careful not to set grill head down on
flexible metal hose of the pre-assemblad valve kit
or you may damage the hose.
7. Use the parts list to check that all parts have been
included.
8. Inspect the grill for damage as you assemble.
Do not assemble or operate the grill if it appears
damaged. If there are damaged or missing parts
when you unpack the shipping box. or if you have
questions during the assembly process, call:
1-888-317-7642 8am-8pm CST, Mon-Fri
[] Assembling The Grill Cart
NOTE: To aid in assembly, compare hardware to
diagrams on page 7 and page 9.
1. Before attaching the Cart Bottom Shelf to the
L,art Legs be sure t.he holes TOrthe DooroStop
on L,art Bottom SheeTare _ocatea on the Tront
side. Be sure the Cart Leg Brackets and air
vents all face outward. Right Cart Leg Bracket
has a semi-circle cutout at top front.
See Figure 1.
2. Install the Cart Bottom Shelf between the Cart
Legs. Align ,the holes on Cart Leas with the
threaaed hoes at the corners of "Cart Bottom
Shelf. T!ghten securely using 8 of the 1/4"x2"
Pattern Nead Screws provided. See Figure 1.
3. Screw the 2 Casters into the Caster Seats (sea
bottom of Cart Legs). Turn the threaded Caster
Stem .by hand, clOCKWiseuntil it stops. Tighten
securely usin9 the L,ustomized Wrencn proviaed.
See Figure 3.
4. Install the 2 Wheels to the Right Cart Legs by
insertin_ the Wheel Bolt throug]_ the Whee3 and
axle hoTeon the Cart Leg as shown in Figure 1.
Put spring washer and 3-/8"nut onto bolt-and.
tighten securely using the L,ustomized Wrench
provided. Do not overtighten or wheel wilt not
turn freely. Snap Wheel Hub Caps onto Wheels.
5. For LP Gas grills:
Place the TanEPull-out Tray Assembly on the Cart
Bottom S.helf. Extend the tank Tray .outward from
the _racKet so you can a_ign the notes on the
Bracket with the threaded holes on the top of Cart
Bottom Shelf. Tighten securely using 4 of the 1/4"xl/
2" Pattern Head Screws provided. See Figure 2.
6. Install the Cart Rear Panel to inside of rear Cart
Legs making, sure that air vents face outward.
Align the holes on the Cart Rear Panel with the
threaded holes on rear L,art Legs. Tighten
securely using 4 of the 1/4"xl/2" Pattern Head
Screws provided. See Figure 3.
CART LEG
BRACKET_
LEFT CART LEG
f
RIGHT
CARTLEG
/
J
CASTER
SEAT
CASTER
CARTBOTTOM
SHELF
HOLES FOR j
DOOR STOP
WHEEL HUB CAP WHEEL
Figure 2 (LP gas model only)
LEFT CART LEG
TANK PULL-OUT
TRAY ASSEMBLY
T
t i
! t
t i
TANK PULL-OUT
TRAY BRACKET
CARTBOTTOM
SHELF
RIGHT CART LEG
Figure 3
LEFT CART LEG
CART REAR PANEL
13
DOOR Z
BRACKET
CARTBOTTOM
SHELF
RIGHT CART LEG
7. Install the Door Bracket to the inside of front
Cart Legs. Align the threaded holes on the Door
Bracket with the holes on Cart Legs. Tighten
securely using 4 of the 1/4"x2" Pattern Head
Screws provided. (See Figure 3 on page 13)
Upper door bolt holes (at ends of bracket) must
face outward.

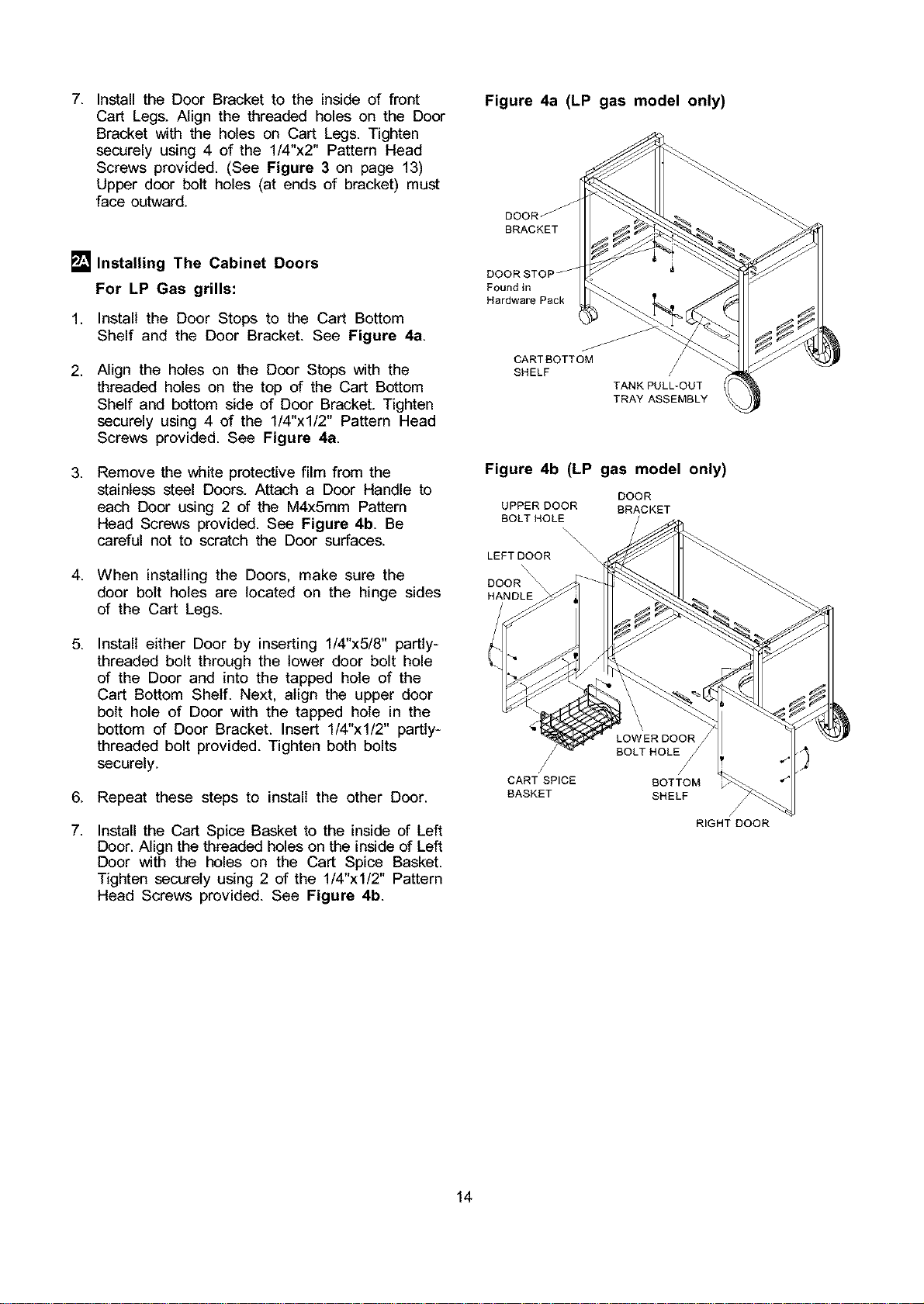

[] Installing The Cabinet Doors
For LP Gas grills:
1. Install the Door Stops to the Cart Bottom
Shelf and the Door Bracket. See Figure 4a.
2. Align the holes on the Door Stops with the
threaded holes on the top of the Cart Bottom
Shelf and bottom side of Door Bracket. Tighten
securely using 4 of the 1/4"xl/2" Pattern Head
Screws provided. See Figure 4a.
3. Remove the white protective film from the
stainless steel Doors. Attach a Door Handle to
each Door using 2 of the M4x5mm Pattern
Head Screws provided. See Figure 4b. Be
careful not to scratch the Door surfaces.
4. When installing the Doors, make sure the
door bolt holes are located on the hinge sides
of the Cart Legs.
5,
Install either Door by inserting 1/4"x5/8" partly-
threaded bolt through the lower door bolt hole
of the Door and into the tapped hole of the
Cart Bottom Shelf. Next, align the upper door
bolt hole of Door with the tapped hole in the
bottom of Door Bracket. Insert 1/4"xl/2" partly-
threaded bolt provided. Tighten both bolts
securely.
6. Repeat these steps to install the other Door.
7,
Install the Cart Spice Basket to the inside of Left
Door. Align the threaded holes on the inside of Left
Door with the holes on the Cart Spice Basket.
Tighten securely using 2 of the 1/4"xl/2" Pattern
Head Screws provided. See Figure 4b.
Figure 4a (LP gas model only)
DOOR _
BRACKET
DOORSTOP _
Found in
Hardware Pack
CARTBOTTOM
SHELF /
TANK PULL-OUT
TRAY ASSEMBLY
Figure 4b (LP gas model only)
DOOR
UPPER DOOR BRACKET
BOLT HOLE
\\\\\
LEFT DOOR
DOOR_
HANDLE
l/
CART SPICE
BASKET
\
LOW ER DOOR
BOLT HOLE
BOTTOM
SHELF
RIGHT DOOR
14
[] Installing The Cabinet Doors
For Natural Gas grills:
1. Install the Door Stops to the Cart Bottom
Shelf and the Door Bracket. See Figure 5a.
2,
Align the holes on the Door Stops with the
threaded holes on the top of the Cart Bottom
Shelf and bottom side of Door Bracket. Tighten
securely using 4 of the 1/4"xl/2" Pattern Head
Screws provided. See Figure 5a.
,
Remove the white protective film from the
stainless steel Doors. Attach a Door Handle to
each Door using 2 of the M4x5mm Pattern
Head Screws provided. See Figure 5b. Be
careful not to scratch the Door surfaces.
4. When installing the Doors, make sure the
door bolt holes are located on the hinge sides
of the Cart Legs.
5. Install either Door by inserting 1/4"x5/8" partly-
threaded bolt through the lower door bolt hole
of the Door and into the tapped hole of the
Cart Bottom Shelf. Next, align the upper door
bolt hole of Door with the tapped hole in the
bottom of Door Bracket. Insert 1/4"xl/2" partly-
threaded bolt provided. Tighten both bolts
securely.
6. Repeat these steps to install the other Door.
7. Install the Cart Spice Basket to the inside of Left
Door. Align the threaded holes on the inside of Left
Door with the holes on the Cart Spice Basket.
Tighten securely using 2 of the 1/4"xl/2" Pattern
Head Screws provided. See Figure 5b.
8. Install the Cart Spice Basket to the inside of Right
Door. Align the threaded holes on the inside of Right
Door with the holes on the Cart Spice Basket.
Tighten securely using 2 of the 1/4"x1/2" Pattern
Head Screws provided. See Figure 5b.
Figure 5a (NG gas model only)
DOOR _
BRACKET
DOOR STOP J
Found in
Hardware Pack
J
J
f
CARTBOTTOM
SHELF
Figure 5b (NG gas model only)
DOOR
BRACKET
UPPER DOOR
BOLT HOLE
LEFTDOOR
\\\
DOOR
HANDLE
/
CART SPICE
CARTBOTTOM
BASKET
SHELF
• When you have finished assembling your
grill we strongly urge that all Pattern
Head Thumb Screws be tightened, either
with the supplied Tightening Tool or a
#2 Phillips Head Screwdriver.
Tightening Tool
Ref. # P05515102K
/
/
CART SPICE
BASKET
RIGHT DOOR
15

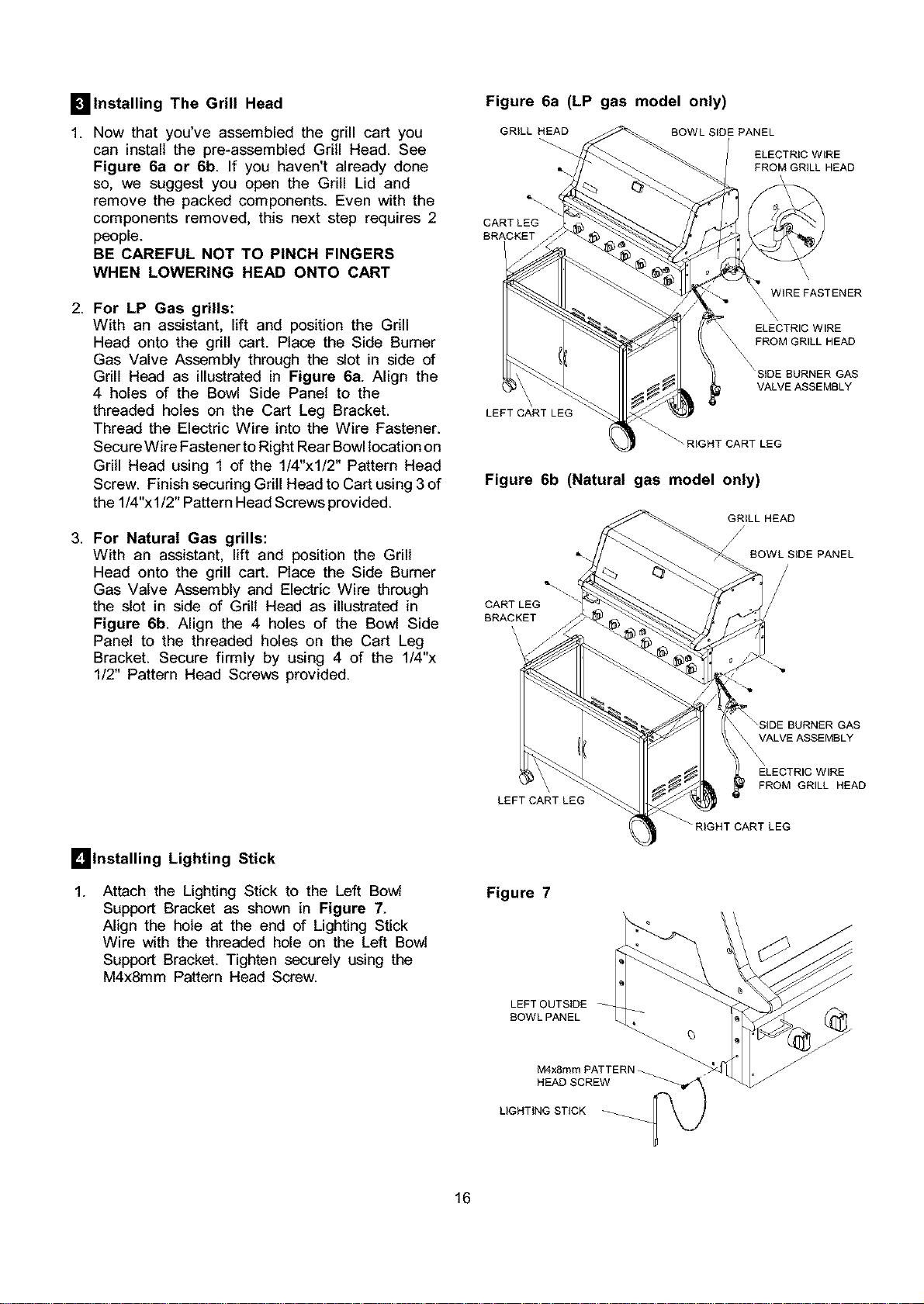

_llnstalling The Grill Head
1. Now that you've assembled the grill cart you
can install the pre-assembled Grill Head. See
Figure 6a or 6b. If you haven't already done
so, we suggest you open the Grill Lid and
remove the packed components. Even with the
components removed, this next step requires 2
people.
BE CAREFUL NOT TO PINCH FINGERS
WHEN LOWERING HEAD ONTO CART
2. For LP Gas grills:
With an assistant, lift and position the Grill
Head onto the grill cart. Place the Side Burner
Gas Valve Assembly through the slot in side of
Grill Head as illustrated in Figure 6a. Align the
4 holes of the Bowl Side Panel to the
threaded holes on the Cart Leg Bracket.
Thread the Electric Wire into the Wire Fastener.
Secure Wire Fastener to Right Rear Bowl location on
Grill Head using 1 of the 1/4"xl/2" Pattern Head
Screw. Finish securing Grill Head to Cart using 3 of
the 1/4"xl/2" Pattern Head Screws provided.
3. For Natural Gas grills:
With an assistant, lift and position the Grill
Head onto the grill cart. Place the Side Burner
Gas Valve Assembly and Electric Wire through
the slot in side of Grill Head as illustrated in
Figure 6b. Align the 4 holes of the Bowl Side
Panel to the threaded holes on the Cart Leg
Bracket. Secure firmly by using 4 of the 1/4"x
1/2" Pattern Head Screws provided.
Figure 6a (LP gas model only)
GRILL HEAD BOWL SIDE PANEL
ELECTRIC WIRE
FROM GRILL HEAD
CARTLEG
BRACKET
WiRE FASTENER
FROM C
_\ VALVE ASSEMBLY
LEFT CART LEG
_HT CART LEG
Figure 6b (Natural gas model only)
GRILL HEAD
/
%\ BOWL SIDE PANEL
CARTLEG
BRACKET
\
\
Imlnstalling Lighting Stick
1.
Attach the Lighting Stick to the Left Bowl
Support Bracket as shown in Figure 7.
Align the hole at the end of Lighting Stick
Wire with the threaded hole on the Left Bowl
Support Bracket. Tighten securely using the
M4x8mm Pattern Head Screw.
LEFT CART LEG
BURNER GAS
VALVE ASSEMBLY
ELECTRIC WIRE
FROM GRILL HEAD
_'RIGHT CART LEG
Figure 7
LEFT OUTSIDE
BOWL PANEL
M4x8mmPATTENN_
HEAD SCREW
UGHTtNG STICK
16

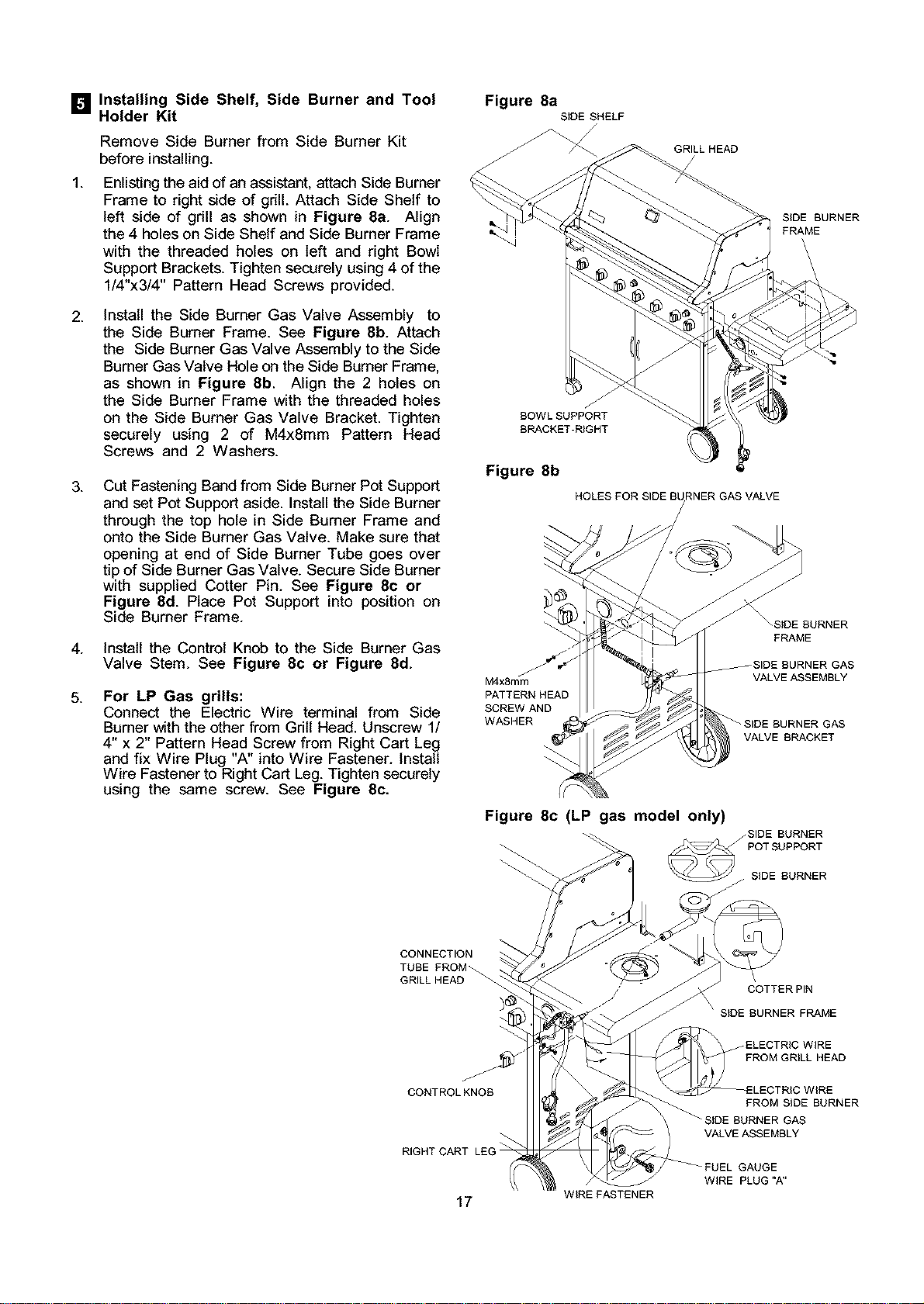

[] Installing Side Shelf, Side Burner and Tool
Holder Kit
1.
Remove Side Burner from Side Burner Kit
before installing.
Enlisting the aid of an assistant, attach Side Burner
Frame to right side of grill. Attach Side Shelf to
left side of grill as shown in Figure 8a. Align
the 4 holes on Side Shelf and Side Burner Frame
with the threaded holes on left and right Bowl
Support Brackets. Tighten securely using 4 of the
1/4"x3/4" Pattern Head Screws provided.
2.
install the Side Burner Gas Valve Assembly to
the Side Bumer Frame. See Figure 8b. Attach
the Side Burner Gas Valve Assembly to the Side
Burner Gas Valve Hole on the Side Burner Frame,
as shown in Figure 8b. Align the 2 holes on
the Side Burner Frame with the threaded holes
on the Side Burner Gas Valve Bracket. Tighten
securely using 2 of M4x8mm Pattern Head
Screws and 2 Washers.
.
Cut Fastening Band from Side Burner Pot Support
and set Pot Support aside. Install the Side Burner
through the top hole in Side Burner Frame and
onto the Side Burner Gas Valve. Make sure that
opening at end of Side Burner Tube goes over
tip of Side Burner Gas Valve. Secure Side Burner
with supplied Cotter Pin. See Figure 8c or
Figure 8d. Place Pot Support into position on
Side Burner Frame.
4. install the Control Knob to the Side Burner Gas
Valve Stem. See Figure 8c or Figure 8d.
5.
For LP Gas grills:
Connect the Electric Wire terminal from Side
Burner with the other from Grill Head. Unscrew 1/
4" x 2" Pattern Head Screw from Right Cart Leg
and fix Wire Plug "A" into Wire Fastener. install
Wire Fastener to Right Cart Leg. Tighten securely
using the same screw. See Figure 8c.
Figure 8a
SIDE SHELF
GRILL HEAD
S_DE BURNER
FRAME
J
z
BOWL SUPPORT
BRACKET-RIGHT
Figure 8b
HOLES FOR SIDE BURNER GAS VALVE
M4x8mm
PATTERN HEAD
SCREW AND
WASHER
SIDE BURNER
FRAME
JSIDE BURNER GAS
VALVEASSEMBLY
_SIDE BURNER GAS
VALVE BRACKET
Figure 8c (LP gas model only)
SIDE BURNER
_/ POTSUPPORT
SiDE BURNER
CONNECTION
TUBE FROM_
GRILL HEAD
CONTROLKNOB
RIGHT CART
COTTERPIN
\
SIDE BURNER FRAME
J ELECTRIC WIRE
FROM GRILL HEAD
WIRE
FROM SIDE BURNER
_StDE BURNER GAS
VALVE ASSEMBLY
_FUEL GAUGE
WiRE PLUG"A"
17 WIRE FASTENER

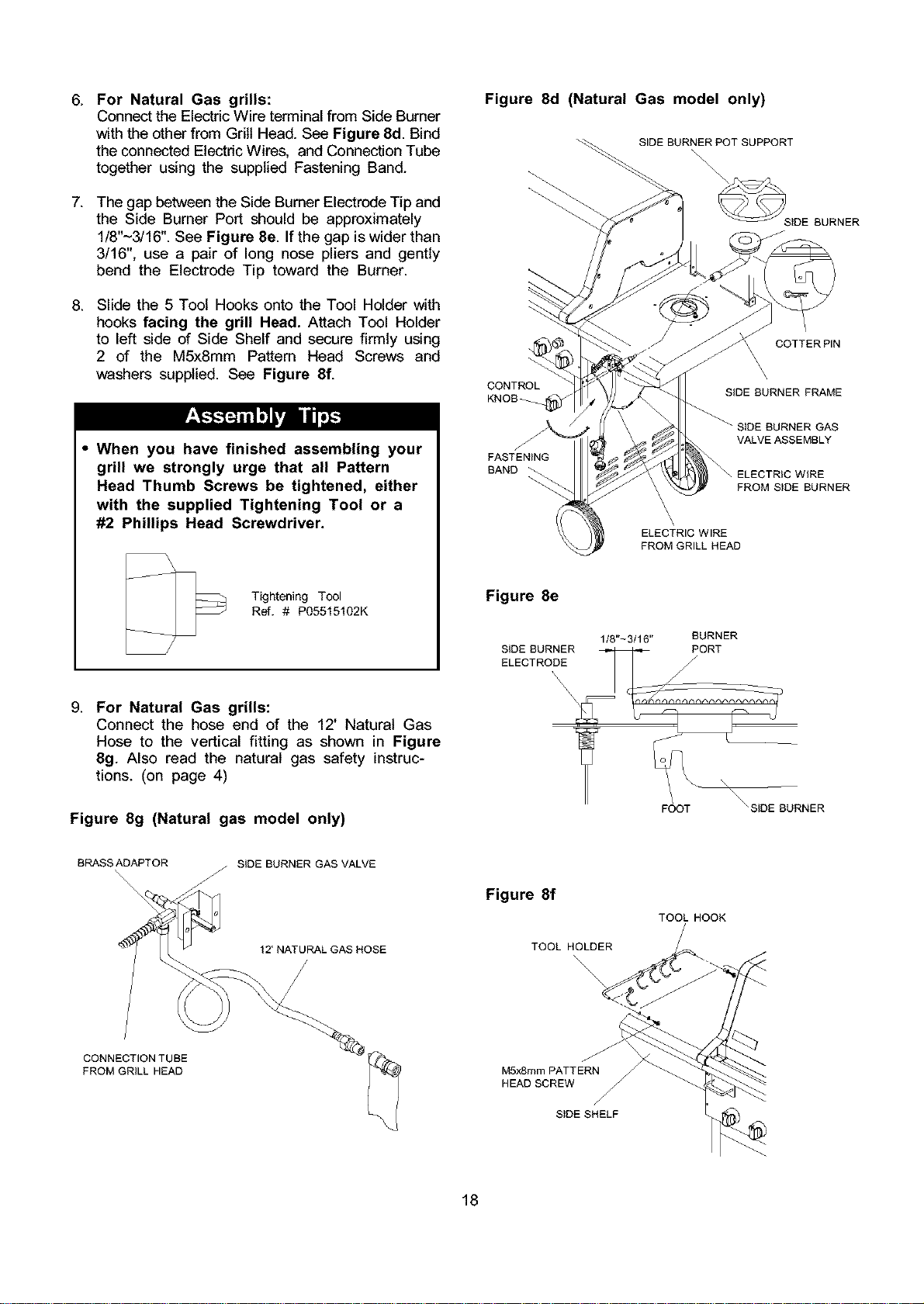

6. For Natural Gas grills:
Connect the Electric Wire terminal from Side Burner
with the other from Grill Head. See Figure 8d. Bind
the connected Electric Wires, and Connection Tube
together using the supplied Fastening Band.
7. The gap between the Side Burner Electrode Tip and
the Side Burner Port should be approximately
1/8"~3/16". See Figure 8e. If the gap is wider than
3/16", use a pair of long nose pliers and gently
bend the Electrode Tip toward the Burner.
8. Slide the 5 Tool Hooks onto the Tool Holder with
hooks facing the grill Head. Attach Tool Holder
to left side of Side Shelf and secure firmly using
2 of the M5x8mm Pattern Head Screws and
washers supplied. See Figure 8f.
• When you have finished assembling your
grill we strongly urge that all Pattern
Head Thumb Screws be tightened, either
with the supplied Tightening Tool or a
#2 Phillips Head Screwdriver.
Tightening Tool
Ref. # P05515102K
Figure 8d (Natural Gas model only)
SIDE BURNER POT SUPPORT
\\\\\
_StDB BURNER
CONTROL
KNOB_
FASTENING
BAND
COTTER PIN
\
SiDE BURNER FRAME
_StDE BURNER GAS
VALVE ASSEMBLY
_ ELECTRIC WIRE
FROM SiDE BURNER
\
\
\
ELECTRIC WIRE
FROM GRILL HEAD
Figure 8e
1/8"-3/16" BURNER
PORT
9. For Natural Gas grills:
Connect the hose end of the 12' Natural Gas
Hose to the vertical fitting as shown in Figure
8g. Also read the natural gas safety instruc-
tions. (on page 4)
Figure 8g (Natural gas model only)
FOOT \SIDE BURNER
BRASSADAPTOR, f SIDE BURNER GAS VALVE
12' NATURAL GAS HOSE
Figure 8f
TOOL HOLDER
TOOL HOOK
CONNECTION TUBE
FROM GRILL HEAD M5x8rnm PATTERN
HEAD SCREW
SiDE SHELF
18
[] Ignitor Battery Installation - See Fig. 9
1. Remove the Ignitor Caps on the grill Control
Panel.
2. Place the manufacturer supplied AA battery
into Ignitor Slot. Be sure to place the positive
pole facing toward you. See Figure 9.
3. Place the Cap and Spring over the AA battery
then tighten the Ignitor Cap back onto the grill
Control Panel.
4. Remove any protective film from outside and
inside of Grill Head.
IMPORTANT: Before use of this grill please
refer to Cleaning Exterior Stainless Steel
Surfaces found on page 27 of this Owner's
Manual.
Figure 9
IGNITOR SLOT
[] Electrode Check - Requires an Assistant
Before placing the cooking components into your
grill, ensure that the Spark Electrode Tip is properly
positioned within each Gas Collector Box ( a
3-1/4" wide stainless mechanism found at the front
between each set of Burners.) The easiest way to
ensure this is to perform this Electrode Check:
1. Be sure all Control Knobs are set to "OFF"
and open the Grill Lid.
2. Have an assistant stand behind to the right of
the grill and look down at each Gas Collector
Box. NEVER put your face inside Grill Head.
.
Press the Ignitor Cap. You should hear a
"clicking" sound and your assistant should see
a small blue spark within each Gas Collector
Box. If a spark is present the Electrode Tips
are properly positioned.
4. if no spark is seen the Spark Gap shown in
Figure 10 needs to be adjusted as follows:
Using an adjustable wrench, loosen the inside
Nut just until the Gas Collector Box can be
maneuvered and turned upward.
The gap between the Spark Electrode Tip and
Spark receiver should be approximately 3/16".
If the gap is wider than 3/16" use a pair of long
nose pliers and gently squeeze the Gas Collector
Box until the gap is correct.
Return the Gas Collector Box to its original
horizontal position, secure the Inside Nut and try
the Electrode Check again.
5.
If no "clicking" sound is heard check the following
common causes. If you need assistance call our
Grill Information Center
at 1-888-317-7642.
• IgnitorAA battery not installed properly.
Electric wires may be loose. Remove the AA
battery, inspect the Ignitor Junction Box found
behind the Control Panel, and connect any loose
wires.
Figure 10 - Side View Figure
GAS COLLECTOR BOX
\\ iNSiDE NUT
\
SPARK GAP _SPARK RECEIVER
19

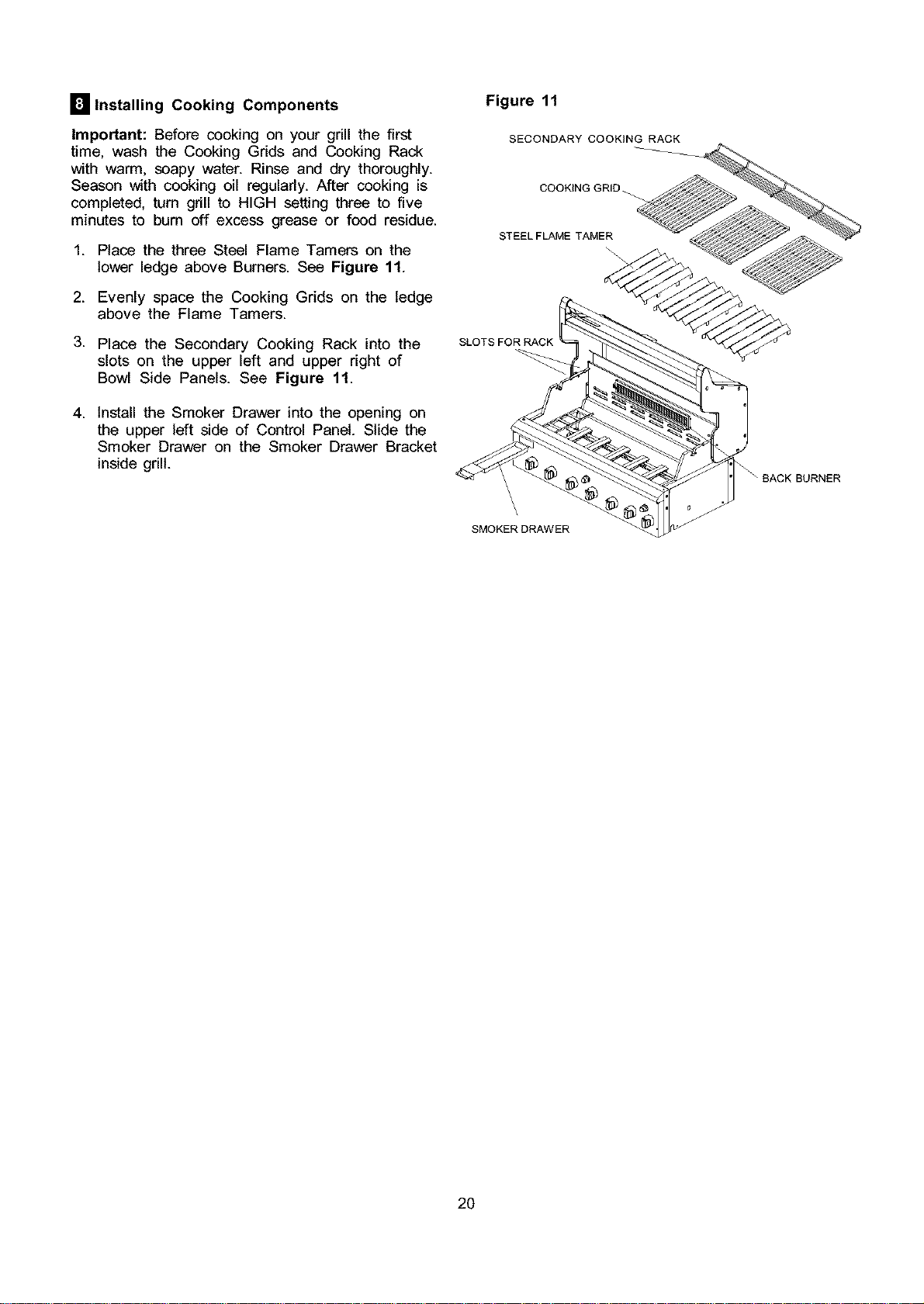

[] Installing Cooking Components
Important: Before cooking on your grill the first
time, wash the Cooking Grids and Cooking Rack
with warm, soapy water. Rinse and dry thoroughly.
Season with cooking oil regularly. After cooking is
completed, tum grill to HIGH setting three to five
minutes to burn off excess grease or food residue.
1. Place the three Steel Flame Tamers on the
lower ledge above Bumers. See Figure 11.
2. Evenly space the Cooking Grids on the ledge
above the Flame Tamers.
3. Place the Secondary Cooking Rack into the
slots on the upper left and upper right of
Bowl Side Panels. See Figure 11.
4. Install the Smoker Drawer into the opening on
the upper left side of Control Panel. Slide the
Smoker Drawer on the Smoker Drawer Bracket
inside grill.
Figure 11
SECONDARY COOKING RACK
COOKING GRID
STEELFLAME TAMER
SLOTS FOR RACK
\
SMOKER DRAWER
_BACK BURNER
2O

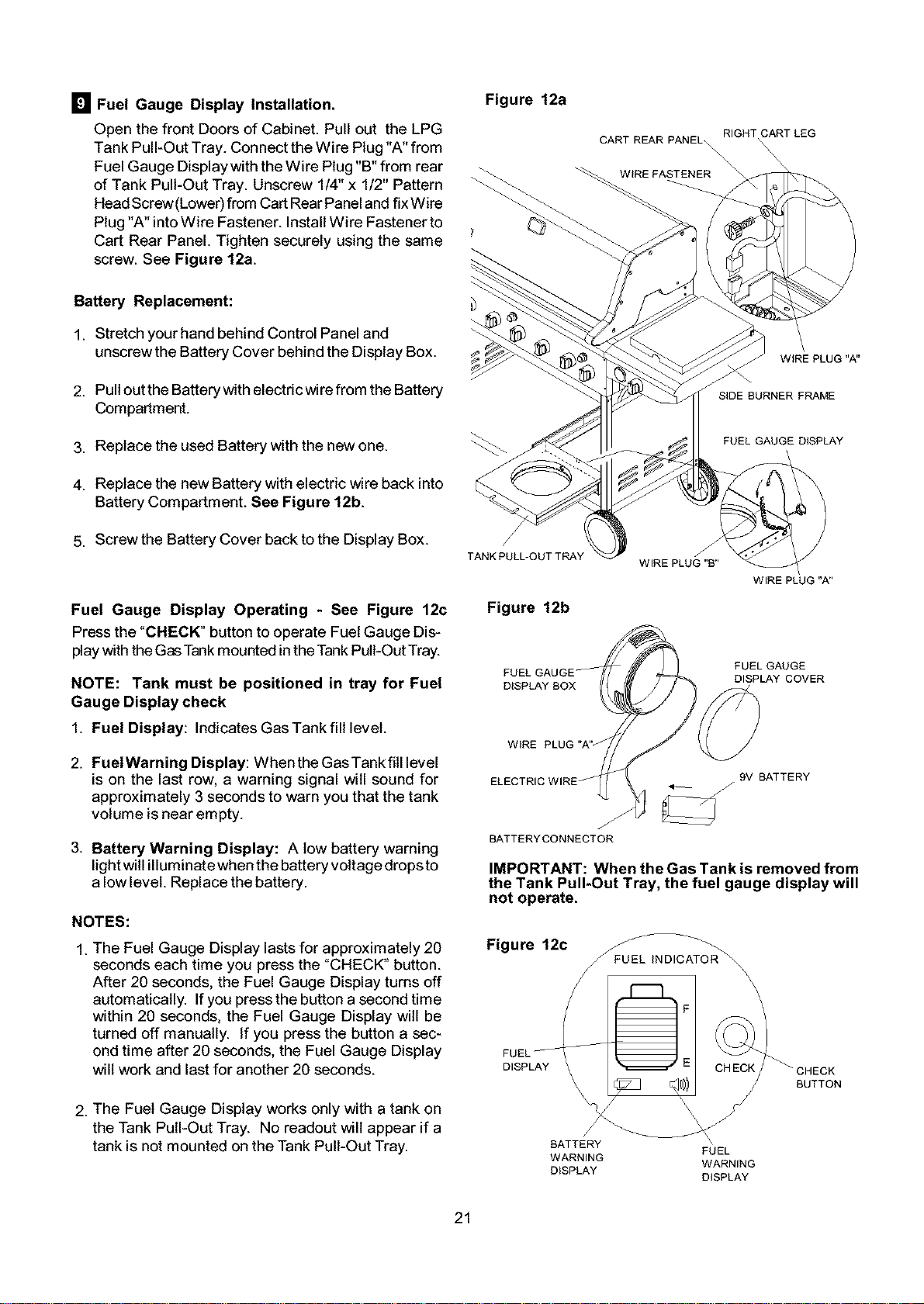

[] Fuel Gauge Display Installation.
Open the front Doors of Cabinet. Pull out the LPG
Tank Pull-Out Tray. Connect the Wire Plug "A" from
Fuel Gauge Display with the Wire Plug "B" from rear
of Tank Pull-Out Tray. Unscrew 1/4" x 1/2" Pattern
Head Screw(Lower) from Cart Rear Panel and fix Wire
Plug "A" into Wire Fastener. Install Wire Fastener to
Cart Rear Panel. Tighten securely using the same
screw. See Figure 12a.
Battery Replacement:
1. Stretch your hand behind Control Panel and
unscrew the Battery Cover behind the Display Box.
2. Pull out the Battery with electric wire from the Battery
Compartment.
3. Replace the used Battery with the new one.
4. Replace the new Battery with electric wire back into
Battery Compartment. See Figure 12b.
5. Screw the Battery Cover back to the Display Box.
Fuel Gauge Display Operating - See Figure 12c
Press the "CHECK" button to operate Fuel Gauge Dis-
play with the Gas Tank mounted in the Tank Pull-Out Tray.
NOTE: Tank must be positioned in tray for Fuel
Gauge Display check
1. Fuel Display: Indicates Gas Tank fill level.
2. FuelWarning Display: WhentheGasTankfitl level
is on the last row, a warning signal will sound for
approximately 3 seconds to warn you that the tank
volume is near empty.
3. Battery Warning Display: A low battery warning
light will illuminate when the battery voltage drops to
a low level. Replace the battery.
NOTES:
1. The Fuel Gauge Display lasts for approximately 20
seconds each time you press the "CHECK _'button.
After 20 seconds, the Fuel Gauge Display turns off
automatically. If you press the button a second time
within 20 seconds, the Fuel Gauge Display will be
turned off manually. If you press the button a sec-
ond time after 20 seconds, the Fuel Gauge Display
will work and last for another 20 seconds.
2. The Fuel Gauge Display works only with a tank on
the Tank Pull-Out Tray. No readout will appear if a
tank is not mounted on the Tank Pull-Out Tray.
Figure 12a
RIGHT CART LEG
CART REAR PANEL\
\\\\
WiRE FASTENER
WiRE PLUG "A"
SIDE BURNER FRAME
FUEL GAUGE DISPLAY
TANK PULL-OUT TRAY
Figure 12b
WIRE PLUG "B"
WIRE PLUG "A"
DISPLAY BOX
FUEL GAUGE
DISPLAY COVER
WiRE PLUG "A"j
9V BATTERY
.f
J
BATTERY CONNECTOR
IMPORTANT: When the Gas Tank is removed from
the Tank Pull-Out Tray, the fuel gauge display will
not operate,
Figure 12c
J FUEL INDICATOR _\
_CHECK
BUTTON
BATTERY
FUEL
WARNING
WARNING
D_SPLAY
DISPLAY
21

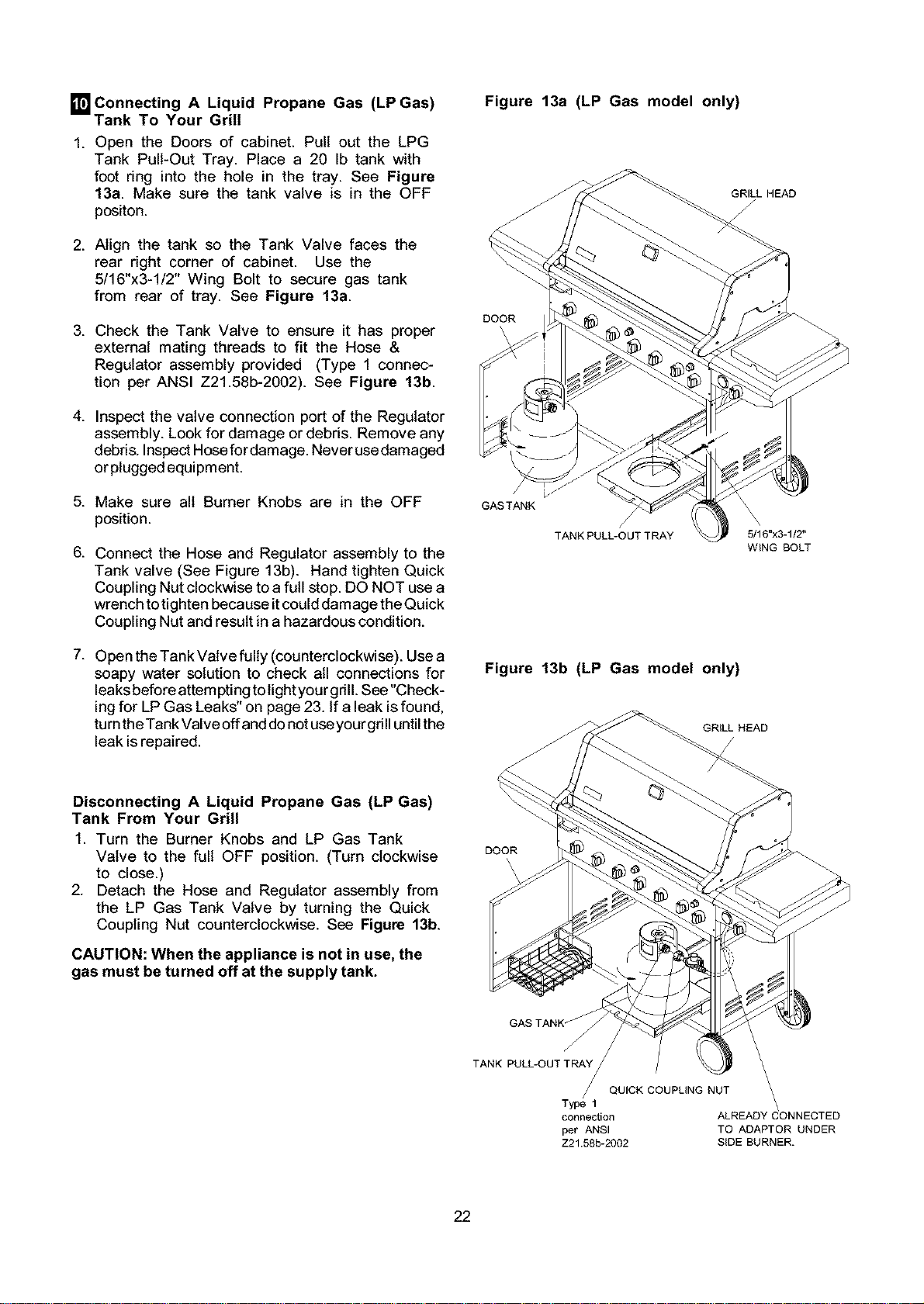

[] Connecting A Liquid Propane Gas (LPGas)
--Tank To Your Grill
1. Open the Doors of cabinet. Pull out the LPG
Tank Pull-Out Tray. Place a 20 Ib tank with
foot ring into the hole in the tray. See Figure
13a. Make sure the tank valve is in the OFF
positon.
2. Align the tank so the Tank Valve faces the
rear right corner of cabinet. Use the
5/16"x3-1/2" Wing Bolt to secure gas tank
from rear of tray. See Figure 13a.
3. Check the Tank Valve to ensure it has proper
external mating threads to fit the Hose &
Regulator assembly provided (Type 1 connec-
tion per ANSI Z21.58b-2002). See Figure 13b.
4. Inspect the valve connection port of the Regulator
assembly. Look for damage or debris. Remove any
debris. Inspect Hosefordamage. Never usedamaged
or plugged equipment.
5. Make sure all Burner Knobs are in the OFF
position.
6. Connect the Hose and Regulator assembly to the
Tank valve (See Figure 13b). Hand tighten Quick
Coupling Nut clockwise to a full stop. DO NOT use a
wrench to tighten because itcould damage the Quick
Coupling Nut and result in a hazardous condition.
7. Open the Tank Valve fully (counterclockwise). Use a
soapy water solution to check all connections for
leaks before attempting to tight your grill. See "Check-
ing for LP Gas Leaks" on page 23. If a leak is found,
turn the Tank Valve off and do not useyour grill until the
leak is repaired.
Figure 13a (LP Gas model only)
GRILL HEAD
DOOR
'\
J _f"
GASTANK
/
TANK PULL-OUT TRAY
Figure 13b (LP Gas model only)
GRILL HEAD
Disconnecting A Liquid Propane Gas (LP Gas)
Tank From Your Grill
1. Turn the Burner Knobs and LP Gas Tank
Valve to the full OFF position. (Turn clockwise
to close.)
2. Detach the Hose and Regulator assembly from
the LP Gas Tank Valve by turning the Quick
Coupling Nut counterclockwise. See Figure 13b.
CAUTION: When the appliance is not in use, the
gas must be turned off at the supply tank.
DOOR
\
\
\
TANK PULL-OUT TRAY//
\
/f QUICK COUPLING NUT \
Type 1 \
connection ALREADY CONNECTED
per ANSI TO ADAPTOR UNDER
Z21.58b-2002 SiDE BURNER.
22

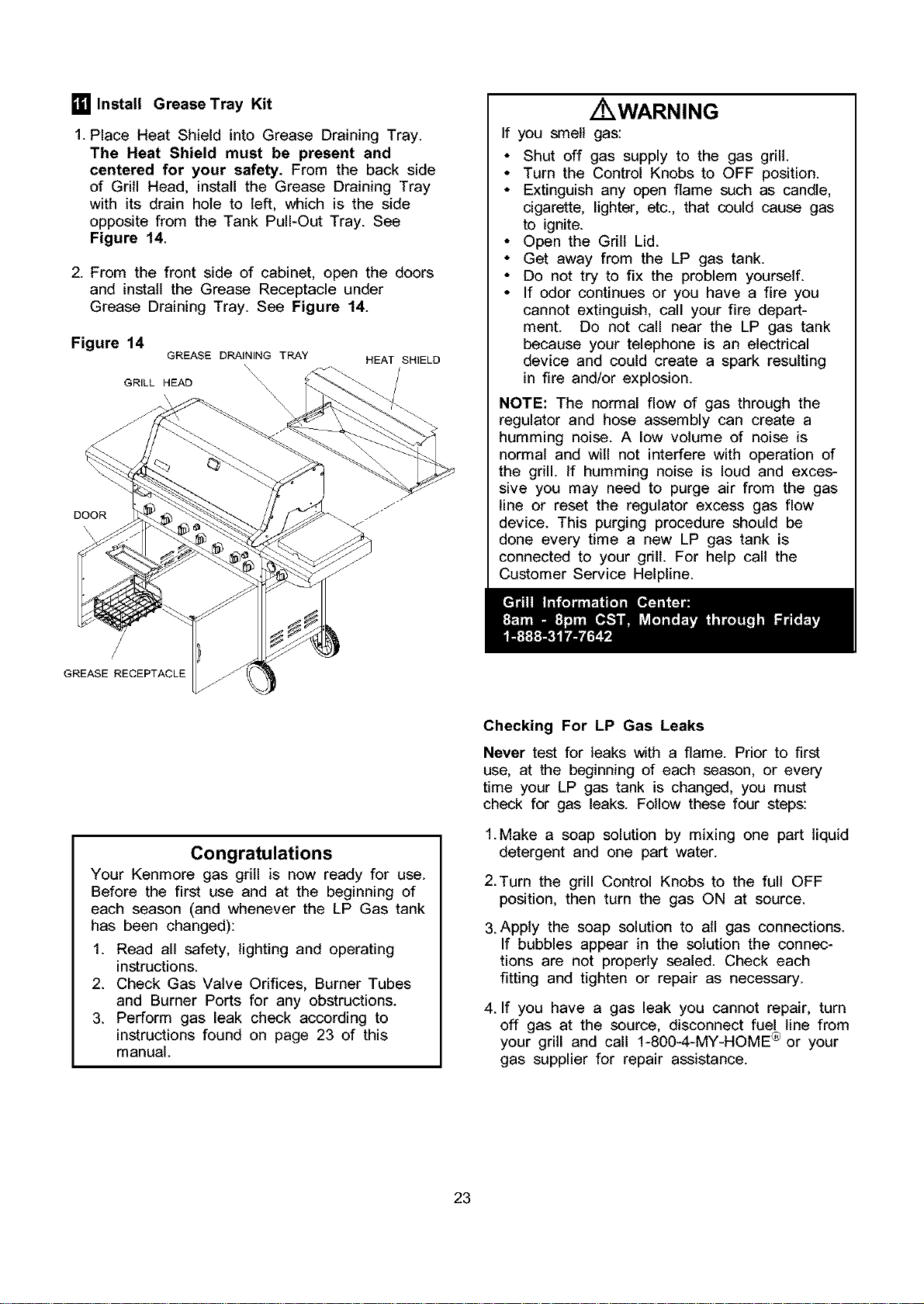

[] Install Grease Tray Kit
1. Place Heat Shield into Grease Draining Tray.
The Heat Shield must be present and
centered for your safety. From the back side
of Grill Head, install the Grease Draining Tray
with its drain hole to left, which is the side
opposite from the Tank Pull-Out Tray. See
Figure 14.
2. From the front side of cabinet, open the doors
and install the Grease Receptacle under
Grease Draining Tray. See Figure 14.
Figure 14
GREASE DRAINING TRAY
GRILL HEAD
HEAT SHIELD
DOOR
"\
\
Z WARNING
If you smell gas:
Shut off gas supply to the gas grill.
Turn the Control Knobs to OFF position.
Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas
to ignite.
Open the Grill Lid.
Get away from the LP gas tank.
Do not try to fix the problem yourself.
If odor continues or you have a fire you
cannot extinguish, call your fire depart-
ment. Do not call near the LP gas tank
because your telephone is an electrical
device and could create a spark resulting
in fire and/or explosion.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a
humming noise. A low volume of noise is
normal and will not interfere with operation of
the grill. If humming noise is loud and exces-
sive you may need to purge air from the gas
line or reset the regulator excess gas flow
device. This purging procedure should be
done every time a new LP gas tank is
connected to your grill. For help call the
Customer Service Helpline.
GREASE RECEPTACLE
Congratulations
Your Kenmore gas grill is now ready for use.
Before the first use and at the beginning of
each season (and whenever the LP Gas tank
has been changed):
1. Read all safety, lighting and operating
instructions.
2. Check Gas Valve Orifices, Burner Tubes
and Burner Ports for any obstructions.
3. Perform gas leak check according to
instructions found on page 23 of this
manual.
Checking For LP Gas Leaks
Never test for leaks with a flame. Prior to first
use, at the beginning of each season, or every
time your LP gas tank is changed, you must
check for gas leaks. Follow these four steps:
1.Make a soap solution by mixing one part liquid
detergent and one part water.
2.Turn the grill Control Knobs to the full OFF
position, then turn the gas ON at source.
3. Apply the soap solution to all gas connections.
If bubbles appear in the solution the connec-
tions are not properly sealed. Check each
fitting and tighten or repair as necessary.
4. If you have a gas leak you cannot repair, turn
off gas at the source, disconnect fuel line from
your grill and call 1-800-4-MY-HOME ® or your
gas supplier for repair assistance.
23
LP Tank Exchange
• Many retailers that sell grills offer you the op-
tion of replacing your empty LP tank through an
exchange service. Use only those reputable
exchange companies that inspect, precision
fill, test and certify their cylinders. Exchange
your tank only for an OPD safety feature-equipped
tank as described in the LP Tank section of
this manual.
• Always keep new and exchanged LP tanks in
upright position during use, transit or storage.
• Leak test new and exchange LP tanks BEFORE
connecting to grill.
LP Tank Leak Test
For your safety
• Leak test must be repeated each time LP tank is
exchanged of refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ven-
tilated area, away from ignition sources such as
gas fired or electrical appliances. During leak test,
keep grill away from open flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap
and water solution. Brush soapy solution onto
areas indicated by arrows in figure below.
WARNING
If growing bubbles appear do not use or move
the LP tank. Contact an LP gas Supplier or your
fire department!
Basic Lighting Procedures
Machine oils used inthe manufacturing process of
stainless steel can cause stainless steel to turn a tan
color. Before initial grill use, remove protective PVC film
from Control Panel and inside and outside of Grill Lid.
Use a Stainless Steel Cleaner to polish the stainless steel
and remove these excess oils from your grill. Never use
abrasive cleaners or scrubbers because they will scratch
and damage your grill. For details, see Cleaning Exterior
Stainless Steel Surfaces on page 27.
Gas Lighting Instructions
Familiarize yourself with the safety guidelines at the
front of this manual. Do not smoke while lighting grill
or checking gas supply connections.
1. If you have a LP gas grill be sure the LP gas tank
is filled, or if you have a NG grill be sure that the
locking shut off valve is open.
2. Check that the end of each Burner Tube is
properly located over each Valve Orifice.
3. Be sure all gas connections are securely tightened.
4. Open the Grill Lid or Side Burner Lid, depending
on the Burner you are lighting.
Z WARNING
Failure to open Grill Lid during the
lighting procedures could result in a fire
or explosion that could cause serious
bodily injury, death, or property damage.
5. Set ALL Control Knobs to OFF and open the LP
Gas Tank Valve slowly until 1/4 to 1/2 open.
Open LP
Gas Tank
T
OFF
• Do not use household cleaning agents. Damage
to gas assembly components can result.
24

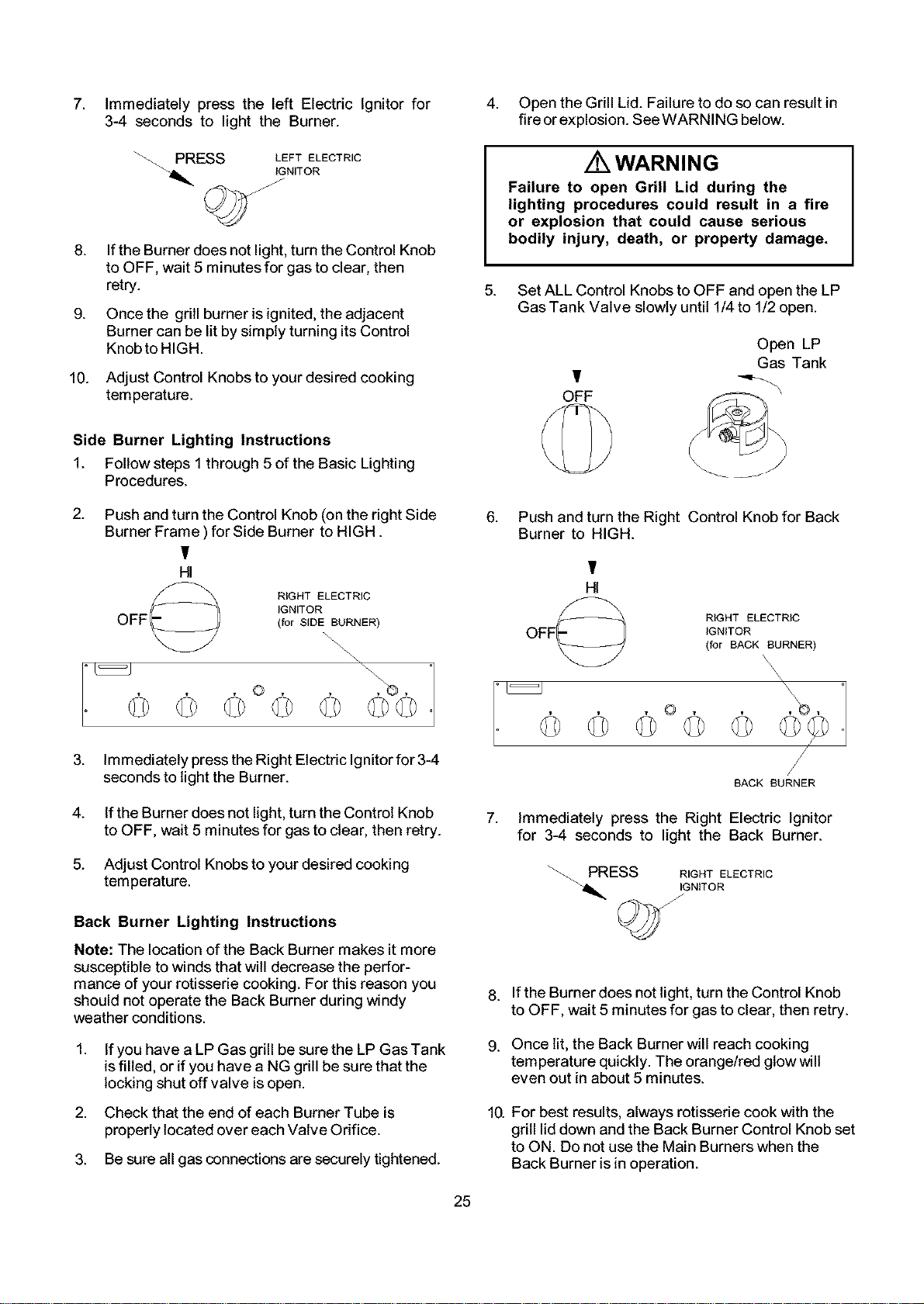

6. Push and turn the any Control Knob for Main
Burner to HIGH.
HI
OFF_
LEFT ELECTRIC
iGNITOR
MAIN BURNER
7.
Immediately press the left Electric Ignitor for
3-4 seconds to light the Burner.
_'\, PRESS LEFTELECTRIC
IGNITOR
.
g.
10.
If the Burner does not light, turn the Control Knob
to OFF, wait 5 minutes for gas to clear, then
retry.
Once the grill burner is ignited, the adjacent
Burner can be lit by simply turning its Control
Knob to HIGH.
Adjust Control Knobs to your desired cooking
temperature.
Side Burner Lighting Instructions
1. Follow steps 1 through 5 of the Basic Lighting
Procedures.
2.
Push and turn the Control Knob (on the right Side
Burner Frame ) for Side Burner to HIGH.
4.
5.
.
Open the Grill Lid. Failure to do so can result in
fire or explosion. See WARNING below.
Z WARNING
Failure to open Grill Lid during the
lighting procedures could result in a fire
or explosion that could cause serious
bodily injury, death, or property damage.
Set ALL Control Knobs to OFF and open the LP
Gas Tank Valve slowly until 1/4 to 1/2 open.
Open LP
Gas Tank
OFF
Push and turn the Right Control Knob for Back
Burner to HIGH.
T
HI T
OFF_ IGNIToRRIGHTELECTRIC OFF H_
(for SIDE BURNER) RIGHT ELECTRIC
IGNITOR
\\\ (for BACK BURNER)
\
\ \
\\ \
©© o
.
4.
5.
Immediately press the Right Electric Ignitor for 3-4
seconds to light the Burner.
If the Burner does not light, turn the Control Knob
to OFF, wait 5 minutes for gas to clear, then retry.
Adjust Control Knobs to your desired cooking
temperature.
Back Burner Lighting Instructions
Note: The location of the Back Burner makes it more
susceptible to winds that will decrease the perfor-
mance of your rotisserie cooking. For this reason you
should not operate the Back Burner during windy
weather conditions.
1.
2.
3.
If you have a LP Gas grill be sure the LP Gas Tank
is filled, or if you have a NG grill be sure that the
locking shut off valve is open.
Check that the end of each Burner Tube is
properly located over each Valve Orifice.
Be sure all gas connections are securely tightened.
7.
.
9.
10.
/
BACK BURNER
Immediately press the Right Electric Ignitor
for 3-4 seconds to light the Back Burner.
"_\ PRESS RIGHTELECTRIC
IGNITOR
If the Burner does not light, turn the Control Knob
to OFF, wait 5 minutes for gas to clear, then retry.
Once lit, the Back Burner will reach cooking
temperature quickly. The orange/red glow will
even out in about 5 minutes.
For best results, always rotisserie cook with the
grill lid down and the Back Burner Control Knob set
to ON. Do not use the Main Burners when the
Back Burner is in operation.
25

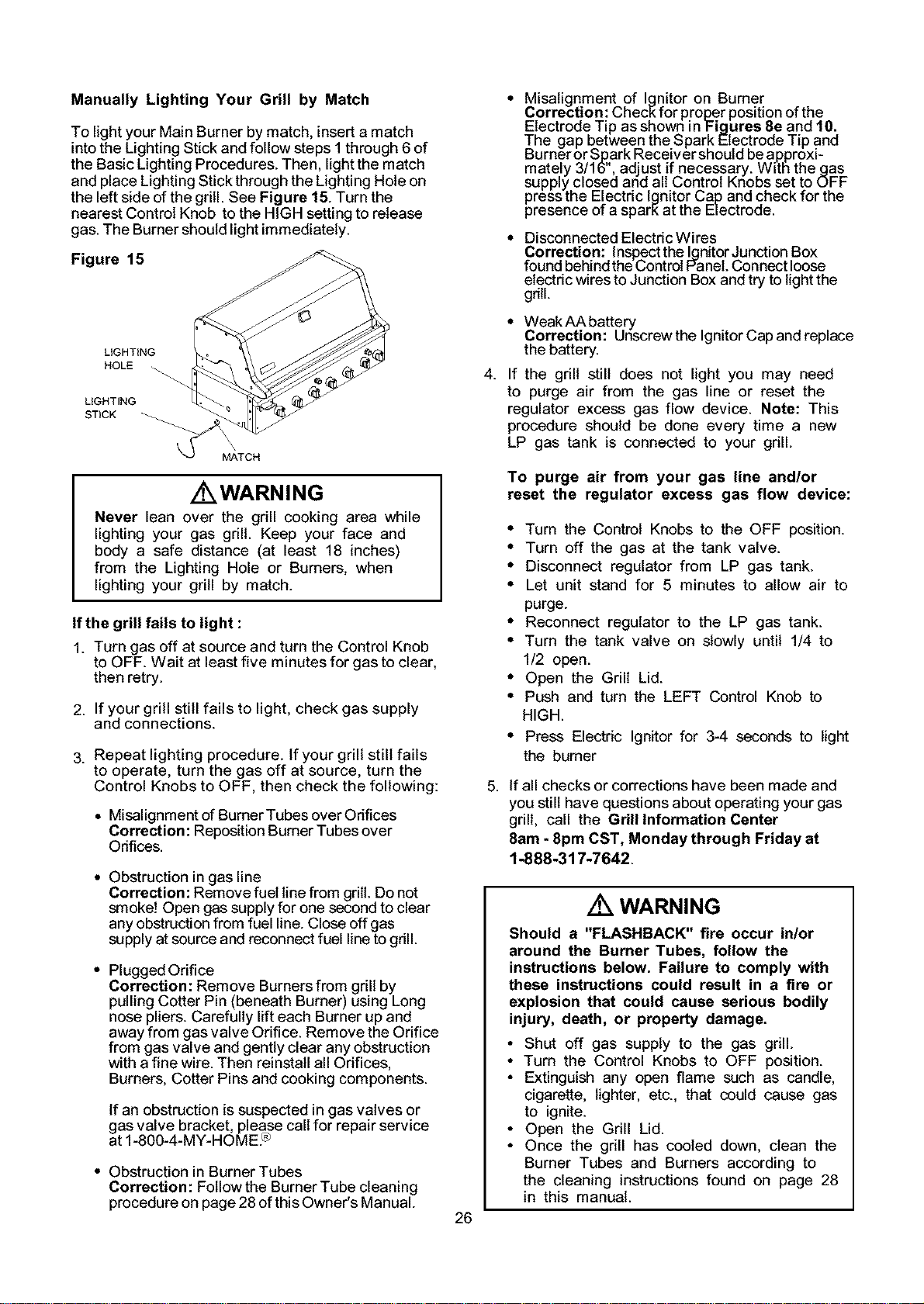

Manually Lighting Your Grill by Match
To light your Main Burner by match, insert a match
into the Lighting Stick and follow steps 1 through 6 of
the Basic Lighting Procedures. Then, light the match
and place Lighting Stick through the Lighting Hole on
the left side of the grill. See Figure 15. Turn the
nearest Control Knob to the HIGH setting to release
gas. The Burner should light immediately.
Figure 15
LIGHTING
HOLE
LIGHTING
STICK
\
MATCH
Z WARNING
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and
body a safe distance (at least 18 inches)
from the Lighting Hole or Burners, when
lighting your grill by match.
If the grill fails to light :
1. Turn gas off at source and turn the Control Knob
to OFF. Wait at least five minutes for gas to clear,
then retry.
2. If your grill still fails to light, check gas supply
and connections.
3. Repeat lighting procedure. If your grill still fails
to operate, turn the gas off at source, turn the
Control Knobs to OFF, then check the following:
• Misalignment of Burner Tubes over Orifices
Correction: Reposition Burner Tubes over
Orifices.
• Obstruction in gas line
Correction: Remove fuel line from grill. Do not
smoke! Open gas supply for one second to clear
any obstruction from fuel line. Close off gas
supply at source and reconnect fuel line to grill.
• Plugged Orifice
Correction: Remove Burners from grill by
pulling Cotter Pin (beneath Burner) using Long
nose pliers. Carefully lift each Burner up and
away from gas valve Orifice. Remove the Orifice
from gas valve and gently clear any obstruction
with a fine wire. Then reinstall all Orifices,
Burners, Cotter Pins and cooking components.
If an obstruction is suspected in gas valves or
gas valve bracket, please call for repair service
at 1-800-4-MY-HOME_
• Obstruction in Burner Tubes
Correction: Follow the Burner Tube cleaning
procedure on page 28 of this Owner's Manual.
4.
.
26
Misalignment of Ignitor on Burner
Correction: Check for proper position of the
Electrode Tip as shown in Figures 8e and 10.
The gap between the Spark Electrode Tip and
Burneror S_ark Receiver should be approxi-
mately 3/16', adjust if necessary. With thegas
supply closed and all Control Knobs set to OFF
press the Electric Iqnitor Cap and check for the
presence of a spark at the Electrode.
Disconnected Electric Wires
Correction: Inspectthe Ignitor Junction Box
found behind the Control Panel. Connect loose
electric wires to Junction Box and try to light the
grill.
• WeakAA battery _ .
Correction: Unscrewthe Ignitor L,ap and replace
the battery.
If the grill still does not light you may need
to purge air from the gas line or reset the
regulator excess gas flow device. Note: This
procedure should be done every time a new
LP gas tank is connected to your grill.
To purge air from your gas line and/or
reset the regulator excess gas flow device:
• Turn the Control Knobs to the OFF position.
• Turn off the gas at the tank valve.
• Disconnect regulator from LP gas tank.
• Let unit stand for 5 minutes to allow air to
purge.
• Reconnect regulator to the LP gas tank.
• Turn the tank valve on slowly until 1/4 to
1/2 open.
• Open the Grill Lid.
• Push and turn the LEFT Control Knob to
HIGH.
• Press Electric Ignitor for 3-4 seconds to light
the burner
If all checks or corrections have been made and
you still have questions about operating your gas
grill, call the Grill Information Center
8am - 8pm CST, Monday through Friday at
1-888-317-7642.
WARNING
Should a '*FLASHBACK" fire occur in/or
around the Burner Tubes, follow the
instructions below. Failure to comply with
these instructions could result in a fire or
explosion that could cause serious bodily
injury, death, or property damage.
• Shut off gas supply to the gas grill.
• Turn the Control Knobs to OFF position.
• Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas
to ignite.
• Open the Grill Lid.
• Once the grill has cooled down, clean the
Burner Tubes and Burners according to
the cleaning instructions found on page 28
in this manual.

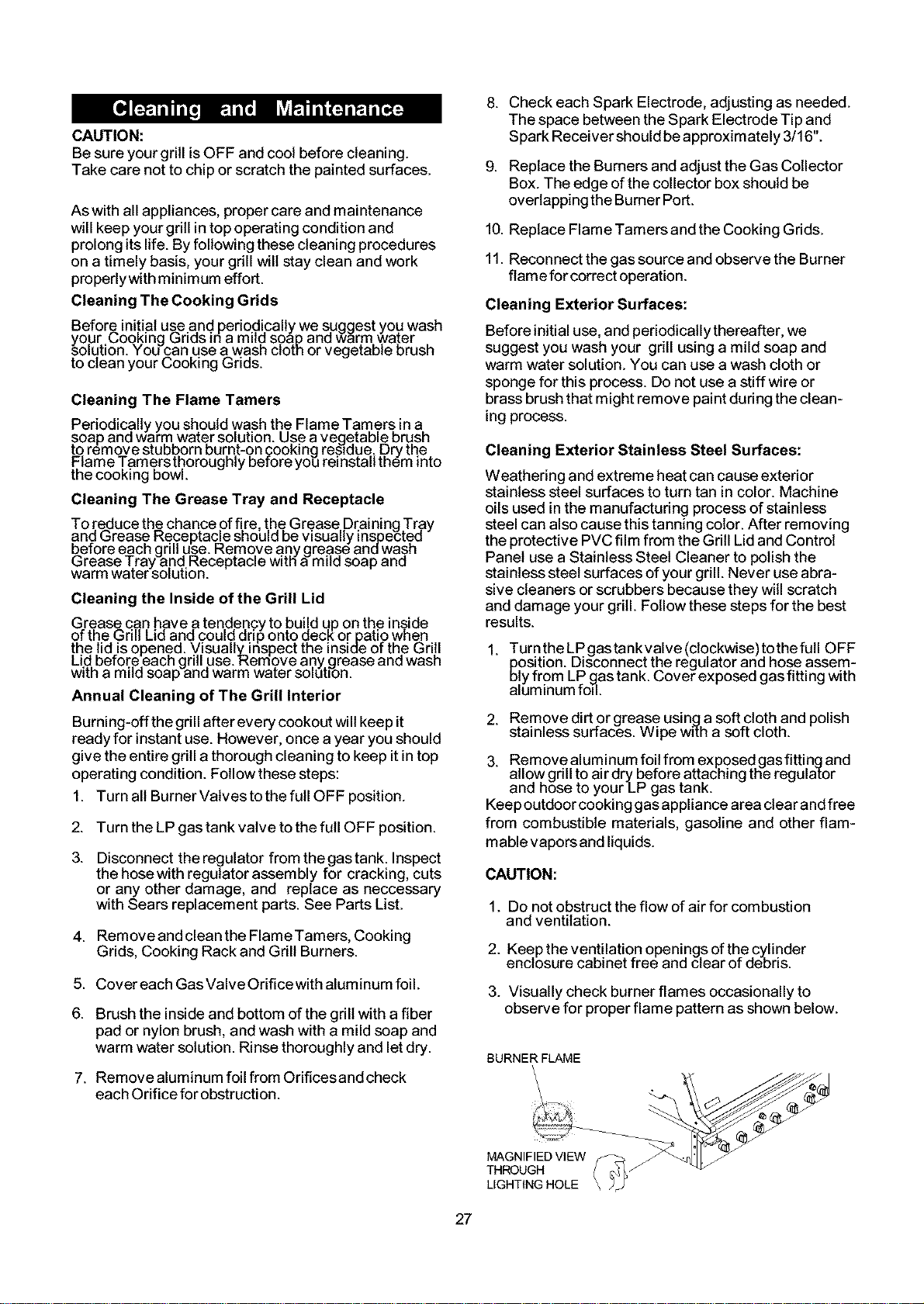

CAUTION:
BesureyourgrillisOFFandcoolbeforecleaning.
Takecarenottochiporscratchthepaintedsurfaces.
Aswithallappliances,propercareandmaintenance
willkeepyourgrillintopoperatingconditionand
prolongitslife.Byfollowingthesecleaningprocedures
onatimelybasis,yourgrillwillstaycleanandwork
properlywithminimumeffort.
CleaningTheCookingGrids
Before.ini,tialus.e.andperio.,dicallywesuggestyo.uwash
yourL,OOKIngL_rlasmamllasoapariawarmwater
solution.Youcanuseawashctotnorvegetablebrush
tocleanyourCookingGrids.
Cleaning The Flame Tamers
Periodically you should wash th,e Flame Tamers ina,
soap aria warm water solution, use a vegetable Drusn
to,remove stub.b,orn burnt-o,ncooking restd,ue..,Drythe.
tlamelamersmorougn_y Beforeyou reinsfall mem info
the cooking bowl.
Cleaning The Grease Tray and Receptacle
To reduce the chance ,off[re, t,he,Grease,p[aining Tray
ang urease Keceptacle snoulg BeViSUally mspecteg
before each grill use. Remove any grease aria wash
Grease T.raya,nd.Receptacle witl'i a mild soap and
warm water SOlUtiOn.
Cleaning the Inside of the Grill Lid
Gre,ase can have a ten,dency to bui!d u,pon the inside
of me L_riHLia ana cou_agrip onto geCKOrpado wnen
the !id.is opened..V,isually_.inspect the insiae of the Gri!l
Lla Before eacn grill use. Kemove any grease ana wasn
with a mild soap and warm water solut=on.
Annual Cleaning of The Grill Interior
Burning-offthe grill after every cookout willkeep it
ready for instant use. However, once a year you should
give the entire grill a thorough cleaning to keep it in top
operating condition. Follow these steps:
1. Turn all Burner Valves to the futl OFF position.
2. Turn the LP gas tank valve to the full OFF position.
3. Disconnect the regulator from the gas tank. Inspect
the hose with regulator assem bly for cracking, cuts
or any other damage, and replace as neccessary
with Sears replacement parts. See Parts List.
4. Remove and clean the Flame Tamers, Cooking
Grids, Cooking Rack and Grill Burners.
5. Cover each Gas Valve Orificewith aluminum foil.
6. Brush the inside and bottom of the grill with a fiber
pad or nylon brush, and wash with a mild soap and
warm water solution. Rinse thoroughly and let dry.
7. Remove aluminum foil from Orificesand check
each Orifice for obstruction.
8. Check each Spark Electrode, adjusting as needed.
The space between the Spark Electrode Tip and
Spark Receiver should be approximately 3/16".
9. Replace the Burners and adjust the Gas Collector
Box. The edge of the collector box should be
overlapping the Burner Port.
10. Replace Flame Tamers and the Cooking Grids.
11. Reconnect the gas source and observe the Burner
flame for correct operation.
Cleaning Exterior Surfaces:
Before initial use, and periodically thereafter, we
suggest you wash your grill using a mild soap and
warm water solution. You can use a wash cloth or
sponge for this process. Do not use a stiff wire or
brass brush that might remove paint during the clean-
ing process.
Cleaning Exterior Stainless Steel Surfaces:
Weathering and extreme heat can cause exterior
stainless steel surfaces to turn tan in color. Machine
oils used in the manufacturing process of stainless
steel can also cause this tanning color. After removing
the protective PVC film from the Grill Lid and Control
Panel use a Stainless Steel Cleaner to polish the
stainless steel surfaces of your grill. Never use abra-
sive cleaners or scrubbers because they will scratch
and damage your grill. Follow these steps for the best
results.
1. TurntheLPgastankvalve(clockwise)tothefull OFF
position. Disconnect the regulator and hose assem-
bly from LP gas tank. Cover exposed gasfitting with
aluminum fo_.
2. Remove dirt or grease using a soft cloth and polish
stainless surfaces. Wipe with a soft cloth.
3. Remove aluminum foil from exposed gasfitting and
allow grill to air drybefore attaching the regulator
and hose to yourLP gas tank.
Keep outdoor cooking gasappliance area clear and free
from combustible materials, gasoline and other flam-
mable vaporsand liquids.
CAUTION:
1. Do not obstruct the flowofair forcombustion
and ventilation.
2. Keep the ventilation openings of the cylinder
enclosure cabinet free and clear of debris.
3. Visually check burner flames occasionally to
observe for proper flame pattern as shown below.
BURNER FLAME
MAGNIFIEDVIEW _ /_l_ ./
THROUGH / _/ "_/
UGHT{NG HOLE \ J_
27
Cleaning The Burner Tubes and Burner Ports
To reduce the chance of FLASHBACK the proce-
dure below should be followed at least once a month
in late summer or early fall when spiders are most
active or when your grill has not been used for a
period of time.
1. Turn all Burner Valves to the full OFF position.
2. Turn the LP gas tank valve to the full OFF position.
3. Detach the LP gas regulator assembly from your
gasgrill.
4. Remove the Cooking Grids, FlameTamers, and
Grease Trays from your grill.
5. Remove the Cotter Pin from the rear underside of
each Burner using a pair of long nose pliers.
6. Carefully lift each Burner up and away from the
Gas Valve Orifice.
7. Checking and cleaning burnedventuri tubes for
insects and insect nests. A clogged tube can lead
to a fire beneath the grill.
8. Refer to Figure 1 and perform one of these
three cleaning methods:
Bend a stiff wire, (a lightweight coat
hanger works well) into a small hook as
shown below. Run the hook through the
Burner Tube and inside the Burner several
times to remove any debris.
,)
Use a bottle brush with a flexible handle.
Run the brush through the Burner Tube
and inside the Burner several times,
removing any debris.
Use an air hose to force air through each
Burner Tube. The forced air should pass
debris or obstructions through the Burner
and out the Ports.
Regardless of which Burner cleaning procedure you
use, we recommend you also complete the following
steps to help prolong Burner life.
1. Use a fiber pad or nylon brush to clean the entire
outer surface of each Burner until free of food
residue and dirt.
2. Clean any clogged Ports with a stiff wire, such as
an open paper clip.
. Inspect each Burner for damage (cracks or holes)
and if such damage is found, order and install a
new Burner. After installation, check to ensure
that the Gas Valve Orifices are correctly placed
inside the ends of the Burner Tubes. Also check
the position of your Spark Electrode.
Z WARNING
The location of the Burner Tube with respect
to the Orifice is vital for safe operation.
Check to ensure the Orifice is inside the
Burner Tube before using your gas grill. See
Figure 2. If the Orifice is not inside the
Burner Tube, lighting the Burner may cause
explosion and/or fire.
Figure 2
GAS VALVE ASSEMBLY
ORIFICE BURNER TUBE
Figure 1
TO CLEAN BURNER TUBE,
INSERT HOOK HERE
\\
_\\\\\
\
SPARK ELECTRODE
ASSEMBLY x\\\
GAS COLLECTOR BOX
/
BURNER BURNERPORT
BURNER TUBE
FOOT
COTTERPIN
28

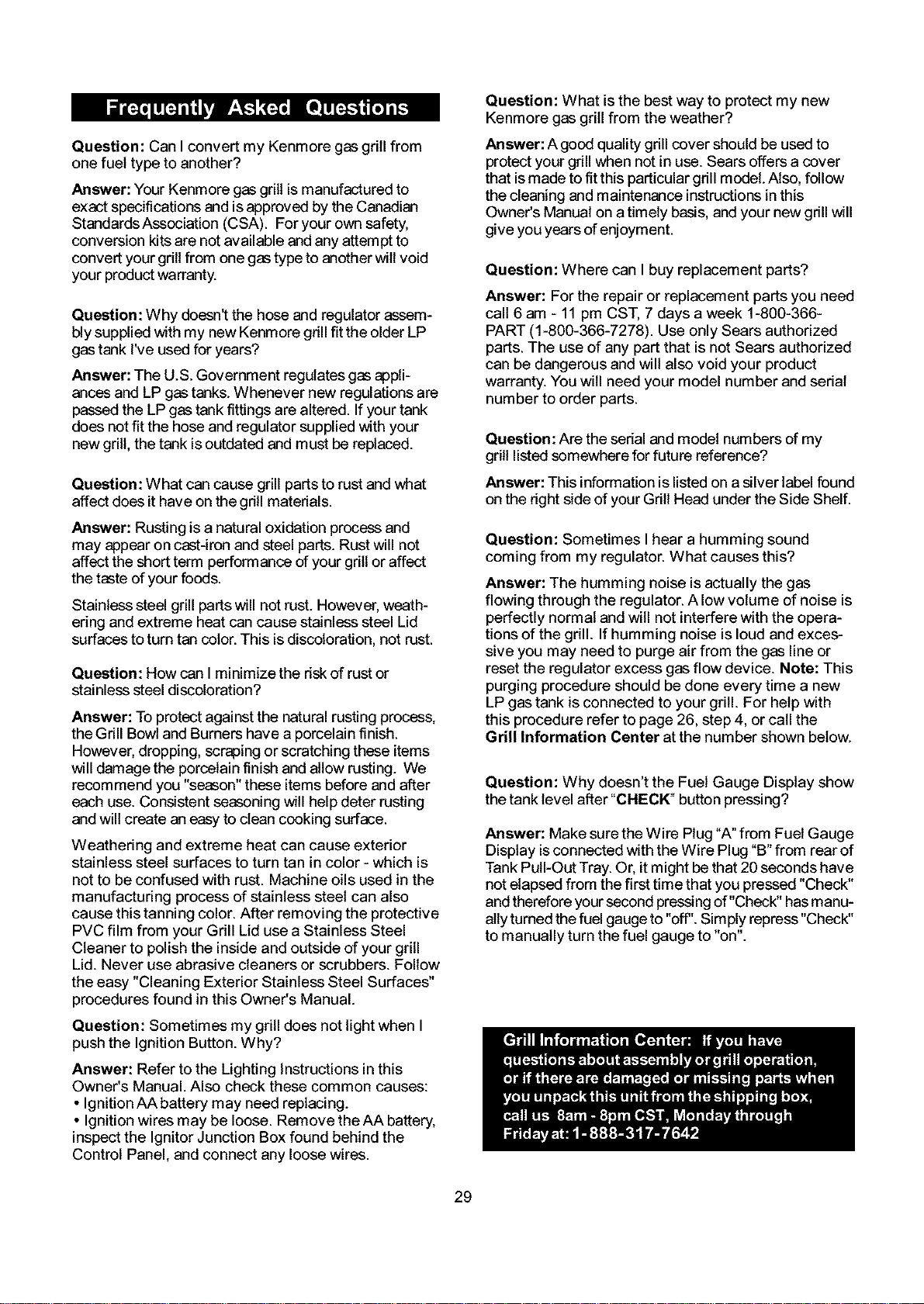

Question: Can Iconvert my Kenmore gas grill from
one fuel type to another?
Answer: Your Kenmore gas grill is manufactured to
exact specifications and is approved by the Canadian
StandardsAsseciation (CSA). Foryour own safety,
conversion kits are not available and any attempt to
convert your grill from one gas type to another wilt void
your product warranty.
Question: Why doesn't the hose and regulator assem-
bly supplied with my new Kenmore grill fit the older LP
gas tank rve used for years?
Answer: The U.S. Government regulates gas appli-
ances and LP gas tanks. Whenever new regulations are
passed the LP gas tank fittings are altered. If your tank
does not fit the hose and regulator supplied with your
new grill, the tank is outdated and must be replaced.
Question: What can cause grill parts to rust and what
affect does it have on the grill materials.
Answer: Rusting is a natural oxidation process and
may appear on cast-iron and steel parts. Rust will not
affect the short term performance of your grill or affect
the taste of your foods.
Stainless steel grill parts will not rust. However, weath-
ering and extreme heat can cause stainless steel Lid
surfaces to turn tan color. This is discoloration, not rust.
Question: How can I minimize the risk of rust or
stainless steel discoloration?
Answer: To protect against the natural rusting process,
the Grill Bowl and Burners have a porcelain finish.
However, dropping, scraping or scratching these items
will damage the porcelain finish and allow rusting. We
recommend you "season" these items before and after
each use. Consistent seasoning will help deter rusting
and will create an easy to clean cooking surface.
Weathering and extreme heat can cause exterior
stainless steel surfaces to turn tan in color - which is
not to be confused with rust. Machine oils used in the
manufacturing process of stainless steel can also
cause this tanning color. After removing the protective
PVC film from your Grill Lid use a Stainless Steel
Cleaner to polish the inside and outside of your grill
Lid. Never use abrasive cleaners or scrubbers. Follow
the easy "Cleaning Exterior Stainless Steel Surfaces"
procedures found in this Owner's Manual.
Question: Sometimes my grill does not light when I
push the Ignition Button. Why?
Answer: Refer to the Lighting Instructions in this
Owner's Manual. Also check these common causes:
• Ignition AA battery may need replacing.
• Ignition wires may be loose. Remove the AA battery,
inspect the Ignitor Junction Box found behind the
Control Panel, and connect any loose wires.
Question: What is the best way to protect my new
Kenmore gas grill from the weather?
Answer: A good quality grill cover should be used to
protect your grill when not in use. Sears offers a cover
that is made to fit this particular grill model. Also, follow
the cleaning and maintenance instructions in this
Owner's Manual on a timely basis, and your new grill will
give you years of enjoyment.
Question: Where can I buy replacement parts?
Answer: For the repair or replacement parts you need
call 6 am - 11 pm CST, 7 days a week 1-800-366-
PART (1-800-366-7278). Use only Sears authorized
parts. The use of any part that is not Sears authorized
can be dangerous and will also void your product
warranty. You will need your model number and serial
number to order parts.
Question: Are the serial and model numbers of my
grill listed somewhere for future reference?
Answer: This information is listed on a silver label found
on the right side of your Grill Heed under the Side Shelf.
Question: Sometimes I hear a humming sound
coming from my regulator. What causes this?
Answer: The humming noise is actually the gas
flowing through the regulator. A low volume of noise is
perfectly normal and will not interfere with the opera-
tions of the grill. If humming noise is loud and exces-
sive you may need to purge air from the gas line or
reset the regulator excess gas flow device. Note: This
purging procedure should be done every time a new
LP gas tank is connected to your grill. For help with
this procedure refer to page 26, step 4, or call the
Grill Information Center at the number shown below.
Question: Why doesn't the Fuel Gauge Display show
the tank level after "CHECK" button pressing?
Answer: Make sure the Wire Plug "A" from Fuel Gauge
Display is connected with the Wire Plug "B"from rear of
Tank Pull-Out Tray. Or, it might be that 20 seconds have
not elapsed from the first time that you pressed "Check"
and therefore your second pressing of "Check" has manu-
ally turned the fuel gauge to "off'. Simply repress "Check"
to manually turn the fuel gauge to "on".
29

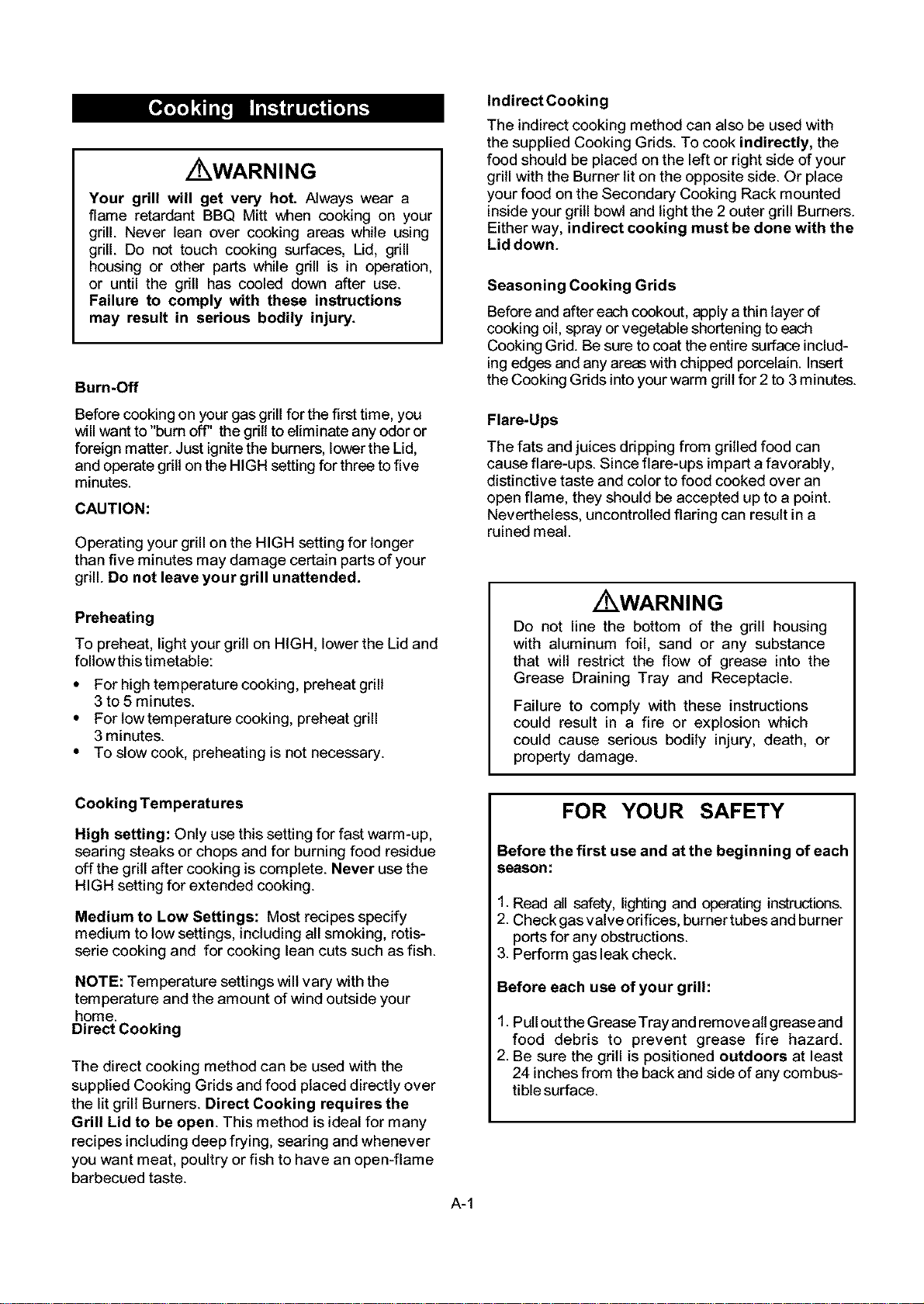

Z WARNING
Your grill will get very hot. Always wear a
flame retardant BBQ Mitt when cooking on your
grill. Never lean over cooking areas while using
grill. Do not touch cooking surfaces, Lid, grill
housing or other parts while grill is in operation,
or until the grill has cooled down after use.
Failure to comply with these instructions
may result in serious bodily injury.
Burn-Off
Before cooking on your gas grill for the first time, you
will want to "bum off' the grill to eliminate any odor or
foreign matter. Just ignite the burners, lower the Lid,
and operate grill on the HIGH setting for three to five
minutes.
CAUTION:
Operating your grill on the HIGH setting for longer
than five minutes may damage certain parts of your
grill. Do not leave your grill unattended.
Preheating
To preheat, light your grill on HIGH, lower the Lid and
followthis timetable:
• For high temperature cooking, preheat grill
3 to 5 minutes.
• For low temperature cooking, preheat grill
3 minutes.
• To slow cook, preheating is not necessary.
Indirect Cooking
The indirect cooking method can also be used with
the supplied Cooking Grids. To cook indirectly, the
food should be placed on the left or right side of your
grill with the Burner lit on the opposite side. Or place
your food on the Secondary Cooking Rack mounted
inside your grill bowl and light the 2 outer grill Burners.
Either way, indirect cooking must be done with the
Lid down.
Seasoning Cooking Grids
Before and after each cookout, apply a thin layer of
cooking oil, spray or vegetable shortening to each
Cooking Grid. Be sure to coat the entire surface includ-
ing edges and any areas with chipped porcelain. Insert
the Cooking Grids into your warm grill for 2 to 3 minutes.
Flare-Ups
The fats and juices dripping from grilled food can
cause flare-ups. Since flare-ups impart a favorably,
distinctive taste and color to food cooked over an
open flame, they should be accepted up to a point.
Nevertheless, uncontrolled flaring can result in a
ruined meal.
Z WARN ING
Do not line the bottom of the grill housing
with aluminum foil, sand or any substance
that will restrict the flow of grease into the
Grease Draining Tray and Receptacle.
Failure to comply with these instructions
could result in a fire or explosion which
could cause serious bodily injury, death, or
property damage.
Cooking Temperatures
High setting: Only use this setting for fast warm-up,
searing steaks or chops and for burning food residue
off the grill after cooking is complete. Never use the
HIGH setting for extended cooking.
Medium to Low Settings: Most recipes specify
medium to low settings, including all smoking, rotis-
serie cooking and for cooking lean cuts such as fish.
NOTE: Temperature settings will vary with the
temperature and the amount of wind outside your
home.
Direct Cooking
The direct cooking method can be used with the
supplied Cooking Grids and food placed directly over
the lit grill Burners. Direct Cooking requires the
Grill Lid to be open. This method is ideal for many
recipes including deep frying, searing and whenever
you want meat, poultry or fish to have an open-flame
barbecued taste.
A-1
FOR YOUR SAFETY
Before the first use and at the beginning of each
season:
1. Read all safety, lighting and operating instructions.
2. Check gas valve orifices, burner tubes and burner
ports for any obstructions.
3. Perform gas leak check.
Before each use of your grill:
1. Pull outthe Grease Tray and remove all grease and
food debris to prevent grease fire hazard.
2. Be sure the grill is positioned outdoors at least
24 inches from the back and side of any combus-
tible surface.

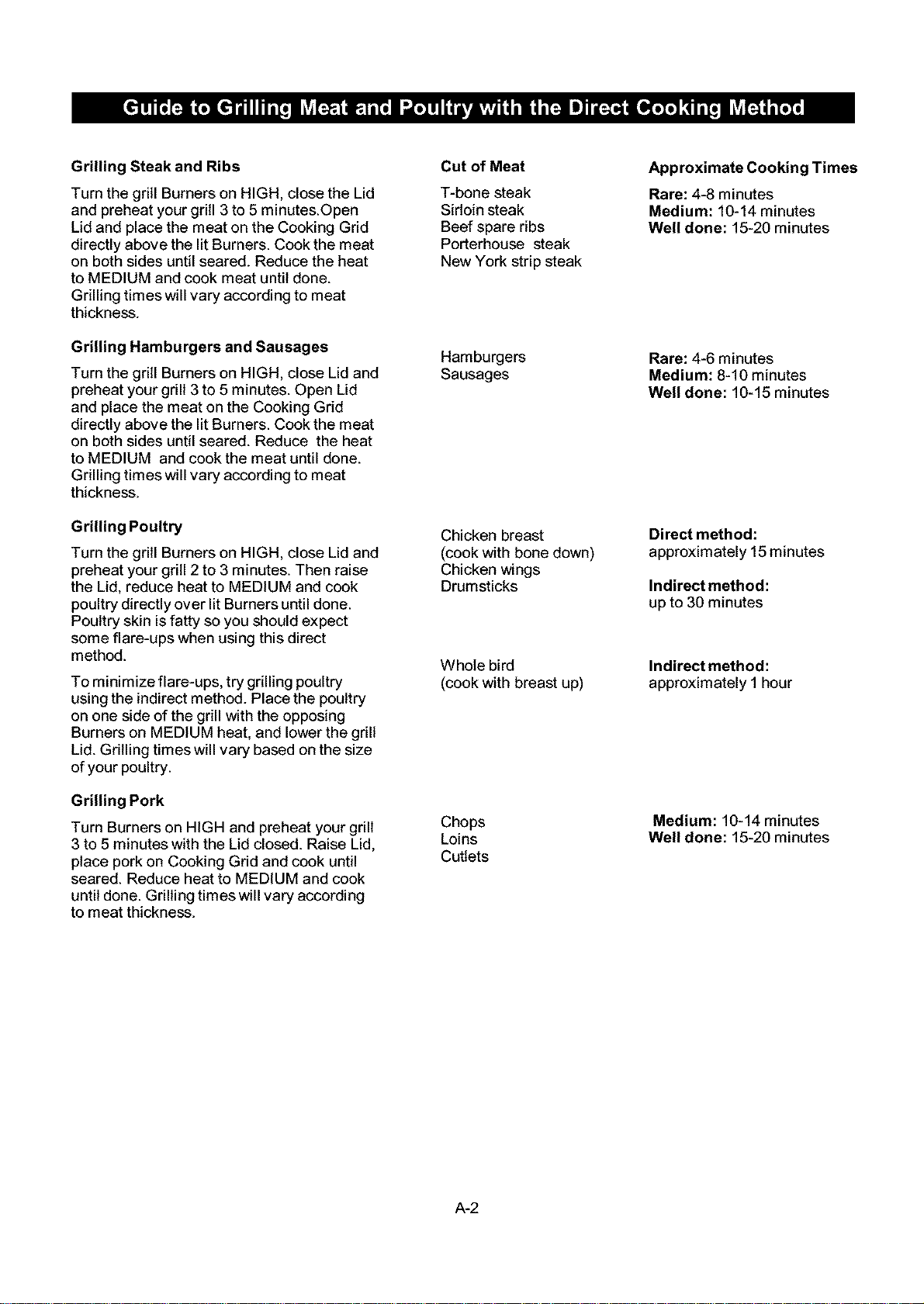

Grilling Steak and Ribs
Turn the grill Burners on HIGH, close the Lid
and preheat your grill 3 to 5 minutes.Open
Lid and place the meat on the Cooking Grid
directly above the lit Burners. Cook the meat
on both sides until seared. Reduce the heat
to MEDIUM and cook meat until done.
Grilling times willvary according to meat
thickness.
Grilling Hamburgers and Sausages
Turn the grill Burners on HIGH, close Lid and
preheat your grill 3 to 5 minutes. Open Lid
and place the meat on the Cooking Grid
directly above the lit Burners. Cook the meat
on both sides until seared. Reduce the heat
to MEDIUM and cook the meat until done.
Grilling times willvary according to meat
thickness.
Grilling Poultry
Turn the grill Burners on HIGH, close Lid and
preheat your grill 2 to 3 minutes. Then raise
the Lid, reduce heat to MEDIUM and cook
poultry directly over lit Burners until done.
Poultry skin is fatty so you should expect
some flare-ups when using this direct
method.
To minimize flare-ups, try grilling poultry
using the indirect method. Place the poultry
on one side of the grill with the opposing
Burners on MEDIUM heat, and lower the grill
Lid. Grilling times will vary based on the size
of your poultry.
Grilling Pork
Turn Burners on HIGH and preheat your grill
3 to 5 minutes with the Lid closed. Raise Lid,
place pork on Cooking Grid and cook until
seared. Reduce heat to MEDIUM and cook
until done. Grilling times will vary according
to meat thickness.
Cut of Meat
T-bone steak
Sirloin steak
Beef spare ribs
Porterhouse steak
New York strip steak
Hamburgers
Sausages
Chicken breast
(cook with bone down)
Chicken wings
Drumsticks
Whole bird
(cook with breast up)
Chops
Loins
Cutlets
Approximate Cooking Times
Rare: 4-8 minutes
Medium: 10-14 minutes
Well done: 15-20 minutes
Rare: 4-6 minutes
Medium: 8-10 minutes
Well done: 10-15 minutes
Direct method:
approximately 15 minutes
Indirect method:
up to 30 minutes
Indirect method:
approximately 1 hour
Medium: 10-14 minutes
Well done: 15-20 minutes
A-2

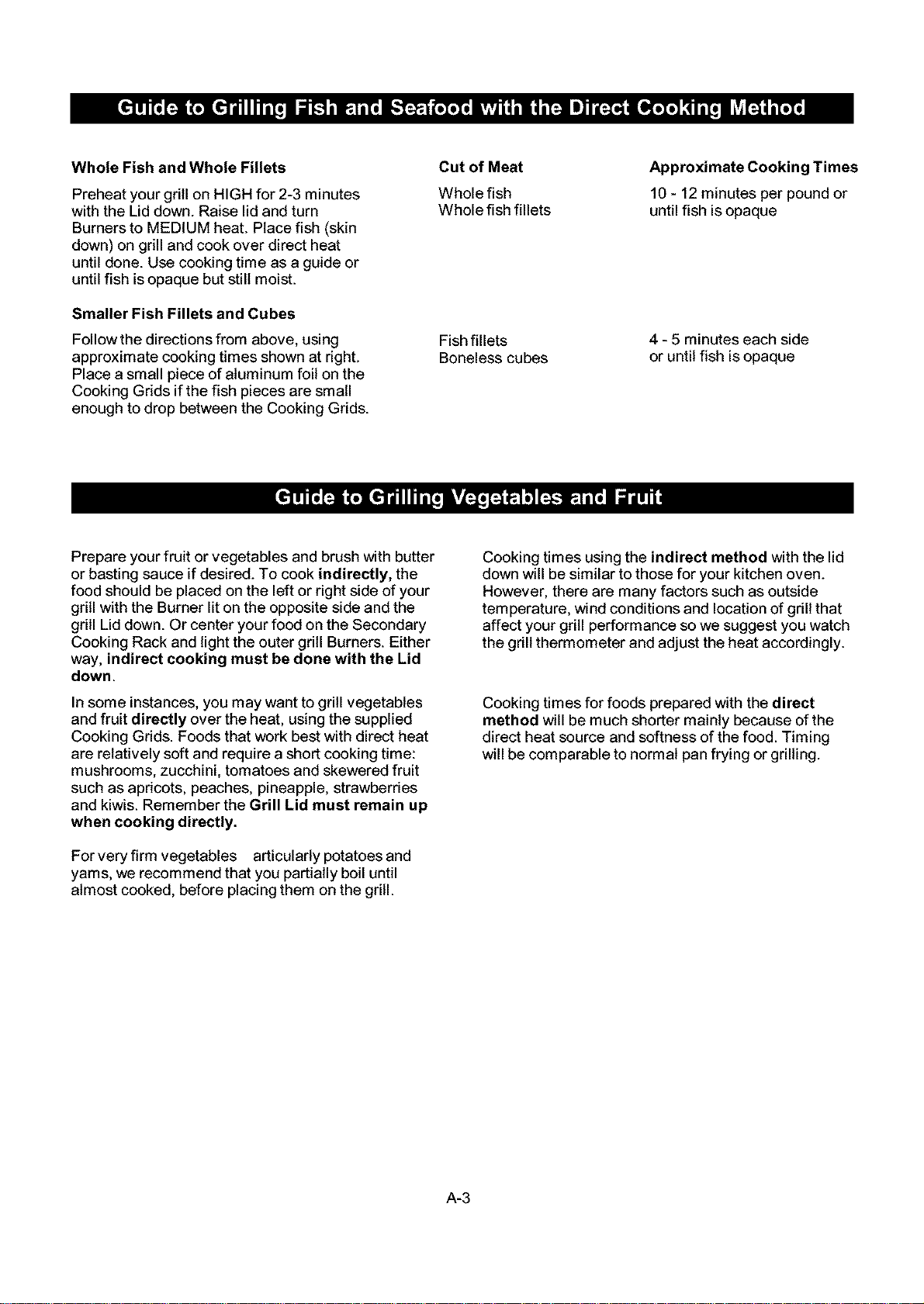

Whole Fish and Whole Fillets
Preheat your grill on HIGH for 2-3 minutes
with the Lid down. Raise lid and turn
Burners to MEDIUM heat. Place fish (skin
down) on grill and cook over direct heat
until done. Use cooking time as a guide or
until fish is opaque but still moist.
Smaller Fish Fillets and Cubes
Follow the directions from above, using
approximate cooking times shown at right.
Place a small piece of aluminum foil on the
Cooking Grids if the fish pieces are small
enough to drop between the Cooking Grids.
Cut of Meat
Whole fish
Whole fish fillets
Fish fillets
Boneless cubes
Approximate Cooking Times
10 - 12 minutes per pound or
until fish is opaque
4 - 5 minutes each side
or until fish is opaque
Prepare your fruit or vegetables and brush with butter
or basting sauce if desired. To cook indirectly, the
food should be placed on the left or right side of your
grill with the Burner lit on the opposite side and the
grill Lid down. Or center your food on the Secondary
Cooking Rack and light the outer grill Burners. Either
way, indirect cooking must be done with the Lid
down.
In some instances, you may want to grill vegetables
and fruit directly over the heat, using the supplied
Cooking Grids. Foods that work best with direct heat
are relatively soft and require a short cooking time:
mushrooms, zucchini, tomatoes and skewered fruit
such as apricots, peaches, pineapple, strawberries
and kiwis. Remember the Grill Lid must remain up
when cooking directly.
For very firm vegetables articularly potatoes and
yams, we recommend that you partially boil until
almost cooked, before placing them on the grill.
Cooking times using the indirect method with the lid
down will be similar to those for your kitchen oven.
However, there are many factors such as outside
temperature, wind conditions and location of grill that
affect your grill performance so we suggest you watch
the grill thermometer and adjust the heat accordingly.
Cooking times for foods prepared with the direct
method will be much shorter mainly because of the
direct heat source and softness of the food. Timing
will be comparable to normal pan frying or grilling.
A-3

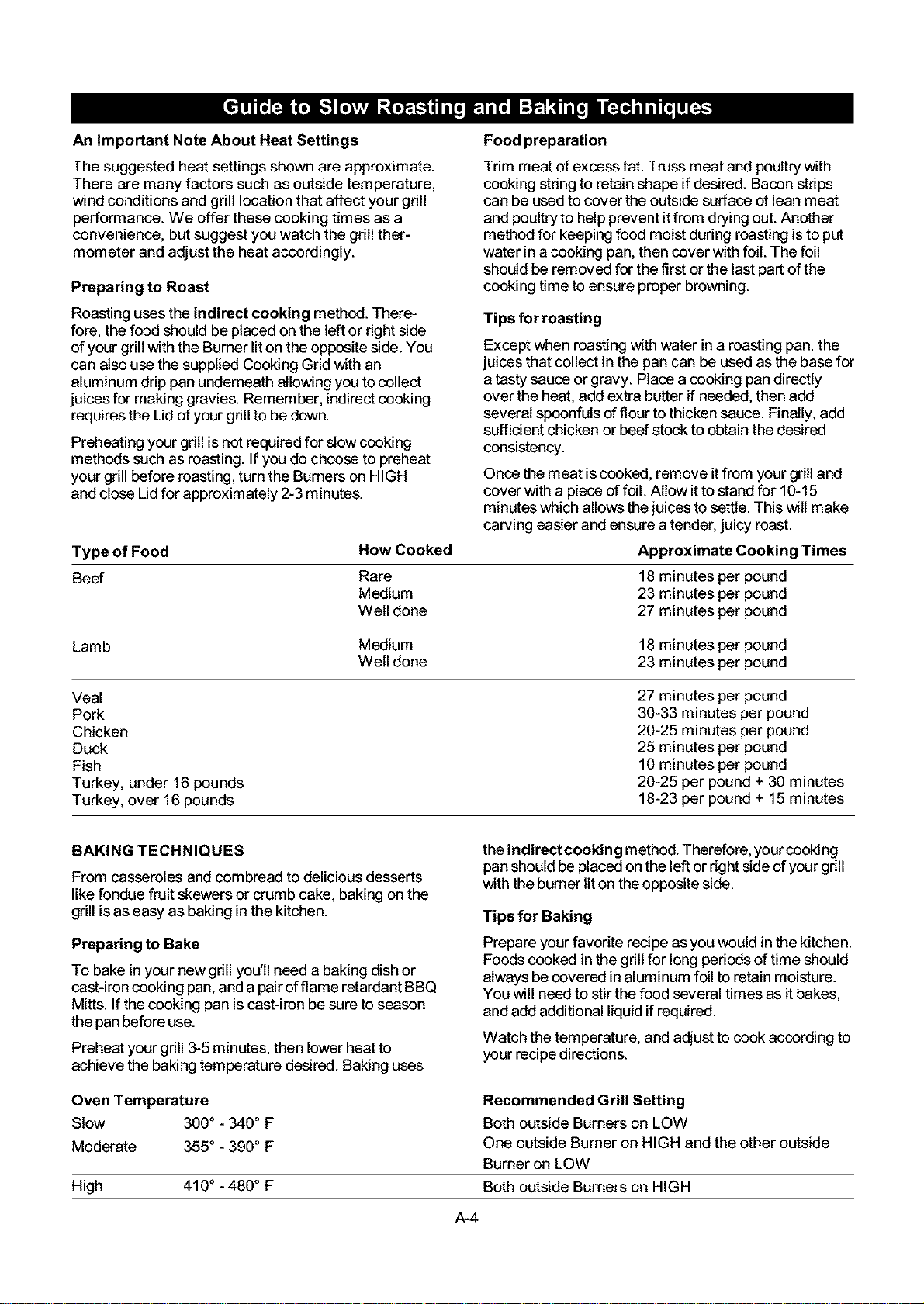

An Important Note About Heat Settings Food preparation
The suggested heat settings shown are approximate.
There are many factors such as outside temperature,
wind conditions and grill location that affect your grill
performance. We offer these cooking times as a
convenience, but suggest you watch the grill ther-
mometer and adjust the heat accordingly.
Preparing to Roast
Trim meat of excess fat. Truss meat and poultry with
cooking string to retain shape if desired. Bacon strips
can be used to cover the outside surface of lean meat
and poultry to help prevent it from drying out. Another
method for keeping food moist during roasting is to put
water in a cooking pan, then cover with foil. The foil
should be removed for the first or the last part of the
cooking time to ensure proper browning.
Roasting uses the indirect cooking method. There-
fore, the food should be placed on the left or right side
of your grill with the Burner lit on the opposite side. You
can also use the supplied Cooking Grid with an
aluminum drip pan underneath allowing you to collect
juices for making gravies. Remember, indirect cooking
requires the Lid of your grill to be down.
Preheating your grill is not required for slow cooking
methods such as roasting. If you do choose to preheat
your grill before roasting, turn the Burners on HIGH
and close Lid for approximately 2-3 minutes.
Tips forroasting
Except when roasting with water in a roasting pan, the
juices that collect in the pan can be used as the base for
a tasty sauce or gravy. Place a cooking pan directly
over the heat, add extra butter if needed, then add
several spoonfuls of flour to thicken sauce. Finally, add
sufficient chicken or beef stock to obtain the desired
consistency.
Once the meat iscooked, remove itfrom your grill and
cover with a piece of foil. Allow itto stand for 10-15
minutes which allows the juices to settle. This wilt make
carving easier and ensure a tender, juicy roast.
Type of Food How Cooked Approximate Cooking Times
Beef Rare 18 minutes per pound
Medium 23 minutes per pound
Well done 27 minutes per pound
Lamb Medium 18 minutes per pound
Well done 23 minutes per pound
Veal
Pork
Chicken
Duck
Fish
Turkey, under 16 pounds
Turkey, over 16 pounds
27 minutes per pound
30-33 minutes per pound
20-25 minutes per pound
25 minutes per pound
10 minutes per pound
20-25 per pound + 30 minutes
18-23 per pound + 15 minutes
BAKING TECHNIQUES
From casseroles and cornbread to delicious desserts
like fondue fruit skewers or crumb cake, baking on the
grill is as easy as baking in the kitchen.
Preparing to Bake
To bake in your new grill you'll need a baking dish or
cast-iron cooking pan, and a pair of flame retardant BBQ
Mitts. If the cooking pan is cast-iron be sure to season
the pan before use.
Preheat your grill 3-5 minutes, then lower heat to
achieve the baking temperature desired. Baking uses
the indirect cooking method. Therefore, your cooking
pan should be placed on the left or right side of your grill
with the burner lit on the opposite side.
Tips for Baking
Prepare your favorite recipe as you wouldin the kitchen.
Foods cooked in the grill for long periods of time should
always be covered in aluminum foil to retain moisture.
You will need to stir the feed several times as it bakes,
and add additional liquid if required.
Watch the temperature, and adjust to cook according to
your recipe directions.
Oven Temperature
Slow 300 ° - 340° F
Moderate 355° - 390° F
High 410 ° -480° F
Recommended Grill Setting
Both outside Burners on LOW
One outside Burner on HIGH and the other outside
Burner on LOW
Both outside Burners on HIGH
A-4

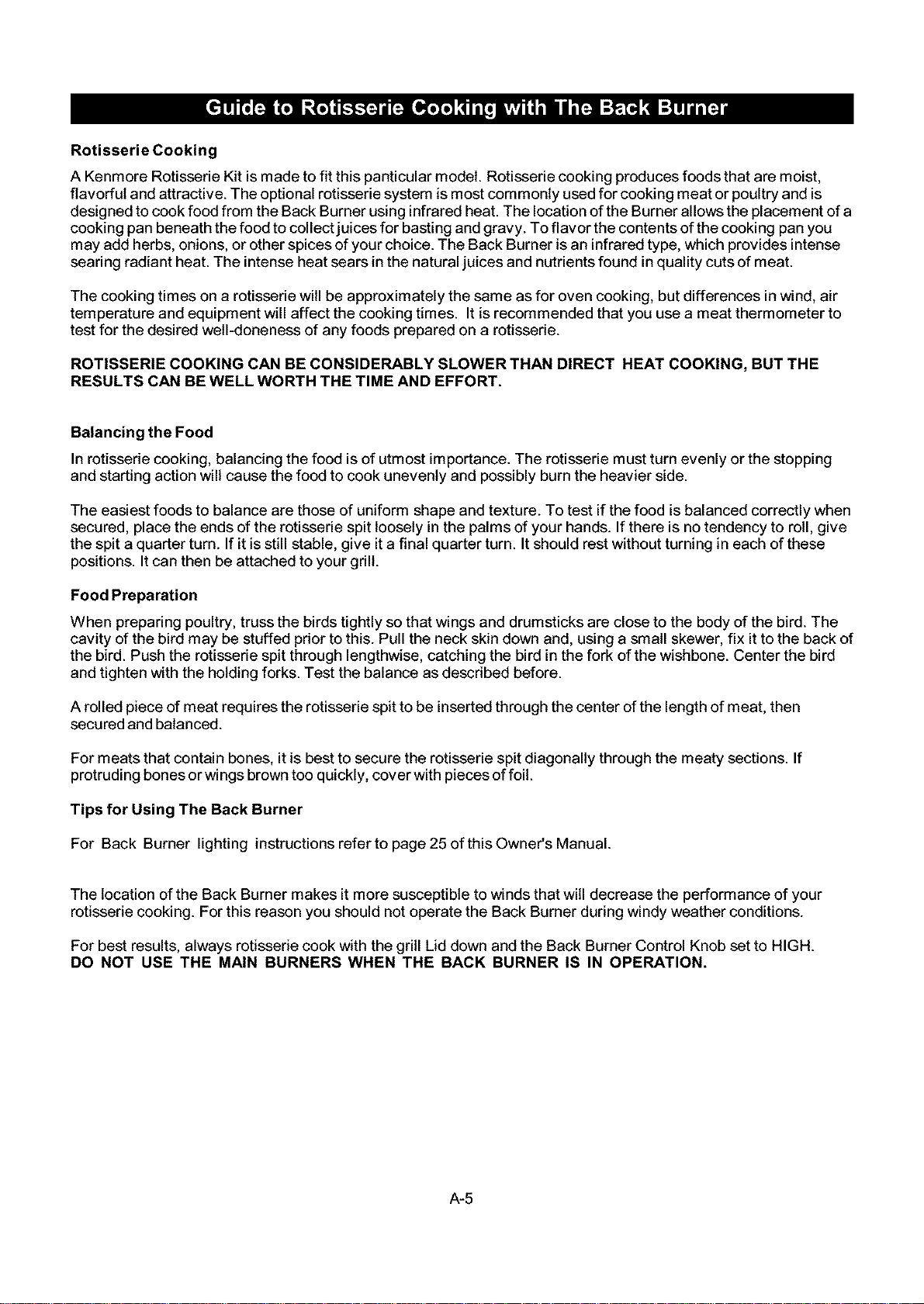

Rotisserie Cooking
A Kenmore Rotisserie Kit is made to fit this panticular model. Rotisserie cooking produces foods that are moist,
flavorful and attractive. The optional rotisserie system is most commonly used for cooking meat or poultry and is
designed to cook food from the Back Burner using infrared heat. The location of the Burner allows the placement of a
cooking pan beneath the food to collect juices for basti ng and gravy. To flavor the contents of the cooki ng pan you
may add herbs, onions, or other spices of your choice. The Back Burner isan infrared type, which provides intense
searing radiant heat. The intense heat sears in the natural juices and nutrients found in quality cuts of meat.
The cooking times on a rotisserie will be approximately the same as for oven cooking, but differences in wind, air
temperature and equipment will affect the cooking times. It is recommended that you use a meat thermometer to
test for the desired well-aloneness of any foods prepared on a rotisserie.
ROTISSERIE COOKING CAN BE CONSIDERABLY SLOWER THAN DIRECT HEAT COOKING, BUT THE
RESULTS CAN BE WELL WORTH THE TIME AND EFFORT.
Balancing the Food
In rotisserie cooking, balancing the food is of utmost importance. The rotisserie must turn evenly or the stopping
and starting action will cause the food to cook unevenly and possibly burn the heavier side.
The easiest foods to balance are those of uniform shape and texture. To test if the food is balanced correctly when
secured, place the ends of the rotisserie spit loosely in the palms of your hands. If there is no tendency to roll, give
the spit a quarter turn. If it is still stable, give it a final quarter turn. It should rest without turning in each of these
positions. It can then be attached to your grill.
Food Preparation
When preparing poultry, truss the birds tightly so that wings and drumsticks are close to the body of the bird. The
cavity of the bird may be stuffed prior to this. Pull the neck skin down and, using a small skewer, fix it to the back of
the bird. Push the rotisserie spit through lengthwise, catching the bird in the fork of the wishbone. Center the bird
and tighten with the holding forks. Test the balance as described before.
A roiled piece of meat requires the rotisserie spit to be inserted through the center of the length of meat, then
secured and balanced.
For meats that contain bones, it is best to secure the rotisserie spit diagonally through the meaty sections. If
protruding bones or wings brown too quickly, cover with pieces of foil.
Tips for Using The Back Burner
For Back Burner lighting instructions refer to page 25 of this Owner's Manual.
The location of the Back Burner makes it more susceptible to winds that will decrease the performance of your
rotisserie cooking. For this reason you should not operate the Back Burner during windy weather conditions.
For best results, always rotisserie cook with the grill Lid down and the Back Burner Control Knob set to HIGH.
DO NOT USE THE MAIN BURNERS WHEN THE BACK BURNER IS IN OPERATION.
A-5

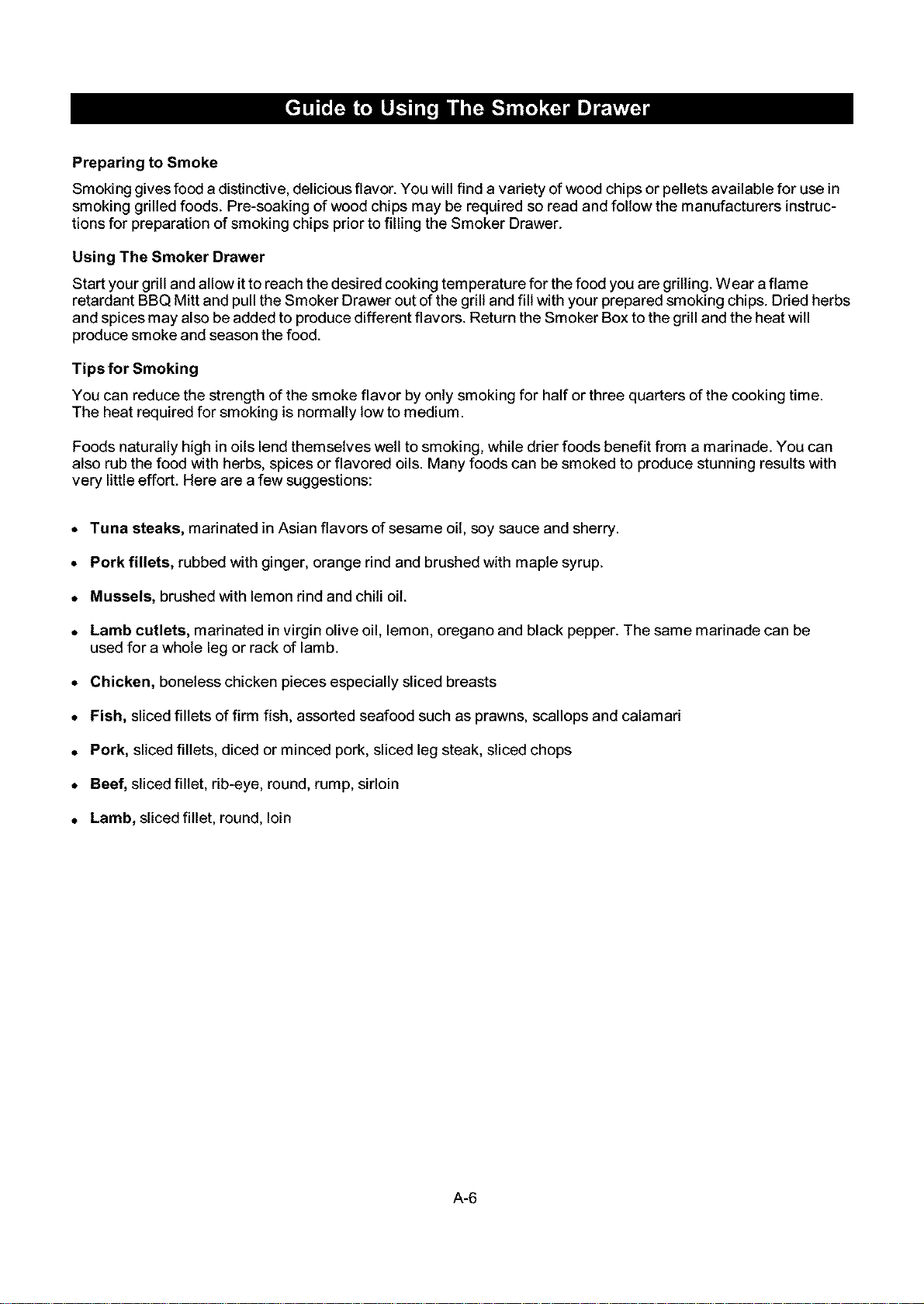

Preparing to Smoke
Smoking gives food a distinctive, delicious flavor. You will find a variety of wood chips or pellets available for use in
smoking grilled foods. Pre-soaking of wood chips may be required so read and follow the manufacturers instruc-
tions for preparation of smoking chips prior to filling the Smoker Drawer.
Using The Smoker Drawer
Start your grill and allow itto reach the desired cooking temperature for the food you are grilling. Wear a flame
retardant BBQ Mitt and pull the Smoker Drawer out of the grill and fill with your prepared smoking chips. Dried herbs
and spices may also be added to produce different flavors. Return the Smoker Box to the grill and the heat will
produce smoke and season the food.
Tips for Smoking
You can reduce the strength of the smoke flavor by only smoking for half or three quarters of the cooking time.
The heat required for smoking is normally low to medium.
Foods naturally high in oils lend themselves well to smoking, while drier foods benefit from a marinade. You can
also rub the food with herbs, spices or flavored oils. Many foods can be smoked to produce stunning results with
very little effort. Here are a few suggestions:
• Tuna steaks, marinated in Asian flavors of sesame oil, sey sauce and sherry.
• Pork fillets, rubbed with ginger, orange rind aod brushed with maple syrup.
• Mussels, brushed with lemon rind and chili oil.
• Lamb cutlets, marinated in virgin olive oil, lemon, oregano and black pepper. The same marinade can be
used for a whole leg or rack of lamb.
• Chicken, bonetess chicken pieces especially sliced breasts
• Fish, sliced fillets of firm fish, assorted seafood such as prawns, scallops and calamari
• Pork, sliced fillets, diced or minced pork, sliced leg steak, sliced chops
• Beef, sliced fillet, rib-eye, rouod, rump, sirloin
• Lamb, sliced fillet, round, loin
A-6

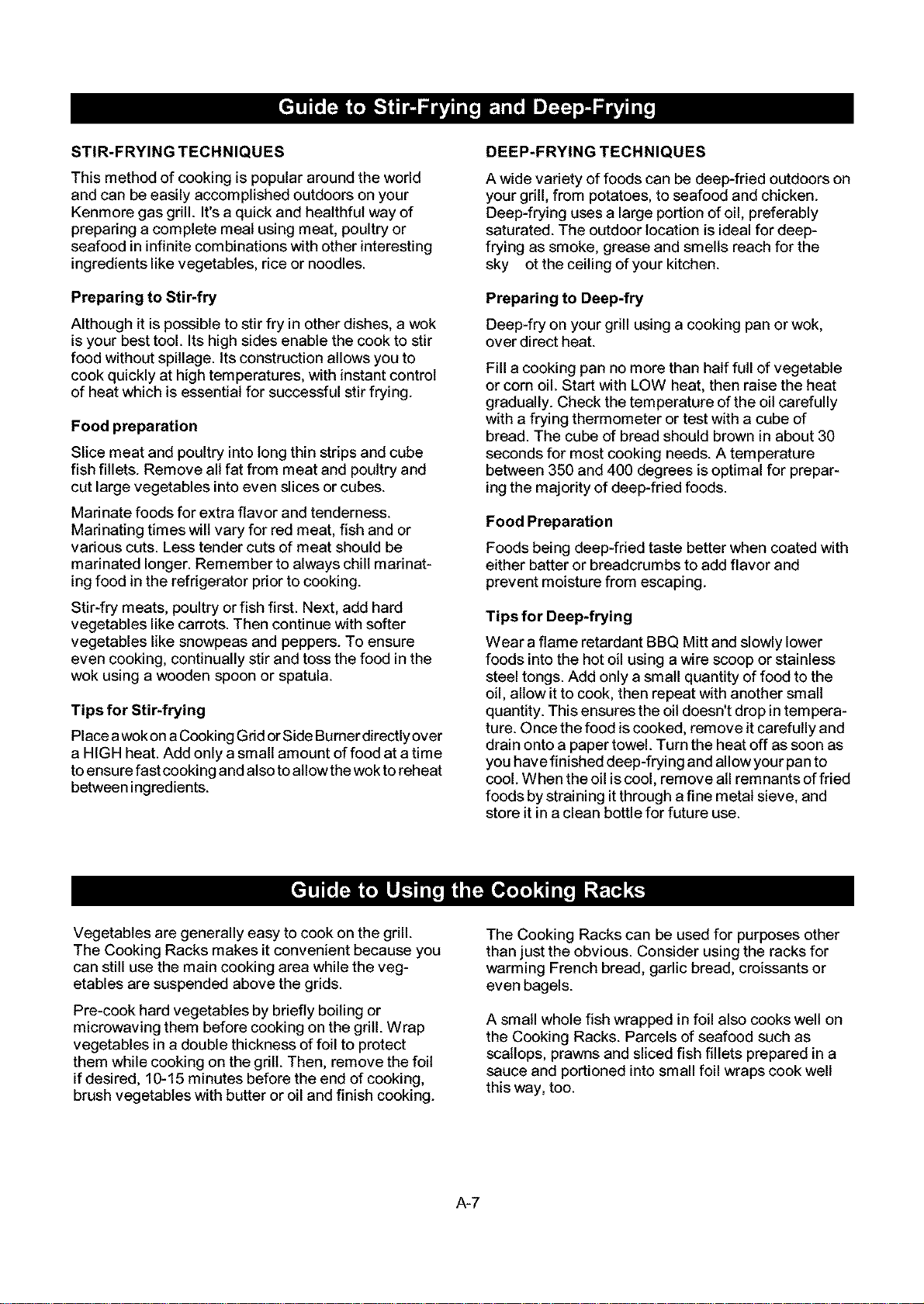

STIR-FRYING TECHNIQUES
This method of cooking is popular around the world
and can be easily accomplished outdoors on your
Kenmore gas grill. It's a quick and healthful way of
preparing a complete meal using meat, poultry or
seafood in infinite combinations with other interesting
ingredients like vegetables, rice or noodles.
Preparing to Stir-fry
Although it ispossible to stir fry in other dishes, a wok
isyour best tool. Its high sides enable the cook to stir
food without spillage. Its construction allows you to
cook quickly at high temperatures, with instant control
of heat which is essential for successful stir frying.
Food preparation
Slice meat and poultry intolong thin strips and cube
fish fillets. Remove all fat from meat and poultry and
cut large vegetables into even slices or cubes.
Marinate foods for extra flavor and tenderness.
Marinating times will vary for red meat, fish and or
various cuts. Less tender cuts of meat should be
marinated longer. Remember to always chill marinat-
ingfood in the refrigerator prior to cooking.
Stir-fry meats, poultry or fish first. Next, add hard
vegetables like carrots. Then continue with softer
vegetables like snowpeas and peppers. To ensure
even cooking, continually stir and toss the food in the
wok using a wooden spoon or spatula.
Tips for Stir-frying
Place a wokon a Cooking Grid or Side Burner directly over
a HIGH heat. Add only a small amount of food at a time
to ensure fast cooking and also to allow the wok to reheat
between ingredients.
DEEP-FRYING TECHNIQUES
A wide variety of foods can be deep-fried outdoors on
your grill, from potatoes, to seafood and chicken.
Deep-frying uses a large portion of oil, preferably
saturated. The outdoor location is ideal for deep-
frying as smoke, grease and smells reach for the
sky ot the ceiling of your kitchen.
Preparing to Deep-fry
Deep-fry on your grill using a cooking pan or wok,
over direct heat.
Fill a cooking pan no more than half full of vegetable
or corn oil. Start with LOW heat, then raise the heat
gradually. Check the temperature of the oil carefully
with a frying thermometer or test with a cube of
bread. The cube of bread should brown in about 30
seconds for most cooking needs. A temperature
between 350 and 400 degrees is optimal for prepar-
ing the majority of deep-fried foods.
Food Preparation
Foods being deep-flied taste better when coated with
either batter or breadcrumbs to add flavor and
prevent moisture from escaping.
Tips for Deep-frying
Wear a flame retardant BBQ Mitt and slowly lower
foods into the hot oil using a wire scoop or stainless
steel tongs. Add only a small quantity of food to the
oil, allow it to cook, then repeat with another small
quantity. This ensures the oil doesn't drop in tempera-
ture. Once the food is cooked, remove it carefully and
drain onto a paper towel. Turn the heat off as soon as
you have finished deep-frying and allow your pan to
cool. When the oil is cool, remove all remnants of flied
foods by straining itthrough a fine metal sieve, and
store it ina clean bottle for future use.
Vegetables are generally easy to cook on the grill.
The Cooking Racks makes it convenient because you
can still use the main cooking area while the veg-
etables are suspended above the grids.
Pre-cook hard vegetables by briefly boiling or
microwaving them before cooking on the grill. Wrap
vegetables in a double thickness of foil to protect
them while cooking on the grill. Then, remove the foil
if desired, 10-15 minutes before the end of cooking,
brush vegetables with butter or oil and finish cooking.
The Cooking Racks can be used for purposes other
than just the obvious. Consider using the racks for
warming French bread, garlic bread, croissants or
even bagels.
A small whole fish wrapped in foil also cooks well on
the Cooking Racks. Parcels of seafood such as
scallops, prawns and sliced fish fillets prepared in a
sauce and portioned into small foil wraps cook well
this way, too.
A-7
ONIONBURGERS
A honey and mustard sauce glazes the onion slices
as they cook alongside these delicious burgers. For
optimal sweetness, select Vidalia or Walla Walla
onions. Makes 4 open face burgers.
Ingredients
2
2
2
2
1
1/4
1/8
4
4
large sweet onions, sliced (12 to 16 ounces)
tablespoons margarine or melted butter
teaspoons dry mustard
teaspoons honey
pound lean ground beef
teaspoon salt
teaspoon pepper
slices Texas toast
lettuce leaves
4 tomato slices
Preparing Onions
Place onions in a cooking pan or on a small piece of
aluminum foil. Combine melted margarine, mustard
and honey, then drizzle over onions. Cover pan with
lid or fold up edges of foil and seal with double fold to
completely enclose onions eaving space for steam to
build. Place pan or foil packet on grill directly over
medium heat for 15 minutes with the grill lid up.
Preparing Burgers
While onions are cooking, combine ground beef, salt
and pepper in a medium bowl and mix well. Shape
mixture into four 3/4 inch burger patties and add to
grill, directly over heat. Grill burgers along with onions
for about 5 minutes, then turn burgers. Grill for 8 to 10
minutes more or until no pink remains in meat, and
onions are tender. To serve, toast both sides of Texas
toast on grill. Then top each slice of Texas toast with
a burger, lettuce, tomato and onion. Sprinkle with
pepper if desired.
DOUBLE SALSA BURGERS
A fresh tomato salsa flavors the beef mixture for a
zesty tasting burger. The salsa also serves as a
colorful topping. Makes 6 burger patties.
Ingredients
1
1/2
1/4
2
1
1
large tomato, seeded and finely chopped
cup finely chopped green pepper
cup finely chopped red onion
finely chopped, seeded jalapeno peppers
garlic clove, minced
tablespoon snipped cilantro
1/4 teaspoon salt
1 1/2 pounds lean ground beef
2 cups shredded lettuce
1/3 cup finely shredded cheddar cheese
1/4 cup dairy sour cream and/or guacamole
Preparing the Salsa
Combine tomato, green pepper, onion, jalapeno
peppers, garlic, cilantro and salt in a bowl. Set
aside 2 tablespoons of salsa. Cover and chill
remaining salsa until serving time.
Preparing Burgers
In another bowl, combine ground beef with 2
tablespoons of reserved salsa, mix well. Shape
mixture into six 1/2 inch thick burgers and place on
the grill directly over medium heat with lid up. Grill
for 13 to 15 minutes or until no pink remains. Turn
burgers once, halfway through grilling time. Ar-
range the shredded lettuce on individual plates.
Top lettuce with a burger, cheddar cheese and
salsa. Serve with sour cream and/or guacamole.
CHICAGO STYLE HOT DOGS
Serve these hot dogs "Chicago-style" with pickled pep-
pers! Makes 4 servings.
Ingredients
1/3
1/4
2
2
1/4
4
4
cup ketchup
cup chopped pickled peppers
tablespoons pickle relish
tablespoons chopped onion
teaspoon poppy seed
fully cooked 4-ounce jumbo hot dogs
hot dog buns
Preparing the Relish
Combine ketchup, chopped pickled peppers, relish,
onion and poppy seed in a small bowl, then set aside.
Preparing Hot Dogs
Place hot dogs on grill directly over MEDIUM heat 5 to
8 minutes with the lid up. Turn hot dogs and brush
with some of the relish mixture. Grill hot dogs 6 to 8
minutes more or until thoroughly cooked.
To Serve
Toast inner sides of hot dog buns on grill. Serve hot
dogs inside buns and top with remaining relish
mixture.
A-8

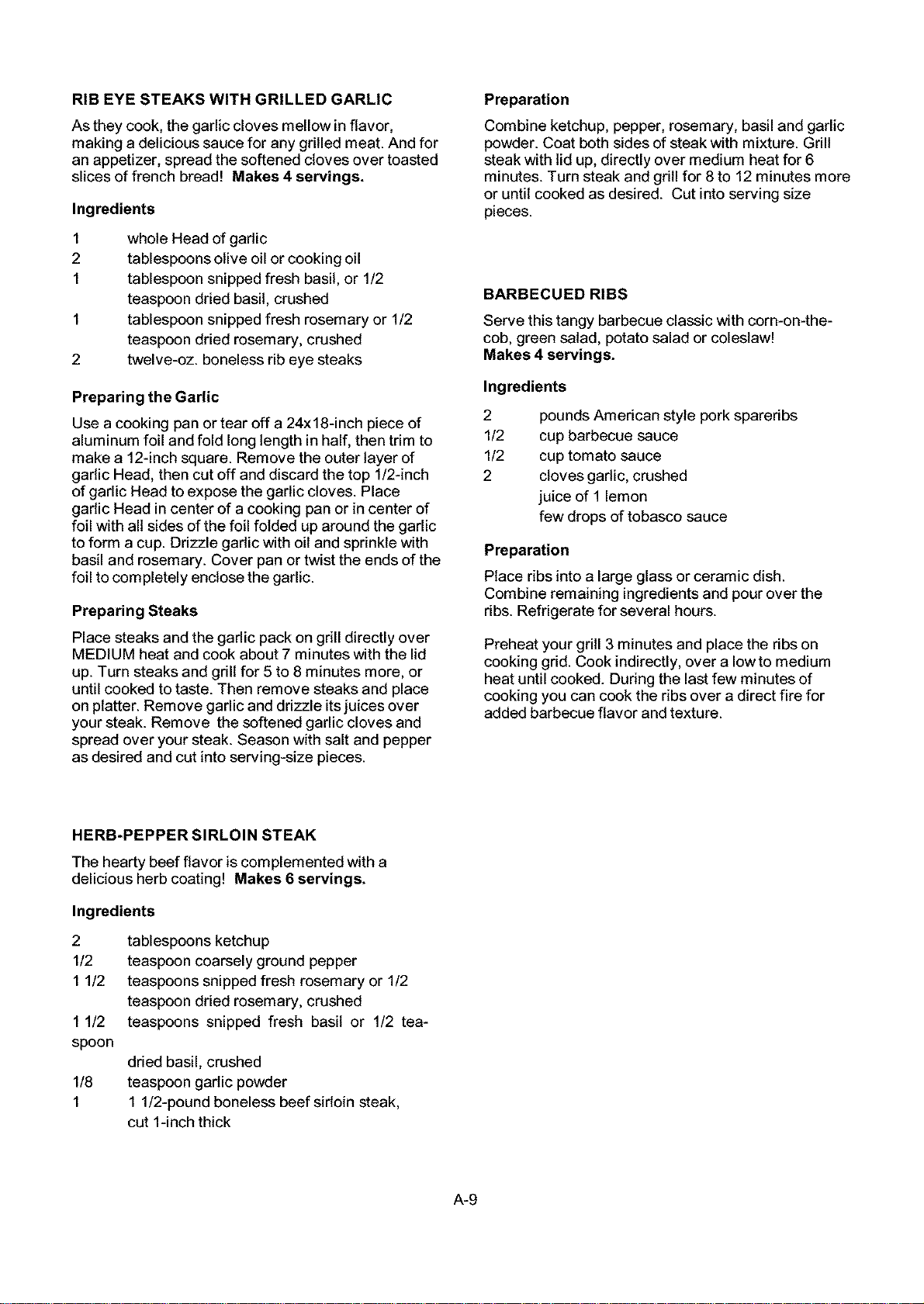

RIB EYE STEAKS WITH GRILLED GARLIC
As they cook, the garlic cloves mellow in flavor,
making a delicious sauce for any grilled meat. And for
an appetizer, spread the softened cloves over toasted
slices of french bread! Makes 4 servings.
Ingredients
1
2
1
whole Head of garlic
tablespoons olive oil or cooking oil
tablespoon snipped fresh basil, or 1/2
teaspoon dried basil, crushed
tablespoon snipped fresh rosemary or 1/2
teaspoon dried rosemary, crushed
twelve-oz, boneless rib eye steaks
Preparing the Garlic
Use a cooking pan or tear off a 24x18-inch piece of
aluminum foil and fold long length in half, then trim to
make a 12-inch square. Remove the outer layer of
garlic Head, then cut off and discard the top 1/2-inch
of garlic Head to expose the garlic cloves. Place
garlic Head in center of a cooking pan or in center of
foil with all sides of the foil folded up around the garlic
to form a cup. Drizzle garlic with oil and sprinkle with
basil and rosemary. Cover pan or twist the ends of the
foil to completely enclose the garlic.
Preparing Steaks
Place steaks and the garlic pack on grill directly over
MEDIUM heat and cook about 7 minutes with the lid
up. Turn steaks and grill for 5 to 8 minutes more, or
until cooked to taste. Then remove steaks and place
on platter. Remove garlic and drizzle its juices over
your steak. Remove the softened garlic cloves and
spread over your steak. Season with salt and pepper
as desired and cut into serving-size pieces.
Preparation
Combine ketchup, pepper, rosemary, basil and garlic
powder. Coat both sides of steak with mixture. Grill
steak with lid up, directly over medium heat for 6
minutes. Turn steak and grill for 8 to 12 minutes more
or until cooked as desired. Cut into serving size
pieces.
BARBECUED RIBS
Serve this tangy barbecue classic with corn-on-the-
cob, green salad, potato salad or coleslaw!
Makes 4 servings.
Ingredients
2
1/2
1/2
2
pounds American style pork spareribs
cup barbecue sauce
cup tomato sauce
cloves garlic, crushed
juice of 1 lemon
few drops of tobasco sauce
Preparation
Place ribs into a large glass or ceramic dish.
Combine remaining ingredients and pour over the
ribs. Refrigerate for several hours.
Preheat your grill 3 minutes and place the ribs on
cooking grid. Cook indirectly, over a low to medium
heat until cooked. During the last few minutes of
cooking you can cook the ribs over a direct fire for
added barbecue flavor and texture.
HERB-PEPPER SIRLOIN STEAK
The hearty beef flavor is complemented with a
delicious herb coating! Makes 6 servings.
Ingredients
2 tablespoons ketchup
1/2 teaspoon coarsely ground pepper
1 1/2 teaspoons snipped fresh rosemary or 1/2
teaspoon dried rosemary, crushed
teaspoons snipped fresh basil or 1/2 tea-
1 1/2
spoon
1/8
1
dried basil, crushed
teaspoon garlic powder
1 1/2-pound boneless beef sirloin steak,
cut 1-inch thick
A-9
MARINATED TUNA STEAK
Experiment with unique dishes, like this tuna steak
recipe boasting a delicious wine marinade!
Makes 4 servings.
Ingredients
4
1/3
1
1
1
2
1/4
6-ounce fresh or frozen tuna steaks cut 1 inch
thick. Thaw fish if frozen.
cup dry white wine
tablespoon lemon juice
tablespoon olive oil or cooking oil
clove garlic, minced
teaspoons snipped fresh rosemary, crushed,
orl/2 teaspoon dried rosemary, crushed
teaspoon snipped fresh oregano, crushed, or
1/4 teaspoon dried oregano, crushed
teaspoon salt
Preparation
Combine wine, oil, garlic, rosemary, oregano and
salt and pour into a plastic bag. Place tuna steak in
bag and seal. Rotate bag to coat fish well. Place
sealed bag into a shallow dish then chill for up to 2
hours, turning fish once.
Remove fish from bag and discard marinade. Place
a cooking pan with baking rack or roasting rack into
center of grill with outer burners on MEDIUM heat.
Cook tuna steak on top of rack with lid down for 8 to
12 minutes or until fish begins to flake easily. Turn
fish once during cooking. When cooked, remove fish
from grill and serve.
MUSTARD-GLAZED HALIBUT STEAKS
A simple sauce of melted margarine, lemon juice,
Dijon-style mustard and basil adds a scintillating note
to these sizzling fish steaks! Makes 4 servings.
Ingredients
4
2
2
1
2
6-ounce fresh or frozen halibut steaks, cut 1
inchthick
tablespoons margarine or butter
tablespoons lemon juice
tablespoon Dijon-style mustard
teaspoons snipped fresh basil or 1/2
teaspoons dried basil, crushed
Preparation
Combine thawed fish, margarine or butter, lemon
juice, mustard and basil into a cooking pan or
aluminum foil rectangle, and cook directly over low
flame until butter is melted. Brush mixture over
both sides of halibut fish steaks. Pour balance of
mixture into small bowl.
Place clean cooking pan or foil on center of grill
with both outer burners on MEDIUM. Place fish on
grill and close lid. Cook indirectly for 8 to 12
minutes or just until fish begins to flake easily,
turning once and brushing as needed with remain-
ing mixture.
ALMOND COATED TROUT
This delicious recipe is unique and easy to prepare on
your gas grill. Makes 4 servings.
Ingredients
2
1/2
1
1
1/3
trout
cup all purpose flour
egg, lightly beaten
cup sliced almonds
cup parmesan cheese, grated
olive or peanut oil for frying
Preparation
Remove the Head and tail from trout and fillet.
Cut each fish in half to form 4 long fillets. Coat fish
in flour, dip in egg and roll in almonds. Refrigerate
for 1 hour.
Fill a cooking pan with 1 to 2 inches of oil, and
place over HIGH heat. Cook trout until golden
brown. Drain oil, sprinkle trout with parmesan
cheese and serve right from the grill.
A-1O

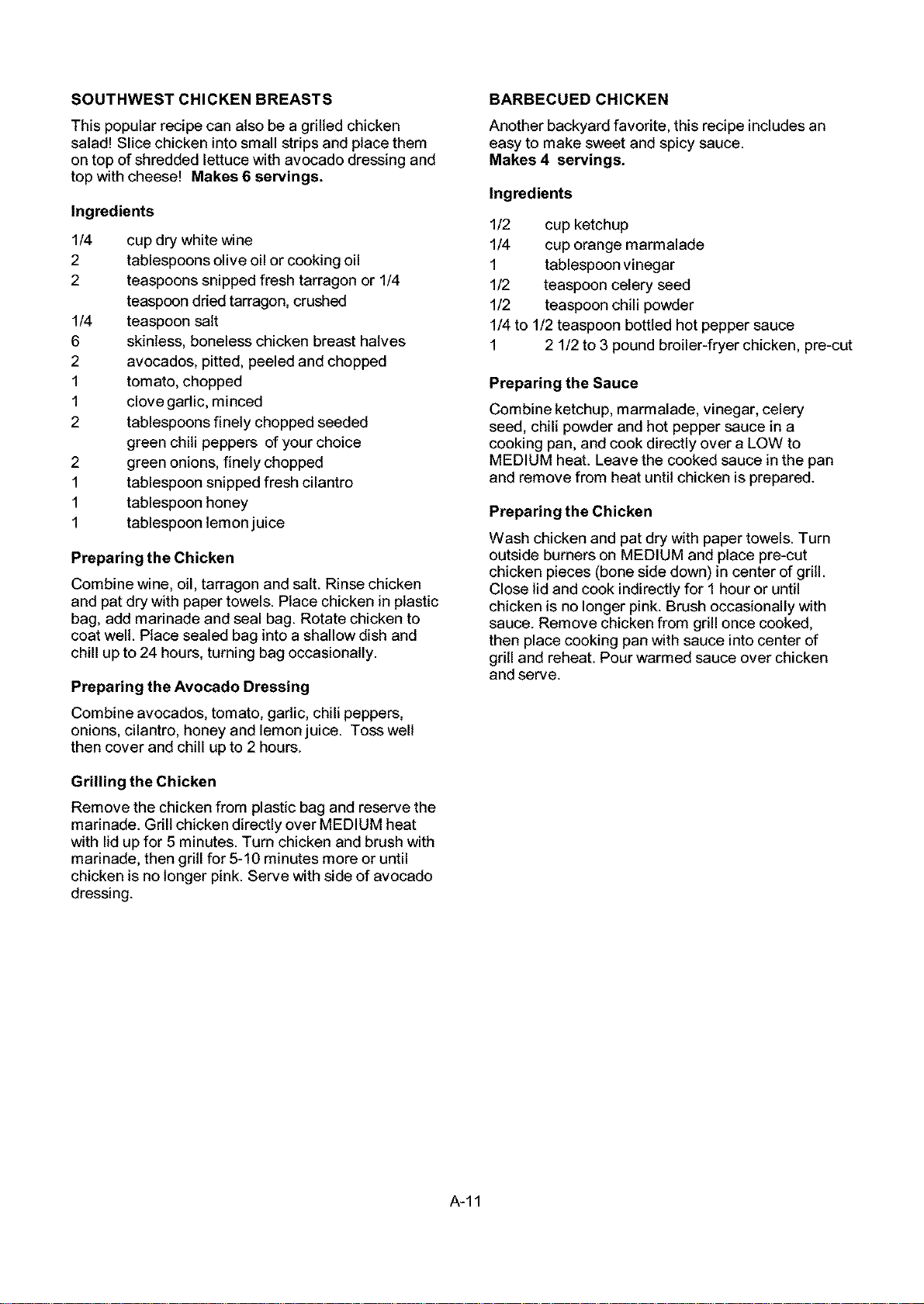

SOUTHWEST CHICKEN BREASTS
This popular recipe can also be a grilled chicken
salad! Slice chicken into small strips and place them
on top of shredded lettuce with avocado dressing and
top with cheese! Makes 6 servings.
Ingredients
1/4
2
2
1/4
6
2
1
1
2
2
1
1
1
cup dry white wine
tablespoons olive oil or cooking oil
teaspoons snipped fresh tarragon or 1/4
teaspoon dried tarragon, crushed
teaspoon salt
skinless, boneless chicken breast halves
avocados, pitted, peeled and chopped
tomato, chopped
clove garlic, minced
tablespoons finely chopped seeded
green chili peppers of your choice
green onions, finely chopped
tablespoon snipped fresh cilantro
tablespoon honey
tablespoon lemon juice
Preparing the Chicken
Combine wine, oil, tarragon and salt. Rinse chicken
and pat dry with paper towels. Place chicken in plastic
bag, add marinade and seal bag. Rotate chicken to
coat well. Place sealed bag into a shallow dish and
chill up to 24 hours, turning bag occasionally.
Preparing the Avocado Dressing
Combine avocados, tomato, garlic, chili peppers,
onions, cilantro, honey and lemon juice. Toss well
then cover and chill up to 2 hours.
Grilling the Chicken
Remove the chicken from plastic bag and reserve the
marinade. Grill chicken directly over MEDIUM heat
with lid up for 5 minutes. Turn chicken and brush with
marinade, then grill for 5-10 minutes more or until
chicken is no longer pink. Serve with side of avocado
dressing.
BARBECUED CHICKEN
Another backyard favorite, this recipe includes an
easy to make sweet and spicy sauce.
Makes 4 servings.
Ingredients
1/2 cup ketchup
1/4 cup orange marmalade
1 tablespoon vinegar
1/2 teaspoon celery seed
1/2 teaspoon chili powder
1/4 to 1/2 teaspoon bottled hot pepper sauce
1 2 1/2 to 3 pound broiler-fryer chicken, pre-cut
Preparing the Sauce
Combine ketchup, marmalade, vinegar, celery
seed, chili powder and hot pepper sauce in a
cooking pan, and cook directly over a LOW to
MEDIUM heat. Leave the cooked sauce in the pan
and remove from heat until chicken is prepared.
Preparing the Chicken
Wash chicken and pat dry with paper towels. Turn
outside burners on MEDIUM and place pre-cut
chicken pieces (bone side down) in center of grill.
Close lid and cook indirectly for 1 hour or until
chicken is no longer pink. Brush occasionally with
sauce. Remove chicken from grill once cooked,
then place cooking pan with sauce into center of
grill and reheat. Pour warmed sauce over chicken
and serve.
A-11

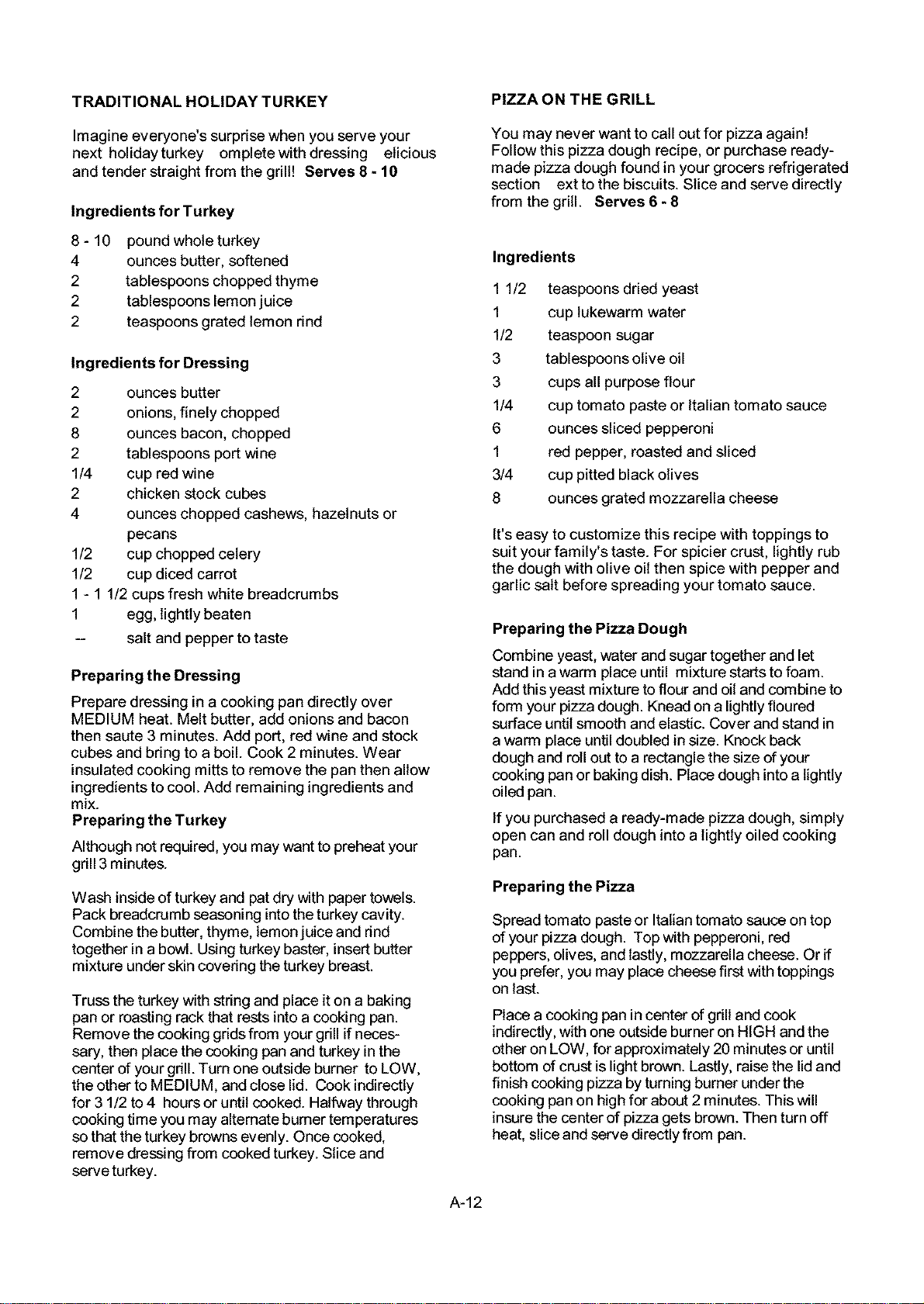

TRADITIONAL HOLIDAY TURKEY
PIZZA ON THE GRILL
Imagine everyone's surprise when you serve your
next holiday turkey omplete with dressing eticious
and tender straight from the grill! Serves 8 - 10
Ingredients for Turkey
8 - 10 pound whole turkey
4 ounces butter, softened
2 tablespoons chopped thyme
2 tablespoons lemon juice
2 teaspoons grated lemon rind
Ingredients for Dressing
2
2
8
2
1/4
2
4
1/2
1/2
ounces butter
onions, finely chopped
ounces bacon, chopped
tablespoons port wine
cup red wine
chicken stock cubes
ounces chopped cashews, hazelnuts or
pecans
cup chopped celery
cup diced carrot
1 - 1 1/2 cups fresh white breadcrumbs
1 egg, lightly beaten
-- salt and pepper to taste
Preparing the Dressing
Prepare dressing in a cooking pan directly over
MEDIUM heat. Melt butter, add onions and bacon
then saute 3 minutes. Add port, red wine and stock
cubes and bring to a boil. Cook 2 minutes. Wear
insulated cooking mitts to remove the pan then allow
ingredients to cool. Add remaining ingredients and
mix.
Preparing the Turkey
Although not required, you may want to preheat your
grill 3 minutes.
Wash inside of turkey and pat dry with paper towels.
Pack breadcrumb seasoning intothe turkey cavity.
Combine the butter, thyme, lemon juice and rind
together in a bowl. Using turkey baster, insert butter
mixture under skin covering the turkey breast.
Truss the turkey with string and place it on a baking
pan or roasting rack that rests into acooking pan.
Remove the cooking grids from your grill if neces-
sary, then place the cooking pan and turkey in the
center of your grill. Turn one outside burner to LOW,
the other to MEDIUM, and close lid. Cook indirectly
for 31/2 to 4 hours or until cooked. Halfway through
cooking time you may alternate burner temperatures
so that the turkey browns evenly. Once cooked,
remove dressing from cooked turkey. Slice and
serve turkey.
You may never want to call out for pizza again!
Follow this pizza dough recipe, or purchase ready-
made pizza dough found in your grocers refrigerated
section ext to the biscuits. Slice and serve directly
from the grill. Serves 6 - 8
Ingredients
1 1/2 teaspoons dried yeast
1 cup lukewarm water
1/2 teaspoon sugar
3 tablespoons olive oil
3 cups all purpose flour
1/4 cup tomato paste or italian tomato sauce
6 ounces sliced pepperoni
1 red pepper, roasted and sliced
3/4 cup pitted black olives
8 ounces grated mozzarella cheese
It's easy to customize this recipe with toppings to
suit your family's taste. For spicier crust, lightly rub
the dough with olive oil then spice with pepper and
garlic salt before spreading your tomato sauce.
Preparing the Pizza Dough
Combine yeast, water and sugar together and let
stand ina warm place until mixture starts to foam.
Add this yeast mixture to flour and oil and combine to
form your pizza dough. Knead on a lightly floured
surface until smooth and elastic. Cover and stand in
a warm place until doubled in size. Knock back
dough and roll out to a rectangle the size of your
cooking pan or baking dish. Place dough into a lightly
oiled pan.
If you purchased a ready-made pizza dough, simply
open can and roll dough into a lightly oiled cooking
pan.
Preparing the Pizza
Spread tomato paste or Italian tomato sauce on top
of your pizza dough. Top with pepperoni, red
peppers, olives, and lastly, mozzarella cheese. Or if
you prefer, you may place cheese first with toppings
on last.
Place a cooking pan incenter of grill and cook
indirectly, with one outside burner on HIGH and the
other on LOW, for approximately 20 minutes or until
bottom of crust is light brown. Lastly, raise the lid and
finish cooking pizza by turning burner under the
cooking pan on high for about 2 minutes. This will
insure the center of pizza gets brown. Then turn off
heat, slice and serve directly from pan.
A-12

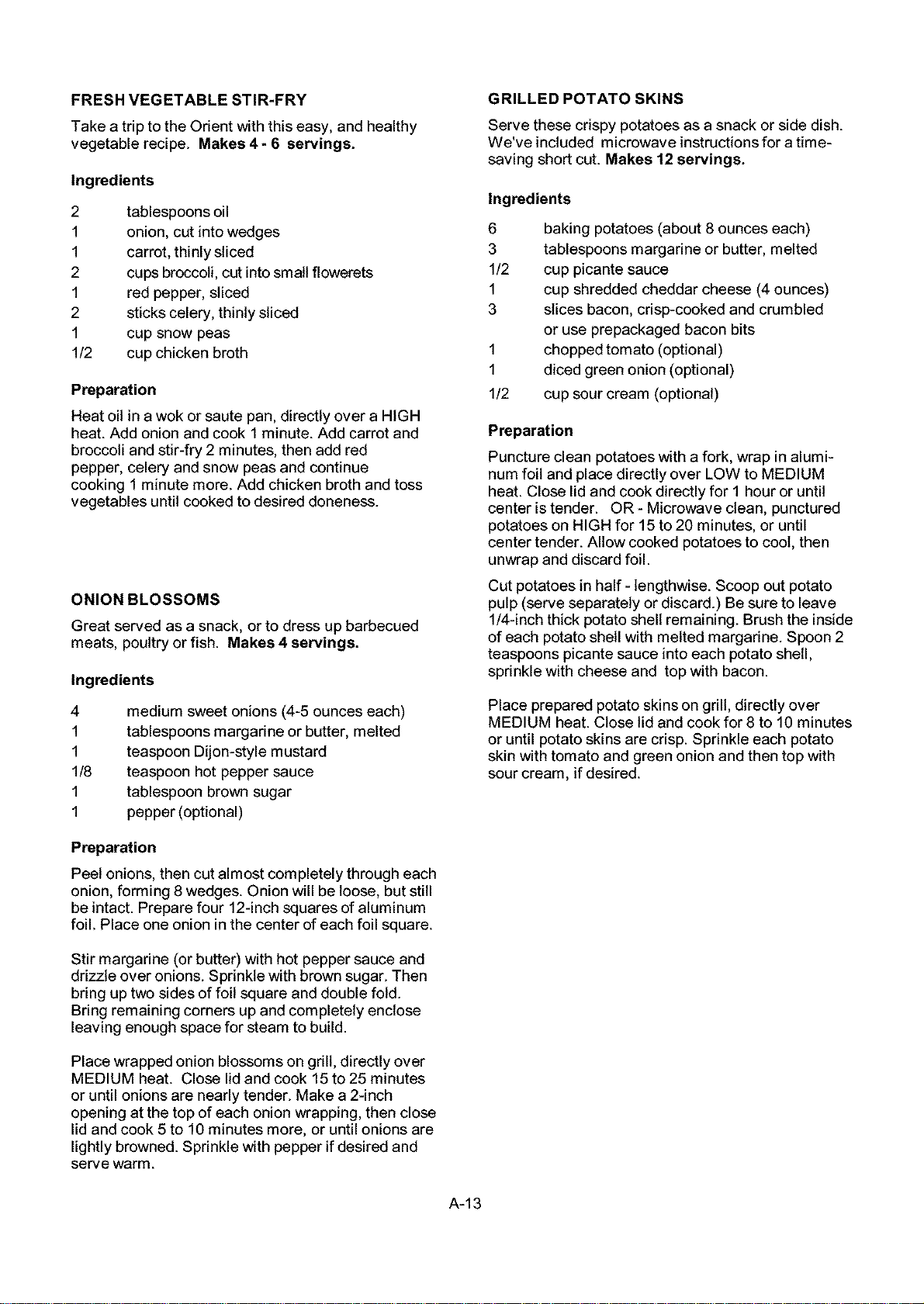

FRESH VEGETABLE STIR-FRY
Take a trip to the Orient with this easy, and healthy
vegetable recipe. Makes 4- 6 servings.
Ingredients
2
1
1
2
1
2
1
1/2
tablespoons oil
onion, cut into wedges
carrot, thinly sliced
cups broccoli, cut into small flowerets
red pepper, sliced
sticks celery, thinly sliced
cup snow peas
cup chicken broth
Preparation
Heat oil in a wok or saute pan, directly over a HIGH
heat. Add onion and cook 1 minute. Add carrot and
broccoli and stir-fry 2 minutes, then add red
pepper, celery and snow peas and continue
cooking 1 minute more. Add chicken broth and toss
vegetables until cooked to desired aloneness.
ONION BLOSSOMS
Great served as a snack, or to dress up barbecued
meats, poultry or fish. Makes 4 servings.
Ingredients
4
1
1
1/8
1
1
medium sweet onions (4-5 ounces each)
tablespoons margarine or butter, melted
teaspoon Dijon-style mustard
teaspoon hot pepper sauce
tablespoon brown sugar
pepper (optional)
Preparation
Peel onions, then cut almost completely through each
onion, forming 8 wedges. Onion will be loose, but still
be intact. Prepare four 12-inch squares of aluminum
foil. Place one onion in the center of each foil square.
Stir margarine (or butter) with hot pepper sauce and
drizzle over onions. Sprinkle with brown sugar. Then
bring up two sides of foil square and double fold.
Bring remaining corners up and completely enclose
leaving enough space for steam to build.
Place wrapped onion blossoms on grill, directly over
MEDIUM heat. Close lid and cook 15 to 25 minutes
or until onions are nearly tender. Make a 2-inch
opening at the top of each onion wrapping, then close
lid and cook 5 to 10 minutes more, or until onions are
lightly browned. Sprinkle with pepper if desired and
serve warm.
GRILLED POTATO SKINS
Serve these crispy potatoes as a snack or side dish.
We've included microwave instructionsfor a time-
saving short cut. Makes 12 servings.
Ingredients
6
3
1/2
1
3
1
1
1/2
baking potatoes (about 8 ounces each)
tablespoons margarine or butter, melted
cup picante sauce
cup shredded cheddar cheese (4 ounces)
slices bacon, crisp-cooked and crumbled
or use prepackaged bacon bits
chopped tomato (optional)
diced green onion (optional)
cup sour cream (optional)
Preparation
Puncture clean potatoes with a fork, wrap in alumi-
num foil and place directly over LOW to MEDIUM
heat. Close lid and cook directly for 1 hour or until
center is tender. OR - Microwave clean, punctured
potatoes on HIGH for 15 to 20 minutes, or until
center tender. Allow cooked potatoes to cool, then
unwrap and discard foil.
Cut potatoes in half - lengthwise. Scoop out potato
pulp (serve separately or discard.) Be sure to leave
1/4-inch thick potato shell remaining. Brush the inside
of each potato shell with melted margarine. Spoon 2
teaspoons picante sauce into each potato shell,
sprinkle with cheese and top with bacon.
Place prepared potato skins on grill, directly over
MEDIUM heat. Close lid and cook for 8 to 10 minutes
or until potato skins are crisp. Sprinkle each potato
skin with tomato and green onion and then top with
sour cream, if desired.
A-13
To purchase a protec_on agreement (U.S.A,)
or mau_enance agreement (,_anada_ on a p_xduct s,ewiced by Sea_:
