User Manual Lenovo TB-J607Z Tab P11 5G Network Tablet

Basics

Before using this information and the product it supports, be sure to read the following:

Safety, Warranty & Quick Start Guide
Regulatory Notice
Important safety and handling information" in "Appendix".

Note: All pictures and illustrations in this document are for your reference only and may differ from the final product.

Technical specifications

Note: Lenovo TB-J607Z supports 5G Bands: n1/n3/n7/n8/n20/n28/n38/n41/n77/n78/n79, but in some countries 5G is not supported. To know if your device works with 5G networks in your country, contact your carrier.

Home screen

The home screen is the starting point for using your device. For your convenience, the home screen is already set up with some useful apps and widgets.

Note: Your device's features and the home screen may be different depending on your location, language, carrier, and device model.

You can customize your home screen at any time.

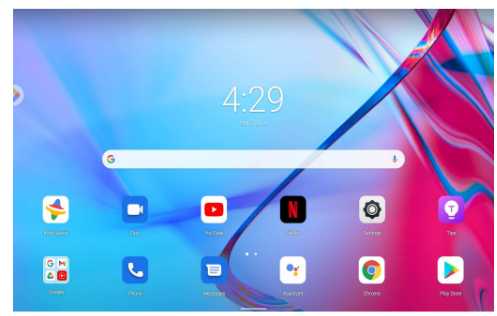

Home screen

On the default home screen, there is a Google Search bar and some useful apps.

Entertainment Space

On the left of the default home screen, tap and open the entertainment space.

Add a widget to a home screen

Press and hold anywhere on the home screen except the icons. Tap Widgets, press and hold the widget you want to add, then drag it to where you want to place it, and release.

Change the wallpaper

Press and hold anywhere on the home screen except the icons, tap

Wallpapers, and then choose your preferred wallpaper.

Or go to Settings > Display > Wallpaper and choose your preferred wallpaper.

Move an app to another screen

Press and hold an app that you want to move, drag it to where you want to place it, then release.

Uninstall an app

Press and hold the app that you want to uninstall.
Drag to Uninstall, and then release and tap OK.

Note: Some of the system apps cannot be uninstalled.

Search apps

Swipe up from the bottom of your screen to the top.

View recent apps

Swipe up from the bottom of your screen to the middle and pause for 1 second. Then you can do the following:

Swipe left or right to find the app you want to open.
Swipe an app window up to close it.
Tap "Clear all" to stop running all the apps.

APP list

Swipe up from the bottom to go to the APP list screen.

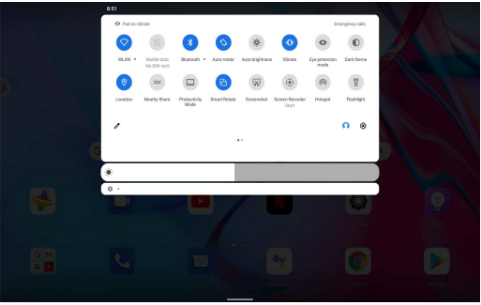

Notifications and Quick Settings

The Notifications panel informs you of new messages, USB connection, and activities in progress such as file downloading. The Quick Settings panel allows you to access frequently-used settings such as the WLAN switch.

You can do any of the following:

To see notifications, swipe down from the top of the screen.
To close the Notifications panel, swipe up from the bottom of the screen.
To dismiss a notification, swipe left or right across the notification.
To dismiss all notifications, tap Clear all at the bottom of the Notifications panel.
To open the Quick Settings panel, swipe down from the top of the screen twice.
To close the Quick Settings panel, swipe up from the bottom of the screen.

Force shutdown

Press and hold the Power button and Volume down button for about 12 seconds until the device turns off.

Split screen mode

Using split screen mode

Open the list of recently used applications, press and hold the application icon above the screen, and then select Split screen.

Note: Not all applications support split screen mode.

Split screen settings

In split screen mode you can do the following:

Adjust the split screen size

Slide the " " in the middle of the two screens to adjust the split screen size.

Replace the second app

Swipe up from the bottom to choose another app.

Exiting split screen mode

You can exit split screen mode by:

Choosing an app that doesn't support split screen mode.
Or sliding the " " to the edge of the screen.

Productivity mode

Go to Settings > Productivity mode to turn on and off. Enhance office experience with mouse and keyboard.

Multi-User

Multi-User Preferences

There are three user types:

Owner: An owner has full control over all user permissions and manages all user accounts.
Guest: There is only one Guest account. A Guest has restricted access to the device.
New User: There can be multiple user accounts.

Creating new user accounts

Tap Settings > Accounts > Multiple users > Add user to create user accounts.

Tap Add user > OK to create a standard user account.

Or swipe down twice from the top of the screen.

Tap the account icon .
Tap > Add user to create a standard user account.
Tap > Add guset to create a guest account.

Switching between user accounts

On the home screen, swipe down from the top of the screen, and then tap the users icon to switch between different user accounts.
On the lock screen, tap the user icon on the top left to switch to other accounts.

Deleting a user account

Tap Settings > Accounts > Multiple users, and tap the icon located beside the user you would like to delete, then tap Delete user > DELETE.

Or swipe down twice from the top of the screen. Tap > More settings, then tap the icon located beside the user you would like to delete. Then tap Delete user > DELETE. Guest account could not be deleted.

Kids Space

Kids space is a special user identity that can be controlled by parents offering kids a safe Internet space with fun, thoughtful and age-appropriate contents.

Get Started

Tap 'Kids space' icon on the screen, choose who's going to use this device, and then following the steps to sign in or create a new account.

Manage the Device

Press and hold the icon to change the settings and getting help.

Camera

To open the Camera app, go to Camera.

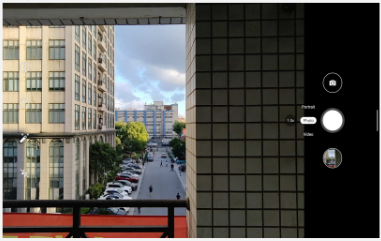

Taking photos and videos

You can take photos and record videos with your device's built-in camera.

Select Portrait / Photo to take a photo.
Select Video to record a video.
Tap to switch between the front and the rear camera.
Tap to setup a countdown shooting.
Tap to change the color style.
Tap to turn flash on and off.
Tap to configure the other camera settings.

Taking screenshots

Short press Power and the Volume down buttons at the same time to take a screenshot.

Viewing pictures and videos

Photos and videos are stored in your device's internal storage. You can view your photos and videos by using the following methods:

Tap the thumbnail when using the Camera app.
Go to Photos.
Go to Files.

The screenshots are stored in your device's internal storage. You can view your screenshots by using the following methods:

Go to Photos.
Go to Files.

Network

You need to set up a wireless network before connecting to the Internet.

Set up a WLAN network.
Set up a mobile network.
Set up a VPN network.

You can also share your mobile network with others.

Set up a hotspot.

Setting up a WLAN network

Go to Settings > Network & Internet > WLAN. Turn on the WLAN switch and tap a WLAN hotspot in the list to connect to the Internet. When you are connecting to a secure hotspot, you may need to enter your login name and password to connect.

*Setting up a mobile network

Go to Settings > Network & Internet > Mobile network.

Note: You need a valid SIM card with a data service. If you don't have a SIM card, contact your carrier.

Setting up a VPN network

VPNs are used within organizations to allow you to communicate private information securely over a non-private network. You may need to configure a VPN, for example, to access your work email. Ask the network's administrator for the settings necessary to configure a VPN for your network.

Go to Settings > Network & Internet > VPN.
Tap to edit the VPN profile, including the server name, type, and server address, and then tap SAVE.
Tap the VPN server name, enter the username and password, and then tap CONNECT to connect to the VPN network.
Tap to edit or forget the VPN.

*Setting up a hotspot

You can use personal hotspot to share an Internet connection with a computer or other device.

Go to Settings > Network & Internet > Hotspot & tethering and do the following:

Tap WLAN hotspot to configure the hotspot.

You can also use USB tethering, Bluetooth tethering or Ethernet tethering.

Note: Tell your friends the Network name and password, and then they can connect to your mobile network.

Internet

You can browse the web if your device is connected to a wireless network or a cellular network. To open the browser app, go to Chrome.

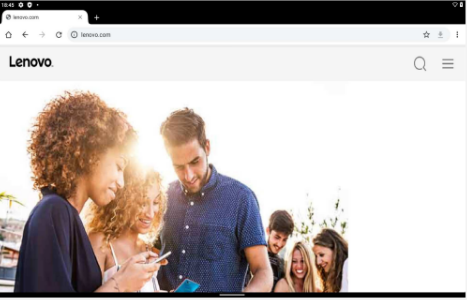

Visiting websites

You can use the Chrome app to visit websites.

Type a web address

You don't need to type the full web address of an "http://" website to access it.

Search for keywords

You can also type keywords into the address bar to search for webpages.

You can set a search engine in > Settings > Search engine.

Add a new webpage

Tap

> New tab to add a new webpage tab.

Tap

> New incognito tab to visit a website without leaving any traces of your visit.

Close a webpage

Tap to close a webpage tab.

Refresh a webpage

Tap

to refresh a webpage.

Tap

to return to the previous webpage.

Tap

to go forward to a recent webpage.

Saving webpages

You can save images and webpages in your device's internal storage.

Save images

Press and hold the image, then tap Download image.

Bookmark webpages

Tap to add a webpage to Bookmarks.

Tap > Bookmarks to view bookmarks.

Setting accessibility preferences

Tap > Settings > Accessibility to set the text scaling and the webpage zoom.

Gmail

You can send and receive emails if your device is connected to a wireless network.

To access the Gmail app, go to Gmail.

Setting up a Gmail account

You can sign into Gmail if you have a Gmail account. If not, you will need to create a Gmail account.

You can also sign in with email accounts provided by other companies.

Using Gmail

After setting up your gmail account, you can use the Gmail app to send and receive emails.

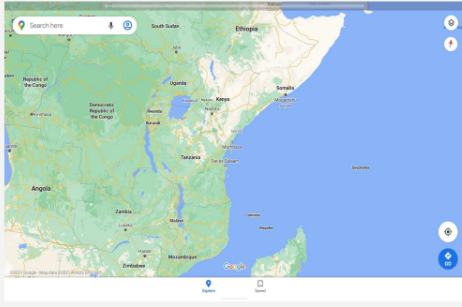

Maps

You need to select the following settings before you can use Maps.

Go to Settings >Location and enable location access for Google apps.

Finding a location

Type the address that you want to find, then press Search here.

You can also tap to speak the address you want to search for.

Current location

Tap

to see your current location.

Then tap Explore to check what is nearby.

Planning a route

Tap

and type in "Choose starting point" and "Choose destination", or just choose the starting point as "Your location".

Choose the travel mode: by car, by bus or on foot.

Sync

You can transfer data between your device and computer such as music, pictures, videos, documents, Android application package (APK) files, and so on.

Connecting your device to your computer

Connect your device and computer using a USB cable.

Slide down from the top of the screen. You will see "Charging this device via USB" in the

Notifications bar.

Tap Charging this device via USB to view other options.

Selecting the computer connection mode

You can select one of the following options:

File transfer: Select this mode if you want to transfer files such as photos, videos, and ringtones between your tablet and computer.
USB tethering: Select this mode if you want to share the network with your computer.
MIDI: Select this mode if you want MIDI-enabled apps on your device to work with MIDI software on the computer.
PTP: Select this mode if you only want to transfer only photos and videos between your tablet and computer.
No data transfer: Select this mode if you want to charge your phone only.

Settings

Setting the language

Go to Settings > System > Languages & input > Languages > Add a language.
Select the language that you want to add.
Press and hold to drag the added language to the first line.

Setting screen lock

Go to Settings > Security > Screen lock , and select screen lock mode.

Setting sound

Go to Settings > Sound. Here you can set the ringtone, default notification sound, default alarm sound, and so on. You can also set the ringing volume.

Setting face recognition

Go to Settings > Security > Face-recognition, follow the on-screen instructions to set up your device.

Battery protection mode

Battery protection mode prevents charging for extended periods, which exposes the battery to high temperatures and high voltage that may cause it to age faster. Once turned on, the battery level will remain between 40% and 60% to extend the battery life.

Go to Settings > Battery > Battery Protection mode to turn on the battery protection mode.

Eye Protection and Safety Information

Eye protection

Eye protection Mode is enabled, the screen will have an amber tint, which reduces blue light. This allows you to read or view the screen more comfortably in dimly lit environments.

Go to Settings > Display > Eye protection mode, and tap TURN ON NOW/TURN OFF NOW to turn it on/off.

Color Temperature adjustment: Enter Eye Protection Mode and slide the Color Temperature slider to adjust as needed.

Safety Information

Please use the device in a well-lit area, and when using the device, keep it at a suitable distance from your eyes. To avoid eyestrain, take a break from looking at the screen after a period of time.

Factory reset

Factory reset will erase all data from your tablet's internal storage. Please back up important data on the device before resetting your tablet. Go to Settings > System > Reset options > Erase all data factory reset), then tap Erase all data to reset to the manufacturer's default settings.

Appendix

Important safety and handling information

To avoid personal injury, property damage, or accidental damage to the product, read all of the information in this section before using the product

Handle your device with care

Do not drop, bend, or puncture your device; do not insert foreign objects into or place heavy objects on your device. Sensitive components inside might become damaged.

Your device screen is made of glass. The glass might break if the device is dropped on a hard surface, is subjected to a high impact, or is crushed by a heavy object. If the glass chips or cracks, do not touch the broken glass or attempt to remove it from the device. Stop using the device immediately and contact Lenovo technical support for repair, replacement, or disposal information.

When using your device, keep it away from hot or high-voltage environments, such as electrical appliances, electrical heating equipment, or electrical cooking equipment. Use your device only in the temperature range of 0°C (32°F) to 40°C (104°F) (storage -20°C (-4°F) to 60 °C (140°F)) to avoid damage.

Don't expose your device to water, rain, extreme humidity, sweat or other liquids.

Do not disassemble or modify your device

Your device is a sealed unit. There are no end-user serviceable parts inside. All internal repairs must be done by a Lenovo-authorized repair facility or a Lenovo-authorized technician. Attempting to open or modify your device will void the warranty.

Built-in rechargeable battery notice

Do not attempt to replace the internal rechargeable lithium ion battery. There is risk of explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for replacement.

Plastic bag notice

DANGER:

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Adapter information

Prevent your device and AC adapter from getting wet.

Do not immerse your device in water or leave your device in a location where it can come into contact with water or other liquids.

Use approved charging methods only.

Note: Please only use standard Lenovo power adapters. The use of third-party power adapters will affect the charging speed, resulting in abnormal charging and potential damage to the equipment. Connect a standard power adapter to a suitable power outlet.

Use a standard data cable to connect the device to a PC or a device that complies with USB or higher.

Charging devices might become warm during normal use. Ensure that you have adequate ventilation around the charging device. Unplug the charging device if any of the following occurs:

The charging device has been exposed to rain, liquid, or excessive moisture.
The charging device shows signs of physical damage.
You want to clean the charging device.

Warning:

Lenovo is not responsible for the performance or safety of products not manufactured or approved by Lenovo. Use only approved Lenovo ac adapters and batteries.

CLASS 1 LASER PRODUCT

CLASSIFIED EN/IEC 60825-1:2014

Caution: use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019.

EU ErP (EcoDesign) Directive (2009/125/EC) - external power adapters (Regulation (EU) 2019/1782) Ecodesign for Energy-Relater Products Regulations 2010 - UK SI 2010 No. 2617 (Ext PSU), SI 2020 No. 485 (Ntwk Standby), SI 2014 No. 1290 as amended

Lenovo products are compliance with the EU EcoDesign (ErP) Directive & UK EcoDesign for Energy- related Products Regulations. Refer to the following for details:

For EU, refer to the system declaration https://www.lenovo.com/us/en/compliance/eu-doc, and for UK refer to the system declaration https://www.lenovo.com/us/en/compliance/uk-doc.

Alkaline battery warnings (The following contents shall be applicable with alkaline battery.)

When replacing the alkaline batteries, only use a compatible type or an equivalent to the one recommended by the manufacturer. Alkaline batteries can explode when they are used, handled, or disposed of improperly. When disposing of alkaline batteries, comply with all relevant local battery disposal ordinances and regulations. In addition:

Do not disassemble or short-circuit batteries.
Insert the batteries correctly according to the +/- symbols for their polarity.
Remove batteries from the product when not in use.
Do not recharge alkaline batteries.
Do not dispose of batteries in fires.
Do not allow metal objects to come in contact with the battery terminals.
Do not mix new batteries with used batteries, or mix batteries of different types (such as alkaline with carbon zinc).

For proper battery installation and removal, follow the manufacturer’s instructions for this product. Keep batteries away from small children. If swallowed, consult a physician immediately. If the batteries are leaking, avoid letting the battery fluid come into contact with your skin and eyes. If battery fluid has already come in contact with your skin, wash your skin with clean water. If battery fluid has already come in contact with your eyes, avoid rubbing your eyes. Consult your physician immediately.

Caution about high volume usage

Warning: exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the sound, the less time is required before your hearing could be affected. To protect your hearing:

Limit the amount of time you use headsets or headphones at high volume.
Avoid turning up the volume to block out noisy surroundings.
Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Take care when using your device in a motor vehicle or on a bicycle

Always prioritize your safety and the safety of others. Follow the law. Local laws and regulations might govern how you can use mobile electronic devices, such as your device, while you drive a motor vehicle or ride a bicycle.

Dispose according to local laws and regulations

When your device reaches the end of its useful life, do not crush, incinerate, immerse in water, or dispose of your device in any manner contrary to local laws and regulations. Some internal parts contain substances that can explode, leak, or have an adverse environmental effects if disposed of incorrectly.

See “Recycling and environmental information” for additional information.

Keep your device and accessories away from small children

Your device contains small parts that can be a choking hazard to small children. Additionally, the glass screen can break or crack if dropped on or thrown against a hard surface.

Protect your data and software

Do not delete unknown files or change the name of files or directories that were not created by you; otherwise, your device software might fail to work. Be aware that accessing network resources can leave your device vulnerable to computer viruses, hackers, spyware, and other malicious activities that might damage your device, software, or data. It is your responsibility to ensure that you have adequate protection in the form of firewalls, antivirus software, and anti-spyware software and keep such software up to date. Keep electrical appliances away from your device. These include electric fans, radios, high-powered speakers, air-conditioners, and microwave ovens. The strong magnetic fields generated by electrical appliances can damage the screen and the data on the device.

Be aware of heat generated by your device

When your device is turned on or the battery is charging, some parts might become hot. The temperature that they reach depends on the amount of system activity and the battery charge level. Extended contact with your body, even through clothing, could cause discomfort or even a skin burn. Avoid keeping your hands, your lap, or any other part of your body in contact with a hot section of the device for any extended time.

Environmental, recycling, and disposal information

General recycling statement

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to http://www.lenovo.com/recycling.

Important battery and WEEE information

Take back and recycling information for WEEE and batteries/accumulators in the European Union and the United Kingdom

The crossed-out wheeled bin marking applies only to countries with WEEE and batteries waste regulations within the European Union (EU), and United Kingdom (UK).

Appliances and batteries/accumulators are labeled in accordance with local regulations concerning waste electrical and electronic equipment (WEEE) and waste batteries and waste accumulators.

These regulations determine the framework for the return and recycling of used appliances and used batteries/accumulators as applicable within each geography. This label is applied to various products to indicate that the product is not to be thrown away, but rather put in the established collection systems for reclaiming these end of life products.

The label on the battery may also include a chemical symbol for the metal concerned in the battery Pb for lead, Hg for mercury, and Cd for cadmium).

Users of electrical and electronic equipment (EEE) and users of batteries/accumulators with the crossed-out wheeled bin marking must not dispose of end of life products as unsorted municipal waste, but use the collection framework available to them for the return, recycle, and recovery of WEEE and waste batteries/accumulators and to minimize any potential effects of EEE and batteries on the environment and human health due to the presence of hazardous substances.

Lenovo electrical and electronic equipment (EEE) may contain parts and components, which at end- of-life might qualify as hazardous waste.

EEE and waste electrical and electronic equipment (WEEE) can be delivered free of charge to the place of sale or any distributor that sells electrical and electronic equipment of the same nature and function as the used EEE or WEEE.

Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Dispose of lithium batteries and battery packs from Lenovo products:

A coin-cell type lithium battery might be installed inside your Lenovo product. You can find details about the battery in the product documentation. If the battery needs to be replaced, contact your place of purchase or contact Lenovo for service. If you need to dispose of a lithium battery, insulate it with vinyl tape, contact your place of purchase or a waste-disposal operator, and follow their instructions.

Your Lenovo device might contain a lithium-ion battery pack or a nickel metal hydride battery pack.

You can find details on the battery pack in the product documentation. If you need to dispose of a battery pack, insulate it with vinyl tape, contact Lenovo sales, service, or your place of purchase, or a waste-disposal operator, and follow their instructions. You also can refer to the instructions provided in the user guide for your product.

Battery recycling marks

The battery recycling information of Taiwan

Battery recycling information for the United States and Canada

Export classification notice

This product is subject to the United States Export Administration Regulations (EAR) and has an Export Classification Control Number (ECCN) of 5A992.c. It can be re-exported except to any of the embargoed countries in the EAR E1 country list.

Troubleshooting

Insufficient memory prompt appears during app installation

Please free up some memory and try to install again.

The touch screen does not work or is not sensitive

Please press and hold the Power button and Volume down button until the device turns off. Then switch it on again in normal way.

Device does not power on or system crashes

Please charge the battery for half an hour and then press and hold the Power button and Volume down button until the device turns off. Then switch it on again in normal way.

The device cannot access the internet via a wireless network

Restart the wireless router or go to Settings and restart WLAN.

The device cannot wake up from sleep mode
