Trim Kit
Trousse de finition
Montagem de adaptador
EBA6707; EBA6767; EBA6708;
EBA6808; EBA6768; EBA6868
de, en, fr, es, pt – AU,
BR, CA, GB, MX, NZ,
US, ZA
M.-Nr. 09 374 273

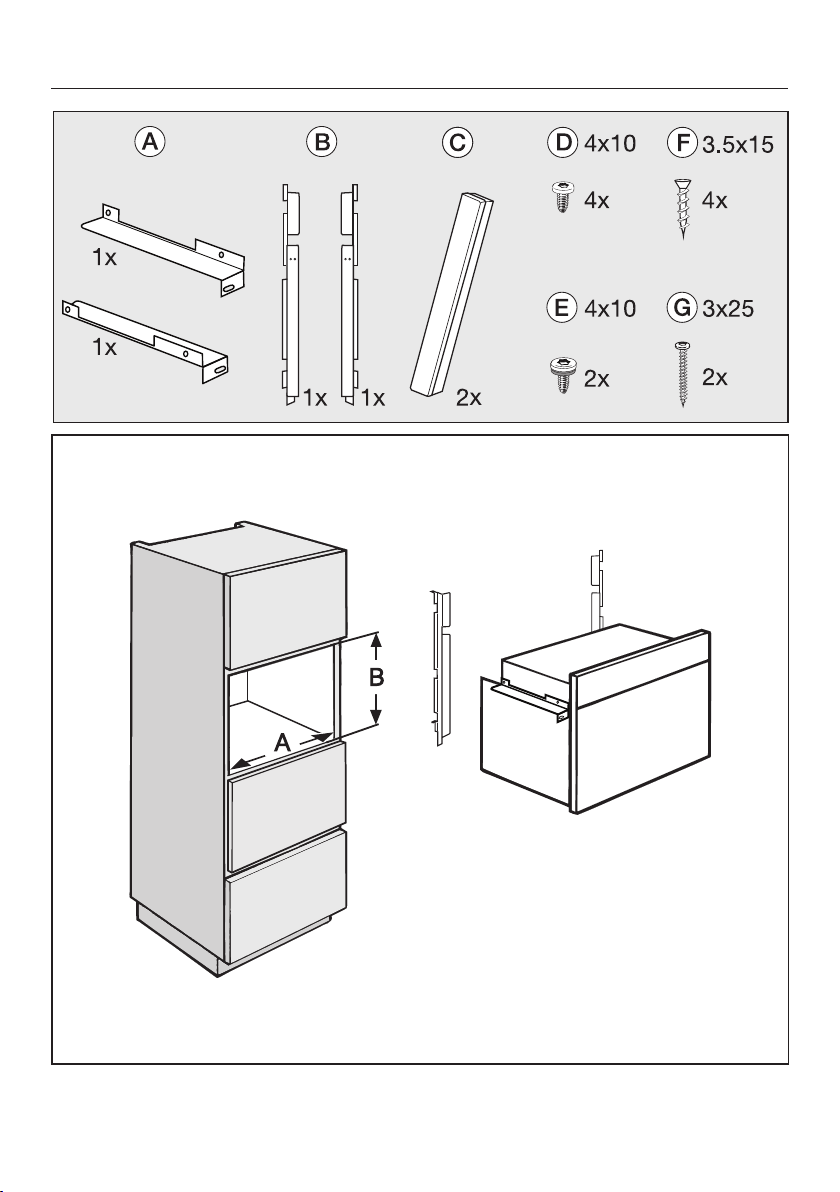

EBA6707 (70cm)
2
A = 26" - 26 5/16" (660 mm - 668 mm)
B = 17 11/16" - 17 13/16" (450 mm - 452 mm)

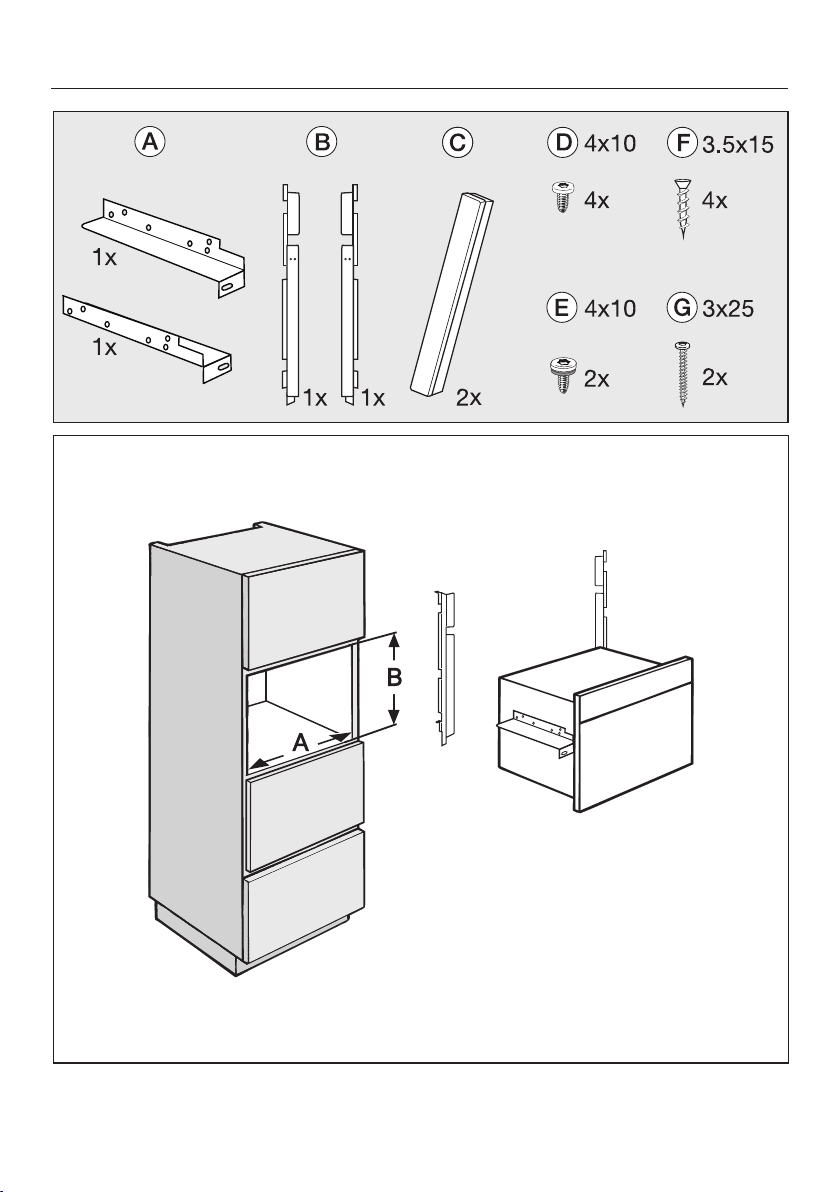

EBA6767 (70cm)
3
A = 26" - 26 5/16" (660 mm - 668 mm)
B = 23 1/4" - 23 7/16" (590 mm - 595 mm)
EBA6708 / EBA6808 (30")
4
A = 28 1/2" (724 mm)
B = 17 11/16" - 17 13/16" (450 mm - 452 mm)
C = 24" (610 mm)
EBA6768 / EBA6868 (30")
5
EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
6

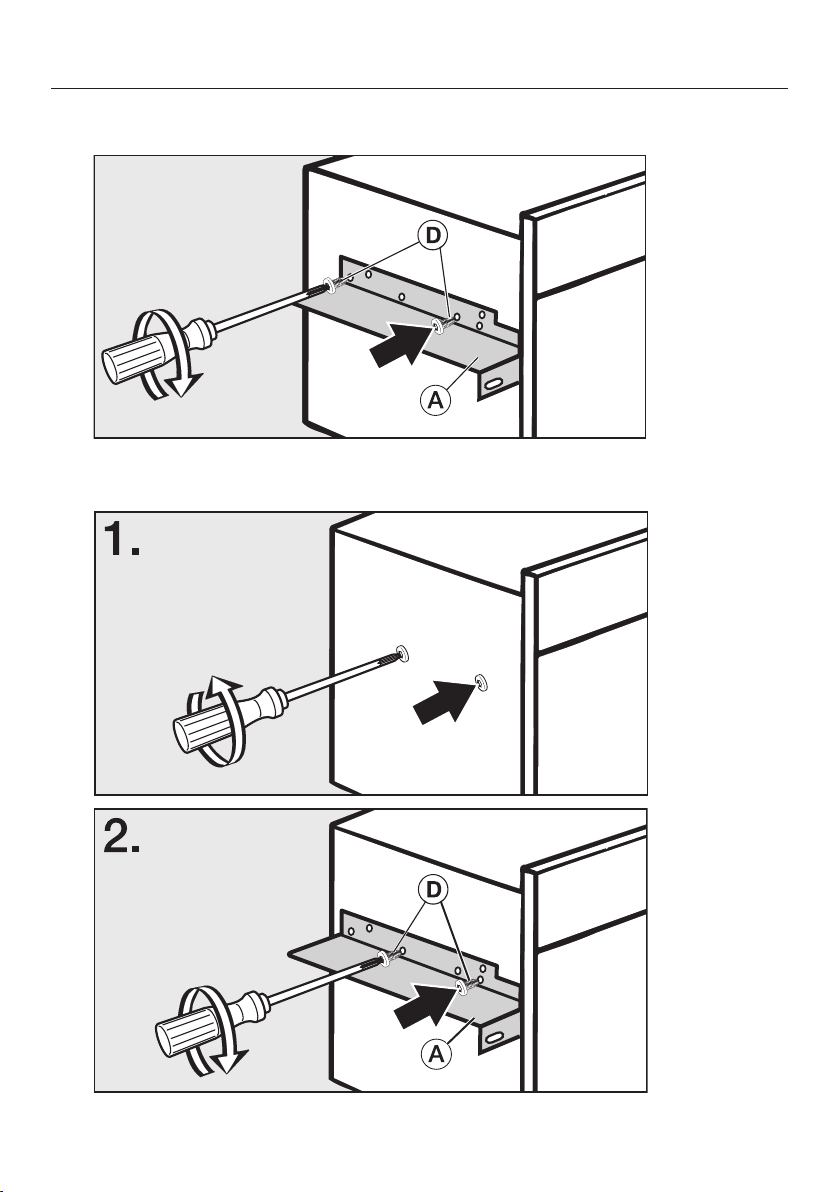

EBA6707 (70cm); EBA6708/6808 (30")
7
H6xxxBM
DG6x0x

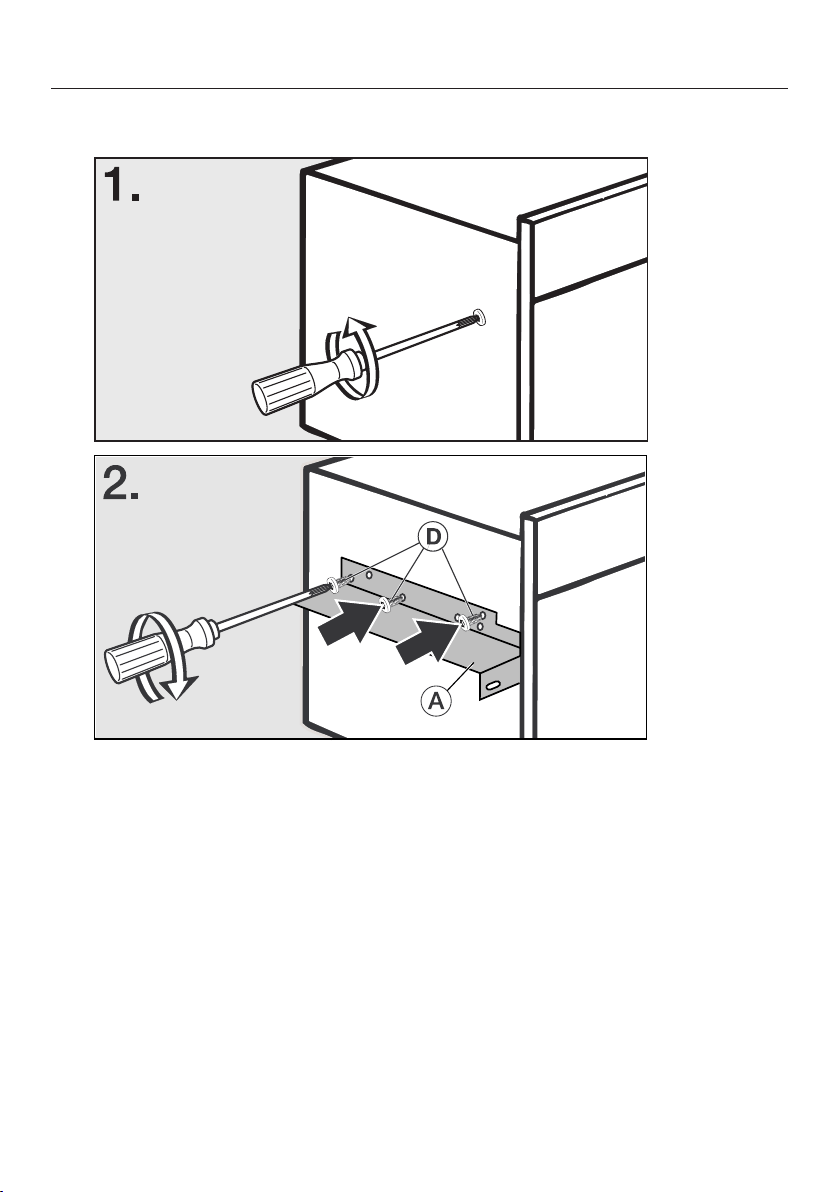

EBA6707 (70cm); EBA6708/6808 (30")
8
DGC6x0x
EBA6767 (70cm)
9
H2x6x, H6x6x
EBA6768/6868 (30")
10
DGC6x6x
EBA6768/6868 (30")
11
H2x6x, H6x6x
EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
12
EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
13
EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
14
EBA6707 EDST/CLST, EBA6767 EDST/CLST (70cm)
EBA6708 EDST/CLST, EBA6808 HVBR, OBSW, BRSW, GRGR,
EBA6768 EDST/CLST, EBA6868 OBSW, BRSW (30")
EBA6808 GRGR
c
c
EBA6808 EDST/CLST, EBA6868 EDST/CLST (30")

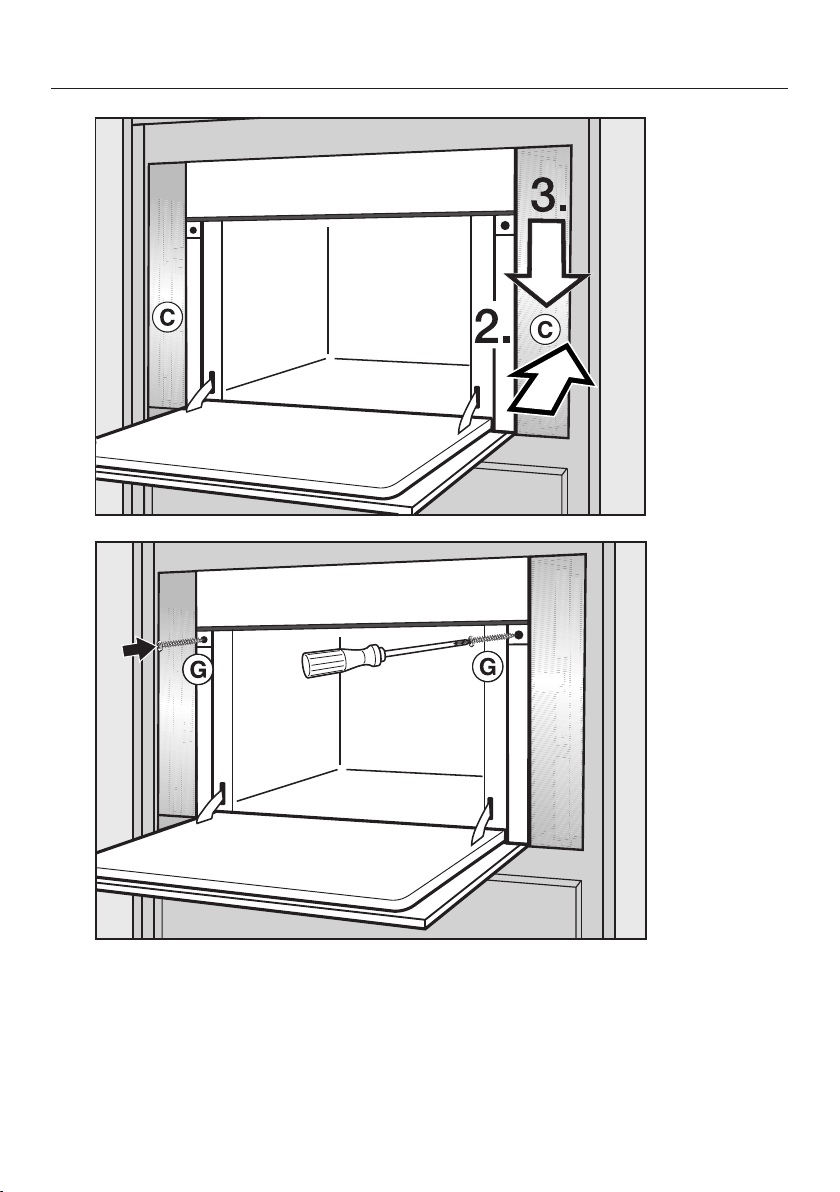

EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
15
EBA6707/6767 (70cm); EBA6708/6808/6768/6868 (30")
16
de
Stellen Sie sicher, dass die Oberkante der Abdeckung bündig mit der Oberkante
des Geräts abschließt und dass die Schraublöcher direkt übereinander liegen.
Halten Sie die Abdeckung fest und befestigen Sie das Gerät mit den
Schrauben.
en
Please ensure that the top edge of the panel sits flush with the top edge of the
appliance and that the screw holes are aligned correctly.
Hold the panel in position and secure the appliance using screws.
fr
Vérifiez que l'arête supérieure du bandeau est bien alignée avec l'arête
supérieure de l'appareil et que les trous de vissage sont l'un au-dessus de
l'autre.
Tenez le bandeau et fixez l'appareil avec les vis.
es
Tenga en cuenta que el borde superior del panel queda al nivel del borde
superior del aparato y que los orificios de la unión roscada están unos encima de
otros.
Sostenga el panel y fija el aparato con los tornillos.
pt
Verifique se a parte superior do painel está nivelado com a parte superior do
aparelho e se os orifícios dos parafusos estão alinhados.
Segure a tampa e fixe o aparelho com os parafusos.
