Maytag MED6230HC0 27 Inch Electric Smart Dryer with 7.4 Cu. Ft. Capacity

Installation and Care Instructions Manual - Transcript

• Page 1 - Spanish - : W11268643B Dryer Installation and Care Instructions Manual Manuel dinstructions concernant linstallation et lentretien de la sécheuse Manual de instrucciones de instalación y cuidado de la secadora Para obtener acceso a las quotInstrucciones de instalación en español o para obtener información adicional acerca de su producto visite wwwwhirlpoolcom Tenga listo su número de modelo completo Puede encontrar el número de modelo y de serie dentro de la cavidad superior de la puerta DRYER SAFETY 2 INSTALLATION REQUIREMENTS 4 Tools and parts 4 LOCATION REQUIREMENTS 5 Installation clearances 5 ELECTRICAL REQUIREMENTS USA ONLY 6 ELECTRIC DRYER POWER HOOKUP CANADA ONLY 7 Electrical requirements 7 GAS DRYER POWER HOOKUP USA AND CANADA 7 Electrical requirements 7 Gas supply requirements 8 Gas type 8 Gas supply line 8 Gas supply connection requirements 8 Burner input requirements 8 Dryer gas pipe9 INSTALL LEVELING LEGS 9 MAKE ELECTRICAL CONNECTION USA ONLY 9 Electrical Connection 9 Power Supply Cord Connection 10 Direct Wire Connection 12 MAKE GAS CONNECTION USA AND CANADA 15 VENTING 16 Venting Requirements 16 Plan Vent System 17 Install vent system18 CONNECT INLET HOSES 18 CONNECT VENT 19 LEVEL DRYER 20 COMPLETE INSTALLATION CHECKLIST 21 DRYER DOOR 21 REVERSE DOOR SWING 22 DRYER CARE 26 CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW 27 SÉCURITÉ DE LA SÉCHEUSE 29 EXIGENCES DINSTALLATION 31 Outils et pièces 31 EXIGENCES DEMPLACEMENT 32 Dégagements dinstallation 32 SPÉCIFICATIONS ÉLECTRIQUES ÉU SEULEMENT 33 RACCORDEMENT DE LA SÉCHEUSE ÉLECTRIQUE CANADA SEULEMENT 34 Spécications électriques 34 RACCORDEMENT ÉLECTRIQUE DE LA SÉCHEUSE À GAZ ÉU ET CANADA 34 Spécications électriques 34 SPÉCIFICATIONS DE LALIMENTATION EN GAZ 35 Type de gaz 35 Canalisation de gaz 35 Spécications du raccordement de lalimentation en gaz 36 Spécications de lalimentation du brûleur 36 Canalisation de gaz de la sécheuse 36 INSTALLATION DES PIEDS DE NIVELLEMENT 36 EFFECTUER LE RACCORDEMENT ÉLECTRIQUE ÉU SEULEMENT 37 Raccordement électrique 37 Raccordement du câble dalimentation 37 Raccordement direct 39 EFFECTUER LE RACCORDEMENT AU GAZ ÉU ET CANADA 42 ÉVACUATION 43 Exigences concernant lévacuation 43 Planication des circuits de conduits 44 Installation du système dévacuation 45 RACCORDEMENT DES TUYAUX DE VIDANGE 46 RACCORDEMENT DU SYSTÈME DÉVACUATION 47 RÉGLAGE DE LAPLOMB DE LA SÉCHEUSE 48 LISTE DE VÉRIFICATION POUR INSTALLATION TERMINÉE 48 PORTE DE LA SÉCHEUSE 49 INVERSION DU SENS DOUVERTURE DE LA PORTE 50 ENTRETIEN DE LA SÉCHEUSE 54 VÉRIFICATION DUNE CIRCULATION DAIR ADÉQUATE POUR LE SYSTÈME DÉVACUATION 55 SEGURIDAD DE LA SECADORA 58 REQUISITOS DE INSTALACIÓN 60 Herramientas y piezas 60 REQUISITOS DE UBICACIÓN 61 Espacios libres para la instalación 61 REQUISITOS ELÉCTRICOS EEUU EEUU 62 CONEXIÓN PARA SECADORA ELÉCTRICA SOLAMENTE EN CANADÁ 63 Requisitos eléctricos 63 CONEXIÓN DE ENERGÍA DE LA SECADORA A GAS EE UU Y CANADÁ 64 Requisitos eléctricos 64 Requisitos del suministro de gas 64 Tipo de gas64 Línea de suministro de gas 65 Requisitos para la conexión del suministro de gas 65 Requisitos de entrada del quemador 65 Tubo de gas de la secadora 65 INSTALACIÓN DE LAS PATAS NIVELADORAS 66 CÓMO HACER LA CONEXIÓN DEL SUMINISTRO ELÉCTRICO SOLO EN EEUU 66 Conexión eléctrica 66 Conexión por cable de suministro eléctrico67 Conexión por cable directo 69 CONEXIÓN DEL SUMINISTRO DE GAS EE UU Y CANADÁ 72 VENTILACIÓN 73 Requisitos de ventilación 73 Planicación del sistema de ventilación 74 Instalación del sistema de ventilación 75 CONECTE LAS MANGUERAS DE ENTRADA 75 CONEXIÓN DEL DUCTO DE ESCAPE76 NIVELE LA SECADORA 77 LISTA DE CONTROL DE LA INSTALACIÓN TERMINADA 77 PUERTA DE LA SECADORA 78 INVERSIÓN DE LA PUERTA 79 CUIDADO DE LA SECADORA 83 Table of Contents Table des matières Índice

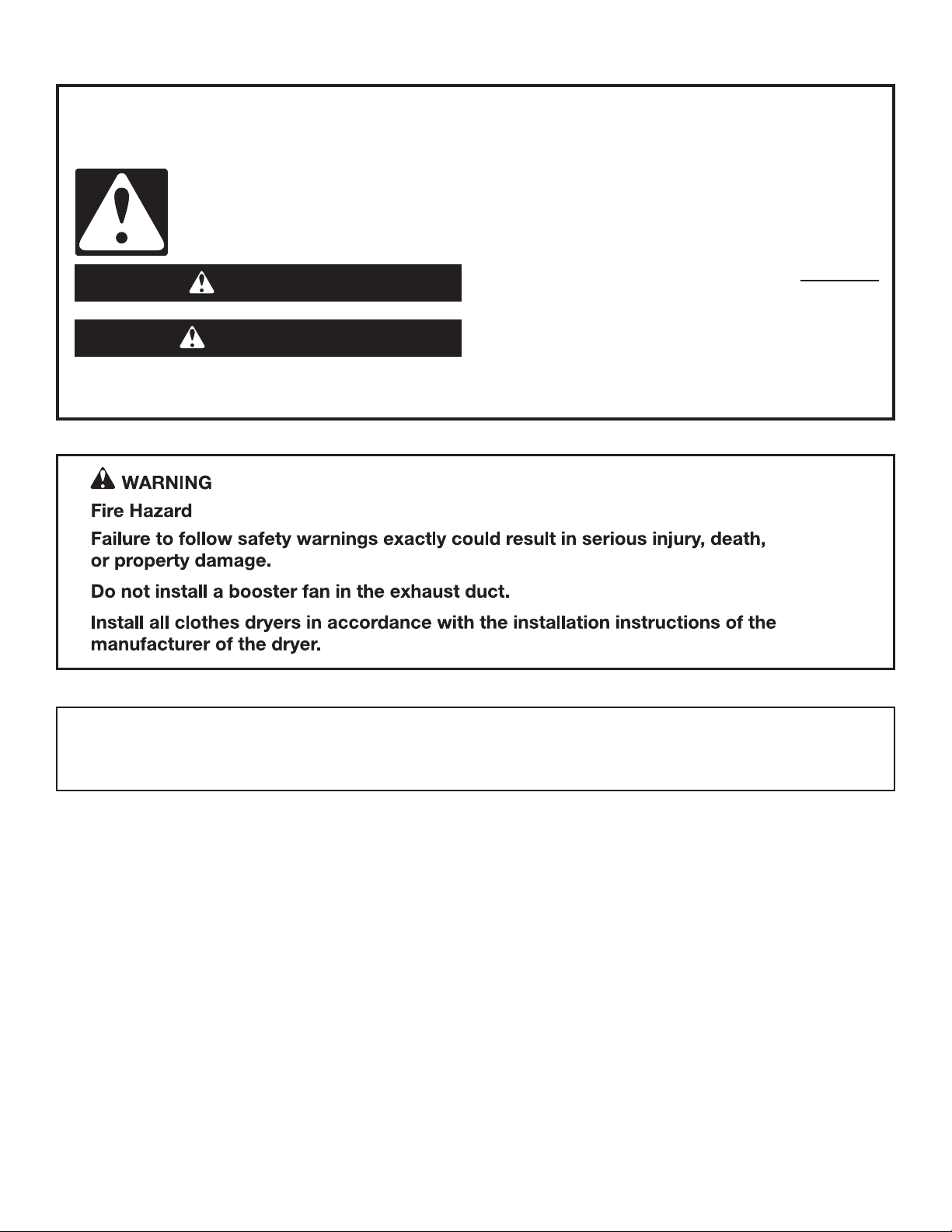

• Page 2 - English - : DRYER SAFETY You can be killed or seriously injured if you dont immediately You can be killed or seriously injured if you dont follow All safety messages will tell you what the potential hazard is tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed Your safety and the safety of others are very important We have provided many important safety messages in this manual and on your appliance Always read and obey all safety messages This is the safety alert symbol This symbol alerts you to potential hazards that can kill or hurt you and others All safety messages will follow the safety alert symbol and either the word DANGER or WARNING These words mean follow instructions instructions DANGER WARNING IMPORTANT The gas installation must conform with local codes or in the absence of local codes with the National Fuel Gas Code ANSI Z2231NFPA 54 or the Natural Gas and Propane Installation Code CSA B1491 The dryer must be electrically grounded in accordance with local codes or in the absence of local codes with the National Electrical Code ANSINFPA 70 or the Canadian Electrical Code Part 1 CSA C221
• Page 3 - English - : In the State of Massachusetts the following installation instructions apply Installations and repairs must be performed by a qualified or licensed contractor plumber or gas fitter qualified or licensed by the State of Massachusetts Acceptable Shutoff Devices Gas Cocks and Ball Valves installed for use shall be listed A flexible gas connector when used must not exceed 4 feet 1219 cm
• Page 4 - English - : INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation Read and follow the instructions provided with any tools listed here Tools needed for all installations Flatblade screwdriver Adjustable wrench that opens to 1quot or hexhead socket wrench Level Vent clamps Plastic putty knife Caulking gun and compound for installing new exhaust vent Tin snips new vent installations 14quot nut driver recommended 2 Phillips screwdriver Wire stripper direct wire installations Tape measure Pliers Tools needed for gas installations 8quot or 10quot pipe wrench 8quot or 10quot adjustable wrench for gas connections Pipejoint compound resistant to propane gas Parts supplied all models Leveling legs 4 Parts needed steam models Y connector Short inlet hose Rubber washer 4 Inlet hose If using a power supply cord Use a UL listed power supply cord kit marked for use with clothes dryers The kit should contain A UL listed 30 A power supply cord rated 120240 V minimum with a temperature rating of 140F 60C minimum The cord should be type SRD or SRDT and be at least 4 ft 122 m long The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends A UL listed strain relief Parts needed Not supplied with dryer Check local codes Check existing electrical supply and venting See Electrical Requirements and Venting Requirements before purchasing parts Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer For further information please refer to the Assistance or Service section in your Quick Reference Guide
• Page 5 - English - : LOCATION REQUIREMENTS Explosion Hazard Keep flammable materials and vapors such as gasoline away from dryer Place dryer at least 18 inches 46 cm above the floor for a garage installation Failure to do so can result in death explosion or fire You will need A location allowing for proper exhaust installation See Venting Requirements A separate 15 or 20 A circuit needed for gas dryers and 30 A circuit needed for electric dryers If using power supply cord a grounded electrical outlet located within 2 ft 610 mm of either side of dryer See Electrical Requirements Floor must support dryer weight of 200 lbs 907 kg Also consider weight of companion appliance Level oor with maximum slope of 1quot 25 mm under entire dryer If slope is greater than 1quot 25 mm clothes may not tumble properly and automatic sensor cycles may not operate correctly For garage installation place dryer at least 18quot 460 mm above oor Steam models only Cold water faucets located within 4 ft 12 m of the water ll valves and water pressure of 20100 psi 13796896 kPa You may use your washers water supply by purchasing the necessary parts noted in Parts needed IMPORTANT Do not operate install or store dryer where it will be exposed to water weather or at temperatures below 45F 7C Lower temperatures may cause dryer not to shut off at end of automatic sensor cycles resulting in longer drying times NOTE No other fuelburning appliance can be installed in the same closet as a dryer INSTALLATION CLEARANCES For each arrangement consider allowing more space for ease of installation and servicing spacing for companion appliances and clearances for walls doors and oor moldings Space must be large enough to allow door to fully open Add spacing on all sides of dryer to reduce noise transfer If a closet door or louvered door is installed top and bottom air openings in door are required Check code requirements Some codes limit or do not permit installation of the dryer in garages closets mobile homes or sleeping quarters Contact your local building inspector Spacing for recessed area or closet installation The dimensions shown are for the recommended spacing allowed Additional spacing should be considered for ease of installation and servicing Additional clearances might be required for wall door and oor moldings Additional spacing of 1quot 25 mm on all sides of the dryer is recommended to reduce noise transfer For closet installation with a door minimum ventilation openings in the top and bottom of the door are required Louvered doors with equivalent ventilations openings are acceptable Companion appliance spacing should also be considered RecommendedMinimum spacing Mobile home Additional installation requirements This dryer is suitable for mobile home installations The installation must conform to the Manufactured Home Construction and Safety Standard Title 24 CFR Part 3280 formerly the Federal Standard for Mobile home construction and Safety Title 24 HUD Part 280 or Standard CANCSAZ240 MH Mobile home installations require All dryers Metal exhaust system hardware available for purchase from your dealer For further information see Assistance or Service section in your Quick Reference Guide Special provisions must be made in mobile homes to introduce outside air into dryer Openings such as a nearby window should be at least twice as large as dryer exhaust opening For gas dryers mobile home installations Mobile Home Installation Holddown Kit is available to order For further information see Assistance or Service section in your Quick Reference Guide 6quot0quot 152 mm0 mm 14quot max 356 mm 1quot 25 mm 18quot 460 mm 3quot 76 mm 3quot 76 mm 48 in 310 cm 155 cm 1quot0quot 25 mm0 mm 24 in
• Page 6 - English - : ELECTRICAL REQUIREMENTS USA ONLY It is your responsibility To contact a qualied electrical installer To be sure that the electrical connection is adequate and in conformance with the National Electrical Code ANSINFPA 70 latest edition and all local codes and ordinances The National Electrical Code requires a 4wire power supply connection for homes built after 1996 dryer circuits involved in remodeling after 1996 and all mobile home installations A copy of the above code standards can be obtained from National Fire Protection Association One Batterymarch Park Quincy MA 02269 To supply the required 3 or 4wire single phase 120240 V 60 Hz AC only electrical supply or 3 or 4wire 120208 V electrical supply if specied on the serialrating plate on a separate 30 A circuit fused on both sides of the line Connect to an individual branch circuit Do not have a fuse in the neutral or grounding circuit Do not use an extension cord If codes permit and a separate ground wire is used it is recommended that a qualied electrician determine that the ground path is adequate Electrical Connection To properly install your dryer you must determine the type of electrical connection you will be using and follow the instructions provided for it here This dryer is manufactured ready to install with a 3wire electrical supply connection The neutral ground conductor is permanently connected to the neutral conductor white wire within the dryer If the dryer is installed with a 4wire electrical supply connection the neutral ground conductor must be removed from the external ground connector green screw and secured under the neutral terminal center or white wire of the terminal block When the neutral ground conductor is secured under the neutral terminal center or white wire of the terminal block the dryer cabinet is isolated from the neutral conductor If local codes do not permit the connection of a neutral ground wire to the neutral wire see Optional 3wire connection section A 4wire power supply connection must be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited Grounding through the neutral is prohibited for 1 new branchcircuit installations 2 mobile homes 3 recreational vehicles and 4 areas where local codes prohibit grounding through the neutral conductors If using a power supply cord Use a UL listed power supply cord kit marked for use with clothes dryers The kit should contain A UL listed 30 A power supply cord rated 120240 V minimum with a temperature rating of 140F 60C minimum The cord should be type SRD or SRDT and be at least 4 ft 122 m long The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends A UL listed strain relief If your outlet looks like this Then choose a 4wire power supply cord with ring or spade terminals and UL listed strain relief The 4wire power supply cord at least 4 ft 122 m long must have 4 10gauge solid copper wires and match a 4wire receptacle of NEMA Type 1430 R The ground wire ground conductor may be either green or bare The neutral conductor must be identied by a white cover 4wire receptacle 1430R If your outlet looks like this Then choose a 3wire power supply cord with ring or spade terminals and UL listed strain relief The 3wire power supply cord at least 4 ft 122 m long must have 3 10gauge solid copper wires and match a 3wire receptacle of NEMA Type 1030 R 3wire receptacle 1030R If connecting by direct wire Power supply cable must match power supply 4wire or 3wire and be Flexible armored cable or nonmetallic sheathed copper cable with ground wire covered with exible metallic conduit All currentcarrying wires must be insulated 10gauge solid copper wire do not use aluminum at least 5 ft 152 m long
• Page 7 - English - : ELECTRIC DRYER POWER HOOKUP CANADA ONLY ELECTRICAL REQUIREMENTS Electrical Shock Hazard Plug into a grounded 4 prong outlet Failure to do so can result in death or electrical shock It is your responsibility To contact a qualied electrical installer To be sure that the electrical connection is adequate and in conformance with Canadian Electrical Code C221latest edition and all local codes A copy of above codes standard may be obtained from Canadian Standards Association 178 Rexdale Blvd Toronto ON M9W 1R3 CANADA To supply the required 4wire single phase 120240 V 60 Hz AC only electrical supply on a separate 30 A circuit fused on both sides of the line A timedelay fuse or circuit breaker is recommended Connect to an individual branch circuit This dryer is equipped with a UL listed andor CSA International Certied Power Cord intended to be plugged into a standard 1430R wall receptacleThe cord is 5 ft 152 m long Be sure wall receptacle is within reach of dryers nal location 4wire receptacle 1430R For further information please reference service numbers located in Assistance or Service section of your Quick Reference Guide GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS For a grounded cordconnected dryer This dryer must be grounded In the event of malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This dryer is equipped with a cord having an equipment grounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances WARNING Improper connection of the equipment grounding conductor can result in a risk of electric shock Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded Do not modify the plug provided with the dryer if it will not t the outlet have a proper outlet installed by a qualied electrician GAS DRYER POWER HOOKUP USA AND CANADA ELECTRICAL REQUIREMENTS Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING 120 V 60 Hz AC only 15 A or 20 A fused electrical supply is required A timedelay fuse or circuit breaker is recommended It is also recommended that a separate circuit serving only this dryer be provided GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS For a grounded cordconnected dryer This dryer must be grounded In the event of malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This dryer is equipped with a cord having an equipment grounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances WARNING Improper connection of the equipment grounding conductor can result in a risk of electric shock Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded Do not modify the plug provided with the dryer if it will not t the outlet have a proper outlet installed by a qualied electrician
• Page 8 - English - : GAS SUPPLY REQUIREMENTS WARNING Explosion Hazard Use a new CSA International approved gas supply line Install a shutoff valve Securely tighten all gas connections If connected to propane have a qualified person make sure gas pressure does not exceed 13quot 330 mm water column Examples of a qualified person include licensed heating personnel authorized gas company personnel and authorized service personnel Failure to do so can result in death explosion or fire GAS TYPE Natural Gas This dryer is equipped for use with Natural gas It is certied by UL for use with propane gas with appropriate conversion Your dryer must have the correct burner for the type of gas in your home Burner information is located on the rating plate in the door well of your dryer If this information does not agree with the type of gas available contact your dealer or call the phone numbers referenced in the Assistance or Service section of your Quick Reference Guide Propane Gas Conversion IMPORTANT Conversion must be made by a qualied technician No attempt shall be made to convert the dryer from the gas specied on the modelserial rating plate for use with a different gas without consulting your gas company GAS SUPPLY LINE Option 1 Recommended Method Flexible stainless steel gas connector If local codes permit use a new exible stainless steel gas connector Design Certied by the American Gas Association or CSA International to connect your dryer to the rigid gas supply line Use an elbow and a 38quot are x 38quot NPT adapter tting between the stainless steel gas connector and the dryer gas pipe as needed to prevent kinking Option 2 Alternate Method Approved aluminum or copper tubing Must include 18quot NPT minimum plugged tapping accessible for test gauge connection immediately upstream of the gas connection to the dryer 12quot IPS pipe is recommended 38quot approved aluminum or copper tubing is acceptable for lengths under 20 ft 61 m if local codes and gas supplier permit If you are using Natural gas do not use copper tubing Lengths over 20 ft 61 m should use larger tubing and a different size adapter tting If your dryer has been converted to use LP gas 38quot propane compatible copper tubing can be used If the total length of the supply line is more than 20 ft 61 m use larger pipe NOTE Pipejoint compounds that resist the action of propane gas must be used Do not use TEFLON tape Must include shutoff valve In the USA An individual manual shutoff valve must be installed within six 6 ft 18 m of the dryer in accordance with the National Fuel Gas Code ANSI Z2231 The location should be easy to reach for opening and closing In Canada An individual manual shutoff valve must be installed in accordance with the B1491 Natural Gas and Propane Installation Code It is recommended that an individual manual shutoff valve be installed within six 6 ft 18 m of the dryer The location should be easy to reach for opening and closing E BA D C A 38quot exible gas connector B 38quot pipe to are adapter tting C 18quot NPT minimum plugged tapping D 12quot NPT gas supply line E Gas shutoff valve GAS SUPPLY CONNECTION REQUIREMENTS Use an elbow and a 38quot are x 38quot NPT adapter tting between the exible gas connector and the dryer gas pipe as needed to avoid kinking Use only pipejoint compound Do not use TEFLON tape This dryer must be connected to the gas supply line with a listed exible gas connector that complies with the standard for connectors for gas appliances ANSI Z2124 or CSA 610 BURNER INPUT REQUIREMENTS Elevations above 2000 ft 610 m When installed above 2000 ft 610 m a 4 reduction of the burner Btu rating shown on the modelserial number plate is required for each 1000 ft 305 m increase in elevation Gas supply pressure testing The dryer must be disconnected from the gas supply piping system during pressure testing at pressures greater than 12 psi TEFLON is a registered trademark of Chemours
• Page 9 - English - : DRYER GAS PIPE The gas pipe that comes out through the rear of your dryer has a 38quot male pipe thread 38quot NPT dryer pipe NOTE For a garage installation the gas pipe height must be an additional 18quot 460 mm from the oor INSTALL LEVELING LEGS Prepare dryer for leveling legs Firmly grasp dryer body not console panel and gently lay dryer down on back cardboard corner posts IMPORTANT If laying dryer on its back use the cardboard corner posts the dryer was packed with to avoid damaging the back of the dryer Screw in leveling legs Using a wrench and tape measure screw leveling legs into leg holes until bottom of foot is approximately 1quot 25 mm from bottom of dryer Now stand the dryer on its feet Slide the dryer until it is close to its nal location Leave enough room to connect the exhaust vent For mobile home use Gas dryers must be securely fastened to the oor Mobile home installations require a Mobile Home Installation Holddown Kit For ordering information please reference the Quick Reference Guide MAKE ELECTRICAL CONNECTION USA ONLY ELECTRICAL CONNECTION Power Supply Cord WARNING Fire Hazard Use a new UL listed 30 amp power supply cord Use a UL listed strain relief Disconnect power before making electrical connections Connect neutral wire white or center wire to center terminal silver Ground wire green or bare wire must be connected to green ground connector Connect remaining 2 supply wires to remaining 2 terminals gold Securely tighten all electrical connections Failure to do so can result in death fire or electrical shock Electrical Connection Options 1 Choose electrical connection type Power supply cord 4wire receptacle NEMA Type 1430R Go to Power Supply Cord Connection 3wire direct connection Go to Direct Wire Connection 4wire direct connection Go to Direct Wire Connection Power supply cord 3wire receptacle NEMA Type 1030R Go to Power Supply Cord Connection NOTE If local codes do not permit connection of a cabinetground conductor to neutral wire go to Optional 3wire connection This connection may be used with either a power supply cord or a direct wire connection

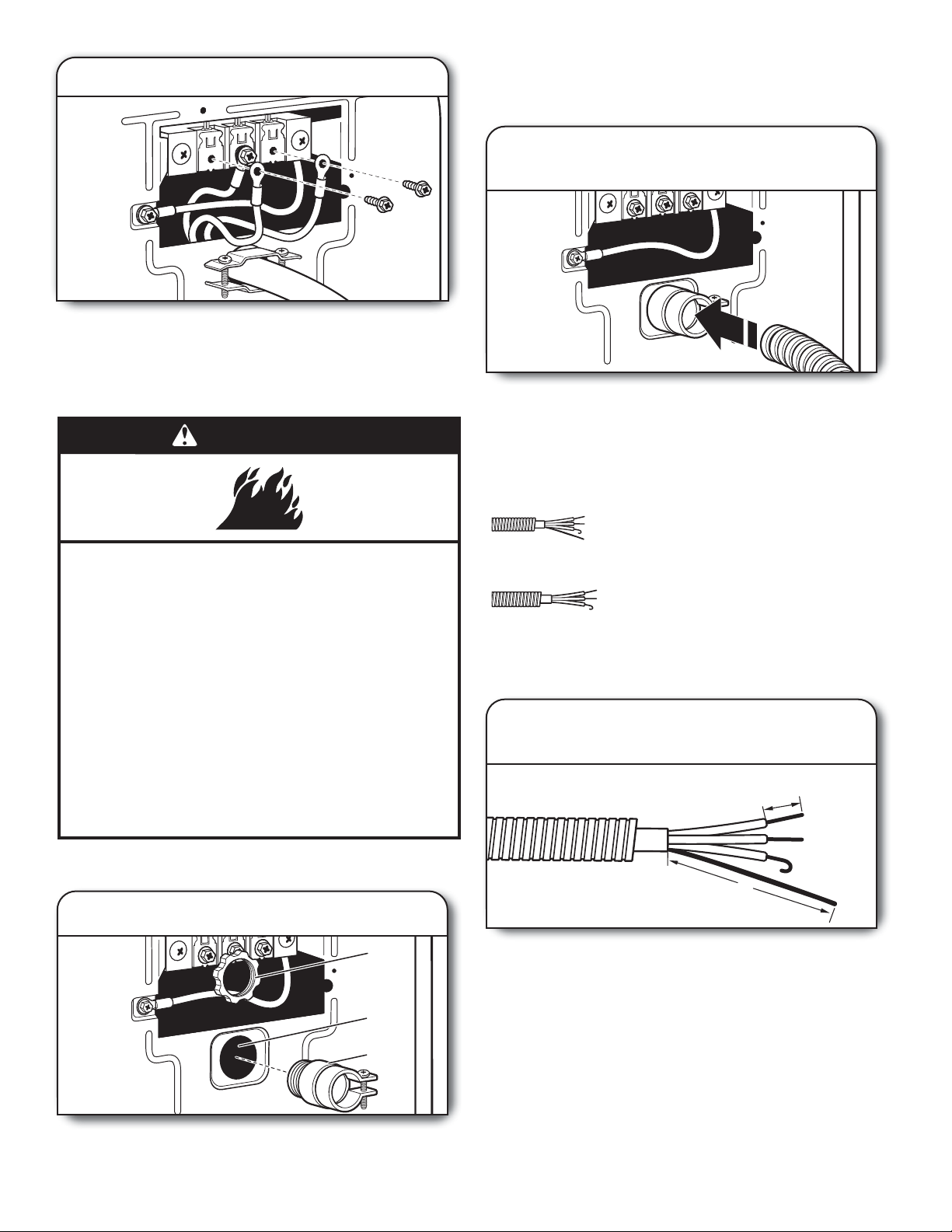

• Page 10 - English - : Remove terminal block cover Remove holddown screw and terminal block cover POWER SUPPLY CORD CONNECTION Power Supply Cord Strain Relief Attach power supply cord strain relief A B C D Remove the screws from a 34quot 19 mm UL Listed strain relief Put the tabs of the two clamp sections C into the hole below the terminal block opening B so that one tab is pointing up A and the other is pointing down D and hold in place Tighten strain relief screws just enough to hold the two clamp sections C together Attach power supply cord strain relief Put power supply cord through the strain relief Be sure that the wire insulation on the power supply cord is inside the strain relief The strain relief should have a tight t with the dryer cabinet and be in a horizontal position Do not further tighten strain relief screws at this point If your outlet looks like this Power supply cord 4wire receptacle NEMA Type 1430R Go to 4Wire Power Supply Cord Connection Power supply cord 3wire receptacle NEMA Type 1030R Go to 3Wire Power Supply Cord Connection 4wire Power Supply Cord Connection IMPORTANT A 4wire connection is required for mobile homes and where local codes do not permit the use of 3wire connections 4wire receptacle NEMA type 1430R 4prong plug Spade terminals with upturned ends Ring terminals B A E Prepare to connect neutral ground wire and neutral wire Remove center terminal block screw B Remove neutral ground wire E from external ground conductor screw A

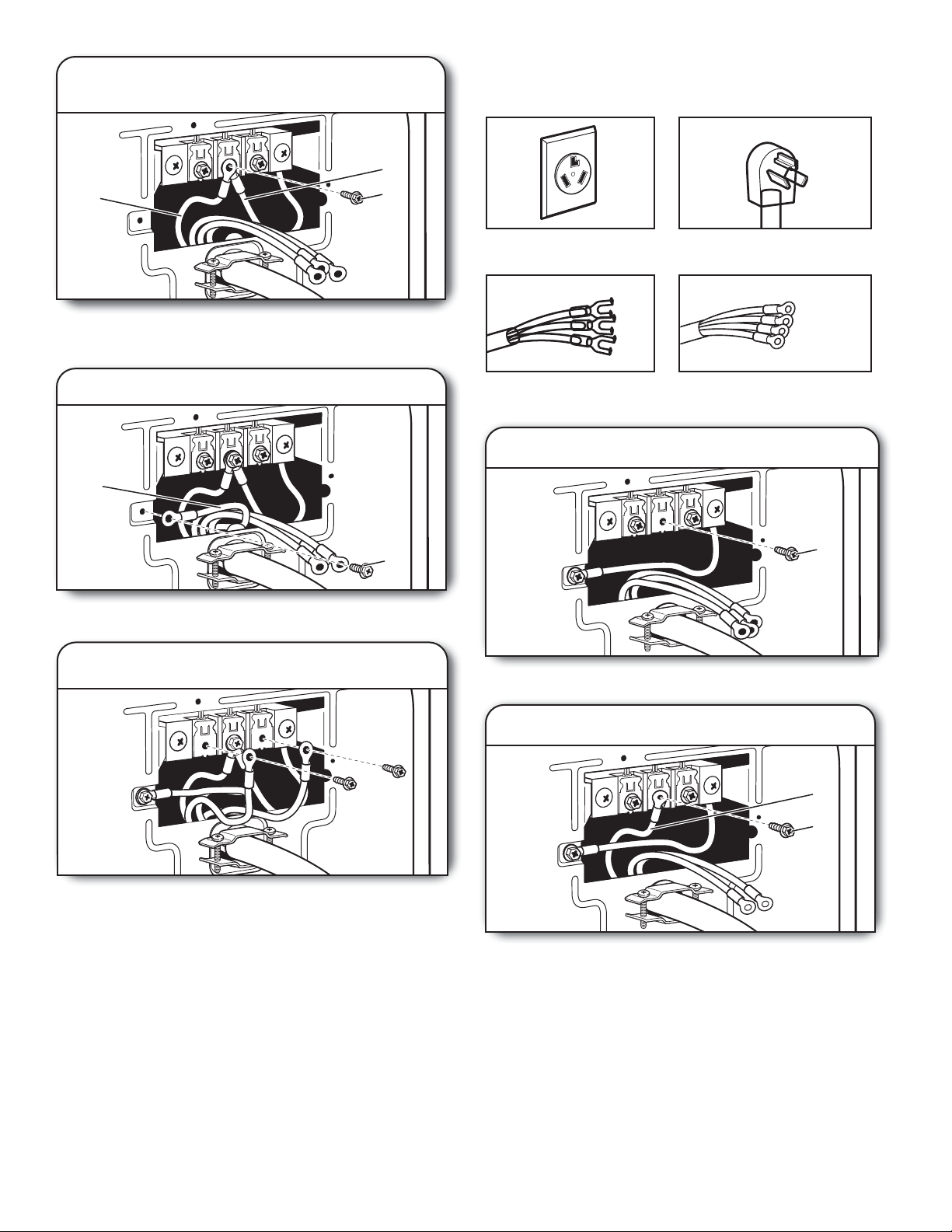

• Page 11 - English - : B E C Connect neutral ground wire and neutral wire Connect neutral ground wire E and neutral wire white C of power supply cord under center terminal block screw B Tighten screw F A 3 Connect ground wire Connect ground wire F green or bare of power supply cord to external ground conductor screw A Tighten screw Connect remaining wires Connect remaining wires to outer terminal block screws Tighten screws Finally reinsert tab of terminal block cover into slot of dryer rear panel Secure cover with holddown screw Now go to Venting Requirements 3wire Power Supply Cord Connection Use where local codes permit connecting cabinetground conductor to neutral wire 3wire receptacle NEMA type 1030R 3prong plug Spade terminals with upturned ends Ring terminals B 1 Remove center screw Remove center terminal block screw B 2 Connect neutral wire B C Connect neutral wire white or center C of power supply cord to center terminal block screw B Tighten screw

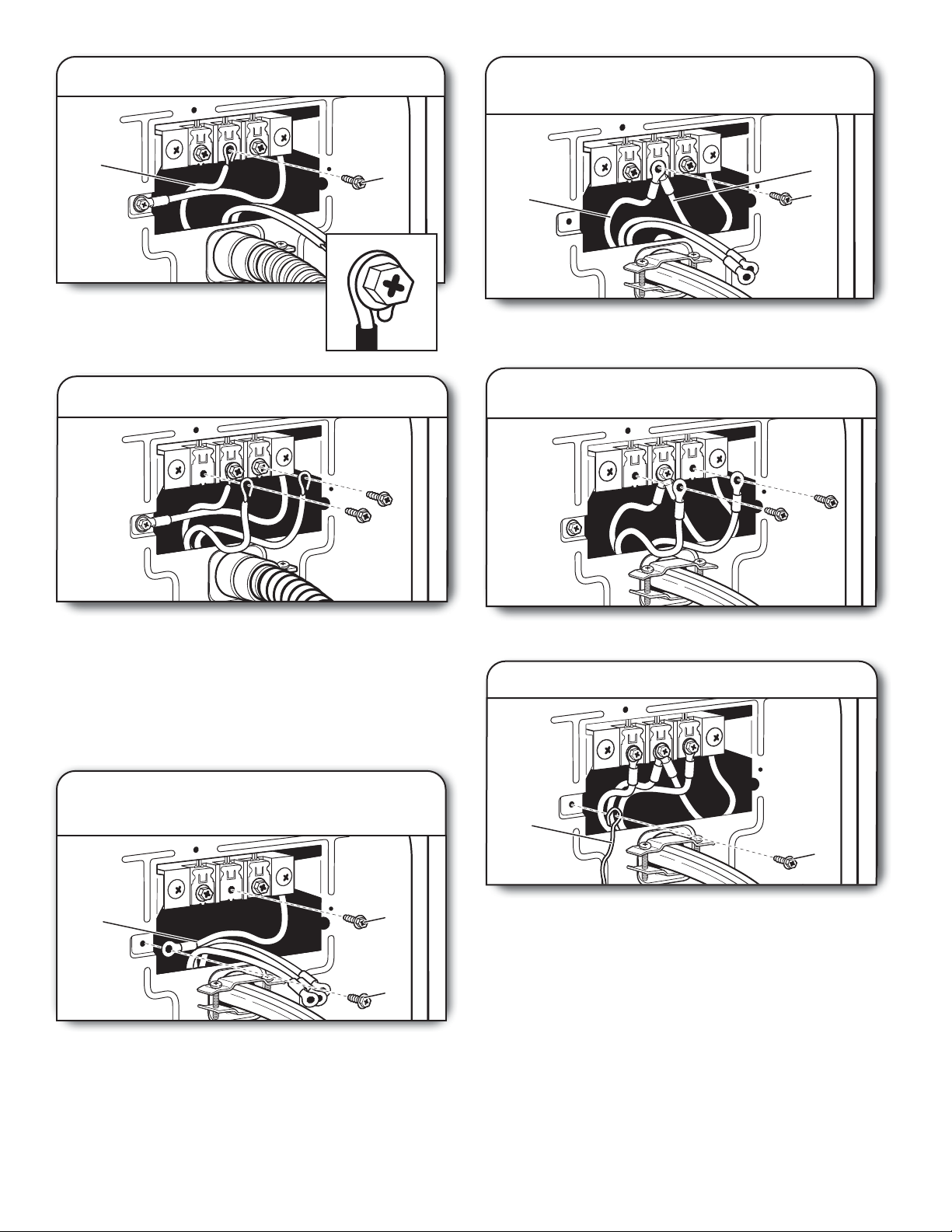

• Page 12 - English - : 3 Connect remaining wires Connect remaining wires to outer terminal block screws Tighten screws Finally reinsert tab of terminal block cover into slot of dryer rear panel Secure cover with holddown screw Now go to Venting Requirements DIRECT WIRE CONNECTION WARNING Fire Hazard Use 10 gauge copper wire Use a UL listed strain relief Disconnect power before making electrical connections Connect neutral wire white or center wire to center terminal silver Ground wire green or bare wire must be connected to green ground connector Connect remaining 2 supply wires to remaining 2 terminals gold Securely tighten all electrical connections Failure to do so can result in death fire or electrical shock Direct Wire Strain Relief C B A 1 Attach direct wire strain relief Unscrew the removable conduit connector A and any screws from a 34quot 19 mm UL Listed strain relief Put the threaded section of the strain relief C through the hole below the terminal block opening B Reaching inside the terminal block opening screw the removable conduit connector A onto the strain relief threads 2 Attach direct wire cable to strain relief Put direct wire cable through the strain relief The strain relief should have a tight t with the dryer cabinet and be in a horizontal position Tighten strain relief screw against the direct wire cable If your wiring looks like this 4wire direct connection Go to 4Wire Direct Connection on this page 3wire direct connection Go to 3Wire Direct Connection on page 11 4wire Direct Wire Connection IMPORTANT A 4wire connection is required for mobile homes and where local codes do not permit 3wire connections 1quot 25 mm 5quot 127 mm 1 Prepare your 4wire cable for direct connection Direct wire cable must have 5 ft 152 m of extra length so dryer may be moved if needed Strip 5quot 127 mm of outer covering from end of cable leaving bare ground wire at 5quot 127 mm Cut 1½quot 38 mm from remaining 3 wires Strip insulation back 1quot 25 mm Shape ends of wires into hooks

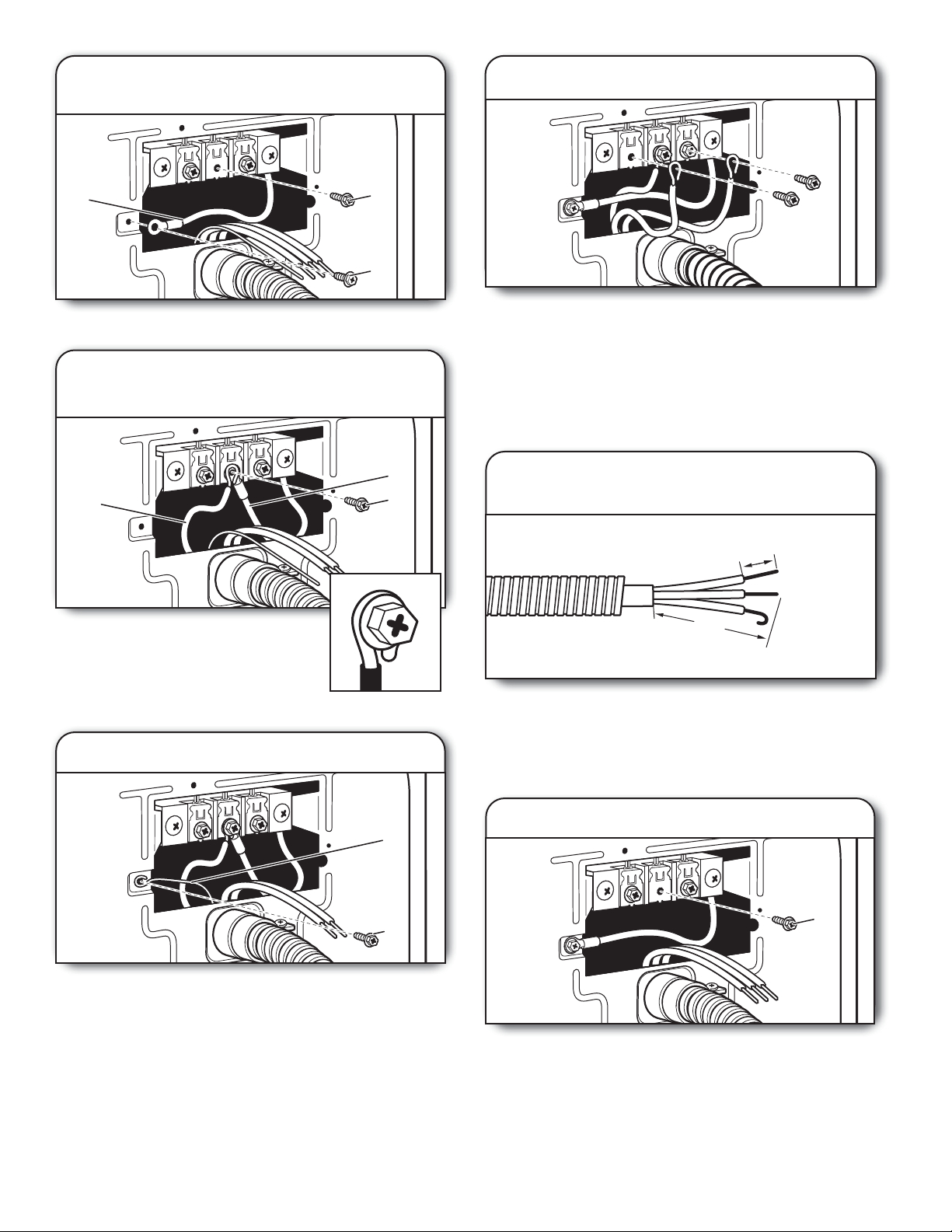

• Page 13 - English - : 2 Prepare to connect neutral ground wire and neutral wire B A E Remove center terminal block screw B Remove neutral ground wire E from external ground conductor screw A B E C 3 Connect neutral ground wire and neutral wire Connect neutral ground wire E and place hooked end hook facing right of neutral wire white or center wire C of direct wire cable under center screw of terminal block B Squeeze hooked ends together and tighten screw 4 Connect ground wire A F Connect ground wire green or bare F of direct wire cable to external ground conductor screw A Tighten screw 5 Connect remaining wires Place hooked ends of remaining direct wire cable wires under outer terminal block screws hooks facing right Squeeze hooked ends together and tighten screws Finally reinsert tab of terminal block cover into slot of dryer rear panel Secure cover with hold down screw Now go to Venting Requirements 3wire Direct Wire Connection Use where local codes permit connecting cabinetground conductor to neutral wire 1quot 25 mm 3½quot 89 mm 1 Prepare your 3wire cable for direct connection Direct wire cable must have 5 ft 152 m of extra length so dryer may be moved if needed Strip 3½quot 89 mm of outer covering from end of cable Strip insulation back 1quot 25 mm If using 3wire cable with ground wire cut bare wire even with outer covering Shape wire ends into hooks B 2 Remove center screw Remove center terminal block screw B
• Page 14 - English - : B C 3 Connect neutral wire Place hooked end of neutral wire white or center C of direct wire cable under center terminal block screw B Squeeze hooked end together Tighten screw Connect remaining wires Place hooked ends of remaining direct wire cable wires under outer terminal block screws hooks facing right Squeeze hooked ends together and tighten screws Finally reinsert tab of terminal block cover into slot of dryer rear panel Secure cover with holddown screw Now go to Venting Requirements Optional 3wire Connection You must verify with a qualied electrician that this grounding method is acceptable before connecting 1 Prepare to connect neutral ground wire and neutral wire B A E Remove center terminal block screw B Remove neutral ground wire E from external ground conductor screw A B E C Connect neutral ground wire and neutral wire Connect neutral ground wire E and neutral wire white or center wire C of power supply cord or cable under center terminal block screw B Tighten screw Connect remaining wires Connect remaining wires to outer terminal block screws Tighten screws A G Connect external ground wire Connect a separate copper ground wire G from the external ground conductor screw A to an adequate ground Finally reinsert tab of terminal block cover into slot of dryer rear panel Secure cover with holddown screw Now go to Venting Requirements
• Page 15 - English - : MAKE GAS CONNECTION USA AND CANADA WARNING Explosion Hazard Use a new CSA International approved gas supply line Install a shutoff valve Securely tighten all gas connections If connected to propane have a qualified person make sure gas pressure does not exceed 13quot 330 mm water column Examples of a qualified person include licensed heating personnel authorized gas company personnel and authorized service personnel Failure to do so can result in death explosion or fire Connect gas supply to dryer A B Nonared male tting Flared male tting Remove red cap from gas pipe Using a wrench to tighten connect gas supply to dryer Use pipejoint compound on threads of all nonared male ttings If exible metal tubing is used be sure there are no kinks NOTE For propane gas connections you must use pipejoint compound resistant to action of propane gas Do not use TEFLON tape B A D C Plan pipe tting connection A 38quot exible gas connector B 38quot dryer pipe C 38quot to 38quot pipe elbow D 38quot pipetoare adapter tting A combination of pipe ttings must be used to connect dryer to existing gas line Recommended connection is shown Your connection may be different according to supply line type size and location Open shutoff valve A B Open valve Closed valve Open shutoff valve in supply line valve is open when handle is parallel to gas pipe Then test all connections by brushing on an approved noncorrosive leakdetection solution Bubbles will show a leak Correct any leaks found
• Page 16 - English - : VENTING VENTING REQUIREMENTS Fire Hazard Use a heavy metal vent Do not use a plastic vent Do not use a metal foil vent Failure to follow these instructions can result in death or fire WARNING To reduce the risk of re this dryer MUST BE EXHAUSTED OUTDOORS IMPORTANT Observe all governing codes and ordinances Dryer exhaust must not be connected into any gas vent chimney wall ceiling attic crawl space or a concealed space of a building Only rigid or exible metal vent shall be used for exhausting 4quot 102 mm 4quot 102 mm heavy metal exhaust vent Only a 4quot 102 mm heavy metal exhaust vent and clamps may be used Do not use plastic or metal foil vent Rigid metal vent Recommended for best drying performance and to avoid crushing and kinking Flexible metal vent Acceptable only if accessible to clean Must be fully extended and supported in nal dryer location Remove excess to avoid sagging and kinking that may result in reduced airow and poor performance Do not install in enclosed walls ceilings or oors The total length should not exceed 7 ft 24 m The length of exible metal vent used must be included in the overall vent system design as shown in the Vent System Charts NOTE If using an existing vent system clean lint from entire length of the system and make sure exhaust hood is not plugged with lint Replace plastic or metal foil vents with rigid metal or exible metal vents Review Vent System Chart and if necessary modify existing vent system to achieve best drying performance Exhaust hoods Must be at least 12quot 305 mm from ground or any object that may obstruct exhaust such as owers rocks bushes or snow Recommended Styles Louvered Hood Angled Hood Box Hood Acceptable Style Elbows 45 elbows provide better airow than 90 elbows Recommended Styles Good Better Clamps Use clamps to seal all joints Exhaust vent must not be connected or secured with screws or other fastening devices that extend into interior of duct and catch lint Do not use duct tape Vent products can be purchased from your dealer For more information see Assistance or Service section in your Quick Reference Guide

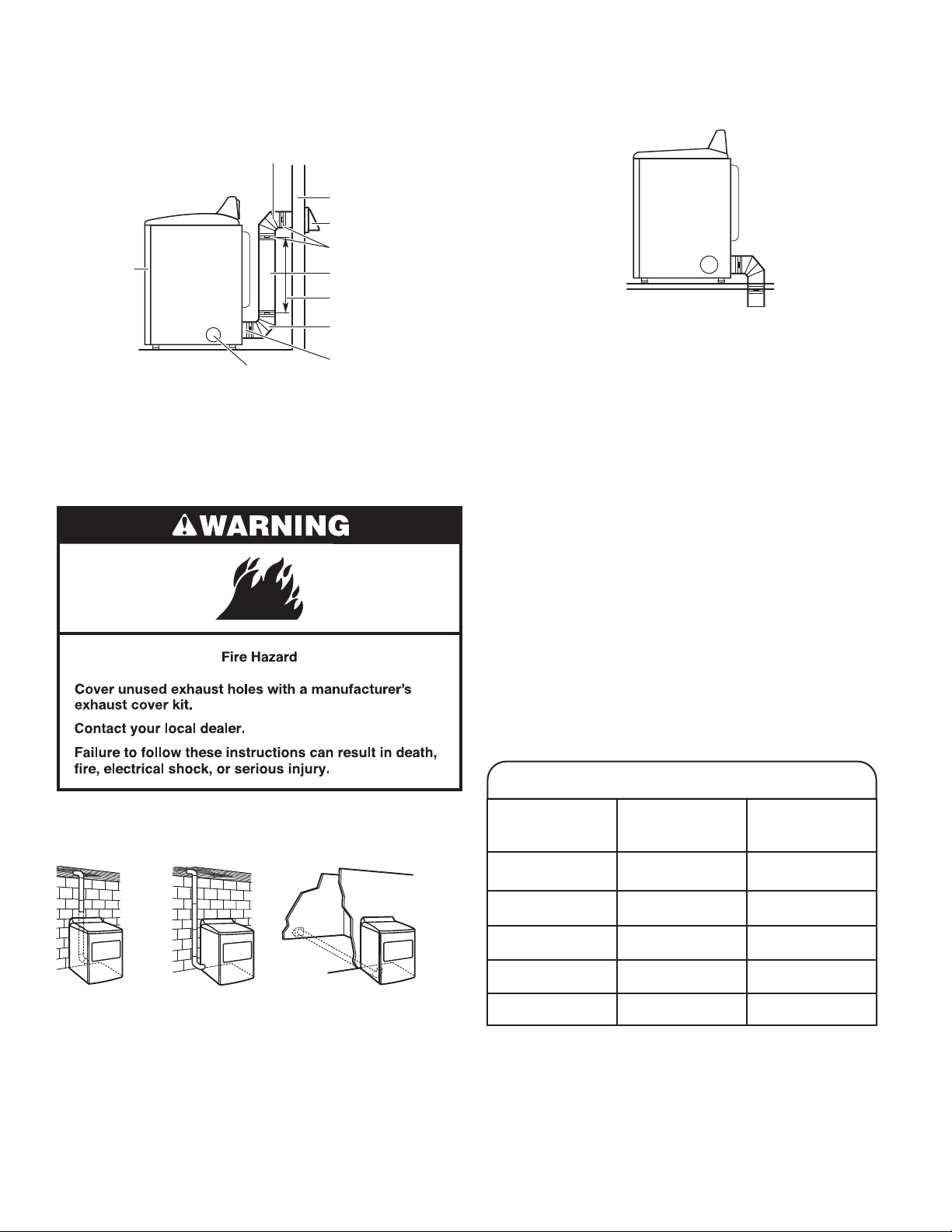

• Page 17 - English - : PLAN VENT SYSTEM Recommended exhaust installations Typical installations vent the dryer from the rear of the dryer Other installations are possible B B C D E F G H I A A Dryer B Elbow C Wall D Exhaust hood E Clamps F Rigid metal or exible metal vent G Vent length necessary to connect elbows H Exhaust outlet I Optional side exhaust outlet Optional exhaust installations If you prefer dryer may be converted to exhaust through the bottom and sides You must contact your local dealer to have dryer converted A B C A Standard rear offset exhaust installation B Left or right side exhaust installation C Bottom exhaust installation Special provisions for mobile homes Exhaust vent must be securely fastened to a noncombustible portion of mobile home and must not terminate beneath the mobile home Terminate exhaust vent outside Mobile Home Exhaust installation Determine vent path Select route that will provide straightest and most direct path outdoors Plan installation to use fewest number of elbows and turns When using elbows or making turns allow as much room as possible Bend vent gradually to avoid kinking Use as few 90 turns as possible Determine vent length and elbows needed for best drying performance Use following Vent System Chart to determine type of vent material and hood combinations acceptable to use NOTE Do not use vent runs longer than those specied in Vent System Chart Exhaust systems longer than those specied will Shorten life of dryer Reduce performance resulting in longer drying times and increased energy usage The Vent System Charts provide venting requirements that will help achieve best drying performance Vent System Chart Number of 90 turns or elbows Type of vent Angled hoods Rigid metal 64 ft 20 m Rigid metal 54 ft 165 m Rigid metal 44 ft 134 m Rigid metal 35 ft 107 m Rigid metal 27 ft 82 m NOTE Bottom exhaust installations have a 90 turn inside the dryer To determine maximum exhaust length add one 90 turn to the charts
• Page 18 - English - : INSTALL VENT SYSTEM 12quot min 305 mm 12quot min 305 mm Install exhaust hood Install exhaust hood and use caulking compound to seal exterior wall opening around exhaust hood Connect vent to exhaust hood Vent must t over the exhaust hood Secure vent to exhaust hood with 4quot 102 mm clamp Run vent to dryer location using straightest path possible Avoid 90 turns Use clamps to seal all joints Do not use duct tape screws or other fastening devices that extend into interior of vent to secure vent because they can catch lint CONNECT INLET HOSES For nonsteam models skip to Connect Vent The dryer must be connected to the cold water faucet using the new inlet hoses Do not use old hoses 1 Turn cold water off remove and replace rubber washer Turn cold water faucet off and remove washer inlet hose Remove old rubber washer from inlet hose and replace with new rubber washer 2 Attach short hose and Y connector Attach 2 ft 06 m inlet hose to cold water faucet Screw on coupling by hand until it is seated on faucet Then attach Y connector to male end of the 2 ft 06 m inlet hose Screw on coupling by hand until it is seated on connector 3 Tighten couplings Using pliers tighten the couplings with additional twothirds turn NOTE Do not overtighten Damage to the coupling can result 4 Attach long hose to Y connector and tighten couplings Attach dryer 5 ft 15 m inlet hose ends to the Y connector Attach washer cold inlet hose to other side of Y connector Screw on coupling by hand until it is seated on connector Using pliers tighten the couplings an additional twothirds turn NOTE Do not overtighten Damage to the coupling can result
• Page 19 - English - : 5 Attach long hose to dryer ll valve and tighten coupling Gas Valve Fill Valve Attach other end of long hose to ll valve at bottom of dryer back panel Screw on coupling by hand until it is seated on ll valve connector Using pliers tighten the couplings an additional twothirds turn NOTE Do not overtighten Damage to the coupling can result Turn on cold water faucet Check that the water faucet is turned on Check for leaks Check for leaks around Y connector faucets and hoses CONNECT VENT 1 Connect vent to exhaust outlet Using a 4quot 102 mm clamp connect vent to exhaust outlet in dryer If connecting to existing vent make sure vent is clean Dryer vent must t over dryer exhaust outlet and inside exhaust hood Check that vent is secured to exhaust hood with a 4quot 102 mm clamp Move dryer to nal location Move dryer to nal location Avoid crushing or kinking vent

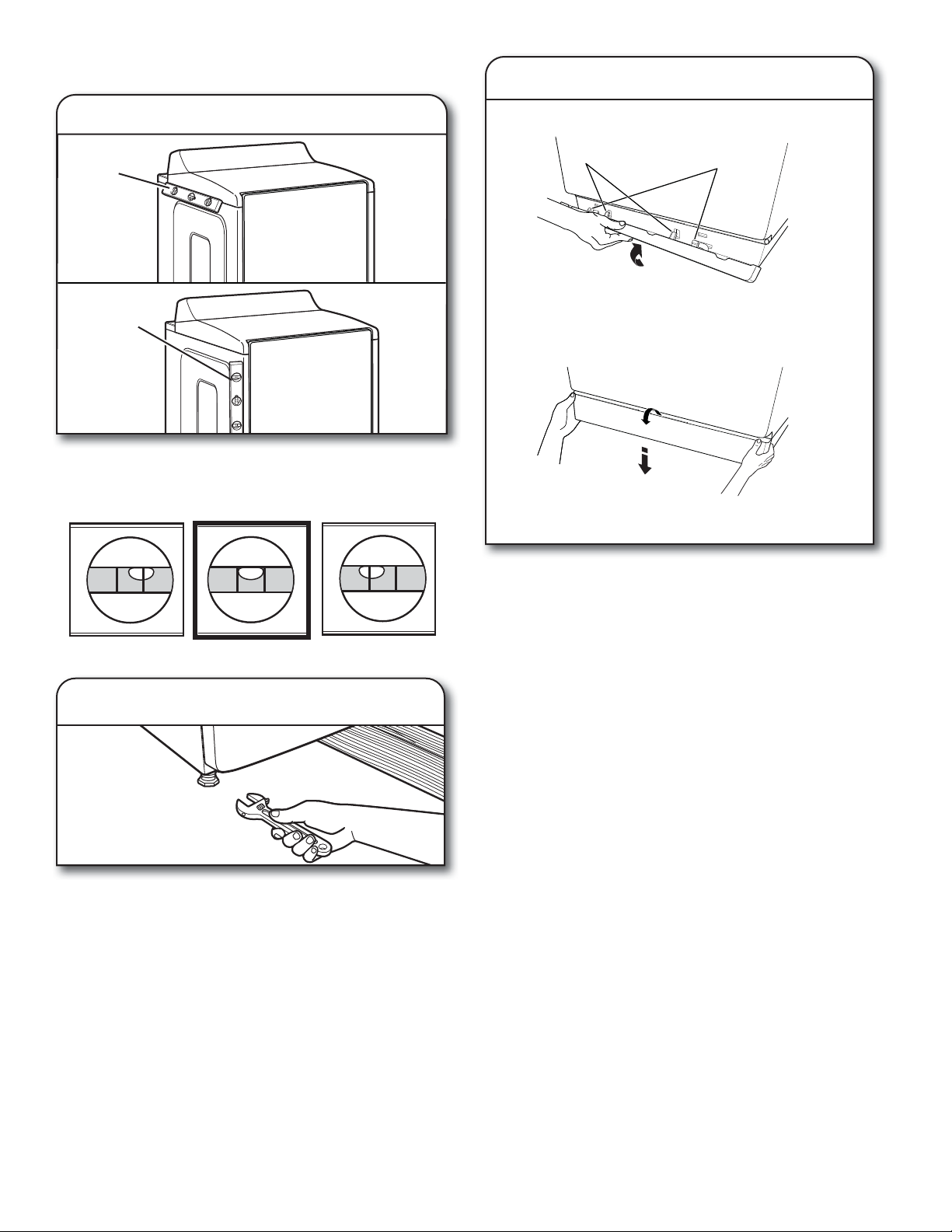

• Page 20 - English - : LEVEL DRYER Level Dryer Place level here Place level here Check levelness of dryer from side to side Repeat from front to back NOTE The dryer must be level for the moisture sensing system to operate correctly Not Level LEVEL Not Level Adjust leveling legs If dryer is not level prop up using a wood block Use wrench to adjust legs up or down and check again for levelness Locating Pins Locking Features Base trim on some models Place the base trim to bottom of dryer and match the locating pins with the holes Press the base trim rmly upwards until it snaps into place To Install To Remove On each corner 1 Push down on top of base trim 2 Rotate away from dryer and remove
• Page 21 - English - : COMPLETE INSTALLATION CHECKLIST K Check that all parts are now installed If there is an extra part go back through steps to see what was skipped K Check that you have all of your tools K Dispose ofrecycle all packaging materials K Check dryers nal location Be sure vent is not crushed or kinked K Check that dryer is level See Level Dryer K Remove lm on console and any tape remaining on dryer K Wipe dryer drum interior thoroughly with a damp cloth to remove any dust K Read Dryer Use in your Quick Reference Guide Electric Models K For power supply cord installation plug into a grounded outlet For direct wire installation turn on Power Gas Models K Check that gas supply is on K Check for leaks Steam Models Only K Be sure the water faucets are on K Check for leaks around Y connector faucet and hoses K If you live in a hard water area use of a water softener is recommended to control the buildup of scale through the water system in the dryer Over time the buildup of lime scale may clog different parts of the water system which will reduce product performance Excessive scale buildup may lead to the need for certain part replacement or repair All Models K Select a Timed Dry heated cycle and start dryer Do not select Air Only Temperature setting If dryer will not start check the following Controls are set in a running or ON position Start button has been pushed rmly Dryer is plugged into an outlet andor electrical supply is connected Household fuse is intact and tight or circuit breaker has not tripped Dryer door is closed This dryer automatically runs an installation diagnostic routine at the start of its rst cycle If your dryer heater is not turning on then you might have power supply problem in your house You will receive L2 code for this problem See Troubleshooting If your Airow screen reads Check Vent your dryer vent may be crushed or blocked See Troubleshooting NOTE You may notice an odor when dryer is rst heated This odor is common when heating element is rst used The odor will go away DRYER DOOR ON SOME MODELS For normal dryer use it is not suggested to remove the dryer door However if removal is necessary make sure the dryer is off and cool Then follow these instructions The dryer door is heavy To Remove 1 Open dryer door all the way 2 Use at head screw drive to open hinge latch 3 Pinch the hinge latch between two ngers and pull forward Repeat on other side of dryer door A 4 Close the dryer door as far as it will shut 5 Lift the dryer door while holding both sides Continue to push the dryer door closed and pull it away from the dryer door frame To Replace 1 Insert both hanger arms into the front panel 2 Open the dryer door You should hear a click as the door is set into place 3 Move the hinge levers back to the locked position Check that the door is free to open and close If it is not repeat the removal and installation procedures A Hinge latch
• Page 22 - English - : DOOR REVERSAL ON SOME MODELS The following instructions are applicable for models with side opening door Tools Needed Flatblade screwdriver Plastic putty knife Min 8quot long TORX T20 screwdriver 2 Phillips screwdriver You can change your door swing from a rightside opening to a leftside opening if desired 1 Place a towel or soft cloth on top of dryer or work space to avoid damaging the surface Remove door from dryer cabinet 1 Open the dryer door 2 Using a T20 screwdriver remove screws A and then B screws from each of the two hinges that attach dryer door to front panel of dryer Set the hinge screws off to the side for reinstalling the door A B A B 3 Remove the dryer door by lifting upward and out to lift the door off the cabinet Lay the door on a at covered surfacewith the inside of the door facing up 4 Remove the 2 plastic plugs A located outside the dryer door opening A A A A 5 Install 2 plastic plugs A into screw holes where the hinges were removed in Step 4 Reverse the strike 1 Remove the door strike A from the dryer door opening 2 Remove the cosmetic screw B opposite the door strike A A B A Door strike B Cosmetic screw 3 Reinstall the door strike and cosmetic screw on the opposite side of dryer door opening from where they were removed NOTE Door strike and plugs must be on the same side of the dryer door opening
• Page 23 - English - : Remove the door assembly 1 Lay the door on a at covered surface with the inside of the door facing up Remove the 3 plugs with a plastic putty knife There is a cut out to stick the putty knife under to pop out 2 Remove the 10 screws from the dryer door and setscrews off to the side 3 Remove the inner door by using a plastic putty knife to separate the sides and bottom of the dryer door and trim There are 2 snaps on left right and bottom of door Insert the putty knife next to the snaps 4 When you have the door separated from the frame use a putty knife to lift up in the center tab and then pull door toward you and out
• Page 24 - English - : 5 Remove the door strike plug with a athead screwdriver Remove door strike by pinching the clips from the inside door panel and then rotate and push out the front Insert door strike on the other side of dryer door by pushing in and then add the door strike plug 6 Remove the door hinges and set off to the side 7 Remove the 3 screws down the left and right sides of the door to remove the outer trim pieces 8 Lift door up and rotate trim pieces to the opposite side from which they were removed Then screw trim pieces back in 9 Add the hinges to the right side of the door and then ip the hinge labeled 1 to the bottom of the right side and the hinge labeled 2 to the top of the right side of the door
• Page 25 - English - : 10 Add inside door panel back into the dryer door by sliding the top into the top trim piece and then lower door down Then press down on the corners to snap into place with the hinges lined up with the hinge holes 11 Install 6 hinge screws and the other 4 screws 12 Install hinge covers and plugs Hinge covers will go inside ways to then rotate 90 and snap into place 13 Hang door by placing set pin in dryer cabinet hole and slide door down Using a T20 screwdriver install A screws and then B screws Tighten all hinge screws A B A B
• Page 26 - English - : DRYER CARE CLEANING THE DRYER LOCATION Keep dryer area clear and free from items that would block the airow for proper dryer operation This includes clearing piles of laundry in front of the dryer Explosion Hazard Keep flammable materials and vapors such as gasoline away from dryer Place dryer at least 18 inches 46 cm above the floor for a garage installation Failure to do so can result in death explosion or fire CLEANING THE DRYER INTERIOR To clean dryer drum 1 Use a mild hand dish detergent mixed at a low concentration with very warm water and rub with a soft cloth 2 Rinse well with a wet sponge or towel 3 Tumble a load of clean clothes or towels to dry drum OR Use a microber cloth and hot water in a spray bottle to clean the drum and a second microber towel to dry NOTE Garments that contain unstable dyes such as denim blue jeans or brightly colored cotton items may discolor the rear of the dryer interior These stains are not harmful to your dryer and will not stain future loads of clothes Dry unstable dye items inside out to avoid transfer of dye REMOVING ACCUMULATED LINT From Inside the Dryer Cabinet Lint should be removed every 2 years or more often depending on dryer usage Cleaning should be done by a qualied appliance servicer or ventilation system cleaner From the Exhaust Vent Lint should be removed every 2 years or more often depending on dryer usage CLEANING THE LINT SCREEN Every load cleaning The lint screen is located in the door opening of the dryer A screen blocked by lint can increase drying time To clean Style 1 1 Pull the lint screen straight up and out Press tab down on front and open lint screen Roll lint off the screen with your ngers Do not rinse or wash screen to remove lint Wet lint is hard to remove Style 2 1 Pull the lint screen out of its holder Roll lint off the screen with your ngers Do not rinse or wash screen to remove lint Wet lint is hard to remove 2 Push the lint screen rmly back into place IMPORTANT Ó Do not run the dryer with the lint screen loose damaged blocked or missing Doing so can cause overheating and damage to both the dryer and fabrics Ó If lint falls off the screen into the dryer during removal check the exhaust hood and remove the lint See Venting Requirements in the Installation Instructions Ó Clean space where lint screen is located as needed Using a vacuum gently remove any lint that has accumulated outside of the lint screen Asneeded cleaning Laundry detergent and fabric softener residue can build up on the lint screen This buildup can cause longer drying times for your clothes or cause the dryer to stop before your load is completely dry The screen is probably clogged if lint falls off while the screen is in the dryer Clean the lint screen with a nylon brush every 6 months or more frequently if it becomes clogged due to a residue buildup To wash 1 Roll lint off the screen with your ngers 2 Wet both sides of lint screen with hot water 3 Wet a nylon brush with hot water and liquid detergent Scrub lint screen with the brush to remove residue buildup Style 1 Style 2 4 Rinse screen with hot water 5 Thoroughly dry lint screen with a clean towel Reinstall screen in dryer
• Page 27 - English - : CHANGING THE DRUM LIGHT ON SOME MODELS 1 Unplug dryer or disconnect power 2 Open the dryer door Locate the light bulb cover on the back wall of the dryer Using a 14quot 6 mm nut driver or socket wrench remove the screw located in the lower righthand corner of the cover Remove the cover 3 Turn bulb counterclockwise Replace the bulb with a 10 W appliance bulb only Replace the cover and secure with the screw 4 Plug into a grounded outlet or reconnect power CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW Fire Hazard Use a heavy metal vent Do not use a plastic vent Do not use a metal foil vent Failure to follow these instructions can result in death or fire GOOD AIR FLOW Along with heat dryers require good air ow to efciently dry laundry Proper venting will reduce your drying times and improve your energy savings See Installation Instructions The venting system attached to the dryer plays a big role in good air ow Blocked or crushed vents as well as improper venting installation will reduce air ow and dryer performance GOOD AIR FLOW CONTD Service calls caused by improper venting are not covered by the warranty and will be paid by the customer regardless of who installed the dryer To clean or repair venting contact a venting specialist MAINTAIN GOOD AIR FLOW BY Ó Cleaning your lint screen before each load Ó Replace plastic or foil vent material with 4quot 102 mm diameter heavy rigid vent material Ó Use the shortest length of vent possible Ó Use no more than four 90 elbows in a vent system each bend and curve reduces air ow Good Better Ó Remove lint and debris from the exhaust hood Ó Remove lint from the entire length of the vent system at least every 2 years When cleaning is complete be sure to follow the Installation Instructions supplied with your dryer for nal product check Ó Clear away items from the front of the dryer
• Page 28 - English - : NONUSE STORAGE AND MOVING CARE Steam models only Install and store your dryer where it will not freeze Because some water may stay in the hose freezing can damage your dryer If storing or moving your dryer during freezing weather winterize it NonUse or Storage Care If you will be on vacation or not using your dryer for an extended period of time you should 1 Unplug dryer or disconnect power 2 Clean lint screen See Cleaning the Lint Screen 3 Turn off the water supply to the dryer This helps to avoid unintended ooding due to a water pressure surge while you are away Moving Care For power supply cordconnected dryers 1 Unplug the power supply cord 2 Gas models only Close shutoff valve in gas supply line 3 Gas models only Disconnect gas supply line pipe and remove ttings attached to dryer pipe 4 Gas models only Cap the open fuel supply line 5 Steam models only Shut off water faucet 6 Steam models only Disconnect the water inlet hose from faucet then drain the hose Transport hose separately 7 Make sure leveling legs are secure in dryer base 8 Use tape to secure dryer door 9 On models with base trim Remove base trim before moving dryer See quotBase trimquot WARNING Electrical Shock Hazard Disconnect power before servicing Replace all parts and panels before operating Failure to do so can result in death or electrical shock For directwired dryers 1 Disconnect power 2 Disconnect wiring from dryer and secure wire ends 3 Steam models only Shut off water faucet 4 Steam models only Disconnect the water inlet hose from faucet then drain the hose Transport hose separately 5 Make sure leveling legs are secure in dryer base 6 Use tape to secure dryer door 7 On models with base trim Remove base trim before moving dryer See quotBase trimquot Reinstalling the Dryer Follow the Installation Instructions to locate level and connect the dryer SPECIAL INSTRUCTIONS FOR STEAM MODELS Water Inlet Hose Replace inlet hose and hose screen after 5 years of use to reduce the risk of hose failure Periodically inspect and replace inlet hose if bulges kinks cuts wear or leaks are found When replacing your inlet hose record the date of replacement To Winterize the Dryer 1 Unplug dryer or disconnect power 2 Shut off water faucet 3 Disconnect water inlet hose from faucet and drain To Use the Dryer Again 1 Flush water pipes Reconnect water inlet hose to faucet Turn on water faucet 2 Plug in dryer or reconnect power as described in the Installation Instructions
• Page 29: NOTES W11268643B 2020 All rights reserved Tous droits réservés Todos los derechos reservados 0320
