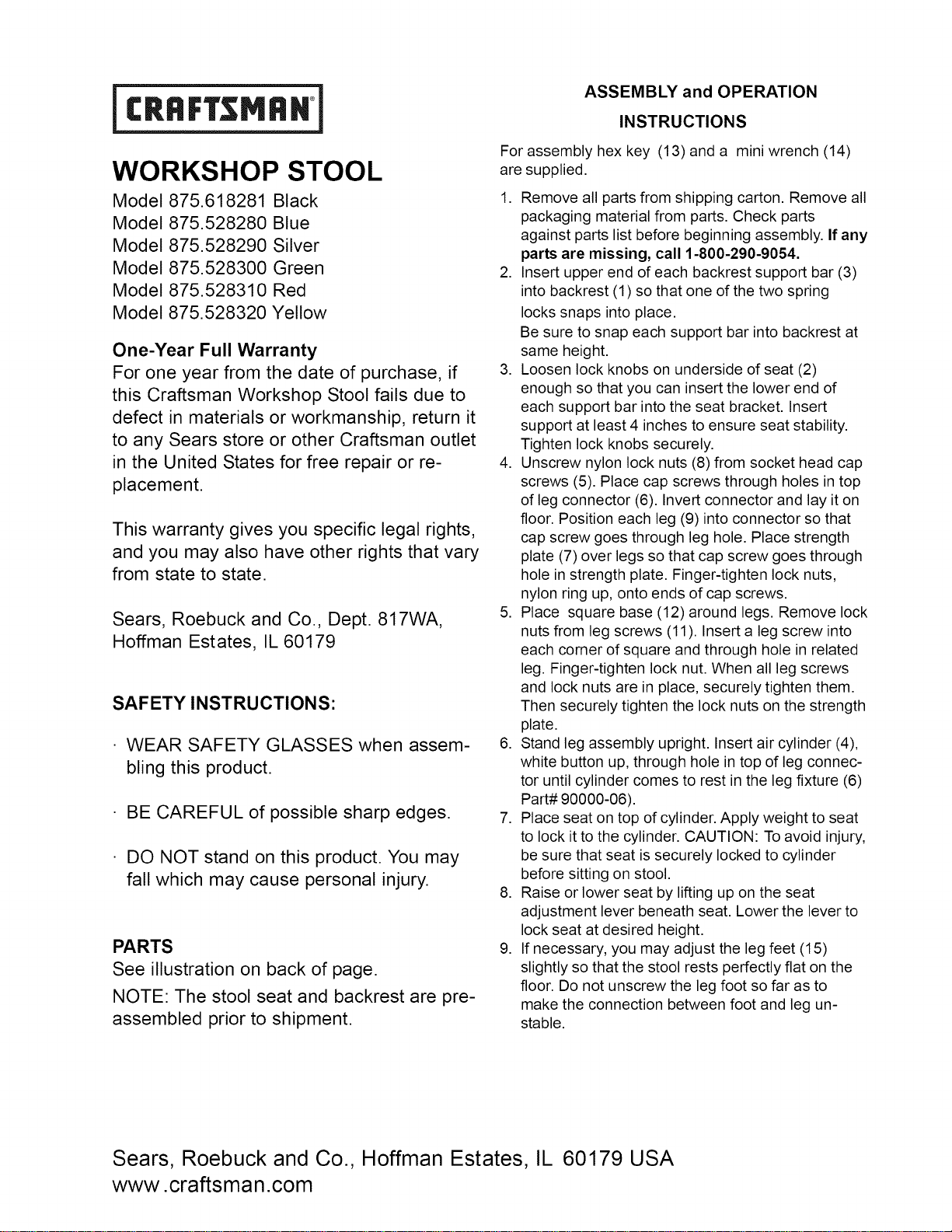

WORKSHOP STOOL
Model 875.618281 Black
Model 875.528280 Blue
Model 875.528290 Silver
Model 875.528300 Green
Model 875.528310 Red
Model 875.528320 Yellow
One-Year Full Warranty
For one year from the date of purchase, if
this Craftsman Workshop Stool fails due to
defect in materials or workmanship, return it
to any Sears store or other Craftsman outlet
in the United States for free repair or re-
placement.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
SAFETY INSTRUCTIONS:
WEAR SAFETY GLASSES when assem-
bling this product.
BE CAREFUL of possible sharp edges.
DO NOT stand on this product. You may
fall which may cause personal injury.
PARTS

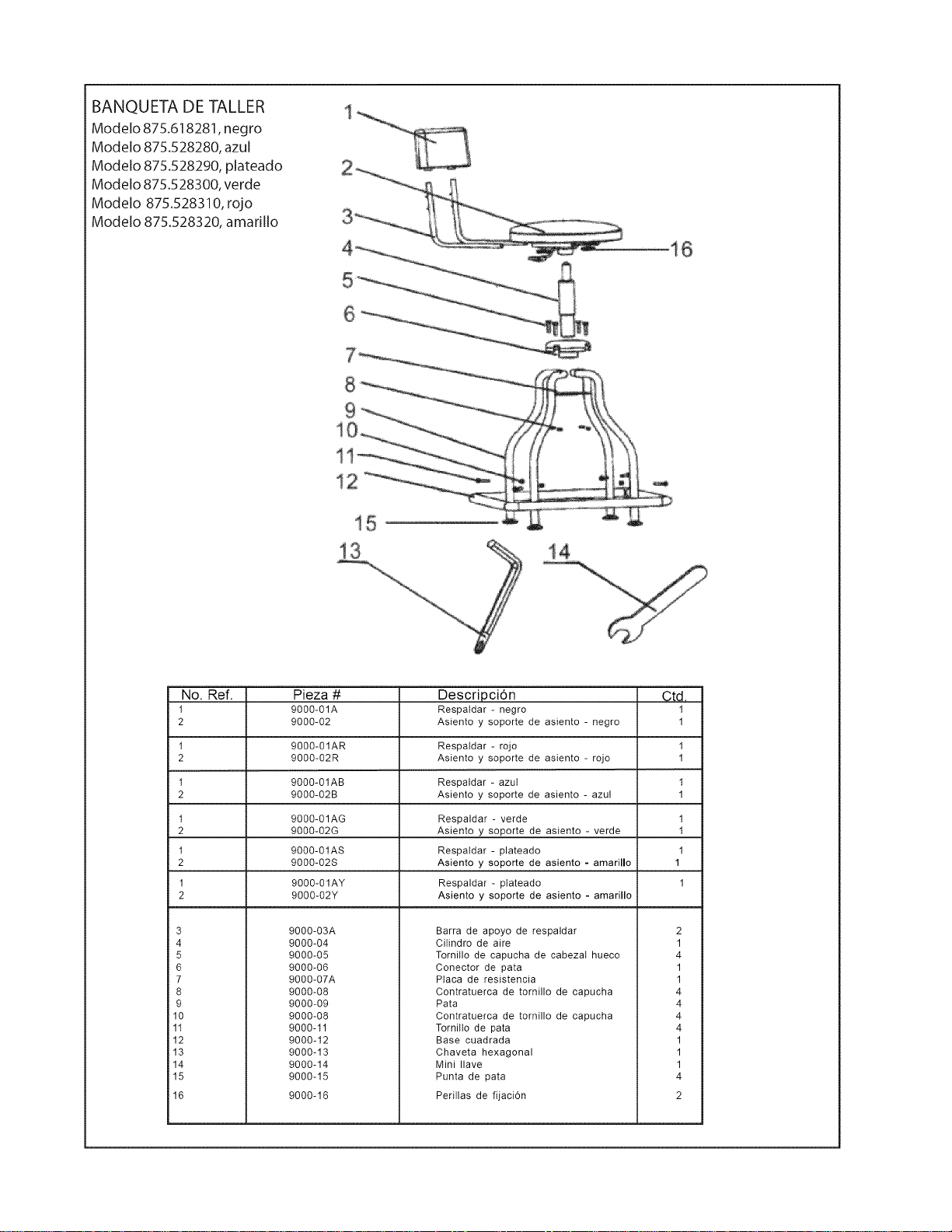

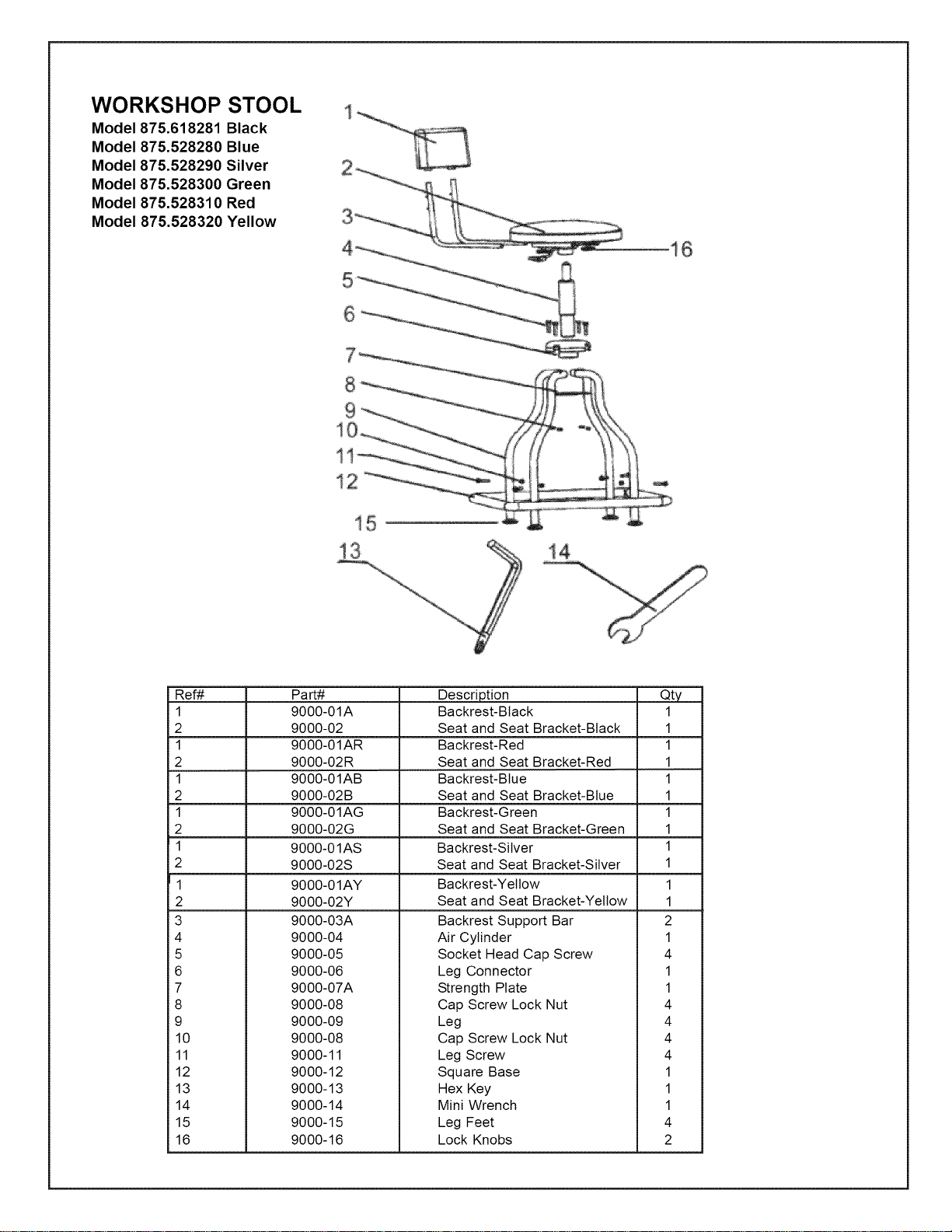

See illustration on back of page.
NOTE: The stool seat and backrest are pre-
assembled prior to shipment.
ASSEMBLY and OPERATION
INSTRUCTIONS
For assembly hex key (13) and a mini wrench (14)
are supplied.
1. Remove all parts from shipping carton. Remove all
packaging material from parts. Check parts
against parts list before beginning assembly. If any
parts are missing, call 1-800-290-9054.
2. Insert upper end of each backrest support bar (3)
into backrest (1) so that one of the two spring
locks snaps into place.
Be sure to snap each support bar into backrest at
same height.
3. Loosen lock knobs on underside of seat (2)
enough so that you can insert the lower end of
each support bar into the seat bracket. Insert
support at least 4 inches to ensure seat stability.
Tighten lock knobs securely.
4. Unscrew nylon lock nuts (8) from socket head cap
screws (5). Place cap screws through holes in top
of leg connector (6). Invert connector and lay it on
floor. Position each leg (9) into connector so that
cap screw goes through leg hole. Place strength
plate (7) over legs so that cap screw goes through
hole in strength plate. Finger-tighten lock nuts,
nylon ring up, onto ends of cap screws.
5. Place square base (12) around legs. Remove lock
nuts from leg screws (11). Insert a leg screw into
each corner of square and through hole in related
leg. Finger-tighten lock nut. When all leg screws
and lock nuts are in place, securely tighten them.
Then securely tighten the lock nuts on the strength
plate.
6. Stand leg assembly upright. Insert air cylinder (4),
white button up, through hole in top of leg connec-
tor until cylinder comes to rest in the leg fixture (6)
Part# 90000-06).
7. Place seat on top of cylinder. Apply weight to seat
to lock it to the cylinder. CAUTION: To avoid injury,
be sure that seat is securely locked to cylinder
before sitting on stool.
8. Raise or lower seat by lifting up on the seat
adjustment lever beneath seat. Lower the lever to
lock seat at desired height.
9. If necessary, you may adjust the leg feet (15)
slightly so that the stool rests perfectly flat on the
floor. Do not unscrew the leg foot so far as to
make the connection between foot and leg un-
stable.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
www.craftsman.com
