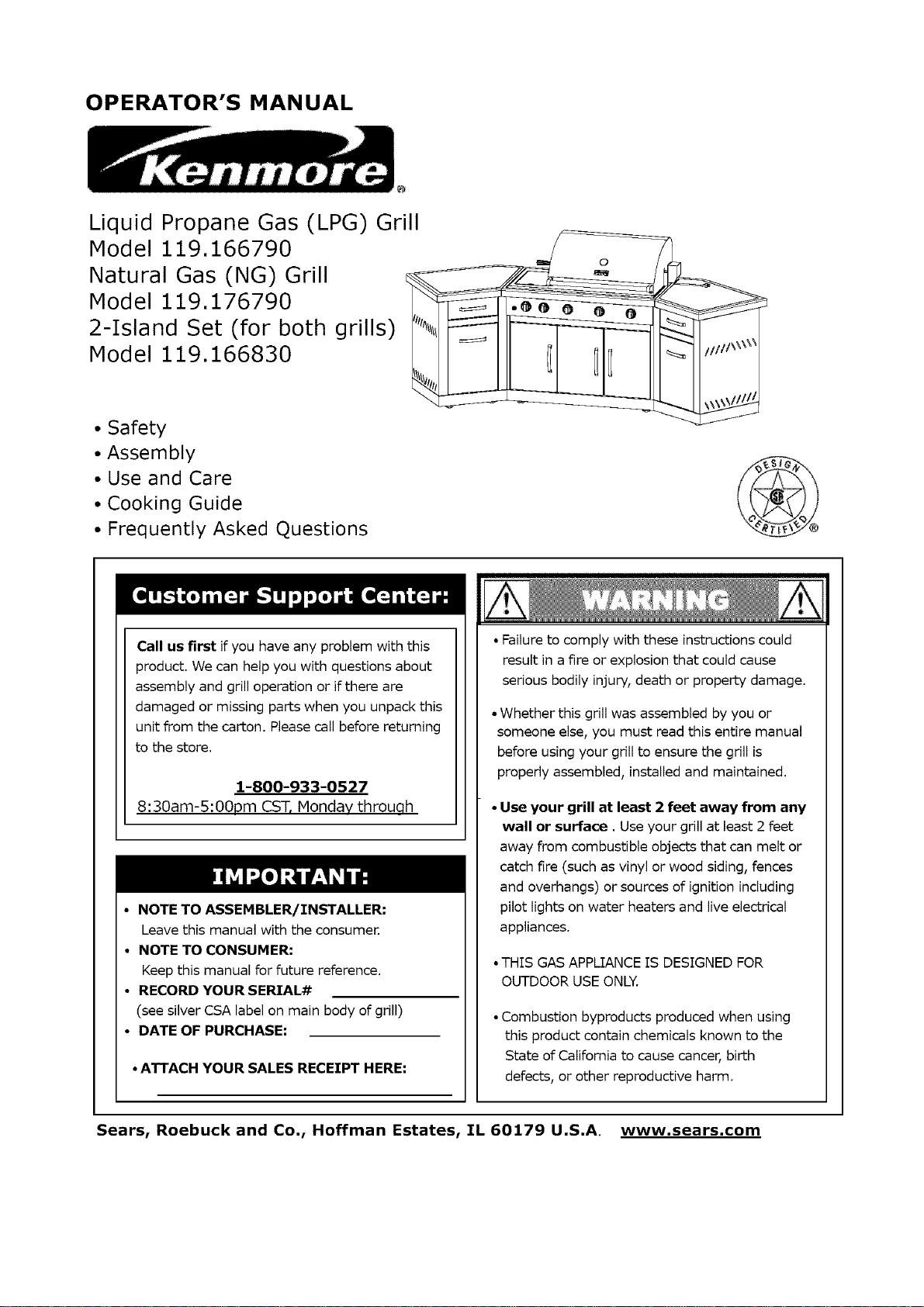

OPERATOR'S MANUAL
Liquid Propane Gas (LPG) Grill
Model 119.166790
Natural Gas (NG) Grill
Model 119.176790
2-Island Set (for both grills)
Model 119.166830
• Safety
• Assembly
• Use and Care
• Cooking Guide
• Frequently Asked Questions
Call us first if you have any problem with this
product. We can help you with questions about
assembly and grill operation or if there are
damaged or missing parts when you unpack this
unit from the carton. Please call before returning
to the store.
1-800-933-0527
8:30am-5:00pm CST, Monday throuqh
• NOTE TO ASSEMBLER/INSTALLER:
Leave this manual with the consumer.
• NOTE TO CONSUMER:
Keep this manual for future reference.
• RECORD YOUR SERIAL#
(see silver CSA label on main body of grill)
• DATE OF PURCHASE:
• A'rFACH YOUR SALES RECEIPT HERE:
• Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
• Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
• Use your grill at least 2 feet away from any
wall or surface. Use your grill at least 2 feet
away from combustible objects that can melt or
catch fire (such as vinyl or wood siding, fences
and overhangs) or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
• THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
• Combustion byproducts produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, or other reproductive harm.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

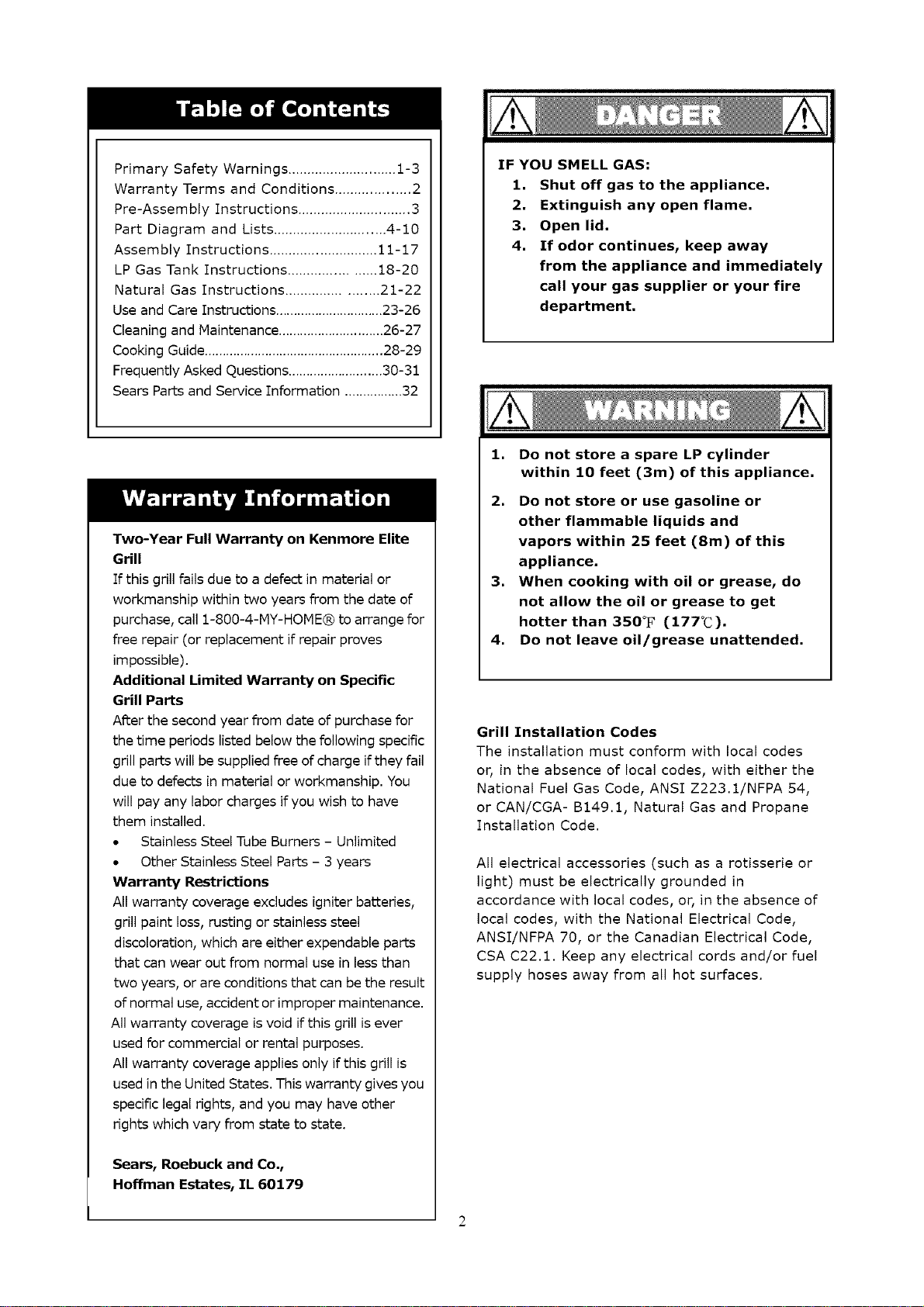

Primary Safety Warnings ............................ 1-3
Warranty Terms and Conditions ................... 2
Pre-Assembly Instructions ............................. 3
Part Diagram and Lists ............................. 4-10
Assembly Instructions ............................ 11-17
LP Gas Tank Instructions ...................... 18-20
Natural Gas Instructions ....................... 21-22
Use and Care Instructions ..............................23-26
Cleaning and Maintenance ............................. 26-27
Cooking Guide .................................................. 28-29
Frequently Asked Questions .......................... 30-31
Sears Parts and Service Information ................32
Two-Year Full Warranty on Kenmore Elite
Grill
If this grill fails due to a defect in material or
workmanship within two years from the date of
purchase, call 1-800-4-MY-HOME® to arrange for
free repair (or replacement if repair proves
impossible).
Additional Limited Warranty on Specific
Grill Parts
After the second year from date of purchase for
the time periods listed below the following specific
grill parts will be supplied free of charge if they fail
due to defects in material or workmanship. You
will pay any labor charges if you wish to have
them installed.
• Stainless Steel Tube Burners - Unlimited
• Other Stainless Steel Parts - 3 years
Warranty Restrictions
All warranty coverage excludes igniter batteries,
grill paint loss, rusting or stainless steel
discoloration, which are either expendable parts
that can wear out from normal use in less than
two years, or are conditions that can be the result
of normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever
used for commercial or rental purposes.
All warranty coverage applies only if this grill is
used in the United States. This warranty gives you
specific legal rights, and you may have other
rights which vary from state to state.
Sears, Roebuck and Co,,
Hoffman Estates, IL 60179
IF YOU SMELL GAS;
1. Shut off gas to the appliance,
2. Extinguish any open flame.
3. Open lid,
4. If odor continues, keep away
from the appliance and immediately
call your gas supplier or your fire
department.
1. Do not store a spare LP cylinder
within 10 feet (3m) of this appliance.
2. Do not store or use gasoline or
other flammable liquids and
vapors within 25 feet (8m) of this
appliance.
3. When cooking with oil or grease, do
not allow the oil or grease to get
hotter than 350°F (177°C),
4. Do not leave oil/grease unattended.
Grill Installation Codes
The installation must conform with local codes
or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or CAN/CGA- B149.1, Natural Gas and Propane
Installation Code.
All electrical accessories (such as a rotisserie or
light) must be electrically grounded in
accordance with local codes, or, in the absence of
local codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1. Keep any electrical cords and/or fuel
supply hoses away from all hot surfaces.
Failuretocomplywiththeseinstructionscould
resultinafireorexplosionthatcouldcause
seriousbodilyinjury,deathor property damage.

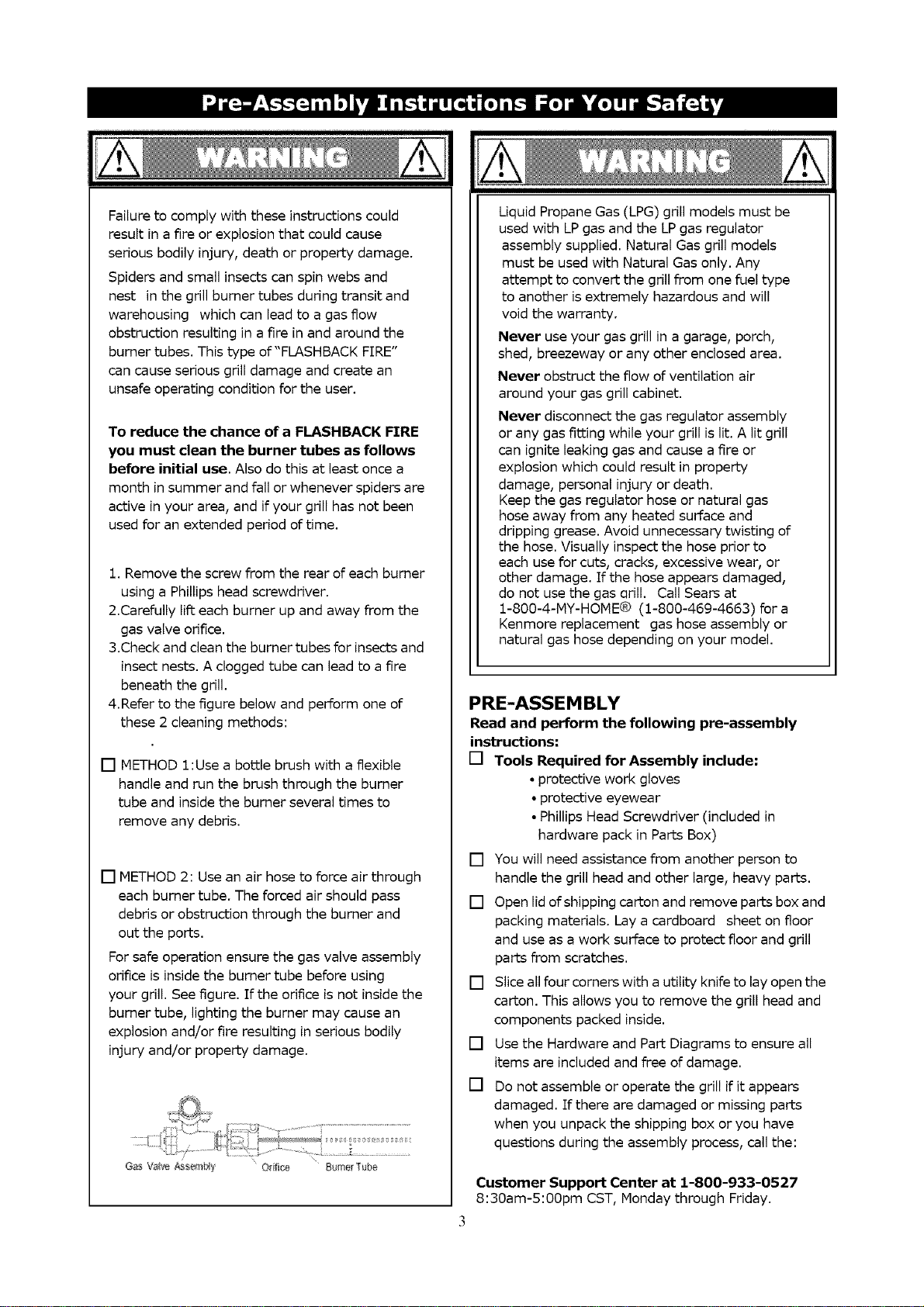

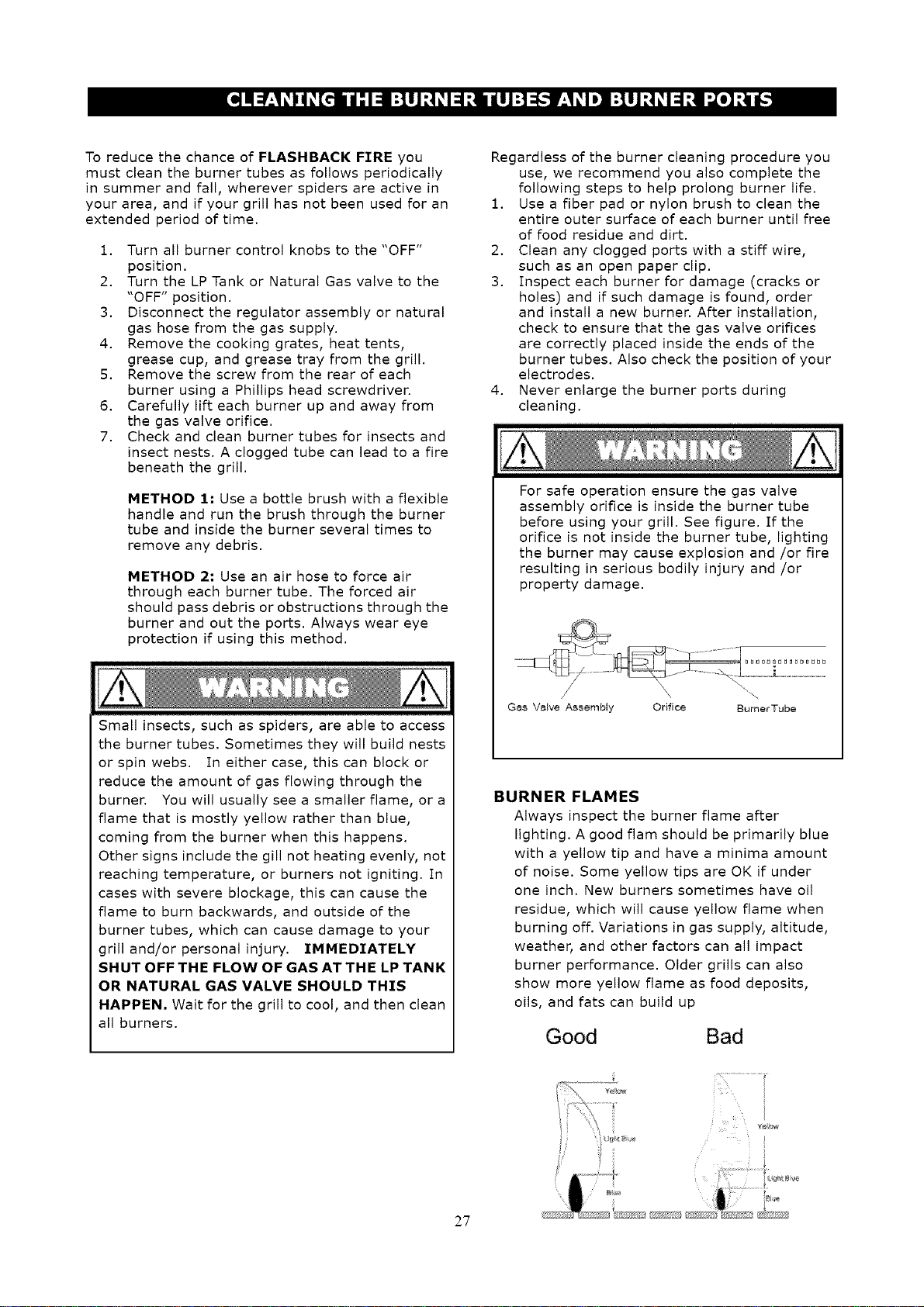

Spiders and small insects can spin webs and
nest in the grill burner tubes during transit and
warehousing which can lead to a gas flow
obstruction resulting in a fire in and around the
burner tubes. This type of "FLASHBACK FIRE"
can cause serious grill damage and create an
unsafe operating condition for the user.
To reduce the chance of a FLASHBACK FIRE
you must clean the burner tubes as follows
before initial use. Also do this at least once a
month in summer and fall or whenever spiders are
active in your area, and if your grill has not been
used for an extended period of time.
1. Remove the screw from the rear of each burner
using a Phillips head screwdriver.
2.Carefully lift each burner up and away from the
gas valve orifice.
3.Check and clean the burner tubes for insects and
insect nests. A clogged tube can lead to a fire
beneath the grill.
4.Refer to the figure below and perform one of
these 2 cleaning methods:
[] METHOD 1:Use a bottle brush with a flexible
handle and run the brush through the burner
tube and inside the burner several times to
remove any debris.
[] METHOD 2: Use an air hose to force air through
each burner tube. The forced air should pass
debris or obstruction through the burner and
out the ports.
For safe operation ensure the gas valve assembly
orifice is inside the burner tube before using
your grill. See figure. If the orifice is not inside the
burner tube, lighting the burner may cause an
explosion and/or fire resulting in serious bodily
injury and/or property damage.
Gas Valve AssenlNy Orifice 8_Jrne_Tube
Uquid Propane Gas (LPG) grill models must be
used with LP gas and the LP gas regulator
assembly supplied. Natural Gas grill models
must be used with Natural Gas only. Any
attempt to convert the grill from one fuel type
to another is extremely hazardous and will
void the warranty.
Never use your gas grill in a garage, porch,
shed, breezeway or any other enclosed area.
Never obstruct the flow of ventilation air
around your gas grill cabinet.
Never disconnect the gas regulator assembly
or any gas fitting while your grill is lit. A lit grill
can ignite leaking gas and cause a fire or
explosion which could result in property
damage, personal injury or death.
Keep the gas regulator hose or natural gas
hose away from any heated surface and
dripping grease. Avoid unnecessary twisting of
the hose. Visually inspect the hose prior to
each use for cuts, cracks, excessive wear, or
other damage, tf the hose appears damaged,
do not use the gas orill. Call Sears at
1-800-4-MY-HOME(e (1-800-469-4663) for a
Kenmore replacement gas hose assembly or
natural gas hose depending on your model.
PRE-ASSEMBLY
Read and perform the following pre-assembly
instructions:
[] Tools Required for Assembly include:
• protective work gloves
• protective eyewear
• Phillips Head Screwdriver (included in
hardware pack in Parts Box)
[] You will need assistance from another person to
handle the grill head and other large, heavy parts.
[] Open lid of shipping carton and remove parts box and
packing materials. Lay a cardboard sheet on floor
and use as a work surface to protect floor and grill
parts from scratches.
[] Slice all four corners with a utility knife to lay open the
carton. This allows you to remove the grill head and
components packed inside.
[] Use the Hardware and Part Diagrams to ensure all
items are included and free of damage.
[] Do not assemble or operate the grill if it appears
damaged. If there are damaged or missing parts
when you unpack the shipping box or you have
questions during the assembly process, call the:
Customer Support Center at 1-800-933-0527
8:30am-S:00pm CST, Monday through Friday.
%
©

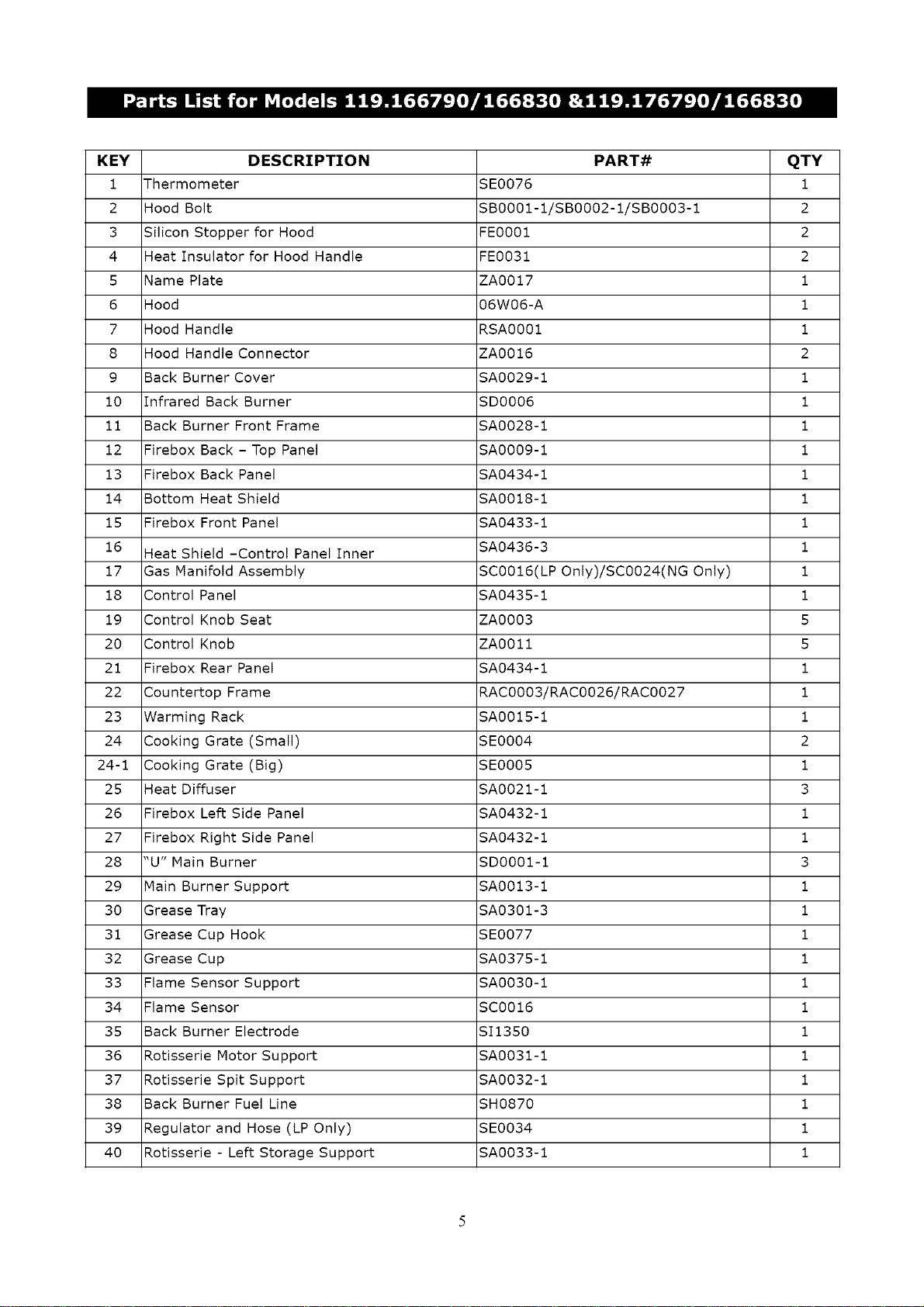

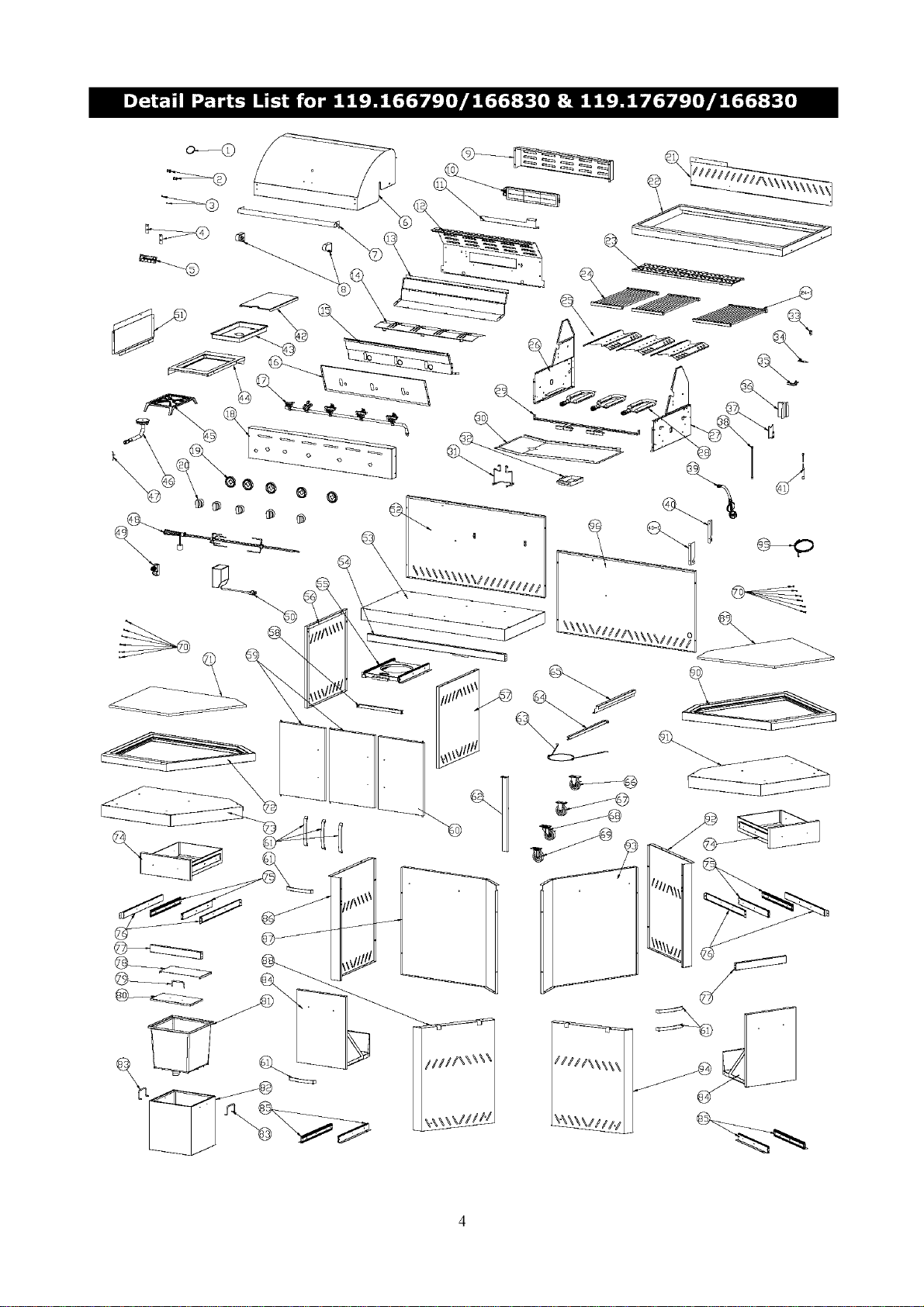

KEY DESCRIPTION PART# QTY
I Thermometer SE0076 I
2 Hood Bolt SB0001-1/SB0002-1/SB0003-1 2
3 Silicon Stopper for Hood FE0001 2
4 Heat Insulator for Hood Handle FE0031 2
5 Name Plate ZA0017 1
6 Hood 06W06-A 1
7 Hood Handle RSA0001 1
8 Hood Handle Connector ZA0016 2
9 Back Burner Cover SA0029-1 1
10 Infrared Back Burner SD0006 1
11 Back Burner Front Frame SA0028-1 1
12 Firebox Back - Top Panel SA0009-1 1
13 Firebox Back Panel SA0434-1 1
14 Bottom Heat Shield SA0018-1 1
15 Firebox Front Panel SA0433-1 1
16 Heat Shield -Control Panel Inner SA0436-3 1
17 Gas Manifold Assembly SC0016(LP Only)/SC0024(NG Only) 1
18 Control Panel SA0435-1 1
19 Control Knob Seat ZA0003 5
20 Control Knob ZA0011 5
21 Firebox Rear Panel SA0434-1 1
22 Countertop Frame RAC0003/RAC0026/RAC0027 1
23 Warming Rack SA0015-1 1
24 Cooking Grate (Small) SE0004 2
24-1 Cooking Grate (Big) SE0005 1
25 Heat Diffuser SA0021-1 3
26 Firebox Left Side Panel SA0432-1 1
27 Firebox Right Side Panel SA0432-1 1
28 "U" Main Burner SD0001-1 3
29 Main Burner Support SA0013-1 1
30 Grease Tray SA0301-3 1
31 Grease Cup Hook SE0077 1
32 Grease Cup SA0375-1 1
33 Flame Sensor Support SA0030-1 1
34 Flame Sensor SC0016 1
35 Back Burner Electrode SI1350 1
36 Rotisserie Motor Support SA0031-1 1
37 Rotisserie Spit Support SA0032-1 1
38 Back Burner Fuel Line SH0870 1
39 Regulator and Hose (LP Only) SE0034 1
40 Rotisserie - Left Storage Support SA0033-1 1

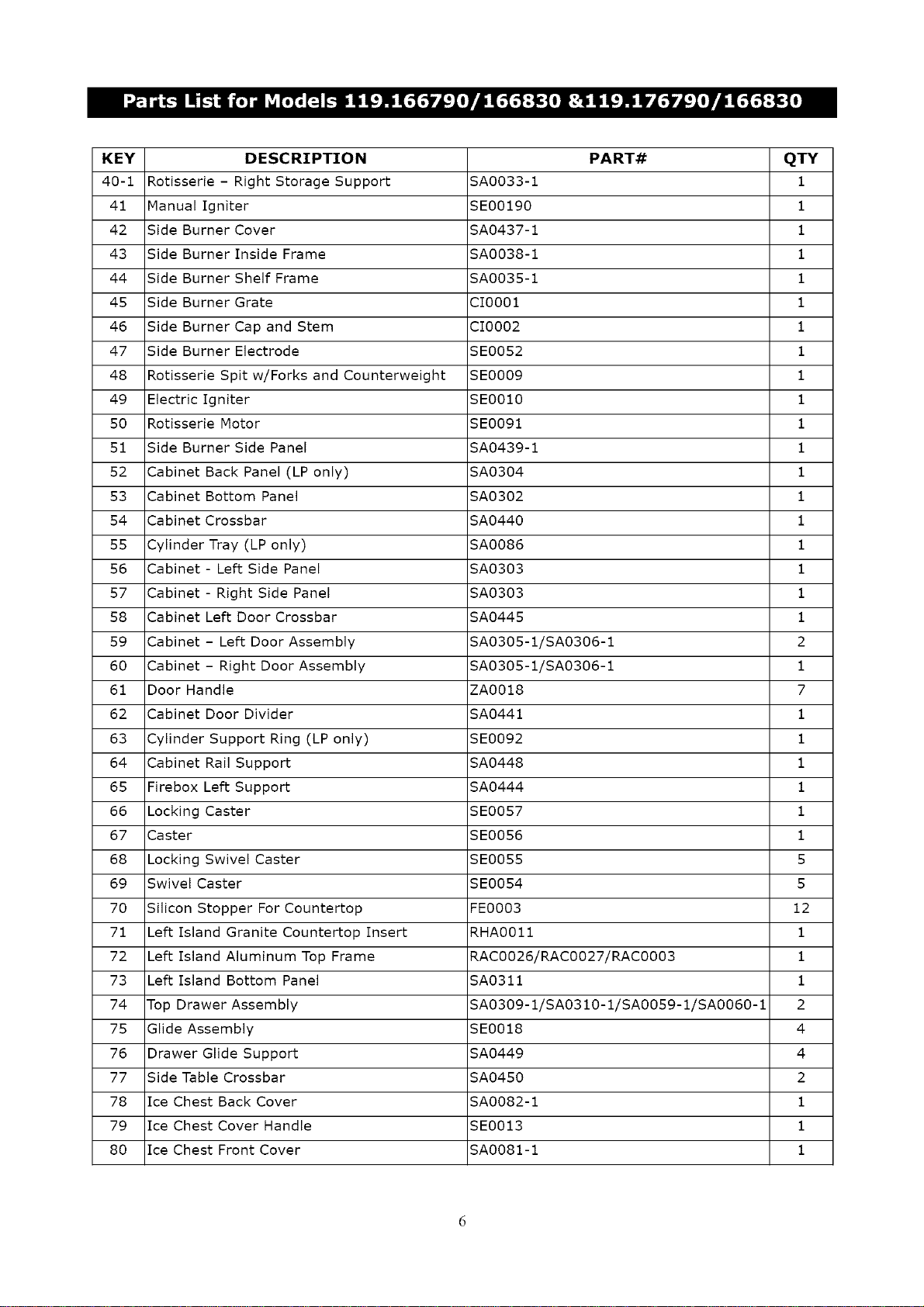

KEY DESCRIPTION PART# QTY
40-1 Rotisserie- Right Storage Support SA0033-1 1
41 Manual Igniter SE00190 1
42 Side Burner Cover SA0437-1 1
43 Side Burner Inside Frame SA0038-1 1
44 Side Burner Shelf Frame SA0035-1 1
45 Side Burner Grate CI0001 1
46 Side Burner Cap and Stem CI0002 1
47 Side Burner Electrode SE0052 1
48 Rotisserie Spit w/Forks and Counterweight SE0009 1
49 Electric Igniter SE0010 1
50 Rotisserie Motor SE0091 1
51 Side Burner Side Panel SA0439-1 1
52 Cabinet Back Panel (LP only) SA0304 1
53 Cabinet Bottom Panel SA0302 1
54 Cabinet Crossbar SA0440 1
55 Cylinder Tray (LP only) SA0086 1
56 Cabinet - Left Side Panel SA0303 1
57 Cabinet - Right Side Panel SA0303 1
58 Cabinet Left Door Crossbar SA0445 1
59 Cabinet - Left Door Assembly SA0305-1/SA0306-1 2
60 Cabinet - Right Door Assembly SA0305-1/SA0306-1 1
61 Door Handle ZA0018 7
62 Cabinet Door Divider SA0441 1
63 Cylinder Support Ring (LP only) SE0092 1
64 Cabinet Rail Support SA0448 1
65 Firebox Left Support SA0444 1
66 Locking Caster SE0057 1
67 Caster SE0056 1
68 Locking Swivel Caster SE0055 5
69 Swivel Caster SE0054 5
70 Silicon Stopper For Countertop FE0003 12
71 Left Island Granite Countertop Insert RHA0011 1
72 Left Island Aluminum Top Frame RAC0026/RAC0027/RAC0003 1
73 Left Island Bottom Panel SA0311 1
74 Top Drawer Assembly SA0309-1/SA0310-1/SA0059-1/SA0060-1 2
75 Glide Assembly SE0018 4
76 Drawer Glide Support SA0449 4
77 Side Table Crossbar SA0450 2
78 Ice Chest Back Cover SA0082-1 1
79 Ice Chest Cover Handle SE0013 1
80 Ice Chest Front Cover SAO081-1 I

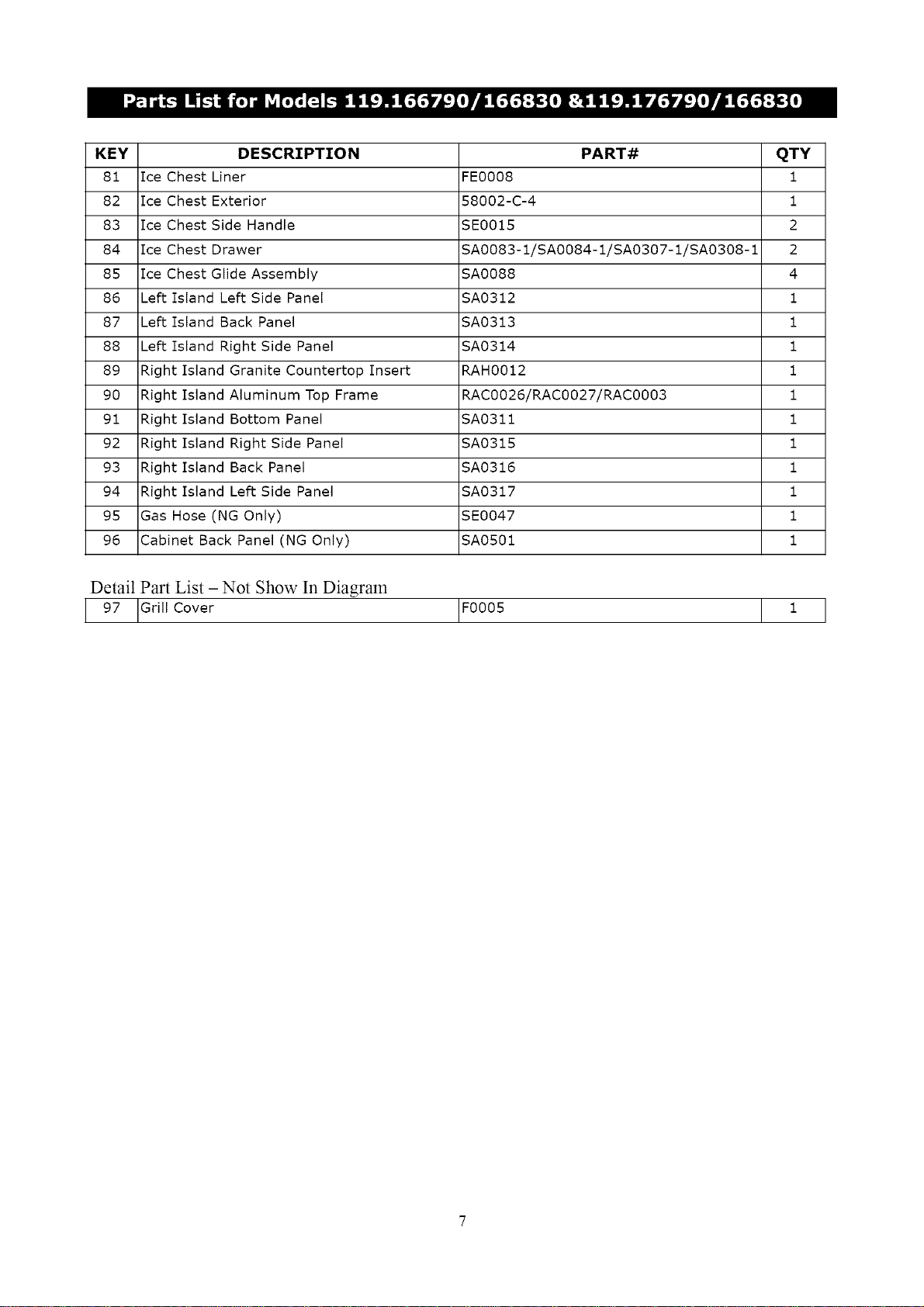

KEY DESCRIPTION PART# QTY
81 Ice Chest Liner FEO008 i
82 Ice Chest Exterior 58002-C-4 1
83 Ice Chest Side Handle SE0015 2
84 Ice Chest Drawer SA0083-1/SA0084-1/SA0307-1/SA0308-1 2
85 Ice Chest Glide Assembly SA0088 4
86 Left Island Left Side Panel SA0312 1
87 Left Island Back Panel SA0313 1
88 Left Island Right Side Panel SA0314 1
89 Right Island Granite Countertop Insert RAH0012 1
90 Right Island Aluminum Top Frame RAC0026/RAC0027/RAC0003 1
91 Right Island Bottom Panel SA0311 1
92 Right Island Right Side Panel SA0315 1
93 Right Island Back Panel SA0316 1
94 Right Island Left Side Panel SA0317 1
95 Gas Hose (NG Only) SE0047 1
96 Cabinet Back Panel (NG Only) SA0501 1
Detail Part List - Not Show In Diagram
I 97IGr'''C°ver IF°°°_ I 1 I

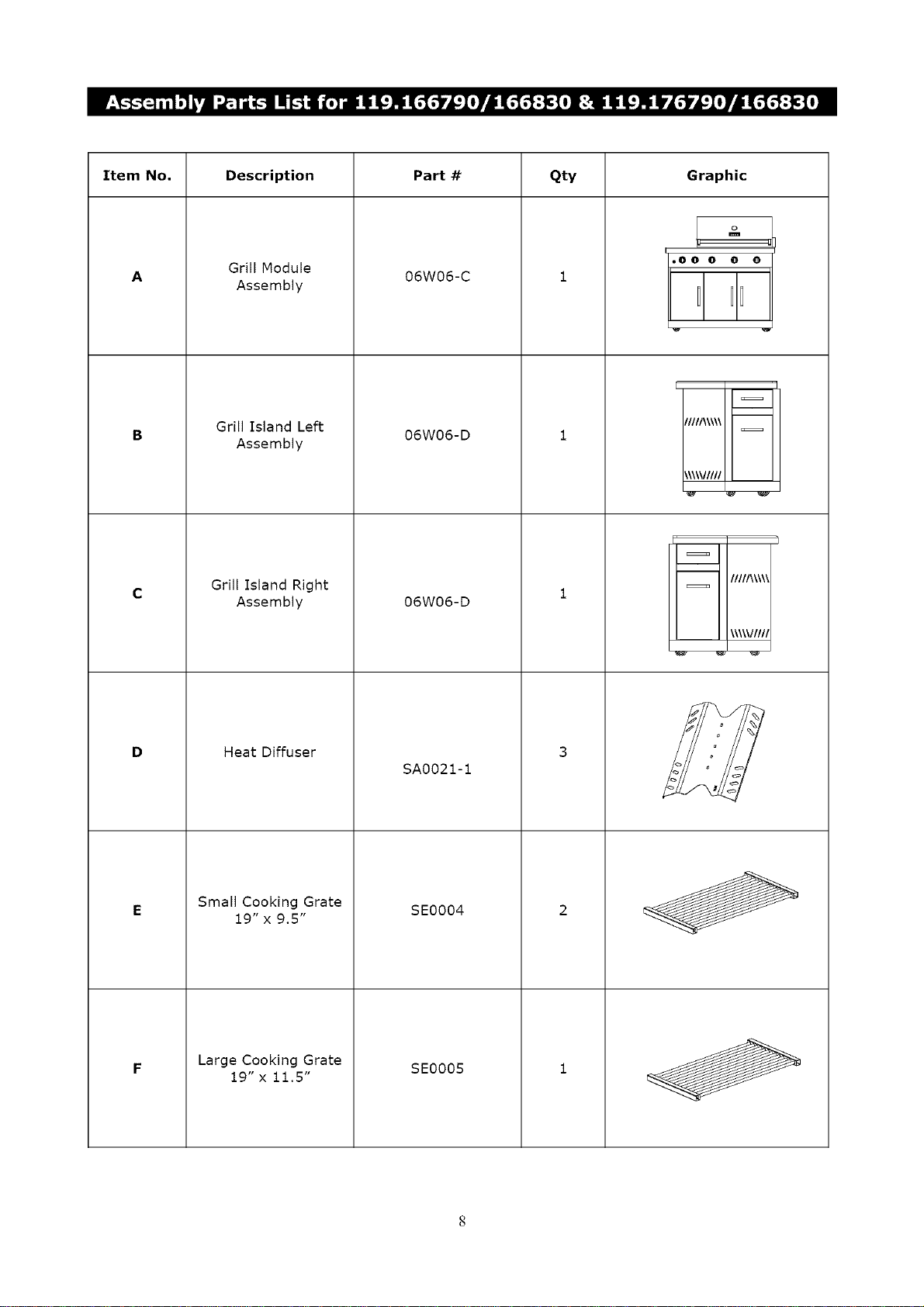

Item No, Description Part # Qty Graphic
A
GrillModule
Assembly
06W06-C
Grill Island Left
Assembly
Grill Island Right
Assembly
Heat Diffuser
Small Cooking Grate
19" x 9.5"
Large Cooking Grate
19" x 11.5"
06W06-D
06W06-D
SA0021-1
SE0004
SE0005
Hill\\\\\
\\\\Villi
IIIIIXXXX\
XXXXX/IIII

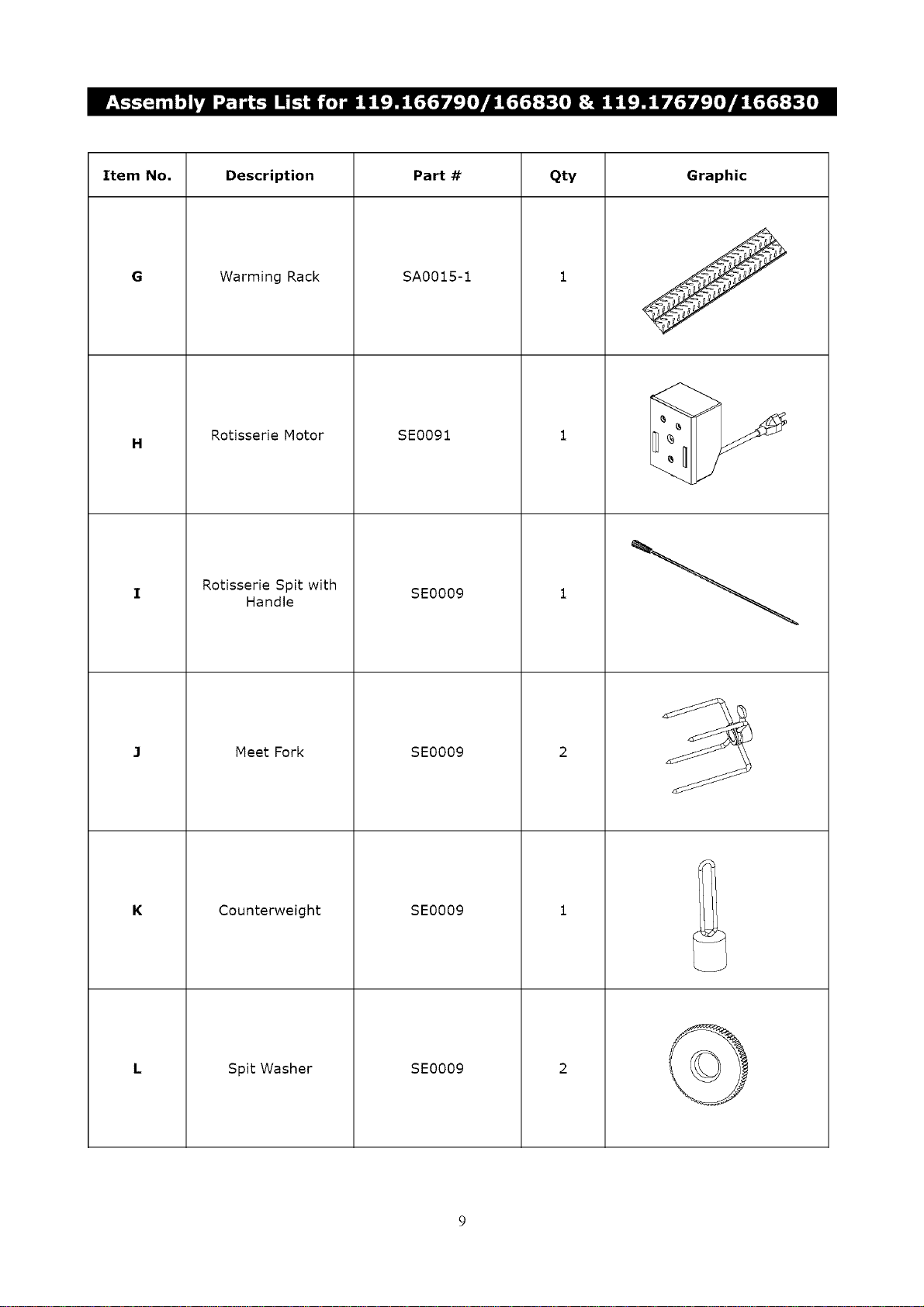

Item No, Description Part # Qty Graphic
G
Warming Rack
SA0015-1
Rotisserie Motor
Rotisserie Spit with
Handle
Meet Fork
Counterweight
Spit Washer
SE0091
SE0009
SE0009
SE0009
SE0009
Item No, Description Part # Qty Graphic
Spit Bushing
SE0091

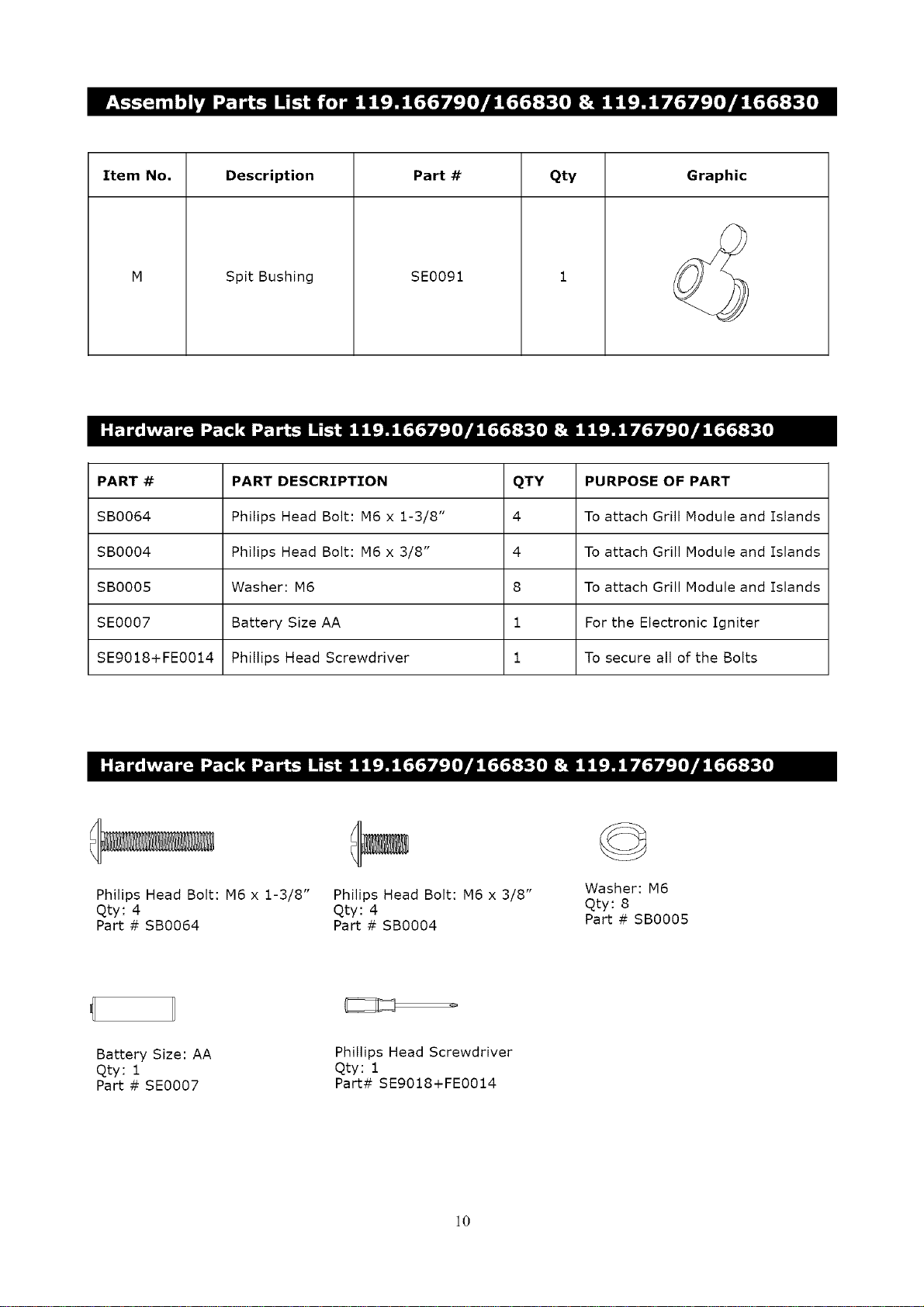

PART # PART DESCRIPTION QTY PURPOSE OF PART
SB0064 Philips Head Bolt: M6 x 1-3/8" 4 To attach Grill Module and Islands
SB0004 Philips Head Bolt: M6 x 3/8" 4 To attach Grill Module and Islands
SB0005 Washer: M6 8 To attach Grill Module and Islands
SE0007 Battery Size AA 1 For the Electronic Igniter
SEgO18+FEO014 Phillips Head Screwdriver 1 To secure all of the Bolts
Philips Head Bolt: M6 x 1-3/8" Philips Head Bolt: M6 x 3/8"
Qty: 4 Qty: 4
Part # SB0064 Part # SBO004
Washer: M6
Qty: 8
Part # SB0005
Battery Size: AA
Qty: 1
Part # SE0007
Phillips Head Screwdriver
qty: 1
Part# SE9018+FEO014
lO
Please refer to pages 8 through 10 for item graphics.
Igl

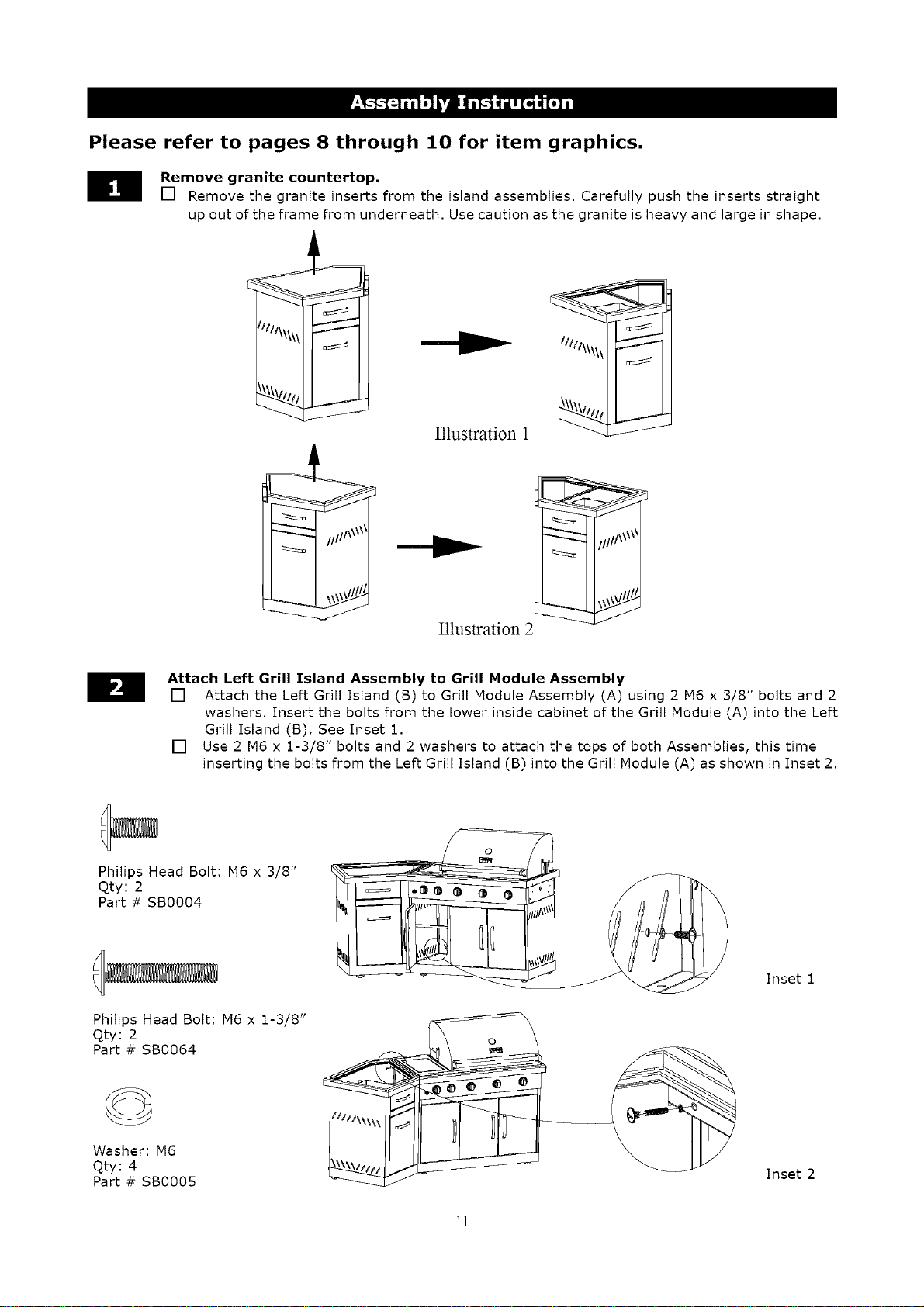

Remove granite countertop.
[] Remove the granite inserts from the island assemblies. Carefully push the inserts straight
up out of the frame from underneath. Use caution as the granite is heavy and large in shape.
Illustration 1
Illustration 2
Attach Left Grill Island Assembly to Grill Module Assembly
[] Attach the Left Grill Island (B) to Grill Module Assembly (A) using 2 M6 x 3/8" bolts and 2
washers. Insert the bolts from the lower inside cabinet of the Grill Module (A) into the Left
Grill Island (B). See Inset 1.
[] Use 2 M6 x 1-3/8" bolts and 2 washers to attach the tops of both Assemblies, this time
inserting the bolts from the Left Grill Island (B) into the Grill Module (A) as shown in Inset 2.
Philips Head Bolt: M6 x 3/8"
qty: 2
Part # SBO004
Philips Head Bolt: M6 x 1-3/8"
Qty: 2
Part # SB0064
©
Washer: M6
Qty: 4
Part # SBO005
Inset 1
Inset 2
ii

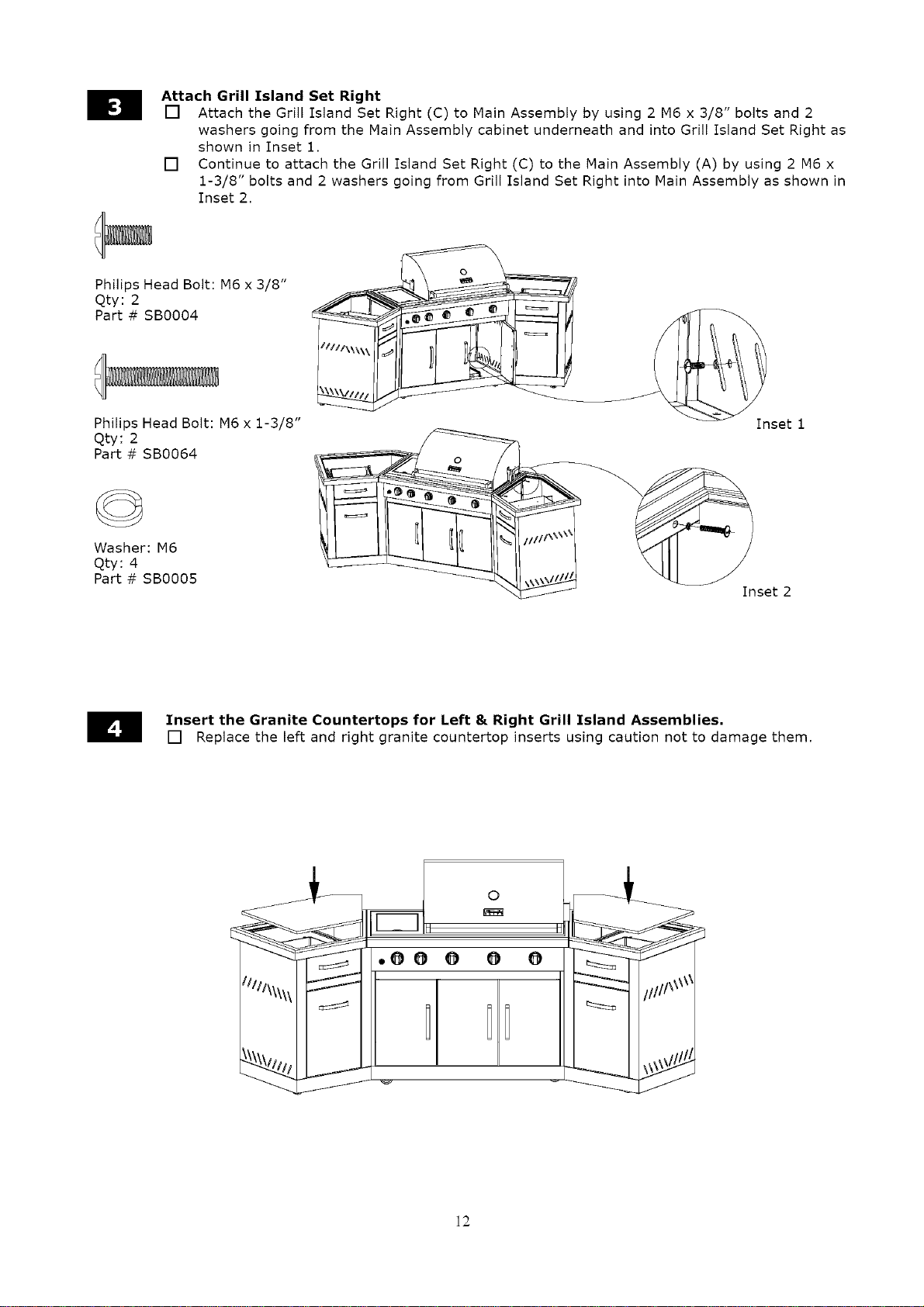

Attach Grill Island Set Right
[] Attach the Grill Island Set Right (C) to Main Assembly by using 2 M6 x 3/8" bolts and 2
washers going from the Main Assembly cabinet underneath and into Grill Island Set Right as
shown in Inset 1.
[] Continue to attach the Grill Island Set Right (C) to the Main Assembly (A) by using 2 M6 x
1-3/8" bolts and 2 washers going from Grill Island Set Right into Main Assembly as shown in
Inset 2.
Philips Head Bolt: M6 x 3/8"
Qty: 2
Part # SB0004
Philips Head Bolt: M6 x 1-3/8"
Qty: 2
Part # SB0064
Washer: M6
Qty: 4
Part # SB0005
Inset 1
__nset 2
Insert the Granite Countertops for Left & Right Grill Island Assemblies.
[] Replace the left and right granite countertop inserts using caution not to damage them.
]2

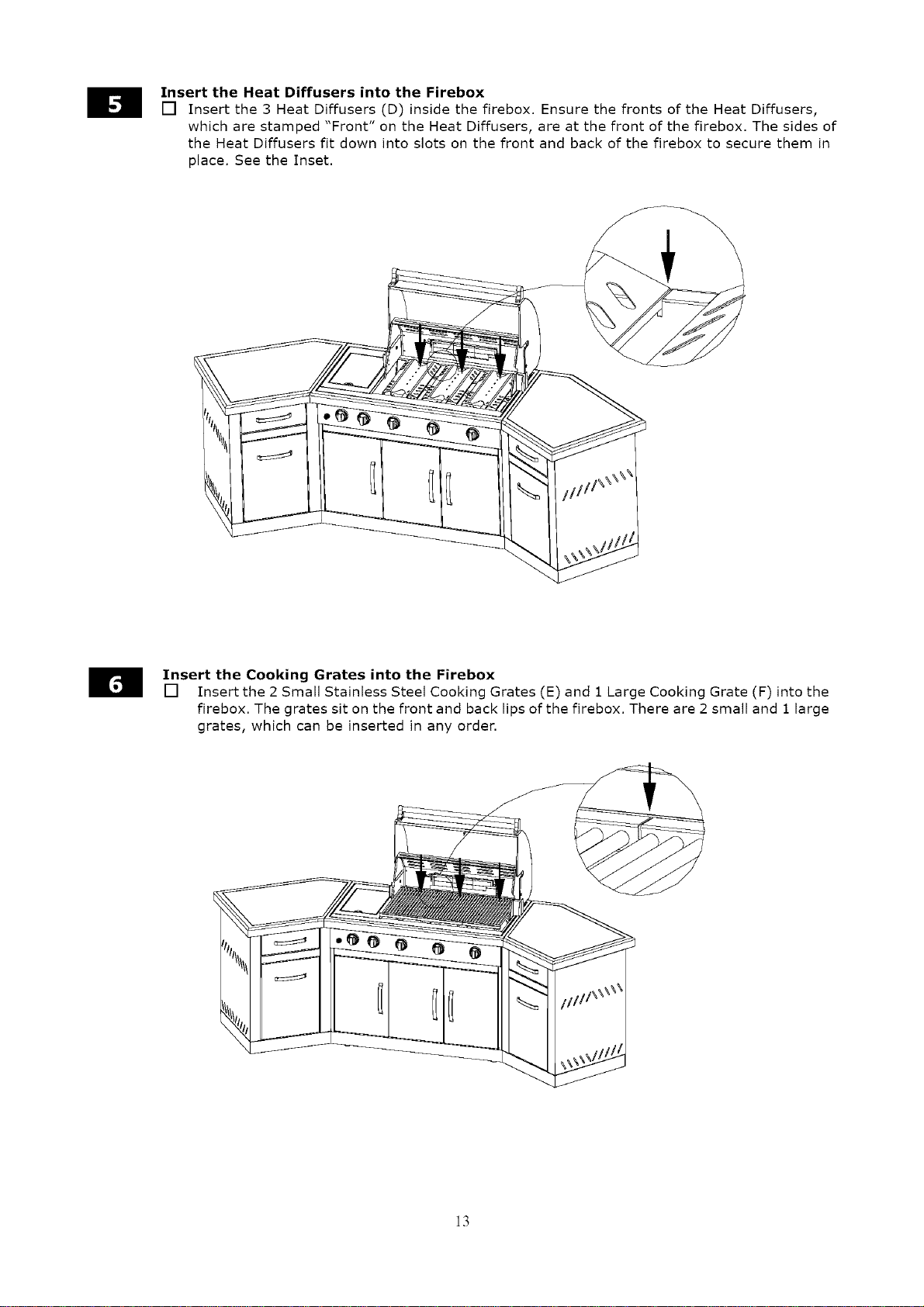

Insert the Heat Diffusers into the Firebox
[] Insert the 3 Heat Diffusers (D) inside the firebox. Ensure the fronts of the Heat Diffusers,
which are stamped "Front" on the Heat Diffusers, are at the front of the firebox. The sides of
the Heat Diffusers fit down into slots on the front and back of the firebox to secure them in
place. See the Inset.
Insert the Cooking Grates into the Firebox
[] Insert the 2 Small Stainless Steel Cooking Grates (E) and 1 Large Cooking Grate (F) into the
firebox. The grates sit on the front and back lips of the firebox. There are 2 small and 1 large
grates, which can be inserted in any order.
]3

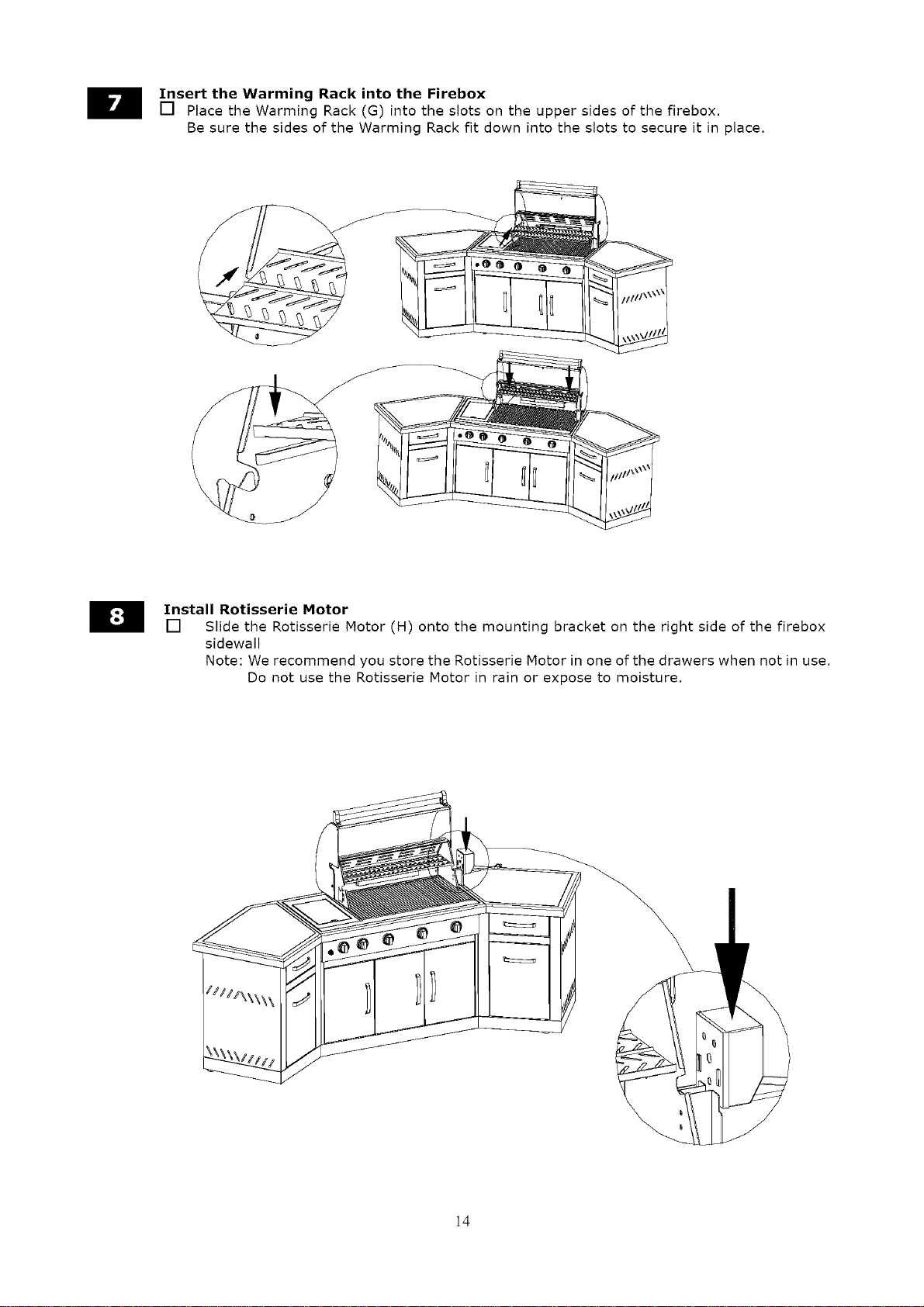

Insert the Warming Rack into the Firebox
[] Place the Warming Rack (G) into the slots on the upper sides of the firebox.
Be sure the sides of the Warming Rack fit down into the slots to secure it in place.
Install Rotisserie Motor
[] Slide the Rotisserie Motor (H) onto the mounting bracket on the right side of the firebox
sidewall
Note: We recommend you store the Rotisserie Motor in one of the drawers when not in use.
Do not use the Rotisserie Motor in rain or expose to moisture.
14

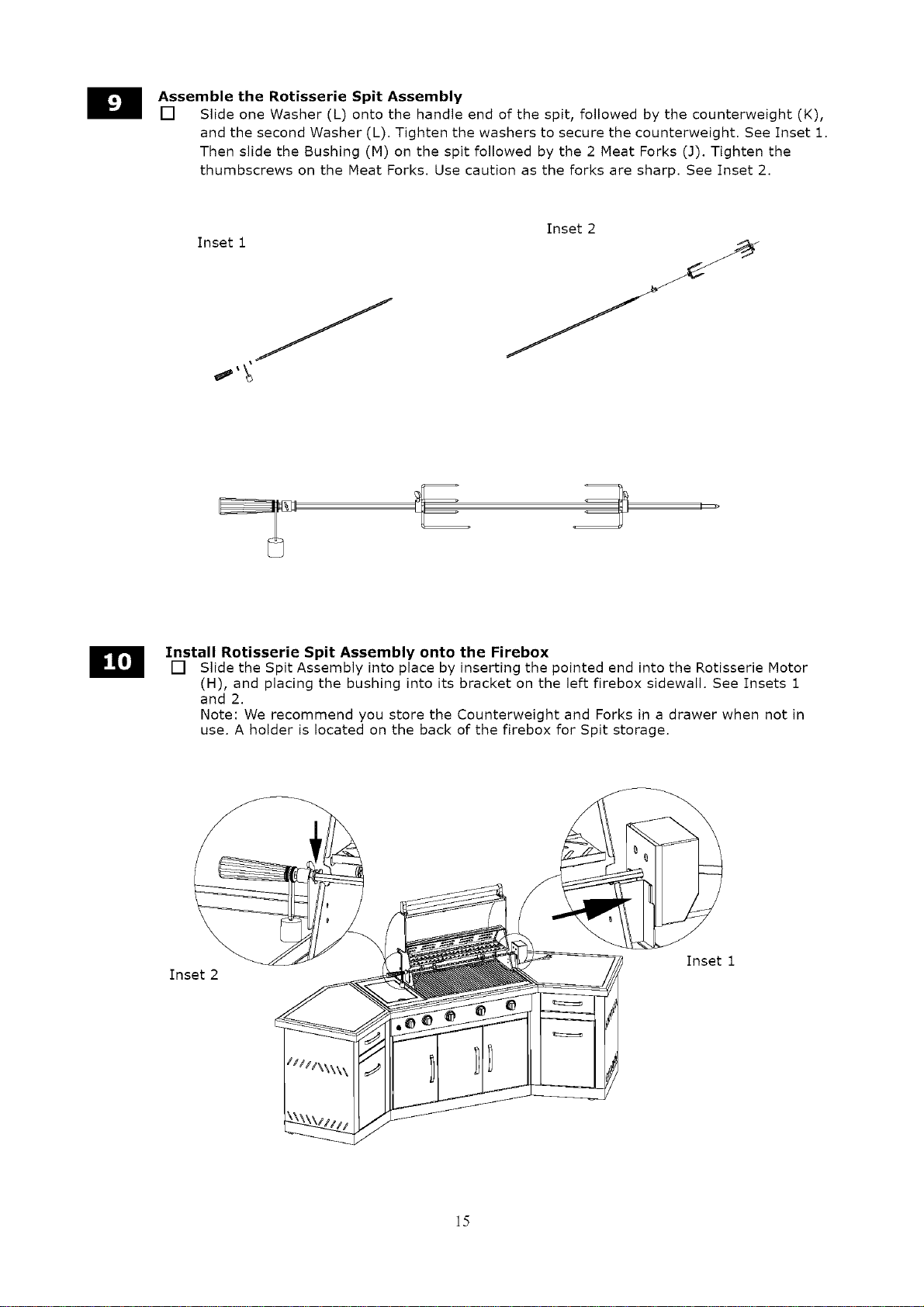

Assemble the Rotisserie Spit Assembly
[] Slide one Washer (L) onto the handle end of the spit, followed by the counterweight (K),
and the second Washer (L). Tighten the washers to secure the counterweight. See Inset 1.
Then slide the Bushing (M) on the spit followed by the 2 Meat Forks (J). Tighten the
thumbscrews on the Meat Forks. Use caution as the forks are sharp. See Inset 2.
Inset 1
Inset 2
Install Rotisserie Spit Assembly onto the Firebox
[] Slide the Spit Assembly into place by inserting the pointed end into the Rotisserie Motor
(H), and placing the bushing into its bracket on the left firebox sidewall. See Insets 1
and 2.
Note: We recommend you store the Counterweight and Forks in a drawer when not in
use. A holder is located on the back of the firebox for Spit storage.
Inset 2
Inset i
15

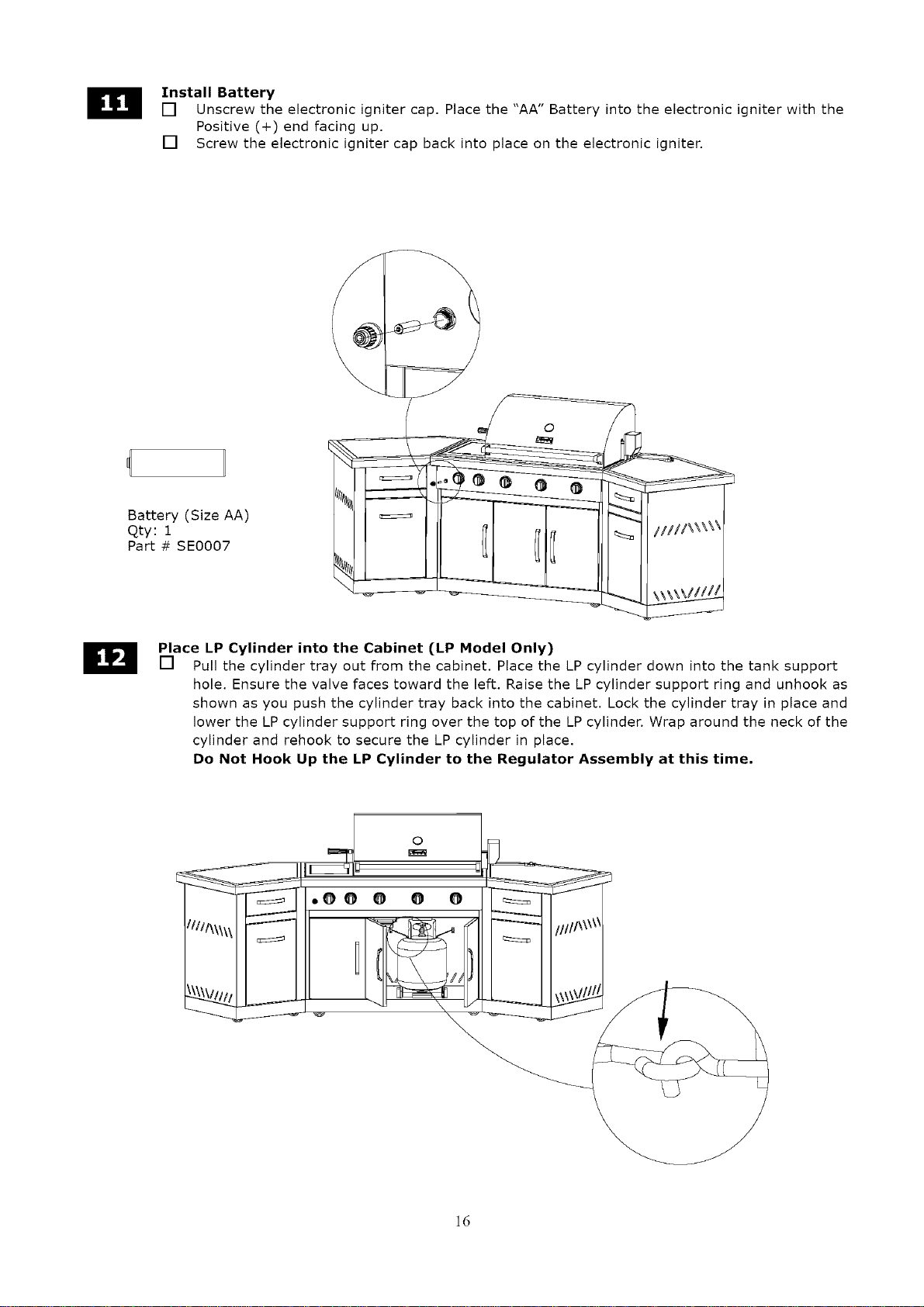

Install Battery
[] Unscrew the electronic igniter cap. Place the "AA" Battery into the electronic igniter with the
Positive (+) end facing up.
[] Screw the electronic igniter cap back into place on the electronic igniter.
Battery (Size AA)
Qty: 1
Part # SE0007
Place LP Cylinder into the Cabinet (LP Model Only)
[] Pull the cylinder tray out from the cabinet. Place the LP cylinder down into the tank support
hole. Ensure the valve faces toward the left. Raise the LP cylinder support ring and unhook as
shown as you push the cylinder tray back into the cabinet. Lock the cylinder tray in place and
lower the LP cylinder support ring over the top of the LP cylinder. Wrap around the neck of the
cylinder and rehook to secure the LP cylinder in place.
Do Not Hook Up the LP Cylinder to the Regulator Assembly at this time,
oOO @ O O _=,
Ii/11\\\\\
I
]6

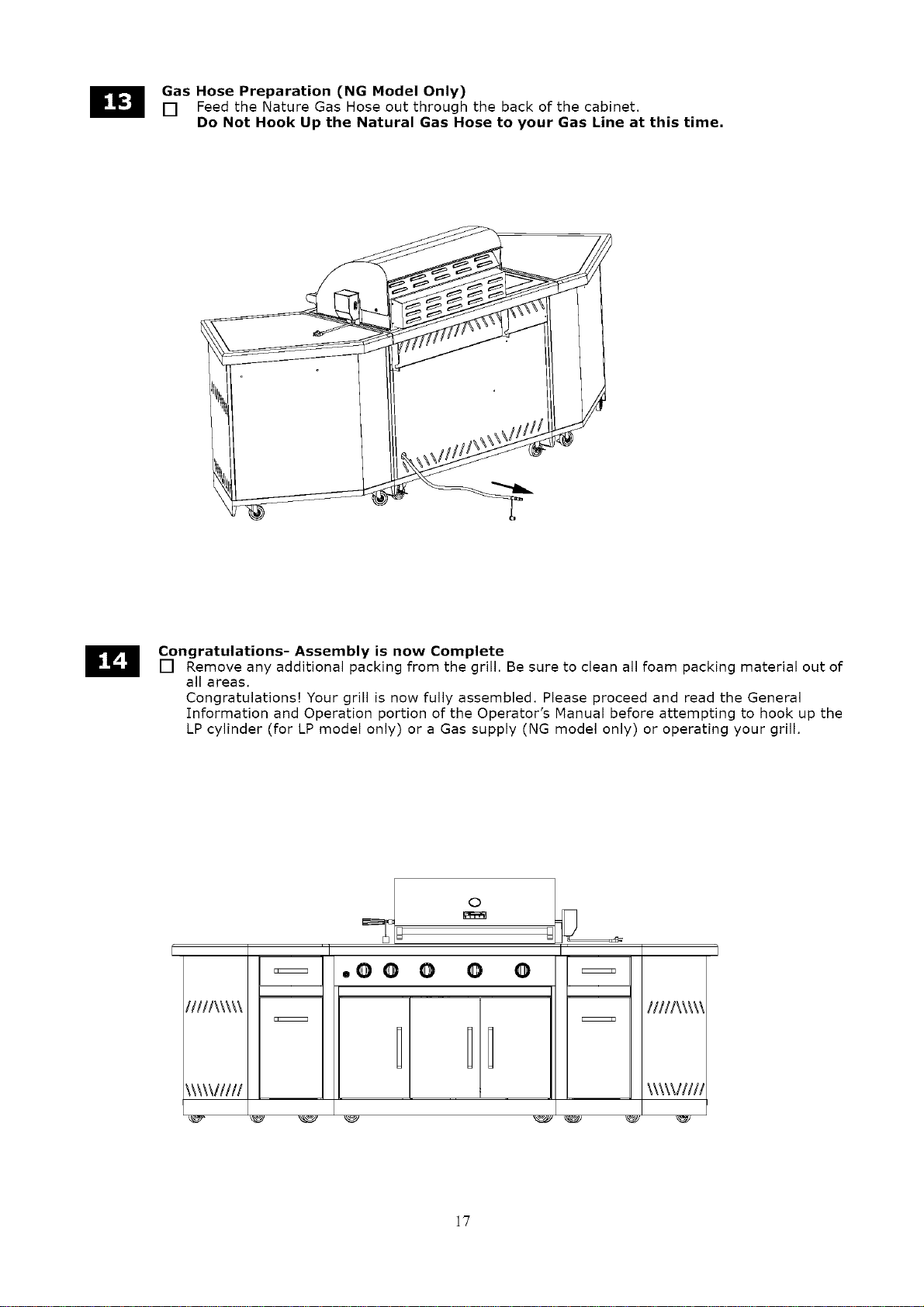

Gas Hose Preparation (NG Model Only)
[] Feed the Nature Gas Hose out through the back of the cabinet.
Do Not Hook Up the Natural Gas Hose to your Gas Line at this time.
Congratulations- Assembly is now Complete
[] Remove any additional packing from the grill. Be sure to clean all foam packing material out of
all areas.
Congratulations! Your grill is now fully assembled. Please proceed and read the General
Information and Operation portion of the Operator's Manual before attempting to hook up the
LP cylinder (for LP model only) or a Gas supply (NG model only) or operating your grill.
II111\\\\\
\\\\\fill/
o
D
• 00 0 0 0
I///1\\\\\
\\\\\/////
]?

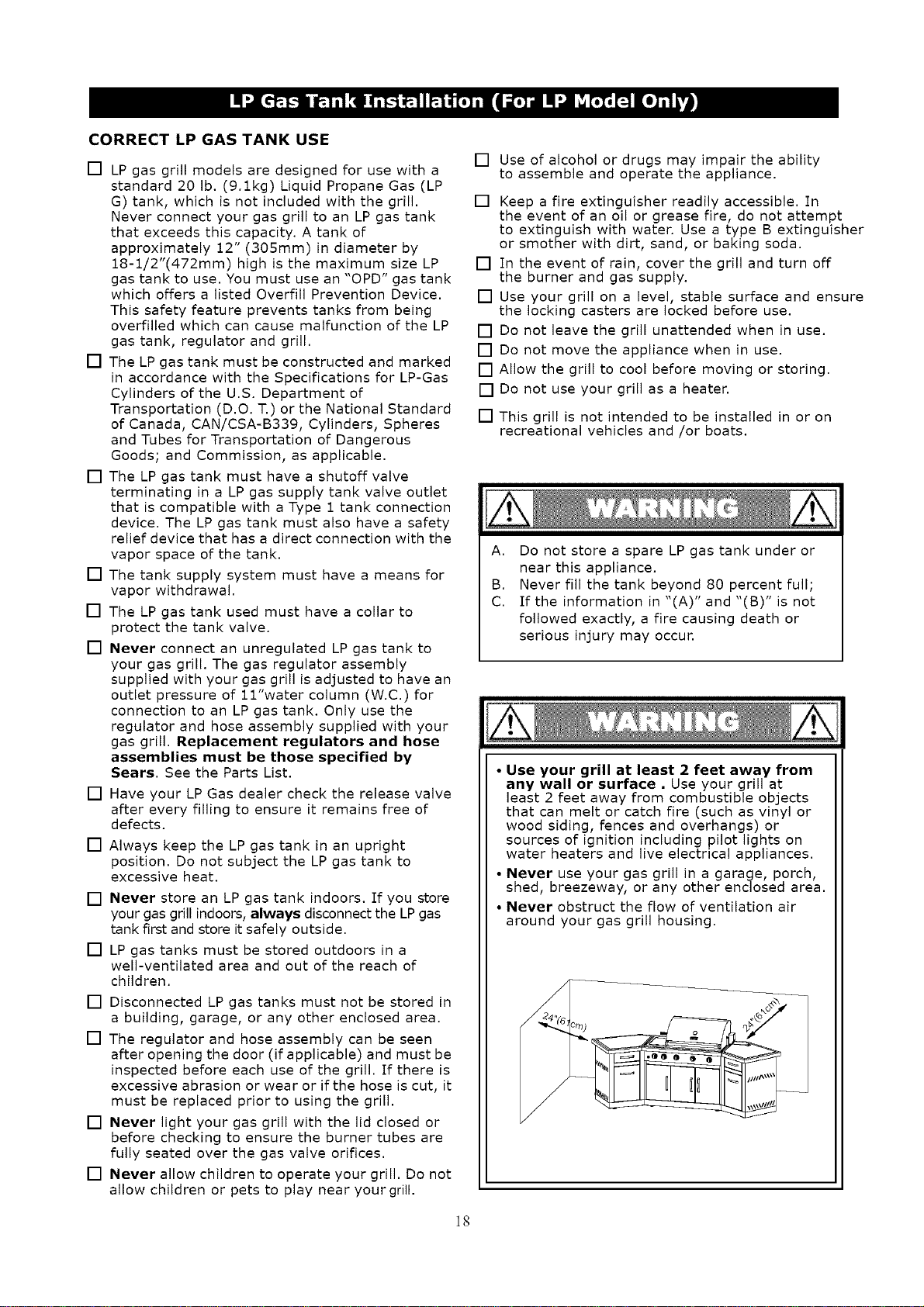

CORRECT LP GAS TANK USE
[] LP gas grill models are designed for use with a
standard 20 lb. (9.1kg) Liquid Propane Gas (LP
G) tank, which is not included with the grill.
Never connect your gas grill to an LP gas tank
that exceeds this capacity. A tank of
approximately 12" (305mm) in diameter by
18-1/2"(472mm) high is the maximum size LP
gas tank to use. You must use an "OPD" gas tank
which offers a listed Overfill Prevention Device.
This safety feature prevents tanks from being
overfilled which can cause malfunction of the LP
gas tank, regulator and grill.
[] The LP gas tank must be constructed and marked
in accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of
Transportation (D.O.T.) or the National Standard
of Canada, CAN/CSA-B339, Cylinders, Spheres
and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable.
[] The LP gas tank must have a shutoff valve
terminating in a LP gas supply tank valve outlet
that is compatible with a Type 1 tank connection
device. The LP gas tank must also have a safety
relief device that has a direct connection with the
vapor space of the tank.
[] The tank supply system must have a means for
vapor withdrawal.
[] The LP gas tank used must have a collar to
protect the tank valve.
[] Never connect an unregulated LP gas tank to
your gas grill. The gas regulator assembly
supplied with your gas grill is adjusted to have an
outlet pressure of 11"water column (W.C.) for
connection to an LP gas tank. Only use the
regulator and hose assembly supplied with your
gas grill. Replacement regulators and hose
assemblies must be those specified by
Sears. See the Parts List.
[] Have your LP Gas dealer check the release valve
after every filling to ensure it remains free of
defects.
[] Always keep the LP gas tank in an upright
position. Do not subject the LP gas tank to
excessive heat.
[] Never store an LP gas tank indoors. If you store
your gas grill indoors, always disconnect the LPgas
tank first and store it safely outside.
[] LP gas tanks must be stored outdoors in a
well-ventilated area and out of the reach of
children.
[] Disconnected LP gas tanks must not be stored in
a building, garage, or any other enclosed area.
[] The regulator and hose assembly can be seen
after opening the door (if applicable) and must be
inspected before each use of the grill. If there is
excessive abrasion or wear or if the hose is cut, it
must be replaced prior to using the grill.
[] Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
[] Never allow children to operate your grill. Do not
allow children or pets to play near yourgrill.
[]
[]
[]
[]
[]
[]
[]
[]
[]
Use of alcohol or drugs may impair the ability
to assemble and operate the appliance.
Keep a fire extinguisher readily accessible, tn
the event of an oil or grease fire, do not attempt
to extinguish with water. Use a type B extinguisher
or smother with dirt, sand, or baking soda.
In the event of rain, cover the grill and turn off
the burner and gas supply.
Use your grill on a level, stable surface and ensure
the locking casters are locked before use.
Do not leave the grill unattended when in use.
Do not move the appliance when in use.
Allow the grill to cool before moving or storing.
Do not use your grill as a heater.
This grill is not intended to be installed in or on
recreational vehicles and/or boats.
A. Do not store a spare LP gas tank under or
near this appliance.
B. Never fill the tank beyond 80 percent full;
C. If the information in "(A)" and "(B)" is not
followed exactly, a fire causing death or
serious injury may occur.
• Use your grill at least 2 feet away from
any wall or surface. Use your grill at
least 2 feet away from combustible objects
that can melt or catch fire (such as vinyl or
wood siding, fences and overhangs) or
sources of ignition including pilot lights on
water heaters and live electrical appliances.
• Never use your gas grill in a garage, porch,
shed, breezeway, or any other enclosed area.
• Never obstruct the flow of ventilation air
around your gas grill housing.
]8

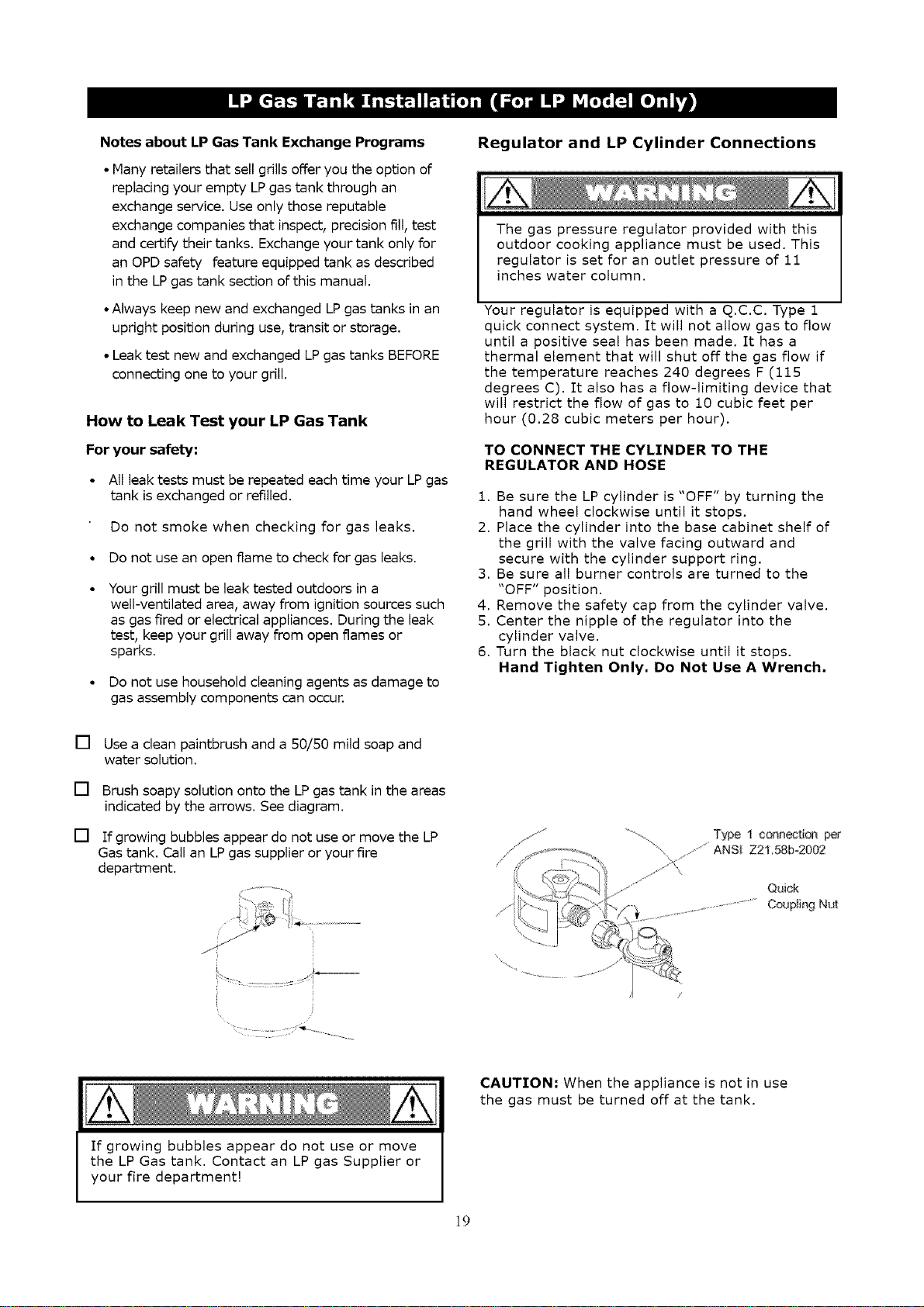

Notes about LP Gas Tank Exchange Programs
• Many retailers that sell grills offer you the option of
replacing your empty LP gas tank through an
exchange service. Use only those reputable
exchange companies that inspect, precision fill, test
and certify their tanks. Exchange your tank only for
an OPD safety feature equipped tank as described
in the LP gas tank section of this manual.
• Always keep new and exchanged LP gas tanks in an
upright position during use, transit or storage.
• Leak test new and exchanged LP gas tanks BEFORE
connecting one to your grill.
How to Leak Test your LP Gas Tank
For your safety:
• All leak tests must be repeated each time your LP gas
tank is exchanged or refilled.
Do not smoke when checking for gas leaks.
• Do not use an open flame to check for gas leaks.
Your grill must be leak tested outdoors in a
well-ventilated area, away from ignition sources such
as gas fired or electrical appliances. During the leak
test, keep your grill away from open flames or
sparks.
• Do not use household cleaning agents as damage to
gas assembly components can occur.
Regulator and LP Cylinder Connections
The gas pressure regulator provided with this
outdoor cooking appliance must be used. This
regulator is set for an outlet pressure of 11
inches water column.
Your regulator is equipped with a Q.C.C. Type 1
quick connect system. It will not allow gas to flow
until a positive seal has been made. It has a
thermal element that will shut off the gas flow if
the temperature reaches 240 degrees F (115
degrees C). It also has a flow-limiting device that
will restrict the flow of gas to 10 cubic feet per
hour (0.28 cubic meters per hour).
TO CONNECT THE CYLINDER TO THE
REGULATOR AND HOSE
1. Be sure the LP cylinder is "OFF" by turning the
hand wheel clockwise until it stops.
2. Place the cylinder into the base cabinet shelf of
the grill with the valve facing outward and
secure with the cylinder support ring.
3. Be sure all burner controls are turned to the
"OFF" position.
4. Remove the safety cap from the cylinder valve.
5. Center the nipple of the regulator into the
cylinder valve.
6. Turn the black nut clockwise until it stops.
Hand Tighten Only. Do Not Use A Wrench,
[]
[]
[]
Use a clean paintbrush and a 50/50 mild soap and
water solution.
Brush soapy solution onto the LPgas tank in the areas
indicated by the arrows. See diagram.
Ifgrowing bubbles appear do not use or move the LP
Gas tank. Call an LP gas supplier or your fire
department.
Type I c_nection per
If growing bubbles appear do not use or move
the LP Gas tank. Contact an LP gas Supplier or
your fire department!
CAUTION: When the appliance is not in use
the gas must be turned off at the tank.
]9

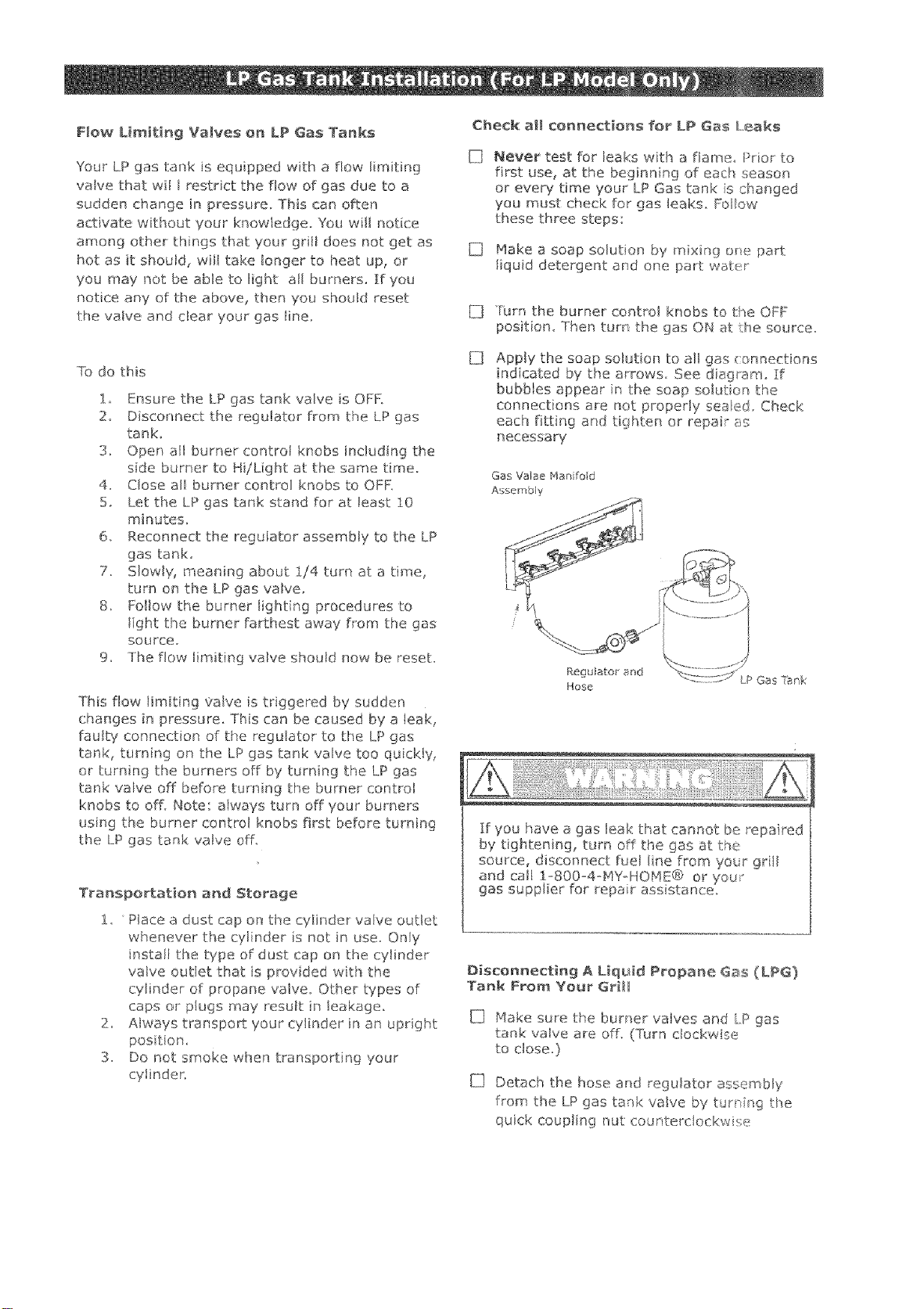

Flow Limiting Valves on LP Gas Tanks
Your LP gas tank is equipped with a flow limiting
valve that wilt restrict the flow of gas due to a
sudden change in pressure. This can often
activate without your knowledge. You will notice
among olher things that your grtl does not get as
hot as it should, witl take longer to heat up or
you may not be able to light all burners. If you
notice any of the above, then you should reset
the valve and clear' your gas _ine
?b do this
;_ Ensure the LP gas tank valve is OFR
2 Disconnect the regulator from the LP gas
tank.
3. Open aH burnercontrot knobs including the
side burner to Hi/Light at the same time.
4_ Close all burner control knobs to OFR
5. Let the LP gas tank stand for at _east _0
minutes,
6_ Reconnect the regulator assemUy to the LP
gas Lank
7. Slowly, meaning about 1/4 turn at a Lime,
bJm on the LP gas valve.
8. Follow the burner lighting procedures to
light the burner farthest away from the gas
source
9. ]he flow limiting valve should now be reset
This flow limiting Valve is triggered by sudden
changes in pressure This can be caused by a leak,
faulb/connection of the regulator to t_e LP gas
tank, turning on the LP gas tank valve too quickly,
or turning the burners off by turning the LP gas
tank valve off before turning the burner control
knobs to offl Note: aJways turn off your burners
using the burner contro! knobs first before turning
the LP gas tank valve off.
Transportation and Storage
l. "Place a dust cap on the cylindel vave outlet
whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder
valve outiet that is provided wth the
cylinder of propane valve. Other types of
caps or plugs may result in leakage.
2. Always transport your cylinder in an upright
position,
3, Do not smoke whe_ transporting your
Check aH connections for LP Gas _eaks
D Never test for leaks with a fiame_ Prior to
first use, at the beginning of each season
or every time your LP Gas tank is changed
you must check for gas teaks. Follow
these three steps:
Hakea soap solut on by mixingo e part
liquid detergent and one part water
D
D
[urn the burner contro_ knobs to tse OFF
position Then turn the gas ON at the source.
Appty the soap sotution to aH gas :onnections
indicated by the arrows. See diag am. _f
bubbles appear in the soap solution the
connections are not properly sealed Check
each fitting and tighten or repair as
necessary
:ff you have a gas leak that cannot be repaired
by tightening turn off the gas at the
source, disconnect fuel line from yot. r grill
and call 1-800_4_Hyo.HOHE@ or yo/.. °
gas supplier for- repar ass stance.
Disconnecting A Liquid Propa_e Gas (LPG}
Tank From Your Grill
_} Hake sure the burner valves and .P gas
tank valve are of£ (Turn clockwise
[Z Detach the hose and regulator ass(;mMy
from the LP gas taJ'_k valve by turr ng the
quick coupling nut counterc ockwise

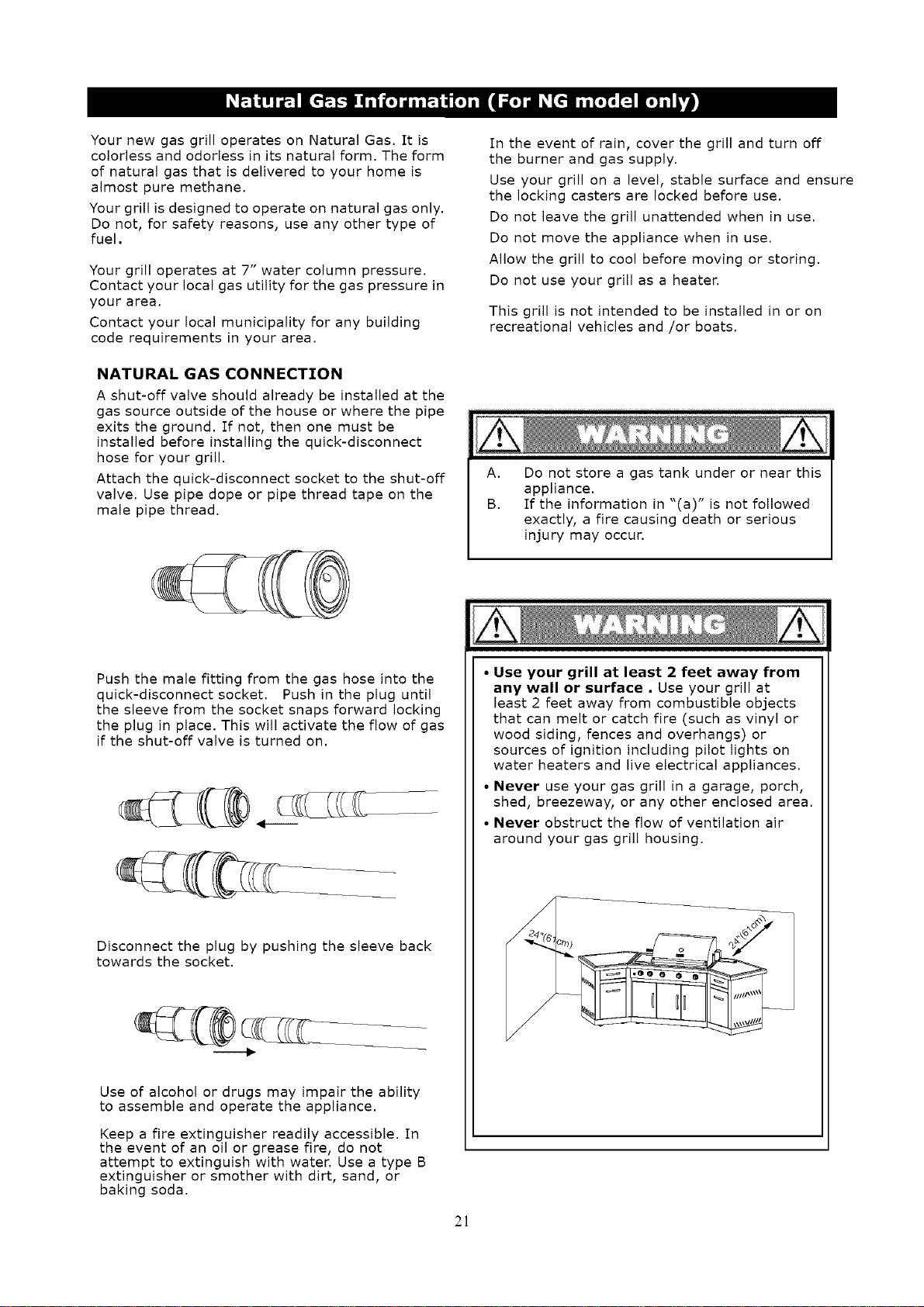

YournewgasgrilloperatesonNaturalGas.It is
colorlessandodorlessinitsnaturalform.Theform
ofnaturalgasthatisdeliveredtoyourhomeis
almostpuremethane.
Yourgrillisdesignedtooperateonnaturalgasonly.
Donot,forsafetyreasons,useanyothertypeof
fuel.
Yourgrilloperatesat7"watercolumnpressure.
Contactyourlocalgasutilityforthegaspressurein
yourarea.
Contactyourlocalmunicipalityforanybuilding
coderequirementsinyourarea.
NATURAL GAS CONNECTION
A shut-off valve should already be installed at the
gas source outside of the house or where the pipe
exits the ground. If not, then one must be
installed before installing the quick-disconnect
hose for your grill.
Attach the quick-disconnect socket to the shut-off
valve. Use pipe dope or pipe thread tape on the
male pipe thread.
In the event of rain, cover the grill and turn off
the burner and gas supply.
Use your grill on a level, stable surface and ensure
the locking casters are locked before use.
Do not leave the grill unattended when in use.
Do not move the appliance when in use.
Allow the grill to cool before moving or storing.
Do not use your grill as a heater.
This grill is not intended to be installed in or on
recreational vehicles and/or boats.
A. Do not store a gas tank under or near this
appliance.
B. If the information in "(a)" is not followed
exactly, a fire causing death or serious
injury may occur.
Push the male fitting from the gas hose into the
quick-disconnect socket. Push in the plug until
the sleeve from the socket snaps forward locking
the plug in place. This will activate the flow of gas
if the shut-off valve is turned on.
Disconnect the plug by pushing the sleeve back
towards the socket.
Use of alcohol or drugs may impair the ability
to assemble and operate the appliance.
Keep a fire extinguisher readily accessible. In
the event of an oil or grease fire, do not
attempt to extinguish with water. Use a type B
extinguisher or smother with dirt, sand, or
baking soda.
• Use your grill at least 2 feet away from
any wall or surface. Use your grill at
least 2 feet away from combustible objects
that can melt or catch fire (such as vinyl or
wood siding, fences and overhangs) or
sources of ignition including pilot lights on
water heaters and live electrical appliances.
• Never use your gas grill in a garage, porch,
shed, breezeway, or any other enclosed area.
• Never obstruct the flow of ventilation air
around your gas grill housing.
2!
For your safety;

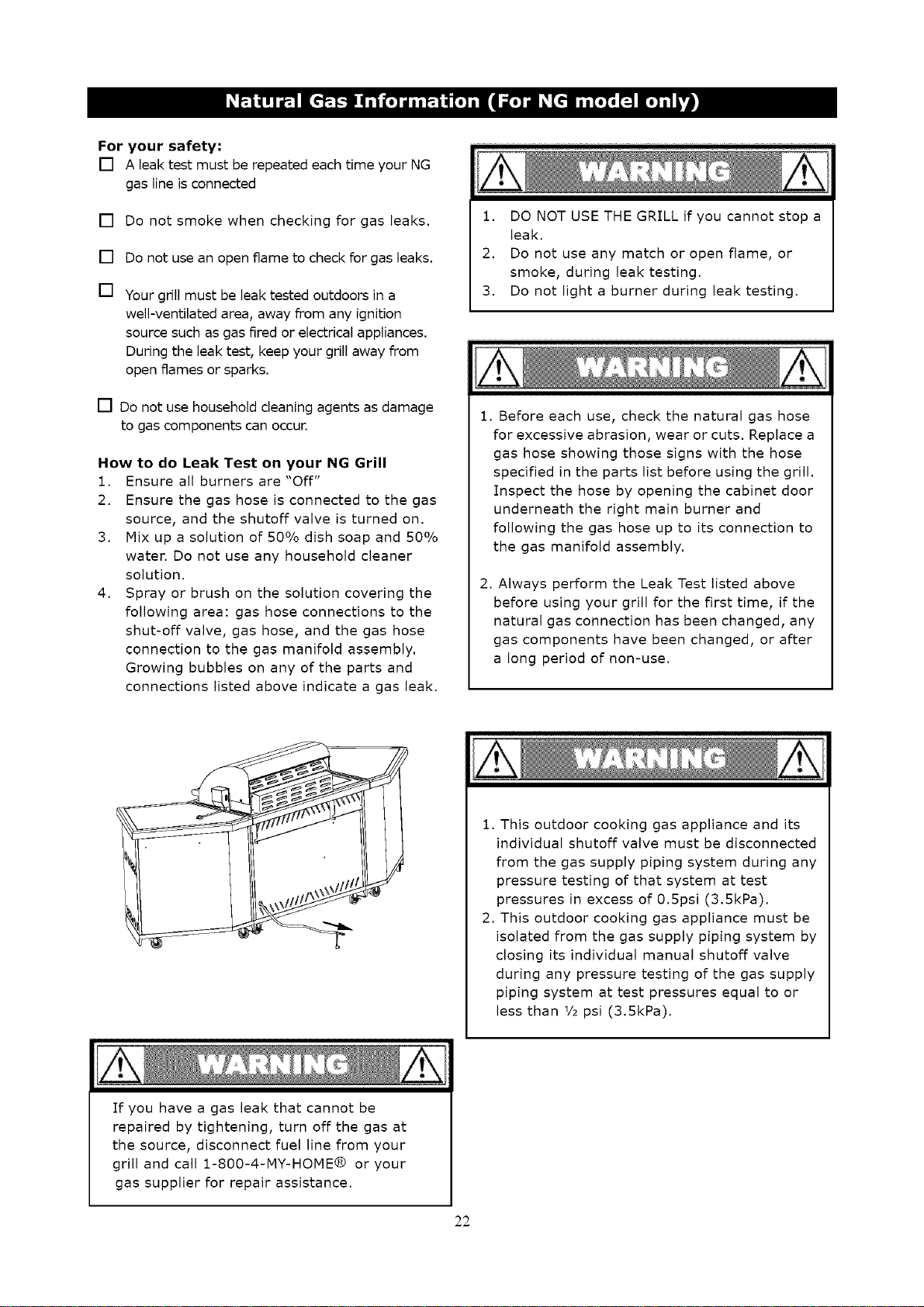

[] A leak test must be repeated each time your NG
gas line is connected
[] Do not smoke when checking for gas leaks.
[] Do not use an open flame to check for gas leaks.
[]
Your grill must be leak tested outdoors in a
well-ventilated area, away from any ignition
source such as gas fired or electrical appliances.
During the leak test, keep your grill away from
open flames or sparks.
[] Do not use household cleaning agents as damage
to gas components can occur.
How to do Leak Test on your NG Grill
1. Ensure all burners are "Off"
2. Ensure the gas hose is connected to the gas
source, and the shutoff valve is turned on.
3. Mix up a solution of 50% dish soap and 50%
water. Do not use any household cleaner
solution.
4. Spray or brush on the solution covering the
following area: gas hose connections to the
shut-off valve, gas hose, and the gas hose
connection to the gas manifold assembly.
Growing bubbles on any of the parts and
connections listed above indicate a gas leak.
1. DO NOT USE THE GRILL if you cannot stop a
leak.
2. Do not use any match or open flame, or
smoke, during leak testing.
3. Do not light a burner during leak testing.
1. Before each use, check the natural gas hose
for excessive abrasion, wear or cuts. Replace a
gas hose showing those signs with the hose
specified in the parts list before using the grill.
Inspect the hose by opening the cabinet door
underneath the right main burner and
following the gas hose up to its connection to
the gas manifold assembly.
2. Always perform the Leak Test listed above
before using your grill for the first time, if the
natural gas connection has been changed, any
gas components have been changed, or after
a long period of non-use.
1. This outdoor cooking gas appliance and its
individual shutoff valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test
pressures in excess of 0.5psi (3.5kPa).
2. This outdoor cooking gas appliance must be
isolated from the gas supply piping system by
closing its individual manual shutoff valve
during any pressure testing of the gas supply
piping system at test pressures equal to or
less than 1/2 psi (3.5kPa).
If you have a gas leak that cannot be
repaired by tightening, turn off the gas at
the source, disconnect fuel line from your
grill and call 1-800-4-MY-HOME® or your
gas supplier for repair assistance.
22

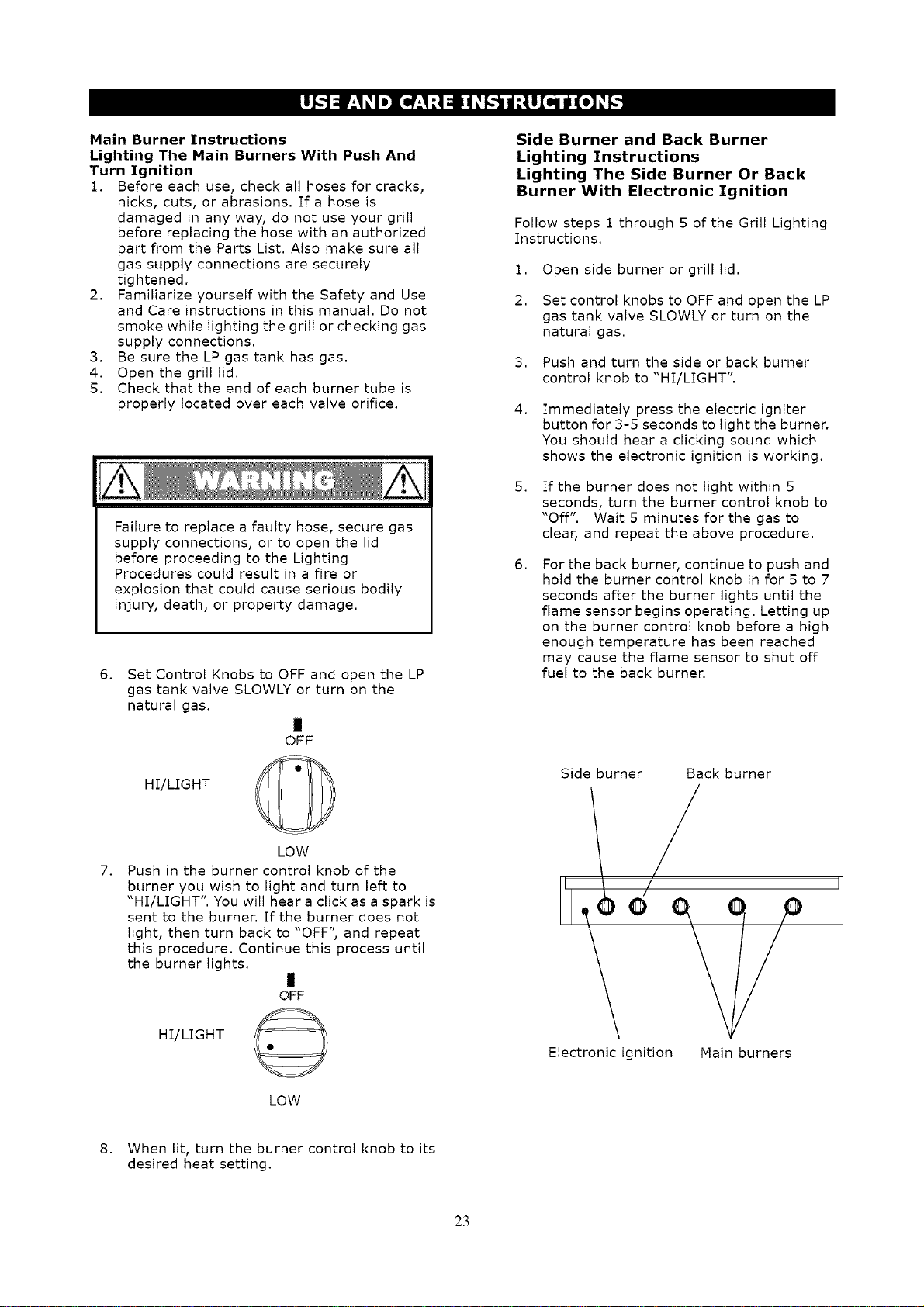

lain Burner Instructions
Lighting The Hain Burners With Push And
Turn Ignition
1. Before each use, check all hoses for cracks,
nicks, cuts, or abrasions. If a hose is
damaged in any way, do not use your grill
before replacing the hose with an authorized
part from the Parts List. Also make sure all
gas supply connections are securely
tightened.
2. Familiarize yourself with the Safety and Use
and Care instructions in this manual. Do not
smoke while lighting the grill or checking gas
supply connections.
3. Be sure the LP gas tank has gas.
4. Open the grill lid.
5. Check that the end of each burner tube is
properly located over each valve orifice.
Failure to replace a faulty hose, secure gas
supply connections, or to open the lid
before proceeding to the Lighting
Procedures could result in a fire or
explosion that could cause serious bodily
injury, death, or property damage.
6.
Set Control Knobs to OFF and open the LP
gas tank valve SLOWLY or turn on the
natural gas.
i
OFF
HI/LIGHT
7.
LOW
Push in the burner control knob of the
burner you wish to light and turn left to
"HI/LIGHT". You will hear a click as a spark is
sent to the burner. If the burner does not
light, then turn back to "OFF, and repeat
this procedure. Continue this process until
the burner lights.
i
HI/LIGHT
OFF
LOW
Side Burner and Back Burner
Lighting Instructions
Lighting The Side Burner Or Back
Burner With Electronic Ignition
Follow steps 1 through 5 of the Grill Lighting
Instructions.
1. Open side burner or grill lid.
2. Set control knobs to OFF and open the LP
gas tank valve SLOWLY or turn on the
natural gas.
3. Push and turn the side or back burner
control knob to "HI/LIGHT".
4.
Immediately press the electric igniter
button for 3-5 seconds to light the burner.
You should hear a clicking sound which
shows the electronic ignition is working.
If the burner does not light within 5
seconds, turn the burner control knob to
"Off". Wait 5 minutes for the gas to
clear, and repeat the above procedure.
6.
For the back burner, continue to push and
hold the burner control knob in for 5 to 7
seconds after the burner lights until the
flame sensor begins operating. Letting up
on the burner control knob before a high
enough temperature has been reached
may cause the flame sensor to shut off
fuel to the back burner.
Side burner
Electronic ignition
Back burner
Main burners
II
8. When lit, turn the burner control knob to its
desired heat setting.
23

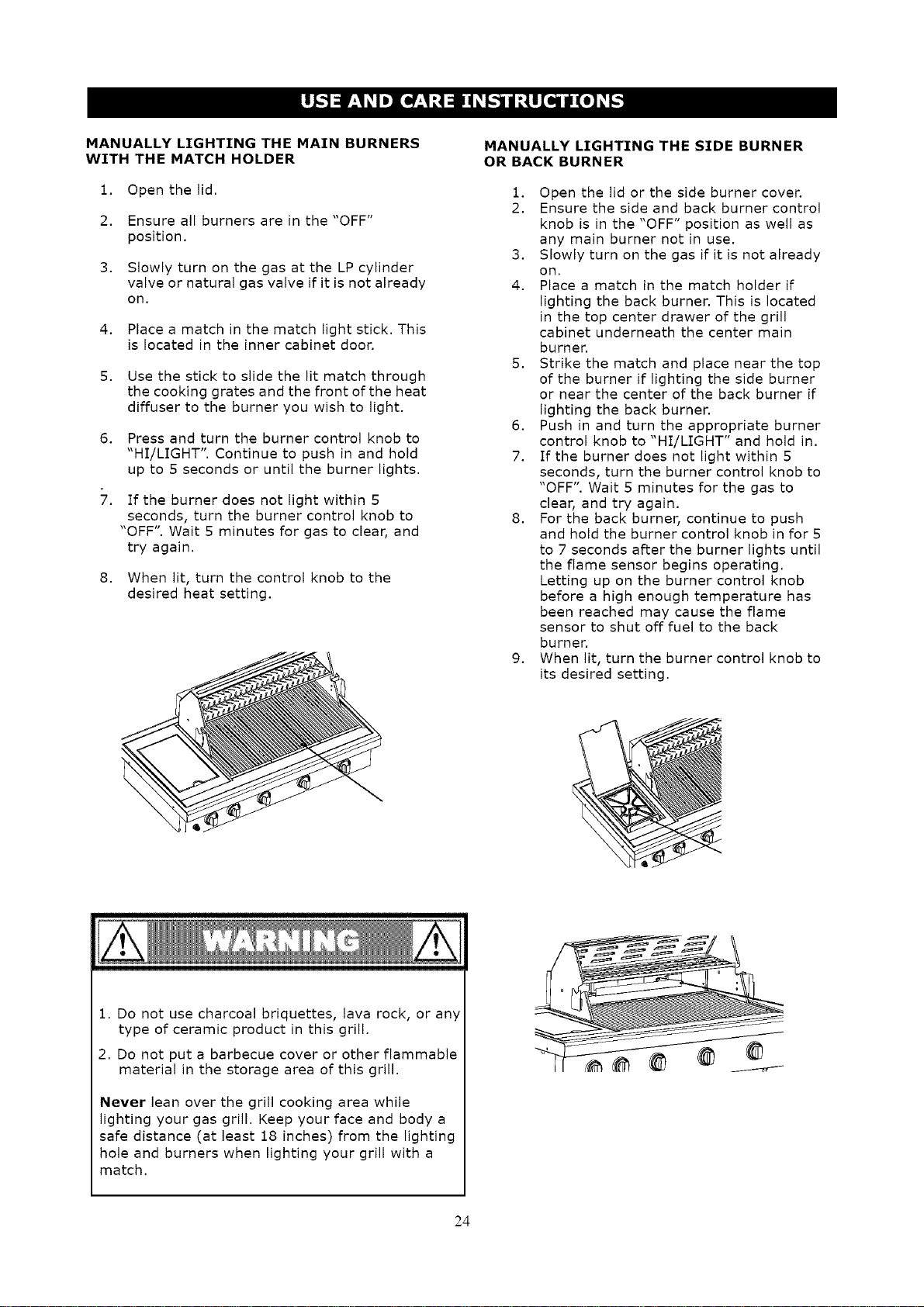

MANUALLY LIGHTING THE MAIN BURNERS
WITH THE MATCH HOLDER
1. Open the lid.
2. Ensure all burners are in the "OFF"
position.
3. Slowly turn on the gas at the LP cylinder
valve or natural gas valve if it is not already
on.
4. Place a match in the match light stick. This
is located in the inner cabinet door.
5. Use the stick to slide the lit match through
the cooking grates and the front of the heat
diffuser to the burner you wish to light.
6. Press and turn the burner control knob to
"HI/LIGHT". Continue to push in and hold
up to 5 seconds or until the burner lights.
If the burner does not light within 5
seconds, turn the burner control knob to
"OFF. Wait 5 minutes for gas to clear, and
try again.
8. When lit, turn the control knob to the
desired heat setting.
MANUALLY LIGHTING THE SIDE BURNER
OR BACK BURNER
1. Open the lid or the side burner cover.
2. Ensure the side and back burner control
knob is in the "OFF" position as well as
any main burner not in use.
3. Slowly turn on the gas if it is not already
on.
4. Place a match in the match holder if
lighting the back burner. This is located
in the top center drawer of the grill
cabinet underneath the center main
burner.
5. Strike the match and place near the top
of the burner if lighting the side burner
or near the center of the back burner if
lighting the back burner.
6. Push in and turn the appropriate burner
control knob to "HI/LIGHT" and hold in.
7. If the burner does not light within 5
seconds, turn the burner control knob to
"OFF". Wait 5 minutes for the gas to
clear, and try again.
8. For the back burner, continue to push
and hold the burner control knob in for 5
to 7 seconds after the burner lights until
the flame sensor begins operating.
Letting up on the burner control knob
before a high enough temperature has
been reached may cause the flame
sensor to shut off fuel to the back
burner.
9. When lit, turn the burner control knob to
its desired setting.
1. Do not use charcoal briquettes, lava rock, or any
type of ceramic product in this grill.
2. Do not put a barbecue cover or other flammable
material in the storage area of this grill.
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and body a
safe distance (at least 18 inches) from the lighting
hole and burners when lighting your grill with a
match.
24

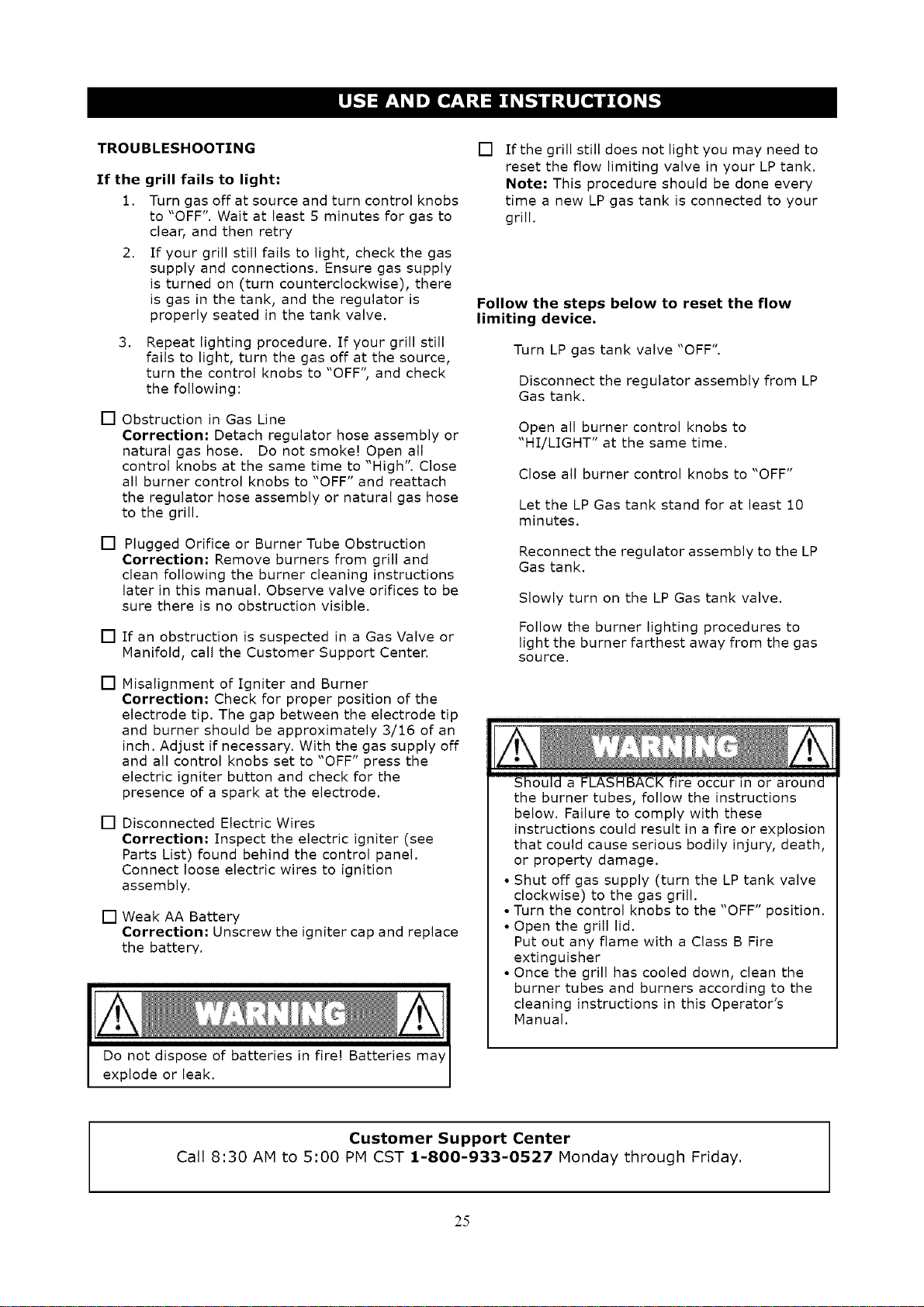

TROUBLESHOOTING
If the grill fails to light:
1. Turn gas off at source and turn control knobs
to "OFF". Wait at least 5 minutes for gas to
clear, and then retry
2. If your grill still fails to light, check the gas
supply and connections. Ensure gas supply
is turned on (turn counterclockwise), there
is gas in the tank, and the regulator is
properly seated in the tank valve.
3,
Repeat lighting procedure. Ifyour grill still
fails to light, turn the gas off at the source,
turn the control knobs to "OFF", and check
the following:
[] Obstruction in Gas Line
Correction: Detach regulator hose assembly or
natural gas hose. Do not smoke! Open all
control knobs at the same time to "High". Close
all burner control knobs to "OFF" and reattach
the regulator hose assembly or natural gas hose
to the grill.
[] Plugged Orifice or Burner Tube Obstruction
Correction: Remove burners from grill and
clean following the burner cleaning instructions
later in this manual. Observe valve orifices to be
sure there is no obstruction visible.
[] If an obstruction is suspected in a Gas Valve or
Manifold, call the Customer Support Center.
[] Misalignment of Igniter and Burner
Correction: Check for proper position of the
electrode tip. The gap between the electrode tip
and burner should be approximately 3/16 of an
inch. Adjust if necessary. With the gas supply off
and all control knobs set to "OFF" press the
electric igniter button and check for the
presence of a spark at the electrode.
[] Disconnected Electric Wires
Correction: Inspect the electric igniter (see
Parts List) found behind the control panel.
Connect loose electric wires to ignition
assembly.
[] Weak AA Battery
Correction: Unscrew the igniter cap and replace
the battery.
Do not dispose of batteries in fire! Batteries ma'
explode or leak.
[] If the grill still does not light you may need to
reset the flow limiting valve in your LP tank.
Note: This procedure should be done every
time a new LP gas tank is connected to your
grill.
Follow the steps below to reset the flow
limiting device.
Turn LP gas tank valve "OFF".
Disconnect the regulator assembly from LP
Gas tank.
Open all burner control knobs to
"HI/LIGHT" at the same time.
Close all burner control knobs to "OFF"
Let the LP Gas tank stand for at least 10
minutes.
Reconnect the regulator assembly to the LP
Gas tank.
Slowly turn on the LP Gas tank valve.
Follow the burner lighting procedures to
light the burner farthest away from the gas
source.
Should a FEASRBACK fire occur in or around
the burner tubes, follow the instructions
below. Failure to comply with these
instructions could result in a fire or explosion
that could cause serious bodily injury, death,
or property damage.
• Shut off gas supply (turn the LP tank valve
clockwise) to the gas grill.
• Turn the control knobs to the "OFF" position.
• Open the grill lid.
Put out any flame with a Class B Fire
extinguisher
• Once the grill has cooled down, clean the
burner tubes and burners according to the
cleaning instructions in this Operator's
Manual.
Customer Support Center
Call 8:30 AN to 5:00 PM CST 1-800-933-0527 Monday through Friday.
25

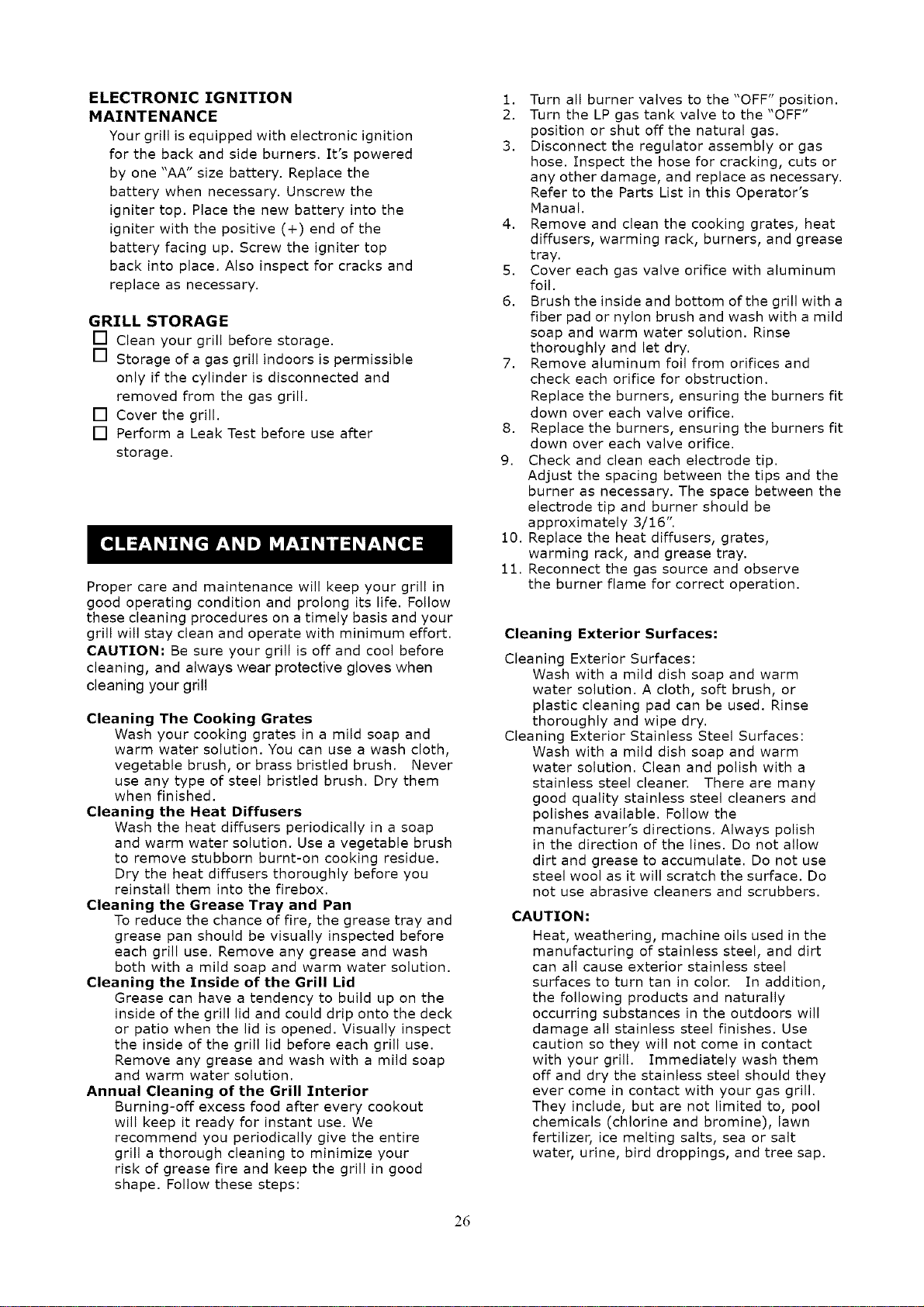

ELECTRONIC IGNITION
MAINTENANCE
Your grillisequipped with electronicignition
for the back and side burners. It'spowered
by one "AA" size battery.Replace the
batterywhen necessary. Unscrew the
ignitertop. Place the new battery intothe
igniterwith the positive(+) end of the
batteryfacing up. Screw the ignitertop
back intoplace.Also inspect for cracks and
replaceas necessary.
GRILL STORAGE
[] Clean your grill before storage.
[] Storage of a gas grill indoors is permissible
only if the cylinder is disconnected and
removed from the gas grill.
[] Cover the grill.
[] Perform a Leak Test before use after
storage.
Proper care and maintenance will keep your grill in
good operating condition and prolong its life. Follow
these cleaning procedures on a timely basis and your
grill will stay clean and operate with minimum effort.
CAUTION= Be sure your grill is off and cool before
cleaning, and always wear protective gloves when
cleaning your grill
Cleaning The Cooking Grates
Wash your cooking grates in a mild soap and
warm water solution. You can use a wash cloth,
vegetable brush, or brass bristled brush. Never
use any type of steel bristled brush. Dry them
when finished.
Cleaning the Heat Diffusers
Wash the heat diffusers periodically in a soap
and warm water solution, Use a vegetable brush
to remove stubborn burnt-on cooking residue.
Dry the heat diffusers thoroughly before you
reinstall them into the firebox.
Cleaning the Grease Tray and Pan
To reduce the chance of fire, the grease tray and
grease pan should be visually inspected before
each grill use. Remove any grease and wash
both with a mild soap and warm water solution.
Cleaning the Inside of the Grill Lid
Grease can have a tendency to build up on the
inside of the grill lid and could drip onto the deck
or patio when the lid is opened. Visually inspect
the inside of the grill lid before each grill use.
Remove any grease and wash with a mild soap
and warm water solution.
Annual Cleaning of the Grill Interior
Burning-off excess food after every cookout
will keep it ready for instant use. We
recommend you periodically give the entire
grill a thorough cleaning to minimize your
risk of grease fire and keep the grill in good
shape. Follow these steps:
1. Turn all burner valves to the "OFF" position.
2. Turn the LP gas tank valve to the "OFF"
position or shut off the natural gas.
3. Disconnect the regulator assembly or gas
hose. Inspect the hose for cracking, cuts or
any other damage, and replace as necessary.
Refer to the Parts List in this Operator's
Manual.
4. Remove and clean the cooking grates, heat
diffusers, warming rack, burners, and grease
tray.
5. Cover each gas valve orifice with aluminum
foil.
6. Brush the inside and bottom ofthe grill with a
fiber pad or nylon brush and wash with a mild
soap and warm water solution. Rinse
thoroughly and let dry.
7. Remove aluminum foil from orifices and
check each orifice for obstruction.
Replace the burners, ensuring the burners fit
down over each valve orifice.
8. Replace the burners, ensuring the burners fit
down over each valve orifice.
9. Check and clean each electrode tip.
Adjust the spacing between the tips and the
burner as necessary. The space between the
electrode tip and burner should be
approximately 3/16".
10. Replace the heat diffusers, grates,
warming rack, and grease tray.
11. Reconnect the gas source and observe
the burner flame for correct operation.
Cleaning Exterior Surfaces:
Cleaning Exterior Surfaces:
Wash with a mild dish soap and warm
water solution. A cloth, soft brush, or
plastic cleaning pad can be used. Rinse
thoroughly and wipe dry.
Cleaning Exterior Stainless Steel Surfaces:
Wash with a mild dish soap and warm
water solution. Clean and polish with a
stainless steel cleaner. There are many
good quality stainless steel cleaners and
polishes available. Follow the
manufacturer's directions. Always polish
in the direction of the lines. Do not allow
dirt and grease to accumulate. Do not use
steel wool as it will scratch the surface. Do
not use abrasive cleaners and scrubbers.
CAUTION:
Heat, weathering, machine oilsused inthe
manufacturing ofstainlesssteel,and dirt
can allcause exteriorstainlesssteel
surfaces to turn tan in color. In addition,
the followingproducts and naturally
occurring substances in the outdoors will
damage allstainlesssteelfinishes.Use
caution so they willnot come in contact
with your grill.Immediately wash them
offand dry the stainlesssteelshould they
ever come in contact with your gas grill.
They include,but are not limitedto, pool
chemicals (chlorine and bromine), lawn
fertilizer, ice melting salts, sea or salt
water, urine, bird droppings, and tree sap.
26
To reduce the chance of FLASHBACK FIRE you
must clean the burner tubes as follows periodically
in summer and fall, wherever spiders are active in
your area, and if your grill has not been used for an
extended period of time.
1. Turn all burner control knobs to the "OFF"
position.
2. Turn the LP Tank or Natural Gas valve to the
"OFF" position.
3. Disconnect the regulator assembly or natural
gas hose from the gas supply.
4. Remove the cooking grates, heat tents,
grease cup, and grease tray from the grill.
5. Remove the screw from the rear of each
burner using a Phillips head screwdriver.
6. Carefully lift each burner up and away from
the gas valve orifice.
7. Check and clean burner tubes for insects and
insect nests. A clogged tube can lead to a fire
beneath the grill.
METHOD I: Use a bottle brush with a flexible
handle and run the brush through the burner
tube and inside the burner several times to
remove any debris.
METHOD 2: Use an air hose to force air
through each burner tube. The forced air
should pass debris or obstructions through the
burner and out the ports. Always wear eye
protection if using this method.
Small insects, such as spiders, are able to access
the burner tubes. Sometimes they will build nests
or spin webs. In either case, this can block or
reduce the amount of gas flowing through the
burner. You will usually see a smaller flame, or a
flame that is mostly yellow rather than blue,
coming from the burner when this happens.
Other signs include the gill not heating evenly, not
reaching temperature, or burners not igniting. In
cases with severe blockage, this can cause the
flame to burn backwards, and outside of the
burner tubes, which can cause damage to your
grill and/or personal injury. IMMEDIATELY
SHUT OFF THE FLOW OF GAS AT THE LP TANK
OR NATURAL GAS VALVE SHOULD THIS
HAPPEN, Wait for the grill to cool, and then clean
all burners.
Regardless of the burner cleaning procedure you
use, we recommend you also complete the
following steps to help prolong burner life.
1. Use a fiber pad or nylon brush to clean the
entire outer surface of each burner until free
of food residue and dirt.
2. Clean any clogged ports with a stiff wire,
such as an open paper clip.
3. Inspect each burner for damage (cracks or
holes) and if such damage is found, order
and install a new burner. After installation,
check to ensure that the gas valve orifices
are correctly placed inside the ends of the
burner tubes. Also check the position of your
electrodes.
4. Never enlarge the burner ports during
cleaning.
For safe operation ensure the gas valve
assembly orifice is inside the burner tube
before using your grill. See figure. If the
orifice is not inside the burner tube, lighting
the burner may cause explosion and/or fire
resulting in serious bodily injury and/or
property damage.
Gas Va_ve AssemMy Orifice BumerTube
BURNER FLAMES
Always inspect the burner flame after
lighting. A good flam should be primarily blue
with a yellow tip and have a minima amount
of noise. Some yellow tips are OK if under
one inch. New burners sometimes have oil
residue, which will cause yellow flame when
burning off. Variations in gas supply, altitude,
weather, and other factors can all impact
burner performance. Older grills can also
show more yellow flame as food deposits,
oils, and fats can build up
Good Bad
2?

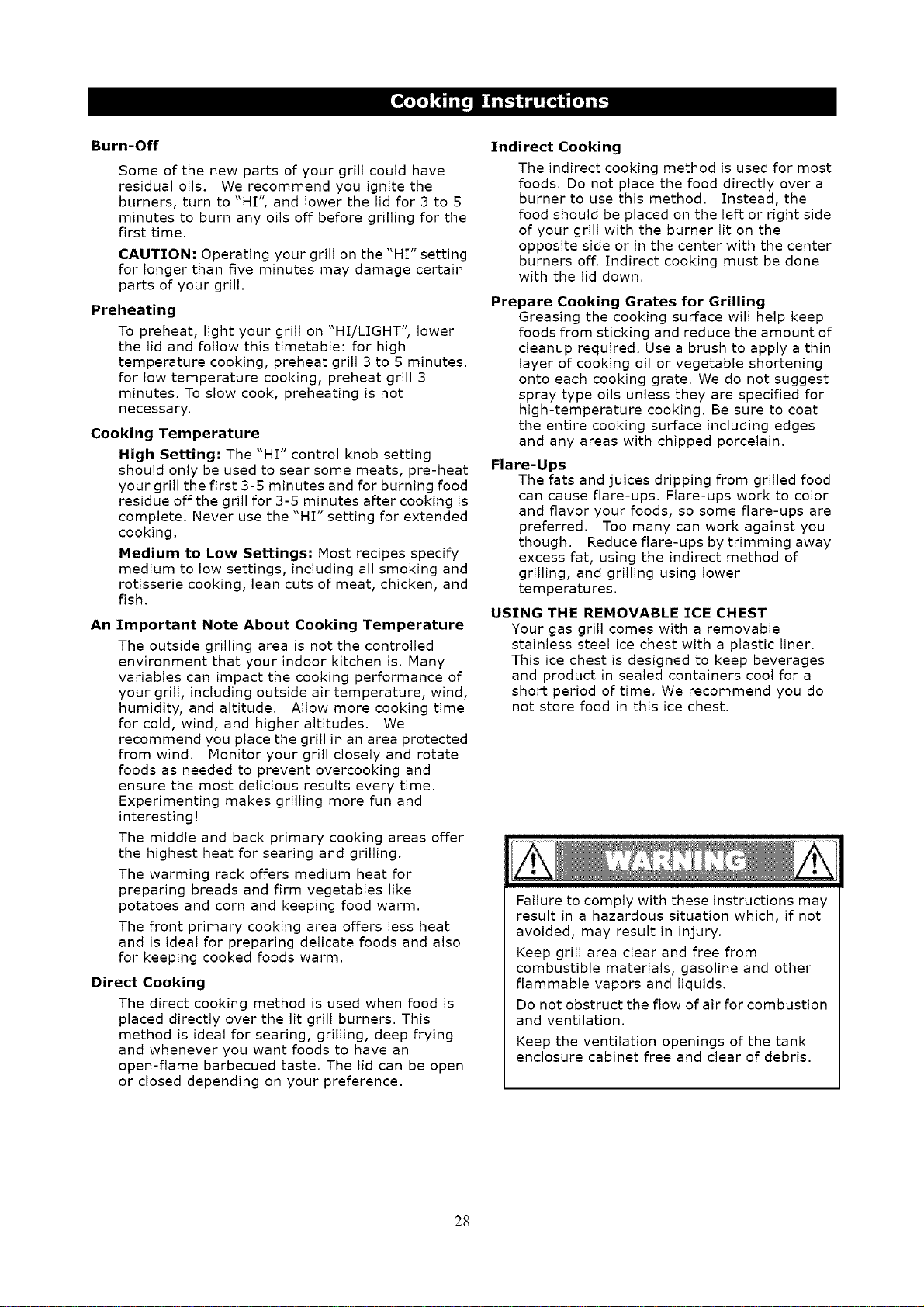

Burn-Off
Some of the new parts of your grill could have
residual oils. We recommend you ignite the
burners, turn to "HI", and lower the lid for 3 to 5
minutes to burn any oils off before grilling for the
first time.
CAUTION: Operating your grill on the "HI" setting
for longer than five minutes may damage certain
parts of your grill.
Preheating
To preheat, light your grill on "HI/LIGHT', lower
the lid and follow this timetable: for high
temperature cooking, preheat grill 3 to 5 minutes.
for low temperature cooking, preheat grill 3
minutes. To slow cook, preheating is not
necessary.
Cooking Temperature
High Setting: The "HI" control knob setting
should only be used to sear some meats, pre-heat
your grill the first 3-5 minutes and for burning food
residue off the grill for 3-5 minutes after cooking is
complete. Never use the "HI" setting for extended
cooking.
Medium to Low Settings: Nost recipes specify
medium to low settings, including all smoking and
rotisserie cooking, lean cuts of meat, chicken, and
fish.
An Important Note About Cooking Temperature
The outside grilling area is not the controlled
environment that your indoor kitchen is. Many
variables can impact the cooking performance of
your grill, including outside air temperature, wind,
humidity, and altitude. Allow more cooking time
for cold, wind, and higher altitudes. We
recommend you place the grill in an area protected
from wind. Monitor your grill closely and rotate
foods as needed to prevent overcooking and
ensure the most delicious results every time.
Experimenting makes grilling more fun and
interesting!
The middle and back primary cooking areas offer
the highest heat for searing and grilling.
The warming rack offers medium heat for
preparing breads and firm vegetables like
potatoes and corn and keeping food warm.
The front primary cooking area offers less heat
and is ideal for preparing delicate foods and also
for keeping cooked foods warm.
Direct Cooking
The direct cooking method is used when food is
placed directly over the lit grill burners. This
method is ideal for searing, grilling, deep frying
and whenever you want foods to have an
open-flame barbecued taste. The lid can be open
or dosed depending on your preference.
Indirect Cooking
The indirect cooking method is used for most
foods. Do not place the food directly over a
burner to use this method. Instead, the
food should be placed on the left or right side
of your grill with the burner lit on the
opposite side or in the center with the center
burners off. Indirect cooking must be done
with the lid down.
Prepare Cooking Grates for Grilling
Greasing the cooking surface will help keep
foods from sticking and reduce the amount of
cleanup required. Use a brush to apply a thin
layer of cooking oil or vegetable shortening
onto each cooking grate. We do not suggest
spray type oils unless they are specified for
high-temperature cooking. Be sure to coat
the entire cooking surface including edges
and any areas with chipped porcelain.
Flare-Ups
The fats and juices dripping from grilled food
can cause flare-ups. Flare-ups work to color
and flavor your foods, so some flare-ups are
preferred. Too many can work against you
though. Reduce flare-ups by trimming away
excess fat, using the indirect method of
grilling, and grilling using lower
temperatures.
USING THE REMOVABLE ICE CHEST
Your gas grill comes with a removable
stainless steel ice chest with a plastic liner.
This ice chest is designed to keep beverages
and product in sealed containers cool for a
short period of time. We recommend you do
not store food in this ice chest.
Failure to comply with these instructions may
result in a hazardous situation which, if not
avoided, may result in injury.
Keep grill area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of air for combustion
and ventilation.
Keep the ventilation openings of the tank
enclosure cabinet free and clear of debris.
28

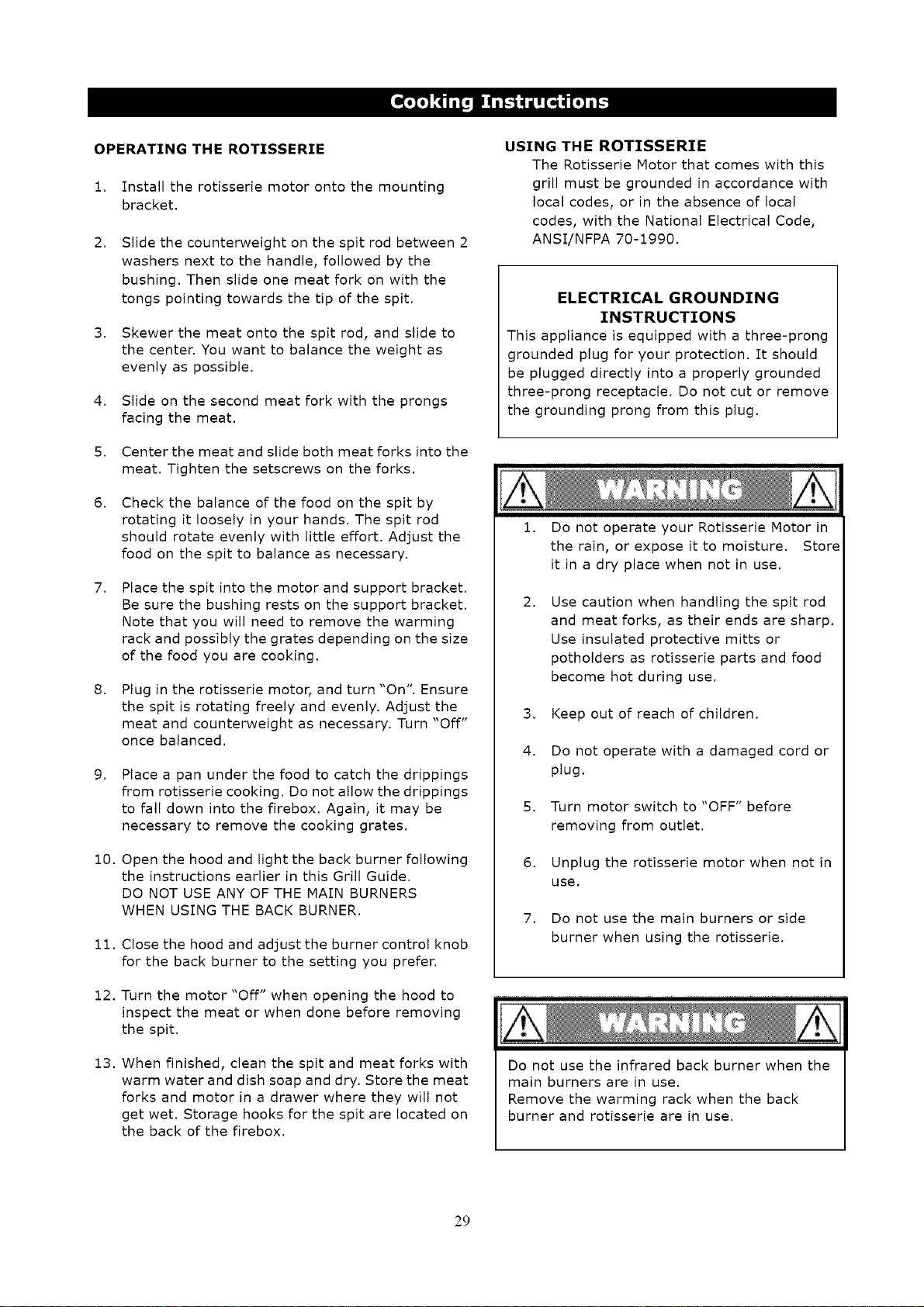

OPERATING THE ROTISSERIE
1. Install the rotisserie motor onto the mounting
bracket.
2.
Slide the counterweight on the spit rod between 2
washers next to the handle, followed by the
bushing. Then slide one meat fork on with the
tongs pointing towards the tip of the spit.
3.
4.
6.
7.
8.
Skewer the meat onto the spit rod, and slide to
the center. You want to balance the weight as
evenly as possible.
Slide on the second meat fork with the prongs
facing the meat.
Center the meat and slide both meat forks into the
meat. Tighten the setscrews on the forks.
Check the balance of the food on the spit by
rotating it loosely in your hands. The spit rod
should rotate evenly with little effort. Adjust the
food on the spit to balance as necessary.
Place the spit into the motor and support bracket.
Be sure the bushing rests on the support bracket.
Note that you will need to remove the warming
rack and possibly the grates depending on the size
of the food you are cooking.
Plug in the rotisserie motor, and turn "On". Ensure
the spit is rotating freely and evenly. Adjust the
meat and counterweight as necessary. Turn "Off"
once balanced.
9.
Place a pan under the food to catch the drippings
from rotisserie cooking. Do not allow the drippings
to fall down into the firebox. Again, it may be
necessary to remove the cooking grates.
10. Open the hood and light the back burner following
the instructions earlier in this Grill Guide.
DO NOT USE ANY OF THE MAIN BURNERS
WHEN USING THE BACK BURNER.
11. Close the hood and adjust the burner control knob
for the back burner to the setting you prefer.
12. Turn the motor "Off" when opening the hood to
inspect the meat or when done before removing
the spit.
13. When finished, clean the spit and meat forks with
warm water and dish soap and dry. Store the meat
forks and motor in a drawer where they will not
get wet. Storage hooks for the spit are located on
the back of the firebox.
USING THE ROTISSERIE
The Rotisserie Motor that comes with this
grill must be grounded in accordance with
local codes, or in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA 70-1990.
ELECTRICAL GROUNDING
INSTRUCTIONS
This appliance isequipped with a three-prong
grounded plug for your protection.Itshould
be plugged directlyintoa properly grounded
three-prong receptacle.Do not cut or remove
the grounding prong from thisplug.
I,
2,
3,
4.
6.
7.
Do not operate your Rotisserie Motor in
the rain, or expose it to moisture. Store
it in a dry place when not in use.
Use caution when handling the spit rod
and meat forks, as their ends are sharp.
Use insulated protective mitts or
potholders as rotisserie parts and food
become hot during use.
Keep out of reach of children.
Do not operate with a damaged cord or
plug.
Turn motor switch to "OFF" before
removing from outlet.
Unplug the rotisserie motor when not in
use,
Do not use the main burners or side
burner when using the rotisserie.
Do not use the infrared back burner when the
main burners are in use.
Remove the warming rack when the back
burner and rotisserie are in use.
29

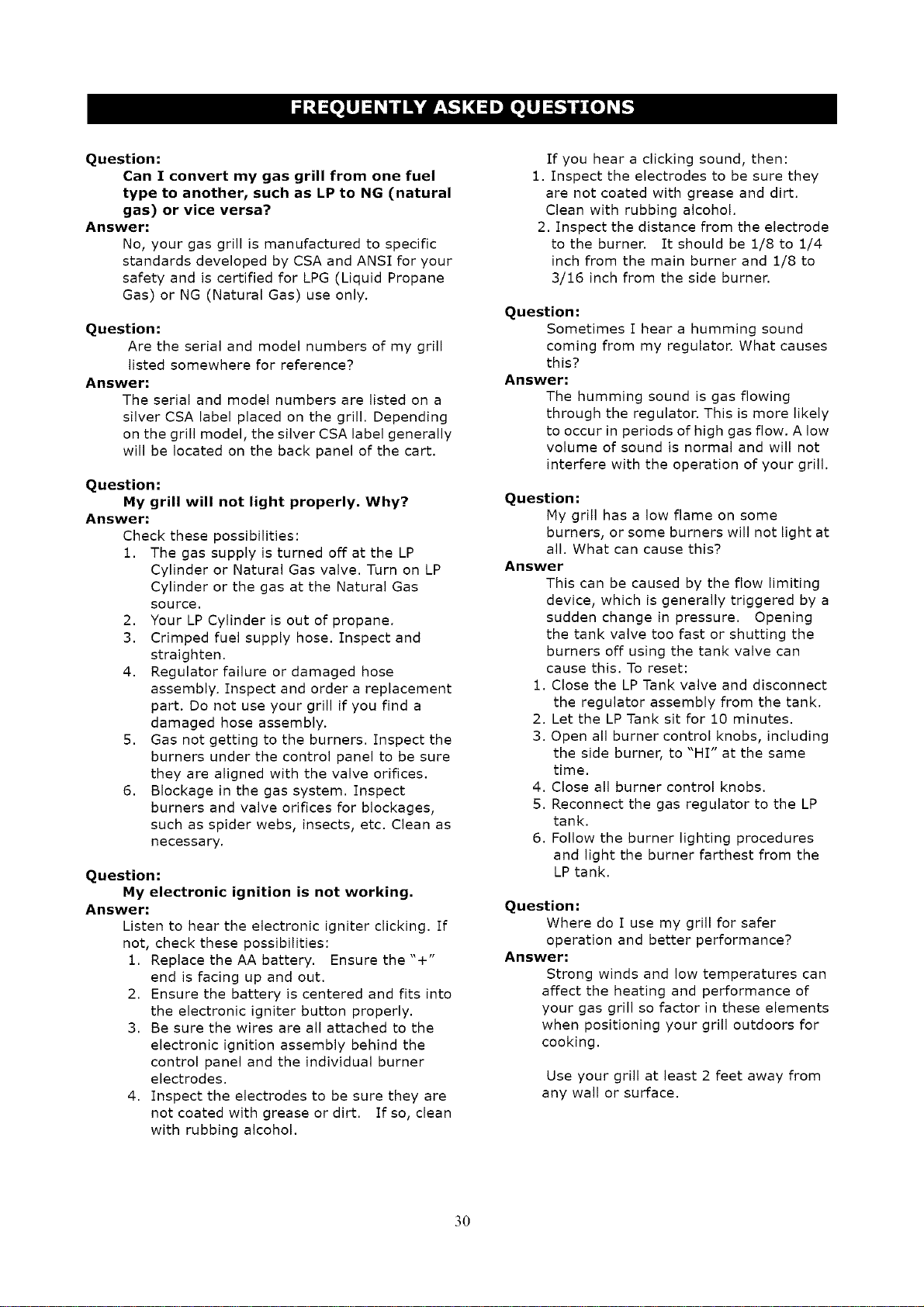

Question:
Can iFconvert my gas grill from one fuel
type to anotherr such as LP to NG (natural
gas) or vice versa?
Answer:
No, your gas grill is manufactured to specific
standards developed by CSA and ANSI for your
safety and is certified for LPG (Liquid Propane
Gas) or NG (Natural Gas) use only.
Question:
Are the serial and model numbers of my grill
listed somewhere for reference?
Answer:
The serial and model numbers are listed on a
silver CSA label placed on the grill. Depending
on the grill model, the silver CSA label generally
will be located on the back panel of the cart.
Question:
My grill will not light properly. Why?
Answer:
Check these possibilities:
1. The gas supply is turned off at the LP
Cylinder or Natural Gas valve. Turn on LP
Cylinder or the gas at the Natural Gas
source.
2. Your LP Cylinder is out of propane.
3. Crimped fuel supply hose. Inspect and
straighten.
4. Regulator failure or damaged hose
assembly. Inspect and order a replacement
part. Do not use your grill if you find a
damaged hose assembly.
5. Gas not getting to the burners. Inspect the
burners under the control panel to be sure
they are aligned with the valve orifices.
6. Blockage in the gas system. Inspect
burners and valve orifices for blockages,
such as spider webs, insects, etc. Clean as
necessary.
Question:
My electronic ignition is not working.
Answer:
Listen to hear the electronic igniter clicking. If
not, check these possibilities:
1. Replace the AA battery. Ensure the "+"
end is facing up and out.
2. Ensure the battery is centered and fits into
the electronic igniter button properly.
3. Be sure the wires are all attached to the
electronic ignition assembly behind the
control panel and the individual burner
electrodes.
4. Inspect the electrodes to be sure they are
not coated with grease or dirt. If so, clean
with rubbing alcohol.
If you hear a clicking sound, then:
1. Inspect the electrodes to be sure they
are not coated with grease and dirt.
Clean with rubbing alcohol.
2. Inspect the distance from the electrode
to the burner. It should be 1/8 to 1/4
inch from the main burner and 1/8 to
3/16 inch from the side burner.
Question:
Sometimes I hear a humming sound
coming from my regulator. What causes
this?
Answer:
The humming sound is gas flowing
through the regulator. This is more likely
to occur in periods of high gas flow. A low
volume of sound is normal and will not
interfere with the operation of your grill.
Question:
My grill has a low flame on some
burners, or some burners will not light at
all. What can cause this?
Answer
This can be caused by the flow limiting
device, which is generally triggered by a
sudden change in pressure. Opening
the tank valve too fast or shutting the
burners off using the tank valve can
cause this. To reset:
1. Close the LP Tank valve and disconnect
the regulator assembly from the tank.
2. Let the LP Tank sit for 10 minutes.
3. Open all burner control knobs, including
the side burner, to "HI" at the same
time.
4. Close all burner control knobs.
5. Reconnect the gas regulator to the LP
tank.
6. Follow the burner lighting procedures
and light the burner farthest from the
LP tank.
Question:
Where do I use my grill for safer
operation and better performance7
Answer:
Strong winds and low temperatures can
affect the heating and performance of
your gas grill so factor in these elements
when positioning your grill outdoors for
cooking.
Use your grill at least 2 feet away from
any wall or surface.
3O

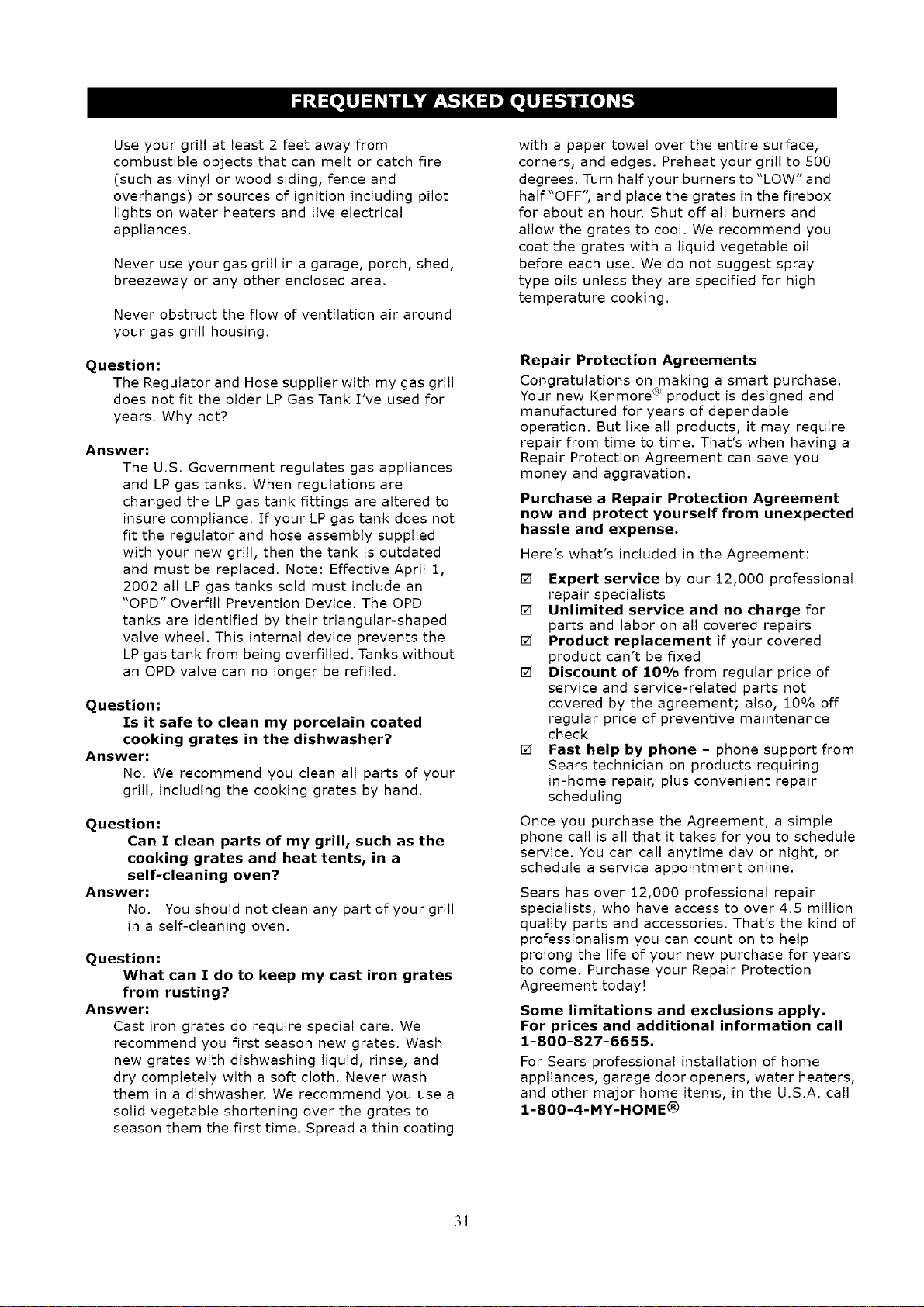

Use your grill at least 2 feet away from
combustible objects that can melt or catch fire
(such as vinyl or wood siding, fence and
overhangs) or sources of ignition including pilot
lights on water heaters and live electrical
appliances.
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area.
Never obstruct the flow of ventilation air around
your gas grill housing.
Question:
The Regulator and Hose supplier with my gas grill
does not fit the older LP Gas Tank I've used for
years. Why not?
Answer:
The U.S. Government regulates gas appNances
and LP gas tanks. When regulations are
changed the LP gas tank fittings are altered to
insure compliance. If your LP gas tank does not
fit the regulator and hose assembly supplied
with your new grill, then the tank is outdated
and must be replaced. Note: Effective April 1,
2002 all LP gas tanks sold must include an
"OPD" Overfill Prevention Device. The OPD
tanks are identified by their triangular-shaped
valve wheel. This internal device prevents the
LP gas tank from being overfilled. Tanks without
an OPD valve can no longer be refilled.
Question:
Is it safe to clean my porcelain coated
cooking grates in the dishwasher?
Answer:
No. We recommend you clean aN parts of your
grill, including the cooking grates by hand.
Question:
Can I clean parts of my grill, such as the
cooking grates and heat tents, in a
self-cleaning oven?
Answer:
No. You should not clean any part of your grill
in a self-cleaning oven.
Question:
What can I do to keep my cast iron grates
from rusting?
Answer:
Cast iron grates do require special care. We
recommend you first season new grates. Wash
new grates with dishwashing liquid, rinse, and
dry completely with a soft cloth. Never wash
them in a dishwasher. We recommend you use a
solid vegetable shortening over the grates to
season them the first time. Spread a thin coating
with a paper towel over the entire surface,
corners, and edges. Preheat your grill to 500
degrees. Turn half your burners to "LOW" and
half "OFF", and place the grates in the firebox
for about an hour. Shut off all burners and
allow the grates to cool. We recommend you
coat the grates with a liquid vegetable oil
before each use. We do not suggest spray
type oils unless they are specified for high
temperature cooking.
Repair Protection Agreements
Congratulations on making a smart purchase.
Your new Kenmore (_ product is designed and
manufactured for years of dependable
operation. But like all products, it may require
repair from time to time. That's when having a
Repair Protection Agreement can save you
money and aggravation.
Purchase a Repair Protection Agreement
now and protect yourself from unexpected
hassle and expense.
Here's what's included in the Agreement:
[] Expert service by our 12,000 professional
repair specialists
[] Unlimited service and no charge for
parts and labor on all covered repairs
[] Product replacement if your covered
product can't be fixed
[] Discount of 10% from regular price of
service and service-related parts not
covered by the agreement; also, 10% off
regular price of preventive maintenance
check
[] Fast help by phone - phone support from
Sears technician on products requiring
in-home repair, plus convenient repair
scheduling
Once you purchase the Agreement, a simple
phone call is all that it takes for you to schedule
service. You can call anytime day or night, or
schedule a service appointment online.
Sears has over 12,000 professional repair
specialists, who have access to over 4.5 million
quality parts and accessories. That's the kind of
professionalism you can count on to help
prolong the life of your new purchase for years
to come. Purchase your Repair Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-HY-HOHE®
31
Your Home ................
For repair-in your home- of all major brand appliances_
lawn and garden equipment,or heating and cooling systems
no matter who made it, no matter who sold it;! .................
For tile replacement parts_ accessories and
owner's manuals that you need to dodt-yourse If. ................
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
................ iiii
1-800'-4-MY-HOME _ (1400-4@-4663)
................ mmmmm:
Call anytime, day or night (U.S.A, and c_ -'
:::::::::::::::: _.anad_)
wv_vosears.com _#,sears,ca
OurHome
For repair of carry-in items like vacuums lawn equipment,
and electronics, call or go ondine for the location of your nearest
Sears Parts & Repair Service Center
1 800 488 1222
Call anytime, ddy'-or night (U,S,A, or,ly')
_iiRegisl_red Trademark TT_'Tr'Bdc-_'_rk J_;_._n4cs Mark of SeaPa Brands, LLC
@Mares RegislT_a _ J'4arca de F_bri_ J Mares _ Berstisis de B_s Brands, LLC
Marque de .omme_ce,_ Marque dep_e de Sears Brands, LLC @Sears Brsnd_, LLC
32
