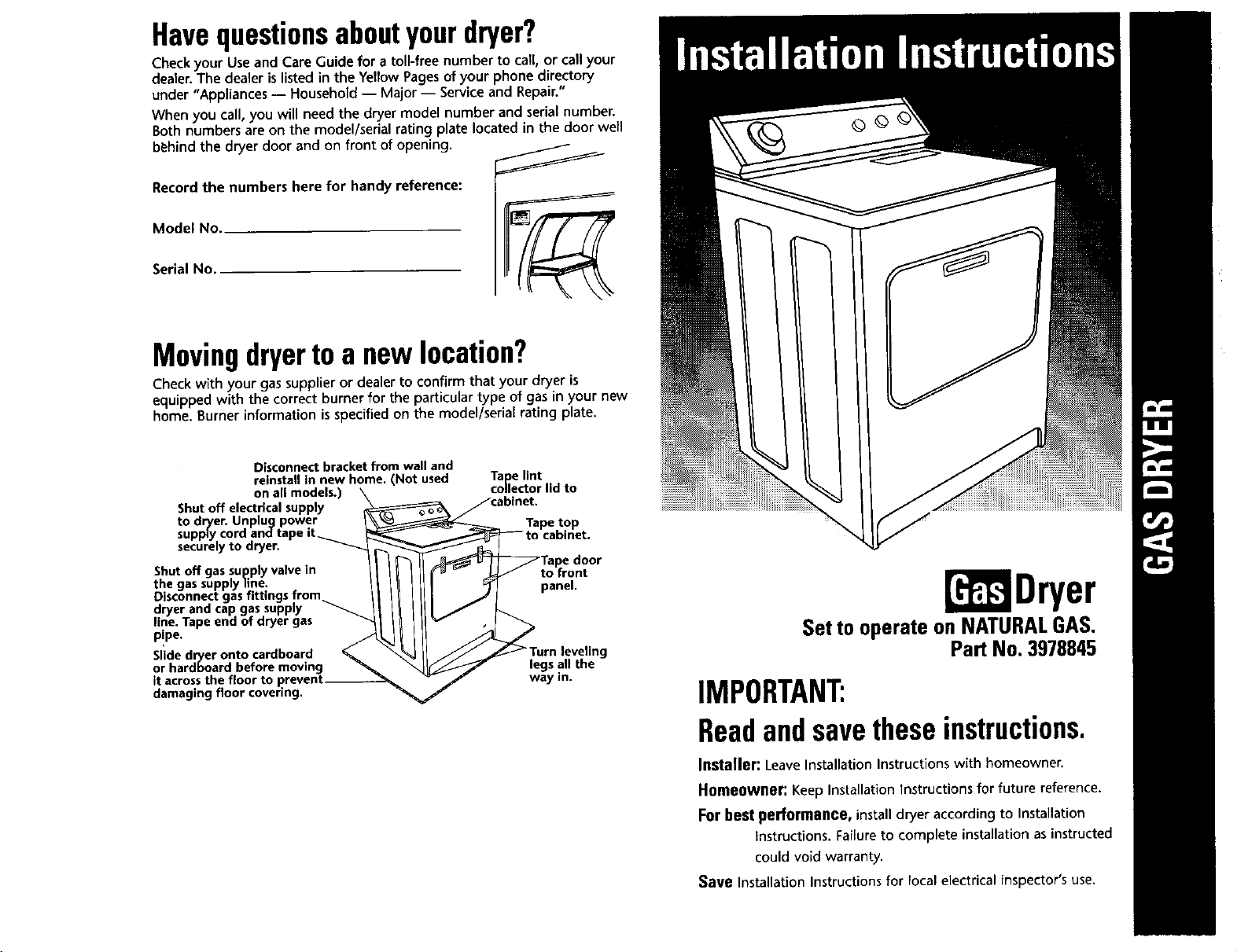

Havequestionsaboutyourdryer?
Check your Use and Care Guide for a toll-free number to call, or call your
dealer. The dealer islisted in the Yetlow Pages of your phone directory
under "Appliances -- Household -- Major -- Service and Repair."
When you call, you will need the dryer model number and serial number.
Both numbers are on the model/serial rating plate located in the door well
b_hind the dryer door and on front of opening.
Record the numbers here for handy reference:
Model No.
Serial No.
Movingdryerto a newlocation?
Check with your gas supplier or dealer to confirm that your dryer is
equipped with the correct burner for the particular type of gas in your new
home. Burner information is specified on the model/serial rating plate.
Disconnect bracket from wall and
reinstall in new home. (Not used
on all models.)
Shut off electrical supply
securely to dryer.
Shut off gas supply valve in
the gas supply fine.
Disconnect gas fittings from
dryer and cap gas supply
line. Tape end of dryer gas
pipe.
Slide dryer onto cardboard
or hardboard before moving
it across the floor to prevent--
damaging floor covering.
Tape lint
collector lid to
font
panel.
legs all the
way in.
[' Dryer
Set to operate on NATURALGAS.
Part No. 3978845
IMPORTANT:
Readandsavetheseinstructions.
Jnsta|Jer: Leave Installation Instructions with homeowner.
Hfimeowller: Keep Installation Instructions for future reference.
For best performance, install dryer according to Installation
Instructions. Failure to complete installation as instructed
could void warranty.
Save Installation Instructions for local electrical inspector's use.
r inlet "-.
_e connection
WARNING:Foryoursafetythe
informationinthismanualmust
befollowedtominimizethe
riskoffireorexplosionorto
preventpropertydamage,
personalinjuryordeath.
-- Donotstoreorusegasoline,
orotherflammablevaporsand
liquidsinthevicinityofthisor
anyotherappliance.
--WHAT TODOIFYOUSMELL
GAS:
• Donottrytalightany
appliance.
• Donottouchanyelectrical
switch;donotuseanyphone
inyourbuilding.
• Cleartheroom,buildingor
areaofall occupants.
• Immediatelycallyourgas,
supplierfromaneighbor's
phone.Followthegas
suppliersinstructions.
• Ifyoucannotreachyourgas
supplier,callthefire
department.
-- Installationandservicemust
bedonebya qualified
installer,serviceagencyor
the9assupplier.
*from floor with _ 'Most installations will
dryer feet require at least S'inch
clearance behLnd the
extended 1 inch dryer for the dryer vent.
Forproperdryingperformance:
The location must provide:
I/Protection from weather and water: Do not
store or use dryer where it will be exposed to
water and weather.
I/Room temperature above 4S°F: If room
temperature is below 4S°F, automatic cycles
may not shut off.
Itisyourresponsibilityto:
I/Observe all governing
codes and ordinances.
I/Check code requirements:
Some codes limit or do not
permit installation of clothes
dryers in garages, closets,
mobile homes or sleeping
quarters. Contact your local
building inspector.
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
Place dryer at least 18 inches above the floor for a garage installation.
Failure to do so can result in death, explosion,or fire.
I/Level floor: Maximum slope under entire dryer
shouid not be more than 1 inch. (If slope is
greater than 1 inch, install Extended Dryer Feet
Kit, Part No. 279810.) Clothes may not tumble
propeby and automatic sensor cyclesmay not
operate correctly if dryer is not level.
I/Comply with the installation
specifications and
dimensions.
I/Consider spacing
requirements for companion
appliances.
I/Make sure you have
everything necessary for
proper installation.
v'Sturdy floor to support dryer weight of
175 pounds.
I/Properly install dryer.
I/Contact a qualified installer
to insure that the electrical
and gas installations meet all
national and local codes and
ordinances.
I/Exhaust to outdoors: Dryer
must be exhausted outdoors
to prevent exposure to
harmful substances in the gas
fuels.
This installation must also conform with the
American National Standard, National Fuel
Gas Code ANSI Z223,1 -- latest edition***,
and all local codes and ordinances.
Copies of the standards listed may be obtained
from:
***American Gas Association
1515 Wilson Boulevard
Arlington, Virginia 22209

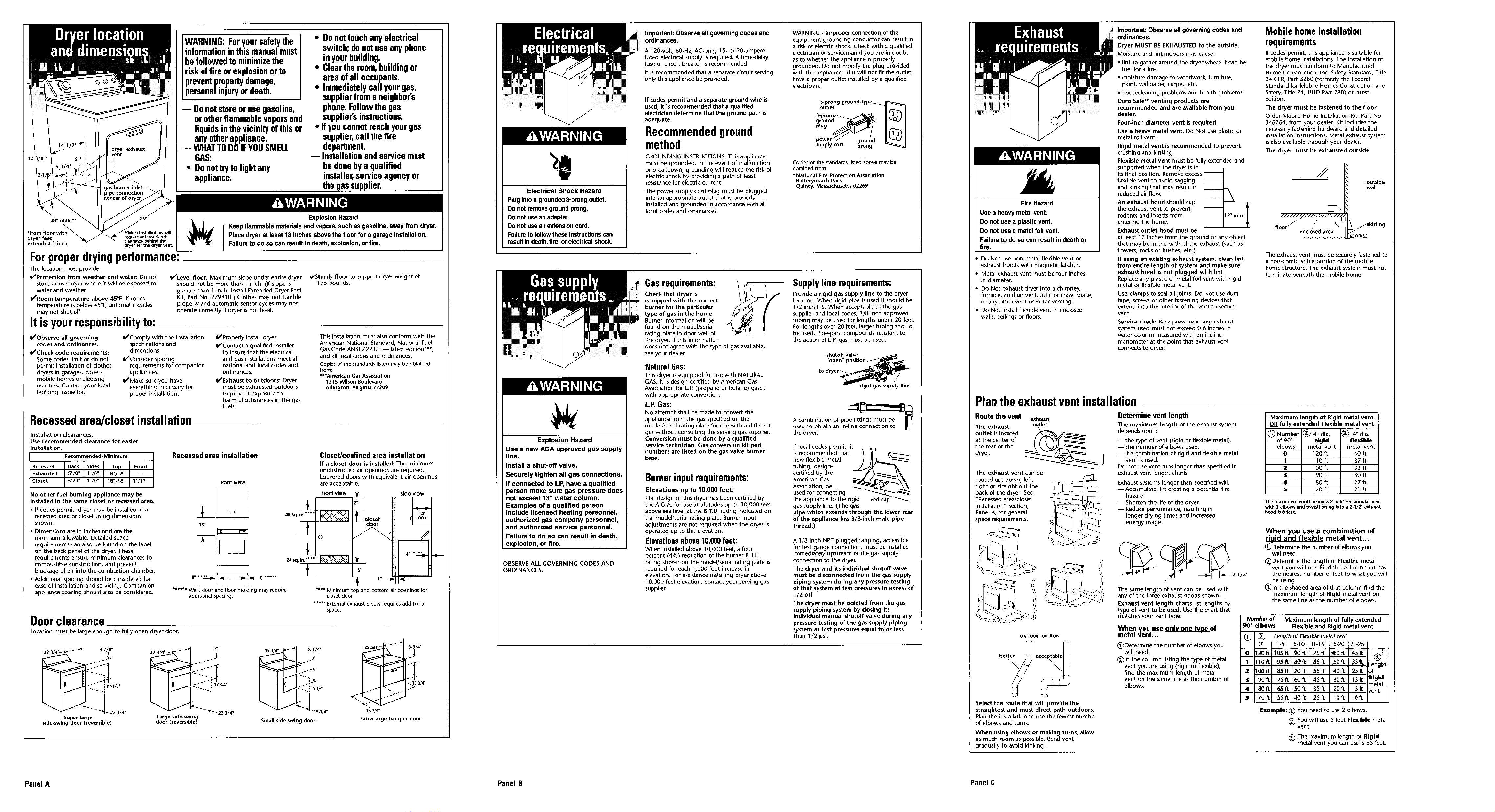

Recessedarea]closetinstallation
Installation clearances.
Use recommended clearance for easier
installation.
Recessed
Exhausted
Closet
No other fuel burning appliance may be
installed in the same closet or recessed area.
• If codes permit, dryer may be installed in a
recessed area or closet using dimensions
shown.
• Dimensions are in inches and are the
minimum allowable. Detailed space
requirements can also be found on the label
on the back panel of the dryer. These
requirements ensure minimum clearances to
combustible construction, and prevent
blockage of air into the combustion chamber.
• Additional spacing should be considered for
ease of installation and servicing. Companion
appliance spacing should also be considered.
Recessed area installation
frontview
18"
Closel]confined area installation
If a closetdoor isinstalled: The minimum
unobstructedair openings are required.
Louvered doors with equivalent air openings
side view
I 14"
closet d mdx
dOOr
3"
****** Wall, door and floor molding may require
additional spacing.
Doorclearance
Location must be large enough to fully open dryer door.
are acceptable.
front view
**** Minimum top and bottom air openings for
closet door.
*****External exhaust elbow requires additional
space.
Super-large Large side swin
door (reverslble_
side-swing door (reversible)
8.1/4"
,., ,,
_15.1/4"
Small side-swing door
13-3/4 n
Extra-large hamper door
Electrical Shock Hazard
Pluginto a grounded3-prongoutlet.
Do not removeground prong.
Do not usean adapter.
Do not usean extensioncord.
Failuretofollowtheseinstructionscan
resultin neath,fire,or electricalshock.
Important: Observe all governing codes and
ordinances.
A 120-volt, 6O-Hz, AC-only, 15- or 2B-ampere
fused electrical supply is required. A time-delay
fuse or circuit breaker is recommended.
It is recommended that a separate circuit serving
only this appliance be provided.
If codes permit and a separate ground wire is
used, it is recommended that a qualified
electrician determine that the ground path is
adequate,
Recommendedground
method
GROUNDING INSTRUCTIONS: This appliance
must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of
electric shock by providing a path of least
resistance for electric current,
The power supply cord plug must be plugged
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
WARNING - Improper connection of the
equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified
electrician or serviceman it you are in doubt
as to whether the appliance is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
3 prong ground-type
3-pron
groun_
power
supply cord prong
Copies of the standards listed above may be
obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Explosion Hazard
Use a new AGA approved gas supply
line.
Install a shut-off valve.
Securely tighten all gas connections.
U connected to LP, have a qualified
person make sure gas pressure does
not exceed 13" water column.
Examples of a qualified person
include licensed heating personnel,
authorized gas company personnel,
and authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
OBSERVE ALL GOVERNING CODES AND
ORDINANCES.
Gasrequirements: Supplyline requirements:
Check that dryer is
equipped with the correct
burner for the particular
type or gas in the home.
Burner information will be
found on the model/serial
rating plate in door well of
the dryer. If this information
does not agree with the type of gas available,
see your dealer.
Natural Gas:
This dryer is equipped for use with NATURAL
GAS. It is design-certified by American Gas
Association for L.R (propane or butane) gases
with appropriate conversion.
L,R Gas:
No attempt shall be made to convert the
appliance from the gas specified on the
model/serial rating plate for use with a different
gas without consulting the serving gas supplier.
Conversion must be done by a qualified
service technician. Gas conversion kit part
numbers are listed on the gas valve burner
base.
Burnerinputrequirements:
Elevations up to 10,000 feet:
The design of this dryer has been certified by
the A.G.A. for use at altitudes up to 10,000 feet
above sea level at the B.T.U. rating indicated on
the model/serial rating plate. Burner input
adjustments are not required when the dryer is
operated up to this elevation.
Elevations above 10,000 feet:
When installed above 10,OO0feet_ a four
percent (4%) reduction of the burner B.T.U.
rating shown on the model/serial rating plate is
required for each 1,000 foot increase in
elevation. For assistance installing dryer above
10,0go feet elevation, contact your serving gas
supplier.
Provide a rigid gas supply line to the dryer
location. When rigid pipe is used it should be
IJ2 inch IPS. When acceptable to the gas
supplier and local codes, 318-inch approved
tubing may be used for lengths under 20 feet.
For lengths over 20 feet, larger tubing should
be used. Pipe-joint compounds resistant to
the action of L.P. gas must be used.
shutoff valve
"open" position
to dryer _
As__tmbinl_ttia°_ a(fn,PI.I_
the dryer.
If local codes permit, it
isrecommendedthat
new flexible metal
tubing, design-
certified by the
American Gas
Association, be
used for connecting
the appliance to the rigid red cap
gas supply line. (The gas
pipe which extends through the lower rear
of the appliance has 3/8-inch male pipe
thread.)
A 1/8-inch NPT plugged tapping, accessible
for test gauge connection, must be installed
immediately upstream of the gas supply
connection to the dryer.
The dryer and its individual shutoff valve
must be disconnected from the gas supply
piping system during any pressure testing
or that system at test pressures in excess of
1/2 psi.
The dryer must be isolated from the gas
supply piping system by closing its
individual manual shutoff valve during any
pressure testing of the gas supply piping
system at test pressures equal to or less
than 1/2 psi.

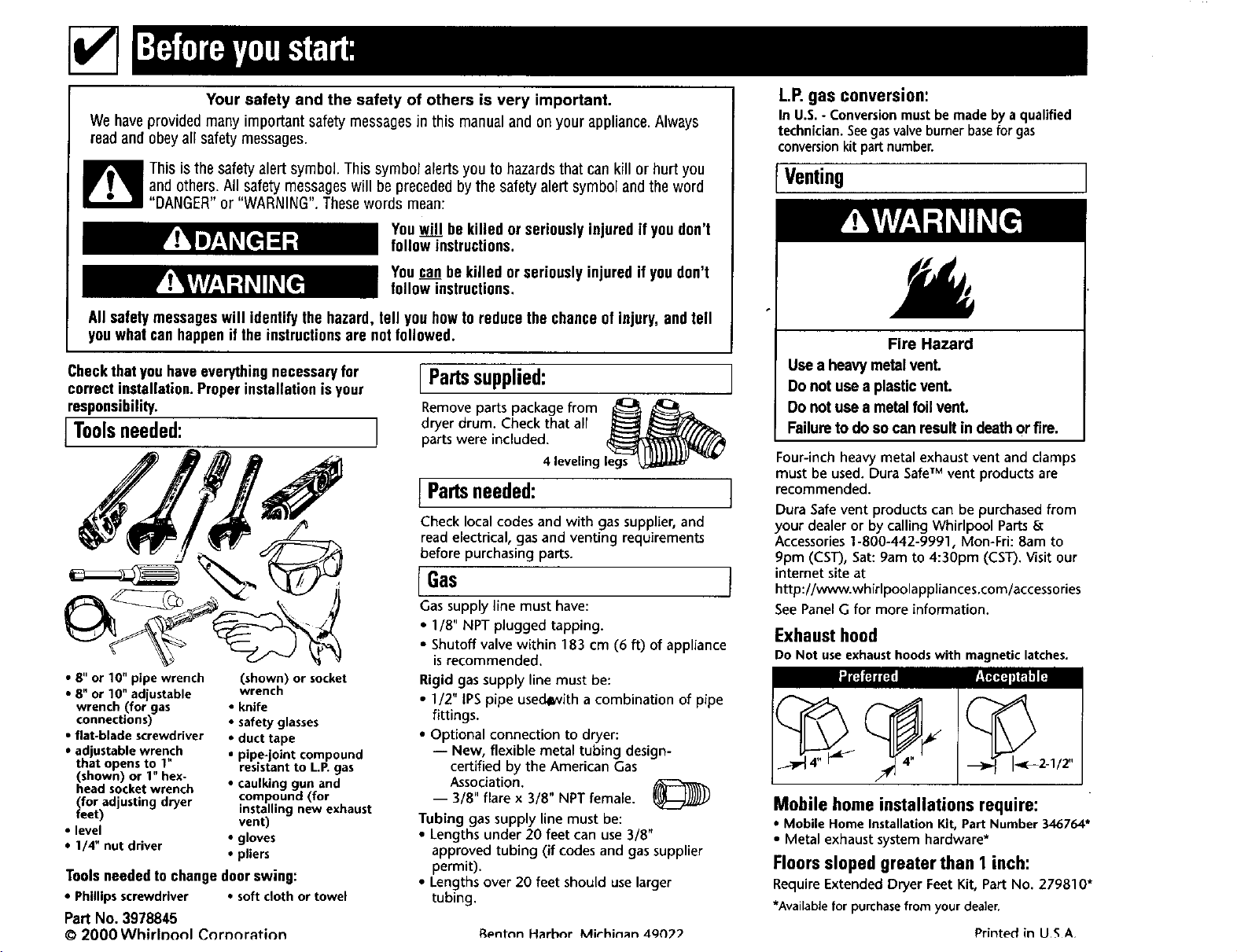

Fire Hazard
Use e heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can _esult in death or
fire.
DO Not use non metal flexible vent or
exhaust hoods with magnetic latches.
Metal exhaust vent must be four inches
in diameter.
Do Not exhaust dryer into a chimney,
furnace, cold air vent, attic or crawl space,
or any other vent used for venting.
Do Not install flexible vent in enclosed
walls, ceilings or floors,
Important: Observe all governing codes and
ordinances.
Dryer MUST BE EXHAUSTED to the outside,
Moisture and lint indoors may cause:
• lint to gather around the dryer where it can be
fuel for a fire.
• moisture damage to woodwork, furniture,
paint, wallpaper, carpet, etc,
• housecleaning problems and health problems.
Dura SafeTM venting products are
recommended and are available from your
dealer.
Fourdnch diameter vent is required.
Use a heavy metal vent. Do Not use plastic or
metal foil vent.
Rigid metal vent is recommended to prevent
crushing and kinking.
Flexible metal vent must be fully extended and
supported when the dryer is in
its final position. Remove excess --
flexible vent to avoid sagging
and kinking that may result in __
reduced air flow.
An exhaust hood should cap
the exhaust vent to prevent
rodents and insects from
entering the home.
Exhaust outlet hood must be
at least 12 inches from the ground or any object
that may be in the path of the exhaust (such as
flowers, rocks or bushes, etc,),
If using an existing exhaust system, clean lint
from entire length of system and make sure
exhaust hood is not plugged with lint.
Replace any plastic or metal foil vent with rigid
metal or flexible metal vent.
Use clamps to seal all joints. Do Not use duct
tape, screws or other fastening devices that
extend into the interior of the vent to secure
vent.
Service check: Back pressure in any exhaust
system used must not exceed 0.6 inches in
water column measured with an incline
manometer at the point that exhaust vent
connects to dryer.
Mobile homeinstallation
requirements
If codes permit, this appliance is suitable for
mobile home installations. The installation of
the dryer must conform to Manufactured
Home Construction and Safety Standard, Title
24 CFR,Part 3280 (formerly the Federal
Standard for Mobile Homes Construction and
Safety, Title 24, HUD Part 280) or latest
edition.
The dryer must be fastened to the floor.
Order Mobile Home Installation Kit, Part No.
346764, from your dealer. Kit includes the
necessaryfastening hardware and detailed
installation instructions. Metal exhaust system
isalso available through your dealer.
The dryer must be exhausted outside.
wall
enclosed area
The exhaust vent must be securely fastened to
a non-combustible portion of the mobile
home structure. The exhaust system must not
terminate beneath the mobile home.
Plantheexhaustventinstallation
Route the vent
The exhaust
outlet is located
at the center of
the rear of the
dryer.
exhaust
outlet
The exhaust vent can be
routed up, down, left,
right or straight out the
back of the dryer. See
"Recessedarea/closet
installation" section,
Panel A, for general
space requirements.
Determine vent length
The maximum length of the exhaust system
depends upon:
-- the type of vent (rigid or flexible metal).
-- the number of elbows used.
-- if a combination of rigid and flexible metal
vent is used.
Do not use vent runs longer than specified in
exhaust vent length charts.
Exhaust systems longer than specified will:
Accumulate lint creating a potential fire
hazard.
-- Shorten the life of the dryer.
-- Reduce performance, resulting in
longer drying times and increased
energy usage.
exhoust tar flow
Select the route that will provide the
straightest and most direct path outdoors.
Plan the installation to use the fewest number
of elbows and turns.
When using elbows or making turns, allow
as much room as possible, gend vent
gradually to avoid kinking,
The same length of vent can be used with
any of the three exhaust hoods shown,
Exhaust vent length charts list lengths by
type of vent to be used. Use the chart that
matches your vent type.
When you use _of
metal vent...
_Determine the number of elbows you
will need.
(_ln the column listing the type of metal
vent you are using (rigid or flexible),
find the maximum length of metal
vent on the same line as the number of
elbows.
Maximum length of Rigid metal vent
OR fully extended Flexible metal vent
Number _ 4" din. @ 4" dia.
of 90° dboId flexible
elbows metal vent metal vent
O 120ft 4fill
1 110ff 37ft
2 1O0ft 33f_
3 90 ft 3Oft
4 80 ft 27 ft
$ 70 ft 23 ft
The maximum length using a 2" x 6" p_ctangular vent
with 2 elbows and transitioning into a 2-1/2" exhaust
hood is 8 feet.
When you use a combination of
rigid and flexible metal vent...
_)Determine the number of elbows you
will need.
_)Determine the length of Flexible metal
vent you will use. Find the column that has
the nearest number of feet to what you will
be using.
(_ln the shaded area of that column find the
maximum length of Rigid metal vent on
the same line as the number of elbows.
Number of Maximum length of fully extended
900 elbows Flexible and Rigid metal vent
O' 1-5' 6-10' 11-15' 16-20' 21-25'
2oft lOSft 9Oft 75R 6Oft 4Sft
i _l_l_d_O0ft 8Sff 70_ SSft 40ff 25ff of _"
.... _ metal
80ft 6Sft SOft 35ft 2Oft 5ft vent
Example: (_ You need to use 2 elbows.
(_ You will use S feet Flexlble metal
vent.
(_) The maximum length of Rlgld
metal vent you can use is85 feet.

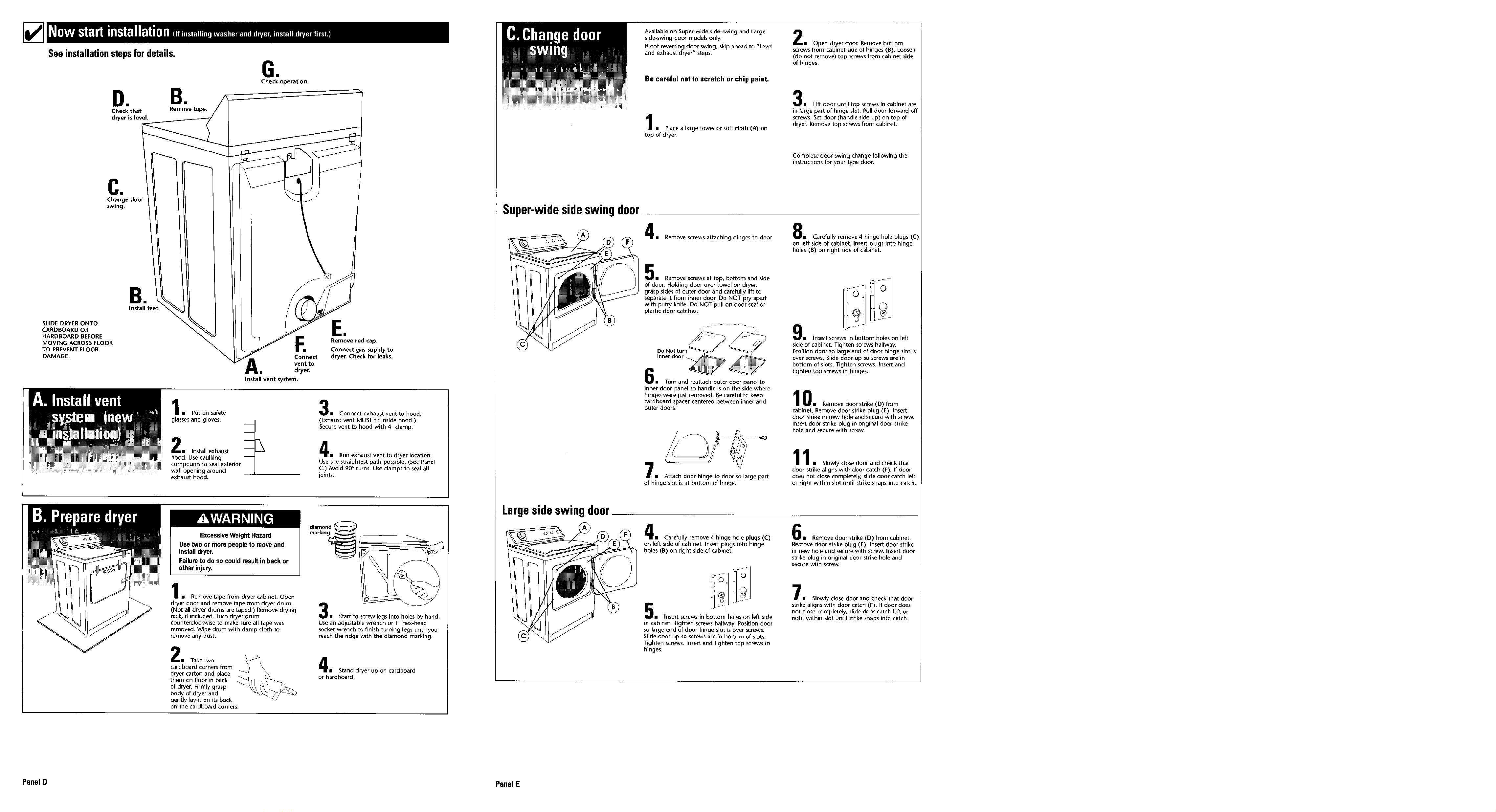

Panel A Panel B Panel C
See installationstepsfor details.
D, B,
Check that Remove tape.
dryer is level.
Gm
Check operation•
Cm
Change doo
swing.
SLIDE DRYER ONTO
CARDBOARD OR
HARDBOARD BEFORE
MOVING ACROSS FLOOR
TO PREVENT FLOOR
DAMAGE.
Install feet.
E
Connect
vent to
dryen
Install vent system.
Remove red cap.
Connect gas supply to
dryer. Check for leaks.
• Put on safety
glasses and gloves.
. Installexhaust
hood. Use caulking
compound to sealexterior
wallopening around
exhausthood.
m Connect exhaust vent to hood.
(Exhaust vent MUST fit inside hood.)
Secure vent to hood with 4" clamp.
• Run exhaust vent to dryer location.
Use the straightest path possible. (See Panel
C.) Avoid 900 turns. Use clamps to seal all
joints.
ExcessiveWeight Hazard
Usetwo or more people to move and
install dryer,
Failureto do so could result in back or
other injury.
• Remove tape from dryer cabinet. Open
dryer door and remove tape from dryer drum.
(Not all dryer drums are taped.) Remove drying
rack, if included. Turn dryer drum
counterclockwise to make sure all tape was
removed. Wipe drum with damp cloth to
remove any dust.
m Take two
cardboard corners from
dryer carton and place
them on floor in back
of dryer. Firmly grasp
body of dryer and
gently lay it on its back
on the cardboard corners.
dmlaarl_i°nn_
m Start to screw legs into holes by hand.
Use an adiustable wrench or l" hex-head
socket wrench to finish turning legs until you
reach the ridge with the diamond marking.
m Stand dryer up on cardboard
or hardboard.
1 i i
Available on Supe_wide side-swing and Large
side-swing door models only.
If not reversing door swing, skip ahead to "Level
and exhaust dryer" steps.
Be careful not to scratch or chip paint.
l m Place a large towel or soft cloth (A) on
top of dryer.
m Open dryer door. Remove bottom
screws from cabinet side of hinges (a). Loosen
(do not remove) top screws from cabinet side
of hinges.
m Lift door until top screws in cabinet are
in large part of hinge slot. Pull door forward off
screws. Set door (handle side up) on top of
dryer. Remove top screws from cabinet.
Complete door swing change following the
instructions for your type door.
Super-widesideswingdoor
m Remove screws attaching hinges to door.
• Remove screws at top, bottom and side
of door. Holding door over towel on dryer,
grasp sides of outer door and carefully lift to
separate it from inner door, Do NOT pry apart
with putty knife. Do NOT pull on door seal or
plastic door catches.
inner door
m Turn and reattach outer door panel to
inner door panel so handle is on the side where
hinges were just removed, Be careful to keep
cardboard spacer centered between inner and
outer doors.
m Carefully remove 4 hinge hole plugs (C)
on left side of cabinet. Insert plugs into hinge
holes (B) on right side of cabinet,
9
• Insert screws in bottom holes on left
side of cabinet. Tighten screws halfway.
Position door so large end of door hinge slot is
over screws. Slide door up so screws are in
bottom of slots. Tighten screws. Insert and
tighten top screws in hinges.
0• Remove door strike (D) from
cabinet. Remove door strike plug (E). Insert
door strike in new hole and secure with screw.
Insert door strike plug in original door strike
hole and secure with screw.
e Attach door hinge to door so large part
of hinge slot is at bottom of hinge.
1. Slowly close door and check that
door strike aligns with door catch (F). If door
does not close completely, slide door catch left
or right within slot until strike snaps into catch.
Largesideswingdoor
m Carefully remove 4 hinge hole plugs (C)
on left side of cabinet. Insert plugs into hinge
holes (B) on right side of cabinet.
Insert screws in bottom holes on left side
of cabinet. I]ghten screws halfway. Position door
so large end of door hinge slot is over screws.
Slide door up so screws are in bottom of slots.
Tighten screws, Insert and tighten top screws _n
hinges.
m Remove door strike (D) from cabinet.
Remove door strike plug (E). Insert door strike
in new hole and secure with screw. Insert door
strike plug in original door strike hole and
secure with screw.
m Slowly close door and check that door
strike aligns with door catch (F). If door does
not close completely, slide door catch left or
right within slot until strike snaps into catch.

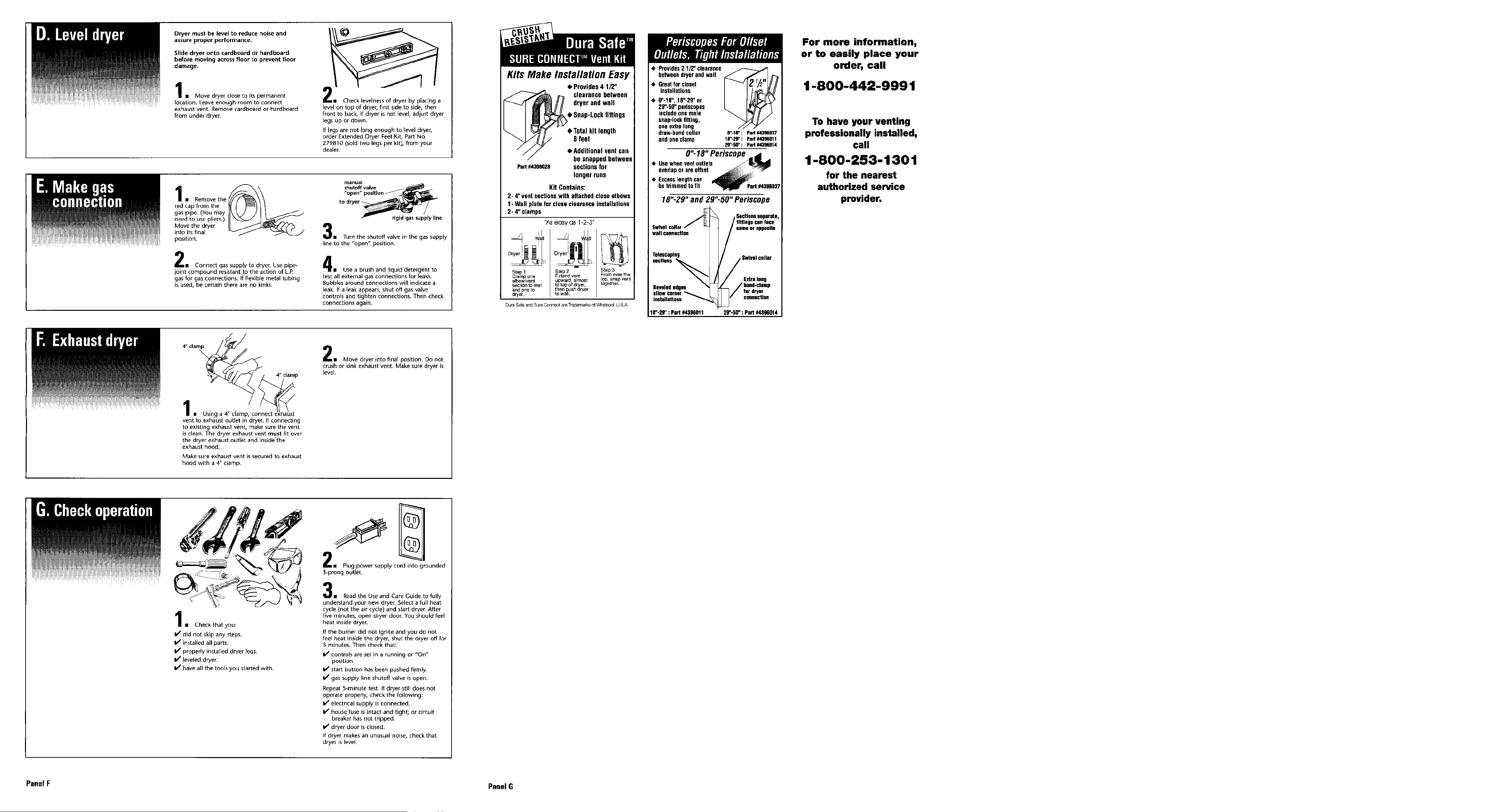

Panel D Panel E
_i_?_i:_i_ _i_i _¸_!%_!i__il_ii?ii¸¸_ii_ii_!i_ii_!i_!ii_il_ii_ii_ii!_iii_ill_ii
Dryer must be level to reduce noise and
assure proper performance.
Slide dryer onto cardboard or hardboard
before moving across floor to prevent floor
damage.
• Move dryer close to its permanent
location. Leave enough room to connect
exhaust vent. Remove cardboard or hardboard
from under dryer.
• Check levelness of dryer by placing a
level on top of dryer, first side to side, then
front to back. If dryer is not level, adjust dryer
legs up or down.
If legs are not long enough to level dryer,
order Extended Dryer Feet Kit, Part NO.
279810 (sold two legs per kit), from your
dealer.
gaspipe.(YoumayJl\\J / II _-_
need to use pliers.) II_ 3_
Move the dryer
into its final __
position.
• Connect gas supply to dryer. Use pipe-
joint compound resistant to the action of L.R
gas for gas connections. If flexible metal tubing
is used, be certain there are no kinks.
manual
shutoff valve
open position _ __
to dryer _e
• Turn the shutoff valve in the gas supply
line to the "open" position.
• Use a brush and liquid detergent to
test all external gas connections for leaks.
Bubbles around connections will indicate a
leak. If a leak appears, shut off gas valve
controls and tighten connections. Then check
connections again.
Kits Make Installation Easy
clearance between
dryer and wall
4.Total kit length
8 feet
€.Additional vent can
be snapped between
part#43a_8 sections for
Iongerruns
Kit Contains:
2- 4' ventsectionswith altachedcloseelbows
1- Wall plate forcloseclearanceinstallations
2- 4" clamps
"As easy as 1-2-3"
Dryer =
\
Step 1 Step 2 Step 3
Clamp one Extend vent From over the
elbow/vent upward, almost top, snap vent
section to wall to top of dryer, together.
and one to then push dryer
dryer, to wall.
Dura Safe and Sure Corlne_l are Trademarks of WhirlpOOl USA
• Provides2 1/2" clearance
between dryerand wall
• Greatfor closet
installations
• e'-18", 18"-z9"or
2_"-5g"periscopes
includeonemale
snap4ocklittirlp,
oneextralong
draw-bandcollar
anderieclamp
• '-1_': Pad#4396037
18"-2S": Pad#4396011
29"-5_': Pad#4396014
0"-18" Per/scope l j
• Excesslength can
be trimmed to fit _Part #4398037
18"-29" and 29"-50" Periscope
wall connection
Telescoping
sections %
Bevelededges
allowcorner
installations_
lr'-2e': Part#4396011
Sections separate,
rlUInns can face
semll or opposlta
_lvel collar
Extra long
/paed-clamn
tar dryer
coBnentlon
29=-50" : Part _014
For more information,
or to easily place your
order, call
1-800-442-9991
To have your venting
professionally installed,
call
1-800-253-1301
for the nearest
authorized service
provider.
4" da_
a • Using a 4" clamp, connect exhaust
vent to exhaust outlet in dryer. If connecting
to existing exhaust vent, make sure the vent
is clean. The dryer exhaust vent must fit over
the dryer exhaust outlet and inside the
exhaust hood.
Make sure exhaust vent is secured to exhaust
hood with a 4" clamp.
• Move dryer into final position. Do not
crush or kink exhaust vent. Make sure dryer is
lever.
• Check that you:
I/did not skip any steps.
l/installed all parts.
I/properly installed dryer legs.
If leveled dryer.
I_ have all the tools you starLed with,
'43J
@
a Plug powersupplycor_rounded
3-prong outlet.
• Read the Use and Care Guide to fully
understand your new dryer. Select a full heat
cycle (not the air cycle) and start dryer. After
five minutes, open dryer door. You should feel
heat inside dryer.
If the burner did not ignite and you do not
feel heat inside the dryer, shut the dryer off for
5 minutes. Then check that:
I/controls are set in a running or "On"
position,
V_ start button has been pushed firmly.
I_ gas supply line shutoff valve is open.
Repeat 5-minute test. If dryer still does not
operate properly, check the following:
electrical supply is connected.
1/house fuse is intact and tight; or circuit
breaker has not tripped.
V_ dryer door is closed.
If dryer makes an unusual noise, check that
dryer is level.
Panel F Panel G
Your safety and the safety of others is very important.
We haveprovided many important safety messagesin this manualand on your appliance.Always
read and obeyall safety messages.
Thisis the safety alert symbol. Thissymbol alerts you to hazardsthat can kill or hurt you
and others. All safety messageswill be precededby the safety alert symbol andthe word
"DANGER"or "WARNING".Thesewords mean:
Youwill be killed or seriouslyinjured if youdon't
follow instructions.
Youcan bekilled or seriouslyinjured if youdon't
follow instructions.
All safetymessageswill identifythe hazard,tell youhow to reducethe chanceof injury, andtell
youwhatcan happenif the instructionsare notfollowed.
Check that you have everything necessary for
correct installation. Proper installation is your
responsibility.
[Toolsneeded:
• 8" or 10" pipe wrench
• 8" or 10" adjustable
wrench (for gas
connections)
• fiat-blade screwdriver
• adjustable wrench
that opens to r"
(shown) or 1" hex-
head socket wrench
(for adjusting dryer
feet)
• level
• 1/4" nut driver
(shown) or socket
wrench
• knife
• safety glasses
• duct tape
• pipe-joint compound
resistant to LP. gas
• caulking gun and
compound (for
installing new exhaust
vent)
• gloves
• pliers
Tools needed to change door swing:
• Phillipsscrewdriver • soft cloth or towel
PartNo. 3978845
© 2000 Whirlnonl Cnrnnrarinn
[Partssupplied:
Remove parts package from _j
dryer drum. Check that all _
parts were included. _l/_
4 leveling legs _
[ Partsneeded: ]
Check local codes and with gas supplier, and
read electrical, gas and venting requirements
before purchasing parts.
[Gas I
Gas supply line must have:
• 1/8" NPT plugged tapping.
• Shutoff valve within 183 cm (6 ft) of appliance
is recommended.
Rigid gas supply line must be:
• 112" IPSpipe usecklMth a combination of pipe
fittings.
• Optional connection to dryer:
-- New, flexible metal tubing design-
certified by the American Gas
Association.-- 318" flare x 318" NPT female.
Tubing gas supply line must be:
• Lengths under 20 feet can use 318"
approved tubing (if codes and gas supplier
permit).
• Lengths over 20 feet should use larger
tubing.
Rentnn Harbnr Mirhinan 4g_77
L.P.gas conversion:
In U.S.- Conversion must be made by a qualified
technician. Seegas valveburner basefor gas
conversionkit part number.
Venting
Fire Hazard
Usea heavymetalvent.
Do not usea plasticvent.
Do not usea metalfoilvent.
Failuretodo so can result in deathor fire.
Four-inch heavy metal exhaust vent and clamps
must be used. Dura SafeTM vent products are
recommended.
Dura Safe vent products can be purchased from
your dealer or by calling Whirlpool Parts &
Accessories 1-800-442-9991, Mon-Fri: 8am to
9pm (CST), Sat: 9am to 4:30pm (CST), Visit our
internet site at
http://www.whirlpoolappliances.com/accessories
See Panel G for more information.
Exhaust hood
Do Not useexhaust hoodswith magnetic latches.
Mobile home installations require:
• Mobile Home Installation Kit, Part Number 346764*
• Metal exhaust system hardware*
Floors sloped greater than I inch:
Require Extended Dryer Feet Kit, Part No. 279810"
*Availablefor purchasefrom your dealer.
Printed in U_; A
