PRINCETON PEAK 40" HIGH
DINING FIREPIT
ASSEMBLY INSTRUCTIONS
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF
UNAPPROVED PARTS OR
ACCESSORIES CAN VOID THE
WARRANTY ON THIS PRODUCT
AND RESULT IN A HAZARDOUS
CONDITION. PLEASE
CONTACT US FOR
INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVA ROCKS, LOGS,
FIRE ICE
,
ETC.
Jul-01-2021
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.
–
5
p
.m. Eastern Time.
Thi
s app
li
ance can pro
d
uce car
b
on
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
DANGER
If you smell gas:
FIRE OR EXPLOSION HAZARD
If you smell gas:
•shut off gas to the appliance.
•Extinguish any open flame.
•if odor continues, leave the area
immediately.
•After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING：For Outdoor Use Only.
Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
FOR USE WITH 9KG (20LB) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR
FOR USE WITH NATURAL GAS AFTER
CONVERSION KIT IS INSTALLED (MUST BE
PROFESSIONALLY INSTALLED).
Installer: Leave these instructions with
consumer.
Consumer: Keep these instructions for future
reference
.
WARNING:
Improper installation, adjustment
alteration, service, or maintenance can
cause injury or property damage. Read the
installation, operating, and maintenance
instructions thoroughly before installing or
servicing this equipment.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING: It is UNSAFE to use this product
for cooking!
CSA Model WT17YL SKU: 272-2169
Factory Model: BRK00700K01
2
T ABLE OF CONTENTS
Important Safety Information .................................................................3
Important Information about Propane....................................................4
Specification ..........................................................................................4
Parts Identification List ..........................................................................5
Installation ......................................................................................... 6-7
Natural Gas Conversion .................................................................... 8-9
Maintenance..........................................................................................9
Batteries ..............................................................................................10

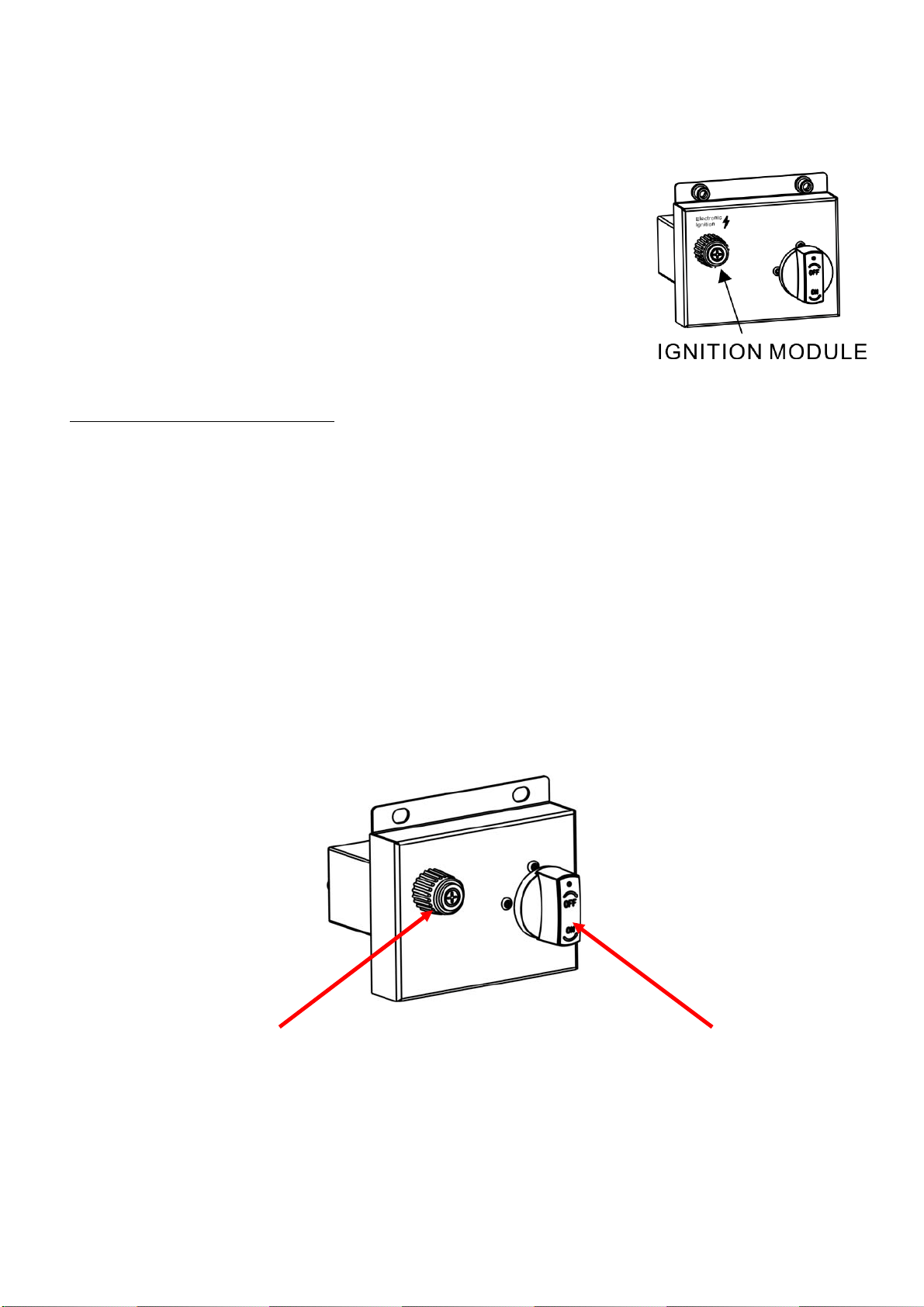

Lighting Instructions ............................................................................10
Troubleshooting Guide ........................................................................11
Warranty..............................................................................................12
3
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA
B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during
any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at a safe
distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or near the
appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the
appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be
required as necessary. It is imperative that the control compartments, burners and circulating air
passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire ice) into the burner pan. The
media must be evenly distributed over the burner.
During initial firing of firepit, please stay away from the firepit for 20 minutes as fire media (lava rock or fire ice)
may pop and hit someone on the face or eyes
Do NOT ignite or use the firepit if the burner media (lava rock or fire ice) are wet. Ensure the burner media are
completely dry before igniting as intense heat could cause the media to crack and pop.
It is UNSAFE to use this product for cooking!
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This regulator is set
for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP Hose. If
there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas
appliance being put into operation. Use only the replacement hose assembly specified in this manual. Inspect
the burner before each use of the appliance. The burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces.
Furniture covers are a great way to protect your set from harsh elements of weather and UV light. However, it
is important to ensure furniture and covers are free of moisture and debris before covering. It is also necessary
to promptly uncover furniture after rain and during periods of high humidity to prevent moisture build up.
Failure to do so can lead to permanent surface and finish damage.
4
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS

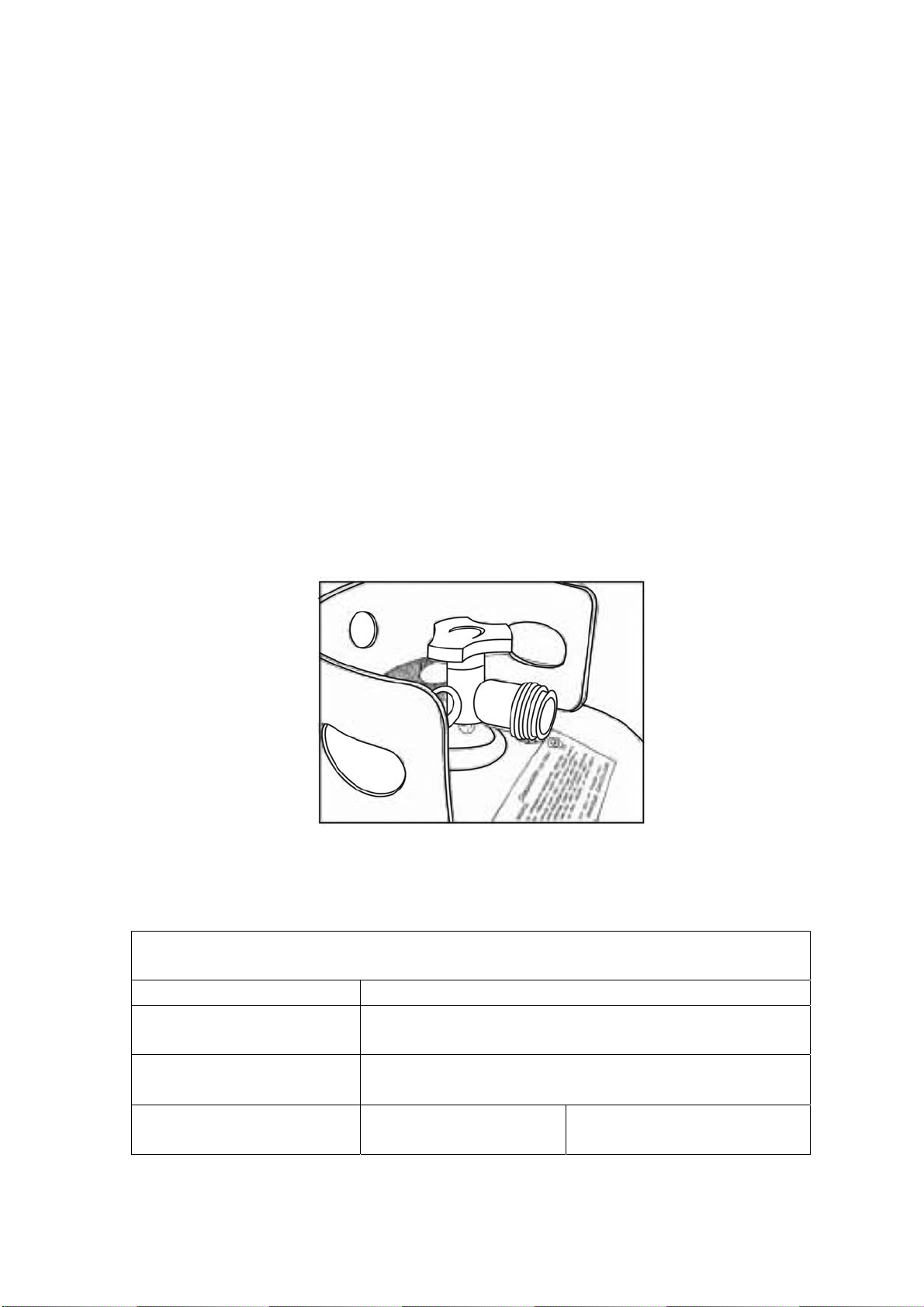

A LP-gas cylinder for use with this appliance must have a capacity of 20 lbs / 9kg.
and must be equipped with a Type 1 connector and an OPD (overfill protection
device). Figure 1
The LP-gas supply cylinder to be used must be constructed and marked in
accordance with the specification for LP-gas cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinder, Sphere and Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall
not be used in a building, garage, or any other enclosed space.
When this appliance is not in use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of
children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed
areas.
Figure 1
SPECIFICATIONS
The maximum inlet supply pressure, as follows:
“Max. gas supply:6922 in wc (1723Kpa)”
INPUT 60,000 Btu/hr(17.6kW)
Propane Regulator
Pressure
11 in / 2.74 kPa water column
Natural Gas Minimum
Inlet Pressure
7 in / 1.74 kPa water column
Clearances to
combustible surfaces
Sides 24 in / 60.96
cm
Top: 72 in / 182.88 cm
5

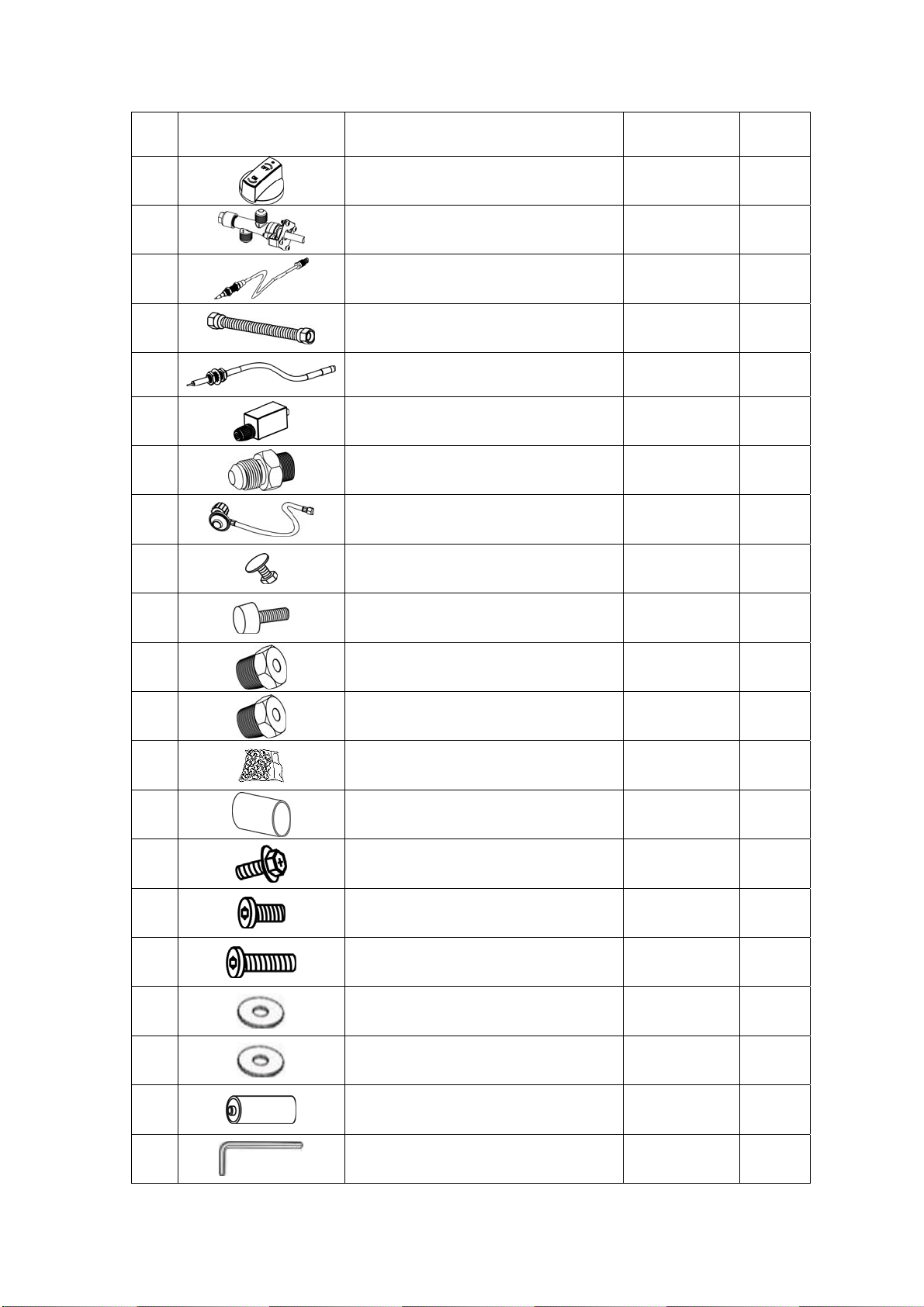

PART
DESCRIPTION PART# QTY
A
CONTROL KNOB FP2329 1
B
GAS VALVE FP2330 1
C
THERMOCOUPLE FP2331 1
D
FLEX CONNECTOR FP2332 1
E
ELECTRODE FP2333 1
F
IGNITION MODULE FP2334 1
G
ORIFICE HOLDER FP3573 1
H
LP REGULATOR HOSE FP2250 1
I
LP TANK RETAINING KNOB FP0585 2
J
ADJUSTABLE FOOT CAPS FC0553 4
K
PROPANE ORIFICE FP2250 1
L
NATURAL GAS ORIFICE FP2103 1
M
FIRE ICE(TOTAL:8KG) FP3134 2
N
AIR SHUTTER FP1922 1
O
M4 SCREW HW0898 3
P
1/4” X20 MM BOLT HW0036 6
Q
1/4” X30 MM BOLT HW0038 8
R
Ø20 X Ø6.5 X 2.0 MM
WASHER
HW0594 4
S
Ø6.5 X 1.0 MM WASHER HW0004 10
T
“AA” BATTERY(1.5V) HW0905 1
U
HEX BOLT DRIVER HW0006 1
PARTS IDENTIFICATION LIST
6
V
CROSS POINT
SCREWDRIVER
HW0900 1
W
FIREPIT TABLE TOP FP3617 1
X
TABLE LEG-1 FP3618 1
Y
TABLE LEG-2 FP3619 1
Z
BACK PANEL FP3620 1
AA
BOOR PANEL FP3621 1
BB
BURNER COVER FP3622 1
CC
LP SUPPORT FP3623 1
DD
MIDDLE SUPPORT BAR FP3624 1
EE
FIREPAN/BURNER
ASSEMBLY
FP3625 1
7
INSTALLATION
1. Carefully unpack all items from the box. Place the base in the final position. There must be
a minimum of 24 in / 60.96 cm of clearance from the side of the table top to any combustible
walls.

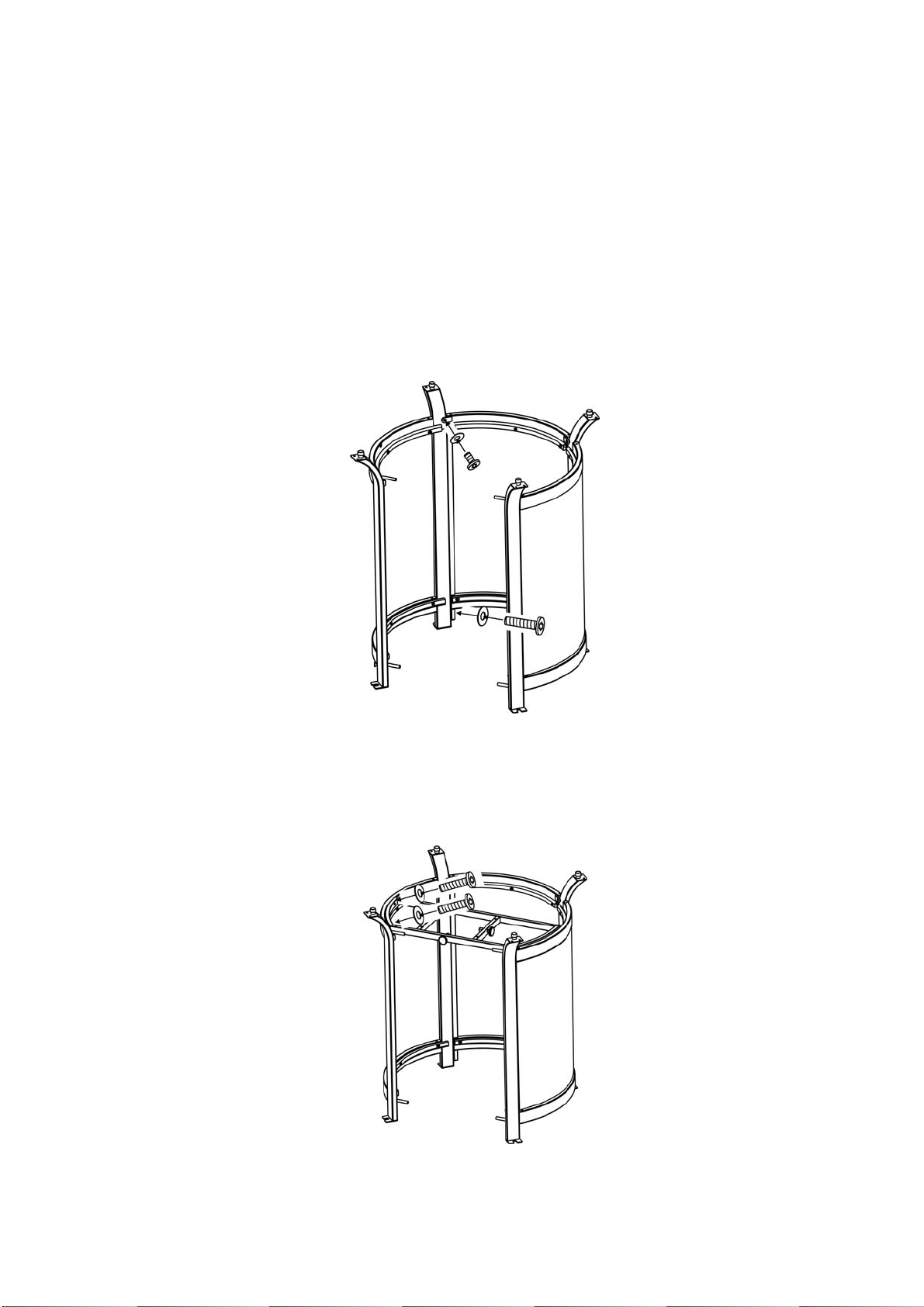

2. Attach the back panel to the table legs by using two 1/4"x20 mm bolts, two 1/4"x30 mm
bolts and four Ø6.5x1.0 mm washers as shown in Figure 2. Guide the bolts through the
holes in back panel, into the pre-drilled holes in the table legs. Hand tighten only.
Figure 2
3. Attach the LP support to the table legs by using four 1/4"x30 mm bolts and Ø6.5x1.0 mm
washers as shown in Figure 3. Guide the bolts through the holes in the LP support, into the
pre-drilled holes in the table legs. Hand tighten only.
Figure 3
8

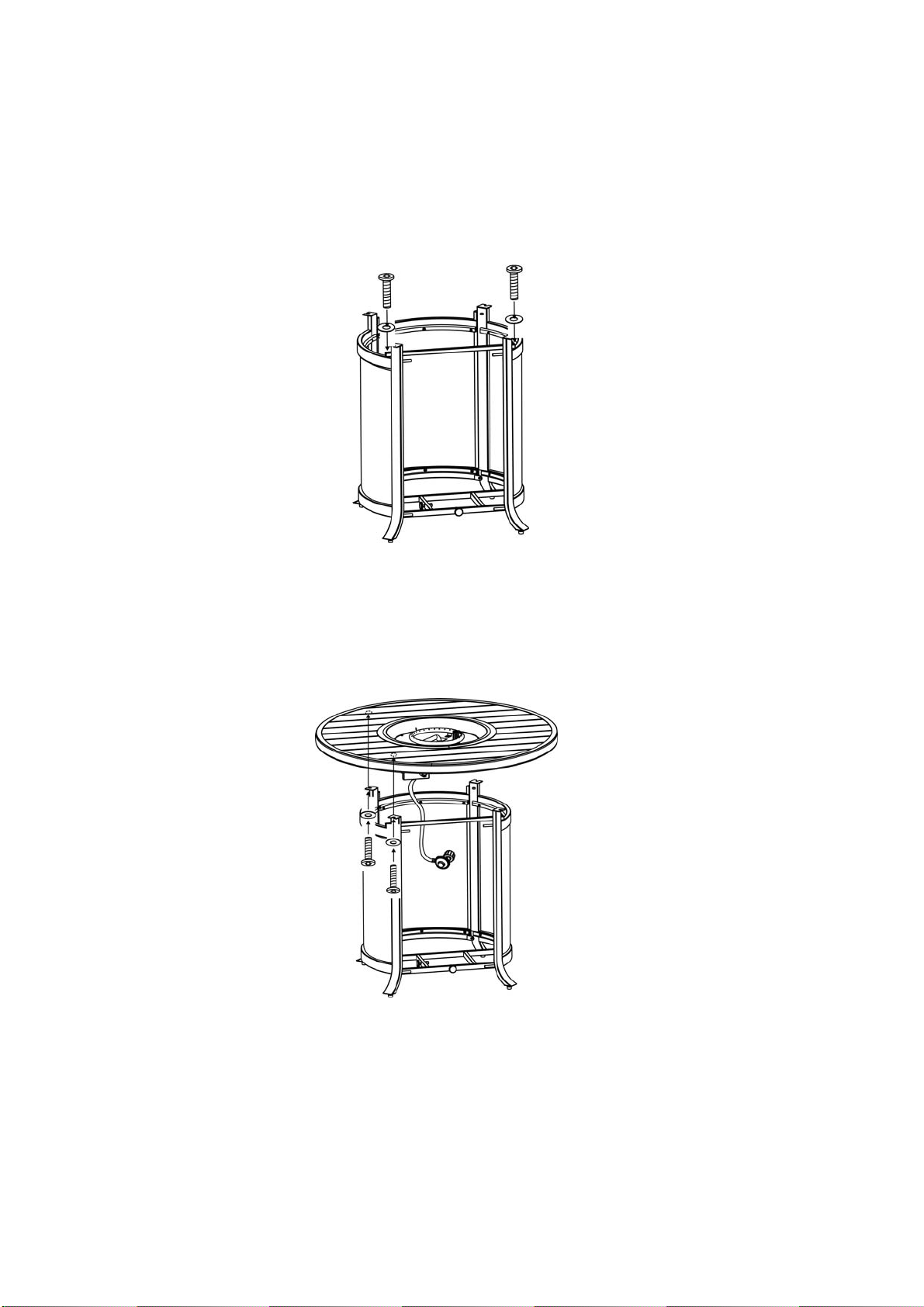

4. Attach the middle support bar to the table legs by using two 1/4"x30 mm bolts and
Ø6.5x1.0 mm washers as shown in Figure 4.Guide the bolts through the holes in the middle
support bar, into the pre-drilled holes in the table legs. Hand tighten only.
Figure 4
5. With the help of another person, carefully place the table top onto the firepit base. After
making any necessary adjustments to the alignment of the table top and the assembled
base, use four 1/4"x20 mm bolts and Ø20xØ6.5x2.0 mm washers as shown in Figure 5.
Guide the bolts through the holes in the base brackets, into the pre drilled holes in the table
top. Do not tighten completely.
Figure 5
6. Pour ALL of the provided media (fire ice or lava rock) into the burner pan. The burner MUST
be completely covered to ensure the appliance functions properly and safely. Remove any
lava rocks or fire ice on top of the ignition well. See Figure 6.
9
Figure 6
7. Slide the tank drawer out and place the LP tank in the drawer. Connect the regulator as
shown in Figure 7. Turn the black handle clockwise to tighten. Turn the handle counter
clockwise to remove. The hose must point down. Check that the valve is turned all the way
clockwise to the "OFF" position. Open the tank valve. Apply a solution of soapy water to the
tank-regulator connection and to the valve-hose connection to check for leaks. If soap
bubbles continue to form, the connection has a leak. If a leak is found, close the tank valve
and tighten all connections.
NEVER USE A FLAME TO CHECK FOR LEAKS.
Figure 7
8. Tighten the threaded knobs found on tank tray (Figure 8) so that the LP tank cannot move
from side to side. Do not remove plastic cap from end of threaded section.
Figure 8
10

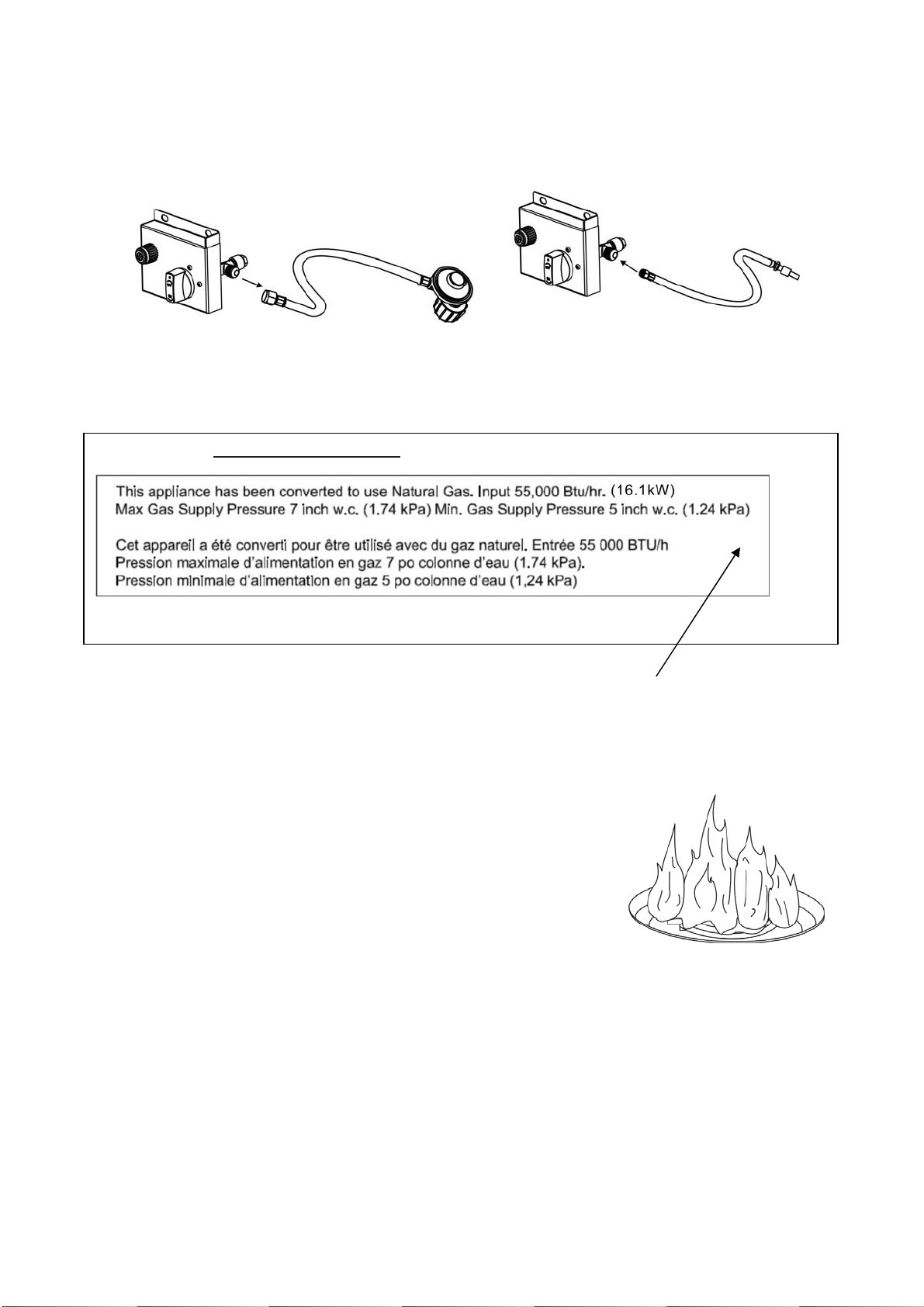

NATURAL GAS CONVERSION
Natural gas conversion must be performed only by your natural gas provider or service
company.
1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE
OR APPLICANCES

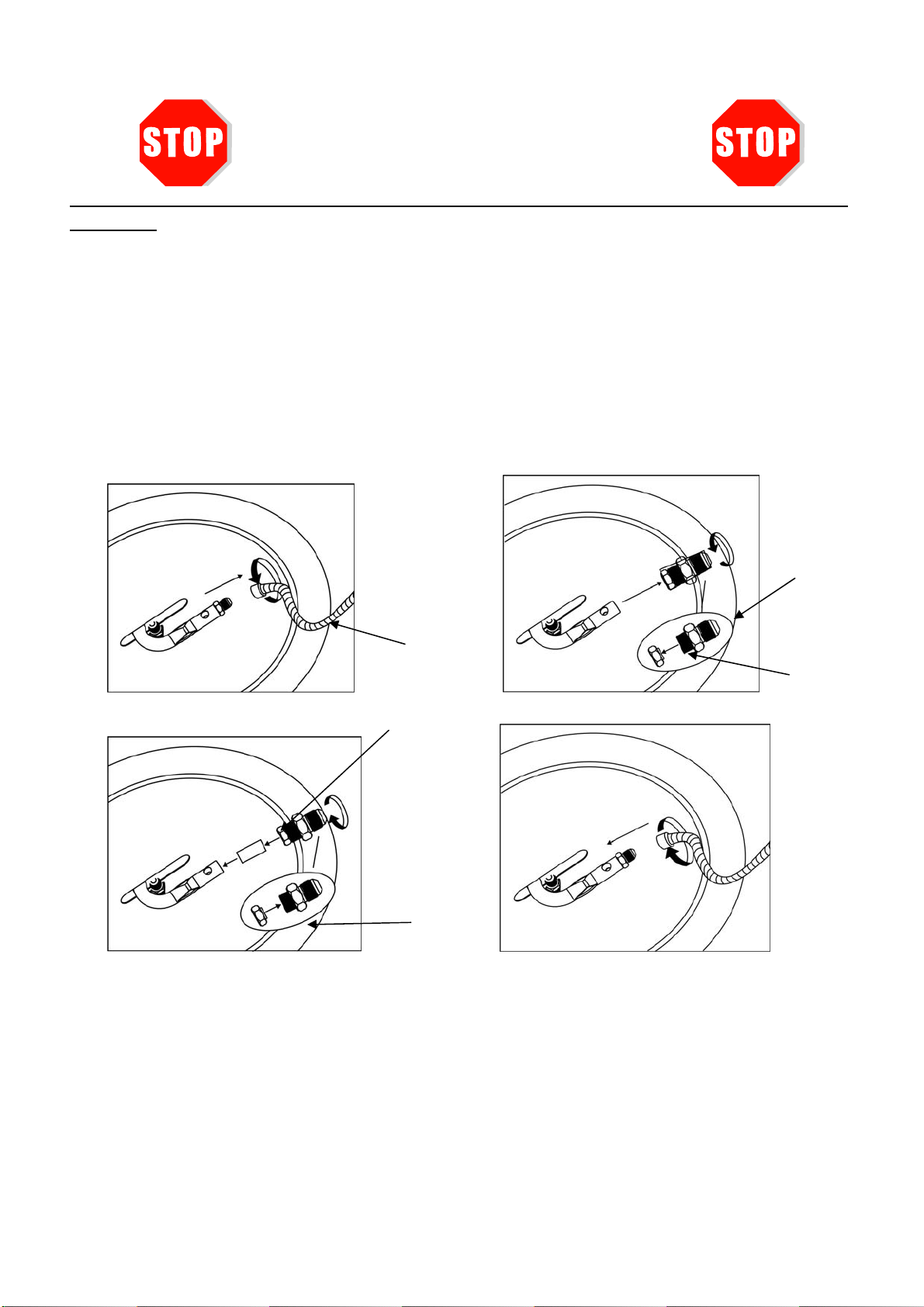

2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see
step1).
3. Carefully unscrew the orifice holder from the burner pipe (see step2).
4. Remove the propane orifice from the holder and replace with natural gas orifice (see step2).
5. Install the air shutter over burner pipe to cover the air holes. Then reattach orifice hold to
burner pipe (see step3).
6. Reattach the flex connector to office holder. (see step4).
7. To convert the regulator from propane to natural gas, the appliance must be isolated from the
gas supply piping system by closing its individual manual shot off valve. Ensure any pressure
testing of the gas supply piping system is at test pressure equal to or less than 1/2 psi(3.5KPA)
8. Remove the propane rubber hose from valve and replace with 5/8” natural gas pipe (see
step5, natural gas pipe package is not provided).
Flex
connector
Orifice
holder
Air
shutter
Step1
Step2
Step3 Step4
Propane
orifice
(2.4mm)
NaturalGas
orifice
(3.78mm)
11
9. Restore your gas supply and check ALL of the connections for leaks using a solution of
soapy water. If a leak is discovered and any bubbles are seen, close the main gas valve and
re-tighten ALL the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS!
Step5
10. Stick the conversion label on the rating plate as shown in Figure 9.
Metal Rating Plate
Conversion Label
MAINTENANCE
The flames should look like those in Figure 10. To clean the
burner, use a soft brush after the burner has cooled completely.
Never use a vacuum cleaner on the burner. It is recommended to
store the fire pit indoors during winter if it will be subjected to
freezing temperatures. The LP cylinder must be disconnected
and removed from the appliance before the appliance can be
stored indoors.
Figure 10
SerialNumber : ModelNumber : WI17YL
Numéro de série Numéro de modèle
For Outdoor Use Only. If Stored Indoors, Detach and Leave Cylinder Outdoors.
The gas supply must be turned off at the propane gas supply cylinder when this appliance is not in use
Figure 9
12
BATTERIES
Make sure the control knob is in the "OFF" position. Unscrew the push
button cap on the ignition module located on the control panel to
access the battery compartment. The ignition module requires one
Alkaline AA size battery (1.5V). The negative (-) end goes in first. See
Figure 11. Dispose of the battery safely as it may explode or leak if
charged or disposed of in a fire. Make sure of the polarity. Mercury
and cadmium free.
Figure 11
CAUTIONS: BATTERY INSTRUCTIONS
●Always purchase the correct size and grade of battery most suitable for the intended use.
●Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
●Clean the battery contacts and also those of the device prior to battery installation.
●Ensure the batteries are installed correctly with regard to polarity (+ and -).
●Remove batteries from equipment which is not to be used for an extended period of time.
●Remove used batteries promptly.
For recycling and disposal of batteries to protect the environment, please check the internet or your local phone directory for
local recycling centers and / or follow local government regulations.
LIGHTING INSTRUCTIONS
Warning: If these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
1. Read instructions before lighting.
2. Push the control knob in and turn the knob to ON.
3. Hold the ignitor to light the burner, release the control knob after 15 seconds. If the burner
does not light, wait 5 minutes, repeat.
4. Adjust the flame to desired amount by using the control knob. See Figure 12
IGNITOR BUTTON CONTROL KNOB
Figure 12
13
TROUBLESHOOTING GUIDE
PROBLEM CAUSE REMEDY
No Propane Gas at Burner
Check that the gas tank
valve is open. Turn the
control knob to “ON” and
push the control knob in.
Make sure tank has
propane gas.
No Spark at Electrode
Check that the AA battery is
installed with the negative
(-) end first and has a
charge. Check that the wire
is connected to the ignition
module. Check that the
electrode is not cracked or
broken.
Burner won’t light
Lack of Oxygen
Remove excess fire ice
from around the ignition
well.
Thermocouple not in flame
Check that the tip of the
thermocouple is even with
the top of the ignition well.
Remove any fire ice from
the ignition well.
Thermocouple connection
at the main control valve is
loose.
Tighten the thermocouple
nut at the back of the valve.
Burner won’t stay
lit after lighting
No fire ice on burner
Cover the burner with fire
ice per the instructions.
14
ONE-YEAR LIMITED WARRANTY
What is Covered Under This Warranty?
The item you have purchased is warranted against defects in material and
workmanship for the following parts from the date of purchase for the period of
warranty as outlined below, but only when the unit is installed and operated in
accordance with the instructions in this Owner’s Manual and in compliance with local
building and fire codes:
Limited 1 Year
• Stainless Tube/Plate burner
Limited 90 days
• All remaining parts
How Do I Obtain Warranty Service?
To obtain warranty service, you must contact our customer service center within the
relevant warranty period and provide us with a copy of your dated register receipt as
proof of the purchase date. We reserve the right to request photographs and/or return
of the defective item(s) and/or such other evidence relating to any claim as we shall
reasonably require. Please call our customer service center at 1-800-416-3511 for
additional warranty claim details and procedures.
What are the Limitations and Exclusions of this Warranty?
Warranty Limitations:
This warranty is subject to the limitation set forth above. In addition, this warranty is
made to the original purchaser only and is effective only if items are purchased from
one of our authorized dealers. This warranty is not transferable. For warranty
replacements based on warranty claims, we will not be responsible for charges
associated with shipments outside continental North America at any time or for any
reason.
Warranty Exclusions: This warranty is subject to the exclusions set forth above. In
addition, the following are excluded from coverage under this warranty: any item
used for commercial, contract or any other non-residential purpose; clearance items,
display models or items purchased “as is”; freight damage; items subject to misuse,
abuse, neglect or lack of proper care or maintenance (including without limitation as
provided in any “care and maintenance guide” or similar information we provide);
normal wear and tear; damage caused by acts of nature, acts of force majeure,
vandalism, fire or other casualty, or improper assembly; hardware against corrosion
or rusting; purchased or replacement parts; and all plastic parts. Also excluded are
loss of use or time; inconvenience; money; travel; packaging; or incidental, special or
consequential damages of any kind. Replacement of defective items or parts as
provided herein, or (at our sole discretion) pro rated refund of your purchase price,
shall constitute your sole and exclusive remedy for items which are not as warranted.
In no event shall our responsibility exceed the purchase price of the item found to be
other than as warranted. This warranty is the exclusive statement of your rights with
respect to items you have purchased and supersedes any other express warranty or
statement, written or oral, made in connection with the purchase and sale of such
items. The term ”item” when used herein in the singular refers to the specific piece
found to be defective, and not to the entire set of which the item is a part.
Some states do not allow exclusion or limitation of incidental or consequential
damage, so that limitation may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from state to state.
