230/208 VOLT ELECTRICAL SUPPLY
A power supply kit must be used to supply power to
the Zoneline unit. The appropriate kit is determined by
the voltage, the means of electrical connection, and
the amperage of the branch circuit. See the POWER
CONNECTION CHART to conrm the appropriate kit.
All wiring, including installation of the receptacle,
must be in accordance with the NEC, local codes,
ordinances, and regulations.
IMPORTANT NOTES
• This unit must be properly connected to a grounded
circuit.
• The electrical rating marked on the power supply kit
must be the same as the supply branch circuit.
• Aluminum building wiring may present special
problems—consult a qualified electrician.
• All wiring, including installation of the receptacle,
must be in accordance with the NEC, local codes,
ordinances, and regulations.
• Use ONLY the wiring size recommended for single
outlet branch circuit.
• Proper current protection is the responsibility of the
owner.
Recommended branch circuit wire sizes*
Nameplate maximum circuit
breaker size
AWG wire size**
15A
20A
30A
14
12
10
AWG – American Wire Gauge
* Single circuit breaker from main box
** Based on copper wire, single-insulated conductor at 60°C
NOTE: Use copper conductors only.
Tandem
15 Amp
Perpendicular
20 Amp
Large Tandem
30 Amp
Power supply kit - Appearance may vary
230/208 volt receptacle configuration
15A 20A and 30A
31-5000693 Rev. 0 03-22 GEA

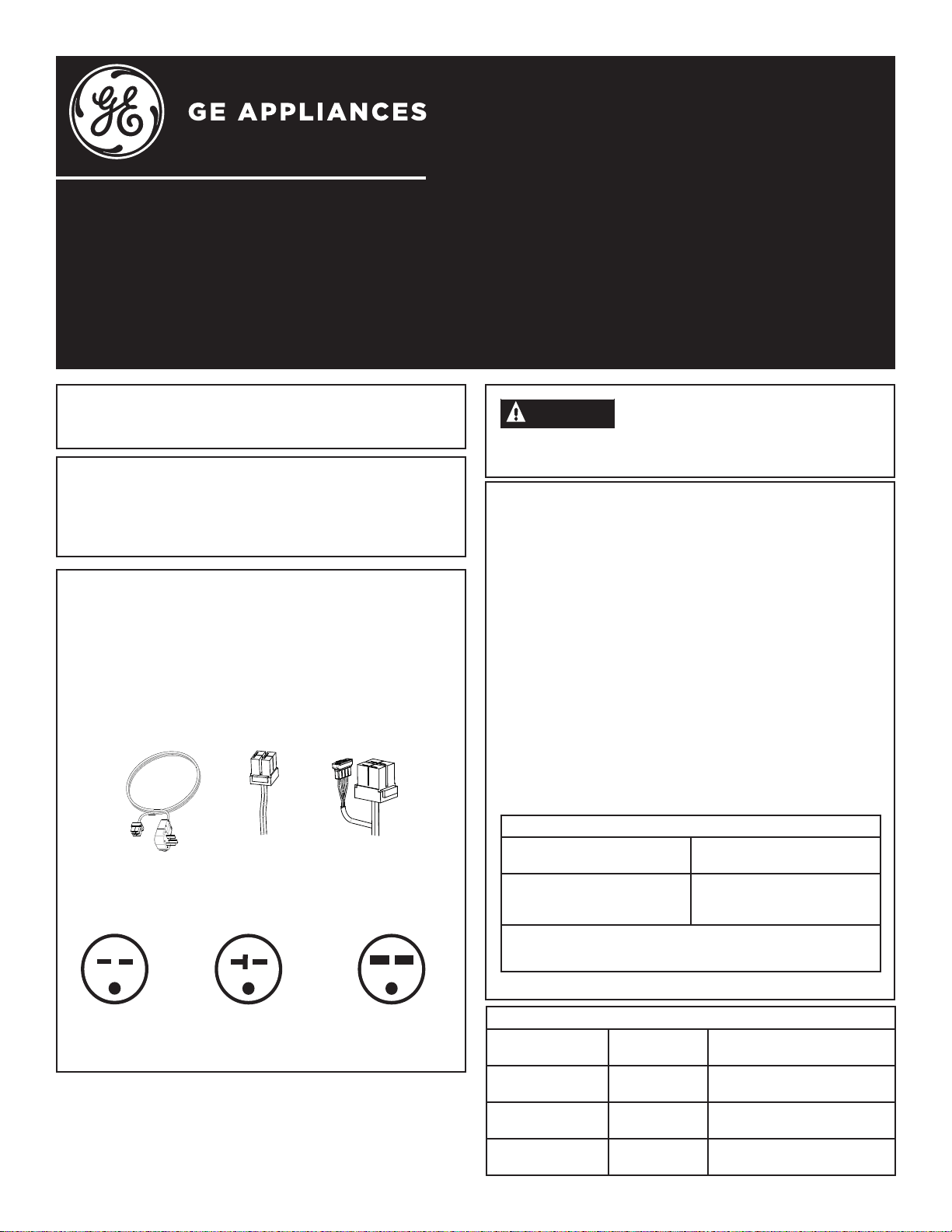

Installation Instructions
for your new
RAK315SP,
RAK320SP,
RAK330SP
Power Supply Kit for Sub-base
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
Tools Needed
• Phillips Head Screw Driver
This kit is for use with 230/208 volt replacement GE
Zoneline units only with previously installed sub-
bases.
NOTE: Use only with sub-base kits RAK204D15*,
RAK204D20*, or RAK204D30*.
WARNING
RISK OF ELECTRIC SHOCK.
Disconnect the electrical power supply before
wiring connections.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
POWER CONNECTION CHART
GE 230/208 Volt
Power Supply Kit
Receptacle
&RQ¿JXUDWLRQ
Circuit Protective
Device
RAK315SP Tandem 15-Amp Time-Delay
Fuse or Breaker
RAK320SP Perpendicular 20-Amp Time-Delay
Fuse or Breaker
RAK330SP Large Tandem 30-Amp Time-Delay
Fuse or Breaker
