Operator's Manual
I
I r s.. i
LAWN TRACTOR
24 HP,* 42" Mower
Electric Start
6-Speed Transaxle
Model No.
917.25432
This product has a low emission engine which operates I
[_ ifferently from previously built engines. Before you start the
engine, read and understand this manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
Sears Brands Management Corporation, Hoffman Estates, [L 60179 U.S.A,
Visit our Craftsman webslte: www.craftsman.com
The power r:_ng as declared Dy the engine manufacturer fs the
average gross power output at the spec_hed RRM of a typical
produ&lfon erlqH3e for the et_glr_ model measured us_hg SAE
S[aRd_,rds for engine gross power F_Jease yefer tO t_B eP, gT4he
m_nu|acturel- lor detad£
586506726 Rev. 2
Warranty ................................................. 2
Safety Rules ............................................ 3
Product Specifications ............................. 6
AssemblyiPre-Operatlon ......................... 7
OperatEon ................................................. 9
Maintenance .......................................... 16
CRAFTSMAN FULL WARRANTY
TWO YEARS ON RIDING EQUIPMENT
Maintenance Schedule .......................... 16
Service and Adjustments ....................... 2I
Storage ................................................ 27

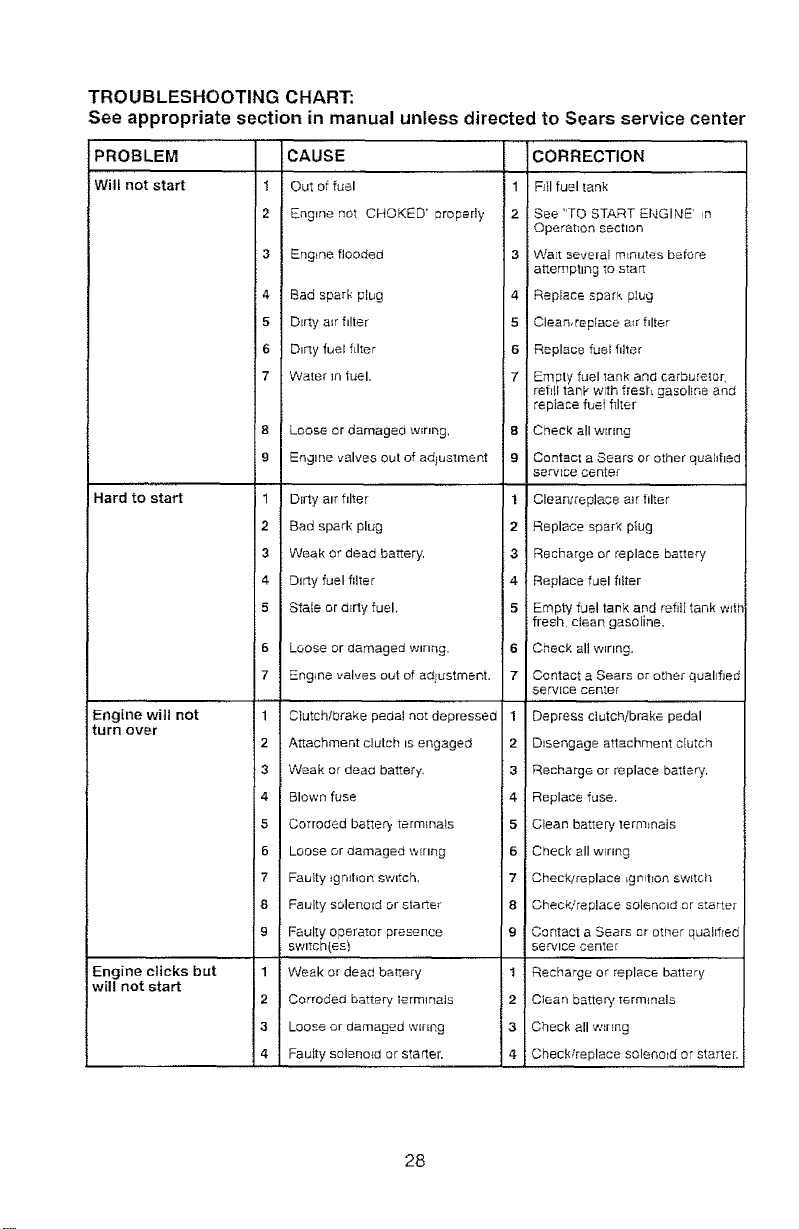

Troubleshooting ..................................... 28
Sears Service ........................ Back Cover
When operated and maintained according to eli supplied instructlons, Warranty wtll also
cover defects in matenat and workmanship of the Frame and Front Axle for five years from
the date of purchase
This warranty covers ONLY defects in material and workmanship. Sears will NOT
pay for:
• Expendable items that become worn dunng normal use, including but not hm_ted to
blades, spark plugs, air cleaners, belts, and o_1filters.
Standard maintenance servicing, o_1changes, or tune-ups.
• Tire replacement or repair caused by punctures from outside objects, such as na_ls.
thorns, stumps, or glass.
Tire or wheel replacement or repair resulting from normal wear, accident, or fmproper
operation or matntenance.
Repairs necessary because of operator abuse, including but not limited to damage
caused by towing obiects beyond the capabJhty of the riding equipment, impacting
objects that bend the frame or crankshaft, or over-speeding the engine.
Repairs necessary because of operator negligence, including but not ttmited to, electrical
and mechantcal damage caused by improper storage, failure to use the proper grade
and amount of engine oil, fadure to keep the deck clear of flammable debris, or failure to
malntarn the riding equipment according to the instructions contatned tn the operator's
manual.
• Engine (fuel system) cleantng or repairs caused by fuel determined to be contaminated
or oxidized (stale]. In general, fuel should be used within 30 days of its purchase date.
Normal deterioration and wear of the exterior ftnishes, or product label replacement.
All rEd,rig equipment and battery warranty coverage _svoid _fth_s product is ever used for
commercial or rental purposes.
This warranty apphes only wh_le thts product _swlthtn the United States.
This warranty gives you specific legal rights, and you may also have other nghts which
vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179

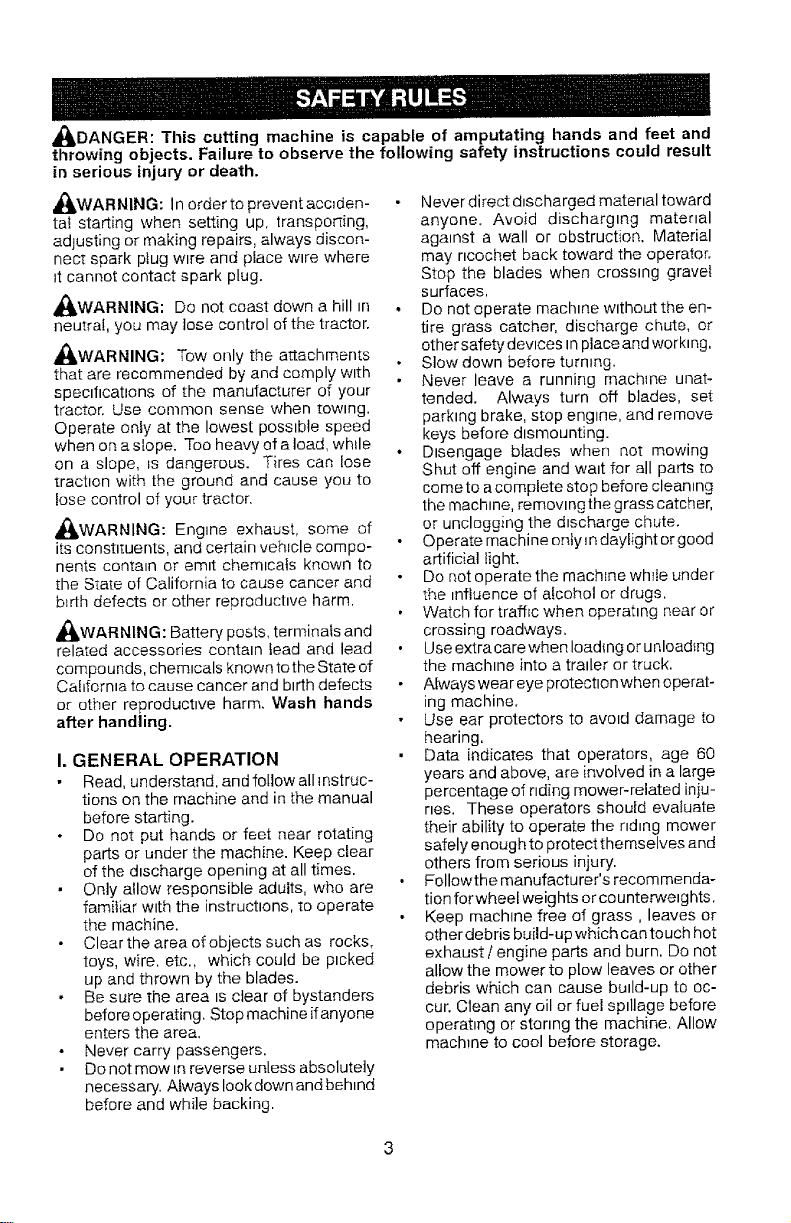

_DANGER:This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result
in serious injury or death.
_WARNING: In order to prevent acciden-
tal starting when setting up. transporting,
adjusting or making repairs, always discon-
nect spark ptug wire and place wire where
It cannot contact spark plug.
_WARNING: Do not coast down a hill in
neutral, you may lose control of the tractor.
_WARNING; Tow only the attachments
that are recommended by and comply with
spec_hcatlons of the manufacturer of your
tractor. Use common sense when towing.
Operate only at the lowest possible speed
when on aslope. Too heavy of a load, wh_le
on a slope, _s dangerous. Tires can lose
traction with the ground and cause you to
lose control of your tractor.
_WARNING: Engine exhausL some of
its constituents, and certain vehicle compo-
nents contain or emit chemicals known to
the S_ate of California to cause cancer and
b_rth defects or other reproduchve harm.
_,WARNING: Battery posts, terminals and
related accessories contain tead and lead
compounds, chemicals known tothe State of
Cahforma to cause cancer and b_rth defects
or other reproductive harm. Wash hands
after handling.
I. GENERAL OPERATION
Read, understand, and follow all instruc-
tions on the machine and in the manual
before starting.
De not put hands or feet near rotating
parts or under the machine. Keep clear
of the discharge opening at all times.
Only allow responsible adults, who are
familiar with the instructions, to operate
the machine.
Clear the area of objects such as rocks,
toys, wire. etc., which could be Dcked
up and thrown by the blades.
Be sure the area is clear of bystanders
before operating. Stop machine ifanyone
enters the area.
Never carry passengers.
Do not mow in reverse unless absolutely
necessary. Always look down and behind
before and while backing.
Never direct d_scharged material toward
anyone. Avoid discharging material
against a wall or obstruction. Material
may ricochet back toward the operator.
Stop the blades when crossing gravel
surfaces.
Do not operate machine without the en-
tire grass catcher, discharge chute, or
other safety devices In place and working,
Slow down before turning.
Never leave a running machine unat-
tended. Always turn off blades, set
parking brake, stop engine, and remove
keys before dismounting.
Disengage blades when not mowing
Shut off engine and walt for all parts to
come to a complete stop before cleamng
the machine, removing the grass catcher,
or unclogging the discharge chute.
Operate machine onty _ndaylig ht or good
artificial light.
Do not operate the machine wMe under
the _nfluence of alcohol or drugs.
Watch for traffic when operahng near or
crossing roadways,
Use extra care when loading or unloading
the machine into a trailer or truck.
Always wear eye protection when operat-
ing machine,
Use ear protectors to avoid damage to
hearing,
Data indicates that operators, age 60
years and above, are involved in a large
percentage of nding mower-related iniu-
nes. These operators should evaiuate
their ability to operate the nd_ng mower
safely enough to protect themselves and
others from serious injury.
Followthe manufacturer's recommenda-
tion for wheel weights or counterweights,
Keep machine free of grass, leaves or
other debris build-up which can to uch hot
exhaust / engine parts and burn. Do not
allow the mower to plow leaves or other
debris which can cause build-up to oc-
cur, Clean any oil or fuel sDllage before
operating or stenng the machine. Allow
machine to cool before storage.

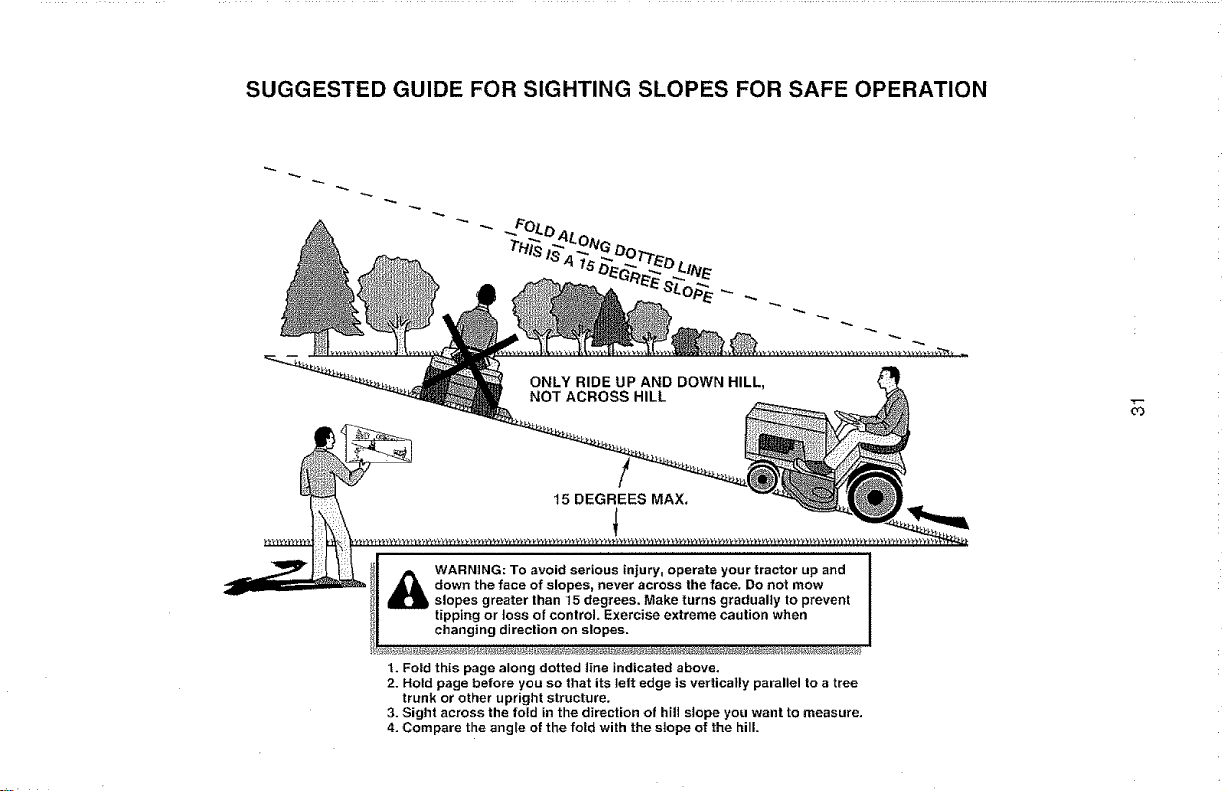

11,SLOPE OPERATION
Slopes are a major factor related to toss of
control and t_p-over accidents, which can
result in severe _njury or death. Operation
on a!l slopes requtres extra caution. If you
cannot back up the slope or _fyou feel uneasy
on _t,do not mow it.
Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or
other hidden objects. Uneven terrain
could overturn the machine, Tall grass
can hide obstacles.
Choose a low ground speed so that you
will not have to stop or sh_ft white on the
slope,
* Do not mow on wet grass. Tires may !ose
traction.
Always keep the machine in gear when
going down slopes, Do not sh_ftto neutral
and coast downhill.
Avoid starting, stopping, or turning on a
slope, lfthetireslosetractlon, dtsengage
the blades and proceed slowly straight
down the slope.
• Keep all movement on the slopes slow
and gradual. Do not make sudden
changes in speed or direction, which
could cause the machine to roll over.
Use extra care while operating machine
with grass catchers orother attachments,
they can affect the stability of the ma-
chine. Do no use on steep s{opes.
Do not try to stabilize the machine by
putting your foot on the ground.
Do not mow near drop-offs, ditches,
or embankments. The machine could
suddeniy roll over if a wheel _s over the
edge or if the edge caves in.
i11.CHILDREN
_WARNING: CHILDREN CAN BE INJURED
BY THIS EQUIPMENT The Amencan Acade-
my of Pediatrics recommends that children
be a m_ntmum of 12 year of age before op-
erating a pedestrian con[roiled Fawn mower
and a minimum of 16 years of age before
operatIng a ndmg fawn mower,
Tragic acctden[s can occur if [he operator
is not alert to the presence of children.
Ch_fdren are often attracted to the machine
and the mowing activtty, Never assume
that children will remain where you last
saw them.
Keep chddren out of the mow_ng area
and m the watchful care era responsEble
adult other than the operator.
Be alert and turn machine off if a chdd
enters the area.
Before and while backing, look behind
and down for small children.
Never carry children, even with the blades
shut off. They may fall off and be seriously
injured or interfere with safe machine
operation. Children who have been given
rides In the past may suddenly appear in
the mowing area for another ride and be
run over or backed over by the machine,
Never allow children to operate the ma-
chine.
Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may block your view of a chdd.
IV. TOWING
• Tow only with a machine that has a hitch
designed for towing. Do not attach towed
equipment except at the hitch point.
• Followthemanufacturer'srecommenda-
uonfor weight hm_tsfor towed equipment
and towing on slopes.
Never allow children or others in or on
towed equipment.
Onslopes, the weight ofthe towed equip-
ment may cause loss of tractron and loss
of control.
Travel slowly and allow extra distance to
stop.
V, SERVICE
SAFE HANDLING OF GASOLINE
To avoid personal injury or property dam-
age, use extreme care in handling gasohne.
Gasohne _s extremely flammable and the
vapors are explosive.
Extinguish alt cigarettes, cigars, p_pes,
and other sources of ignit_on.
• Use only approved gasoline container.
Never remove gas cap or add fuel w_th
the engine running. Allow engine to cool
before refueling.
Never fue! the machine _ndoors.
Never store the machine or fuel container
where there _san open flame, sped<, or
pl{ot light such as on a water heater or
other appliances.
• Never flit containers inside a vehicle or
on a truck or trailer bed with piashc liner.
Always place containers on the ground
away from your vehicle when fiJltng.

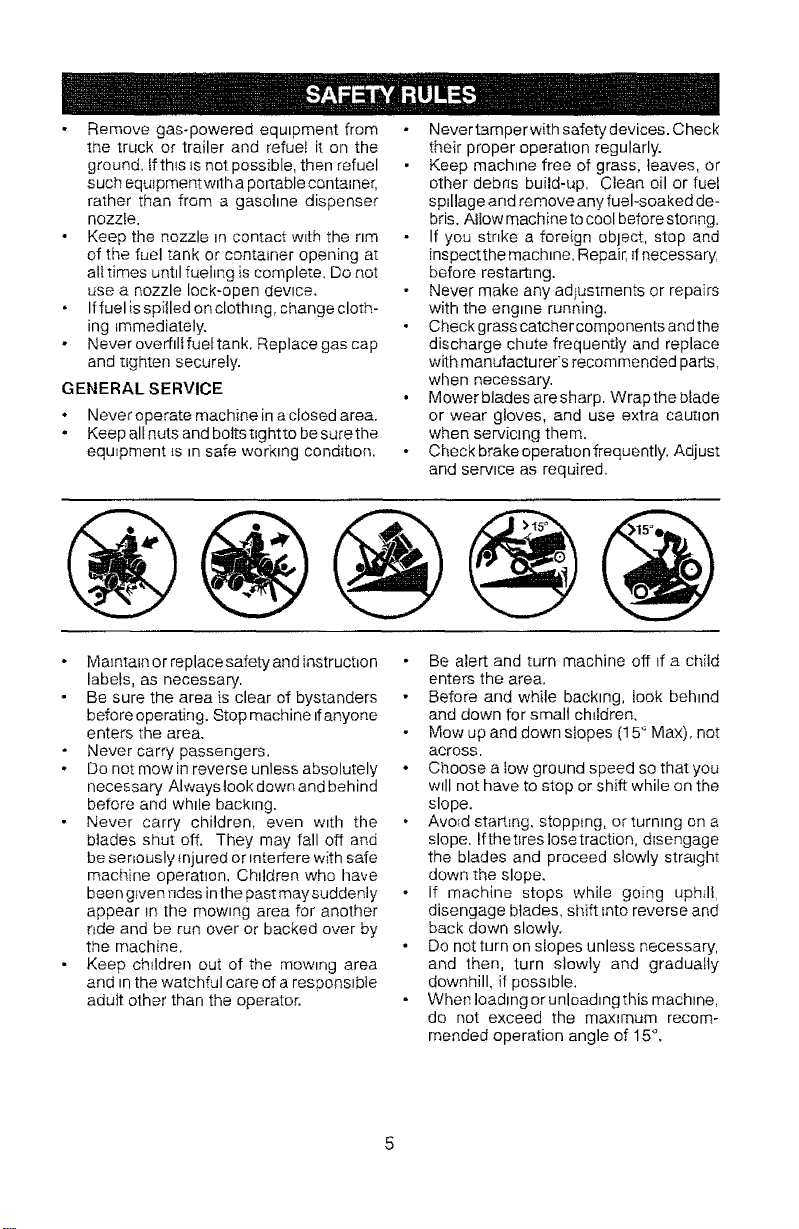

Removegas-poweredequipmentfrom
thetruckortrailerandrefueiitonthe
ground,ifthisisnotpossible,thenrefuel
suchequlpmentw_thaportablecontainer,
ratherthanfromagasolinedispenser
nozzle.
Keepthenozzle_ncontactw_ththerim
ofthefueltankorcontaineropeningat
alltimesuntilfuelingiscomplete,Donot
useanozzlelock-opendevice.
Iffuelisspilledonclothing,changecloth-
ing_mmediately.
Neveroverfillfueltank.Replacegascap
andughtensecurely.
GENERALSERVICE
* Neveroperate machine ina closed area.
Keep al! nuts and bolts t_ght to be sure the
equipment is _nsafe working condthon.
Never tamper with safety devices. Check
their proper operation regularly.
Keep machine free of grass, leaves, or
other debris build-up, Clean oil or fuel
spillage and remove any fuel-soaked de-
bris. Allow machine to cool before stonng,
If you stnke a foreign oblect, stop and
inspect the machine. Repair, ifnecessary,
before restarting.
Never make any adiustments or repairs
with the engine running.
Check grass catcher components and the
discharge chute frequently and replace
with manufacturer's recommended parts r
when necessary.
Mower blades are sharp. Wrap the blade
or wear gloves, and use extra caution
when servicing them.
Check brake operation frequently. Adjust
and service as required,
Maintain or replace safety and instruchon
labels, as necessary.
Be sure the area is clear of bystanders
before operating. Stop machine #anyone
enters the area.
Never carry passengers.
Do not mow in reverse unless absolutely
necessary Always look down and behind
betore and while backing.
Never carry children, even with the
blades shut off. They may fall off and
be senously injured or interfere with safe
machine operation, Chddren who have
been g_ven r_des in the past may suddenly
appear _n the mowing area for another
ride and be run over or backed over by
the machine.
Keep children out of the mowing area
and _nthe watchful care of a responsible
adutt other than the operator.
Be alert and turn machine off _fa child
enters the area.
Before and while backing, took behind
and down for small cMdren.
Mow up and down slopes (15" Max), not
across,
Choose a low ground speed so that you
w_ll not have to stop or shift while on the
slope.
Avoid starting, stopping, or turning on a
slope, lfthetlres Iosetraction, d_sengage
the blades and proceed slowly straight
down the slope.
If machine stops while going uphill,
disengage blades, shift into reverse and
back down slowly.
Do not turn on slopes unless necessary,
and then, turn slowly and gradually
downhill, if possible.
When loading or unloading this machine,
do not exceed the maximum recom-
mended operation angle of 15°.
PRODUCT SPECIFICATIONS
Gasohne Capacrty 3 GaIi_ns/t 1,35L
and type Regular Unleadedl-
Power Rating" t 7 5 K-"W@ 3400 RF'M
eLIType SAE 30 _abeve32_Ft0_C)
(API SG-SLI S_E 5W30 Ibelow 32"F/0"C)
Q_tCapactty W.,Rlter 64 Oz '1.96 L
W/out FEIter 60 Qz/t,77 L
Spark Plug Champion696798
tGap 030" / 0 76 ram)
ChargEng 3 Amps Battery
System 5 Amps HeadlEghts
Battery Amp/Hr 28
Mtn CCA 230
Case s_ze U1R
Blade Bolt Torque 45-55 Ft. Lbs _62-75Nm
The power ratEng as declared by the engine manufac-
turer istheaveragegrosspoweroutputatthespectfJed
RPMofatyptcal production eng¢_efortheenginemode{
measuredusingSAEStandardsforenginegrosspower.
Pleaserefer totheengLnemanufacturerfor deta(_s
"l'_lkGasehne contalmng upto 10%ethanoltel0) _s
acceptable for use in this machine Tr_e use of
any gasohne exceedtng 10% ethanol (EI01 w_ll
vo_d the product warranty.
CONGRATULATIONS on your purchase of
a new tractor. It has been deslgnedr engi-
nee red and manufactured to give you the best
possible dependabih:y and performance.
Should you experience any problem you can-
not easily remedy, please contact a Sears or
other qualified servicecenter, We have com-
petent, well-trained representati,!es and the
proper tools to service or repair th_s tractor.
PIease read and retain this manual. The
instructions w_ll enable you to assemble
and maintain your tractor properly. Always
observe the "SAFETY RULES",
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule _nmamta_nlng,
caring for and using your tractor.
• Follow anstructtons under "Maintenance"
and "S_orage" sections of th_s manual.
• Wear proper Personal Protectwe Equip-
ment (PPE) while operahng [hEsmachine,
Including (at a minEmum) sturdy footwear
eye protection, and heartng protechen.
Do not mow in shorts and/or open toed
footwear.
• Always let someone _<nowyou are outside
mow_ng.
_,WARNING: Th_stractor _sequipped with
at_ internal combustion engine and should
not be usect on or near any unimproved
forest-covered, brush-covered or grass-
covered land unless the engine's exhaust
system is equipped with a spark arrestor
meeting apphcable local or state laws (If
any). [f a spark arrester is used, It should
be maintained tneffective working order by
the operator.
Inthe state of Cahfornia the above is req ulred
by law (Section 4442 of the Caltfornla Pubhc
Resources Code). Other states may have
stmilar taws. Federal laws apply on federal
lands. A spark arrester for the muffler ts
ava ilablethrough your nearest Sears service
center (See REPAIR PARTS manual).
6
Keys Slope Sheet
(2) Keys
Your new tractor has been assembled at the factory with the exception of those parts left
unassembled for shipping purposes.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly
eas_er. Standard wrench sizes are l_sted.
(1) 1/2" wrench Tire pressure gauge
(2) 7116" wrenches Utility knife
Pliers
When righ_ or left hand is mentioned in this
manual, itmeans whenyou arelntheoperating
position {seated behind the steering wheel),
TO REMOVE TRACTOR FROM
CARTON
UNPACK CARTON
Remove all accessible loose parts and
parts cartons from carton.
Cut along dotted lines on all four pan-
els of carton. Remove end panels and
lay side panels fiat.
Check for any additional loose parts or
cartons and remove.
BEFORE REMOVING TRACTOR
FROM SKID
TO CHECK BATTERY
1, Lift hood to raised position.
NOTE: If th_s battery _sput into service after
month and year _nd_cated on taoel (labe{ is
located between _erminals) charge battery
for m_nimum of one hour at 6-10 arabs. (See
"BATTERY" in Maintenance section of this
manual for charging instructions),
* For battery, and battery cable installahon
see "REPLACING BATTERY" _n the
"Service and Adjustments" section inthis
manual.
Label
ADJUST SEAT
l. Satin seat.
2. Lift up adjustment lever (A) and slide seat
until a comfortable position is reached
which allows you to press clutch/brake
pedal all the way down.
3. Release lever to lock seat in posit_on.
l [- <-.
NOTE: You may now roll your tractor off
the skid. Follow the appropnate instruchor_
below to remove the tractor from the skid.
_kWARNING: Before start{ng, read, under-
stand and follow al! instructions in the Opera-
tlon sec[ion of this manual. Ensure trac_or _sIn
awell-ventilated area, Ens ure the area infront
of tractor is clear of other people and objects,
NOTE:Youmaynowrollyourtractoroffthe
skid.Continueustngtheinstructionsthat
followtoremovethetractorfromtheskid.
WARNING:Beforestarting,read,un-
derstandandfollowallinstructionsinthe
Operationsectionofth_smanual.Besure
tractorIS_nawefl-ventdatedarea.Besure
theareainfrontoftractor_sc{earofother
peopleandobjects.
TOROLLTRACTOROFFSKID(See
Operationsectionfor locationand
functionofcontrols)
1, Raiseattachmentliftlevertoitshighest
position.
2. Releaseparkingbrakebydepressing
clutch!brakepedal.
3. PlacegearshiftleverInneutralposition.
4. Rolltractorforwardoffskid.
5, Removebandingholdingthedeflector
shieldupagainsttractor.
Continuewiththeinstructionsthatfollow.
CHECKTIREPRESSURE
Theflresonyourtractorwereevennflatedat
thefactoryfor.shippingpurposes.Correct
tirepressureis _mportant for best cutting
performance,
• Reduce tire pressure to PSI shown on
[ires.
CHECK DECK LEVELNESS
For best cutting results, mower housing
should be properly leveled. See 'TO LEVEL
MOWER" tn the Servtce and Adjustments
section of th_s manual
CHECK FOR PROPER POSITION OF
ALL BELTS
See the figures that are shown for replac-
ing motion and mower blade dnve belts _n
the Service and Adjustments section of this
manual. Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor,
check to see that the brake is operating
properly, See "TO CHECK BRAKE" in the
Service and Adjustments section of this
manual,
,!CHECKLIST
Before you operate your new tractor, we
wish to ensure that you receive the best
performance and satisfaction from th_s
Quality Product.
Please rewew the following checkiist:
,/Alt assembly instructions have been com-
pleted,
v" No remaining loose parts _ncarton.
,/Battery is properly prepared and charged.
,/Seat _sadjusted comfortably and tfghte ned
securely,
¢" All tires are properly inflated. (For shEp-
ping purposes, the tires were overinflated
at the factory).
¢" Ensure mower deck is properly leveled
side-to-sideifront-te-rear for best cueing
results. (Tires must be properly inftated
for levehng).
,/Check mower and dnve belts. Ensure
they are routed properly around pulleys
and inside all belt keepers.
v" Check w_rEng. See that all connections
are stitl secure and w_res are properly
clamped.
Whtle learning how to use your tractor, pay
extra atXent_on to the following important
_tems'
•/ Engine otl is at proper level.
,/Fuel tank _sfilled w_thfresh, clean, reguIar
unleaded gasoline.
,/Become familEar wtth all comrois, [herr Io-
cahon and function. Operate them before
you start the engine.
v' Ensure brake system is tn safe operatHlg
condition.
v" Ensure Operator Presence System and
Reverse Operal:lon System (ROSI are
working properly (See the Operation and
Maintenance secttons in [h_s manual).
Thesesymbolsmayappearonyourtractororinliteraturesuppliedwiththeproduct.
Learnandunderstandtheirmeaning.
R N H L Ikl
REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION
SWITCH
@
ENGINE ENGINE ENGINE DIFFERENT[AL
OFF START ON LOCK
CLUTCH/ MOWER
BRAKE PEDAL LIFT
@} @
PARKING MOWER
BRAKE HEIGHT
IklH
REVERSE REVERSE FORWARD
OPERATION
SYSTEM (ROS)
®,u o
CRUISE CONTROL LIGHTS ON
ATTACHMENT A'N'ACHMENT DANGER, KEEP
CLUTCH CLUTCH HANDS AND
DISENGAGED ENGAGED FEET AWAY
FREEWHEEL
)Automatic Models only)
Faliure to follow instructions
could result tn senous injury or
death. The safety alert symbol
is used to _dentffy safety inform-
ation about hazards which can
result _n death, serious injury
and:or property damage.
FUEL BATTERY EAR
PROTECTION
REOU1RED
®@@@@
KEEP AREA CLEAR SLOPE HAZARDS
{SEE SAFETY RULES SECTION)
&
&
&
,lll_tlll,lllu,I
DANGER indicates a hazard wnlcr=, if not avoided
will result in death or serious injury.
WARNING _ndlcates a hazard wr_leh, if not avmoed,
could result In death or serious injury.
CAUTION _ndlcates a hazard which tf Dot avoided
might result in minor or moderate injury.
CAUTION when used without me alert symbol,
JndLcates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES tnd=cates a hazard wh{cn,
=1ROt avoided, could result In death, serious
inluqi and/or property damage.
FIRE indicates a hazard which, _frxot avoided,
could result in death, serious injury and/or
property damage.
KNOW YOUR TRACTOR
READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of
vanous controls and adjustments Save this manual for future reference.
i ,i
Our tractors conform to the applicable safety standards of the
American National Standards Institute.
(A) ATTACHMENT LIFT LEVER - Used to
raise and lower the mower or other attach-
ments mounted to your tractor.
(B) CLUTCH/BRAKE PEDAL -Used for
declutch_ng and braking the tractor and
starting the engine.
(C) PARKING BRAKE _Locks clutch/brake
pedal into the brake posItion.
(D) THROTTLE/CHOKE CONTROL- Used
for starting and controlling engine speed,
(E) ATTACHMENT CLUTCH LEVER - Used
to eng age the mower blades, or other attach-
merits mounted to your tractor.
(F) IGNITION SWITCH - Used for starting
and stopping the engine.
(G} REVERSE OPERATION SYSTEM
(ROS) "ON" POSITION - Allows operation
of mower or other powered attachment white
IR reverse.
(H) LIGHT SWITCH - Turns the headhghts
on and off.
(J) GEARSHIFT LEVER- Selects the speed
and direction of tractor.
(P) SERVICE MINDERiHOUR METER -
Indicates when service _s required for the
engine and mower.
10
The operation of any tractor can result in foreign objects thrown into the
eyes, which can result in severe eye damage. Always wear safety glasses
or eye shields while operating your tractor or performing any adjustments
or repa;rs. We recommend standard safety glasses or a wide vision safety
mask worn over spectacles.
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE
Your tractor ts equipped with an operator
presence sensing sw_tch. When engme
is running, any attempt by the operator to
leave the seat wlthoutflrst seltingthe parking
brake w_ll shut off the engine,
1, Depress clutchfbrake pedal (B) a!l the
way down and hold.
2. Pull parkmg brake lever (C) up and hold,
release pressure from clutchlbrake pedal
(B), then release parking brake tever. Ped-
al should remain in brake position. Ensure
parking brake wilt hold tractor secure.
. . t.t__ " ..,.(c)-s
':',;4_',<,J "L - '-"
STOPPING
, Z-:
[/?
MOWER BLADES -
• To stop mower blades, move attachment
clutch control to disengaged position (r_).
J
',i>..."--T._),
(1"_1) Attachment (t_) Attachment
Clutch Contro] Clutch Control
"Engaged .... Disengaged"
ENGINE -
• Move throttle control (D) to slow position.
NOTE; Failure to move throttle control
to slow position and atlowlng engine to
idle before stopping may cause engine to
"backfi re".
* Turn ignition key (F) to "STOP" poslbon
and remove key. Always remove keywhen
leavtngtractor to prevent unauthonzed use.
• Never use choke to stop engine.
IMPORTANT: Leavmg the _gnition switch in
any positaon other than "STOP" will cause the
battery to discharge and go dead,
NOTE: Under certain conditions when tracto r
ts standing tdle with the engme runmng, hot
engine exhaust gases may cause "brown-
mg'' of grass. To eliminate this poss_bihty,
always stop engine when stopping tractor
on grass areas.
_i_ CAUTION: Always stop tractor com-
pletely, as described above, before leaving
the operator's position.
TO USE THROTTLE CONTROL (D)
Always operate engine at full speed (fast).
• Operating engine at less than ful! speed
(fast) red uces engine's operating efficiency.
• Full speed (fast) offers the best mower
performance.
l .. iI :iii
GROUND DRIVE -
• To stop ground dnve, depress brake pedal
all the way down.
• Move gearshift lever to neutral posmon.
1!
TO MOVE FORWARD AND BACKWARD
The d{rectlon and speed of movement is
controlled by the gearshift lever (J},
"-_L
_--J2"- "- <
Start tractor with clutch/brake pedal
depressed and gearshift lever =nneutral
(N) posiuon.
2. Move gearshift leverto desired pos_tion,
3, Slowly release clutch/brake pedalto start
movement.
IMPORTANT: Bnng tractor to a complete
stop before shifting or changing gears.
Fadure to do so will shorten the useful life
of your transaxle.
TO ADJUST MOWER CUFFING HEIGHT
The position of tile attachment hft _ever (A)
determines the cutting height.
I ._. "° ]
• Put attachment hft _ever _ndesired cutting
height slot.
The cutting height range is approxtmately 1
to 4" (25,4 to 101,6 mm), The heights are
measured from the ground to the blade tip
with the engine not running, These heiglqts
are approximate and may vary dependtng
upon soil conditions, height of grass and
types of grass being mowed.
, The average lawn should be cut to approxi-
mately 2-1/2" (63,5 mm) during the cool
season and to over 3" (76,2 ram) during
hot months. For heakh[er and better look-
ing tawns, mow often and after moderate
growth.
• For best cutttng performance, grass over
6" (152,4 ram) in height should be mowed
[w_ce. Make the first cut rela[wely hEgh,the
second to desired Iqelght,
TO ADJUST GAUGE WHEELS
Gauge wheels are properly adjusted when
_hey are shghtly off the ground when mower
ts at the desired CUttEng height _noperating
posit_on. Gauge wheels then keep the deck
_nproper posttton to help prevent scalping
in most terrain conditions,
NOTE: Adjust gauge wheels with tractor on
a flat lave] surface,
1. Adjust mower to desired cu_ng height
(See "TO ADJUST MOWER CUTTING
HEIGHT" in this sectton of manuall.
2. W_th mower tn desired height of cut posi-
t_on,gauge wheels should be assembled
so they are stightly oflthe ground, install
gauge wheel in appropriate hoie, Tighten
secureiy.
3. Repeat for all, installing gauge wheel in
same adjustment hole_
r
TO OPERATE MOWER
Your tractor is equipped with an operator
presence sensing switch, Any attempt
by the operator to leave the seat with [he
engine running and the attachment clutch
engaged wtli shut off the engine. You must
remain fully and centrally positioned tn the
seat to preven[the engtne from hes_tahng or
cutting off when operating your equipment
on rough, rolling terrain or hills.
1 Select destred height of cut with attach-
ment hfl lever.
2. Start mower blades by engagtng attach-
merit clutch control,
!2
TO STOP MOWER BLADES
D_sengage attachment clutch control.
_kCAUTION: Do not operate the mower
without e_ther the entire grass catcher, on
mowers so equipped, orthe deflector shield
in place.
i , ,,- "/' "q
REVERSE OPERATION SYSTEM (ROS)
Your tractor is equipped with a Reverse
Operation System (ROS). Any attempt by
the operator to travel inthe reverse direction
with the attachment clutch engaged wdl shut
off the engine unless tgnit{on key is placed
in _he ROS "ON" position.
_WARNING: Backing up with the at-
tachment clutch engaged while mowing is
strongly discouraged. Turning the RQS "ON",
to allow reverse operation with the attach-
ment clutch engaged, shoutd only be done
when the operator dec_des it_snecessary to
reposlt_on the machtne w_th the attachment
engaged Do not mow in reverse unless
absolutely necessary.
USING THE REVERSE OPERATION
SYSTEM -
Only use ff you are certain no children or
other bystanders will enter the mowing area.
l. Depress clutch/brake pedal aif the way
down and hold.
2. W_th engtne running, turn _gnit_on key
counterclockwise to ROS "ON _'pos_t_on.
3. Look down and behind before and while
backing.
4. Move gear shift lever to reverse (R}
posit{on and siowly release clutch/brake
pedal to start movemen:.
5. When use of the RQS is no longer
needed, wrn the ignition key clockwise
to engine "ON" position.
ROS "ON" Poskt_on Engine "ON" Position
(Normal Operating}
TO OPERATE ON HILLS
_,WARNING: Do not dnve up or down
hills with slopes greater than 15° and do
not drive across any slope, Use the slope
guide provided at the back of this manual.
• Choosetheslowestspeed beforestarting
up or down hills,
• Avoid stopping or changing speed on hills.
• If stopping is absolutely necessary, push
clutch/brake pedal quickly to brake posi-
tion and engage parking brake.
• Move gearshift lever to 1st gear. Ensure
you have allowed room for tractor to roll
shghtty as you restart movement.
* To restart movement, slowly release park-
ing brake and clutch/brake pedal.
• Make all turns slowly.
TO TRANSPORT
1. Raise attachment lift lever to its highest.
2. When pushing or towing your tractor, be
sure gearshift lever is in neutra{ posttion.
• Do not push or tow tractor at more than
five (5) mph (8 kmih}.
NOTE. To protect hood from damage when
transporting your tractor on atruck or atrailer,
be sure hood isclosed and secured totractor.
Use an appropriate means of tying hood to
tractor (rope, cord, etc.).
TOWING CARTS AND OTHER ATTACHMENTS
Tow only the attachments that are recom-
mended by and comply with specifications
of the manufacturer of your tractor. Use
common sense when towing. Too heavy of
a load, while on a slope, Is dangerous. Tires
can lose traction with the ground and cause
you to lose control of your tractor.
SERVICE MINDERiHOUR METER
Service Minder shows the total number of
hours the engine has run and indicates when
the engine or mower needs servicing, After
every 50 hours of operation the olf can icon
will stay on for 2 hours or until a manual reset
occurs, To reset the display manually turn
the ignition switch to the on posit_on, then
the off position five times (l second on, I
second off). To service engine and mower,
see the Maintenance section of this manual.
NOTE: Service M[nder runs when the ignition
key is in any posttion but "STOP". For ac-
cu rate reading, ensure the key remains tnthe
"STOP" position when engine is not running,
13
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
The engine in your tractor has been shipped
from the factory already filled w_th summer
weight oil,
1. Check engrne otl wtth tractor on level
ground.
2. Remove etl fiTI cap!dipstick and wipe
clean, re_nsert the dtpstEck and screw cap
tight, wa_tfor a few seconds, remove and
read oi! level. If necessary, add oil unttl
"FULL' mark on d_pstick is reached. Do
not overfill.
• For cold weather operation you should
change oil for easier starting (See the o_1
viscosity chart in the Maintenance sechon
of this manual).
• To change engine oil, see the Maintenance
section in this manual.
ADD GASOLINE
• Fill fuel tank to bottom of filler neck. Do
not overfill. Use fresh, clean, regular
gasoltne wtth a mtnimum of 87 octane.
Do not mix oil wrth gasohne. Purchase
fuel in quamitles that can be used wtth_n
0 days to ensure fuel freshness.
CAUTION: Wipe off any spilled oil or fuel.
Do not store, sp_ll or use gasohne near an
open flame.
IMPORTANT: When operating Lntempera-
tures below 32°F (0°C), use fresh, clean
winter grade gasoline to help ensure good
cofd weather starting,
_IbCAUTION: Alcohol blendedfuels (called
gasohel or us{rig ethanol or methanol) can
attract moisture which leads to separatton
and formation of acids dunng storage. Acidic
gas can damage the fuel system of an engine
while instorage. To avoid engine problems.
the fuel system should be emptied before
storage of 30 days or longer, Dram the gas
tank, start the engine and let _trun unttt the
fuel Itnes and carburetor are empty. Use
fresh fuel nextseason. See Storage Instruc-
ttons for additional _nformatlon. Never use
engine or carburetor cleaner products in the
fuef tank or permanent damage may occur,
Fuel stabihzer is an acceptab{e alternative _n
mtnlmizt ngthe fo rmarton of fuel gum deposits
dunng storage. Add stabd_zer to gasoline in
fuel tank or storage container. Always follow
the mix ratio found on stabihzer container.
Run engine a_least 10 minutes after adding
stabilizer to allow the stabilizer to reach the
carburetor. Do not empty the gas tank and
carburetor if using fuel s_ab_lizer.
TO START ENGINE
When starting the engine for the first hme or
if the engine has run out of fuel, _tw_ll take
extra cranking time to move fuel from the
tank to the engine.
1. Sit on seat In operating pos_hon, depress
clutch/brake pedal and set parking brake.
2. Place gearshift lever _nneutral posttion.
3. Move attachment clutch to disengaged
positron.
4. Move throttle control to dqoke pos_uon
NOTE: Before starting, read the warm and
cold starting procedures below.
5, insert key _nto fgnition and turn key
clockwise to start posklon and release
key as soon as engine starts. Do not run
starter continuously for more than f_fteen
seconds per minute. If the engine does
not start after several attempts, move
throttle control to fast position, watt a
few minutes and try again, If engine sttll
does not start, move the throttle control
back to the choke positron and retry.
WARM WEATHER STARTING
(50°F (10°C) and above)
6. When engine starts, move the throttle
control to the fast position.
• The attachments and ground drive
can now be used. If the engine does
not accept the load, restart the engine
and aliow it to warm up for one m_nute
using the choke as described above.
COLD WEATHER STARTING
(50°F (I0°C) and below)
6. When engine starts, leave throttle control
_nchoke poslt_on until engine warms up
and begins to run roughly. Once rough
running begins, immediately move the
throttle controito the fast posttlon. Engine
warm-up may take from several seconds
to severat m_nutes (the colder the tem-
perature, the longer the warm-up).
• The attachments can also be used
during the engtne warm-up period
14

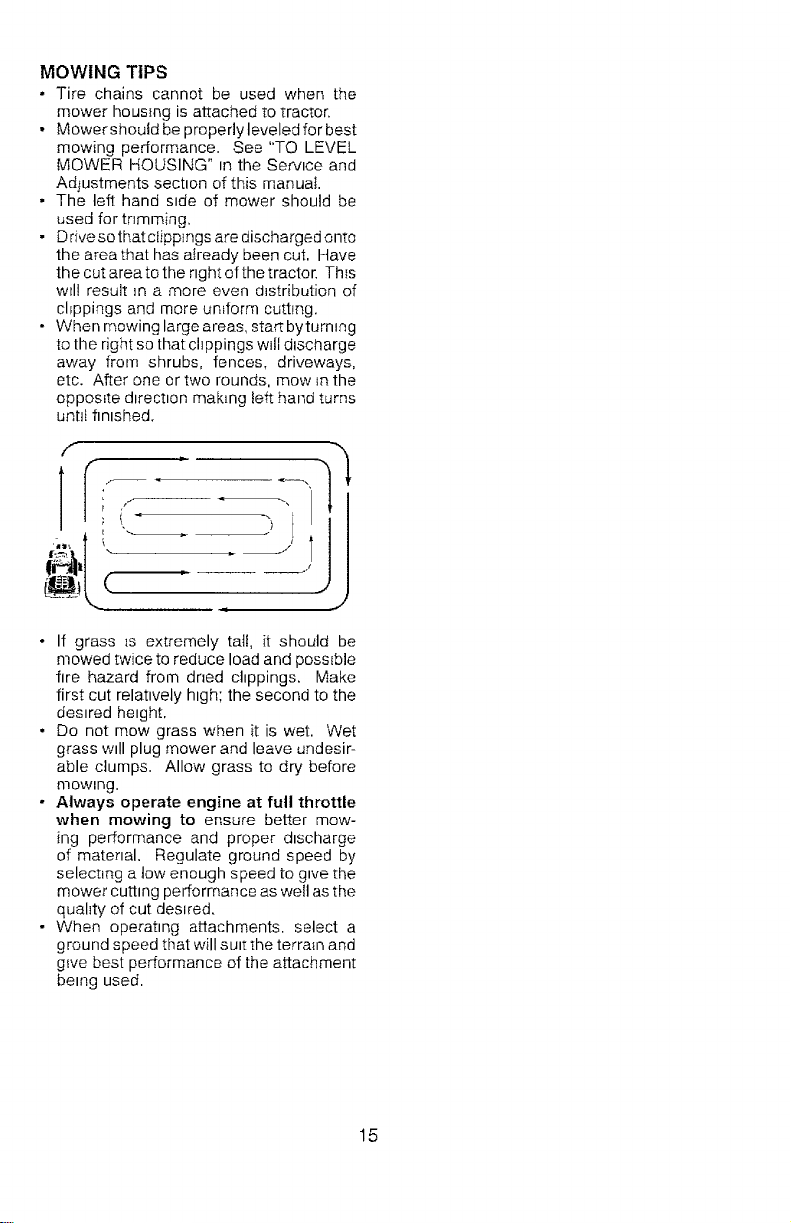

MOWING TIPS
• Tire chains cannot be used when the
mower housing is attached to tractor.
• Mower should be properly leveled for best
mowing performance. See "TO LEVEL
MOWER HOUSING" in the Service and
Adjustments section of this manual.
• The left hand side of mower should be
used for trimming,
• Drivesothatctipptngs are dischargedonto
the area that has already been cut. Have
the cut area to the right of the tractor. Th_s
will result m a more even d_stribution of
chppings and more uniform cutting.
• When mowing large areas, start by turning
to the right so that chppings will discharge
away from shrubs, fences, driveways,
etc. After one or two rounds, mow m the
opposite direction making left hand turns
untJt ftntshed.
f
p
J
J
• If grass is extremely tall, it should be
mowed twice to reduce load and possible
fire hazard from dned chppings. Make
first cut relatively hgh; the second to the
desired height.
• Do not mew grass when it is wet. Wet
grass will plug mower and leave undesir-
able clumps. Allow grass to dry before
mowing.
• Always operate engine at full throttle
when mowing to ensure better mow-
ing performance and proper discharge
of material. Regulate ground speed by
selecting a tow enough speed to gtve the
mower cutttng performance as well as the
quahty of cut desired.
• When operating attachments, select a
ground speed that will suit the terrain and
gwe best performance of the attachment
betng used.
15
GENERAL RECOMMENDATIONS
The warranty on th_s tractor does not cover
items that have been subiected to oper&tor
abuse or negligence. To recewe full value
from the warranty, operator must maintain
tractor as _nstructed _nthis manual.
Some adlus[ments wilt need to be made
periodicallyto properly maintain your tractor.
At least once a season, check to see if
you should make any of the adjustments
described _nthe Service and Adlustments
section of this manual.
, At least once a year you should replace
the spark plug, clean or replace a_r filter,
and check blades and belts for wear. A
new spark plug and clean a_rfilter assure
proper air-fuel m_xture and help your en-
gine run better and fast longer.
BEFORE EACH USE
l, Check engine oil level.
2, Check brake operation.
3. Check tire pressure.
4. Check operator presence and
ROS systems for proper operabon.
5. Check for loose fasteners,
LUBRICATION CHART
"_; Spindle_--__-'lr---_ Spindle
Zerk ,'::_ ...... _['_ Zerk
Front _-_J'_=_="_" "_,_<2"_ Front Wheat
Wheel ,-__ _ Bearing Zerk
Beanna _'_f ........... _ _.-'."_
zerk _ " i_ :_ ,I i "-_"X Engine
?""iP
......... Pivots
@,SAE 30 or 10w30 motor o_I
,_)General Purpose Grease
L_3}Refer_oMaintenance "ENGINE" Section.
IMPORTANT: Do not oil or grease tt_e pivot
points which have special nylon beanngs.
Viscous lubricants wd/attract dust and dirt
that wilt shorten the life of the self-lubncatmg
bearings. If you feelthey must be lubricated,
use only a dry, powdered graphite type
lubncant spanngly.
16
TRACTOR
Always observe safety rules when perform-
ing any maintenance.
BRAKE OPERATION
If tractor requires more than 5 feet (1,5 m)
to stop at highest speed in highest gear on
a level, dry concrete or paved surface, then
brake must be serviced. (See "TO CHECK
BRAKE" _n the Service and Adjustments
section of this manual).
TIRES
• Maintain proper a_r pressure in all tires
(See the side of tires for proper PSi.)
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may cause
tire damage.
NOTE: To seal hre punctures and preven[
flat tires due to slow leaks, tire sealant may
be purchased from your local parts dealer.
T_re sealant aJso prevents t_re dry rot and
corrosion
OPERATOR PRESENCE SYSTEM AND
REVERSE OPERATION SYSTEM (ROS)
Be sure operator presence and reverse
operatton systems are working properly, If
your tractor does not function as descnbed,
repair the problem _mmedlately.
• The eng=ne should not start un{ess the
brake pedal is fully depressed, and the
attachment dutch control is in the dtsen-
gaged position,
CHECK OPERATOR PRESENCE SYSTEM
• When the engine _srunning, any attempt
by the operator to leave the seat without
first setting the parking brake should shut
off the engine.
• When the engine is running and the at-
tachment clutch is engaged, any attempt
by the operator to leave the seat should
shut off the engtne.
• The attachment clutch should never oper-
ate unless the operator is in the seat.
CHECK REVERSE OPERATION (ROS)
SYSTEM
• When the engine is running with the lgnttion
switch in the engine "Q N" position and the
attachment clutch engaged, any attempt
by the operator to dnve in reverse shouid
shut off the engine.
• Whentheeng_ne_s running wtththe ignition
switch in the RQS "ON" position and the
attachment clutch engaged, any attempt
by the operator to drive _nreverse shoutd
NOT shut off the engine.
Ros "On" Engtne "On" Posttton
Pos_t_on (Normal Operating}
BLADE CARE
For best resul;s mower b{ades mus_ be sharp.
Replace worn, bent or damaged blades.
_CAUTION: Use onIy a replacement blade
approved bythe manufacturer of your tractor.
Using a btade not approved by the manu-
facturer of your tractor is hazardous, could
damage your tractor and void your warranty.
BLADE REMOVAL
I Raise mowerto highest position to allow
access to biades.
NOTE: Protect your hands with gloves and,"
or wrap blade w_th heavy cloth,
2. Remove blade bolt by turntng counter-
clockwise.
3. Install new blade with stamped "GRASS
SIDE" facing the ground,
IMPORTANT: To ensure proper assembly,
center hole _nblade must ahgn with star on
mandrel assembly.
4. Install and tighten bfade bolt securely
(45-55 Ft. Lbs,i62-75 Nm).
IMPORTANT Special b{ade bolt is heat
treated
Star
Center Hole \ i-, ,._
"_ '_' I-_ 71
o.o0o°o....... I oo..o,
B ade _'_'_'"J-- ['..
BATTERY
Your tractor has a battery charging system
which is sufficient for normal use. However,
periodic charging of the battery with an au-
tomotwe charger will extend its life,
• Keep battery and terminals clean.
• Keep battery bolts tight.
• Keep small vent holes open.
• Recharge at 6-I0 amperes for 1 hour
NOTE; The orlgtnal equipment battery on
your tractor is maintenance free. Do not
attempt to open or remove caps or covers.
Adding or checking level of elec[roiyte is
not necessary.
17
TO CLEAN BATTERY AND TERMINALS
Co rrosion and dtrton the battery and terminals
can cause the battery to "leak" power.
1. Remove temlinal guard.
2. Disconnect BLACK battery cable first
then RED battery cable and remove
battery from tractor.
3. Rinse the battery w_th plain water and
dry.
4. Clean terminals and battery cable ends
wIth wire brush until bright.
5. Coat terminals with grease or petroleum
ielly.
6. Remstalf battery (See "REPLACING
BATTERY" in the Service and Adjust-
ments section of this manuall.
TRANSAXLE MAINTENANCE
Keep transaxle free from bu_ld-up of dirl and
chaff wh=ch can restrict cootng.
Do not attempt to clean transaxle while
engine is running or while the transaxle {s
hot. To prevent possible damage to seals,
do not use high pressure water or steam to
clean transaxle.
V-BELTS
Check V-baits for deterioration and wear after
t00 hours of operation and replace ifneces-
sary. The belts are net adjustable, Replace
belts _fthey begin to slip from wear.
ENGINE
LUBRICATION
Only use high quality detergent eelrated with
API servtce classification SG-SL. Seiectthe
oil's SAE viscosity grade according to your
expected operat=ng temperature,
I__ I SAE VfSCOSITI GRADES
J
NOTE: Although mulh-wscoslty ells (5W30.
10W30 etc.) treprove starttng Er_coId weather
they will result in increased oil consumption
when used above 32_F/0°C. Check your
engine oit level more frequentiyto avoid pos-
sible engine damage from runntng low on oil.
Changethe eit after every 50 hours of opera-
tton or at least once a year If the tractor is
not used for 50 hours _none year.
Check the crankcase otl level before starting
the engine and after each eight (8) hours
of operation. Tighten oil flit cap/dipshck
securely each time you check the oil level.
TO CHANGE ENGINE OIL
Determine temperature range expected
before oil change. All oil must meet API
service classification SG-SL,
• Be sure tractor is on level surface.
• QEIwill drain more freely when warm,
• Catch eel in a sultab{e container.
1 Remove oil fill capidipsttck, Be careful
not to allow dirt to enter the engine when
changing oil.
2. Shdeoil dram extension from the dock_ng
pos_t_on on the engtne blower housing
and extend outward from engtne,
Docking
Posit{on Oii Dratn
Extension
Cap
3, To open, twist cap counter-clockwise
4. After oil ts drained completely, replace
cap and twist clockwise until it stops.
5, Re-attach oil drain extension to engine
blower housing.
6. Refilt engtne with oil through o_Ifill dtpst_ck
tube. Pour slowly. Do not overNi. For ap-
proximate capacity see "PRODUCT SP-
ECIFICATIONS" section of this manual.
7. Use gauge on oil fill cap/dipstick for
checktng level. For accurate reading,
tighten d_pshck cap securely onto the
tube before removing dipstick. Keep o_1
at "FULE' line on d_pstick. T_ghten cap
onto the tube securely when finished,
ENGINE OIL FILTER
Replace the engine od filter every season or
every ether od change _f[he tractor _sused
more than 100 hours in one year
AIR FILTER
Your engine w=ll not run properly using a
d_rtya_rNter, Service atr cteaner more often
under dusty cendftions. See engine manual.
CLEAN AIR SCREEN
The a_rscreen _sover the a_r _ntake blower
located on top of engine The azr screen
must be kept free of d_r[ _nd chaff to prevent
engine damage from overheating. C{ean w_th
a w_re brush or compressed air to remove
d_rt and stubborn dned gum fibers.
18
ENGINE COOLING SYSTEM
To ensure proper coohng, make sure the
grass screen, cooling fins, and other exter-
nal surfaces of tile engine are kept clean
at all t_mes.
Every 100 hours ef operahon (more often
under extremely dusty, dirty conditions),
remove the blower housing and other cooling
shrouds. Clean the cooling fins and externa{
surfaces as necessary. Ensure _he cooling
shrouds are reinstalled.
NOTE. Operating the engine w_th a blocked
grass screen, dirty or plugged cooling fins,
and/or cooling shrouds removed will cause
engine damage due to overheating.
MUFFLER
Inspect and replace corroded muffler and
spark arrester (if equipped) as it could cre-
ate a fire hazard and/or damage.
SPARK PLUG(S)
Replace spark plug(s) at the beginning of
each mowing season or after every !00
lTours of operation, whichever occurs f_rst.
Spark plug type and gap setting are shown
in "PRODUCT SPECIFICATIONS" section
el this manual.
IN-LINE FUEL FILTER
The fuei filter should be replaced once each
season, if fuel filter becomes clogged, ob-
struchng fuel flowto carburetor, replacement
is required,
1. With engine cool, remove filter and plug
fuel line sections.
2. Place newfuel filter in position in fuet hne
with arrow pointing towards c_rburetor,
3, Ensure there are no fuel line leaks and
clamps are property positioned.
4, Immed_atetywipe up any spilled gasotme.
CIamp_ ,"_'_,-._'--_ Clam
Fuel Fitter_j[-"__-_ J
CLEANING
Cfean engine, battery, seat, finish, etc.
of all foreign matter.
* Clean debnsfromsteermg plate. Debris
can restrict clutch/b rake pedal shaft: move-
ment, causing belt slip and toss of dnve.
_1,CAUTION: Avoid all pinch points and
movable parts
Clutch/brake pedal _ , ,'
-../- / '
Clean ' _: . . /-
top side , _ -.:- _..../
"1
Plate _, _'__
Steering System, Dash, Fender
and Mower Not Shown
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
Protect painted s uriaces with auto motive
type wax.
Except ?or the washout port (if equipped),
we do not recommend using a garden hose
or pressure washer to clean the outside of
your tractor unless the engine and transmis-
sion are covered to keep water out. Water
m engine or transmission will shorten the
useful hfe of your tractor. Use compressed
air or a leaf blower to remove grass, leaves
and trash from outside tractor and mower.
19
DECK WASHOUT PORT
Your tractor's deck is equipped with a wash-
out port on _tssurface as part of its deck wash
system, it should be uN_zed after each use.
1. Drive the tractor to a level, clear spot
on your lawn, near enough to a water
spigot for your garden hose to reach,
IMPORTANT: Make certain the tractor's
discharge chute is dErected AWAY from your
house, garage, parked cars, etc. Remove
bagger chute or mulch cover if attached.
2. Make sure the attachment clutch control
is in the "DISENGAGED" position, set
the parking brake, and stop the engine.
3. Ensure your garden hose isfitted w_th a
standard t 2ram female hose connector
(at the opposite end from the tap con-
nect_on).
4. Pull back the lock collar of the hose
connector and push the connector onto
the deck washout port at the left end of
the mowerdeck Refeasethe tockcoltar
to lock the connector on the nozzle.
10. Move the tractor to a dry area, prefer-
ably a concrete or paved area. Place
the attachment clutch control in the
"ENGAGED" position to remove excess
water and to help dry before putting the
tractor away.
Aid,WAR NING: A broken or missing washout
fitting could expose you or others to thrown
objects from contact with the blade.
Replace broken or missing washout fitting
immediately, prior to using mower again.
Plug any holes in mower with bolts and
Iocknuts.
Hose _"i:
Hose CoRoector ...._,_ _t',, _.&tashout POF'.
(t 2rr_m Female) J ,:_
€,
IMPORTANT: Tug hose ensuring connec-
tion Jssecure.
5. Turn the water on.
6. While setting in the operator's position
on the tractor, re-start the engine and
place the throttle lever in the Fast ",_"
positEon.
IMPORTANT: Recheck the area making
certain the area is clear.
7, Move the tractor's attachment clutch
control to the "ENGAGED" poslhon
Remain in the operator's posit_on w_th
the cutting deck engaged until the deck
is cleaned.
8. Move the tractor's attachment clutch
control to the "DISENGAGED" posi-
tion. Turn the ignition key to the STOP
position to turn the tractor's engine off.
Turn the water off.
9. Pull back the lock collar of the hose
connector to disconnect the connector
from the nozzle washout port.
2O
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANYSERVICE OR ADJUSTMENTS:
1. Depress clutch/brake pedal fully and set parktng brake.
2, Place gearshift lever In neutral poslt_on.
3, Place attachment clutch in "DISENGAGED" position.
4, Turn ignition key to "STOP" and remove key.
5. Ensure the blades and all moving parts have completely stopped.
6. O_sconnect spark plug wire from spark plug and place wire where it cannot
come in contact with plug,
TO REMOVE MOWER
1. Place attachment clutch in 'DISEN-
GAGED" posrtfon.
2. Lower attachment hft lever to its lowest
position.
3, Roll belt off engine pulley (M) and belt
keepers (G).
4. Remove retafner spring (K), slide collar
(L) off and push housing guide (P} out
of bracket.
5. Remove clutch cable spring (Q) from
idler arm (R).
6. Disconnect fronl link (E) from mower -
remove retainer spring and washer.
7. Go to either s_de of mower and discon-
nect mower suspension arm (A) from
chassis pin (B) and rear lift link (C) from
rear mower bracket (D) - remove retainer
springs and washers.
CAUTION: After rear lift hnks are discon-
nected, the attachment lift lever will be spring
loaded. Have a tight grip on lift lever when
changing position of the lever,
8, Slide mower out from under nght side of
tractor.
IMPORTANT: If an attachment other than
the mower is to be mounted on the tractor,
remove the front link (E) and rear lift hnks
(C) from tractor and hook the clutch spring
(Q) into the cable guide on front edge of
lower dash.
TO INSTALL MOWER
Ensure tractor fs on leve! surface and engage
parking brake.
1. Lower attachment lift [ever to 1Is Iowest
pos_t_on.
_IL CAUTION: Lift lever is spnng loaded.
Have a tight grip on lift lever, lower it slowly
and engage in lowest position.
NOTE: Ensure mower side suspensron arms
(A) are pointing forward before sliding mower
under tractor.
2 Slide mower under tractor unhl it is cen-
tered under tractor.
03042te_
21
3. ATTACH MOWER SIDE SUSPENSION
ARMS (A) TO CHASSIS - Position hole
in arm over pin (B) on outside of tractor
chassis and secure w_th retainer spr_ng.
4. Repeat on opposite stcie of tractor.
5. ATTACH REAR LIFT LINKS (C) o Lift
rear corner of mower and position slot
in hnk assembly over pin (D) on rear
mower bracket and secure wEth washer
and retainer spnng,
7. Insert end of link /E) into hole in front
mower bracket (H) and secure w_th
washer and retainer spring /J).
8, Hook end of clutch cablespr;ng (Q) into
hole In tdler arm (R).
9 Push clutch cable housing guide IP) _nto
bracket, slide collar (L) onto gu{de and
secure wtth retainer spring (K).
10. Install belt onto eng}ne pulley (M) and belt
keepers (G).
6. ATTACH FRONT LINK (E) - Work from
left stde of tractor. Insert rod end of link
assembly through front hole in tractor
front suspension bracket (F).
IMPORTANT: Check beit for proper rout=ng
in all mower pulley grooves.
11,Raise attachment ttft lever to h=ghest
pos=fion.
12, If necessary, adiust gauge wheels before
operattng mower as shown inthe Opera-
tion section of thEs manual.
/
D)
03042te_
22
TO LEVEL MOWER
Ensure tires are properiy inflated to the PSi
shown on tires, if ttres are over or under
inflated, itmay affect the appearance of your
lawn and Iead you to th_nk the mower is not
adjusted properly.
VISUAL SIDE-TO-SIDE ADJUSTMENT
1. W_th all tires properly _nflated and ffyour
lawn appears unevenly cut, determine
which side of mower is cutting lower.
2. W_th a 3/4" or adjustable wrench, turn
lift link adjustment nut (A) to the left to
lower LH side of mower, or, to the right
to raise LH side of mower.
Turn nut Turn nut
rsght to left to
raise _ lower
mower mower
NOTE: Each full turn of adjustment nut w_ll
change mower height about 3/16" (4,7 ram).
3. Test your adjustment by mowing some
uncut grass and visually ci_eckmg the
appearance. Readjust, if necessary, untif
you are sat{stied with the resuits.
PRECISION SIDE-TO-SIDE ADJUSTMENT
1. Wtth all ttres properly inflated, park tractor
on level ground or driveway.
A01LCAUTION: Blades are sharp. Protect
your hands w_th gloves and/or wrap blade
w_th heavy cloth
2. Raise mower to its highest posit_on.
3. At both sides of mower, posltLon blade
at side and measure d_stance "A" from
bottom edge of blade to ground. The dis-
tance should be the same en both sides.
4. If adjustment _snecessary, see steps in
V_sual Adiustment instructions above.
5. Recheckmeasurements, adjustifneces-
sary until both sides are equal.
FRONT-TO-BACK ADJUSTMENT
IMPORTANT: Deck must be level side-
to-side.
To obtain the best cutting results, the mower
blades should be adjusted so the front tip
is 1i8 to 1/2" (3,1 to t2,7 ram) (iower than
the rear tip when the mower Is in its h_ghest
posibon.
A(_CAUTION: Blades are sharp. Protect
your hands with gloves and/or wrap blade
w_th heavy cloth.
• Raise mower to h_ghest position.
• Position any blade so the tip is pointing
straight forward. Measure distance "B'Lto
the ground at front and rear hp of blade
• If front tip of blade is not 1/8 to I/2" (3,1
to ! 2,7 ram) lower than the rear tip, go to
the front of tractor.
• With an 11/16" or adjustable wrench,
loosen jam nut "A" several turns to clear
adjustment nut "B".
• With a 3/4" or adjustable wrench, turn
fro nt link adjustment nut "B" clockwise (,_)
(t_ghten) to raise the front of mower_ or.
counterclockwise (¢',) (loosen) to lower
the front mower.
®
T_grtten adjust Loosen adjust
nut "B" to nut "B" to
-- --- lower mower
raise mower
Loosen jam nut "A" first
NOTE: Each full turn of adiustment nut will
change mower height about 1,._8'' [3,1 mm).
• Recheck measurements, adjust if neces-
sary until front tip of blade is 1/8 to ti2"
(3,1 to I2,7 ram) lower than the rear tip.
• Hotd adjustment nut in positBon w_th
wrench and tighten jam nut securely
against adjustment nut.
23
TO REPLACE MOWER BLADE DRIVE
BELT
The mower blade drwe belt may be replaced
w_thout teoJs. Park the tractor on level sur-
face. Engage parking brake.
BELT REMOVAL -
1. Remove mower from tractor (See "TO
REMOVE MOWER" in this section of
manual).
2. Work belt off both mandrel pulleys and
idler pulleys,
3. Pull belt away from mower,
BELT INSTALLATION -
l. Work belt around both mandrel pulleys
and idler pulleys
2, Ensure belt _s in all pulley grooves and
inside all belt guides.
3, Instal! mower (See "To Install Mower" in
this section of this manual),
TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parF,mg brake. For assistance, there is a
belt mstallabon guide decal on bottom s_de
of {eft footrest.
BELT REMOVAL-
1. Remove mower (See '%O REMOVE
MOWER 'r In this section of manual).
NOTE: Observe enbre motion dove belt
and position of all belt guides and keepers.
2. Remove beltfromstationary idler (A) and
clutching idler CB).
3. Pull belt slack toward rear of tractor.
Remove belt upwards from transaxle
toput pulley (D),
4. Remove belt downward from engine
pulley (E).
5. Shde belt toward rear of trac_or, off the
steering plate (F) and remove from tractor.
TO CHECK BRAKE
tf tractor requires more than five (5) feet (1,5
m) to stop at highest speed m h_ghest gear
on a level, dry concrete or paved surface,
then brake must be serviced.
You may also check brake by
1. Park tractor on a level, dry concrete or
paved surface, depress clutch/brake
pedal all the way down and engage
parking brake
2. Place gear shift lever _nneutral posEbon.
The rear wheels must lock and skid when
you try to manually push the tractor forward.
If the rear wheels rotate, then t_qe brake
needs to be serviced. Contact a Sears or
other quahfJed service center,
BELT INSTALLATION -
1. Install new belt from tractor rear to front,
over the steering plate (F) and above
clutch brake pedal shaft (G).
2. Pull belt toward front of tractor and roll
belt onto engine pulley (E).
3. Pull belt toward rear of tractor. Carefully
work belt down around transaxle input
pulley (D), Ensure belt is reside the belt
keeper.
4. install belt through stabonary idier (A_
and ctutchmg idler (B).
5. Ensure belt is _nall pulley grooves and
inside all belt guides and keepers.
6. Install mower (See "TO INSTALL MOW-
ER" In this secbon of manual),
24
TRANSAXLE GEAR SHIFT LEVER NEU-
TRAL ADJUSTMENT
The transaxte should be in neutral when the
gear shift lover ts in neutral (N) (lock gate)
position. The adjustment _s preset at the
factory, however, if adjustment is needed,
proceed as follows:
1. Make sure transaxle is tn neutral (N).
NOTE: When the tractor rear wheels move
freely, the transaxie ts in neutral.
2, Loosen adjustment bolt in front of the
right rear wheel.
3, Position the gear shift lever _nthe neutral
(N) position.
4. Tighten adjustment bolt securely.
NOTE: If additional clearance _sneeded to
get to adjustment bolt, move mower deck
hetght to the lowest position,
Gearshift Adjustment Bolt
Lever ..- _ __
2_:., 5:-
Lock Gate
TO REMOVE WHEEL
1. Block up axle securely.
2. Remove axte cover, retaining ring and
washers to atlow wheel removal Irear
wheels have a square key - Do not tose)
3. Repair tire and reassemble,
NOTE: On rear wheels only. ahgn grooves in
rear wheel hub and axle, Insert square key.
4. Replacewashers andsnap retaining ring
securely _naxle groove.
5. Replace axle cover.
NOTE: To seal fire punctures and prevent
flat tires due to slow leaks, purchase and
use ttre sealant from Sears. T_resealant atso
prevents tire dry rot and corrosion.
Washers
Retaining
Axle Ring.
Cover\ \
'\
'\\
Square
(Rear Wheel Only)
FRONT WHEEL TOE-IN/CAMBER
Your new tractor front wheel toe-in and
camber is set at the factory and _snormal.
The front wheet toe-in and camber are Rot
adjus[able. If damage has occurred to
affect the factory set front wheel toe-in or
camber, contact a Sears or other qualified
service center.
TO START ENGINE WITH A WEAK BAT-
TERY
_WARNING: Lead-acid batteries gener-
ate explosive gases. Keep sparks, flame
and smoking materials away from batteries.
Always wear eye protection when around
batteries.
If your battery _stoo weak to star_ the engine,
it should be recharged. (See "BATTERY" in
the MAINTENANCE section of this manual).
If "jumper cables" are used for emergency
starting, follow th_s procedure
IMPORTANT' Your tractor is equipped with
a 12 volt system. The other vehicle must also
be a 12 vott system, bo not use your tractor
battery to start other vehicles.
TO ATTACH JUMPER CABLES -
I. Connect one end of the RED cabIe to the
POSITIVE (+) terminal of each battery(A-
B), taking care not to short against tractor
chassis.
2, Connect one end of the BLACK cable
to the NEGATIVE (-) terminal (C) of fully
charged battery.
3. Connect the other end of the BLACK
cable (D) to good chassts ground, away
from fuel tank and battery.
TO REMOVE CABLES, REVERSE ORDER
1 BLACK cable f{rst from chass{s and then
from the fully charged battery,
2. RED cable last from both batteries,
A +A
Weak or Dead Fully Charged
Battery Battery
25
REPLACING BATI'ERY
n_asWARNING: Do not short battery termi-
by a{Iowf ng awrench or any other object
to contact both term_nNs at the same time.
Before connecting battery, remove metal
bracelets, wristwatch bands, rings, etc.
Positive terminal must be connected first to
prevent sparkff_g from accidental grounding.
1. Lift hood to ratsed posit_on.
2. Removeterm_nal cover.
3. Disconnect BLACK battery cable then
RED battery cable and carefully remove
battery from tractor.
4. Install new battery w_thtermEnals _nsame
pos_hon as old battery.
5. RemstNt terminal cover.
6. First connect RED battery cable to pose-
tire (+} battery terra,nat with bolt and nut
as shown. Tighten securely.
7. Connect BLACK grounding cable to
negative (-) battery termt hal wath re main-
ing bolt and nut. T_ghten securely
8. Close hood.
Negatwe
Cable
TO REPLACE HEADLIGHT BULB
1. Raise hood.
2. Remove bulb holder from the hole _nthe
backside of the grill.
3. Reptace bulb in holder and _nstall bulb
holder securely back _nto the hole _nthe
backside of the gnll.
4. Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your
tractor to run poorly, stop running, or prevent
it from starting.
• Check winng.
TO REPLACE FUSE
Replace w_th30 amp automotwe-type plug-_n
fuse. Thefuseholderistocatedbehindthedash.
TO REMOVE HOOD AND GRILL
ASSEMBLY
I. Raise hood.
2. Unsnap headlight wtre connector.
3. Stand in front of tractor, Grasp hood at
stdes, t_lttoward engine and hffoff oftractor.
4. When replacing hood, ensure to recon-
nect the headlight w_re connecter.
ENGINE
TO ADJUST THROTTLE CONTROL
CABLE
The throttle control has been preset at
_he factory and adIustment should not be
necessary Check adjustment as descnbed
below before Ioosentng cable. If adjustment
_snecessary, see engine manual.
TO ADJUST CHOKE CONTROL
The choke control has been preset at the
factory and adjustment shoutd not be neces-
sary. If adjustment is necessary, see engine
manual.
26
Immediately prepare your tractor for storage
at the end of the season or if the tractor will
not be used for 30 days or more.
WARNING: Never store the tractor with
gasohne in the tank inside a butldlng where
fumes may reach an open flame or spark
Atlow the engine to cool before storing _n
any enclosure.
TRACTOR
Remove mower from tractor for w_nter stor-
age. When mower is to be stored for a period
of brae, clean It thoroughly, remove atl dwt,
grease, teaves, etc. Storein aclean, dryarea,
1. Clean entlretractor (See"CLEANfNG" in
the Maintenance section of this manual).
2, Inspect and replace belts, if necessary
(See belt replacement instructions in the
Service and Adjustments section of this
manual).
3. Lubncate as shown in the Maintenance
secbon of _h_smanual.
4. Ensure that alf nuts, bolts and screws
are securely fastened. Inspect movtng
parts for damage, breakage and wear.
Replace if necessary.
5. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
BATTERY
• Fully charge the battery for storage.
• After a penod of time tn storage, battery
may require recharging.
• To help prevent corrosion and power
leakage during long periods of storage,
battery cables should be disconnected
and battery cleaned thoroughly (see "TO
CLEAN BATTERY AND TERMINALS" in
the Maintenance section of th_s manual).
• After cleaning, leave cables disconnected
and place cables where they can not come
m contact w_th battery terminals.
• If battery _s removed from tractor for
storage, do not store battery dwectly on
concrete or damp surfaces.
• If unit is equipped with battery tndlcatori
charging plug, an opbonal charging unit
may be purchased and connected to the
unit to charge the battery dunng long term
storage. Inspect and clean the battery
terminals as needed prior to long term
storage w_th charger connected.
ENGINE
FUEL SYSTEM
IMPORTANT. It is important to prevent
gum deposits from forming in essential tuel
system parts such as carburetor, fuel hose,
or tank dunng storage. Also, alcohol blended
fuels (called gasohol or using ethanol or
methanoi) can attract moisture which feNdS
to separation and formabon of acids dunng
storage. Acidic gas can damage the fuel
system of an engine while in storage.
• Empty the fuel tank by starting the engine
and le_lng it run until the fuel lines and
carburetor are empty.
• Never use engine or carburetor cleaner
products =n the fuel tank or permanent
damage may occur.
• Use fresh fuel next season,
NOTE: Fuel stabihzer is an acceptable al-
ternattve in minimtz_ng the formation of fuel
gum deposits during storage. Add stabilizer
to gasoline _nfuel tank or storage container.
Always followthe mix raUo found on stabdizer
container, Run engine at least 10 minutes
after add_ng stab ilize r to al low the stabilizer to
reach _he carburetor. Do not empty the gas
tank and carburetor tf using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oi!. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER(S)
1, Remove spark plug(s),
2. Pour one ounce (29.5 mL) of oil through
spark plug hole(s) into cylinder(s).
3. Turn ignition key to "START" position for
a few seconds to dtstribute off.
4, Replace with new spark plug(s).
OTHER
• Do not store gasoline from one season to
another.
• Replaceyourgasoline can tfyourcan starts
to rust, Rust and/or dirt in your gasohne
will cause problems.
• if possible, store your tractor tndoors and
cove r_ttogive protection from dust and dirt.
• Cover your tractor wtth a suitable protec-
tive cover that does not retaIn moisture,
Do not use plastic, Piastic cannot breathe
which allows condensation to form and wtll
cause your tractor to rust.
IMPORTANT' Never cover tractor while
engine and exhaust areas are stdl warm.
27
TROUBLESHOOTING CHART:
See appropriate section in manual unless directed to Sears service center
PROBLEM
Will not start
Hard to start
Engine witl not
turn over
I
2
Engine clicks but
will not start
CAUSE
Out of fuel
Engine not CHOKED' 13roperly
Engine flooded
4 Bad spark plug
5 Dirty air filter
6 Dirty fuel filter
7 Water Jnfuel.
8
9
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
1
2
3
4
Loose or damaged w_nng.
Engine valves out of adjustment 9
DErtyair filter
Bad spark plug
Weak or dead battery'.
Dirty fuel filter
Stale or dErtyfuel.
CORRECTION
1 FJilfuel lank
2 See "TO START ENGINE' in
Operation £ectlon
3 Watt several mLnutes before
attempting to start
4 Replace spark pIug
5 Clean, replace a_rfilter
6 Replace fuel filter
7 Empty fuel tank and carburetor.
refdl tank wrth fresh gasoline and
replace fuel filter
8 Check all w_nng
Contact a Sears or other quaIff_ed
service center
I Clean/_eplace air filter
2 Replace sparV, plug
: 3 Recharge or replace battery"
4 Replace fuel filter
5 Empty fuel tank and reNI tank w_tk-
i fresh, clean gasoline.
Check all wlnng.
Contact a Sears or ether qualified
service center
Depress clutch/brake pedal
2 D_sengage attachment c{utch
3 Recharge or replace battery.
4 Replace fuse.
5 CLean battery lerm,nats
6 Ctleck all wErlng
7 Checklreplace ,gn_t_onswEtch
8 Cheek/replace solenc=d or starter
9 Contact a Sears or ether quahffed
service center
t Recharge or replace battery
2 Clean battery terminals
3 Check all wErEng
4- Checklreplace soler_o_d or starter.
Luose or damaged wEir_g. 6
Engine valves out of adjustment. 7
Clutchfbrake pedal not depressed 1
Attachment clutch is engaged
Weak or dead battery.
Blown fuse
Corroded battery terminals
Loose or damaged WENng
Faulty _gn_hon sw_tch,
Faulty solenoid or starter
FauRy operator presence
switch (as)
Weak or dead battery
Corroded battery terminals
Loose or damaged w_nng
Faulty solenoid or starter.
28
TROUBLESHOOTINGCHART:
Seeappropriatesectionin manualunlessdirectedtoSearsservicecenter
PROBLEM CAUSE CORRECTION
Loss of power 1 Cutting too much grass/too fast I Raise cutting hetghttreduce
speed
2 Throttle _n CHOKE" pestt_on 2 Adjust throttle control
3 BuEId-up of grass, leaves and 3 Clean underside of mower
trash under mawer, housing.
4 Dirty a_rNter 4 Clean/replace a_rfilter
5 Low o_1level/d_rty o_t 5 Check o_1leve!/change o_l
6 Faulty spark plug 6 Clean and regap or change spark
plug.
7 D_rtyfuel fi{ter 7 Replace fuel filtec
8 Stale or dirty fuel 8 Empty rue{ tank and refill tank wlt_"
fresh, clean gasoline.
9 Water rn fuel 9 Empty fuel tank and carburetor,
refill tank with fresh gasoline and
replace fuel filter.
t0 Spark pIug wire lease. I0 Connect and tighten spark p]ug
wire.
tl D_rtyengine air screen/fins, 1I Clean engine a_r screen, fins,
t2 D_rty/cfegged muffler 12 Clean/replace muffler
13 Loose er damaged wiring. 13 Check all wlnng.
14 Engine valves out of adjustment 14 Contact a Sears er other qualified
service center
Excessive vibration 1 V'vorn, bent or loose blade 1 Replace blade T_gbten blade bolt
2 Bent blade mandret 2 Contact a Sears or ether
qualified service center
3 Loose/damaged part(s) 3 Tighten loose partlst
Replace damaged parts
Engine continues to 1 Faulty opera[or-safety presence 1 Check wEnng, switches and
run when operator control system connechons. If not corrected,
leaves seat with contact a Sears or other quahfled
attachment clutch service center
engaged
._ CAUTION: DO NOT
U operate machine until
problem is corrected.
Poor cut - uneven 1 Worn, bent or loose blade. 1
cutting
2 Mower deck not revel ! 2
3 Buildup of grass, leaves, and 3
trash under mower.
4 Bent blade mandrel
Clogged mower deck vent from
build-up of grass, leaves, and
trash around mandrels.
Replace biade Tighten blade bolt
Level mower deck
Clean underside of mower
housing
4 Contact a Sears or other
qualified service center
: 5 Ciean around mandrels to
open vent holes
29
TROUBLESHOOTING CHART:
See appropriate section in manual unless directed to Sears service center
PROBLEM CAUSE
Mower blades will 1 Oustructlon tn cIutch mechanism
not rotate
2 Womldamaged mower dr_ve belt
3 Frozen _dler pulley
4 Frozen blade mandrel
Poor grass
discharge
! Headlight(s) not
working
(if so equipped)
Battery will not
charge
i Loss of drive
Engine "backfires"
when turning
engine "OFF"
Engine dies when
tractor is shifted
into reverse
1
Engine speed too slow
Travel speed too fast
Wet grass
Mower deck not tevel
Low/uneven hre a_r pressure_
Worn, bent or loose blade
1
2
3
4
5
6
7 Buildup ot grass, leaqes and 7
trash under mower.
8 Mower dnve bell worn 8
9 Blades _mproperl,y _nstalied 9
10 Improper blades use_ 101
11 Clogged mo_'_er deck vent holes 11
from buildup ef grass leaves, and
trash around mandrets
1 Light switch [s OFF' 1
2 Bulb(s} or lamp(s) burned out. 2
3 Faulty i_ght switch 3
4 Loose or damaged w_nng 4
5 Blown fuse_ 5
1 Bad battery ceil(s). 1
2 Poor cable connections. 2
3 Faulty regulator (Efso equipped) 3
4 Faulty alternator 4
1 Debns on steering plate /_f 1
equtpped)
2 Morton drive be_t worn, damaged, 2
or broken
3 Axte key missing 3
Engine throttle control not SOl 1
between half and full speed (fast}
pos_t_on before stopping engine
Reverse operatton system (RQS} 1
_s not 'ON' wh_le mower or other
attachment _s engaged
CORRECTION
1 Remove obstructLon,
2 Replace mower dnve Beit
3 Replace _dler pulley.
4 Contact a Sears or other
quahfied service centeL
1 P_ace throttle control tn '}-AST '_
position.
2 Sh_ft to slower speed
3 Allow grass to dry betore mowing
4 Level mowe; deck
,5 Check t_res for proper PSi
6 Replace/sharpen blade T_ghten
blade bolt
Clean underside of mower
housing
Replace mowe; dnve belt
Remstalt blades sharp edge down
Replace w_th blades listed [n
tins rnanua[
Clean around mandrels to
open vent holes
Turn Itght switch "ON"
RepJace bulb(s} or lamp(s)
Checklrepiace hght switch
Check wLnng and connections
Replace fuse.
Replace battery.
Cheektclean all connectbons
Replace regulator
Replace alternator
See "CLEANING" Lnthe
maintenance section,
Replace motion drive be}t.
install axle key at rear wheel See
"TO REMOVE WHEEL" _nthe
Service and Ad}ustments section.
Move throttle control between
half and full speed [fast) posit!on
before stopping engtne
Turn ignltFon key to ROS "ON"
posit(on See Operation section.
30
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
ONLY RIDE UP AND DOWN HILL,
NOT ACROSS HILL
15 DEGREES MAX,
t
WARNING: To avoid serious injury, operate your tractor up and
down the face of slopes, never across the face. Do not mow
slopes greater than t5 degrees. Make turns gradually to prevent
tipping or toss of control. Exercise extreme caution when
changing direction on slopes.
t. Fold this page along dotted line indicated above.
2. Hold page before you so that its ]eft edge is vertically parallel to a tree
trunk or other upright structure.
3. Sight across the fold in the direction of hill slope you want to measure.
4. Compare the angle of the fold with the slope of the hill.
CRRFTSMFlti !
Product questions or problems?
1-888-331-4569
Customer Care Hot Line
Get answers to questions, troubleshoot problems,
order parts, or schedule repair service.
Para respuestas a preguntas o problemas, y ordenar
piezas o pedlr servlcJo para la reparact6n de su equtpo.
To help us help you, register your product at www.craftsman.comlregistration
Para poderte ayudar me._or reg=stra tu producto en www craftsman comlreg_strat_on
Join the Craftsman Club today!
CRRFT.TMAN
www, craftsman.com/sig n up
Receive exclusive member benefits including special pricmg and offers,
project sharing, expert advice, and SHOP YOUR WAY REWARDS!
Como m_embro excluswo, recLbe dlv_rsos beneflc,os como ofertas prec_es espec_ales, proyectos
nuevos, consejos de experlos y nuestro programa de puntos SHOP YOuR WAY REWARDSI
02,24.14 AP Printed in the U.S.A.
