Craftsman 917252711 tractor User Manual

SEARS

MODEL NUMBER 91

7.252711

Assembly

Operation

Customer Responsibilities

Service and Adjustments

Repair Parts

MANUAL

Convertible

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

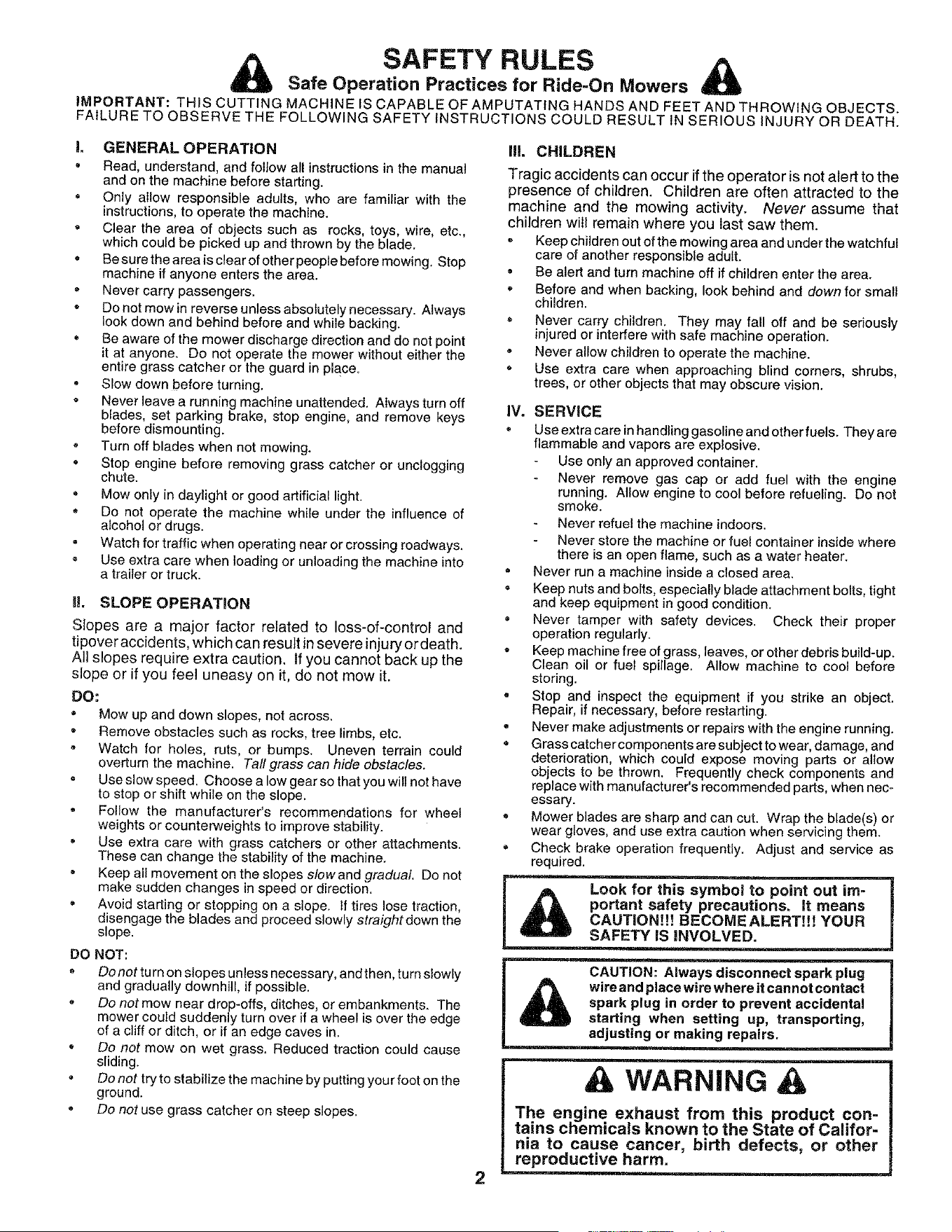

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT tN SERIOUS INJURY OR DEATH.

L GENERAL OPERATION

• Read, understand, and follow all instructions in the manual

and on the machine before starting.

, Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning.

, Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

o Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of

alcohol or drugs.

= Watch for traffic when operating near or crossing roadways.

Use extra care when loading or unloading the machine into

a trailer or truck.

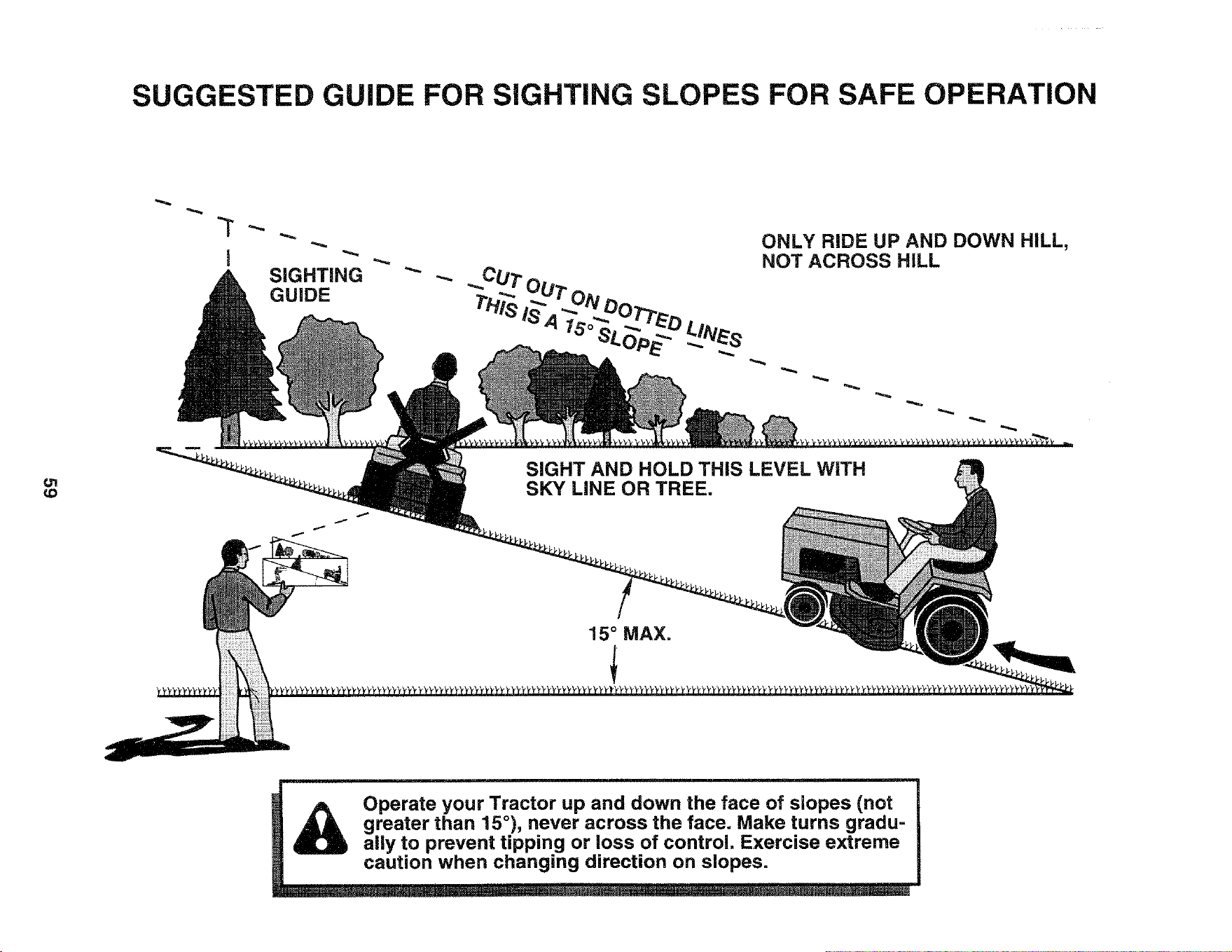

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

,, Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

o Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

° Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

" Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

', Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual Do not

make sudden changes in speed or direction.

= Avoid starting or stopping on a slope, tf tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

" Donotturnonslopesunlessnecessary, andthen, turnslowly

and gradually downhill, if possible.

o Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could cause

sliding.

, Do not try to stabilize the machine by putting your foot on the

ground.

Do not use grass catcher on steep slopes.

IlL CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

,, Keep children out of the mowing area and under the watchful

care of another responsible adult.

• Be alert and turn machine off if children enter the area.

o Before and when backing, look behind and down for small

children.

Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV.

SERVICE

Use extra care inhandling gasoline and other fuels. They are

flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

" Never run a machine inside a closed area.

" Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

Never tamper with safety devices. Check their proper

operation regularly.

" Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

° Never make adjustments or repairs with the engine running.

" Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec_

essary.

,, Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

,' Check brake operation frequently. Adjust and service as

required.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY iS iNVOLVED.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

WARNING &

The engine exhaust from this product con-

tains chemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

CONGRATULATIONS on your purchase of a Sears

tractor. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Service Cen-

ter/Department. We have competent, well-trained tech-

nicians and the proper tools to service or repair this trac-

tor.

Please read and retain this manual The instructions will

enable you to assemble and maintain your tractor prop-

erly. Always observe the "SAFETY RULES".

MODEL

NUMBER 917,252711

SERIAL

NUMBER

DATE OF PURCHASE

THE MODELAND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MADNTENANCE AGREEMENT

A Sears maintenance agreement is available on this prod-

uct, Contact your nearest Sears store for details.

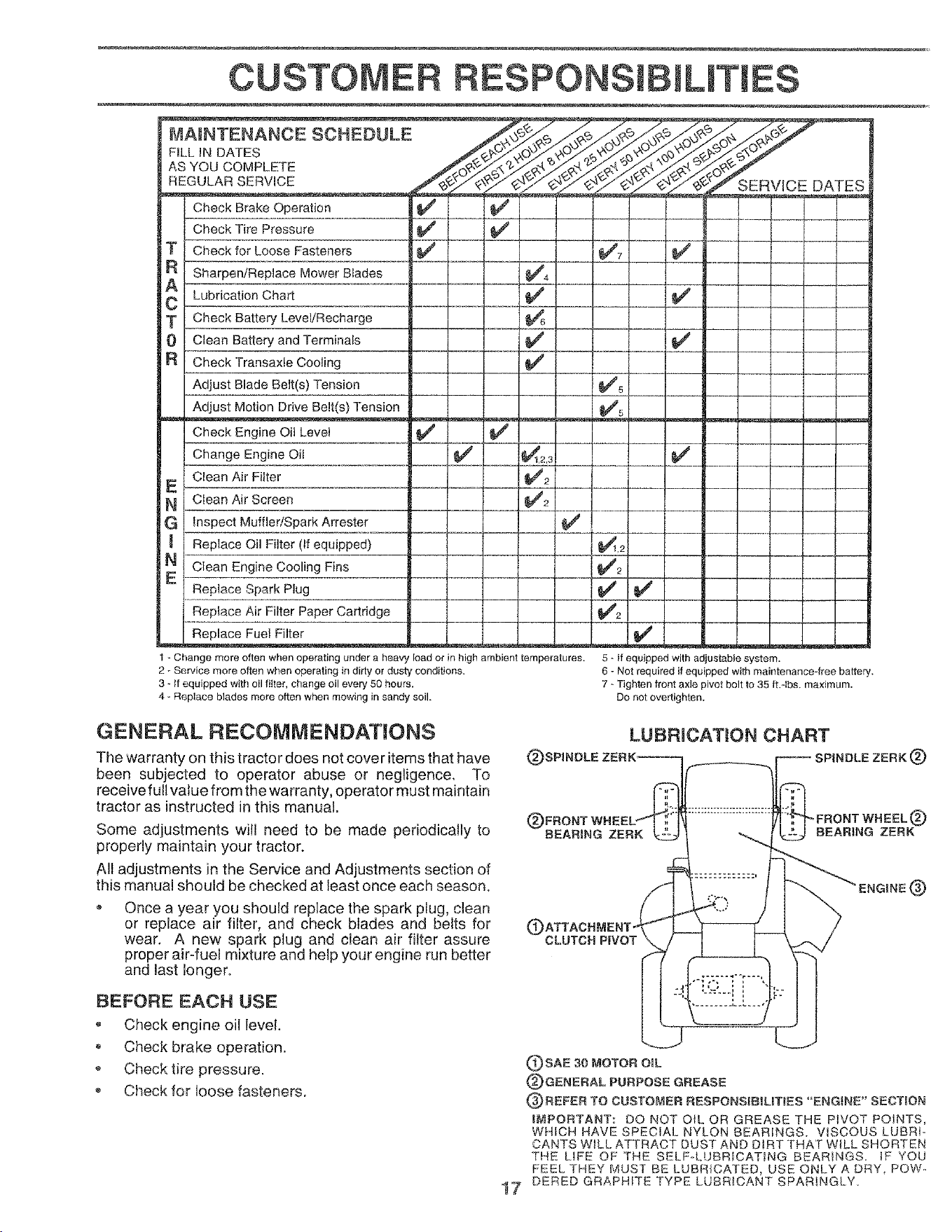

CUSTOMER RESPONSIBIMTIES

o Read and observe the safety rules.

" Fotlow a regular schedule in maintaining, caring for and

using your tractor.

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

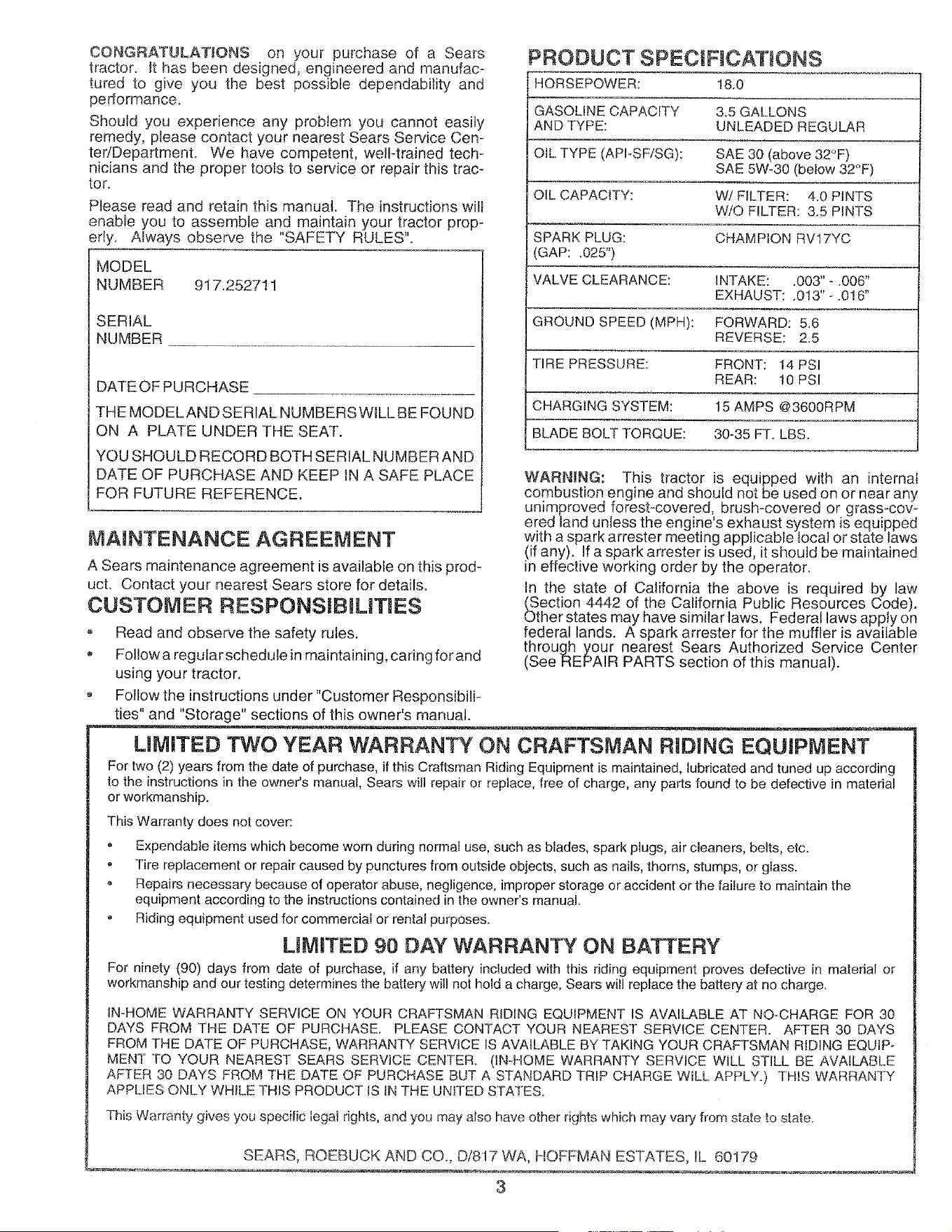

PRODUCT SPECNF CATJONS

HORSEPOWER: 18.0

GASOLINE CAPACITY 3.5 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/O FILTER: 3.5 PINTS

SPARK PLUG: CHAMPION RV17YC

(GAP: .025")

tNTAKE:003"-006"

EXHAUST: .013" - .016"

GROUND SPEED (MPH): FORWARD: 5,6

REVERSE: 2.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 15 AMPS @3600RPM

BLADE BOLT TORQUE: 30-35 F_. LBS.

WARNaNG: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grassocow

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(_Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center

(See REPAIR PARTS section of this manual).

LNMITED TWO YEAR WARRANTY ON CRAFTSMAN R|DING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material

or workmanship.

This Warranty does not cover:

Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc.

Fire replacement or repair caused by punctures from outside objects, such as nails, thorns, slumps, or glass.

Repairs necessary because of operator abuse, negligence, improper storage or accident or the faiture to maintain the

equipment according to the instructions contained in the owner's manual.

, Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS PROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS

FROM THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIP-

MENT TO YOUR NEAREST SEARS SERVICE CENTER. (IN-.HOME WARRANTY SERVICE WILL STILL BE AVAILABLE

AFTER 30 DAYS FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WiLL APPLY.) THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

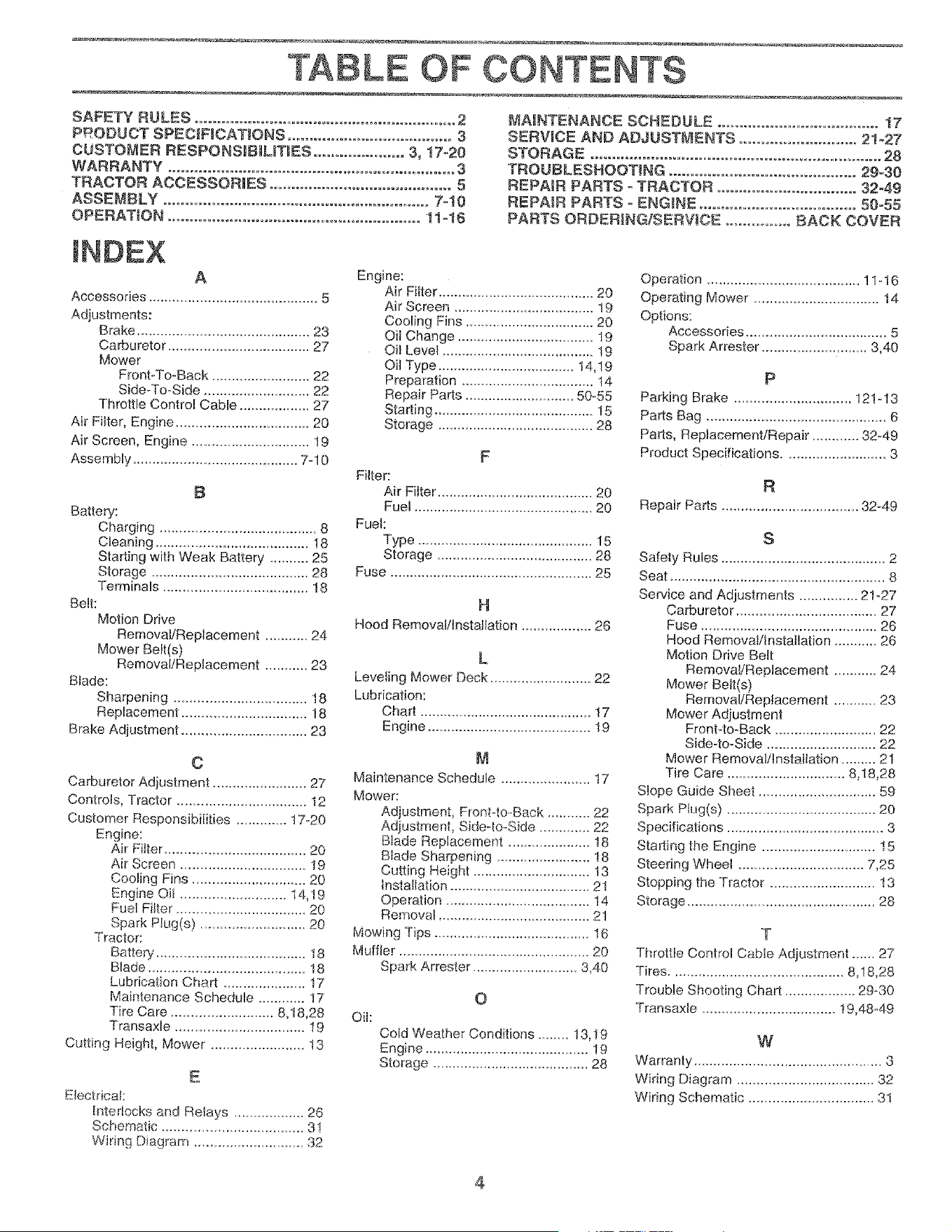

TABLE OF

NDE×

Accessories ........................................... 5

Adjustments:

Brake ............................................. 23

Carburetor ................................... 27

Mower

FrontoTo-Back .......................... 22

Side-To-Side ........................... 22

Throttle Control Cable .................. 27

Air Filter, Engine .................................. 20

Air Screen, Engine .............................. 19

Assembly .......................................... 7-10

Battery:

Charging ........................................ 8

Cleaning ....................................... 18

Starting with Weak Battery .......... 25

Storage ......................................... 28

Terminals .................................... 18

Belt:

Motion Drive

Removal/Replacement ........... 24

Mower Belt(s)

Removal/Replacement ........... 23

Blade:

Sharpening .................................. 18

Replacement ................................ 18

Brake Adjustment ................................ 23

_AIN_['ENANCE SC_ED,_J LE ..................................... 17

SERVICE A_ A_JUST_E_TS ........................... 21 _27

STORAGE .................................................................... 28

TROUBLESHOOTING ............................................ 29-30

REPAIR PARTS o TRACTOR ................................. 32-49

REPAIR PARTS o ENGINE ...................................... 50-55

PARTS ORDERiNG/SERViCE ................ BACK COVER

Engine:

Air Filter ....................................... 20

Aim"Screen ................................... 19

Cooling Fins .................................. 20

OiI Change ................................... 19

Oil Level ........................................ 19

Oil Type ................................... 14,19

Preparation ................................... 14

Repair Parts ............................ 50-55

Starting ......................................... 15

Storage ......................................... 28

Filter:

Air Filter ........................................ 20

Fuel .............................................. 20

Fuel:

Type ............................................ 15

Storage ....................................... 28

Fuse .................................................... 25

Hood Removaittnstallation ..................26

Carburetor Adjustment ........................27

Controls, Tractor ................................ 12

Customer Responsibilities ............. 17-20

Engine:

AirFilter....................................20

Air Screen ................................t9

Cooling Fins .............................20

Engine Oil ...........................14,!9

Fuel Filter .................................20

Spark Plug(s) ...........................20

Tractor:

Battery' ...................................... 18

Blade.......................................18

Lubrication Chart .....................17

Maintenance Schedule ............ 17

TireCare .........................8,18,28

Transaxle.................................19

Cutting Height, Mower ........................ 13

Electrical:

Interiocks and Relays .................. 26

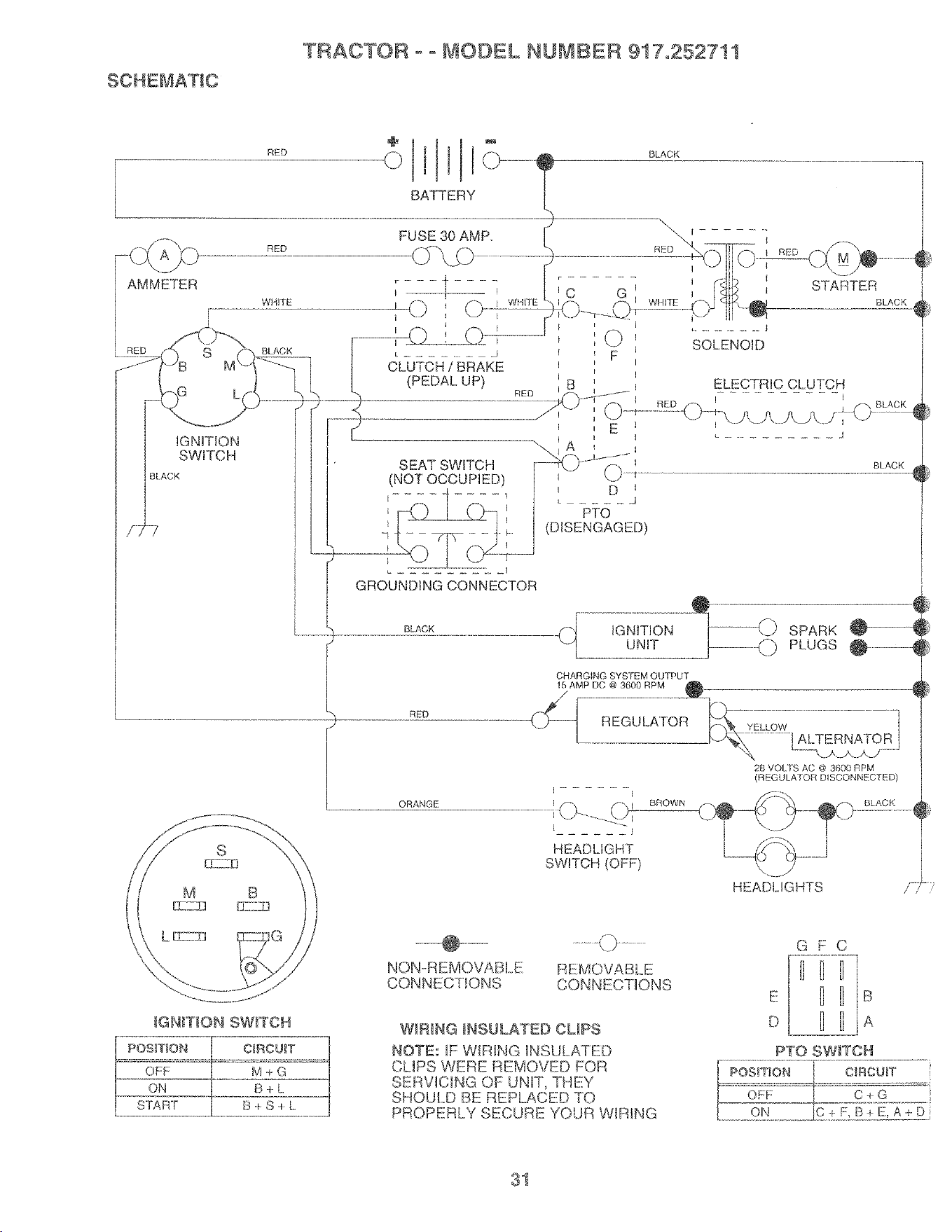

Schematic ...............................31

WiringDiagram ............................32

Leveling Mower Deck .......................... 22

Lubrication:

Chart .............................................17

Engine ........................................... I9

Maintenance Schedule ....................... 17

Mower:

Adjustment, Front-to-Back ........... 22

Adjustment, Sideqo-Side ............. 22

Blade Replacement ...................... 18

Blade Sharpening ......................!8

Cutting Height ............................. 13

Installation..................................21

Operation ..................................... 14

Remova_ ........................................ 21

Mowing Tips ........................................16

Muffler ..................................................20

Spark Arrester ...........................3,40

Cold Weather Conditions ........ 13,t9

Engine .......................................... 19

Storage .......................................28

Oil:

Operation .......................................1I-16

OperaLing Mower ................................14

Options:

Accessories ....................................5

Spark Attester ............................3,40

ParkingBrake ..............................121--13

Parts Bag ..............................................6

Parts, Replacement/Repair ............ 32..49

Product Specifications .......................... 3

Repair Parts ................................... 32-49

Safety Rules .......................................... 2

Seat .......................................................8

Service and Adjustments ...............21-27

Carburetor....................................27

Fuse .............................................26

Hood Removatlinstallation ...........26

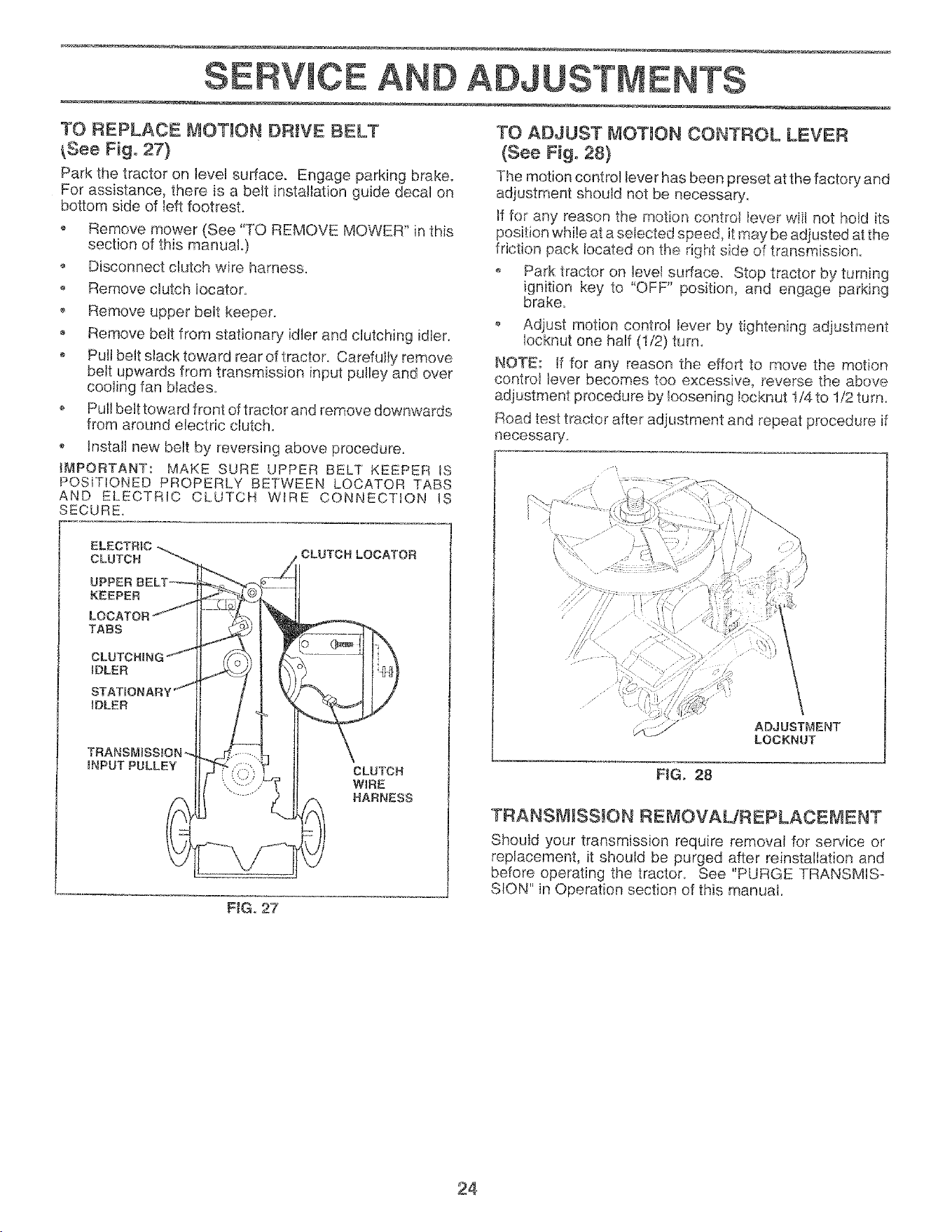

Motion Drive Belt

Removal!Replacement ........... 24.

Mower Belt(s)

Remova!/Replacement ........... 23

Mower Adjustment

Frontqo-Back ........................... 22

Side4o-Side ............................ 22

Mower Removal/Installation ......... 21

Tire Care ..............................8,18,28

Slope Guide Sheet ..............................59

Spark Plug(s).......................................20

Specifications........................................3

Starting the Engine .............................! 5

Steering Wheel ...............................7,25

Stopping the Tractor ...........................!3

Storage.............................................28

Throttle Control Cable Adjustment ...... 27

Tires ............................................. 8,18,28

Treuble Shoeting Chart ................. 29-30

Transaxle ..................................! 9,48-49

Warranty.................................................3

WiringDiagram ...................................32

Wiring Schematic ................................ 31

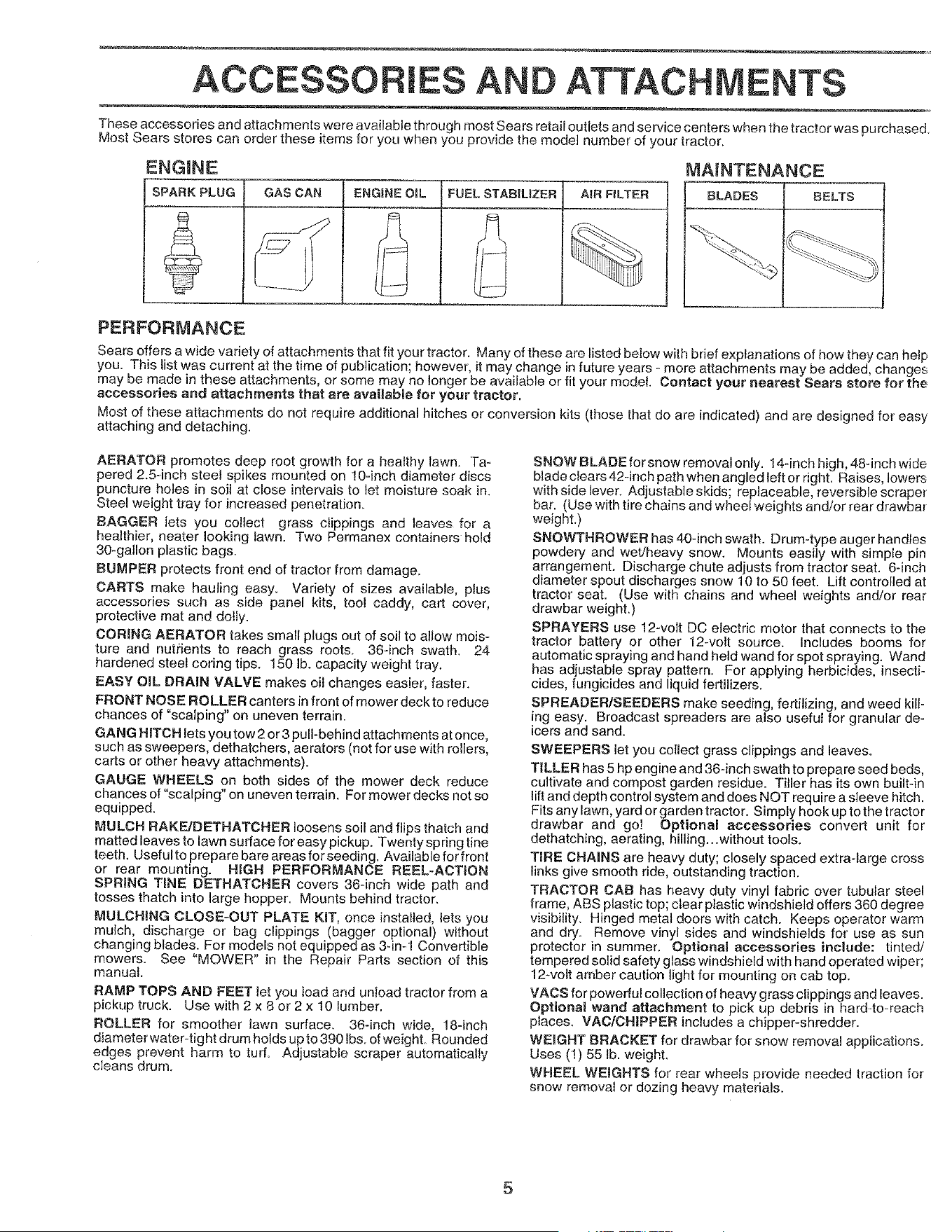

ACCESSOR!

AND ATTACH

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased,

Most Sears stores can order these items for you when you provide the model number of your tractor.

ENGINE MAaNTENANCE

SPARK PLUG GAS CAN ENGINE OIL FUEL STABILIZER A_RFILTER 8LADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help

you. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model. Contact your nearest Bears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching.

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2.54nch steel spikes mounted on !0-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

heaffhier, nearer looking lawn. Two Permanex containers hold

30-gallon plastic bags.

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soi! to allow mois-

ture and nutrients to reach grass root& 36-inch swath. 24

hardened steel coring tips. 150 lb. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow 2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain. For mower decks not so

equipped.

MULCH RAKE/DETHATCHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth. Useful to prepare bare areas for seeding. Available for front

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING "FINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor.

MULCHING CLOSE-OUT PLATE KiT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades. For models not equipped as 34nol Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck. Use with 2 x 8 or 2 x 10 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater-tight drum holds up to 390 Ib& of weighL Rounded

edges prevent harm to tud° Adjustable scraper automatically

cleans drum.

SNOW BLADE for snow removal only. 14qnch high, 48qnch wide

blade clears 42-inch path when angled left or right. Raises, lowers

with side lever. Adjustable skids; repJaceable, reversible scrape[

bar. (Use with tire chains and wheel weights and/or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source. Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADER/SEEDERS make seeding, fertilizing, and weed kill-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch,

Fits any lawn, yard or garden tractor. Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hilling,..without tools.

TiRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyl sides and windshields for use as sun

protector in summer. Optional accessories include: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves=

Optional wand attachment to pick up debris in hard-to-reach

places. VAC/CHIPPER includes a chipper-shredder.

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (1) 55 lb. weight.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

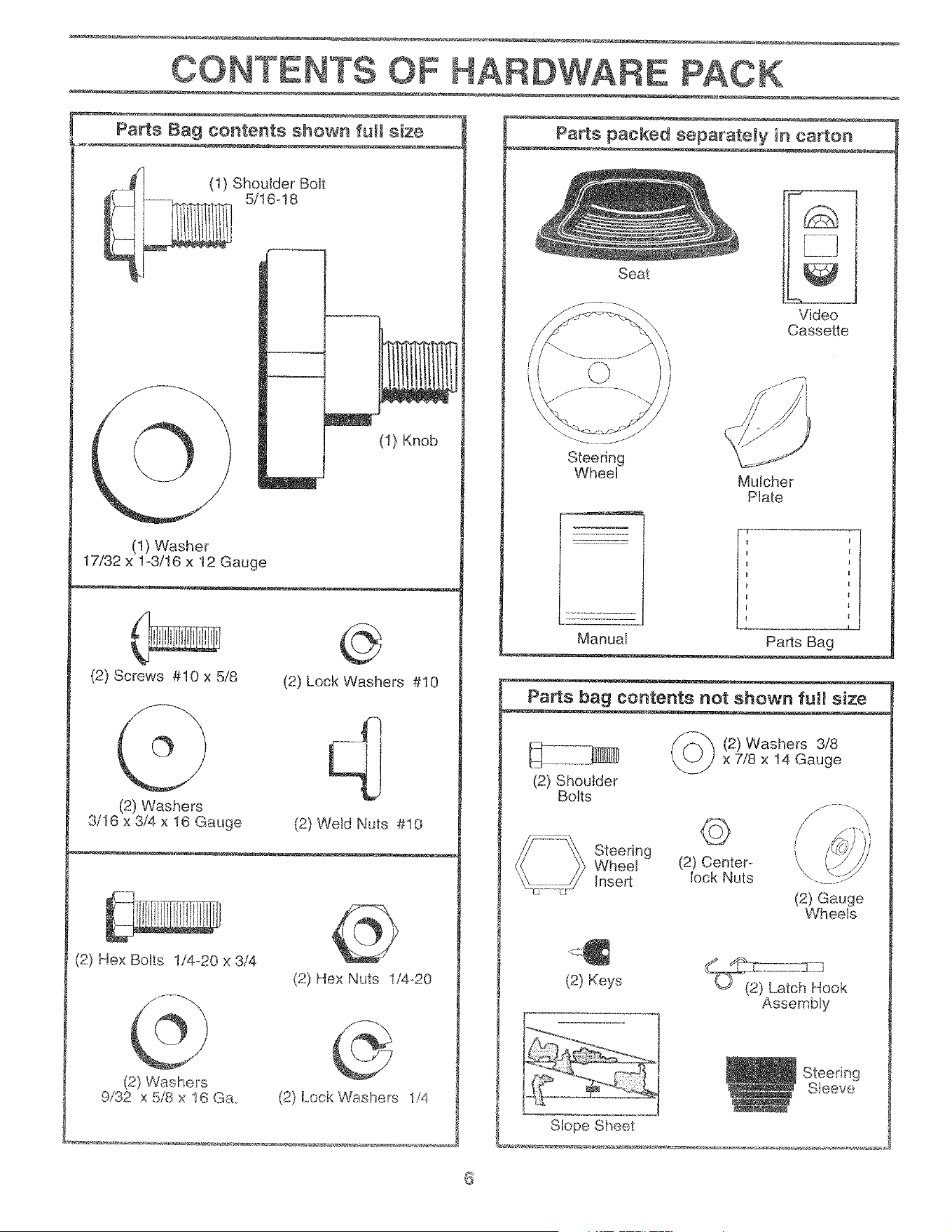

Parts Bag contents shown fu_ size

CONTE F

Parts packed separately in carton

rl (1) Shoulder Bolt

q 5/16 t8

(1) Knob

(!) Washer

17/32 x 1-3/16 x t2 Gauge

(2) Lock Washers #10

(2) Screws #!0 x 5/8

(2) Weld Nuts #10

(2) Washers

3/16 x 3/4 x 16 Gauge

(2) Hex Nuts 1/420

(2) Lock Washers 1/,4

(2) Hex Bolts t/4-20 x 3/4

9/32 x 5/8 x "t6 Ga.

Seat

Video

Cassette

Steering

Whee!

Mulcher

Plate

.......................... I t

Manual Parts Bag

Parts bag contents not shown full size

_._ ___(_ (2) Washers 3/8x 7/8 x t4 Gauge

(2) Shoulder

Bolts

Steering

Wheel (2) CenteF \

insert lock Nuts \

(2) Gauge

Wheels

(2) Keys

_-(2) L.atch Hook

Assembty

Steering

Sleeve

Slope Sheet

BLY

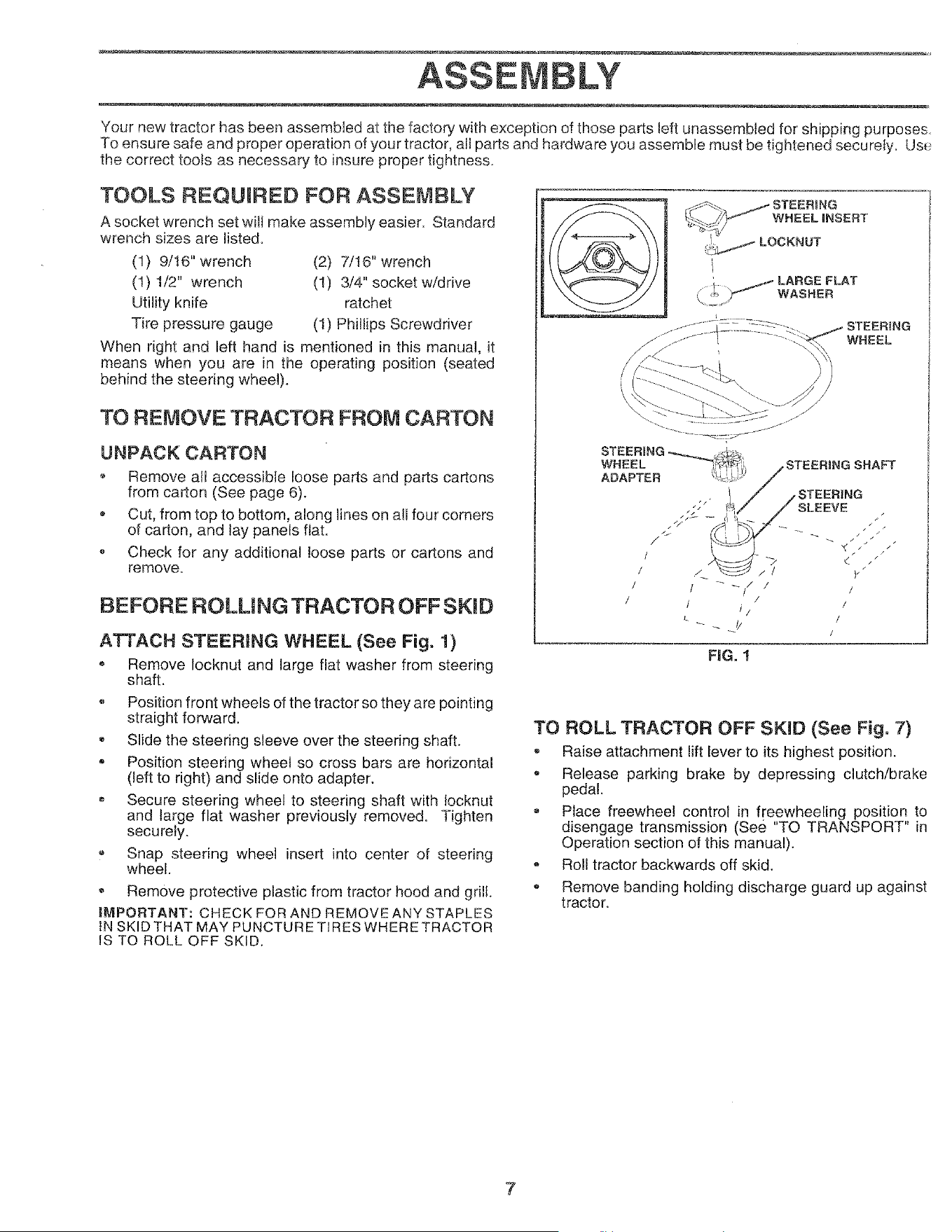

Your new tractor has been assembled at the factory with exception of those parts left unassembted for shipping purposes

To ensure safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely. Us_

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSE_BLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) 9/!6" wrench

(1) 1/2" wrench

Utility knife

Tire pressure gauge

(2) 7/16" wrench

(1) :-}/4"socket w/drive

ratchet

(1) Phillips Screwdriver

When right and left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

Remove all accessible loose parts and parts cartons

from carton (See page 6).

Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

, Remove locknut and large fiat washer from steering

shaft.

• Position front wheels of the tractor so they are pointing

straight forward.

- Slide the steering sleeve over the steering shaft.

o Position steering wheel so cross bars are horizontal

(left to right) and slide onto adapter.

o Secure steering wheel to steering shaft with Iocknut

and large flat washer previously removed. Tighten

securely.

, Snap steering wheel insert into center of steering

wheel.

, Remove protective plastic from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

-._. _ WHEEL INSERT

_/LOCKNUT

i _ LARGE FLAT

,,: :_..,..I WASRER

WHEEL

STEERING _..._d_,

WHEEL _,_f' # STEERING SHAFT

ADAPTER /

1 / /STEERING

/,_v <_._/ /" SLEEVE ,

/ /_S / 1 I'"

/ I _'/ /

/ /

/ I i// /

'- _ ._ I/ J/

FIG, t

TO ROLL TRACTOR OFF SKID (See Fig, 7)

Raise attachment lift lever to its highest position.

, Release parking brake by depressing clutch/brake

pedal.

- Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" in

Operation section of this manual).

Roll tractor backwards off skid.

Remove banding holding discharge guard up against

tractor.

E LY

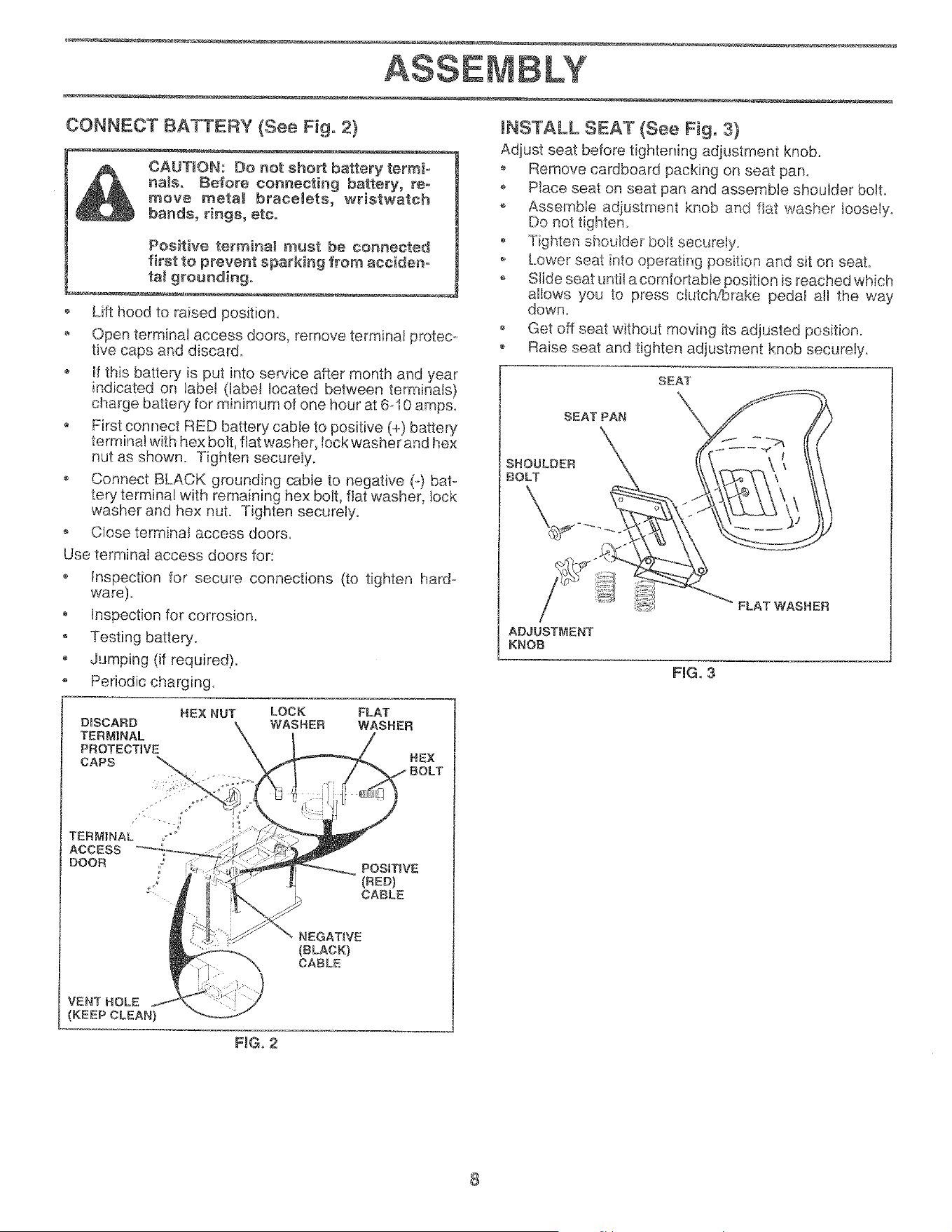

CONNECT BATTERY (See Fig. 2)

CAUTION: Do not short battery termi-

nals° Before connecting battery, re-

move metal braceaets, wristwatch

bands_ rings, etc°

Positive termina_ must be connected

first to prevent sparking from accideno

tal grounding.

Lift hood to raised position.

, Open terminal access doors, remove terminal protec-

tive caps and discard.

If this battery is put into service after month and year

indicated on labe[ ([abe[ located between terminals)

charge battery for minimum of one hour at 6o10 amps.

First connect RED battery cable to positive (+.)battery

terminal with hex bolt, fial washer, lock washer and hex

nut as shown. Tighten securely_

o Connect BLACK grounding cable to negative (_) bat-

tery termina! with remaining hex boIt, flat washer, lock

washer and hex nut. Tighten securely.

Ctose terminal access door&

Use terminal access doors for:

• Inspection for secure connections (to tighten hard_

ware).

Inspection for corrosion.

o Testing battery.

Jumping (if required).

o Periodic charging.

DISCARD

TERMINAL

PROTECTIVE

CAPS

HEX NUT LOCK FLAT

WASHER WASHER

BEX

INSTALL SEAT (See Fig. 3}

Adjust seat before tightening adjustment knob.

o Remove cardboard packing on seat pan.

Ptace seat on seat pan and assemble shoulder bolt.

o Assemble adjustment knob and fiat washer loosely.

Do not tighten°

Tighten shoulde__bolt secL_rely.

Lower seat into operating position and sit on seat.

o Slide seat until a comfortable position is reached which

allows you 1o press clutch/brake pedal all the way

down.

Get off seat without moving its adiusted position.

Raise seat and tighten adjustment knob securely.

SEAT

SEAT PAN

SHOULDER

BOLT

ADJUSTMENT

KNOB

FroG.3

FLAT WASHER

POSiTiVE

(RED)

CABLE

NEGATIVE

(BLACK)

CABLE

VENT HOLE

(KEEP CLEAN)

F_Go2

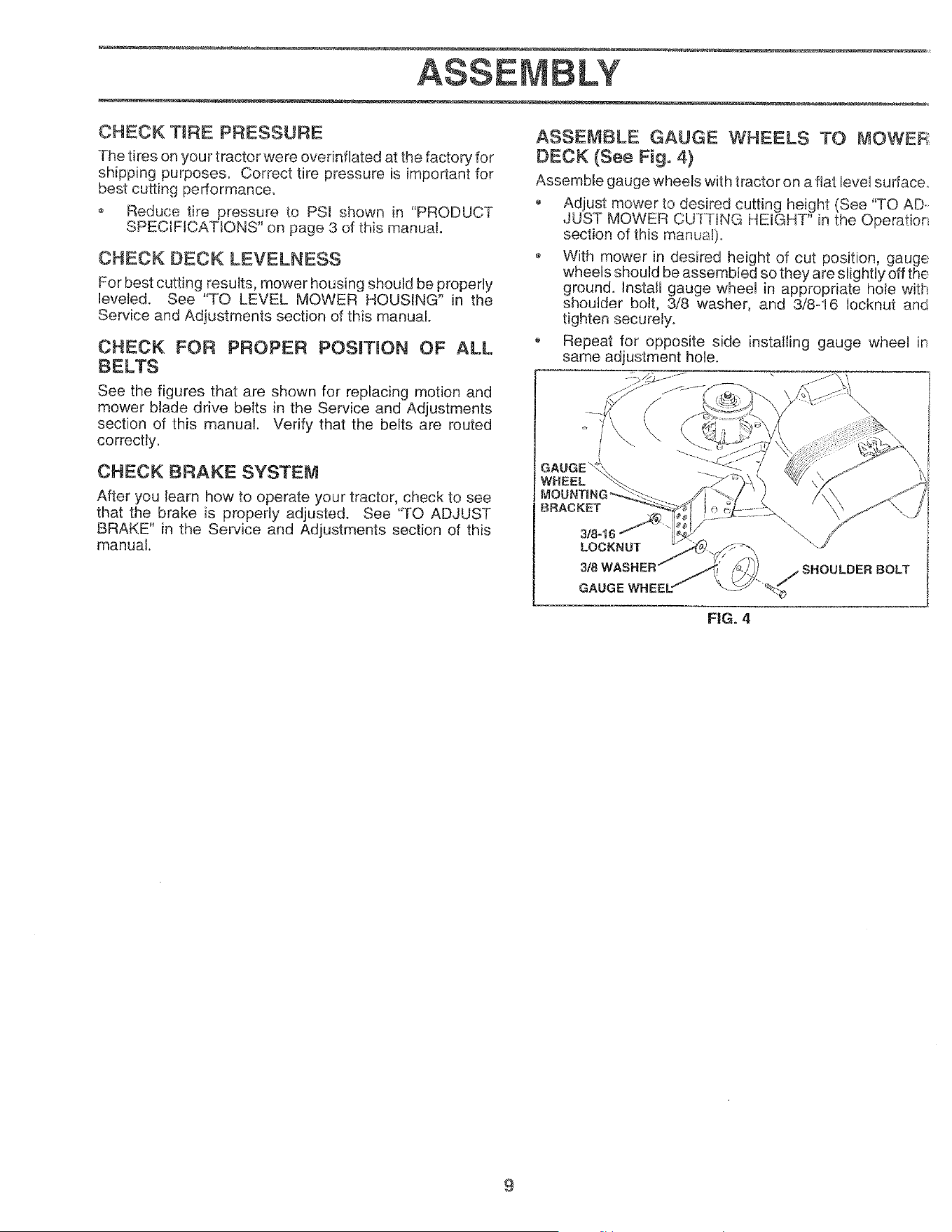

CHECK T_RE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance°

Reduce tire pressure to PSi shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See '"TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

ASSEMBLE GAUGE WHEELS TO MOWER:

DECK (See Fig. 4,)

Assemble gauge wheels with tractor on a fiat level surface.

Adjust mower to desired cutting height (See "TO AD.

JUST MOWER CU_q-tNG HEIGHT" in the Operation

section of this manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hote with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknut and

tighten securely.

Repeat for opposite side installing gauge wheel in

same adjustment hole.

BRACKET

LOCKNUT

GAUGE

FIG, 4

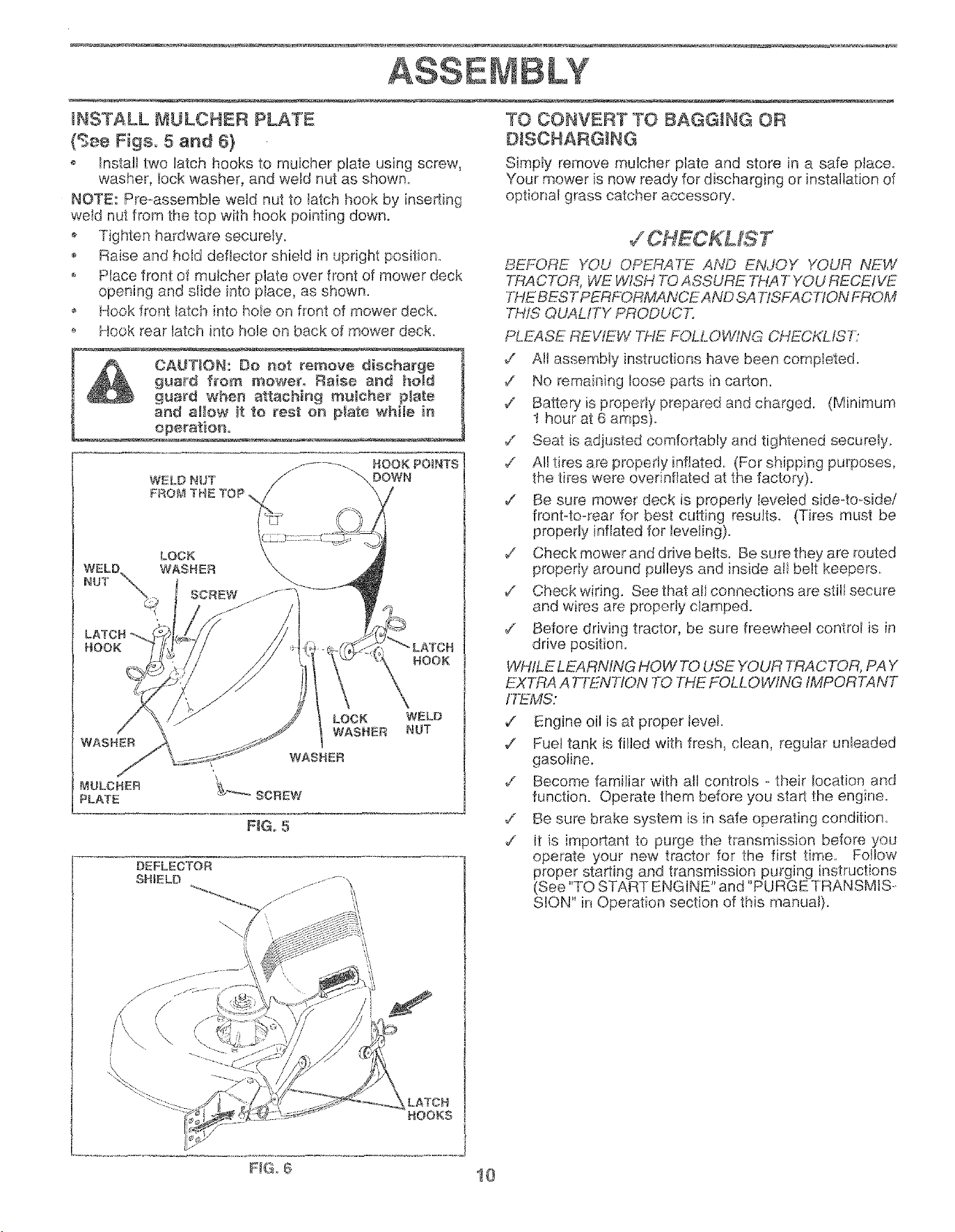

iNSTALL MULCHER PLATE

(See Figs° 5 and 6)

o Install two latch hooks to muicher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Preoassembte weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

o Tighten hardware securely,

Raise and hold deflector shield in upright position,

Place front of mulcher plate ever front of mower deck

opening and slide into place, as shown.

o Hook front latch into hole on front of mower deck,

Hook rear latch into hole on back of mower deck.

[_se and hold

I __" plate

_e_n

operaf_ion

MULCHER

PLATE

HOOK

LOCK WELD

WASHER NUT

FIG. 5

DEFLECTOR

SHIELD

WASHER

LATCH

HOOKS

TO CONVERt TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or instaftation of

optional grass catcher accessory°

BEFC)RE YOU OPEFAtATE AND ENJOY YOUR NEW

TRACTOR, WE VVfSH710ASSURE %HAT YOU RECEIV_

THE BEST PERFORMANCE AND SA T?SFACTION FROM

THIS QUALITY PRODUC7:

PL.E;ASE REWEW THE FOLLOWING CHECKLIST7

/ A!l assembly instructions have been completed.

/ No remaining loose parts in carton.

i Battery is properly prepared and charged. (Minimum

t hour at 6 arRps).

l Seat is adjusted comfortably and tightened securely.

i All tiros are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

t Be sure mower deck is properly leveled side-to-side/

frontqo-rear for best cutting results. (Tires must be

properly inflated for leveling).

/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers

i Check wiring. See that all connections are still secure

and wires are properly clamped.

/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOWTO USE YOUR TRACTOR, PA Y

E:XTRA A TTEN770N 70 XNE FOLLOWING IMPORTANT

/7-E?_¢S:

/ Engine oil is at proper leve!.

,Z Fue! tank is filled wiIh fresh, clean, regular unleaded

gasoline.

¢ Become familiar with all controls --their !ocation and

function. Operate them before you star1 the engine.

V" Be sure brake system is in safe operating condition.

V" it is important to purge the transmission before you

operate your new tractor for the first time Fo!low

proper starting and transmission purging instructions

(See "TO START ENGINE" and "PURGE TRANSMIS--

SION" in Operation section of this manual).

F_G.e I 0

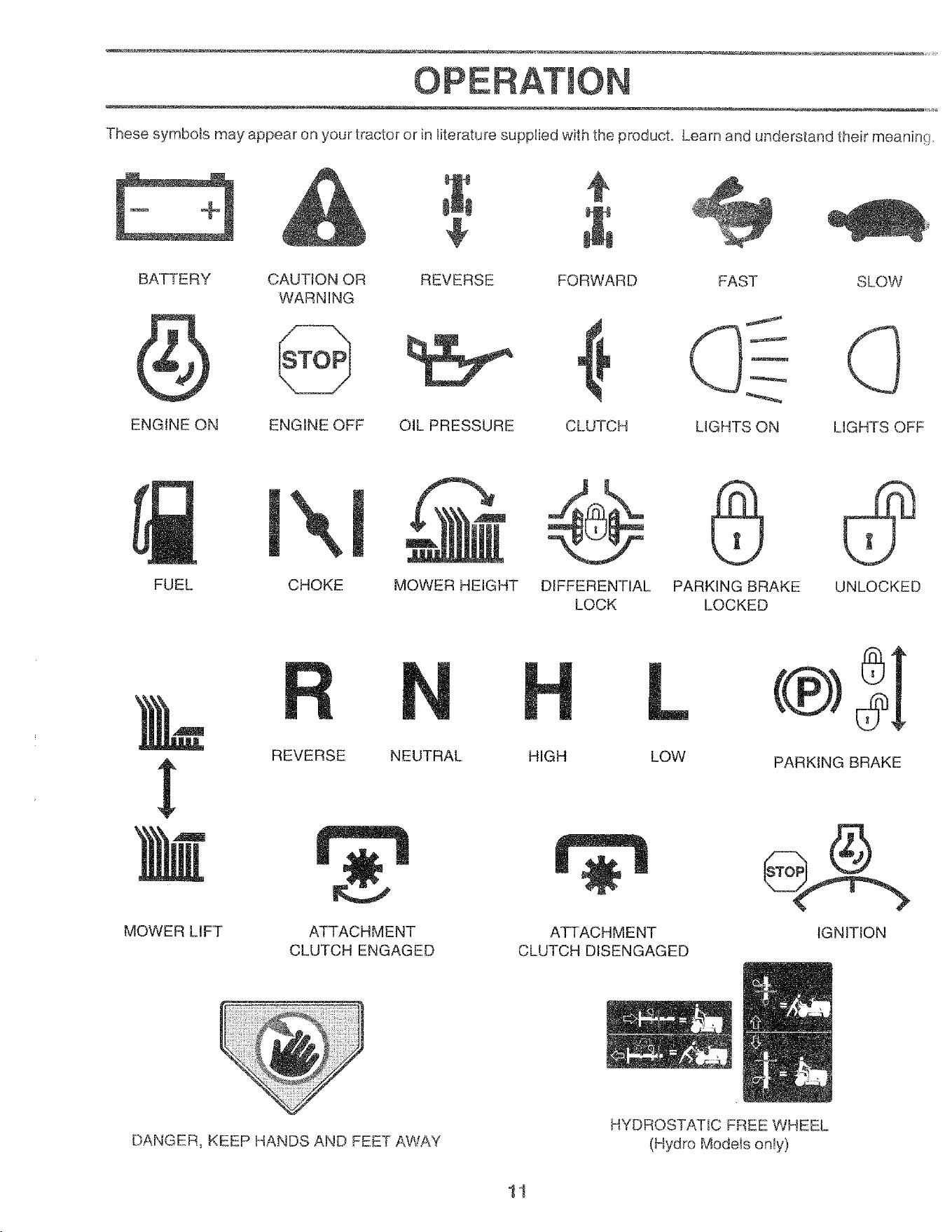

These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their meanin!,

BATTERY CAUTION OR REVERSE FORWARD SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS OFF

FAST

LIGHTS ON

FUEL

CHOKE

MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH LOW

ATTACHMENT

CLUTCH DISENGAGED

PARKING BRAKE

IGNmON

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Modeis onBy)

KNOW YOUR TRAC fOR

READ TH_S OWNER°S MANUAL AND SAFE°_ RULES BEFORE OPERAT#_G YOUR TRACTOR

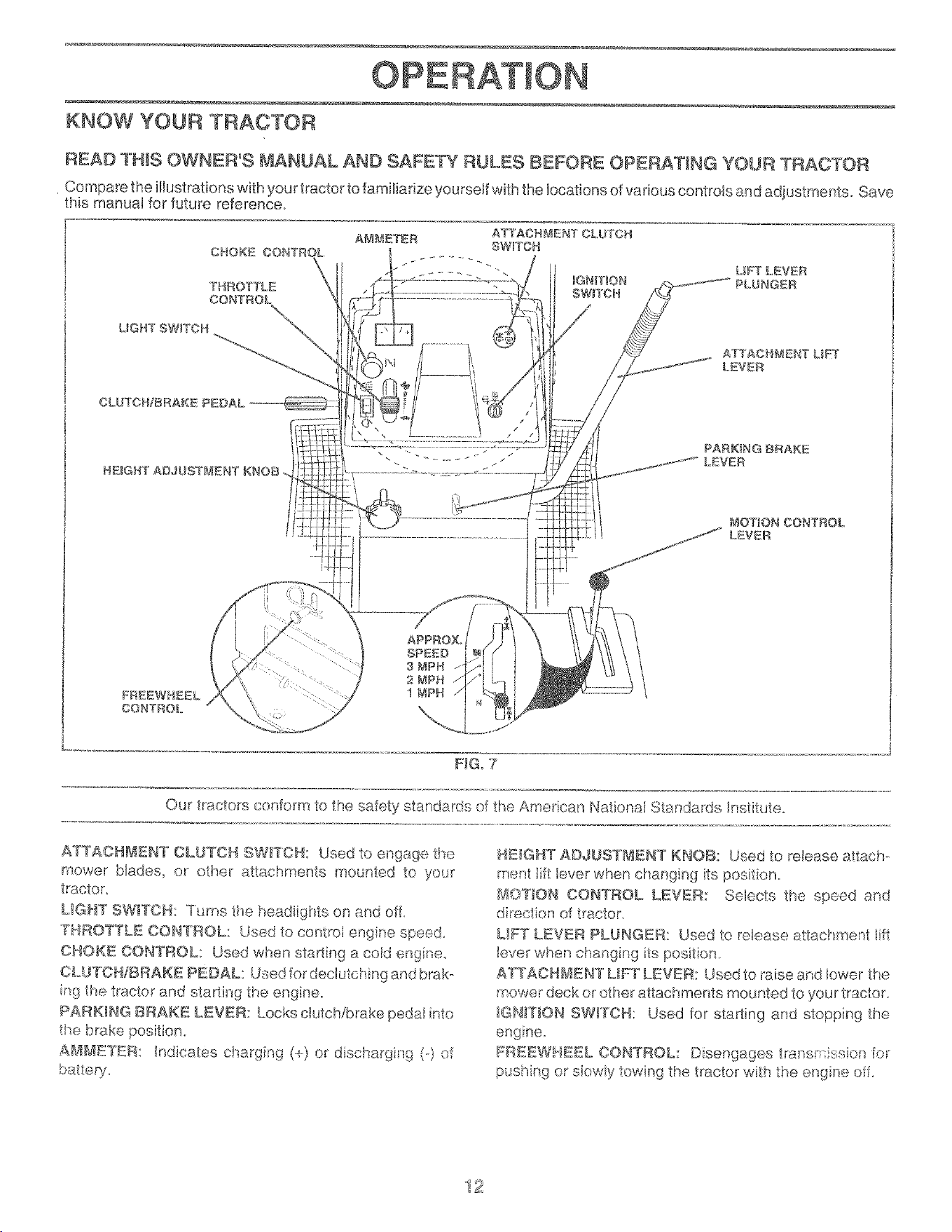

Compare the illustrations with your tractor to familiarize yourself with the bcatiens of var ous controls and adjustments. Save

this manual for future reference.

AMMETER ATTACHMENT CLU T'CH

CHOKE CONTROL, SWITCR

" ............ " L_FT LEVER

THROTTLE PLUNGER

CONTROL

UGRT SW_TOR

ATTACHMENT UF'°[

LEVER

PARKING RRAXE

LEVER

MOTION CONTROL

LEVER

FREEWHEEL

CONTROL

F_G°7

Our tractors cenforrn to the safety standards of the American National Standards tr slitute.

ATTACHMENT CLUTCH SWITCH: Used to engage the

mower blades, or other attachrTents mounted to your

tractoL

L_GRT SW_TCH: Turns the headiights on and ell

TRROTTLE CONTROL: Used to centre', engine speed

CHOKE CONTROL: Used when starting a cold engine.

CLUTCNiBRAKE PEDAL: Used for deciutching and brak o

ing the tractor and starting the engine.

PARKING BRAKE LEVER: Locks clutch/brake pedal into

[he brake position°

A_'vIB#E7EB: Indicates charging (+) or dischargi_ 9 (-) of

HEIGHT ADJUST_,qENT KNOB: Used to release attach-

men_ lift lever when changing its position,

B_OT_ON CONTROL LEVER: Selects the speed and

direction of tractor.

LIFT LEVER PLUNGER: Used to release attachment tift

lever when changir_g its position.

ATTACRf_'_ENT UFT LEVER: Used to raise and tower the

mower deck or other attachments mounted to your tracbr.

IGNiTiON SWI[CR: Used for starting and stopping the

FREEWHEEL CONTROL: Disengages trans_:ssien [or

pushir g.or siowty towing the tractor with ",n_...en,_ine,off.

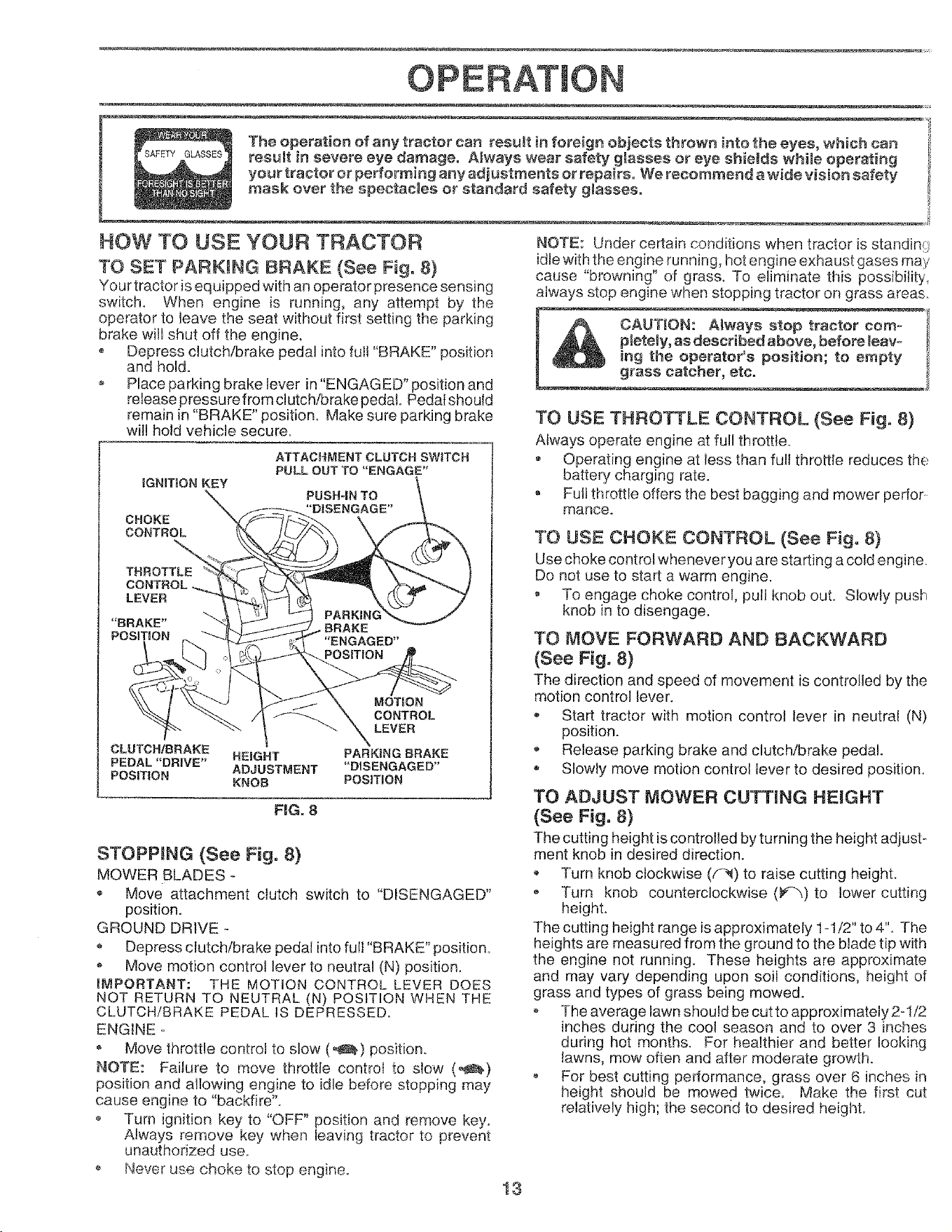

The operation of any tractor can resuRt in foreign objects thrown into the eyes, which can

result in severe eye damage. A_ways wear safety glasses or eye shietds while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision safety

mask over the spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

Depress clutch/brake pedal into full "BRAKE" position

and hold.

o Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal Pedalshould

remain in "BRAKE" position. Make sure parking brake

will hold vehicle secure.

ATTACHMENT CLUTCH SWITCH

PULL OUT TO "ENGAGE"

IGNITION KEY

PUSH4NTO

"DISENGAGE"

CHOKE

CONTROL

CLUTCH/BRAKE PARKING BRAKE

PEDAL"DRIVE" HEIGHT

POSITION ADJUSTMENT "DISENGAGED"

KNOB POSITION

FIG. 8

STOPPING (See Fig. 8)

MOWER BLADES -

Move attachment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

, Depress clutch!brake pedal into full "BRAKE" position.

Move motion control lever to neutral (N) position.

IMPOFtTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

ENGINE o

Move throttle control to stow (_) position.

NOTE: Failure to move throttle control to slow (_)

position and allowing engine to idle before stopping may

cause engine to "backfire".

o Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

,_ Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standinf:_

idle with the engine running, hot engine exhaust gases may

cause "browning" ol grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas

CAUTWON: Always stop tractor como

pletely, as described above, before leavo

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttteo

• Operating engine at less than full throttle reduces the

battery charging rate.

o Full throttle offers the best bagging and mower peffor.

mance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine

Do not use to start a warm engine.

o To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig, 8)

The direction and speed of movement is controlled by the

motion contro! lever.

• Start tractor with motion control lever in neutral (N)

position.

Release parking brake and clutch/brake pedal.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

, Turn knob clockwise (f_) to raise cutting height.

- Turn knob counterclockwise (_)to lower cutting

height.

The cutting height range is approximately 1_1/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the secorld to desired height°

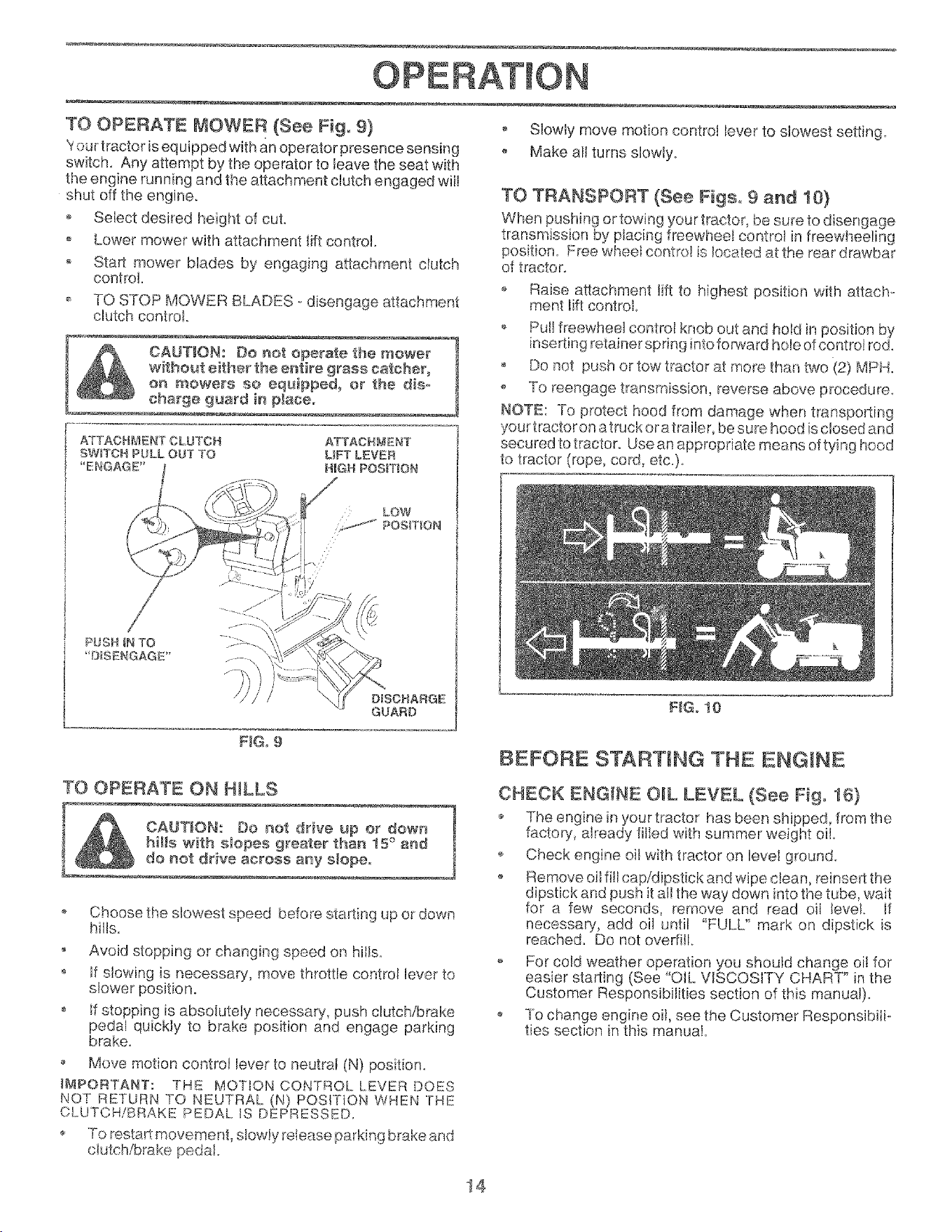

TO OPERATE MOWER (See Fig. 9)

'_our tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine_

o Select desired height of cut.

o Lower mower with attachment [ift control.

Start mower blades by engaging attachmen_ clutch

control.

TO STOP MOWER BLADES _ disengage attachment

clutch controk

ATTAC_4MENT

L_F'T LEVER

HIGH POSmON

LOW

[ ....

/ DISCHARGE

GUARD

FiG. g

TO OPERATE ON HILLS

o Choose the slowest speed before starting up or down

hills°

o Avoid stopping or changing speed on hills.

[f slowing is necessary, move throttle control lever to

slower position.

o if stopping is absoJutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

Move motion control lever to neutral (N) position.

iMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSFTION WHEN THE

CLUTCH!BRAKE PEDAl__IS DEPRESSED.

° TO resta_!:movement, slowly release parking brake and

clutch/brake pedal

Slowly move motion control lever to slowest setting°

o Make all turns slowly.

TO TRANSPORT (See Figs. 9 and t0}

When pushing or towing your tractor, be sure to disengage

transmission by placing treewhee! controf in freewheeling

position. Free wheet centre! is located at the rear drawbar

of tractor.

o Raise attachment Jift to highest position with attach-

ment lift control

o Pu!l freewheel contro[ knob out and hold in position by

inserting retainer spring into fowvard hole of control rod.

Do not push or tow tractor al more than two (2) MPH.

o To reengage transmission, reverse above procedure

NOTE: To protect hood from damage when transporting

your tractor ORa truck or a _railer, be sure hood is closed and

secured totractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.)_

FIG. 10

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig, 16)

The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor ORlevel ground

Remove oil fill cap/dipstick and wipe clean, reinse_t the

dipstick and push it all the way down into the tube, wait

for a few seconds, remove and read oii levek Jf

necessary, add oil until "FULL" mark on dipstick is

reached. Do not overfi[k

o For cold weather operation you should change oil for

easier slatting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).

o To change enghe oil, see the Customer Responsibifi_

ties section in this manual.

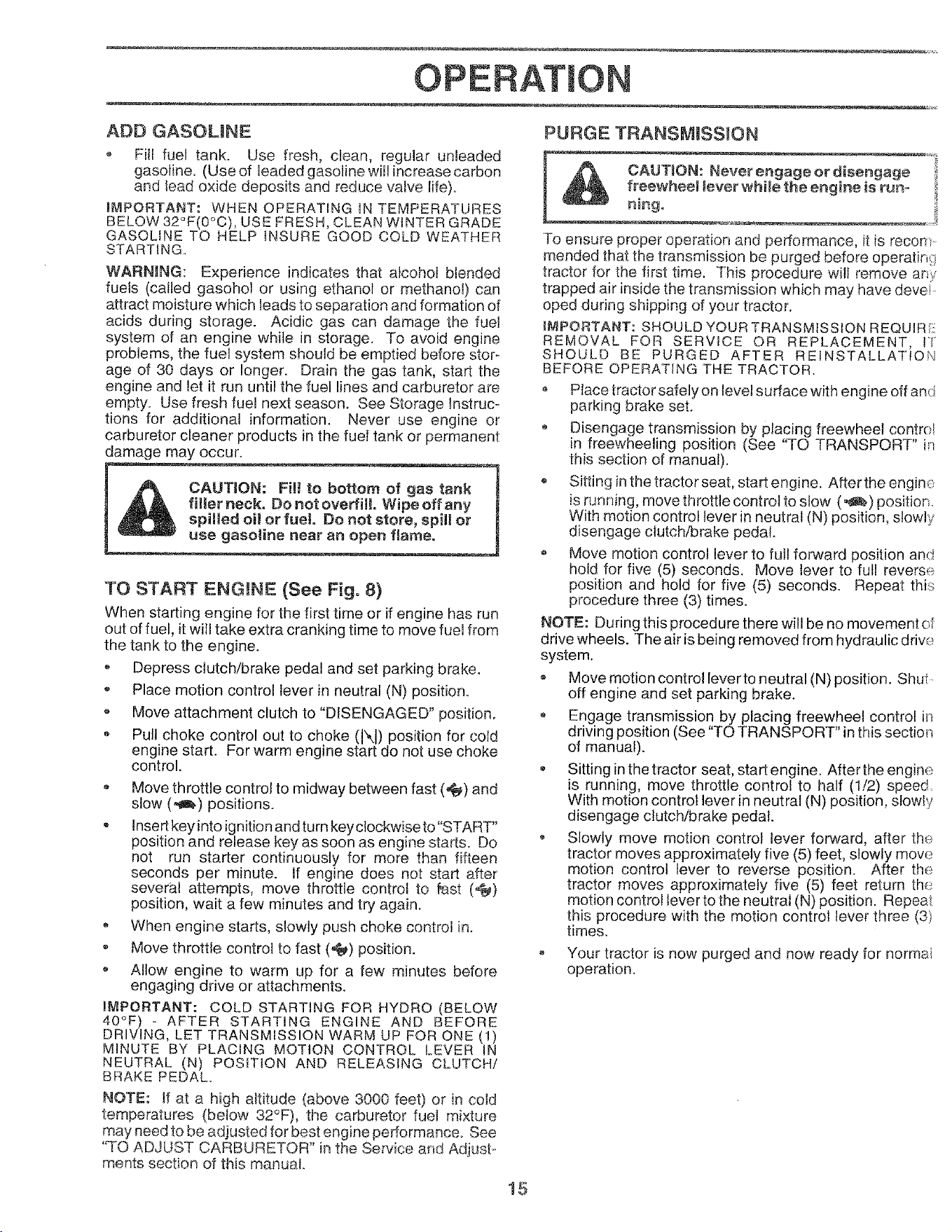

OPERATION

ADD GASOUNE

o Fill fuel tank. Use fresh, clean, regular unleaded

gasoline. (Useof leaded gasolinewill increasecarbon

and lead oxide deposits and reduce valve life).

mMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that atcohot blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stoF

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fue! tank or permanent

damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuet. Do not store, spill or

use gasoline near an open flame.

TO START ENGmNE (See Fig. 8)

When starting engine for the first time or if engine has run

out of fuel, it will take extra cranking time to move fue! from

the tank to the engine.

Depress clutch/brake pedal and set parking brake.

Place motion control lever in neutral (N) position.

o Move attachment clutch to "DISENGAGED" position.

o Pull choke control out to choke (!\1)position for cold

engine start. For warm engine start do not use choke

control.

Move throttle control to midway between fast (_) and

stow (_) positions.

Insert key into ignition and turn key clockwise to "START"

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen

seconds per minute. If engine does not start after

several al_empts, move throttle control to Past (@)

position, wait a few minutes and try again.

* When engine starts, slowly push choke control in.

® Move throttle control to fast (,¢_) position.

o Allow engine to warm up for a few minutes before

engaging drive or attachments.

IMPORTANT: COLD STARTING FOR HYDRO (BELOW

40°F) - AFTER STARTING ENGINE AND BEFORE

DRIVING, LET TRANSMISSION WARM UP FOR ONE (1)

MINUTE BY PLACING MOTION CONTROL LEVER IN

NEUTRAL (N) POSITION AND RELEASING CLUTCH/

BRAKE PEDAL.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance. See

"TO ADJUST CARBURETOR" in the Service and Adjust-

ments section of this manual.

PURGE TRANSMISSION

& CAUT!ON: Neverengageordisengage

freewhee_ _ever whi_e the engine is run-

nit, go :_

To ensure proper operation and performance, it is recorr

mended that the transmission be purged before operatin!:!

tractor for the first time. This procedure wilt remove any

trapped air inside the transmission which may have devei-

oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRL

REMOVAL FOR SERVICE OR REPLACEMENT. !

SHOULD BE PURGED AFTER REtNSTALLATiON

BEFORE OPERATING THE TRACTOR.

o Place tractor safely on level surface with engine off and

parking brake set.

Disengage transmission by placing freewheel contro

in freewheeling position (See "TO TRANSPORT" i_'

this section of manual).

, Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to slow (,,_) position.

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

, Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there will be no movement of

drive wheels. The air is being removed from hydraulic drive

system.

o Move motion control lever to neutral (N) position. Shut

off engine and set parking brake.

, Engage transmission by placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

, Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

* Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times.

Your tractor is now purged and now ready for normai

operation.

t OW NG T PS

Tire chains cannot be used when the mower housing

is attached to tractor.

o Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

The left hand side of mower should be used for trim-

ruing.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

rnaehine. This will resu!t in a more even distribution d

clippings and mere uniform cutting,,

o When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, dnveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig, 11 ).

If grass is extrernely tall, it should be mowed twice to

reduce load and possibte fire hazard from dried clipo

pings. Make first cut relatively high; the second to the

desired height.

• Do net mow grass when it is wet, Wet grass will plug

mower and leave undesirable clumps. Allow grass io

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select o

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used°

( ,-

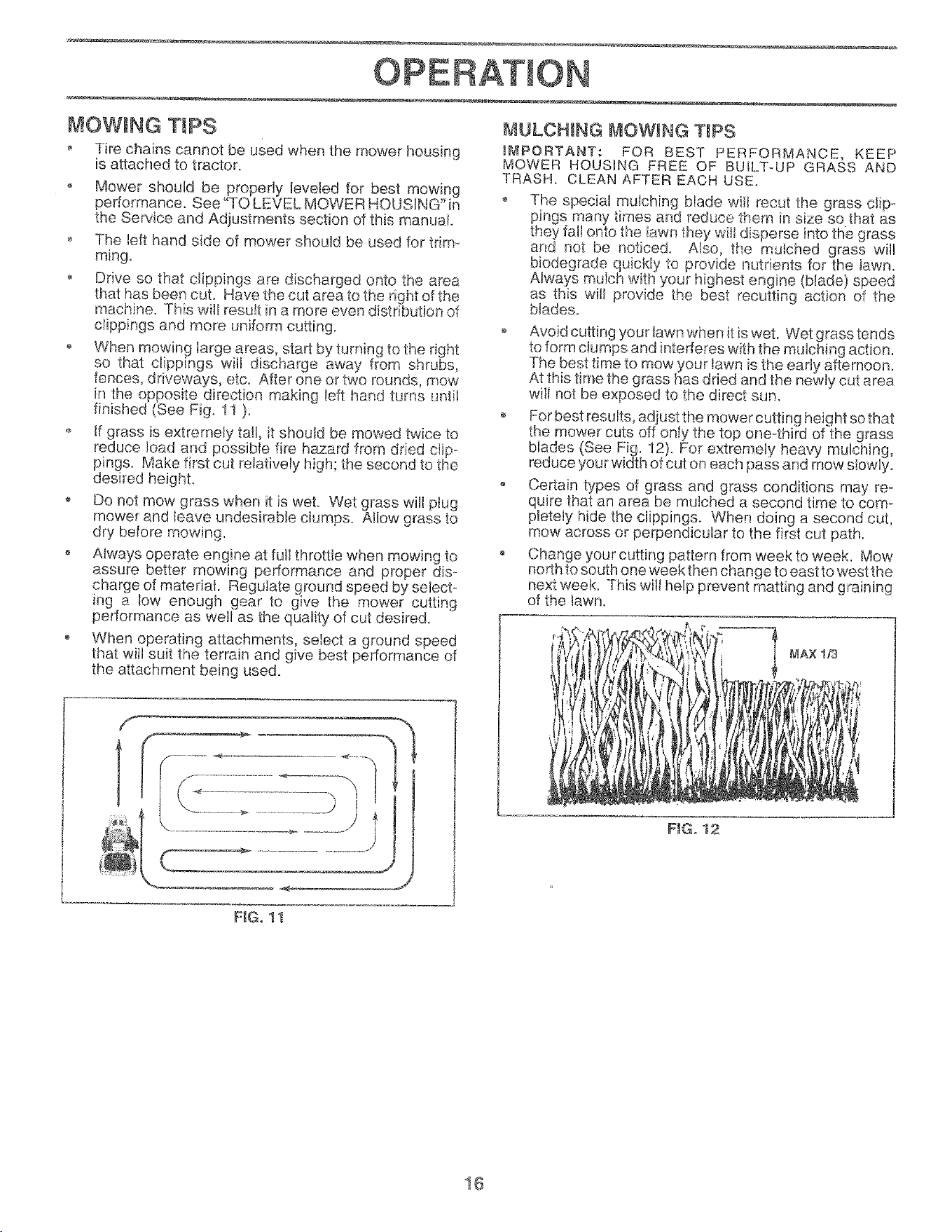

F_Go1t

MULCHING MOWING TNPS

_MPORTANT': FOR BEG"[ PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-.UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

-[he special muiching blade will recut the grass clip °

pings many times and reduce them in size so that as

they fall onto the lawn they wilt disperse into the grass

and not be noticed. Atso, the mutched grass will

biodegrade quickly to provide nutrients for the !awn.

Always mulch with your highest engine (b!ade) speed

as this will provide the best recutting action of the

blades.

o Avoid cutting your lawn when it is wet. Wet grasstends

to form clumps and interferes with the muJchhlg action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to [he direct sun.

o For best results, adjust the mower cutting height sothat

the mower cuts off only the top one4hird of the grass

blades (See Fig. 12). For extremely heavy mulching,

reduce your width of cut on each pass arid mow slowly.

o Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the ciippings. When doing a second cut,

mow across or perpendicular to the first cut path.

o Change your cutting pattern from week to week, Mow

north to south one week then change to east to west the

ne_ week, This wilJ help prevent matting and graining

of the lawn.

F_Go12

CU LINES

MAINTENANCE SCHEDULE

FILL iN DATES

AS YOU COMPLETE

REGULAR SERVICE

SERVUCE DATES

NI.

Check Brake Operation

Check Tire Pressure

Cheek for Loose Fasteners

Sharpen/Replace Mower Blades

Lubrication Chart

Check Battery, Level/Recharge

Clean Battery and Terminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tension

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

Clean Air Screen

Inspect Muffler/Spark Arrester

Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 _ Change more often when operating under e heav'

ti2

load or in high ambient temperatures.

5 _ If equipped with adjustable system.

6 - Not required if equipped with maintenance-free battery.

7 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

2 - Service more often when operating in dirty or dusty conditions.

3 - If equipped with oil filter, change oil every 50 hours.

4 _ Replace blades more often when mowing in sandy soil.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence, To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

® Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air fitter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

Check engine oi! level.

o Check brake operation.

o Check tire pressure.

Check for Hoosefasteners,

LUBRICATION CHART

(_)SPINDLE ZERK_f..._.- SP,NDLE ZERK(_

F,ONTWNEEL@

REARINGZERK _ I _ _2# REARINGZERK

CLUTCH PIVOT

_SAE 30 MOTOR OIL

(_GENERAL PURPOSE GREASE

(_F_EFER TO CUSTOMER RESPONStB_UTBES "ENGINE" SECTION

IN_PORTANT: DO NOT OIL OR GREASE THE PfVOTPOiNTS,

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRi-

CANTS W_LL ATTRACT DUST AND DRT THAT WILL SHORTEN

THE LiFE OF THE SELF-LUBRICATING BEARINGS, iF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, PQW_

17 DERED GRAPHITE TYPE LUBRICANT SPARINGLY,

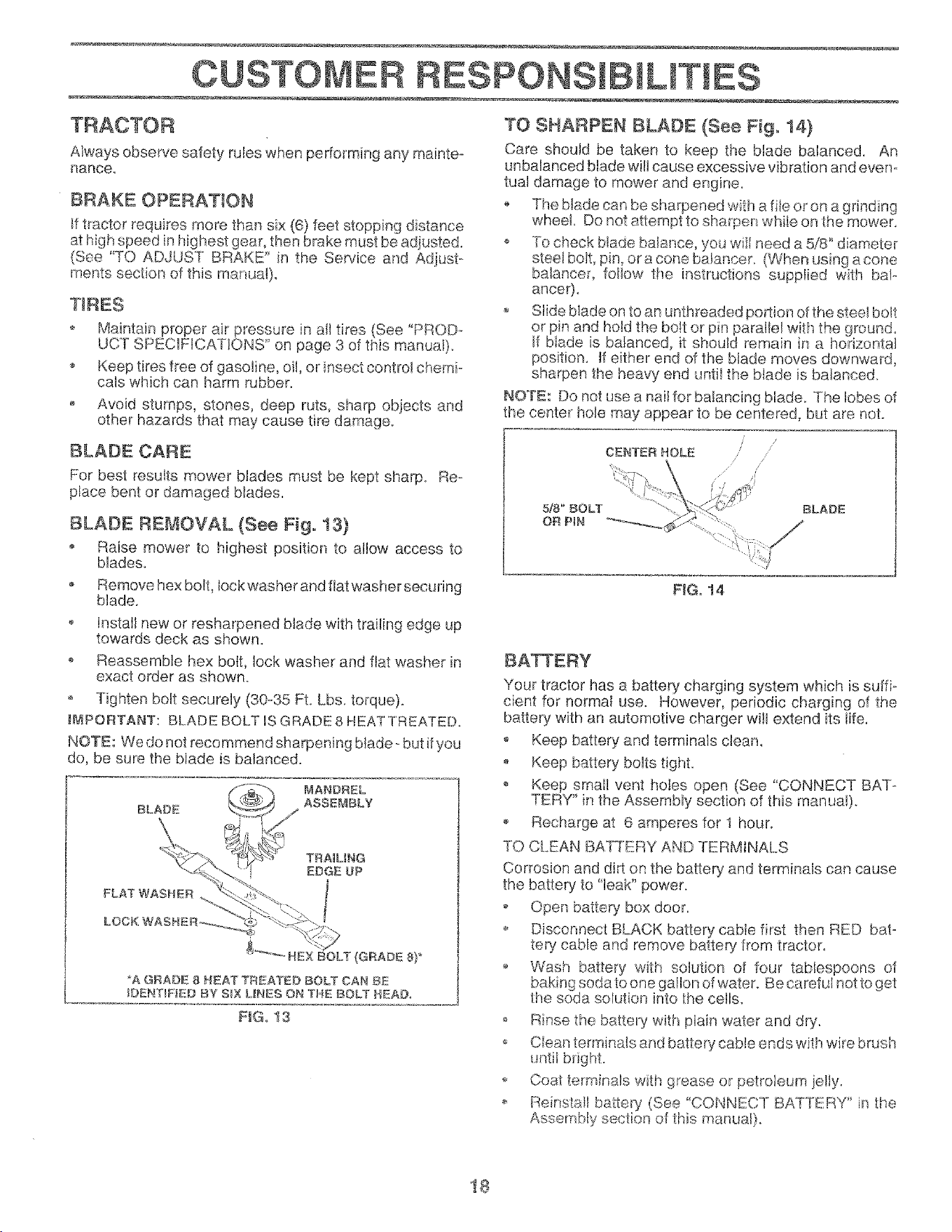

CU E ES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

tf tractor requires more than six (6) feet stopping distance

at hgh speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Ad}ust-

ments section of this manua0.

TO SHARPEN BLADE (See Fig. 14)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even°

tual damage to mower and engine.

The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower,

o To check blade balance, you witI need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, fol!ow the instructions supplied with bar

Maintain proper air pressure in all tires (See "PROD-.

UCT SPECIFICATIONS" on page 3 of this manual).

Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

o Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 13}

o Raise mower to highesf position to allow access to

blades.

° Removehexbolt, lockwasherandflatwashersecuring

blade.

o Install new or resharpened blade with trailing edge up

towards deck as shown.

o Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

Tighten bolt securely (30.G5 Ft° Lbs. torque).

_&'_PORTANT: BLADE BOLT IS GRADE 8 HEAT'TREATED.

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.

BLADE

MANDREL

ASSEMBLY

FLAT WASHER

LOCK WASHE_

_A GRADE 8 HEAT TREATED BOLT CAN BE

IDENT}F[EB BY S_X L_NES ON THE BOLT HEAD°

FIGo 13

Slide blade on to an unthreaded portion of the stee! bolt

or pin and hold the bo!t or pin parailel with the ground.

If blade is balanced, it should remain in a horizontal

position, If either end of the blade moves downward,

sharpen the heavy end _ntil the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center' hole may appear to be centered, but are not.

518" BOLT BLADE

OR PMN

FIGo 14

BATTERY

Your tractor has a battery charging system which is su[fi,,

cient for normal use. However, periodic charging of the

battery with an automotive charger wi!l extend its life,

o Keep battery and terminals clean_

o Keep battery bolts tight.

o Keep smaN vent holes open (See "CONNECT BAT-.

TERY" in the Assembly section of this manual).

• Recharge at 6 amperes for t hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

o Open battery box door..

Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery frem tractor,

o Wash battery with solution ot four tablespoons of

baking soda to one gallon of water. Be careful not to get

the soda solution into the cells.

o Rinse the baltery wilh ptain waI:er and dry.

Clean terminals and battery cable ends with wire brush

L_ntitbright.

Coat terminals with grease or petroleum jelly.

,', Reinslail battery (See "CONNECT BATTERY" in lhe

Assembly section o[ this manual).

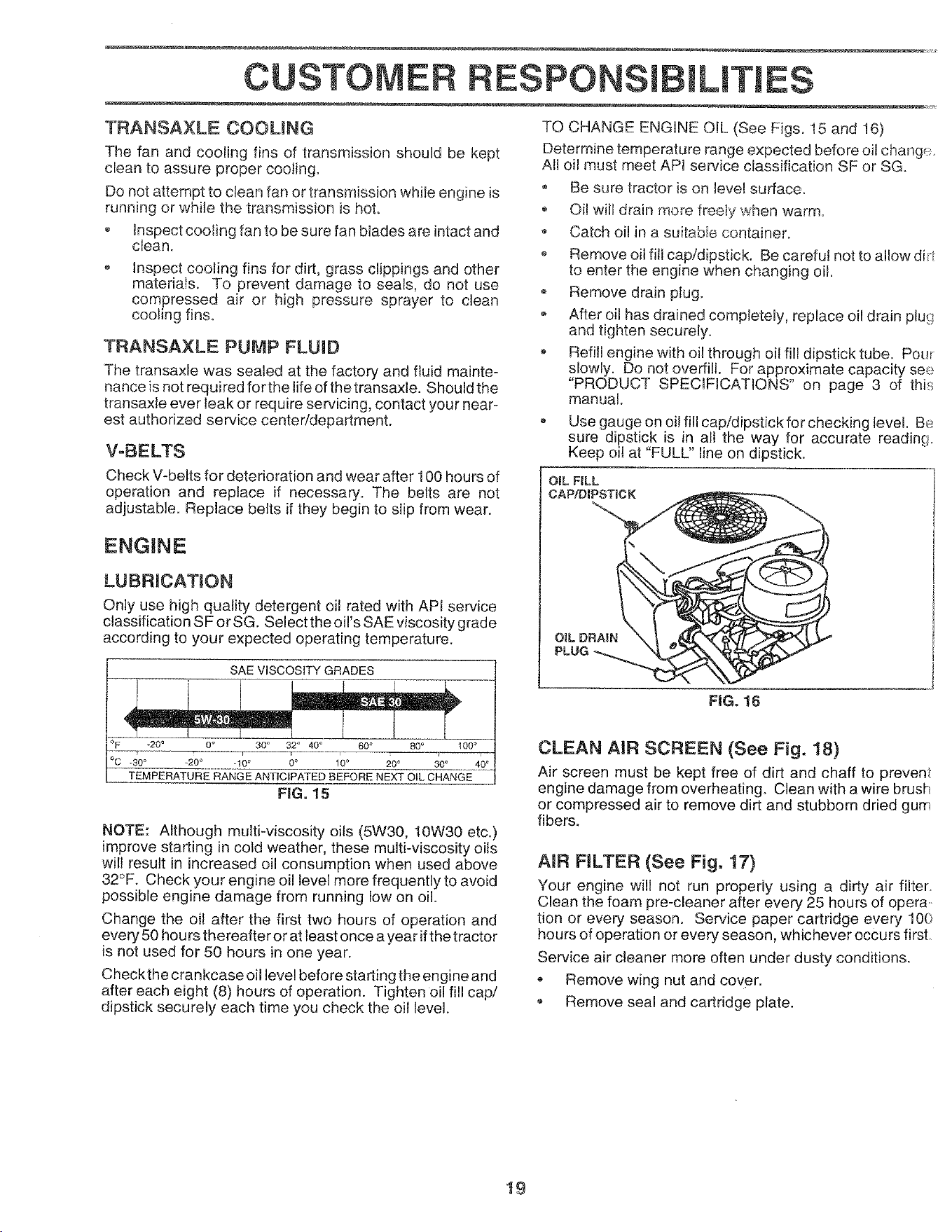

CUSTO RESPONSnBmLmES

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hoL

tnspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near-

est authorized service center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification S F or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

_F "20 ° 0o 30 ° 32° 40 ° 60 ° 80 ° 100 °

°c -3oo -20° -loo o° lo° _oo 30° 40°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE_

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°R Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oi! after the first two hours of operation and

every 50 hours thereafter or at least once a year if the tractor

is not used for 50 hours in one year.

Checkthe crankcase oil level before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 15 and 16)

Determine temperature range expected before oil chang_

All oil must meet API service classification SF or SG.

o Be sure tractor is on leve! surface.

o Oi! will drain more freely when warm.

o Catch oil in a suitable container.

- Remove oil fil! cap/dipstick. Be careful not to allow di;t

to enter the engine when changing oil.

o Remove drain plug.

After oil has drained completely, replace oil drain plu 9

and tighten securely.

Refill engine with oil through oil fil! dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.

Use gauge on oit fill cap/dipstick for checking level. B(_

sure dipstick is in all the way for accurate readin(_

Keep oit at "FULL" line on dipstick.

OIL FILL

CAP/DIPSTICK

O_L ORA_N

FIG, 16

CLEAN AiR SCREEN (See Fig, 18)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

AiR FILTER (See Fig. 17)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs firsL

Service air cleaner more often under dusty conditions.

Remove wing nut and cover.

• Remove seal and cartridge plate.

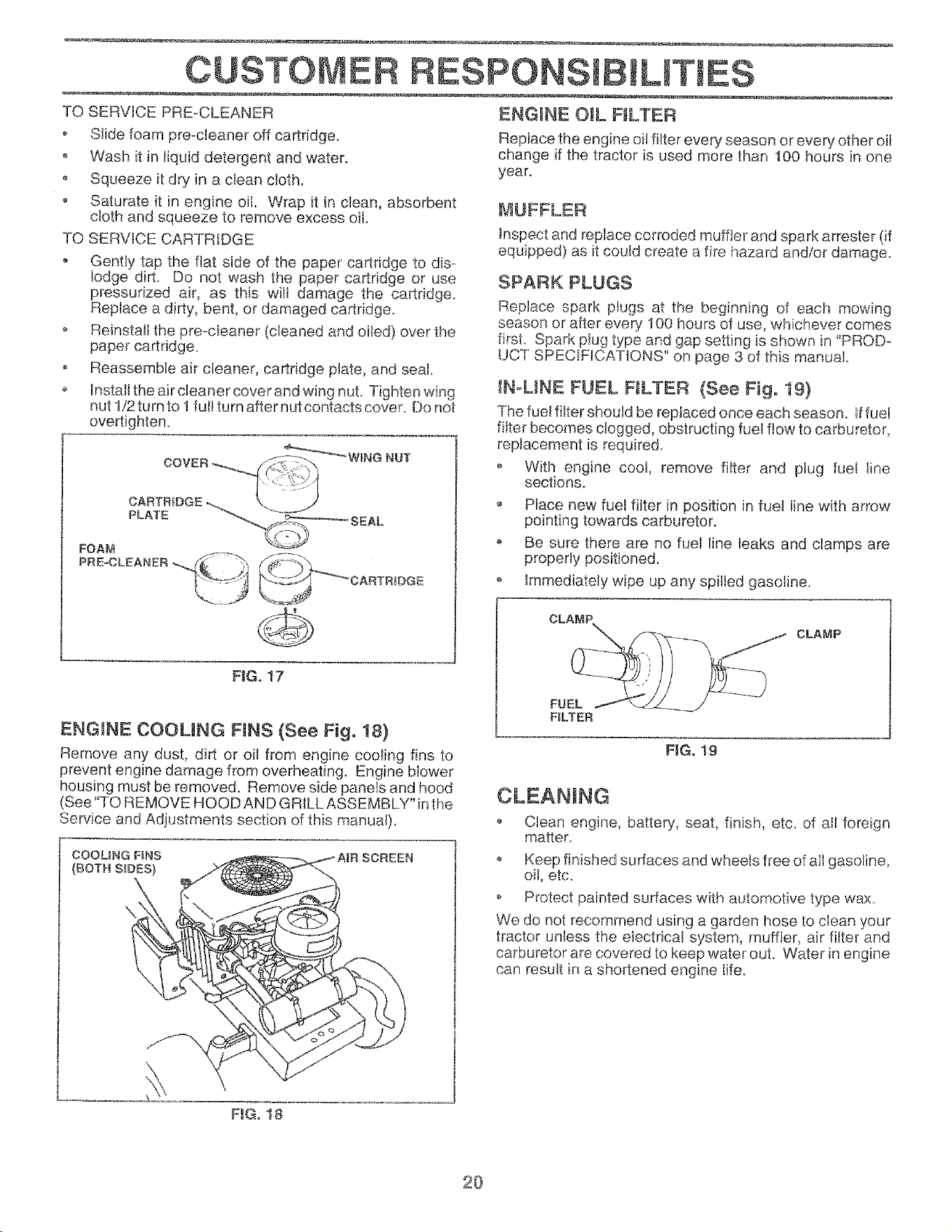

"TO SERVICE PRE_CLEANER

Slide foam pre-cleaner off cartridge.

o Wash it in liquid detergent and water.

o Squeeze it dry in a clean cloth,

o Saturate it in engine off. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil

TO SERVICE CARTRIDGE

o Gently tap the flat side of the paper cartridge to diso_

lodge dirt. Do not wash the paper cartridge or use

pressurized air, as this will damage the cartridge°

Replace a dirty, bent, or damaged cartridge,

o Reinstall the pre-cleaner (cleaned and oiled) over the

paper cartridge.

o Reassemble air cleaner, cartridge plate, and seal

Instalt the air cleaner cover and wing nut. Tighten wing

nut 1/2 turn to 1 futl turn after nut contacts cover. Do not

overtighten.

COVER

FiG, 17

ENGINE COOLING F_NS (See Fig. 18)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating. Engine blower

housing must be removed. Remove side panels and hood

(See "TO REMOVE HOOD AND GRILL ASSEMBL.Y"in the

Service and Adjustments section of this manual).

COOLING FiNS SCREEN

(BOTH SIDES)

ENGINE OIL F_LTER

Replace the engine oil filter every season or every other oil

change if the tracter is used more than 100 hours in one

year.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it coutd create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of use, whichever comes

firsL Spark plug type and gap setting is shown in "PROD-

UCT SPECIFICATIONS" on page 3 of this manual

IN-UNE FUEL F_LTER (See Fig. 19)

The fuel filter should be replaced once each season, Iffuel

fiiter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

o With engine cool, remove filter and ptug [uet line

sections.

o Place new fuel filter in position in fuet line with arrow

pointing towards carburetor.

Be sure there are no fuel line leaks and clamps are

properly positioned.

Immediately wipe up any spilled gasoline.

CLAMP

FUEL

FILTER

RGo 19

CLEANING

Clean engine, battery., seat, finish, etc, of all foreign

matter.

o Keep finished surfaces and wheels free of all gasoline,

oil, etc_

o Protect painted surfaces with automotive type wax_

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

RG. 18

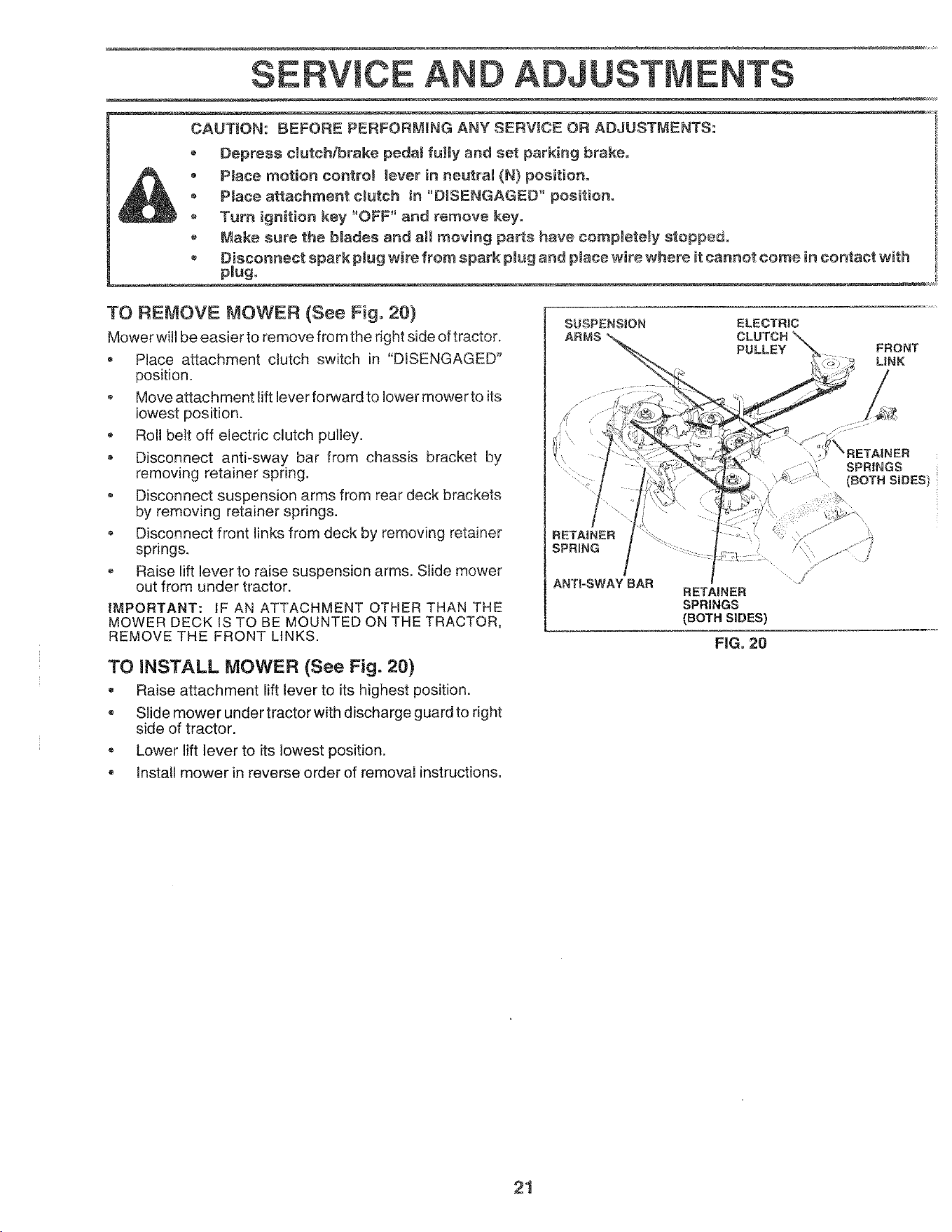

CAUTION: BEFORE PERFOFIMING ANY SERVICE OR ADJUSTMENTS:

® Depress clutch/brake pedaJ fully and set parking brake,

, Place motion contre_ iever in neutral (N) position.

, Place attachment clutch in "DISENGAGE[}" position.

Turn ignitien key "OFF" and remove key.

® Make sure the blades and aH moving parts have comp_etemy stopped,

, Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

pMug°

TO REMOVE MOWER (See Fig. 20)

Mower will be easier to remove from the right side of tractor.

• Place attachment dutch switch in "DISENGAGED"

position.

o Move attachment lift lever forward to lower mower to its

lowest position.

Roll belt off electric clutch pulley.

o Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

o Disconnect suspension arms from rear deck brackets

by removing retainer springs.

Disconnect front links from deck by removing retainer

springs.

Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

iMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS•

TO iNSTALL MOWER (See Fig. 20)

= Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor.

, Lower lift lever to its lowest position.

Install mower in reverse order of removal instructions.

SUSPENSION ELECTRIC

ARMS CLUTCH

PULLEY

FRONT

UNK

_ER

SPRINGS

(BOTH BIDES)

RETAINER

SPRING

ANT!-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG, 20

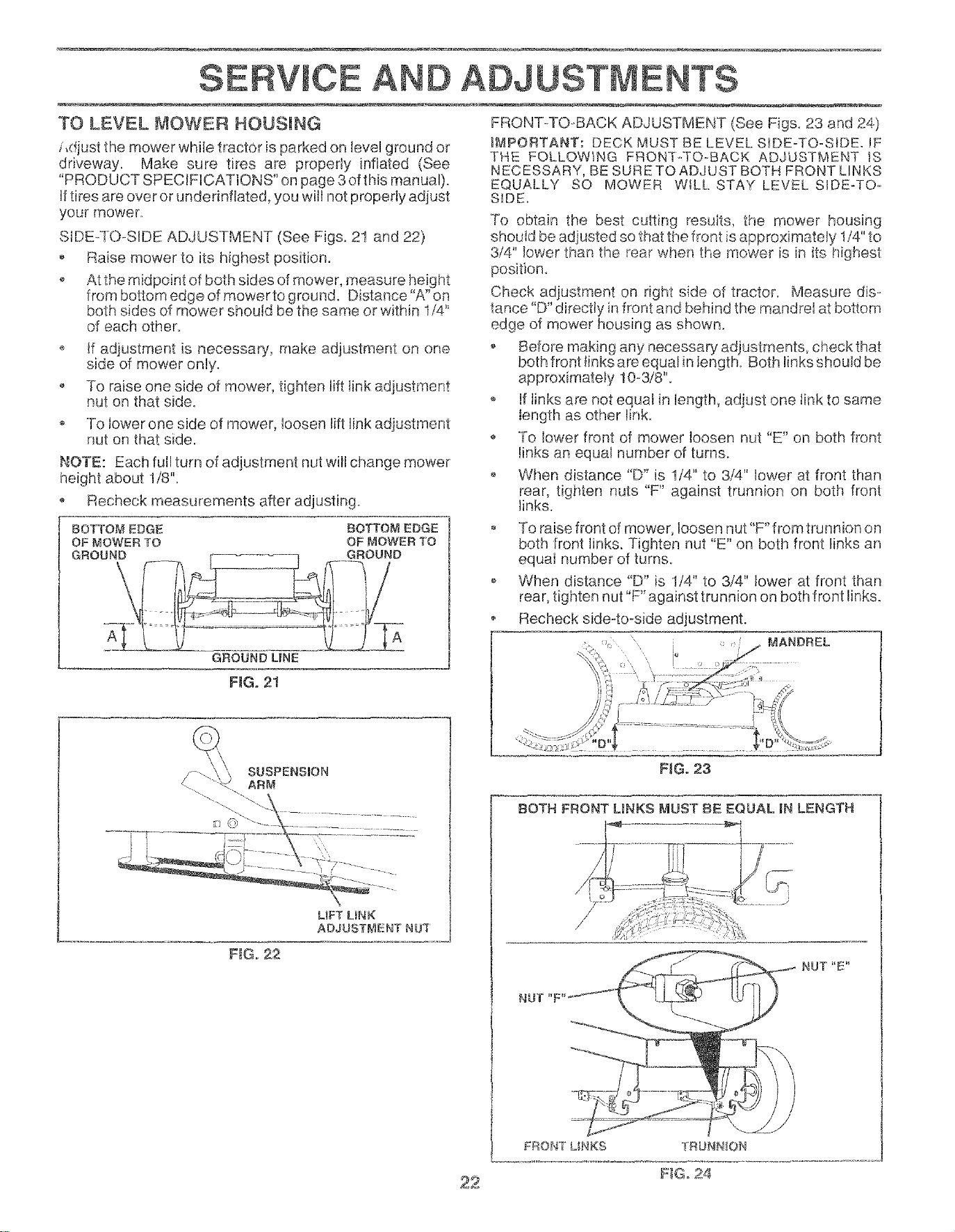

TO LEVEL MOWER HOUSING FRONT°TO-BACK ADJUSTMENT (See Figs. 23 and 2@

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual).

if tires are over or undednfiated, you wiJtnot properly adjust

your mower,.

SJDE.-TOoSIDE ADJUSTMENT (See Figs. 21 and 22)

o Raise mower to its highest position.

o At the midpoint of both sides of mower, measure height

from bottorn edge of mower to ground. Distance"A"on

both sides of mower should be the same or within 1/4"

of each other.

if adjustment is necessary, make adjustment on one

side of mower only.

o To raise one side of mower, tighten tift !ink adjustment

nut on that side.

To lower one side of rnower, !oosen lift link adjustment

nut on that side.

NOTE: Each furl turn of adjustment nut will change mower

height about 1/8".

Recheck measurements after adjusting.

BOTTO_,zl EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND r- q GROUND

AT _........ W ...... 7--

GROUNDUNE

FIG. 21

_4PORTANT: DECK MUST BE LEVEL SDEZTQ-SIDE. iF

THE FOLLOWING FRONT,.TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WiLL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting resuRs, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" Jower than the rear when the mower is in its highest

pos)tion.

Check adjustment on right side of tractor. Measure dis,_

tance"D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

Before making any necessary adjustments, check that

both front links are equal in Jength. Both links should be

approximately 10,3/8".

If links are not equat in length, adjust one tink to same

tength as other link,

To lower front of mower loosen nut "E" on both front

links an equal number of turns.

o When distance "D" is 1/4" to 3/4" lower at front than

rear, tighter_ nuts "F" against trunnion on both front

links.

To raise front of mower, loosen nut"F" from trunnion on

both front links. Tighten nut "E" on both front links an

equat number of turns.

o When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut"F" against trunnion on both front links.

Recheck side*to-side adjustment.

SUSPENSION

ARM

LIFT UNK

ADJUST&']ENT NU_[

F_Go22

FIG. 23

NUT "F ...........

FRONT URKS

TRUNNION

NUT"E"

22 FIG. 24

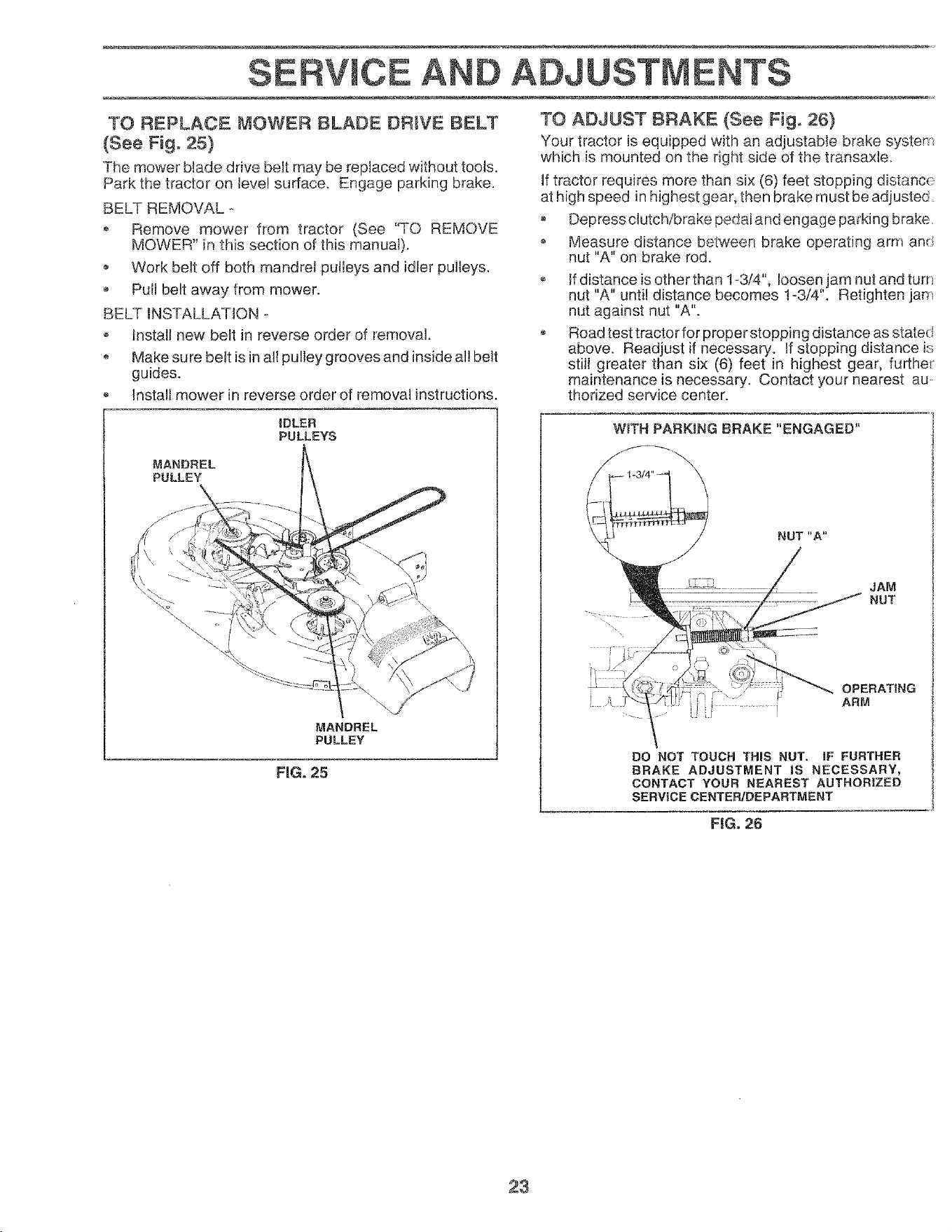

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig, 25)

The mower b!ade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL

Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

o Work bett off both mandrel pulleys and idler pulleys.

Puff belt away from mower.

BELT INSTALLATION o

o Install new belt in reverse order of removal.

Make sure belt is in nit pulley grooves and inside all belt

guides.

Install mower in reverse order of removal instructions.

IDLER

PULLEYS

MANDREL

PULLEY

MANDREL

PULLEY

FIG. 25

TO ADJUST BRAKE (See Fig. 26)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted

o Depress clutch/brake pedal and engage parking brake.

o Measure distance between brake operating arm and

nut "A" on brake rod.

Ifdistance is other than 1-3/4", loosen jam nut and turn

nut "A" unti! distance becomes 1-3/4". Retighten jam

nut against nut "A".

Road test tractor for proper stopping distance as stated

above. Readjust if necessary, tf stopping distance is

still greater than six (6) feet in highest gear, furthe_

maintenance is necessary. Contact your nearest au _

thorized service center.

WITH PARKING BRAKE "ENGAGED"

JAM

NUT

DO NOT TOUCH THIS NUT. IF FURTHER

BRAKE ADJUSTMENT IS NECESSARY,

CONTACT YOUR NEAREST AUTHORIZED

SERWCE CENTER/DEPARTMENT

FiG. 26

A E

TO REPLACE MOTION DR_VE BELT

_See Fig. 27}

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

o Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

o Disconnect clutch wire harness.

o Remove clutch Iocator.

o Remove upper belt keeper.

o Remove belt from stationary idler and clutching idler.

o Pull belt slack toward rear of tractor. Carefully remove

be!t upwards from transmission input pulley and over

cooling fan blades_

Pull belt toward front of tractor and remove downwards

from around electric clutch.

o Install new bett by reversing above procedure.

_t,J1POF_TANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS

AND ELECTR!C CLUTCH WIRE CONNECTION IS

SECURE_

TABS

CLUTCH LOCATOR

IDLER

STATIONAR

IDLER

TRANSMI_

IHPUTPULLEY

CLUTCH

WiRE

HARNESS

FIG. 27

TO ADJUST MOTION CONTROL LEVER

(See Fig. 28}

]he motion control lever has been preset at the factory and

adjustment should not be necessary.

If for any reason the motion control lever wiil not hold its

position whi!e at a selected speed, it may be adjusted at the

friction pack Iocated on the right side of transmission.

Park tractor on level surface. Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake.

o Adjust motion control lever by tightening adjustment

tocknut one half (1/2) turn.

NOTE: if for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by !oosening locknut t/4 to 1/2 turn.

Road test tractor after adjustment and repeat procedure it

necessary.

ADJUSTMENT

LOCKNUT

FIGo 28

TRANSB_ISS_ON REMOVAL/REPLACEMENT

Should your transmission require remova! for service or

replacement, it should be purged after reinstaltation and

before operating the tractor See "PURGE TRANSM!S _,

SION" in Operation section of this manual.

24,

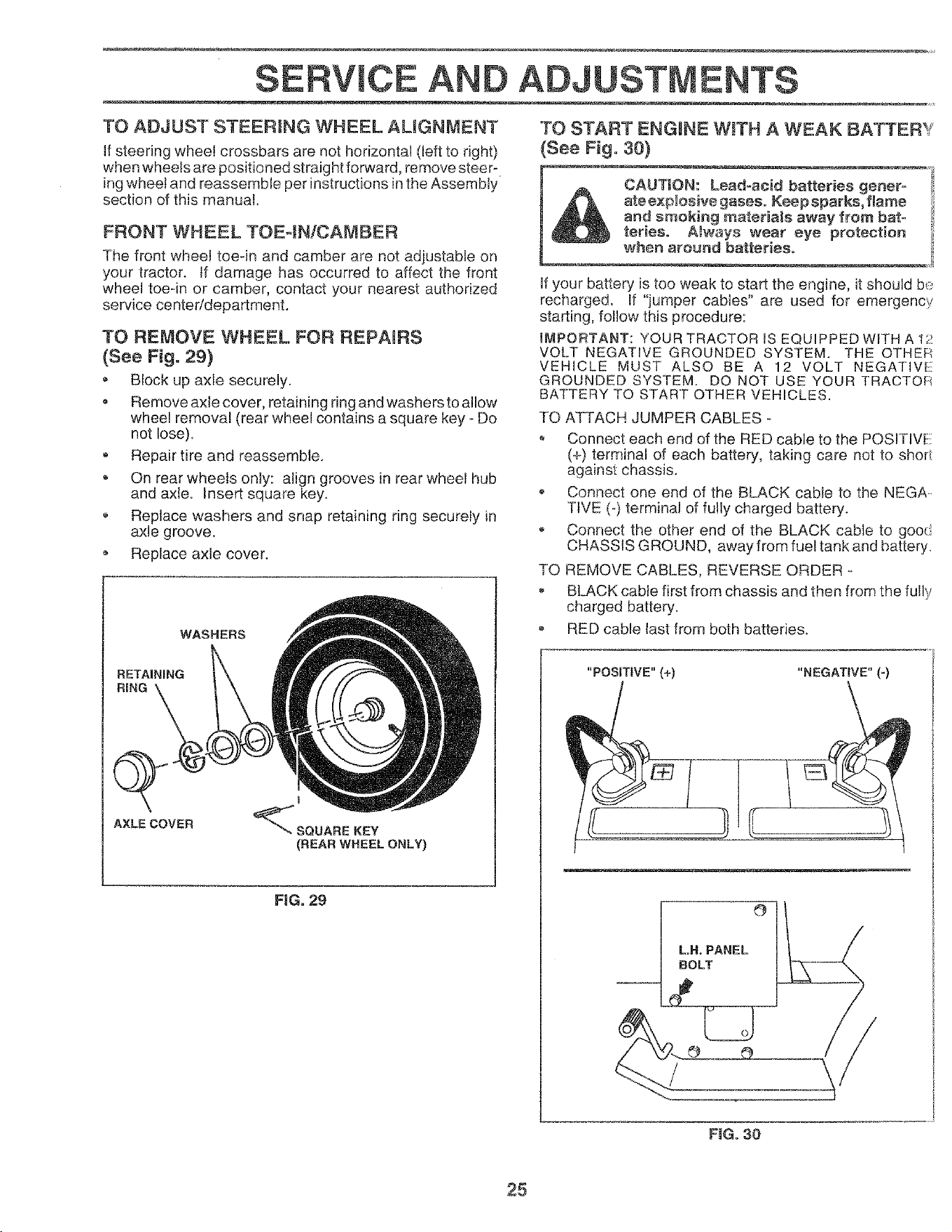

SERVICE AN

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal 0eft to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions inthe Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor, tf damage has occurred to affect the front

wheel toe--in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 29)

Block up axle securely.

, Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

, Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

, Replace washers and snap retaining ring securely in

axle groove.

o Replace axle cover.

WASHERS

RETAINING

RING

AXLE COVER

SQUARE KEY

(REAR WHEEL ONLY)

FIG. 29

TO START ENGINE WiTH A WEAK BATTERY

'See Fig, 30}

CAUTION: Lead-acid batteries genero I

i_ atee×p_osivegases. Keepsparka, flame i!

and smoking materiaJs away from bat- t

reties. A_waya wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR JS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES,

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

Connect one end of the BLACK cable to the NEGA_

T_VE (-) terminal of fully charged battery.

Connect the other end of the BLACK cable to gooc

CHASSIS GROUND, away from fuel tank and battery

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

"POSmVE" (+) "NEGATIVE"(-)

L,H, PANEL

BOLT

F_Go30

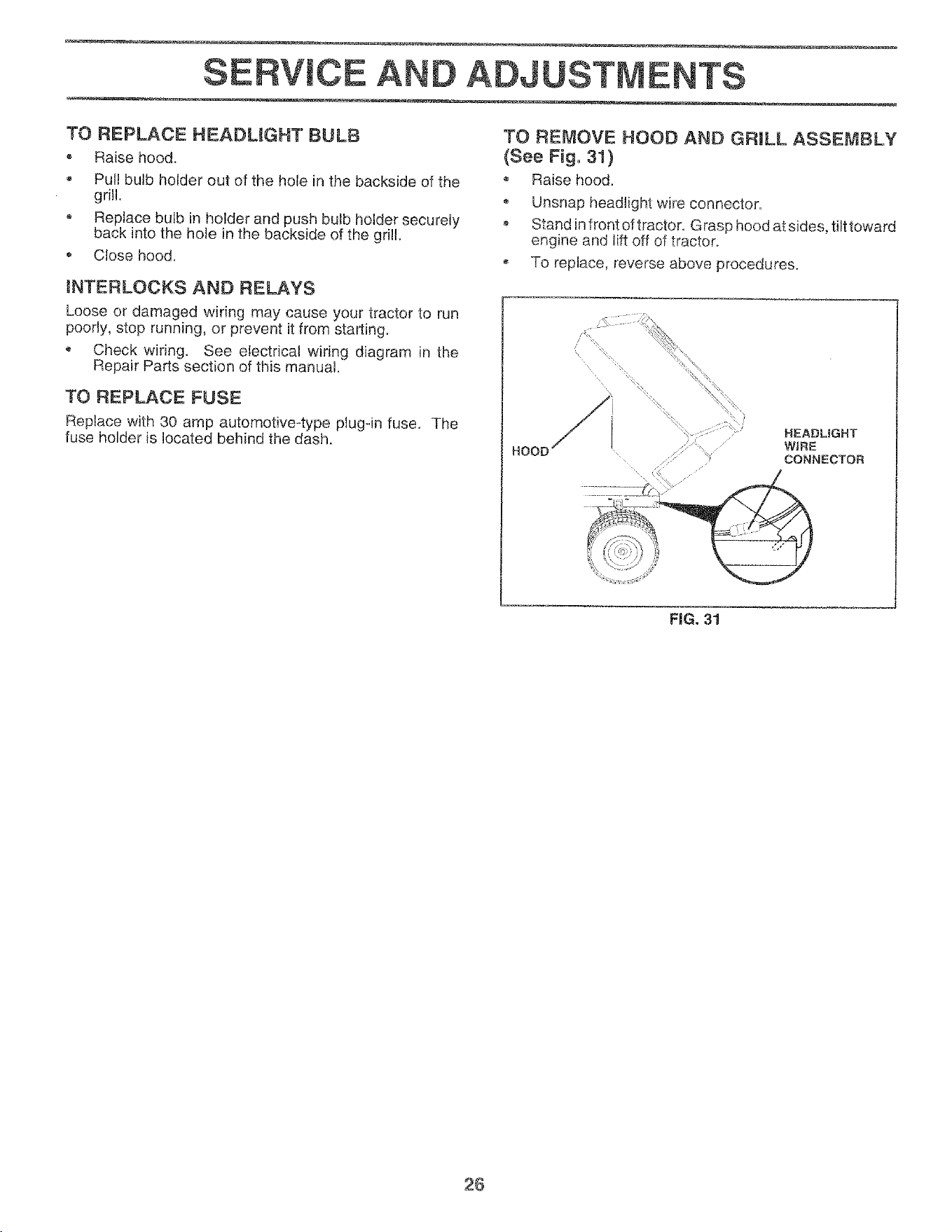

TO REPLACE HEADUGHT BULB

® Raise hood.

o Put! bulb holder out of the hole in the backside of the

grill.

Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

Check wiring. See electrical wiring diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

ENTS

TO REMOVE HOOD AND GRmLL ASSEMBLY

(See Fig. 31)

- Raise hood.

Unsnap headlight wire connector.

, Stand in front of tractor. G rasp hood at sides, tilt toward

engine and lift off of tracton

• To replace, reverse above procedures.

HOOD

HEADLIGHT

WiRE

CONNECTOR

FIG. 31

E DJ E

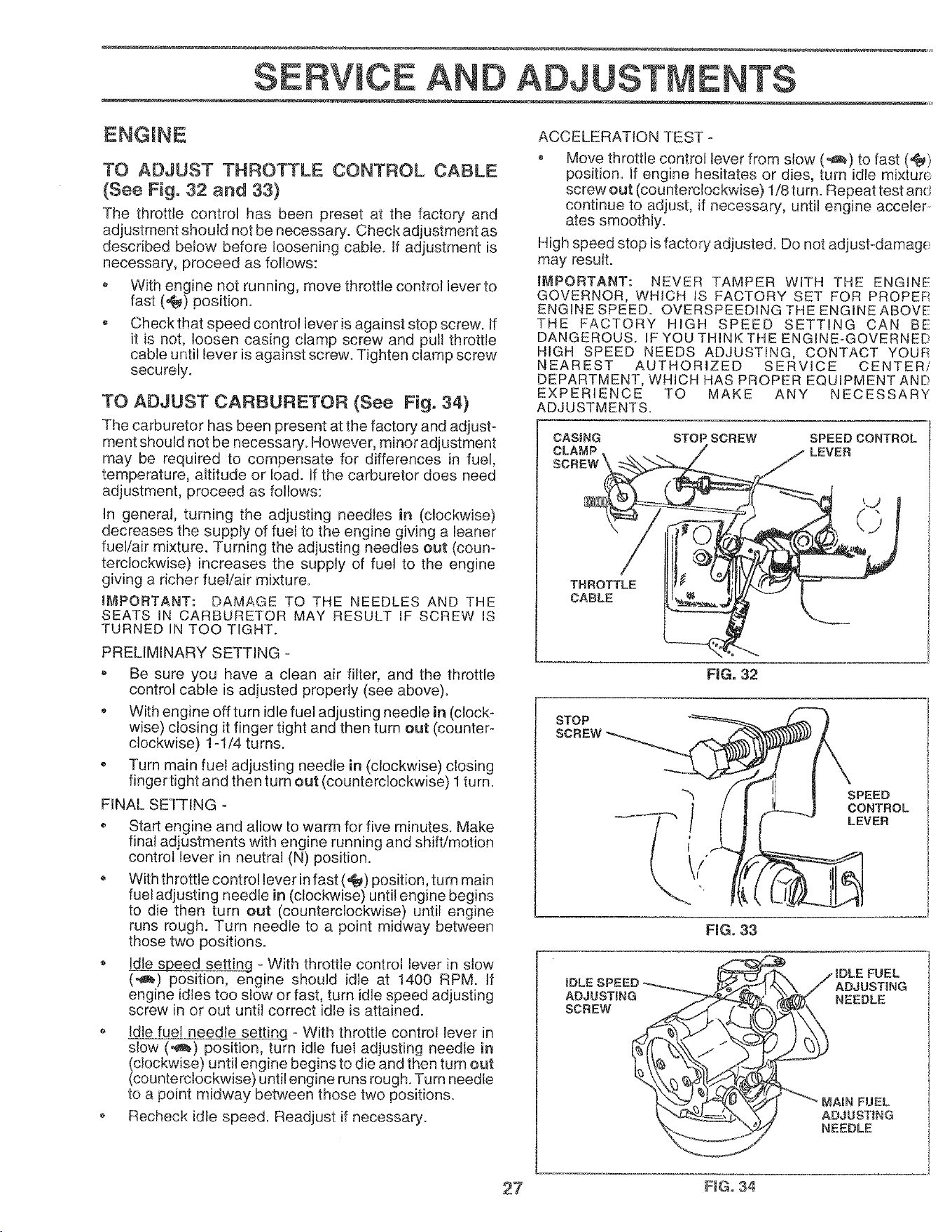

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig° 32 and 33)

The thlottle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

, With engine not running, move throttle control lever to

fast (4/_) position.

Check that speed control lever is against stop screw. If

it is not, loosen casing clamp screw and pull threttle

cable until lever is against screw. Tighten clamp screw

securely.

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been present at the factory and adjust-

ment should not be necessary. However, minor adjustment

may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles in (clockwise)

decreases the supply of fuel to the engine giving a leaner

fuel/air mixture. Turning the adjusting needles out (coum

terclockwise) increases the supply of fuel to the engine

giving a richer fuel/air mixture.

Bt_PORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

o Be sure you have a clean air filter, and the throttle

control cable is adjusted properly (see above).

, With engine off turn idle fuel adjusting needle in (clock-

wise) closing it finger tight and then turn out (counter-

clockwise) 1-1/4 turns.

Turn main fuel adjusting needle in (clockwise) closing

finger tight and then turn out (counterclockwise) 1 turn.

FINAL SETTING -

o Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

o With throttle control lever in fast (@) position, turn main

fuel adjusting needle in (clockwise) until engine begins

to die then turn out (counterclockwise) until engine

runs rough. Turn needle to a point midway between

those two positions.

Idle sj:)eed setting oWith throttle control lever in slow

(-_) position, engine should idle at 1400 RPM. if

engine idles too slow or fast, turn idle speed adjusting

screw in or out until correct idle is attained.

o Idle fuel needle setting - With throttle control lever in

slow (._) position, turn idle fuel adjusting needle in

(clockwise) until engine begins to die and then turn out

(counterclockwise) until engine runs rough. Turn needle

to a point midway between those two positions.

o Recheck idle speed. Readjust if necessary.

ACCELERATION TEST -

o Move throttle control lever from slow (_) to fast (@)

position. If engine hesitates or dies, turn idle mixture

screw out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceter

ates smoothly.

High speed stop is factory adjusted. Do not adjust-damage

may result.

_MPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPEFI

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

CASING STOP SCREW SPEED CONTROL

CLAMP LEVER

SCREW

THROTTLE

CABLE

FIG. 32

STOP

SCREW

SPEED

CONTROL

LEVER

RG. 33

ADJUSTING

SCREW

FUEL

ADJUSTING

NEEDLE

FUEL

ADJUSTING

NEEDLE

27 F_G. 34

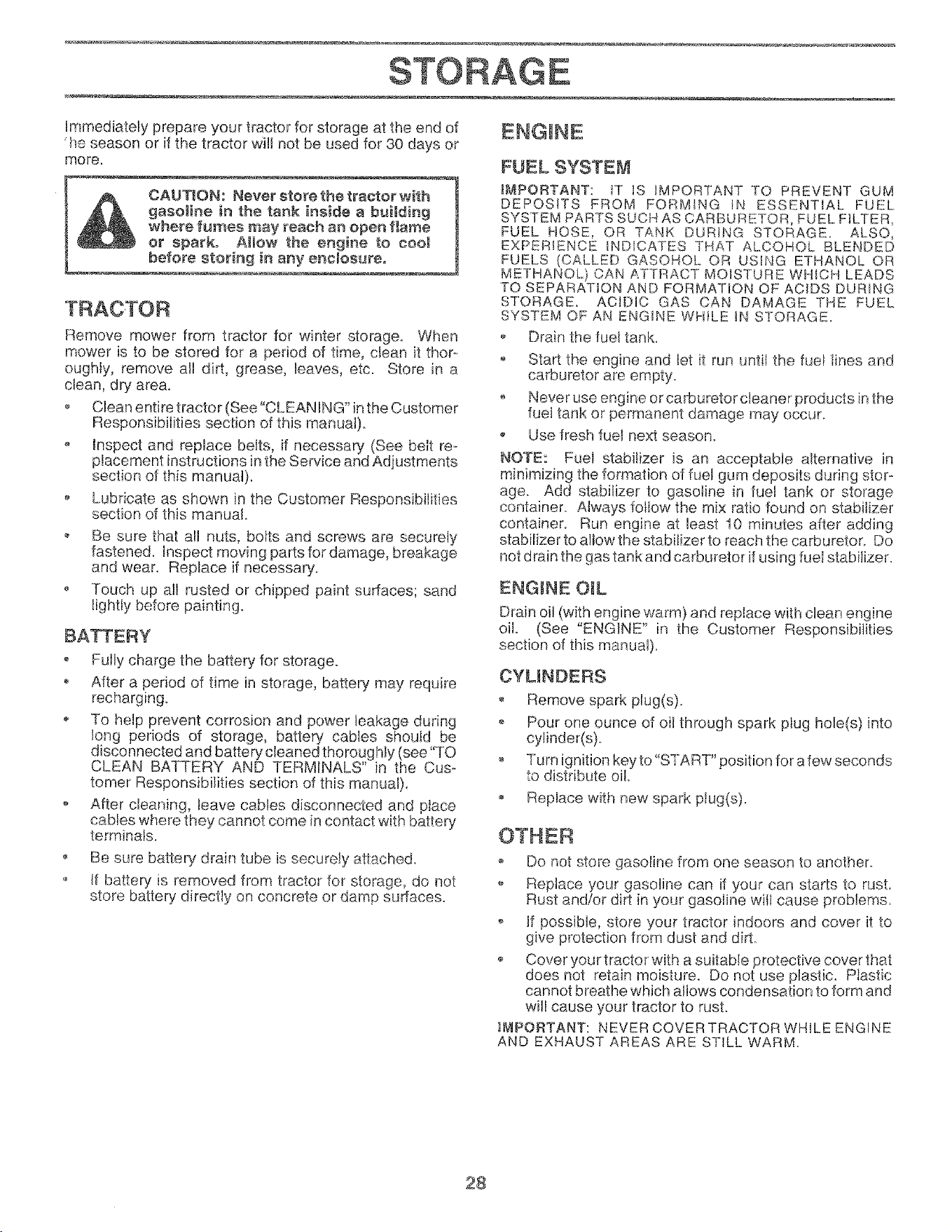

Immediatelyprepareyourtractorforstorageattheendof

'heseasonorifthetractorWillnotbeusedfor30daysor

more.

CAUTION:Neveretorethetraetorwith

gasolinein thetank insidea building

wherefumesmayreachanopenflame

or spark° A_lowthe engineto coo_

beforestoring in arryenclosureo

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-.

ougNy, remove all di_, grease, leaves, etc. Store in a

clean, dry area.

Clean entire tractor (See "CLEANING" in the Customer

Responsibilities section of this manuai)°

Inspect and replace belts, if necessary (See belt re_

placement instructions in the Service and Adjustments

section of this manual).

o Lubricale as shown in the Customer Responsibilities

section of this manual.

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts fordamage, breakage

and wear. Replace if necessary..

o Touch up all rusted or chipped paint surfaces; sand

lightty before painting.

BATTERY

o Fully charge the battery for storage.

o After a period of time in storage, batten/may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery" cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

o After cleaning, leave cables disconnected and place

cables where they cannot come in contact with batlery

terrnina]s.

o Be sure battery drain tube is securely atI:ached.

If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGMNE

FUEL SYSTEM

_aPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING tN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL. FILTER

FUEL HOSE, OR TANK DURING STORAGE ALSO,

EXPERW!NCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

o Drain the fuel tank_

o Start the engine and let it run until the fuef lines and

carburetor are empty.

o, Never use engine or carburetor cleaner products in the

fuel tank or permanent damage rnay occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuet gum deposits during stor*

age. Add stabilizer to gasoline in _uel tank or storage

container. Always fotiow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGmNE OML

Drain oil (with engine warm) and replace with clean engine

eii. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

Remove spark plug(s).

Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

Turn ignition key to "START" position for a few seconds

to distribute oil.

Replace with new spark plug(s).

OTHER

o Do not store gasoline from one season to another.

o Replace your gasoline can if your can starts 1o rust

Rust and/or dirt in your gasoline will cause problems

o Jf possible, store your tractor indoors and cover it to

give protection from dust and dirt.

Cover your tractor' with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensalion to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTORWHiLEENGINE

AND EXHAUST AREAS ARE STILL WARM.

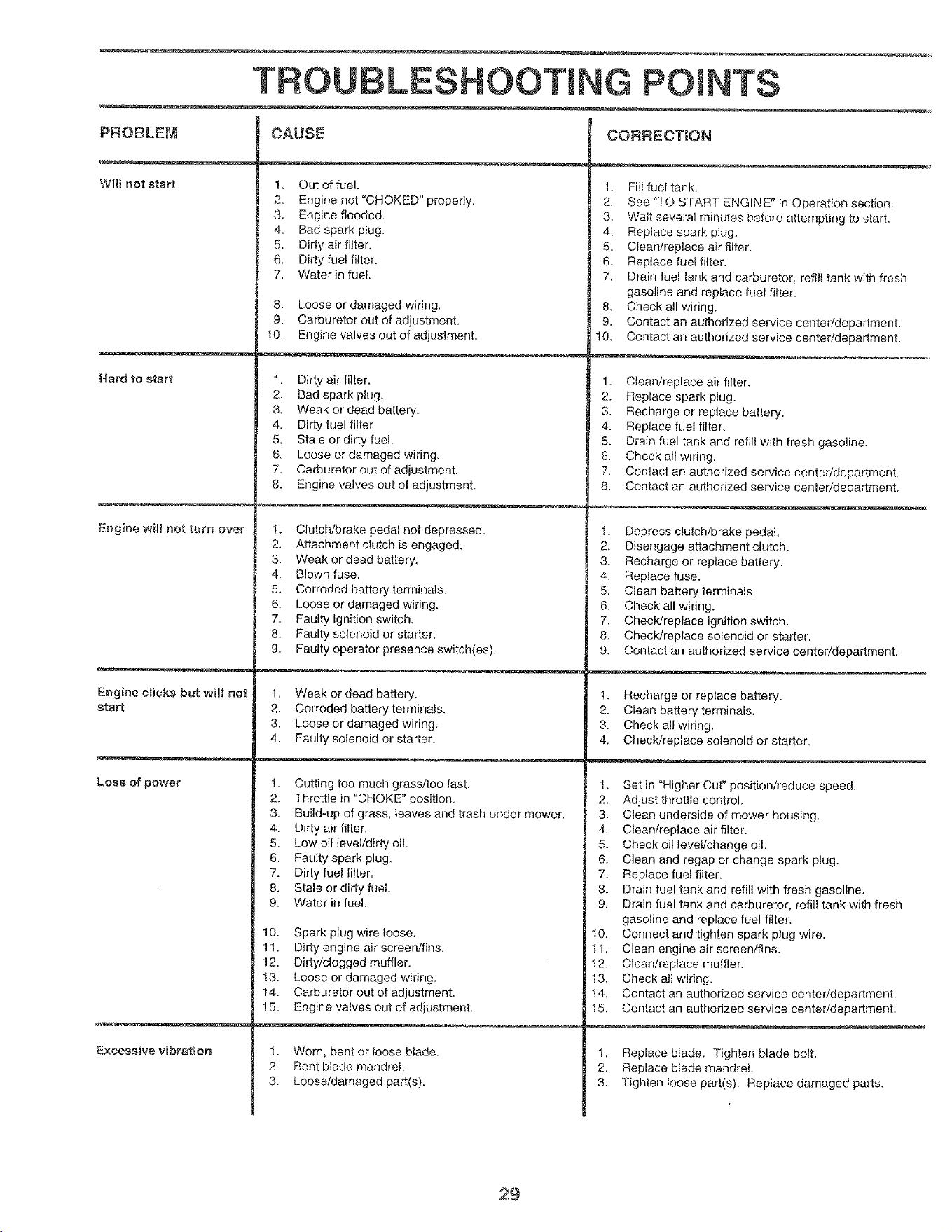

POINTS

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Eng}ne will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

1. Out of fuel.

2. Engine riot"CHOKED" properly.

3. Engine flooded.

4. Bad spark plug=

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

!. Fill fueltank.

2. See "!"O START ENGINE" in Operation section

3. Wait several minutes before attemptir_g to start.

4. Replace spark plug.

5. Clean/replace air filter.

6_ Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring.

9. Contact an authorized service center/department.

10. Contact an authorized service center/department.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fue!.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

I. Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHQKE"position.

3. Build-up of grass, leaves and trash under mower.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refil! with fresh gasoline.

6. Check all wiring.

7. Contact an authorized service centerideparlment.

8. Contact an authorized service center/department.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. ChecWreplace ignition switch.

8. Chectdreplace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring

4. Check/replace solenoid or starter.

I. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fueI.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring,

14. Carburetor out of adjustment.

!5. Engine valves out of adjustment.

I. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

4. Clean/replace air filter.

5. Check oil level!change oi!.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. Contact an authorized service center!department.

!5. Contact an authorized service center!department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

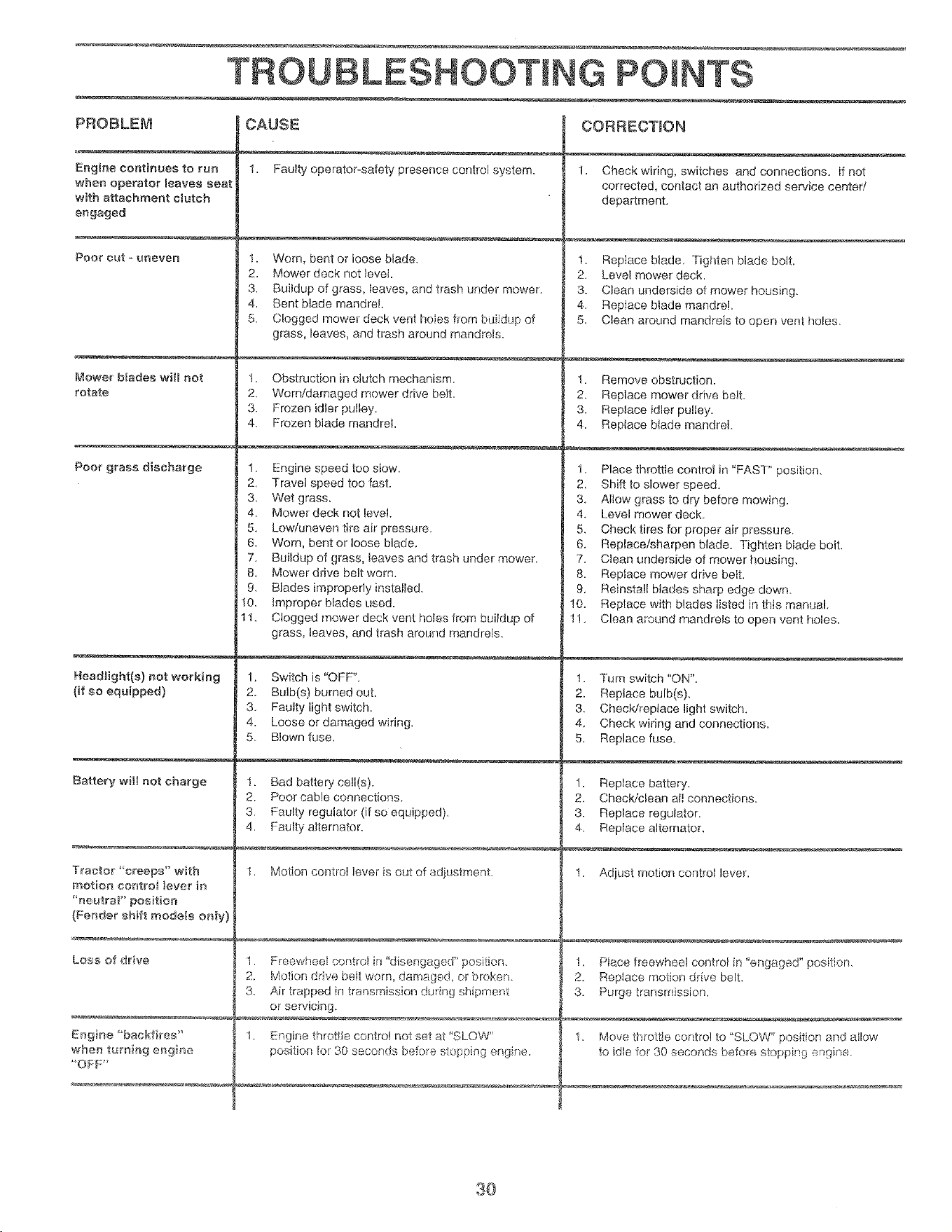

PROBLE_ CAUSE CORRECTION

Engine continues to run I. Faulty' operator-safety presence control system. 1. Check wiring, switches and connections. If not

when operator leaves seat

with attachment c!utch

engaged

Poor cut o-uneven

t, Worn, bent or loose blade.

2. Mower deck not level.

corrected, contact an authorized service center/

department,

i. Reptace blade Tighten blade bolt,

2. Level mower deck.

Mower biades wil_ not

rotate

3. Buildup of grass, leaves, and bash under mower.

4. Sent blade mandrel.

5. Clogged mower deck vent holes bom buildup of

grass, leaves, and trash aroend mandrels.

I. Obstruction in clutch mechanism.

2, Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel,

3. Clean underside ot mower housing.

4. Rep}ace blade mandrel

5 Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel

Poor grass discharge '1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass,

4, Mower deck not level

5. Low/unevea tire air pressure.

6. Worn, bent or loose blade.

1. Place throttle control in "FAST" position.

2, Shift to slower speed.

3. Allow grass to dry before mowing,

4. Level mower deck.

5. Check tires for proper air pressure,

6. Replace/sharpen blade. Tighten blade bolt.

Headlight(s) not working

(if so equipped)

Battery will not ci_arge

Tractor "creeps'* with

motio[_ control lever in

"neutraF' positio_

(Fender shift mode{s onIy)

Loss of drive

Engine "backfires"

when turning eHg_ne

OFF'*

7. Buildup of grass, leaves and trash under mower.

8. Mower ddve belt worn.

9. Blades improperly installed.

!0. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1, Switch is "OFF".

2. Bulb(s) burned out,

3. Faulty light switch.

4. Loose or damaged wiring.

5 Blown Iuse,

1. Bad battery cetl(s).

2. Poor cable connections.

3, Faulty regulator (if so equipped),

4. Fauky alternator.

1. Motion control ]ever is out of adiustment.

I, Freewheel contro! in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

Engine throttle contro not set at "SLOW"

position for 30 seconds before s opp _l9 eofi ne

7, Clean underside of mower housing.

8. Replace mower drive belt.

9, Reinsta!l blades sharp edge down.

10. Replace with blades listed in this manual.

1. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2, Replace bulb(s),

3_ ChecWreptace light switch,

4 Check wiring and connections=

5. Replace fuse.

1. Replace battery.

2, ChecWclean at! connections.

3. Replace regulator.

4. Replace akernator_

1. Adjust motion controI lever.

1, Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Move throttle control to "SLOW" pesition and allow

to idle for 30 seconds befere s_oppiag anr._ine

TRACTOR _ o MODEL NUMBER 917,2527!1

AMMETER

BLACK

BATTERY

RED

BLACK

IGNITION

SWITCH

ff :-:L::---..

'%. !,_:/_

"- L':'::L:I:;::':jJ

IGNITION SWITCH

START

ORANGE

(R EGULATOR DISCONNECTED)

t_S .........J ,

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

I ........ I

HEADLiGBT

SWITCH (OFF)

REMOVABLE

CONNECTIONS

G FC

II I1_

E _!f B

o _A

PTO SWITCH

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNiT THEY

SHOULD BE REPLACED ]O

PROPERLY SECURE YOUR WIRING

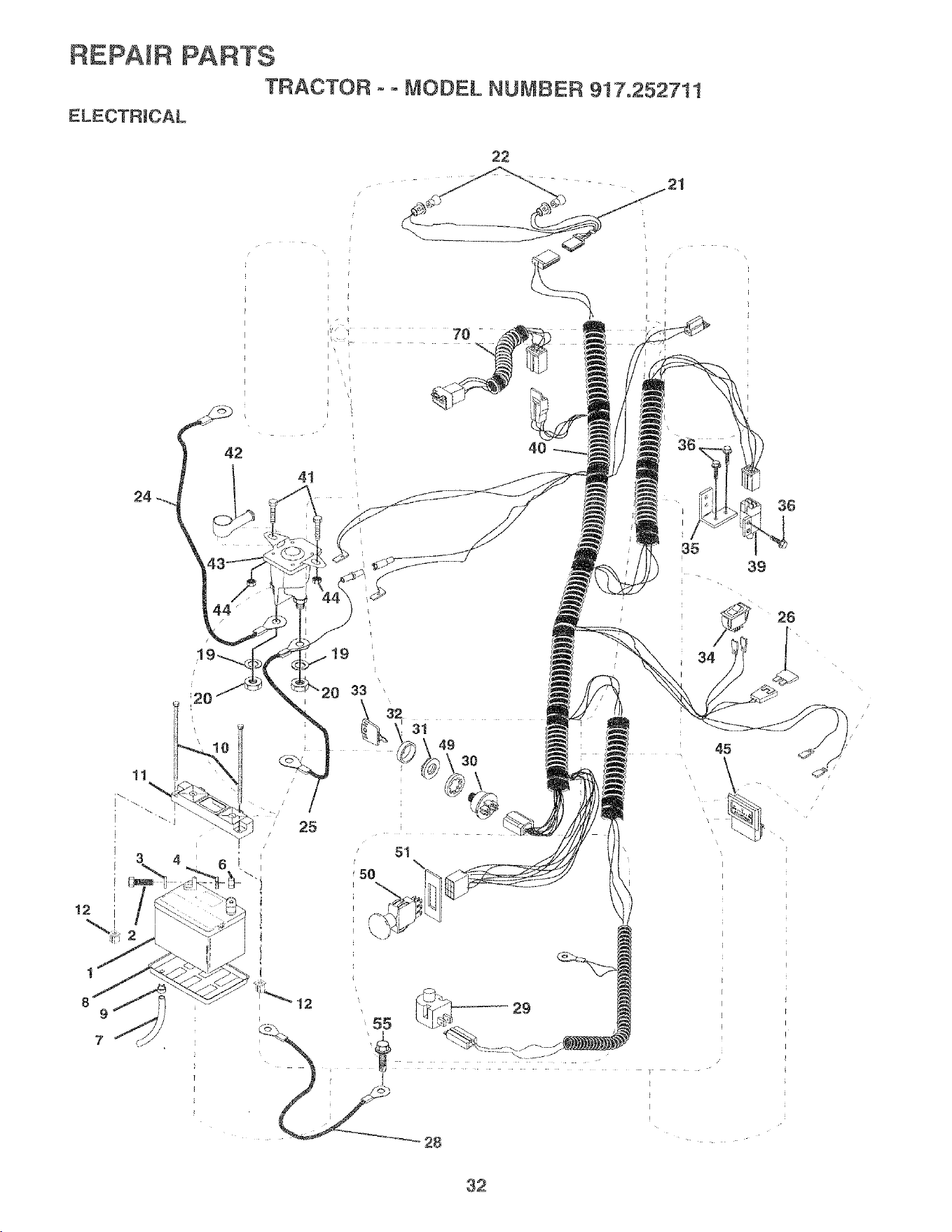

REPAIR PARTS

TRACTOR °oMODEL NUMBER 917.252711

ELECTRICAL

4 6

,' 25

'12

34 I-_

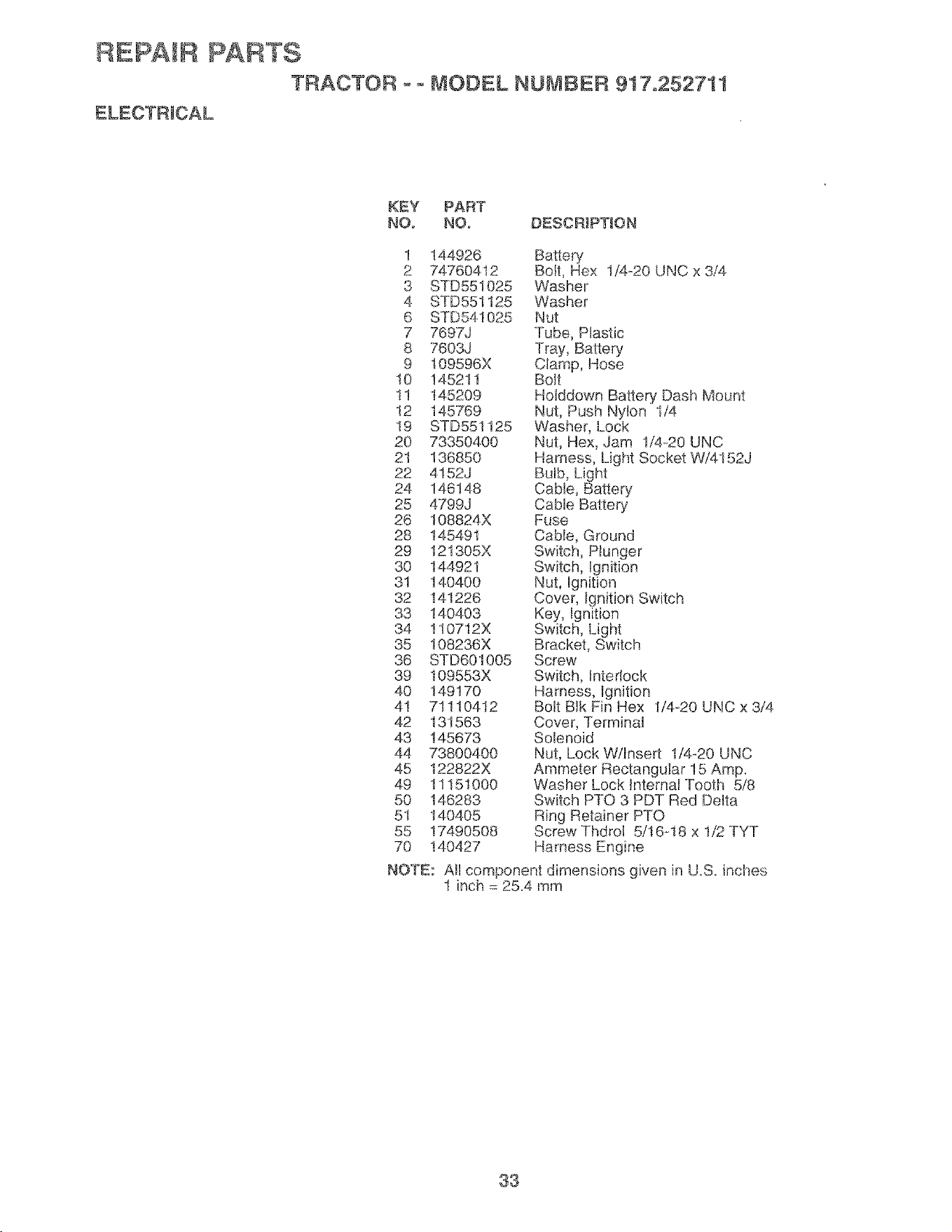

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917=252711

ELECTRICAL

KEY PART

NO. NOo DESCR_PTION

1 144926 Battery

2 74760412 Bolt, Hex 1/4-20 UNC x 3/4

3 STD551025 Washer

4 STD551125 Washer

6 STD54t025 Nut

7 7697J Tube, Plastic

8 7603J Tray, Battery

9 !09596X Clamp, Hose

•10 145211 Bolt

1! 145209 Holddown Battery Dash Mount

t2 145769 Nut, Push Nylon i/4

19 STD551125 Washer, Lock

20 73350400 Nut, Hex, Jam 1/4-20 UNC

2t 136850 Harness, Light Socket W/4152J

22 4152J Bulb, Light

24 146148 Cable, Battery

25 4799J Cable Battery

26 108824X Fuse

28 145491 Cable, Ground

29 121305X Switch, Hunger

30 144921 Switch, ignition

3! 140400 Nut, Ignition

32 141226 Cover, ignition Switch

33 1404.03 Key, Ignition

34 110712X Switch, Light

35 108236X Bracket, Switch

36 STD601005 Screw

39 109553X Switch, tnter!ock

40 149170 Harness, _gnition

4t 71110412 BoltBIkFinHex I/4-20UNCx3!4

42 131563 Cover', Terminal

43 145673 Solenoid

44 73800400 Nut, Lock W/Insert 1/4o20 UNC

45 122822X Ammeter Rectangular 15 Amp.

49 11151000 Washer Lock Internal Tooth 5/8

50 146283 Switch PTO 3 PDT Red Delta

51 140405 Ring Retainer PTO

55 17490508 Screw Thdrol 5/!6.q8 x 1/2 TYT

70 140427 Harness Engine

NOTE: All component dimensions given in U_S=inches

1 inch = 25.4 rnm

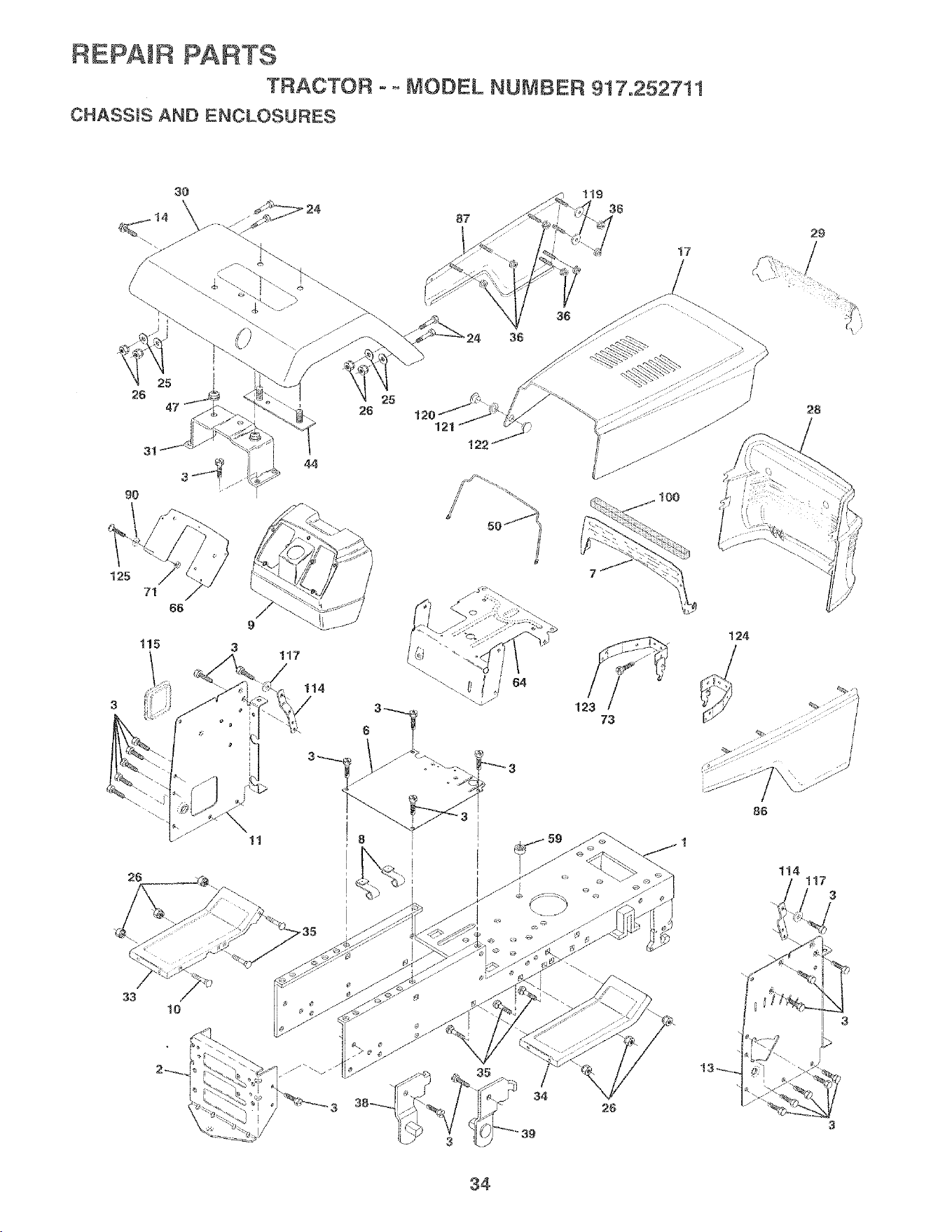

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917.252711

CHASSIS AND ENCLOSURES

J i "

_ 25 i

26 25

47 26

121

115

117

119

123

IO0

124

° _

114

117

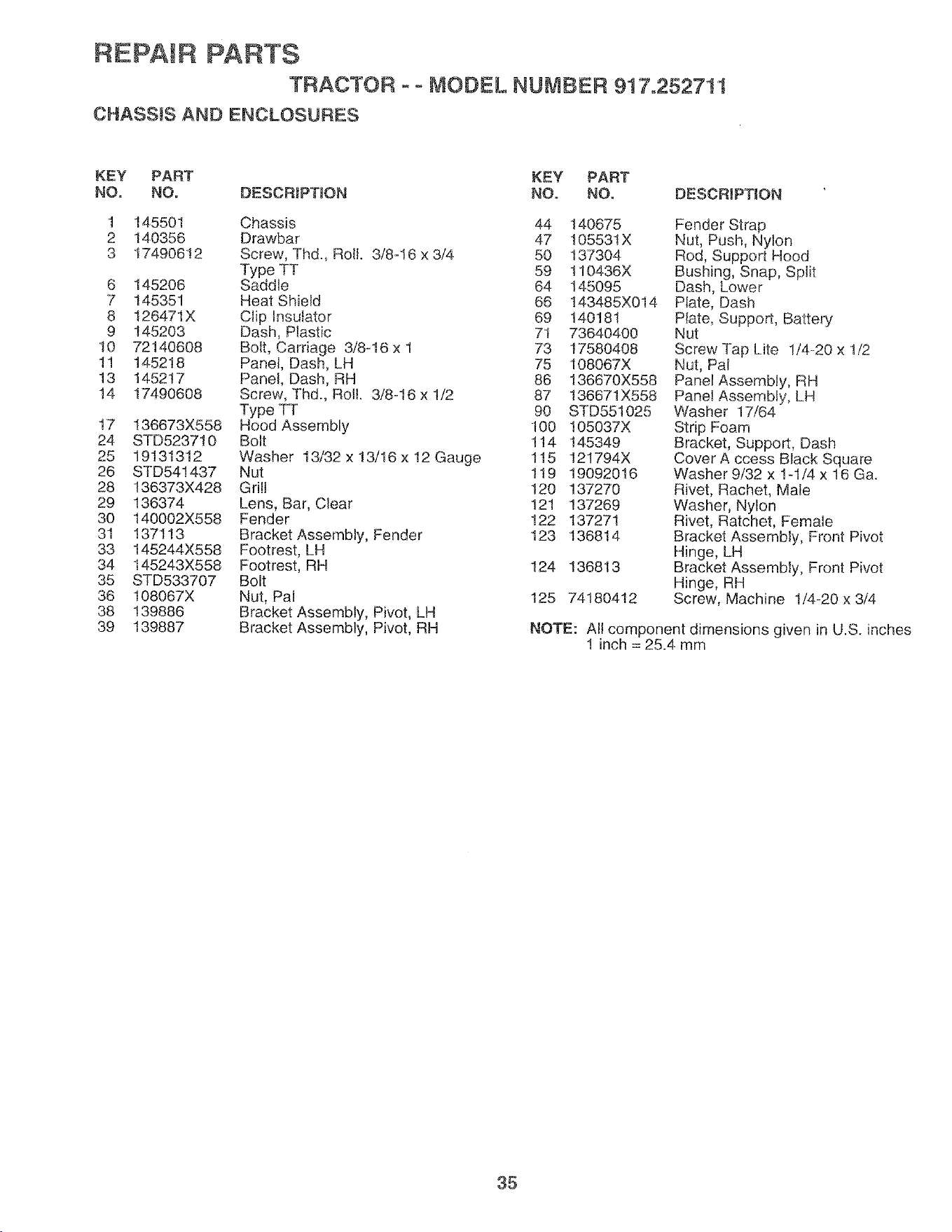

REPAmR PARTS

TRACTOR ° o MODEL NUMBER 917.2527!1

CHASSIS AND ENCLOSURES

KEY PART KEY PART

NOo NO. DESCRIPTION NO. NO. DESCRIPTION

1 14550t Chassis 44 140675

2 140356 Drawbar 47 10553tX

3 17490612 Screw, Thd., Roll. 3/8-16 x 3/4 50 137304

Type TT 59 110436X

6 145206 Saddle 64 145095

7 145351 Heat Shield 66 143485X014

8 126471X Clip Insulator 69 140181

9 145203 Dash, Plastic 7t 73640400

10 72140608 Bolt, Carriage 3/8-16 x 1 73 17580408

11 14.52!8 Panel, Dash, LH 75 108067X

13 145217 Panel, Dash, RH 86 136670X558

14 17490608 Screw, Thd., Roll. 3/8o16 x 1/2 87 136671X558

Type TT 90 STD551025

17 136673X558 Hood Assembly 100 t05037X

24 STD523710 Bolt t14 145349

25 19131312 Washer 13/32 x 13/16 x 12 Gauge t15 121794X

26 STD541437 Nut 119 19092016

28 136373X428 Grill t20 137270

29 136374 Lens, Bar, Clear 121 137269

30 140002X558 Fender 122 137271

31 137113 Bracket Assembly, Fender 123 136814

33 145244X558 Footrest, LH

34 I45243X558 Footrest, RH 124 136813

35 STD533707 Bolt

36 !08067X Nut, Pal 125

38 139886 Bracket Assembly, Pivot, LH

39 139887 Bracket Assembly, Pivot, RH

Fender Strap

Nut, Push, Nylon

Rod, Support Hood

Bushing, Snap, Split

Dash, Lower

Plate, Dash

Plate, Support, Battery

Nut

Screw Tap Lite 1/4-20 x 1/2

Nut, Pal

Panel Assembly, RH

Panel Assembly, LH

Washer 17/64

Strip Foam

Bracket, Support, Dash

Cover Access Black Square

Washer 9/32 x 1-I/4 x 16 Ga.

Rivet, Rachet, Male

Washer, Nylon

Rivet, Ratchet, Female

Bracket Assembly, Front Pivot

Hinge, LH

Bracket Assembly, Front Pivot

Hinge, RH

74180412 Screw, Machine 1/4-20 x 3/4

NOTE: All component dimensions given in U.So inches

1 inch = 25.4 mm

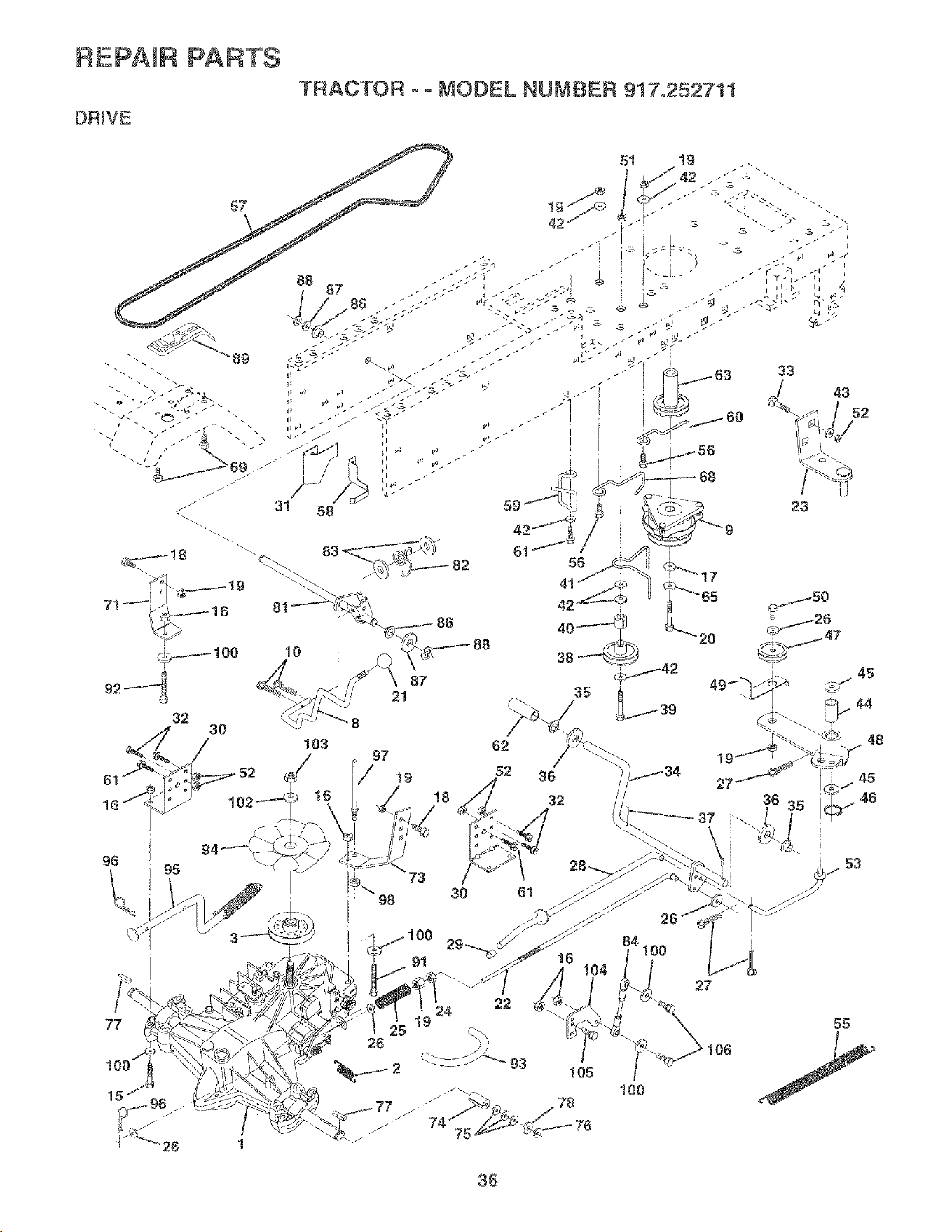

TRACTOR-- MODEL NUIV_BER 9!7.252711

3_(_ 103 8 97 62

61 52

' " 98 30 61

•48

I T 91

24 22

104

105

84100

100

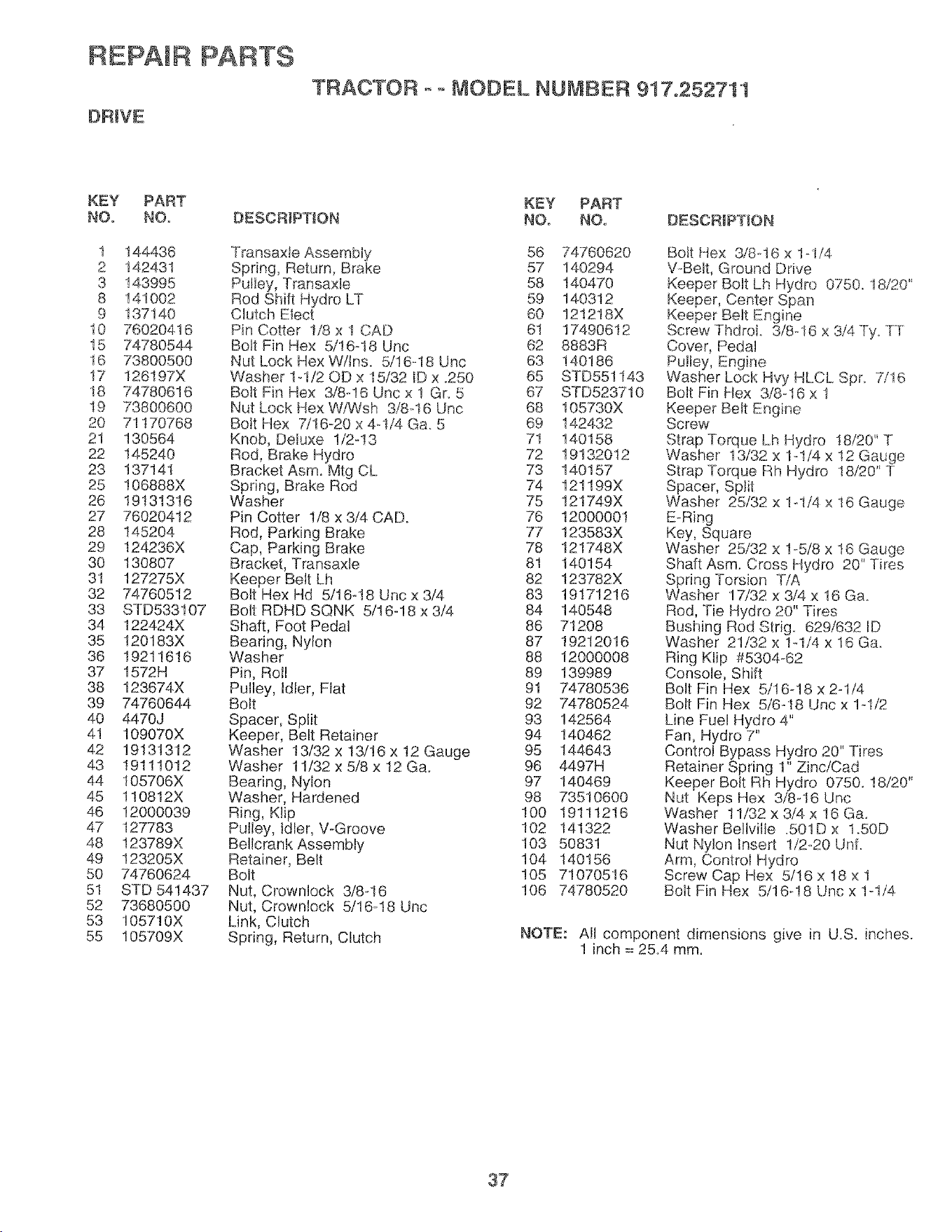

REPAIR PARTS

DRIVE

TRACTOR o MODEL NU IBER 917o25271t

KEY PART

NO. NOo

1 144436

2 142431

3 143995

8 14.1002

9 13714O

10 76020416

15 74780544

16 73800500

I7 126197X

18 74780616

!9 73800600

20 71170768

21 130564

22 145240

23 137141

25 106888X

26 19131316

27 76020412

28 145204

29 124236X

30 130807

31 127275X

32 74760512

33 STD533107

34 122424X

35 120183X

36 19211616

37 1572H

38 123674X

39 74760644

40 4470J

4i 109070X

42 19131312

43 19111012

44 I05706X

45 !10812X

46 12000039

47 127783

48 t23789X

49 123205X

50 74760624

51 STD 541437

52 73680500

53 105710X

55 105709X

DESCRIPTION

Transaxle Assembly

Spring, Return, Brake

Pulley, Transaxle

Rod Shift Hydro LT

ChJtch Elect

Pin Cotter 1/8 x 1 CAD

Bolt Fin Hex 5/t6-18 Unc

Nut Lock Hex W/Ins. 5/16o18 Uric

Washer lq/20D x I5/32 ID x .250

Bolt Fin Hex 3/8.-16 Unc x ! Gr. 5

Nut Lock Hex W[Wsh 3/8-.16 Unc

Bott Hex 7/16-20 x 4.-1/4 Ga. 5

Knob, Deluxe 1/2q3

Rod, Brake Hydro

Bracket Asm. Mtg CL

Spring, Brake Rod

Washer

Pin Cotter 1/8 x 3/'4 CAD.

Rod, Parking Brake

Cap, Parking Brake

Bracket, Transaxle

Keeper Belt Lh

Bolt Hex Hd 5/16.-t8 Unc x 3/4

Bolt RDHD SQNK 5/16-18 x 3/4

Shaft, Foot Pedal

Bearing, Nylon

Washer

Pin, Roll

Pulley, Idler, Fiat

Bolt

Spacer, Split

Keeper, Belt Retainer

Washer 13/32 x 13/16 x 12 Gauge

Washer 11/32 x 5/8 x 12 Ga.

Bearing, Nylon

Washer, Hardened

Ring, Klip

Putley, Idler, V-Groove

Bellcrank Assembly

Retainer, Belt

Bolt

Nut, Crownlock 3/816

Nut, Crowniock 5/16-18 Unc

Link, Clutch

Spring, Return, Clutch

KEY PART

NO. NO. DESCRiPTiON

56 74760620

57 140294

58 140470

59 140312

60 1212!8X

61 17490612

62 8883R

63 140186

65 STD551t43

67 STD523710

68 105730X

69 142432

71 140158

72 19132012

73 140157

74 121199X

75 121749X

76 12000001

77 123583X

78 121748X

81 140154

82 t23782X

83 19171216

84 140548

86 71208

87 19212016

88 12000008

89 '139989

91 74780536

92 74780524

93 142564

94 140462

95 14464.3

96 4497H

97 140469

98 73510600

100 19111216

102 141322

103 50831

104 140156

!05 71070516

106 74780520

Bolt 14ex 3/8-.16 x lq/4

V-.Bett, Ground Drive

Keeper Bolt Lh Hydro 0750. t8/20"

Keeper, Center Span

Keeper Belt Engine

Screw ThdroL 3/8q6 x 3/'4 Ty_ TT

Cover, Pedal

Pulley, Engine

Washer Lock Hvy HLCL Spr. 7/16

Bolt Fin Flex 3/8o16 x 1

Keeper Belt Engine

Screw

Strap Torque Lh Hydro 18/20" T

Washer 13/32 x 1_1/4 x !2 Gauge

Strap Torque Rh Hydro 18/20" T

Spacer, Split

Washer 25/32 x !ol/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x !-5/8 x !6 Gauge

Shaft Asm. Cross Hydro 20" Tires

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.

Rod, Tie Hydro 20" Tires

Bushing Rod Strig. 629/632 [D

Washer 21/32 x 1_!/4 x 16 Ga_

Ring Klip #5304-82

Console, Shift

Bolt Fin Hex 5/!6-18 x 2-1/4

Bolt Fin Hex 5/6-18 Unc x 1-1/2

Line Fuel Hydro 4"

Fan, Hydro 7"

Control Bypass Hydro 20" Tires

Retainer Spring 1" Zinc/Cad

Keeper Bolt Rh Hydro 0750.18/20"

Nut Keps Hex 3/8o16 Unc

Washer 11/32 x 3/4 x t6 Ga.

Washer Beltville .501D x 1.50D

Nut Nylon Insert !/2-20 Urff.

Arm, Control Hydro

Screw Cap Hex 5/16 x t8 x t

Bolt Fin Hex 5/16q8 Unc x 1-1/4

NOTE: All componen[ dimensions give in US. inches.

! inch = 25.4 mm.

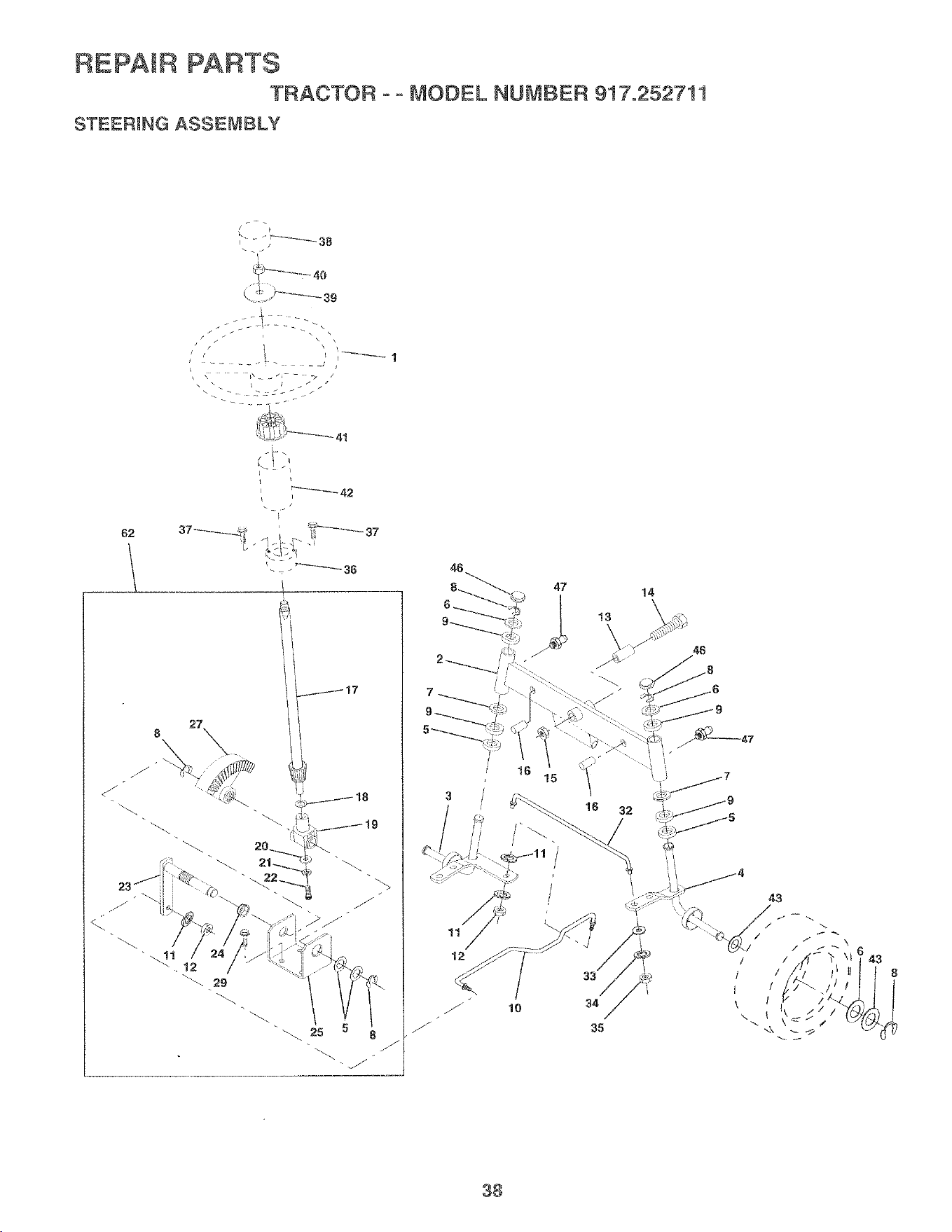

REPAIR PARTS

TRACTOR ° _ MODEL NUMBER 9!7o252711

STEERING ASSEMBLY

"_. r-___ 42

._.,..f17

47 14

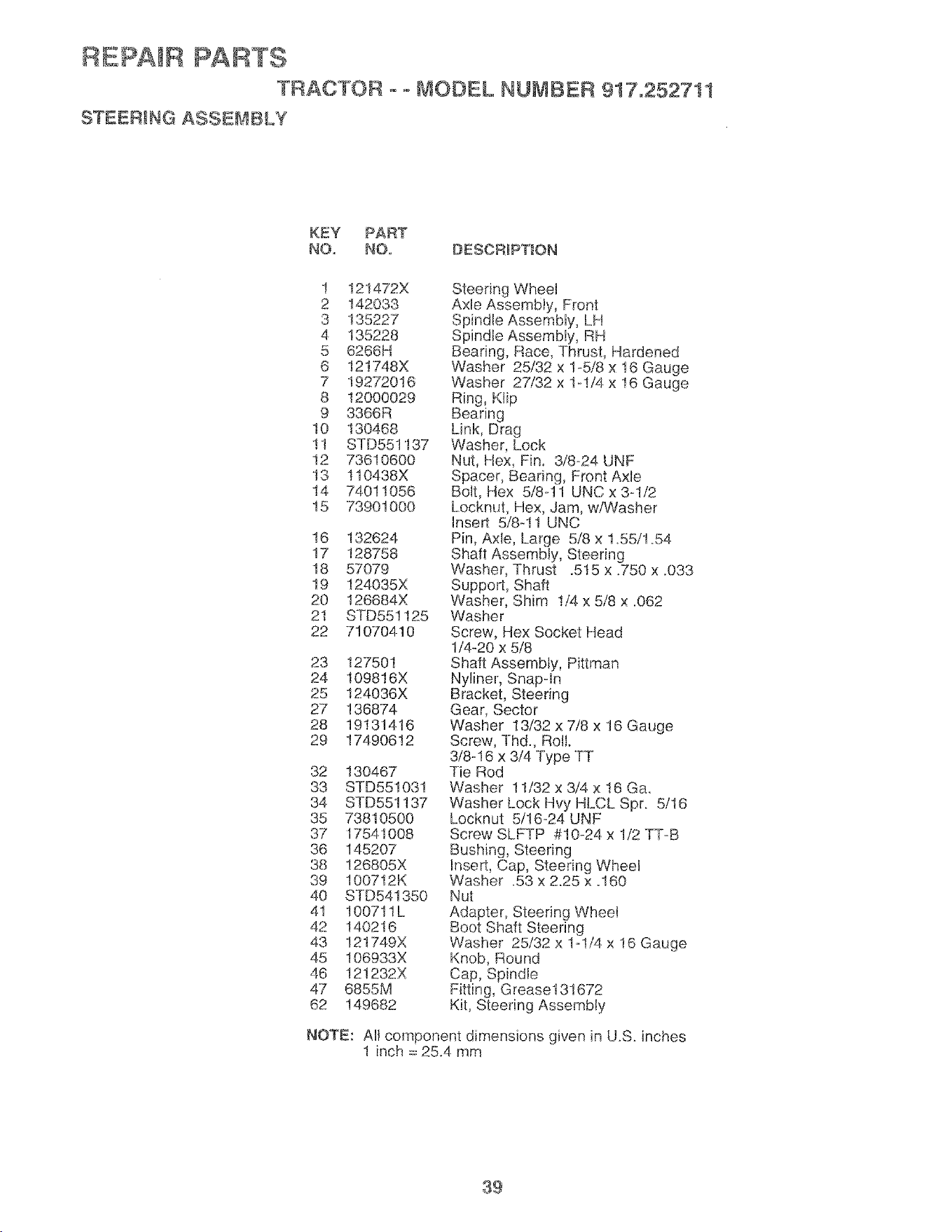

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917.252711

STEERING ASSEMBLY

KEY PART

NO, NO. DESCRIPTION

1 121472X

2 142033

3 135227

4 135228

5 6266H

6 12t748X

7 19272016

8 12000029

9 3366R

10 130468

!1 STD551137

12 73610600

!3 110438X

14 74011056

15 73901000

16 132624

17 128758

t8 57079

19 124035X

20 126684X

21 STD55!125

22 71070410

23 127501

24 109816X

25 124036X

27 136874

28 19131416

29 17490612

32 130467

33 STD551031

34 STD551137

35 73810500

37 t7541008

36 145207

38 126805X

39 100712K

40 STD541350

41 1007!1L

42 140216

43 121749X

45 t06933X

46 121232X

47 6855M

62 149682

Steering Wheel

Axle Assembly, Front

Spindle Assembly, LH

Spindle Assembly, RH

Bearing, Race, Thrust, Hardened

Washer 25/32 x to5/8 x 16 Gauge

Washer 27/32 x 1-!/4 x 16 Gauge

Ring, Klip

Bearing

Link, Drag

Washer, Lock

Nut, Hex, Fin. 3/8-24 UNF

Spacer, Bearing, Front Axle

Bolt, Hex 5/8-11 UNC x 3-1/2

Loocknut,Hex, Jam, wlWasher

Insert 5/8-11 UNC

Pin, Axle, Large 5/8 x 1.55/1.54

Shaft Assembly, Steering

Washer, Thrust .5t5 x .750 x .033

Support, Shaft

Washer, Shim t/4 x 5/8 x .062

Washer

Screw, Hex Socket Read

1/4-20 x 5/8

Shaft Assembly, Pittman

Nyliner, Snap-In

Bracket, Steering

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd., Roll

3/8-16 x 3/4 Type _

Tie Rod

Washer 11/32 x 3/4 x t6 Ga.

Washer Lock Hvy HLCL Spr. 5/16

Locknut 5/16..24 UNF

Screw SLFTP #10-24 x 1/2 TT.-B

Bushing, Steering

Insert, Cap, Steering Wheel

Washer .53 x 2.25 x _160

Nut

Adapter, Steering Wheel

Boot Shaft Steering

Washer 25/32 x I-t/4 x 16 Gauge

Knob, Round

Cap, Spindle

Fitting, Grease131672

Kit, Steering Assembly

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

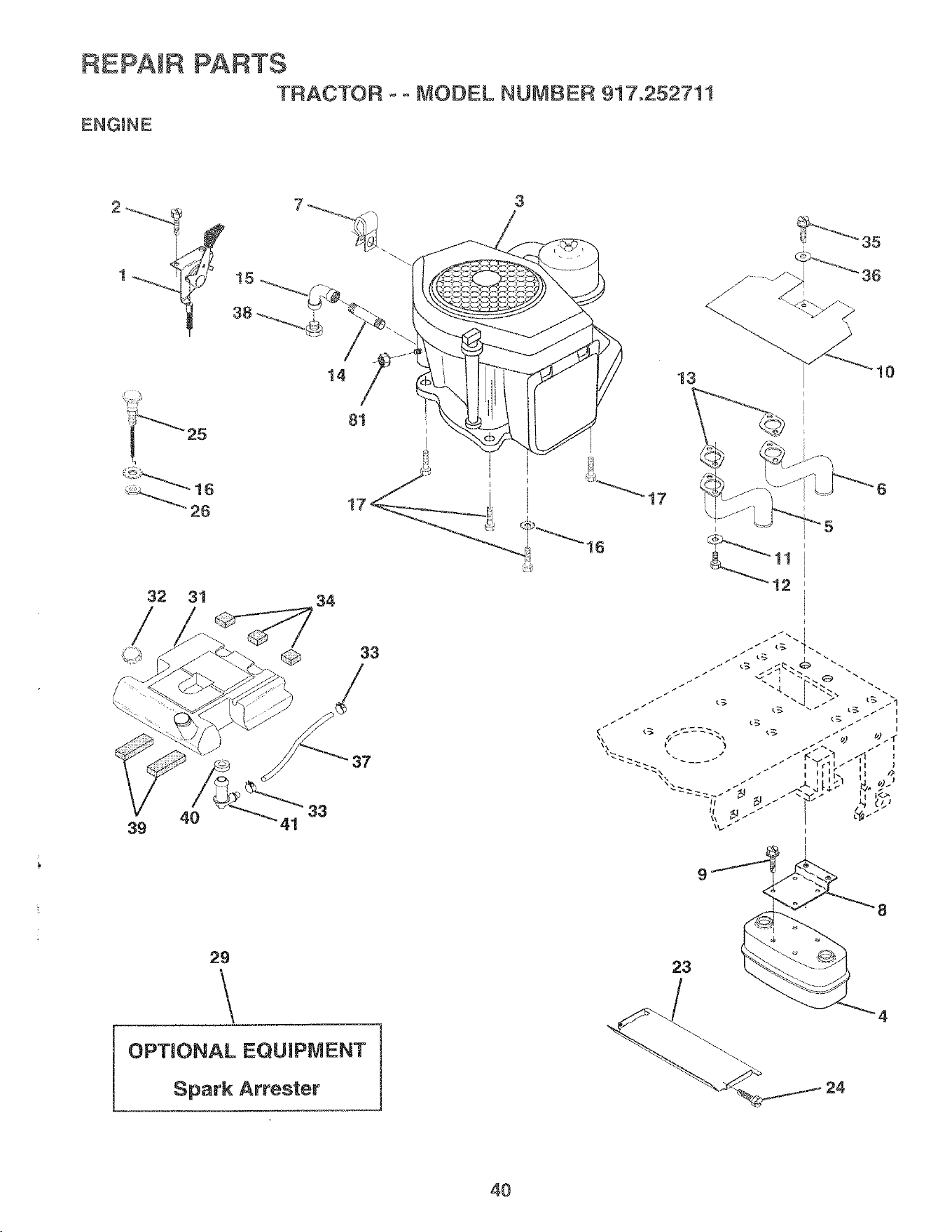

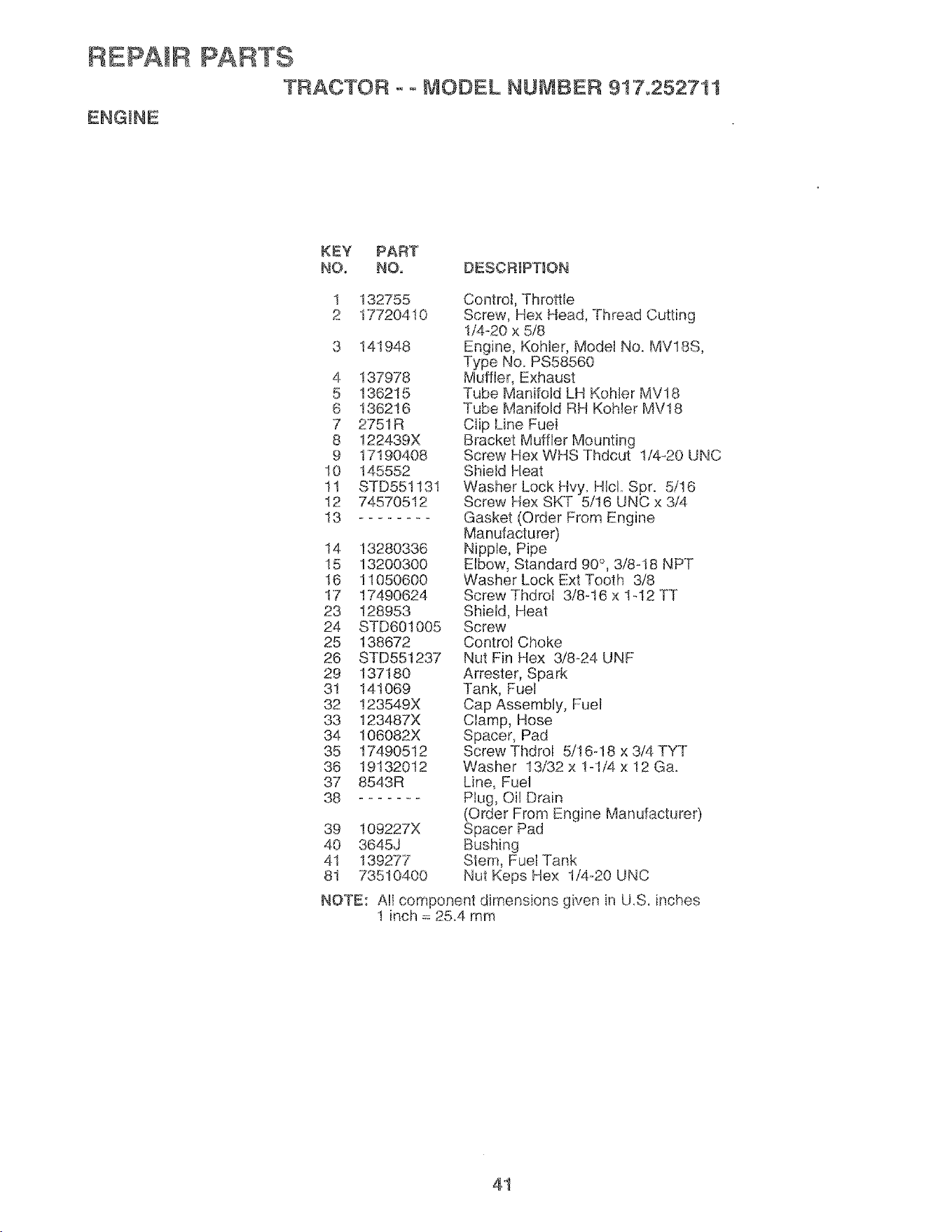

REPAIR

ENGINE

PARTS

TRACTOR ° o MODEL NUMBER 917.252711

KEY PART

NOo NO. DESCR_PTION

1 132755

2 177204t0

3 141948

4 !37978

5 136215

6 136216

7 2751R

8 122439X

9 17190408

!0 I4.5552

11 STD551131

12 74570512

13 ..........

14 13280336

I5 13200300

16 11050600

1'7 17490624

23 128953

24 STD60!005

25 138672

26 STD551237

29 137180

31 141069

32 123549X

33 123487X

34 106082X

35 17490512

36 19132012

37 8543R

38 .......

39 109227X

40 3645J

41 139277

81 735104.00

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5/8

Engine, Kohter, Model No. MV18S,

Type No. PS58560

Muffler, Exhaust

Tube Manifold LH Kohler MV18

Tube Manifold RH Koh!er MV18

Clip Line Fuel

Bracket Muffler Mounting

Screw Hex WHS Thdcut 1/4-.20 UNC

Shield Heat

Washer Lock Hvy. Hlcl. Spr. 5/18

Screw Hex SKT 5/16 UNC x 3/4

Gasket (Order From Engine

Manufacturer)

Nipple, Pipe

Elbow, Standard 90°, 3/8-18 NPT

Washer Lock Ext Tooth 3/8

Screw Thdrof 3/8-!6 x I_12 TT

Shield, Heat

Screw

Control Choke

Nut Fin Hex 3/8-24. UNF

Arrester, Spark

Tank, Fuel

Cap Assembly, Fuel

Clamp, Hose

Spacer, Pad

Screw Thdro! 5/16-18 x 3/4. TYT

Washer !3/32 x 1-1/4 x !2 Ga.

Line, Fuel

Plug, Oil Drain

(Order From Engine Manufacturer)

Spacer Pad

Bushing

Stem, Fuel Tank

Nut Keps Hex 1/4_20 UNC

NOTE: AII component dimensions gwen in U.S. inches

! inch = 25.4 mm

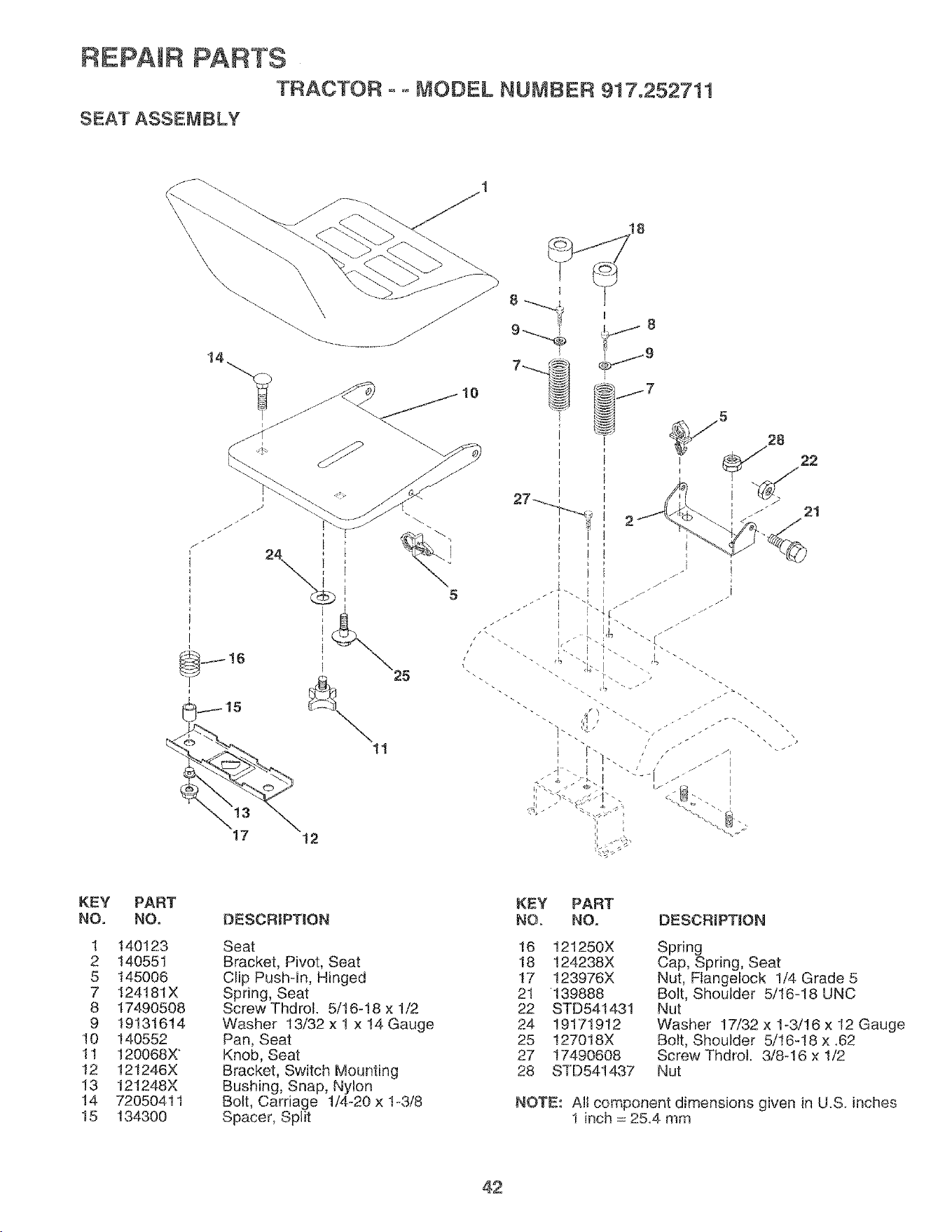

REPAR PARTS

TRACTOR o o MODEL NUMBER 917o2527!1

SEAT ASSEMBLY

17 12

KEY

NO.

PART

NO.

140123

140551

145006

124181X

17490508

19131614

140552

120068X"

121246X

121248X

72050411

134300

DESCRIPTION

Seat

Bracket, Pivot, Seat

Clip Pushqn, Hinged

Spring, Seat

Screw Thdrot. 5/16-!8 x 1/2

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

Knob, Seat

Bracket, Switch Mounting

Bushing, Snap, Nylon

Bolt, Carriage 1/4-20 x t-3/8

Spacer, Split

KEY PART

NOo NO. DESCRIPTION

16 121250X

18 124238X

17 !23976X

2! 139888

22 STD541431

24 19171912

25 !27018X

27 17490608

28 STD541437

Spring

Cap, Spring, Seat

Nut, Flangelock 1/4 Grade 5

Boll, Shoulder 5/16-18 UNC

Nut

Washer 17/32 x 1o3/16 x 12 Gauge

Bolt, Shoulder 5/!6-18 x .62

Screw ThdroL 3/8o16 x 1/2

Nut

NOTE: All component dimensions givenin U.S. inches

1 inch = 25.4 mm

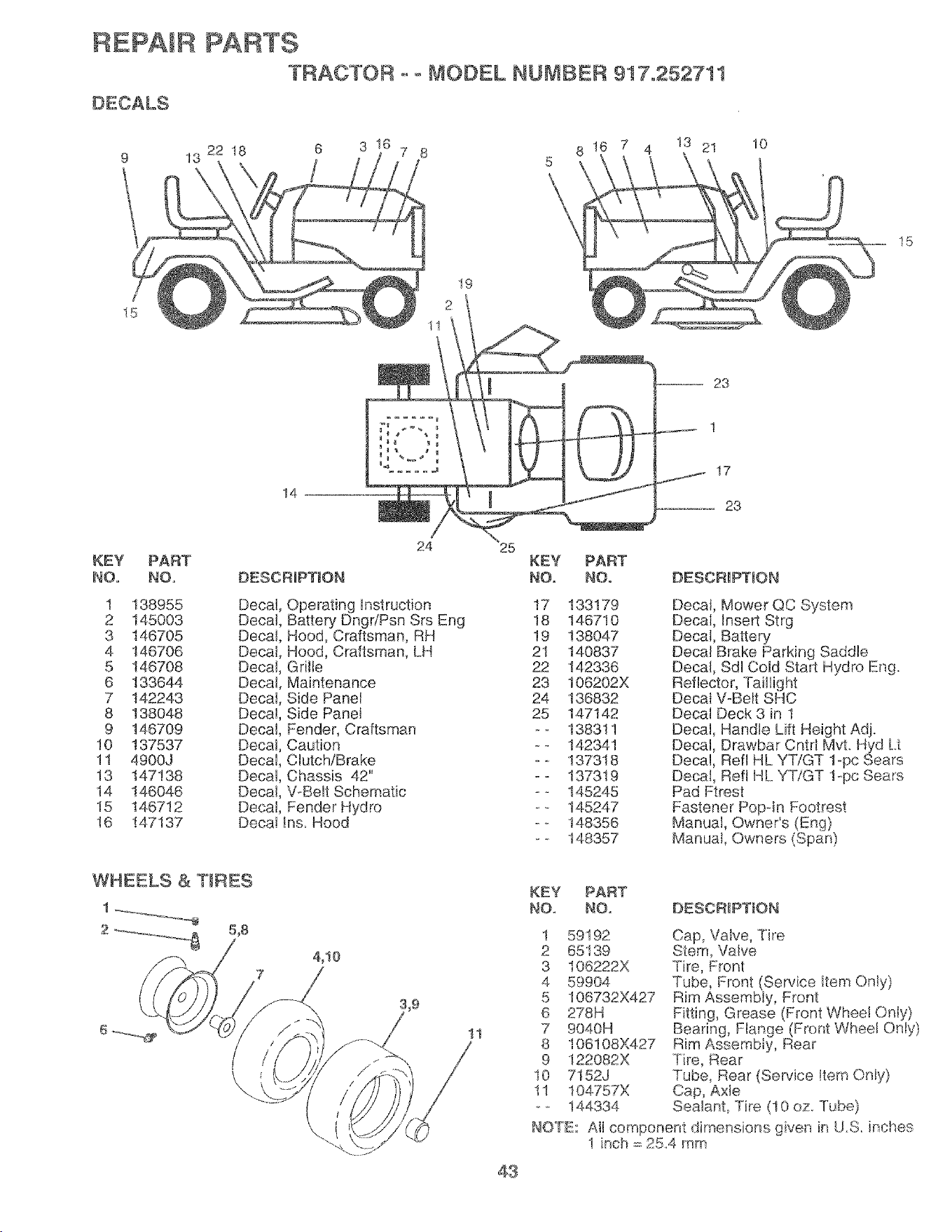

REPAIR PARTS

TRACTOR o o MODEL NUMBER 9t7o252711

DECALS

13 22 18 6 3 10 7 8

!6 7 4 21 10

KEY

NO.

PART

NO,

1 138955

2 145003

3 146705

4 146706

5 146708

6 133644

7 142243

8 138048

9 146709

10 137537

11 4900J

13 147138

14 146046

15 146712

16 147137

DESCRmPT_ON

Decal, Operating Instruction

Decal, Battery DngdPsn Srs Eng

Decal, Hood, Craftsman, RH

Decal, Hood, Craftsman, LH

Decal, Gdlle

Decal Maintenance

Decal Side Panel

Decal Side Panet

Decal. Fender, Craftsman

Decal Caution

Decal Clutch/Brake

Decal Chassis 42"

Decal WBelt Schematic

Decal Fender Hydro

Deca! tns. Hood

WHEELS & T_RES

! ...... _ ....... '8

5,8

4,I0

KEY

NO.

PART

NO.

133179

146710

138047

140837

142336

106202X

136832

147142

138311

142341

137318

137319

145245

145247

148356

148357

DESCRIPTION

Decal, Mower QC System

Decal, Insert Strg

Decal, Battery

Decal Brake Parking Saddle

Decal, Sdl Cold Start Hydro Eng.

Reflector, Taillight

Decal V-Belt SHC

Decal Deck 3 in 1

Decal, Handle Lift Height Adj.

Decal, Drawbar Cntrl MvL Hyd Lt

Decal, Refl HL YT/GT 1-pc Sears

Decal, Refl HL YT/GT 1-pc Sea_s

Pad FtresI

Fastener Popqn Footrest

Manual, OwneCs (Eng)

Manuat, Owners (Span)

KEY PART

NOo NO, DESCRiPTiON

! 59192

2 65139

3 I06222X

4 59904

5 !06732X427

6 278H

7 9040H

8 186108)(427

9 122082X

10 7152J

11 104757X

o_ 144334

Cap, Valve, Tire

Stern_ Valve

Tire, Front

Tube, Front (Service Item Only)

Rim Assembly, Front

Fitting, Grease (Front Wheet Only)

Bearing, Flange (Front Wheel Only)

Rim Assembiy, Rear

Tire, Rear

Tube, Rear (Service !tern Onty)

Cap, Axle

Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given ir_ U.S_ inches

1 inch .=254 mm

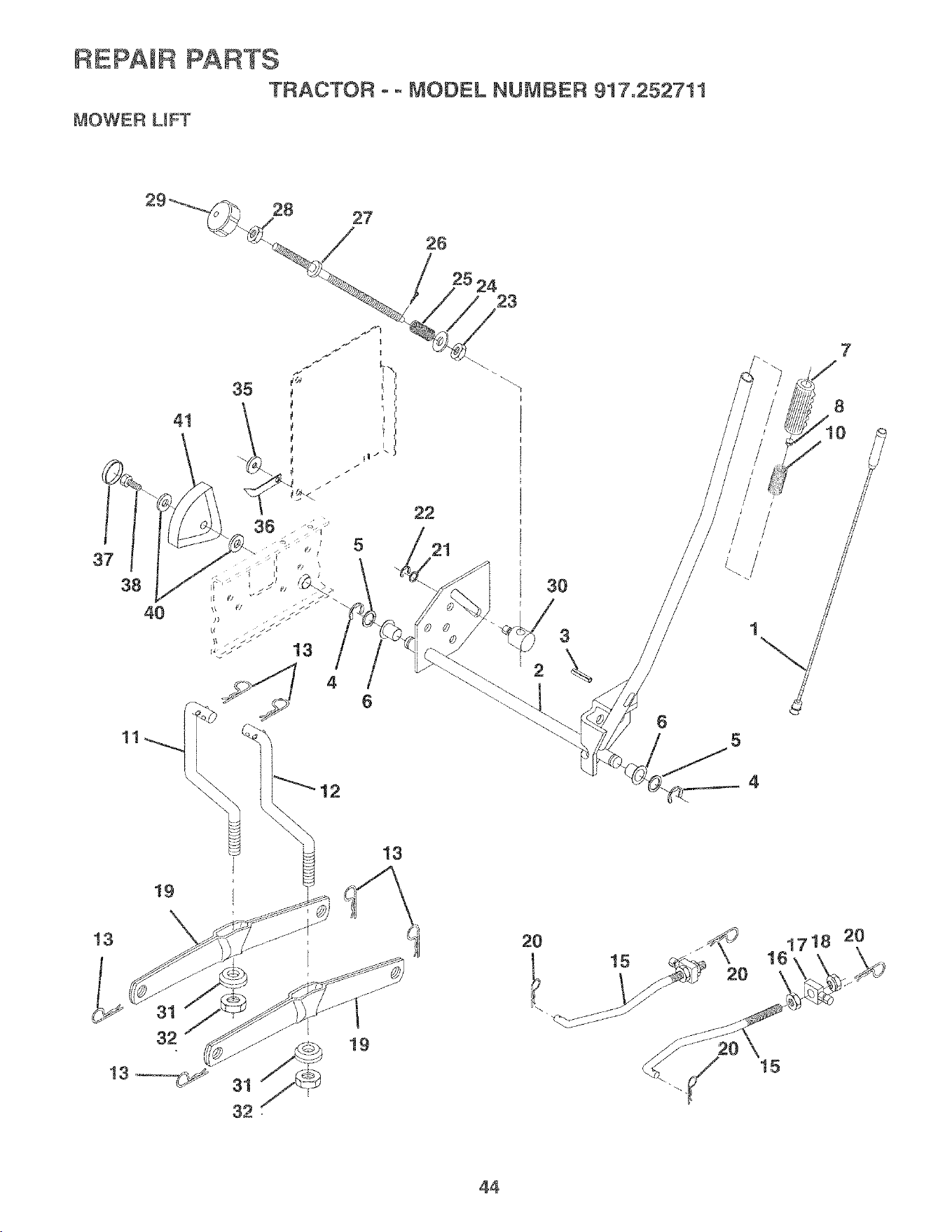

REPAmR PARTS

TRACTOR ° o MODEL NUMBER 917o252711

MOWER LIFT

28 27

5 21

161718 20

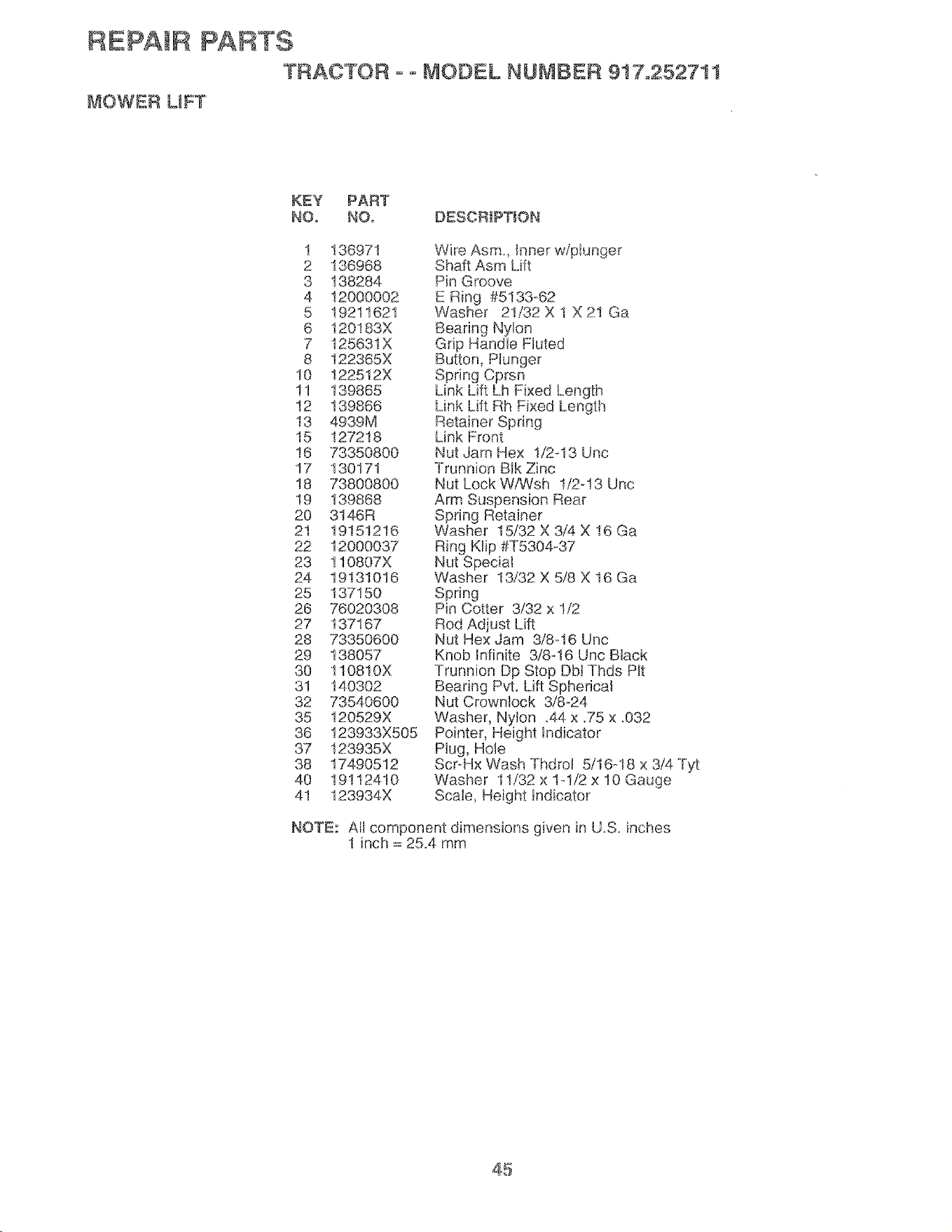

REPAMR PARTS

TRACTOR o ° 4ODEL NUMBER 9!7.252711

MOWER L_FT

KEY PART

NO. NO, DESCRiPTiON

t 136971

2 136968

3 138284

4 12000002

5 19211621

6 120!83X

7 I25631X

8 !22365X

10 122512X

11 139865

12 139866

13 4939M

15 127218

!6 73350800

17 130171

18 73800800

19 139868

20 3146R

2t 19151216

22 12000037

23 110807X

24 19131016

25 137150

26 76020308

27 137167

28 73350600

29 138057

30 110810X

31 140302

32 7354.0600

35 I20529X

36 123933X505

37 123935X

38 17490512

40 19112410

41 123934X

Wire Asm. Inner wipiunger

Shaft Asm Lift

Pin Groove

E Ring #5133_62

Washer 21i32X1X21Ga

Bearing Nylon

Grip HandJe Fluted

Button, Plunger

Spring Cprsn

Link Lift Lh Fixed Length

Link Lift Rh Fixed Length

Retainer Spring

Link Front

Nut Jam Hex I/2q3 Uric

Trunnion BIk Zinc

Nut Lock WiWsh 1/2ot3 Uric

Arm Suspension Rear

Spring Retainer

Washer 15/32 X 3/4 X !6 Ga

Ring Klip #T5304-_37

Nut Special

Washer 13/32 X 5/8 X I6 Ga

Spring

Pin Cotter 3/32 x 1/2

Rod Adjust Lift

Nut HexJam 3/8-16 Unc

Knob Infinite 3/8-16 Unc Black

Trunnion Dp Stop Dbl _hds Pit

Bearing Pvt. LifL Spherical

Nut Crownlock 3/8-24

Washer, Nylon .44 x .75 x .032

Pointer, Height indicator

Plug, Hole

Scr-Hx Wash ThdroI 5/16.!8 x 3/4 Tyt

Washer 11/32 x 1-1/2 x 10 Gauge

Scale, Height Indicator

NOTE: Ai] component dimensions given in U.S. inches

1 inch = 25.4 mm

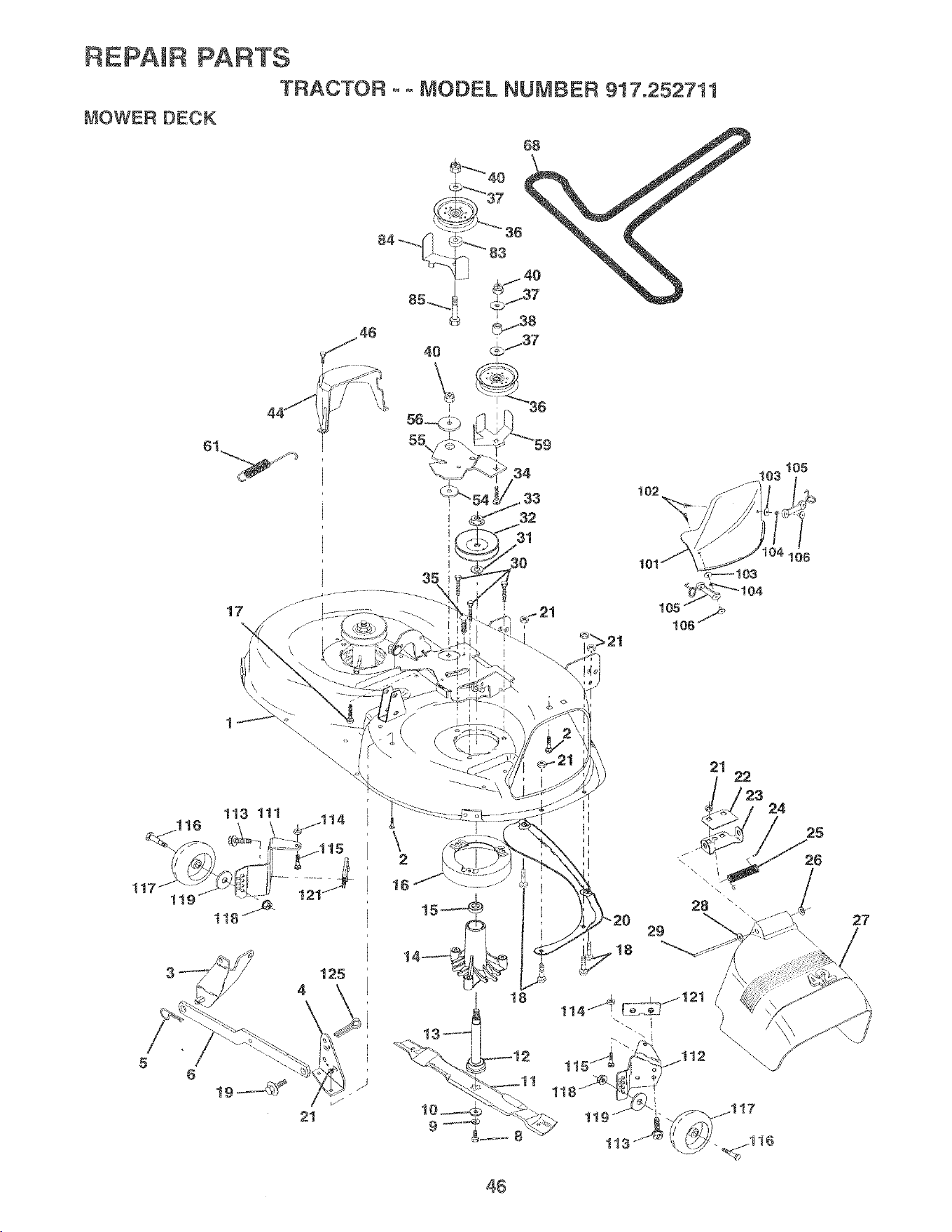

REPAIR PARTS

TRACTOR o _ MODEL NUMBER 917o252711

MOWER DEC}(

84 36

102

f--

105 /._

106 --

106

117

1!9

113 111

121 j

125

14 ! 18

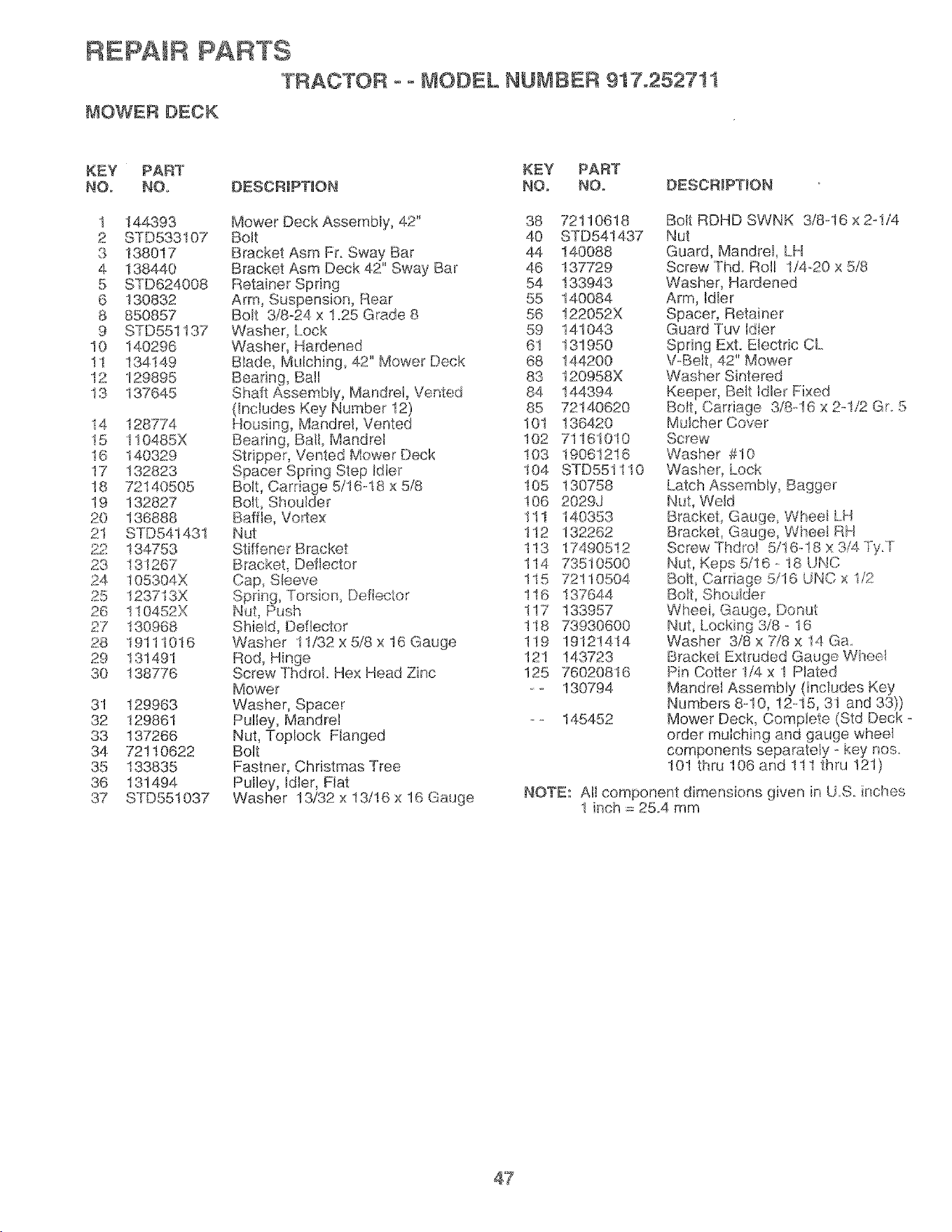

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917.2527!I

MOWER DECK:

KEY PART KEY PART

NO. NOo DESCRIPTION NOo NOo DESCRIPTION

1 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

II 134149

12 129895

13 137645

i4 128774

!5 110485X

16 140329

17 132823

t8 7214O505

19 132827

20 136888

21 STD54!431

22 134753

23 131267

24 105304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 1387'76

31 129963

32 129861

33 137266

34 72110622

35 133835

36 131494

37 STD551037

Mower Deck AssernbIy, 42" 38

Bolt 40

Bracket Asm Fr. Sway Bar 44

Bracket Asm Deck 42" Sway Bar 46

Retainer Spring 54

Arm, Suspension, Hear 55

Bolt 3/8=24.x t.25 Grade 8 56

Washer, Lock 59

Washer, Hardened 61

Blade, MutcNng_ 42" Mower Deck 68

Bearing, Bali 83

Shaft Assembly, Mandrel, Vented 84

(k_c[udes Key Number 12) 85

Housing, Mandrel, Vented 101

Bearing, Bal[_ Mandrel 102

Stripper, Vented Mower Deck 103

Spacer Spring Step Idier t04

Bolt, Carriage 5/16!8 x 5/8 105

Bolt, ShouIder !06

Baffle, Vortex 11t

Nut 112

Stiffener Bracket 1! 3

Bracket, Deflector 114

Cap, Steeve 115

Sprir_g, Torsion, De%ctor 116

Nut, Push 117

Shield, Deflector 118

Washer 11/32 x 5/8 x 16 Gauge 1!9

Rod, Hinge 12!

Screw ThdroI, Hex Head Zinc I25

Mower -

Washer, Spacer

Pufley Mandrel --

Nut, Toplock Flanged

Bolt

Fastner, Christmas Tree

Pulley, idler, Fiat

Washer 13/32 x 13/16 x 16 Gauge

72110618

STD541437

!4.0088

137729

133943

140084

122052X

141043

131950

144200

!20958X

144394

72140620

136420

71161010

19061216

STD551110

130758

2029J

140353

132262

17490512

73510500

72110504

137644

133957

73930600

191214t4

143723

76020816

130794

145452

Bolt RDHD SWNK 3/8-16 x 2q/4

Nut

Guard, Mandrel, LH

Screw Th& Rofl 1/4o20 x 5/8

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard Tuv Idter

Spring Ext. Electric CL

\/. Beit, 42" Mower

Washer Sintered

Keeper, Belt Idler Fixed

BoIt, Carriage 3/8.-!6 x 2-1/2 Gr 5

Mutcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly_ Bagger

Nut, Weld

Brackel, Gauge, Wheet LH

Bracket, Gauge, Wheel RH

Screw Thdre! 5/!6o18 x 3/'4.Ty.T

Nut, Keps 5/16 - 18 UNC

Bolt, Carriage 5/16 UNC x t/2

BoIt, Shoulder

Wheei, Gauge, Donut

Nut, Locking 3/8 - 16

Washer 3/8 x 7/8 x !4 Ga

Bracket Extruded Gauge Wheei

Pin Cotter 1/4 x 1 Plated

Mandrel Assembly (Includes Key

Numbers 8=10, !2.15, 31 and 33))

Mower Deck, Complete (Std Deck

order mulching and gauge wheel

components separately okey nos.

10! thru 106 and Ill thru 12i)

NOTE: All component dimensions given in US. inches

1 ir_ch = 25.4 mm

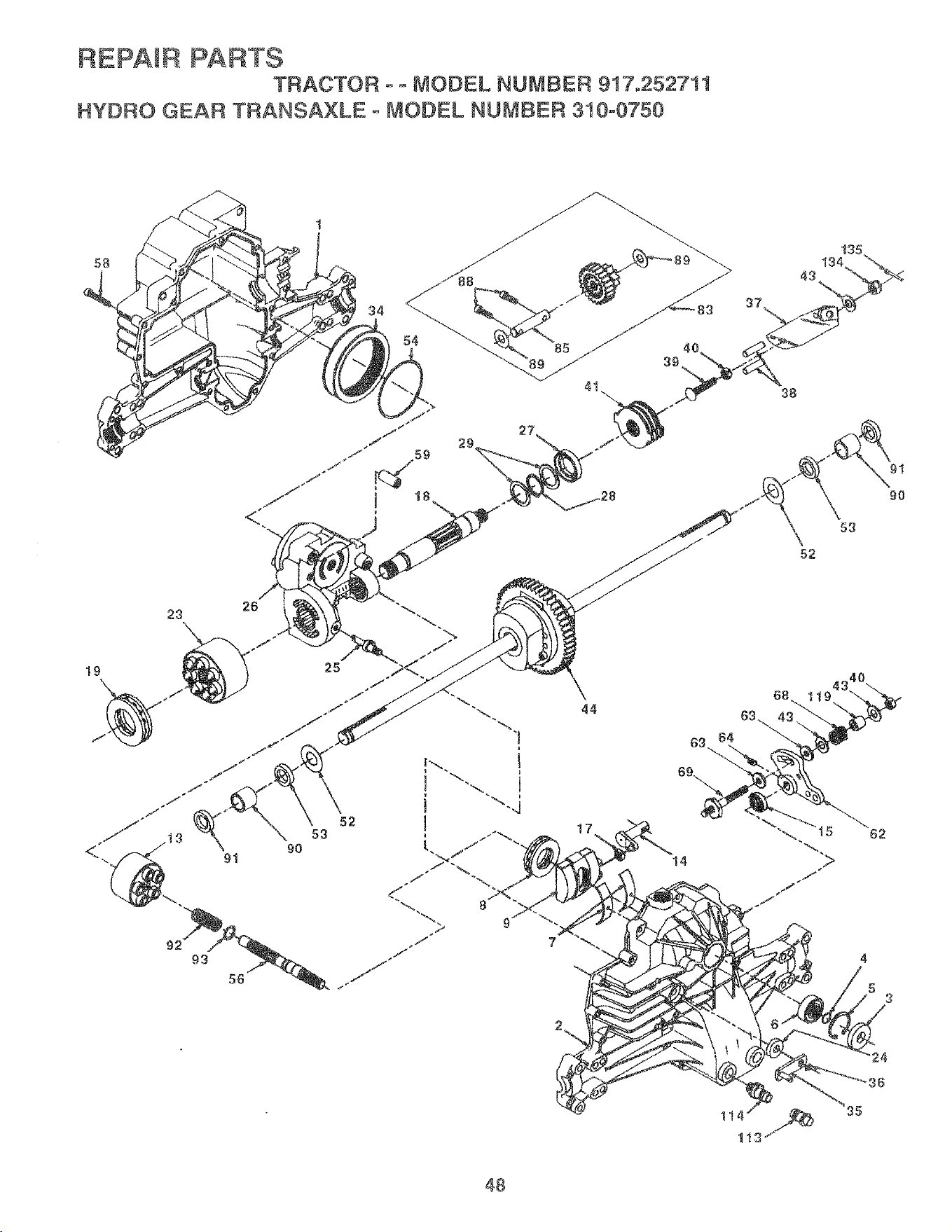

REPAtR PARTS

TRACTOR _ o MODEL NUMBER 917.252711

HYDRO GEAR TRANSA×LE ° MODEL NUMBER 310-0750

t35

184

_24

1!3i _ 35

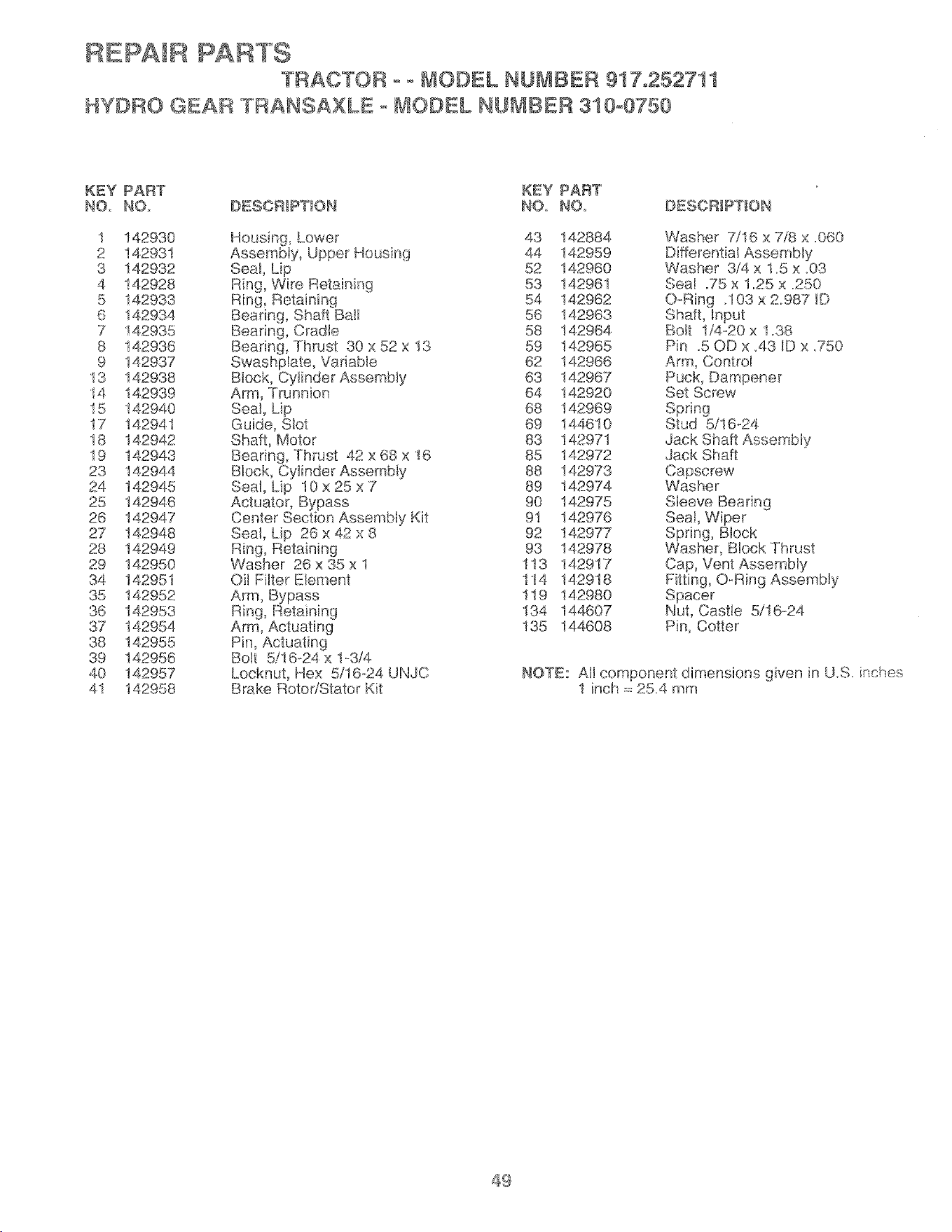

RBPA R PARTS

TRACTOR ooo MODEL NUMBBR 917o252711

NYDRO GEAR TRANSAXLE o ODEL NU[VIBER 310o0750

KEY PART KEY PART

NOo NO,, DESCRiPTiON NO. NOo

I 142930 43 142884

2 14293I Assemb!y, Upper Housing 44 t42959

3 I4.2932 Seat, Lip 52 142960

4 142928 Ring, Wire Retaining 53 142961

5 142933 Ring, Retaining 54 142962

6 142934 Bearing, Shaft Bait 56 142963

7 142935 Bearing, Cradle 58 142964

8 142936 Bearing, Thrust 30 x 52 x 13 59 142965

9 142937 Swashplate, Variable 62 142966

13 14.2938 BIock, Cylinder Assembly 63 142967

t4 142939 64 142920

!5 !42940 Seal, Lip 68 !42969

17 14294.t Guide, Slot 69 144610

18 14.2942 Shaft, Motor 83 14297t

19 142943 Bearing, Thrust 42 x 68 x t6 85 142972

23 142944 Block, Cyiinder Assembly 88 142973

24 142945 Seal, Lip 10x25x7 89 142974

25 142946 Actuator, Bypass 90 142975

26 142947 Center Section Assembly Kit 9! 142976

27 142948 Seal, Lip 28x42x8 92 I42977

28 142949 Ring, Retaining 93 142978

29 142950 Washer 26x 35 x 1 113 142917

34 142951 Oil Filter Element 114 142918

35 142952 Arm, Bypass 1!9 142980

36 142953 Ring, Retaining t34 144607

37 142954 Arm, Actuating 135 144608

38 142955 Pin, Actuating

39 142956 Bolt 5/t8-24 x t_3/4

40 142957 Locknut, Hex 5/16-24 UNJC

41 142958 Brake Rotor/Stator Kit

DESCRiPTiON

Washer 7/I6 x 7/8 x .060

Washer 3/4 x 15 x .03

Seal .75 x 1.25 x 250

O-Ring .103 x 2.987 fD

Shaft, Input

Bolt 1/4._20x 1.38

Pin .50D x .43 ID x .750

Arm, Control

Puck, Dampener

Set Screw

Spring

Stud 5/16_24

Jack Shaft Assembly

Jack Shaft

Capscrew

Washer

Sleeve Bearing

Seal, Wiper

Spring, Block

Washer, B!ock Thrust

Cap, Vent Assembly

Fitting, O-Ring Assembiy

Spacer

Nut, Castle 5/16-.24

Pin, Cotter

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4. turn

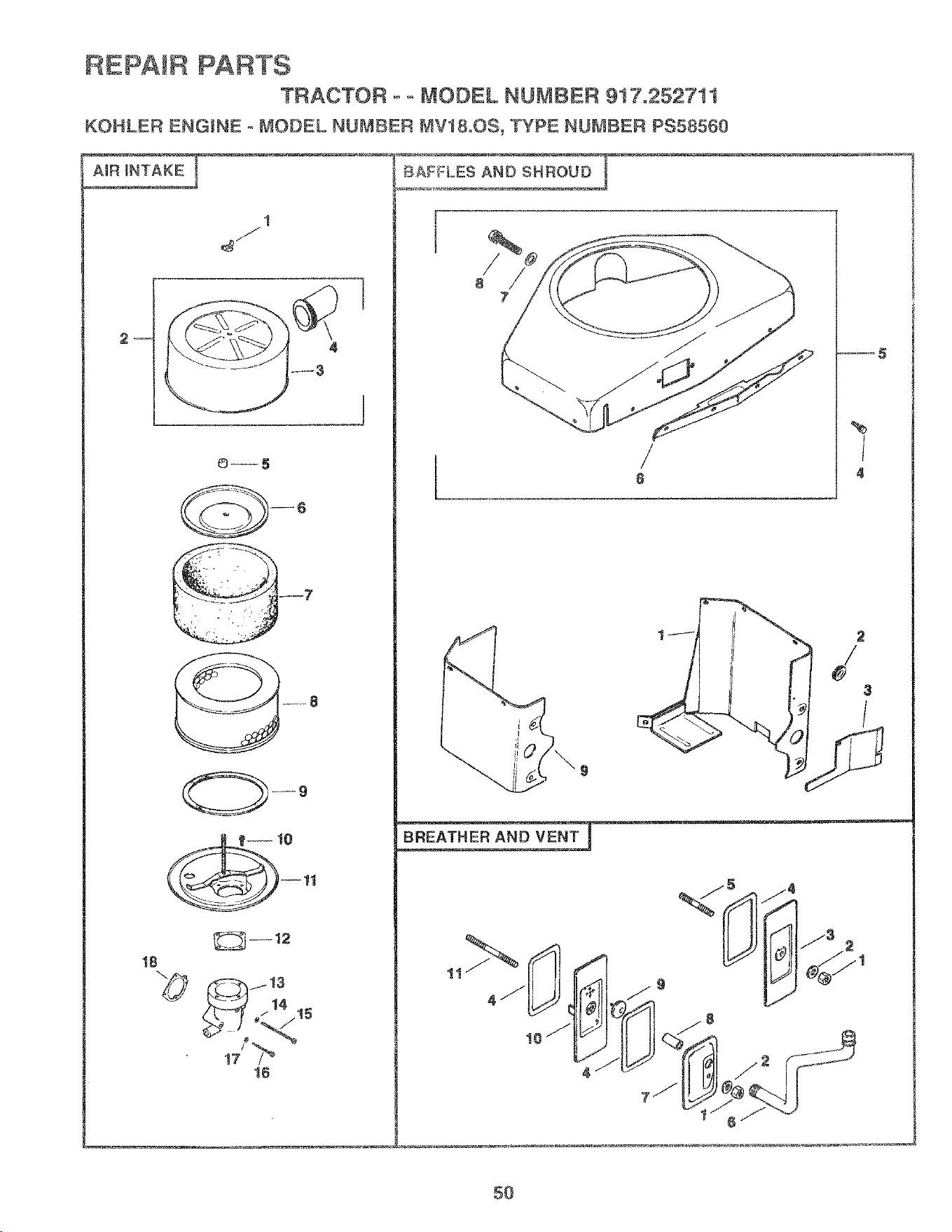

REPAIR PARTS

TRACTOR o ° _,_ODEL NUMBER 917o252711

KOHLER ENGINE o MODEL NUMBER MV18.OS, TYPE NUMBER PS58560

...... 8

--11

_ "-12

0 _j-13

U 'o ",_

, 17_ /_

BREATHER AND VENT ....................

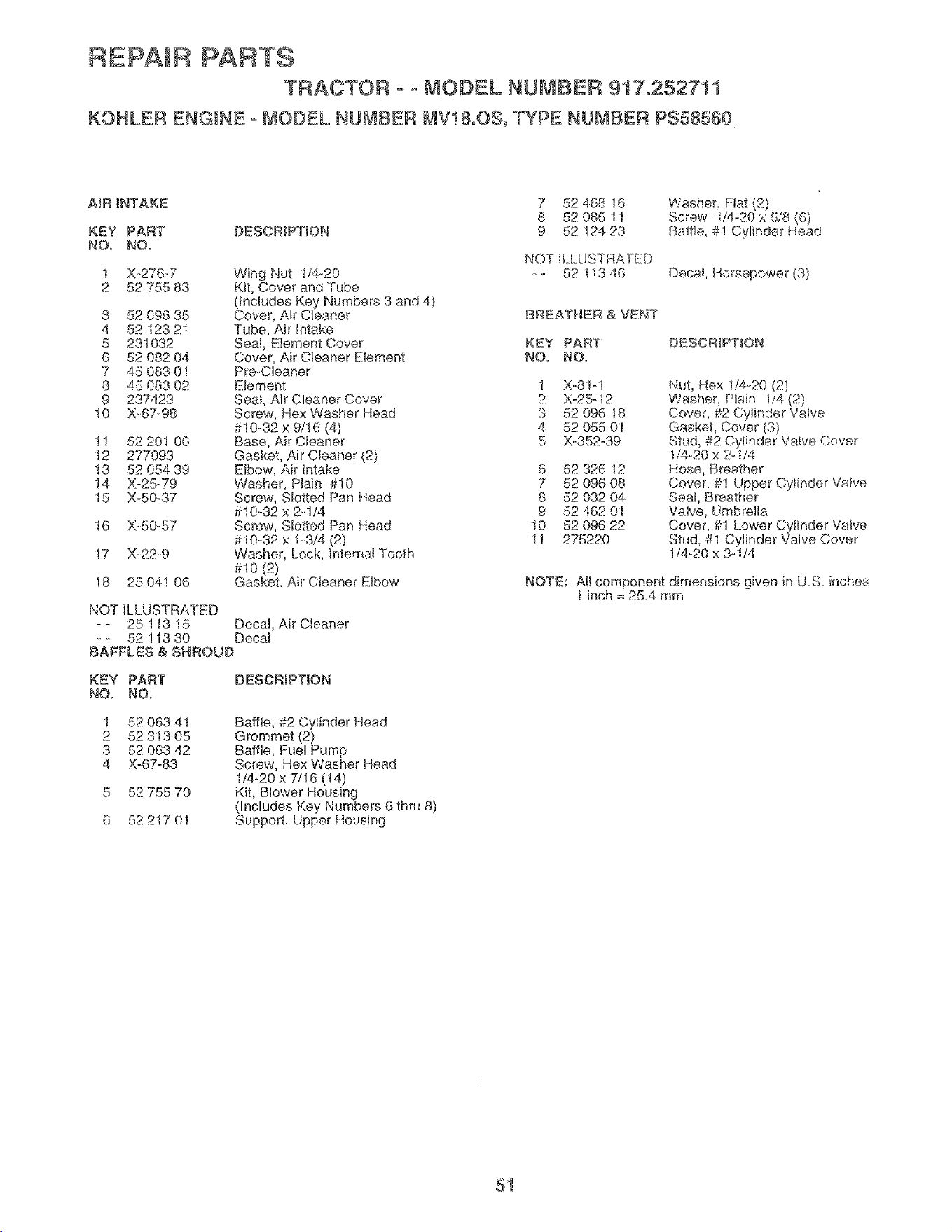

REPAIR PARTS

TRACTOR o o MODEL NUMBER 9t7.252711

KOHLER ENG_INE o MODEL NU_YiBER MV18oOS, TYPE NUMBER PS58560

AIR _NTAKE

KEY PART BESCRIPTION

NO, NOo

i X°276o7 Wing Nut 1/4-20

2 52 755 83 Kit, Cover and Tube

(Includes Key Numbers 3 and 4)

3 52 096 35 Cover, Air Cleaner

4 52 123 21 Tube, Air Intake

5 23t032 Seal, Element Cover

6 52 082 04 Cover, Air Cbaner E_ement

7 45 083 0I Pre_Oleaner

8 45 083 02 Element

9 237423 Seal, Air Cleaner Cover

10 X-67.-98 Screw, Hex Washer Head

#t0.-32 x 9/16 (4)

!! 52 20! 06 Base, AhCteaner

t2 277093 Gasket, Air Cleaner (2)

I3 52 054 39 Elbow, Air Intake

14 Xo25-79 Washer, Plain #10

15 X.-50-37 Screw, Slotted Pan Head

#10._32 x 2_.1/4

16 X-50--57 Screw, Slotted Pan Head

#10-.32 x t_3/4 (2)

17 X-22-9 Washer, Lock, InternaJ Tooth

#10 (2)

18 25 041 06 Gasket, Air Cleaner Elbow

NOT ILLUSTRATED

=° 25 113 !5 Decal, Air Cleaner

o- 5211330 Decal

BAFFLES & SHROUD

KEY PART DESCRIPTION

NOo NO,

52 063 41

52 313 05

52 063 42

X-67-83

52 755 70

52 217 01

Baffle, #2 Cylinder Head

Grommet (2)

Baffle, Fuel Pump

Screw, Hex Washer Head

t14-20 x 7/16 (t4)

Kit, Blower Housing

(Includes Key Numbers 6 thru 8)

Support, Upper Housing

7 52 468 16

8 52 086 1t

9 52 124 23

NOT !LLUSTRATED

°-- 5211346

Washer, Flat (2)

Screw 1/4.-20 x 5/8 (6)

Baffle, #1 Cylinder Head

Decal, Horsepower (3)

BREATHER & VENT

KEY PART

NOo NO.

DESCRIPTION

X-81ol

X-25o12

52 096 18

52 055 01

X._352-39

6 52 326 !2

7 52 096 08

8 52 032 04

9 52 462 01

t0 52 096 22

11 275220

Nut, Hex I/4-20 (2)

Washer, P_ain 1/4 (2)

Cover, #2 Cylinder Valve

Gasket, Cover (3)

Stud, #2 Cylinder Valve Cover

1/4_.20 x 2-I/4

Hose, Breather

Cover, #1 Upper Cylinder Valve

Seal, Breather

VaJve, Umbrella

Cover, #1 Lower Cylinder Valve

Stud, #1 Cylinder Valve Cover

1/4-20 x 3ol/4

NOTE: A!l component dimensions given in U.S. inches

1 inch = 25.4 mm

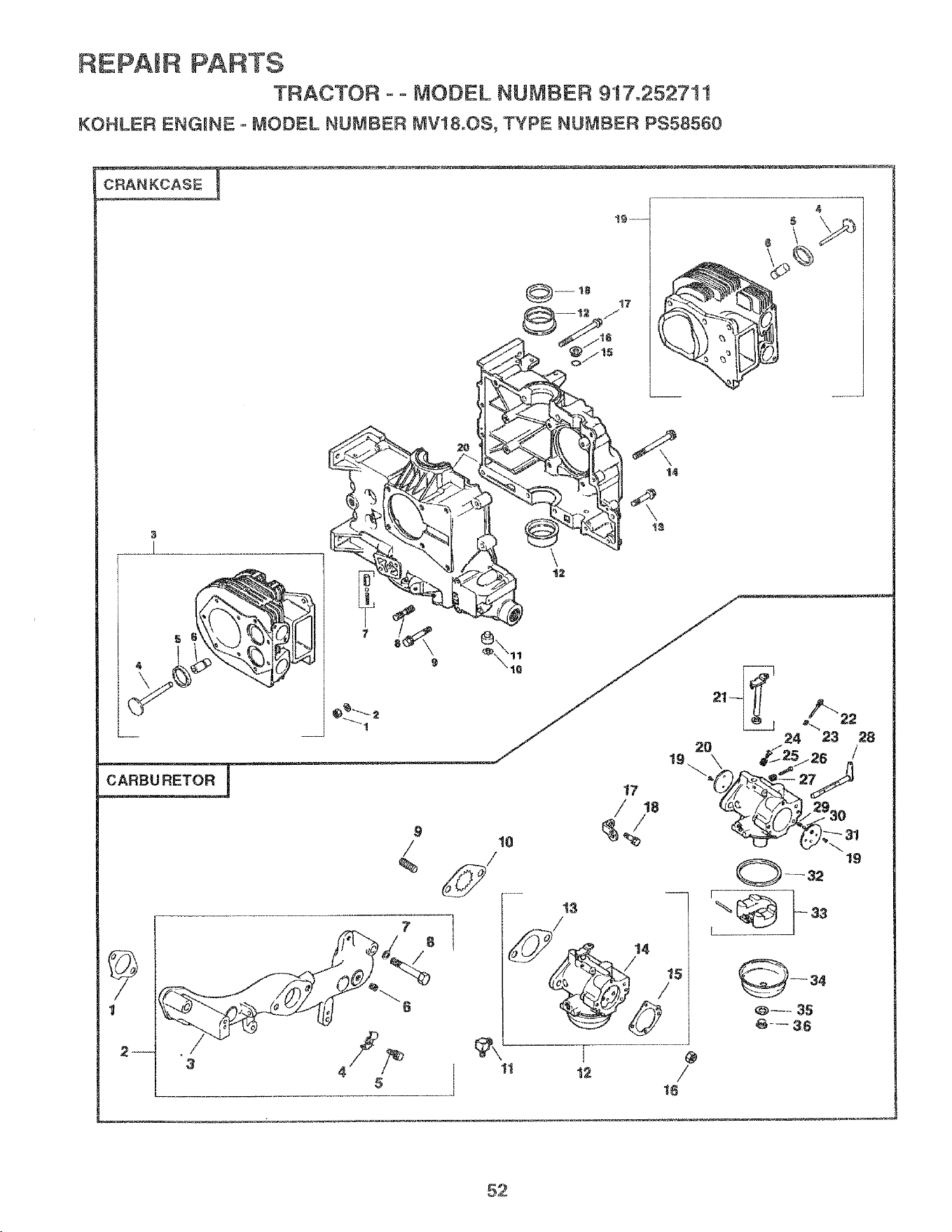

REPAMR PARTS

TRACTOR o o MODEL NUMBER 9t7.2527!1

KOHLER ENGINE ° MODEL NUMBER MV18oO$, TYPE NUMBER PS58560

CARBURETOR [

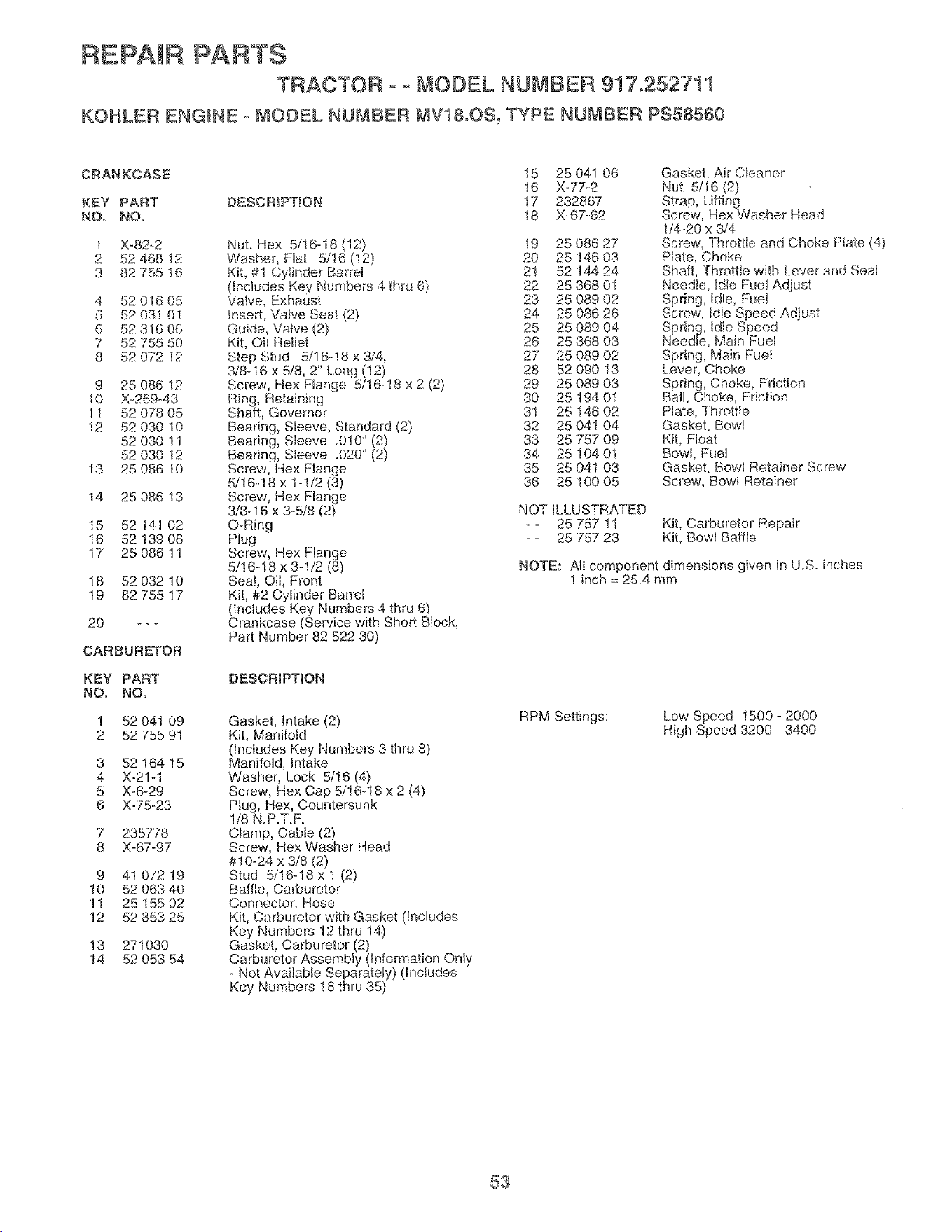

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917o252711

KOHLER ENGINE o MODEL NUMBER MV18.OS, TYPE NUMBER PS58560

CRANKCASE 15 25 041 06

16 X-77-2

KEY PART DESCRiPTiON t7 232867

NO° NO. t8 X-67-62

1 X-82-2 Nut, Hex 5/16 _18(12} I9 25 086 27

2 52 46812 Washer Flat 5/!6(12) 20 25!4603

3 82 755 t6 Kit, #! Cylinder Barrel 2t 52 144 24

(Includes Key Numbers 4 thru 6) 22 25 368 01

4 52 016 05 Va!ve, Exhaust 23 25 089 02

5 52 03t 0I InserL Valve Seat (2) 24 25 086 26

6 52 316 06 Guide, Valve (2) 25 25 089 04

7 52 755 50 Kit, Oil Relief 26 25 368 03

8 52 07212 Step Stud 5/!6.°18x3/4, 27 25 089 02

3/8o18 x 5/8, 2" Long (12) 28 52 090 I3

9 25 08612 Screw, HexFlange 5/16-18x2(2} 29 25 089 03

t0 X._269._4.3 Ring, Retaining 30 25 !94 01

11 52 078 05 Shaft, Governor 31 25 146 02

12 52 030 10 Bearing, Sleeve, Standard (2) 32 25 041 04

52 030 11 Bearing, Sleeve .010" (2) 33 25 757 09

52 038 12 Bearing, Sleeve .020" (2) 34. 25 104 01

13 25 086 10 Screw, Hex Flange 35 25 041 03

5/16-.18 x lq/2 (3) 36 25 100 05

14 25 086 !3 Screw, Hex Flange

3/8o16 x 3o5/8 (2)

t5 52 141 02 CoRing

16 52 139 08 Plug

17 25 086 11 Screw, Hex Flange

5/t6-18 x 3q/2 (8)

I8 52 032 10 Sea!, Oil, Front

19 82 755 17 Kit, #2 Cy!inder Barre!

(Includes Key Numbers 4 thru 6)

20 - - _ Crankcase (Service with Short Block,

Part Number 82 522 30)

CARBURETOR

KEY PART DESCRIPTION

NO, NO.

1 52 041 09

2 52 755 91

3 52 164 !5

4 X-21°1

5 X_6-29

6 X-'75_23

7 235778

8 X-67-97

9 41 072 19

10 52 063 40

11 25 155 02

12 52 853 25

!3 27t030

!4 52 053 54

Gasket, Intake (2)

Kit, Manifold

(Includes Key Numbers 3 thru 8)

Manifold, Intake

Washer, Lock 5/16 (4)

Screw, Hex Cap 5/16-18 x 2 (4)

Plug, Hex, Countersunk

1/8 N.P.T.F.

Clamp, Cable (2)

Screw, Hex Washer Head

#10-24 x 3/8 (2)

Stud 5/!6-18 x 1 (2)

Baffle, Carburetor

Connector, Hose

Kit, Carburetor with Gasket (Includes

Key Numbers 12 thru 14)

Gasket, Carburetor (2)

Carburetor Assembly (Information Only

- Not Available Separately) 0ncludes

Key Numbers 18 thru 35)

Gasket, Air Cleaner

Nut 5/16 (2)

Strap, Lifting

Screw, Hex Washer Head

1/4-20 x 3/4

Screw, Throt[le and Choke Plate (4)

P_ate, Choke

Shaft, Throttle with Lever and Seal

Needie, idle Fue_ Adjust

Spring, Idle, Fuel

Screw, Id!e Speed Adiust

Spring, _dle Speed

Needle, Main Fuel

Spring, Main Fuel

Lever, Choke

Spring, Choke, Friction

Ball, Choke, Friction

Plate, Throttte

Gasket, Bowt

Kit, Float

Bowl, Fuel

Gasket, Bowl Reta}ner Screw

Screw, Bowi Retainer

NOT ILLUSTRATED

-- 25 757 11 Kit, Carburetor Repair

-- 25 757 23 Kit, Bowl Baffle

NOTE: All component dimensions given in U.S° inches

1 inch = 25.4 mm

RPM Settings: Low Speed !500o2000

High Speed 3200-34.00

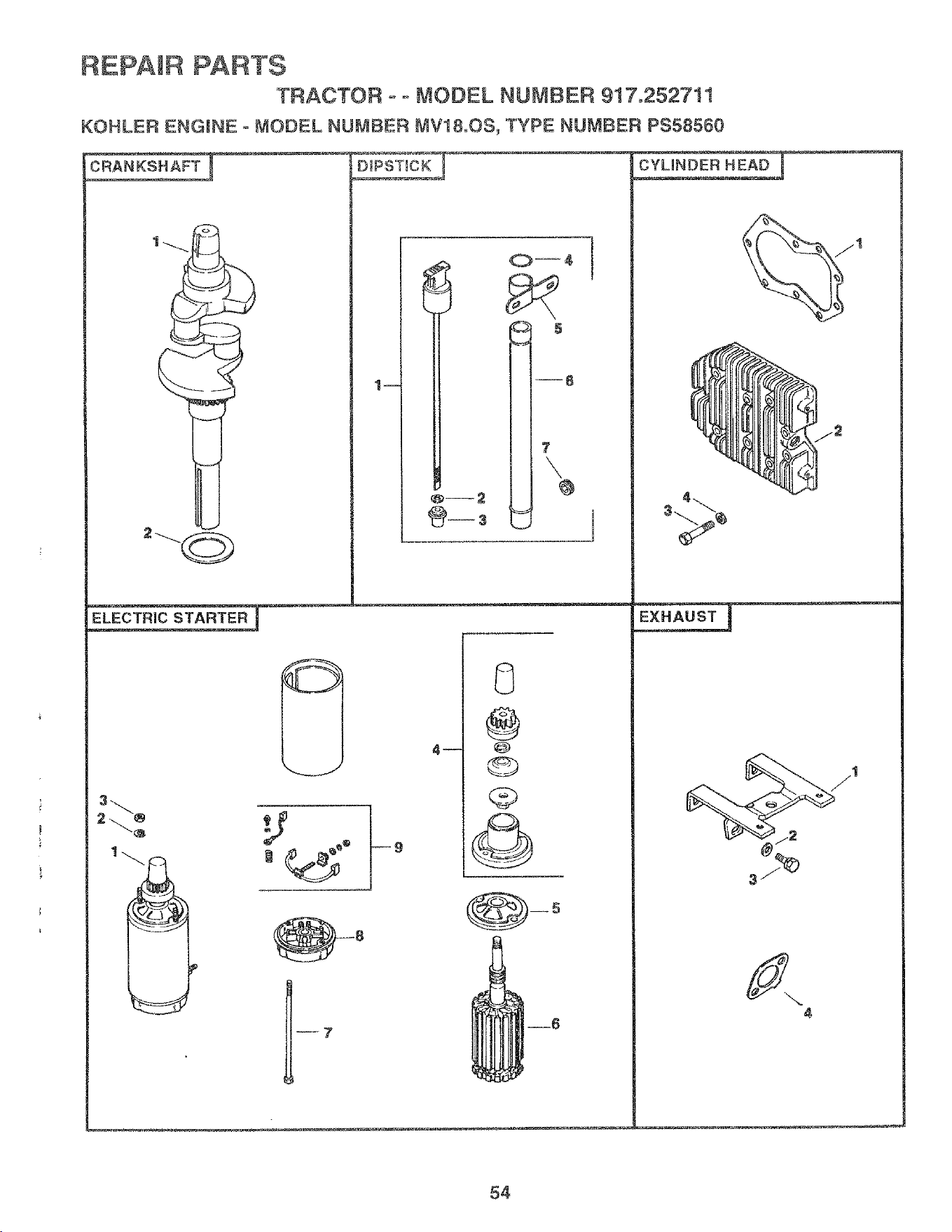

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917o252711

KOHLER ENGINE ° MODEL NUMBER MV18.O$, TYPE NUMBER PS58560

CRANKSHAFT I

ELECTRIC STARTER ]"

---7

4 m

0--4

--6

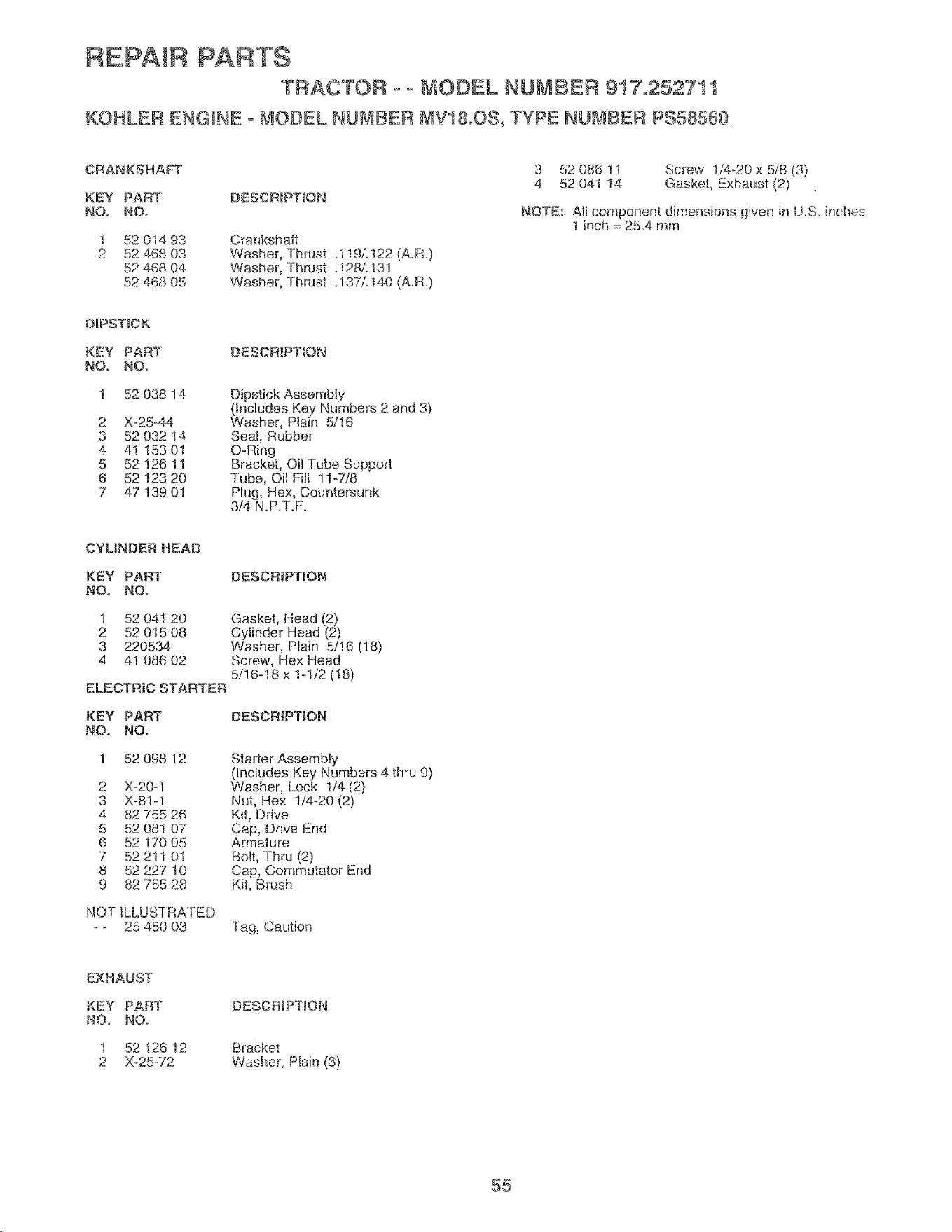

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917.2527!1

KOHLER ENGINE o MODEL NUMBER MV18.OS_ TYPE NUMBER PS58560

CRANKSHAFT 3 52 086 1i

4 52 041 14

KEY PART DESCRIPTION

NO, NO,

1 52 014 93

2 52 468 03

52 468 04

52 468 05

Crankshaft

Washer, Thrust ,I 19/.!22 (A.R,)

Washer, Thrust . 128/131

Washer, Th rust _13'7/.140 (A.R.)

Screw !/4-20 x 5/8 (3)

Gasket, Exhaust (2)

NOTE: A_lcomponent dimensions given in U..S ir_ches

1 inch = 25.4 mm

DIPSTICK

KEY PART OESCR_PT_ON

NO. NO.

1 52 038 14 Dipstick Assembty

(Includes Key Numbers 2 and 3)

2 X-_25o44 Washer, Plain 5/!6

3 52 032 14 Seal, Rubber

4 41 153 01 CoRing

5 52 126 11 Bracket, Oil Tube Support

6 52 123 20 Tube, Oil Fill 11..7/8

7 47 139 0t Plug, Hex, Countersunk

3/4 N.P.T.F.

CYUNDER HEAD

KEY PART DESCRIPTmON

NO. NO.

1 52 04! 20 Gasket, Head (2)

2 52 015 08 Cylinder Head (2)

3 220534 Washer, Plain 5/!6 (18)

4 41 086 02 Screw, Hex Head

5/!6-18 x t-1/2 (!8)

ELECTRIC STARTER

KEY PART DESCRIPTION

NO. NO.

52 098 12

X 20-.1

X-81-1

82 755 26

52 081 07

52 170 05

52211 01

52 227 10

82 755 28

Starter Assembly

(includes Key Numbers 4 thru 9)

Washer, Lock I/4 (2)

Nut, Hex 1/4-20 (2)

Kit, Drive

Cap, Drive End

Armature

Bolt, Thru (2)

Cap, Commutator End

Kit, Brush

NOT ILLUSTRATED

- 25 450 03 Tag, Caution

EXHAUST

KEY PART DESCRiPTiON

NO, NO.

I 52 126 12 Bracket

2 X_25--72 Washer, Ptain (3)

E NOTES

SERVICE NOTES

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

O't

SIGHTING

lIDE

--. cU7-o._

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WiTH

SKY LINE OR TREE.

15 ° MAX.

_e your Tractor up

I _ greater than 15°), never across the face. Make turns gradu-

_ ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes, i

A/RS

OWNER'S

MANUAL

MODEL NO.

917.252711

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

18 HP TWIN CYLINDER

ELECTRIC START

3 in One Convertible

42" MOWER

AUTOMATIC (HYDROSTATIC)

DRIVE

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model number.

The model number for your tractor will be found on the

model plate located under the seat.

The model number for your engine witl be found on the

blower housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PRODUCT- TRACTOR

o MODEL NUMBER - 917.252711

• ENGINE MODEL NO. - MV18S-58560

• PART NUMBER

• PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians.., professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

148356 REV. 3 06.21.95 KFSW Printed in U.S.A.

Craftsman 917252711 tractor

Product's Documents

User Manual

Specifications

Craftsman 917252711 Questions and Answers

Related Products

Craftsman 917273631 tractor

Craftsman 917258661 tractor

Craftsman 917252714 Tractor

Craftsman 247273270 tractor

Craftsman 917255981 Tractor

Craftsman 917256710 Tractor
