Craftsman 917272452 21.5 HP, 42" Mower Lawn Tractor User Manual

Owner's Manual

JCRIIFTSMRN"I

LAWN TRACTOR

21.5 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.272452

[_] his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers toyour questions

aboutthis product,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................ 2

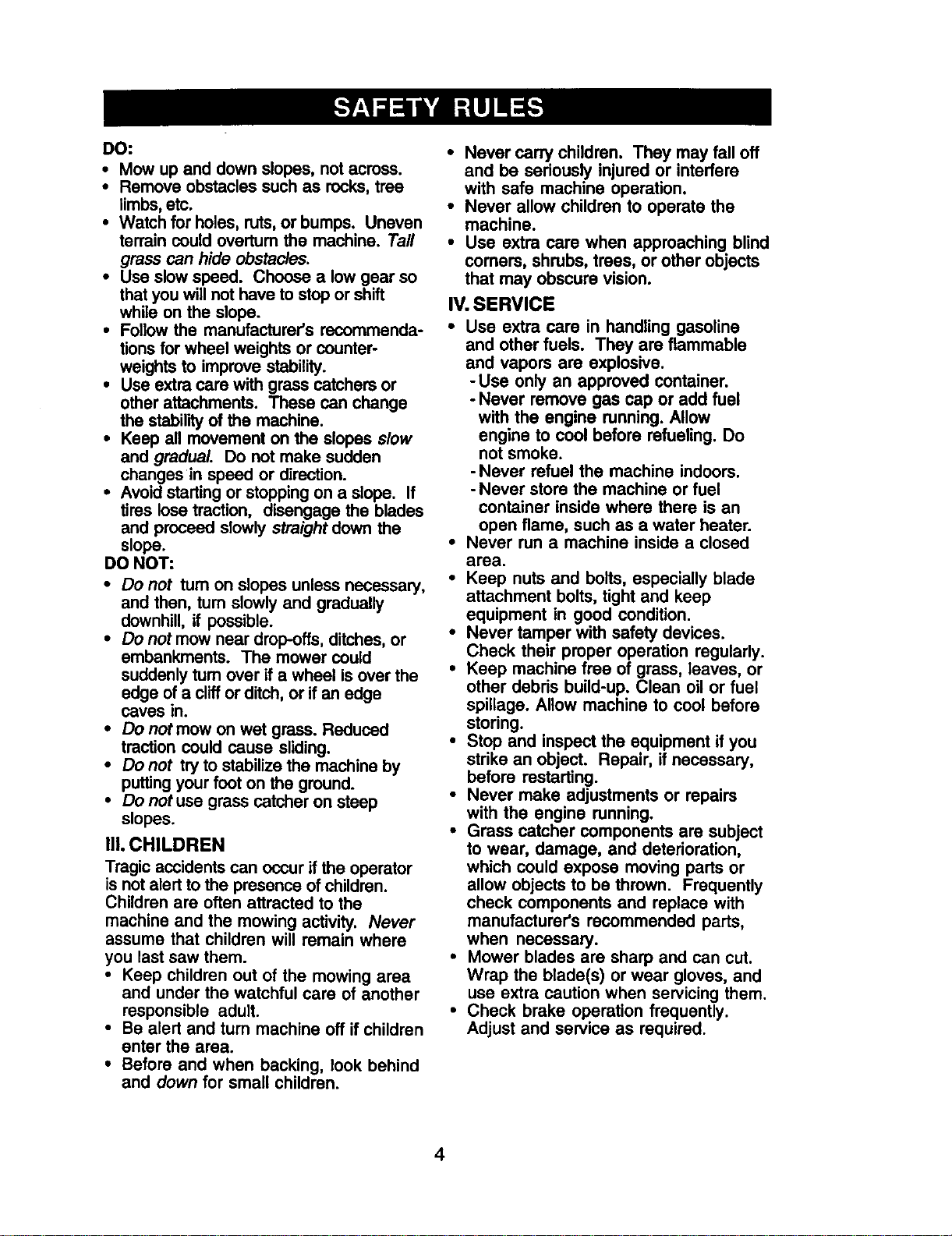

Safety Rules .......................................... 3

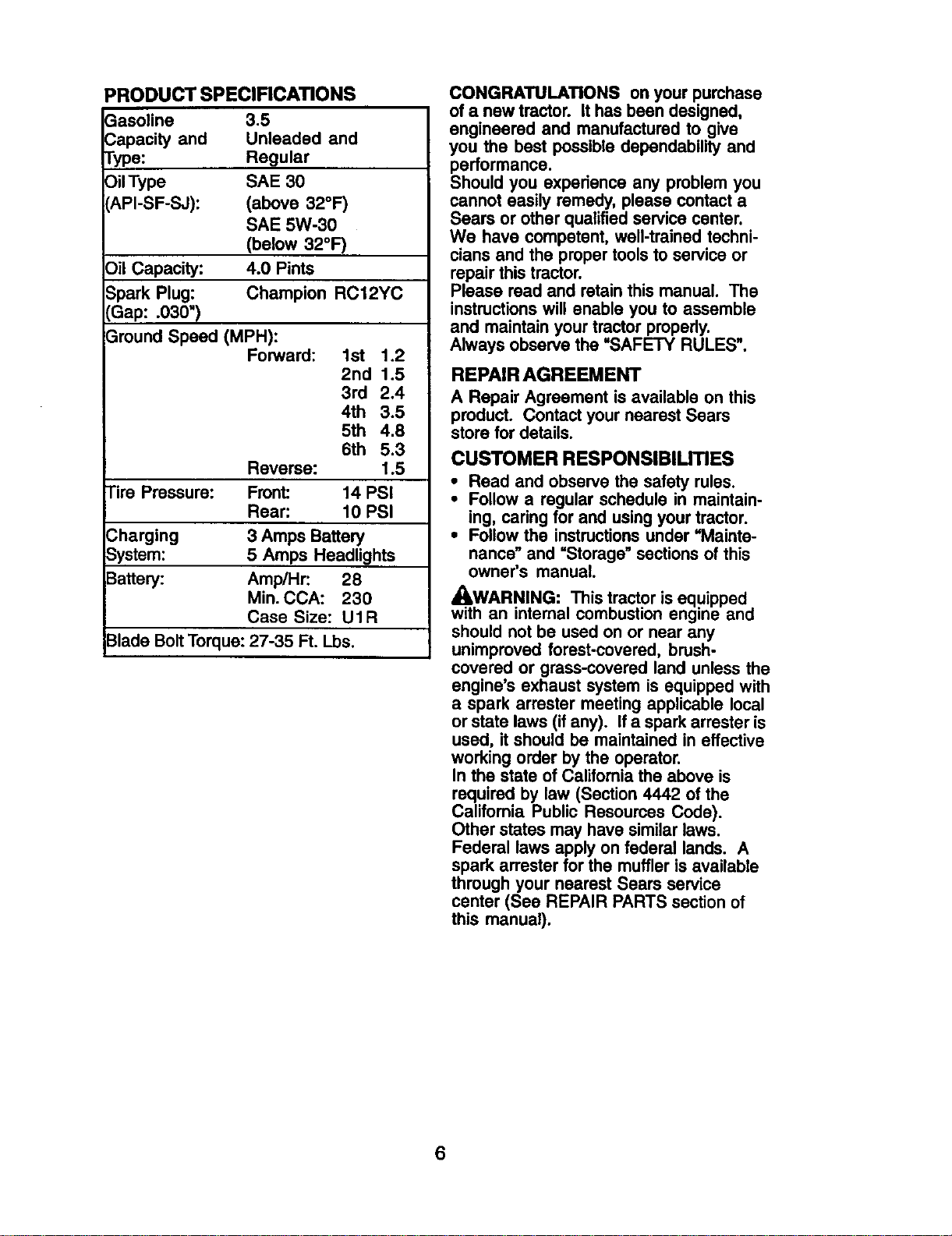

Product Specifications ........................... 6

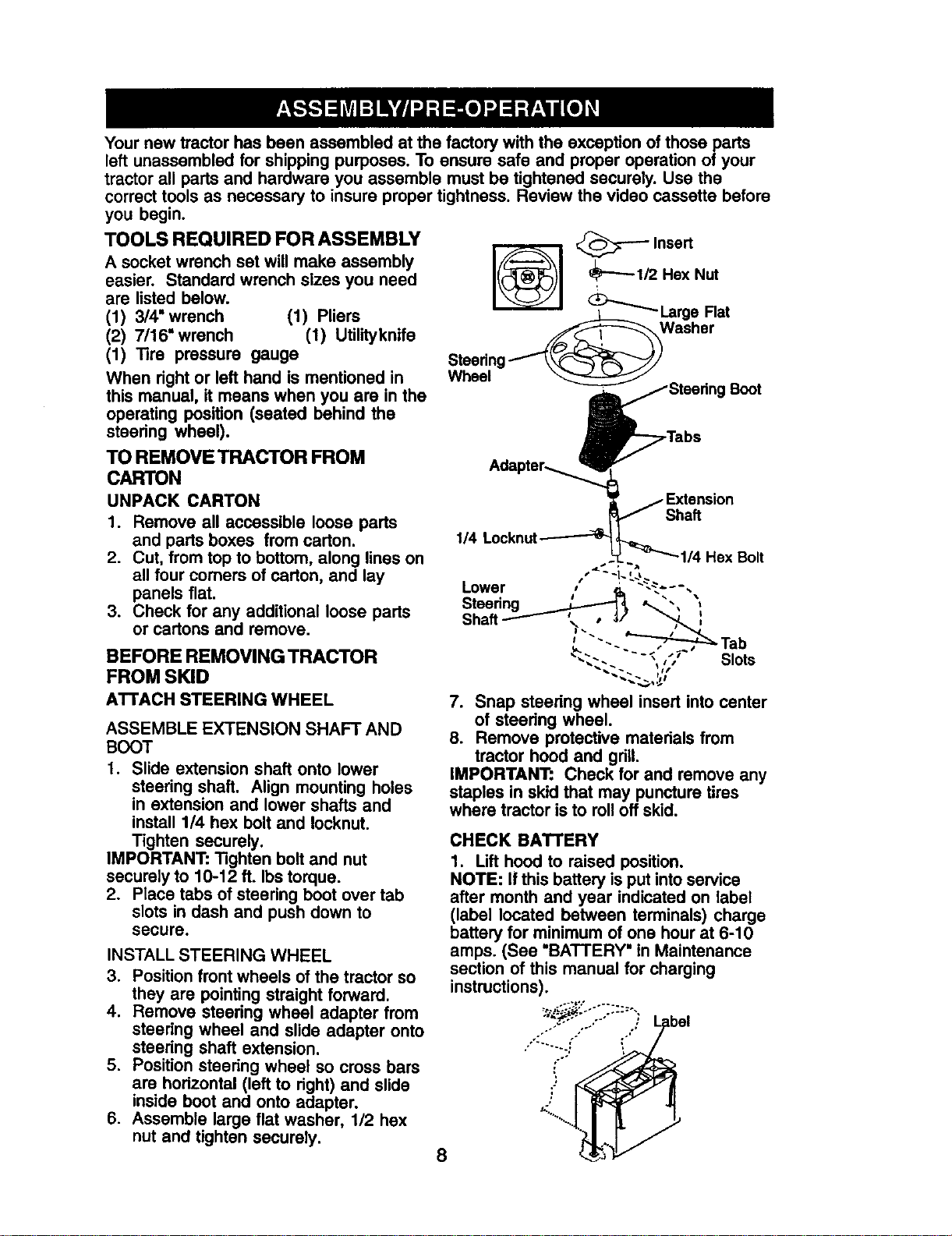

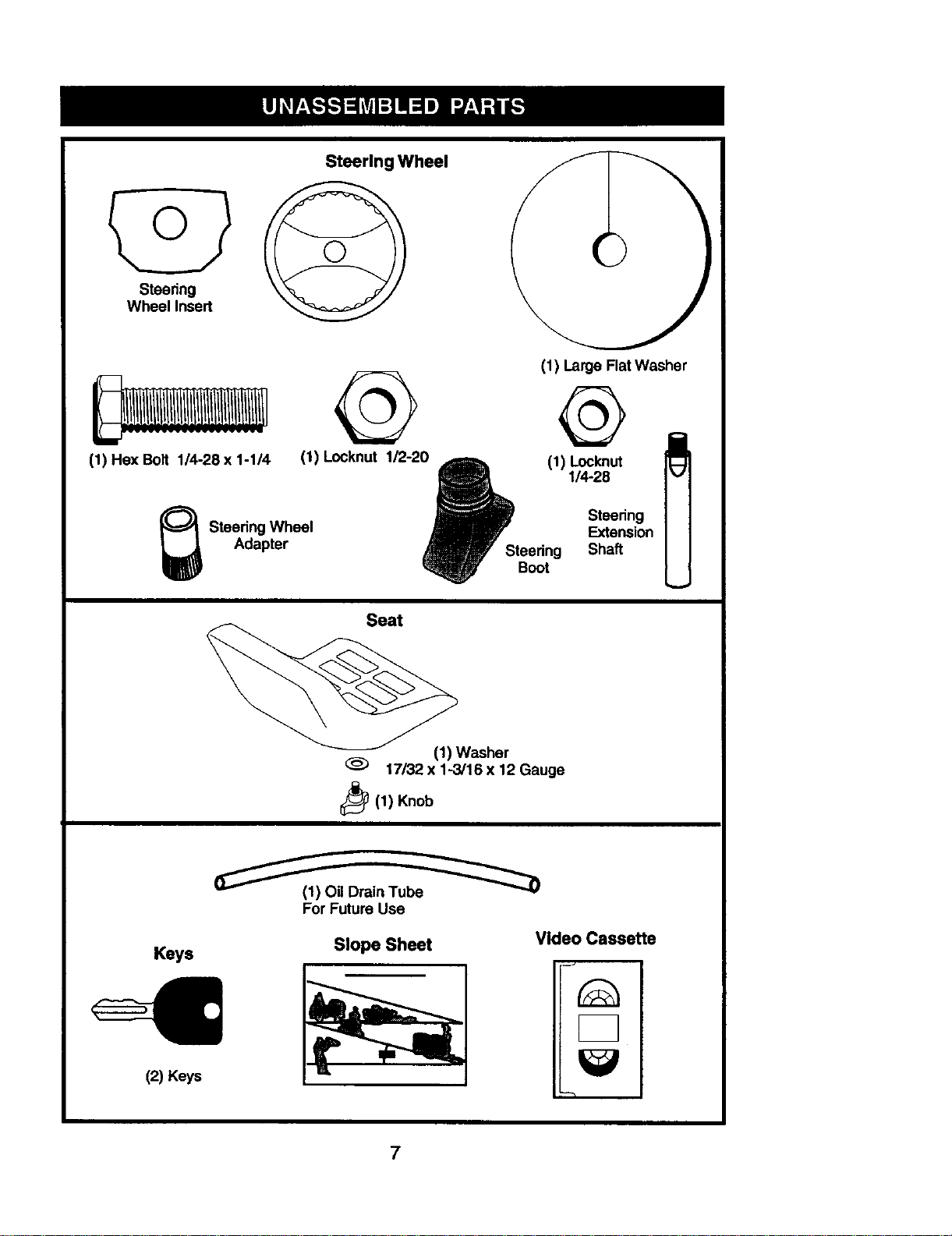

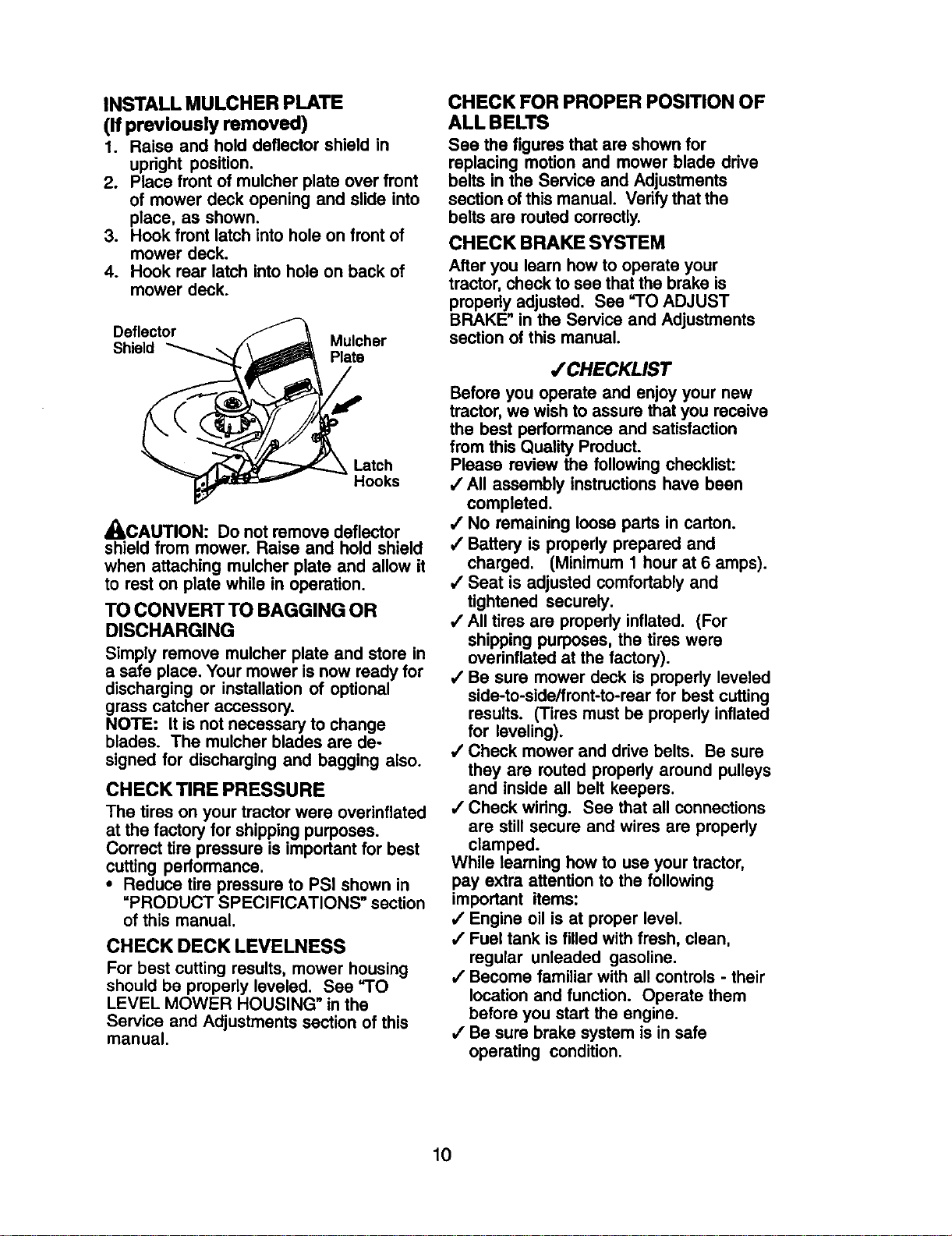

Assembly/Pre-Operation ....................... 8

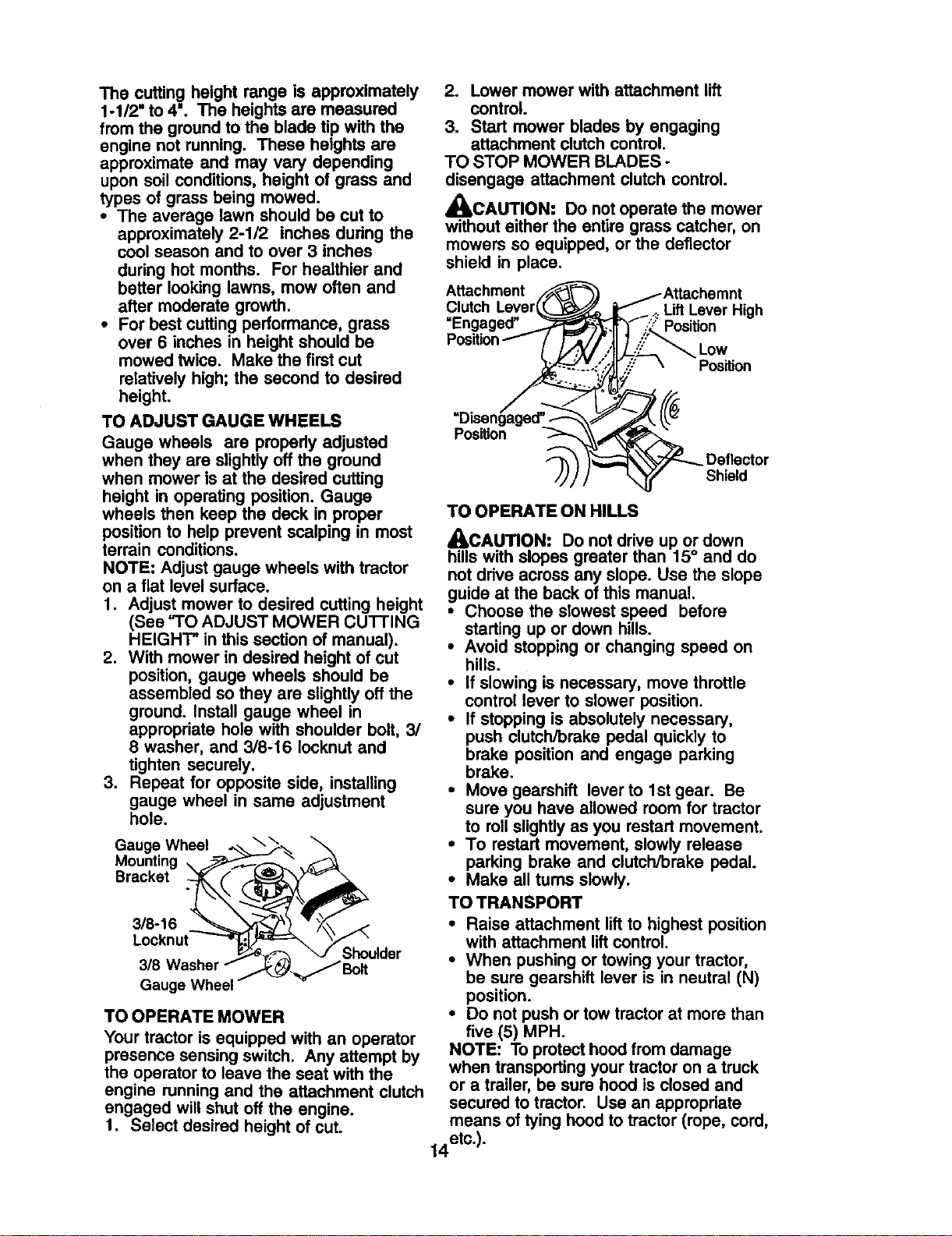

Operation ............................................. 11

Maintenance Schedule ....................... 17

Maintenance ........................................ 17

Service and Adjustments..................... 21

Storage ................................................ 27

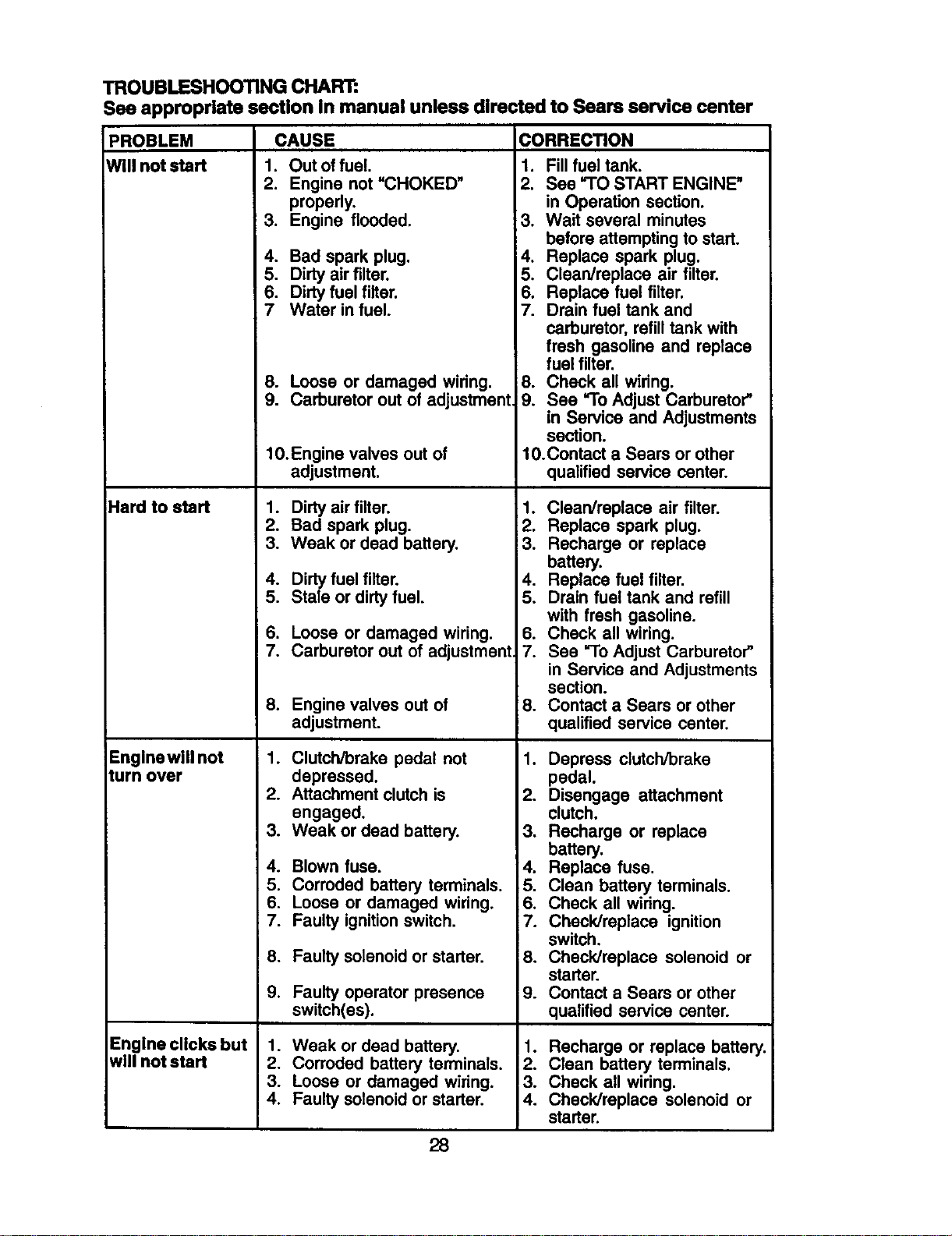

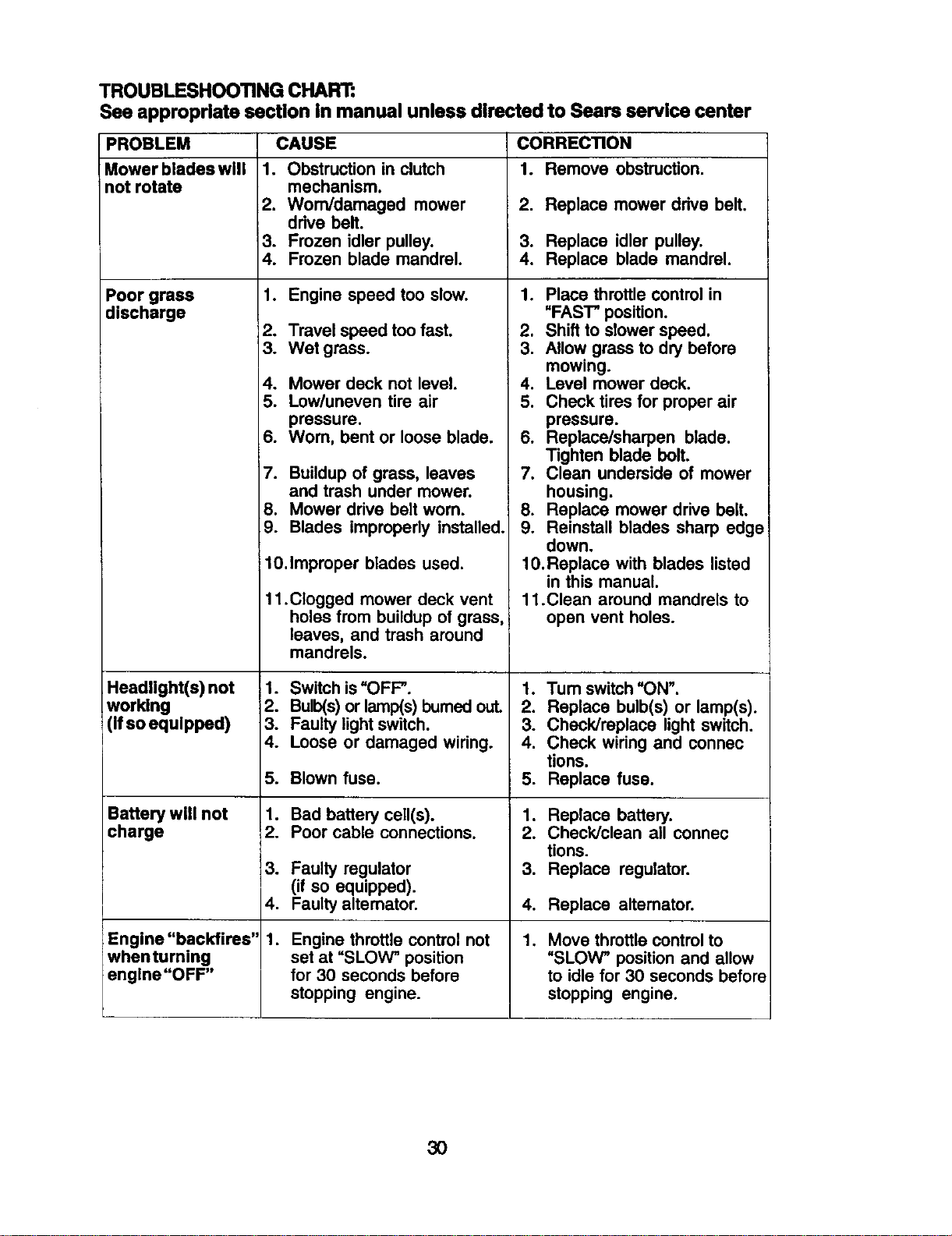

Troubleshooting .................................. 28

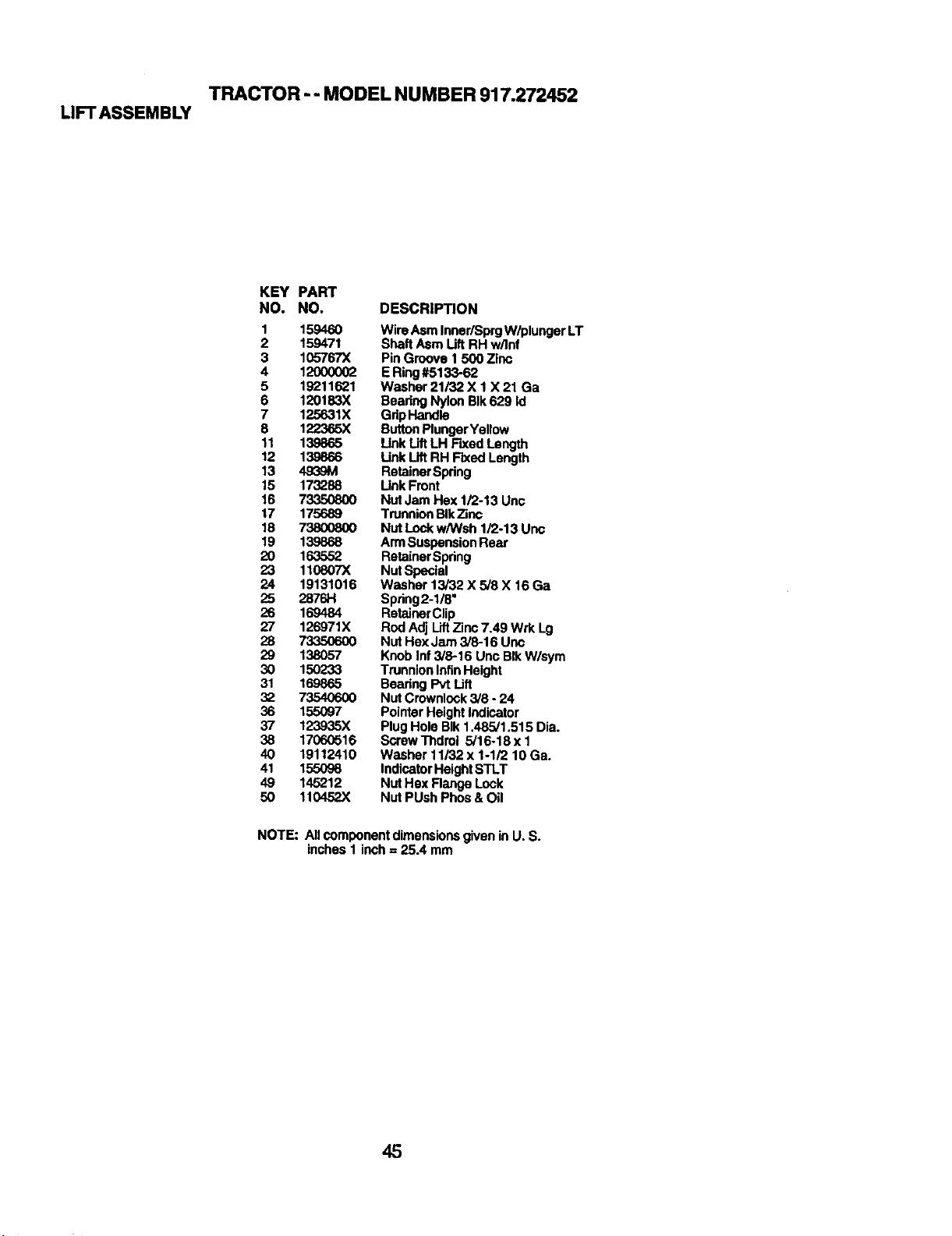

Repair Parts......................................... 32

Sears Service ....................... Back Cover

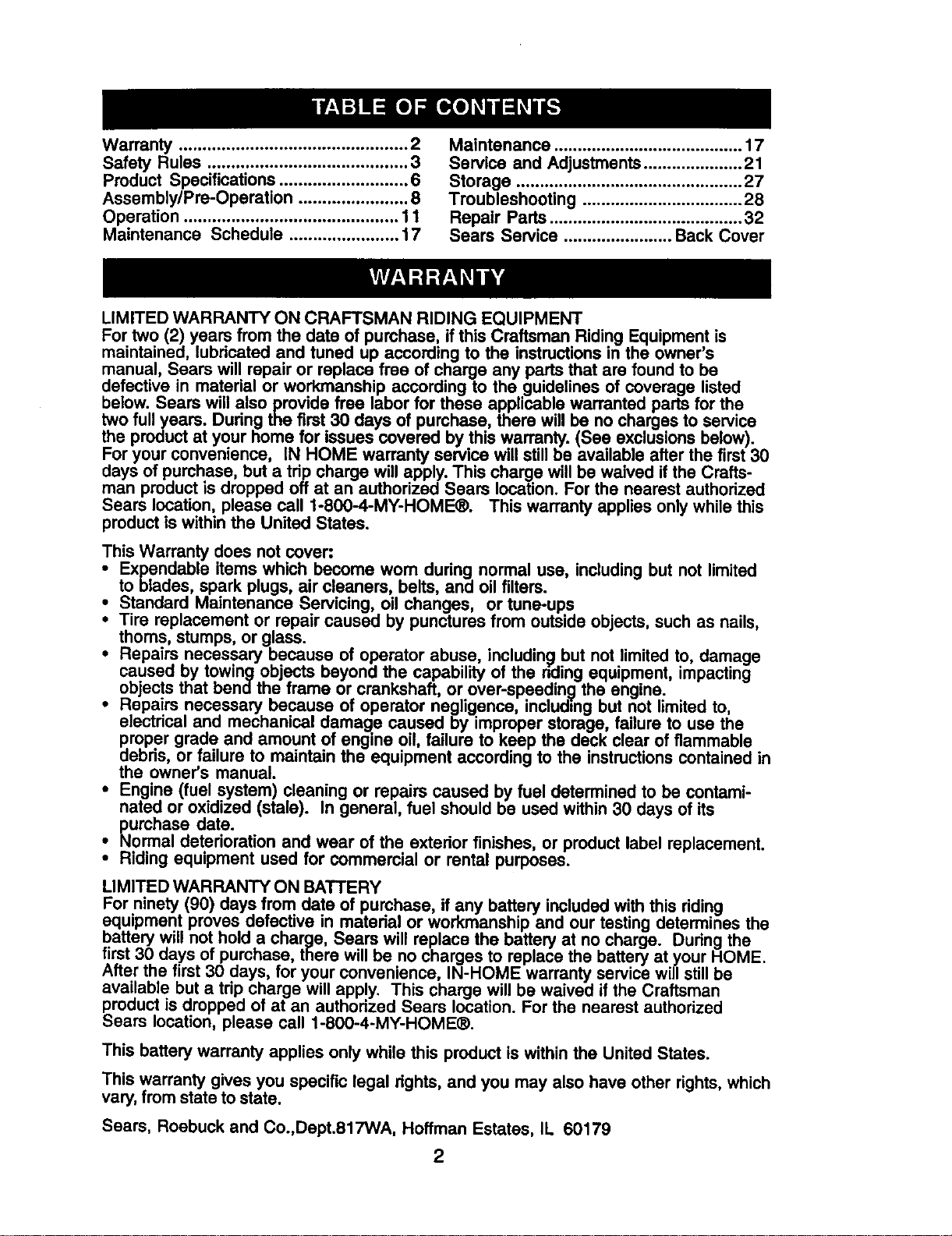

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubdcated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will alsoprovide free labor for these applicable warranted pads for the

two full years. Dudng the first 30 days of purchase, there willbe no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will stillbe available after the first 30

days of purchase, but a tdp charge will apply. This charge will be waived if the Crafts-

man product is dropped offat an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover"

• Expendable items which become wom dudng normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

i Repairs necessary because of operator abuse, includin_ but not limited to, damage

caused by towing objects beyond the capability of the nding equipment, impacting

objects that bendthe frame or crankshaft or over-speedin._ the engine.

Rapa rs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructionscontained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the extedor finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in matedal or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal dghts, and you may also have other rights, which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

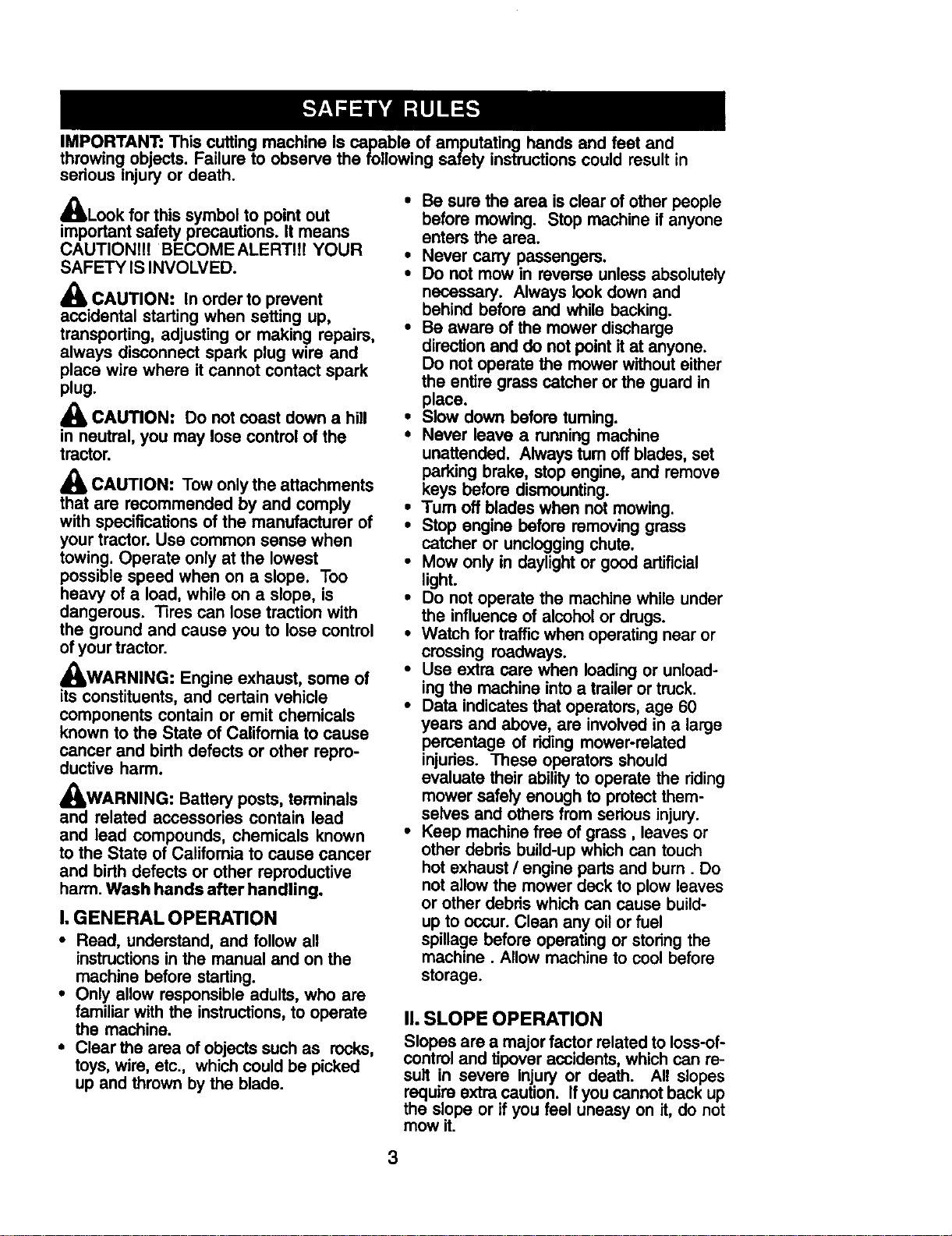

IMPORTANT: This cutting machine Is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

4BkLookfor this symbol to point out

important safety precautions. It means

CAUTIONI!! BECOMEALERTI!! YOUR

SAFETY IS INVOLVED.

,_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow onlythe attachments

that are recommended by and comply

with specificationsof the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. _res can lose traction with

the ground and cause you to lose control

of yourtractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birthdefects or other repro-

ductive harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birthdefects or other reproductive

harm.Wash hands after handling.

I, GENERAL OPERATION

• Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

• Clear the area of objectssuch as rocks,

toys,wire, etc., whichcould be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unlessabsolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

directionand do not point itat anyone.

Do not operate the mower withouteither

the entiregrass catcheror the guard in

place.

• Slow down before tuming.

• Never leave a runningmachine

unattended. Always tum off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

• Stop engine before removing grass

catcher or uncloggingchute.

• Mow only in daylightor good artificial

light.

• Do not operate the machine while under

the influence of alcoholor drugs.

• Watch for trafficwhen operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicatesthat operators, age 60

years and above, are involvedin a large

percentage of riding mower-related

injuries. These operatorsshould

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from seriousinjury.

• Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust / engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipoveraccidents, whichcan re-

suit in severe Injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or if you feel uneasy on it,do not

mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstaclessuch as rocks,tree

limbs,etc.

• Watch for holes, ruts,or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

thatyou willnot have to stoporshift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

thestabilityofthemachine.

• Keep allmovement on theslopesslow

and gradual.Do notmake sudden

changesinspeed or direction.

• Avoidstartingorstoppingon a slope.If

tireslosetraction,disengagetheblades

and proceed slowly straight downthe

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliffor ditch,or ifan edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilizethe machine by

puttingyour foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occurif the operator

is notalert to the presence ofchildren.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off ifchildren

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be sedously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and detedoration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

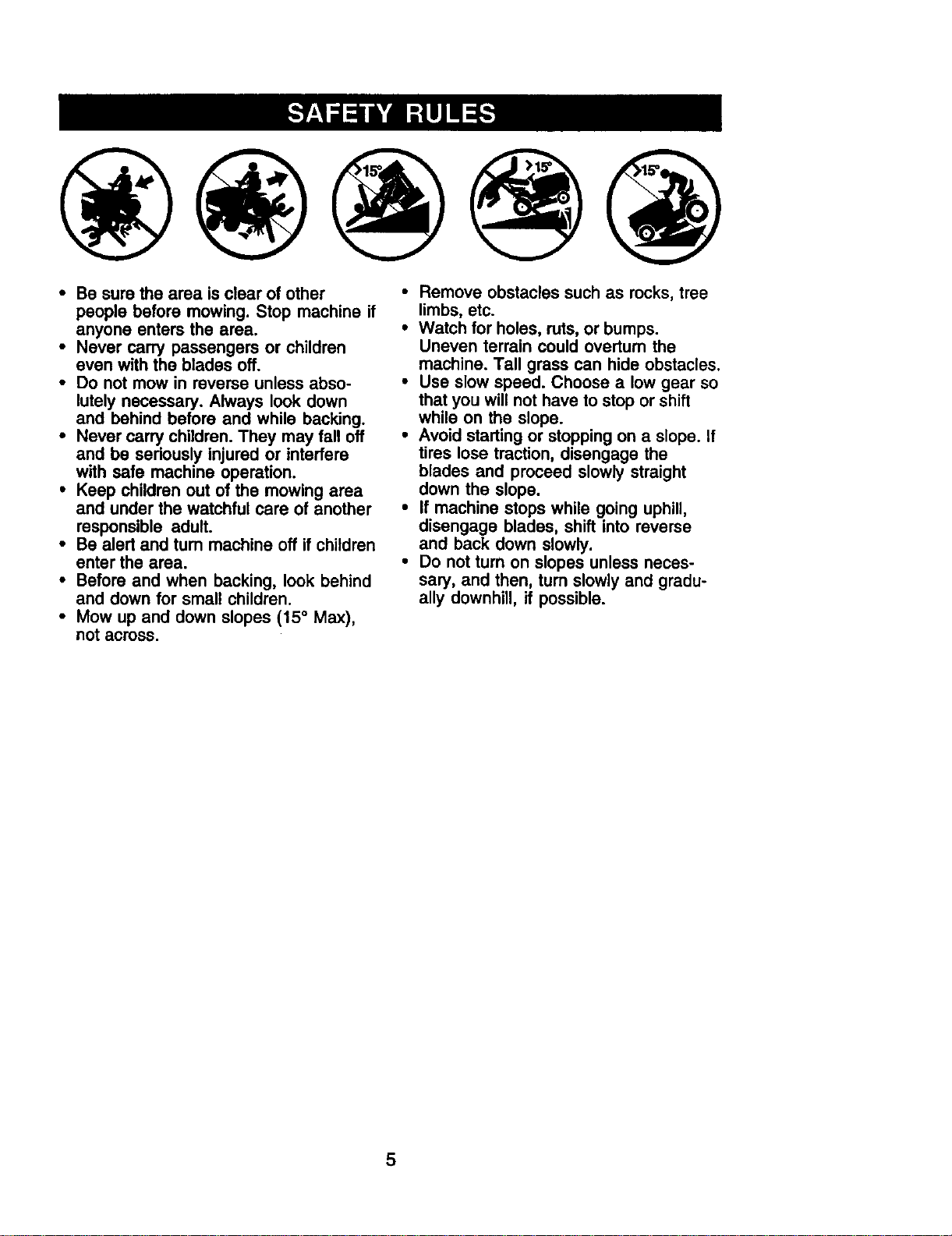

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and tum machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIRCATIONS

"_asoline

Capacity and

rype:

_)ilType

_,PI-SF-SJ):

3il Capacity:

3park Plug:

',Gap: .030")

3round Speed (MPH):

Forward:

3.5

Unleaded and

Regular

SAE 30

(above 32°F)

SAE 5W-30

(below 32°F)

4.0 Pints

Champion RC12YC

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: UIR

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you expedence any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

_ Steedng Wheel

Adapter

(1) Locknut 1/2-20

_St_eo_g

(1) Large Flat Washer

(1) Locknut

114-28

Steedng

Extension

Shaft

Seat

(1) Washer

17132x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(2) Keys

(_1_(1) O_ Drain Tub_

For Future Use

Slope Sheet

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts

left unassambled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utilityknife

(1) Tire pressure gauge

When rightor left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACHSTEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 1/4 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: "13ghtanbolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots indash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steedng wheel adapter from

steering wheel and slide adapter onto

steedng shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

_ Insert

I( )1 HexNut

Whee,

Adapter_ --

Extension

Shaft

1/4 Locknut-------_

_'_"_1/4 Hex Bolt

Lower , _. --._--..

Steenng _ ,_-,

_'-_. ",,;/ Slots

7. Snap steering wheel insert into center

of steedng wheel.

8. Remove protective materials from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

_:_"i.;':::::':, __be,

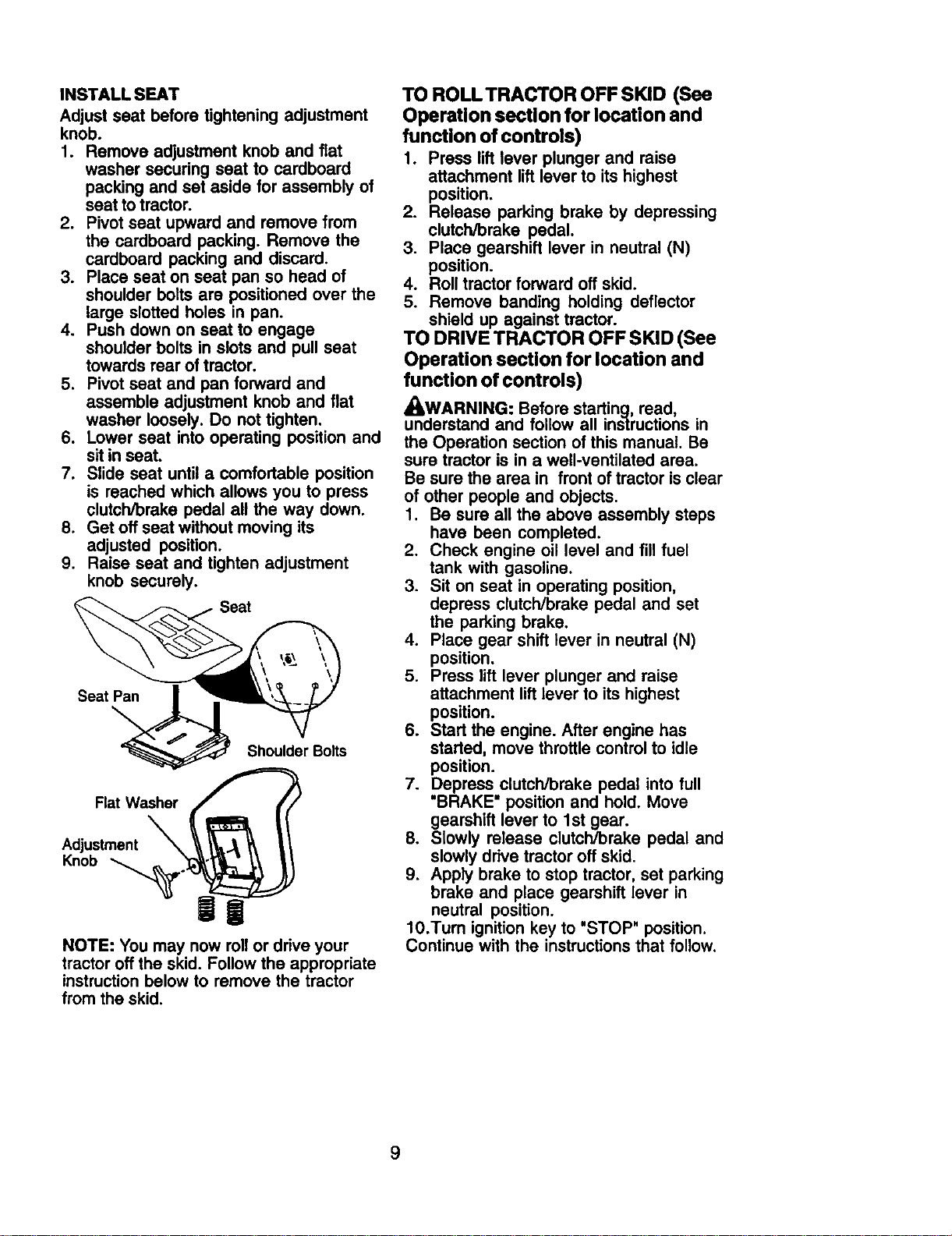

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Shoulder Bolts

Flat Washer

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press liftlever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3, Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front oftractor isclear

of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment liftlever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignitionkey to "STOP" position.

Continue with the instructionsthat follow.

INSTALL MULCHER PLATE

(If previously removed)

I. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Mulcher

Shield _ Plate

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower isnow ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is importantfor best

cutting performance.

• Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section ofthis manual. Varifythat the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See ='1"OADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

/All assembly instructions have been

completed.

/ No remaining loose parts in carton.

/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

•f Seat is adjusted comfortably and

tightened securely.

/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

•/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

•/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While teaming how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/ Be sure brake system is in safe

operating condition.

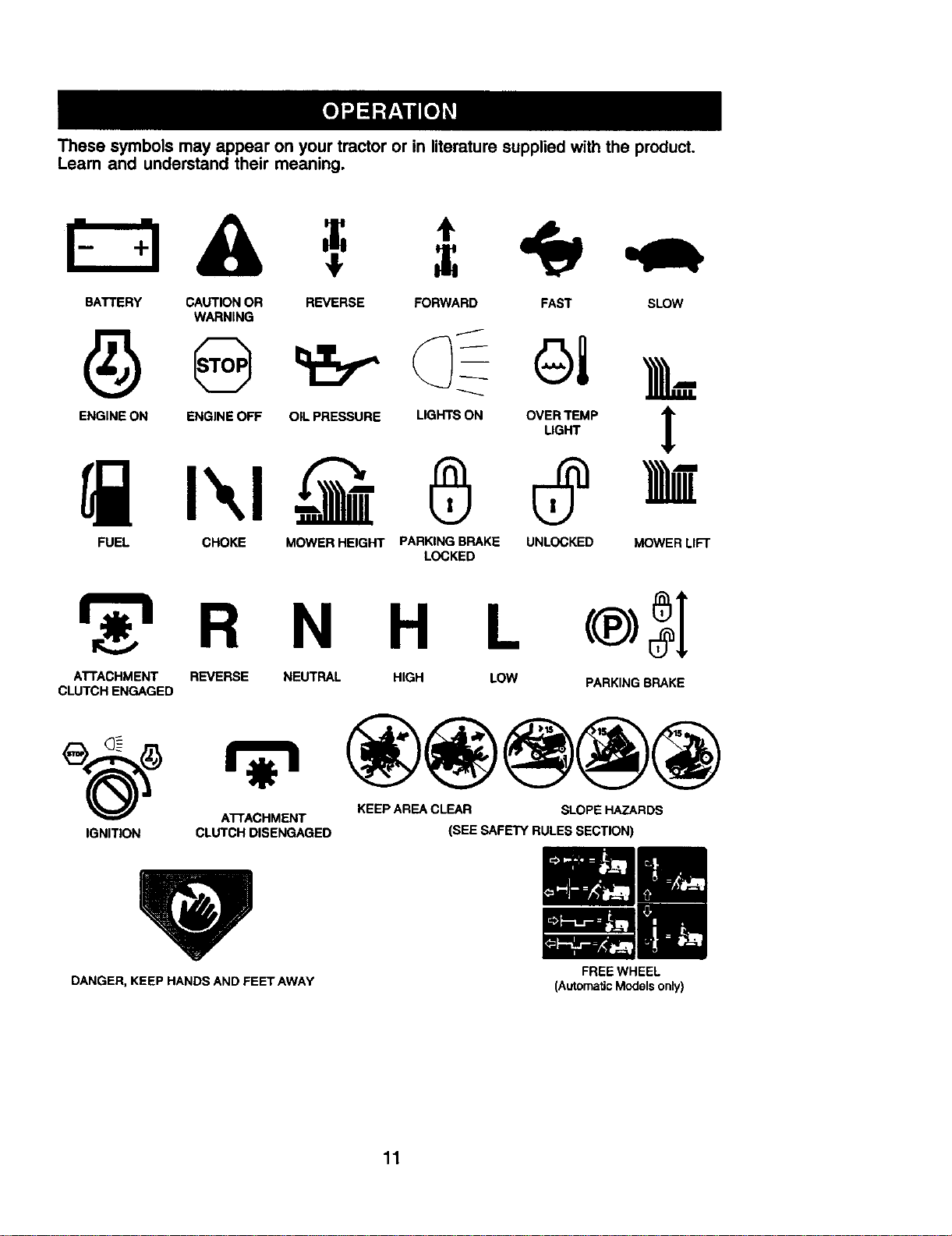

These symbols may appear on your tractor or in literature suppliedwith the product.

Learn and understand their meaning.

BATTERY CAUTIONOR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP t

UGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

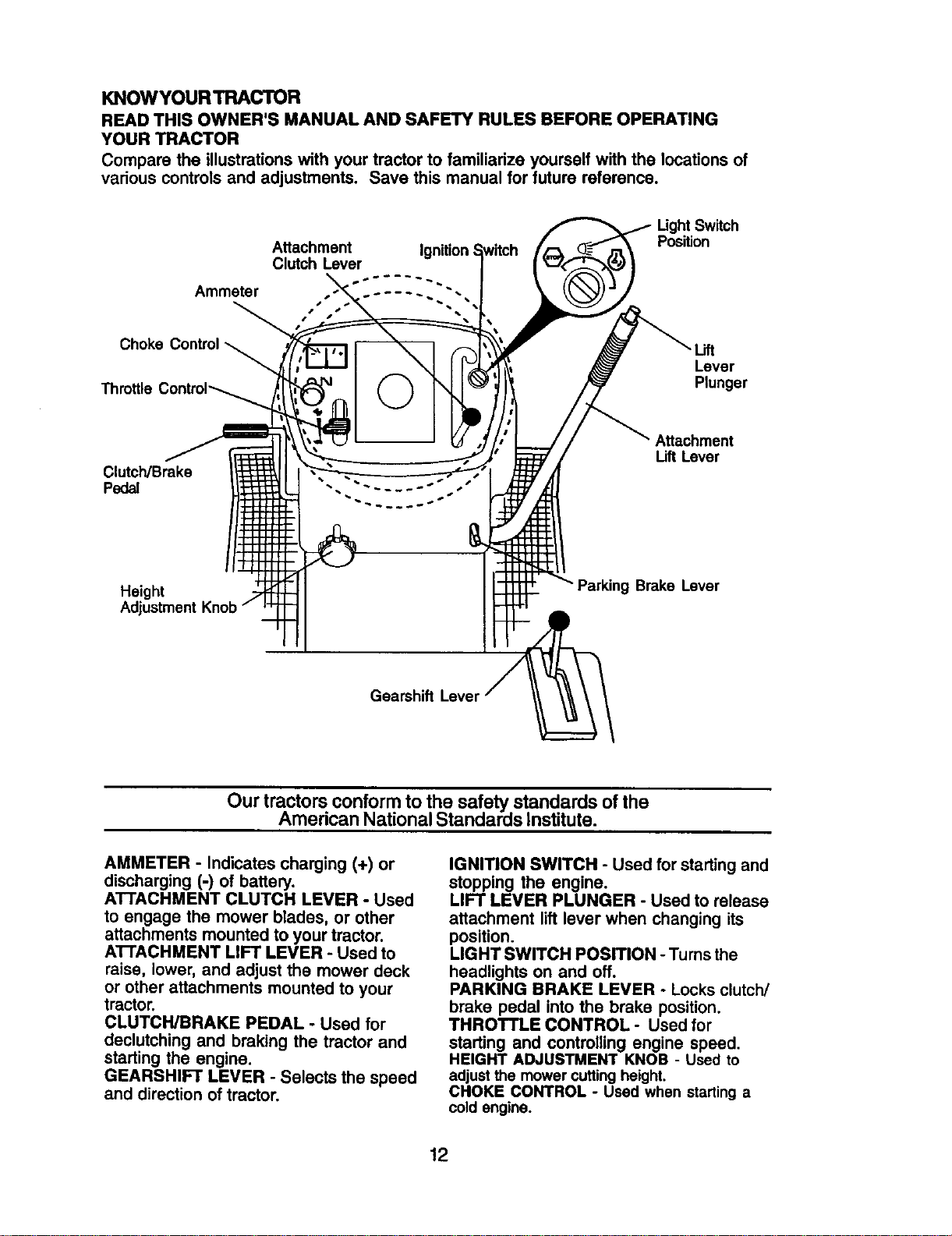

KNOWYOURTRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Attachment Ignition

Clutch Lever

Ught Switch

Position

Choke Control

Throttle

.lift

Lever

Plunger

Clutch/Brake

Pedal

Attachment

Uft Lever

Height

Adjustment Kno

Brake Lever

Gearshift

Our tractors conformto the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used for

starting and controlling engine speed.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

CHOKE CONTROL - Used when starting a

cold engine.

The operation of any tractor can resultin foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

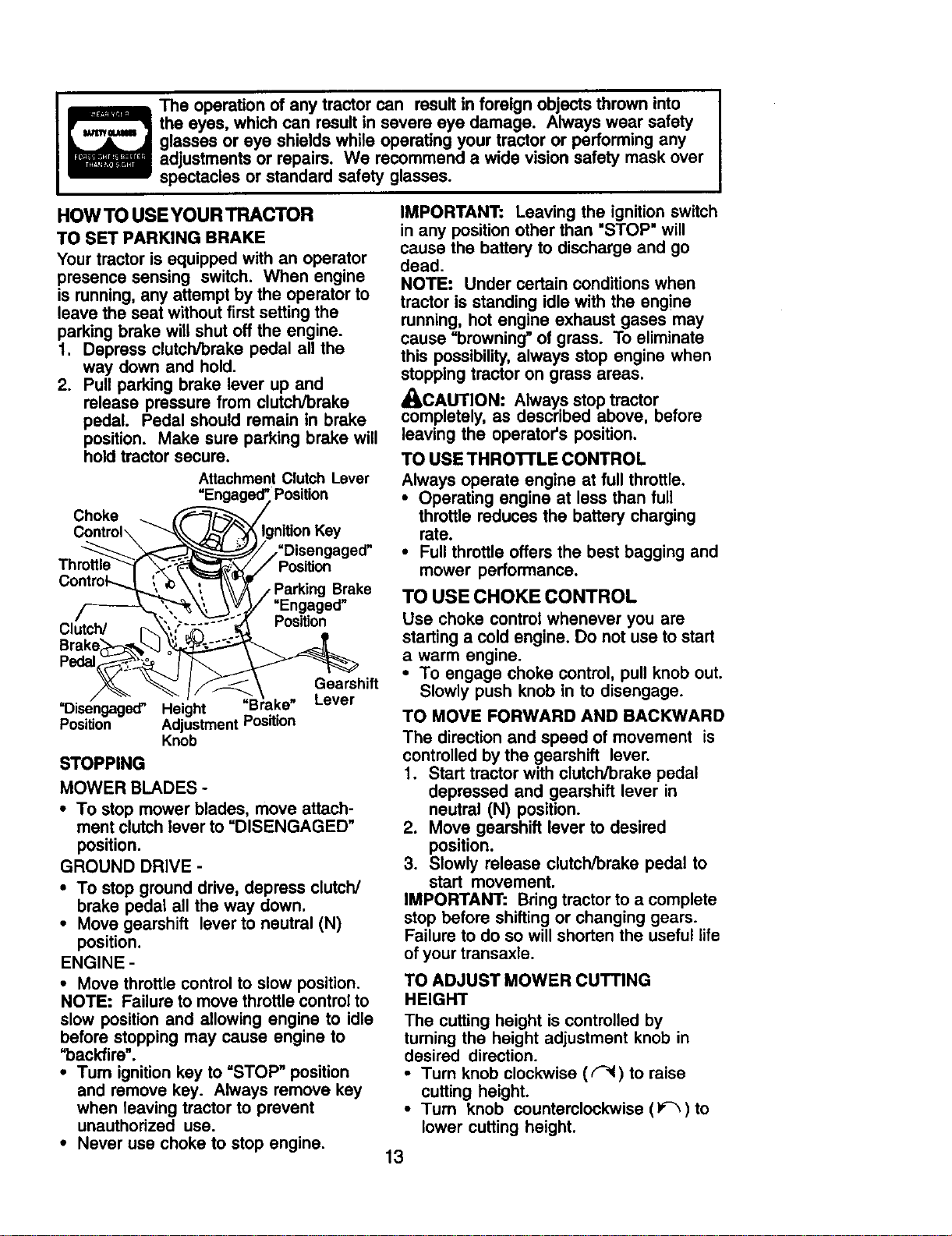

HOWTO USEYOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running,any attempt by the operator to

leave the seat without first setting the

parkingbrake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

holdtractor secure.

Attachment Clutch Lever

=Engaged" Position

Choke

Control\ _-_,. _/_,_ IgnitionKey

.__//=Disengaged"

Th_L _ ,.__ Position

Controt--....._,'_yi ParkingBrake

/-_ ",.-_ ',"_ _V ".Engaged"

cl ,tc Position

Pedal , ,

"D_eight _ake" Lever

Position Adjustment Position

Knob

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

=backfire".

• Turn ignition key to =STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

A0&CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROI-rLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bringtractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING

HEIGHT

The cutting height is controlled by

turning the height adjustment knob in

desired direction.

• Turn knob clockwise (F_I) to raise

cutting height.

• Turn knob counterclockwise (P-_)to

lower cutting height.

Thecuttingheightrangeis approximately

1-1/2"to4". Theheightsaremeasured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches dudng the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUI-rlNG

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment

hole.

Gauge Wheel

Mounting

Bracket

3/8-16

3/8

Gauge Wheel

Shoulder

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment

Clutch Lever Uft Lever High

=Engaged" Position

Low

Position

Deflector

Shield

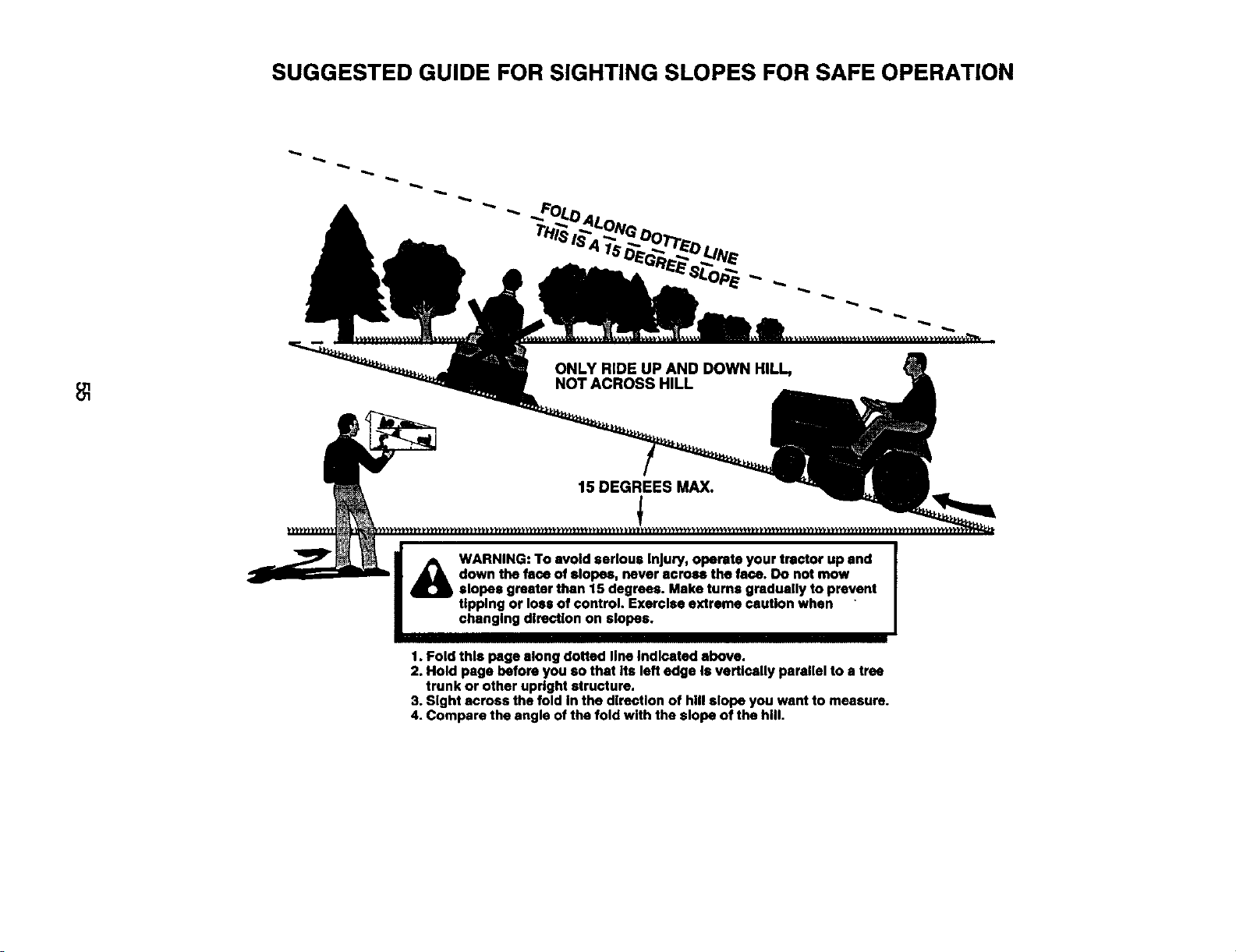

TO OPERATE ON HILLS

_CAUTION: Do not drive upor down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• if slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightlyas you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment liftto highest position

with attachment liftcontrol.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hoodfrom damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

14etc.) -

TOWINGCARTSANDOTHERATTACH-

MENTS

Towonlytheattachmentsthatare

recommendedbyandcomplywith

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. "lirascan lose traction with

the ground and cause you to lose control

ofyour tractor.

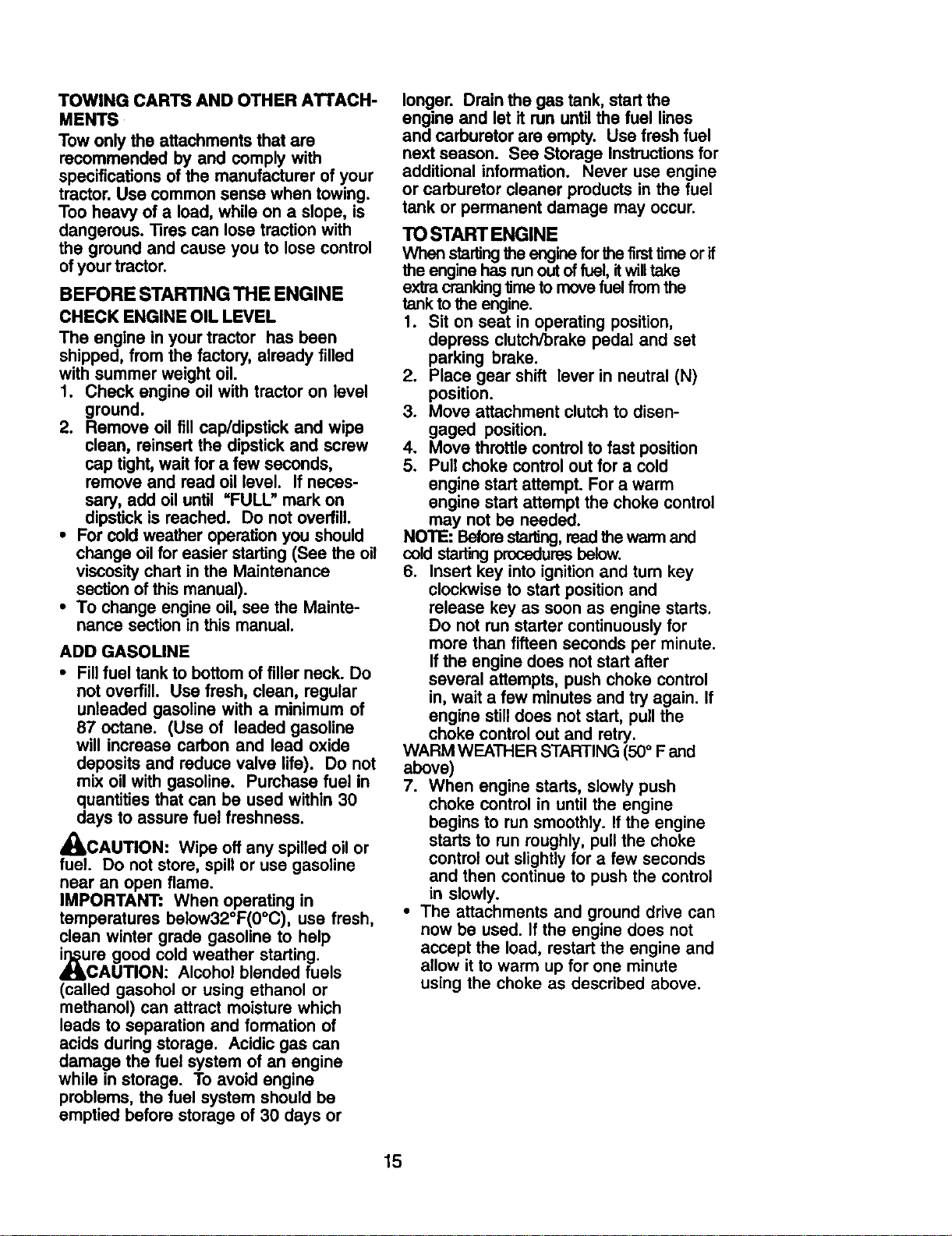

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight,wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operationyou should

change oil for easier starting(See the oil

viscositychart inthe Maintenance

section ofthis manual).

• To change engine oil, see the Mainte-

nance sectionin this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

,_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in

temperatures below32°F(0°C), use fresh,

clean winter grade gasoline to help

_Ucre good cold weather starting.

AUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructionsfor

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When startingthe engine for the firsttime or if

the engine has run out of fuel, itwilltake

extra cranking time to move fuel from the

tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starling procedures below.

6. Insert key into ignition and turn key

clockwise to start position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

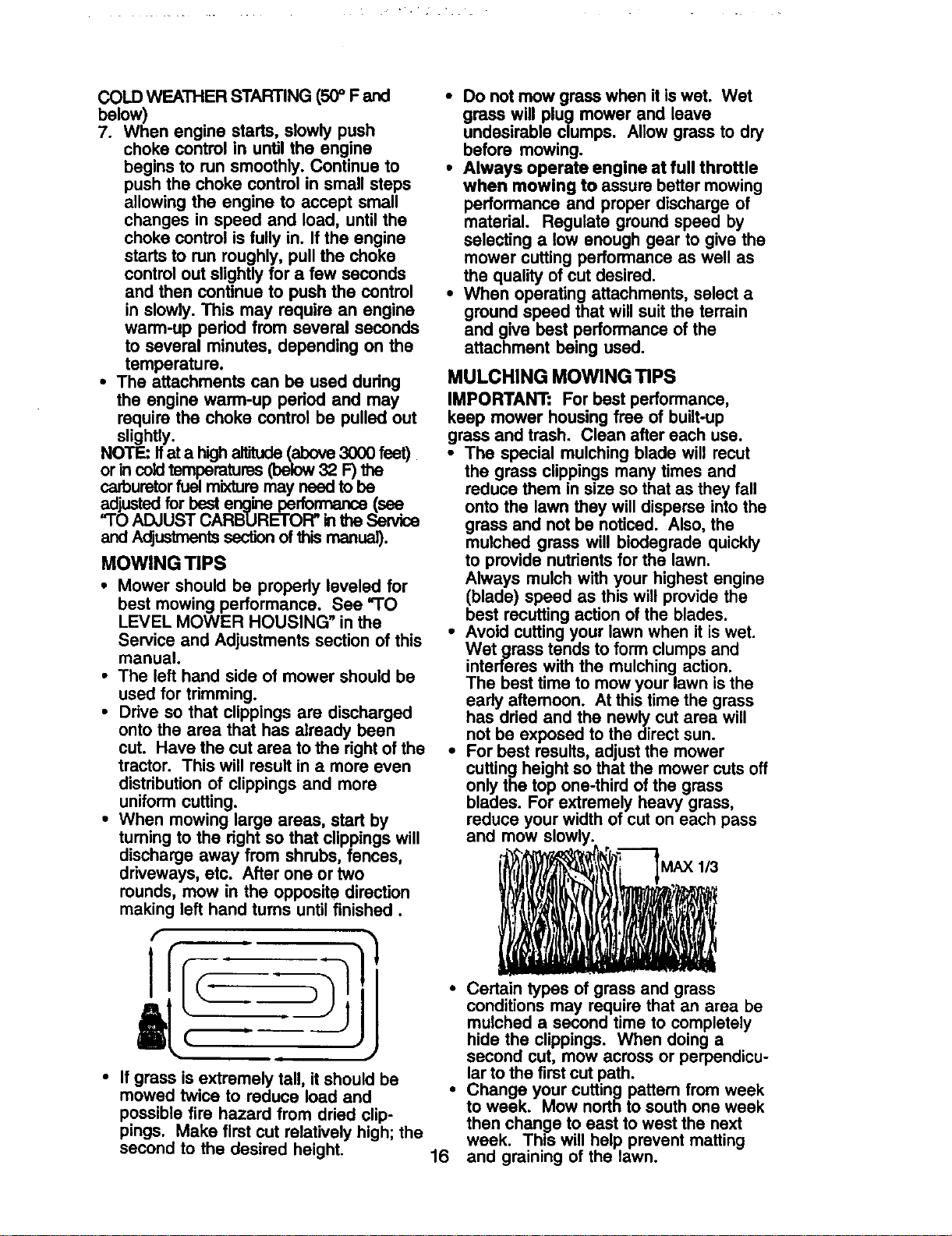

COLDWEATHERSTARTING(50°Fand

below)

7. Whenenginestarts,slowlypush

chokecontrolin untilthe engine

beginsto runsmoothly.Continueto

pushthechokecontrolin smallsteps

allowingthe engineto acceptsmall

changesinspeedand load,untilthe

chokecontrolisfully in.Iftheengine

startsto runroughly,pullthe choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used dudng

the engine warm-up pedod and may

require the choke control be pulled out

slighti[ly..

NOTE: fiat a highaltitude(above3000 feet)

or in cold temperatures(below32 F)the

carburetorfuelmixturemay needto be

adjustedforbest engineperformance (see

"TO ADJUST CARBURETOR' intheService

and Adjustmentssectionof_is manual).

MOWING TIPS

• Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area tothe right ofthe

tractor. This will result in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

tuming to the rightso that clippingswilt

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand tums until finished.

[

C--,--_el. -- w

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undasirabte clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse intothe

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it iswet.

Wet grass tends to form clumpsand

interferes with the mulching action.

The best time to mow your lawn isthe

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cuttingheight so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly. ,

'_ _MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow northto southone week

then change to east to west the next

week. This will help prevent matting

16 and graining of the lawn.

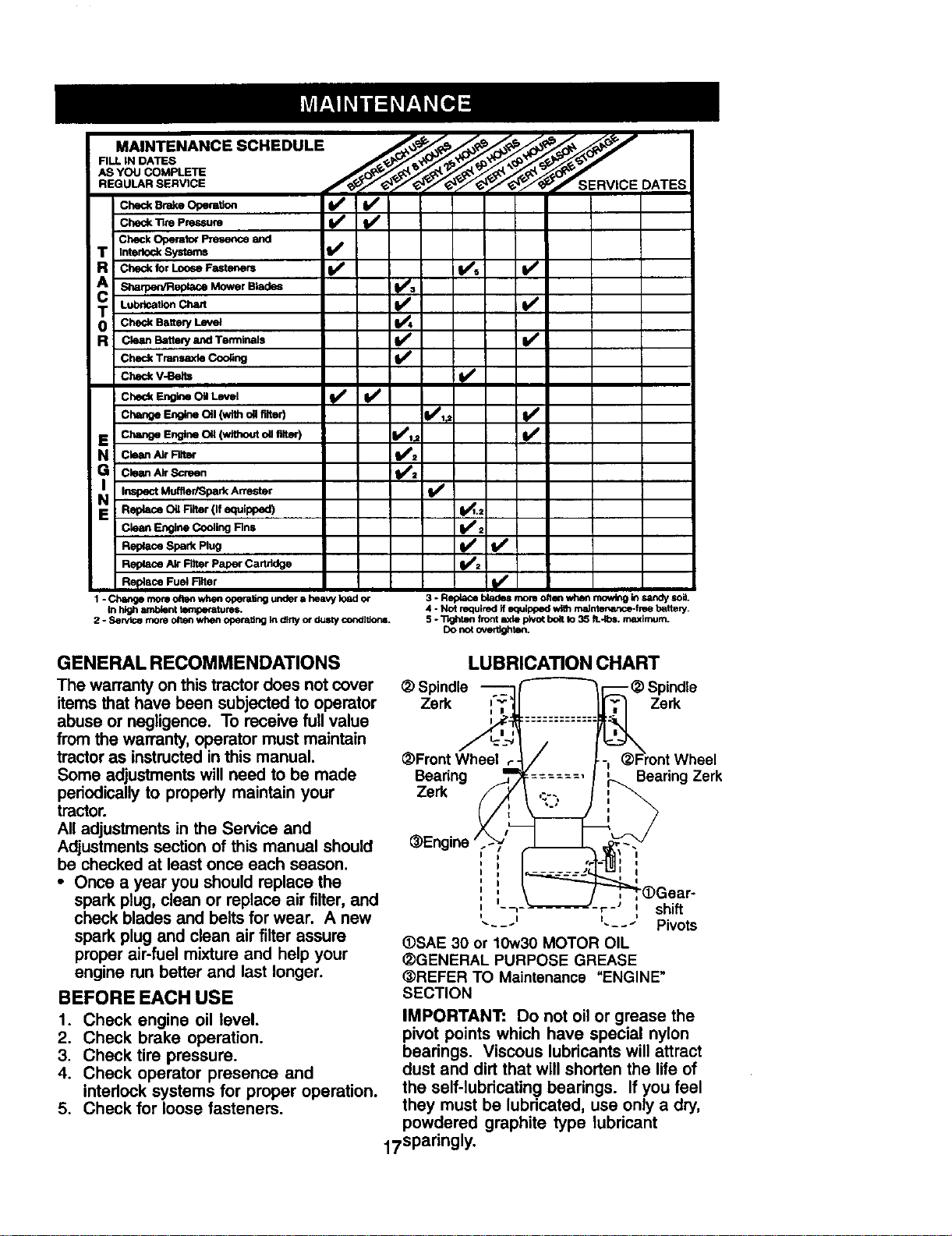

MAINTENANCE SCHEDULE _,_'f_;_,_#_'_'_ J,,_J

Fi,,,.o. 8

AS YOU COMPLETE __O_J "_l,_'l_. _ _-_J,_ ._d_" "_ _-

IIIllllI

Check Operator _ and

i T Interlock Systems

R CheckforLoo_Fasteners I/ Vss V!

A Sharpa_Replace Mower Blades _s

T L_.a.on Chart V °

0 Check Battery Level

R c_m Battery and Terminals V*

CheckTmnsaxleCooling

c_._v-e_ i_/

c_ _O.LM, W' V'

c_ F._ og(w_ o=hr) i,_,_ iVe

NEC._rFaterChangeeng_neO_(w_°ut°U"_er)Ik/uk_: V'

S Ck_. _r Screen

NI Muffler/Spark Attester

Inspect

E Re_ OUFilter(Ifequipped) ll_t=

Clean Engine Cooling Fins If=

Replace Spark Plug _1= _ !

Replace All Fitter Paper Cartridge

Replace Fuel Filter

1 - C_ange mornoften when opera,rig under a heavy load _r

in high ambient temperatureS.

2 - Servk;e moreolten when opem_ng In dirtyor dusty condltinns.

3 - Replace b_adesmorn o_tenwhen mow_ In sandy soil.

4 - Not requin)d If equipped with maintenance-frse battery.

5 - "r_ front axle pivo_boltto 35 It.-Ib_. maximum.

DOnot over_ghten.

GENERAL RECOMMENDATIONS

The warranty onthis tractordoes not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty,operator must maintain

tractoras instructedin this manual.

Some adjustmentswillneed to be made

periodicallyto properly maintain your

tractor.

All adjustments in the Service and

Adjustmentssection of this manual should

be checkedat least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and beltsfor wear. A new

spark plugand clean airfilter assure

proper air-fuel mixtureand help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

_) Spindle -_) Spindle

Zerk Zerk

_)Front Wheel Wheel

Bearing Bearing Zerk

Zerk

_SAE 30 or 10w30 MOTOR OIL

_)GENERAL PURPOSE GREASE

(_REFER TO Maintenance "ENGINE"

SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

17sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

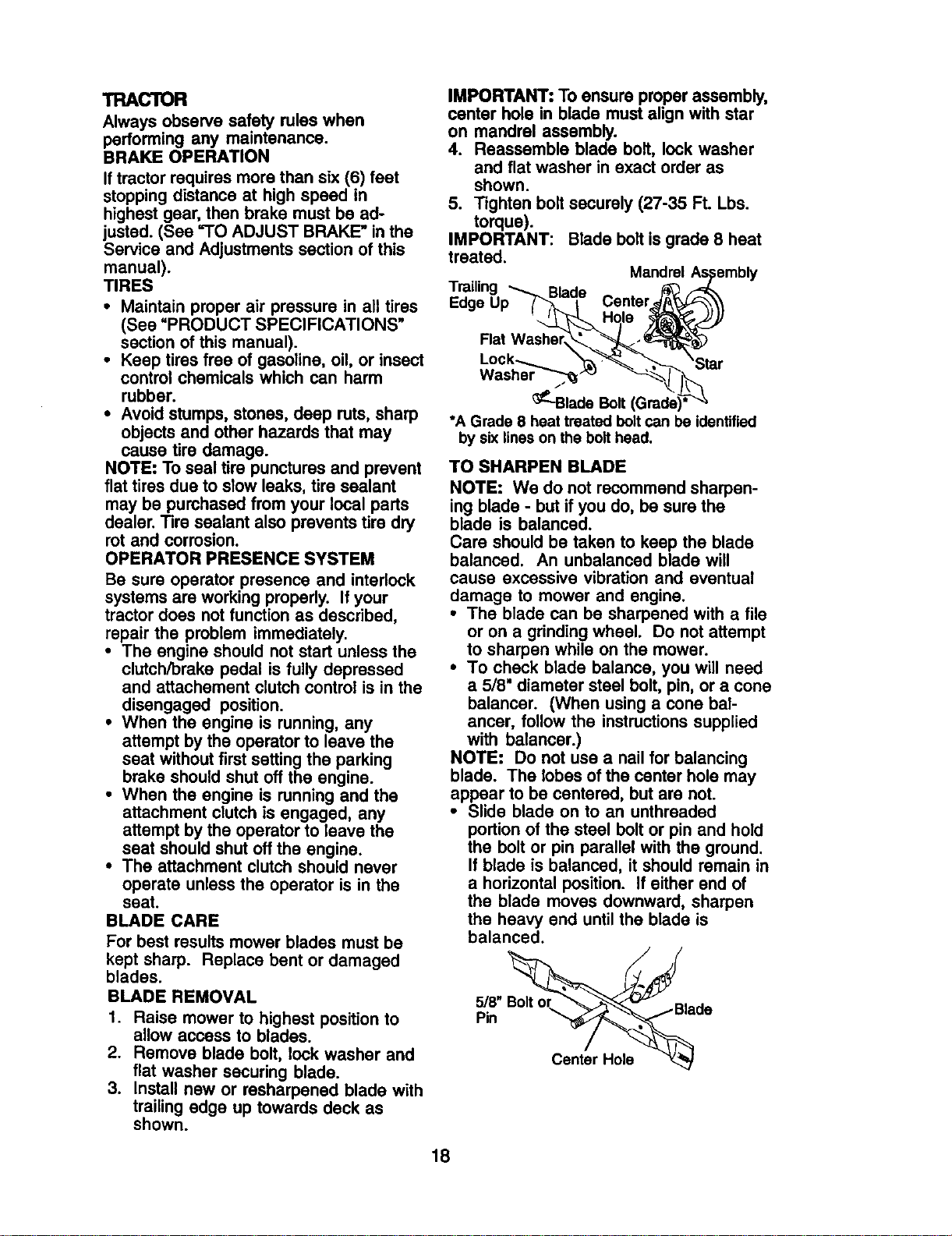

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or rasharpenad blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Edge

Lock_

Washer _.

_----Blade Bolt

*A Grade 8 heat treated boltcan be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a gdnding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with baiancer.)

NOTE: Do not usa a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthraaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8" de

Center Hole _/

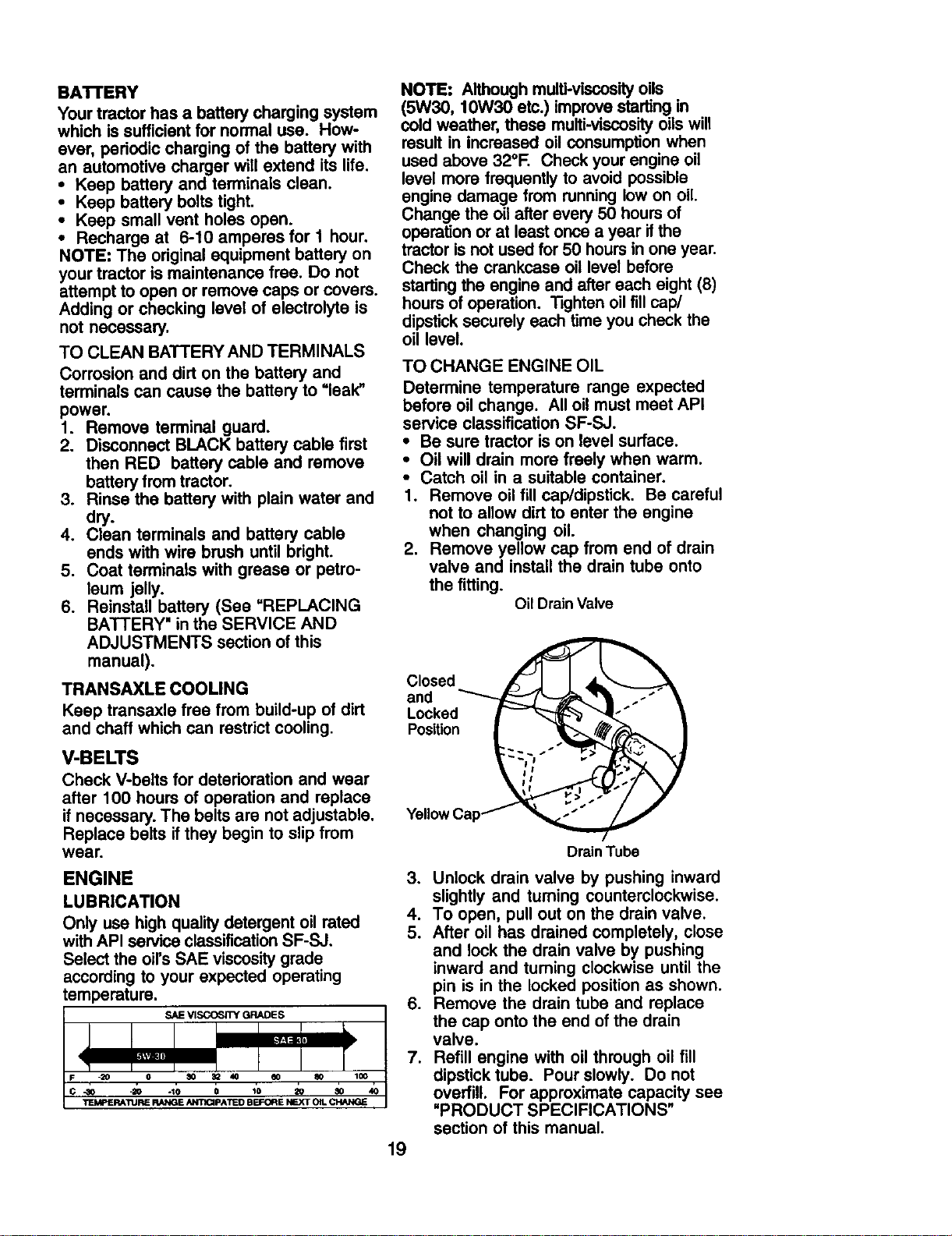

BATFERY

Your tractor has a battery charging system

which is sufficientfor normal use. How-

ever, pedodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for I hour.

NOTE: The odginal equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to =leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery fromtractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush untilbright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" inthe SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for detsdoration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

-2O 0 80

-30 -_ "10 0 tO _ _0

TF.MPERA'I1JRE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°R Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 50 hours of

operation or at least once a year ifthe

tractor is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

3. Unlock drain valve by pushing inward

slightly and turning countemlockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

Drain Tube

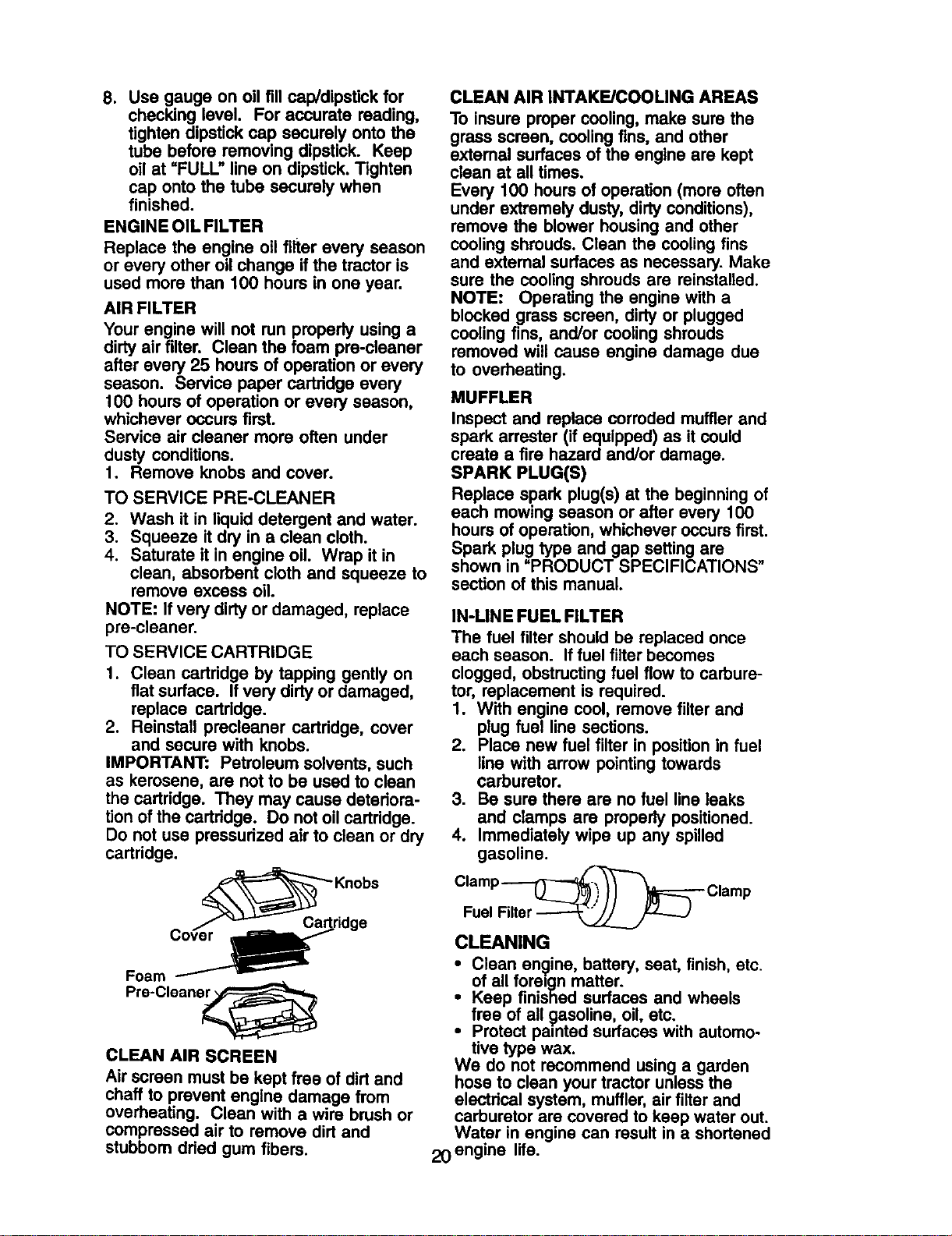

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at =FULL" line on dipstick. Tighten

cap onto the tube securely when

finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartddge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

fiat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause detedora-

tion of the cartddge. Do not oil cartridge.

Do not use pressudzed air to clean or dry

cartridge.

Knobs

Foam c°_ridge

Pre-Cleane_

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubbom dded gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and extemal surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

section of this manual.

IN-UNE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp _ Clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electdcal system, muffler, sir filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

20 engine life.

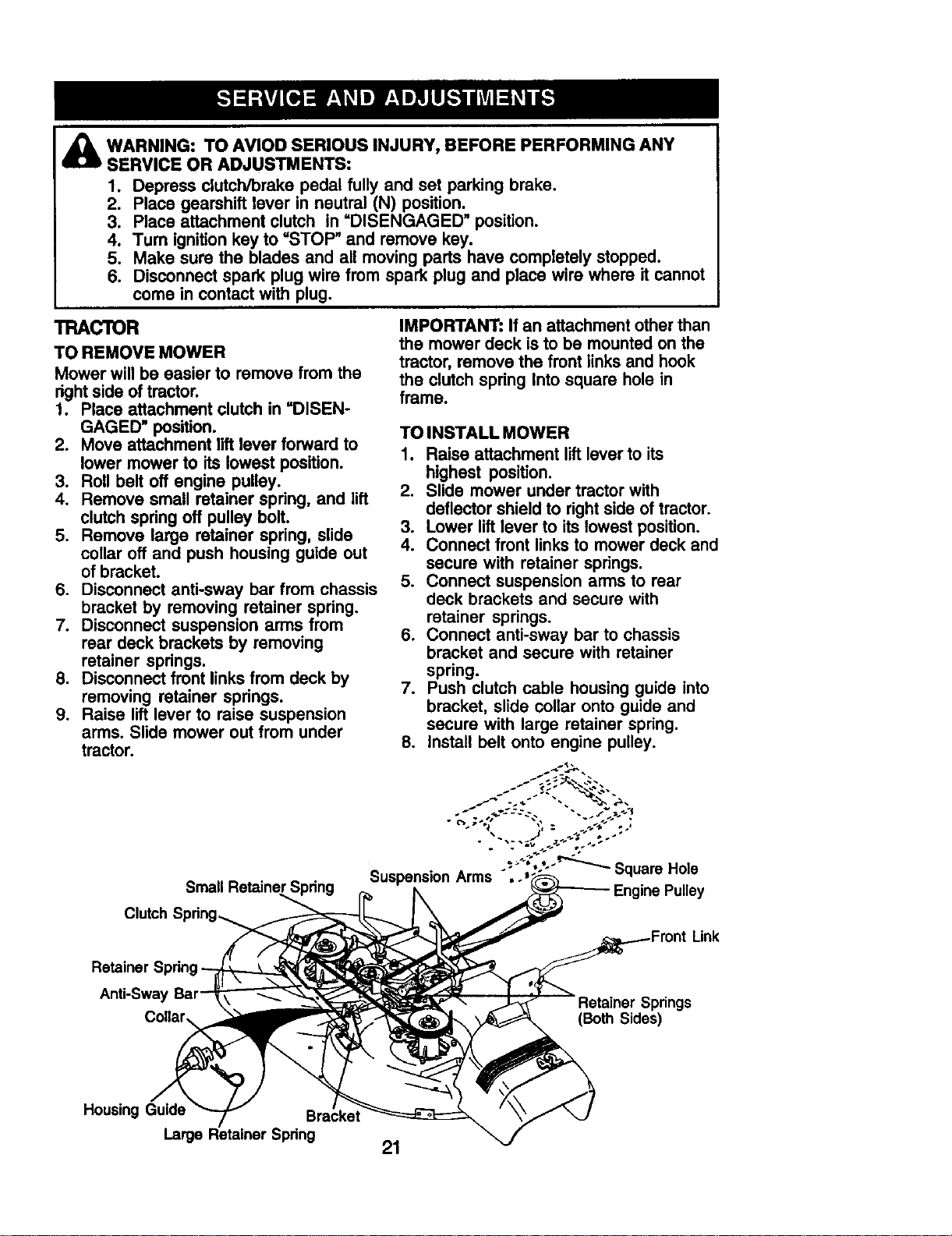

_ WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in =DISENGAGED" position.

4. Tum ignitionkey to =STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

rightside of tractor.

1. Place attachment clutch in =DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spdng, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spdng.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

Small Retainer Spring

Clutch

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment liftlever to its

highest position.

2, Slide mower under tractor with

deflector shield to rightside of tractor.

3. Lower lift lever to its lowestposition,

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Unk

Retainer

Anti-Swa'

prings

(Both Sides)

Housing Guide Bracket

Large _pdng

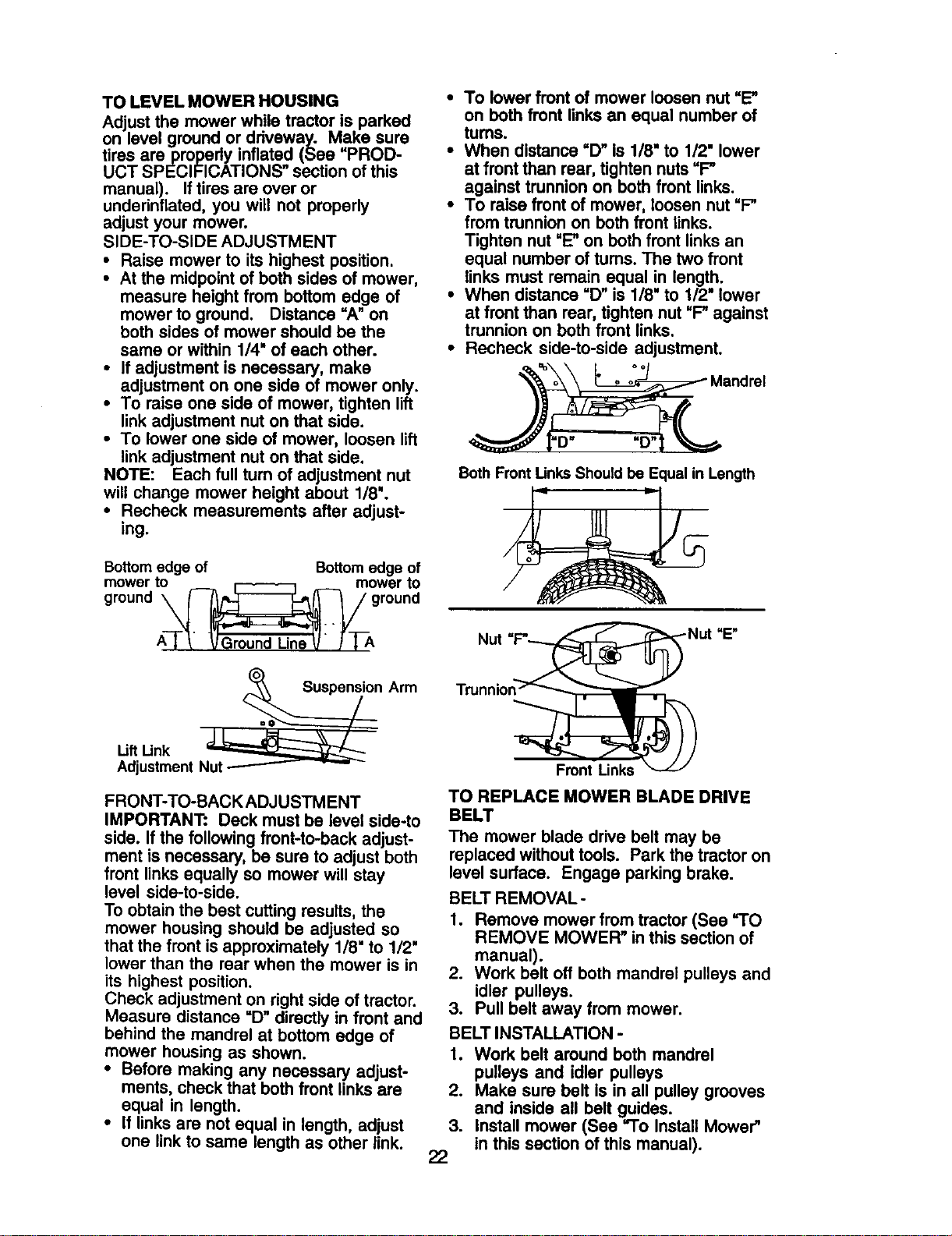

TO LEVEL MOWER HOUSING

Adjust themower while tractor is parked

on level ground or driveway. Make sure

tires areproperly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpointof both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A"on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to mower to

ground _ ground

A-r V fTA

Suspension Arm

llft Unk

Adjustment

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtainthe best cutting results, the

mower housing should be adjusted so

that the front isapproximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front linksare

equal in length.

• If links are not equal in length, adjust

one linkto same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D"is 1/8" to 1/2" lower

at front than rear, tighten nuts"P

against trunnion on both front links.

• To raise front of mower, loosen nut "P

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Unks Should be Equal in Length

Nut

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL-

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt Is in all pulley grooves

and inside all belt guides.

3. install mower (See "To Install Mower"

in this section of this manual).

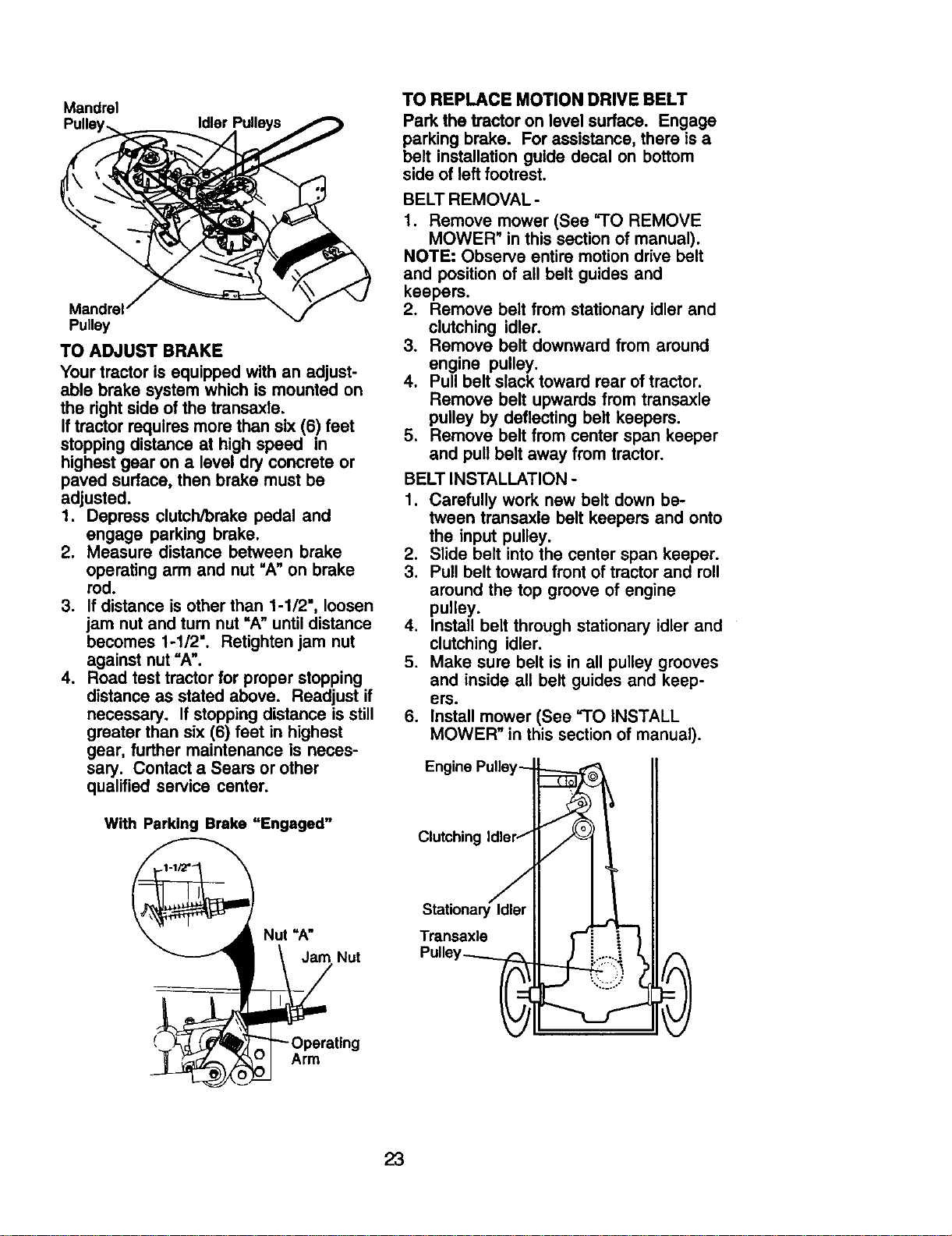

Mandrel

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the rightside of the transaxle.

Iftractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut =A"on brake

rod.

3. If distance isother than 1-1/2", loosen

jam nut and tum nut =A"until distance

becomes 1-1/2". Retighten jam nut

against nut =A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stoppingdistance isstill

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL-

1. Remove mower (See fro REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from trensaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down be-

tween transaxle belt keepers and onto

the input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See =TO INSTALL

MOWER" in this section of manual).

Engine Pulley--

Clutching Idler/

StationaryId_ler

Transaxle

Pulley_

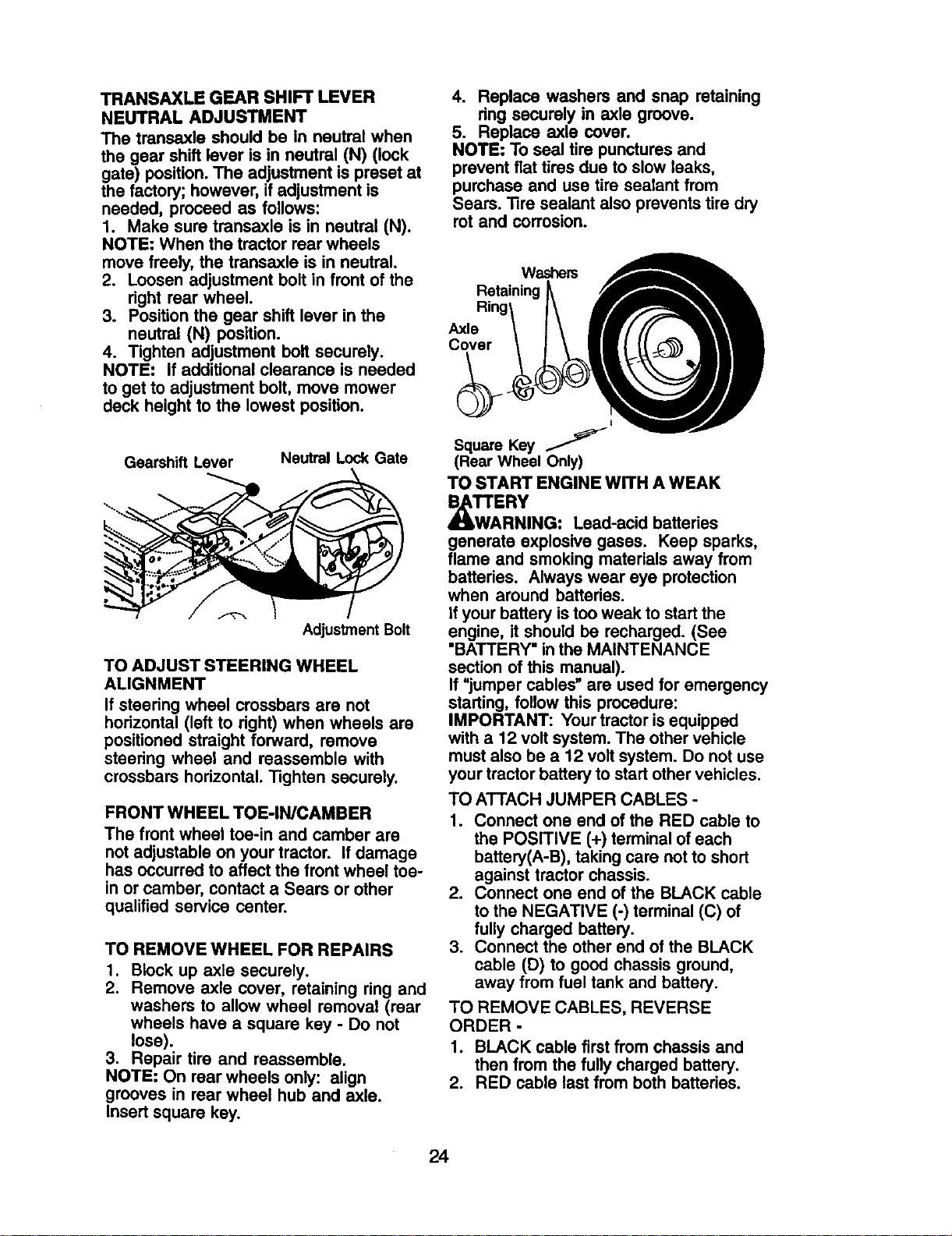

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The tmnsaxle should be In neutral when

the gear shift lever is in neutral (N) (lock

gate) position.The adjustment is preset at

the factory; however, ifadjustment is

needed, proceed as follows:

I. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. Ifdamage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

dng securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks,

purchase and use tire sealant from

Seam. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Axle

Cover

SquareKey J

(RearWheel Only)

TO START ENGINE WITH A WEAK

_ W'_'AERY

RNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

•BATTERY" in the MAINTENANCE

section of this manual).

If _jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

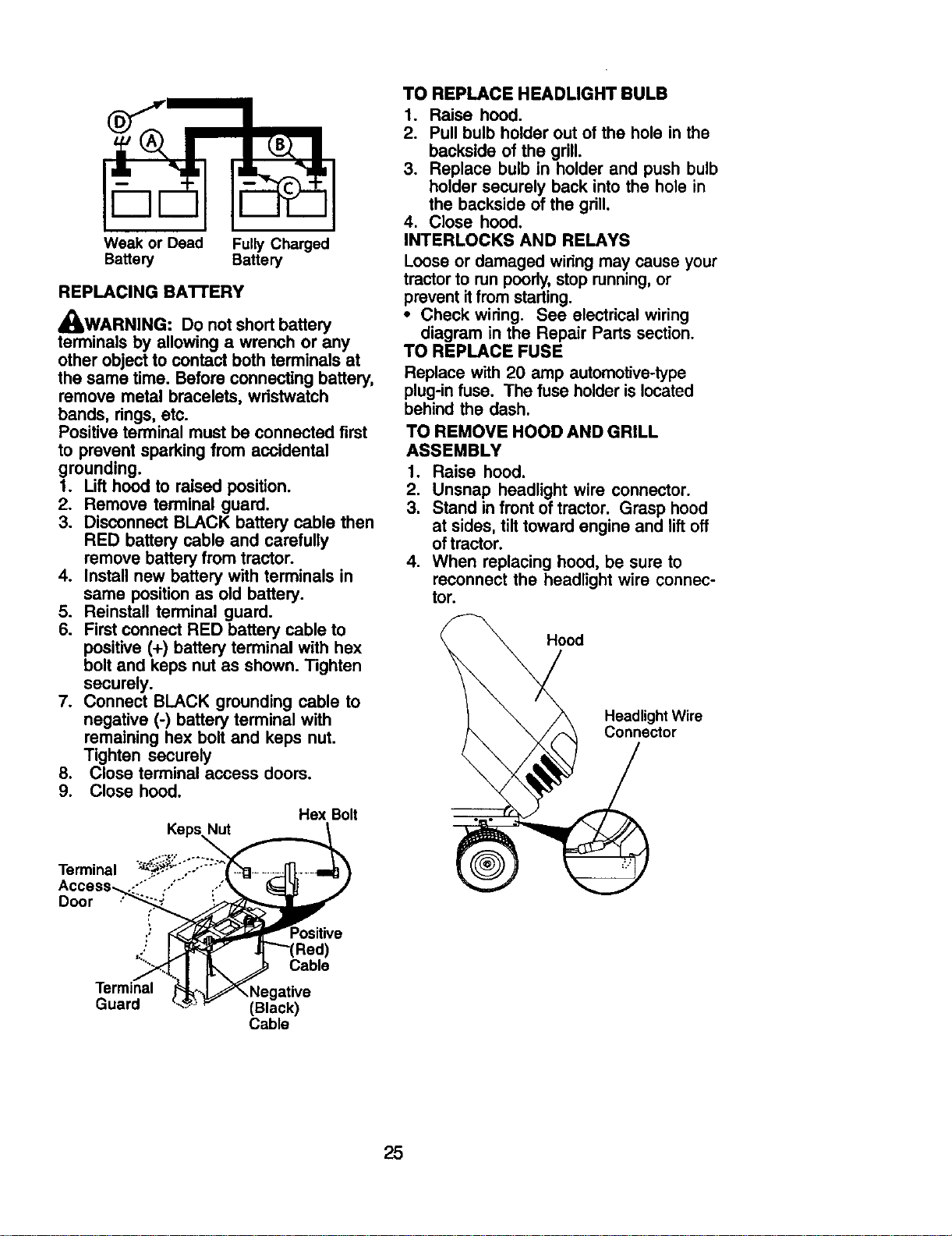

Weak or Dead Fully Charged

Battery Battery

REPLACING BA'I'I'ERY

,_WARNING: DO not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, dngs, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carofully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Hex Bolt

Nut

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the gdll.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the gdll.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged widng may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check widng. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Hood

HeadlightWire

Connector

Terminal

Access...,:. ,-'_ .,o" ..-

Door _

Terminal

Guard

Cable

,,Negative

(Black)

Cable

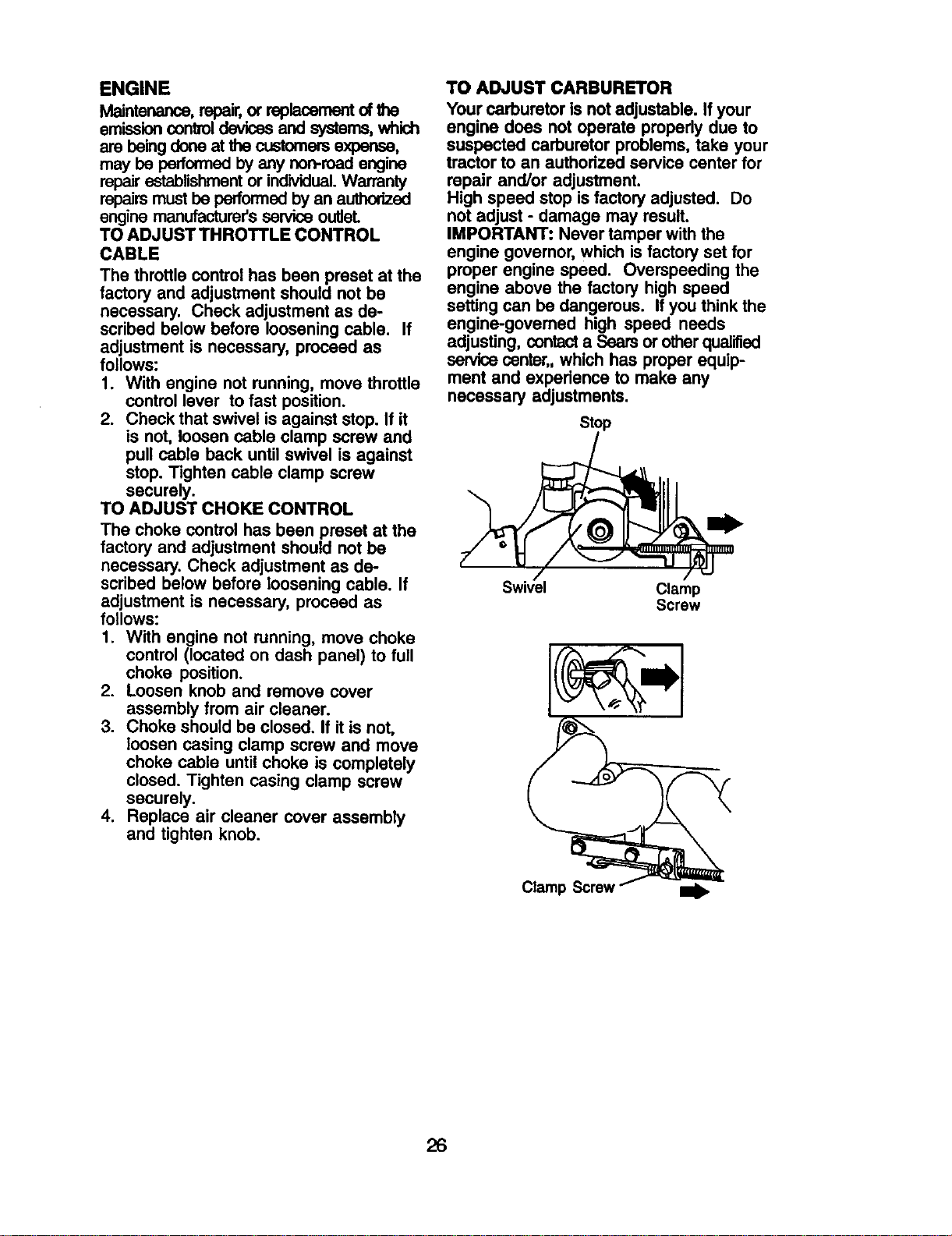

ENGINE

Maintenance,repair,or replacementof

emission controldevicesand systems,which

are beingdone at the customersexpense,

may be performedby any non-roadengine

repairestablishmentor individual.Warranty

repairsmust be performedby an authodzed

enginemanufacturer'sserviceoutleL

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it

is not, loosen cable clamp screw and

pull cable back untilswivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If itis not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate propedy due to

suspected carburetor problems, take your

tractor to an authodzed service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center,, which has proper equip-

ment and experience to make any

necessary adjustments.

Clamp

Screw

Clamp

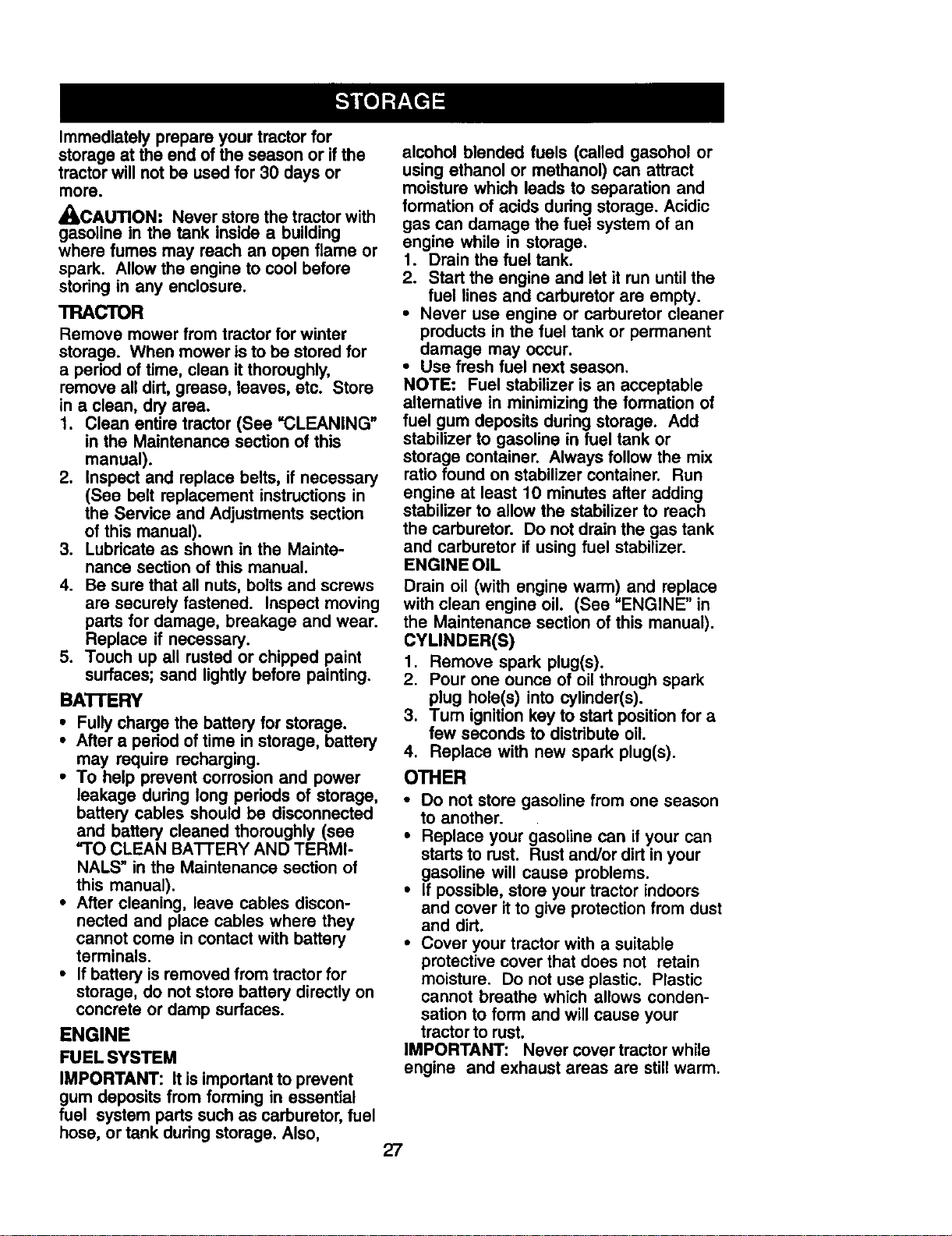

Immediately prepara your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRAGTOFI

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Glean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubdcate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BAI-rERY

• Fully charge the battery for storage.

• After a pedod of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage dudng long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank dudng storage. Also,

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits dudng storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start positionfor a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can ifyour can

startsto rust. Rust and/or dirtin your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover itto give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractorto rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are stillwarm.

TROUBLESHOOTING CHART:

See appropriate section In manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Englnewill not

turn over

CAUSE CORRECTION

1. Out of fuel.

2. Engine not =CHOKED"

properly.

3. Engine flooded.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignitionswitch.

8. Faulty solenoid or starter.

1. Fill fuel tank.

2. See =TOSTART ENGINE"

in Operation section.

Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

i81 Check all widng.

See "ToAdjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

9. Faulty operator presence

switch(es).

Engine clicks but 1. Weak or dead battery. 1. Recharge or replace battery.

will not start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or

starter.

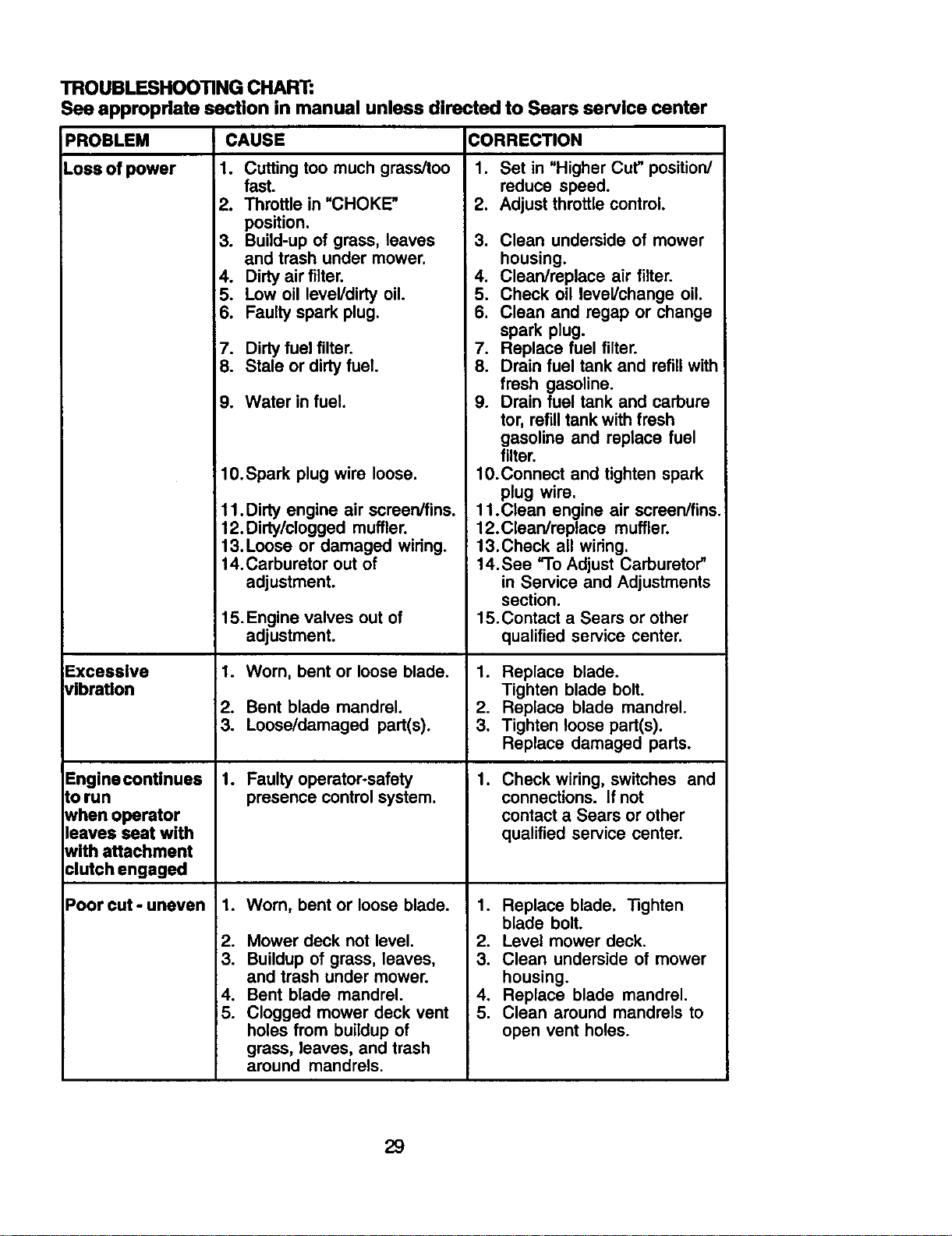

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSEPROBLEM

Lossofpower

;Excessive

_ibratlon

Enginecontinues

Lorun

Nhen operator

leaves seat with

_vlthattachment

=lutch engaged

Poor cut - uneven

CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves 3.

and trash under mower.

4. Dirty air filter. 4.

5. Low oil level/didy oil. 5.

6. Faulty spark plug. 6.

7. Dirty fuel filter. 7.

8. Stale or dirty fuel. 8.

9. Water in fuel. 9.

10.Spark plug wire loose.

i11.Didy engine air screen/fins.

i12. Didy/clogged muffler.

13. Loose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety 1.

presence control system.

1. Worn, bent or loose blade. 1.

2. Mower deck not level. 2.

3. Buildup of grass, leaves, 3.

and trash under mower.

4. Bent blade mandrel. 4.

5. Clogged mower deck vent 5.

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil leveVchange oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure

tor,refill tank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged pads.

Check wiring, switches and

connections. Ifnot

contact a Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

Level mower deck.

Clean underside of mower

housing.

Replace blade mandrel.

Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section In manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades wlll 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

2. Wom/damaged mower 2. Replace mower drive belt.

drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass 1. Engine speed too slow.

discharge

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

13.

Engine "backfires':

when turning

engine "OFF"

Switch is"OFF".

Bulb(s)or lamp(s)burnedouL

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Tum switch"ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

lions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec

tions.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

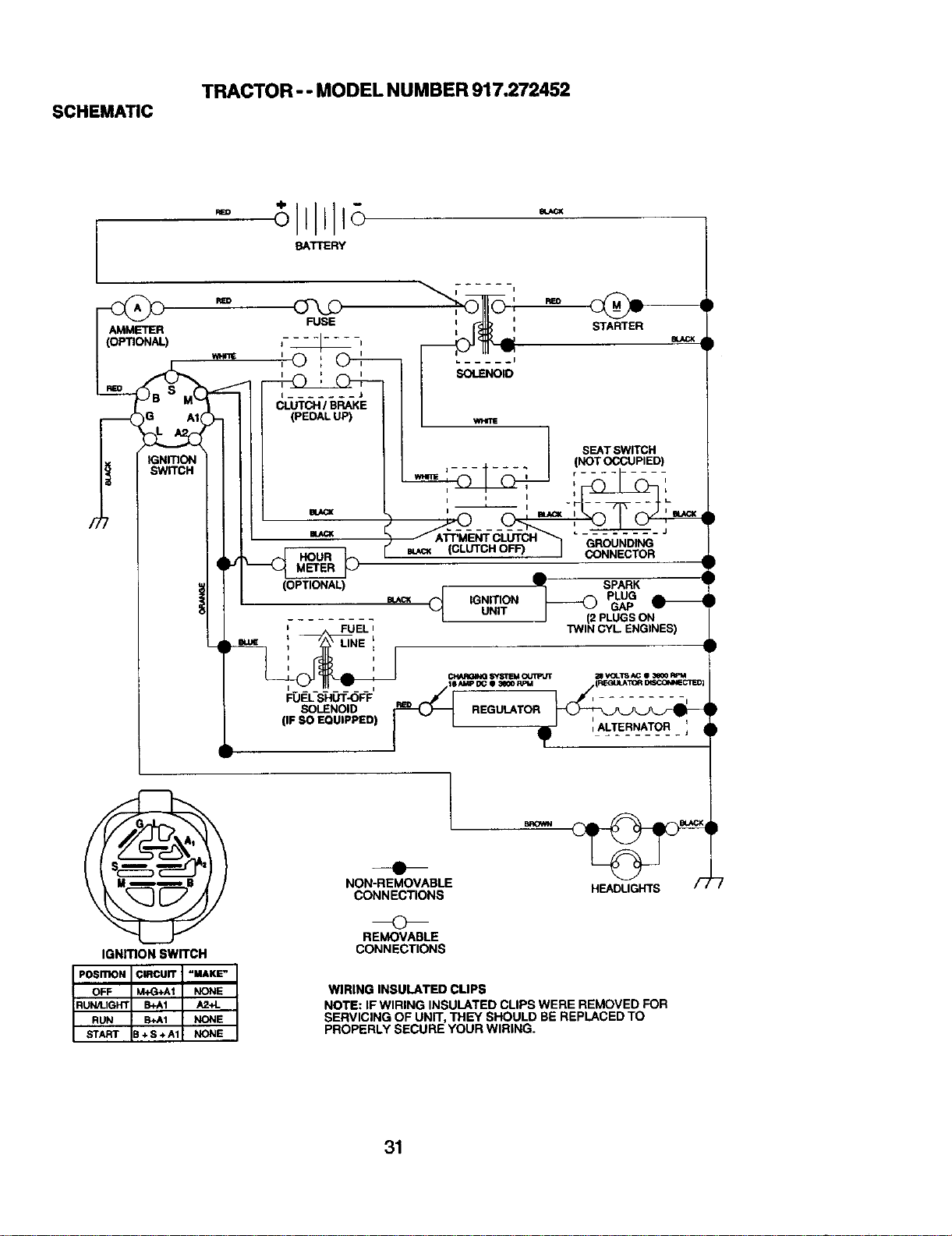

TRACTOR-- MODEL NUMBER917.272452

SCHEMATIC

IGNmON

SWITCH

BATTERY

P_D

FUSE

:o _ ......

I J

CLUTCH/ BRAKE

(PEDALUP)

(OPTIONAL)

FUEL,

I i

FUEL SHUT_)FF

SOLENOID

(IF SO EQUIPPED)

STARTER

SEATSWITCH

....... (NOT OCCUPIED)

*"_ ' , [ ........_,,

I N lul.u I un urrl I CONNECTOR

BL_K

v SPARK

_ PLUG

IGNITION GAP

UNIT

PLUGSON

TWIN CYL ENGINES)

_,.IAR_I _tSTEM (X/TFIX'G m 'I@LTS AC a _ P_PM

_e_DC O _RPM (REGULATORD_ONNEGTI_

REGULATOR

| tp ..... ,

IGNITION SWITCH

NON-REMOVABLE HEADLIGHTS /-_

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

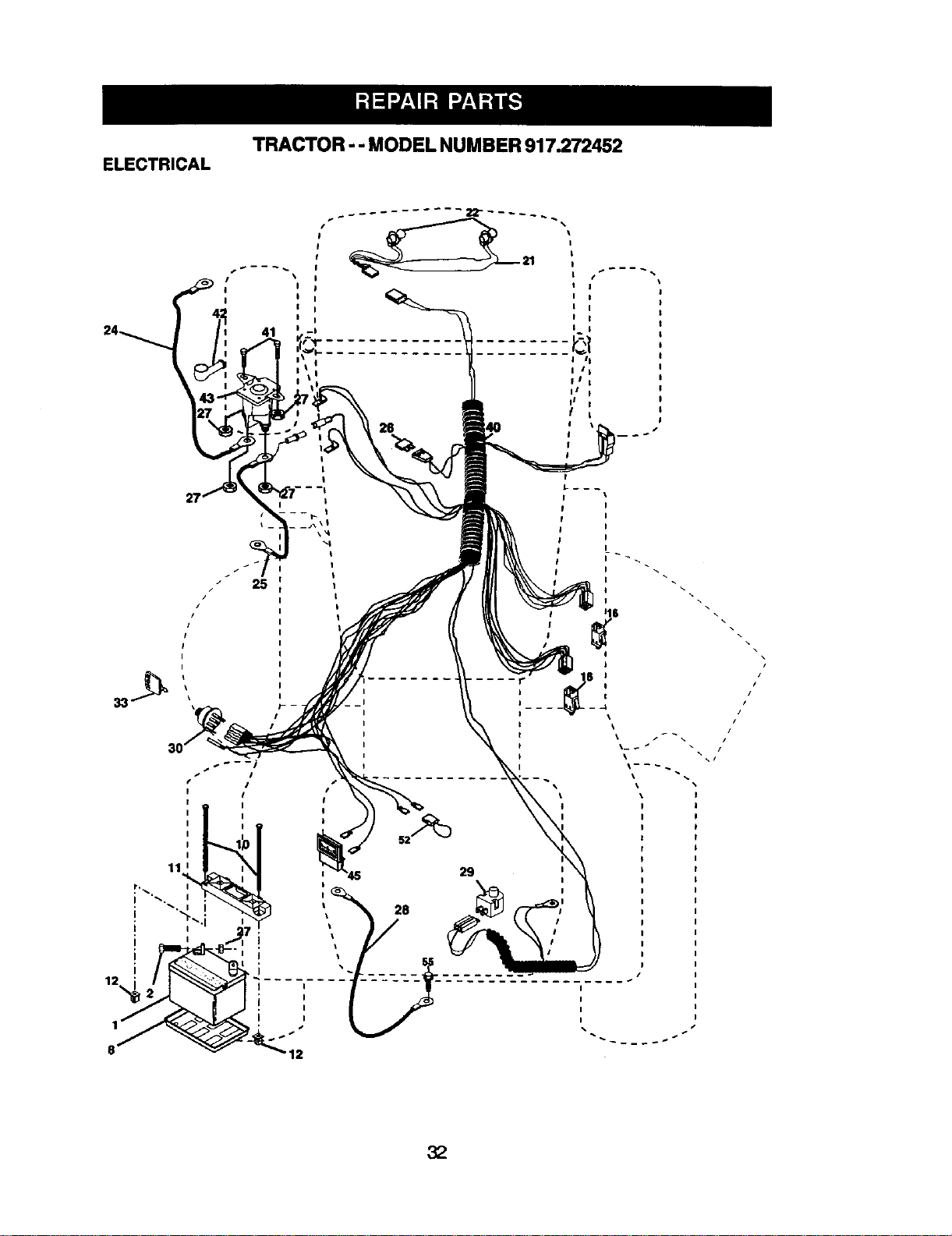

TRACTOR -- MODEL NUMBER' )17.272452

I I I

I Ii

IIi

I! I

.... r _s :

.....

\ I t

I !

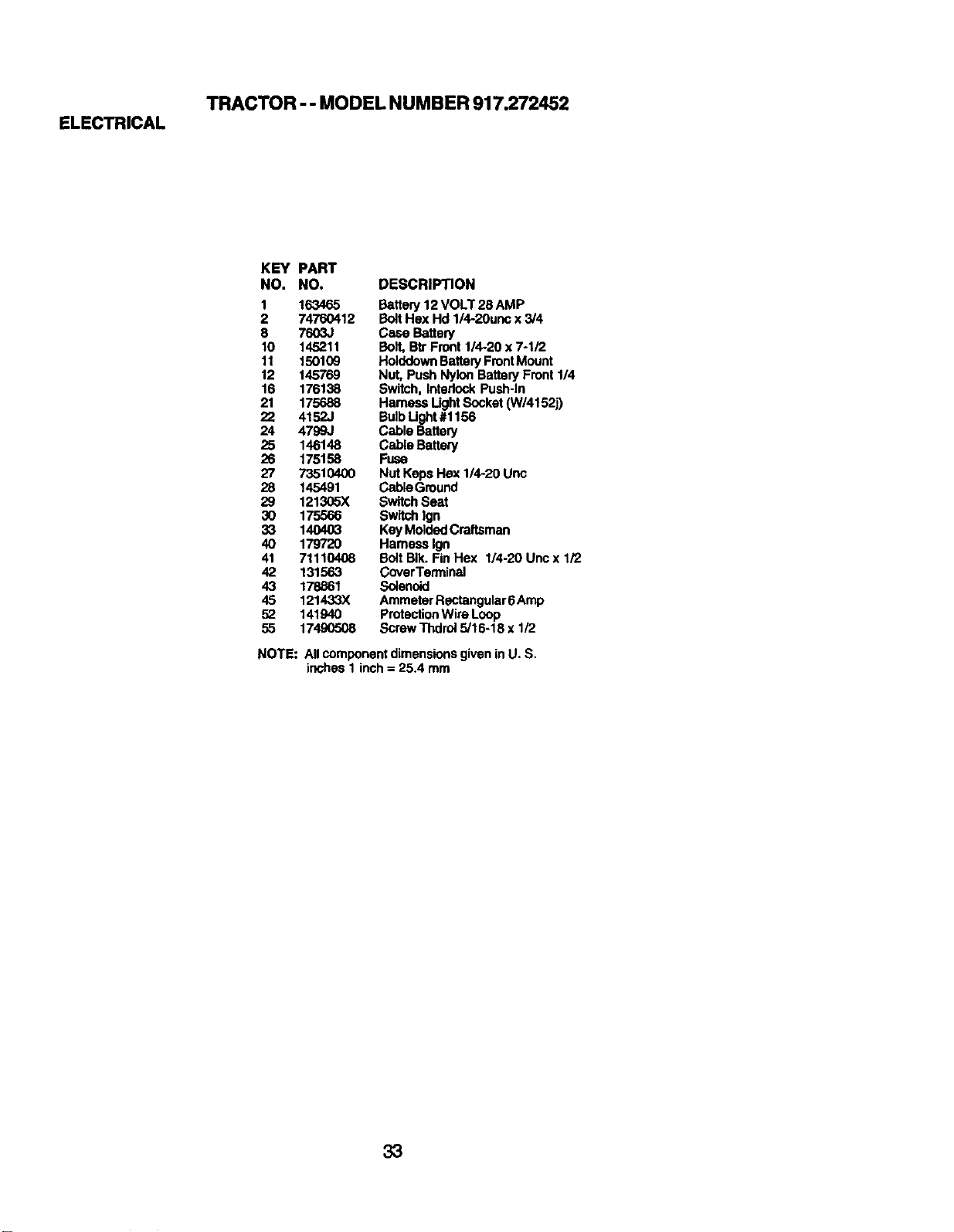

TRACTOR -- MODELNUMBER917.272452

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery12 VOLT 28 AMP

2 74760412 BoltHex Hd 114-20uncx3/4

8 7603J Case Battery

10 145211 Bolt,Btr Front1/4-20 x 7-1/2

11 150109 HolddownBatteryFrontMount

12 145769 Nut, Push Nylon BatteryFront1/4

16 176138 Switch, Interlock Push-in

21 175688 Harness LightSocket (W/4152j)

22 4152J BulbLight#1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut KepsHex 1/4-20 Uric

28 145491 CableGround

29 12130o-X SwitchSeat

30 175566 Switch tgn

33 140403 Key MoldedCraftsman

40 179720 Harness Ign

41 71110408 Bolt Blk.Fin Hex 114-20Unc x 1/2

42 131563 CoverTerminal

43 178861 Solenoid

45 121433X AmmeterRectangular6 Amp

52 141940 ProtectionWire Loop

55 17490508 Screw Thdrol5/16-18 x 1/2

NOTE: All componentdimensionsgiven in U. S.

inches 1inch = 25.4 mm

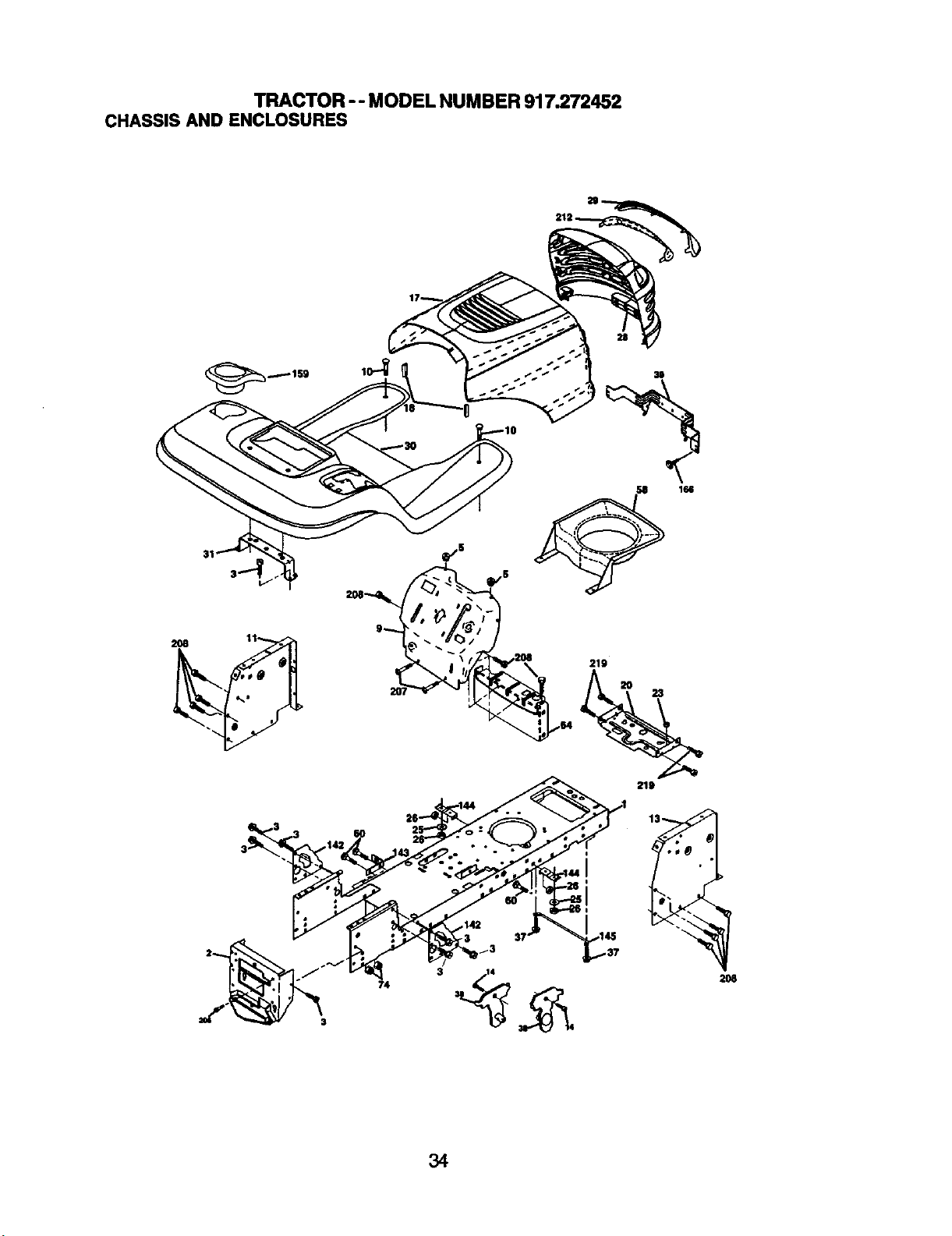

TRACTOR -- MODEL NUMBER 917.272452

CHASSIS AND ENCLOSURES

166

219

13 ,° 1

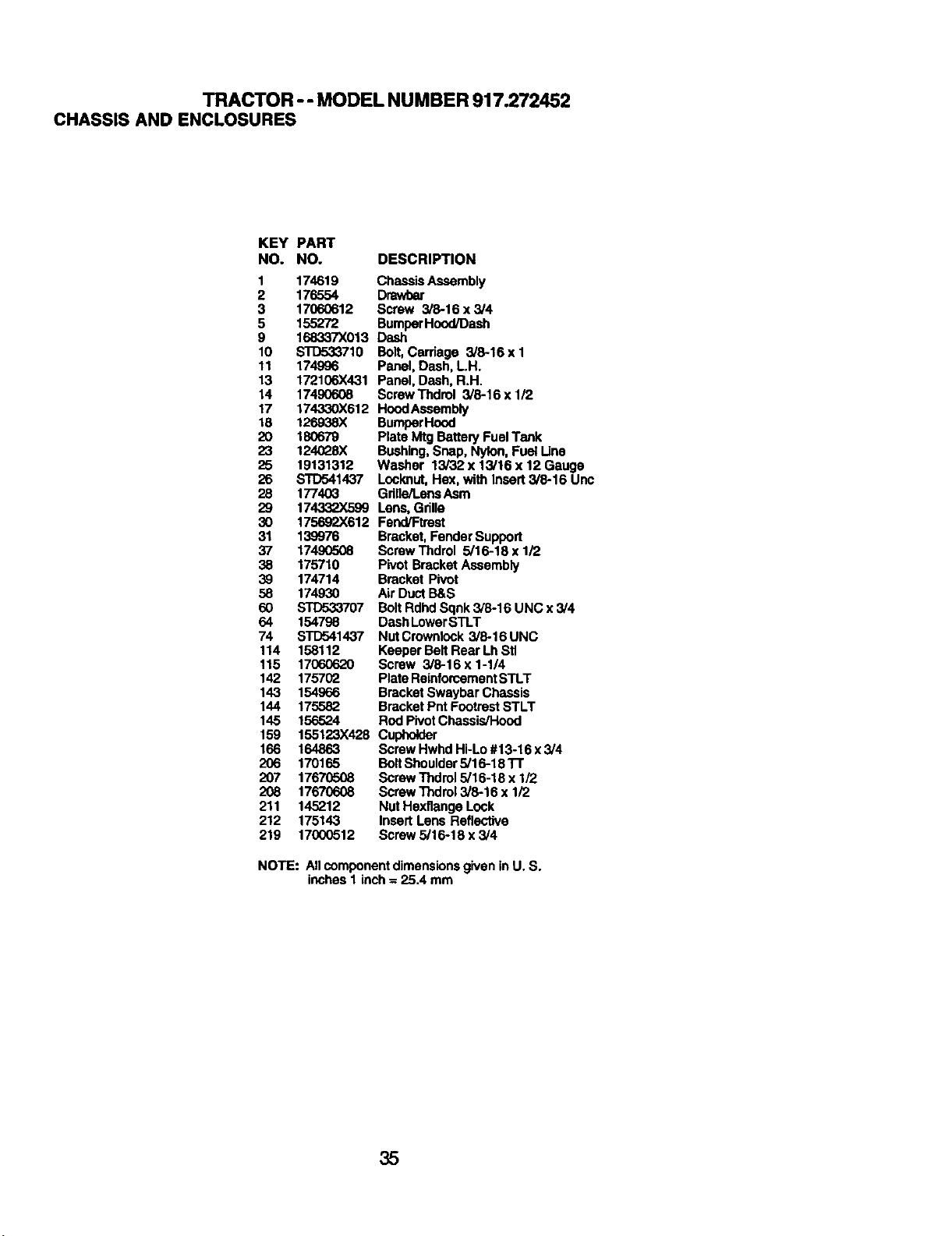

TRACTOR -- MODEL NUMBER 917.272452

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 ChassisAssembly

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumporHood/Dash

9 168337X013 Dash

10 STD533710 Bolt,Carriage 3/8-16 x 1

11 174996 Panel, Dash, LH.

13 172106X431 Panel, Dash, R.H.

14 17490608 ScrewThdrol 3/8-16 x 1/2

17 174330X612 HoodAssembly

18 126938X BumperHood

20 180679 Plate Mtg Batteq/Fuel Tank

23 124028X Bushing,Snap, Nylon,Fuel Line

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Locknut, Hex, with Insert 3/8-16 Unc

28 177403 Gdlis/LansAsm

29 174332X599 Lens, Grille

30 175692X612 Fend/Rrest

31 139976 Bracket, FenderSupport

37 17490508 Screw Thdrol 5/18-18 x 1/2

38 175710 Pivot Bracket Assembly

39 174714 Bracket Pivot

58 174930 Air Duct B&S

60 STD533707 BoltRdhd Sqnk 3/8-16 UNC x3/4

64 154798 DashLowerSTLT

74 STD541437 NutCrowniock 3/8-16UNC

114 158112 Keeper Belt Rear Lh SU

115 17060620 Screw 3/8-16x1-1/4

142 175702 PlateReinforcementSTLT

143 154966 BracketSweybar Chassis

144 175582 BracketPnt FootrestSTLT

145 156524 RodPivotChassis/Hood

159 155123X428 Cuphdder

166 164863 ScrewHwhd Hi-Lo#13-16 x3/4

206 170165 Bolt Shoulder5/18-18 ]-r

207 1767(_508 screw Thdrol5/16-18 x 1/2

208 17670608 ScrewThdrel 3/8-16 x 1/2

211 145212 Nut Hexflange Lock

212 175143 Insert Lens Reflective

219 17000512 screw 5/18-18 x 3/4

NOTE: All component dimensionsgiven inU, S.

inches 1inch = 25.4 mm

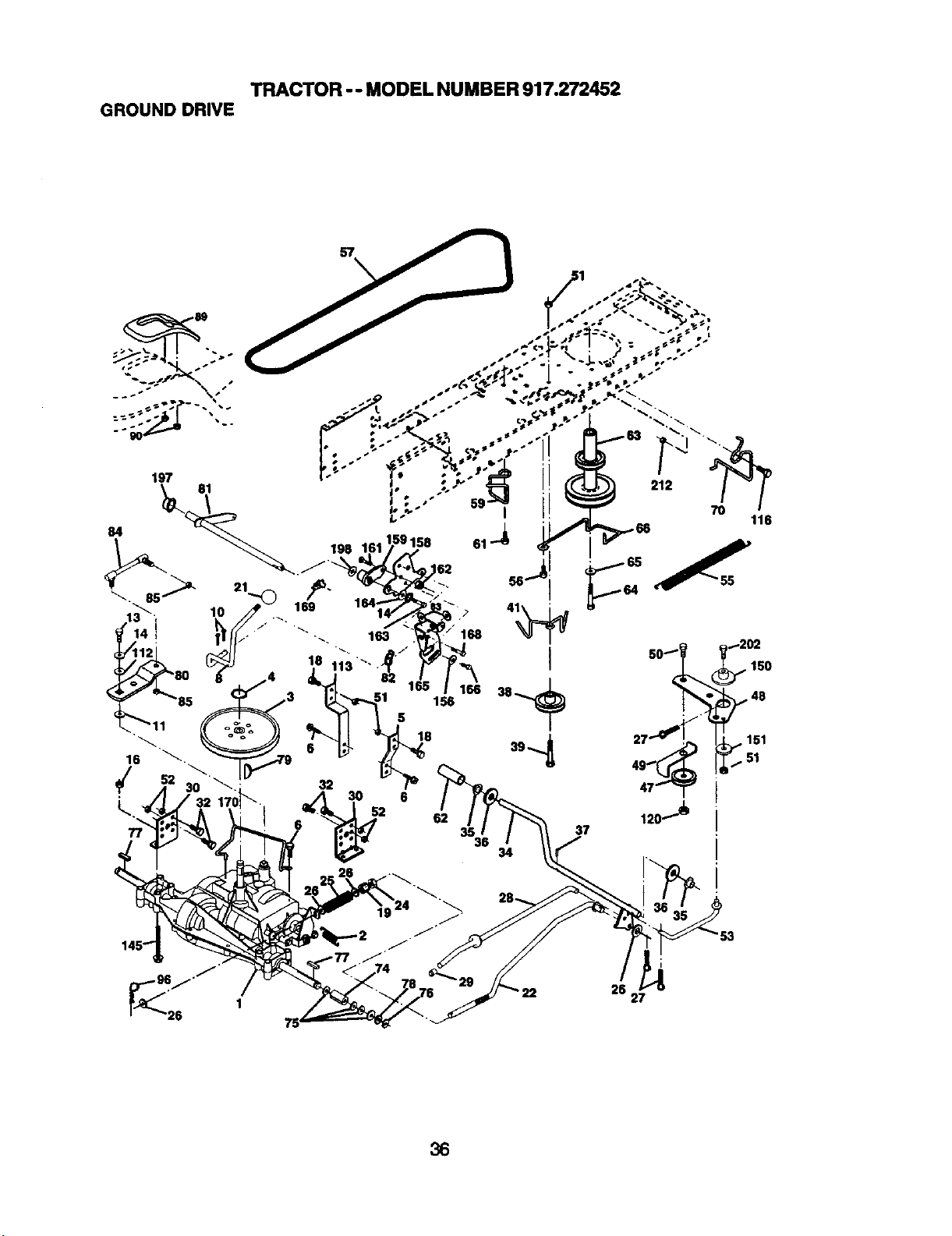

TRACTOR -- MODEL NUMBER 917.272452

GROUNDDRIVE

212

116

26 27

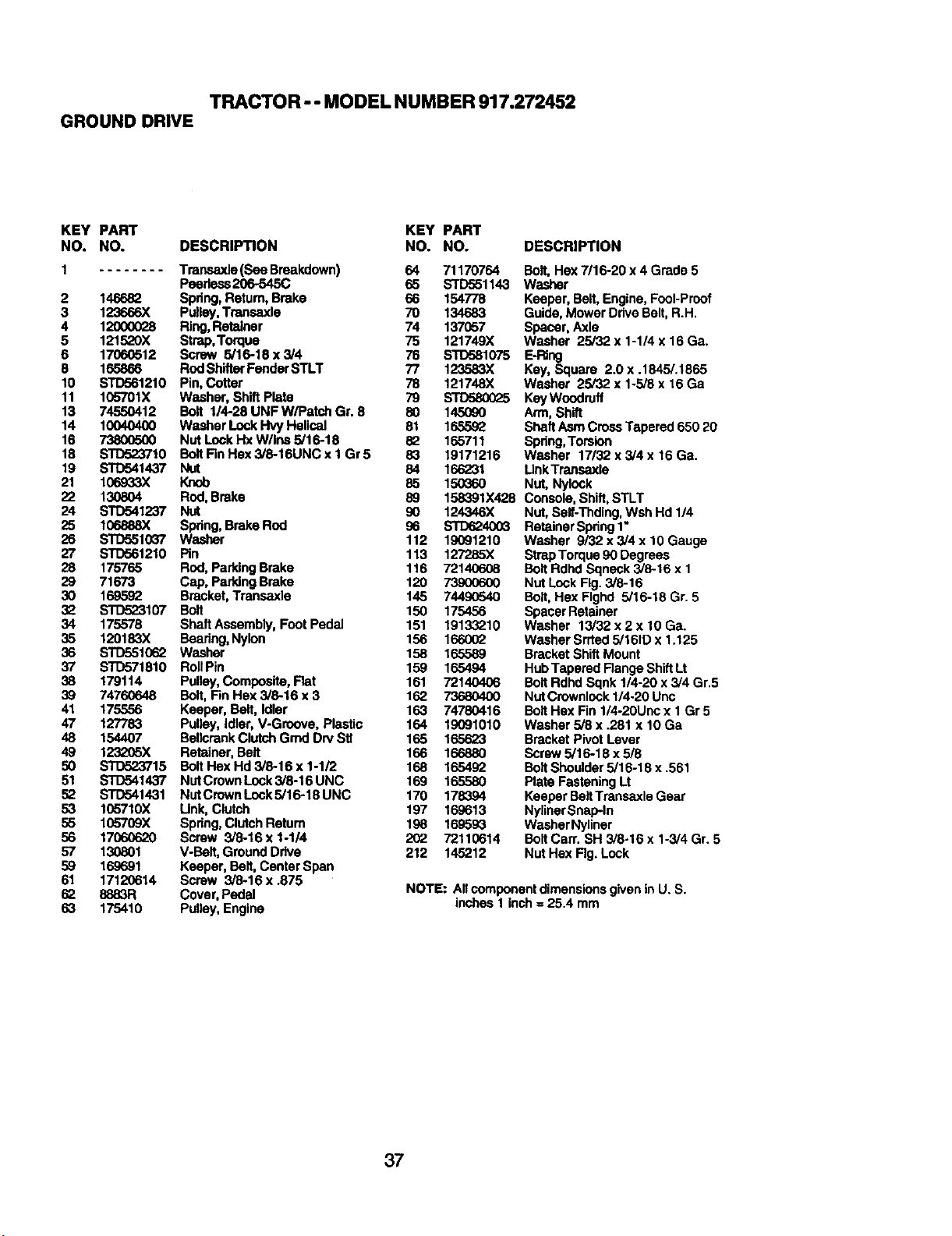

TRACTOR-- MODELNUMBER917.272452

GROUNDDRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Tmnsaxle (See Breakdown) 64

Pasdass206-545C 65

2 146682 Spdng, Return, Brake 66

3 123666X Pullay,Trensaxle 70

4 12000028 Ring,Retelner 74

5 121520X Strap,Torque 75

6 17060512 Screw 5/16-18 x 3/4 76

8 165866 Rod ShifferFenderSTLT 77

10 STD561210 Pin, Cotter 78

11 105701X Washer, Shift Plate 79

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 80

14 10040400 Washer Lock HvyHelical 81

16 73800500 Nut LookHx W/Ins 5/16-18 82

18 STD523710 BoltRn Hex 5/8-16UNC x 1Gr 5 83

19 STD541437 Nut 84

21 106933X Knob 85

22 130804 Rod, Brake 89

24 STD541237 Nut 9O

25 106888X Spdng, Brake Rod 96

26 STD5510_/ Washer 112

27 BTD561210 Pin 113

28 175765 ROd,Parking Brake 116

29 71673 Cap, Parking Broke 120

30 169592 Bracket, Trensaxla 145

32 STD523107 Bolt 150

34 175578 Shaft Assembly, Foot Pedal 151

35 120183X Beadng,Nylon 156

36 STD5510_2 Washer 158

37 BTD571810 RollPin 159

38 179114 Pulley,Composite, Flat 151

39 74760648 Bolt, Fin Hex 3/8-16 x 3 162

41 175556 Keeper, Belt, Idler 163

47 127783 Pulley, Idler, V-Groove, Plastic 164

48 154407 BallcrankClutch Grnd Dry $8 165

49 123205X Retainer, Belt 166

50 BTD523715 Bolt Hex Hd 3/8-16 x 1-1/2 168

51 STD541437 Nut CrownLock3/8-16 UNC 169

52 STD541431 Nut CrownLock5/16-18 UNC 170

53 105710X Unk, Clutch 197

55 10o'709X Spring, ClutchRetum 198

56 17060620 Screw 3/6-16 x 1-1/4 202

57 130801 V-Belt, Ground Drive 212

59 169691 Keeper, Bolt, Center Span

61 17120614 Screw 3/8-16x .875

62 8883R Cover, Pedal

63 175410 Pulley, Engine

71170764 Bolt,He:<7/16-20 x 4 Grade 5

STD551143 Washer

154778 Keeper, Belt, Engine, Fool-Proof

134683 Guide,Mower DriveBelt, R.H.

137057 Spacer, Axle

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-F_ng

123583)( Key, Square 2.0 x .1845/.1865

121748X Washer 25/32 x 1o5/3x 15 Ga

STD580025 KeyWoodruff

145090 Arm, Shift

165592 ShaftAsm CrossTapered 650 20

165711 Spring,Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga.

166231 LJnkTransaxle

150360 Nut, Nylock

158391X428 Console,Shift,STLT

124346X Nut,Self-Thding, Wsh Hd 1/4

STD624003 RetainerSpring 1"

19091210

127285X

721406O8

739OO6OO

7449O54O

175456

19133210

1669O_

165,589

165494

72140406

7368O4O0

74780416

19091010

165623

16688O

165492

165580

178394

169613

169593

72110614

145212

Washer 9/32 x 3/4 x 10 Gauge

StrapTorque 90 Degrees

BoltRdhd Sqneck 3/8-16 x 1

Nut LookFig. 3/8-16

Bolt,Hex Flghd 5/16-18 Gr. 5

SpacerRetainer

Washer 13/32x2x 10Ga.

Washer Srrted5/161Dx 1.125

Bracket Shift Mount

HubTapered Range ShiftLt

BoltRdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock1/4-20 Unc

BoltHex Fin 1/4-20Unc x I Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x5/8

BoltShoulder5/16-18 x .551

Plate FasteningLt

Keeper BeltTmnsaxle Gear

NylinerSnap-In

WasherNyliner

BoltCam SH 3/6-16 x 1-3/4 Gr. 5

Nut Hex Rg. Look

NOTE: All componentdimensionsgiven in U. S.

inches 1 inch= 25.4 mm

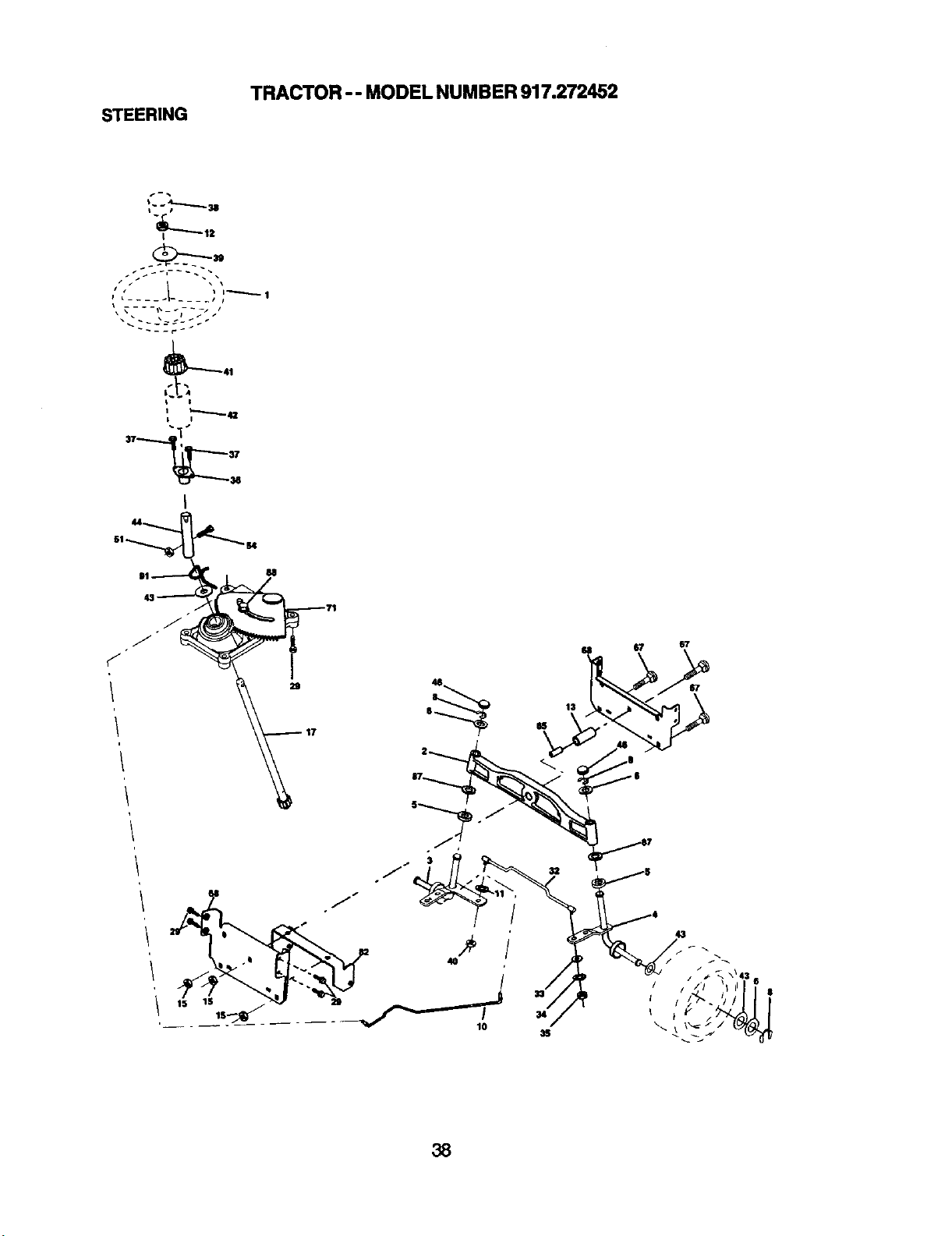

STEERING

TRACTOR -- MODEL NUMBER 917.272452

r-.

- __81

t_" I ,!

jt i

"-..--.....1

• t / •

t I

,½

/ / /'1 I il 6 8

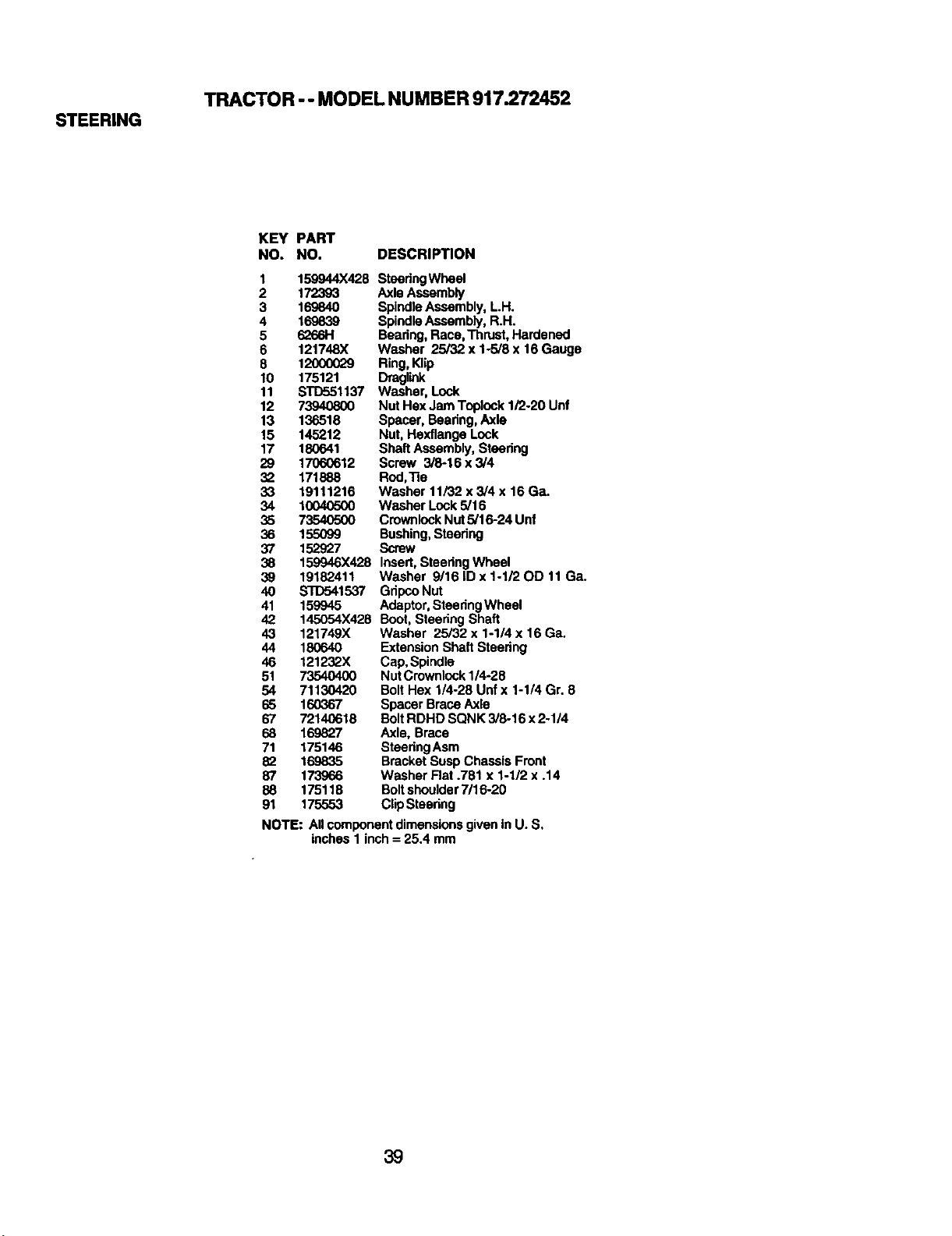

TRACTOR -- MODEL NUMBER 917.272452

STEERING

KEY PART

NO. NO. DESCRIPTION

1 159944X428 SteeringWheel

2 172393 Axle Assembly

3 169840 SpindleAssembly, L.H.

4 169839 SpindleAssembly, R.H.

5 62661-1 Beadng,Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

8 12000029 Ring,Klip

10 175121 Draglfnk

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock1/2-20 Unf

13 136518 Spacer, Beedng, Axle

15 145212 Nut, Hexflange Lock

17 180641 ShaftAssembly, Steedng

29 17060612 Screw 3/8-16 x 3/4

32 171888 Rod,Tie

33 19111216 Washer 11/32 x 3/4 x 16 Ga.

34 10040500 Washer Lock5/16

3_ 73540500 CrownlockNUt5/16-24 Unf

36 155099 Bushing,Steedng

37 152927 Screw

38 159946)(428 Insert,Steedng Wheel

39 19182411 Washer 9/161D x 1-1/2OD 11Ga.

40 S'rD541537 Gdpco Nut

41 159945 Adaptor,Steedng Wheel

42 145054X428 Boot, Steedng Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 180640 Extension Shaft Steedng

46 121232X Cap, Spindle

51 73540400 NutCrownlock114-28

54 71130420 BoltHex 1/4-28 Unf x 1-114Gr. 8

65 160367 Spacer Brace Axle

67 72140618 BoltRDHD SQNK 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 SteedngAsm

82 169835 Bracket Susp Chassis Front

87 173966 Washer Rat .781 x 1-1/2 x .14

88 175118 Bolt shoulder7/16-20

91 175553 ClipSteedng

NOTE: Allcomponentdimensions givenIn U. S,

inches 1 inch= 25.4 mm

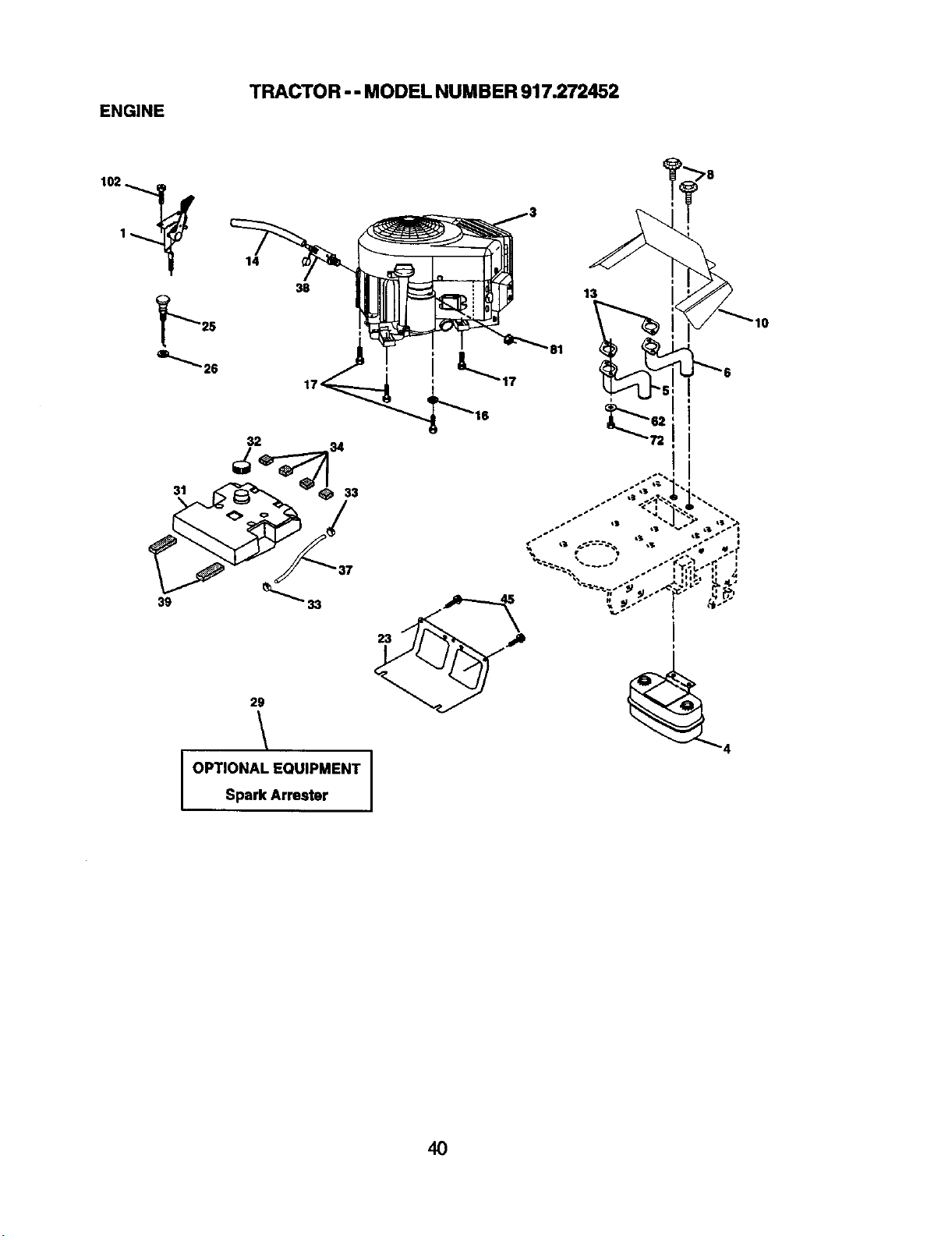

TRACTOR -- MODELNUMBER 917.272452

ENGINE

102

1_ 14

_'"_ 26

OPTIONAL EQUIPMENT

Spark Arrester

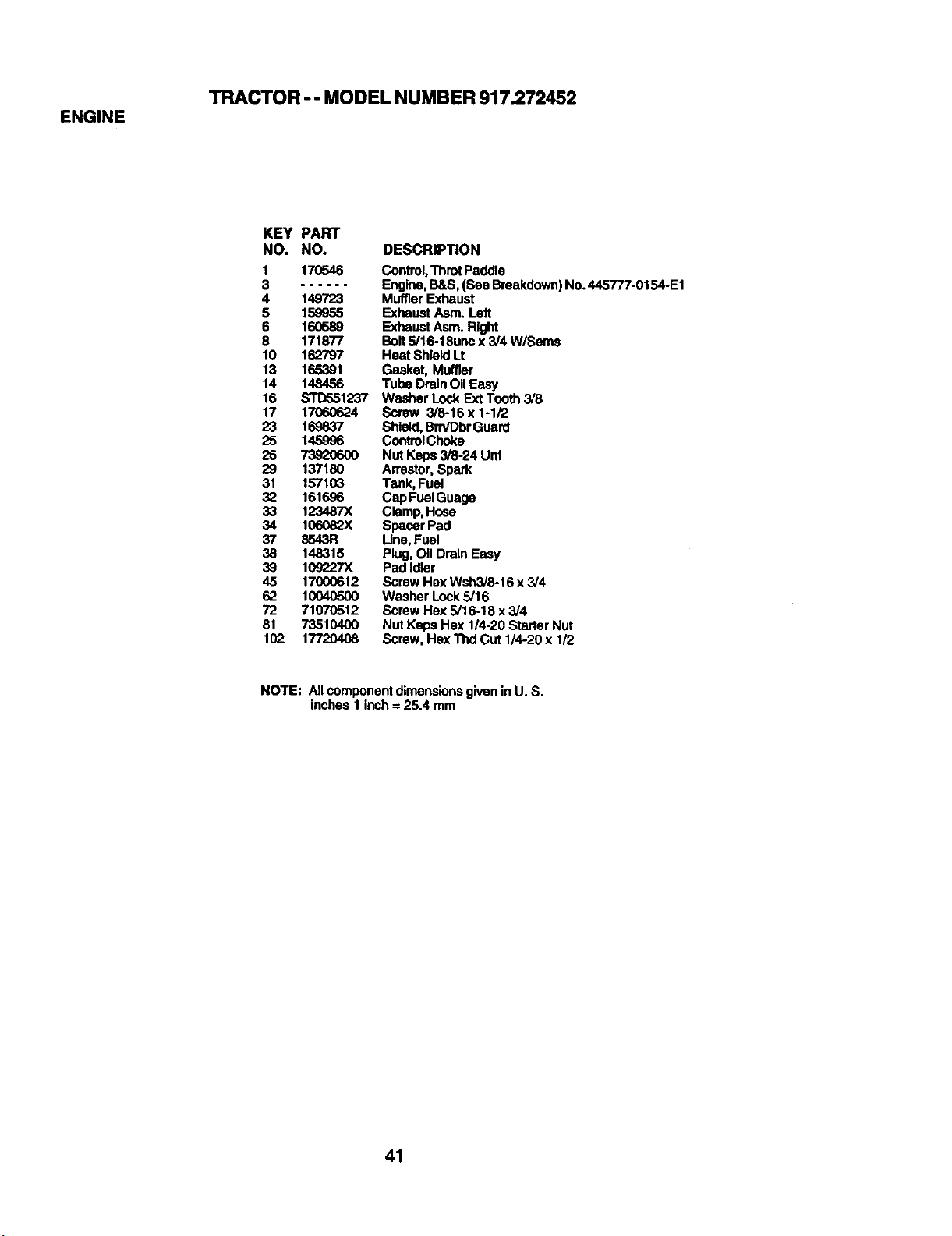

TRACTOR -- MODEL NUMBER 917.272452

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 170546 Control,Throt Paddle

3 Engine,B&S, (Sea Breakdown)No.445777-0154-E1

4 149723 MufflerExhaust

5 159955 Exhaust Asm. Left

6 160589 ExhaustAsm. Right

8 171877 Bolt5/16-18unc x 3/4 W/Seres

10 162797 Heat Shield Lt

13 165391 Gasket, Muffler

14 148456 Tube Drain OilEasy

16 STD551237 Washer Lock ExtTooth 3/8

17 17060624 Screw 3/8-16 x 1-1/2

23 169837 Shield,Bm/Dbr Guard

25 145996 Co_trolChoke

26 73920600 Nut Keps3/8-24 Unf

29 137180 Arrestor,Spark

31 157100 Tank, Fuel

32 161696 Cap FuelGuage

33 123487X Clamp,Huse

34 106082)( Spacer Pad

37 8543R Line,Fuel

38 148315 Plug, OilDrain Easy

39 109227X Pad Idler

45 17000612 Screw Hex Wsh3/8-16 x 3/4

62 10040500 Washer Lock5/16

72 71070512 Screw He)(5/16-18 x 3/4

81 73510400 Nut KepsHex 1/4-20 Starter Nut

102 17720408 Screw, Hex Thd Cut t/4-20 x 1/2

NOTE: Allcomponentdimensionsgiven in U. S.

inches 1inch = 25.4 mm

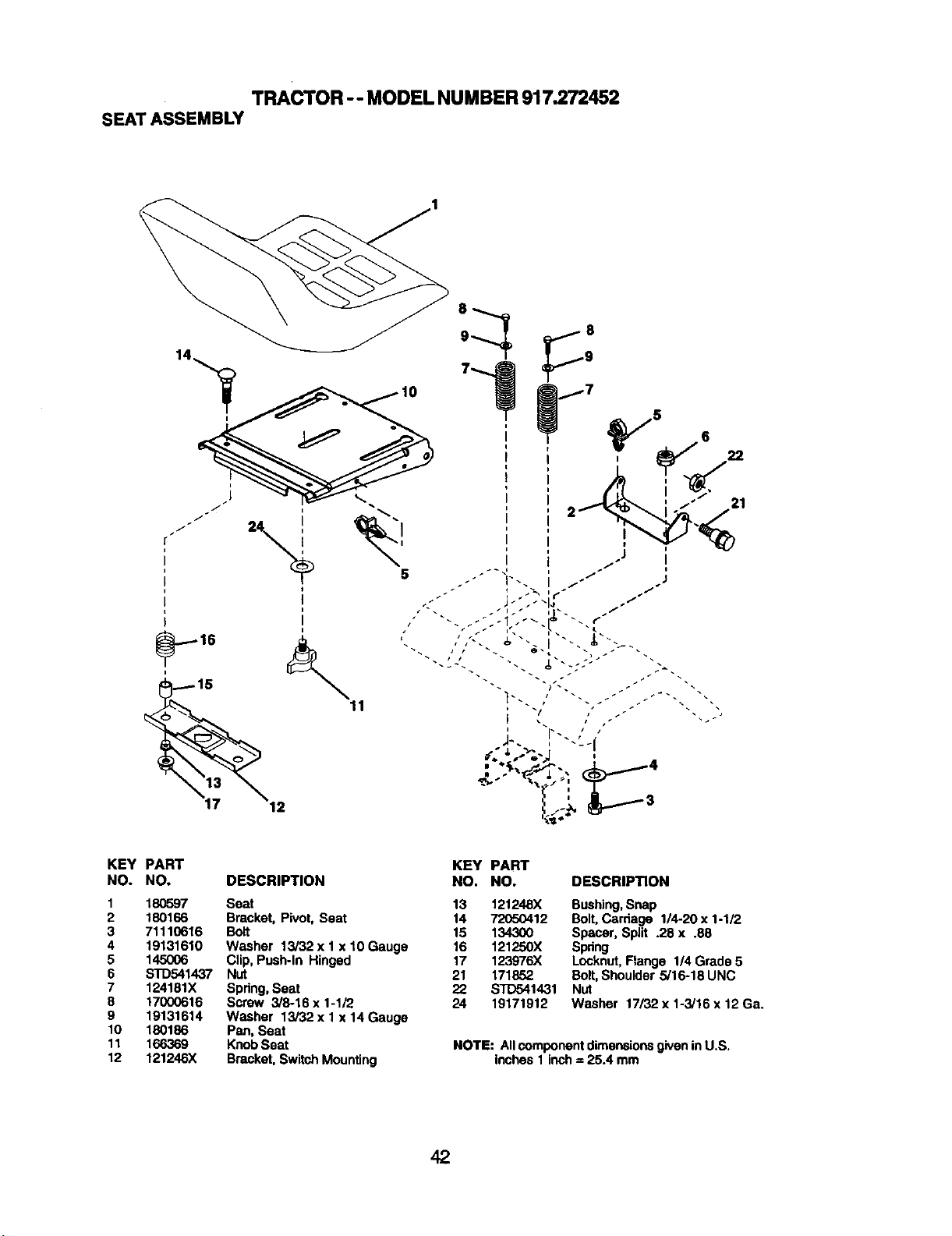

TRACTOR -- MODELNUMBER917.272452

SEATASSEMBLY

I 5

I I

KEY PART

NO. NO.

1 18Q597

2 180166

3 7111O616

4 19131610

5 145OO6

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

12 121246X

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring,Seat

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

KnobSeat

Bracket, SwitchMounting

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing,Snap

14 72050412 Bolt, Cardage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut,Flange 1/4 Grade 5

21 171852 Bolt. Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All componentdimensionsgivenin U.S.

inches 1 inch = 25.4 mm

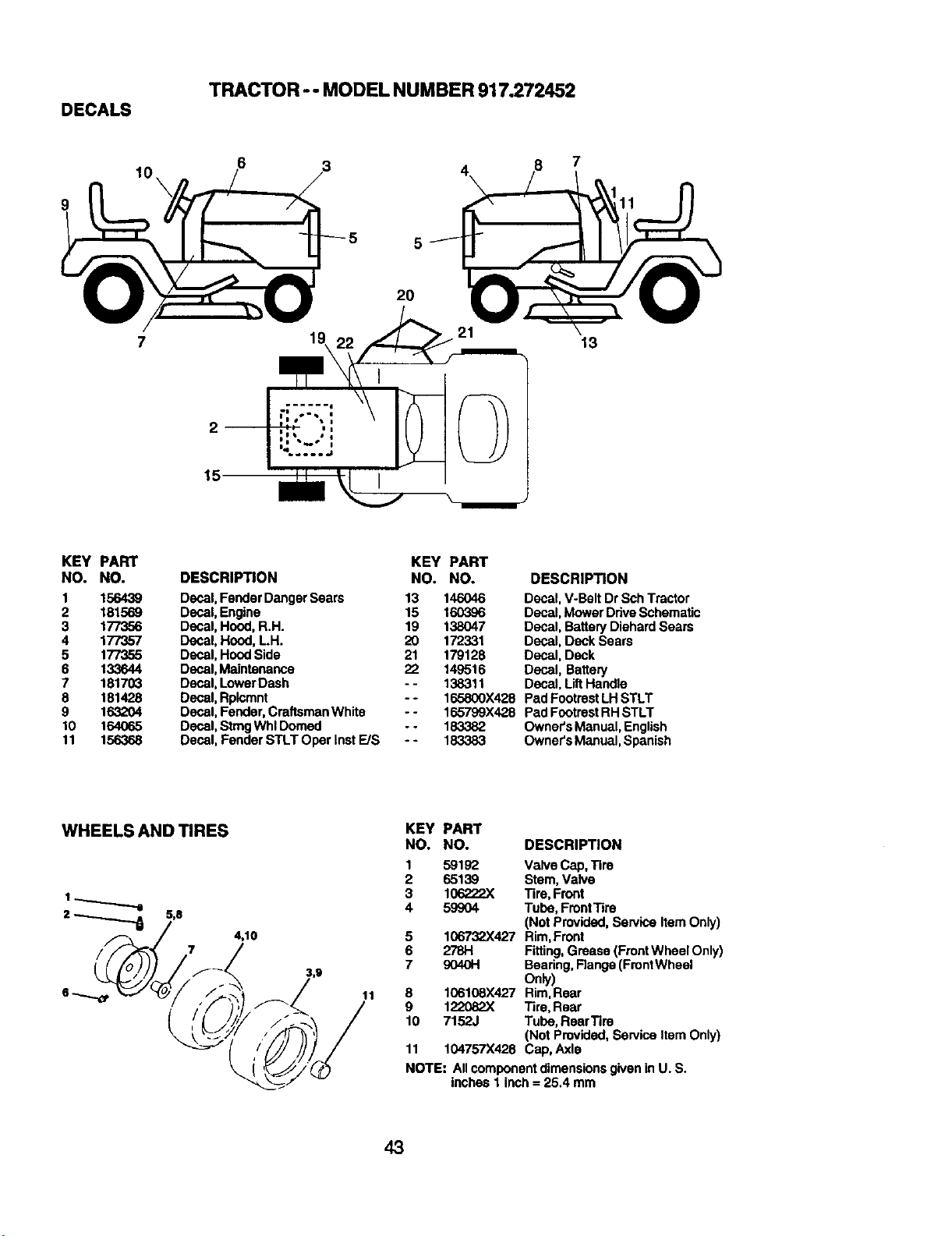

TRACTOR -- MODEL NUMBER 917.272452

DECALS

8 7

2 --

KEY PART

NO. NO.

1 156439

2 181569

3 177356

4 177357

5 177355

6 133644

7 181703

8 181428

9 163204

10 164065

11 156368

KEY PART

DESCRIPTION NO. NO.

Decai, FenderDanger Sears 13 146046

Decal, Engine 15 1603.96

Decal, Hood,R.H. 19 138047

Decal, Hood, LH. 20 172331

Decal, Hood Side 21 179128

Decai,Maintenance 22 149516

Decal, LowerDash - - 138311

Decal, Rplcmnt - - 165800X428

Decal, Fender, CraftsmanWhite - - 165799X428

Decal, StmgWhl Domed - - 183,382

Decal, Fender STLT Oper Inst F-JS - - 183383

DESCRIPTION

Decal, V-Belt Dr Sch Tractor

Decal,Mower DriveSchematic

Decal, Battery DiehardSears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, LiftHandle

Pad FootrestLH STLT

Pad FootrestRHSTLT

Owner'sManual, English

Owner'sManual,Spanish

WHEELS AND TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire,Front

4 59904 Tube, FrontTire

(Not Provided,Service Item Only)

5 106732X427 Rim,Front

6 278H Fitting,Grease (FrontWheel Only)

7 90401-1 Bearing,Range (FrontWheel

Only)

8 106108X427 Rim,Rear

9 122082X Tire, Rear

10 7152J Tube, RearTire

(Not Provided,Service Item Only)

11 104757X428 Cap, Axle

NOTE: All componentdimensionsgivenin U. S.

inches 1 inch = 25.4 mm

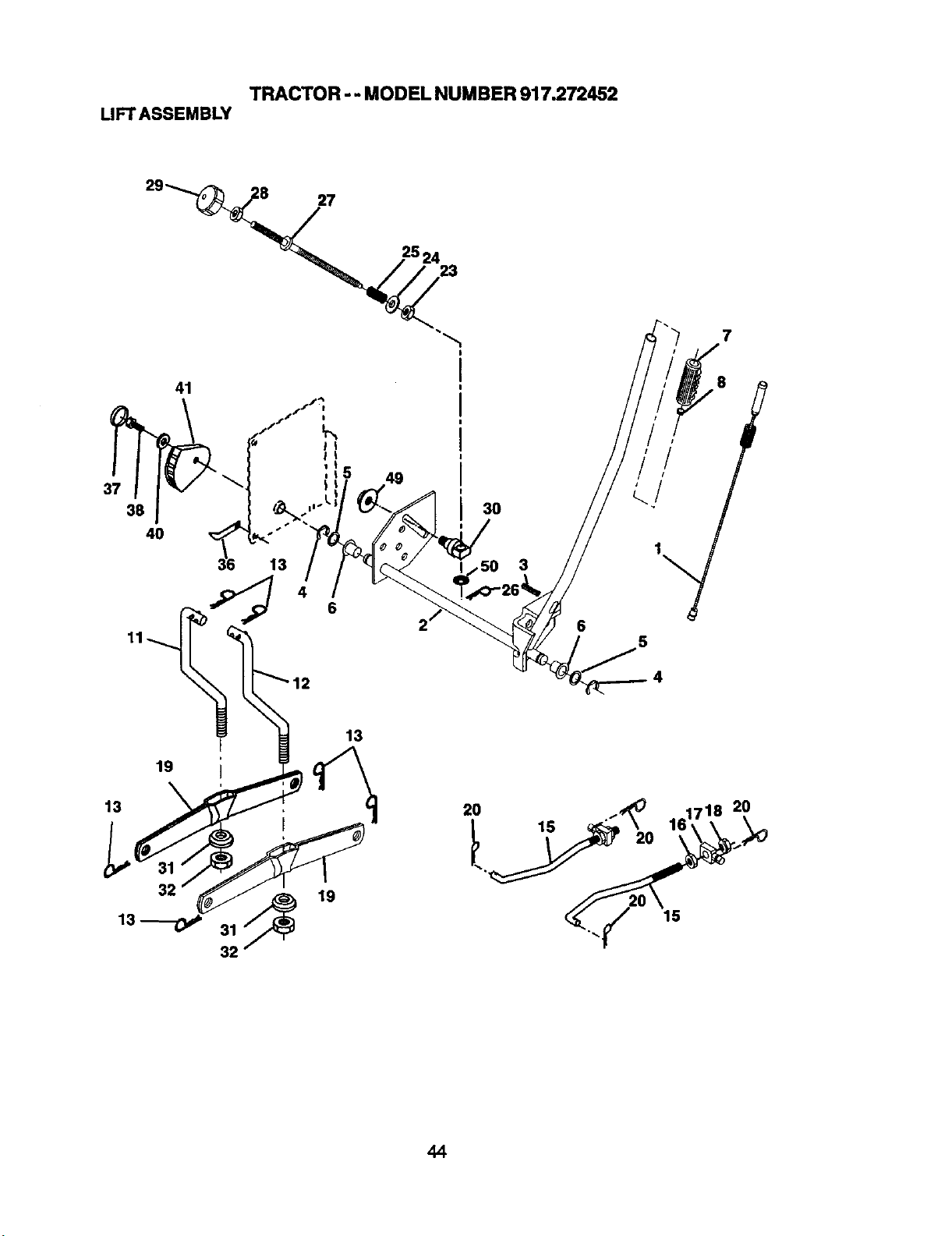

TRACTOR -- MODELNUMBER917.272452

LIFTASSEMBLY

20 ,,_0 1718 20

... 15 " 16

_,_._ 15

TRACTOR -- MODEL NUMBER 917.272452

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Wire Asm Inner/SprgW/plunger LT

2 159471 Shaft Asm Lift RH w/Inf

3 105767X Pin Groove 1 500 Zinc

4 12000002 E Ring#5133-62

5 19211621 Washer 21/32 X 1 X 21 Ga

6 120183X Beadng Nylon BIk629 Id

7 125631X GdpHandle

8 122365X ButtonPlungerYeliow

11 139865 Unk LiftLH Fixed Length

12 139866 Link LiftRH Fixed Length

13 4939M RetainerSpdng

15 173288 Unk Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 TrunnionBIk Zinc

18 73800800 Nut Lockw/Wsh 1/2-13 Unc

19 139868 ArmSuspensionRear

20 163552 RetainerSpring

23 1108(O NUtSpecial

24 19131016 Washer 13/32 X 5/8 X 16 Ga

25 2876H Spring2-1/8"

26 169484 RetainerClip

27 126971X Rod AdjjLiftZinc7.49 Wrk Lg

28 73350600 Nut Hex Jam 3/8-16 Unc

29 138057 Knob Inf 3/8-16 Unc BIk W/sym

30 150233 TrunnionInfinHeight

31 169865 Bearing Pvt Lift

32 73540600 NUtCrownlock3/8 - 24

36 155097 PointerHeight Indicator

37 123935X Plug Hole BIk1.48.5/1.515 Dia.

38 17060516 ScrewThdrol 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 10 Ga.

41 155098 IndioatorHeightSTLT

49 145212 NUtHex Range Lock

50 110452X Nut PUsh Phos & Oil

NOTE: All component dimensionsgivenin U. S.

inches I inch = 25.4 mm

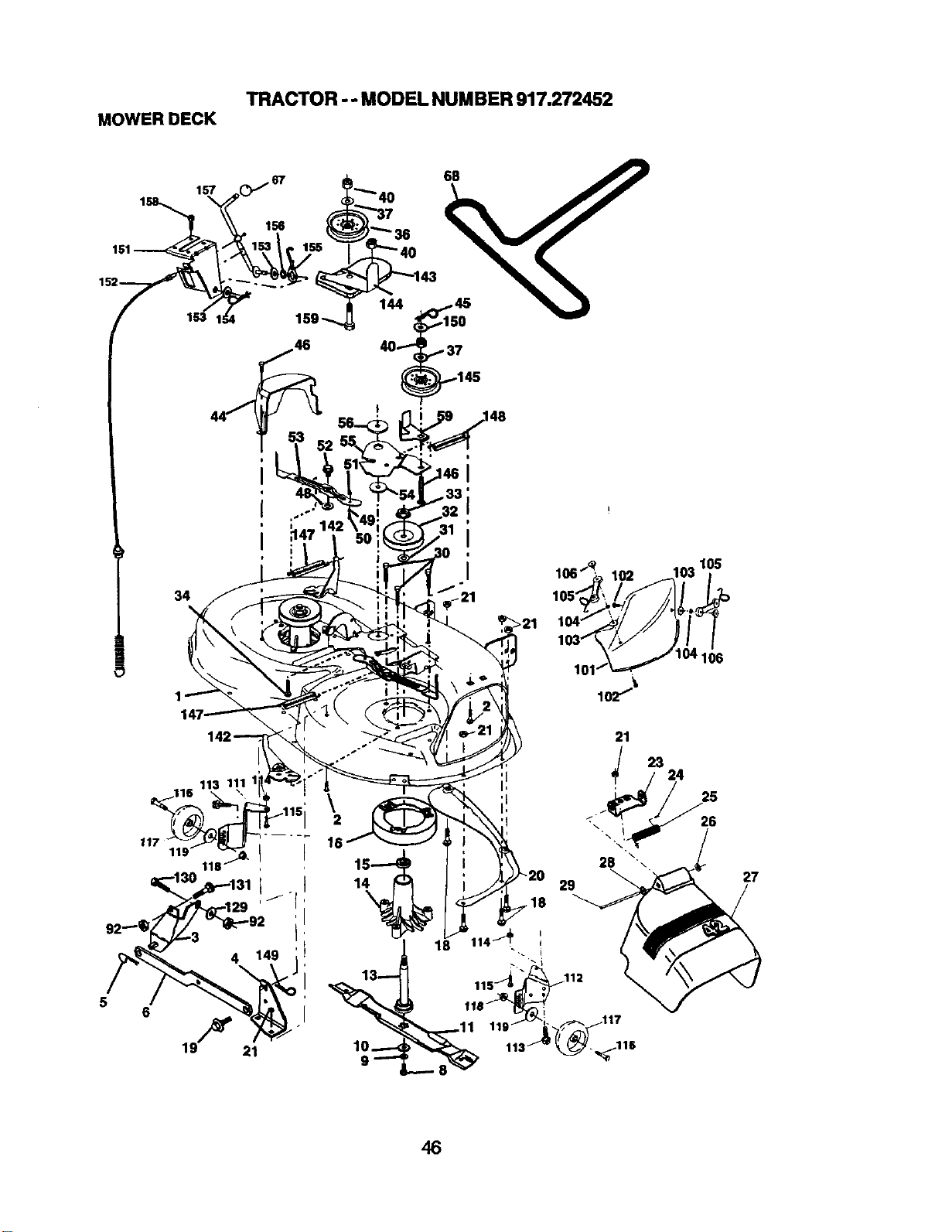

TRACTOR -- MODEL NUMBER917.272452

MOWERDECK

1,51

157

156

153 1:

106_.- 102 103 175

105 , /

ll__i(Ji ii [

101/_,,, ,'j104 106

117 +

119"

19F 21

.18

114"_ i

119_"

_117

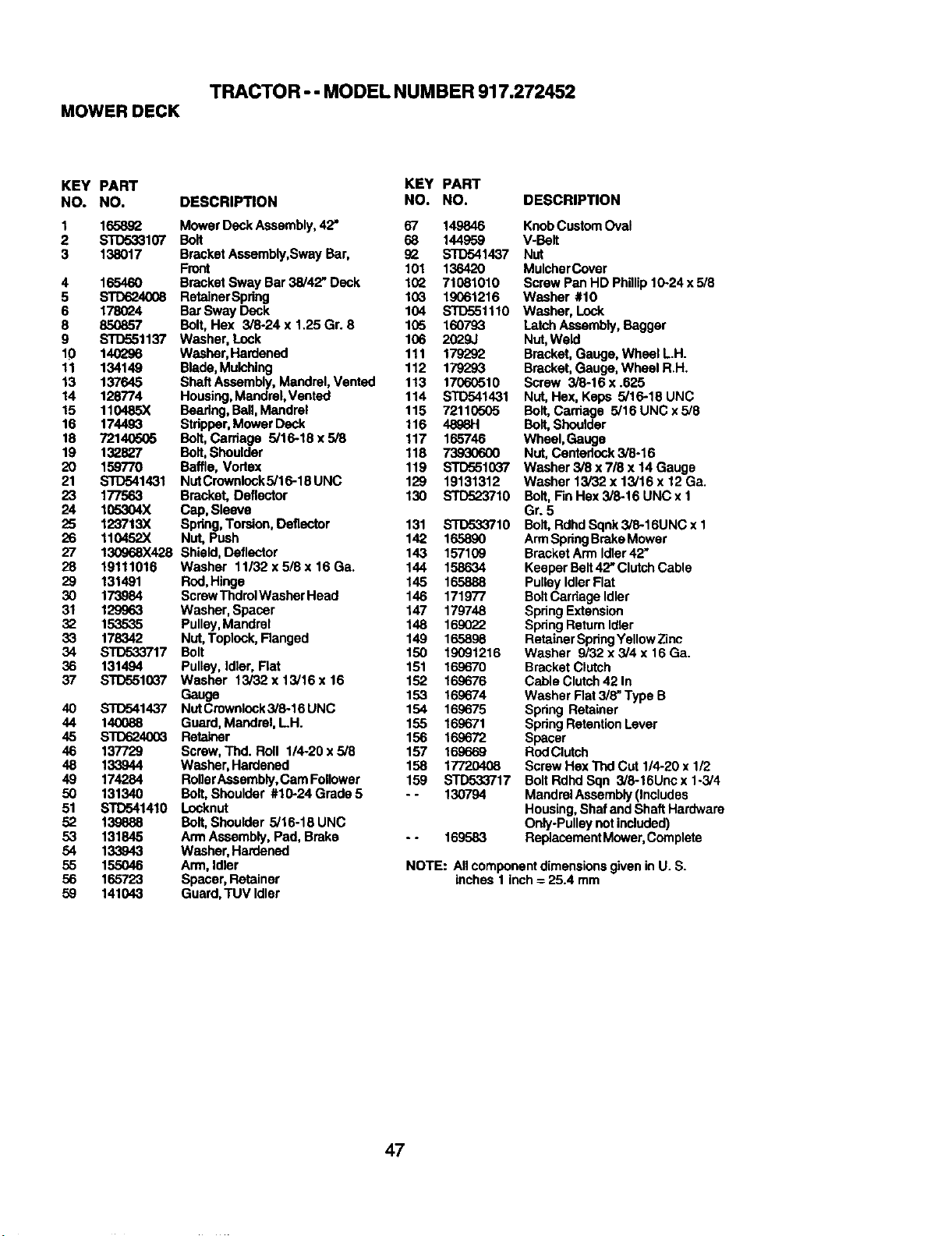

TRACTOR - - MODEL NUMBER 917.272452

MOWER DECK

KEY PART

NO. NO.

1 165892

2 STD533107

3 138017

4 165460

5 STD624006

6 1780_4

8 85O857

9 _1137

10 14O296

11 134149

13 137645

14 128774

15 110485X

16 174493

18 72140505

19 132827

2O 159770

21 S'1I)541431

23 177563

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

3O 173984

31 129963

32 153535

33 178342

34 STD533717

36 131494

37 STD5510_7

40 STD541437

44 14OO88

45 STD624003

46 137729

48 133944

49 174284

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155O46

56 165723

59 141043

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Deck Assembly,42- 67 149846

Bolt 68 144959

Bracket Assembly,Sway Bar, 9_ STD541437

Front 101 136420

Bracket Sway Bar 35/42- Deck 102 71081010

RetalnerSpfing 103 19061216

Bar Sway Deck 104 STD551110

Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

Washer, Lock 106 2029J

Washer,Hardened 111 179292

Blede,Mulching 112 179293

Shaft Assembly, Mandrel,Vented 113 17060510

Housiug,Mendrel,Vented 114 STD541431

Bearing,Ball, Mandrel 115 72110505

Stripper,Mower Deck 116 4898H

Bolt, Cardage 5116-18 x 5/8 117 165746

Bolt,Sheulder 118 73930600

Baffle, Vortex 119 STD551037

Nut Crownlock5/16-18 UNC 129 19131312

Bracket, Deflector 130 STD523710

Cap, Sleeve

Spdng, Torsion,Deflector 131 STD533710

Nut, Push 142 165890

Shield, Deflector 143 1571(79

Washer 11/32x5/8x16Ga. 144 158634

Red, Hinge 145 165888

ScrewThdrolWasher Head 146 171977

Washer, Spacer 147 179748

Pulley,Mandral 148 169022

Nut,Toplock,Flanged 149 165898

Bolt 150 19091216

Pulley, Idler, Fiat 151 169670

Washer 13/32 x13/16 x16 152 169676

Gauge 153 169674

NutCrownlock 3/8-16 UNC 154 169675

Guard, Mandrel,LH. 155 169671

Retainer 156 169672

Screw, Thd. Roll 1/4o20x 5/8 157 169669

Washer, Hardened 158 17720408

RollerAssembly,Cam Follower 159 STD533717

Bolt,Shoulder #10-24 Grade 5 - - 130794

Locknut

Bolt,Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake - - 169583

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard,TUV Idler

KnobCustomOval

V-BaR

Nut

MulcherCover

Screw Pan HD Phillip10-24 x 5/8

Washer #10

Washer, Lock

Latch Assembly,Bagger

NUt,Weld

Bracket,Gauge, Wheel L.H.

Bracket,Gauge, Wheel R.H.

Screw 3/8-16 x .625

Nut,Hex, Keps 5/16-18 UNC

Bolt,Cardage 5/16 UNC x 5/8

Bolt, Shoulder

Wheel, Gauge

NUt,Centedock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt,Fin Hex 3/8-16 UNC x 1

Gr. 5

Bolt,Rdhd Sqnk3/8-16UNC x 1

ArmSpdngBrakeMower

Bracket Arm Idler42"

Keeper Belt42" ClutchCable

Pulley IdlerFlat

BoltCardage Idler

Spring Extension

Spdng ReturnIdler

Retainer SpdngYellowZinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch42 In

Washer Rat 3/8" Type B

Spdng Retainer

Spdng RetentionLever

Spacer

RodClutch

Screw Hex Thd CUt 1/4-20 x 1/2

BoltRdhd Sqn 3/8-16Uno x 1-3/4

Mandrel Assembly(Includes

Housing,Shaf and Shaft Hardware

Only-Pulleynot included)

ReplacementMower,Complete

NOTE: All componentdimensionsgivenin U. S.

inches 1 inch = 25.4 mm

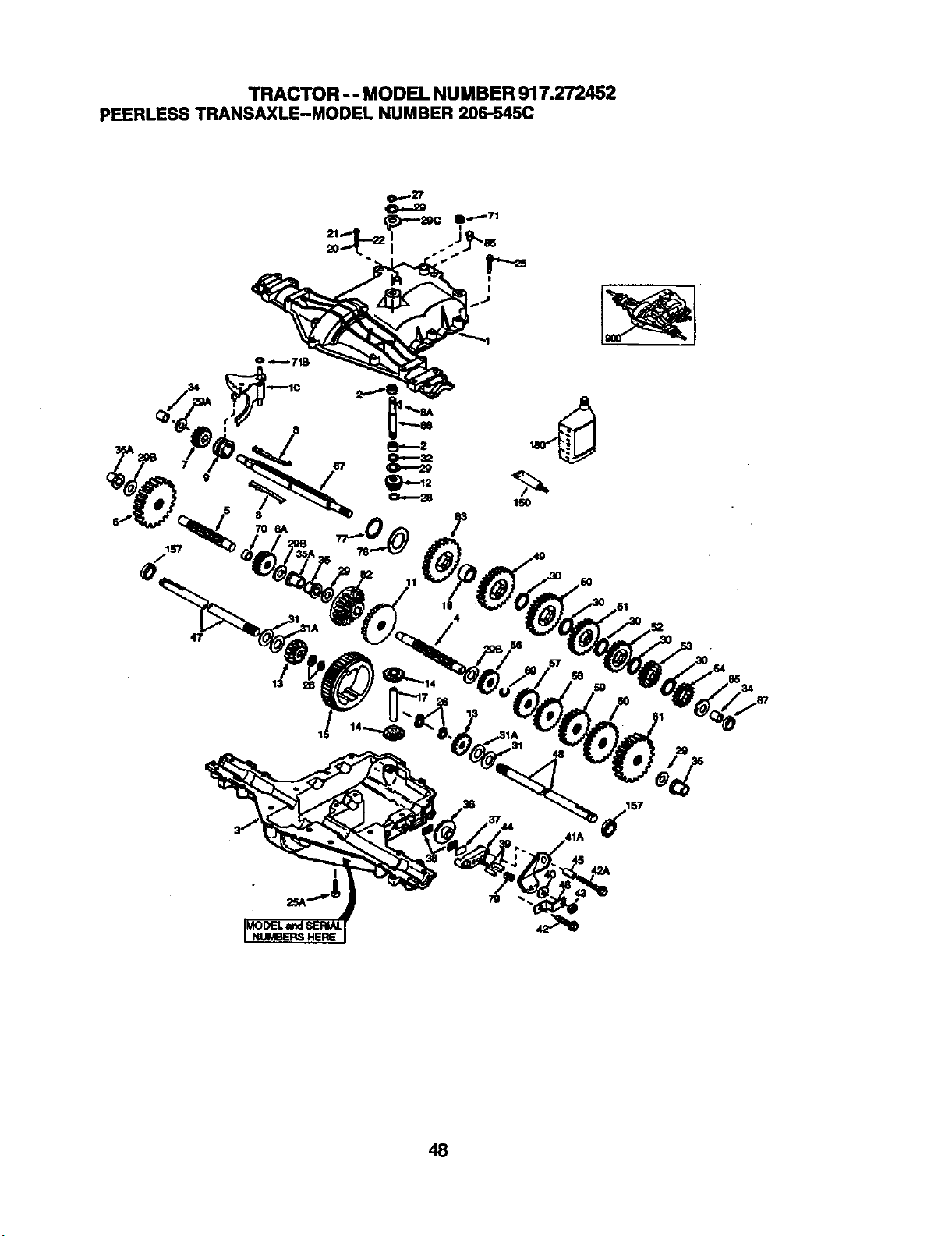

TRACTOR-- MODEL NUMBER917.272452

PEERLESSTRANSAXLE-MODELNUMBER206-545C

NUMBERS H

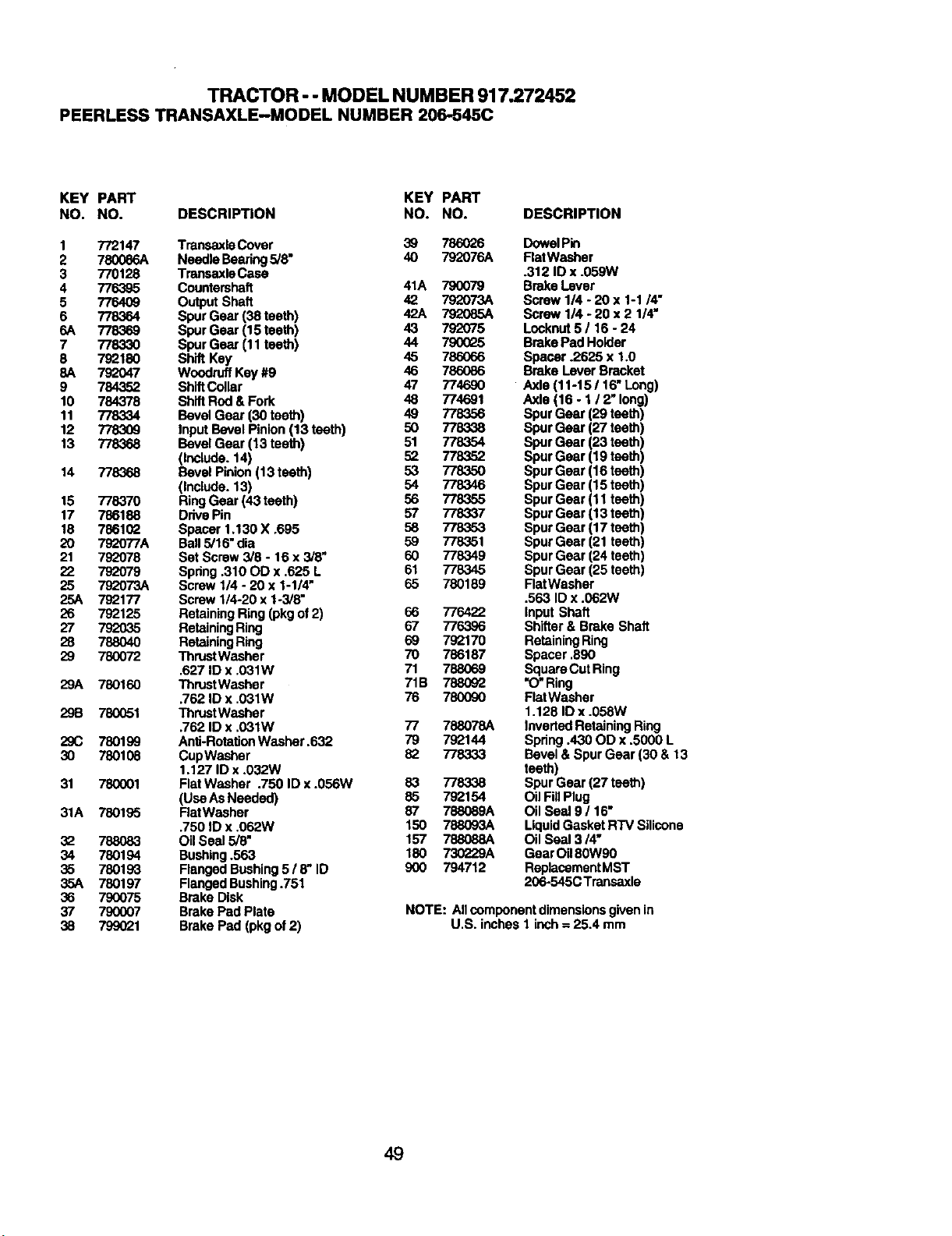

TRACTOR - -MODEL NUMBER917.272452

PEERLESSTRANSAXLE-MODELNUMBER206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 TransaxioCover 39 786026 DowelPin

2 780086A Needle Beadng5/8" 40 792076A FlatWasher

3 770128 Transasle Cace ,312 ID x .059W

4 776395 Countershaft 41A 790079 Brake Lover

5 776409 Output Shaft 42 792073A Screw 114- 20 x 1-1/4"

6 778364 Spur Gear (38 teeth) 42A 792085A Screw 114* 20 x 2 1/4"

6A 778369 Spur Gear (15 teeth) 43 792075 Locknut 5 / 16 - 24

7 778330 Spur Gear (11 teeth) 44 790025 Brake Pad Holder

8 792180 Shift Key 45 786066 Spacer .2625 x 1.0

8A 792047 WoodruffKey #9 46 786086 Brake Lever Bracket

9 784352 ShiftCollar 47 774690 Axle (11-I 5116" Long)

10 784378 Sh_ Rod & Fork 48 774691 Axle (16 - I / 2" long)

11 778334 Bevel Gear (30 teeth) 49 778356 Spur Gear (29 teeth)

12 778309 InputBevel Pinion (13 teeth) 50 778338 Spur Gear (27 teeth)

13 778368 Bevel Gear (13 teeth) 51 778354 Spur Gear (23 teeth)

(Include. 14) 52 778352 Spur Geer (19 teeth)

14 778368 Bevel Pinion(13 teeth) 53 778350 Spur Geer (16 teeth)

(Include. 13) 54 778346 Spur Gear (15 teeth)

15 778370 RingGear (43 teeth) 56 778355 Spur Gear (11 teeth)

17 786188 Drive Pin 57 778337 Spur Gear (13 teeth)

18 786102 Spaser 1.130 X .695 58 778353 Spur Gear (17 teeth)

20 792077A Ball5/16" dia 59 778351 Spur Gear (21 teeth)

21 792078 Set Screw 3/6 - 16 x 3/8_ 60 778349 Spur Gear (24 teeth)

22 792079 Spring .310 OD x ,625 L 61 778345 Spur Gear (25 teeth)

25 792073A Screw 114- 20 x 1-1/4" 65 780189 FlatWasher

25A 792177 Screw 1/4-20 x 1-3/8" .563 ID x .062W

26 792125 Retaining Ring (pkgof 2) 66 776422 Input Shaft

27 792035 RetainingRing 67 776396 Shifter & Brake Shaft

28 788040 RetainingRing 69 792170 RetainingRing

29 780072 ThrustWasher 70 786187 Spacer .890

.627 ID x .031W 71 788069 SquareCut Ring

29A 780160 ThrustWasher 71B 788092 "O"Ring

.762 ID x .031W 76 780(_30 FlatWasher

29B 780051 ThrustWasher 1.128 ID x .058W

.762 ID x .031W 77 788078A Inverted RetainingRing

29C 780199 Anti-RotetionWasher.632 79 792144 Spring .430 OD x .5000 L

30 780108 CupWasher 82 7783,33 Bevel &Spur Gear (30 & 13

1.127 ID x.032W teeth)

31 780001 Flat Washer .750 ID x .056W 83 778338 Spur Gear (27 teeth)

(Use As Needed) 85 792154 OilFillPlug

31A 780195 RatWasher 87 788089A Oil Seal 9 / 16"

.750 ID x .062W 150 788093A LiquidGasketRTV Silicone

32 788083 Oil Seal 5/8" 157 788088A Oil Seal 3/4"

34 780194 Bushing.563 180 730229A GearOil80W90

35 780193 FlangedBushing5 / 8" ID 900 794712 ReplacementMST

35A 780197 FlangedBushing.751 206-545C Transaxle

36 790075 Brake Disk

37 790007 Brake Pad Plate NOTE: All componentdimensionsgivenin

38 799(_I BrakePad (pkg of2) U.S. inches I inch = 25.4 mm

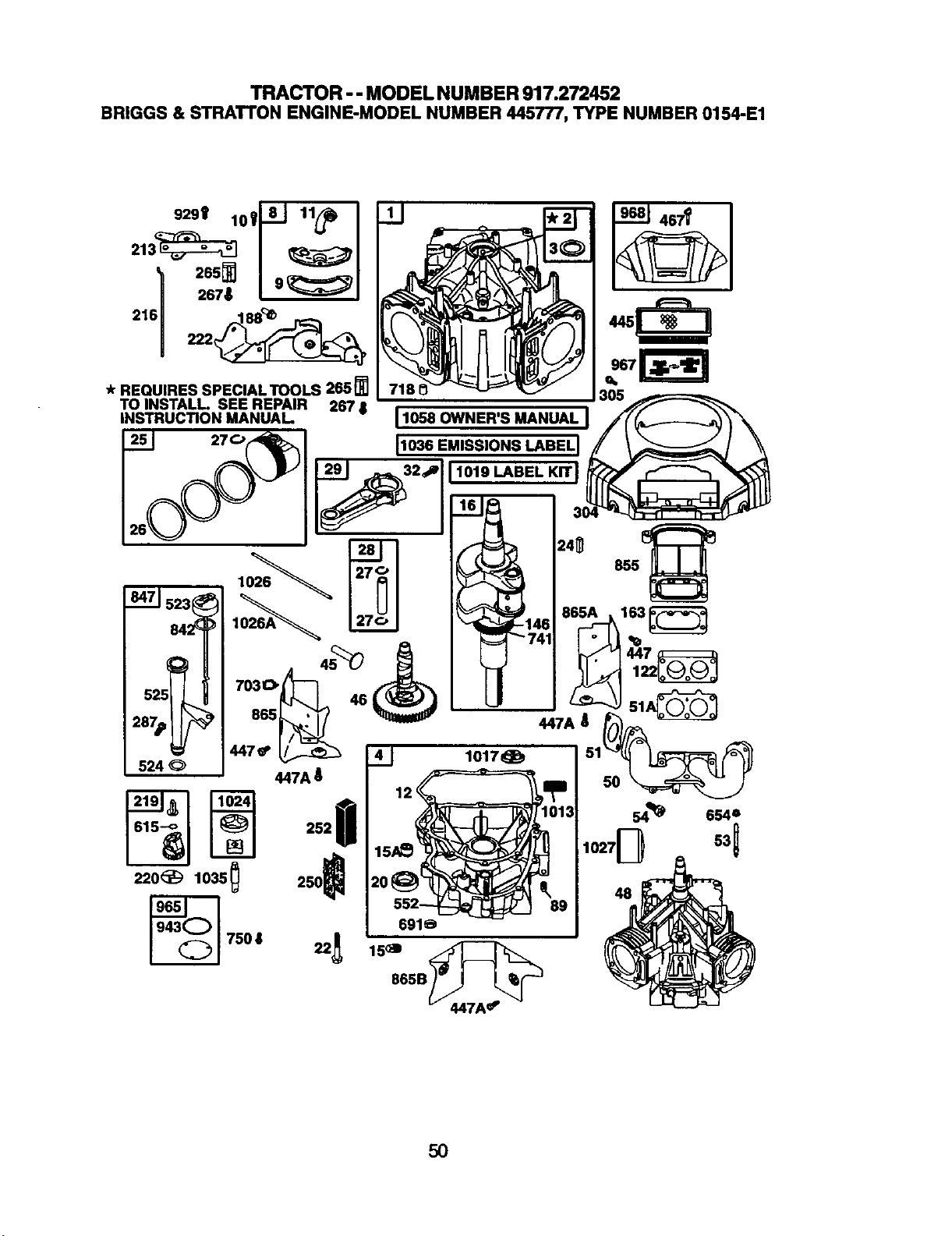

TRACTOR -- MODEL NUMBER 917.272452

BRIGGS& STRATTONENGINE-MODELNUMBER445777,TYPENUMBER0154-E1

9291' 10T_J 11_)

21_ /_

1 _°_,_I'_

* REQUIRES SPECIALTOOLS 265_]

TO INSTALL. SEE REPAIR 267 8

INSTRUCTION MANUAL.

524 O

_1058 OWNER'S MANUAL J

_ONS L_RELI

_32.1 LlO19_B_L KIT,

4'®

447A 8

305

1017_ 51

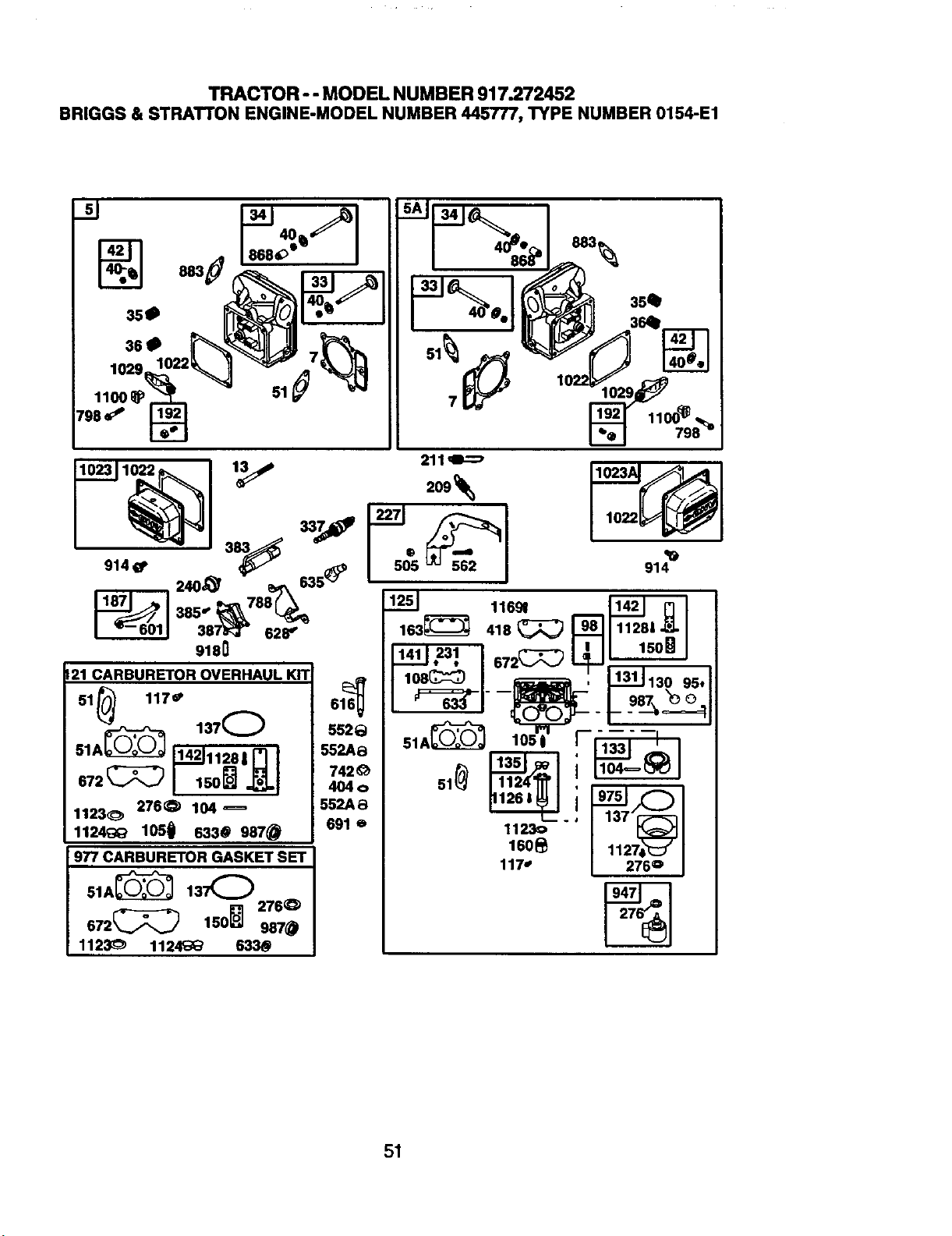

TRACTOR -- MODELNUMBER917.272452

BRIGGS& STRATTONENGINE-MODELNUMBER445777,TYPENUMBER0154-E1

798

211_

_'_ I 383,,_

914 g" _ _:)

240,_ _._ 635

385" _788 _q_

"--601 387_:Z- 628_

9180

12_1_RBURETOR117"OVERHAUL KIT

51A_ 137Q

142111281 n

o72_ 15o__1

1123_ 2760 1114_

1124_ 1050 633# 987@

977 CARBURETOR GASKET SET

51A_'_1_ 3_2760

672_,/_ 150_

987@

1123_ 1124_ 6330

1169t

163_ 418 _ _ 1_8_o_I

_ ..^_-"_--_ I _ I t '_t

_. 108_ I _ ' 1L_J130 95,1

010,,

5520

51A___..___ 1051 I

552A8

742_ 51_ _ I _'_J4--_

4040

991. 11_-I1_°_

160_ 1 1127,'_J

117., i 276°

I 9471 i

I 276"Z

I I_

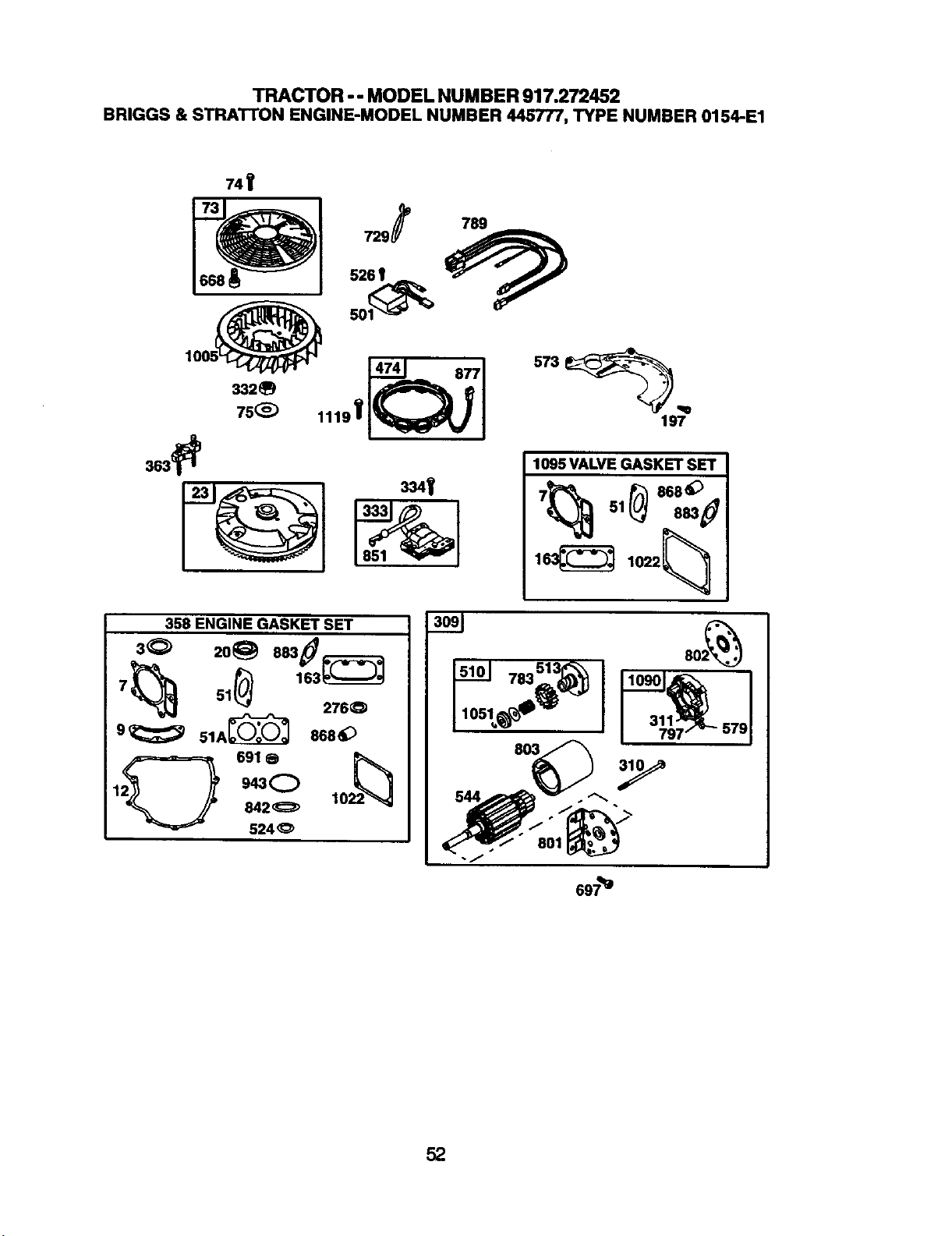

TRACTOR-- MODELNUMBER 917.272452

BRIGGS& STRATTONENGINE-MODELNUMBER445777,TYPENUMBER0154-E1

741f

729; 789 __

526 |

' _ 14741 8_1 s73

73352_ 111911_ I _)19r

303_ 1095 VALVE GASKET SET

7_ 51_ 86:83_

358 ENGINE GASKET SET

7_ 51_ 163_

2760

9_ 51A_ 8.a_

2_ 691 ® 22_

1 943(_

842_ 10

524 O

1051_ _

803

697_z_

52.

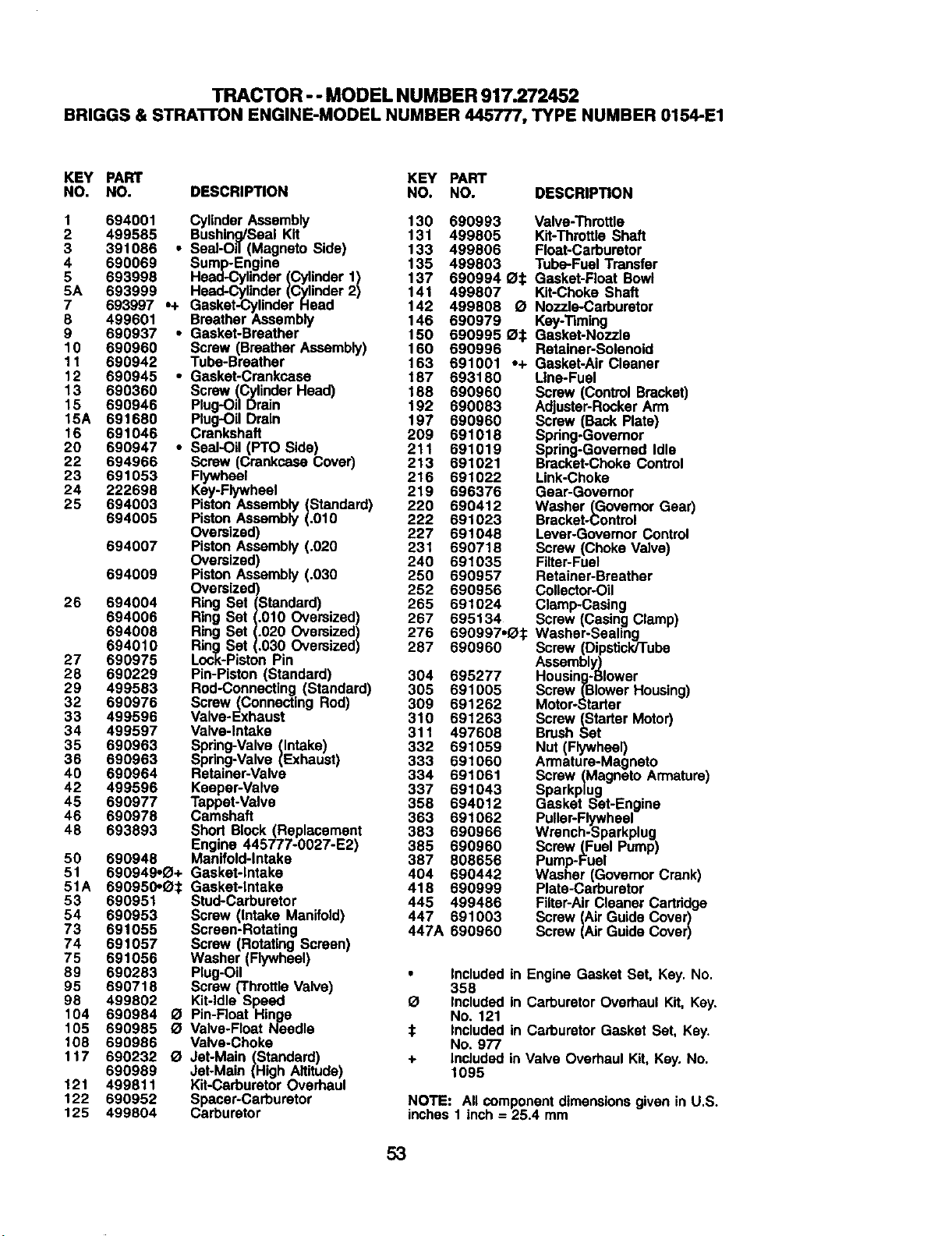

TRACTOR - - MODEL NUMBER 917.272452

BRIGGS & STRATrON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0154-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 694001

2 499585

3 391086

4 690069

5 693998

5A 693999

7 693997

8 499601

9 690937

10 690960

11 690942

12 690945

13 690360

15 690946

15A 691680

16 691046

20 690947

22 694966

23 691053

24 222698

Cylinder Assembly 130 690993

Bushing/Seal Kit 131 499805

i Seal-Oil (Magneto Side) 133 499806

Sump-Engine 135 499803

Head-Cylinder (Cylinder 1) 137 690994 O:1:

Head-Cylinder (Cylinder 2) 141 499807

• Gasket-Cylinder Head 142 499808 I_

Breather Assembly 146 690979

• Gasket-Breather 150 690995 O.1:

Screw (Breather Assembly) 160 690996

Tube-Breather 163 691001 -+

• Gasket-Crankcase 187 693180

Screw (Cylinder Head) 188 690960

Plug-Oil Drain 192 690083

Plug-Oil Drain 197 690960

Crankshaft 209 691018

• Seal-Oil (PTO Side) 211 691019

Screw (Crankcase Cover) 213 691021

Flywheel 216 691022

Key-Flywheel 219 696376

694003 Piston Assembly (Standard) 220 690412

694005 Piston Assembly (.010 222 691023

Oversized) 227 691048

694007 Piston Assembly (.020 231 690718

Oversized) 240 691035

694009 Piston Assembly (.030 250 690957

Oversized) 252 690956

26 694004 Ring Set(Standard) 265 691024

694006 Ring Set (.010 Oversized) 267 695134

694008 Ring Set (.020 Oversized) 276 690997,O:1:

694010 Ring Set (.030 Oversized) 287 690960

27 690975 Lock-Piston Pin

28 690229 Pin-Piston (Standard) 304 695277

29 499583 Rod-Connecting (Standard) 305 691005

32 690976 Screw(Connecting Rod) 309 691262

33 499596 Valve-Exhaust 310 691263

34 499597 Valve-Intake 311 497608

35 690963 Spring-Valve (Intake) 332 691059

36 690963 Spring-Valve (Exhaust) 333 691060

40 690964 Retainer-Valve 334 691061

42 499596 Keeper-Valve 337 691043

45 690977 Tappet-Valve 358 694012

46 690978 Camshaft 363 691062

48 693893 Shod Block(Replacement 383 690966

Engine 446777-0027-E2) 385 690960

50 690948 Manifold-Intake 387 808656

51 690949.0+ Gasket-intake 404 690442

51A 690959.£1:1: Gasket-Intake 418 690999

53 690951 Stud-Carburetor 445 499486

447 691003

447A 690960

54 690953

73 691055

74 691057

75 691056

89 690283

95 690718

98 499802

104 690984

105 690985

108 690986

117 690232

690989

121 499811

122 690952

125 499804

Screw (Intake Manifold)

Scraen-Rotating

Screw (Rotating Screen)

Washer (Flywheel)

Plug-Oil

Screw (Throttle Valve)

Kit-idle Speed

21 Pin-Float Hinge

I_ Valve-Float Needle

Valve-Choke

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Spacer-Carburetor

Carburetor

Valve-Throttle

Kit-ThrottleShaft

Float-Carburetor

Tube-FuelTransfer

Gasket-FloatBowl

Kit-ChokeShaft

Nozzle-Carburetor

Key-Timing

Gasket-Nozzle

Retainer-Solenoid

Gasket-AirCleaner

Line-Fuel

Screw (ControlBracket)

Adjuster-RockerArm

Screw (Back Plate)

Spring-Governor

Spring-Governed Idle

Bracket-ChokeControl

Link-Choke

Gear-Governor

Washer (GovernorGear)

Bracket-Control

Lever-GovernorControl

Screw (ChokeValve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw(Casing Clamp)

Washer-Sealing

Screw (Dipstick/Tube

Assembly)

Housing-Blower

Screw(Blower Housing)

Motor-Starter

Screw(Starter Motor)

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Sparkplug

Gasket Set-Engine

Puller-Flywheel

Wrench-Sparkplug

Screw(Fuel Pump)

Pump-Fuel

Washer (GovernorCrank)

Plate-Carburetor

Filter-AirCleaner Cartridge

Screw (AirGuideCover)

• Included in Engine Gasket Set, Key. No.

358

Included in Carburetor Overhaul Kit, Key.

No. 121

included in Carburetor Gasket Set, Key.

No. 977

+ included in Valve Overhaul Kit, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

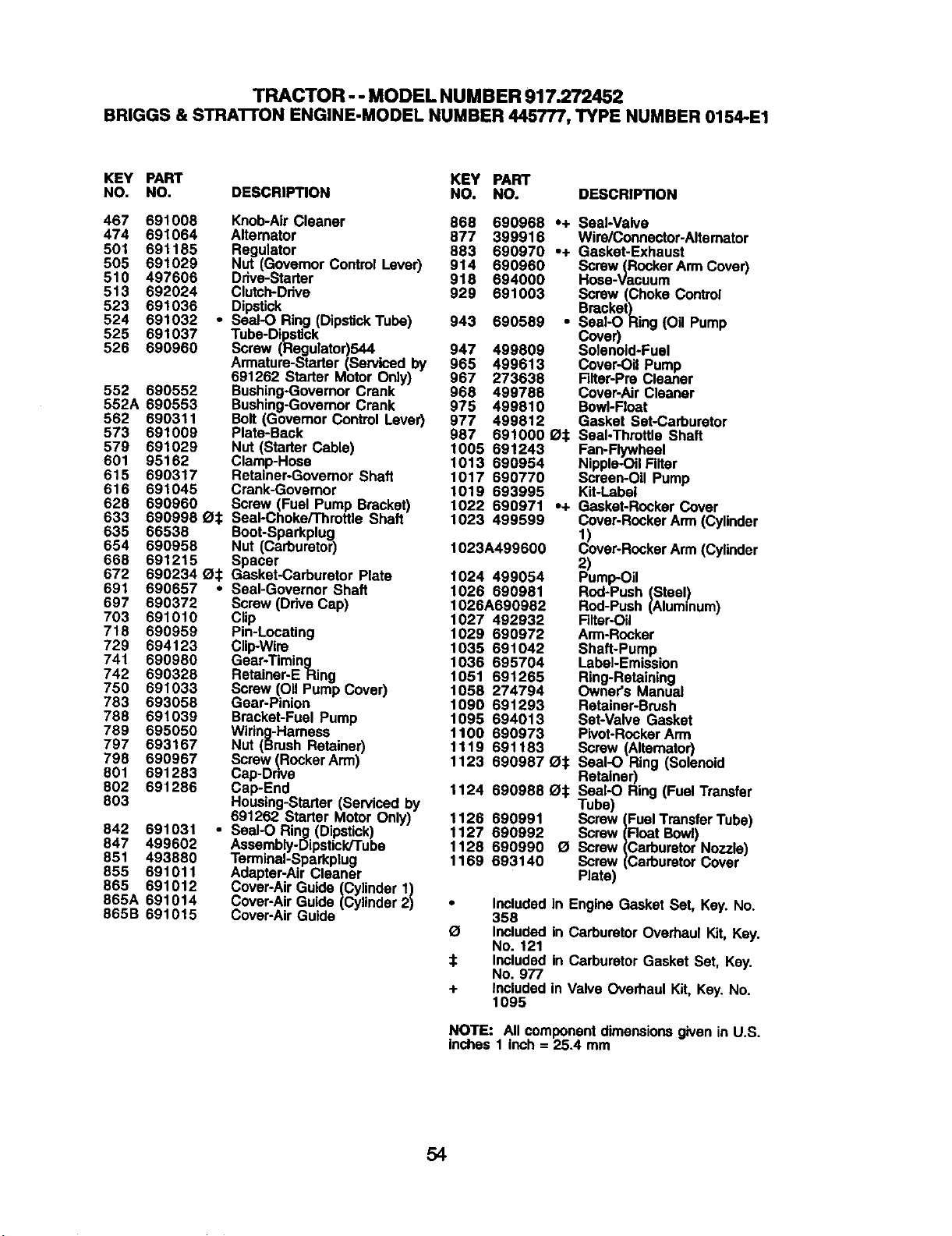

TRACTOR - - MODEL NUMBER 917.272452

BRIGGS & STRA'n'ON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0154-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

467 691008 Knob-AirCleaner 868 690968 .+ Seal-Valve

474 691064 Alternator 877 399916 Wire/Connector-Alternator

501 691185 Regulator 883 690970 .+ Gasket-Exhaust

505 691029 Nut (Govemor Control Lever) 914 690960 Screw(RockerArm Cover)

510 497606 Drive-Starter 918 694000 Hose-Vacuum

513 692024 Clutch-Drive 929 691003 Screw (Choke Control

523 691036 Dipstick Bracket)

524 691032 • Seal-O Ring (DipstickTube) 943 690589 • Seal-O Ring(Oil Pump

525 691037 Tube-Dipstick Cover)

526 690960 Screw (Regulator)544 947 499809 Solenoid-Fual

Armatura-Starter (Servicedby 965 499613 Cover-OilPump

691262 Starter Motor Only) 967 273638 Filter-PraCleaner

552 690552 Bushing-GovernorCrank 968 499788 Cover-AirCleaner

552A 690553 Bushing-GovernorCrank 975 499810 Bowl-Float

582 690311 Bolt (GovernorControlLever) 977 499812 Gasket Set-Carburetor

573 691009 Plate-Back 987 691000 O_ Seal-Throttle Shaft

579 691029 Nut (Starter Cable) 1005 691243 Fan-Flywheel

601 95162 Clamp-Hose 1013 690954 Nipple-OilFilter

615 690317 Retainer-Govemor Shaft 1017 690770 Screen-Oil Pump

616 691045 Crank-Governor 1019 693995 Kit-Label

628 690960 Screw (Fuel Pump Bracket) 1022 690971 o+ Gasket-RockerCover

633 690998 £11:Seal-Choke/Throttle Shaft 1023 499599 Cover-RockerArm (Cylinder

635 66538 Boot-Sparkplug 1)

654 690958 Nut (Carburetor) 1023A499600 Cover-RockerArm (Cylinder

668 691215 Spacer 2)

672 690234 O:1: Gasket-Carburetor Plate 1024 499054 Pump-Oil

691 690657 • SeaI-Govemor Shaft 1026 690981 Rod-Push(Steel)

697 690372 Screw(DriveCap) 1026A690982 Rod-Push(Aluminum)

703 691010 Clip 1027 492932 Filter-Oil

718 690959 Pin-Locating 1029 690972 Arm-Rocker

729 694123 Clip-Wire 1035 691042 Shaft-Pump

741 690980 Gear-Timing 1036 695704 Label-Emission

742 690328 Retalner-ERing 1051 691265 Ring-Retaining

750 691033 Screw (Oil PumpCover) 1058 274794 Owner's Manual

783 693058 Gear-Pinion 1090 691293 Retainer-Brush

788 691039 Bracket-Fuel Pump 1095 694013 Set-Valve Gasket

789 695050 Wiring-Harness 1100 690973 Pivot-RockerArm

797 693167 Nut (Brush Retainer) 1119 691183 Screw (Aitamator)

798 690967 Screw_RockerArm) 1123 690987 £1_:SeaI-O Ring (Solenoid

801 691283 Cap-Dnve Retainer)

802 691286 Cap-End 1124 690988 £1:[:Tube)803 Housing-Starter(Servicedby Seal-O Ring (Fuel Transfer

691262 Starter Motor Only) 1126 690991 Screw (FuelTransferTube)

842 691031 • SeaI-O Ring(Dipstick) 1127 690992 Screw (FloatBowl)

847 499602 Assembly-Dipstick/Tube 1128 690990 O Screw (CarburetorNozzle)

851 493880 TerminaI-Sparkplug 1169 693140 Screw (CarburetorCover

855 691011 Adapter-Air Cleaner Plate)

865 691012 Cover-AirGuide(Cylinder 1)

865A 691014 Cover-AirGuide(Cylinder2) • Includedin Engine Gasket Set, Key. No.

865B 691015 Cover-AirGuide 358

_f Includedin CarburetorOverhaul Kit,Key.

No. 121

:[: Includedin CarburetorGasket Set, Key.

No. 977

+ Includedin Valve Overhaul Kit, Key.No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line Indicated above.

2. Hold page before you so that Its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

For repairof majorbrand appliancesinyour own home...

nomatterwhomade it,no matterwhosolditf

1-800-4-MY-HOME _ _ dayornight

(1-800_169-4663) (U.SAandCanada)

WJ3Qarl_¢om _.seam.ca

Forrepairofcarry-inproducts likevacuums,lawnequipment,and

electnmics,callforthenearestSears Pads and RepairCenter.

1-800-488-1222 Any,me,dayorr_ (U.SAorgy)

Forthereplacementparts,accessoriesandownersmanuals

that you need to do-it-youPself, caJlSears PartsDirect_!

1-800-366-PART 6a.m.-11 pJ-n.,7daysaweek

(1-8(30-,366-7278) (U.S.A.only)

To purchaseorinquireabouta SearsSe_ice Agreement

orSears MaintenanceAgreement

1-800-827-6655 (u.sJ_) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m.,CST,Mort.- Sat. 9 a.m.-8 p.m.EST, M- F,4 p.m.SaL

Parapecirse_iciode reparad_ a

dornic_o,y paraordenarpieza_

I_SM

(1-e_-7_o427)

Au Canadaixx="_ enfran_s:

1,.800-LE-FOYER_

Www.s_rs.ca

® Registered Trademark / TMTrademark / su Service Mark of Sears, Roebuck and Co.

® Mama Registrada / TMMama de Fdbdca/ su Mama de Servicio de Sears, Roebuck and Co.

_c Marque de commerce I ao Marque d6pos6e de Seam, Roebuckand Co.

183382 3.19.02 TR Printed in U.S.A.

Craftsman 917272452 21.5 HP, 42" Mower Lawn Tractor

Product's Documents

Owner 's Manual

Specifications

Craftsman 917272452 Questions and Answers

Related Products

Craftsman 247288851 LAWN TRACTOR 21 HP, Variation Speed 46" Deck

Craftsman 917388381 21" 6.0-hp rotary lawn mower

Craftsman 247288852 21 HP, Variation Speed 46" Deck Lawn Tractor

Craftsman 247288862 21 HP, Variation Speed 46" Deck Lawn Tractor

Craftsman 917388270 21" 5.5-hp Rear Discharge Rotary Lawn Mower

Craftsman 917388391 21" 6-hp multi-cut rotary lawn mower
