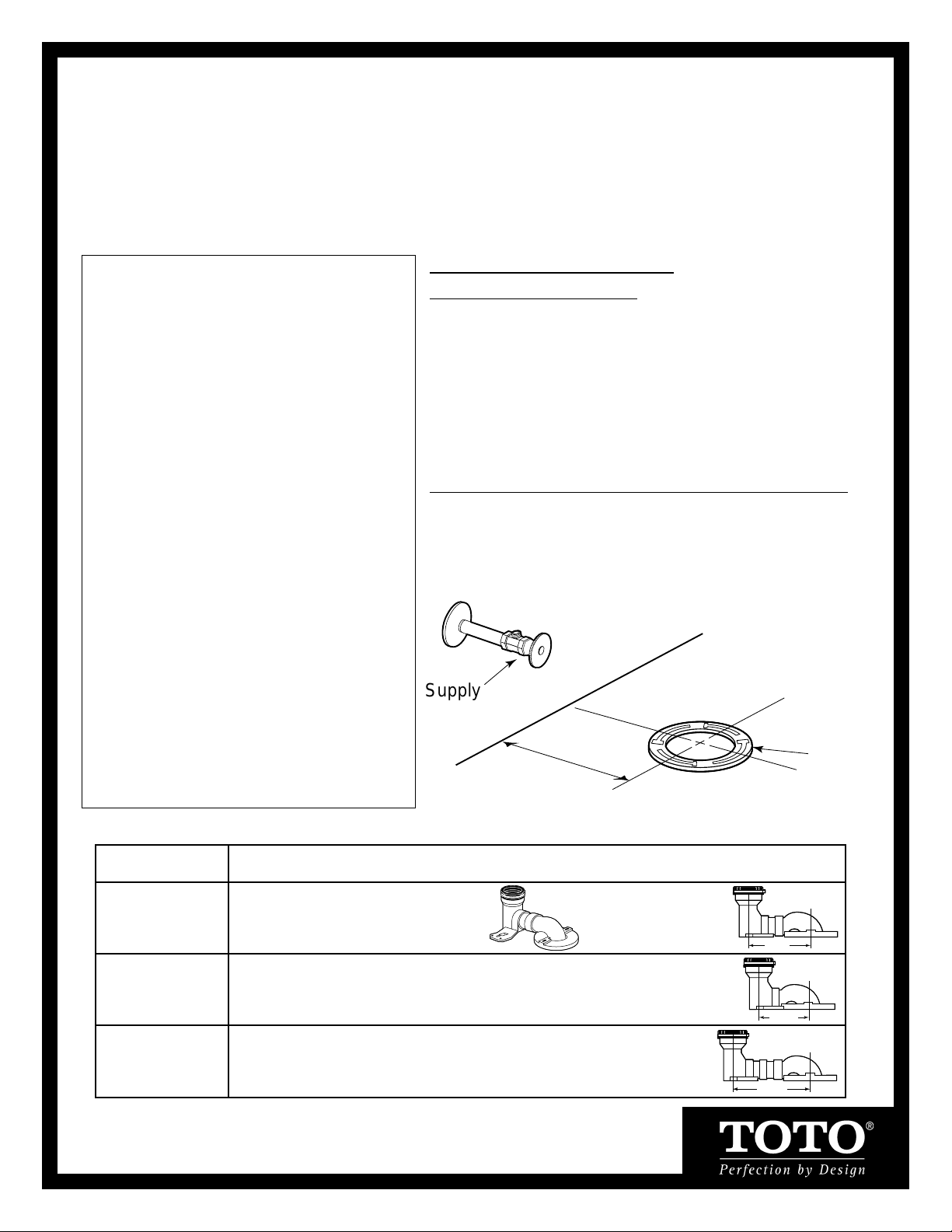

STEP 1 PIPING CHECK
AND ROUGHING-IN
In order for your new TOTO toilet to fit correctly,
check the dimensions below.
Rough-In (“RI”): Distance between finished wall to the
center of the toilet outlet.
REMOVE EXISTING TOILET (If Necessary)
STEP 2 INSTALLING MOUNTING BOLTS
Clean any debris out of the closet flange, then install
the mounting bolts into the slots of the flange. The
bolt should be inserted into the slot with its head down
and threaded shank pointed upward.
MATERIALS REQUIRED:
1. Mounting bolts
2. Wax ring / seal
PACKAGE CONTENT:
1. PVC Outlet Connection - 1
2. Toilet mounting bolt (T-bolt) - 2
3. Mounting screw w/washer - 4
4. T-bolt nut - 2
5. T-bolt washer - 2
6. Anchor - 4
COMMON TOOLS NEEDED:
1. Tape measure
2. Screw driver
3. Putty knife
4.
Drill motor, 11/64” drill bit (for
wood floor installation) & 1/4”
masonry drill bit
(for masonry/tile
floor installation)
Please make sure that you have the correct outlet connection part.
Wall
"RI"
Closet
Flange
C
/
L
;;
;
yy
y
Supply
Valve
UNIFIT ROUGH-IN
INSTALLATION INSTRUCTIONS
UNIFIT ROUGH-IN
INSTALLATION INSTRUCTIONS
“RI”
12 inch
10 inch
14 inch
TSU01W.12
(supplied)
TSU01W.10
(optional - must be purchased separately)
TSU01W.14
(optional - must be purchased separately)
Outlet Connection Part No.
9-1/2"
7-1/2"
11-1/2"11-1/2"

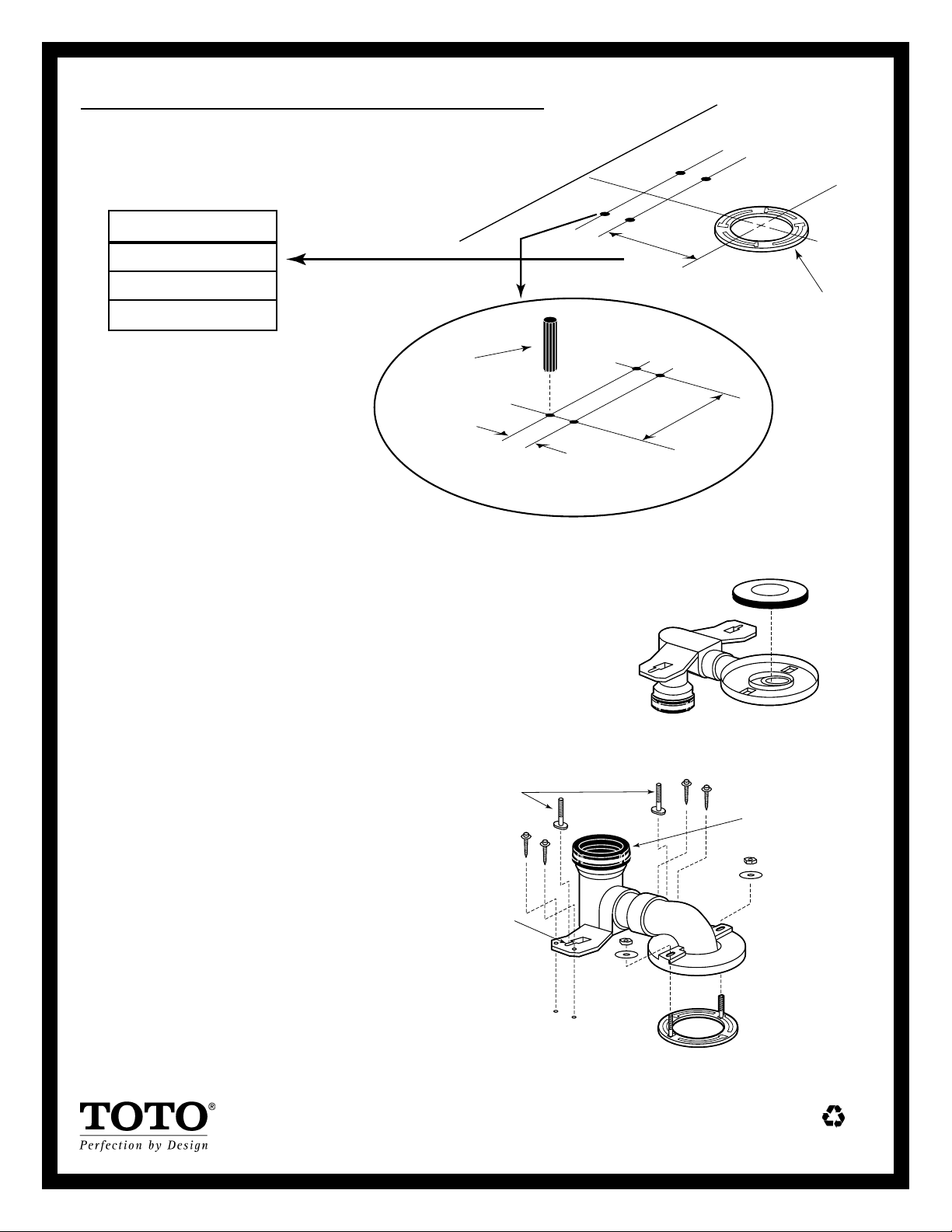

STEP 3 INSTALLING OUTLET CONNECTION
Drill 4 holes 11/64” on the floor at location shown.
(1/4” holes are for tile/concrete floor using anchors.)
Turn the PVC outlet connection upside down.
Firmly press a new wax seal onto the circular
recess around the outlet opening.
Turn the outlet connection upright and lower
it into position over closet flange. With the
unit properly aligned, press down firmly to
set wax seal.
CAUTION: DO NOT move the outlet
connection after the wax seal is set.
Insert washers and thread nuts onto
mounting bolts and hand tighten. Then
tighten bolts an additional 1/2 turn.
Secure back side of outlet connection
to the floor using the 4 screws and washers.
Insert the T-Bolts into the slots with its head
down and threaded shank pointed upward.
NOTE: DO NOT remove the white tie-wrap
from rubber sleeve.
RI A Dimension
10” A = 3-1/2”
12” A = 5-1/2”
14” A = 7-1/2”
Wall
A
Closet
Flange
C
/
L
Floor
4 holes
Anchor
2"
9"
T-Bolts
nut
washer
slot
rubber
sleeve
Wax seal
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (770) 282-8686 • Fax. (770) 282-8701 • www.totousa.com
TOTO KIKI U.S.A. is a wholly owned subsidiary of TOTO LTD. Printed in U.S.A. © 1997 by TOTO LTD. 5/98
