Owner's Manual
(RI:IFTXMAN°
6.0 HORSEPOWER
21" MULTI-CUT
POWER PROPELLED
ROTARY LAWN MOWER
Model No
917.377160
• Safety
• Assembly
• Operation
• Maintenance
• Espa_ol

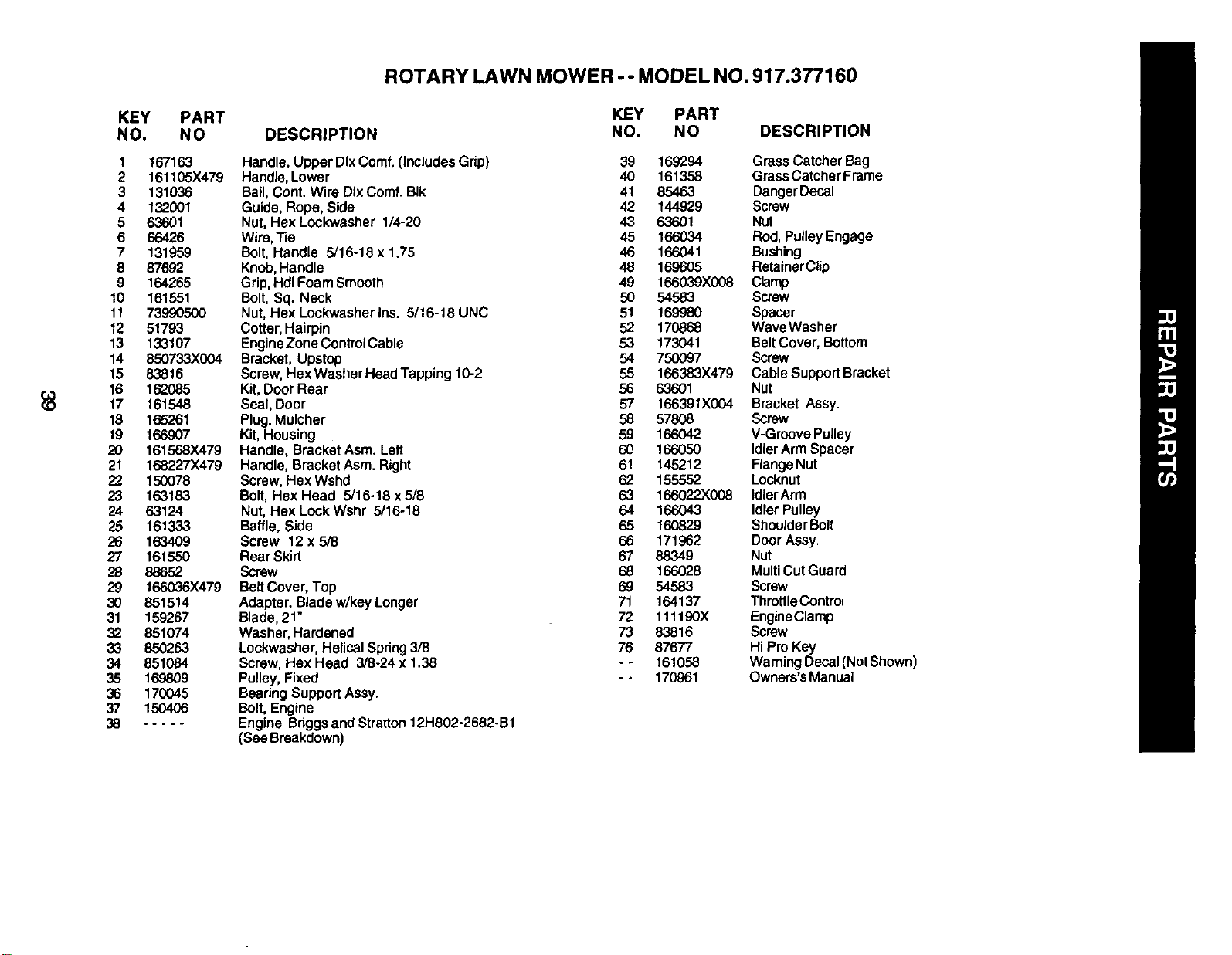

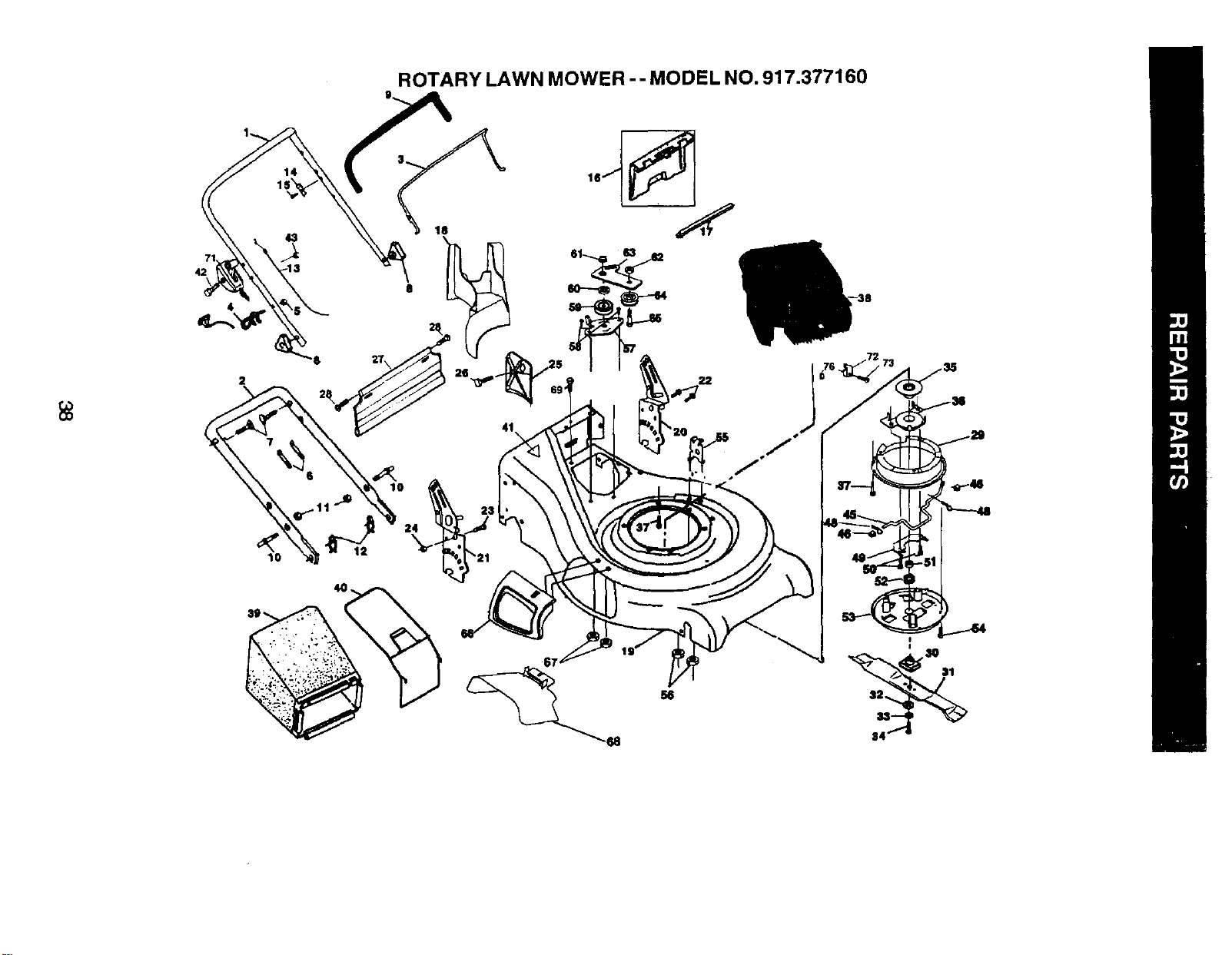

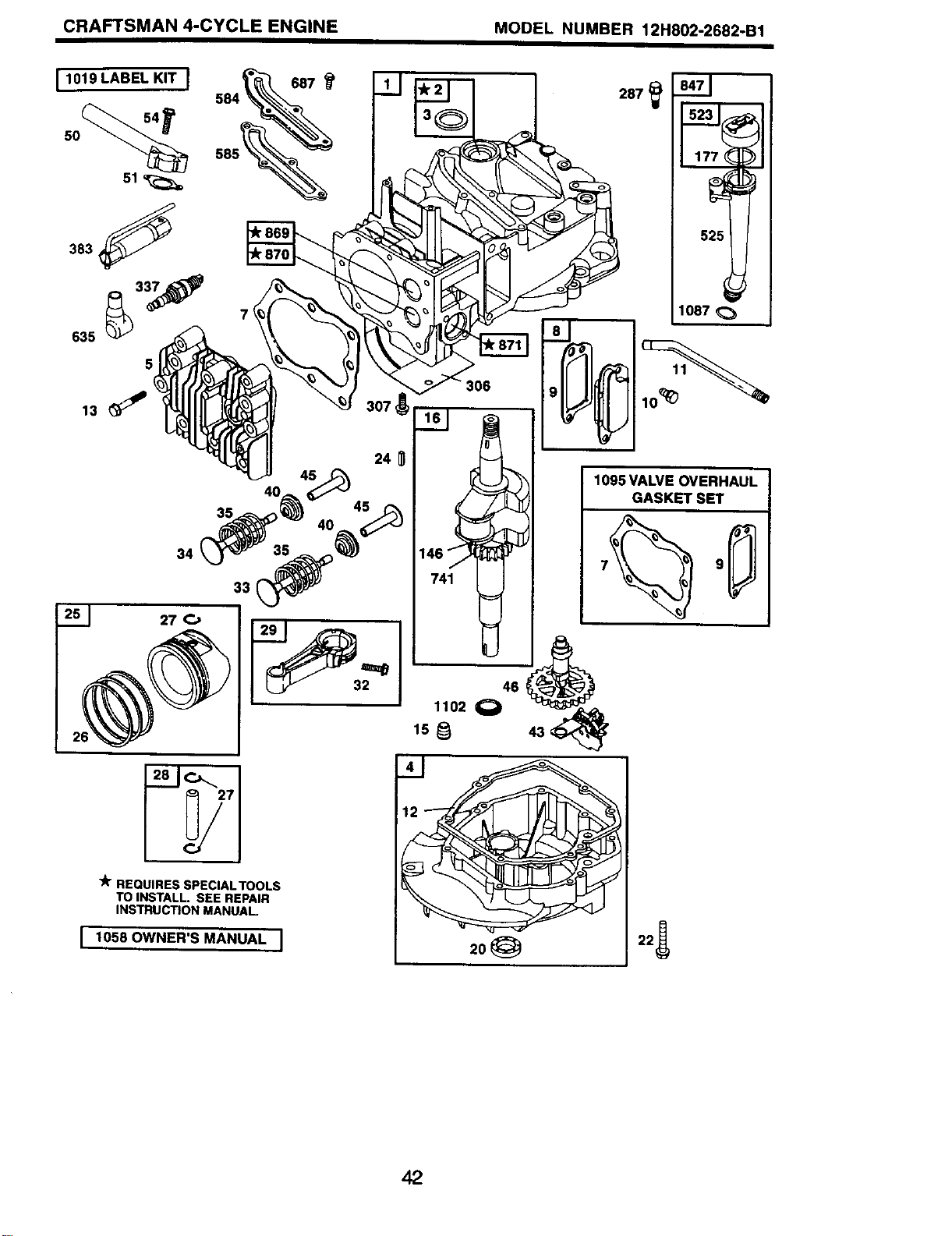

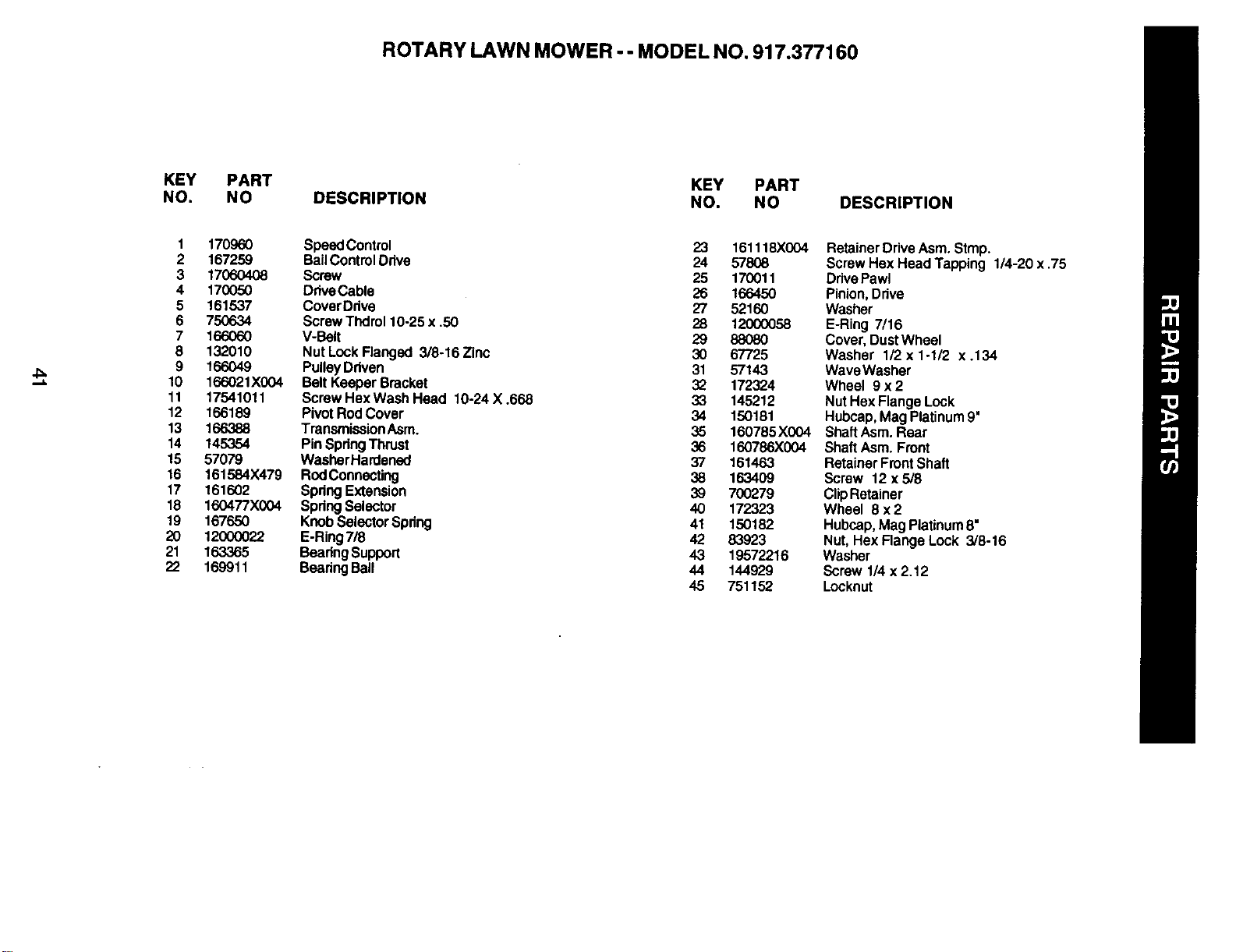

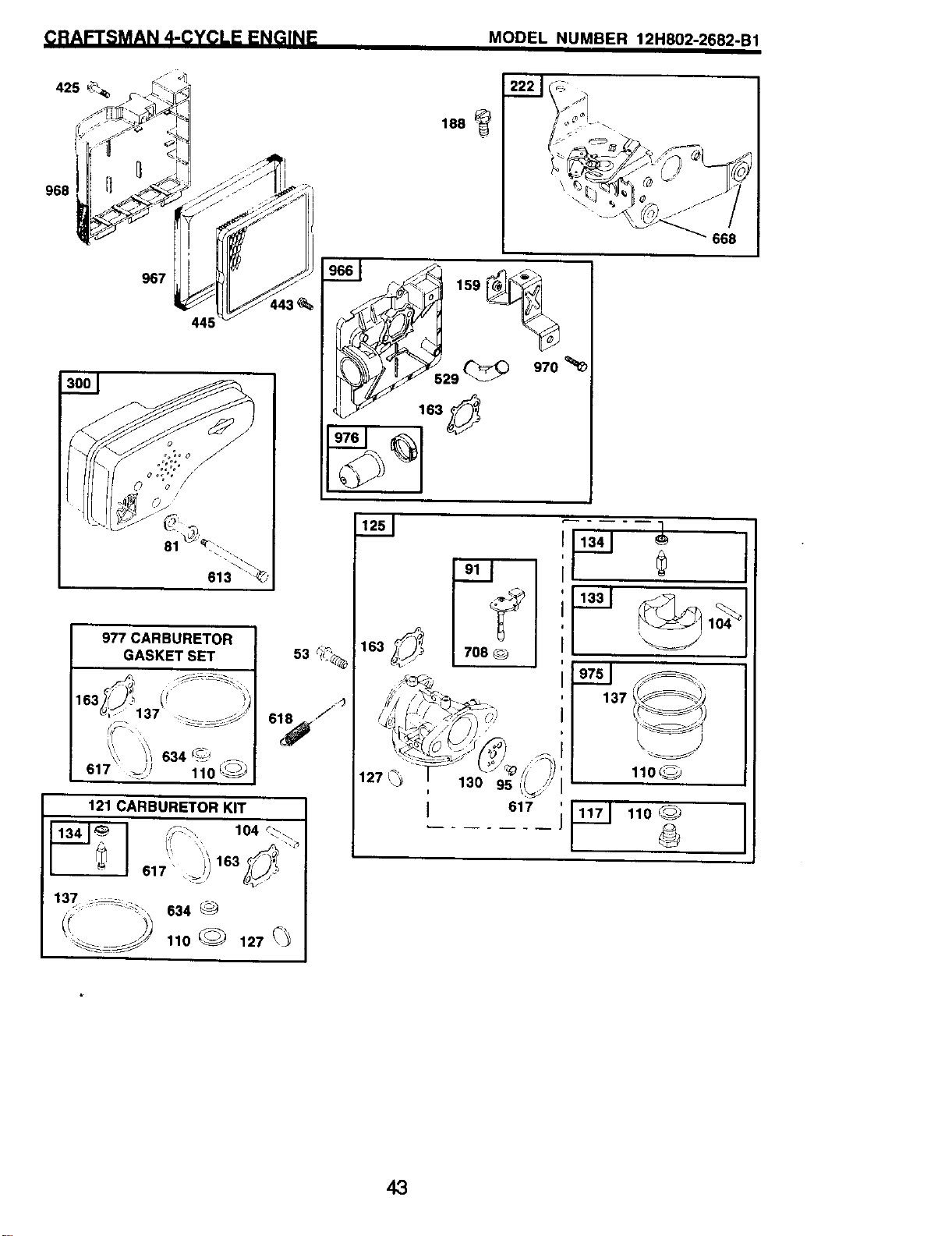

• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www,sears.comlcraftsman

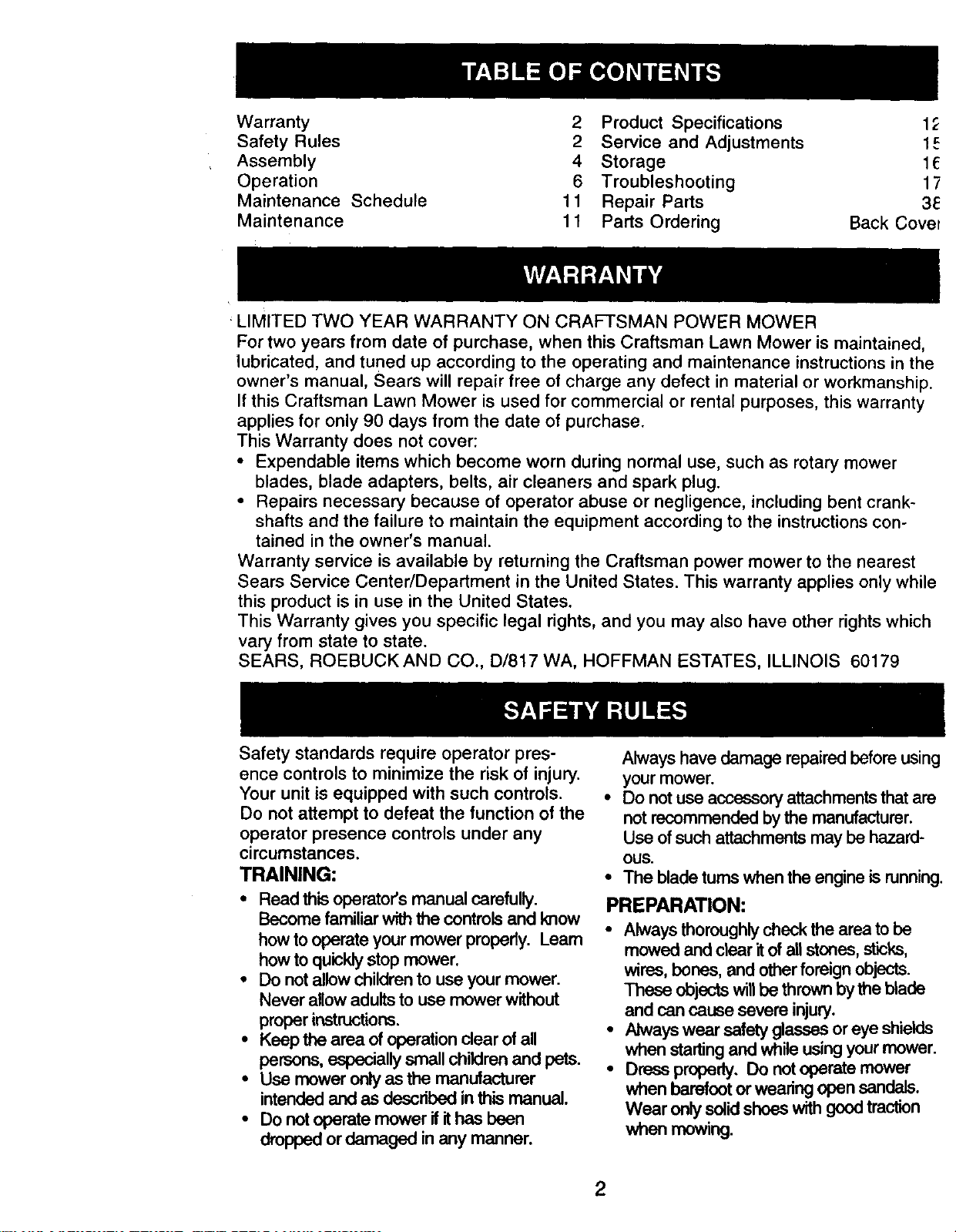

Warranty 2 Product Specifications 1,_
Safety Rules 2 Service and Adjustments 15
Assembly 4 Storage 1

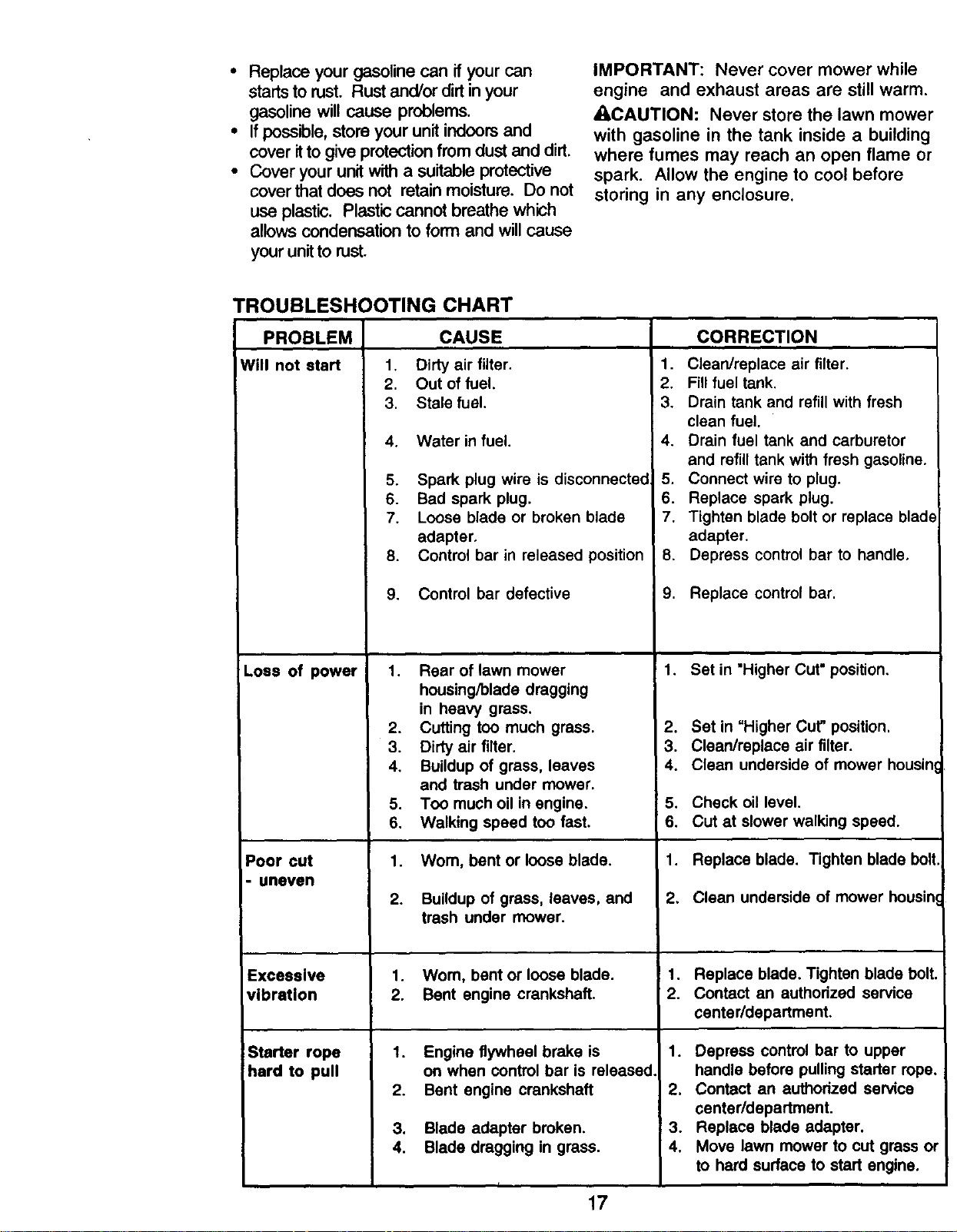

Operation 6 Troubleshooting 17
Maintenance Schedule 11 Repair Parts 31_

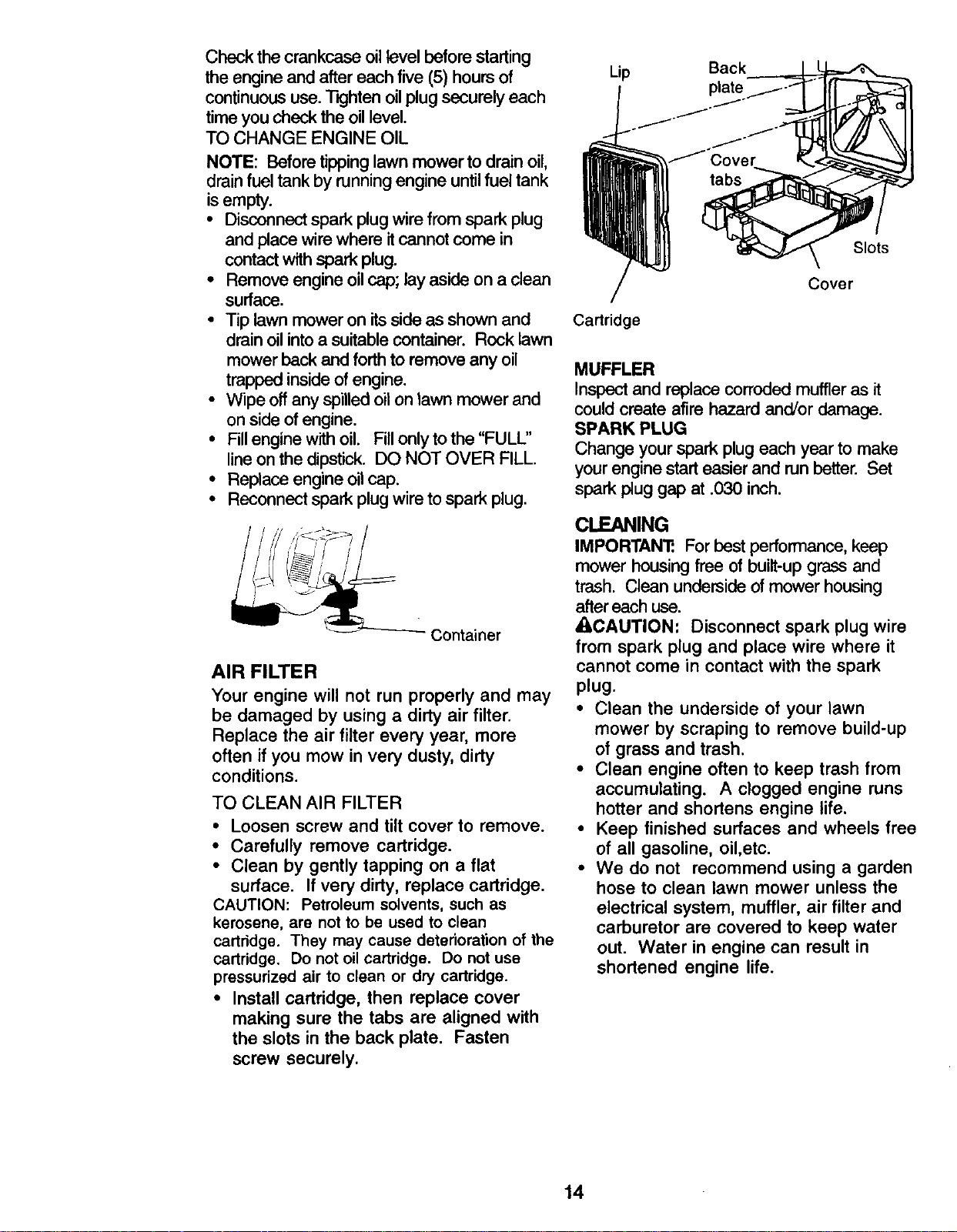

Maintenance 11 Parts Ordering Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Sears will repair free of charge any defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only while
this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Safety standards require operator pres-
ence controls to minimize the risk of injury.
Your unit is equipped with such controls.
Do not attempt to defeat the function of the
operator presence controls under any
circumstances.
TRAINING;
• Read this operator's manual carefully.
Become familiar with the controlsand know
how to operate your mower properly. Leam
how to quicklystop mower.
• Do notallow childrento use your mower.
Never allow adultsto use mower without
proper instructions.
• Keep the area of operation clear of all
persons, especially small children and pets.
• Use mower onlyas the manufacturer
intended and as described inthis manual.
• Do not operate mower it it has been
dropped or damaged in any manner.
Always have damage repaired before using
your mower.
• Do not use accessory attachments that are
not recommended by the manufacturer.
Use of such attachments may be hazard-
ous.
• The blade turnswhen the engine is running.
PREPARATION:
• Always thoroughlycheckthe area to be
mowed and clear it of allstones,sticks,
wires,bones, and other foreign objects.
These objectswill be thrown by the blade
and can cause severe injury.
• Always wear safety glasses oreye shields
when starting and while using yourmower.
• Dress properly. Do notoperate mower
when barefoot or wearing open sandals.
Wear only solidshoes with goodtraction
when mowing.
2

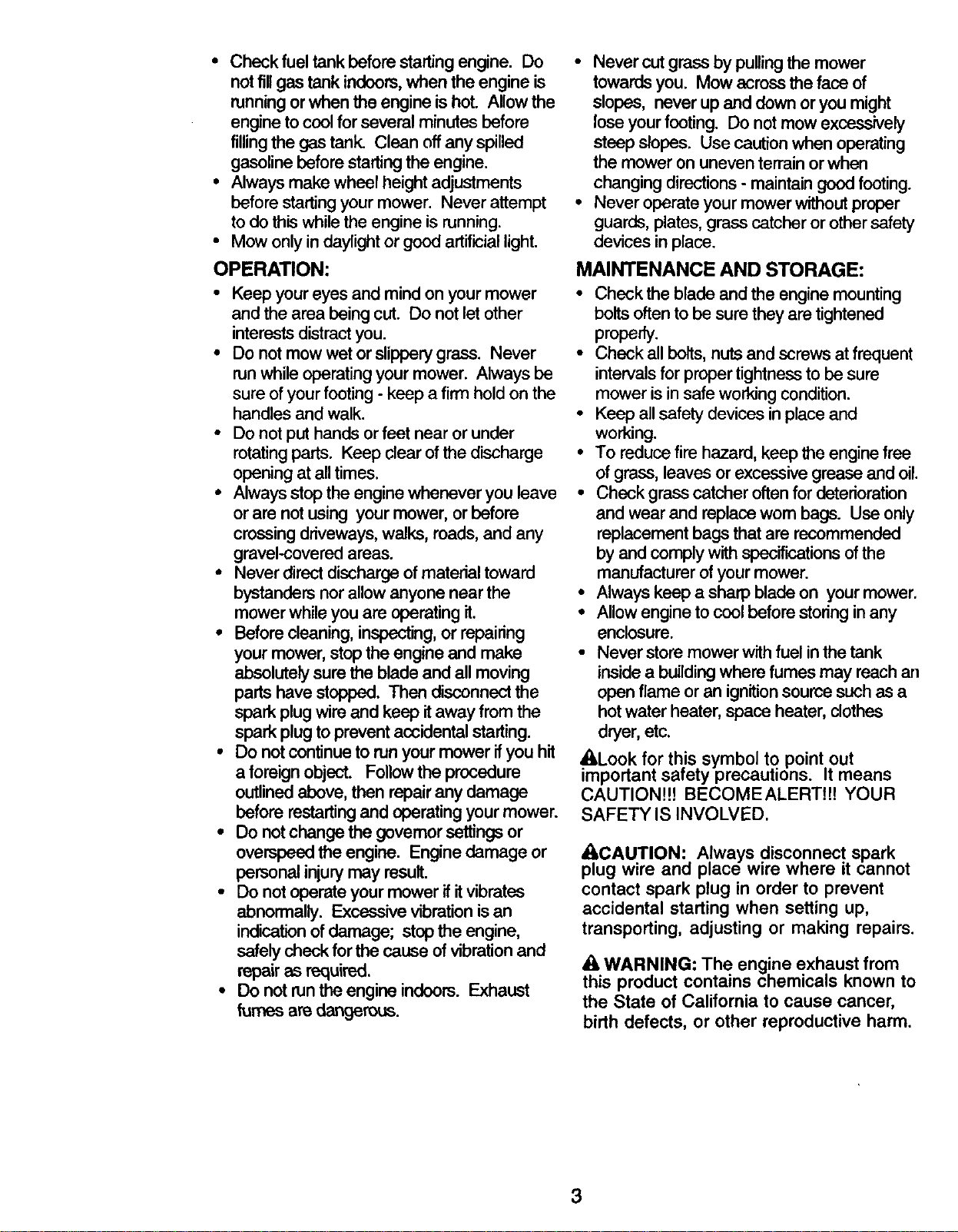

• Check fuel tank before starting engine. Do
notfill gas tank indoors, when the engine is
running or when the engine is hot. Allow the
engine to cool for several minutes before
filling the gas tank. Clean off any spilled
gasoline before starting the engine.
• Always make wheel height adjustments
before starting your mower. Never attempt
to do this while the engine is running.
• Mow only in daylight or good artificial light.
OPERATION:
• Keep your eyes and mind on your mower
and the area being cut. Do not let other
interests distract you.
• Do not mow wet or slippery grass. Never
run while operating your mower. Always be
sure of your footing - keep a firm hold on the
handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.
• Always stop the engine whenever you leave
or are not using your mower, or before
crossing driveways, walks, roads, and any
gravel-covered areas.
• Never direct discharge of material toward
bystanders nor allow anyone near the
mower while you are operating it.
• Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all moving
parts have stopped. Then disconnect the
spark plug wire and keep it away from the
spark plug to prevent accidental starting.
• Do not continue to run your mower if you hit
a foreign object. Follow the procedure
outlined above, then repair any damage
before restarting and operating your mower.
• Do not change the gevemor settings or
overspeed the engine. Engine damage or
personal injury may result.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration and
repair as R_quired.
• Do not run the engine indoors. Exhaust
fumesaredangerous.
• Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you might
lose your footing. Do not mow excessively
steep slopes. Use caution when operating
the mower on uneven terrain or when
changing directions - maintain good footing.
• Never operate your mower without proper
guards, plates, grass catcher or other safety
devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine mounting
bolts often to be sure they are tightened
prope_.
• Check all bolts, nuts and screws at frequent
intervals for proper tightness to be sure
mower is in safe working condition.
• Keep all safety devices in place and
working.
• To reduce fire hazard, keep the engine free
of grass, leaves or excessive grease and oil.
• Check grass catcher often for deterioration
and wear and replace worn bags. Use only
replacement bags that are recommended
by end comply with specifications of the
manufacturer of your mower.
• Always keep a sharp blade on your mower.
• Allow engine to cool before storing in any
enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may reach an
open flame or an ignition source such as a
hot water heater, space heater, clothes
dryer, etc.
ALook for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
ACAUTION: A!ways disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
_1,WARNING: The engine exhaust from
this product contains chemicals known to
the State of Califomia to cause cancer,
birth defects, or other reproductive harm.
3

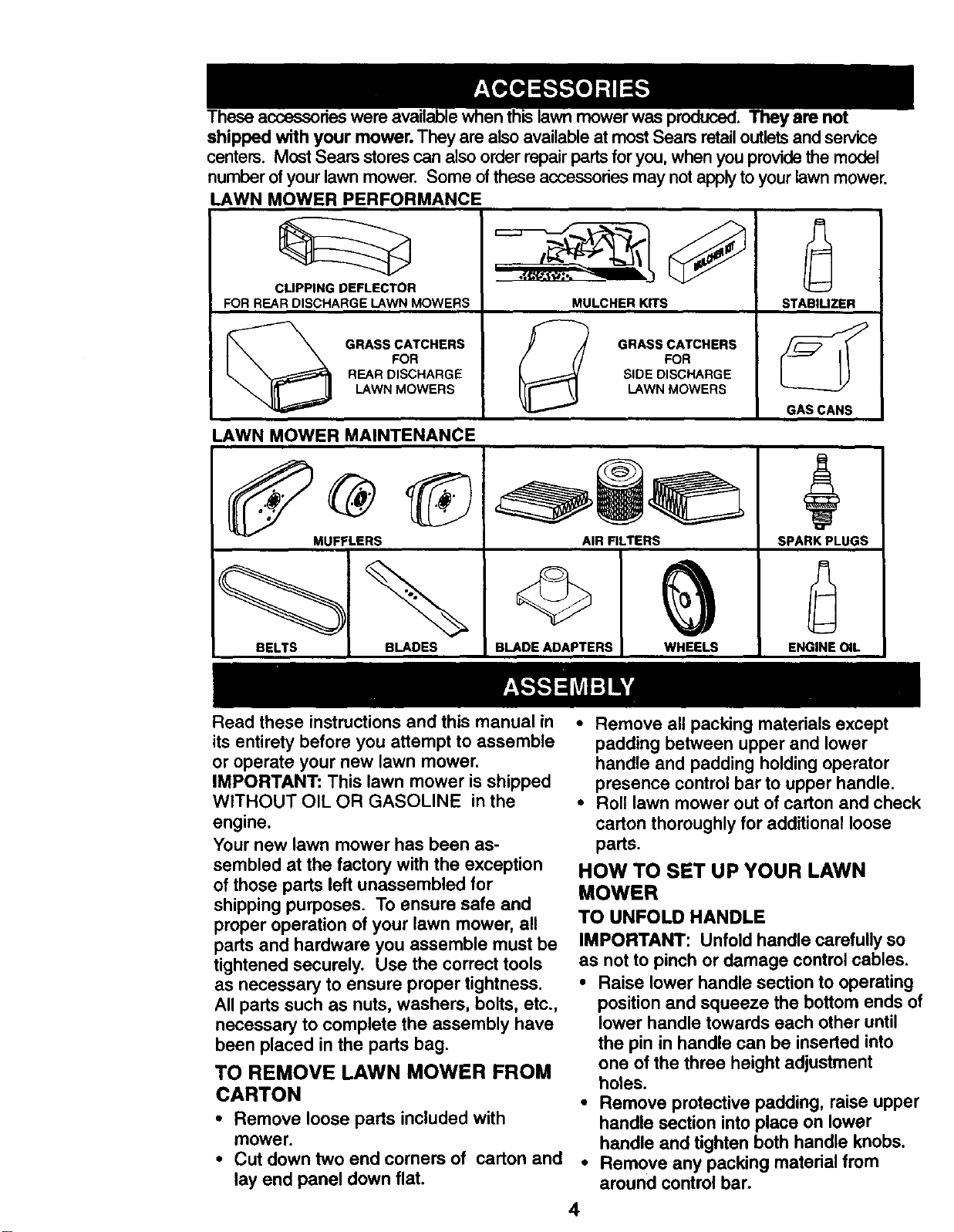

These accessories were available when this lawn mower was produced. ,are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair parts for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS MULCHERK_S
GRASSCATCHERS
FOR
REAR DISCHARGE
LAWNMOWERS
GRASSCATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS
BELTS
BLADES
AIR FILTERS
©
BLADE ADAPTERS WHEELS
STABIUZER
GAS CANS
SPARK PLUGS
ENGINE OIL
Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. To ensure safe and
proper operation of your lawn mower, all
parts and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
All parts such as nuts, washers, bolts, etc.,
necessary to complete the assembly have
been placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts includedwith
mower.
• Cut down two end cornersof carton and
lay end panel down flat.
• Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
• Roll lawn mower out of carton and check
carton thoroughly for additional loose
pads.
4
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
• Raise lower handle section to operating
position and squeeze the bottom ends of
lower handle towards each other until
the pin in handle can be inserted into
one of the three height adjustment
holes.
• Remove protective padding, raise upper
handle section into place on lower
handle and tighten both handle knobs.
• Remove any packing material from
around control bar.

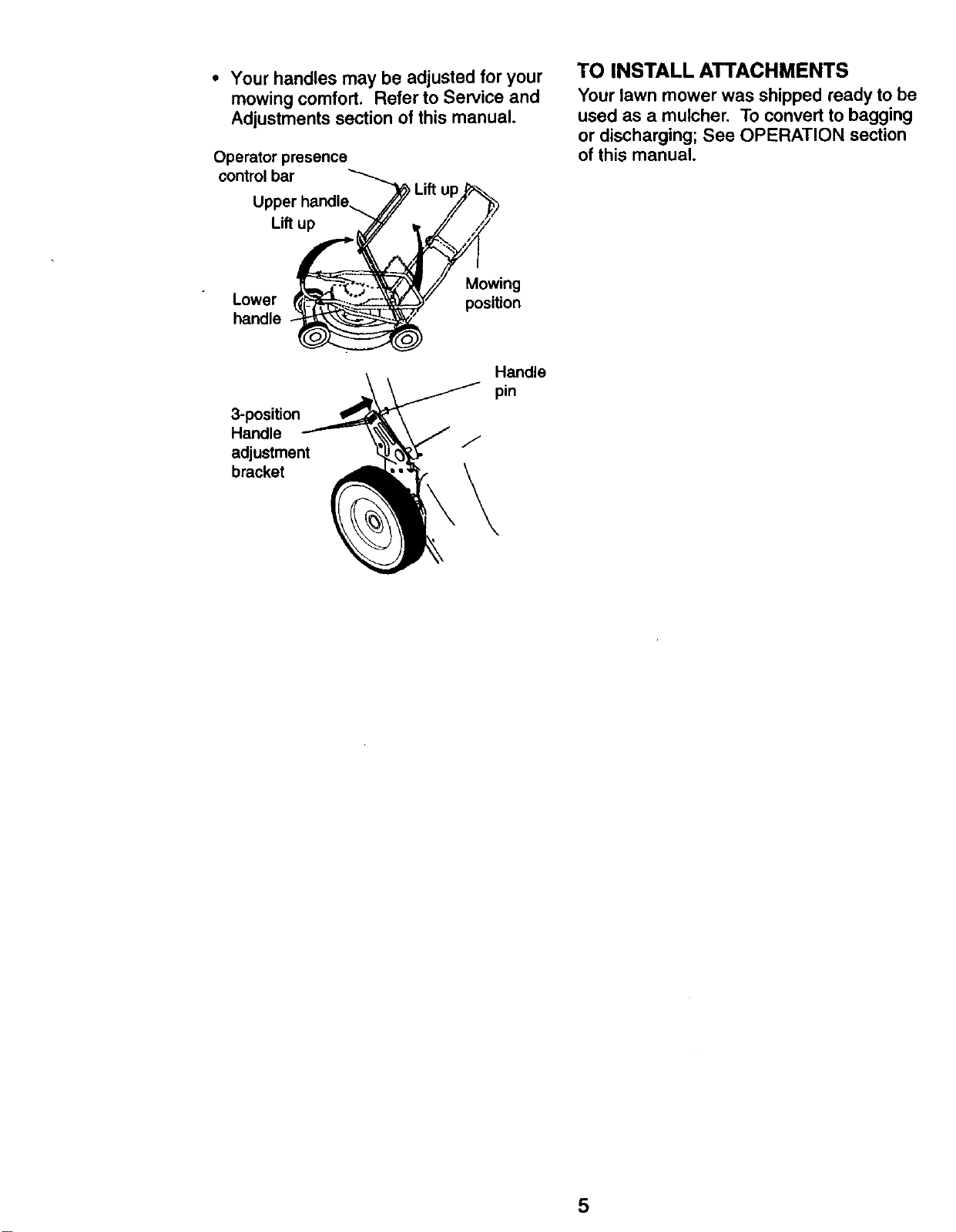

• Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
Operator presence
control bar
UI
Lift up
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging
or discharging; See OPERATION section
of this manual.
Lower
handle
Mowing
position
3-position
Handle
adjustment
bracket
Handle
pin
5
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWI_
MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Operator presence control
)eed control lever
Starter handle
Cable clip
Grass catcher
Wheel adjuster
lever
Engine oil cap w/dipstick
Mulcher
plug
Gasoline cap
Mulcher door
IMPORTANT: This lawn mower is shipped Primer
without oil or _lasoline in the en_line. Housing
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis-
sion. The blade turns when the engine is running.
Operator presence control - must be
held down to the handle to start the
engine, Release to stop the engine,
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle - used for starting the
engine.
Drive control bar - used to engage
power-prepeiled foward motion of lawn
mower.
Mulcher plug - Located at the rear
discharge opening must be removed
when converting to bagging operation.
6
The operationof any lawn mower can result in
foreign objects thrown into the eyes, which can
result in severe eye damage. Always wear
safety glasses or eye shields while operating
your lawn mower or performing any adjust-
ments or repairs. We recommend a wide
vision safety mask overspectacles or standard
safety glasses.
HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
TO OPERATE DRIVE SYSTEM
• With engine running, select ground
speed by moving speed control lever to
desired position.
• To start forward motion, pull drive
control bar back against handle.
• To stop forward motion, release drive
control bar.
IMPORTANT: Always keep drive control
bar fully engaged against handle when in
The engine speed was set at the factory for use.
optimum performance. Speed is not adjust-
able.
ENGINE ZONE CONTROL
ACAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an Drivecontrol
operator presence control bar which engaged
requires the operator to be positioned "
behind the lawn mower handle to start and
operate the lawn mower.
TO ADJUST CUTTING HEIGHT
• All four wheels are adjusted by a single
lever.
• Pulladjuster lever toward wheel. To raise
mower, move lever forward to desired
position.To lower mower, move the lever
toward the rear.
Lower Wheels for high cut
Wheel \
A_juster
Lever J
Raise Wheels for low cut
GROUND DRIVE SPEEDS
Your lawn mower provides multiple speeds
to let you select the speed that suits you
best.
• Lower speeds are for slow, heavy/thick
grass cutting or trimming.
• Medium speeds are for normal grass
cutting or trimming.
• High is for light cutting and for ground
transport.
NOTE: Do not move speed control lever
unless the engine is running
Speed control
lever
Operator presence
control bar
Drive control
disengaged
TO CONVERTMOWER
Your lawn mower was shipped ready to be
used as a mulcher. Toconvert to begging or
discharging:
REAR BAGGING-
, Open rear door and remove mulcher plug.
Store mulcher plug in a safe place.
• To convert to mulching or discharging
operation, install mulcher plug into rear
discharge opening of mower.
SIDE DISCHARGING-
• Rear door must be closed.
• Open mulcher door and installdischarge
deflector under guard as shown.
• Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, discharge deflector must be
removed and mulcher door must be
dosed.
7
SIMPLE STEPS TO REMEMBER
WHEN CONVERTING YOURLAWN
MOWER
FOR MULCHING -
• Rear mulcher plug installed.
• Mulcher door dosed.
FOR REAR BAGGING -
• Rear mulcher plug removed.
• - Grass catcher installed.
• Mulcher door closed.
FOR SIDE DISCHARGING -
• Rear mulcher plug installed.
• Side discharge deflector installed.
ACAUTION: Do not run your lawn mower
without rear mulcher plug in place or
approved grass catcher in place.
Never attempt to operate the lawn mower
with the rear door removed or propped
open.
Mutcherplug
Mulcher door
TO ATTACH GRASS CATCHER
• Lift the rear door ofthe lawn mower and
place the grass catcher frame hooks into
the slots ofthe rear door.
• The gm_sscatcher is secured to the lawn
mower housing when the rear door is
lowered onto the grass catcher frame.
Rear door Grass
catcher
handle
Catcher frame J
hook
_I,CAUTION: Do not run your lawn mower
without rear mulcher plug or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or prepped open.
TO EMPTY GRASS CATCHER
• Liftup on grass catcher using the frame
handle.
• Remove grass catcher with clippings from
under lawn mower handle.
• Empty clippingsfrom bag using both frame
handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
Open
mulcher door
Discharge deflector
BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil in
the engine.
• Be sure mower is level and area
around oil fill is clean.
• Remove engine oil cap and fill to the
full line on the dipstick.
NOTE: Allow oil to settle down into
engine for accurate reading.
• Engine holds 20 ozs. of oil. For type
and grade of oil to use, see "ENGINE"
in maintenance section of this manual.
• Pour oil slowly. Do not over fill.
8
• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• To read proper level, tighten engine oil
cap each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
NOTE: Before filling fuel tank, remove
and discard the debris plug that is inside
the tank.
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane(Use of leaded gasoline will
increase carbon and lead oxide
deposits and reduce valve life). Do not
mix oil with gasoline. Purchase fuel in
quantities that can be used within 30
days to assure fuel freshness.
_I,WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the fuel tank, start the
engine and let it run until fuel lines and
carburetor are empty. Use fresh fuel next
season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in fuel tank
or permanent damage may occur.
ACAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or use
gasoline near an open flame.
TO STARTENGINE
• To stad a cold engine, push primer three
(3) times before tryingto stad. Use a firm
push. This step is not usually necessary
when starting an engine which has already
runfor a few minutes.
• Hold operator presence control bar down
to the handle.
• To stop engine, release operator presence
control bar.
NOTE: In cooler weather it may be necessary
to repeat primingsteps. In warmer weather
over priming may cause flooding and engine
willnotstad. Ifyou do flood engine wait a few
minutes before attemptingto stad and do not
repeat priming steps.
Gasoline
filler cap
Engine oil cap
(Discard
debris plug
inside)
9
MOWINGTIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extre_nely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See "Cleaning" in MAINTENANCE
section of this manual.
The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall ontothe
lawn they will disperse intothe grass and
not be noticed. Also, the mulched grass
will biodegrade quicklyto provide nutrients
for the lawn. Always mulch withyour
highest engine (blade) speed as this will
providethe best recuttingaction of the
blades.
Avoidcuttingyour lawn when itis wet. Wet
grass tends to form clumps and interferes
with the mulchingaction. The best time to
mow your lawn isthe early afternoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
For best results, adjust the lawn mower
cutting height so that the lawn mower cuts
off only the top one-third of the grass
blades. If the lawn is overgrown itwill be
necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your widthof cut
by overlapping previously cut path and
mow slowly.
Certain types of grass and grass conditions
may require that an area be mulched a
second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
Change your cutting pattem from week to
week. Mow north to south one week then
change to east towast the next week. This
will help prevent matting and grainingof
the lawn.
10
MAINTENANCE SCHEDULE _,/,'____°_._Y
Check for Loose Fasteners _ I_
Clean/Inspect Grass Catcher
(If Equipped) _ _
M Clean Lawn Mower _
o
Clean Under Drive Cover
(Power-Propelled Mowers)
_ heck drive beWpu!leys
(Power.Propelled Mowers)
g Check/Sharpen/Replace Blade 3
Lubrication Chart
Clean Battery/Recharge
/Electdc Start MowersI I_ I_4
E Check Engine Oil Level I_
Change Engine Oil 1_#'1,2
G clean Air Filter _ 2
Inspect Muffler
N Clean or Replace Spark Plug
Replace Air Filter Paper Cartridge If2
I - Change moreoftenwhenoperatingunder a heavy load orin highambienttemperatures.
2 - Servicemore oftenwhenoperatingin dirtyor dustyconditions.
3 - Replace i_adesmore oftenwhenmowingin sandy soil.
4 - Charge48 hours at endofseason.
GENERAL RECOMMENDATIONS
The warranty on thislawn mower does not
cover itemsthat have been subjected to
operatorabuse or negligence. To receive full
value from the warranty, operator must
maintainmower as instructedin this manual.
Some adjustmentswill need to be made
periodically to properly maintain your unit.
All adjustments inthe Service end Adjust-
ments section of this manual should be
checked at least once each season.
• Once a year, replace the spark plug,
replaceair filter element and check blade for
wear. A new spark plug and clean/new air
filter element assures proper air-fuelmixture
and helps your engine runbetter and last
longer.
• Followthe maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loosefasteners.
LUBRICATION
Keep unitwell lubricated(See "LUBRICATION
CHART").
LUBRICATION CHART
(_) Wheel
adjuster
(_) Engine oil
(_) Spray lubricant
(_) Refer to MAINTENANCE
"ENGINE' section.
IMPORTANT: Do not oilor grease plastic
wheel bearings. Viscous lubricantswill
attract dust and dirtthat willshortenthe
lifeof the serflubricatingbearings. Ifyou
feel they must be lubricated,use onlya
dry, powdered graphitetype lubricant
sparingly.
11

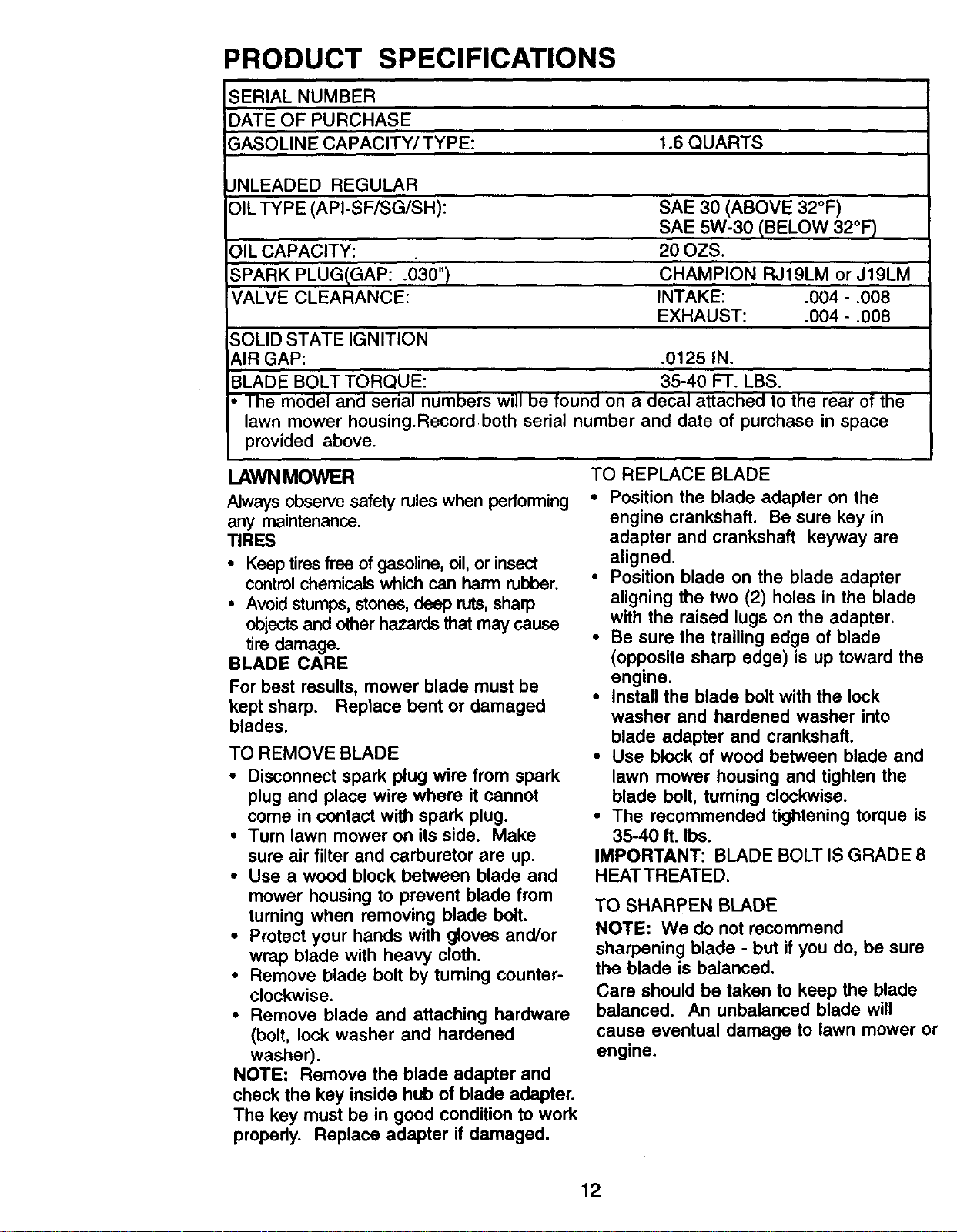

PRODUCT SPECIFICATIONS
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
qLTYPE (API-SF/SG/SH):
OIL CAPACITY:
SPARK PLUGIGAP: .030")
VALVE CLEARANCE:
SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
20 OZS.
CHAMPION RJ19LM or J19LM
INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWNMOWER
Always observe safety rules when performing
any maintenance.
TIRES
• Keep tiresfree of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts,sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by turning counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE" Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
propedy. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: BLADE BOLT IS GRADE 8
HEAT TREATED.
TO SHARPEN BLADE
NOTE: We do not recommend
sharpening blade - but if you do, be sure
the blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
12
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced. Crank-
Blade shaft
adapter _ keyway
Blade
bolt
• If you remove the drive pinions, wipe
clean with dry cloth. Reassemble dry.
Do not lubricate. Do not use oil or
grease.
• The pinion gear, on both sides of the
mower, are the same, however, they
must be installed correctly. If installed
incorrectly, the drive system will not
work.
• There are arrows embossed on both
sides of the pinion gear. With the arrow
at the top of the pinion, the arrow must
point towards front of mower. If the
arrow points to the rear, turn the pinion
around and assemble to mower.
• Place wheels back on adjuster axles.
• Replace Iocknuts and hubcaps.
Correct Incorrect
Lock
washer
washer
Trailing Blade
edge adapter
3rank-
shaft
Pinion
E-ring
Wave
Washer
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher needs
replacing, replace only with a manufac-
turer approved replacement catcher.
Give the lawn mower model number
when ordering.
DRIVE WHEELS
Check rear drive wheels each time you
mow to be sure they move freely. The
wheels not turning freely means trash,
grass cuttings, etc., may be inside the
drive wheel and dust cover area and must
be cleaned out to free drive wheels.
If necessary to clean the drive wheels,
check both rear wheels:
• Remove hubcaps and Iocknuts.
• Remove wheels from wheel adjuster
axles.
• Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
/-- Dustcover
Washer
"Hubcap
ENGINE
LUBRICATION
Use only high quality detergent oil rated with
API service cless_on SF, SG orSH.
Select the oil's SAE viscositygrade according
to your expected operating temperature.
"30* -20* -I0" 6" 10" 20" 30"
TEMPERATURE RANGE ANTICIPATEDBEFORENEXTOiL CHANGE
NOTE: Although mu_-vlscosity oils (5W30,
10W30 etc.) improve starting incoldweather,
these multi-viscosityoilswill resultin
increased oil consumption when used above
32°F. Check your engine oil level more
frequently to avoid possible engine damage
from running low on oil.
Change the oilafter every 25 hours of
operation or at least once a year ifthe lawn
mower is not used for 25 hours in one year.
13
Check the crankcase oil level before starting
the engine and after each five (5) hours of
continuous use.T_hten oilplugsecurely each
time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Before tippinglawn mower to drain oil,
drain fuel tank by running engine untilfuel tank
is empty.
• Disconnect spark plug wire from spark plug
and place wire where itcannot come in
contact with spark plug.
• Remove engine oil cap; lay aside on a clean
surface.
• Tip lawn mower on its side as shown and
drain oil into a suitable container. Rock lawn
mower back and forth to remove any oil
trapped inside of engine.
• Wipe off any spilled oil on lawn mower and
on side of engine.
• Fill engine with oil. Fill only to the "FULL"
line on the dipstick. DO NOT OVER FILL.
• Replace engine oil cap.
• Reconnect spark plug wire to spark plug.
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions.
TO CLEAN AIR FILTER
• Loosen screw and tilt cover to remove.
• Carefully remove cartridge.
• Clean by gently tapping on a flat
surface. If very dirty, replace cartridge.
CAUTION: Petroleumsolvents,such as
kerosene, are notto be used to clean
cartridge. They may cause deteriorationof the
cartridge. Do notoil cartridge. Do not use
pressurizedair to clean or dry cartridge.
• Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Lip Back
plate
Cartridge
Slots
Cover
MUFFLER
Inspect and replace corroded muffler as it
could create afire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make
your engine start easier and run better. Set
spark pluggap at .030 inch.
CLEANING
IMPORTANT." For best performance, keep
mower housing free of built-upgrass and
trash. Clean underside of mower housing
aftereach use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
14

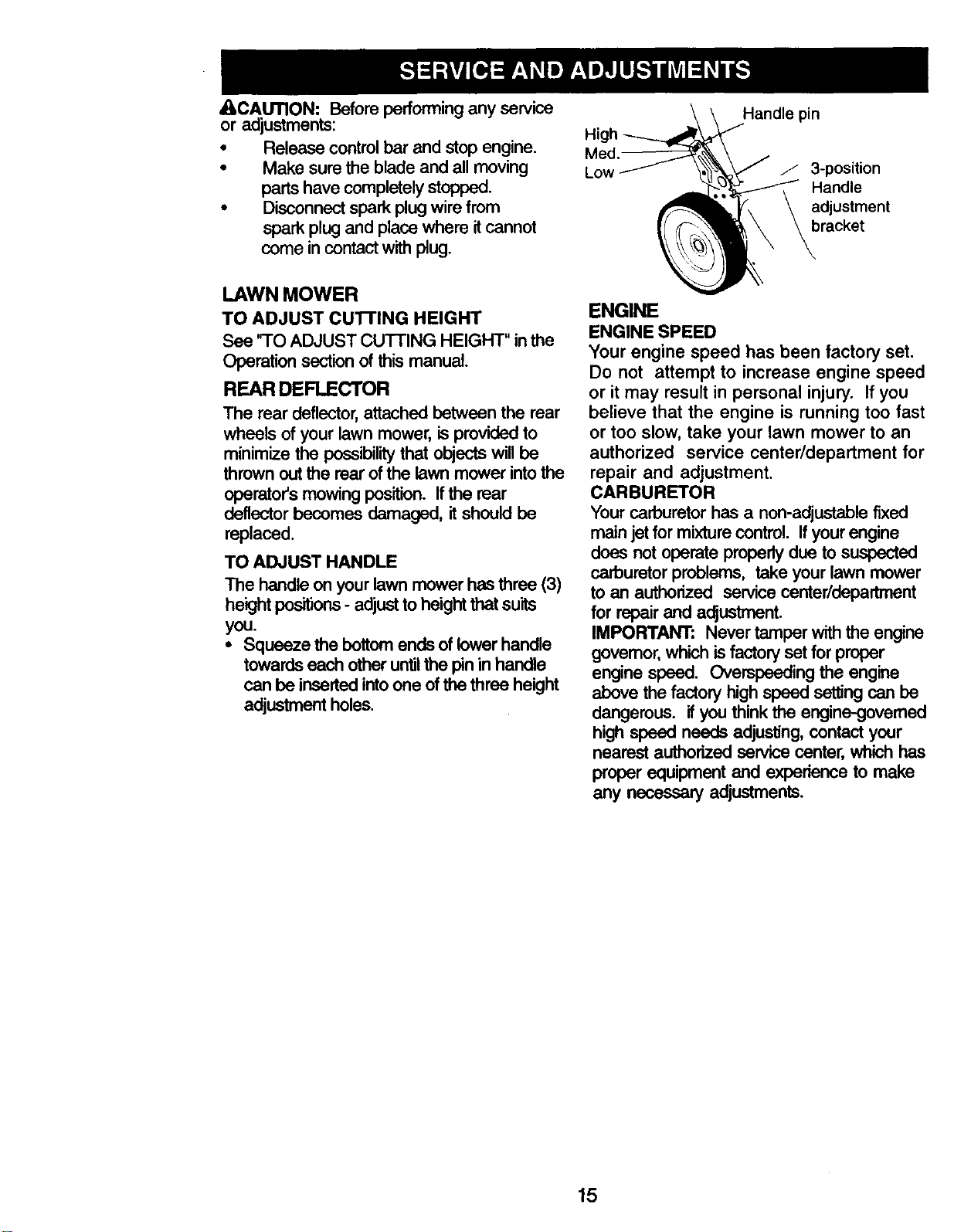

_I_CAUTION: Before performing any service
or adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from
spark plugand place where itcannot
come in contact with plug.
High
Med.-
Low
Handle pin
/ 3-position
Handle
adjustment
bracket
LAWN MOWER
TO ADJUST cu'n'ING HEIGHT
See "TO ADJUST CUI-rlNG HEIGHT" inthe
Operation section of this manual.
REAR DEFLECTOR
The rear deflector,attached between the rear
wheels of your lawn mower, is provided to
minimize the possibilitythat objects willbe
thrown out the rear of the lawn mower intothe
operator'smowing position. If the rear
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle onyour lawn mower has three (3)
height positions- adjustto heightthat suits
you.
• Squeeze the bottom ends oflower handle
towards each other untilthe pin inhandle
can be insertedintoone ofthe three height
adjustment holes.
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center/department for
repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable fixed
main jet for mixturecontrol. Ifyour engine
does not operate properly due to suspected
carburetor problems, take your lawn mower
to an authorized service center/department
for repair and adjustment.
IMPORTANT: Never tamper with the engine
govemor, which is factoryset for proper
engine speed. Overspeeding the engine
above the factory highspeed settingcan be
dangerous, ifyou think the engine-governed
highspeed needs adjusting, contact your
nearest authorized service center, which has
proper equipment and experience to make
any necessary adjustments.
15

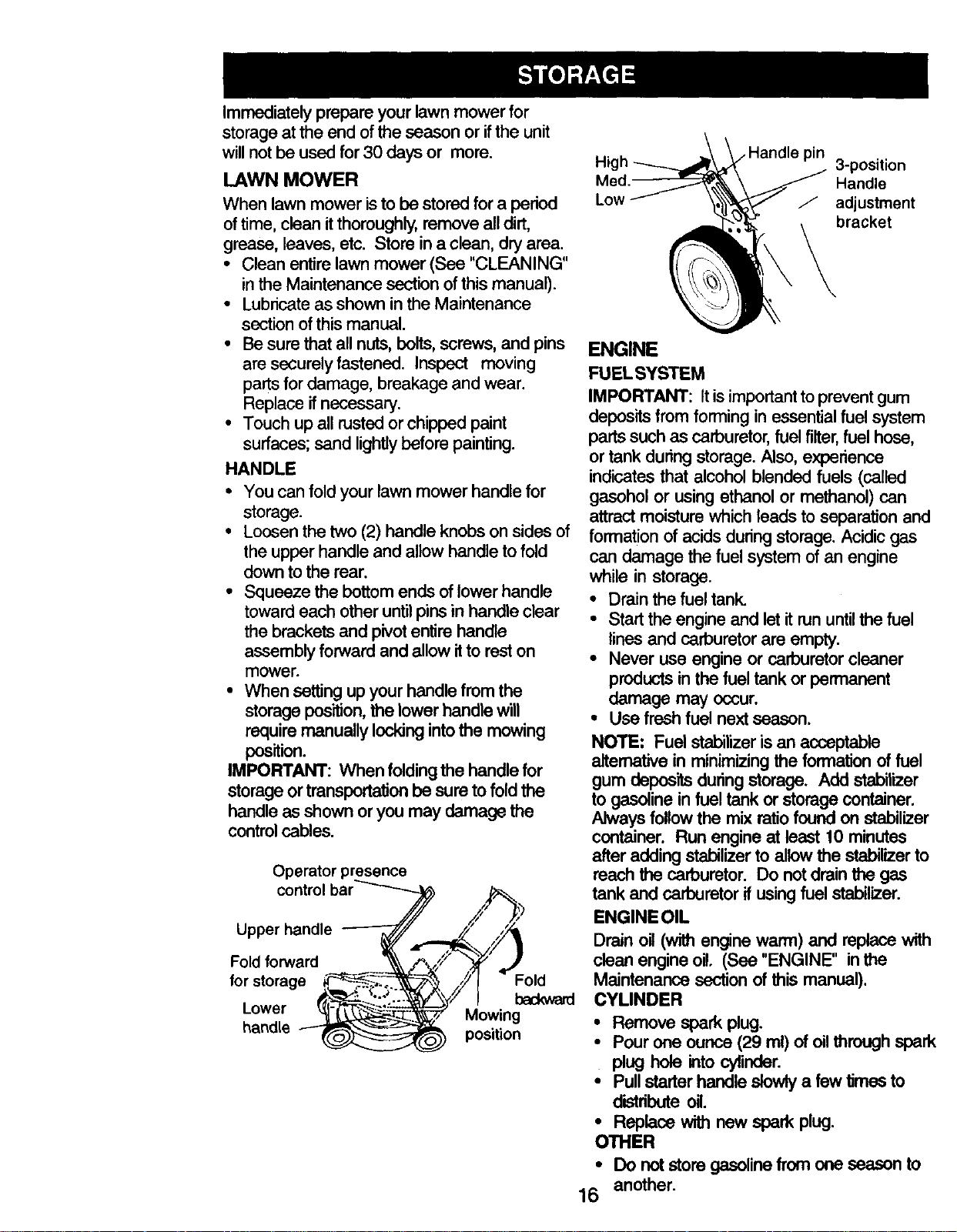

Immediately prepare your lawn mower for
storage at the end of the season or ifthe unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a period
of time, clean it thoroughly, remove all dirt,
grease, leaves, etc. Store in a clean, dry area.
• Clean entire lawn mower (See "CLEANING"
in the Maintenance section of this manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, belts, screws, and pins
are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
• You can foldyour lawn mower handle for
storage.
• Loosen the two (2) handle knobs on sides of
the upper handle and allow handle to fold
down to the rear.
• Squeeze the bottom ends of lower handle
toward each other until pinsin handle clear
the brackets and pivot entire handle
assembly forward and allow itto rest on
mower.
• When setting up your handle from the
storage position, the lower handle will
require manually locking into the mowing
position.
IMPORTANT: When folding the handle for
storage or transportation be sure to fold the
handle as shown or you may damage the
control cables.
Operator presence
control bar_
Upper handle _
Foldforward _---_Z_
forstorage ._-_-;__--_
Lower _._-.
handle
pin
3-position
Med. Handle
Low J adjustment
bracket
ENGINE
FUELSYSTEM
IMPORTANT: Itis important to prevent gum
deposits from formingin essential fuel system
parts such as carburetor, fuel filter, fuel hose,
or tank during storage. Also, experience
indicates that alcohol blended fuels (called
gasohol or using ethanol or methanol) can
attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let it run until the fuel
lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel s_ilizer is an acceptable
alternative in minimizingthe formation of fuel
gum depos'Csduring storage. Add s_ilizer
to gasoline in fuel tank or storage container.
Always followthe mix ratio found on stabilizer
container. Run engine at least 10 minutes
after adding stabilizerto allow the stabilizerto
reach the carburetor. Do not drainthe gas
,_,_, _, tank and carburetor if usingfuel stabilizer.
ENGINEOIL
__ Drain oil (with engine warm) and replace with
clean engine oil. (See "ENGINE" inthe
:_ /.'7 I Fold Maintenance section of this manual).
__'F I backward CYLINDER
Mowing
position • Remove spark plug.
• Pour one ounce (29 ml) of oil through spark
plug hole intocylinder.
• Pullstarter handle slowly a few times to
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season to
another.
16
• Replace your gasoline can if your can
starts to rust. Rust and/or dirtin your
gasoline will cause problems.
• If possible,store your unit indoorsand
cover itto give protectionfrom dust and dirt.
• Cover your unitwith a suitable protective
cover that does not retainmoisture. Do not
use plastic. Plasticcannot breathe which
allows condensation to form and will cause
your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
ACAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING CHART
PROBLEM
Will not sta_
Loss of power
Poor cut
- uneven
Excessive
vibration
IStarter rope
hard to pull
CAUSE
1. Dirty air filter.
2. Out of fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is disconnected
6. Bad spark plug.
7. Loose blade or broken blade
adapter,
8. Control bar in released position
9. Control bar defective
1. Rear of lawn mower
housing/blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Wom, bent or loose blade,
.
Buildup of grass, leaves, and
trash under mower.
1. Wom, bent or loose blade.
2. Bent engine crankshaft.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with fresh
clean fuel.
4. Drain fuel tank and carburetor
and refill tank with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or replace blade
adapter.
8. Depress control bar to handle,
9. Replace control bar.
1. Set in "Higher Cut" position.
2. Set in =Higher Cut" position,
3. Clean/replace air filter.
4. Clean underside of mower housin
5. Check oil level.
6. Cut at slower walking speed.
1. Replace blade. Tighten blade bolt.
2. Clean underside of mower housin
1. Replace blade, Tighten blade bolt.
2. Contact an authodzed service
center/department,
.
2.
3.
,
Engine flywheel brake is
on when control bar is released,
Bent engine crankshaft
Blade adapter broken.
Blade dragging in grass.
1. Depress control bar to upper
handle before pulling starter rope.
2. Contact an authorized service
centerldepartment.
3. Replace blade adapter.
4. Move lawn mower to cut grass or
to hard surface to start engine.
17
TROUBLESH( OTING CHART
PROBLEM CAUSE
Grass catcher 1.
not filling 2.
(If so equipped) 3.
Hard to push 1.
2.
3,
4,
Loss of drive 1.
2,
3.
4.
Cutting height too low.
Lift on blade worn off.
Catcher not venting air.
Grass is too high or
wheel height is too low.
Rear of lawn mower
housing/blade dragging
in grass.
Grass catcher too full.
Handle height position
not right for you.
Belt wear.
Belt off of pulley.
Drive cable worn or broken.
Dirt in drive pinions.
CORRECTION
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutt!ng height.
2. Raise rear of lawn mower
housing one (1)setting higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
1. Check/replace drive belt.
2. Check/reinstaU drive belt.
3. Replace drive cable.
4. Clean drive pinions.
18
SERVICENOTES
37
ROTARY LAWN MOWER -- MODEL NO. 917.377160
71,
42
lo
24
41
ROTARY LAWN MOWER -- MODEL NO. 917.377160
KEY PART
NO. NO
1 167163
2 161105X479
3 131036
4 132001
5 63601
6 66426
7 131959
8 87692
9 164265
10 161551
11 73990500
12 51793
13 133107
14 8507&3X004
15 83816
16 162085
17 161548
18 165261
19 166907
20 161568X479
21 168227X479
22 150078
23 163183
24 63124
25 161333
26 163409
27 161550
28 88652
29 166036X479
30 851514
31 159267
32 851074
33 850263
34 851084
35 169809
36 170045
37 15O406
38 .....
DESCRIPTION
Handle, Upper DIx Comf. (Includes Grip)
Handle, Lower
Bail, Cont. Wire DIx Comf. BIk
Guide, Rope, Side
Nut, Hex Lockwasher 1/4-20
Wire, Tie
Bolt, Handle 5/16-18 x 1.75
Knob, Handle
Grip, Hdl Foam Smooth
Bolt, Sq. Neck
Nut, Hex Lookwasher Ins. 5/16-18 UNC
Cotter, Hairpin
Engine Zone Control Cable
Bracket, Upstop
Screw, Hex Washer Head Tapping 10-2
Kit, Door Rear
Seal, Door
Plug, Mulcher
Kit, Housing
Handle, Bracket Asm. Left
Handle, Bracket Asm. Right
Screw, Hex Wshd
Bolt, Hex Head 5/16-18 x5/8
Nut, Hex Lock Wshr 5/16o18
Baffle, Side
Screw 12 x 5/8
Rear Skirt
Screw
Belt Cover, Top
Adapter, Blade w/key Longer
Blade, 21"
Washer, Hardened
Lock'washer, Helical Spring 3/8
Screw, Hex Head 3/8-24 x 1.38
Pulley, Fixed
Bearing Support Assy.
Bolt, Engine
Engine Briggs and Stratton 12H802°2682-B1
(See Breakdown)
KEY PART
NO. NO DESCRIPTION
39 16£294 Grass Catcher Bag
40 161358 Grass Catcher Frame
41 85463 Danger Decal
42 144929 Screw
43 63601 Nut
45 166034 Rod, Pulley Engage
46 166041 Bushing
48 169605 Retainer Clip
49 166039X008 Clamp
50 54583 Screw
51 169980 Spacer
52 170868 Wave Washer
53 173041 Belt Cover, Bottom
54 750097 Screw
55 166383X479 Cable Support Bracket
56 63601 Nut
57 166391X004 Bracket Assy.
58 57808 Screw
59 166042 V-Groove Pulley
60 166050 Idler Arm Spacer
61 145212 Flange Nut
62 155552 Locknut
63 166022X008 Idler Arm
64 166043 Idler Pulley
65 160829 Shoulder Bolt
66 171962 Door Assy.
67 88349 Nut
68 166028 MultiCut Guard
69 54583 Screw
71 164137 ThrottleControl
72 111190X EngineClamp
73 83816 Screw
76 87677 Hi Pro Key
- ÷ 161058 Warning Decal (Not Shown)
- - 170961 Owners's Manual
ROTARY LAWN MOWER -- MODEL NO. 917.377160
8
,3O _2
34
24
15...,
ROTARY LAWN MOWER -- MODEL NO. 917.377160
KEY PART
NO. NO
DESCRIPTION
KEY PART
NO. NO DESCRIPTION
1 170960
2 167259
3 17060408
4 170050
5 161537
6 750634
7 166060
8 132010
9 166049
10 166021X004
11 17541011
12 166189
13 166388
14 145354
15 57079
16 161584X479
17 161602
18 160477X004
19 167650
20 12000022
21 163365
22 169911
SpeedControl
BailControlDrive
Screw
DdveCable
CoverDdve
ScrewThdro110-25x.50
V-Belt
NutLockRanged 3/8-16 Zinc
PulleyDdven
Belt KeeperBracket
ScrewHexWashHead 10-24X .668
PivotRodCover
TransmissionAsm.
PinSpringThrust
WasherHan:lened
RodConnecting
SpringExtension
SpringSelector
KnobSelectorSpring
E-Ring7/8
BearingSupport
BeadngBall
23 161118X004
24 578O8
25 170011
26 166450
27 52150
28 12000058
29 88080
3O 67725
31 57143
32 172324
33 145212
34 150181
35 160785X004
36 150786X004
37 161463
38 1634O9
39 700279
40 172323
41 150182
42 83923
43 19572216
44 144929
45 751152
RetainerDriveAsm.Stmp.
ScrewHex Head Tapping 1/4-20 x .75
DrivePawl
Pinion,Ddve
Washer
E-Ring 7/16
Cover, DustWheel
Washer 1/2x 1-1/2 x.134
WaveWasher
Wheel 9 x 2
Nut Hex Flange Lock
Hubcap,Mag Platinum9"
Shaft Asm. Rear
ShaftAsm.Front
RetainerFrontShaft
Screw 12 x 5/8
ClipRetainer
Wheel 8 x 2
Hubcap,MagPlatinum8"
Nut,Hex FlangeLock 3/8-16
Washer
Screw 1/4 x 2.12
Locknut
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2682-B1
I 1019LABEL KIT I
51
687
2
251 27 _
46
1102 Q
"_ REQUIRES SPECIALTOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL
I 1058 OWNER'S MANUAL I
43
177(
525
1087_
1095 VALVE OVERHAUL
GASKET SET
42
_RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2682-B1
188
968
967
445
977 CARBURETOR
GASKET SET
163_ij]:_ 137 _!
163
708 _
668
130 95
i
I 617
43
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2682-B1
304
305
363
%0
670 _)
921
I, 1036 LABEL KIT-EMISSION I
6081 65A
55 _ 592 _ 58
I_'--- 7
I
I
I I
I 4.s9
I
I
I
I 669A
I
I
I
597
44

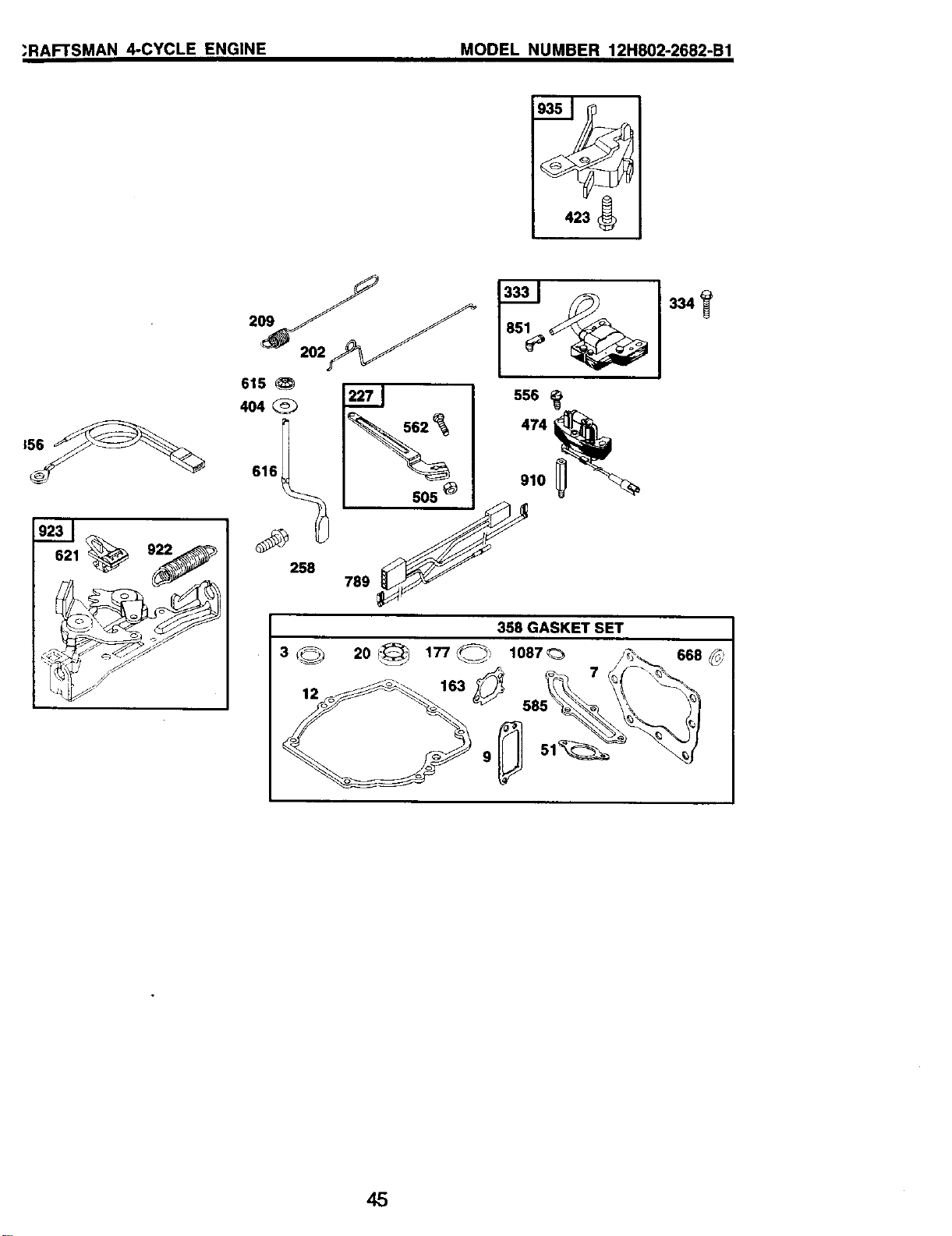

"RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2682-B1
615
404
616__
258
556
562 _ 474
910
505 _
789 f
3©
358 GASKET SET
201_ 177_) 1087_
163 _
334'_
45

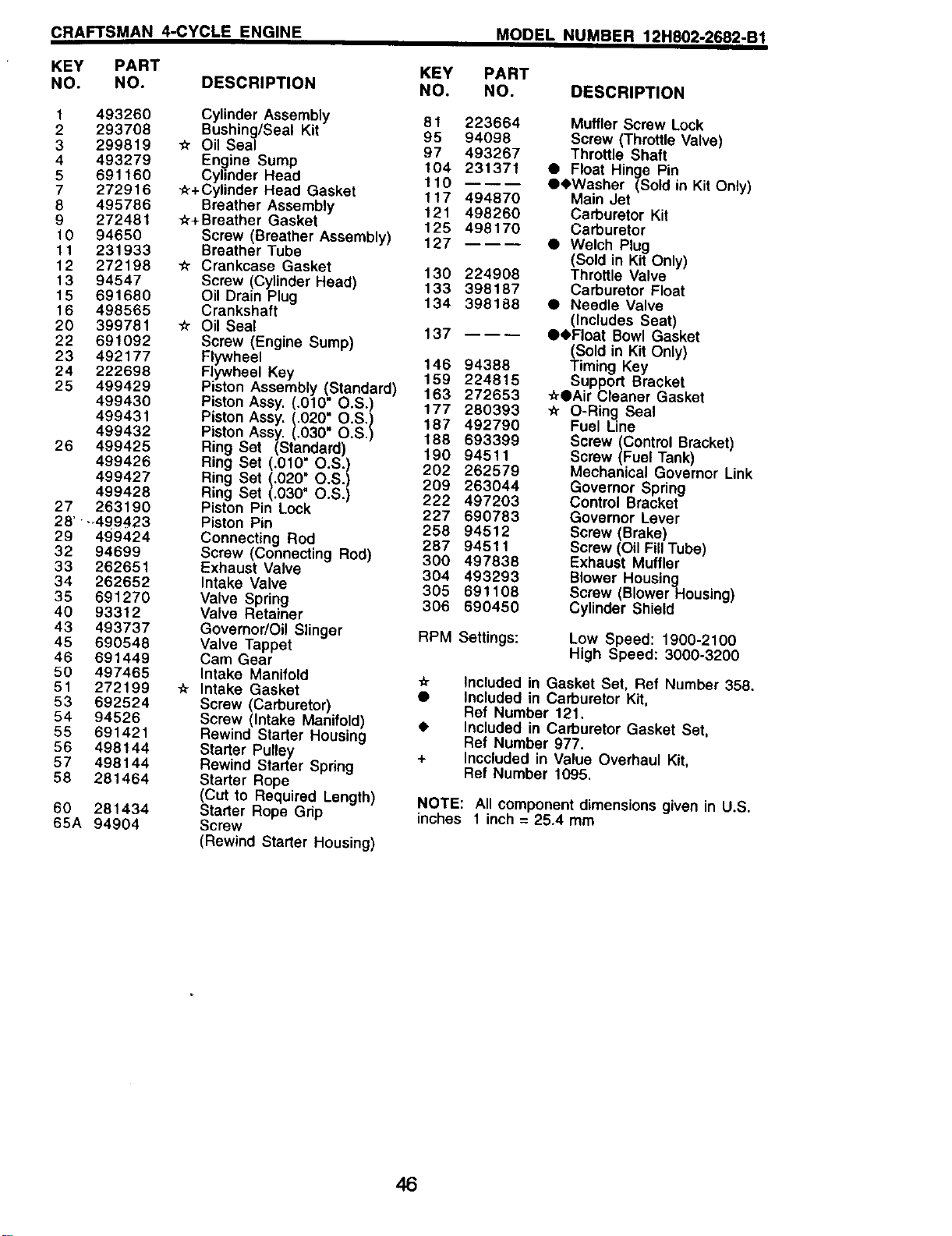

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2682-B1
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO, NO. DESCRIPTION
1 493260 Cylinder Assembly 81 223664
2 293708 Bushing/Seal Kit 95 94098
3 299819 -tr Oil Seal 97 493267
4 493279 Engine Sump 104 231371
5 691160 Cylinder Head 110
7 272916 _+Cylindar Head Gasket 117 494870
8 495786 Breather Assembly 121 498260
9 272481 _+Breather Gasket 125 498170
10 94650 Screw (Breather Assembly) 127
11 231933 Breather Tube
12 272198 _ Crankcase Gasket 130 224908
13 94547 Screw (Cylinder Head) 133 398187
15 691680 Oil Drain Plug 134 398188
16 498565 Crankshaft
20 399781 _ Oil Seal 137
22 691092 Screw (Engine Sump)
23 492177 Flywheel 146 94388
24 222698 Flywheel Key 159 224815
25 499429 Piston Assembly (Standard) 163 272653
499430 Piston Assy. (.010" O.S.) 177 280393
499431 Piston Assy. (.020" O.S.) 187 492790
499432 Piston Assy. (.030" O.S.) 188 693399
26 499425 Ring Set (Standard) 190 94511
499426 Ring Set (.010" O.S.) 202 262579
499427 Ring Set (.020" O.S.) 209 263044
499428 Ring Set (.030" O.S.) 222 497203
27 263190 Piston Pin Lock 227 690783
28' .,499_,23 Piston Pin 258 94512
29 499424 Connecting Rod 287 94511
32 94699 Screw (Connecting Rod) 300 497838
33 262651 Exhaust Valve 304 493293
34 262652 Intake Valve 305 691108
35 691270 Valve Spring 306 690450
40 93312 Valve Retainer
43 493737 GovemodOi! Slinger
45 690548 Valve Tappet
46 691449 Cam Gear
50 497465 Intake Manifold _r
51 272199 _ Intake Gasket •
53 692524 Screw (Carburetor)
54 94526 Screw (Intake Manifold)
55 691421 Rewind Starter Housing
56 498144 Starter Pulley +
57 498144 Rewind Starter Spring
58 281464 Starter Rope
(Cut to Required Length)
60 281434 Starter Rope Grip
65A 94904 Screw
(Rewind Starter Housing)
Muffler Screw Lock
Screw (Throttle Valve)
Throttle Shaft
• Float Hinge Pin
• _Washer (Sold in Kit Only)
Main Jet
Carburetor Kit
Carburetor
• Welch Plug
(Sold in Kit Only)
Throttle Valve
Carburetor Float
• Needle Valve
(Includes Seat)
De,Float Bowl Gasket
(Sold in Kit Only)
Timing Key
Support Bracket
_@Air Cleaner Gasket
O-Ring Seal
Fuel Line
Screw (Control Bracket)
Screw (Fuel Tank)
Mechanical Governor Link
Governor Spring
Control Bracket
Governor Lever
Screw (Brake)
Screw (Oil Fill Tube)
Exhaust Muffler
Blower Housing
Screw (Blower Housing)
Cylinder Shield
RPM Settings: Low Speed: 1900-2100
High Speed: 3000-3200
Included in Gasket Set, Ref Number 358.
Included in Carburetor Kit,
Ref Number 121.
Included in Carburetor Gasket Set,
Ref Number 977.
Incctuded in Value Overhaul Kit,
Ref Number 1095.
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
46
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12HB02-2682-B1
KEY PART
NO. NO, DESCRIPTION
307 690345
332 94877
333 802574
334 94731
337 802592
356 497833
358 497316
363 19069
383 89838
404 690272
423 93758
425 94872
443 94873
445 491588
455 225121
456 281503
459 281505
474 492841
505 231082
523 495264
525 495265
529 281299
556 94512
562 92613
584 692342
585 272238
592 94908
597 94943
601 93053
608 497680
613 94231
615 690340
616 691306
617 270344
618 262749
621 396847
635 66538
668 493823
KEY PART
NO. NO. DESCRIP_ON
Screw (Cylinder Shield) 670 280512
Nut (Flywheel) 687 94515
Magneto Armature
Screw (Magneto Armature) 689A 263073
Spark Plug 708 691321
Stop Wire 741 262598
Gasket Set 789 493380
Flywheel Puller 847 495263
Spark Plug Wrench 851 493880
Washer (Governor Crank) 869 691155
Screw (Interlock Switch) 870 690380
Screw (Air Cleaner Cover) 871 63709
Screw (A/C Primer Base)
A/C Cartridge Filter 262001
Flywheel Cup
Pawl Friction Plate 910 94510
Ratchet Pawl 921 497233
Alternator 922 262640
Nut (Governor Lever) 923 691994
Dipstick 935 398758
Oil Fill Tube 957 397974
Grommet 966 496116
Screw (Alternator) 967 493537
Bolt (Governor Lever) 968 281340
Breather Passage Cover 969 94696
Breather Passage Gasket
Nut 970 94749
(Rewind Starter Housing) 972 495224
Screw (Pawl Friction Plate) 975 493640
Fuel Line Clamp 976 496115
Rewind Starter 977 498261
Screw (Exhaust Muffler) 1019 494256
Retainer 1036 695111
Governer Crank 1058 273693
O,Intake Manifold Seal 1059 398540
Spring 1087 280966
Stop Switch 1095 498528
Spark Plug Boot 1102 232153
-k Spacer (Includes 2)
RPM
_r
4-
Fuel Tank Spacer
Screw
(Breather Passage Cover)
Friction Spring
• ,Throttle Shaft Seal
Timing Gear
Wiring Harness
Dipstick/Tube Assembly
Cable Terminal
Valve Seat (Intake)
Valve Seat (Exhaust)
Guide Bushing
(Intake Valve )
Guide Bushing
(Exhaust Valve )
Stud (Alternator)
Blower Housing Cover
Brake Spring
Brake
Interlock Switch
Fuel Tank Cap
NC Primer Base
Pre Cleaner Filter
Air Cleaner Cover
Screw
_Blower Housing Cover)
crew (Support Bracket)
Fuel Tank
Float Bowl
Carburetor Primer
Carburetor Gasket Sat
Label Kit
Label Kit-Emission
Owner's Manual
Screw/Washer Kit
-tr O-Ring Seal
Valve Overhaul Gasket Set
Guide Pilot
---- 12J802-1915-E1Replacement Engine
Settings: Low Speed: 1900-2100
High Speed: 3000-3200
Included in Gasket Sat, Ref Number 358.
Included in Carburetor Kit, Ref Number
121.
Included in Carburetor Gasket Set, Ref
Number 977.
Inccluded in Value Overhaul Kit, Ref
Number 1095.
NOTE; All component dimensions given in U.S.
inches
1 inch = 25.4 mm
47
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold ifl
s n Is
© Seam, Roebuck and Co.
® RegisteredTrademark/ " Trademark ofSeam, Roebuckand Co.
• ® Marca Regislrada/ ,u Marca de F_bricade Sears, Roebuckand Co.
170961 Rev.3 03.13.00 VB Printed in U.S.A.
