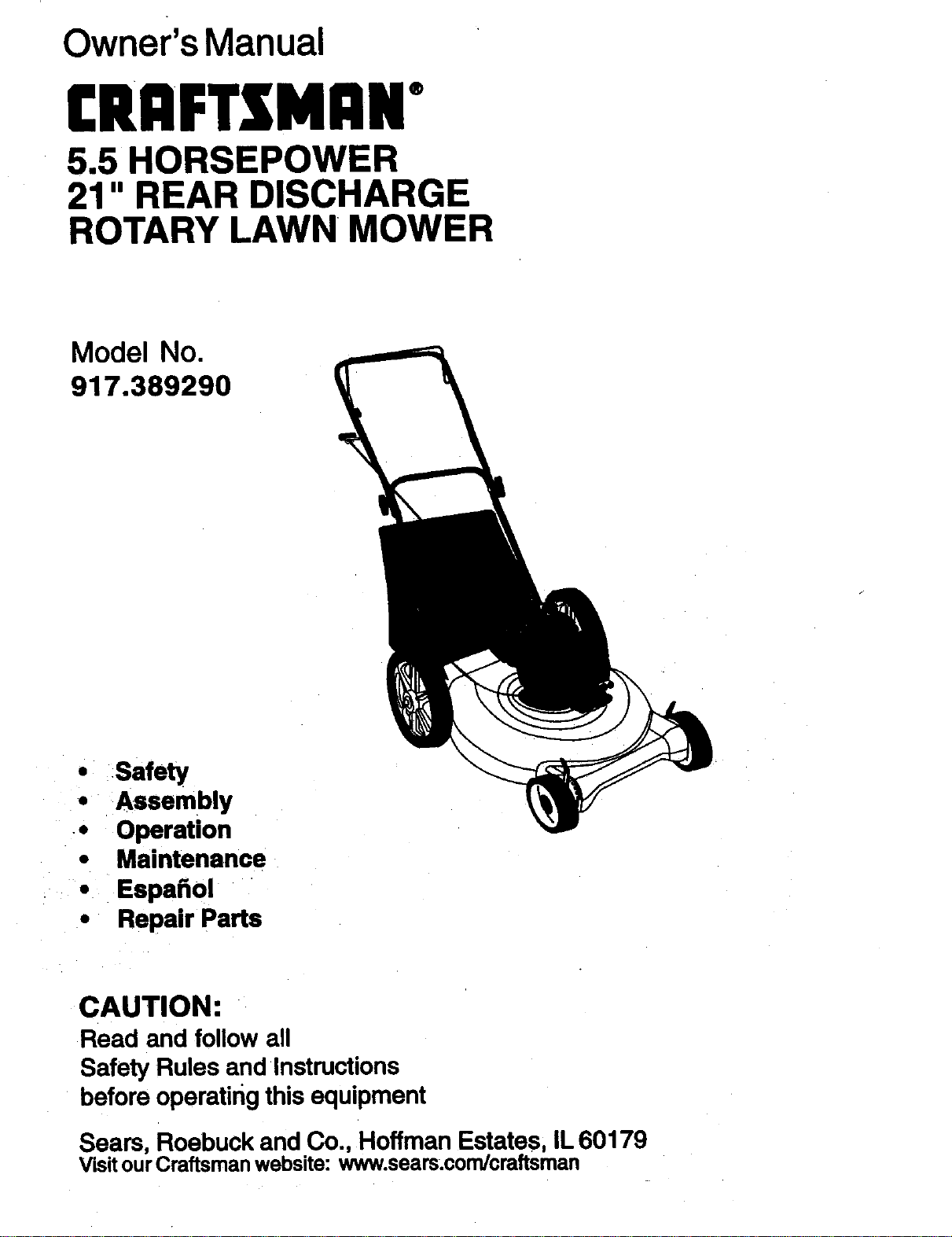

Owner's Manual
€IIIIFTZMIIN+
5.5 HORSEPOWER
21" REAR DISCHARGE
ROTARY LAWN MOWER
Model No
917.389290
• Safety
• Assembly
•. Operation
• Maintenance
• Espahol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Seam, Roebuck and Co., Hoffman Estates, IL 60179
visitourCraftsmanwebsite:www.sears.com/craftsman

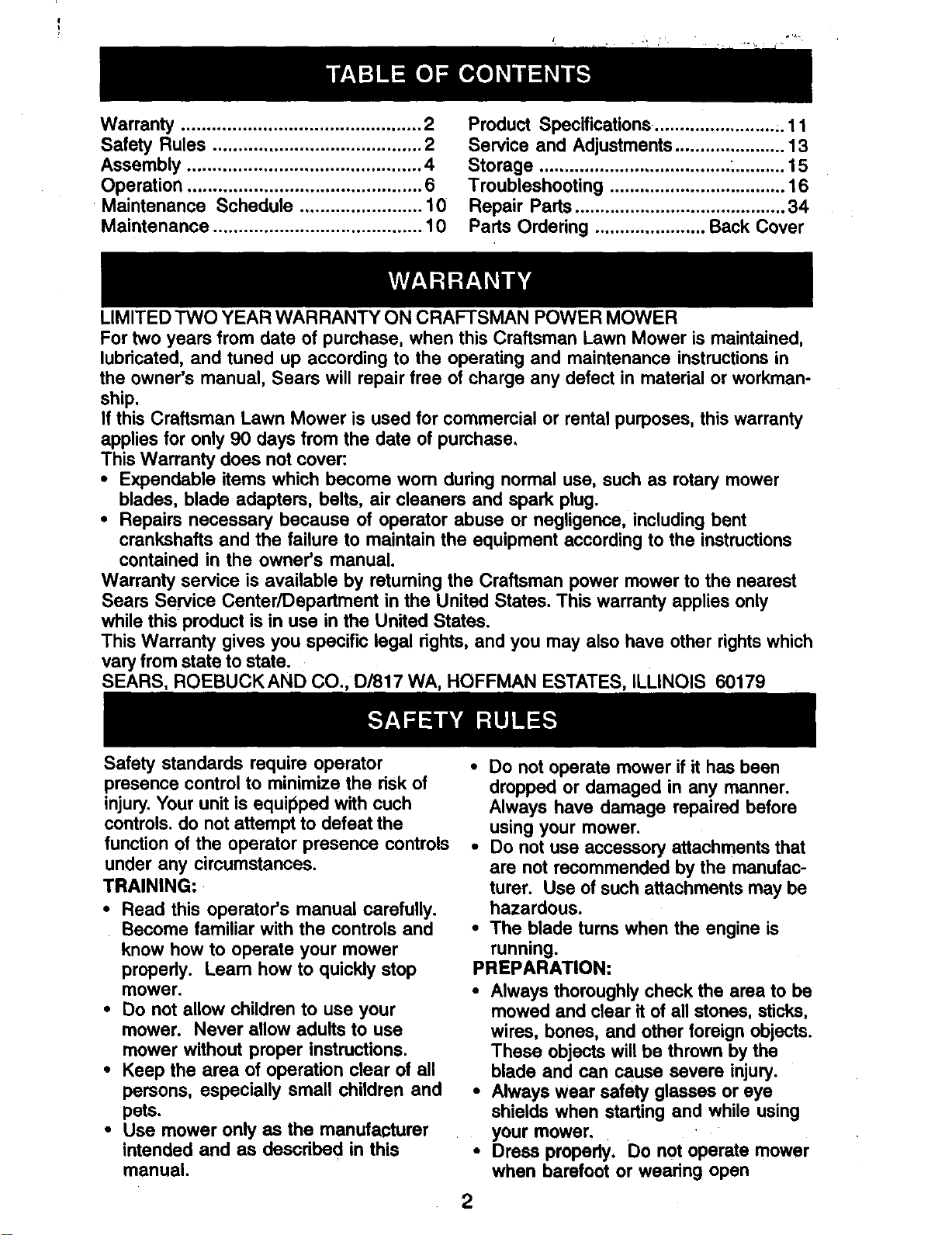

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 4
Operation .............................................. 6
Maintenance Schedule ........................ 10
Maintenance ....................................... ,. 10

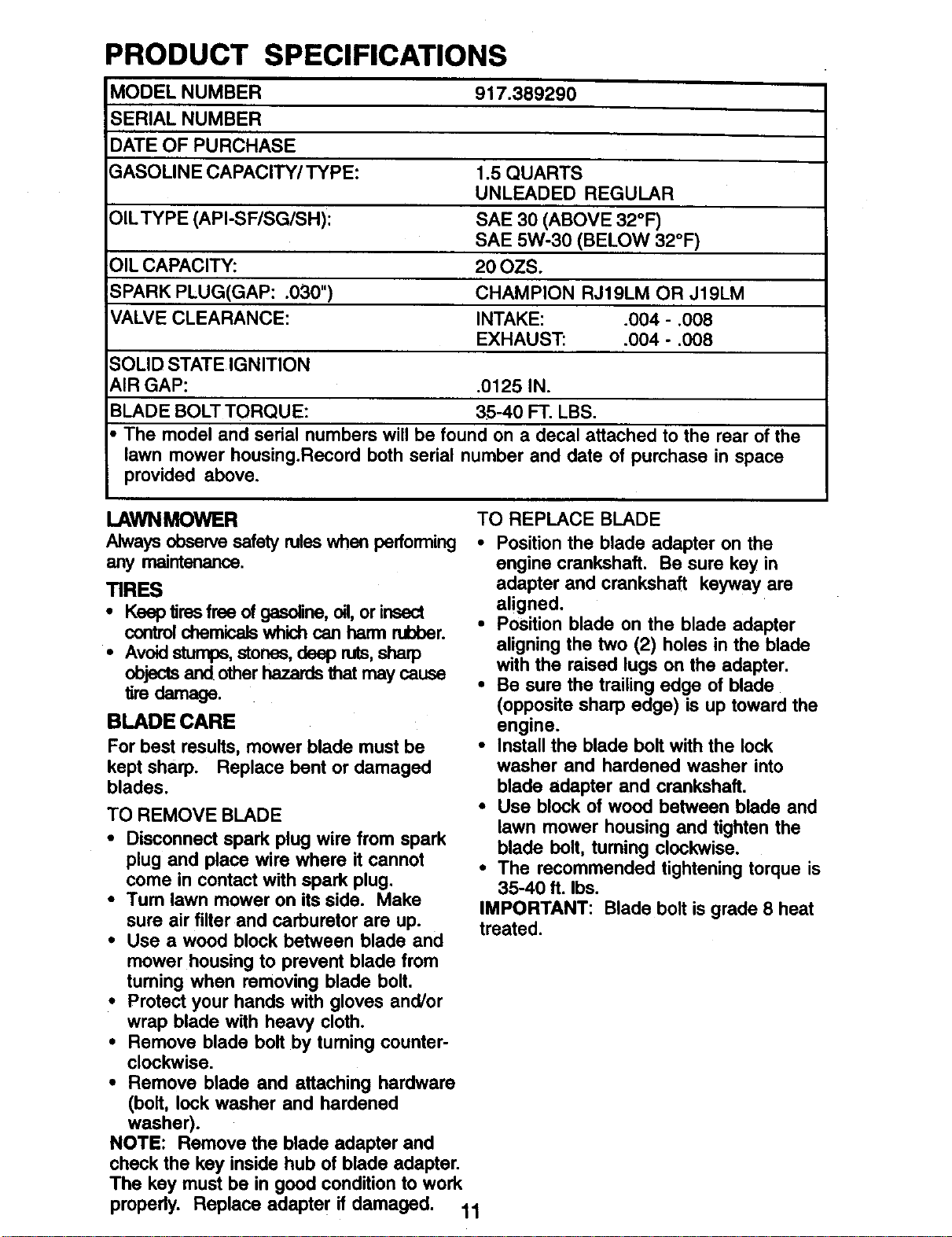

Product Specifications ........................ ,. 11
Service and Adjustments ...................... 13

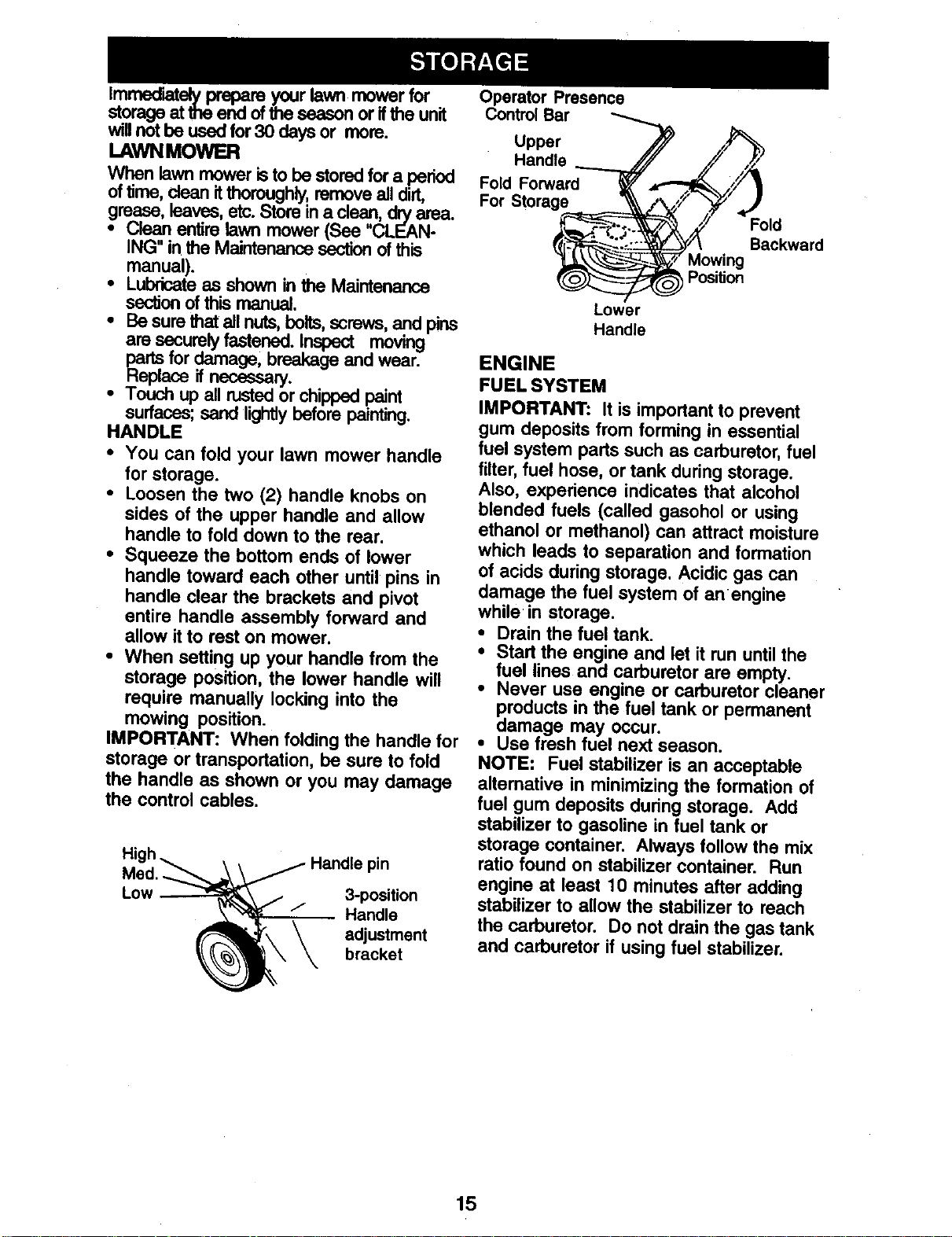

Storage ...................................... :.......... 15

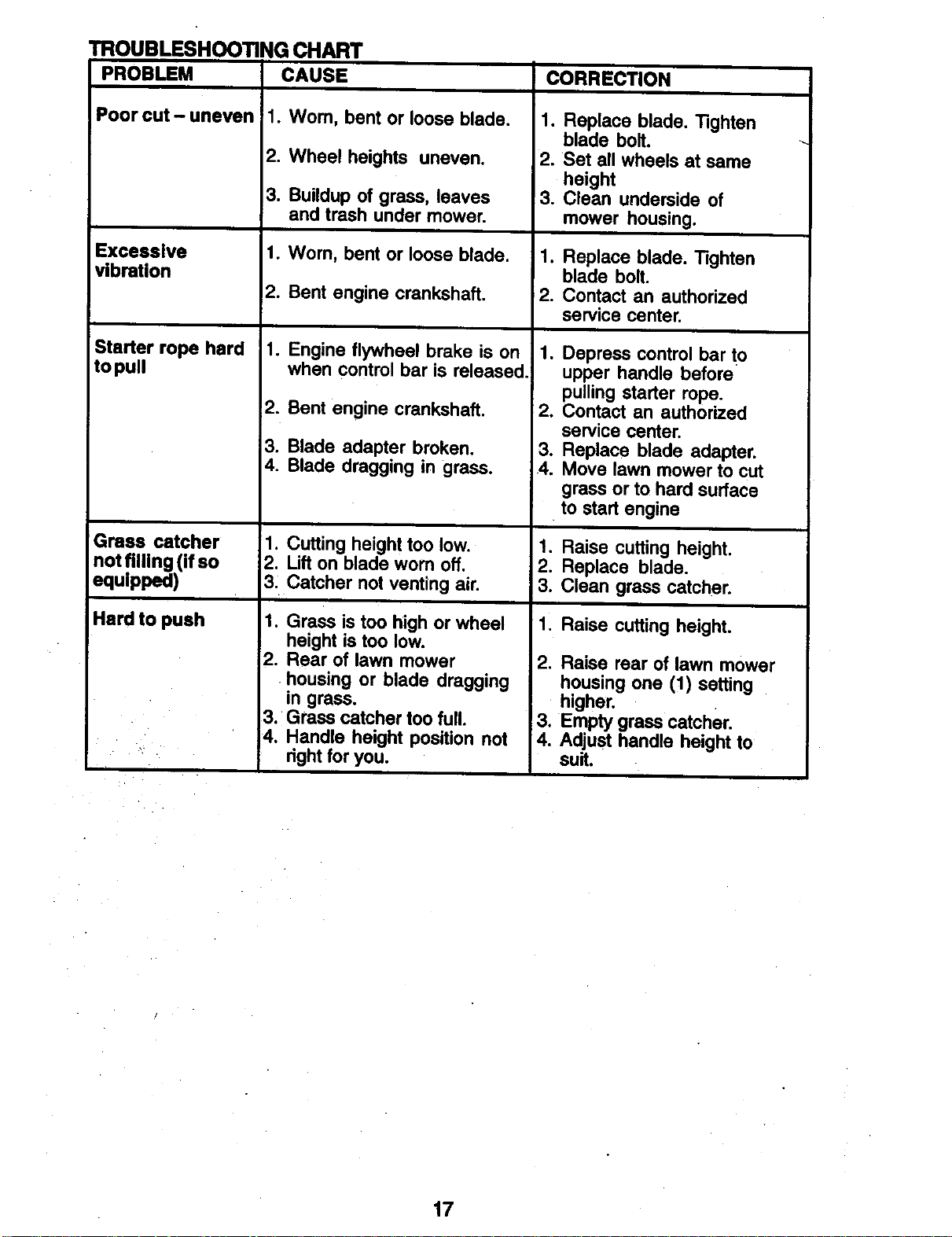

Troubleshooting ................................... 16

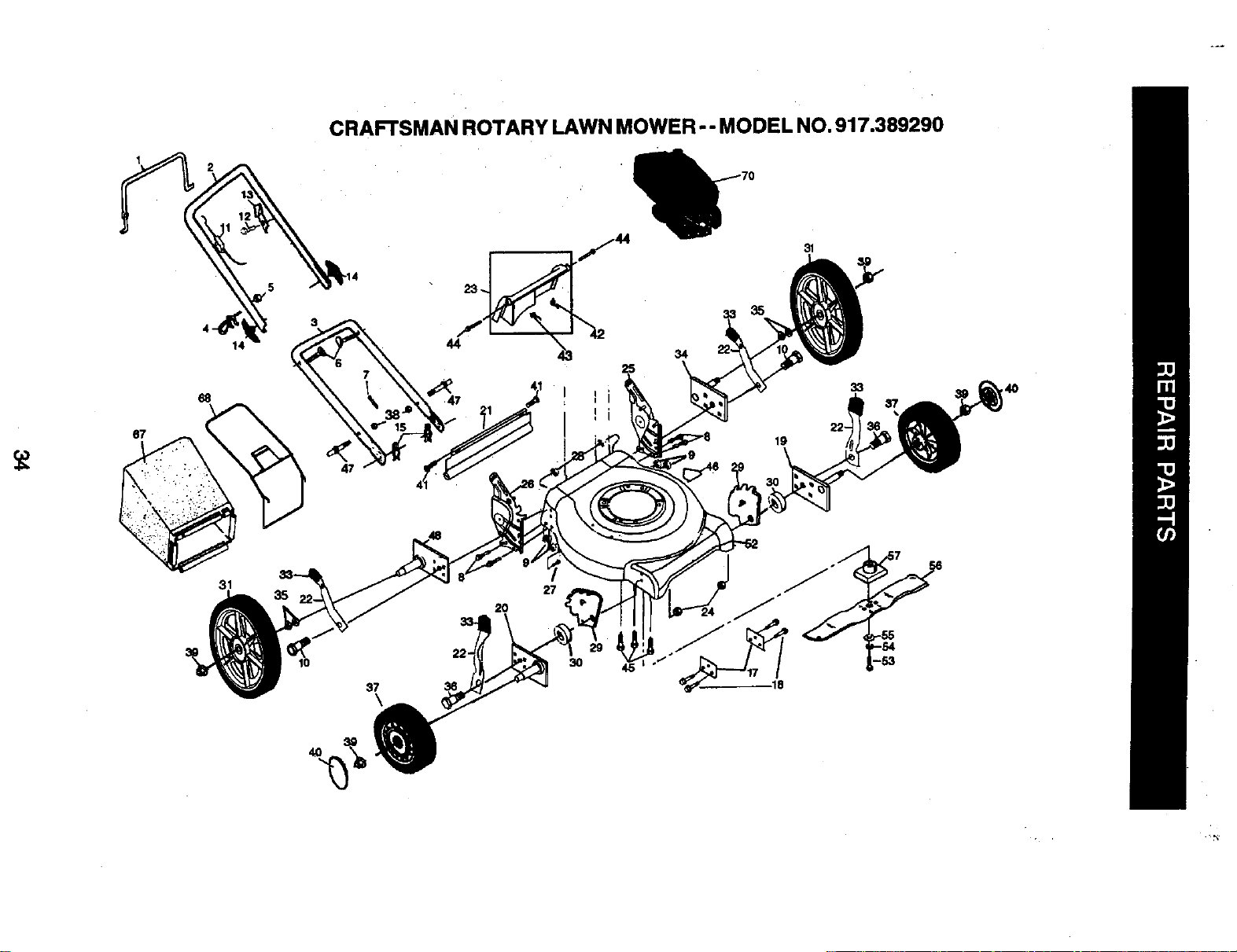

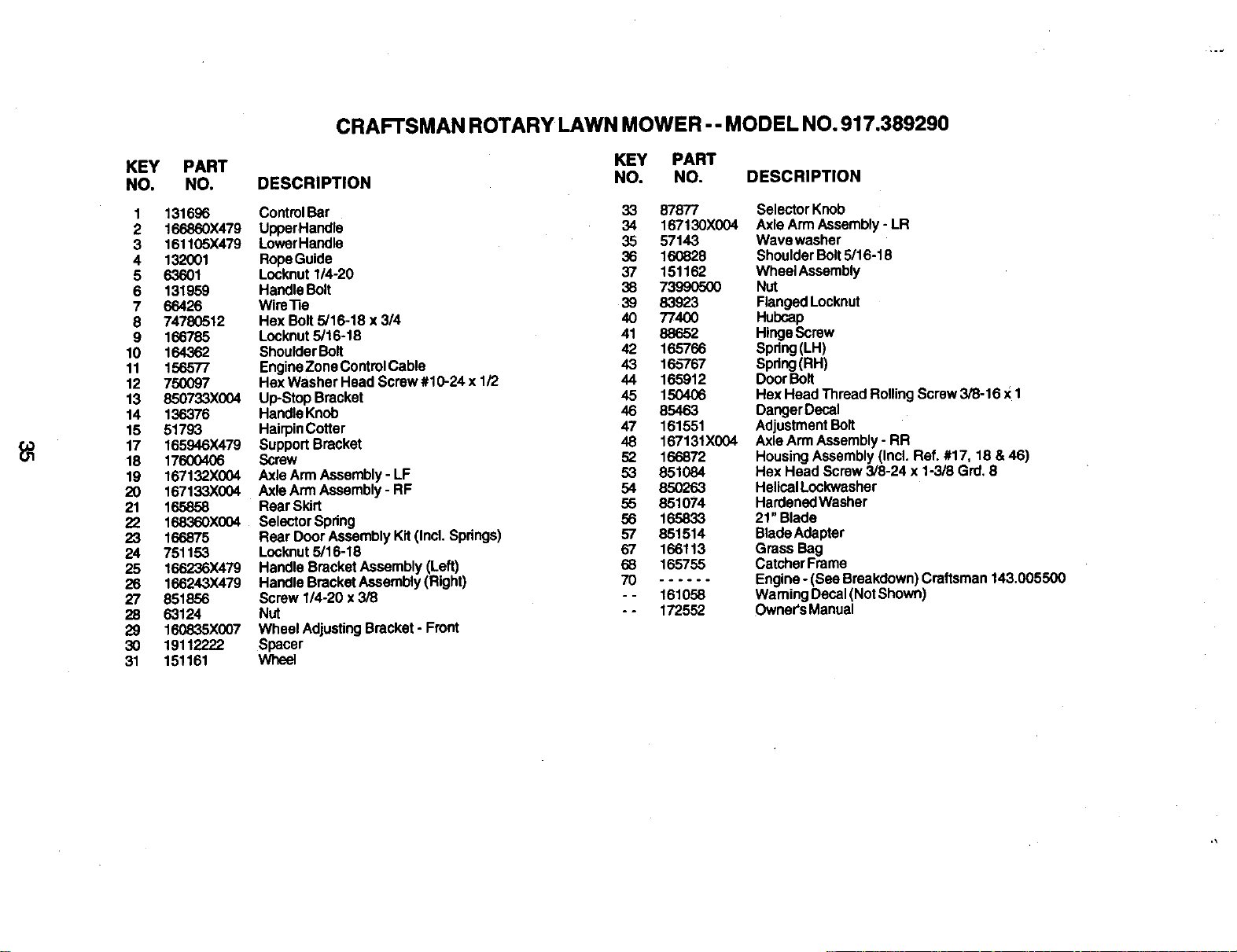

Repair Parts .......................................... 34
Parts Ordering ...................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by retuming the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Safety standards require operator
presence control to minimize the risk of
injury. Your unit is equipped with cuch
controls, do not attempt to defeat the
function of the operator presence controls
under any circumstances.
TRAINING:
• Read this operator's manual carefully.
Become familiar with the controls and
know how to operate your mower
properly. Leam how to quickly stop
mower.
• Do not allow children to use your
mower. Never allow adults to use
mower without proper instructions.
• Keep the area of operation clear of all
persons, especially small children and
pets.
• Use mower only as the manufacturer
intended and as described in this
manual.
• Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
• Do not use accessory attachments that
are not recommended by the manufac-
turar. Use of such attachments may be
hazardous.
• The blade turns when the engine is
running.
PREPARATION:
• Always thoroughly check the area to be
mowed and clear it of all stones, sticks,
wires, bones, and other foreign objects.
These objects will be thrown by the
blade and can cause severe injury.
• Always wear safety glasses or eye
shields when starting and while using
your mower,
• Dress properly, Do not operate mower
when barefoot or wearing open
2

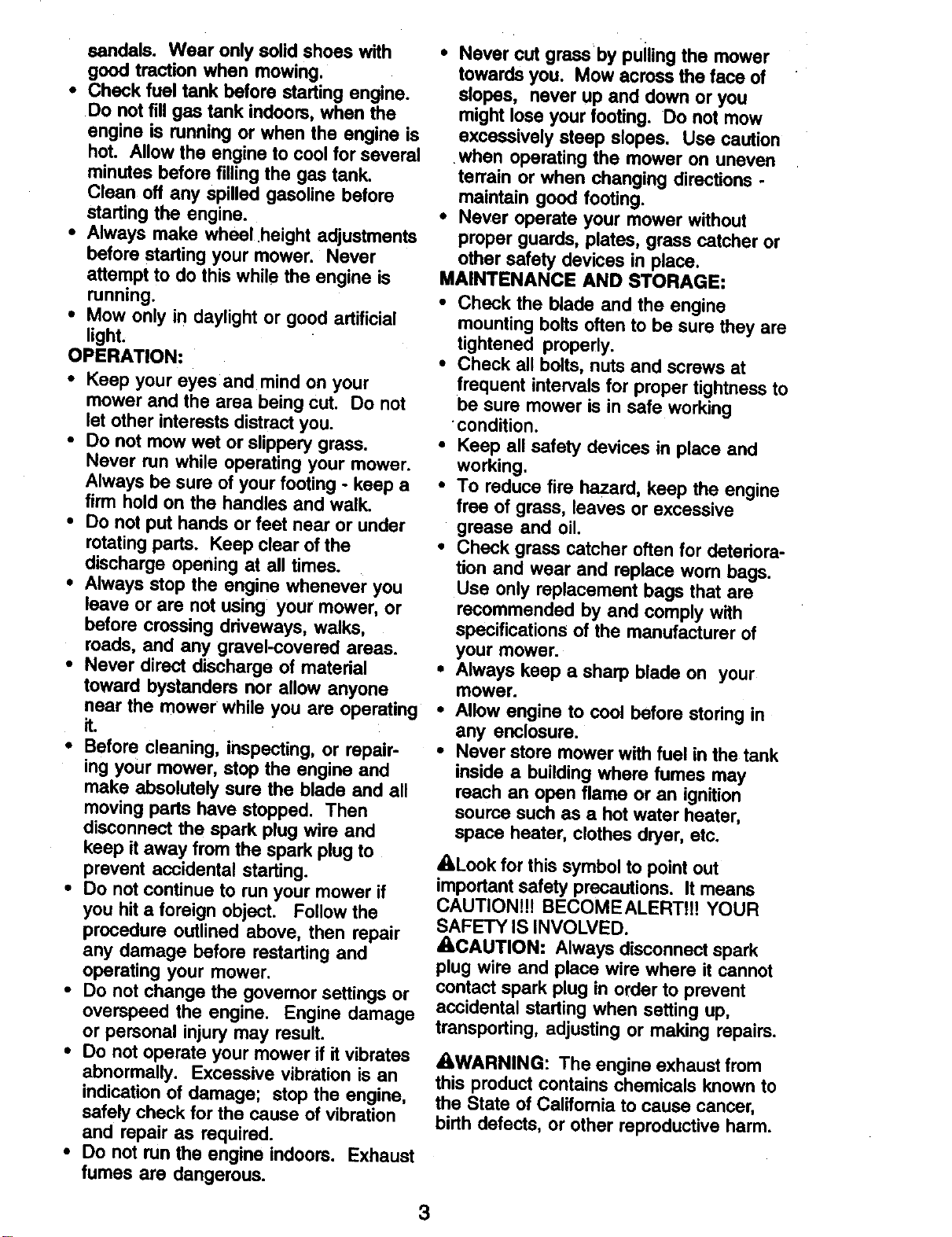

sandals. Wear only solid shoes with
good traction when mowing.
• Check fuel tank before starting engine.
Do not fill gas tank indoors, when the
engine is running or when the engine is
hot. Allow the engine to cool for several
minutes before filling the gas tank.
Clean off any spilled gasoline before
starting the engine.
• Always make wheel .height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
• Mow only in daylight or good artificial
light,
OPERATION:
• Keep your eyes and mind on your
mower and the area being cut. Do not
let other interests distract you.
• Do not mow wet or slippery grass.
Never run while operating your mower.
Always be sure of your footing - keep a
firm hold on the handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep clear of the
discharge opening at all times.
• Always stop the engine whenever you
leave or are not using your mower, or
before crossing driveways, walks,
roads, and any gravel-covered areas.
• Never direct discharge of matedal
toward bystanders nor allow anyone
near the mower while you are operating
it.
• Before cleaning, inspecting, or repair-
ing your mower, stop the engine and
make absolutely sure the blade and all
moving pads have stopped. Then
disconnect the spark plug wire and
keep it away from the spark plug to
prevent accidental starting.
• Do not continue to run your mower if
you hit a foreign object. Follow the
procedure outlined above, then repair
any damage before restarting and
operating your mower.
• Do not change the governor settings or
overspeed the engine. Engine damage
or personal injury may result.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
• Do not run the engine indoors. Exhaust
fumes are dangerous.
• Never cut grass by puilingthe mower
towards you. Mow across the face of
slopes, never up and down or you
might lose your footing. Do not mow
excessively steep slopes. Use caution
.when operating the mower on uneven
terrain or when changing directions -
maintain good footing.
• Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
• Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
• Keep all safety devices in place and
working.
• To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
• Check grass catcher often for deteriora-
tion and wear and replace worn bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
• Always keep a sharp blade on your
mower.
• Allow engine to cool before storing in
any enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
_l_Look for this symbol to point out
important safety precautions. It means
CAUTIONtl! BECOMEALERTt!! YOUR
SAFETY IS INVOLVED.
ACAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
AWARNING: The engine exhaust from
this product contains chemicals known to
the State of California to cause cancer,
birth defects, or other reproductive harm.
3

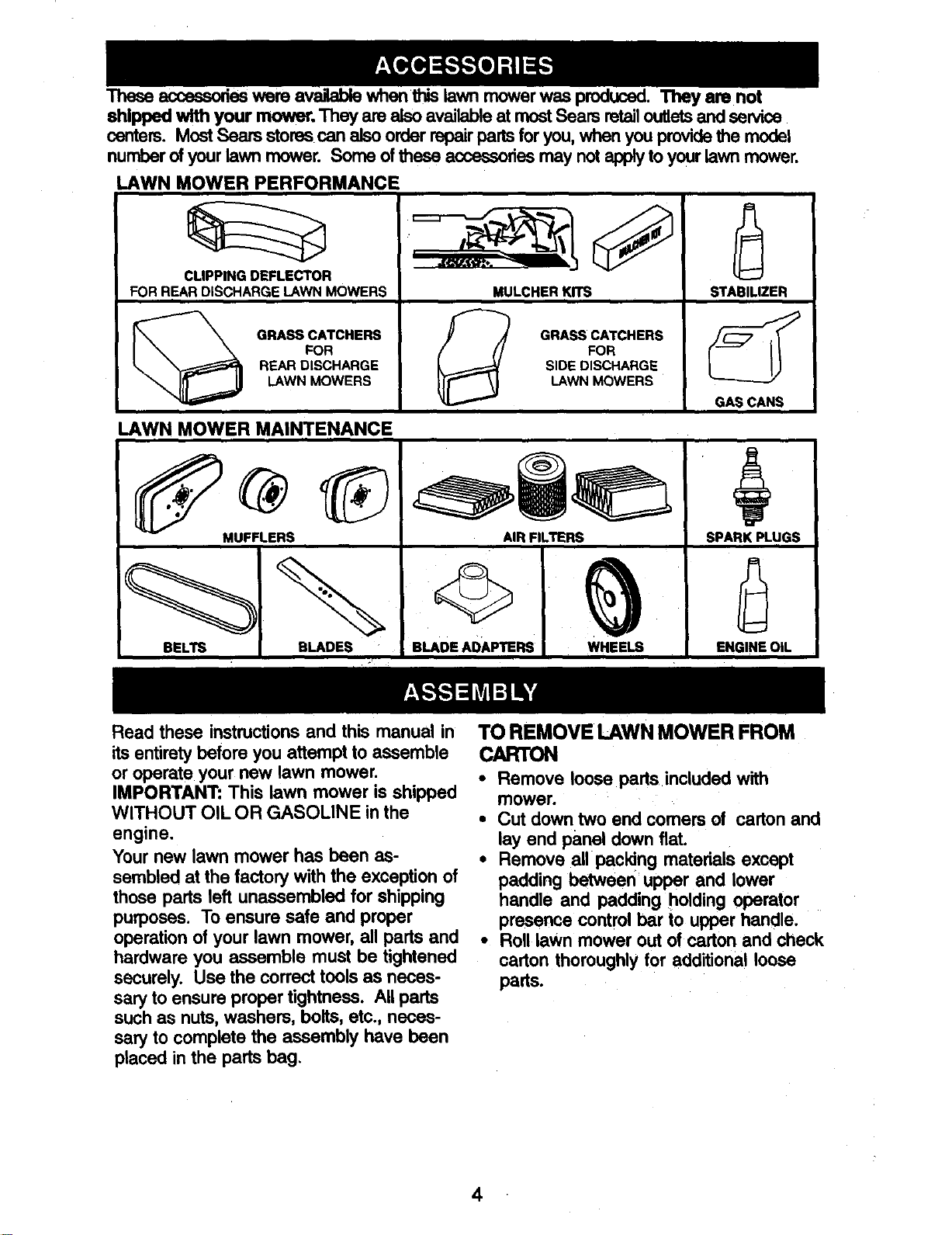

These accessodaswere ava_ble whenthis lawnmowerwas produced.They ere not
shippedwithyour mower.TheyarealsoavailableatmostSearsretailoutletsandservice
centers. MostSearsstorescan alsoorderrepairpartsforyou,whenyouprovidethe model
numberofyourlawnmower. Some ofthese aoceasofiesmaynotapplyto yourlawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS MULCHERKITS
GRAasCATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
GRASS CATCHERS
FOR
I SIDE DISCHARGE
LAWN MOWERS
STABILIZER
GASCANS
LAWN MOWER MAINTENANCE
MUFF_LERS (_ __ iRm FS;__
BELTS BLADES BLAOE ADAPTERS WHEELS
SPARK PLUGS
ENGINE OIL
Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception of
those parts left unassembled for shipping
purposes. To ensure safe and proper
operation of your lawn mower, all parts and
hardware you assemble must be tightened
securely. Use the correct tOOlsas neces-
sary to ensure proper tightness. All pads
such as nuts, washers, bolts, etc., neces-
sary to complete the assembly have been
placed in the parts bag.
TO REMOVE LAWN MOWER FROM
• Remove loose parts included with
mower.
• Cut down two end comers of carton and
lay end panel down fiat.
• Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
• Roll lawn mower out of carton and check
carton thoroughly for additional loose
parts.
4

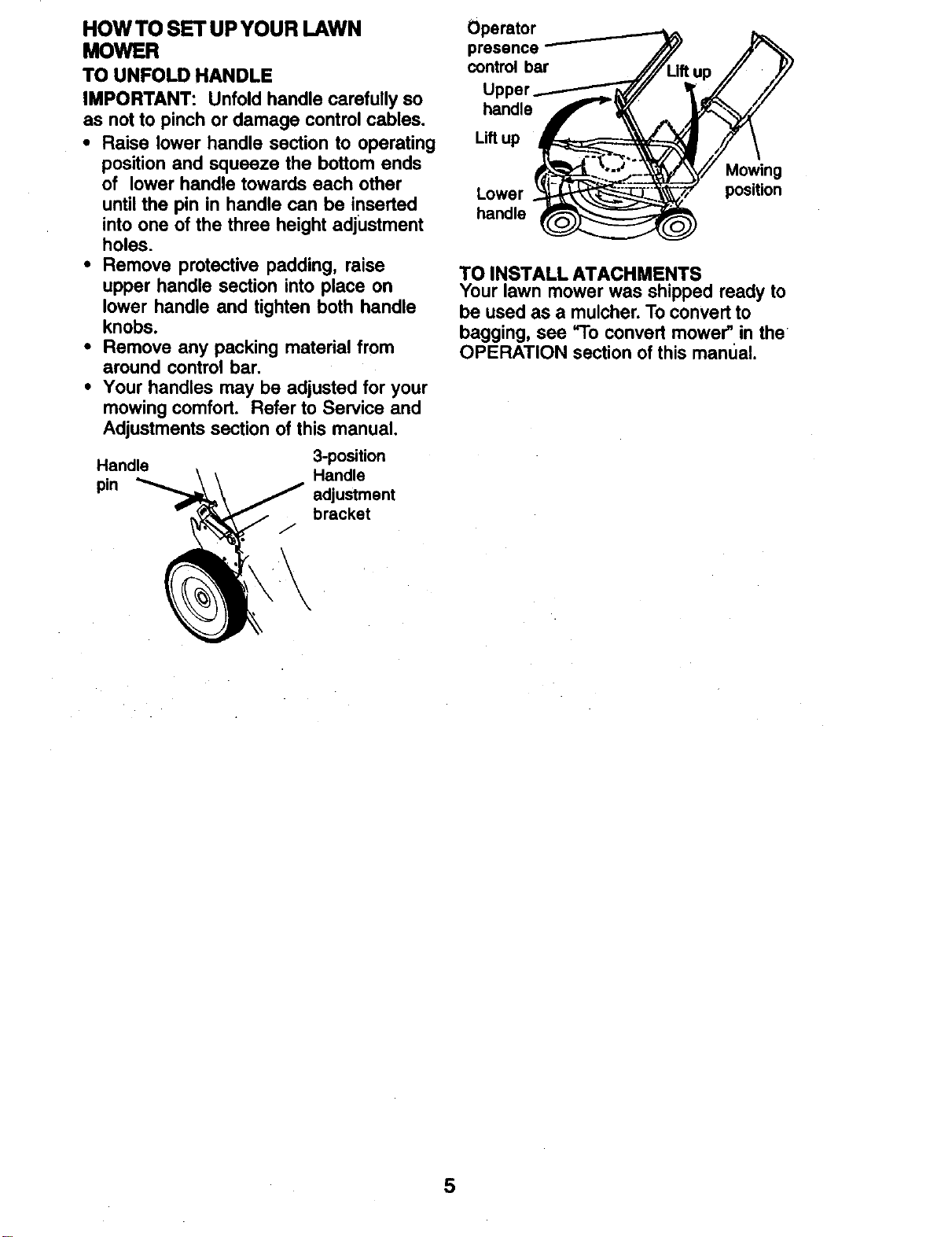

HOW TO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
• Raise lower handle section to operating
position and squeeze the bottom ends
of lower handle towards each other
until the pin in handle can be inserted
into one of the three height adjustment
holes.
• Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
• Remove any packing material from
around control bar.
• Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
Handle 3-posiUon
Handle
pin adjustment
bracket
J
Operator
presence
control bar
handle
Liftup
Lower
handle
Mowing
position
TO INSTALL ATACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher.Toconvert to
bagging, see "Toconvert mower" inthe
OPERATION section ofthis manual.
5

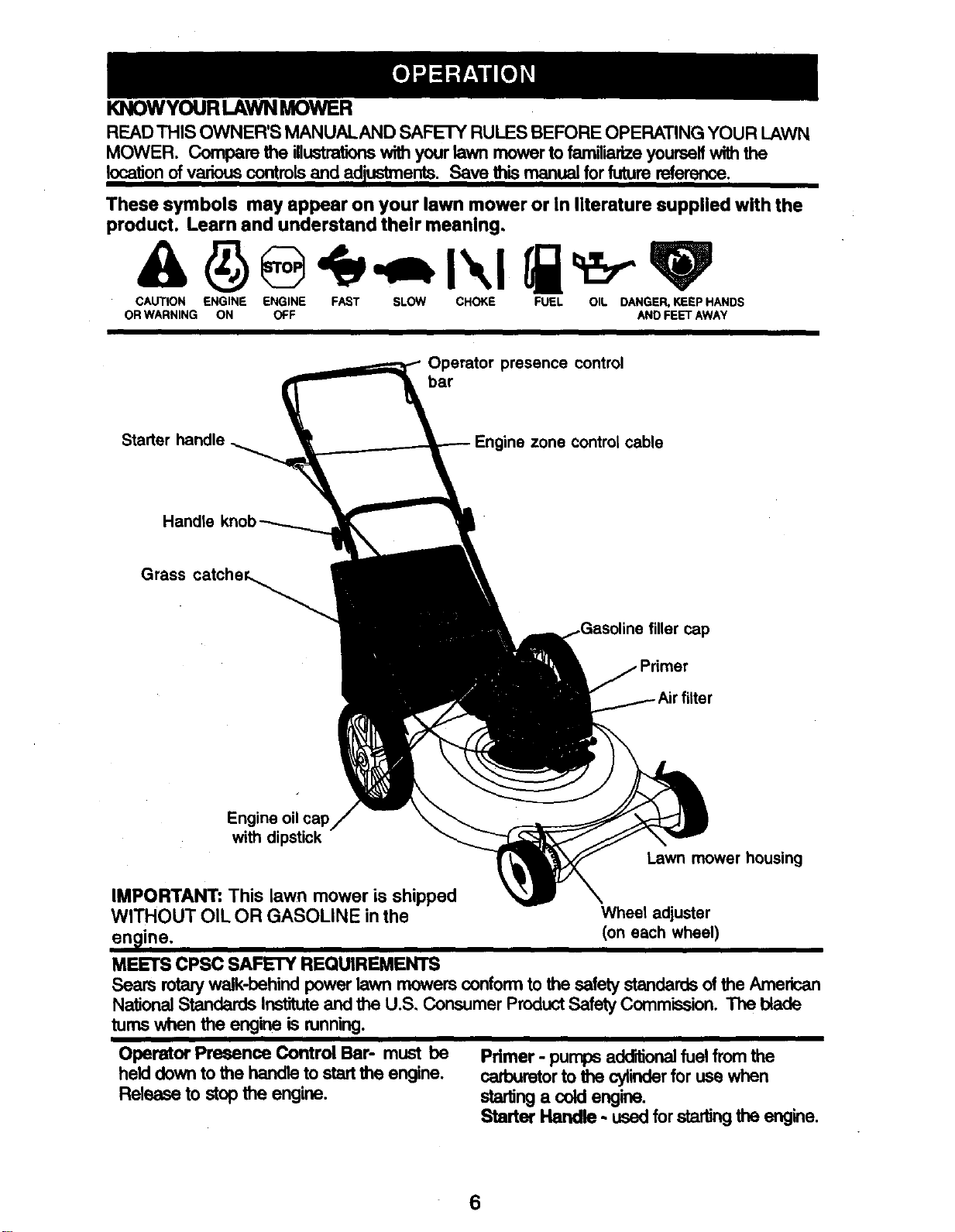

KNOWYOURLAWNMOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrationswith your lawn mower to familiarize yourselfwith the
location of various controlsand adjustments. Save this manual for future reference,
These symbols may appear on your lawn mower or In literature supplied with the
product. Learn and understand their meaning,
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Operator presence control
bar
Starter handle
zone control cable
Handle
Gras s catcher_
)line filler cap
with dipstick
Lawn mower housing
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the Wheel adjuster
engine. (on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotarywalk-behind power lawn mowers conform to the safety standards of the American
National Standards Instituteand the U.S, Consumer Product Safety Commisslen. The blade
rums when the engine is running.
Operator Presence Control Bar- must be
held down to the handle to start the engine.
Release to stop the engine.
Primer - pumps additionalfuel fromthe
carburetor to the cylinderfor use when
startinga cold engine.
Starter Handle. used for startingthe engine.
6

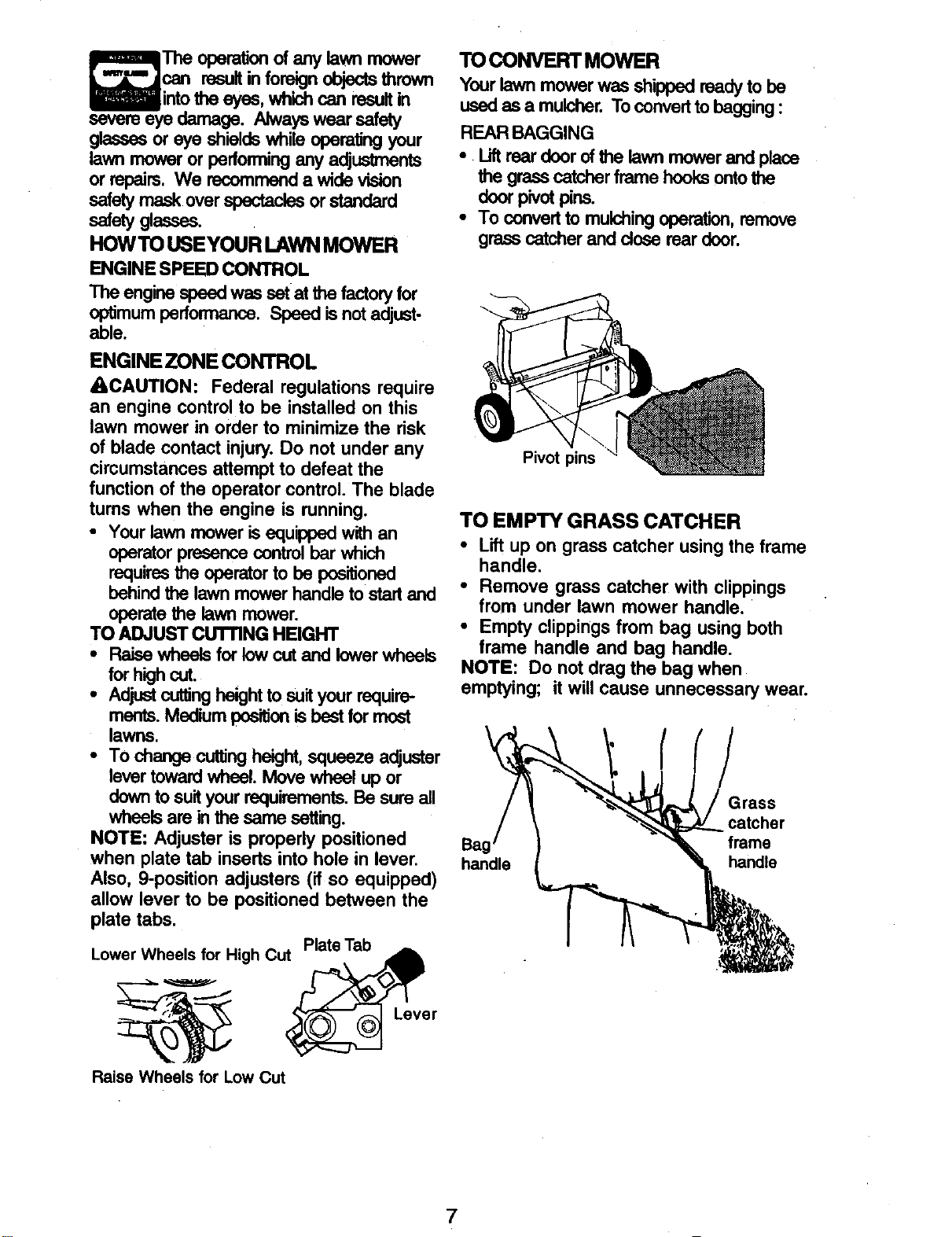

'The operation of any lawn mower
can result in foreign objects thrown
intothe eyes, which can resultin
severn eye damage. Always wear safety
glasses or eye shields while operating your
lawn mower or performing any adjustments
or repairs. We recommend a wide vision
safety mask over spectacles or standard
safety glasses.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED CONTROL
The engine speed was set at the factory for
op_mum performance. Speed isnot adjust-
able.
ENGINEZONE CONTROL
_CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
tums when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requiresthe operator to be positioned
behind the lawn mower handle to start and
operate the lawn mower.
TO ADJUST cUTrlNG HEIGHT
• Raise wheels for low cut and lower wheels
forhighcut.
• Adjustcuttingheightto suityour require-
ments. Medium position is best for most
lawns.
• To change cutting height, squeeze adjuster
lever toward wheel. Move wheel up or
down to suit your requirements. Be sure all
wheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
PlateTab
LowerWheels for HighCut
Raise Wheels for Low Cut
Lever
TOCONVERTMOWER
Your lawn mower was shippedreadytobe
used as a mulcher. To convertto bagging :
REAR BAGGING
• 1Liftrear door of the lawn mower and place
the grass catcher frame hooks onto the
door pivot pins.
• To convert to mulching operation, remove
grass catcher and close rear door.
Pivot pins
TO EMPTY GRASS CATCHER
• Lift up on grass catcher using the frame
handle.
• Remove grass catcher with clippings
from under lawn mower handle.
• Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
handle
/
Grass
catcher
frame
handle
7

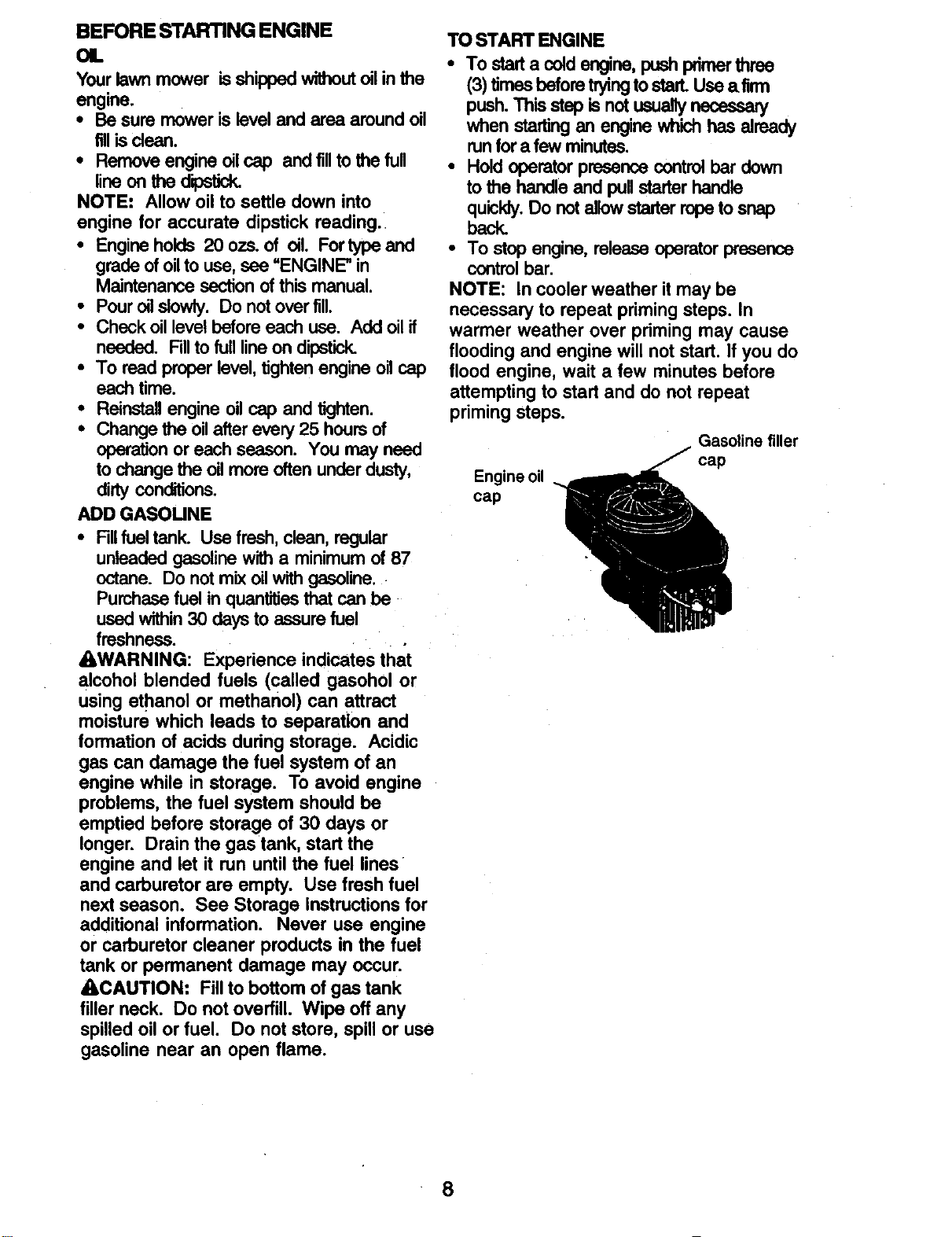

BEFORE STARTINGENGINE
OIL
Your lawn mower isshipped withoutoil in the
engine.
• Be sure mower is level and area around oil
fillisdean.
• Remove engine oil cap and fillto the full
line on the di_
NOTE: Allow oil to settle down into
engine for accurate dipstick reading.
• Engine holds 20 ozs. of oil. For type and
grade of oil to use, see "ENGINE" in
Maintenance section of this manual.
• Pour oilslowly. Do not over fill.
• Check oil level before each use. Add oil if
needed. Fillto full lineon dipstick.
• To read proper level, tighten engine oil cap
each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may need
to change the oil more often under dusty,
dirty conditions.
ADD GASOUNE
• Fillfuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of 87
octane. Do not mix oil with gasoline.
Purchase fuel in quantitiesthat can be
used within 30 days to assure fuel
freshness.
AWARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids dudng storage. Acidic
gas can damage the fuel system of an
engine while in storage• To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer• Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
ACAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or use
gasoline near an open flame.
TO START ENGINE
• To start a cold angine, push pdrnerthree
(3)timesbeforetryingtostart.Useafirm
push. This step isnot usually necessary
when starting an engine which has already
run for a few minutes.
• Hold operator presence control bar down
to the handle and pull starterhandle
quickly.Do not allow starter rope to snap
back.
• To stop engine, release operator presence
control bar.
NOTE: In cooler weather itmay be
necessary to repeat priming steps• In
warmer weather over priming may cause
flooding and engine will not start. If you do
flood engine, wait a few minutes before
attempting to start and do not repeat
priming steps•
Gasoline filler
cap
Engine oil
cap
8

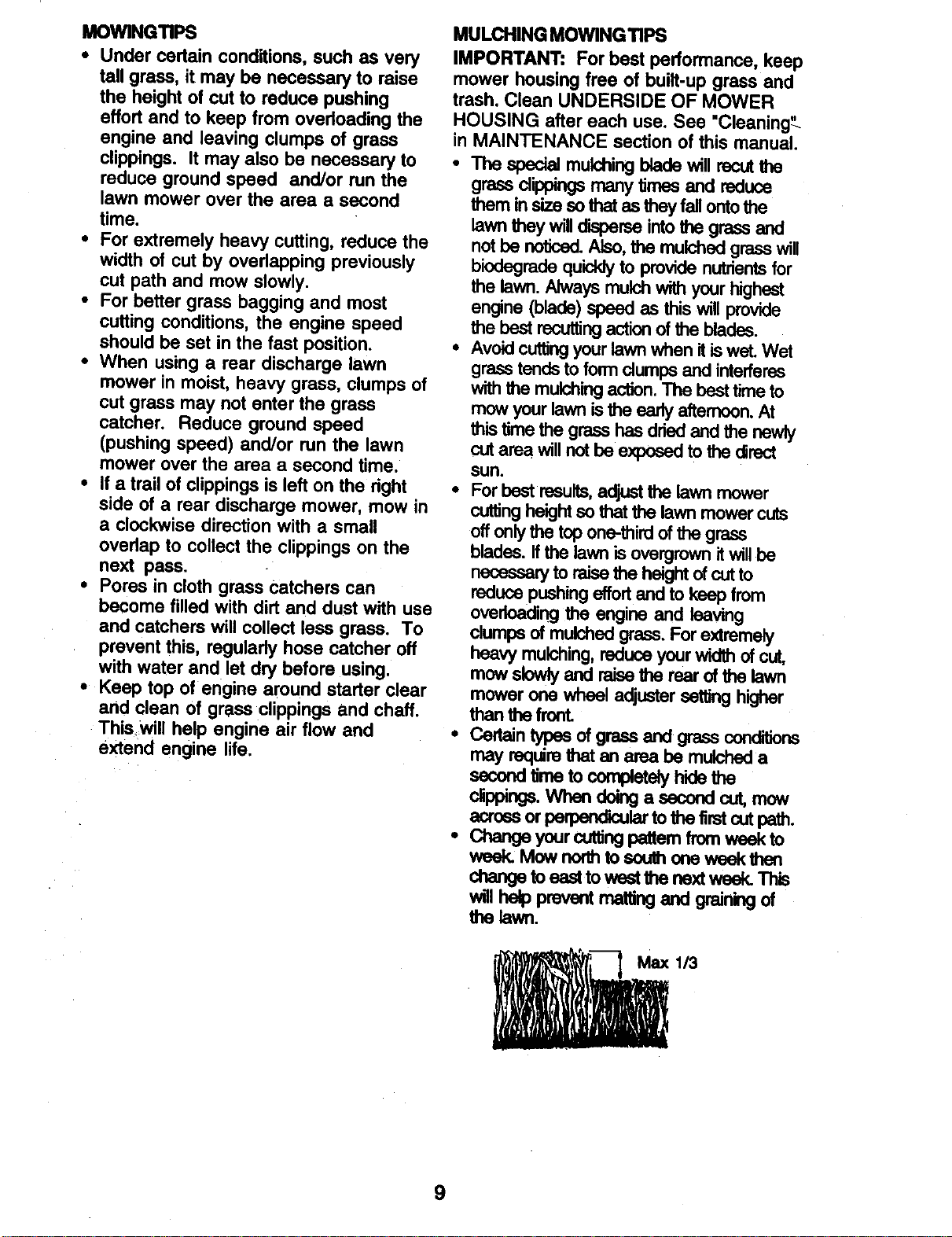

MOWlNGTIPS
* Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
• If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small
overlap to collect the clippings on the
next pass.
• Pores in cloth grass Catchers can
become filled with dirt and dust with use
and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This.will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. Clean UNDERSIDE OF MOWER
HOUSING after each use. See "Cleaning"
in MAINTENANCE section of this manual.
• The special mulching blade will recurthe
grass clippings many times and reduce
them in size so thatas they fallonto the
lawn they will disperse into the grass and
notbe noticed. Aiso,the mulched grass will
biodegrade quicklyto provide nutrientsfor
the lawn. Always mulch withyour highest
engine (blade) speed as this will provide
the best recuttingaction of the blades.
• Avoid cuttingyour lawn when itis w_ Wet
grass tends to form dumps and interferes
with the muk:_ action. The best time to
mow your lawn is the early afternoon.At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• For best results, adjustthe lawn mower
cuttingheightso thatthe lawn mower cuts
off onlythe top one-thirdof the grass
blades. Ifthe lawn is overgrown itwill be
necessary to raise the height ofcut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching,reduce your width of cut,
mow slowlyand raise the rear of the lawn
mower one wheel adjuster setting higher
than the front.
• Certain types of grass and grsss conditions
may requirethat an area be mulched a
secondUmetocompletalyhklethe
c pp s,wl m amco cts,mow
asro_ or peqoandicularto the firstcut path.
• Change your cuffingpattem from week to
week. Mow north to scuth one week than
change to eest to west'd_enext wsak. This
will help prevent matting and grainingof
the lawn.
1/3
9

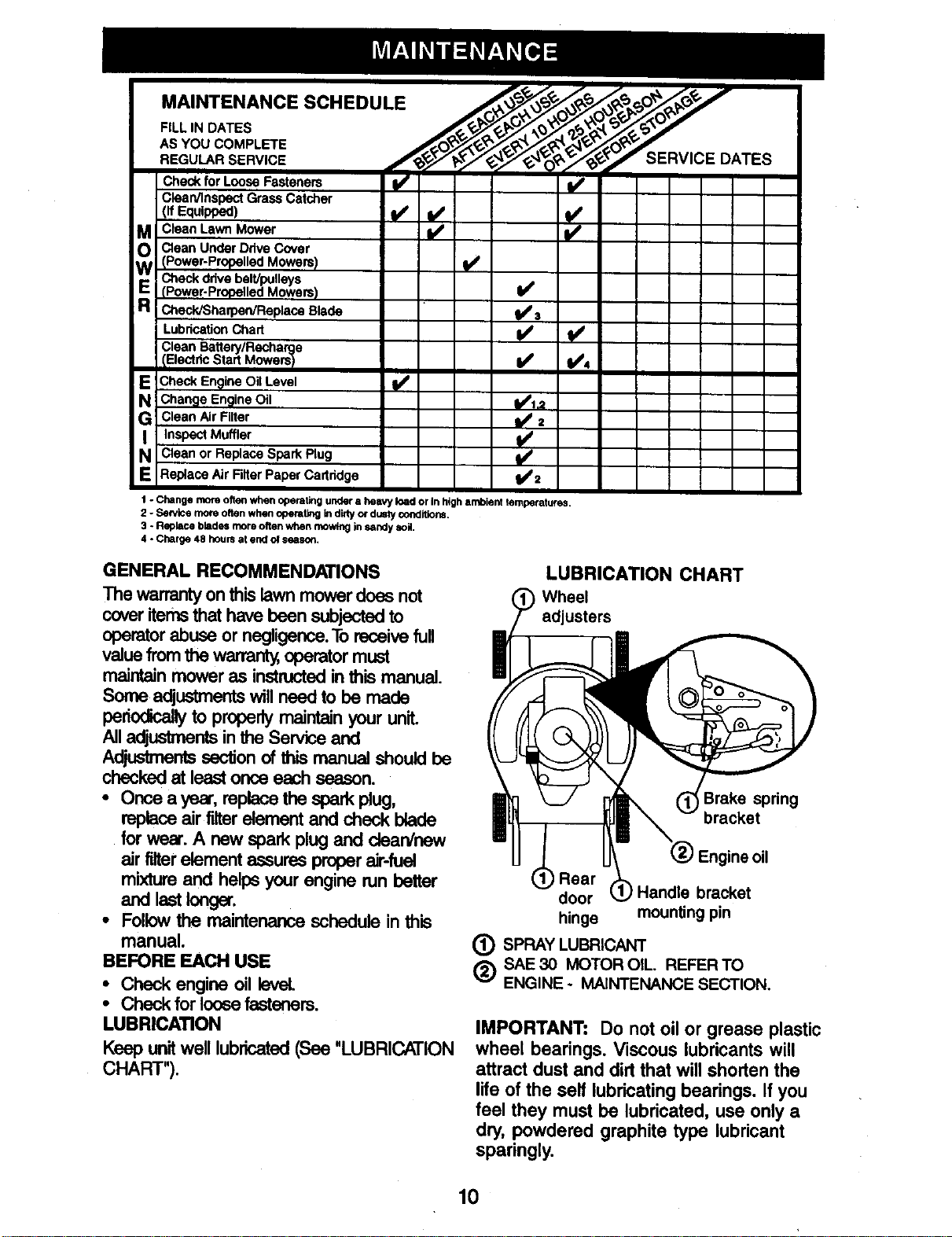

MAINTENANCE SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check for Loose Fasteners
ClearVInspect Grass Catcher
(if Equipped)
Clean Lawn Mower
Clean Under Drive Cover
_Power-Propelled Mowers)
Check ddve belt/pulleys
(Power-PropelledMowers)
Check/Shalpen/Replace Blade
LubricationChart
Clean Batted/Recharge
IElectdc Start Mowers1
Check En_lineOil Level
Change EngineOil
Clean Air Filter
InspectMuffler
Clean or Replace Spark P',ug
ReplaceAir FilterPaper Cartridge
3ERVICE DATES
=/ =/,
v'
V'g
V'g
1 - Change more often when operating under a heavy load or In high ambient temperatures.
2 - Sen/ice mole often when operating in dirtyo_d_sty conditions,
3 - RGplace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence.To receive full
value fromthe warrant_ operator must
maintain mower as instructed in this manual.
Some adjustments willneed to be made
periocicallyto properly maintain your un'd.
All adjustments in the Service and
Adjustments section of this manual should be
checked at least once each season.
• Onceaye_, replacethe spark plug,
replace air filterelement and check blade
for wear. A new spark plug and dean/new
air filterelement assures proper air-fuel
mixture and helps your engine run better
and last tenger.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level
• Check for loosefasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICATION
CHART").
LUBRICATION CHART
) Wheel
adjusters
3rake spnng
bracket
(_ Rear
door ) Handle bracket
hinge mounting pin
(_ SPRAY LUBRICANT
(_ SAE 30 MOTOR OIL REFER TO
ENGINE - MAINTENANCE SECTION.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the
life of the serf lubricating bearings. If you
feel they must be lubricated, use only a
dry, powdered graphite type lubricant
sparingly.
10
PRODUCT SPECIFICATIONS
MODEL NUMBER 917.389290
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM
VALVE CLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
The model and serial numbers will be found on a decal attached to the roar of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when performing
any maintenance.
TIRES
• Keeptiresfreeofgasoline,oil,orinsect
controlchemicalswhich can harmrubber.
• Avoidstumps,stones,deep ruts,sharp
objectsandotherhazards_at maycause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
tuming when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by tuming counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged. 11
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.

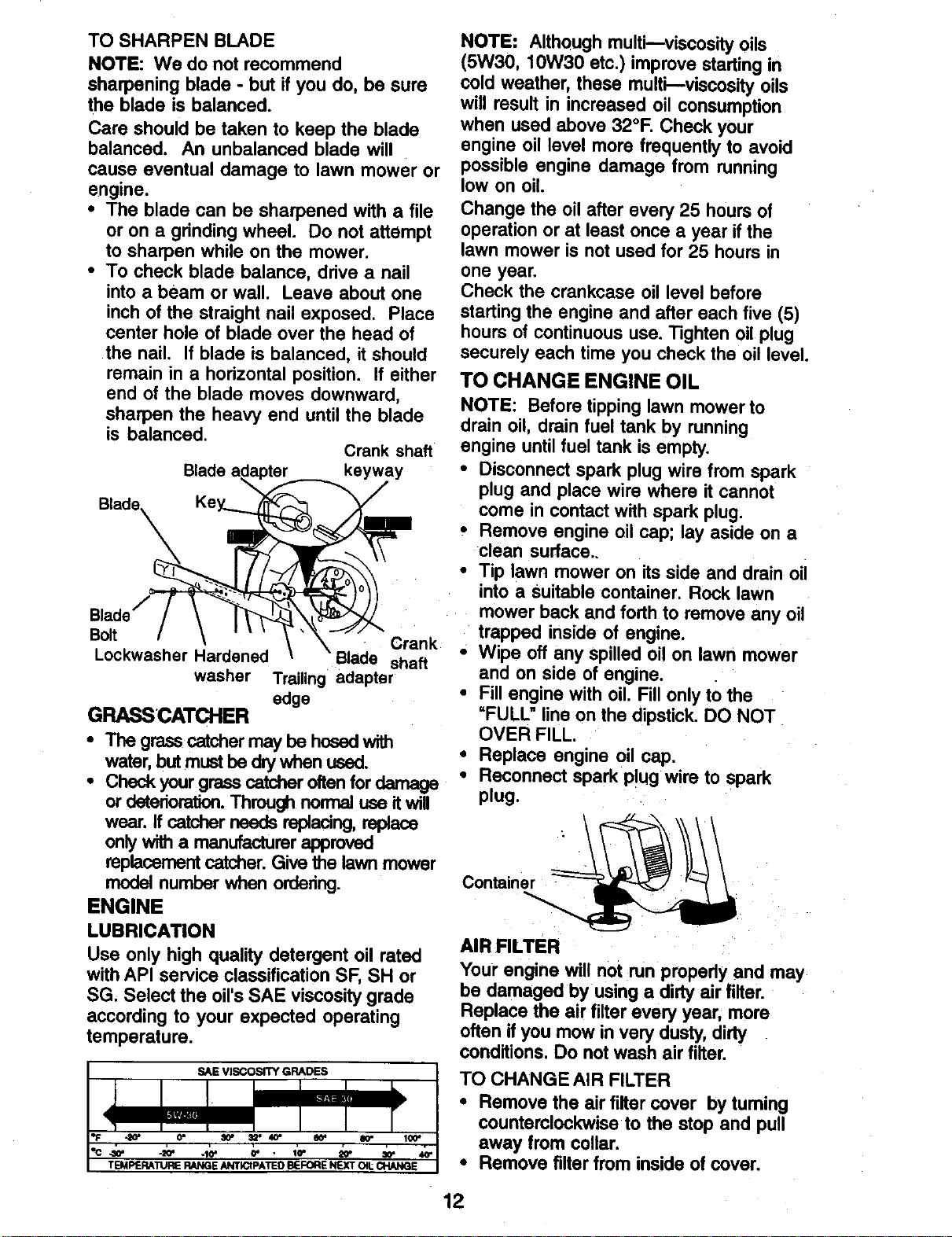

TO SHARPEN BLADE
NOTE: We do not recommend
sharpening blade - but if you do, be sure
the blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
Crank shaft
Blade keyway
Blad
Bolt
Crank
Lockwasher Hardened Blade
shaft
washer Trailing adapter
edge
GRASSCATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for damage
or deterioration. Through normal use it will
wear. If catcher needs replacing, replace
only with a manufacturer approved
replacement catcher. Give the lawn mower
model number when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SH or
SG, Select the oil's SAE viscosity grade
according to your expected operating
temperature.
SAE VISCOSITY GRADES
-2o' .10= O* , 10= lO"
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi--viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi--viscosity oils
will result in increased oil consumption
when used above 32°R Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Remove engine oil cap; lay aside on a
clean surface..
• Tip lawn mower on its side and drain oil
into a Suitable container. Rock lawn
mower back and forth to remove any oil
trapped inside of engine.
• Wipe off any spilled oil on lawn mower
and on side of engine.
• Fill engine with oil. Fill only to the
=FULL" line on the dipstick. DO NOT
OVER FILL.
• Replace engine oil cap.
• Reconnect spark P!ug wire to spark
plug.
Container _
AIR RLTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
• Remove the air filter cover by tuming
counterclockwiseto the stop and pull
away from collar.
• Remove filterfrom inside of cover.
12

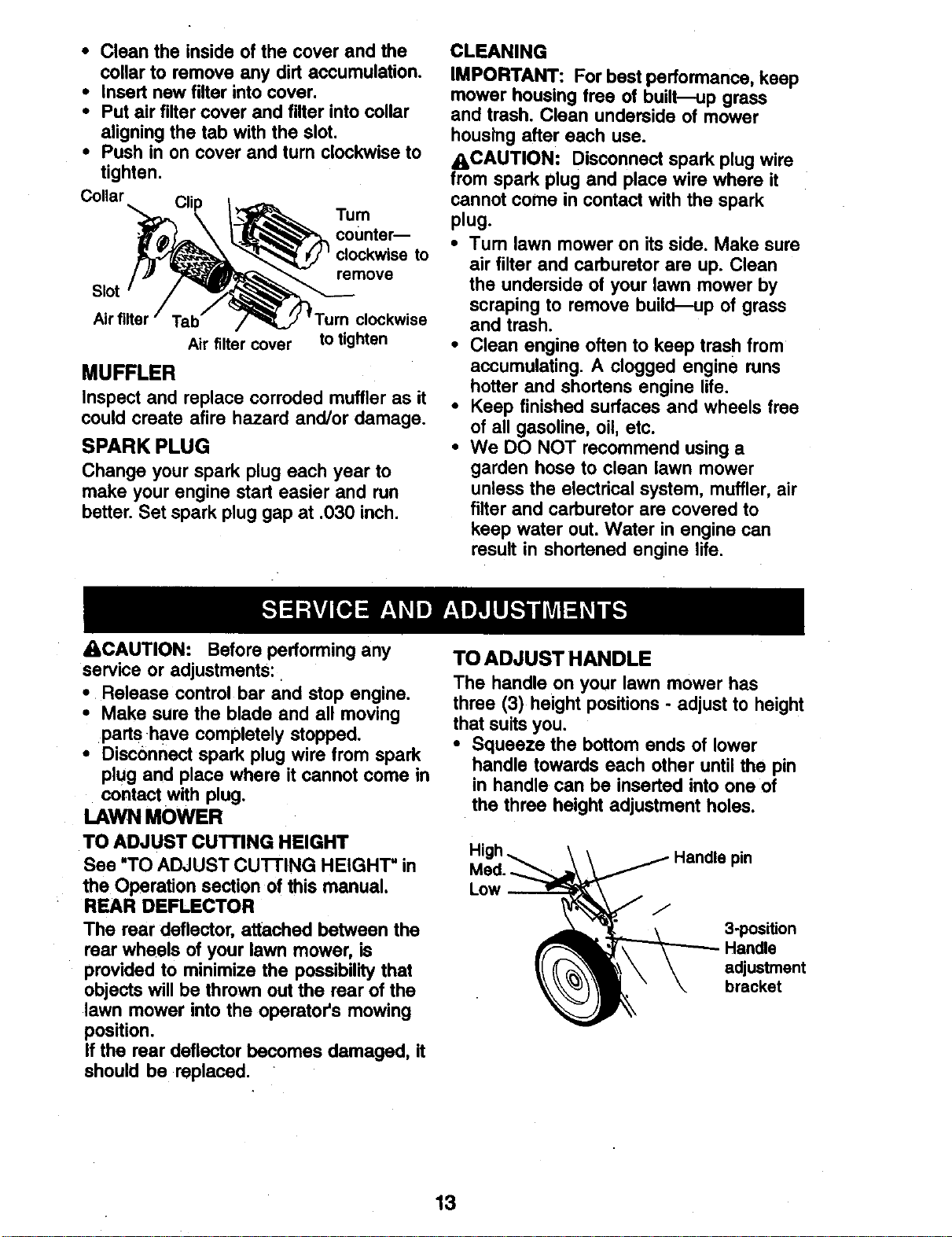

• Clean the inside of the cover and the
collar to remove any dirt accumulation.
• Insert new filter into cover.
• Put air filter cover and filter into collar
aligning the tab with the slot.
• Push in on cover and turn clockwise to
tighten.
Collar
Slot
Clip
Tum
counter--
clockwise to
remove
clockwise
Air filter cover to tighten
MUFFLER
Inspect and replace corroded muffler as it
could create afire hazard and/or damage,
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better. Set spark pluggap at .030 inch.
CLEANING
IMPORTANT: For best performance, keep
mower housing free of built---up grass
and trash. Clean underside of mower
housing after each use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Tum lawn mower on its side. Make sure
air filter and carburetor are up. Clean
the underside of your lawn mower by
scraping to remove buiid_up of grass
and trash.
• Clean engine often to keep tras h from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• We DO NOT recommend using a
garden hose to clean lawn mower
unless the electrical system, muffler, air
filter and carburetor are covered to
keep water out. Water in engine can
result in shortened engine life.
ACAUTION: Before performing any
service or adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from spark
plug and place where it cannot come in
contact with plug.
LAWN MOWER
TO ADJUST CUTFING HEIGHT
See "TO ADJUST CU'I-I'ING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your lawn mower, is
provided to minimize the possibility that
objects will be thrown out the rear of the
lawn mower into the operator's mowing
position.
If the rear deflector becomes damaged, it
should be replaced.
TOADJUSTHANDLE
The handle on your lawn mower has
three (3) height positions - adjust to height
that suits you.
• Squeeze the bottom ends of lower
handle towards each other until the pin
in handle can be inserted into one of
the three height adjustment holes.
Hi
Low
pin
3-position
Handle
adjustment
bracket
13

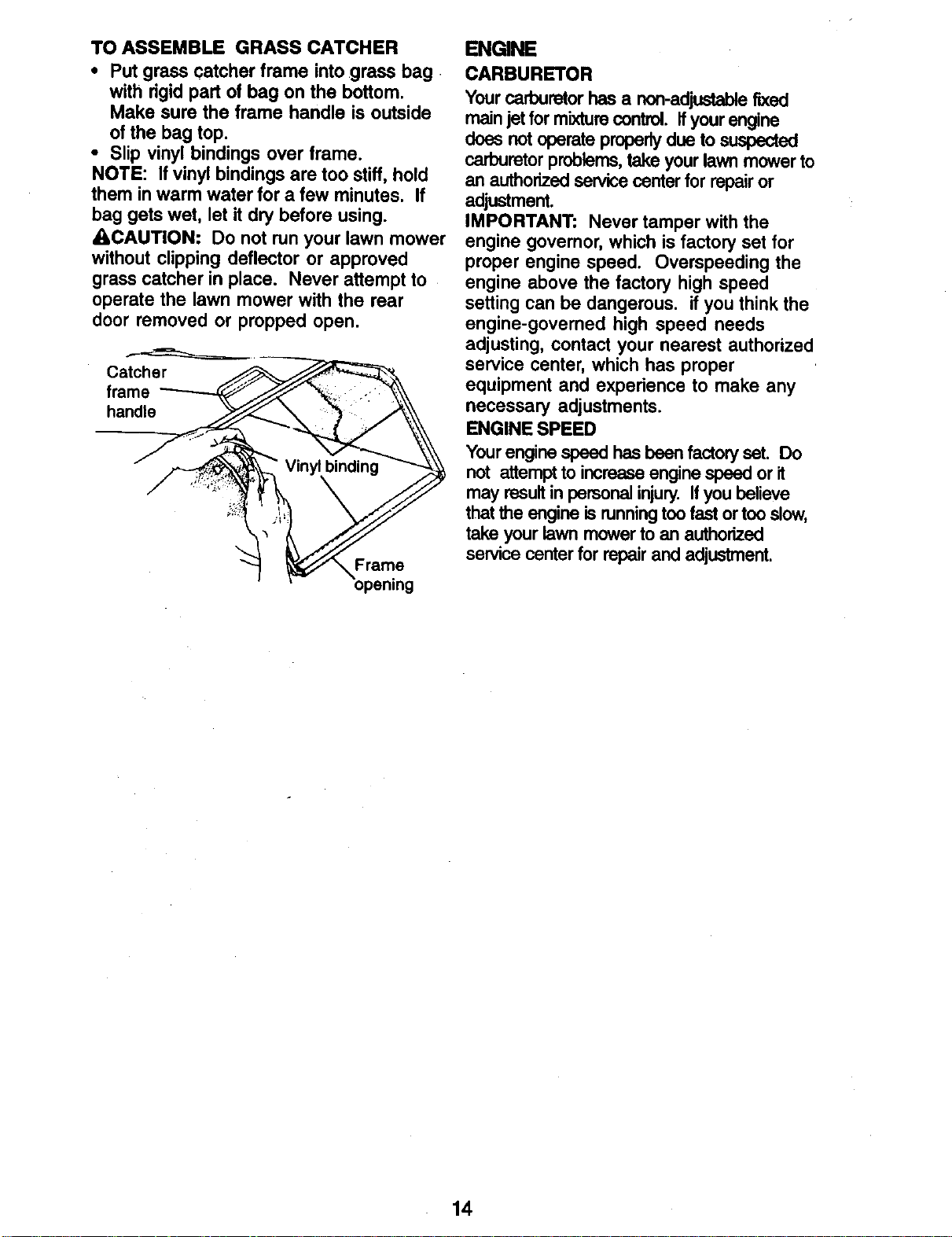

TO ASSEMBLE GRASS CATCHER
• Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
A_CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher
frame
handle
Frame
ENGINE
CARBURETOR
Your carburetor has a non-adjustablefixed
main jet for mixturecontrol. Ifyour engine
does not operate properlydue to suspected
carburetor problems, take your lawn mower to
an authorized service center for repair or
adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous, if you think the
engine-governed high speed needs
adjusting, contact your nearest authorized
service center, which has proper
equipment and experience to make any
necessary adjustments.
ENGINE SPEED
Your engine speed has been factoryset. Do
not attempt to increase engine speed or it
may resultin personal injury. Ifyou believe
that the engine is runningtoo fast or too slow,
take your lawn mower to an authorized
service center for repair and adjustment.
14
Immediately prepare your lawn mower for
storage at _ end of the season or if the unit
willnot be used for 30 days or mere.
LAWN MOWlER
When lawn mower isto be stored for a period
of time, clean it thoroughly,remove alldirt,
grease, leaves, etc. Store in a clean, dry area.
• Clean entire lawn mower (See "CLEAN-
ING" in the Maintenance section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, bolts, screws, and pins
are securely fastened. Inspect moving
pads for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
• You can fold your lawn mower handle
for storage.
• Loosen the two (2) handle knobs on
sides of the upper handle and allow
handle to fold down to the rear.
• Squeeze the bottom ends of lower
handle toward each other until pins in
handle clear the brackets and pivot
entire handle assembly forward and
allow it to rest on mower.
• When setting up your handle from the
storage position, the lower handle will
require manually locking into the
mowing position.
IMPORTANT: When folding the handle for
storage or transportation, be sure to fold
the handle as shown or you may damage
the control cables.
Low
pin
3-position
/ Handle
adjustment
bracket
Operator Presence
ControlBar
Upper
Handte
Fold Forward
For Storage
Fold
Backward
Mowing
Position
Lower
Handle
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of anengine
while in storage.
• Drainthefueltank.
Startthe engine and letitrun untilthe
fuellinesand carburetorare empty.
Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
15

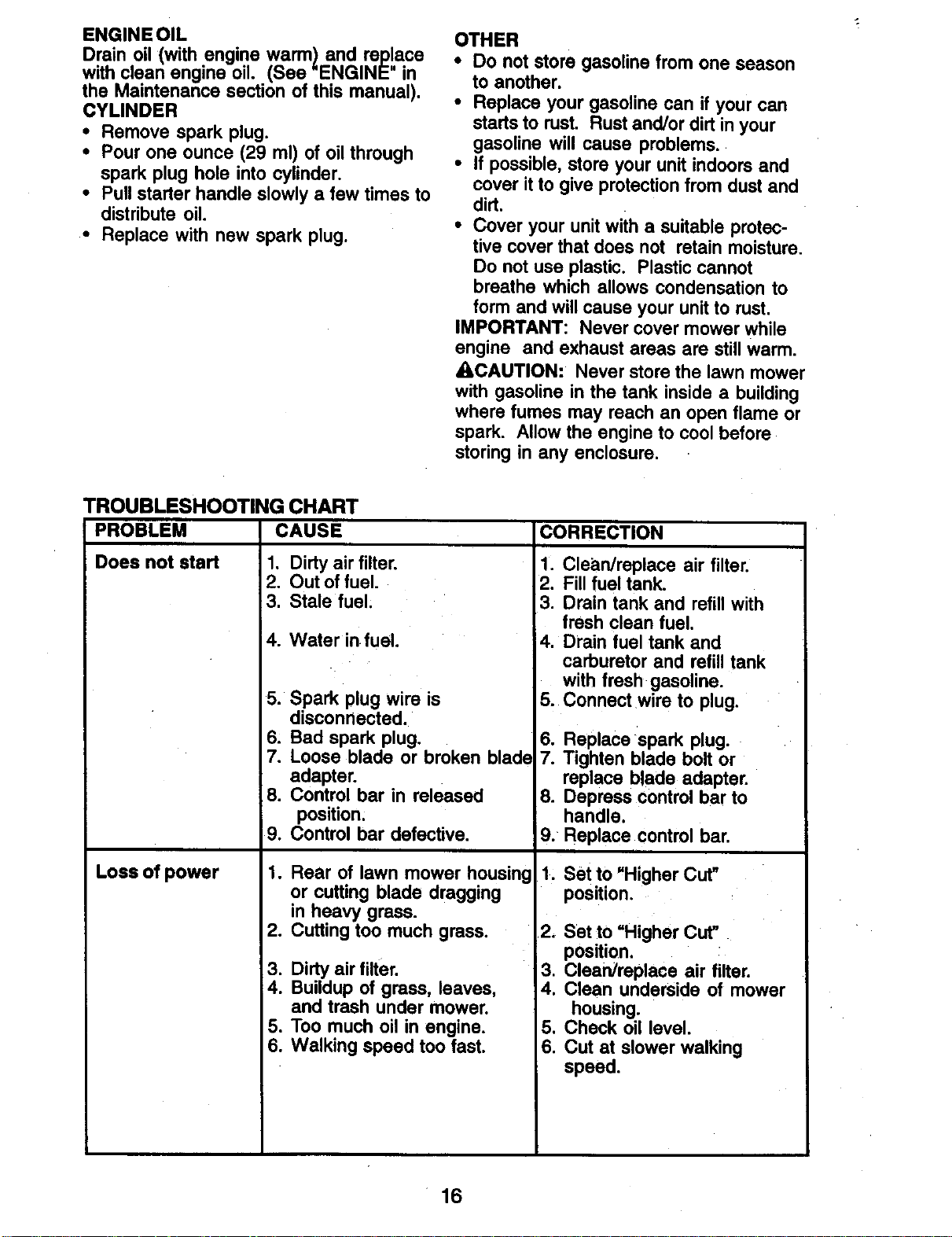

ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
• Pull starter handle slowly a few times to
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
ACAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Does not start
Loss of power
1. Dirty air filter.
2. Out of fuel.
3. Stale fuel.
4. Water infuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released
position.
9. Control bar defective.
.
Rear of lawn mower housing
or cutting blade dragging
in heavy grass.
Cutting too much grass.
,
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
1. set to =Higher Cut"
position.
2. Set to =Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
• 16
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Poorcut-uneven
Exceeslve
vibration
Starter rope hard
topuII
Grass catcher
not filling (if so
equipped)
Hard to push
1. Wom, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on
when control bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
r housing or blade dragging
in grass.
3. Grass catcher too full.
4, Handle height position not
right for you.
1. Replace blade. "tighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housing.
1. Replace blade. "]3ghten
blade bolt.
_2. Contact an authorized
service center.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface
to start engine
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
17
14
CRAFTSMAN ROTARY LAWN MOWER-- MODEL NO. 917.389290
-14
31
25
34
19
33
4O
IO
KEY PART
NO. NO.
1 131696
2 166860X479
3 161105X479
4 132001
5 63601
6 131959
7 66426
8 74780512
9 166785
10 164362
11 156577
12 7,50097
13 850733X004
14 136376
15 51793
17 165946X479
18 17600406
19 167132X004
20 167133X004
21 165858
22 168360X004
23 166875
24 751153
25 166236X479
26 166243X479
27 851856
28 63124
29 160835X007
30 19112222
31 151161
CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.389290
DESCRIPTION
ControlBar
UpperHandle
LowerHandle
RopeGuide
Locknut1/4-20
HandleBolt
Wire'Re
Hex Bolt 5/16-18 x 3/4
Locknut5/16-18
ShoulderBolt
EngineZoneControlCable
HexWasherHead Screw#10-24 x 1/2
Up-StopBracket
HandleKnob
HairpinCotter
SupportBracket
Screw
AxleArmAssembly- LF
AxleArm Assembly- RF
Rear Skirt
SelectorSpring
Rear DoorAssemblyKit(Incl.Springs)
Locknut5/16-18
HandleBracketAssembly(Left)
HandleBracketAssembly(Right)
Screw1/4-20 x 3/8
Nut
WheelAdjustingBracket- Front
Spacer
Wheel
KEY PART
NO. NO. DESCRIPTION
33 87877
34 167130X004
35 57143
36 160828
37 151162
38 73990500
39 83923
4O 77400
41 88652
42 165766
43 165767
44 165912
45 15O406
46 85463
47 161551
48 167131X004
52 166872
53 851084
54 85O263
55 851074
56 16,5833
57 851514
67 166113
68 165755
70 ......
- - 161058
- - 172552
SelectorKnob
AxleArmAssembly- LR
Wavewasher
ShoulderBolt5/16-18
WheelAssembly
Nut
FlangedLocknut
Hubcap
HingeScrew
Spring(LH)
Spdng(RH)
DoorBolt
HexHead ThreadRollingScrew3/8-16 x 1
DangerDecal
AdjustmentBolt
Axle ArmAssembly- RR
HousingAssembly(Incl. Ref. #17, 18 & 46)
Hex Head Screw3/8-24 x 1-3/8 Grd.8
HelicalLockwasher
HardenedWasher
21"Blade
BladeAdapter
GrassBag
CatcherFrame
Engine- (See Breakdown)Craftsman143.005500
WamingDecal(NotShown)
Owner'sManual
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER l_Lqnn_rJ0
42
41
9
la2 ," 19 f
43
2O7
178
45 46
306
36

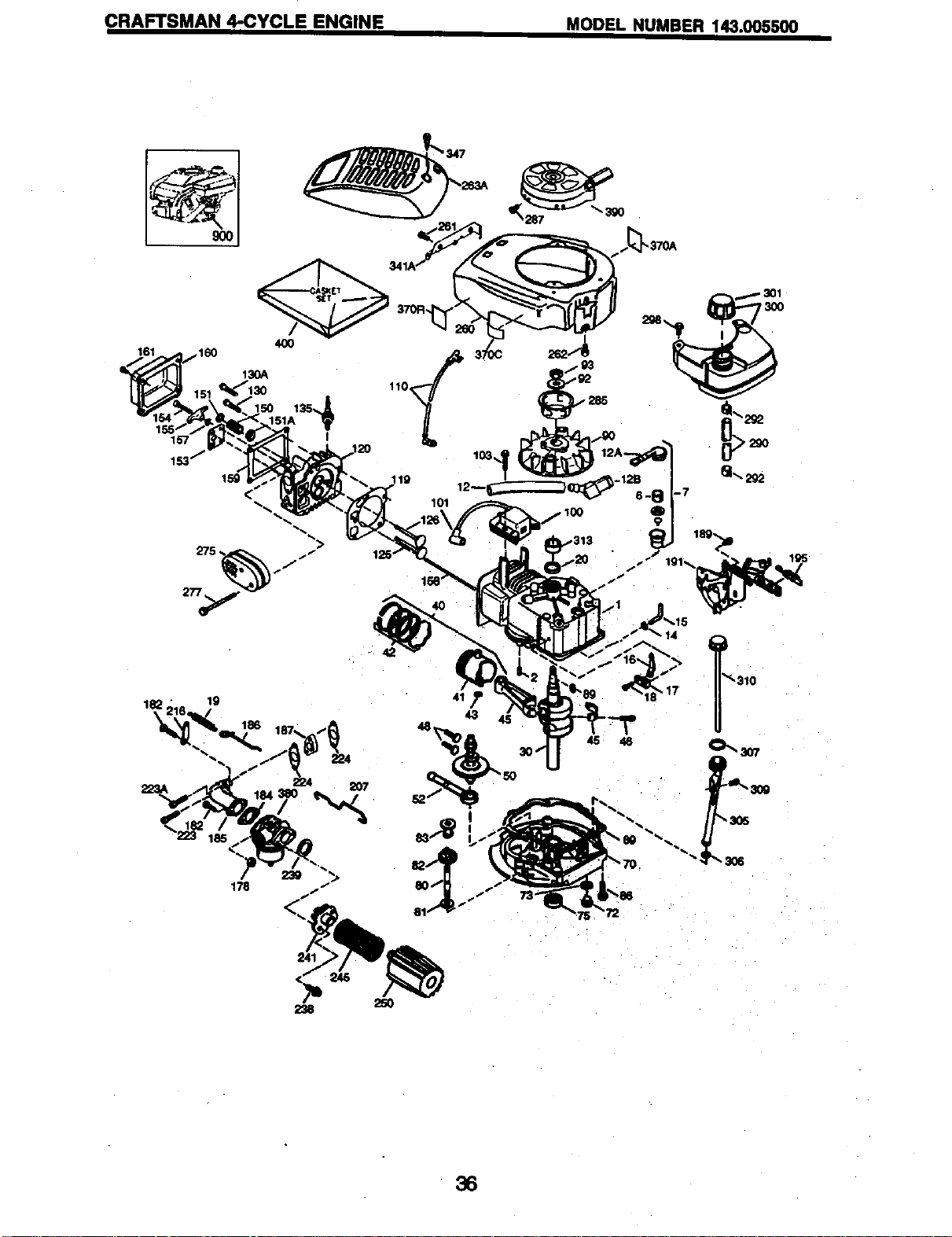

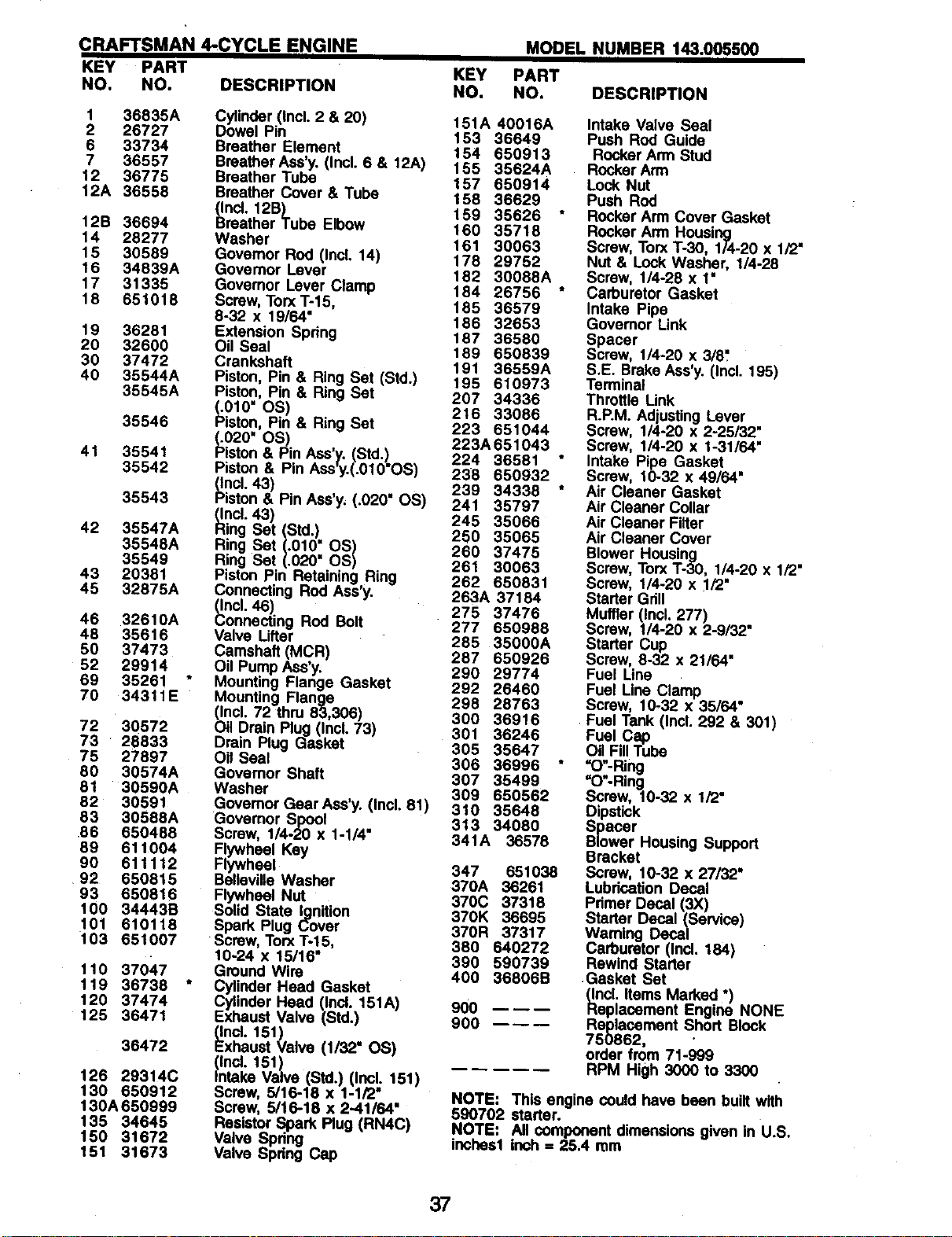

CRAFTSMAN 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
1 36835A
2 26727
6 33734
7 36557
12 36775
12A 36558
12B 36694
14 28277
15 30589
16 34839A
17 31335
18 651018
19 36281
20 32600
30 37472
40 35544A
35545A
35546
41 35541
35542
35543
42 35547A
35548A
35549
43 20381
45 32875A
46 32610A
48 35616
50 37473
52 29914
69 35261
70 34311E
72 30572
73 28833
75 27897
80 30574A
81 30590A
82 30591
83 30588A
.88 650468
89 611004
90 611112
92 650815
93 650816
100 34443S
101 610118
103 651007
110 37047
119 36738
120 37474
125 36471
36472
126 29314C
130 650912
130A650999
135 34645
150 31672
151 31673
MODEL NUMBER 143.005500
KEY PART
NO, NO. DESCRIPTION
Cylinder (Incl. 2 & 20) 151A 40016A
Dowel Pin 153 36649
Breather Element 154 650913
BreatherAss'y. (IncL 6 & 12A) 155 35624A
Breather Tube 157 650914
Breather Cover & Tube 158 36629
_ncL 12B) 159 35626 *
reather Tube Elbow 160 35718
Washer 161 30063
Governor Rod (IncL 14) 178 29752
Governor Lever 182 30088A
Governor Lever Clamp 184 26756 *
Screw, Torx T-15, 185 36579
8-32 x 19/64" 186 32653
Extension Spdng 187 36580
Oil Seal 189 650839
Crankshaft 191 36559A
Piston, Pin & Ring Set (Std.) 195 610973
Piston, Pin & Ring Set 207 34336
_010" OS) 216 33086
ston, Pin & Ring Set 223 651044
_020" OS) 223A 651043
iston & Pin Ass'y. (Std.) 224 36581 °
Piston & Pin Ass'y.(.010"OS) 238 650932
_ncl. 43) 239 34338 *
iston & Pin Ass'y, (.020" OS) 241 35797
I(11cl.43) 245 35066
R
ing Set (Std.!. 250 35065
Ring Set (.010 OS) 260 37475
Ring Set (.020" OS) 261 30063
Piston Pin Retaining Ring 262 650831
Connecting Rod Ass'y. 263A 37184
gncl. 46) 275 37476
onnecting Rod Bolt 277 650988
Valve Lifter 285 35000A
Camshaft (MCR) 287 650926
Oil Pump Ass'y. 290 29774
Mounting Flange Gasket 292 26460
Mounting Flange 298 28763
(Incl. 72 thru 83,306) 300 36916
Oil Drain Plug (Incl. 73) 301 36246
Drain Plug Gasket 305 35647
Oil Seal 306 36996
Governor Shaft 307 35499
Washer 309 650562
Govemor GearAss'y. (Incl. 81) 310 35648
Governor Spool 313 34080
Screw, 1/4-20 x 1-1/4" 341A 36578
Flywheel Key
Flel_lheel 347 651038
Be isville Washer 370A 36261
Flywheel Nut 370C 37318
Solid State Ignition 370K 36695
Spark Plug Cover 370R 37317
Screw, TorxT-15, 380 640272
10-24 x 15/16" 390 590739
Ground Wire 400 36806B
Cylinder Head Gasket
Cylinder Head (Incl. 151A) 900
Exhaust Valve (Std.) 900
_ncl. 151)
xhaust Valve (1/32" OS)
lind. 151)
ntake Valve (Std.) (Incl. 151)
Screw, 5/16-18 x 1-1/2=
Screw, 5/16-18 x 2-41/64"
Resistor Spark Plug (RN4C)
ValveSpring
Valve Spdng Cap
Intake Valve Seal
Push Rod Guide
Rocker Arm Stud
Rocker Arm
Lock Nut
Push Rod
Rocker Arm Cover Gasket
Rocker Arm Housing
Screw, Torx T-30, 1/4-20 x 1/2"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 1"
Carburetor Gasket
Intake Pipe
Govemor Link
Spacer
Screw, 1/4-20 x 3/8"
S.E. Brake Ass'y. (Incl. 195)
Terminal
Throttle Link
R.P.M. Adjusting Lever
Screw, 1/4-20 x 2-25132"
Screw, 1/4-20 x 1-31/64'
Intake Pipe Gasket
Screw, 10-32 x 49/64 =
Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, Torx "1-30, 1/4-20 x 1/2"
Screw, 114-20 x 1/2'
Starter Gdll
Muffler (Incl. 277)
Screw, 1/4-20 x 2-9/32"
Starter Cup
Screw, 6-32 x 21164"
Fuel Line
Fuel Line Clamp
Screw, 10-32 x 35164"
Fuel Tank (Incl. 292 & 301)
Fuel Cap
Oil Fill Tube
=O"-Ring
=O"-Ring
Screw, 16-32 x 1/2"
Dipstick
Spacer
Blower Housing Support
Bracket
Screw, 10-32 x 27/32"
Lubdcation Decal
Pdmer Decal (3X)
Starter Decal (Service)
Waming Decal
Carburetor (Incl. 184)
Rewind Starter
Gasket Set
_ncl. Items Marked *)
aplacement Engine NONE
Replacement Short Block
750862,
order from 71-999
RPM High 3000 to 3300
NOTE: This engine could have been built with
590702 starter.
NOTE: All component dimensions given in U.S.
inshasl inch = 25,4 mm
37

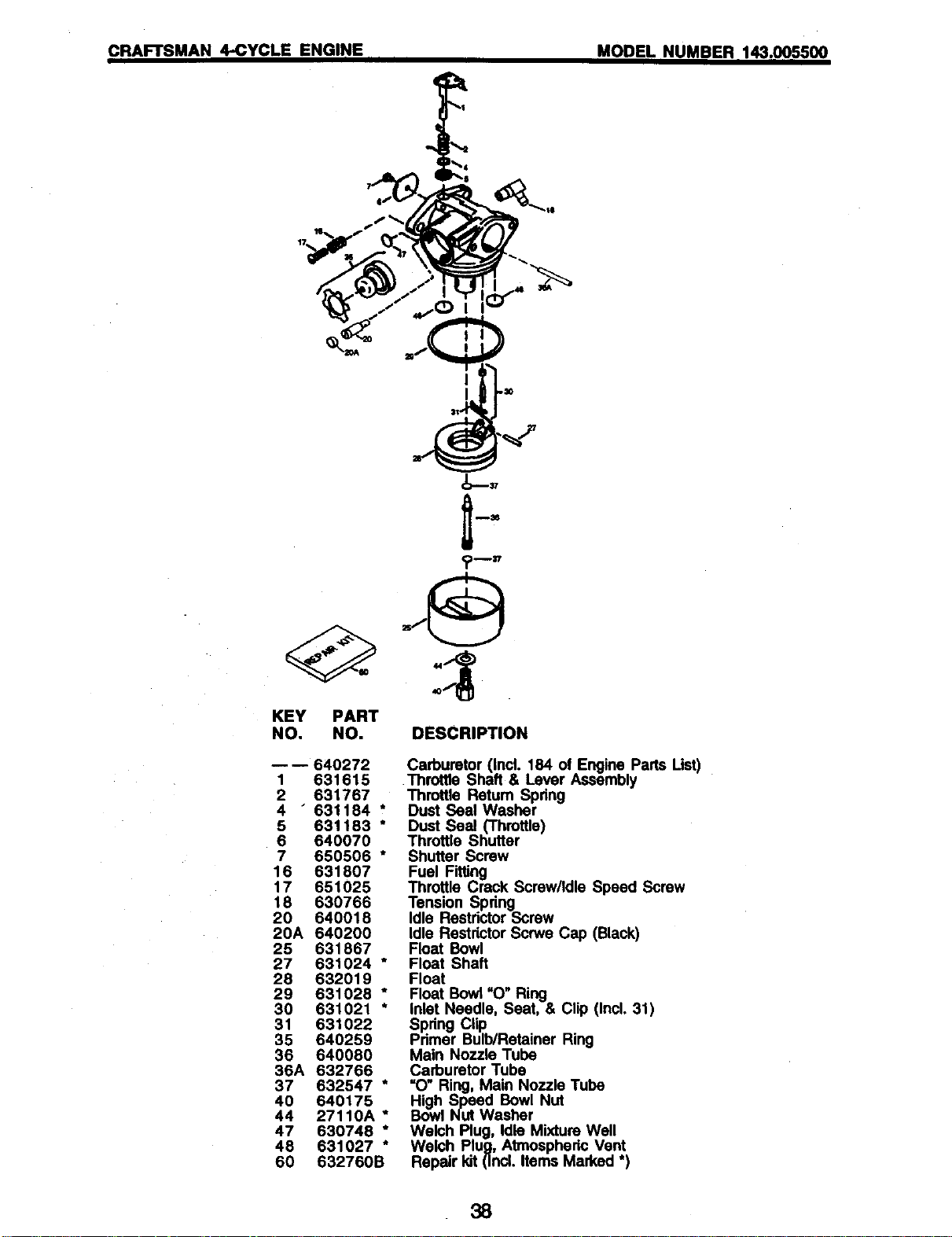

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.005500
KEY PART
NO. NO.
----640272
1 631615
2 631767
4 " 631184 *
5 631183 "
6 640070
7 650506 *
16 631807
17 651025
18 630766
20 640018
20A 640200
25 631867
27 631024 *
28 632019
29 631028 *
30 631021 *
31 631022
35 640259
36 640080
36A 632766
37 632547 *
40 640175
44 27110A *
47 630748 *
48 631027 *
60 632760B
pm37
DESCRIPTION
Carburetor (Incl. 184 o1 Engine Parts Ust)
•Throttle Shaft & Lever Assembly
Throttle Retum Spdng
Dust Seal Washer
Dust Seal (Throttle)
Throttle Shutter
Shutter Screw
Fuel Fitting
Throttle Crack Screw/Idle Speed Screw
Tension Spring
Idle Restdctor Screw
Idle Restrlctor Scrwe Cap (Black)
Float Bowl
Float Shaft
Float
Float Bowl =O" Ring
Inlet Needle, Seat, & Clip (Incl. 31)
Spring Clip
Pdmer Bulb/Retainer Ring
Main Nozzle Tube
Carburetor Tube
=O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kit (Incl. Items Marked *)
38

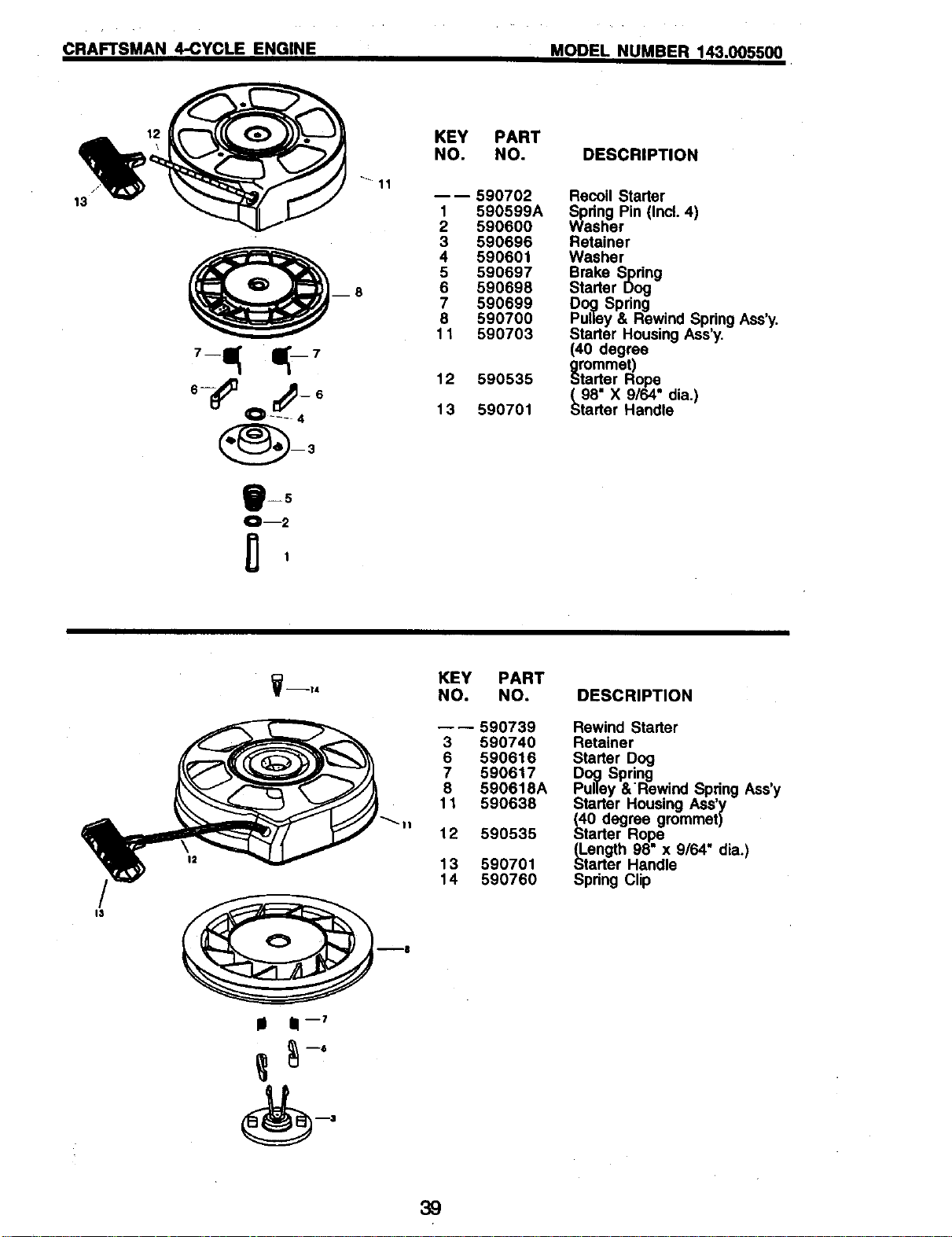

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.005500
.... 11
O .... 4
KEY
NO.
1
2
3
4
5
6
7
8
11
12
13
PART
NO.
----590702
590599A
590600
590696
590601
590697
590698
590699
590700
590703
590535
590701
DESCRIPTION
Recoil Starter
t,S/PadngPin (Incl. 4)
sher
Retainer
Washer
Brake Spdng
Starter Dog
Dog Spdng
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y.
(40 degree
_ommet)
arter Rope
(=98" X 9/64" dia.)
Starter Handle
_--t4
12
KEY
NO.
3
6
7
8
11
12
13
14
PART
NO.
----590739
590740
590616
590617
590618A
590638
590535
590701
590760
DESCRIPTION
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley &Rewind Spdng Ass'y
Starter Housing Ass'y
(_40degree grommet)
:Starter Rope
(_Length98" x 9/64" dia.)
Starter Handle
Spdng Clip
39
For in-home major brand repair service:
Call 24 hoursa day, 7 daysa week
1-800-4-MY-Home sM (1-800-469-4663)
Para pedir servicio de reparaci6n a domicilio
1-800-676-5811
In Canada for all your service and parts needs call
Au Canada pour tout le service ou les pi_ces
1-800-665-4455
For the repair or replacement parts you need:
Call 6 am-11pm CST, 7 days a week
PartsDirect sM
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicilio
1-600-659-7084
For the location of a Sears Parts and Repair Center
in your area:
Call 24 Hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears Maintenance
Agreement or to inquire about an existing Agreement:
Call 9 am-5 prn, Monday - Saturday
1-600-827-6655
SEAR8
172552 11.30.99 VB Printed in U.S.A
I
