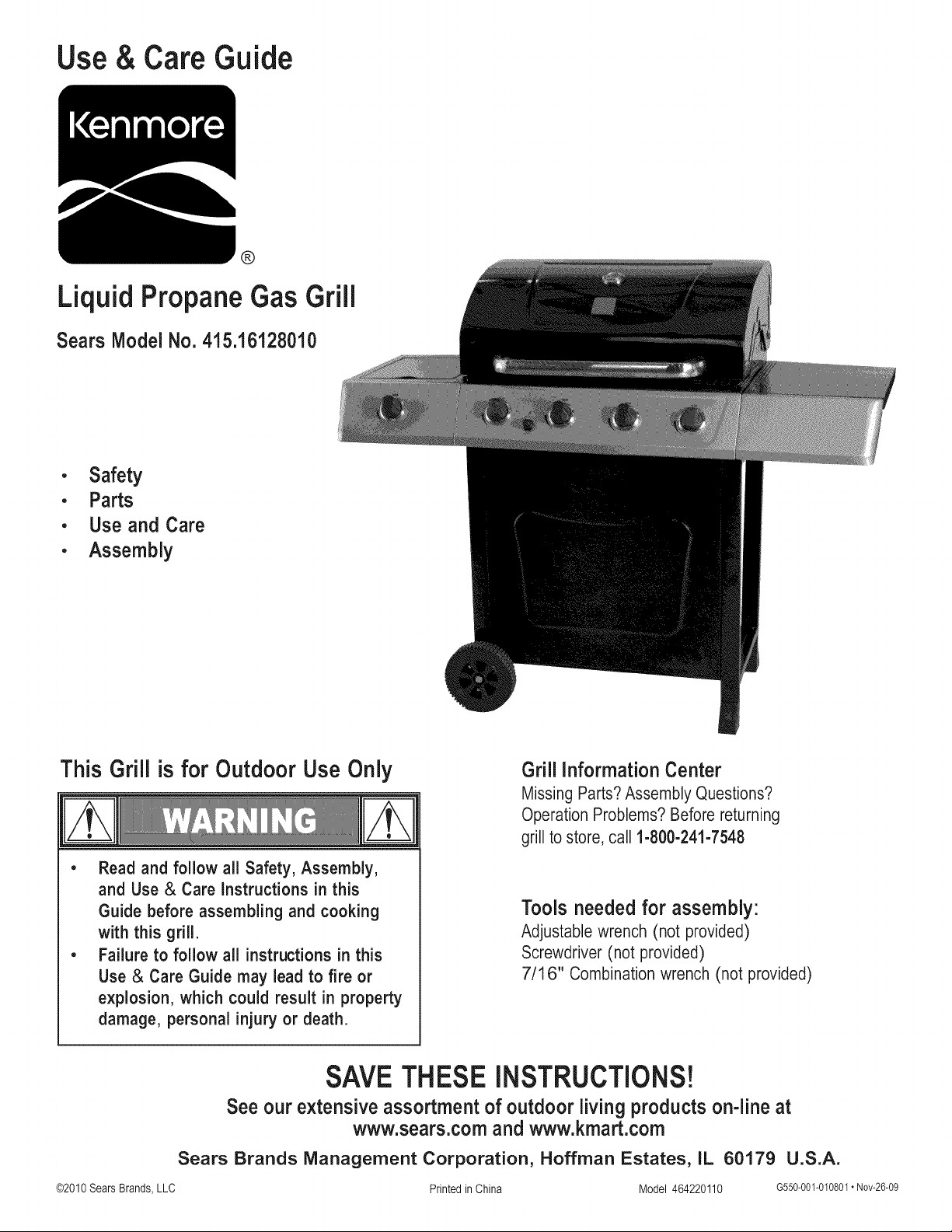

Use& Care Guide
®
LiquidPropaneGasGrill
Sears Model No. 4t5.t6t280t0
• Safety
• Parts
• Use and Care
• Assembly
This Grill is for Outdoor Use Only
• Read and follow all Safety, Assembly,
and Use & Care instructions in this
Guide before assembling and cooking
with this grill.
• Failure to follow all instructions in this
Use & Care Guide may lead to fire or
explosion, which could result in property
damage, personal injury or death.
Grill InformationCenter
Missing Parts?Assembly Questions?
Operation Problems? Before returning
grill to store, call 1-800-241-7548
Tools needed for assembly:
Adjustable wrench (not provided)
Screwdriver (not provided)
7/16" Combination wrench (not provided)
SAVETHESEiNSTRUCTiONS!
See our extensiveassortment of outdoor living products on-line at
www.sears.comand www.kmart.com
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
©2010SearsBrands, LLC PrintedinChina Model 464220110 G550-001-010801• Nov-%-09
_l|_mmmm_l! / " _

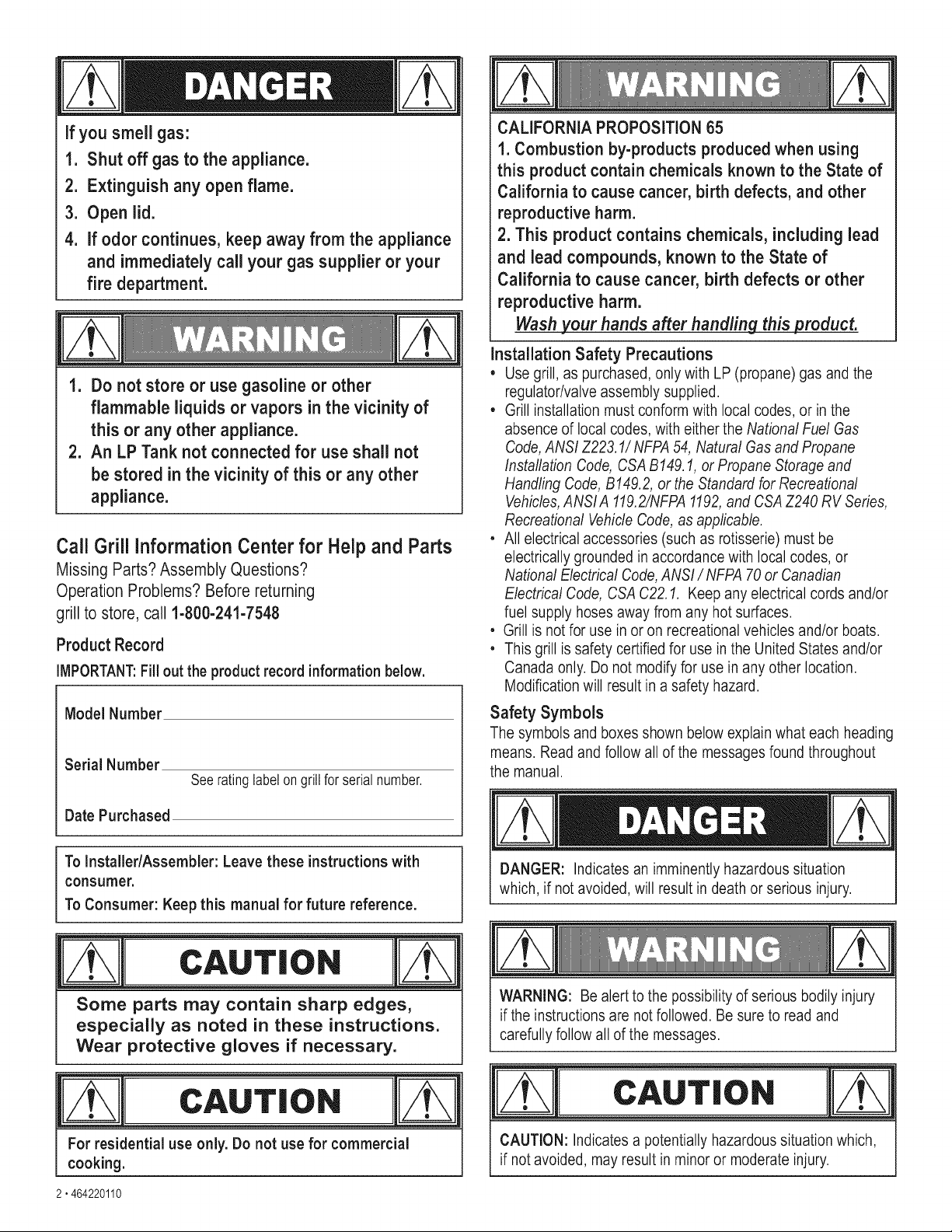

if you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. if odor continues, keep away from the appliance
and immediatelycall your gas supplier or your
fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP Tank not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Call Grill informationCenter for Help and Parts
Missing Parts? Assembly Questions?
Operation Problems? Before returning
grill to store, call 1-800-241-7548
Product Record
IMPORTANT:Fill outthe productrecordinformationbelow.
Model Number
Serial Number
Date Purchased
Seeratinglabelongrill for serialnumber.
To installedAssembler: Leave these instructions with
consumer.
To Consumer: Keep this manual for future reference.
CAUTioN/K
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handlinq this product.
installation Safety Precautions
• Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.
• Grill installation must conform with local codes, or in the
absence of local codes, with either the National Fuel Gas
Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles,ANSI A 119.2/NFPA 1192,and CSAZ240 RV Series,
Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• Grill is not for use in or on recreational vehicles and/or boats.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
Some parts may contain sharp edges,
especially as noted in these instructions.
Wear protective gloves if necessary.
CAUT'O.
For residential use only. Do not use for commercial
cooking.
2. 464220110
WARNING: Be alert to the possibility of serious bodily injury
if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION
CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.

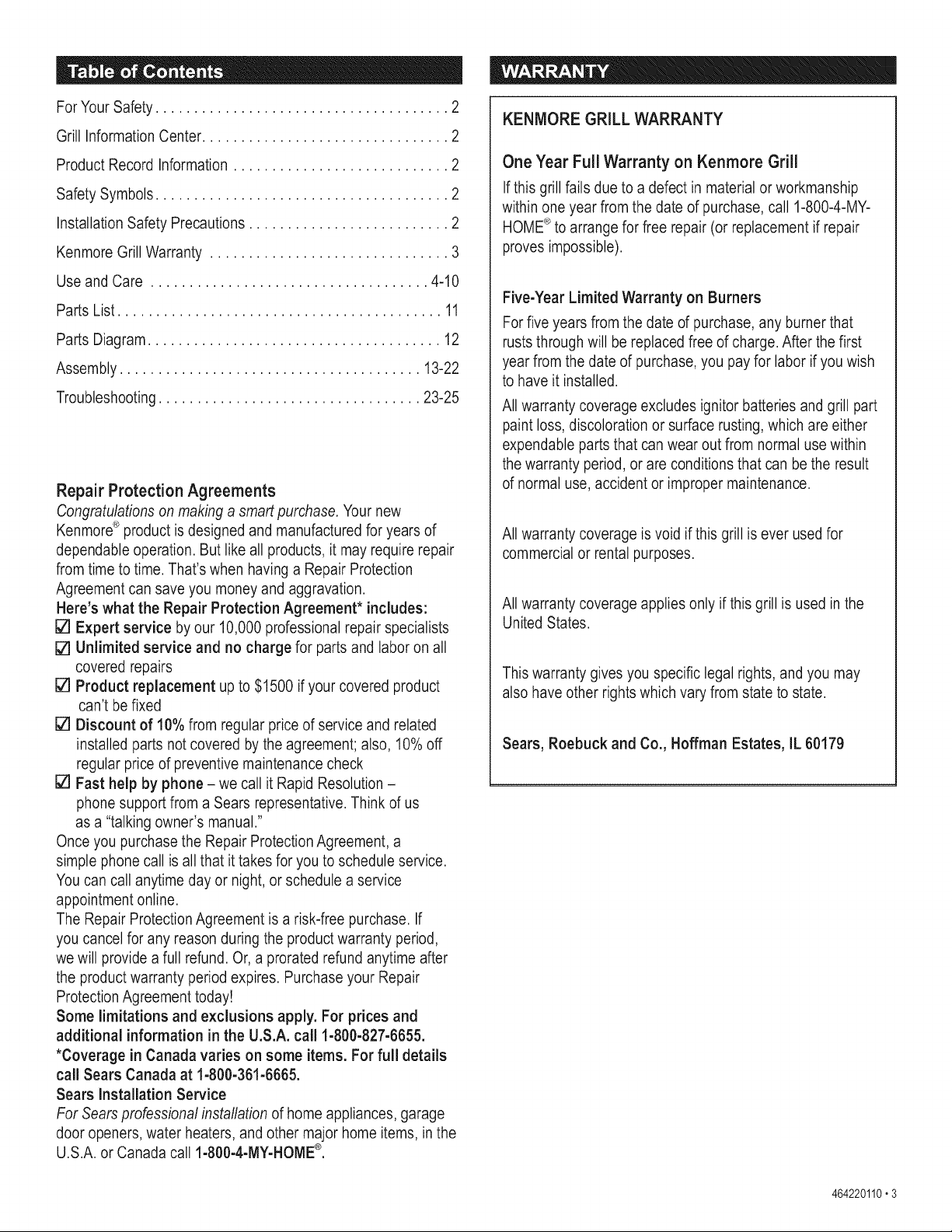

ForYourSafety...................................... 2
GrillInformationCenter................................ 2
ProductRecordInformation............................ 2
SafetySymbols...................................... 2
InstallationSafetyPrecautions.......................... 2
KenmoreGrillWarranty............................... 3
UseandCare.................................... 4-10

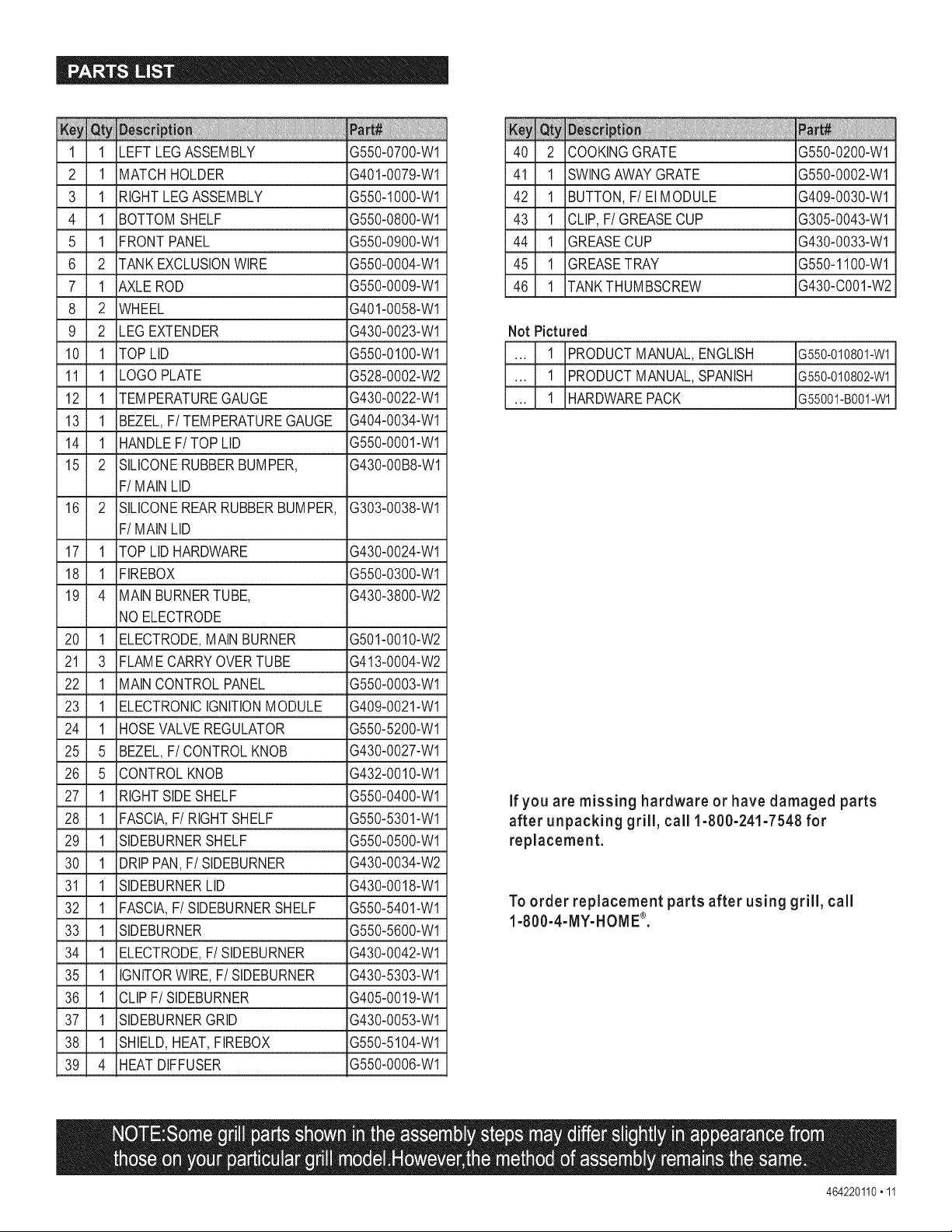

PartsList.......................................... 11

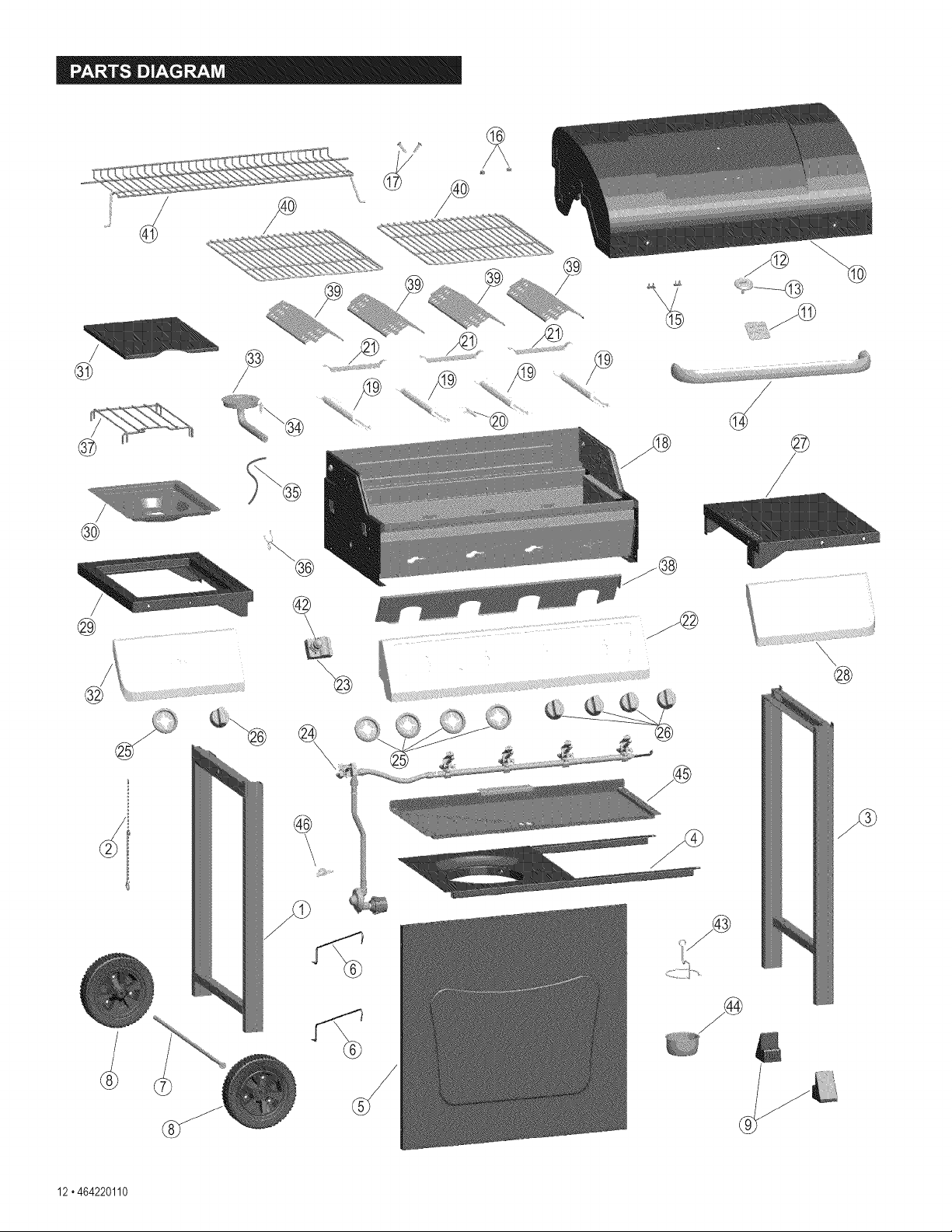

PartsDiagram...................................... 12

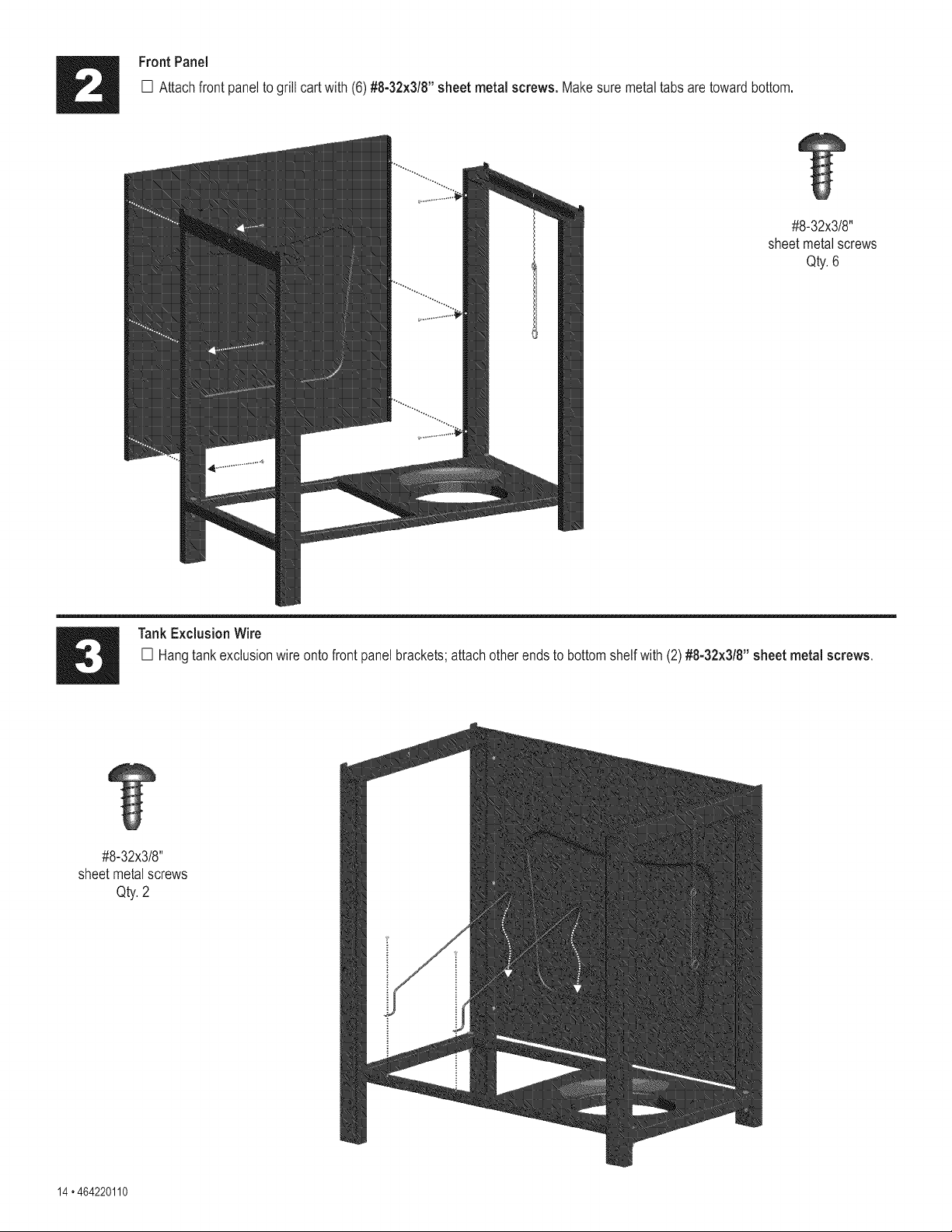

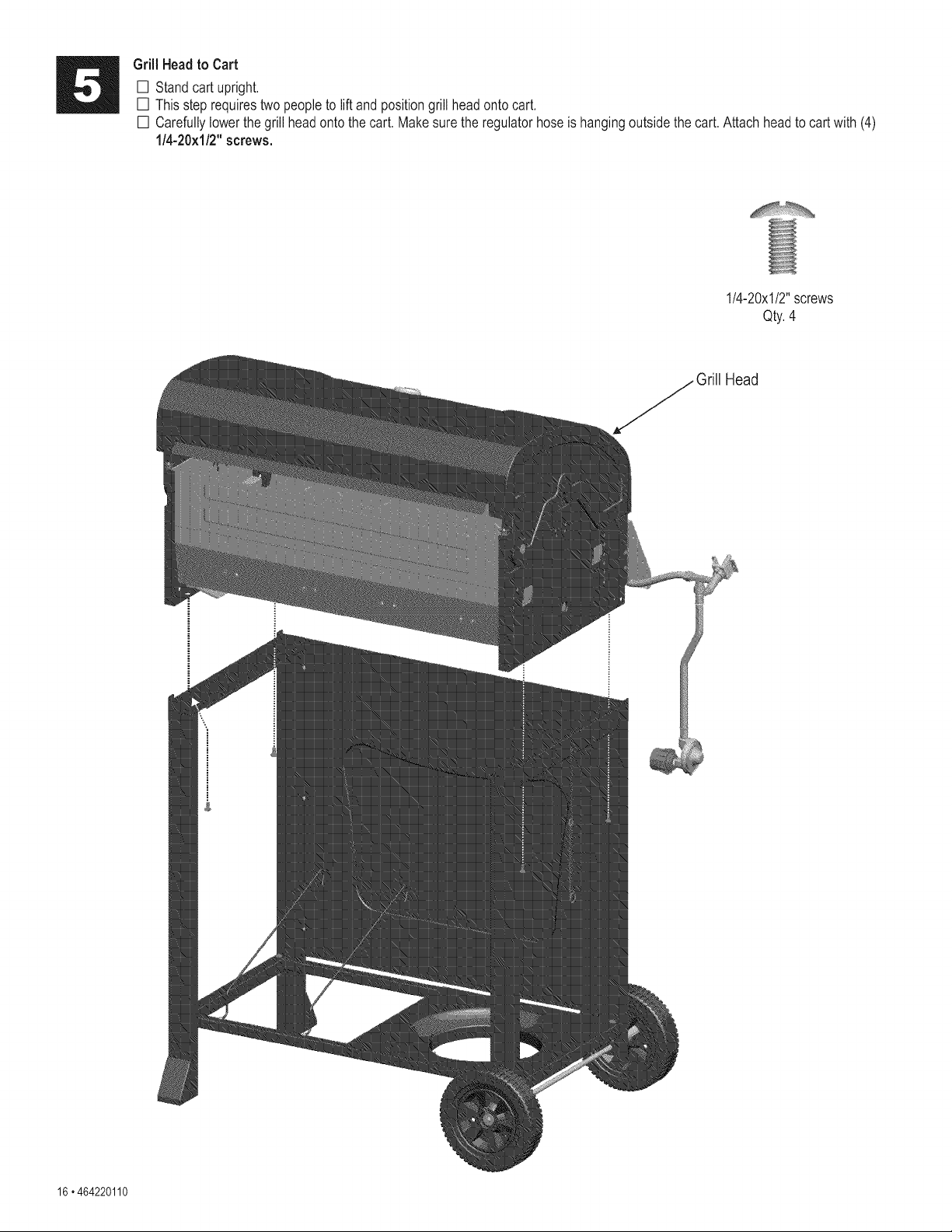

Assembly....................................... 13-22

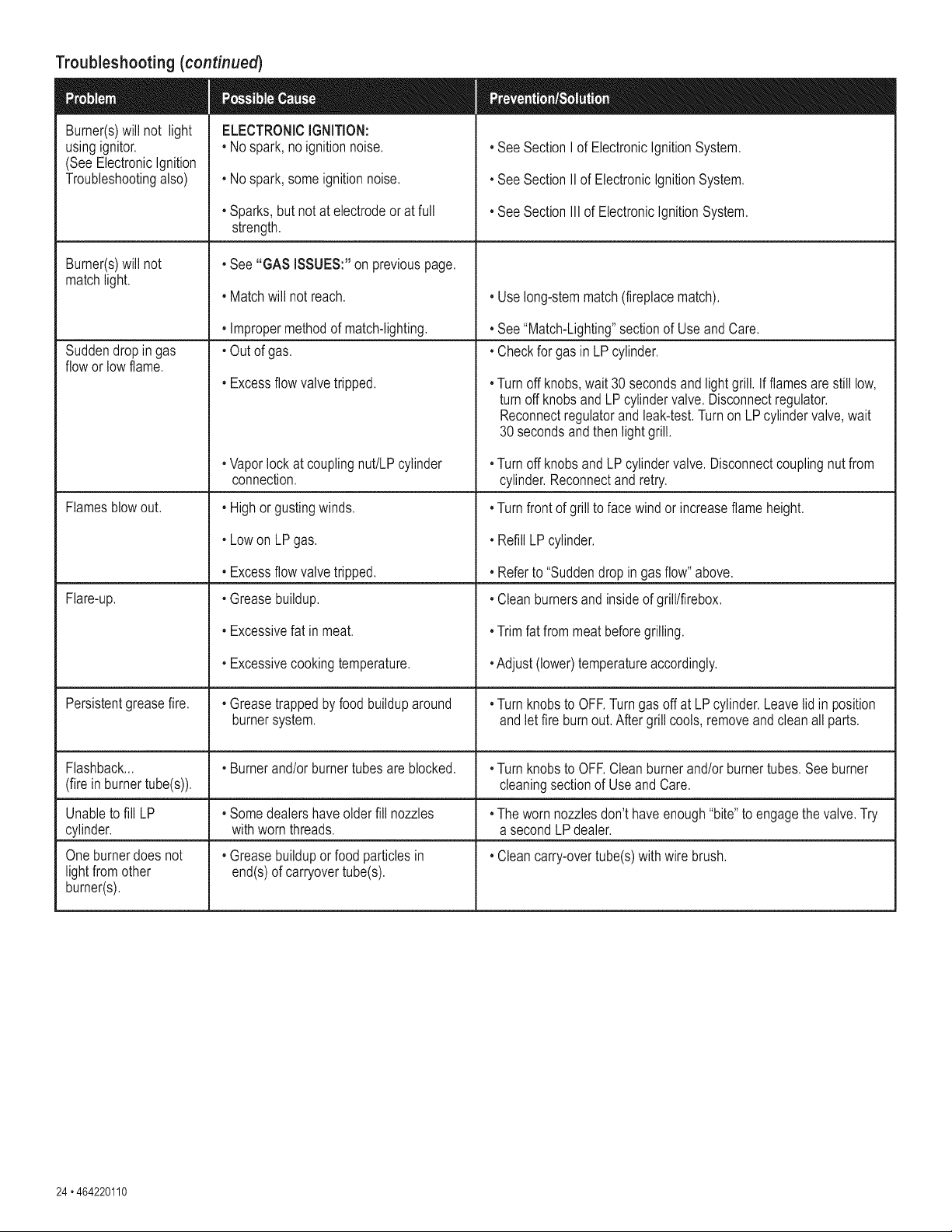

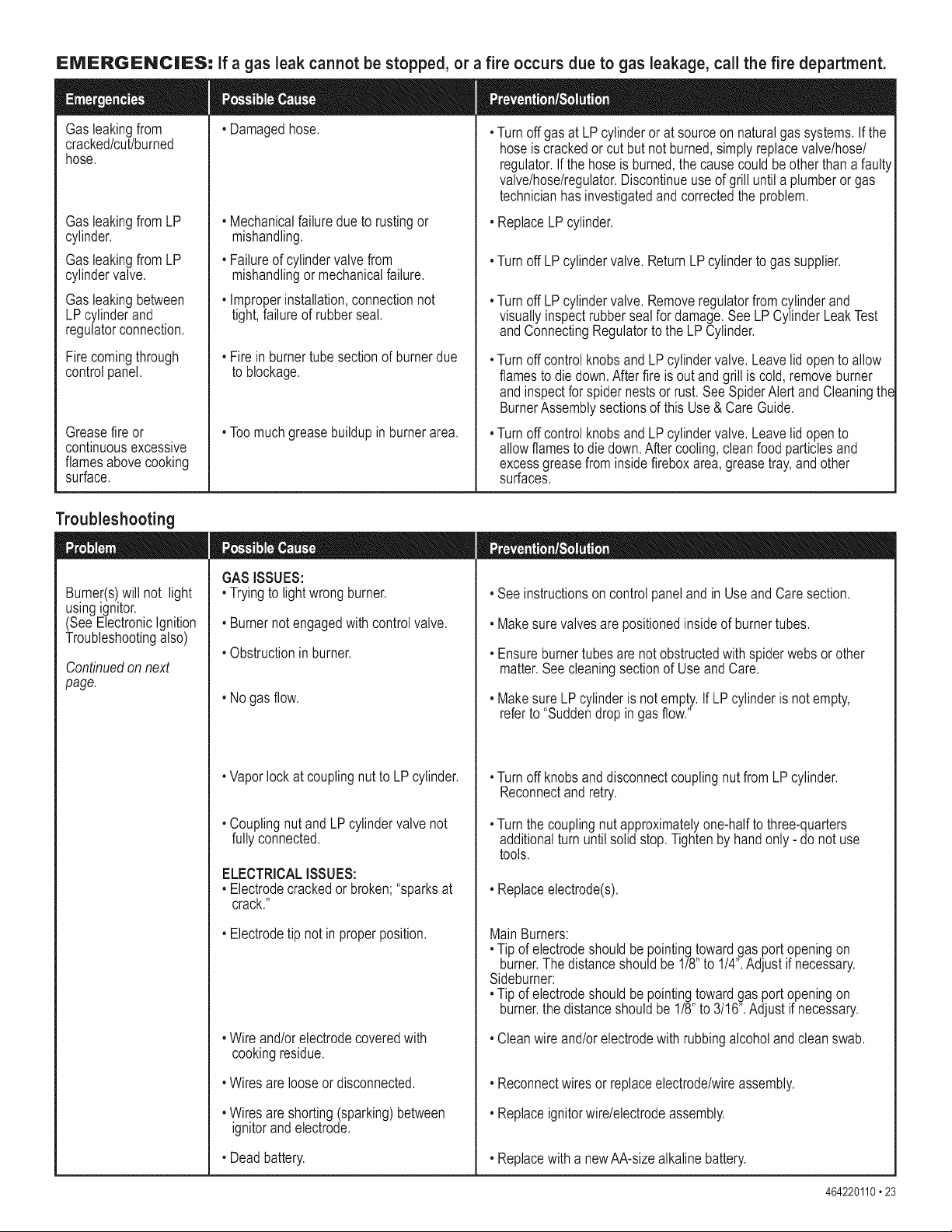

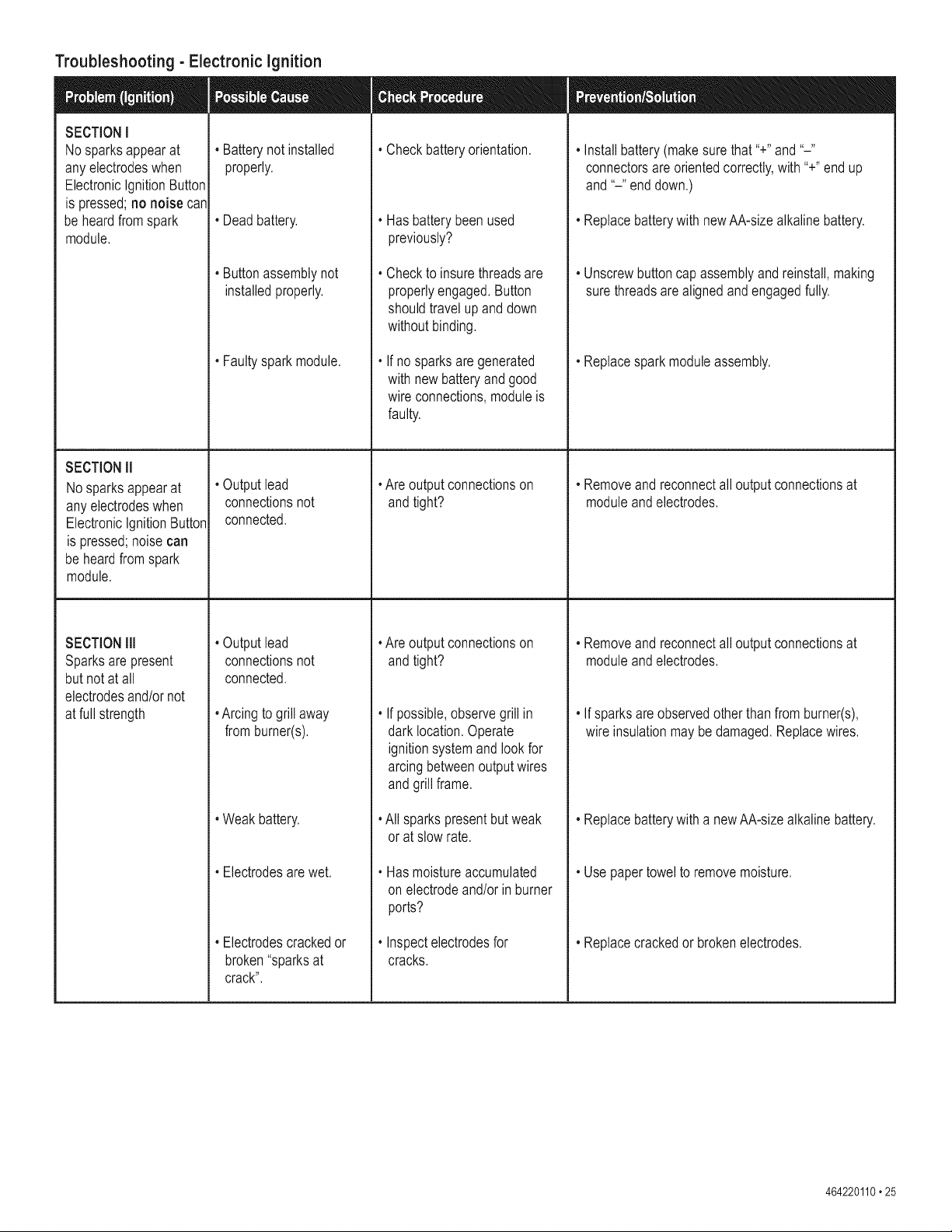

Troubleshooting.................................. 23-25
RepairProtectionAgreements
Congratulations on making a smart purchase. Your new
Kenmore®product is designed and manufactured for years of
dependable operation. But like all products, it may require repair
from time to time. That's when having a Repair Protection
Agreement can save you money and aggravation.
Here's what the Repair Protection Agreement* includes:
[] Expert service by our 10,000 professional repair specialists
[] Unlimited service and no charge for parts and labor on all
covered repairs
[] Product replacement up to $1500 if your covered product
can't be fixed
[] Discount of 10% from regular price of service and related
installed parts not covered by the agreement; also, 10% off
regular price of preventive maintenance check
[] Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative. Think of us
as a "talking owner's manual."
Once you purchase the Repair Protection Agreement, a
simple phone call is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a service
appointment online.
The Repair Protection Agreement is a risk-free purchase. If
you cancel for any reason during the product warranty period,
we will provide a full refund. Or, a prorated refund anytime after
the product warranty period expires. Purchase your Repair
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6665.
Sears installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. or Canada call 1-800-4-MY-HOME®.
KENMORE GRILL WARRANTY
One Year Full Warranty on Kenmore Grill
If this grill fails due to a defect in material or workmanship
within one year from the date of purchase, call 1-800-4-MY-
HOME®to arrange for free repair (or replacement if repair
proves impossible).
Five-Year Limited Warranty on Burners
For five years from the date of purchase, any burner that
rusts through will be replaced free of charge. After the first
year from the date of purchase, you pay for labor if you wish
to have it installed.
All warranty coverage excludes ignitor batteries and grill part
paint loss, discoloration or surface rusting, which are either
expendable parts that can wear out from normal use within
the warranty period, or are conditions that can be the result
of normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
United States.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
464220110.3

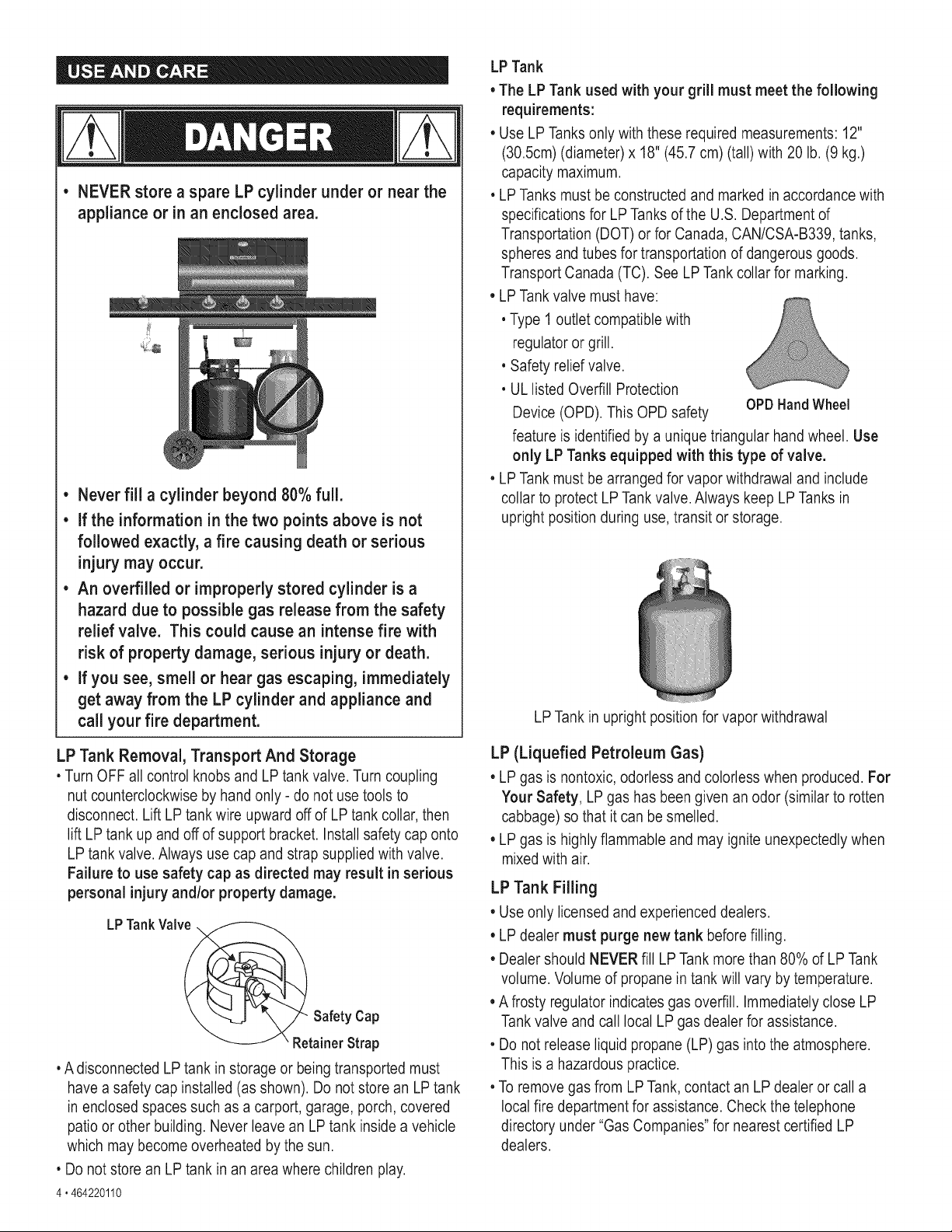

• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• If the information in the two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An overfilled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder and appliance and
call your fire department.
LP Tank Removal, Transport And Storage
• Turn OFF all control knobs and LP tank valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then
lift LP tank up and off of support bracket. Install safety cap onto
LP tank valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LPTankValve ..
Safety Cap
RetainerStrap
• A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LPtank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
• Do not store an LP tank in an area where children play.
4,464220110
LP Tank
• The LP Tank used with your grill must meet the following
requirements:
• Use LP Tanks only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
• LP Tanks must be constructed and marked in accordance with
specifications for LP Tanks of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339, tanks,
spheres and tubes for transportation of dangerous goods.
Transport Canada (TC). See LP Tank collar for marking.
• LP Tankvalve must have:
• Type 1 outlet compatible with
regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection
Device (OPD). This OPD safety OPDHandWheel
feature is identified by a unique triangular hand wheel. Use
only LP Tanks equipped with this type of valve.
• LP Tankmust be arranged for vapor withdrawal and include
collar to protect LPTank valve. Always keep LP Tanks in
upright position during use, transit or storage.
LP Tank in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when
mixedwith air.
LP Tank Filling
• Use only licensed and experienced dealers.
• LP dealer must purge new tank before filling.
• Dealer should NEVER fill LP Tank more than 80% of LP Tank
volume. Volume of propane in tank will vary by temperature.
• A frosty regulator indicates gas overfill. Immediately close LP
Tankvalve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
• To remove gas from LP Tank, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.

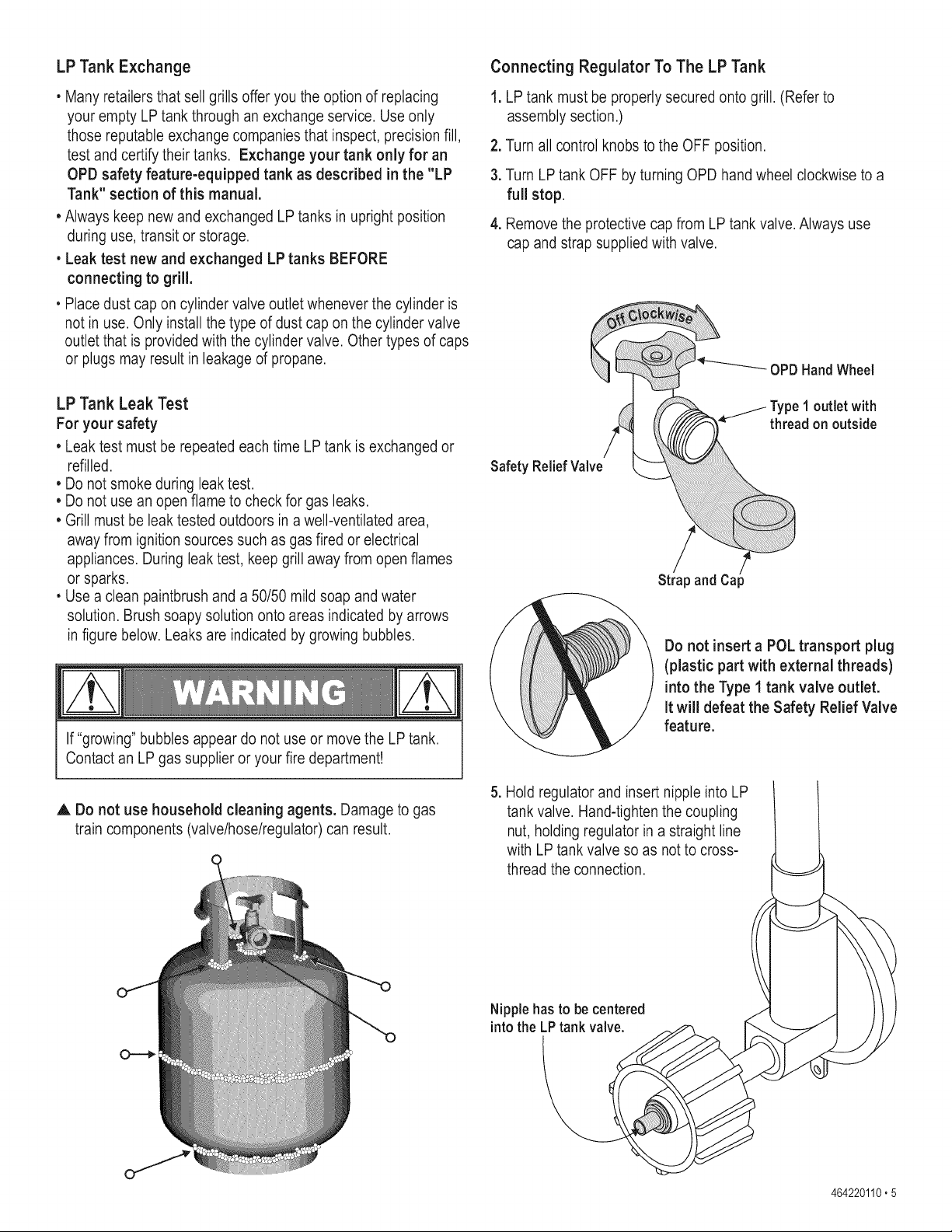

LPTank Exchange
• Many retailers that sell grills offer you the option of replacing
your empty LP tank through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their tanks. Exchange your tank only for an
OPD safety feature-equipped tank as described in the "LP
Tank" section of this manual.
• Always keep new and exchanged LP tanks in upright position
during use, transit or storage.
• Leak test new and exchanged LP tanks BEFORE
connecting to grill.
• Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps
or plugs may result in leakage of propane.
LP Tank Leak Test
For your safety
• Leak test must be repeated each time LP tank is exchanged or
refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows
in figure below. Leaks are indicated by growing bubbles.
If "growing" bubbles appear do not use or move the LP tank.
Contact an LP gas supplier or your fire department!
,& Do not use household cleaning agents. Damage to gas
train components (valve/hose/regulator) can result.
Connecting Regulator To The LP Tank
1. LP tank must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP tank OFF by turning OPD hand wheel clockwise to a
full stop.
4. Remove the protective cap from LPtank valve. Always use
cap and strap supplied with valve.
OPDHandWheel
//- Type1 outlet with
thread on outside
Safety ReliefValve
/
Strap and Cap
Do not insert a POL transport plug
(plastic part with external threads)
into the Type I tank valve outlet.
It will defeat the Safety Relief Valve
feature.
5. Hold regulator and insert nipple into LP
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LP tank valve so as not to cross-
thread the connection.
Nipple has to be centered
intothe LPtank valve.
464220110.5

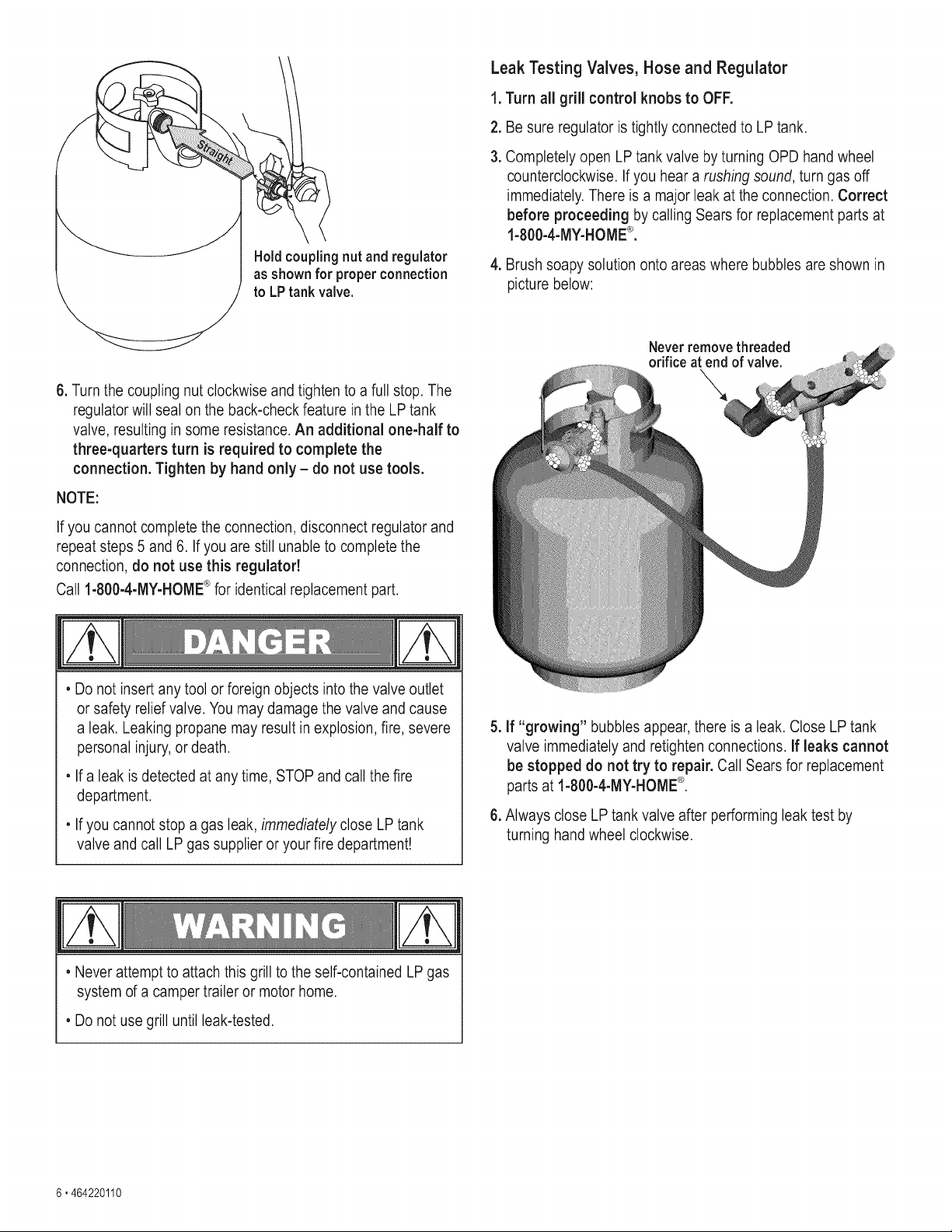

Hold coupling nutand regulator
as shownfor properconnection
to LPtank valve.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP tank.
3. Completely open LPtank valve by turning OPD hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding by calling Sears for replacement parts at
1-800-4-MY-HOME®.
4. Brush soapy solution onto areas where bubbles are shown in
picture below:
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Call ®
1-800-4-MY-HOME for identical replacement part.
/L /L
• Do not insert any tool or foreign objects into the valve outlet
or safety relief valve. You may damage the valve and cause
a leak. Leaking propane may result in explosion, fire, severe
personal injury,or death.
• If a leak is detected at any time, STOP and call the fire
department.
• If you cannot stop a gas leak, immediately close LP tank
valve and call LP gas supplier or your fire department!
Neverremove threaded
orificeat end of valve.
5. If "growing" bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks cannot
be stopped do not try to repair. Call Sears for replacement
parts at 1-800-4-MY-HOME®.
6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.
• Never attempt to attach this grill to the self-contained LP gas
system of a camper trailer or motor home.
• Do not use grill until leak-tested.
6' 464220110

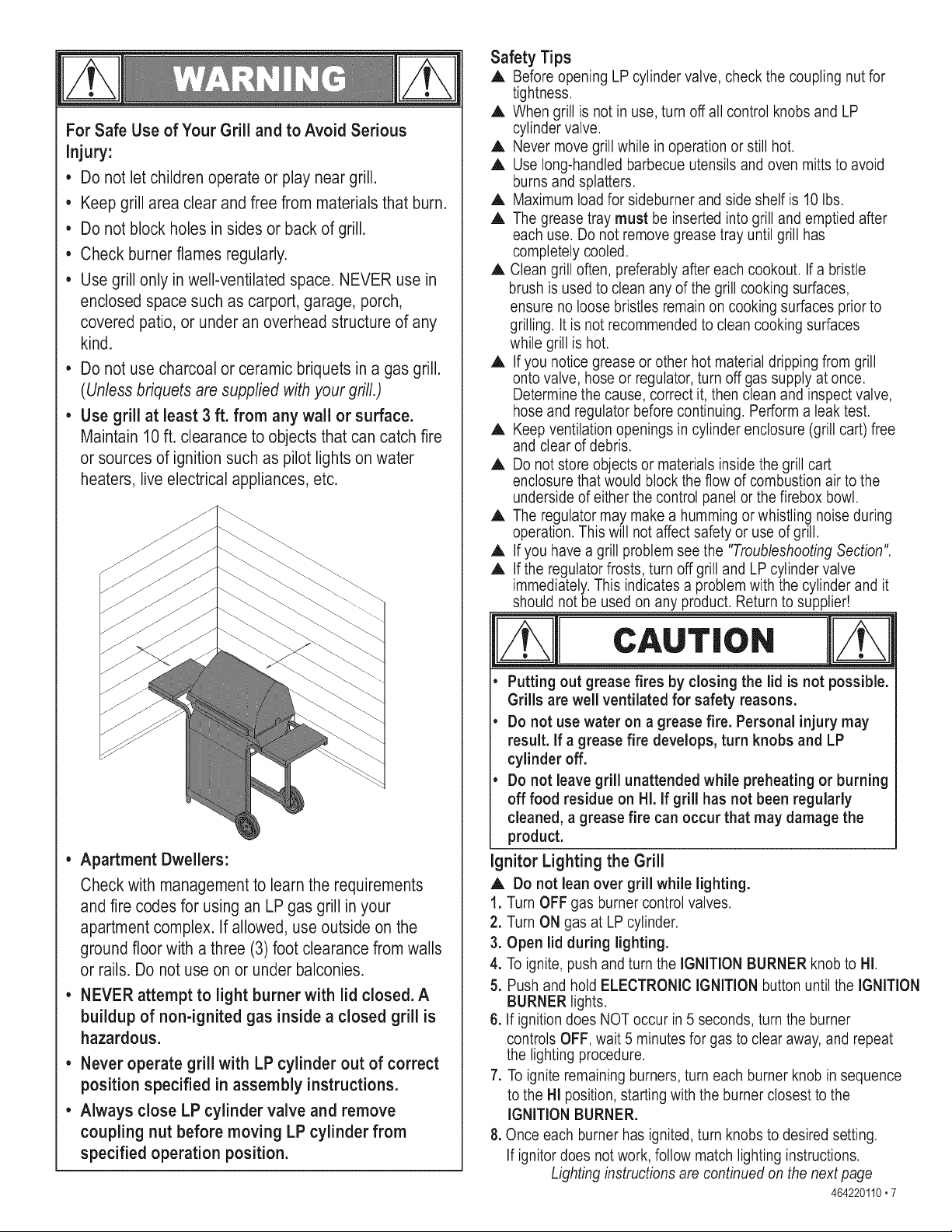

For Safe Use of YourGrill and to Avoid Serious
injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Do not block holes in sides or back of grill.
• Check burnerflames regularly.
• Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.
Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with managementto learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed.A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
positionspecified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
A Before opening LP cylinder valve, check the coupling nut for
tightness.
A When grill is not in use, turn off all control knobs and LP
cylinder valve.
,I, Never move grill while in operation or still hot.
A Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
A Maximum load for sideburner and side shelf is 10 Ibs.
A The grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
A Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
A If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
A Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
A Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
A The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
,I, If you have a grill problem see the "Troubleshooting Section".
A If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
tAuT,oN
• Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result, if a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. if grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
Ignitor Lighting the Grill
,I, Do not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2. Turn ON gas at LP cylinder.
3. Open lid during lighting.
4. To ignite, push and turn the iGNITiON BURNER knob to HI.
5. Push and hold ELECTRONIC IGNITION button until the IGNITION
BURNER lights.
6. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes for gas to clear away, and repeat
the lighting procedure.
7. To ignite remaining burners, turn each burner knob in sequence
to the HI position, starting with the burner closest to the
IGNITION BURNER.
8. Once each burner has ignited, turn knobs to desired setting.
If ignitor does not work, follow match lighting instructions.
Lighting instructions are continued on the next page
464220110,7

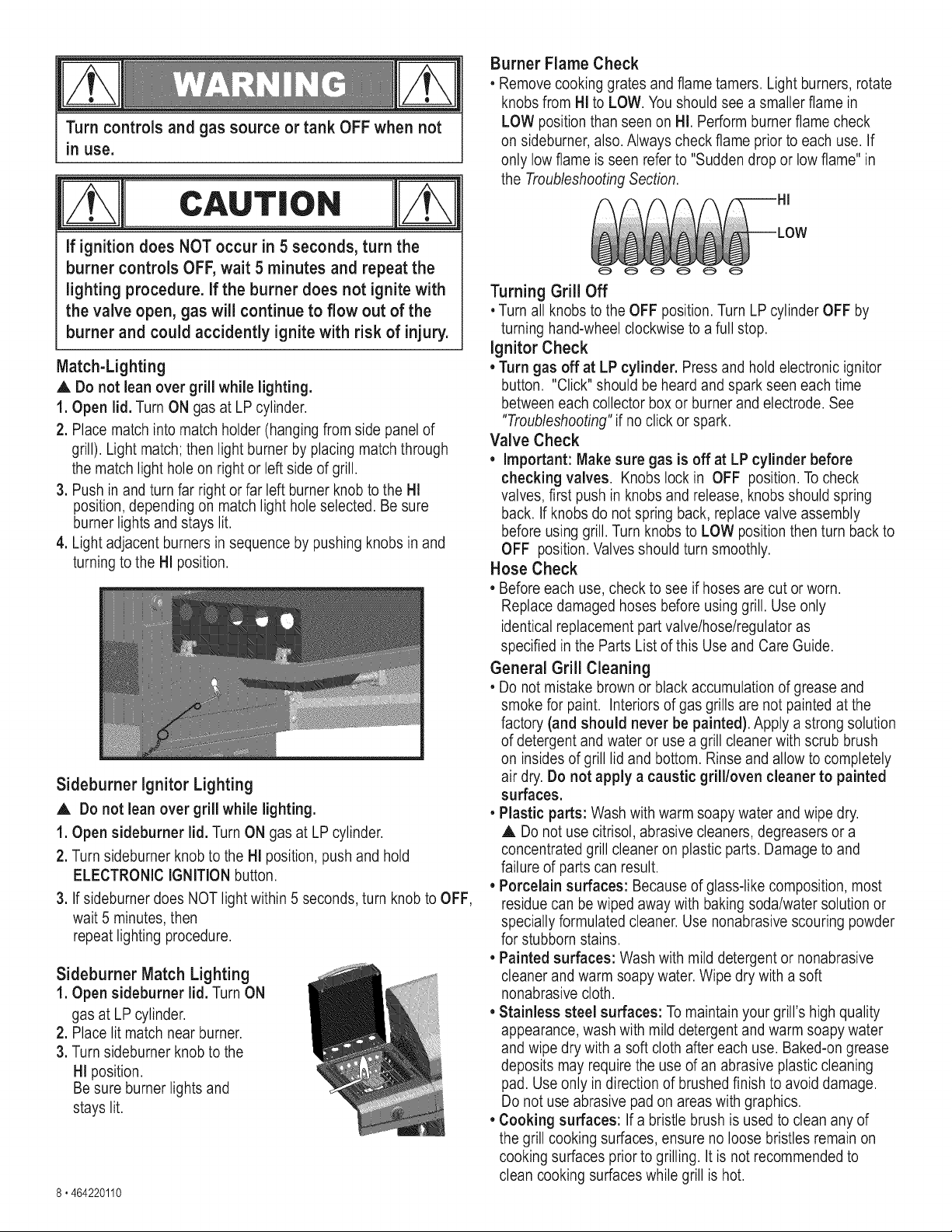

Turn controls and gas source or tank OFF when not
in use.
c.uT,o.
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure, if the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match-Lighting
A Do not lean over grill while lighting.
1. Open lid. Turn ON gas at LP cylinder.
2. Place match into match holder (hanging from side panel of
grill). Light match; then light burner by placing match through
the match light holeon right or left side of grill.
3. Push in and turn far right or far left burner knob to the HI
position, depending on match light hole selected. Be sure
burner lights and stays lit.
4. Light adjacent burners in sequence by pushing knobs in and
turning to the HI position.
Sideburner ignitor Lighting
,A Do not lean over grill while lighting.
1. Open sideburner lid. Turn ON gas at LP cylinder.
2. Turn sideburner knob to the Hi position, push and hold
ELECTRONIC IGNITION button.
3. Ifsideburner does NOT light within 5 seconds, turn knob to OFF,
wait 5 minutes, then
repeat lighting procedure.
Sideburner Match Lighting
1. Open sideburner lid. Turn ON
gas at LP cylinder.
2. Place lit match near burner.
3. Turn sideburner knob to the
HI position.
Be sure burner lights and
stays lit.
8' 464220110
Burner Flame Check
• Remove cooking grates and flame tamers. Light burners, rotate
knobs from HI to LOW. Youshould see a smaller flame in
LOW position than seen on HI. Perform burner flame check
on sideburner, also.Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
Turning Grill Off
• Turn all knobs to the OFF position. Turn LP cylinder OFF by
turning hand-wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between each collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
• important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in OFF position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
OFF position. Valves should turn smoothly.
Hose Check
• Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
identical replacement part valve/hose/regulator as
specified in the Parts List of this Use and Care Guide.
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
,A.Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill's high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.
cAuTioN
f

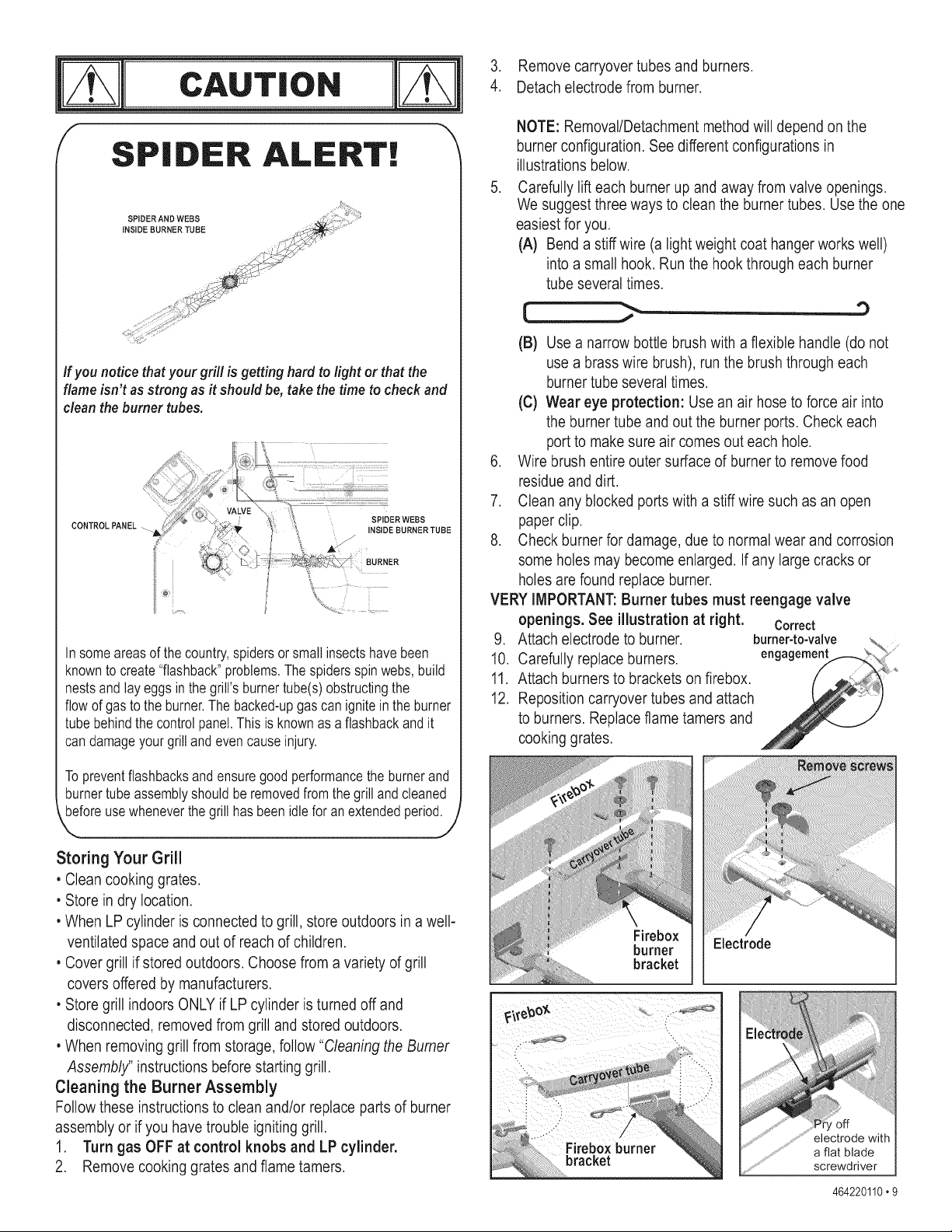

SPIDER ALERT!
If you notice that your grill is getting hard to light or thatthe
flame isn't as strong as it should be, takethe time to check and
clean the burner tubes.
CONTROLPANEL
iiiiiiii
SPIDERWEBS
INSIDE BURNER TUBE
BURNER
'k _ i!
In someareasof the country,spidersor small insectshavebeen
knownto create"flashback"problems.The spidersspinwebs,build
nestsand layeggs inthe grill'sburnertube(s)obstructingthe
flowof gasto the burner.The backed-upgascan igniteinthe burner
tubebehindthecontrolpanel.This is knownas a flashbackand it
candamageyourgrill andevencauseinjury.
Topreventflashbacksandensuregoodperformancethe burnerand
burnertubeassemblyshouldbe removedfromthe grill and cleaned
beforeusewheneverthe grill hasbeenidlefor anextendedperiod.
\ J
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturers.
• Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.
• When removing grill from storage, follow "Cleaning the Burner
Assembly" instructions before starting grill.
Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas OFF at control knobs and LP cylinder,
2. Remove cooking grates and flame tamers.
3. Remove carryover tubes and burners.
4. Detach electrode from burner.
,
NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.
Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hangerworks well)
into a small hook. Run the hook through each burner
tube several times.
r.,_,,.,. -__-
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT:Burner tubes must reengage valve
openings. See illustration at right. Correct
9. Attach electrode to burner, burner-to-valve
10. Carefully replace burners, enc
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Firebox
burner
bracket
Electrode
screwdriver
464220110.9

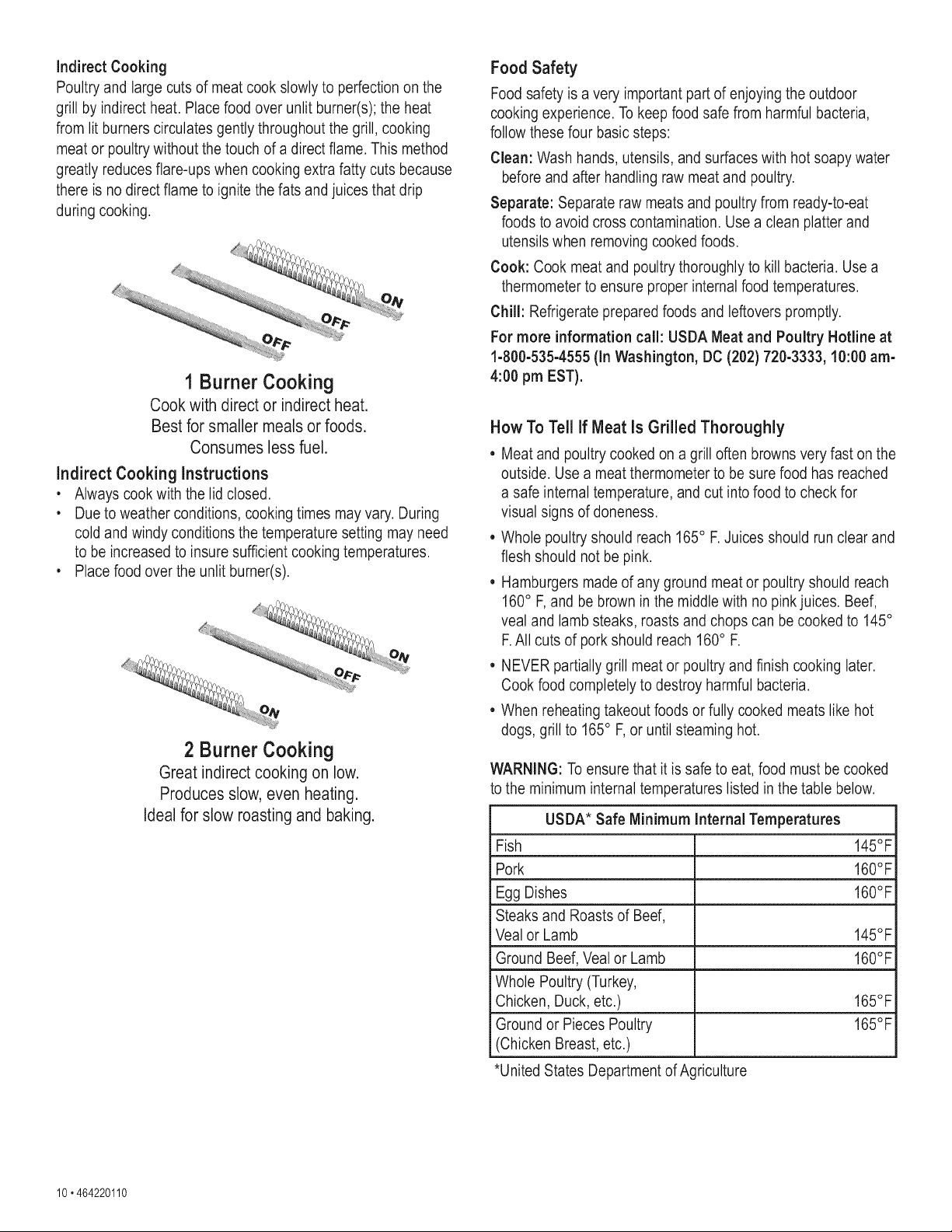

Indirect Cooking
Poultry and large cuts of meat cook slowly to perfection on the
grill by indirect heat. Place food over unlit burner(s); the heat
from lit burners circulates gently throughout the grill, cooking
meat or poultry without the touch of a direct flame. This method
greatly reduces flare-ups when cooking extra fatty cuts because
there is no direct flame to ignite the fats and juices that drip
during cooking.
1 Burner Cooking
Cook with direct or indirect heat.
Best for smaller meals or foods.
Consumes less fuel.
Indirect Cooking Instructions
• Always cook with the lid closed.
• Due to weather conditions, cooking times may vary. During
cold and windy conditions the temperature setting may need
to be increased to insure sufficient cooking temperatures.
• Place food over the unlit burner(s).
2 Burner Cooking
Great indirect cooking on low.
Produces slow, even heating.
Ideal for slow roasting and baking.
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Use a clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.
For more information call: USDA Meat and Poultry Hotline at
1-800-535-4555 (in Washington, DC (202) 720-3333, 10:00 am-
4:00 pm EST).
How To Tell If Meat Is Grilled Thoroughly
* Meat and poultry cooked on a grill often browns very fast on the
outside. Use a meat thermometer to be sure food has reached
a safe internal temperature, and cut into food to check for
visual signs of doneness.
* Whole poultry should reach 165° F.Juices should run clear and
flesh should not be pink.
* Hamburgers made of any ground meat or poultry should reach
160° F, and be brown in the middle with no pink juices. Beef,
veal and lamb steaks, roasts and chops can be cooked to 145°
F.All cuts of pork should reach 160° F.
* NEVER partially grill meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
* When reheating takeout foods or fully cooked meats like hot
dogs, grill to 165° F, or until steaming hot.
WARNING: To ensure that it is safe to eat, food must be cooked
to the minimum internal temperatures listed in the table below.
USDA* Safe Minimum Internal Temperatures
Fish 145°F
Pork 160°F
Egg Dishes 160°F
Steaks and Roasts of Beef,
Veal or Lamb 145°F
Ground Beef, Veal or Lamb 160°F
Whole Poultry (Turkey,
Chicken, Duck, etc.) 165°F
Ground or Pieces Poultry 165°F
(Chicken Breast, etc.)
*United States Department ofAc riculture
10.464220110
1 1 LEFT LEGASSEMBLY G550-0700-W1
2 1 MATCHHOLDER G401-0079-W1
3 1 RIGHT LEGASSEMBLY G550-1000-W1
4 1 BOTTOM SHELF G550-0800-W1
5 1 FRONT PANEL G550-0900-W1
6 2 TANKEXCLUStONWIRE G550-0004-W1
7 1 AXLE ROD G550-0009-W1
8 2 WHEEL G401-0058-W1
9 2 LEG EXTENDER G430-0023-W1
10 1 TOP LID G550-0100-W1
11 1 LOGOPLATE G528-0002-W2
12 1 TEMPERATUREGAUGE G430-0022-W1
13 1 iBEZEL,F/TEMPERATUREGAUGE G404-0034-W1
14 1 HANDLEF/TOP LID G550-0001-W1
15 2 SILICONERUBBERBUMPER, G430-00B8-W1
iF/MAIN LID
16 2 SILICONEREARRUBBERBUMPER, G303-0038-W1
iF/MAIN LID
17 1 TOP LIDHARDWARE G430-0024-W1
18 1 FIREBOX G550-0300-W1
19 4 iMAIN BURNERTUBE, G430-3800-W2
NOELECTRODE
20 1 ELECTRODE,MAINBURNER G501-0010-W2
21 3 FLAMECARRYOVERTUBE G413-0004-W2
22 1 MAINCONTROLPANEL G550-0003-W1
23 1 ELECTRONICIGNITIONMODULE G409-0021-W1
24 1 HOSEVALVEREGULATOR G550-5200-W1
25 5 iBEZEL,F/CONTROL KNOB G430-0027-W1
26 5 CONTROLKNOB G432-0010-W1
27 1 RIGHTSIDESHELF G550-0400-W1
28 1 iFASClA,F/RIGHT SHELF G550-5301-W1
29 1 StDEBURNERSHELF G550-0500-W1
30 1 iDRIPPAN,F/StDEBURNER G430-0034-W2
31 1 StDEBURNERLID G430-0018-W1
32 1 iFASClA,F/StDEBURNERSHELF G550-5401-W1
33 1 StDEBURNER G550-5600-W1
34 1 ELECTRODE,F/StDEBURNER G430-0042-W1
35 1 IGNITORWIRE,F/StDEBURNER G430-5303-W1
36 1 CLIPF/StDEBURNER G405-0019-W1
37 1 StDEBURNERGRID G430-0053-W1
38 1 iSHIELD,HEAT,FIREBOX G550-5104-W1
39 4 HEATDIFFUSER G550-0006-W1
40 2 COOKINGGRATE G550-0200-W1
41 1 SWINGAWAYGRATE G550-0002-W1
42 1 BUTTON,F/EIMODULE G409-0030-W1
43 1 CLIP,F/GREASECUP G305-0043-W1
44 1 GREASECUP G430-0033-W1
45 1 GREASETRAY G550-1100-W1
46 1 TANKTHUMBSCREW G430-C001-W2
Not Pictured
... 1 PRODUCTMANUAL,ENGLISH G550-010801-W1
... 1 PRODUCTMANUAL,SPANISH G550-010802-W1
... 1 HARDWAREPACK G55001-B001-W1
if you are missing hardware or have damaged parts
after unpacking grill, call 1-800-241-7548 for
replacement,
To order replacement parts after using grill, call
1-800-4-MY-HOME ®.
464220110,11
/
®
//
@
\
@
\
\
@
_2"464220_0

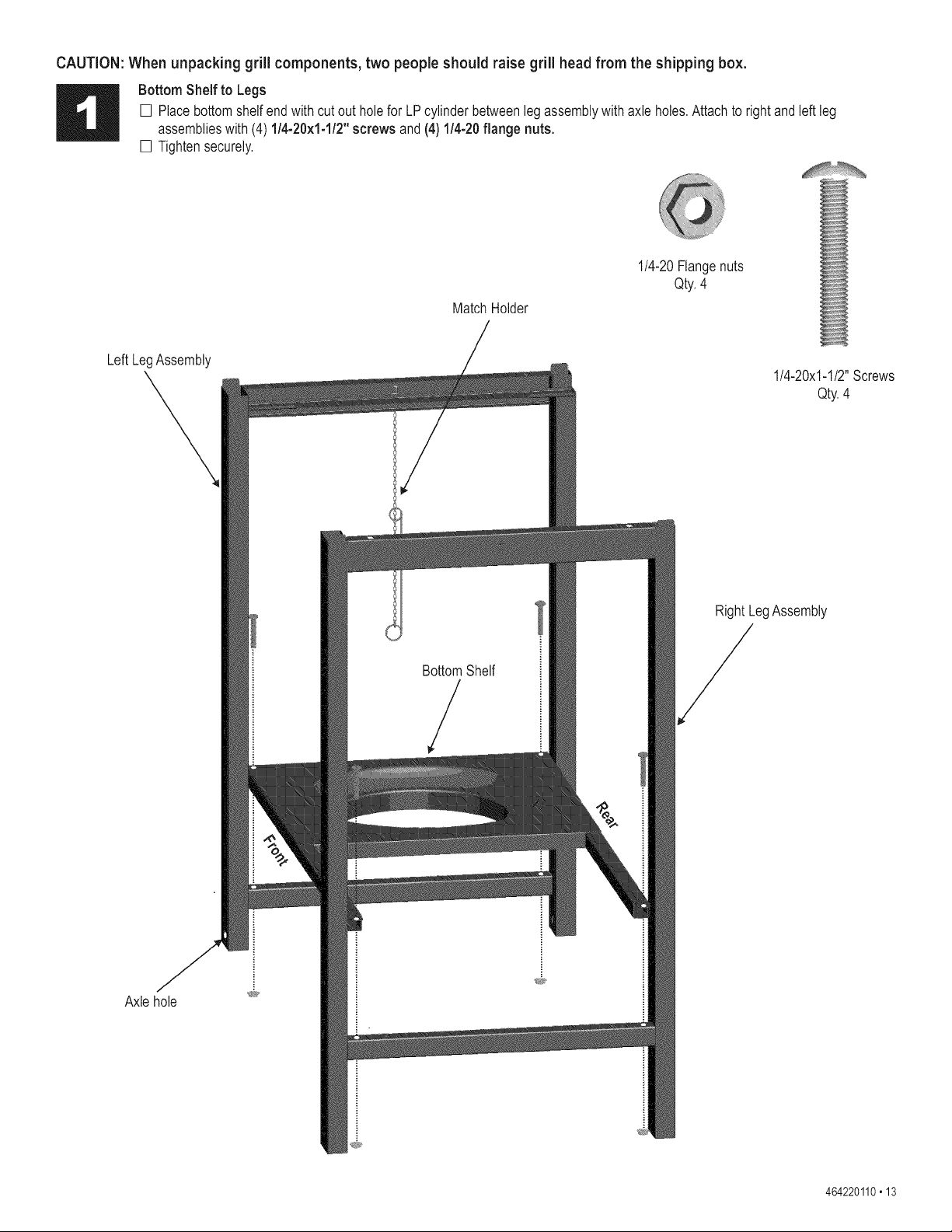

CAUTION: When unpacking grill components, two people should raise grill head from the shipping box.
Bottom Shelf to Legs
[] Placebottomshelfendwith cut out holefor LPcylinderbetweenleg assemblywith axle holes.Attachto rightandleft leg
assemblieswith (4) 1/4-20x1-1/2"screws and(4) 1/4-20flange nuts.
[] Tightensecurely.
MatchHolder
1/4-20Flangenuts
Qty.4
LeftLegAssembly
Axlehole
BottomShelf
/
1/4-20x1-1/2"Screws
Qty.4
RightLegAssembly
464220110'13
Front Panel
[] Attachfront panelto grillcartwith (6) #8-32x3/8"sheet metal screws. Makesure metaltabs aretowardbottom.
#8-32x3/8"
sheetmetalscrews
Qty.6
D Tank ExclusionWire
[] Hangtank exclusionwire ontofront panelbrackets;attachotherendsto bottomshelfwith(2)#8-32x3/8"sheet metal screws.
#8-32x3/8"
sheetmetalscrews
Qty.2
14 °464220110

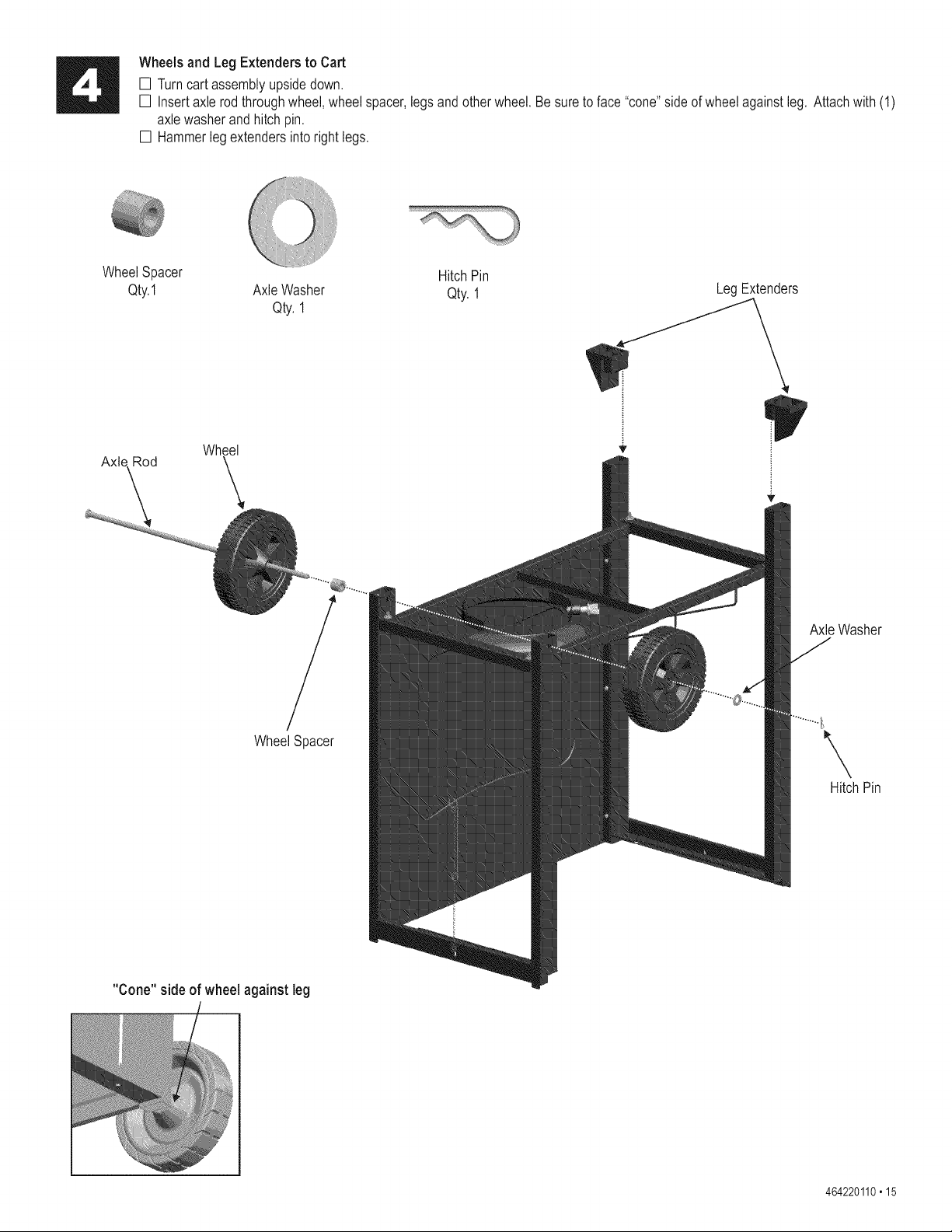

Wheelsand LegExtenders to Cart
[] Turncartassemblyupsidedown.
[] Insertaxlerodthroughwheel,wheelspacer,legsand otherwheel.Besureto face "cone"sideof wheelagainstleg. Attachwith (1)
axlewasherandhitchpin.
[] Hammerleg extendersinto rightlegs.
WheelSpacer HitchPin
Qty.1 AxleWasher Qty. 1 LegExtenders
Qty.1
Rod
Wheel
\
WheelSpacer
Axle Washer
HitchPin
"Cone" side of wheelagainst leg
464220110.15
Grill Headto Cart
[] Standcart upright.
[] Thissteprequirestwopeopleto liftand positiongrillhead ontocart.
[] Carefullylowerthe grillheadontothe cart. Makesurethe regulatorhoseis hangingoutsidethecart.Attach headto cartwith (4)
1/4-20×1/2"screws.
1/4-20xlt2"screws
Qty.4
.Grill Head
16 '464220110

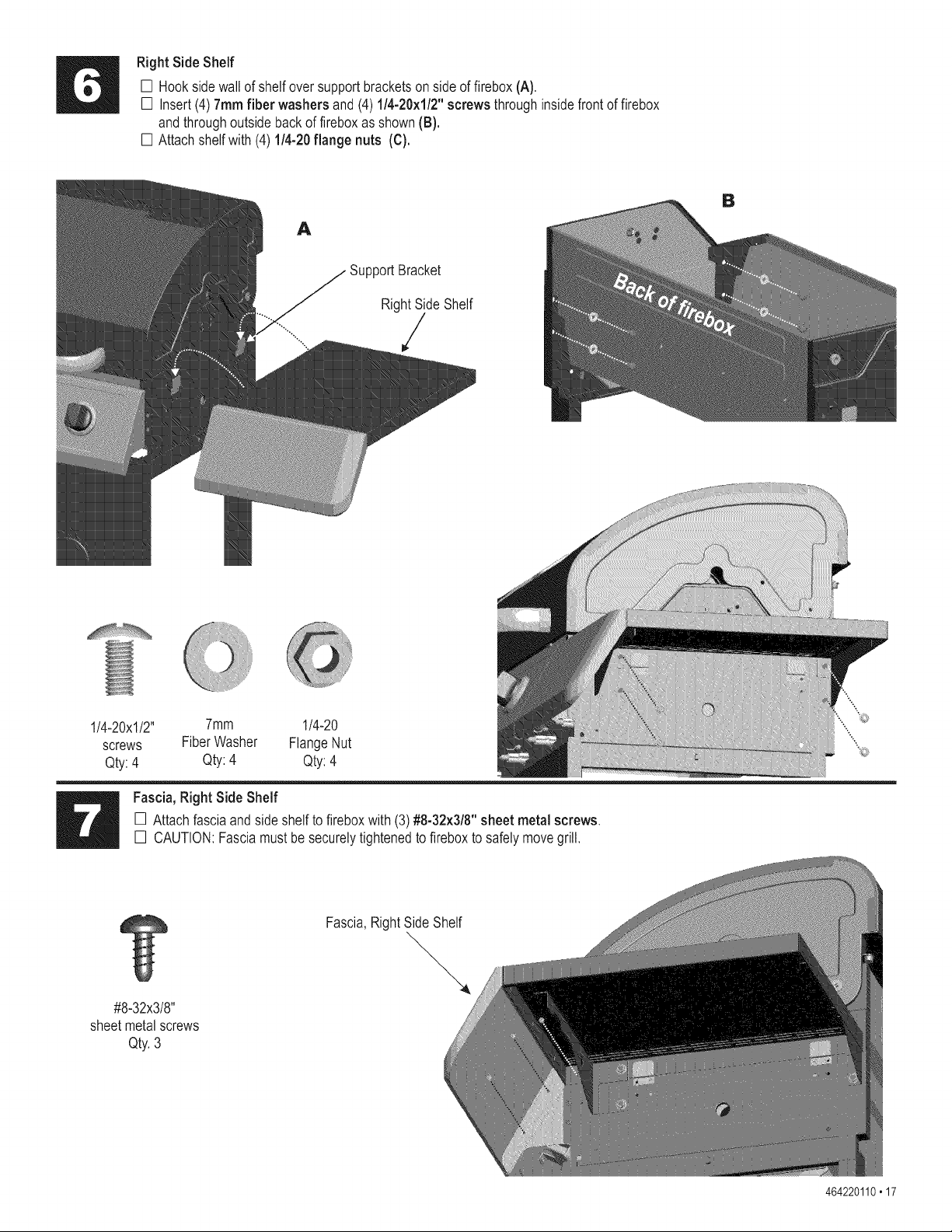

Right Side Shelf
[] Hooksidewall of shelf oversupportbracketson sideof firebox (A).
[] Insert(4)7ramfiber washers and (4) 1/4-20x1/2"screws throughinsidefrontof firebox
andthroughoutsidebackof fireboxas shown(B).
[] Attachshelfwith (4)1/4-20flange nuts (C).
SupportBracket
RightSideShelf
/
1/4-20xl/2" 7mm 1/4-20
screws FiberWasher FlangeNut
Qty:4 Qty:4 Qty:4
D Fascia, Right Side Shelf
[] Attachfasciaand side shelfto fireboxwith (3) #8-32x3/8"sheet metalscrews.
[] CAUTION:Fasciamustbesecurelytightenedto fireboxto safelymovegrill.
#8-32x3/8"
sheetmetalscrews
Qty.3
Fascia,RightSideShelf
464220110.17

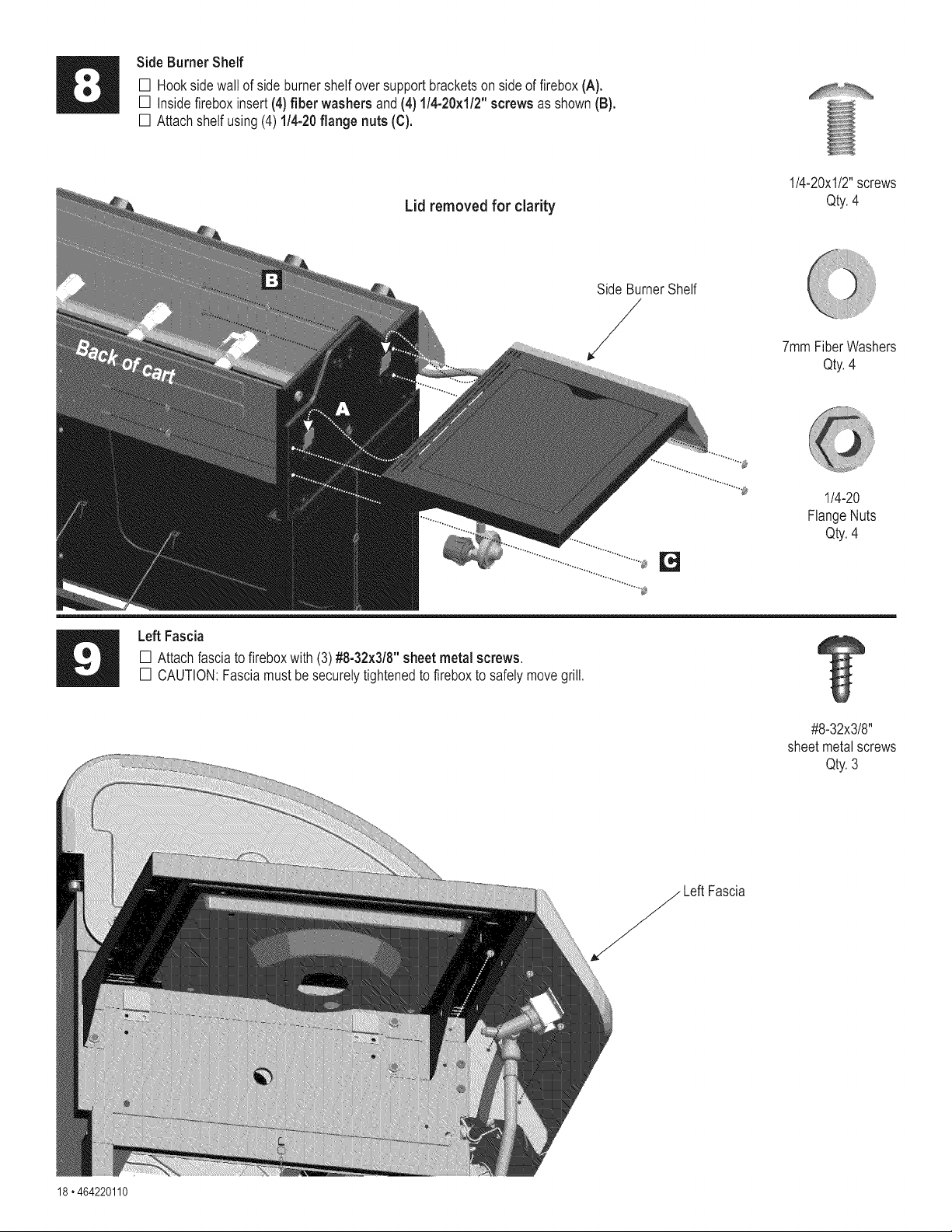

Side Burner Shelf
[] Hooksidewall of sideburnershelf oversupportbracketson sideof firebox(A).
[] Insidefireboxinsert(4)fiber washers and (4)1/4-20x1/2"screws as shown(B).
[] Attachshelf using(4)1/4-20flange nuts (C).
Lid removed for clarity
SideBurnerShelf
/
¢
1/4-20xlt2" screws
Qty.4
7mmFiberWashers
Qty.4
1/4-20
FlangeNuts
Qty.4
Left Fascia 1_
[] Attachfasciato fireboxwith (3)#8-32x3/8"sheet metal screws.
[] CAUTION:Fasciamustbesecurelytightenedto fireboxto safelymovegrill.
#8-32x3/8"
sheetmetalscrews
Qty.3
Fascia
18 °464220110

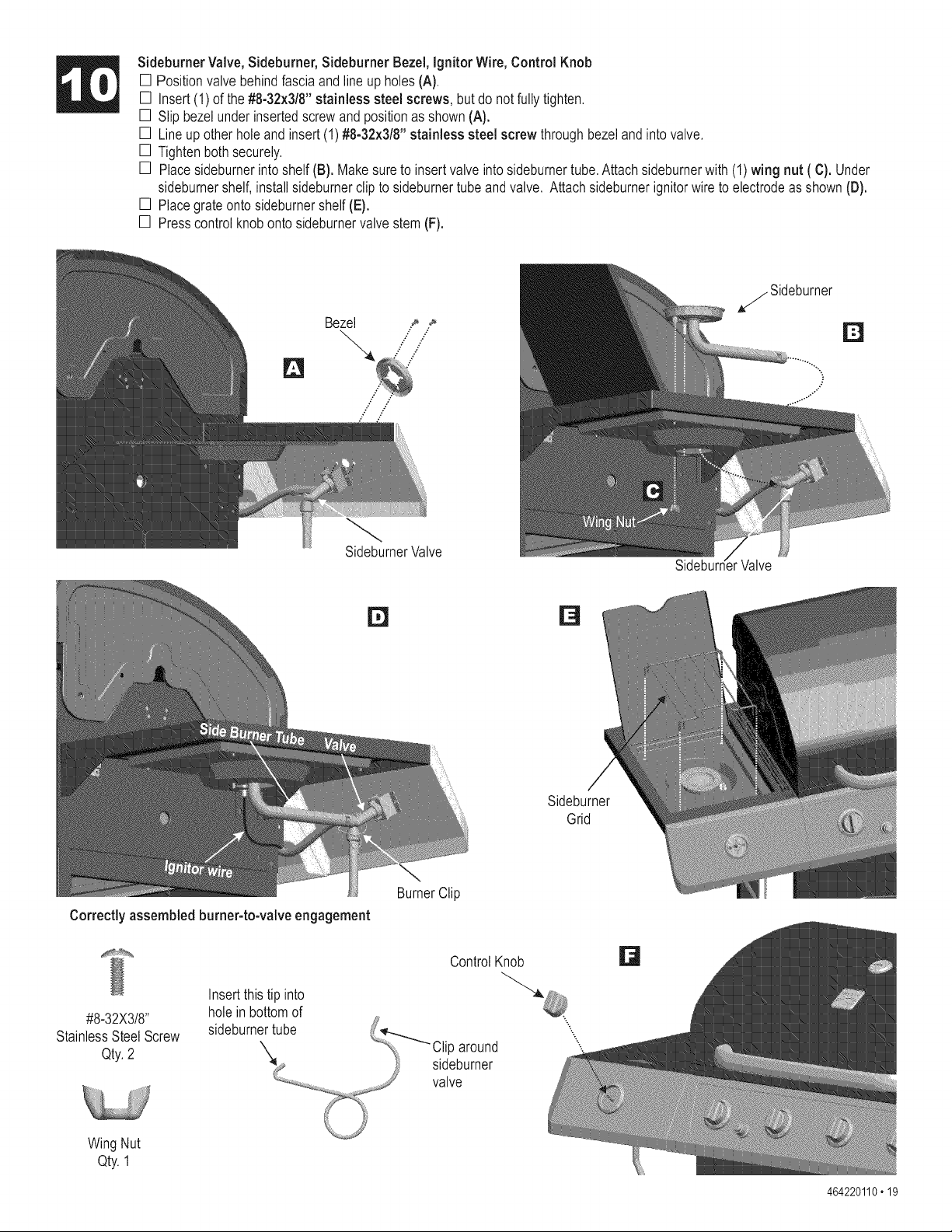

SideburnerValve, Sideburner,Sideburner Bezel,ignitorWire, Control Knob
[] Positionvalve behindfasciaand lineupholes(A).
[] Insert(1) of the#8-32x3/8"stainless steel screws, butdo notfullytighten.
[] Slipbezelunder insertedscrewand )ositionas shown(A).
[] Lineup otherholeand insert(1) #8-32x3/8"stainless steel screw throughbezelandinto valve.
[] Tightenbothsecurely.
[] Placesidebumerintoshelf (B). Makesureto insertvalveintosideburnertube.Attachsideburnerwith(1)wing nut (C). Under
sideburnershelf,installsideburnerclip to sidebumertube andvalve. Attachsideburnerignitorwire to electrodeasshown(D).
[] Placegrateontosideburnershelf(E).
[] Presscontrolknobontosideburnervalvestem (F).
Bezel _
SideburnerValve
j Sideburner
,_rValve
El El
Sideburner
Grid
Correctly assembled burner-to-valveengagement
BurnerClip
#8-32X3/8"
StainlessSteelScrew
Qty.2
WingNut
Qty.1
ControlKnob
Insertthistip into
holein bottomof
sideburnertube _.j_
'X¢_ Cliparound
_ _id_urner
464220110,19

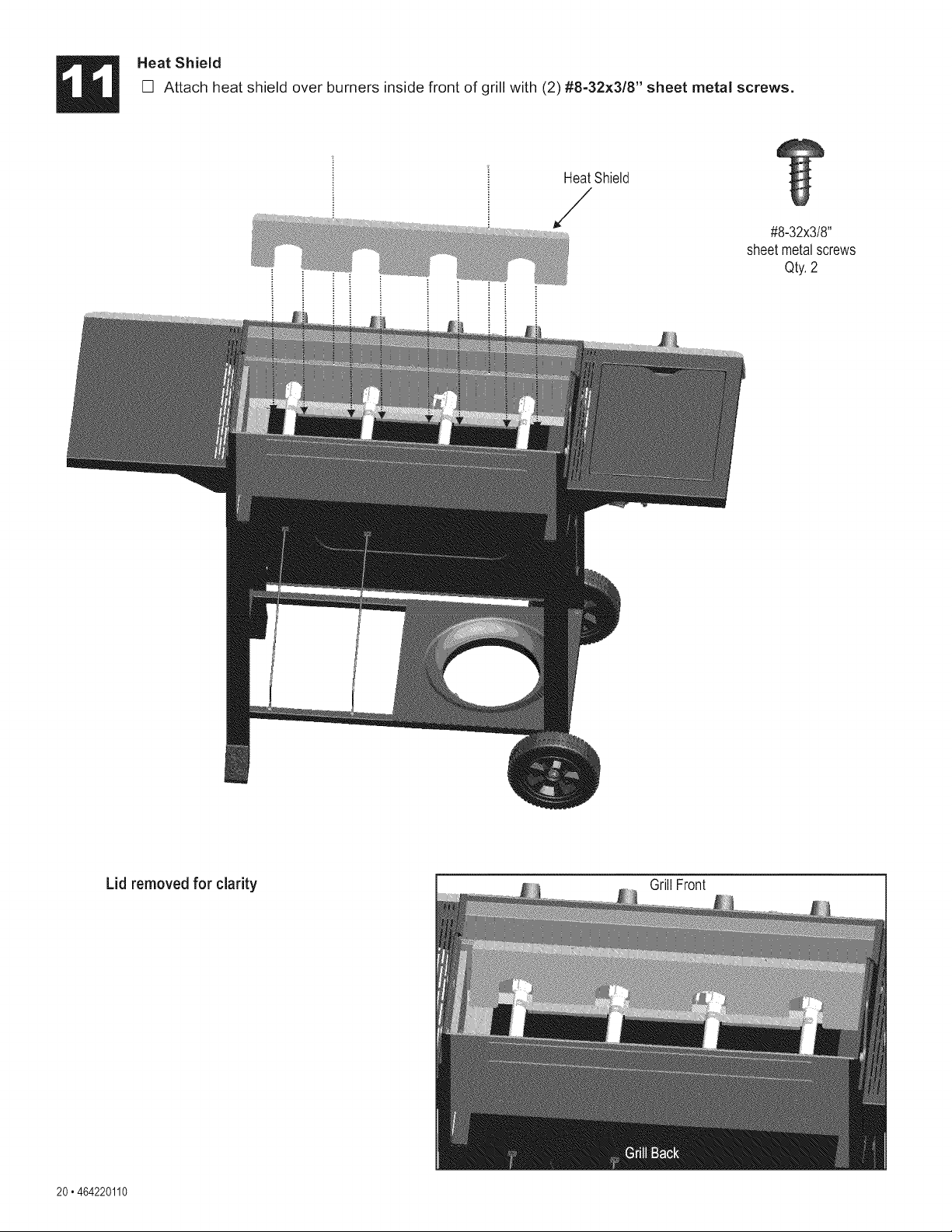

Heat Shield
[] Attach heat shield over burners inside front of grill with (2) #8=32×3/8" sheet metal screws.
HeatShield
/
#8-32x3/8"
sheetmetalscrews
Qty.2
Lid removed for clarity
GrillFront
20,464220110

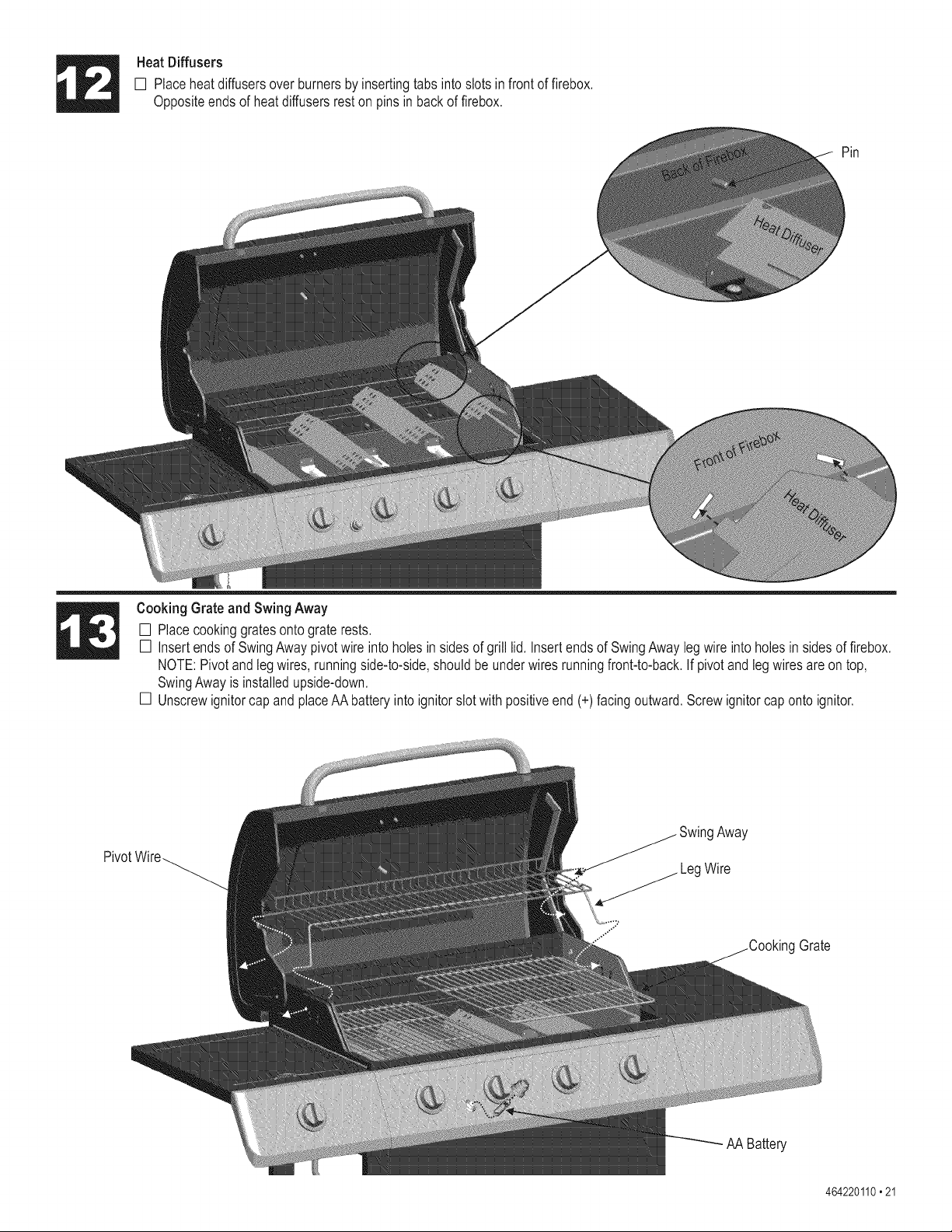

HeatDiffusers
[] Placeheatdiffusersoverburnersbyinsertingtabsinto slotsin frontof firebox.
Oppositeends of heatdiffusersrest on pinsin backof firebox.
Pin
Cooking Grateand Swing Away
[] Placecookinggratesonto graterests.
[] Insertendsof SwingAwaypivotwireinto holesinsidesof grill lid. Insertendsof SwingAway legwire intoholesin sidesof firebox.
NOTE:Pivotandleg wires,runningside-to-side,shouldbeunderwiresrunningfront-to-back.If pivotand legwiresareon top,
SwingAwayis installedupside-down.
[] Unscrewignitorcapand placeAA batteryinto ignitorslotwithpositiveend (+)facingoutward.Screw ignitorcaponto ignitor.
Away
PivotWire..._ LegWire
Grate
AABattery
464220110.21

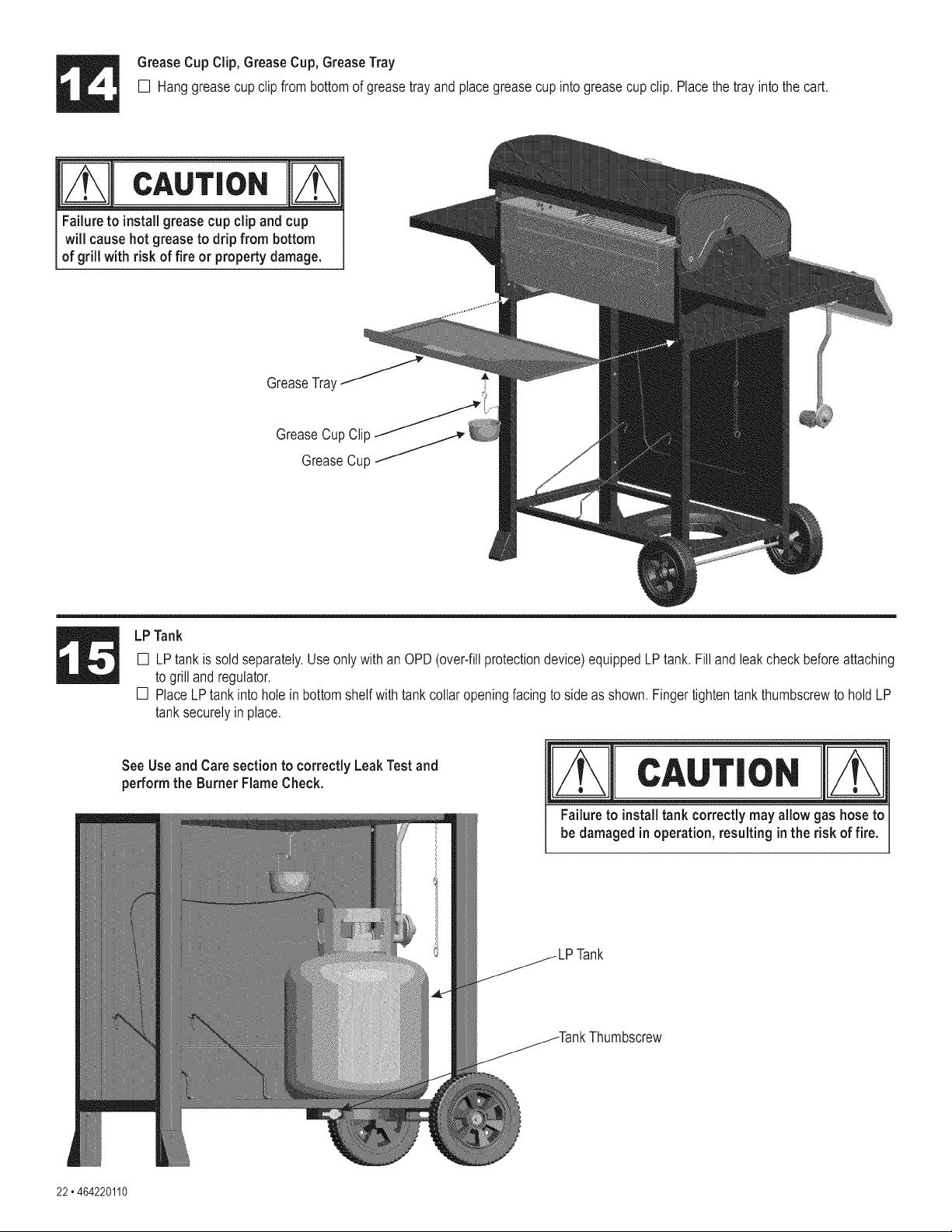

GreaseCup Clip,GreaseCup, GreaseTray
[] Hanggreasecup clipfrom bottomof greasetrayandplacegreasecup intogreasecup clip.Placethe tray into thecart.
cAuTioN
Failureto installgreasecupclip and cup
willcause hot greaseto drip from bottom
of grill with risk of fire or property damage.
GreaseTray
GreaseCupClip
GreaseCup
LP Tank
[] LPtankis soldseparately Useonlywithan OPD(over-fillprotectiondevice)equippedLPtank Filland leakcheckbeforeattaching
to grillandregulator
[] PlaceLPtankinto holeinbottomshelfwithtank collaropeningfacingto side as shown.Fingertightentankthumbscrewto hold LP
tanksecurelyin place.
SeeUse and Caresection to correctly LeakTest and
performthe Burner Flame Check.
cAu'rlo.
Failure to installtank correctly may allow gas hose to
be damaged in operation, resulting in the risk of fire.
Tank
Thumbscrew
22.464220110
EMERGENCIES= If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Gasleakingfrom
cracked/cut/burned
hose.
Gasleakingfrom LP
cylinder.
Gasleakingfrom LP
cylindervalve.
Gasleakingbetween
LPcylinderand
regulatorconnection.
Firecomingthrough
controlpanel.
Greasefire or
continuousexcessive
flamesabovecooking
surface.
• Damagedhose.
, Mechanicalfailuredue to rustingor
mishandling.
, Failureof cylindervalvefrom
mishandlingormechanicalfailure.
, Improperinstallation,connectionnot
tight,failureof rubberseal.
, Firein burnertube sectionof burnerdue
to blockage.
, Toomuchgreasebuildupin burnerarea.
, Turnoff gas at LPcylinderor at sourceon naturalgassystems.Ifthe
hoseis crackedor cutbut notburned,simplyreplacevalve/hose/
regulator.Ifthe hoseis burned,the causecouldbe otherthana faulty
valve/hose/regulator.Discontinueuseof grill untila plumberor gas
technicianhas investigatedand correctedthe problem.
, ReplaceLPcylinder.
, Turnoff LPcylindervalve.ReturnLPcylinderto gassupplier.
, Turnoff LPcylindervalve.Removeregulatorfrom cylinderand
visuallyinspectrubbersealfor damage.SeeLP CylinderLeakTest
andConnectingRegulatorto the LP Cylinder.
, Turnoff controlknobsandLP cylindervalve.Leavelidopento allow
flamesto die down.Afterfire is outandgrill is cold,removeburner
andinspectfor spidernestsor rust.See SpiderAlert and Cleaningthe
BurnerAssemblysectionsof this Use& CareGuide.
, Turnoff controlknobsandLP cylindervalve.Leavelidopento
allowflamesto die down.Aftercooling,cleanfood particlesand
excessgreasefrominsidefireboxarea,greasetray,and other
surfaces.
Troubleshooting
Burner(s)will not light
usingignitor.
(SeeElectronicIgnition
Troubleshootingalso)
Continuedonnext
page.
GASISSUES:
, Tryingto lightwrongburner.
, Burnernot engagedwithcontrolvalve.
, Obstructioninburner.
• Nogas flow.
, Vaporlockat couplingnutto LP cylinder.
, Couplingnut andLPcylindervalvenot
fullyconnected.
ELECTRICALISSUES:
• Electrodecrackedor broken;"sparksat
, Seeinstructionson controlpanelandin UseandCaresection.
, Makesurevalvesare positionedinsideof burnertubes.
, Ensureburnertubesarenot obstructedwith spiderwebsor other
matter.Seecleaningsectionof Useand Care.
, MakesureLPcylinderis not empty.If LPcylinderis notempty,
referto "Suddendropin gasflow."
, Turnoff knobsanddisconnectcouplingnut from LPcylinder.
Reconnectandretry.
, Turnthe couplingnutapproximatelyone-halfto three-quarters
additionalturn untilsolidstop.Tightenby handonly- do not use
tools.
, Replaceelectrode(s).
crack."
, Electrodetip notin properposition.
, Wire and/orelectrodecoveredwith
cookingresidue.
, Wiresarelooseordisconnected.
, Wiresareshorting(sparking)between
ignitorandelectrode.
, Deadbattery.
MainBurners:
, Tip of electrodeshouldbepointingtowardgasport openingon
burner.The distanceshouldbe 118"to 114".Adjustif necessary.
Sideburner:
, Tip of electrodeshouldbepointingtowardgasport openingon
burner,the distanceshouldbe 118"to 3116".Adjustif necessary.
, Cleanwireand/orelectrodewith rubbingalcoholand cleanswab.
, Reconnectwiresor replaceelectrode/wireassembly.
, Replaceignitorwire/electrodeassembly.
, Replacewitha newAA-sizealkalinebattery.
464220110'23
Troubleshooting(continued)
Burner(s)will not light ELECTRONICIGNITION:
usingignitor. • Nospark,no ignitionnoise.
(SeeElectronicIgnition
Troubleshootingalso) • Nospark,someignitionnoise.
• Sparks,but notat electrodeorat full
strength.
Burner(s)will not • See"GAS ISSUES:"onpreviouspage.
matchlight.
• Matchwill not reach.
• Impropermethodof match-lighting.
Suddendropin gas
flowor low flame.
Flamesblowout.
Flare-up.
, Outof gas.
• Excessflowvalvetripped.
•Vaporlockat couplingnut/LPcylinder
connection.
• Highor gustingwinds.
• Lowon LPgas.
• Excessflowvalvetripped.
• Greasebuildup.
• Excessivefat in meat.
• Excessivecookingtemperature.
• Greasetrappedby foodbuilduparound
burnersystem.
• SeeSectionI of ElectronicIgnitionSystem.
• SeeSectionII of ElectronicIgnitionSystem.
• SeeSectionIII of ElectronicIgnitionSystem.
, Uselong-stemmatch(fireplacematch).
, See"Match-Lighting"sectionof Useand Care.
• Checkfor gasin LPcylinder.
•Turnoff knobs,wait30 secondsandlightgrill. If flamesare still low,
turnoff knobsandLPcylindervalve.Disconnectregulator.
Reconnectregulatorand leak-test.Turnon LPcylindervalve,wait
30secondsand thenlightgrill.
•Turnoff knobsandLP cylindervalve.Disconnectcouplingnutfrom
cylinder.Reconnectandretry.
•Turnfront of grill to face windor increaseflameheight.
• RefillLPcylinder.
• Referto "Suddendropin gasflow"above.
• Cleanburnersand insideof grilltfirebox.
•Trimfatfrom meat beforegrilling.
•Adjust(lower)temperatureaccordingly.
•Turnknobsto OFF.Turngas off at LPcylinder.Leavelid in position
andlet fire burnout.Aftergrill cools,removeandcleanall parts.
Persistentgreasefire.
Flashback... • Burnerand/orburnertubesare blocked. •Turnknobsto OFF.Cleanburnerand/orburnertubes.Seeburner
(firein burnertube(s)), cleaningsectionof Useand Care.
Unableto fill LP • Somedealershaveolder fill nozzles •The wornnozzlesdon'thaveenough"bite"to engagethe valve.Try
cylinder, withworn threads, a secondLPdealer.
Oneburnerdoes not • Greasebuildupor foodparticlesin • Cleancarry-overtube(s)withwirebrush.
lightfromother end(s)of carryovertube(s).
burner(s).
24 °464220110
Troubleshooting - Electronic Ignition
• Batterynot installed
properly.
SECTIONI
Nosparksappearat
anyelectrodeswhen
ElectronicIgnitionButton
is pressed;no noise can
be heardfromspark
module.
SECTIONII
Nosparksappearat
any electrodeswhen
ElectronicIgnitionButton
is pressed;noisecan
beheardfrom spark
module.
SECTIONill
Sparksare present
butnot at all
electrodesand/ornot
at fullstrength
, Checkbatteryorientation. • Installbattery(makesurethat "+"and"-"
connectorsareorientedcorrectly,with "+"end up
, Deadbattery. , Hasbatterybeen used
previously?
and"-" enddown.)
• Replacebatterywith newAA-sizealkalinebattery.
, Buttonassemblynot
installedproperly.
, Faultysparkmodule.
• Outputlead
connectionsnot
connected.
Checkto insurethreadsare
properlyengaged.Button
shouldtravelupanddown
withoutbinding.
If no sparksare generated
withnew batteryand good
wire connections,moduleis
faulty.
, Are outputconnectionson
andtight?
, Unscrewbuttoncap assemblyandreinstall,making
sure threadsarealignedandengagedfully.
, Replacesparkmoduleassembly.
, Removeandreconnectall outputconnectionsat
moduleandelectrodes.
• Outputlead
connectionsnot
connected.
, Arcingto grillaway
fromburner(s).
, Weakbattery.
, Electrodesare wet.
, Electrodescrackedor
broken"sparksat
crack".
, Are outputconnectionson
andtight?
If possible,observegrill in
dark location.Operate
ignitionsystemandlookfor
arcingbetweenoutputwires
andgrill frame.
All sparkspresentbutweak
or at slowrate.
Hasmoistureaccumulated
on electrodeand/orin burner
ports?
Inspectelectrodesfor
cracks.
, Removeandreconnectall outputconnectionsat
moduleandelectrodes.
• If sparksare observedotherthan fromburner(s),
wire insulationmaybedamaged.Replacewires.
, Replacebatterywith a newAA-sizealkalinebattery.
, Usepapertowel to removemoisture.
, Replacecrackedor brokenelectrodes.
464220110,25
26'464220110
464220110.27
Your Home
Forexperttroubleshooting and homesolutionsadvice:
aHage
For repair- in your home - of all major brand appliances,
lawn and garden equipment, orheating and cooling systems,
no matterwho madeit, no matterwhosold it!
Forthereplacementparts, accessoriesand
owner's manualsthatyou need todo-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
i8i8i8i8i8i_i
1-800-4-MY-HOME ® (1-8oo-46e-466s)
iiiiiiiiiiiiiiiiiiii_
Call anytime, day or night (U.S.A. and Canada)
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
SM
® Registered Trademark / TMTrademark / Service Mark of Sears Brands, LLC
TM
® Marca Registrada / Marca de Fabrics / SM Marca de Servicio de Sears Brands, LLC
MC Marque de commerce / MD Marque deposde de Sears Brands, LLC ® Sears Brands, LLC
