HOLD
AND
PULL TO
OPEN GEO
WiFi THERMOSTAT
Welcome to your LUX/GEO® quick-start guide
Your LUX/GEO
®
internet connected thermostat puts the control of your comfort in your hands and you
are only 10 easy steps away from installation.
Step 1: Getting started
Locate and gather the following items for ease
of installation
Download App and
Create Your Account
Included:
Items needed:
IF AT ANY TIME DURING THE INSTALLATION AND SET-UP PROCESS YOU NEED ADDITIONAL SUPPORT,
VISIT LUXGEO.COM OR CALL 856.234.8803
2-AA Lithium
batteries
2 screws
2 wall anchors
wire stripper
& cutter
phillips & at head
screwdriver
WiFi enabled
mobile device
WiFi router
Download your LUX/GEO App
Depending on device type, search the
App store for “LUX GEO” and create
your LUX/GEO
®
user account
IF YOU DO NOT HAVE AN iOS OR ANDROID DEVICE,
PLEASE VISIT LUXGEO.COM.
Step 2: Switch power o
IMPORTANT: Turn o the power at
circuit breaker to both your heating
& cooling systems before performing
any wiring.
WATCH OUR VIDEO DEMO LUXGEO.COM
Step 3: Remove existing
thermostat & install GEO
®
Remove front of existing thermostat from base
Photograph current wiring for reference
Release wires and mounting screws and
remove base from wall
Open GEO® from base, pull up on plastic
“cover” between terminal blocks to access
and pull wires through.
Secure GEO® base to wall (mounting
hardware & optional wall plate included)
REMOVE
TERMINAL
COVER
TAKE
PHOTO OF
CURRENT
WIRING
GEO
GAS / OIL / ELECTRIC FURNACE and/or AIR CONDITIONING [typical wire color used]
(typical)
RH (or R) = 24(+) VAC Power, Heat [RED]
W1 = 1st Stage Heat [WHITE]
G = Blower Fan [GREEN]
C = 24(-) VAC Common [BLUE]
Y1 = 1st Stage Cool [YELLOW]
(other)
RC = 24(+) VAC Power, Cool
B = Heat Mode Damper
O = Cool Mode Damper
W2 = 2nd Stage Heat
Y2 = 2nd Stage Cool
RETURN
TERMINAL
COVER
Y1
RC RH
RESET
W1
IMPORTANT: If you have both an RC and RH wire present then
remove the RED RC-RH shorting cap found on inside front of GEO
TM
.
Wiring is complete - you may return “cover” between terminal blocks.

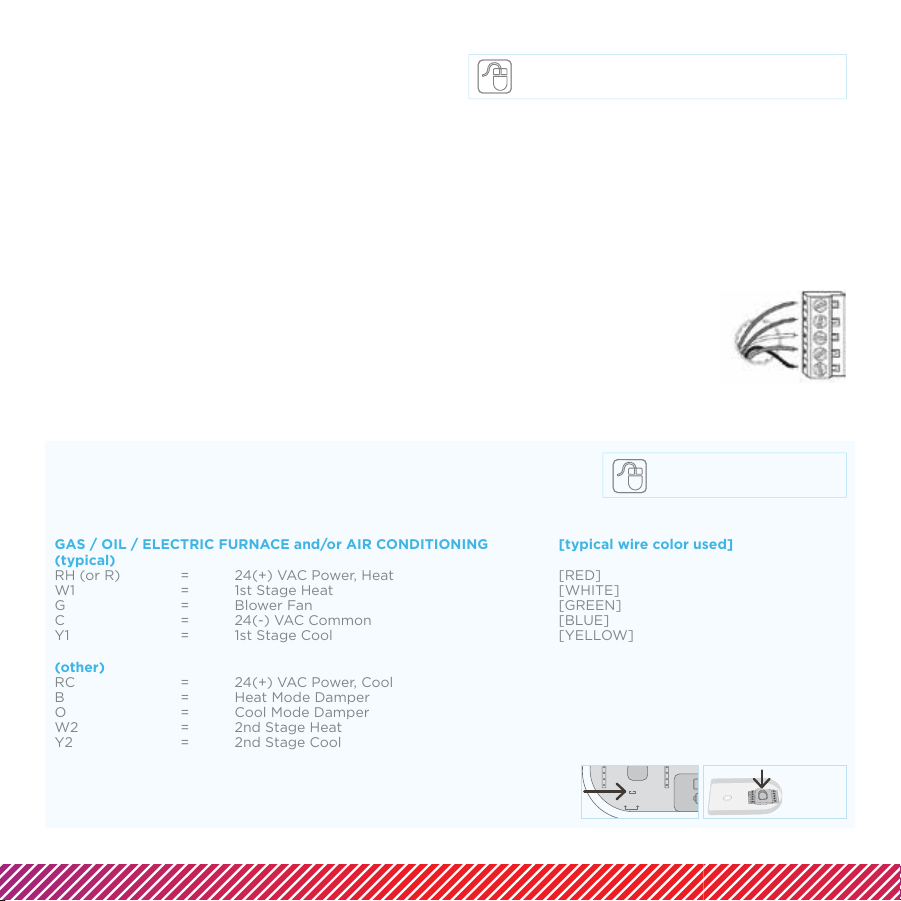

4.1 Wiring Terminal Reference: Conventional
Furnace – gas/oil/electric & air-conditioning*
*for heat pump systems - see section 4.2
FOR A DETAILED WIRING GUIDE
VISIT LUX-GEO.COM.
Referencing your wiring photo & terminal guide below, wire to GEO.
Step 4: Powering & wiring
LUX/GEO
®
*Notice for battery installations:
Batteries should be replaced at least once per year, but
depending on your settings may need to be replaced sooner.
Battery failure could leave property without controlled
heating or cooling. Reliance on battery power is not
recommended with prolonged absence from property.
After installation you can choose to set the
“energy profile” for your GEO
®
This energy profile will
determine the delay in GEO
®
responding to changes from
the App.
GEO
®
should only be used with lithium batteries.
AS AN ADDED RESOURCE, A GLOSSARY OF TERMS IS
AVAILABLE ON LUX-GEO.COM
NOTE: System compatibility
For Use On:
Most 24-volt heating and cooling systems
1 or 2 stage heat / 1 or 2 stage cool: gas, oil, or electric
furnace and a/c systems
1 or 2 stage heat / 1 stage cool: heat-pump style systems
2-wire hydronic (hot water) zone valves
Gas Millivolt wall/floor heaters
Not For Use On:
120/240 VAC line-
voltage systems
(without a transformer)
Heat pumps that
have (Y2) two
compressor stages
WIRES INSERT INTO SIDE OF
TERMINAL, UNDER SCREWS.
GEO
®
needs only 1 of 3 power source options:
C-terminal (Recommended & for optimal performance.
Reference photo from step 3 to confirm C-wire.)
Battery* (2-AA Lithium included)
USB micro-port available on GEO
®
(adapter & cord not included; recommend 1A adapter)
Step 5 provides detail on battery & USB connection
HEAT-PUMP (COMPRESSOR) STYLE HEAT/COOL SYSTEM [typical wire color used]
R (or RC/RH) = 24(+) VAC Power, Cool [RED]
O = Reversing Valve [ORANGE]
Y1 = Heat Pump Outdoor Unit [YELLOW]
G = Blower Fan [GREEN]
W2 = Auxiliary/Emergency Heat [WHITE]
C = 24(-) VAC Common [BLUE]
B** = Reversing Valve (only if no “O” wire- [can vary per each
ie: Rheem/Ruud/Bard systems) installation]
Note: There should NOT be a wire used on the W1 wire connection at terminal.
** IMPORTANT: If you have both an O wire and B wire (ie: Trane system),
please install B to the “C” terminal
Heat Pump systems
(Y1/W1) -
YELLOW cap MUST BE MOVED to sit on both pins.
Wiring is complete – you may return “cover” between terminal blocks.
4.2
Wiring
Terminal
Reference:
Heat
Pump
Systems
Referencing your wiring photo, attach your thermostat wires to the LUX/GEO
®
using your original wiring
letters and the following terminal reference as a guide based upon your system type.
Step 7: If you have not yet downloaded your LUX/GEO
®
App–do so now
RETURN
TERMINAL
COVER
Y1
RC RH
RESET
W1
Step 5: Power on
For C-terminal: secure GEO
®
front onto base
For battery power: insert 2-AA lithium
batteries & secure GEO
®
front onto base
For USB power: place a
flathead screwdriver against
port cover from inside GEO
®
along bottom side – twist &
push out. Plug in Micro USB
and insert into base.
Once GEO
®
front has been
secured to base (line up and
firmly push), return power
to system.
Step 6: Configure system settings
GEO
®
will guide you through setup
Rotate the control wheel to navigate
through options and values. To make a
selection, press ; to go back, press .
GEO
®
will prompt you to select:
1. Whether heating and/or cooling are
connected.
2. System type (only applies if you have heat).
Note if you wired per section 4.1 you
have a furnace. If you wired per section
4.2 you have a heat pump.
If furnace fan is not operating properly after
installation, change from furnace:gas to
furnace:electric in the settings menu.
3. The number of stages for heat/cool you have.
Most common is 1 heat/1 cool. Not sure? refer
to our online glossary to learn more.
4. If you have set more than 1 stage of heat or cool,
the OFFSET setting adjusts the stage-2 cut in.
INSERT
SCREWDRIVER &
TWIST TO POP OUT
USB COVER
---
WITH GEO SECURE & POWER
ON – THE DISPLAY SHOULD
ILLUMINATE, IF NOT, CHECK
POWER IS BACK ON.
Step 8: Connecting LUX/GEO
®
The recommended set-up of GEO
®
requires an iOS or Android device...using another?... Visit
LUXGEO.com. Set-up follows a series of screen prompts – have your GEO
®
and mobile device ready.
8a. Getting ready to connect
You’ve downloaded the
LUX/GEO App, created a
user account and now,
from your GEO, select “yes”
for WiFi setup
GEO will begin scanning –
but you can move on to 8b.
8b. Connecting GEO
TM
to your mobile device
Open App and click
+ icon to add device.
When prompted, leave
App & go to your mobile
device’s WiFi settings menu.
Select the WiFi
network that looks like
TSTAT-xx-xx.
Enter in the password
displayed on the
thermostat.
After connecting to
TSTAT-xx-xx return back to
App.
iOS iOS
Android Android
Step 8: Connecting LUX/GEO
®
8c. Select your home WiFi network & enter password
8d. When room temp appears
on GEO
®
display, continue by
following prompts on App
iOS Android
Once you see on app and
on GEO®– your system is now
successfully connected.
Troubleshoot:
You may need to manually
reconnect your phone to your wifi
network.
If this is unsuccessful – restart
GEO® by going to menu/settings/
network and pick up App from
step 8b.
Once the GEO® connects to your home WiFi Network, the thermostat will automatically complete steps 3-6.
Step 10: Enjoy the comfort, peace of mind and flexibility of your LUX/GEO
TM
thermostat.
VISIT OUR ONLINE COMMUNITY FOR INTERESTING ARTICLES AND TIPS FOR SAVING ENERGY AT LUXPRODUCTS.COM. THANK YOU.
53599-16
LUX/GEO
®
is a trademark of LUX Products Corporation. Radius
TM
is a trademark of EnergyHub, Inc.
LUX Products Corporation, Philadelphia, PA 19112 LuxProducts.com ©2016
