Napoleon GDIZC-NSB Inspiration ZC User Manual

FRENCH

PG. 33

W415-2359 / 08.22.19

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleon.com • [email protected]

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be

performed by a qualiﬁ ed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

SAFETY BARRIER

GDIZCN-SB

GDIZCP-SB

INSTALLATION AND

OPERATION MANUAL

Inspiration™ ZC

W415-2359 / 08.22.19

safety information

• This appliance is hot when operated and

can cause severe burns if contacted.

• Any changes or alterations to this

appliance or its controls can be

dangerous and is prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Ensure the glass door is opened or removed

when lighting the pilot for the ﬁ rst time and

when the gas supply has run out.

• Risk of ﬁ re or asphyxiation, do not operate

appliance with ﬁ xed glass removed and never

obstruct the front opening of the appliance.

• Do not connect 110 volts to the control valve,

with the exception of models; GSST8 and

GT8.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing

and operating the appliance.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at

test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 psig (35mb).

• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance

to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these

appliances are suitable for 0°F / -18°C.

• Children and adults should be alerted to hazards of high surface temperature and should stay

away to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact

burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,

young children and other at risk individuals out of the room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from

furniture and draperies.

• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is off, it will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior

to operating the appliance.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the

appliance and venting system are kept clean. The appliance and its venting system should be inspected

before use and at least annually by a qualiﬁ ed service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and

free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it

serviced. Keep burner and control compartment clean.

• Under no circumstances should this appliance be modiﬁ ed.

• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner ﬂ ame

patterns.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the

hot viewing glass is provided with this appliance and

shall be installed for the protection of children and other

at-risk individuals.

WARNING

W415-2359 / 08.22.19

safety information

WARNING

• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this

appliance.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person, if equipped.

• Do not strike or slam shut the appliance glass door, if equipped.

• Only doors / optional fronts certiﬁ ed with the appliance are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

with all plastic bags, these are not toys and should be kept away from children and infants.

• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your

home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have

it serviced by a qualiﬁ ed technician before operating it again.

• If equipped, the screen must be in place (closed) when the appliance is in operation.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating

to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of

the exhaust escaping through these openings can also cause the surrounding combustible materials to

overheat and catch ﬁ re.

• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the

ﬂ u, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working

properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with

heart or lung disease, anemia, those under the inﬂ uence of alcohol, those at high altitudes are more

affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean

may result in sooting and property damage.

• As with any combustion appliance, we recommend having your appliance regularly inspected and

serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and

your family against Carbon Monoxide (not applicable for outdoor appliances).

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the

appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,

discolouration or damage to decorations, a TV or other electronic components.

• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier

shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. It is imperative that control

compartments, burners and circulating air passageways of the appliance be kept clean.

• For outdoor products only: this appliance must not be installed indoors or within any structure that

prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.

• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace

only with a fast acting thermocouple supplied by Wolf Steel Ltd.

WARNING

Disconnect the appliance main gas valve/control

from the supply piping when pressure testing that

system at pressures in excess of 1/2 psi (3.5 kPa).

Isolate the appliance with it’s shut off valve during

any pressure testing of the supply piping at

pressures equal to or less than 1/2 psi (3.5 kPa).

FIRE RISK HAZARD / DELAYED IGNITION

High supply pressure will damage the valve / controls.

Add California Prop 65 warning

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

1.0 general information 5

1.1 dimensions 5

1.2 minimum opening 5

1.3 general instructions 6

1.4 rates and efﬁ ciencies 7

1.5 rating plate information 7

2.0 installation 8

2.1 levelling the appliance 8

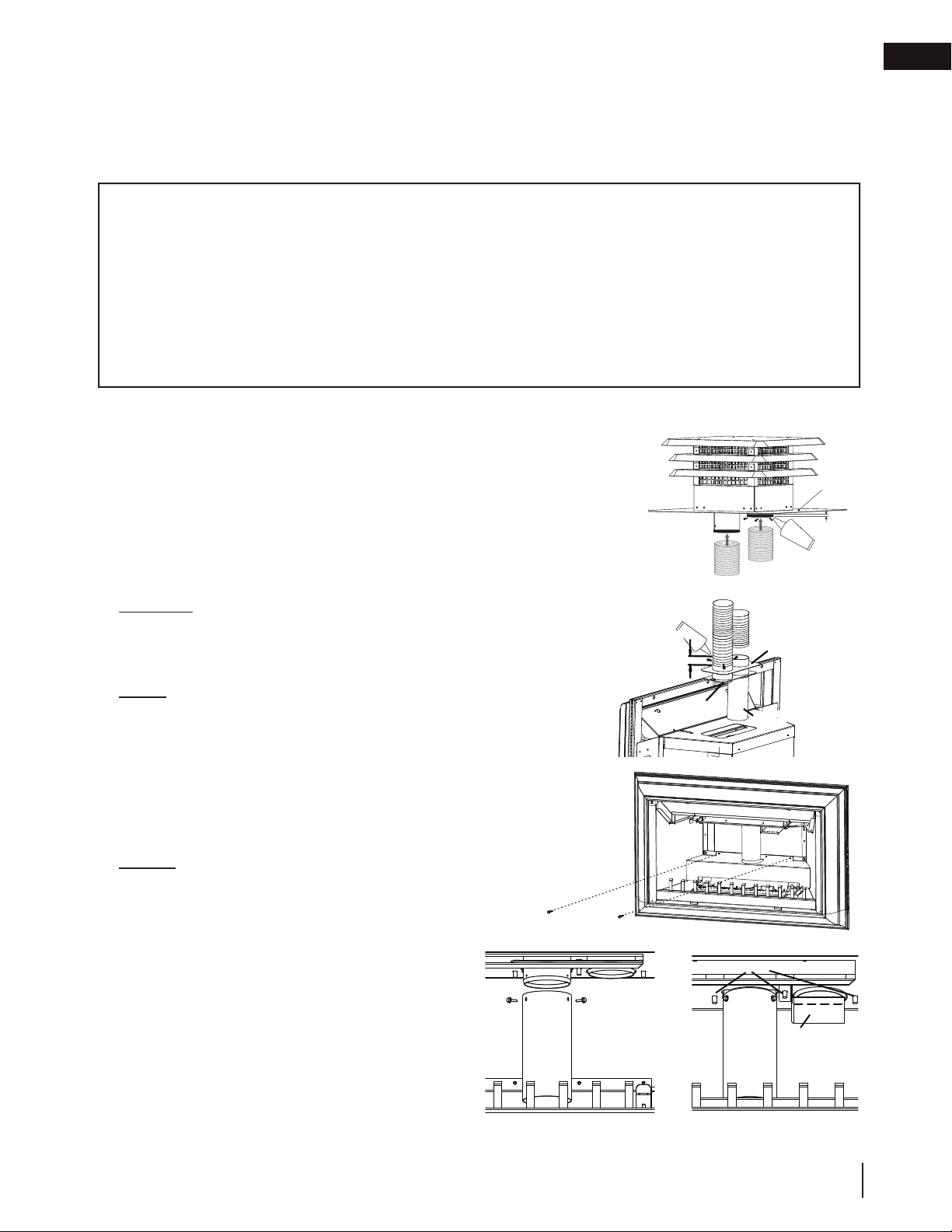

2.2 chimney connection 9

2.3 gas installation 10

2.4 optional wall switch 10

3.0 finishing 11

3.1 minimum mantel clearances 11

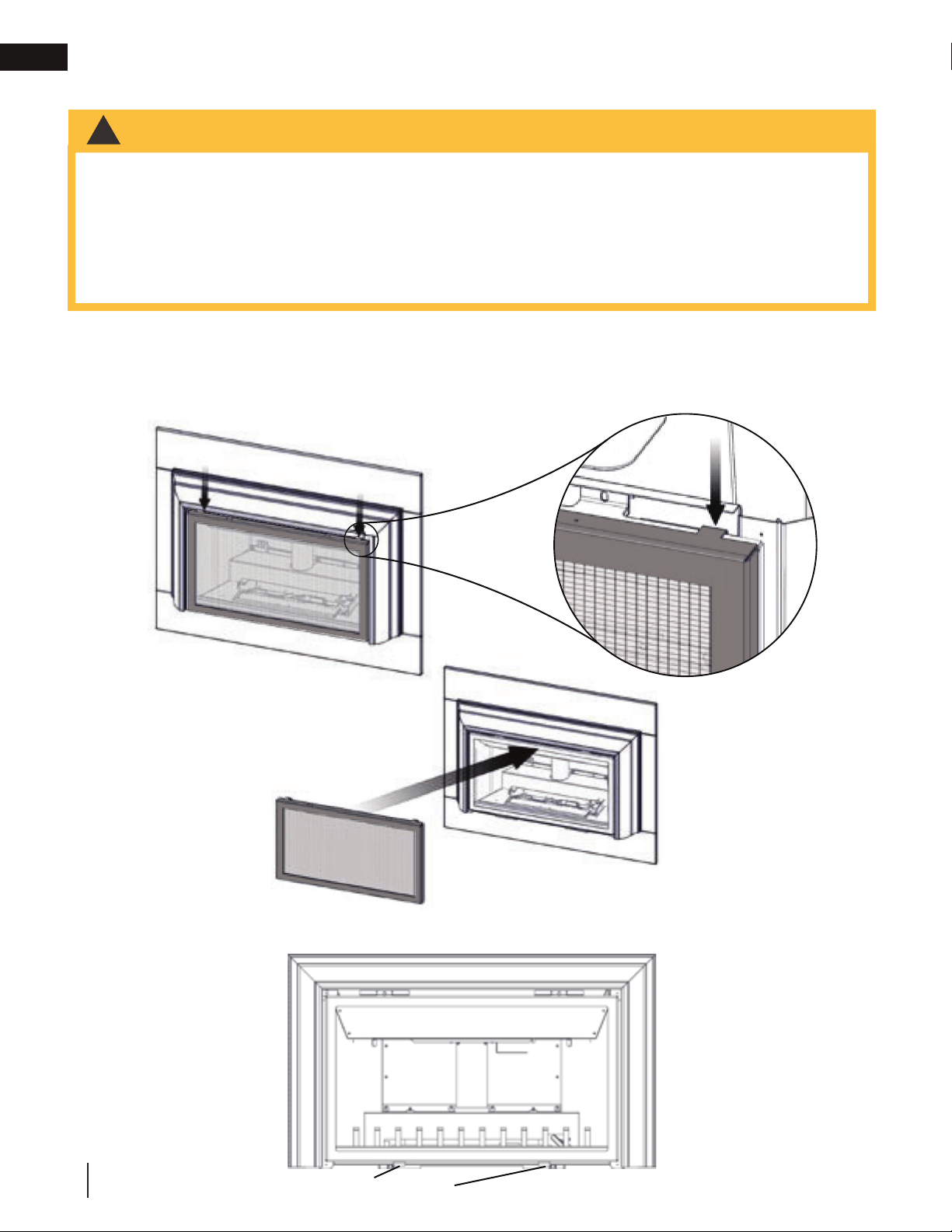

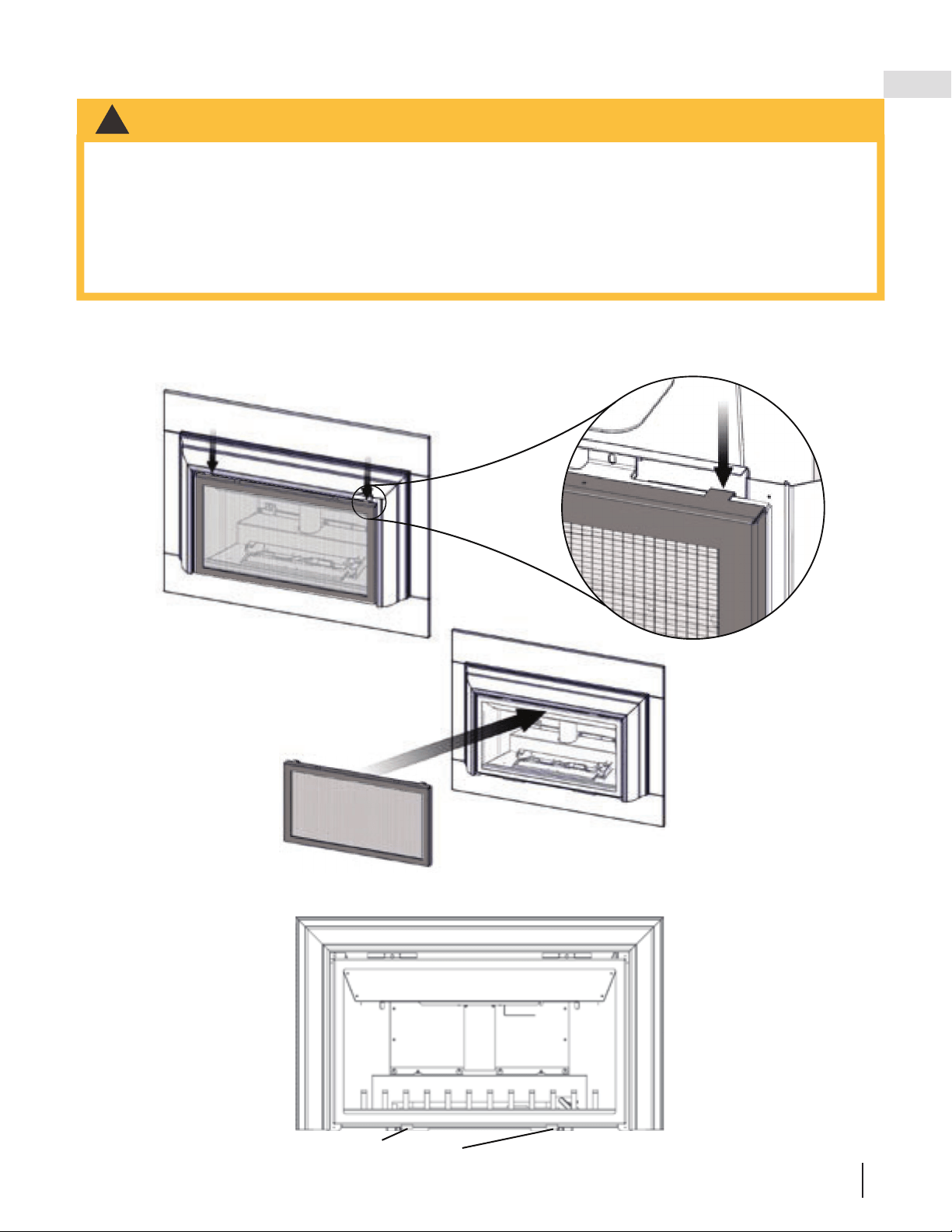

3.2 safety screen & door removal and installation 12

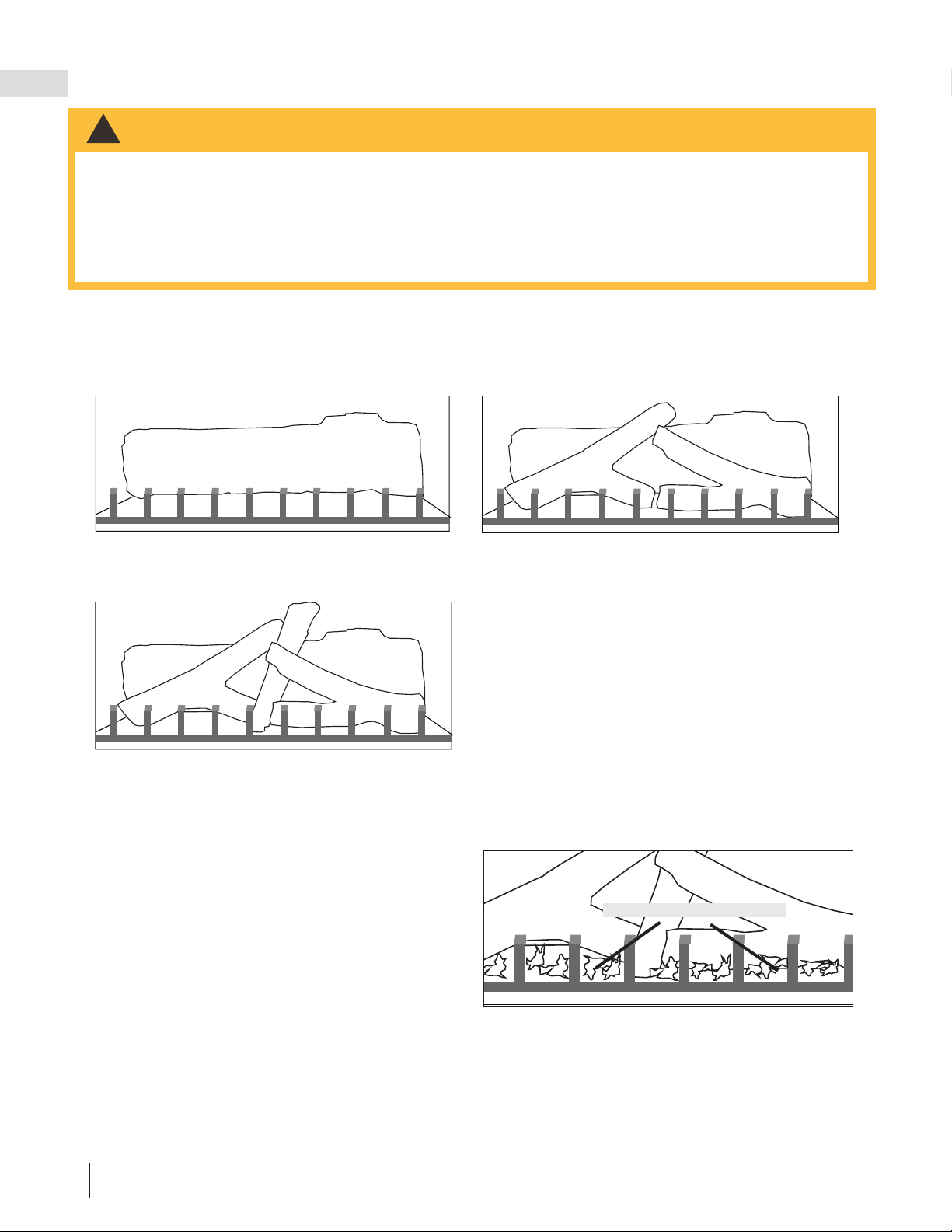

3.3 log placement 13

3.4 glowing embers 13

3.5 logo placement 14

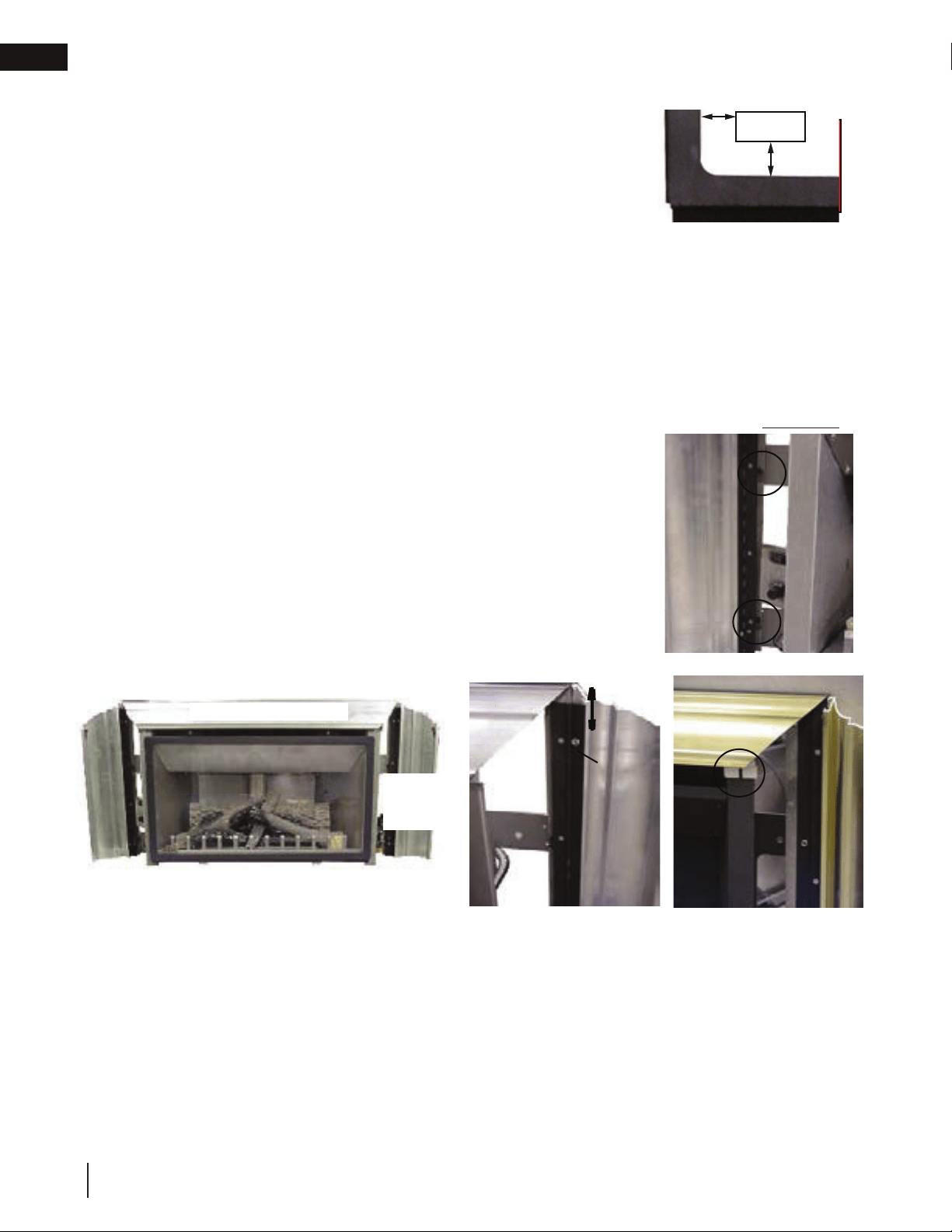

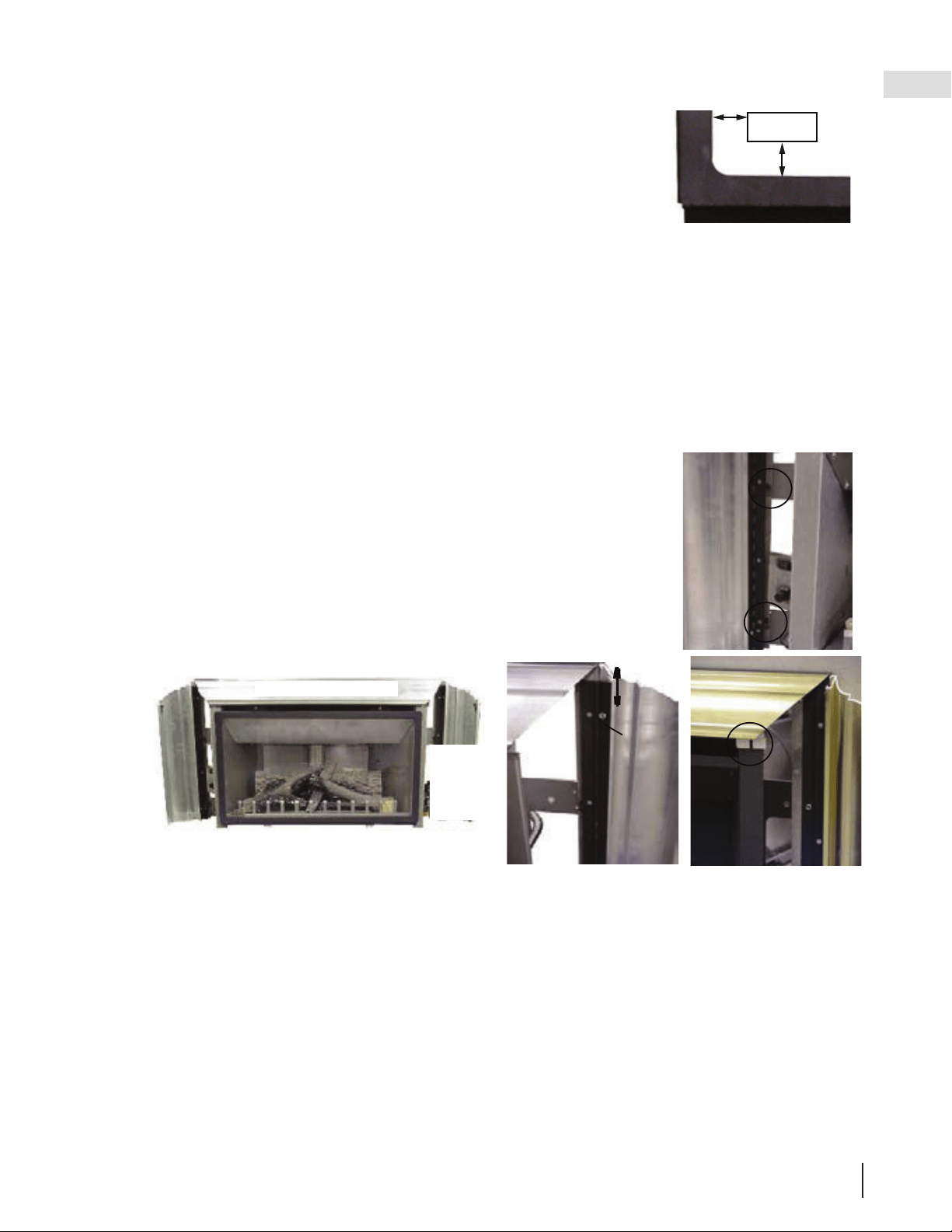

3.6 aluminum extrusion trim kit installation 14

4.0 operation 15

5.0 adjustments 16

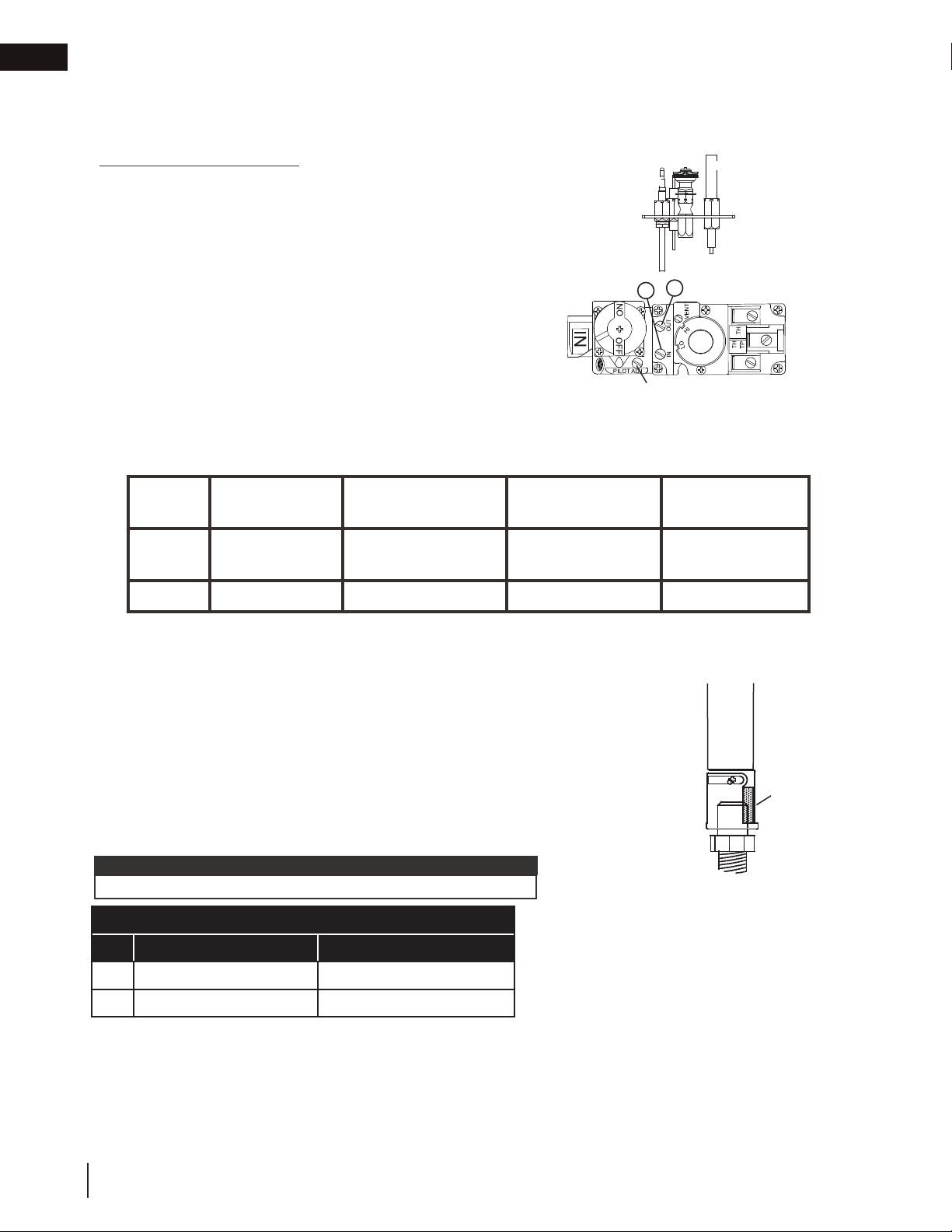

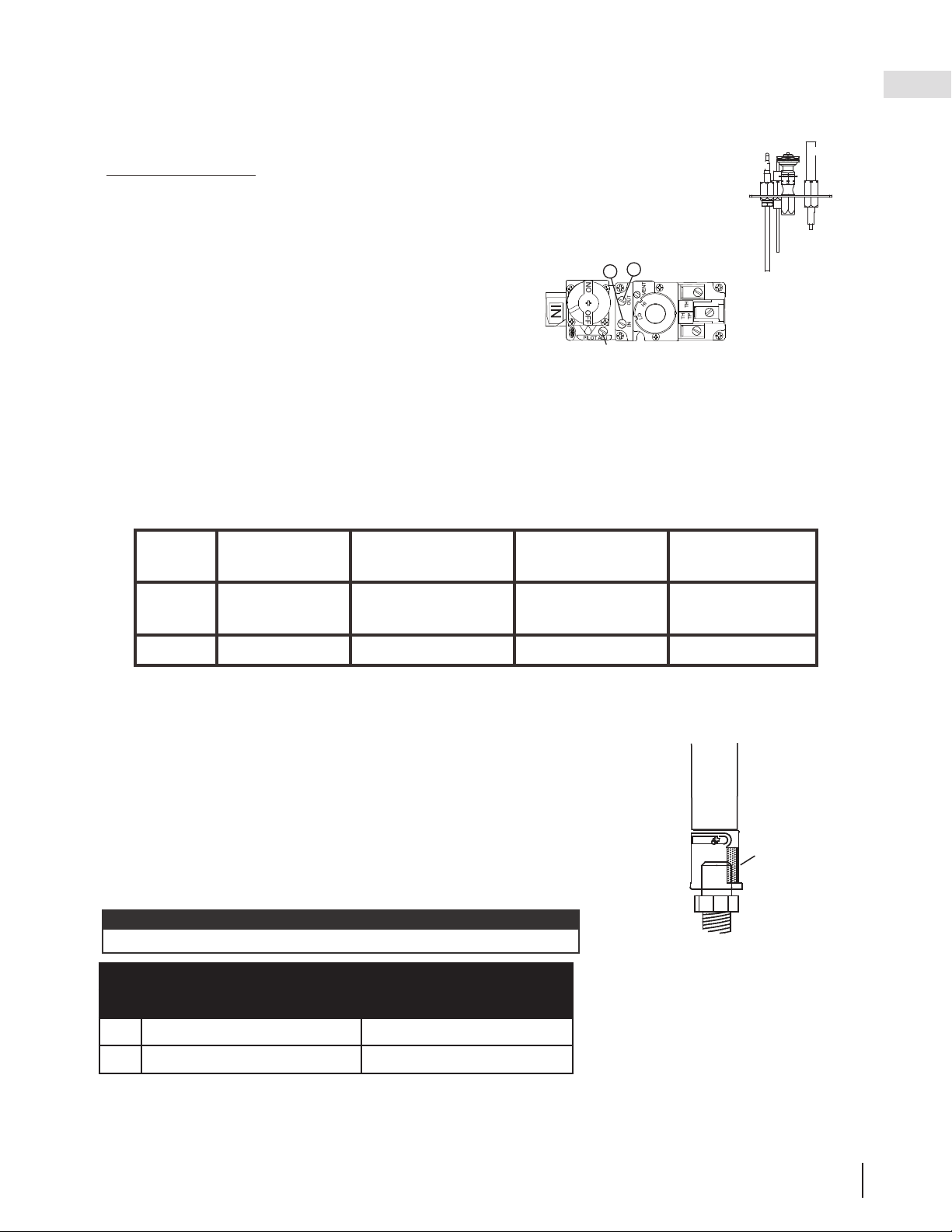

5.1 pilot burner adjustment 16

5.2 venturi adjustment 16

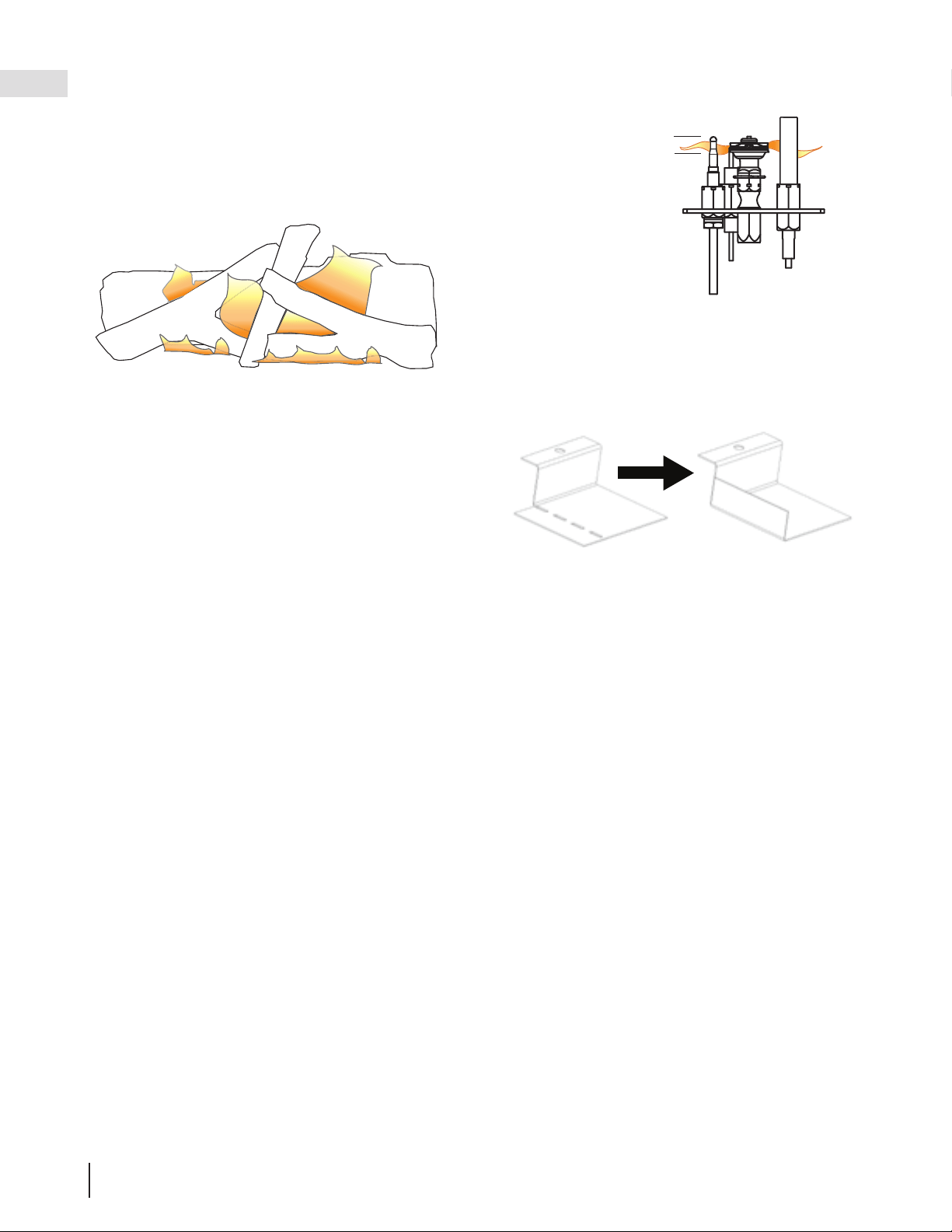

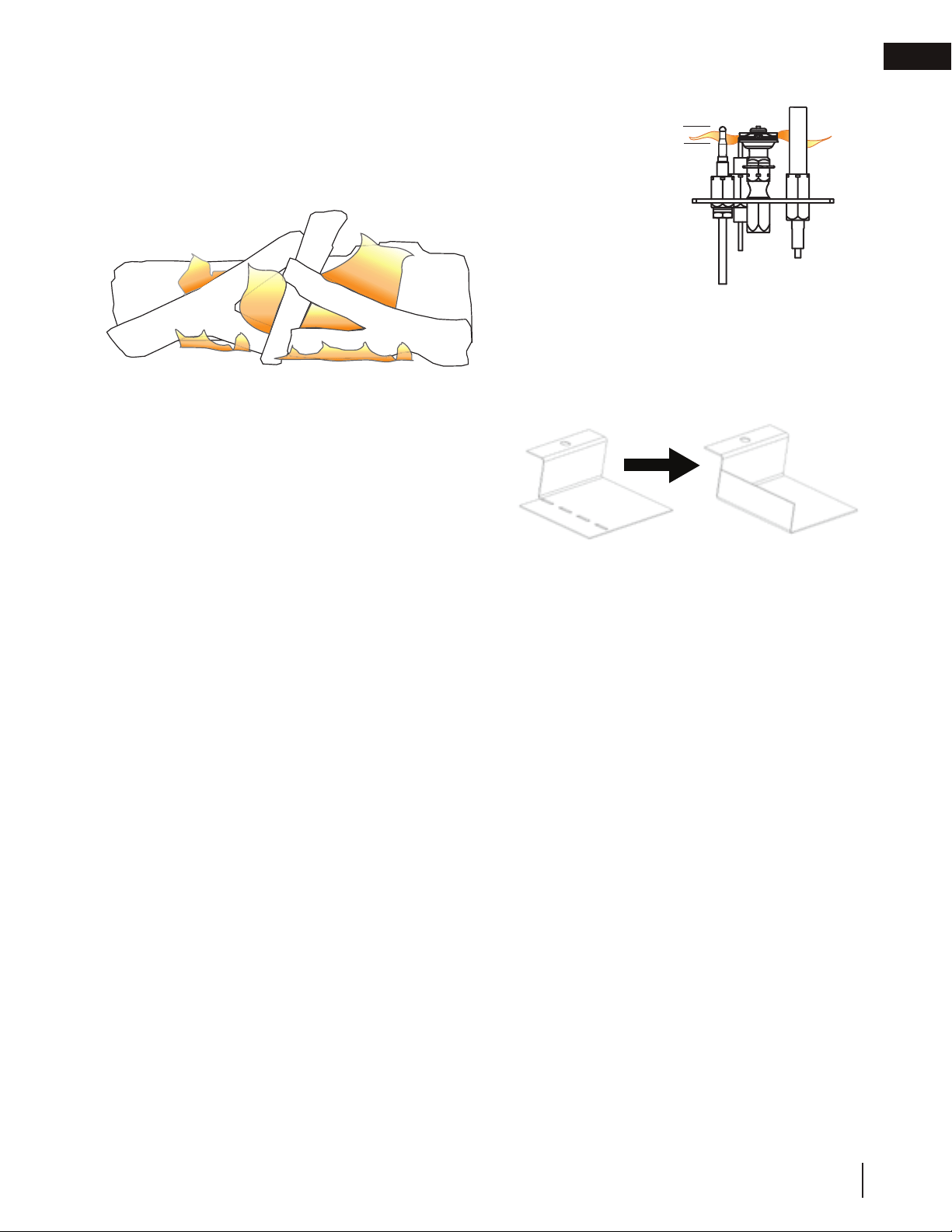

5.3 ﬂ ame characteristics 17

5.4 restricting vertical vents 17

6.0 maintenance 18

6.1 annual maintenance 19

6.2 care of glass 20

6.4 care of plated parts 20

6.3 door glass replacement 20

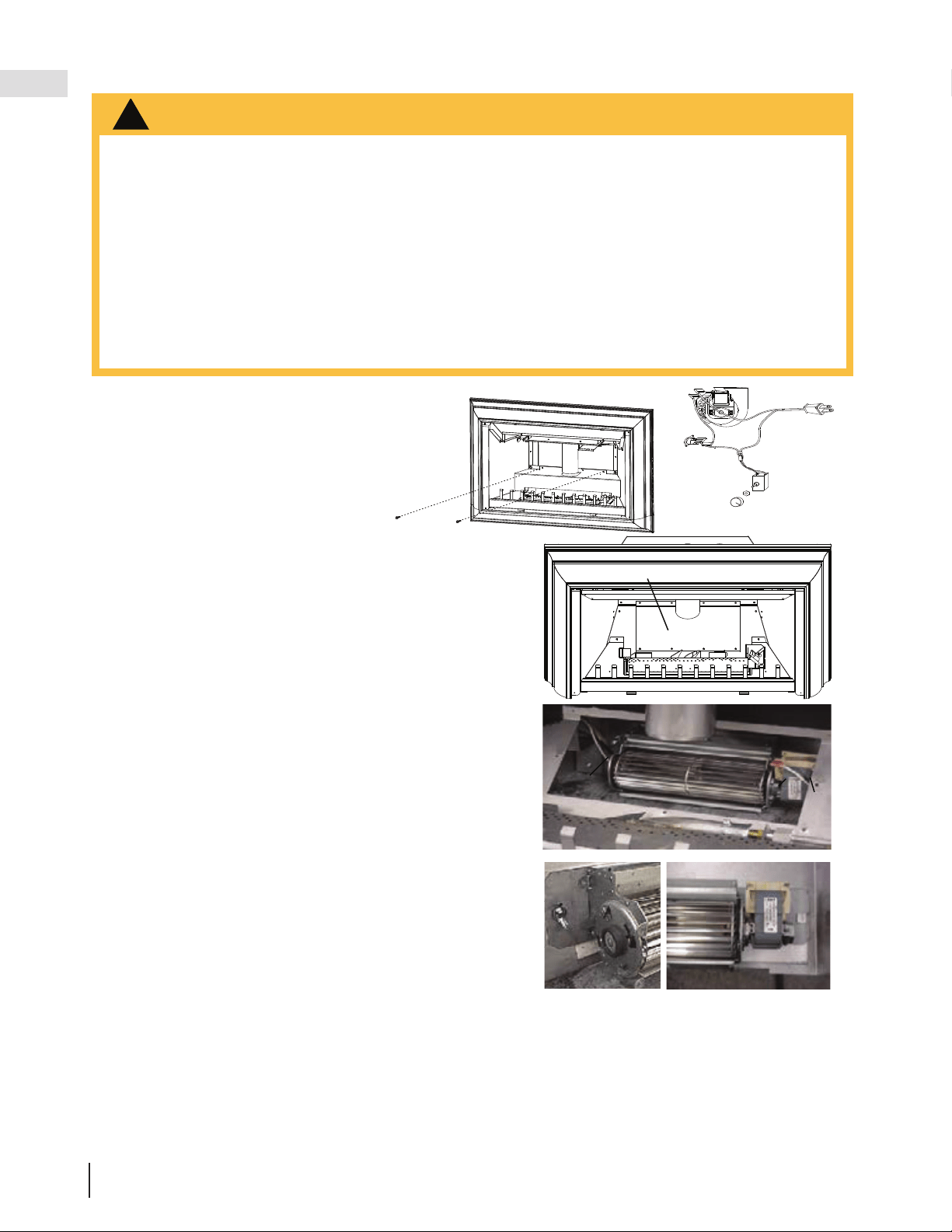

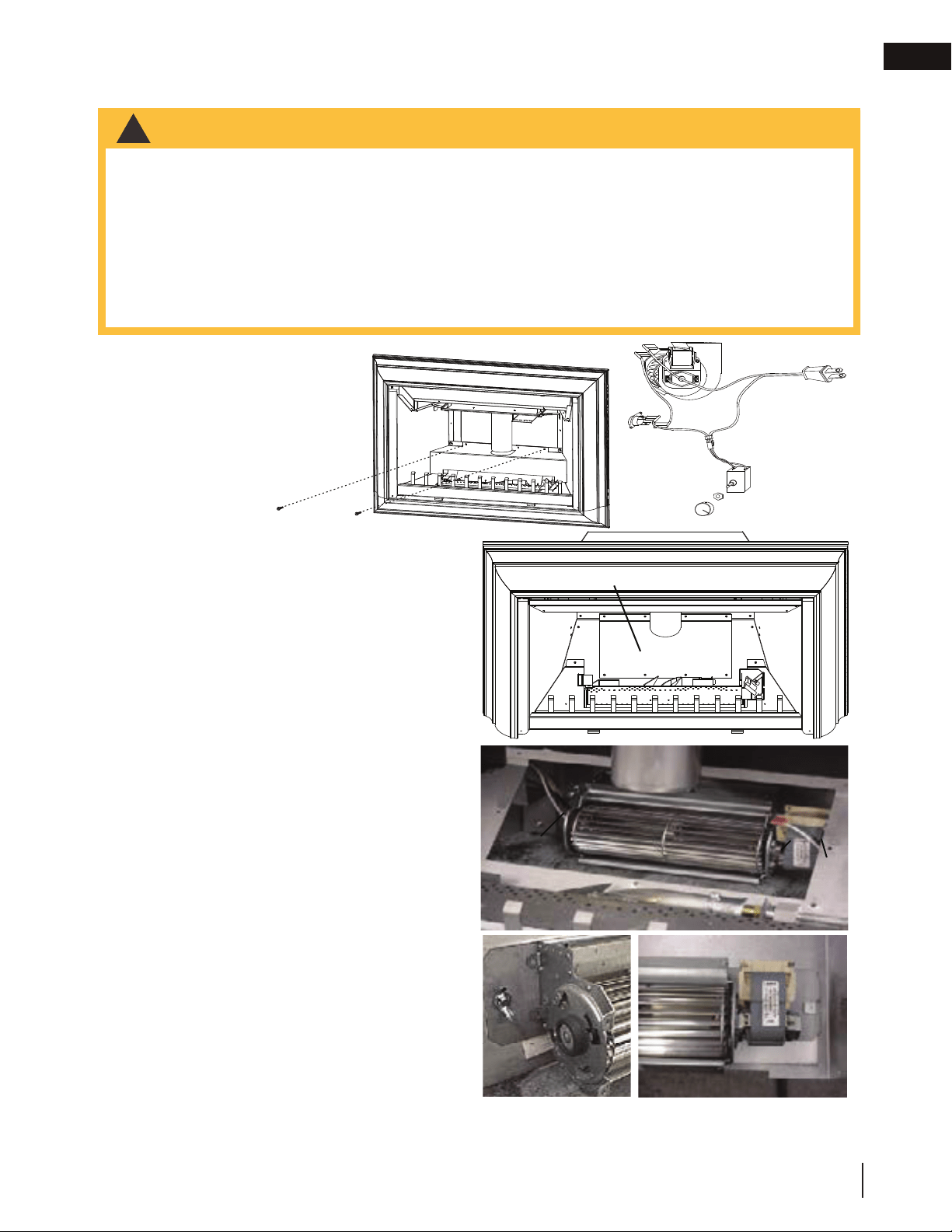

6.5 replacement blower installation 21

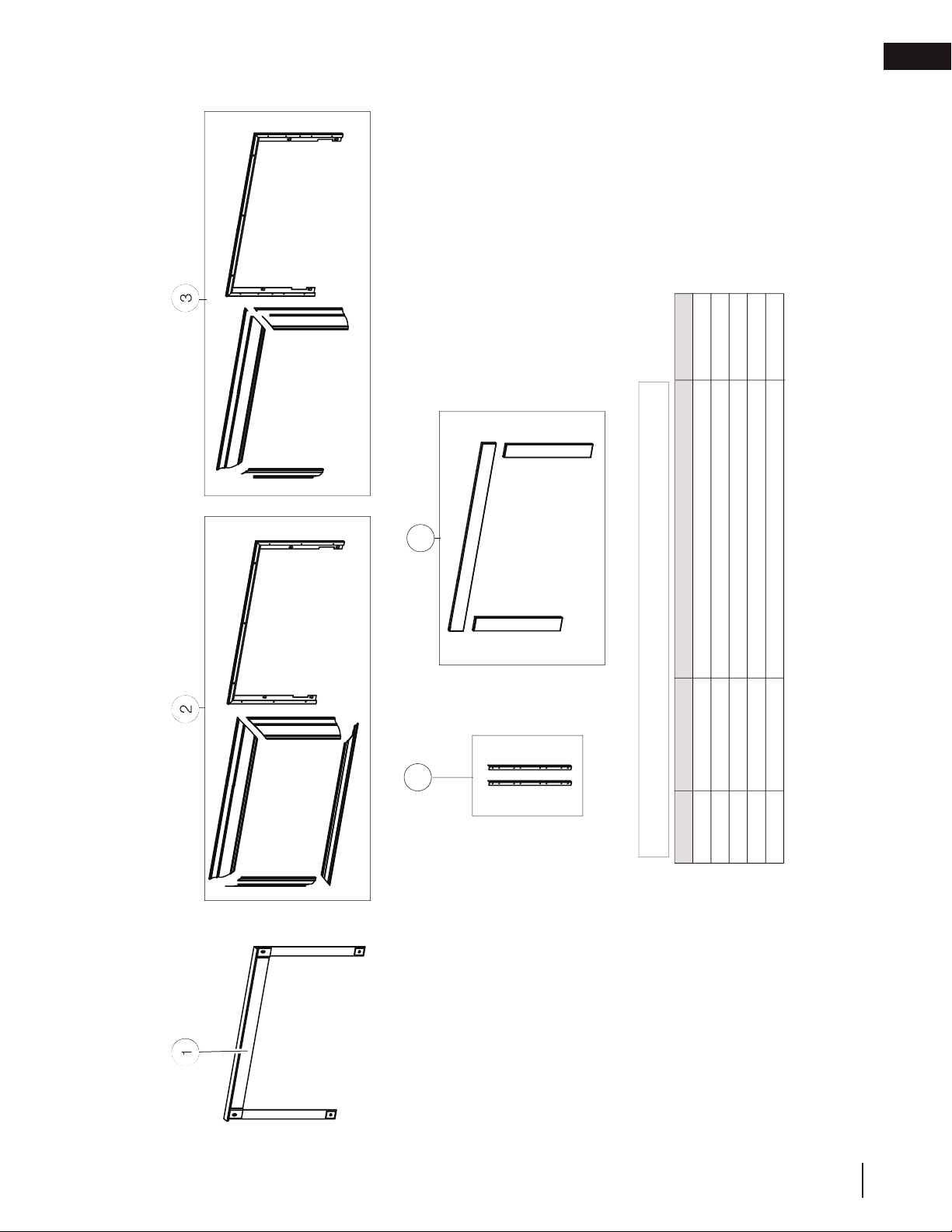

7.0 replacement parts 22

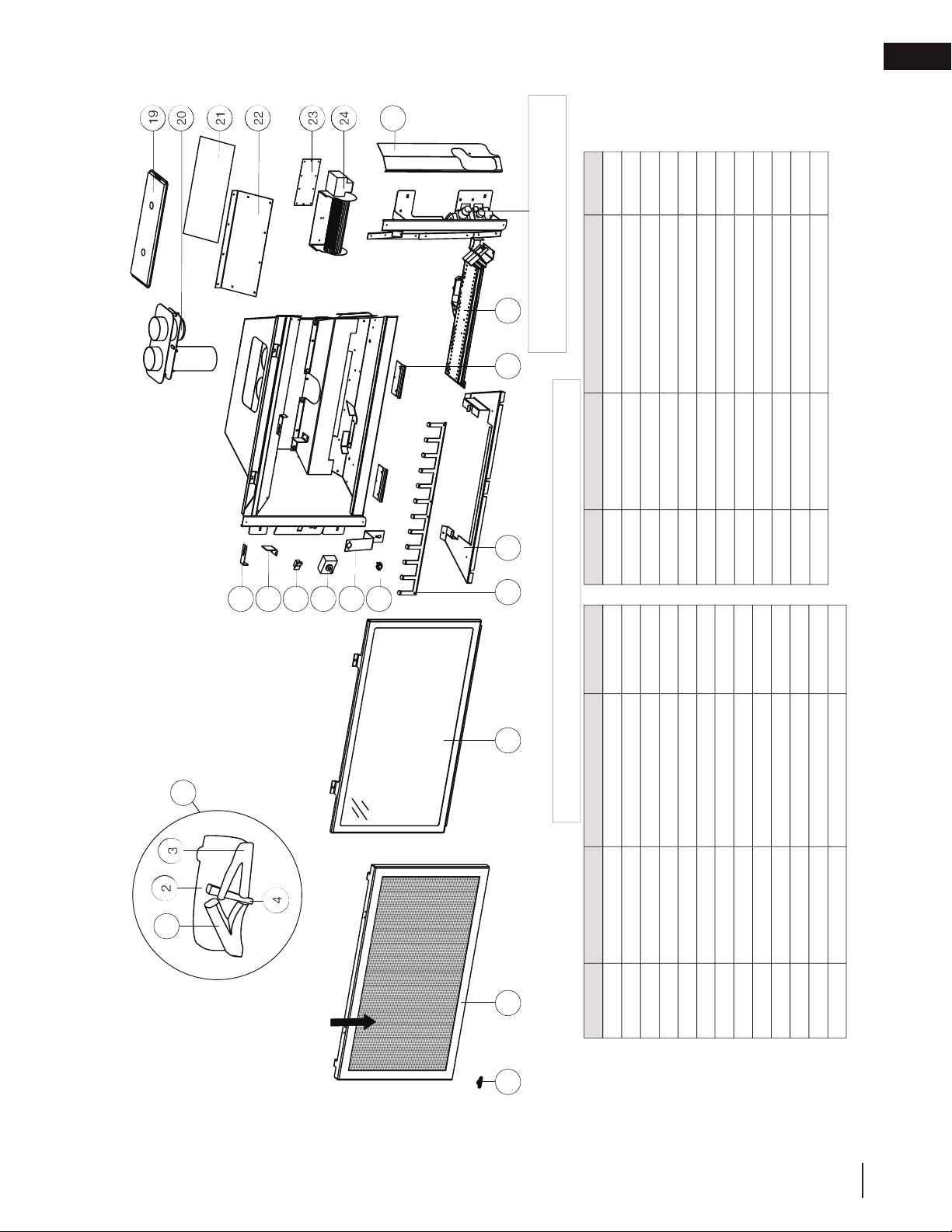

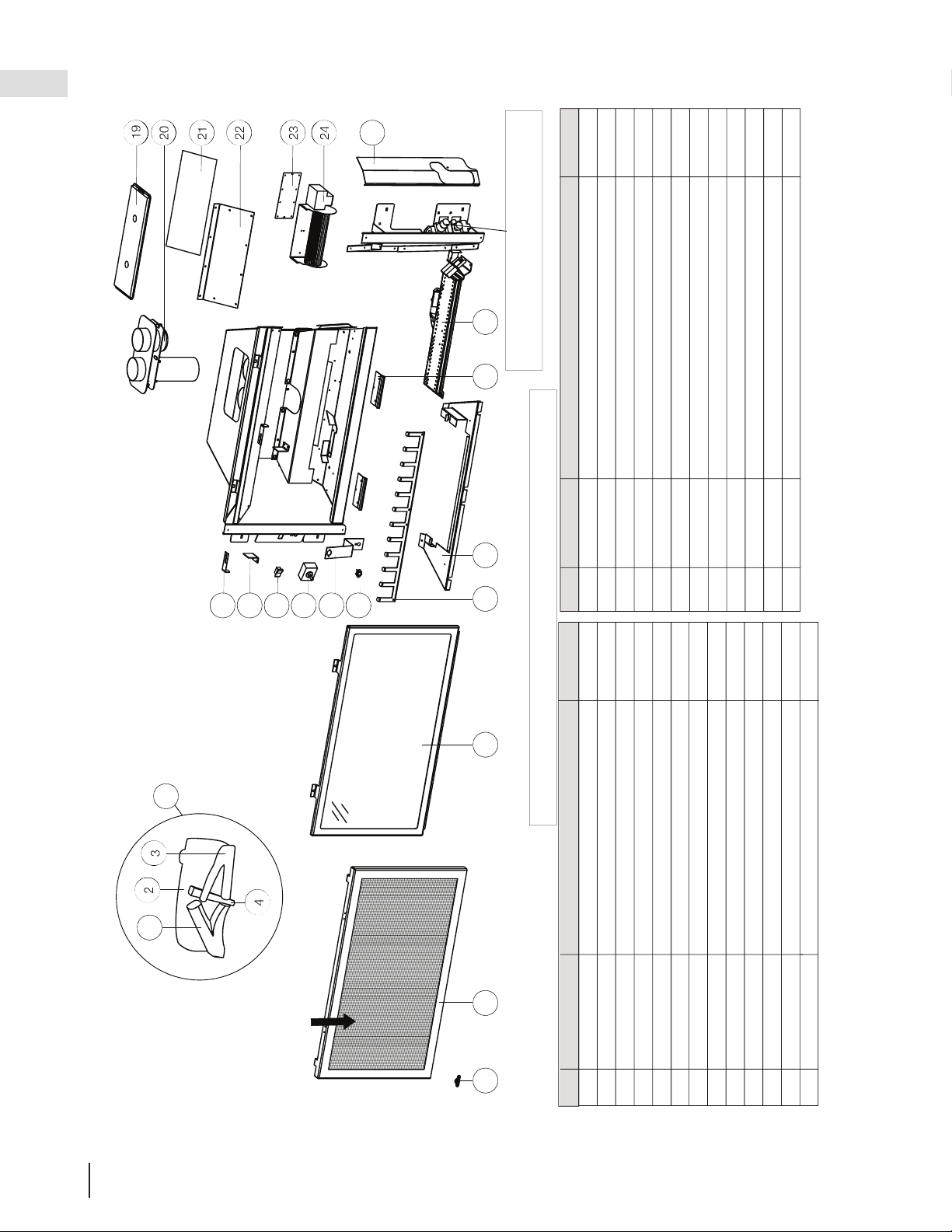

7.1 overview 23

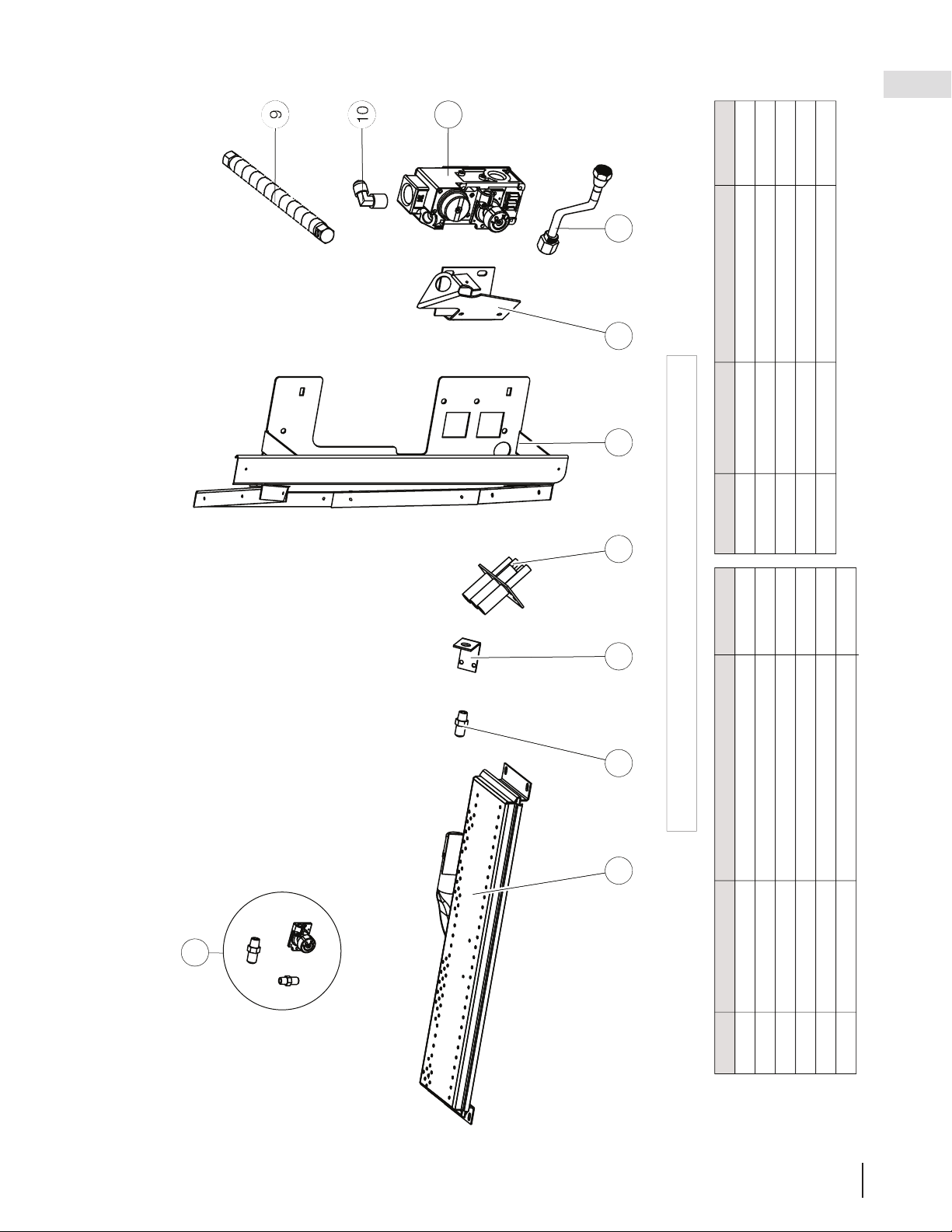

7.2 valve train assembly 24

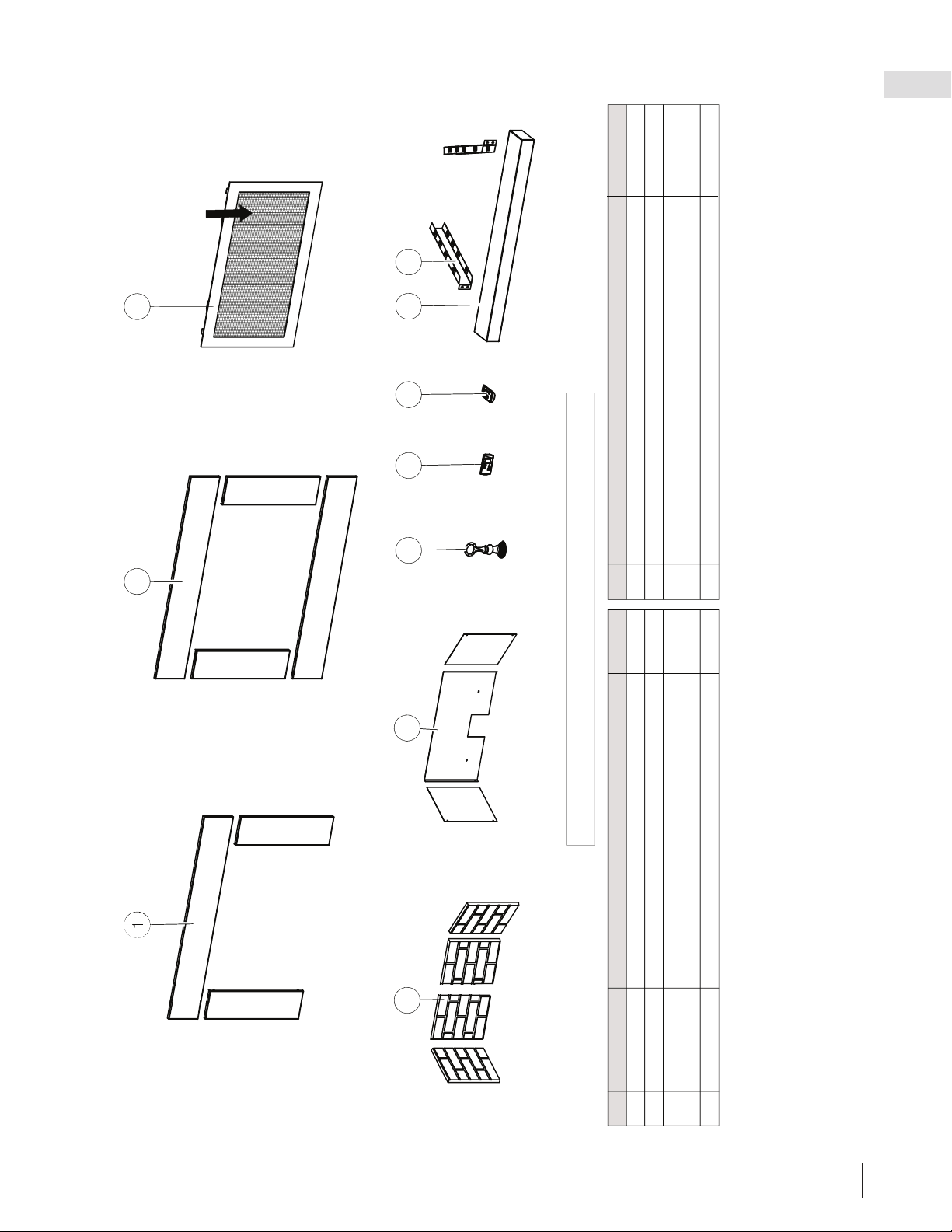

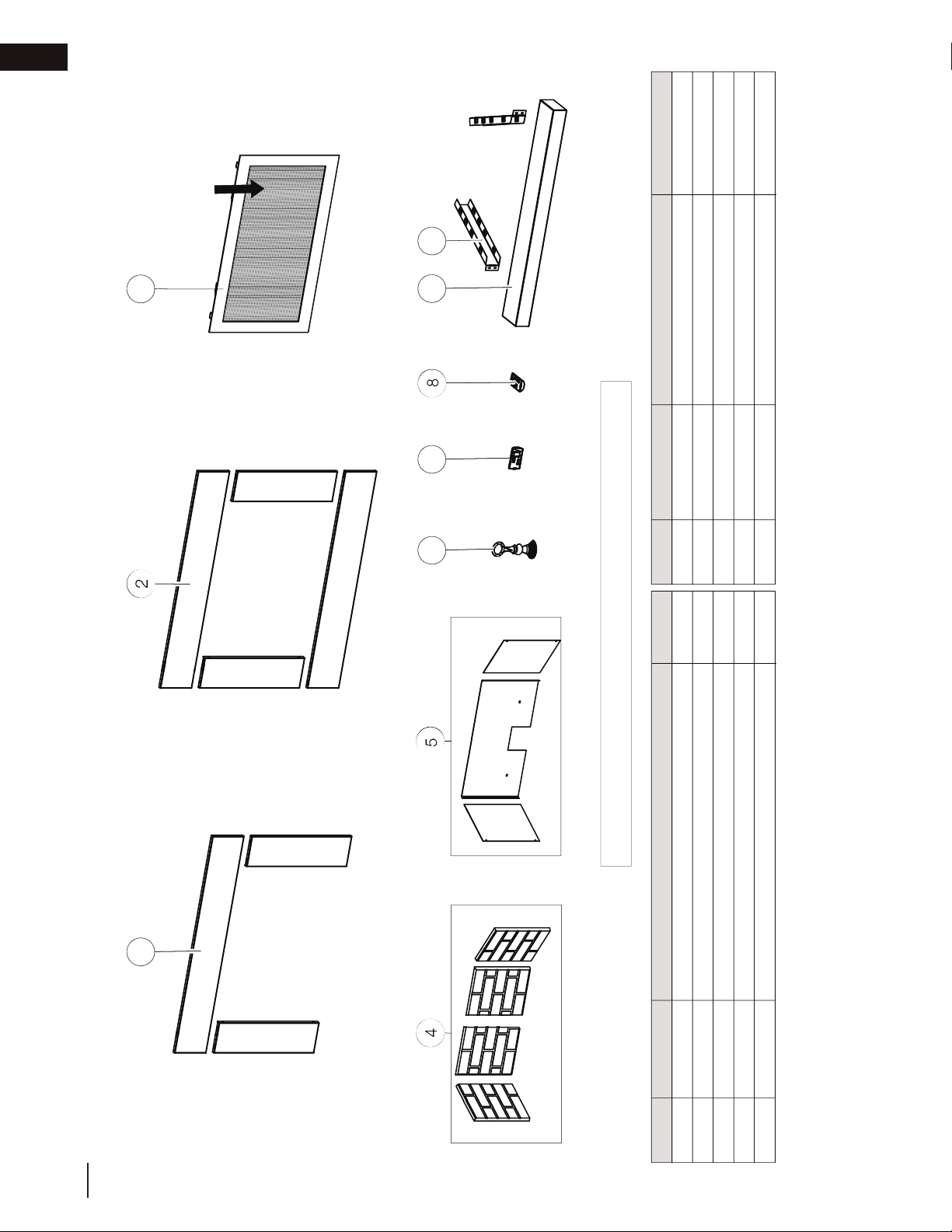

8.0 accessories 25

9.0 troubleshooting 27

10.0 warranty 29

11.0 service history 30

W415-2359 / 08.22.19

table of contents

NOTE: changes, other than editorial, are denoted by a vertical line in the margin.

W415-2359 / 08.22.19

general information

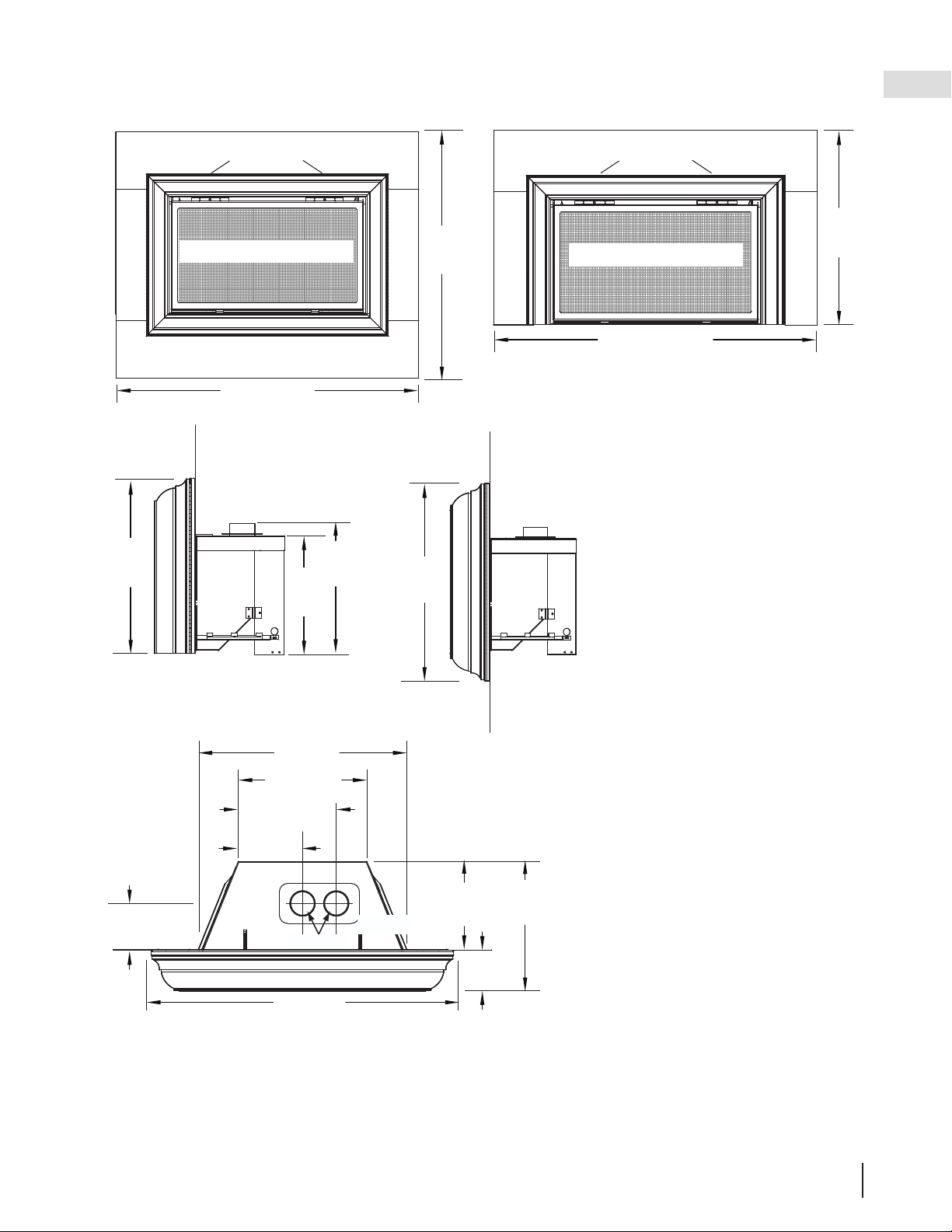

1.0 general information

36 1/2"

[927mm]

ALUMINUM TRIM

4 SIDED BACKER PLATE

44 7/8" [1140mm]

SAFETY BARRIER

ALUMINUM TRIM

3 SIDED BACKER PLATE

44 7/8" [1140mm]

27"

[686mm]

20 3/4"

[527mm]

15 1/2"

[394mm]

14"

[356mm]

24 1/8"

[613mm]

15 1/2"

[394mm]

10 9/16"

[268mm]

4 15/16"

[125mm]

36" [914mm]

5 1/2"

[140mm]

25" [635mm]

15 1/2" [394mm]

11 5/8" [295mm]

7 3/8"

[187mm]

3" [76mm] Ø

EXHAUST

AIR

INLET

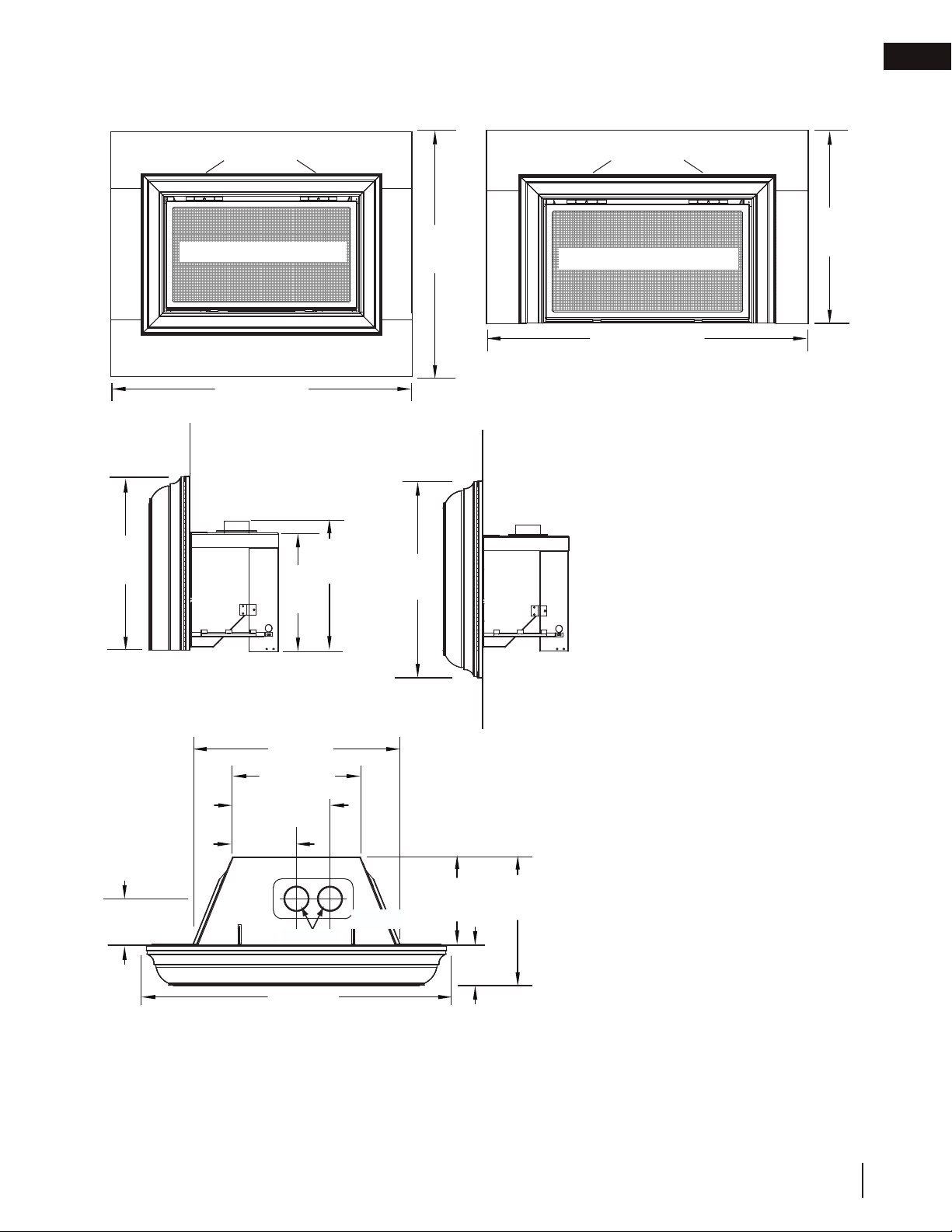

1.1 dimensions

This appliance must be recessed into a vented noncombustible solid fuel-burning ﬁ replace (prefabricated or masonry)

only. The minimum ﬁ replace opening size in which the appliance is to be installed is:

HEIGHT 14.5" (368mm) WIDTH 25" (635mm) DEPTH 11" (279mm)

The minimum allowable chimney ﬂ ue size is 6" (152mm) round.

1.2 minimum opening

3 & 4 SIDED BACKER PLATES - SIDE VIEWS

TOP VIEW

FRONT VIEW

W415-2359 / 08.22.19

general information

1.3 general instructions

When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of speciﬁ c

recommendations from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be

reduced at the rate of 4% for each additional 1,000ft (305m). Expansion /

contraction noises during heating up and cooling down cycles are normal

and to be expected.

This appliance is not approved for closet or recessed installations. It

is approved for bathroom, bedroom and bed-sitting room installations

and is suitable for mobile homes. The natural gas model is suitable for

installation in a mobile home that is permanently positioned on its site and

fuelled with natural gas.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the

appliance and must be installed.

65.5%

GDIZC

THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in the state of Massachusetts:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

W415-2359 / 08.22.19

general information

1.4 rates and efﬁ ciencies

NG P

Altitude (FT) 0-4,500

Max. Input (BTU/HR) 24,000

Min. Inlet Gas Supply Pressure 4.5" (11mb) Water Column 11" (27mb) Water Column

Max. Inlet Gas Supply Pressure 7" (17mb) Water Column* 13" (32mb) Water Column

Manifold Pressure (Under Flow Conditions) 3.5" (9mb) Water Column 10" (25mb) Water Column

1.5 rating plate information

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

NOTE: The rating plate must remain with the appliance at all times. It must not be removed.

Max. inlet gas supply pressure not to exceed 13" w.c.

Certiﬁed to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances

Certiﬁé selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation

Direct vent, vented gas ﬁreplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current

standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance

must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.

Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation

conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,

Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured

Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou

CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.

9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)

WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada

XXXX XXXX XXXX XXXX

MODEL / MODÈLE

Altitude

Input

Reduced Input

Élévation

Alimentation

Alimentation Réduite

Manifold Pressure: 3.5” w.c. (NG)

Minimum Supply Pressure: 4.5” w.c. (NG)

Maximum Supply Pressure: 7”* w.c. (NG)

Pression au Collecteur: 3,5” d’une colonne d’eau (GN)

Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)

Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)

** Maximum inlet pressure not to exceed 13”.

Manifold Pressure: 10” w.c. (P)

Minimum Supply Pressure: 11” w.c. (P)

Maximum Supply Pressure: 13”* w.c. (P)

Pression au Collecteur: 10” d’une colonne d’eau (P)

Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)

Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)

** Pression d’alimentation maximale ne devait pas dépasser 13”.

0-XXXXft (0-XXXXm)

Minimum clearance to combustible materials:

Top, sides & back: per standoff spacers for framing and ﬁnishing

materials. For non-combustible framing and ﬁnishing materials,

see installation manual.

Top X”

Floor X”

Sides X”

Back X”

Vent top X”

Vent sides & bottom X”

Recessed depth X”

*** Mantel X” from appliance opening

Dégagements minimaux des matériaux combustibles:

Dessus, côtés et arrière: selon les espaceurs de dégagements

pour les matériaux d’ossature selon le manuel du propriétaire

pour les matériaux de ﬁnition.

Dessus X”

Plancher X“

Côtés X”

Arrière X“

Dessus du conduit d’évent X”

Côtés et dessous du conduit d’évent X”

Profondeur d’encastré une face X”

*** Tablette X” de l’ouverture de l’appareil

WARNING: Do not add any material to the appliance which will come in contact with the

ﬂames, other than that supplied by the manufacturer with the appliance.

AVERTISSEMENT: N’ajoutez pas à cet appareil aucun matériau devant entretien

contact avec les ﬂammes autre que celui qui est fourni avec cet appareil par le fabricant.

*** Maximum horizontal extension:

X”. See installation manual for

greater extensions, minimum vent

lengths and maximum vent lengths.

*** L’extension horizontale maximale: X”.

Référez au manuel d’installation pour des

extensions plus grandes, les longueurs

d’évacuation minimaux et maximum.

The appliance must be vented using the appropriate Napoleon vent kits. See installation

manual for venting speciﬁcations. Proper reinstallation and resealing is necessary after servicing

the vent-air intake system.

L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au

manuel d’installation pour les spéciﬁcations d’évacuation. Il est nécessaire de bien réinstaller et

resceller l’évacuation après avoir executer l’entretien du système de prise d’air.

Serial Number / N° de Série:

W385-XXXX

REFERENCE# 161746

XXXX

VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF

HEAT, NOT INTENDED FOR USE AS A HEATING

APPLIANCE, NOT FOR USE WITH SOLID FUEL.

APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS

UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE

UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE

CONVIENT PAS AUX COMBUSTIBLES SOLIDES.

FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE

CERTIFIÉES AVEC L’APPAREIL.

XX,XXX XX,XXX

For natural gas when equipped with No. XX drill size oriﬁce.

For propane when equipped with No. XX drill size oriﬁce.

Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.

Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.

Electrical rating: 115V, 60HZ. Less than 12 amperes.

Spéciﬁcations électriques: 115V, 60HZ. Moins de 12 ampère.

XX.X% XX.X%

XXXX XXXX XXXX XXXX

SAMPLE

80, ,

for Manufactured or Manufactured

allation

I Z22

ANSI Z223.1 ou

Élévat

Ali

mentation

Alim

n R

édu

eAlimentation Réduite

))

w.c. (NG)c. (NG)

” d’une colonne d’eau (GN)

une colonne d’eau (G

n.:

,5” d’une colonne d’eau

)4,5” d’une colonne d’eau (GN)

x.:

7” ** d’une colonne d’eau

)7” ** d’une colonne d’eau (GN)

o exceed 13”.

exceed 13”.

nif

essu

Manifold Pressure:

10” w.c.

(

)w.c. (P)

Minimum

upply Pressure:

Minimum Supply Pressure:

11” w.c.

(

)w.c. (P)

aximum Su

Pressure:

Maximum Supply Pressure:

3”* w.c.

(

)13”* w.c. (P)

Pression au

ollecteur:

Pression au Collecteur:

10” d’une colonne d’eau (P)10” d’une colonne d’eau (P)

essio

d’Ali

n.:

ssion d’Alimentation Min.:

11” d’une colonne d’11” d’une colonne

essio

d’Ali

x.:

Pression d’Alimentation M

13” * d’une co13” * d’

** Pression d’alimentation maximale ne d** Pression d’alimentation maxi

ustible materials: tible materials:

pacers for framing and ﬁnishing or framing and ﬁnishing

ming and ﬁnishing materials, g and ﬁnishing materials,

Dégagements minimauDégagements minima

Dessus, côtés et arrDessus, côtés et

pour les m

TED DECORATIVE GAS APPLIANCD DECORATIVE GAS APPLIAN

HEAT, NOT INTENDED FORHEAT, NOT INTENDED F

APPLIANCE, NOT FOR USAPPLIANCE, NOT FOR US

APPAREIL À GAZ DÉCORATIF À ÉVACU

UNE SOURCE DE CHALEUR; N’ESUNE SOURCE DE CHALEUR; N’E

UTILISÉ COMME UNILISÉ COMME

CONCON

FOR US

XX,XXXX,XXX

XX.X% XX.X%

XXXXXXX

W415-2359 / 08.22.19

installation

2.0 installation

2.1 levelling the appliance

WARNING

• Risk of ﬁ re! Maintain speciﬁ ed air space clearances to vent pipe and appliance.

Clean out ashes from the inside of the wood-burning appliance. Make sure that the chimney and wood-burning

appliance are in a clean and sound condition and constructed of non-combustible materials. If necessary have any

repair work done by a qualiﬁ ed person before installing the insert. Remove the existing appliance damper or lock

into an open position.

Using screws, attach the appliance warning tag to the inside

of the ﬁ rebox of the appliance into which the insert is being

installed.

The sheet-metal parts of the appliance, in which the gas

appliance insert is to be installed, must not be cut.

If the wood-burning factory-built appliance has no gas access

hole(s) provided, an access hole of 1½ inch (38.1mm) or less

may be drilled through the lower sides or bottom of the appliance in a proper workman like manner. This access

hole must be plugged with non-combustible insulation after the gas supply line has been installed.

Ensure that existing chimney cleanouts ﬁ t properly.

The refractory, glass doors, screen rails, screen mesh and log grates may be removed from the existing appliance

before installing the gas appliance insert.

Smoke shelves, shields and bafﬂ es may be removed if attached by mechanical fasteners.

The ventilation openings in the existing appliance may be obstructed by the backer plates, aluminium trim etc. but

these parts are not to be applied so as to have an airtight seal.

W385-0199

Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review your

installation plans and/or installation. Draw out a detailed plan of the installation including dimensions and verify the

dimensions with the requirements listed in this manual.

You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing

member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,

doors), 48” (121.9cm) of the front of the appliance.

Inserts only: This appliance is equipped with levelling screws, level the appliance before installing into the ﬁ nal

position. Levelling the appliance will eliminate rocking or excessive noise when the fan is in operation. Once the

appliance is level, move it partially into place to allow for all connections to be made. It is not practical to level the

appliance once it has been installed. Determine the required depth prior to installing the appliance and adjust the

levelling screws accordingly.

W385-0199_B

WARNING: THIS FIREPLACE HAS BEEN CONVERTED FOR USE WITH A GAS FIREPLACE

INSERT ONLY AND CANNOT BE USED FOR BURNING WOOD OR SOLID FUELS UNLESS ALL ORIGINAL

PARTS HAVE BEEN REPLACED AND THE FIREPLACE IS RE-APPROVED BY THE AUTHORITY HAVING

JURISDICTION.

ATTENTION: CE FOYER A ETE CONVERTI AFIN D’ETRE UTILISE SEULEMENT

COMME FOYER ENCASTRE AU GAZ ET NE PEUT ETRE UTILSE POUR BRULER DU BOIS OU

TOUT AUTRE COMBUSTIBLE SOLIDE, SANS QUE TOUTES LES PIECES ORIGINALES AIENT

ETE REMPLACEES ET QUE LE FOYER SOIT APPROUVE DE NOUVEAU PAR LES AUTORITES

AYANT JURIDICTION.

ADVERTENCIA: ESTA CHIMENEA SE REMODELÓ PARA USARSE SOLO CON UNA

INSERCIÓN DE CHIMENEA A GAS Y NO PUEDE USARSE PARA QUEMAR MADERA NI COMBUSTIBLES

SÓLIDOS, A MENOS QUE SE HAYAN REEMPLAZADO TODAS LAS PIEZAS ORIGINALES, Y LA AUTORI-

DAD JURISDICCIONAL LA HAYA VUELTO A APROBAR.

W415-2359 / 08.22.19

installation

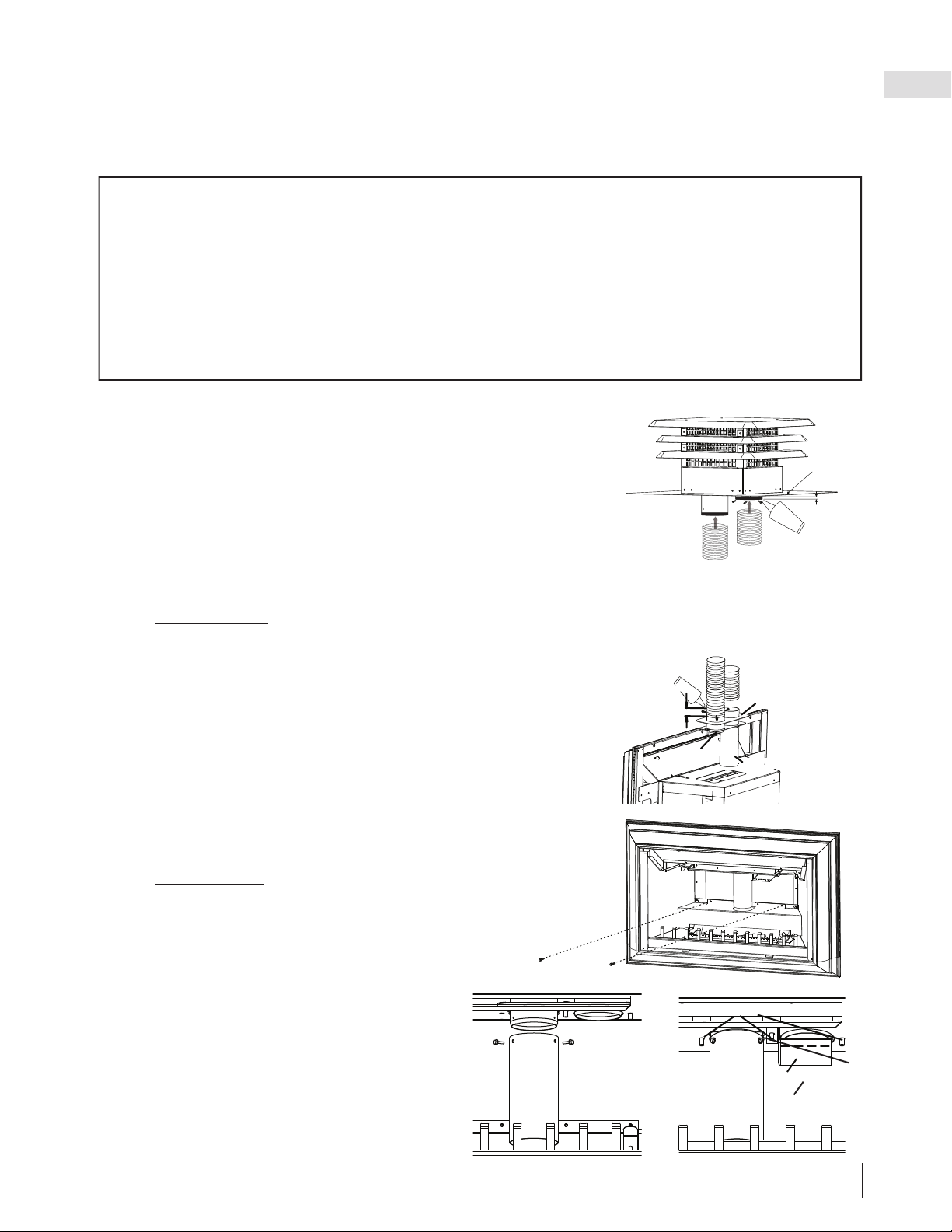

2.2 chimney connection

Chimney installation must conform to both national and local code requirements. The chimney must be lined with

one 2" (51mm) or 3" (76mm) diameter liner for intake and one 3" (76mm) diameter liner for exhaust. The minimum

and maximum vent lengths are 10ft (3m) and 35ft (10m) respectively. Recommended kits come in 3 lengths:

1-2" (25-51mm) & 1-3" (25-76mm) DOUBLE PLY ALUMINUM LINER-INLET AND EXHAUST &

2-3" (51-76mm) TO 2" (51mm) REDUCER:

GDI-2320KT VENT KIT 20FT (6m)

GDI-2325KT VENT KIT 25FT (7m)

GDI-2335KT VENT KIT 35FT (11m)

2-3" (50.8-76.2mm) DOUBLE PLY ALUMINUM LINER-INLET AND EXHAUST:

GDI-320KT VENT KIT 20FT (6m)

GDI-325KT VENT KIT 25 FT (7m)

GDI-335KT VENT KIT 35 FT (11m)

While the liners must be continuous from the appliance to the chimney cap, to

achieve the needed length, they may be coupled, using an approved coupler.

We recommend that exhaust vents that pass through unheated spaces, such as tall

exterior chimneys, be wrapped in a protective sleeve to minimize condensation and

reverse ﬂ ow symptoms. See the "TROUBLESHOOTING" section for details.

This appliance is approved for use with a 2" (51mm) liner for air intake and a 3"

(76mm) liner for exhaust. For best performance, however, it is recommended to use

two 3" (76mm) liners.

If a 2" (51mm) liner is used for the intake, it may be necessary to adjust the

primary air shutter.

A. OUTSIDE: Slip the one end of a liner a minimum of

(51mm)

over the sleeve of the air terminal. Secure

using 3 screws. Then seal the joint and screw heads

with high temperature sealant Mill-Pac (not supplied).

Repeat with the other liner.

NOTE: We recommend that the other end of the

exhaust liner be marked to eliminate the exhaust

liner being connected to the intake collar at the

appliance.

B. Gently stretch the liners to the required lengths and

insert into the chimney. Trim and ﬁ t the ﬂ ashing plate

to suit the chimney termination. Place the air terminal

onto the top of the chimney. Make weather tight by

sealing with caulking (not supplied). Fasten to the

chimney with screws and plugs (not supplied).

C. INSIDE: Attach and secure the ﬂ ex liners to the vent

connection assembly using the same procedure as

before, ensuring that the marked exhaust liner is

attached to the exhaust collar.

D. Detach the two screws from the back of the ﬁ rebox

and remove the panel, as illustrated.

E. Reaching in through the appliance, manoeuvre the

vent connection assembly through the openings in the

ﬁ rebox top, taking care not to damage the gasket. In

case of a low ceiling ﬁ replace, the extension should be

removed and reinstalled after the vent connection is

secured to the ﬁ rebox. Attach the restrictor plate to the

centre stud and secure the assembly using the three

studs and 1/4-20 hex nuts.

Flashing Plate

2” (51mm)

Overlap

Exhaust

Intake

EXHAUST

SEALANT

HI-TEMP

INTAKE

VENT

CONNECTION

ASSEMBLY

2” (50.8mm)

OVERLAP

VENT

CONNECTOR

eXteNSiON

RESTRICTOR

PLATE

STUDS

W415-2359 / 08.22.19

installation

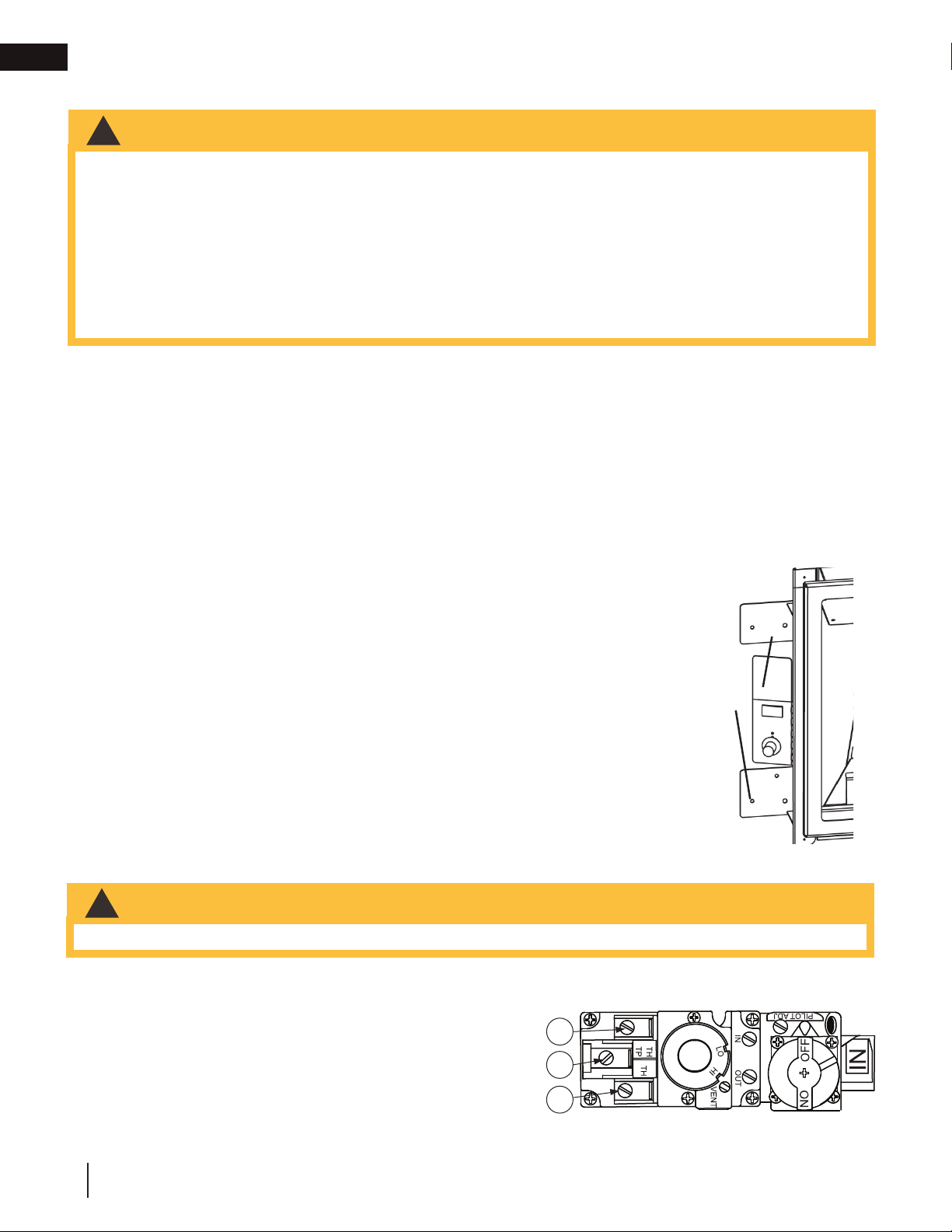

2.3 gas installation

The appliance may now be pushed into its ﬁ nal position inside the wood burning

appliance. Secure the appliance to the ﬁ replace using perforated strapping attached to

the two securing holes on either side of the appliance as shown. We recommend that the

trim be installed before the appliance is placed into its ﬁ nal position.

SECURING

HOLES

WARNING

• Risk of ﬁ re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open ﬂ ames.

• Support gas control when attaching gas supply pipe to prevent damaging gas line.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door opened

or removed. Purging of the gas supply line should be performed by a qualiﬁ ed service technician. Ensure

that a continuous gas ﬂ ow is at the burner before closing the door. Ensure adequate ventilation. For gas and

electrical locations, see “dimensions” section.

• All gas connections must be contained within the appliance when complete (gas ﬁ replaces only).

• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above

1/2 PSIG.

• Valve settings have been factory set, do not change.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector, the appliance is designed to accept a 1/2” (13mm) gas supply. Without the

connector, it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut

off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current

CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA

54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly

on its side to aid with servicing components.

• Check for gas leaks by brushing on a soap and water solution. Do not use open ﬂ ame.

2.4 optional wall switch

WARNING

• Do not connect either the wall switch, thermostat or gas valve directly to 110 volt electricity.

For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient

location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The

recommended maximum lead length depends on wire size:

WIRE SIZE MAX. LENGTH

14 gauge (1.8mm) 100 feet (30.5m)

16 gauge (1.5mm) 60 feet (18.3m)

18 gauge (1.2mm) 40 feet (12.2m)

Disconnect the existing wires from terminals 1 and 3 (from the

ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.

ADD IMAGE

HERE

W415-2359 / 08.22.19

ﬁ nishing

3.0 ﬁ nishing

3.1 minimum mantel clearances

WARNING

• Risk of ﬁ re!

• Never obstruct the front opening of the appliance.

• The front of the appliance must be ﬁ nished with any non-combustible materials such as brick, marble, granite,

etc., provided that these materials do not go below the speciﬁ ed dimension, as illustrated.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.

• Facing and/or ﬁ nishing material must never overhang into the appliance opening.

• The glass door assembly is a safety device designed to pivot forward when relieving excess pressure that

might occur. Finishing or other materials must not be located in the opening surrounding the door as this will

interfere with the doors ability to relieve pressure.

• If applicable, drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must

be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any damage

resulting from this condition is not covered by the warranty policy.

WARNING

• Risk of ﬁ re. Maintain all speciﬁ ed air space clearances to combustibles. Failure to comply with these instructions

may cause a ﬁ re or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top, vent, mantel,

front, etc.) are clearly maintained.

• When using paint or lacquer to ﬁ nish the mantel, the paint or lacquer must be heat resistant to prevent

discolouration.

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the

clearance needed. These same requirements apply to any combustibles protruding on either side of the appliance.

6” (152mm) MANTEL

A = 6” (152mm)

B = 5” (127mm)

C = 4” (102mm)

D = 3” (76mm)

MANTEL WIDTH

1” (25mm)

2345

2” (51mm)

3” (76mm)

4” (102mm)

5” (127mm)

6” (152mm)

7” (178mm)

W415-2359 / 08.22.19

ﬁ nishing

3.2 safety barrier & door removal and installation

WARNING

• Glass may be hot. Do not touch glass until cooled.

• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not

operate the appliance with latches disengaged.

• Facing and/or ﬁ nishing materials must not interfere with air ﬂ ow through air openings, louvre openings,

operation of louvres, or doors/access for service. Observe all clearances when applying combustible

materials.

• Before door is removed, turn the appliance off and wait until appliance is cool to the touch. Doors are heavy

and fragile so handle with care.

ONLY:

LOWER DOOR BRACKET

ONLY:

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance and shall

be installed. Before the glass door can be removed, the safety barrier must be removed. Lift the safety barrier up

and remove from the appliance. Reverse these steps to reinstall the safety barrier.

Place the door into the two lower door brackets then secure at the top of the appliance with two #10-24 machine

screws. Reverse these steps to reinstall the safety barrrier and door. Ensure safety barrier is installed correctly.

W415-2359 / 08.22.19

ﬁ nishing

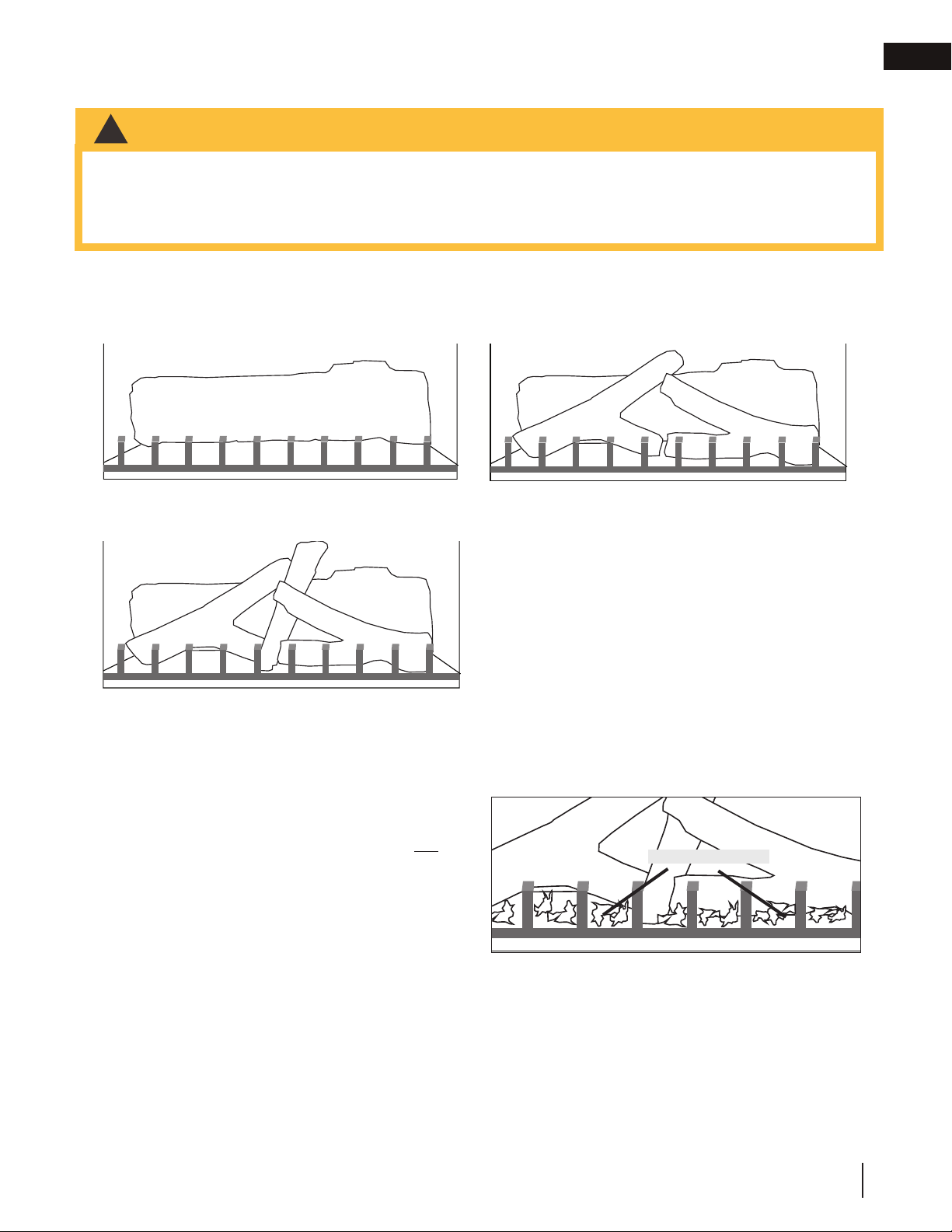

3.3 log placement

PHAZER

logs and glowing embers exclusive to Napoleon Fireplaces, provide a unique and realistic glowing effect that is

different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.

Log colours may vary. During the initial use of the ﬁ replace, the colours will become more uniform as colour

pigments burn in during the heat activated curing process.

Place the rear log (W135-0136) onto the two log

supports and against the air intake pipe.

B. Position the left log (W135-0137) and the right log

(W135-0138) against the grate posts and line up the

studs located on the burner with the holes on the

bottom of the logs. Keep slightly back of the front

row of ports.

Fit the centre log (W135-0139) into place behind the

left log and into the pocket provided on the rear log.

Tear the embers into pieces and place along the front row

of ports covering all of the burner area in front of the logs.

Care should be taken to shred the embers into thin, small

irregular pieces as only the exposed edges of the ﬁ bre

hairs will glow. The ember material will only glow when

exposed to direct ﬂ ame; however, care should be

taken to not block the burner ports.

Blocked burner ports can cause an incorrect ﬂ ame

pattern, carbon deposits and delayed ignition. PHAZER

logs glow when exposed to direct ﬂ ame. Use only certiﬁ ed "glowing embers" and PHAZER

logs available from

your authorized dealer / distributor.

3.4 glowing embers

GLOWING EMBERS

WARNING

• Failure to position the logs in accordance with these diagrams or failure to use only logs speciﬁ cally approved

with this appliance may result in property damage or personal injury.

• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since

appliance may not function properly and delayed ignition may occur.

• The logs are fragile and should be handled with care.

W415-2359 / 08.22.19

ﬁ nishing

3.5 logo placement

3.6 aluminum extrusion trim kit installation

Remove the backing of the logo supplied and place, as illustrated.

INSERT


HERE

1/2"(12.7

LOGO

1/2"(12.7mm)

In order to close off the ﬁ replace opening or if the opening is larger than the 3- or 4-sided aluminum extrusion trim

kits, it is recommended to reduce the opening using a non-combustible material such as ceramic tile, marble,

etc. or the GIZBP6-3 or GIZBP6-4 backer plate kits. The outside edge of teh backer plate is ﬁ nished off with

gold trim included in each kit. A deluxe ﬂ ashing kit complete with marquis trim may also be used to complete the

installation. These ﬂ ashing and trim combinations are available in 6 inch (152.4mm) and 9 inch (228.6mm) widths

as well as many ﬁ nishes to accent any room decor. Mounting brackets, GIZBRKT, are required to install the

deluxe ﬂ ashing. Detailed installation instructions are included with each kit.

If this appliance is being installed into an existing wood burning, zero clearance ﬁ replace, then be aware of this

precaution: Any circulation air opening may be covered (with non-combustible material) but not sealed!

The appliance can be equipped with either a 3- or 4-sided trim kit to ﬁ nish off

the ﬁ replace opening. Slide the trim assembly over the keyholes (2 per side) and

drop into place. If installing the optional 3- or 4-sided backer plate (GIZBP6-3

or GIZBP6-4), it must be hung prior to the trim kit installation using the same

keyholes.

To adjust the trim: If the mitre is out of alignment, open each side and loosen the

two screws at either side trim hinge. Slide the trim up or down to adjust and re-

tighten the screws. There is also a very slight in/out adjustment that can be made.

Note: Since the side panels open and close, to access the controls, a gap is

necessary at the mitre joint.

The top trim piece has an adjustable securing bracket which enables the trim to be

secured to the ﬁ rebox shell.

FIRE VIEWING DOOR

VALVE

CONTROL

DOOR

LOOSEN

SCREWS

SLIDE TO

ADJUST

W415-2359 / 08.22.19

operation

4.0 operation

The on-off switch is located behind the left side control door.

GAS KNOB TO OFF

BOUTON DU GAZ A

“OFF”

LIGHTING INSTRUCTIONS / INSTRUCTIONS D'ALLUMAGE

WHEN LIGHTING AND RE-LIGHTING, THE GAS KNOB CANNOT BE TURNED FROM PILOT

UNLESS THE KNOB IS DEPRESSED.

1. STOP! READ THE SAFETY INFORMATION ON THE OPERATING LABEL.

2. TURN OFF ALL ELECTRIC POWER TO THE FIREPLACE.

3. TURN THE GAS KNOB CLOCKWISE TO OFF.

4. WAIT FIVE (5) MINUTES TO CLEAR OUT ANY GAS. IF YOU SMELL GAS, INCLUDING

NEAR THE FLOOR, STOP! FOLLOW “B” ON THE OPERATING LABEL. IF YOU DON’T

SMELL GAS GO TO THE NEXT STEP.

5. IF FIREPLACE IS EQUIPPED WITH FLAME ADJUSTMENT VALVE TURN CLOCKWISE TO

OFF.

6. FIND PILOT LOCATED IN FRONT OF BACK LOG.

7. TURN GAS KNOB COUNTER-CLOCKWISE TO PILOT.

8. DEPRESS AND HOLD GAS KNOB WHILE LIGHTING THE PILOT WITH THE PUSH

BUTTON IGNITOR. KEEP KNOB FULLY DEPRESSED FOR ONE MINUTE, THEN

RELEASE. IF PILOT DOES NOT CONTINUE TO BURN REPEAT STEPS 3 THROUGH 7.

9. WITH PILOT LIT, TURN GAS KNOB COUNTER-CLOCKWISE TO ON.

10. IF EQUIPPED WITH FLAME ADJUSTMENT VALVE, PUSH AND TURN KNOB TO HIGH.

11. IF EQUIPPED WITH REMOTE ON-OFF SWITCH, MAIN BURNER MAY NOT COME ON

WHEN YOU TURN THE VALVE TO ON OR HIGH. REMOTE SWITCH MUST BE IN THE ON

POSITION TO IGNITE BURNER.

12. TURN ON ALL ELECTRIC POWER TO THE FIREPLACE.

TO TURN OFF GAS / COUPER L’ALIMENTATION EN GAZ

LORSQUE LE GAZ EST ALLUME OU RE-ALLUME LE BOUTON DE GAZ NE PEUT PAS

ETRE TOURNE DE PILOTE A FERME A MOINS QU'IL SOIT ENFONCE.

1. ARRETEZ! LISEZ LES INSTRUCTIONS DE SECURITE SUR L’ETIQUETTE DE

FONCTIONNEMENT.

2. COUPEZ L'ALIMENTATION ELECTRIQUE AU FOYER.

3. TOURNEZ LE BOUTON DE CONTROLE DU GAZ VERS LA DROITE A

"OFF".

4. ATTENDEZ CINQ (5) MINUTES AFIN D'EVACUER TOUT LES GAZ. SI VOUS

SENTEZ LE GAZ COMPRIS PRES DU REVETEMENT, ARRETEZ! OBSERVEZ

L'ITEM "B" SUR L’ETIQUETTE DE FONCTIONNEMENT. SI VOUS NE SENTEZ

PAS LE GAZ, CONTINUEZ A L'ETAPE SUIVANTE.

5. SI L'APPAREIL EST MUNI D'UNE SOUPAPE DE REGLAGE DE LA FLAMME.

TOURNEZ LE BOUTON VERS LA DROITE A "OFF".

6. LOCALISEZ LA VEILLEUSE DEVENT LA BUCHE ARRIERE.

7. TOURNE LE BOUTON DU GAZ VERS LA GAUCHE A PILOTE.

8. ENFONCEZ ET GARDEZ LE BOUTON DU GAZ ENFONCE PENDANT QUE

VOUS ALLUMEZ LA VEILLEUSE EN PRENFONCE PENDANT UNE MINUTE ET

RE-LACHEZ-LE. SI LA VEILLEUSE NE RESTE PAS ALLUMEE, REPETEZ LES

ETAPES DE 3 A 7.

9. LORSQUE LA VEILLEUSE EST ALLUMEE, TOURNEZ LE BOUTON DU GAZ

VERS LA GAUCHE A "ON".

10. SI L'APPAREIL EST MUNI D'UNE SOUPAPE DE REGLAGE DE LA FLAMME,

PRESSEZ ET TOURNEZ LE BOUTON A "HIGH".

11. SI L'APPAREIL EST MUNI D'UNE INTERRUPTEUR OUVERT/FERME A DISTANCE,

LE BRULEUR PRINCIPAL PEUT NE PAS S'ALLUMER QUAND VOUS TOURNEZ

LA SOUPAPE OUVERT OU "HIGH". L'INTERRUPTEUR A DISTANCE DOIT ETRE

EN POSITION OUVERT POUR QUE LE BRULEUR PRINCIPAL S'ALLUME.

12. RE-ALIMENTEZ L'APPAREIL EN ELECTRICITE.

1. TURN OFF ALL ELECTRIC POWER TO THE FIREPLACE IF SERVICE IS TO

BE PERFORMED.

2. PUSH IN GAS CONTROL KNOB SLIGHTLY AND TURN CLOCKWISE

TO OFF. DO NOT FORCE.

1. COUPEZ L'ALIMENTATION ELECTRIQUE AU FOYER SI LE SERVICE EST

EFFECTUE.

2. ENFONCEZ LEGEREMENT LE BOUTON DE CONTROLE DU GAZ ET TOURNEZ

VERS LA DROITE A “OFF”. NE FORCEZ PAS.

W385-0201 / C

OPERATING INSTRUCTIONS / INSTRUCTIONS D'OPERATION

FOR YOUR SAFETY READ BEFORE OPERATING / POUR VOTRE SECURITE LIRE AVANT DE FAIRE FONCTIONNER

ATTENTION:

NE PAS ALLUMER SI DES ENFANTS OU D’AUTRES

INDIVIDUS À RISQUE SONT À PROXIMITÉ DU FOYER. QUICONQUE NE

RESPECTE PAS À LA LETTRE LES INSTRUCTIONS DANS LA PRÉSENTE

NOTICE RISQUE DE DÉCLENCHER UN INCENDIE OU UN EXPLOSION

ENTRAÎNANT DES DOMMAGES, DES BLESSURES OU LA MORT.

L’ALLUMAGE INITIAL DE LA VEILLEUSE ET DU BRÛLEUR PRINCIPAL

DOIT SE FAIRE AVEC LA PORTE VITRÉE ENLEVÉE.

NE RACCORDEZ PAS LA SOUPAPE OU L’INTERRUPTEUR MURAL A

L’ÉLECTRICITÉ. CONSULTEZ LES INSTRUCTIONS D’INSTALLATION.

A. THIS FIREPLACE IS EQUIPPED WITH A PILOT WHICH MUST BE LIT BY

HAND WHILE FOLLOWING THESE INSTRUCTIONS EXACTLY.

B. BEFORE OPERATING SMELL ALL AROUND THE FIREPLACE AREA FOR GAS AND

NEXT TO THE FLOOR BECAUSE SOME GAS IS HEAVIER THAN AIR AND WILL

SETTLE ON THE FLOOR.

WHAT TO DO IF YOU SMELL GAS:

• TURN OFF ALL GAS TO THE FIREPLACE.

• OPEN WINDOWS.

• DO NOT TRY TO LIGHT ANY APPLIANCE.

• DO NOT TOUCH ANY ELECTRIC SWITCH; DO NOT USE ANY PHONE IN

YOUR BUILDING.

• IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOUR’S PHONE.

FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.

• IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.

C. USE ONLY YOUR HAND TO TURN THE GAS CONTROL KNOB / MANUAL SHUT-OFF

KNOB. NEVER USE TOOLS. IF THE KNOB WILL NOT TURN BY HAND, DO NOT TRY

TO REPAIR IT. CALL A QUALIFIED SERVICE TECHNICIAN. FORCE OR ATTEMPTED

REPAIR MAY RESULT IN A FIRE OR EXPLOSION.

D. DO NOT USE THIS FIREPLACE IF ANY PART HAS BEEN UNDER WATER. IMMEDI-

ATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE FIREPLACE AND

REPLACE ANY PART OF THE CONTROL SYSTEM AND ANY GAS CONTROL WHICH

HAS BEEN UNDER WATER.

A. CET APPAREIL EST MUNI D’UNE VEILLEUSE QUI DOIT ÊTRE ALLUMEÉ MANUELLEMENT.

RESPECTEZ LES INSTRUCTIONS CI-DESSOUS À LA LETTRE.

B. AVANT D’ALLUMER LA VEILLEUSE, RENIFLEZ TOUT AUTOUR DE L’APPAREIL POUR DÉCELER

UNE ODOUR DE GAZ. RENIFLEZ PRÈS DU PLANCHER, CAR CERTAINS GAZ SONT PLUS

LOURDS QUE L’AIR ET PEUVENT S’ACCUMULER AU NIVEAU DU SOL.

QUE FAIRE SI VOUS SENTEZ UN ODEUR DE GAZ :

• COUPEZ ENTIEREMENT L'ALIMENTTION DE GAZ PRINCIPALE.

• OUVREZ LES FENETRES.

• NE PAS TENTER D’ALLUMER D’APPAREIL.

• NE TOUCHEZ À AUCUN INTERRUPTEUR ; NE PAS VOUS SERVIR DES TÉLÉPHONES SE

TROUVANT DANS LE BÂTIMENT.

• APPELEZ IMMÉDIATEMENT VOTRE FOURNISSEUR DE GAZ DEPUIS UN VOISIN. SUIVEZ LES

INSTRUCTIONS DU FOURNISSEUR.

• SI VOUS NE POUVEZ REJOINDRE LE FOURNISSEUR, APPELEZ LE SERVICE DES INCEND-

IES.

C. NE POUSSER OU TOURNER LA MANETTE D’ADMISSION DU GAZ QU’À LA MAIN. NE JAMAIS

EMPLOYER D’OUTIL À CETTE FIN. SI LA MANETTE RESTE COINCÉE, NE TENTEZ PAS DE LA

RÉPARER; APPELEZ UN TECHNICIEN QUALIFIÉ. QUICONQUE TENTE DE FORCER LA

MANETTE OU DE LA RÉPARER PEUT PROVOQUER UNE EXPLOSION OU UN INCENDIE.

D. N’UTILISEZ PAS CET APPAREIL S’IL A ÉTÉ PLONGÉ DANS L’EAU, MÊME PARTIELLEMENT.

FAITES INSPECTER L’APPAREIL PAR UN TECHNICIEN QUALIFIÉ ET REMPLACEZ TOUTE

PARTIE DU SYSTÈME DE CONTRÔLE ET TOUTE COMMANDE QUI ONT ÉTÉ PLONGÉS DANS

L’EAU.

WARNING: DO NOT TURN ON IF CHILDREN OR OTHER AT RISK

INDIVIDUALS ARE NEAR THE FIREPLACE. IF YOU DO NOT FOLLOW

THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT

CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

INITIAL LIGHTING OF THE PILOT AND MAIN BURNERS MUST BE DONE

WITH THE GLASS DOOR OFF.DO NOT CONNECT VALVE OR WALL

SWITCH TO ELECTRICITY. SEE INSTALLATION INSTRUCTIONS.

DO NOT CONNECT VALVE OR WALL SWITCH TO ELECTRICITY.

SEE INSTALLATION INSTRUCTIONS.

W415-2359 / 08.22.19

adjustments

5.0 adjustments

5.1 pilot burner adjustment

5.2 venturi adjustment

AIR SHUTTER SETTING

3" / 3" Liner System 2" / 3" Liner System

1/16” (2mm) 1/8" (3mm)

3/16” (5mm) 5/16" (8mm)

This appliance is approved for use with a 2" (51mm) liner for air intake and a 3" (76mm) liner for exhaust. For best performance,

however, it is recommended to use two 3" (76mm) liners.

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using screw

(B). Gauge should read as described on the chart below. Check

pressure with main burner operating on “HI”.

After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. Do not overtorque.

Leak test with a soap and water solution.

Prior to pilot adjustment, ensure that the pilot assembly has not been painted. If overspray or painting of

the pilot assembly has occurred remove the paint from the pilot assembly, or replace. Fine emery cloth or a

synthetic scrub pad (such as Scotch-Brite

™)

can be used to remove the paint from the pilot hood, electrode

and ﬂ ame sensor.

INSERT PILOT ASSEMBLY

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

This appliance has an air shutter that has been factory set open according to

the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow ﬂame, but can lead to carbonization. Opening the air shutter will cause

a more blue ﬂame, but can cause ﬂame lifting from the burner ports. The ﬂame

may not appear yellow immediately; allow 15 to 30 minutes for the ﬁnal ﬂame

colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER.

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

It is important that the oriﬁce is securely inserted into the venturi.

note:

PILOT

BURNER

THERMOCOUPLE

THERMOPILE

PILOT SCREW

W415-2359 / 08.22.19

adjustments

5.3 ﬂ ame characteristics

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

ADD IMAGE

HERE

5.4 restricting vertical vents

Some vent conﬁ gurations may display a very active ﬂ ame.

If this appearance is not desirable, the vent exit may be

restricted using a restrictor plate. Bend the ﬂ ap up as shown

to reduce the velocity of the exhaust gases, slowing down the

ﬂ ame pattern and creating a more traditional appearance.

3/8” - 1/2”

(9.5mm - 12.7mm)

Flame must envelop

upper

3/8" to 1/2"

(12.7mm - 9.5mm) of

thermocouple &

thermopile

W415-2359 / 08.22.19

maintenance

6.0 maintenance

WARNING

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners on glass.

• Do not paint the pilot assembly.

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The appliance

area must be kept clear and free of combustible materials, gasoline, or other ﬂ ammable vapors and liquids.

The ﬂ ow of combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to ex-

pose both assemblies.

2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the appli-

ance clean by vacuuming or brushing, at least once a year.

3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning

or are not burning properly.

4. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as it reaches the burner.

5. If your appliance is equipped with a safety barrier, cleaning may be necessary due to excessive lint /

dust from carpeting, pets, etc. simply vacuum using the brush attachment.

6. If your appliance is equipped with relief doors, ensure the system performs effectively. Check that the

gasket is not worn or damaged. Replace if necessary.

7. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning

which can be distributed in the surrounding living area, inside the ﬁ rebox and on exterior surfaces sur-

rounding vent termination.

8. Check to see that the main burner ignites completely on all ports when turned on. A 5 to 10 second

total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer / dis-

tributor.

9. Visually inspect the appliance for carbon build up. Using a small whisk or brush, brush off the carbon

and vacuum up or sweep into garbage.

10. This step is not applicable for Vent Free appliances: Check to see that the appliance is vent-

ing correctly. Ensure chimney system is safe and unobstructed. (If for any reason the vent air intake

system is disassembled, re-install and re-seal per the instructions provided for the initial installation).

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and

dangerous operation. Verify proper operation after servicing.

note:

W415-2359 / 08.22.19

maintenance

6.1 annual maintenance

WARNING

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media, and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels, etc.).

• Using a vacuum with soft brush attachment, gently remove any dirt, debris, or carbon build up from the

logs, ﬁ rebox, and burner. For glass media, follow the installation instructions for pre-cleaning.

• Gently remove any build-up on the pilot assembly including thermopile, thermocouple, ﬂ ame sensor, and

igniter (if equipped).

• Inspect all accessible gaskets and replace as required.

• If equipped with a blower, access the blower and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely, if equipped. Replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including pilot tube

connections.

Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad (such as Scotch-Brite™) to remove any

oxides. Clean the pilot assembly using a vacuum with a soft brush attachment. It is important that the pilot

assembly is not painted.

note:

• Annual maintenance should be performed by a qualiﬁ ed service technician

• The ﬁ rebox becomes very hot during operation. Let the appliance cool completely or wear heat resistant

gloves before conducting service.

• Never vacuum hot embers.

• Do not paint the pilot assembly

W415-2359 / 08.22.19

maintenance

6.2 care of glass

This appliance is factory equipped with 5mm ceramic glass. Use only replacement parts as supplied by the

appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

WARNING

Buff lightly with a clean dry soft cloth to remove accumulated dust or ﬁ ngerprints. Clean both sides of the glass

after the ﬁ rst 10 hours of operation with an ammonia-free glass cleaner.

Thereafter, clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may

result. Contact you local authorized dealer / distributor for complete cleaning instructions.

Razor blades, steel wool, or other metallic objects must not be used on both surfaces of the glass. Doing so

can remove a thin layer of metal from the razor blades, steel wool, or other metallic objects that may then be

deposited onto the coating. This can result in a discoloured stain or scratch-like mark. More importantly, this can

scratch the glass surface, thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of ﬂ ue gases may result.

Contact your local authorized dealer / distributor for complete cleaning instructions.

If the glass should ever crack or break while the ﬁ re is burning, do not open the door until the ﬁ re is out. Do not

operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for

replacement parts. DO NOT SUBSTITUTE MATERIALS.

Vinegar-based glass cleaners have demonstrated an ability to provide a clean, streak free glass surface.

note:

• Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

If the appliance is equipped with plated parts, you must clean ﬁ ngerprints or other marks from the plated surfaces

before operating the appliance for the ﬁ rst time. Use an ammonia-free or vinegar-based cleaner and a towel

to clean. If not cleaned properly before operating for the ﬁ rst time, the marks can cause permanent blemishes

on the plating. After the plating is cured, the ﬁ ngerprints and oils will not affect the ﬁ nish and little maintenance

is required, just wipe clean as needed. Prolonged high temperature burning with the door ajar may cause

discolouration on plated parts.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can

be improved if the assembly is warmed (i.e. using a hair dryer or similar heat source).

note:

WARNING

• Do not use substitute materials.

• Glass may be hot. Do not touch glass until cooled.

• Care must be taken when removing and disposing of any broken door glass or damaged components. Be

sure to vacuum up any broken glass from inside appliance before operation.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, broken, or scratched.

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the appliance

manufacturer.

6.3 care of plated parts

6.4 door glass replacement

W415-2359 / 08.22.19

maintenance

6.5 replacement blower installation

WARNING

• Risk of ﬁre and electrical shock!

• Turn off the gas and electrical power before servicing this appliance.

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using

non-listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could

result in a safety hazard and will void the warranty and certiﬁcation.

• Ensure that the fan’s power cord is not in contact with any surface of the appliance to prevent electrical

shock or ﬁre damage. Do not run the power cord beneath the appliance.

• The wire harness provided in the blower kit is a universal harness. When installed, ensure that any excess

wire is contained, prevent it from making contact with moving or hot objects.

1. Turn off the electrical

power and the

gas supply to the

appliance.

2. Remove the ﬁ re

viewing door. Remove

the logs.

3. Detach the two

screws from the back

of the ﬁ rebox and

remove the panel, as

illustrated.

4. Remove the blower access door helf on with the

remaining 8 screws. Replace the blower access

door gasket when changing the blower.

5. Disconnect the two blower wires. Remove the

blower bracket secured with one wing nut and

lock washer. For thermodisc replacement: Remove

the "Z" shaped mounting bracket secured to the

ﬁ rebox wall to the left of the blower. Remove the

thermodisc from the bracket and replace.

6. Replace the blower using the existing bracket.

Slide the vibration reducing pad (A) into the clip (C)

and up against the threaded stud (B) at the other

end. The blower must be able to be positioned

entirely onto the pad.

7. Slide the blower into the clip (C). Secure to the

threaded stud using the existing lock washer and

wing nut. Ensure that the blower does not touch

the ﬁ replace base or the ﬁ rebox.

8. Reconnect the two wires. Holding the replacement

gasket in place, reattach the blower access door

and panel. Replace the logs. Reinstall the ﬁ re

viewing door.

9. Turn the gas supply and electricity back on.

Because the blower is thermally activated, when

turned on, it will automatically start approximately 5-15

minutes after lighting the appliance and will run for

approximately 30-45 minutes after the appliance has

been turned off. Use of the fan increases the output of

heat.

Drywall dust will penetrate into the blower bearings causing irreparable damage and must be prevented from

coming into contact with the blower or its compartment. Any damage resulting from this condition is not covered

by the warranty policy.

black

white

red

SPEED

CONTROL

SWITCH

BLOWER

THERMAL

SWITCH

BLOWER ACCESS DOOR

BLOWER

WIRES

THERMODISC

BRACKET

ASSEMBLY

W415-2359 / 08.22.19

7.0 replacement parts

WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁ cally approved

with this appliance may result in property damage or personal injury.

• **This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting supplied

by Wolf Steel Ltd.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁ ed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁ ed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁ ed as ‘SO’ are special order and can take up to 90 days for delivery

W415-2359 / 08.22.19

replacement parts

13 W565-0181-SER Safety screen

Ref. No. Part number Description

1 W135-0137 Left side log (GL-631)

2 W135-0136 Rear log (GL-631)

3 W135-0138 Right side log (GL-631)

4 W135-0139 Centre log (GL-631)

5 GL-631 Log set

6 W500-0170 Brick retainer (X2)

Ref. No. Part number Description

W010-0802 Door assembly

W185-0013 Grate

W655-0114 Log support

W160-0084 Bottom door bracket

W010-1762 Valve train assembly

Items may not appear exactly as illustrated.

GL-631

W525-0021 Relief door rail (X2)

8 W660-0009 On / Off switch

9 W660-0019

ariable speed switch

10 W080-0071 Thermodisc bracket

11 W690-0002 Thermodisc

12 W385-2010 Napoleon logo

W010-1101 Relief door assembly

W290-0063 Blower access door gasket

W361-0037 Blower gasket

W062-0005 Crossﬂow blowe

W500-0281 Valve cover plate

W225-0091 Blower access doo

113 115114

For replacement parts, refer to

“valve train assembly” section.

110

111

118116

112 117

Safety barrier

W010-0787

ent assembly connection

Stocked

Yes

7.1 overview

W415-2359 / 08.22.19

replacement parts

2 4

653 7

2 4

653 7

Items may not appear exactly as illustrated.

W175-0162

Ref. No. Part number Description

1 W175-0162 Propane conversion kit

2 W100-0128-SER Pan burne

3 W456-0042 Burner oriﬁce #42

4 W080-0450 Oriﬁce bracket

5 W010-0798 Pilot assembly (NG)

6 W010-1763 Right side housing

Ref. No. Part number Description

7 W080-0463 Valve bracket

8 W432-0043 3/8" manifold

9 W175-0144 Flex connecto

10 W235-0046 3/8" elbow

11 W725-0039 Valve

Stocked

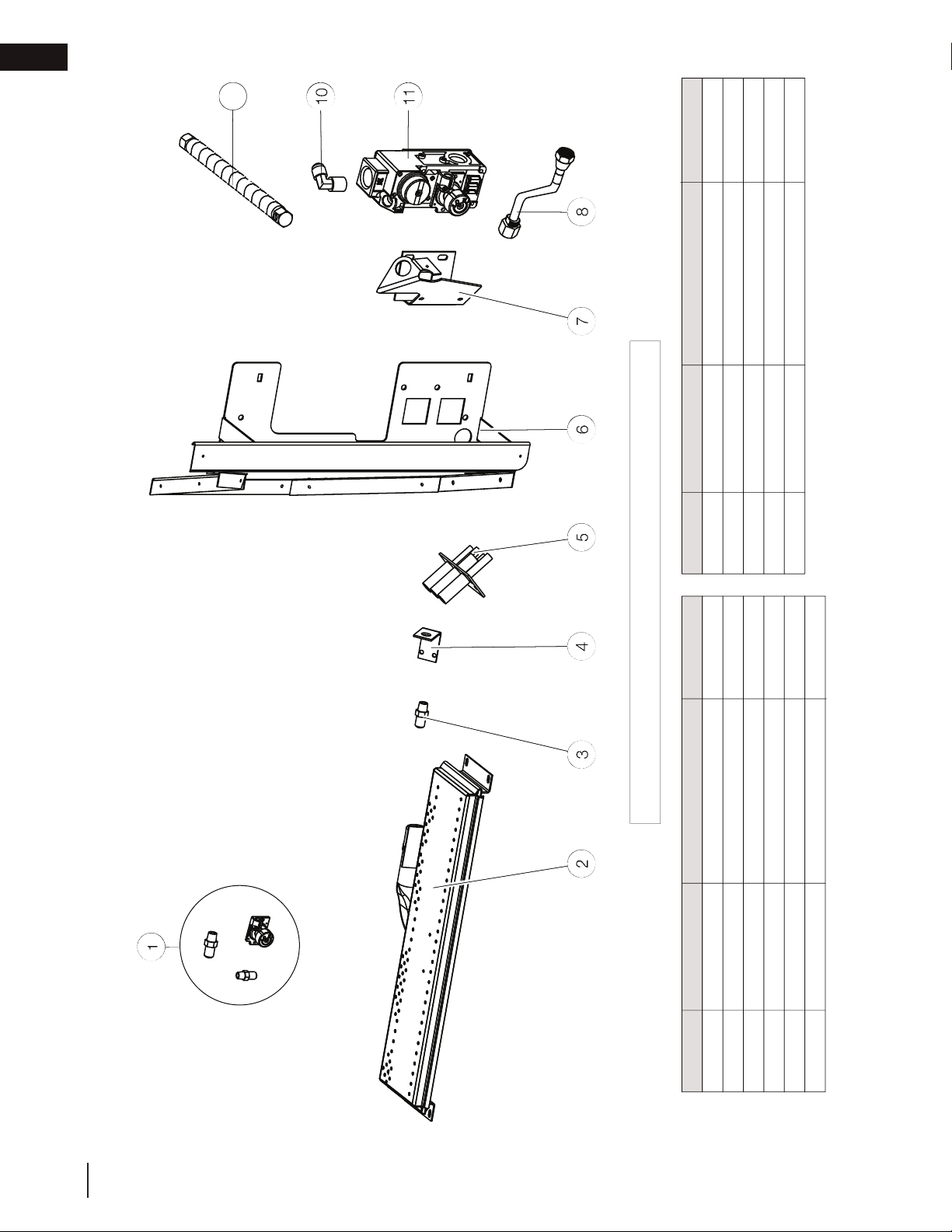

7.2 valve train assembly

W415-2359 / 08.22.19

accessories

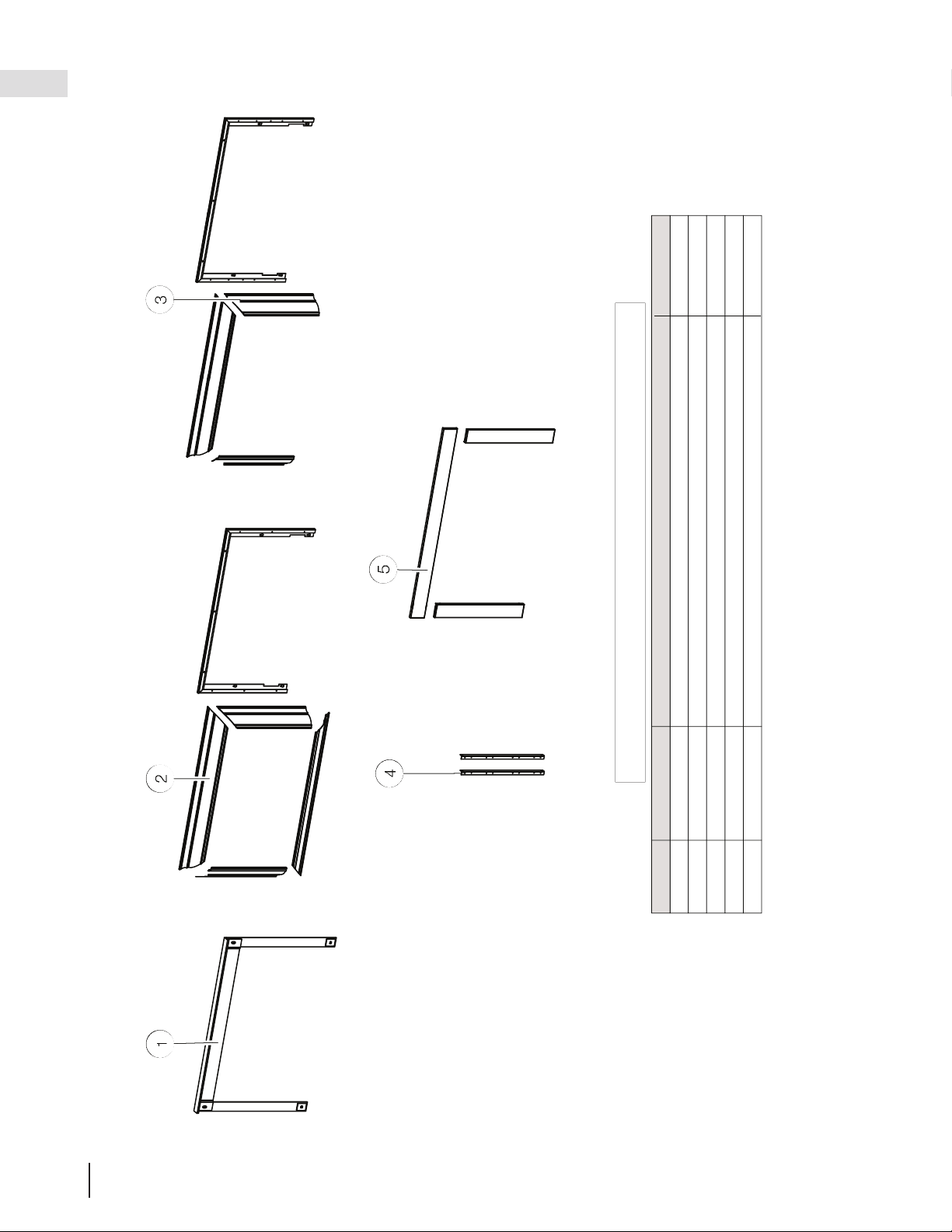

8.0 accessories

1 2 5

1 2 3

Items may not appear exactly as illustrated

GIZTRM4

GIZTRM3

GIZT3K

Ref. No. Part number Description

1 CISM-

Cast Iron Black Surround

2 GIZTRM4

extured Satin Black 4 Sided Aluminum Trim

GIZTRM3

extured Satin Black 3 Sided Aluminum Trim

GIZBRK

Flash Mounting Bracket

GIZT3

Contemporary Black Trim

Stocked

W415-2359 / 08.22.19

accessories

52 4

31 2

Items may not appear exactly as illustrated.

GIZBP6-3

GIZBP6-4

GI823K

GI-RB

PRPZC

14 159 10

Safety barrie

FPZC (BC/SS/K)

Ref. No. Part number Description

GIZBP6-3 Black 3 Sided Flashing

GIZBP6-4 Black 4 Sided Flashing

FPZC-__SB Surround (Brushed Copper / Stainless Steel / Copper)

GI823K

Decorative Brick Panels Sandstone

W715-0561 Hearth trim (GI-RB)

W525-0022 Rail (X2) (GI-RB)

ANI-

Black Traditional Andirons

W660-0081 Wall mounted thermostat

F45 / F60 Handheld remote control

Stocked

PRPZC Porcelain Reﬂective Radiant Panels

W415-2359 / 08.22.19

troubleshooting

9.0 troubleshooting

symptom problem test solution

Main burner ﬂ ame is a

blue, lazy, transparent

ﬂ ame.

Blockage in vent. - Remove blockage. In really cold conditions, ice buildup may occur on the

terminal and should be removed as required. To minimize this from happening

again, it is recommended that the vent lengths that pass through unheated

spaces (attics, garages, crawl spaces) be wrapped with an insulated mylar

sleeve. Prevent sleeve from sagging. Contact your local authorized dealer for

more information.

Main burner goes out;

pilot stays on.

Pilot ﬂ ame is not large enough or

not engulﬁ ng the thermopile.

- Turn up the pilot ﬂ ame.

- Replace pilot assembly.

Thermopile shorting. - Clean thermopile connection to the valve. Reconnect.

- Replace thermopile / valve.

Remote wall switch wire is too

long; too much resistance in the

system.

- Shorten wire to correct length or wire gauge.

Faulty thermostat or switch. - Replace.

Main burner goes out;

pilot goes out.

Refer to “MAIN BURNER GOES OUT; PILOT STAYS ON”

Vent is blocked - Check for vent blockage.

Vent is re-circulating - Check joint seals and installation

Flexible vent has become

disconnected from appliance.

- Re-attach to appliance.

- Cap was not replaced.

Flames are consistently

too large or too small.

Carboning occurs.

Appliance is over-ﬁ red or

underﬁ red.

- Check pressure readings:

Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or

3 turns and then placing pressure gauge tubing over the test point. Gauge

should read as described on the chart below. Check that main burner is

operating on ‘HI’. Outlet pressure can be checked the same as above using

screw (B). Gauge should read as described on the chart below. Check that

main burner is operating on ‘HI’. AFTER TAKING PRESSURE READINGS,

BE SURE TO TURN SCREWS CLOCKWISE FIRMLY TO RESEAL. DO

NOT OVER TORQUE.

Leak test with a soap and water solution.

Air shutter improperly adjusted. - Return air shutter to speciﬁ ed opening, see “venturi adjustment” section.

Carbon is being

deposited on glass,

logs, rocks, media or

combustion chamber

surfaces.

Air shutter is blocked. - Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the

glass, logs, rocks, media or

combustion chamber.

- Ensure the media is positioned correctly in the appliance.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce size as speciﬁ ed

by the rating plate.

- Ensure door gasketing is not broken or missing and the seal is tight.

- Ensure vent liners are free of holes and well sealed at all joints.

- Check that minimum rise per foot (meters) has been adhered to for any

horizontal venting.

White / grey ﬁ lm forms. Sulphur from fuel is being

deposited on glass, logs or

combustion chamber surfaces.

- Clean the glass with a recommended gas ﬁ replace glass cleaner. DO NOT

CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may become permanently

marked.

Exhaust fumes smelled

in room, headaches.

Appliance is spilling.

(This is not applicable in outdoor

appliances)

- Check door seal.

- Check for exhaust damage.

- Check that venting is installed correctly.

- Room is in negative pressure; increase fresh air supply.

INSERT


OF VALVE

HERE

Pressure

Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

* 13”

(MIN. 4.5”)

17.4mb

(MIN. 11.2mb)

13”

(MIN. 11”)

32.4mb

(MIN. 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

* Maximum inlet

pressure not to

exceed 13”

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door open or

removed.

• Turn off gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners

PILOT SCREW

W415-2359 / 08.22.19

troubleshooting

symptom problem test solution

Pilot will not light. No spark at pilot burner. - Check if pilot can be lit by a match.

- Check that the wire is connected to the push button ignitor.

- Check if the push button ignitor needs tightening.

- Replace the wire if the wire insulation is broken or frayed.

- Replace the electrode if the ceramic insulator is cracked or broken.

- Replace the push button ignitor

Out of propane gas. - Fill the tank.

Spark gap is incorrect. - Spark gap should be 0.150” (3.8mm) to 0.175” (4.5mm) from the electrode tip

and the pilot burner. To ensure proper electrode location, tighten securing nut

(ﬁ nger tight plus 1/4 turn).

No gas at the pilot burner. - Check that the manual valve is turned on.

- Check the pilot oriﬁ ce for blockage.

- Replace the valve.

- Call the gas distributor.

Pilot goes out when the

gas knob is released.

The gas valve

has an interlock

device which will

not allow the pilot

burner to be lit until

the thermocouple

has cooled. Allow

approximately 60

seconds for the

thermocouple to cool.

System is not correctly purged - Purge the gas line.

Out of propane gas. - Fill the tank.

Pilot ﬂ ame is not large enough. - Turn up the pilot ﬂ ame.

Pilot ﬂ ame is not engulﬁ ng the

thermocouple

- Gently twist the pilot head to improve the ﬂ ame pattern around the

thermocouple.

Thermocouple shorting / faulty. - Loosen and tighten thermocouple.

- Clean thermocouple and valve connection.

- Replace thermocouple.

- Replace valve.

Faulty valve. - Replace.

Pilot burning; no gas to

main burner; gas knob

is on ‘HI’; wall switch /

thermostat is on.

Thermostat or switch is defective - Connect a jumper wire across the wall switch terminals; if main burner lights,

replace switch / thermostat.

Wall switch wiring is defective. - Disconnect the switch wires & connect a jumper wire across terminals 1 & 3; if

the main burner lights, check the wires for defects and/or replace wires.

Main burner oriﬁ ce is plugged. - Remove stoppage in oriﬁ ce.

Faulty valve. - Replace.

Pilot goes out while

standing; Main burner

is in ‘OFF’ position.

Gas piping is undersized. - Turn on all gas appliances and see if pilot ﬂ ame ﬂ utters, diminishes or

extinguishes, especially when main burner ignites. Monitor appliance supply

working pressure.

- Check if supply piping size is to code. Correct all undersized piping.

Flames are very

aggressive.

Door is ajar. - Ensure the mechanical means of securing the door is providing a tight seal.

Venting action is too

great.

- Check to ensure venting is properly sealed.

- If restriction is required see “restricting vertical vents” section.

Remote wall switch is

in ’OFF’ position; main

burner comes on when

gas knob is turned to

‘ON’ position.

Wall switch is mounted upside down.

- Reverse.

Remote wall switch is grounding.

- Replace.

Remote wall switch wire is grounding.

- Check for ground (short); repair ground or replace wire.

Faulty valve. - Replace.

INSERT


OF PILOT

HERE

PILOT

BURNER

THERMOCOUPLE

THERMOPILE

W415-2359 / 08.22.19

warranty

10.0 warranty

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is

not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim.

Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty

claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the

following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not

be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized

service technician or contractor qualiﬁ ed and authorized installer, service agency or supplier. Installation must be done in

accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or

neglect, and parts installed from other manufacturers will nullify this warranty. This limited warranty further does not cover

any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners nor chipping

on porcelain enamel parts, mechanical breakage of Phazer™ logs and embers. This warranty extends to the repair or

replacement of warranted parts which are defective in material or workmanship provided that the product has been

operated in accordance with the operation instructions and under normal conditions. After the ﬁ rst year, with respect to

this President’s Lifetime Limited Warranty, Napoleon may, at its discretion, fully discharge all obligations with respect to this

warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the ﬁ rst year, Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation

of a warranted part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the

President’s Lifetime Limited Warranty, Napoleon’s responsibility under this warranty is deﬁ ned as above and it shall not in

any event extend to any incidental, consequential or indirect damages. This warranty deﬁ nes the obligations and liability

of Napoleon with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to

this product, its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to

assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-

ﬁ ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains,

inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or negative air pressures which

may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to

the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon.

During the ﬁ rst 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our

discretion free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support

the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be

defective, the manufacturer will repair or replace such defect. Before shipping your appliance or defective components,

your dealer must obtain an authorization number. Any merchandise shipped without authorization will be refused and

returned to sender. Shipping costs are not covered under this warranty. Additional service fees may apply if you are

seeking warranty service from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel,

diagnostic tests, shipping and other related charges are not covered by this warranty.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001 : 2015 Quality Management

System.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great

pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete appliance is

again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer, receive the quality

product that you expect from Napoleon.

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as long

as you own the appliance. This covers: combustion chamber, heat exchanger, stainless / steel burner, Phazer™ logs

and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled

components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free

of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring,

remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year (labour warranty is not applicable for the Gas

Log Sets). Repair work, however, requires the prior approval of an authorized company ofﬁ cial. Labour costs to the account

of Napoleon are based on a predetermined rate schedule and any repair work must be done through an authorized

Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Conditions and Limitations

All speciﬁ cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered

trademark of Wolf Steel Ltd.

W415-2359 / 08.22.19

service history

11.0 service history

Appliance Service History

This appliance must be serviced annually depending on usage.

Date Dealer Name Service Technician Name Service Performed Special Concerns

W415-2359 / 08.22.19

notes

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

AAAA

PPPP

OOOOO

HHHH

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleon.com

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manuel avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂ ammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁ é, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleon.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIF À ÉVACUATION

POUR USAGE INTÉRIEUR SEULEMENT

FRANÇAIS

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

FRANÇAIS

W415-2359 / 08.22.19

ÉCRAN DE PROTECTION

GDIZCN-SB

GDIZCP-SB

MANUEL D'INSTALLATION

ET D'OPÉRATION

Inspiration

W415-2359 / 08.22.19

consignes de sécurité

• Cet appareil est chaud lorsqu’il

fonctionne et peut causer de graves

brûlures en cas de contact.

• Toute modiﬁ cation apportée à cet

appareil ou aux contrôles peut être

dangereux et est interdit.

• Ne faites pas fonctionner l’appareil avant

d’avoir lu et compris les instructions

d’opération. Omettre d’utiliser l’appareil selon

les instructions d’opération pourrait causer un

incendie ou des blessures.

• S’assurez que la porte vitrée est ouvert ou retiré

de l’appareil lorsque vous allumer le pilote pour

la première fois et lorsque le gaz est épuisé.

• Risque d’incendie ou d’asphyxie, ne faites

pas fonctionner l’appareil avec la vitre retirée

et jamais obstruer l’ouverture sur le devant de

l’appareil.

• Ne branchez pas la soupape à du courant 110 volts, avec les exception de modèles; GSST8 et GT8.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs, des chaussures de protection et des

lunettes de sécurité lors de l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Assurez-vous d’une quantité sufﬁ sante d’air de combustion et de ventilation. Prévoyez un accès sufﬁ sant

pour entretenir et opérer l’appareil.

• Haute pression endommagera la soupape. Débrancher la tuyauterie d’alimentation en gaz avant de tester la pression

de ligne de gaz à la pression d’essai au-dessus de 1/2 psig. Fermer l’arrêt manuelle du soupape avant de tester la

pression de ligne de gaz à la pression égale ou inférieure à 1/2psig (35mb).

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°f / 0°c). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement, avec l’exception de modèles; GSS36,

GSS42; ces appareil sont adaptés pour 0°F / -18°C.

• Les enfants et les adultes devraient être informés des dangers que posent les températures

de surface élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne

s’enflamment.

• Les jeunes enfants doivent être surveillés attentivement lorsqu’ils sont dans la même pièce

que l’appareil. Les jeunes enfants et autres personnes à risque sont sujets aux brûlures

accidentelles. Une barrière de protection est recommandée si des individus à risque se

trouvent dans la maison. Aﬁ n de restreindre l’accès à l’appareil, installez une barrière de

protection ajustable pour garder les jeunes enfants ou autres personnes à risque hors de la

pièce et loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à

proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et

loin des meubles et des rideaux.

• Les meubles ou autres objets doivent être gardés à une distance d’au moins 4 pieds (1.22m) du devant

de l’appareil.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, l’appareil demeurera chaud pendant un temps prolongé.

• Consultez votre détaillant local de l’appareil pour connaître les écrans de protection et les protection du

foyer offerts pour protéger les enfants des surfaces chaudes. Ces écrans de protection et les protection

du foyer doivent être ﬁ xés au plancher.

• Tout écrans de protection, garde ou barriére enlevés pour faire l’entretien devront être remis

en place avant d’utiliser l’appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches

d’air de l’appareil ainsi que le système d’évacuation. L’appareil et son système d’évacuation doivent

être inspectés avant la première utilisation et au moins une fois l’an par un spécialiste en entretien. Un

entretien plus fréquent pourrait être nécessaire en raison des peluches provenant des tapis, literie, etc.

L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou autres

liquides et vapeurs inﬂ ammables.

• Si l’appareil s’éteint, n’allume pas l’appareil jusqu’à ce que vous donner de l’air frais. Si l’appareil

continue de s’éteindre, faire réparer.

Garder propres le brûleur et le compartiment de contrôle.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Ne laissez pas les ventilateurs soufﬂ er directement sur l’appareil. Empêchez les courants d’air de modiﬁ er

l’a

arence de la ﬂ amme.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil et

sera installé pour la protection des enfants et d’autres

personnes à risque.

AVERTISSEMENT

W415-2359 / 08.22.19

consignes de sécurité

AVERTISSEMENT

• N’utilisez pas une soufﬂ erie intégrée, un échangeur de chaleur intégré ni un autre accessoire non

approuvé pour cet appareil.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de

chauffage à combustible solide.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un

technicien de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de

contrôle et du contrôle du gaz qui aurait été submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlevée, ﬁ ssurée ou brisée. Le remplacement de la

vitre devra être effectué par un technicien de service certiﬁ é ou qualiﬁ é, si équippé.

• Ne frappez pas et ne claquez pas la porte vitrée de l’appareil, si équippé.

• Seulement les portes/façades certiﬁ ées pour l’appareil peuvent être utilisées avec cet

appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de

façon sécuritaire. Comme tous les emballages de plastique, ces matériaux ne sont pas des jouets et

doivent demeurer hors de la portée des enfants et des bébés.

• Le carbone ou la suie ne doit pas se produire dans un appareil sans évent car il peut être distribué dans

une zone habitable de votre maison. Si vous remarquez des signes de carbone ou de suie, éteignez

immédiatement votre appareil et arrangez-le pour le faire entretenir par un technicien qualiﬁ é avant de

l’actionner à nouveau.

• Si équipé, l’écran doivent être (fermez) en place pendant le fonctionnement de l’appareil.

• Lorsque l’appareil est muni de portes d’évacuation de pression, elles doivent demeurer fermées pendant

le fonctionnement de l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde de

carbone de s’inﬁ ltrer dans la maison. La température des gaz de combustion s’échappant par ces

ouvertures peut aussi causer les matériaux combustibles avoisinants à surchauffer et à prendre feu.

• L’empoisonnement au monoxyde de carbone peut conduire à la mort; les premiers signes d’une intoxication

au monoxyde de carbone ressemblent à la grippe, avec céphalées, vertiges et/ou des nausées. Si vous

présentez ces signes, l’appareil peut ne pas fonctionner correctement. Obtenir l’air frais! Faire réparer

l’appareil. Certaines personnes; les femmes enceintes, les personnes ayant une maladie cardiaque ou

pulmonaire, anémie, ceux sous l’inﬂ uence de l’alcool, ceux à haute altitude sont plus touchées par le

monoxyde de carbone que d’autres. Défaut de garder l’ouverture d’air primaire(s) du brûleur(s) propre peut

entraîner la formation de suies et dommages à la propriété.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir

votre appareil régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce

pour vous protéger, ainsi que votre famille, contre les intoxications (pas applicable pour les appareils pour

l’extérieure).

• Assurez-vous que les distances requises pour les dégagements aux matériaux combustibles sont

respectées lorsque vous installez une tablette décorative ou des tablettes au-dessus de l’appareil. En

raison des températures élevées, un téléviseur ou d’autres composants électroniques pourraient être

endommagés prématurément ou ils pourraient fondre, se déformer ou se décolorer.

• Pour les appareils avec une barriére; si la barriére est endommagée, elle devra être remplacée par la

barriére conçu par le manufacturier pour cet appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. Il est impératif que

les compartiments de contrôle, le brûleur et les passages de circulation d’air soient gardés propres

aﬁ n de fourni une combustion et une circulation d’air adéquates.

• Produits pour l’extérieur seulement: Cet appareil ne doit pas être installé à l’intérieur ni dans une structure

qui empêche la dissipation des gaz de combustion dans l’environnement extérieur.

• S’il y a lieu, la version de millivolt de cet appareil utilise et requiert un thermocouple à action rapide.

Remplacez uniquement par un thermocouple à action rapide de Wolf Steel ltée.

Isoler l'appareil en fermant la soupape

d'arrêt pendant tout essai de pression

du système d’alimentation en gaz

lorsque les pressions sont de 1/2

lb/po2 (3,5 kPa) ou moins.

RISQUE D'INCENDIE /

RETARD D'ALLUMAGE

AVERTISSEMENT/ADVERTENCIA

Desconectar la válvula/el control

principal de gas del aparato del

caño de suministro cuando se

compruebe la presión del sistema

a más de 1/2 psi (3.5 kPa).

El suministro a alta presión

dañará la válvula/los controles.

Débrancher la soupape de gaz de la

ligne d’alimentation en gaz pendant

les essais de pression de ce

système lorsque les pressions

excèdent 1/2 lb/po2 (3,5 kPa).

Aislar el aparato con su válvula de

cierre durante cualquier

comprobación de la presión de

la cañería de suministro a

una presiónigual o inferior

a 1/2 psi (3.5 kPa).

Add California Prop 65 warning

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

1.0 information générale 37

1.1 dimensions 37

1.2 ouverture minimale 37

1.3 instructions générale 38

1.4 taux et efﬁ cacités 39

1.5 information à propos de la plaque d'homologation 39

2.0 installation 40

2.1 mise à niveau de l'encastré 40

2.2 installation de la cheminée 41

2.3 branchement du gaz 42

2.4 installation de l'interrupteur mural optionnel 43

3.0 finitions 44

3.1 dégagements minimaux de la tablette 44

3.2 enlèvement et installation de la barrière de protection et la porte 45

3.3 disposition des bûches 46

3.4 braises incandescentes 46

3.5 mise en place du logo 47

3.6 installation des moulures d'extrusion en aluminium 47

4.0 fonctionnement 48

5.0 réglages 49

5.1 réglage de la veilleuse 49

5.2 réglage du venturi 49

5.3 caractéristiques de la ﬂ amme 50

5.4 étranglement des évents verticaux 50

6.0 entretien 51

6.1 entretien annuel 52

6.2 soins de la vitre 52

6.3 soins des pièces plaquées 53

6.4 remplacement de la porte vitrée 53

6.5 remplacement de la soufﬂ erie 54

7.0 pièces de rechange 55

7.1 vue d'ensemble 56

7.2 l'assemblage de la soupape 57

8.0 accessoires 58

9.0 guide de dépannage 60

10.0 garantie 62

11.0 historique de service 63

W415-2359 / 08.22.19

table des matières

NOTE: Les modiﬁ cations, autres qu'éditoriales, sont indiquées par une liqne verticale dans la marge

W415-2359 / 08.22.19

information générale

1.0 information générale

36 1/2"

[927mm]

MOULURE D’ALUMINUM

PLAQUE DE FOND À 4 CÔTÉS

44 7/8" [1140mm]

ÉCRAN DE PROTECTION

MOULURE D’ALUMINUM

PLAQUE DE FOND À 3 CÔTÉS

44 7/8" [1140mm]

27"

[686m

20 3/4"

[527mm]

15 1/2"

[394mm]

14"

[356mm]

24 1/8"

[613mm]

15 1/2"

[394mm]

10 9/16"

[268mm]

4 15/16"

[125mm]

36" [914mm]

5 1/2"

[140mm]

25" [635mm]

15 1/2" [394mm]

11 5/8" [295mm]

7 3/8"

[187mm]

3" [76mm] Ø

ÉCHAPPEMENT

ADMISSION

D’AIR

1.1 dimensions

Cet appareil ne doit être encastré que dans un appareil à combustion solide ventilé incombustible (préfabriqué ou

en maçonnerie). Le foyer dans lequel l’encastré est installé doit avoir les dimensions minimales suivantes:

HAUTEUR 14.5" (368mm) LARGEUR 25" (635mm) PROFONDEUR 11" (279mm)

Le diamètre minimal du conduit de la cheminée doit être de 6'' (152mm) rond.

1.2 ouverture minimale

PLAQUES DE FOND À 3 ET 4

CÔTÉS- VUES DE CÔTÉ

VUE DE DESSUS

VUE DE FACE

W415-2359 / 08.22.19

information générale

1.3 instructions générale

Lorsque l'encastré est installé à des élévations dépassant 4 500 pieds (1372m), et en l’absence de

recommandations spéciﬁ ques de l’autorité compétente locale, l’indice certiﬁ é du débit à haute altitude devra être

réduit au taux de 4 % pour chaque 1 000 pieds (305m) supplémentaires.

Les bruits causés par l’expansion et la contraction lors des cycles de

chauffage et de refroidissement sont tout à fait normaux et il faut s’y

attendre.

Cet appareil n’est pas approuvé pour installation dans un placard ou

en retrait; il est approuvé pour installation dans les salles de bain, les

chambres à coucher et les chambres studio et convient pour installation

dans les maisons mobiles. Le modèle au gaz naturel ne peut être placé

que dans une maison mobile installée en permanence et alimentée au

gaz naturel.

Une barrière conçu à réduire le risque de brûlures à partir de le chaude la vitre est à condition que

avec l’appareil et sera être installés.

65,5 %

GDIZC

Cote énergétique des foyers à gaz

Basée sur la norme CSA P.4.1-02

Modèle no

Cet appareil au gaz devrait être installé et entretenu par un installateur qualiﬁ é en se conformant aux

codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaÎtre

les normes spéciﬁ ques qui s’appliquent à votre région. Par example, dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le

Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un

encastré ou un ensemble de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas messurer plus que 36 pouces (914,4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés

au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins

d’être un appareil avec une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En

l’absence de codes locaux, l’installation doit être conforme

au Code d’installation du gaz naturel et du propane CSA

B149.1 au Canada ou au National Fuel Gas Code, ANSI

Z223.1 / NFPA 54 aux États-Unis. Cet appareil convient

pour installation dans une maison mobile si l’installation est

conforme aux normes actuelles pour les maisons mobiles

équipées au gaz CAN/CSA Z240 SÉRIE MM au Canada ou

selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

L’alimentation de gaz de l’appareil doit être débranchée

pendant les essais de pression de ce système lorsque les pressions d’essai excèdent ½ lb/po² (3,5 kpa). Fermez

la soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la pression

est de ½ lb/po² (3,5 mb) ou moins. Si la soufﬂ erie ou ventilateur est installer la boîte de dérivation doit être

branchée au circuit électrique et mise à la terre conformément aux codes locaux. En l’absence de codes locaux

utilisez la version courante du Code Canadien de l’Électricité CSA C22.1 au Canada ou le National Electrical

Code ANSI/NFPA 70 aux États-Unis. Dans le cas où le soufﬂ erie est équipé d’un cordon d’alimentation il doit

être connecté à une réceptacle correctement mise à la terre. La ﬁ che de mise à la terre ne doit pas être retiré du

cordon d’alimentation.

Ce qui suit ne s’applique pas aux foyers encastrés; tant que les distances requises pour les dégagements aux

matériaux combustibles sont respectées, le meilleur endroit pour un appareil est le centre de la maison, car ceci

permet une meilleure utilisation de la chaleur fournie. L’emplacement des fenêtres, des portes et la circulation

dans la pièce où se trouve l’appareil devront être pris en considération. Si possible, vous devriez choisir un

emplacement où le système d’évent peut passer à travers la maison sans avoir à découper des solives de

plancher ou de toit, sauf indication contraire à l’essai.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

W415-2359 / 08.22.19

information générale

1.4 taux et efﬁ cacités

GN P

Altitude (PI) 0-4,500

Débit max. (BTU/H) 24 000

Pression minimale d'alimentation en gaz 4.5" (11mb) de colonne d'eau 11" (27mb) de colonne d'eau

Pression maximale d'alimentation en gaz 7" (17mb) de colonne d'eau* 13" (32mb) de colonne d'eau

Pression au collecteur (lorsque le gaz circule) 3.5" (9mb) de colonne d'eau 10" (25mb) de colonne d'eau

1.5 information à propos de la plaque d'homologation

Pour les renseignements exacts, consultez la plaque d'homologation ﬁ xée sur l'appareil.

NOTE: La plaque d'homologation doit rester avec l'appareil à tout le temps. Il ne doit pas être enlevé.

ÉCHANTILLON

* Pression maximale d'alimentation en gaz ne devait pas dépasser 13".
