47.75

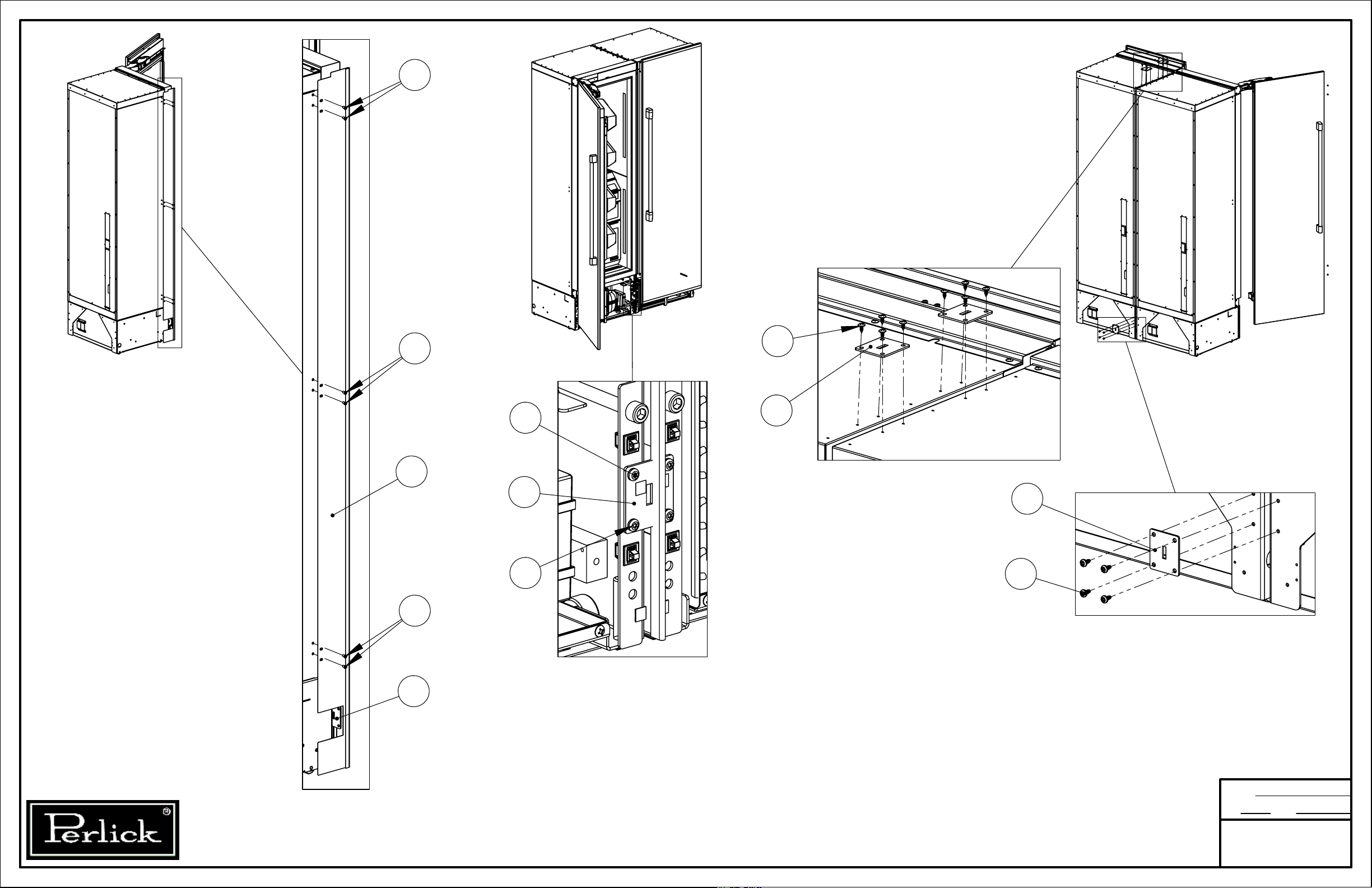

STEP #1
: OPEN THE DOORS TO THE CABINETS.
GRAB BOTH SIDES OF THE FRONT GRILL PLATE
AND PULL STRAIGHT OUT IN ORDER TO POP
THE CLIPS OUT OF THE LATCHS.
DO THIS TO BOTH CABINETS.
PULL POINTS
STEP #2
: SELECT THE CABINET THAT WILL BE PLACED
ON THE RIGHT SIDE. SECURE (1) 1013719-1
TO THE FRONT BASE WITH (2) 1008781 SCREWS
3
3
2
PERLICK ACCESSORY KIT INSTRUCTIONS FOR CR-ACC-D1N
DUAL INSTALLATION KIT WITH NO HEATER (HANDLE TO HANDLE OR HINGE TO HINGE)
ITEM NO.
PART NUMBER
DESCRIPTION
Default/QTY.
1
1015035-1
CENTER TRIM, SIDE BY SIDE INSTALL, COLUMN
1
2
1013719-1
BRACKET, ATTACHING, COLUMN, FOR SIDE BY SIDE INSTALLS
4
3 1008781
SCREW, M6 X 12MM, THRD
8
4
M50050-466
#10 X 1/2" PH Truss Head SMS #410 S.S., Type "AB",
8
5 1010546
M5x10 MACH SCR, LOW HEAD, NBK PART NO: SSH-M5-10
6
8
1006628-4R
OVERLAY, SOLID SS, 4" TOE KICK, RH, 24" COLUMN
1
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
DR.:
DATE:
5/26/2018
KDS
SCALE: 1:50
D:\perlick\engineering\projects\refrigeration\1601802\cad files\1017886.slddrw
SHEET 1 OF 2
1017886
REVISIONS
5/26/2018
NEW RELEASE
A
B
KDS
1/17/2019
C
ADDED TITLE & HANDLE VIEW
KDS
1/17/2019
47.75" WAS 49.00"
