241-0485
17 19 21 23
OPERATOR’S MANUAL
CAUTION:
To Reduce the Risk of Injury, User Must
Read and Understand the Operator’s Manual. Save These
Instructions For Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374. (M-F 8:30am-5:00pm Est.)
BRUSHLESS DRILL/DRIVER
TABLE OF CONTENTS
Safety Symbols ......................................................... Page 2
Safety Instructions ...................................................... Page 4

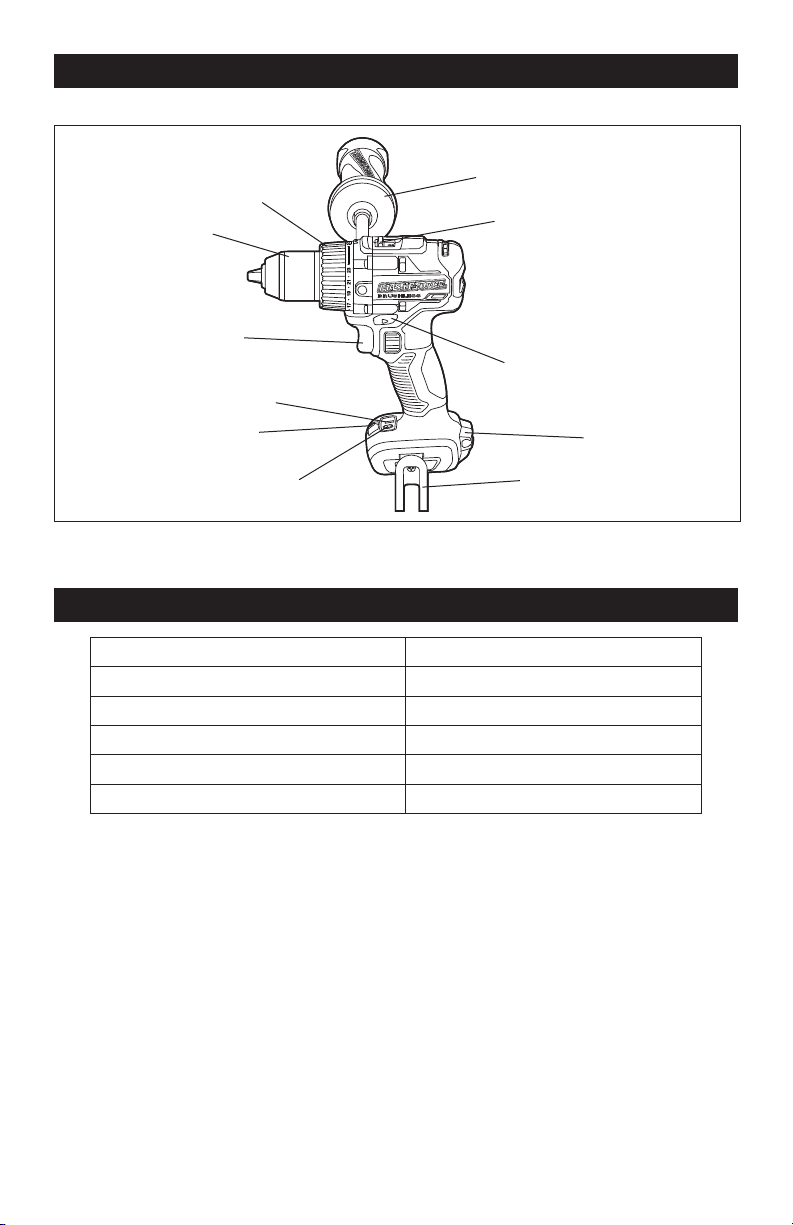

Overview/Specifications ................................................. Page 8
Assembly ............................................................. Page 9
Operation ............................................................. Page 9
Maintenance .......................................................... Page 16
Troubleshooting ....................................................... Page 17
Warranty .............................................................Page 18
Page 2
SAFETY SYMBOLS
Some of these following symbols may be used on this tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
Symbol
Name
Designation / Explanation
V Volts Voltage
A Amps Current
Hz Hertz Frequency (cycles per second)
W Watts Power
lbs Pounds Weight
n
o
No-load Speed Rotational speed at no load
RPM
Revolutions per
Minute
Unit of speed
�
or d.c Direct Current Type of characteristic of current
WARNING:
To ensure safety and reliability, all repairs should be performed by a
qualified service technician.
Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER,” ”WARNING,” and “CAUTION”
before using this tool. Failure to following all instructions listed below may result in
electric shock, fire, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION.
May be used in conjunction with other symbols or pictographs.
DANGER:
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, could
result in minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SAVE THESE INSTRUCTIONS!
Page 4
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING:
Read all safety
warnings, instructions, illustrations and
specifications provided with this power
tool. Failure to follow all instructions listed
below may result in electric shock, fire and/or
serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the
outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
2. Avoid body contact with earthed
or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or
wet conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
6. If operating a power tool in a damp
location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply.
Use of an GFCI reduces the risk of electric
shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have
the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected
situations.
SAFETY INSTRUCTIONS
Page 5
SAFETY INSTRUCTIONS
6. Dress properly. Do not wear loose
clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught
in moving parts.
7. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
8. Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE
AND CARE
1. Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
7. Use the power tool, accessories
and tool bits etc. in accordance with
these instructions, taking into account
the working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
8. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do
not allow for safe handling and control of the
tool in unexpected situations.
BATTERY TOOL USE
AND CARE
1. Recharge only with the charger
specified by the manufacturer. A charger
that is suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
2. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
3. When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make
a connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
Page 6
SAFETY INSTRUCTIONS
4. Under abusive conditions, liquid may
be ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that
is damaged or modified. Damaged or
modified batteries may exhibit unpredictable
behaviour resulting in fire, explosion or risk
of injury.
6. Do not expose a battery pack or tool
to fire or excessive temperature. Exposure
to fire or temperature above 100 °C (212 °F)
may cause explosion.
7. Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specified
in the instructions. Charging improperly or
at temperatures outside the specified range
may damage the battery and increase the
risk of fire.
SERVICE
1. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Never service damaged battery
packs. Service of battery packs should
only be performed by the manufacturer or
authorized service providers.
SAFETY INSTRUCTIONS FOR
ALL OPERATIONS
1. Use the auxiliary handle. Loss of control
can cause personal injury.
2. Hold the power tool by insulated
gripping surfaces, when performing an
operation where the cutting accessory may
contact hidden wiring. Cutting accessory
or fasteners contacting a “live” wire may
make exposed metal parts of the power tool
“live” and could give the operator an electric
shock.
SAFETY INSTRUCTIONS WHEN
USING LONG DRILL BITS
• Never operate at higher speed than
the maximum speed rating of the drill bit.
At higher speeds, the bit is likely to bend if
allowed to rotate freely without contacting
the workpiece, resulting in personal injury.
• Always start drilling at low speed
and with the bit tip in contact with the
workpiece. At higher speeds, the bit is likely
to bend if allowed to rotate freely without
contacting the workpiece, resulting in
personal injury.
• Apply pressure only in direct line
with the bit and do not apply excessive
pressure. Bits can bend causing breakage
or loss of control, resulting in personal injury.
Page 7
WARNING:
Some dust created
by power sanding, sawing, grinding,
drilling, and other construction activities
contains chemicals known to the state
of California to cause cancer, birth
defects, or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks, cement,
and other masonry products
• Arsenic and chromium from
chemically-treated lumber
Your risk from these exposures varies,
depending upon how often you do this
type of work. To reduce your exposure
to these chemicals:
• Work in a well-ventilated area.
• Work with approved safety
equipment, such as dust masks that
are specially designed to filter out
microscopic particles.
• Avoid prolonged contact with dust
from power sanding, sawing, grinding,
drilling, and other construction activities.
Wear protective clothing and wash
exposed areas with soap and water.
Allowing dust to get into your mouth or
eyes or to lie on the skin may promote
absorption of harmful chemicals.
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY
INSTRUCTIONS
1. To reduce the risk of electric shock
or damage to the chargers and batteries,
use only with the MASTERFORCE
®
FLEXPOWER
®
battery packs and chargers
listed.
Battery pack Charger
252-8029 (1.5Ah)
252-8031 (2.0Ah)
252-8030 (2.5Ah)
252-8034 (4.0Ah)
252-8035 (5.0Ah)
252-8027 (7.5Ah)
252-8003 (2.5Ah Boost)
252-8007 (7.5Ah Boost)
252-8025
252-8037
252-8026
2. For best results, your battery and tool
should be stored, charged and used in a
location where the temperature is more
than 5°C (41°F) but less than 40°C (104°F).
Do not store outside or in vehicles.
DANGER:
People with electronic
devices, such as pacemakers, should
consult their physician(s) before using this
product. Operation of electrical equipment
in close proximity to a heart pacemaker
could cause interference or failure of the
pacemaker.
SAFETY INSTRUCTIONS
Page 8
OVERVIEW
17 19 21 23
Chuck Sleeve
Side Handle
Variable-Speed
Trigger Switch
Direction-Of-Rotation
Selector (Forward/
Center-Lock/Reverse)
LED Worklight
Torque-Adjustment Ring
Two-Speed Gearbox Switch
Impulse Button
Impulse Indicator
Bit Holder
Belt Clip
SPECIFICATIONS
Rated Voltage 20 V d.c.
No-load Speed 0-550/0-2,000 RPM
Chuck Capacity 1/2” (13mm)
Max. Torque 800 in. lbs.
Clutch 23+1 positions
Weight (without battery) 3 lb 8oz
Page 9
2 Ensure that the battery-release button
on the battery pack snaps into place
and the battery pack is secured to the
tool before beginning operation.
NOTICE: When placing the battery pack
on the tool, be sure that the raised rib on
the battery pack aligns with the groove on
the tool and the latches snap into place
properly. Improper assembly of the battery
pack can cause damage to internal com-
ponents.
TO DETACH BATTERY
PACK (FIG.1)
1. Press the battery-release button to
release the battery pack.
2. Pull the battery pack to remove it from
the tool.
OPERATION
ASSEMBLY
CONTENTS
Cordless drill/driver, bit, belt clip, screw,
side handle, and instruction manual.
UNPACKING
1. Carefully remove the tool and any
accessories from the carton. Make sure
that all items listed in the packing list are
included.
2. Inspect the tool carefully to make sure
that no breakage or damage occurred
during shipping.
3. Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the tool.

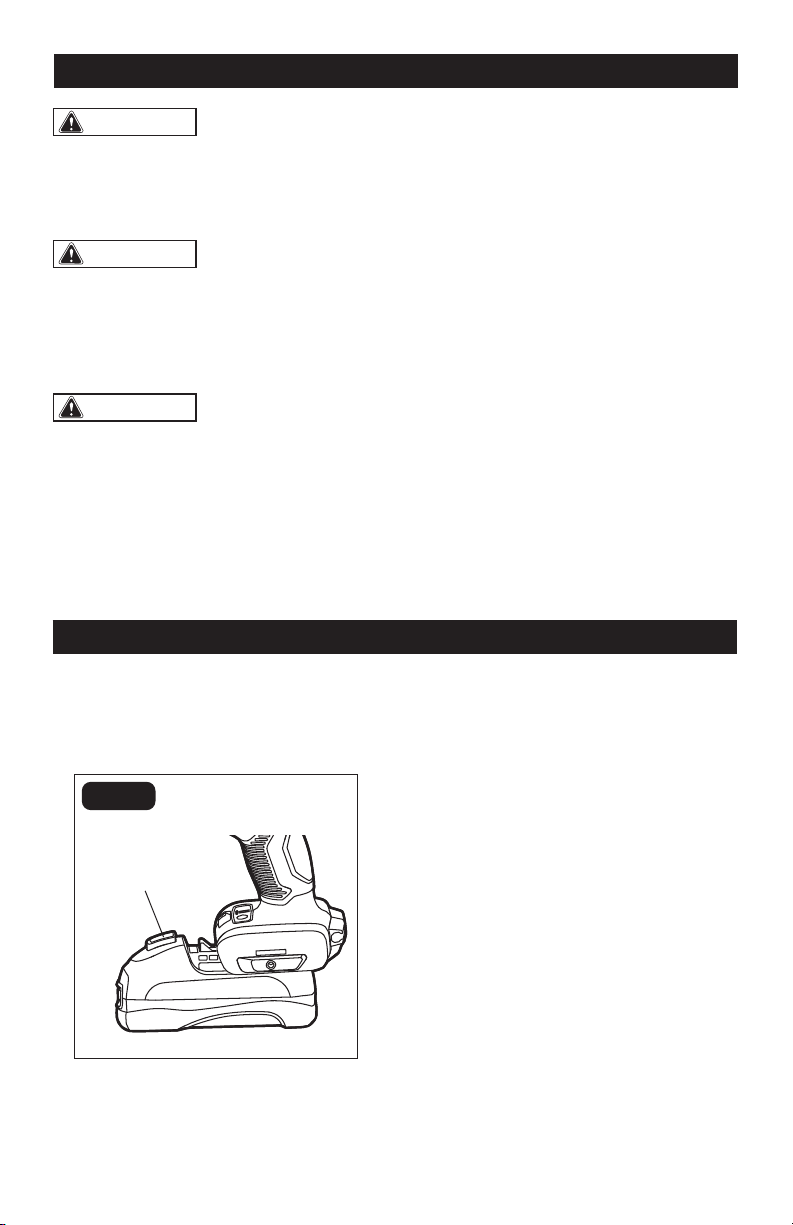

TO ATTACH BATTERY
PACK (FIG.1)
FIG. 1
Battery-Release
Button
1. Align the raised rib on the battery pack
with the grooves on the bottom of the
tool, then slide the battery pack onto the
tool.
WARNING:
If any part is broken or
missing, DO NOT attach the battery pack
or operate the tool until the broken or
missing part is replaced. Failure to do so
could result in possible serious injury.
WARNING:
Do not attempt to
modify this tool or create accessories not
recommended for use with this tool. Any
such alteration or modification is misuse
and could result in a hazardous condition
leading to possible serious injury.
WARNING:
Your tool should
never be connected to the battery pack
when you are assembling parts, making
adjustments, cleaning, or when it is not in
use. Disconnecting the tool will prevent
accidental starting, which could cause
serious personal injury.
Page 10

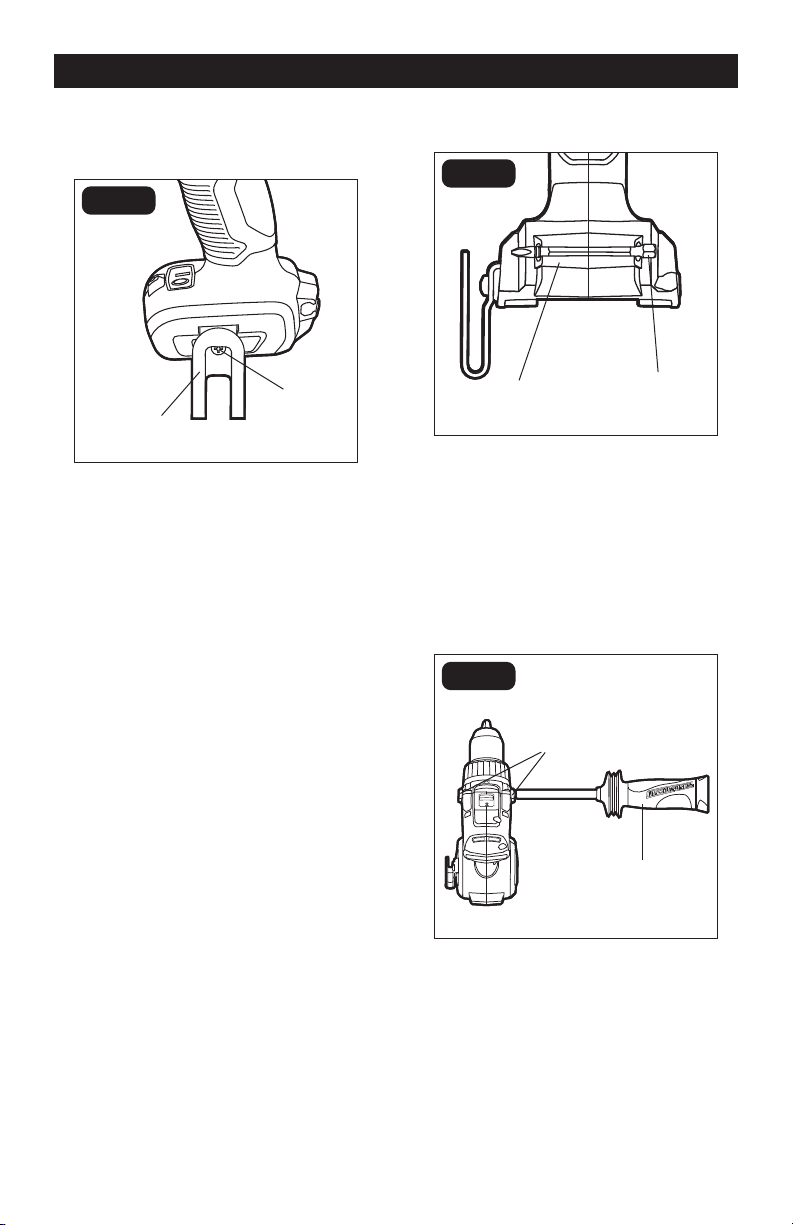

STORE THE BIT (FIG.3)
FIG. 3
Bit Holder
Your drill/driver is equipped with a bit holder
on the heel of the tool. After using the bit,
you can insert the bit into the bit holder for
convenient storage.
INSTALL/REMOVE THE SIDE
HANDLE (FIG.4)
FIG. 4
Side Handle
1. Align the side handle with either the left
or right mounting hole in the housing of
the tool.
2. Turn the side handle clockwise to
tighten the side handle.
3. Turn the side handle counterclockwise
to loosen and remove the side handle.
OPERATION
INSTALL THE BELT
CLIP (FIG.2)
FIG. 2
1. Align the rib of the clip with the hole on
the base of the drill/driver.
2. Insert the screw and tighten the screw
securely with a screwdriver. The belt clip
can be positioned on the left side of the
tool.
REMOVE THE BELT
CLIP (FIG.2)
1. Use a screwdriver to loosen the screw
that attaches the belt clip to the drill/
driver.
2. Remove the screw and the belt clip.
Bit
Mounting Holes
Screw
Belt Clip
Page 11
OPERATION
3. The variable-speed trigger switch
delivers higher speed with increased
trigger pressure and lower speed with
decreased trigger pressure.
WARNING:
Allow the motor to
come to a complete stop before setting
the drill/driver down.
ELECTRIC BRAKE
To stop the drill/driver, release the trigger
switch and allow the chuck to come to a
complete stop. The electric brake quickly
stops the chuck from rotating. This feature
engages automatically when the trigger
switch is released.
DIRECTION-OF-ROTATION SE-
LECTOR
(FORWARD/CENTERLOCK/
REVERSE) (FIG. 7)
FIG. 7
Reverse
The direction of bit rotation is reversible and
is controlled by a selector located above the
variable-speed trigger switch. With the drill/
driver held in normal operating position:
1. Position the direction-of-rotation
selector to the right of the tool for
reverse rotation.

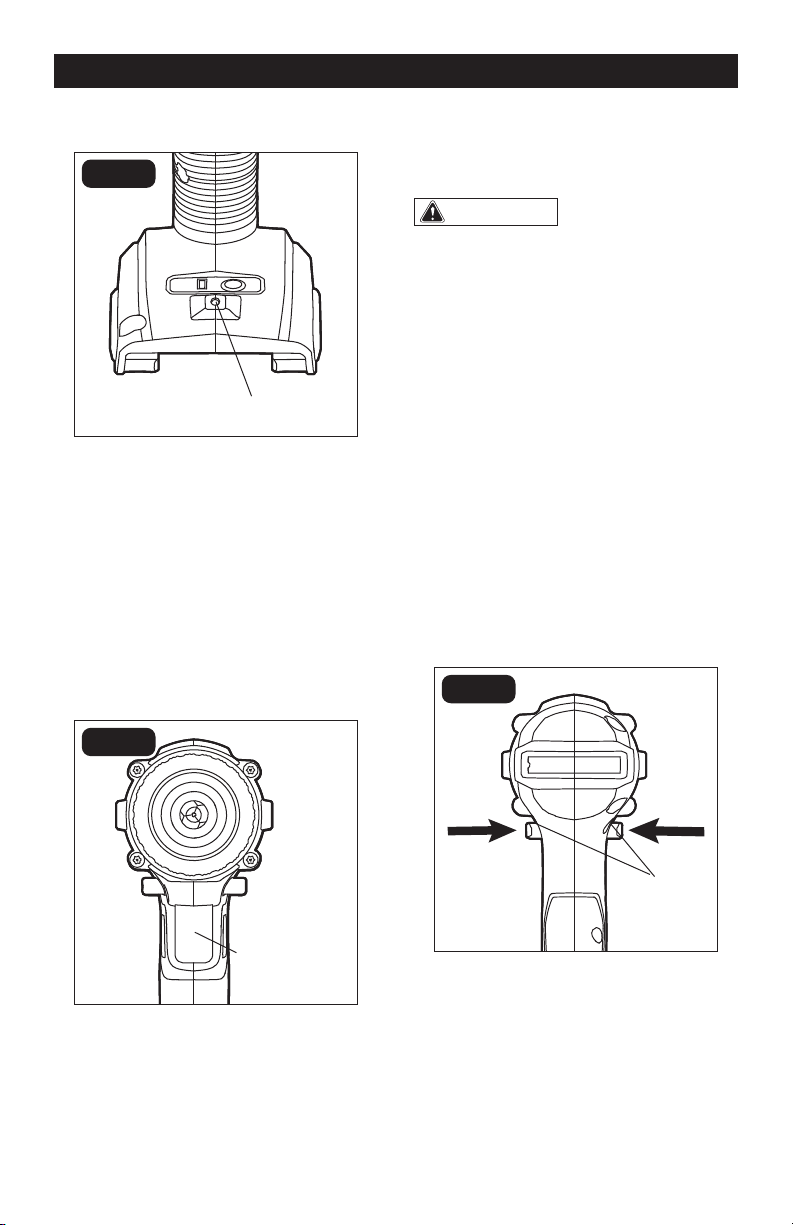

LED WORKLIGHT (FIG.5)
FIG. 5
The LED worklight, located on the base
of the drill/driver, will illuminate when the
trigger switch is depressed before the drill/
driver is running. This provides additional
light on the surface of the workpiece. The
light will automatically turn off within 10
seconds after trigger is released.
VARIABLE-SPEED TRIGGER
SWITCH (FIG. 6)
FIG. 6
1. To turn the drill/driver ON, press the
variable-speed trigger switch.
2. To turn the drill/driver OFF, release the
variable-speed trigger switch.
LED Worklight
Variable-Speed
Trigger Switch
Forward
Direction-
Of-Rotation
Selector
Page 12
OPERATION
2. Position the direction-of-rotation
selector to the left of the tool for forward
rotation.
3. Setting the direction-of-rotation selector
in the OFF (center-lock) position helps
reduce the possibility of accidental
starting when not in use.
NOTICE: To prevent gear damage, always
allow the drill/driver to come to a complete
stop before changing the direction of rota-
tion.
NOTICE: The drill/driver will not run unless
the direction-of-rotation selector is en-
gaged fully to the left or right.
TWO-SPEED GEARBOX
(FIG. 8)
FIG. 8
High
The drill/driver has a two-speed gearbox
for drilling or driving at either low or high
speeds. A slide switch is located on the
top of the drill/ driver to select either low or
high speed. The required speed is adjusted
depending on the material and the working
conditions.
Use low speed for high-power and high-
torque applications and high speed for fast
drilling or driving applications.
Low
When using drill/driver in the low-speed
range, the speed will decrease and the drill/
driver will have more power and torque.
Use low speed for starting holes without
a center punch, drilling metals or plastic,
drilling ceramics, or in applications requiring
a higher torque.
High speed is better for drilling wood and
wood composites.
NOTICE: Avoid running the drill/driver at
high speed for extended periods of time.
Running at high speed under constant us-
age may cause the drill/driver to become
overheated.
NOTICE: Make sure that the two-speed
gearbox switch is fully adjusted at the front
or the back position.
NOTICE: Never adjust the speed while the
tool is running. Failure to obey this caution
could result in serious damage to the drill/
driver.
Page 13
OPERATION
The torque clutch can be adjusted to any
of 24 different settings (23 driving and 1
drilling). The higher the torque setting,
the more force the drill/driver produces to
turn an object in either low or high rotation
speed.
When using the drill/driver for different
driving applications, increase or decrease
the torque in order to help prevent damage
to the screw heads, threads, workpiece, etc.
Adjust the torque by rotating the torque-
adjustment ring. The proper setting depends
on the job and the type of bit, fastener, and
material you will be using.
In general, use greater torque for larger
screws. If the torque is too high, the screws
may be damaged or broken. For delicate
operations, such as removing a partially
stripped screw, use a low torque setting. For
operations such as drilling into hardwood,
use a higher torque setting.
NOTICE: Do not change the torque setting
when the tool is running.
DRILL MODE (FIG. 11)
FIG. 11
Select the drill mode for drilling and other
heavy-duty applications.
To select drill mode, rotate the torque-
adjustment ring until the drill icon aligns with
the torque indicator.

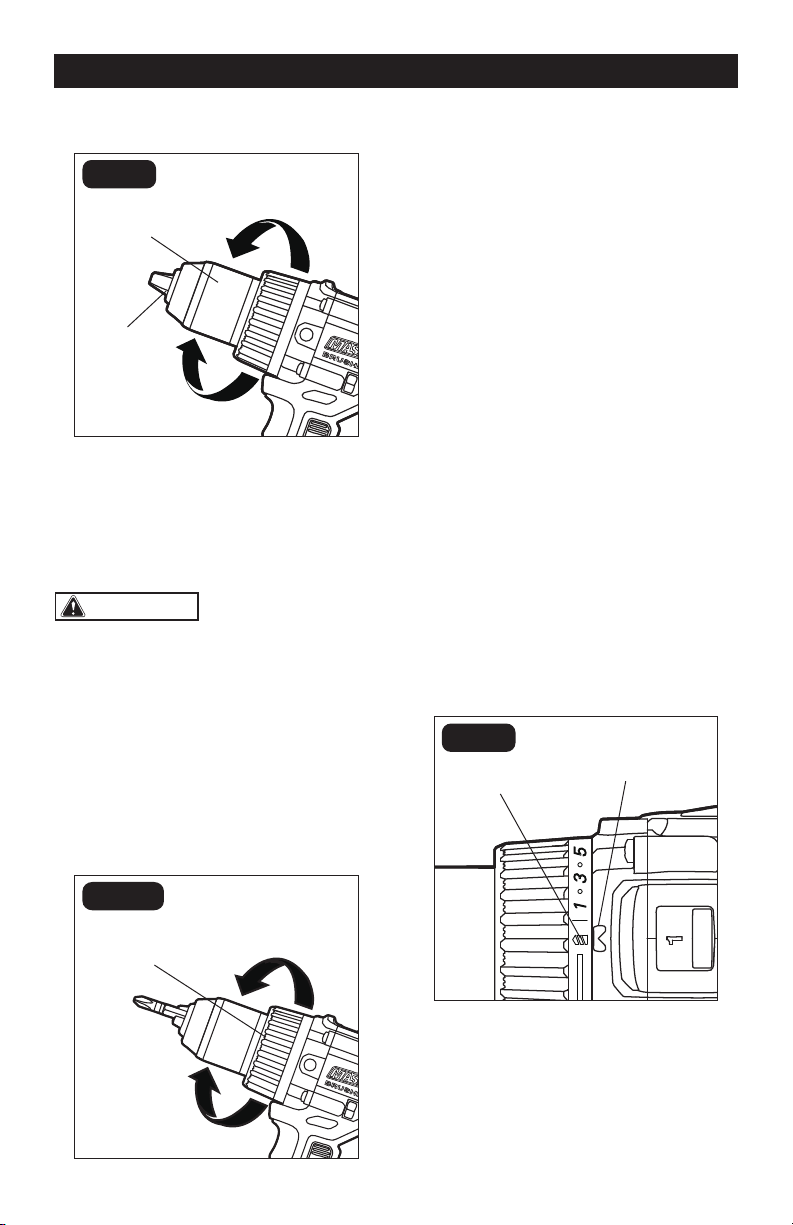

KEYLESS CHUCK (FIG.9)
FIG. 9
Lock (Tighten)
The drill/driver has a keyless chuck to
tighten or release bits in the chuck jaws. The
arrows on the chuck indicate the direction in
which to rotate the chuck in order to LOCK
(tighten) or UNLOCK (release) the chuck
jaws on the bit.
WARNING:
Do not hold the chuck
with one hand and use the power of the
drill/driver to tighten the chuck jaws on
the drill bit. The chuck could slip in your
hand, or your hand could slip and come
in contact with the rotating bit. This could
cause an accident resulting in serious
personal injury.
ADJUST THE TORQUE (FIG. 10)
FIG. 10
Unlock (Release)
Chuck Jaws
Keyless Chuck
To Increase Torque
To Decrease Torque
Torque-Adjustment
Ring
Drill Icon
Torque Indicator
Page 14

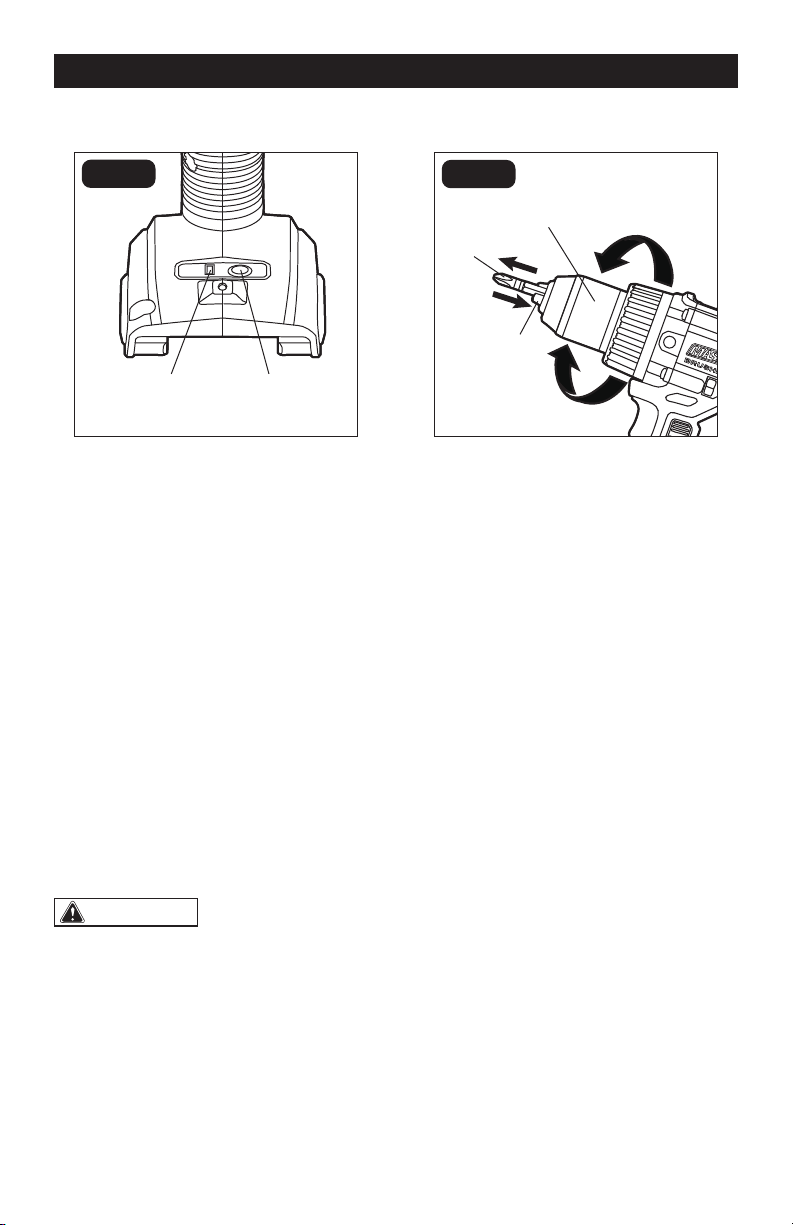

INSTALL THE BIT (FIG.13)
FIG. 13
Unlock
(Release)
1. Remove the battery pack from the drill/
driver.
2. Open the chuck jaws until the opening is
slightly larger than the bit you intend to
use and raise the front of the drill/driver
slightly to keep the bit from falling out of
the chuck jaws.
3. Insert the bit into the chuck.
4. Rotate the chuck in the direction of the
arrow marked LOCK to close the chuck
jaws.
5. Tighten the chuck jaws securely on the
bit.
REMOVE THE BIT (FIG.13)
1. Remove the battery pack from the drill/
driver.
2. Open the chuck jaws.
3. Rotate the chuck in the direction of the
arrow marked UNLOCK to loosen the
chuck jaws.
4. Remove the bit.
OPERATION
IMPULSE MODE (FIG.12)
FIG. 12
1. Impulse mode creates a pulsating on-
off-on motor power cycle, which leads to
a short impulse of torque, together with
low speed, that can be more effective
than a pure rotational motion for certain
applications. The impulse mode can be
used to remove stubborn screws and
prevent the bit tip from walking when
drilling into smooth surfaces, such as
ceramic tiles and steel pipes.
2. Attach the battery to the tool.
3. Turn the direction-of-rotation selector
fully to the left or right and then press the
trigger switch to shine the LED worklight.
4. If the impulse indicator is off, you can
press the impulse button to turn on
the impulse indicator. If the impulse
indicator is on, it indicates that the
impulse mode has been turned.
WARNING:
Do not work for long
periods with the impulse mode activated
as the motor can be overheated.
NOTICE: The impulse mode has a memory
function. If the impulse mode is activated
and not turned off, you can continue to
use the mode directly next time.
NOTICE: With the impulse mode on, the
impulse indicator will be automatically turn
off about 1 minute after the trigger switch
is released.
Impulse
Indicator
Impulse
Button
Bit
Lock
(Tighten)
Keyless Chuck
Chuck Jaws
Page 15
DRILLING IN WOOD
For maximum performance, use high-
speed-steel (available separately) or brad-
point bits (available separately) for wood
drilling.
1. When drilling “through” holes, place a
block of wood behind the workpiece to
prevent ragged or splintered edges on
the back side of the hole.
2. Begin drilling at a very low speed to
prevent the bit from slipping off the
starting point.
3. Increase speed as the drill bit bites into
the material.
DRILLING IN METAL
For maximum performance, use high-
speed-steel bits (available separately) for
metal or steel drilling. It’s recommended to
use the impulse mode to drill into the steel
pipes.
1. When drilling metals, use light oil on
the drill bit to keep it from overheating.
The oil will prolong the life of the bit and
increase the drilling action.
2. Begin drilling at a very low speed to
prevent the bit from slipping off the
starting point.
3. Maintain a speed and a pressure that
allow cutting without overheating the
bit. Applying too much pressure will:
• Overheat the drill/driver
• Wear the bearings
• Bend or burn bits
• Produce off-center or irregularly shaped
holes
OPERATION
WARNING:
Make sure to insert
the bit straight into the chuck jaws. Do
not insert the bit into the chuck jaws at an
angle and then tighten. This could cause
the bit to be thrown from the drill/driver,
resulting in possibly serious personal
injury or damage to the chuck.
WARNING:
Use protective gloves
when removing the bit from the tool, or
first allow the bit to cool down. The bit
may be hot after prolonged use.
DRILLING
1. Check that the direction-of-rotation
selector is at the forward setting.
2. Secure the material to be drilled in a vise
or with clamps to keep it from turning as
the drill bit rotates.
3. Hold the drill/driver firmly and place the
bit at the point to be drilled.
4. Depress the variable-speed trigger
switch to start the drill/driver.
5. Move the drill bit into the workpiece,
applying only enough pressure to keep
the bit drilling. Do not force the drill or
apply side pressure to elongate a hole.
Let the tool do the work.
6. When drilling hard and smooth surfaces,
use a center punch to mark the desired
location of the hole. This will prevent the
drill bit from slipping off-center as the
hole is started.
7. When drilling metals, use light oil on
the drill bit to keep it from overheating.
The oil will prolong the life of the bit and
increase the drilling action.
8. If the bit jams in the workpiece or if the
drill stalls, stop the tool immediately.
Remove the bit from the workpiece and
determine the reason for jamming.
Page 16
OPERATION
DRILLING IN CERAMIC TILES
For maximum performance, use carbide-
tipped masonry bits (available separately)
for ceramic tile drilling. It’s recommended
to use the impulse mode to drill into the
ceramic tiles.
1. Use just enough force on the drill to
keep it from bouncing excessively. Too
much force will cause slower drilling
speeds, overheating and a lower drilling
rate.
2. Do not exert side pressure on the bit
when drilling, as this will cause clogging
of the bit flutes and a slower drilling
speed.
3. If the drill speed starts to drop off when
drilling deep holes, pull the bit partially
out of the hole with the tool still running
to help clear debris from the hole.
SCREWDRIVER OPERATION
1. Select the desired speed/torque range
to match the planned operation.
2. Attach the desired fastener accessory
into the chuck.
3. Make a few practice runs in a scrap
piece before working.
WARNING:
When servicing, use
only identical replacement parts. Use of
any other parts may create a hazard or
cause product damage.
WARNING:
To avoid serious
personal injury, always remove the battery
pack from the product when cleaning or
performing any maintenance.
WARNING:
Avoid using solvents
when cleaning plastic parts. Most plastics
are susceptible to damage from various
types of commercial solvents and may be
damaged by their use. Use a clean cloth
to remove dirt, dust, oil, grease, etc.
MAINTENANCE
WARNING:
Using compressed
air may be the most effective cleaning
method. Always wear safety goggles
when cleaning tools with compressed air.
Page 17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The drill/driver does not work. The battery is depleted. Charge the battery.
The bit cannot be installed.
The chuck sleeve is not
released.
Release the chuck sleeve.
The bit does not fit the
sleeve.
Use a suitable bit.
Motor is overheating
The cooling vents may be
obstructed.
Clean and clear the vents.
Do not cover the vents with
your hand during operation
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
1/2" BRUSHLESS DRILL/DRIVER
WARRANTY
90-DAY MONEY BACK GUARANTEE:
This MASTERFORCE® brand power tool carries our 90-DAY Money Back
Guarantee. If you are not completely satisfied with your MASTERFORCE® brand
power tool for any reason within ninety (90) days from the date of purchase, return
the tool with your original receipt to any MENARDS® retail store, and we will provide
you a refund – no questions asked.
3-YEAR LIMITED WARRANTY:
This MASTERFORCE® brand power tool carries our famous No Hassle 3-Year Limited
Warranty to the original purchaser. If, during normal use, this MASTERFORCE® power
tool breaks or fails due to a defect in material or workmanship within three (3) years
from the date of original purchase, simply bring this tool with the original sales receipt
back to your nearest MENARDS® retail store. At its discretion, MASTERFORCE®
agrees to have the tool or any defective part(s) repaired or replaced with the same or
similar MASTERFORCE® product or part free of charge, within the stated warranty
period, when returned by the original purchaser with original sales receipt. Not
withstanding the foregoing, this limited warranty does not cover any damage that
has resulted from abuse or misuse of the Merchandise. This warranty: (1) excludes
expendable parts including but not limited to blades, brushes, belts, bits, light bulbs,
and/or batteries; (2) shall be void if this tool is used for commercial and/or rental
purposes; and (3) does not cover any losses, injuries to persons/property or costs. This
warranty does give you specific legal rights and you may have other rights, which vary
from state to state. Be careful, tools are dangerous if improperly used or maintained.
Seller’s employees are not qualified to advise you on the use of this Merchandise.
Any oral representation(s) made will not be binding on seller or its employees. The
rights under this limited warranty are to the original purchaser of the Merchandise
and may not be transferred to any subsequent owner. This limited warranty is in lieu
of all warranties, expressed or implied including warranties or merchantability and
fitness for a particular purpose. Seller shall not be liable for any special, incidental, or
consequential damages. The sole exclusive remedy against the seller will be for the
replacement of any defects as provided herein, as long as the seller is willing or able
to replace this product or is willing to refund the purchase price as provided above.
For insurance purposes, seller is not allowed to demonstrate any of these power tools
for you.
For questions / comments, technical assistance or repair parts – Please Call Toll
Free at: 1-866-917-4374. (M-F 8:30am-5:00pm Est.)
05/2020
© 2020 Menard, Inc., Eau Claire, WI 54703
