241-0388
MIXER/DRILL
OPERATOR’S MANUAL
CAUTION:
To Reduce the Risk of Injury, User Must
Read and Understand the Operator’s Manual. Save These
Instructions For Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374 (M-F 8:30am-5:00pm EST).
TABLE OF CONTENTS
Safety Symbols ......................................................... Page 2
Safety Instructions .....................................................Page 3-7
Overview/Specifications ................................................. Page 7
Assembly ............................................................. Page 8
Operation ..........................................................Page 8 -11
Maintenance .......................................................... Page 11
Troubleshooting ....................................................... Page 12

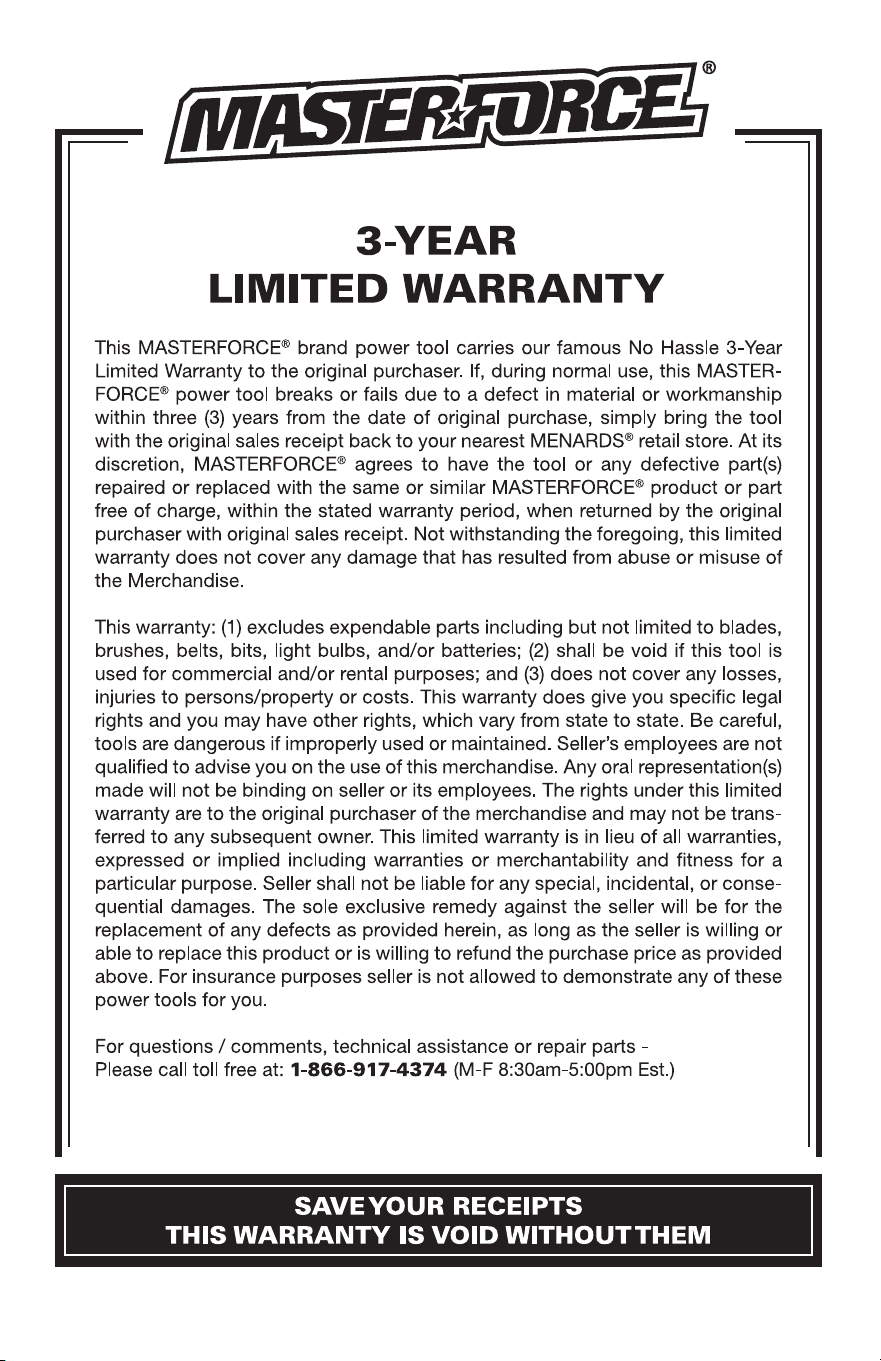

Warranty ............................................................. Page 14
Page 2
SAFETY SYMBOLS
Some of these following symbols may be used on this tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
Symbol
Name
Designation / Explanation
V Volts Voltage
A Amps Current
Hz Hertz Frequency (cycles per second)
W Watts Power
lbs Pounds Weight
n
o
No-load speed Rotational speed at no load
…/min Per minute
Revolutions, strokes, surface speed
orbits, etc., per minute
�
or d.c.
Direct current Type of characteristic of current
Read instruction manual
To reduce the risk of injury, user must
read instruction manual.
WARNING:
To ensure safety and reliability, all repairs should be performed by a
qualied service technician.
Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understand-
ing. The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER”, “WARNING” and “CAUTION” before
using this tool. Failure to follow all instructions listed below may result in electric shock,
re, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May be used
in conjunction with other symbols or pictographs.
DANGER:
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, could
result in minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SAVE THESE INSTRUCTIONS!
Page 4
SAFETY INSTRUCTIONS
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING:
Read all safety
warnings, instructions, illustrations and
specications provided with this power
tool. Failure to follow all instructions listed
below may result in electric shock, fire and/
or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
2. Avoid body contact with earthed
or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
4. Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
6. If operating a power tool in a damp
location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply.
Use of an GFCI reduces the risk of electric
shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the inuence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have
the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of
the power tool may result in personal injury.
5. Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected
situations.
Page 5
SAFETY INSTRUCTIONS
6. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose
clothes, jewelry or long hair can be caught
in moving parts.
7. If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.
8. Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
4. Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
7. Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
BATTERY TOOL USE AND CARE
1. Recharge only with the charger specied
by the manufacturer. A charger that is
suitable for one type of battery pack may
create a risk of fire when used with another
battery pack.
2. Use power tools only with specically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
3. When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make
a connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, ush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that
is damaged or modied. Damaged or
modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of
injury.
6. Do not expose a battery pack or tool to
re or excessive temperature. Exposure
to fire or temperature above 265°F (130 °C)
may cause explosion.
Page 6
SAFETY INSTRUCTIONS
7. Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specied
in the instructions. Charging improperly or
at temperatures outside the specified range
may damage the battery and increase the
risk of fire.
SERVICE
1. Have your power tool serviced by a
qualied repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Never service damaged battery packs.
Service of battery packs should only
be performed by the manufacturer or
authorized service providers.
SAFETY INSTRUCTIONS FOR
MIXER/DRILL
1. Hold the tool with both hands on the
intended handles. Loss of control can
cause personal injury.
2. Ensure sufcient ventilation when
mixing ammable materials to avoid a
hazardous atmosphere. Developing vapor
may be inhaled or be ignited by the sparks
the power tool produces.
3. Do not mix food. Power tools and their
accessories are not designed for processing
food.
4. Ensure that the mixing container is
placed in a rm and secure position. A
container that is not properly secured may
move unexpectedly.
5. Follow the instructions and warnings
for the material to be mixed. Material to be
mixed may be harmful.
6. Do not reach into the mixing container
with your hands or insert any other objects
into it while mixing. Contact with the paddle
may lead to serious personal injury.
7. Start up and run down the tool in the
mixing container only. The paddle may
bend or spin in an uncontrolled manner.
IMPORTANT SAFETY INSTRUC-
TIONS
1. To reduce the risk of electric shock or
damage to the chargers and batteries, use
only with the MASTERFORCE
®
20V battery
packs and chargers listed.
Battery pack Charger
252-8031 (2.0Ah)
252-8030 (2.5Ah)
252-8003 (2.5Ah)
252-8034 (4.0Ah)
252-8013 (4.0Ah)
252-8035 (5.0Ah)
252-8005 (5.0Ah)
252-8007 (7.5Ah)
252-8014 (8.0Ah)
252-8025
252-8037
252-8026
252-8043
2. For best results, your battery and tool
should be stored, charged and used in a
location where the temperature is more
than 41°F (5°C) but less than 104°F (40°C).
Do not store outside or in vehicles.
DANGER:
People with electronic
devices, such as pacemakers, should
consult their physician(s) before using this
product. Operation of electrical equipment
in close proximity to a heart pacemaker
could cause interference or failure of the
pacemaker.
WARNING:
• Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to the state of California to cause
cancer, birth defects, or other reproductive
harm. Some examples of these chemicals
are:
– Lead from lead-based paints
– Crystalline silica from bricks, cement, and
other masonry products
– Arsenic and chromium from chemically-
treated lumber
Page 7
OVERVIEW
Chuck
Speed Dial
Lock-off Button
Chuck Key
Holder
5/8" Chuck Key
Edge Protector
Trigger
Switch
Grip
Handle
SPECIFICATIONS
Rated voltage 20 V d.c.
Variable speed 1: 200 /min
2: 275 /min
3: 350 /min
4: 425 /min
5: 500 /min
6: 575 /min
MAX: 650 /min
Chuck diameter
5/8" (16 mm)
Chuck key
Φ 5/16" (8 mm) pilot
Weight (without battery) 6 lbs. 4 oz. (2.85 Kg)
• Your risk from these exposures varies,
depending upon how often you do this type
of work. To reduce your exposure to these
chemicals:
– Work in a well-ventilated area.
– Work with approved safety equipment,
such as dust masks that are specially
designed to filter out microscopic
particles.
SAFETY INSTRUCTIONS
– Avoid prolonged contact with dust from
power sanding, sawing, grinding, drilling,
and other construction activities. Wear
protective clothing and wash exposed
areas with soap and water. Allowing dust
to get into your mouth or eyes or to lie
on the skin may promote absorption of
harmful chemicals.
SAVE THESE INSTRUCTIONS!
Page 8
OPERATION
WARNING:
If any part is broken or
missing, DO NOT attach the battery pack
or operate the tool until the broken or
missing part is replaced. Failure to do so
could result in possible serious injury.
WARNING:
Do not attempt to
modify this tool or create accessories not
recommended for use with this tool. Any
such alteration or modication is misuse
and could result in a hazardous condition
leading to possible serious injury.
WARNING:
Your tool should
never be connected to the battery pack
when you are assembling parts, making
adjustments, cleaning, or when it is not in
use. Disconnecting the tool will prevent
accidental starting, which could cause
serious personal injury.
ASSEMBLY
PACKING LIST
- Cordless mixer/drill
- Chuck key
- Chuck key holder
- Operator’s manual.
UNPACKING
1. Carefully remove the tool and any
accessories from the carton. Make sure
that all items listed in the packing list are
included.
2. Inspect the tool carefully to make sure
that no breakage or damage occurred
during shipping.
3. Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the tool.
ATTACH THE BATTERY PACK
(FIG. 1)
FIG. 1
Battery-Release
Button
1. Align the raised ribs on the battery pack
with the grooves on the bottom of the
tool, then slide the battery pack onto the
tool.
2. Ensure that the battery-release button
on the battery pack snaps into place
and the battery pack is secured to the
tool before beginning operation.
NOTICE: When placing the battery pack on
the tool, be sure that the raised ribs on the
battery pack align with the grooves on the
tool and the latches snap into place prop-
erly. Improper assembly of the battery pack
can cause damage to internal components.
Page 9
DETACH THE BATTERY PACK
(FIG. 1)
1. Press the battery-release button to
release the battery pack.
2. Pull the battery pack to remove it from
the tool.
CHUCK KEY (FIG. 2)
FIG. 2
Chuck Key
Chuck Key
Holder
A chuck key is provided for use when installing
or removing the paddle. When not in use, the
chuck key can be placed in the chuck key holder.
TURN THE TOOL ON AND OFF
(FIG. 3)
FIG. 3
Trigger
Switch
Lock-off
Button
To turn the tool on, squeeze the lock-off button
and then depress the trigger switch. Release the
lock-off button once the tool starts rotating.
To turn the tool off, release the trigger switch and
allow the chuck to come to a complete stop.
ADJUST THE SPEED (FIG. 4)
FIG. 4
Speed Dial
The speed dial is used to adjust the speed of
the mixer/drill.
1. Turn the dial to increase or decrease the
speed of the tool.
2. Position the dial at “1” to select the
slowest speed; position the dial at “MAX”
to select the fastest speed. Adjust the
speed for optimum performance.
INSTALL THE PADDLE
(NOT INCLUDED)
(FIG. 5, FIG. 6)
FIG. 5
Paddle Shaft
OPERATION
Page 10
OPERATION
FIG. 6
Open
Close
1. Remove the battery pack from the tool.
2. Insert the chuck key into one of the
holes on the cylinder of the chuck.
3. Rotate the key counterclockwise to
open the chuck jaws or clockwise to
close the chuck jaws.
4. Open or close the chuck jaws to a point
where the opening is slightly larger than
the paddle shaft. Also, raise the front of
the mixer/drill slightly to keep the paddle
from falling out of the chuck jaws.
5. Insert the paddle shaft into the chuck
jaws.
6. Use the chuck key to tighten the chuck
jaws securely on the paddle shaft and
then remove the chuck key.
WARNING:
Make sure to insert
the paddle straight into the chuck jaws.
Do not insert the paddle into the chuck
jaws at an angle.
REMOVE THE PADDLE (FIG. 6)
1. Remove the battery pack from the tool.
2. Loosen the chuck jaws using the chuck
key.
3. Remove the paddle and the chuck key.
MIXING (FIG. 7)
FIG. 7
1. Pour materials to be mixed into a suitable
container. Do not fill the container. There
should be enough room in the container
to prevent spillage and reduce the risk
of the material splashing back on you or
the tool during operation.
2. Secure the container to keep it from
turning as the paddle rotates.
3. Select the appropriate speed setting for
the materials you are mixing.
4. Attach the battery pack to the
mixer/drill.
5. Hold the mixer/drill firmly with both
hands and lower the paddle into the
container.
6. Depress the trigger switch to start
mixing.
7. Stop and start the unit intermittently
during the mixing process to allow the
material to absorb moisture (or slake).
The type of material you are mixing will
determine how long and how often the
material needs to slake.
8. When mixing is complete, stop the tool
and remove the battery pack and the
paddle. Clean the paddle and store for
later use.
NOTICE:
• It is recommended that you begin mixing
at low speeds to ensure that wet and dry
materials are evenly mixed.
Page 11
OPERATION
• If the mixer/drill is sluggish or if the unit
struggles to mix the material, lower the
speed setting.
WARNING:
• Mix and prepare materials according to
the material manufacturer’s instructions.
• To reduce the risk of electric shock or
tool failure, use caution to prevent liquid
material from entering the tool. If the tool
falls into the material being mixed, remove
the battery pack and have it checked by a
qualied repair person.
1. Check for damaged, missing, or worn
parts.
2. Check for loose screws, misalignment
or binding of moving parts, or any other
condition that may affect the operation.
3. If abnormal vibration or noise occurs,
turn the tool off immediately and havethe
problem corrected before further use.
4. Using compressed air may be the most
effective cleaning method. Always wear
safety goggles when cleaning tools
using compressed air.
5. Clean the mixer/drill paddle right after
use. Do not allow the mixed product to
dry on the paddle.
6. Store the tool indoors in a place that
is inaccessible to children. Keep away
from corrosive agents.
WARNING:
• When servicing, use only identical
replacement parts. Use of any other parts
may create a hazard or cause product
damage.
• To avoid serious personal injury,
always remove the battery pack from the
product when cleaning or performing any
maintenance.
MAINTENANCE
Page 12
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The mixer/drill does not start.
Battery charge is
depleted.
Charge the battery.
Battery or the tool is
overheated.
Allow the battery or the tool
to cool down.
The tool is overloaded.
Restart the tool and do not
force the tool.
Page 13
NOTES
20V Brushless Mixer/Drill
08/2023
© 2023 Menard, Inc., Eau Claire, WI 54703
