ESF6010BW
Compact Dishwasher
TH เครืองล้างจานแบบตั
งโต๊ะ คู
่
มือการใช้งาน
User manual
CONTENTS
1. Quick operation guide……………………………..2
2. Safety information………………………………….3
3. Operation instruction………………………………6
4. Prior using for the first time……………………….7
5. Loading the dishwasher basket………………….11
6. Starting a washing programme…………………..12
7. Maintenance and cleaning………………………..16
8. Installation instruction……………………………..18
9. Troubleshooting tips……………………………….22
10. Technical information………………………………24
11. Consumer care center……………………………..25
Note:
• Please carefully read this manual before using the dishwasher, it will help
you to use and maintain the dishwasher properly.
• Pass it on to any subsequent owner of the appliance.
• Keep it to refer to it at a later date.
• This manual contains sections on safety Instructions, Operating
Instructions, Installation Instructions and Troubleshooting Tips, etc.
Before calling for service:
• To review the section on troubleshooting Tips will help you to solve some
common problems by yourself.
• If you can not solve the problems by yourself, please ask for the help of
professional technicians.
Compartment A:Compartment A:
With each wash cycle.
(Follow the user instructions!)
Mechanical indicator C. Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Check the regeneration
salt level
Load the baskets
Select a programme
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door Press the programme button until the selected programme lights up.
( See the section entitled Operation instruction )
When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance
Press the Power switch button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content on the instruction manual.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.
T urn on the water tap and press the Start/Reset button. The machine will start working
after about 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Reset button more than 3 seconds to cancel the running programme.
3. Select a new programme.
4. Restart the dishwasher.
1.Press the start/Reset button to stop the machine.
2.Open the door.
3.Add the forgotten dishes.
4.Close the door, then press the Start/Reset button, the dishwasher will
start running again after 10 seconds.

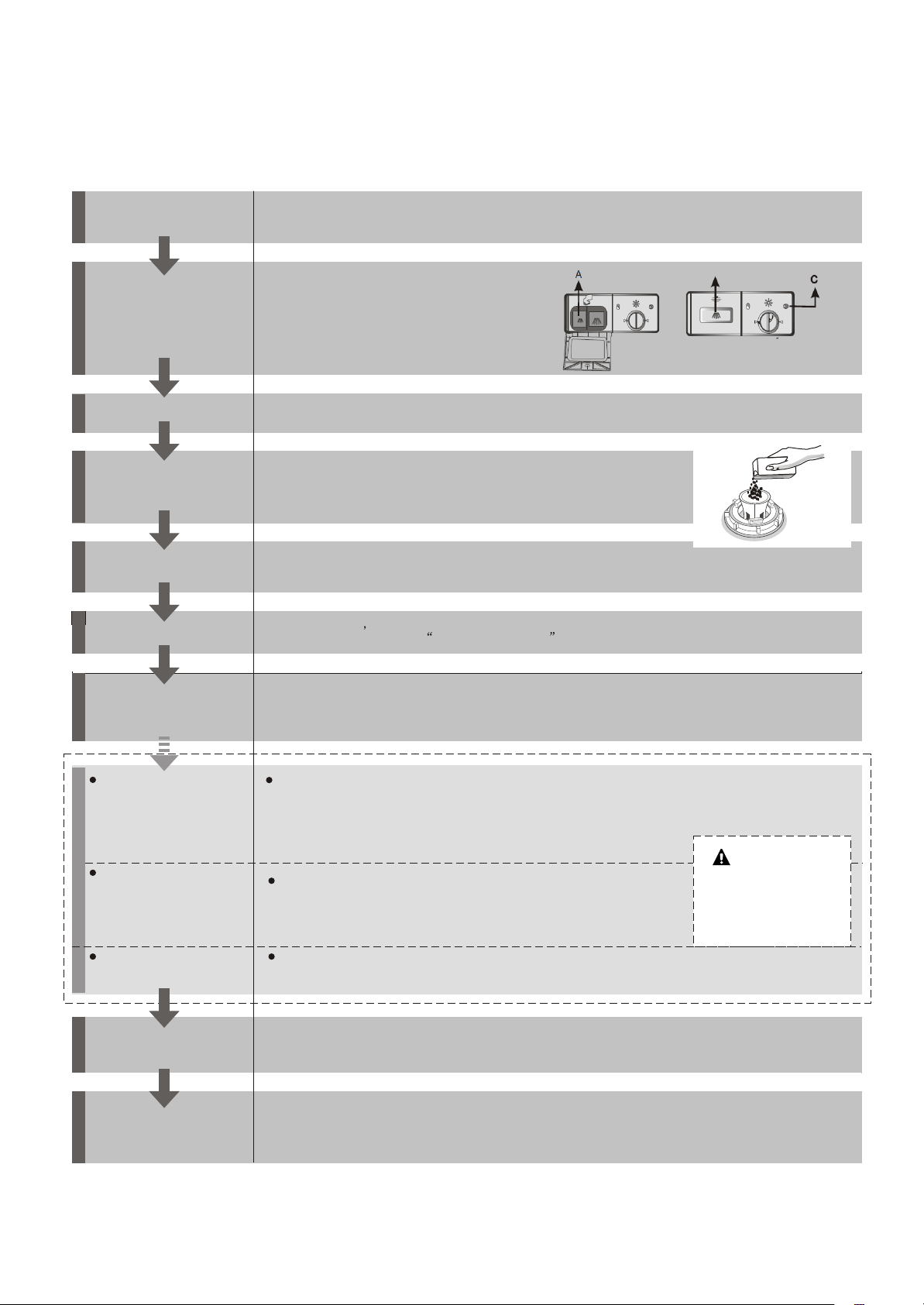

QUICK OPERATION GUIDE
2
Electric indicator on control panel.
Fill the salt into
the softener by the number of
cycles the dishwasher has run.
This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
For IEC60335-1
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
When using your dishwasher,
follow the precautions listed below:
WARNING! WARNING!
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earth ed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
SAFETY INFOMRATION
3
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic it ems n check th e m anufacturer's
ot so marked,
recommendations.
Use only det ergent and rins e add itives des igned for an aut omatic dish washer.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.

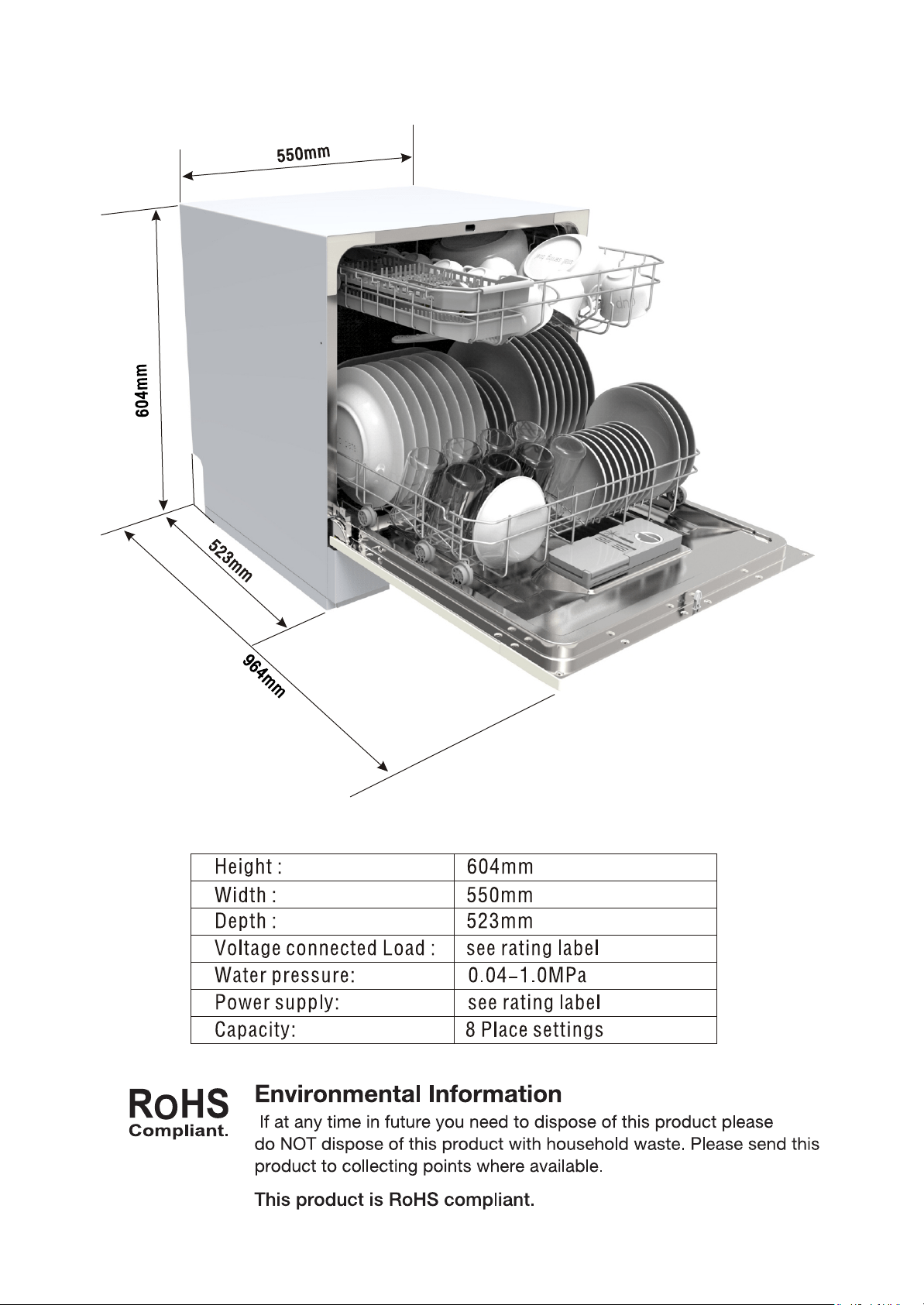

The maximum number of place settings to be washed is 8.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
4
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international
abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.
WARNING! WARNING!
Disposal Disposal
5

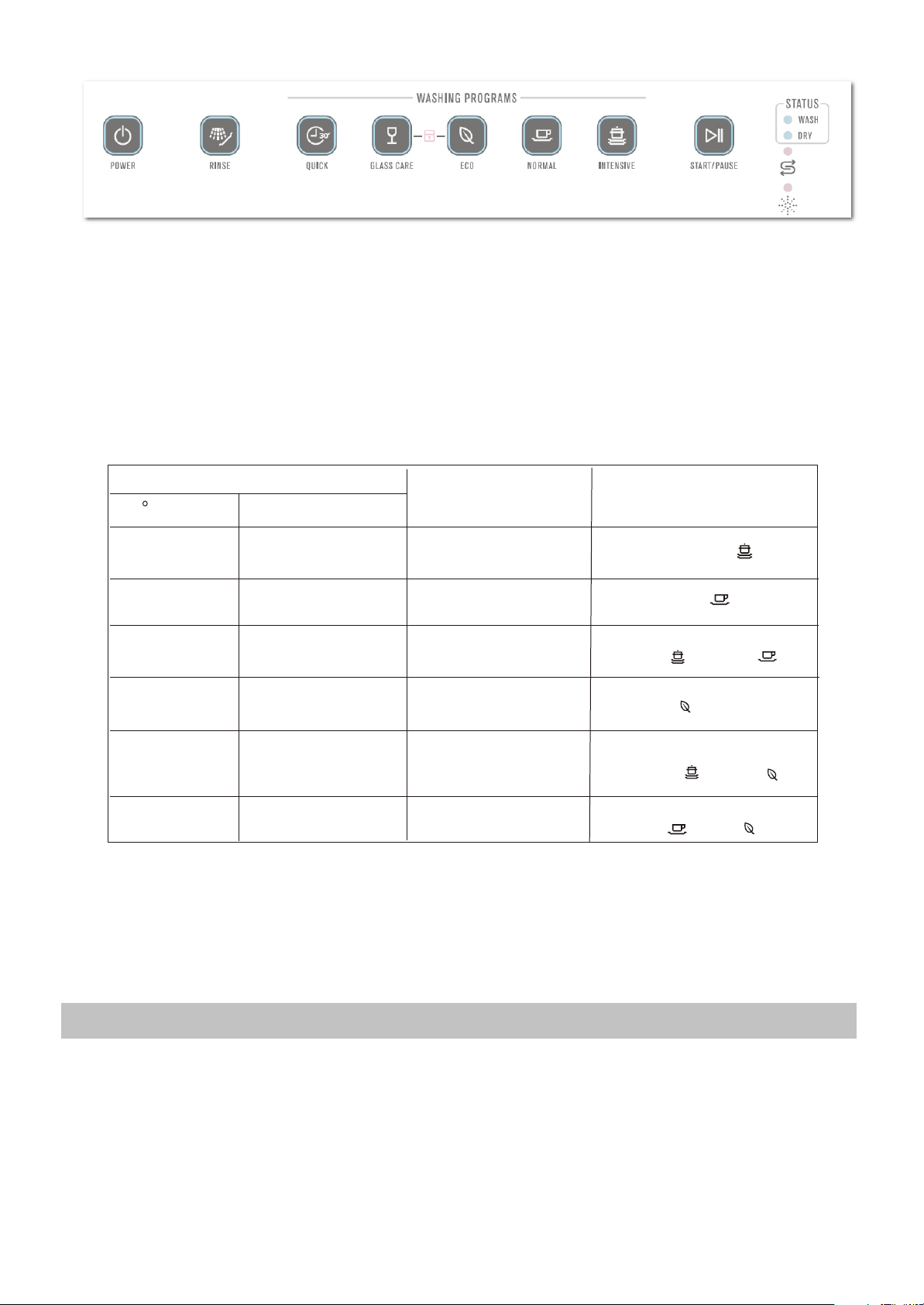

Dishwasher FeaturesDishwasher Features
Control PanelControl Panel
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
Filter assembly
Detergent Dispenser
Rinse Aid Dispenser
Spray Arms
1
Salt Container
5
6
7
8
9
3
2
4
1
2
5---Wash cycle indicator light:To show current state
of wash cycle:Wash,Dry.
need to be refilled.
1---Power button and indicator: To switch On/Off the
appliance.and the Power pilot lamp will be on when
the power is on.
3---Start/Pause Button: Press this button to start or pause
the dishwasher, the process pilot lamp will be blinking
when starting.
button simultaneously to lock the program,and the
Child lock pilot lamp will be on
.
.
2---Washing Program Selector: Press a wash program
button which you want to chose ,and the washing
program pilot lamp will be on.
6
OPERATION INSTRUCTION
4---Child lock function : press Glass care button and ECO
dispenser
Inlet pipe
connector
Drain pipe
connector
1
0
1
1
Cutlery shelves
Upper basket
Lower basket
Cutlery basket
1
0
1
1
1
2
4
3
5
6
5
7
9
8
7---Rinse aid warning light:The light is on when the
6---Salt warning light:To show when
the salt
cont
ainer need to be refilled
It is normal for a small amount of water to come out of the salt container.
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how fully the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (For some Models),you can judge when to load
the salt into the softener by the cycles that the dishwasher had run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
Always use salt intended for use with dishwasher.
The salt container is located beneath the basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of
salt not specifically designed for use in a dishwasher, especially table salt, will
salt the manufacturer does not give any warranty nor is liable for any caused
damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split,
remaining of the bottom of the machine for any period of time, which may cause
corrosion.
NOTE:NOTE:

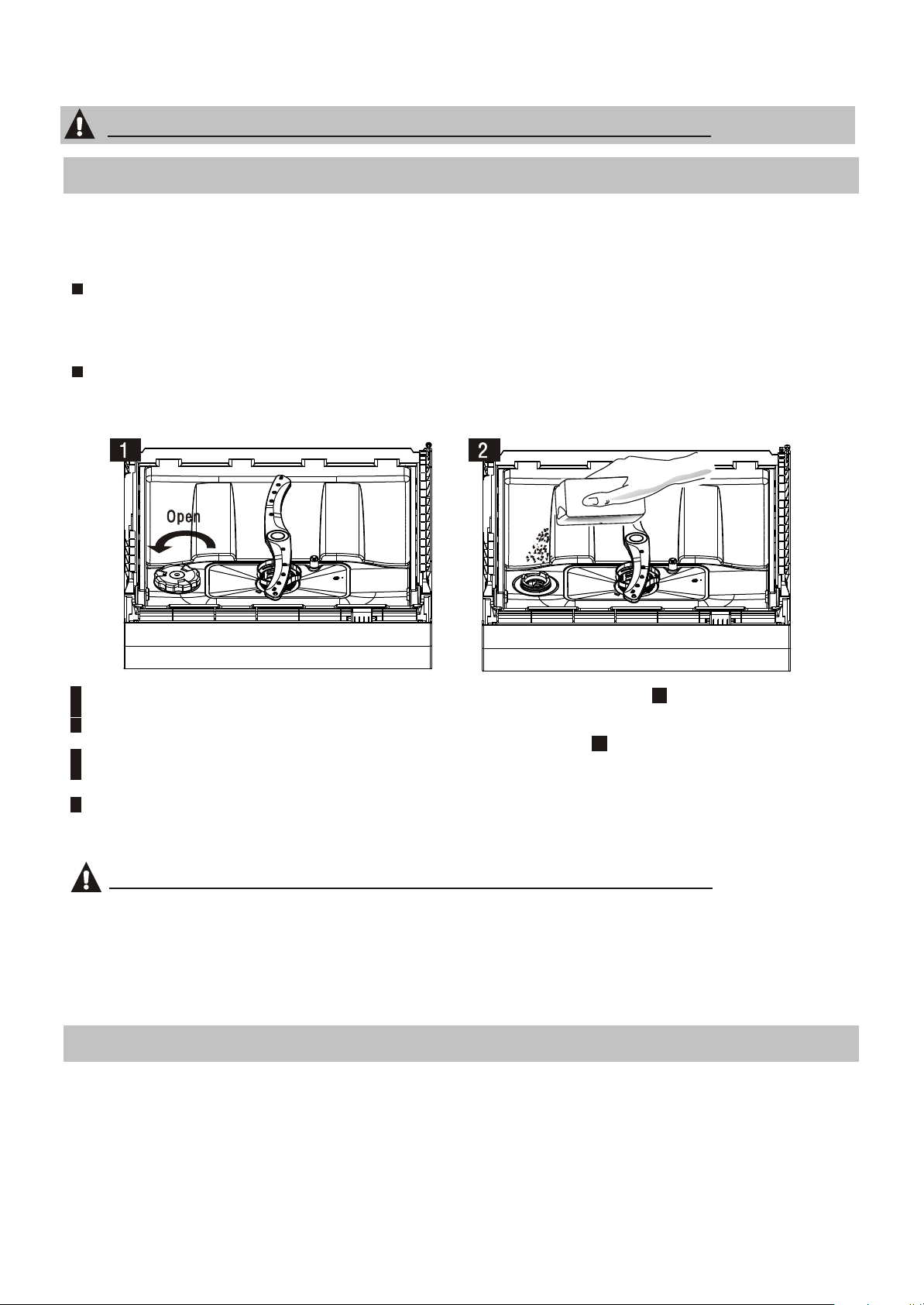

A Remove the basket and then unscrew and remove the cap from the salt container.
B Before first wash, add 1lt. of water in the salt container of your machine.
C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
D After filling the container , screw the cap tightly back clockwise.
E Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with
salt.
F Immediately after filling the salt into the salt container, a washing programme should be started (Suggest choose
therwise filter system, pump or other important parts of the machine may be damaged by
salty water. It is out of warranty.
(Suggest choose
NOTE:NOTE:
If your model have no water softener, you may skip this section.
Step 1: Enter the status of salt adjustment
Adjusting Salt Consumption
Close the door, within 60 seconds after power on, press Start/Pause button and hold for 5 seconds,
the machine will enter setting mode.
7
PRIOR USING FOR THE FIRST TIME
AA..
(fig. )
11
(fig. )
22
Quick
programme). O programme).
damage the water softener. In case of damages caused by the use of unsuitable
Loading the SaIt Into the Salt container
Setting on the
water softener
Digital display stalls
1
INTENSIVE
2
3
4
5
dH
Water Hardness level
mmol/l
1)
2)
6
*
0-5 0-0.9
6-11 1.0-2.0
12-17
18-22
23-34
35-45
2.1-3.0
3.1-4.0
4.1-6.1
6.2-8.0
NORMAL
INTENSIVE & NORMAL
ECO
There are 6 levels of salt consumption in all.It is recommended to select the level according to below table:
Step 2: select a certain level of salt consumption
Contact your local water board for information on the hardness of your water supply.Contact your local water board for information on the hardness of your water supply.
Press the Start/pause button to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
Step 3: Exit the status of salt adjustment
Without any operation in five seconds, the machine will exit from set mode, the machine is into standby statusWithout any operation in five seconds, the machine will exit from set mode, the machine is into standby status
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
Note:Note:

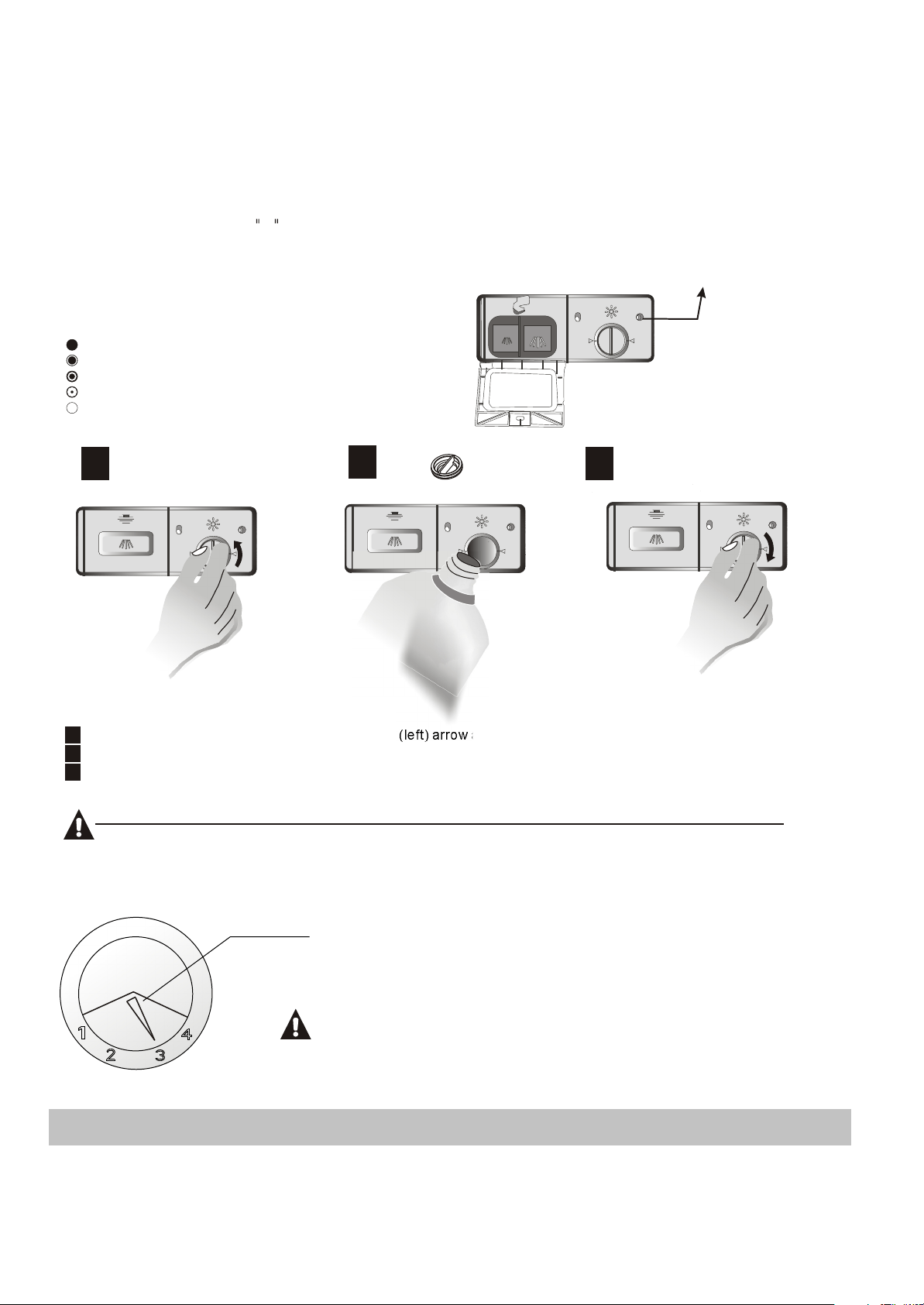

B. Fill the Rinse Aid DispenserB. Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave
spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to
use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the
dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.
The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
H1:H1:
H2:H2:
H3:H3:
H4:H4:
H5:H5:
H6:H6:
INTENSIVE & ECO
NORMAL & ECO
8
*
factory setting
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 ful l
1 / 2 ful l
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color
of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid get below 1 / 4 full.
C
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
NOTE:NOTE:
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of commercial quality detergents are suitable for this purpose.
C. Function of DetergentC. Function of Detergent
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
C (Rinse-Aid indicator) C
11
22
33
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four settings.The recommended setting is on "3".
If the dishes still are not drying properly or are spotted, adjust the dial to the
next higher number on "4".
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
Adjust lever
(Rinse)
NOTE:NOTE:
MAXMAX
9

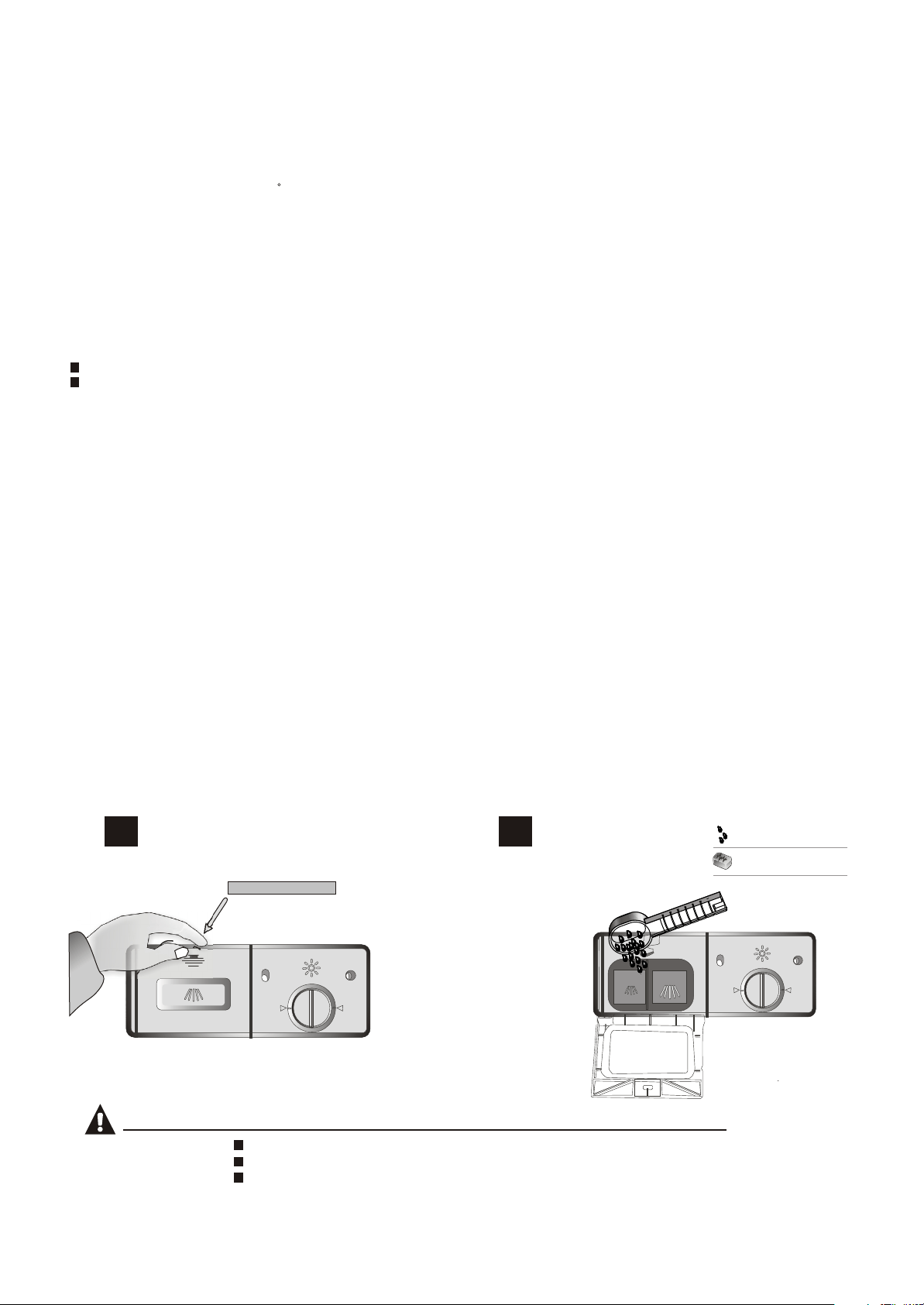

Amount of Detergent to Use
Based on their chemical composition, dishwasher can be split in two basic types:
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programmes. Therefore please use long programmes when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. Also, more heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. The water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a programme with higher Temperature.
Push latch to openPush latch to open
11 22
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid springs open.
NOTE:NOTE:
Detergent tablet
Detergent powder
10
provided in the Wash Cycle Table . Your dishwasher uses less detergent and rinse aid than
8
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on right:
The place of main wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
If the dishes are heavily soiled, place an additional
A
B
Fill in detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
NOTE:NOTE:
5.Loading the Dishwasher Baskets5.Loading the Dishwasher Baskets
For washing in the dishwasher the following cutlery/dishesFor washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable
Are of limited suitability
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
RecommendationRecommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a programme with as low a temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING! WARNING!
Close the lid and press until it locks in place
.
detergent dose in the detergent chamber.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the basket.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consume.
Load hollow items such as cups, glasses, pans etc. With the opening downwards so that
water cannot collect in the container or a deep base.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are face down.
2.Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotated freely during washing.
NOTE:NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets
Loading the baskets according to En50242: Loading the baskets according to En50242:
11
66
55
11
IN
11
11
Down ShelfDown ShelfUp ShelfUp Shelf
1.Upper basket:1.Upper basket:
2.Lower basket:2.Lower basket:
1
0
1
0
44
33
88
99
77
77
22
IN
Saucers
2
1
Cups
3
Glasses
Small serving bowl
4
5
Medium serving bowl
6
Large serving bowl
Dessert dishes
7
8
Dinner plates
9
Soup plates
10
Oval platter
12
STARTING A WASHING PROGRAMME
Information for comparability tests in accordance
with EN 50242
Information for comparability tests in accordance
with EN 50242
Capacity: 8 place settingsCapacity: 8 place settings
Programme: ECOProgramme: ECO
Rinse aid
setting: 6Rinse aid
setting: 6
Softener setting: H4
Softener setting: H4
Note: Please
place the light flat wares on the up shelf. The
total weight is less than 2kg.
Note: Please
place the light flat wares on the up shelf. The
total weight is less than 2kg.
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
WARNING!
For personal safety and a top quality clean, place the silverware in the basket:For personal safety and a top quality clean, place the silverware in the basket:
They do not nest together.They do not nest together.
Place silverware with handles-down.Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up. But place knives and other potentially dangerous utensils handles-up.
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles
I
N
Up ShelfUp Shelf
Down ShelfDown Shelf
IN
1
2
4
4
5
3
8
6
7
4
13
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Detergent
Cycle Selection
Information
Program
Running
time(min)
Energy
(Kwh)
Water
(l)
Description
of Cycle
Rinse
Aid
Turning On the ApplianceTurning On the Appliance
Starting a wash cycle...
Draw out the basket(see the section entitled Loading the Dishwasher ).
Pour in the detergent (see the section entitled Salt,
Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240
VAC
50 HZ, the specification of the socket is 10 A 250 VAC.
Make sure that the water supply is turned on to full pressure.
When you press the Start/Reset button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless you press the Start/Reset button to start.
For normally soiled loads,
such as pots, plates,
glasses and lightly
soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
Use for rinsing dishes and
glasses that will not be wash
right away.
For lightly soiled crockery
and glass.
150
185
160
13
100
1.25
0.82
1.35
0.01
0.7
13
8
13
3
10.5
Pre-wash(45 )
Wash (60 )
Rinse
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (45 )
Rinse (65 )
Drying
Wash(45 )
Rinse(65 )
Drying
Pre-wash(45 )
Wash (65 )
Rinse
Rinse
Rinse (70 )
Drying
(*EN5 0242)
NOTE:NOTE:
*EN 5 0242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 8 setting
Rinse aid setting: 6
The power consumption of off-mode is 0.45W
left-on mode is 0.49W
This is standard programme,
it is suitable to clean normally
soiled tableware and it is the
most efficient programme in
terms of its combined energy
and water consumption for
that type of tableware.
---
Pre-wash
A shorter wash for lightly soiled
loads that do not need drying.
30
0.35
7
Wash (35 )
Rinse
Rinse (40 )
18 g
Pre-wash
14
main
20g
20g
20g
20g
When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off
the appliance using the Power button, shut off the water supply and open the door of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the Power button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Change the Programme...Change the Programme...
Forget to Add a Dish?Forget to Add a Dish?
will keep on working after 10 seconds.
If you open the door when washing, the machine will pause. When you close the door , the machine
NOTE:NOTE:
At the end of the Wash CycleAt the end of the Wash Cycle
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
1
4
5
6
Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. If this
is the case, the detergent dispenser must be refilled (see the section entitled
" Loading the Detergent " ).
Press Start/Reset Button more than three seconds the machine will be in stand
by state ,then you can change the program to the desired cycle setting (see
the section entitled " Starting a wash cycle. . ." ).
working after 10 seconds.
The program lights show the state of the dishwasher:
a) One of the program lights on----------stand by or pause
b) One of the program lights blinking----- run
runs for a short time.
Press the start/reset button
Press the start/reset button, the dishwasher will run
after 10 seconds.
WARNING! WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
15
Premise: You can modify the washing program when the dishwasher just
NOTE: If you open the door during the washing cycle, the machine will pause. When you
close the door and press the start/reset button, the machine will keep on
The filter prevent larger remnants of food or other objects from getting inside the pump.
The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
Main filter
A
Larger items, such as pieces of bone or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
Coarse filter
C
This filter holds soil and food residue in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Fine filter
B
Filtering SystemFiltering System
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be re-cyclated during the cycle.
For best performance and results, the filter assembly must be regularly. For this reason, it is a good idea to
remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under
running water. To remove the filter assembly, pull on the cup handle in the upward direction.
WARNING! WARNING!
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
the filter system will be installed.
If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1,
NOTE:NOTE:
Step1
then lift it all up.
OpenOpen
C
B
A
Step2: lift B and C up from A;
A
B
C
A
B
C
The End.
16
MAINTENANCE AND CLEANING
contrarotate t he filter assembly(A,B and C),
The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.
The exterior use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Caring for the DishwasherCaring for the Dishwasher
- Inspect the filters for blocking every time the dishwasher has been used.
- By unscrewing the coarse filter.you can remove the filter system.Remove any food remnants and
clean the filters under running water.
Remarks:
Cleaning The Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
in the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.
The entire filter assembly should be cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of dishwasher could be debased.
WARNING! WARNING!
NOTE:NOTE:
To clean the edge around the door, you should use only a soft warm,
damp cloth. To avoid penetration of water into the door lock and
electrical components, do not use a spray cleaner of any kind.
WARNING! WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agent or some paper towel should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
nn
nn
17
How to Keep Your Dishwasher in Shape
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to ast longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water with a little
vinegar, or a cleaning product made specifically for
dishwashers.
After Every Wash
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
When it is not in need for a long time
The installation of the pipes
and electrical equipments
should be done by professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power
before installing dishwasher.
Failure to do so can result in
death or electrical shock.
Attention:
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher.
Installation preparationInstallation preparation
Cleaning the Spray Arms
OpenOpen
water chemicals will clog the spray arm jets and bearings.
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
18
INSTALLATION INSTRUCTION
It is necessary to clean the spray arms regularly as hard
Electrical Requirements
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Electrical Connection
Insure proper ground
exists before use
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Positioning the AppliancePositioning the Appliance
and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply
Position the appliance in the desired location. The back should rest against the wall behind it,
and drain hoses that can be positioned to the right or the left to facilitate proper installation.
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water pipes are new or have not been used for
an extended period of time, let the water run to make sure that the water is clear and
free of impurities. If this precaution is not taken, there is a risk that the water inlet can
get blocked and damage the appliance.
please close the hydrant after using.
WARNING! WARNING!
Water ConnectionWater Connection
About Power ConnectionAbout Power Connection
WARNING! WARNING!
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection
from the power cord.
nn
nn
19
Connection of drain hosesConnection of drain hoses
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the special
plastic support that comes with the appliance. The free end of the hose must be
at a height lower than75cm and must not be immersed in water to avoid the back
flow of it.
The special plastic hose support must be solidly fastened to the wall to
prevent the drain hose from moving and allowing water to spill outside
the drain.
Attention:Attention:
MAX 750mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
750mm.
40mm
B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BPLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
20
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Ensure that the water drain hose is not kinked or squashed.
If you need a drain hose extension, observe to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Water Outlet
Extension Hose
How to Drain Excess Water From Hoses
Start of dishwasherStart of dishwasher
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2 The inlet valve is open
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher
Attention:Attention:
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
3 Inlet hose connections are fully tightened and not leaking
21
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leakage.
Problem Possible Causes What To Do
Fuse blown, or the
circuit breaker tripped.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Suds in the tub
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Review the charts on the following pages may save you from calling for service.
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the wash cabinet
Rattling noise
in the wash cabinet
Knocking noise
in the water pipes
Hard water minerals
The affected items are
not corrosion resistant.
The lid of softer
is loose.
The spray arm is
knocking against
an item in a basket.
Item of crockery
are insecure
in the wash cabinet.
This may be caused
by on-site installation
or the cross-section of
the piping.
A programme was not
run after dishwasher
salt was added.
Traces of salt have
got into the wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the Quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check the lip .Ensure the fix is fine.
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on dishwasher function.
if in doubt, contact a suitably qualified plumber.
Stained tub interior
Detergent with
colourant was used.
Make sure that the detergent is the one without
colourant.
Improper detergent
Dishwasher doesn t
start
'
Make sure the dishwasher is turned on and the door is
closed securely.
Closed dishwasher making sure that door latches.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on.
Door of dishwasher
not properly closed.
Water not pumped
from dishwasher
Kink in drain hose
Filter clogged.
Kitchen sink clogged.
Check drain hose.
Check the coarse filter.
(see section titled " Cleaning The Filter ")
Check kitchen sink to make sure it is draining well.
If problem is kitchen sink not draining ,you may need
a plumber rather than a serviceman for dishwasher.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start any wash cycle
to drain out the water . Repeat if necessary.
Before Calling for Service Before Calling for Service
Technical
problems
General
problems
Noise
22
TROUBLESHOOTING TIPS
Problem Possible Causes What To Do
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
The dishes
are not drying
Select a more intensive programme.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/Refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short programmes the washing temperature is lower.
This also lowers cleaning performance. Choose a
programme with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Item are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon.
Wrong programme
selection
Using cutlery with
a low-quality coating
Error CodesError Codes
When some malfunctions come on, the appliance will display error codes to warn you:
WARNING! WARNING!
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
nn
nn
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
Codes
Meanings
Possible Causes
Longer inlet time.
Faucets is not opened, or water intake is restricted,
or water pressure is too low.
The PANELAS light flicker fleetly
The ECO light flicker fleetly
Some element of dishwasher leaks .
Overflow.
23
24
TECHNICAL INFORMATION
Model: ESF6010BW
25
CONSUMER CARE CENTER
!"#$"
%&'(
)(*+,,)
-./0($)1
*-)20
34522
345' 2
6
%7
8 ///
+9::);<
:3459&/(<'(=(
*788+7:45(>8(*)"()-78(
0"*7()"
345808222
345' 82
9?(>(
*@(">(
0)<<9()"
' 80
76
<::
' ///0/9,8
+809,8
<::(
<'A<9.;"
<9.8)
;4!17(
""<::80
-88/0
A1=== :<
=6
)":
822
)9?
':(
B/! (A?117
)":8
345' 8
/6
<
2
<(?
;"0<'
2>=<<1,(
;"-:(+$<="(;"--8
3452
345' 222
<6
C
'///22
0820
C?
'2<(9D;=
??/;<<A/E
+<%<7C
3450820
345' 0820
.6
+"-"
82
E<<"+"(?/).
@'(F? !=;-
/$=?-)($=<"(>
26
